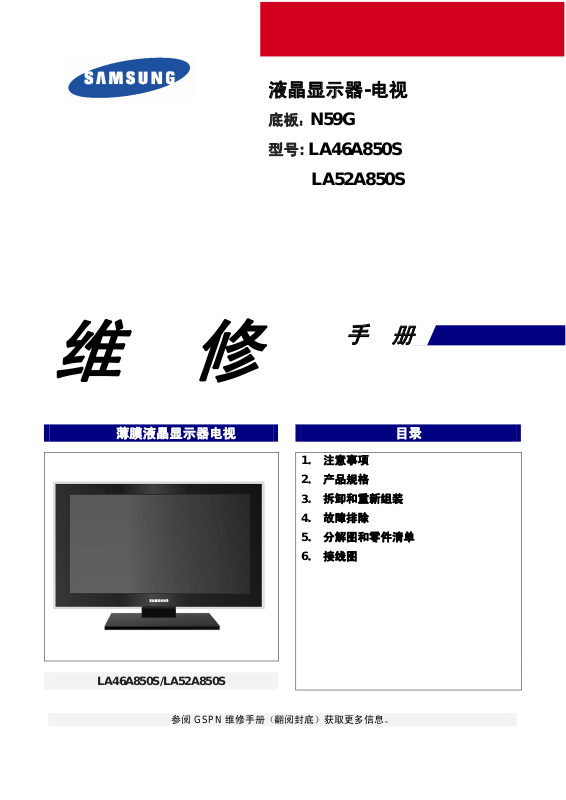

Samsung LA46A850S Schematic

液晶显示器-电视

底板：N59G
型号: LA46A850S

LA52A850S

维

LA46A850S/LA52A850S

手 册

薄膜液晶显示器电视 目录

修

参阅 GSPN 维修手册（翻阅封底）获取更多信息。

1． 注意事项
2． 产品规格
3． 拆卸和重新组装
4． 故障排除
5． 分解图和零件清单
6． 接线图

目录表

1．注意事项 ........................................................................................................................................1-1

1-1 安全注意事项...........................................................................................................................1-1

1-2 维修注意事项...........................................................................................................................1-2

1-3 静电敏感器件（ESD）注意事项 ..............................................................................................1-2

1-4 安装注意事项...........................................................................................................................1-3

2．产品规格 ........................................................................................................................................2-1

2-1 特点与规格 ..............................................................................................................................2-1

2-2 Movie Plus：MJC （运动加帧处理引擎） .............................................................................. 2-5

2-3 目录表.....................................................................................................................................2-6

2-4 智能链接 .................................................................................................................................2-8

2-5 与老型号的规格比较 .............................................................................................................. 2-10

2-4 附件 ....................................................................................................................................... 2-11

3．拆卸和重新组装.............................................................................................................................. 3-1

3-1 拆卸 .......................................................................................................................................3-1

4．故障排除 ........................................................................................................................................4-1

4-1 故障排除 .............................................................................................................................4-1

4-2 调整和调节 ............................................................................................................................4-16

4-3 工厂模式调节.........................................................................................................................4-17

4-4 白平衡-校准 ......................................................................................................................4-21

4-5 白（平衡）比率调节 .............................................................................................................. 4-23

4-6 服务信息 ...............................................................................................................................4-24

4-7 EDID 自写方法......................................................................................................................4-26

5．分解图和零件清单 .......................................................................................................................... 5-1

5-1 LA46A850S

5-2 LA52A850S 分解图 ................................................................................................................. 5-3

5-3 LA46A850S 零件清单.............................................................................................................5-5

5-4 LA52A850S 零件清单...........................................................................................................5-48

6．接线图 ............................................................................................................................................6-1

6-1 接线图......................................................................................................................................6-1

6-2 接线图片 ..................................................................................................................................6-4

分解图..................................................................................................................5-1

6-3 连接器功能 ..............................................................................................................................6-5

6-4 接线 .........................................................................................................................................6-6

GSPN (全球维修合作网络)

国家 网站

北美
拉丁美洲

CIS cis.samsungportal.com

欧洲
中国
亚洲
中东&非洲

本维修手册归三星电子有限公司所有。
未经授权使用该手册可能受到适用的国际和/或国内法律
的惩罚。

service.samsungportal.com
latin.samsungportal.com

europe.samsungportal.com
china.samsungportal.com
asia.samsungportal.com
mea.samsungportal.com

© 2009三星电子有限公司。

版权所有
中国印刷

P/N: BN82-00468A-00

3.拆卸和重新组装

维修手册的这一章叙述LA46A850S液晶显示电视的拆卸和重新组装步骤。

警告：本显示器包含静电敏感器件。处理这些部件时应小心。

3-1.拆卸

小心：1.拆卸前，断开显示器电源。

3 拆卸和重新组装

2．小心遵守以下步骤，不得使用任何金属器具拆卸本产品。

说明 图片说明 螺钉

1. 将显示器面朝下放在垫有软垫的桌子
上。
拆除底座螺钉。
拆卸底座。

3-1

3 拆卸和重新组装

2.拆卸后盖螺钉。

说明 图片说明 螺钉

3.提起后盖。.

3-2

说明 图片说明 螺钉

4.拆卸IP板和主板上的螺钉。.

3 拆卸和重新组装

5. 拆卸扬声器和插座上的螺钉。

3-3

3 拆卸和重新组装

说明 图片说明 螺钉

6 拆卸底部座架螺钉并提起底部座架。

7-1.拆卸架部螺钉。

3-4

说明 图片说明 螺钉

8.拆卸屏板上的螺钉。

※ 重新组装步骤与拆卸步骤相反。

3 拆卸和重新组装

3-5

5. Exploded View & Part List

T0003

M0215

M0027

M0125

M0115

T0764

M0013

M0254

M0014

M0146

5-1. LA46A850S Exploded View

5. Exploded View & Part List

5-1

5. Exploded View & Part List

5-1-1. LA46A850S Parts List

Location No. Code No. Description & Specication Q’ty S.A/S.N.A Remark

T0003 BN96-08561K ASSY COVER P-FRONT;46L850,CO(DTV),PC(CLE 1 S.A

M0215 BN07-00562A LCD-PANEL;LTF460HE05 1 S.A

M0254 BN61-04381D ASSY SPEAKER P;8ohm,4pin,L850,10W 1 S.A

M0014 BN94-02256A ASSY PCB MAIN;LA46A850S1FXXZ,N59B 1 S.A

M0146 BN61-04370A BRACKET-PANEL SIDE;L850,SECC,T1.2 4 S.N.A

M0027 BN96-07302A ASSY STAND P-BASE;46L850,GLASS 1 S.A

M0125 BN96-08481B ASSY INLET P;LN46A850S1FXZA,450mm,AC110V 1 S.A

M0115 BN61-04375A BRACKET-STAND LINK;46/52L850,SECC,T1.6 1 S.N.A

T0764 BN44-00242A SMPS-LCDTV;SC4614,SC4614,AC/DC,233W,AC10 1 S.A

M0013 BN96-08562G ASSY COVER P-REAR;46L850,CO(DTV),ABS+PMM 1 S.A

5-2

5-2. LA52A850S Exploded View

T0003

M0215

M0254

M0014

M0146

M0027

M0125

M0115

T0764

M0013

5. Exploded View & Part List

5-3

5. Exploded View & Part List

5-2-1. LA52A850S Parts List

Location No. Code No. Description & Specication Q’ty S.A/S.N.A Remark

T0003 BN96-08568K ASSY COVER P-FRONT;52L850,CO(DTV),PC(CLE 1 S.A

M0215 BN07-00563A LCD-PANEL;LTF520HE04 1 S.A

M0254 BN61-04381D HOLDER-SIDE AV;L850(NT),PMMA+ABS HB H/GL 1 S.N.A

M0014 BN94-02256A ASSY PCB MAIN;LA46A850S1FXXZ,N59B 1 S.A

M0146 BN61-04370A BRACKET-PANEL SIDE;L850,SECC,T1.2 4 S.N.A

M0027 BN96-08591A ASSY STAND P-BASE;52L850,GLASS 1 S.A

M0125 BN96-08481C ASSY INLET P;LN52A850S1FXZA,200mm,AC110V 1 S.A

M0115 BN61-04375A BRACKET-STAND LINK;46/52L850,SECC,T1.6 1 S.N.A

T0764 BN44-00240A SMPS-LCDTV;SC5214,LN52A690A4F,AC/DC,320W 1 S.A

M0013 BN96-08571G ASSY COVER P-REAR;52L850,CO(DTV),ABS+PMM 1 S.A

5-4

5. Exploded View & Part List

5-3. LA46A850S Parts List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

LA46A850S1FXXZ LA46A850S1F,N59G/46AS1-GPH,46,LCD-TV,CHI

0.1 M0001 BN90-01765K ASSY COVER FRONT;46L850,CO(DTV),XZ 1 S.N.A

..2 T0003 BN96-08561K ASSY COVER P-FRONT;46L850,CO(DTV),PC(CLE 1 S.A

...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 4 S.A

...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 1 S.A

...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.A

...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 1 S.A

...3 T0069 AA63-60001S SPACER-FELT;-,FELT,-,-,-,BLK,T0.5,-,15X1 1 S.N.A

...3 T0069 BN60-00027H SPACER-FELT;L650-46,FELT,1020,0.5,20 2 S.N.A

...3 CCM1 BN63-02183H COVER-SHEET;Rhcm,PE Vinyl,T0.05,1300mm,2 2.1 S.N.A

...3 CCM1 BN63-04755A COVER-SHEET;AMBER,PE,T0.05,W150mm,200M,6 4.2 S.N.A

...3 M0112 BN63-04823K COVER-FRONT;46L850,CO(DTV),PC(CLEAR)+PC( 1 S.N.A

...3 BN96-08563B ASSY HOLDER P-BOSS TOP;46L850,HIPS,HB,BK 1 S.N.A

....4 BN61-03261F BOSS-TAPE;Amber,ACRYL,T1.1,W8mm,GRAY,TAP 0.752 S.N.A

....4 BN61-04385B HOLDER-BOSS TOP;46L850,HIPS,HB,BK500 1 S.N.A

...3 BN96-08564B ASSY HOLDER P-BOSS SIDE;46L850,HIPS,HB,B 2 S.N.A

....4 BN61-03261F BOSS-TAPE;Amber,ACRYL,T1.1,W8mm,GRAY,TAP 0.635 S.N.A

....4 BN61-04384B HOLDER-BOSS SIDE;46L850,HIPS,HB,BK500 1 S.N.A

...3 M0175 BN96-08918A ASSY BOARD P-TOUCH FUNCTION;LE46A856S1FX 1 S.A

...3 M0145 BN96-08931A ASSY BOARD P-FUNCTION;LE46A856S1F,CT5000 1 S.A

...3 T0069 BP60-00015L SPACER-FELT;56K7,FELT,L610,BLK,T0.5,W20 2 S.N.A

...3 BN96-08565D ASSY HOLDER P-BOSS BOTTOM;46L850(NEW),HI 1 S.N.A

....4 BN61-03261C BOSS-TAPE;Tulip,ACRYL,T1.1,W24mm,GRAY,TA 0.834 S.N.A

....4 BN61-03261H BOSS-TAPE;Tulip,ACRYL,T1.1,W8.0mm,GRAY,T 0.062 S.N.A

....4 BN61-04386B HOLDER-BOSS BOTTOM;46L850,HIPS,HB,BK500 1 S.N.A

...3 BN64-00946B INDICATOR-LED LIGHTING;L850,PC TP26,MILK 1 S.N.A

0.1 M0002 BN90-01766G ASSY COVER REAR;46L850,CO(DTV),XZ 1 S.N.A

..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 14 S.A

..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 1 S.A

..2 C/R+H/WALL 6011-001610 BOLT-ETC;M8,L18,ZPC(BLK),SWRCH18A,WSP,PH 4 S.N.A

..2 M0013 BN96-08562G ASSY COVER P-REAR;46L850,CO(DTV),ABS+PMM 1 S.N.A

...3 CCM1 BN63-02183H COVER-SHEET;Rhcm,PE Vinyl,T0.05,1300mm,2 1.1 S.N.A

...3 M0006 BN63-04818B COVER-REAR;46L850,SO,LO,PC+ABS,-,-,-,V0, 1 S.N.A

...3 T0071 BN64-00945D INLAY-TERMINAL;L850,PS SHEET,T0.5,H/GLOS 1 S.N.A

...3 T0064 BN65-00002A CLAMPER CORE;BORDEAUX,LDPE,-,-,BLK,- 1 S.N.A

0.1 M0216 BN90-01767A ASSY STAND;46L850 1 S.N.A

..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 5 S.A

..2 M0027 BN96-07302A ASSY STAND P-BASE;46L850,GLASS 1 S.A

...3 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 4 S.A

...3 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 4 S.A

...3 BN61-02533A HOLDER-SWIVEL RING;46M7 EO,ACETAL,NATUAL 1 S.N.A

...3 BN61-04374A BRACKET-STAND BASE;40,46,52L850,SECC,T2. 1 S.N.A

...3 T0920 BN61-04379A GUIDE-STAND;L850,PC+GF 20%,BLK 1 S.N.A

...3 BN61-04428B BOSS-TAPE;ACRYL,T0.4,W20.0mm,WHITE 0.32 S.N.A

...3 BN61-04437A BRACKET-STAND SUB;40,46,52L850,SECC,T3.0 1 S.N.A

5-5

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

...3 BN61-04438A BRACKET-HINGE SWIVEL;40,46,52L850,SECC,T 1 S.N.A

...3 BN61-04439A HOLDER-SWIVEL RING;40,46,52L850,ACETAL 1 S.N.A

...3 BN63-04825A COVER-STAND NECK;L850,HIPS,HB,BK500,SE-1 1 S.N.A

...3 BN63-04883A COVER-STAND SUB;L850,ABS+PMMA,HB,RD02,GL 1 S.N.A

...3 T0132 BN73-00181A RUBBER FOOT;RUBY,CR Rubber,PI 25,T3.5,BL 4 S.N.A

...3 M0003 BN96-08793A ASSY COVER P-STAND GLASS;46,L850,TEMPERE 1 S.A

....4 BN63-04817A COVER-STAND GLASS;46L850,GLASS,T8.0 1 S.N.A

....4 CCM1 BN63-05135C COVER-SHEET;Ruby52”,RhcmPEVinyl,T0.5,160 0.65 S.N.A

....4 CCM1 BN63-05135D COVER-SHEET;Ruby 32”,Rhcm PE Vinyl,T 0.5 0.65 S.N.A

...3 CIS4 BP73-00001A RUBBER-SHEET;42W5,NBB RUBBER,GRAY,10*20 2 S.N.A

0.1 BN91-02602A ASSY LCD-AMLCD;LN46A850S1FXZA 1 S.N.A

..2 M0215 BN07-00562A LCD-PANEL;LTF460HE05 1 S.A

0.1 M0017 BN91-02882A ASSY CHASSIS;LA46A850S1FXXZ,N59G 1 S.N.A

..2 M0014 BN94-02256A ASSY PCB MAIN;LA46A850S1FXXZ,N59B 1 S.A

...3 T0245 0202-001608 SOLDER-WIRE FLUX;LFC7-107,D0.8,99.3Sn/0. 0.25 S.N.A

...3 CN3013_NSI 3701-001388 CONNECTOR-HDMI;20P,Phosphor Bronze,ANGLE 1 S.A

...3 CN3018 3701-001510 CONNECTOR-DSUB;15P,3R,FEMAIL,STAMPED PIN 1 S.A

...3 CN906 3707-001081 CONNECTOR-OPTICAL;STRAIGHT,SPDIF 1 S.A

...3 CN330 3711-000754 HEADER-BOARD TO CABLE;BOX,20P,2R,2.54mm, 1 S.N.A

...3 CN330 3711-003848 HEADER-BOARD TO CABLE;BOX,11P,1R,2mm,ANG 1 S.A

...3 CN330 3711-004379 HEADER-BOARD TO CABLE;BOX,4P,1R,2mm,STRA 1 S.A

...3 CN330 3711-004484 HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA 1 S.A

...3 CN1001 3711-005884 HEADER-BOARD TO BOARD;BOX,30P,2R,2mm,ANG 1 S.A

...3 JA330 3722-001055 JACK-PHONE;5P/2C,AG,BLK,ANGLE 1 S.A

...3 JA332 3722-001734 JACK-VHS;4P,SN,BLK,STRAIGHT 1 S.A

...3 CN9002_NSI 3722-002546 JACK-USB;4P/1C,AU,BLK,ANGLE,A type 1 S.N.A

...3 JA333 3722-002728 JACK-PIN;3P, SHIELD,Ni,RED/WHT/YEL,ANGLE 1 S.A

...3 JA333 3722-002751 JACK-PIN;2P+Shield,Ni,WHT/RED,STRAIGHT 1 S.A

...3 JA333 3722-002751 JACK-PIN;2P+Shield,Ni,WHT/RED,STRAIGHT 1 S.A

...3 JA333 3722-002751 JACK-PIN;2P+Shield,Ni,WHT/RED,STRAIGHT 1 S.A

...3 JA333 3722-002751 JACK-PIN;2P+Shield,Ni,WHT/RED,STRAIGHT 1 S.A

...3 JA333 3722-002754 JACK-PIN;3P+Shield,Ni,GRN/BLU/RED,STRAIG 1 S.A

...3 JA333 3722-002754 JACK-PIN;3P+Shield,Ni,GRN/BLU/RED,STRAIG 1 S.A

...3 JA9001 3722-002757 JACK-MODULAR;8P/8C,N,STRAIGHT,GRN/YEL,AU 1 S.A

...3 JA330 3722-002758 JACK-PHONE;1P,BLK,STRAIGHT 1 S.A

...3 JA330 3722-002758 JACK-PHONE;1P,BLK,STRAIGHT 1 S.A

...3 T0510 BN97-02712A ASSY SMD-MAIN;LA46A850S1FXXZ,N59C 1 S.N.A

....4 SUB05 0202-001477 SOLDER-CREAM;LST309-M,-,D20~45um,96.5Sn/ 4.53 S.N.A

....4 D1004 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3005 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3006 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3007 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3011 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3023 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3024 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3026 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3032 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3044 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3050 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

5-6

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 D3051 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3052 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3057_4HDM 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3058_4HDM 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3060 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3061 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3201_NSID 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3202_NSID 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D4004_CEC 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D5004 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D5005 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D5006 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D5010 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D5011 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D5012 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D5013 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D9003 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D9004 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D9005 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D9006 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1008 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.N.A

....4 D1213 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.N.A

....4 D2001 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.N.A

....4 D2002 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.N.A

....4 D2003 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.N.A

....4 D3002 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.N.A

....4 D3003 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.N.A

....4 D3004 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.N.A

....4 D3012 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.N.A

....4 D3071 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.N.A

....4 D3072 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.N.A

....4 D3073 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.N.A

....4 D0254 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 1 S.A

....4 D0254 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 1 S.A

....4 D0254 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 1 S.A

....4 D0254 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 1 S.A

....4 D0254 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 1 S.A

....4 D0254 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 1 S.A

....4 D2004 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A

....4 D3001 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A

....4 D3010 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A

....4 D3022 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A

....4 D3033_NSID 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A

....4 D3039_NSID 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A

....4 D3046 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A

....4 D3047 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A

....4 D3048 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A

....4 D3049 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A

....4 D3053 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A

....4 D3054 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A

....4 D4007 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A

5-7

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 D5009 0403-000258 DIODE-ZENER;BZX84C5V6,5.2-6V,225mW,SOT-2 1 S.A

....4 D4010 0403-000584 DIODE-ZENER;VLZ3V6B,3.6/3.845V,500mW,SOD 1 S.N.A

....4 D3043 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D3055_4HDM 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D3056 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D3059 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D3066_NSID 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D3067 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D3068 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D3069_4HDM 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D3100 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D3101 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D3102 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D3103 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D9002 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D5014 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A

....4 D1005 0403-001425 DIODE-ZENER;BZX84C33,31-35V,350mW,SOT-23 1 S.A

....4 D0254 0404-001271 DIODE-SCHOTTKY;SSA34,40V,3000mA,SMA,TP 1 S.A

....4 D9001 0406-001217 DIODE-TVS;NUP4301MR6,6/-/-V,500W,TSOP-6 1 S.A

....4 IC3011 0406-001299 DIODE-TVS;CM1224-04MR,MSOP-10 1 S.A

....4 IC3012 0406-001299 DIODE-TVS;CM1224-04MR,MSOP-10 1 S.A

....4 IC3013 0406-001299 DIODE-TVS;CM1224-04MR,MSOP-10 1 S.A

....4 IC3014 0406-001299 DIODE-TVS;CM1224-04MR,MSOP-10 1 S.A

....4 IC3015 0406-001299 DIODE-TVS;CM1224-04MR,MSOP-10 1 S.A

....4 IC3016 0406-001299 DIODE-TVS;CM1224-04MR,MSOP-10 1 S.A

....4 IC3017_4HD 0406-001299 DIODE-TVS;CM1224-04MR,MSOP-10 1 S.A

....4 IC3018_4HD 0406-001299 DIODE-TVS;CM1224-04MR,MSOP-10 1 S.A

....4 D2005 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.N.A

....4 D2007 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.N.A

....4 D2010 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.N.A

....4 D4003 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.N.A

....4 D4005 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.N.A

....4 D4006 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.N.A

....4 D4008 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.N.A

....4 D4009 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.N.A

....4 Q1401 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q3002 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q3003 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q5111 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q9001 0501-000434 TR-SMALL SIGNAL;KTC3875S-GR,NPN,150mW,SO 1 S.A

....4 Q9002 0501-000434 TR-SMALL SIGNAL;KTC3875S-GR,NPN,150mW,SO 1 S.A

....4 Q1003 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q1005 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q2002 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q3001 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q3013 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q3016_4HDM 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q3017 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q3018 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q4002 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q4003 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

5-8

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 Q4004 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q5006 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q5007 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q5008 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q6001 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q2001 0501-000669 TR-SMALL SIGNAL;KTA1505Y,PNP,150mW,SOT-2 1 S.A

....4 Q2003 0501-000669 TR-SMALL SIGNAL;KTA1505Y,PNP,150mW,SOT-2 1 S.A

....4 Q1002 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A

....4 Q1007 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A

....4 Q1008 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A

....4 Q1009 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A

....4 Q3014_NSID 0501-002184 TR-SMALL SIGNAL;KTD1304,NPN,200mW,SOT-23 1 S.N.A

....4 Q3015_NSID 0501-002184 TR-SMALL SIGNAL;KTD1304,NPN,200mW,SOT-23 1 S.N.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-001165 FET-SILICON;SI3443BDV,P,-20V,+-4.4A,65mo 1 S.A

....4 Q409 0505-001957 FET-SILICON;NTR2101P,P,-8V,-3.7A,0.052oh 1 S.A

....4 L0405 0601-001313 LED;SMD,GRN,2X1.8MM,565NM,3.16X1.6X1.1MM 1 S.A

....4 L0405 0601-001915 LED;SMD,RED,1.6x0.8x0.6mm,660nm,1.6x0.8x 1 S.A

....4 IC104 0801-002237 IC-CMOS LOGIC;74V(A)HC1G04,INVERTER,SC-7 1 S.A

....4 IC104 0801-002237 IC-CMOS LOGIC;74V(A)HC1G04,INVERTER,SC-7 1 S.A

....4 IC104 0801-002633 IC-CMOS LOGIC;7WBD3125,2bit BUS SWITCH,S 1 S.A

....4 IC520 0903-001552 IC-MICROCONTROLLER;WT61P8-RG480WT,LQFP,4 1 S.A

....4 IC1101 0904-001838 IC-BUS SWITCH;PCA9546APW,TSSOP,16P,5.1x4 1 S.A

....4 T0596 0904-002329 IC-USC;USB2514,QFN,36P,6.55x6.55mm,58.6K 1 S.A

....4 IC5001 1001-000164 IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16 1 S.A

....4 IC106 1001-001440 IC-VIDEO SWITCH;SiI9185CTU,QFP,80P,3.3V, 1 S.A

....4 IC106 1001-001513 IC-VIDEO SWITCH;TMDS351PAG,TQFP,64P,9x9m 1 S.A

....4 IC2002 1002-001509 IC-A/D&D/A CONVERTER;MT8291,24bit,LQFP,4 1 S.A

....4 IC110 1006-001076 IC-DRIVER/RECEIVER;MAX232ECWE+T,SOP,16P, 1 S.A

....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A

....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A

....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A

....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A

....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A

....4 IC112 1103-001385 IC-EEPROM;AT24C256,256Kbit,32Kx8,SOP,8P, 1 S.A

....4 IC112 1103-001410 IC-EEPROM;S-24CS08AFJ-TB-1GE,8Kbit,1Kx8, 1 S.A

....4 IC113 1105-001712 IC-DRAM;HYB25D256163CE,DDR,256Mbit,16Mx1 1 S.A

....4 IC113 1105-001712 IC-DRAM;HYB25D256163CE,DDR,256Mbit,16Mx1 1 S.A

....4 IC113 1105-001823 IC-DRAM;HYB25DC512160,DDR,512Mbit,32Mx16 1 S.N.A

....4 IC113 1105-001823 IC-DRAM;HYB25DC512160,DDR,512Mbit,32Mx16 1 S.N.A

....4 IC4002 1105-001862 IC-DDR2 SDRAM;K4T56163QI-ZCF7,DDR2 SDRAM 1 S.A

....4 IC4003 1105-001862 IC-DDR2 SDRAM;K4T56163QI-ZCF7,DDR2 SDRAM 1 S.A

....4 IC115 1107-001415 IC-FLASH MEMORY;29W320D,4Mx8/2Mx16Bit,TS 1 S.N.A

....4 IC7013 1107-001740 IC-NAND FLASH;KFH8GH6U4M-DIB6,8Gbit,512M 1 S.A

5-9

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 DU410 1201-000166 IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10 1 S.A

....4 T0124 1201-002677 IC-POWER AMP;NTP3100,QFN56,56P,8x8mm,DUA 1 S.A

....4 T0087 1203-001815 IC-POSI.FIXED REG.;78M09,TO-252,3P,-,PLA 1 S.A

....4 T0087 1203-001815 IC-POSI.FIXED REG.;78M09,TO-252,3P,-,PLA 1 S.A

....4 T0087 1203-002842 IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P 1 S.A

....4 IC012 1203-002995 IC-POSI.ADJUST REG.;AP1117D-A,TO-252,3P, 1 S.A

....4 IC012 1203-002995 IC-POSI.ADJUST REG.;AP1117D-A,TO-252,3P, 1 S.A

....4 IC012 1203-002995 IC-POSI.ADJUST REG.;AP1117D-A,TO-252,3P, 1 S.A

....4 IC012 1203-003038 IC-POSI.ADJUST REG.;LP2995,SO,8P,4.9x3.9 1 S.N.A

....4 IC012 1203-003038 IC-POSI.ADJUST REG.;LP2995,SO,8P,4.9x3.9 1 S.N.A

....4 IC062 1203-003183 IC-MULTI REG.;SI-3002KWM-TL,DPAK,5P,6.6X 1 S.A

....4 T0087 1203-003696 IC-POSI.FIXED REG.;NCP1117DT18T5G,DPAK,3 1 S.A

....4 IC4004 1203-004363 IC-VOL. DETECTOR;RT9818C-29PV,SOT-23,3P, 1 S.A

....4 IC2004 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, 1 S.A

....4 T0170 1203-004868 IC-SWITCH VOL. REG.;MP2363,SOIC,8P,4.9x3 1 S.A

....4 T0170 1203-004868 IC-SWITCH VOL. REG.;MP2363,SOIC,8P,4.9x3 1 S.A

....4 T0170 1203-004868 IC-SWITCH VOL. REG.;MP2363,SOIC,8P,4.9x3 1 S.A

....4 T0170 1203-004868 IC-SWITCH VOL. REG.;MP2363,SOIC,8P,4.9x3 1 S.A

....4 IC118 1204-002779 IC-VIDEO PROCESS;S4LF122X01,PBGA,208P,17 1 S.A

....4 IC118 1204-002869 IC-VIDEO PROCESS;MT8226FJ,BGA,569P,31x31 1 S.A

....4 IC7001 1204-002888 IC-DECODER;SAM7103,FPBGA,716P,27x27mm,PL 1 S.A

....4 IC3019 1205-003201 IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2x2.3mm 1 S.A

....4 IC4011 1205-003201 IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2x2.3mm 1 S.A

....4 IC9001 1205-003444 IC-ETHERNET CONTROLLER;LAN8700-AEZG,QFN, 1 S.A

....4 P803T 1404-001223 THERMISTOR-PTC;45mohm,20,6V,-,40A,4A,TP 1 S.A

....4 IC3007 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A

....4 IC3009_4HD 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A

....4 IC3010 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A

....4 IC4008 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A

....4 R1252 2007-000060 R-CHIP;100Kohm,1%,1/10W,TP,1608 1 S.N.A

....4 R1253 2007-000060 R-CHIP;100Kohm,1%,1/10W,TP,1608 1 S.N.A

....4 R1035 2007-000067 R-CHIP;15Kohm,1%,1/10W,TP,1608 1 S.N.A

....4 R1041 2007-000067 R-CHIP;15Kohm,1%,1/10W,TP,1608 1 S.N.A

....4 R1121 2007-000067 R-CHIP;15Kohm,1%,1/10W,TP,1608 1 S.N.A

....4 R1819 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.N.A

....4 R1820 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.N.A

....4 R5114 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.N.A

....4 R5115 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.N.A

....4 R6051_100P 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.N.A

....4 R6052_100P 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.N.A

....4 R3089 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R3090 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1251 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 S.N.A

....4 R1254 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 S.N.A

....4 R1858 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608 1 S.N.A

....4 R6025 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 S.N.A

....4 R7346 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 S.N.A

....4 R1255 2007-000133 R-CHIP;330Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1005 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1161 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2013 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

5-10

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R2014 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2015 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2041 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2042 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2043 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2044 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3045 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3085 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3086 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3117 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3121_NSID 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3122_NSID 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3127_NSID 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3172 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3176 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3179 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3181 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3546_FAN 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3547_FAN 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3612 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4018 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4019 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4066 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4082 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4083 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4089 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4090 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4095 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4100 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4101 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4103 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4104 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4113 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4114 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4115 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4132 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4133 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4134 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4135 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4136 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4137 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4150 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4151 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4207 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4208 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5073 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5074 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5520 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6013 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6014 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6016 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

5-11

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R6017 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6018 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6019 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6020 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6021 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6031 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6038 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6039 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6043 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6044 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6045 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6046 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7021 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7022 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7023 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7024 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7025 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7026 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7027 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7028 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7037 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7049 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7054 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7055 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7056 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7057 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7058 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7059 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7060 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7061 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7066 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7069 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7321 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7415 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7416 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7417 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7418 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7419 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7420 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7428_T 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7429_T 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9003 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9004 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9005 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9006 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9014 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9017 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9019 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9020 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1421 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1825 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

5-12

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R1826 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1827 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1828 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1830 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2038 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2039 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2057 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3041 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3042 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3050 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3051 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3052 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3053 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3099 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3100 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3111 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3118_NSID 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3119_NSID 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3120_NSID 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3128_NSID 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3131 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3168_4HDM 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3184 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3191 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3194_4HDM 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3224 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3225 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3226 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3227 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3228 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3310 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5007 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6033 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6037 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7336 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7357 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1010 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5027 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6035 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1012 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1032 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1162 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1163 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1164 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1165 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1166 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1167 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1168 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1169 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1170 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1171 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

5-13

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R1422 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1569 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1605 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1726 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2058 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2060 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2061 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2062 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2063 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2064 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3114 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3182_4HDM 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3190 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3198 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3401 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3402 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3620 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3621 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3623 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3642 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3656 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3657 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3659 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4084 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4091 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4092 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4093 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4108 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4149_DE 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4157 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4158 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4159 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4160 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4161 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4162 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4164 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4167 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4169 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4170 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4170_FRCM 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4171 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4173_FRCM 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4178 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4182 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4183 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4193 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4194 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4200 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4211 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4212 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5017 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

5-14

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R5018 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5054 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5055 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5058 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5059 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5060 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5061 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5066 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5069 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5106 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5107 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5116 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6001 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6005 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6008_FHD 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6009 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6012 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6027 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6036 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7283 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7284 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7296 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7302 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7303 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7304 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7305 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7306 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7307 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7308 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7309 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7310 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7311 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7312 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7314 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7315 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7316 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7340 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7341 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7342 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7387 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7404 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7828 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9026 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9061 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9067 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9068 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1050 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1710 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1810 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1812 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1813 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

5-15

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R1824 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2049 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2066 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2067 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3134 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3139 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3140 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3174 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3183 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3185 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3186 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3197_4HDM 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3199_4HDM 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3200_4HDM 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3212 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3213 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3214 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3218 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3221 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3230 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3611_46OP 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4088 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4098 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4107 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4142_IR 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4155 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4156 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4163 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4168 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4172_NALM 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4191_FAN 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4192_FAN 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4201 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4203 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4206 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4209 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4210 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5062 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5063 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5067 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5068 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6015 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7042 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7070 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7116 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7117 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7118 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7256 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7319 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7338 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7349 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

5-16

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R7350 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7356 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7362 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7367 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7371 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7372 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7378 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7752 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9001 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9011 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9021 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9024 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9025 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9057 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9060 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9062 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9063 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9064 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9065 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9569 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9570 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1027 2007-000153 R-CHIP;22Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4072_CEC 2007-000155 R-CHIP;27Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3039 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3040 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3048 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3049 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3072 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3080 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3101_NSID 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3102_NSID 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3103_NSID 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3104_NSID 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3211 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3215 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3219 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3229 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3616 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3617 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4177 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4174_CEC 2007-000159 R-CHIP;56Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1021 2007-000162 R-CHIP;100Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9033 2007-000162 R-CHIP;100Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9571 2007-000162 R-CHIP;100Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9572 2007-000162 R-CHIP;100Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9573 2007-000162 R-CHIP;100Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9574 2007-000162 R-CHIP;100Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9575 2007-000162 R-CHIP;100Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4086 2007-000170 R-CHIP;1Mohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9008 2007-000170 R-CHIP;1Mohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9073 2007-000170 R-CHIP;1Mohm,5%,1/16W,TP,1005 1 S.N.A

5-17

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 L850 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 L950 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1040 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1565 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1706 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1802_TEST 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2065 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2084_4SPK 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2085_4SPK 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2086 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3032 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3043 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3046 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3065 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3109 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3123_NSID 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3125_NSID 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3167_4HDM 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3187 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3192 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3193 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3220 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3332_NSID 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3333_SIDE 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3403 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3404 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3405 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3423 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3601 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3602 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3603 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3604 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3605 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3606 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3607 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3608 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3609 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3610 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3613 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3614 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3618 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3619 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3626 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3627 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3628 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3629 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3638_46OP 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3639_46OP 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3640 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3643 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3650 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

5-18

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R3660_46OP 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3661_46OP 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4020_T 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4021_T 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4022_T 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4059 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4063 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4064 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4067 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4099 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4105 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4106 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4109 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4110 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4111 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4112 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4116 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4118 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4121 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4140 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4143 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4144 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4176 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4179 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4180 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4181 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4205 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4290 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5014 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5020 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5024 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5056_TEST 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5057_TEST 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5118 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6022_T 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6023_T 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6024_T 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6026_T 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6030 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6042 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6047_100H 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6050_100H 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6053_100H 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6054_100H 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6056_FJDA 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6068_T 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6069_T 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6070_T 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6073_100H 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6074_100H 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6078_FBE3 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

5-19

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R6083_100H 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6084_100H 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6133 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6204 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6205 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6206 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6207 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7029 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7031_T 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7043_T 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7044 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7096 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7097 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7114 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7115 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7243 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7244 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7247 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7249 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7250 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7251 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7282 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7313 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7339 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7343 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7344 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7345 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7347 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7389 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7390 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7392 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7401 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7406 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7407 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7410 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7411 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7412 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7421 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7422 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7423 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7424 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7425 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7426 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7427 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7430 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7431 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7432 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7436 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9010 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9012 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9013 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

5-20

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R9015 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9018 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9034 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9035 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9036 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9037 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9038 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9056 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9070 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9071 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9170 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9171 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9172 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9173 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9568 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1606 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3301 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3302 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3303 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3304 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3305 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3306 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3307 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3308 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3630 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3631 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3632 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3633 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3634 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3635 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3636 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3637 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4117 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5038 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5039 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9007 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9022 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9023 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9028 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9045 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3169 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3173 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4011 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4012 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4013 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4014 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6028 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7084 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7085 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7086 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7087 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

5-21

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R7088 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7089 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7091 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7092 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7093 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7094 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7095 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7099 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7102 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7103 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7104 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7105 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7106 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7107 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7108 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7109 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7110 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7111 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7112 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7113 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1807 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1808 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1811 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2087 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2088 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3025 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3091 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3115 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3116 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3141 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3142 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3175 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3177 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3178 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3180 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3188 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3189 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3201_4HDM 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3202_4HDM 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3216 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3217 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3222 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3223 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4055_T 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4056_T 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4057_T 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4165 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4166 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4198 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4199 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7266 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

5-22

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R7267 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7268 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7269 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7271 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7272 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7327 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7328 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7329 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7330 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7331 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7332 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7334 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7348 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7351 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7352 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7353 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7354 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7355 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7361 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7363 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7364 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7365 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7366 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7370 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7374 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7375 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7376 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7377 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7379 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7380 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7381 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7382 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7383 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7384 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7385 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7386 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7388 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7391 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7393 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7394 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7395 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7396 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7397 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7398 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7399 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7400 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7402 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7403 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7405 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2047 2007-000287 R-CHIP;100ohm,1%,1/10W,TP,1608 1 S.N.A

....4 R3132 2007-000312 R-CHIP;10ohm,5%,1/4W,TP,3216 1 S.N.A

5-23

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R3133 2007-000312 R-CHIP;10ohm,5%,1/4W,TP,3216 1 S.N.A

....4 R3195_4HDM 2007-000312 R-CHIP;10ohm,5%,1/4W,TP,3216 1 S.N.A

....4 R3196_4HDM 2007-000312 R-CHIP;10ohm,5%,1/4W,TP,3216 1 S.N.A

....4 R3299 2007-000312 R-CHIP;10ohm,5%,1/4W,TP,3216 1 S.N.A

....4 R3300 2007-000312 R-CHIP;10ohm,5%,1/4W,TP,3216 1 S.N.A

....4 R3311 2007-000312 R-CHIP;10ohm,5%,1/4W,TP,3216 1 S.N.A

....4 R3312 2007-000312 R-CHIP;10ohm,5%,1/4W,TP,3216 1 S.N.A

....4 R4015_T 2007-000372 R-CHIP;130ohm,5%,1/10W,TP,1608 1 S.A

....4 R4016_T 2007-000372 R-CHIP;130ohm,5%,1/10W,TP,1608 1 S.A

....4 R4017_T 2007-000372 R-CHIP;130ohm,5%,1/10W,TP,1608 1 S.A

....4 R2050 2007-000414 R-CHIP;15ohm,1%,1/10W,TP,1608 1 S.A

....4 R1037 2007-000516 R-CHIP;2.7Kohm,1%,1/10W,TP,1608 1 S.A

....4 R1108 2007-000516 R-CHIP;2.7Kohm,1%,1/10W,TP,1608 1 S.A

....4 R1114 2007-000583 R-CHIP;22Kohm,1%,1/10W,TP,1608 1 S.A

....4 R1031 2007-000591 R-CHIP;22ohm,1%,1/10W,TP,1608 1 S.A

....4 R1029 2007-000606 R-CHIP;240ohm,1%,1/10W,TP,1608 1 S.A

....4 R1038 2007-000683 R-CHIP;3.3Kohm,1%,1/10W,TP,1608 1 S.A

....4 R3151_CEC 2007-000691 R-CHIP;3.3Mohm,5%,1/10W,TP,1608 1 S.A

....4 R5028 2007-000758 R-CHIP;330Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5102 2007-000763 R-CHIP;330ohm,1%,1/10W,TP,1608 1 S.N.A

....4 R2017 2007-000775 R-CHIP;33Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2018 2007-000775 R-CHIP;33Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2019 2007-000775 R-CHIP;33Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2020 2007-000775 R-CHIP;33Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2021 2007-000775 R-CHIP;33Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2022 2007-000775 R-CHIP;33Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2023 2007-000775 R-CHIP;33Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2024 2007-000775 R-CHIP;33Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2025 2007-000775 R-CHIP;33Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2026 2007-000775 R-CHIP;33Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2027 2007-000775 R-CHIP;33Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2028 2007-000775 R-CHIP;33Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1120 2007-000828 R-CHIP;39Kohm,1%,1/10W,TP,1608 1 S.A

....4 R6034 2007-000842 R-CHIP;3Kohm,1%,1/10W,TP,1608 1 S.A

....4 R1084_TEST 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1305 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2001 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2016 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6029 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9054 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9055 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1601 2007-000982 R-CHIP;5.6Kohm,5%,1/16W,TP,1005 1 S.A

....4 R2053 2007-000987 R-CHIP;5.6ohm,5%,1/10W,TP,1608 1 S.A

....4 R2054 2007-000987 R-CHIP;5.6ohm,5%,1/10W,TP,1608 1 S.A

....4 R2055 2007-000987 R-CHIP;5.6ohm,5%,1/10W,TP,1608 1 S.A

....4 R2056 2007-000987 R-CHIP;5.6ohm,5%,1/10W,TP,1608 1 S.A

....4 R1028 2007-000999 R-CHIP;510ohm,1%,1/10W,TP,1608 1 S.A

....4 R1302_NACH 2007-000999 R-CHIP;510ohm,1%,1/10W,TP,1608 1 S.A

....4 R3170 2007-000999 R-CHIP;510ohm,1%,1/10W,TP,1608 1 S.A

....4 R3171 2007-000999 R-CHIP;510ohm,1%,1/10W,TP,1608 1 S.A

....4 R7409 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 S.A

5-24

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R9069 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 S.A

....4 R9074 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 S.A

....4 R1110 2007-001068 R-CHIP;6.8Kohm,1%,1/10W,TP,1608 1 S.A

....4 R3110 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.N.A

....4 R3113 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.N.A

....4 R3105_NSID 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R3164 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R3165 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R3166 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R1113 2007-001175 R-CHIP;8.2Kohm,1%,1/10W,TP,1608 1 S.A

....4 R2007 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2008 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2009 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2010 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2011_NPX 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2012 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2040 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2045 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4010 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4065 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4068 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4069 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4070 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4071 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4094 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4096 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4097 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4102 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4138 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4139 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4141 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5015 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5016 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7030 2007-001305 R-CHIP;120ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7045 2007-001305 R-CHIP;120ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7067 2007-001305 R-CHIP;120ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7071 2007-001305 R-CHIP;120ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1809 2007-001307 R-CHIP;180ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7368 2007-001308 R-CHIP;200ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7369 2007-001308 R-CHIP;200ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1015 2007-001313 R-CHIP;330ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1803_TEST 2007-001313 R-CHIP;330ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4081 2007-001313 R-CHIP;330ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4085 2007-001313 R-CHIP;330ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9030 2007-001313 R-CHIP;330ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9072 2007-001313 R-CHIP;330ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2031 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2048 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2059 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6032 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7333 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 1 S.N.A

5-25

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R7335 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7358 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7408 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1131 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 S.N.A

....4 R1134_NACH 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 S.N.A

....4 R1135_FAN 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 S.N.A

....4 R1136 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 S.N.A

....4 R1137 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 S.N.A

....4 R1138 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 S.N.A

....4 R5104 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 S.N.A

....4 R1256 2007-007107 R-CHIP;100Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R5031 2007-007107 R-CHIP;100Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R1602 2007-007136 R-CHIP;4.7Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R1603 2007-007136 R-CHIP;4.7Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R1604 2007-007136 R-CHIP;4.7Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R2068 2007-007136 R-CHIP;4.7Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R4080 2007-007142 R-CHIP;10Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R7123 2007-007226 R-CHIP;49.9ohm,1%,1/10W,TP,1608 1 S.A

....4 R9027 2007-007309 R-CHIP;12Kohm,1%,1/16W,TP,1005 1 S.A

....4 R1051 2007-007312 R-CHIP;20Kohm,1%,1/16W,TP,1005 1 S.A

....4 R1816 2007-007312 R-CHIP;20Kohm,1%,1/16W,TP,1005 1 S.A

....4 R1817 2007-007312 R-CHIP;20Kohm,1%,1/16W,TP,1005 1 S.A

....4 R9032 2007-007316 R-CHIP;3.3Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R1046 2007-007318 R-CHIP;1Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R1818 2007-007318 R-CHIP;1Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R2046 2007-007318 R-CHIP;1Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R4119 2007-007318 R-CHIP;1Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R4120 2007-007318 R-CHIP;1Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R5117 2007-007318 R-CHIP;1Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R1821_8G52 2007-007455 R-CHIP;24.9Kohm,1%,1/10W,TP,1608 1 S.A

....4 R1030 2007-007469 R-CHIP;110ohm,1%,1/16W,TP,1005 1 S.N.A

....4 R5103 2007-007469 R-CHIP;110ohm,1%,1/16W,TP,1005 1 S.N.A

....4 R1033 2007-007470 R-CHIP;7.5Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R7413 2007-007470 R-CHIP;7.5Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R7414 2007-007470 R-CHIP;7.5Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R9031 2007-007528 R-CHIP;1.5Kohm,1%,1/16W,TP,1005 1 S.A

....4 R3615 2007-007587 R-CHIP;3.6Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R1048 2007-007698 R-CHIP;5.1Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R4087 2007-007698 R-CHIP;5.1Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R1115 2007-007723 R-CHIP;75Kohm,1%,1/10W,TP,1608 1 S.A

....4 R9029 2007-007791 R-CHIP;9.1Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R1815 2007-007886 R-CHIP;649ohm,1%,1/10W,TP,1608 1 S.A

....4 R3033 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 1 S.N.A

....4 R3034 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 1 S.N.A

....4 R3035 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 1 S.N.A

....4 R3044 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 1 S.N.A

....4 R3066 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 1 S.N.A

....4 R3067 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 1 S.N.A

....4 R3068 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 1 S.N.A

....4 R5029 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 1 S.N.A

....4 R9048 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 1 S.N.A

5-26

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R9049 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 1 S.N.A

....4 R9052 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 1 S.N.A

....4 R9053 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 1 S.N.A

....4 R4146 2007-008298 R-CHIP;49.9ohm,1%,1/16W,TP,1005 1 S.A

....4 R9039 2007-008298 R-CHIP;49.9ohm,1%,1/16W,TP,1005 1 S.A

....4 R9040 2007-008298 R-CHIP;49.9ohm,1%,1/16W,TP,1005 1 S.A

....4 R9041 2007-008298 R-CHIP;49.9ohm,1%,1/16W,TP,1005 1 S.A

....4 R9042 2007-008298 R-CHIP;49.9ohm,1%,1/16W,TP,1005 1 S.A

....4 R3625 2007-008429 R-CHIP;499ohm,1%,1/16W,TP,1005 1 S.N.A

....4 R2051 2007-008649 R-CHIP;220ohm,1%,1/16W,TP,1005 1 S.N.A

....4 RA7002 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7003 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7004 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7005 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7006 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7007 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7008 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7009 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7072 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7073 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7074 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7075 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7076 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7077 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7078 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7079 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7080 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7081 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7082 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7083 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7098 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7099 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7100 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7101 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 R1801 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

....4 R1822 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

....4 R1823 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

....4 RA4074 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

....4 RA4075 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

....4 RA4076 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

....4 RA4077 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

....4 RA4078 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

....4 RA4079 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

....4 RA7257 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

....4 RA7258 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

....4 RA7259 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

....4 RA7260 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

....4 RA7261 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

....4 RA7262 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

....4 RA7263 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

....4 RA7264 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

5-27

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 RA7265 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

....4 RA3001 2011-000651 R-NETWORK;10ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.N.A

....4 RA3002 2011-000651 R-NETWORK;10ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.N.A

....4 RA7119 2011-000881 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

....4 RA7120 2011-000881 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

....4 RA7121 2011-000881 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

....4 R1701 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 R1702 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 R1703 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 R1704 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 R1705 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 R1707 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 R1708 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 RA3003_NSI 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 RA3004_NSI 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 RA3005_NSI 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 RA3006 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 RA3007 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 RA3008 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 RA3009 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 RA4001 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 RA4002 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 RA4003 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 RA4004 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 RA4005 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 RA6001 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 RA6058 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 RA6059 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 RA6060 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 RA6061 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 RA6062 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 RA6063 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 RA4143 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA4144 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA4145 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA4146 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA4147 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA4148 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA4153 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7001 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7013 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7014 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7015 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7016 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7017 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7018 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7019 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7020 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7032 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7033 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7034 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

5-28

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 RA7035 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7036 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7046 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7047 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7048 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7049 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7050 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7051 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7052 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7053 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7062 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7063 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7064 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7065 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 C1088 2203-000125 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,- 1 S.A

....4 C1098 2203-000125 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,- 1 S.A

....4 C1082 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.N.A

....4 C1089 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.N.A

....4 C1091 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.N.A

....4 C1097 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.N.A

....4 C4151 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.N.A

....4 C2052 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,1005 1 S.A

....4 C3010 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,1005 1 S.A

....4 C3011 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,1005 1 S.A

....4 C3013 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,1005 1 S.A

....4 C3014 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,1005 1 S.A

....4 C3028 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,1005 1 S.A

....4 C3029 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,1005 1 S.A

....4 C3073 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,1005 1 S.A

....4 C7232 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,1005 1 S.A

....4 C7234 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,1005 1 S.A

....4 C1035 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 S.A

....4 C1036 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 S.A

....4 C1081 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 S.A

....4 C1083 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 S.A

....4 C5114 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 S.A

....4 C5115 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 S.A

....4 C1819 2203-000332 C-CER,CHIP;0.012nF,5%,50V,C0G,1608 1 S.A

....4 C1820 2203-000332 C-CER,CHIP;0.012nF,5%,50V,C0G,1608 1 S.A

....4 C4112 2203-000332 C-CER,CHIP;0.012nF,5%,50V,C0G,1608 1 S.A

....4 C4113 2203-000332 C-CER,CHIP;0.012nF,5%,50V,C0G,1608 1 S.A

....4 C3007 2203-000386 C-CER,CHIP;0.015nF,5%,50V,C0G,1005 1 S.A

....4 C3008 2203-000386 C-CER,CHIP;0.015nF,5%,50V,C0G,1005 1 S.A

....4 C3009 2203-000386 C-CER,CHIP;0.015nF,5%,50V,C0G,1005 1 S.A

....4 C3022 2203-000386 C-CER,CHIP;0.015nF,5%,50V,C0G,1005 1 S.A

....4 C3023 2203-000386 C-CER,CHIP;0.015nF,5%,50V,C0G,1005 1 S.A

....4 C3024 2203-000386 C-CER,CHIP;0.015nF,5%,50V,C0G,1005 1 S.A

....4 C1084 2203-000405 C-CER,CHIP;0.18nF,5%,50V,C0G,1608 1 S.N.A

....4 C1092 2203-000405 C-CER,CHIP;0.18nF,5%,50V,C0G,1608 1 S.N.A

....4 C1154 2203-000405 C-CER,CHIP;0.18nF,5%,50V,C0G,1608 1 S.N.A

....4 C1157 2203-000405 C-CER,CHIP;0.18nF,5%,50V,C0G,1608 1 S.N.A

5-29

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 C4055_T 2203-000425 C-CER,CHIP;0.018nF,5%,50V,C0G,1005 1 S.A

....4 C1512 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C1816 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C2053 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C2069 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C2070 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C2071 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C2072 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C2073 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C3043_NSID 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C3047_NSID 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C3305_FAN 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C3306_FAN 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C4045 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C4046 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C4051 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C4052 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C4077 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C4078 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C4116 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C5117 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C6017 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C6018 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C1021 2203-000489 C-CER,CHIP;2.2nF,10%,50V,X7R,1005 1 S.A

....4 C4103 2203-000550 C-CER,CHIP;0.02nF,5%,50V,C0G,1005 1 S.N.A

....4 C4107 2203-000550 C-CER,CHIP;0.02nF,5%,50V,C0G,1005 1 S.N.A

....4 C7246 2203-000550 C-CER,CHIP;0.02nF,5%,50V,C0G,1005 1 S.N.A

....4 C7253 2203-000550 C-CER,CHIP;0.02nF,5%,50V,C0G,1005 1 S.N.A

....4 C9010 2203-000550 C-CER,CHIP;0.02nF,5%,50V,C0G,1005 1 S.N.A

....4 C9013 2203-000550 C-CER,CHIP;0.02nF,5%,50V,C0G,1005 1 S.N.A

....4 C4100 2203-000627 C-CER,CHIP;0.022nF,5%,50V,C0G,1005 1 S.N.A

....4 C1085 2203-000714 C-CER,CHIP;3.3nF,10%,50V,X7R,TP,1005,- 1 S.A

....4 C3100_NSID 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C9008 2203-000815 C-CER,CHIP;0.033nF,5%,50V,C0G,1608 1 S.A

....4 C9108 2203-000815 C-CER,CHIP;0.033nF,5%,50V,C0G,1608 1 S.A

....4 C1162 2203-000925 C-CER,CHIP;470nF,+80-20%,50V,Y5V,2012 1 S.A

....4 C1201 2203-000925 C-CER,CHIP;470nF,+80-20%,50V,Y5V,2012 1 S.A

....4 C1203 2203-000925 C-CER,CHIP;470nF,+80-20%,50V,Y5V,2012 1 S.A

....4 C2074 2203-000925 C-CER,CHIP;470nF,+80-20%,50V,Y5V,2012 1 S.A

....4 C2075 2203-000925 C-CER,CHIP;470nF,+80-20%,50V,Y5V,2012 1 S.A

....4 C1101 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,- 1 S.N.A

....4 C3012 2203-000995 C-CER,CHIP;0.047nF,5%,50V,C0G,1005 1 S.A

....4 C3049_NSID 2203-000995 C-CER,CHIP;0.047nF,5%,50V,C0G,1005 1 S.A

....4 C4099 2203-000995 C-CER,CHIP;0.047nF,5%,50V,C0G,1005 1 S.A

....4 C4101 2203-000995 C-CER,CHIP;0.047nF,5%,50V,C0G,1005 1 S.A

....4 C5002 2203-000995 C-CER,CHIP;0.047nF,5%,50V,C0G,1005 1 S.A

....4 C6041 2203-000998 C-CER,CHIP;0.047nF,5%,50V,C0G,1608 1 S.N.A

....4 C6042 2203-000998 C-CER,CHIP;0.047nF,5%,50V,C0G,1608 1 S.N.A

....4 C4059_T 2203-001153 C-CER,CHIP;0.068nF,5%,50V,NP0,1005 1 S.A

....4 C4060_T 2203-001153 C-CER,CHIP;0.068nF,5%,50V,NP0,1005 1 S.A

....4 C4061_T 2203-001153 C-CER,CHIP;0.068nF,5%,50V,NP0,1005 1 S.A

5-30

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 C4202 2203-001153 C-CER,CHIP;0.068nF,5%,50V,NP0,1005 1 S.A

....4 C1003_NACH 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C1004 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C1009 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C1015 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C1018 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C1069 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C1070 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C1145 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C1147 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C1202 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C3001 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C3002 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C3003 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C3005 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C3006 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C3037 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C3038 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C3039 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C3041 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C3042 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4030 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4031 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4039 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4040 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4041 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4042 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4043 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4044 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4047 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4048 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4049 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4050 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4053 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4054 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4058 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4062 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4067 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4069 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4071 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4073 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4074 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4075 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4088 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4090 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4092 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4093 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4095 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4096 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4097 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4098 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

5-31

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 C4114 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4133 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4134 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4135 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4142 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4143 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4144 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4145 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4146 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4147 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C5003 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C5005 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C5006 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C5008 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C5020 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C5041 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C5043 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C6004 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C6005 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C6007 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C6009 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C6010 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C6011 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C6013 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C6014 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C6015 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C6016 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C6050 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7029 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7035 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7059 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7060 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7061 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7062 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7063 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7064 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7065 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7067 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7068 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7070 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7097 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7098 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7099 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7100 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7101 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7102 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7103 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7104 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7105 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7106 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7107 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

5-32

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 C7108 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7115 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7116 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7117 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7118 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7161 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7162 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7163 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7164 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7165 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7166 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7167 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7169 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7170 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7171 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7172 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7173 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7174 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7175 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7176 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7178 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7179 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7180 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7181 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7182 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7183 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7184 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7185 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7209 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7210 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7212 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7224 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7225 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7237 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7240 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7241 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7242 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7243 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7245 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7247 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7248 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7249 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7250 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7251 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7274 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7275 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C9024 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C2056 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,1608 1 S.N.A

....4 C2060 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,1608 1 S.N.A

....4 C2061 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,1608 1 S.N.A

....4 C2068 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,1608 1 S.N.A

5-33

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 C9026 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,1608 1 S.N.A

....4 C1161 2203-002687 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1005 1 S.A

....4 C1513 2203-002687 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1005 1 S.A

....4 C2084 2203-002687 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1005 1 S.A

....4 C2085 2203-002687 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1005 1 S.A

....4 C2086 2203-002687 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1005 1 S.A

....4 C2087 2203-002687 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1005 1 S.A

....4 C3090 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V,Y5V,2012 1 S.N.A

....4 C3091 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V,Y5V,2012 1 S.N.A

....4 C3092 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V,Y5V,2012 1 S.N.A

....4 C3093_4HDM 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V,Y5V,2012 1 S.N.A

....4 C3068 2203-005054 C-CER,CHIP;0.0047nF,0.25pF,50V,NP0,1005 1 S.A

....4 C3069 2203-005054 C-CER,CHIP;0.0047nF,0.25pF,50V,NP0,1005 1 S.A

....4 C3070 2203-005054 C-CER,CHIP;0.0047nF,0.25pF,50V,NP0,1005 1 S.A

....4 C3401 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.N.A

....4 C1030 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.N.A

....4 C2058 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.N.A

....4 C2067 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.N.A

....4 C2076 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.N.A

....4 C2077 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.N.A

....4 C2078 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.N.A

....4 C2079 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.N.A

....4 C2080 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.N.A

....4 C2081 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.N.A

....4 C2082 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.N.A

....4 C2083 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.N.A

....4 C2089 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.N.A

....4 C2090 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.N.A

....4 C5042 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.N.A

....4 C5044 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.N.A

....4 C3071 2203-005393 C-CER,CHIP;0.005nF,0.1pF,50V,NP0,TP,1005 1 S.N.A

....4 C3072 2203-005393 C-CER,CHIP;0.005nF,0.1pF,50V,NP0,TP,1005 1 S.N.A

....4 C1028 2203-005642 C-CER,CHIP;0.22nF,5%,50V,NP0,1005 1 S.N.A

....4 C4056_T 2203-005642 C-CER,CHIP;0.22nF,5%,50V,NP0,1005 1 S.N.A

....4 C4057_T 2203-005642 C-CER,CHIP;0.22nF,5%,50V,NP0,1005 1 S.N.A

....4 C4063_T 2203-005642 C-CER,CHIP;0.22nF,5%,50V,NP0,1005 1 S.N.A

....4 C4064_T 2203-005642 C-CER,CHIP;0.22nF,5%,50V,NP0,1005 1 S.N.A

....4 C4065_T 2203-005642 C-CER,CHIP;0.22nF,5%,50V,NP0,1005 1 S.N.A

....4 C1053 2203-005834 C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216 1 S.A

....4 C1057 2203-005834 C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216 1 S.A

....4 C1094 2203-005834 C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216 1 S.A

....4 C1102 2203-005834 C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216 1 S.A

....4 C1152 2203-005834 C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216 1 S.A

....4 C1163 2203-005834 C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216 1 S.A

....4 C1169 2203-005834 C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216 1 S.A

....4 C1190 2203-005834 C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216 1 S.A

....4 C1191 2203-005834 C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216 1 S.A

....4 C1192 2203-005834 C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216 1 S.A

....4 C1193 2203-005834 C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216 1 S.A

....4 C1029 2203-005968 C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005 1 S.N.A

....4 C2022 2203-005968 C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005 1 S.N.A

5-34

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 C2025 2203-005968 C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005 1 S.N.A

....4 C3004 2203-005968 C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005 1 S.N.A

....4 C3040 2203-005968 C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005 1 S.N.A

....4 C4094 2203-005968 C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005 1 S.N.A

....4 C6021 2203-005968 C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005 1 S.N.A

....4 C9028 2203-006039 C-CER,CHIP;1nF,10%,2000V,X7R,3216 1 S.A

....4 C9030 2203-006039 C-CER,CHIP;1nF,10%,2000V,X7R,3216 1 S.A

....4 C1037 2203-006104 C-CER,CHIP;1000nF,10%,50V,X7R,3225 1 S.A

....4 C4079 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A

....4 C4080 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A

....4 C4081 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A

....4 C4082 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A

....4 C4083 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A

....4 C4084 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A

....4 C4085 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A

....4 C1007 2203-006141 C-CER,CHIP;1000nF,10%,16V,X5R,1608 1 S.N.A

....4 C2055 2203-006141 C-CER,CHIP;1000nF,10%,16V,X5R,1608 1 S.N.A

....4 C2062 2203-006141 C-CER,CHIP;1000nF,10%,16V,X5R,1608 1 S.N.A

....4 C2063 2203-006141 C-CER,CHIP;1000nF,10%,16V,X5R,1608 1 S.N.A

....4 C2066 2203-006141 C-CER,CHIP;1000nF,10%,16V,X5R,1608 1 S.N.A

....4 C1040 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C1041 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C1044 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C1086 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C1166 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C1260 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C1420 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C1422 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C1424 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C1811 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C1812 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C1813 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C1814 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C1815 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C2014 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C2015 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C2033 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C2035 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C2039 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C2040 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C2046 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C2047 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C2048 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C2049 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C2051 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C2054 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C2059 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C3081 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C3302_FAN 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C3304_FAN 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4001 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

5-35

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 C4002 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4003 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4004 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4009 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4014 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4021 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4023 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4025 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4028 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4029 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4038 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4068 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4104 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4105 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4117 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4123 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4127 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4136 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4137 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4138 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4139 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4140 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4141 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4201 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C5007 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C5014 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C5017 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C5031 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C5033 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C5034 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C5035 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C5036 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C5037 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C5102 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C6023 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7028 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7031 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7058 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7069 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7076 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7077 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7121 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7122 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7123 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7124 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7125 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7126 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7148 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7149 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7150 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7152 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

5-36

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 C7160 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7177 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7187 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7188 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7189 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7190 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7201 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7203 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7204 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7205 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7206 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7211 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7213 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7214 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7215 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7218 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7220 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7222 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7226 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7227 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7228 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7229 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7230 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7233 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7235 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7236 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7238 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7244 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7252 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7254 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7255 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7256 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7265 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C9002 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C9005 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C9007 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C9009 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C9011 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C9012 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C9014 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C9015 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C9016 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C9018 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C9020 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C9022 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C9023 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C9029 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C9032 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C9033 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C1093 2203-006307 C-CER,CHIP;1000nF,10%,25V,X5R,2012 1 S.N.A

....4 C1080 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.N.A

5-37

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 C1087 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.N.A

....4 C1090 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.N.A

....4 C1095 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.N.A

....4 C2057 2203-006336 C-CER,CHIP;10000nF,10%,25V,X5R,3216 1 S.A

....4 C5101 2203-006336 C-CER,CHIP;10000nF,10%,25V,X5R,3216 1 S.A

....4 C1059 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1099 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1164 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C3412 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C3420 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C3421 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C3422 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C3423 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C2002 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,1005 1 S.N.A

....4 C2003 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,1005 1 S.N.A

....4 C2004 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,1005 1 S.N.A

....4 C2005 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,1005 1 S.N.A

....4 C2006 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,1005 1 S.N.A

....4 C2007 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,1005 1 S.N.A

....4 C2008 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,1005 1 S.N.A

....4 C2009 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,1005 1 S.N.A

....4 C2010 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,1005 1 S.N.A

....4 C2011 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,1005 1 S.N.A

....4 C2012 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,1005 1 S.N.A

....4 C2013 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,1005 1 S.N.A

....4 C2036 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,1005 1 S.N.A

....4 C4106 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,1005 1 S.N.A

....4 C6024 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,1005 1 S.N.A

....4 C7223 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,1005 1 S.N.A

....4 C7231 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,1005 1 S.N.A

....4 C7239 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,1005 1 S.N.A

....4 C9004 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,1005 1 S.N.A

....4 C1002_NACH 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1008 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1010 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1011 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1068 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1072 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1073 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1141 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1146 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1195_FAN 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1196_FAN 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1198_NACH 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1211 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1712 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1713 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1714 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1715 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1716 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1717 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

5-38

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 C1718 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1719 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1809 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1810 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1821 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1822 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1823 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1824 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1825 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1826 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1827 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1828 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1829 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1830 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1831 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1832 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1833 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1834 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1835 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1836 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1837 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1838 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1866 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3067 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3075 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3077 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3080_4HDM 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3087 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3402 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3403 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3404 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3405 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3406 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3407 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3408 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3409 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3410 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3411 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3413 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3414 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3415 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3416 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3417 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3418 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3419 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3424 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3425 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3426 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3427 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4005 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4006 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

5-39

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 C4007 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4010 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4011 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4012 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4013 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4015 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4016 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4017 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4018 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4019 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4020 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4022 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4024 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4070 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4108 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4111 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4115 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4118 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4119 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4120 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4126 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C5015 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C5118 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C6006 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C6008 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C6012 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C6019 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C6020 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C6101 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C7001 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C7002 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C7015 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C7016 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3054_NSID 2203-006992 C-CER,CHIP;0.33nF,5%,50V,C0G,1005 1 S.N.A

....4 C3055_NSID 2203-006992 C-CER,CHIP;0.33nF,5%,50V,C0G,1005 1 S.N.A

....4 C3079 2203-006992 C-CER,CHIP;0.33nF,5%,50V,C0G,1005 1 S.N.A

....4 C3082 2203-006992 C-CER,CHIP;0.33nF,5%,50V,C0G,1005 1 S.N.A

....4 C3084 2203-006992 C-CER,CHIP;0.33nF,5%,50V,C0G,1005 1 S.N.A

....4 C3085 2203-006992 C-CER,CHIP;0.33nF,5%,50V,C0G,1005 1 S.N.A

....4 C6022 2203-006992 C-CER,CHIP;0.33nF,5%,50V,C0G,1005 1 S.N.A

....4 C1005_NACH 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1019 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1039 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1042 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1048 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1049 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1055 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1056 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1063 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1064 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1065 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

5-40

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 C1171 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1172 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1173 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1174 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1194_FAN 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1197_FAN 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1199_NACH 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1200_NACH 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1204 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1205 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1206 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1207 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1208 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1213 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1421 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C2016 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C2017 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C2021 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C2034 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C2041 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C2042 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C2043 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C2044 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C2045 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C2050 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C2065 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C2101 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C2102 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C3066 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C3074 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C3076 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C3078_4HDM 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C3083 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C3086 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C3301_FAN 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C3303_FAN 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C4008 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C4026 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C4027 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C4032 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C4034 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C4035 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C4036 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C4037 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C4066 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C4072 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C4102 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C4110 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C4124 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C4125 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C4130 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

5-41

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 C4131 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C4132 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C4148 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C4149 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C4150 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C5032 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C5038 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C5103 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C5104 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C5105 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C6001 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C6002 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C6003 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7030 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7066 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7186 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7207 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7208 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7217 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7219 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7221 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7257 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7258 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7259 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7260 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7261 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7262 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7263 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7264 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7266 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7267 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7268 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7269 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7270 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7271 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7272 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7276 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7277 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C9001 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C9003 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C9006 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C9019 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C9025 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C9035 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C9040 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C6030 2402-001128 C-AL,SMD;100##F,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C6031 2402-001128 C-AL,SMD;100##F,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C1001_NACH 2402-001210 C-POLYMER AL CHIP;100uF,20%,10V,WT,TP,7. 1 S.A

....4 C2037 2402-001210 C-POLYMER AL CHIP;100uF,20%,10V,WT,TP,7. 1 S.A

....4 C2038 2402-001210 C-POLYMER AL CHIP;100uF,20%,10V,WT,TP,7. 1 S.A

....4 C4152 2402-001210 C-POLYMER AL CHIP;100uF,20%,10V,WT,TP,7. 1 S.A

5-42

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 C5016 2402-001210 C-POLYMER AL CHIP;100uF,20%,10V,WT,TP,7. 1 S.A

....4 C7025 2402-001210 C-POLYMER AL CHIP;100uF,20%,10V,WT,TP,7. 1 S.A

....4 C7055 2402-001210 C-POLYMER AL CHIP;100uF,20%,10V,WT,TP,7. 1 S.A

....4 C7154 2402-001210 C-POLYMER AL CHIP;100uF,20%,10V,WT,TP,7. 1 S.A

....4 C7168 2402-001210 C-POLYMER AL CHIP;100uF,20%,10V,WT,TP,7. 1 S.A

....4 C7273 2402-001210 C-POLYMER AL CHIP;100uF,20%,10V,WT,TP,7. 1 S.A

....4 C2064 2402-001323 C-AL,SMD;100uF,20%,25V,LZ,TP,6.3x8mm 1 S.A

....4 C7216 2409-001114 C-POLYMER ,CHIP;220UF,20%,10V,LR,TP,7343 1 S.A

....4 C1817 2409-001118 C-POLYMER ,CHIP;47uF,-+20,10V,WT,REEL,3. 1 S.A

....4 C9031 2409-001126 C-POLYMER ,CHIP;4.7uF,20%,6.3V,WT,REEL,1 1 S.A

....4 C1419 2409-001129 C-POLYMER ,CHIP;100uF,20%,6.3V,WT,TP,3.5 1 S.A

....4 C1423 2409-001129 C-POLYMER ,CHIP;100uF,20%,6.3V,WT,TP,3.5 1 S.A

....4 T9001 2601-001056 TRANS-SMD,PULSE;350UH,-,1:1,1:1,12.7X6.7 1 S.A

....4 T0052 2703-000125 INDUCTOR-SMD;10uH,10%,2012 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000417 INDUCTOR-SMD;220uH,5%,3225 1 S.A

....4 T0052 2703-001426 INDUCTOR-SMD;680uH,20%,7070 1 S.A

....4 T0052 2703-002722 INDUCTOR-SMD;22uH,20%,12x12mm 1 S.A

....4 T0052 2703-002722 INDUCTOR-SMD;22uH,20%,12x12mm 1 S.A

....4 T0052 2703-002722 INDUCTOR-SMD;22uH,20%,12x12mm 1 S.A

....4 T0052 2703-002722 INDUCTOR-SMD;22uH,20%,12x12mm 1 S.A

....4 L2001 2704-000018 INDUCTOR-SMD-ARRAY;15uH,2000mA,2,0.124oh 1 S.N.A

....4 L2002 2704-000018 INDUCTOR-SMD-ARRAY;15uH,2000mA,2,0.124oh 1 S.N.A

....4 X202 2801-003326 CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH 1 S.A

....4 X202 2801-003326 CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH 1 S.A

....4 X202 2801-003954 CRYSTAL-SMD;27MHz,30ppm,28-AAN,16pF,50oh 1 S.A

....4 X202 2801-004058 CRYSTAL-SMD;25MHZ,30PPM,SMD,20PF,50OHM,T 1 S.N.A

....4 X202 2801-004435 CRYSTAL-SMD;30.0MHz,30ppm,KX,20pF,50ohm, 1 S.A

....4 X202 2801-004747 CRYSTAL-SMD;30.4MHz,30ppm,SMD,12pF,40ohm 1 S.A

....4 X7001 2804-001521 OSCILLATOR-CLOCK;27MHz,50ppm,HCMOS,TP,3. 1 S.A

....4 F103 2901-001114 FILTER-EMI SMD;25VDC,2.0ADC,-,100nF,3.2x 1 S.A

....4 F103 2901-001302 FILTER-EMI SMD;20V,0.3A,0pF,2.0x1.2x1.3m 1 S.N.A

....4 F103 2901-001302 FILTER-EMI SMD;20V,0.3A,0pF,2.0x1.2x1.3m 1 S.N.A

....4 F103 2901-001302 FILTER-EMI SMD;20V,0.3A,0pF,2.0x1.2x1.3m 1 S.N.A

....4 F103 2901-001302 FILTER-EMI SMD;20V,0.3A,0pF,2.0x1.2x1.3m 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001148 BEAD-SMD;60ohm,1608,TP,-,- 1 S.N.A

....4 T0568 3301-001148 BEAD-SMD;60ohm,1608,TP,-,- 1 S.N.A

5-43

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 T0568 3301-001148 BEAD-SMD;60ohm,1608,TP,-,- 1 S.N.A

....4 T0568 3301-001148 BEAD-SMD;60ohm,1608,TP,-,- 1 S.N.A

....4 T0568 3301-001148 BEAD-SMD;60ohm,1608,TP,-,- 1 S.N.A

....4 T0568 3301-001148 BEAD-SMD;60ohm,1608,TP,-,- 1 S.N.A

....4 T0568 3301-001148 BEAD-SMD;60ohm,1608,TP,-,- 1 S.N.A

....4 T0568 3301-001148 BEAD-SMD;60ohm,1608,TP,-,- 1 S.N.A

....4 T0568 3301-001148 BEAD-SMD;60ohm,1608,TP,-,- 1 S.N.A

....4 T0568 3301-001148 BEAD-SMD;60ohm,1608,TP,-,- 1 S.N.A

....4 T0568 3301-001148 BEAD-SMD;60ohm,1608,TP,-,- 1 S.N.A

....4 T0568 3301-001148 BEAD-SMD;60ohm,1608,TP,-,- 1 S.N.A

....4 T0568 3301-001148 BEAD-SMD;60ohm,1608,TP,-,- 1 S.N.A

....4 T0568 3301-001148 BEAD-SMD;60ohm,1608,TP,-,- 1 S.N.A

....4 T0568 3301-001148 BEAD-SMD;60ohm,1608,TP,-,- 1 S.N.A

....4 T0568 3301-001148 BEAD-SMD;60ohm,1608,TP,-,- 1 S.N.A

....4 T0568 3301-001148 BEAD-SMD;60ohm,1608,TP,-,- 1 S.N.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

5-44

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 JA3003 3701-001367 CONNECTOR-HDMI;19P,2R,FEMALE,SMD,AU 1 S.A

....4 JA3004_4HD 3701-001367 CONNECTOR-HDMI;19P,2R,FEMALE,SMD,AU 1 S.A

....4 JA3005 3701-001367 CONNECTOR-HDMI;19P,2R,FEMALE,SMD,AU 1 S.A

....4 CN330 3711-005292 HEADER-BOARD TO CABLE;BOX,3P,1R,2MM,SMD- 1 S.A

....4 CN330 3711-005292 HEADER-BOARD TO CABLE;BOX,3P,1R,2MM,SMD- 1 S.A

....4 CN330 3711-005925 HEADER-BOARD TO CABLE;BOX,51P,1R,0.5mm,S 1 S.A

....4 CN330 3711-006374 HEADER-BOARD TO CABLE;BOX,41P,2R,1.25mm, 1 S.A

....4 IC113 1105-001585 IC-DRAM;M12L64164, K4S641632,-,64Mbit,4x 1 S.N.A

....4 D3008 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 D3009 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 D3013 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 D3014 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 D3025 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 D3027 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 D3028 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 D3029 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 D3035_NSID 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 D3036 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 D3037_NSID 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 D3038 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 D3040_NSID 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 D3041_NSID 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 D3042_NSID 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 D3062 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 D3063 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 D3064 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 D3065 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

5-45

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R3026 2007-000139 R-CHIP;220ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3027 2007-000139 R-CHIP;220ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3028 2007-000139 R-CHIP;220ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3029 2007-000139 R-CHIP;220ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3030 2007-000139 R-CHIP;220ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3031 2007-000139 R-CHIP;220ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3093 2007-000139 R-CHIP;220ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3094 2007-000139 R-CHIP;220ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3095 2007-000139 R-CHIP;220ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3096 2007-000139 R-CHIP;220ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3097 2007-000139 R-CHIP;220ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3098 2007-000139 R-CHIP;220ohm,5%,1/16W,TP,1005 1 S.N.A

....4 C1839 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.N.A

....4 C1840 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.N.A

....4 C5120 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.N.A

....4 IC1801 1204-002952 IC-DEMODULATOR;LGS-8G52-A1-C-LQ1-E,LQFP, 1 S.A

....4 C1096 2203-006790 C-CER,CHIP;5.6NF,10%,50V,X7R,1005 1 S.N.A

....4 C1158 2203-006790 C-CER,CHIP;5.6NF,10%,50V,X7R,1005 1 S.N.A

....4 C1160 2203-006790 C-CER,CHIP;5.6NF,10%,50V,X7R,1005 1 S.N.A

....4 C5119 2402-001238 C-AL,SMD;1uF,20%,50V,HR,TP,4.3x4.3x5.2mm 1 S.N.A

....4 T0077 BN41-01128A PCB MAIN;LA55A950D1FXZK,FR-4,6,A,1.6T,24 1 S.N.A

...3 JA333 3722-002793 JACK-PIN;3P+Shield,Ni,YEL/WHT/RED,STRAIG 1 S.A

...3 HDCP BN97-00688B ASSY HDCP;MT8202 IC HDCP Key’ 1 S.N.A

....4 BN46-00018A KEY CODE-CERTIFICATE;(HDCP KEY)PPM42M5S, 1 S.N.A

...3 CN330 3711-006715 HEADER-BOARD TO CABLE;BOX,4P,1R,2.5mm,AN 1 S.N.A

...3 CIS3 BN40-00133A TUNER;DTOS44ACL171A,DTOS44ACL171A,China 1 S.A

...3 T0066 BN62-00040A HEAT SINK-ES;SAPPHIRE,T2.0,36*36*6.6,BLK 1 S.N.A

...3 T0066 BN62-00040A HEAT SINK-ES;SAPPHIRE,T2.0,36*36*6.6,BLK 1 S.N.A

...3 SUB12 BN73-00191B SILICON/RUBBER-GAPPAD;LE46A856S1,SILICON 2 S.N.A

...3 T0066 BP62-00047A HEAT SINK-ES;DLP,A6063S,T2.5,13,13,TAPE 2 S.N.A

0.1 M0112 BN91-02883A ASSY SHIELD;LA46A850S1FXXZ,N59G 1 S.N.A

..2 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 6 S.A

..2 M0081 6003-000269 SCREW-TAPTITE;BH,+,-,S,M3,L6,ZPC(WHT),SW 4 S.N.A

..2 M0081 6003-000269 SCREW-TAPTITE;BH,+,-,S,M3,L6,ZPC(WHT),SW 6 S.N.A

..2 M0081 6003-000337 SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR 6 S.A

..2 M0081 6003-000337 SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR 2 S.A

..2 M0081 6003-000337 SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR 2 S.A

..2 M0081 6003-000337 SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR 2 S.A

..2 M0081 6003-000337 SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR 8 S.A

..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 6 S.A

..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.A

..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.A

..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 4 S.A

..2 M0081 6003-001439 SCREW-TAPTITE;BH,+,-,S,M4,L8,ZPC(WHT),SW 1 S.N.A

..2 T0562 6046-001015 STAND OFF;#4-40,L5,Ni PLT,C3601,M3 2 S.N.A

..2 T0136 BN31-00019F FAN;RUBY2,PBTP 1 S.A

..2 T0136 BN31-00019G FAN;LN40A850S1FXZA,PBTP 1 S.A

..2 M2893 BN39-01099H LEAD CONNECTOR;LN46A850S1FXZA,UL1007#26, 1 S.A

..2 M2893 BN39-01118A LEAD CONNECTOR;LN46A850S1FXZA,UL2464#26, 1 S.A

..2 M2893 BN39-01118B LEAD CONNECTOR;LN46A850S1FXZA,UL2464#26, 1 S.A

5-46

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

..2 T0764 BN44-00242A SMPS-LCDTV;SC4614,SC4614,AC/DC,233W,AC10 1 S.A

..2 M0125 BN61-04116A HOLDER-WALL;L650- SLIM,46 / L850,HIPS,HB 4 S.N.A

...3 BN61-02932D BRACKET-STOPPER NUT;L670_SLIM,M8,D10,L18 1 S.N.A

..2 BN61-04118A BRACKET-GUIDE MAIN L;L650- SLIM,52,SECC, 1 S.N.A

..2 BN61-04120A BRACKET-PANEL BOTTOM;L650- SLIM,52,SECC, 1 S.N.A

..2 M0146 BN61-04370A BRACKET-PANEL SIDE;L850,SECC,T1.2 4 S.N.A

..2 M0115 BN61-04375A BRACKET-STAND LINK;46/52L850,SECC,T1.6 1 S.N.A

..2 BN61-04376A BRACKET-GUIDE MAIN R;L850,SECC,T1.2 1 S.N.A

..2 M0254 BN61-04381D HOLDER-SIDE AV;L850(NT),PMMA+ABS HB H/GL 1 S.N.A

..2 T0175 BN96-08430A ASSY SPEAKER P;8ohm,4pin,L850,10W 1 S.A

..2 M0250 BN96-08479G ASSY CABLE P-FFC LVDS;LE55A956D1F,FFC,11 1 S.A

..2 M0125 BN96-08481B ASSY INLET P;LN46A850S1FXZA,450mm,AC110V 1 S.A

..2 T0066 BP62-00064B HEAT SINK-ES;ROBOCOP,A6063,T4.0,40,40,BL 1 S.N.A

0.1 M0003 BN92-03723V ASSY BOX;46L850,CO(DTV),XZ 1 S.N.A

..2 BN69-02879J BOX-SET,OUT;46L850,CB,DW-80,YEL,W1207,D3 1.02 S.N.A

..2 M0521 BN69-02880A BOX-SET,IN;46L850,CB,C-01,DY-01,YEL,W160 1 S.N.A

0.1 M0113 BN92-03724A ASSY P/MATERIAL;46L850,W/W 1 S.N.A

..2 T0376 6902-000061 BAG AIR;LDPE,T0.2,W500,L1000,TRP,-,-,-,3 0.082 S.N.A

..2 T0376 6902-000379 BAG AIR;LDPE,T0.2,W1000,L1800,TRP,-,-,-, 0.019 S.N.A

..2 T0524 6902-000867 BAG PE;HDPE/HDPE/NITRON,T0.015/T0.015/T1 1 S.N.A

..2 6922-000003 BAND PP;PP,T0.8,W18,L1650M,TRP,DA69-9014 5.04 S.N.A

..2 T0214 AA61-20285C HOLDER-BOX;CORAL,PP,BLACK,HB 2 S.N.A

..2 T0214 BN74-00008A TAPE-OPP MASKING;OPP-2,T0.05,W100,L800M, 1.36 S.N.A

0.1 M0045 BN92-03987A ASSY ACCESSORY;LA46A850S1FXXZ,N59G 1 S.N.A

..2 M0045 BN96-09007A ASSY ACCESSORY-MANUAL;LA46A850S1FXXZ,N59 1 S.A

...3 T0524 6902-000110 BAG PE;LDPE,T0.05,W250,L400,TRP,28,2,-,9 1 S.N.A

...3 AA68-03184A MANUAL FLYER-CARD-04;ALL MODEL,CHINESE,2 1 S.N.A

...3 T0511 BN68-01809A MANUAL USERS;COMM,SAMSUNG,SC,CHINA,W/P 8 1 S.N.A

..2 M0045 BN96-09008A ASSY ACCESSORY-CABLE;LA46A850S1FXXZ,N59G 1 S.A

...3 T0268 3903-000082 CBF-POWER CORD;DT,CN,IP3/YES(A),I(IEC C1 1 S.A

...3 T0524 6902-000110 BAG PE;LDPE,T0.05,W250,L400,TRP,28,2,-,9 1 S.N.A

...3 BN63-01798B CLOTH-CLEAN;cloth,180,200,sea blue,ToC 1 S.N.A

...3 T0531 BN63-04822A COVER-BOTTOM;40,46,52L850,HIPS,-,-,-,HB, 1 S.N.A

...3 T0074 BN59-00698A REMOCON;TM-98B,49,CHINA_650 1 S.A

...3 T0074 BN59-00788B REMOCON;TM94,5,KOREA 1 S.A

...3 BN59-00726B S/W DRIVER-01;RUBY,DLNA,WW 1 S.N.A

0.1 M0019 BN92-03988A ASSY LABEL;LA46A850S1FXXZ,N59G 1 S.N.A

0.1 M0215 BN81-02129A A/S-T CON BOARD;LTF460HE05,V0.1,C0.2,005 1 S.A

5-47

5. Exploded View & Part List

5-4. LA52A850S Parts List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

LA52A850S1FXXZ LA52A850S1F,N59G/52AS1-GPH,52,LCD-TV,CHI

0.1 M0001 BN90-01769L ASSY COVER FRONT;52L850,SO(DTV),XZ 1 S.N.A

..2 T0003 BN96-08568K ASSY COVER P-FRONT;52L850,CO(DTV),PC(CLE 1 S.A

...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 4 S.A

...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 1 S.A

...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.A

...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 1 S.A

...3 T0069 BN60-00027U SPACER-FELT;L850-52,FELT,1200,0.5,22 2 S.N.A

...3 T0069 BN60-00027V SPACER-FELT;L850-52,FELT,80,0.5,25 1 S.N.A

...3 T0069 BN60-00027Y SPACER-FELT;52 L850,FELT,700,0.5,17 2 S.N.A

...3 CCM1 BN63-02183F COVER-SHEET;Rhcm,PE Vinyl,T0.05,900mm,20 1.4 S.N.A

...3 CCM1 BN63-04755A COVER-SHEET;AMBER,PE,T0.05,W150mm,200M,6 4.6 S.N.A

...3 M0112 BN63-04820K COVER-FRONT;52L850,CO(DTV),PC(CLEAR)+PC( 1 S.N.A

...3 BN96-08572B ASSY HOLDER P-BOSS TOP;52L850,HIPS,HB,BK 1 S.N.A

....4 BN61-03261F BOSS-TAPE;Amber,ACRYL,T1.1,W8mm,GRAY,TAP 0.839 S.N.A

....4 BN61-04378B HOLDER-BOSS TOP;52L850,HIPS,HB,BK500 1 S.N.A

...3 BN96-08575B ASSY HOLDER P-BOSS SIDE;52L850,HIPS,HB,B 2 S.N.A

....4 BN61-03261A BOSS-TAPE;Tulip,ACRYL,T1.1,W12mm,GRAY,TA 0.721 S.N.A

....4 BN61-04380B HOLDER-BOSS SIDE;52L850,HIPS,HB,BK500 1 S.N.A

...3 BN96-08576B ASSY HOLDER P-BOSS BOTTOM;52L850,HIPS,HB 1 S.N.A

....4 BN61-03261C BOSS-TAPE;Tulip,ACRYL,T1.1,W24mm,GRAY,TA 0.874 S.N.A

....4 BN61-04382B HOLDER-BOSS BOTTOM;52L850,HIPS,HB,BK500 1 S.N.A

...3 M0175 BN96-08918A ASSY BOARD P-TOUCH FUNCTION;LE46A856S1FX 1 S.A

...3 M0145 BN96-08931A ASSY BOARD P-FUNCTION;LE46A856S1F,CT5000 1 S.A

...3 BN64-00946B INDICATOR-LED LIGHTING;L850,PC TP26,MILK 1 S.N.A

0.1 M0002 BN90-01771H ASSY COVER REAR;52L850,CO(DTV),XZ 1 S.N.A

..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 14 S.A

..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 1 S.A

..2 C/R+H/WALL 6011-001610 BOLT-ETC;M8,L18,ZPC(BLK),SWRCH18A,WSP,PH 4 S.N.A

..2 M0013 BN96-08571G ASSY COVER P-REAR;52L850,CO(DTV),ABS+PMM 1 S.A

...3 CCM1 BN63-02183H COVER-SHEET;Rhcm,PE Vinyl,T0.05,1300mm,2 1.1 S.N.A

...3 M0006 BN63-04816B COVER-REAR;52L850,SO,LO,PC+ABS,-,-,-,V0, 1 S.N.A

...3 T0071 BN64-00945D INLAY-TERMINAL;L850,PS SHEET,T0.5,H/GLOS 1 S.N.A

...3 T0064 BN65-00002A CLAMPER CORE;BORDEAUX,LDPE,-,-,BLK,- 1 S.N.A

0.1 M0216 BN90-01775A ASSY STAND;52L850 1 S.N.A

..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 5 S.A

..2 M0027 BN96-08591A ASSY STAND P-BASE;52L850,GLASS 1 S.A

...3 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 4 S.A

...3 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 4 S.A

...3 BN61-02533A HOLDER-SWIVEL RING;46M7 EO,ACETAL,NATUAL 1 S.N.A

...3 BN61-04374A BRACKET-STAND BASE;40,46,52L850,SECC,T2. 1 S.N.A

...3 T0920 BN61-04379A GUIDE-STAND;L850,PC+GF 20%,BLK 1 S.N.A

...3 BN61-04428B BOSS-TAPE;ACRYL,T0.4,W20.0mm,WHITE 0.32 S.N.A

...3 BN61-04437A BRACKET-STAND SUB;40,46,52L850,SECC,T3.0 1 S.N.A

...3 BN61-04438A BRACKET-HINGE SWIVEL;40,46,52L850,SECC,T 1 S.N.A

...3 BN61-04439A HOLDER-SWIVEL RING;40,46,52L850,ACETAL 1 S.N.A

5-48

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

...3 BN63-04825A COVER-STAND NECK;L850,HIPS,HB,BK500,SE-1 1 S.N.A

...3 BN63-04883A COVER-STAND SUB;L850,ABS+PMMA,HB,RD02,GL 1 S.N.A

...3 T0132 BN73-00181A RUBBER FOOT;RUBY,CR Rubber,PI 25,T3.5,BL 4 S.N.A

...3 M0003 BN96-08794A ASSY COVER P-STAND GLASS;52,L850,TEMPERE 1 S.A

....4 CCM1 BN63-02183A COVER-SHEET;ROME,PE Vinyl,T0.05,100mm,20 0.65 S.N.A

....4 CCM1 BN63-02183C COVER-SHEET;Rhcm,PE Vinyl,T0.05,200mm,20 0.65 S.N.A

....4 BN63-04929A COVER-STAND GLASS;52L850,GLASS,T8.0 1 S.N.A

...3 CIS4 BP73-00001A RUBBER-SHEET;42W5,NBB RUBBER,GRAY,10*20 2 S.N.A

0.1 BN91-02602B ASSY LCD-AMLCD;LN52A850S1FXZA 1 S.N.A

..2 M0215 BN07-00563A LCD-PANEL;LTF520HE04 1 S.A

0.1 M0017 BN91-02882B ASSY CHASSIS;LA52A850S1FXXZ,N59G 1 S.N.A

..2 M0014 BN94-02256A ASSY PCB MAIN;LA46A850S1FXXZ,N59B 1 S.A

...3 T0245 0202-001608 SOLDER-WIRE FLUX;LFC7-107,D0.8,99.3Sn/0. 0.25 S.N.A

...3 CN3013_NSI 3701-001388 CONNECTOR-HDMI;20P,Phosphor Bronze,ANGLE 1 S.A

...3 CN3018 3701-001510 CONNECTOR-DSUB;15P,3R,FEMAIL,STAMPED PIN 1 S.A

...3 CN906 3707-001081 CONNECTOR-OPTICAL;STRAIGHT,SPDIF 1 S.A

...3 CN330 3711-000754 HEADER-BOARD TO CABLE;BOX,20P,2R,2.54mm, 1 S.N.A

...3 CN330 3711-003848 HEADER-BOARD TO CABLE;BOX,11P,1R,2mm,ANG 1 S.A

...3 CN330 3711-004379 HEADER-BOARD TO CABLE;BOX,4P,1R,2mm,STRA 1 S.A

...3 CN330 3711-004484 HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA 1 S.A

...3 CN1001 3711-005884 HEADER-BOARD TO BOARD;BOX,30P,2R,2mm,ANG 1 S.A

...3 JA330 3722-001055 JACK-PHONE;5P/2C,AG,BLK,ANGLE 1 S.A

...3 JA332 3722-001734 JACK-VHS;4P,SN,BLK,STRAIGHT 1 S.A

...3 CN9002_NSI 3722-002546 JACK-USB;4P/1C,AU,BLK,ANGLE,A type 1 S.N.A

...3 JA333 3722-002728 JACK-PIN;3P, SHIELD,Ni,RED/WHT/YEL,ANGLE 1 S.A

...3 JA333 3722-002751 JACK-PIN;2P+Shield,Ni,WHT/RED,STRAIGHT 1 S.A

...3 JA333 3722-002751 JACK-PIN;2P+Shield,Ni,WHT/RED,STRAIGHT 1 S.A

...3 JA333 3722-002751 JACK-PIN;2P+Shield,Ni,WHT/RED,STRAIGHT 1 S.A

...3 JA333 3722-002751 JACK-PIN;2P+Shield,Ni,WHT/RED,STRAIGHT 1 S.A

...3 JA333 3722-002754 JACK-PIN;3P+Shield,Ni,GRN/BLU/RED,STRAIG 1 S.A

...3 JA333 3722-002754 JACK-PIN;3P+Shield,Ni,GRN/BLU/RED,STRAIG 1 S.A

...3 JA9001 3722-002757 JACK-MODULAR;8P/8C,N,STRAIGHT,GRN/YEL,AU 1 S.A

...3 JA330 3722-002758 JACK-PHONE;1P,BLK,STRAIGHT 1 S.A

...3 JA330 3722-002758 JACK-PHONE;1P,BLK,STRAIGHT 1 S.A

...3 T0510 BN97-02712A ASSY SMD-MAIN;LA46A850S1FXXZ,N59C 1 S.N.A

....4 SUB05 0202-001477 SOLDER-CREAM;LST309-M,-,D20~45um,96.5Sn/ 4.53 S.N.A

....4 D1004 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3005 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3006 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3007 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3011 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3023 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3024 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3026 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3032 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3044 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3050 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3051 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3052 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

5-49

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 D3057_4HDM 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3058_4HDM 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3060 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3061 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3201_NSID 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3202_NSID 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D4004_CEC 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D5004 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D5005 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D5006 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D5010 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D5011 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D5012 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D5013 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D9003 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D9004 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D9005 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D9006 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1008 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.N.A

....4 D1213 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.N.A

....4 D2001 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.N.A

....4 D2002 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.N.A

....4 D2003 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.N.A

....4 D3002 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.N.A

....4 D3003 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.N.A

....4 D3004 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.N.A

....4 D3012 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.N.A

....4 D3071 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.N.A

....4 D3072 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.N.A

....4 D3073 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.N.A

....4 D0254 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 1 S.A

....4 D0254 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 1 S.A

....4 D0254 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 1 S.A

....4 D0254 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 1 S.A

....4 D0254 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 1 S.A

....4 D0254 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 1 S.A

....4 D2004 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A

....4 D3001 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A

....4 D3010 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A

....4 D3022 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A

....4 D3033_NSID 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A

....4 D3039_NSID 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A

....4 D3046 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A

....4 D3047 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A

....4 D3048 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A

....4 D3049 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A

....4 D3053 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A

....4 D3054 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A

....4 D4007 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A

....4 D5009 0403-000258 DIODE-ZENER;BZX84C5V6,5.2-6V,225mW,SOT-2 1 S.A

....4 D4010 0403-000584 DIODE-ZENER;VLZ3V6B,3.6/3.845V,500mW,SOD 1 S.N.A

5-50

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 D3043 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D3055_4HDM 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D3056 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D3059 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D3066_NSID 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D3067 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D3068 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D3069_4HDM 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D3100 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D3101 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D3102 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D3103 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D9002 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D5014 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A

....4 D1005 0403-001425 DIODE-ZENER;BZX84C33,31-35V,350mW,SOT-23 1 S.A

....4 D0254 0404-001271 DIODE-SCHOTTKY;SSA34,40V,3000mA,SMA,TP 1 S.A

....4 D9001 0406-001217 DIODE-TVS;NUP4301MR6,6/-/-V,500W,TSOP-6 1 S.A

....4 IC3011 0406-001299 DIODE-TVS;CM1224-04MR,MSOP-10 1 S.A

....4 IC3012 0406-001299 DIODE-TVS;CM1224-04MR,MSOP-10 1 S.A

....4 IC3013 0406-001299 DIODE-TVS;CM1224-04MR,MSOP-10 1 S.A

....4 IC3014 0406-001299 DIODE-TVS;CM1224-04MR,MSOP-10 1 S.A

....4 IC3015 0406-001299 DIODE-TVS;CM1224-04MR,MSOP-10 1 S.A

....4 IC3016 0406-001299 DIODE-TVS;CM1224-04MR,MSOP-10 1 S.A

....4 IC3017_4HD 0406-001299 DIODE-TVS;CM1224-04MR,MSOP-10 1 S.A

....4 IC3018_4HD 0406-001299 DIODE-TVS;CM1224-04MR,MSOP-10 1 S.A

....4 D2005 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.N.A

....4 D2007 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.N.A

....4 D2010 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.N.A

....4 D4003 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.N.A

....4 D4005 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.N.A

....4 D4006 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.N.A

....4 D4008 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.N.A

....4 D4009 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.N.A

....4 Q1401 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q3002 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q3003 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q5111 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q9001 0501-000434 TR-SMALL SIGNAL;KTC3875S-GR,NPN,150mW,SO 1 S.A

....4 Q9002 0501-000434 TR-SMALL SIGNAL;KTC3875S-GR,NPN,150mW,SO 1 S.A

....4 Q1003 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q1005 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q2002 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q3001 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q3013 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q3016_4HDM 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q3017 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q3018 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q4002 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q4003 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q4004 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q5006 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

5-51

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 Q5007 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q5008 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q6001 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q2001 0501-000669 TR-SMALL SIGNAL;KTA1505Y,PNP,150mW,SOT-2 1 S.A

....4 Q2003 0501-000669 TR-SMALL SIGNAL;KTA1505Y,PNP,150mW,SOT-2 1 S.A

....4 Q1002 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A

....4 Q1007 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A

....4 Q1008 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A

....4 Q1009 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A

....4 Q3014_NSID 0501-002184 TR-SMALL SIGNAL;KTD1304,NPN,200mW,SOT-23 1 S.N.A

....4 Q3015_NSID 0501-002184 TR-SMALL SIGNAL;KTD1304,NPN,200mW,SOT-23 1 S.N.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-001165 FET-SILICON;SI3443BDV,P,-20V,+-4.4A,65mo 1 S.A

....4 Q409 0505-001957 FET-SILICON;NTR2101P,P,-8V,-3.7A,0.052oh 1 S.A

....4 L0405 0601-001313 LED;SMD,GRN,2X1.8MM,565NM,3.16X1.6X1.1MM 1 S.A

....4 L0405 0601-001915 LED;SMD,RED,1.6x0.8x0.6mm,660nm,1.6x0.8x 1 S.A

....4 IC104 0801-002237 IC-CMOS LOGIC;74V(A)HC1G04,INVERTER,SC-7 1 S.A

....4 IC104 0801-002237 IC-CMOS LOGIC;74V(A)HC1G04,INVERTER,SC-7 1 S.A

....4 IC104 0801-002633 IC-CMOS LOGIC;7WBD3125,2bit BUS SWITCH,S 1 S.A

....4 IC520 0903-001552 IC-MICROCONTROLLER;WT61P8-RG480WT,LQFP,4 1 S.A

....4 IC1101 0904-001838 IC-BUS SWITCH;PCA9546APW,TSSOP,16P,5.1x4 1 S.A

....4 T0596 0904-002329 IC-USC;USB2514,QFN,36P,6.55x6.55mm,58.6K 1 S.A

....4 IC5001 1001-000164 IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16 1 S.A

....4 IC106 1001-001440 IC-VIDEO SWITCH;SiI9185CTU,QFP,80P,3.3V, 1 S.A

....4 IC106 1001-001513 IC-VIDEO SWITCH;TMDS351PAG,TQFP,64P,9x9m 1 S.A

....4 IC2002 1002-001509 IC-A/D&D/A CONVERTER;MT8291,24bit,LQFP,4 1 S.A

....4 IC110 1006-001076 IC-DRIVER/RECEIVER;MAX232ECWE+T,SOP,16P, 1 S.A

....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A

....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A

....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A

....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A

....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A

....4 IC112 1103-001385 IC-EEPROM;AT24C256,256Kbit,32Kx8,SOP,8P, 1 S.A

....4 IC112 1103-001410 IC-EEPROM;S-24CS08AFJ-TB-1GE,8Kbit,1Kx8, 1 S.A

....4 IC113 1105-001712 IC-DRAM;HYB25D256163CE,DDR,256Mbit,16Mx1 1 S.A

....4 IC113 1105-001712 IC-DRAM;HYB25D256163CE,DDR,256Mbit,16Mx1 1 S.A

....4 IC113 1105-001823 IC-DRAM;HYB25DC512160,DDR,512Mbit,32Mx16 1 S.N.A

....4 IC113 1105-001823 IC-DRAM;HYB25DC512160,DDR,512Mbit,32Mx16 1 S.N.A

....4 IC4002 1105-001862 IC-DDR2 SDRAM;K4T56163QI-ZCF7,DDR2 SDRAM 1 S.A

....4 IC4003 1105-001862 IC-DDR2 SDRAM;K4T56163QI-ZCF7,DDR2 SDRAM 1 S.A

....4 IC115 1107-001415 IC-FLASH MEMORY;29W320D,4Mx8/2Mx16Bit,TS 1 S.N.A

....4 IC7013 1107-001740 IC-NAND FLASH;KFH8GH6U4M-DIB6,8Gbit,512M 1 S.A

....4 DU410 1201-000166 IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10 1 S.A

....4 T0124 1201-002677 IC-POWER AMP;NTP3100,QFN56,56P,8x8mm,DUA 1 S.A

5-52

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 T0087 1203-001815 IC-POSI.FIXED REG.;78M09,TO-252,3P,-,PLA 1 S.A

....4 T0087 1203-001815 IC-POSI.FIXED REG.;78M09,TO-252,3P,-,PLA 1 S.A

....4 T0087 1203-002842 IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P 1 S.A

....4 IC012 1203-002995 IC-POSI.ADJUST REG.;AP1117D-A,TO-252,3P, 1 S.A

....4 IC012 1203-002995 IC-POSI.ADJUST REG.;AP1117D-A,TO-252,3P, 1 S.A

....4 IC012 1203-002995 IC-POSI.ADJUST REG.;AP1117D-A,TO-252,3P, 1 S.A

....4 IC012 1203-003038 IC-POSI.ADJUST REG.;LP2995,SO,8P,4.9x3.9 1 S.N.A

....4 IC012 1203-003038 IC-POSI.ADJUST REG.;LP2995,SO,8P,4.9x3.9 1 S.N.A

....4 IC062 1203-003183 IC-MULTI REG.;SI-3002KWM-TL,DPAK,5P,6.6X 1 S.A

....4 T0087 1203-003696 IC-POSI.FIXED REG.;NCP1117DT18T5G,DPAK,3 1 S.A

....4 IC4004 1203-004363 IC-VOL. DETECTOR;RT9818C-29PV,SOT-23,3P, 1 S.A

....4 IC2004 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, 1 S.A

....4 T0170 1203-004868 IC-SWITCH VOL. REG.;MP2363,SOIC,8P,4.9x3 1 S.A

....4 T0170 1203-004868 IC-SWITCH VOL. REG.;MP2363,SOIC,8P,4.9x3 1 S.A

....4 T0170 1203-004868 IC-SWITCH VOL. REG.;MP2363,SOIC,8P,4.9x3 1 S.A

....4 T0170 1203-004868 IC-SWITCH VOL. REG.;MP2363,SOIC,8P,4.9x3 1 S.A

....4 IC118 1204-002779 IC-VIDEO PROCESS;S4LF122X01,PBGA,208P,17 1 S.A

....4 IC118 1204-002869 IC-VIDEO PROCESS;MT8226FJ,BGA,569P,31x31 1 S.A

....4 IC7001 1204-002888 IC-DECODER;SAM7103,FPBGA,716P,27x27mm,PL 1 S.A

....4 IC3019 1205-003201 IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2x2.3mm 1 S.A

....4 IC4011 1205-003201 IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2x2.3mm 1 S.A

....4 IC9001 1205-003444 IC-ETHERNET CONTROLLER;LAN8700-AEZG,QFN, 1 S.A

....4 P803T 1404-001223 THERMISTOR-PTC;45mohm,20,6V,-,40A,4A,TP 1 S.A

....4 IC3007 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A

....4 IC3009_4HD 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A

....4 IC3010 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A

....4 IC4008 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A

....4 R1252 2007-000060 R-CHIP;100Kohm,1%,1/10W,TP,1608 1 S.N.A

....4 R1253 2007-000060 R-CHIP;100Kohm,1%,1/10W,TP,1608 1 S.N.A

....4 R1035 2007-000067 R-CHIP;15Kohm,1%,1/10W,TP,1608 1 S.N.A

....4 R1041 2007-000067 R-CHIP;15Kohm,1%,1/10W,TP,1608 1 S.N.A

....4 R1121 2007-000067 R-CHIP;15Kohm,1%,1/10W,TP,1608 1 S.N.A

....4 R1819 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.N.A

....4 R1820 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.N.A

....4 R5114 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.N.A

....4 R5115 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.N.A

....4 R6051_100P 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.N.A

....4 R6052_100P 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.N.A

....4 R3089 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R3090 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1251 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 S.N.A

....4 R1254 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 S.N.A

....4 R1858 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608 1 S.N.A

....4 R6025 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 S.N.A

....4 R7346 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 S.N.A

....4 R1255 2007-000133 R-CHIP;330Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1005 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1161 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2013 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2014 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2015 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

5-53

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R2041 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2042 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2043 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2044 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3045 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3085 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3086 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3117 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3121_NSID 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3122_NSID 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3127_NSID 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3172 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3176 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3179 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3181 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3546_FAN 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3547_FAN 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3612 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4018 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4019 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4066 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4082 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4083 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4089 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4090 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4095 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4100 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4101 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4103 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4104 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4113 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4114 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4115 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4132 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4133 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4134 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4135 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4136 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4137 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4150 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4151 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4207 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4208 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5073 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5074 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5520 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6013 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6014 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6016 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6017 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6018 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

5-54

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R6019 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6020 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6021 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6031 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6038 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6039 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6043 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6044 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6045 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6046 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7021 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7022 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7023 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7024 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7025 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7026 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7027 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7028 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7037 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7049 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7054 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7055 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7056 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7057 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7058 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7059 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7060 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7061 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7066 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7069 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7321 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7415 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7416 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7417 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7418 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7419 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7420 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7428_T 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7429_T 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9003 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9004 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9005 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9006 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9014 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9017 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9019 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9020 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1421 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1825 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1826 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1827 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

5-55

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R1828 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1830 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2038 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2039 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2057 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3041 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3042 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3050 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3051 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3052 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3053 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3099 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3100 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3111 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3118_NSID 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3119_NSID 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3120_NSID 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3128_NSID 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3131 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3168_4HDM 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3184 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3191 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3194_4HDM 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3224 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3225 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3226 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3227 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3228 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3310 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5007 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6033 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6037 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7336 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7357 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1010 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5027 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6035 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1012 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1032 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1162 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1163 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1164 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1165 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1166 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1167 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1168 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1169 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1170 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1171 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1422 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1569 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

5-56

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R1605 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1726 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2058 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2060 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2061 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2062 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2063 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2064 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3114 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3182_4HDM 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3190 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3198 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3401 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3402 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3620 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3621 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3623 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3642 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3656 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3657 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3659 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4084 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4091 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4092 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4093 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4108 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4149_DE 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4157 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4158 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4159 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4160 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4161 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4162 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4164 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4167 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4169 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4170 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4170_FRCM 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4171 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4173_FRCM 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4178 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4182 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4183 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4193 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4194 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4200 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4211 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4212 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5017 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5018 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5054 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

5-57

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R5055 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5058 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5059 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5060 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5061 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5066 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5069 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5106 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5107 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5116 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6001 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6005 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6008_FHD 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6009 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6012 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6027 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6036 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7283 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7284 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7296 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7302 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7303 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7304 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7305 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7306 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7307 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7308 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7309 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7310 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7311 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7312 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7314 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7315 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7316 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7340 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7341 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7342 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7387 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7404 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7828 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9026 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9061 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9067 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9068 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1050 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1710 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1810 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1812 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1813 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1824 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2049 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

5-58

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R2066 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2067 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3134 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3139 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3140 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3174 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3183 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3185 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3186 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3197_4HDM 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3199_4HDM 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3200_4HDM 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3212 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3213 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3214 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3218 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3221 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3230 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3611_46OP 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4088 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4098 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4107 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4142_IR 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4155 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4156 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4163 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4168 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4172_NALM 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4191_FAN 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4192_FAN 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4201 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4203 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4206 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4209 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4210 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5062 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5063 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5067 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5068 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6015 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7042 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7070 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7116 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7117 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7118 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7256 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7319 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7338 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7349 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7350 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7356 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

5-59

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R7362 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7367 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7371 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7372 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7378 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7752 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9001 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9011 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9021 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9024 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9025 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9057 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9060 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9062 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9063 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9064 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9065 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9569 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9570 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1027 2007-000153 R-CHIP;22Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4072_CEC 2007-000155 R-CHIP;27Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3039 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3040 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3048 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3049 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3072 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3080 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3101_NSID 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3102_NSID 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3103_NSID 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3104_NSID 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3211 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3215 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3219 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3229 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3616 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3617 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4177 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4174_CEC 2007-000159 R-CHIP;56Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1021 2007-000162 R-CHIP;100Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9033 2007-000162 R-CHIP;100Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9571 2007-000162 R-CHIP;100Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9572 2007-000162 R-CHIP;100Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9573 2007-000162 R-CHIP;100Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9574 2007-000162 R-CHIP;100Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9575 2007-000162 R-CHIP;100Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4086 2007-000170 R-CHIP;1Mohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9008 2007-000170 R-CHIP;1Mohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9073 2007-000170 R-CHIP;1Mohm,5%,1/16W,TP,1005 1 S.N.A

....4 L850 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 L950 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

5-60

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R1040 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1565 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1706 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1802_TEST 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2065 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2084_4SPK 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2085_4SPK 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2086 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3032 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3043 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3046 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3065 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3109 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3123_NSID 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3125_NSID 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3167_4HDM 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3187 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3192 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3193 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3220 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3332_NSID 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3333_SIDE 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3403 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3404 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3405 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3423 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3601 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3602 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3603 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3604 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3605 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3606 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3607 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3608 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3609 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3610 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3613 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3614 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3618 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3619 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3626 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3627 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3628 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3629 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3638_46OP 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3639_46OP 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3640 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3643 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3650 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3660_46OP 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3661_46OP 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

5-61

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R4020_T 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4021_T 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4022_T 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4059 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4063 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4064 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4067 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4099 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4105 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4106 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4109 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4110 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4111 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4112 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4116 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4118 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4121 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4140 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4143 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4144 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4176 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4179 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4180 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4181 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4205 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4290 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5014 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5020 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5024 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5056_TEST 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5057_TEST 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5118 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6022_T 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6023_T 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6024_T 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6026_T 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6030 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6042 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6047_100H 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6050_100H 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6053_100H 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6054_100H 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6056_FJDA 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6068_T 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6069_T 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6070_T 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6073_100H 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6074_100H 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6078_FBE3 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6083_100H 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6084_100H 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

5-62

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R6133 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6204 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6205 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6206 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6207 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7029 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7031_T 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7043_T 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7044 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7096 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7097 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7114 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7115 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7243 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7244 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7247 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7249 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7250 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7251 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7282 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7313 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7339 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7343 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7344 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7345 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7347 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7389 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7390 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7392 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7401 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7406 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7407 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7410 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7411 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7412 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7421 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7422 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7423 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7424 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7425 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7426 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7427 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7430 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7431 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7432 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7436 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9010 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9012 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9013 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9015 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9018 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

5-63

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R9034 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9035 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9036 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9037 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9038 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9056 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9070 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9071 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9170 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9171 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9172 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9173 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9568 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1606 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3301 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3302 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3303 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3304 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3305 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3306 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3307 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3308 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3630 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3631 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3632 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3633 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3634 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3635 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3636 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3637 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4117 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5038 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5039 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9007 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9022 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9023 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9028 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9045 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3169 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3173 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4011 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4012 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4013 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4014 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6028 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7084 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7085 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7086 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7087 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7088 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7089 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

5-64

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R7091 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7092 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7093 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7094 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7095 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7099 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7102 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7103 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7104 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7105 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7106 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7107 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7108 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7109 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7110 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7111 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7112 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7113 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1807 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1808 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1811 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2087 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2088 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3025 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3091 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3115 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3116 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3141 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3142 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3175 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3177 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3178 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3180 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3188 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3189 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3201_4HDM 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3202_4HDM 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3216 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3217 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3222 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3223 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4055_T 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4056_T 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4057_T 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4165 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4166 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4198 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4199 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7266 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7267 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7268 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

5-65

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R7269 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7271 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7272 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7327 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7328 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7329 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7330 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7331 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7332 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7334 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7348 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7351 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7352 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7353 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7354 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7355 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7361 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7363 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7364 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7365 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7366 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7370 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7374 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7375 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7376 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7377 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7379 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7380 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7381 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7382 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7383 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7384 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7385 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7386 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7388 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7391 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7393 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7394 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7395 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7396 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7397 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7398 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7399 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7400 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7402 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7403 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7405 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2047 2007-000287 R-CHIP;100ohm,1%,1/10W,TP,1608 1 S.N.A

....4 R3132 2007-000312 R-CHIP;10ohm,5%,1/4W,TP,3216 1 S.N.A

....4 R3133 2007-000312 R-CHIP;10ohm,5%,1/4W,TP,3216 1 S.N.A

....4 R3195_4HDM 2007-000312 R-CHIP;10ohm,5%,1/4W,TP,3216 1 S.N.A

5-66

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R3196_4HDM 2007-000312 R-CHIP;10ohm,5%,1/4W,TP,3216 1 S.N.A

....4 R3299 2007-000312 R-CHIP;10ohm,5%,1/4W,TP,3216 1 S.N.A

....4 R3300 2007-000312 R-CHIP;10ohm,5%,1/4W,TP,3216 1 S.N.A

....4 R3311 2007-000312 R-CHIP;10ohm,5%,1/4W,TP,3216 1 S.N.A

....4 R3312 2007-000312 R-CHIP;10ohm,5%,1/4W,TP,3216 1 S.N.A

....4 R4015_T 2007-000372 R-CHIP;130ohm,5%,1/10W,TP,1608 1 S.A

....4 R4016_T 2007-000372 R-CHIP;130ohm,5%,1/10W,TP,1608 1 S.A

....4 R4017_T 2007-000372 R-CHIP;130ohm,5%,1/10W,TP,1608 1 S.A

....4 R2050 2007-000414 R-CHIP;15ohm,1%,1/10W,TP,1608 1 S.A

....4 R1037 2007-000516 R-CHIP;2.7Kohm,1%,1/10W,TP,1608 1 S.A

....4 R1108 2007-000516 R-CHIP;2.7Kohm,1%,1/10W,TP,1608 1 S.A

....4 R1114 2007-000583 R-CHIP;22Kohm,1%,1/10W,TP,1608 1 S.A

....4 R1031 2007-000591 R-CHIP;22ohm,1%,1/10W,TP,1608 1 S.A

....4 R1029 2007-000606 R-CHIP;240ohm,1%,1/10W,TP,1608 1 S.A

....4 R1038 2007-000683 R-CHIP;3.3Kohm,1%,1/10W,TP,1608 1 S.A

....4 R3151_CEC 2007-000691 R-CHIP;3.3Mohm,5%,1/10W,TP,1608 1 S.A

....4 R5028 2007-000758 R-CHIP;330Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5102 2007-000763 R-CHIP;330ohm,1%,1/10W,TP,1608 1 S.N.A

....4 R2017 2007-000775 R-CHIP;33Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2018 2007-000775 R-CHIP;33Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2019 2007-000775 R-CHIP;33Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2020 2007-000775 R-CHIP;33Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2021 2007-000775 R-CHIP;33Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2022 2007-000775 R-CHIP;33Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2023 2007-000775 R-CHIP;33Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2024 2007-000775 R-CHIP;33Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2025 2007-000775 R-CHIP;33Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2026 2007-000775 R-CHIP;33Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2027 2007-000775 R-CHIP;33Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2028 2007-000775 R-CHIP;33Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1120 2007-000828 R-CHIP;39Kohm,1%,1/10W,TP,1608 1 S.A

....4 R6034 2007-000842 R-CHIP;3Kohm,1%,1/10W,TP,1608 1 S.A

....4 R1084_TEST 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1305 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2001 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2016 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6029 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9054 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9055 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1601 2007-000982 R-CHIP;5.6Kohm,5%,1/16W,TP,1005 1 S.A

....4 R2053 2007-000987 R-CHIP;5.6ohm,5%,1/10W,TP,1608 1 S.A

....4 R2054 2007-000987 R-CHIP;5.6ohm,5%,1/10W,TP,1608 1 S.A

....4 R2055 2007-000987 R-CHIP;5.6ohm,5%,1/10W,TP,1608 1 S.A

....4 R2056 2007-000987 R-CHIP;5.6ohm,5%,1/10W,TP,1608 1 S.A

....4 R1028 2007-000999 R-CHIP;510ohm,1%,1/10W,TP,1608 1 S.A

....4 R1302_NACH 2007-000999 R-CHIP;510ohm,1%,1/10W,TP,1608 1 S.A

....4 R3170 2007-000999 R-CHIP;510ohm,1%,1/10W,TP,1608 1 S.A

....4 R3171 2007-000999 R-CHIP;510ohm,1%,1/10W,TP,1608 1 S.A

....4 R7409 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 S.A

....4 R9069 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 S.A

....4 R9074 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 S.A

5-67

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R1110 2007-001068 R-CHIP;6.8Kohm,1%,1/10W,TP,1608 1 S.A

....4 R3110 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.N.A

....4 R3113 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.N.A

....4 R3105_NSID 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R3164 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R3165 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R3166 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R1113 2007-001175 R-CHIP;8.2Kohm,1%,1/10W,TP,1608 1 S.A

....4 R2007 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2008 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2009 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2010 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2011_NPX 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2012 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2040 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2045 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4010 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4065 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4068 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4069 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4070 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4071 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4094 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4096 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4097 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4102 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4138 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4139 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4141 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5015 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5016 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7030 2007-001305 R-CHIP;120ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7045 2007-001305 R-CHIP;120ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7067 2007-001305 R-CHIP;120ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7071 2007-001305 R-CHIP;120ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1809 2007-001307 R-CHIP;180ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7368 2007-001308 R-CHIP;200ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7369 2007-001308 R-CHIP;200ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1015 2007-001313 R-CHIP;330ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1803_TEST 2007-001313 R-CHIP;330ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4081 2007-001313 R-CHIP;330ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4085 2007-001313 R-CHIP;330ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9030 2007-001313 R-CHIP;330ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9072 2007-001313 R-CHIP;330ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2031 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2048 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2059 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6032 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7333 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7335 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7358 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 1 S.N.A

5-68

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R7408 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1131 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 S.N.A

....4 R1134_NACH 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 S.N.A

....4 R1135_FAN 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 S.N.A

....4 R1136 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 S.N.A

....4 R1137 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 S.N.A

....4 R1138 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 S.N.A

....4 R5104 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 S.N.A

....4 R1256 2007-007107 R-CHIP;100Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R5031 2007-007107 R-CHIP;100Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R1602 2007-007136 R-CHIP;4.7Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R1603 2007-007136 R-CHIP;4.7Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R1604 2007-007136 R-CHIP;4.7Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R2068 2007-007136 R-CHIP;4.7Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R4080 2007-007142 R-CHIP;10Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R7123 2007-007226 R-CHIP;49.9ohm,1%,1/10W,TP,1608 1 S.A

....4 R9027 2007-007309 R-CHIP;12Kohm,1%,1/16W,TP,1005 1 S.A

....4 R1051 2007-007312 R-CHIP;20Kohm,1%,1/16W,TP,1005 1 S.A

....4 R1816 2007-007312 R-CHIP;20Kohm,1%,1/16W,TP,1005 1 S.A

....4 R1817 2007-007312 R-CHIP;20Kohm,1%,1/16W,TP,1005 1 S.A

....4 R9032 2007-007316 R-CHIP;3.3Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R1046 2007-007318 R-CHIP;1Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R1818 2007-007318 R-CHIP;1Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R2046 2007-007318 R-CHIP;1Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R4119 2007-007318 R-CHIP;1Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R4120 2007-007318 R-CHIP;1Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R5117 2007-007318 R-CHIP;1Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R1821_8G52 2007-007455 R-CHIP;24.9Kohm,1%,1/10W,TP,1608 1 S.A

....4 R1030 2007-007469 R-CHIP;110ohm,1%,1/16W,TP,1005 1 S.N.A

....4 R5103 2007-007469 R-CHIP;110ohm,1%,1/16W,TP,1005 1 S.N.A

....4 R1033 2007-007470 R-CHIP;7.5Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R7413 2007-007470 R-CHIP;7.5Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R7414 2007-007470 R-CHIP;7.5Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R9031 2007-007528 R-CHIP;1.5Kohm,1%,1/16W,TP,1005 1 S.A

....4 R3615 2007-007587 R-CHIP;3.6Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R1048 2007-007698 R-CHIP;5.1Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R4087 2007-007698 R-CHIP;5.1Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R1115 2007-007723 R-CHIP;75Kohm,1%,1/10W,TP,1608 1 S.A

....4 R9029 2007-007791 R-CHIP;9.1Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R1815 2007-007886 R-CHIP;649ohm,1%,1/10W,TP,1608 1 S.A

....4 R3033 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 1 S.N.A

....4 R3034 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 1 S.N.A

....4 R3035 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 1 S.N.A

....4 R3044 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 1 S.N.A

....4 R3066 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 1 S.N.A

....4 R3067 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 1 S.N.A

....4 R3068 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 1 S.N.A

....4 R5029 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 1 S.N.A

....4 R9048 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 1 S.N.A

....4 R9049 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 1 S.N.A

....4 R9052 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 1 S.N.A

5-69

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R9053 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 1 S.N.A

....4 R4146 2007-008298 R-CHIP;49.9ohm,1%,1/16W,TP,1005 1 S.A

....4 R9039 2007-008298 R-CHIP;49.9ohm,1%,1/16W,TP,1005 1 S.A

....4 R9040 2007-008298 R-CHIP;49.9ohm,1%,1/16W,TP,1005 1 S.A

....4 R9041 2007-008298 R-CHIP;49.9ohm,1%,1/16W,TP,1005 1 S.A

....4 R9042 2007-008298 R-CHIP;49.9ohm,1%,1/16W,TP,1005 1 S.A

....4 R3625 2007-008429 R-CHIP;499ohm,1%,1/16W,TP,1005 1 S.N.A

....4 R2051 2007-008649 R-CHIP;220ohm,1%,1/16W,TP,1005 1 S.N.A

....4 RA7002 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7003 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7004 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7005 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7006 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7007 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7008 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7009 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7072 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7073 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7074 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7075 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7076 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7077 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7078 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7079 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7080 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7081 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7082 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7083 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7098 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7099 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7100 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 RA7101 2011-000002 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.A

....4 R1801 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

....4 R1822 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

....4 R1823 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

....4 RA4074 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

....4 RA4075 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

....4 RA4076 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

....4 RA4077 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

....4 RA4078 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

....4 RA4079 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

....4 RA7257 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

....4 RA7258 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

....4 RA7259 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

....4 RA7260 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

....4 RA7261 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

....4 RA7262 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

....4 RA7263 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

....4 RA7264 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

....4 RA7265 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

....4 RA3001 2011-000651 R-NETWORK;10ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.N.A

5-70

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 RA3002 2011-000651 R-NETWORK;10ohm,5%,1/16W,L,CHIP,8P,TP,32 1 S.N.A

....4 RA7119 2011-000881 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

....4 RA7120 2011-000881 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

....4 RA7121 2011-000881 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.N.A

....4 R1701 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 R1702 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 R1703 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 R1704 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 R1705 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 R1707 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 R1708 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 RA3003_NSI 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 RA3004_NSI 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 RA3005_NSI 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 RA3006 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 RA3007 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 RA3008 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 RA3009 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 RA4001 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 RA4002 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 RA4003 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 RA4004 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 RA4005 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 RA6001 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 RA6058 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 RA6059 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 RA6060 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 RA6061 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 RA6062 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 RA6063 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 RA4143 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA4144 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA4145 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA4146 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA4147 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA4148 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA4153 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7001 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7013 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7014 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7015 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7016 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7017 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7018 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7019 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7020 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7032 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7033 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7034 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7035 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7036 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

5-71

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 RA7046 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7047 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7048 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7049 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7050 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7051 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7052 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7053 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7062 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7063 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7064 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7065 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 C1088 2203-000125 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,- 1 S.A

....4 C1098 2203-000125 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,- 1 S.A

....4 C1082 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.N.A

....4 C1089 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.N.A

....4 C1091 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.N.A

....4 C1097 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.N.A

....4 C4151 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.N.A

....4 C2052 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,1005 1 S.A

....4 C3010 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,1005 1 S.A

....4 C3011 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,1005 1 S.A

....4 C3013 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,1005 1 S.A

....4 C3014 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,1005 1 S.A

....4 C3028 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,1005 1 S.A

....4 C3029 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,1005 1 S.A

....4 C3073 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,1005 1 S.A

....4 C7232 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,1005 1 S.A

....4 C7234 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,1005 1 S.A

....4 C1035 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 S.A

....4 C1036 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 S.A

....4 C1081 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 S.A

....4 C1083 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 S.A

....4 C5114 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 S.A

....4 C5115 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 S.A

....4 C1819 2203-000332 C-CER,CHIP;0.012nF,5%,50V,C0G,1608 1 S.A

....4 C1820 2203-000332 C-CER,CHIP;0.012nF,5%,50V,C0G,1608 1 S.A

....4 C4112 2203-000332 C-CER,CHIP;0.012nF,5%,50V,C0G,1608 1 S.A

....4 C4113 2203-000332 C-CER,CHIP;0.012nF,5%,50V,C0G,1608 1 S.A

....4 C3007 2203-000386 C-CER,CHIP;0.015nF,5%,50V,C0G,1005 1 S.A

....4 C3008 2203-000386 C-CER,CHIP;0.015nF,5%,50V,C0G,1005 1 S.A

....4 C3009 2203-000386 C-CER,CHIP;0.015nF,5%,50V,C0G,1005 1 S.A

....4 C3022 2203-000386 C-CER,CHIP;0.015nF,5%,50V,C0G,1005 1 S.A

....4 C3023 2203-000386 C-CER,CHIP;0.015nF,5%,50V,C0G,1005 1 S.A

....4 C3024 2203-000386 C-CER,CHIP;0.015nF,5%,50V,C0G,1005 1 S.A

....4 C1084 2203-000405 C-CER,CHIP;0.18nF,5%,50V,C0G,1608 1 S.N.A

....4 C1092 2203-000405 C-CER,CHIP;0.18nF,5%,50V,C0G,1608 1 S.N.A

....4 C1154 2203-000405 C-CER,CHIP;0.18nF,5%,50V,C0G,1608 1 S.N.A

....4 C1157 2203-000405 C-CER,CHIP;0.18nF,5%,50V,C0G,1608 1 S.N.A

....4 C4055_T 2203-000425 C-CER,CHIP;0.018nF,5%,50V,C0G,1005 1 S.A

....4 C1512 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

5-72

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 C1816 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C2053 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C2069 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C2070 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C2071 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C2072 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C2073 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C3043_NSID 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C3047_NSID 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C3305_FAN 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C3306_FAN 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C4045 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C4046 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C4051 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C4052 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C4077 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C4078 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C4116 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C5117 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C6017 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C6018 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C1021 2203-000489 C-CER,CHIP;2.2nF,10%,50V,X7R,1005 1 S.A

....4 C4103 2203-000550 C-CER,CHIP;0.02nF,5%,50V,C0G,1005 1 S.N.A

....4 C4107 2203-000550 C-CER,CHIP;0.02nF,5%,50V,C0G,1005 1 S.N.A

....4 C7246 2203-000550 C-CER,CHIP;0.02nF,5%,50V,C0G,1005 1 S.N.A

....4 C7253 2203-000550 C-CER,CHIP;0.02nF,5%,50V,C0G,1005 1 S.N.A

....4 C9010 2203-000550 C-CER,CHIP;0.02nF,5%,50V,C0G,1005 1 S.N.A

....4 C9013 2203-000550 C-CER,CHIP;0.02nF,5%,50V,C0G,1005 1 S.N.A

....4 C4100 2203-000627 C-CER,CHIP;0.022nF,5%,50V,C0G,1005 1 S.N.A

....4 C1085 2203-000714 C-CER,CHIP;3.3nF,10%,50V,X7R,TP,1005,- 1 S.A

....4 C3100_NSID 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C9008 2203-000815 C-CER,CHIP;0.033nF,5%,50V,C0G,1608 1 S.A

....4 C9108 2203-000815 C-CER,CHIP;0.033nF,5%,50V,C0G,1608 1 S.A

....4 C1162 2203-000925 C-CER,CHIP;470nF,+80-20%,50V,Y5V,2012 1 S.A

....4 C1201 2203-000925 C-CER,CHIP;470nF,+80-20%,50V,Y5V,2012 1 S.A

....4 C1203 2203-000925 C-CER,CHIP;470nF,+80-20%,50V,Y5V,2012 1 S.A

....4 C2074 2203-000925 C-CER,CHIP;470nF,+80-20%,50V,Y5V,2012 1 S.A

....4 C2075 2203-000925 C-CER,CHIP;470nF,+80-20%,50V,Y5V,2012 1 S.A

....4 C1101 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,- 1 S.N.A

....4 C3012 2203-000995 C-CER,CHIP;0.047nF,5%,50V,C0G,1005 1 S.A

....4 C3049_NSID 2203-000995 C-CER,CHIP;0.047nF,5%,50V,C0G,1005 1 S.A

....4 C4099 2203-000995 C-CER,CHIP;0.047nF,5%,50V,C0G,1005 1 S.A

....4 C4101 2203-000995 C-CER,CHIP;0.047nF,5%,50V,C0G,1005 1 S.A

....4 C5002 2203-000995 C-CER,CHIP;0.047nF,5%,50V,C0G,1005 1 S.A

....4 C6041 2203-000998 C-CER,CHIP;0.047nF,5%,50V,C0G,1608 1 S.N.A

....4 C6042 2203-000998 C-CER,CHIP;0.047nF,5%,50V,C0G,1608 1 S.N.A

....4 C4059_T 2203-001153 C-CER,CHIP;0.068nF,5%,50V,NP0,1005 1 S.A

....4 C4060_T 2203-001153 C-CER,CHIP;0.068nF,5%,50V,NP0,1005 1 S.A

....4 C4061_T 2203-001153 C-CER,CHIP;0.068nF,5%,50V,NP0,1005 1 S.A

....4 C4202 2203-001153 C-CER,CHIP;0.068nF,5%,50V,NP0,1005 1 S.A

....4 C1003_NACH 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

5-73

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 C1004 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C1009 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C1015 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C1018 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C1069 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C1070 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C1145 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C1147 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C1202 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C3001 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C3002 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C3003 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C3005 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C3006 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C3037 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C3038 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C3039 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C3041 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C3042 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4030 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4031 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4039 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4040 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4041 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4042 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4043 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4044 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4047 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4048 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4049 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4050 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4053 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4054 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4058 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4062 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4067 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4069 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4071 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4073 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4074 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4075 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4088 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4090 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4092 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4093 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4095 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4096 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4097 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4098 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4114 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4133 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

5-74

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 C4134 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4135 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4142 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4143 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4144 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4145 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4146 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4147 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C5003 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C5005 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C5006 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C5008 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C5020 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C5041 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C5043 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C6004 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C6005 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C6007 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C6009 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C6010 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C6011 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C6013 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C6014 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C6015 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C6016 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C6050 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7029 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7035 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7059 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7060 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7061 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7062 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7063 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7064 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7065 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7067 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7068 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7070 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7097 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7098 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7099 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7100 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7101 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7102 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7103 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7104 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7105 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7106 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7107 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7108 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7115 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

5-75

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 C7116 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7117 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7118 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7161 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7162 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7163 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7164 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7165 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7166 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7167 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7169 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7170 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7171 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7172 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7173 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7174 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7175 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7176 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7178 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7179 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7180 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7181 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7182 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7183 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7184 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7185 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7209 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7210 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7212 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7224 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7225 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7237 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7240 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7241 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7242 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7243 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7245 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7247 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7248 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7249 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7250 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7251 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7274 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C7275 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C9024 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C2056 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,1608 1 S.N.A

....4 C2060 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,1608 1 S.N.A

....4 C2061 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,1608 1 S.N.A

....4 C2068 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,1608 1 S.N.A

....4 C9026 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,1608 1 S.N.A

....4 C1161 2203-002687 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1005 1 S.A

5-76

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 C1513 2203-002687 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1005 1 S.A

....4 C2084 2203-002687 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1005 1 S.A

....4 C2085 2203-002687 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1005 1 S.A

....4 C2086 2203-002687 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1005 1 S.A

....4 C2087 2203-002687 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1005 1 S.A

....4 C3090 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V,Y5V,2012 1 S.N.A

....4 C3091 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V,Y5V,2012 1 S.N.A

....4 C3092 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V,Y5V,2012 1 S.N.A

....4 C3093_4HDM 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V,Y5V,2012 1 S.N.A

....4 C3068 2203-005054 C-CER,CHIP;0.0047nF,0.25pF,50V,NP0,1005 1 S.A

....4 C3069 2203-005054 C-CER,CHIP;0.0047nF,0.25pF,50V,NP0,1005 1 S.A

....4 C3070 2203-005054 C-CER,CHIP;0.0047nF,0.25pF,50V,NP0,1005 1 S.A

....4 C3401 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.N.A

....4 C1030 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.N.A

....4 C2058 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.N.A

....4 C2067 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.N.A

....4 C2076 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.N.A

....4 C2077 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.N.A

....4 C2078 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.N.A

....4 C2079 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.N.A

....4 C2080 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.N.A

....4 C2081 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.N.A

....4 C2082 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.N.A

....4 C2083 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.N.A

....4 C2089 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.N.A

....4 C2090 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.N.A

....4 C5042 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.N.A

....4 C5044 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.N.A

....4 C3071 2203-005393 C-CER,CHIP;0.005nF,0.1pF,50V,NP0,TP,1005 1 S.N.A

....4 C3072 2203-005393 C-CER,CHIP;0.005nF,0.1pF,50V,NP0,TP,1005 1 S.N.A

....4 C1028 2203-005642 C-CER,CHIP;0.22nF,5%,50V,NP0,1005 1 S.N.A

....4 C4056_T 2203-005642 C-CER,CHIP;0.22nF,5%,50V,NP0,1005 1 S.N.A

....4 C4057_T 2203-005642 C-CER,CHIP;0.22nF,5%,50V,NP0,1005 1 S.N.A

....4 C4063_T 2203-005642 C-CER,CHIP;0.22nF,5%,50V,NP0,1005 1 S.N.A

....4 C4064_T 2203-005642 C-CER,CHIP;0.22nF,5%,50V,NP0,1005 1 S.N.A

....4 C4065_T 2203-005642 C-CER,CHIP;0.22nF,5%,50V,NP0,1005 1 S.N.A

....4 C1053 2203-005834 C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216 1 S.A

....4 C1057 2203-005834 C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216 1 S.A

....4 C1094 2203-005834 C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216 1 S.A

....4 C1102 2203-005834 C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216 1 S.A

....4 C1152 2203-005834 C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216 1 S.A

....4 C1163 2203-005834 C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216 1 S.A

....4 C1169 2203-005834 C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216 1 S.A

....4 C1190 2203-005834 C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216 1 S.A

....4 C1191 2203-005834 C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216 1 S.A

....4 C1192 2203-005834 C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216 1 S.A

....4 C1193 2203-005834 C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216 1 S.A

....4 C1029 2203-005968 C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005 1 S.N.A

....4 C2022 2203-005968 C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005 1 S.N.A

....4 C2025 2203-005968 C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005 1 S.N.A

....4 C3004 2203-005968 C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005 1 S.N.A

5-77

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 C3040 2203-005968 C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005 1 S.N.A

....4 C4094 2203-005968 C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005 1 S.N.A

....4 C6021 2203-005968 C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005 1 S.N.A

....4 C9028 2203-006039 C-CER,CHIP;1nF,10%,2000V,X7R,3216 1 S.A

....4 C9030 2203-006039 C-CER,CHIP;1nF,10%,2000V,X7R,3216 1 S.A

....4 C1037 2203-006104 C-CER,CHIP;1000nF,10%,50V,X7R,3225 1 S.A

....4 C4079 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A

....4 C4080 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A

....4 C4081 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A

....4 C4082 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A

....4 C4083 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A

....4 C4084 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A

....4 C4085 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A

....4 C1007 2203-006141 C-CER,CHIP;1000nF,10%,16V,X5R,1608 1 S.N.A

....4 C2055 2203-006141 C-CER,CHIP;1000nF,10%,16V,X5R,1608 1 S.N.A

....4 C2062 2203-006141 C-CER,CHIP;1000nF,10%,16V,X5R,1608 1 S.N.A

....4 C2063 2203-006141 C-CER,CHIP;1000nF,10%,16V,X5R,1608 1 S.N.A

....4 C2066 2203-006141 C-CER,CHIP;1000nF,10%,16V,X5R,1608 1 S.N.A

....4 C1040 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C1041 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C1044 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C1086 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C1166 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C1260 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C1420 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C1422 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C1424 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C1811 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C1812 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C1813 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C1814 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C1815 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C2014 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C2015 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C2033 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C2035 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C2039 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C2040 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C2046 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C2047 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C2048 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C2049 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C2051 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C2054 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C2059 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C3081 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C3302_FAN 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C3304_FAN 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4001 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4002 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4003 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

5-78

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 C4004 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4009 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4014 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4021 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4023 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4025 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4028 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4029 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4038 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4068 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4104 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4105 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4117 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4123 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4127 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4136 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4137 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4138 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4139 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4140 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4141 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4201 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C5007 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C5014 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C5017 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C5031 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C5033 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C5034 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C5035 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C5036 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C5037 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C5102 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C6023 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7028 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7031 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7058 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7069 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7076 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7077 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7121 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7122 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7123 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7124 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7125 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7126 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7148 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7149 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7150 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7152 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7160 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7177 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

5-79

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 C7187 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7188 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7189 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7190 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7201 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7203 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7204 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7205 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7206 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7211 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7213 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7214 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7215 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7218 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7220 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7222 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7226 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7227 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7228 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7229 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7230 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7233 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7235 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7236 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7238 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7244 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7252 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7254 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7255 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7256 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7265 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C9002 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C9005 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C9007 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C9009 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C9011 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C9012 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C9014 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C9015 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C9016 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C9018 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C9020 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C9022 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C9023 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C9029 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C9032 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C9033 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C1093 2203-006307 C-CER,CHIP;1000nF,10%,25V,X5R,2012 1 S.N.A

....4 C1080 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.N.A

....4 C1087 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.N.A

....4 C1090 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.N.A

5-80

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 C1095 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.N.A

....4 C2057 2203-006336 C-CER,CHIP;10000nF,10%,25V,X5R,3216 1 S.A

....4 C5101 2203-006336 C-CER,CHIP;10000nF,10%,25V,X5R,3216 1 S.A

....4 C1059 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1099 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1164 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C3412 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C3420 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C3421 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C3422 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C3423 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C2002 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,1005 1 S.N.A

....4 C2003 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,1005 1 S.N.A

....4 C2004 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,1005 1 S.N.A

....4 C2005 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,1005 1 S.N.A

....4 C2006 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,1005 1 S.N.A

....4 C2007 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,1005 1 S.N.A

....4 C2008 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,1005 1 S.N.A

....4 C2009 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,1005 1 S.N.A

....4 C2010 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,1005 1 S.N.A

....4 C2011 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,1005 1 S.N.A

....4 C2012 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,1005 1 S.N.A

....4 C2013 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,1005 1 S.N.A

....4 C2036 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,1005 1 S.N.A

....4 C4106 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,1005 1 S.N.A

....4 C6024 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,1005 1 S.N.A

....4 C7223 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,1005 1 S.N.A

....4 C7231 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,1005 1 S.N.A

....4 C7239 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,1005 1 S.N.A

....4 C9004 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,1005 1 S.N.A

....4 C1002_NACH 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1008 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1010 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1011 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1068 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1072 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1073 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1141 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1146 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1195_FAN 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1196_FAN 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1198_NACH 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1211 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1712 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1713 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1714 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1715 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1716 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1717 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1718 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1719 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

5-81

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 C1809 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1810 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1821 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1822 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1823 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1824 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1825 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1826 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1827 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1828 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1829 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1830 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1831 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1832 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1833 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1834 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1835 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1836 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1837 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1838 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C1866 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3067 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3075 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3077 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3080_4HDM 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3087 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3402 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3403 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3404 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3405 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3406 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3407 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3408 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3409 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3410 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3411 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3413 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3414 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3415 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3416 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3417 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3418 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3419 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3424 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3425 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3426 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3427 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4005 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4006 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4007 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4010 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

5-82

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 C4011 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4012 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4013 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4015 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4016 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4017 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4018 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4019 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4020 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4022 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4024 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4070 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4108 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4111 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4115 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4118 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4119 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4120 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4126 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C5015 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C5118 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C6006 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C6008 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C6012 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C6019 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C6020 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C6101 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C7001 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C7002 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C7015 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C7016 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3054_NSID 2203-006992 C-CER,CHIP;0.33nF,5%,50V,C0G,1005 1 S.N.A

....4 C3055_NSID 2203-006992 C-CER,CHIP;0.33nF,5%,50V,C0G,1005 1 S.N.A

....4 C3079 2203-006992 C-CER,CHIP;0.33nF,5%,50V,C0G,1005 1 S.N.A

....4 C3082 2203-006992 C-CER,CHIP;0.33nF,5%,50V,C0G,1005 1 S.N.A

....4 C3084 2203-006992 C-CER,CHIP;0.33nF,5%,50V,C0G,1005 1 S.N.A

....4 C3085 2203-006992 C-CER,CHIP;0.33nF,5%,50V,C0G,1005 1 S.N.A

....4 C6022 2203-006992 C-CER,CHIP;0.33nF,5%,50V,C0G,1005 1 S.N.A

....4 C1005_NACH 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1019 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1039 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1042 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1048 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1049 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1055 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1056 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1063 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1064 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1065 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1171 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1172 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

5-83

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 C1173 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1174 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1194_FAN 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1197_FAN 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1199_NACH 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1200_NACH 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1204 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1205 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1206 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1207 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1208 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1213 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1421 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C2016 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C2017 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C2021 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C2034 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C2041 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C2042 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C2043 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C2044 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C2045 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C2050 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C2065 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C2101 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C2102 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C3066 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C3074 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C3076 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C3078_4HDM 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C3083 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C3086 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C3301_FAN 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C3303_FAN 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C4008 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C4026 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C4027 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C4032 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C4034 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C4035 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C4036 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C4037 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C4066 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C4072 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C4102 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C4110 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C4124 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C4125 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C4130 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C4131 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C4132 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

5-84

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 C4148 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C4149 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C4150 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C5032 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C5038 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C5103 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C5104 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C5105 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C6001 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C6002 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C6003 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7030 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7066 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7186 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7207 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7208 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7217 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7219 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7221 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7257 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7258 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7259 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7260 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7261 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7262 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7263 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7264 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7266 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7267 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7268 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7269 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7270 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7271 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7272 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7276 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7277 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C9001 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C9003 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C9006 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C9019 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C9025 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C9035 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C9040 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C6030 2402-001128 C-AL,SMD;100##F,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C6031 2402-001128 C-AL,SMD;100##F,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C1001_NACH 2402-001210 C-POLYMER AL CHIP;100uF,20%,10V,WT,TP,7. 1 S.A

....4 C2037 2402-001210 C-POLYMER AL CHIP;100uF,20%,10V,WT,TP,7. 1 S.A

....4 C2038 2402-001210 C-POLYMER AL CHIP;100uF,20%,10V,WT,TP,7. 1 S.A

....4 C4152 2402-001210 C-POLYMER AL CHIP;100uF,20%,10V,WT,TP,7. 1 S.A

....4 C5016 2402-001210 C-POLYMER AL CHIP;100uF,20%,10V,WT,TP,7. 1 S.A

....4 C7025 2402-001210 C-POLYMER AL CHIP;100uF,20%,10V,WT,TP,7. 1 S.A

5-85

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 C7055 2402-001210 C-POLYMER AL CHIP;100uF,20%,10V,WT,TP,7. 1 S.A

....4 C7154 2402-001210 C-POLYMER AL CHIP;100uF,20%,10V,WT,TP,7. 1 S.A

....4 C7168 2402-001210 C-POLYMER AL CHIP;100uF,20%,10V,WT,TP,7. 1 S.A

....4 C7273 2402-001210 C-POLYMER AL CHIP;100uF,20%,10V,WT,TP,7. 1 S.A

....4 C2064 2402-001323 C-AL,SMD;100uF,20%,25V,LZ,TP,6.3x8mm 1 S.A

....4 C7216 2409-001114 C-POLYMER ,CHIP;220UF,20%,10V,LR,TP,7343 1 S.A

....4 C1817 2409-001118 C-POLYMER ,CHIP;47uF,-+20,10V,WT,REEL,3. 1 S.A

....4 C9031 2409-001126 C-POLYMER ,CHIP;4.7uF,20%,6.3V,WT,REEL,1 1 S.A

....4 C1419 2409-001129 C-POLYMER ,CHIP;100uF,20%,6.3V,WT,TP,3.5 1 S.A

....4 C1423 2409-001129 C-POLYMER ,CHIP;100uF,20%,6.3V,WT,TP,3.5 1 S.A

....4 T9001 2601-001056 TRANS-SMD,PULSE;350UH,-,1:1,1:1,12.7X6.7 1 S.A

....4 T0052 2703-000125 INDUCTOR-SMD;10uH,10%,2012 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000417 INDUCTOR-SMD;220uH,5%,3225 1 S.A

....4 T0052 2703-001426 INDUCTOR-SMD;680uH,20%,7070 1 S.A

....4 T0052 2703-002722 INDUCTOR-SMD;22uH,20%,12x12mm 1 S.A

....4 T0052 2703-002722 INDUCTOR-SMD;22uH,20%,12x12mm 1 S.A

....4 T0052 2703-002722 INDUCTOR-SMD;22uH,20%,12x12mm 1 S.A

....4 T0052 2703-002722 INDUCTOR-SMD;22uH,20%,12x12mm 1 S.A

....4 L2001 2704-000018 INDUCTOR-SMD-ARRAY;15uH,2000mA,2,0.124oh 1 S.N.A

....4 L2002 2704-000018 INDUCTOR-SMD-ARRAY;15uH,2000mA,2,0.124oh 1 S.N.A

....4 X202 2801-003326 CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH 1 S.A

....4 X202 2801-003326 CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH 1 S.A

....4 X202 2801-003954 CRYSTAL-SMD;27MHz,30ppm,28-AAN,16pF,50oh 1 S.A

....4 X202 2801-004058 CRYSTAL-SMD;25MHZ,30PPM,SMD,20PF,50OHM,T 1 S.N.A

....4 X202 2801-004435 CRYSTAL-SMD;30.0MHz,30ppm,KX,20pF,50ohm, 1 S.A

....4 X202 2801-004747 CRYSTAL-SMD;30.4MHz,30ppm,SMD,12pF,40ohm 1 S.A

....4 X7001 2804-001521 OSCILLATOR-CLOCK;27MHz,50ppm,HCMOS,TP,3. 1 S.A

....4 F103 2901-001114 FILTER-EMI SMD;25VDC,2.0ADC,-,100nF,3.2x 1 S.A

....4 F103 2901-001302 FILTER-EMI SMD;20V,0.3A,0pF,2.0x1.2x1.3m 1 S.N.A

....4 F103 2901-001302 FILTER-EMI SMD;20V,0.3A,0pF,2.0x1.2x1.3m 1 S.N.A

....4 F103 2901-001302 FILTER-EMI SMD;20V,0.3A,0pF,2.0x1.2x1.3m 1 S.N.A

....4 F103 2901-001302 FILTER-EMI SMD;20V,0.3A,0pF,2.0x1.2x1.3m 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001148 BEAD-SMD;60ohm,1608,TP,-,- 1 S.N.A

....4 T0568 3301-001148 BEAD-SMD;60ohm,1608,TP,-,- 1 S.N.A

....4 T0568 3301-001148 BEAD-SMD;60ohm,1608,TP,-,- 1 S.N.A

....4 T0568 3301-001148 BEAD-SMD;60ohm,1608,TP,-,- 1 S.N.A

5-86

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 T0568 3301-001148 BEAD-SMD;60ohm,1608,TP,-,- 1 S.N.A

....4 T0568 3301-001148 BEAD-SMD;60ohm,1608,TP,-,- 1 S.N.A

....4 T0568 3301-001148 BEAD-SMD;60ohm,1608,TP,-,- 1 S.N.A

....4 T0568 3301-001148 BEAD-SMD;60ohm,1608,TP,-,- 1 S.N.A

....4 T0568 3301-001148 BEAD-SMD;60ohm,1608,TP,-,- 1 S.N.A

....4 T0568 3301-001148 BEAD-SMD;60ohm,1608,TP,-,- 1 S.N.A

....4 T0568 3301-001148 BEAD-SMD;60ohm,1608,TP,-,- 1 S.N.A

....4 T0568 3301-001148 BEAD-SMD;60ohm,1608,TP,-,- 1 S.N.A

....4 T0568 3301-001148 BEAD-SMD;60ohm,1608,TP,-,- 1 S.N.A

....4 T0568 3301-001148 BEAD-SMD;60ohm,1608,TP,-,- 1 S.N.A

....4 T0568 3301-001148 BEAD-SMD;60ohm,1608,TP,-,- 1 S.N.A

....4 T0568 3301-001148 BEAD-SMD;60ohm,1608,TP,-,- 1 S.N.A

....4 T0568 3301-001148 BEAD-SMD;60ohm,1608,TP,-,- 1 S.N.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

5-87

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 JA3003 3701-001367 CONNECTOR-HDMI;19P,2R,FEMALE,SMD,AU 1 S.A

....4 JA3004_4HD 3701-001367 CONNECTOR-HDMI;19P,2R,FEMALE,SMD,AU 1 S.A

....4 JA3005 3701-001367 CONNECTOR-HDMI;19P,2R,FEMALE,SMD,AU 1 S.A

....4 CN330 3711-005292 HEADER-BOARD TO CABLE;BOX,3P,1R,2MM,SMD- 1 S.A

....4 CN330 3711-005292 HEADER-BOARD TO CABLE;BOX,3P,1R,2MM,SMD- 1 S.A

....4 CN330 3711-005925 HEADER-BOARD TO CABLE;BOX,51P,1R,0.5mm,S 1 S.A

....4 CN330 3711-006374 HEADER-BOARD TO CABLE;BOX,41P,2R,1.25mm, 1 S.A

....4 IC113 1105-001585 IC-DRAM;M12L64164, K4S641632,-,64Mbit,4x 1 S.N.A

....4 D3008 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 D3009 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 D3013 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 D3014 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 D3025 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 D3027 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 D3028 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 D3029 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 D3035_NSID 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 D3036 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 D3037_NSID 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 D3038 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 D3040_NSID 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 D3041_NSID 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 D3042_NSID 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 D3062 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 D3063 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 D3064 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 D3065 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 R3026 2007-000139 R-CHIP;220ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3027 2007-000139 R-CHIP;220ohm,5%,1/16W,TP,1005 1 S.N.A

5-88

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R3028 2007-000139 R-CHIP;220ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3029 2007-000139 R-CHIP;220ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3030 2007-000139 R-CHIP;220ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3031 2007-000139 R-CHIP;220ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3093 2007-000139 R-CHIP;220ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3094 2007-000139 R-CHIP;220ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3095 2007-000139 R-CHIP;220ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3096 2007-000139 R-CHIP;220ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3097 2007-000139 R-CHIP;220ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3098 2007-000139 R-CHIP;220ohm,5%,1/16W,TP,1005 1 S.N.A

....4 C1839 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.N.A

....4 C1840 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.N.A

....4 C5120 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.N.A

....4 IC1801 1204-002952 IC-DEMODULATOR;LGS-8G52-A1-C-LQ1-E,LQFP, 1 S.A

....4 C1096 2203-006790 C-CER,CHIP;5.6NF,10%,50V,X7R,1005 1 S.N.A

....4 C1158 2203-006790 C-CER,CHIP;5.6NF,10%,50V,X7R,1005 1 S.N.A

....4 C1160 2203-006790 C-CER,CHIP;5.6NF,10%,50V,X7R,1005 1 S.N.A

....4 C5119 2402-001238 C-AL,SMD;1uF,20%,50V,HR,TP,4.3x4.3x5.2mm 1 S.N.A

....4 T0077 BN41-01128A PCB MAIN;LA55A950D1FXZK,FR-4,6,A,1.6T,24 1 S.N.A

...3 JA333 3722-002793 JACK-PIN;3P+Shield,Ni,YEL/WHT/RED,STRAIG 1 S.A

...3 HDCP BN97-00688B ASSY HDCP;MT8202 IC HDCP Key’ 1 S.N.A

....4 BN46-00018A KEY CODE-CERTIFICATE;(HDCP KEY)PPM42M5S, 1 S.N.A

...3 CN330 3711-006715 HEADER-BOARD TO CABLE;BOX,4P,1R,2.5mm,AN 1 S.N.A

...3 CIS3 BN40-00133A TUNER;DTOS44ACL171A,DTOS44ACL171A,China 1 S.A

...3 T0066 BN62-00040A HEAT SINK-ES;SAPPHIRE,T2.0,36*36*6.6,BLK 1 S.N.A

...3 T0066 BN62-00040A HEAT SINK-ES;SAPPHIRE,T2.0,36*36*6.6,BLK 1 S.N.A

...3 SUB12 BN73-00191B SILICON/RUBBER-GAPPAD;LE46A856S1,SILICON 2 S.N.A

...3 T0066 BP62-00047A HEAT SINK-ES;DLP,A6063S,T2.5,13,13,TAPE 2 S.N.A

0.1 M0112 BN91-02883B ASSY SHIELD;LA52A850S1FXXZ,N59G 1 S.N.A

..2 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 6 S.A

..2 M0081 6003-000269 SCREW-TAPTITE;BH,+,-,S,M3,L6,ZPC(WHT),SW 4 S.N.A

..2 M0081 6003-000269 SCREW-TAPTITE;BH,+,-,S,M3,L6,ZPC(WHT),SW 8 S.N.A

..2 M0081 6003-000337 SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR 6 S.A

..2 M0081 6003-000337 SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR 2 S.A

..2 M0081 6003-000337 SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR 2 S.A

..2 M0081 6003-000337 SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR 2 S.A

..2 M0081 6003-000337 SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR 8 S.A

..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 6 S.A

..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.A

..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.A

..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 4 S.A

..2 M0081 6003-001439 SCREW-TAPTITE;BH,+,-,S,M4,L8,ZPC(WHT),SW 1 S.N.A

..2 T0562 6046-001015 STAND OFF;#4-40,L5,Ni PLT,C3601,M3 2 S.N.A

..2 T0136 BN31-00019G FAN;LN40A850S1FXZA,PBTP 1 S.A

..2 T0136 BN31-00019H FAN;SAPPHIRE,PBTP 1 S.A

..2 M2893 BN39-01099G LEAD CONNECTOR;LN52A850S1FXZA,UL1007#26, 1 S.A

..2 M2893 BN39-01118C LEAD CONNECTOR;LN46A850S1FXZA,UL2464#26, 2 S.A

..2 T0764 BN44-00240A SMPS-LCDTV;SC5214,LN52A690A4F,AC/DC,320W 1 S.A

..2 M0125 BN61-04116A HOLDER-WALL;L650- SLIM,46 / L850,HIPS,HB 4 S.N.A

...3 BN61-02932D BRACKET-STOPPER NUT;L670_SLIM,M8,D10,L18 1 S.N.A

5-89

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

..2 BN61-04118A BRACKET-GUIDE MAIN L;L650- SLIM,52,SECC, 1 S.N.A

..2 BN61-04120A BRACKET-PANEL BOTTOM;L650- SLIM,52,SECC, 1 S.N.A

..2 M0146 BN61-04370A BRACKET-PANEL SIDE;L850,SECC,T1.2 4 S.N.A

..2 M0115 BN61-04375A BRACKET-STAND LINK;46/52L850,SECC,T1.6 1 S.N.A

..2 BN61-04376A BRACKET-GUIDE MAIN R;L850,SECC,T1.2 1 S.N.A

..2 M0254 BN61-04381D HOLDER-SIDE AV;L850(NT),PMMA+ABS HB H/GL 1 S.N.A

..2 T0175 BN96-08430A ASSY SPEAKER P;8ohm,4pin,L850,10W 1 S.A

..2 M0250 BN96-08479H ASSY CABLE P-FFC LVDS;LE55A956D1F,FFC,11 1 S.A

..2 M0125 BN96-08481C ASSY INLET P;LN52A850S1FXZA,200mm,AC110V 1 S.A

..2 T0066 BP62-00064B HEAT SINK-ES;ROBOCOP,A6063,T4.0,40,40,BL 1 S.N.A

0.1 M0003 BN92-03729V ASSY BOX;52L850,CO(DTV),XZ 1 S.N.A

..2 M0521 BN69-02884A BOX-SET,IN;52L850 With Stand,CB,C1,DY-01 1.02 S.N.A

..2 BN69-02885N BOX-SET,OUT;52L850,CB,C-03,DW-80,YEL,W13 1.02 S.N.A

0.1 M0113 BN92-03731A ASSY P/MATERIAL;52L850,UO 1 S.N.A

..2 T0376 6902-000061 BAG AIR;LDPE,T0.2,W500,L1000,TRP,-,-,-,3 0.067 S.N.A

..2 T0376 6902-000379 BAG AIR;LDPE,T0.2,W1000,L1800,TRP,-,-,-, 0.022 S.N.A

..2 T0524 6902-000867 BAG PE;HDPE/HDPE/NITRON,T0.015/T0.015/T1 1 S.N.A

..2 6922-000013 BAND PP;PP,W18,L2300m,TRP,21000g 5.63 S.N.A

..2 T0214 AA61-20285C HOLDER-BOX;CORAL,PP,BLACK,HB 2 S.N.A

..2 T0214 BN74-00008A TAPE-OPP MASKING;OPP-2,T0.05,W100,L800M, 1.52 S.N.A

0.1 M0045 BN92-03987B ASSY ACCESSORY;LA52A850S1FXXZ,N59G 1 S.N.A

..2 M0045 BN96-09007A ASSY ACCESSORY-MANUAL;LA46A850S1FXXZ,N59 1 S.A

...3 T0524 6902-000110 BAG PE;LDPE,T0.05,W250,L400,TRP,28,2,-,9 1 S.N.A

...3 AA68-03184A MANUAL FLYER-CARD-04;ALL MODEL,CHINESE,2 1 S.N.A

...3 T0511 BN68-01809A MANUAL USERS;COMM,SAMSUNG,SC,CHINA,W/P 8 1 S.N.A

..2 M0045 BN96-09008B ASSY ACCESSORY-CABLE;LA52A850S1FXXZ,N59G 1 S.A

...3 T0268 3903-000082 CBF-POWER CORD;DT,CN,IP3/YES(A),I(IEC C1 1 S.A

...3 T0524 6902-000110 BAG PE;LDPE,T0.05,W250,L400,TRP,28,2,-,9 1 S.N.A

...3 BN63-01798B CLOTH-CLEAN;cloth,180,200,sea blue,ToC 1 S.N.A

...3 T0531 BN63-04822A COVER-BOTTOM;40,46,52L850,HIPS,-,-,-,HB, 1 S.N.A

...3 T0074 BN59-00698A REMOCON;TM-98B,49,CHINA_650 1 S.A

...3 T0074 BN59-00788B REMOCON;TM94,5,KOREA 1 S.A

0.1 M0019 BN92-03988B ASSY LABEL;LA52A850S1FXXZ,N59G 1 S.N.A

5-90

2. Product specications

2. Product specications

2-1. Feature & Specications

Model LA46A850S

Feature

Digital-TV, RF, 4-HDMI, 2Component, 2-A/V, S-Video, USB2.0(Wiselink), D-sub

�

Brightness : 500cd/m

�

Contrast Ratio : 50,000:1

�

Response time : 4ms

�

Dynamic contrast, Super-PVA

�

PIP (in HDMI1, 2, 3, 4, Component1, Component2, PC mode and Sub picture is available TV , AV1 , AV2)

�

Item Description

2

Specications

LCD Panel TFT-LCD panel, RGB vertical stripe, SPVA mode, normaly black, 46-Inch viewable,

Scanning Frequency Horizontal : 30 kHz ~ 80 kHz (Automatic)

Display Colors 1.07 billion colors

Maximum resolution Horizontal : 1920 Pixels

Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated

Input Sync Signal H/V Separate, TTL, P. or N.

Maximum Pixel Clock rate 310MHz

Active Display
Horizontal/Vertical

AC power voltage & Frequency AC 160V ~ 240V, 50/60Hz

Power Consumption <310W ( < 1W, stand by )

Dimensions

Set (W x D x H)

Weight (Set) 25.0kg_with stand

TV System Tuning Frequency Synthesize (Refer to detailed Frequency Table)

0.53025(H) x 0.53025(W) x 3mm pixel pitch

Vertical : 56 Hz ~ 75 Hz (Automatic)

Vertical : 1080 Pixels

1018.08(H)*572.67(V) mm

1119.0 x 283.0 x 745.1 mm_with stand

1119.0 x 44.4 x 692.5 mm_without stand

20.9kg_without stand

System DVB-T, BG, DK, L/L’, I

Sound FM, AM, A2, NICAM, MPEG1, AC3, AC3+

Colour PAL, SECAM, NT4.43

Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)

Operating Humidity : 10% ~ 80%, non-condensing
Storage temperature : -13˚F ~ 113˚F (-25˚C ~ 45˚C)
Storage Humidity : 5% ~ 95%, non-condensing

Environmental Considerations - MAX Internal speaker Out : Right => 10W, Left => 10W

- BASS Control Range : -8 dB ~ + 8dB

- TREBLE Control Range : -8 dB ~ +8 dB

- Headphone Out : 10 mW MAX

- Output Frequency : RF : 80 Hz ~ 15 kHz

A/V : 80 Hz ~ 20 kHz

Note: Anynet+, WISELINK, INFO LINK

2-1

2. Product specications

Model LA52A850S

Feature

Digital-TV, RF, 4-HDMI, 2Component, 2-A/V, S-Video, USB2.0(Wiselink), D-sub

�

Brightness : 500cd/m

�

Contrast Ratio : 50,000:1

�

Response time : 4ms

�

Dynamic contrast, Super-PVA

�

PIP(in HDMI1, 2, 3, 4, Component1, Component2, PC mode and Sub picture is available TV , AV1 , AV2)

�

2

Specications

Item Description

LCD Panel TFT-LCD panel, RGB vertical stripe, SPVA mode, normaly black, 52-Inch viewable,

0.6(H) x 0.6(W) x 3 mm pixel pitch

Scanning Frequency Horizontal : 30 kHz ~ 80 kHz (Automatic)

Vertical : 56 Hz ~ 75 Hz (Automatic)

Display Colors 1.07 billion colors

Maximum resolution Horizontal : 1920 Pixels

Vertical : 1080 Pixels

Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated

Input Sync Signal H/V Separate, TTL, P. or N.

Maximum Pixel Clock rate 307MHz

Active Display
Horizontal/Vertical

1152(H) x 648(V) mm

AC power voltage & Frequency AC 160 ~ 240V, 50/60Hz

Power Consumption < 390 W ( < 1W, stand by )

Dimensions

Set (W x D x H)

1263.1 X 314.0 X 831.7 mm_with stand

1263.0 X 44.4 X779.3mm_without stand

Weight (Set) 31.2kg_with stand

26.8kg_without stand

TV System Tuning Frequency Synthesize (Refer to detailed Frequency Table)

System DVB-T, BG, DK, L/L’, I

Sound FM, AM, A2, NICAM, MPEG1, AC3, AC3+

Colour PAL, SECAM, NT4.43

Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)

Operating Humidity : 10% ~ 80%, non-condensing
Storage temperature : -13˚F ~ 113˚F (-25˚C ~ 45˚C)
Storage Humidity : 5% ~ 95%, non-condensing

Environmental Considerations - MAX Internal speaker Out : Right => 10W, Left => 10W

- BASS Control Range : -8 dB ~ + 8dB

- TREBLE Control Range : -8 dB ~ +8 dB

- Headphone Out : 10 mW MAX

- Output Frequency : RF : 80 Hz ~ 15 kHz

A/V : 80 Hz ~ 20 kHz

Note: Anynet+, WISELINK, INFO LINK

2-2
