Samsung LA40F71BX Schematic

TFT-LCD TV

Chassis GFM40KSA

GFM40CCN
GFM46KSA
GFM46CCN
GFM52KSA
GFM52CCN

Model LA40F71BX

LA46F71BX
LA52F71BX

Manual

SERVICE

TFT-LCD TV Fashion Feature

- Luxurious Slim Design

- Supreme Picture Quality

- Supreme Sound Quality

- Supreme Convenience Quality

- Convenience for Users

ii

Copyright

©2006 by Samsung Electronics Co., Ltd.
All rights reserved.
This manual may not, in whole or in part, be copied,

photocopied, reproduced, translated, or converted to
any electronic or machine readable form without prior
written permission of Samsung Electronics Co., Ltd.

LA40F71B/LA46F71B Service Manual
First edition June 2006.

Printed in Korea.

Trademarks

Samsung is the registered trademark of Samsung
Electronics Co., Ltd.

LA40F71B/LA46F71B and MacMaster Cable Adapter
are trademarks of Samsung Electronics Co., Ltd.

Macintosh, Power Macintosh are trademarks of Apple
Computer, Inc.

All other trademarks are the property of their respective
owners.

Contents

Contents

Samsung Electronics Co.,Ltd.

416, Maetan-3Dong, Yeongtong-Gu, Suwon City,
Gyeonggi-Do, Korea, 443-742
Printed in Korea
P/N : BN82-00145H-00
URL : http://itself.sec.samsung.co.kr/

- This Service Manual is a property of
Samsung Electronics Co., Ltd.
Any unauthorized use of Manual can be
punished under applicable International
and/or domestic law.

2 Product Specifications

2-1

2 Product specifications

2-1 Fashion Feature

Wise link (except 52")

- Accept 10 types of Memory Cards including USB (10 in 3 )
Excellent Compatibility. SD/MMC/CF/MD/MS/MSPRO/XD/SM

Smooth Motion Driver

- No ghosting, No Smearing Edge in image
powered by Smooth Motion Driver Engine of Samsung LCD TV

Wide Color Gamut

- More natural and vivid picture quality by WCG (127%)

High Dynamic Contrast

- 7000:1 Highest dynamic Contrast Ratio

Best Off-Angle Viewing

- Widened Viewing Angle , 178

/ 178 (Left/Right)

Real 10 Bit

- Panel 10 Bit + Signal Processing 10 Bit

Game Mode

- Present the most suitable picture for gaming

Swivel Stand

- 20

/ 20 (left/right)

Full HD

- 1080p (1920 x 1080 Pixels)

2 Product Specifications

2-2

2-2 LA40F71B Specifications

LCD Panel

A-si TFT matrix, 40'' Diagonal, 0.46125(H) x 0.15375(v) x 3 mm pixel pitch

Scanning Frequency

Horizontal : 30 kHz ~ 80 kHz (Automatic) / Vertical : 56 Hz ~ 75 Hz (Automatic)
Display Colors 16.7 M colours
Maximum Resolution Horizontal : 1920 Pixels

Vertical : 1080 Pixels
Input Video Signal Analog 0.7 Vp-p ± 5% positive at 75

, internally terminated

Input Sync Signal Type : Seperate H/V

Level : TTL level
Maximum Pixel Clock rate

166.8 MHz

Active Display
Horizontal/Vertical 885.6 (H) mm / 498.15 (V) mm

AC power voltage & Frequency AC 100 ~ 240V, 50/60Hz

Power Consumption 210 W
Dimensions(W x D x H)

Set

994.0 x 92.0 x 647.0 mm (39.13 x 3.62 x 25.47 inches) Without stand

994.0 x 290.0 x 696.0 mm (39.13 x 11.41 x 27.40 inches) After installation Stand

Weight
Set

(After installation Stand) 24.3 kg (53.57 lbs)

TV System Tunning Frequency Synthesize

System PAL, SECAM, NTSC-M

Sound MONO, STEREO, NICAM

Environmental Considerations Operating Temperature : 50°F ~ 104°F (10°C ~ 40°C)

Operating Humidity : 10 % ~ 80 %

Storage Temperature : -4°F ~ 113°F (-20°C ~ 45°C)

Storage Humidity : 5 % ~ 95 %
Antena Input 75

- MAX Internal speaker Out : Right : 10W / Left : 10W

- BASS Control Range : -8 dB ~ + 8dB

Sound Characteristic - TREBLE Control Range : -8 dB ~ +8 dB

- Headphone Out : 10 mW MAX

- Output Frequency : RF : 80 Hz ~ 15 kHz
A/V : 80 Hz ~ 20 kHz

Item

Description

2 Product Specifications

2-3

2-3 LA46F71B Specifications

LCD Panel

a-si TFT active matrix, 46" Diagonal, 0.53025(H) x 0.17675(V) x 3 mm pixel pitch

Scanning Frequency

Horizontal : 30 kHz ~ 80 kHz (Automatic) / Vertical : 56 Hz ~ 75 Hz (Automatic)
Display Colors 16.7 M colours
Maximum Resolution Horizontal : 1920 Pixels

Vertical : 1080 Pixels
Input Video Signal Analog 0.7 Vp-p ± 5% positive at 75

, internally terminated

Input Sync Signal Type : Seperate H/V

Level : TTL level
Maximum Pixel Clock rate

166.8 MHz

Active Display
Horizontal/Vertical 1018.08(H)mm x 572.67(V)mm

AC power voltage & Frequency AC 100~240V, 50 ~ 60 Hz

Power Consumption 300 W
Dimensions(W x D x H)

Set

44.4 x 4.2 x 28.8 inches (1129 x 106 x 732 mm) Without stand

44.4 x 12.8 x 31 inches (1129 x 326 x 788 mm) After installation Stand

Weight
Set

(After installation Stand) 35.5kg (78.26lbs)

TV System Tunning Frequency Synthesize

System PAL, SECAM, NTSC-M

Sound MONO, STEREO, NICAM

Environmental Considerations Operating Temperature : 50°F ~ 104°F (10°C ~ 40°C)

Operating Humidity : 10 % ~ 80 %

Storage Temperature : -4°F ~ 113°F (-20°C ~ 45°C)

Storage Humidity : 5 % ~ 95 %
Antena Input 75

- MAX Internal speaker Out : Right : 10W / Left : 10W

- BASS Control Range : -8 dB ~ + 8dB

Sound Characteristic - TREBLE Control Range : -8 dB ~ +8 dB

- Headphone Out : 10 mW MAX

- Output Frequency : RF : 80 Hz ~ 15 kHz
A/V : 80 Hz ~ 20 kHz

Item

Description

2 Product Specifications

2-4

2-4 LA52F71B Specifications

LCD Panel

a-si TFT active matrix, 52" Diagonal, 0.6 (H) x 0.2 (V) x 3 mm pixel pitch

Scanning Frequency

Horizontal : 30 kHz ~ 80 kHz (Automatic) / Vertical : 56 Hz ~ 75 Hz (Automatic)
Display Colors 16.7 M colours
Maximum Resolution Horizontal : 1920 Pixels

Vertical : 1080 Pixels
Input Video Signal Analog 0.7 Vp-p ± 5% positive at 75

, internally terminated

Input Sync Signal Type : Seperate H/V

Level : TTL level
Maximum Pixel Clock rate

166.8 MHz

Active Display
Horizontal/Vertical 1152 (H) mm x 648 (V) mm

AC power voltage & Frequency AC 100~240V, 50 ~ 60 Hz

Power Consumption 310 W
Dimensions(W x D x H)

Set

50.4 x 4.4 x 32.4 inches(1281.0 x 112.7 x 823.4mm) Without stand

50.4 x 12.8 x 34.6 inches(1281.0 x 326.0 x 879.0mm) After installation Stand

Weight
Set

(After installation Stand) 42.6Kg (93.92 lbs)

TV System Tunning Frequency Synthesize

System PAL, SECAM, NTSC-M

Sound MONO, STEREO, NICAM

Environmental Considerations Operating Temperature : 50°F ~ 104°F (10°C ~ 40°C)

Operating Humidity : 10 % ~ 80 %

Storage Temperature : -4°F ~ 113°F (-20°C ~ 45°C)

Storage Humidity : 5 % ~ 95 %
Antena Input 75

- MAX Internal speaker Out : Right : 10W / Left : 10W

- BASS Control Range : -8 dB ~ + 8dB

Sound Characteristic - TREBLE Control Range : -8 dB ~ +8 dB

- Headphone Out : 10 mW MAX

- Output Frequency : RF : 80 Hz ~ 15 kHz
A/V : 80 Hz ~ 20 kHz

Item

Description

2 Product Specifications

2-5

LA40M71B/LA46M71BModel

Design

Frequency

Horizontal
Vertical
Display Color

30 ~ 61 kHz

100 ~ 120 Hz

16,777,216 colors

30 ~ 61 kHz

60 ~ 75 Hz

16,777,216 colors

PC Resolution

Maximum mode

Input Signal

Sync Signal
Video Signal

Power
Consumption

Normal
Power Saving

205W

< 1W

210W / 300W / 310W

< 1W

H/V Separate, TTL, P. or N.

0.7 Vp-p @ 75ohm

H/V Separate, TTL, P. or N.

0.7 Vp-p @ 75ohm

WXGA, 1366 x 768 @ 60 Hz WXGA, 1920 x 1080 @ 60 Hz

LA40F71B/LA46F71B/LA52F71B

2-4 Spec Comparison

2 Product Specifications

2-6

2-5 Option Specification

Item Item Name

Remote Control

&

Batteries (AAA x 2)

Power Cord

Cover-Bottom

Cleaning Cloth

BN59-00530A (40"/46")
BN59-00593A (52" chinese)
BN59-00594A (52" southeast asian)

3903-000193
3903-000172 (chinese)

BN63-02491A (40")
BN63-02624A (46"/52")

BN63-01798A

Code.No Remark

5 Exploded View & Parts List

5-1

5 Exploded View and Parts List

- You can search for updated part codes through ITSELF web site.

URL : http://itself.sec.samsung.co.kr/

5-1 LA40F71B Exploded View

M0013

T0003

T0003

M0215

M0059

T0003

M0146

T0447

M0014

M0146

M0013

5 Exploded View & Parts List

5-2

5-2 LA40F71B Parts list

Location Code.No Item & Specification Q'ty SA/SNA Remark

T0003 BN96-03412M ASSY COVER P-FRONT;40F71,SO,ABS+PMMA,HB, 1 S.A

T0175 BN96-03271A ASSY SPEAKER P;8ohm,Mosel 32,Left,10W,BA 1 S.A

T0175 BN96-03272A ASSY SPEAKER P;8ohm,Mosel 32,Right,10W,B 1 S.A

M0215 BN07-00288A LCD-PANEL;LTA400HS-LH1,8bit,952*551*51.0 1 S.A

T0447 BN96-03421A ASSY BRACKET P-PANEL;40M7,EO,MOSEL 1 S.N.A

M0014 BN94-01119A ASSY PCB MAIN;LA40F71BX/* 1 S.A

M0013 BN96-04227C ASSY COVER P-REAR;40F71,SO,-,HIPS,HB,BK5 1 S.A

M0013 BN96-03418A ASSY STAND P-BASE;40M70,ABS+PMMA,HB,BK23 1 S.A

5 Exploded View & Parts List

5-3

5-3 LA46F71B Exploded View

M0013

M0013

M0013

M0215

T0175

M0059

M0146

M0014

T0447

M0146

M0146

M0115

T0175

5 Exploded View & Parts List

5-4

5-4 LA46F71B Parts list

Location Code.No Item & Specification Q'ty SA/SNA Remark

T0003 BN96-03411J ASSY COVER P-FRONT;46F71,SO,ABS+PMMA,HB, 1 S.A

T0175 BN96-03593C ASSY SPEAKER P;8ohm,Mosel 46inch,Right,1 1 S.A

T0175 BN96-03591C ASSY SPEAKER P;8ohm,Mosel 46inch,LEFT,10 1 S.A

M0215 BN07-00291A LCD-PANEL;LTA460HS-LH1,8bit,1083*627*56. 1 S.A

T0447 BN96-03420D ASSY BRACKET P-PANEL;46F71.SO,FHD MOSEL 1 S.N.A

M0014 BN94-01119B ASSY PCB MAIN;LA46F71BX/* 1 S.A

M0013 BN96-03417A ASSY STAND P-BASE;46M7,-,ABS+PMMA,HB,BK2 1 S.A

M0013 BN96-04226C ASSY COVER P-REAR;46N71,SO,HIPS,HB,BK500 1 S.A

11 Disassembly and Reassembly

11-1

11 Disassembly and Reassembly

This section of the service manual describes the disassembly and reassembly procedures for the TFT-LCD
TV.

WARNING : This monitor contains electrostatically sensitive devices. Use caution when

handling these components.

11-1 Disassembly (LA40F71BX)

Cautions : 1. Disconnect the monitor from the power source before disassembly.

2. Follow these directions carefully; never use metal instruments to pry apart the
cabinet.

Description Picture Description

1. Place monitor face down on cushioned table.
Remove screws from the Stand.
Remove stand.

11 Disassembly and Reassembly

11-2

3. Disconnet cables from the main and power
boards
Remove screws from the side AV jack.

Description Picture Description

2. Remove screws from the rear-cover and lift up
the rear-cover.

11 Disassembly and Reassembly

11-3

5. Lift up the speakers.
Remove screws from the BRKT.

Description Picture Description

4. Remove screws from the boards and stand
BRKT.

11 Disassembly and Reassembly

11-4

7. Lift up the panel BRKT.

Description Picture Description

6. Lift up the Panel and remove screws.

11 Disassembly and Reassembly

11-5

11-2 Disassembly (LA46F71BX)

Cautions : 1. Disconnect the monitor from the power source before disassembly.

2. Follow these directions carefully; never use metal instruments to pry apart the
cabinet.

Description Picture Description

1. Place monitor face down on cushioned table.
Remove screws from the Stand.
Remove stand.

11 Disassembly and Reassembly

11-6

3. Disconnet cables from the main and power
boards
Remove screws from the side AV jack.

Description Picture Description

2. Remove screws from the rear-cover and lift up
the rear-cover.

11 Disassembly and Reassembly

11-7

5. Lift up the speakers.
Remove screws from the BRKT.

Description Picture Description

4. Remove screws from the boards and stand
BRKT.

11 Disassembly and Reassembly

11-8

7. Lift up the panel BRKT.

Description Picture Description

6. Lift up the Panel and remove screws.

11 Disassembly and Reassembly

11-9

11-3 Reassembly

Reassembly procedures are in the reverse order of disassembly procedures.

11 Disassembly and Reassembly

11-10

Memo

4 Troubleshooting

4-1

4 Troubleshooting

4-1 First Checklist for Troubleshooting

1. Check the various cable connections first.

- Check to see if there is a burnt or damaged cable.

- Check to see if there is a disconnected cable connection or a connection is too loose.

- Check to see if the cables are connected according to the connection diagram.

2. Check the power input to the Main Board.

3. Check the voltage in and out between the SMPS Main Board, between the SMPS
INVERTER Board, and between the Main LVDS Boards.

4 Troubleshooting

4-2

4-2-1 No Power

4-2 Checkpoints by Error Mode

Does proper DC 12V

appear at CM801?

Change a Assy PCB Power.

Yes

Yes

No

Check a connection a power cable.

No

Does proper DC A3.3V,

A5V appear at

C1034, C1032?

Check a IC109, Q113.

Change a main PCB ass'y.

Yes

No

Does proper DC 5V, 3.3V, 2.5V

1.8V appear at C1024, C1102,
C1140?

Check a IC100, IC114, IC106, IC107,

IC108. Change a main PCB ass'y

Yes

A power is supplied to set?

Check a other function.

(No picture part)

Replace a lcd panel.

No

No

LAMP off, power indicator

LED blue color?

4 Troubleshooting

4-3

4-2-2 No Video (Analog PC)

Check a PC source and check

the connection of DSUB cable?

Input a analog PC signal and

connected cable(DPMS).

Yes

Does the signal appear at

#R5101, R2094, R5105

(R, G, B) of IC502?

PC cable. Change a PC

cable. Change a main PCB ass'y.

Yes

Power Indicator is off.

Lamp on, no video.

No

No

1

Yes

Check a LVDS cable?

Replace a lcd panel?

Please, Call to Samsung Co. LTD.

No

4 Troubleshooting

4-4

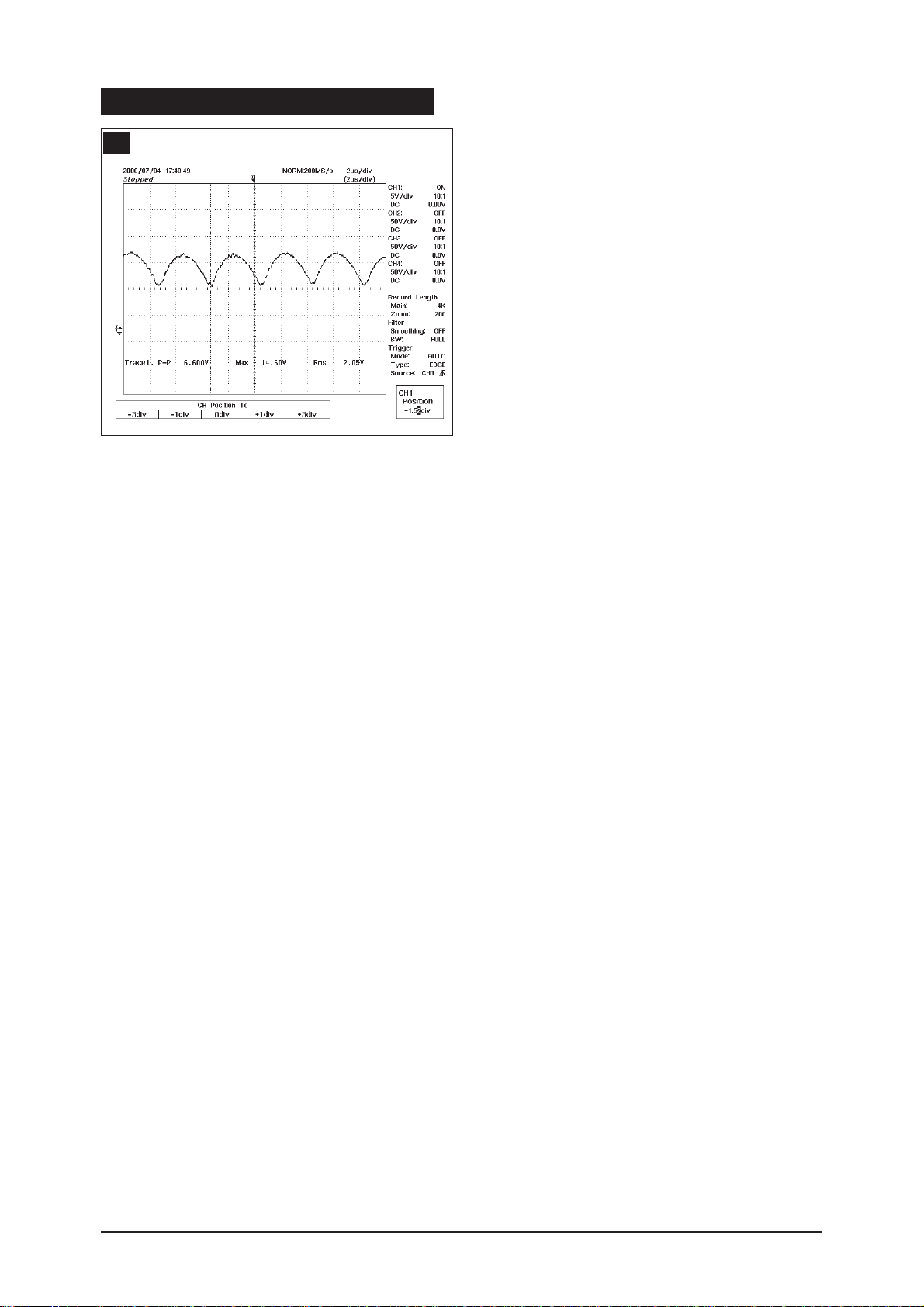

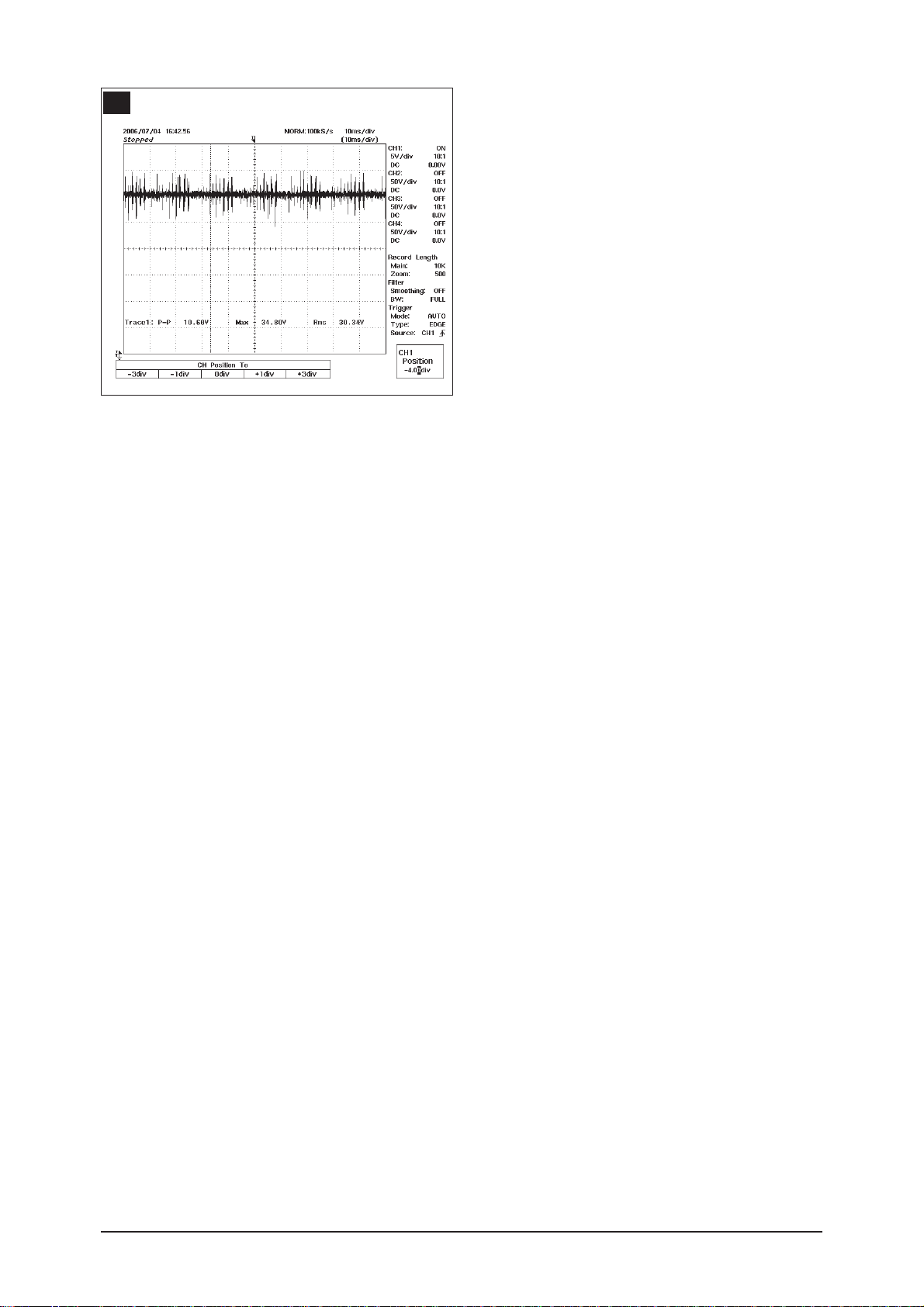

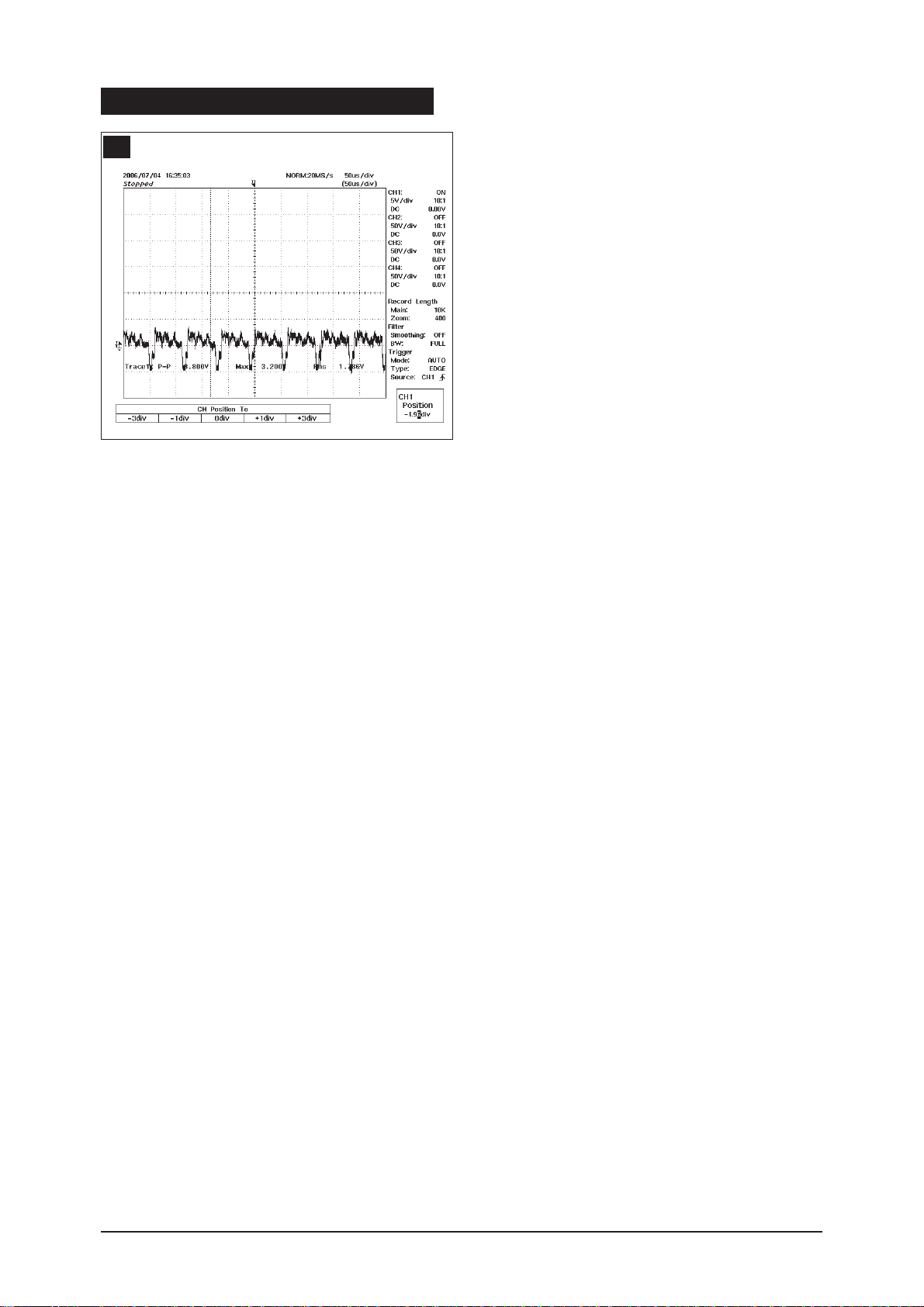

WAVEFORMS

1

4 Troubleshooting

4-5

4-2-3 No Video (Digital-HDMI)

Check the connection

of HDMI cable?

Input a HDMI cable.

Yes

Does the digital data appear at

HDMI1 (R6100 ~ R6107)

HDMI2 (R6108 ~ R6115)?

Check IC604.

Change a main PCB ass'y.

Yes

Does the digital data

appear at RA (618 ~ 623)?

Yes

Power Indicator is off.

Lamp on, no video.

No

No

2

Yes

Check a LVDS cable?

Replace a lcd panel?

Please, Call to Samsung Co. LTD.

No

4 Troubleshooting

4-6

2

4 Troubleshooting

4-7

4-2-4 No Picture (Tuner_CVBS)

Dose the signal appear

at R939?

Check a B+ voltage (#7 of Tuner) 5V,

change a main PCB ass'y

Yes

Does the signal appear at

#M4 of IC502-1?

Change a main PCB ass'y.

Yes

Power Indicator is off.

Lamp on, no picure.

No

Connect the RF cable and

check RF signal.

No

No

4

3

Yes

Check a LVDS cable?

Replace a lcd panel?

Please, Call to Samsung Co. LTD.

No

4 Troubleshooting

4-8

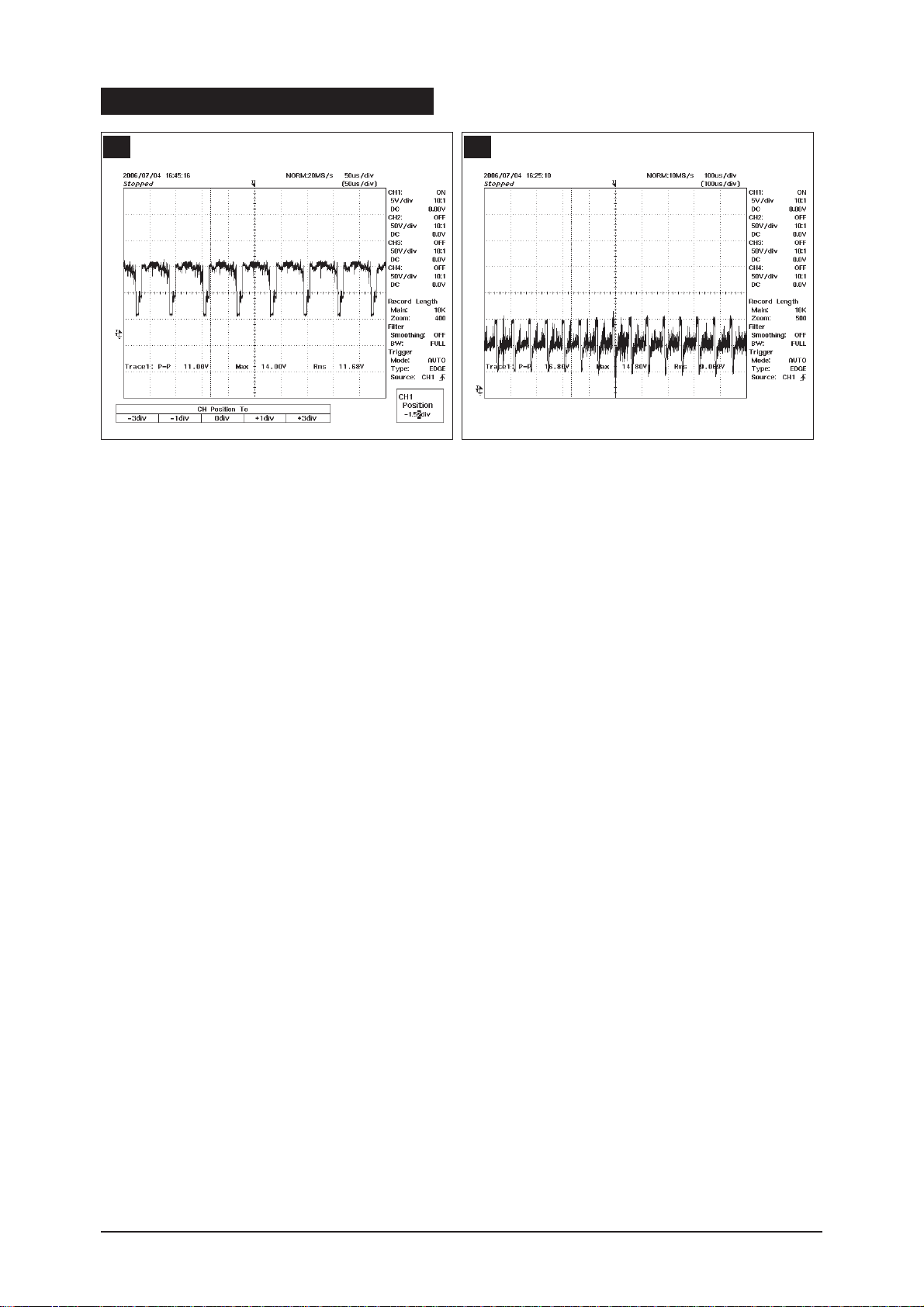

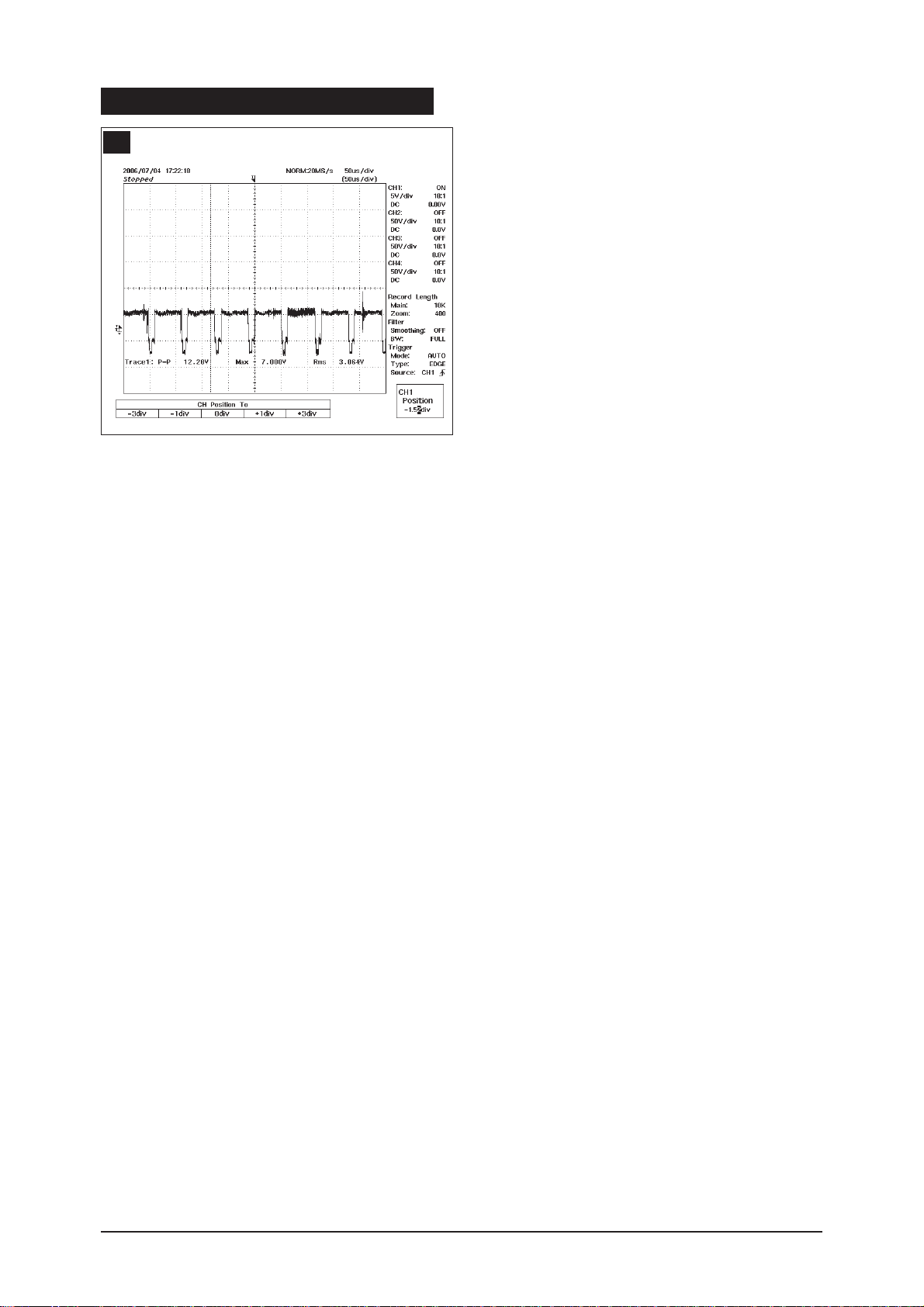

WAVEFORMS

43

4 Troubleshooting

4-9

4-2-5 No Picture (Video_CVBS)

Dose the signal appear at
#P1 (R5127), P2 (R5200)

of IC502-1?

Check a connection harness.

Yes

Power Indicator is off.

Lamp on, no picture.

No

Check a A/V cable and video signal.

No

5

Yes

Check a LVDS cable?

Replace a lcd panel?

Please, Call to Samsung Co. LTD.

No

4 Troubleshooting

4-10

WAVEFORMS

5

4 Troubleshooting

4-11

4-2-6 No Picture (S-VIDEO_Y,C)

Dose the Y/C signal appear at

#N2 (R5124), #T1 (R5111)

of IC502-1?

Check a connection harness.

Yes

Power Indicator is off.

Lamp on, no picure.

No

Connect the s-video cable.

Operating a video player.

No

6

Yes

Check a LVDS cable?

Replace a lcd panel?

Please, Call to Samsung Co. LTD.

No

4 Troubleshooting

4-12

6

WAVEFORMS

4 Troubleshooting

4-13

Does the signal appear at

Pin #10, #16(CH1_L, R Sound)

and Pin #3, #9

(CH2_L, R Sound)

of IC111?

Check a connection harness and

headphone jack / Side AV.

Yes

Yes

No

Check the DC 12V

of IC111?

Check a IC111.

Change a main PCB ass'y.

Yes

No

Does the signal appear at

L107, L108, L112, L113?

Change a main PCB ass'y.

Yes

Replace the speaker ass'y?

No

4-2-7 No Sound

6

7

Connect a sound cable.

control a volume.

Picture is display, no sound.

No

4 Troubleshooting

4-14

WAVEFORMS

7

3 Alignments and Adjustments

3-1

3 Alignments and Adjustments

3-1 Ser vice Instr uction

1. Usually, a color TV-VCR needs only slight touch-up adjustment upon installation.
Check the basic characteristics such as height, horizontal and vertical sync.

2. Use the specified test equipment or its equivalent.

3. Correct impedance matching is essential.

4. Avoid overload. Excessive signal from a sweep generator might overload the front-end
of the TV. When inserting signal markers, do not allow the marker generator to distort
test result.

5. Connect the TV only to an AC power source with voltage and frequency as specified on
the backcover nameplate.

6. Do not attempt to connect or disconnect any wire while the TV is turned on. Make sure
that the power cord is disconnected before replacing any parts.

7. To protect aganist shock hazard, use an isolation transform.

3 Alignments and Adjustments

3-2

3-2 How to Access Service Mode

3-2-1 Entering Factory Mode

" "

- If you have Factory remote - control

- The buttons are active in the service mode.

1. Remote - Control Key : Power, Arrow Up, Arrow Down, Arrow Left
Arrow Right, Menu, Enter, Number Key(0~9)

2. Function - Control Key : Power, CH +, CH -, VOL +, VOL -,
Menu, TV/VIDEO(Enter)

Power OFF

PICTURE ON

INFO

DISPLAY

MENU

MUTE

FACTORY

Power ON

3 Alignments and Adjustments

3-3

3-3 Factory Data

1. Calibration

2. Option Table XXXX XXXX

3. White Balance

4. SVP-PX

5. Option Block

6. STV8257/STA323W

7. YC Delay

8. Adjust

9. I2C Check

10. W/B MOVIE

11. Checksum

12. Reset

13. Spread Spectrum
T-FHDMPEU-0000
T-BRDMPEUS-0000
T-MSLMPEUW-0000

1. Calibration

1) AV Calibration

2) Comp Calibration

3) PC Calibration

4) HDMI Calibration

2. Option Table XXXX XXXX
Inch Option 40" Carrier Mute OFF TTX Group Auto

Gamma AMLCD Language English Auto Power ON

Panel Option AMLCD_INT Auto FM ON Magazine LNA OFF

2HDMI ON High Deviation OFF VOL MODE SMALL

Brt.Sensor OFF TTX ON ---- OFF

EnergySave OFF TTX List Flof Debug OFF

LBE/FBE ON ACR OFF Ch.Table SUWON

FRC(Micronas) OFF Dynamic CE ON iDTV_Cntry UK

FRC 2X OFF Dynamic Dimming ON Dynamic Contrast OFF

LNA ON Tuner TOP 8

3 Alignments and Adjustments

3-4

3. White Balance

4. SVP-PX

1) ComB Filter

2) Sharpness

3) NR

No.

Item

1
2
3
4
5
6
7
8

No1Item

Y-Filter

Range

0 ~ 255

EEPROM NTSC

80h

PAL SECAM Control IC Remark

X

H2 Gain
H4 Gain
V2 Gain

V4 Gain

Sr2 Gain

Sr4 Gain

05H
02H

0CH

04H
02H
00H

Sl2 gain

Sl4 gain
Peakth 1
Peakth 2
Peakth 3

02H
08H
04H
2FH
3FH

Sub-Briteness

R-offset
G-offset
B-offset

Sub-Contrast

R-Gain
G-Gain

B-Gain

TV/AV

Component

130
128
128
128
145
128
128
128

DVI (HDMI)

5) ADC Calibration
TCD3

TCD3
TCD3
TCD3

Analog

Contrast

CR
CB

Delay

Y offset

78H
20H
80H
00H

3DH

Y_NR_OFF
C_NR_OFF

Y_NR_ON
C_NR_ON

80H

4) RGB Calibration

R-offset
G-offset
B-offset

R-Gain
G-Gain
B-Gain

48H
48H
48H
39H
39H
39H

Analog

Black level

SVP Brightness

PB offset
PR offset

Y-Gain
PB-Gain
PR-Gain

80H
80H
B7H
9AH
9AH
00H
00H

3 Alignments and Adjustments

3-5

6) Calibration Target

AV ADC

COMP ADC

PC ADC

ALL RGB

low

17
0FH
17H
00H

high

D5H
EBH
D5H
DDH

delta

02H
02H
04H
08H

Ch1 Volume
Ch2 Volume

AGC Gain

AV-Prescale

4BH
4BH

07H
00H

AV delay

Comp delay

HDMI delay

PC delay

L1 Att / Rel Thres

41H
41H
41H
41H
7FH

7) Color Management
Skin Direction

Skin Enhance
Green Stretch

Blue Stretch

Reddish

40H
00H
00H

6. STV 8257 / STA 323W

RF PAL - B/G
RF PAL - D/K

RF PAL - I

RF SECAM B/G

RF SECAM D/K
RF SECAM L/L'

AAH

99H

99H

RF SECAM -B/G

44H
88H

RF NTSC 3.58
RF NTSC 4.43

AV PAL

AV SECAM
AV NTSC 3.58
AV NTSC 4.43

AV PAL 60

66H

CCH

AAH

88H

BBH

AAH

77H

7. YC Delay(TV)

5. Option Block
FRC (Micronas)
FRC 2X
LBE / FBE

8. Adjust
Video mute time 10
Melody volume 9
Ana_Dimm_Max FEH
LNA PLUS
Hotel Option

9. I2C Check

3 Alignments and Adjustments

3-6

WB movie Off

color mode Movie

W1 R Gain 157
W1 B Gain 157

W1 R Offset 157

W1 B Offset 157

W2 R Gain 142

W2 B Gain 48
W2 R Offset 129
W2 B Offset 143

Movie contrast 80

Movie Brightness 65

Movie color 35

Movie sharpness 35

Movie colortone warm 2

10. W/B movie

11. Checksum

12. Reset

13. Spread Spectrum
Spectrum on
Delta 0
Positive 8
Negative 2

3 Alignments and Adjustments

3-7

3-4 Ser vice Adjustment

3-4-1 White Balance - Calibration

If picture color is wrong, do calibration first.

Equipment : CA210, Patten : chess pattern
Execute calibration in Factory Mode
Source AV: PAL composite, Component : 1280 x 720/60Hz

Component: 720P

PC: 1024*768/60Hz

HDMI: 720P

3-4-2 White Balance - Adjustment

If picture color is wrong, check White Balance condition.

Equipment : CA210, Patten : New W/B Pattern
Adjust W/B in Factory Mode

Sub brightness and R/G/B Offset controls low light region
Sub contrast and R/G/B Gain controls high light region
Source AV : PAL composite, Component : 1280 x 720/60Hz

HDMI[DVI] : 1280 x 720/60Hz

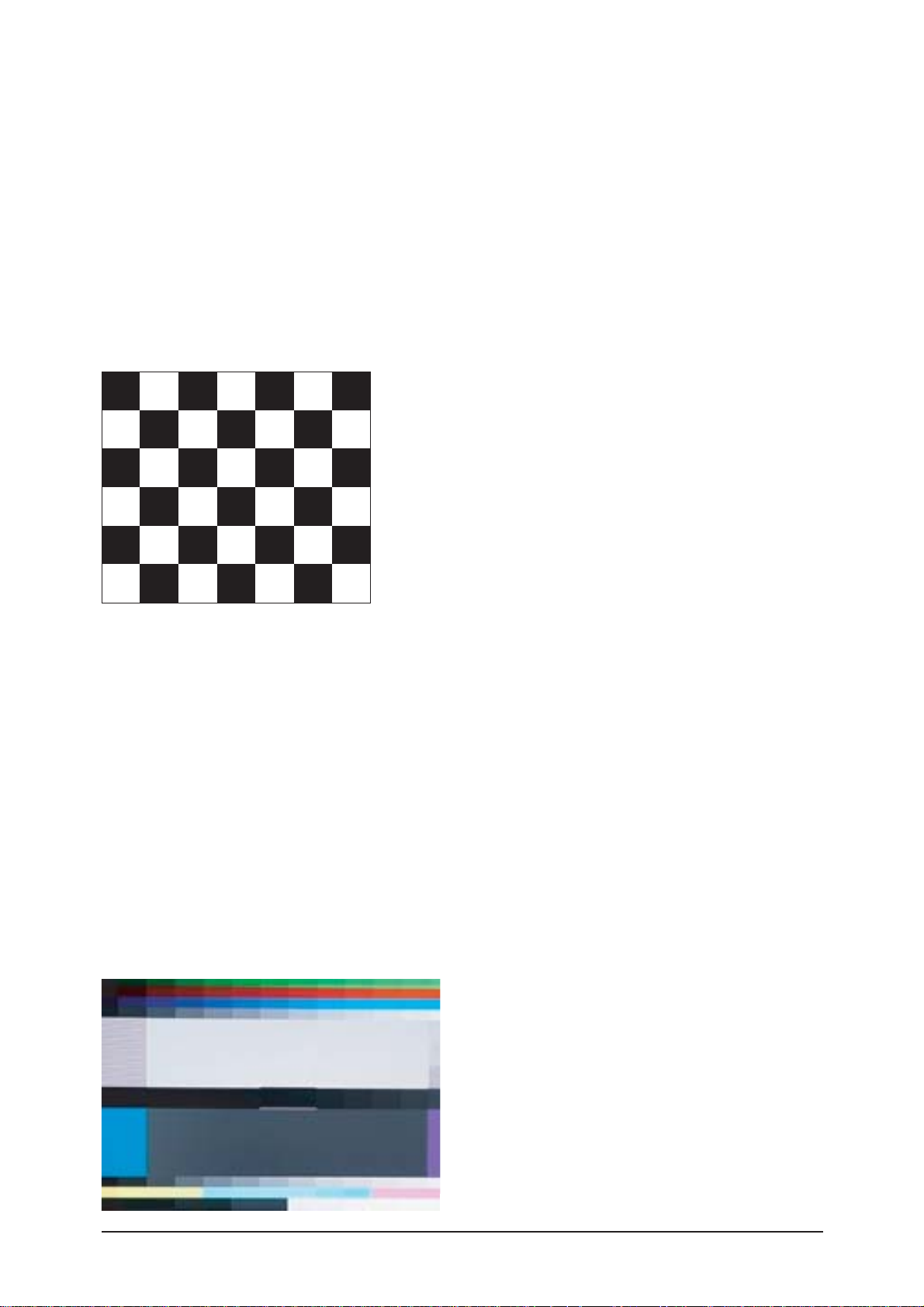

New W/B Pattern

[ Test Pattern : MSPG-945 Series Pattern #92 ]

*Color temperature
1500K +/-500, -6 ~-20 MPCD

*Color coordinate
H/L : 272/278 +/- 5
L/L : 272/278 +/-5 3.8ft +/- 0.2ft

( chess patten )

3 Alignments and Adjustments

3-8

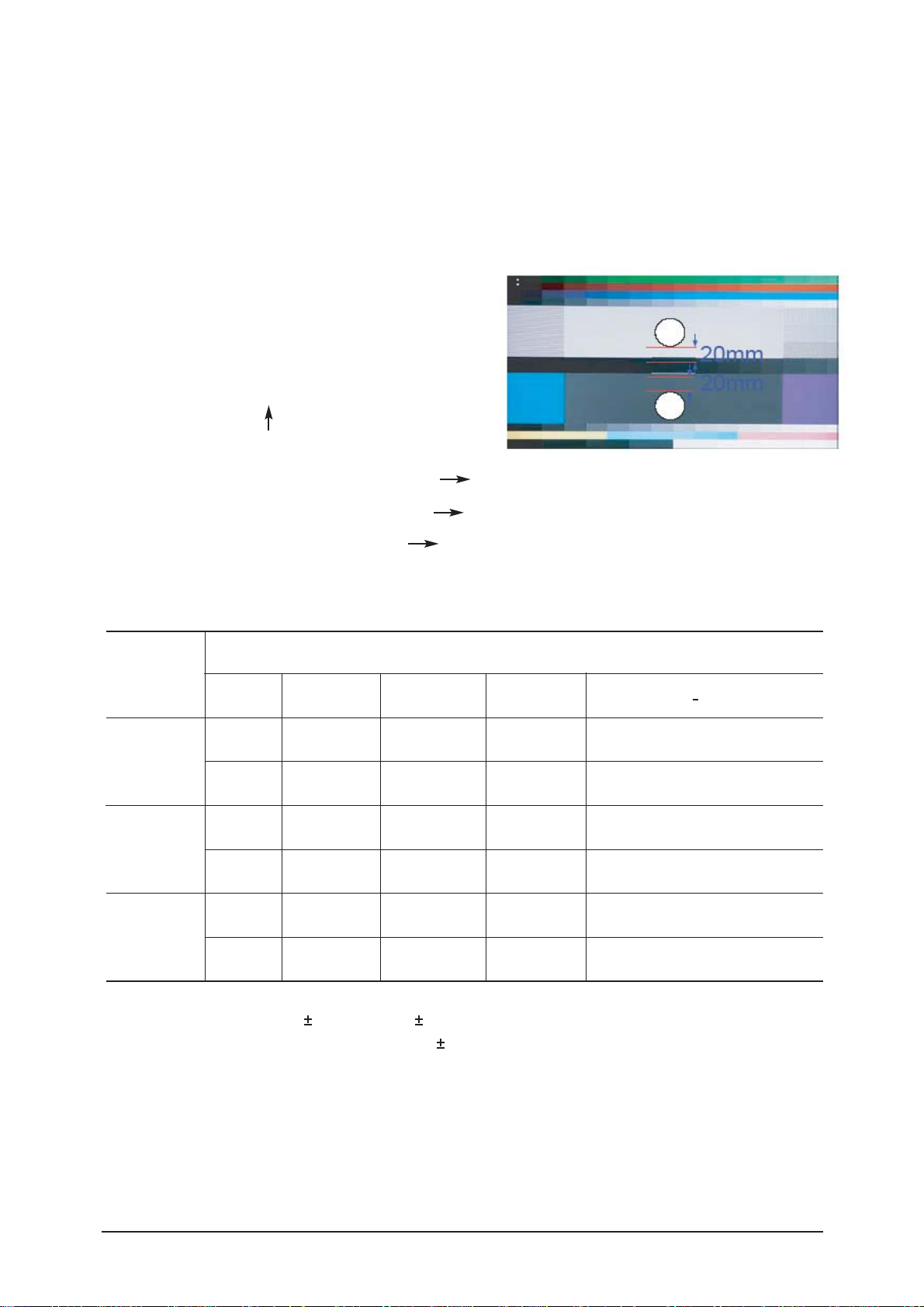

3-4-3 Conditions for Measurement

1. On the basis of toshiba ABL pattern : High Light level (57 IRE)

- INPUT SIGNAL GENERATOR
* Mode NO 2 : 744X484 @ 60 Hz

NO 6 : 1280X720 @ 60 Hz
NO 21 : 1024X768 @ 60 Hz

* Pattern NO 17 : 16 Gray Pattern

NO 92 : Combination Pattern

2. Optical measuring device : CA210 (FL)
Please use the generator for model

LA40F71B

.

3 Alignments and Adjustments

3-9

1. You can adjust the white ratio in factory mode (1:Calibration, 3:White-Balance).

2. Since the adjustment value and the data value vary depending on the input source, you have to
adjust these in AV, Component 1 and HDMI 1 modes.

3. The optimal values for each mode are configured by default. (Refer to Table 1, 2.)

It varies with Panel's size and Specification.

- Equipment : CS-210

- Pattern: MIK K-7256 #92 "Flat W/B Pattern" as standard

- Use other equipment only after comparing the result
with that of the Master equipment.

- Set Aging time : 60min

- Calibration and Manual setting for WB adjustment.
HDMI : Calibration at #24 Chessboard Pattern Manual adjustment #92 pattern (720p)
COMP: Calibration at #24 Chessboard Pattern Manual adjustment at #92 pattern (720p)
AV Calibration at #24 Chessboard Pattern Manual adjustment at #92 pattern

- If finishing in HDMI mode, adjustment coordinate is almost same in AV/COMP mode.

278

278

278

278

278

AV

L/L

H/L

H/L

L/L

H/L

L/L

T(K) + MPCD

Y (cd/m

2

)

-

-

-

-

-

13.2cd/m

2

y

278

Adjustment Coordinate (LE40F71B)

x

272

272

272

272

272

272

12,000

12,000

12,000

12,000

12,000

12,000

Component

(720P)

HDMI

(720P)

- White Balance Manual Adjustment

- Adjustment Specification
White Balance : High light ( 2), Low light ( 3)
Luminance : High light (Don't care), Low light ( 0.2 Ft/L)

3-5 White Ratio (Balance) Adjustment

3 Alignments and Adjustments

3-10

3-6 Ser vicing Infor mation

3-6-1 USB Download Method

(1) Copy the Software file into the USB flash driver.
(2) Turn on your LCD TV and check the source is 'Analog TV Mode'.
(3) Insert the USB flash driver into the USB Jack of LCD TV.
(4) Press 'Mute'+'7'+'8'+'9'+'Exit' keys of your remote control.
(5) The banner osd "Updating SW..." is displayed.
(6) The banner osd "Completed..." is displayed when the updating is
completed.
(7) Remove the USB flash driver from LCD TV.
(8) Check the program version.

* How to check Program Version

1. Press " MENU "

2. Select " SET UP "

3. Select " INFORMATION HELP "

4. Highlight " ON " option

5. Press " INFO " button on the remote control

AV

L/L

H/L

H/L

L/L

H/L

L/L

T(K) + MPCD

Y (cd/m

2

)

-

-

-

-

-

13.2cd/m

2

y

283

Adjustment Coordinate (LE46F71B)

x

268

268 283

283

283

283

283

268

268

268

268

12,000

12,000

12,000

12,000

12,000

12,000

Component

(720P)

HDMI

(720P)

- Adjustment Specification
White Balance : High light (

2), Low light ( 3)

Luminance : High light (Don't care), Low light (

0.2 Ft/L)

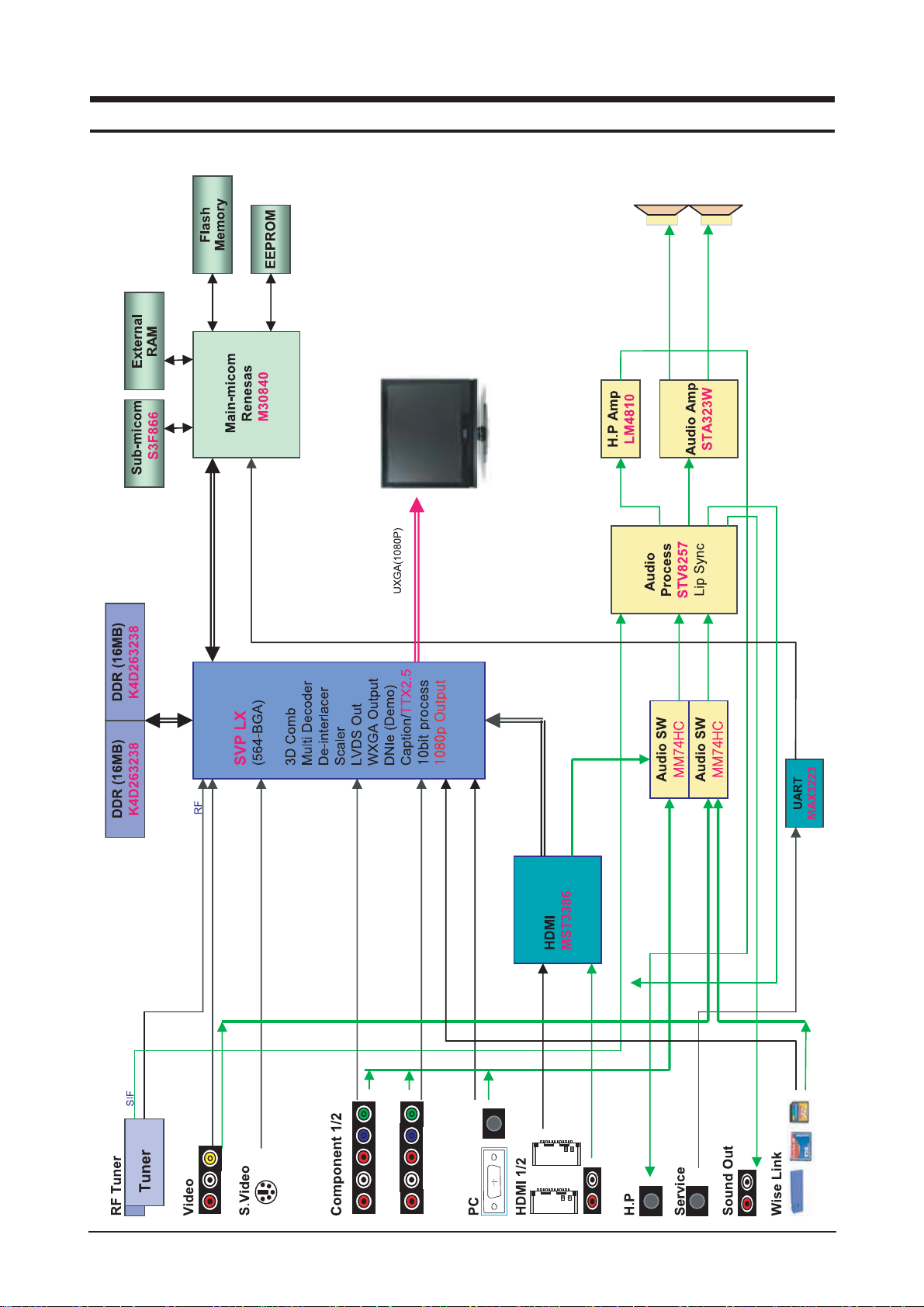

7 Block Diagrams

7-1

7 Block Diagram

- This Document can not be used without Samsung’s authorization

7 Block Diagrams

7-2

Memo

12 PCB Diagram

12-1

12 PCB Diagram

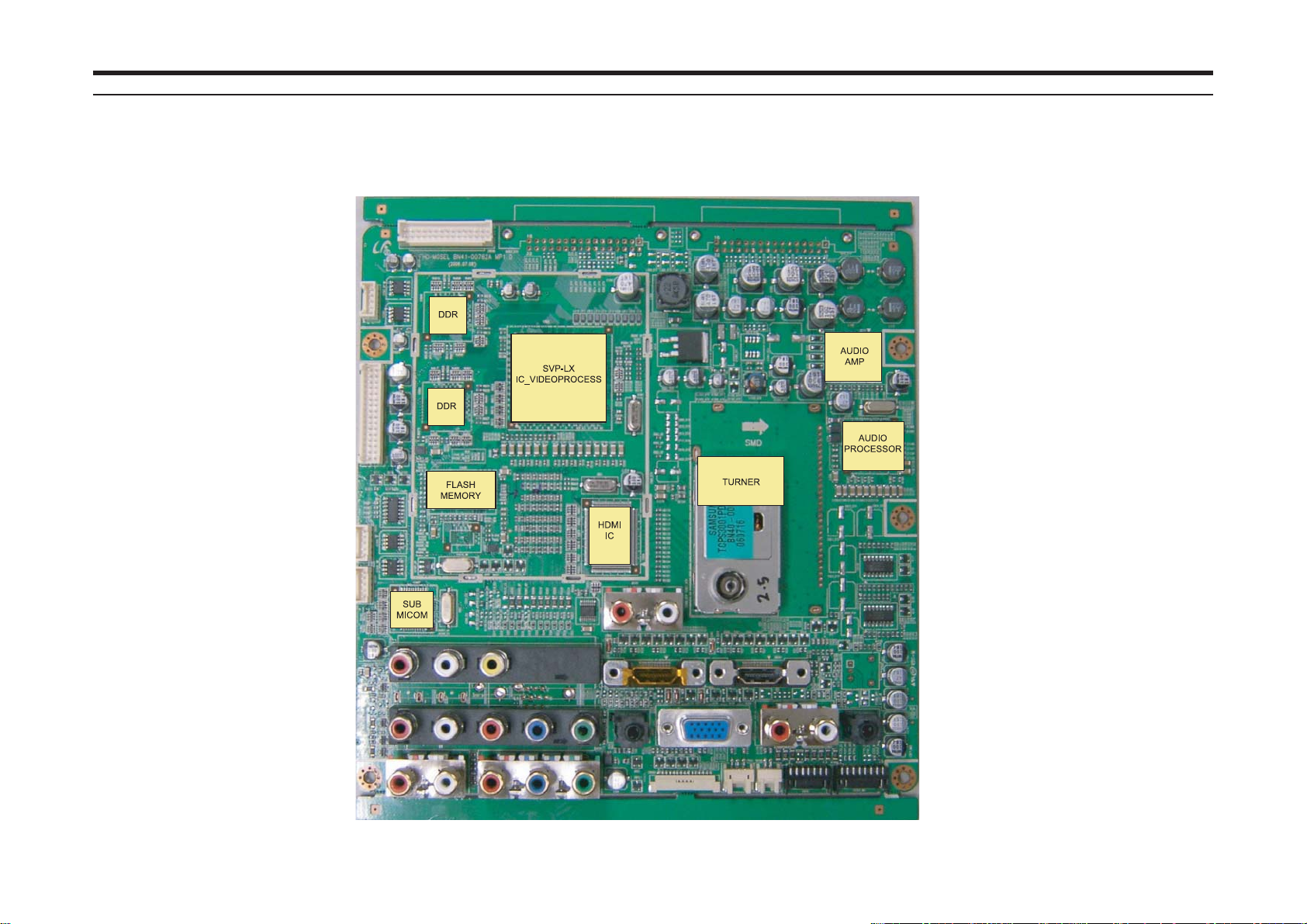

12-1 Main PCB Layout

12-1-1 Main PCB Layout (40/46")

12 PCB Diagram

12-2

12-1-2 Main PCB Layout (52")

12 PCB Diagram

12-3

12-2 IP Board Diagr am 40"

12 PCB Diagram

12-4

12-3 IP BOARD Diagram 46"

8-1

8 Wiring Diagrams

8 Wiring Diag ram

8-1 Wiring Diagr am

8 Wiring Diagrams

8-2

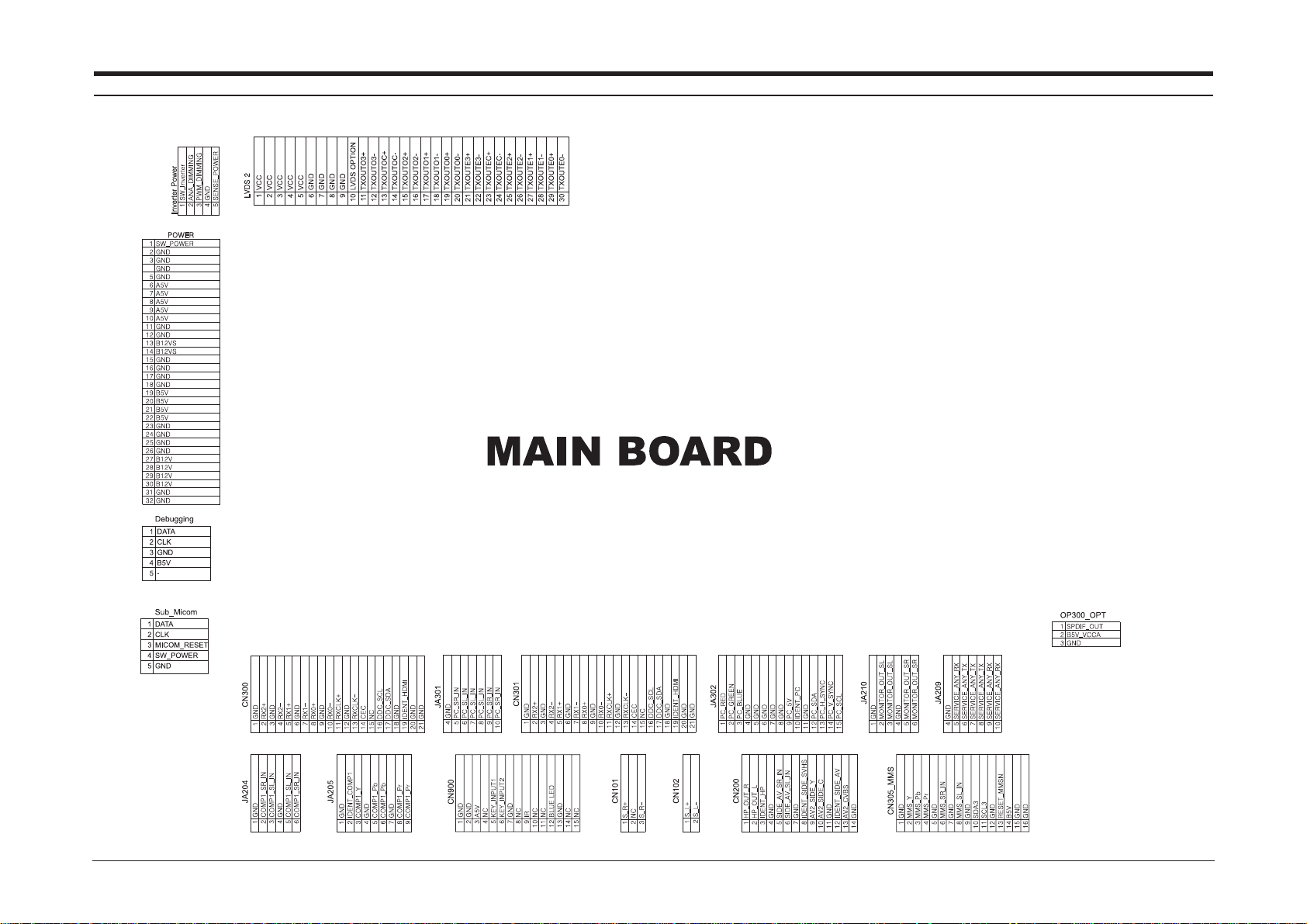

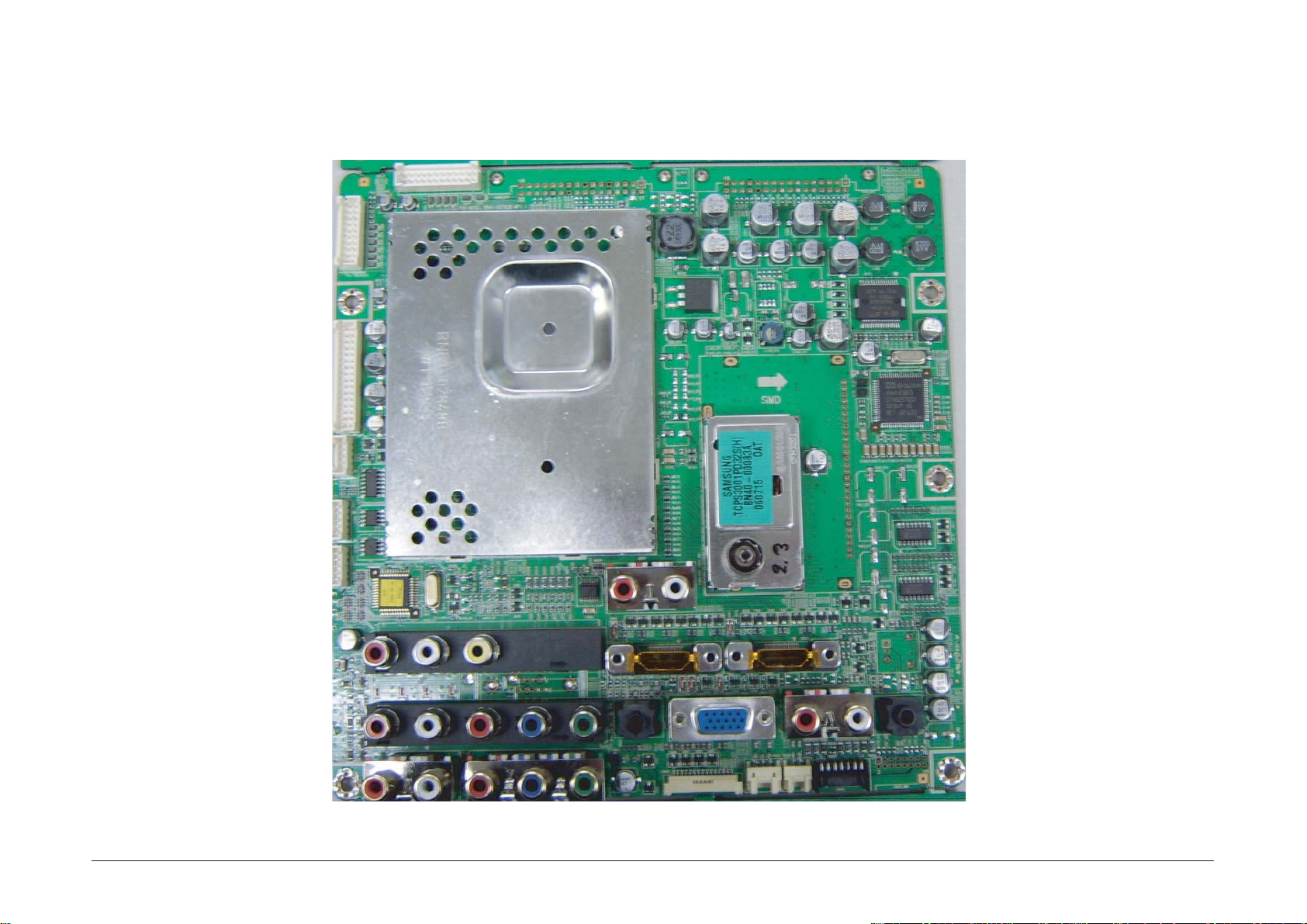

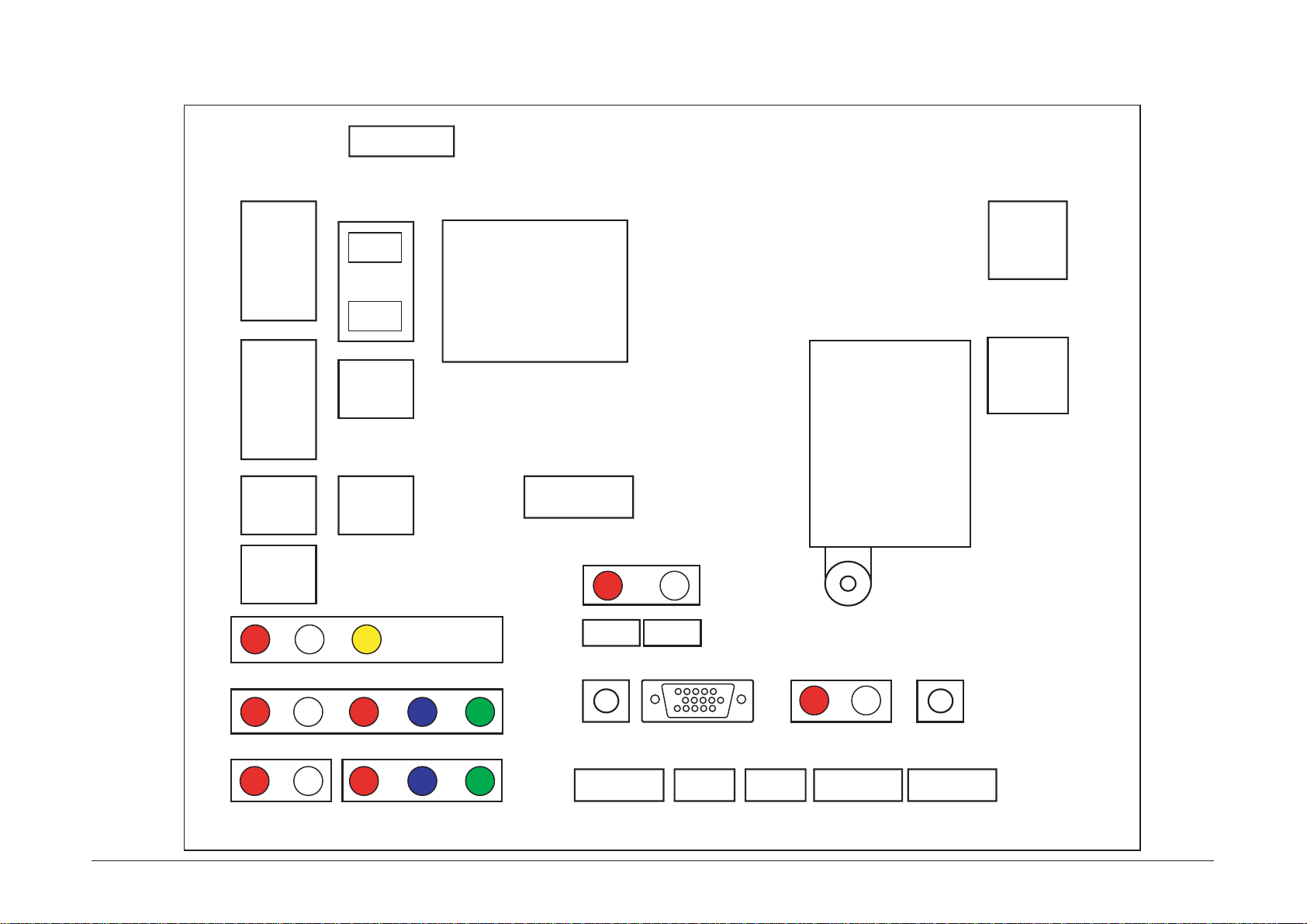

8-2 Main Board Layout (40"/46")

Inverter
Control

(5P)

LVDS (30P)

Power

(32P)

Deburgging

(5P)

Sub

micom

Sub

micom

(5P)

main

micom

DDR

SVP-LX

TUNER
BLOCK

DDR

HDMI-IC

Sound

amp

Sound

Block

CN201_NT

JA204

JA205

JA201_NT

JA300

CN300

Control Speaker Jack Side AV MMS

CN900

(15P)

CN101

(3P)

CN102

(2P)

CN200

(14P)

CN305

(16P)

JA301

JA210 JA209JA302

CN301

8-3

8 Wiring Diagrams

8-3 Main Board Layout (52")

LVDS
(20P)

LVDS (24P)

Power

(32P)

Deburgging

(5P)

Sub

micom

Sub

micom

(5P)

main

micom

DDR

SVP-LX

TUNER
BLOCK

DDR

HDMI-IC

Sound

amp

Sound

Block

CN201_NT

JA204

JA205

JA201_NT

JA300

CN300

Control Speaker Jack Side AV

CN900

(15P)

CN101

(3P)

CN102

(2P)

CN200

(14P)

JA301

JA210

JA209

JA302

CN301

Inverter
Control

(5P)

8 Wiring Diagrams

8-4

8-4 PIN characteristic

CN100 - Main Board power supply

PIN 1 2 3 4 5 6 7 8 9 10 1 1 12 13 14 15 16

NAME SW GND GND GND GND A5V A5V A5V A5V A5V GND GND B12VS B12VS GND GND

POWER

PIN 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

NAME GND GND B5V B5V B5V B5V GND GND GND GND B12V B12V B12V B12V GND GND

Function Define

- B12V B12V_CHN, B9V, B8V, B5V_VCCT

- B5V B33V, B5V_VCCA, B3.3VD, B2.5V_VDD, B1.8VD, PX_VD1.8, PX_VA1.8, PX_VL1.8, B1.2VD

- B12VS B12VS

- A5V A5V_1, A3.3V

CN101 / CN102 - SPEAKER CONNECTOR

PIN 1 2 3

NAME R+ NC R-

PIN 1 2

NAME L+ L-

8-5

8 Wiring Diagrams

CN900 - Front control

PIN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

NAME SDA-T SCL-T GND KEY LED GND A5V GND IR KEY KEY GND IDENT HP-L HP-R

INPUT1 INPUT1 INPUT2

HP

Function Define

- A5V Front control board poewr supply

- KEY INPUT1,2 Key control, from the memu, change up/down Etc.

- IR Remote control signal

- LED Control the timing and stand by LED color

CN505 - Panel control

PIN 1 2 3 4 5

NAME SW_inverter Ana_dimming PWM_dimming GND Sense_Power

Function Define

- SW_inverter panel inverter control, about 3.3V

- Ana_dimming panel dimming control

- PWM_dimming panel PWM control, duty 40% ~ 90%

8 Wiring Diagrams

8-6

LVDS Signal (40"/46")

PIN NAME PIN NAME

1 VDD 16 TXOUTO2­2 VDD 17 TXOUTO1+
3 VDD 18 TXOUTO1­4 VDD 19 TXOUTIO0+
5 VDD 20 TXOUTO0­6 GND 21 TXOUTE3+
7 GND 22 TXOUTE3­8 GND 23 TXOUTEC+

9 GND 24 TXOUTEC­10 LVDS OPTION 25 TXOUTE2+
11 TXOUTO3+ 26 TXOUTE2­12 TXOUTO3- 27 TXOUTE1+
13 TXOUTOC+ 28 TXOUTE1­14 TXOUTOC- 29 TXOUTE0+
15 TXOUTOC2+ 30 TXOUTE0-

8-7

8 Wiring Diagrams

LVDS Signal (52")

PIN

1
2
3
4
5
6
7
8

9
10
11
12

PIN

13
14
15
16
17
18
19
20
21
22
23
24

NAME

VDD
VDD
VDD
VDD

VDD
GND
GND
GND
GND

TXOUTO0-

TXOUTO0+

TXOUTO1-

NAME

TXOUTO1+

TXOUTO2-

TXOUTO2+

GND

TXOUTOC-

TXOUTOC+

GND

TXOUTO3-

TXOUTO3+

TXOUTO4-

TXOUTO4+

GND

PIN

1
2
3
4
5
6
7
8
9

10

PIN

11
12
13
14
15
16
17
18
19
20

NAME

TXOUTE0-

TXOUTE0+

TXOUTE1-

TXOUTE1+

TXOUTE2-

TXOUTE2+

GND

TXOUTEC-

TXOUTEC+

GND

NAME

TXOUTE3-

TXOUTE3+

TXOUTE4-

TXOUTE4+

GND

NC
NC
NC
NC
NC

8 Wiring Diagrams

8-8

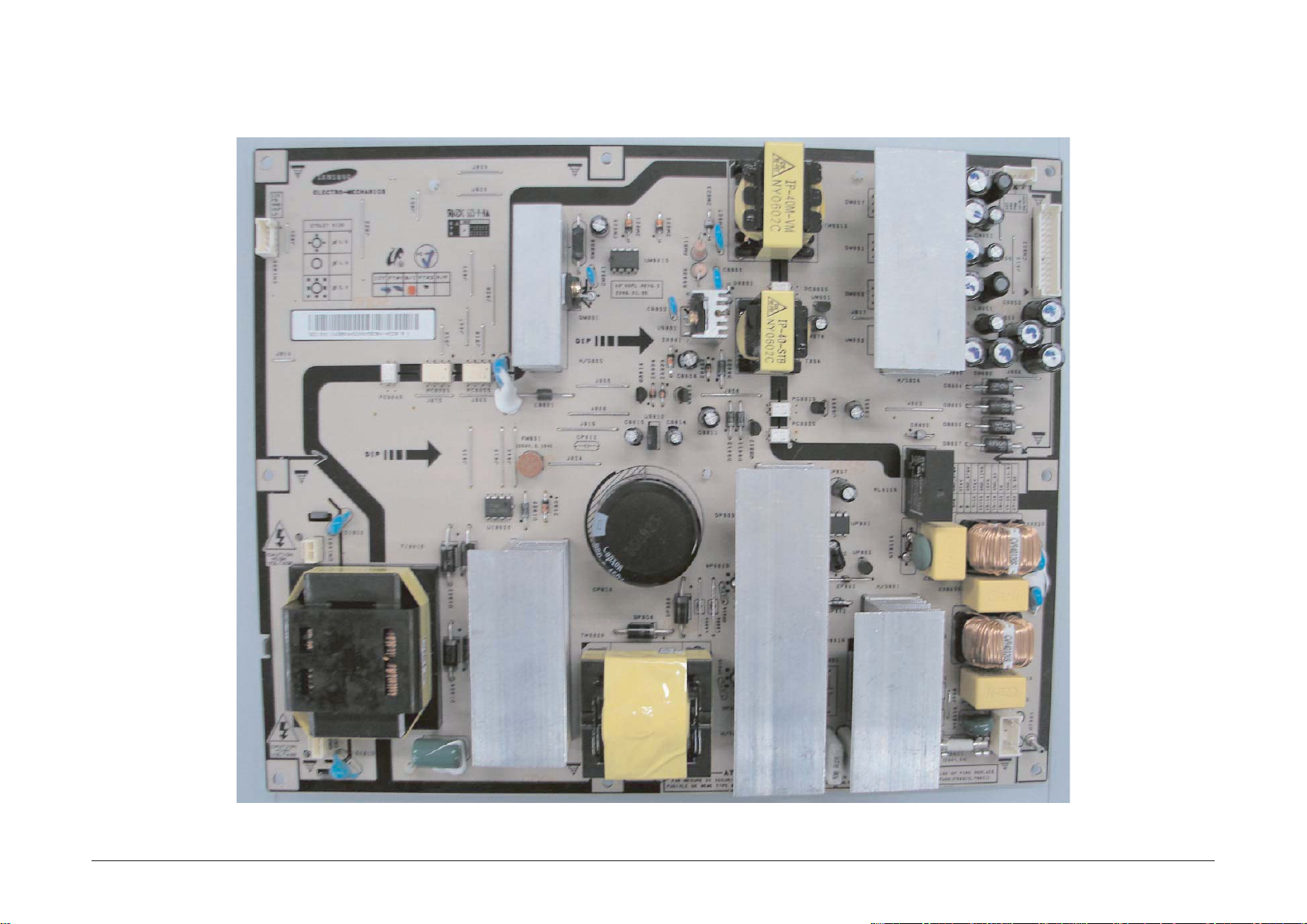

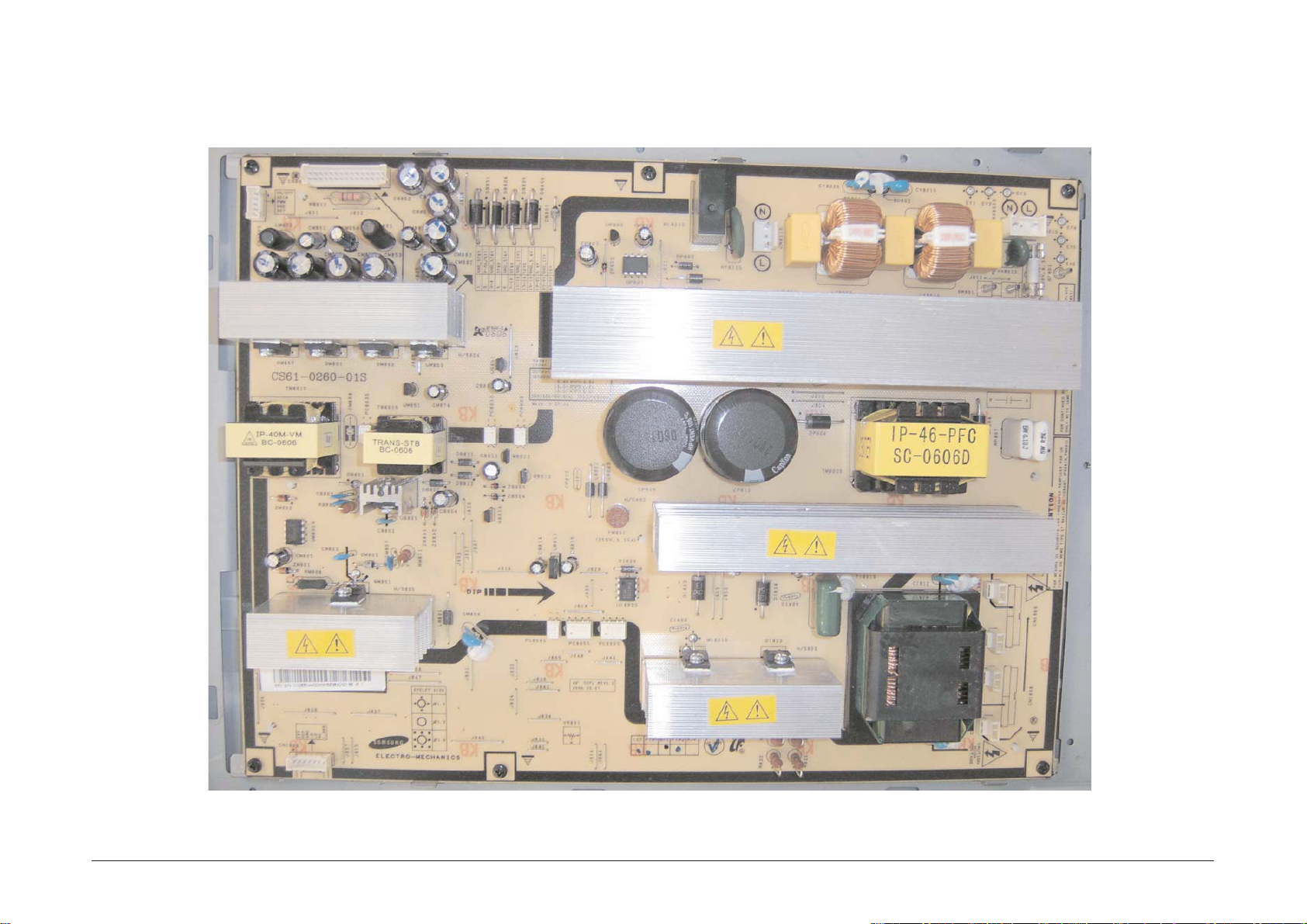

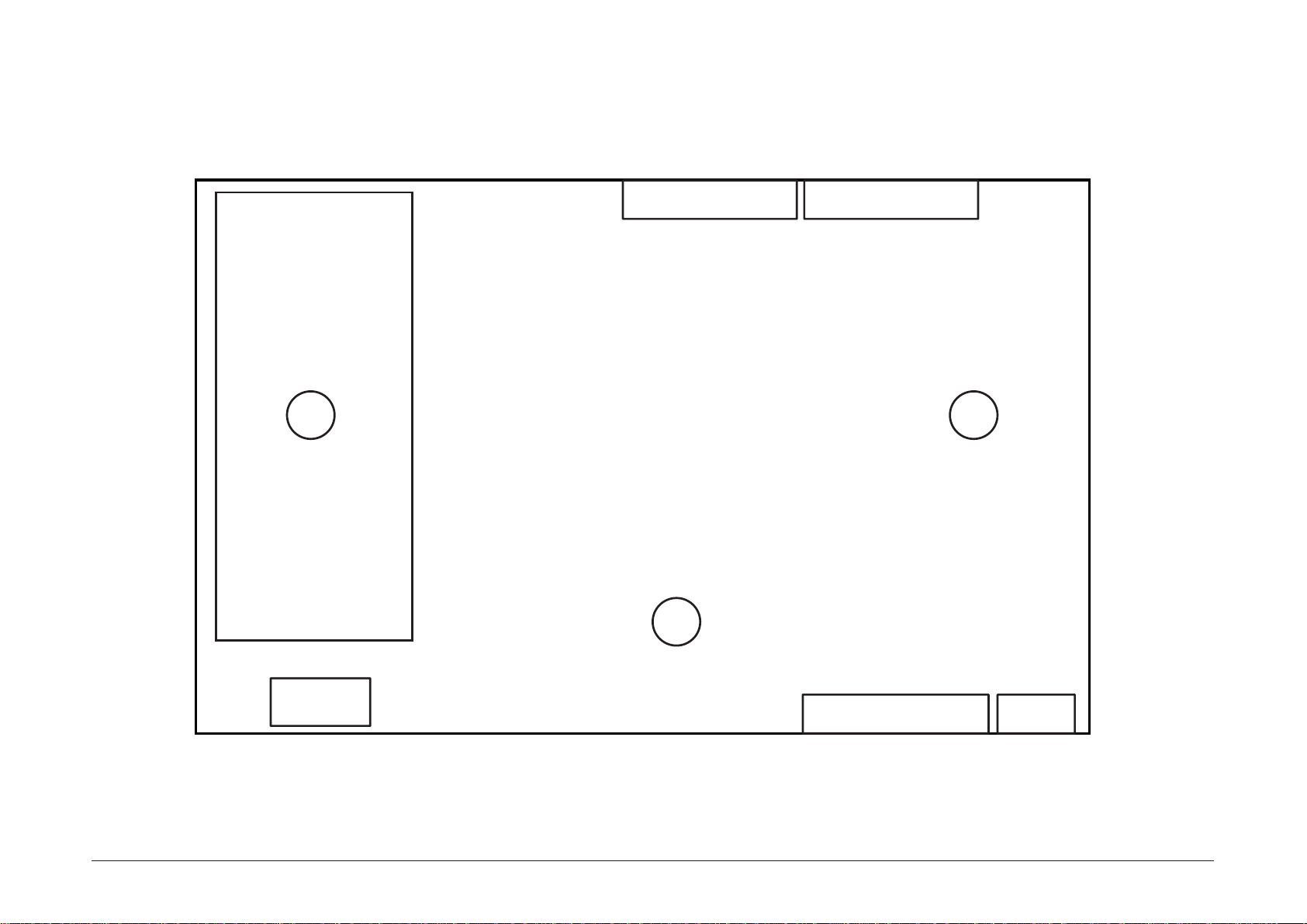

8-5 Power Board Layout

Line Filter

1

Stand By

Inverter power supply

Stand By

2

Multi

Main Board

Power supply

Main Board

Power supply

Panel

Control

3

AC Input

CN801

CNM803 14PIN CNM802 14PIN

CNM801 16PIN CNI804

8-9

8 Wiring Diagrams

CN801 - AC Input

PIN I 2

NAME Live Netural

VOLTAGE AC AC

Functing Define

- Refer to : AC Input

CN801 - Main Board power supply

PIN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

NAME 13V GND 5.4V 5.4V 5.4V GND GND GND 12V 12V 12V GND GND GND ST7V PWR

Functing Define

- ST7V Stand-By Output

- PWR Power On/Off Control

- Refer to : CN801 function define

CNM804 - Panel control

PIN 1 2 3 4 5

NAME SW_inverter Ana_dimming PWM_dimming GND SENSOR POWER

Functing Define

- Refer to : CN815 function define

8 Wiring Diagrams

8-10

CN802 - Inverter power supply

PIN 1 2 3 4 5 6 7 8 9 10 11 12 13 14

NAME 24V 24V 24V 24V 24V GND GND GND GND GND GND B/L A_D P_D

Functing Define

- AMLCD Panel Inverter Power

- 24V LAMP INVERTER Voltage

- B/L Brightness sensor power

- A_D ANA_DIMMING

- P_D PWM_DIMMING

CN803 - Inverter power supply

PIN 1 2 3 4 5 6 7 8 9 10 11 12 13 14

NAME 24V 24V 24V 24V 24V GND GND GND GND GND A_D B/L P_D GND

Functing Define

- AUO Panel Inverter Power

- 24V LAMP INVERTER Voltage

- B/L Brightness sensor power

- A_D ANA_DIMMING

- P_D PWM_DIMMING

8-11

8 Wiring Diagrams

Line Filter

1

Stand By

Inverter power supply

Stand By

2

Multi

Main Board

Power supply

Main Board

Power supply

Panel

Control

3

AC Input

CN800

CN804 14PIN CN803 14PIN

CN801 16PIN CN802

8 Wiring Diagrams

8-12

CN801 - AC Input

PIN I 2

NAME Live Netural

VOLTAGE AC AC

Functing Define

- Refer to : AC Input

CN801 - Main Board power supply

PIN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

NAME 13V GND 5.4V 5.4V 5.4V GND GND GND 12V 12V 12V GND GND GND ST7V PWR

Functing Define

- ST7V Stand-By Output

- PWR Power On/Off Control

- Refer to : CN801 function define

CNM804 - Panel control

PIN 1 2 3 4 5

NAME SW_inverter Ana_dimming PWM_dimming GND SENSOR POWER

Functing Define

- Refer to : CN815 function define

8-13

8 Wiring Diagrams

CN803 - Inverter power supply

PIN 1 2 3 4 5 6 7 8 9 10 11 12 13 14

NAME 24V 24V 24V 24V 24V GND GND GND GND GND GND B/L A_D P_D

Functing Define

- AMLCD Panel Inverter Power

- 24V LAMP INVERTER Voltage

- B/L Brightness sensor power

- A_D ANA_DIMMING

- P_D PWM_DIMMING

CN804 - Inverter power supply

PIN 1 2 3 4 5 6 7 8 9 10 11 12 13 14

NAME 24V 24V 24V 24V 24V GND GND GND GND GND B/D P_L GND B/L

Functing Define

- CMO Panel Inverter Power

- 24V LAMP INVERTER Voltage

- B/L Brightness sensor power

- P_D PWM_DIMMING

8 Wiring Diagrams

8-14

Memo

6 Electrical Parts List

6-1

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

0 LA40F71BX/XST LA40F71B,Q56B/40F70-GFM,40,LCD-TV,THAILA 0

0.1 M0001 BN90-00935K ASSY COVER FRONT;40F71,SO,ABS+PMMA,HB,BK 1 S.N.A
..2 T0175 BN96-03271A ASSY SPEAKER P;8ohm,Mosel 32,Left,10W,BA 1 S.A
..2 T0175 BN96-03272A ASSY SPEAKER P;8ohm,Mosel 32,Right,10W,B 1 S.A
..2 T0003 BN96-03412M ASSY COVER P-FRONT;40F71,SO,ABS+PMMA,HB, 1 S.A
...3 M0081 6003-001003 SCREW-TAPTITE;BH,+,B,M4,L12,ZPC(BLK),SWR 4 S.N.A
...3 M0081 6003-001003 SCREW-TAPTITE;BH,+,B,M4,L12,ZPC(BLK),SWR 2 S.N.A
...3 M0081 6003-001003 SCREW-TAPTITE;BH,+,B,M4,L12,ZPC(BLK),SWR 2 S.N.A
...3 M2893 BN39-00609A LEAD CONNECTOR;VE20EO,UL1015#22 BLACK,1P 1 S.A
...3 T0060 BN61-01655A SPRING ETC;STS-304 SUS,D8,L12,T0.5 1 S.N.A
...3 BN61-02667A HOLDER-BOSS;MOSEL 40,ABS,VO,TOP 2 S.N.A
...3 BN61-02670A HOLDER-BOSS;MOSEL 40,ABS,VO,BOTTOM,LEFT 1 S.N.A
...3 BN61-02671A HOLDER-BOSS;MOSEL 40,ABS,VO,BOTTOM,RIGHT 1 S.N.A
...3 BN61-02771A BOSS-BOND;MOSEL,ABS+PMMA,NATURAL,BOND 14 S.N.A
...3 CCM1 BN63-02183G COVER-SHEET;Rhcm,PE Vinyl,T0.05,1100mm,2 1.983 S.N.A
...3 M0112 BN63-02488M COVER-FRONT;40F71,SO,ABS+PMMA,-,-,-,HB,- 1 S.N.A
...3 T0056 BN63-02831A COVER-DECORATION;40" MOSEL,AL,Extruding 1 S.N.A
...3 T0023 BN64-00342A KNOB POWER;ROME,40,PC,VIOLET 1 S.N.A
...3 T0059 BN64-00366A INDICATOR LED;ROME-I,PC,CLEAR,ALL MODEL 1 S.N.A
...3 T0054 BN64-00443A KNOB-DECORATION;32R71,ABS,HB,GR503,VACUU 1 S.N.A
...3 T0061 BN64-00453A WINDOW-REMOCON;32R71,PC,V0,VIOLET,DIFFUS 1 S.N.A
...3 T0022 BN64-00467A KNOB CONTROL;SONOMA26,32,40,ABS,-,-,-,V0 1 S.A
...3 M0145 BN96-03466B ASSY BOARD P-FUNCTION;LE40M71BX,CT5000-4 1 S.A
...3 M0020 BN96-04015C ASSY BOARD P;LE40M91BX,CT5000-4330C,POWE 1 S.A

0.1 M0002 BN90-00938J ASSY COVER REAR;40F71,SO,HIPS,HB,BK500 1 S.N.A
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 2 S.A
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 1 S.A
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 14 S.A
..2 M0013 BN96-04227C ASSY COVER P-REAR;40F71,SO,-,HIPS,HB,BK5 1 S.A
...3 T0069 AA60-00091G SPACER-FELT;-,FELT,200X10,-,-,BLK,T0.5,- 2 S.N.A
...3 T0069 AA63-60122K SPACER-FELT;SPD-42P3S,FELT,L60,D20,T0.35 4 S.N.A
...3 BN61-02776A HOLDER-WALL;32R7,ABS,HB,BLK 1 S.N.A
...3 M0006 BN63-02690C COVER-REAR;40F71,SO,HIPS,-,-,-,HB,-,BK50 1 S.N.A
...3 T0071 BN64-00483A INLAY-TERMINAL;MOSEL 40",PS SHEET,T0.5,E 1 S.N.A
...3 T0064 BN65-00002A CLAMPER CORE;BORDEAUX,PP,V0,BLK 1 S.N.A

0.1 M0216 BN90-00941A ASSY STAND;40M70,ABS+PMMA,HB,BK23,H/GLAS 1 S.N.A
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 4 S.A
..2 M0013 BN96-03418A ASSY STAND P-BASE;40M70,ABS+PMMA,HB,BK23 1 S.A
...3 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 4 S.A
...3 M0081 6003-001239 SCREW-TAPTITE;FH,+,B,M4,L10,ZPC(YEL),SWR 4 S.A
...3 BN61-02247A HOLDER-SWIVEL RING;40R71,ACETAL,BLK 1 S.N.A
...3 BN61-02248A HOLDER-SWIVEL RING;40R71,ACETAL NATUAL,T 1 S.N.A
...3 BN61-02249A HOLDER-SWIVEL RING;40R71,ACETAL NATUAL,B 1 S.N.A
...3 BN61-02259A BRACKET-STAND BOTTOM;BORDEAUX 40,SGHC,T3 1 S.N.A
...3 BN61-02260A BRACKET-HINGE SWIVEL;BORDEAUX 40,SGHC,T3 1 S.N.A
...3 CCM1 BN63-02183E COVER-SHEET;Rhcm,PE Vinyl,T0.05,750mm,20 0.5 S.N.A
...3 T0004 BN63-02364A COVER-STAND BASE;40R71,ABS+PMMA,HB,BK23, 1 S.N.A
...3 BN63-02495A COVER-STAND SUB;40M70,ABS+PMMA,HB,BK23,H 1 S.N.A
...3 T0132 BN73-00052A RUBBER FOOT;ARES 17,SILICON,DIA 17 * T1. 4 S.N.A
...3 T0920 BN61-02410A GUIDE-STAND;MOSEL,40,ABS,V0,-,-,-,BK07,- 1 S.N.A

....4 T0514 BN61-02368A BRACKET-SUPPORT;BORDEAUX 40,SECC,T1.2 2 S.N.A

0.1 T0852 BN91-01058Q ASSY LCD-SPZ;LNS4096DX/XAA 1 S.N.A
..2 M0215 BN07-00288A LCD-PANEL;LTA400HS-LH1,8bit,952*551*51.0 1 S.A

0.1 M0112 BN91-01235A ASSY SHIELD;LA40F71BX/* 1 S.N.A

6 Electrical Parts List

You can search for updated part codes through ITSELF web site.

URL : http://itself.sec.samsung.co.kr/

6 Electrical Parts List

6-2

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

..2 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 1 S.A
..2 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 6 S.A
..2 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 5 S.A
..2 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 4 S.A
..2 M0081 6003-000337 SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR 5 S.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,B,M4,L10,YEL,SWRCH18A 2 S.N.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,B,M4,L10,YEL,SWRCH18A 9 S.N.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,B,M4,L10,YEL,SWRCH18A 2 S.N.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,B,M4,L10,YEL,SWRCH18A 2 S.N.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,B,M4,L10,YEL,SWRCH18A 1 S.N.A
..2 M0081 6003-001439 SCREW-TAPTITE;BH,+,S,M4,L8,ZPC(YEL) 1 S.N.A
..2 T0076 BN39-00615D CBF HARNESS;BORDEAUX,1617#22,3P,1P,RING, 1 S.A
..2 M2893 BN39-00716B LEAD CONNECTOR;LE40R71BX/XEC,UL3239#24,2 1 S.A
..2 M2893 BN39-00717A LEAD CONNECTOR;LE32R71BX/XEC,UL3443#28,5 1 S.A
..2 M2893 BN39-00725E LEAD CONNECTOR;LE40F71BX,UL2835#28,UL/CS 1 S.A
..2 M2893 BN39-00727D LEAD CONNECTOR;LE40F71BX,UL1571#30,UL/CS 1 S.A
..2 M2893 BN39-00741A LEAD CONNECTOR;LE40M71BX,UL1007#26,UL/CS 1 S.A
..2 M0174 BN44-00140A IP BOARD;PSIV280601A,40" MOSEL,44mA,86m 1 S.A
..2 M0146 BN61-02256A BRACKET-PANEL SIDE;BORDEAUX 40,SECC,T1.2 1 S.N.A
..2 M0146 BN61-02257A BRACKET-PANEL SIDE;BORDEAUX 40,SECC,T1.2 1 S.N.A
..2 M0115 BN61-02414A BRACKET-STAND LINK;MOSEL 40",SECC,T1.6 1 S.N.A
..2 M0114 BN61-02500A HOLDER-WIRE;NYLON6.6,NATURAL 2 S.N.A
..2 T0447 BN96-03421A ASSY BRACKET P-PANEL;40M7,EO,MOSEL 1 S.N.A
...3 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 1 S.A
...3 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 2 S.A
...3 M0146 BN61-02251A BRACKET-PANEL TOP;Bordeaux 40,SECC,T1.2 1 S.N.A
...3 BN61-02252A BRACKET-PANEL BOTTOM;Bordeaux 40,SECC,T1 1 S.N.A
...3 BN61-02253A BRACKET-GUIDE MAIN;Bordeaux 40,SECC,T1.2 1 S.N.A
...3 BN61-02254A BRACKET-GUIDE POWER;Bordeaux 40,SECC,T1. 1 S.N.A
...3 BN61-02255A BRACKET-GUIDE POWER;Bordeaux 40,SECC,T1. 1 S.N.A
...3 T0101 BN61-02438A BRACKET-WALL;MOSEL 40,SECC T1.6 1 S.N.A
...3 M0131 BN63-02549A GASKET;LE37R72B,Conductive Fabric,26mm,1 3 S.N.A
...3 M0131 BN63-02712A GASKET;LE40M71BX,Conductive Fabric,8mm,1 1 S.N.A
...3 T0069 AA60-00091J SPACER-FELT;-,FELT,330X10,-,-,BLK,T0.5,- 1 S.N.A
...3 M0131 BN63-02628A GASKET;Oxford,Conductive Fabric,8,12,300 1 S.N.A
...3 T0514 BN61-02778A BRACKET-SUPPORT;40M7,SECC T1.2 1 S.N.A
..2 M0059 BN96-03431G ASSY BOARD P-HOLDER AV;40F71,MOSEL,CT500 1 S.N.A
...3 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 2 S.A
...3 BN61-02411A HOLDER-SIDE AV;MOSEL,40,HIPS,V0,-,-,-,BK 1 S.N.A
...3 T0578 BN64-00454B INLAY AV;BORDEAUX,PS SHEET,T0.3,-,-,BLAC 1 S.N.A
...3 T0186 BN64-00484A INLAY-MMS;MOSEL,40,PS SHEET,T0.3,-,-,-,- 1 S.N.A
...3 M0020 BN96-02439B ASSY BOARD P-SIDE AV;LE40M71BX,CT5000-36 1 S.N.A
..2 M2893 BP39-00177B LEAD CONNECTOR;RE40**,UL1007#26,5P,150mm 1 S.A

0.1 M0017 BN91-01237A ASSY CHASSIS;LA40F71BX/* 1 S.N.A
..2 T0862 BN94-00868G ASSY PCB MISC-MMS;MOSEL,NEO MOSEL ALL 1 S.N.A
...3 T0245 0202-001492 SOLDER-WIRE FLUX;HSE-02 LFM48 SR-34 S,-, 0.003 S.N.A
...3 CN330 3711-003340 HEADER-BOARD TO CABLE;BOX,16P,2R,2mm,STR 1 S.A
...3 CN5 3722-001051 JACK-USB;4P/1C,AU,BLK,ANGLE,A TYPE 1 S.A
...3 SUB06 BN63-02530A SHIELD-MMS;MOSEL,SPTE T0.2,-,-,-,-,- 1 S.N.A
...3 T0174 BN97-00842J ASSY SMD;LE26R73BDX/XET 1 S.N.A

....4 SUB05 0202-001477 SOLDER-CREAM;LST309-M,-,D20~45§-,96.5Sn/ 5.347 S.N.A

....4 D1 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D10 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D11 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D12 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D13 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D14 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D15 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D16 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D17 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D18 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D19 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D2 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D20 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D21 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

6 Electrical Parts List

6-3

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 D4 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D5 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D6 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D7 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D8 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D9 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 Q1 0505-001217 FET-GAAS;FDN338P,-20V,+-8V,-1.6A,500mW,S 1 S.A

....4 Q2 0505-001217 FET-GAAS;FDN338P,-20V,+-8V,-1.6A,500mW,S 1 S.A

....4 Q3 0505-001217 FET-GAAS;FDN338P,-20V,+-8V,-1.6A,500mW,S 1 S.A

....4 Q4 0505-001217 FET-GAAS;FDN338P,-20V,+-8V,-1.6A,500mW,S 1 S.A

....4 Q5 0505-001217 FET-GAAS;FDN338P,-20V,+-8V,-1.6A,500mW,S 1 S.A

....4 Q6 0505-001217 FET-GAAS;FDN338P,-20V,+-8V,-1.6A,500mW,S 1 S.A

....4 L0405 0601-001313 LED;SMD,GRN,2X1.8MM,565NM,3.16X1.6X1.1MM 1 S.A

....4 IC6 1203-001211 IC-VOL. DETECTOR;7027,SOT-89,3P,-,PLASTI 1 S.A

....4 T0087 1203-002842 IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P 1 S.A

....4 T0087 1203-002842 IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P 1 S.A

....4 T0087 1203-002842 IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P 1 S.A

....4 T0087 1203-002974 IC-POSI.FIXED REG.;AP1117D-25A,TO-252,3P 1 S.A

....4 IC1 1204-002585 IC-DECODER;MP612,LFBGA,256P,17x17mm,PLAS 1 S.A

....4 IC2 1205-002713 IC-CODEC;ALC202A,LQFP,48P,7X7MM,PLASTIC, 1 S.A

....4 R11 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 1 S.A

....4 R12 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 1 S.A

....4 R120 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R138 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R148 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R149 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R150 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R163 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R164 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R165 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R166 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R167 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R168 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R19 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R32 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R33 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R35 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R36 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R10 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R9 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R107 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R108 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R109 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R110 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R111 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R112 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A

....4 R113 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A

....4 R1 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R105 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R117 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R140 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R146 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R158 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R159 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R5 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R116 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R139 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R142 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R143 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R144 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R145 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R37 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R38 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-4

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R7 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R8 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R100 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R101 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R129 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R130 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R160 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R161 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R64 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R65 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R66 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R67 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R68 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R69 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R70 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R71 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R72 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R73 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R74 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R75 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R76 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R77 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R78 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R79 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R80 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R81 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R82 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R83 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R84 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R85 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R86 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R87 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R88 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R89 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R90 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R91 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R92 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R93 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R94 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R95 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R96 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R97 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R98 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R99 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R102 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 S.A

....4 R103 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 S.A

....4 R115 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608 1 S.A

....4 R49 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R50 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R51 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R52 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R53 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R54 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1

S.A

....4 R55 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R56 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R57 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R58 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R59 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R60 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R61 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R62 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R63 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R106 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608 1 S.A

....4 R114 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R48 2007-000475 R-CHIP;1Mohm,1%,1/10W,TP,1608 1 S.A

....4 R151 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-5

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R152 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R153 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R13 2007-007526 R-CHIP;23.7Kohm,1%,1/10W,TP,1608 1 S.A

....4 R39 2007-007947 R-CHIP;36ohm,1%,1/10W,TP,1608 1 S.A

....4 R40 2007-007947 R-CHIP;36ohm,1%,1/10W,TP,1608 1 S.A

....4 C106 2203-000041 C-CER,CHIP;0.01nF,0.25pF,50V,C0G,1608 1 S.A

....4 C114 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C115 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C100 2203-000332 C-CER,CHIP;0.012nF,5%,50V,C0G,1608 1 S.A

....4 C101 2203-000332 C-CER,CHIP;0.012nF,5%,50V,C0G,1608 1 S.A

....4 C116 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C117 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C118 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C155 2203-000552 C-CER,CHIP;0.02nF,5%,50V,C0G,1608 1 S.A

....4 C156 2203-000552 C-CER,CHIP;0.02nF,5%,50V,C0G,1608 1 S.A

....4 C157 2203-000552 C-CER,CHIP;0.02nF,5%,50V,C0G,1608 1 S.A

....4 C104 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

....4 C105 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

....4 C107 2203-000815 C-CER,CHIP;0.033nF,5%,50V,C0G,1608 1 S.A

....4 C108 2203-000815 C-CER,CHIP;0.033nF,5%,50V,C0G,1608 1 S.A

....4 C103 2203-001242 C-CER,CHIP;0.082nF,5%,50V,NP0,1608 1 S.A

....4 C129 2203-001724 C-CER,CHIP;4700nF,+80-20%,16V,Y5V,3216 1 S.A

....4 C123 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C124 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C125 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C126 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C127 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C128 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C135 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C136 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C137 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C138 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C139 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C140 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C141 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C142 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C143 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C144 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C145 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C146 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C160 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C164 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C165 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C167 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C168 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C169 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C170 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C171 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C176 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C44 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C45 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C46 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C47 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C48 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C49 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C50 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C51 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C52 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C53 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C54 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C55 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C56 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C57 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C58 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C59 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C60 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

6 Electrical Parts List

6-6

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C61 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C62 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C63 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C64 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C65 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C66 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C67 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C68 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C69 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C71 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C72 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C73 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C74 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C76 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C77 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C78 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C79 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C81 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C82 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C83 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C84 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C86 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C87 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C88 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C89 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C91 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C92 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C93 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C94 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C95 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C96 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C97 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C98 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C99 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C109 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C110 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C111 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C112 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C113 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C10 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C11 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C119 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C120 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C147 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C148 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C149 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C150 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C151 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C152 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C153 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C154 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C161 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C172 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C173 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C174 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C175 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C21 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C22 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C23 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C24 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C25 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C26 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C27 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C28 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C29 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C3 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

6 Electrical Parts List

6-7

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C30 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C31 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C32 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C33 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C34 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C35 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C36 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C37 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C38 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C39 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C4 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C40 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C41 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C42 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C43 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C5 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C8 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C9 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C122 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.7m 1 S.A

....4 C16 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.7m 1 S.A

....4 C162 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.7m 1 S.A

....4 C17 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.7m 1 S.A

....4 C19 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.7m 1 S.A

....4 C20 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.7m 1 S.A

....4 C163 2402-000209 C-AL,SMD;22uF,20%,16V,WT,TP,5.3x5.3mm 1 S.A

....4 C7 2402-000209 C-AL,SMD;22uF,20%,16V,WT,TP,5.3x5.3mm 1 S.A

....4 C133 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4 1 S.A

....4 C134 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4 1 S.A

....4 C1 2402-001059 C-AL,SMD;220UF,20%,6.3V,-,TP,6X6.6X6.6 1 S.A

....4 C158 2402-001059 C-AL,SMD;220UF,20%,6.3V,-,TP,6X6.6X6.6 1 S.A

....4 C159 2402-001059 C-AL,SMD;220UF,20%,6.3V,-,TP,6X6.6X6.6 1 S.A

....4 C2 2402-001059 C-AL,SMD;220UF,20%,6.3V,-,TP,6X6.6X6.6 1 S.A

....4 C6 2402-001059 C-AL,SMD;220UF,20%,6.3V,-,TP,6X6.6X6.6 1 S.A

....4 C166 2402-001222 C-AL,SMD;3.3UF,20%,50V,HR,TP,4.3X4.3X5.8 1 S.A

....4 X3 2801-003804 CRYSTAL-SMD;24.576MHz,30ppm,28-AAN,20pF, 1 S.A

....4 X1 2801-003948 CRYSTAL-SMD;12MHz,30ppm,28-AAN,12pF,60oh 1 S.A

....4 X2 2801-004355 CRYSTAL-SMD;13.5MHz,30ppm,28-AAN,20,40oh 1 S.A

....4 CN3 3709-001290 CONNECTOR-CARD SLOT;50P,1.27MM,SMD-A,AU1 1 S.A

....4 CN8 3709-001424 CONNECTOR-CARD SLOT;70pin,0.6,-,gold,car 1 S.A

....4 CN4 3722-002236 JACK-MINI USB;5P,AU30U,BLK,SMD-A,MINI US 1 S.A

....4 T0077 BN41-00746B PCB MAIN;MOSEL,FR-4,6,1.0,1.6T,179*184,3 1 S.N.A

....4 M0018 BN97-01024A ASSY MICOM;29LV320,T-MSLMPEUW-1013,2006/ 1 S.A

.....5 IC115 1107-001475 IC-FLASH MEMORY;29LV320,32MBIT,4MX8/2MX1 1 S.N.A

....4 D3 0403-001180 DIODE-ZENER;BZX84C6V2,5.8-6.6V,350mW,SOT 1 S.A

....4 IC113 1105-001571 IC-DRAM;K4D551638,GDDR,256Mbit,4x4Mx16,T 1 S.A

....4 T0087 1203-003696 IC-POSI.FIXED REG.;NCP1117DT18T5G,DPAK,3 1 S.A

...3 T0069 AA63-60002W SPACER-FELT;-,FELT,-,-,-,BLK,T0.5,-,30X1 1 S.N.A
...3 SUB09 AA63-01387A GASKET-EMI,SPONGE;SP-P300M,Conductive Fa 1 S.N.A
..2 M0014 BN94-01119A ASSY PCB MAIN;LA40F71BX/* 1 S.A
...3 T0245 0202-001492 SOLDER-WIRE FLUX;HSE-02 LFM48 SR-34 S,-, 0.25 S.N.A
...3 JA302 3701-001294 CONNECTOR-DSUB;15P,3R,FEMALE,STRAIGHT,AU 1 S.A
...3 CN330 3711-002347 HEADER-BOARD TO CABLE;BOX,16P,2R,2MM,ANG 1 S.A
...3 CN330 3711-004484 HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA 1 S.A
...3 CN330 3711-004484 HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA 1 S.A
...3 CN330 3711-004484 HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA 1 S.A
...3 CN330 3711-004909 HEADER-BOARD TO CABLE;BOX,14P,2R,2MM,ANG 1 S.A
...3 CN330 3711-005606 HEADER-BOARD TO CABLE;BOX,30P,2R,2mm,STR 1 S.A
...3 CN330 3711-005607 HEADER-BOARD TO CABLE;BOX,32P,2R,2mm,STR 1 S.A
...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A
...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A
...3 JA333 3722-001903 JACK-PIN;2P,-,AU,WHT/RED,- 1 S.A
...3 JA333 3722-001903 JACK-PIN;2P,-,AU,WHT/RED,- 1 S.A
...3 JA333 3722-001903 JACK-PIN;2P,-,AU,WHT/RED,- 1 S.A
...3 JA333 3722-001938 JACK-PIN;3P,-,AU,GRN/BLU/RED,- 1 S.A
...3 JA333 3722-002143 JACK-PIN;5P,NI,GRN/BLU/RED/WHT/RED,STRAI 1 S.A
...3 JA333 3722-002523 JACK-PIN;3P,NI,YEL/WHT/RED,STRAIGHT 1 S.A

6 Electrical Parts List

6-8

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

...3 T0562 6046-001013 STAND OFF;M3,L5,Ni PLT,SUM24L,#4-40 2 S.N.A
...3 CIS3 BN40-00083A TUNER;TCPS3001PD32S(H),TCPS3001PD32S(H), 1 S.A
...3 T0603 BN63-02848B SHIELD-PCB MAIN;FHD MOSEL 40,SPTE T0.3,- 1 S.N.A
...3 CIS2 BN73-00024C SILICON/RUBBER-BERGQUIST;VENUS 32,40",SI 1 S.N.A
...3 T0174 BN97-01231A ASSY SMD;LA40F71BX/* 1 S.N.A

....4 SUB05 0202-001477 SOLDER-CREAM;LST309-M,-,D20~45§-,96.5Sn/ 4.307 S.N.A

....4 D1100_ATV 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D208 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D215_NT 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D218 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D228 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D232_NT 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D302 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D303 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D310 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D311 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D312 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D313 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D314 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D315 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D316 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D317 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D318 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D319 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D320 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D321 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D322 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D323 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D324 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D325 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D328 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D329 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D330 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D338 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D900 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D901 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D902 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D903 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D907 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D106 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A

....4 D107 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A

....4 D108 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A

....4 D110 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A

....4 D101 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 1 S.A

....4 D103 0403-000258 DIODE-ZENER;BZX84C5V6,5.2-6V,225mW,SOT-2 1 S.A

....4 D402 0403-000258 DIODE-ZENER;BZX84C5V6,5.2-6V,225mW,SOT-2 1 S.A

....4 D450 0403-000614 DIODE-ZENER;RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A

....4 D304 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D305 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D306 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D307 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D326 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D327 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D333 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D334 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D335 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D336 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D337 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D403 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D405 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D620 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D300 0403-001016 DIODE-ZENER;RLZ6.2B,5.96-6.27V,500mW,LL- 1 S.A

....4 D301 0403-001016 DIODE-ZENER;RLZ6.2B,5.96-6.27V,500mW,LL- 1 S.A

....4 D1101_ATV 0403-001425 DIODE-ZENER;BZX84C33,31-35V,350mW,SOT-23 1 S.A

....4 D201 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D203 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

6 Electrical Parts List

6-9

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 D204 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D205 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D206 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D207 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D219 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D220 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D221 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D222 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D223 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D224 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D225 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D226 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D227 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D229_EU 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D233 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D234 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D308 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D309 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D331 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D332 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 S.A

....4 D100 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A

....4 D102 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A

....4 D240 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A

....4 D400 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A

....4 D401 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A

....4 D404_OP 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A

....4 Q108 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150MW,SOT-23 1 S.A

....4 Q231 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150MW,SOT-23 1 S.A

....4 Q1100_ATV 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q113 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q116 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q117 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q119 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q120 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q232 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q235 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q236 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q300 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q301 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q400 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q402 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q403 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q404 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q501 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q111 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A

....4 Q118 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A

....4 Q903 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-001170 FET-SILICON;SI9933ADY-T1,P,-20V,3.4A,0.0 1 S.A

....4 IC104 0801-002095 IC-CMOS LOGIC;74LCX245,TRANSCEIVER,TSSOP 1 S.A

....4 IC403 0903-001432 IC-MICROCOMPUTER;M30840SGP,16Bit,LQFP,10 1 S.N.A

....4 IC115 1001-000164 IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16 1 S.A

....4 IC117 1001-000164 IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16 1 S.A

....4 IC405 1001-001109 IC-ANALOG SWITCH;FST3125M,BUS SWITCH & C 1 S.A

....4 IC107 1002-001399 IC-D/A CONVERTER;PCM1754,24BIT,SSOP,16P, 1 S.A

....4 IC110 1006-001076 IC-DRIVER/RECEIVER;MAX232ECWE+T,SOP,16P, 1 S.A

....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A

....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A

....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A

....4 IC112 1103-001279 IC-EEPROM;24C32,32Kbit,4Kx8Bit,SOP,8P,5x 1 S.A

....4 IC113 1105-001674 IC-DRAM;EM6A9320BI,-,128Mbit,4Mx32Bit,FB 1 S.A

....4 IC113 1105-001674 IC-DRAM;EM6A9320BI,-,128Mbit,4Mx32Bit,FB 1 S.A

6 Electrical Parts List

6-10

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 DU410 1201-000166 IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10 1 S.A

....4 T0085 1201-002136 IC-AUDIO AMP;LM4810,MSOP,8P,3x3mm,DUAL,- 1 S.A

....4 T0085 1201-002246 IC-AUDIO AMP;STA323W,SO,36P,15.9x11mm,-, 1 S.A

....4 IC409 1203-001559 IC-RESET;DS1834A,SOIC,8P,150MIL,PLASTIC, 1 S.A

....4 IC503_OP 1203-001559 IC-RESET;DS1834A,SOIC,8P,150MIL,PLASTIC, 1 S.A

....4 T0087 1203-001815 IC-POSI.FIXED REG.;78M09,TO-252,3P,-,PLA 1 S.A

....4 T0087 1203-001816 IC-POSI.FIXED REG.;78M08,TO-252,3P,-,PLA 1 S.A

....4 IC113 1203-001824 IC-VOL. DETECTOR;7042,SOT-89,3P,-,PLASTI 1 S.A

....4 IC408_OP 1203-001824 IC-VOL. DETECTOR;7042,SOT-89,3P,-,PLASTI 1 S.A

....4 T0087 1203-002842 IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P 1 S.A

....4 T0087 1203-002855 IC-POSI.FIXED REG.;MC33269DTRK-5.0,DPRK, 1 S.A

....4 T0087 1203-002974 IC-POSI.FIXED REG.;AP1117D-25A,TO-252,3P 1 S.A

....4 T0087 1203-003060 IC-POSI.FIXED REG.;AP1084,TO-263,3P,9.97 1 S.A

....4 T0087 1203-003696 IC-POSI.FIXED REG.;NCP1117DT18T5G,DPAK,3 1 S.A

....4 IC107 1203-004379 IC-DC/DC CONVERTER;AP1530SA,SOP,8P,5x3.9 1 S.A

....4 IC105 1204-002464 IC-AUDIO PROCESSOR;STV8257DSX,TQFP,80P,1 1 S.A

....4 IC118 1204-002484 IC-VIDEO PROCESS;SVP-LX64-7164,BGA,564P, 1 S.N.A

....4 IC604 1205-002929 IC-RECEIVER;MST3386M-LF-170,PQFP,128P,20 1 S.A

....4 R6008 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 1 S.A

....4 R6009 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 1 S.A

....4 R6010 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 1 S.A

....4 R6011 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 1 S.A

....4 R4071 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R4104 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R4105 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R4106 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R4107 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R4108 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R4109 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R4110 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R4111 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R4117 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R1006 2007-000060 R-CHIP;100Kohm,1%,1/10W,TP,1608 1 S.A

....4 R937_ATV 2007-000060 R-CHIP;100Kohm,1%,1/10W,TP,1608 1 S.A

....4 40_ 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1087 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1100 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1101 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1102 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1114 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1115 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2021_NT 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2033 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2100_NT 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R318 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R319 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R363 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R371 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4000 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4005 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4013 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4014 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4015 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4019 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4020 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4044 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4045 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4048 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4101 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4103 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4112 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4113 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R4500 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5000 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5002_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5004 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-11

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R5008 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5009 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5011 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5014 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5020 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5034_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5035_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5084_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5092_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5096 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5097 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5098 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5099 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5100 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5106 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5109 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5115 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5116 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5117 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5120 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5122 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5128 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5135 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5137 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5140 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5141 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5142 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5143 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5144 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5145 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5146 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5147 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5148 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5149 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5150 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5151 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5152 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5153 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5154 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5155 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5156 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5157 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5160 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5165 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5166 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5167 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5168 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5169 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5170 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5171 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5172 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

1 S.A

....4

R5173 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5174 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5175 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5180 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5197 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5198 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5202 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5204_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5205_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5300 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5301 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5302 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5303 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5304 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5500 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-12

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R5501 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5502 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5503 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5504 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5505 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5506 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5507 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5508 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5509 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5510 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5511 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5512 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5513 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5514 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5515 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5516 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5517 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R5518 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R6028 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R6029 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R6034 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R6035 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R909 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R983_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R984_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R985_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R352 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R370 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R5003 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R5089 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R5118 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R5158 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R5161 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R5196 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R5199 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6016 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6017 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6018 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6019 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6024 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6025 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6026 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6027 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6100 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6101 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6102 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6103 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6104 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6105 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6106 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6107 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608

1 S.A

....4

R6108 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6109 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6110 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6111 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6112 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6113 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6114 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6115 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R1088 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R1090 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R1098 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R1099 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R1111 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R1112 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R3001 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-13

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R3002 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R304 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R306 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R350 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R353 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R4035 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R4036 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R4037 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R4038 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R4040 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R4079 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R6012 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R6013 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R6014 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R6015 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R6020 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R6021 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R6022 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R6023 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R924_ATV 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R925_ATV 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R1073 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1074 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1077 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1078 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1081 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1083 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1085 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1106 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1107 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1130 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1131 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1132 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1133 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1134 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1135 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1136 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1137 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1300 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1301 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1302 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1303 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1304 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1305 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R2020_NT 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R2062 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R2063 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R2206 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R2207 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R3003_MMS 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R366 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

1 S.A

....4

R4009 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R4010 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R4011 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R4012 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R4041 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R4042 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R4043 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R4049 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R4062 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R4063 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R4064 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R4065 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R4067 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R4069 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R4070 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-14

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R4073 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R4100 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R4102 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R4115 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R4121 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R5007 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R5022 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R5086 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R5087 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R5093 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R5094 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R5101 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R5102 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R5103 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R5104 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R5105 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R5107 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R5108 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R5110 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R5111 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R5112 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R5119 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R5121 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R5123 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R5124 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R5125 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R5127 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R5134 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R5136 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R5138 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R5139 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R5162 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R5163 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R5164 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R5200 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R5201 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R936_ATV 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R942_ATV 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1200_ATV 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A

....4 R2038 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A

....4 R2040 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A

....4 R1022 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R2003 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R2005 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R2028 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R2029 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R2039 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R2041 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R2057 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R2058 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R310 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

1 S.A

....4

R317 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R340 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R342 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R4118 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R5015 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R6036 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R6037 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R6042 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R1108 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2210 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2211 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2250 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2251 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R305 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R307 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-15

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R336 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R337 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4034 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4039 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4050 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4051 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4114 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4120 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R5001_OP 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R5005 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R5017 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R5019 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R926_ATV 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1104 2007-000081 R-CHIP;2.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4032 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4033 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4053 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4056 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4092 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4093 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R5013 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R5016 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1020 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1021 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1079 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1086 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4002 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4007 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4008 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4021 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4022 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4024 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4029 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4031 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4058 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4089 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4090 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4091 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4095 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4096 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4097 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4200 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R5012 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R5021 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R5090 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R5091 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R5095 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R5159 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R5305 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R5306 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R5307 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R5308 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R946 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2011 2007-000087 R-CHIP;6.8Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2046 2007-000087 R-CHIP;6.8Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1091 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1117 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1118 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1146 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1147 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1148 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1149 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1162 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1163 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1164 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1165 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-16

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R2200 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2201 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R300 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R301 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R302 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R303 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R313 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R314 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R346 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R347 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R367 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R378 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4026 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4027 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4028 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4047 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4068 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4098 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4099 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4119 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R6043 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R6044 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R6047 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1093 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1094 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1201_ATV 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4023 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1009 2007-000096 R-CHIP;30Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2203 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2204 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R308 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R309 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4094 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R5130_OP 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1089 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1092 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1095 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1116 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1122 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1123 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1124 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1125 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1126 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1127 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1128 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1129 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1138 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1139 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1140 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1141 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1142 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1143 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1144 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1145 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1150 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1151 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1152 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1153 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1154 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1155 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1156 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1157 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1158 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1159 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1160 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1161 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-17

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R1202_ATV 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R380 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 S.A

....4 R932 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 S.A

....4 R940_ATV 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 S.A

....4 R941_ATV 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1096 2007-000107 R-CHIP;470Kohm,5%,1/10W,TP,1608 1 S.A

....4 R6041 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R1072 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608 1 S.A

....4 R943 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 S.A

....4 R944 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 S.A

....4 R945 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1080 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1105 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4116 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1110 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1010 2007-000219 R-CHIP;1.2Kohm,1%,1/10W,TP,1608 1 S.A

....4 R1007 2007-000239 R-CHIP;1.5Kohm,1%,1/10W,TP,1608 1 S.A

....4 R2006 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R2031 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R2042 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R2045_EU 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R2051_NT 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R2052 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R2055 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R2059 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R320 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R321 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R322 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R323 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R324 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R325 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R326 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R327 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R328 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R329 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R330 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R331 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R332 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R333 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R334 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R335 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R4046 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R4052 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R4054_1M 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R4055_1M 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R4066 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R4072 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R4074 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R4075 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R4076 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R4077 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R4078 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R4080 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R4081 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R4082 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R4083 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R4084 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R4085 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R4086 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R4087 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R4088 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R6038 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R6039 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R6040 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R6045 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R6046 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1

S.A

6 Electrical Parts List

6-18

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R6048 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R2008 2007-000458 R-CHIP;18Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2043_OP 2007-000458 R-CHIP;18Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4017 2007-000704 R-CHIP;3.6Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4030 2007-000704 R-CHIP;3.6Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1008 2007-000857 R-CHIP;4.3Kohm,1%,1/10W,TP,1608 1 S.A

....4 R2007 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R2009 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R2010 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R2030 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R2032 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R2034 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R2053 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R2054 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R2056 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R2060 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R2061 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R6030 2007-001014 R-CHIP;51OHM,5%,1/10W,TP,1608 1 S.A

....4 R6031 2007-001014 R-CHIP;51OHM,5%,1/10W,TP,1608 1 S.A

....4 R6032 2007-001014 R-CHIP;51OHM,5%,1/10W,TP,1608 1 S.A

....4 R6033 2007-001014 R-CHIP;51OHM,5%,1/10W,TP,1608 1 S.A

....4 R2014 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R2015 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R2016 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R2035 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R2036 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R2037 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R2047_EU 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R311 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R312 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R315 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R316 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R939_ATV 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R338 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R339 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R341 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R343 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R344 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R345 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R362 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R364 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R397_MMS 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R398_MMS 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R399_MMS 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R5190 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R5191 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R5192 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R5193 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R5194 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R5195 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R5230 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R1097 2007-008720 R-CHIP;4.7ohm,1%,1/4W,TP,3216 1 S.A

....4 R1103 2007-008720 R-CHIP;4.7ohm,1%,1/4W,TP,3216 1 S.A

....4 R1109 2007-008720 R-CHIP;4.7ohm,1%,1/4W,TP,3216

1 S.A

....4

R1113 2007-008720 R-CHIP;4.7ohm,1%,1/4W,TP,3216 1 S.A

....4 RA480 2011-000515 R-NET;4.7Kohm,5%,1/16W,L,CHIP,8P,TP,3.2x 1 S.A

....4 RA481 2011-000515 R-NET;4.7Kohm,5%,1/16W,L,CHIP,8P,TP,3.2x 1 S.A

....4 RA618 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA619 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA620 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA621 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA622 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA623 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA624 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA403 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA404 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

6 Electrical Parts List

6-19

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 RA406 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA407 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA408 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA410 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA520 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA521 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA522 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA510 2011-001001 R-NET;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.6 1 S.A

....4 RA511 2011-001001 R-NET;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.6 1 S.A

....4 RA512 2011-001001 R-NET;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.6 1 S.A

....4 RA513 2011-001001 R-NET;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.6 1 S.A

....4 RA514 2011-001087 R-NET;75ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA515 2011-001087 R-NET;75ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA516 2011-001087 R-NET;75ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA517 2011-001087 R-NET;75ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA518 2011-001087 R-NET;75ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA519 2011-001087 R-NET;75ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA600 2011-001087 R-NET;75ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA601 2011-001087 R-NET;75ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA602 2011-001087 R-NET;75ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA603 2011-001087 R-NET;75ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA604 2011-001087 R-NET;75ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA605 2011-001087 R-NET;75ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA606 2011-001087 R-NET;75ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA607 2011-001087 R-NET;75ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA608 2011-001087 R-NET;75ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA609 2011-001087 R-NET;75ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA610 2011-001087 R-NET;75ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA611 2011-001087 R-NET;75ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA614 2011-001087 R-NET;75ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA615 2011-001087 R-NET;75ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA616 2011-001087 R-NET;75ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA617 2011-001087 R-NET;75ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA400 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA401 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA402 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA405 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA409 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA411 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA412 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA413 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA414 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA415 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA416 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA417 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA418 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA419 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 C1180 2203-000125 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,- 1 S.A

....4 C1083 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,1608 1 S.A

....4 C1095 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,1608 1 S.A

....4 C1000 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1006 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1008 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1010 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1013 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1015 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1026 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1031 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1037 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1039 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1042 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1045 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1087 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1097 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1098 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1100 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

6 Electrical Parts List

6-20

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C1101 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1110 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1119 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1122 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1131 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1139 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1149 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1150 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1156 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1177 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1185 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1212 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1219 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1221 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C302 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C303 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C308 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C405 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C410 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C434 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5026 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5027 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5028 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5029 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5030 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5031 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5032 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5033 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5034 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5035 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5037 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5038 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5039 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5040 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5041 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5042 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5045 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5046 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5047 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5048 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5049 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5050 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5051 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5052 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5055 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5056 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5057 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5058 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5059 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5060 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5061 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5064 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5066 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5071 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5072 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5073 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5074 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5075 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5076 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5078 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5081 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5083 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5085 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5088 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5090 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5092 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

6 Electrical Parts List

6-21

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C5094 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5096 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5099 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5100 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5102 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5104 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5106 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5107 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5108 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5109 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5110 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5111 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5112 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5116 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C5117 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C6050 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C6051 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C6052 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C6053 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C947 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C950_ATV 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1088 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C1153 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C1154 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C1178 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C1179 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C1181 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C200 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C202 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C210 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C211 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C212 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C213 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C214 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C215 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C317 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C318 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C319 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C320 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C424 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C425 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C941_ATV 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C942_ATV 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C1001 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C1007 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C1009 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C1014 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C1027 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C1029 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C1090 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C1302_ATV 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C1304_ATV 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C1305_ATV 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C436 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C5118 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C6001 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C6002 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C6003 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C6004 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C6009 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C6010 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C6011 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C6012 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C6013 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C6014 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C6026 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

6 Electrical Parts List

6-22

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C6028 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C6054 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C6055 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C943 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C952 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C953 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C956 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C406 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C407 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C412 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C426 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C427 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C430 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C1307_ATV 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,1608 1 S.A

....4 C5079 2203-000531 C-CER,CHIP;2.7nF,10%,50V,X7R,1608 1 S.A

....4 C5086 2203-000531 C-CER,CHIP;2.7nF,10%,50V,X7R,1608 1 S.A

....4 C5025 2203-000552 C-CER,CHIP;0.02nF,5%,50V,C0G,1608 1 S.A

....4 C5036 2203-000552 C-CER,CHIP;0.02nF,5%,50V,C0G,1608 1 S.A

....4 C1113 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

....4 C1116 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

....4 C413 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

....4 C414 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

....4 C431 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

....4 C432 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

....4 C6082 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

....4 C6083 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

....4 C1157 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C1168 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C304 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C305 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C310 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C311 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C1133 2203-000798 C-CER,CHIP;33nF,10%,16V,X7R,TP,1608,- 1 S.A

....4 C1134 2203-000798 C-CER,CHIP;33nF,10%,16V,X7R,TP,1608,- 1 S.A

....4 C1147 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C1148 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C1172 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C1308_ATV 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C6017 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C6018 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C6019 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C6020 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C1099 2203-000972 C-CER,CHIP;47nF,10%,16V,X7R,1608 1 S.A

....4 C1303_ATV 2203-000972 C-CER,CHIP;47nF,10%,16V,X7R,1608 1 S.A

....4 C954 2203-000998 C-CER,CHIP;0.047nF,5%,50V,C0G,1608 1 S.A

....4 C1092 2203-001402 C-CER,CHIP;220nF,+80-20%,16V,Y5V,TP,1608 1 S.A

....4 C8092 2203-001402 C-CER,CHIP;220nF,+80-20%,16V,Y5V,TP,1608 1 S.A

....4 C8093 2203-001402 C-CER,CHIP;220nF,+80-20%,16V,Y5V,TP,1608 1 S.A

....4 C8094 2203-001402 C-CER,CHIP;220nF,+80-20%,16V,Y5V,TP,1608 1 S.A

....4 C8095 2203-001402 C-CER,CHIP;220nF,+80-20%,16V,Y5V,TP,1608 1 S.A

....4 C8096 2203-001402 C-CER,CHIP;220nF,+80-20%,16V,Y5V,TP,1608 1 S.A

....4 C8097 2203-001402 C-CER,CHIP;220nF,+80-20%,16V,Y5V,TP,1608 1 S.A

....4 C8098 2203-001402 C-CER,CHIP;220nF,+80-20%,16V,Y5V,TP,1608 1 S.A

....4 C8099 2203-001402 C-CER,CHIP;220nF,+80-20%,16V,Y5V,TP,1608 1 S.A

....4 C8100 2203-001402 C-CER,CHIP;220nF,+80-20%,16V,Y5V,TP,1608 1 S.A

....4 C8101 2203-001402 C-CER,CHIP;220nF,+80-20%,16V,Y5V,TP,1608 1 S.A

....4 C8102 2203-001402 C-CER,CHIP;220nF,+80-20%,16V,Y5V,TP,1608 1 S.A

....4 C8103 2203-001402 C-CER,CHIP;220nF,+80-20%,16V,Y5V,TP,1608 1 S.A

....4 C8104 2203-001402 C-CER,CHIP;220nF,+80-20%,16V,Y5V,TP,1608 1 S.A

....4 C8105 2203-001402 C-CER,CHIP;220nF,+80-20%,16V,Y5V,TP,1608 1 S.A

....4 C8106 2203-001402 C-CER,CHIP;220nF,+80-20%,16V,Y5V,TP,1608 1 S.A

....4 C8107 2203-001402 C-CER,CHIP;220nF,+80-20%,16V,Y5V,TP,1608 1 S.A

....4 C1182 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,1608 1 S.A

....4 C1306_ATV 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,1608 1 S.A

....4 C1143 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y5V,1608 1 S.A

....4 C1145 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y5V,1608 1 S.A

6 Electrical Parts List

6-23

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C1084 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,1608 1 S.A

....4 C1094 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,1608 1 S.A

....4 C1146 2203-001724 C-CER,CHIP;4700nF,+80-20%,16V,Y5V,3216 1 S.A

....4 C5001 2203-001724 C-CER,CHIP;4700nF,+80-20%,16V,Y5V,3216 1 S.A

....4 C1002 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1022 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1023 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1033 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1035 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1036 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1064 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1066 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1067 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1106 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1107 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1108 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1109 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1129 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1138 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1186 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1188 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1200 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1211 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1215 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1218 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C325_MMS 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C402 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C408 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C415 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C416 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C418 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C420 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C421 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C422 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C423 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C428 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C433 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C5000 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C5005 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6005 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6006 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6007 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6008 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6021 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6022 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6025 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6027 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6063 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C6077 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C933_ATV 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C934_ATV 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C935_ATV 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C951 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1163 2203-005030 C-CER,CHIP;470nF,+80-20%,50V,Y5V,TP,3216 1 S.A

....4 C1171 2203-005030 C-CER,CHIP;470nF,+80-20%,50V,Y5V,TP,3216 1 S.A

....4 C1028 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C1173 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C1189 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C306 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C307 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C417 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C435 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C5115 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C6056 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C6057 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C6058 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

6 Electrical Parts List

6-24

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C6059 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C6060 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C6061 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C6065 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C6066 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C6067 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C6068 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C6069 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C6070 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C6071 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C6073 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C6075 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C6078 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C6079 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C6080 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C6084 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C1152 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C1155 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C1158 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C1159 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C1160 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C1164 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C1165 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C1166 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C1167 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C1169 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C1170 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C1174 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C1175 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C1176 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C1184 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C8076 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C8077 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C8078 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C8079 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C8080 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C8081 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C8082 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C8083 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C8084 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C8085 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C8086 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C8087 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C8088 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C8089 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C8090 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C8091 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C1038 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1086 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1089 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1091 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1093 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1103 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1104 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1112 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1114 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1115 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1118 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1121 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1123 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1124 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1126 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1127 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1128 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1130 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1132 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

6 Electrical Parts List

6-25

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C1161 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1162 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1199 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1201 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1202 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1203 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1204 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1205 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1206 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1207 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1208 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1210 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1216 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1217 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1220 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1300 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1301 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1302 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1303 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1304 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1305 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C300 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C301 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C309 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C403 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C404 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C409 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C411 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C419 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C429 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C5070 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C5077 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C5080 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C5082 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C5084 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C5087 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C5089 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C5091 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C5093 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C5095 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C5097 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C5098 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C5101 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C5103 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C5105 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C6062 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C6064 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C6072 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C6074 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C6076 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C6081 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C6085 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C6090 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C6091 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C6092 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C6093 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C6094 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C6095 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C6096 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C6097 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C931_ATV 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C932_ATV 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C1021 2402-000108 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.2m 1 S.A

....4 C1025 2402-000108 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.2m 1 S.A

....4 C5006 2402-000108 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.2m 1 S.A

....4 C5119 2402-000108 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.2m 1 S.A

6 Electrical Parts List

6-26

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C5130 2402-000108 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.2m 1 S.A

....4 C1141 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4 1 S.A

....4 C1144 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4 1 S.A

....4 C1005 2402-001081 C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10 1 S.A

....4 C1011 2402-001081 C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10 1 S.A

....4 C1151 2402-001081 C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10 1 S.A

....4 C1183 2402-001081 C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10 1 S.A

....4 C1004 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C1024 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C1030 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C1034 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C1085 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C1142 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C1214 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C292 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C360_MMS 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C1003 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A

....4 C1012 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A

....4 C1102 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A

....4 C1135 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A

....4 C938_ATV 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A

....4 C946 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A

....4 C1140 2402-001160 C-AL,SMD;330UF,20%,16V,WT,TP,1008 1 S.A

....4 C1032 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A

....4 C1063 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A

....4 C1065 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A

....4 C1300_ATV 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A

....4 C1187 2402-001218 C-AL,SMD;22UF,20%,35V,WT,TP,6.6X6.6X5.8M 1 S.A

....4 C1301_ATV 2402-001238 C-AL,SMD;1uF,20%,50V,HR,TP,4.3x4.3x5.2mm 1 S.A

....4 C1041 2402-001257 C-AL,SMD;470uF,20%,16V,-,TP,8.3*10 1 S.A

....4 C1043 2402-001257 C-AL,SMD;470uF,20%,16V,-,TP,8.3*10 1 S.A

....4 C8074 2402-001257 C-AL,SMD;470uF,20%,16V,-,TP,8.3*10 1 S.A

....4 T0052 2703-000274 INDUCTOR-SMD;2.2uH,10%,2012 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000417 INDUCTOR-SMD;220uH,5%,3225 1 S.A

....4 T0052 2703-001229 INDUCTOR-SMD;2.2uH,10%,1608 1 S.A

....4 T0052 2703-001229 INDUCTOR-SMD;2.2uH,10%,1608 1 S.A

....4 T0052 2703-001229 INDUCTOR-SMD;2.2uH,10%,1608 1 S.A

....4 T0052 2703-001229 INDUCTOR-SMD;2.2uH,10%,1608 1 S.A

....4 T0052 2703-001229 INDUCTOR-SMD;2.2uH,10%,1608 1 S.A

....4 T0052 2703-001229 INDUCTOR-SMD;2.2uH,10%,1608 1 S.A

....4 T0052 2703-001229 INDUCTOR-SMD;2.2uH,10%,1608 1 S.A

....4 T0052 2703-001426 INDUCTOR-SMD;680uH,20%,7070 1 S.A

....4 T0052 2703-002327 INDUCTOR-SMD;3.9uH,5%,3225 1 S.A

....4 T0052 2703-002915 INDUCTOR-SMD;22uH,20%,8080 1 S.A

....4 T0052 2703-002915 INDUCTOR-SMD;22uH,20%,8080 1 S.A

....4 T0052 2703-002915 INDUCTOR-SMD;22uH,20%,8080 1 S.A

....4 T0052 2703-002915 INDUCTOR-SMD;22uH,20%,8080 1 S.A

....4 X401 2801-003326 CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH 1 S.A

....4 X500 2801-003667 CRYSTAL-SMD;14.31818MHz,30ppm,28-AAN,16, 1 S.A

....4 X601 2801-003667 CRYSTAL-SMD;14.31818MHz,30ppm,28-AAN,16, 1 S.A

....4 X400 2801-003923 CRYSTAL-SMD;10MHz,30ppm,28-AAN,20pF,60oh 1 S.A

....4 X602 2801-003954 CRYSTAL-SMD;27MHz,30ppm,28-AAN,16pF,50oh 1 S.A

....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A

6 Electrical Parts List

6-27

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001393 BEAD-SMD;60ohm,3216,1500mA,TP,41ohm/40MH 1 S.N.A

....4 T0568 3301-001393 BEAD-SMD;60ohm,3216,1500mA,TP,41ohm/40MH 1 S.N.A

....4 T0568 3301-001393 BEAD-SMD;60ohm,3216,1500mA,TP,41ohm/40MH 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 T0568 3301-001593 BEAD-SMD;200ohm,2.0x1.2x1.3mm,150mA,TP,, 1 S.N.A

....4 T0568 3301-001593 BEAD-SMD;200ohm,2.0x1.2x1.3mm,150mA,TP,, 1 S.N.A

....4 T0568 3301-001593 BEAD-SMD;200ohm,2.0x1.2x1.3mm,150mA,TP,, 1 S.N.A

....4 T0568 3301-001593 BEAD-SMD;200ohm,2.0x1.2x1.3mm,150mA,TP,, 1 S.N.A

....4 T0568 3301-001593 BEAD-SMD;200ohm,2.0x1.2x1.3mm,150mA,TP,, 1 S.N.A

....4 T0568 3301-001593 BEAD-SMD;200ohm,2.0x1.2x1.3mm,150mA,TP,, 1 S.N.A

....4 T0568 3301-001593 BEAD-SMD;200ohm,2.0x1.2x1.3mm,150mA,TP,, 1 S.N.A

....4 T0568 3301-001593 BEAD-SMD;200ohm,2.0x1.2x1.3mm,150mA,TP,, 1 S.N.A

....4 T0568 3301-001593 BEAD-SMD;200ohm,2.0x1.2x1.3mm,150mA,TP,, 1 S.N.A

....4 T0568 3301-001593 BEAD-SMD;200ohm,2.0x1.2x1.3mm,150mA,TP,, 1 S.N.A

....4 CN300 3701-001311 CONNECTOR-HDMI;21P,2R,FEMALE,SMD-S,AU30U 1 S.A

....4 CN301 3701-001311 CONNECTOR-HDMI;21P,2R,FEMALE,SMD-S,AU30U 1 S.A

....4 CN330 3711-005291 HEADER-BOARD TO CABLE;BOX,2P,1R,2MM,SMD- 1 S.A

....4 CN330 3711-005292 HEADER-BOARD TO CABLE;BOX,3P,1R,2MM,SMD- 1 S.A

....4 CN330 3711-005497 HEADER-BOARD TO CABLE;BOX,15P,1R,1.25MM, 1 S.A

....4 IC605 BN11-00002A IC MASK ROM;CAT24WC08W,SOIC,0to+70,5x4mm 1 S.N.A

....4 L103 BN27-00008A COIL CHOKE-SMD;SMD12*12*8.5,GH15/17PS,22 1 S.A

....4 T0077 BN41-00762B PCB MAIN;FHD MOSEL,FR-4,4,MP1.1,1.6,192* 1 S.N.A

....4 M0018 BN97-01162B ASSY MICOM;T-BRDMPEUS-1000,LE40F71BX,IC- 1 S.N.A

.....5 IC520 0903-001389 IC-MICROCONTROLLER;S3F866B,8Bit,QFP,44P, 1 S.N.A

....4 M0018 BN97-01162C ASSY MICOM;T-FMSLMPEA-0000,LE40F71BX,200 1 S.N.A

.....5 IC115 1107-001555 IC-FLASH MEMORY;49BV802A,8MBIT,1MX8/512K 1 S.N.A

0.1 M0113 BN92-01758A ASSY P/MATERIAL;40M7,MOSEL 1 S.N.A
..2 T0376 6902-000061 BAG AIR;LDPE,T0.2,L1000,W500,TRP,,, 0.05 S.N.A
..2 T0376 6902-000379 BAG AIR;LDPE,T0.2,W1000,L1800,TRP,-,-- 0.015 S.N.A
..2 T0524 6902-000524 BAG PE;HDPE/NITRON(DOUBLE),T0.015/T0.5(D 1 S.N.A

6 Electrical Parts List

6-28

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

..2 T0003 6902-000604 BAG WRAPPING;LDPE,T0.02,W500,L10000,TRP, 13.3 S.N.A

0.1 M0003 BN92-01986W ASSY BOX;40F71,SO 1 S.N.A
..2 T0130 BN69-01369L BOX-00,SET;40F71,CB,DY-01,AB,YEL,A1,ASIA 1.01 S.N.A

0.1 M0019 BN92-02065G ASSY LABEL;LA46F71BX/XST 1 S.N.A

0.1 M0045 BN92-02140U ASSY ACCESSORY;LA40F71BX/XST 1 S.N.A
..2 M0045 BN96-04428U ASSY ACCESSORY;LA40F71BX/XST 1 S.N.A
...3 T0268 3903-000145 CBF-POWER CORD;DT,EU,FP3/YES,U(IEC C13-R 1 S.A
...3 T0524 6902-000110 BAG PE;LDPE,T0.05,W250,L400,TRP,28,2 2 S.N.A
...3 T0152 AA68-01068B CARD WARRANTY;-,TSE,W/P120G,-,217*93mm,2 1 S.N.A
...3 T0511 AA68-03242G MANUAL FLYER-SAFETY GUIDE;All Model,SAMS 1 S.N.A
...3 T0074 BN59-00530A REMOCON;Mosel,TM87A,SAMSUNG,55key,38mArm 1 S.A
...3 ACCESSORY BN63-01798A CLOTH-CLEAN;RE40**,CLOTH,310,320,RHCM 1 S.N.A
...3 T0531 BN63-02491A COVER-BOTTOM;MOSEL 40",HIPS,HB 1 S.N.A
...3 ACCESSORY BN68-00774A MANUAL FLYER-01,REGISTRATION C;THAILAND 1 S.N.A
...3 T0511 BN68-01117J MANUAL USERS;COMM,SAMSUNG,English,Asia,W 1 S.N.A
...3 T0511 BN68-01117R MANUAL USERS;COMM,SAMSUNG,Thai,E.Asia,W/ 1 S.N.A
...3 M0126 BN69-01052A BOX ACCESSORY-00;ALL,CB-SW1,YEL,W603,D67 1 S.N.A
...3 ACCESSORY BP68-00264A MANUAL FLYER-00,WARRANTY CARD;SP50L2HXX/ 1 S.N.A

6 Electrical Parts List

6-29

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

0 LA46F71BX/XST LA46F71B,Q56B/46F70-GFM,46,LCD-TV,THAILA 0

0.1 M0001 BN90-00934K ASSY COVER FRONT;46F71,SO,ABS+PMMA,HB,BK 1 S.N.A
..2 M0081 6006-001096 SCREW-TAPTITE;BH,+,WP,B,M4.0,L12,ZPC(BLK 2 S.N.A
..2 T0003 BN96-03411J ASSY COVER P-FRONT;46F71,SO,ABS+PMMA,HB, 1 S.A
...3 M0081 6003-001003 SCREW-TAPTITE;BH,+,B,M4,L12,ZPC(BLK),SWR 4 S.N.A
...3 M0081 6003-001003 SCREW-TAPTITE;BH,+,B,M4,L12,ZPC(BLK),SWR 2 S.N.A
...3 M0081 6003-001003 SCREW-TAPTITE;BH,+,B,M4,L12,ZPC(BLK),SWR 2 S.N.A
...3 M0162 6502-001067 CABLE CLAMP;DAFC-1300,ID2.2,T5.2,NYLIN6/ 1 S.N.A
...3 M2893 BN39-00609A LEAD CONNECTOR;VE20EO,UL1015#22 BLACK,1P 1 S.A
...3 T0060 BN61-01655A SPRING ETC;STS-304 SUS,D8,L12,T0.5 1 S.N.A
...3 BN61-02666A HOLDER-BOSS;MOSEL 46,ABS,VO,TOP 2 S.N.A
...3 BN61-02672A HOLDER-BOSS;MOSEL 46,ABS,VO,BOTTOM,LEFT 1 S.N.A
...3 BN61-02673A HOLDER-BOSS;MOSEL 46,ABS,VO,BOTTOM,RIGHT 1 S.N.A
...3 BN61-02771A BOSS-BOND;MOSEL,ABS+PMMA,NATURAL,BOND 14 S.N.A
...3 CCM1 BN63-02183H COVER-SHEET;Rhcm,PE Vinyl,T0.05,1300mm,2 2.21 S.N.A
...3 M0112 BN63-02621K COVER-FRONT;46F71,SO,ABS+PMMA,HB,BK23,S/ 1 S.N.A
...3 T0056 BN63-02854A COVER-DECORATION;46" MOSEL,AL,Extruding 1 S.N.A
...3 T0023 BN64-00342A KNOB POWER;ROME,40,PC,VIOLET 1 S.N.A
...3 T0059 BN64-00366A INDICATOR LED;ROME-I,PC,CLEAR,ALL MODEL 1 S.N.A
...3 T0054 BN64-00443A KNOB-DECORATION;32R71,ABS,HB,GR503,VACUU 1 S.N.A
...3 T0061 BN64-00453A WINDOW-REMOCON;32R71,PC,V0,VIOLET,DIFFUS 1 S.N.A
...3 M0145 BN96-03466B ASSY BOARD P-FUNCTION;LE40M71BX,CT5000-4 1 S.A
...3 M0146 BN96-04015B ASSY BOARD P-POWER & IR;LNS4695DX,CT5000 1 S.A
...3 T0022 BN64-00467D KNOB CONTROL;MOSEL32",40",46",ABS,V0,BK0 1 S.N.A
..2 T0175 BN96-03593C ASSY SPEAKER P;8ohm,Mosel 46inch,Right,1 1 S.A
..2 T0175 BN96-03591C ASSY SPEAKER P;8ohm,Mosel 46inch,LEFT,10 1 S.A

0.1 M0002 BN90-00937L ASSY COVER REAR;46F71,SO,HIPS,HB,BK500 1 S.N.A
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 2 S.A
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 12 S.A
..2 C/R+B/W 6011-001610 BOLT-ETC;M8,L18,ZPC(BLK),SWRCH18A,WSP,PH 4 S.N.A
..2 M0013 BN96-04226C ASSY COVER P-REAR;46N71,SO,HIPS,HB,BK500 1 S.A
...3 T0069 AA63-60122K SPACER-FELT;SPD-42P3S,FELT,L60,D20,T0.35 2 S.N.A
...3 M0006 BN63-02695C COVER-REAR;46N71,SO,HIPS,HB,BK500,NEO MO 1 S.N.A
...3 T0071 BN64-00483A INLAY-TERMINAL;MOSEL 40",PS SHEET,T0.5,E 1 S.N.A
...3 T0064 BN65-00002A CLAMPER CORE;BORDEAUX,PP,V0,BLK 1 S.N.A

0.1 M0216 BN90-00940A ASSY STAND;46M7,-,-,-,MOSEL,ROUND 1 S.N.A
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 4 S.A
..2 M0013 BN96-03417A ASSY STAND P-BASE;46M7,-,ABS+PMMA,HB,BK2 1 S.A
...3 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 7 S.A
...3 M0081 6003-001239 SCREW-TAPTITE;FH,+,-,B,M4,L10,ZPC(WHT),S 7 S.A
...3 T0010 BN61-02532A HOLDER;46M7 EO,ACETAL,BLK,TOP 1 S.N.A
...3 BN61-02533A HOLDER-SWIVEL RING;46M7 EO,ACETAL,NATUAL 1 S.N.A
...3 BN61-02534A HOLDER-SWIVEL RING;46M7 EO,ACETAL,NATUAL 1 S.N.A
...3 BN61-02535A BRACKET-STAND BOTTOM;46M7 EO,HG,T3.0 1 S.N.A
...3 BN61-02536A BRACKET-HINGE SWIVEL;46M7 EO,HG,T3.0 1 S.N.A
...3 CCM1 BN63-02183F COVER-SHEET;Rhcm,PE Vinyl,T0.05,900mm,20 0.45 S.N.A
...3 BN63-02625A COVER-STAND SUB;46M7 EO,ABS+PMMA,HB,BK23 1 S.N.A
...3 T0004 BN63-02626A COVER-STAND BASE;46M7 EO,ABS+PMMA,HB,BK2 1 S.N.A
...3 T0132 BN73-00052A RUBBER FOOT;ARES 17,SILICON,DIA 17 * T1. 10 S.N.A
...3 T0920 BN61-02531A GUIDE-STAND;46M7,ABS V0,-,-,-,BK07,- 1 S.N.A

....4 T0514 BN61-02537A BRACKET-SUPPORT;46M7,SECC,T2.0 2 S.N.A

0.1 T0852 BN91-01058R ASSY LCD-SPZ;LNS4696DX/XAA 1 S.N.A
..2 M0215 BN07-00291A LCD-PANEL;LTA460HS-LH1,8bit,1083*627*56. 1 S.A

0.1 M0112 BN91-01236A ASSY SHIELD;LA46F71BX/* 1 S.N.A
..2 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 4 S.A
..2 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 4 S.A
..2 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 6 S.A
..2 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 6 S.A
..2 M0081 6003-000337 SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR 3 S.A
..2 M0081 6003-000337 SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR 1 S.A
..2 M0081 6003-001003 SCREW-TAPTITE;BH,+,B,M4,L12,ZPC(BLK),SWR 2 S.N.A

6-2 LA46F71BX Parts List

6 Electrical Parts List

6-30

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.N.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.N.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.N.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 12 S.N.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 1 S.N.A
..2 M0081 6003-001439 SCREW-TAPTITE;BH,+,-,S,M4,L8,ZPC(WHT),SW 1 S.N.A
..2 M2893 BN39-00615M LEAD CONNECTOR;LNS4696DX,UL1617#22,UL/CS 1 S.A
..2 M2893 BN39-00725C LEAD CONNECTOR;LE46N71BX,UL2835#28,UL/CS 1 S.A
..2 M2893 BN39-00741D LEAD CONNECTOR;NEO MOSEL,UL1007#26,UL/CS 1 S.A
..2 M2893 BN39-00751A LEAD CONNECTOR;LNS4096DX,UL3443#28,UL/CS 1 S.A
..2 M2893 BN39-00763A LEAD CONNECTOR;LNS4696DX,UL3239#24,UL/CS 1 S.A
..2 M2893 BN39-00764A LEAD CONNECTOR;LNS4696DX,UL3239#24,UL/CS 1 S.A
..2 M0174 BN44-00141A IP BOARD;PSIV350801A,46" MOSEL,44mA,86m 1 S.A
..2 M0115 BN61-02538A BRACKET-STAND LINK;46M7,SECC,T1.6 1 S.N.A
..2 M0146 BN61-02539A BRACKET-PANEL TOP;46M7,SECC,T1.6 1 S.N.A
..2 BN61-02540A BRACKET-PANEL BOTTOM;46M7,SECC,T1.6 1 S.N.A
..2 M0146 BN61-02541A BRACKET-PANEL SIDE;46M7,SECC,T1.6,LEFT 1 S.N.A
..2 M0146 BN61-02542A BRACKET-PANEL SIDE;46M7,SECC,T1.6,RIGHT 1 S.N.A
..2 M0146 BN63-02642A SHIELD-PCB SMPS;46M7 UO,SECC,T0.5 1 S.N.A
..2 M0059 BN96-03431H ASSY BOARD P-HOLDER AV;46F71,MOSEL,CT500 1 S.N.A
...3 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 2 S.A
...3 BN61-02411A HOLDER-SIDE AV;MOSEL,40,HIPS,V0,-,-,-,BK 1 S.N.A
...3 T0578 BN64-00454B INLAY AV;BORDEAUX,PS SHEET,T0.3,-,-,BLAC 1 S.N.A
...3 T0186 BN64-00484A INLAY-MMS;MOSEL,40,PS SHEET,T0.3,-,-,-,- 1 S.N.A
...3 M0020 BN96-02439C ASSY BOARD P-SIDE AV;LE46N71BX,CT5000-36 1 S.N.A
..2 M2893 BN39-00727E LEAD CONNECTOR-LVDS;LE46F71BX,UL1571#30, 1 S.A
..2 M0162 6502-001027 CABLE CLAMP;DAWH-5NA,ID11.5,T3,NYLON66,N 5 S.N.A
..2 M0131 BN63-03008A GASKET;LN46M71BD,Conductive Fabric,18mm, 1 S.N.A
..2 T0447 BN96-03420D ASSY BRACKET P-PANEL;46F71.SO,FHD MOSEL 1 S.N.A
...3 M0081 6003-000133 SCREW-TAPTITE;BH,+,-,S,M4,L8,ZPC(BLK),SW 4 S.A
...3 T0101 BN61-02544A BRACKET-WALL;46M7,SECC,T2.0,R,L 2 S.N.A

....4 BN61-02428H STUD-PEM;PNA,M8,D14,L16,ZPC(SIL),SUM24L 4 S.N.A

...3 M0107 BN61-02546C BRACKET-PCB;46M7 SO,SECC,T1.2 1 S.N.A
...3 M0131 AA63-01046A GASKET;ROMR 40",Conductive Fabric,11mm,1 4 S.N.A
..2 M2893 BN39-00789A LEAD CONNECTOR;LA46F71BX,UL1007#26,UL100 1 S.A
..2 M0081 6003-001150 SCREW-TAPTITE;PH,+,WP,S,M5,L12,ZPC(BLK), 8 S.N.A
..2 T0527 AA65-30018A CLAMPER CORE-WIRE;DONG-A,NYLON-66,-,-,-, 1 S.N.A

0.1 M0017 BN91-01237B ASSY CHASSIS;LA46F71BX/* 1 S.N.A
..2 T0862 BN94-00868G ASSY PCB MISC-MMS;MOSEL,NEO MOSEL ALL 1 S.A
...3 T0245 0202-001492 SOLDER-WIRE FLUX;HSE-02 LFM48 SR-34 S,-, 0.003 S.N.A
...3 CN330 3711-003340 HEADER-BOARD TO CABLE;BOX,16P,2R,2mm,STR 1 S.A
...3 CN5 3722-001051 JACK-USB;4P/1C,AU,BLK,ANGLE,A TYPE 1 S.A
...3 SUB06 BN63-02530A SHIELD-MMS;MOSEL,SPTE T0.2,-,-,-,-,- 1 S.N.A
...3 T0174 BN97-00842J ASSY SMD;LE26R73BDX/XET 1 S.N.A

....4 SUB05 0202-001477 SOLDER-CREAM;LST309-M,-,D20~45§-,96.5Sn/ 5.347 S.N.A

....4 D1 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D10 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D11 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D12 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D13 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D14 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D15 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D16 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D17 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D18 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D19 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D2 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D20 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D21 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D4 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D5 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D6 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D7 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D8 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D9 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

6 Electrical Parts List

6-31

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 Q1 0505-001217 FET-GAAS;FDN338P,-20V,+-8V,-1.6A,500mW,S 1 S.A

....4 Q2 0505-001217 FET-GAAS;FDN338P,-20V,+-8V,-1.6A,500mW,S 1 S.A

....4 Q3 0505-001217 FET-GAAS;FDN338P,-20V,+-8V,-1.6A,500mW,S 1 S.A

....4 Q4 0505-001217 FET-GAAS;FDN338P,-20V,+-8V,-1.6A,500mW,S 1 S.A

....4 Q5 0505-001217 FET-GAAS;FDN338P,-20V,+-8V,-1.6A,500mW,S 1 S.A

....4 Q6 0505-001217 FET-GAAS;FDN338P,-20V,+-8V,-1.6A,500mW,S 1 S.A

....4 L0405 0601-001313 LED;SMD,GRN,2X1.8MM,565NM,3.16X1.6X1.1MM 1 S.A

....4 IC6 1203-001211 IC-VOL. DETECTOR;7027,SOT-89,3P,-,PLASTI 1 S.A

....4 T0087 1203-002842 IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P 1 S.A

....4 T0087 1203-002842 IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P 1 S.A

....4 T0087 1203-002842 IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P 1 S.A

....4 T0087 1203-002974 IC-POSI.FIXED REG.;AP1117D-25A,TO-252,3P 1 S.A

....4 IC1 1204-002585 IC-DECODER;MP612,LFBGA,256P,17x17mm,PLAS 1 S.A

....4 IC2 1205-002713 IC-CODEC;ALC202A,LQFP,48P,7X7MM,PLASTIC, 1 S.A

....4 R11 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 1 S.A

....4 R12 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 1 S.A

....4 R120 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R138 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R148 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R149 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R150 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R163 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R164 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R165 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R166 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R167 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R168 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R19 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R32 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R33 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R35 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R36 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R10 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R9 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R107 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R108 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R109 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R110 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R111 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R112 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A

....4 R113 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A

....4 R1 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R105 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R117 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R140 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R146 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R158 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R159 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R4 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R5 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R116 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R139 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R142 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R143 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R144 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R145 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R37 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R38 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R7 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R8 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R100 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R101 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R129 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R130 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
