Page 1

LCD-TV

Chassis : G5K32ASA G5K40ASA G5K46ASA G5K52ASA Model : LA32B550K1R LA40B550K1R LA46B550K1R LA52B550K1R

Manual

SERVICE

TFT-LCD TV Contents

1. Precautions

2. Product specications

3. Disassembly and

4. Troubleshootin

5. Exploded View & Part Lis

6. Wiring Diagra

Reassembly

LA32B550K1R/LA40B550K1R LA46B550K1R/LA52B550K1R

Refer to the service manual in the GSPN (see the rear cover) for the more information.

Page 2

Contents

1. Precautions .............................................................................................................. 1-1

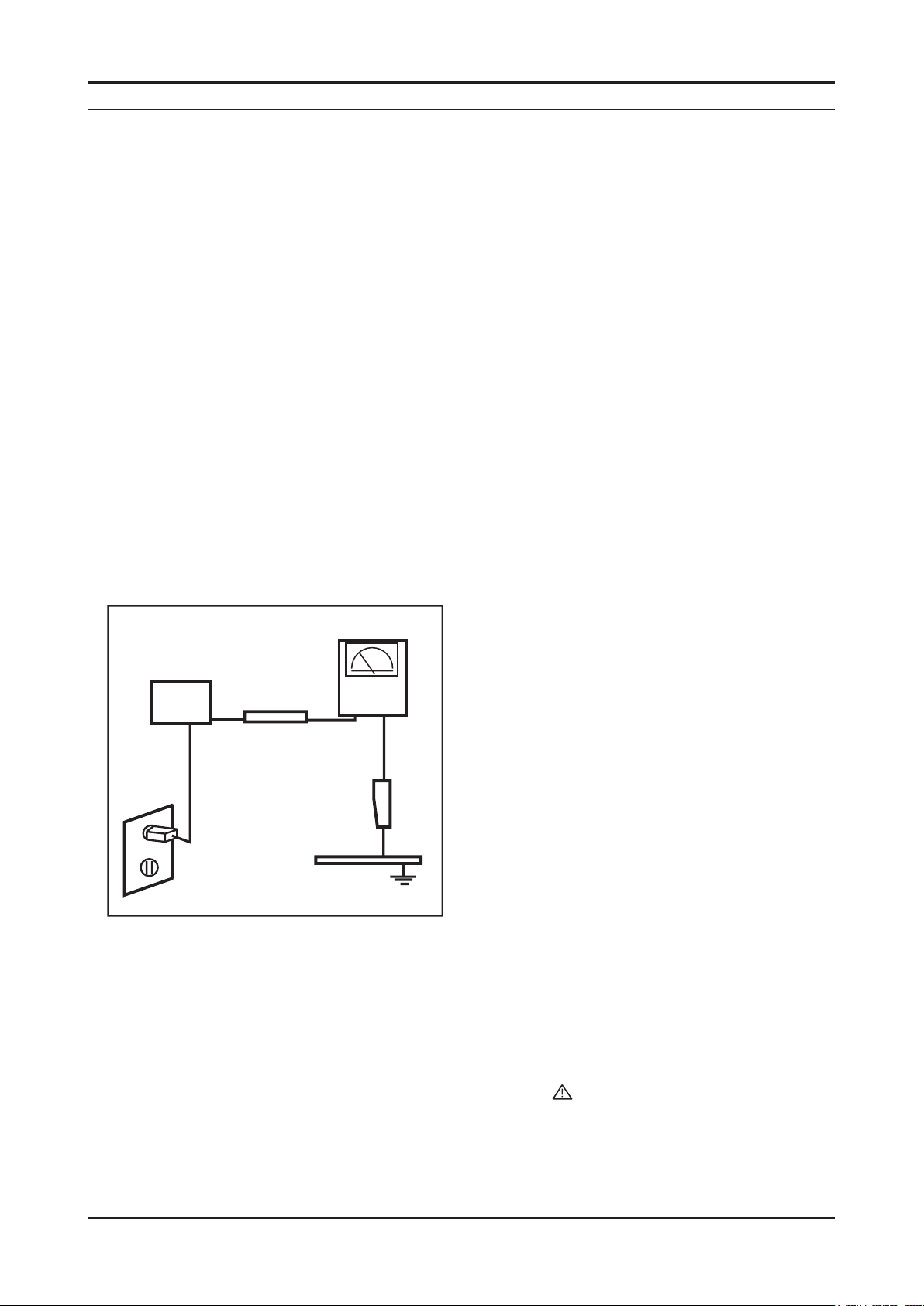

1-1. Safety Precautions ......................................................................................................... 1-1

1-2. Servicing Precautions .....................................................................................................1-2

1-3. Electrostatically Sensitive Devices (ESD) Precautions .................................................. 1-2

1-4. Installation Precautions .................................................................................................. 1-3

2. Product specications ............................................................................................ 2-1

2-1. Feature & Specications ................................................................................................. 2-1

2-2. MEDIA PLAY ................................................................................................................... 2-7

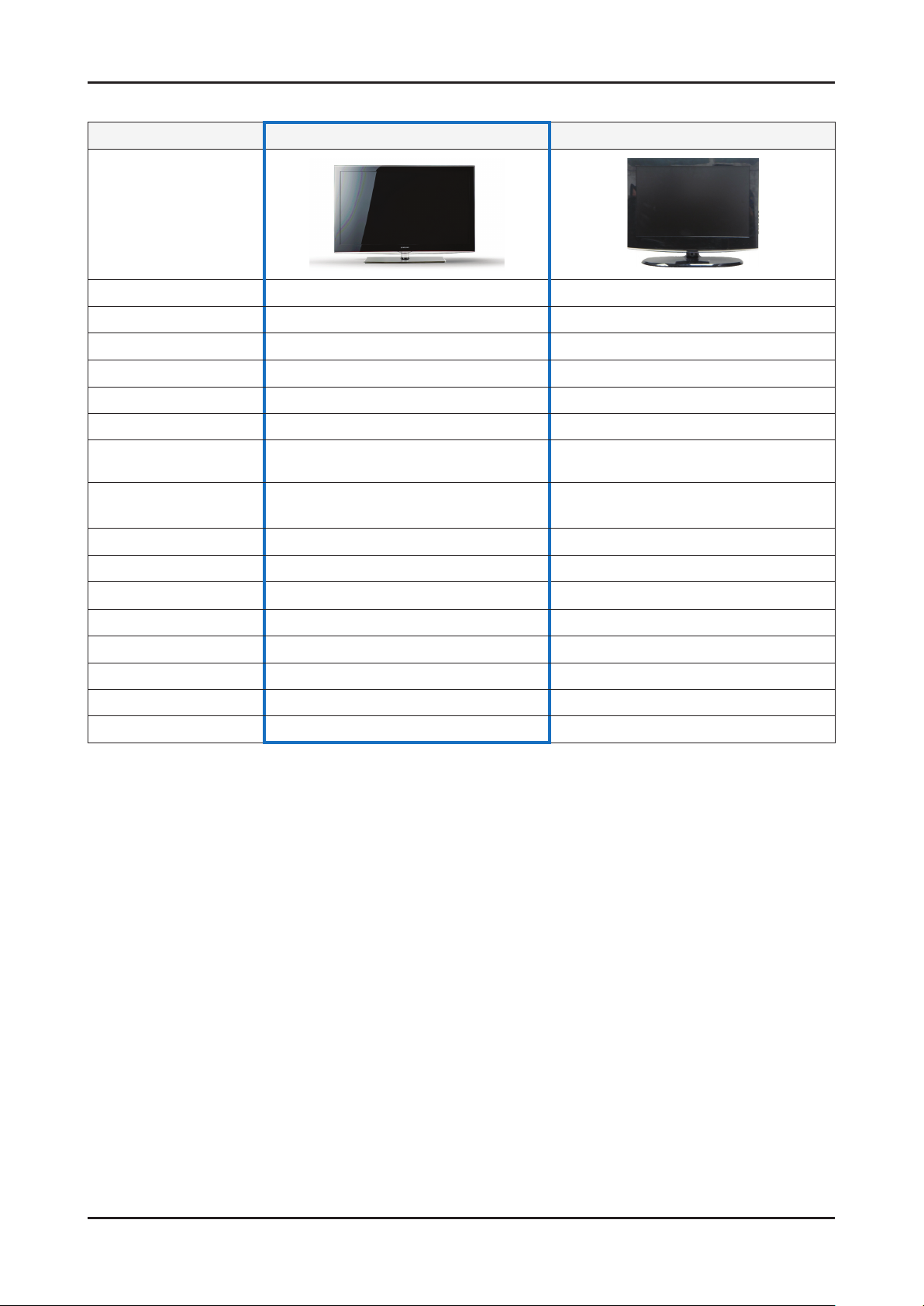

2-3. Specication Comparison to Old Models ........................................................................ 2-9

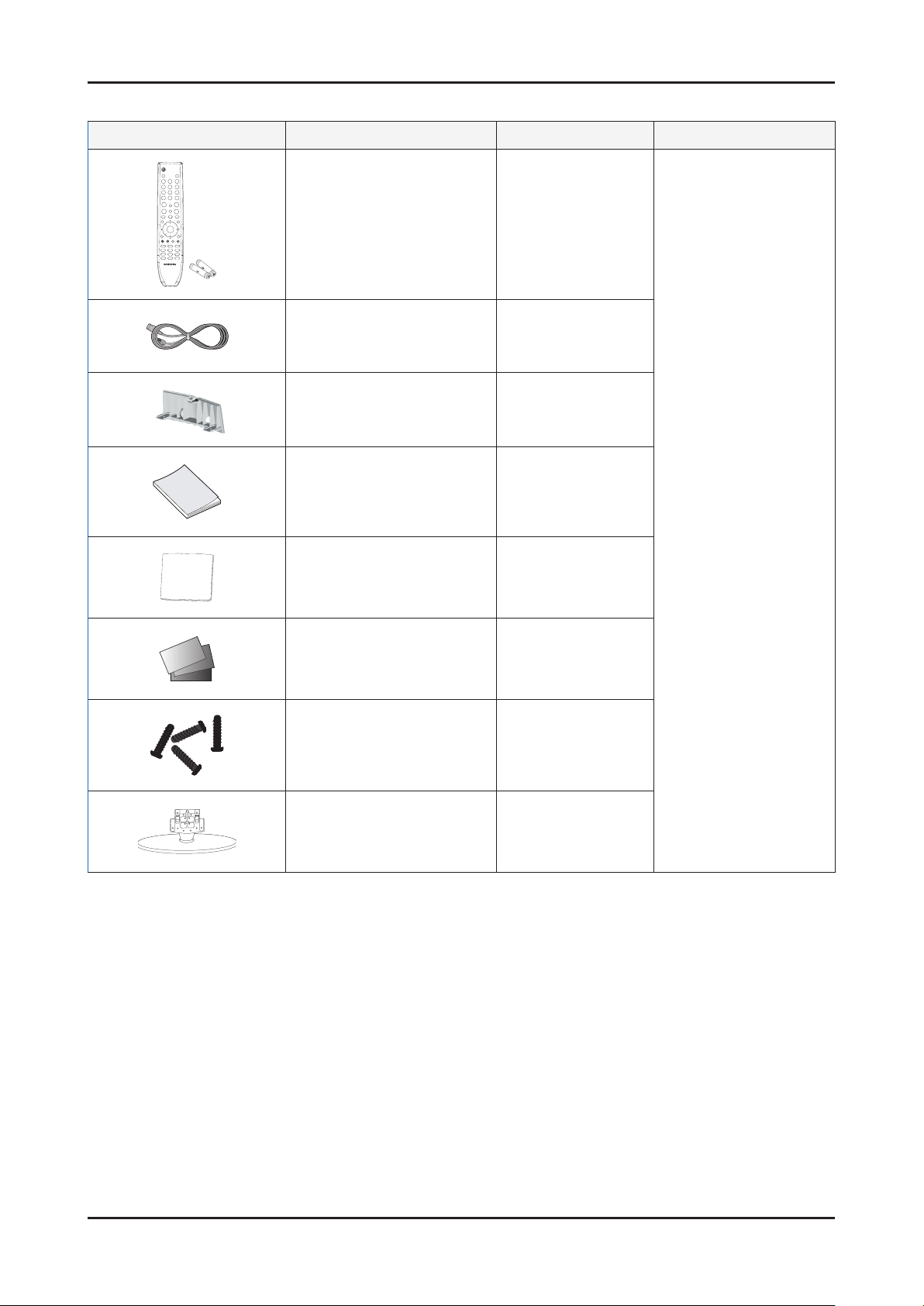

2-4. Accessories .................................................................................................................. 2-10

3. Disassembly and Reassembly ............................................................................... 3-1

3-1. Disassembly and Reassembly ....................................................................................... 3-1

4. Troubleshooting ...................................................................................................... 4-1

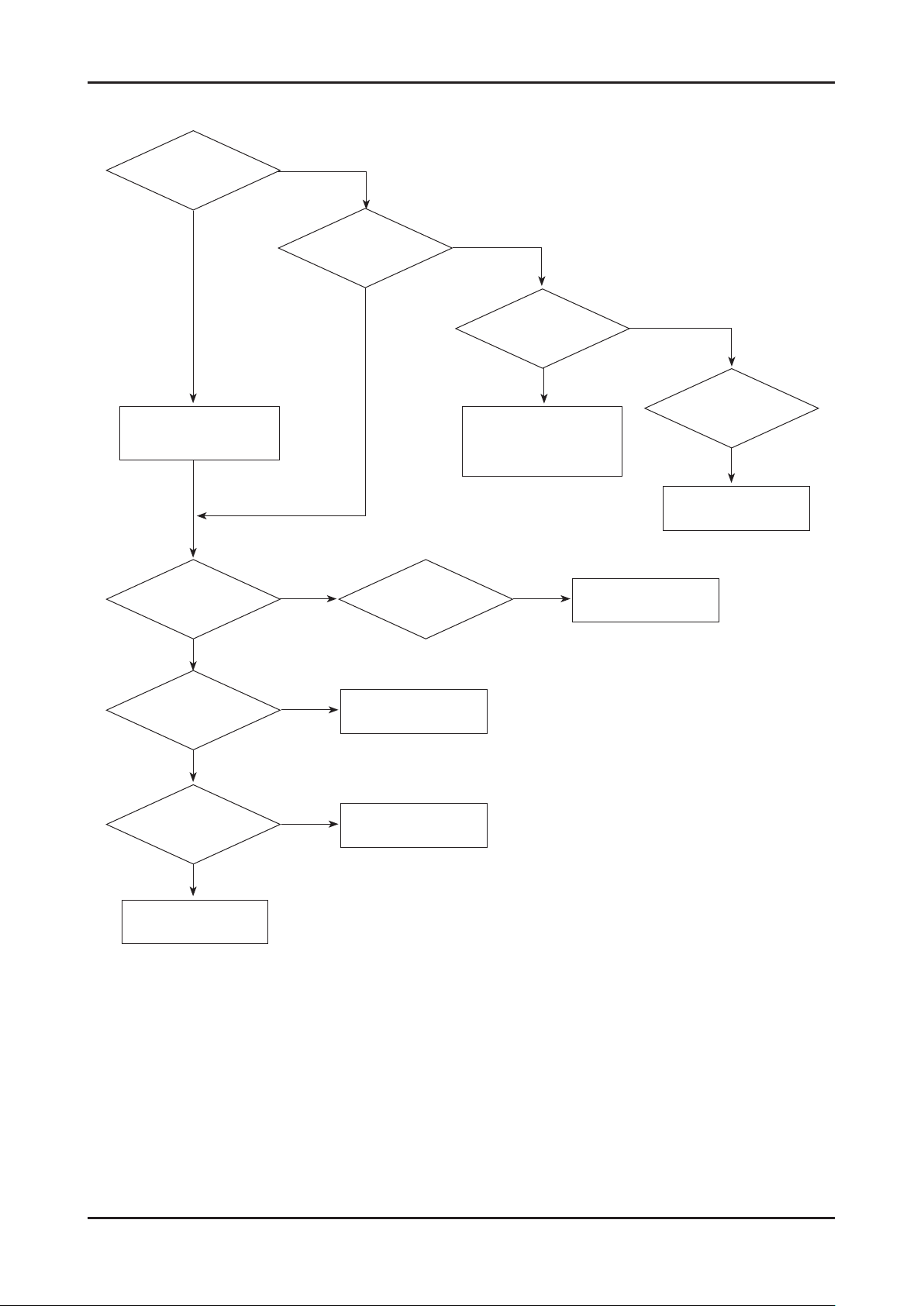

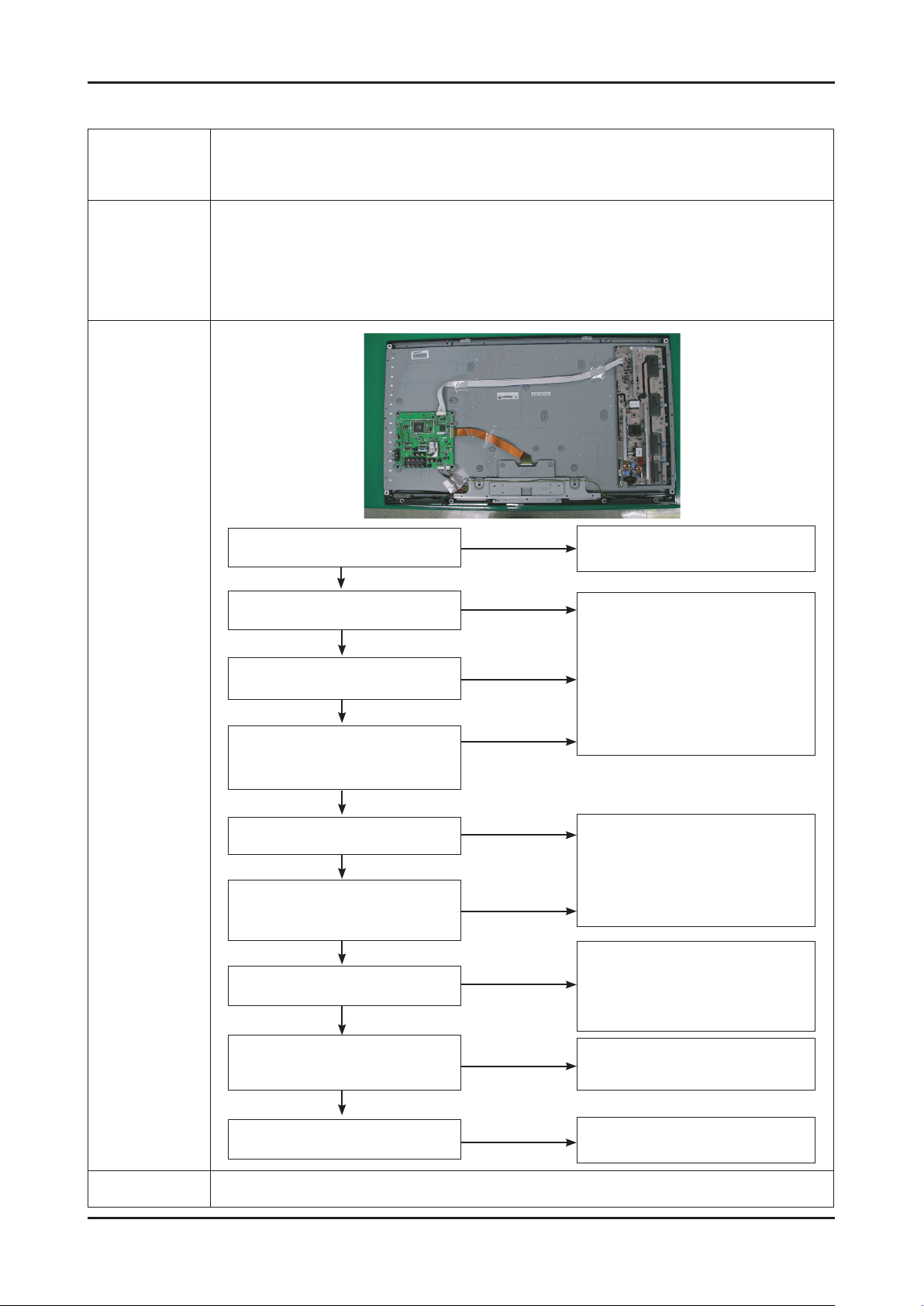

4-1. Troubleshooting .............................................................................................................. 4-1

4-2. Alignments and Adjustments ........................................................................................ 4-18

4-3. Factory Mode Adjustments ........................................................................................... 4-19

4-4. White Balance - Calibration .......................................................................................... 4-29

4-5. Servicing Information .................................................................................................... 4-31

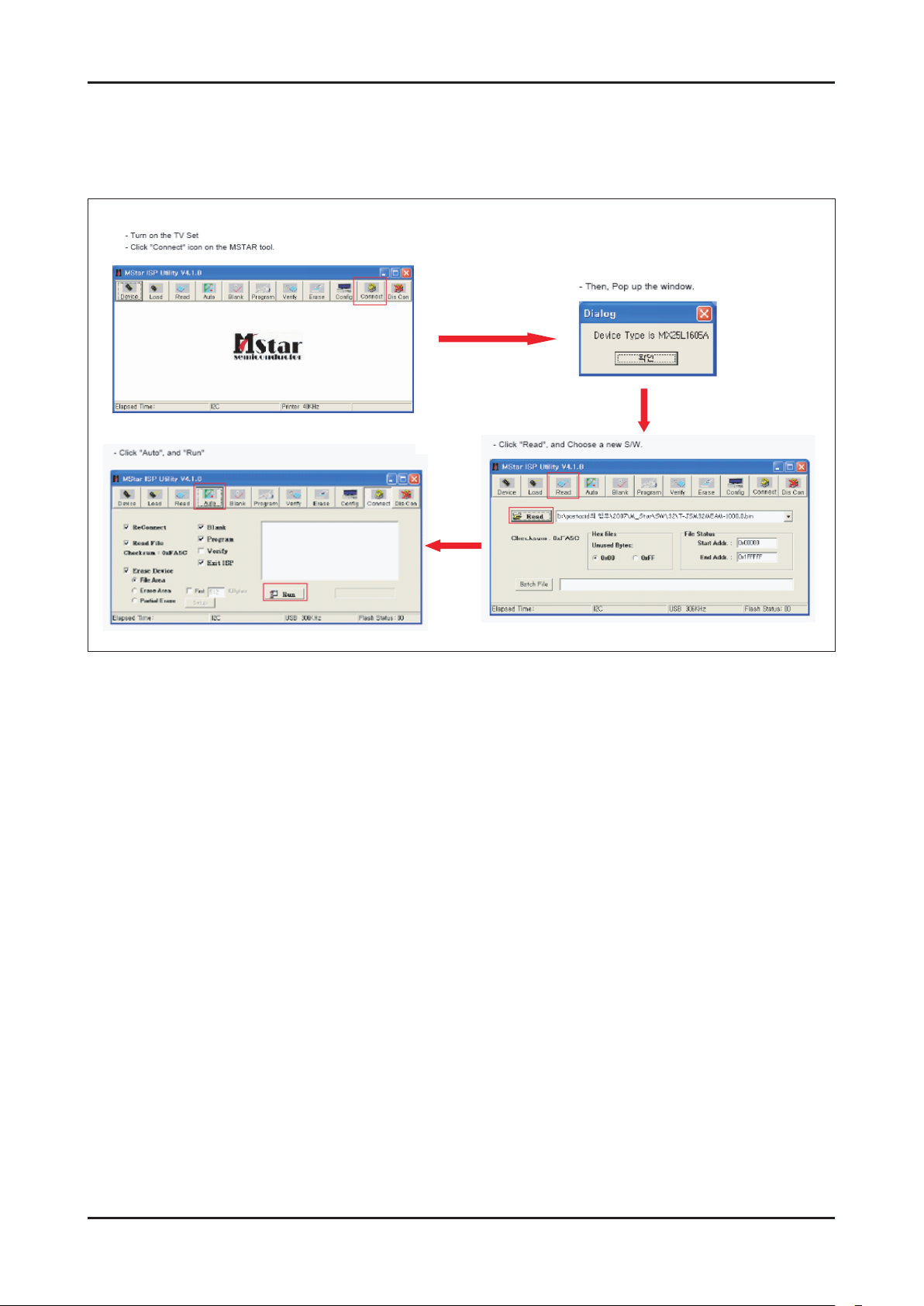

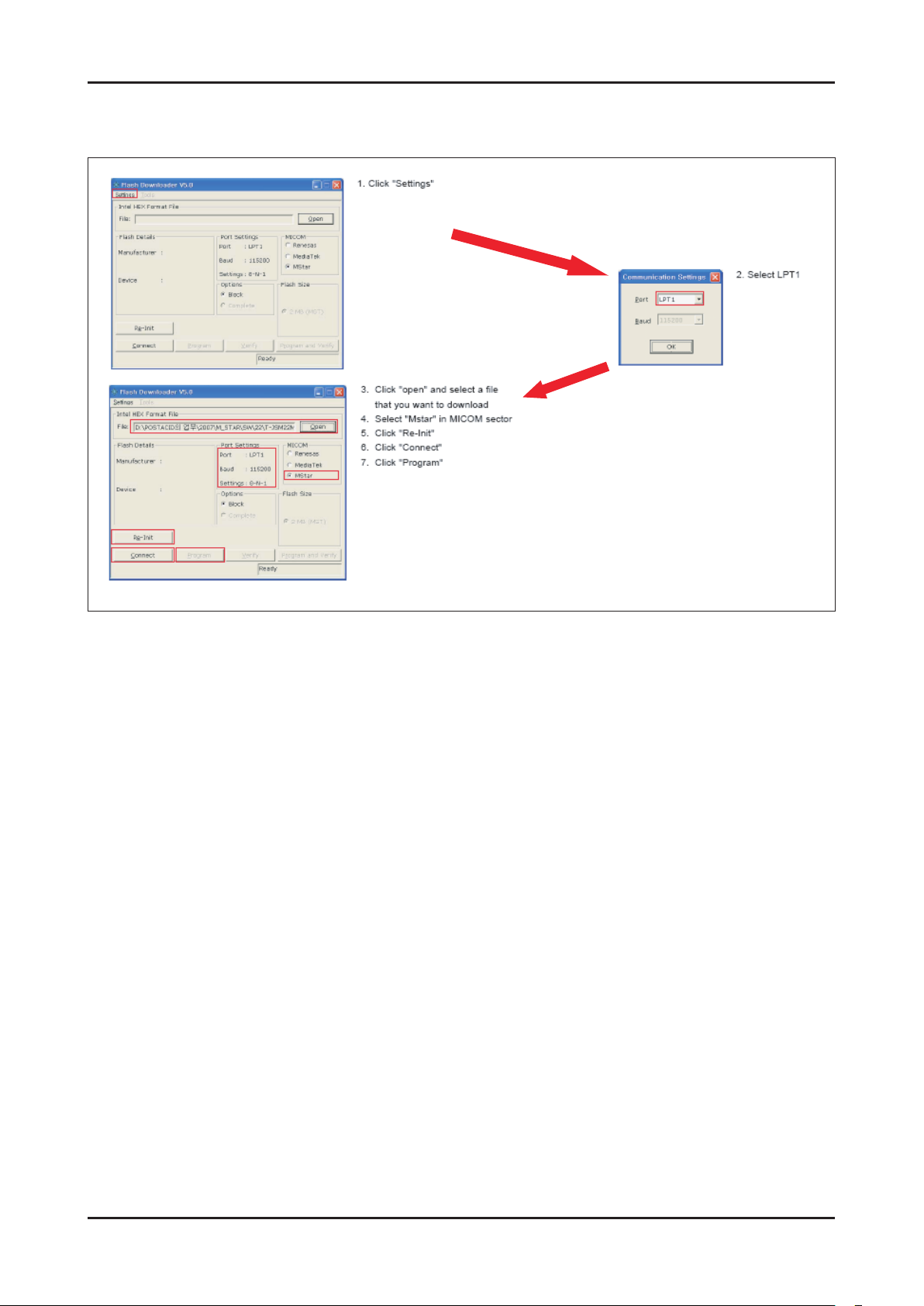

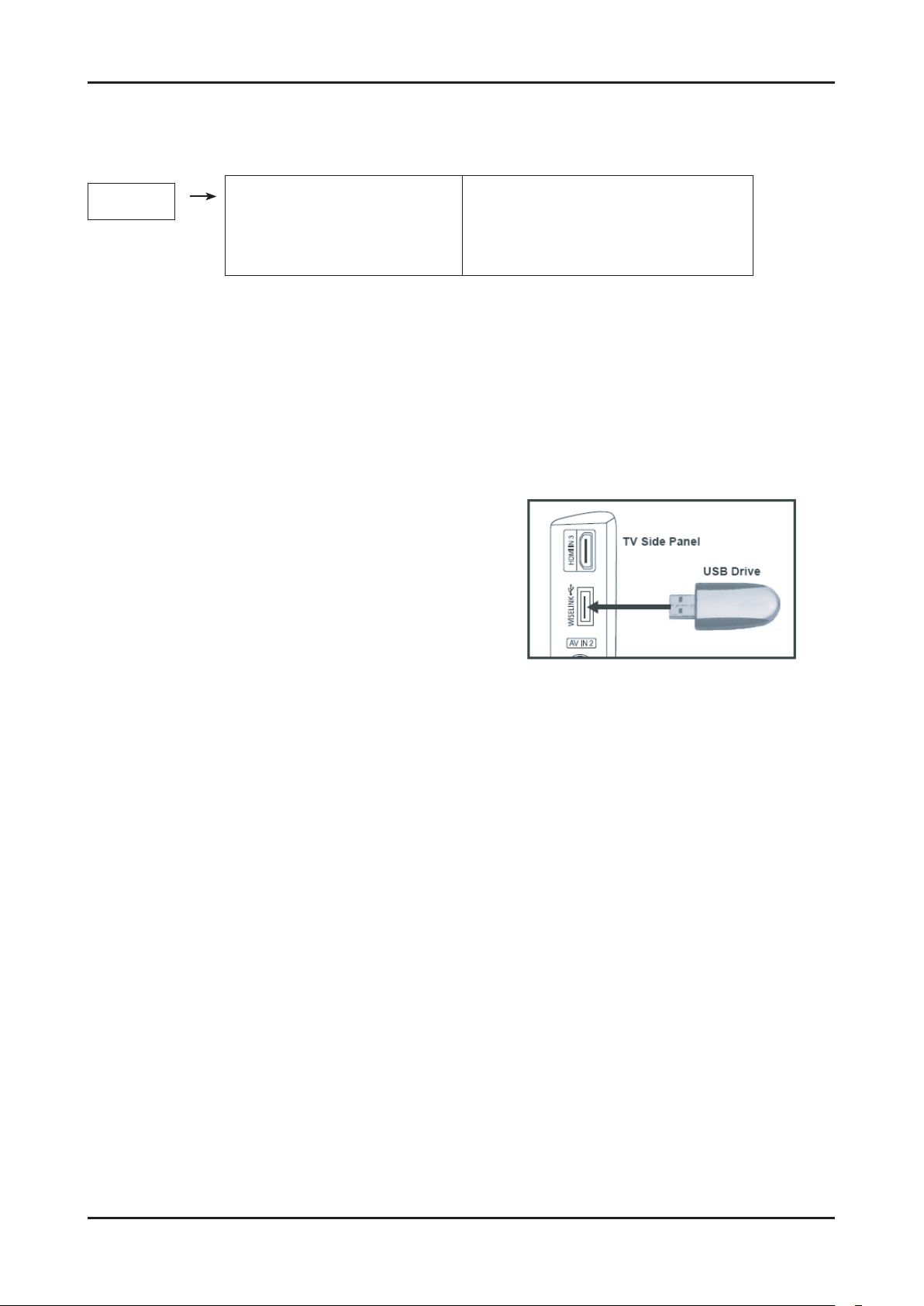

4-6. HOW TO UPGRADE .................................................................................................... 4-32

5. Exploded View & Part List ...................................................................................... 5-1

5-1. LA32B550K1R Exploded View ....................................................................................... 5-1

5-2. LA40B550K1R Exploded View ....................................................................................... 5-3

5-3. LA46B550K1R Exploded View ....................................................................................... 5-5

5-4. LA52B550K1R Exploded View ....................................................................................... 5-7

5-5. LA32B550K1R Parts List ................................................................................................ 5-9

5-6. LA40B550K1R Parts List .............................................................................................. 5-33

5-7. LA46B550K1R Parts List .............................................................................................. 5-57

5-8. LA52B550K1R Parts List .............................................................................................. 5-81

6. Wiring Diagram ........................................................................................................ 6-1

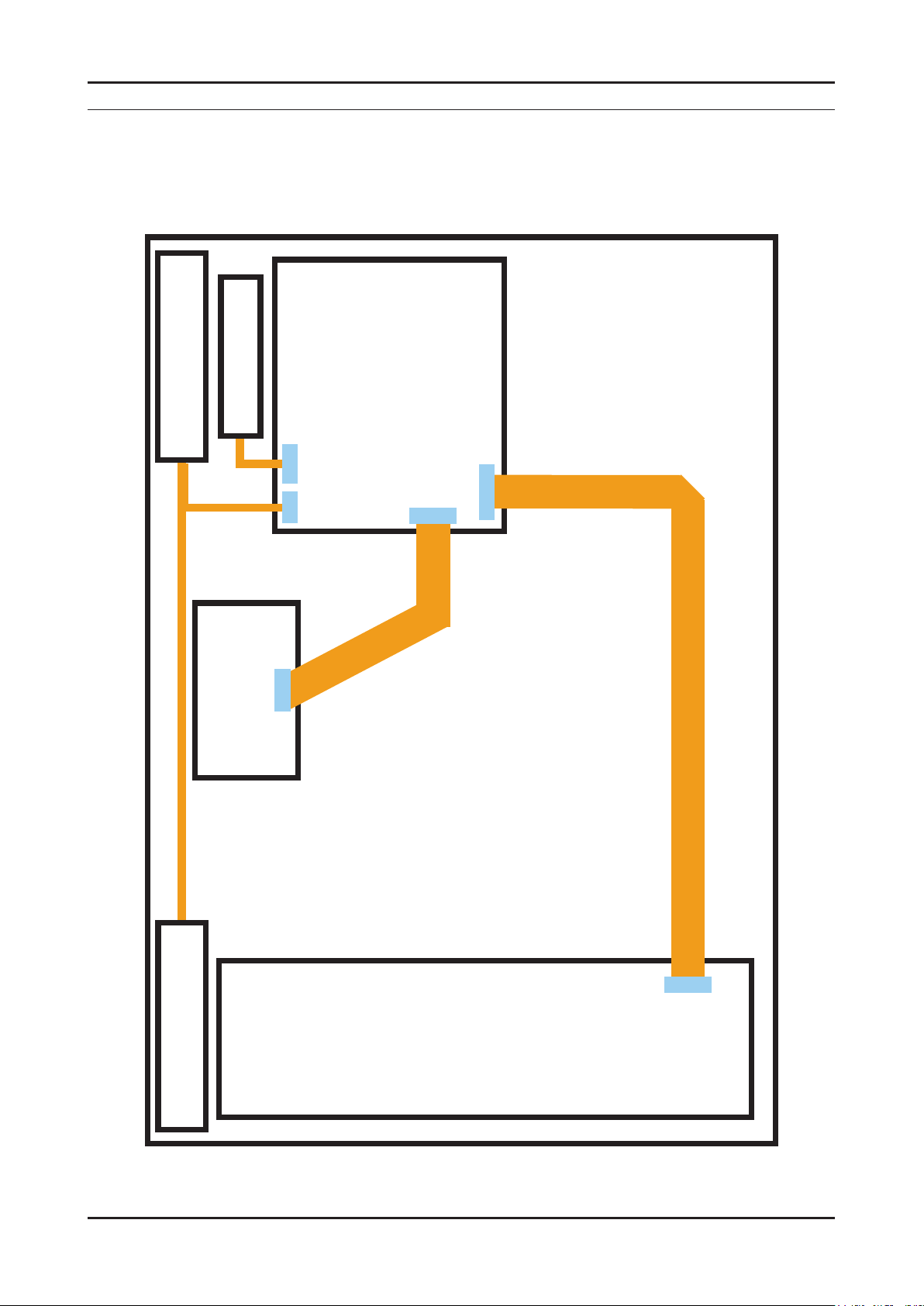

6-1. Wiring Diagram 32” /40” ................................................................................................. 6-1

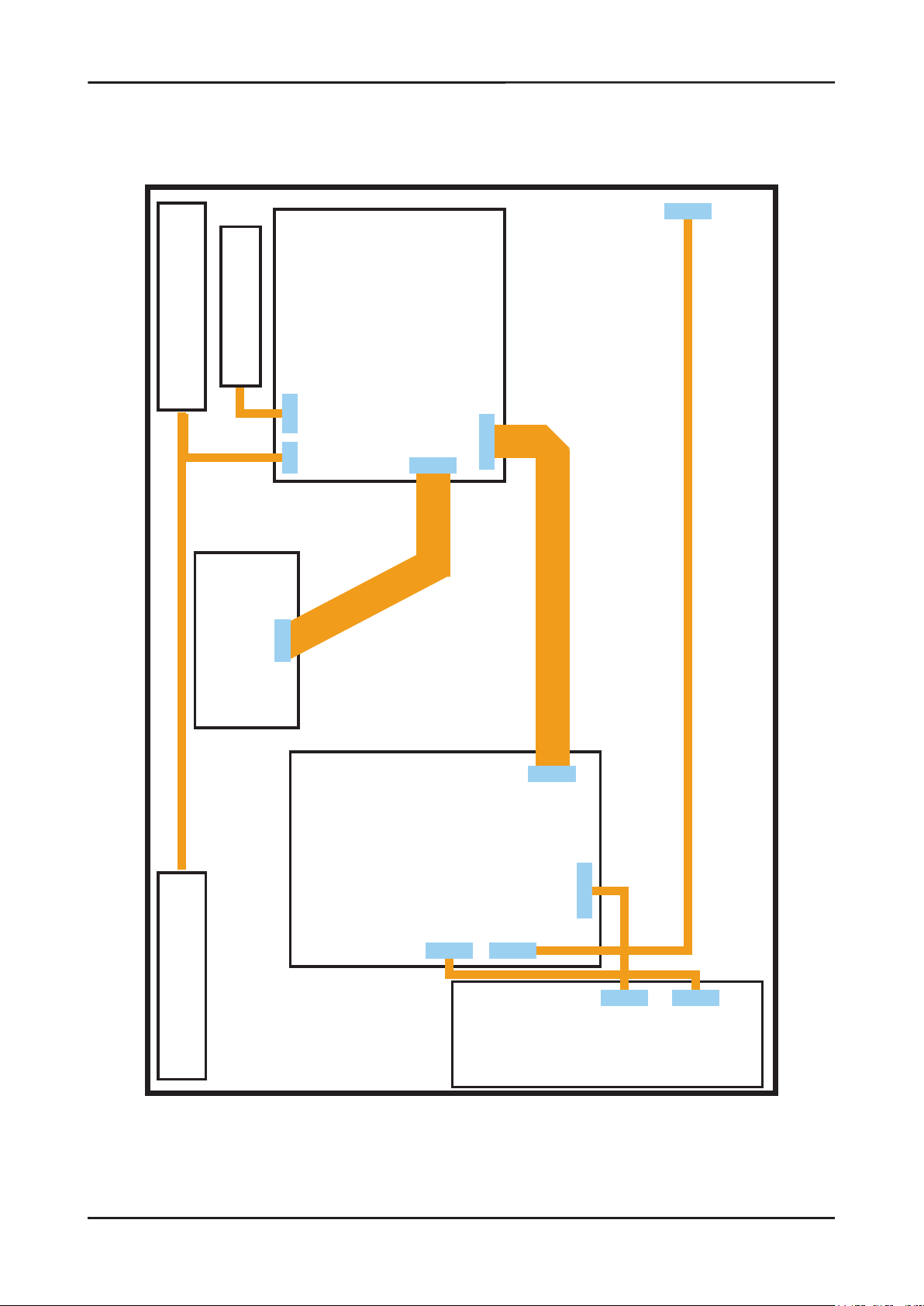

6-2. Wiring Diagram 46”/52” .................................................................................................. 6-2

6-3. Connector Functions ...................................................................................................... 6-5

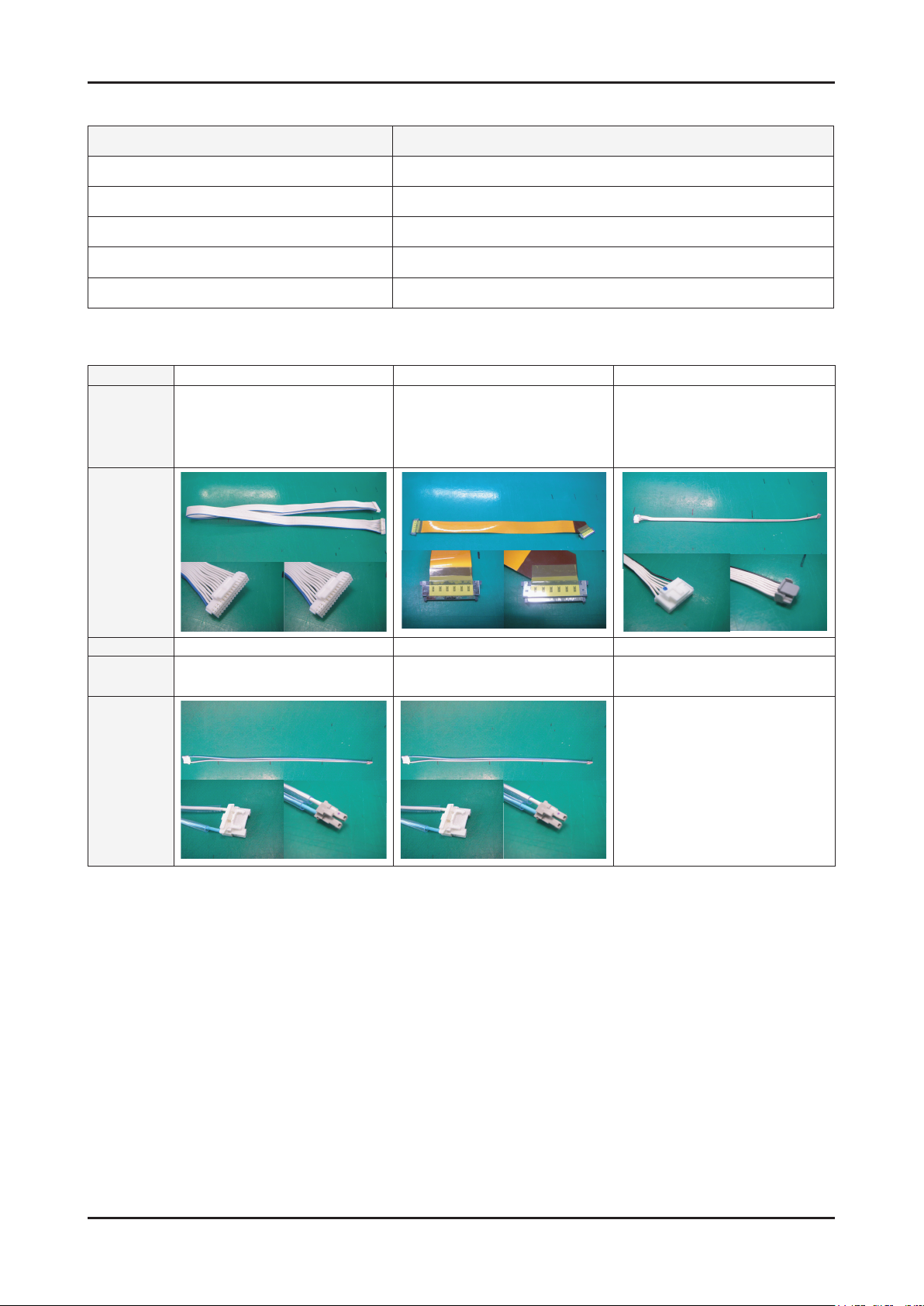

6-4. Cables ............................................................................................................................ 6-5

Page 3

GSPN (Global Service Partner Network)

Area Web Site

North America

Latin America

CIS http://cis.samsungportal.com

Europe http://europe.samsungportal.com

China http://china.samsungportal.com

Asia http://asia.samsungportal.com

Mideast & Africa

This Service Manual is a property of Samsung Electronics Co.,Ltd.

Any unauthorized use of Manual can be punished under applicable International and/or domestic law.

http://service.samsungportal.com

http://latin.samsungportal.com

http://mea.samsungportal.com

Printed in Korea

P/N: BN82-00553A-00

Page 4

3. Disassembly and Reassembly

This section of the service manual describes the disassembly and reassembly procedures for the LA40B550K1R LCD TV.

WARNING: This LCD TV contains electrostatically sensitive devices. Use caution when handling these components.

3-1. Disassembly and Reassembly

Cautions: 1. Disconnect the LCD TV from the power source before disassembly.

2. Follow these directions carefully; never use metal instruments to pry apart the cabinet.

Description Picture Description Screws

1. Place LCD TV face down on cushioned table. Remove screws from the Stand. Remove stand.

3-1

Page 5

3. Disassembly and Reassembly

Description Picture Description Screws

2. Remove the screws of rear-cover.

3. Lift up and remove the rear-cover.

* Rear view of 32” / 40”

* Rear view of 46” / 52”

3-2

Page 6

Description Picture Description Screws

4. Remove the screws of main board.

4-1. Remove the screws of IP board.

Remove the IP board. (32” / 40”)

3. Disassembly and Reassembly

4-2. Remove the screws of IP board.

Remove the IP board. (46” / 52”)

3-3

Page 7

3. Disassembly and Reassembly

Description Picture Description Screws

5. Remove the speakers. (R/L)

6. Remove the screws of Stand BKLT. Lift up the Stand BKLT.

7. Remove the screw of panel top.

3-4

Page 8

Description Picture Description Screws

7-1. Remove the screw of wall bracket.

(46” / 52” only)

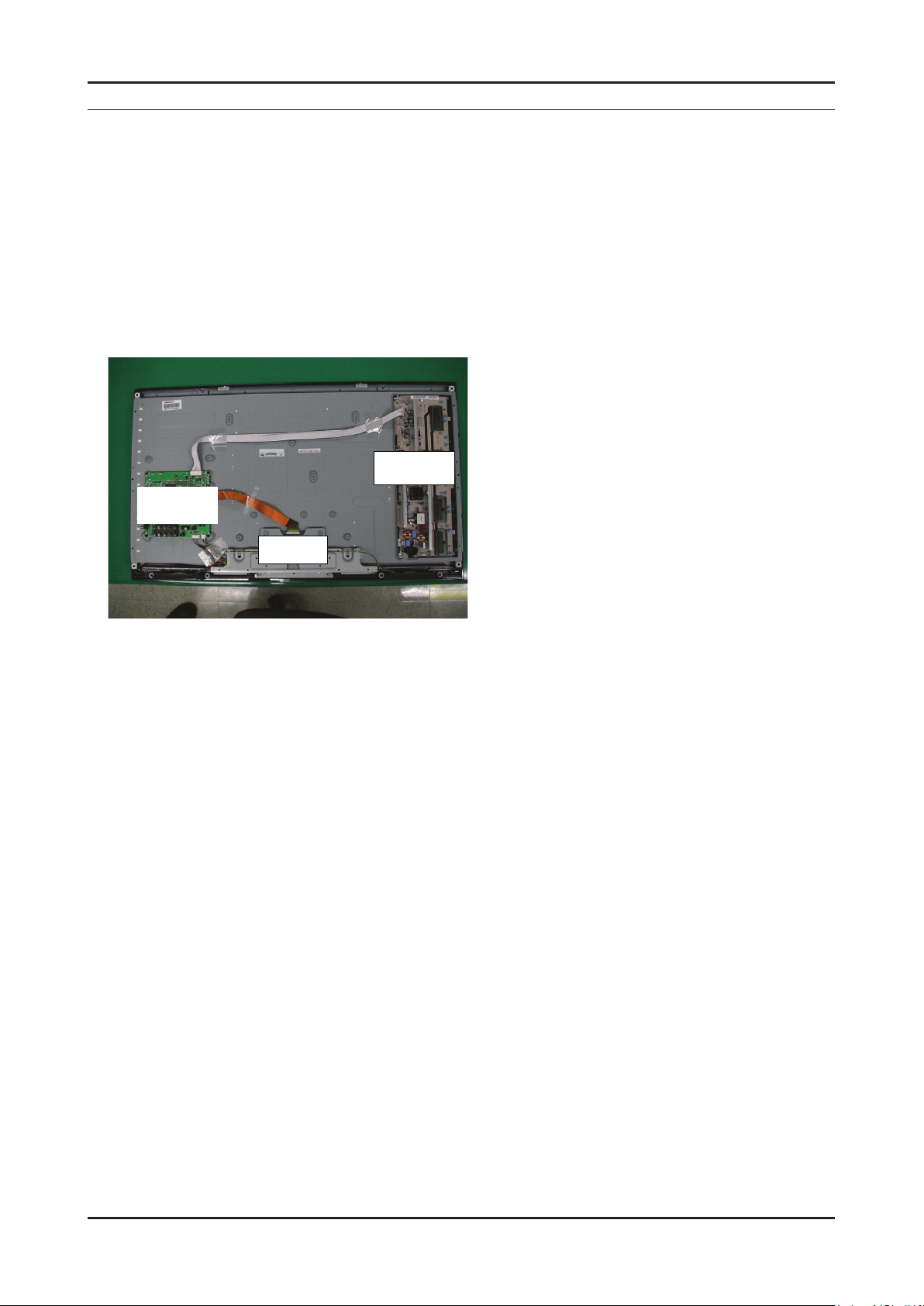

8-1. Front

3. Disassembly and Reassembly

8-2. Panel

Reassembly procedures are in the reverse order of disassembly procedures.※

3-5

Page 9

5. Exploded View & Part List

0003

M0215

M0254

M0027

M0215

M0174

M0014

M0013

M0175

M0146

M0115

M0146

5-1. LA32B550K1R Exploded View

5. Exploded View & Part List

5-1

Page 10

5-2

5. Exploded View & Part List

5-1-1. LA32B550K1R Parts List

Location No. Code No. Description & Specication Q’ty S.A/S.N.A Remark

T0003 BN96-11074A ASSY COVER P-FRONT;DP,BN96-09666C,LB550 1 S.A

M0215 BN07-00679D LCD-PANEL;LTF320HA09 1 S.A

M0215 BN81-02344A A/S-T CON LTF320HA05;LTF320HA05 1 S.A

T0175 BN96-09785J ASSY SPEAKER P;8E,3001-002520, 02Nos,BN3 1 S.A

M0174 BN44-00261C IP BOARD;PSIV161C01AI,HI32F1_9SS,0.12mA, 1 S.A

M0254 BN61-04801E HOLDER-SIDE AV;LB550,BRAZIL,HIPS,HB,BK50 1 S.N.A

M0146 BN61-04818A BRACKET-PANEL TOP;B650-32,SECC,T1.2 2 S.N.A

M0115 BN61-04820A BRACKET-STAND LINK;B650-32,SECC,T1.2 1 S.N.A

M0014 BN94-02709R ASSY PCB MAIN;SSD-LA32B550K1RXXT 1 S.A

M0013 BN96-11077A ASSY COVER P-REAR;DP,BN96-09706C,LB550 3 1 S.A

M0027 BN96-10803A ASSY STAND P-BASE;DP,BN96-09648A,B540,55 1 S.A

Page 11

5-3

5. Exploded View & Part List

5-2. LA32B550K1R Parts List

Service Bom (SA: SERVICE AVAILABLE, SNA: SERVICE NOT AVAILABLE)

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

LA32B550K1RLSG

0.1 M0001 BN90-01957D ASSY COVER FRONT;LB550 32 1 S.N.A ..2 T0003 BN96-11074A ASSY COVER P-FRONT;DP,BN96-09666C,LB550 1 S.A ...3 H/B/SIDE+C 6003-001188 SCREW-TAPTYPE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.N.A ...3 T0069 BN60-00090H SPACER-FELT;FELT,700,T0.35,20 2 S.N.A ...3 T0069 BN60-00090R SPACER-FELT;FELT,380,T0.35,20 2 S.N.A ...3 BN61-04661A BRACKET-STOPPER;L650,SK-5,T0.4,Plating,H 6 S.N.A ...3 CCM1 BN63-05199B COVER-SHEET;AMBER,PE,T0.08,W65mm,200M,CL 2.4 S.N.A ...3 CCM1 BN63-05199D COVER-SHEET;AMBER,PE,T0.08,W75mm,200M,CL 1 S.N.A ...3 M0112 BN63-05455C COVER-FRONT;LB550 32,SO,PMMA(CLR)+ABS-PM 1 S.A

...3 BN96-09676B ASSY HOLDER P-BOSS BOTTOM;LB550 32,HIPS, 1 S.N.A

....4 BN61-04692A BOSS-PRIMER;#94,clear,35cps 0.3 S.N.A

....4 BN61-04731D BOSS-TAPE;AMBER,ACRYL,T1.1,W20.0mm,WHITE 0.565 S.N.A

....4 BN61-05106B HOLDER-BOSS BOTTOM;32,LB550,HIPS,HB,BK50 1 S.N.A

....4 BN61-04731F BOSS-TAPE;AMBER,ACRYL,T1.1,W6.0mm,WHITE, 0.13 S.N.A

...3 BN96-09681C ASSY HOLDER P-SIDE R;LB550 32,ABS+PMMA,H 1 S.N.A

....4 BN61-04692A BOSS-PRIMER;#94,clear,35cps 0.04 S.N.A

....4 BN61-04731A BOSS-TAPE;AMBER,ACRYL,T1.1,W8.0mm,WHITE 0.24 S.N.A

....4 BN61-05113C HOLDER-BOSS SIDE;32,LB550,PMMA+ABS,HB,BK 1 S.N.A

....4 BN61-04731D BOSS-TAPE;AMBER,ACRYL,T1.1,W20.0mm,WHITE 0.03 S.N.A

...3 BN96-09681D ASSY HOLDER P-SIDE L;LB550 32,ABS+PMMA,H 1 S.N.A

....4 BN61-04692A BOSS-PRIMER;#94,clear,35cps 0.04 S.N.A

....4 BN61-04731A BOSS-TAPE;AMBER,ACRYL,T1.1,W8.0mm,WHITE 0.24 S.N.A

....4 BN61-05113D HOLDER-BOSS SIDE;32,LB550,PMMA+ABS,HB,BK 1 S.N.A

....4 BN61-04731D BOSS-TAPE;AMBER,ACRYL,T1.1,W20.0mm,WHITE

...3 BN96-10210G ASSY BOARD P-TOUCH FUNCTION &;LB5K,CT500 1 S.A

..2 T0175 BN96-09785J ASSY SPEAKER P;8E,3001-002520, 02Nos,BN3 1 S.A

LA32B550K1R,N66A/32BK1-G5K,32,LCD-TV,SRI

0.03 S.N.A

0.1 M0002 BN90-01982C ASSY COVER REAR;LB550 32 1 S.N.A

..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 9 S.N.A

..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 1 S.N.A

..2 M0013 BN96-11077A ASSY COVER P-REAR;DP,BN96-09706C,LB550 3 1 S.A

...3 T0101 BN61-04816A BRACKET-WALL;40, B610,SECC,T1.2 4 S.N.A

...3 M0279 BN63-00870A FELT;AS17UO,FELT,0.3,10,287 2 S.N.A

...3 T0071 BN64-01034B INLAY-TERMINAL;LB550,SO,PS SHEET,T0.5,BL 1 S.N.A

...3 T0064 BN65-00002A CLAMPER CORE;BORDEAUX,LDPE,BLK 1 S.N.A

...3 M0006 BN63-05524A COVER-REAR;LB550 32,SO,HIPS,HB,BK500 1 S.A

0.1 M0216 BN90-02001A ASSY STAND;LB550 32 1 S.N.A

..2 M0027 BN96-10803A ASSY STAND P-BASE;DP,BN96-09648A,B540,55 1 S.A

...3 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 4 S.N.A

...3 BN61-03872A GUIDE-STAND BOTTOM;L450 32INCH,PET+PC+GF 1 S.N.A

....4 BN61-02932B BRACKET-STOPPER NUT;L450,M4,OD8,L24,MOLD 3 S.N.A

...3 BN61-04248C BOSS-TAPE;#4920,acryl,0.45mm,12mm,3M,whi 0.28 S.N.A

...3 BN61-04692A BOSS-PRIMER;#94,clear,35cps 0.002 S.N.A

...3 BN61-05174A BRACKET-STAND BASE;32INCH,SECC,T2.0 1 S.N.A

...3 BN61-05175A BRACKET-HINGE SWIVEL;32INCH,SECC,T2.0 1 S.N.A

Page 12

5-4

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

...3 BN61-05180A HOLDER-SWIVEL RING TOP;32inch,ACETAL,TOP 1 S.N.A

...3 BN61-05181A HOLDER-SWIVEL RING BOTTOM;32inch,ACETAL, 1 S.N.A

...3 CCM1 BN63-04755A COVER-SHEET;AMBER,PE,T0.05,W150mm,200M,6 1.1 S.N.A

...3 BN63-05570A COVER-STAND GLASS;32 B550,GLASS,T8.0,BLK 1 S.N.A

...3 T0132 BN73-00181A RUBBER FOOT;RUBY,CR Rubber,PI 25,T3.5,BL 4 S.N.A

...3 CIS4 BP73-00001A RUBBER-SHEET;42W5,NBB RUBBER,GRAY,10*20 2 S.N.A

..2 BN63-05696A COVER-STAND SUB;DP,BN63-05500A,LB550 1 S.A

..2 BN96-11123A ASSY COVER P-GUIDE STAND;DP,BN96-10813A, 1 S.A

...3 T0524 6902-001048 BAG PE;LDPE,T0.05,W160,L300,TRP,4g 1 S.N.A

...3 T0920 BN61-05116A GUIDE-STAND;32,LB550,PET+PC+GF(15%) V2,B 1 S.N.A

0.1 BN91-03433N ASSY LCD-AMLCD;BN07-00679D 1 S.N.A

..2 M0215 BN07-00679D LCD-PANEL;LTF320HA09 1 S.A

...3 M0215 BN81-02344A A/S-T CON LTF320HA05;LTF320HA05 1 S.A

0.1 M0017 BN91-03868P ASSY CHASSIS;SSD-LA32B550K1RXXT 1 S.N.A

..2 M0014 BN94-02709R ASSY PCB MAIN;SSD-LA32B550K1RXXT 1 S.A

...3 T0245 0202-001608 SOLDER-WIRE FLUX;LFC7-107,D0.8,99.3Sn/0. 0.25 S.N.A

...3 JA3003_S 3701-001388 CONNECTOR-HDMI;20P,Phosphor Bronze,ANGLE 1 S.A

...3 JA4005_PC 3701-001480 CONNECTOR-DSUB;15P,3R,FEMAIL,STAMPED PIN 1 S.A

...3 CN330 3711-004531 HEADER-BOARD TO CABLE;BOX,10P,1R,2mm,ANG 1 S.A

...3 CN1001 3711-005884 HEADER-BOARD TO BOARD;BOX,30P,2R,2mm,ANG 1 S.A

...3 CN330 3711-006715 HEADER-BOARD TO CABLE;BOX,4P,1R,2.5mm,AN 1 S.N.A

...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A

...3 JA330

...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A

...3 JA7001 3722-002546 JACK-USB;4P/1C,AU,BLK,ANGLE,A type 1 S.N.A

...3 JA333 3722-002691 JACK-PIN;2P,Ni,WHT/RED,STRAIGHT 1 S.A

...3 JA333 3722-002699 JACK-PIN;3P,Ni,YEL/WHT/RED,STRAIGHT 1 S.A

...3 JA333 3722-002704 JACK-PIN;3P,Sn,YEL/WHT/RED,ANGLE 1 S.A

...3 JA333 3722-002711 JACK-PIN;10P,Ni,GRN/BLU/RED/WHT/RED,STRA 1 S.A

...3 CIS3 BN40-00142B TUNER;TCPS3001PD11S(H),TCPS3001PD11S(H), 1 S.A

...3 HDCP BN97-01987A ASSY HDCP;BN46-00018A,PS-42V6S,D73A,MSTA 1 S.N.A

....4 BN46-00018A KEY CODE-CERTIFICATE;(HDCP KEY)PPM42M5S, 1 S.N.A

...3 T0174 BN97-03261A ASSY SMD;LA32B550K1RXXM,LB5K 1 S.N.A

....4 D2006 0401-001049 DIODE-SWITCHING;LS4148,75V,150mA,SOD-80, 1 S.A

....4 D2009 0401-001049 DIODE-SWITCHING;LS4148,75V,150mA,SOD-80, 1 S.A

....4 D2012 0401-001049 DIODE-SWITCHING;LS4148,75V,150mA,SOD-80, 1 S.A

....4 D2013 0401-001049 DIODE-SWITCHING;LS4148,75V,150mA,SOD-80, 1 S.A

....4 D2014 0401-001049 DIODE-SWITCHING;LS4148,75V,150mA,SOD-80, 1 S.A

....4 D1002 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3007 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3008_550 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3009 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3010_550 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3017 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3018_S 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1

....4 D3019 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3020_S 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D4002 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D4005 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A

S.A

Page 13

5-5

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 D4009 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D4010 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D4011_PAD 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D4012 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D4013 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D4014 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D5001 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D5002 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D5003 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D5005 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D5007 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D5010 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D5012 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D5014 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D5015 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D5016 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D5017 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D2002 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.N.A

....4 D5004 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.N.A

....4 D5006 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.N.A

....4 D5008 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.N.A

....4 D5009

....4 D5011 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.N.A

....4 D5013 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.N.A

....4 D5018 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.N.A

....4 D2004 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A

....4 D3005 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D3006_550 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D3014 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D3016_S 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D4001 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D4003 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D4004 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D4006 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D4007 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D4008 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D4016 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D4017 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D6001 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D7003 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D3001 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A

....4 D3002_550 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A

....4 D3011 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A

....4 D3012_S 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2

....4 D7001 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A

....4 D1003 0403-001425 DIODE-ZENER;BZX84C33,31-35V,350mW,SOT-23 1 S.A

....4 D0254 0404-001020 DIODE-SCHOTTKY;BAT54C,30V,200mA,SOT-23,T 1 S.A

....4 D0254 0404-001271 DIODE-SCHOTTKY;SSA34,40V,3000mA,SMA,TP 1 S.A

....4 D7002 0406-001200 DIODE-TVS;RCLAMP0504F,6/-/-V,150W,SC-70 1 S.A

0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.N.A

1 S.A

Page 14

5-6

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 Q1001_LCD 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q1005 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q1006_LCD 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q2003 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q3005 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q4001 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q6001 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q1002_LCD 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A

....4 Q8003 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A

....4 Q8005_PWM 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-001165 FET-SILICON;SI3443BDV,P,-20V,+-4.4A,65mo 1 S.A

....4 IC106 1001-001567 IC-VIDEO SWITCH;TMDS361,TQFP,64P,9x9mm,3 1 S.A

....4 IC7003 1006-001266 IC-LINE TRANSCEIVER;3232,TSSOP,16P,174MI 1 S.A

....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8,SOP,8P,5x4mm 1 S.A

....4 IC112 1103-001385 IC-EEPROM;AT24C256,256Kbit,32Kx8,SOP,8P, 1 S.A

....4 IC7001 1105-001931 IC-DDR2 SDRAM;K4T51163Q,DDR2-800,512Mbit 1 S.N.A

....4 T0085 1201-002487 IC-AUDIO AMP;MAX9728A,QFN,12P,3x3mm,DUAL 1 S.A

....4 T0124 1201-002797 IC-POWER AMP;NTP-3200,QFN,56P,8x8mm,DUAL 1 S.A

....4 T0085 1201-002849 IC-AUDIO AMP;DRV603,TSSOP,14P,5x4.4mm,DU 1 S.A

....4 T0087 1203-001815 IC-POSI.FIXED REG.;78M09,TO-252,3P,PLAST 1 S.A

....4 T0087 1203-002842 IC-POSI.FIXED REG.;AP1117D-33,TO-252,3P, 1 S.A

....4 T0087 1203-003696 IC-POSI.FIXED REG.;NCP1117DT18T5G,DPAK,3 1 S.A

....4 IC6002 1203-004363 IC-VOL. DETECTOR;RT9818C-29PV,SOT-23,3P, 1 S.A

....4 IC2003 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, 1 S.A

....4 IC1008 1203-005538 IC-DC/DC CONVERTER;AOZ1021HAIL,SOP,8P,4. 1 S.A

....4 IC7005 1205-003201 IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2x2.3mm

....4 IC7006_550 1205-003201 IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2x2.3mm 1 S.A

....4 IC7007 1205-003201 IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2x2.3mm 1 S.A

....4 IC7008 1205-003201 IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2x2.3mm 1 S.A

....4 IC7009 1205-003201 IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2x2.3mm 1 S.A

....4 IC7010 1205-003479 IC-SWITCH;TPS2051BDBVR,SOT-23,5P,2.9x1.6 1 S.A

....4 IC109 1205-003695 IC-LCD CONTROLLER;SEMS03-LF,PQFP,296P,32 1 S.A

....4 VT9001 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A

0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

1 S.A

Page 15

5-7

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 VT4001 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 VT4002 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 VT4003 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 VT4004 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 VT5001 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 VT5002 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 VT5003 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 VT5004 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 VT5005 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 VT5006 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 VT5007 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 VT5008 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 VT5009 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 VT5010 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 VT5011 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 VT5012 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 VT5013 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 VT5014 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A

....4 R1031 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 S.N.A

....4 R1032 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 S.N.A

....4 R7016 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 1 S.A

....4 R7017

....4 R1015 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.N.A

....4 R4043 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2007 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2008 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2009 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2010 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2046 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3032 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3036_550 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3047_550 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3048 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3065 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3066_S 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3081 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4004 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4021 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4024 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4025 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4029 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4030 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4048 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5003 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005

....4 R5021 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5025 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5026 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5034 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5035 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5043 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6004 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 1 S.A

1 S.N.A

Page 16

5-8

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R6005 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6034 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6036 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6037 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6038 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6039 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6041 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6044 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6046 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6047 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6048 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6076 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6077 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6078 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6079 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6080 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6081 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6082 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6083 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6084 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6085 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6095

....4 R6097 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6104 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6106 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6108 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6109 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6111 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6113 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6115 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6116 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6117 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6118 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6119 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6120 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6121 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6135 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6136 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6137 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6145 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6147 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6148 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6149 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6150 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005

....4 R6151_NFBE 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6155 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6156 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6157 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6158 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6159 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6160 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

1 S.N.A

Page 17

5-9

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R6161 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6162 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6163 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6165 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6167 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6168 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6169 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6216 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7062 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7063 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R8065_PWM 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9036 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1029_LCD 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2012 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2017_OP 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2018_OP 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3023 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3024_550 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3056 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3058_S 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4056_PAD 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5044

....4 R5045 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6003 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1002_LCD 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2013 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2026 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6189 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6197 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1005_LCD 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1006 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1028_LCD 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2027 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2031 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2032 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2033 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2034 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3029 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3033_550 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3060 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3062_S 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3084 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4020 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4023 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005

....4 R4051 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4058_OP 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6052 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6213_LCD 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6214_FHD 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7058 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7061 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

1 S.N.A

Page 18

5-10

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R8047_NFBE 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9001 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9002 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9048 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1009_LCD 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1011_LCD 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2002 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2003 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2020 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2025 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2036 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2037 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3037 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3038_550 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3039 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3040_550 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3041 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3042_550 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3049 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3050_550 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3071 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3072_S

....4 R3073 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3074_S 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3075 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3076_S 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3082 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3085 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4009 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4010 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4011 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4012 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4015 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4016 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4028 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5009 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5010 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5017 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5018 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5031 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5032 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5036 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5037 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6051 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005

....4 R6058 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6060 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6061 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6064 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6072 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6073 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6075 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

1 S.N.A

Page 19

5-11

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R6122 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6123 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6124 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6126 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6128 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6139 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6142 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6152_PWM_ 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6182 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6184 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6185 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6186 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6187 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6192 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6196 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6218 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6219 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7015 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7032_550 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7039 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7040 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7050

....4 R8063_PWM 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4017 2007-000151 R-CHIP;15Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4022 2007-000151 R-CHIP;15Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5011 2007-000151 R-CHIP;15Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5016 2007-000151 R-CHIP;15Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5023 2007-000151 R-CHIP;15Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5024 2007-000151 R-CHIP;15Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5033 2007-000151 R-CHIP;15Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5038 2007-000151 R-CHIP;15Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5039 2007-000151 R-CHIP;15Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5040 2007-000151 R-CHIP;15Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1023 2007-000153 R-CHIP;22Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1027 2007-000153 R-CHIP;22Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6066 2007-000153 R-CHIP;22Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6067 2007-000153 R-CHIP;22Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6068 2007-000153 R-CHIP;22Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6069 2007-000153 R-CHIP;22Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1008_LCD 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2015_OP 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2016_OP 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5028_EU 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5029_EU 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005

....4 R1022 2007-000162 R-CHIP;100Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6057 2007-000170 R-CHIP;1Mohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2006 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2028 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2029 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3003 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3004_550 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A

1 S.N.A

Page 20

5-12

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R3005 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3014_550 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3053 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3054_S 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3055 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3057_S 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4026 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4027 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4042 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4047 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4050 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5001 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6029 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6032 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6033 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6086 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6088 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6090 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6091 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6093 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6153 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6154

....4 R6164 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6177_ANA_ 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6178 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6200 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6220 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7007 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7008 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7018 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7019 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7020_550 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7021_550 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7033_550 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7034_550 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7035 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7036 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7037 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7038 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7043 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7044 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7045 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7046 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7047 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005

....4 R7048 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7052 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7053 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7054 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7055 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R8050_NFBE 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R8054_ANA_ 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

1 S.N.A

Page 21

5-13

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R8060_PWM_ 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R8138_NFBE 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R8139_NFBE 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R8140_NFBE 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R8141_NFBE 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R8142_NFBE 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R8143_NFBE 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R8144_NFBE 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R8145_NFBE 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R8146_NFBE 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R8147_NFBE 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R8148_NFBE 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R8149_NFBE 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R8150_NFBE 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R8151_NFBE 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R8152_NFBE 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R8153_NFBE 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R8154_NFBE 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R8155_NFBE 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R8156_NFBE 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R8157_NFBE 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R8158_NFBE

....4 R8159_NFBE 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R8160_NFBE 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R8161_NFBE 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R8174 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R8175 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R8176 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R8177 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9004 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9005 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3025 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3026_550 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3059 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3061_S 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6010 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6011 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6012 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6013 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6014 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6015 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6016 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6017 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6021 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005

....4 R6022 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6023 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6024 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6025 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6026 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6027 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6028 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A

1 S.N.A

Page 22

5-14

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R6094 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6096 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6100 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6102 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6105 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6107 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6110 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6112 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3030 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3031 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3034_550 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3035_550 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3067 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3068 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3069_S 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3070_S 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4001 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4005 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7001 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7002 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7003 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7004

....4 R7005 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7006 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7010 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7011 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3043 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3044 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3045_550 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3046_550 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3077 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3078 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3079_S 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R3080_S 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4013 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4014 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4040 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4041 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5015 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5041 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5042 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6006 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6009 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6018 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005

....4 R6019 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6020 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6030 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6031 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6092 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6098 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6114 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A

1 S.N.A

Page 23

5-15

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R7009 2007-000402 R-CHIP;150ohm,5%,1/10W,TP,1608 1 S.A

....4 R4045 2007-000566 R-CHIP;220Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R7013 2007-000640 R-CHIP;270ohm,1%,1/10W,TP,1608 1 S.A

....4 R1016 2007-000763 R-CHIP;330ohm,1%,1/10W,TP,1608 1 S.N.A

....4 R1021 2007-000763 R-CHIP;330ohm,1%,1/10W,TP,1608 1 S.N.A

....4 R1026 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2019 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2042 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2044 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6035 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6040 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6045 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R8051 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6134 2007-001237 R-CHIP;910ohm,1%,1/10W,TP,1608 1 S.A

....4 R2011 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6001 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6002 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6054 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6055 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6222 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9015 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9016

....4 R9017 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9018 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9019 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9020 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9021 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9022 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9027 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9028 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9029 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9030 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9031 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9032 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9033 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R9034 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2014 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6053 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6056 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R6217 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R8064_PWM 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1101 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 S.N.A

....4 R1102 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 S.N.A

....4 R1103 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608

....4 R1104 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 S.N.A

....4 R1105 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 S.N.A

....4 R7014 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 S.N.A

....4 R4002 2007-007009 R-CHIP;75ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4003 2007-007009 R-CHIP;75ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4006 2007-007009 R-CHIP;75ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R4007 2007-007009 R-CHIP;75ohm,5%,1/16W,TP,1005 1 S.N.A

2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

1 S.N.A

Page 24

5-16

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R4008 2007-007009 R-CHIP;75ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5002 2007-007009 R-CHIP;75ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5004 2007-007009 R-CHIP;75ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5005 2007-007009 R-CHIP;75ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5006 2007-007009 R-CHIP;75ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5007 2007-007009 R-CHIP;75ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5008 2007-007009 R-CHIP;75ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5027 2007-007009 R-CHIP;75ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R5030 2007-007009 R-CHIP;75ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1003 2007-007107 R-CHIP;100Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R1007_LCD 2007-007107 R-CHIP;100Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R1030 2007-007107 R-CHIP;100Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R2043 2007-007107 R-CHIP;100Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R2045 2007-007107 R-CHIP;100Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R6130 2007-007142 R-CHIP;10Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R6131 2007-007142 R-CHIP;10Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R2021 2007-007197 R-CHIP;3.3ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2022 2007-007197 R-CHIP;3.3ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2023 2007-007197 R-CHIP;3.3ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R2024 2007-007197 R-CHIP;3.3ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R1020 2007-007297 R-CHIP;110ohm,1%,1/10W,TP,1608 1 S.A

....4 R6059

....4 R3001 2007-007334 R-CHIP;200Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R3002_550 2007-007334 R-CHIP;200Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R3051_OP 2007-007334 R-CHIP;200Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R3052_S 2007-007334 R-CHIP;200Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R1017 2007-007549 R-CHIP;4.99Kohm,1%,1/10W,TP,1608 1 S.N.A

....4 R7012 2007-007721 R-CHIP;560ohm,1%,1/10W,TP,1608 1 S.A

....4 R2038 2007-008339 R-CHIP;30Kohm,0.5%,1/16W,TP,1005 1 S.N.A

....4 R2039 2007-008339 R-CHIP;30Kohm,0.5%,1/16W,TP,1005 1 S.N.A

....4 R2040 2007-008339 R-CHIP;30Kohm,0.5%,1/16W,TP,1005 1 S.N.A

....4 R2041 2007-008339 R-CHIP;30Kohm,0.5%,1/16W,TP,1005 1 S.N.A

....4 R1018 2007-008593 R-CHIP;750ohm,1%,1/16W,TP,1005 1 S.A

....4 R8162_NFBE 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 R8163_NFBE 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 R8164_NFBE 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 R8168_NFBE 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 R8169_NFBE 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 R8170_NFBE 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 R6179 2011-001011 R-NETWORK;10Kohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 R6180 2011-001011 R-NETWORK;10Kohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 R7022 2011-001262 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,2. 1 S.A

....4 R7023 2011-001262 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,2. 1 S.A

....4 R7024 2011-001262 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,2.

....4 R7025 2011-001262 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,2. 1 S.A

....4 R7026 2011-001262 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,2. 1 S.A

....4 R7027 2011-001262 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,2. 1 S.A

....4 R7028 2011-001262 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,2. 1 S.A

....4 R7029 2011-001262 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,2. 1 S.A

....4 R7030 2011-001262 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,2. 1 S.A

....4 R7031 2011-001262 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,2. 1 S.A

2007-007319 R-CHIP;390ohm,1%,1/16W,TP,1005 1 S.N.A

1 S.A

Page 25

5-17

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 C6052 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012 1 S.A

....4 C7062 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 1 S.N.A

....4 C7067 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 1 S.N.A

....4 C2012 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,TP,1005 1 S.A

....4 C4003 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,TP,1005 1 S.A

....4 C4004 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,TP,1005 1 S.A

....4 C5008 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,TP,1005 1 S.A

....4 C2065 2203-000239 C-CER,CHIP;0.1nF,5%,50V,C0G,2012 1 S.N.A

....4 C2067 2203-000239 C-CER,CHIP;0.1nF,5%,50V,C0G,2012 1 S.N.A

....4 C2059 2203-000280 C-CER,CHIP;0.01nF,0.5pF,50V,C0G,1608 1 S.A

....4 C2060 2203-000280 C-CER,CHIP;0.01nF,0.5pF,50V,C0G,1608 1 S.A

....4 C2010 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,TP,1005 1 S.A

....4 C4016 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,TP,1005 1 S.A

....4 C6006 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,TP,1005 1 S.A

....4 C6011 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,TP,1005 1 S.A

....4 C6014 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,TP,1005 1 S.A

....4 C6057 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,TP,1005 1 S.A

....4 C7046 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,TP,1005 1 S.A

....4 C1024 2203-000489 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1005 1 S.A

....4 C1033 2203-000489 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1005 1 S.A

....4 C6048 2203-000489 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1005 1 S.A

....4 C6049

....4 C6050 2203-000489 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1005 1 S.A

....4 C6051 2203-000489 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1005 1 S.A

....4 C4006 2203-000627 C-CER,CHIP;.022nF,5%,50V,C0G,TP,1005 1 S.N.A

....4 C4007 2203-000627 C-CER,CHIP;.022nF,5%,50V,C0G,TP,1005 1 S.N.A

....4 C2016 2203-000812 C-CER,CHIP;.033nF,5%,50V,C0G,1005 1 S.A

....4 C2017 2203-000812 C-CER,CHIP;.033nF,5%,50V,C0G,1005 1 S.A

....4 C2039 2203-000838 C-CER,CHIP;0.39NF,5%,50V,C0G,TP,1608 1 S.A

....4 C2040 2203-000838 C-CER,CHIP;0.39NF,5%,50V,C0G,TP,1608 1 S.A

....4 C2041 2203-000838 C-CER,CHIP;0.39NF,5%,50V,C0G,TP,1608 1 S.A

....4 C2042 2203-000838 C-CER,CHIP;0.39NF,5%,50V,C0G,TP,1608 1 S.A

....4 C2043 2203-000925 C-CER,CHIP;470nF,+80-20%,50V,Y5V,2012 1 S.A

....4 C2044 2203-000925 C-CER,CHIP;470nF,+80-20%,50V,Y5V,2012 1 S.A

....4 C1038 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,- 1 S.N.A

....4 C4019 2203-000995 C-CER,CHIP;.047nF,5%,50V,C0G,TP,1005 1 S.A

....4 C4021 2203-000995 C-CER,CHIP;.047nF,5%,50V,C0G,TP,1005 1 S.A

....4 C4028 2203-000995 C-CER,CHIP;.047nF,5%,50V,C0G,TP,1005 1 S.A

....4 C5010 2203-000995 C-CER,CHIP;.047nF,5%,50V,C0G,TP,1005 1 S.A

....4 C6037 2203-001412 C-CER,CHIP;0.03nF,5%,50V,NP0,TP,1005 1 S.N.A

....4 C6038 2203-001412 C-CER,CHIP;0.03nF,5%,50V,NP0,TP,1005 1 S.N.A

....4 C6002 2203-001630 C-CER,CHIP;330nF,+80-20%,16V,Y5V,1608 1 S.N.A

....4 C1028 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C1040 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005

....4 C1041 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4029 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4030 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4031_PAD 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4032 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C8044 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C4005 2203-002525 C-CER,CHIP;0.56nF,10%,50V,X7R,TP,1005 1 S.N.A

2203-000489 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1005 1 S.A

1 S.N.A

Page 26

5-18

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 C4009 2203-002525 C-CER,CHIP;0.56nF,10%,50V,X7R,TP,1005 1 S.N.A

....4 C5004 2203-002525 C-CER,CHIP;0.56nF,10%,50V,X7R,TP,1005 1 S.N.A

....4 C5005 2203-002525 C-CER,CHIP;0.56nF,10%,50V,X7R,TP,1005 1 S.N.A

....4 C5006 2203-002525 C-CER,CHIP;0.56nF,10%,50V,X7R,TP,1005 1 S.N.A

....4 C5007 2203-002525 C-CER,CHIP;0.56nF,10%,50V,X7R,TP,1005 1 S.N.A

....4 C5012 2203-002525 C-CER,CHIP;0.56nF,10%,50V,X7R,TP,1005 1 S.N.A

....4 C5013 2203-002525 C-CER,CHIP;0.56nF,10%,50V,X7R,TP,1005 1 S.N.A

....4 C5015 2203-002525 C-CER,CHIP;0.56nF,10%,50V,X7R,TP,1005 1 S.N.A

....4 C5017 2203-002525 C-CER,CHIP;0.56nF,10%,50V,X7R,TP,1005 1 S.N.A

....4 C2053 2203-002687 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1005 1 S.A

....4 C2054 2203-002687 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1005 1 S.A

....4 C2055 2203-002687 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1005 1 S.A

....4 C2056 2203-002687 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1005 1 S.A

....4 C1018 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V,Y5V,2012 1 S.N.A

....4 C1047 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V,Y5V,2012 1 S.N.A

....4 C1049 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A

....4 C1050 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A

....4 C1052 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A

....4 C2026 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A

....4 C2027 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A

....4 C2029 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A

....4 C2030

....4 C2032 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A

....4 C2033 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A

....4 C2034 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A

....4 C2035 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A

....4 C2036 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A

....4 C2037 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A

....4 C2045 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A

....4 C2046 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A

....4 C2047 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A

....4 C2048 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A

....4 C2049 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A

....4 C2050 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A

....4 C2051 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A

....4 C2052 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A

....4 C4011 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A

....4 C1016_LCD 2203-005261 C-CER,CHIP;1000nF,10%,25V,X7R,TP,3216 1 S.N.A

....4 C1004 2203-005384 C-CER,CHIP;4700nF,+80-20%,10V,Y5V,TP,201 1 S.N.A

....4 C1037 2203-005384 C-CER,CHIP;4700nF,+80-20%,10V,Y5V,TP,201 1 S.N.A

....4 C1043 2203-005384 C-CER,CHIP;4700nF,+80-20%,10V,Y5V,TP,201 1 S.N.A

....4 C1054 2203-005384 C-CER,CHIP;4700nF,+80-20%,10V,Y5V,TP,201 1 S.N.A

....4 C6029 2203-005384 C-CER,CHIP;4700nF,+80-20%,10V,Y5V,TP,201 1 S.N.A

....4 C6030 2203-005384 C-CER,CHIP;4700nF,+80-20%,10V,Y5V,TP,201

....4 C6033 2203-005384 C-CER,CHIP;4700nF,+80-20%,10V,Y5V,TP,201 1 S.N.A

....4 C6034 2203-005384 C-CER,CHIP;4700nF,+80-20%,10V,Y5V,TP,201 1 S.N.A

....4 C6035 2203-005384 C-CER,CHIP;4700nF,+80-20%,10V,Y5V,TP,201 1 S.N.A

....4 C6036 2203-005384 C-CER,CHIP;4700nF,+80-20%,10V,Y5V,TP,201 1 S.N.A

....4 C6041 2203-005384 C-CER,CHIP;4700nF,+80-20%,10V,Y5V,TP,201 1 S.N.A

....4 C6053 2203-005384 C-CER,CHIP;4700nF,+80-20%,10V,Y5V,TP,201 1 S.N.A

....4 C6054 2203-005384 C-CER,CHIP;4700nF,+80-20%,10V,Y5V,TP,201 1 S.N.A

2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A

1 S.N.A

Page 27

5-19

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 C6055 2203-005384 C-CER,CHIP;4700nF,+80-20%,10V,Y5V,TP,201 1 S.N.A

....4 C6056 2203-005384 C-CER,CHIP;4700nF,+80-20%,10V,Y5V,TP,201 1 S.N.A

....4 C2001 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.N.A

....4 C2002 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.N.A

....4 C1035 2203-005642 C-CER,CHIP;0.22nF,5%,50V,NP0,1005 1 S.N.A

....4 C1036 2203-005968 C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005 1 S.N.A

....4 C2038 2203-005968 C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005 1 S.N.A

....4 C1042 2203-006104 C-CER,CHIP;1000nF,10%,50V,X7R,3225 1 S.A

....4 C5016 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A

....4 C5018 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A

....4 C6005 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A

....4 C6007 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A

....4 C6008 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A

....4 C6009 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A

....4 C6010 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A

....4 C6012 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A

....4 C6013 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A

....4 C6015 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A

....4 C6016 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A

....4 C6017 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A

....4 C6018 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A

....4 C6021

....4 C6022 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A

....4 C6023 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A

....4 C6024 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A

....4 C6025 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A

....4 C6026 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A

....4 C1017 2203-006141 C-CER,CHIP;1000nF,10%,16V,X5R,1608 1 S.N.A

....4 C2006 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C2007 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C2008 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C2013 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C2014 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C2015 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C2023_OP 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C2024 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4020 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4034 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C6001 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7031 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7033 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7034 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7036 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7039 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005

....4 C7041 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7044 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7045 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7059 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7060 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7063 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C7064 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A

1 S.N.A

Page 28

5-20

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 C7065 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C9003 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C9004 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C9007 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C9008 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C9009 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C9010 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C4015 2203-006307 C-CER,CHIP;1000nF,10%,25V,X5R,2012 1 S.N.A

....4 C5014 2203-006307 C-CER,CHIP;1000nF,10%,25V,X5R,2012 1 S.N.A

....4 C7025 2203-006307 C-CER,CHIP;1000nF,10%,25V,X5R,2012 1 S.N.A

....4 C7047 2203-006307 C-CER,CHIP;1000nF,10%,25V,X5R,2012 1 S.N.A

....4 C2019 2203-006336 C-CER,CHIP;10000nF,10%,25V,X5R,3216 1 S.A

....4 C2020 2203-006336 C-CER,CHIP;10000nF,10%,25V,X5R,3216 1 S.A

....4 C2021 2203-006336 C-CER,CHIP;10000nF,10%,25V,X5R,3216 1 S.A

....4 C2022 2203-006336 C-CER,CHIP;10000nF,10%,25V,X5R,3216 1 S.A

....4 C2028 2203-006336 C-CER,CHIP;10000nF,10%,25V,X5R,3216 1 S.A

....4 C2031 2203-006336 C-CER,CHIP;10000nF,10%,25V,X5R,3216 1 S.A

....4 C1013 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A

....4 C1025 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A

....4 C1031 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A

....4 C1034 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A

....4 C1055

....4 C1056 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A

....4 C2005 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A

....4 C2009 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A

....4 C2025_OP 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A

....4 C3005 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A

....4 C3006_550 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A

....4 C3013 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A

....4 C3014_S 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A

....4 C4008 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A

....4 C4017 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A

....4 C4035 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A

....4 C6003 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A

....4 C6046 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A

....4 C7028 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A

....4 C9002 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A

....4 C9005 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A

....4 C9006 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A

....4 C1005 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 1 S.N.A

....4 C1008 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 1 S.N.A

....4 C1009 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 1 S.N.A

....4 C2003 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 1 S.N.A

....4 C2004 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005

....4 C2011_OP 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 1 S.N.A

....4 C2018_OP 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 1 S.N.A

....4 C2061 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 1 S.N.A

....4 C2062 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 1 S.N.A

....4 C2063 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 1 S.N.A

....4 C4026 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 1 S.N.A

....4 C6045 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 1 S.N.A

2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A

1 S.N.A

Page 29

5-21

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 C7043 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 1 S.N.A

....4 C7053_550 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 1 S.N.A

....4 C7055 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 1 S.N.A

....4 C7056 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 1 S.N.A

....4 C7057 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 1 S.N.A

....4 C7066 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 1 S.N.A

....4 C1001 2203-006618 C-CER,CHIP;2200nF,+80-20%,16V,Y5V,TP,160 1 S.N.A

....4 C1003 2203-006618 C-CER,CHIP;2200nF,+80-20%,16V,Y5V,TP,160 1 S.N.A

....4 C1053 2203-006618 C-CER,CHIP;2200nF,+80-20%,16V,Y5V,TP,160 1 S.N.A

....4 C1010 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3007 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3008_550 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3015 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C3016_S 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4010 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4027 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C6004 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C6027 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C6028 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C6039 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C6040 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C6042

....4 C6043 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C6044 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C6047 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C6058 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C7001 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C7002 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C7003 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C7005 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C7006 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C7007 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C7008 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C7009 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C7010 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C7011 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C7012 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C7013 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C7014 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C7015 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C7017 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C7018 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C7019 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C7020 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005

....4 C7021 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C7022 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C7023 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C7024 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C7026 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C7027 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C7030 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

1 S.N.A

Page 30

5-22

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 C7032 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C7035 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C7037 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C7048 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C7049 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C7050 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C7051 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C7052 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C7054 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C4001 2203-006992 C-CER,CHIP;0.33nF,5%,50V,C0G,TP,1005 1 S.N.A

....4 C4002 2203-006992 C-CER,CHIP;0.33nF,5%,50V,C0G,TP,1005 1 S.N.A

....4 C5009 2203-006992 C-CER,CHIP;0.33nF,5%,50V,C0G,TP,1005 1 S.N.A

....4 C5011 2203-006992 C-CER,CHIP;0.33nF,5%,50V,C0G,TP,1005 1 S.N.A

....4 C1006 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1023 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1029 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1030 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1032 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1045 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C2057 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C2058 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C2064

....4 C2066 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7038 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7040 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C7042 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C8045 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000417 INDUCTOR-SMD;220uH,5%,3225 1 S.A

....4 T0052 2703-001426 INDUCTOR-SMD;680uH,20%,7070 1 S.A

....4 T0052 2703-001778 INDUCTOR-SMD;3.3uH,20%,3225

....4 T0052 2703-003559 INDUCTOR-SMD;4.7uH,20%,8080 1 S.A

....4 L2001 2704-000018 INDUCTOR-SMD-ARRAY;15uH,2000mA,2,0.124oh 1 S.N.A

....4 L2002 2704-000018 INDUCTOR-SMD-ARRAY;15uH,2000mA,2,0.124oh 1 S.N.A

....4 X202 2801-003773 CRYSTAL-SMD;12MHz,30ppm,28-AAN,20pF,50oh 1 S.A

....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

1 S.A

Page 31

5-23

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608 1 S.N.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001393 BEAD-SMD;60ohm,3216,1500mA,TP,41ohm/40MH 1 S.N.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 CN330 3711-005925 HEADER-BOARD TO CABLE;BOX,51P,1R,0.5mm,S 1 S.N.A

....4 T0077 BN41-01163A PCB MAIN;B550/530,FR-4,4,1.0,1.2T,192*19 1 S.N.A

....4 M0018 BN97-03240A ASSY MICOM;T-LL5MEAM-1014.0,LOLA3,2009.1 1 S.N.A

.....5 IC115 1107-001777 IC-FLASH MEMORY;MX25L6405DMI-12G,64Mbit, 1 S.A

....4 R6223 2007-002796 R-CHIP;510ohm,5%,1/16W,TP,1005 1 S.A

....4 R4063_DE 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 1 S.A

....4 C9101 2203-005054 C-CER,CHIP;0.0047nF,0.25pF,50V,NP0,TP,10 1 S.A

....4 C9102 2203-005054 C-CER,CHIP;0.0047nF,0.25pF,50V,NP0,TP,10 1 S.A

....4 C9103 2203-005054 C-CER,CHIP;0.0047nF,0.25pF,50V,NP0,TP,10 1 S.A

....4 C9104 2203-005054 C-CER,CHIP;0.0047nF,0.25pF,50V,NP0,TP,10 1 S.A

....4 C9105 2203-005054 C-CER,CHIP;0.0047nF,0.25pF,50V,NP0,TP,10 1 S.A

....4 C9106 2203-005054 C-CER,CHIP;0.0047nF,0.25pF,50V,NP0,TP,10 1 S.A

....4 C9107 2203-005054 C-CER,CHIP;0.0047nF,0.25pF,50V,NP0,TP,10 1 S.A

....4 C9108 2203-005054 C-CER,CHIP;0.0047nF,0.25pF,50V,NP0,TP,10 1 S.A

....4 C9109 2203-005054 C-CER,CHIP;0.0047nF,0.25pF,50V,NP0,TP,10 1 S.A

....4 C9110 2203-005054 C-CER,CHIP;0.0047nF,0.25pF,50V,NP0,TP,10 1 S.A

....4 C9111 2203-005054 C-CER,CHIP;0.0047nF,0.25pF,50V,NP0,TP,10

....4 C9112 2203-005054 C-CER,CHIP;0.0047nF,0.25pF,50V,NP0,TP,10 1 S.A

....4 C9113 2203-005054 C-CER,CHIP;0.0047nF,0.25pF,50V,NP0,TP,10 1 S.A

....4 C9114 2203-005054 C-CER,CHIP;0.0047nF,0.25pF,50V,NP0,TP,10 1 S.A

....4 C9115 2203-005054 C-CER,CHIP;0.0047nF,0.25pF,50V,NP0,TP,10 1 S.A

....4 C9116 2203-005054 C-CER,CHIP;0.0047nF,0.25pF,50V,NP0,TP,10 1 S.A

....4 SUB05 0202-001477 SOLDER-CREAM;LST309-M,D20~45um,96.5Sn/3A 1.827 S.N.A

....4 JA3001 3701-001591 CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-S,AU 1 S.A

3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

1 S.A

Page 32

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 JA3002_550 3701-001591 CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-S,AU 1 S.A

....4 JA3004 3701-001591 CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-S,AU 1 S.A

....4 R1019 2007-007651 R-CHIP;9.1Kohm,1%,1/10W,TP,1608 1 S.A

....4 IC012 1203-003700 IC-POSI.ADJUST REG.;LD1117ADT-R,DPAK,3P, 1 S.A

...3 T0066 BN62-00042A HEAT SINK-ES;30*30*5,Ceramic,T1.5,TAPE 1 S.A

0.1 M0112 BN91-04331C ASSY SHIELD;CNE-LA32B550K1RLXL 1 S.N.A

..2 T0081 6001-002284 SCREW-MACHINE;BH,+,M4,L8,ZPC(WHT),SWRCH1 4 S.A

..2 T0081 6001-002284 SCREW-MACHINE;BH,+,M4,L8,ZPC(WHT),SWRCH1 6 S.A

..2 BR/LINK+PA 6003-000337 SCREW-TAPTYPE;BH,+,S,M4,L10,ZPC(BLK),SWR 4 S.N.A

..2 B/P/TOP+C/ 6003-001188 SCREW-TAPTYPE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.N.A

..2 BR/LINK+H/ 6003-001188 SCREW-TAPTYPE;BH,+,-,B,M4,L10,ZPC(WHT),S 3 S.N.A

..2 GROUND 6003-001439 SCREW-TAPTYPE;BH,+,S,M4,L8,ZPC(WHT),SWRC 1 S.N.A

..2 M0174 BN44-00261C IP BOARD;PSIV161C01AI,HI32F1_9SS,0.12mA, 1 S.A

..2 M0254 BN61-04801E HOLDER-SIDE AV;LB550,BRAZIL,HIPS,HB,BK50 1 S.N.A

..2 M0146 BN61-04818A BRACKET-PANEL TOP;B650-32,SECC,T1.2 2 S.N.A

..2 M0115 BN61-04820A BRACKET-STAND LINK;B650-32,SECC,T1.2 1 S.N.A

..2 BN61-05281A HOLDER-CLAMP;LCD,NYLON 66,WHT 3 S.N.A

..2 M0230 BN96-10077A ASSY CABLE P-FPCB LVDS;LA46A650A1,FPCB L 1 S.A

..2 M2893 BN39-01208B LEAD CONNECTOR;UL1007#26,500MM,SMH200-30 1 S.A

0.1 M0003 BN92-04285H ASSY BOX;LB550 32 1 S.N.A

..2 BN69-03577C BOX-01,SET;32LB550,CB,A-01, DW3, AB,YEL,

0.1 M0113 BN92-04298A ASSY P/MATERIAL;LB550 32 (UO) 1 S.N.A

..2 T0524 6902-000417 BAG PE;HDPE/NITRON/HDPE,T0.015/T0.5/T0.0 1 S.N.A

0.1 M0019 BN92-04821A ASSY LABEL;LA32/40/46B550K1RXXM 1 S.N.A

0.1 M0045 BN92-05286P ASSY ACCESSORY;LA32B550K1RMER 1 S.N.A

..2 M0045 BN96-10274H ASSY ACCESSORY-CABLE;LA32B550K1RLXL,LB5K 1 S.N.A

...3 T0685 4301-000103 BATTERY-ALKALINE;1.5V,750mAH,LR03,10.5x4 2 S.N.A

...3 M0254 AA59-00416B ANT SHIELD BOX;UGC-AS-003A,PAL-BG,DK,I,M 1 S.N.A

...3 T0074 BN59-00874A REMOCON;L610,L550,L530,L480,L450,P550,P4 1 S.A

...3 M9889 BN63-01798B CLOTH-CLEAN;cloth,180,200,sea blue,ToC 1 S.N.A

...3 T0531 BN63-05466B COVER-BOTTOM;32B550,HIPS,HB,BK500 1 S.A

...3 M0560 BN96-01800A ASSY ACCESSORY-SCREW ZIPPER;ROME32,SCREW 1 S.N.A

....4 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 4 S.N.A

....4 6902-000683 BAG ZIPPER;LDPE,T0.05,W60,L60,TRP,4-PE M 1 S.N.A

...3 M0560 BN96-01800D ASSY ACCESSORY-SCREW ZIPPER;CORAL,Withou 1 S.N.A

....4 G/S-TOP+G/ 6003-001334 SCREW-TAPTYPE;BH,+,S,M4,L14,ZPC(BLK),SWR 3 S.N.A

....4 6902-000683 BAG ZIPPER;LDPE,T0.05,W60,L60,TRP,4-PE M 1 S.N.A

...3 T0268 3903-000431 CBF-POWER CORD;DT,IN,DP3/Y(A),IEC320 C13 1 S.A

..2 M0045 BN96-11827K ASSY ACCESSORY-MANUAL;LA32B550K1RMER 1 S.A

...3 T0524 6902-000361 BAG PE;LDPE,T0.05,W400,L240,TRP,8,2,8.00 1 S.N.A

...3 AA68-03242M MANUAL FLYER-MANUAL FLYER-06,S;comm,Sams 1 S.N.A

...3 T0511 BN68-00968F MANUAL USERS;LA32R81BM/XTL,SIEL,ENGLISH, 1 S.N.A

...3 BN68-01420C MANUAL FLYER-SAFETY NOTICE FOR;All model 1 S.N.A

...3 M0284 BN68-01929A MANUAL USERS-02;COMM,SAMSUNG,Eng,ASIA,W/

...3 BN68-02186A MANUAL FLYER-TOC GUIDE;COMM,SAMSUNG,10 L 1 S.N.A

1 S.N.A

5-24

Page 33

1. Precautions

1-1. Safety Precautions

Follow these safety, servicing, and ESD precautions to prevent damage and to protect against potential hazards such as electrical shock.

1-1-1. Warnings

For continued safety, do not attempt to modify any circuitry.

1-1-2. Servicing the LCD TV

When servicing the LCD TV, Disconnect the AC line cord from the AC outlet.

It is essential that service technicians have an accurate voltage meter available at all times.

2. Check the calibration of this meter periodically.

1-1-3. Fire and Shock Hazard

Before returning the LCD TV to the user, perform the following safety checks:

Inspect each lead dress to make certain that the leads are not pinched or that hardware is not lodged between the

1. chassis and other metal parts in the LCD TV.

Inspect all protective devices such as nonmetallic control knobs, insulating materials, cabinet backs, adjustment and

2. compartment covers or shields, isolation resistor capacitor networks, mechanical insulators, etc.

Leakage Current Hot Check (Figure 1-1):

3. WARNING : Do not use an isolation transformer during this test. Use a leakage current tester or a metering system that complies with American National Standards Institute (ANSI C101.1, Leakage Current for Appliances), and Underwriters Laboratories (UL Publication UL1410, 59.7).

With the unit completely reassembled, plug the AC line cord directly into a 120V AC outlet. With the unit’s AC switch

(READING SHOULD) NOT BE ABOVE 0.5mA

DEVICE UNDER TEST

2-WIRE CORD

*ALSO TEST WITH

PLUG REVERSED (USING AC ADAPTER PLUG AS REQUIRED)

TEST ALL

EXPOSED METAL

SURFACES

LEAKAGE CURRENT TESTER

EARTH

GROUND

Figure 1-1. Leakage Current Test Circuit

rst in the ON position and then OFF, measure the current between a known earth ground (metal water pipe, conduit,

etc.) and all exposed metal parts, including: metal cabinets, screwheads and control shafts. The current measured should not exceed 0.5 milliamp. Reverse the power-plug prongs in the AC outlet and repeat the test.

1-1-4. Product Safety Notices

Some electrical and mechanical parts have special safety related characteristics which are often not evident from visual inspection. The protection they give may not be obtained by replacing them with components rated for higher voltage, wattage, etc. Parts that have special safety characteristics are identied by on schematics and parts lists. A substitute replacement that does not have the same safety characteristics as the recommended replacement part might create

shock, re and/or other hazards. Product safety is under review continuously and new instructions are issued whenever

appropriate.

1-1

Page 34

1-2

1. Precautions

1-2. Servicing Precautions

WARNING: An electrolytic capacitor installed with the wrong polarity might explode. Caution: Before servicing units covered by this service manual, read and follow the Safety Precautions section of

this manual.

Note:

1-2-1 General Servicing Precautions

Always unplug the unit’s AC power cord from the AC power source and disconnect the DC Power Jack before attempting to: (a) remove or reinstall any component or assembly, (b) disconnect PCB plugs or connectors, (c) connect a test component in parallel with an electrolytic capacitor.

Some components are raised above the printed circuit board for safety. An insulation tube or tape is sometimes used. The internal wiring is sometimes clamped to prevent contact with thermally hot components. Reinstall all such elements to their original position.

After servicing, always check that the screws, components and wiring have been correctly reinstalled. Make sure that

the area around the serviced part has not been damaged.

Check the insulation between the blades of the AC plug and accessible conductive parts (examples: metal panels, input terminals and earphone jacks).

Insulation Checking Procedure: Disconnect the power cord from the AC source and turn the power switch ON. Connect an insulation resistance meter (500 V) to the blades of the AC plug. The insulation resistance between each blade of the AC plug and accessible conductive parts (see above) should be greater than 1 mega ohm.

Always connect a test instrument’s ground lead to the instrument chassis ground before connecting the positive lead; always remove the instrument’s ground lead last.

If unforeseen circumstances create conict between the following servicing precautions and any of the

safety precautions, always follow the safety precautions.

1-3. Electrostatically Sensitive Devices (ESD) Precautions

Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly

called Electrostatically Sensitive Devices (ESD). Examples of typical ESD are integrated circuits and some eld-effect

transistors. The following techniques will reduce the incidence of component damage caused by static electricity.

Immediately before handling any semiconductor components or assemblies, drain the electrostatic charge from your body by touching a known earth ground. Alternatively, wear a discharging wrist-strap device. To avoid a shock hazard, be sure to remove the wrist strap before applying power to the LCD TV.

After removing an ESD-equipped assembly, place it on a conductive surface such as aluminum foil to prevent accumulation of an electrostatic charge.

Do not use freon-propelled chemicals. These can generate electrical charges sufcient to damage ESDs.

Use only a grounded-tip soldering iron to solder or desolder ESDs.

Use only an anti-static solder removal device. Some solder removal devices not classied as “anti-static” can generate electrical charges sufcient to damage ESDs.

Do not remove a replacement ESD from its protective package until you are ready to install it. Most replacement ESDs

are packaged with leads that are electrically shorted together by conductive foam, aluminum foil or other conductive materials.

Immediately before removing the protective material from the leads of a replacement ESD, touch the protective material to the chassis or circuit assembly into which the device will be installed. Caution: Be sure no power is applied to the chassis or circuit and observe all other safety precautions.

Minimize body motions when handling unpackaged replacement ESDs. Motions such as brushing clothes together, or lifting your foot from a carpeted oor can generate enough static electricity to damage an ESD.

Page 35

1. Precautions

1-4. Installation Precautions

For safety reasons, more than two people are required for carrying the product.

Keep the power cord away from any heat emitting devices, as a melted covering may cause re or electric shock.

Do not place the product in areas with poor ventilation such as a bookshelf or closet. The increased internal

temperature may cause re.

Bend the external antenna cable when connecting it to the product. This is a measure to protect it from being exposed

to moisture. Otherwise, it may cause a re or electric shock.

Make sure to turn the power off and unplug the power cord from the outlet before repositioning the product. Also check

the antenna cable or the external connectors if they are fully unplugged. Damage to the cord may cause re or electric

shock.

Keep the antenna far away from any high-voltage cables and install it rmly. Contact with the highvoltage cable or the

antenna falling over may cause re or electric shock.

When installing the product, leave enough space (10cm) between the product and the wall for ventilation purposes.

A rise in temperature within the product may cause re.

1-3

Page 36

1. Precautions

Memo

1-4

Page 37

2. Product specications

2-1. Feature & Specications

Model LA32B550K1R

Feature

Analog-TV, RF, 4-HDMI, 2-Component, 2-A/V, 1-USB2.0, D-SUB

�

Brightness : 500cd/m

�

Contrast Ratio : 5000:1

�

Response time : 8ms

�

Super-PVA

�

PIP(in HDMI 1, 2, 3, 4, Component 1, 2, PC Mode and Sub picture is available only in TV mode)

�

SRS TruSorround HD

�

Item Description

LCD Panel V315H1-L01,32H11,8bits,31.5inch,16.7M,16:9,0 to +50,12V, DJITO, 72%,31.5 inch,

Scanning Frequency Horizontal : 30 kHz ~ 80 kHz (Automatic)

Specications

FHD, 4U Lamp, w/o inverter, 60Hz

Vertical : 56 Hz ~ 75 Hz (Automatic)

Display Colors 16.7M

Maximum resolution Horizontal : 1920 Pixels

Vertical : 1080 Pixels

Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated

Input Sync Signal H/V Separate, TTL, P. or N.

Maximum Pixel Clock rate 310MHz

Active Display Horizontal/Vertical 698.4 (H) x 392.85 (V) (mm)

AC power voltage & Frequency AC 110V ~ 220V, 60 Hz

Power Consumption <230 W ( < 1W, stand by )

Dimensions

Set (W x D x H)

Weight (Set) 12.6 kg with stand

TV System Tuning Frequency Synthesize

Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)

793.9 x 240.0 x 569.7 (mm) with stand

793.9 x 77.1 x 569.7 (mm) without stand

10.2 kg without stand

System PAL, SECAM, NTSC, NTSC4.43

Sound BG, DK, I, M

Operating Humidity : 10% ~ 80%, non-condensing Storage temperature : -13˚F ~ 113˚F (-25˚C ~ 45˚C) Storage Humidity : 5% ~ 95%, non-condensing

Audio Spec. MAX Internal Audio Output Power : Each 10W(Left/Right)

Equalizer : 5band Output Frequency : RF : 20 Hz ~ 15.4 kHz AV/Componet/HDMI : 20 Hz ~ 20 kHz

Note: Anynet+, MEDIA PLAY

2-1

Page 38

2. Product specications

Model LA40B550K1R

Feature

Analog-TV, RF, 4-HDMI, 2-Component, 2-A/V, 1-USB2.0, D-SUB

�

Brightness : 500cd/m

�

Contrast Ratio : 5000:1

�

Response time : 8ms

�

Super-PVA

�

PIP(in HDMI 1, 2, 3, 4, Component 1, 2, PC Mode and Sub picture is available only in TV mode)

�

SRS TruSorround HD

�

Specications

Item Description

LCD Panel T400HW02 V3,AU40H23,8bit,40 inch,16.7M,16:9,0 to +50,12V,AMVA3,72%,40 inch,

FHD, 14S-Lamp, w/o inverter, 60Hz

Scanning Frequency Horizontal : 30 kHz ~ 80 kHz (Automatic)

Vertical : 56 Hz ~ 75 Hz (Automatic)

Display Colors 16.7M

Maximum resolution Horizontal : 1920 Pixels

Vertical : 1080 Pixels

Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated

Input Sync Signal H/V Separate, TTL, P. or N.

Maximum Pixel Clock rate 310MHz

Active Display Horizontal/Vertical 885.6(H) X 498.15(V) (mm)

AC power voltage & Frequency AC 110V ~ 220V, 60 Hz

Power Consumption <230 W ( < 1W, stand by )

Dimensions

Set (W x D x H)

982.4 x 255.0 x 675.8 (mm) with stand

982.4 x 78.6 x 626.3 (mm) without stand

Weight (Set) 18.0 kg with stand

14.9 kg without stand

TV System Tuning Frequency Synthesize

System PAL, SECAM, NTSC, NTSC4.43

Sound BG, DK, I, M

Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)

Operating Humidity : 10% ~ 80%, non-condensing Storage temperature : -13˚F ~ 113˚F (-25˚C ~ 45˚C) Storage Humidity : 5% ~ 95%, non-condensing

Audio Spec. MAX Internal Audio Output Power : Each 10W(Left/Right)

Equalizer : 5band Output Frequency : RF : 20 Hz ~ 15.4 kHz AV/Componet/HDMI : 20 Hz ~ 20 kHz

Note: Anynet+, MEDIA PLAY

2-2

Page 39

2. Product specications

Model LA46B550K1R

Feature

Analog-TV, RF, 4-HDMI, 2-Component, 2-A/V, 1-USB2.0, D-SUB

�

Brightness : 500cd/m

�

Contrast Ratio : 5000:1

�

Response time : 8ms

�

Super-PVA

�

PIP(in HDMI 1, 2, 3, 4, Component 1, 2, PC Mode and Sub picture is available only in TV mode)

�

SRS TruSorround HD

�

Specications

Item Description

LCD Panel LTF460HA06,SSEZAU,8bit,46inch,16.7M,16:9,0.53025(H)*0.53025(W,0 to

+50,12V,SPVA 72%,AG3,60Hz

Scanning Frequency Horizontal : 30 kHz ~ 80 kHz (Automatic)

Vertical : 56 Hz ~ 75 Hz (Automatic)

Display Colors 16.7M

Maximum resolution Horizontal : 1920 Pixels

Vertical : 1080 Pixels

Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated

Input Sync Signal H/V Separate, TTL, P. or N.

Maximum Pixel Clock rate 310MHz

Active Display Horizontal/Vertical

1018.08(H) X 572.67(V) (mm)

AC power voltage & Frequency AC 110V ~ 220V, 60 Hz

Power Consumption <230 W ( < 1W, stand by )

Dimensions

Set (W x D x H)

1116.1 x 275.0 x 769.5 (mm) with stand

1116.1 x 78.6 x 706.3 (mm) without stand

Weight (Set) 23.2 kg with stand

19.8 kg without stand

TV System Tuning Frequency Synthesize

System PAL, SECAM, NTSC, NTSC4.43

Sound BG, DK, I, M

Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)

Operating Humidity : 10% ~ 80%, non-condensing Storage temperature : -13˚F ~ 113˚F (-25˚C ~ 45˚C) Storage Humidity : 5% ~ 95%, non-condensing

Audio Spec. MAX Internal Audio Output Power : Each 10W(Left/Right)

Equalizer : 5band Output Frequency : RF : 20 Hz ~ 15.4 kHz AV/Componet/HDMI : 20 Hz ~ 20 kHz

Note: Anynet+, MEDIA PLAY

2-3

Page 40

2. Product specications

Model LA52B550K1R

Feature

Analog-TV, RF, 4-HDMI, 2-Component, 2-A/V, 1-USB2.0, D-SUB

�

Brightness : 500cd/m

�

Contrast Ratio : 5000:1

�

Response time : 8ms

�

Dynamic contrast, Super-PVA

�

PIP(in HDMI 1, 2, 3, 4, Component 1, 2, PC Mode and Sub picture is available only in TV mode)

�

SRS TruSorround HD

�

Specications

Item Description

LCD Panel T520HW01 V0,AU52H10,8bit,52 inch,16.7M,16:9,0 to +50,12V,AMVA3,72%,52 inch,

FHD, 16S-Lamp, G7.5, 60Hz

Scanning Frequency Horizontal : 30 kHz ~ 80 kHz (Automatic)

Vertical : 56 Hz ~ 75 Hz (Automatic)

Display Colors 16.7M

Maximum resolution Horizontal : 1920 Pixels

Vertical : 1080 Pixels

Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated

Input Sync Signal H/V Separate, TTL, P. or N.

Maximum Pixel Clock rate 310MHz

Active Display Horizontal/Vertical

1018.08(H) X 572.67(V) (mm)

AC power voltage & Frequency AC 110V ~ 220V, 60 Hz

Power Consumption <230 W ( < 1W, stand by )

Dimensions

Set (W x D x H)

1258.4 x 305.0 x 852.2 (mm) with stand

1258.4 x 79.9 x 797.9 (mm) without stand

Weight (Set) 28.7 kg with stand

24.9 kg without stand

TV System Tuning Frequency Synthesize

System PAL, SECAM, NTSC, NTSC4.43

Sound BG, DK, I, M

Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)

Operating Humidity : 10% ~ 80%, non-condensing Storage temperature : -13˚F ~ 113˚F (-25˚C ~ 45˚C) Storage Humidity : 5% ~ 95%, non-condensing

Audio Spec. MAX Internal Audio Output Power : Each 15W(Left/Right)

Equalizer : 5band Output Frequency : RF : 20 Hz ~ 15.4 kHz AV/Componet/HDMI : 20 Hz ~ 20 kHz

Note: Anynet+, MEDIA PLAY

2-4

Page 41

CHANNEL FREQUENCY TABLE

OSD CH NO AIR CH NO CH NO CH NO

Air-DTV Air-NTSC BAND Cable STD BAND Cable HRC Cable IRC 1 1 A-8 72. 00 A-8 73. 25 2 2 57 55. 25 V-L 2 55. 25 V-L 2 54. 00 2 55. 25 3 3 63 61.25 V-L 3 61.25 V-L 3 60.00 3 61.25 4 4 69 67.25 V-L 4 67.25 V-L 4 66.00 4 67.25 5 5 79 77. 25 V-L 5 77. 25 V-L A-7 78. 00 A-7 79. 25 6 6 85 83.25 V-L 6 83.25 V-L A-6 84.00 A-6 85.25 7 7 177 175. 25 V-H 7 175. 25 V-H 7 174. 00 7 175. 25 8 8 183 181.25 V-H 8 181.25 V-H 8 180.00 8 181.25 9 9 189 187.25 V-H 9 187.25 V-H 9 186.00 9 187.25

10 10 195 193.25 V-H 10 193.25 V-H 10 192.00 10 193.25 11 11 201 199.25 V-H 11 199.25 V-H 11 198.00 11 199.25 12 12 207 205.25 V-H 12 205.25 V-H 12 204.00 12 205.25 13 13 213 211.25 V-H 13 211.25 V-H 13 210.00 13 211.25 14 14 473 471. 25 UHF A 121. 25 MID A 120. 00 A 121. 25 15 15 479 477.25 UHF B 127.25 MID B 126.00 B 127.25 16 16 485 483.25 UHF C 133.25 MID C 132.00 C 133.25 17 17 491 489.25 UHF D 139.25 MID D 138.00 D 139.25 18 18 497 495.25 UHF E 145.25 MID E 144.00 E 145.25 19 19 503 501.25 UHF F 151.25 MID F 150.00 F 151.25 20 20 509 507.25 UHF G 157.25 MID G 156.00 G 157.25 21 21 515 513.25 UHF H 163.25 MID H 162.00 H 163.25 22 22 521 519.25 UHF I 169.25 MID I 168.00 I 169.25 23 23 527 525.25 UHF J 217. 25 SUPER J 216. 00 J 217. 25 24 24 533 531.25 UHF K 223.25 SUPER K 222.00 K 223.25 25 25 539 537.25 UHF L 229.25 SUPER L 228.00 L 229.25 26 26 545 543.25 UHF M 235.25 SUPER M 234.00 M 235.25 27 27 551 549.25 UHF N 241.25 SUPER N 240.00 N 241.25 28 28 557 555.25 UHF O 247.25 SUPER O 246.00 O 247.25 29 29 563 561.25 UHF P 253.25 SUPER P 252.00 P 253.25 30 30 569 567.25 UHF Q 259.25 SUPER Q 258.00 Q 259.25 31 31 575 573.25 UHF R 265.25 SUPER R 264.00 R 265.25 32 32 581 579.25 UHF S 271.25 SUPER S 270.00 S 271.25 33 33 587 585.25 UHF T 277.25 SUPER T 276.00 T 277.25 34 34 593 591.25 UHF U 283.25 SUPER U 282.00 U 283.25 35 35 599 597.25 UHF V 289.25 SUPER V 288.00 V 289.25 36 36 605 603.25 UHF W 295.25 SUPER W 294.00 W 295.25 37 37 611 609.25 UHF AA 301.25 HYPER AA 300.00 AA 301.25 38 38 617 615.25 UHF BB 307.25 HYPER BB 306.00 BB 307.25 39 39 623 621.25 UHF CC 313.25 HYPER CC 312.00 CC 313.25 40 40 629 627.25 UHF DD 319.25 HYPER DD 318.00 DD 319.25 41 41 635 633.25 UHF EE 325.25 HYPER EE 324.00 EE 325.25 42 42 641 639.25 UHF FF 331.25 HYPER FF 330.00 FF 331.25 43 43 647 645.25 UHF GG 337.25 HYPER GG 336.00 GG 337.25 44 44 653 651.25 UHF HH 343.25 HYPER HH 342.00 HH 343.25 45 45 659 657.25 UHF II 349.25 HYPER II 348.00 II 349.25 46 46 665 663.25 UHF JJ 355.25 HYPER JJ 354.00 JJ 355.25 47 47 671 669.25 UHF KK 361.25 HYPER KK 360.00 KK 361.25 48 48 677 675.25 UHF LL 367.25 HYPER LL 366.00 LL 367.25 49 49 683 681.25 UHF MM 373.25 HYPER MM 372.00 MM 373.25 50 50 689 687.25 UHF NN 379.25 HYPER NN 378.00 NN 379.25 51 51 695 693.25 UHF OO 385.25 HYPER OO 384.00 OO 385.25 52 52 701 699.25 UHF PP 391.25 HYPER PP 390.00 PP 391.25 53 53 707 705.25 UHF QQ 397.25 HYPER QQ 396.00 QQ 397.25 54 54 713 711.25 UHF RR 403.25 HYPER RR 402.00 RR 403.25 55 55 719 717.25 UHF SS 409.25 HYPER SS 408.00 SS 409.25 56 56 725 723.25 UHF TT 415.25 HYPER TT 414.00 TT 415.25 57 57 731 729.25 UHF UU 421.25 HYPER UU 420.00 UU 421.25 58 58 737 735.25 UHF VV 427.25 HYPER VV 426.00 VV 427.25 59 59 743 741.25 UHF WW 433.25 HYPER WW 432.00 WW 433.25 60 60 749 747.25 UHF XX 439.25 HYPER XX 438.00 XX 439.25 61 61 755 753.25 UHF YY 445.25 HYPER YY 444.00 YY 445.25 62 62 761 759.25 UHF ZZ 451.25 HYPER ZZ 450.00 ZZ 451.25 63 63 767 765.25 UHF AAA 457.25 HYPER AAA 456.00 AAA 457.25 64 64 773 771.25 UHF BBB 463.25 HYPER BBB 462.00 BBB 463.25 65 65 779 777.25 UHF CCC 469.25 ULTRA CCC 468.00 CCC 469.25 66 66 785 783.25 UHF DDD 475.25 ULTRA DDD 474.00 DDD 475.25 67 67 791 789.25 UHF EEE 481.25 ULTRA EEE 480.00 EEE 481.25 68 68 797 795.25 UHF FFF 487.25 ULTRA FFF 486.00 FFF 487.25 69 69 803 801.25 UHF GGG 493.25 ULTRA GGG 492.00 GGG 493.25

OUTPUT FREQUENCY : ANALOG fv:45.75MHz, fs:41.25MHz DIGITAL Fc:44MHz

TUNING STEP SIZE : FIRST PLL 250KHz SECOND PLL 62.5KHz

2. Product specications

2-5

Page 42

2. Product specications

OSD CH NO AIR CH NO CH NO CH NO

Air-DTV Air-NTSC BAND Cable STD BAND Cable HRC Cable IRC

70 70 HHH 499.25 ULTRA HHH 498.00 HHH 499.25 71 71 III 505.25 ULTRA III 504.00 III 505.25 72 72 JJJ 511.25 ULTRA JJJ 510.00 JJJ 511.25 73 73 KKK 517.25 ULTRA KKK 516.00 KKK 517.25 74 74 LLL 523.25 ULTRA LLL 522.00 LLL 523.25 75 75 MMM 529.25 ULTRA MMM 528.00 MMM 529.25 76 76 NNN 535.25 ULTRA NNN 534.00 NNN 535.25 77 77 OOO 541.25 ULTRA OOO 540.00 OOO 541.25 78 78 PPP 547.25 ULTRA PPP 546.00 PPP 547.25 79 79 79 553.25 ULTRA 79 552.00 79 553.25 80 80 80 559.25 ULTRA 80 558.00 80 559.25 81 81 81 565.25 ULTRA 81 564.00 81 565.25 82 82 82 571.25 ULTRA 82 570.00 82 571.25 83 83 83 577.25 ULTRA 83 576.00 83 577.25 84 84 84 583.25 ULTRA 84 582.00 84 583.25 85 85 85 589.25 ULTRA 85 588.00 85 589.25 86 86 86 595.25 ULTRA 86 594.00 86 595.25 87 87 87 601.25 ULTRA 87 600.00 87 601.25 88 88 88 607.25 ULTRA 88 606.00 88 607.25 89 89 89 613.25 ULTRA 89 612.00 89 613.25 90 90 90 619.25 ULTRA 90 618.00 90 619.25 91 91 91 625.25 ULTRA 91 624.00 91 625.25 92 92 92 631.25 ULTRA 92 630.00 92 631.25 93 93 93 637.25 ULTRA 93 636.00 93 637.25 94 94 94 643.25 ULTRA 94 642.00 94 643.25 95 95 A-5 91. 25 FM A-5 90. 00 A-5 91. 25 96 96 A-4 97.25 FM A-4 96.00 A-4 97.25 97 97 A-3 103.25 FM A-3 102.00 A-3 103.25 98 98 A-2 109.25 MID A-2 108.00 A-2 109.25

99 99 A-1 115.25 MID A-1 114.00 A-1 115.25 100 100 100 649. 25 ULTRA 100 648. 00 100 649. 25 101 101 101 655.25 ULTRA 101 654.00 101 655.25 102 102 102 661.25 ULTRA 102 660.00 102 661.25 103 103 103 667.25 ULTRA 103 666.00 103 667.25 104 104 104 673.25 ULTRA 104 672.00 104 673.25 105 105 105 679.25 ULTRA 105 678.00 105 679.25 106 106 106 685.25 ULTRA 106 684.00 106 685.25 107 107 107 691.25 ULTRA 107 690.00 107 691.25 108 108 108 697.25 ULTRA 108 696.00 108 697.25 109 109 109 703.25 ULTRA 109 702.00 109 703.25 110 110 110 709.25 ULTRA 110 708.00 110 709.25 111 111 111 715.25 ULTRA 111 714.00 111 715.25 112 112 112 721.25 ULTRA 112 720.00 112 721.25 113 113 113 727.25 ULTRA 113 726.00 113 727.25 114 114 114 733.25 ULTRA 114 732.00 114 733.25 115 115 115 739.25 ULTRA 115 738.00 115 739.25 116 116 116 745.25 ULTRA 116 744.00 116 745.25

. .

. . .

. . . .

. .

. . .

. . . .

125 125 125 799.25 ULTRA 125 798.00 125 799.25

. . . . . . . . .

2-6

Page 43

2. Product specications

2-2. MEDIA PLAY

2-2-1 Using the MEDIA PLAY Function

This function enables you to view and listen to photo(JPEG), audio les(MP3) and movie(MPEG) saved on a USB Mass Storage Class (MSC) device.

Press the POWER button on the remote control or front panel.

- The TV is powered on.

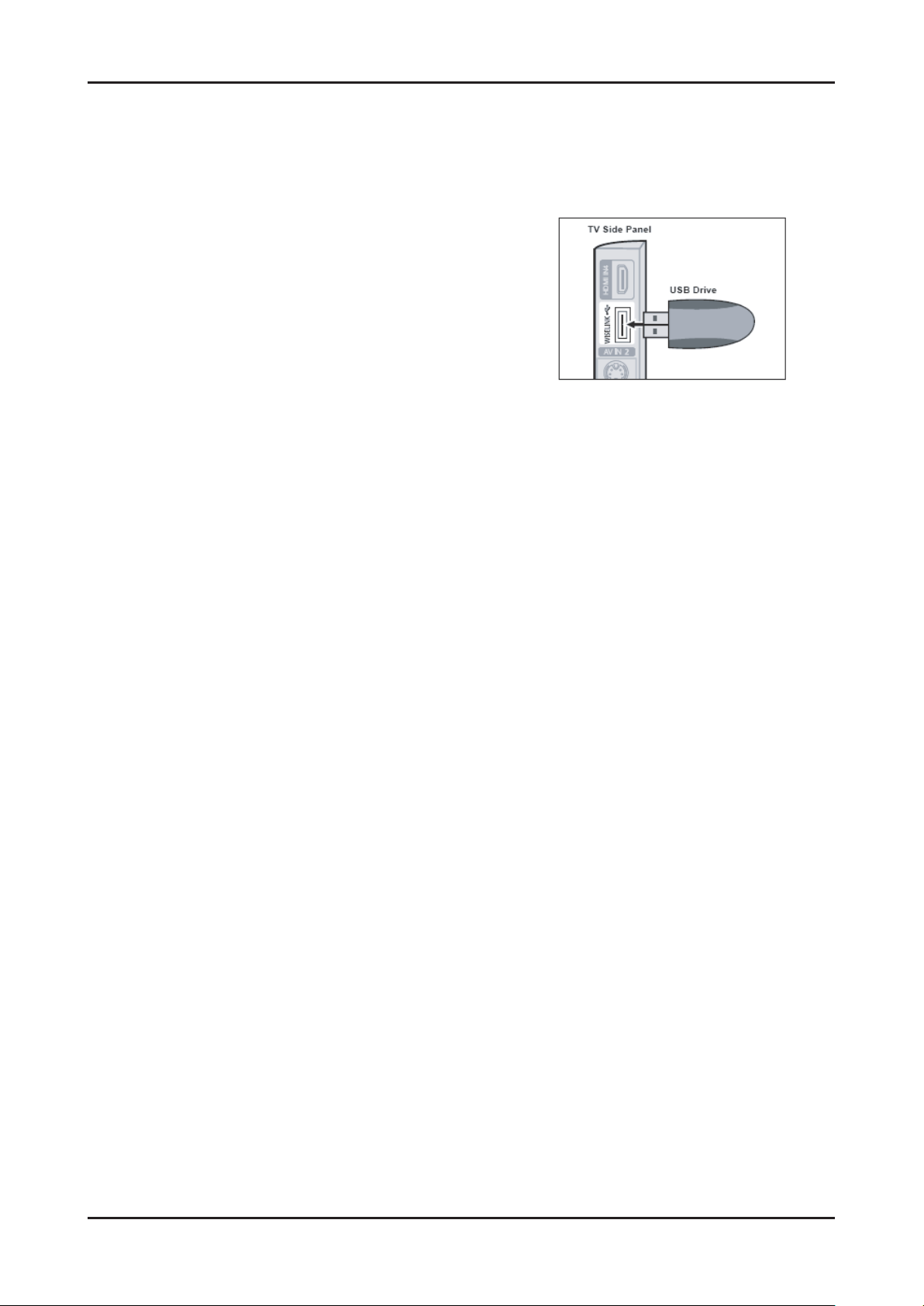

Connect a USB device containing JPEG and/or MP3 and or/MPEG

les to the MEDIA PLAY jack (USB jack) on the side of the TV.

- (If you enter the MEDIA PLAY mode with no USB device connected the message “No external storage device found. Check the connection status.” will appear. In this case, insert the USB device, exit the screen by pressing the W.LINK button on the remote control and enter the MEDIA PLAY screen again.

- MTP (Media Transfer Protocol) is not supported.

- The le system only supports FAT16/32 (The NTFS le

system is not supported).

- Certain types of USB Digital camera and audio devices may not be compatible with this TV.

- MEDIA PLAY only supports USB Mass Storage Class devices (MSC). MSC is a Mass Storage Class Bulk-Only Transport device. Examples of MSC are Thumb drives and Flash Card Readers (Both USB HDD and HUB are not supported.)

- Please connect directly to the USB port of your TV. If you are using a separate cable connection, there may be a USB Compatibility problem.

Before connecting your device to the TV, please back up your les to prevent them from damage or loss of data.SAMSUNG is not responsible for any data le damage or data loss.

- Do not disconnect the USB device while it is loading.

- MSC supports MP3 and JPEG les, while a PTP device

supports JPEG les only.

- The sequential jpeg format is supported.

- Photo and audio les must be named in English, French or

Spanish. If not, the les can not be played. Change the le names to English, French or Spanish if necessary.

- The higher the resolution of the image, the longer it takes to display on the screen.

- The maximum supported JPEG resolution is 15360 x 8640 pixels.

- For unsupported or corrupted les, the “Not Supported File Format” message is displayed.

2-7

Page 44

2. Product specications

-. movie format

File Extention Container Video Decoder Resolution Audio codec

Xvid 800 x 600

* .avi AVI

* .mp4 MP4

* .mpg PS MPEG2 1920 x 1088 AC3

* .vro

* .vob

VRO MPEG2 1920 x 1088 AC3

H.264 MP 1920 x 1088 AC3

MPEG4 SP 800 x 600

MJPEG 800 x 600 PCM

H.264 BP 1920 x 1088 AAC

H.264 MP 1920 x 1088

PCM

ADPCM

PCM

ADPCM

PCM

AAC

2-8

Page 45

2. Product specications

2-3. Specication Comparison to Old Models

Model LA40B550K1R LA40A450C1

Design

Display Type LCD TV LCD TV

Built-in Tuner O O

Resolution 1920 x 1080 1366 x 768

LCD Panel 40”TFT LCD Panel 60Hz 40”TFT LCD Panel 50Hz

Screen Size 40” 40”

Picture ratio 16 : 9 16 : 9

Dimensions (W x H x D)

Weight

Brightness 500 nit 450 nit

Contrast Ratio 5000:1 2000:1

Picture Enhacer DNIe (FBE3) DNIe (FBE3)

Equalizer 5 Band 5 Band

Auto Motion Plus 120Hz O O

Surround Sound 2 Way SRS TruSurround HD 2 Way SRS TruSurround TX

Speaker Output 10W + 10W 10W + 10W

Antenna 1 (Cable/Air) 1 (Cable/Air)

982.4 x 255.0 x 675.8 (mm) with stand

982.4 x 78.6 x 626.3 (mm) without stand

18 kg (set)

22.5 kg (package)

1094.3 x 289.9 x 675.4 (mm) with stand

1094.3 x 102.8 x 607.3 (mm) without stand

23.70 kg

2-9

Page 46

2. Product specications

2-4. Accessories

Product Description Code. No Remark

Remote Control & Batteries

(AAA x 2)

Power Cord 3903-000193

Cover-Bottom BN63-05466B

Owner’s Instructions BN68-01929A

Cleaning Cloth BN63-01798B

Warranty Card / Registration

Card / Safety Guide Manual

(Not available in all locations)

BN59-00874A

AA68-03242M BH68-00527B

Samsung Electronics

Service center

Stand Screw x 4 6002-001294

Stand BN90-02001A

2-10

Page 47

4. Troubleshooting

M a in

Bo ard

IP Board

T-CON

4. Troubleshooting

4-1. Troubleshooting

Check the various cable connections rst.

• Check to see if there is a burnt or damaged cable.

• Check to see if there is a disconnected or loose cable connection.

• Check to see if the cables are connected according to the connection diagram.

Check the power input to the Main Board.

2. check internal pattern FBE3 if there is some picture noise. FBE3 : Factory mode(Info - MENU - MUTE - power on) -> Advanced Menu -> Option Block -> FBE -> Pattern Select Press right button of Remocon. If FBE3 NG, change the main Board.

4-1

Page 48

4. Troubleshooting

Simple ow chart of malfunction

Does the TV turn on?

Check the Power Cord

Yes

Is standby LED on?

Yes

Can you see anything

on the screen?

Yes

is any sound of TV?

Yes

Can you see OSD menu

running on the screen?

Yes

Check LVDS cable connected

to Main Board.

If necessary,

replace the Main Board

Yes

Can you see Digital

Channel broadcast ?

Yes

Replace the Main Board

Check dimming cable.

If necesary replace the

Main Board.

A5V appear at the pin

27 of CN201?

Yes

B13V appear at the pin

9 or 10 of CN201?

Yes

Please, contact Tech support

Yes

Check 30p cable.

If necessary, replace the

IP board.

Change the main board.

4-2

Page 49

4. Troubleshooting

Troubelshooting about new functions

I tried to set up BGM in MEDIA PLAY.

I can select a le but I cannot congure the Mood settings.

I cannot enter Photos or Music after running MEDIA PLAY.

Photo thumbnails are not displayed in the Photo category.

Video thumbnails are not displayed in the Movie category.

The JPEG les on the USB memory

are not in the list.

I have connected a digital camera, but I cannot browse the folders.

I cannot play the currently

highlighted le.

I want to know about supported photo color formats.

I want to know about the maximum supported photo resolution.

I want to know about supported music sampling frequencies.

I cannot play MP3 les downloaded

from websites. (Paid MP3 download sites such as Melon)

I want to know about supported USB devices.

The supported photo play is slow. An explanation of

I cannot play paid MP3 les. An explanation of

I cannot play a digital camera that supports PTP.

I cannot use the morning call function with a digital camera that supports PTP.

I have changed the device settings to MSC connection mode after connecting PTP or during an operation, but the device is not recognized.

The WLAN does not work. An explanation of

An explanation of

MEDIA PLAY

An explanation of

MEDIA PLAY

An explanation of

MEDIA PLAY

An explanation of

MEDIA PLAY

An explanation of

MEDIA PLAY

An explanation of

MEDIA PLAY

An explanation of

MEDIA PLAY

An explanation of

MEDIA PLAY

An explanation of

MEDIA PLAY

An explanation of

MEDIA PLAY

An explanation of

MEDIA PLAY

An explanation of

MEDIA PLAY

An explanation of

MEDIA PLAY

An explanation of

MEDIA PLAY

An explanation of

MEDIA PLAY

The BGM shufe and Mood settings are only available when the Music DB conguration is

complete. Enter the Music category and compelete

the Music DB conguration rst.

Check if the USB memory contains MP3 or JPEG

les.

This may occur when the photo format is not

supported by the TV or the JPEG les do not include

thumbnails.

A video thumbnail is only displayed when the video has been played at least once.

Files with a path longer than 256 characters will not be displayed.

When a device is connected in PTP mode, a browsing folder is not supported.

Check if another le is selected (checked). The selected le will be played

The RGB, YUV, YCbCr, CMYK, YCCK, GRAY formats are supported.

The maximum resolution is 15360x8640 pixels.

Supported frequencies are 8, 11.025, 12, 16, 22.05, 24, 32, 44.1, 48 Khz

Playing DRM les (used to protect content) is not

supported.

The TV only supports devices that do not support the Mass Storage Class or PTP Class. Devices are not supported when they are connected to the TV via a USB hub. Supporting USB devices that require external power such as an external-type HDD is not guaranteed. Supporting USB devices that require an additional device driver installation is not guaranteed.

Since the TV does not use caching unlike for a PC, it make take some time to display a high-resolution photo.

If the MP3 le is a DRM (Copy Protected) le, the le

will not be played.

Check the PTP mode of the digital camera. It will not work in Printer Connection mode.

A morning call cannot be set with a PTP device.

Switching the connection mode between MSC and PTP after a connection is made or during anoperation is not supported. You can only change the digital camera connection mode after disconnecting it.

Equipment other than the WLAN USB stick supplied by Samsung Electronics (as a bundle) will not work.

The sharer must support IEEE 801.11 g/b. IEEE

801.11 n is not supported.

4-3

Page 50

4. Troubleshooting

I cannot nd Internet Sharer in the Wlan

settings menu.

The WLAN data rate is slow. An explanation of

An explanation of MEDIA PLAY

MEDIA PLAY

Only InfraStructure mode of the sharer is supported. AdHoc mode is not supported. If multiple sharers are being

used, congure them so that they do not use the same

channel. Set up the sharer to not control the ICMP so that it answers the Ping test.

If the distance from the sharer is too far, the operation may slow or the sharer may not be found. If there is an obstacle, wall or electronic device between the TV and the sharer, the operation may slow or the sharer may not be found due

to a difculty in communication.

4-4

Page 51

4-1-1. No Power

Symptom

Major

checkpoints

The IP relay or the LEDs on the front panel does not work when connecting the power cord if the cables are improperly connected or the Main Board or IP BOARD is not functioning. In this case, check the following:

4. Troubleshooting

The LEDs on the front panel do not work when connecting the power cord. The IP BOARD relay does not work when connecting the power cord. The units appears to be dead.

Check the internal cable connection status inside the unit. Check the fuses of each part. Check the output voltage of IP BOARD. Replace the Main Board.

Diagnostics

Lamp(Backlight) Off, power indicator

LED on?

Yes

Check the backlight on,

when 30p cable unconnected.

Yes

Does proper Stand-By DC

A5V appear at BD1003?

Yes

Does proper Main DC B13VS,

B13V, B5V appear at BD1006,

BD1004, BD1005?

Yes

Does proper DC A3.3V

appear at R1003?

Yes

Does proper DC B3.3VD, B9V,

B1.25VD, B1.8V appear

at R1030, R1101, BD1010, R1105?

Yes

Does proper DC B12V

appear at F1 of T-con b’d?

Yes

Check a connetion power code.

Change 30p cable

32” : BN39-01099H

40” 46” 52” : BN39-01099K or

Change Main Power Assy

32” : BN44-00261B 40” : BN44-00264C 46” : BN44-00265A 52” : BN44-00267B

Change the Main Assy

BN94-02709A

Change the LVDS cable

32” : BN96-10077A 40” : BN96-10075A 46” : BN96-10075A 52” : BN96-10074A

Does proper DC B1.25V, B3.3VD

appear at BD8005, BD8004 of

T-con b’d?

Yes

Does proper VCC18, VCC33 appear at

BT7, BT8 of T-con b’d?

Caution Make sure to disconnect the power before working on the IP board.

Change the T-con b’d

Check a other function

(No picture part)

4-5

Page 52

4. Troubleshooting

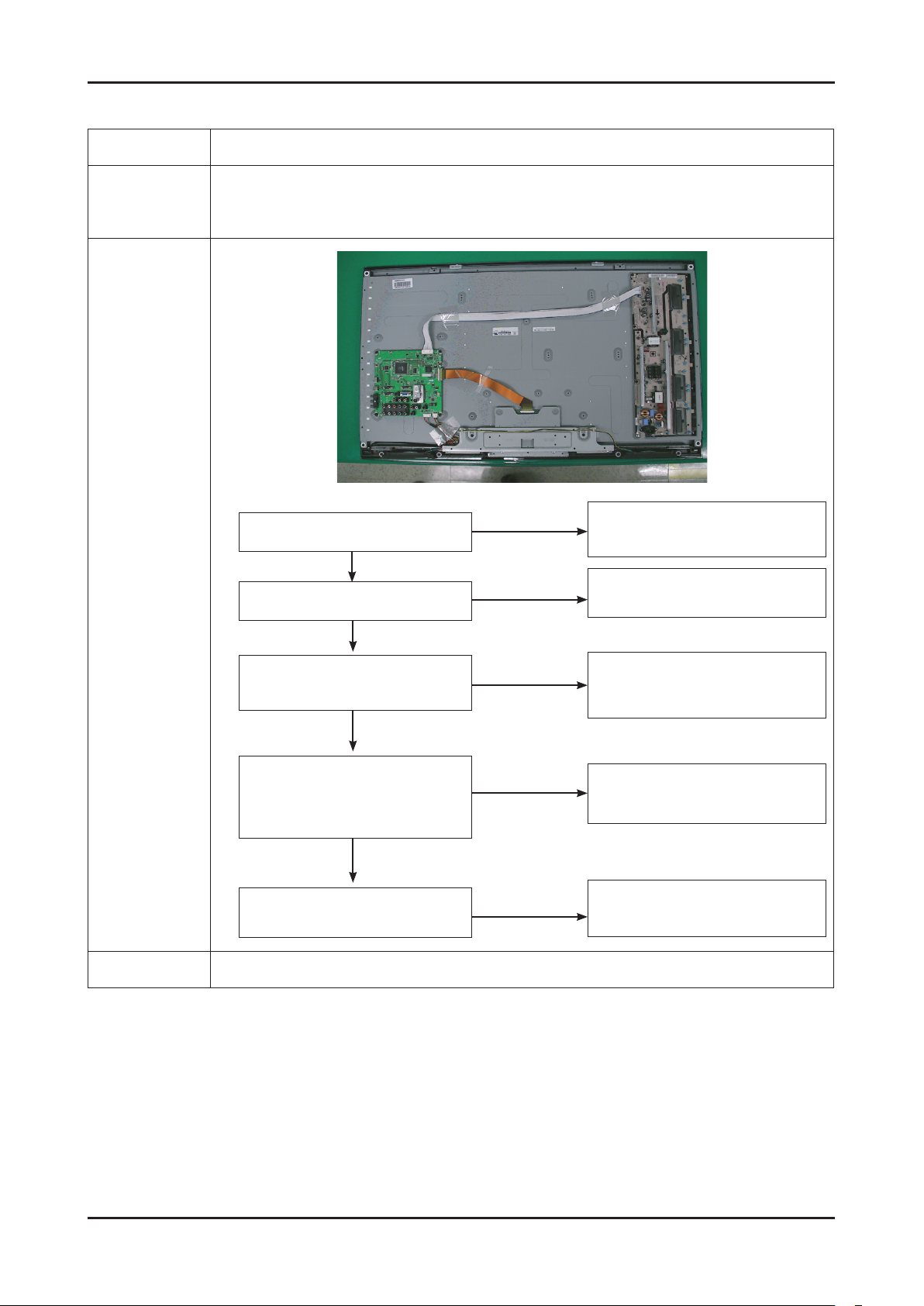

4-1-2. No Video (Analog PC signal)

Symptom Audio is normal but no picture is displayed on the screen.-

Check the PC source

Major

checkpoints

Check the SEMS03.

This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected.

Power indicator LED is off.

Lamp(Backlight) on, no video?

Yes

Diagnostics

Caution Make sure to disconnect the power before working on the IP board.

Check the PC source and

check the connection of D-SUB?

Yes

Does the signal appear at

R6037, R6034, R6035, R6032, R6023

(R, G, B, H, V) of IC6003?

Yes

Does the digital data appear at

R8051 (HSYNC_OUT)

Pin #19,20,34,35 (LVDS Data clk)

of LVDS connector?

Yes

Check the LVDS cable?

Replace the LCD panel?

Check a set in the

‘Stand-by mode’ or ‘DPMS mode’.

Input the analog

PC signal properly.

Check JA4005_PC, PC cable.

Change the Main Assy

BN94-02709A

Check IC8003. Change the Main Assy

BN94-02709A

Please, Contact Tech support.

4-6

Page 53

WAVEFORMS

4. Troubleshooting

R,G,B Output Signal

4-7

Page 54

4. Troubleshooting

4-1-3. No Video (HDMI 1, 2, 3, 4 - Digital Signal)

Symptom Audio is normal but no picture is displayed on the screen.-

Check the HDMI source.

Major

checkpoints

Check the HDMI switch, Check the SEMS03.

This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected.

Diagnostics

Power Indicator is off.

Lamp(Backlight) Off, no video?

Yes

Check the HDMI source and check

the connection of HDMI cable?

Yes

Does the signal appear at

R9030 (Pin#10 , #6 )(HDMI1)

R9018 (Pin#10 , #6 )(HDMI2) R6105 (Pin#10 , #6 )(HDMI3) R6014 (Pin#10 , #6 )(HDMI4)

(HDMI RX_Clk , RX_Data)?

Yes

Does the digital data appear at

R6021, R6025

(D2 RX_Clk, D2 RX_Data)?

Yes

Does the digital data appear at

TP8007(FBE_HSYNC_IN)

Pin #19,20,34,35 (LVDS Data clk)

of LVDS connector?

Check a set

in the ‘Stand-by mode’.

Input the HDMI signal properly

Check JA3001~4

Check HDMI cable

Change the Main Assy

BN94-02709A

Check IC9001 (HDMI switch)

Change the Main Assy

BN94-02709A

Check IC8003 (FBE)

Change the Main Assy

BN94-02709A

Yes

Check the LVDS cable?

Replace the LCD panel?

Caution Make sure to disconnect the power before working on the IP board.

4-8

Please, Contact Tech support

Page 55

WAVEFORMS

4. Troubleshooting

Digital Output Data

Signal of HDMI(Data)

4-9

Page 56

4. Troubleshooting

4-1-4. No Video (Tuner_CVBS)

Symptom Audio is normal but no picture is displayed on the screen.-

Check the Tuner CVBS source.

Major

checkpoints

Check the Tuner, Check the SEMS03.

This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected.

Diagnostics

Power indicator LED is off.

Lamp(Backlight) on, no video?

Yes

Check the RF source and

check the connection of RF cable?

Yes

Does the DC B33V, B5V_VCCT

appear at #4, #2 Pin of Tuner

Yes

Does the CVBS data appear at

#8 pin of Tuner?

Yes

Does the digital data appear at

TP8007(FBE_HSYNC_IN)

Pin #19,20,34,35 (LVDS Data clk)of

LVDS connector?

Yes

Check a set

in the ‘Stand-by mode’.

Input the RF source properly.

Change the Main Assy

BN94-02709A

Check Tuner

Change the Main Assy

BN94-02709A

Check IC6003 (SEMS03)

Change the Main Assy

BN94-02709A

Check the LVDS cable?

Replace the LCD panel?

Caution Make sure to disconnect the power before working on the IP board.

4-10

Please, Contact Tech support

Page 57

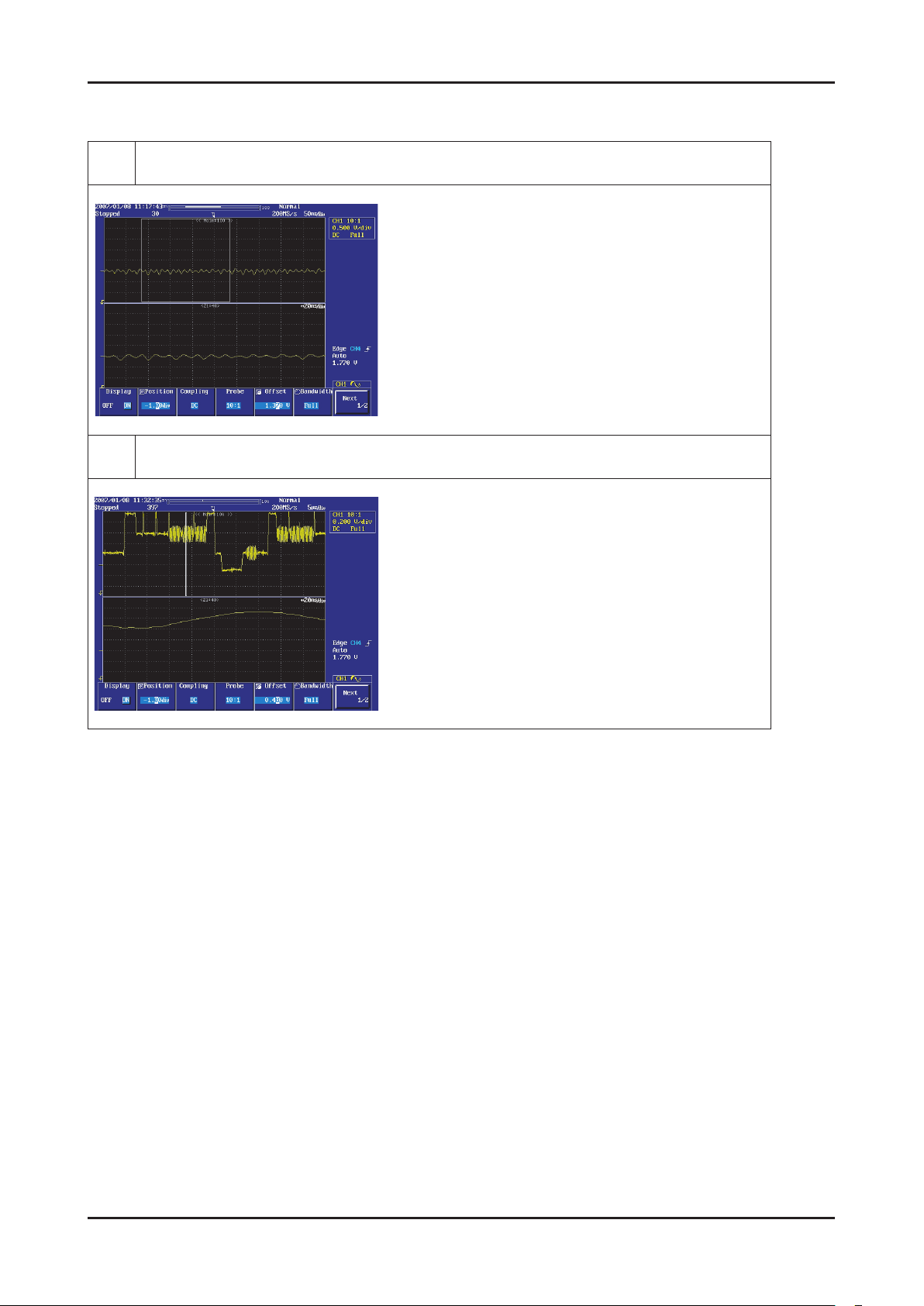

WAVEFORMS

CVBS Output Signal

Tuner_CVBS Output Signal

4. Troubleshooting

4-11

Page 58

4. Troubleshooting

4-1-5. No Video (Video CVBS 1, 2)

Symptom Audio is normal but no picture is displayed on the screen.-

Check the Video CVBS source

Major

checkpoints

Check the SEMS03.

This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected.

Power indicator LED is off.

Lamp(Backlight) on, no video?

Yes

Diagnostics

Caution Make sure to disconnect the power before working on the IP board.

Check the video source and

check the connection of video cable?

Yes

Does the CVBS data appear at

R5030(AV1), L5002(AV2)?

Yes

Does the digital data appear at

TP8007 (FBE_HSYNC_IN)

Pin #19,20,34,35 (LVDS Data clk)

of LVDS connector?

Yes

Check the LVDS cable?

Replace the LCD panel?

Check a set

in the ‘Stand-by mode’.

Input the video source properly.

Check JA5004 or JA5005

Change the Main Assy

BN94-02709A

Check IC8003 (FBE)

Change the Main Assy

BN94-02709A

Please, Contact Tech support

4-12

Page 59

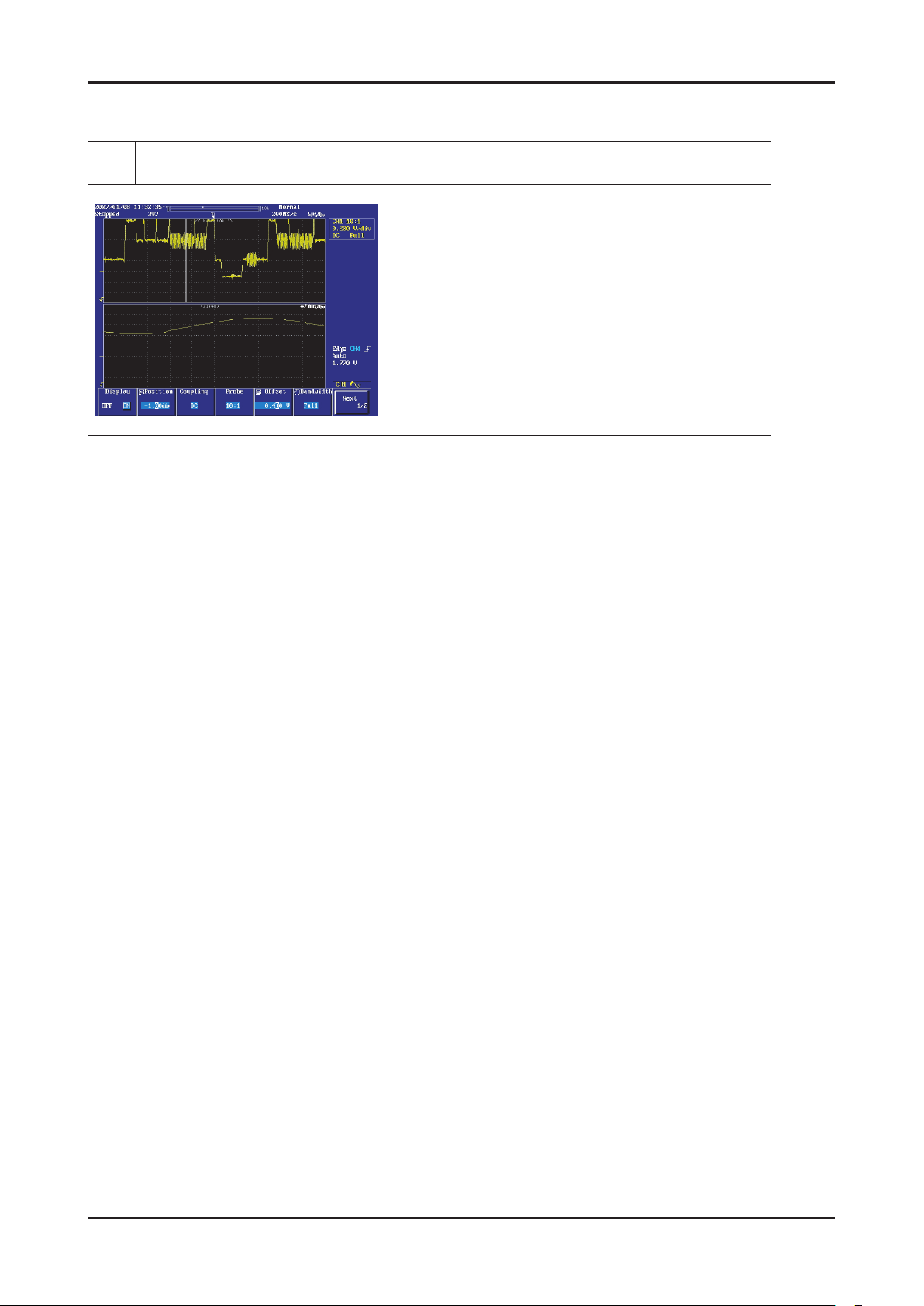

WAVEFORMS

CVBS Output Signal

4. Troubleshooting

4-13

Page 60

4. Troubleshooting

4-1-6. No Video (Component 1, 2)

Symptom Audio is normal but no picture is displayed on the screen.-

Check the Component source

Major

checkpoints

Check the SEMS03.

This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected.

Diagnostics

Power indicator LED is off.

Lamp(Backlight) on, no video?

Yes

Check the component source and

check the connection of

component cables(Y,Pb,Pr)?

Yes

Does the component data

appear at R5022, R5019, R5020

(Comp1 / Y, Pb, Pr) R5014, R5012,

R5013 (Comp2 / Y, Pb, Pr)?

Yes

Does the digital data appear at

TP8007 (FBE_HSYNC_IN)

Pin #19,20,34,35 (LVDS Data clk)

of LVDS connector?

Yes

Check a set

in the ‘Stand-by mode’.

Input the component

source properly.

Check JA5001

Change the Main Assy

BN94-02709A

Check IC8003 (FBE)

Change the Main Assy

BN94-02709A

Check the LVDS cable?

Replace the LCD panel?

Caution Make sure to disconnect the power before working on the IP board.

4-14

Please, Contact Tech support

Page 61

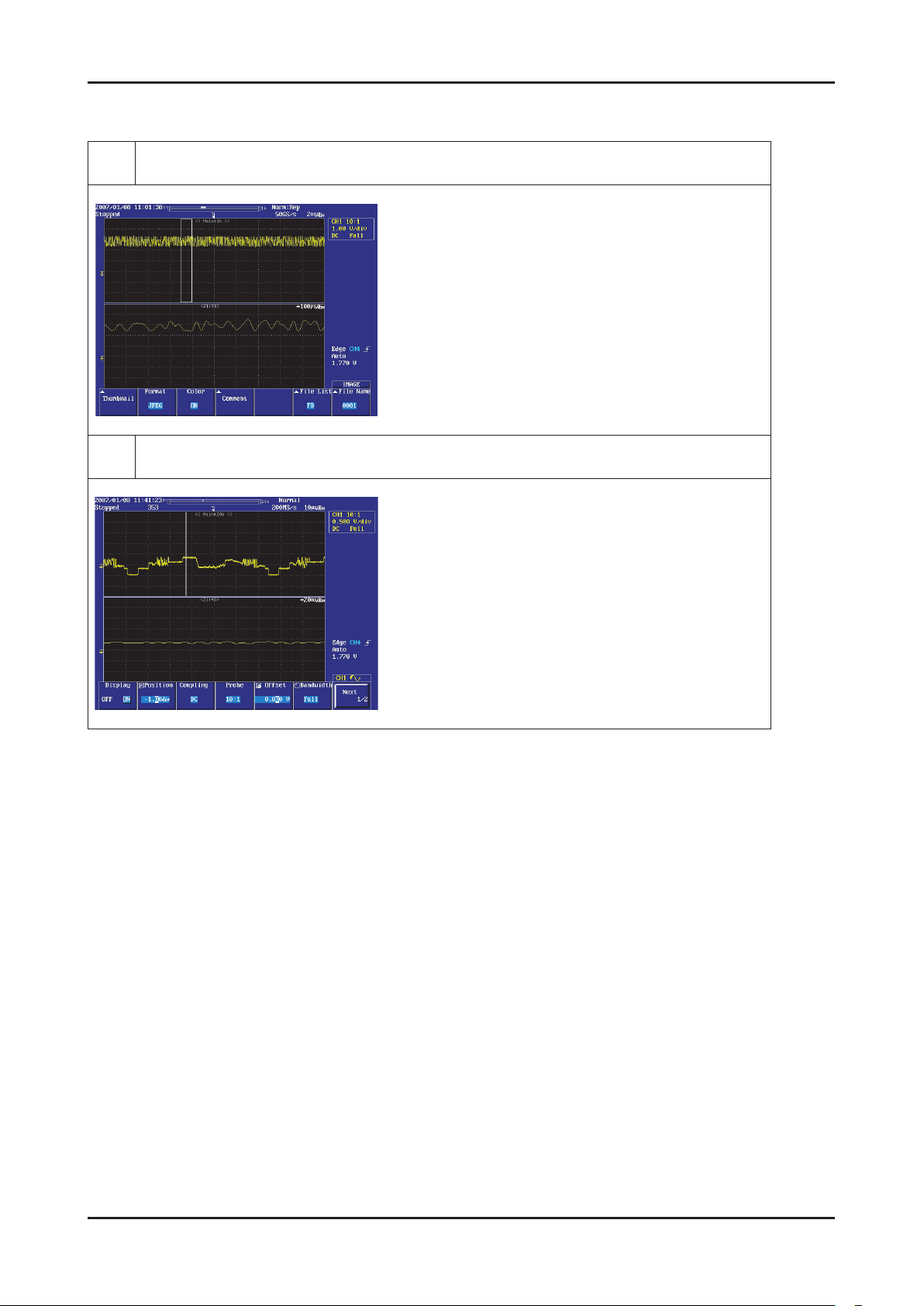

WAVEFORMS

Digital Output Data

Analog Signal(Y,C)

4. Troubleshooting

4-15

Page 62

4. Troubleshooting

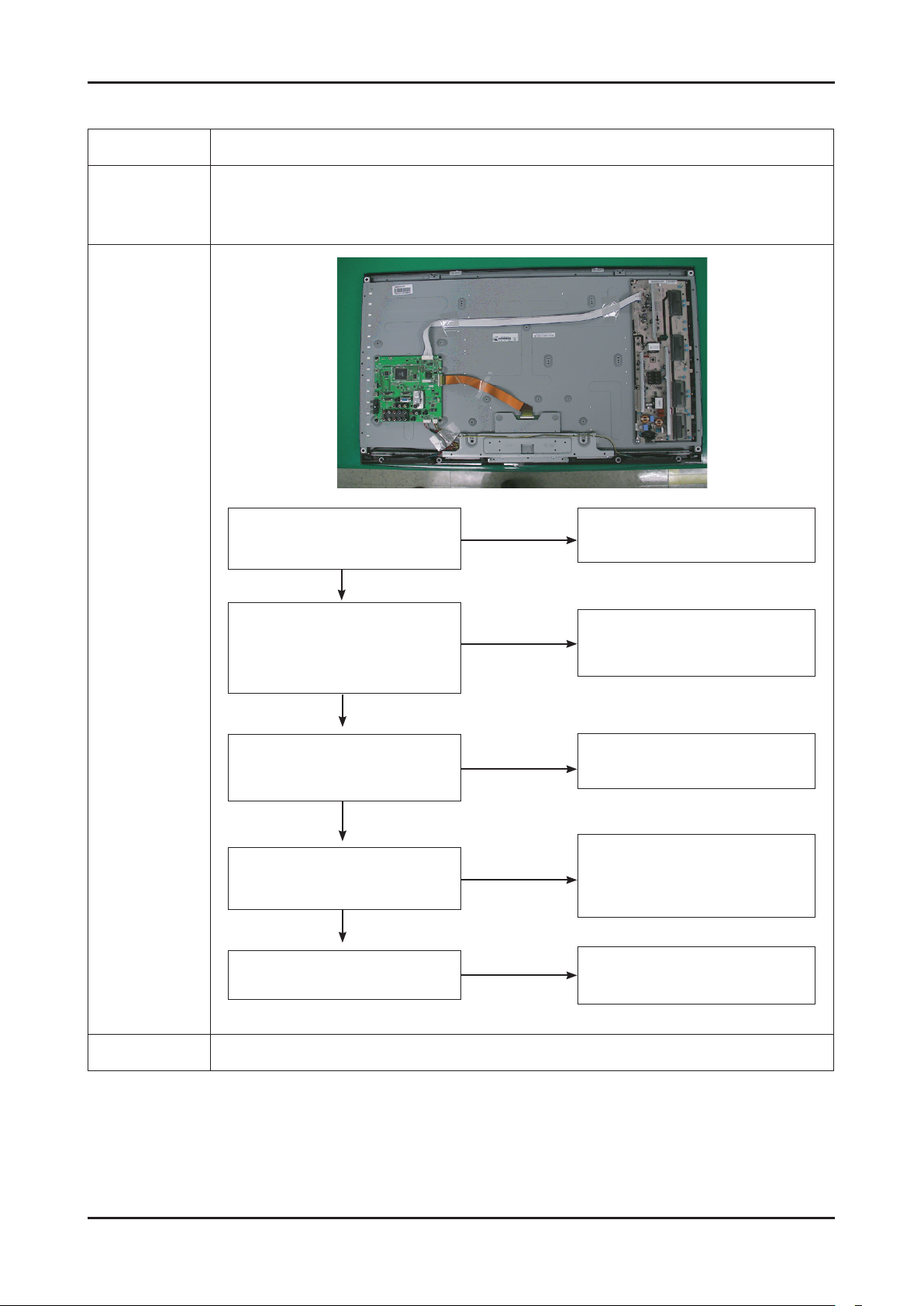

4-1-7. No Sound

Symptom Video is normal but there is no sound..-

Major

checkpoints

When the speaker connectors are disconnected or damaged.

When the sound processing part of the Main Board is not functioning.

Speaker defect..

Check the source and

check the connection of sound cable

(Comp/PC/DVI to HDMI).

Yes

Input the sound source properly.

Does the sound data appear at

Diagnostics

Caution Make sure to disconnect the power before working on the IP board.

R5032, R5031(AV2 R/L), R5036,

R5037(AV1 R/L), R5017, R5018

(Comp1 R/L), R5009, R5010

(Comp2 R/L). R4012, R4014 (PC R/L)?

Yes

Does the DC B3.3VD, B13VS

appear at R2013, BD1006?

Yes

Does the sound data appear at

C2056, C2054 (R +/-)

C2053, C2055 (L +/-)?

Yes

Replace speaker?

Check JA5004/JA5005/JA5001/JA4001

Change the Main Assy

BN94-02709A

Change the Main Assy

BN94-02709A

Check IC6003 (SEMS03)

Check IC2002 (Sound AMP)

Change the Main Assy

BN94-02709A

Please, Contact Tech support

4-16

Page 63

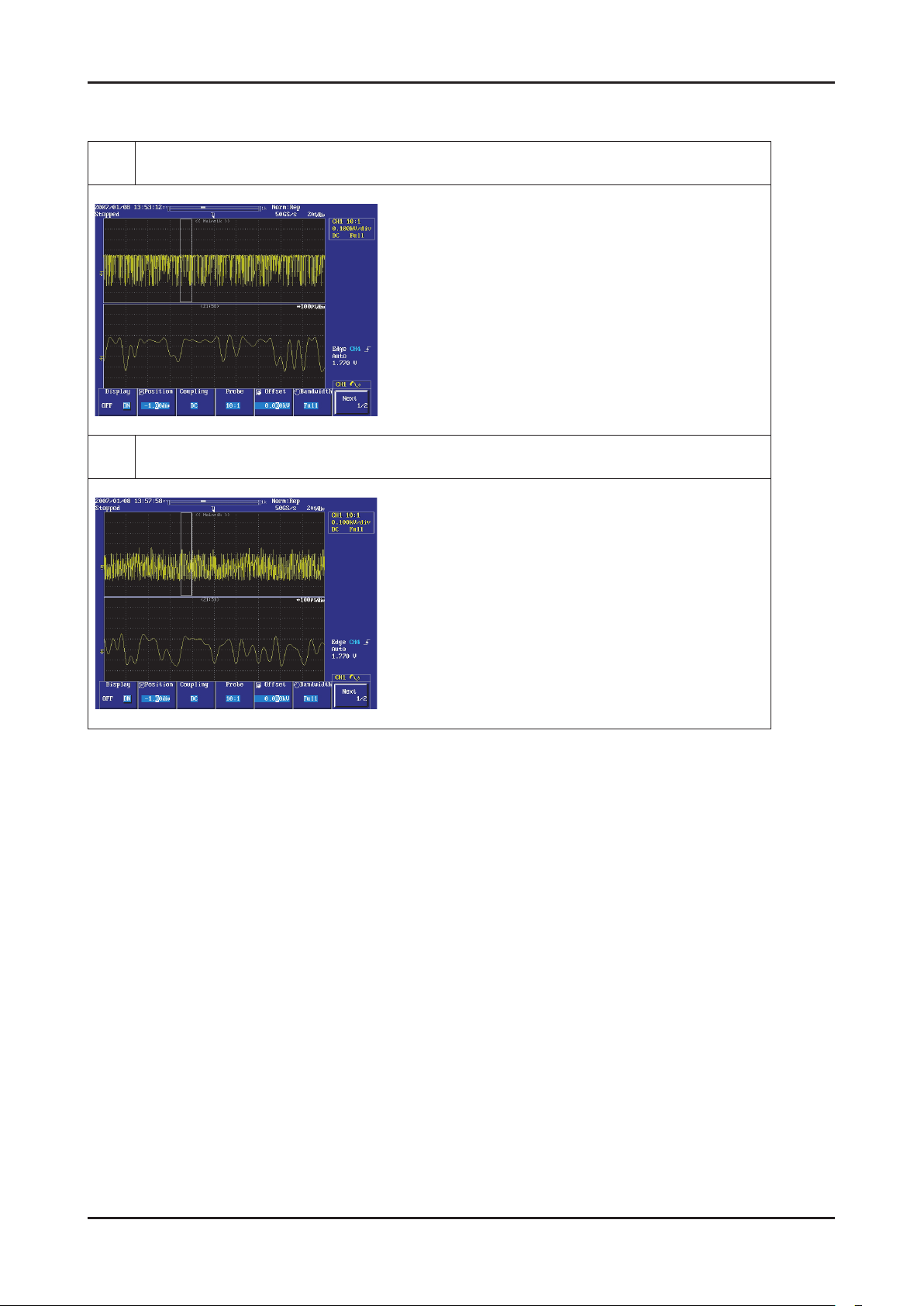

WAVEFORMS

The Signal are Inputed to IC1201

The Signal are Inputed to IC1202

4. Troubleshooting

4-17

Page 64

4. Troubleshooting

4-2. Alignments and Adjustments

4-2-1. General Alignment Instuction

Usually, a color LCD-TV needs only slight touch-up adjustment upon installation.

1. Check the basic characteristics such as height, horizontal and vertical sync.

Use the specied test equipment or its equivalent.

Correct impedance matching is essential.

Avoid overload. Excessive signal from a sweep generator might overload the front-end

4. of the TV. When inserting signal markers, do not allow the marker generator to distort test result.

Connect the TV only to an AC power source with voltage and frequency as specied on

5. the backcover nameplate.

Do not attempt to connect or disconnect any wire while the TV is turned on. Make sure

6. that the power cord is disconnected before replacing any parts.

To protect against shock hazard, use an isolation transformer.

4-18

Page 65

4-3. Factory Mode Adjustments

4-3-1 Entering Factory Mode

To enter ‘Service Mode’ Press the remote -control keys in this sequence :

- If you do not have Factory remote - control

4. Troubleshooting

- If you have Factory remote - control

- The buttons are active in the service mode.

1. Remote - Control Key : Power, Arrow Up, Arrow Down, Arrow Left

Arrow Right, Menu, Enter, Number Key(0~9)

2. Function - Control Key : Power, CH +, CH -, VOL +, VOL -,

Menu, TV/VIDEO(Enter)

MENUINFO MUTE Power on

DISPLAYPICTURE ON FACTORY

4-3-2 Panel Check

You have to check Panel Maker Because of different adjustments as follows. First of all, Check the label rating!

1) Label Rating File

- LCD PANEL MARK

A:ACER(AUO) S : SEC C : CMO

* If not printed you could consider S(sec) panel mark.

4-19

Page 66

4. Troubleshooting

4-3-3 Factory Data

Option



Option

Factory Reset OPTION RANGE

Type 32D_AG 22D_T,22I_T,22L_T,26D_AG, 26L_AG, 32L_AG,

32D_AG, 37L_AG, 40L_AG, 32A_AG_F, 32L_AG_F, 32D_AG_F, 32I_AG_F, 37L_AG_F, 37D_AG_F, 40A_ AG_F, 40L_AG_F, 40D_AG_F, 46A_AG_F, 46L_AG_F, 46D_AG_F, 32A_AG_FF, 32L_AG_FF, 32D_AG_FF, 40A_AG_FF, 40L_AG_FF, 40D_AG_FF, 46A_AG_FF, 46D_AG_FF, 52A_AG_FF, 52L_AG_FF

Model B550_FBE PB350, PB430, PB450, PB550, PB550_FBE, L_

BASIC, LB350, LB360, LB360_22, LB450, LB450_22, LB460, LB480, LB480_22, LB530, LB550, B550_FBE, LB622, LB550_FBE_NM

Tuner Select SEMCO SEMCO, XUGUANG

DDR Samsung Samsung

Ch Table SUWON SUWON, SESK, SHE, TTSEC, SEIN, SDMA, TSED,

SAVINA, SIEL, TSE

Local Set East Asia Vietnam, Philippines, China, India, Iran, Israel, Middle

Asia, East Asia, Thailand, Africa

P&P Language English English, China, French, Arabic, Persia, Hebrew,

Russian

PDP Group P55A_50SP P55A_50SP



ADC/WB

ADC

ADC Target

AV Calibration Comp Calibration PC Calibration HDMI Calibration

1st_AV_Low 1st_AV_High 1st_AV_Delta 1st_Comp_Low 1st_Comp_High 1st_Comp_Delta 1st_PC_Low 1st_PC_High 1st_PC_Delta 2nd_Low 2nd_High 2nd_Delta

Success Success Success Success

17 234 3 17 234 3 1 235 3 2 235 1

Success/Failure Success/Failure Success/Failure Success/Failure

0 ~ 255 0 ~ 255 0 ~ 255 0 ~ 255 0 ~ 255 0 ~ 255 0 ~ 255 0 ~ 255 0 ~ 255 0 ~ 255 0 ~ 255 0 ~ 255

4-20

Page 67

4. Troubleshooting

ADC Result

1st_AV_Gain 1st_AV_Offset 1st_Comp_Gain 1st_Comp_Gain_Cb 1st_Comp_Gain_Cr 1st_Comp_Offset 1st_Comp_Offset_Cb 1st_Comp_Offset_Cr 1st_PC_R_Gain 1st_PC_G_Gain 1st_PC_B_Gain 1st_PC_R_Offset 1st_PC_G_Offset 1st_PC_B_Offset 2nd_R_Offset 2nd_G_Offset 2nd_B_Offset 2nd_R_Gain 2nd_G_Gain 2nd_B_Gain

Sub Brightness Red Offset Green Offset Blue Offset Sub Contrast Red Gain Green Gain Blue Gain

132 139 67 67 67 128 128 128 85 85 86 140 142 142 57 57 57 114 114

128 128 128 128 128 128 128 128

0 ~ 255 0 ~ 255 0 ~ 255 0 ~ 255 0 ~ 255 0 ~ 255 0 ~ 255 0 ~ 255 0 ~ 255 0 ~ 255 0 ~ 255 0 ~ 255 0 ~ 255 0 ~ 255 0 ~ 255 0 ~ 255 0 ~ 255 0 ~ 255 0 ~ 255 0 ~ 255

0 ~ 255 0 ~ 255 0 ~ 255 0 ~ 255 0 ~ 255 0 ~ 255 0 ~ 255 0 ~ 255

4-21

Page 68

4. Troubleshooting

Control



EDID

Sub Option

EDID Protect On On/Off

EDID Type L13_1920_1080 P12_1024_768, P13_1024_768,

P12_1366_768, P13_1366_768, P12_1920_1080, P13_1920_1080, L12_1366_768, L13_1366_768, L12_1920_1080, L13_1920_1080

EDID Write(0x4D,0) L13_1920_1080

SUCCESS

Video Mute Time Inch Dimm Type D.Gamma Anynet+ TTX TTX List TTX Group

Carrier Mute High Devi Volume Curve NT Conversion Auto Power LVDS Format LNA Menu WatchDog Bus Stop Panel Auto Setting HotPlug HotPlugCtrl HotPlugDelay USB Upgrade Spread Spectrum

8 32” EXT Off On On Flof Lang OSD

Off Off EA Off On DEFAULT Off Off

On On 12 Off

0~99 19, 22, 23, 26, 27, 32, 37, 40, 42, 46, 50, 52, 57 EXT, INT, INT_NEG,EXT_POS, EXT_NEG Off, 0.85, 0.88, 0.90, 0.93, 0.95, 0.98, M1, M2, M3, M4 On/Off On/Off Flof/List “Lang OSD, W Europe, E Europe, Russia,

Greek, Turkey, Arab, Farsi, ArabHbrw” On/Off On/Off EA, INDIA On/Off On/Off DEFAULT, VESA, JEIDA On/Off On/Off

On/Off On/Off 0~63 On/Off

P12_1024_768, P13_1024_768, P12_1366_768, P13_1366_768, P12_1920_1080, P13_1920_1080, L12_1366_768, L13_1366_768, L12_1920_1080, L13_1920_1080

Spread Spectrum

PDP Option



PDP Option PDP Filter

4-22

Spread Spectrum Step 1 Step 2 Range 1 Range 2 FBE SSC

On 30 9 0 44 5

On/Off 0~255 0~255 0~255 0~255 On/Off

Page 69

Hotel Option



Hotel Option Hotel Mode Off On/Off

Shop Option



Shop Option Shop Mode Off On/Off



Sound

4. Troubleshooting

SOUND

Detection Threshold OPTION RANGE

FM Prescale AM Prescale NICAM Prescale FM M Prescale SC1 Vol SC2 Vol Audio Delay Normal Audio Delay Game Num Of Check Stereo Cnt MP3 Level Ext Volume Scale R2E Scart2 Offset NTP Master Volume NTP PWM Modulation NTP DRC Thresh1 NTP DRC Thresh2 NTP Speaker EQ

Pilot Threshold M2S Thr High

M2S Thr Low S2M Thr High S2M Thr Low

Carrier1 Threshold Amp On Thr High

Amp On Thr Low Amp Off Thr High Amp Off Thr Low NSR On Thr High NSR On Thr Low NSR Off Thr High NSR Off Thr Low

Carrier2 Threshold Amp On Thr High

Amp On Thr Low Amp Off Thr High Amp Off Thr Low NSR On Thr High NSR On Thr Low NSR Off Thr High NSR Off Thr Low

23 22 33 23 16 16 8 8 10 10 0 2 2 32 254 55 80 On

0~40 0~40 0~40 0~40 0~40 0~40 0~255 0~255 0~60 0~60 0~60 0~100 0~40 0~48 0~255 0~127 0~127 On/Off

2 144 1 176

2 0 1 0 16 0 32 0

2 0 1 0 13 0 24 0

0~255 0~255 0~255 0~255

0~255 0~255 0~255 0~255 0~255 0~255 0~255 0~255

4-23

Page 70

4. Troubleshooting

MST69A84HQ



VDEC

IPC/MJC

Color Space

SYNC_LVL HPLL_MD HPLL_SPD1 HPLL_SPD2 CBCRLP_MD YC_DLY IFCOMP SAT_ADJ YSEPFLT NOISE_LVL

Film Det Speed NT Film Det Speed PAL Motion Hist Motion History

Red Sat Red Hue Green Sat Green Hue Blue Sat Blue Hue Cyan Sat Cyan Hue Magenta Sat Magenta Hue Yellow Sat Yellow Hue FWC Blue FWC Red

255 0 16 32 1 1 0 128 7 0

80 80 5 3

25 64 34 127 37 80 37 80 25 64 23 64 21 21

0~255 0~1 0~63 0~255 0~3 0~3 0~63 0~255 0~7 0~255

0~255 0~255 0~7 0~7

0~30 0~127 0~30 0~127 0~30 0~127 0~30 0~127 0~30 0~127 0~30 0~127 0~30 0~30

4-24

Page 71



4. Troubleshooting

FBE

WB Movie



WB Movie

Pattern Select

B-Slope Gain

B-Tilt Min

B-Tilt Max

LFuc-Basis

HFuc-Basis

Mean-Offset1

Mean-Offset2

Mean-Slope

ACR Offset

ACR Th1

ACR Th2

Skin Enable

Skin Uv

Mskin Uv

Sub Color

Msub Color

WB Moive

Color Mode

Color Tone

Msub Brigh

Msub Contr

W1_RGAIN

W1_BGAIN

W1_ROFFS

W1_BOFFS

W2_RGAIN

W2_BGAIN

W2_ROFFS

W2_BOFFS

NO_RGAIN

NO_BGAIN

NO_ROFFS

NO_BOFFS

Movie_Contr

Movie_Brigh

Moive_Color

Moive_Sharp

Moive_Tint

Mv BkLight

M.Gamma

M.S.Gamma

Off

Movie

Cool

128

138

109

128

144

128

134

109

128

100

Off

-3

0~25

0~255

0~127

0~255

On/Off

Dynamic, Standard, Movie

Cool, Normal, Warm1, Warm2

0~255

0~100

0~10

-5~5

-3~3

4-25

Page 72

4. Troubleshooting

EPA Standard



EPA Standard

Adjsut



Adjsut Dynamic Dimming

Dynamic CE

LNA Plus RF Db 0 Level

Megazine LNA

UART Select

Debug Mode

BackEndMute

PixelShift Test

Hp Detect

?????

PDP FRC

Visual Test

Std Contr

Std Bright

Std Sharp

Std Color

Std Tint

Std Backlight

Off On/Off

Dynamic CE

B Slope

RF Db 1 Level

RF Db 2 Level

RF Db 3 Level

Off

Normal

Off

High

Off

On/Off

Normal, NONE, MSTAR, Run Time

On/Off

High/Low

On/Off

0~100

0~10

Off

On/Off

0~255

4-26

Page 73

YC_Delay



4. Troubleshooting

YC Delay

Sharpness



Sharpness

PAL BG

PAL DK

PAL I

SECAM BG

SECAM DK

SECAM L

NTSC 358

NTSC 443

AV PAL

AV SECAM

AV NT358

AV NT443

AV PAL60

H1 Gain

H2 Gain

H3Gain

H4 Gain

V1 Gain

V2 Gain

H Overshoot B1

H Overshoot B2

V Overshoot B5

V Overshoot B8

H Undershoot B1

H Undershoot B2

V Undershoot B5

V Undershoot B8

Coring TH2

Coring TH1

0~3

0~7

0~3

0~7

0~3

0~63

0~255

0~15

4-27

Page 74

4. Troubleshooting



EEPROM Reset



EEPROM Reset



Defect Log

Skin X

Skin Y

B Slope

DLC ML

DLC_MH

DLC_H

Skin_SAT

Skin_Hue

M_Skin_Hue

M_Skin_X

M_Skin_Y

Mid_color_level

M_Mid_color_level

EEPROM Reset

NVR All Clear Off

160

240

176

0~11

0~255

0~15

0~127

0~11

0~255

On/Off

Defect Log

LogList1

LogList2

LogList3

4-28

Page 75

4-4. White Balance - Calibration

4-4-1 White Balance -Calibration

4. Troubleshooting

1. ADC

4-4-2 Service Adjustment -

Color Calibration



Adjust spec.

1. Source : HDMI

2. Setting Mode : 1280*720@60Hz

3. Pattern : Pattern #24 (Chess Pattern)

You must perform Calibration in the Lattice Pattern before adjusting the White Balance.

AV Calibration

Comp Calibration

PC Calibration

HDMI Calibration

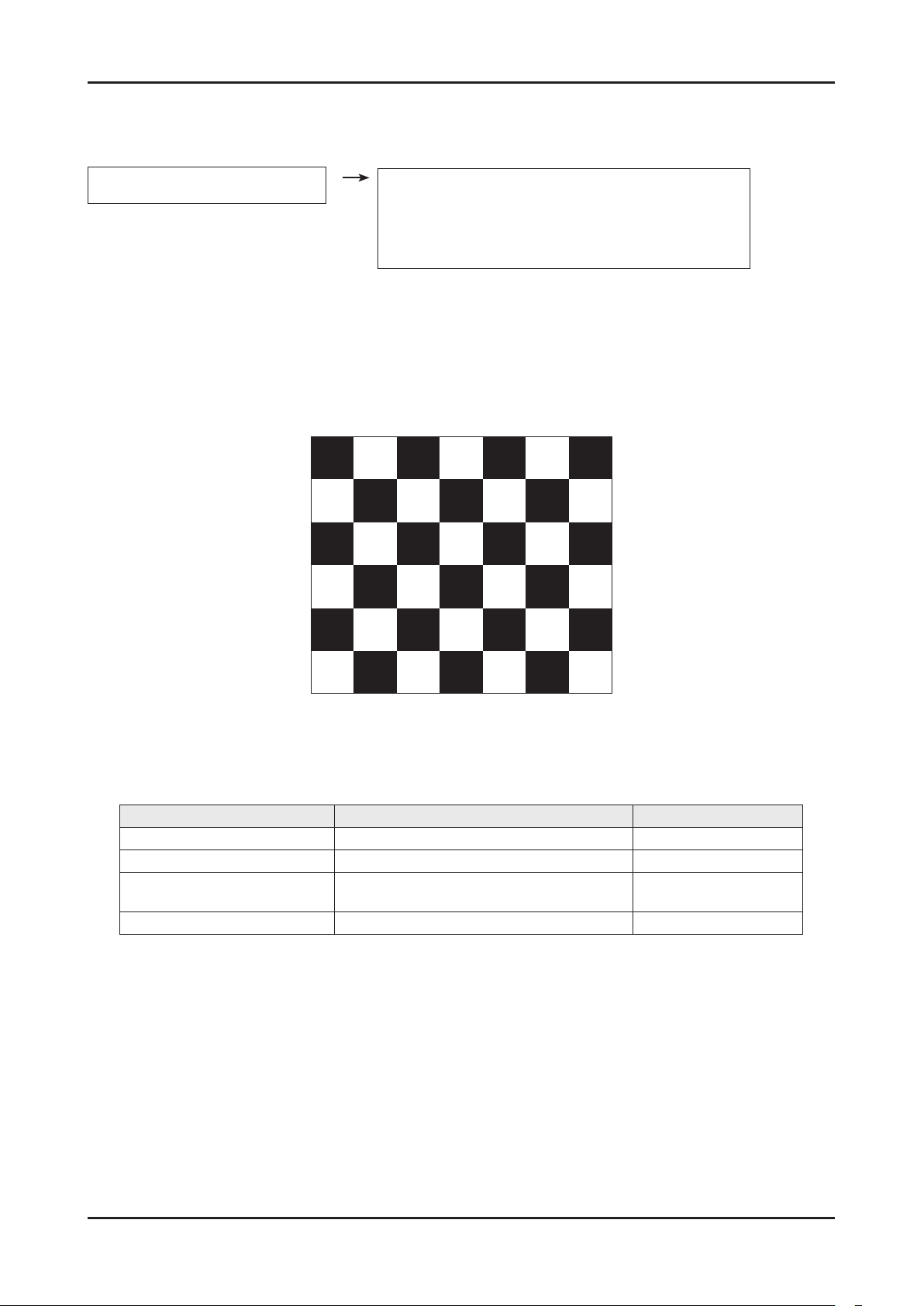

( Chess Pattern )

4. Use Equipment : CA210 & Master MSPG925 Generator

- Use other equipment only after comparing the result with that of the Master equipment.

Input mode Calibration Pattern

CVBS IN (Model_#1) Perform in NTSC B&W Pattern #24 Lattice

Component IN (Model_#6) Perform in 720p B&W Pattern #24 Lattice

PC Analog IN (Model_#21)

HDMI IN Perform in 720p B&W Pattern #24 Lattice

Perform in VESA XGA (1024x768)

B&W Pattern #24

Lattice

4-29

Page 76

4. Troubleshooting



Method of Color Calibration (AV)

1) Apply the PAL Lattice (NO. 2) pattern signal to the AV IN 1 port

2) Press the Source key to switch to “AV1” mode

3) Enter Service mode

4) Select the “ADC” menu

5) Select the “AV Calibration” menu.

6) In “AV Calibration Off” status, press the “ ” key to perform Calibration.

7) When Calibration is complete, it returns to the high-level menu.

8) You can see the change of the “AV Calibration” status from Failure to Success.



Method of Color Calibration (Component)

1) Apply the 720p Lattice (N0. 6) pattern signal to the Component IN 1 port

2) Press the Source key to switch to “Component1” mode

3) Enter Service mode

4) Select the “ADC” menu

5) Select the “Comp Calibration” menu.

6) In “Comp Calibration Off” status, press the “ ” key to perform Calibration.

7) When Calibration is complete, it returns to the high-level menu.

8) You can see the change of the “Comp Calibration” status from Failure to Success.



Method of Color Calibration (PC)

1) Apply the VESA XGA Lattice (N0. 21) pattern signal to the PC IN port

2) Press the Source key to switch to “PC” mode

3) Enter Service mode

4) Select the “ADC” menu

5) Select the “PC Calibration” menu.

6) In “PC Calibration Off” status, press the “ ” key to perform Calibration.

7) When Calibration is complete, it returns to the high-level menu.

8) You can see the change of the “PC Calibration” status from Failure to Success.



Method of Color Calibration (HDMI)

1) Apply the 720p Lattice (N0. 6) pattern signal to the HDMI1/DVI IN port

2) Press the Source key to switch to “HDMI1” mode

3) Enter Service mode

4) Select the “ADC” menu

5) Select the “HDMI Calibration” menu.

6) In “HDMI Calibration Off” status, press the “ ” key to perform Calibration.

7) When Calibration is complete, it returns to the high-level menu.

8) You can see the change of the “HDMI Calibration” status from Failure to Success.

4-30

Page 77

4. Troubleshooting

4-4-3 White Balance - Adjustment

(low light) (hight light)

5. W/B

Sub Bright

R offset

G offset

B offset

Sub Contrast

R gain

G gain

B gain

(W/B adjustment Condition refer next page)

4-5. Servicing Information

4-5-1 USB Download Method

Samsung may offer upgrades for TV’s rmware in the future. Please contact the Samsung call center at 1-800-

SAMSUNG (726-7864) to receive information about downloading upgrades and using a USB drive. Upgrades will be possible by connecting a USB drive to the USB port located on your TV.

Insert a USB drive containing the rmware upgrade into the

1. MEDIA PLAY port on the side of the TV.

Enter the factory mode.

Go to Control → Sub Option, then change “USB Upgrade” from

Off to On.

Pull out power cord from the Set and re-insert.

Power indicator LED Light on.

4. And in just a few seconds, The light twinkle faster as time went on.

The SET is automatically ON.

5. You can watch updated software version that you enter the factory mode.

Please be careful to not disconnect the power or remove the USB drive while upgrades are being applied. The TV will turn off

and turn on automatically after completing the rmware upgrade. Please check the rmware version after the upgrades are

complete. When software is upgraded, video and audio settings you have made will return to their default (factory) settings. We recommend you write down your settings so that you can easily reset them after the upgrade.

4-31

Page 78

4. Troubleshooting

4-6. HOW TO UPGRADE

4-6-1 Software Upgrade (MSTAR ISP Tool)

MSTAR ISP TOOL

4-32

Page 79

4-6-2 Software Upgrade (Flash Downloader)

Flash Downloader

4. Troubleshooting

4-33

Page 80

6. Wiring Diagram

IP Board

Main Board

SpeakerSpeaker

CN1001

CN8002

CN4007

CN801

Function & IR

T-CON

CN2001

6-1. Wiring Diagram 32” /40”

6. Wiring Diagram

6-1

Page 81

6. Wiring Diagram

Main Board

SpeakerSpeaker

CN1001

CN8002

CN4007

CN801

Function & IR

T-CON

CN2001

Panel CN1 Panel CN2

Panel CN3

CN1806

CN1808

CN1809

IP Board

Driver

6-2. Wiring Diagram 46”/52”

6-2

Page 82

6. Wiring Diagram

CN8002 (to Panel)

HVS

T_Micom_Reset

PVCC_SW

SDA (FRC Control)

FRC Reset

SCL (FRC Control)

LVDS opt

H-Sync Out

W/P(T_Con)

T_Con Check

SDA (T_Control)

SCL (T_Control)

GND

RE[4]+

RE[4]-

RE[3]+

RE[3]-

GND

RECLK+

RECLK-

GND

RE[2]+

RE[2]-

RE[1]+

RE[1]-

RE[0]+

27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51

RE[0]GND RO[4]+ RO[4]RO[3]+ RO[3]GND ROCLK+ ROCLKGND RO[2]+ RO[2]RO[1]+ RO[1]RO[0]+ RO[0]GND GND GND NC Panel_VCC Panel_VCC Panel_VCC Panel_VCC Panel_VCC

JA3001 (HDMI1)

HDMI1_RX2+ 12

GND

HDMI1_RX2-

HDMI1_RX1+ 15

GND

HDMI1_RX1-

HDMI1_RX0+ 18

GND

HDMI1_RX0-

HDMI1_RXCLK+

GND

JA3004 (HDMI2)

HDMI2_RX2+ 12

GND

HDMI1_RX2-

HDMI2_RX1+ 15

GND

HDMI2_RX1-

HDMI2_RX0+ 18

GND

HDMI2_RX0-

HDMI2_RXCLK+

GND

JA4001 (PC sound)

GND

PC_SR_IN

PC_SL_IN

PC_SR_IN

CN2001 (sound out)

R+

R-

L+

L-

JA7001 (USB1)

USB1 VCC

USBN 2.0

USBP 2.0

GND

CN1001 (to Power board)

H-SYNC

Power On/Off

GND(5.2V)

ST-BY(5.2V)

GND

14V(Sound Vcc)

GND

5.3V

16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

5.3V GND GND GND

12.5V

12.5V I-PWM (ANA) SW_INVETER GND E-PWM (PWM) NC DET_5V NC (FAN2_DET) NC (FAN3_DET)

JA3002 (HDMI3)

HDMI3_RX2+ 12

GND

HDMI3_RX2-

HDMI3_RX1+ 15

GND

HDMI3_RX1-

HDMI3_RX0+ 18

GND

HDMI3_RX0-

HDMI3_RXCLK+

GND

JA5004 (side AV)

GND

VIDEO2 SL IN

VIDEO2 SR IN

GND

VIDEO2 SR IN

VIDEO2 SL IN

GND

VIDEO2 IDENT

VIDEO2_CVBS_BAY

6-3

Page 83

6. Wiring Diagram

CN4007 (to Function IR)

GND

A3.3V

LED_INDICATOR

BUZZER

KEY_1

KEY_2

KEY_SDA (NC)

A5V

KEY_SCL(NC)

LED_DECO(NC)

A5V(NC)

JA3003_S (HDMI4)

HDMI4_RX2+ 12

GND

HDMI4_RX2-

HDMI4_RX1+ 15

GND

HDMI4_RX1-

HDMI4_RX0+ 18

GND

HDMI4_RX0-

HDMI4_RXCLK+

GND

JA4005_PC (PC)

PC_RED

PC_GREEN

PC_BLUE

GND

PC_5V

PC_IDENT

GND

EMU_SDA

PC_H_SYNC

PC_V_SYNC

EMU_SCL

6-4

Page 84

6. Wiring Diagram

6-3. Connector Functions

Connector Functions

CN1001 <-> CN801 Supply main power and dimming signal from IP board to Main Board.

CN8002 <-> CN505 The LVDS signal transfered from Main Board to Panel .

CN1806 <-> Panel CN3 Feedback signal from driver.

CN1808 <-> Panel CN1 Supply power from IP board to Driver Board(left).

CN1809 <-> Panel CN2 Supply power from IP board to Driver Board(right).

6-4. Cables

Use

32”

Code


Use IP - BalanceBD(L) (2P) IP - BalanceBD(R) (2P)

Code


BN39-01099H (500mm)

40”/46”/52”

BN39-01099K (700mm)

46” BN39-01021C (1100mm)

52” BN39-01021D (1200mm)

Main IP (30P) Main - TCON IP - BalanceBD (7P)

32” BN96-10077A (250mm)

40” BN96-10075A (350mm)

46” BN96-10075A (350mm)

52” BN96-10074A (450mm)

46” BN39-01024A (350mm)

52” BN39-01021A (450mm)

46” / 52” BN39-00830B (200mm)

6-5
