《1》

Instructions Getting to know your camera

■ Use this camera in the following order

Set up the camera driver

Take a picture

Insert the USB cable

Check the camera’s power

Check [Removable Disk]

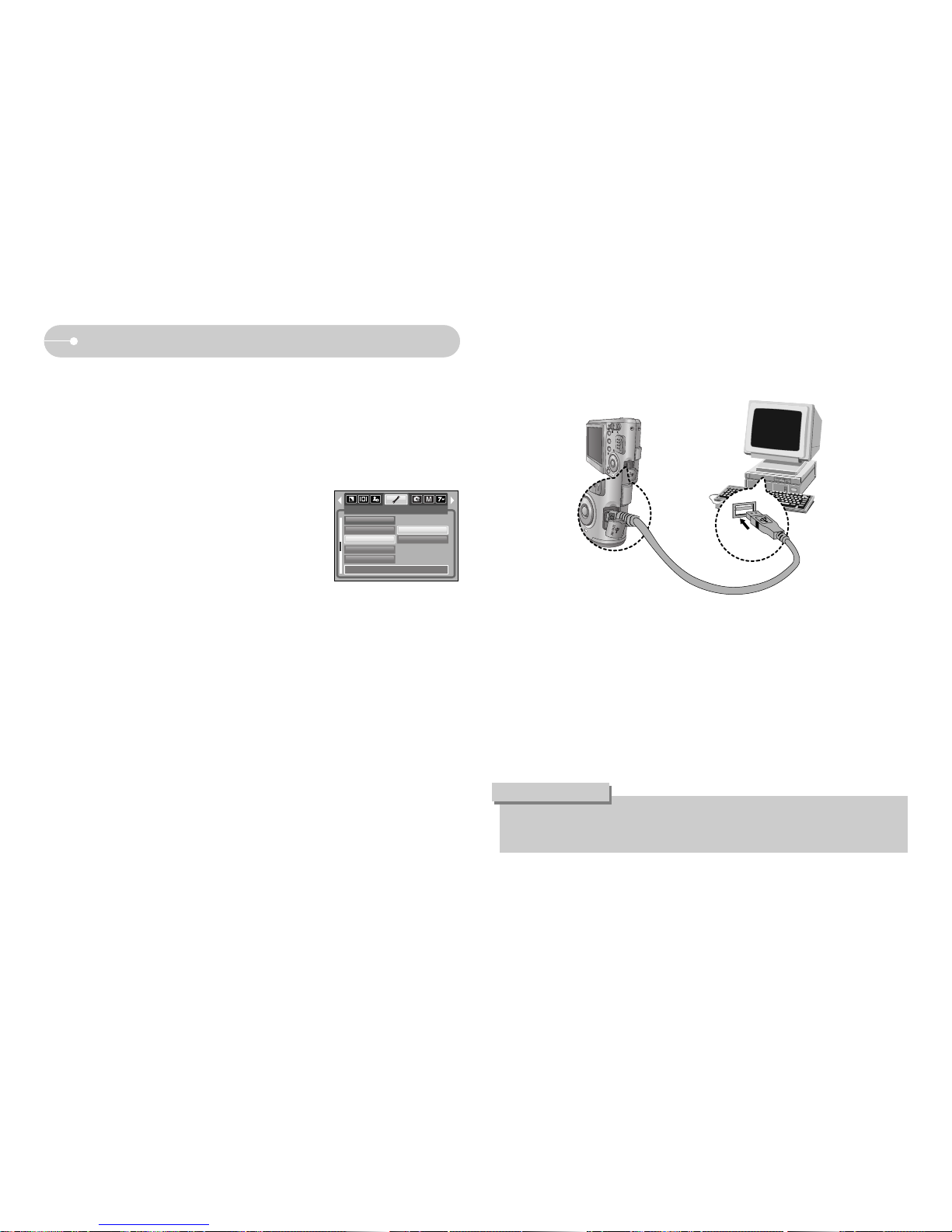

Before connecting the camera to a PC, via the USB cable, you will need to set up the camera driver. Install the camera driver that is contained in Application software CD-ROM. (p.64)

Take a picture. (p.15)

Insert the supplied USB cable into the PC’s USB port and the camera’s USB connection terminal. (p.66)

Check the camera’s power. If the power is turned off, press the camera button to turn it on.

Open Window’s EXPLORER and search for [Removable Disk]. (p.67)

● If you use a card reader to copy the images on the memory card to your PC, the

images could be damaged. When transferring the images taken with the camera to your PC, be sure to use the supplied USB cable to connect the camera to your PC. Please note that the manufacturer holds no responsibility for loss or damage of images on the memory card due to the use of a card reader.

Thank you for buying a Samsung Digital Camera.

● Prior to using this camera, please read the user manual thoroughly.

● If you require After Sales service, please bring the camera and the cause of the

camera malfunction (such as battery, Memory card etc.) to the A/S centre.

● Please check that the camera is operating properly prior to when you intend to

use it (e.g. for a trip or an important event) to avoid disappointment. Samsung camera takes no responsibility for any loss or damages that may result from camera malfunction.

● Keep the manual in a safe place.

● If you use a card reader to copy the images on the memory card to your PC, the

images could be damaged. When transferring the images taken with the camera to your PC, be sure to use the supplied USB cable to connect the camera to your PC. Please note that the manufacturer accepts no responsibility for loss or damage of images on the memory card due to the use of a card reader.

● The contents and illustrations of this manual are subject to change without prior

notice for upgrading the camera functions.

● If your camera was purchased outside of the country where you wish to have,

servicing fees are charged by the manufacturer's representatives in that country.

● In some countries where this camera is not in market, servicings may not be

available.

 Microsoft, Windows and Windows logo are registered trademarks of Microsoft

Corporation incorporated in the United States and/or other countries.

 All brand and product names appearing in this manual are registered trademarks

of their respective companies.

Page 3

Danger Warning

《2》

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

■ Do not use the flash in close proximity to people or animals. Positioning the flash

too close to your subject’s eyes may cause eyesight damage.

■ For safety reasons keep this product and accessories out of reach of children or

animals to prevent accidents e.g.:

•Swallowing battery or small camera accessories. If an accident should occur,

please consult a doctor immediately.

•There is the possibility of injury from the camera’s moving parts.

■ Battery and camera may become hot during prolonged use and it may result in

camera malfunction. Should this be the case, allow the camera to sit idle for a few minutes to allow it time to cool.

■ Do not leave this camera in places subject to extremely high temperatures, such

as a sealed vehicle, direct sunlight or other places of extreme variances in temperature. Exposure to extreme temperatures may adversely affect the camera’s internal components and could cause a fire.

■ When in use, do not cover the camera or Charger. This may cause heat to build

up and distort the camera body or cause a fire. Always use the camera and its accessories in a well-ventilated area.

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

■ Do not attempt to modify this camera in any way. This may result in fire, injury,

electric shock or severe damage to you or your camera. Internal inspection, maintenance and repairs should be carried out by your dealer or Samsung Camera Service centre.

■ Please do not use this product in close proximity to flammable or explosive

gases, as this could increase the risk of explosion.

■ Should any form of liquid or a foreign object enter the camera, do not use it.

Switch off the camera, and then disconnect the power source. You must contact your dealer or Samsung Camera Service centre. Do not continue to use the camera as this may cause a fire or electric shock.

■ Do not insert or drop metallic or inflammable foreign objects into the camera

through access points e.g. the memory card slot and battery chamber. This may cause a fire or electric shock.

■ Do not operate this camera with wet hands. This could pose a risk of electric

shock.

Page 4

《3》

ContentsCaution

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in a minor or moderate injury.

■ Leaking, overheating, or burst battery could result in fire or injury.

•Use battery with the correct specification for the camera.

•Do not short circuit, heat or dispose of battery in fire.

•Do not insert the battery with the polarities reversed.

■ Remove the battery when not planning to use the camera for a long period of

time. Battery may leak corrosive electrolyte and permanently damage the camera’s components.

■ Do not fire the flash while it is in contact with hands or objects. Do not touch the

flash after using it continuously. It may cause burns.

■ Take care not to touch the lens or lens cover to avoid taking an unclear image

and possibly causing camera malfunction.

■ Avoid obstructing the lens or the flash when you capture an image.

■ Credit cards may be demagnetized if left near case. Avoid leaving magnetic strip

cards near the case.

READY

●System chart 5

●Identification of features

■Front & Top

■Back & Bottom

■Bottom / 5-function button

■Self-timer lamp

■Camera Status Lamp

■Mode icon

●Connecting to a Power Source

●Inserting the memory card

●Instructions on how to use the

memory card

●LCD monitor indicator

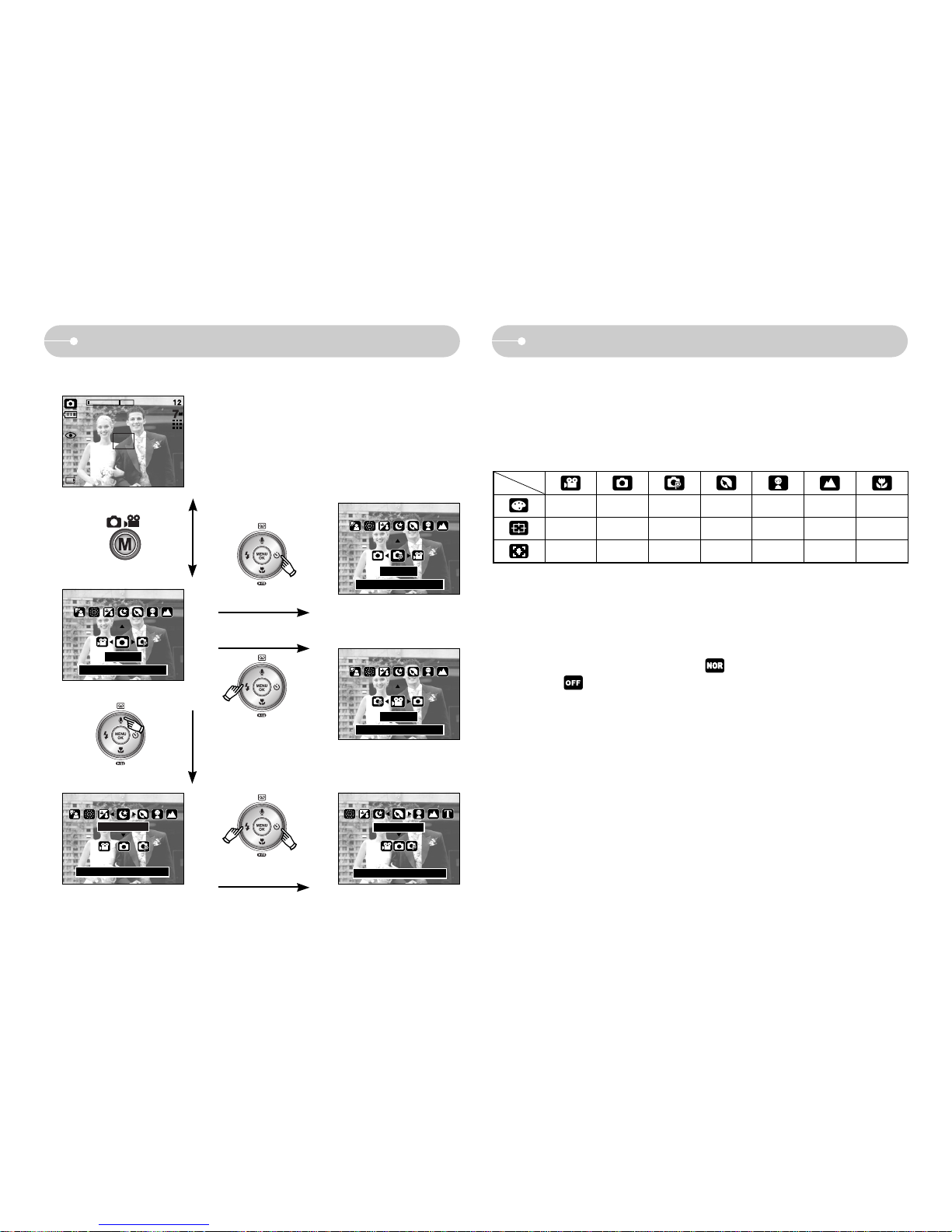

●Changing the recording mode

■Selecting the [MODE] menu

■Changing the recording mode

●Starting the recording mode

■How to use the Auto mode

■

How to use the Movie clip mode

■Recording the movie clip without

sound

■Pausing while recording a movie clip

(Successive Recording)

■Using Successive Recording

■How to use the Program mode

■How to use the Scene modes

■How to use the VOICE

RECORDING mode

●Things to Watch Out for When

Taking Pictures

●Using the camera buttons to set the

camera

■POWER button

■Shutter button

■ZOOM W / T button

■TELE Zoom

■WIDE Zoom

■Voice recording / Voice memo / UP

button

■Recording a voice memo

■Macro / Down button

■Focus lock

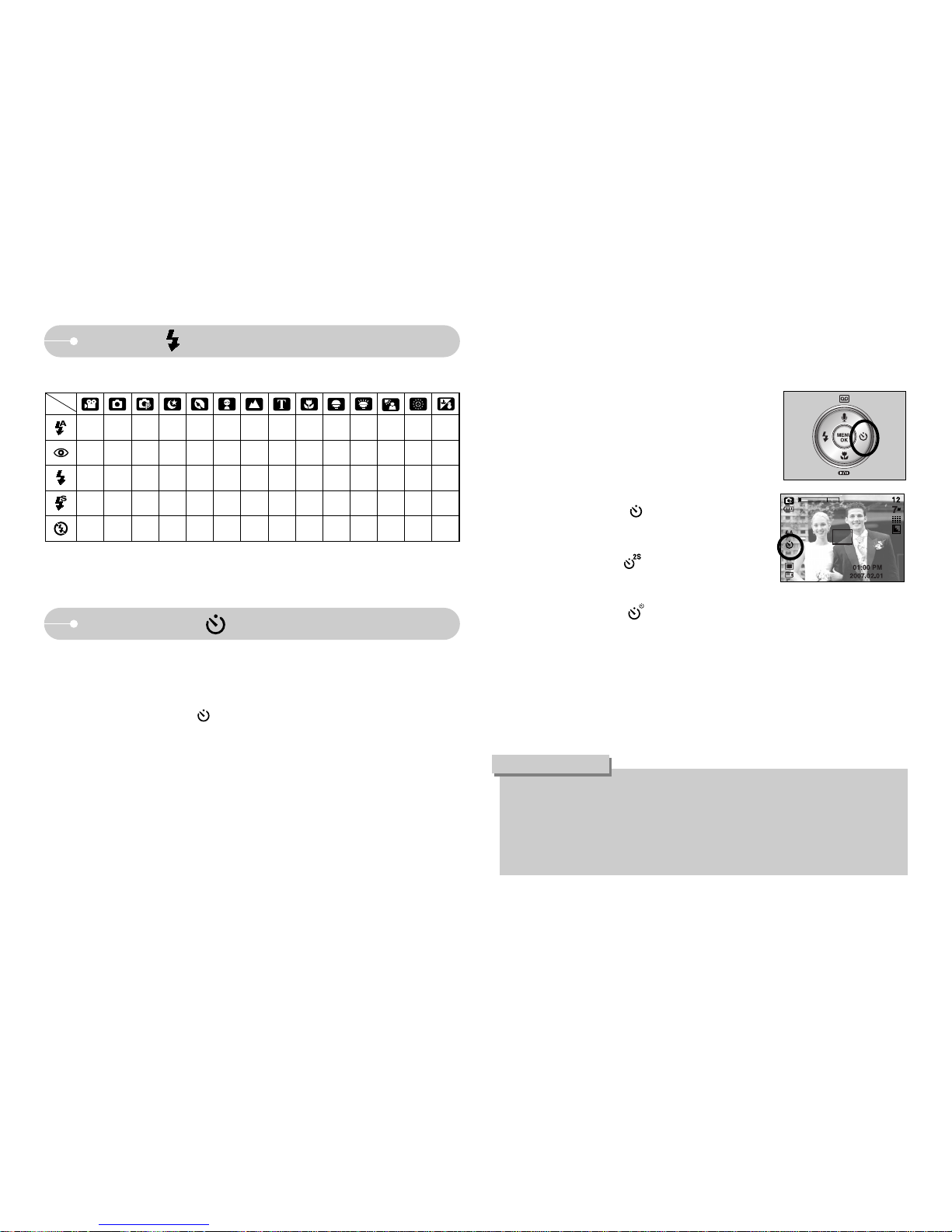

■Flash / Left button

■Self-timer / Right button

■MENU / OK button

■M (Mode) button

■E (Effect) button

■Special Effect : Colour

■Special Effect :

Preset focus frames

■Movie Clip frame stabiliser

RECORDING

Page 5

《4》

Contents

■+ / - button 29

●Using the LCD monitor to set the

camera settings

■How to use the menu

■Mode Set

■Mode

■Size

■Quality / Frame rate

■Metering

■Continuous shot

■Sharpness

■OSD (On Screen Display)

information

●Starting play mode

■Playing back a movie clip

■Movie clip capture function

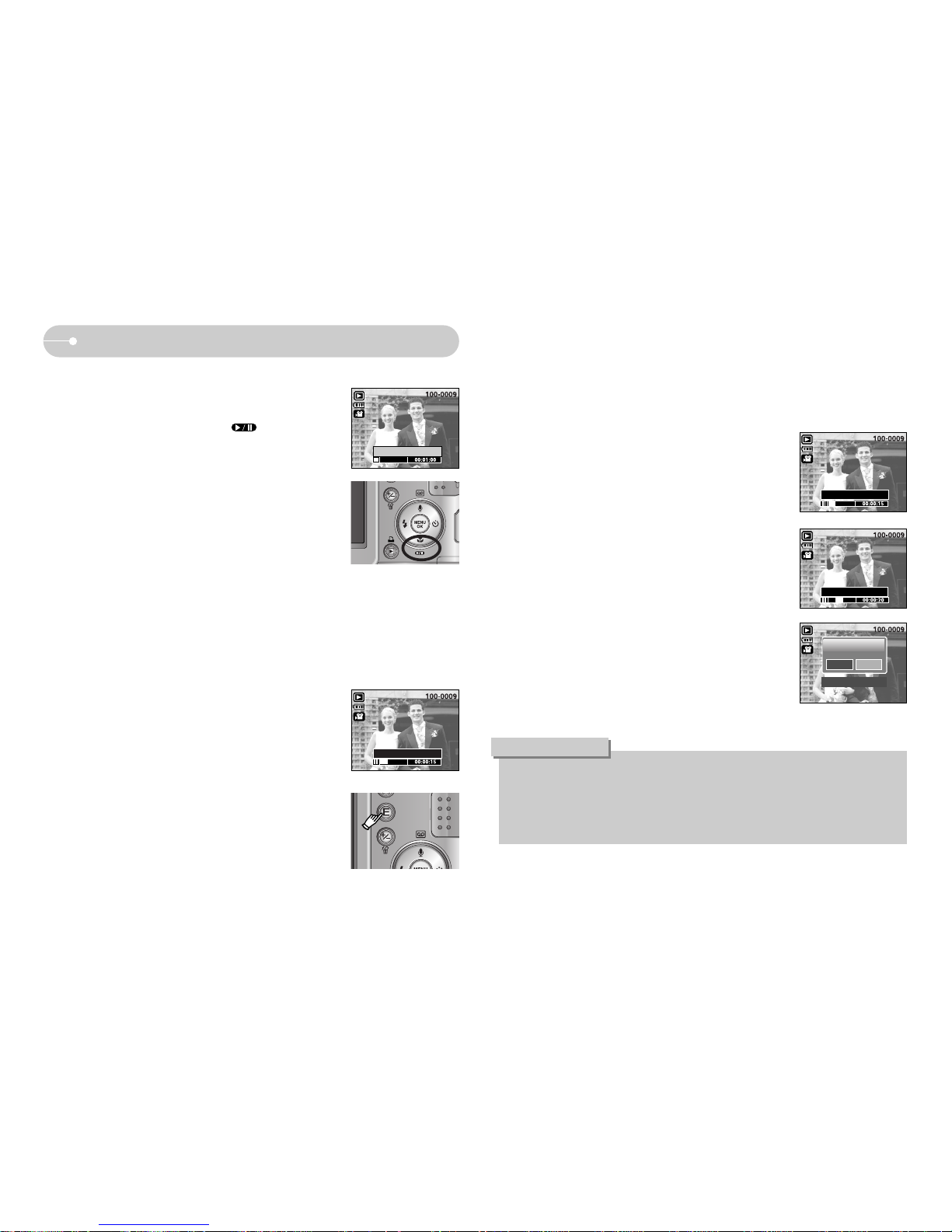

■How to capture the movie clip

■On camera movie trimming

■Playing back a recorded voice

●LCD monitor indicator

●Using the camera buttons to adjust

the camera

■

Play mode button

■

Thumbnail / Enlargement button

■Voice memo / Up button

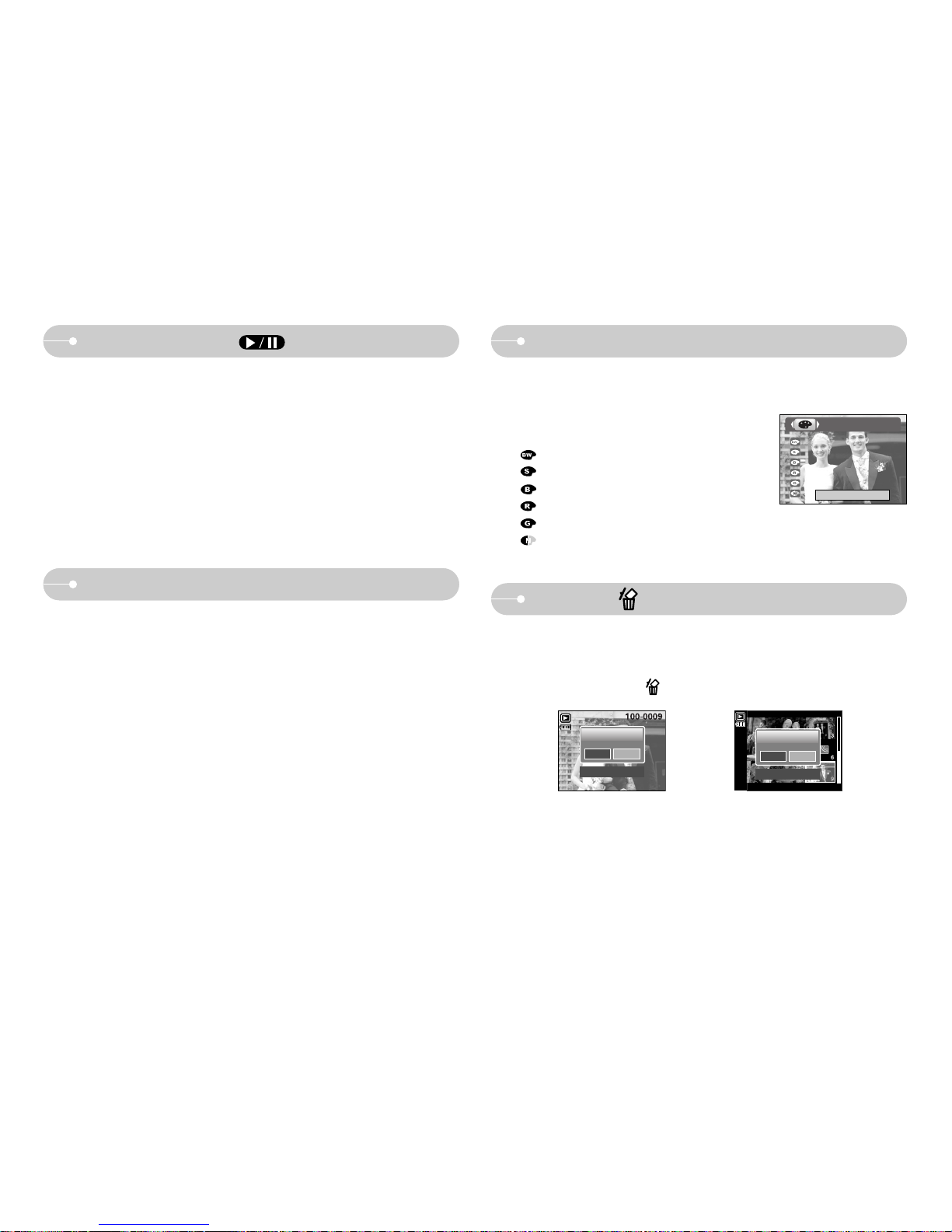

■Play & Pause / Down button

■Left / Right / Menu / OK button

■E (Effect) button

■Delete button

●Setting up the play back function

using the LCD monitor

■Starting the slide show

■On Screen Display information

■Rotating an image

■Resize

■Protecting images

■Deleting images

■Copy To Card

■DPOF

■DPOF : STANDARD

■DPOF : Index

■DPOF : Print size

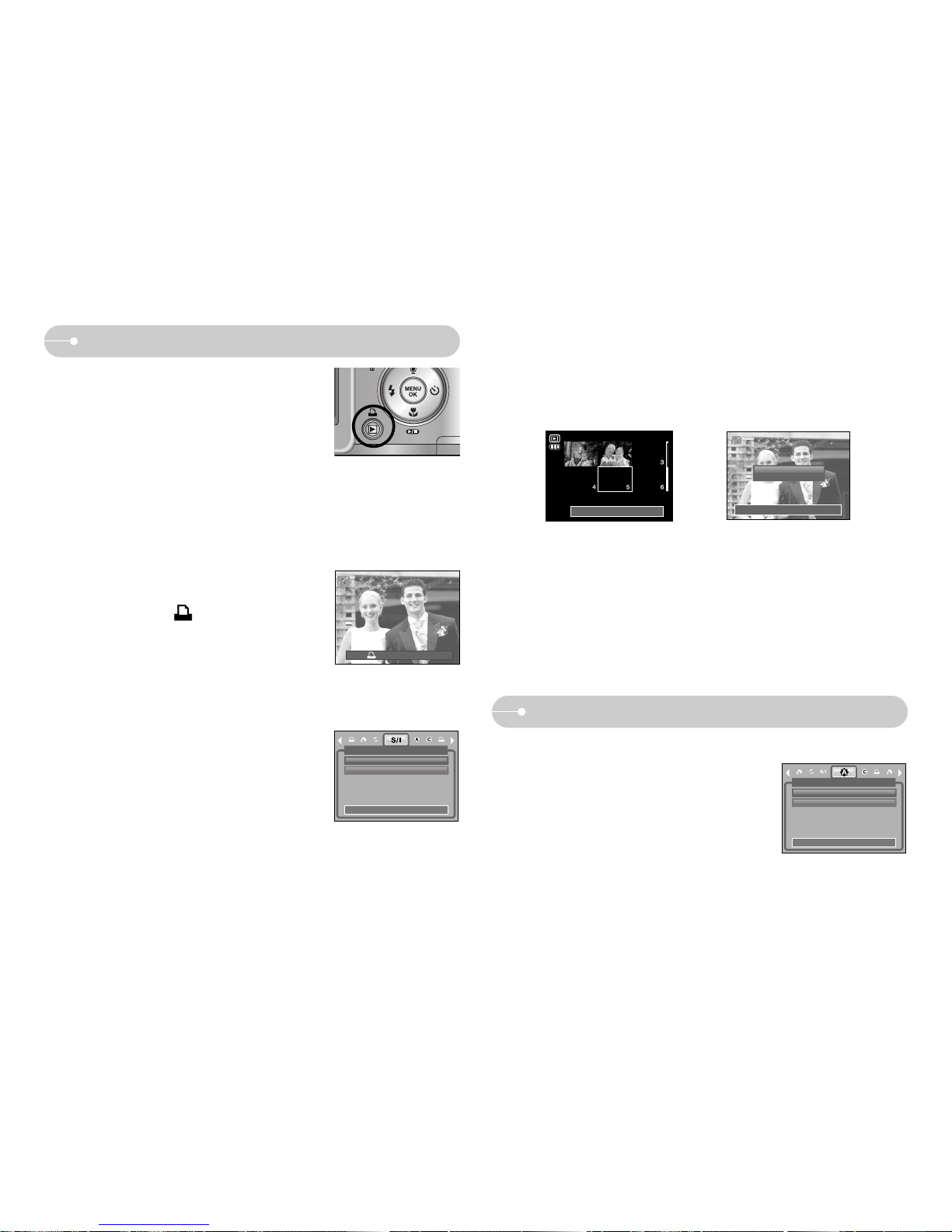

■PictBridge

■PictBridge : Picture Selection

■PictBridge : Print Setting

■PictBridge : Print

■PictBridge : RESET

●Setup menu

■File name

■Auto power off

■Language

■Format

■Setting up the Date / Time / Date

type

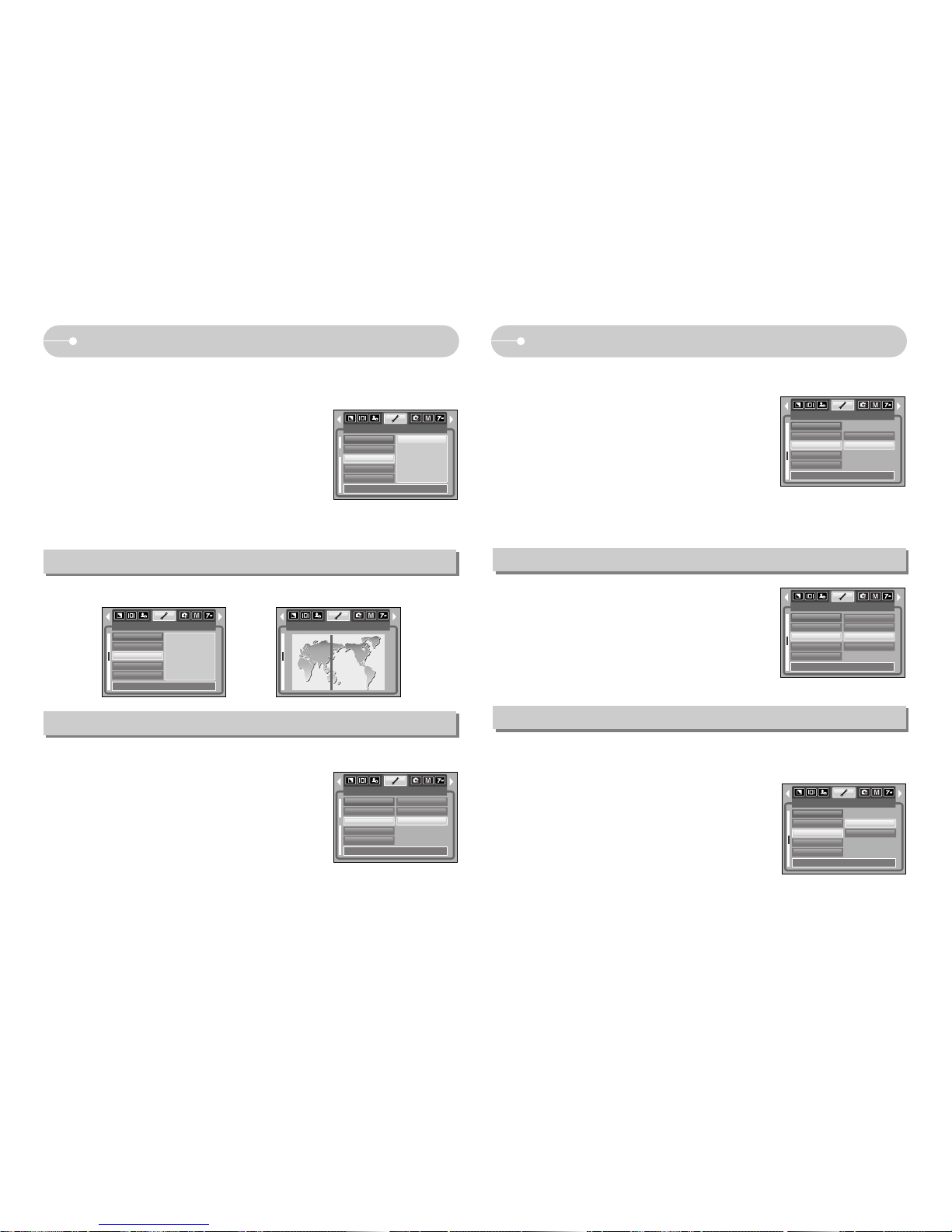

■World Time

■Imprinting the recording date

■Auto Focus lamp

■Sound

■Connecting an External Device

(USB)

■LCD brightness

■Selecting Video out type

■Quick view

■Initialisation

●Setting up the Mycam menu

■Start up image

■Start up sound

■Shutter sound

●Important notes

●Warning indicator

●

Before contacting a service centre

●Specifications

●Software Notes

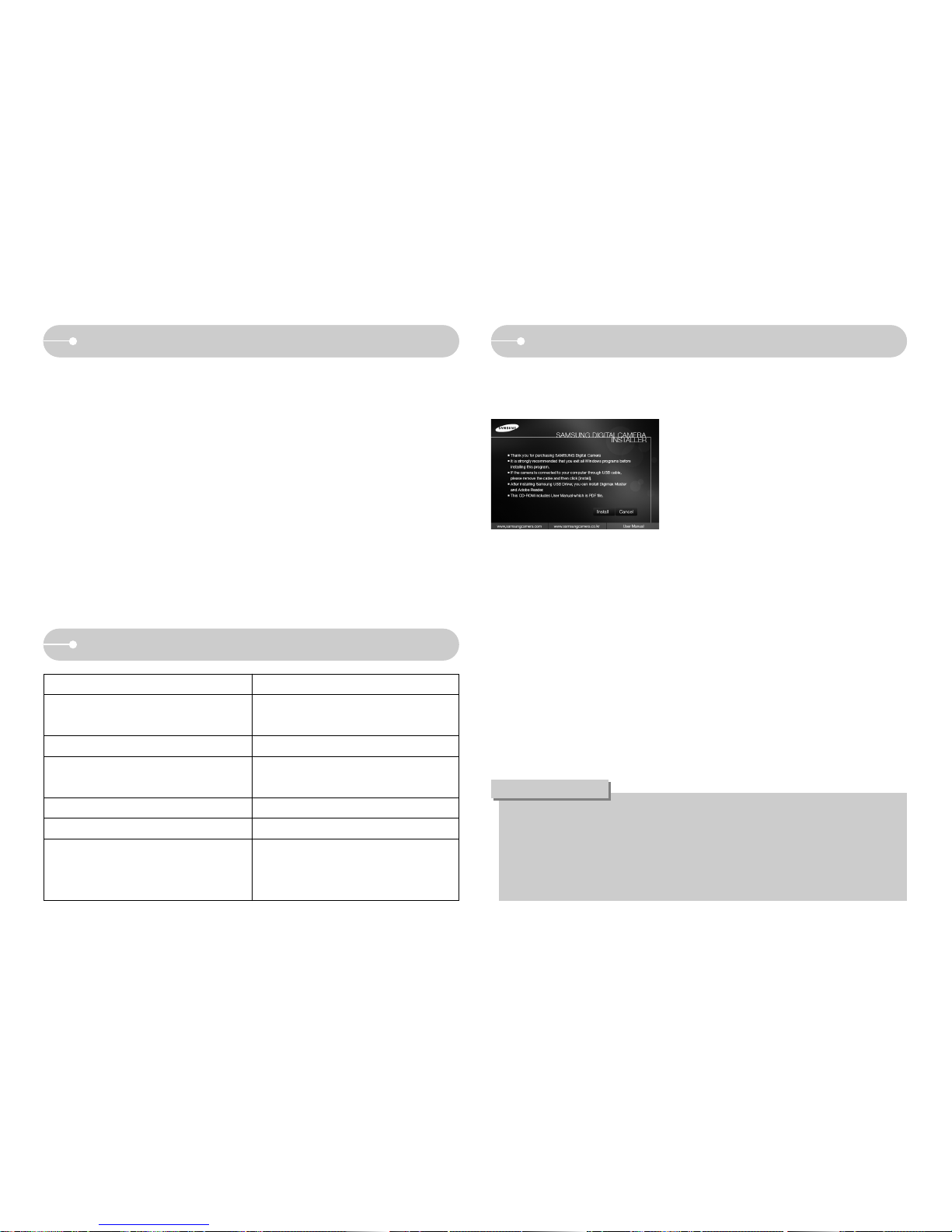

●System Requirements

●About the software

●

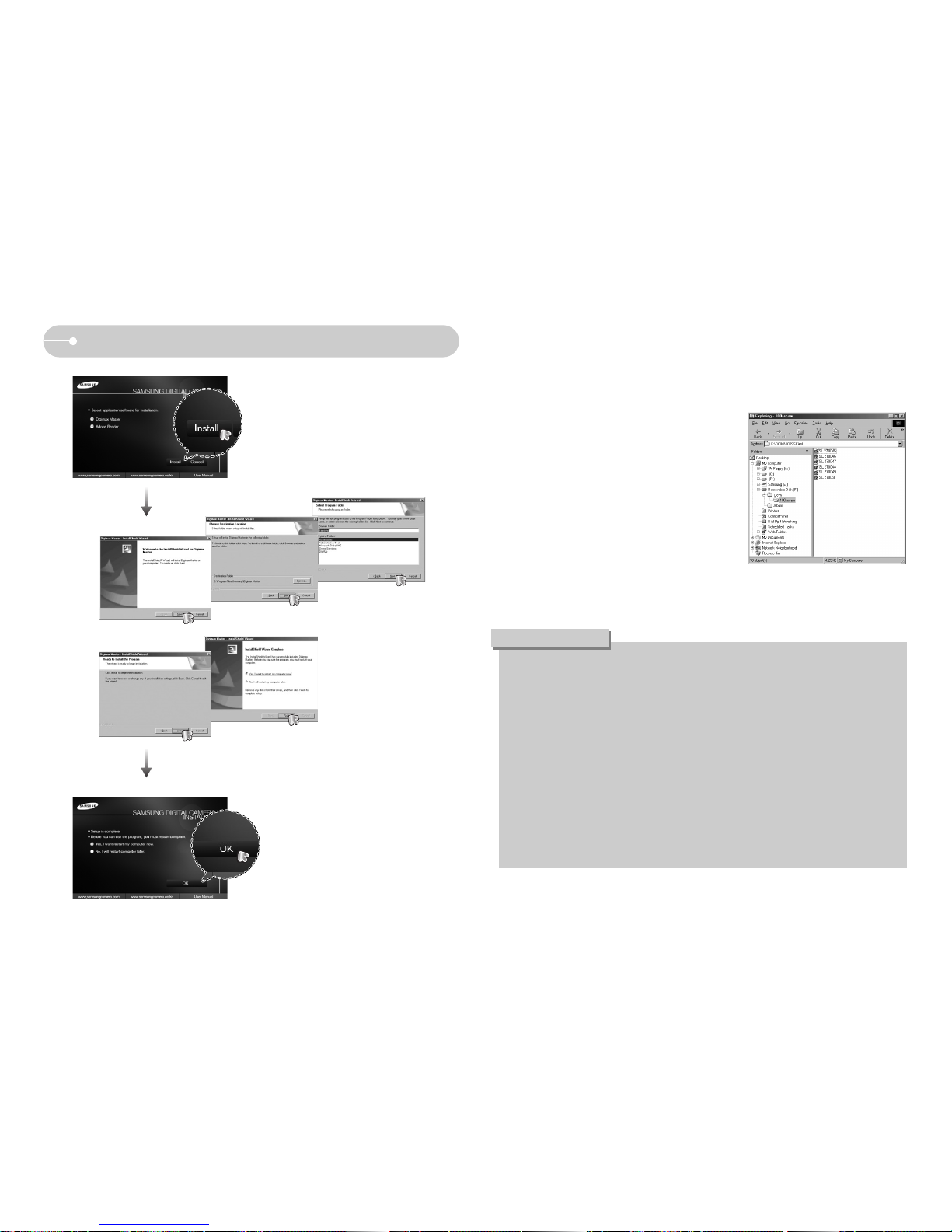

Setting up the application software

●Starting PC mode

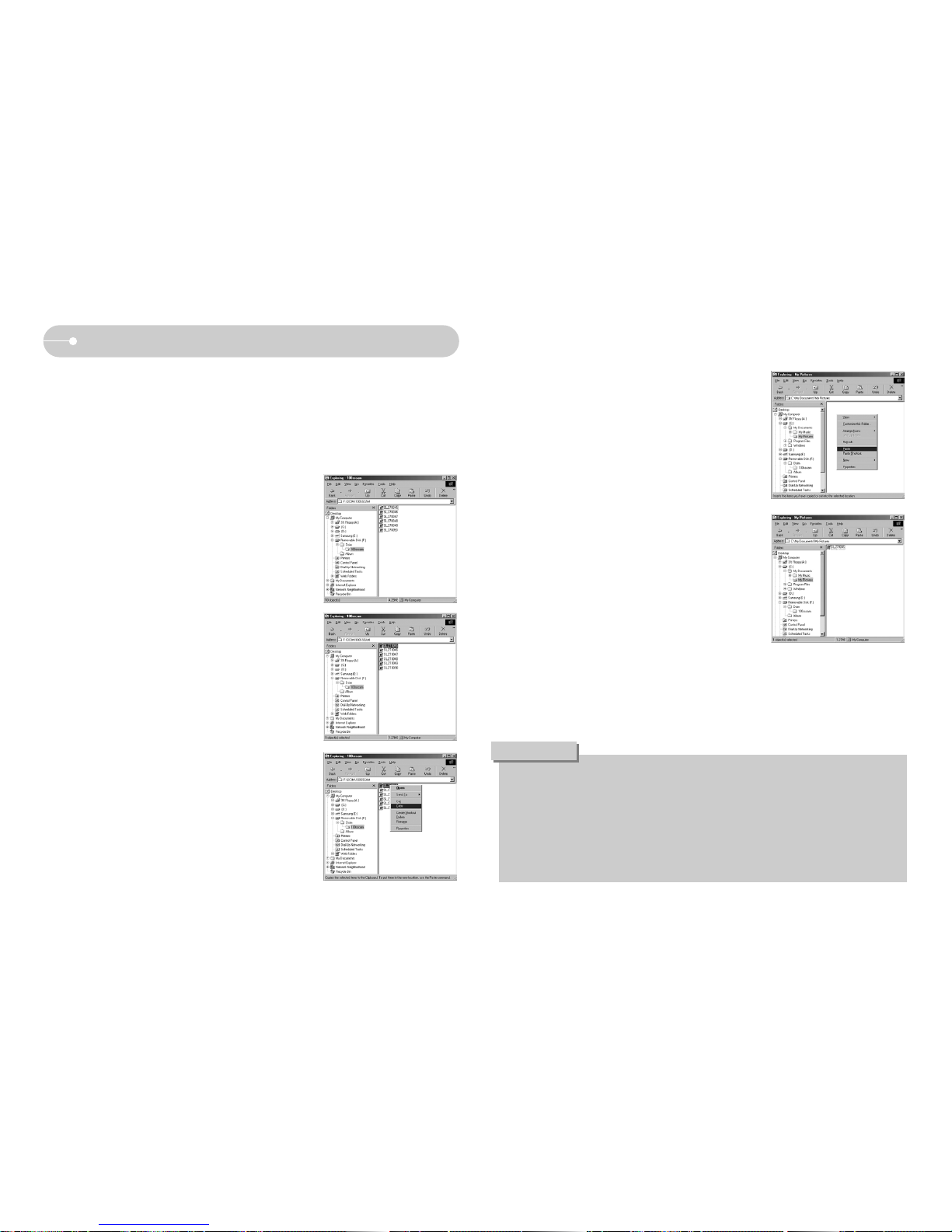

●Removing the removable disk

●

Setting up the USB Driver for MAC

●Using the USB Driver for MAC

●Removing the USB Driver for

Windows 98SE

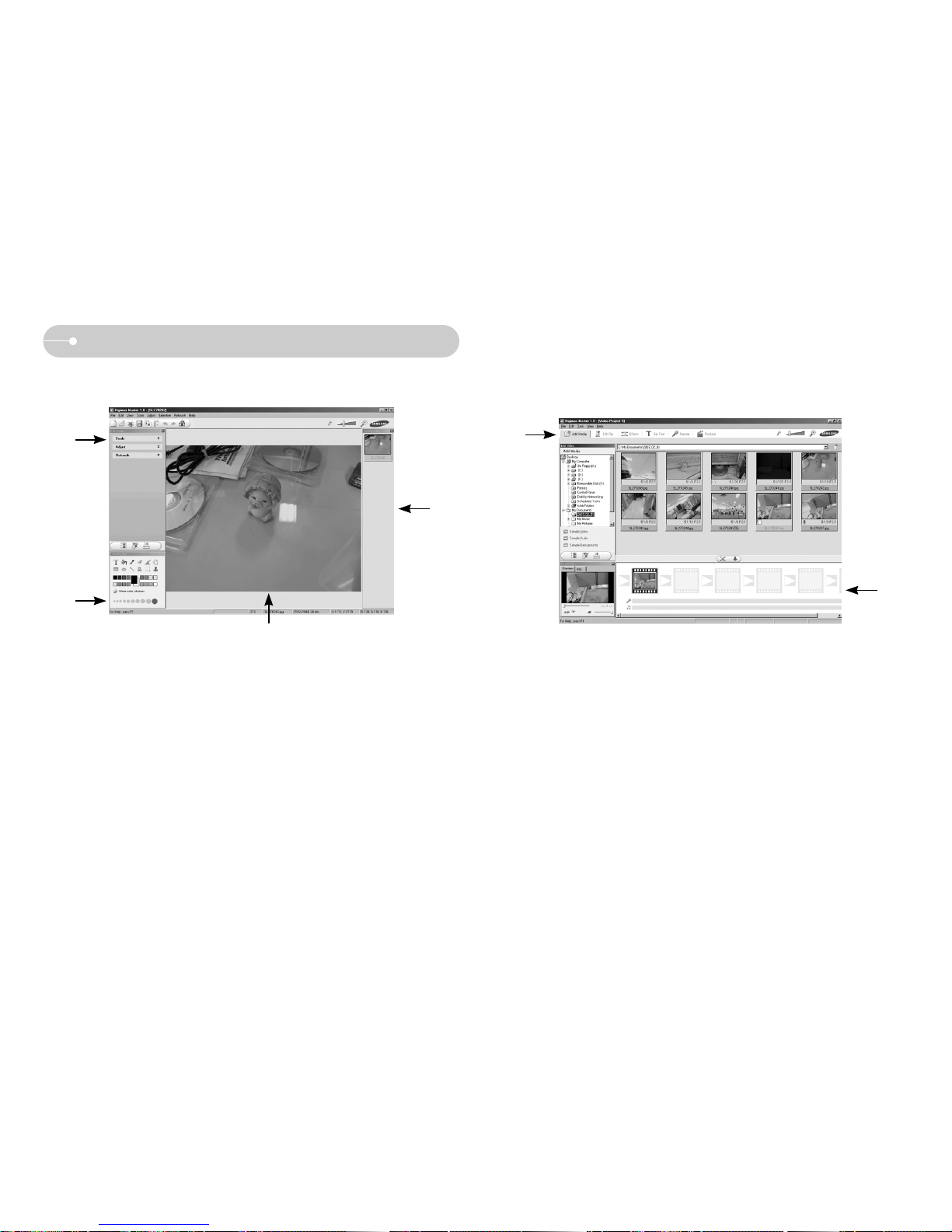

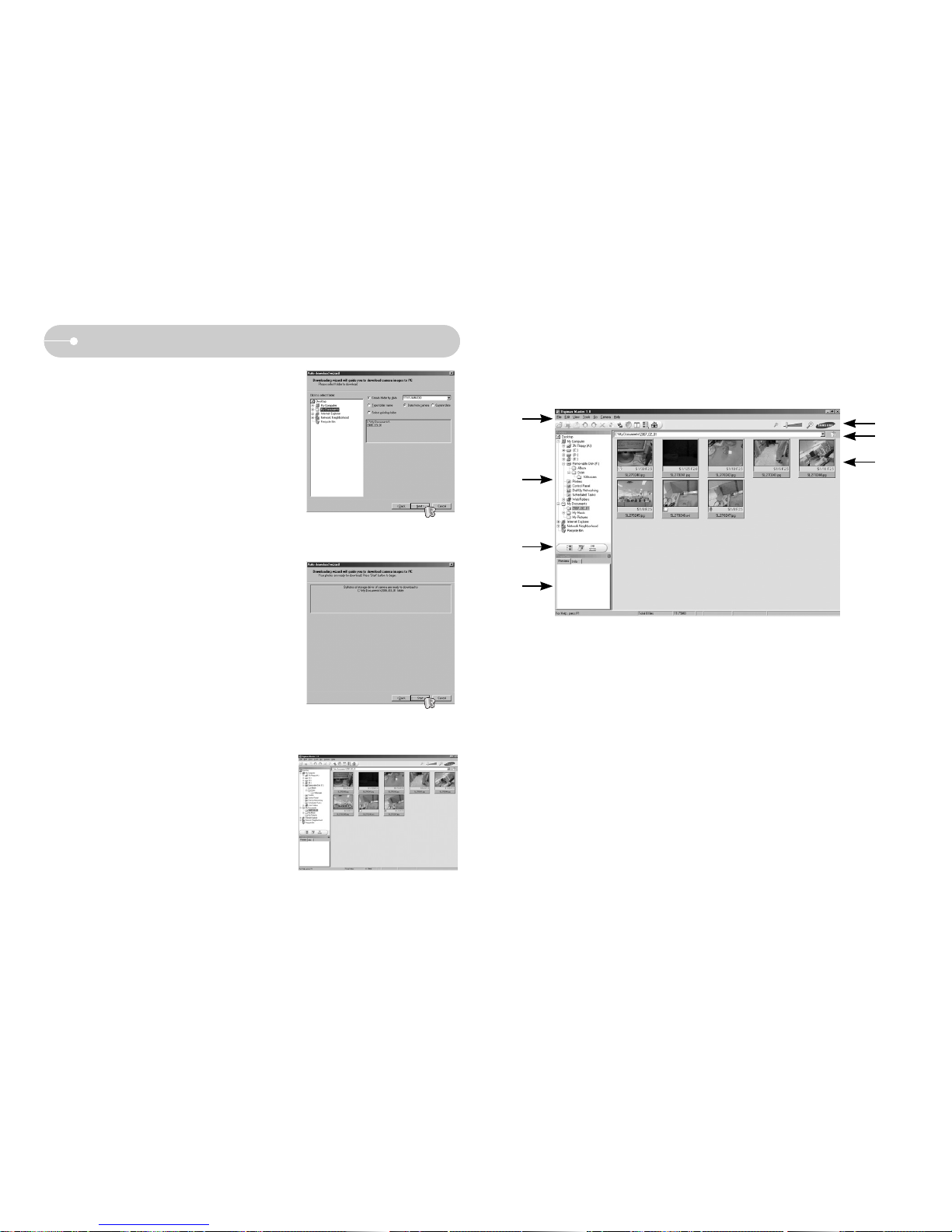

●Digimax Master

●FAQ

SETUP SOFTWARE

PLAY

Page 6

《5》

System chart

Please check that you have the correct contents before using this product. The contents can vary depending on the sales region. To buy the optional equipment, contact your nearest Samsung dealer or Samsung service centre.

Software CD

(see p.63)

Camera strap

User manual,

Product warranty

Camera case

SD memory card / MMC

(see p.12)

DPOF compatible

printer (see p.48)

PictBridge compatible

printer (see p.49)

Computer (see p.66)

External monitor

(see p. 56)

< Included items >

Rechargeable battery

(SLB-0837)

USB cable AV cable

Charger

(SBC-L5)

AC cord

Page 7

《6》

Identification of features

Flash

Microphone

Shutter button

Self-timer lamp / Auto focus lamp

Lens

Front & Top

Power button

Speaker

Page 8

《7》

Identification of features

Back & Bottom

LCD monitor

Tripod socket

5 function button

M (Mode) button

+ / - button, Delete button

Zoom T button (Digital zoom)

Camera status lamp

Strap eyelet

AV OUT/ USB

Play mode button/Printer button

Zoom W button (Thumbnail)

E (Effects) button

Page 9

《8》

Bottom / 5-function button

Voice memo / Voice Recording / Up button

Flash /

Left button

Menu / OK button

Self-timer / Right button

Macro / Down button Play & Pause button

■ Self-timer lamp

Icon Status Description

For the first 7 seconds, the lamp blinks at 1 second intervals.

- For the final 3 seconds, the lamp blinks quickly at 0.25second intervals.

For the 2 seconds, the lamp blinks quickly at 0.25-second intervals. A picture will be taken after about 10 seconds and 2 seconds later a second picture will be taken.

Blinking

■ Camera Status Lamp

Status Description

Power on

The lamp turns on and off when the camera is ready to take a picture

After taking a picture

The lamp blinks while saving the image data and turns off when the camera is ready to take a picture The lamp lights up (LCD monitor turns off after initializing the device)

Transmitting Data with a PC The lamp blinks (LCD monitor turns off)

The lamp is off

When the printer is printing The lamp blinks

When the USB cable is inserted to a PC

When the USB cable is inserted to a printer

Memory card slot Battery holder

Battery chamber cover Battery chamber

Identification of features

Page 10

《9》

Identification of features

Connecting to a Power Source

■

Mode icon : Refer to page 14 for more information about the camera mode setting.

Model SLB-0837 Type Lithium Ion Capacity 860mAh Voltage 3.7V Charging time Approx. 150 MIN (Using the SBC-L5)

Battery life Number of images Recording time

Approx. 85 MIN Approx. 170 Approx. 70 MIN

Using the fully charged battery, Auto mode 7M image size, Fine image quality Shot to shot interval : 30Sec. Changing the zoom position between the Wide and the Tele ends every 1 shot. Using the flash every two times

Still image Movie

Based

the following shooting

conditions

Based

the following shooting

conditions

Using the fully charged battery 640X480 image size 30fps frame rate

■ Number of images and battery life: Using the SLB-0837

※These figures are measured under Samsung’s standard conditions and Shooting

conditions and may vary depending on the way of user’s usage.

Important information about battery usage

● When the camera is not in use, turn off the camera power.

● Please remove the battery if the camera will not be used for long periods.

The battery can lose power over time and may leak if kept inside the camera.

● Low temperatures (below 0°C) can affect the performance of the battery

and you may experience reduced battery life.

● Battery will usually recover at normal temperatures.

● During extended use of the camera, the camera body may become warm.

This is perfectly normal.

INFORMATION

■ You should use the rechargeable battery (SLB-0837) supplied with the camera.

■ SLB-0837 rechargeable battery Specification

MODE MOVIE CLIP

VOICE RECORDING

AUTO PROGRAM PLAY

ICON

NIGHT

PORTRAIT

CHILDREN

LANDSCAPE

TEXT

CLOSE UP

ICON

MODE SUNSET DAWN

BACKLIGHT

FIREWORKS

BEACH&SNOW

ICON -

MODE

SCENE

Page 11

《10》

Connecting to a Power Source

■ Insert the battery as shown

- If the camera does not turn on after you have inserted battery, please check whether the battery is inserted with the correct polarity (+ / -).

- When the battery chamber cover is opened, do not press the battery chamber cover by force. This may cause damage to the battery chamber cover.

Battery

status

Battery

indicator

The battery is

fully charged

Low battery

capacity

(Prepare to

recharge or use

spare battery)

Low battery

capacity

(Prepare to

recharge or use

spare battery)

Low battery

capacity

(Prepare to

recharge or use

spare battery)

■ There are 4 indicators for battery condition that are displayed on the LCD

monitor.

■ Insert the memory card as shown.

- Turn off the camera’s power before inserting the memory card.

- Have the front of the memory card facing toward the front of the camera (lens) and the card pins toward the back of the camera (LCD monitor).

- Do not insert the memory card in the wrong way round. Doing so may damage the memory card slot.

Inserting the memory card

Page 12

《11》

Instructions on how to use the memory card

● Be sure to format the memory card (see p.54) if you are using a newly

purchased memory for the first time, if it contains data that the camera cannot recognise, or if it contains images captured with a different camera.

● Turn off the camera power whenever the memory card is being inserted or

removed.

● Repeated use of the memory card will eventually reduce the memory card’s

performance. Should this be the case, you will need to purchase a new memory card. Wear and tear on the memory card is not covered by the Samsung warranty.

● The memory card is an electronic precision device.

Do not bend, drop or subject the memory card to any heavy impact.

● Do not store the memory card in an environment with strong electronic or

magnetic fields, e.g. near loud speakers or TV receivers.

● Please do not use or store in an environment where there are extremes in

temperature.

● Do not allow the memory card to become dirty or to come into contact with any

liquid. Should this happen, clean the memory card with a soft cloth.

● Please keep the memory card in its case when not in use.

● During and after periods of extended use, you may notice that the memory card

is warm. This is perfectly normal.

● Do not use a memory card that is used in another digital camera. To use the

memory card in this camera, format the memory card using this camera.

● Do not use a memory card formatted by another digital camera or memory card

reader.

● If the memory card is subjected to any of the following, the recorded data may

become corrupted :

- When the memory card is used incorrectly.

- If the power is switched off or the memory card is removed while recording,

deleting (formatting) or reading.

● Samsung cannot be held responsible for lost data.

● It is advisable to copy important data onto other media as back-up e.g. floppy

disks, hard disks, CD etc.

● If there is insufficient memory available :

A [Memory Full!] message will appear and the camera will not operate. To optimise the amount of memory in the camera, replace the memory card or delete unnecessary images stored on the memory card.

Page 13

《12》

Instructions on how to use the memory card

[SD (Secure Digital) memory card]

Write protect

switch

Label

Card pins

■ The camera can use SD/ SDHC Memory Cards and MMC (Multi Media Cards).

Please consult the enclosed manual for using the MMC Cards.

The SD/ SDHC memory card has a write protect switch that prevents image files from being deleted or formatted. By sliding the switch to the bottom of the SD memory card, the data will be protected. By sliding the switch to the top of the SD memory card, the data protection will be cancelled. Slide the switch to the top of the SD memory card before taking a picture.

● Don't remove the memory card when the camera status lamp is blinking as

this may cause damage to data in the memory card.

INFORMATION

■ When using a 256MB MMC memory, the specified shooting capacity will be as

follows. These figures are approximate as image capacities can be affected by variables such as subject matter and memory card type.

※ The recording times can be changed by the zoom operation.

The zoom button doesn’t use during the movie recording.

Recorded image size

Super Fine Fine Normal

30FPS 15FPS

76 113 193 - -

93 159 272 - -

173 266 425 - -

560 673 743 - -

---About 11' About 18'

---About 40' About 67'

640

320

Movie

clip

Still


Page 14

《13》

LCD monitor indicator

[Image & Full Status]

②

③

⑤

④

⑥

⑦

⑧

⑮ ⑭

⑫

⑬

⑰

⑯

⑲

⑱

⑪⑨ ⑩

 ⑳①

■

The LCD monitor displays information about the shooting functions and selections.

No. Description Icons Page

2 Battery p.10

3 Continuous shot AEB p.35

Recording mode

p.15~181

No. Description Icons Page

Flash p.22~24

Without Sound p.16

5 Self-timer p.24

6 Macro p.21~22

7 Metering p.35

8 Card inserted indicator -

9 Auto focus frame -

10 Camera shake warning p.18

11 Date / Time 2007.01.01 01:00 PM p.55

12 Exposure compensation p.31

13 White Balance p.30

14 ISO p.29

15 RGB RGB p.29

16 Sharpness p.35

17 Image quality p.34

18 Image size p.34

Number of available shots remaining

12 p.12

Remaining time (Movie clip / Voice recording)

00:01:30/ 01:00:00 p.12

20 Voice memo p.21

21 p.19~20

Optical/ Digital Zoom bar/

Digital Zoom rate

Page 15

《14》

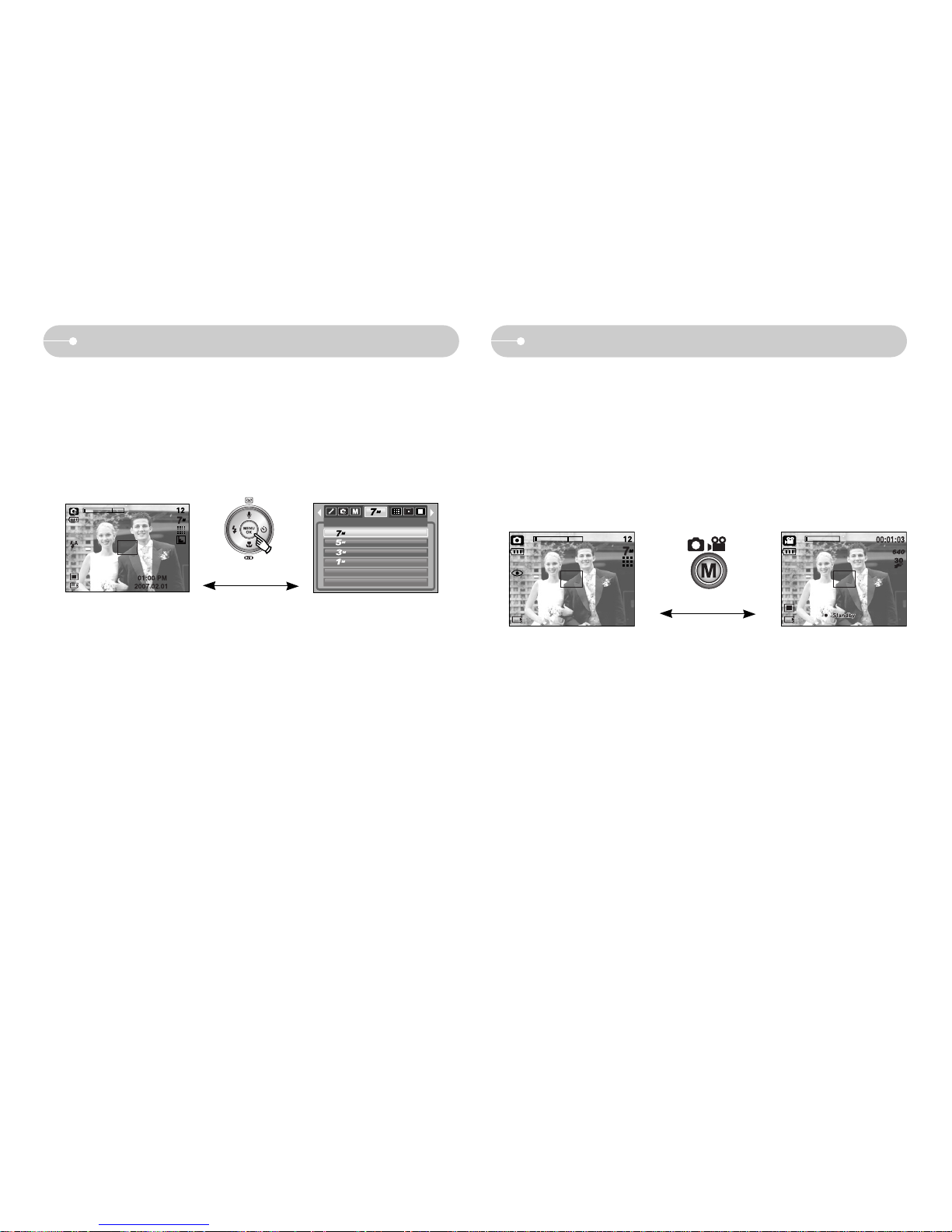

Changing the recording mode

■ You can select the desired working mode by the M (mode) button located on the

back of the camera and [MODE], [MODE SET] menu. Auto, Program, movie clip, scene (night, portrait, children, landscape, text recognition, close-up, sunset, dawn, backlight, fireworks, beach & snow) camera modes are available.

● Selecting the [MODE] menu

1. Insert the battery (p.10).

2. Insert the memory card (p.10). As this camera has a 20MB internal memory, it is not essential to insert the memory card. If the memory card is not inserted, an image will be stored in the internal memory. If the memory card is inserted, an image will be stored on the memory card.

3. Close the battery chamber cover.

4. Press the power button to turn on the camera.

5. Press the menu button and a menu will display.

6. Use the Left / Right button to select the [MODE] menu.

7. Select [STILL & MOVIE] or [FULL] sub menu by pressing the UP / DOWN button.

- [STILL & MOVIE] : A still image mode that was selected on the [MODE SET] menu and movie clip mode can be selected. Refer to page 51 for more information about using the [MODE SET] menu.

- [FULL] : Auto, Program, Movie clip and scene modes can be selected.

8. Press the MENU button and the menu will disappear.

● Changing the recording mode : If the [STILL & MOVIE] menu was selected

Steps from 1-4 are the same as those for selecting the [MODE] menu.

5. The recording mode of still image selected in the [MODE SET] menu will display.

6. Press the M (Mode) button located on the back of the camera and the recording mode will change to the movie clip mode.

7. Press the M (Mode) button again and a still image mode selected on the [MODE SET] menu will be selected.

[Pressing the M (Mode) button]

[AUTO mode]

[MOVIE CLIP mode]

MODE

STILL & MOVIE

FULL

Page 16

《15》

Changing the recording mode Starting the recording mode

● Changing the recording mode : If the [FULL] menu was selected

Steps from 1-4 are the same as those for selecting the [MODE] menu.

5. The recording mode of still image selected in the [MODE SET] menu will display.

6. Press the M (Mode) button located on the back of the camera and the mode selection menu will display.

7. To select the Auto, Program, Movie clip or Scene modes, press the Left / Right button. To move between the Auto, Manual, Movie clip menu line and Scene menu line, press the Up / Down button.

8. Press the M (Mode) button to select the mode and the mode selection menu will disappear.

[Pressing the Up button]

Portrait

[Pressing the Left button]

[Mode selection menu]

AUTO

MOVIE

[Selecting the Movie clip mode]

[Selecting the Scene mode]

Confirm:Mode/OK

■ How to use the Auto mode( )

Use this for shooting basic still images.

1. Select the [FULL] sub menu on the [MODE] menu (p.14).

2. Select the Auto mode by pressing the M (Mode) button (p.15).

3. Point the camera towards the subject and compose the image by using the LCD monitor.

4. Press the shutter button to capture an image.

[AUTO mode]

●If the auto focus frame turns to red when you press the shutter button down

half way, it means that the camera cannot focus on the subject. Should this be the case, the camera is less likely to capture an image clearly.

●Avoid obstructing the lens or the flash when you capture an image.

INFORMATION

Page 17

《16》

Starting the recording mode

■ How to use the Movie clip mode( )

A movie clip can be recorded for as long as the available recording time of the memory capacity allows.

1. Select the [FULL] sub menu on the [MODE] menu (p.14).

2. Select the Movie clip mode by pressing the M (Mode) button (p.15).

3. Point the camera towards the subject and compose the image by using the LCD monitor.

4. Press the shutter button once and movie clips are recorded for as long as the available recording time allows. Movie clips will still be recorded if the shutter button is released. If you wish to stop recording, press the shutter button again.

※ Image size and type are listed below.

- Image size : 640X480, 320X240 (user selectable)

- Movie clip file type : AVI (MPEG-4)

[MOVIE CLIP mode]

■ Recording the movie clip without sound

You can record the movie clip without sound. Steps from 1-3 are the same as those for MOVIE CLIP mode.

4. Press the Up button and the ( ) icon will display on the LCD monitor.

5. Press the shutter button and movie clip is recorded for as long as the available recording time without sound.

6. To stop the recording, press the shutter button again.

■ Pausing while recording a movie clip (Successive Recording)

This camera allows you to temporarily stop during unwanted scenes, while recording a movie clip. Using this function, you can record your favourite scenes into a movie clip without having to create multiple movie clips.

● Using Successive Recording

Steps from 1-2 are the same as those for MOVIE CLIP mode.

3. Point the camera towards the subject and compose the image by using the LCD monitor. Press the shutter button and movie clips are recorded for as long as the available recording time. Movie clips will still be recorded if the shutter button is released.

4. Press the Pause button ( ) to pause recording.

5. Press the Pause button ( ) again to resume the recording.

6. If you wish to stop recording, press the shutter button again.

[Successive recording of a movie clip]

Stop:Shutter REC:/

Page 18

《17》

Starting the recording mode

■ How to use the Program mode( )

Selecting the automatic mode will configure the camera with optimal settings and you can manually configure various functions.

1. Select the [FULL] sub menu on the [MODE] menu (p.14).

2. Select the Program mode by pressing the M (Mode) button (p.15).

3. Point the camera towards the subject and compose the image by using the LCD monitor.

4. Press the shutter button to capture an image.

[PROGRAM mode]

※ The scene modes are listed below.

[NIGHT] ( ) : Use this for shooting still images at night or in other

dark conditions. [PORTRAIT] ( ) : To take a picture of a person. [CHILDREN] ( ) : To take a picture of fast moving objects, for

example, children. [LANDSCAPE] ( ) : To take pictures of distant scenery. [TEXT] ( ) : Use this mode to shoot a document. [CLOSE UP] ( ) : Close-up shooting for small objects such as plants

and insects. [SUNSET] ( ) : For taking pictures of sunsets. [DAWN] ( ) : Daybreak scenes. [BACKLIGHT] ( ) : Portrait without shadows caused by backlight. [FIREWORKS] ( ) : Firework scenes. [BEACH&SNOW] ( ) : For ocean, lake, beach and snowscape scenes.

■ How to use the Scene modes( )

Use the menu to easily configure optimal settings for a variety of shooting situations.

1. Select the [FULL] sub menu on the [MODE] menu (p.14).

2. Select the Scene mode by pressing the M (Mode) button (p.15).

3. Point the camera towards the subject and compose the image by using the LCD monitor.

4. Press the shutter button to capture an image.

[SCENE mode]

Page 19

《18》

Starting the recording mode

Things to Watch Out for When Taking Pictures

■ How to use the VOICE RECORDING mode ( )

A voice recording can be recorded for as long as the memory capacity allows. (Max. 1hour)

1. In any mode with the exception of Movie clip mode, select the VOICE RECORDING mode by pressing the Voice recording button twice.

2. Press the shutter button to record a voice.

- Press the shutter button once and voice is recorded for as long as the available recording time allows. The recording time will be displayed on the LCD monitor. Voice will still be recorded if the shutter button is released.

- If you wish to stop recording, press the shutter button again.

- File type : *.wav

* A distance of 40cm between you and the camera

(microphone) is the best distance to record sound.

■ Pressing the shutter button down half way.

Lightly press the shutter button to confirm focus and flash battery charge. Press the shutter button all way down to take the picture.

[Lightly press the shutter button] [Press the shutter button]

■ The available memory capacity may vary depending on shooting conditions and

camera settings.

■

When the Flash Off or Slow synchro mode is selected in a low lighting condition, the camera shake warning indicator ( ) may appear on the LCD monitor. In this case, use a tripod, support the camera on a solid surface or change to flash shot mode.

■ Shooting against the light :

Please do not take pictures to the sunlight direction. Taking a picture against the sun may make the picture dark. To take a picture against the sun, please use the [Backlight] in the scene shooting mode (see page 17), fill-in flash (see page 23), spot metering (see page 35), or exposure compensation (see page 31).

■ Avoid obstructing the lens or the flash when you capture an image.

■ Compose the image by using the LCD monitor.

■ Under certain conditions the auto focus system may not perform as expected.

- When photographing a subject that has little contrast.

- If the subject is highly reflective or shiny.

- If the subject is moving at high speed.

- When there is strong reflected light, or when the background is very bright.

- When the subject matter has only horizontal lines or the subject is very narrow (such as a stick or flagpole).

- When the surroundings are dark.

[VOICE RECORDING mode]

REC:Shutter EXIT:

Page 20

《19》

Using the camera buttons to set the camera

ZOOM W / T button

■ The recording mode function can be set up by using the camera buttons.

● Used for turning the camera’s power on / off.

● If there is no operation during the specified time,

the camera's power will be turned off automatically to save battery life. Refer to page 54 for more information about the auto power off function.

POWER button

● Used for taking an image or recording voice in

the RECORDING mode.

● In MOVIE CLIP mode :

Pressing the shutter button down fully starts the process for recording a movie clip. Press the shutter button once and the movie clip is recorded for as long as the available recording time in the memory allows. If you wish to stop recording, press the shutter button again.

● In STILL IMAGE mode

Pressing the shutter button down halfway activates the autofocus and checks the condition of the flash. Pressing the shutter button down fully takes and stores the image. If you select voice memo recording, the recording will start after the camera has finished storing the image data.

Shutter button

● If the menu is not displayed, this button works

as the OPTICAL ZOOM or DIGITAL ZOOM button.

● This camera has a 3X optical zoom and a 5X digital zoom function.

Using both will offer a total zoom ratio of 15X.

● TELE Zoom

Optical zoom TELE : Pressing the ZOOM T button. This will zoom into the

subject i.e. the subject will appear nearer.

Digital zoom TELE : When the maximum (3X) optical zoom is selected,

pressing the ZOOM T button activates the digital zoom software. Releasing ZOOM T button stops the digital zooming at the required setting. Once the maximum digital zoom (5X) is achieved, pressing the ZOOM T button will have no effect.

[WIDE zoom]

[TELE zoom] [Digital zoom 5.0X]

Pressing

the ZOOM

T button

Pressing

the ZOOM

T button

Page 21

《20》

ZOOM W / T button

● Images taken using the digital zoom may take a little longer for the camera

to process. Allow time for this to take place.

● The digital zoom cannot be used in movie clip shots.

● You may notice a decrease in image quality when using the digital zoom.

● To view a clearer digital zoom image, press the shutter button halfway at the

maximum (3X) optical zoom position and press the zoom T button again.

● The digital zoom can't be activated in the Night scene mode, Children

mode, Text mode, two scene modes (Close up, Fireworks) and the movie clip mode.

● Take care not to touch the lens to avoid taking an unclear image and

possibly causing camera malfunction. If the image is dim, turn the camera power off and on again to modify the lens position.

● Take care not to press the lens as this may cause a camera malfunction.

● When the camera is turned on, take care not to touch the camera's moving

lens parts as this may cause the resulting image to be dim and unclear.

INFORMATION

[TELE zoom]

[Optical zoom 2X] [WIDE zoom]

Pressing

the ZOOM

W button

Pressing

the ZOOM

W button

[Digital zoom 5.0X]

[TELE zoom] [WIDE zoom]

Pressing

the ZOOM

W button

Pressing

the ZOOM

W button

● WIDE Zoom

Optical zoom WIDE : Pressing the ZOOM W button. This will zoom out from

the subject i.e. the subject will appear further away. Pressing the ZOOM W button continuously will set the camera to its minimum zoom setting i.e. the subject appears at its furthest from the camera.

Digital zoom WIDE : When the digital zoom is in operation, pressing the

ZOOM W button will reduce the digital zooming in steps. Releasing ZOOM W button stops digital zooming. Pressing the ZOOM W button will reduce the digital zoom and then it will continue to reduce the optical zoom until the minimum setting is reached.

Optical zoom

Digital zoom

Page 22

《21》

Voice recording ( ) / Voice memo ( ) / UP button

Macro ( ) / Down button

■ While the menu is showing, press the UP button to move up the sub menu.

When the menu is not displayed on the LCD monitor, the UP button operates as the voice recording or voice memo ( ) button. You can add your voice-over to a stored still image. Refer to page 18 for more information about the voice recording.

● Recording a voice memo

Select a RECORDING mode with the exception of MOVIE CLIP mode. (p.15, 17)

2. Press the VOICE MEMO ( ) button. If the voice memo indicator is displayed on the LCD monitor, the setting is completed.

3. Press the shutter button and take a picture. The picture is stored on the memory card.

4. Voice memo will be recorded for ten seconds from the moment the picture is stored. In the middle of the sound recording, pressing the shutter button will stop the voice memo.

● A distance of 40cm between you and the camera (microphone) is the best

distance to record sound.

INFORMATION

■ While the menu is showing, press the DOWN button to move from the main

menu to a sub menu, or to move down the sub menu. When the menu is not showing, you can use the MACRO / DOWN button to take macro pictures. The distance ranges are shown below. Press the Macro button until the desired macro mode indicator displays on the LCD monitor.

■ Types of focus modes and focus ranges (W : Wide, T : Tele)

(Unit : cm)

● When the macro mode is selected, it is possible that camera shake will

occur. Take care not to shake the camera.

● When you take a picture within 20cm in the Macro mode, select the FLASH

OFF mode.

INFORMATION

[Preparing for Voice Memo] [Recording Voice Memo]

Stop:Shutter

[Auto macro ( )][Macro ( )][Auto focus - No icon]

Mode

Focus Type

Auto macro

( ) Normal Macro ( ) Normal

Focus range

W : 5~Infinity

T : 40~Infinity

W : 80~Infinity

T : 80~Infinity

W : 80~Infinity

T : 80~Infinity

W : 5~80 T : 40~80

Program ( )

Auto ( )

Page 23

《22》

Macro ( ) / Down button Flash ( ) / Left button

■ Available focusing method, by recording mode

(O : Selectable, X : Not selectable, ∞ : Infinity focus range)

■

To focus on a subject not positioned in the centre of the picture, use the focus lock function.

● Using the Focus Lock

1. Ensure the subject is in the centre of the autofocus frame.

2. Press the SHUTTER button halfway. When the green auto focus frame lights up, it means the camera is focused on the subject. Be careful not to press the SHUTTER button all the way down to avoid taking an unwanted picture.

3. With the SHUTTER button still pressed down only halfway, move the camera to recompose your picture as desired, and then press the SHUTTER button completely to take the picture. If you release your finger from the SHUTTER button, the focus lock function will be cancelled.

1. The image to be captured.

2. Press the SHUTTER button halfway and focus on the subject.

3. Recompose the picture and fully depress the SHUTTER button.

Focus lock

● Flash range (Unit : m)

■ When the menu is displayed on the LCD monitor,

pressing the LEFT button makes the cursor shift to the left tab.

■ When the menu is not displayed on the LCD

monitor, the LEFT button operates as the FLASH ( ) button.

● Selecting the flash mode

Select a RECORDING mode with the exception of MOVIE CLIP mode. (p.15, 17)

2. Press the Flash button until the desired flash mode indicator displays on the LCD monitor.

3. A flash mode indicator will be displayed on the LCD monitor. Use the correct flash to suit the environment.

[Selecting the Auto flash]

OOO OXO XOX

SCENE

Mode

Normal

Macro

Auto macro

Normal

Macro

Auto macro

Mode

OOO∞ XX∞∞O ∞ O

XXXXXOXXXXX

XXXXOXXXXXX

WIDE TELE WIDE TELE WIDE TELE

0.8 ~ 3.0 0.8 ~ 2.5 0.4 ~ 0.8 0.5 ~ 0.8 0.4 ~ 3.0 0.5 ~ 2.5

ISO

AUTO

Normal Macro

Auto macro

Page 24

《23》

Flash ( ) / Left button

Menu tab Flash mode Description

● Flash mode indicator

If the subject or background is dark, the camera flash will operate automatically.

If a subject or background is dark, the camera flash will work automatically and will reduce the red-eye effect by using the red-eye reduction function.

The flash fires regardless of available light. The intensity of the flash will be controlled, according to the prevailing conditions. The brighter the background or subject is, the less intense the flash will be.

The flash will operate in conjunction with a slow shutter speed in order to obtain the correct exposure. When you take an image in a condition with poor light, the camera shake warning indicator ( ) will display on the LCD monitor. We recommend using a tripod for this function.

The flash does not fire. Select this mode when capturing images in a place or situation where flash photography is prohibited. When you capture an image in a poorly lit condition, the camera shake warning indicator ( ) will display on the LCD monitor. We recommend using a tripod for this function.

Auto flash

Auto &

Red eye

reduction

Fill in flash

Slow synchro

Flash off

● If you press the shutter button after selecting the Auto, Fill-in, Slow sychro

flash, the first flash fires to check the shooting condition (Flash range and Power ratio of flash). Do not move until the second flash fires.

● Using the flash frequently will reduce the life of the battery.

● Under normal operating conditions the charging time for the flash is

normally less than 4 seconds. If the battery is weak, the charging time will be longer.

● Take photographs within the flash range.

● The image quality is not guaranteed if the subject is too close or highly

reflective.

● When taking an image in a poorly lit condition with the flash, there may be a

white speck in the captured image. The speck is caused by the reflecting of the flash light from the atmospheric dust. It is not camera malfunction.

INFORMATION

Page 25

《24》

Flash ( ) / Left button

● If you operate the Power button, Self-timer button, Shutter button or Play

mode button during the self-timer operation, the self-timer function is cancelled.

● Use a tripod to prevent the camera from shaking.

● In Movie Clip mode, only the 10SEC self-timer will work.

● Available flash mode, by recording mode (O : Selectable X : Not selectable) ● Selecting the self-timer

1. Select a RECORDING mode with the exception of VOICE RECORDING mode. (p.15~17)

2. Press the SELF-TIMER button until the desired mode indicator displays on the LCD monitor. A 10 second, 2 second or double self-timer icon appears on the LCD monitor. In Movie Clip mode, only the 10-second self-timer will work.

•10SEC self-timer ( ):

Pressing the shutter button will allow an interval of 10 seconds before the image is taken.

•2SEC self-timer ( ):

Pressing the shutter button will allow an interval of 2 seconds before the image is taken.

•Double self-timer ( ):

A picture will be taken after about 10 seconds and 2 seconds later a second picture will be taken. When using the flash, the 2-second self-timer may be delayed for longer than 2 seconds depending on the flash charging time.

3. When you press the SHUTTER button, the picture will be taken after the specified time has elapsed.

■ When the menu is displayed on the LCD monitor, pressing the Right button

makes the cursor shift to the right tab.

■ When the menu is not displayed on the LCD monitor, the RIGHT button

operates as the Self-timer ( ) button. This function is used when the photographer would also like to be in the image.

INFORMATION

[Selecting the 10 SEC self-timer]

Self-timer ( ) / Right button

XXOXXXXXXXXXXO

XOO XOOXXX XXXXX

XXOXXXXXXXXOXX

XXOOXXXXXXXXXX

OOOOOOOOOOOXO X

Page 26

《25》

■ MENU button

- When you press the MENU button, a menu related to each camera mode will be displayed on the LCD monitor. Pressing it again will return the LCD to the initial display.

- A menu option can be displayed when the followings are selected : MOVIE CLIP and STILL IMAGE mode. There is no menu available when the VOICE RECORDING mode is selected.

■ OK button

- When the menu is displayed on the LCD monitor, this button is used for shifting the cursor to the sub menu or for confirming data.

[Pressing the MENU button]

[Menu off]

[Menu on]

SIZE

3072x2304

2592x1944 2048x1536

1024x768

MENU / OK button M (Mode) button

[Auto mode] [Movie clip mode]

■ You can select the desired recording mode. The selectable recording modes are

different from what you selected sub menu in the [MODE] menu.

- [STILL & MOVIE] : A recording mode selected in the [MODE SET] menu, Movie clip mode

- [FULL] : Auto, Movie clip, Program, Scene modes

● How to use the mode button : In case of [STILL & MOVIE] and [AUTO] sub

[Pressing the M button]

Page 27

《26》

M (Mode) button E (Effect) button

■ It is possible to add special effects to your images by using this button

■ Still image mode : You can select the colour and focus menus.

Movie clip mode : You can select the colour and stabilizer menus.

■ Available Effects, by recording mode (O : Selectable X : Not selectable)

※ This button will not operate in the Voice recording mode and some scene modes

(Night, Text, Sunset, Dawn, Backlight, Fireworks and Beach & Snow)

■ Even if the camera is turned off, the special effect setting will be preserved.

To cancel the special effect, select the sub menu in the Colour menu and select the sub menu in the rest special effect menu.

● How to use the mode button : In case of [FULL] sub menu and Auto mode

[Pressing the Right button]

[Pressing the Left / Right button]

[Auto mode]

[Mode selection menu]

[Movie cliip mode]

[Scene mode]

Night

Movie

Auto

Confirm:Mode/Ok

[Pressing the Up button]

[Pressing the Mode button]

[Program mode]

Program

Confirm:Mode/Ok

[Selecting a scene mode]

Portrait

Confirm:Mode/Ok

[Pressing the Left button]

OOOO OOO

XXOXXXX

OXXX XXX

Page 28

《27》

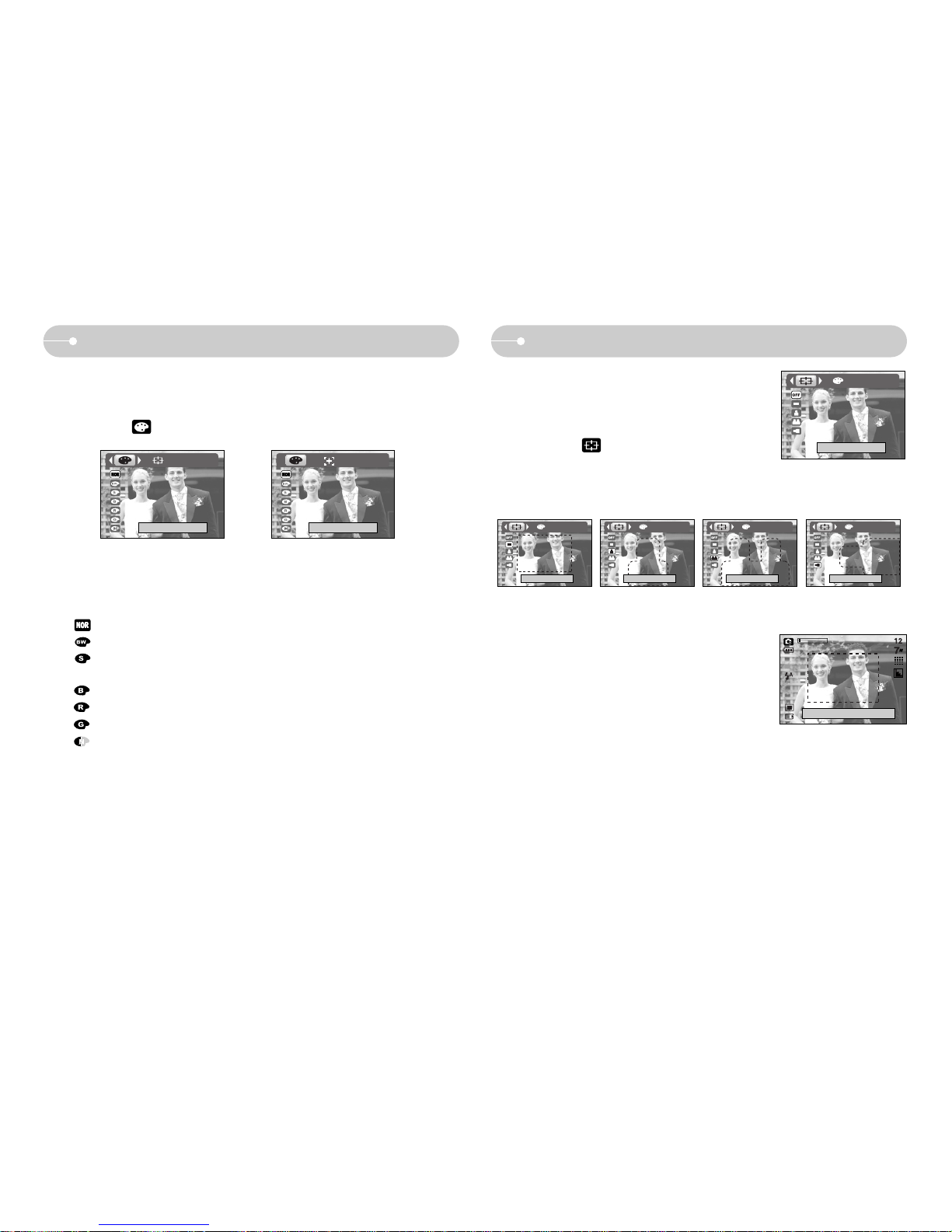

Special Effect : Colour

Special Effect : Preset focus frames

3. Select a desired sub menu by pressing the Up / Down button and press the OK button.

: No effect is added to the image : Captured images will be stored in black and white. : Captured images will be stored in a sepia tone

(a gradient of yellowish brown colours). : Captured images will be stored in a blue tone. : Captured images will be stored in a red tone. : Captured images will be stored in a green tone. : Save the image in negative mode.

4. Press the shutter button to capture an image.

■ You can make the subject stand out from its

surroundings. The subject will be sharp and in focus while making the rest out of focus.

1. Press the E button in the Program mode.

2. Select the ( ) menu tab by pressing the Left / Right button.

3. Select a desired sub menu by pressing the Up / Down button and press the OK button.

4. The preset focus frame will appear. Press the shutter button to capture an image

[Range 1]

[Range 2] [Range 3] [Range 4]

■ By using the camera’s digital processor, it is possible to add special effects to

your images.

1. Press the E button in the available camera modes.

2. Select the ( ) menu tab by pressing the Left / Right button.

[Still image mode] [Movie clip mode]

Normal

HighLight

HighLight HighLight HighLight

Capture:SH Edit:+/-

Page 29

Movie Clip frame stabiliser

■ This function helps stabilise images captured during movie recording.

You can select this menu only in the MOVIE CLIP mode. If the memory card is not inserted, this function will not operate.

● How to use this function

1. Press the E button in the Movie clip mode.

2. Select the STABILISER menu by pressing the Left / Right button.

3. Select a desired sub menu by pressing the Up / Down button and press the OK button.

- : Movie clip frame stabiliser function becomes disabled.

- : Prevents camera shake during movie recording. The recording frame range will become narrower than when you select the menu. Pre-view frames may not display smoothly on the LCD monitor.

●When you select the sub menu, the movie clip frame range will be

narrow depending on the movie clip size.

INFORMATION

Stabilizer

《28》

Capture:SH Edit:+/-

Capture:SH Move:



 

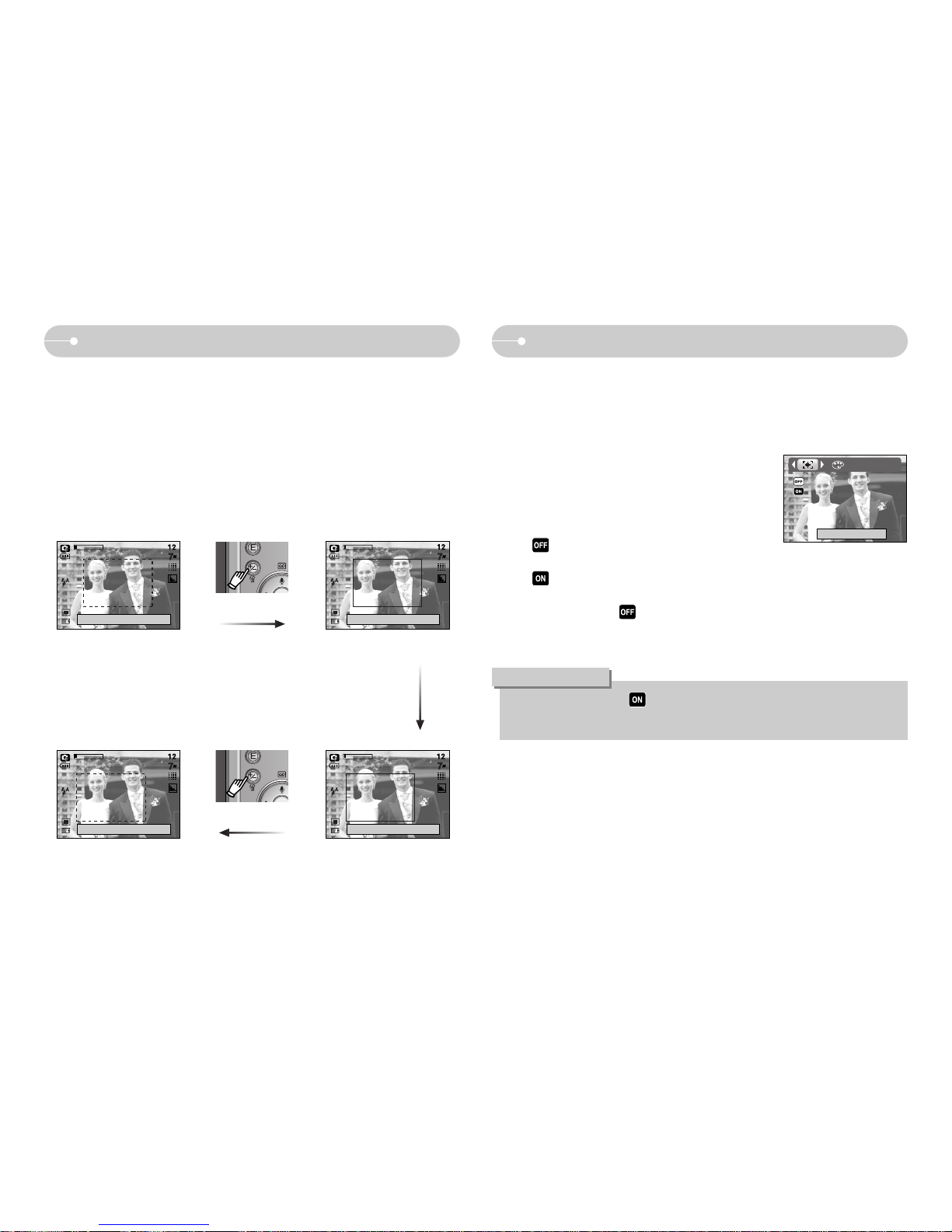

● Moving and changing the focus frame

You can change the focus frame after selecting a Range menu.

1. Point the camera towards the subject and compose the image by using the LCD monitor.

2. Press the + / - button.

3. The colour of focus frame turns white. Press the Up / Down / Left / Right button to move the focus frame position.

4. To select the focus frame position, press the + / - button again and you can take a picture.

[The frame is activated]

Capture:SH Move:

[After changing the frame position]

Pressing the

Up / Down / Left /

Right button

Pressing the + / - button



 

Pressing the + / - button

Special Effect : Preset focus frames

Page 30

《29》

+ / - button

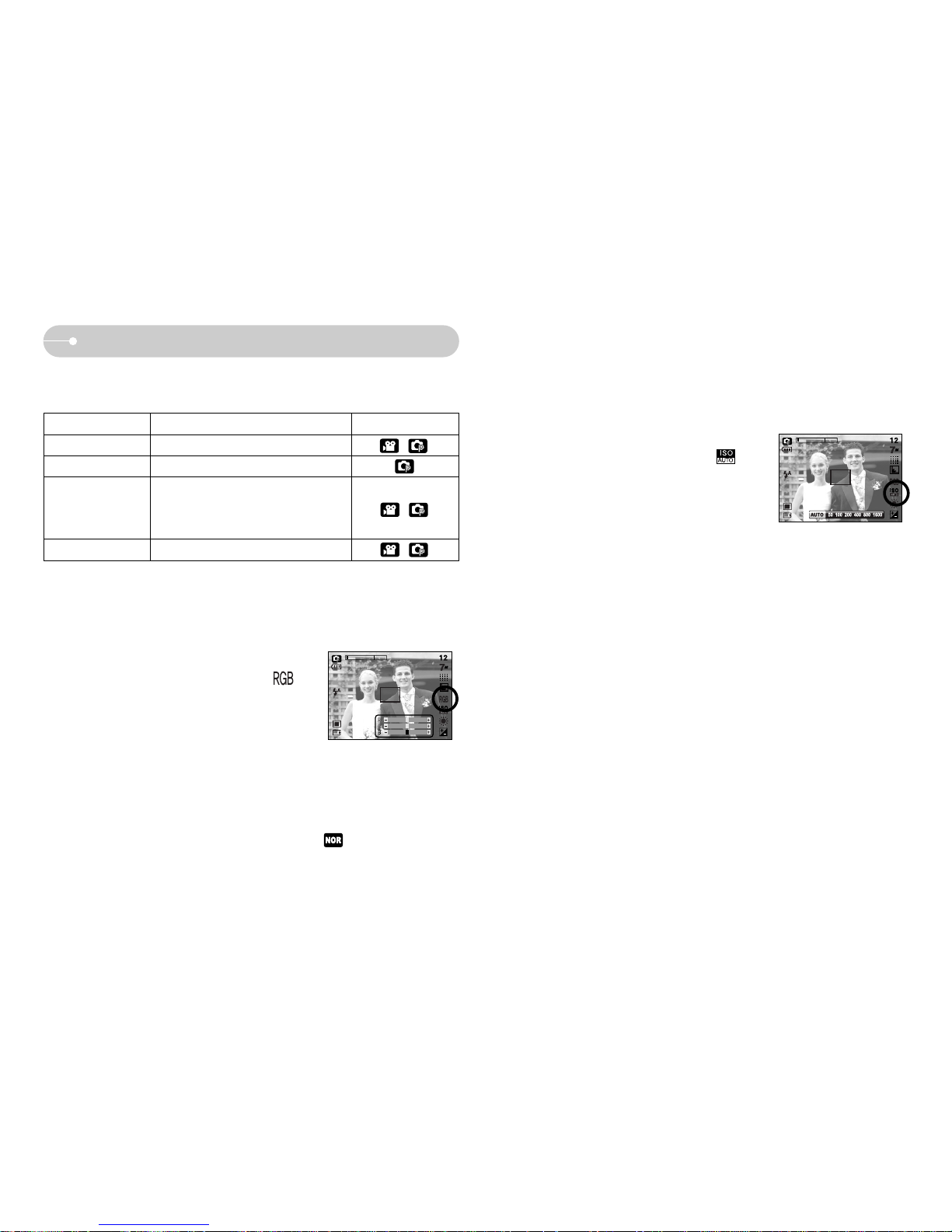

■ You can use the + / - button to adjust the values for the RGB, ISO, white balance

and exposure compensation.

Main menu Sub menu

Available camera mode

RGB R (Red), G (Green), B (Blue)

ISO AUTO, 50, 100, 200, 400, 800, 1600

Exposure compensation

-2.0 ~ 0.0 ~ +2.0 (0.5EV steps)

WHITE BALANCE

AUTO, DAYLIGHT, CLOUDY,

FLUORESCENT H, FLUORESCENT L,

TUNGSTEN, CUSTOM.

■ RGB : Allows the user to adjust the R (Red), G (Green), and B (Blue) values of

the images to be captured.

● Setting RGB Values

1. Press the + / - button, and then use the UP and DOWN buttons to select the RGB icon ( ). The RGB menu bar will appear as shown.

2. Use the UP / DOWN / LEFT and RIGHT buttons to select the desired RGB value.

- Up / Down Button : Navigates between R, G,

and B icons.

- Left / Right Button : Changes value of each icon.

3. When you press the + / - button again, the value you set will be saved and RGB setup mode will end.

※ When special effect (colour) from the icon other than is selected, it will not

be able to select the RGB.

● Selecting an ISO Sensitivity

1. Press the + / - button, and then use the UP and DOWN buttons to select the ISO icon ( ). The ISO menu bar will appear as shown.

2. Use the LEFT and RIGHT buttons to select the desired ISO sensitivity value.

- AUTO :

The camera's sensitivity is automatically changed by variables such as lighting value or subject brightness.

- 50, 100, 200, 400, 800, 1600 :

You can increase the shutter speed while the same amount of light is present, by increasing the ISO sensitivity. However, the image may be saturated in high luminance. The higher the ISO value, the higher the camera’s sensitivity to light is and therefore the greater its capacity to take pictures in dark conditions. However, the noise level in the image will increase as the ISO value increases, making the image appear coarse.

3. When you press the + / - button again, the value you set will be saved and ISO setup mode will end.

■ ISO : You can select the ISO sensitivity when taking pictures.

The speed or specific light-sensitivity of a camera is rated by ISO numbers.

Page 31

《30》

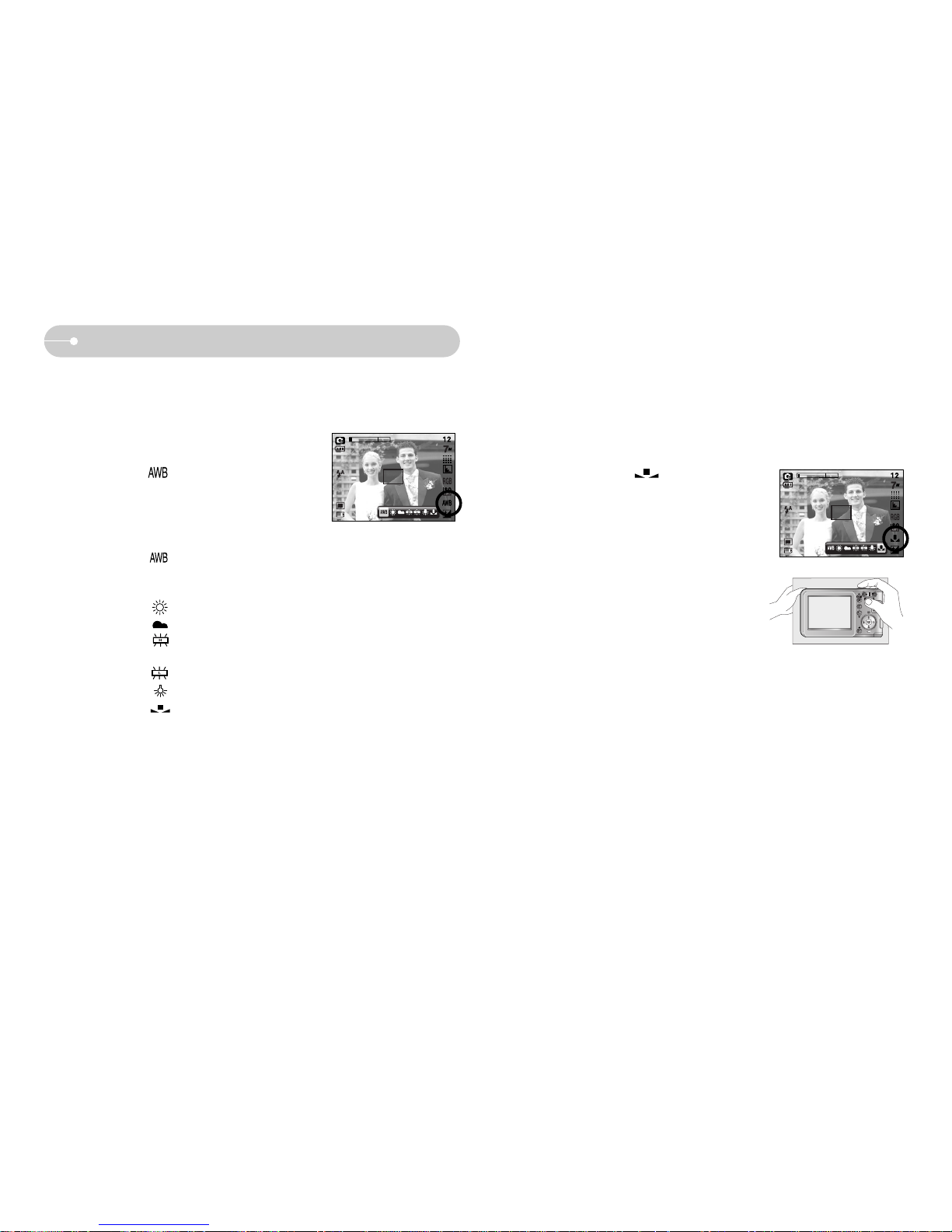

● Using the Custom White Balance

White balance settings may vary slightly depending on the shooting environment. You can select the most appropriate white balance setting for a given shooting environment by setting up the custom white balance.

1. Select the CUSTOM ( ) menu of the White Balance.

2. Place a sheet of white paper in front of the camera so that the LCD monitor shows only white, and then press the SHUTTER button.

3. Your custom white balance value is stored.

- The custom white balance value will be applied, starting with the next picture you take.

- The user configured white balance will be remain effective until it is overwritten.



[White paper]

Measure:Shutter

+ / - button

● Selecting a White Balance

1. Press the + / - button, and then use the UP and DOWN buttons to select the white balance icon ( ). The white balance menu bar will appear as shown.

2. Use the LEFT and RIGHT buttons to set the white balance to the desired value. The value you set wil be displayed on the LCD monitor.

AUTO : The camera automatically selects the appropriate

white balance settings, depending on the prevailing

lighting conditions. DAYLIGHT : For taking images outside. CLOUDY : For taking images under a cloudy and overcast sky. Fluorescent H : For shooting under daylight fluorescent types of three-

way fluorescent lighting. Fluorescent L : Shooting under white fluorescent lighting. TUNGSTEN :

For shooting under tungsten (standard light bulb) lighting. CUSTOM : Allows the user to set the white balance according to

the shooting condition. Different lighting conditions may cause a colour cast on your images.

3. Press the + / - button again. The value you set will be saved and White Balance setup mode will end.

■ White balance : The white balance control allows you to adjust the colours to

appear more natural.

Page 32

《31》

+ / - button

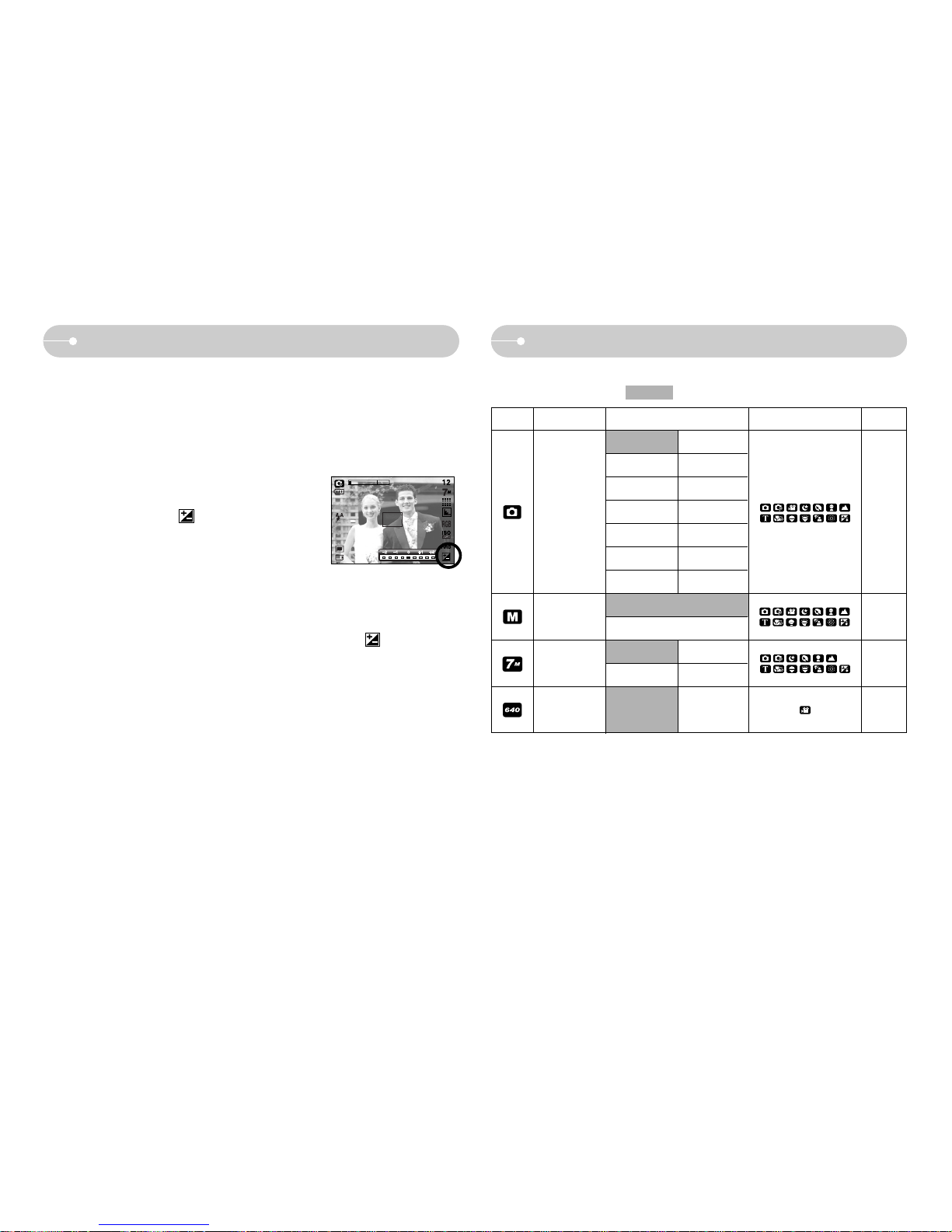

■ Exposure compensation : This camera automatically adjusts the exposure

according to the ambient lighting conditions. You can also select the exposure value by using the + / - button.

3. Press the + / - button again. The value you set will be saved and the Exposure Compensation setup mode will close. If you change the exposure value, the exposure indicator ( ) will be displayed on the bottom of the LCD monitor.

※ A negative exposure compensation value reduces the exposure.

Note that a positive exposure compensation value increases the exposure and the LCD monitor will appear white or you may not get good pictures.

● Compensating Exposure

1. Press the + / - button, and then use the UP and DOWN buttons to select the exposure compensation icon ( ). The exposure compensation menu bar will appear as shown.

2. Use the LEFT and RIGHT buttons to set the desired exposure compensation factor.

Using the LCD monitor to set the camera settings

■ You can use the menu on the LCD monitor to set up recording functions.

The items indicated by are default settings.

Menu tab

Main menu Sub menu

Camera working mode

Page

Auto Program

Movie Night

Portrait Children

MODE SET Landscape Text p.33

Close up Sunset

Dawn Backlight

Firework

Beach&Snow

Still & Movie

Full

3072X2304 2592X1944

2048X1536 1024X768

MODE

p.33

p.34

SIZE

(Still image)

SIZE

(Movie clip)

640X480

320X240

Page 33

《32》

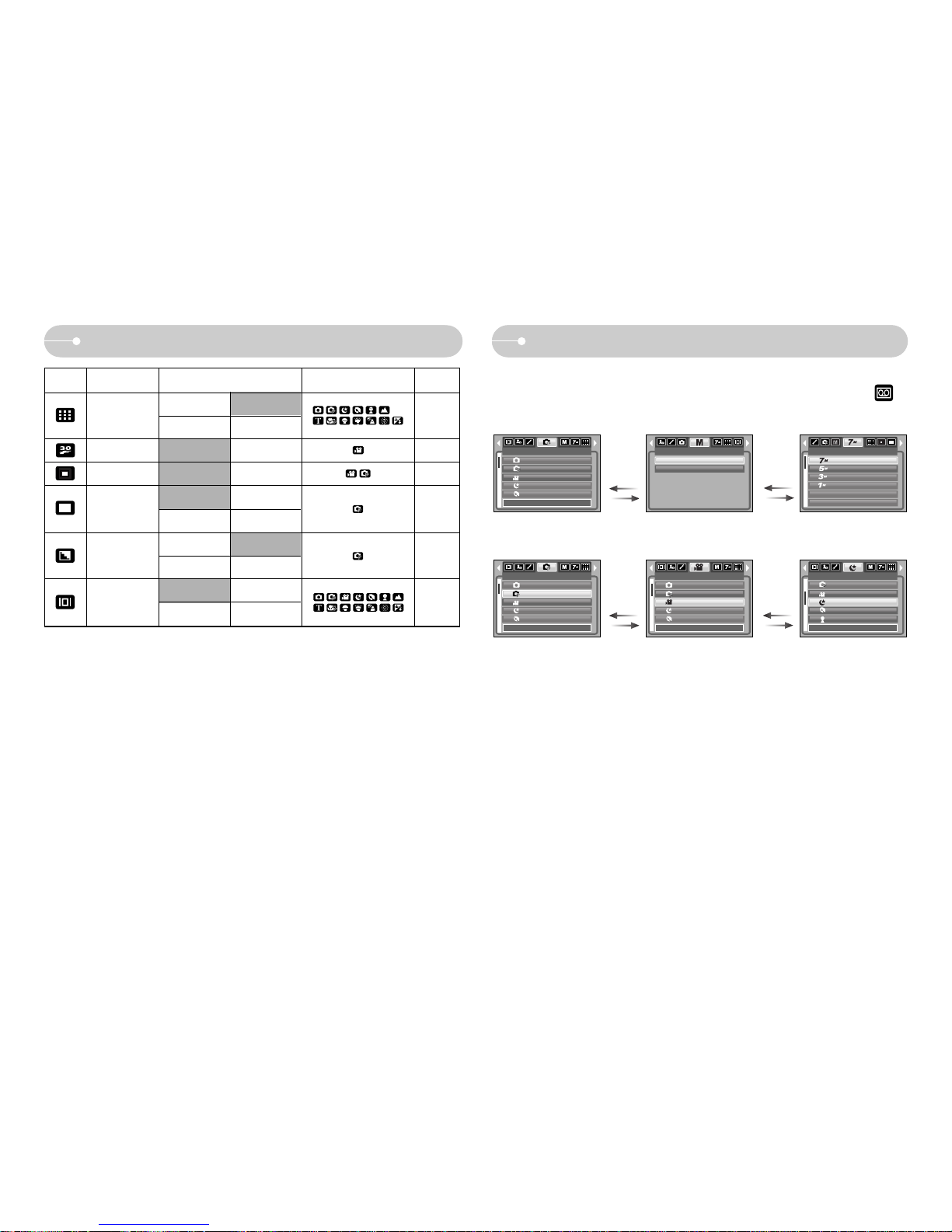

Using the LCD monitor to set the camera settings

How to use the menu

1. Turn on the camera and press the MENU button. A menu for each camera mode appears. However, there is no menu for Voice Recording mode ( ).

2. Use the LEFT and RIGHT buttons to navigate through the menus.

3. Use the UP and DOWN buttons to select a sub menu.

4. Select a sub menu, and then the value you set will be saved. Press the MENU button and the menu will disappear.

Press the

LEFT or

RIGHT button.

Press the

UP or DOWN

button.

Press the

UP or DOWN

button.

Press the

LEFT or

RIGHT button.

SIZE

3072x2304

2592x1944 2048x1536

1024x768

MODE

STILL & MOVIE

FULL

※ Menus are subject to change without prior notice.

Menu tab

Main menu Sub menu

Camera working mode

Page

Super Fine Fine

Normal -

FRAME RATE

30 FPS 15 FPS p.34

METERING Multi Spot p.35

Single Continuous

AEB -

Soft Normal

Vivid -

Full Basic

LCD Save -

p.34

p.36

p.35

QUALITY

SHARPNESS

SHOOTING

OSD

INFORMATION

MODE SET

Auto

Program

Movie

Night

Portrait

Exit:MENU Move:

 

MODE SET

Auto

Program

Movie

Night

Portrait

Move: Set:OK

 

MODE SET

Auto

Program

Movie

Night

Portrait

Move: Set:OK

 

MODE SET

Program

Movie

Night

Portrait

Children

Move: Set:OK

 

Page 34

《33》

Mode Set

■ You can select the desired recording mode.

[Auto] : For shooting basic still image [Program] : You can still manually configure all

functions except the aperture value

and shutter speed. [Movie] : For taking a movie clip [Night] : Use this for shooting still images at

night or in other dark conditions. [Portrait] : To take a picture of a person. [Children] : To take a picture of fast moving objects, for example, children. [Landscape]

: To take pictures of distant scenery. [Text] : Use this mode to shoot a document. [Close up] : Close-up shooting for small objects such as plants and insects. [Sunset] : For taking pictures of sunsets. [Dawn] : Daybreak scenes. [Backlight] : Portrait without shadows caused by backlight. [Firework] : Firework scenes. [Beach & Snow]

: For ocean, lake, beach and snowscape scenes.

● When [Night], [Landscape], [Text], [Close up], [Sunset], [Dawn] and

[Firework] scene mode are selected, it is possible that camera shake will occur.

INFORMATION

Mode

■ You can select the desired working mode using the M (Mode) button located on

the back of the camera in the [MODE] menu.

[STILL & MOVIE] : A still image mode that was

selected on the [MODE SET] menu and movie clip mode can be selected.

[FULL] : Auto, Program, Movie clip and

scene modes can be selected.

MODE SET

Auto

Program

Movie

Night

Portrait

Move: Set:OK

 

MODE

STILL & MOVIE

FULL

Page 35

《34》

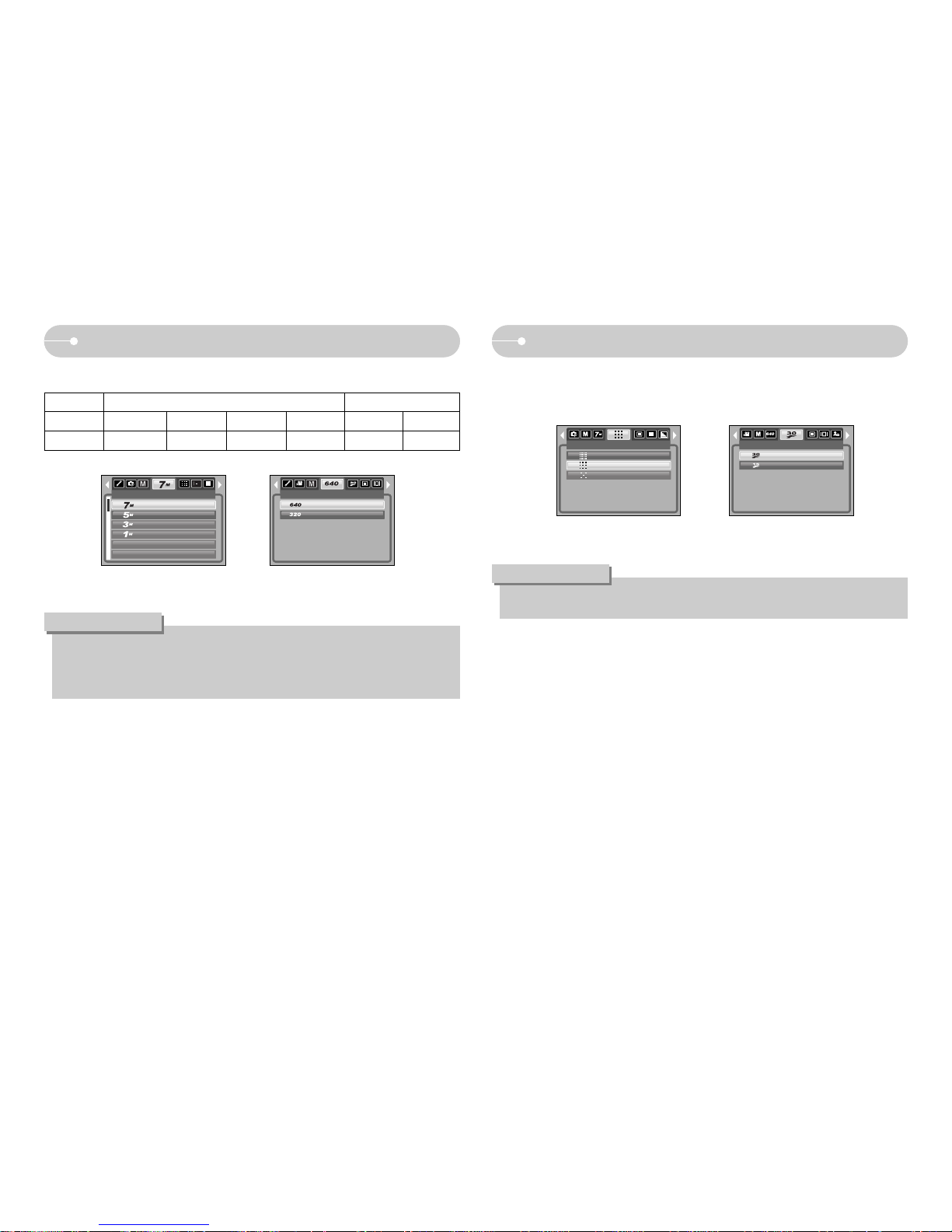

Quality / Frame rate

●

This file format complies with the DCF (Design rule for Camera File system).

INFORMATION

■ You can select the compression ratio appropriate for your application of the

captured images. The higher the compression ratio, the lower the picture quality.

[STILL IMAGE mode] [MOVIE CLIP mode]

QUALITY

Super Fine

Fine

Normal

FRAME RATE

30 FPS

15 FPS

Size

● High resolution images use more memory than lower resolution shots.

Therefore the higher the resolution selected the fewer will be the number of shots available.

INFORMATION

■ You can select the image size appropriate for your application.

[STILL IMAGE mode]

[MOVIE CLIP mode]

SIZE

3072x2304

2592x1944 2048x1538

1024x768

SIZE

640X480

320X240

Icon

7M 5M 3M 1M 640 320

Size

3072X2304 2592X1944 2048X1536 1024X768 640X480 320X240

STILL IMAGE mode

Mode

MOVIE CLIP mode

Page 36

《35》

Metering

● If the subject is not the centre of the focus area, do not use the spot

metering as this may result in an exposure error. In this circumstance, it is better to use exposure compensation.

INFORMATION

■ If you cannot obtain suitable exposure conditions, you can change the metering

method to take brighter pictures.

- Multi : Exposure will be calculated based on an average of the available light in the image area. However, the calculation will be biased towards the centre of the image area. This is suitable for general use.

- Spot : Only the rectangular area in the centre of the LCD monitor will be metered for light. This is the preferable setting when you want the subject in the centre of the image exposed correctly, regardless of the back lighting.

METERING

Multi

Spot

Continuous shot

■ Select the number of pictures in continuous shooting.

- Single : Take one picture only

- Continuous : Images will be taken continuously until the shutter button is released. The shooting capacity depends on the memory available.

- AEB :

Take three pictures in a series in different exposures: short exposure (-0.5EV), standard exposure (0.0EV) and over exposure (+0.5EV). Use this mode if it is hard to decide exposure of the object.

※ High resolution and picture quality increases file saving time, which increases

stand-by time.

※

If fewer than 3 pictures are available in the memory, the AEB shooting is not available.

※ It is best to use a tripod for the AEB shooting as the time to save each image

file is longer and the blurring caused by camera shake may occur.

SHOOTING

Single

Continuous

AEB

■ You can adjust the sharpness of the picture you are

about to take. You cannot check the sharpness effect on the LCD monitor before you take a picture, because this function is applied only when the captured image is stored on the memory.

- Soft : The edges of the image are softened.

This effect is suitable for editing images on your PC.

- Normal : The edges of the image are sharp.

This is suitable for printing.

- Vivid : The edges of the image are emphasized. The edges will appear

sharp, but noise may occur in the recorded image.

SHARPNESS

Soft

Normal

Vivid

Sharpness

Page 37

《36》

OSD (On Screen Display) information

■ In any mode with the exception of VOICE

RECORDING mode, you can check the recording status in the LCD monitor.

■ Idle mode : If you select the [LCD Save] and the

camera isn't operated during the specified time(about 30 SEC.), the camera power will be idle (LCD monitor : OFF, Camera status lamp : Blinking) automatically.

- To use the camera again, press any of the camera buttons except the power button.

- If there is no operation during the specified time, the camera power will be turned off automatically to save battery life. Refer to page 54 for more information about the auto power off function.

OSD INFORMATION

Full

Basic

LCD Save

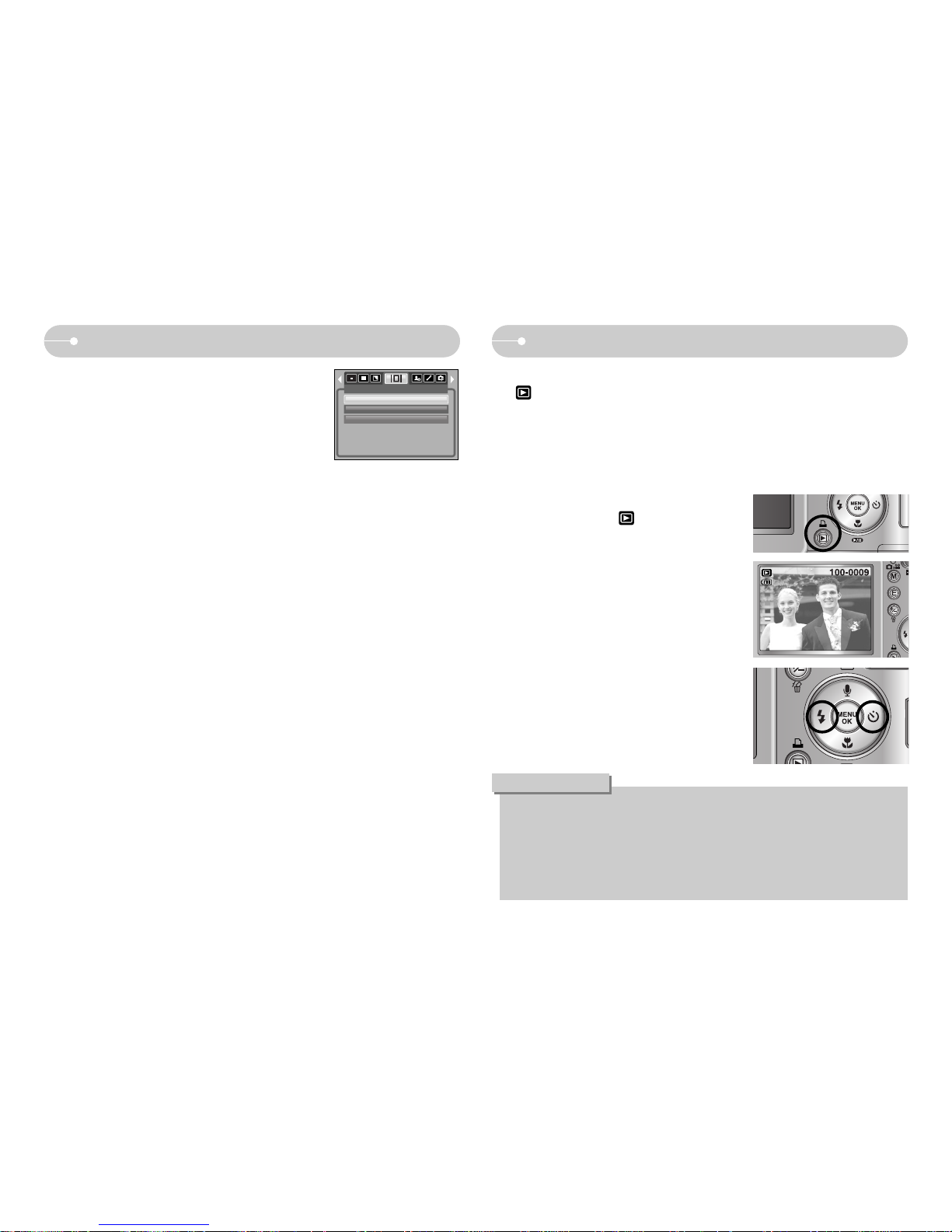

Starting play mode

■ Turn the camera on and select Play mode by pressing the play mode button

( ). The camera can now play back the images stored in the memory.

■ If the memory card is inserted in the camera, all the camera functions apply only

to the memory card.

■ If the memory card is not inserted in the camera, all the camera functions apply

only to the internal memory.

3. Select an image that you want to view by pressing the LEFT / RIGHT button.

※ Press and hold the LEFT or RIGHT

button to play back the images quickly.

2. The last image stored on the memory is displayed on the LCD monitor.

● Playing back a still image

1. Select the PLAY mode by pressing the play mode button ( ).

● Manner mode :To select the Manner mode, press the Playback mode

button for more than 3 seconds. In the Manner mode, Shutter sound, Operating sound, Start-up sound and Effect sound will not be generated. To cancel the Manner mode, turn on the camera by pressing the Power button.

●

Lightly press the shutter button in Play mode to switch to the currently set shooting mode.

INFORMATION

Page 38

《37》

Starting play mode

■ On camera movie trimming : You can extract desired frames of a movie clip during the movie clip play back.

● If the running time is under 10 seconds, the movie clip can’t be trimmed.

1. Press the Pause button at the point of the movie clip that you want to start extracting.

2. Press the OK button. (The start point doesn't display on the status bar, but the start point will be marked.)

3. Press the Play & Pause button and the extracted range will be displayed on the status bar.

4. Press the Play & Pause button once more at the point where you wish the extracted file to stop.

5. Press the OK button and a confirmation window will be displayed.

6. Select a desired sub menu by pressing the Left / Right button and press the OK button. [Yes] : The extracted frames are saved as a new

file name.

[No] : The movie trimming will cancel.

● Playing back a movie clip

1. Select the recorded movie clip that you want to play back by using the LEFT / RIGHT button.

2. Press the play & pause button ( ) to play back a movie clip file.

- To pause a movie clip file while playing it back,

press the play & pause button again.

- Pressing the play & pause button again will cause

the movie clip file to restart.

- To rewind the movie clip while it is playing, press

the LEFT button. To fast forward the movie clip, press the RIGHT button.

- To stop playback of the movie clip, press the play &

pause button, and then press the LEFT or RIGHT button.

■ Movie clip capture function : capture still images from the movie clip.

● How to capture the movie clip

1. Press the Play & Pause button while playing the movie clip. Then press the E button.

2. The paused movie clip is saved in a new file name.

※ The captured movie clip file has same size as the

original movie clip (640X480, 320X240).

[Press the E button]

[Paused]

MARK IN:OK Capture:E

● If the time line bar passes by the start point by pressing the REW (Left) button, the first frame of the movie clip will display.

● If you don't specify the ending point of the movie clip, the trimming confirmation window will display at the point of the last frame.

INFORMATION

MARK IN:OK Capture:E

PLAY:▶/ II OK:Trim

Trimming?

Confirm:OK

Yes No

Play:▶/ II

Page 39

《38》

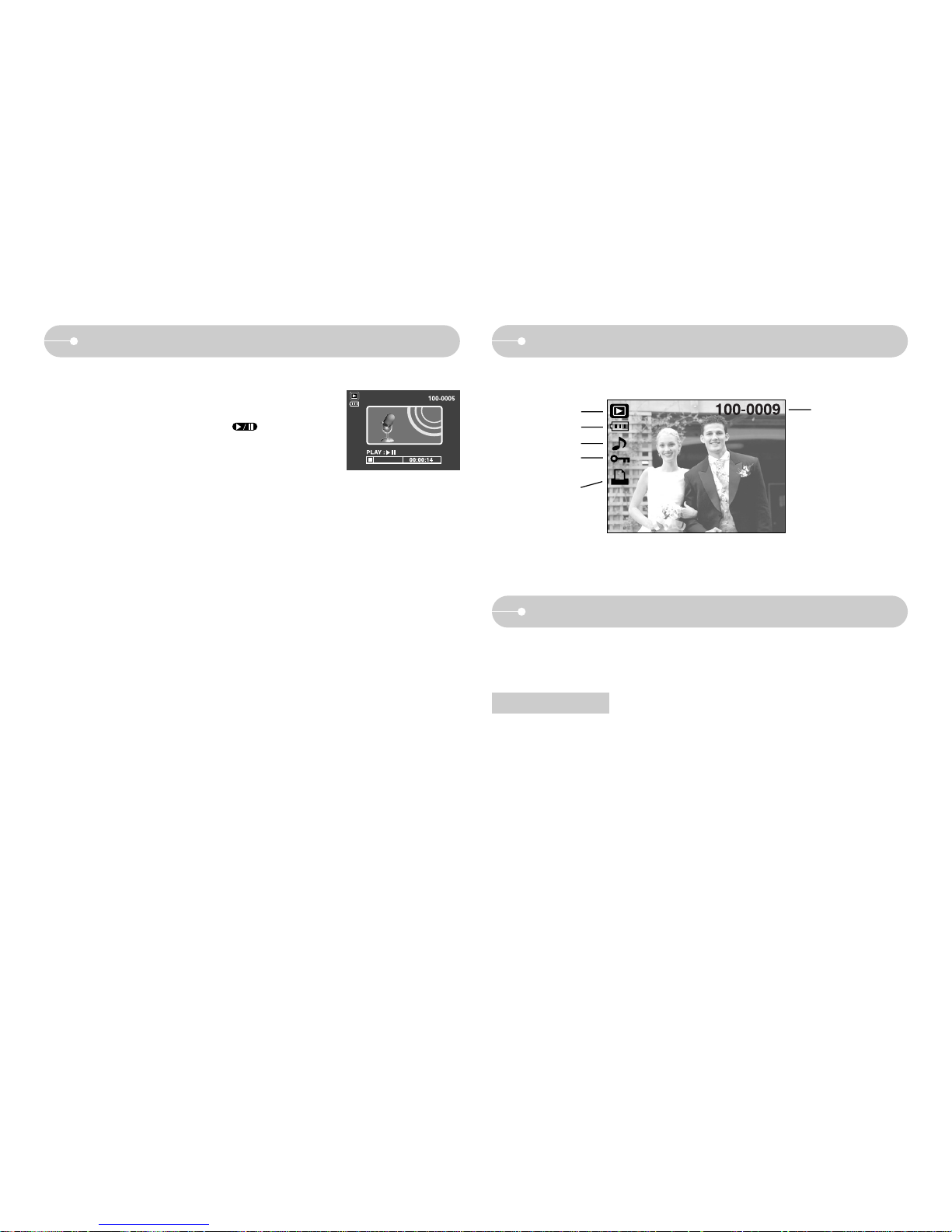

Starting play mode

● Playing back a recorded voice

1. Select the recorded voice that you want to play back by using the LEFT / RIGHT button.

2. Press the play & pause button ( ) to play back a recorded voice file.

- To pause a recorded voice file, while playing it back, press the play & pause button again.

- To resume playback of the voice file, press the play & pause button

- To rewind the voice file while it is playing, press the LEFT button. To fast forward the voice file, press the RIGHT button.

- To stop playback of the voice file, press the play & pause button, and then press the LEFT or RIGHT button.

LCD monitor indicator

■ The LCD monitor displays shooting information about the displayed image.

Play mode

Battery (p.10)

Voice Memo (p.40)

Protect indicator

(p.46)

DPOF indicator (p.48)

Folder name and Stored image number

■ In Play mode, you can use the buttons on the camera to conveniently set up the Play mode functions.

Play mode button

■ If you have turned on the camera by pressing the POWER button, you can press the PLAY MODE button once to switch to Play mode and press it again to switch to Recording mode.

■ You can turn the power on with the play mode button. The camera is turned on in play mode. Press the play mode button again to turn off the camera.

Using the camera buttons to adjust the camera

Page 40

《39》

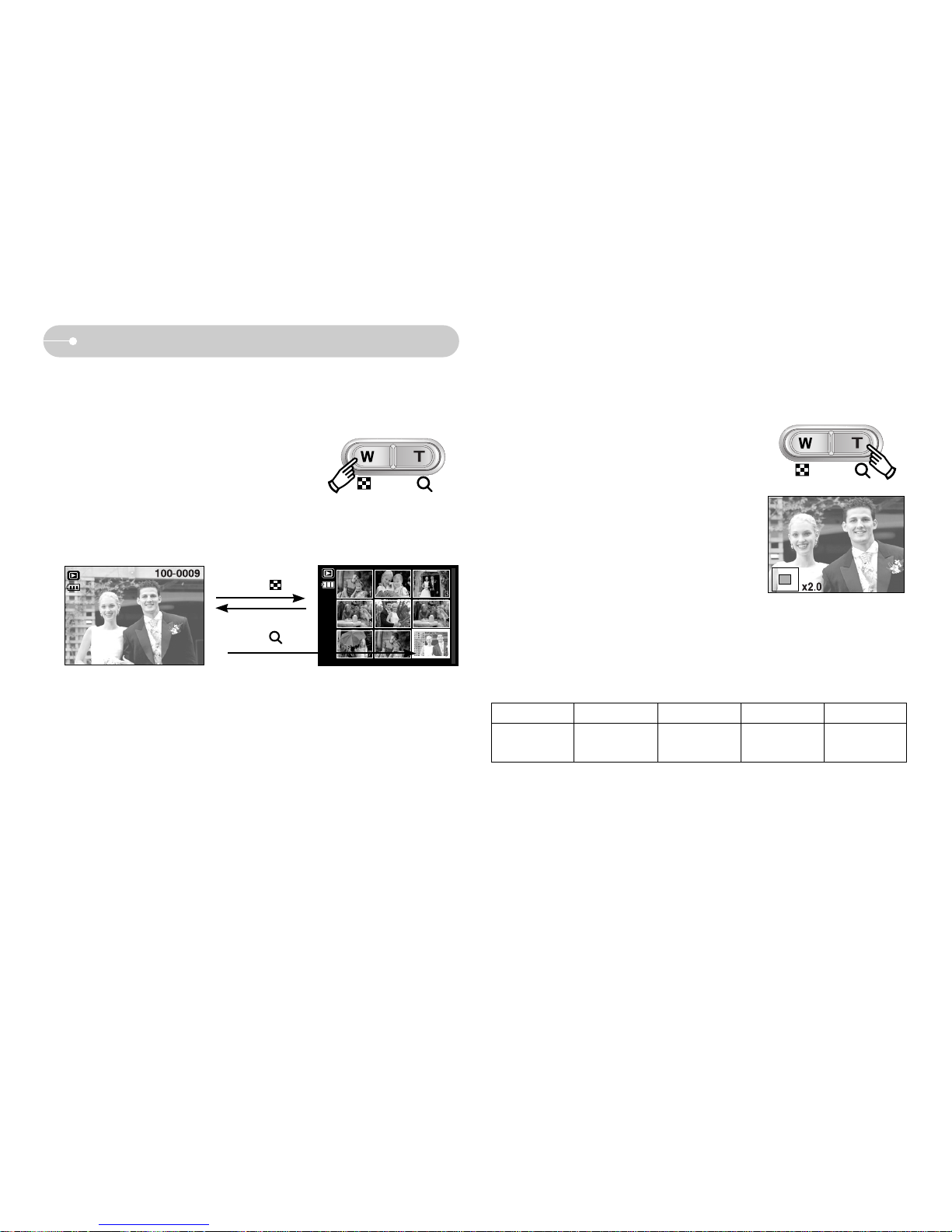

Thumbnail / Enlargement button

● You can view multiple pictures, enlarge a selected picture, and crop and save a selected area of an image.

● Thumbnail display

1. While an image is displayed full screen, press

the thumbnail button.

2. The thumbnail display will highlight the image

that had been showing at the time the thumbnail mode was selected.

3. Press the 5 function button to move to a desired image.

4. To view an image separately, press the enlargement button.

[Normal display mode] [Thumbnail display mode]

Pressing the thumbnail

button ( )

Pressing the enlargement

button ( )

Highlighted image

● Image enlargement

1. Select an image that you want to enlarge and press the enlargement button.

2. Different parts of the image can be viewed by pressing the 5 function button.

3. Pressing the thumbnail button will zoom back to the original full sized image.

- You can tell whether the image displayed is an

enlarged view by checking the image enlargement indicator shown at the bottom left of the LCD monitor. (If the image is not an enlarged view, the indicator will not be displayed.) You can also check the area of enlargement.

- Movie clips and WAV files can’t be enlarged.

- If an image is enlarged, a loss of quality may

occur.

● The maximum enlargement in proportion to the image size.

Image size 3072x2304 2592x1944 2048x1536 1024x768

X10.0 X8.1 X6.4 X3.2

Maximum

enlargement

Page 41

《40》

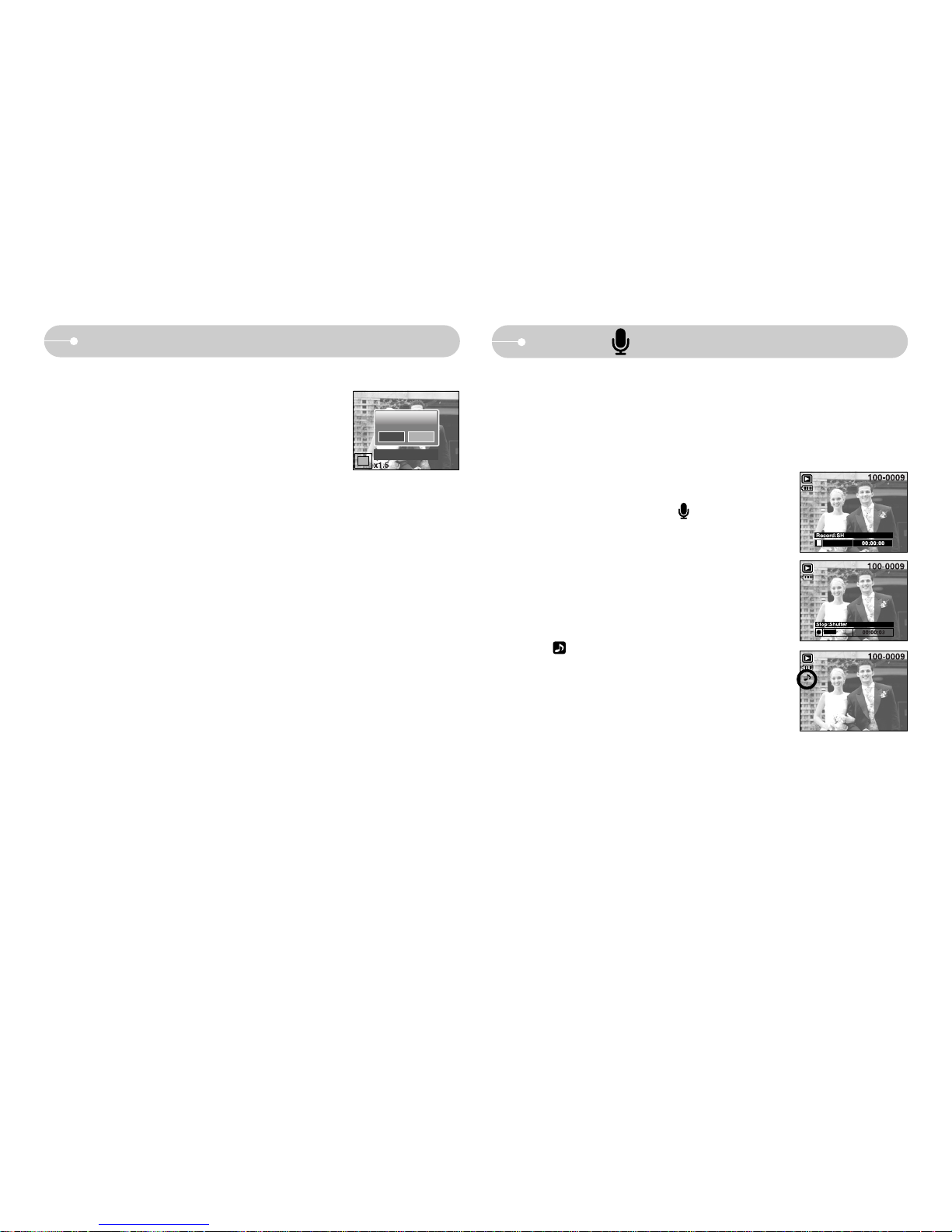

Thumbnail / Enlargement button

● Trimming : You can extract part of the image and save it separately.

1. Select an image that you want to enlarge and press the enlargement button.

2. Different parts of the image can be viewed by pressing the 5 function button.

3. Press the MENU button and a message will be displayed as shown alongside.

4. Select a desired sub menu by pressing the UP / DOWN button and press the OK button.

[Yes] : The trimmed image will save as a new file name, and display on the

LCD monitor.

[No] : The trimming menu will disappear.

※ If there is insufficient memory space to save the trimmed image, the image

can’t be trimmed.

※ To delete the enlarged image on the LCD monitor, press the delete button.

Trimming?

Confirm:OK

Yes No

■ When the menu is displayed on the LCD monitor, the UP button operates as a direction button.

■ When the menu is not displayed on the LCD monitor, the UP button operates as the voice memo button. You can add your voice to a stored still image.

● Adding a Voice Memo to a Still Image

1. Press the LEFT / RIGHT button to select an image that you wish to add sound to.

2. Press the voice memo button ( ) and the voice memo indicator will display. The camera is now ready to record a voice memo.

3. Press the shutter button to start recording and voice will be recorded to the still image for 10 seconds. While the voice is recording, the recording status window will be displayed as shown alongside. The recording can be stopped by pressing the shutter button again.

4. The ( ) icon will be displayed on the LCD monitor after voice memo recording has finished.

- The voice memo will be saved in * .wav format, but has the same file name as the still image to which it corresponds.

- If you add a new voice memo to the still image that already has a voice memo, the existing voice memo will be erased.

Voice ( ) memo / Up button

Page 42

《41》

E (Effect) button

■ By using the camera’s digital processor, it is possible to add special effects to your images.

1. Press the E button.

2. Select a desired sub menu and press the OK button.

: Captured images will be stored in black and white. : Captured images will be stored in a sepia tone. : Captured images will be stored in a blue tone. : Captured images will be stored in a red tone. : Captured images will be stored in a green tone. : Save the image in negative mode.

Exit:E

Play & Pause ( ) / Down button

■ In Play mode, the play & pause/ down button works as follows:

- If the menu is displayed Press the DOWN button to move from the main menu to a sub menu, or to move down the sub menu cursor.

- If a still image with a voice memo, a voice file, or a movie clip is playing In Stop mode :

Plays a still image with a voice memo, a voice file, or a movie clip. During playback : Temporarily stops playback. In Pause mode : Resumes playback

Left / Right / Menu / OK button

■ LEFT / RIGHT / MENU / OK buttons activate the following.

- LEFT button : While the menu is showing, the LEFT button operates as a direction button. While the menu is not showing, press the LEFT button to select the previous image.

- RIGHT button : While the menu is showing, the RIGHT button operates as a direction button. While the menu is not showing, press the RIGHT button to select the next image.

- MENU button : When you press the MENU button, the play mode menu will be displayed on the LCD monitor. Pressing it again will return the LCD to the initial display.

- OK button : When the menu is displayed on the LCD monitor, the OK button is used for confirming data that is changed by using the 5 function button.

■ This deletes images stored on the memory card.

1. Select an image that you want to delete by pressing the LEFT / RIGHT button and press the DELETE ( ) button.

2. Select the sub menu values by pressing the Left / Right button and then press the OK button. If [Yes] is selected : deletes the selected images. If [No] is selected : cancels "Delete Image".

Delete?

Confirm:OK

Yes No

Delete?

Confirm:OK

Yes No

Delete ( ) button

Page 43

《42》

Setting up the play back function using the LCD monitor

■ PLAY mode functions can be changed by using the LCD monitor. In the PLAY mode, pressing the MENU button displays the menu on the LCD monitor. The menus you can set up in Play mode are as follows. To capture an image after setting up the play menu, press the PLAY mode button or shutter button.

Menu tab Main menu Sub menu Secondary menu Page

Show Play, Repeat Play

Interval 1, 3, 5, 10 sec

Off

Music Off, Music1,2,3

Full -

Basic -

OSD Off -

Right 90° -

Left 90° -

ROTATE 180° -

Horizontal -

Vertical 2592X1944 2048X1536 -

1024X768 -

User Image 1,2 -

p.44

p.45

p.46

p.45

p.46

PROTECT

Unlock/ Lock

DELETE

RESIZE

SLIDE

Effect

p.47

p.48~49

Menu tab Main menu Sub menu Secondary menu Page

Select

All Pics

Select -

All Pics -

No -

Yes -

Standard

Select/ All Pics/ Cancel

DPOF Index No/ Yes

Size

Select/ All Pics/ Cancel

COPY TO CARD

OSD

INFORMATION

p.47

Page 44

《43》

Setting up the play back function using the LCD monitor

p.51

p.52

Menu tab Main menu Sub menu Secondary menu Page

Auto

Plain


FastPhoto

Auto Draft

Normal

Fine

Auto

Date Off

Auto

File Name Off

Standard -

Index -

No -

Yes -

No -

Yes -

CUSTOM SET

DPOF PRINT

RESET

Quality

Type

※ Menus are subject to change without prior notice.

p.50

p.51

Menu tab Main menu Sub menu Secondary menu Page

One Pic -

All Pics -

No -

Yes -

Auto

PostCard

Card

4X6

Letter

A4 A3

Auto

Full

1 2 4 8 9

Index

AUTO SET

CUSTOM SET

IMAGES

Layout

Size

■ This menu is available while the camera is connected to a PictBridge supporting printer (direct connection to the camera, sold separately) with a USB cable.

Page 45

《44》

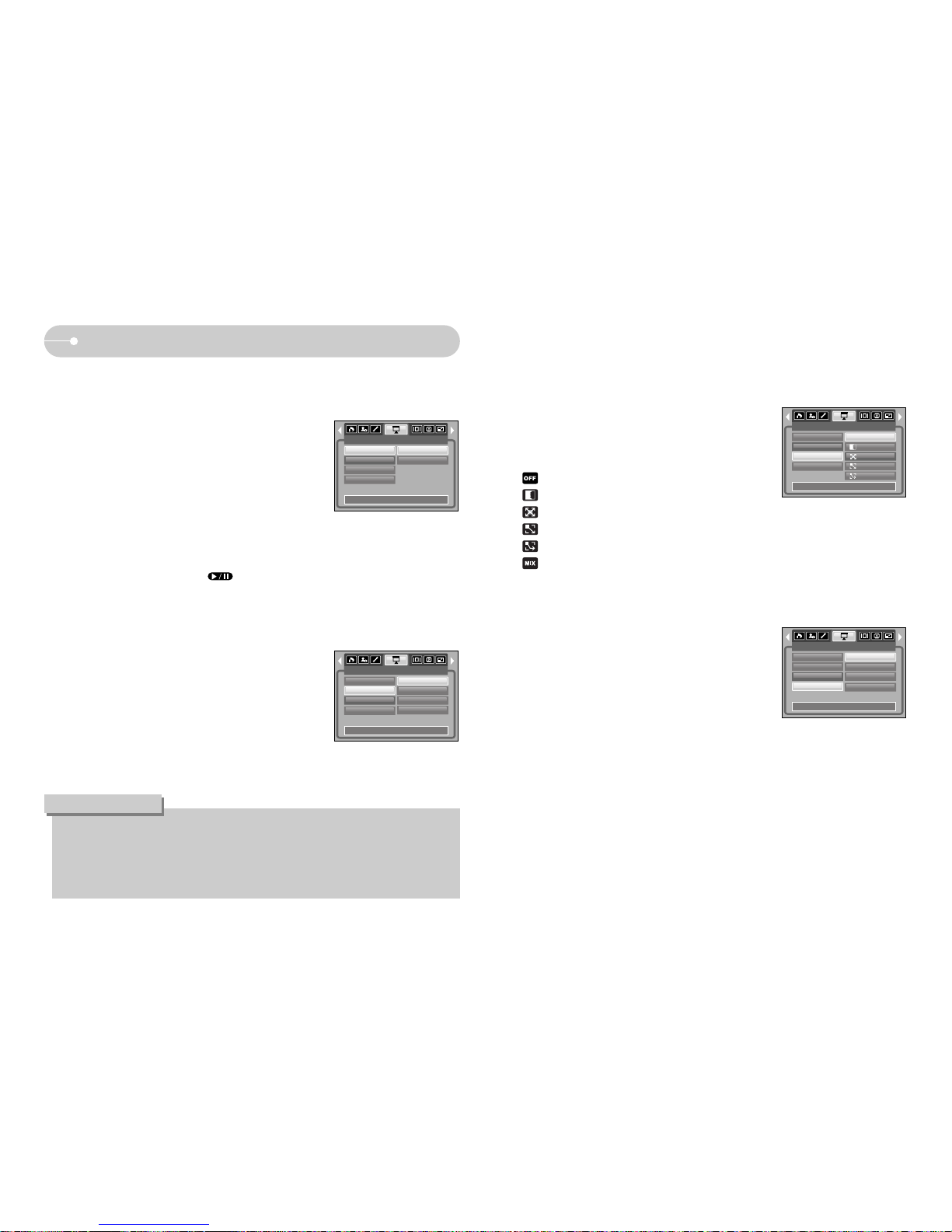

Starting the slide show

■ Images can be displayed continuously at pre-set intervals. You can view the slide show by connecting the camera to an external monitor.

1. Select the [Show] sub menu by pressing the UP / DOWN button and press the RIGHT button.

2. Use the Up / Down buttons to select the desired sub menu.

[Play] selected : The slide show is closed

after one cycle.

[Repeat Play] selected : The slide show is repeated until cancelled.

3. Press the OK button to start the slide show.

- Press the Pause button to pause the slide show.

- Press the Pause button ( ) again to resume the slide show.

- To stop the slide show, press the play & pause button, and then press the LEFT or RIGHT button.

● Setting play interval : Set the slide show play interval.

1. Select the [Interval] sub menu by pressing the UP / DOWN button and press the RIGHT button.

2. Use the Up / Down buttons to select the desired interval.

3. Press the OK button to save the configuration.

● The loading time depends on the image size and quality.

● While the slide show is playing, only the first frame of a MOVIE file is

displayed.

● While the slide show is playing, the voice recording file will not display.

INFORMATION

SLIDE

Show

Interval Effect Music

Back: Set:OK

Play

Repeat Play

SLIDE

Show

Interval

Effect Music

Back: Set:OK

1 sec

3 sec 5 sec 10 sec

● Setting the Music : Three types of music can be used for the slide show.

1. Select the [Music] sub menu by pressing the UP / DOWN button and press the RIGHT button.

2. Use the Up / Down Button to select the type of music. (Off, Music 1~3)

3. Press the OK button to confirm the setting.

SLIDE

Show Interval Effect

Music

Back: Set:OK

Off

Music 1 Music 2 Music 3

● Configure slide show effects : Unique screen effects can be used for the slide show.

1. Select the [Effect] sub menu by pressing the UP / DOWN button and press the RIGHT button.

2. Use the Up / Down Button to select the type of effect.

: Normal display. : Image is displayed slowly. : Image is displayed slowly from the centre outwards. : Image moves from the top left. : The image slides diagonally from top left to bottom right. : The image slides irregularly.

3. Press the OK button to confirm the setting.

SLIDE

Show Interval

Effect

Music

Back: Set:OK

Off

Page 46

《45》

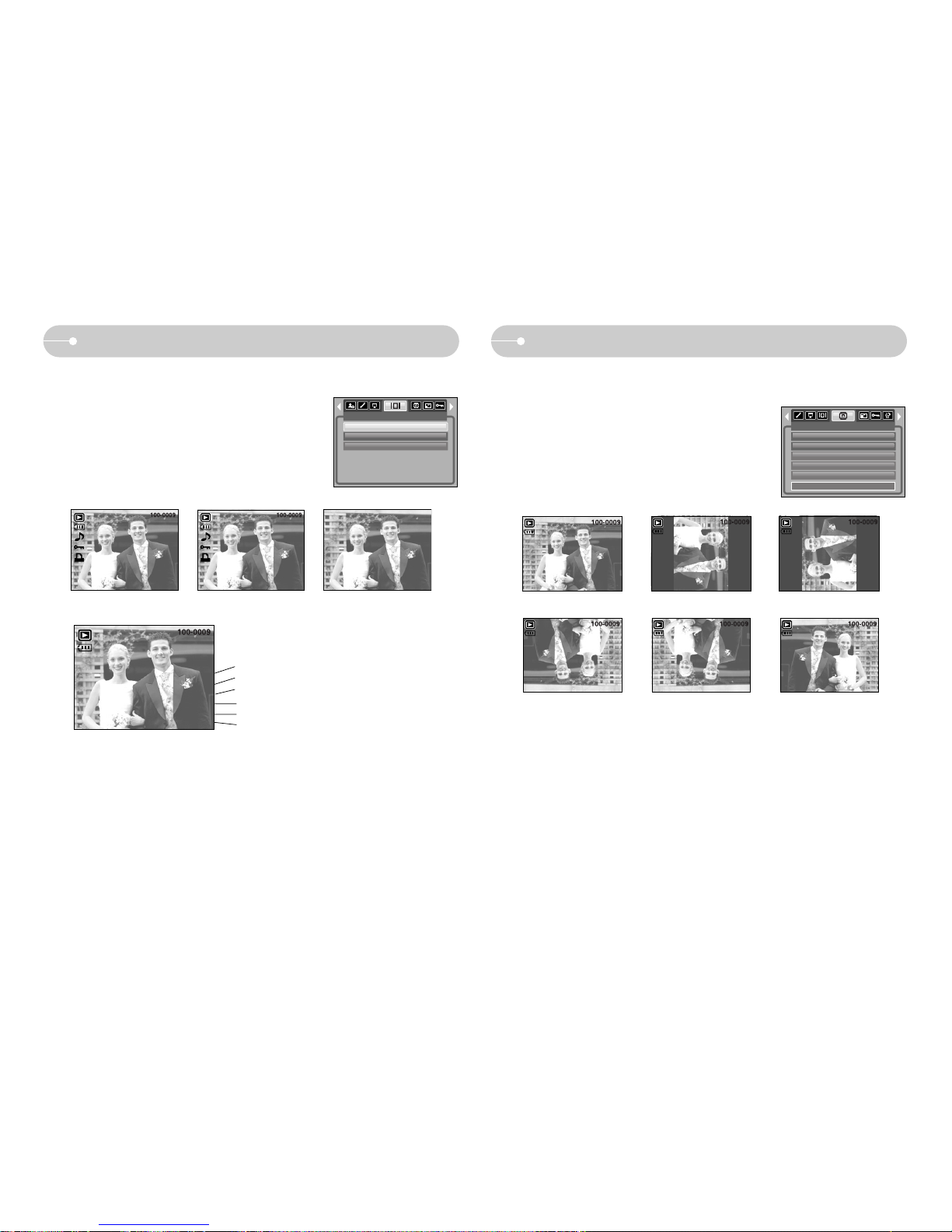

On Screen Display information Rotating an image

1. Select a desired sub menu by pressing the UP / DOWN button and press the OK button.

■ You can check shooting information about the displayed image.

[OSD Off][Full]

Av : F2.8 Tv : 1/60

ISO : 50 Flash:OFF 3072x2304 2007/02/01

[Basic]

OSD INFORMATION

Full

Basic OSD Off

■ You can rotate the stored images by various degrees. Once the playback of the rotated picture is finished, it will switch back to the original state.

2. Press the OK button and the rotated image will be displayed. If you display the

rotated image on the LCD monitor, empty spaces may appear to the left and right of the image.

1. Select a desired sub menu by pressing the

UP / DOWN button.

[Horizontal] [Vertical]

[Right 90°] [Left 90°]

[180°]

[Before rotating the image]

ROTATE

Exit:MENU Move:

 

Right 90° Left 90° 180° Horizontal Vertical

Aperture value Shutter speed

ISO value Whether or not the flash is used Size Recording date

Av : F2.8

Tv : 1/60

ISO : 50 Flash:OFF 3072x2304 2007/02/01

Page 47

《46》

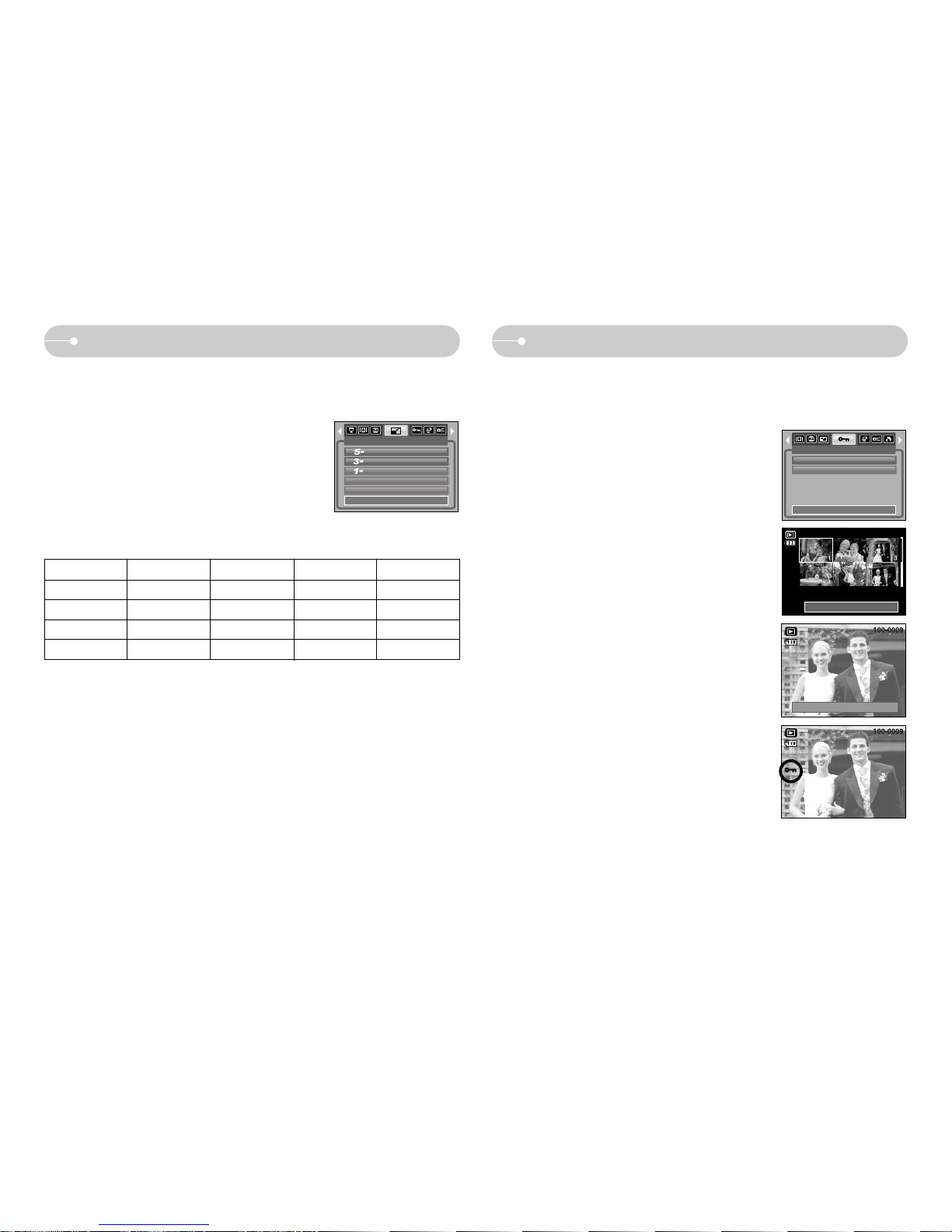

Resize Protecting images

■ Change the resolution (size) of pictures taken. Select the [User Image] to save an image to be the start-up image. The resized image will have a new file name.

1. Select a desired sub menu by pressing the UP / DOWN button and press the OK button.

● Image Resize Types

7M O O O O 5M X O O O 3M X X O O 1M X X X O

Resize

2048X15362592X1944 1024X768 User Image 1,2

● A large sized image can be resized to a smaller sized image, but not vice versa.

● Only JPEG images can be resized. Movie clip (AVI), Voice recording (WAV) files

can’t be resized.

● You can change the resolution of only those files compressed in the JPEG 4:2:2 format.

● The resized image will have a new file name. The [User Image] image is stored not on the memory card but on the internal memory.

● Only two [User Image] images can be saved.

● If the memory capacity is insufficient to store the resized image, the resized

image will not be stored.

RESIZE

Exit:MENU Move:

 

2592x1944 2048x1536

1024x768

UserImage1 UserImage2

■ This is used to protect specific shots from being accidentally erased (Lock).

It also unprotects images that have been previously protected (Unlock).

● Protecting Images

1. Select a desired sub menu by pressing the UP / DOWN button and press the OK button.

[Select] : Selection window for an image to be

protected / released is displayed.

- Up / Down / Left / Right : Select an image

- Zoom W / T Button : Protect / release the image

- OK Button : Your changes will be saved and the menu will disappear.

[All Pics] : Protect / release all saved images

- Zoom W / T Button :Protect / release the

images

- OK Button : Your changes will be saved and the menu will disappear.

- If you protect an image, the protect icon will be displayed on the LCD monitor. (An unprotected image has no indicator)

- An image in LOCK mode will be protected from the delete function, but will NOT be protected from the format function.

Set:OK

W◀ Unlock ▶T

PROTECT

Select All Pics

Exit:MENU Move:

 

Set:OK

W◀ Unlock ▶T

Page 48

《47》

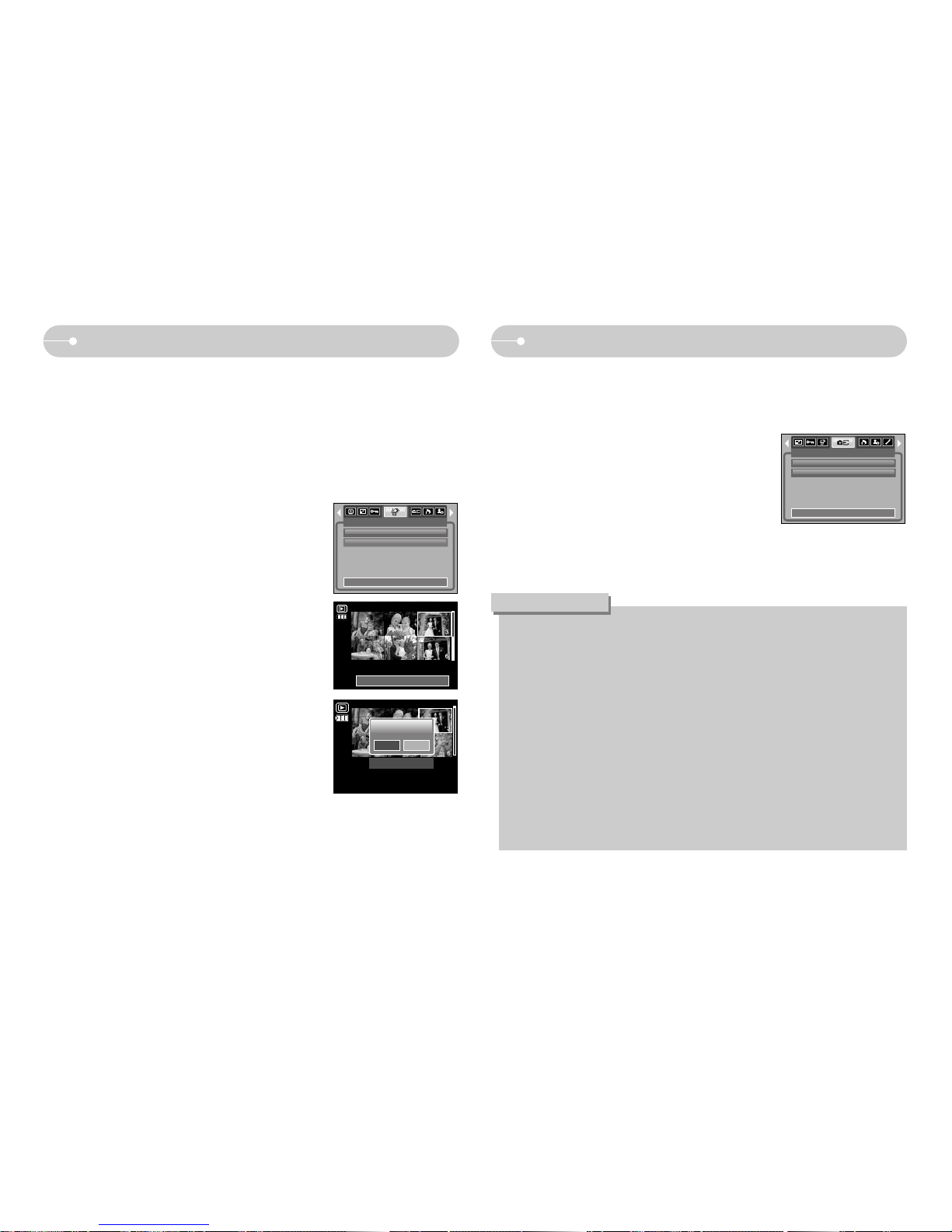

Deleting images Copy To Card

■ Of all the files stored in the memory card, the unprotected files in the DCIM subfolder will be deleted. Remember that this will permanently delete unprotected images. Important shots should be stored on a computer before deletion takes place. The startup image and SKIN image are stored in the camera's internal memory (i.e., not on the memory card) and it will not be deleted even if you delete all files on the memory card.

● Deleting images

1. Select a desired sub menu by pressing the

UP / DOWN button and press the OK button. [Select] : Selection window for an image to

delete is displayed.

- Up / Down / Left / Right : Select an image

- Zoom T Button : Select the image for deletion. (V mark)

- OK Button : Press the OK Button to display the

confirmation message. Select the [Yes] menu and press the OK button to delete marked images.

[All Pics] : Displays confirmation window. Select

the [Yes] menu and press the OK button to delete all unprotected images. If there aren’t protected images, all the images are deleted and a [No Image!] message will display.

2. After deletion, the screen will be changed to the play mode screen.

DELETE

Select All Pics

Exit:MENU Move:

 

Del:OK

Select:T

Delete?

Confirm:OK

Yes No

■ This enables you to copy image files, movie clips and voice recording files on the camera's built-in internal memory to the camera's removable SD memory card.

● Copying to the Memory Card

1. Select a desired sub menu by pressing the

UP / DOWN button and press the OK button.

- [No] : Cancels "Copy to Card".

- [Yes] : All images, movie clips and voice recording files saved in the internal memory are copied to the memory card after the [Processing!] message is displayed. After copying has been completed, the screen will return to play mode.

● When this menu is selected without inserting a memory card, you can select the [COPY TO CARD] menu but the menu can’t be run.

● If there is not enough space available in the memory card to copy saved images in the internal memory (20MB), the [COPY TO CARD] command will copy only some of the images and display [Memory Full!] message. Then the system will return to the playback mode. Please be sure to delete any unnecessary files to free up space before inserting the memory card into the camera.

● When you move images from the internal memory to the removable SD card, they will be automatically renumbered to avoid duplication of the file name. If the last file in the memory card is SL270001.jpg, the copied file names start from SL270002.jpg. After completing [COPY TO CARD], the last stored image of the last copied folder is displayed on the LCD monitor.

INFORMATION

COPY TO CARD

Exit:MENU Move:

 

No Yes

Page 49

《48》

DPOF DPOF : Index

■ DPOF (Digital Print Order Format) allows you to embed printing information on your memory card’s MISC folder. Select the pictures to be printed and how many prints to make.

■ The DPOF indicator will display on the LCD monitor when an image that has DPOF information plays back. Images can then be printed on DPOF printers, or at an increasing number of photo labs.

■ This function is not available for Movie clips and Voice recording files.

■ If a memory card is not inserted, the menus are still displayed in the LCD, but are

not selectable.

■ This function allows you to embed print quantity information on a stored image.

1. Select the [Standard] menu by pressing the UP / DOWN button and press the RIGHT button.

2. Select a desired sub menu by pressing the UP / DOWN button.

[Select] : Selection window for an image to print is

displayed.

- Up / Down / Left / Right : Select an image to print.

- Zoom W / T Button : Select the number of prints. [All Pics] : Configure number of prints for all pictures

except movie and voice files.

- W / T button : Select a number of prints [Cancel] : Cancel the print setup.

3. Press the OK button to confirm the setting. If an image carries DPOF instructions, the DPOF indicator ( ) will show.

Set:OK

W◀ 0 Prints ▶T

DPOF

Standard

Index Size

Back: Set:OK

Select

All Pics Cancel

Set:OK

W◀ 0 Prints ▶T

■ Images (except for movie clips and voice file) are printed as index type.

1. Select the [Index] menu by pressing the UP / DOWN button and press the RIGHT button.

2. Select a desired sub menu by pressing the UP / DOWN button. If [No] is selected : Cancel the index print setting. If [Yes] is selected : The image will be printed in

index format.

3. Press the OK button to confirm the setting.

DPOF

Standard

Index

Size

Back: Set:OK

Yes

DPOF : STANDARD

Page 50

《49》

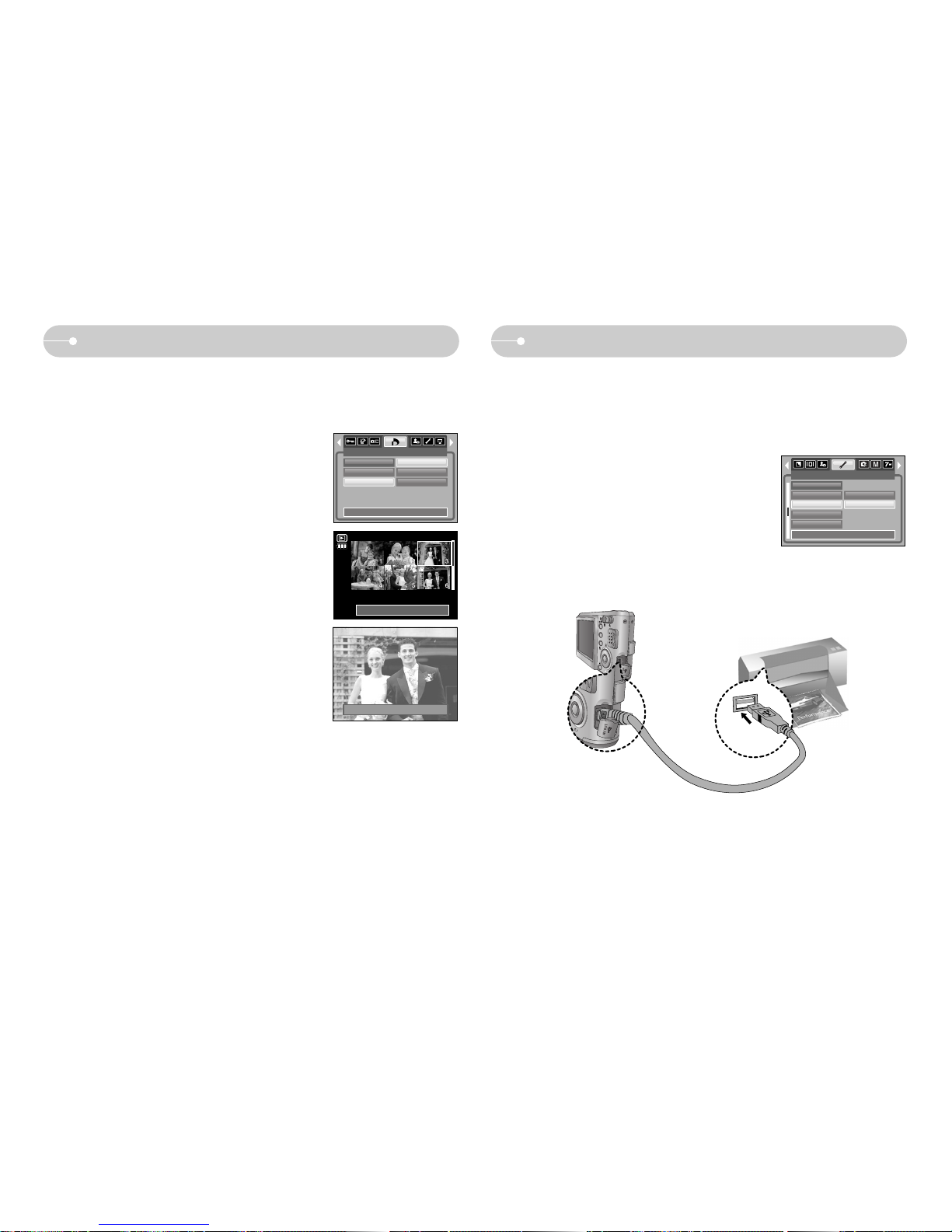

PictBridgeDPOF : Print size

● Setting the Print Size

1. Select the [Size] menu by pressing the UP / DOWN button and press the RIGHT button.

2. Select a desired sub menu by pressing the UP / DOWN button and press the OK button. [Select] : Selection window for an image to be

changed printed size is displayed.

- Up / Down / Left / Right : Select an image.

- Zoom W / T Button : Change the print size.

- OK button : Your changes will be saved and the

menu will disappear.

[All Pics] : Change print size of all saved images.

- W / T button : Select a print size

- OK button : Confirm the changed setting. [Cancel] : Cancel all of the print size settings.

※ DPOF [Size] secondary menu : Cancel, 3X5, 4X6,

5X7, 8X10

※ Depending on the manufacturer and printer model,

cancelling the printing may take a little longer for the printer to process.

■ You can specify the print size when printing images stored on the memory card. The [Size] menu is available only for DPOF 1.1 compatible printers.

Set:OK

W Cancel T

DPOF

Standard Index

Size

Back: Set:OK

Select

All Pics Cancel

Set:OK

W Cancel T

■ You can use the USB cable to connect this camera to a printer that supports PictBridge (sold separately) and print the stored images directly. Movie clips and voice files cannot be printed.

■ Setting up the camera for connection with the printer

1. In any mode with the exception of Voice Recording

mode, press the MENU button.

2. Press the LEFT / RIGHT button and select

[SETUP] menu tab.

3. Select [USB] menu by pressing the UP / DOWN

button and press the RIGHT button.

4. Select [Printer] menu by pressing the UP / DOWN

button and press the OK button.

※ If you selected [COMPUTER] in Step 5, when you connect the camera to your

printer, the [USB ERROR!] message will display and the connection will not be established. In this case, disconnect the USB cable, and then follow the procedure from Step 2 onwards.

SETUP

AF Lamp Sound

USB

LCD Video Out Back: Set:OK

Computer

Printer

Page 51

《50》

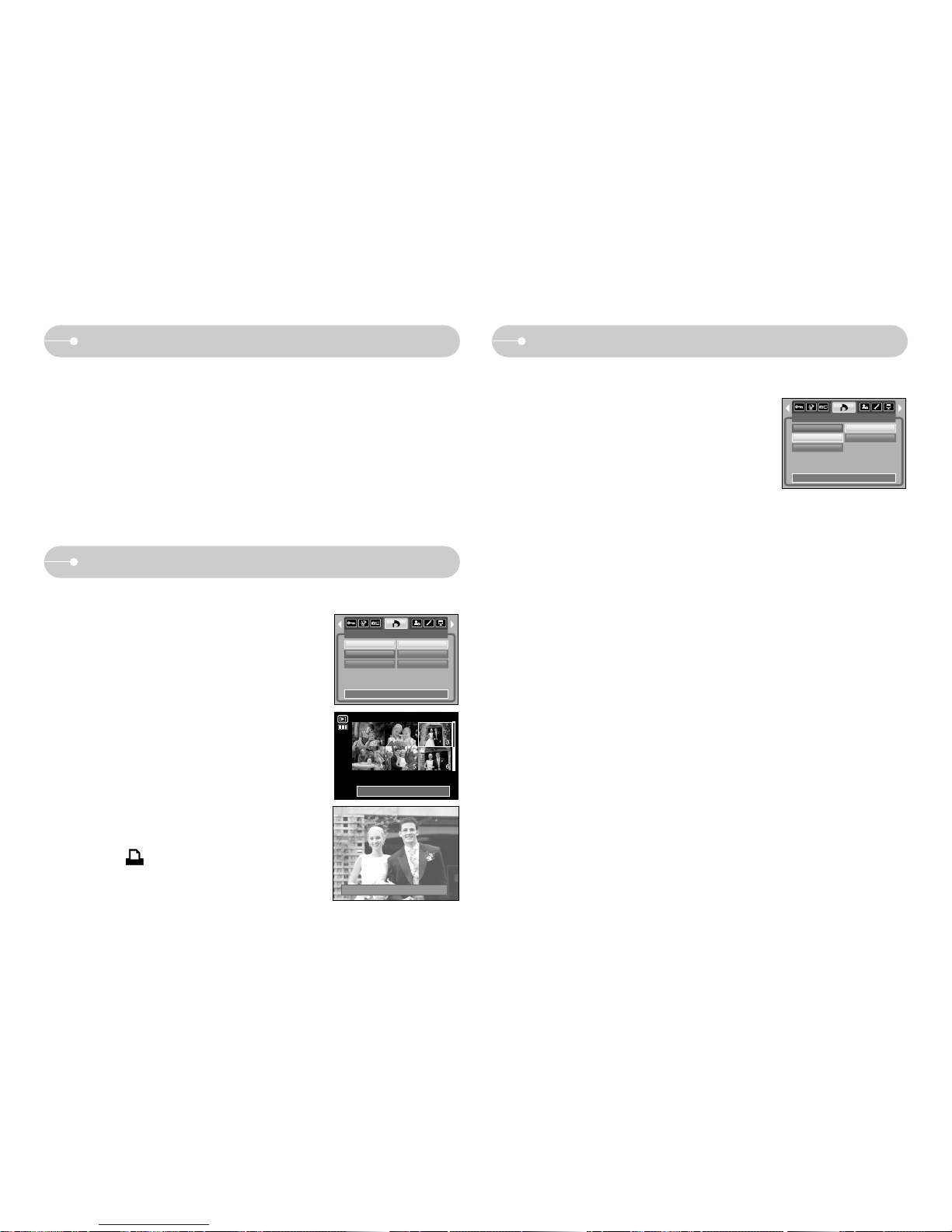

PictBridge : Print Setting

PictBridge : Picture Selection

■ Easy printing When you connect the camera to printer in the Play back mode, you can print a picture easily.

- Pressing the Printer ( ) button :

The currently displayed image will be printed with the printer’s default setting.

- Pressing the Left / Right button :

Selects a previous / next image.

■ Select pictures to print

1. Press the Menu button.

2. The [Images] menu will appear.

3. Use the UP and DOWN buttons to select the desired

submenu value, and then press the OK button.

When [One Pic] is selected : The PictBridge function will be applied only to the picture currently displayed. When [All Pics] is selected : The PictBridge function will be applied to all pictures, excluding movie clips and voice files.

● Setting the Number of Copies to Print

- Select [One Pic] or [All Pics]. A screen where you can set the number of copies to print will appear as shown below.

- Press the Up / Down button to select the number of prints.

- When [One Pic] is selected : Use the Left / Right button to select another

picture. After selecting another picture, select the number of prints for another picture.

- After setting the number of prints, press the OK button to save.

- Press the Shutter button to return to the menu without setting the number of prints.

■ AUTO SET

1. Use the LEFT and RIGHT buttons to select the

[AUTO SET] menu tab.

2. Use the UP and DOWN buttons to select the

desired submenu value, and then press the OK button.

[No] : [CUSTOM SET] values are kept. [Yes] : All values in the [CUSTOM SET] are

automatically changed.

141-0001

Print: Menu:Ok

◀▶

IMAGES

One Pic All Pics

Move:

 

[When [One Pic] is selected]

Exit:Shutter Set:OK

[When [All Pics] is selected]

0Prints

W◀▶T

Set:OK Exit:Shutter

W◀ 0 Prints ▶T

AUTO SET

No Yes

Move:

 

■ If you select [Computer] sub menu in the [USB] setup menu, [Connecting Computer] message will display when you connect the camera to your printer and the connection will not be established. In this case, press the Printer button. [Connecting Printer] message will display and the Easy printing mode will be selected.

* In some instances the camera may not connect to the printer, this will depend on

the manufacturer of the printer.

Page 52

《51》

PictBridge : Print Setting PictBridge : Print

■ Custom Set : You can select the Paper Size, Print Format, Paper Type, Print Quality, Date Print, and File Name Print menus for printed pictures.

1. Use the LEFT and RIGHT buttons to select the [CUSTOM SET] menu tab.

2. Use the UP and DOWN buttons to select the desired submenu value, and then press the RIGHT button.

3. Use the UP and DOWN buttons to select the desired submenu value, and then press the OK button.

■ The menus you can set up are as follows:

■ DPOF Print : This allows you to directly print the files with DPOF information.

1. Use the LEFT and RIGHT buttons to select the [DPOF PRINT] menu tab.

2. Use the UP and DOWN buttons to select the desired submenu value, and then press the OK button. [No] : Cancel the printing [Yes] : Directly print the file with the DPOF information

※ Depending on the manufacturer and printer model, some menus may not be

available. When a printer does not support the DPOF, the menu is still displayed but not available.

■ Printing Pictures

1. Use the LEFT and RIGHT buttons to select the [PRINT] menu tab.

2. Use the UP and DOWN buttons to select the desired submenu value, and then press the OK button. [Standard] : Print the pictures stored in the memory

card in set numbers. One picture is printed on one piece of paper.

[Index] : Print multiple images on one sheet of

paper.

3. The screen shown on the right will appear and the picture will be printed. If no picture is selected, the [No image!] message will be displayed. Press the Menu / OK button while printing to cancel the printing and the [Images] menu is displayed.

※ Number of pictures on an index print varies

depends on the printer used.

Size Set the size of the printing paper

Auto, PostCard, Card, 4X6, L, 2L, Letter, A4, A3

Set the number of pictures to be printed on a sheet of paper

Auto, Full, 1, 2, 4, 8, 9, 16, Index

Set the quality of the printing paper

Auto, Plain, Photo, FastPhoto

Set the quality of the picture to be printed

Auto, Draft, Normal, Fine

Set whether to print the date Auto, Off, On

Set whether to print the file name

Auto, Off, On

Layout

Type

Quality

Date

File Name

Function Sub menu

※ Some menu options are not supported on all printers.

If not supported, the menus are still displayed in the LCD, but are not selectable.

※ If the setting values are not changed in the automatic/ manual setting, the setting

values are automatically kept.

CUSTOM SET

Size Layout Type Quality Date

Auto Auto Auto Auto Auto

Move:

 

0001 / 0001

Exit:Shutter

Now Printing

Standard Index

Move:

 

DPOF PRINT

No Yes

Move:

 

Page 53

《52》

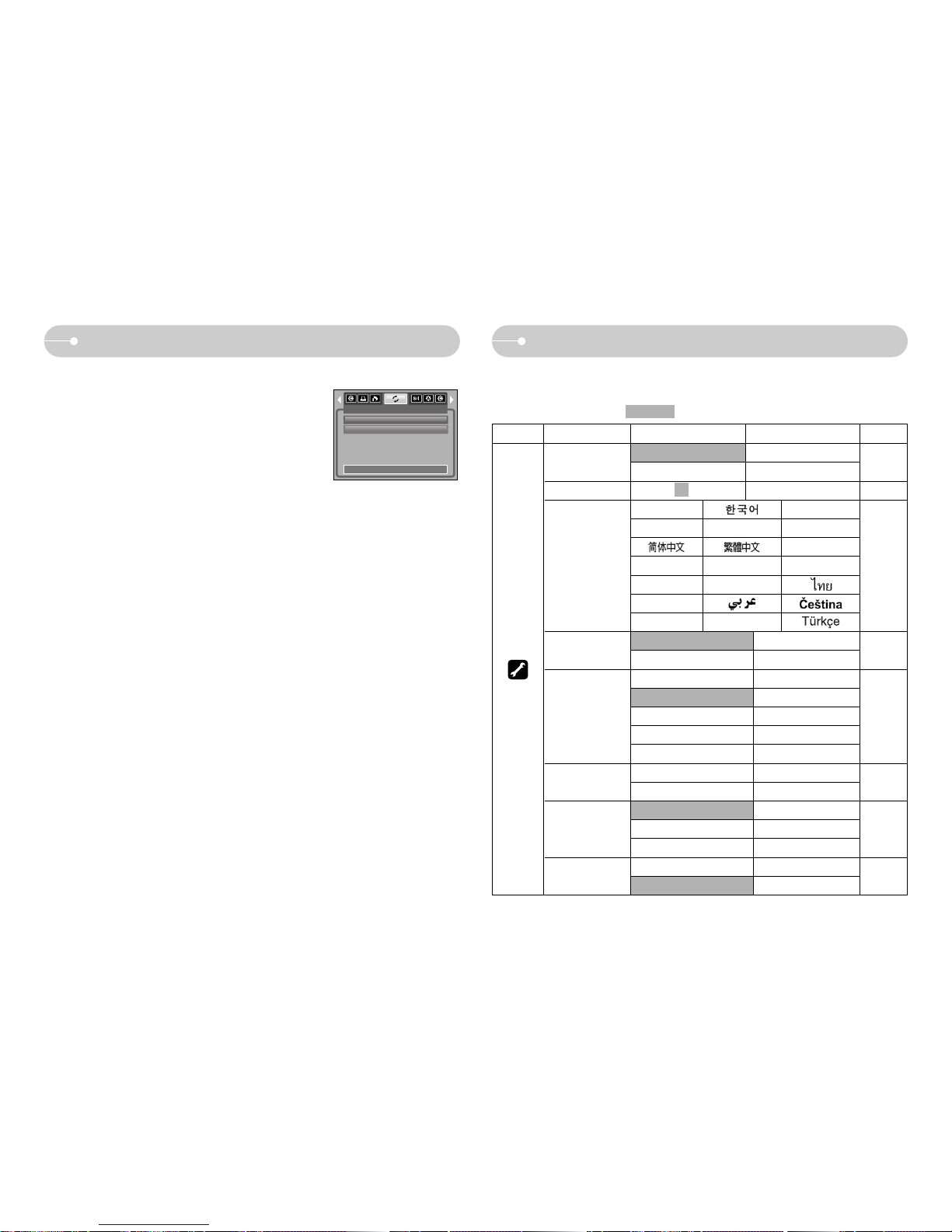

Menu tab Main menu Sub menu Secondary menu Page

Series -

Reset -

Off, 1, 3, 5,10min -

No -

Yes -

07/02/01 13:00 -

yy/mm/dd mm/dd/yy dd/mm/yy -

Off -

Guam -

Sydney -

Off -

Date -

Date&Time -

Off On

PictBridge : RESET Setup menu

■ Initialises user-changed configurations.

1. Use the LEFT and RIGHT buttons to select the [RESET] menu tab.

2. Use the UP and DOWN buttons to select the desired submenu value, and then press the OK button.

If [No] is selected : Settings will not be reset. If [Yes] is selected : All print and image settings

will be reset.

※ Default print setting varies depending on the printer manufacturer. For your

printer’s default setting, refer to the user’s guide that came with your printer.

ENGLISH FRANÇAIS

DEUTSCH ESPAÑOL ITALIANO

P”CCK»…

PORTUGUÊS

DUTCH DANSK

SVENSKA SUOMI

BAHASA

POLSKI Magyar

■ In this mode, you can set up basic settings. You can use the setup menu in all camera modes, except Voice Recording mode. The items indicated by are default settings.

File

Power Off

Language

Format

Date&Time

Imprint

AF lamp

World Time

p.53

p.54

p.55

RESET

No Yes

Move:

 

Page 54

《53》

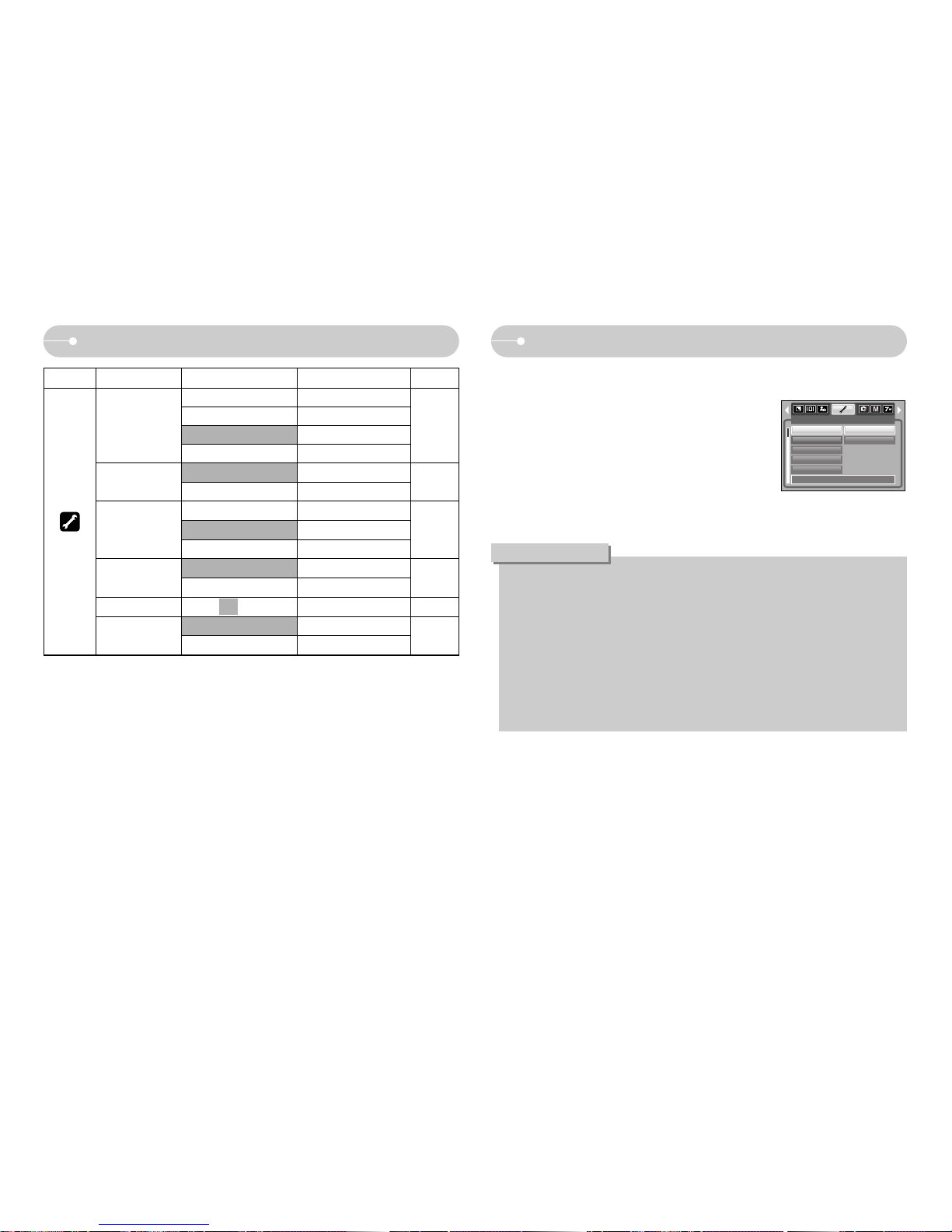

File nameSetup menu

Menu tab Main menu Sub menu Secondary menu Page

Off -

Low -

Medium -

High -

Computer

Printer

Dark

Normal

Bright

NTSC -

PAL -

Quick View Off, 0.5, 1, 3 sec -

Yes

LCD

Video Out

Reset

p.55

p56

p.56

USB

p.55

※ Menus are subject to change without prior notice.

Sound

■ This function allows the user to select the file naming format. [Series] : New files are named using numbers that

follow the previous sequence, even when a new memory card is used, or after formatting, or after deleting all pictures.

[Reset] : After using the reset function, the next file

name will be set from 0001 even after formatting, deleting all or inserting a new memory card.

● The first stored folder name is 100SSCAM, and the first file name is SL270001

● File names are assigned sequentially from SL270001 → SL270002 → ~ → SL279999.

● The folder number is assigned sequentially from 100 to 999 as follows: 100SSCAM → 101SSCAM → ~ → 999SSCAM.

● The files used with the memory card conform to the DCF (Design rule for Camera File systems) format. If you change the image file name, the image may not play back.

INFORMATION

SETUP

File

Power Off Language Format Date&Time

Series

Reset

Back: Set:OK

Page 55

《54》

Auto power off Format

● After replacing the battery, the power off setting will be preserved.

● Note that the automatic power off function will not operate if the camera is in

connecting the computer or printer, slide show, playing back a voice recording, playing back a movie clip and taking a composite shot.

INFORMATION

■ This function switches the camera off after a specified period in order to prevent unnecessary battery drainage.

[Off] : The power off function will not

operate.

[1, 3, 5, 10 min] : The power will turn off

automatically if not used for the period of time specified.

LANGUAGE sub menu : English, Korean, French, German, Spanish, Italian, S.Chinese, T.Chinese, Russian, Portuguese, Dutch, Danish, Swedish, Finnish, Thai, BAHASA (MALAY/ INDONESIAN), Arabic, Czech, Polish, Hungarian and Turkish.

■ There is a choice of languages that can be displayed on the LCD monitor. Even if the battery and AC charger are removed and inserted again, the language setting will be preserved.

■ This is used for formatting the memory. If you run [Format] on the memory, all images, including the protected images, will be deleted. Be sure to download important images to your PC before formatting the memory.

If [No] is selected : The memory card will not be

formatted. Press the menu button twice and the menu display will disappear.

If [Yes] is selected : A [Processing!] message

appears and the memory card will be formatted. If you ran FORMAT in Play mode, a [No Image!] message will appear.

● Be sure to run [Format] on the following types of memory card.

- A new memory card or an unformatted memory card.

- A memory card that has a file this camera can't recognise or one that has been taken from another camera.

● Always format the memory card using this camera. If you insert a memory card that has been formatted using other cameras, memory card readers, or PCs, you will get a [Card Error!] message.

INFORMATION

Language

SETUP

File

Power Off

Language Format Date&Time

Off 1 min

3 min

5 min 10 min

Back: Set:OK

SETUP

File Power Off

Language

Format Date&Time

ENGLISH

한국어

FRANÇAIS DEUTSCH ESPAÑOL

Back: Set:OK

SETUP

Power Off Language

Format

Date&Time World Time

Yes

Back: Set:OK

Page 56

《55》

Auto Focus lamp

Setting up the Date / Time / Date type

RIGHT button : Selects the year / month / day / hour /

minute date type.

LEFT button : Moves the cursor to the [Date&Time]

main menu if the cursor is at the first item of the date and time setup. In all other cases, the cursor will be shifted to the left of its current position.

UP and DOWN buttons : Changes the setting value.

[Off] : The DATE & TIME will not be

imprinted on the image file.

[Date] :

Only the DATE will be imprinted on the image file.

[Date&Time] :

The DATE & TIME will be imprinted on the image file.

※ The Date & Time are imprinted at the bottom right

side of the still image.

※ The imprint function is applied only to still images except for the images taken in

the [Text] scene mode and photo frame effect mode.

■ You can change the date and time that will be displayed on the captured images and set up the date type.

■ There is an option to include DATE / TIME on still images.

Imprinting the recording date

Sound

■ If you set the operation sound to on, various sounds will be activated for camera start-up and when buttons are pressed, so that you are aware of the camera's operation status.

World Time

If [Off] is selected : The AF lamp will not light up. If [On] is selected : The AF lamp will light up.

※ If you select [Off] menu and take an image in poorly

lit conditions or select the [Night] scene mode, the camera may not be able to focus accurately.

※ The Auto Focus lamp will function while using the self-timer even if the

configuration is set to off.

■ You can turn the Auto Focus lamp on or off.

■ This menu enables you to display the local date and time on the LCD monitor.

[Computer] : Select this if you want to connect the

camera to your PC. Refer to page 66 for instructions on how to connect the camera to your PC.

[Printer] : Select this if you want to connect the

camera to your printer. Refer to page 49 for instructions on how to connect the camera to your printer.

■ You can select an external device to which you want to connect the camera using the USB cable.

Connecting an External Device (USB)

SETUP

Language Format

Date&Time

World Time Imprint Back: Set:OK

▲ 07/02/01 ▼

13:00

yy/mm/dd

SETUP

Format Date&Time

World Time

Imprint AF Lamp Back: Set:OK

SETUP

Date&Time World Time

Imprint

AF Lamp Sound

Off Date

Date&Time

Back: Set:OK

SETUP

World Time Imprint

AF Lamp

Sound USB Back: Set:OK

Off

SETUP

Imprint AF Lamp

Sound

USB LCD Back: Set:OK

Off Low

Medium

High

SETUP

AF Lamp Sound

USB

LCD Video Out Back: Set:OK

Computer

Printer

Guam Sydney

Guam, Sydney

07/02/01 15:08

Set:OK

Page 57

《56》

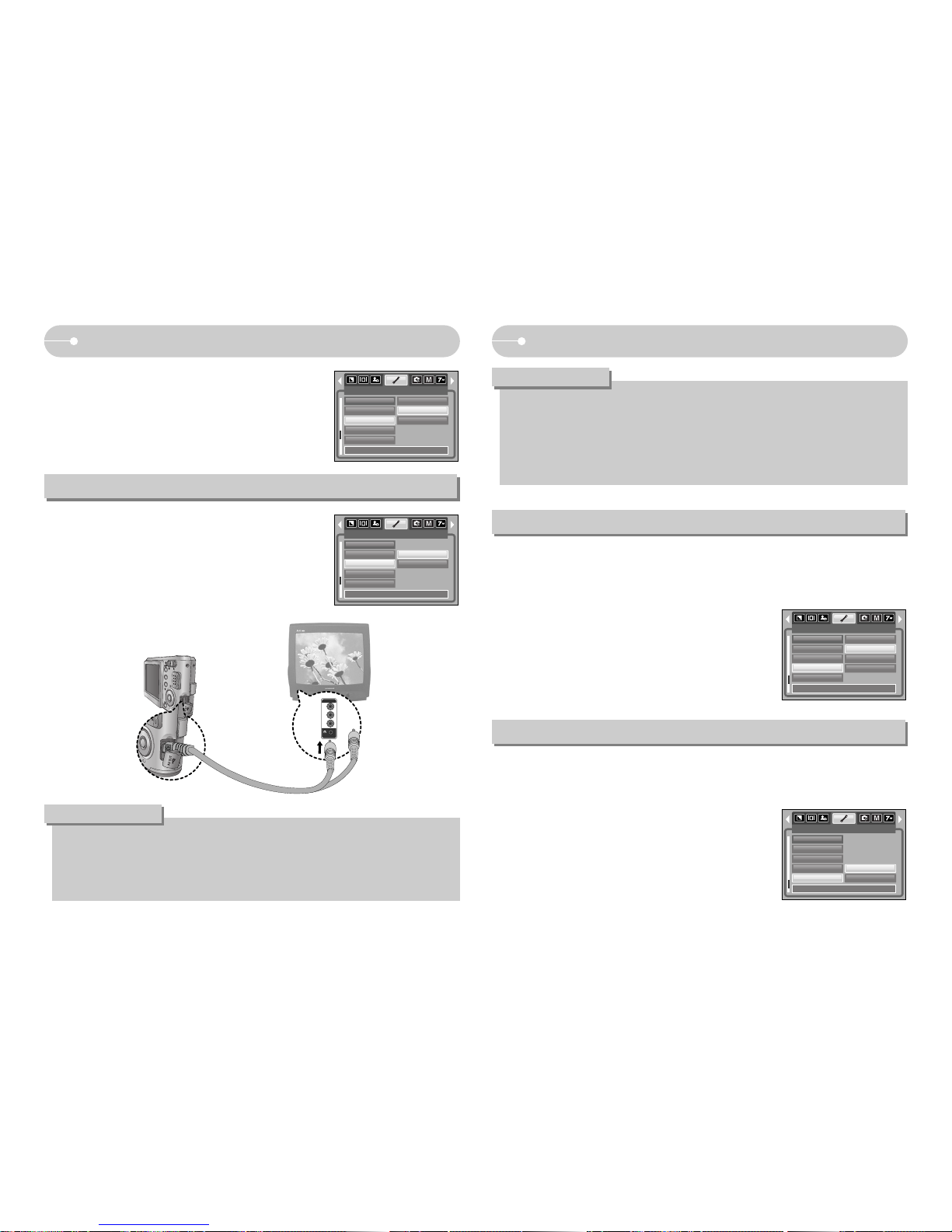

■ If you enable Quick View before capturing an image, you can view the image

you just captured on the LCD monitor for the duration set in the [Quick View] setup. Quick view is possible only with still images.

[Off] : The quick view function can’t be

activated.

[0.5, 1, 3sec] : The captured image is briefly

displayed during the selected time.

Initialisation

■ All camera menu and function settings will be restored to their default values. However, values for DATE / TIME, LANGUAGE, and VIDEO OUT will not be changed.

If [No] is selected : Settings will not be restored to

their defaults.

If [Yes] is selected : All settings will be restored to

their defaults.

LCD brightness Selecting Video out type

■ The Movie output signal from the camera can be NTSC or PAL. Your choice of output will be governed by the type of device (monitor or TV, etc.) to which the camera is connected. PAL mode can support only BDGHI.

● NTSC : U.S.A, Canada, Japan, South Korea, Taiwan, Mexico.

● PAL : Australia, Austria, Belgium, China, Denmark, Finland, Germany,

U.K., Holland, Italy, Kuwait, Malaysia, New Zealand, Singapore, Spain, Sweden, Switzerland, Thailand, Norway.

INFORMATION

● When using a TV as an external monitor, you will need to select the external or AV channel of the TV.

● There will be a digital noise on the external monitor, but it is not a malfunction.

● If the image is not in the centre of the screen, use the TV controls to centre it.

● The menu functions are the same as those indicated on the LCD monitor.

INFORMATION

Yellow - Video White - sound

Quick view

Selecting Video out type

■ You can adjust the LCD brightness.

SETUP

USB LCD

Video Out

Quick View Reset Back: Set:OK

NTSC

PAL

SETUP

SOund USB

LCD

Video Out Quick View Back: Set:OK

Dark

Normal

Bright

SETUP

USB LCD Video Out

Quick View

Reset Back: Set:OK

off

0.5 sec

1 sec 3 sec

SETUP

USB LCD Video Out Quick View

Reset

Back: Set:OK

Yes

Page 58

《57》

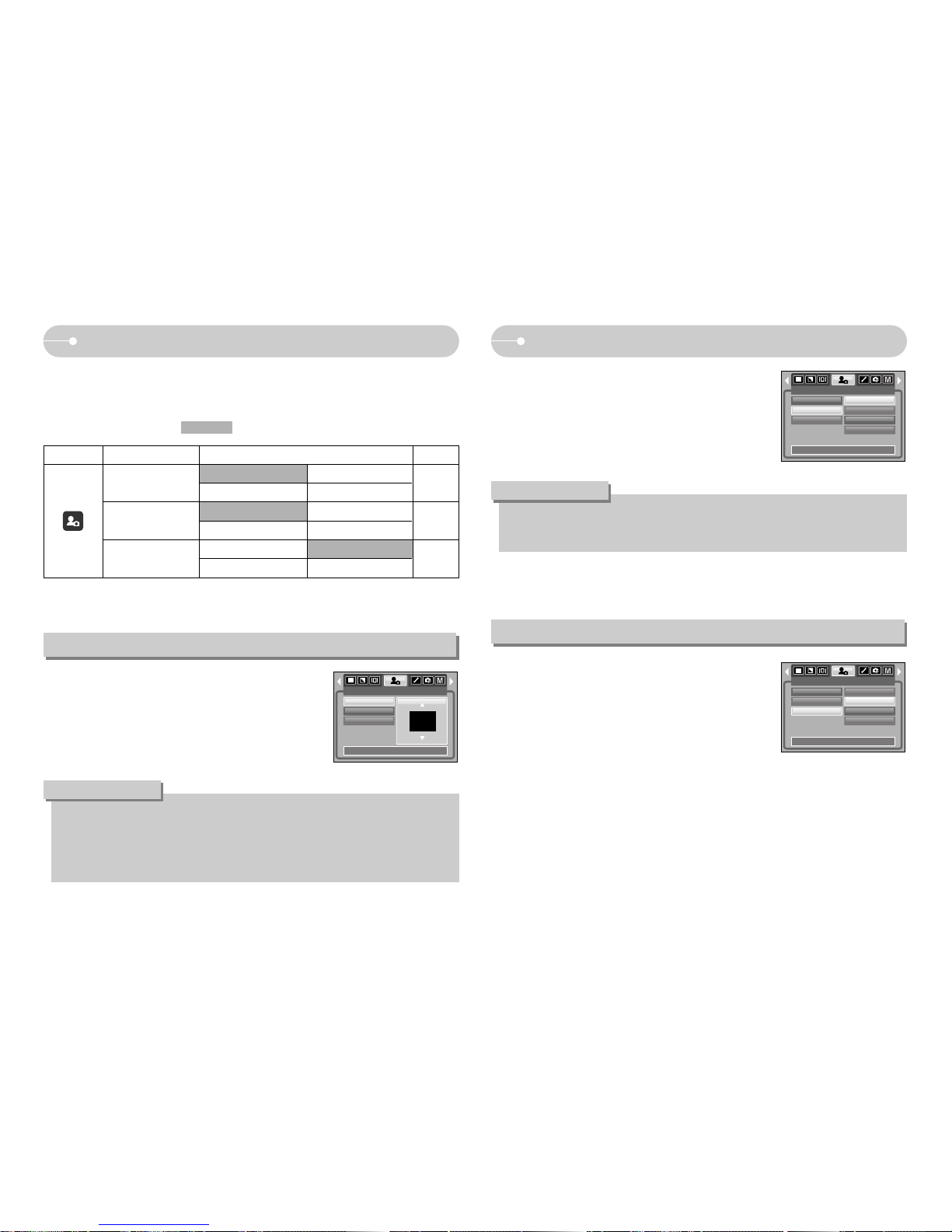

Start up soundSetting up the Mycam menu

Start up image

■ YYou can set up a start up image, start up sound and shutter sound. Every working mode of camera with the exception of Voice recording mode has the MyCAM menu. The items indicated by are default settings.

Menu tab Main menu Sub menu Page

Off LOGO

User Image 1 User Image 2

Off Sound 1

Sound 2 Sound 3

Off Sound 1

Sound 2 Sound 3

Start Image

Start Sound

Shutter Sound

p.57

※ Menus are subject to change without prior notice.

■ You can select the image that is first displayed on the

LCD monitor whenever the camera is turned on.

● Use a saved image for the start-up image with the [User Image] in the [RESIZE] menu in the play mode.

●

The start-up image will not be deleted by deleting all images or [Format] menu.

● The User images will be deleted by [Reset] menu.

INFORMATION

■ You can select the shutter sound.

Shutter sound

● If the start up image is set to [Off], the start up sound will not activate, even though you may have set these to on.

INFORMATION

■ You can select the sound that is activated whenever the camera is turned on.

MYCAM

Start Image

Start Sound Shutter Sound

Back: Set:OK

OOffff

MYCAM

Start Image

Start Sound

Shutter Sound

Off

Sound 1 Sound 2 Sound 3

Back: Set:OK

MYCAM

Start Image Start Sound

Shutter Sound

Off

Sound 1

Sound 2 Sound 3

Back: Set:OK

Page 59

《58》

Important notes

Be sure to observe the following precautions!

■ This unit contains precision electronic components. Do not use or store this unit in the following locations.

- Areas exposed to severe changes in temperature and humidity.

- Areas exposed to dust and dirt.

- Areas exposed to direct sunlight or the inside of a vehicle in hot weather.

- Environments where there is high magnetism or excessive vibration.

- Areas with high explosives or highly flammable materials.

■ Do not leave this camera in places subject to dust, chemicals (like naphthalene and mothball), high temperature and high humidity. Keep this camera with silica gel in a hermetically sealed box when not planning to use the camera for a long period of time

■ Sand can be particularly troublesome to cameras.

- Do not let sand get inside the camera when using it on beaches, coastal dunes, or other areas where there is lots of sand.

- Doing so may result in failure or may permanently render the camera unusable.

■ Handling the camera

- Never drop the camera or subject it to severe shocks or vibrations.

- Protect the large size LCD monitor from an impact. When this camera is not being used, keep it in the camera case.

- Avoid obstructing the lens or the flash when you capture an image.

- This camera is not waterproof. To avoid dangerous electrical shocks, never hold or operate the camera with wet hands.

- If you use this camera in wet places, such as beach or pool, do not let water or sand get inside the camera. Doing so may result in failure or may permanently damage the unit.

■ Extremes in temperature may cause problems.

If the camera is transferred from a cold to a warm and humid environment, condensation can form on the delicate electronic circuitry. If this occurs, turn the camera off and wait for at least 1 hour until all moisture is dispersed. Moisture built up can also occur in the memory card. If this happens, turn off the camera and remove the memory card. Wait until the moisture has dispersed.

■ Caution on Using the Lens

- If the lens is subjected to direct sunlight, it could result in discoloration and deterioration of the image sensor.

- Pay attention not to get fingerprints or foreign substances on the surface of the lens.

■

If the digital camera is not used for a long period, an electric discharge can occur. It is a good idea to remove the battery and the memory card if you do not intend to use the camera for an extended period of time.

■ If the camera is exposed to an electronic interference, it will turn itself off to protect the memory card.

■ Camera Maintenance

- Use a soft brush (available from photo stores) to gently clean the lens and LCD assemblies. If this does not work, lens-cleaning paper with lens cleaning fluid can be used. Clean the camera body with a soft cloth. Do not allow this camera to come into contact with solvent materials such as benzol, insecticide, thinners etc. This may damage the body shell of the camera and also affect its performance. Rough handling can damage the LCD monitor. Take care to avoid damage and keep the camera in its protective carry case at all times when not in use.

■ Do not attempt to disassemble or modify the camera.

Page 60

Important notes

《59》

Memory Full!

•There is insufficient memory capacity to take an image → Insert a new memory card → Delete unnecessary image files to free up some memory

No Image!

•There are no images stored on the memory → Take images → Insert a memory card that is holding some images

File Error!

•File error → Format the memory card

•Memory card error → Contact a camera service centre

Low Battery!

•There is low battery capacity → Insert fresh batteries.

Low Light!

•When taking pictures in dark places → Take pictures in Flash Photography mode.

Out Of Number

•When selecting too many printing pages in the PictBridge menu. → Select printing page within the limitation.

Warning indicator

■ There are several warnings that may appear on the LCD display

Card Error!

•Memory card error → Turn off the camera power and turn it on again → Insert the memory card again → Insert the memory card and format the memory card. (p.54)

Card Locked!

•The memory card is locked →

SD memory card : Slide the write protect switch to the top of the memory card

■ Under certain conditions, static electricity can cause the flash unit to fire. This is not harmful to the camera and is not a malfunction.

■ When images are uploaded or downloaded (when the charger and USB cable are inserted into the cradle (optional) at the same time), the data transfer may be affected by static electricity. In this case, disconnect and re-connect the USB cable before trying the transfer again.

■ Before an important event or going on a trip, you should check the camera condition.

- Take a picture to test the camera's condition, and prepare spare batteries.

- Samsung cannot be held responsible for camera malfunctions.

Page 61

《60》

Before contacting a service centre

■ Please check the following

The camera doesn’t switch on

•There is low battery capacity → Insert fresh batteries. (p.10)

•The battery may be inserted incorrectly. → Insert the battery according to the polarity marks (+, -)

•The battery is not inserted → Insert the battery and turn on the camera

The camera power ceases while in use

•The battery are exhausted → Insert charged battery

•The Camera is turned off automatically → Turn on the camera power again.

Battery power quickly drains

•The Camera is being used in low temperatures → Keep the camera in warm conditions (i.e. inside a coat or jacket) and only

remove it in order to take images

Camera does not take images when pressing the Shutter button

•There is insufficient memory capacity → Delete unnecessary image files

•The memory card has not been formatted → Format the memory card (p.54)

•The memory card is exhausted → Insert a new memory card

•The memory card is locked → Refer to [Card Locked!] error message

•The camera’s power is off → Turn the camera power on

•The battery is exhausted → Insert fresh batteries.

•Battery is inserted incorrectly with the polarities reversed → Insert the battery according to the polarity marks (+, -)

The camera suddenly stops working while in use

•The camera stopped due to a malfunction → Remove /re-insert battery and switch the camera on

The images are unclear

•A picture was taken without setting an appropriate macro mode → Select an appropriate macro mode to take a clear image.

•The picture was taken with the subject beyond the flash range → Take a picture within the flash range

•The lens is smudged or dirty → Clean the lens

The flash does not fire

•Flash off mode has been selected → Dis-engage flash off mode

•The camera mode can’t use the flash → Refer to the FLASH instruction (p.22~24)

Incorrect date and time is displayed

•The date and time have been set incorrectly or the camera has adopted the

default settings

→ Reset the date and time correctly

The camera buttons do not operate

•Camera malfunction → Remove / re-insert battery and switch the camera on

A card error has occurred while the memory card is in the camera.

•Incorrect memory card format → Re-format the memory card

Page 62

《61》

Specifications

■ Image Sensor

- Type : 1/2.5" CCD - Effective Pixel : Approx. 7.2Mega-pixel

- Total Pixel : Approx. 7.4 Mega-pixel

■ Lens

- Focal Length : NV Lens f = 5.8 ~ 17.4mm (35mm equivalent : 35 ~ 105mm)

- F No. : F2.8 ~ F4.9

- Digital Zoom :ㆍStill Image mode : 1.0X ~ 5.0X

ㆍPlay mode : 1.0X ~ 10.0X (depends on image size)

■ LCD Monitor : 2.5" color TFT LCD (230,000 pixel)

■ Focusing

- Type : TTL contrast auto focus

- Range

■ Shutter

- Speed : 1 ~ 1/2,000 sec. (Night Mode : 15 ~ 1/2,000 sec.)

■ Exposure

- Control : Program AE Metering : Multi, Spot

- Compensation : ±2EV (0.5 EV steps)

- ISO Equivalent : Auto, 50, 100, 200, 400, 800, 1600

■ Flash

- Modes : Auto, Auto & Red-eye reduction, Fill-in flash, Slow sync, Flash off

- Range : Wide : 0.4 ~ 3.0m, Tele : 0.5 ~ 2.5m (ISO AUTO)

- Recharging Time : Approx. 4.0sec

■ Sharpness : Soft, Normal, Vivid

■ Effect : Color, B&W, Sepia, Red, Green, Blue, Negative, RGB, Highlight

■ White Balance : Auto, Daylight, Cloudy, Fluorescent_H, Fluorescent_L,

Tungsten, Custom

Normal Macro Auto Macro

Wide 5~80cm 5cm~infinity

Tele 40~80cm 40cm~infinity

80cm ~ infinity

Before contacting a service centre

The images don't play back

•Incorrect file name (Violation of DCF format) → Do not change the image file name

Colour of image is different to the original scene

•White balance or effect setting is incorrect → Select appropriate White balance and effect

Images are too bright

•Exposure is excessive → Reset exposure compensation

No image on external monitor

•The external monitor has not been connected properly with the camera → Check the connection cables

•There are incorrect files in the memory card → Insert a memory card that has correct files

When using the PC’s explorer, the [Removable Disk] file does not show

•Cable connection is incorrect → Check the connection

•The camera is off → Turn the camera on

•The operating system is not Windows 98, 98SE, 2000, ME, XP/ Mac OS 10.0 ~

10.3. Alternatively the PC does not support USB.

→ Install Windows 98, 98SE, 2000, ME, XP/ Mac OS 10.0 ~ 10.3 to PC that

supports USB.

•The camera driver is not installed → Install a [USB Storage Driver]

Page 63

《62》

Specifications

■ White Balance : Auto, Daylight, Cloudy, Fluorescent_H, Fluorescent_L,

Tungsten, Custom

■ Voice Recording : Voice Recording (Max. 1 hour)

Voice Memo in Still Image (Max. 10 sec.)

■ Date Imprinting : Date&Time, Date, Off (user selectable)

■ Shooting

- Still Image : ㆍModes : Auto, Program, Scene, Voice Recording ※ 11 Scene (Night, Portrait, Children, Landscape, Close-up,

Sunset, Dawn, Backlight, Firework, Beach & Snow, Text)

ㆍShooting : Single, Continuous, AEB ㆍSelf-timer : 10 sec., 2 sec., Double self timer (10sec. & 2sec.)

- Movie Clip :ㆍWith Audio or without Audio

(user selectable, recording time : memory capacity dependent)

ㆍSize : 640x480, 320x240

(3X Optical Zoom (Mute during Zoom Operation))

ㆍFrame rate : 30 fps, 15 fps ㆍMovie Stabiliser (User Selectable) ㆍMovie Editing (Embedded) : Pause during recording, Still Image

Capture, Time Trimming

■ Storage

- Media : Internal memory : Approx. 20MB flash memory

External memory : SD card / MMC/ SDHC (Up to 4GM Guaranteed)

- File Format : Still Image : JPEG (DCF), EXIF 2.2, DPOF 1.1, PictBridge 1.0

Movie Clip : AVI (MPEG-4) Audio : WAV

- Image Size

7M 5M 3M 1M

3072x2304 2592x1944 2048x1536 1024x768

- Capacity (256MB MMC)

※ These figures are measured under Samsung’s standard conditions and may

vary depending on shooting conditions and camera settings.

■ Image Play

- Type : Single image, Thumbnails, Slide show, Movie Clip

- Editing : Trimming, Rotating, Resizing, Colour Effect

■ Interface : Digital output connector : USB 2.0 (Mass Storage Class)

Video Out : Pal & NTSC selectable Audio : Mono (without external codec) Pictbridge (Full Option)

■ Power Source : Rechargeable battery : 3.7V Li-ion battery (SLB-0837) ※ Included battery may vary depending on sales region.

■ Dimensions (WxHxD) : 96.9 X 56.8 X 20.5 mm

■ Weight : 130g

- Operating Temperature : 0 ~ 40°C

- Operating Humidity : 5 ~ 85%

■ Software

- Application : Digimax Master, Adobe Reader

■ Special Features

- 3X Optical Zoom for Still & Movie. MPEG-4 VGA 30 fps Movie Clip (supporting Edit on DSC), Effect Key Powerful Effect (Colour, Highlight), Easy Mode Change using “M” button

※ Specifications are subject to change without prior notice. ※ All trademarks are the property of their respective owners.

7M 5M 3M 1M

Superfine 76 93 173 560

Fine 113 159 266 673

Normal 193 272 425 743

Page 64

《63》

Software Notes About the software

System Requirements

Please ensure that you read the instruction manual carefully before use.

•The attached software is a camera driver and image editing software tool for

Windows.

•Under no circumstances should all or part of either the software or the user

manual be reproduced.

•Copyrights for software are licensed only for use with a camera.

•In the unlikely event of a manufacturing fault, we will repair or exchange your

camera. We cannot, however, be held responsible in any way for damage caused by inappropriate use.

•Using a Hand-made PC or a PC and OS that has not been guaranteed by the

manufacturer is not covered by the Samsung warranty.

•Before reading this manual, you should have a basic knowledge of computers

and O/S (Operating Systems).

After inserting the CD-ROM provided with this camera into the CD-ROM drive, the following window should automatically run.

Before connecting the camera to the PC, you should first install the camera driver.

※Screen Captures illustrated on this manual is

based on English Edition of Windows.

● Be sure to check the system requirements before installing the driver.

● You should allow 5 ~ 10 seconds for running the automatic setup program

according to the capability of your computer. If the frame does not show, run the [Windows Explorer] and select [Installer.exe] in the CD-ROM Drive root directory.

INFORMATION

■ Camera driver : This enables images to transfer between the camera

and PC.

This camera uses the USB Storage Driver as the camera driver. You can use the camera as a USB card reader. After installing the driver and connecting this camera to the PC, you can find [Removable Disk] in [Windows Explorer] or [My Computer]. A USB Storage Driver is provided only for Windows. A USB Driver for MAC is not included with the Application CD. You can use the camera with Mac OS 10.0 ~ 10.3.

■ Digimax Master : This is the all-in-one multi media software solution.

You can download, view, edit and save your digital images and movie clips clip with this software. This software is only compatible with Windows.

For Windows For Macintosh

Power Mac G3 or later

Windows 98 / 98SE / 2000 / ME / XP Mac OS 10.0 ~ 10.3

Minimum 64MB RAM (Over 128MB recommended)

Minimum 64MB RAM

200MB of available hard-disk space (Over 1GB recommend)

110MB of available hard-disk space

USB port USB port

CD-ROM drive CD-ROM drive

PC with processor better than Pentium II 450MHz

(Pentium 700MHz recommended)

1024x768 pixels, 16bit colour display

compatible monitor

(24bit colour display recommended)

MPlayer

DivX (For movie clip)

Page 65

《64》

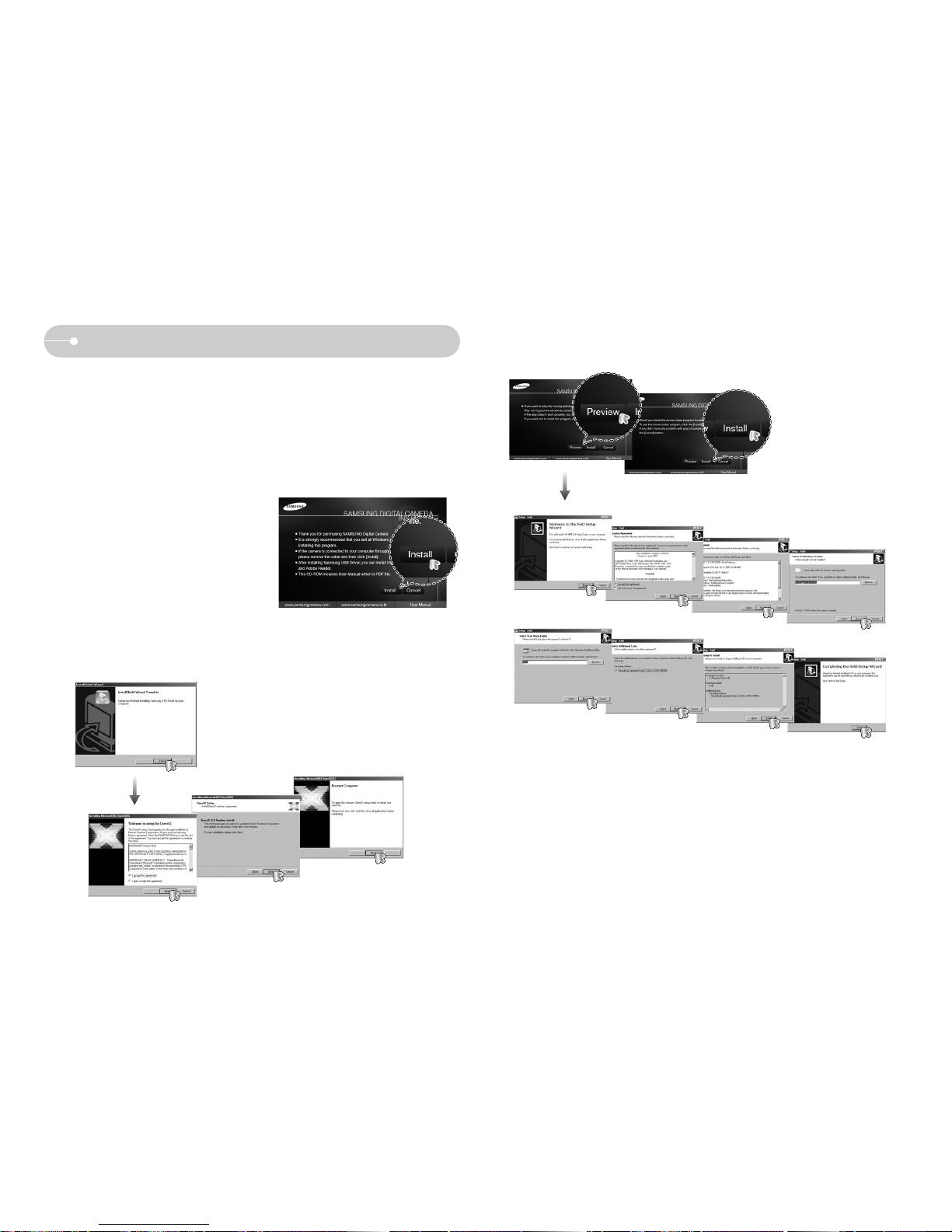

Setting up the application software

■ To use this camera with a PC, install the application software first.

After this has been done, the stored images in the camera can be moved to the PC and can be edited by an image editing program.

■ You can visit the Samsung web-site through the internet.

1. The auto run frame will display. Click the [Install] menu in the Auto run frame.

http://www.samsungcamera.com : English http://www.samsungcamera.co.kr : Korean

2. Install the camera driver, DirectX, Xvid and Digimax Master by selecting a button shown on the monitor. If an upper version of DirectX was installed on your computer, DirectX may not be installed.

※ The XviD codec is distributed according to and under the terms and conditions of

the GNU General Public License and everyone can copy, modifiy and distribute this codec freely, but WITHOUT ANY WARRANTY, IMPLIED OR EXPRESSED, OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE; provided, however, that you have to follow the GNU General Public License whenever you are distributing this codec or modification thereof. For more information see the GNU General Publice License documents (http://www.gnu.org/copyleft/gpl.html).

Page 66

《65》

4. Turn the camera power on. The [Found New Hardware Wizard] will open and the computer will recognise the camera.

※ If your OS is Windows XP, an image

viewer program will open. If the download window of Digmax Master opens after starting Digimax Master, the camera driver was set up successfully.

3. After restarting the computer, connect the PC to the camera with the USB cable.

● If you have installed the camera driver, the [Found New Hardware Wizard]

may not open.

● On a Windows 98/98SE system, the Found New Hardware Wizard dialog

box opens and a window asking you to select a driver file may appear. In this case, specify "USB Driver" in the CD supplied. (for Windows 98/98SE).

● PDF documents of user manual are included in the Software CD-ROM

supplied with this camera. Search the PDF files with Window's explorer. Before opening the PDF files, you must install the Adobe Reader included in the Software CD-ROM.

● To install the Adobe Reader 6.0.1 correctly, Internet Explorer 5.01 or later

had to be installed. Visit "www.microsoft.com" and upgrade the Internet Explorer

INFORMATION

Setting up the application software

Page 67

《66》

Starting PC mode

■ Connecting the camera to a PC

■ Disconnecting the camera and PC : Refer to page 68

(Removing the removable disk).

※ If you selected [Printer] in Step 4, when you connect the camera to your

printer, the [Connecting Printer] message will display and the connection will not be established. In this case, disconnect the USB cable, and then follow the procedure from Step 2 and onward.

● To save battery power, it is recommended that you use the cradle (optional)

when connecting the camera to a computer.

INFORMATION

•If you connect the USB cable to a USB port on your PC and then turn on the

power, the camera will automatically switch to "computer connection mode".

•In this mode, you can download stored images to your PC through the USB

cable.

•The LCD monitor is always turned off in PC mode.

■ Connecting the camera to a PC

1. In any mode with the exception of Voice Recording mode, press the Menu button.

2. Press the LEFT / RIGHT button and select the [SETUP] menu tab.

3. Select the [USB] menu by pressing the UP / DOWN button and press the RIGHT button.

4. Use the UP and DOWN buttons to select [Computer], and then press the OK button.

5. Press the menu button twice and the menu will disappear.

6. Connect the PC to the camera with the USB cable.

SETUP

AF Lamp

Sound

USB

LCD

Video Out

Back: Set:OK

Computer

Printer

Page 68

■ Downloading stored images

You can download the still images stored on the camera to your PC's hard disk and print them or use a photo editing software to edit them.

1. Connect the camera to your PC with the USB cable.

2. On your computer's desktop display, select [My Computer] and double click [Removable Disk → DCIM → 100SSCAM]. The image files will then be displayed.

3. Select an image and press the right mouse button.

4. A pop-up menu will open. Click the [Cut] or [Copy] menu.

- [Cut] : cuts a selected file.

- [Copy] : copies files.

5. Click a folder where you want to paste the file.

《67》

● We recommend that you should copy the images to the PC to view them.

Opening images directly from the removable disk may be subject to unexpected disconnection.

● When you upload a file that is not taken by this camera to the Removable

Disk, the [File Error!] message will be displayed on the LCD monitor in the PLAY mode, and nothing is displayed in THUMBNAIL mode.

CAUTION

7. An image file is transferred from the camera to your PC.

6. Press the right mouse button and a pop-up menu will open. Click [Paste].

- By using [Digimax Master], you can see the stored images in the memory

directly on the PC monitor and you can copy or move the image files.

Starting PC mode

Page 69

《68》

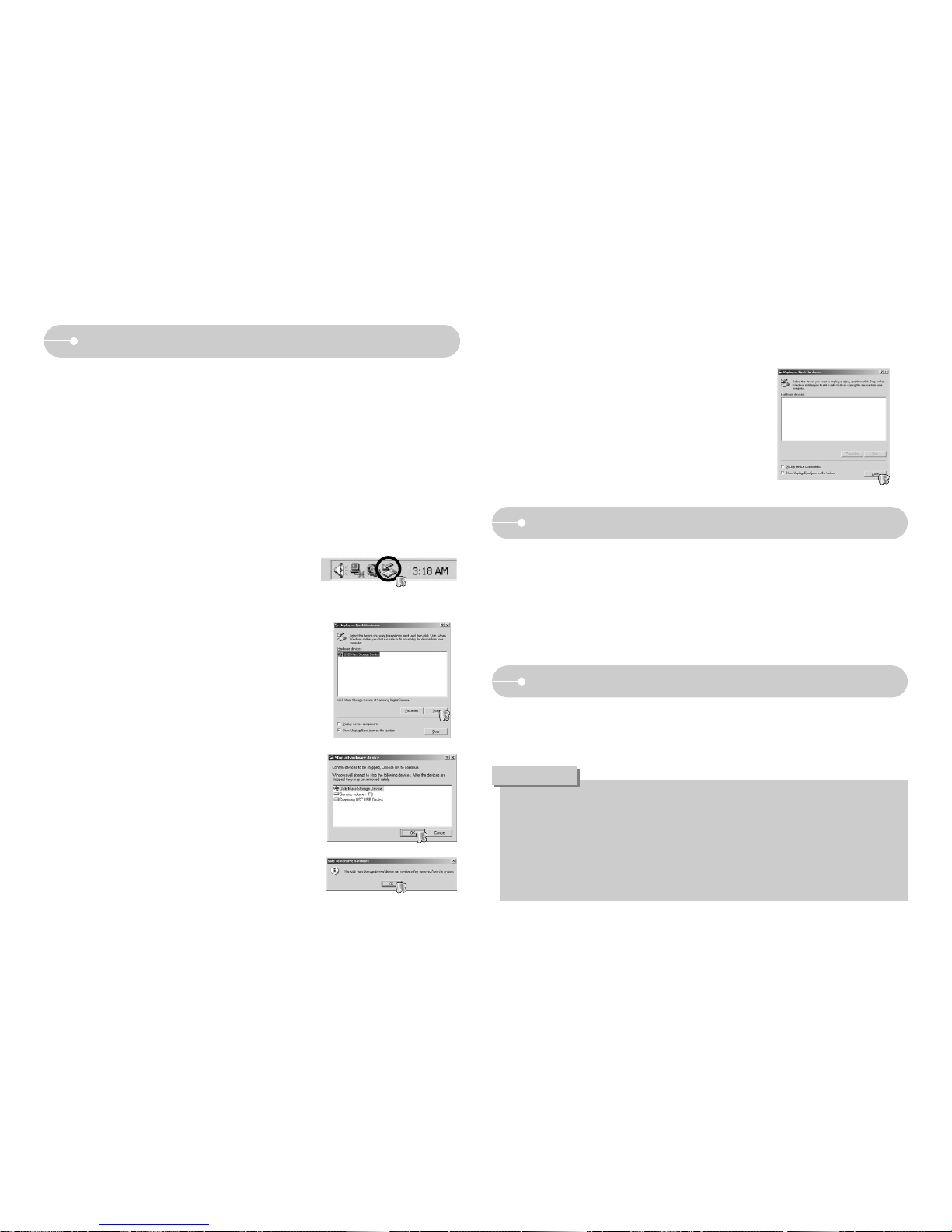

● For Mac OS 10.0 or later : First complete uploading from computer to

camera and then remove the removable disk with the Extract command.

● If a movie clip can’t play back on the Mac OS, please visit the following site

(http://www.divx.com/divx/mac/) and download the codec. Or, use a media player that supports the Xvid codec (Mplayer).

CAUTION

1. A USB Driver for MAC is not included with the software CD as MAC OS supports the camera driver.

2. Check the MAC OS version during start-up. This camera is compatible with MAC OS 10.0 ~ 10.3.

3. Connect the camera to the Macintosh and turn the camera power on.

4. A new icon will be displayed on the desktop after connecting the camera to the MAC.

Setting up the USB Driver for MAC

Using the USB Driver for MAC

6. A [Unplug or Eject Hardware] window will open. Click the [Close] button and the removable disk will be removed safely.

7. Unplug the USB cable.

1. Double click a new icon on the desktop and the folder in the memory will be displayed.

2. Select an image file and copy or move it to MAC.

Removing the removable disk

■ Windows 98/98SE

1. Check whether the camera and PC are transferring a file. If the camera status lamp blinks, please wait until the lamp has finished blinking and is constantly on.

2. Unplug the USB cable.

■ Windows 2000/ME/XP

(The illustrations may differ from those shown depending on the Windows O/S.)

1. Check whether the camera and PC are transferring a file. If the camera status lamp blinks, please wait until the lamp has finished blinking and is constantly on.

3. The [Unplug or Eject Hardware] window will open. Select the [USB Mass Storage Device] and click the [Stop] button.

4. The [Stop a Hardware device] window will open. Select the [USB Mass Storage Device] and click the [OK] button.

2. Double-click the [Unplug or Eject Hardware] icon on the task bar.

5. A [Safe to Remove Hardware] window will open. Click the [OK] button.

[Double-click!]

Page 70

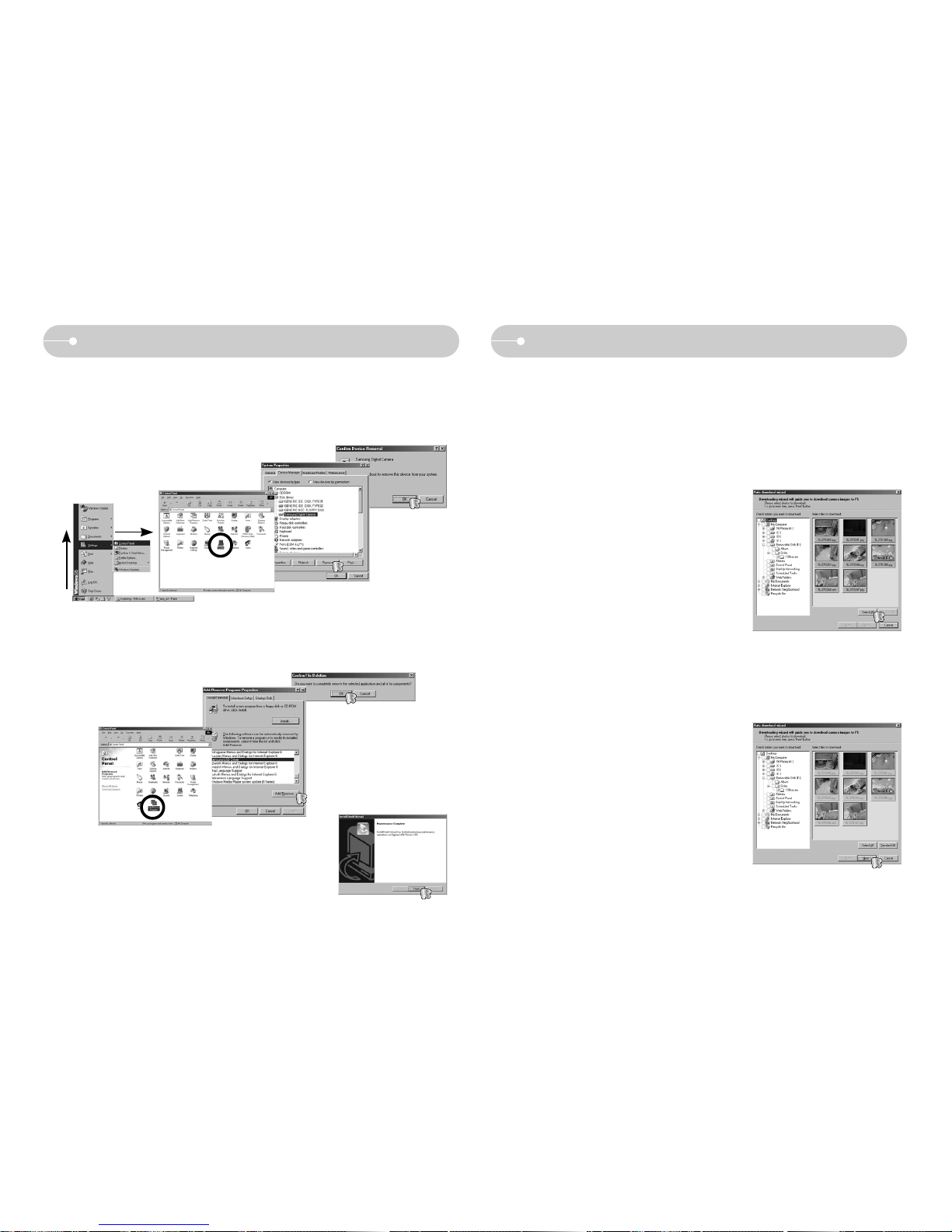

Removing the USB Driver for Windows 98SE

■ To remove the USB driver, refer to the process shown below.

1. Connect the camera to your PC and turn it on.

2. Check whether the Removable Disk is on the [My Computer].

3. Remove the [Samsung Digital Camera] on the Device manager.

6. Uninstallation is complete.

4. Disconnect the USB cable.

5. Remove the [SAMSUNG USB DRIVE] on the Add / Remove Programs Properties.

《69》

Digimax Master

■

You can download, view, edit and save your images and movies with this software. This software is only compatible with Windows except for the Windows 98.

■ To start the program, click [Start → Programs → Samsung → Digimax Master →

Digimax Master].

3. Click [Next >] button.

● Downloading images

1. Connect the camera to your PC.

2. A window for downloading images will display after connecting the camera to your PC.

- To download the captured images, select

the [Select All] button.

- Select desired folder in the window and

click the [Select All] button. You can save captured images and selected folder.

- If you click the [Cancel] button, downloading will be

cancelled.

Page 71

《70》

Digimax Master

● Image viewer : You can view the stored images.

①

⑤ ⑥

⑦

②

③

④

- Image viewer functions are listed below.

① Menu bar : You can select menus.

File, Edit, View, Tools, Change functions, Auto download, help, etc.

② Image selection window : You can select the desired images in this window. ③ Media type selection menu : You can select image viewer, image edit and

movie edit functions in this menu.

④ Preview window : You can preview an image or a movie clip and check the

multi media information.

⑤ Zoom bar : You can change preview size. ⑥ Folder display window : You can see the folder location of the selected

image.

⑦ Image display window : Images of the selected folder are displayed.

※ Refer to the [Help] menu in Digimax Master for further information.

4. Select a destination and make a folder to save downloaded images and folders.

- Folder names can be made in order of date and images will be downloaded.

- Folder name will be made as you want and images will be downloaded.

- After selecting a folder that was made before, images will be downloaded.

5. Click [Next >] button.

6. A window will open as shown alongside. The destination of the selected folder will be displayed on the upper side of the window. Click the [Start] button to download the images.

7. Downloaded images will be displayed.

Page 72

● Image edit : You can edit the still image.

①

②

③

④

- Image edit functions are listed below.

① Edit menu : You can select the following menus.

[Tools] : You can resize or crop the selected image. See the [Help] menu. [Adjust] : You can modify image quality. See the [Help] menu. [Retouch] : You can change image or insert effects on the image. See the

[Help] menu.

② Drawing tools : Tools for editing an image. ③ Image display window : A selected image displays in this window. ④ Preview window : You can preview the changed image.

※ A still image edited with Digimax Master can’t be played back on the camera. ※ Refer to the [Help] menu in Digimax Master for further information.

《71》

Digimax Master

● Movie edit : You can get the still image, movie clip, narration, music files together

in a movie clip.

①

②

- Movie clip edit functions are listed below.

① Edit menu : You can select the following menus.

[Add Media] : You can add other media elements to a movie. [Edit Clip] : You can change the brightness, contrast, colour and saturation. [Effects] : You can insert an effect. [Set Text] : You can insert texts. [Narrate] : You can insert a narration. [Produce] : You can save the edited multi media as a new file name.

You can select AVI, Windows media (wmv), Windows media (asf) and movie clip for this camera (avi, MPEG-4) file types.

② Frame display window : You can insert multi media in this window.

※ Some movie clips that were compressed with a codec that is not compatible with

the Digimax Master can’t play back in the Digimax Master.

※ Refer to the [Help] menu in Digimax Master for further information.

Page 73

《72》

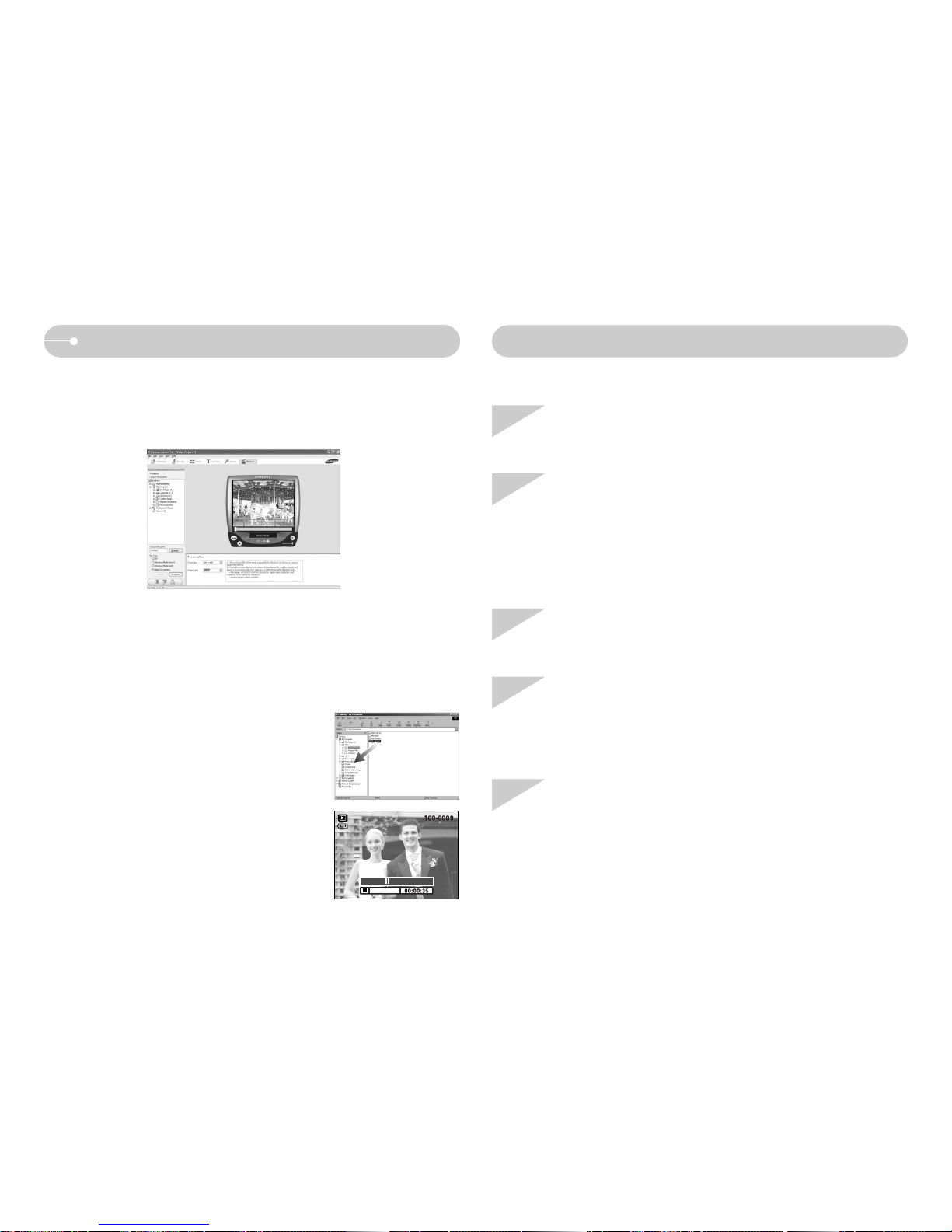

Digimax Master FAQ

■ Please check the following if the USB connection malfunctions.

Case 1 USB cable is not connected or it is not the supplied USB cable.

→ Connect the supplied USB cable.

Case 2 The camera is not recognised by your PC.

Sometimes, the camera may appear under [Unknown Devices] in Device Manager.

→ Install the camera driver correctly.

Turn off the camera, remove the USB cable, plug in the USB cable again, and then turn on the camera.

Case 3 There is an unexpected error during file transfer.

→ Turn the camera power off and on again. Transfer the file again.

Case 4 When using the USB hub.

→ There may be a problem in connecting the camera to the PC through

the USB hub if the PC and the hub are not compatible. Wherever possible, connect the camera to the PC directly.

Case 5 Are other USB cables connected to the PC?

→ The camera may malfunction when it is connected to the PC at the

same time as another USB cable. In this case, disconnect the other USB cable, and connect only one USB cable to the camera.

■ Movies for viewing on the camera : You can play back a movie on this camera

1. Select a movie for playing back on the camera by pressing the [Add] button. Insert effects and edit the movie. To save the edited movie, press the [Make] button.

2. Select [Movie for camera] video type.

3. Select Camera option, Output location, File name and press the [Make] button.

- Frame size : Selecting the width and height of the frame.

- Frame rate : Selecting the frame rate per second.

- File location : Selecting a location where the edited movie is saved.

- File name : To play back the movie on the camera, you must keep the DCF rule. Save the movie as SL27XXXX.avi (You can input any numbers between 0001 ~ 9999 instead of XXXX letters).

4. Connect the camera to the computer with the included USB cable.

5. Copy the edited movie to [Removable Disk\DCIM\XXXSSCAM]. (You can input any numbers between 100 ~ 999 instead of XXX letters)

6. You can play back the movie in the Play mode of the camera.

Play:/ Capture:E

Page 74

Case 6 When I open the Device Manager (by clicking Start → (Settings) →

Control Panel → (Performance and Maintenance) → System → (Hardware) → Device Manager), there are Unknown Devices or Other Devices entries with a yellow question mark(?) beside them or devices with an exclamation mark(!) beside them.

→ Right-click on the entry with the question (?) or exclamation (!) mark

and select "Remove". Restart the PC and connect the camera again. For Windows 98 PC, remove the camera driver also, restart the PC, and then reinstall the camera driver.

Case 7 In some security programs (Norton Anti Virus, V3, etc.), the computer

may not recognise the camera as a removable disk.

→ Stop the security programs and connect the camera to the computer.

Refer to the security program instructions about how to temporarily disable the program.

Case 8 The camera is connected to the USB port located on the front of the

computer.

→ When the camera is connected to the USB port located on the front of

the computer, the computer may not recognise the camera. Connect the camera to the USB port located on the back of the computer.

《73》

FAQ

■ When the movie clip doesn’t play back on the PC

※ When the movie clip recorded by the camera doesn’t play back on the PC,

the causes are mostly due to the codec installed on the PC.

● When codec for play back the movie clip isn’t installed → Install the codec as listed below.

[ Installing codec for Windows ]

1) Insert the CD provided with the camera.

2) Run the windows explorer and select [CD-ROM drive:\XviD] folder and click the XviD-1.0.3-20122004.exe file.

※ The XviD codec is distributed according to the GNU General Public Licence

and everyone can copy, distribute and change this codec. This Licence applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public Licence. For more information, see the Licence documents (http://www.gnu.org/copyleft/gpl.html).

[ Installing codec for Mac OS ]

1) Visit the following site for downloading the codec. (http://www.divx.com/divx/mac)

2) Click the [Free Download] button located at the upper right side of the page and a window for downloading the DivX codec will display.

3) Select Mac OS you use and click the [Download] button. Save it on a folder you want to.

4) Run the downloaded file and the codec for playing back the movie clip will be installed.

※ If a movie clip can’t play back on the Mac OS, use a media player that

supports XviD codec (Mplayer).

Page 75

《74》

● When the DirectX 9.0 or later is not installed → Install the DirectX 9.0 or later

1) Insert the CD provided with the camera

2) Run the windows explorer and select the [CD-ROM drive:\ USB

Driver\DirectX 9.0] folder and click the DXESETUP.exe file. The DirectX will be installed. Visit the following site for downloading the DirectX.http://www.microsoft.com/directx

● If a PC (Windows 98) stops responding while the camera and PC are connected

repeatedly

→ If a PC (Windows 98) is turned on for a long time and the camera is

connected repeatedly, the PC may not recognise the camera. In this case, restart the PC.

● If a PC connected with the camera stops responding while Windows is starting. → In this case, disconnect the PC and the camera and Windows will start.

If the problem happens continuously, set the Legacy USB Support to disable and re-start the PC. The Legacy USB Support is in the BIOS setup menu. (The BIOS setup menu differs from the PC manufacturers and some BIOS menus don’t have Legacy USB Support) If you can’t change the menu by yourself, contact to the PC manufacturer or BIOS manufacturer.

● If the movie clip can’t be deleted, removable disk can’t be extracted or an error

message displays during the file transfer.

→ If you install only the Digimax Master, the problems mentioned above

occasionally happen.

- Close the Digimax Master program by clicking the Digimax Master icon on the Taskbar.

- Install all the application programs included in the software CD. (You must install the Movie clip codec)

FAQ Correct Disposal of This Product

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its

literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Samsung Techwin cares for the environment at all product manufacturing stages to preserve the environment, and is taking a number of steps to provide customers with more environment-friendly products. The Eco mark represents Samsung Techwin's will to create environment-friendly products, and indicates that the product satisfies the EU RoHS Directive.

Page 76

《75》

MEMO

■■

Declaration of Conformity

Trade Name : SAMSUNG TECHWIN Model No. : Samsung L700 Responsible Party : Samsung Opto-Electronics America, INC. Address : 40 Seaview Dr. Secaucus,NJ 07094 Telephone No. : 201-902-0347

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC notice

■■

NOTE :

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorientate, or relocate, the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio / TV technician for help.

■■

CAUTION :

Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment.

Page 77

《76》

MEMO MEMO

Page 78

SAMSUNG TECHWIN CO., LTD. OPTICS & DIGITAL IMAGING DIVISION

145-3, SANGDAEWON 1-DONG, JUNGWONGU, SUNGNAM-CITY, KYUNGKI-DO, KOREA 462-121 TEL : (82) 31-740-8222, 8488, 8490 FAX : (82) 31-740-8398 www.samsungcamera.com

SAMSUNG OPTO-ELECTRONICS AMERICA, INC. 1-800-SAMSUNG (726-7864)

www.samsungcamerausa.com

If you have any questions or comments relating to Samsung cameras, Please contact the SAMSUNG customer care center

SAMSUNG FRANCE S.A.S. HOTLINE PHOTO NUMÉRIQUE :

00 800 22 26 37 27 (Numéro Vert-Appel Gratuit) www.samsungphoto.fr

SAMSUNG OPTO-ELECTRONICS GmbH ZENTRALE, KEINE REPARATUR

AM KRONBERGER HANG 6 D-65824 SCHWALBACH/TS, GERMANY TEL : 49 (0) 6196 66 5303 FAX : 49 (0) 6196 66 5366 TECHNISCHE SERVICE HOTLINE : 00800 4526 3727 (nur kostenfrei fur Anrufe aus Deutschland)

Die Adressen Ihrer Kundendienste sowie die Garantiebestimmungen entnehmen Sie bitte aus dem beiliegenden Faltblatt (SAMSUNG INTERNATIONAL WARRANTY CERTIFICATE) INTERNET : www.samsungcameras.de

TIANJIN SAMSUNG OPTO-ELECTRONICS CO., LTD NO.9 ZHANGHENG STREET. MICRO-ELECTRONIC

INDUSTRIAL PARK JINGANG ROAD TIANJIN CHINA. POST CODE : 300385 TEL : 800-810-5858 www.samsungcamera.com.cn

SAMSUNG OPTO-ELECTRONICS UK LIMITED SAMSUNG HOUSE 1000 HILLSWOOD DRIVE HILLSWOOD BUSINESS PARK CHERTSEY KT16 OPS U.K. TEL : 00800 12263727 (free for calls from UK only) UK Service Hotline : 01932455320 www.samsungcamera.co.uk

RUSSIA INFORMATION CENTER SAMSUNG ELECTRONICS

117545 ST. DOROZHNAYA BUILDING 3, KORPUS 6, ENTRANCE 2, MOSCOW, RUSSIA TEL : (7) 495-363-1700 CALL FREE : (8) 800 555 55 55 (from Russia only) www.samsungcamera.ru

The CE Mark is a Directive conformity mark of the European Community (EC)

Internet address - http : //www.samsungcamera.com

6806-4307
