Samsung CT3366BZX, CT3338ZX, CT5038ZX, CT331HX, CT5066BZX Service Manual

COLOR TELEVISION RECEIVER

Chassis : K15A
Model: CT331HBZX CT501EBZX

CT331EBZX CT501HX
CT331HBX CT5066BZX
CT331HX CT5038ZX
CT3366BZX
CT3338ZX

COLOR TELEVISION RECEIVER CONTENTS

Precautions

Specifications

Disassembly and Reassembly

Alignment and Adjustments

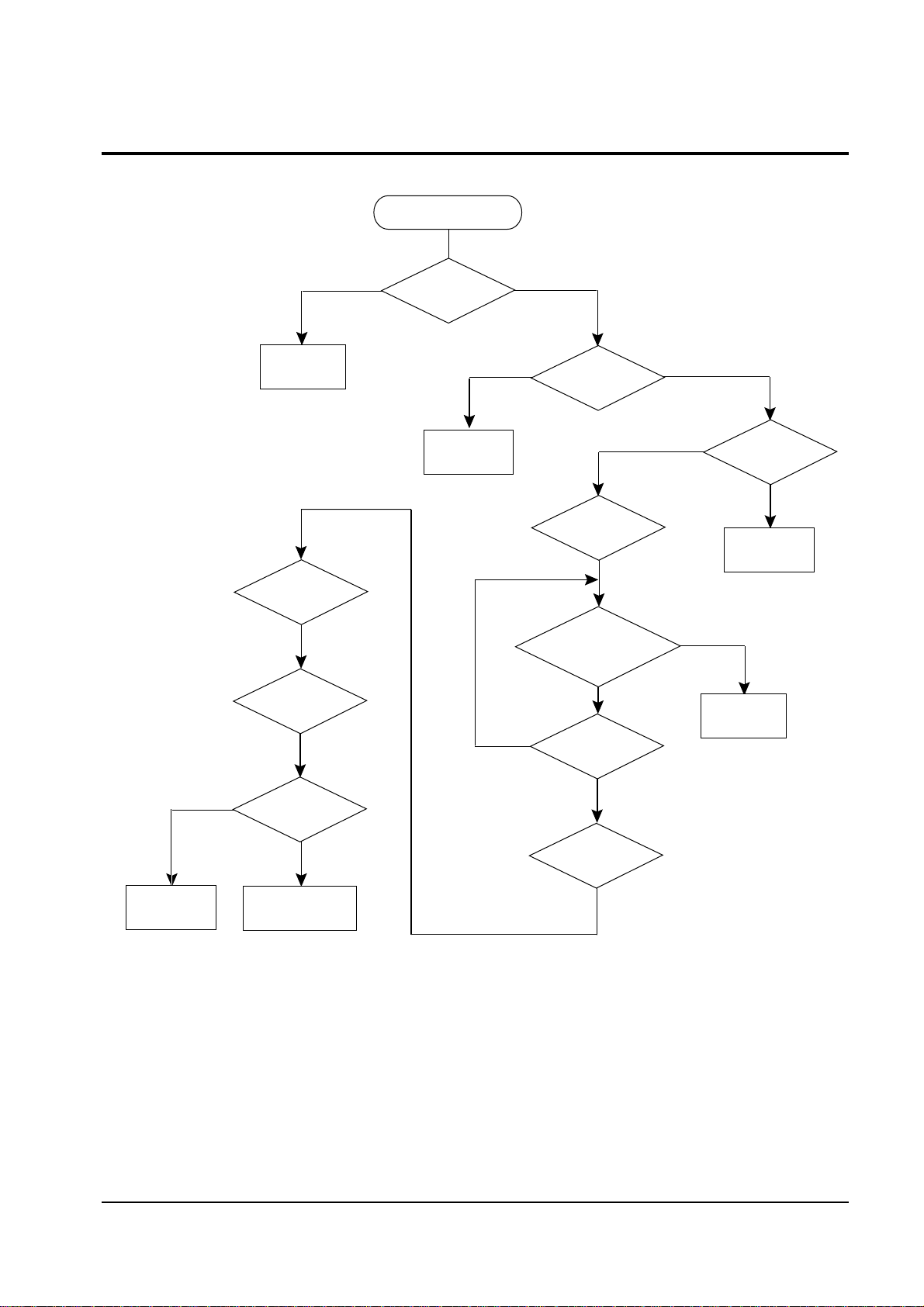

Troubleshooting

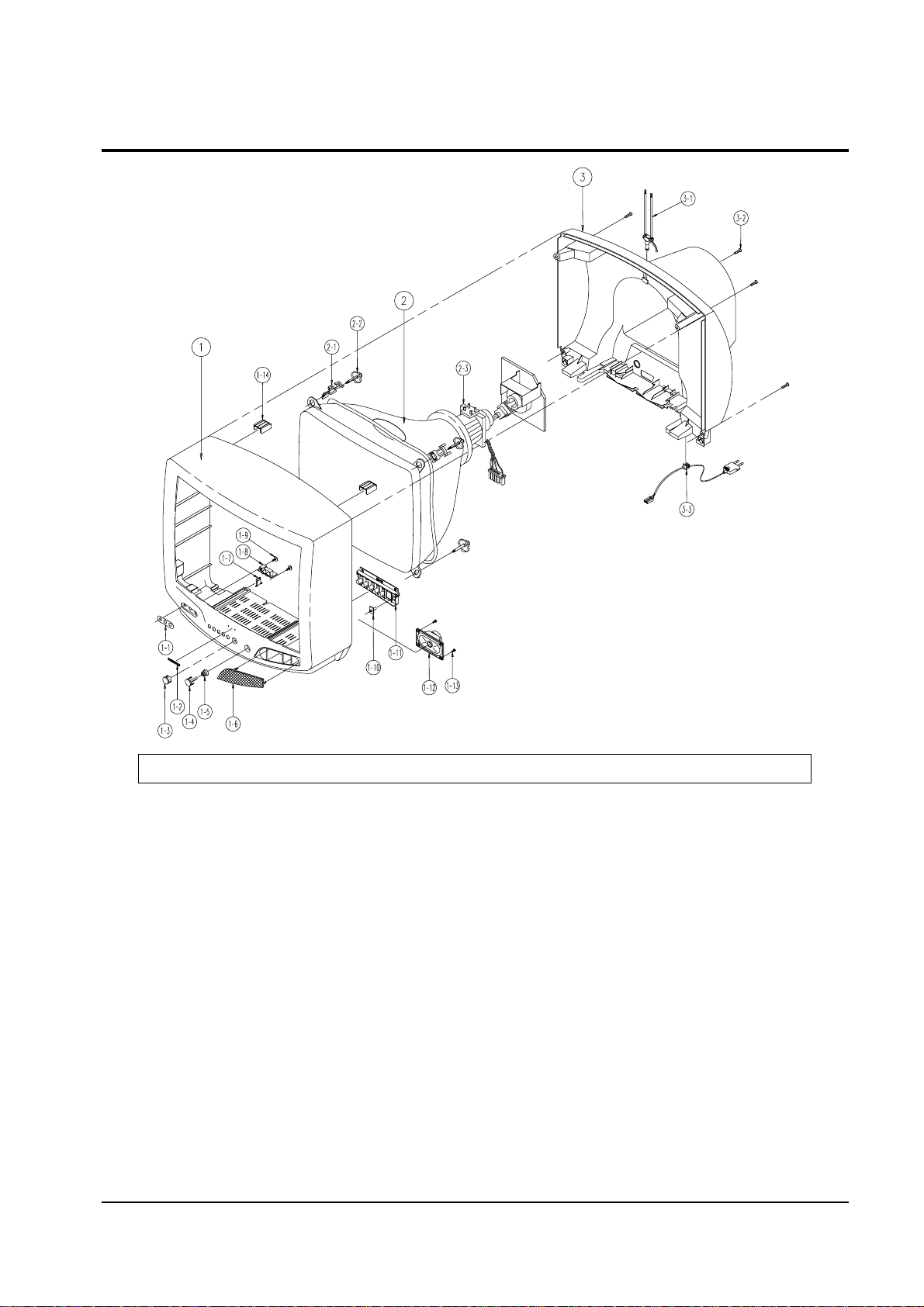

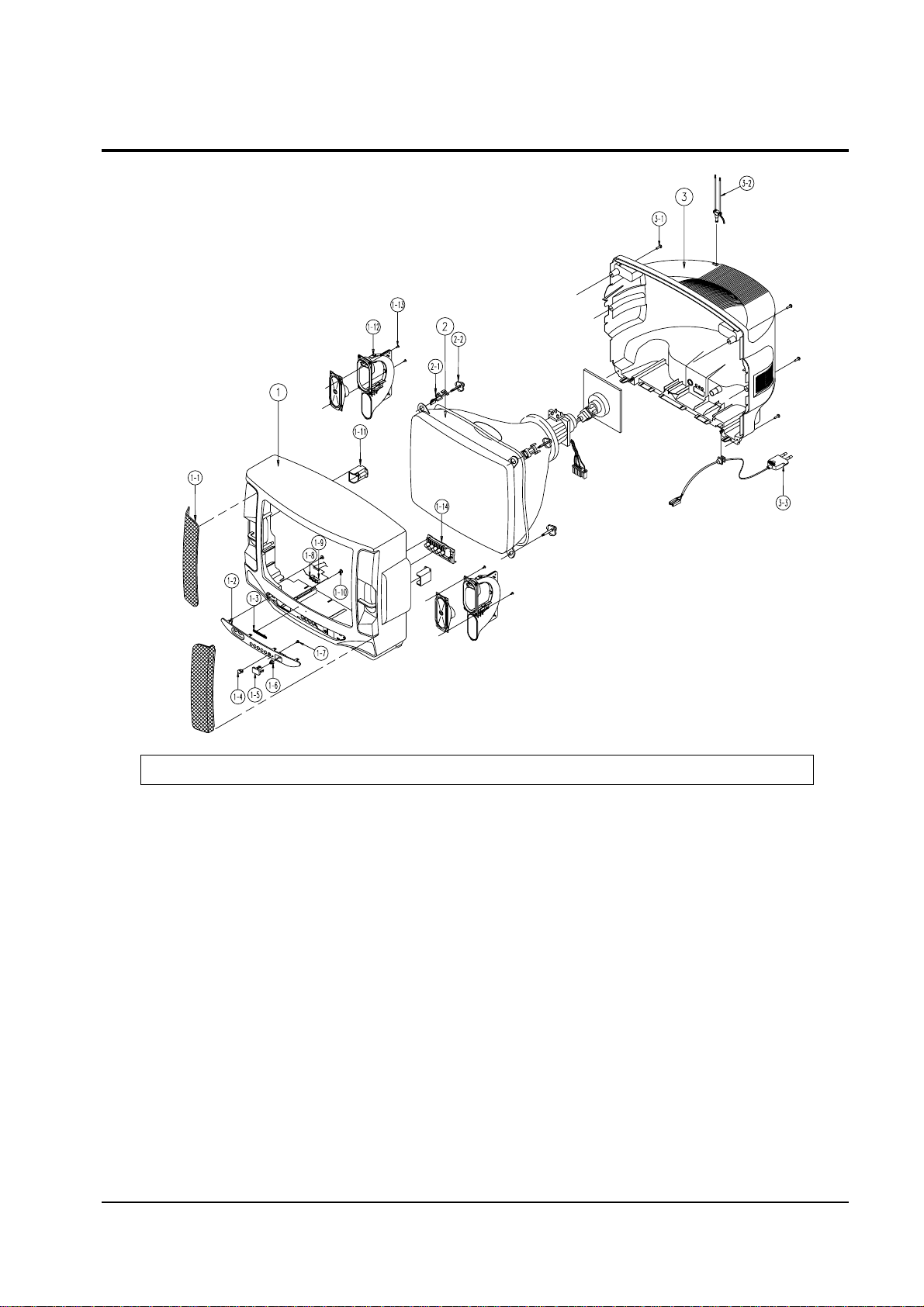

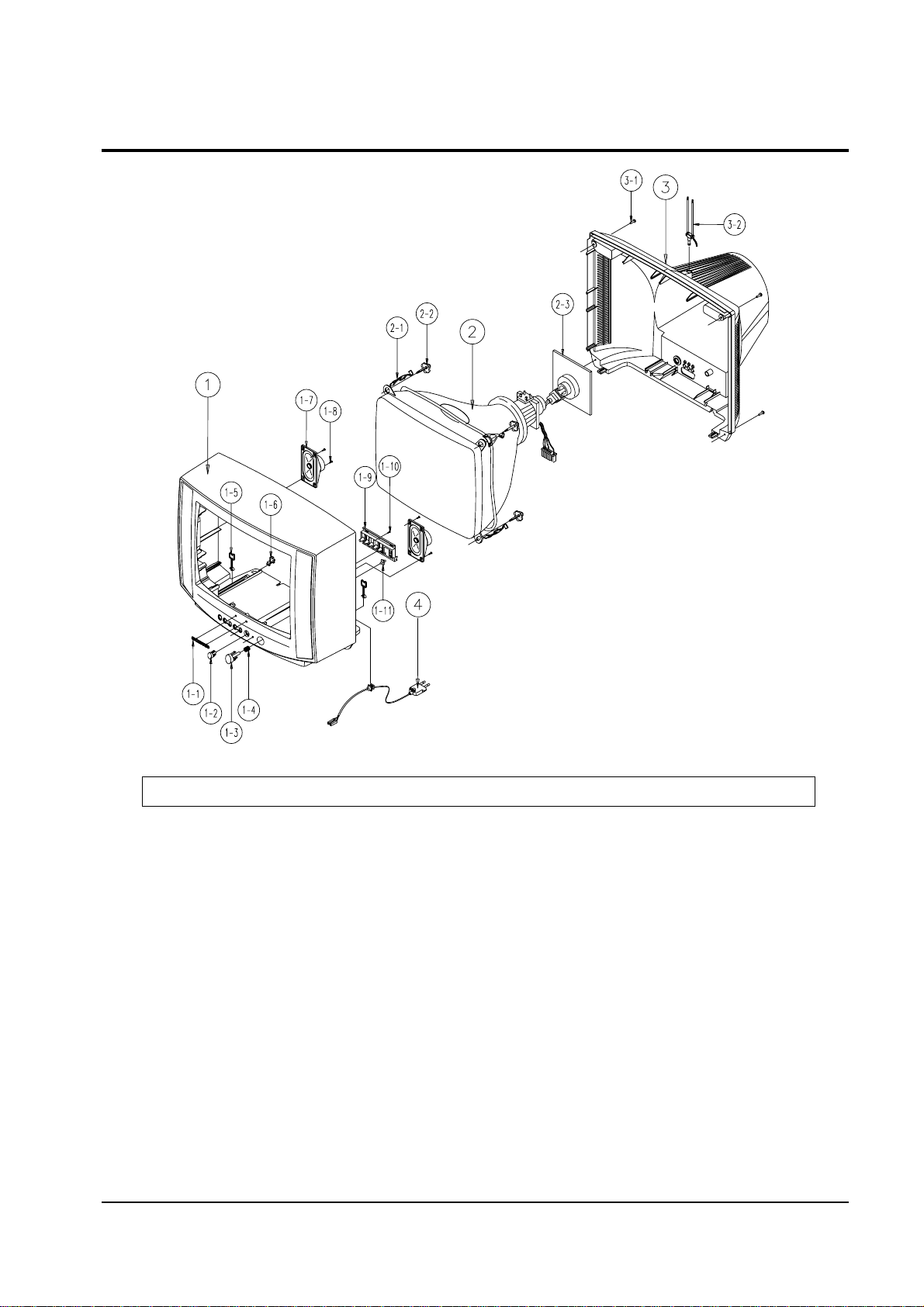

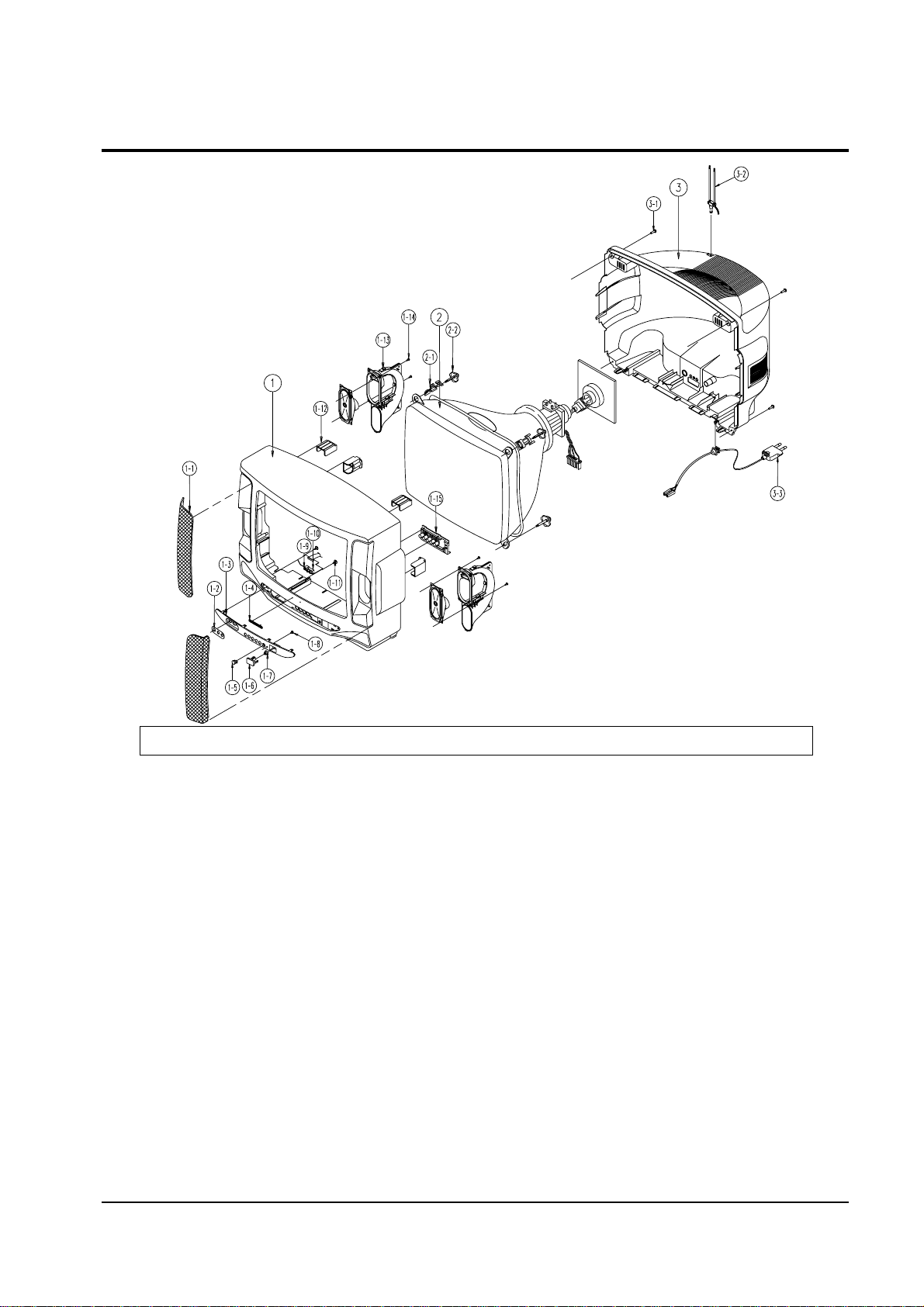

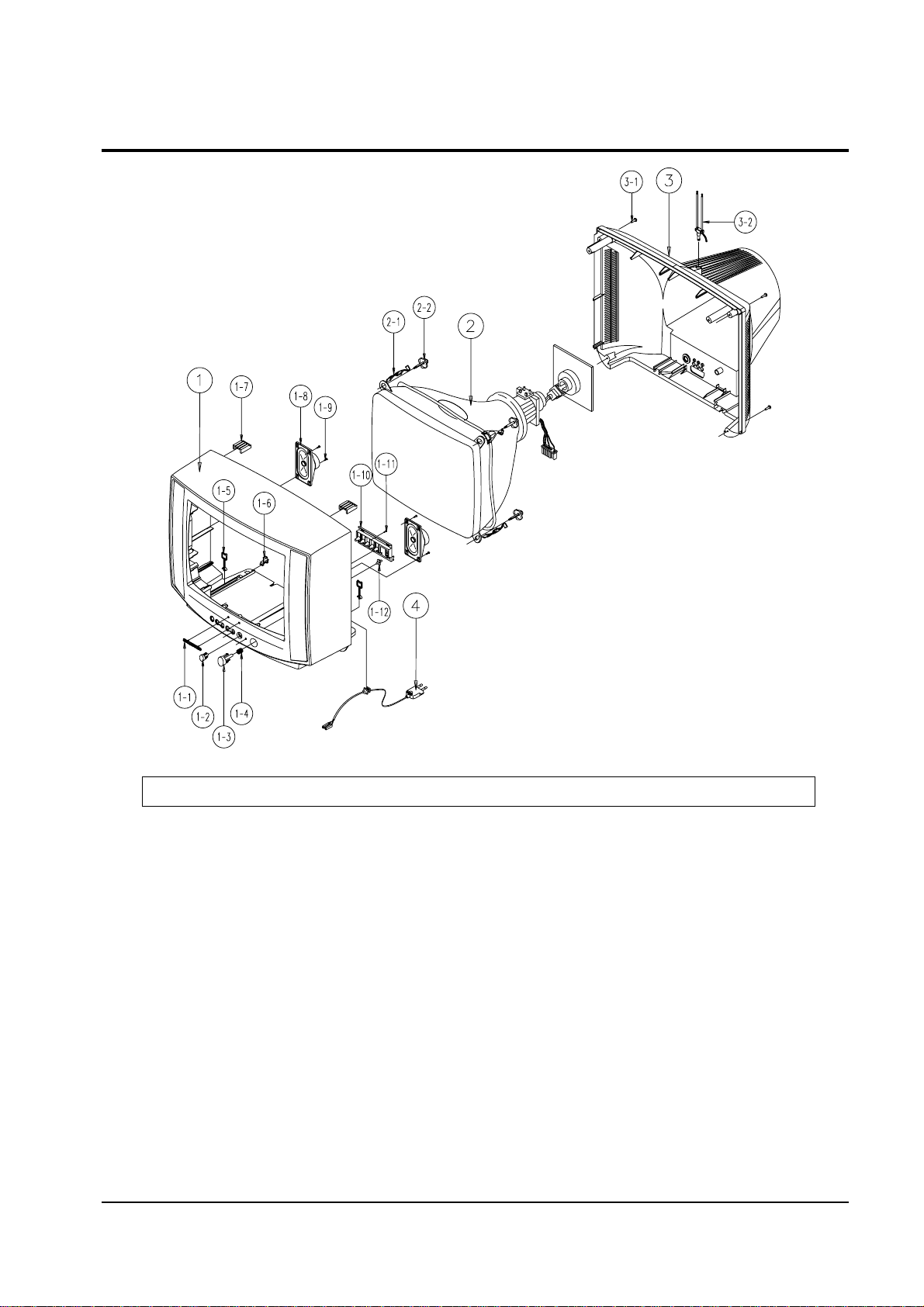

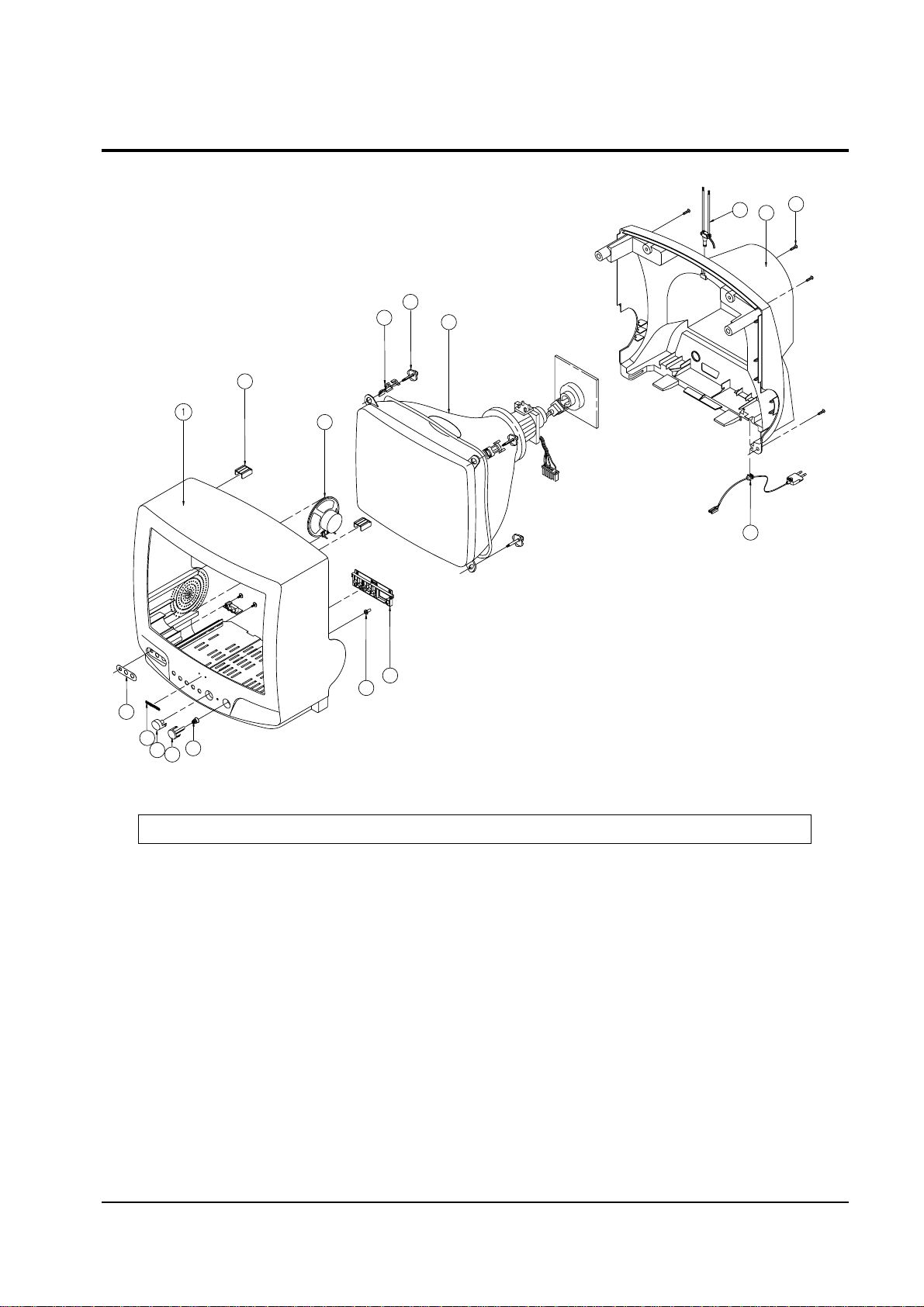

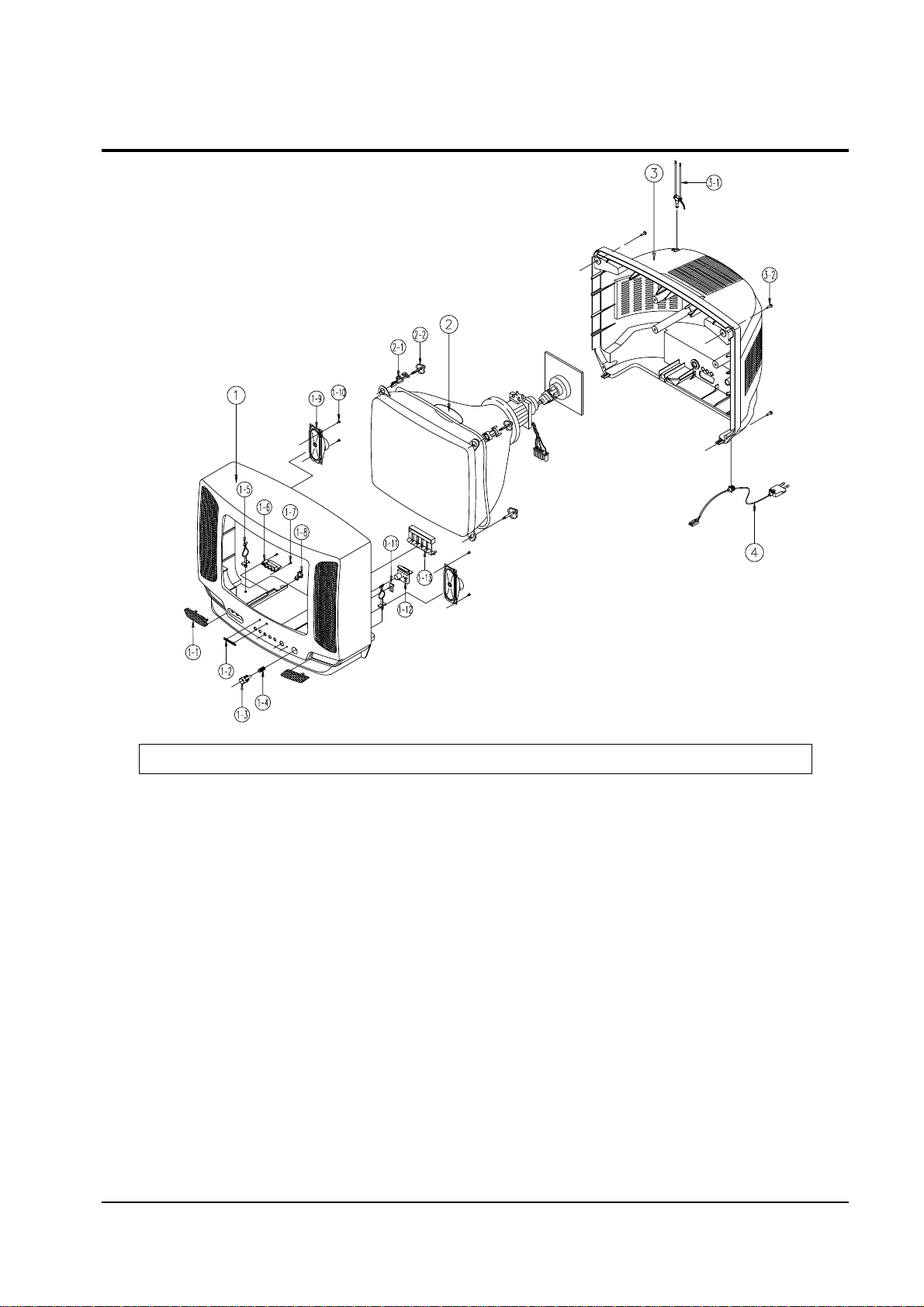

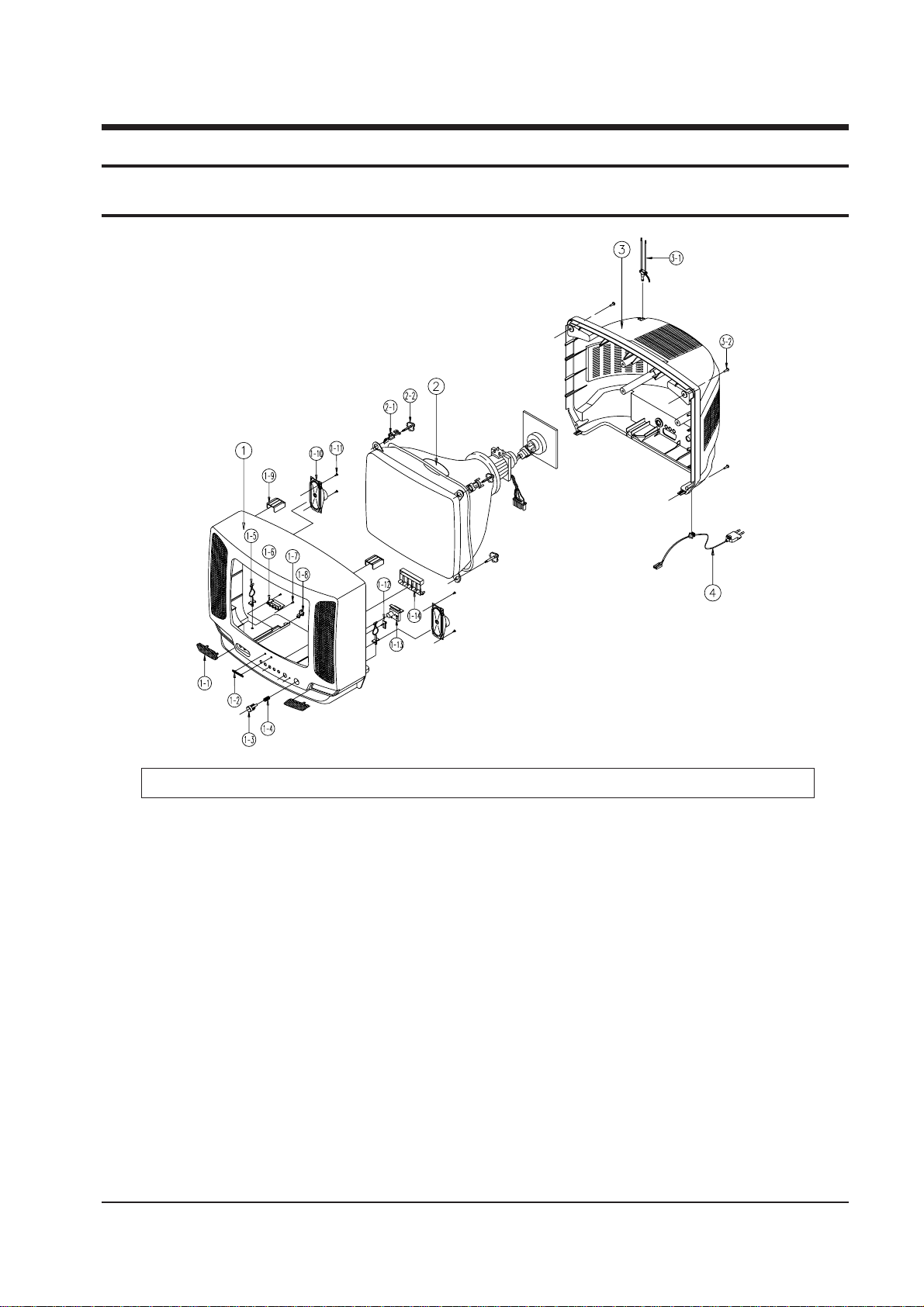

Exploded Views and Parts List

Electric Parts List

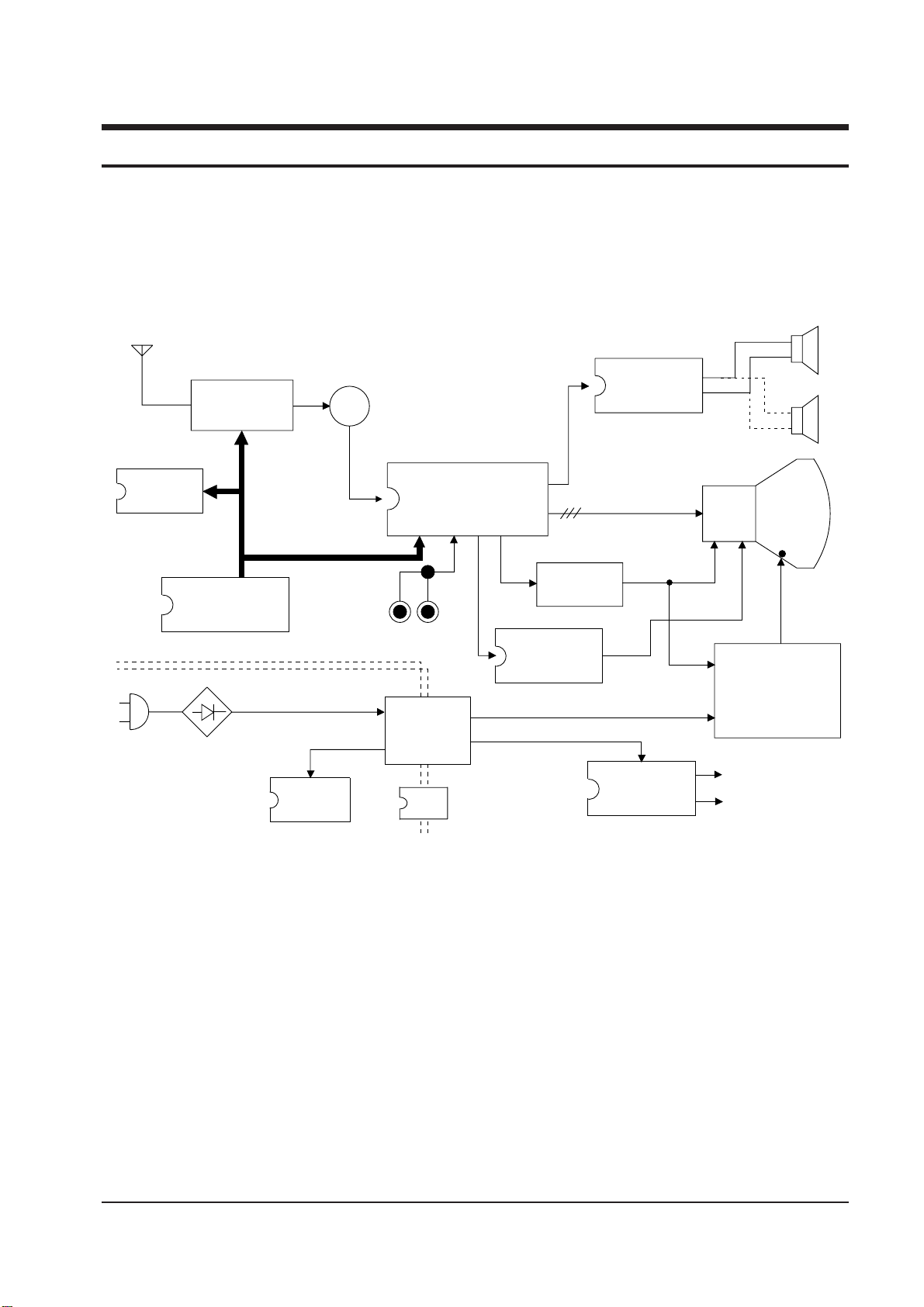

Block Diagram

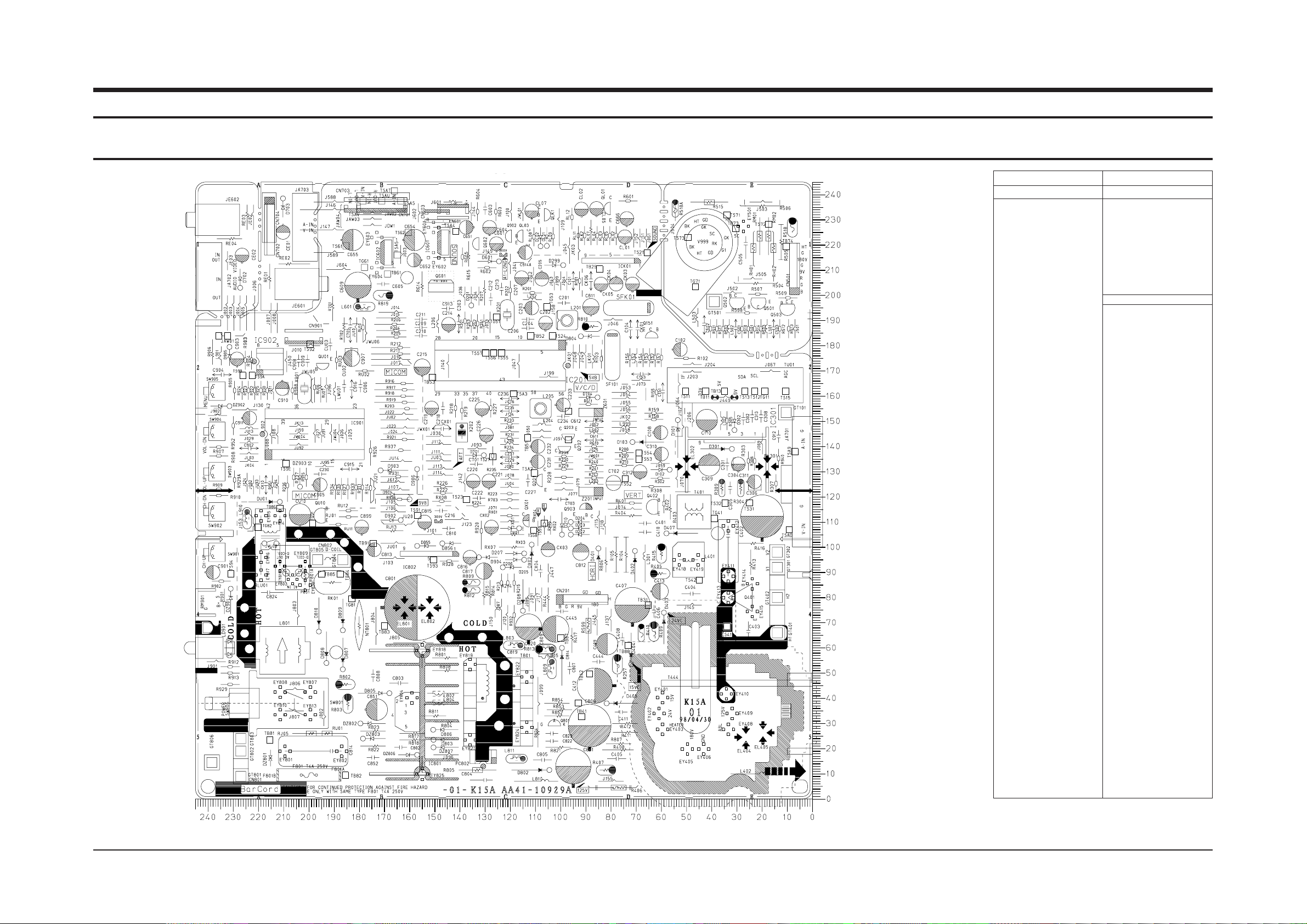

PCB Layout

Wiring Diagrams

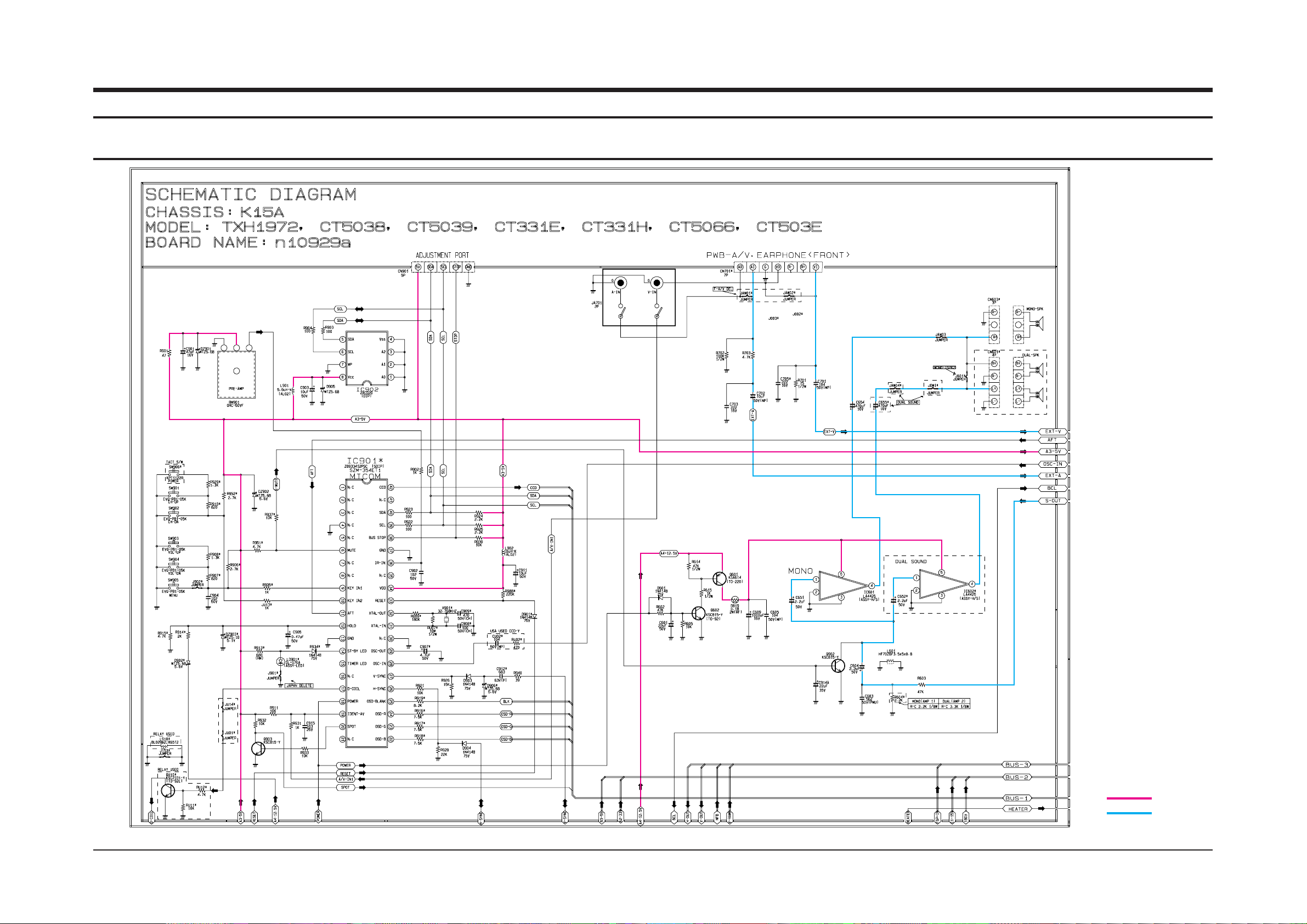

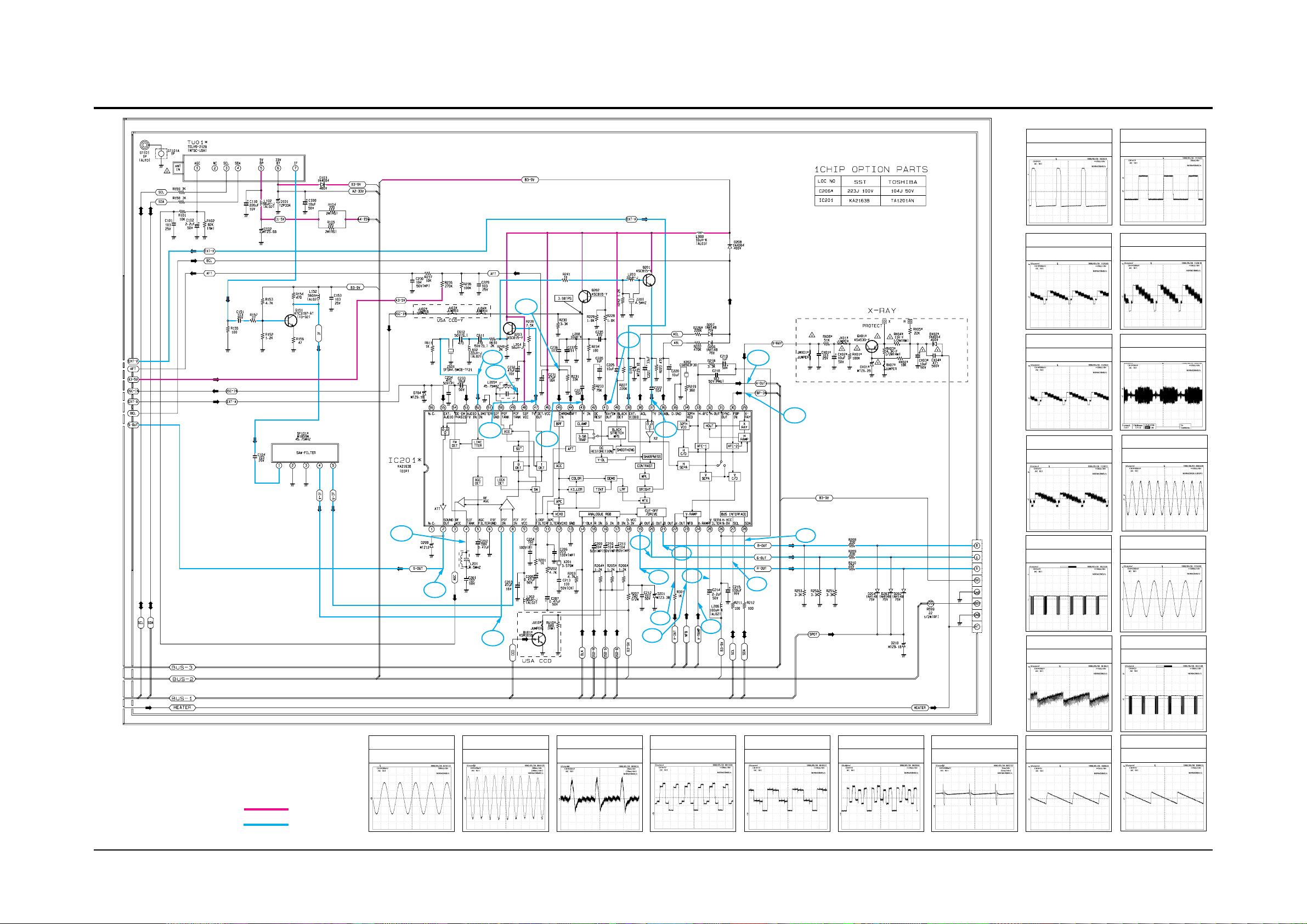

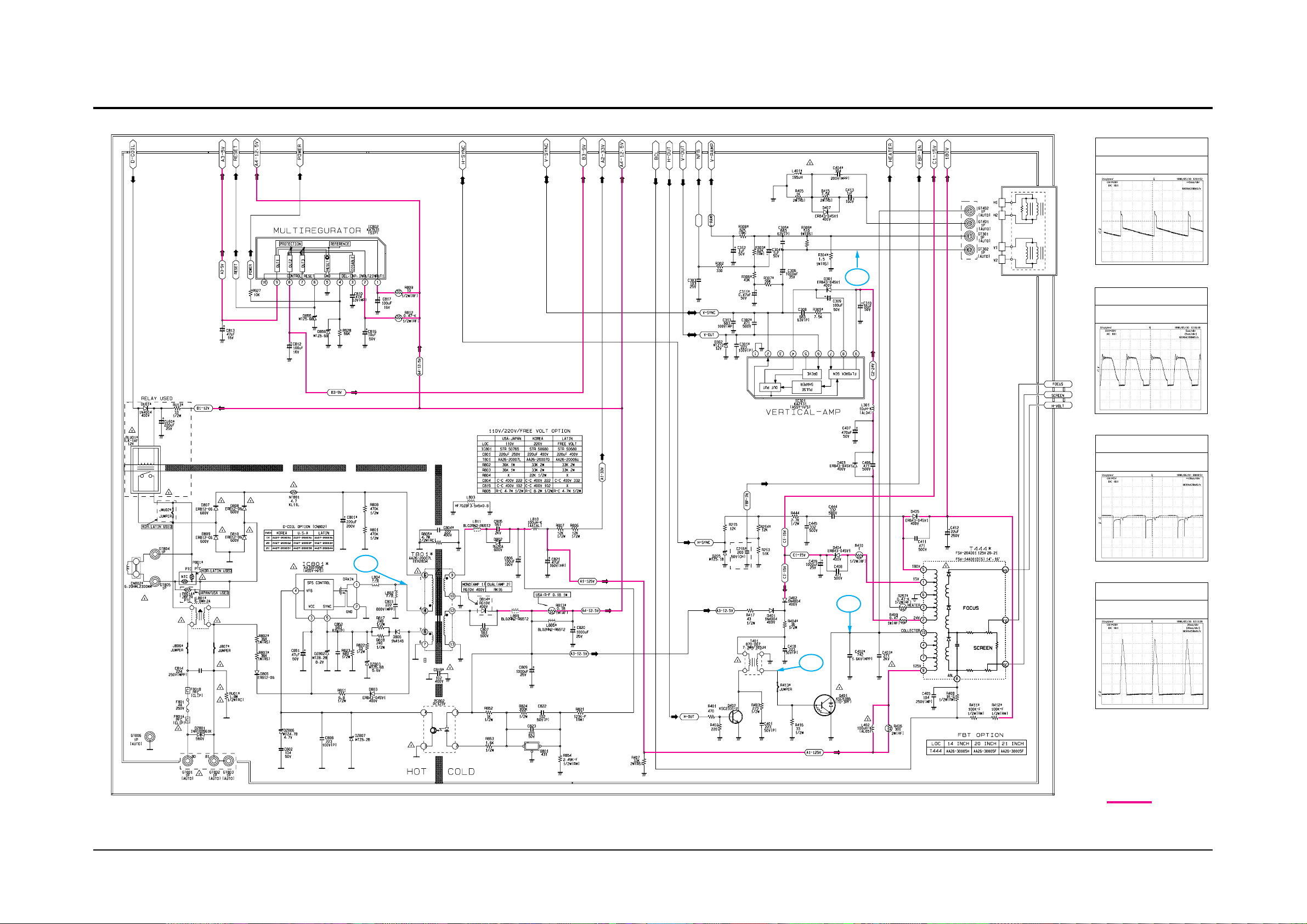

Schematic Diagrams

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

ELECTRONICS

©

Samsung Electronics Co., Ltd. JUN. 1998
Printed in Korea

3K15A-0101

1. Precautions

1-1 Safety Precautions

1. Be sure that all of the built-in protective
devices are replaced. Restore any missing
protective shields.

2. When reinstalling the chassis and its
assemblies, be sure to restore all protective
devices, including: nonmetallic control knobs
and compartment covers.

3. Make sure that there are no cabinet openings
through which peopleÑparticularly
childrenÑmight insert fingers and contact
dangerous voltages. Such openings include
the spacing between the picture tube and the
cabinet mask, excessively wide cabinet

ventilation slots, and improperly fitted back

covers.

If the measured resistance is less than 1.0
megohm or greater than 5.2 megohms, an
abnormality exists that must be corrected
before the unit is returned to the customer.

4. Leakage Current Hot Check (Figure 1-1):
Warning: Do not use an isolation
transformer during this test. Use a leakage­current tester or a metering system that
complies with American National Standards
Institute (ANIS C101.1, Leakage Current for
Appliances), and Underwriters Laboratories
(UL Publication UL1410, 59.7).

5. With the unit completely reassembled, plug
the AC line cord directly into the power
outlet. With the unitÕs AC switch first in the
ON position and then OFF, measure the
current between a known earth ground (metal
water pipe, conduit, etc.) and all exposed
metal parts, including: antennas, handle
brackets, metal cabinets, screwheads and
control shafts. The current measured should
not exceed 0.5 milliamp. Reverse the power­plug prongs in the AC outlet and repeat the
test.

Fig. 1-1 AC Leakage Test

6. Antenna Cold Check:
With the unitÕs AC plug disconnected from the
AC source, connect an electrical jumper across
the two AC prongs. Connect one lead of the
ohmmeter to an AC prong. Connect the other
lead to the coaxial connector.

7. X-ray Limits:
The picture tube is especially designed to pro­hibit X-ray emissions. To ensure continued
X-ray protection, replace the picture tube only
with one that is the same type as the original.
Carefully reinstall the picture tube shields and
mounting hardware; these also provide X-ray
protection.

8. High Voltage Limits:
High voltage must be measured each time ser­vicing is done on the B+, horizontal deflection
or high voltage circuits. Correct operation of
the X-ray protection circuits must be
reconfirmed whenever they are serviced.

(X-ray protection circuits also may be called

Òhorizontal disableÓ or Òhold-downÓ.)

Heed the high voltage limits. These include
the XÐray Protection Specifications Label, and
the Product Safety and X-ray Warning Note on
the service data schematic.

Precautions

Samsung Electronics 1-1

LEAKAGE
CURRENT

TESTER

DEVICE
UNDER

TEST

TEST ALL

EXPOSED METAL

SURFACES

2-WIRE CORD

ALSO TEST WITH

PLUG REVERSED

(USING AC ADAPTER

PLUG AS REQUIRED)

EARTH

GROUND

(READING SHOULD

NOT BE ABOVE

0.5mA)

Follow these safety, servicing and ESD precautions to prevent damage and protect against potential
hazards such as electrical shock and X-rays.

1-1 Safety Precautions (Continued)

9. High voltage is maintained within specified
limits by close-tolerance, safety-related
components and adjustments. If the high
voltage exceeds the specified limits, check
each of the special components.

10. Design Alteration Warning:
Never alter or add to the mechanical or
electrical design of this unit. Example: Do not
add auxiliary audio or video connectors. Such
alterations might create a safety hazard. Also,
any design changes or additions will void the
manufacturerÕs warranty.

11. Hot Chassis Warning:
Some TV receiver chassis are electrically
connected directly to one conductor of the AC
power cord. If an isolation transformer is not
used, these units may be safely serviced only
if the AC power plug is inserted so that the
chassis is connected to the ground side of the
AC source.

To confirm that the AC power plug is inserted
correctly, do the following: Using an AC
voltmeter, measure the voltage between the
chassis and a known earth ground. If the
reading is greater than 1.0V, remove the AC
power plug, reverse its polarity and reinsert.
Re-measure the voltage between the chassis
and ground.

12. Some TV chassis are designed to operate with
85 volts AC between chassis and ground,
regardless of the AC plug polarity. These units
can be safely serviced only if an isolation
transformer inserted between the receiver and
the power source.

13. Some TV chassis have a secondary ground
system in addition to the main chassis ground.
This secondary ground system is not
isolated from the AC power line. The two
ground systems are electrically separated by
insulating material that must not be defeated
or altered.

14. Components, parts and wiring that appear to
have overheated or that are otherwise
damaged should be replaced with parts that
meet the original specifications. Always
determine the cause of damage or overheat­ing, and correct any potential hazards.

15. Observe the original lead dress, especially
near the following areas: Antenna wiring,
sharp edges, and especially the AC and high
voltage power supplies. Always inspect for
pinched, out-of-place, or frayed wiring. Do
not change the spacing between components
and the printed circuit board. Check the AC
power cord for damage. Make sure that leads
and components do not touch thermally hot
parts.

16. Picture Tube Implosion Warning:
The picture tube in this receiver employs
Òintegral implosionÓ protection. To ensure
continued implosion protection, make sure
that the replacement picture tube is the same
as the original.

17. Do not remove, install or handle the picture
tube without first putting on shatterproof
goggles equipped with side shields. Never
handle the picture tube by its neck. Some
Òin-lineÓ picture tubes are equipped with a
permanently attached deflection yoke; do not
try to remove such Òpermanently attachedÓ
yokes from the picture tube.

18. Product Safety Notice:
Some electrical and mechanical parts have
special safety-related characteristics which
might not be obvious from visual inspection.
These safety features and the protection they
give might be lost if the replacement compo­nent differs from the originalÑeven if the
replacement is rated for higher voltage,
wattage, etc.

Components that are critical for safety are
indicated in the circuit diagram by shading,
( ) or ( ).

Use replacement components that have the
same ratings, especially for flame resistance
and dielectric strength specifications.
A replacement part that does not have the
same safety characteristics as the original
might create shock, fire or other hazards.

Precautions

1-2 Samsung Electronics

!

1-2 Servicing Precautions

1. Servicing precautions are printed on the
cabinet. Follow them.

2. Always unplug the unitÕs AC power cord from
the AC power source before attempting to: (a)
Remove or reinstall any component or
assembly, (b) Disconnect an electrical plug or
connector, (c) Connect a test component in
parallel with an electrolytic capacitor.

3. Some components are raised above the printed
circuit board for safety. An insulation tube or
tape is sometimes used. The internal wiring is
sometimes clamped to prevent contact with
thermally hot components. Reinstall all such
elements to their original position.

4. After servicing, always check that the screws,
components and wiring have been correctly
reinstalled. Make sure that the portion around
the serviced part has not been damaged.

5. Check the insulation between the blades of the
AC plug and accessible conductive parts
(examples: metal panels, input terminals and
earphone jacks).

6. Insulation Checking Procedure: Disconnect the
power cord from the AC source and turn the
power switch ON. Connect an insulation
resistance meter (500V) to the blades of the AC
plug.

The insulation resistance between each blade
of the AC plug and accessible conductive parts
(see above) should be greater than 1 megohm.

7. Never defeat any of the B+ voltage interlocks.
Do not apply AC power to the unit (or any of
its assemblies) unless all solid-state heat sinks
are correctly installed.

8. Always connect a test instrumentÕs ground
lead to the instrument chassis ground before
connecting the positive lead; always remove
the instrumentÕs ground lead last.

Precautions

Samsung Electronics 1-3

Warning1: First read the “Safety Precautions” section of this manual. If some unforeseen circumstance creates a conflict between

the servicing and safety precautions, always follow the safety precautions.

Warning2: An electrolytic capacitor installed with the wrong polarity might explode.

1. Some semiconductor (Òsolid stateÓ) devices
are easily damaged by static electricity. Such
components are called Electrostatically
Sensitive Devices (ESDs); examples include
integrated circuits and some field-effect
transistors. The following techniques will
reduce the occurrence of component damage
caused by static electricity.

2. Immediately before handling any semicon
ductor components or assemblies, drain the
electrostatic charge from your body by
touching a known earth ground. Alternatively,
wear a discharging wrist-strap device. (Be
sure to remove it prior to applying powerÑ
this is an electric shock precaution.)

3. After removing an ESD-equipped assembly,
place it on a conductive surface such as
aluminum foil to prevent accumulation of
electrostatic charge.

4. Do not use freon-propelled chemicals. These
can generate electrical charges that damage
ESDs.

5. Use only a grounded-tip soldering iron when
soldering or unsoldering ESDs.

6. Use only an anti-static solder removal device.
Many solder removal devices are not rated as
Òanti-staticÓ; these can accumulate sufficient
electrical charge to damage ESDs.

7. Do not remove a replacement ESD from its
protective package until you are ready to
install it. Most replacement ESDs are
packaged with leads that are electrically
shorted together by conductive foam,
aluminum foil or other conductive materials.

8. Immediately before removing the protective
material from the leads of a replacement ESD,
touch the protective material to the chassis or
circuit assembly into which the device will be
installed.

9. Minimize body motions when handling
unpackaged replacement ESDs. Motions such
as brushing clothes together, or lifting a foot
from a carpeted floor can generate enough
static electricity to damage an ESD.

Precautions

1-4 Samsung Electronics

1-3 Precautions for Electrostatically Sensitive Devices (ESDs)

Specifications

Samsung Electronics 2-1

2. Specifications

2-1 Specifications

Television System 14"/20"/21" NTSC COLOR TV SIGNAL

Power Consumption 14" : 57 WATTS NOMINAL,

20" : 70 WATTS NOMINAL
21" : 75 WATTS NOMINAL,

Picture Tube 14" : A34KQV42X

20" : A48KRD82X (H)
21": : A51KQJ63X (H)

Power Requirement AC 120V, 60Hz /AC 100 ~ 240, 50Hz, 60Hz

Operating System REMOCON SYSTEM (SZM354ET)

Tuning Ranges VHF CH : 2-13, UHF CH : 14-69, CABLE CH : 1,14-125

Antenna Input Impedance 75 ohm UNBALANCED TYPE FOR VHF/UHF

Intermediate Frequency PICTURE 45.75MHz, SOUND 41.25MHz,

COLOR SUB CARRIER 42.17MHz

Speaker Impedance Single:

Dual : 8 ohm 3W x 2
Dual : 16 ohm , 3W x 2 (CT-33H1, CT-50H1)

8 ohm 3W

Disassembly and Reassembly

Samsung Electronics 3-1

3. Disassembly and Reassembly

3-1 Back Cover Removeal

Fig. 3-1

1. After removing the screws, pull the cabinet backwards.

3-2 Main Board Removal

Disassembly and Reassembly

3-2 Samsung Electronics

Fig. 3-2

Fig. 3-3

1. Separate the socket board from the CRT neck.

2. Remove the Anode Cap from the CRT.

3. Remove the main board by pulling it with both hands.

Warning: The FBT is charged with high voltage.
Before removing the Anode Cap, discharge the voltage
through one of the heat sinks on the main board.

Disassembly and Reassembly

Samsung Electronics 3-3

3-3 Speaker Removal

1. Loosen the screws and remove the speakers.

Fig. 3-4

Disassembly and Reassembly

3-4 Samsung Electronics

3-4 CRT Removel

Fig. 3-5

1. Spread a soft mat on the floor. Place the TV set face down.

2. Remove the 4 nuts mounting the CRT to the front cabinet.

3. Lift the CRT.

4. Caution: Because of the high vacuum and large surface area of the
picture tube, be careful while handling it:
(1) Always lift the picture tube by grasping it firmly around the face­plate, (2) Never lift the tube by its neck. (3) Do not scratch the picture
tube or apply excessive pressure. Fractures of the glass may cause an
implosion.

Alignment and Adjustments

Samsung Electronics 4-1

4. Alignment and Adjustments

4-1 Service Mode Adjustments

4-1-1 Service Mode Menus

Since there are no VRs in the K15A chassis, all
adjustments after parts replacement must be
done in the Service Mode. Service Mode
adjustments are necessary when either the
EEPROM (IC902) or the CRT is replaced.

4-1-2 Entering the Service Mode

Press the following transmitter keys
while in STAND-BY mode:

MUTE—>1—>8—>2—>POWER
“Factory Mode Menu” is displayed

<---selected (violet)

RC XXX
VCO XX GC XXX
SBT XX BC XX
SCT XX VA XX
SCR XX VS XX
STT XXX HS XX
GG XXX SS XX
BG XXX SVC : MUTE

AGC XX

AGC XX RC XXX

GC XXX
SBT XX BC XX
SCT XX VA XX
SCR XX VS XX
STT XXX HS XX
GG XXX SS XX
BG XXX SVC : MUTE

VCO XX

VCO

71

AGC XX XXX

XXX
XX XX
XX VA XX
XX VS XX
XXX HS XX
XXX SS XX
XXX

SVC : MUTE

VCO XX

RC
GC

SBT

BC
SCT
SCR
STT
GG
BG

ADJUSTMENT
PATTERN
OPTION
RESET

ADJUSTMENT
PATTERN
OPTION
RESET

Enter Service Mode using the Volume

+,- keys. Service Mode Menu:

Return to the Service mode by pressing
MENU.

Change the data with “Volume +, - “ keys.

Return to the Factory mode via the MENU
key.

Press POWER to enter the Stand-by mode.

Select a mode to be adjusted, using the chan­nel down key. Example: VCO.

POWER

OFF

No

Item Function

Range

MICOM Data
1 AGC RF AGC Adjustment 0~63 50
2 VCO PIF VCO Adjustment 0~127 63
3 SCT SUB-CONTRAST Adjustment 0~63 48
4 SCR SUB-COLOR Adjustment 0~27 13
5 STT SUB-TINT Adjustment 0~27 7
6 RC RED-CUT OFF Adjustment 0~255 0
7 GC GREEN-CUT OFF Adjustment 0~255 0
8 BC BLUE-CUT OFF Adjustment 0~255 0
9 SVC Input a Horiz line pattern

10 GG GREEN-GAIN Adjustment 0~255 127
11 BG BLUE-GAIN Adjustment 0~255 127
12 SBT SUB-BRIGHTNESS Adjustment 0~63 31
13 VA VERTICAL SIZE Adjustment 0~63 39
14 VS VERTICAL CENTER Adjustment 0 0
15 HS HORIZONTAL Phase Adjustment 0~31 15
16 SS SUB-SHARPNESS Adjustment 0~31 4

BYTE 0 : 0 0

ADJUSTMENT
PATTERN
OPTION
RESET

ADJUSTMENT
PATTERN
OPTION
RESET

ADJUSTMENT
PATTERN
OPTION
RESET

ADJUSTMENT
PATTERN
OPTION
RESET

ADJUSTMENT
PATTERN
OPTION
RESET

Initalized

Alignment and Adjustments

4-2 Samsung Electronics

4-1-3 Adjustment in Option Mode

This adjustment is necessary whenever the
EEPROM is replaced. Input data (as marked
on the back cabinet).

Select “SET OPTION” by pressing the
Channel key twice.

Press the Volume +, - keys to enter the set
Option mode.

Press MENU to go back to the factory mode.

Select RESET with channel key.

Press volume + key.

▼

▼

4-1-4 Service Mode Adjustments

1. The Pattern Adjustment is done only in the
factory. Do not attempt to readjust it.

2. Refer to 4-2 for other adjustments.

3. Set OPTION data.

4-1-5 Service Mode Adjustment Ratings

Note : The initial MICOM data values take
effect when IC902 is replaced.

Alignment and Adjustments

Samsung Electronics 4-3

4-2 Alignment and Adjustment

4-2-1 General Alignment Instructions

1. Usually, a color TV needs only slight
touch-up adjustment upon installation. Check
the basic characteristics such as picture height,
focus and a horizontal and vertical sync.

2. Observe the picture and check for good back
and white details. There should be no
objectionable color shading: If color shading is
present, demagnetize the receiver. If color
shading persists, perform purity and
convergence adjustments described below.

3. To protect against shock hazard, use an
isolation transformer.

4-2-2 Power Supply Check

Check the following:
A: Power plug is connected; “Stand-by” mode
B: Power On when “Power ON” button is pressed
C: Power On by FBT Each supply is marked on

its lead-in wire. ( )

4-2-3 Focus Adjustment

Adjust the focus control on the FBT for well
defined scanning lines.

4-2-4 Fail Safe Circuit Check (FS) (OPTION)

1. The failsafe check must be the final step in
servicing.

2. Turn the power switch ON and adjust
customer controls for normal operation.

3. Temporarily short pin X to pin R on the main
board (RX06, RX04) with a jumper wire.
Raster will disappear.

4. The TV must remain in this state even after
removing the jumper wire. This shows that
the failsafe circuit is working properly.

5. To recover picture and sound, temporarily
turn off the TV and allow the failsafe circuit
more than 30 seconds to reset. Then switch
power ON to produce normal picture and
sound.

4-2-5 IC902 Replacement

1. When IC902 is replaced, all values are reset to
“Initialized MICOM Data” and readjustment
is necessary.

2. Press the POWER button 10 seconds after
plug-in.

3. To enter the Service Mode, refer to Fig. 4-1
(Service Mode Adjustment).

4-2-6 PIF VCO Adjustment

1. Use a Pattern Generator or an off-air signal.

2. Open pin 11 of Micom (IC901) or one side of
lead pin for R237.

3. Adjust VCO in the service mode to set IC101
Pin 44 (AFT) to 2.5V ± 0.4V.

4. Connect the opened site.

4-2-7 RF-AGC Adjustment

1. Input a PHILLIPS pattern.

2. Set the input signal to 60 dB.

3. Enter into the AGC in the service mode.

4. Adjust AGC until color bar noise disappears.

Alignment and Adjustments

4-4 Samsung Electronics

4-2-8 Sub-Contrast Adjustment

1. Input a gray scale pattern. Use a pattern
generator (PM5518).

2. Short D208 to switch off the ABL feed-back.

3. Check CN201 R-OUT with an oscilloscope.

4. Set RC, BC, GC data to 0 in the Service Mode.

5. Adjust SCT to 2.40 ± 0.1Vp-p

6. Remove the short across D208 and restore
ABL.

4-2-9 Sub-Tint Adjustment

1. Input a rainbow pattern.

2. Check CN201 B-OUT with an oscilloscope.

3. Adjust STT in the service mode until the 6th
peak is the highest and the 5th and 7th peaks
have equal heights.

4-2-10 Sub-Color Adjustment

1. Do sub-color adjustment after the Sub­Contrast and Sub-Tint adjustments.

2. D208 should still be shorted. The ABL should
still be switched OFF.

3. Input a color bar pattern. Use a pattern gen­erator (PM5518).

4. Check CN201 R-OUT (use an oscilloscope).

5. Ensure that the RC, GC and BC data are 0.
BG are 140 and GG should be 90.

6. Adjust SCR to 2.4 ± 0.1Vp-p (black and
red levels).

7. Remove the short across D208 and restore
ABL.

2.5V 0.1Vpp

+

_

1

2

3

4

5

6

7

8

9

10

2.4V 0.1Vpp

+

_

Alignment and Adjustments

Samsung Electronics 4-5

4-2-11 White Balance Adjustment

4-2-11 (A) LOW-LIGHT ADJUSTMENTS

1. Input either a lion head or “pure white” color
pattern.

2. Operate the receiver for 30 minutes.

3. Check the data in the service mode:
RC, GC, BC are 0 and SB is 16;
Steps BG are 90 and GG are 140.

4. Enter the horizontal line mode by pressing
the MUTE key.

5. Adjust the screen VR on the FBT until a dim
colored line (red,green or blue) appears on the
screen.

6. After pressing the MUTE key, go to RC,BC or
GC with channel , keys. After putting a
dim colored line (red, green or blue) in the
horizontal line with MUTE key, adjust color
with volume , keys.

7. Exit the horizontal line via the MUTE key.

4-2-11 (B) HIGH-LIGHT ADJUSTMENTS

1. Input a high-light pattern

2. Adjust GG,BG in the Service Mode.

3. Recheck in low light.

4-2-12 Sub-Brightness Adjustment

1. Input a Toshiba pattern.

2. Warm up the receiver for 10 minutes.

3. Enter the Service Mode and set SB to the point
where the 5th point is brighter in the gray
scale.

4-2-13 Vertical Size Adjustment

1. Input a lion head pattern.

2. After the vertical center adjustment, enter into
the service mode.

3. Adjust VA so that the each top and bottom of
the screen is 4.0. If the top and bottom values
are different, adjust VA so that the sum of the
two values is 8.0.

4-2-14 Horizontal Size Adjustment

1. Receive a lion head pattern.

2. Enter into the service mode.

3. Adjust HS to symmetrized right and left.

4-2-15 When CRT Is Replaced

Do the following adjustments after the basic
purity and convergence adjustments.

1. White Balance

2. Sub-brightness

3. Vertical Size

4. Horizontal Size

5. Fail safe (should be the final step).

W

5

4 3

2 1

▼

▼

▼

▼

MEMO

4-6 Samsung Electronics

Troubleshooting

Samsung Electronics 5-1

5. Troubleshooting

5-1 No Power

Normal

Check LED when AC

code is plugged.

Check

Fuse.

OFF

No Power

Check

IC801* Pin 1

Oscillation.

Check

IC801 Pin 3 B+.

Abnormal

Abnormal (0 ~ 15V)

Check/Replace

D806, Q401, Q801,

D802, D814*

Check and Replace

D807 ~D810

Abnormal

Abnormal (0V)

Normal (15~20V)

Check/Replace

PC802, DZ807

Check IC801*

Pin 4 Voltage

Check IC802.

Check/Replace

IC802, R812, D856.

ON

Abnormal

Normal (0.5 ~ 3V)

Check/Replace

DZ802, DZ803, D806

5-2 No Sound

Troubleshooting

5-2 Samsung Electronics

Abnormal

Abnormal

Normal

Normal

Normal

Abnormal

Abnormal

Abnormal

Normal

Normal (approx. 12V)

No Sound

Check

Connector CN601

and CN701.

Check

Waveform of

IC601 Pin 1.

Check

Waveform of IC201

Pin 52.

Check

Waveform of IC201

Pin 1.

Volume

Up.

Check

SIF (L201).

Check/Replace

IC201.

Abnormal

Check

Waveform of IC601 and

IC602 Pins 4.

Check CN601 and CN701

Connector

Soldering and A/V PCB.

Check

Voltage of IC601 and IC602

Pin 5.

Check Power

12V Line Voltage.

Replace IC601

and IC602.

O.K

NG

Ok

Normal

5-3 Horizontal Line Appears

Troubleshooting

Samsung Electronics 5-3

Abnormal

Normal (24V)

Abnormal

Check/Replace

IC201.

NG

Single Horizontal Line

Check

24V-C Voltage.

Check

Waveform of IC201

Pins 22,24.

Normal

O.K

Check Whether

a horizontal line appears in

the service mode..

Check/Replace

IC301.

Check

FBT Pin 2 (24V)

Oscillation.

Normal

NG

Check R409

Open.

Check/Replace

R409.

Open

Check/Replace

FBT.

Troubleshooting

5-4 Samsung Electronics

5-4 No Signal

Abnormal

Normal

No Signal

Normal

Normal

Abnormal

Abnormal

Abnormal

Normal

Normal

Abnormal

Normal (2Vp-p)

Normal (1Vp-p)

Normal (3~5Vp-p)

Abnormal

Normal (2Vp-p)

Normal (1Vp-p)

Check

each tuner terminal

voltage.

Check voltage

line.

Check

Micom IC901.

Check

tuner SCL,SDA

waveform.

Check

tuner IF terminal

waveform.

Check

IC201 Pins 7,8

waveform.

Replace tuner.

Check

whether AGC and

AFTadjustment are normal in

the service mode.

Check

IC201 Pin 47

waveform level.

Check IC201

Pin 37 waveform

level.

Readjust AGC

and AFT.

Check IC201 Pin 41

waveform level.

Check

IC201 Pin 43 waveform

level.

Check

IC201 Pins 19,20, 21

waveform level.

Check CRT PCB (180V)

and heater Voltages.

Replace IC201.

Exploded Views & Parts List

Samsung Electronics 6-1

6. Exploded Views & Parts List

No Code No Description Specification Q’ty Remark

1 AA64-30981P CABINET-FRONT -,CT331EBZ,BK708P EGB,HIPS 1
1-1 AA63-50311A GRILLE-WOOFER,L ;-,331E,PA110 3R,SECC,T0. 1

AA63-50306A GRILLE-WOOFER,R -,331E,PA110 3R,SECC,T0. 1
1-2 AA64-70009G BADGE-BRAND AL,SS R800 22,GOLD,L40,-,-,- 1
1-3 AA64-10638A KNOB-POWER,T -,331E,TACT,ABS,HB,BLK 1
1-4 AA61-60005S SPRING-CS -,SUS304,0.6,OD10,H12.5,N4,-,- 1
1-5 AA65-30105A CLAMP-WIRE NYLON 66,V2,NTR,15MM,ALL MODE 1
1-6 AA95-90030M ASSY-PCB,A/V FRONT -,CT-2139H,KCT15A,NTS 1
1-7 AA60-10002A SCREW-TAPPING RH,+,M4,L12,ZPC(YEL),-,OD1 2
1-8 AA61-40053A STOPPER-PCB ALL MODEL,HIPS HB,WHT,HB,-,- 1
1-9 AA61-40015A BOSS-CABINET -,HIPS,HB,NTR,-,- 2
1-10 3001-001034 SPEAKER 6W,8ohm,90dB,140Hz 1
1-11 6002-000514 SCREW-TAPPING RH,+,2,M4,L15,ZPC(BLK),SWR 4
1-12 AA64-40408A INDICATOR-LED -,501E,-,ACRYL,HB,CLR,- 1
1-13 AA64-40407A WINDOW-REMOCON -,501E,-,PC,-,-,VIOLET 1
1-14 AA64-10637A KNOB-CONTROL -,501E,-,ABS,HB,BLK 1

2 AA03-10003K CRT-COLOR -,A34KQV42X(B),-300MG,14,90DE 1 CT331EBZX/GSU

AA03-10003J CRT-COLOR -,A34KQV42X(B),0MG,14,90DEG,5 1 CT331EBZX/STR
2-1 AA60-10050R SCREW-ASSY WC,HH,+,M5,L31.5,SWRCH18A,ZPC 4
2-2 AA65-30016A CLAMP-D,COIL NYLON-66,V0,NTR,DADH-360 14 4

3 AA64-30983B CABINET-BACK -,331E,-,HIPS,HB,BLK,-,- 1
3-1 AA42-10001V ANT-ROD -,3S,620mm,BRN,UL/CSA 1
3-2 6002-000514 SCREW-TAPPING RH,+,2,M4,L15,ZPC(BLK),SWR 4

4 AA39-10006X POWER-CORD -,KKP419C,KLCE-2F,2.286MT,3P, 1

6-1 CT331E

Exploded Views & Parts List

6-2 Samsung Electronics

No Code No Description Specification Q’ty Remark

1 AA64-30978X CABINET-FRONT ,CT501EBZ,BK708P EGB,HIPS,HB, 1 GSU,STR,XAP
1-1 AA63-50305A GRILLE-WOOFER,R -,501E,PA110 3R,SECC,T0.5,-,- 1

AA63-50310A GRILLE-WOOFER,L -,501E,PA110 3R,SECC,T0.5,-,- 1
1-2 AA64-70010D BADGE-BRAND AL,SS R2000 25,GOLD,L50,-,-,- 1
1-3 AA64-10635A KNOB-POWER,T -,5084,TACT,ABS,HB,BLK 1
1-4 AA61-60003J SPRING-CS -,SUS304,0.5,OD6,H12,N7,-,-,- 1
1-5 AA65-30105A CLAMP-WIRE NYLON 66,V2,NTR,15MM,ALL MODE 1
1-6 AA95-90030M ASSY-PCB,A/V FRONT -,CT-2139H,KCT15A,NTS 1
1-7 AA60-10002A SCREW-TAPPING RH,+,M4,L12,ZPC(YEL),-,OD1 2
1-8 AA61-40053A STOPPER-PCB ALL MODEL,HIPS HB,WHT,HB,-,- 1
1-9 3001-001034 SPEAKER 6W,8ohm,90dB,140Hz 1
1-10 6002-000514 SCREW-TAPPING RH,+,2,M4,L15,ZPC(BLK),SWR 4
1-11 AA64-40408A INDICATOR-LED -,501E,-,ACRYL,HB,CLR,- 1
1-12 AA64-40407A WINDOW-REMOCON -,501E,-,PC,-,-,VIOLET 1
1-13 AA64-10637A KNOB-CONTROL -,501E,-,ABS,HB,BLK 1

2 AA03-10029Z CRT-COLOR -,A48KRD82X(HB),+380mG,20,90d 1 CT501EBZX/XAP

AA03-10030A CRT-COLOR -,A48KRD82X(HB),-300mG,20,90d 1 CT501EBZX/GSU

AA03-10030L CRT-COLOR -,A48KRD82X(HB),0mG,20,90deg 1 CT501EBZX/STR
2-1 AA60-10050R SCREW-ASSY WC,HH,+,M5,L31.5,SWRCH18A,ZPC 4
2-2 AA65-30019A CLAMP-D,COIL NYLON-66,V0,NTR,DADH-460 20 4

AA65-30107A CLAMP-D,COIL NYLON 66,V2,NTR,-,20~22 INCH,- 4 CT501EBZX/STR
3 AA64-30979B CABINET-BACK -,501E,-,HIPS,HB,BLK,-,- 1 XAP,STR,GSU

3-1 AA42-10001V ANT-ROD -,3S,620mm,BRN,UL/CSA 1
3-2 6002-000514 SCREW-TAPPING RH,+,2,M4,L15,ZPC(BLK),SWR 4

4 AA39-10006X POWER-CORD -,KKP419C,KLCE-2F,2.286MT,3P, 1

6-2 CT501E

Exploded Views & Parts List

Samsung Electronics 6-3

No Code No Description Specification Q’ty Remark

1 AA64-31232B CABINET-FRONT ;-,CT-331HB,BK708P HITRON,HIPS, 1

AA64-31232E CABINET-FRONT ;-,CT-331HBZ,BK708P EGB,HIPS,HB 1 CT331HBX/DIS
1-1 AA64-70009G BADGE-BRAND AL,SS R800 22,GOLD,L40,-,-,- 1
1-2 AA64-40495A WINDOW-REM OCON;-,331,501H,-,PC,-,VIOLET,- 1
1-3 AA64-10768B KNOB-POWER;- ,331H,TACT,ABS,HB,BLK 1
1-4 AA61-60003T SPRING-CS;-,SU S304,0.5,OD7,H13.5,N5,-,-, 1
1-5 AA65-30105A CLAMP-WIRE NYLON 66,V2,NTR,15MM,ALL MODE 1
1-6 AA61-40113A STOPPER-PCB 501H,HIPS,NTR,HB,-,- 1
1-7 AA61-40010A BOSS-WING -,HIPS,HB,NTR,-,- 2
1-8 3001-000003 SPEAKER 3W,16ohm,88+-2dB,180+-36Hz 2
1-9 6002-000514 SCREW-TAPPING RH,+,2,M4,L15,ZPC(BLK),SWR 4
1-10 AA64-10767A KNOB-CONTROL ;-,-,-,ABS,HB,BLK 1
1-11 6002-000514 SCREW-TAPPING RH,+,2,M4,L15,ZPC(BLK),SWRCH18 1
1-12 AA64-40496A INDICATOR-LED ;-,-,-,ACRYL,-,-,- 1

2 AA03-10003J CRT-COLOR ;-,A34KQV42X(B),0MG,14””,90DEG,5 1
2-1 AA60-10050R SCREW-ASSY WC,HH,+,M5,L31.5,SWRCH18A,ZPC 4
2-2 AA65-30016A CLAMP-D,COIL NYLON-66,V0,NTR,DADH-360 14 4

3 AA64-31233A CABINET-BACK ;-,331H,-,HIPS,HB,BLK,-,- 1
3-1 AA42-10001V ANT-ROD ;-,3S,620mm,BRN,UL/CSA 1
3-2 6002-000514 SCREW-TAPPING RH,+,2,M4,L15,ZPC(BLK),SWR 4

4 AA39-10006X POWER-CORD ;-,KKP419C,KLCE-2F,2.286MT,3P, 1

6-3 CT331H

Exploded Views & Parts List

6-4 Samsung Electronics

No Code No Description Specification Q’ty Remark

1 AA64-31232B CABINET-FRONT -,CT-331HB,BK708P HITRON,HIPS, 1

AA64-31232E CABINET-FRONT -,CT-331HBZ,BK708P EGB,HIPS,HB 1
1-1 AA64-70009G BADGE-BRAND AL,SS R800 22,GOLD,L40,-,-,- 1
1-2 AA64-40495A WINDOW-REMOCON -,331,501H,-,PC,-,VIOLET,- 1
1-3 AA64-10768B KNOB-POWER -,331H,TACT,ABS,HB,BLK 1
1-4 AA61-60003T SPRING-CS -,SUS304,0.5,OD7,H13.5,N5,-,-, 1
1-5 AA65-30105A CLAMP-WIRE NYLON 66,V2,NTR,15MM,ALL MODE 1
1-6 AA61-40113A STOPPER-PCB 501H,HIPS,NTR,HB,-,- 1
1-7 3001-000003 SPEAKER 3W,16ohm,88+-2dB,180+-36Hz 2
1-8 6002-000514 SCREW-TAPPING RH,+,2,M4,L15,ZPC(BLK),SWR 4
1-9 AA64-10767A KNOB-CONTROL -,-,-,ABS,HB,BLK 1
1-10 6002-000514 SCREW-TAPPING RH,+,2,M4,L15,ZPC(BLK),SWRCH18 1
1-11 AA64-40496A INDICATOR-LED -,-,-,ACRYL,-,-,- 1

2 AA03-10003J CRT-COLOR -,A34KQV42X(B),0MG,14””,90DEG,5 1
2-1 AA60-10050R SCREW-ASSY WC,HH,+,M5,L31.5,SWRCH18A,ZPC 4
2-2 AA65-30016A CLAMP-D,COIL NYLON-66,V0,NTR,DADH-360 14 4

3 AA64-31233A CABINET-BACK -,331H,-,HIPS,HB,BLK,-,- 1
3-1 AA42-10001V ANT-ROD -,3S,620mm,BRN,UL/CSA 1
3-2 6002-000514 SCREW-TAPPING RH,+,2,M4,L15,ZPC(BLK),SWR 4

4 AA39-10006X POWER-CORD -,KKP419C,KLCE-2F,2.286MT,3P, 1

6-4 CT501H

Exploded Views & Parts List

Samsung Electronics 6-5

No Code No Description Specification Q’ty Remark

1 AA64-30850F CABINET-FRONT -,3366,PA100 HITRON BIO,HI 1
1-1 AA63-50274A GRILLE-WOOFER -,3366,PA110,SECC-1,T0.5,- 2
1-2 AA63-30120N COVER-CONTROL,A -,CT-3366BZ,KSP213 EG TV 1
1-3 AA64-70009G BADGE-BRAND AL,SS R800 22,GOLD,L40,-,-,- 1
1-4 AA64-40360A WINDOW-REMOCON -,66,LG41338,ABS,HB,CLR,- 1
1-5 AA64-10582E KNOB-POWER -,3366,TACT,ABS,HB,M/B 1
1-6 AA61-60003T SPRING-C ;-,SUS304,0.5,OD7,H13.5,N5,-,-, 1
1-7 AA64-40184A INDICATOR-LED -,3373,-,ACRYL,-,-,- 1
1-8 AA95-90030M ASSY-PCB,A/V FRONT -,CT-2139H,KCT15A,NTS 1
1-9 3722-000506 JACK-RCA 2P,3.6MM,-,AG 1
1-10 AA60-10002A SCREW-TAPPING RH,+,M4,L12,ZPC(YEL),-,OD1 2
1-11 AA61-40010A BOSS-WING -,HIPS,HB,NTR,-,- 2
1-12 AA91-60301A ASSY-HOLDER,SPK -,8ohm6W,R550L350,4P/RBY 1
1-13 6002-000522 SCREW-TAPPING;TH ,+,2,M4,L15,ZPC(BLK),SWR 4
1-14 AA64-10559B KNOB-CONTROL -,66,-,ABS,HB,M/B 1

2 AA03-10001Z CRT-COLOR -,A34KQV42X(B),+380MG,14,90DE 1
2-1 AA60-10050R SCREW-ASSY WC,HH,+,M5,L31.5,SWRCH18A,ZPC 4
2-2 AA65-30106A CLAMP-D,COIL NYLON 66,V2,NTR,-,14 INCH,- 2

3 AA64-30851A CABINET-BACK -,HIPS,HB,-,-,BLK,-,3366 1
3-1 6002-000514 SCREW-TAPPING RH,+,2,M4,L15,ZPC(BLK),SWR 6
3-2 AA42-10001V ANT-ROD -,3S,620mm,BRN,UL/CSA 1
3-3 AA39-10006X POWER-CORD -,KKP419C,KLCE-2F,2.286MT,3P, 1

6-5 CT3366

Exploded Views & Parts List

6-6 Samsung Electronics

No Code No Description Specification Q’ty Remark

1 AA64-30678K CABINET-FRONT -,5066,BK-708P AMER B TVI,HIPS 1
1-1 AA63-50196A GRILLE-WOOFER -,5066,PA110,SECC,T0.5,-,- 2
1-2 AA64-60284F INLAY-AV 50.5366,KSP213 TVI NT EG,PS,T0 1
1-3 AA63-30072Z COVER-CONTROL,A -,CT-5066BZ,KSP213 EG,HIPS,V0, 1
1-4 AA64-70010D BADGE-BRAND AL,SS R2000 25,GOLD,L50,-,-,- 1
1-5 AA64-40360A WINDOW-REMOCON -,66,LG41338,ABS,HB,CLR,- 1
1-6 AA64-10560E KNOB-POWER -,38.5066,TACT,ABS,HB,M/B 1
1-7 AA61-60003T SPRING-CS ,SUS304,0.5,OD7,H13.5,N5,-,-, 1
1-8 AA64-40184A INDICATOR-LED -,3373,-,ACRYL,-,-,- 1
1-9 3722-000506 JACK-RCA ;2P,3.6MM,-,AG 1
1-10 AA95-90032S ASSY-PCB,A/V FRONT -,5066,K15A,NTSC,-,- 1
1-11 AA60-10002A SCREW-TAPPING RH,+,M4,L12,ZPC(YEL),-,OD1 2
1-12 AA61-40015A BOSS-CABINET -,HIPS,HB,NTR,-,- 4
1-13 AA91-60302A ASSY-HOLDER,SPK -,8ohm6W,R700L350,4P/RBYB,5066 1
1-14 6002-000522 SCREW-TAPPING TH,+,2,M4,L15,ZPC(BLK),SWR 4
1-15 AA64-10559B KNOB-CONTROL -,66,-,ABS,HB,M/B 1

2 AA03-10029Z CRT-COLOR -,A48KRD82X(HB),+380mG,20,90d 1 XAP

AA03-10030L CRT-COLOR -,A48KRD82X(HB),0mG,20,90deg, 1 STR
2-1 AA60-10050R SCREW-ASSY WC,HH,+,M5,L31.5,SWRCH18A,ZPC 4
2-2 AA65-30107A CLAMP-D,COIL NYLON 66,V2,NTR,-,20~22 INCH,- 4
2-3 3704-001090 SOCKET-CRT 9P,15.24PI,26.5PI,SN,- 1

3 AA64-30680B CABINET-BACK -,5066,-,HIPS,HB,BLK,-,- 1
3-1 6002-000514 SCREW-TAPPING RH,+,2,M4,L15,ZPC(BLK),SWR 6
3-2 AA42-10001V ANT-ROD ;-,3S,620mm,BRN,UL/CSA 1
3-3 AA39-10006X POWER-CORD -,KKP419C,KLCE-2F,2.286MT,3P, 1

6-6 CT5066

Exploded Views & Parts List

Samsung Electronics 6-7

1-1

1-2

1-3

1-4

1-5

1-9

1-8

1-6

1-7

2

2-2

2-1

3

3-2

3-1

3-3

No Code No Description Specification Q’ty Remark

1 AA64-30151W CABINET-FRONT -,CT3338Z,PA100 HITRON EG, 1
1-1 AA64-60161Q INLAY-AV V-MODEL,NTSC TVI EG,PS,T0.3,BL 1
1-2 AA64-70009G BADGE-BRAND AL,SS R800 22,GOLD,L40,-,-,- 1
1-3 AA64-40057A WINDOW-REMOCON -,3338,-,PC,V0,VIOLET,- 1
1-4 AA64-10153B KNOB-POWER,T -,3338,SILK,ABS,HB,BLK 1
1-5 AA61-60003J SPRING-CS -,SUS304,0.5,OD6,H12,N7,-,-,- 1
1-6 AA64-40189A INDICATOR-LED -,3338,-,ACRYL,-,-,- 1
1-7 AA64-10052A KNOB-CONTROL -,3338,-,ABS,HB,BLK 1
1-8 3001-000281 SPEAKER 2.5W,8ohm,90dB,140Hz 1
1-9 AA61-40010A BOSS-WING -,HIPS,HB,NTR,-,- 2

2 AA03-10001D CRT-COLOR -,A34KQV42X,+380MG,14,90DEG,5 1
2-1 AA65-30106A CLAMP-D,COIL NYLON 66,V2,NTR,-,14 INCH,- 2
2-2 AA60-10050Q SCREW-ASSY WC,HH,+,M5,L26.5,SWRCH18A,ZPC 4
2-3 3704-001089 SOCKET-CRT 7P,22.5PI,12PI,SN,- 1

3 AA64-30381B CABINET-BACK -,3338,73,-,HIPS,HB,BLK,-,- 1
3-1 AA42-10001V ANT-ROD -,3S,620mm,BRN,UL/CSA 1
3-2 6002-000514 SCREW-TAPPING RH,+,2,M4,L15,ZPC(BLK),SWR 4
3-3 AA39-10006X POWER-CORD -,KKP419C,KLCE-2F,2.286MT,3P, 1

6-7 CT3338

Exploded Views & Parts List

6-8 Samsung Electronics

No Code No Description Specification Q’ty Remark

1 AA64-31263B CABINET-FRONT -,CT5038Z,PA100 HITRON,HIPS,HB 1
1-1 AA64-60161Q INLAY-AV V-MODEL,NTSC TVI EG,PS,T0.3,BL 1
1-2 AA64-70015B BADGE-BRAND AL,SS R2000 22,GOLD,L45,-,-,- 1
1-3 AA64-40085A WINDOW-REMOCON -,5038,-,PC,V0,VIOLET,- 1
1-4 AA64-10187B KNOB-POWER,T -,5038,SILK,ABS,HB,BLK 1
1-5 AA61-60003J SPRING-CS -,SUS304,0.5,OD6,H12,N7,-,-,- 1
1-6 AA63-50056A GRILLE-WOOFER -,5038,PA110,SECC,T0.5,-,- 1
1-7 AA61-40007A STOPPER-PCB 5038.5368,ABS HB,NTR,-,-,- 1
1-8 AA95-90030M ASSY-PCB,A/V FRONT -,CT-2139H,KCT15A,NTS 1
1-9 AA60-10002A SCREW-TAPPING RH,+,M4,L12,ZPC(YEL),-,OD1 2
1-10 AA64-40188A INDICATOR-LED -,5038,-,ACRYL,-,-,- 1
1-11 AA64-10050A KNOB-CONTROL -,5038,-,ABS,HB,BLK 1
1-12 3001-000191 SPEAKER 3W,8ohm,90dB,180Hz 1
1-13 6002-000514 SCREW-TAPPING RH,+,2,M4,L15,ZPC(BLK),SWRCH18 2
1-14 AA61-40010A BOSS-WING -,HIPS,HB,NTR,-,- 2

2 AA03-10029Y CRT-COLOR -,A48KRD82X(H),-380mG,20,90de 1
2-1 AA65-30107A CLAMP-D,COIL NYLON 66,V2,NTR,-,20~22 INCH,- 4
2-2 AA60-10050R SCREW-ASSY WC,HH,+,M5,L31.5,SWRCH18A,ZPC 4
2-3 AA27-50004W DEFLECTION-YOKE -,DSE-1992LL(1H),20/A48KRD82X 1

3 AA64-30375B CABINET-BACK -,5073,38,-,HIPS,HB,BLK,-,- 1
3-1 AA42-10001V ANT-ROD -,3S,620mm,BRN,UL/CSA 1
3-2 6002-000514 SCREW-TAPPING RH,+,2,M4,L15,ZPC(BLK),SWR 4
3-3 AA39-10006X POWER-CORD -,KKP419C,KLCE-2F,2.286MT,3P, 1

6-8 CT5038

7. Electric Parts List

Electric Parts List

Samsung Electronics 7-1

7-1 Part Differences (by screen size) .......................................................................................

7-2 CT331EBZX/STR (CT331EBZX/GSU AND CT331EBZX/STR Dissimilar Parts) ............

7-3 CT331HX/SPL (CT331EBZX/GSU AND CT331HX/SPL Dissimilar Parts) .....................

7-4 CT331HBX/DIS (CT331EBZX/GSU AND CT331HBX/DIS Dissimilar Parts) ................

7-5 CT331HBZX/DIS (CT331EBZX/GSU AND CT331HBZX/DIS Dissimilar Parts) ............

7-6 CT501EBZX/GSU (CT331EBZX/GSU AND CT501EBZX/GSU Dissimilar Parts)............

7-7 CT501EBZX/STR (CT331EBZX/GSU AND CT501EBZX/STR Dissimilar Parts).............

7-8 CT501EBZX/XAP (CT331EBZX/GSU AND CT501EBZX/XAP Dissimilar Parts) ............

7-9 CT501HX/SPL (CT331EBZX/GSU AND CT501HX/SPL Dissimilar Parts) .....................

7-10 CT331EBZX/GSU ..........................................................................................................,.........

7-11 CT5066BZX/STR (CT3366BZX/XAP AND CT5066BZX/STR Dissimilar Parts) ..............

7-12 CT5066BZX/XAP (CT3366BZX/XAP AND CT5066BZX/XAP Dissimilar Parts) ............

7-13 CT3366BZX/STR (CT3366BZX/XAP AND CT3366BZX/STR Dissimilar Parts) .............

7-14 CT3366BZX/XAP .....................................................................................................................

7-15 CT5038ZX/GSU (CT3338ZX/XAP AND CT5038ZX/GSU Dissimilar Parts) .....................

7-16 CT5038ZX/XAP (CT3338ZX/XAP AND CT5038ZX/XAP Dissimilar Parts) ....................

7-17 CT3338ZX/XAP ........................................................................................................................

7-1

7-9

7-9

7-10

7-10

7-11

7-11

7-12

7-13

7-14

7-18

7-19

7-19

7-20

7-25

7-25

7-26

No. Loc. No.

INC

H

U.S.A LATIN

SPECIFICATION CODE No. SPECIFICATION CODE No.

1 CRT

14" A34KQV42X,+380mG,14" AA03- 10001D
20" A48KRD82X(H),+380mG,21" AA03-10029W

2 DY

14" DSE-1422FL,14" AA27- 50001K

←

20" DSE-1992LL1(H),20" AA27- 50004W

3 CY

14" 22.5MM AA27-60001E
20" -,JH-291- (JH-8210) AA27-60001D

4 V999

14" 7P,22.5PI,12PI,SN 3704- 001089
20" 9P,15.24PI,26.5PI,SN,- 3704-001090 CRT OCKET

5 T444

14" -,FSV-14A001,14",125V AA26- 30004H B/R
20" -,FSV-20A001,20",125V AA26- 30001Y B/R

6 CN802

14" 14",16.4ohm,75T AA27-20003U D-COIL
20" 20" JAPAN 6.2

Ω

AA27-20003F 20",14.4ohm,48T AA27- 20003X D-COIL

7

TBC-

WIRE

14" 14" 1P AA98-70014A
20" 20" 1P AA98-70014B

8

ASSY-

CRT

14" A34KQV42X,+380mG,14",BARE AA94-50014P
20" A48KRD82X(H),+380MG,20",BARE AA94-50019X

←
←
←
←
←
←
←

←

←

←

REMARK

Electric Parts List

7-2 Samsung Electronics

7-1 Part Differences (by screen size)

Electric Parts List

Samsung Electronics 7-3

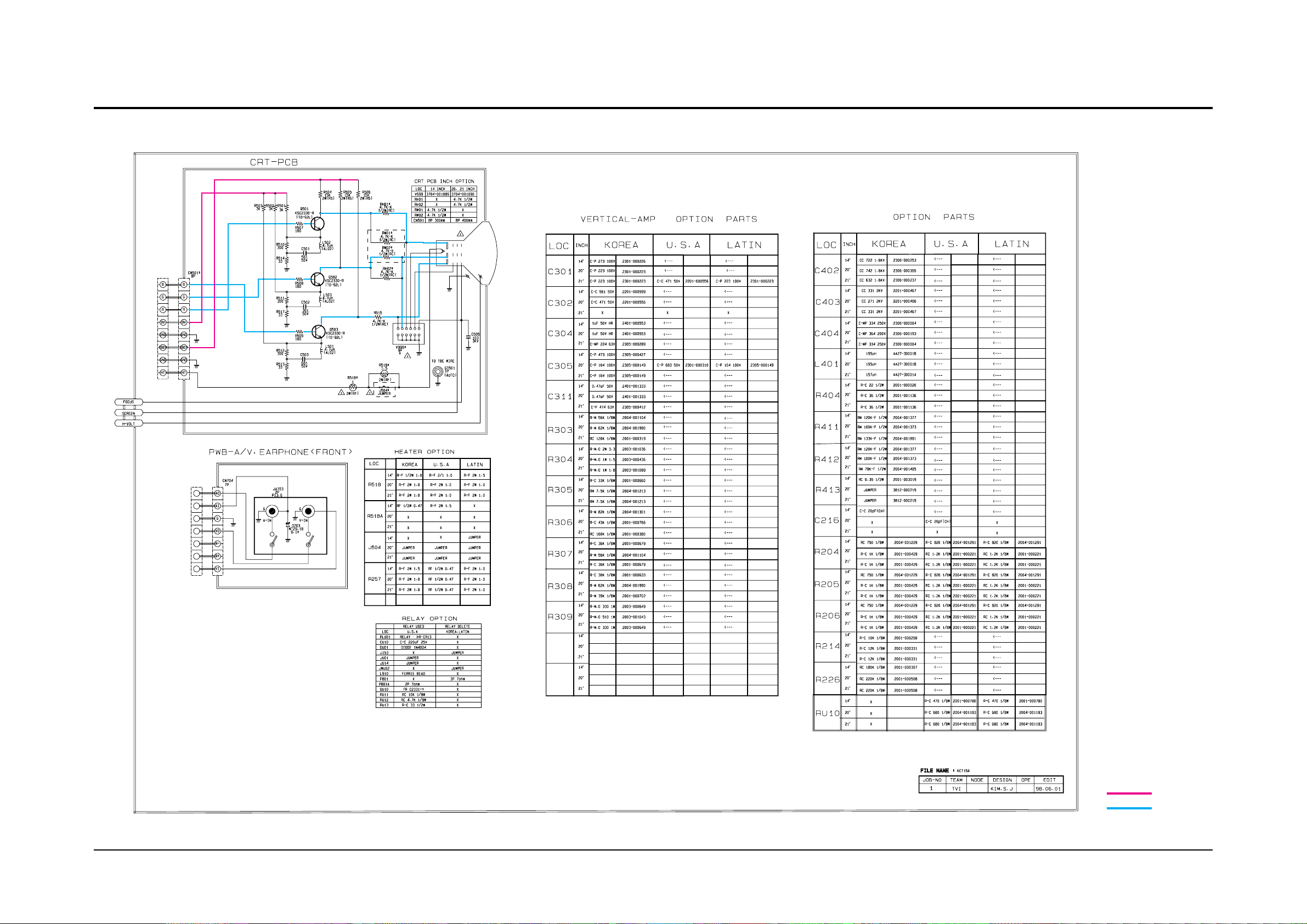

7-1-1 Inch Option

No. Loc. No.

INC

H

U.S.A LATIN

SPECIFICATION CODE No. SPECIFICATION CODE No.

1 C402

14" C-C 722 1.6KV 2306-000253

← ←

HORIZONTAL CT CAPACITOR

20" C-C 742 1.6KV 2306-000355

← ←

2 C403

14" C-C 331 2KV 2201-000467

← ←

20" C-C 271 2KV 2201-000406

← ←

3 C404

14" C-MPP 334 250V 2306- 000004

← ←

20" C-MPP 364 200V 2306- 000193

← ←

4 L401

14" 195uH AA27-30001B

← ←

LINEARITY COIL

20" 195uH AA27-30001B

← ←

LINEARITY COIL

5 R404

14" R-C 22-J 1/2T 2001-000020

← ←

HDT B+

RESISTOR

20" R-C 36-J 1/2T 2001-001136

← ←

6 R411

14" R-M 120K-F 1/2T 2004-001377

← ←

ABL RESISTOR

20" R-M 100K-F 1/2T 2004-001373

← ←

7 R412

14" R-M 120K-F 1/2T 2004-001377

← ←

20" R-M 100K-F 1/2T 2004-001373

← ←

8 R413

14" R-C 0.39-K 1/2T 2001- 003019

← ←

KSD5386 OPTION

20" JUMPER 3812-000219

← ←

KSD5386 OPTION

REMARK

HORIZONTAL CT CAPACITOR
HORIZONTAL CT CAPACITOR
HORIZONTAL CT CAPACITOR
HORIZONTAL CS CAPACITOR
HORIZONTAL CS CAPACITOR

HDT B+

RESISTOR

ABL RESISTOR
ABL RESISTOR

ABL RESISTOR

9 C301

14" C-P 273 100V 2301-000226

←

20" C-P 223 100V 2301-000223

←

10 C302

14" C-C 471 50V 2201-000556 C-C 561 50V 2201-000599
20" C-C 471 50V 2201-000556

←

11 C304

14" C-E 1uF 50V HR 2401-000553

←

20" C-E 1uF 50V HR 2401-000553

←

12 C305

14" C-P 473 100V 2305-000427

←

20" C-P 683-J 50V 2301-000310 C-P 104 100V 2305-000149

Electric Parts List

7-4 Samsung Electronics

No. Loc. No.

INC

H

U.S.A LATIN

SPECIFICATION CODE No. SPECIFICATION CODE No.

13 C311

14" C-E 0.47uF 50V 2401-001333

←

20" C-E 0.47uF 50V 2401-001333

←

14 R303

14" R-C 56K-J 1/8T 2001- 000864

←

20" R-C 62K-J 1/8T 2004- 001990

←

15 R304

14" R-M.O 2W 3.3-J 2003- 001036

←

20" R-M.O 1W 1.5-J 2003- 000436

←

16 CN501

14" 8P 300MM AA39-20109D

←

20" 8P 400MM AA39-20109A

←

REMARK

17 R305

14" R-C 33K-J 1/8T 2001-000660

←

20" R-M 7.5K-J 1/8T 2004-001213

←

18 R306

14" R-M 82K-J 1/8T 2004-001301

←

20" R-C 43K-J 1/8T 2001-000766

←

19 R307

14" R-C 36K-J 1/8T 2001-000679

←

20" R-C 56K-J 1/8T 2001-000864

←

20 R308

14" R-C 30K-J 1/8T 2001-000633

←

20" R-M 62K-J 1/8T 2004-001990

←

21 R309

14" R-M.O 330-J 1W 2003-000649

←

20" R-M.O 510-J 1W 2003-001043

←

22 R518

14" R-F 2W 1.0 2008- 000266 R-F 2W 1.5 2008-001015
20"

" "

R-F 2W 1.0 2008-000266

23 R518A

14" R-F 2W 1.5 2008- 000257

X X

20"

" " X X

24 J504

14"

X X

JUMPER 3812-000219

20"

X X

JUMPER 3812-000219

Electric Parts List

Samsung Electronics 7-5

No. Loc. No.

INC

H

U.S.A LATIN

REMARK

SPECIFICATION CODE No. SPECIFICATION CODE No.

25 C216

14" C-C 20pF(CH) 2201- 000354

←

20" C-C 20pF(CH) 2201- 000354

X

26 R204

14" R-C 820-J 1/8T 2004- 000995

←

20" R-C 1.2K-J 1/8T 2001- 000221

←

27 R205

14" R-C 820-J 1/8T 2004- 000995

←

20" R-C 1.2K-J 1/8T 2001- 000221

←

28 R206

14" R-C 820-J 1/8T 2004- 000995

←

20" R-C 1.2K-J 1/8T 2001- 000221

←

29 R214

14" R-C 10K-J 1/8T 2001-000290

←

20" R-C 12K-J 1/8T 2001-000331

←

30 R222

14" R-C 470K-J 1/8T 2001-000773

←

DELETE
(INCH DOES NOT MATTER :
CHANGED TO 4570K)

20" R-C 470K-J 1/8T 2001-000773

←

31 R226

14" R-C 180K-J 1/8T 2001-000397

←

20" R-C 220K-J 1/8T 2001-000508

←

32 R257

14" R-F 1/2W 0.47 2008-000252 R-F 2W 1.0 2008- 000266
20" " " " "

X

33 RH01

14"

X X X X

20" R-COMP 4.7K1/2T 2002-001006

← ←

34 RH02

14"

X X X X

20" R-COMP 4.7K1/2T 2002-001006

← ←

35 RM01

14" R-COMP 4.7K1/2T 2002-001006

← ←

20"

X X X X

36 RM02

14" R-COMP 4.7K1/2T 2002-001006

← ←

20"

X X X X

37 T444

14" FSV-14A001,14",125V AA26-30004H

← ←

20" FSV-20A001,14",125V AA26-30001Y

← ←

Electric Parts List

7-6 Samsung Electronics

7-1-2 AC Input Option

No. Loc. No.

RELAY USED RELAY DELETE

SPECIFICATION CODE No. SPECIFICATION CODE No.

1 CU10 C-E 220uF 25V 2401- 000832

X X

RELAY OPTION

2 J153

X X

JUMPER 3812-000219

APPLIED WHEN DELETING RELAY

3 JU14 JUMPER 3812-000219

X X

RELAY OPTION

4 JWU02

X X

JUMPER 3812-000219

5 L910 FERRIE BEAD 2901-000299

X X

RELAY

6 QU10 TR C2331-Y 0501-000369

X X

RELAY OPTION

7 P801

X X

POSISTOR 7ߟ3P 1404-001048 POSISTOR FREE VOLT

8 P801A POSISTOR 7ߟ2P 1404-000208

X X

POSISTOR SINGLE VOLT (110V)

9 RLU01 RELAY:HR-CR13 3501- 001040

X X

RELAY OPTION

10 RU11 R-C 4.7K-J 1/8T 2001-000734

X X

RELAY OPTION

11 RU12 R-C 10K-J 1/8T 2001-000290

X X

RELAY OPTION

12 RU13 R-C 33-J 1/2T 2001-000022

X X

RELAY OPTION

13 DU01 DIODE 1N4004 0402-000132

X X

RELAY OPTION

No. Loc. No.

AC 110V ONLY FREE VOLT

REMARK

SPECIFICATION CODE No. SPECIFICATION CODE No.
1 C801 C-E:220uF 200V 2401-000822 C-E:220uF 400V 2401-002298 110V/FREE VOLT
2 C804 C-C 400V 222 2201-000987 C-C 400V 332 2201-000446

COUNTERMEASURE ON SMPS NOISE

3 C819 C-C 400V 102 2201-000963

X X

4 IC801 STR S0765 AA96- 50395A STR S0680 AA96-50298D

VOLTAGE DIFFERENCE (110V/220)
5 R802 R-M,OXIDE 36K1W 2003-002119 R-M,OXIDE 2W33K 2003- 000994
6 R803 R-M,OXIDE 36K1W 2003-002119 R-M,OXIDE 2W33K 2003- 000994
7 T801 EER2834 AA27- 20007L EER354311 AA27-20006U TRANS

COUNTERMEASURE ON SMPS NOISE

VOLTAGE DIFFERENCE

(SINGLE VOLT/FREE VOLT)

VOLTAGE DIFFERENCE

(SINGLE VOLT/FREE VOLT)

REMARK

ADDED WHEN DELETING RELAY

7-1-3 Relay Option

Electric Parts List

Samsung Electronics 7-7

7-1-4 X-Ray Option

No. Loc. No.

X-RAY USED X-RAY DELETE

REMARK

SPECIFICATION CODE No. SPECIFICATION CODE No.

1 CX01 C-C 103 25V 2202- 000127

X X

X-RAY

2 CX02 10uF 50V 2401-000480

X X

X-RAY

3 CX03 10uF 50V 2401-000480

X X

X-RAY

4 CX04 471 500V 2201-000556

X X

X-RAY

5 DX01 MTZ6.2B 0403-000297

X X

X-RAY

6 DX02 1N4004 400V 0402-000132

X X

X-RAY

7 JX01 JUMPER 3812-000219

X X

X-RAY

8 QX01 KSA539-Y 0501-000283

X X

X-RAY

9 RX01 R-C 180K 1/8T 2001-000397

X X

X-RAY

10 RX02 R-C 18K 1/8T 2001-000411

X X

X-RAY

12 RX03 R-M 4.3K-F 1/2T 2004-001987

X X

X-RAY

13 RX04 R-M 11K-F 1/2T 2004-001376

X X

X-RAY

14 RX05 R-C 22K 1/8T 2001-000522

X X

X-RAY

15 RX07 JUMPER 3812- 000219

X X

X-RAY

16 RX08 R-C 51K 1/8T 2001-000837

X X

X-RAY

17 JWX01

X X

JUMPER 3812-000219

ADDED WHEN DELETING X-RAY

Electric Parts List

7-8 Samsung Electronics

7-1-5 Sound Option (MONO/DUAL)

No. Loc. No.

~73, ~38, ~1F SYSTEM (1 SPK / 1 AMP)1 ~1H SYSTEM (2 SPKs / 1 AMP) ~39,~85,~66,~1E,~3E SYSTEM ( 2 SPKs / 2 AMPs)
SPECIFICATION CODE No. SPECIFICATION CODE No. SPECIFICATION CODE No.

1 IC602

X X X X

ASSY-H/S LA4425 AA96-50392A

WHEN USING 2 AMPs

2 C652

X X X X

2.2uF 50V 2401-000660

3 C655

X X X X

470uF 16V 2401-001363

4 JDW1

X X X X

JUMPER 3812-000219 SOUND L OUT

5 JAW04

X X X X

JUMPER 3812-000219 SOUND L OUT

6 CN603 POST HEADER 3P 3711-002642

X X X X

3P WHEN USING 1 SPEAKER

7 CN601

X X

POST HEADER 4P 3711-002643 POST HEADER 4P 3711-002643

4P WHEN USING 2 SPEAKERS

8 J601

X X

JUMPER 3812- 000219

X X

SOUND R/L CONNECTED

9 D814 RG10V 400V 0402-000534 RG10V 400V 0402-000534 RK16 0404-001056 RK16 WHEN USING 2 AMPs

10 R604 R-C 2.2K 1/8T 2001-000449

← ←

R-C 3.3K 1/8T 2001-000591 3.3K 1/8T WHEN USING 2 AMPs

No. Loc. No. SPECIFICATION CODE No.

F-A/V DELETE F-A/V USED

REMARK

~1F SYSTEM ~1H SYSTEM OTHER CABINET

1 F-A/V

DELETE EARPHONE A/V

AA95-90030M

X O

DELETE EARPHONE

(FROM THE EXISTING F/A/V)

2 CN701 POST HEADER 7P 3711- 002646

X O

ADDED WHEN USING F-A/V

3 JAW01 JUMPER 3812- 000219

O X

ADDED WHEN DELETING F/A/V

4 JAW02 JUMPER 3812- 000219

O X

REMARK

WHEN USING 2 AMPs

WHEN USING 2 AMPs

ADDED WHEN DELETING F/A/V

7-1-6 Front A/V Option

Electric Parts List

Samsung Electronics 7-9

7-2 CT331EBZX/STR (CT331EBZX/GSU AND CT331EBZX/STR Dissimilar Parts)

ASSY-PCB,MAIN

* AA94-10139Z ASSY-PCB,MAIN(OPT);CT331EBZX/STR,K15A,PERU,-

ASSY-CRT

* AA94-50013WASSY-CRT;A34KQV42X(B),0mG,14,BARE,CN33

AA03-10003JCRT-COLOR;-,A34KQV42X(B),0MG,14,90DEG,5

ASSY-CABINET

* AA90-70044N ASSY-CABINET;331E,CT331EBZX/STR

ASSY-ACCESSORY

* AA94-30077Z ASSY-ACCESSORY;CT3366BZX/STR,K15A,PERU

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

7-3 CT331HX/SPL (CT331EBZX/GSU AND CT331HX/SPL Dissimilar Parts)

ASSY-PCB,MAIN

* AA94-10134X ASSY-PCB,MAIN(OPT);CT331HX/SPL,KCT15A,JUNGNAMMI
C409 2401-000832 C-AL;220uF,20%,25V,GP,TP,8x11.5,5mm

C810 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0mm,
CLAMP/F AA65-30109ACLAMP-FBT;NYLON-66,V2,BLK,-,-,­CLAMP/W AA65-30104C CLAMP-WIRE;NYLON 66,V2,NTR,W1 Z4,ALL MODE
D814 0402-000534 DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,TP
IC901 AA13-30019MIC-MCU;-,Z8933412PSC-R3716,16BIT,SDIP
JA701 3722-000162 JACK-PIN;2P,3.4mm,SN,BLACK,­Q401 0502-001115 TR-POWER;KSC5386,NPN,50W,TO-3PF,ST,8­R604 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R936 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

ASSY-CRT

* AA94-50013WASSY-CRT;A34KQV42X(B),0mG,14,BARE,CN33
CRT AA03-10003JCRT-COLOR;-,A34KQV42X(B),0MG,14,90DEG,5

ASSY-CABINET

AA90-70110BASSY-CABINET;331H,CT331HBZX/DIS
AA63-60124ASPACER-FBT;RUBBER,T1.5,BLK,PI11*10,331H,-

AA64-31233ACABINET-BACK;-,331H,-,HIPS,HB,BLK,-,­AA65-30106ACLAMP-D,COIL;NYLON 66,V2,NTR,-,14 INCH,-

ASSY-CABINET,FRONT

AA91-10371BASSY-CABINET,FRONT;-,CT-331HB,BK708P HITRON,HB,BL

KNOPOW AA61-60003TSPRING-CS;-,SUS304,0.5,OD7,H13.5,N5,-,-,

AA64-10767AKNOB-CONTROL;-,-,-,ABS,HB,BLK
AA64-10768BKNOB-POWER;-,331H,TACT,ABS,HB,BLK
AA64-31232BCABINET-FRONT;-,CT-331HB,BK708P HITRON,HIPS,
AA64-40495AWINDOW-REMOCON;-,331,501H,-,PC,-,VIOLET,­AA64-40496AINDICATOR-LED;-,-,-,ACRYL,-,-,­AA61-40113ASTOPPER-PCB;501H,HIPS,NTR,HB,-,-

ASSY-SPEAKER

* AA96-10138AASSY-SPEAKER;-,16ohm,3W,00003,AA3920505N,L3
SPK 3001-000003 SPEAKER;3W,16ohm,88+-2dB,180+-36Hz

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

!

!

Electric Parts List

7-10 Samsung Electronics

7-5 CT331HBZX/DIS (CT331EBZX/GSU AND CT331HBZX/DIS Dissimilar Parts)

ASSY-PCB,MAIN

AA94-10133EASSY-PCB,MAIN(OPT);CT331HBX/DIS,KCT15A,BOLIVIA,-

D814 0402-000534 DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,TP
R604 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m

ASSY-CRT

* AA94-50013WASSY-CRT;A34KQV42X(B),0mG,14,BARE,CN33

AA03-10003JCRT-COLOR;-,A34KQV42X(B),0MG,14,90DEG,5

ASSY-CABINET

* AA90-70110B ASSY-CABINET;331H,CT331HBZX/DIS

AA63-60124ASPACER-FBT;RUBBER,T1.5,BLK,PI11*10,331H,­AA64-31233ACABINET-BACK;-,331H,-,HIPS,HB,BLK,-,­AA65-30106ACLAMP-D,COIL;NYLON 66,V2,NTR,-,14 INCH,-

ASSY-CABINET,FRONT

AA91-10371EASSY-CABINET,FRONT;-,CT-331HBX,BK708P EGB,HB,BLK
AA61-40113ASTOPPER-PCB;501H,HIPS,NTR,HB,-,-

KNOPOW AA61-60003TSPRING-CS;-,SUS304,0.5,OD7,H13.5,N5,-,-,

AA64-10767AKNOB-CONTROL;-,-,-,ABS,HB,BLK
AA64-10768BKNOB-POWER;-,331H,TACT,ABS,HB,BLK
AA64-31232ECABINET-FRONT;-,CT-331HBZ,BK708P EGB,HIPS,HB
AA61-40010ABOSS-WING;-,HIPS,HB,NTR,-,­AA64-40495AWINDOW-REMOCON;-,331,501H,-,PC,-,VIOLET,­AA64-40496AINDICATOR-LED;-,-,-,ACRYL,-,-,-

ASSY-SPEAKER

AA96-10138AASSY-SPEAKER;-,16ohm,3W,00003,AA3920505N,L3
3001-000003 SPEAKER;3W,16ohm,88+-2dB,180+-36Hz

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

7-4 CT331HBX/DIS (CT331EBZX/GSU AND CT331HBX/DIS Dissimilar Parts)

ASSY-PCB,MAIN

AA94-10133EASSY-PCB,MAIN(OPT);CT331HBX/DIS,KCT15A,BOLIVIA,-

D814 0402-000534 DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,TP
R604 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
C409 2401-001998 C-AL;1000uF,20%,25V,GP,TP,10x20,5mm
J601 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING),1/0.6mm
NT0561 AA68-50067A LABEL-RATING;T/P 90(G),T0.2,-,-,-,-,ALL

ASSY-CRT

* AA94-50013WASSY-CRT;A34KQV42X(B),0mG,14,BARE,CN33

AA03-10003JCRT-COLOR;-,A34KQV42X(B),0MG,14,90DEG,5

ASSY-CABINET

AA90-70110BASSY-CABINET;331H,CT331HBZX/DIS
AA63-60124ASPACER-FBT;RUBBER,T1.5,BLK,PI11*10,331H,-

AA64-31233ACABINET-BACK;-,331H,-,HIPS,HB,BLK,-,­AA65-30106ACLAMP-D,COIL;NYLON 66,V2,NTR,-,14 INCH,-

KC+CF 6002-000514 SCREW-TAPPING;RH,+,2,M4,L15,ZPC(BLK),SWRCH18

ASSY-CABINET,FRONT

AA91-10371BASSY-CABINET,FRONT;-,CT-331HB,BK708P HITRON,HB,BL
AA61-40113ASTOPPER-PCB;501H,HIPS,NTR,HB,-,-

KNOPOW AA61-60003TSPRING-CS;-,SUS304,0.5,OD7,H13.5,N5,-,-,

AA64-10767AKNOB-CONTROL;-,-,-,ABS,HB,BLK
AA64-10768BKNOB-POWER;-,331H,TACT,ABS,HB,BLK
AA64-31232BCABINET-FRONT;-,CT-331HB,BK708P HITRON,HIPS,
AA61-40010ABOSS-WING;-,HIPS,HB,NTR,-,­AA64-40495AWINDOW-REMOCON;-,331,501H,-,PC,-,VIOLET,­AA64-40496AINDICATOR-LED;-,-,-,ACRYL,-,-,-

ASSY-SPEAKER

* AA96-10138AASSY-SPEAKER;-,16ohm,3W,00003,AA3920505N,L3

3001-000003 SPEAKER;3W,16ohm,88+-2dB,180+-36Hz

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

!

!

Electric Parts List

Samsung Electronics 7-11

7-6 CT501EBZX/GSU (CT331EBZX/GSU AND CT501EBZX/GSU Dissimilar Parts)

ASSY-PCB,MAIN

* AA94-10140AASSY-PCB,MAIN(OPT);CT501EBZX/GSU,K15A,BOLIVIA,-

C301 2301-000223 C-FILM,PEF;22nF,5%,100V,TP,7.2x4.5x9.0mm,
C302 2201-000556 C-CERAMIC,DISC;470pF,10%,500V,Y5P,TP,7x4,5
C305 2305-000149 C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5,5
C402 2306-000355 C-FILM,MPPF;7.4nF,5%,1.6KV,TP,28.5x18.5x12
C403 2201-000406 C-CERAMIC,DISC;270pF,10%,2KV,Y5P,TP,8x6,7.5
C404 2306-000193 C-FILM,MPPF;360nF,5%,200V,TP,21x18.5x13,7.
CN501 AA39-20109ALEAD-CONNECTOR,ASSY;-,YBNH025-08,S,8P,400,1007#26
CN802 AA27-20003X COIL-DEGAUSSING;-,20,14.4ohm,48T,L2170,E
R204 2001-000221 R-CARBON;1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R205 2001-000221 R-CARBON;1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R206 2001-000221 R-CARBON;1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R214 2001-000331 R-CARBON;12Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R226 2001-000508 R-CARBON;220Kohm,5%,1/8W,AA,TP,1.8x3.2m
R303 2004-001990 R-METAL;62Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R304 2003-000436 R-METAL OXIDE(S);1.5ohm,5%,1W,AF,TP,3.3x9mm
R305 2001-000947 R-CARBON;7.5Kohm,5%,1/8W,AA,TP,1.8x3.2m
R306 2001-000766 R-CARBON;43Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R307 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R308 2004-001990 R-METAL;62Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R309 2003-001043 R-METAL OXIDE(S);510ohm,5%,1W,AF,TP,2.5x6.5mm
R404 2001-001136 R-CARBON(S);36ohm,5%,1/2W,AA,TP,2.4x6.4mm
R411 2004-001373 R-METAL(S);100Kohm,1%,1/2W,AA,TP,2.4x6.4m
R412 2004-001373 R-METAL(S);100Kohm,1%,1/2W,AA,TP,2.4x6.4m
R518 2008-000266 R-FUSIBLE(S);1ohm,5%,2W,AF,TP,3.9x10mm
RH01 2002-001006 R-COMPOSITION;4.7Kohm,10%,1/2W,AA,TP,3.7x9mm
RH02 2002-001006 R-COMPOSITION;4.7Kohm,10%,1/2W,AA,TP,3.7x9mm
T444 AA26-30001YTRANS-FLYBACK;-,FSV-20A001,20,125V
V999 3704-001090 SOCKET-CRT;9P,15.24PI,26.5PI,SN,-

ASSY-CRT

* AA94-50020K ASSY-CRT;A48KRD82X(HB),-300MG,20,BARE,

AA03-10030ACRT-COLOR;-,A48KRD82X(HB),-300mG,20,90d
AA27-50004WDEFLECTION-YOKE;-,DSE-1992LL(1H),20/A48KRD82X
AA27-60001DMAGNET-CONVERGENCE;-,JH-291-(JH-8210),29.1mm

ASSY-CABINET

* AA90-70046V ASSY-CABINET;501E,CT501EBZX/GSU

AA64-30979BCABINET-BACK;-,501E,-,HIPS,HB,BLK,-,­AA65-30019ACLAMP-D,COIL;NYLON-66,V0,NTR,DADH-460 20,-

ASSY-CABINET,FRONT

* AA91-10297V ASSY-CABINET,FRONT;-,CT501EBZ,BK708P EGB,HB,BLK

SPK+CF 6002-000514 SCREW-TAPPING;RH,+,2,M4,L15,ZPC(BLK),SWRCH18
KNOPOW AA61-60003JSPRING-CS;-,SUS304,0.5,OD6,H12,N7,-,-,-

AA63-50305AGRILLE-WOOFER,R;-,501E,PA110 3R,SECC,T0.5,-,­AA63-50310AGRILLE-WOOFER,L;-,501E,PA110 3R,SECC,T0.5,-,­AA64-10635AKNOB-POWER,T;-,5084,TACT,ABS,HB,BLK
AA64-30978XCABINET-FRONT;-,CT501EBZ,BK708P EGB,HIPS,HB,
AA64-70010DBADGE-BRAND;AL,SS R2000 25,GOLD,L50,-,-,-

ASSY-SPEAKER

* AA96-10143AASSY-SPEAKER;-,8ohm,6W,001034,20505M,R700L3

AA39-20505MLEAD CONNECTOR-ASSY;-,YSH025-04,REC,4P,350,700mm

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

7-7 CT501EBZX/STR (CT331EBZX/GSU AND CT501EBZX/STR Dissimilar Parts)

ASSY-PCB,MAIN

* AA94-10140C ASSY-PCB,MAIN(OPT);CT501EBZX/STR,K15A,PERU,­C301 2301-000223 C-FILM,PEF;22nF,5%,100V,TP,7.2x4.5x9.0mm,

C302 2201-000556 C-CERAMIC,DISC;470pF,10%,500V,Y5P,TP,7x4,5
C305 2305-000149 C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5,5
C402 2306-000355 C-FILM,MPPF;7.4nF,5%,1.6KV,TP,28.5x18.5x12
C403 2201-000406 C-CERAMIC,DISC;270pF,10%,2KV,Y5P,TP,8x6,7.5
C404 2306-000193 C-FILM,MPPF;360nF,5%,200V,TP,21x18.5x13,7.
CN501 AA39-20109ALEAD-CONNECTOR,ASSY;-,YBNH025-08,S,8P,400,1007#26
CN802 AA27-20003X COIL-DEGAUSSING;-,20,14.4ohm,48T,L2170,E
R204 2001-000221 R-CARBON;1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R205 2001-000221 R-CARBON;1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R206 2001-000221 R-CARBON;1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R214 2001-000331 R-CARBON;12Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R226 2001-000508 R-CARBON;220Kohm,5%,1/8W,AA,TP,1.8x3.2m
R303 2004-001990 R-METAL;62Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R304 2003-000436 R-METAL OXIDE(S);1.5ohm,5%,1W,AF,TP,3.3x9mm
R305 2001-000947 R-CARBON;7.5Kohm,5%,1/8W,AA,TP,1.8x3.2m
R306 2001-000766 R-CARBON;43Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R307 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R308 2004-001990 R-METAL;62Kohm,5%,1/8W,AA,TP,1.8x3.2mm

R309 2003-001043 R-METAL OXIDE(S);510ohm,5%,1W,AF,TP,2.5x6.5mm
R404 2001-001136 R-CARBON(S);36ohm,5%,1/2W,AA,TP,2.4x6.4mm
R411 2004-001373 R-METAL(S);100Kohm,1%,1/2W,AA,TP,2.4x6.4m
R412 2004-001373 R-METAL(S);100Kohm,1%,1/2W,AA,TP,2.4x6.4m
R413 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING),1/0.6mm
R518 2008-000266 R-FUSIBLE(S);1ohm,5%,2W,AF,TP,3.9x10mm
RH01 2002-001006 R-COMPOSITION;4.7Kohm,10%,1/2W,AA,TP,3.7x9mm
RH02 2002-001006 R-COMPOSITION;4.7Kohm,10%,1/2W,AA,TP,3.7x9mm
RU10 2004-001193 R-METAL;680ohm,5%,1/8W,AA,TP,1.8x3.2mm
T444 AA26-30001YTRANS-FLYBACK;-,FSV-20A001,20,125V
V999 3704-001090 SOCKET-CRT;9P,15.24PI,26.5PI,SN,-

ASSY-CABINET

* AA90-70046X ASSY-CABINET;501E,CT501EBZX/STR

AA64-30979BCABINET-BACK;-,501E,-,HIPS,HB,BLK,-,­AA65-30107ACLAMP-D,COIL;NYLON 66,V2,NTR,-,20~22 INCH,-

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

!

!

!

!
!

!
!

!

!

!

!
!

Electric Parts List

7-12 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

ASSY-CABINET,FRONT

* AA91-10297V ASSY-CABINET,FRONT;-,CT501EBZ,BK708P EGB,HB,BLK
KNOPOW AA61-60003JSPRING-CS;-,SUS304,0.5,OD6,H12,N7,-,-,-

AA63-50305AGRILLE-WOOFER,R;-,501E,PA110 3R,SECC,T0.5,-,­AA63-50310AGRILLE-WOOFER,L;-,501E,PA110 3R,SECC,T0.5,-,­AA64-10635AKNOB-POWER,T;-,5084,TACT,ABS,HB,BLK
AA64-30978XCABINET-FRONT;-,CT501EBZ,BK708P EGB,HIPS,HB,
AA64-70010DBADGE-BRAND;AL,SS R2000 25,GOLD,L50,-,-,­AA96-10143AASSY-SPEAKER;-,8ohm,6W,001034,20505M,R700L3
AA39-20505MLEAD CONNECTOR-ASSY;-,YSH025-04,REC,4P,350,700mm

ASSY-ACCESSORY

* AA94-30077Z ASSY-ACCESSORY;CT3366BZX/STR,K15A,PERU

ASSY-CRT

* AA94-50020MASSY-CRT;A48KRD82X(HB),0MG,20,BARE,CT5

AA03-10030L CRT-COLOR;-,A48KRD82X(HB),0mG,20,90deg,
AA27-50004WDEFLECTION-YOKE;-,DSE-1992LL(1H),20/A48KRD82X
AA27-60001DMAGNET-CONVERGENCE;-,JH-291-(JH-8210),29.1mm

7-8 CT501EBZX/XAP (CT331EBZX/GSU AND CT501EBZX/XAP Dissimilar Parts)

ASSY-PCB,MAIN

* AA94-10140B ASSY-PCB,MAIN(OPT);CT501EBZX/XAP,K15A,PANAMA,-

C301 2301-000223 C-FILM,PEF;22nF,5%,100V,TP,7.2x4.5x9.0mm,
C302 2201-000556 C-CERAMIC,DISC;470pF,10%,500V,Y5P,TP,7x4,5
C305 2305-000149 C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5,5
C402 2306-000355 C-FILM,MPPF;7.4nF,5%,1.6KV,TP,28.5x18.5x12
C403 2201-000406 C-CERAMIC,DISC;270pF,10%,2KV,Y5P,TP,8x6,7.5
C404 2306-000193 C-FILM,MPPF;360nF,5%,200V,TP,21x18.5x13,7.
CN501 AA39-20109ALEAD-CONNECTOR,ASSY;-,YBNH025-08,S,8P,400,1007#26
CN802 AA27-20003X COIL-DEGAUSSING;-,20,14.4ohm,48T,L2170,E
R204 2001-000221 R-CARBON;1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R205 2001-000221 R-CARBON;1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R206 2001-000221 R-CARBON;1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R214 2001-000331 R-CARBON;12Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R226 2001-000508 R-CARBON;220Kohm,5%,1/8W,AA,TP,1.8x3.2m
R303 2004-001990 R-METAL;62Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R304 2003-000436 R-METAL OXIDE(S);1.5ohm,5%,1W,AF,TP,3.3x9mm
R305 2001-000947 R-CARBON;7.5Kohm,5%,1/8W,AA,TP,1.8x3.2m
R306 2001-000766 R-CARBON;43Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R307 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R308 2004-001990 R-METAL;62Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R309 2003-001043 R-METAL OXIDE(S);510ohm,5%,1W,AF,TP,2.5x6.5mm
R404 2001-001136 R-CARBON(S);36ohm,5%,1/2W,AA,TP,2.4x6.4mm
R411 2004-001373 R-METAL(S);100Kohm,1%,1/2W,AA,TP,2.4x6.4m
R412 2004-001373 R-METAL(S);100Kohm,1%,1/2W,AA,TP,2.4x6.4m
R413 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING),1/0.6mm
R518 2008-000266 R-FUSIBLE(S);1ohm,5%,2W,AF,TP,3.9x10mm
RH01 2002-001006 R-COMPOSITION;4.7Kohm,10%,1/2W,AA,TP,3.7x9mm
RH02 2002-001006 R-COMPOSITION;4.7Kohm,10%,1/2W,AA,TP,3.7x9mm
RU10 2004-001193 R-METAL;680ohm,5%,1/8W,AA,TP,1.8x3.2mm
T444 AA26-30001YTRANS-FLYBACK;-,FSV-20A001,20,125V
V999 3704-001090 SOCKET-CRT;9P,15.24PI,26.5PI,SN,-

ASSY-CABINET

* AA90-70046UASSY-CABINET;501E,CT501EBZX/XAP

AA64-30979BCABINET-BACK;-,501E,-,HIPS,HB,BLK,-,­AA65-30107ACLAMP-D,COIL;NYLON 66,V2,NTR,-,20~22 INCH,-

ASSY-CABINET,FRONT

* AA91-10297V ASSY-CABINET,FRONT;-,CT501EBZ,BK708P EGB,HB,BLK

KNOPOW AA61-60003JSPRING-CS;-,SUS304,0.5,OD6,H12,N7,-,-,-

AA63-50305AGRILLE-WOOFER,R;-,501E,PA110 3R,SECC,T0.5,-,­AA63-50310AGRILLE-WOOFER,L;-,501E,PA110 3R,SECC,T0.5,-,­AA64-10635AKNOB-POWER,T;-,5084,TACT,ABS,HB,BLK
AA64-30978XCABINET-FRONT;-,CT501EBZ,BK708P EGB,HIPS,HB,
AA64-70010DBADGE-BRAND;AL,SS R2000 25,GOLD,L50,-,-,­AA96-10143AASSY-SPEAKER;-,8ohm,6W,001034,20505M,R700L3
AA39-20505MLEAD CONNECTOR-ASSY;-,YSH025-04,REC,4P,350,700mm

ASSY-ACCESSORY

* AA94-30077Y ASSY-ACCESSORY;CT3366BZX/XAP,K15A,PANAMA

AA68-30004AMANUAL-BOOK;-,W/P120(G),-,SEPA,-,-

ASSY-CRT

* AA94-50019L ASSY-CRT;A48KRD82X(HB),+380MG,20,BARE,

AA03-10029ZCRT-COLOR;-,A48KRD82X(HB),+380mG,20,90d
AA27-50004WDEFLECTION-YOKE;-,DSE-1992LL(1H),20/A48KRD82X
AA27-60001DMAGNET-CONVERGENCE;-,JH-291-(JH-8210),29.1mm

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

!
!

!

!

!

!
!

!
!

Electric Parts List

Samsung Electronics 7-13

7-9 CT501HX/SPL (CT331EBZX/GSU AND CT501HX/SPL Dissimilar Parts)

ASSY-PCB,MAIN

* AA94-10134V ASSY-PCB,MAIN(OPT);CT501HX/SPL,KCT15A,JUNGNAMMI

C301 2301-000223 C-FILM,PEF;22nF,5%,100V,TP,7.2x4.5x9.0mm,
C302 2201-000556 C-CERAMIC,DISC;470pF,10%,500V,Y5P,TP,7x4,5
C305 2305-000149 C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5,5
C402 2306-000355 C-FILM,MPPF;7.4nF,5%,1.6KV,TP,28.5x18.5x12
C403 2201-000406 C-CERAMIC,DISC;270pF,10%,2KV,Y5P,TP,8x6,7.5
C404 2306-000193 C-FILM,MPPF;360nF,5%,200V,TP,21x18.5x13,7.
C409 2401-000832 C-AL;220uF,20%,25V,GP,TP,8x11.5,5mm
C808 2301-000223 C-FILM,PEF;22nF,5%,100V,TP,7.2x4.5x9.0mm,
C810 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0mm,
C910 2201-000292 C-CERAMIC,DISC;1nF,10%,50V,Y5P,TP,5x4,5mm
CLAMP/F AA65-30109ACLAMP-FBT;NYLON-66,V2,BLK,-,-,­CLAMP/W AA65-30104C CLAMP-WIRE;NYLON 66,V2,NTR,W1 Z4,ALL MODE
CN501 AA39-20109ALEAD-CONNECTOR,ASSY;-,YBNH025-08,S,8P,400,1007#26
CN802 AA27-20003X COIL-DEGAUSSING;-,20,14.4ohm,48T,L2170,E
D814 0402-000534 DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,TP
IC901 AA13-30019MIC-MCU;-,Z8933412PSC-R3716,16BIT,SDIP
R204 2001-000221 R-CARBON;1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R205 2001-000221 R-CARBON;1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R206 2001-000221 R-CARBON;1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R214 2001-000331 R-CARBON;12Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R226 2001-000508 R-CARBON;220Kohm,5%,1/8W,AA,TP,1.8x3.2m
R303 2004-001990 R-METAL;62Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R304 2003-000436 R-METAL OXIDE(S);1.5ohm,5%,1W,AF,TP,3.3x9mm
R305 2001-000947 R-CARBON;7.5Kohm,5%,1/8W,AA,TP,1.8x3.2m
R306 2001-000766 R-CARBON;43Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R307 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R308 2004-001990 R-METAL;62Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R309 2003-001043 R-METAL OXIDE(S);510ohm,5%,1W,AF,TP,2.5x6.5mm
R404 2001-001136 R-CARBON(S);36ohm,5%,1/2W,AA,TP,2.4x6.4mm
R411 2004-001373 R-METAL(S);100Kohm,1%,1/2W,AA,TP,2.4x6.4m
R412 2004-001373 R-METAL(S);100Kohm,1%,1/2W,AA,TP,2.4x6.4m
R518 2008-000266 R-FUSIBLE(S);1ohm,5%,2W,AF,TP,3.9x10mm
R604 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R908 2001-000252 R-CARBON;1.6Kohm,5%,1/8W,AA,TP,1.8x3.2m
R934 2001-000003 R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm
R936 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
RH01 2002-001006 R-COMPOSITION;4.7Kohm,10%,1/2W,AA,TP,3.7x9mm
RH02 2002-001006 R-COMPOSITION;4.7Kohm,10%,1/2W,AA,TP,3.7x9mm
T444 AA26-30001YTRANS-FLYBACK;-,FSV-20A001,20,125V
V999 3704-001090 SOCKET-CRT;9P,15.24PI,26.5PI,SN,-

ASSY-CABINET

* AA90-70109C ASSY-CABINET;501H,CT501HX/SPL

AA64-31231CCABINET-BACK;-,501H,-,HIPS,HB,BLK,-,­AA65-30107ACLAMP-D,COIL;NYLON 66,V2,NTR,-,20~22 INCH,-

ASSY-CABINET,FRONT

* AA91-10370C ASSY-CABINET,FRONT;-,CT501HX,BK708P EGN NT,HB,BLK

KNOPOW AA61-60003TSPRING-CS;-,SUS304,0.5,OD7,H13.5,N5,-,-,

AA61-40113ASTOPPER-PCB;501H,HIPS,NTR,HB,-,­AA64-10767AKNOB-CONTROL;-,-,-,ABS,HB,BLK
AA64-10768BKNOB-POWER;-,331H,TACT,ABS,HB,BLK
AA64-31230CCABINET-FRONT;-,CT-501HX,BK708P EGB NT,HIPS,
AA64-40495AWINDOW-REMOCON;-,331,501H,-,PC,-,VIOLET,­AA64-40496AINDICATOR-LED;-,-,-,ACRYL,-,-,­AA64-70010DBADGE-BRAND;AL,SS R2000 25,GOLD,L50,-,-,-

ASSY-SPEAKER

* AA96-10139AASSY-SPEAKER;-,16ohm,3W,00003,AA3920505M,L3

3001-000003 SPEAKER;3W,16ohm,88+-2dB,180+-36Hz
AA39-20505MLEAD CONNECTOR-ASSY;-,YSH025-04,REC,4P,350,700mm,

ASSY-ACCESSORY

* AA94-30076E ASSY-ACCESSORY;CT331HX/SPL,KCT15A,JUNMNAMMI

ASSY-CRT

* AA94-50015DASSY-CRT;A48KRD2X(B),+380mG,20,BARE,CT

AA03-10003PCRT-COLOR;-,A48KRD82X(BU),+380MG,20,90D
AA27-50001SDEFLECTION-YOKE;-,DSE-1992LL(1),20/A48KRD82X,
AA27-60001KMAGNET-CONVERGENCE;-,NY-291,29.1mm

ASSY-POWER,CORD

* AA96-20125AASSY-POWER,CORD;-,CP2/NO(4.8),H/C300,DW003,KS(

AA39-10006ZPOWER-CORD;-,DW003,VCTEK 2x0.75mm,2.4,3P,

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

!

!

!

!
!

!
!

Electric Parts List

7-14 Samsung Electronics

ASSY-PCB,MAIN

* AA94-10139Y ASSY-PCB,MAIN(OPT);CT331EBZX/GSU,K15A,BO

C101 2202-000127 C-CERAMIC,MLC-AXIAL;10nF,+80-20%,25V,Y5V
C102 2401-000660 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm
C104 2202-000127 C-CERAMIC,MLC-AXIAL;10nF,+80-20%,25V,Y5V
C108 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
C110 2401-000808 C-AL;220uF,20%,16V,GP,8x11mm,5mm,TP
C151 2202-000127 C-CERAMIC,MLC-AXIAL;10nF,+80-20%,25V,Y5V
C153 2202-000127 C-CERAMIC,MLC-AXIAL;10nF,+80-20%,25V,Y5V
C201 2201-000292 C-CERAMIC,DISC;1nF,10%,50V,Y5P,TP,5x4,5m
C202 2401-001333 C-AL;470nF,20%,50V,GP,TP,5x11,5
C203 2401-001495 C-AL;47uF,20%,16V,GP,5x11mm,5mm,TP
C204 2301-000188 C-FILM,PEF;1nF,5%,100V,TP,10.5x12.5x6.5,
C205 2401-001333 C-AL;470nF,20%,50V,GP,TP,5x11,5
C206 2305-001011 C-FILM,MPEF;22nF,5%,100V,TP,3.5x12.5x7.5
C207 2401-001333 C-AL;470nF,20%,50V,GP,TP,5x11,5
C209 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C210 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C211 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C212 2201-000982 C-CERAMIC,DISC;10nF,+80-20%,50V,Y5V,TP,6
C213 2201-000193 C-CERAMIC,DISC;10pF,0.3pF,50V,CH,TP,5x3,
C214 2401-000660 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm
C215 2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5mm
C216 2201-000354 C-CERAMIC,DISC;20pF,5%,50V,NPO,TP,5.0x3.
C218 2301-000181 C-FILM,PEF;18nF,5%,50V,TP,7.1x3.5x13mm,5
C219 2401-000603 C-AL;1UF,20%,50V,GP,TP,5X11MM,5MM
C220 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
C221 2401-002462 C-AL;33uF,20%,16V,GP,TP,5x11,5
C222 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C225 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
C226 2401-000603 C-AL;1UF,20%,50V,GP,TP,5X11MM,5MM
C227 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C229 2202-000127 C-CERAMIC,MLC-AXIAL;10nF,+80-20%,25V,Y5V
C230 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C231 2401-001495 C-AL;47uF,20%,16V,GP,5x11mm,5mm,TP
C232 2401-001495 C-AL;47uF,20%,16V,GP,5x11mm,5mm,TP
C233 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
C234 2301-000264 C-FILM,PEF;4.7nF,5%,50V,TP,6.5X5.5X3.0X5
C235 2202-000279 C-CERAMIC,MLC-AXIAL;47PF,5%,50V,SL,3.5X1
C236 2202-000127 C-CERAMIC,MLC-AXIAL;10nF,+80-20%,25V,Y5V
C237 2202-000154 C-CERAMIC,MLC-AXIAL;150pF,10%,50V,Y5P,TP
C301 2301-000226 C-FILM,PEF;27nF,5%,100V,TP,7.3x4x12.5mm,
C302 2201-000599 C-CERAMIC,DISC;560pF,10%,500V,Y5P,TP,7x4
C303 2202-000127 C-CERAMIC,MLC-AXIAL;10nF,+80-20%,25V,Y5V
C304 2401-000553 C-AL;1uF,10%,50V,HR,TP,5x11mm,5mm
C305 2305-000427 C-FILM,MPEF;47nF,5%,100V,TP,7.5x12.5x3.5
C306 2401-002458 C-AL;1000UF,20%,35V,GP,TP,16X25MM,7
C308 2301-000310 C-FILM,PEF;68nF,5%,50V,TP,8.0X8.5X4.0X
C309 2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11mm,5mm
C310 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
C311 2401-001333 C-AL;470nF,20%,50V,GP,TP,5x11,5
C312 2401-000553 C-AL;1uF,10%,50V,HR,TP,5x11mm,5mm
C313 2305-000470 C-FILM,MPEF;68nF,5%,100V,TP,-,5mm
C401 2301-000224 C-FILM,PEF;22nF,5%,50V,TP,7.4x3.9x13mm
C402 2306-000253 C-FILM,MPPF;7.2nF,5%,1.6KV,TP,28.5x18.5x
C403 2201-000467 C-CERAMIC,DISC;330pF,10%,2KV,Y5P,TP,8x6,
C404 2306-000004 C-FILM,MPPF;330nF,5%,250V,TP,20x18.5x10.
C405 2305-000704 C-FILM,MPEF;100nF,5%,250V,TP,16.5x10.3x5

C406 2201-000556 C-CERAMIC,DISC;470pF,10%,500V,Y5P,TP,7x4
C407 2401-001429 C-AL;470uF,20%,50V,GP,TP,13x20,5
C408 2201-000556 C-CERAMIC,DISC;470pF,10%,500V,Y5P,TP,7x4
C409 2401-001998 C-AL;1000uF,20%,25V,GP,TP,10x20,5mm
C410 2301-000224 C-FILM,PEF;22nF,5%,50V,TP,7.4x3.9x13mm
C411 2201-000556 C-CERAMIC,DISC;470pF,10%,500V,Y5P,TP,7x4
C412 2401-000927 C-AL;22UF,20%,250V,GP,TP,13X20MM,5M
C413 2401-000560 C-AL:1uF,20%,160V,GP,TP,6.3*11,5mm
C444 2201-000441 C-CERAMIC,DISC;3.3nF,10%,500V,Y5P,TP,10x
C445 2201-000441 C-CERAMIC,DISC;3.3nF,10%,500V,Y5P,TP,10x
C501 2202-000821 C-CERAMIC,MLC-AXIAL;560pF,10%,50V,Y5P,TP
C502 2202-000862 C-CERAMIC,MLC-AXIAL;390pF,10%,50V,Y5P,TP
C503 2202-000825 C-CERAMIC,MLC-AXIAL;680pF,10%,50V,Y5P,TP
C505 2201-002063 C-CERAMIC,DISC;10nF,+80-20%,3KV,Y5V,TP,1
C601 2401-000962 C-AL;22uF,20%,50V,GP,TP,5x11,5
C603 2301-000289 C-FILM,PEF;5.6nF,5%,50V,TP,7x6x3,5
C604 2401-000660 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm
C605 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C609 2401-000133 C-AL;1000uF,20%,16V,GP,TP,10x20mm,5
C611 2202-000279 C-CERAMIC,MLC-AXIAL;47PF,5%,50V,SL,3.5X1
C612 2202-000279 C-CERAMIC,MLC-AXIAL;47PF,5%,50V,SL,3.5X1
C651 2401-000660 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm
C652 2401-000660 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm
C654 2401-001363 C-AL;470uF,20%,16V,GP,TP,10x12.5mm,
C655 2401-001363 C-AL;470uF,20%,16V,GP,TP,10x12.5mm,
C701 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C702 2401-000471 C-AL;10uF,20%,50V,BP,TP,5x11,5mm
C703 2202-000183 C-CERAMIC,MLC-AXIAL;2.2nF,20%,16V,Y5R,TP
C705 2202-000183 C-CERAMIC,MLC-AXIAL;2.2nF,20%,16V,Y5R,TP
C801 2401-002219 C-AL;220uF,20%,400V,GP,ST,25x40,10
C802 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP,
C803 2303-000163 C-FILM,PPF;2.2nF,5%,800V,TP,15x13x8.5,7.
C804 2201-000446 C-CERAMIC,DISC;3.3nF,20%,400V,Y5U,TP,18x
C805 2201-000991 C-CERAMIC,DISC;560pF,10%,2KV,Y5P,TP,13x7
C806 2401-000262 C-AL;100uF,20%,160V,HR,TP,16x25,7.5
C807 2201-000599 C-CERAMIC,DISC;560pF,10%,500V,Y5P,TP,7x4
C808 2301-000223 C-FILM,PEF;22nF,5%,100V,TP,7.2x4.5x9.0mm
C809 2401-001998 C-AL;1000uF,20%,25V,GP,TP,10x20,5mm
C810 2305-000412 C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C812 2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5mm
C813 2401-001495 C-AL;47uF,20%,16V,GP,5x11mm,5mm,TP
C814 2306-000318 C-FILM,MPPF;220NF,20%,250V,TP,-,22.5MM
C816 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
C817 2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5mm
C820 2401-001998 C-AL;1000uF,20%,25V,GP,TP,10x20,5mm
C821 2401-001486 C-AL;47uF,20%,160V,HR,TP,13x20mm,5m
C822 2301-000192 C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm
C823 2201-000370 C-CERAMIC,DISC;220pF,10%,50V,Y5P,TP,4.0X
C851 2401-001571 C-AL;47uF,+20%-0%,50V,GP,TP,8x12,5
C852 2301-000310 C-FILM,PEF;68nF,5%,50V,TP,8.0X8.5X4.0X
C901 2401-001495 C-AL;47uF,20%,16V,GP,5x11mm,5mm,TP
C902 2202-000796 C-CERAMIC,MLC-AXIAL;UP050 B102KB INF,10%
C903 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
C904 2202-000796 C-CERAMIC,MLC-AXIAL;UP050 B102KB INF,10%
C905 2401-001333 C-AL;470nF,20%,50V,GP,TP,5x11,5
C907 2401-001271 C-AL;4.7uF,20%,50V,GP,TP,4x7mm,5mm
C908 2201-000193 C-CERAMIC,DISC;10pF,0.3pF,50V,CH,TP,5x3,
C909 2201-000573 C-CERAMIC,DISC;47pF,5%,50V,CH,TP,6.5x3.0
C910 2201-000292 C-CERAMIC,DISC;1nF,10%,50V,Y5P,TP,5x4,5m
C911 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
C912 2301-000310 C-FILM,PEF;68nF,5%,50V,TP,8.0X8.5X4.0X

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

7-10 CT331EBZX/GSU

!

Electric Parts List

Samsung Electronics 7-15

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

C914A 2401-000947 C-AL;22uF,20%,35V,GP,TP,5x11mm,­C915 2202-000127 C-CERAMIC,MLC-AXIAL;10nF,+80-20%,25V,Y5V
CN501 AA39-20109DLEAD-CONNECTOR,ASSY;-,YBNH025-08,S,8P,30
CN601 3711-002643 CONNECTOR-HEADER;BOX,4P,1R,2.5MM,STRAIGH
CN701 3711-002646 CONNECTOR-HEADER;BOX,7P,1R,2.5mm,STRAIGH
CN802 AA27-20003UCOIL-DEGAUSSING;-,14,16.4ohm,75T,890mm,
CU02 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
D101 0403-000700 DIODE-ZENER;TZP33A,33V,31-35V,1W,DO-41,T
D102 0403-000296 DIODE-ZENER;MTZ5.6B,5.6V,5.45-5.73V,500m
D201 0403-000663 DIODE-ZENER;MTZ3.3B,3.3V,3.32-3.53V,500m
D202 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T
D203 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T
D204 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T
D205 0403-000295 DIODE-ZENER;MTZ5.1B,5.1V,4.94-5.20V,500m
D206 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T
D207 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T
D208 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
D210 0403-000563 DIODE-ZENER;MTZ9.1B,9.1V,8.57-9.01V,500m
D299 0403-000654 DIODE-ZENER;MTZ12B,12V,11.44-12.03V,500m
D301 0402-001105 DIODE-RECTIFIER;ERB43-04SV1,400V,1.0A,-,
D302 0403-000654 DIODE-ZENER;MTZ12B,12V,11.44-12.03V,500m
D401 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
D402 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
D403 0402-001105 DIODE-RECTIFIER;ERB43-04SV1,400V,1.0A,-,
D404 0402-001105 DIODE-RECTIFIER;ERB43-04SV1,400V,1.0A,-,
D405 0402-001105 DIODE-RECTIFIER;ERB43-04SV1,400V,1.0A,-,
D407 0402-001105 DIODE-RECTIFIER;ERB43-04SV1,400V,1.0A,-,
D601 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T
D701 0403-000563 DIODE-ZENER;MTZ9.1B,9.1V,8.57-9.01V,500m
D704 0403-000563 DIODE-ZENER;MTZ9.1B,9.1V,8.57-9.01V,500m
D802 0402-000540 DIODE-RECTIFIER;RU20A,600V,1.5A,­D803 0402-001105 DIODE-RECTIFIER;ERB43-04SV1,400V,1.0A,-,
D805 0402-000213 DIODE-RECTIFIER;ERB12-06,600V,1.0A,DO-41
D806 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T
D807 0402-000213 DIODE-RECTIFIER;ERB12-06,600V,1.0A,DO-41
D808 0402-000213 DIODE-RECTIFIER;ERB12-06,600V,1.0A,DO-41
D809 0402-000213 DIODE-RECTIFIER;ERB12-06,600V,1.0A,DO-41
D810 0402-000213 DIODE-RECTIFIER;ERB12-06,600V,1.0A,DO-41
D814 0404-001056 DIODE-SCHOTTKY;RK16,60V,1.5A,DO-204AC,TP
D855 0403-000296 DIODE-ZENER;MTZ5.6B,5.6V,5.45-5.73V,500m
D856 0403-000296 DIODE-ZENER;MTZ5.6B,5.6V,5.45-5.73V,500m
D902 0403-000296 DIODE-ZENER;MTZ5.6B,5.6V,5.45-5.73V,500m
D903 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T
D904 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T
D905 0403-000296 DIODE-ZENER;MTZ5.6B,5.6V,5.45-5.73V,500m
D906 0403-000296 DIODE-ZENER;MTZ5.6B,5.6V,5.45-5.73V,500m
DZ801 1405-000152 VARISTOR;560V,2500A,14x8.5mm,TP
DZ802 0403-000300 DIODE-ZENER;MTZ8.2B,7.78-8.19V,500mW,DO­DZ803 0403-000296 DIODE-ZENER;MTZ5.6B,5.6V,5.45-5.73V,500m
DZ806 0403-000294 DIODE-ZENER;MTZ4.7B,4.55-4.80V,500mW,DO­DZ807 0403-000297 DIODE-ZENER;MTZ6.2B,6.2V,5.96-6.27V,500m
DZ901 0403-000296 DIODE-ZENER;MTZ5.6B,5.6V,5.45-5.73V,500m
DZ902 0403-000296 DIODE-ZENER;MTZ5.6B,5.6V,5.45-5.73V,500m
DZ903 0403-000295 DIODE-ZENER;MTZ5.1B,5.1V,4.94-5.20V,500m
EL301~802 AA60-40011BEYELET;ID2.2,OD3.2,-,-,BSP,­EY401~830 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,­F801 3601-001012 FUSE-FERRULE;250V,4A,SLOW-BLOW,GLASS,5.2
F801A 3602-000114 FUSE-HOLDER;-,-,30mohm
F801B 3602-000114 FUSE-HOLDER;-,-,30mohm
GT101~806 AA60-40014APIN-GT,ASSY;1P,-,-,AUTO
GT101A AA39-20010DLEAD-CONNECTOR,ASSY;-,YFH800-01,S,1P,400
IC201 1204-001296 IC-CHROMA;KA2163B,DIP,56P,-,PLASTIC,12V,
IC301 1204-000475 IC-VIDEO SYSTEM;KA2131,SIP,10P,-,PLASTIC
IC601 1201-001298 IC-POWER AMP;4425,SIP,5P,9.5MIL,MONO,45d
IC602 1201-001298 IC-POWER AMP;4425,SIP,5P,9.5MIL,MONO,45d

IC801 1203-001494 IC-PWM CONTROLLER;3S0680RF,TO3PF-5L,5,21
IC802 1203-001532 IC-POSI.FIXED REG.;7631,SIP,10P,-,PLASTI
IC901 AA13-30020A IC-MCU;-,Z8933412PSC-R3757,16BIT,SDIP
IC902 1103-001107 IC-EEPROM;24C020,256x8BIT,DIP,8P,300MIL,
JA701 3722-000162 JACK-PIN;2P,3.4MM,SN,BLACK,­L102 2701-000207 INDUCTOR-AXIAL;56uH,5%,2.5x3.4mm
L152 2701-000326 INDUCTOR-AXIAL;560nH,10%,2.3x3.4mm
L201 AA26-10004K TRANS-IF;-,7MG,SIF,11.5uH,7mm,100pF,4.8
L202 2701-000207 INDUCTOR-AXIAL;56uH,5%,2.5x3.4mm
L203 2701-000158 INDUCTOR-AXIAL;22uH,10%,2.5x3.4mm
L204 2701-000207 INDUCTOR-AXIAL;56uH,5%,2.5x3.4mm
L205 AA26-10004C TRANS-IF;-,7MG,VIF,0.37uH,7mm,27pF,52.3
L206 2701-000111 INDUCTOR-AXIAL;100uH,10%,2.5x3.4mm
L208 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
L301 2701-000116 INDUCTOR-AXIAL;10uH,10%,4.2x9.8mm
L401 AA27-30001B COIL-LINEARITY;-,195UH,QIC1010,PI0.4,4.5
L402 2701-001032 INDUCTOR-AXIAL;100uH,10%,5x14mm
L501 2701-000184 INDUCTOR-AXIAL;4.7uH,10%,2.5x3.4mm
L502 2701-000184 INDUCTOR-AXIAL;4.7uH,10%,2.5x3.4mm
L503 2701-000184 INDUCTOR-AXIAL;4.7uH,10%,2.5x3.4mm
L601 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,­L602 2701-000158 INDUCTOR-AXIAL;22uH,10%,2.5x3.4mm
L801 AA29-30001DFILTER-LINE;-,6.0mH,2A,-,SQ1913
L802 3301-000287 CORE-FERRITE BEAD;AA,3.5x1x6mm,1500,2400
L803 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,­L804 3301-000287 CORE-FERRITE BEAD;AA,3.5x1x6mm,1500,2400
L805 2901-000299 FILTER-EMI ON BOARD;-,6A,UL/CSA,-,9x7.5,
L809 2901-000299 FILTER-EMI ON BOARD;-,6A,UL/CSA,-,9x7.5,
L810 AA27-10002Y COIL-CHOKE;-,100UH,K,10,700MA,T,100UH-K(
L811 2901-000299 FILTER-EMI ON BOARD;-,6A,UL/CSA,-,9x7.5,
L901 2701-000197 INDUCTOR-AXIAL;5.6uH,10%,2.5x3.4mm
L902 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
L999 2701-000115 INDUCTOR-AXIAL;10uH,10%,2.8x7mm
LD901 AA96-30007AASSY-LED,GUIDE;-,AA61-50055A,DL-G7GA,GRE
NT801 1404-000187 THERMISTOR-NTC;4.7ohm,15%,2800K,27.2mW/C
P801 1404-001048 THERMISTOR-PTC;7ohm,30%,200/220V,270V,19
PC802 0604-001038 PHOTO-COUPLER;TR,130-260%,200mW,DIP-4,ST
Q151 0501-000436 TR-SMALL SIGNAL;KTC3197,NPN,625mW,TO-92,
Q201 0501-002183 TR-SMALL SIGNAL;KTC9014,NPN,625mW,TO-92,
Q202 0501-002183 TR-SMALL SIGNAL;KTC9014,NPN,625mW,TO-92,
Q203 0501-002183 TR-SMALL SIGNAL;KTC9014,NPN,625mW,TO-92,
Q401 0502-001115 TR-POWER;KSC5386,NPN,50W,TO-3PF,ST,8­Q402 0501-000369 TR-SMALL SIGNAL;KSC2331-Y,NPN,1W,TO-92L,
Q501 0501-002014 TR-SMALL SIGNAL;KSC2330-R,NPN,1W,TO-92L,
Q502 0501-002014 TR-SMALL SIGNAL;KSC2330-R,NPN,1W,TO-92L,
Q503 0501-002014 TR-SMALL SIGNAL;KSC2330-R,NPN,1W,TO-92L,
Q601 0502-000242 TR-POWER;KSA614,PNP,25W,TO-220,TP,40-24
Q602 0501-002183 TR-SMALL SIGNAL;KTC9014,NPN,625mW,TO-92,
Q801 1203-001217 IC-POSI.ADJUST REG.;431,TO-92,3P,4.58MIL
Q902 0501-002183 TR-SMALL SIGNAL;KTC9014,NPN,625mW,TO-92,
Q903 0501-002183 TR-SMALL SIGNAL;KTC9014,NPN,625mW,TO-92,
QU01 0504-000123 TR-DIGITAL;KSR1010,NPN,300mW,10K,TO-92,T
R101 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R102 2004-001301 R-METAL;82Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R104 2003-000578 R-METAL OXIDE(S);220ohm,5%,2W,AA,TP,4x12
R105 2003-000578 R-METAL OXIDE(S);220ohm,5%,2W,AA,TP,4x12
R152 2001-000221 R-CARBON;1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R153 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
R154 2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm
R155 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
R156 2001-000793 R-CARBON;47ohm,5%,1/8W,AA,TP,1.8x3.2mm
R157 2001-000568 R-CARBON;27OHM,5%,1/8W,AA,TP,1.8X3.2MM
R158 2001-000007 R-CARBON;3Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R159 2001-000007 R-CARBON;3Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R201 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

!!!!!!!!!!!

!

!

!

Electric Parts List

7-16 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

R202 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
R203 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
R204 2001-000995 R-CARBON ;820 OHM,5%,1\8W,AA,T
R205 2001-000995 R-CARBON ;820 OHM,5%,1\8W,AA,T
R206 2001-000995 R-CARBON ;820 OHM,5%,1\8W,AA,T
R207 2001-001111 R-CARBON(S);240ohm,5%,1/2W,AA,TP,2.4x6.4
R208 2001-000515 R-CARBON;220ohm,5%,1/8W,AA,TP,1.8x3.2mm
R209 2001-000515 R-CARBON;220ohm,5%,1/8W,AA,TP,1.8x3.2mm
R210 2001-000515 R-CARBON;220ohm,5%,1/8W,AA,TP,1.8x3.2mm
R211 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
R212 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
R213 2001-000837 R-CARBON;51Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R214 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R215 2001-000331 R-CARBON;12Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R218 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m
R219 2001-000674 R-CARBON;360ohm,5%,1/8W,AA,TP,1.8x3.2mm
R222 2001-000773 R-CARBON;470Kohm,5%,1/8W,AA,TP,1.8x3.2m
R223 2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm
R226 2001-000397 R-CARBON;180Kohm,5%,1/8W,AA,TP,1.8x3.2m
R227 2001-000508 R-CARBON;220Kohm,5%,1/8W,AA,TP,1.8x3.2m
R228 2001-000258 R-CARBON;1.8Kohm,5%,1/8W,AA,TP,1.8x3.2m
R229 2001-000258 R-CARBON;1.8Kohm,5%,1/8W,AA,TP,1.8x3.2m
R230 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m
R231 2001-000660 R-CARBON;33Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R233 2004-001234 R-METAL;75Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R234 2001-000405 R-CARBON ;180 OHM,5%,1/8W,AA,T
R235 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m
R236 2001-000548 R-CARBON;270Kohm,5%,1/8W,AA,TP,1.8x3.2m
R237 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R239 2001-000947 R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R240 2001-000577 R-CARBON ;2KOHM,5%,1/8W,AA,TP,
R241 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R242 2001-000221 R-CARBON;1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R251 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m
R252 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m
R253 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m
R257 2008-000266 R-FUSIBLE(S);1ohm,5%,2W,AF,TP,3.9x10mm
R301 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R302 2001-000003 R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm
R303 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R304 2003-001036 R-METAL OXIDE(S);3.3ohm,5%,2W,AF,TP,3.9x
R305 2001-000660 R-CARBON;33Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R306 2004-001301 R-METAL;82Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R307 2001-000679 R-CARBON;36KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R308 2001-000633 R-CARBON;30Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R309 2003-000649 R-METAL OXIDE(S);330ohm,5%,1W,AF,TP,3.3x
R401 2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm
R402 2001-000515 R-CARBON;220ohm,5%,1/8W,AA,TP,1.8x3.2mm
R403 2001-001114 R-CARBON(S) ;270ohm,5%,1/2W,AA,TP,2.4x
R404 2001-000020 R-CARBON(S);22ohm,5%,1/2W,AA,TP,2.4x6.4m
R405 2003-000540 R-METAL OXIDE(S);1Kohm,5%,2W,AF,TP,4x12m
R406 2008-001069 R-FUSIBLE(S);300ohm,5%,2W,AA,TP,3.9x10mm
R407 2003-000994 R-METAL OXIDE(S);33Kohm,5%,2W,AF,TP,3.9x
R408 2004-001390 R-METAL(S);1Kohm,2%,1/2W,AA,TP,2.4x6.4mm
R409 2008-000253 R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m
R410 2008-000206 R-FUSIBLE(S);1ohm,5%,1/2W,AF,TP,2.5x6.5m
R411 2004-001377 R-METAL(S);120Kohm,1%,1/2W,AA,TP,2.4x6.4
R412 2004-001377 R-METAL(S);120Kohm,1%,1/2W,AA,TP,2.4x6.4
R413 2001-001037 R-CARBON(S);0.39ohm,5%,1/2W,AA,TP,2.4x6.
R415 2003-000784 R-METAL OXIDE(S);7.5Kohm,5%,2W,AF,TP,4x1
R416 2001-000022 R-CARBON(S);33ohm,5%,1/2W,AA,TP,2.4x6.4m
R417 2001-001410 R-CARBON(S);43ohm,5%,1/2W,AA,TP,2.4x6.4m
R444 2001-001099 R-CARBON(S);2.7Kohm,5%,1/2W,AA,TP,2.4x6.
R501 2001-000007 R-CARBON;3Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R502 2001-000007 R-CARBON;3Kohm,5%,1/8W,AA,TP,1.8x3.2mm

R503 2001-000007 R-CARBON;3Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R504 2003-000510 R-METAL OXIDE(S);15Kohm,5%,2W,AA,TP,4x12
R505 2003-000510 R-METAL OXIDE(S);15Kohm,5%,2W,AA,TP,4x12
R506 2003-000510 R-METAL OXIDE(S);15Kohm,5%,2W,AA,TP,4x12
R507 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
R508 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
R509 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
R510 2001-000628 R-CARBON;300OHM,5%,1/8W,AA,TP,1.8X3.2MM
R511 2001-000628 R-CARBON;300OHM,5%,1/8W,AA,TP,1.8X3.2MM
R512 2001-000628 R-CARBON;300OHM,5%,1/8W,AA,TP,1.8X3.2MM
R513 2001-000666 R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm
R514 2001-000666 R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm
R515 2002-001006 R-COMPOSITION;4.7KOHM,10%,1/2W,AA,TP,3.7
R517 2001-000666 R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm
R518 2008-001015 R-FUSIBLE(S);1.5ohm,5%,2W,AF,TP,3.9x10mm
R599 2008-000226 R-FUSIBLE;22ohm,5%,1/2W,AA,TP,4.7x11mm
R602 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R603 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R604 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m
R605 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R610 2001-000577 R-CARBON ;2KOHM,5%,1/8W,AA,TP,
R611 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R614 2001-001152 R-CARBON(S);47Kohm,5%,1/2W,AA,TP,2.4x6.4
R615 2001-001088 R-CARBON(S);1Kohm,5%,1/2W,AA,TP,2.4x6.4m
R701 2001-001187 R-CARBON(S);75ohm,5%,1/2W,AA,TP,2.4x6.4m
R702 2001-000085 R-CARBON(S);100Kohm,5%,1/2W,AA,TP,2.4x6.
R703 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
R801 2001-001150 R-CARBON(S);470Kohm,5%,1/2W,AA,TP,2.4x6.
R802 2003-000994 R-METAL OXIDE(S);33Kohm,5%,2W,AF,TP,3.9x
R803 2003-000994 R-METAL OXIDE(S);33Kohm,5%,2W,AF,TP,3.9x
R805 2002-001013 R-COMPOSITION;4.7Mohm,10%,1/2W,AA,TP,3.7
R806 2001-001071 R-CARBON(S);12Kohm,5%,1/2W,AA,TP,2.4x6.4
R807 2001-001071 R-CARBON(S);12Kohm,5%,1/2W,AA,TP,2.4x6.4
R808 2001-001150 R-CARBON(S);470Kohm,5%,1/2W,AA,TP,2.4x6.
R809 2008-000205 R-FUSIBLE(S);10ohm,5%,1/2W,AF,TP,2.5x6.5
R811 2001-001170 R-CARBON(S);6.8OHM,5%,1/2W,AA,TP,2.4X6.4
R812 2008-000252 R-FUSIBLE(S);0.47ohm,10%,1/2W,AF,TP,2.5x
R817 2001-001111 R-CARBON(S);240ohm,5%,1/2W,AA,TP,2.4x6.4
R818 2001-001111 R-CARBON(S);240ohm,5%,1/2W,AA,TP,2.4x6.4
R819 2008-001011 R-FUSIBLE(S);0.18ohm,10%,2W,AF,TP,3.9x10
R821 2004-004089 R-METAL;123Kohm,1%,1/2W,AA,TP,2.5x6.5m
R822 2001-000022 R-CARBON(S);33ohm,5%,1/2W,AA,TP,2.4x6.4m
R823 2001-001178 R-CARBON(S);680ohm,5%,1/2W,AA,TP,2.4x6.4
R824 2001-001125 R-CARBON(S);300Kohm,5%,1/2W,AA,TP,2.4x6.
R852 2001-001088 R-CARBON(S);1Kohm,5%,1/2W,AA,TP,2.4x6.4m
R853 2001-001054 R-CARBON(S);1.6Kohm,5%,1/2W,AA,TP,2.4x6.
R854 2004-001983 R-METAL;2.49Kohm,1%,1/2W,AA,TP,2.4x6.4
R901 2001-000793 R-CARBON;47ohm,5%,1/8W,AA,TP,1.8x3.2mm
R902 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R903 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
R904 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
R906 2001-000472 R-CARBON;2.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
R907 2001-000995 R-CARBON ;820 OHM,5%,1\8W,AA,T
R908 2001-000252 R-CARBON;1.6Kohm,5%,1/8W,AA,TP,1.8x3.2m
R910 2001-000995 R-CARBON ;820 OHM,5%,1\8W,AA,T
R911 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R914 2001-000577 R-CARBON ;2KOHM,5%,1/8W,AA,TP,
R915 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
R916 2001-000947 R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R917 2001-000947 R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R918 2001-000947 R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R919 2001-000977 R-CARBON;8.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R920 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R921 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R922 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm

!

Electric Parts List

Samsung Electronics 7-17

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

R923 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
R924 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R925 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R926 2001-000008 R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R927 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R928 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R929 2001-000232 R-CARBON;1.3Kohm,5%,1/8W,AA,TP,1.8x3.2m
R930 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R931 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R932 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R933 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R934 2001-000003 R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm
R936 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T
R937 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R940 2001-000708 R-CARBON;39ohm,5%,1/8W,AA,TP,1.8x3.2mm
R951 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
R952 2001-000472 R-CARBON;2.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
R998 2001-000508 R-CARBON;220Kohm,5%,1/8W,AA,TP,1.8x3.2m
RM01 2002-001006 R-COMPOSITION;4.7KOHM,10%,1/2W,AA,TP,3.7
RM02 2002-001006 R-COMPOSITION;4.7KOHM,10%,1/2W,AA,TP,3.7
RM901 AA59-60001UMODULE-REMOCON;-,ORC-50VF/SR-12V,38KHz,9
RU02 2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm
RU06 2001-000397 R-CARBON;180Kohm,5%,1/8W,AA,TP,1.8x3.2m
RU07 2001-001062 R-CARBON(S);10Mohm,5%,1/2W,AA,TP,2.4x6.4
RU10 2004-001193 R-METAL;680ohm,5%,1/8W,AA,TP,1.8x3.2mm
SF101 2904-000304 FILTER-SAW AV;45.75MHz,-,ST,13.2dB,NTSC­SW901 3404-000244 SWITCH-TACT;15V,20mA,90-170gf,7.5x7mm,SP
SW902 3404-000244 SWITCH-TACT;15V,20mA,90-170gf,7.5x7mm,SP
SW903 3404-000244 SWITCH-TACT;15V,20mA,90-170gf,7.5x7mm,SP
SW904 3404-000244 SWITCH-TACT;15V,20mA,90-170gf,7.5x7mm,SP
SW905 3404-000244 SWITCH-TACT;15V,20mA,90-170gf,7.5x7mm,SP
SW906 3404-000295 SWITCH-TACT;12VDC,50mA,160gf,8.4X22.7,SP
T401 AA26-50001BHORIZ.DRIVE;-,7.1MH,102UH,10-20UH,YL081,
T444 AA26-30004HTRANS-FLYBACK;-,FSV-14A001,14,125V
T801 AA26-20006UTRANS-SWITCHING;-,90-260V,125V/12.5V,EN,
TU01 AA40-10006F TUNER-F/S;TELH9-212A,NTSC/USA,TR,181CH
V999 3704-001089 SOCKET-CRT;7P,22.5PI,12PI,SN,­WIRE1 AA65-30104C CLAMP-WIRE;NYLON 66,V2,NTR,W1 Z4,ALL MOD
WIRE2 AA65-30109ACLAMP-FBT;NYLON-66,V2,BLK,-,-,­X201 2801-000226 CRYSTAL-UNIT;3.579545MHz,20ppm,28-AAM,15
X202 2802-000172 RESONATOR-CERAMIC;503.5KHZ,0.5%,BK,7.0X3
X901 2801-003224 CRYSTAL-UNIT;32.768KHZ,20PPM,28-AAY,12.5
Z201 2903-001022 FILTER-CERAMIC;TR,4.5MHz,-,0.5dB,-,TP,­Z601 2903-000135 FILTER-CERAMIC;BP,4.5MHz,+-60KHz,6dB,-,T

ASSY-ACCESSORY

3721-000136 PLUG-CONVERSION;2P,4.0mm,N,NI
AA68-11250AMANUAL-USERS;KCT15A,ENG,TM59,205X150,A/P
AA68-11251AMANUAL-USERS;KCT15A,SPA,TM59,205X150,A/P
AA42-10001VANT-ROD;-,3S,620mm,BRN,UL/CSA
AA26-90001F TRANS-MATCHING;-,300ohm/75ohm,NTSC,40-89

ASSY-CRT

* AA94-50018T ASSY-CRT;A34KQV42X(B),-300MG,14,BARE,C

AA03-10003KCRT-COLOR;-,A34KQV42X(B),-300MG,14,90DE
AA27-50001KDEFLECTION-YOKE;-,DSE-1422FL,14/A34KQV4
AA27-60001L MAGNET-CONVERGENCE;-,NY-225,22.5MM
AA63-60028ASPACER-DY;NEOPRENE,-,BLK,V0 W12,-,-

ASSY-PCB,A/V FRONT

* AA95-90030MASSY-PCB,A/V FRONT;-,CT-2139H,KCT15A,NTS

JA703 3722-000506 JACK-RCA;2P,3.6MM,-,AG
CN704* AA39-20070E LEAD-CONNECTOR,ASSY;-,YBNH025-07,67096-0

ASSY-POWER,CORD

AA39-10006XPOWER-CORD;-,KKP419C,KLCE-2F,2.286MT,3P,
AA61-20284AHOLDER;-,P-CORD,PP,VO,BLK,KE-002

ASSY-CABINET

* AA90-70044M ASSY-CABINET;331E,CT331EBZX/GSU

AA64-30983BCABINET-BACK;-,331E,-,HIPS,HB,BLK,-,-

AA65-30016ACLAMP-D,COIL;NYLON-66,V0,NTR,DADH-360 14
CRT+CF AA60-10050R SCREW-ASSY;WC,HH,+,M5,L31.5,SWRCH18A,ZPC
CB+CF 6002-000514 SCREW-TAPPING;RH,+,2,M4,L15,ZPC(BLK),SWR
PA+CF AA60-10002A SCREW-TAPPING;RH,+,M4,L12,ZPC(YEL),-,OD1

ASSY-CABINET,FRONT

* AA91-10298N ASSY-CABINET,FRONT;-,CT331EBZ,BK708P EGB

AA64-70009GBADGE-BRAND;AL,SS R800 22,GOLD,L40,-,-,-

AA61-40015ABOSS-CABINET;-,HIPS,HB,NTR,-,-

AA64-30981PCABINET-FRONT;-,CT331EBZ,BK708P EGB,HIPS

AA65-30105ACLAMP-WIRE;NYLON 66,V2,NTR,15MM,ALL MODE

AA63-50311AGRILLE-WOOFER,L;-,331E,PA110 3R,SECC,T0.

AA63-50306AGRILLE-WOOFER,R;-,331E,PA110 3R,SECC,T0.

AA64-40408AINDICATOR-LED;-,501E,-,ACRYL,HB,CLR,-

AA64-60161QINLAY-AV;V-MODEL,NTSC TVI EG,PS,T0.3,BL

AA64-10637AKNOB-CONTROL;-,501E,-,ABS,HB,BLK

AA64-10638AKNOB-POWER,T;-,331E,TACT,ABS,HB,BLK
KC+CF 6002-000514 SCREW-TAPPING;RH,+,2,M4,L15,ZPC(BLK),SWR
SPK+CF 6002-000514 SCREW-TAPPING;RH,+,2,M4,L15,ZPC(BLK),SWR
WIN+CF 6002-000514 SCREW-TAPPING;RH,+,2,M4,L15,ZPC(BLK),SWR
KNOPOW AA61-60005SSPRING-CS;-,SUS304,0.6,OD10,H12.5,N4,-,-

AA61-40053ASTOPPER-PCB;ALL MODEL,HIPS HB,WHT,HB,-,-

AA64-40407AWINDOW-REMOCON;-,501E,-,PC,-,-,VIOLET

ASSY-SPEAKER

* AA96-10144AASSY-SPEAKER;-,8ohm,6W,001034,20505N,R55

3001-001034 SPEAKER;6W,8ohm,90dB,140Hz

AA39-20505NLEAD CONNECTOR-ASSY;-,YSH025-04,REC,4P,3

!!!!!

!

Electric Parts List

7-18 Samsung Electronics

7-11 CT5066BZX/STR (CT3366BZX/XAP AND CT5066BZX/STR Dissimilar Parts)

ASSY-PCB,MAIN

* AA94-10140HASSY-PCB,MAIN(OPT);CT5066BZX/STR,K15A,PERU,-

C301 2301-000223 C-FILM,PEF;22nF,5%,100V,TP,7.2x4.5x9.0mm,
C302 2201-000556 C-CERAMIC,DISC;470pF,10%,500V,Y5P,TP,7x4,5
C305 2305-000149 C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5,5
C402 2306-000355 C-FILM,MPPF;7.4nF,5%,1.6KV,TP,28.5x18.5x12
C403 2201-000406 C-CERAMIC,DISC;270pF,10%,2KV,Y5P,TP,8x6,7.5
C404 2306-000193 C-FILM,MPPF;360nF,5%,200V,TP,21x18.5x13,7.
R204 2001-000221 R-CARBON;1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R205 2001-000221 R-CARBON;1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R206 2001-000221 R-CARBON;1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R214 2001-000331 R-CARBON;12Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R226 2001-000508 R-CARBON;220Kohm,5%,1/8W,AA,TP,1.8x3.2m
R304 2003-000436 R-METAL OXIDE(S);1.5ohm,5%,1W,AF,TP,3.3x9mm
R305 2001-000947 R-CARBON;7.5Kohm,5%,1/8W,AA,TP,1.8x3.2m
R306 2001-000766 R-CARBON;43Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R307 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R404 2001-001136 R-CARBON(S);36ohm,5%,1/2W,AA,TP,2.4x6.4mm
RH01 2002-001006 R-COMPOSITION;4.7Kohm,10%,1/2W,AA,TP,3.7x9mm
RH02 2002-001006 R-COMPOSITION;4.7Kohm,10%,1/2W,AA,TP,3.7x9mm
R309 2003-001043 R-METAL OXIDE(S);510ohm,5%,1W,AF,TP,2.5x6.5mm
RU10 2004-001193 R-METAL;680ohm,5%,1/8W,AA,TP,1.8x3.2mm
R411 2004-001373 R-METAL(S);100Kohm,1%,1/2W,AA,TP,2.4x6.4m
R412 2004-001373 R-METAL(S);100Kohm,1%,1/2W,AA,TP,2.4x6.4m
R303 2004-001990 R-METAL;62Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R308 2004-001990 R-METAL;62Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R518 2008-000266 R-FUSIBLE(S);1ohm,5%,2W,AF,TP,3.9x10mm
V999 3704-001090 SOCKET-CRT;9P,15.24PI,26.5PI,SN,­T444 AA26-30001YTRANS-FLYBACK;-,FSV-20A001,20,125V
CN802 AA27-20003X COIL-DEGAUSSING;-,20,14.4ohm,48T,L2170,E
CN501 AA39-20109ALEAD-CONNECTOR,ASSY;-,YBNH025-08,S,8P,400,1007#26

ASSY-CABINET

* AA90-70100P ASSY-CABINET;5066,CT5066BZX/STR

AA64-30680BCABINET-BACK;-,5066,-,HIPS,HB,BLK,-,-

AA65-30107ACLAMP-D,COIL;NYLON 66,V2,NTR,-,20~22 INCH,-

ASSY-CABINET,FRONT

* AA91-10360C ASSY-CABINET,FRONT;-,CT-5066BZ,BK-708P EGB TVI,HB

AA63-30072ZCOVER-CONTROL,A;-,CT-5066BZ,KSP213 EG,HIPS,V0,

AA63-50196AGRILLE-WOOFER;-,5066,PA110,SECC,T0.5,-,-

AA64-10560EKNOB-POWER;-,38.5066,TACT,ABS,HB,M/B

AA64-30678KCABINET-FRONT;-,5066,BK-708P AMER B TVI,HIPS

AA64-60284F INLAY-AV;50.5366,KSP213 TVI NT EG,PS,T0

AA64-70010DBADGE-BRAND;AL,SS R2000 25,GOLD,L50,-,-,-

ASSY-CRT

AA94-50020MASSY-CRT;A48KRD82X(HB),0MG,20,BARE,CT5

AA03-10030L CRT-COLOR;-,A48KRD82X(HB),0mG,20,90deg,

AA27-50004WDEFLECTION-YOKE;-,DSE-1992LL(1H),20/A48KRD82X

AA27-60001DMAGNET-CONVERGENCE;-,JH-291-(JH-8210),29.1mm

ASSY-PCB,A/V FRONT

* AA95-90032SASSY-PCB,A/V FRONT;-,5066,K15A,NTSC,-,-

CN702 AA39-20098ALEAD-CONNECTOR,ASSY;-,YBNH025-09,67096-009,9P,200,

ASSY-HOLDER,SPK

* AA91-60302AASSY-HOLDER,SPK;-,8ohm6W,R700L350,4P/RBYB,5066

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

!

!
!

!
!

!
!

Electric Parts List

Samsung Electronics 7-19

7-12 CT5066BZX/XAP (CT3366BZX/XAP AND CT5066BZX/XAP Dissimilar Parts)

ASSY-PCB,MAIN

* AA94-10140J ASSY-PCB,MAIN(OPT);CT5066BZX/XAP,K15A,PANAMA,-

C301 2301-000223 C-FILM,PEF;22nF,5%,100V,TP,7.2x4.5x9.0mm,
C302 2201-000556 C-CERAMIC,DISC;470pF,10%,500V,Y5P,TP,7x4,5
C305 2305-000149 C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5,5
C402 2306-000355 C-FILM,MPPF;7.4nF,5%,1.6KV,TP,28.5x18.5x12
C403 2201-000406 C-CERAMIC,DISC;270pF,10%,2KV,Y5P,TP,8x6,7.5
C404 2306-000193 C-FILM,MPPF;360nF,5%,200V,TP,21x18.5x13,7.
CN501 AA39-20109ALEAD-CONNECTOR,ASSY;-,YBNH025-08,S,8P,400,1007#26
CN802 AA27-20003X COIL-DEGAUSSING;-,20,14.4ohm,48T,L2170,E
R204 2001-000221 R-CARBON;1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R205 2001-000221 R-CARBON;1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R206 2001-000221 R-CARBON;1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R214 2001-000331 R-CARBON;12Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R226 2001-000508 R-CARBON;220Kohm,5%,1/8W,AA,TP,1.8x3.2m
R303 2004-001990 R-METAL;62Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R304 2003-000436 R-METAL OXIDE(S);1.5ohm,5%,1W,AF,TP,3.3x9mm
R305 2001-000947 R-CARBON;7.5Kohm,5%,1/8W,AA,TP,1.8x3.2m
R306 2001-000766 R-CARBON;43Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R307 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R308 2004-001990 R-METAL;62Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R309 2003-001043 R-METAL OXIDE(S);510ohm,5%,1W,AF,TP,2.5x6.5mm
R404 2001-001136 R-CARBON(S);36ohm,5%,1/2W,AA,TP,2.4x6.4mm
R411 2004-001373 R-METAL(S);100Kohm,1%,1/2W,AA,TP,2.4x6.4m
R412 2004-001373 R-METAL(S);100Kohm,1%,1/2W,AA,TP,2.4x6.4m
R518 2008-000266 R-FUSIBLE(S);1ohm,5%,2W,AF,TP,3.9x10mm
RH01 2002-001006 R-COMPOSITION;4.7Kohm,10%,1/2W,AA,TP,3.7x9mm
RH02 2002-001006 R-COMPOSITION;4.7Kohm,10%,1/2W,AA,TP,3.7x9mm
RU10 2004-001193 R-METAL;680ohm,5%,1/8W,AA,TP,1.8x3.2mm
T444 AA26-30001YTRANS-FLYBACK;-,FSV-20A001,20,125V
V999 3704-001090 SOCKET-CRT;9P,15.24PI,26.5PI,SN,-

ASSY-CABINET

* AA90-70100N ASSY-CABINET;5066,CT5066BZX/XAP

AA64-30680BCABINET-BACK;-,5066,-,HIPS,HB,BLK,-,-

AA65-30107ACLAMP-D,COIL;NYLON 66,V2,NTR,-,20~22 INCH,-

ASSY-CABINET,FRONT

* AA91-10360C ASSY-CABINET,FRONT;-,CT-5066BZ,BK-708P EGB TVI,HB

AA63-30072ZCOVER-CONTROL,A;-,CT-5066BZ,KSP213 EG,HIPS,V0,

AA63-50196AGRILLE-WOOFER;-,5066,PA110,SECC,T0.5,-,-

AA64-10560EKNOB-POWER;-,38.5066,TACT,ABS,HB,M/B

AA64-30678KCABINET-FRONT;-,5066,BK-708P AMER B TVI,HIPS

AA64-60284F INLAY-AV;50.5366,KSP213 TVI NT EG,PS,T0

AA64-70010DBADGE-BRAND;AL,SS R2000 25,GOLD,L50,-,-,-

ASSY-CRT

* AA94-50019L ASSY-CRT;A48KRD82X(HB),+380MG,20,BARE,

AA03-10029ZCRT-COLOR;-,A48KRD82X(HB),+380mG,20,90d

AA27-50004WDEFLECTION-YOKE;-,DSE-1992LL(1H),20/A48KRD82X

AA27-60001DMAGNET-CONVERGENCE;-,JH-291-(JH-8210),29.1mm

ASSY-PCB,A/V FRONT

* AA95-90032S ASSY-PCB,A/V FRONT;-,5066,K15A,NTSC,-,-

CN702 AA39-20098ALEAD-CONNECTOR,ASSY;-,YBNH025-09,67096-009,9P,200,
PCB AA41-10595APCB-A/V;K1,1L,FR-1,245x330x1.6T,6EA,10

ASSY-HOLDER,SPK

* AA91-60302AASSY-HOLDER,SPK;-,8ohm6W,R700L350,4P/RBYB,5066

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

ASSY-PCB,MAIN

* AA94-10138B ASSY-PCB,MAIN(OPT);CT3366BZX/STR,K15A,PERU,-

ASSY-CABINET

* AA90-70107C ASSY-CABINET;3366,CT3366BZX/STR

ASSY-ACCESSORY

* AA94-30077Z ASSY-ACCESSORY;CT3366BZX/STR,K15A,PERU

ASSY-CRT

* AA94-50013WASSY-CRT;A34KQV42X(B),0mG,14,BARE,CN33

AA03-10003JCRT-COLOR;-,A34KQV42X(B),0MG,14,90DEG,5

7-13 CT3366BZX/STR (CT3366BZX/XAP AND CT3366BZX/STR Dissimilar Parts)

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

!

!

!
!

!
!

!

Electric Parts List

7-20 Samsung Electronics

ASSY-PCB,MAIN

* AA94-10138AASSY-PCB,MAIN(OPT);CT3366BZX/XAP,K15A,PA

C101 2202-000127 C-CERAMIC,MLC-AXIAL;10nF,+80-20%,25V,Y5V
C102 2401-000660 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm
C104 2202-000127 C-CERAMIC,MLC-AXIAL;10nF,+80-20%,25V,Y5V
C108 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
C110 2401-000808 C-AL;220uF,20%,16V,GP,8x11mm,5mm,TP
C151 2202-000127 C-CERAMIC,MLC-AXIAL;10nF,+80-20%,25V,Y5V
C153 2202-000127 C-CERAMIC,MLC-AXIAL;10nF,+80-20%,25V,Y5V
C201 2201-000292 C-CERAMIC,DISC;1nF,10%,50V,Y5P,TP,5x4,5m
C202 2401-001333 C-AL;470nF,20%,50V,GP,TP,5x11,5
C203 2401-001495 C-AL;47uF,20%,16V,GP,5x11mm,5mm,TP
C204 2301-000188 C-FILM,PEF;1nF,5%,100V,TP,10.5x12.5x6.5,
C205 2401-001333 C-AL;470nF,20%,50V,GP,TP,5x11,5
C206 2305-001011 C-FILM,MPEF;22nF,5%,100V,TP,3.5x12.5x7.5
C207 2401-001333 C-AL;470nF,20%,50V,GP,TP,5x11,5
C209 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C210 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C211 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C212 2201-000982 C-CERAMIC,DISC;10nF,+80-20%,50V,Y5V,TP,6
C213 2201-000193 C-CERAMIC,DISC;10pF,0.3pF,50V,CH,TP,5x3,
C214 2401-000660 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm
C215 2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5mm
C216 2201-000354 C-CERAMIC,DISC;20pF,5%,50V,NPO,TP,5.0x3.
C218 2301-000181 C-FILM,PEF;18nF,5%,50V,TP,7.1x3.5x13mm,5
C219 2401-000603 C-AL;1UF,20%,50V,GP,TP,5X11MM,5MM
C220 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
C221 2401-002462 C-AL;33uF,20%,16V,GP,TP,5x11,5
C222 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C225 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
C226 2401-000603 C-AL;1UF,20%,50V,GP,TP,5X11MM,5MM
C227 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C229 2202-000127 C-CERAMIC,MLC-AXIAL;10nF,+80-20%,25V,Y5V
C230 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C231 2401-001495 C-AL;47uF,20%,16V,GP,5x11mm,5mm,TP
C232 2401-001495 C-AL;47uF,20%,16V,GP,5x11mm,5mm,TP
C233 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
C234 2301-000264 C-FILM,PEF;4.7nF,5%,50V,TP,6.5X5.5X3.0X5
C235 2202-000279 C-CERAMIC,MLC-AXIAL;47PF,5%,50V,SL,3.5X1
C236 2202-000127 C-CERAMIC,MLC-AXIAL;10nF,+80-20%,25V,Y5V
C237 2202-000154 C-CERAMIC,MLC-AXIAL;150pF,10%,50V,Y5P,TP
C301 2301-000226 C-FILM,PEF;27nF,5%,100V,TP,7.3x4x12.5mm,
C302 2201-000599 C-CERAMIC,DISC;560pF,10%,500V,Y5P,TP,7x4
C303 2202-000127 C-CERAMIC,MLC-AXIAL;10nF,+80-20%,25V,Y5V
C304 2401-000553 C-AL;1uF,10%,50V,HR,TP,5x11mm,5mm
C305 2305-000427 C-FILM,MPEF;47nF,5%,100V,TP,7.5x12.5x3.5
C306 2401-002458 C-AL;1000UF,20%,35V,GP,TP,16X25MM,7
C308 2301-000310 C-FILM,PEF;68nF,5%,50V,TP,8.0X8.5X4.0X
C309 2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11mm,5mm
C310 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
C311 2401-001333 C-AL;470nF,20%,50V,GP,TP,5x11,5
C312 2401-000553 C-AL;1uF,10%,50V,HR,TP,5x11mm,5mm
C313 2305-000470 C-FILM,MPEF;68nF,5%,100V,TP,-,5mm
C401 2301-000224 C-FILM,PEF;22nF,5%,50V,TP,7.4x3.9x13mm
C402 2306-000253 C-FILM,MPPF;7.2nF,5%,1.6KV,TP,28.5x18.5x
C403 2201-000467 C-CERAMIC,DISC;330pF,10%,2KV,Y5P,TP,8x6,
C404 2306-000004 C-FILM,MPPF;330nF,5%,250V,TP,20x18.5x10.
C405 2305-000704 C-FILM,MPEF;100nF,5%,250V,TP,16.5x10.3x5
C406 2201-000556 C-CERAMIC,DISC;470pF,10%,500V,Y5P,TP,7x4

C407 2401-001429 C-AL;470uF,20%,50V,GP,TP,13x20,5
C408 2201-000556 C-CERAMIC,DISC;470pF,10%,500V,Y5P,TP,7x4
C409 2401-001998 C-AL;1000uF,20%,25V,GP,TP,10x20,5mm
C410 2301-000224 C-FILM,PEF;22nF,5%,50V,TP,7.4x3.9x13mm
C411 2201-000556 C-CERAMIC,DISC;470pF,10%,500V,Y5P,TP,7x4
C412 2401-000927 C-AL;22UF,20%,250V,GP,TP,13X20MM,5M
C413 2401-000560 C-AL:1uF,20%,160V,GP,TP,6.3*11,5mm
C444 2201-000441 C-CERAMIC,DISC;3.3nF,10%,500V,Y5P,TP,10x
C445 2201-000441 C-CERAMIC,DISC;3.3nF,10%,500V,Y5P,TP,10x
C501 2202-000821 C-CERAMIC,MLC-AXIAL;560pF,10%,50V,Y5P,TP
C502 2202-000862 C-CERAMIC,MLC-AXIAL;390pF,10%,50V,Y5P,TP
C503 2202-000825 C-CERAMIC,MLC-AXIAL;680pF,10%,50V,Y5P,TP
C505 2201-002063 C-CERAMIC,DISC;10nF,+80-20%,3KV,Y5V,TP,1
C601 2401-000962 C-AL;22uF,20%,50V,GP,TP,5x11,5
C603 2301-000289 C-FILM,PEF;5.6nF,5%,50V,TP,7x6x3,5
C604 2401-000660 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm
C605 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C609 2401-000133 C-AL;1000uF,20%,16V,GP,TP,10x20mm,5
C611 2202-000279 C-CERAMIC,MLC-AXIAL;47PF,5%,50V,SL,3.5X1
C612 2202-000279 C-CERAMIC,MLC-AXIAL;47PF,5%,50V,SL,3.5X1
C651 2401-000660 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm
C652 2401-000660 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm
C654 2401-001363 C-AL;470uF,20%,16V,GP,TP,10x12.5mm,
C655 2401-001363 C-AL;470uF,20%,16V,GP,TP,10x12.5mm,
C701 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C702 2401-000471 C-AL;10uF,20%,50V,BP,TP,5x11,5mm
C703 2202-000183 C-CERAMIC,MLC-AXIAL;2.2nF,20%,16V,Y5R,TP
C705 2202-000183 C-CERAMIC,MLC-AXIAL;2.2nF,20%,16V,Y5R,TP
C801 2401-002219 C-AL;220uF,20%,400V,GP,ST,25x40,10
C802 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP,
C803 2303-000163 C-FILM,PPF;2.2nF,5%,800V,TP,15x13x8.5,7.
C804 2201-000446 C-CERAMIC,DISC;3.3nF,20%,400V,Y5U,TP,18x
C805 2201-000991 C-CERAMIC,DISC;560pF,10%,2KV,Y5P,TP,13x7
C806 2401-000262 C-AL;100uF,20%,160V,HR,TP,16x25,7.5
C807 2201-000599 C-CERAMIC,DISC;560pF,10%,500V,Y5P,TP,7x4
C808 2301-000016 C-FILM,PEF;22nF,5%,100V,TP,7.2x4.5x9.0mm
C809 2401-001998 C-AL;1000uF,20%,25V,GP,TP,10x20,5mm
C810 2305-000412 C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C812 2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5mm
C813 2401-001495 C-AL;47uF,20%,16V,GP,5x11mm,5mm,TP
C814 2306-000318 C-FILM,MPPF;220NF,20%,250V,TP,-,22.5MM
C816 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
C817 2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5mm
C820 2401-001998 C-AL;1000uF,20%,25V,GP,TP,10x20,5mm
C821 2401-001486 C-AL;47uF,20%,160V,HR,TP,13x20mm,5m
C822 2301-000192 C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm
C823 2201-000370 C-CERAMIC,DISC;220pF,10%,50V,Y5P,TP,4.0X
C851 2401-001571 C-AL;47uF,+20%-0%,50V,GP,TP,8x12,5
C852 2301-000310 C-FILM,PEF;68nF,5%,50V,TP,8.0X8.5X4.0X
C901 2401-001495 C-AL;47uF,20%,16V,GP,5x11mm,5mm,TP
C902 2202-000796 C-CERAMIC,MLC-AXIAL;UP050 B102KB INF,10%
C903 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
C904 2202-000796 C-CERAMIC,MLC-AXIAL;UP050 B102KB INF,10%
C905 2401-001333 C-AL;470nF,20%,50V,GP,TP,5x11,5
C907 2401-001271 C-AL;4.7uF,20%,50V,GP,TP,4x7mm,5mm
C908 2201-000193 C-CERAMIC,DISC;10pF,0.3pF,50V,CH,TP,5x3,
C909 2201-000573 C-CERAMIC,DISC;47pF,5%,50V,CH,TP,6.5x3.0
C911 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
C912 2301-000310 C-FILM,PEF;68nF,5%,50V,TP,8.0X8.5X4.0X
C914A 2401-000947 C-AL;22uF,20%,35V,GP,TP,5x11mm,­C915 2202-000127 C-CERAMIC,MLC-AXIAL;10nF,+80-20%,25V,Y5V

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

7-14 CT3366BZX/XAP

!

Electric Parts List

Samsung Electronics 7-21

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

CN501 AA39-20109DLEAD-CONNECTOR,ASSY;-,YBNH025-08,S,8P,30
CN601 3711-002643 CONNECTOR-HEADER;BOX,4P,1R,2.5MM,STRAIGH
CN701 3711-002646 CONNECTOR-HEADER;BOX,7P,1R,2.5mm,STRAIGH
CN802 AA27-20003UCOIL-DEGAUSSING;-,14,16.4ohm,75T,890mm,
CU02 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
D101 0403-000700 DIODE-ZENER;TZP33A,33V,31-35V,1W,DO-41,T
D102 0403-000296 DIODE-ZENER;MTZ5.6B,5.6V,5.45-5.73V,500m
D103 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
D201 0403-000663 DIODE-ZENER;MTZ3.3B,3.3V,3.32-3.53V,500m
D202 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T
D203 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T
D204 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T
D205 0403-000295 DIODE-ZENER;MTZ5.1B,5.1V,4.94-5.20V,500m
D206 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T
D207 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T
D208 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
D210 0403-000563 DIODE-ZENER;MTZ9.1B,9.1V,8.57-9.01V,500m
D299 0403-000654 DIODE-ZENER;MTZ12B,12V,11.44-12.03V,500m
D301 0402-001105 DIODE-RECTIFIER;ERB43-04SV1,400V,1.0A,-,
D302 0403-000654 DIODE-ZENER;MTZ12B,12V,11.44-12.03V,500m
D401 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
D402 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
D403 0402-001105 DIODE-RECTIFIER;ERB43-04SV1,400V,1.0A,-,
D404 0402-001105 DIODE-RECTIFIER;ERB43-04SV1,400V,1.0A,-,
D405 0402-001105 DIODE-RECTIFIER;ERB43-04SV1,400V,1.0A,-,
D407 0402-001105 DIODE-RECTIFIER;ERB43-04SV1,400V,1.0A,-,
D601 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T
D701 0403-000563 DIODE-ZENER;MTZ9.1B,9.1V,8.57-9.01V,500m
D704 0403-000563 DIODE-ZENER;MTZ9.1B,9.1V,8.57-9.01V,500m
D802 0402-000540 DIODE-RECTIFIER;RU20A,600V,1.5A,­D803 0402-001105 DIODE-RECTIFIER;ERB43-04SV1,400V,1.0A,-,
D805 0402-000213 DIODE-RECTIFIER;ERB12-06,600V,1.0A,DO-41
D806 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T
D807 0402-000213 DIODE-RECTIFIER;ERB12-06,600V,1.0A,DO-41
D808 0402-000213 DIODE-RECTIFIER;ERB12-06,600V,1.0A,DO-41
D809 0402-000213 DIODE-RECTIFIER;ERB12-06,600V,1.0A,DO-41
D810 0402-000213 DIODE-RECTIFIER;ERB12-06,600V,1.0A,DO-41
D814 0404-001056 DIODE-SCHOTTKY;RK16,60V,1.5A,DO-204AC,TP
D855 0403-000296 DIODE-ZENER;MTZ5.6B,5.6V,5.45-5.73V,500m
D856 0403-000296 DIODE-ZENER;MTZ5.6B,5.6V,5.45-5.73V,500m
D902 0403-000296 DIODE-ZENER;MTZ5.6B,5.6V,5.45-5.73V,500m
D903 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T
D904 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T
D905 0403-000296 DIODE-ZENER;MTZ5.6B,5.6V,5.45-5.73V,500m
D906 0403-000296 DIODE-ZENER;MTZ5.6B,5.6V,5.45-5.73V,500m
DZ801 1405-000152 VARISTOR;560V,2500A,14x8.5mm,TP
DZ802 0403-000300 DIODE-ZENER;MTZ8.2B,7.78-8.19V,500mW,DO­DZ803 0403-000296 DIODE-ZENER;MTZ5.6B,5.6V,5.45-5.73V,500m
DZ806 0403-000294 DIODE-ZENER;MTZ4.7B,4.55-4.80V,500mW,DO­DZ807 0403-000297 DIODE-ZENER;MTZ6.2B,6.2V,5.96-6.27V,500m
DZ901 0403-000296 DIODE-ZENER;MTZ5.6B,5.6V,5.45-5.73V,500m
DZ902 0403-000296 DIODE-ZENER;MTZ5.6B,5.6V,5.45-5.73V,500m
DZ903 0403-000295 DIODE-ZENER;MTZ5.1B,5.1V,4.94-5.20V,500m
EL301~802 AA60-40011BEYELET;ID2.2,OD3.2,-,-,BSP,­EY401~803 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,­F801 3601-001012 FUSE-FERRULE;250V,4A,SLOW-BLOW,GLASS,5.2
F801A 3602-000114 FUSE-HOLDER;-,-,30mohm
F801B 3602-000114 FUSE-HOLDER;-,-,30mohm
GT101~806 AA60-40014APIN-GT,ASSY;1P,-,-,AUTO
GT101A AA39-20010DLEAD-CONNECTOR,ASSY;-,YFH800-01,S,1P,400
IC201 1204-001296 IC-CHROMA;KA2163B,DIP,56P,-,PLASTIC,12V,
IC301 1204-000475 IC-VIDEO SYSTEM;KA2131,SIP,10P,-,PLASTIC
IC601 1201-001298 IC-POWER AMP;4425,SIP,5P,9.5MIL,MONO,45d
IC602 1201-001298 IC-POWER AMP;4425,SIP,5P,9.5MIL,MONO,45d
IC801 1203-001494 IC-PWM CONTROLLER;3S0680RF,TO3PF-5L,5,21

IC802 1203-001532 IC-POSI.FIXED REG.;7631,SIP,10P,-,PLASTI
IC901 AA13-30020A IC-MCU;-,Z8933412PSC-R3757,16BIT,SDIP
IC902 1103-001107 IC-EEPROM;24C020,256x8BIT,DIP,8P,300MIL,
JA701 3722-000162 JACK-PIN;2P,3.4MM,SN,BLACK,­JU13 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
L102 2701-000207 INDUCTOR-AXIAL;56uH,5%,2.5x3.4mm
L152 2701-000326 INDUCTOR-AXIAL;560nH,10%,2.3x3.4mm
L201 AA26-10004K TRANS-IF;-,7MG,SIF,11.5uH,7mm,100pF,4.8
L202 2701-000207 INDUCTOR-AXIAL;56uH,5%,2.5x3.4mm
L203 2701-000158 INDUCTOR-AXIAL;22uH,10%,2.5x3.4mm
L204 2701-000207 INDUCTOR-AXIAL;56uH,5%,2.5x3.4mm
L205 AA26-10004C TRANS-IF;-,7MG,VIF,0.37uH,7mm,27pF,52.3
L206 2701-000111 INDUCTOR-AXIAL;100uH,10%,2.5x3.4mm
L208 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
L301 2701-000116 INDUCTOR-AXIAL;10uH,10%,4.2x9.8mm
L401 AA27-30001B COIL-LINEARITY;-,195UH,QIC1010,PI0.4,4.5
L402 2701-001032 INDUCTOR-AXIAL;100uH,10%,5x14mm
L501 2701-000184 INDUCTOR-AXIAL;4.7uH,10%,2.5x3.4mm
L502 2701-000184 INDUCTOR-AXIAL;4.7uH,10%,2.5x3.4mm
L503 2701-000184 INDUCTOR-AXIAL;4.7uH,10%,2.5x3.4mm
L601 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,­L602 2701-000158 INDUCTOR-AXIAL;22uH,10%,2.5x3.4mm
L801 AA29-30001DFILTER-LINE;-,6.0mH,2A,-,SQ1913
L802 3301-000287 CORE-FERRITE BEAD;AA,3.5x1x6mm,1500,2400
L803 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,­L804 3301-000287 CORE-FERRITE BEAD;AA,3.5x1x6mm,1500,2400
L805 2901-000299 FILTER-EMI ON BOARD;-,6A,UL/CSA,-,9x7.5,
L809 2901-000299 FILTER-EMI ON BOARD;-,6A,UL/CSA,-,9x7.5,
L810 AA27-10002Y COIL-CHOKE;-,100UH,K,10,700MA,T,100UH-K(
L811 2901-000299 FILTER-EMI ON BOARD;-,6A,UL/CSA,-,9x7.5,
L901 2701-000197 INDUCTOR-AXIAL;5.6uH,10%,2.5x3.4mm
L902 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
L999 2701-000115 INDUCTOR-AXIAL;10uH,10%,2.8x7mm
LD901 AA96-30007AASSY-LED,GUIDE;-,AA61-50055A,DL-G7GA,GRE
NT801 1404-000187 THERMISTOR-NTC;4.7ohm,15%,2800K,27.2mW/C
P801 1404-001048 THERMISTOR-PTC;7ohm,30%,200/220V,270V,19
PC802 0604-001038 PHOTO-COUPLER;TR,130-260%,200mW,DIP-4,ST
Q151 0501-000436 TR-SMALL SIGNAL;KTC3197,NPN,625mW,TO-92,
Q201 0501-002183 TR-SMALL SIGNAL;KTC9014,NPN,625mW,TO-92,
Q202 0501-002183 TR-SMALL SIGNAL;KTC9014,NPN,625mW,TO-92,
Q203 0501-002183 TR-SMALL SIGNAL;KTC9014,NPN,625mW,TO-92,
Q401 0502-001115 TR-POWER;KSC5386,NPN,50W,TO-3PF,ST,8­Q402 0501-000369 TR-SMALL SIGNAL;KSC2331-Y,NPN,1W,TO-92L,
Q501 0501-002014 TR-SMALL SIGNAL;KSC2330-R,NPN,1W,TO-92L,
Q502 0501-002014 TR-SMALL SIGNAL;KSC2330-R,NPN,1W,TO-92L,
Q503 0501-002014 TR-SMALL SIGNAL;KSC2330-R,NPN,1W,TO-92L,
Q601 0502-000242 TR-POWER;KSA614,PNP,25W,TO-220,TP,40-24
Q602 0501-002183 TR-SMALL SIGNAL;KTC9014,NPN,625mW,TO-92,
Q801 1203-001217 IC-POSI.ADJUST REG.;431,TO-92,3P,4.58MIL
Q902 0501-002183 TR-SMALL SIGNAL;KTC9014,NPN,625mW,TO-92,
Q903 0501-002183 TR-SMALL SIGNAL;KTC9014,NPN,625mW,TO-92,
QU01 0504-000123 TR-DIGITAL;KSR1010,NPN,300mW,10K,TO-92,T
R101 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R102 2004-001301 R-METAL;82Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R104 2003-000578 R-METAL OXIDE(S);220ohm,5%,2W,AA,TP,4x12
R105 2003-000578 R-METAL OXIDE(S);220ohm,5%,2W,AA,TP,4x12
R152 2001-000221 R-CARBON;1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R153 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
R154 2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm
R155 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
R156 2001-000793 R-CARBON;47ohm,5%,1/8W,AA,TP,1.8x3.2mm
R157 2001-000568 R-CARBON;27OHM,5%,1/8W,AA,TP,1.8X3.2MM
R158 2001-000007 R-CARBON;3Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R159 2001-000007 R-CARBON;3Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R201 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

!

!

!!!

!!!

!!!!!

!

Electric Parts List

7-22 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

R202 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
R203 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
R204 2001-000995 R-CARBON;820 OHM,5%,1\8W,AA,T
R205 2001-000995 R-CARBON;820 OHM,5%,1\8W,AA,T
R206 2001-000995 R-CARBON ;820 OHM,5%,1\8W,AA,T
R207 2001-001111 R-CARBON(S);240ohm,5%,1/2W,AA,TP,2.4x6.4
R208 2001-000515 R-CARBON;220ohm,5%,1/8W,AA,TP,1.8x3.2mm
R209 2001-000515 R-CARBON;220ohm,5%,1/8W,AA,TP,1.8x3.2mm
R210 2001-000515 R-CARBON;220ohm,5%,1/8W,AA,TP,1.8x3.2mm
R211 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
R212 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
R213 2001-000837 R-CARBON;51Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R214 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R215 2001-000331 R-CARBON;12Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R218 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m
R219 2001-000674 R-CARBON;360ohm,5%,1/8W,AA,TP,1.8x3.2mm
R222 2001-000773 R-CARBON;470Kohm,5%,1/8W,AA,TP,1.8x3.2m
R223 2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm
R226 2001-000397 R-CARBON;180Kohm,5%,1/8W,AA,TP,1.8x3.2m
R227 2001-000508 R-CARBON;220Kohm,5%,1/8W,AA,TP,1.8x3.2m
R228 2001-000258 R-CARBON;1.8Kohm,5%,1/8W,AA,TP,1.8x3.2m
R229 2001-000258 R-CARBON;1.8Kohm,5%,1/8W,AA,TP,1.8x3.2m
R230 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m
R231 2001-000660 R-CARBON;33Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R233 2004-001234 R-METAL;75Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R234 2001-000405 R-CARBON;180 OHM,5%,1/8W,AA,T
R235 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m
R236 2001-000548 R-CARBON;270Kohm,5%,1/8W,AA,TP,1.8x3.2m
R237 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R239 2001-000947 R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R240 2001-000577 R-CARBON;2KOHM,5%,1/8W,AA,TP,
R241 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R242 2001-000221 R-CARBON;1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R251 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m
R252 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m
R253 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m
R257 2008-000266 R-FUSIBLE(S);1ohm,5%,2W,AF,TP,3.9x10mm
R301 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R302 2001-000003 R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm
R303 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R304 2003-001036 R-METAL OXIDE(S);3.3ohm,5%,2W,AF,TP,3.9x
R305 2001-000660 R-CARBON;33Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R306 2004-001301 R-METAL;82Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R307 2001-000679 R-CARBON;36KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R308 2001-000633 R-CARBON;30Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R309 2003-000649 R-METAL OXIDE(S);330ohm,5%,1W,AF,TP,3.3x
R401 2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm
R402 2001-000515 R-CARBON;220ohm,5%,1/8W,AA,TP,1.8x3.2mm
R403 2001-001114 R-CARBON(S) ;270ohm,5%,1/2W,AA,TP,2.4x
R404 2001-000020 R-CARBON(S);22ohm,5%,1/2W,AA,TP,2.4x6.4m
R405 2003-000540 R-METAL OXIDE(S);1Kohm,5%,2W,AF,TP,4x12m
R406 2008-001069 R-FUSIBLE(S);300ohm,5%,2W,AA,TP,3.9x10mm
R407 2003-000994 R-METAL OXIDE(S);33Kohm,5%,2W,AF,TP,3.9x
R408 2004-001390 R-METAL(S);1Kohm,2%,1/2W,AA,TP,2.4x6.4mm
R409 2008-000253 R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m
R410 2008-000206 R-FUSIBLE(S);1ohm,5%,1/2W,AF,TP,2.5x6.5m
R411 2004-001377 R-METAL(S);120Kohm,1%,1/2W,AA,TP,2.4x6.4
R412 2004-001377 R-METAL(S);120Kohm,1%,1/2W,AA,TP,2.4x6.4
R413 2001-001037 R-CARBON(S);0.39ohm,5%,1/2W,AA,TP,2.4x6.
R415 2003-000784 R-METAL OXIDE(S);7.5Kohm,5%,2W,AF,TP,4x1
R416 2001-000022 R-CARBON(S);33ohm,5%,1/2W,AA,TP,2.4x6.4m
R417 2001-001410 R-CARBON(S);43ohm,5%,1/2W,AA,TP,2.4x6.4m
R444 2001-001099 R-CARBON(S);2.7Kohm,5%,1/2W,AA,TP,2.4x6.
R501 2001-000007 R-CARBON;3Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R502 2001-000007 R-CARBON;3Kohm,5%,1/8W,AA,TP,1.8x3.2mm

R503 2001-000007 R-CARBON;3Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R504 2003-000510 R-METAL OXIDE(S);15Kohm,5%,2W,AA,TP,4x12
R505 2003-000510 R-METAL OXIDE(S);15Kohm,5%,2W,AA,TP,4x12
R506 2003-000510 R-METAL OXIDE(S);15Kohm,5%,2W,AA,TP,4x12
R507 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
R508 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
R509 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
R510 2001-000628 R-CARBON;300OHM,5%,1/8W,AA,TP,1.8X3.2MM
R511 2001-000628 R-CARBON;300OHM,5%,1/8W,AA,TP,1.8X3.2MM
R512 2001-000628 R-CARBON;300OHM,5%,1/8W,AA,TP,1.8X3.2MM
R513 2001-000666 R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm
R514 2001-000666 R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm
R515 2002-001006 R-COMPOSITION;4.7KOHM,10%,1/2W,AA,TP,3.7
R517 2001-000666 R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm
R518 2008-001015 R-FUSIBLE(S);1.5ohm,5%,2W,AF,TP,3.9x10mm
R599 2008-000226 R-FUSIBLE;22ohm,5%,1/2W,AA,TP,4.7x11mm
R602 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R603 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R604 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m
R605 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R610 2001-000577 R-CARBON ;2KOHM,5%,1/8W,AA,TP,
R611 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R614 2001-001152 R-CARBON(S);47Kohm,5%,1/2W,AA,TP,2.4x6.4
R615 2001-001088 R-CARBON(S);1Kohm,5%,1/2W,AA,TP,2.4x6.4m
R701 2001-001187 R-CARBON(S);75ohm,5%,1/2W,AA,TP,2.4x6.4m
R702 2001-000085 R-CARBON(S);100Kohm,5%,1/2W,AA,TP,2.4x6.
R703 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
R801 2001-001150 R-CARBON(S);470Kohm,5%,1/2W,AA,TP,2.4x6.
R802 2003-000994 R-METAL OXIDE(S);33Kohm,5%,2W,AF,TP,3.9x
R803 2003-000994 R-METAL OXIDE(S);33Kohm,5%,2W,AF,TP,3.9x
R805 2002-001013 R-COMPOSITION;4.7Mohm,10%,1/2W,AA,TP,3.7
R806 2001-001071 R-CARBON(S);12Kohm,5%,1/2W,AA,TP,2.4x6.4
R807 2001-001071 R-CARBON(S);12Kohm,5%,1/2W,AA,TP,2.4x6.4
R808 2001-001150 R-CARBON(S);470Kohm,5%,1/2W,AA,TP,2.4x6.
R809 2008-000205 R-FUSIBLE(S);10ohm,5%,1/2W,AF,TP,2.5x6.5
R811 2001-001170 R-CARBON(S);6.8OHM,5%,1/2W,AA,TP,2.4X6.4
R812 2008-000252 R-FUSIBLE(S);0.47ohm,10%,1/2W,AF,TP,2.5x
R817 2001-001111 R-CARBON(S);240ohm,5%,1/2W,AA,TP,2.4x6.4
R818 2001-001111 R-CARBON(S);240ohm,5%,1/2W,AA,TP,2.4x6.4
R819 2008-001011 R-FUSIBLE(S);0.18ohm,10%,2W,AF,TP,3.9x10
R821 2004-004089 R-METAL;123Kohm,1%,1/2W,AA,TP,2.5x6.5m
R822 2001-000022 R-CARBON(S);33ohm,5%,1/2W,AA,TP,2.4x6.4m
R823 2001-001178 R-CARBON(S);680ohm,5%,1/2W,AA,TP,2.4x6.4
R824 2001-001125 R-CARBON(S);300Kohm,5%,1/2W,AA,TP,2.4x6.
R852 2001-001088 R-CARBON(S);1Kohm,5%,1/2W,AA,TP,2.4x6.4m
R853 2001-001054 R-CARBON(S);1.6Kohm,5%,1/2W,AA,TP,2.4x6.
R854 2004-001983 R-METAL;2.49Kohm,1%,1/2W,AA,TP,2.4x6.4
R901 2001-000793 R-CARBON;47ohm,5%,1/8W,AA,TP,1.8x3.2mm
R902 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R903 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
R904 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
R905 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R906 2001-000472 R-CARBON;2.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
R907 2001-000995 R-CARBON ;820 OHM,5%,1\8W,AA,T
R908 2001-000232 R-CARBON;1.3Kohm,5%,1/8W,AA,TP,1.8x3.2m
R910 2001-000995 R-CARBON ;820 OHM,5%,1\8W,AA,T
R911 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R914 2001-000577 R-CARBON ;2KOHM,5%,1/8W,AA,TP,
R915 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
R916 2001-000947 R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R917 2001-000947 R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R918 2001-000947 R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R919 2001-000977 R-CARBON;8.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R920 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R921 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm

!

Electric Parts List

Samsung Electronics 7-23

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

R922 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
R923 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
R924 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R925 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R926 2001-000008 R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R927 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R928 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R929 2001-000232 R-CARBON;1.3Kohm,5%,1/8W,AA,TP,1.8x3.2m
R930 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R931 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R932 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R933 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R934 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T
R936 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T
R937 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R940 2001-000708 R-CARBON;39ohm,5%,1/8W,AA,TP,1.8x3.2mm
R951 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
R952 2001-000472 R-CARBON;2.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
R988 2001-000508 R-CARBON;220Kohm,5%,1/8W,AA,TP,1.8x3.2m
RM01 2002-001006 R-COMPOSITION;4.7KOHM,10%,1/2W,AA,TP,3.7
RM02 2002-001006 R-COMPOSITION;4.7KOHM,10%,1/2W,AA,TP,3.7
RM901 AA59-60001UMODULE-REMOCON;-,ORC-50VF/SR-12V,38KHz,9
RU02 2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm
RU06 2001-000397 R-CARBON;180Kohm,5%,1/8W,AA,TP,1.8x3.2m
RU07 2001-001062 R-CARBON(S);10Mohm,5%,1/2W,AA,TP,2.4x6.4
RU10 2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm
SF101 2904-000304 FILTER-SAW AV;45.75MHz,-,ST,13.2dB,NTSC­SW901 3404-000244 SWITCH-TACT;15V,20mA,90-170gf,7.5x7mm,SP
SW902 3404-000244 SWITCH-TACT;15V,20mA,90-170gf,7.5x7mm,SP
SW903 3404-000244 SWITCH-TACT;15V,20mA,90-170gf,7.5x7mm,SP
SW904 3404-000244 SWITCH-TACT;15V,20mA,90-170gf,7.5x7mm,SP
SW905 3404-000244 SWITCH-TACT;15V,20mA,90-170gf,7.5x7mm,SP
SW906 3404-000295 SWITCH-TACT;12VDC,50mA,160gf,8.4X22.7,SP
T401 AA26-50001BHORIZ.DRIVE;-,7.1MH,102UH,10-20UH,YL081,
T444 AA26-30004HTRANS-FLYBACK;-,FSV-14A001,14,125V
T801 AA26-20006UTRANS-SWITCHING;-,90-260V,125V/12.5V,EN,
TU01 AA40-10006F TUNER-F/S;TELH9-212A,NTSC/USA,TR,181CH
V999 3704-001089 SOCKET-CRT;7P,22.5PI,12PI,SN,­WIRE1 AA65-30104C CLAMP-WIRE;NYLON 66,V2,NTR,W1 Z4,ALL MOD
WIRE2 AA65-30109ACLAMP-FBT;NYLON-66,V2,BLK,-,-,­X201 2801-000226 CRYSTAL-UNIT;3.579545MHz,20ppm,28-AAM,15
X202 2802-000172 RESONATOR-CERAMIC;503.5KHZ,0.5%,BK,7.0X3
X901 2801-003224 CRYSTAL-UNIT;32.768KHZ,20PPM,28-AAY,12.5
Z201 2903-001022 FILTER-CERAMIC;TR,4.5MHz,-,0.5dB,-,TP,­Z601 2903-000135 FILTER-CERAMIC;BP,4.5MHz,+-60KHz,6dB,-,T

ASSY-ACCESSORY

* AA94-30077Y ASSY-ACCESSORY;CT3366BZX/XAP,K15A,PANAMA

3721-000136 PLUG-CONVERSION;2P,4.0mm,N,NI
AA68-11250A MANUAL-USERS;KCT15A,ENG,TM59,205X150,A/P
AA68-11251A MANUAL-USERS;KCT15A,SPA,TM59,205X150,A/P
AA68-30004A MANUAL-BOOK;-,W/P120(G),-,SEPA,-,­AA42-10001V ANT-ROD;-,3S,620mm,BRN,UL/CSA
AA26-90001F TRANS-MATCHING;-,300ohm/75ohm,NTSC,40-89

ASSY-CRT

* AA94-50015E ASSY-CRT;A34KQV42X(B),+380MG,14,BARE,C

AA03-10001Z CRT-COLOR;-,A34KQV42X(B),+380MG,14,90DE
AA27-50001K DEFLECTION-YOKE;-,DSE-1422FL,14/A34KQV4

AA27-60001L MAGNET-CONVERGENCE;-,NY-225,22.5MM
AA63-60028A SPACER-DY;NEOPRENE,-,BLK,V0 W12,-,-

ASSY-PCB,A/V FRONT

* AA95-90030MASSY-PCB,A/V FRONT;-,CT-2139H,KCT15A,NTS

JA703 3722-000506 JACK-RCA;2P,3.6MM,-,AG
CN704* AA39-20070E LEAD-CONNECTOR,ASSY;-,YBNH025-07,67096-0
01LOT AA41-10350APCB-A/V;K1,1,FR-1,51X23X1.6T

ASSY-POWER,CORD

* AA96-20109C ASSY-POWER,CORD;-,CP2/NO(4.0),H/C300,KKP

AA39-10006XPOWER-CORD;-,KKP419C,KLCE-2F,2.286MT,3P,

AA61-20284AHOLDER;-,P-CORD,PP,VO,BLK,KE-002

REMOCON

AA59-10095TREMOCON;-,TM59,SS,SZM354EP,25,-,-,L/GR

ASSY-CABINET

* AA90-70107DASSY-CABINET;3366,CT3366BZX/XAP

AA64-30851ACABINET-BACK;-,HIPS,HB,-,-,BLK,-,3366

AA65-30008ACLAMP-CORD;PE,HB,BLK,-,-,-

AA65-30106ACLAMP-D,COIL;NYLON 66,V2,NTR,-,14 INCH,­CRT+CF AA60-10050R SCREW-ASSY;WC,HH,+,M5,L31.5,SWRCH18A,ZPC
CB+CF 6002-000514 SCREW-TAPPING;RH,+,2,M4,L15,ZPC(BLK),SWR
CB+RCA 6002-000514 SCREW-TAPPING;RH,+,2,M4,L15,ZPC(BLK),SWR
PA+CF AA60-10002A SCREW-TAPPING;RH,+,M4,L12,ZPC(YEL),-,OD1
SPK+CF 6002-000522 SCREW-TAPPING;TH,+,2,M4,L15,ZPC(BLK),SWR
CABBAC AA63-60002DSPACER-FELT;FELT,T1.0,BLK,330X15,-,-

ASSY-CABINET,FRONT

* AA91-10265QASSY-CABINET,FRONT;-,CT-3366BZ,PA100 EGB

AA64-70009GBADGE-BRAND;AL,SS R800 22,GOLD,L40,-,-,-

AA61-40010ABOSS-WING;-,HIPS,HB,NTR,-,-

AA64-30850F CABINET-FRONT;-,3366,PA100 HITRON BIO,HI

AA65-30105ACLAMP-WIRE;NYLON 66,V2,NTR,15MM,ALL MODE

AA63-30120NCOVER-CONTROL,A;-,CT-3366BZ,KSP213 EG TV

AA63-50274AGRILLE-WOOFER;-,3366,PA110,SECC-1,T0.5,-

AA64-40184AINDICATOR-LED;-,3373,-,ACRYL,-,-,-

AA64-60161PINLAY-AV;3366,KSP213 NTSC TVI EG,PS,T0.

AA64-10559BKNOB-CONTROL;-,66,-,ABS,HB,M/B

AA64-10582EKNOB-POWER;-,3366,TACT,ABS,HB,M/B
KC+CF 6002-000512 SCREW-TAPPING;RH,+,2,M4,L12,ZPC(BLK),SWR
KNOPOW AA61-60003TSPRING-CS;-,SUS304,0.5,OD7,H13.5,N5,-,-,

AA64-40360AWINDOW-REMOCON;-,66,LG41338,ABS,HB,CLR,-

ASSY-HOLDER,SPK

* AA91-60301AASSY-HOLDER,SPK;-,8ohm6W,R550L350,4P/RBY

!!!!!

!

Electric Parts List

7-24 Samsung Electronics

7-15 CT5038ZX/GSU (CT3338ZX/XAP AND CT5038ZX/GSU Dissimilar Parts)

ASSY-PCB,MAIN

* AA94-10140DASSY-PCB,MAIN(OPT);CT5038ZX/GSU,K15A,BOLIVIA,-

C301 2301-000223 C-FILM,PEF;22nF,5%,100V,TP,7.2x4.5x9.0mm,
C302 2201-000556 C-CERAMIC,DISC;470pF,10%,500V,Y5P,TP,7x4,5
C305 2305-000149 C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5,5
C402 2306-000355 C-FILM,MPPF;7.4nF,5%,1.6KV,TP,28.5x18.5x12
C403 2201-000406 C-CERAMIC,DISC;270pF,10%,2KV,Y5P,TP,8x6,7.5
C404 2306-000193 C-FILM,MPPF;360nF,5%,200V,TP,21x18.5x13,7.
CN501 AA39-20109ALEAD-CONNECTOR,ASSY;-,YBNH025-08,S,8P,400,1007#26
CN802 AA27-20003X COIL-DEGAUSSING;-,20,14.4ohm,48T,L2170,E
R204 2001-000221 R-CARBON;1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R205 2001-000221 R-CARBON;1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R206 2001-000221 R-CARBON;1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R214 2001-000331 R-CARBON;12Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R226 2001-000508 R-CARBON;220Kohm,5%,1/8W,AA,TP,1.8x3.2m
R303 2004-001990 R-METAL;62Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R304 2003-000436 R-METAL OXIDE(S);1.5ohm,5%,1W,AF,TP,3.3x9mm
R305 2001-000947 R-CARBON;7.5Kohm,5%,1/8W,AA,TP,1.8x3.2m
R306 2001-000766 R-CARBON;43Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R307 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R308 2004-001990 R-METAL;62Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R309 2003-001043 R-METAL OXIDE(S);510ohm,5%,1W,AF,TP,2.5x6.5mm
R404 2001-001136 R-CARBON(S);36ohm,5%,1/2W,AA,TP,2.4x6.4mm
R411 2004-001373 R-METAL(S);100Kohm,1%,1/2W,AA,TP,2.4x6.4m
R412 2004-001373 R-METAL(S);100Kohm,1%,1/2W,AA,TP,2.4x6.4m
R413 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING),1/0.6mm
R518 2008-000266 R-FUSIBLE(S);1ohm,5%,2W,AF,TP,3.9x10mm
RH01 2002-001006 R-COMPOSITION;4.7Kohm,10%,1/2W,AA,TP,3.7x9mm
RH02 2002-001006 R-COMPOSITION;4.7Kohm,10%,1/2W,AA,TP,3.7x9mm
RU10 2004-001193 R-METAL;680ohm,5%,1/8W,AA,TP,1.8x3.2mm
T444 AA26-30001YTRANS-FLYBACK;-,FSV-20A001,20,125V
V999 3704-001090 SOCKET-CRT;9P,15.24PI,26.5PI,SN,-

ASSY-CABINET

* AA90-70012P ASSY-CABINET;5038,CT5038ZX/GSU

AA64-30375BCABINET-BACK;-,5073,38,-,HIPS,HB,BLK,-,-

AA65-30107ACLAMP-D,COIL;NYLON 66,V2,NTR,-,20~22 INCH,­CRT+CF AA60-10050R SCREW-ASSY;WC,HH,+,M5,L31.5,SWRCH18A,ZPC(

ASSY-CABINET,FRONT

* AA91-10382B ASSY-CABINET,FRONT;-,CT5038Z,PA100 HITRON EG,HB,B

AA61-40007ASTOPPER-PCB;5038.5368,ABS HB,NTR,-,-,-

AA63-50056AGRILLE-WOOFER;-,5038,PA110,SECC,T0.5,-,-

AA64-10050AKNOB-CONTROL;-,5038,-,ABS,HB,BLK

AA64-10187BKNOB-POWER,T;-,5038,SILK,ABS,HB,BLK

AA64-31263BCABINET-FRONT;-,CT5038Z,PA100 HITRON,HIPS,HB

AA64-40085AWINDOW-REMOCON;-,5038,-,PC,V0,VIOLET,-

AA64-40188AINDICATOR-LED;-,5038,-,ACRYL,-,-,-

AA64-70015BBADGE-BRAND;AL,SS R2000 22,GOLD,L45,-,-,­SPK+CF 6002-000514 SCREW-TAPPING;RH,+,2,M4,L15,ZPC(BLK),SWRCH18

ASSY-SPEAKER

* AA96-10141AASSY-SPEAKER;-,8ohm3W,001020,A3920501C,700m

3001-000191 SPEAKER;3W,8ohm,90dB,180Hz

AA39-20501CLEAD CONNECTOR-ASSY;-,67096-003,REC,3(2)P,700mm,10

ASSY-CRT

* AA94-50020L ASSY-CRT;A48KRD82X(H),-300MG,20,BARE,C

AA03-10029YCRT-COLOR;-,A48KRD82X(H),-380mG,20,90de

AA27-50004WDEFLECTION-YOKE;-,DSE-1992LL(1H),20/A48KRD82X

AA27-60001DMAGNET-CONVERGENCE;-,JH-291-(JH-8210),29.1mm

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

!

!

!
!

!
!

Electric Parts List

Samsung Electronics 7-25

7-16 CT5038ZX/XAP (CT3338ZX/XAP AND CT5038ZX/XAP Dissimilar Parts)

ASSY-PCB,MAIN

* AA94-10140E ASSY-PCB,MAIN(OPT);CT5038ZX/XAP,K15A,PANAMA,-

C301 2301-000223 C-FILM,PEF;22nF,5%,100V,TP,7.2x4.5x9.0mm,
C302 2201-000556 C-CERAMIC,DISC;470pF,10%,500V,Y5P,TP,7x4,5
C305 2305-000149 C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5,5
C402 2306-000355 C-FILM,MPPF;7.4nF,5%,1.6KV,TP,28.5x18.5x12
C403 2201-000406 C-CERAMIC,DISC;270pF,10%,2KV,Y5P,TP,8x6,7.5
C404 2306-000193 C-FILM,MPPF;360nF,5%,200V,TP,21x18.5x13,7.
CN501 AA39-20109ALEAD-CONNECTOR,ASSY;-,YBNH025-08,S,8P,400,1007#26
CN802 AA27-20003X COIL-DEGAUSSING;-,20,14.4ohm,48T,L2170,E
NT0565 AA68-50067A LABEL-RATING;T/P 90(G),T0.2,-,-,-,-,ALL
R204 2001-000221 R-CARBON;1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R205 2001-000221 R-CARBON;1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R206 2001-000221 R-CARBON;1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R214 2001-000331 R-CARBON;12Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R226 2001-000508 R-CARBON;220Kohm,5%,1/8W,AA,TP,1.8x3.2m
R303 2004-001990 R-METAL;62Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R304 2003-000436 R-METAL OXIDE(S);1.5ohm,5%,1W,AF,TP,3.3x9mm
R305 2001-000947 R-CARBON;7.5Kohm,5%,1/8W,AA,TP,1.8x3.2m
R306 2001-000766 R-CARBON;43Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R307 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R308 2004-001990 R-METAL;62Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R309 2003-001043 R-METAL OXIDE(S);510ohm,5%,1W,AF,TP,2.5x6.5mm
R404 2001-001136 R-CARBON(S);36ohm,5%,1/2W,AA,TP,2.4x6.4mm
R411 2004-001373 R-METAL(S);100Kohm,1%,1/2W,AA,TP,2.4x6.4m
R412 2004-001373 R-METAL(S);100Kohm,1%,1/2W,AA,TP,2.4x6.4m
R413 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING),1/0.6mm
R518 2008-000266 R-FUSIBLE(S);1ohm,5%,2W,AF,TP,3.9x10mm
RH01 2002-001006 R-COMPOSITION;4.7Kohm,10%,1/2W,AA,TP,3.7x9mm
RH02 2002-001006 R-COMPOSITION;4.7Kohm,10%,1/2W,AA,TP,3.7x9mm
RU10 2004-001193 R-METAL;680ohm,5%,1/8W,AA,TP,1.8x3.2mm
T444 AA26-30001YTRANS-FLYBACK;-,FSV-20A001,20,125V
V999 3704-001090 SOCKET-CRT;9P,15.24PI,26.5PI,SN,-

ASSY-CRT

* AA94-50019X ASSY-CRT;A48KRD82X(H),+380MG,20,BARE,-

AA03-10029WCRT-COLOR;-,A48KRD82X(H),+380mG,20,90de

AA27-50004WDEFLECTION-YOKE;-,DSE- 1992LL(1H),20/A48KRD82X

AA27-60001DMAGNET-CONVERGENCE;-,JH-291-(JH-8210),29.1mm

ASSY-CABINET

* AA90-70012QASSY-CABINET;5038,CT5038ZX/XAP

CRT+CF AA60-10050R SCREW-ASSY;WC,HH,+,M5,L31.5,SWRCH18A,ZPC(

AA64-30375BCABINET-BACK;-,5073,38,-,HIPS,HB,BLK,-,-

AA65-30107ACLAMP-D,COIL;NYLON 66,V2,NTR,-,20~22 INCH,-

ASSY-CABINET,FRONT

* AA91-10382B ASSY-CABINET,FRONT;-,CT5038Z,PA100 HITRON EG,HB,B

SPK+CF 6002-000514 SCREW-TAPPING;RH,+,2,M4,L15,ZPC(BLK),SWRCH18

AA61-40007ASTOPPER-PCB;5038.5368,ABS HB,NTR,-,-,-

AA63-50056AGRILLE-WOOFER;-,5038,PA110,SECC,T0.5,-,-

AA64-10050AKNOB-CONTROL;-,5038,-,ABS,HB,BLK

AA64-10187BKNOB-POWER,T;-,5038,SILK,ABS,HB,BLK

AA64-31263BCABINET-FRONT;-,CT5038Z,PA100 HITRON,HIPS,HB

AA64-40085AWINDOW-REMOCON;-,5038,-,PC,V0,VIOLET,-

AA64-40188AINDICATOR-LED;-,5038,-,ACRYL,-,-,-

AA64-70015BBADGE-BRAND;AL,SS R2000 22,GOLD,L45,-,-,-

ASSY-SPEAKER

* AA96-10141AASSY-SPEAKER;-,8ohm3W,001020,A3920501C,700m

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

!

!

!
!

!
!

Electric Parts List

7-26 Samsung Electronics

ASSY-PCB,MAIN

* AA94-10138C ASSY-PCB,MAIN(OPT);CT3338ZX/XAP,K15A,PAN

C101 2202-000127 C-CERAMIC,MLC-AXIAL;10nF,+80-20%,25V,Y5V
C102 2401-000660 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm
C104 2202-000127 C-CERAMIC,MLC-AXIAL;10nF,+80-20%,25V,Y5V
C108 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
C110 2401-000808 C-AL;220uF,20%,16V,GP,8x11mm,5mm,TP
C151 2202-000127 C-CERAMIC,MLC-AXIAL;10nF,+80-20%,25V,Y5V
C153 2202-000127 C-CERAMIC,MLC-AXIAL;10nF,+80-20%,25V,Y5V
C201 2201-000292 C-CERAMIC,DISC;1nF,10%,50V,Y5P,TP,5x4,5m
C202 2401-001333 C-AL;470nF,20%,50V,GP,TP,5x11,5
C203 2401-001495 C-AL;47uF,20%,16V,GP,5x11mm,5mm,TP
C204 2301-000188 C-FILM,PEF;1nF,5%,100V,TP,10.5x12.5x6.5,
C205 2401-001333 C-AL;470nF,20%,50V,GP,TP,5x11,5
C206 2305-001011 C-FILM,MPEF;22nF,5%,100V,TP,3.5x12.5x7.5
C207 2401-001333 C-AL;470nF,20%,50V,GP,TP,5x11,5
C209 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C210 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C211 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C212 2201-000982 C-CERAMIC,DISC;10nF,+80-20%,50V,Y5V,TP,6
C213 2201-000193 C-CERAMIC,DISC;10pF,0.3pF,50V,CH,TP,5x3,
C214 2401-000660 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm
C215 2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5mm
C216 2201-000354 C-CERAMIC,DISC;20pF,5%,50V,NPO,TP,5.0x3.
C218 2301-000181 C-FILM,PEF;18nF,5%,50V,TP,7.1x3.5x13mm,5
C219 2401-000603 C-AL;1UF,20%,50V,GP,TP,5X11MM,5MM
C220 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
C221 2401-002462 C-AL;33uF,20%,16V,GP,TP,5x11,5
C222 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C225 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
C226 2401-000603 C-AL;1UF,20%,50V,GP,TP,5X11MM,5MM
C227 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C229 2202-000127 C-CERAMIC,MLC-AXIAL;10nF,+80-20%,25V,Y5V
C230 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C231 2401-001495 C-AL;47uF,20%,16V,GP,5x11mm,5mm,TP
C232 2401-001495 C-AL;47uF,20%,16V,GP,5x11mm,5mm,TP
C233 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
C234 2301-000264 C-FILM,PEF;4.7nF,5%,50V,TP,6.5X5.5X3.0X5
C235 2202-000279 C-CERAMIC,MLC-AXIAL;47PF,5%,50V,SL,3.5X1
C236 2202-000127 C-CERAMIC,MLC-AXIAL;10nF,+80-20%,25V,Y5V
C237 2202-000154 C-CERAMIC,MLC-AXIAL;150pF,10%,50V,Y5P,TP
C301 2301-000226 C-FILM,PEF;27nF,5%,100V,TP,7.3x4x12.5mm,
C302 2201-000599 C-CERAMIC,DISC;560pF,10%,500V,Y5P,TP,7x4
C303 2202-000127 C-CERAMIC,MLC-AXIAL;10nF,+80-20%,25V,Y5V
C304 2401-000553 C-AL;1uF,10%,50V,HR,TP,5x11mm,5mm
C305 2305-000427 C-FILM,MPEF;47nF,5%,100V,TP,7.5x12.5x3.5
C306 2401-002458 C-AL;1000UF,20%,35V,GP,TP,16X25MM,7
C308 2301-000310 C-FILM,PEF;68nF,5%,50V,TP,8.0X8.5X4.0X
C309 2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11mm,5mm
C310 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
C311 2401-001333 C-AL;470nF,20%,50V,GP,TP,5x11,5
C312 2401-000553 C-AL;1uF,10%,50V,HR,TP,5x11mm,5mm
C313 2305-000470 C-FILM,MPEF;68nF,5%,100V,TP,-,5mm
C401 2301-000224 C-FILM,PEF;22nF,5%,50V,TP,7.4x3.9x13mm
C402 2306-000253 C-FILM,MPPF;7.2nF,5%,1.6KV,TP,28.5x18.5x
C403 2201-000467 C-CERAMIC,DISC;330pF,10%,2KV,Y5P,TP,8x6,
C404 2306-000004 C-FILM,MPPF;330nF,5%,250V,TP,20x18.5x10.
C405 2305-000704 C-FILM,MPEF;100nF,5%,250V,TP,16.5x10.3x5
C406 2201-000556 C-CERAMIC,DISC;470pF,10%,500V,Y5P,TP,7x4

C407 2401-001429 C-AL;470uF,20%,50V,GP,TP,13x20,5
C408 2201-000556 C-CERAMIC,DISC;470pF,10%,500V,Y5P,TP,7x4
C409 2401-001998 C-AL;1000uF,20%,25V,GP,TP,10x20,5mm
C410 2301-000224 C-FILM,PEF;22nF,5%,50V,TP,7.4x3.9x13mm
C411 2201-000556 C-CERAMIC,DISC;470pF,10%,500V,Y5P,TP,7x4
C412 2401-000927 C-AL;22UF,20%,250V,GP,TP,13X20MM,5M
C413 2401-000560 C-AL:1uF,20%,160V,GP,TP,6.3*11,5mm
C444 2201-000441 C-CERAMIC,DISC;3.3nF,10%,500V,Y5P,TP,10x
C445 2201-000441 C-CERAMIC,DISC;3.3nF,10%,500V,Y5P,TP,10x
C501 2202-000821 C-CERAMIC,MLC-AXIAL;560pF,10%,50V,Y5P,TP
C502 2202-000862 C-CERAMIC,MLC-AXIAL;390pF,10%,50V,Y5P,TP
C503 2202-000825 C-CERAMIC,MLC-AXIAL;680pF,10%,50V,Y5P,TP
C505 2201-002063 C-CERAMIC,DISC;10nF,+80-20%,3KV,Y5V,TP,1
C601 2401-000962 C-AL;22uF,20%,50V,GP,TP,5x11,5
C603 2301-000289 C-FILM,PEF;5.6nF,5%,50V,TP,7x6x3,5
C604 2401-000660 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm
C605 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C609 2401-000133 C-AL;1000uF,20%,16V,GP,TP,10x20mm,5
C611 2202-000279 C-CERAMIC,MLC-AXIAL;47PF,5%,50V,SL,3.5X1
C612 2202-000279 C-CERAMIC,MLC-AXIAL;47PF,5%,50V,SL,3.5X1
C651 2401-000660 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm
C654 2401-001363 C-AL;470uF,20%,16V,GP,TP,10x12.5mm,
C701 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C702 2401-000471 C-AL;10uF,20%,50V,BP,TP,5x11,5mm
C703 2202-000183 C-CERAMIC,MLC-AXIAL;2.2nF,20%,16V,Y5R,TP
C705 2202-000183 C-CERAMIC,MLC-AXIAL;2.2nF,20%,16V,Y5R,TP
C801 2401-002219 C-AL;220uF,20%,400V,GP,ST,25x40,10
C802 2201-000119 C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP,
C803 2303-000163 C-FILM,PPF;2.2nF,5%,800V,TP,15x13x8.5,7.
C804 2201-000446 C-CERAMIC,DISC;3.3nF,20%,400V,Y5U,TP,18x
C805 2201-000991 C-CERAMIC,DISC;560pF,10%,2KV,Y5P,TP,13x7
C806 2401-000262 C-AL;100uF,20%,160V,HR,TP,16x25,7.5
C807 2201-000599 C-CERAMIC,DISC;560pF,10%,500V,Y5P,TP,7x4
C808 2301-000016 C-FILM,PEF;22nF,5%,100V,TP,7.2x4.5x9.0mm
C809 2401-001998 C-AL;1000uF,20%,25V,GP,TP,10x20,5mm
C810 2305-000412 C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C812 2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5mm
C813 2401-001495 C-AL;47uF,20%,16V,GP,5x11mm,5mm,TP
C814 2306-000318 C-FILM,MPPF;220NF,20%,250V,TP,-,22.5MM
C816 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
C817 2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5mm
C820 2401-001998 C-AL;1000uF,20%,25V,GP,TP,10x20,5mm
C821 2401-001486 C-AL;47uF,20%,160V,HR,TP,13x20mm,5m
C822 2301-000192 C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm
C823 2201-000370 C-CERAMIC,DISC;220pF,10%,50V,Y5P,TP,4.0X
C851 2401-001571 C-AL;47uF,+20%-0%,50V,GP,TP,8x12,5
C852 2301-000310 C-FILM,PEF;68nF,5%,50V,TP,8.0X8.5X4.0X
C901 2401-001495 C-AL;47uF,20%,16V,GP,5x11mm,5mm,TP
C902 2202-000796 C-CERAMIC,MLC-AXIAL;UP050 B102KB INF,10%
C903 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
C904 2202-000796 C-CERAMIC,MLC-AXIAL;UP050 B102KB INF,10%
C905 2401-001333 C-AL;470nF,20%,50V,GP,TP,5x11,5
C907 2401-001271 C-AL;4.7uF,20%,50V,GP,TP,4x7mm,5mm
C908 2201-000193 C-CERAMIC,DISC;10pF,0.3pF,50V,CH,TP,5x3,
C909 2201-000573 C-CERAMIC,DISC;47pF,5%,50V,CH,TP,6.5x3.0
C911 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
C912 2301-000310 C-FILM,PEF;68nF,5%,50V,TP,8.0X8.5X4.0X
C914A 2401-000947 C-AL;22uF,20%,35V,GP,TP,5x11mm,­C915 2202-000127 C-CERAMIC,MLC-AXIAL;10nF,+80-20%,25V,Y5V
CN501 AA39-20109DLEAD-CONNECTOR,ASSY;-,YBNH025-08,S,8P,30
CN603 3711-002642 CONNECTOR-HEADER;BOX,3P,1R,2.5MM,STRAIGH

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

7-17 CT3338ZX/XAP

!

Electric Parts List

Samsung Electronics 7-27

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

CN701 3711-002646 CONNECTOR-HEADER;BOX,7P,1R,2.5mm,STRAIGH
CN802 AA27-20003UCOIL-DEGAUSSING;-,14,16.4ohm,75T,890mm,
CU02 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
D101 0403-000700 DIODE-ZENER;TZP33A,33V,31-35V,1W,DO-41,T
D102 0403-000296 DIODE-ZENER;MTZ5.6B,5.6V,5.45-5.73V,500m
D103 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
D201 0403-000663 DIODE-ZENER;MTZ3.3B,3.3V,3.32-3.53V,500m
D202 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T
D203 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T
D204 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T
D205 0403-000295 DIODE-ZENER;MTZ5.1B,5.1V,4.94-5.20V,500m
D206 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T
D207 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T
D208 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
D210 0403-000563 DIODE-ZENER;MTZ9.1B,9.1V,8.57-9.01V,500m
D299 0403-000654 DIODE-ZENER;MTZ12B,12V,11.44-12.03V,500m
D301 0402-001105 DIODE-RECTIFIER;ERB43-04SV1,400V,1.0A,-,
D302 0403-000654 DIODE-ZENER;MTZ12B,12V,11.44-12.03V,500m
D401 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
D402 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
D403 0402-001105 DIODE-RECTIFIER;ERB43-04SV1,400V,1.0A,-,
D404 0402-001105 DIODE-RECTIFIER;ERB43-04SV1,400V,1.0A,-,
D405 0402-001105 DIODE-RECTIFIER;ERB43-04SV1,400V,1.0A,-,
D407 0402-001105 DIODE-RECTIFIER;ERB43-04SV1,400V,1.0A,-,
D601 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T
D701 0403-000563 DIODE-ZENER;MTZ9.1B,9.1V,8.57-9.01V,500m
D704 0403-000563 DIODE-ZENER;MTZ9.1B,9.1V,8.57-9.01V,500m
D802 0402-000540 DIODE-RECTIFIER;RU20A,600V,1.5A,­D803 0402-001105 DIODE-RECTIFIER;ERB43-04SV1,400V,1.0A,-,
D805 0402-000213 DIODE-RECTIFIER;ERB12-06,600V,1.0A,DO-41
D806 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T
D807 0402-000213 DIODE-RECTIFIER;ERB12-06,600V,1.0A,DO-41
D808 0402-000213 DIODE-RECTIFIER;ERB12-06,600V,1.0A,DO-41
D809 0402-000213 DIODE-RECTIFIER;ERB12-06,600V,1.0A,DO-41
D810 0402-000213 DIODE-RECTIFIER;ERB12-06,600V,1.0A,DO-41
D814 0402-000534 DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T
D855 0403-000296 DIODE-ZENER;MTZ5.6B,5.6V,5.45-5.73V,500m
D856 0403-000296 DIODE-ZENER;MTZ5.6B,5.6V,5.45-5.73V,500m
D902 0403-000296 DIODE-ZENER;MTZ5.6B,5.6V,5.45-5.73V,500m
D903 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T
D904 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T
D905 0403-000296 DIODE-ZENER;MTZ5.6B,5.6V,5.45-5.73V,500m
D906 0403-000296 DIODE-ZENER;MTZ5.6B,5.6V,5.45-5.73V,500m
DZ801 1405-000152 VARISTOR;560V,2500A,14x8.5mm,TP
DZ802 0403-000300 DIODE-ZENER;MTZ8.2B,7.78-8.19V,500mW,DO­DZ803 0403-000296 DIODE-ZENER;MTZ5.6B,5.6V,5.45-5.73V,500m
DZ806 0403-000294 DIODE-ZENER;MTZ4.7B,4.55-4.80V,500mW,DO­DZ807 0403-000297 DIODE-ZENER;MTZ6.2B,6.2V,5.96-6.27V,500m
DZ901 0403-000296 DIODE-ZENER;MTZ5.6B,5.6V,5.45-5.73V,500m
DZ902 0403-000296 DIODE-ZENER;MTZ5.6B,5.6V,5.45-5.73V,500m
DZ903 0403-000295 DIODE-ZENER;MTZ5.1B,5.1V,4.94-5.20V,500m
EL301~802 AA60-40011BEYELET;ID2.2,OD3.2,-,-,BSP,­EY401~830 AA60-40011A EYELET;ID2.0,OD2.8,-,-,BST,­F801 3601-001012 FUSE-FERRULE;250V,4A,SLOW-BLOW,GLASS,5.2
F801A 3602-000114 FUSE-HOLDER;-,-,30mohm
F801B 3602-000114 FUSE-HOLDER;-,-,30mohm
GT101~806 AA60-40014APIN-GT,ASSY;1P,-,-,AUTO
GT101A AA39-20010DLEAD-CONNECTOR,ASSY;-,YFH800-01,S,1P,400
IC201 1204-001296 IC-CHROMA;KA2163B,DIP,56P,-,PLASTIC,12V,
IC301 1204-000475 IC-VIDEO SYSTEM;KA2131,SIP,10P,-,PLASTIC
IC601 1201-001298 IC-POWER AMP;4425,SIP,5P,9.5MIL,MONO,45d
IC801 1203-001494 IC-PWM CONTROLLER;3S0680RF,TO3PF-5L,5,21
IC802 1203-001532 IC-POSI.FIXED REG.;7631,SIP,10P,-,PLASTI
IC901 AA13-30020A IC-MCU;-,Z8933412PSC-R3757,16BIT,SDIP
IC902 1103-001107 IC-EEPROM;24C020,256x8BIT,DIP,8P,300MIL,

JA701 3722-000162 JACK-PIN;2P,3.4MM,SN,BLACK,­JU13 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
L102 2701-000207 INDUCTOR-AXIAL;56uH,5%,2.5x3.4mm
L152 2701-000326 INDUCTOR-AXIAL;560nH,10%,2.3x3.4mm
L201 AA26-10004K TRANS-IF;-,7MG,SIF,11.5uH,7mm,100pF,4.8
L202 2701-000207 INDUCTOR-AXIAL;56uH,5%,2.5x3.4mm
L203 2701-000158 INDUCTOR-AXIAL;22uH,10%,2.5x3.4mm
L204 2701-000207 INDUCTOR-AXIAL;56uH,5%,2.5x3.4mm
L205 AA26-10004C TRANS-IF;-,7MG,VIF,0.37uH,7mm,27pF,52.3
L206 2701-000111 INDUCTOR-AXIAL;100uH,10%,2.5x3.4mm
L208 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
L301 2701-000116 INDUCTOR-AXIAL;10uH,10%,4.2x9.8mm
L401 AA27-30001B COIL-LINEARITY;-,195UH,QIC1010,PI0.4,4.5
L402 2701-001032 INDUCTOR-AXIAL;100uH,10%,5x14mm
L501 2701-000184 INDUCTOR-AXIAL;4.7uH,10%,2.5x3.4mm
L502 2701-000184 INDUCTOR-AXIAL;4.7uH,10%,2.5x3.4mm
L503 2701-000184 INDUCTOR-AXIAL;4.7uH,10%,2.5x3.4mm
L601 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,­L602 2701-000158 INDUCTOR-AXIAL;22uH,10%,2.5x3.4mm
L801 AA29-30001DFILTER-LINE;-,6.0mH,2A,-,SQ1913
L802 3301-000287 CORE-FERRITE BEAD;AA,3.5x1x6mm,1500,2400
L803 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,­L804 3301-000287 CORE-FERRITE BEAD;AA,3.5x1x6mm,1500,2400
L805 2901-000299 FILTER-EMI ON BOARD;-,6A,UL/CSA,-,9x7.5,
L809 2901-000299 FILTER-EMI ON BOARD;-,6A,UL/CSA,-,9x7.5,
L810 AA27-10002Y COIL-CHOKE;-,100UH,K,10,700MA,T,100UH-K(
L811 2901-000299 FILTER-EMI ON BOARD;-,6A,UL/CSA,-,9x7.5,
L901 2701-000197 INDUCTOR-AXIAL;5.6uH,10%,2.5x3.4mm
L902 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
L999 2701-000115 INDUCTOR-AXIAL;10uH,10%,2.8x7mm
LD901 AA96-30007AASSY-LED,GUIDE;-,AA61-50055A,DL-G7GA,GRE
NT801 1404-000187 THERMISTOR-NTC;4.7ohm,15%,2800K,27.2mW/C
P801 1404-001048 THERMISTOR-PTC;7ohm,30%,200/220V,270V,19
PC802 0604-001038 PHOTO-COUPLER;TR,130-260%,200mW,DIP-4,ST
Q151 0501-000436 TR-SMALL SIGNAL;KTC3197,NPN,625mW,TO-92,
Q201 0501-002183 TR-SMALL SIGNAL;KTC9014,NPN,625mW,TO-92,
Q202 0501-002183 TR-SMALL SIGNAL;KTC9014,NPN,625mW,TO-92,
Q203 0501-002183 TR-SMALL SIGNAL;KTC9014,NPN,625mW,TO-92,
Q401 0502-001115 TR-POWER;KSC5386,NPN,50W,TO-3PF,ST,8­Q402 0501-000369 TR-SMALL SIGNAL;KSC2331-Y,NPN,1W,TO-92L,
Q501 0501-002014 TR-SMALL SIGNAL;KSC2330-R,NPN,1W,TO-92L,
Q502 0501-002014 TR-SMALL SIGNAL;KSC2330-R,NPN,1W,TO-92L,
Q503 0501-002014 TR-SMALL SIGNAL;KSC2330-R,NPN,1W,TO-92L,
Q601 0502-000242 TR-POWER;KSA614,PNP,25W,TO-220,TP,40-24
Q602 0501-002183 TR-SMALL SIGNAL;KTC9014,NPN,625mW,TO-92,
Q801 1203-001217 IC-POSI.ADJUST REG.;431,TO-92,3P,4.58MIL
Q902 0501-002183 TR-SMALL SIGNAL;KTC9014,NPN,625mW,TO-92,
Q903 0501-002183 TR-SMALL SIGNAL;KTC9014,NPN,625mW,TO-92,
QU01 0504-000123 TR-DIGITAL;KSR1010,NPN,300mW,10K,TO-92,T
R101 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R102 2004-001301 R-METAL;82Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R104 2003-000578 R-METAL OXIDE(S);220ohm,5%,2W,AA,TP,4x12
R105 2003-000578 R-METAL OXIDE(S);220ohm,5%,2W,AA,TP,4x12
R152 2001-000221 R-CARBON;1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R153 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
R154 2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm
R155 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
R156 2001-000793 R-CARBON;47ohm,5%,1/8W,AA,TP,1.8x3.2mm
R157 2001-000568 R-CARBON;27OHM,5%,1/8W,AA,TP,1.8X3.2MM
R158 2001-000007 R-CARBON;3Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R159 2001-000007 R-CARBON;3Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R201 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R202 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
R203 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
R204 2001-000995 R-CARBON;820 OHM,5%,1\8W,AA,T

!!!!!!!!!

!

!!!

!

Electric Parts List

7-28 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

R205 2001-000995 R-CARBON;820 OHM,5%,1\8W,AA,T
R206 2001-000995 R-CARBON;820 OHM,5%,1\8W,AA,T
R207 2001-001111 R-CARBON(S);240ohm,5%,1/2W,AA,TP,2.4x6.4
R208 2001-000515 R-CARBON;220ohm,5%,1/8W,AA,TP,1.8x3.2mm
R209 2001-000515 R-CARBON;220ohm,5%,1/8W,AA,TP,1.8x3.2mm
R210 2001-000515 R-CARBON;220ohm,5%,1/8W,AA,TP,1.8x3.2mm
R211 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
R212 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
R213 2001-000837 R-CARBON;51Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R214 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R215 2001-000331 R-CARBON;12Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R218 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m
R219 2001-000674 R-CARBON;360ohm,5%,1/8W,AA,TP,1.8x3.2mm
R222 2001-000773 R-CARBON;470Kohm,5%,1/8W,AA,TP,1.8x3.2m
R223 2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm
R226 2001-000397 R-CARBON;180Kohm,5%,1/8W,AA,TP,1.8x3.2m
R227 2001-000508 R-CARBON;220Kohm,5%,1/8W,AA,TP,1.8x3.2m
R228 2001-000258 R-CARBON;1.8Kohm,5%,1/8W,AA,TP,1.8x3.2m
R229 2001-000258 R-CARBON;1.8Kohm,5%,1/8W,AA,TP,1.8x3.2m
R230 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m
R231 2001-000660 R-CARBON;33Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R233 2004-001234 R-METAL;75Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R234 2001-000405 R-CARBON ;180 OHM,5%,1/8W,AA,T
R235 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m
R236 2001-000548 R-CARBON;270Kohm,5%,1/8W,AA,TP,1.8x3.2m
R237 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R239 2001-000947 R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R240 2001-000577 R-CARBON;2KOHM,5%,1/8W,AA,TP,
R241 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R242 2001-000221 R-CARBON;1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R251 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m
R252 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m
R253 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m
R257 2008-000266 R-FUSIBLE(S);1ohm,5%,2W,AF,TP,3.9x10mm
R301 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R302 2001-000003 R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm
R303 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R304 2003-001036 R-METAL OXIDE(S);3.3ohm,5%,2W,AF,TP,3.9x
R305 2001-000660 R-CARBON;33Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R306 2004-001301 R-METAL;82Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R307 2001-000679 R-CARBON;36KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R308 2001-000633 R-CARBON;30Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R309 2003-000649 R-METAL OXIDE(S);330ohm,5%,1W,AF,TP,3.3x
R401 2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm
R402 2001-000515 R-CARBON;220ohm,5%,1/8W,AA,TP,1.8x3.2mm
R403 2001-001114 R-CARBON(S) ;270ohm,5%,1/2W,AA,TP,2.4x
R404 2001-000020 R-CARBON(S);22ohm,5%,1/2W,AA,TP,2.4x6.4m
R405 2003-000540 R-METAL OXIDE(S);1Kohm,5%,2W,AF,TP,4x12m
R406 2008-001069 R-FUSIBLE(S);300ohm,5%,2W,AA,TP,3.9x10mm
R407 2003-000994 R-METAL OXIDE(S);33Kohm,5%,2W,AF,TP,3.9x
R408 2004-001390 R-METAL(S);1Kohm,2%,1/2W,AA,TP,2.4x6.4mm
R409 2008-000253 R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m
R410 2008-000206 R-FUSIBLE(S);1ohm,5%,1/2W,AF,TP,2.5x6.5m
R411 2004-001377 R-METAL(S);120Kohm,1%,1/2W,AA,TP,2.4x6.4
R412 2004-001377 R-METAL(S);120Kohm,1%,1/2W,AA,TP,2.4x6.4
R413 2001-001037 R-CARBON(S);0.39ohm,5%,1/2W,AA,TP,2.4x6.
R415 2003-000784 R-METAL OXIDE(S);7.5Kohm,5%,2W,AF,TP,4x1
R416 2001-000022 R-CARBON(S);33ohm,5%,1/2W,AA,TP,2.4x6.4m
R417 2001-001410 R-CARBON(S);43ohm,5%,1/2W,AA,TP,2.4x6.4m
R444 2001-001099 R-CARBON(S);2.7Kohm,5%,1/2W,AA,TP,2.4x6.
R501 2001-000007 R-CARBON;3Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R502 2001-000007 R-CARBON;3Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R503 2001-000007 R-CARBON;3Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R504 2003-000510 R-METAL OXIDE(S);15Kohm,5%,2W,AA,TP,4x12
R505 2003-000510 R-METAL OXIDE(S);15Kohm,5%,2W,AA,TP,4x12

R506 2003-000510 R-METAL OXIDE(S);15Kohm,5%,2W,AA,TP,4x12
R507 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
R508 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
R509 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
R510 2001-000628 R-CARBON;300OHM,5%,1/8W,AA,TP,1.8X3.2MM
R511 2001-000628 R-CARBON;300OHM,5%,1/8W,AA,TP,1.8X3.2MM
R512 2001-000628 R-CARBON;300OHM,5%,1/8W,AA,TP,1.8X3.2MM
R513 2001-000666 R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm
R514 2001-000666 R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm
R515 2002-001006 R-COMPOSITION;4.7KOHM,10%,1/2W,AA,TP,3.7
R517 2001-000666 R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm
R518 2008-001015 R-FUSIBLE(S);1.5ohm,5%,2W,AF,TP,3.9x10mm
R599 2008-000226 R-FUSIBLE;22ohm,5%,1/2W,AA,TP,4.7x11mm
R602 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R603 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R604 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R605 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R610 2001-000577 R-CARBON;2KOHM,5%,1/8W,AA,TP,
R611 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R614 2001-001152 R-CARBON(S);47Kohm,5%,1/2W,AA,TP,2.4x6.4
R615 2001-001088 R-CARBON(S);1Kohm,5%,1/2W,AA,TP,2.4x6.4m
R701 2001-001187 R-CARBON(S);75ohm,5%,1/2W,AA,TP,2.4x6.4m
R702 2001-000085 R-CARBON(S);100Kohm,5%,1/2W,AA,TP,2.4x6.
R703 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
R801 2001-001150 R-CARBON(S);470Kohm,5%,1/2W,AA,TP,2.4x6.
R802 2003-000994 R-METAL OXIDE(S);33Kohm,5%,2W,AF,TP,3.9x
R803 2003-000994 R-METAL OXIDE(S);33Kohm,5%,2W,AF,TP,3.9x
R805 2002-001013 R-COMPOSITION;4.7Mohm,10%,1/2W,AA,TP,3.7
R806 2001-001071 R-CARBON(S);12Kohm,5%,1/2W,AA,TP,2.4x6.4
R807 2001-001071 R-CARBON(S);12Kohm,5%,1/2W,AA,TP,2.4x6.4
R808 2001-001150 R-CARBON(S);470Kohm,5%,1/2W,AA,TP,2.4x6.
R809 2008-000205 R-FUSIBLE(S);10ohm,5%,1/2W,AF,TP,2.5x6.5
R811 2001-001170 R-CARBON(S);6.8OHM,5%,1/2W,AA,TP,2.4X6.4
R812 2008-000252 R-FUSIBLE(S);0.47ohm,10%,1/2W,AF,TP,2.5x
R817 2001-001111 R-CARBON(S);240ohm,5%,1/2W,AA,TP,2.4x6.4
R818 2001-001111 R-CARBON(S);240ohm,5%,1/2W,AA,TP,2.4x6.4
R819 2008-001011 R-FUSIBLE(S);0.18ohm,10%,2W,AF,TP,3.9x10
R821 2004-004089 R-METAL;123Kohm,1%,1/2W,AA,TP,2.5x6.5m
R822 2001-000022 R-CARBON(S);33ohm,5%,1/2W,AA,TP,2.4x6.4m
R823 2001-001178 R-CARBON(S);680ohm,5%,1/2W,AA,TP,2.4x6.4
R824 2001-001125 R-CARBON(S);300Kohm,5%,1/2W,AA,TP,2.4x6.
R852 2001-001088 R-CARBON(S);1Kohm,5%,1/2W,AA,TP,2.4x6.4m
R853 2001-001054 R-CARBON(S);1.6Kohm,5%,1/2W,AA,TP,2.4x6.
R854 2004-001983 R-METAL;2.49Kohm,1%,1/2W,AA,TP,2.4x6.4
R901 2001-000793 R-CARBON;47ohm,5%,1/8W,AA,TP,1.8x3.2mm
R902 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R903 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
R904 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
R905 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R906 2001-000472 R-CARBON;2.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
R907 2001-000995 R-CARBON;820 OHM,5%,1\8W,AA,T
R908 2001-000232 R-CARBON;1.3Kohm,5%,1/8W,AA,TP,1.8x3.2m
R910 2001-000995 R-CARBON;820 OHM,5%,1\8W,AA,T
R911 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R914 2001-000577 R-CARBON;2KOHM,5%,1/8W,AA,TP,
R915 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
R916 2001-000947 R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R917 2001-000947 R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R918 2001-000947 R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R919 2001-000977 R-CARBON;8.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R920 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R921 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R922 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
R923 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
R924 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m

Electric Parts List

Samsung Electronics 7-29

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

R925 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R926 2001-000008 R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R927 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R928 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R929 2001-000232 R-CARBON;1.3Kohm,5%,1/8W,AA,TP,1.8x3.2m
R930 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R931 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R932 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R933 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R934 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T
R936 0401-000005 DIODE-SWITCHING;1N4148,75V,300mA,DO-35,T
R937 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R940 2001-000708 R-CARBON;39ohm,5%,1/8W,AA,TP,1.8x3.2mm
R951 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
R952 2001-000472 R-CARBON;2.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
R988 2001-000508 R-CARBON;220Kohm,5%,1/8W,AA,TP,1.8x3.2m
RM01 2002-001006 R-COMPOSITION;4.7KOHM,10%,1/2W,AA,TP,3.7
RM02 2002-001006 R-COMPOSITION;4.7KOHM,10%,1/2W,AA,TP,3.7
RM901 AA59-60001UMODULE-REMOCON;-,ORC-50VF/SR-12V,38KHz,9
RU02 2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm
RU06 2001-000397 R-CARBON;180Kohm,5%,1/8W,AA,TP,1.8x3.2m
RU07 2001-001062 R-CARBON(S);10Mohm,5%,1/2W,AA,TP,2.4x6.4
RU10 2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm
SF101 2904-000304 FILTER-SAW AV;45.75MHz,-,ST,13.2dB,NTSC­SW901 3404-000244 SWITCH-TACT;15V,20mA,90-170gf,7.5x7mm,SP
SW902 3404-000244 SWITCH-TACT;15V,20mA,90-170gf,7.5x7mm,SP
SW903 3404-000244 SWITCH-TACT;15V,20mA,90-170gf,7.5x7mm,SP
SW904 3404-000244 SWITCH-TACT;15V,20mA,90-170gf,7.5x7mm,SP
SW905 3404-000244 SWITCH-TACT;15V,20mA,90-170gf,7.5x7mm,SP
SW906 3404-000295 SWITCH-TACT;12VDC,50mA,160gf,8.4X22.7,SP
T401 AA26-50001BHORIZ.DRIVE;-,7.1MH,102UH,10-20UH,YL081,
T444 AA26-30004HTRANS-FLYBACK;-,FSV-14A001,14,125V
T801 AA26-20006UTRANS-SWITCHING;-,90-260V,125V/12.5V,EN,
TU01 AA40-10006F TUNER-F/S;TELH9-212A,NTSC/USA,TR,181CH
V999 3704-001089 SOCKET-CRT;7P,22.5PI,12PI,SN,­WIRE1 AA65-30104C CLAMP-WIRE;NYLON 66,V2,NTR,W1 Z4,ALL MOD
WIRE2 AA65-30109ACLAMP-FBT;NYLON-66,V2,BLK,-,-,­X201 2801-000226 CRYSTAL-UNIT;3.579545MHz,20ppm,28-AAM,15
X202 2802-000172 RESONATOR-CERAMIC;503.5KHZ,0.5%,BK,7.0X3
X901 2801-003224 CRYSTAL-UNIT;32.768KHZ,20PPM,28-AAY,12.5
Z201 2903-001022 FILTER-CERAMIC;TR,4.5MHz,-,0.5dB,-,TP,­Z601 2903-000135 FILTER-CERAMIC;BP,4.5MHz,+-60KHz,6dB,-,T

ASSY-ACCESSORY

* AA94-30077Y ASSY-ACCESSORY;CT3366BZX/XAP,K15A,PANAMA

AA42-10001VANT-ROD;-,3S,620mm,BRN,UL/CSA
AA68-30004AMANUAL-BOOK;-,W/P120(G),-,SEPA,-,­AA68-11250AMANUAL-USERS;KCT15A,ENG,TM59,205X150,A/P
AA68-11251AMANUAL-USERS;KCT15A,SPA,TM59,205X150,A/P
3721-000136 PLUG-CONVERSION;2P,4.0mm,N,NI
AA26-90001F TRANS-MATCHING;-,300ohm/75ohm,NTSC,40-89

ASSY-CRT

* AA94-50017V ASSY-CRT;A34KQV42X,+380MG,14,BARE,CT33

AA03-10001DCRT-COLOR;-,A34KQV42X,+380MG,14,90DEG,5
AA27-50001KDEFLECTION-YOKE;-,DSE-1422FL,14/A34KQV4
AA27-60001L MAGNET-CONVERGENCE;-,NY-225,22.5MM
AA63-60028ASPACER-DY;NEOPRENE,-,BLK,V0 W12,-,-

ASSY-PCB,A/V FRONT

* AA95-90030MASSY-PCB,A/V FRONT;-,CT-2139H,KCT15A,NTS

JA703 3722-000506 JACK-RCA;2P,3.6MM,-,AG
CN704* AA39-20070E LEAD-CONNECTOR,ASSY;-,YBNH025-07,67096-0
01LOT AA41-10350APCB-A/V;K1,1,FR-1,51X23X1.6T

ASSY-SPEAKER

* AA96-10014AASSY-SPEAKER;-,8OHM,2W,77BR02N,-,L200

3001-000281 SPEAKER;2.5W,8ohm,90dB,140Hz

AA39-20015BLEAD-CONNECTOR,ASSY;-,67096-003,-,3(2)P,

ASSY-POWER,CORD

* AA96-20109C ASSY-POWER,CORD;-,CP2/NO(4.0),H/C300,KKP

AA39-10006XPOWER-CORD;-,KKP419C,KLCE-2F,2.286MT,3P,

AA61-20284AHOLDER;-,P-CORD,PP,VO,BLK,KE-002

REMOCON

AA59-10095TREMOCON;-,TM59,SS,SZM354EP,25,-,-,L/GR

ASSY-CABINET

* AA90-70002GASSY-CABINET;3338,CT3338ZX/XAP

AA64-30381BCABINET-BACK;-,3338,73,-,HIPS,HB,BLK,-,-

AA65-30008ACLAMP-CORD;PE,HB,BLK,-,-,-

AA65-30106ACLAMP-D,COIL;NYLON 66,V2,NTR,-,14 INCH,­CRT+CF AA60-10050QSCREW-ASSY;WC,HH,+,M5,L26.5,SWRCH18A,ZPC

6002-000514 SCREW-TAPPING;RH,+,2,M4,L15,ZPC(BLK),SWR
CB+CF 6002-000514 SCREW-TAPPING;RH,+,2,M4,L15,ZPC(BLK),SWR
CB+RCA 6002-000514 SCREW-TAPPING;RH,+,2,M4,L15,ZPC(BLK),SWR
PA+CF AA60-10002A SCREW-TAPPING;RH,+,M4,L12,ZPC(YEL),-,OD1

ASSY-CABINET,FRONT

* AA91-10033X ASSY-CABINET,FRONT;-,CT3338Z,PA100 HITRO

AA64-70009GBADGE-BRAND;AL,SS R800 22,GOLD,L40,-,-,-

AA61-40010ABOSS-WING;-,HIPS,HB,NTR,-,-

AA64-30151WCABINET-FRONT;-,CT3338Z,PA100 HITRON EG,

AA65-30105ACLAMP-WIRE;NYLON 66,V2,NTR,15MM,ALL MODE

AA64-40189AINDICATOR-LED;-,3338,-,ACRYL,-,-,-

AA64-60161QINLAY-AV;V-MODEL,NTSC TVI EG,PS,T0.3,BL

AA64-10052AKNOB-CONTROL;-,3338,-,ABS,HB,BLK

AA64-10153BKNOB-POWER,T;-,3338,SILK,ABS,HB,BLK
KNOPOW AA61-60003JSPRING-CS;-,SUS304,0.5,OD6,H12,N7,-,-,-

AA64-40057AWINDOW-REMOCON;-,3338,-,PC,V0,VIOLET,-

!

!!!

!

!

7-30 Samsung Electronics

MEMO

8. Block Diagram

Block Diagram

Samsung Electronics 8-1

IC601

SOUND-AMP

2.5W x 1CH
LA4425

R.G.B

CRT

1CHIP
IF/V/C/D
KA2163B

SAW

M1859M

TU01*

TUNER

TELH9-212A

IC902

EEPROM

KS24C020

IC901*

MICOM

SZM-354ET

EXT IN
VIDEO

EXT IN

AUDIO

IC201

Q401*

H-TR

KSC5368

VERTICAL-AMP

KA2131

T444*

F.B.T

14" : FSV14A001
20" : FSV20A001
21" : FSV20A001

IC802

MULTI-REGULATOR

KA7631

SWITCHING

TRANS

S:125V,12.5V

T801*

D807 ~ D810

IC801*

SPS CONTROL
KA3SO680
KA3S0765

(125V)

(12.5V)

MICOM

1CHIP

(5V)

(9V)

I2C BUS

PC802


COULPER

DUAL

9. PCB Layout

9-1 PCB-MAIN

PCB Layout

Samsung Electronics 9-1

D101 53 150
D102 56 130
D103 71 141
D201 135 196
D202 96 105
D203 96 107
D204 96 110
D205 123 92
D206 114 95
D207 114 97
D208 115 74
D210 99 105
D299 99 212
D301 32 139
D302 31 146
D401 85 99
D402 70 98
D403 59 74
D404 72 53
D405 81 38
D407 58 105
D601 124 213
D701 130 136
D702 227 203
D703 210 238
D704 85 159
D802 104 11
D803 150 23
D804 92 183
D805 168 42
D806 150 27
D807 186 51
D808 193 54
D809 186 67
D810 196 66
D814 99 60
D855 157 100
D856 147 101
D901 160 119
D902 163 110
D903 171 130
D904 132 96
D905 231 179
D906 157 131
DL01 105 219
DL02 108 219
DU01 211 118
DX01 116 107
DX02 111 101
DZ801 215 20
DZ802 179 30
DZ803 178 24
DZ806 157 17
DZ807 150 20
DZ901 231 83
DZ902 231 156
DZ903 203 124

IC201 100 164
IC301 50 132
IC601 146 225
IC602 168 221
IC801 155 10
IC802 141 97
IC901 215 153
IC902 219 178
ICK01 69 213

Q151 61 183
Q201 107 129
Q202 101 140
Q203 99 144
Q401 24 85
Q402 63 118
Q501 24 197
Q502 32 197
Q503 12 195
Q601 145 203
Q602 132 223
Q801 100 29
Q902 119 226
Q903 87 115
QL01 80 237
QL03 115 226
QLK1 106 229
QU01 197 173
QU10 195 115
QX01 112 113

Loc. No. X Y

DIODE

IC

Loc. No. X Y

TRANSISTOR

11. Schematic Diagrams

11-1 MAIN 1/4

Schematic Diagrams

Samsung Electronics 11-1

: Power Line

: Signal Line

TP13

IC201 30PIN

TP15

TP17

TP21

TP10

TP11

TP19

IC201 37PIN

IC201 43PIN

IC201 47PIN

IC201 53PIN

IC201 25PIN

IC201 27PIN

TP7

TP8

IC201 23PIN

IC201 22PIN

TP14

IC201 32PIN

TP16

TP18

TP12

TP20

IC201 41PIN

IC201 45PIN

IC201 49PIN

IC201 28PIN

TP9

IC201 24PIN

TP4

TP5

IC201 20PIN

IC201 19PIN

TP6

IC201 21PIN

TP1

TP2

IC201 4 PIN

IC201 2 PIN

TP3

IC201 7PIN

Schematic Diagrams

11-2 Samsung Electronics

TP9

TP10

TP13

TP14

TP15

TP16

TP17

TP18

TP21

TP19

TP20

TP1

TP2

TP3

TP4

TP5

TP6

TP7

TP8

TP11

TP12

11-2 MAIN 2/4

: Power Line

: Signal Line

Schematic Diagrams

Samsung Electronics 11-3

TP25

TP27

TP26

TP24

11-3 MAIN 3/4

TP24

TP26

TP25

IC801 1 PIN

TP27

T444 10 PIN

: Power Line

Schematic Diagrams

11-4 Samsung Electronics

11-4 MAIN 4/4

: Power Line

: Signal Line
