TECHNICAL MANUAL PART 1 APRIL 2007
PART 1. ENHANCED DISPLAY PROGRAMMING
1.1 OVERVIEW
• iDCS KEYSETS
This diagram illustrates the keys on a
iDCS 28 BUTTON and a iDCS 18
BUTTON keyset that have special
functions during programming. When
required, these keys will be referred to
by the names described in the
diagram.
1.1
OfficeServ 7100 USER INSTRUCTIONS
Home Page
Table of Contents
TECHNICAL MANUAL PART 1 APRIL 2007
This diagram illustrates the keys on a iDCS 8
BUTTON keyset that have special functions
during programming. When required, these keys
will be referred to by the names described in the
diagram.
• ITP and DS 5000 Series Keysets

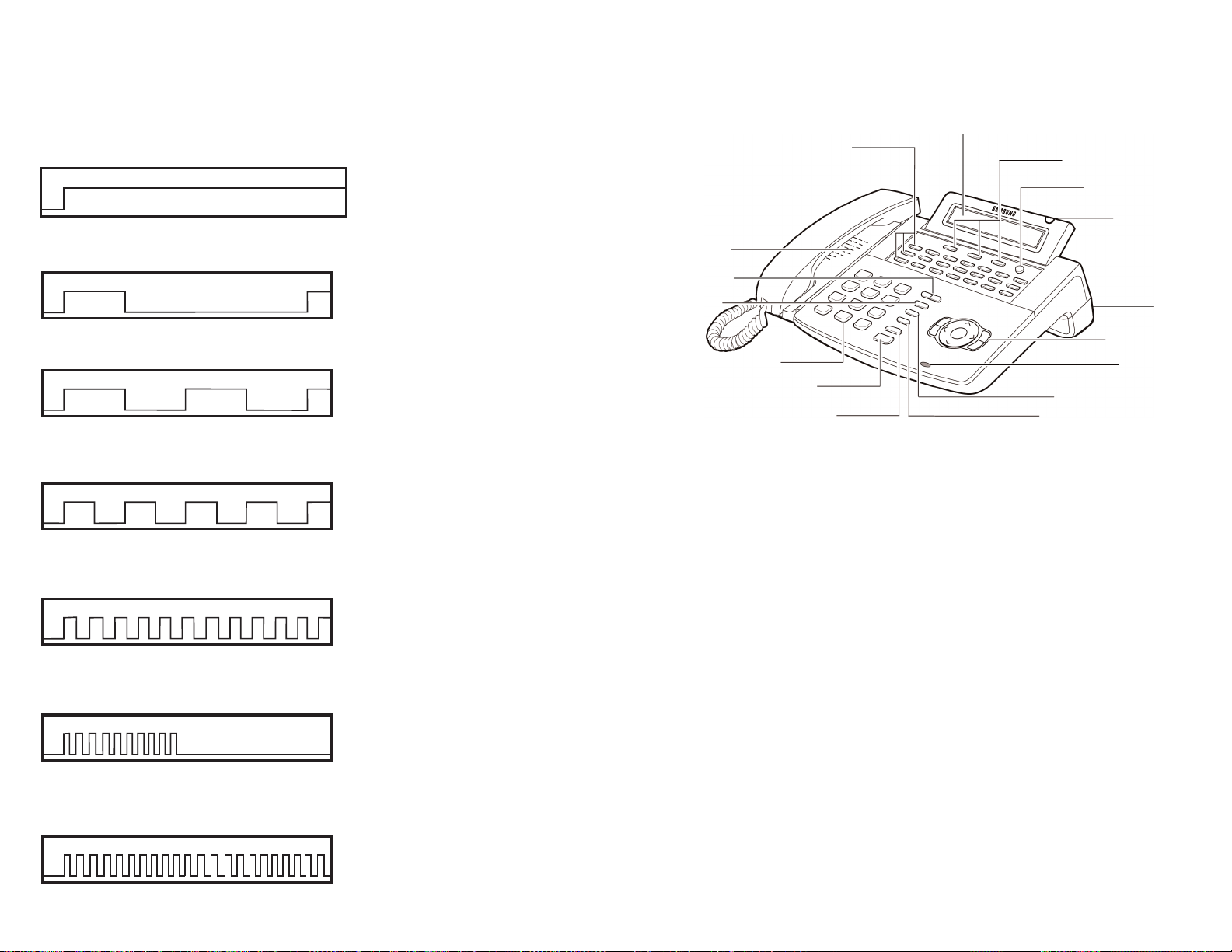

This diagram illustrates the keys on an ITP 5021-D keyset. The ITP and DS 5000
keysets have keys that have special functions during programming. When required,
these keys will be referred to by the names described in the diagram.
ABCDEF
1.2
OfficeServ 7100 USER INSTRUCTIONS
Home Page
Table of Contents
TECHNICAL MANUAL PART 1 APRIL 2007
1.2 LOCKING YOUR KEYSET
You can lock your keyset to prevent other people from making or receiving calls while
you are away. You can unlock it when you return.
ACTION DISPLAY
1. Press the transfer key followed by 100
Display shows
2. Enter your passocde
Default is 1234
3. Enter 1 for locking outgoing calls (Internal
calls will still be allowed).
OR
4. Enter 2 for locking all calls (Internal and
external calls will not be allowed).
5. Enter 0 to unlock your phone.
6. Press the transfer key to save and exit
[201] STN LOCK
PASSCODE:_
[201] STN LOCK
UNLOCKED
[201] STN LOCK
LOCKED OUTGOING
[201] STN LOCK
LOCKED ALL CALLS
[201] STN LOCK
UNLOCKED
1.3
OfficeServ 7100 USER INSTRUCTIONS
Home Page
Table of Contents
TECHNICAL MANUAL PART 1 APRIL 2007
1.3 CHANGING YOUR PASSCODE
Each keyset user can set or change his/her individual passcode. This passcode is used
to lock or unlock keysets, for toll restriction override and to access the DISA feature.
NOTE: Default passcodes cannot be used for toll restriction override or for DISA
access.
ACTION DISPLAY
1. Press the transfer key followed by 101
Display shows
2. Enter the existing passcode (default = 1234)
3. Enter the new passcode
4. Reenter the new passcode to verify the number
If reentered correctly, display shows
5. Press the transfer key to save and exit
[201] PASSCODE
OLD CODE:_
[201] PASSCODE
OLD CODE:****
[201] PASSCODE
NEW CODE:_
[201] PASSCODE
VERIFY :SUCCESS
1.4
OfficeServ 7100 USER INSTRUCTIONS
Home Page
Table of Contents
TECHNICAL MANUAL PART 1 APRIL 2007
1.4 CALL FORWARDING
The OfficeServ 7100 allows the system administrator to program the call forward
destinations for other station users. This MMC also allows call forward to be set after
the destination has been entered.
The OfficeServ 7100 system allows four types of call forwarding: FORWARD ALL,
FORWARD NO ANSWER, FORWARD BUSY, and FORWARD DND. There is an
additional option, FORWARD BUSY/NO ANSWER, that allows both of these options to
be activated at the same time, provided that destinations have been entered for both.
The destinations for all these forwards can be either an internal number or an external
number.
0 = FORWARD CANCEL 3 = NO ANSWER
1 = ALL CALL 4 = BUSY/NO ANSWER
2 = BUSY 5 = FORWARD DND
0 = FORWARD CANCEL This option will cancel any call forwarding set in MMC
102. It will not remove the programmed destination and
1 = ALL CALL This option, when set, will forward all calls to the
2 = BUSY This option, when set, will forward calls to the
3 = NO ANSWER This option, when set, will forward calls to the
4 = BUSY/NO ANSWER This option will activate both the BUSY option and the
5 = FWD DND This option will forward all calls to the programmed
ACTION DISPLAY
1. Press the transfer key followed by 102
Display shows
will not override any preset forward settings in MMC 316.
programmed destination. If the programmed destination
is a station then that station can call the forwarded
station to put calls through.
programmed destination when the forwarded keyset is
busy.
programmed destination if the forwarded station
does not answer a call before the forward no answer
timer in MMC 502
NO ANSWER option at the same time.
destination whenever the forwarded station goes into
DND.
expires.
[201] FORWARD
0:FORWARD CANCEL
1.5
OfficeServ 7100 USER INSTRUCTIONS
Home Page
Table of Contents
TECHNICAL MANUAL PART 1 APRIL 2007
2. Dial 0 – 4 to select forward type
OR
Press UP or DOWN to select forward type
and press RIGHT soft key to move cursor
3. Dial destination number (e.g., 201)
OR
Press UP or DOWN to select destination
and press RIGHT soft key to move cursor
4. Dial 1 for YES, 0 for NO
OR
Press UP or DOWN to select YES or NO
and press RIGHT soft key to return to step
2
5. Press the transfer key to store and exit
[201] FORWARD
1:ALL CALL:NONE
[201] FORWARD
1:ALL CALL:205
[201] FORWARD
CURENTLY SET :YES
1.6
OfficeServ 7100 USER INSTRUCTIONS
Home Page
Table of Contents
TECHNICAL MANUAL PART 1 APRIL 2007
1.5 SETTING YOUR ANSWER MODE
Each keyset can have its answer mode for intercom calls set to one of the following
options:
RING—The station will ring in one of eight custom ring patterns. Calls are answered by
pressing the ANS/RLS key or lifting the handset.
AUTO—After giving a short attention tone, the station will automatically answer calls on
the speakerphone. When a C.O. line is transferred to a station in Auto Answer, the
screened portion of the call will be Auto Answer, but the keyset will ring when the
transfer is complete if the user has not pressed the ANS/RLS key or lifted the handset.
VOICE—The station will not ring. After a short attention tone, callers can make an
announcement. The called party must press the ANS/RLS key or lift the handset to
reply.
ACTION DISPLAY
1. Press the transfer key followed by 103
Display shows
2. Dial 0, 1 or 2 to change the ring mode, e.g., 2
OR
Press UP or DOWN to select the ring mode
3. Press the transfer key to store and exit
[201] ANS MODE
RING MODE
[201] ANS MODE
VOICE ANNOUNCE
1.7
OfficeServ 7100 USER INSTRUCTIONS
Home Page
Table of Contents
TECHNICAL MANUAL PART 1 APRIL 2007
1.6 PROGRAMMING YOUR STATION’S NAME
Names are written using the keypad. Each key press selects a character. Pressing the
dial pad key moves the cursor to the next position. For example, if the directory name
is “SAM SMITH,” press the number “7” four times to get the letter “S.” Press the
number “2” once to get the letter “A.” Continue selecting characters from the table
below to complete your message. Pressing the bottom left programmable key will
change the letter from upper case to lower case. There are up to 11 characters that can
be used. NOTE: When the character you want appears on the same dial pad key as the
previous character, press the VOLUME UP or DOWN keys to move the cursor to the
right or to the left.
• iDCS KEYSETS and ITP KEYSETS
COUNT 1 2 3 4 5
DIAL 0 < > . ) 0
DIAL 1 space ? , ! 1
DIAL 2 A B C @ 2
DIAL 3 D E F # 3
DIAL 4 G H I $ 4
DIAL 5 J K L % 5
DIAL 6 M N O ^ 6
DIAL 7 P Q R S 7
DIAL 8 T U V
DIAL 9 W X Y Z 9
DIAL 4 : = [ ]
The # key can be used for the following special characters: #, space, &, !, :, ?, ., %,
$, -, <, >, /, =, [, ], @, ^, (, ), _, +, {, }, |, ;, \, " and ~.
1. When the character you want appears on the same dial pad key as the previous
character, press UP to move the cursor one space to the right.
2. Other symbols are available for DIAL #.
4
8
4
ACTION DISPLAY
1. Press the transfer key followed by 104
2. Enter the station name using the procedure
3. Press the transfer key to store and exit
Display shows
described above
[201] STN NAME
[201] STN NAME
SAMSUNG
1.8
OfficeServ 7100 USER INSTRUCTIONS
Home Page
Table of Contents
TECHNICAL MANUAL PART 1 APRIL 2007
1.7 PROGRAMMING PERSONAL SPEED DIAL
LOCATIONS
You can program frequently dialed telephone numbers in a personal speed dial list.
Each station user begins with ten numbers 00–09 and may be assigned up to fifty
numbers. See your system administrator to determine the amount assigned to your
station.
NOTE: Press button B for flash and button C for pause.
Display keyset users may want to hide some speed dial numbers so they will not show
in the display. Before entering a telephone number, press button E. All digits after this
will be hidden. Press button E again to begin displaying digits.
If your system uses rotary (or pulse) dialing C.O. lines, pressing button D before
entering a speed dial will cause all subsequent digits to be sent as DTMF tones until
the D button is pressed again.
ACTION DISPLAY
1. Press the transfer key followed by 105
Display shows
If you have no speed dial bins,
the display will be as shown
2. Dial the location number (e.g., 05)
OR
Press UP or DOWN to select the location
Press the right soft key to move cursor
3. Enter the trunk access code (e.g., 9) followed
by the number to be dialed (e.g., 4264100)
OR
Press the left soft key to return to step 2
4. Press the F button to access the next program
OR
Press the transfer key to save and exit
[201] SPEED DIAL
00:
[201] SPEED DIAL
SPDBLK NOT EXIST
[201] SPEED DIAL
05:_
[201] SPEED DIAL
05:9-4264100_
1.9
OfficeServ 7100 USER INSTRUCTIONS
Home Page
Table of Contents
TECHNICAL MANUAL PART 1 APRIL 2007
1.8 NAMING YOUR PERSONAL SPEED DIAL
LOCATIONS
This program allows a character name to be entered for each personal speed dial
location. This name enables the speed dial number to be located when using the
directory dial feature. The directory dial feature allows the display keyset user to select
a speed dial location by scanning its name. There are up to 11 characters that can be
used.
ACTION DISPLAY
1. Press the transfer key followed by 106
Display shows
2. Dial the speed dial location (e.g., 01)
OR
Use UP or DOWN to scroll through the location
numbers and use the right soft key to move the
cursor
3. Enter the location name using the procedure
described in Programming Your Station’s Name
4. Press UP or DOWN to move to the next
location
OR
Press the F key to program speed dial numbers
5. Press the transfer key to store and exit
[201] SPEED NAME
00:
[201] SPEED NAME
01:_
[201] SPEED NAME
01:SAMSUNG_
1.10
OfficeServ 7100 USER INSTRUCTIONS
Home Page
Table of Contents
TECHNICAL MANUAL PART 1 APRIL 2007
1.9 ADDING EXTENDERS TO KEYS
This program allows you to assign key extenders to make a general access feature key
more specific. The feature keys that can have extenders are listed below:
FEATURE KEY DESCRIPTION EXTENDER
BOSS Boss and Secretary 1–4
DP Direct Pickup Extension or station group number
DS Direct Station Select Any extension number
FWRD Call Forward 0–5
GPIK Group Pickup 01–20
IG In/Out of Group Any group number you are part of
MMPG Meet Me Page 0–9, 4
PAGE Page 0–9, 4
PARK Park (orbits) 0–9
RP Ring Plan 1–6 or HOLD for None
SPD Speed Dial 00–49, 500–999
PMSG Programmed Message 01–13
DIR Directory PERS (1), SYS (2) or STN (3)
VT Voice Mail Transfer Voice Mail Group (501–519)
SG Station Group Any group number (500–519)
ACTION DISPLAY
1. Press the transfer key followed by 107
Display shows the first station
2. Enter the key number, e.g., 18
OR
Use UP and DOWN to scroll through the keys
Use the right soft key to move the cursor
OR
Press the key to be programmed
3. Dial the extender according to above table
Press the right soft key to return to step 2
OR
Press the transfer key to store and exit
OR
Press the speaker key to store and advance to
the next program
[201] EXT (KTS)
01:CALL1 ¤
[201] EXT (KTS)
18:DS ¤
[201] EXT (KTS)
18:DS ¤DS207
1.11
OfficeServ 7100 USER INSTRUCTIONS
Home Page
Table of Contents
TECHNICAL MANUAL PART 1 APRIL 2007
1.10 CHECKING STATION STATUS
This program displays the following attributes of a station port. This is a read only
feature.
0 PORT # Cabinet 2 Slot 3
1 PICKUP GROUP None, 01–20
2 SGR Station Group Number
3 BOSS-SECR None, 1–4
4 PAGE Page Zone (1–4)
5 COS NO COS (1–30) per Ring Plan (01–06)
6 TENANT GROUP 1
ACTION DISPLAY
1. Press the transfer key followed by 108
Display shows
2. Press UP or DOWN to view the status items
3. Press the transfer key to exit
[201] STN STATUS
PORT:C1-S02-P01
[201] STN STATUS
TYPE:24B US SET
1.12
OfficeServ 7100 USER INSTRUCTIONS
Home Page
Table of Contents
TECHNICAL MANUAL PART 1 APRIL 2007
1.11 CHANGING YOUR TIME AND DATE DISPLAY
Display keysets will always have the date and time displayed when not in use. You can
select from the following display options:
0 COUNTRY Sets overall display format and has two options
0 = ORIENTAL MM/DD DAY HH:MM
1 = WESTERN DAY DD MM HH:MM
1 CLOCK Sets format of clock display and has two options
0 = 12 HOUR (Displays 1 P.M. as 01:00)
1 = 24 HOUR (Displays 1 P.M. as 13:00)
2 DISPLAY Sets format of DAY and MONTH display and has two options
0 = UPPER CASE (Displays Friday as FRI and March as MAR)
1 = LOWER CASE (Displays Friday as Fri and March as Mar)
ACTION DISPLAY
1. Press the transfer key followed by 109
Display shows
2. Press UP or DOWN to select the display mode
Press the right soft key to move the cursor
3. Press the right soft key to return to step 2
OR
Press the left soft key to return to step 3
4. Press the transfer key to store and exit
[201] DAY FORMAT
COUNTRY:WESTERN
[201] DAY FORMAT
COUNTRY:ORIENTAL
1.13
OfficeServ 7100 USER INSTRUCTIONS
Home Page
Table of Contents
TECHNICAL MANUAL PART 1 APRIL 2007
1.12 SETTING STATION ON/OFF OPTIONS
The OfficeServ 7100 allows the system administrator to set any of the keyset features
listed below.
FEATURES DESCRIPTION
Automatically places an existing C.O. call
00
01 AUTO TIMER
02 HEADSET USE
03 HOT KEYPAD
04 KEY TONE
05 PAGE REJOIN
06 RING PREF.
07 NOT FOR USA
08 AUTO CAMP-ON
09 NOT FOR USA
10 AME PASSCODE
11 DISP SPD NAME
12 CID REVIEW ALL
AUTO HOLD
on hold if a CALL button, trunk key or trunk
route key is pressed during that call.
Automatically starts the stopwatch timer
during a C.O. call.
When ON, this feature disables the
hookswitch allowing a headset user to
answer all calls by pressing the ANS/RLS
button.
When ON, this feature allows the user to
dial directory numbers without having to
first lift the handset or press the SPK button.
Allows the user to hear a slight tone when
pressing buttons on keyset.
Allows the user to hear the latter part of
page announcements if keyset becomes
free during a page.
When OFF, requires the user to press the
fast flashing button to answer a ringing call
after lifting the handset.
This field is reserved and can not be used
for U.S. software.
Keyset users can allow intercom calls to
camp-on to other keysets without having to
press a CAMP-ON key.
If this option is set to YES, station users
who have AME set must enter their station
password to listen to messages being left.
If this option is set to ON the user will have
the name associated with the speed dial
number shown in the display after the
number has been dialed.
If this setting is set to OFF the CID review
list will only store CID information for calls
that were not answered at the station and
reject the information for calls that were
answered.
1.14
OfficeServ 7100 USER INSTRUCTIONS
Home Page
Table of Contents
TECHNICAL MANUAL PART 1 APRIL 2007
FEATURES DESCRIPTION
When set to OFF an OHVA will be heard
13 SECURE OHVA
14 NOT FOR USA
15 AUTO ANS CO
16 ENBLOCK 2LED
17 STN NO RING
through the keyset speaker rather than the
handset.
This option determines whether CO calls
arriving at a station will be auto answered if
auto answer is selected in MMC 103.
For ITP phones with 2 Line Display
Set to ON will require user to press SEND
button to make a call, it works like a cell
phone. Enblock dialing must be enabled in
MMC 861
When ON all incoming calls will not ring at
stations.
.
ACTION DISPLAY
1. Press the transfer key followed by 110
Display shows
2. Dial the option number from above list
(e.g., 4)
Press UP or DOWN to select the option and
[201] STN ON/OFF
AUTO HOLD :OFF
[201] STN ON/OFF
HOT KEYPAD :OFF
Press the right soft key to move the
cursor
3. Press UP or DOWN to select ON or OFF
Press the left or right soft key to return to
step 2
OR
Dial 1 for ON or 0 for OFF
If option 00 from above list is dialed at
Step 2
If option 01 from above list is dialed at
Step 2
If option 02 from above list is dialed at
Step 2
If option 03 from above list is dialed at
Step 2
[201] STN ON/OFF
HOT KEYPAD :ON
[201] STN ON/OFF
AUTO HOLD :OFF
[201] STN ON/OFF
AUTO TIMER :OFF
[201] STN ON/OFF
HEADSET USE :ON
[201] STN ON/OFF
HOT KEYPAD :ON
1.15
OfficeServ 7100 USER INSTRUCTIONS
Home Page
Table of Contents
TECHNICAL MANUAL PART 1 APRIL 2007
If option 04 from above list is dialed at
Step 2
If option 06 from above list is dialed at
Step 2
If option 07 from above list is dialed at
Step 2
If option 08 from above list is dialed at
Step 2
If option 10 from above list is dialed at
Step 2
4. Press UP or DOWN to select ON or OFF
Press the left or right soft key to return to
[201] STN ON/OFF
KEY TONE :ON
[201] STN ON/OFF
RING PREF :ON
[201] STN ON/OFF
DISPLAY :TIME
[201] STN ON/OFF
AUTO CAMPON :ON
[201] STN ON/OFF
AME PASSCODE :ON
[201] STN ON/OFF
HOT KEYPAD :ON
Step 2
5. Press transfer to store and exit
1.16
OfficeServ 7100 USER INSTRUCTIONS
Home Page
Table of Contents
TECHNICAL MANUAL PART 1 APRIL 2007
1.13 SELECTING A RING TONE
Each keyset user can select one of eight ring frequencies.
ACTION DISPLAY
1. Press the transfer key followed by 111
Display shows
2. Dial 1–8 to select the ring tone
OR
Press UP or DOWN to select the ring tone
Press the right soft key to move the cursor
3. Press the transfer key to store and exit
[201] RING TONE
SELECTION 6
[201] RING TONE
SELECTION 5
1.17
OfficeServ 7100 USER INSTRUCTIONS
Home Page
Table of Contents
TECHNICAL MANUAL PART 1 APRIL 2007
1.14 ALARM REMINDER
Station users can have three alarms programmed at their phones. Each alarm may be
one of the following three types:
0. NOTSET The alarm is not set.
1. TODAY ONLY The alarm will ring at the programmed time and be canceled
automatically.
2. DAILY The alarm will ring each day at this time.
ACTION DISPLAY
1. Press the transfer key followed by 112
Display shows
2. Dial 1–3 to select the alarm (e.g., 2)
OR
Press UP or DOWN to select alarm
Press the right soft key to move the cursor
OR
Press the left soft key to return to step 2
3. Enter alarm time in 24 hour format (e.g., 1300)
Display automatically advances to step 5
4. Enter alarm type (e.g., 2)
OR
Press UP or DOWN to select alarm type
Press the right soft key to move the cursor
and return to step 2
5. Press the transfer key to store and exit
[201] ALM CLK(1)
HHMM: ¤NOTSET
[201] ALM CLK(2)
HHMM: ¤NOTSET
[201] ALM CLK (2)
HHMM:1300¤NOTSET
[201] ALM CLK
HHMM:1300¤DAILY
1.18
OfficeServ 7100 USER INSTRUCTIONS
Home Page
Table of Contents
TECHNICAL MANUAL PART 1 APRIL 2007
1.15 STATION VOLUME
This procedure allows users to view and set the level of the volume for your keyset.
0. RING VOLUME Set a level for your keyset ring volume. There are eight levels of
volume; level 1 is the lowest and level 8 is the highest.
1. OFF-RING VOL Set a level for your keyset off-hook ring volume. There are eight
levels of volume; level 1 is the lowest and level 8 is the highest.
2. HANDSET VOL Set a level for your keyset handset volume. There are eight
levels of volume; level 1 is the lowest and level 8 is the highest.
3. SPEAKER VOL Set a level for your keyset speaker volume. There are sixteen
levels of volume; level 1 is the lowest and level 16 is the highest.
4. BGM VOLUME Set a level for your keyset background music volume. There are
sixteen levels of volume; level 1 is the lowest and level 16 is the
highest.
5. PAGE VOLUME This is the volume you will hear internal page over the keyset
speaker when your keyset is idle and BGM is turned on. There
are 16 volume levels: level 1 is the lowest and level 16 the
highest.
ACTION DISPLAY
1. Press the transfer key followed by 114
Display shows
2. Dial 1-8 to select the volume to change
OR
Press UP or DOWN to select the volume to
change
Press the right soft key to move the cursor
3. Press UP or DOWN to select ON or OFF
Press the left or right soft key to return to step 2
OR
Dial 1 for ON or 0 for OFF
If option 0 from above list is dialed at step 2
[201] STN VOLUME
RING VOLUME :OFF
[201] STN VOLUME
OFF-RING VOL:OFF
[201] STN VOLUME
OFF-RING VOL:ON
[201] STN VOLUME
RING VOLUME :4
1.19
OfficeServ 7100 USER INSTRUCTIONS
Home Page
Table of Contents
TECHNICAL MANUAL PART 1 APRIL 2007
If option 1 from above list is dialed at step 2
If option 2 from above list is dialed at step 2
If option 3 from above list is dialed at step 2
If option 4 from above list is dialed at step 2
4. Press the transfer key to store and exit
[201] STN VOLUME
OFF-RING VOL:4
[201] STN VOLUME
HANDSET VOL:4
[201] STN VOLUME
SPEAKER VOL:13
[201] STN VOLUME
BGM VOLUME :13
1.20
OfficeServ 7100 USER INSTRUCTIONS
Home Page
Table of Contents
TECHNICAL MANUAL PART 1 APRIL 2007
1.16 SETTING A PROGRAMMED MESSAGE
When you will be away from your phone for any length of time, you can leave a
programmed message. Display stations calling you will see this message and be
informed of your status or follow your instructions.
ACTION DISPLAY
1. Press the transfer key followed by 115
Display shows
2. Dial 00–20 to select message number, e.g., 05
OR
Press UP or DOWN to select message
3. Press the left or right soft key to return to step 2
OR
Press the transfer key to store and exit
[201] PGMMSG(00)
CANCEL VAC MSG
[201] PGMMSG(05)
PAGE ME
1.21
OfficeServ 7100 USER INSTRUCTIONS
Home Page
Table of Contents
TECHNICAL MANUAL PART 1 APRIL 2007
1.17 ALARM REMINDER WITH MESSAGE
Station users can have three alarms programmed at their phones. Each alarm may be
one of the following three types:
0. NOTSET The alarm is not set.
1. TODAY ONLY The alarm will ring at the programmed time and be canceled
automatically.
2. DAILY The alarm will ring each day at this time.
In addition, each alarm may be accompanied by a 16 character message that will be
displayed while the alarm is ringing.
NOTE: These are the same three alarms described in Alarm Reminder. This procedure
allows a message to be added. A display keyset is necessary to view messages.
ACTION DISPLAY
1. Press the transfer key followed by 116
Display shows
2. Dial 1–3 to select the alarm (e.g., 2)
OR
Press UP or DOWN to select the alarm
Press the right soft key to move the cursor
3. Enter the alarm time in 24 hour clock format
(e.g., 1300)
Display automatically advances to step 4
4. Dial the valid entry from the above list for the
alarm type
OR
Press UP or DOWN to select the alarm type
Press the right soft key to move the cursor
5. Enter messages using the method in
Programming Your Station’s Name
Press the right soft key to return to step 2
6. Press the transfer key to store and exit
[201] ALM REM(1)
HHMM: ¤NOTSET
[201] ALM REM(1)
HHMM: ¤NOTSET
[201] ALM REM (2)
HHMM:1300¤NOTSET
[201] ALM REM
HHMM:1300¤DAILY
[201] ALM REM
TAKE MEDICATION
1.22
OfficeServ 7100 USER INSTRUCTIONS
Home Page
Table of Contents
TECHNICAL MANUAL PART 1 APRIL 2007
1.18 CALLER ID DISPLAY
The station user can change the order in which the CLI, Caller ID and/or ANI
information is displayed on an LCD set during a transferred call.
CLI display options are the following:
0. NO DISPLAY No CLI data will be displayed.
1. NUMBER FIRST The CLI number received from the Central Office will be
displayed first.
2. NAME FIRST The CLI name received from the Central Office will be
displayed first.
Caller ID display options are the following:
0. NO DISPLAY No CID data will be displayed.
1. NUMBER FIRST The CID number received from the Central Office will be
displayed first.
2. NAME FIRST The CID name received from the Central Office will be
displayed first.
ANI display options are the following:
0. NO DISPLAY No ANI data will be displayed.
1. NUMBER FIRST The ANI number received from the Central Office will be
displayed first.
2. NAME FIRST Since there is no name sent by the Central Office, The only
time you will receive a name is when your service company
has programmed a name to be associated with the number
otherwise your display will read “no ANI name”.
ACTION DISPLAY
1. Press the transfer key followed by 119
Display shows
[201] CID DISP
NUMBER FIRST
1.23
OfficeServ 7100 USER INSTRUCTIONS
Home Page
Table of Contents
TECHNICAL MANUAL PART 1 APRIL 2007
2. Dial 0 or 1 to select CID or ANI
OR
Press UP or DOWN to select CID or ANI and
press the right soft key
3. Dial display option 0, 1 or 2, e.g., 2
OR
Press UP or DOWN to select option
4. Press the transfer key to store and exit
[201] ANI DISP
NUMBER FIRST
[201] CID DISP
NAME FIRST
1.24
ITP-5112L User Guide
For
OfficeServ
™ 100, OfficeServ™ 500,
OfficeServ
™ 7000 Series
Home Page
ITP-5112L
Table of Contents
04/2007
TABLE OF CONTENTS
ABOUT THIS BOOK ....................................................................................1
Auto Answer Mode ......................................................................................................................21
B
usy Station Callback ..................................................................................................................21
B
usy Station Camp-On................................................................................................................21
Calling your System Operator ..................................................................................................22
CALL PR
OCESSING
System Hold....................................................................................................................................23
Exclusive Hold ................................................................................................................................23
Remote Hold ..................................................................................................................................23
Samsung Telecommunications America reserves the right without prior notice to revise information in
this guide for any reason. Samsung Telecommunications America also reserves the right without prior
notice to make changes in design or components of equipment as engineering and manufacturing
may warrant. Samsung Telecommunications America disclaims all liabilities for damages arising from
the erroneous interpretation or use of information presented in this guide.
All rights reserved. No part of this manual may be reproduced in any form or by any means—graphic,
electronic or mechanical, including recording, taping, photocopying or information retrieval systems—
without express written permission of the publisher of this material.
Home Page
Table of Contents
ITP-5112L
B
ackground Music ........................................................................................................................40
Established Call Pick-Up ............................................................................................................41
Making an Internal Page ............................................................................................................36
Making an External Page............................................................................................................36
All Page ............................................................................................................................................36
Meet Me Page ................................................................................................................................36
Call Park and Page ........................................................................................................................37
Messages—Set and Cancel ......................................................................................................38
Samsung’s new OfficeServ technology keyset model ITP-5112L is part of the
OfficeServ 100, OfficeServ 500, and OfficeServ 7000 Series.
The ITP-5112L IP keyset represents a new concept of Internet phone,in that it uses
an IP address to Send/Receive voice and data. For voice communications,the ITP5112L uses the data network line already in place in most offices and increasing
number of homes.
The ITP-5112L IP keysets also incorporate a large LCD color screen, which provides
important information for the user,to make using the keyset easier and more convenient.
Please take the time to study this guide and to become familiar with the operation
of your keyset. Keep this guide handy,as you may need to look up instructions for
infrequently used features.
This book is written based on factory default settings, for the feature access codes.
Sometimes, due to programming requirements, these codes may be changed. If
you find that a feature code does not work as described in this book, please contact your installation and service company to determine the correct code.
PERSONAL SPEED DIAL NUMBERS ............................89–90
Home Page
Table of Contents
ITP-5112L
3
TERMINAL STATUS INDICATOR
The terminal status indicator light is positioned on the top right corner of the keyset above the display. The terminal status indicator is a tri-colored (red, green, and
amber) light that provides greater visibility of your keysets status than the individual button LEDs. The terminal status indicator provides the following indications:
•Busy/Off HookSteady Red
•Intercom RingFlashing Red
•Outside Call RingFlashing Blue
•Recall RingFlashing Amber
•Message WaitingFlashing Red
•Do Not DisturbFast Flash Red at 1 Second Intervals
SELECT BUTTONS
The 5112L keysets incorporate twelve select buttons. These buttons are positioned six on either side of the LCD screen.
The top left and right buttons are used to page up and page down screens.
The remaining five buttons on either side of the display are programmable. There
are ten programmable buttons per programmable feature screen,with the exception of the last screen, which has nine programmable buttons. The total programmable buttons per 5112L station is ninety-nine.Any system feature or function can
be assigned to these buttons.
VOLUME CONTROLS
The 5112L keysets use the UP and DOWN buttons to adjust the ringer volume
while the keyset is ringing, the speaker volume while the speakerphone is in use
and the handset volume while you are listening.These three levels will be stored
in memory until changed. If background music is turned on at your keyset,the volume buttons will also control the level of music. The volume of pages heard
through the speaker of a keyset can be adjusted during a page announcement by
using the volume buttons.There are 16 levels for each volume setting.The volume
of off-hook ring is controlled by a user-programmable setting.
2
THINGS YOU SHOULD KNOW
USER ORIENTATION
The ITP model telephones are called “IP keysets”. The IP keyset incorporates buttons or “keys” that are used to access or activate the many features of your office
phone system. The lower five buttons (ten total) that reside on either side of the
Large Display screen are programmable buttons. This means they can be programmed for a specific function on your keyset and that same button can be
something different on another keyset. See the system manager to get your most
frequently used features assigned to your programmable buttons.
The top button on either side of the Large Display Screen scrolls through the various levels of the programmable button display screens.
Lines from the telephone company are “C.O. lines”. Calls on these lines are referred
to as “outside calls”. Your system can have individual C.O.line buttons or lines may
be assigned to groups. When they are in a group, you access a line by dialing an
access code or pressing a route button.For example,dial 9 or press a “LOCAL” button to get a local outside line. If Least Cost Routing is used,pressing the “LCR”button will automatically select a preprogrammed C.O. line according to what digits
are dialed.Each line in the system is numbered,beginning with 701,then 702,703,
etc.
Direct Station Selection (DSS) buttons are programmed to ring specific stations.
You can press a DSS button instead of dialing the extension number.
The 5112L keyset provides distinctive ring patterns:
•Outside calls have a single ring tone repeated.
•Internal calls have a double ring tone repeated.
•Door phone calls and alarm/appointment reminders have a triple ring tone
repeated.
FULL DUPLEX SPEAKERPHONE
All ITP keysets are speakerphones. Pressing the SEND button will answer an
incoming call on the speakerphone. Pressing the END button will release the call
on the speakerphone.
Switching from the handset to the speakerphone is easy. Press the SPEAKER but-
ton and hang up the handset.
Home Page
Table of Contents
ITP-5112L
Loading...
+ 259 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
