SAMSUNG HW-F450 User Manual [fr, it, de]

HW-F450

Crystal Surround Air Track

(Active Speaker System)

user manual

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service,
please register your product at

www.samsung.com/register

features

2.0 Channel

2.0 Channel

SoundShare

SoundShare produces TV sound on your SAT via a Bluetooth connection and controls the sound.

HDMI

HDMI transmits video and audio signals simultaneously, and provides a clearer picture.
The unit is also equipped with the ARC function which lets you listen to sound from your TV via an HDMI cable through the Crystal
Surround Air Track. This function is only available if you connect the unit to an ARC compliant TV.

3D SOUND PLUS

The 3D SOUND PLUS feature adds depth and spaciousness to your listening experience.

Wireless Subwoofer

Samsung’s wireless module does away with cables running between the main unit and the subwoofer.
Instead, the subwoofer connects to a compact wireless module that communicates with the main unit.

Special Sound mode

You can select from 7 different sound modes - MUSIC, NEWS, DRAMA, CINEMA, SPORTS, GAME, and OFF (Original Sound) ­depending on the type of content you want to enjoy.

Multi-function Remote Control

The supplied remote control can be used to control the TV connected to this unit. (Works only for Samsung TVs)
The remote control has a TV hotkey that enables you to perform various operations with the simple press of a button.

Active Speaker System

This unit features an Active Speaker System that provides high sound quality in a single slim unit.
This unit does not require any satellite loudspeakers or speaker cabling, which are normally associated with conventional surround

sound systems.

USB Host support

You can connect and play music files from external USB storage devices such as MP3 players,
USB flash memory, etc. using the Air Track's USB HOST function.

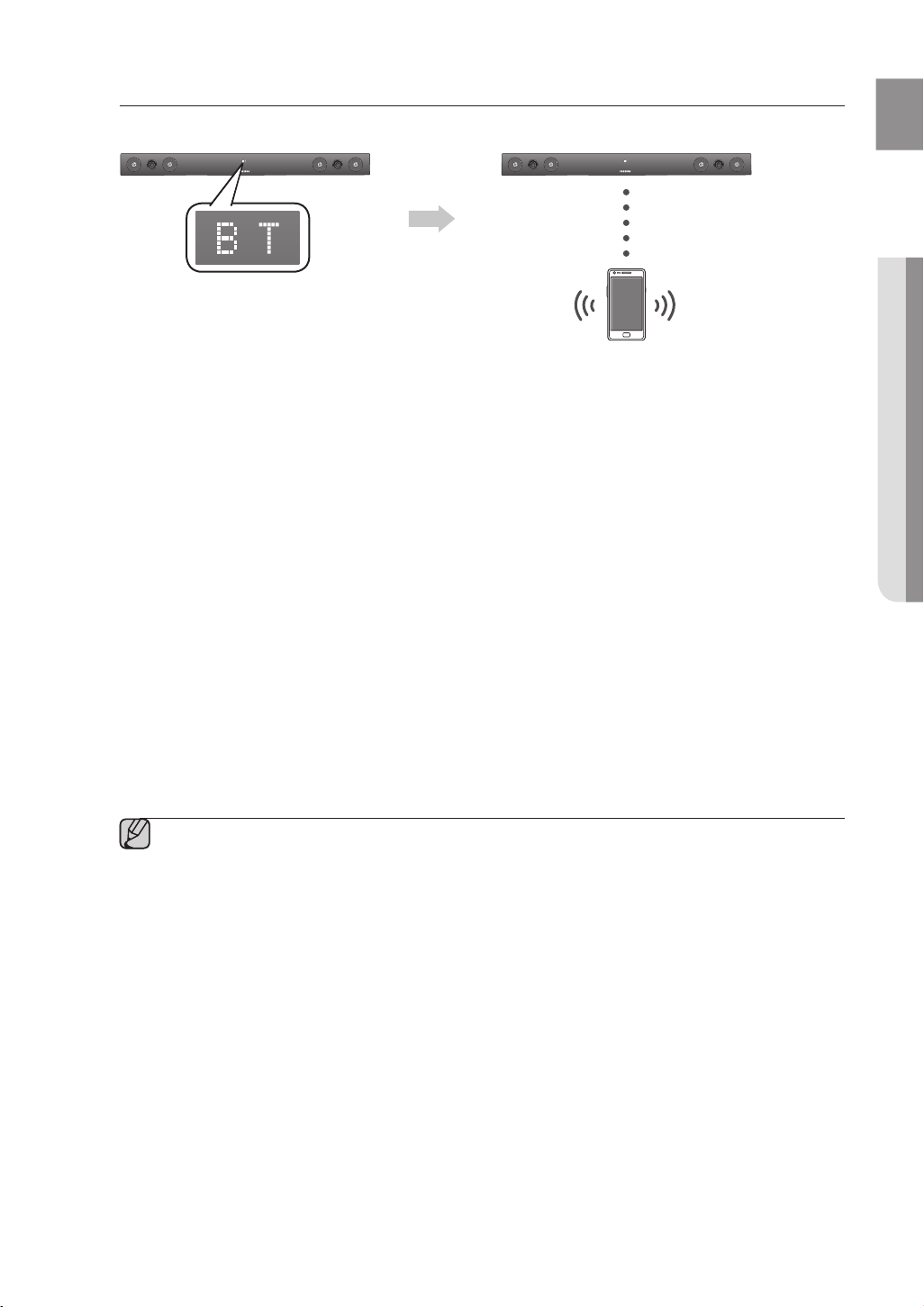

Bluetooth Function

You can use connect a Bluetooth device to the SAT and enjoy music with high quality stereo sound, all without wires!

LICENSE

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby
Laboratories.

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S. and worldwide patents
issued & pending. DTS, the Symbol, & DTS and the Symbol together are registered trademarks & DTS 2.0 Channel is a
trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or
registered trademarks of HDMI Licensing LLC in the United States and other countries.

- To send inquiries and requests regarding open sources, contact Samsung via Email ([e-mail]).

2

EnG

safety information

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK).
NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates “dangerous voltage”

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING : To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

This apparatus shall always be connected to a AC outlet with a protective grounding connection.

•

To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains

•

plug shall be readily operable.

CAUTION

• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the

apparatus.

• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power

plug must be easily and readily accessible at all times.

inside the product that presents a risk of
electric shock or personal injury.

This symbol indicates important instructions
accompanying the product.

3

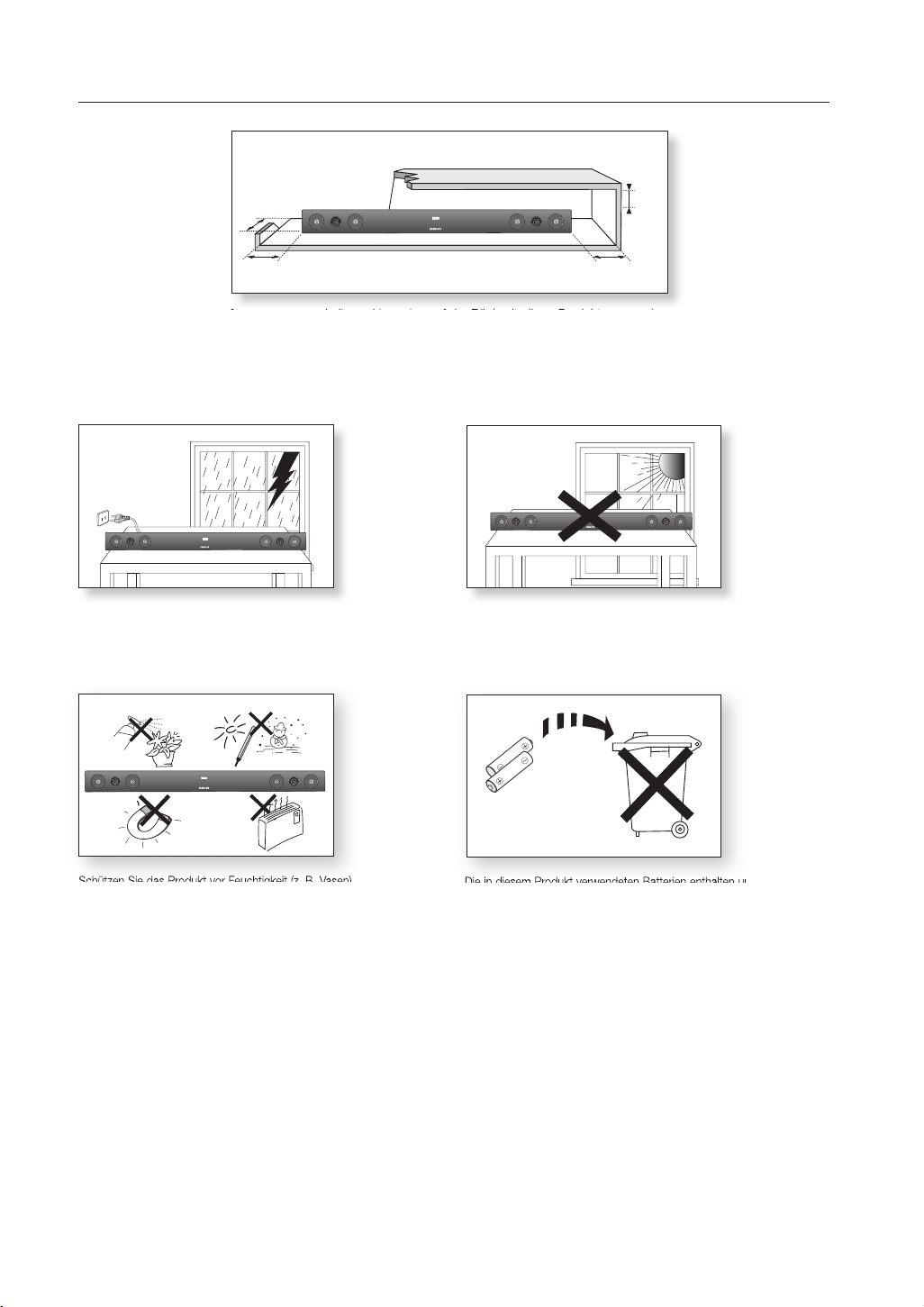

PRECAUTIONS

3.9 inch 3.9 inch

2.7 inc

h

3.9 inch

99.1mm

99.1mm

68.6mm

99.1mm

Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker located on the
back of your product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4 inch-

unit

es, 7~10 cm). Make sure the ventilation slots are not covered. Do not place the

unit

hot. This

is designed for continuous use. To fully turn off the unit, disconnect the AC plug from the wall outlet. Unplug the unit if you

on amplifiers or other equipment which may become

intend to leave it unused for a long period of time.

During thunderstorms, disconnect the AC plug from the
wall outlet. Voltage peaks due to lightning could damage the unit.

Do not expose the unit to direct sunlight or other heat sources.
This could lead to overheating and cause the unit to malfunction.

Phones

product

Protect the

from moisture (i.e. vases) , and excess heat (e.g.
a fireplace) or equipment creating strong magnetic or electric fields
Disconnect the power cable from the AC supply if the unit malfunctions.

product

Your

is not intended for industrial use. This product is for per-

sonal use only.
Condensation may occur if your

peratures. If transporting the

product

unit

has been stored in cold tem-

during the winter, wait approxi

mately 2

hours until the unit has reached room temperature before using.

4

The batteries used with this product contain chemicals that are harmful to
the environment.
Do not dispose of batteries in the general household trash.

EnG

contents

FEATURES

2

SAFETY INFORMATION

3

GETTING STARTED

6

DESCRIPTIONS

7

REMOTE CONTROL

8

CONNECTIONS

9

FUNCTIONS

14

2 Features
2 License

3 Safety warnings
4 Precautions

6 Before reading the User’s manual
6 What’s included

7 Front/Rear Panel

8 Tour of the remote control

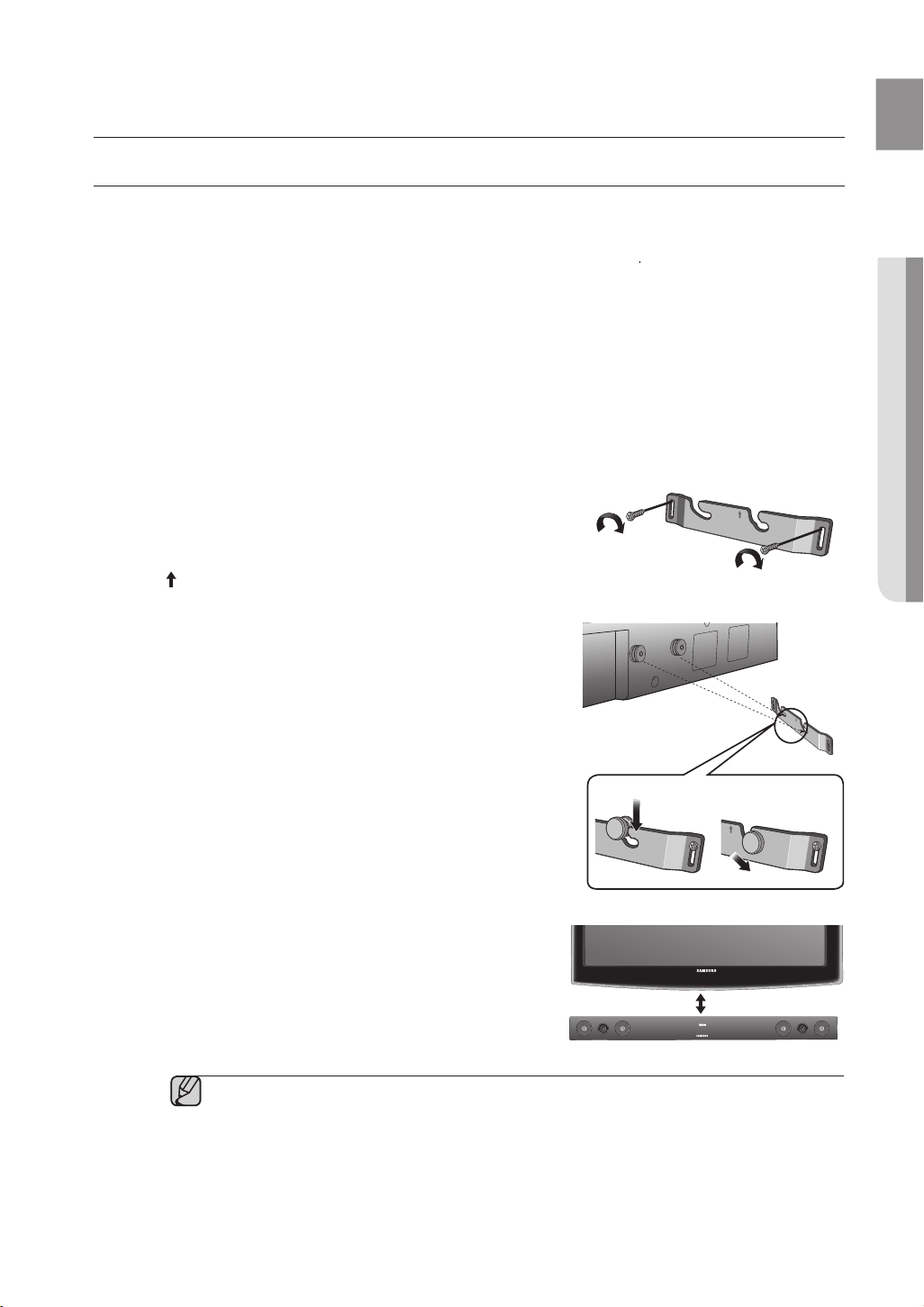

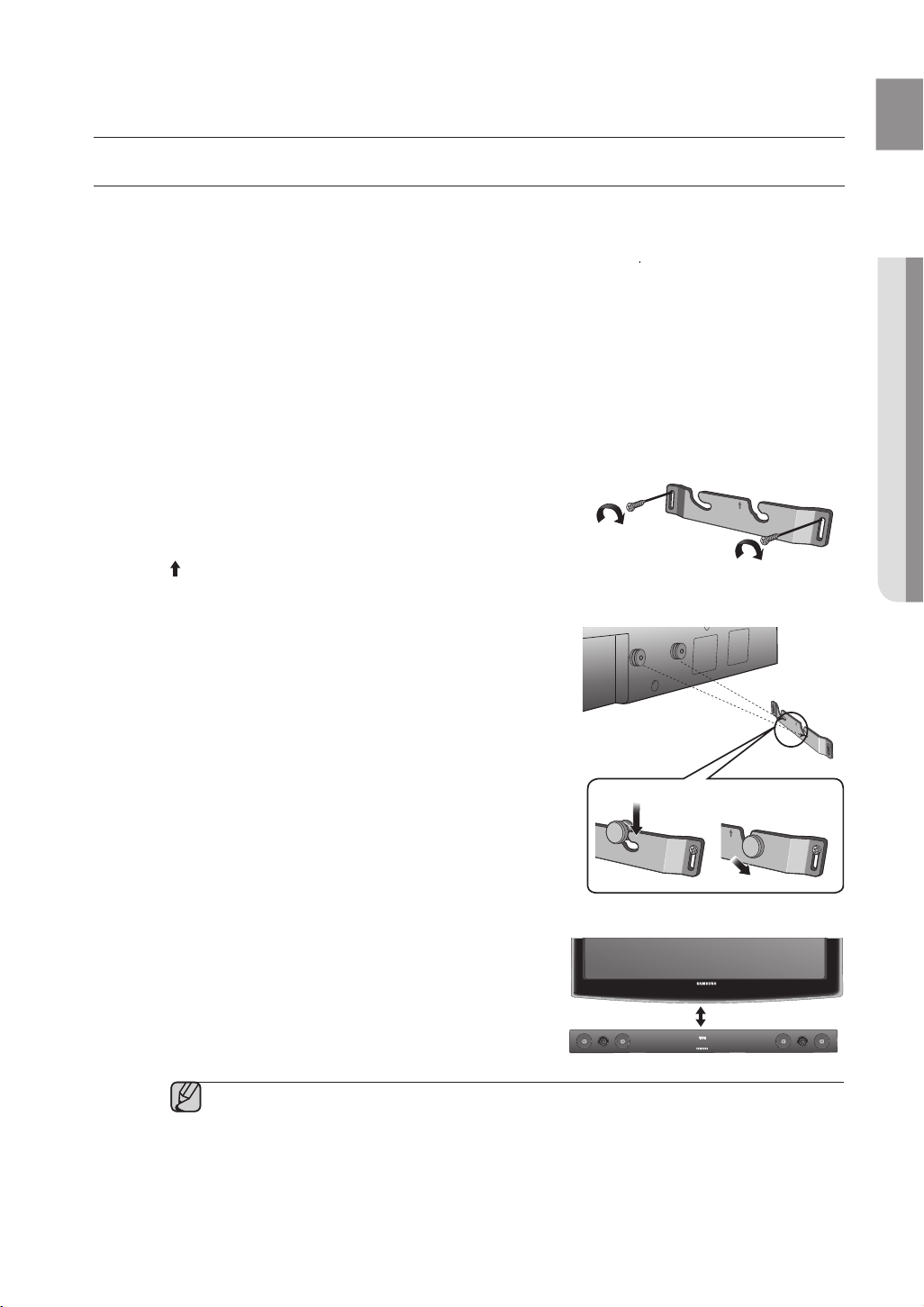

9 Installing the wall mount

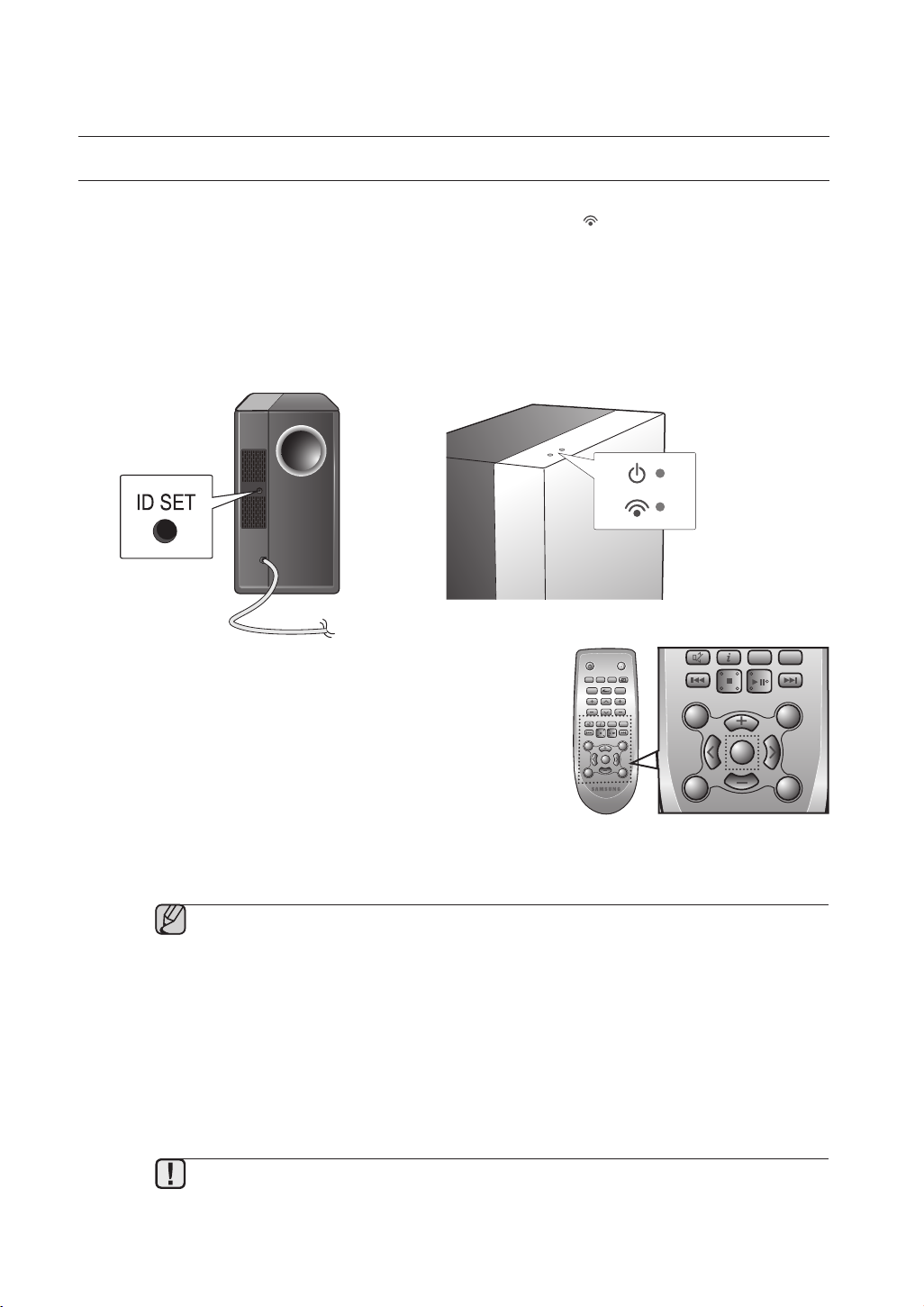

10 Connecting the Wireless Subwoofer

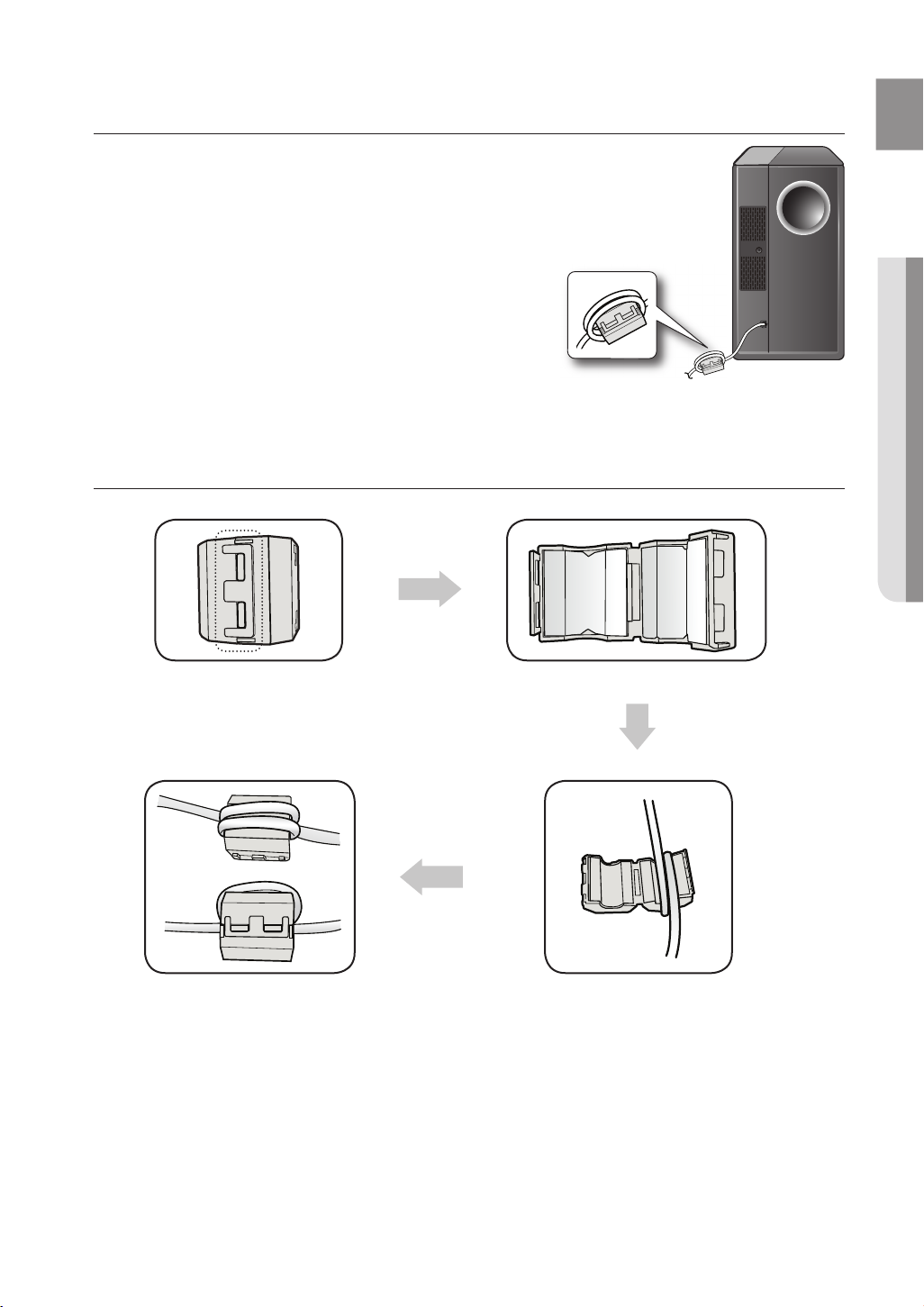

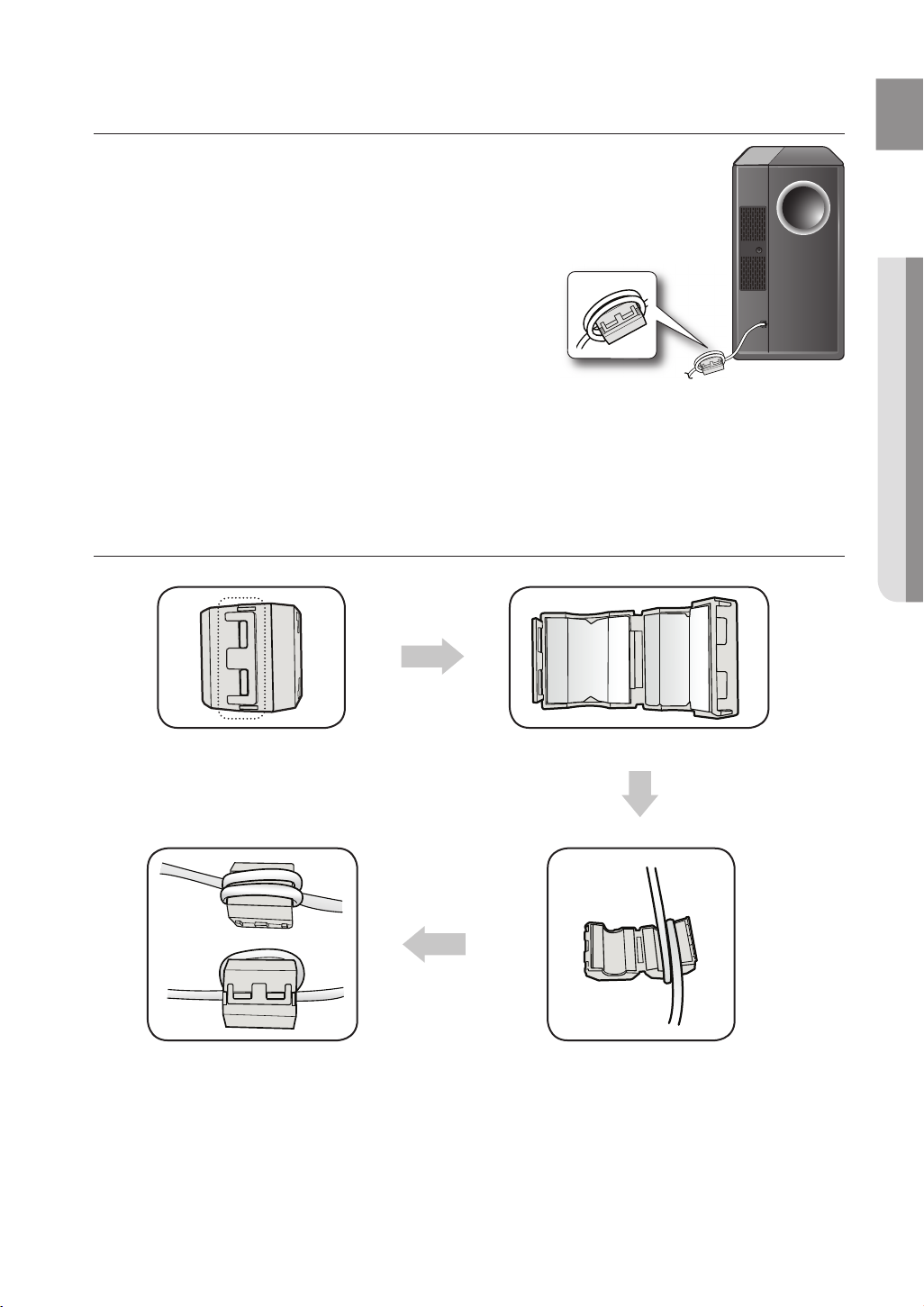

11 Attaching the Toroidal Ferrite Core to the

Power Cord of the Subwoofer

11 Looping the Power Cable around the

Toroidal Core

12 Connecting an external device using HDMI

cable

13 Connecting an external device using Audio

(Analog) cable or Optical (Digital) cable

14 Input mode
14 Bluetooth

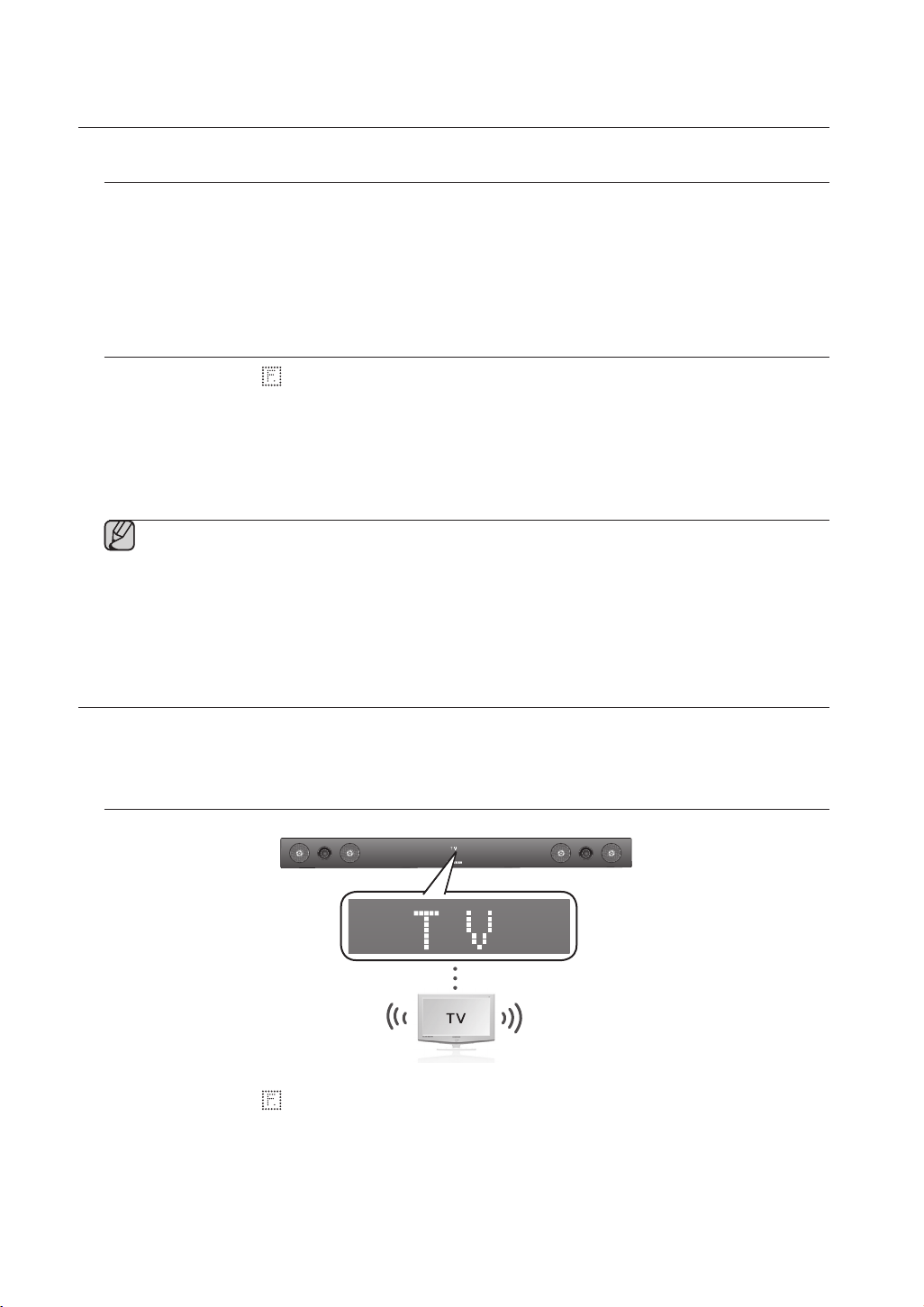

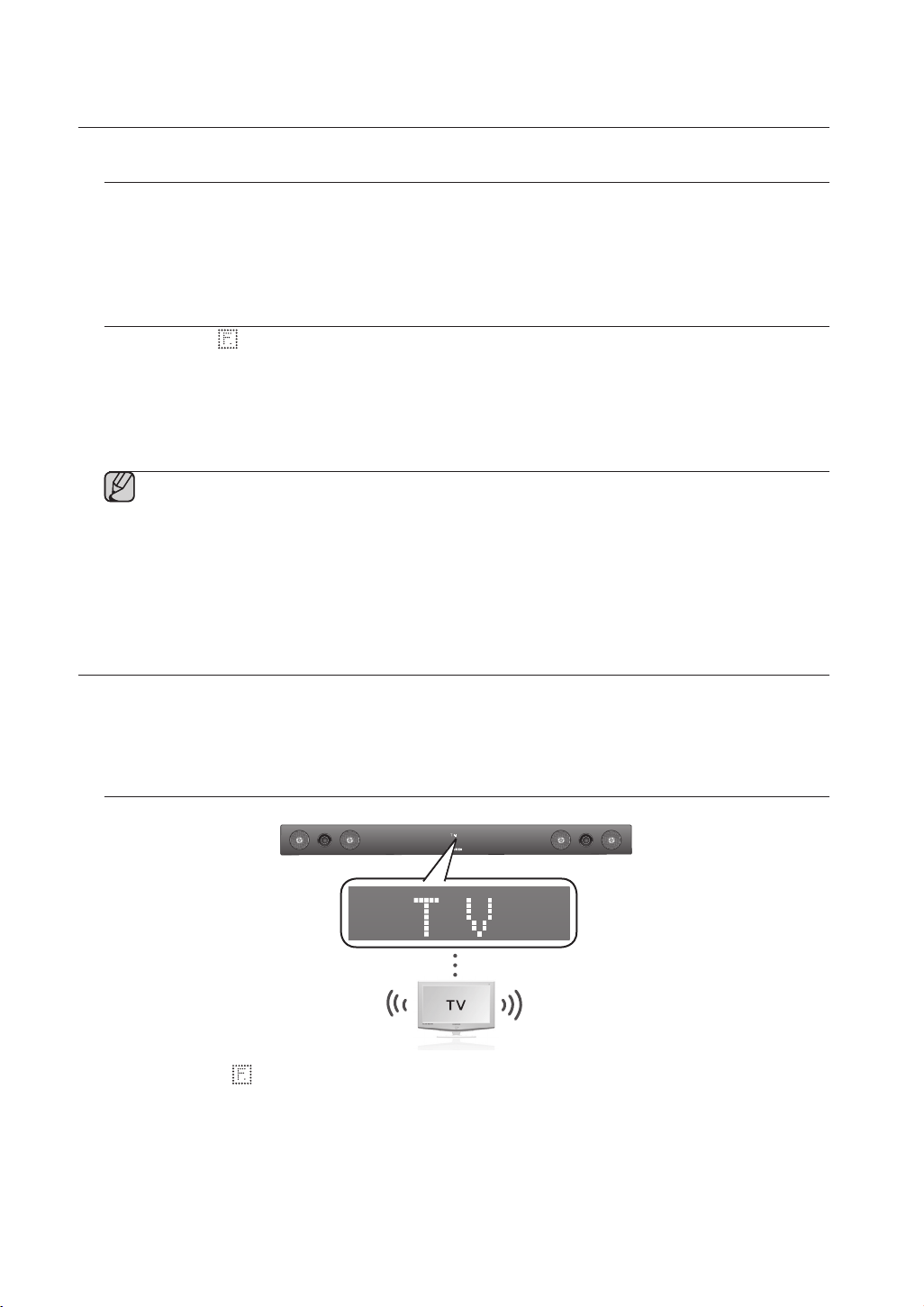

16 SoundShare

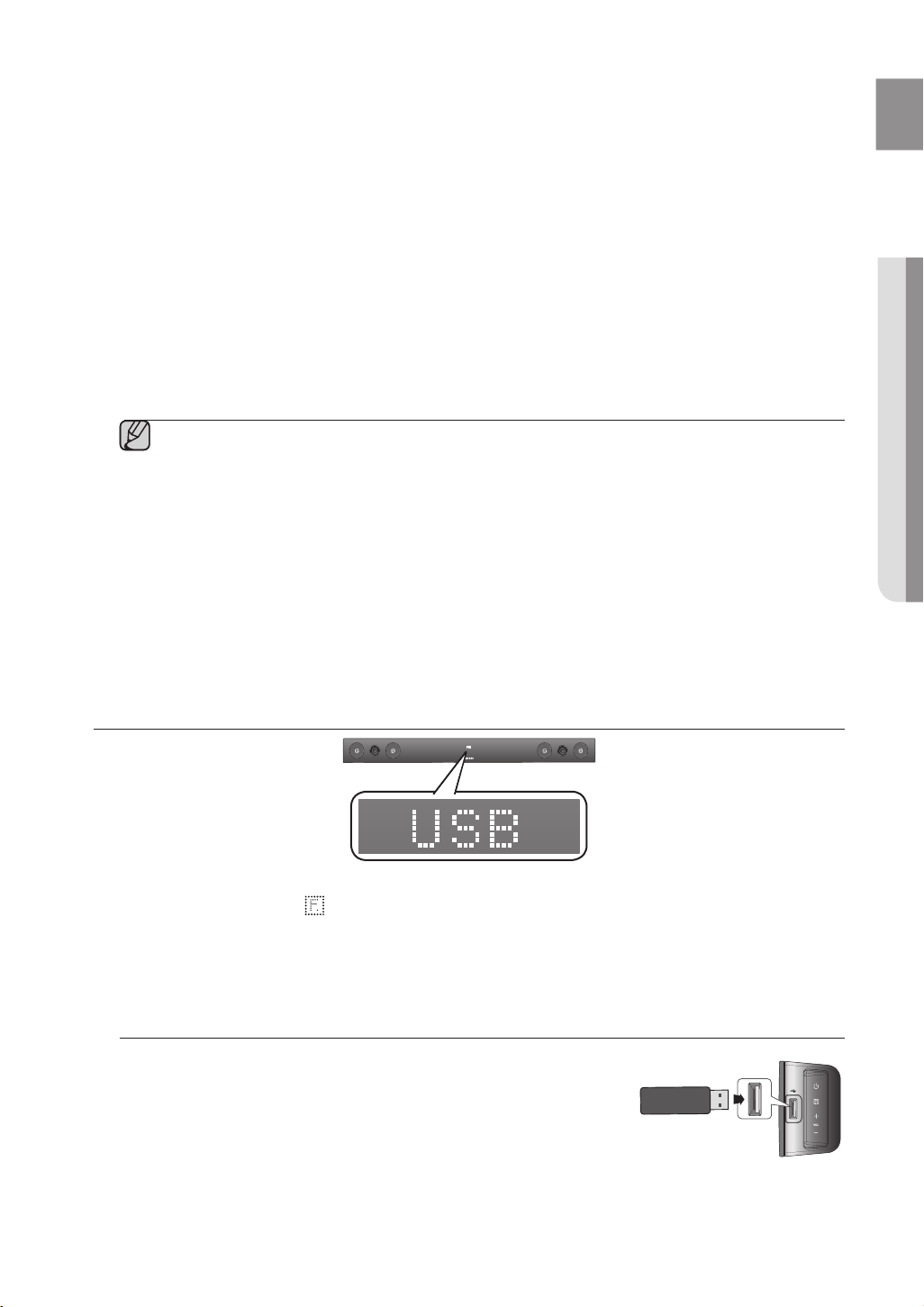

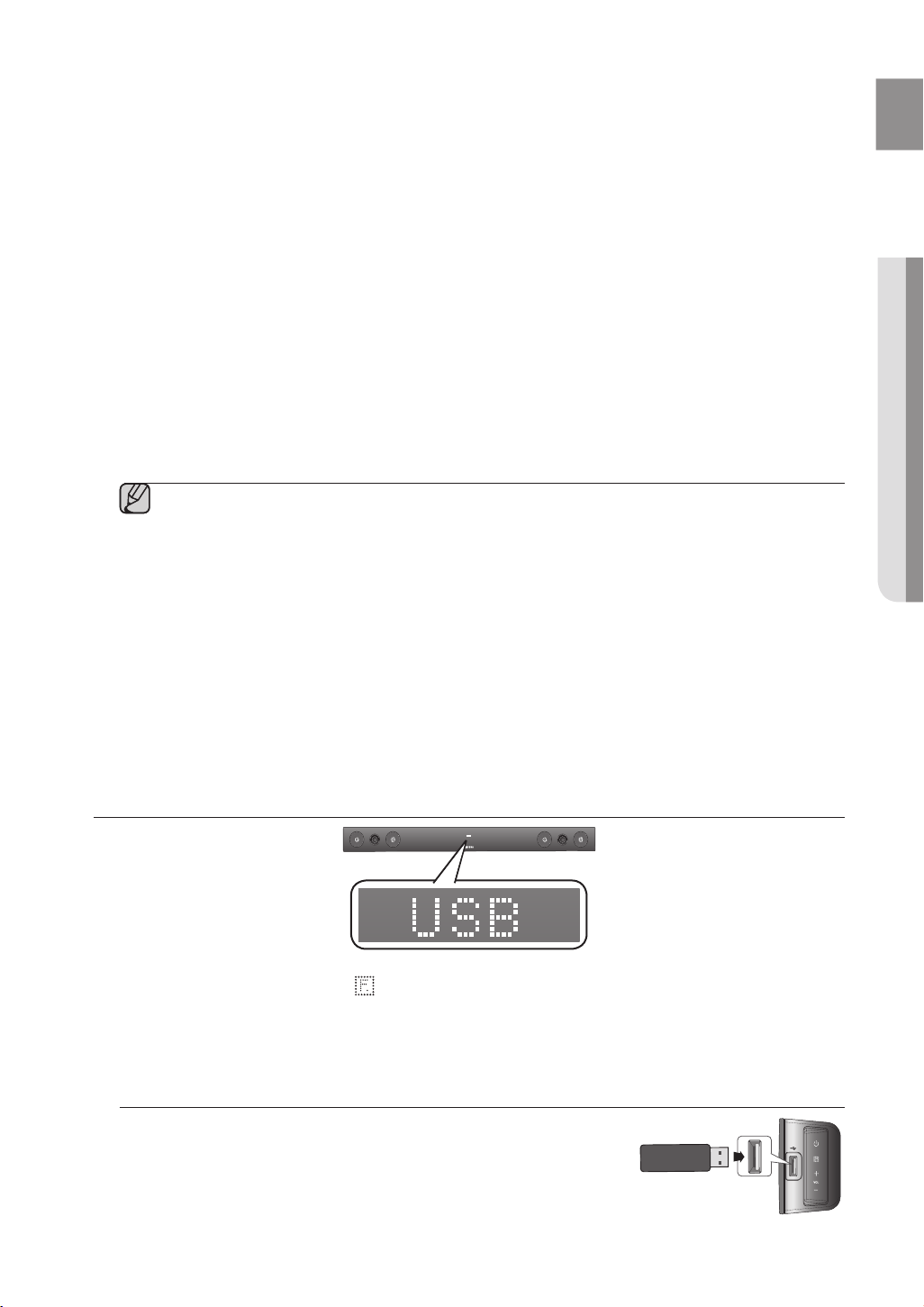

17 USB

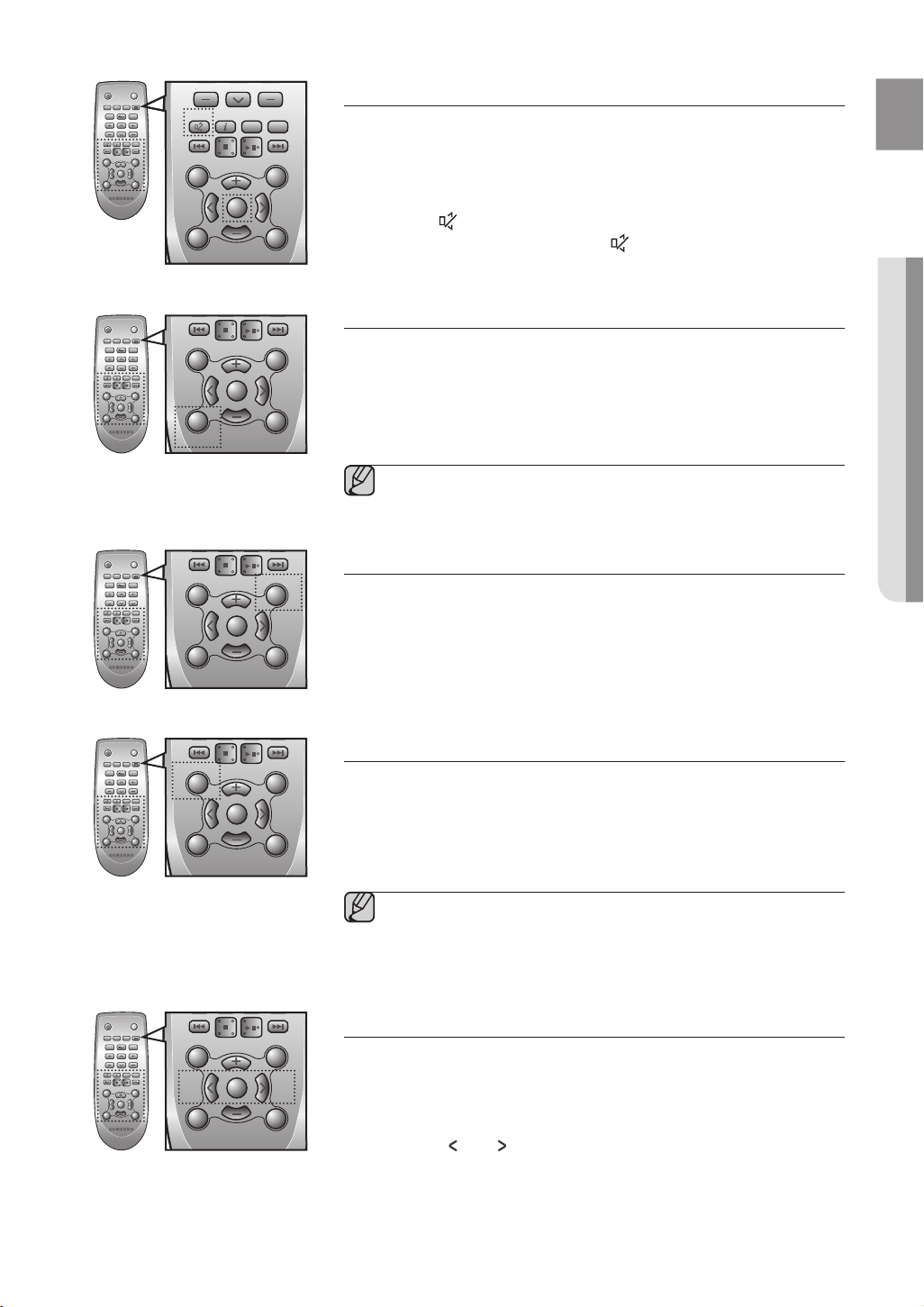

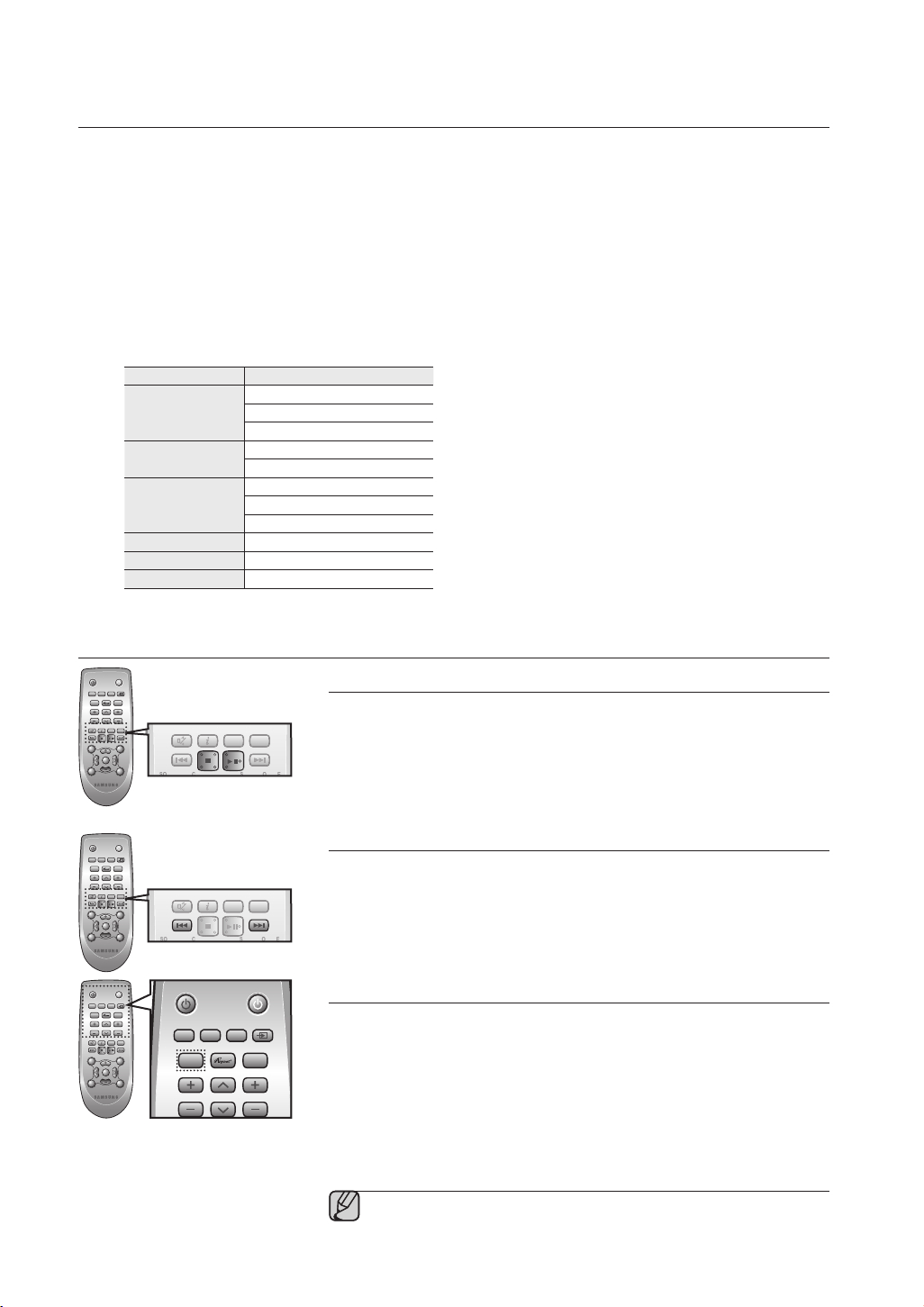

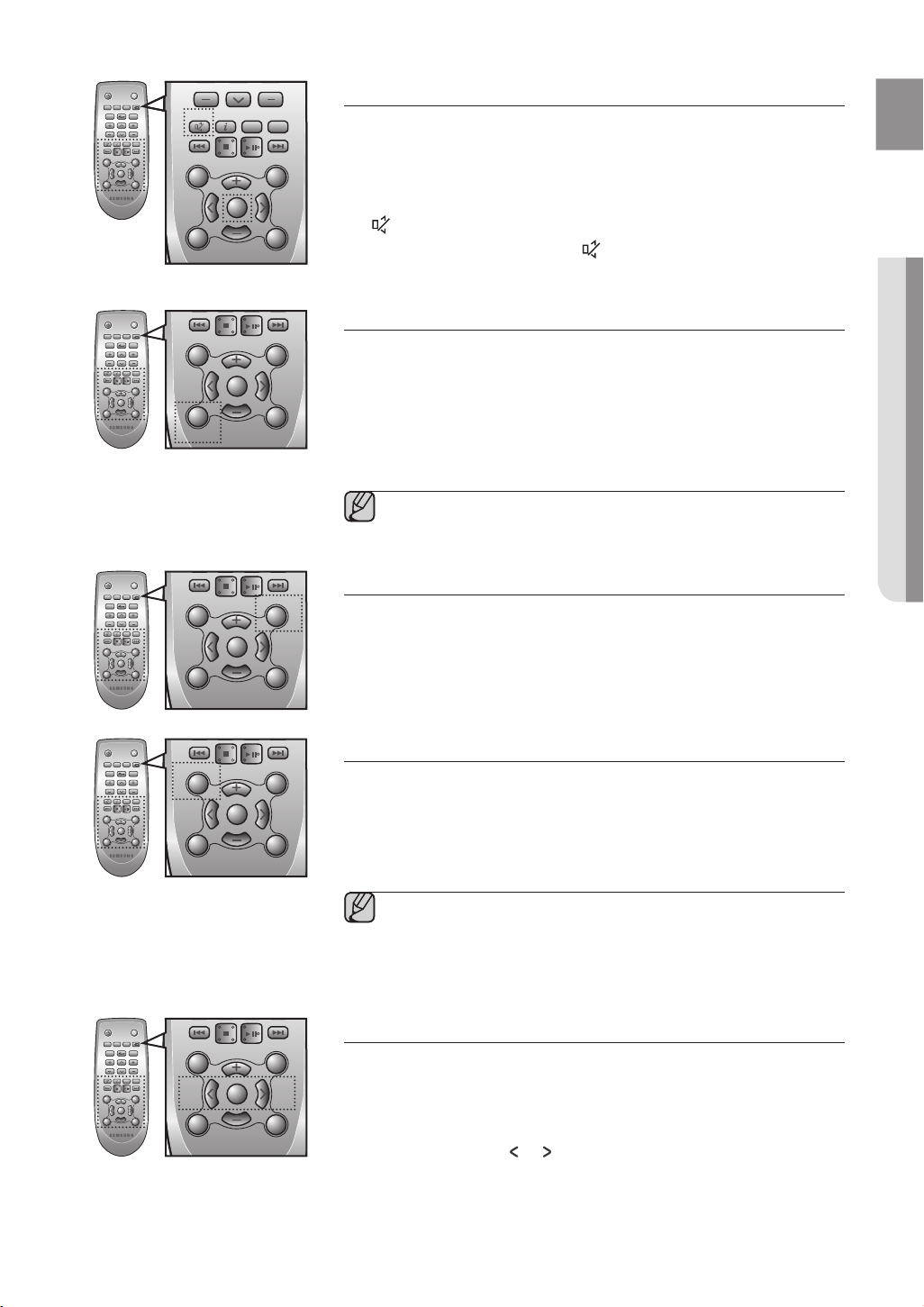

18 Using the remote control
21 Software Upgrade

TROUBLESHOOTING

22

APPENDIX

23

22 Troubleshooting

23 Specifications

5

getting started

BEFORE READING THE USER’S MANUAL

Note the following terms before reading the user manual.

Icons used in this manual

Icon Term Definition

Caution

Note

Indicates a situation where a function does not operate or settings may be
canceled.

Indicates tips or instructions on the page that help you operate a function.

Safety Instructions and Troubleshooting

1) Be sure to familiarize yourself with the Safety Instructions before using this product. (See page 3)

2) If a problem occurs, check Troubleshooting. (See page 22)

Copyright

©2013 Samsung Electronics Co.,Ltd.

All rights reserved; no part or whole of this user’s manual may be reproduced or copied without the prior
written permission of Samsung Electronics Co.,Ltd.

WHAT’S INCLUDED

Check for the supplied accessories shown below.

POWER

TV POWER

AUTO

SPEAKER

TV SOURCE

POWER

SOURCE

SoundShare

REPEAT

TV VOL TV CH

AUDIO SYNC

DIMMER

TV INFOTV MUTE

TV PRE-CH

SMART VOLUMESOUND EFFECT

VOL

S/W

S/W

MUTE

LEVEL

LEVEL

VOL

3D SOUND

DRC

PLUS

AH59-02547B

Remote Control / Batteries (AAA size)

Aux Cable USB Cable Toroidal ferrite core

▪ The appearance of the accessories may differ slightly from the illustrations above.
▪ Use the dedicated USB cable to connect external USB devices to the unit.

6

Bracket-Wall Mount User Manual

(For Subwoofer power cable 1EA)

descriptions

Front/rear Panel

1 2

3

5v 500mA

4

OPTICAL IN

EnG

● dEscriptions

7

HDMI IN

9

5

reMote
Control
SenSor

DISPlaY

PoWer
BUtton

FUnCtIon
BUtton

VolUMe
( +/- )

5

6

The remote control can operate
Air Tracks made by SAMSUNG
only.

Displays the current mode.

Turns the Crystal Surround Air
Track on and off.

Selects the D.IN, AUX, HDMI,
BT, TV, USB input.

While the unit is powered,

­pressing the button for more
than 3 seconds sets the button
to act as MUte button. To
cancel MUte button setup,
press button for more than 3
seconds again.

Controls the volume level.

AUX IN

6

7

8

9

10

11

8

11

USB Port

oPtICal In

aUX In

HDMI In
JaCK

HDMI oUt
JaCK

PoWer
SUPPlY
CaBle

HDMI OUT

Connect USB devices such as
MP3 players here to the play
files on the devices.

Connect to the digital (optical)
output of an external device.

Connect to the Analog output
of an external device.

Receives digital video and
audio signals simultaneously
from an external source using
an HDMI cable.

Outputs digital video and audio
signals simultaneously using an
HDMI cable.

Plug the power supply cable
into the AC wall outlet.

10

▪ When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

▪ When disconnecting the power cable from the wall outlet, pull the plug. Do not pull the cable.
▪ Do not connect this unit or other components to an AC outlet until all connections between components are

complete.

7

remote control

POWER

TV POWER

AH59-02547B

REPEAT

TV VOL TV CH

AUDIO SYNC

SOURCE

AUTO

POWER

SPEAKER

TV SOURCE

TV PRE-CH

DIMMER

SMART VOLUMESOUND EFFECT

S/W

LEVEL

S/W

LEVEL

VOL

VOL

3D SOUND

PLUS

DRC

TV INFOTV MUTE

SoundShare

MUTE

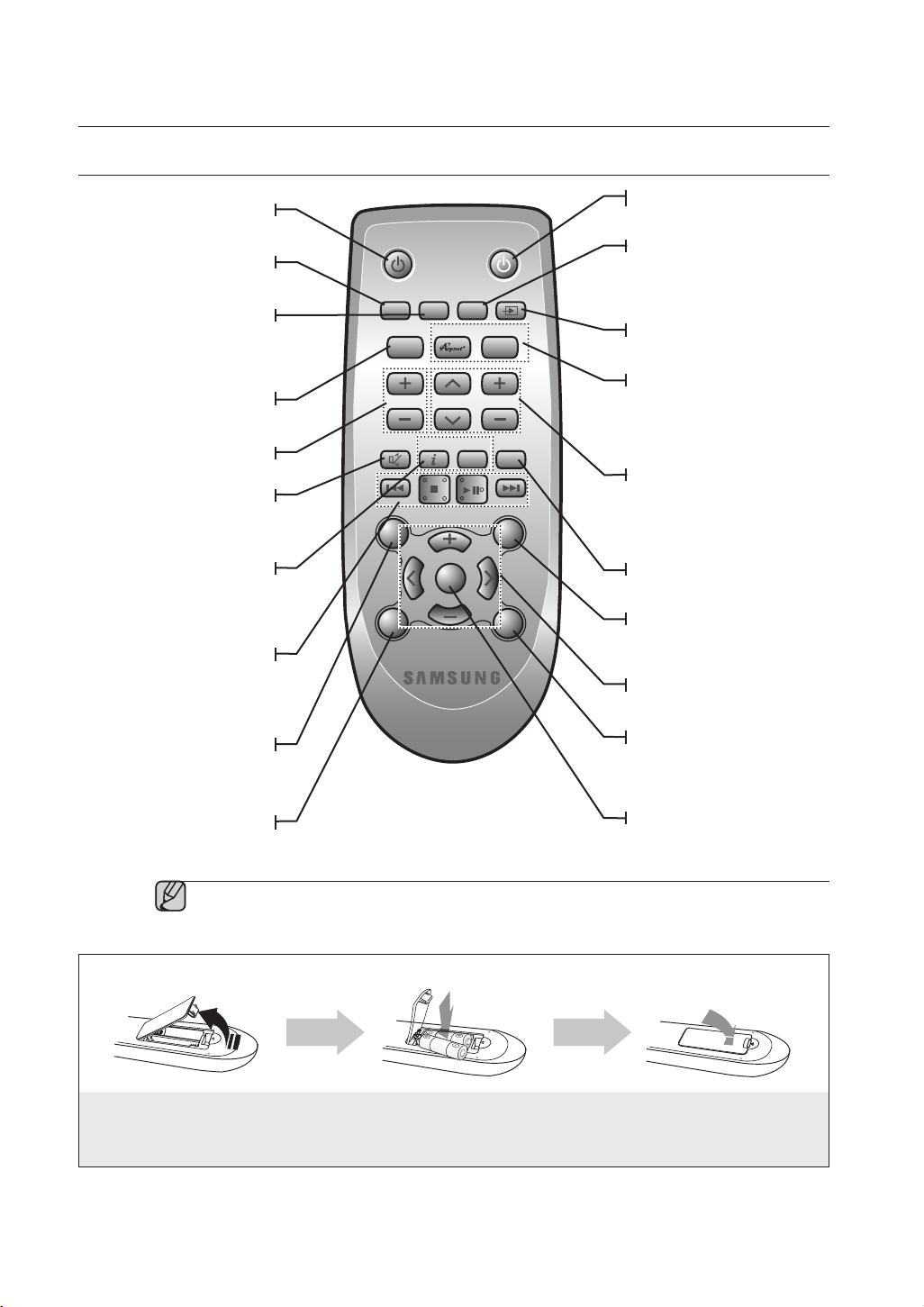

TOUR OF THE REMOTE CONTROL

POWER BUTTON

Turns the Crystal Surround Air Track
on and off.

SOURCE

Press to select a connected SAT
source. (SAT:Surround Air Track)

AUTO POWER

Synchronizes the Air Track to a
connected Optical source via the
Optical jack so it turns on automatically
when you turn on your TV.

REPEAT

Select Repeat File, All, Random.

TV VOLUME

Adjusts the TV volume level.

TV MUTE

Mutes the sound from the TV. Press
again to restore the sound to the
previous volume level.

TV INFO, TV PRE-CH

Display current TV status.
Moves to the previous TV channel.

CONTROL BUTTON

Play, pause, or stop playing
a music file, or search forwards or
backwards for a music file.

SOUND EFFECT

Selects the Sound Effect:
(MUSIC, NEWS, DRAMA, CINEMA,
SPORTS, GAME, OFF (Original Sound))

3D SOUND PLUS

This feature adds depth and
spaciousness to the sound.

▪ SAT stands for Surround Air Track, which is a Samsung’s proprietary name.
▪ The remote control can operate TVs made by SAMSUNG only.
▪ Depending on the TV you are using, you may not be able to operate your TV with this remote control. If you can't,

operate the TV using the TV's remote control.

Installing batteries in the Remote Control

TV POWER BUTTON

Turns your Samsung TV on and off.

SPEAKER

This button allows you to choose to listen
to audio from the Air track or your TV.

TV SOURCE

Press to select a connected TV's video
source.

Anynet+,

SoundShare

Anynet+ is a function that enables you
to control other Samsung Devices
with your Samsung TV's remote
control.
This produces TV sound on your SAT
via a Bluetooth connection and
controls the sound.

TV CHANNEL , AUDIO SYNC

Switches between the available TV
channels.
Used to help sync video to audio
when connected to a digital TV.

DIMMER

You can control the brightness of the
Display.

SMART VOLUME

Regulates and stabilizes the volume
level against a drastic volume change.

VOLUME, S/W LEVEL

Adjusts the volume level of the unit.
Adjusts the Subwoofer level.

DRC

You can use this function to enjoy Dolby
Digital sound when watching movies at
low volume at night (Standard, MAX, MIN).

MUTE

Mutes the sound from the unit. Press
again to restore the sound to the
previous volume level.

1. Lift the cover at the back of

the remote control upward as
shown.

Operational Range of the Remote Control

Install two AAA size batteries.

2.

Make sure to match the “+” and “–” ends
of the batteries with the diagram inside the
compartment.

Replace the cover.

3.

Assuming typical TV usage,
the batteries last for about
one year.

You can use the remote control up to 23 feet (7 meters) in a straight line from the unit. You can also operate the
remote at a horizontal angle of up to 30° from the remote control sensor.

8

connections

INSTAllING THE WAll MOUNT

You can use the wall mount bracket to mount this unit on a wall.

EnG

Installation Precautions

• Install on a vertical wall only.

• For the installation, avoid a location with high temperature or humidity, or a wall that cannot sustain the

weight of the set.

• Check the strength of the wall. If the wall is not strong enough to support the unit, reinforce the wall or
install the unit on different wall that can support the unit's weight.

• Purchase and use the flxing screws or mollys appropriate for the kind of wall you have (plaster board, iron
board, wood, etc.). If possible, fix the support screws into wall studs.

• Connect cables from the unit to external devices before you install it on the wall.

• Make sure the unit is turned off and unplugged before you install it. Otherwise, it may cause an electric shock.

1. Place the wall mount bracket on a wall surface

secure it with two screws (not supplied).
If you are hanging the unit below a TV, be
wall mount bracket so that the arrow (
center of the TV.
Also make sure the unit is at least two inches (5 cm)
below the TV.

2. Fit the unit into the corresponding slots of the wall mount

bracket. For secure installation, make sure the mounting
studs slide firmly down into the bottom of the slots.

sure to install the

and then

) is placed in the

1

21

● connEctions

3. The installation is complete.

▪ Do not hang onto the installed unit and avoid any impact to the unit.
▪ Secure the unit firmly to the wall so that it does not fall off. If the unit falls off, it may cause an

injury or damage the product.

▪ When the unit is installed on a wall, please make sure that children do not pull any of the

connecting cables, as it may cause it to fall.

▪ For the optimal performance of a wall mount installation, install the speaker system at least 2

inches (5 cm) below the TV.

2 inches (5 cm) or more

9

connections

CONNECTING THE WIRELESS SUBWOOFER

STANDBY

LINK

STANDBY

LINK

POWER

TV POWER

REPEAT

TV VOL TV CH

AUDIO SYNC

SOURCE

AUTO

POWER

SPEAKER

TV SOURCE

TV PRE-CH

DIMMER

SMART VOLUMESOUND EFFECT

S/W

LEVEL

S/W

LEVEL

VOL

VOL

3D SOUND

DRC

TV INFOTV MUTE

SoundShare

MUTE

The Subwoofer's linking ID is preset at the factory and the main unit and subwoofer should link (connect
wirelessly) automatically when the main unit is turned on. If the link indicator (
unit and subwoofer are turned on, please set the ID by following the procedure below.

1. Plug the power cords of the main unit and subwoofer into an AC wall outlet.

2. Press the ID SET button on the back of the subwoofer with a small, pointed object for 5 seconds.

• The STANDBY indicator is turned off and the LINK indicator (Blue LED) blinks quickly.

) does not light when the main

3. While the main unit is powered off (
press MUTE on the remote control for 5 seconds.

4. The ID SET message appears on the main unit’s VFD display.

5. To finalize the link, turn the main unit’s power on while the

subwoofer’s Blue LED blinks.

• The main unit and the subwoofer are now linked (connected).

• The Link indicator (blue LED) on the subwoofer is turned on.

• You can enjoy better sound from the wireless subwoofer by

selecting the sound effect. (See page 19)

▪ Before moving or installing the product, be sure to turn off the power and disconnect the power

cord.

▪ If the main unit is powered off, the wireless subwoofer will be in the standby mode and the

STANDBY LED on the upper side will come on after the Link indicator (Blue LED) blinks for 30
seconds.

▪ If you use a device that uses the same frequency (2.4GHz) near the system, interference may

cause some sound interruption.

▪ The transmission distance of the wireless signal between the main unit and sub is about 33 ft.,

but may vary depending on your operating environment. If a steel-concrete or metallic wall is
between the main unit and the wireless subwoofer, the system may not operate at all, because
the wireless signal cannot penetrate metal.

▪ If the main unit doesn't make a wireless connection, follow steps 1-5 above to retry the

connection between the main unit and wireless subwoofer.

▪ The wireless receiving antenna is built into the wireless subwoofer. Keep the unit away from

water and moisture.

▪ For optimal listening performance, make sure that the area around the wireless subwoofer

location is clear of any obstructions.

10

STANDBY

mode),

LEVEL

3D SOUND

S/W

POWER

SOURCE

REPEAT

TV VOL TV CH

PLUS

TV POWER

AUTO

SPEAKER

TV SOURCE

POWER

SoundShare

AUDIO SYNC

DIMMER

TV INFOTV MUTE

TV PRE-CH

SMART VOLUMESOUND EFFECT

VOL

S/W

MUTE

LEVEL

VOL

DRC

AH59-02547B

EnG

● connEctions

ATTACHING THE TOROIDAL FERRITE CORE TO THE POWER CORD
OF THE SUBWOOFER

Attaching the Toroidal ferrite core to the power cord of the subwoofer
helps prevent RF interference from radio signals.

1.

Pull the fixing tab of the Toroidal ferrite core to open it.

2. Make two loops around the core with the power cable of the

subwoofer.

3. Attach the Toroidal ferrite core to the Subwoofer power cord as the figure

shows and press it until it clicks.

LOOPING THE POWER CABLE AROUND THE TOROIDAL CORE

Lift up to release the lock and open the core.

Close the lock.

Make two loops around the core with the power

cable. (Start winding 5-10cm (12.75 - 25.5 in.)

away from the core).

11

connections

CONNECTING AN EXTERNAL DEVICE USING HDMI CABLE

HDMI OUT

HDMI IN

HDMI is the standard digital interface for connecting to such devices as a TVs, projectors, DVD players,
Blu-ray players, set top boxes, and more.

HDMI removes any loss of signal from analog conversion, enabling you to enjoy video and audio sound quality
as it was originally created in the digital source.

HDMI IN

HDMI OUT

HDMI IN

Connect an HDMI cable (not supplied) from the HDMI IN jack on the back of the product to the HDMI OUT
jack on your digital devices.

and,

HDMI OUT (HDMI)

• Connect an HDMI cable from the HDMI OUT jack on the back of the product to the HDMI IN jack on your TV.

HDMI Cable

Digital Devices

HDMI Cable

▪ HDMI is an interface that enables the digital transmission of video and audio data with just

a single connector.

HDMI OUT (ARC)

• The ARC function allows digital audio to output via the HDMI OUT (ARC) port.

It can be enabled only when the Air Track is connected to a TV that supports the ARC function.

• Anynet+ must be turned on.

▪ This function is not available if the HDMI cable does not support ARC.

12

EnG

● connEctions

CONNECTING AN EXTERNAL DEVICE USING AUDIO (ANALOG)

AUX IN

AUDIO

OUT

OPTICAL IN

OPTICAL

OUT

CABLE OR OPTICAL (DIGITAL) CABLE

This unit comes equipped with one optical in digital jack and one audio analog in jack, giving you two ways to
connect it to a TV.

OPTICAL IN

Optical Cable (not supplied)

AUX IN

or

Audio Cable

OPTICAL IN

Connect the Digital Input on the main unit to the OPTICAL OUT of

or,

AUX IN

Connect AUX IN (Audio) on the main unit to the AUDIO OUT of
Be sure to match connector colors.

▪ Do not connect the power cord of this product or your TV to the wall outlet until all

connections between components are

complete.

▪ Before moving or installing this product, be sure to turn off the power and disconnect the power

cord.

the TV or Source Device

the TV or Source Device.

BD/DVD player/

Set-top box/

Game console

or

.

13

functions

INPUT MODE

POWER

TV POWER

REPEAT

TV VOL TV CH

AUDIO SYNC

SOURCE

AUTO

POWER

SPEAKER

TV SOURCE

SoundShare

You can select D.IN, AUX, HDMI, BT, TV input or USB input.

Input mode Display

Optical Digital input

AUX input

HDMI input

BLUETOOTH mode

TV mode

USB mode

The unit turns off automatically in the following situations:

• BT/TV/USB/HDMI/ARC/D.IN MODE

- If there is no audio signal for 20 minutes.

D.IN
AUX

HDMI

BT
TV

USB

S/W
LEVEL

3D SOUND

POWER

SOURCE

PLUS

REPEAT

TV VOL TV CH

TV POWER

AUTO

SPEAKER

TV SOURCE

POWER

SoundShare

AUDIO SYNC

DIMMER

TV INFOTV MUTE

TV PRE-CH

SMART VOLUMESOUND EFFECT

VOL

S/W

MUTE

LEVEL

VOL

DRC

AH59-02547B

• AUX Mode

- If no KEY input is entered for 8 hours when the cable is connected.

- If the AUX cable is disconnected for 20 minutes.

▪ The ARC function is activated in D.IN mode if the unit is connected to an ARC supporting TV.
▪ To turn off the ARC function, turn Anynet off.
▪ Use the provided cable if a USB flash memory device cannot be connected directly to the unit.

BLUETOOTH

You can use a Bluetooth device to enjoy music with high quality stereo sound, all without wires!

What is Bluetooth?

Bluetooth is a technology that enables Bluetooth-compliant devices to interconnect easily with each other using
a short wireless connection.

• A Bluetooth device may cause noise or malfunction, depending on usage, when:

- A part of your body is in contact with the receiving/transmitting system of the Bluetooth device or the Air
Track.

- It is subject to electrical variation from obstructions caused by a wall, corner, or office partition.

- It is exposed to electrical interference from same frequency-band devices including medical equipment,
microwave ovens, and wireless LANs.

• Pair the Air Track with the Bluetooth device while they are close together.

• The further the distance is between Air Track and Bluetooth device, the worse the quality is.

If the distance exceeds the Bluetooth operational range, the connection is lost.

• In poor r

• The Bluetooth connection only works when it is close to the set. The connection will be automatically cut off if

the Bluetooth device is out of range. Even within range, the sound quality may be degraded by obstacles
such as walls or doors.

• This wireless device may cause electric interference during its operation.

14

eception-sensitivity areas, the Bluetooth connection may not work properly.

EnG

● functions

To connect the Air Track to a Bluetooth device

Check if the Bluetooth device supports the Bluetooth compliant stereo headset function.

Connect

Bluetooth device

1.

Press the SOURCE button on the remote control of the AirTrack to display the BT message.

• You will see WAIT for 4 seconds and then BT READY on the front display of the Air Track.

2.

Select the Bluetooth menu on the Bluetooth device you want to connect. (Refer to the Bluetooth

device's user manual.)

3.

Select the Stereo headset menu on the Bluetooth device.

• You will see a list of scanned devices.

4. Select "[Samsung] AirTrack" from the list.

• When the Air Track is connected to the Bluetooth device, it will display BT CONNECTED

display.

• If the Bluetooth device has failed to pair with the Air Track, delete the previous “[Samsung] AirTrack” found

by the Bluetooth device and have it search for the Air Track again.

5. Play music on the connected device.

• You can listen to the music playing on the connected Bluetooth device over the Crystal Surround Air Track

system.

• In BT mode, Play/Repeat/Stop/Next/Prev functions are not available.

▪ You may be required to enter a PIN code (password) when connecting the Bluetooth device to

the Air Track. If the PIN code input window appears, enter <0000>.

▪ The Air Track supports SBC data (44.1kHz, 48kHz).
▪ The AVRCP feature is not supported.
▪ Connect only to a Bluetooth device that supports the A2DP (AV) function.
▪ You cannot connect to a Bluetooth device that supports only the HF (Hands Free) function.
▪ Only one Bluetooth device can be paired at a time.
▪ Once you have turned off Air Track and the pairing is disconnected, the pairing will not be

restored automatically. To reconnect, you must pair the device again.

▪ Search or connection may not be performed properly by Air Track in the following cases:

- If there is a strong electrical field around Air Track.

- If several Bluetooth devices are simultaneously paired with AirTrack

- If the Bluetooth device is turned off, not in place, or malfunctions

- Note that such devices as microwave ovens, wireless LAN adaptors, fluorescent lights, and gas

stoves use the same frequency range as the Bluetooth device, which can cause electric
interference.

➡

BT on the front

15

functions

To disc

You can disconnect the Bluetooth device from the Air Track.
For instructions, see the Bluetooth device's user manual.

•

The Air Track will be disconnected.

• When the Air Track is disconnected from the Bluetooth device the Air Track will display BT DISCONNECTED

on the front display.

onnect the Bluetooth device from the Air Track

To disconnect the Air Track from the Bluetooth device

Press the button on the side panel of the Air Track to switch from BT to another mode or turn off the Air
Track.

• The connected Bluetooth device will wait a certain amount of time for a response from the Air Track before
terminating the connection.

(Disconnection time may differ, depending on the Bluetooth device)

•

The currently connected device will be disconnected.

▪ In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Air

Track and the Bluetooth device exceeds 16.25 ft. (5m).

▪ If the Bluetooth device comes back into the effective range after disconnecting, you can restart the Air

Track to restore the pairing with the Bluetooth device.

▪ The Air Track automatically turns off after 20 minutes in the Ready state.

SOUNDSHARE

This section explains how to connect the Crystal Surround Air Track to a Bluetooth compatible SAMSUNG TV.

To connect the Crystal Surround Air Track to a Bluetooth compatible
Samsung TV

Connect

Press the button to select the TV mode, and then connect the TV to the Crystal Surround Air Track.

• The unit will play the TV's audio when it is connected to the TV.

• If you change to another mode, except the TV SoundShare mode, or turn off the Air Track, you will hear audio

from the TV again.

16

EnG

● functions

<To pair to your TV>

To produce TV sound on your Air Track via a Bluetooth connection, you need to pair your system to the Bluetooth
compliant TV first. Once the pairing is established, the pairing information is recorded and kept and no further
Bluetooth connection message will appear. Bring the Air Track and the TV close together before pairing.

1. Turn on the Samsung TV and Air Track.

• Set Add New Device in the TV's SoundShare Setting menu to On.

2. When you change the mode of the Air Track to TV, a message asking whether to proceed with

Bluetooth pairing is displayed. "[Samsung] AirTrack" appears on the TV screen.

3. Select <Yes > on the TV screen. The pairing with the Air Track will be completed.

• Once the pairing is established, when you change the Air Track to the TV mode from other input modes, it will
automatically connect to the TV.

• Changing the Air Track from TV mode to any other mode will cancel the SoundShare connection.

• If you want to cancel the existing pairing of the SAT to a TV and pair your SAT to a different TV.

- Press the PLAY/PAUSE button on the SAT for 5 seconds in the TV input mode to cancel the existing pairing.

You can now pair it to a different TV.

• In the SoundShare mode, you can control the volume and mute using either the TV remote or the SAT remote.

▪ TV SoundShare operation range

- recommended pairing range: within 20 inches (within 50cm.)

- recommended operation range: within 16.25 ft. (5m)

▪ If the distance between the Air Track and Samsung TV is over 16.25 ft. (5m), the connection or the

sound can be cut off. If this occurs, connect to the Bluetooth device again within the operational range.

▪ Make sure the Samsung TV's SoundShare mode is on before you use this function.
▪ The PLAY, NEXT, PREV, STOP buttons will not work in the SoundShare mode.
▪ Bluetooth Standby On function

- Air Track will be powered on automatically when you turn the TV on if you connected TV and Air Track with
SoundShare function.

- You can toggle this fucntion On/Off by pressing SOURCE button over 5 seconds when AirTrack is
powered off. If set to Off, the product turns off automatically when the TV turns off, but it does not turn on
automatically.

▪ The SoundShare function is supported by some Samsung TVs released after 2012.

Check whether your TV supports SoundShare before you begin.
(For more information, refer to the user's guide of your TV)

USB

1.

2. Press the (

3.

Connect the USB device to the USB port on the side of the unit.

) button on the side panel of the Air Track repeatedly until USB appears.

USB appears on the display screen and then disappears.

• The Crystal Surround Air Track connection is complete.

• The SAT automatically turns off (Auto Power Off) if no USB device has been connected for more than 20

minutes.

Before you connect a USB device

Be aware of the following:

• If the file name of a folder on a USB device exceeds 10 characters, it is
not displayed on the VFD.

• This product may not be compatible with certain types of USB storage
media.

• The Air Track supports the FAT16 and FAT32 file systems.

- The NTFS file system is not supported.

17

functions

• Connect USB devices directly to the USB port of the product. Otherwise, you may encounter a USB

POWER

TV POWER

REPEAT

TV VOL TV CH

AUDIO SYNC

SOURCE

AUTO

POWER

SPEAKER

TV SOURCE

TV PRE-CH

DIMMER

TV INFOTV MUTE

SoundShare

PO

WER

TV POWER

R

EPEAT

T

V VOLTV CH

AUDIO SYN

C

SOURCE

AUT

O

POWER

S

PEAKERTV SOURCE

T

V PRE-CH

D

IMMER

TV INF

O

T

V MUT

E

SoundShare

POWER

TV POWER

REPEAT

TV VOL TV CH

AUDIO SYNC

SOURCE

AUTO

POWER

SPEAKER

TV SOURCE

TV PRE-CH

DIMMER

TV INFOTV MUTE

SoundShare

PO

WER

TV POWER

R

EPEAT

T

V VOLTV CH

AUDIO SYN

C

S

OURC

E

AUT

O

POWER

S

PEAKERTV SOURCE

T

V PRE-CH

TV INF

O

TV MUTE

SoundShare

POWER

TV POWER

REPEAT

TV VOL TV CH

AUDIO SYNC

SOURCE

AUTO

POWER

SPEAKER

TV SOURCE

SoundShare

compatibility problem.

• Do not connect multiple storage devices to the product via a multi-card reader. It may not operate
properly.

• Digital camera PTP protocols are not supported.

• Do not remove the USB device while it is being read.

• DRM-protected music files (MP3, WMA) from a commercial web site will not be played.

• External HDDs are not supported.

• Mobile phone devices are not supported.

• File Format Type Compatibility list:

Format Codec

MPEG 1 Layer2

*.mp3

MPEG 1 Layer3
MPEG 2 Layer3

*.wma

Wave_Format_MSAudio1
Wave_Format_MSAudio2

AAC

*.aac

AAC-LC
HE-AAC

*.wav
*.Ogg
*.Flac

FLAC 1.1.0, FLAC 1.2.1

-

OGG 1.1.0

※ Supporting Sampling Rate above 16KHz

USING THE REMOTE CONTROL

POWER

TV POWER

AUTO

SPEAKER

TV SOURCE

POWER

SOURCE

SoundShare

REPEAT

AUDIO SYNC

TV VOL TV CH

DIMMER

TV INFOTV MUTE

TV PRE-CH

SMART VOLUMESOUND EFFECT

VOL

S/W

S/W

MUTE

LEVEL

LEVEL

VOL

3D SOUND

DRC

PLUS

AH59-02547B

POWER

TV POWER

AUTO

SPEAKER

TV SOURCE

POWER

SOURCE

SoundShare

REPEAT

AUDIO SYNC

TV VOL TV CH

DIMMER

TV INFOTV MUTE

TV PRE-CH

SMART VOLUMESOUND EFFECT

VOL

S/W

S/W

MUTE

LEVEL

LEVEL

VOL

3D SOUND

DRC

PLUS

AH59-02547B

POWER

TV POWER

AUTO

SPEAKER

TV SOURCE

POWER

SOURCE

SoundShare

REPEAT

TV VOL TV CH

AUDIO SYNC

DIMMER

TV INFOTV MUTE

TV PRE-CH

SMART VOLUMESOUND EFFECT

VOL

S/W

S/W

MUTE

LEVEL

LEVEL

VOL

3D SOUND

DRC

PLUS

18

AH59-02547B

Play/Pause/Stop

During playback, press the +#,@ button.

• Press the +# button again to stop playing the file temporarily.
Press the +# button to play the selected file.

• To stop playback, press the Stop (

@

) button during playback.

Skip Forward/Back

During playback, press the [,] button.

• When there is more than one file and you press the ] button, the next file
is selected.

• When there is more than one file and you press the [ button, the
previous file is selected.

Using the REPEAT function

Repeat playback allows you to repeatedly play a file, repeat all, randomly play
files, or turn Repeat off.

Press the REPEAT button.

• REPEAT OFF : Cancels Repeat Playback.

• REPEAT FILE : Repeat playing a track.

• REPEAT ALL : Repeat playing all tracks.

• REPEAT RANDOM : Plays tracks in random order. (A track that has

already been played may be played again.)

▪ You can set the REPEAT function during the playback of music from

a USB drive.

EnG

● functions

POWER

POWER

TV POWER

REPEAT

TV VOL TV CH

AUDIO SYNC

SOURCE

AUTO

POWER

SPEAKER

TV SOURCE

TV PRE-CH

DIMMER

SMART VOLUMESOUND EFFECT

S/W

LEVEL

S/W

LEVEL

VOL

VOL

3D SOUND

PLUS

DRC

TV INFOTV MUTE

SoundShare

MUTE

POWER

TV POWER

REPEAT

TV VOL TV CH

AUDIO SYNC

SOURCE

AUTO

POWER

SPEAKER

TV SOURCE

TV PRE-CH

DIMMER

SMART VOLUMESOUND EFFECT

S/W

LEVEL

S/W

LEVEL

VOL

VOL

3D SOUND

PLUS

DRC

TV INFOTV MUTE

SoundShare

MUTE

POWER

TV POWER

REPEAT

TV VOL TV CH

AUDIO SYNC

SOURCE

AUTO

POWER

SPEAKER

TV SOURCE

TV PRE-CH

DIMMER

SMART VOLUMESOUND EFFECT

S/W

LEVEL

S/W

LEVEL

VOL

VOL

3D SOUND

PLUS

DRC

TV INFOTV MUTE

SoundShare

MUTE

POWER

TV POWER

REPEAT

TV VOL TV CH

AUDIO SYNC

SOURCE

AUTO

POWER

SPEAKER

TV SOURCE

TV PRE-CH

DIMMER

SMART VOLUMESOUND EFFECT

S/W

LEVEL

S/W

LEVEL

VOL

VOL

3D SOUND

PLUS

DRC

TV INFOTV MUTE

SoundShare

MUTE

POWER

TV POWER

REPEAT

TV VOL TV CH

AUDIO SYNC

SOURCE

AUTO

POWER

SPEAKER

TV SOURCE

TV PRE-CH

DIMMER

SMART VOLUMESOUND EFFECT

S/W

LEVEL

S/W

LEVEL

VOL

VOL

3D SOUND

PLUS

DRC

TV INFOTV MUTE

SoundShare

MUTE

TV POWER

AUTO

SPEAKER

TV SOURCE

POWER

SOURCE

SoundShare

REPEAT

AUDIO SYNC

TV VOL TV CH

DIMMER

TV INFOTV MUTE

TV PRE-CH

SMART VOLUMESOUND EFFECT

VOL

S/W

S/W

MUTE

LEVEL

LEVEL

VOL

3D SOUND

DRC

PLUS

AH59-02547B

Muting the sound

This is useful when answering a doorbell or telephone call.

1.

To mute the sound of this unit, press the MUTE button on the remote
control.

2.

To mute the TV, press the

control.

TV MUTE ( )

button on the remote

3. Press MUTE/ TV MUTE ( ) on the remote control again (or press
VOLUME +/–) to restore the sound.

POWER

TV POWER

AUTO

SPEAKER

TV SOURCE

POWER

SOURCE

SoundShare

REPEAT

AUDIO SYNC

TV VOL TV CH

DIMMER

TV INFOTV MUTE

TV PRE-CH

SMART VOLUMESOUND EFFECT

VOL

S/W

S/W

MUTE

LEVEL

LEVEL

VOL

3D SOUND

DRC

PLUS

AH59-02547B

Using the 3D SOUND PLUS function

The 3D Sound Plus feature adds depth and spaciousness to the sound.
Press 3D SOUND PLUS on the remote control.

• Each time the button is pressed, the selection changes as follows :
3D SOUND PLUS OFF ➡ 3D SOUND PLUS MUSIC ➡ 3D SOUND

PLUS MOVIE

▪ When you turn on 3D Sound Plus, the Sound Effect function will

automatically change to OFF.

POWER

TV POWER

AUTO

SPEAKER

TV SOURCE

POWER

SOURCE

SoundShare

REPEAT

AUDIO SYNC

TV VOL TV CH

DIMMER

TV INFOTV MUTE

TV PRE-CH

SMART VOLUMESOUND EFFECT

VOL

S/W

S/W

MUTE

LEVEL

LEVEL

VOL

3D SOUND

DRC

PLUS

AH59-02547B

POWER

TV POWER

AUTO

SPEAKER

TV SOURCE

POWER

SOURCE

SoundShare

REPEAT

AUDIO SYNC

TV VOL TV CH

DIMMER

TV INFOTV MUTE

TV PRE-CH

SMART VOLUMESOUND EFFECT

VOL

S/W

S/W

MUTE

LEVEL

LEVEL

VOL

3D SOUND

DRC

PLUS

AH59-02547B

Using the SMART VOLUME function

This will regulate and stabilize the volume level against a drastic volume
change caused by a channel change or scene transition.

Press SMART VOLUME on the remote control.

• Each time the button is pressed, the selection changes as follows :
SMART VOLUME ON ➡ SMART VOLUME OFF

Using the Sound effect function

You can select from 7 different sound modes - MUSIC, NEWS, DRAMA,
CINEMA, SPORTS, GAME, and OFF (Original Sound) - depending on the
type of sources you want to enjoy.

Press SOUND EFFECT on the remote control.

• Select the OFF mode if you want to enjoy the original sound.

POWER

SOURCE

REPEAT

TV VOL TV CH

S/W

LEVEL

3D SOUND

PLUS

TV POWER

AUTO

SPEAKER

TV SOURCE

POWER

SoundShare

AUDIO SYNC

DIMMER

TV INFOTV MUTE

TV PRE-CH

SMART VOLUMESOUND EFFECT

VOL

S/W

MUTE

LEVEL

VOL

DRC

AH59-02547B

▪ We recommend that you select a Sound Effect based on the

source material and your personal taste.

▪ When you choose a Sound Effect mode (except OFF), 3D Sound

Plus will automatically be turned OFF.

Using the S/W LEVEL function

You can control the base volume with the S/W Level button on the remote
control.

Press the S/W LEVEL button on the remote control.

1.

2.

“SW 0” appears on the display.

3. Press or button on the LEVEL key if you want to increase or decrease

the subwoofer volume. You can set it from SW -6 to SW +6.

19

functions

POWER

POWER

TV POWER

REPEAT

TV VOL TV CH

AUDIO SYNC

SOURCE

AUTO

POWER

SPEAKER

TV SOURCE

SoundShare

POWER

TV POWER

REPEAT

TV VOL TV CH

AUDIO SYNC

SOURCE

AUTO

POWER

SPEAKER

TV SOURCE

TV PRE-CH

DIMMER

SMART VOLUMESOUND EFFECT

TV INFOTV MUTE

SoundShare

POWER

TV POWER

REPEAT

TV VOL TV CH

AUDIO SYNC

SOURCE

AUTO

POWER

SPEAKER

TV SOURCE

TV PRE-CH

DIMMER

SMART VOLUMESOUND EFFECT

S/W

LEVEL

S/W

LEVEL

VOL

VOL

3D SOUND

PLUS

DRC

TV INFOTV MUTE

SoundShare

MUTE

POWER

TV POWER

REPEAT

TV VOL TV CH

AUDIO SYNC

SOURCE

AUTO

POWER

SPEAKER

TV SOURCE

TV PRE-CH

DIMMER

SMART VOLUMESOUND EFFECT

TV INFOTV MUTE

SoundShare

POWER

TV POWER

REPEAT

TV VOL TV CH

AUDIO SYNC

SOURCE

AUTO

POWER

SPEAKER

TV SOURCE

SoundShare

TV POWER

AUTO

SPEAKER

TV SOURCE

POWER

SOURCE

SoundShare

REPEAT

TV VOL TV CH

AUDIO SYNC

DIMMER

TV INFOTV MUTE

TV PRE-CH

SMART VOLUMESOUND EFFECT

VOL

S/W

S/W

MUTE

LEVEL

LEVEL

VOL

3D SOUND

DRC

PLUS

AH59-02547B

Using the AUTO POWER LINK function

The Crystal Surround Air Track is automatically turned on when you turn on the
TV or any device connected to the Air Track with the optical cable.

Press AUTO POWER on the remote control of this unit.

• The Auto power link function turns on and off each time you press AUTO
POWER.

AUTO POWER LINK Display

ON

OFF

POWER LINK ON
POWER LINK OFF

▪ If a TV or any device connected to Air Track with the optical cable is

off and there is no digital input, the Air Track is turned off after 20
minutes.

▪ These functions are available only when Anynet+ (HDMI-CEC) is

turned off.

POWER

TV POWER

AUTO

SPEAKER

TV SOURCE

POWER

SOURCE

SoundShare

REPEAT

AUDIO SYNC

TV VOL TV CH

DIMMER

TV INFOTV MUTE

TV PRE-CH

SMART VOLUMESOUND EFFECT

VOL

S/W

S/W

MUTE

LEVEL

LEVEL

VOL

3D SOUND

DRC

PLUS

AH59-02547B

Using the AUDIO SYNC function

Video may appear out of synch with the audio if the Air Track is connected to a
digital TV. If this occurs, adjust the audio delay time to match the video.

Press AUDIO SYNC +/–. on the remote control of this unit.

• You can use the + , - buttons to set the audio delay time between 0 ms
and 300 ms.

▪ In USB mode, TV mode or BT mode, the Audio Sync function may

not work.

POWER

TV POWER

AUTO

SPEAKER

TV SOURCE

POWER

SOURCE

SoundShare

REPEAT

AUDIO SYNC

TV VOL TV CH

DIMMER

TV INFOTV MUTE

TV PRE-CH

SMART VOLUMESOUND EFFECT

VOL

S/W

S/W

MUTE

LEVEL

LEVEL

VOL

3D SOUND

DRC

PLUS

AH59-02547B

POWER

TV POWER

AUTO

SPEAKER

TV SOURCE

POWER

SOURCE

SoundShare

REPEAT

AUDIO SYNC

TV VOL TV CH

DIMMER

TV INFOTV MUTE

TV PRE-CH

SMART VOLUMESOUND EFFECT

VOL

S/W

S/W

MUTE

LEVEL

LEVEL

VOL

3D SOUND

DRC

PLUS

POWER

SOURCE

REPEAT

S/W
LEVEL

3D SOUND

PLUS

20

AH59-02547B

AUTO

SPEAKER

POWER

TV VOL TV CH

TV INFOTV MUTE

TV PRE-CH

VOL

MUTE

VOL

AH59-02547B

TV POWER

TV SOURCE

SoundShare

AUDIO SYNC

DIMMER

SMART VOLUMESOUND EFFECT

S/W

LEVEL

DRC

Using the DRC function

This feature balances the range between the loudest and quietest sounds.
You can use this function to enjoy Dolby Digital sound when watching movies
at low volume at night.

Press DRC on the remote control of this unit.

• Each time the button is pressed, the selection changes as follows :
DRC STANDARD ➡ DRC MAX ➡ DRC MIN

Using the DIMMER function

This feature controls the brightness of the Display.
Press DIMMER on the remote control of this unit.

• Each time the button is pressed, the selection changes as follows :
DIMMER ON ➡ DIMMER OFF

SPEAKER button

If the TV and Air Track are connected via HDMI, this button lets you select
between listening to audio through your TV or through the Air Track.

Press SPEAKER on the remote control of this unit.

AUDIO MODE SPEAKER Scroll Display Display

HDMI IN

ARC

TV

ir Track

A

TV

ir Track

A

TV SPEAKER TV SPK

AVR SPEAKER HDMI

TV SPEAKER S MUTE

AVR SPEAKER TV ARC

EnG

● functions

POWER

TV POWER

REPEAT

TV VOL TV CH

AUDIO SYNC

SOURCE

AUTO

POWER

SPEAKER

TV SOURCE

TV PRE-CH

DIMMER

TV INFOTV MUTE

SoundShare

POWER

POWER

TV POWER

REPEAT

TV VOL TV CH

AUDIO SYNC

SOURCE

AUTO

POWER

SPEAKER

TV SOURCE

SoundShare

5v 500mA

5v 500mA

TV POWER

AUTO

SPEAKER

TV SOURCE

POWER

SOURCE

SoundShare

REPEAT

TV VOL TV CH

AUDIO SYNC

DIMMER

TV INFOTV MUTE

TV PRE-CH

SMART VOLUMESOUND EFFECT

VOL

S/W

S/W

MUTE

LEVEL

LEVEL

VOL

3D SOUND

DRC

PLUS

AH59-02547B

Using the Anynet+(HDMI-CEC) function

Anynet+ is a function that enables you to control other Samsung Devices
with your Samsung TV's remote control.

The Anynet+ function turns on and off each time you press Anynet+.

Connect the product to a Samsung TV with an the HDMI cable.

1.

(See page 12)

2.

Set the Anynet+ function on your TV and the SAT to ON. (See the

TV instruction manual for more information.)

▪ Depending on your TV, certain HDMI output resolutions may not

work.

▪ Please refer to the user’s manual of your TV and check for the

logo (If your TV has an

Anynet+ function.)

POWER

TV POWER

AUTO

SPEAKER

TV SOURCE

POWER

SOURCE

SoundShare

REPEAT

AUDIO SYNC

TV VOL TV CH

DIMMER

TV INFOTV MUTE

TV PRE-CH

SMART VOLUMESOUND EFFECT

VOL

S/W

S/W

MUTE

LEVEL

LEVEL

VOL

3D SOUND

DRC

PLUS

AH59-02547B

Using the TV functions (with Samsung TVs only)

• Press TV SOURCE on the remote control to change the TV's input

source.

• Press TV INFO on the remote control to display the TV channel

information.

• Press TV CH on the remote control to select the TV channel.

• Press TV VOL on the remote control to increase or decrease the volume

level.

• Use TV PRE-CH button to move to the previous TV channel in TV mode.

logo, then it supports the

▪ When you press the SoundShare button, the TV's sound is

transmitted through the Air Track system via a Bluetooth
connection. The Air Track also controls the sound volume,
sound quality, etc.

▪ The remote control can operate TVs made by SAMSUNG only.

SOFTWARE UPGRADE

Samsung may offer upgrades for the Crystal
Surround Air Track's system firmware in the future.

If an upgrade is offered, you can upgrade the
firmware by connecting a USB drive with the
firmware upgrade stored on it to the USB port on
your Air Track.

Note that if there are multiple upgrade files, you must
load them onto the USB drive singly and use them to
upgrade the firmware one at a time.

Please visit Samsung.com or contact the Samsung
call center to receive more information about

downloading upgrades files.

▪ Insert a USB drive containing the firmware upgrade into the USB port on the main unit.
▪ Do not disconnect the power or remove the USB drive while upgrades are being applied. The main unit will turn

off automatically after completing the firmware upgrade.
When software is upgraded, settings you have made will return to their default (factory) settings.
We recommend you write down your settings so that you can easily reset them after the upgrade.

▪ Once upgrading the product software is completed, turn off the product and then press and hold

to reset the product.

▪ If the firmware fails to upgrade, we recommend formatting the USB device in FAT16 and trying again.
▪ For upgrading purposes, do not format the USB drive in NTFS format because it is not a supported file system.
▪ Depending on the manufacturer, some USB devices may not be supported.

(@)

button for a while

21

troubleshooting

Before requesting service, please check the following.

Symptom Check Remedy

The unit will not turn on.

A function does not work when the
button is pressed.

Sound is not produced.

The Picture does not appear on a TV
when the function is selected.

The remote control does not work.

• Is the power cord plugged into

the outlet?

• Is there static electricity in the

air?

• Is the unit properly connected

to your TV?

• Is the Mute function on?

• Is the volume set to minimum?

• Is the TV connected properly? • Connect it correctly.

• Are the batteries drained?

• Is the distance between remote

control and main unit too far?

• Connect the power plug to the

outlet.

• Disconnect the power plug and

connect it again.

• Connect it correctly.

• Press the Mute button to

cancel the function.

• Adjust the volume.

• Replace with new batteries.

• Move closer to the unit.

The sound from the left/right
channels are reversed.

The SoundShare (TV pairing) failed.

22

• Are the left/right audio output

cables from the TV connected
properly?

• Does your TV support

SoundShare?

• Is your TV firmware the latest

version?

• Does an error occur when

connecting?

• Reset the TV MODE and

connect again.

• Check the left/right channel and
connect it/them correctly.

• SoundShare is supported by

some Samsung TVs released
after 2012. Check your TV to
see if it supports SoundShare.

• Update your TV with the latest

firmware.

• Contact the call center.

• Press

to reset the product.

button for 5 seconds

EnG

● appEndix

appendix

SPECIFICATIONS

Model name

GENERAL

AMPLIFIER

HW-F450

USB 5V/0.5A

Main unit 1.92 kg

Weight

Dimensions
(W x H x D)

Operating temperature range +5 °C to +35 °C

Operating humidity range 10 % to 75 %

Rated output
power

S/N ratio (analog

Separation(1kHz) 65 dB

Subwoofer
(PS-WF450)

Main unit 906 x 45 x 70 mm

Subwoofer
(PS-WF450)

Main unit 80W/CH, 4O

Subwoofer
(PS-WF450)

input)

5.4 kg

175 x 350 x 295 mm

HM,

HM,

120W, 4O

65 dB

THD = 10%, 70Hz

THD = 10%, 1kHz

* S/N ratio, distortion, separation and usable sensitivity are based on measurement using AES (Audio

Engineering Society) guidelines.

*: Nominal specification

- Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.

- Weight and dimensions are approximate.

- For the power supply and Power Consumption, refer to the label attached to the product.

Hereby, Samsung Electronics, declares that this Crystal Surround Air Track is in compliance
with the essential requirements and other relevant provisions of Directive 1999/5/EC.
The official Declaration of Conformity may be found at http://www.samsung.com,
go to Support > Search Product Support and enter the model name.
This equipment may be operated in all EU countries.

23

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer
care Centre.

Area Contact Centre

AUSTRIA

0810 - SAMSUNG (7267864,
€ 0.07/min)



BELGIUM 02-201-24-18

BOSNIA 051 133 1999 www.samsung.com
BULGARIA 07001 33 11, normal tariff www.samsung.com
CROATIA 062 SAMSUNG (062 726 786) www.samsung.com
CZECH 800 - SAMSUNG (800-726786) www.samsung.com
DENMARK 70 70 19 70 www.samsung.com
FINLAND 030-6227 515 www.samsung.com
FRANCE 01 48 63 00 00 www.samsung.com/fr

0180 5 SAMSUNG bzw.

GERMANY

0180 5 7267864* (*0,14 €/Min.
aus dem dt. Festnetz, aus dem
Mobilfunk max. 0,42 €/Min.)

8009 4000 only from landline

CYPRUS

([phone] from mobile
and land line

80111-SAMSUNG (80111 726

GREECE

7864) only from land line
([phone] from mobile

and land line
HUNGARY 06-80-SAMSUNG(726-7864) www.samsung.com
ITALIA 800-SAMSUNG(726-7864) www.samsung.com
LUXEMBURG 261 03 710 www.samsung.com
MONTENEGRO 020 405 888 www.samsung.com

NETHERLANDS

0900-SAMSUNG (0900-

7267864) (€ 0,10/Min)

[Correct disposal of batteries in this product]

Web Site

www.samsung.com

www.samsung.com/be
(Dutch)
www.samsung.com/be_
fr (French)

www.samsung.com

www.samsung.com

www.samsung.com

www.samsung.com

Area Contact Centre



Web Site

NORWAY 815 56480 www.samsung.com

0 801-1SAMSUNG(172-678) *
lub [phone] **
* (całkowity koszt połączenia

POLAND

jak za 1 impuls według taryfy

www.samsung.com/pl
operatora)
** (koszt połączenia według taryfy
operatora)

PORTUGAL

808 20-SAMSUNG (808 20

7267)

www.samsung.com

08008 SAMSUNG (08008 726

ROMANIA

7864)

www.samsung.com
TOLL FREE No.

[phone]

SERBIA

(old number still active 0700

www.samsung.com

7267864)

SLOVAKIA

SPAIN

0800 - SAMSUNG(0800-726

786)
902 - 1 - SAMSUNG (902 172

678)

www.samsung.com

www.samsung.com

SWEDEN 0771 726 7864 (SAMSUNG) www.samsung.com

www.samsung.com/ch

Switzerland

0848 - SAMSUNG(7267864,
CHF 0.08/min)

(German)

www.samsung.com/

ch_fr (French)

U.K 0330 SAMSUNG (7267864) www.samsung.com
EIRE 0818 717100 www.samsung.com
LITHUANIA 8-800-77777 www.samsung.com/lt
LATVIA 8000-7267 www.samsung.com/lv
ESTONIA 800-7267 www.samsung.com/ee

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in countries with separate collection systems)

This marking on the battery, manual or packaging indicates that the batteries in
this product should not be disposed of with other household waste at the end of
their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that
the battery contains mercury, cadmium or lead above the reference levels in EC
Directive 2006/66. If batteries are not properly disposed of, these substances can
cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate
batteries from other types of waste and recycle them through your local, free
battery return system.

As an ENERGY STAR Partner, Samsung
has determined that this product or product
models meets the ENERGY STAR guidelines
for energy efficiency.

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and
its electronic accessories (e.g. charger, headset, USB cable) should not be disposed
of with other household waste at the end of their working life. To prevent possible
harm to the environment or human health from uncontrolled waste disposal, please
separate these items from other types of waste and recycle them responsibly to
promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product,

or their local government ofce, for details of where and how they can take these

items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions
of the purchase contract. This product and its electronic accessories should not be
mixed with other commercial wastes for disposal.

AH68-02647L-00

HW-F450

Crystal Surround Air Track

(système avec enceintes actives)

Manuel d'utilisation

imaginez les possibilités

Merci d’avoir choisi un appareil Samsung.
Pour recevoir une assistance plus complète,

veuillez enregistrer votre produit sur

www.samsung.com/register

caractéristiques

2.0 Channel

2.0 Channel

SoundShare

Le SoundShare émet le son du téléviseur sur votre Ensemble Home cinéma (SAT) via une connexion Bluetooth et le son est contrôlé.

HDMI

L'interface HDMI permet la transmission simultanée des signaux audio et vidéo pour vous offrir une image plus nette.
L'appareil est également équipé de la fonction ARC qui vous permet d'écouter le son de votre téléviseur dans l’Ensemble Home

cinéma via un câble HDMI. Cette fonction est uniquement disponible si vous connectez l'appareil à un téléviseur compatible ARC.

3D SOUND PLUS

La fonctionnalité 3D SOUND PLUS ajoute de la profondeur et de la grandeur au son.

Caisson de basses sans fil

Le module sans fil de Samsung s'affranchit des câbles qui reliaient l'unité principale au caisson de basses.
En remplacement du câblage, le caisson de basses se connecte à un module sans fil compact qui communique avec l'unité principale.

Mode sonore spécial

Vous avez le choix entre sept modes de sons différents - MUSIC, NEWS, DRAMA, CINEMA, SPORTS, GAME, et OFF (son
original) - selon le type de contenu dont vous souhaitez profiter.

Télécommande multifonction

La télécommande fournie peut également être utilisée pour commander le téléviseur connecté à cet ensemble. (Fonctionne uniquement
avec les téléviseurs Samsung)
Elle est pourvue d'une touche d'accès rapide au téléviseur permettant d'activer plusieurs options d'une simple pression sur les touches.

Système avec enceintes actives

Cet ensemble est doté d'un système avec enceintes actives qui offre une haute qualité sonore dans une seule unité peu
encombrante.
Cet ensemble ne nécessite aucun haut-parleur satellite ni câbles, généralement présents dans les Home Cinémas classiques.

Prise en charge de la fonction Hôte USB

Vous pouvez connecter des périphériques de stockage USB externes (lecteur MP3, mémoire flash USB, etc.) afin d’en lire les
fichiers musicaux à l’aide de la fonction USB HOST du système Home cinéma.

Fonction Bluetooth

Vous pouvez connecter un périphérique Bluetooth à l'Ensemble Home cinéma pour écouter de la musique avec un son stéréo de
haute qualité, tout cela sans fil !

LICENCE

Fabriqué sous licence par Dolby Laboratories. Dolby et le symbole représentant deux D sont des marques de commerce de
Dolby Laboratories.

Fabriqué sous licence sous les brevets américains suivants : 5,956,674; 5,974,380; 6,487,535 et autres brevets déposés
ou en attente aux États-Unis ou dans d'autres pays. DTS, le Symbole, ainsi que DTS et le Symbole ensemble sont des
marques déposées et DTS 2.0 Channel est une marque de commerce de DTS, Inc. Le produit inclut le logiciel. © DTS, Inc.
Tous droits réservés.

Les termes HDMI et HDMI High-Definition Multimedia Interface, et le logo HDMI sont des marques de
commerce ou des marques déposées de HDMI Licensing LLC aux États-Unis et dans d'autres pays.

- Pour toute requête et demande concernant les questions sur les sources ouvertes, contactez Samsung via e-mail
(oss.request@ samsung.com).

2

FRA

informations relatives à la sécurité

AVERTISSEMENTS

POUR ÉVITER LES RISQUES DE CHOC ÉLECTRIQUE, NE DÉMONTEZ PAS LE CAPOT. L’APPAREIL NE CONTIENT PAS DE
PIÈCES RÉPARABLES PAR L’UTILISATEUR ; S’ADRESSER À UN SERVICE APRÈS-VENTE QUALIFIÉ.

Ce symbole avertit l’utilisateur de la

ATTENTION

RISQUE DE CHOC ÉLECTRIQUE.

NE PAS OUVRIR

AVERTISSEMENT : Afin de diminuer les risques d’incendie ou de choc électrique, n’exposez pas cet appareil à la pluie ou à l’

humidité.

présence d’une tension dangereuse à
l’intérieur de l’appareil.

Ce symbole avertit l’utilisateur de la
présence de directives importantes dans la
documentation accompagnant cet appareil.

MISE EN GARDE

• Cet appareil doit toujours être branché à une prise terre.

• Pour déconnecter l’appareil du circuit principal, la prise doit être débranchée de la prise principale ; il est de ce fait

nécessaire que la prise principale soit facile d'accès.

ATTENTION

• Évitez toute projection d’eau sur l’appareil. Ne posez jamais d’objet contenant un liquide (ex : un vase) dessus.

• Pour éteindre complètement l'appareil, vous devez retirer le cordon d'alimentation de la prise murale. Par conséquent,

le cordon d'alimentation doit être facilement accessible à tout moment.

: Pour prévenir les chocs électriques, branchez la fiche au fond, en prenant soin d'insérer la tige large dans la

fente large.

3

PRÉCAUTIONS

3.9 inch 3.9 inch

2.7 inc

h

3.9 inch

tionnement de l’appareil.

appareil.

99.1mm

99.1mm

68.6mm

99.1mm

Assurez-vous que l'alimentation électrique de votre maison est conforme à la plaque d'identification située au dos de votre produit.
Posez votre produit à plat sur un meuble stable en veillant à laisser un espace de 7 à 10 cm autour de l'appareil afin d’assurer une ven­tilation correcte de celui-ci. Faites attention à ne pas obstruer les orifices de ventilation. Ne posez pas l'ensemble sur un amplificateur ou
un autre appareil susceptible de chauffer. Cet ensemble est conçu pour une utilisation en continu. Pour entièrement éteindre l'appareil,
débranchez la fiche CA de la prise murale. Débranchez l'appareil si vous envisagez de ne pas l'utiliser durant une longue période.

En cas d'orage, débranchez la fiche de l'appareil de la prise murale.
Les surtensions occasionnées par l'orage pourraient endommager votre
appareil.

N'exposez pas l'ensemble aux rayons directs du soleil ou à toute autre
source de chaleur. Ceci pourrait entraîner une surchauffe et un dysfonc­tionnement de l’appareil.

Phones

Protégez le produit de l'humidité (comme les vases) et d'une chaleur
excessive (comme une cheminée) ou de tout équipement capable de
créer des champs magnétiques ou électriques. Débranchez le câble
d'alimentation en cas de dysfonctionnement.

Votre produit n'est pas prévu pour un usage industriel. Ce produit ne peut
être utilisé qu'à des fins personnelles.

Une condensation peut se former si le produit ou un disque a été stocké
à basse température. Si vous devez transporter l'ensemble pendant
l'hiver, attendez environ 2 heures que l'appareil ait atteint la température
de la pièce avant de l'utiliser.

4

Les piles utilisées dans ce produit peuvent contenir des produits ch
miques dangereux pour l'environnement.
Ne jetez pas les piles dans votre poubelle habituelle.

FRA

sommaire

CARACTÉRISTIQUES

2

INFORMATIONS RELATIVES À LA

SÉCURITÉ

3

DÉMARRAGE

6

DESCRIPTIONS

7

TÉLÉCOMMANDE

8

BRANCHEMENTS

9

2 Caractéristiques
2 Licence

3 Avertissements
4 Précautions

6 Avant de lire le manuel d'utilisation
6 Contenu

7 Façade/panneau arrière

8 Présentation de la télécommande

9 Installation de la fixation murale
10

Branchement d’un caisson de graves sans fil

11 Relier le noyau torique en ferrite au cordon

d'alimentation du caisson de basse

11 Installation du noyau torique en ferrite sur le

caisson de basse

12 Connexion d'un périphérique externe à

l'aide d'un câble HDMI

13 Connexion d'un périphérique externe à

l'aide d'un câble audio (analogique) ou
optique (numérique)

FONCTIONS

14

DÉPANNAGE

22

ANNEXE

23

14 Mode d’entrée
14 Bluetooth
16 SoundShare
17 USB
18 Utilisation de la télécommande
21 Mise à jour du logiciel

22 Dépannage

23 Spécifications

5
