HW-C900

AV Receiver System

user manual

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register your product at

www.samsung.com/register

Safety information

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates “dangerous voltage”

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING

•

To reduce the risk of ﬁ re or electric shock, do not expose this appliance to rain or moisture. To prevent injury, this apparatus must be securely attached to the ﬂ oor/wall in accordance with the installation instructions.

•

CAUTION

Apparatus shall not be exposed to dripping or splashing and no objects ﬁ lled with liquids, such as vases, shall be placed on the

•

apparatus. The Mains plug is used as a disconnect device and shall stay readily operable at any time.

•

This product satisﬁ es FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances, such as radios and televisions, use shielded cables and connectors for connections.

FCC NOTE (for U.S.A):

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and receiver.

•

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•

Consult the dealer or an experienced radio/TV technician for help.

inside the product that presents a risk of electric shock or personal injury.

This symbol indicates important instructions accompanying the product.

Caution :

FCC regulations state that any unauthorized changes or modiﬁ cations to this equipment may void the user's authority to operate it.

IMPORTANT SAFETY INSTRUCTIONS

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

IMPORTANT NOTE: FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth an uncontrolled environment. This equipment should be installed and operated with minimum distance 7.9 inches between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Canadian Department of Communications Radio Interference Regulations

This digital apparatus (Wireless Internet Radio) does not exceed the Class B limits for radio-noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications.

Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference.

1) Read these instructions.

2) Keep these Instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including

8) ampliﬁ ers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not ﬁ t into your outlet, consult an electrician for replacement of the obsolete outlet.

10)

Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachment/accessories speciﬁ ed by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table speciﬁ ed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualiﬁ ed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

ENG

Safety information

PRECAUTIONS

2.7 inches

3.9 inches

Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your player horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4inches). Make sure the ventilation slots are not covered. Do not stack anything on top of the amplifier. In order to disconnect the player completely from the power supply, remove the AC plug from the wall outlet, especially when left unused for a long period of time.

During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks due to lightning could damage the unit.

Phones

Protect the player from moisture(i.e. vases), and excess heat(e.g.fireplace) or equipment creating strong magnetic or electric fields (i.e.speakers...). Disconnect the power cable from the AC supply if the player malfunctions. Your player is not intended for industrial use.

Use of this product is for personal use only. Condensation may occur if your player or disc have been

stored in cold temperatures. If transporting the player during the winter, wait

approximately 2 hours until the unit has reached room temperature before using.

Do not expose the unit to direct sunlight or other heat sources.

This could lead to overheating and malfunction of the unit.

The batteries used with this product contain

chemicals that are harmful to the environment.

Do not dispose of batteries in the general household

trash.

Features

ENG

Digital AV Receiver

This product is a pure digital AV receiver that performs digital signal processing to minimize signal distortion and loss.

Dolby Pro Logic llx

Dolby Pro Logic IIx is a new technology that provides discrete 7.1 channels out of 2 channel or multi channel sources.It also provides Music,Movie and Game modes. Dolby Pro Logic IIx is an improved surround system that is optimized to a 7.1 CH multimedia system, enabling you to maximize your entertainment experience.

Dolby Pro Logic llz

Dolby Pro Logic IIz adds front height channels to surround sound, creating a 7.1 playback system for video games, home music, and movies; bringing enhanced spatial effects and enveloping sound.

Dolby Digtal EX

Adds a surround back channel for more spacious sound compared to regular 5.1 channel Dolby Digital.

Dolby Digital Plus

Dolby Digital Plus is the next-generation audio technology for all high-deﬁ nition programming and media.

Dolby True-HD

Dolby True-HD is Dolby’s next-generation lossless technology developed for high-deﬁ nition disc-based media.

DTS 96/24

DTS 96/24 encodes standard 16 bit/44.1 kHz sound to 24 bit/96kHz and applies it to a 5.1 CH sound track.

DTS (Digital Theater Systems)

DTS provides a discrete 5.1 CH digital audio signal for both music and movie contents and uses less compression than Dolby Digital for richer sound.

DTS-HD (Master Audio, High Resolution) (Digital Theater Systems - High Deﬁ nition)

DTS-HD Audio provides the highest quality multi-channel sound possible. It delivers sound quality that matches the clear and vivid images of high-deﬁ nition video.

DTS

Provides a full range of 6 channels by converting a digital PCM or analog stereo signal using DTS digital matrix decoding.

DTS-ES (Extended Surround)

The DTS-ES (Extended Surround) system is a new multi digital signal format that was developed by Digital Theater Systems Inc. Supporting full compatibility with the conventional DTS digital surround sound format, the DTS-ES (Extended Surround) system improves the surround signal for a 360degree surround effect. DTS-ES adds an additional rear center surround channel for

6.1 channel sound.

iPod

You can enjoy music ﬁ les by connecting your iPod/iPhone to the AV Receiver with the supplied iPod dock.

SFE (Sound Field Effect) Using 32bit Audio Digital Signal Processing

Provides more realistic surround sound with normal stereo audio sources.

Anynet+ (HDMI-CEC) Function

Anynet+ is a function that can be used to operate this AV Receiver with a Samsung TV remote control, by connecting the receiver to a SAMSUNG TV using an HDMI Cable. (This function is available only in connection with Samsung TV and DVD player supporting Anynet+(HDMI-CEC).)

ACCESSORIES

INPUT SELECT

TV SOURCE

POWER

MAIN/

AMP/TV

BD/DVD

ZONE2

123

456

SLEEP DIMMERNEO:6

7809

PROLOGIC

AUDIO ASSIGN

DSP

MUTE

TUNING

VOL

/ CH

ASC

TUNER

SUB WOOFER MO/ST

MEMORY

SETUP/MENU

INFO

RETURN

EXIT

TV/AUX1

BD/DVD

SAT

iPod

MULTI CH VCR/AUX2

Remote Control

(AH59-02297A)/

Batteries (AAA size)

(4301-000116)

FM antenna

(AH42-00017A)

User’s manual

(AH68-02312R)

iPod Dock

(AH96-00051A)

ASC microphone

( AH30-00099A )

SAFETY INFORMATION

FEATURES

DESCRIPTION

CONNECTIONS

2 Safety Warnings 3 Important Safety Instructions 4 Precautions

5 Accessories

8 Front Panel 10 Rear Panel 12 Display 13 Insert Remote Control Batteries 13 Operation Range of the Remote Control 14 Tour of the Remote Control

16 Speaker Positioning 18 Connecting the Speakers 19 Connecting the Bi-Amp Speaker 20 Connecting the ZONE2 Speaker 22 Connecting External Devices/Your TV via

HDMI 23 HDMI Function 24 Connecting to your TV 25 Connecting a DVD or BD(Blu-ray) Player 26 Connecting a Cable, Satellite or Set-top Box 27 Connecting a VCR 28 Connecting a CD Player 29 Connecting 7.1 Channel Devices 29 Connecting the Trigger Out Jacks 30 Connecting an iPod 32 Connecting the FM Antenna 32 Connecting Aux Components

BASIC FUNCTIONS OF YOUR AV

RECEIVER

33 Before Using the AV Receiver 33 Basics of ZONE2 35 Audio Setup 36 Selecting Digital/Analog Input

ENG

SETUP

37 Setup Menu Tree 41 Setting the Speaker Size 42 Connection setting for surround BACK 43 Setting the Speaker Listening Distance 44 Setting the Speaker Level 45 Setting the Test Tone 46 Setting Dolby Pro Logic Mode 46 Setting Dolby Pro Logic IIx 47 Setting Tone Control 47 Setting NEO:6 Mode 48 Setting EX/ES Mode 49 AV SYNC 49 MP3 Enhancer 49 Smart Volume 50 ASC (Auto Sound Calibration) Setup 51 DRC Setup 51 DUAL MONO SetUp 52

HDMI Setup

53 Variable Set (Low Power Consumption

SETUP) 53 Video Conv. (Video Conversion) 54 Zone2 Setup 54

12-V Trigger

● CONTENTS

OPERATION

MISCELLANEOUS

TROUBLESHOOTING

APPENDIX

55 Using the Surround Modes 56 Using the Subwoofer Selection Button 57 Listening to the Radio 58 Using an iPod 60 Convenient Functions 61 Software Upgrade

62 Operating Your TV With the Remote Control 64 Operating your DVD or BD player with the

remote control

65 Troubleshooting

67 Speciﬁ cations

Description

FRONT PANEL

7 10 1241 2 3 5 6 9

8 11 13

INPUT SELECT CONTROL

AUDIO ASSIGN BUTTON

AUDIO EFFECT BUTTON

MULTI ZONE BUTTON

SETUP BUTTON

DISPLAY

ENTER BUTTON

ZONE2/BI-AMP INDICATOR

TONE CONTROL

ASC BUTTON

BUTTON

14 15 1716 18

Used to select a source. (FM  BD/DVD  SAT  TV  VCR CD  AUX1  AUX2  7.1 MULTI CH  IPOD AUDIO  IPOD VIDEO).

Toggles to select an input mode for the selected source.

Toggles to select a surround sound mode.

Selects either ZONE2 or main unit.

Displays the SETUP menu.

Displays the speaker/audio input status, listening mode, etc.

Used to select an item in the SETUP menu.

The indicator lights on when you turn on ZONE2 or Bi-AMP.

Used to set the bass, treble level and tone to on/off.

Used to select the ASC (Auto Sound Calibration) mode.

19 20 21 22

ENG

S.DIRECT BUTTON

MASTER VOLUME CONTROL

POWER

PHONE JACK

AUX IN JACKS

ASC MIC JACK

UP(,), DOWN(.), LEFT(<),

RIGHT(>) BUTTONS

MULTI CH BUTTON

AV SYNC BUTTON

TUNING MODE BUTTON

SELECT BUTTON

TUNER MEMORY BUTTON

Used to select the S.DIRECT mode.

(Output the original signal as it is without applying the sound ﬁ eld effect or any other sound effect.

Adjusts the volume level.

Turns the receiver on/off.

Used to connect a set of headphones.

Auxiliary AV input terminals used to connect a camcorder, portable DVD player or gaming device.

Used to connect the ASC MIC for setting up ASC (Auto Sound Calibration).

Used to move the cursor up, down, left or right.

Also used to select detailed options in the

Used to select a connected 7.1 multi channel player.

Used to select the Audio Delay Mode.

Used to select the Manual or Preset mode for FM radio.

Used to change the radio frequency.

Used to set a preset radio frequency.

AUDIO EFFECT mode and to change the tone level.

● DESCRIPTION

Description

REAR PANEL

1 3 5 6 7

2 4

19 208 9

12 13 14

16 17

ENG

OPTICAL IN JACKS (DIGITAL AUDIO IN)

COAXIAL IN JACK (DIGITAL AUDIO IN)

COMPONENT VIDEO IN JACKS

COMPONENT VIDEO OUT JACKS

HDMI IN JACKS

HDMI OUT JACK

USB PORT

FM ANTENNA JACK

iPod JACK

MULTI CH IN JACKS

VIDEO IN JACKS

VIDEO OUT JACKS

ZONE2 VIDEO OUT JACK

SUBWOOFER AUDIO OUT JACKS

Receives the digital optical audio signal.

Receives the digital coaxial audio signal.

Receives the component video signal.

Outputs the component video signal.

Receives digital video and audio signals simultaneously using an HDMI cable.

Outputs digital video and audio signals simultaneously using an HDMI cable.

Can be only used for ﬁ rmware upgrades.

Connect the FM Antenna here.

Receives the audio/video signal from an iPod.

Receives the analog audio signal from an external player with a multi-channel port.

Receives the video signal from a video player (BD/DVD, SAT,VCR).

Outputs the video signal to a VCR or monitors(TV, Projector etc).

Outputs the video signal to the video device that will be used in ZONE2.

Connect the subwoofers. (Active subwoofer only)

● DESCRIPTION

AUDIO IN JACKS

VCR AUDIO OUT JACKS

CD AUDIO IN JACKS

ZONE2 AUDIO OUT JACKS

TRIGGER OUT JACKS

SPEAKER OUT TERMINALS

Receives the audio signal from a video player (TV, BD/DVD, SAT,VCR).

Outputs the audio signal to a VCR.

Receives the audio signal from a CD player.

Outputs the analog audio signal to the external ampliﬁ er that will be used in ZONE2.

Use to switch components in your system on and off according to the input function of the receiver.

Speaker connection terminals.

The front speaker and surround back speaker ports can be connected to a speaker that supports bi-amplifying. For connecting to the bi-ampliﬁ er, refer to page 19.

With ZONE2 activated, you can connect the surround back speaker to a speaker that can be used in Zone 2. For more information about ZONE2 connection, refer to page

20.

Description

DISPLAY

1 2 3 4

SPEAKER INDICATORS

LISTENING MODE INDICATORS

TUNING INDICATORS

AUDIO INPUT INDICATORS

SPEAKER LEVEL INDICATOR

RADIO FREQUENCY INDICATORS

MESSAGE DISPLAY

Displays the connected speakers.

Displays the current listening mode.

Displays the status of the current radio broadcast.

Displays the audio input signal type of the currently connected external audio source.

Displays the speaker level.

Displays the current radio frequency range.

Informs you of the status of the receiver.

INSERT REMOTE CONTROL BATTERIES

* Batteries (AAA size)

Follow these precautions to avoid leaking or cracking cells:

Place batteries in the remote control so they match the polarity : (+) to (+) and (–) to (–).



Assuming typical TV usage, the batteries last for about one year.



Use the correct type of batteries. Batteries that look similar may differ in voltage.



Always replace both batteries at the same time.



Do not expose the batteries to heat or a ﬂ ame.



ENG

● DESCRIPTION

OPERATION RANGE OF THE REMOTE CONTROL

The remote control can be used up to approximately 23 feet/7 meters in a straight line. It can also be operated at a horizontal angle of up to 30° from the remote control sensor.

INPUT SELECT

TV SOURCE

POWER

MAIN/

AMP/TV

BD/DVD

ZONE2

123

456

SLEEP DIMMERNEO:6

7809

PROLOGIC

AUDIO ASSIGN

DSP

MUTE

TUNING

VOL

/ CH

ASC

TUNER

SUB WOOFER MO/ST

MEMORY

SETUP/MENU

INFO

RETURN

EXIT

TV/AUX1

BD/DVD

SAT

iPod

MULTI CH VCR/AUX2

Description

TOUR OF THE REMOTE CONTROL

POWER

MAIN/

ZONE2

SLEEP DIMMERNEO:6

AUDIO ASSIGN

AMP/TV

123

7809

PROLOGIC

INPUT SELECT

TV SOURCE

BD/DVD

DSP

16 17

20 21

MUTE

VOL

TUNER

MEMORY

SETUP/MENU

RETURN

BD/DVD

MULTI CH VCR/AUX2

ASC

SUB WOOFER MO/ST

TV/AUX1

SAT

TUNING

/ CH

INFO

EXIT

iPod

26 27

28 29

POWER BUTTON

AMP/TV BUTTON

NUMBER BUTTONS

Turns the receiver on/off.

Used to select the AMP/TV mode.

- If you select the AMP mode, the button will ﬂ ash orange.

- If you select the TV mode, the button will ﬂ ash green.

Used to select a TV channel.

ENG

NEO : 6 BUTTON

PROLOGIC BUTTON

SKIP BUTTONS

STOP/PLAY BUTTON

MUTE BUTTON

VOLUME CONTROL BUTTONS

SUBWOOFER BUTTON

TUNER MEMORY BUTTON

SETUP/MENU BUTTON

UP/DOWN/LEFT/RIGHT BUTTONS

RETURN BUTTON

FUNCTION SELECTOR BUTTONS

INPUT SELECT,

TV SOURCE BUTTON

MAIN/ZONE2

BD/DVD BUTTON

SLEEP BUTTON

Select the desired NEO:6 mode.

Select the desired Dolby Pro Logic audio mode.

Press to skip backwards or forwards on a connected DVD/BD player or iPod.

Press to stop/start playback on a connected DVD/BD player or iPod.

Mutes the sound of a connected device.

Adjusts the volume of the selected device.

Used to set the Subwoofer level.

Used to set a preset radio frequency.

Displays the SETUP menu.

Used to navigate the menus.

Used to return to the previous menu from the SETUP menu.

Used to select an input source.

Toggles to ﬁ nd and select an input source.

Press to select a connected TV's video source.

Selects either ZONE2 or main unit.

If you select ZONE2, you can use the control functions available in ZONE2.

Used to select the BD/DVD mode.

- If you select the BD mode, the button will ﬂ ash orange.

- If you select the DVD mode, the button will ﬂ ash green.

Used to set the Sleep Timer.

● DESCRIPTION

AUDIO ASSIGN BUTTON

DIMMER BUTTON

DSP BUTTON

SEARCH BUTTON

PAUSE BUTTON

TUNING/CHANNEL BUTTONS

ASC BUTTON

MO/ST BUTTON

INFO BUTTON

ENTER BUTTON

EXIT BUTTON

Toggles to select an input mode for the selected source.

Adjusts the brightness of the display.

Used to select the SFE mode.

Press to search backwards or forwards.

Pauses playback on a connected device.

Used to change the radio broadcasting frequency or TV channel.

Used to set the Auto Sound Calibration function.

Select MONO or STEREO for radio broadcasts.

Display information on the connected device currently being used.

Used to select an item in the SETUP menu.

Exits the SETUP menu.

Connections

This section involves various methods of connecting the AV receiver to other external components. Before moving or installing the product, be sure to turn off the power and disconnect the power cord.

SPEAKER POSITIONING

There are two methods for positioning the speakers. When using Dolby Pro Logic IIz, place the Surround Back Speakers in the FHL, FHR position and connect them to SURROUND BACK/ FRONT HEIGHT Jack.

FHL FHR

6.6~9.8 feet (2~3m)

SBL

L, R, C, SW, SL, SR, SBL, SBR ( Dolby Pro Logic IIx ) L, R, C, SW, SL, SR, FHL, FHR( Dolby Pro Logic IIz)

SBR

SL SR

6.6~9.8 feet (2~3m)

Position of AV Receiver

Place the AV Receiver on a dedicated stand or rack.

Subwoofer

The position of the subwoofer is not so critical. Place it anywhere you like.

Front Speakers

Place these speakers in front of your listening position, facing inwards (about 45°) toward you.

Place the speakers so that their tweeters will be at the same height as your ears.

Align the front face of the front speakers with the front face of the center speaker or place them slightly in front of the center speaker.

Center speaker

It is best to install it at the same height as the front speakers.

You can also install it directly over or under the TV.

Surround Speakers

Place these speakers behind your listening position.

If there isn't enough room, place these speakers so they face each other.

Place them about 2 to 3 feet (60 to 90cm) above your ears, facing slightly downward.

Unlike the front and center speakers, the surround speakers are used to handle mainly sound effects and sound will not come from them all the time.

ENG

● CONNECTIONS

Surround Back Speakers

If you are using two rear center speakers, place them behind the listening position.

Place the surround back speaker about 2.3-3.3 feet (70 cm to 1 m).

Front Height Speakers

When using Dolby Pro Logic IIz, place the Surround Back Speakers on the FHL, FHR position above the front L and front R speakers at least 3.3 feet(1 m) above each one.

When you attach the speakers to the wall, make sure to fasten them tightly so they do not fall off.



FHL FHR

SBL SBR

(Using Dolby Pro Logic IIz)

Speaker Conﬁ guration

For the best surround-sound experience, you should connect seven speakers and a powered subwoofer.

The following table shows which channels you should use based on the number of speakers you have.

2 speakers 3 speakers 4 speakers 5 speakers

7 speakers

(DPL IIx)

7 speakers

(DPL IIz)

SBL

SBR

No matter how many speakers you use, a powered subwoofer is recommended for powerful and solid bass.



If you place a speaker near your TV set, screen color may be distorted because of the magnetic ﬁ eld generated



by the speaker. If this occurs, place the speaker away from your TV set.

FHL

FHR

Connections

CONNECTING THE SPEAKERS

FRONT (R)

ACTIVE SUBWOOFER

SURROUND (R)

SURROUND BACK (R)

SURROUND BACK (L)

CENTER

SURROUND (L)

FRONT (L)

If you want to use two active subwoofer speakers, connect both subwoofer speakers into the SUBWOOFER OUT terminals



in the rear panel.



When using Dolby Pro Logic IIz, connect the Surround Back Speakers (FHL, FHR) to SURROUND BACK/FRONT HEIGHT Jack.

Connecting Speaker Wire

Loosen the knob by turning counterclockwise.

Insert the bare part of the wire into the hole in the side of each terminal.

Tighten the knob by turning clockwise to secure the wire.

Keep the subwoofer speaker out of reach of children to prevent them from inserting their hands or objects



into the duct (hole).



Never touch speaker terminals while the power is on. Doing so could result in electric shock.



Make sure the polarities (+ and -) are correct.

CONNECTING THE Bi-AMP SPEAKER

Connect the tweeter (high range) port and woofer (low range) to the front port and surround back speaker port respectively as appropriate. Then, you can use the bi-ampliﬁ cation feature that supports enriched high range and base tones.

Connect the FRONT L connector (rear side of main unit) to the Tweeter port in the front left speaker.

Connect the FRONT R connector (rear side of main unit) to the

Connect the SURROUND BACK L connector (rear side of main unit) to the Woofer port in the front left speaker.

Connect the SURROUND BACK R connector (rear side of main unit) to the Woofer port in the front right speaker.

Tweeter port in the front right speaker.

Bi-AMP Speaker LBi-AMP Speaker R

ENG

● CONNECTIONS

Tweeter

Woofer

To enable the Bi-Amp feature, you must set SB SETUP to Bi-AMP in SETUP menu. See page 42.



With the Bi-amp feature, you can use up to 5.1 channels for speaker output in the main unit.



If Bi-amp is active, you may encounter a restricted access if you have not removed the shorting bar (like a



jumper) in both tweeter and subwoofer ports in the front speaker.

Before you can use bi-amp, ensure that you use a speaker that supports bi-amplifying.



Tweeter

Woofer

Connections

SBL

SBR

ZONE 2

In addition to your main listening room, you can also enjoy playback in the other room (Zone 2).

•

You can simultaneously play back the same source in both the Main Zone and Zone 2. You can also play back

•

the separate sources in the Main Zone and Zone 2. Use an RCA video cable to connect the AV receiver’s ZONE 2 Video OUT jacks to an Video input on your Zone 2

•

TV.

It is not possible to play the digital audio signals input from the HDMI, Coaxial or Optical connectors.



Use analog connections for Zone 2 playback.



Video output is available in Zone 2.



Connecting the Zone 2 Speaker

There are two ways you can connect Zone 2 speakers:

Connecting the Zone 2 speakers directly to the main unit (Powered ZONE 2)

Connecting using the external ampliﬁ er (ZONE2)

RECEIVER

SL SR

Install speaker in main space

Install speaker in

sub space

Powered ZONE 2

Connecting speaker directly to main unit

ZONE 2

Connecting using the external ampliﬁ er

1. Connecting the speakers directly to the main unit (Powered ZONE2)

This setup allows 5.1-channel playback in your main room and 2-channel stereo playback in Zone 2, with a different source in each room.

•

Connect your Zone 2 speakers to the AV receiver’s Surround Back Speaker terminals.

Zone 2

To enable the Powered ZONE2 feature, you must set SB SETUP to ZONE2 in SETUP menu. See page 42.



You can adjust the volume of Powered ZONE2 using the volume control in the main unit when ZONE2 SETUP



is set to VARIABLE.

ENG

● CONNECTIONS

2. Connecting using the external ampliﬁ er (ZONE2)

This setup allows 7.1-channel playback in your main listening room and 2-channel stereo playback in Zone 2, with a different source in each room.

Use an RCA audio cable to connect the AV receiver’s ZONE 2 OUT L/R jacks to an analog audio input on your Zone 2

•

ampliﬁ er. Connect your Zone 2 speakers to the speaker terminals on your Zone 2 ampliﬁ er

•

ZONE 2

The Volume in Zone 2 using the external ampliﬁ er with volume control (like AV Receiver or Pre-Main Ampliﬁ er)



can be controlled in the external ampliﬁ er.

If external ampliﬁ er does not provide the volume control function like Power Ampliﬁ er, set ZONE2 to "VOL



VARIABLE" in SETUP menu.

CONNECTING EXTERNAL DEVICES/YOUR TV VIA HDMI

OPTICAL OUT

HDMI is a digital standard interface for connection to such devices as a TV, projector, DVD player, Blu-ray player, set-top box and more.

HDMI removes any loss of signal from analog conversion, enabling you to enjoy video and audio sound quality as it was originally created in the digital source.

By connecting through the HDMI(High-Deﬁ nition Multimedia Interface) interface, you can play back digital video and audio.

DVD or

Blu-ray Player

•

Connect it if you want to use Anynet+.

SAT

(Cable/Satellite/Set-top box)

Game console

Camcorder or HDTV Tuner

(HDTV Terrestrial Receiver)

High-bandwidth Digital Content Protection System (HDCP) support

To play digital contents through the HDMI connection, both the connected external device and TV must support High-bandwidth Digital Content Protection System (HDCP). This product supports HDCP.

Compatibility with a TV Supporting HDMI

A TV with an HDMI jack. Video/Audio

A TV with a DVI-D jack (TV supporting HDCP) Video

A TV with a DVI-D jack (TV not supporting HDCP) -

Audio from SACD discs will not be heard with this connection. To play a DVD disc whose copyright is protected



by CPPM, use a player supporting CPPM. The quality of the audio output through the HDMI jack (sampling frequency and bit rate) may be limited by the



performance of the connected device. Since HDMI connection supports both video and audio, you don’t have to connect an additional audio cable.



HDMI FUNCTION

Using Anynet+(HDMI-CEC)

ENG

Anynet+ is a function that enables you to control other Samsung Devices with your Samsung TV's remote control. Anynet + can be used by connecting this AV Receiver to a SAMSUNG TV using an HDMI Cable. This is only available with SAMSUNG TVs and SAMSUNG AV Products that support Anynet+.

Connect the AV receiver to a Samsung TV with an HDMI cable. (See

Set the Anynet+ function on your TV. (See the TV instructions manual for more information.)

•

You can operate the volume on the AV receiver by using Volume buttons on the TV remote

control.

page 22)

To turn on Anynet+

Press the SETUP/MENU button on the remote control.

•

Each time the button is pressed, the mode switches between SETUP ENTER and SETUP OFF.

Press the ENTER button to select SETUP ENTER.

Press the ▲▼ buttons to select HDMI SETUP, and then press the ENTER or ► button.

Press the ▲▼ buttons to select HDMI ANYNET+, and then press the ENTER or ► button.

Press the ▲▼ buttons to set ANYNET+ to ON.

- To exit setup mode-

•

Press the SETUP/MENU button. SETUP OFF appears on the display and Setup Mode is exited.

● CONNECTIONS

If you use an HDMI cable to connect a Samsung TV to your AV Receiver, you can operate the AV receiver using



the TV’s remote control. This function is available only in connection with Samsung TV and DVD player supporting Anynet +(HDMI-CEC).

Please check your TV for the n logo. If your TV has an n logo, then it supports the Anynet+



function.

When you are making Anynet+ connection, do not connect more than two AV receivers (Anynet+ installed).



Otherwise, it can cause a malfunction.

CONNECTING TO YOUR TV

OPTICAL OUT

AUDIO OUT

COMPONENT IN

VIDEO IN

Video Connection

If your television is equipped with Component Video inputs, connect a Component video cable(not supplied) from the Component Video Output (PR, PB and Y) jacks on the back of your AV Receiver to the Component Video Input jacks on your TV.

Connect the Video cable from the VIDEO OUT (MONITOR) jack on the back of your AV Receiver to the Video Input jack on your TV.

Audio Connection

Connect the Digital Input (OPTICAL 3) on your AV Receiver to the Digital Output of the TV.

Connect AUDIO IN (TV) on your AV Receiver to the Audio Out of the TV.

CONNECTING A DVD OR BD(Blu-ray) PLAYER

ENG

COMPONENT IN

VIDEO IN

● CONNECTIONS

OPTICAL OUT

COMPONENT OUT

AUDIO OUT

VIDEO OUT

DVD or BD Player

Video Connection

Connect a Component video cable(not supplied) from the COMPONENT IN (BD/DVD) (PR, PB and Y) jacks on the back of your AV Receiver to the Component Video Output jacks on your DVD/BD player.

Connect a Video cable from the VIDEO IN (BD/DVD) jack on the back of your AV Receiver to the Video Output jack on your DVD/BD player.

Audio Connection

Connect the Digital Input (OPTICAL 1) on your AV Receiver to the Digital Output of the DVD/BD player.

Connect AUDIO IN (BD/DVD) on your AV Receiver to the Audio Out of the DVD/BD player.

CONNECTING A CABLE, SATELLITE OR SET-TOP BOX

COMPONENT IN

VIDEO IN

OPTICAL OUT

COMPONENT OUT

AUDIO OUT

VIDEO OUT

(Cable/Satellite/Set-top box)

SAT

Video Connection

Connect a Component video cable(not supplied) from the COMPONENT IN (SAT) (PR, PB and Y) jacks on the back of your AV Receiver to the Component Video Output jacks on your SAT.

Connect a Video cable from the VIDEO IN (SAT) jack on the back of your AV Receiver to the Video Output jack on your SAT.

Audio Connection

Connect the Digital Input (OPTICAL 2) on your AV Receiver to the Digital Output of the SAT.

Connect AUDIO IN (SAT) on your AV Receiver to the Audio Out of the SAT.

Disconnect the power plug from the outlet if you will not use this unit for a long period of time.



If the cable/set-top box has only one audio output jack, connect it to either the right or left audio input jack of



the main unit. Connect the audio cable's red plug to the red jack and white cable to the white jack.

CONNECTING A VCR

ENG

VCR

● CONNECTIONS

AUDIO OUT

(For playback) (For recording)

Video Connection

VIDEO OUT

VIDEO IN

AUDIO IN

VIDEO IN

For playback

Connect a Video cable from the VIDEO IN (VCR) jack on the back of your AV Receiver to the Video Output jack on your VCR.

For recording

Connect a Video cable from the VIDEO OUT (VCR) jack on the back of your AV Receiver to the Video Input jack on your VCR.

Audio Connection

For playback

Connect AUDIO IN (VCR) on your AV Receiver to the Audio Out of the VCR.

For recording

Connect AUDIO OUT (VCR) on your AV Receiver to the Audio In of the VCR.

Disconnect the power plug from the outlet if you will not use this unit for a long period of time.



Connections

CONNECTING A CD PLAYER

OPTICAL OUT

COAXIAL OUT

AUDIO OUT

CD player

Audio Connection

Connect the Digital Input (COAXIAL, OPTICAL1~3) on your AV Receiver to the Digital Output of the CD Player.

Connect AUDIO IN (CD) on your AV Receiver to the Audio Out of the CD player.

If the CD player has only one audio output jack, connect it to either the right or left audio input jack of the main



unit. Connect the audio cable's red plug to the red jack and white cable to the white jack.

If the CD player has only OPTICAL digital output jack, connect it to OPTICAL 1~3 JACK of the main unit.



Please see "AUDIO SETUP" at Page.35.

CONNECTING 7.1 CHANNEL DEVICES

You can connect the AV receiver to a DVD player, SUPER AUDIO CD player or other device with 7.1 channel output.

ENG

● CONNECTIONS

FRONT SURROUND SURROUND

5.1 CH

7.1 CH

SUB WOOFER

CENTER

BACK

7.1 Channel device

CONNECTING THE TRIGGER OUT JACKS

Once you connect TRIGGER OUT 1 and 2 ports on the rear panel to TRIGGER IN (if available) of the external device, you can control various functions of the external device including turning it on/off.

Once you set TRIGGER OUT1(T1) and TRIGGER OUT2(T2) to either BD/DVD or SAT from the 12-V TRIGGER OUT setup menu, the TRIGGER OUT port will output a maximum 12V/30mA electrical signal if you set the input source to either BD/DVD or SAT. For more information, see page 54.

External device equipped with

the 12V TRIGGER IN port

Connections

CONNECTING AN

You can listen to audio from an iPod through the main unit. For iPod operation with your receiver, see this page and

pages 58 ~ 59.

Connect the iPod dock connector to the iPod jack on your reciever.

Place the iPod in the Dock.

If you want to play a movie stored in your iPod player, you should set the player's TV Out option to

•

On before inserting it into the dock. See

Press the iPod button on the remote control.

You can also use the INPUT SELECT button on the main unit.

•

The mode switches as follows :

FM  BD/DVD  SAT  TV  VCR  CD  AUX 1 IPOD VIDEO

iPod

page 59.

 AUX2

 7.1 MULTI CH  IPOD AUDIO 

Disconnecting an iPod

Follow the steps below to prevent damage to an iPod and data when disconnecting from your AV receiver.

Press the INPUT SELECT button on the main unit to switch to a mode other than IPOD AUDIO or IPOD VIDEO.

Turn off the AV Receiver.

Disconnect the iPod player from the iPod dock, or remove the iPod dock connector from the AV receiver.

You must have the VIDEO (Monitor or VCR) output connected to your TV to view iPod video.



See page 24.

Adjust the volume to a moderate level before you connect your iPod and AV Receiver.



When the unit is powered on and you connect an iPod, the unit will charge your iPod's battery.



Make sure to connect the dock connector so that the label “SAMSUNG” faces upward.



“Made for iPod” means that an electronic accessory has been designed to connect speciﬁ cally to an iPod and



has been certiﬁ ed by the developer to meet Apple performance standards. "Made for iPhone" means that an electronic accessory has been designed to connect speciﬁ cally to an iPhone



and has been certiﬁ ed by the developer to meet Apple performance standards.

ENG

CONNECTING AN

iPod models that are compatible with HW-C900

iPod nano

1st generation

1GB 2GB 4GB

iPod

1st+2nd generation

5GB 10GB 20GB

iPod

4th generation (color display)

20GB 30GB 40GB 60GB

iPod (Continued)

iPod nano

2nd generation

(aluminum)

1GB 2GB 4GB

iPod

3rd generation

10GB 15GB 20GB 30GB 40GB

iPod mini

4GB 6GB

iPod nano

3rd generation (video)

4GB 8GB

iPod

4th generation

20GB 40GB

iPod classic

80GB 120GB 160GB

iPod nano

4th generation

(video)

8GB 16GB

iPod

5th generation(video)

30GB 60GB 80GB

● CONNECTIONS

iPod touch

1st generation

4GB 16GB 32GB

"Made for iPod" means that the dock has been designed to connect speciﬁ cally for the iPod and has been certiﬁed by the



developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.



iPod is a trademark of Apple Inc., registered in the U.S. and other countries.

iPhone is a trademark of Apple Inc.

iPod touch

2nd generation

8GB 16GB 32GB

iPhone

3GS

Connections

CONNECTING THE FM ANTENNA

Connect the FM antenna supplied to the FM ANTENNA terminal as a temporary measure.

Slowly move the antenna wire around until you ﬁ nd a location where reception is good, then fasten it to a wall or

2. other rigid surface.

FM antenna (supplied)

Do not place the antenna cable close to the power cord. Keep it as far away as possible.



If you experience poor FM reception, use an external antenna.

CONNECTING AUX COMPONENTS

You can connect external devices you use for a short time (camcorder, game console, mobile equipment,etc.) to the front of this unit for convenience.

AUDIO

VIDEO

OUT

Camcorder

ENG

Basic functions of your AV Receiver

BEFORE USING THE AV RECEIVER

Turning On/Off

Connect the power plug to the outlet. This unit will set to Standby mode.

Press the POWER button on the main unit for 2 seconds.

This unit will be turned on.

•

You can also turn the unit on/off by pressing the POWER button on the remote control.

•

Remote control functions

You can operate your AMP (this AV receiver)/ TV and BD(Samsung only)/DVD player with this remote control. See pages 62 ~ 64 for more details.

To select a function

Method 1

Press the INPUT SELECT button.

Each time you press this button, FM  BD/DVD  SAT  TV  VCR  CD  AUX1  AUX2

•

 7.1 MULTI CH  IPOD AUDIO  IPOD VIDEO will be selected in turn.

Method 2

Press the TUNING/CH, BD/DVD, SAT,

You can directly select the desired function.

•

BASICS OF ZONE2

● BASIC FUNCTIONS OF YOUR AV RECEIVER

TV/AUX1, CD, MULTI CH, VCR/AUX2 or iPod button.

When the ZONE2 speaker is connected properly, turn on the main unit and use MULTI ZONE2 in the front panel

or MAIN/ZONE button on the remote control to select ZONE2.

Press POWER to turn on the ZONE2 feature, and use INPUT SELECT CONTROL to select a source that you

want to output to ZONE2. You can also use the INPUT SELECT on the main unit. The mode function as follows : FM  BD/DVD  SAT  TV  VCR  CD  AUX 1

M 

However, you cannot listen to one FM program in the main zone and a different program in the sub zone. The SETUP menu will be disabled in ZONE2 mode.



Basic functions of your AV Receiver

BASICS OF ZONE2 (Continued)

Using the ZONE 2 controls

Operation This Unit Remote Control Unit Display & Indicator

Main On

Zone 2 Mode

Zone 2 Power On

Function

(Turn on ZONE2 to display “Z” next to the display of the input source.)

Volume (Variable Mode)

(Fixed Mode)

POWER

MULTI ZONE

POWER

INPUT SELECT

MASTER VOLUME

POWER

MAIN/

ZONE2

MAIN/ZONE2

POWER

INPUT SELECT

TV SOURCE

INPUT SELECT

BD/DVD,SAT,TV/AUX1,CD

VCR/AUX2

DIRECT FUNCTION KEY

MUTE

VOL

Zone 2 Control Off (Zone 2 Mode  Main Zone Mode)

Zone 2 Power Off

MULTI ZONE

POWER

MAIN/

ZONE2

MAIN/ZONE2

POWER

1 2

TUNER

iPod

ENG

INPUT SELECT

MAIN/

ZONE2

TV SOURCE

●

POWER

AMP/TV BD/DVD

BASIC FUNCTIONS OF YOUR AV RECEIVER

MUTE

3 4 5

MULTI ZONE

Indicator

Function

In ZONE2 FM mode, you can switch only between the preset channels that you have speciﬁ ed in the main zone.



ZONE2 is enabled only for an analog input source; the digital source is not applicable. If you still encounter a failure after



following all these instructions, check if the input source is of the analog type. You cannot listen to one FM program in the main zone and a different program in the sub zone. You can use MUTE on the remote control to mute the output sound of ZONE2.



Main Zone : Off, Zone 2 : On



"Main Zone : Off, Zone 2 : On" .

AUDIO SETUP

Selecting a source device and connection jack (Digital Audio In)

Select the external devices you have connected to the receiver.

Press the SETUP/MENU button on the remote control.

Each time the button is pressed, the mode switches between

•

SETUP ENTER and SETUP OFF.

Press the ENTER button to select SETUP ENTER.

Press the ENTER or ► button.

Press the

Devices switch as follows; BD/DVD, SAT, TV, CD

•

- To exit setup mode -

Press the SETUP/MENU button on the remote control.

•

SETUP OFF appears on the display and Setup Mode is exited.

Tuner Preset Mode

Volume Control

Tuner Preset Frequency



It is possible to change into the state of "Main Zone : On, Zone 2 : On" from the state of

▲▼

buttons to select AUDIO SETUP, and then press the

▲▼ buttons

to select a desired jack.

VOL

ASC

TUNER

SUB WOOFER MO/ST

UB WOOFERMO/

MEMOR

MEMORY

SAT

TV/AUX1

BD/DVD

ULTI CH

MULTI CH VCR/AUX2

TUNING

/ CH

iPod

You can also use the SETUP, ,,.,<, >, ENTER buttons on the front of your AV Receiver.



Basic functions of your AV Receiver

SELECTING DIGITAL/(HDMI)/ANALOG

You can listen to sound in 2 channel analog , Dolby Digital or DTS using this unit.

Press the INPUT SELECT button to select a desired function (BD/DVD, SAT,TV, CD, AUX). See

Press the AUDIO ASSIGN button on the remote control to select the audio input source of the external device you have connected.

Each time you press this button, the input mode changes as follows:

•

For BD/DVD function

•

page 33.

Ä Ä

For SAT function

•

Ä Ä

For TV function

•

Ä Ä

456

SLEEP

LEEP

7809

PROLOCIC AUDIO ASSIGN

ROLOCIC

DSP

For CD function

•

For AUX1 function

•

You can also change the input mode by pressing the AUDIO ASSIGN button on the front of your AV Receiver.



You can enjoy Dolby Digital or DTS if you connect the digital audio output jack of an external audio component to the optical



or coaxial digital audio input jack on the main unit.



For the TV function, the TV ARC menu will be displayed only if an ARC-compliant TV is connected.

Setup

For your convenience, you can set this AV receiver's features for the best use.

SETUP MENU TREE

Here’s a quick look at how the setup menus are organized on your AV Receiver.

AUDIO SETUP

BD/DVD

OPT 1,2,3

SAT

OPT 1,2,3

COAX

ENG

● SETUP

SPK SIZE

SB SETUP

SPK DISTANCE

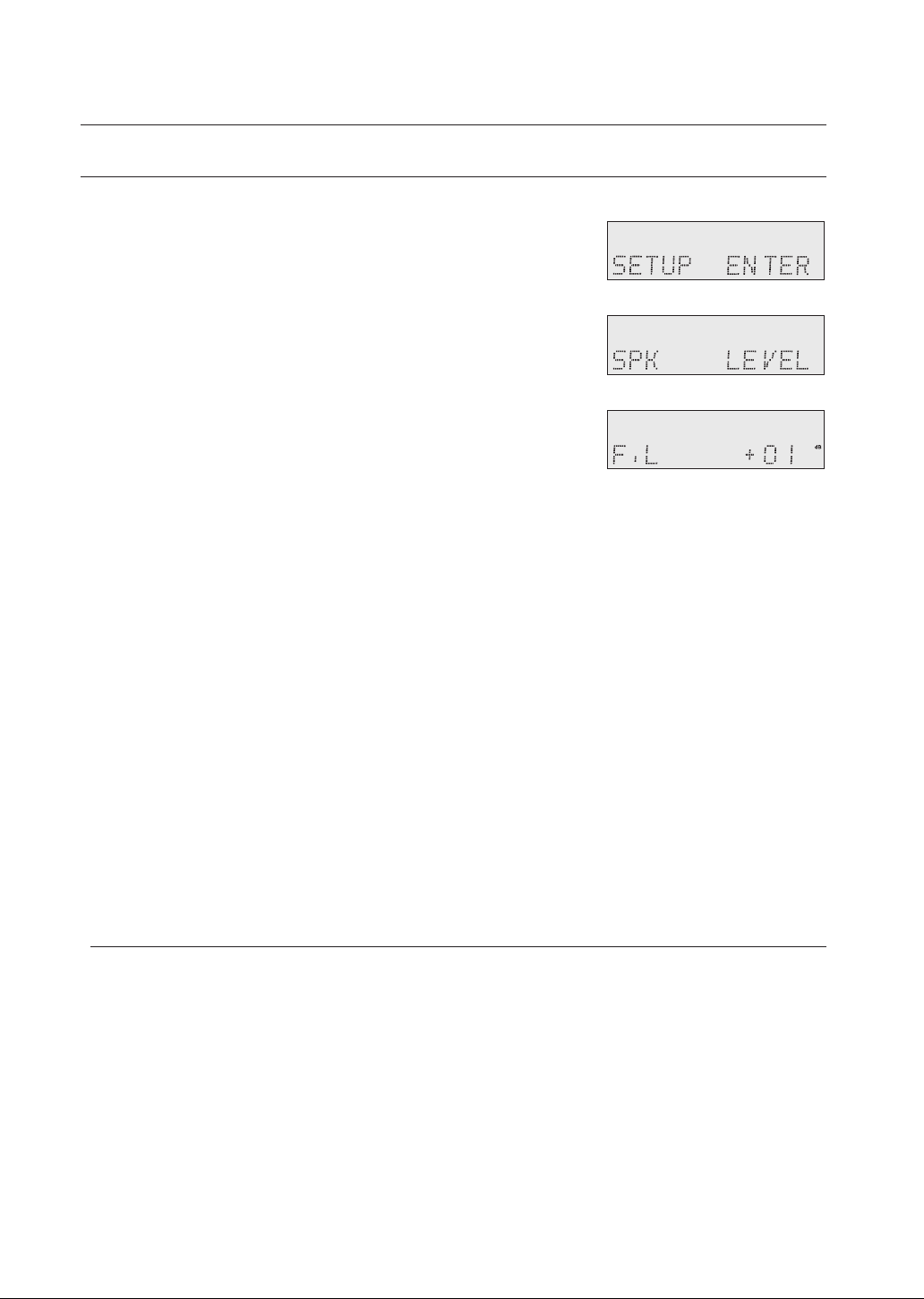

SPK LEVEL

TEST TONE

DPLIIX SETUP

TONE CONTROL

NEO:6 SETUP

EX/ES SETUP

A/V SYNC MP3 ENHANCER SMART VOLUME

ASC SETUP DRC SETUP

DUAL MONO

HDMI SETUP

VARIABLE SET

VIDEO CONV. ZONE2 SETUP 12-V TRIGGER

Setup

SETUP MENU TREE (Continued)

AUDIO SETUP

SPK SIZE

SB SETUP

SPK DISTANCE

SPK LEVEL

TEST TONE

If Dolby Pro Logic IIz is set to On, the Surround



Back speaker (SBL/SBR) is changed to the Front Height Speaker (FHL/FHR).

FRONT

CENTER

SURR

SBACK

FRONTH

SUBW

CROVR

SURR-BACK

PLIIZ

ZONE2

Bi-AMP

F.L

F.R

CEN

S.L

S.R

SBL/FHL

SBR/FHR

S.W

F.L

F.R

CEN

S.L

S.R

SBL/FHL

SBR/FHR

S.W

AUTO

MANUAL

LARGE SMALL

LARGE NONESMALL

LARGE SMALL

YES NO

60Hz, 80Hz, 100Hz, 120Hz, 150Hz, 180Hz, 200Hz

1 ~ 30 FT (1 foot steps) , default : 10 FT

-10 ~ +10dB (1dB step) , default : 00dB

F.L

CEN

S.W

F.R

S.R

SBR

SBL

S.L

-10 ~ +10dB (1dB step)

SETUP MENU TREE (Continued)

ENG

TEST TONE

DPLIIX SETUP

TONE CONTROL

NEO:6 SETUP

PANORAMA

DIMENSION

C- WIDTH

TONE

BASS

TREBLE

C-IMAGE

OFF

-7 ~ 0 ~ +7

0~7

OFF ON

-6dB ~ +6dB (1dB Step)

0~5

● SETUP

A/V SYNC

AUTO OFF ONEX/ES SETUP

SYNC OFF ~ SYNC 240MS (10MS Step)

Setup

SETUP MENU TREE (Continued)

MP3 ENHANCER

SMART VOLUME

ASC SETUP

AUTO

DUAL MONO CH1

HDMI SETUP

ANYNET+

TV ARC

OFF ON

START EQ ON / EQ OFF

MAXDRC SETUP

CH2 CH1CH2

SYNC

OFF ON

AUDIO

AVR TV

ON OFF

OFF AUTO

STD MIN

12-V TRIGGER T1

OFF ONVARIABLE SET

AUTOVIDEO CONV.

FIXEDZONE 2 SETUP

BYPASS

VARIABLE

BD/DVD SATOFF

SETTING THE SPEAKER SIZE

Signal outputs and frequency response from the speaker will be adjusted according to your speaker conﬁ guration and whether certain speakers are used or not.

Press the SETUP/MENU button on the remote control.

•

Each time the button is pressed, the mode switches between SETUP ENTER and SETUP OFF.

Press the ENTER button to select SETUP ENTER.

Press the

►

Press the

ENTER or ► button.

•

Press the

selected speaker.

Repeat steps 3-5 to set the mode for each speaker.

- To exit setup mode Press the SETUP/MENU button on the remote control.

•

SETUP OFF appears on the display and Setup Mode is exited.

▲▼

buttons to select SPK SIZE, and then press the ENTER or

button.

▲▼

buttons to select the speaker you want, and then press the

▲▼

Each time you press the SBACK(DPLllX)  FRONTH(DPLllZ)  SUBW  CROVR will be selected in turn.

▲▼

buttons to set the mode (LARGE, SMALL etc.) for the

buttons, FRONTCENTER  SURR 

ENG

● SETUP

Setting the Speaker

SPEAKER Possible Settings Default Setting

FRONT (Front) LARGE, SMALL SMALL

CENTER (Center) LARGE, SMALL, NONE SMALL

SURR (Surround) LARGE, SMALL, NONE SMALL

SBACK (Surround Back) LARGE, SMALL, NONE SMALL

FRONTH (Front Height) LARGE, SMALL SMALL

SUBW (Subwoofer) YES, NO YES

CROVR (Crossover Frequency) 60, 80, 100,120, 150, 180, 200(Hz) 100Hz

•

LARGE : Select when using large speakers. You can listen to full range sound.

•

SMALL : Select this when using small speakers.

•

NONE : Select when no speaker is used.

•

YES (subwoofer) : Select when using the subwoofer speaker. NO (subwoofer) : Select when not using the subwoofer speaker.

•

CROVR : Select the crossover frequency for the best bass response in your speakers.



You can also use the SETUP, ,,., <, >, ENTER buttons on the front of your AV Receiver.

When the Front speaker is only set to LARGE, you can select LARGE of other speakers.



When the Surround speaker is only set to LARGE, you can select LARGE of SBACK (Surround Back)



speaker.

Setup

CONNECTION SETTING FOR SURROUND BACK

Settings for the surround back speaker differ depending on the connection method and installation site of the speaker to be connected. You must conﬁ gure the SB SETUP settings according to the connected speaker before you listen to music properly.

Press the SETUP/MENU button on the remote control.

Each time the button is pressed, the mode switches between SETUP

•

ENTER and SETUP OFF.

Press the ENTER button to select SETUP ENTER.

Press the ▲▼ buttons to select SB SETUP, and then press the ENTER

or ► button.

Press the ▲▼ to select a proper setting for the surround back speaker.

SURR-BACK : Select this if you want to install the surround back

•

speaker in the default settings. With this setting, you can enable the Dolby Pro Logic IIx mode.

PLIIz : Select this if you want to install the surround back speaker in the

•

top front corner. With this setting, you can enable the Dolby Pro Logic IIz mode.

ZONE2 : Select this if you want to connect the ZONE2-speciﬁ c speakers (left/right) to the surround back port.

•

With this setting, you can enable the Powered ZONE2 feature. Bi-AMP : Select this if you want to connect the Bi-Amp compliant speaker to the surround back port. With

•

this setting, you can enable the Bi-Amp feature.

Depending on the SB SETUP settings, the surround back speaker or front height speaker menus may not



be activated or may differ in the speaker menu: SPEAKER SIZE, SPEAKER LEVEL, SPEAKER DISTANCE.

Depending on your setting, you may not use different features simultaneously.



instance, you cannot use the following features: PLIIz, ZONE2 and Bi-AMP.

If you set SURR-BACK, for

SETTING THE SPEAKER LISTENING DISTANCE

If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of the audio signals from the center and surround speakers.

Press the SETUP/MENU button on the remote control.

Each time the button is pressed, the mode switches between SETUP

•

ENTER and SETUP OFF.

Press the ENTER button to select SETUP ENTER.

Press the

ENTER or ► button.

Press the ENTER or ► button.

•

Press the

•

- To exit setup mode -

•

Press the SETUP/MENU button on the remote control. SETUP OFF appears on the display and Setup Mode is exited.

▲▼

buttons to select SPK DISTANCE, and then press the

▲▼

buttons to select the speaker you want, and then press the

Each time you press the ▲▼ buttons, F.L  F.R CEN  S.L  S.R  SBL  SBR  S.W will be selected in turn.

▲▼

buttons to set the Speaker Distance.

For the FRONT LEFT, FRONT RIGHT, CENTER, SURR. LEFT, SURR. RIGHT, SURRBACK.LEFT, SURRBACK.RIGHT and SUBWOOFER Speakers, you can set the distance from the speaker to listening position between 1ft ~ 30ft (0.3~9.0m) in intervals of 1ft (0.3m).

ENG

● SETUP

- Setting Speaker Distance -

Set the distance from the speaker to listening position in intervals of 1ft(0.3m).

• F.L (front left) : 1ft ~ 30ft • SW (subwoofer) : 1ft ~ 30ft

• F.R (front right) : 1ft ~ 30ft • SBL (surround back left) : 1ft ~ 30ft

• S.L (surround left) : 1ft ~ 30ft • SBR (surround back right) : 1ft ~ 30ft

• S.R (surround right) : 1ft ~ 30ft • FHL (front height left) : 1ft ~ 30ft

• CEN (center) : 1ft ~ 30ft • FHR (front height right) : 1ft ~ 30ft



If the listening position is beyond the range of the speaker distance setup, set the speaker distance to the maximum.



If Dolby Pro Logic IIz is set to On, the Surround Back speaker (SBL/SBR) is changed to the Front Height Speaker (FHL/FHR).

Setup

SETTING THE SPEAKER LEVEL

You can set the balance and level of speakers.

Press the SETUP/MENU button on the remote control.

Each time the button is pressed, the mode switches between SETUP

•

ENTER and SETUP OFF.

Press the ENTER button to select SETUP ENTER.

Press the

or ► button.

Press the ENTER or ► button.

•

Each time you press this button, F.L  F.R CEN  S.L  S.R  SBL  SBR  S.W will be selected in turn.

Press the ▲▼ buttons to set the Speaker Level mode.

•

You can adjust it from -10 to +10dB in 1 step increments.

•

The sound gets quieter at -10dB and louder at +10dB.

▲▼

buttons to select SPK LEVEL, and then press the ENTER

▲▼

buttons to select the speaker you want, and then press the

- To exit setup mode -

•

Press the SETUP/MENU button. SETUP OFF appears on the display and Setup Mode is exited.

- Setting Speaker Level -

• F.L (front left) : -10 ~ +10dB • SW (subwoofer) : -10 ~ +10dB

• F.R (front right) : -10 ~ +10dB • SBL (surround back left) : -10 ~ +10dB

• S.L (surround left) : -10 ~ +10dB • SBR (surround back right) : -10 ~ +10dB

• S.R (surround right) : -10 ~ +10dB • FHL (front height left) : -10 ~ +10dB

• CEN (center) : -10 ~ +10dB • FHR (front height right) : -10 ~ +10dB

If Dolby Pro Logic IIz is set to On, the Surround Back speaker (SBL/SBR) is changed to the Front Height



Speaker (FHL/FHR).

SETTING THE TEST TONE

Use the test tone to check the speaker connection status or level.

Press the SETUP/MENU button on the remote control.

Each time the button is pressed, the mode switches between SETUP

•

ENTER and SETUP OFF.

Press the ENTER button to select SETUP ENTER.

Press the

or ► button.

Press the ENTER or ► button.

•

▲▼

buttons to select TEST TONE, and then press the ENTER

▲▼

buttons to select the option you want, and then press the

AUTO : Test signal will be automatically output as follows; F.L  CEN  S.W  F.R  S.R  SBR  SBL  S.L.

▲▼

- During test tone output, press the output level from -10 to +10 dB by 1 step.

MANUAL : Enables you to adjust the output level of the speaker manually.

1) Press the ENTER or ► button to select the speaker you want.

Each time you press the selected in turn.

ENTER

buttons to adjust the speaker

button, F.L  CEN  S.W  F.R  S.R  SBR  SBL S.L will be

ENG

● SETUP

2) Press the You can adjust the speaker output level from -10 to +10dB by 1 step. The sound gets quieter at -10dB and louder at +10dB.

- Test Tone Output -

• F.L (front left) : -10 ~ +10dB • CEN (center) : -10 ~ +10dB

• F.R (front right) : -10 ~ +10dB • S.W (subwoofer) : -10 ~ +10dB

• S L (surround left) : -10 ~ +10dB • SBL (surround back left) : -10 ~ +10dB

• S.R (surround right) : -10 ~ +10dB • SBR (surround back right) : -10 ~ +10dB

- To stop test tone -

•

Press the SETUP/MENU button once. SETUP OFF appears on the display and test tone stops.



In the Dolby Pro Logic IIz mode, test signal will be automatically output as follows : F.L  FHL  CEN  S.W  FHR  F.R  S.R  S.L.

▲▼

buttons to set the Test Tone mode you want.

Setup

SETTING DOLBY PRO LOGIC MODE

This mode provides up to 7.1 channel sound from 2 channel sources, or provides 7.1 channel sound from 5.1 channel sources for music or movie mode.

Press the PROLOGIC button on the remote control.

MOVIE : Adds realism to the movie soundtrack.

•

MUSIC : Provides up to 7.1 channel surround sound for digital, analog or existing stereo sources.

•

GAME : Enhances the excitement of the game’s sound.

•

MATRIX : You will hear up to 7.1 channel surround sound.

•

PL (Pro Logic) : You will experience a surround effect with 5.1 channel surround sound.

•

OFF : Output the original signal as it is without applying the sound ﬁ eld effect or any other sound effect.

•

SETTING DOLBY PRO LOGIC IIx

This function works only in Dolby Pro Logic IIx MUSIC mode.

Press the SETUP/MENU button on the remote control.

•

Each time the button is pressed, the mode switches between SETUP ENTER and SETUP OFF.

Press the ENTER button to select SETUP ENTER.

Press the ENTER or ► button.

•

PANORAMA : You can set it ON or OFF. (This mode extends the front stereo image to include the surround speakers for an exciting "wraparound" effect with side wall imaging.)

•

DIMENSION : You can set from -7 to +7. (Incrementally adjusts the sound ﬁ eld (DSP)from the front or surround.)

•

C- WIDTH : You can set from 0 to 7. (This sets the width of the center sound image. The higher the setting, the less sound comes from the center speaker.)

▲▼

buttons to select DPLIIX SETUP, and then press the

▲▼

buttons to select the option you want, and then press the

PANORAMA, DIMENSION and CENTER WIDTH settings are enabled only if the Dolby Pro Logic Mode is set



to MUSIC.

You cannot use Dolby Pro Logic llx mode for multi channel signals such as Dolby Digital, Dolly Digital +,



Dolby true HD, DTS, DTS-HD Master Audio.

Pro Logic works only for PCM audio signals with sampling frequencies of 32KHz, 44KHz or 48KHz.



When Dolby Pro Logic IIz is set ON, Dolby Pro Logic IIx can not be used.



SETTING TONE CONTROL

This will enable you to adjust the bass and treble level.

Press the SETUP/MENU button on the remote control.

•

Each time the button is pressed, the mode switches between SETUP ENTER and SETUP OFF.

Press the ENTER button to select SETUP ENTER.

▲▼

Press the ENTER or

Press the

ENTER or ► button.

Each time you press this button, TONE  BASS  TREBLE will be

•

selected in turn.

Press the

If it is set to TONE OFF, the Tone Control function will be disabled.

•

You can adjust it from -6 to +6dB by 1 step.

•

The sound gets quieter at -6dB and louder at +6dB.

•

- To exit setup mode Press the SETUP/MENU button on the remote control.

•

SETUP OFF appears on the display and Setup Mode is exited.

buttons to select TONE CONTROL, and then press the

►

button.

▲▼

buttons to select the option you want, and then press the

▲▼

buttons to set the Tone Control mode you want.

ENG

● SETUP

The Tone Control function can be applied to all channels except for the subwoofer.



SETTING NEO:6 MODE

You can play back 2 channel sound over 7.1 channels when enjoying music or a movie.

Press the SETUP/MENU button on the remote control.

Each time the button is pressed, the mode switches between SETUP

•

ENTER and SETUP OFF.

Press the ENTER button to select SETUP ENTER.

▲▼

Press the

ENTER or

Press the

You can set C-IMAGE from 0 to 5 This parameter adjusts the center image through the front and center speakers. "5" is the wider.

- To exit setup modePress the SETUP/MENU button on the remote control.

•

SETUP OFF appears on the display and Setup Mode is exited.

buttons to select NEO:6 SETUP, and then press the

►

button.

▲▼

buttons to set the C-IMAGE mode you want.

Using NEO:6 mode

Press the NEO:6 button on the remote control.

MUSIC : When listening to music, you can experience sound effects as if you are listening to the actual

•

performance.

CINEMA : Adds realism to the movie soundtrack.

•

OFF : Output the original signal as it is without applying the sound ﬁ eld effect or any other sound effect.

•

NEO:6 works only for 2-ch audio signals with sampling frequencies of 32KHz, 44KHz or 48KHz.



Setup

SETTING EX/ES MODE

When surround back speakers are connected, you can listen to 7.1 multi-channel sound using the built-in Dolby Digital Surround EX or DTS ES decoder. This function works when a Dolby Digital or DTS source (such as a DVD player) is input, and does not work with L.PCM and Dolby Digital 2 channel sources.

Press the SETUP/MENU button on the remote control.

Each time the button is pressed, the mode switches between SETUP

•

ENTER and SETUP OFF.

Press

- To exit setup mode-

the ENTER

Press the ENTER or ► button.

Press the

•

▲▼

AUTO : If the unit receives an audio signal that it can recognize, it will select an optimal decoder for playback in 7.1 channels. If the ampliﬁ er does not recognize the audio signal, it will not play in 7.1 channel automatically.

ON : Dolby Digital or DTS signal will be played in 7.1 channel using Dolby Digital Surround EX / DTS ES decoder.

OFF : Dolby Digital Surround EX / DTS ES decoder will not be used for playback.

Press the SETUP/MENU button. SETUP OFF appears on the display and Setup Mode is exited.

button to select SETUP ENTER.

buttons to select EX/ES SETUP, and then press the

buttons to set the EX/ES mode you want.

You cannot use DTS-ES without surround back speakers connected.



AV SYNC

Video may look slower than the audio if it is connected to a digital TV. If this occurs, adjust the audio delay time to match the video.

Press the SETUP/MENU button on the remote control.

Each time the button is pressed, the mode switches between SETUP

•

ENTER and SETUP OFF.

Press the ENTER button to select SETUP ENTER.

Press the ▲▼ buttons to select A/V SYNC, and then press the ENTER or

► button.

Press the ▲▼ buttons to set the A/V Sync mode you want.

You can adjust it from OFF to 240MS in 10MS steps.

•

MP3 ENHANCER

This also helps enhance your sound experience (ex. mp3 music). Use this if you want to hear better sound from a low quality mp3 source.

Press the SETUP/MENU button on the remote control.

Each time the button is pressed, the mode switches between SETUP

•

ENTER and SETUP OFF.

Press the ENTER button to select SETUP ENTER.

Press the ▲▼ buttons to select MP3 ENHANCER, and then press the

ENTER or ► button.

Press the ▲▼ buttons to select ON or OFF.

SMART VOLUME

This will regulate and stabilize the volume level against a drastic volume change when changing channels or during a scene transition.

ENG

● SETUP

Press the SETUP/MENU button on the remote control.

Each time the button is pressed, the mode switches between SETUP

•

ENTER and SETUP OFF.

Press the ENTER button to select SETUP ENTER.

Press the ▲▼ buttons to select SMART VOLUME, and then press the

ENTER or ► button.

Press the ▲▼ buttons to select ON or OFF.

Setup

ASC (AUTO SOUND CALIBRATION) SETUP

By setting the ASC function just once when you relocate or install the unit, you can have the unit automatically recognize the distance between speakers, levels between channels, and frequency characteristics to create a 7.1channel sound ﬁ eld optimized for your environment.

- Before Setting -

Plug the ASC microphone into the ASC MIC jack.

Place the ASC microphone at the listening position.

Press the ASC button on the front panel, and then press the ENTER button.

Press the SETUP/MENU button on the remote control.

Each time the button is pressed, the mode switches between SETUP

•

ENTER and SETUP OFF.

Press the ENTER button to select SETUP ENTER.

Press the ▲▼ buttons to select ASC SETUP, and then press the ENTER

or ► button.

Press the ▲▼

button.

•

To create the optimal 7.1 channel sound ﬁ eld, the selections are in the following sequence:

L ➞ C ➞ R ➞ SR ➞ SBR ➞ SBL ➞ SL ➞ SW

•

EQ ON : The ASC(Auto Sound Calibration) EQ mode is set to on.

EQ OFF: The ASC(Auto Sound Calibration) EQ mode is set to off.

buttons

to select ASC START, and then press the ENTER

If you see a ASC READY message on the screen, press the ENTER button to apply the measurement value. And then unplug the ASC microphone.

ASC

Microphone

To cancel the ASC (Auto Sound Calibration) setup.

This will be automatically reverted if you press the RETERN button.

* If ASC error occurs, see "ASC Error List" on

Setting the ASC function takes about 3 minutes.



Because the volume level of the tone is ﬁ xed during the ASC setup, you cannot adjust the volume using the volume control.



If the ASC microphone is disconnected during the ASC setup, the setup will be canceled.



You can also press the ASC button on the remote control to use this function.



If Dolby Pro Logic ||z is set to ON, the selection are in the following sequence : FL  CEN  FR  SR  FHR  FHL 



SL  SW.

page 66.

DRC SETUP

You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night.DRC compresses the audio to make the loudest sounds quieter and the quietest sounds louder.

Press the SETUP/MENU button on the remote control.

Each time the button is pressed, the mode switches between SETUP

•

ENTER and SETUP OFF.

Press the ENTER button to select SETUP ENTER.

Press the ▲▼ buttons to select DRC SETUP, and then press the ENTER

or ► button. Press the ▲▼ buttons to set the DRC Setup mode you want.

AUTO : The Dynamic Range Control will be set automatically based on

•

the information provided by the Dolby TrueHD Soundtrack. MAX : Sets DRC effect to maximum.

•

STD : Sets DRC effect to standard.

•

MIN : Sets DRC effect to minimum.

•

DUAL MONO SETUP

ENG

● SETUP

Dual mono programs have two independent mono channels.

You can use this function when dual mono programs are played.

When you use this function, select audio channels CH1, CH2 or both Channel.

Press the SETUP/MENU button on the remote control.

•

Each time the button is pressed, the mode switches between SETUP ENTER and SETUP OFF.

Press the ENTER button to select SETUP ENTER.

Press the ▲▼ buttons to select or ► button.

Press the ▲▼ buttons to select the DUAL MONO option you want.

Channel 1 is heard only.

CH1 :

•

CH2 : Channel 2 is heard only.

•

CH1CH2 : Both channels are heard from front speakers.

DUAL MONO, and then press the ENTER

Setup

HDMI SETUP

Use this if you want to receive audio from HDMI connected external devices.

Press the SETUP/MENU button on the remote control.

Each time the button is pressed, the mode switches between SETUP ENTER and

•

SETUP OFF.

Press the ENTER button to select SETUP ENTER.

Press the ▲▼ buttons to select HDMI SETUP, and then press the ENTER or ► button.

Press the ▲▼ buttons to select the option you want, and then press the ENTER or ► button.

Press the ▲▼ buttons to set the HDMI Setup mode you want.

HDMI SYNC : ON, OFF

•

The AV receiver can be set to automatically correct any delay between the video and the audio, based on the data from the connected TV.

- ON : HDMI Sync is enabled.

- OFF : HDMI Sync is disabled.

HDMI AUDIO : AVR(Audio Video Receiver), TV

•

This preference determines whether audio received at the HDMI IN is output by the HDMI OUT. If you want to listen to audio from an HDMI connected external device through your HDMI connected TV's speakers, set it to TV. Otherwise, leave it on AVR to listen to audio from the A/V receiver.

- AVR : HDMI audio is not output - TV : HDMI audio is output

HDMI ANYNET+ : ON, OFF

•

Anynet+ is a function that enables you to control other Samsung Devices with your Samsung TV's remote control.

- ON : Anynet+ is enabled.

- OFF : Anynet+ is disabled.

TV ARC : AUTO , OFF

•

If you use the HDMI cable to connect between HDMI IN of an Audio Return Channel-compliant TV and HDMI OUT (ARC) of the main unit, you can listen to the TV sound through the main unit connected speaker without the further connection.

- AUTO : The audio signal from the TV can be sent to the HDMI OUT of the main unit.

- OFF : Turn TV ARC funtion off.

HDMI Audio is enabled only if both the HDMI INPUT and HDMI OUT are connected properly and working normally.



HDMI Sync function works only if your HDMI compatible TV supports this function.



If ANYNET+ is set to OFF, TV ARC will be set to OFF accordingly that cannot switch to AUTO.



The TV ARC function will be active only via the HDMI OUT terminal.



VARIABLE SET (Low Power Consumption SETUP)

This function enhances electric power efﬁ ciency.

Press the SETUP/MENU button on the remote control.

Each time the button is pressed, the mode switches between SETUP ENTER and

•

SETUP OFF.

Press the ENTER button to select SETUP ENTER.

Press the ▲▼ buttons to select VARIABLE SET, and then press the ENTER or ►

button. Press the ▲▼ buttons to select ON or OFF.

ON :This is Samsung's electric power efﬁ ciency function, you can save about 30

•

% for power consumption. OFF: Normal power efﬁ ciency function.

•

This function is not available after the Tone Control, Speaker Level, SFE mode or ASC is changed from the



factory setting.

VIDEO CONV. (Video Conversion)

You can convert the incoming composite or component video signal into a maximum quality of the connected TV if you output the converted video via HDMI OUT.

Press the SETUP/MENU button on the remote control.

Each time the button is pressed, the mode switches between SETUP

•

ENTER and SETUP OFF.

Press the ENTER button to select SETUP ENTER.

Press the ▲▼ buttons to select

ENTER or ► button. Press the ▲▼ buttons to select BYPASS or AUTO.

BYPASS :

•

without changing the resolution.

•

AUTO : Converts the incoming video signal before outputting in the maximum resolution that the connected TV supports.

Converts the input video source into the digital counterpart

VIDEO CONV., and then press the

Video conversion ﬂ ow according to the connected port

As shown in the illustration, if the unit’s HDMI Out is connected to a TV or monitor, the analog video source (composite or component) from the video device is processed for up-conversion automatically for HDMI output. If connected to a TV or monitor through Composite or Component ports, corresponding analog signal will be output respectively, without any conversion. In case if the unit and video source device is connected in multiple methods (HDMI, Component and Composite video) at the same time: Video input signal is automatically selected in the order of Component Video  Composite Video.

ENG

● SETUP

Input

Signal

HDMI OUT

COMPONENT OUT

VIDEO OUT

This enables upconverting up to a quality of 1080p.



Auto conversion is not applied to a video source incoming from HDMI IN port.



The maximum resolution of the input video signal is 1080i.



If the input is 1080i (Component) signal, the output will be in 1080i including HDMI. (1080p is not



available for output) Video conversion is compatible with the NTSC color system only.



HDMI IN HDMI OUT

COMPONENT IN

VIDEO IN

Video

Conversion

COMPONENT OUT

VIDEO OUT

Output

Signal

HDMI IN

COMPONENT IN

VIDEO IN

Setup

ZONE2 SETUP

You can use the remote control or the master volume of the main unit to adjust the volume of ZONE2.

Press the SETUP/MENU button on the remote control.

•

Each time the button is pressed, the mode switches between SETUP ENTER and SETUP OFF.

Press the ENTER button to select SETUP ENTER.

Press the ▲▼ buttons to select ENTER or ► button.

Press the ▲▼ buttons to select VARIABLE or FIXED.

VARIABLE : You can control the ZONE2 volume directly in the main unit.

•

FIXED : Select this if you can control the ZONE2 volume directly in the

•

external ampliﬁ er.

However, you can still use the MUTE button on the remote control regardless of the ZONE2 SETUP



settings.

If SB is set to ZONE2, “ZONE2 SETUP” will be changed to “VOL VARIABLE” accordingly.



ZONE2 SETUP, and then press the

12-V TRIGGER

Two different 12 Volt trigger outputs allow automatic activation of externally controlled devices.

Each port supports 12V/30mA trigger-activated functions (BD/DVD, SAT)

Press the SETUP/MENU button on the remote control.

Each time the button is pressed, the mode switches between SETUP

•

ENTER and SETUP OFF.

Press the ENTER button to select SETUP ENTER.

Press the ▲▼ buttons to select

ENTER or ► button.

Press the ▲▼ buttons to select T1 or T2, and then press the ENTER or ► button.

Press the ▲▼ buttons to set the external device mode you want.

BD/DVD : When switching to BD/DVD mode, 12V signal will be output to

•

the TRIGGER OUT terminal.

SAT : When switching to SAT mode, 12V signal will be output to the

•

TRIGGER OUT terminal.

OFF : 12-V TRIGGER will be disabled.

•

12-V TRIGGER, and then press the

Operation

USING THE SURROUND MODES

Using the AUDIO EFFECT button on the front of the main unit

ENG

Selecting the DPLIIx mode

Press the AUDIO EFFECT button to select DPLIIX.

Each time you press this button, DPLIIX  NEO:6  SFE will be selected in turn.

•

Press the

•

UP/DOWN ( ,,. ) button.

Each time you press the PL OFF  MOVIE will be selected in turn.

If you turn Dolby Pro Logic IIz on, HEIGHT  PL OFF will be selected in turn. You can also select the DPLIIx mode by pressing the PROLOGIC button on the remote control.

UP/DOWN ( ,,. ) button, MUSIC  GAME  MATRIX  PL 

Selecting the NEO:6 mode

Press the AUDIO EFFECT button brieﬂ y to select NEO:6.

Each time you press this button, DPLIIX  NEO:6  SFE will be selected in turn.

•

Press the

•

UP/DOWN ( ,,. ) button.

Each time you press the in turn.

You can also select the NEO:6 mode by pressing the NEO : 6 button on the remote control.

UP/DOWN ( ,,. ) button, MUSIC  CINEMA  OFF will be selected

Selecting the SFE mode

Press the AUDIO EFFECT button to select SFE.

Each time you press this button, DPLIIX  NEO:6  SFE will be selected in turn.

•

Press the

•

UP/DOWN ( ,,. ) button.

Each time you press the  CHURCH  ROCK  CLASSIC  LIVE  GAME  MOVIE  CONCERT  STADIUM will be selected in turn.

You can also select the SFE mode by pressing the DSP button on the remote control.

UP/DOWN ( ,,. ) button, STEREO  HALL 1 HALL 2  J.CLUB

● OPERATION

You cannot use Dolby Pro Logic llx mode for Analog multi channel signals, LPCM multi channel



signals from HDMI, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio and DTS-HD High Resolution Audio.

Pro Logic works with the audio signals with sampling frequencies of 32KHz, 44KHz or 48KHz.



Using the S.DIRECT button on the front of the main unit

Output the original signal as it is without applying the sound ﬁ eld effect or any other sound effect.

Press the S.DIRECT button.

The screen will display “DIRECT” instead of “S.DIRECT”.



Operation

USING THE SURROUND MODES

Input Signal and Surround Chart

o = active, – = inactive

Output Channel Display Information

Input Signal Surround Mode

Dolby Digital Dolby Digital

Dolby Digitital EX

Dolby Digital Plus Dolby Digital Plus Dolby TrueHD Dolby TrueHD DTS (5.1-ch) DTS Surround DTS-ES DTS Digital + ProLogic IIx

DTS 96/24

DTS-HD

LPCM Multi-Channel

2-ch PCM

Analog Multi-Channel

Analog 2-ch

L/R : front speaker (left/right)

•

Dolby Digital EX Dolby Digital + ProLogic IIx Dolby Digital + ProLogic Iiz

DTS Digital + ProLogic Iiz DTS-ES DTS 96/24 DTS-HD Master Audio DTS-HD High Resolution Multi-Channel Multi-Channel Stereo

ProLogic IIx

ProLogic Iiz

NEO:6 SFE Multi-Channel Multi-Channel Stereo ProLogic IIx ProLogic Iiz NEO:6 SFE

L/R C

OOO – O OOO O O OOO O O O O O O (Height) O OOO O O OOO O O OOO – O OOO O O O O O O (Height) O OOO O O OOO – O OOO O O OOO O O OOO O O O O O O (Height) O O–– – O

OOO O O

O O O O (Height) O

OOO O O OOO O O OOO O O O O O O (Height) O O–– – O OOO O O O O O O (Height) O OOO O O OOO O O

C : center speaker SL/SR : surround speaker (left/right) SBL/SBR : surround back speaker (left/right) H = FHL/FHR : front height speaker (left/right) SW : subwoofer

SLSRSBL

SBR

(Continued)

SUBW Signal Format

Digital + Dolby Digital L, C, R, SL, SR ,SBL, SW Digital +Dolby Digital EX L, C, R, SL, SR ,SBL, SBR, SW Digital + Dolby Digital + ProLogic IIx L, C, R, SL, SR ,SBL, SBR, SW Digital + Dolby Digital + ProLogic Iiz L, C, R, SL, SR, H, SW Digital + Dolby Digital Plus L, C, R, SL, SR ,SBL, SBR, SW Dolby TrueHD L, C, R, SL, SR ,SBL, SBR, SW DTS L, C, R, SL, SR ,SBL, SW DTS + ProLogic IIx L, C, R, SL, SR ,SBL, SBR, SW DTS + ProLogic Iiz L, C, R, SL, SR ,SBL, SBR, SW DTS ES L, C, R, SL, SR ,SBL, SBR, SW DTS 96/24 L, C, R, SL, SR ,SBL, SW DTS-HD MSTR L, C, R, SL, SR ,SBL, SBR, SW DTS-HD L, C, R, SL, SR, SBL, SBR, SW Digtal + LPCM L, C, R, SL, SR, SBL, SBR, SW Digtal + LPCM L, C, R, SL, SR, H, SW Digtal + LPCM L, R, SW Digtal + LPCM + Dolby Digital + ProLogic IIx Digtal + LPCM + Dolby Digital + ProLogic Iiz Digtal + LPCM + DTS + NEO:6 L, C, R, SL, SR ,SBL, SBR, SW Digital + LPCM + LIVE SURR L, C, R, SL, SR ,SBL, SBR, SW Analog L, C, R, SL, SR ,SBL, SBR, SW Analog L, C, R, SL, SR, H, SW Analog L, R, SW Analog + Dolby Digital + ProLogic IIx L, C, R, SL, SR ,SBL, SBR, SW

Analog + Dolby Digital + ProLogic Iiz L, C, R, SL, SR, H, SW Analog + DTS NEO:6 L, C, R, SL, SR ,SBL, SBR, SW Analog + LIVE SURR L, C, R, SL, SR ,SBL, SBR, SW

LIVE SURR : LIVE SURROUND

•

Channel Status

L, C, R, SL, SR ,SBL, SBR, SW

L, C, R, SL, SR, H, SW

Channel status displays are dependent on the speaker conﬁ guration.



SFE mode works with 2-ch signals.



If Dolby Pro Logic IIz is set to On, the Surround Back speaker(SBL/SBR) is changed to the Front Height



Speaker(FHL/FHR), Dolby true HD, Dolby plus, DTS-HD Audio ,SFE and NE0:6 will be output 5.1 channel. ProLogic IIx and ProLogic IIz works only audio signals with sampling frequencies of 32KHz, 44KHz or 48KHz.



USING THE SUBWOOFER BUTTON

You can set the subwoofer Level.

Press the SUBWOOFER button.

Press the ▲▼ buttons to select Subwoofer LEVEL under the Display with S. W. (The display disappears automatically.)

- Setting the Subwoofer Level-

•

SW (Subwoofer) : -10 ~ +10dB

LISTENING TO THE RADIO

You can listen to the radio by using either automatic or manual tuning.

Press the INPUT SELECT button to select FM.

Select a frequency (radio broadcast).

Preset tuning :

•

Press the #,$ buttons on the remote control to select the preset frequency. Manual tuning 1 (Automatic tuning):

•

Press and hold the TUNING/CH ( .,, ) buttons on the remote control to automatically tune in a frequency. Manual tuning 2 :

•

Press the TUNING/CH ( .,, ) buttons on the remote control to increase or decrease the frequency step by step.

You can also use the SELECT (.,,) button on the main uint to change the radio frequency.



To Listen in mono/stereo

Press the MO/ST button on the remote control.

Each time you press this button, STEREO or MONO will be selected in turn.

•

If you select MONO in an area with weak reception, it will help to reduce noise.

•

This function works only with the remote control.

•

ENG

● OPERATION

Presetting radio stations

You can preset up to 30 FM stations.

E.g.: Setting station FM 89.10 in preset 2.

Press the INPUT SELECT button to select FM.

Press the TUNING/CH ( .,, ) buttons on the remote control

to select 89.10.

Refer to step 2 above to tune in automatically and manually.

•

Press the MEMORY button on the main unit.

You can also use the TUNER MEMORY button on the

•

remote control. Tuner number will blink on the display.

•

Press the TUNING/CH ( .,, ) buttons on the remote control

to select preset 2.

You can select from presets 1 to 30.

•

Press the MEMORY button on the main unit.

Tuner number will disappear and station 89.10 will be saved

•

in preset 2.

To preset other stations, repeat steps 2 to 5.

To Listen to Preset Station

•

Press the TUNING MODE button to select PRESET and press the SELECT ( .,, ) buttons.

Operation

USING AN

You can enjoy playback of your iPod using the supplied remote control.

iPod

Listening to Music (iPod audio function)

You can play music ﬁ les stored in the iPod player by connecting it to the AV receiver.

Connect the iPod dock connector to the iPod jack on the AV

Receiver.

Place the iPod in the dock.

Your iPod is automatically turned on.

•

Press the INPUT SELECT button on the remote control to select IPOD AUDIO mode.

Press the

•

You can use the remote control to control simple playback functions such as the PLAY, PAUSE, STOP, SKIP (#,$) buttons.

PLAY

button on the remote control to play.

The AV receiver starts playing from the ﬁ rst track of the iPod player.

See

page 31 for compatible iPods.



Compatibility depends on the software version of your iPod. You can also select iPod by pressing the iPod button on the remote control.



ENG

USING AN

Watching a Movie (iPod Video function)

You can play video ﬁ les stored in the iPod player on a TV by connecting it to the AV receiver.

Connect the iPod dock connector to the iPod jack on the AV

receiver.

In the iPod screen, move to Videos > Settings and set the TV Out

option to On.

Place the iPod in the dock.

Press the INPUT SELECT button on the remote control to select IPOD VIDEO mode.

Set the AV IN option of the TV connected to the AV receiver to COMPOSITE.

Follow the iPod onscreen guide through the following steps.

Press the S,T buttons on the remote control to select Videos and press the ENTER button.

Press the S,T buttons on the remote control to select Movies and press the ENTER button.

Press the S,T buttons to select the ﬁ le to play and press the ENTER button.

•

iPod

(Continued)

The iPod's video ﬁ les will be played on the TV screen.

● OPERATION

You can use the remote control to control simple playback functions such as the PLAY, PAUSE, STOP, SKIP (#,$) buttons.

•

If you press the PREV button after the playback, the player will move to the start screen of the current ﬁ le.

•

Press the STOP button to stop playing and return to the list screen.

•

Press the RETURN button to return to the previous menu.

You must have the VIDEO (Monitor or VCR) and HDMI connected to your TV to view iPod video.



See page 31 for compatible iPods.



Compatibility depends on the software version of your iPod. When the current ﬁ le is played to the end, the next ﬁ le will not be played automatically.



To play the next ﬁ le, select a ﬁ le to play in the list screen of the iPod player. No other screen than the playback one will appear on the TV screen. Check other screens on



the iPod player.

Operation

DSP

VOL

/ CH

CONVENIENT FUNCTIONS

Sleep timer function

You can set the time that this unit will shut itself off.

Press the SLEEP button.

SLEEP : OFF  15  30  45  60  90  120 MIN will be

•

selected in turn.

To check sleep timer

Press the SLEEP button.

The remaining time before this unit will shut itself off is shown on the display.

•

Pressing the button again changes the sleep time from what you set previously.

•

To cancel sleep timer

Press the SLEEP button until SLEEP OFF appears on the display.

•

Mute function

This function is useful when answering a doorbell or telephone call.

SLEEP DIMMERNEO:6

NEO:6

PROLOGIC

AUDIO ASSIGN

ROLOGICAUDIO ASSIG

IMME

DSP

Press the MUTE button.

•

MUTE appears on the display.

To output sound again

Press the MUTE button again or press the Volume button.

•

MUTE will disappear and sound will output.

Adjust the display

You can adjust the brightness of the display.

Press the DIMMER button.

•

Each time you press this button, the brightness changes as follows : Dark  Bright.

SLEEP, Mute and the Adjust Display functions can only be operated with the remote control.



MUTE

TUNING

ASC

UNIN

/ CH

VOL

123

PROLOGIC

AUDIO ASSIGN

ROLOGICAUDIO ASSIG

SLEEP DIMMERNEO:6

SLEEPNEO:

DSP

Reset function

/ CH

When the Power is on,

Press the MUTE button.

•

MUTE appears on the display.

Press the 2 button ﬁ ve times and then press the ENTER button.

•

INITIAL : NO appears on the display.

Press the

•

When the Power is Off,

Press and hold the MEMORY button on the front of your AV Receiver for longer than 5 seconds.

•

▲▼

buttons to select YES.

The unit will turn off after 5 seconds.

POWER LED will blink one time.

Using the RESET function will erase all stored settings.



Do not use this unless necessary.



SLEEP DIMMERNEO:6

SLEE

NEO:6

PROLOGIC

AUDIO ASSIGN

ROLOGIC

AUDIO ASSIGN

MUTE

VOL

ASC

TUNER

NER

SUB WOOFER MO/ST

SUB WOOFERMO/ST

MEMORY

EMORY

SETUP/MENU

SETUP/MEN

RETURN

ETURN

DSP

TUNING

TUNIN

/ CH

INFO

NFO

EXIT

ENG

● OPERATION

Using headphones

Use headphones (not supplied) for private listening pleasure.

Connect the headphones to the headphone (PHONES) jack and listen to music.

Do not turn the volume up too high when you use headphones as it may damage your hearing.



SOFTWARE UPGRADE

Samsung may offer upgrades for AV Receiver's ﬁ rmware in the future.

Please visit Samsung.com or contact the Samsung call center at 1-800-SAMSUNG (726-7864) to receive information about downloading upgrades and using a USB drive. Upgrades will be possible by connecting a USB drive to the USB port located on your AV Receiver.

Insert a USB drive containing the ﬁ rmware upgrade into the USB port



on the back of the main unit.

Please be careful to not disconnect the power or remove the USB



drive while upgrades are being applied. The main unit will turn off automatically after completing the ﬁ rmware upgrade. When software is upgraded, settings you have made will return to their default (factory) settings. We recommend you write down your settings so that you can easily reset them after the upgrade.

If you failed software upgrade, it is strongly recommended whole USB data



format to FAT16 and retry software upgrade.

The NTFS USB File System can not be supported.



Depending on the manufacturer, the USB may not be supported.



Miscellaneous

OPERATING YOUR TV WITH THE REMOTE CONTROL

Press the POWER button to turn on the TV.

Press the AMP/TV button to set the remote to TV mode.

If you select the AMP mode, the button will ﬂ ash orange.

•

If you select the TV mode, the button will ﬂ ash green.

•

Point the remote control toward the TV.

While holding down the POWER button, enter the code corresponding to your brand of TV.

If there is more than one code listed for your TV in the table, enter one at a time to determine which code

•

works. If the code matches the TV's code, the TV will be turned off.

•

If TV is turned on or off when you press the POWER button of the remote control, the setting is completed.

You can use the TV POWER, VOLUME, CHANNEL, MENU and Numeric buttons (0~9).

•

The remote control may not work on some brands of TVs. Also, some operations may not be possible



depending on your brand of TV.

The remote control will work with Samsung TVs by default.



OPERATING YOUR TV WITH THE REMOTE CONTROL (Continued)

TV Brand Code List

ENG

Brand Code Number Brand Code Number Brand Code Number

Admiral (M.Wards) 056, 057, 058 Luxman 018 Sylvania 018, 040, 048, 054, 059, A Mark 001, 015 LXI (Sears) 019, 054, 056, 059, 060,

Anam 001, 002, 003, 004,005,

006, 007, 008, 009, 010, 011, 012, 013, 014

AOC 001, 018, 040, 048 Marantz 040, 054 Teknika 003, 015, 018, 025 Bell & Howell (M.Wards) Brocsonic 059, 060 MGA 018, 040 Toshiba 019, 057, 063, 071, 101 Candle 018 Mitsubishi/MGA 018, 040, 054, 059, 060,

Citizen 003, 018, 025 MTC 018 Videch 059, 060, 069 CINEMA 097 NEC 018, 019, 020, 040, 059, Classic 003

Concerto 018 Nikei 003 Yamaha 018 Contec 046 Onking 003 York 040 Coronado 015 Onwa 003 Yupiteru 003 Craig 003, 005, 061, 082, 083,

Croslex 062 Penney 018 Dongyang 003, 054 Crown 003 Philco 003, 015, 017, 018, 048, CURTIS MATHES 059, 061, 063 FINLUX 054, 109, 114

CXC 003 Philips 015, 017, 018, 040, 048 Daewoo 002, 003, 004, 015,016,

Daytron 040 Radio Shack 017, 048, 056, 060, 061, Dynasty 003 BLAUPUNKT 108

Emerson 003, 015, 040, 046, 059,

Fisher 019, 065, 103 Sampo 040 MIVAR 113 Funai 003 Samsung 000, 015, 016, 017, 040, Futuretech 003 BANG&OLUFSEN 114 General Electric (GE) 006, 040, 056, 059, 066,

Hall Mark 040 METZ 114 Hitachi 015, 018, 050, 059, 069 Scott 003, 040, 060, 061 WEGA 114

Inkel 045 Sears 015, 018, 019 RADIOMARELLI 114 JC Penny 056, 059, 067, 086 Sharp 015, 057, 064, 101, 105, JVC 070 SINUDYNE 114

KTV 059, 061, 087, 088 Signature 2000

KEC 003, 015, 040 Sony 050, 051, 052, 053, 055, KMC 015

LG (Goldstar) 001, 015, 016, 017, 037,

057, 058, 081 Matsui 054 TMK 018, 040

084

017, 018, 019, 020, 021, 022, 023, 024, 025, 026, 027, 028, 029, 030, 032, 034, 035, 036, 040, 048, 059, 090, 099, 100

061, 064, 082, 083, 084, 085

067, 068

038, 039, 040, 041, 042, 043, 044, 054, 086

Magnavox 015, 017, 018, 048, 054,

Panasonic 006, 007, 008, 009, 054,

Pioneer 063, 066, 080, 091 RADIOLA 054, 112 Portland 015, 018, 059 SCHNEIDER 054 Proton 040 AKAI 103 QUASAR 006, 066, 067 GRUNDIG 108, 109, 113, 119, 120,

RCA/Proscan 018, 059, 067, 076, 077,

Realistic 003, 019 IMPERIAL 113

Sanyo 019, 061, 065, 101, 102,

(M.Wards)

Soundesign 003, 040 Spectricon 001 SSS 018

062, 063, 065, 071

059, 060, 062, 072, 089

075, 101Cetronic 003 Vidtech 018

060

066, 067, 073, 074

054, 059, 062, 069, 090

054, 062, 072, 112, 114, 117, 118

075

078, 092, 093, 094

043, 046, 047, 048, 049, 054, 059, 060, 098

103, 104

106, 115 057, 058 TELEFUNKEN 116

101

Symphonic 061, 095, 096 Tatung 006

Techwood 018

Wards 015, 017, 018, 040, 048,

Zenith 058, 079 Zonda 001

LOWE 054

YOKO 054 LOEWE OPTA 054, 114 PHONOLA 054, 112, 114

SIEMENS 108 CGE 113

SABA 114

BRIONVEGA 114

FORMENTI 114

SINGER 114

060, 062

107, 109, 110, 111, 113

054, 060, 064

121

● MISCELLANEOUS

Miscellaneous

OPERATING YOUR DVD OR BD PLAYER WITH THE REMOTE CONTROL

Press the POWER button to turn on the DVD (BD) player.

Press the BD/DVD button on the remote control to set the remote to DVD (BD) mode.

Point the remote control toward the DVD (BD).

While holding down POWER button, enter the code corresponding to your brand of DVD (BD).

If there is more than one code listed for your DVD (BD) in the table, enter one at a time to determine which

•

code works. If the code matches the DVD (BD)'s code, the DVD (BD) will be turned off.

•

If DVD (BD) is turned on or off when you press the POWER button of the remote controller, the setting is

completed.

You can use DVD (BD) POWER, PLAY, PAUSE, STOP, SKIP, MENU and Numeric buttons (0~9).

•

The remote control may not work on some brands of DVD.



Also, some operations may not be possible depending on your brand of DVD.

The remote control will work with Samsung DVD (BD) by default.



DVD Brand Code List

Brand Code Number Brand Code Number Brand Code Number

DENON 003, 032 ONKYO 004, 014 TOSHIBA 004, 018 DOONOON 019 OPTIMUS 011 YAMAHA 009, 033 DMTECH 017 PANASONIC 021 ZENITH 004, 024 FISHER 002 PROSCAN 006 TAEGWANG 026 GE 006 PHILIPS 004, 023 PS2 028 HARMAN/KARDON 012 PIONEER 007, 011, 022, 025 X-BOX 029 JVC 010, 013 RCA 006 APEX 030 KENWOOD 008 SAMSUNG 000, 027 Marantz 031 LG 001 SANYO 002 MAGNAVOX 004 SONY 015, 020 MITSUBISHI 005, 016 THETA DIGITAL 011

BD player Brand Code List

Brand Code Number

SAMSUNG 000, 001, 002, 003, 004

The remote control will control Samsung BD players only.



Troubleshooting

Before requesting service, please check the following.

Symptom Check Remedy

The unit will not turn on.

A function does not work when the button is pressed.

Sound is not produced.

Picture does not appear on a TV when the function is selected.

Remote controller does not work.

The sound from the left/right channels is reversed.

Can't receive radio broadcasts.

There is no sound from surround speakers.

There is no sound from surround back speakers

Can't select EX/ES mode.

• Is the power cord plugged into the outlet?

• Is there static electricity in the air? • Disconnect the power plug and

• Are the speakers and external components connected properly?

• Is the Mute function on?

• Is the volume set to minimum?

• Is the Speaker Size set incorrectly to NONE?

• Is the external component connected properly?

• Are the batteries drained?

• Is the distance between remote control and main unit too great?

• Are the left/right speaker or left/right input/output cables connected properly?

• Is FM antenna connected properly? • Connect the antenna correctly.

• Are the surround speakers connected properly?

• Is SURR (surround) incorrectly set to NONE in the Speaker Size?

• Is surround mode set to stereo?

• Are the surround back speakers

connected properly?

• Is SBACK (Surround Back) set to

NONE in the Speaker Size?

• Is Surround Mode set to EX/ES?

• Is SBACK (Surround Back) set to

NONE in the Speaker Size?

• Is the input signal selected properly?

• Connect the power plug to the outlet.

connect it again.

• Connect them correctly.

• Press the MUTE button to cancel the

function.

• Adjust the volume.

• Refer to

• Connect it correctly.

• Replace with new batteries.

• Operate at close distance.

• Check the left/right channel and

• If the input strength of antenna signal

• Refer to pages 16 ~18 to connect

• Refer to

• Refer to pages 55 ~ 56 to select

• Refer to pages 16 ~18 to connect them properly.

• Refer to or SMALL.

• Refer to Mode to EX/ES.

• Refer to page 41 to select LARGE or SMALL.

• Use a 7.1 channel external component.

pages 41 to select LARGE,

SMALL or YES.

connect it/them correctly.

is weak, install the FM antenna in a place with good reception.

them properly.

page 41 to select LARGE or

SMALL.

proper Surround Mode.

page 41 to select LARGE

page 48 to set Surround

ENG

● TROUBLESHOOTING

Troubleshooting

Symptom Check Remedy

Can't select Dolby Pro Logic llx mode.

Can't select NEO:6 mode.

There is no sound when playing a DTS encoded DVD.

• Is the input signal selected properly? • Only 2 channel signal can select Dolby Pro Logic IIx mode. (ex:Dolby Digital, PCM, 2 channel analog input signal.)

• Is the input signal selected properly? • Use PCM and Analog input signal.

• Is Digital input selected? • Check whether the DVD player is

properly connected and refer to page 36 to select the digital input.

Product protection function

Heat protection

The protection function will come on if the main unit or power transformer overheats.

•

" " will appear in the display .

This function will come on :

- If speaker terminal is shorted

- If speaker cable is shorted If there is no problem when you turn the unit on again after turning it off, PROTECTION mark will disappear on the display and the unit will work properly.



If PROTECTION appears on the display, check whether the speaker terminal is shorted and then turn on the unit again.

ASC Error List

Error No. VFD Message Action

E01

E02

E03

E04

E05

E07

E08

E13

E14

HP CONCT

NO MIC

NOISY

MIC LEVL

NO FRONT

LEVL OVR

DIST OVR

TIME OVR

CODE ERR

Disconnect the headphones.

Connect the microphone.

Take an appropriate action to reduce the surrounding noise.

The speaker is too close to the microphone. Check the distance between speaker and microphone.

Check if the front speaker is connected properly.

Check the position of each of speaker and microphone.

The distance between speaker and microphone exceeds the acceptable value. Check the location of microphone and each speaker.

Unplug the power cable and plug it back. Then, perform ASC again.

Appendix

SPECIFICATIONS

Power supply 120V, 60 Hz

Standby power consumption 0.9W

Power consumption 75W

GENERAL

FM TUNER

AMPLIFIER

FREQUENCY

RESPONSE

HDMI

VIDEO OUTPUT

Weight 12.3 Ibs

Dimensions (W x H x D) 17 x 6.5 x 14.2 inches

Operating temperature range 41°F~+95°F

Operating humidity range 10%~75%

Frequency response 87.5~108.0MHz

Usable sensitivity 12dBf

S/N ratio MONO/STEREO 55/55dB

Distortion MONO/STEREO 0.3/0.8%

Stereo separation 30dB

Rated output 20Hz~20kHz/THD = 0.9%

Front speaker (left+right) 6 Ω 120W/CH

Center speaker 6 Ω 120W/CH

Surround speaker (left+right) 6 Ω 120W/CH

Surround back speaker (left+right) 6 Ω 120W/CH

Input sensitivity/impedance 450mV/47kΩ

S/N ratio (analog input) 80dB

Separation (1kHz) 60dB

Analog input 20Hz~20kHz(±3dB)

Digital input/96kHz PCM 20Hz ~44kHz(±3dB)

Input Compatible 1080p

Output Compatible 1080p

TV format NTSC/PAL

Input level/impedance 1Vp-p/75 Ω

Output level/impedance 1Vp-p/75 Ω

Video frequency response 5Hz to 10kHz(-3dB)

S/N Ratio 60dB

ENG

● APPENDIX

* S/N Ratio, Distortion, Separation and Usable sensitivity are based on measurement using AES (Audio Engineering

Society) guidelines.

- Samsung Electronics Co., Ltd reserves the right to change the speciﬁ cations without notice.

- Weight and dimensions are approximate.

- Design and speciﬁ cations are subject to change without prior notice.

SAMSUNG AV receiver

LIMITED WARRANTY TO ORIGINAL PURCHASER

This SAMSUNG brand product, as supplied and distributed by Samsung Electronics America, Inc. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of:

One (1) Year Parts and Labor*

(*90 days Parts and Labor for Commercial Use)

This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the United States. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG's authorized service center. Transportation of the product to and from the service center is the responsibility of the purchaser.

SAMSUNG will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer.

SAMSUNG's obligations with respect to software products distributed by SAMSUNG under the SAMSUNG brand name are set forth in the applicable end user license agreement. Non-SAMSUNG hardware and software products, if provided, are on an “AS IS” basis. Non-SAMSUNG manufacturers, suppliers, publishers, and service providers may provide their own warranties.

This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, and except to the extent otherwise expressly provided for in this statement, noncommercial use of this product, and shall not apply to the following, including, but not limited to: damage which occurs in shipment; delivery and installation; applications and uses for which this product was not intended; altered product or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning or other acts of nature; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied and authorized by SAMSUNG, or which damage this product or result in service problems; incorrect electrical line voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions, cleaning, maintenance and environmental instructions that are covered and prescribed in the instruction book; product removal or reinstallation; reception problems and distortion related to noise, echo, interference or other signal transmission and delivery problems. SAMSUNG does not warrant uninterrupted or error-free operation of the product.

THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO WARRANTIES WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY AFTER THE EXPRESS WARRANTY PERIODS STATED ABOVE, AND NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO PURCHASER AND PURCHASER°ØS PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT SOLD BY SAMSUNG NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF SAMSUNG. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.

Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

To obtain warranty hardware service, please contact SAMSUNG at:

Samsung Electronics America, Inc.

105 Challenger Road Ridgefield Park, NJ07660-0511

1-800-SAMSUNG(726-7864) and www.samsung.com

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

Area Contact Center

North America

Canada 1-800-SAMSUNG (726-7864) www.samsung.com

Mexico

U.S.A 1-800-SAMSUNG (726-7864) www.samsung.com

Latin America

Argentine 0800-333-3733 www.samsung.com

Brazil

Chile 800-SAMSUNG (726-7864) www.samsung.com

Nicaragua 00-1800-5077267 www.samsung.com

Honduras 800-7919267 www.samsung.com

Costa Rica 0-800-507-7267 www.samsung.com

Ecuador 1-800-10-7267 www.samsung.com

El Salvador 800-6225 www.samsung.com

Guatemala 1-800-299-0013 www.samsung.com

Jamaica 1-800-234-7267 www.samsung.com

Panama 800-7267 www.samsung.com

Puerto Rico 1-800-682-3180 www.samsung.com

Rep. Dominica 1-800-751-2676 www.samsung.com

Trinidad & Tobago

Venezuela 0-800-100-5303 www.samsung.com

Colombia 01-8000112112 www.samsung.com

Europe

Austria

Belgium 02-201-24-18

Czech

Denmark 70 70 19 70 www.samsung.com

Finland 030 - 6227 515 www.samsung.com

France 01 48 63 00 00 www.samsung.com

Germany

Hungary 06-80-SAMSUNG (726-7864) www.samsung.com

Italia 800-SAMSUNG (726-7864) www.samsung.com

Luxemburg 261 03 710 www.samsung.com

Netherlands

Norway 815-56 480 www.samsung.com

Poland

Portugal

Slovakia 0800-SAMSUNG (726-7864) www.samsung.com

Spain

Sweden 0771 726 7864 (SAMSUNG) www.samsung.com

U.K 0845 SAMSUNG (7267864) www.samsung.com

Eire 0818 717100 www.samsung.com

01-800-SAMSUNG (726-7864)

0800-124-421 4004-0000

1-800-SAMSUNG (726-7864) www.samsung.com

0810 - SAMSUNG (7267864, € 0.07/min)

800 - SAMSUNG (800-726786)

01805 - SAMSUNG (726-7864 € 0,14/Min)

0900-SAMSUNG (0900-7267864) (€ 0,10/Min)

0 801 1SAMSUNG (172678) 022-607-93-33

80820-SAMSUNG (726-7864)

902 - 1 - SAMSUNG (902 172 678)



Web Site

www.samsung.com

www.samsung.com/ be (Dutch) www.samsung.com/ be_fr (French)

www.samsung.com

Area Contact Center

Switzerland

Lithuania 8-800-77777 www.samsung.com

Latvia 8000-7267 www.samsung.com

Estonia 800-7267 www.samsung.com

CIS

Russia 8-800-555-55-55 www.samsung.com

Georgia 8-800-555-555

Armenia 0-800-05-555

Azerbaijan 088-55-55-555

Kazakhstan 8-10-800-500-55-500

Uzbekistan 8-10-800-500-55-500 www.samsung.com

Kyrgyzstan 00-800-500-55-500 www.samsung.com

Tadjikistan 8-10-800-500-55-500 www.samsung.com

Ukraine 0-800-502-000

Belarus 810-800-500-55-500

Moldova 00-800-500-55-500

Asia Paciﬁ c

Australia 1300 362 603 www.samsung.com

New Zealand

China

Hong Kong (852) 3698-4698

India

Indonesia

Japan 0120-327-527 www.samsung.com

Malaysia 1800-88-9999 www.samsung.com

Philippines

Singapore 1800-SAMSUNG (726-7864) www.samsung.com

Thailand

Taiwan 0800-329-999 www.samsung.com

Vietnam 1 800 588 889 www.samsung.com

Middle East & Africa

Turkey 444 77 11 www.samsung.com

South Africa 0860-SAMSUNG (726-7864) www.samsung.com

U.A.E 800-SAMSUNG (726-7864) www.samsung.com

Bahrain 8000-4726

Jordan 800-22273

0848 - SAMSUNG (7267864, CHF 0.08/min)

0800 SAMSUNG (0800 726 786)

400-810-5858 010-6475 1880

3030 8282 1800 110011 1800 3000 8282 1800 266 8282

0800-112-8888 021-5699-7777

1-800-10-SAMSUNG (726-7864) 1-800-3-SAMSUNG (726-7864) 1-800-8-SAMSUNG (726-7864) 02-5805777

1800-29-3232 02-689-3232



Web Site

www.samsung.com/ch www.samsung.com/ ch_fr/ (French)

www.samsung.ua www.samsung.com/ ua_ru

www.samsung.com

www.samsung.com/ hk www.samsung.com/ hk_en/

www.samsung.com

QUESTIONS OR COMMENTS?

COUNTRY CALL OR VISIT US ONLINE AT WRITE

IN THE US

1-800-SAMSUNG

(7267864)

www.samsung.com/us

Samsung Electronics America, Inc.

105 Challenger Road Ridgeﬁ eld Park,

NJ 07660-0511

Code No. AH68-02312R

Samsung HW-C900, HW-C900-XAA User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Safety information

Features

Contents

Description

Connections

CONNECTING A CD PLAYER

CONNECTING THE FM ANTENNA

Basic functions of your AV Receiver

BEFORE USING THE AV RECEIVER

Basic functions of your AV Receiver

Setup

SETUP MENU TREE

SETTING THE SPEAKER SIZE

CONNECTION SETTING FOR SURROUND BACK

SETTING THE SPEAKER LISTENING DISTANCE

SETTING THE SPEAKER LEVEL

SETTING THE TEST TONE

SETTING DOLBY PRO LOGIC MODE

SETTING DOLBY PRO LOGIC IIx

SETTING TONE CONTROL

SETTING NEO:6 MODE

SETTING EX/ES MODE

AV SYNC

MP3 ENHANCER

SMART VOLUME

ASC (AUTO SOUND CALIBRATION) SETUP

DRC SETUP

DUAL MONO SETUP

HDMI SETUP

VARIABLE SET (Low Power Consumption SETUP)

VIDEO CONV. (Video Conversion)

ZONE2 SETUP

12-V TRIGGER

Operation

USING THE SURROUND MODES

LISTENING TO THE RADIO

CONVENIENT FUNCTIONS

SOFTWARE UPGRADE

Miscellaneous

OPERATING YOUR TV WITH THE REMOTE CONTROL

OPERATING YOUR DVD OR BD PLAYER WITH THE REMOTE CONTROL

Troubleshooting

ASC Error List

Appendix

SPECIFICATIONS
