SAMSUNG HT-DS1000, HT-DS1100 User Manual

Download

SLIM DIGITAL HOME

COMPACT

DIGITAL VIDEO

COMPACT

DIGITAL AUDIO

CINEMA SYSTEM

HT-DS1000 HT-DS1100

Instruction Manual

Safety Warnings

CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LASER CLASE 1

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE REAR COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CLASS 1 LASER PRODUCT

This Compact Disc player is classified as a CLASS 1 LASER product.

Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

CAUTION-INVISIBLE LASER RADIATION WHEN OPEN

AND INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM.

This symbol indicates that dangerous voltage which can cause electric shock is present inside this unit.

This symbol alerts you to important operating and maintenance instructions accompanying the unit.

WARNING: To reduce the risk of fire or electric shock, do not

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH

WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

Wiring the Main Power Supply Plug(UK Only)

expose this appliance to rain or moisture.

IMPORTANT NOTICE

The main lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin face of the plug and if it requires replacing, a fuse approved to BS1362 of the same rating must be used.

Never use the plug with the fuse cover removed. If the cover is detachable and a replacement is required, it must be of the same colour as the fuse fitted in the plug. Replacement covers are available from your dealer.

If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should obtain a suitable safety approved extension lead or consult your dealer for assistance.

However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do not connect the plug to a main socket as there is a risk of shock hazard from the bared flexible cord.

Never attempt to insert bare wires directly into a main socket. Aplug and fuse must be used at all times.

IMPORTANT

The wires in the main lead are coloured in accordance with the following code:–

BLUE = NEUTRAL BROWN = LIVE

As these colours may not correspond to the coloured markings identifying the terminals in your plug, proceed as follows:– The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK. The wire coloured BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED.

WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH

THE LETTER E OR BY THE EARTH SYMBOL , OR COLOURED GREEN OR GREEN AND YELLOW.

Precautions

Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your player horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4inches). Make sure the ventilation slots are not covered. Do not stack anything on top of the player. Do not place the player on amplifiers or other equipment which may become hot. Before moving the player, ensure the disc tray is empty. This player is designed for continuous use. Switching off the DVD player to the stand-by mode does not disconnect the electrical supply. In order to disconnect the player completely from the power supply, remove the main plug from the wall outlet, especially when left unused for a long period of time.

PREPARATION

During thunderstorms, disconnect AC main plug from the wall outlet. Voltage peaks due to lightning could damage the unit.

Phones

Protect the player from moisture(i.e. vases) , and excess heat(e.g.fireplace) or equipment creating strong magnetic or electric fields (i.e.speakers...). Disconnect the power cable from the AC supply if the player malfunctions. Your player is not intended for industrial use.

Use of this product is for personal use only. Condensation may occur if your player or disc have been stored in cold

temperatures. If transporting the player during the winter, wait approximately 2 hours

until the unit has reached room temperature before using.

Do not expose the unit to direct sunlight or other heat sources.

This could lead to overheating and malfunction of the unit.

The battery used with this product contain chemicals that are harmful to the environment. Do not dispose of batteries in the general household trash.

Features

Multi-Disc Playback & FM Tuner

The HT-DS1000/HT-DS1100 combines the convenience of multi-disc playback capability, including DVD-AUDIO, DVD-VIDEO, VCD, CD, MP3-CD, WMA-CD, DivX, CD-R/RW, and DVD-R/RW, with a sophisticated FM tuner, all in a single player.

DVD-Audio compatible

Experience the super high-quality audio performance of DVD-Audio. The on-board 24-bit/192kHz DAC enables this player to deliver exceptional sound quality in terms of dynamic range, low-level resolution and high-frequency detail.

Soft Touch Function Selection

The buttons on the front panel of the main unit are touch sensitive and easy to use.

Super Digital Sound Master

Equipped with a new digital audio technology (Auto Sound Calibration, Magic Sound Field, and Magic Headphone) developed in cooperation with DiMagic Co., Ltd. in Japan, you'll enjoy a more lively and sensitive sound.

Logo Sound

When you turn on the power, a ‘sound logo’will be heard.

TV Screen Saver Function

The HT-DS1000/HT-DS1100 automatically brightens and darkens the brightness of the TV screen after 3 minutes in the stop mode. The HT-DS1000/HT-DS1100 automatically switches itself into the power saving mode after 20 minutes in the screen saver mode.

AV SYNC Function

Video may lag behind the audio if the unit is connected to a digital TV. To compensate for this, you can adjust the audio delay time to sync up with the video.

HDMI

HDMI transmits DVD video and audio signals simultaneously, and provides a clearer picture.

PREPARATION

Safety Warnings..................................................................................................................................................................1

Precautions.........................................................................................................................................................................2

Features..............................................................................................................................................................................3

Notes on Discs....................................................................................................................................................................5

Description..........................................................................................................................................................................7

CONNECTIONS

Installing DVD player .........................................................................................................................................................13

Connecting the Speakers ...................................................................................................................................................14

Connecting the Video Out to TV.........................................................................................................................................17

Connecting External Components......................................................................................................................................21

Connecting the FM Antenna ...............................................................................................................................................23

Before Using Your DVD Player...........................................................................................................................................24

OPERATION

Disc Playback .....................................................................................................................................................................25

MP3-CD Playback ..............................................................................................................................................................27

JPEG Disc Playback...........................................................................................................................................................28

DivX Playback.....................................................................................................................................................................29

Displaying Disc Information................................................................................................................................................31

Checking the Remaining Time............................................................................................................................................32

Fast/Slow Playback ............................................................................................................................................................33

Skipping Scenes/Songs ......................................................................................................................................................34

Repeat Playback.................................................................................................................................................................35

A-B Repeat Playback..........................................................................................................................................................37

Angle Function ....................................................................................................................................................................38

Zoom Function ....................................................................................................................................................................39

Bonus Group / Navigating Pages.......................................................................................................................................40

Selecting Audio/Subtitle Language.....................................................................................................................................41

Moving Directly to a Scene/Song .......................................................................................................................................42

Using Disc Menu.................................................................................................................................................................43

Using the Title Menu...........................................................................................................................................................44

SETUP

Setting the Language..........................................................................................................................................................45

Setting TV Screen type.......................................................................................................................................................47

Setting Parental Controls (Rating Level)............................................................................................................................49

Setting the Password..........................................................................................................................................................51

Setting the Wallpaper .........................................................................................................................................................53

DVD Playback Mode...........................................................................................................................................................55

Setting the Speaker Mode..................................................................................................................................................57

Setting the Test Tone..........................................................................................................................................................58

Setting the Delay Time .......................................................................................................................................................59

Setting the Audio Quality....................................................................................................................................................61

Setting the DRC (Dynamic Range Compression) ..............................................................................................................63

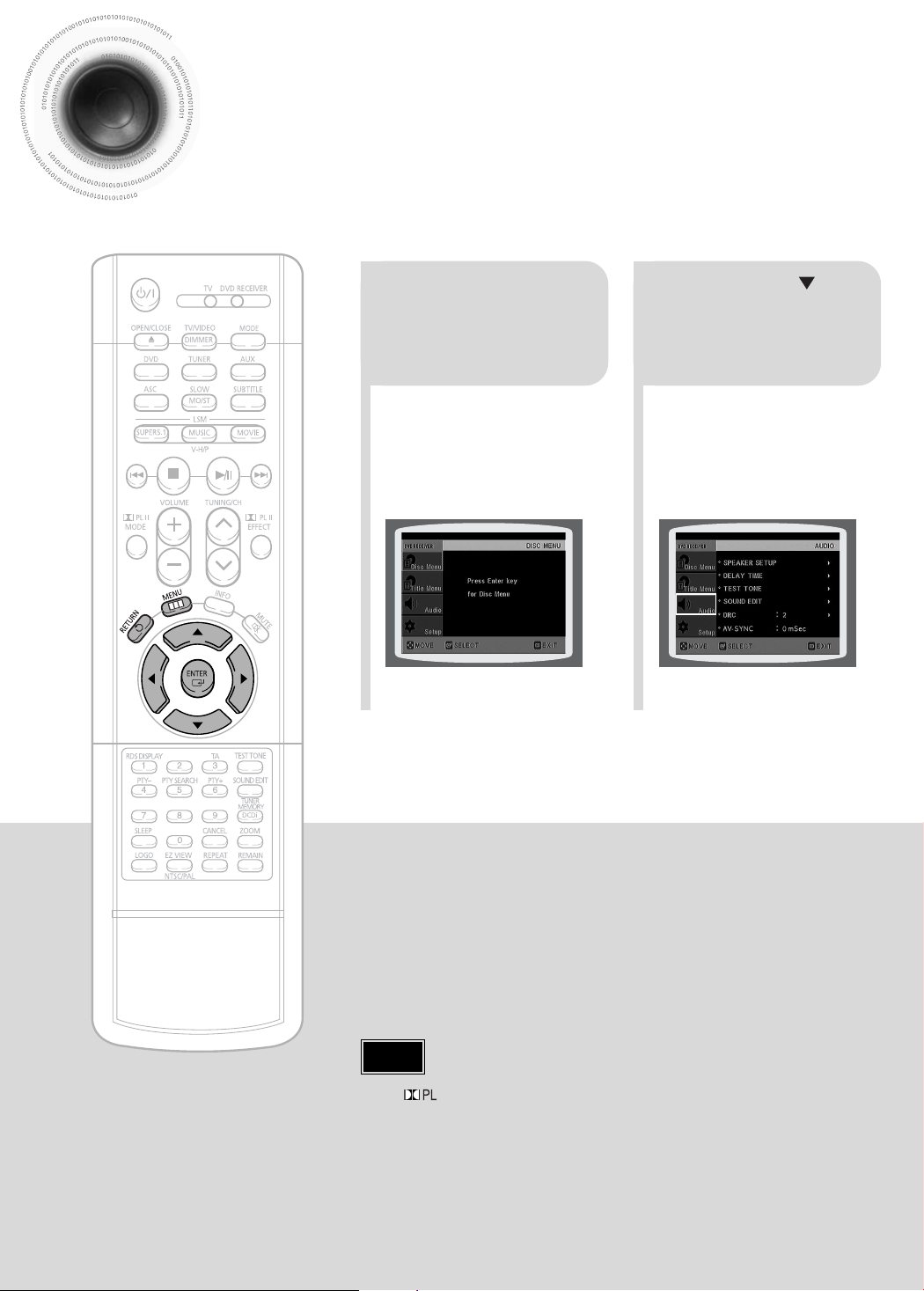

AV SYNC Setup..................................................................................................................................................................64

Dolby Pro Logic II Mode.....................................................................................................................................................65

Dolby Pro Logic II Effect.....................................................................................................................................................66

Auto Sound Calibration Setup ............................................................................................................................................67

Live Surround Mode ...........................................................................................................................................................69

RADIO OPERATION

Listening to Radio...............................................................................................................................................................71

Presetting Stations..............................................................................................................................................................72

About RDS broadcasting....................................................................................................................................................73

MISCELLANEOUS

Convenient Functions.........................................................................................................................................................75

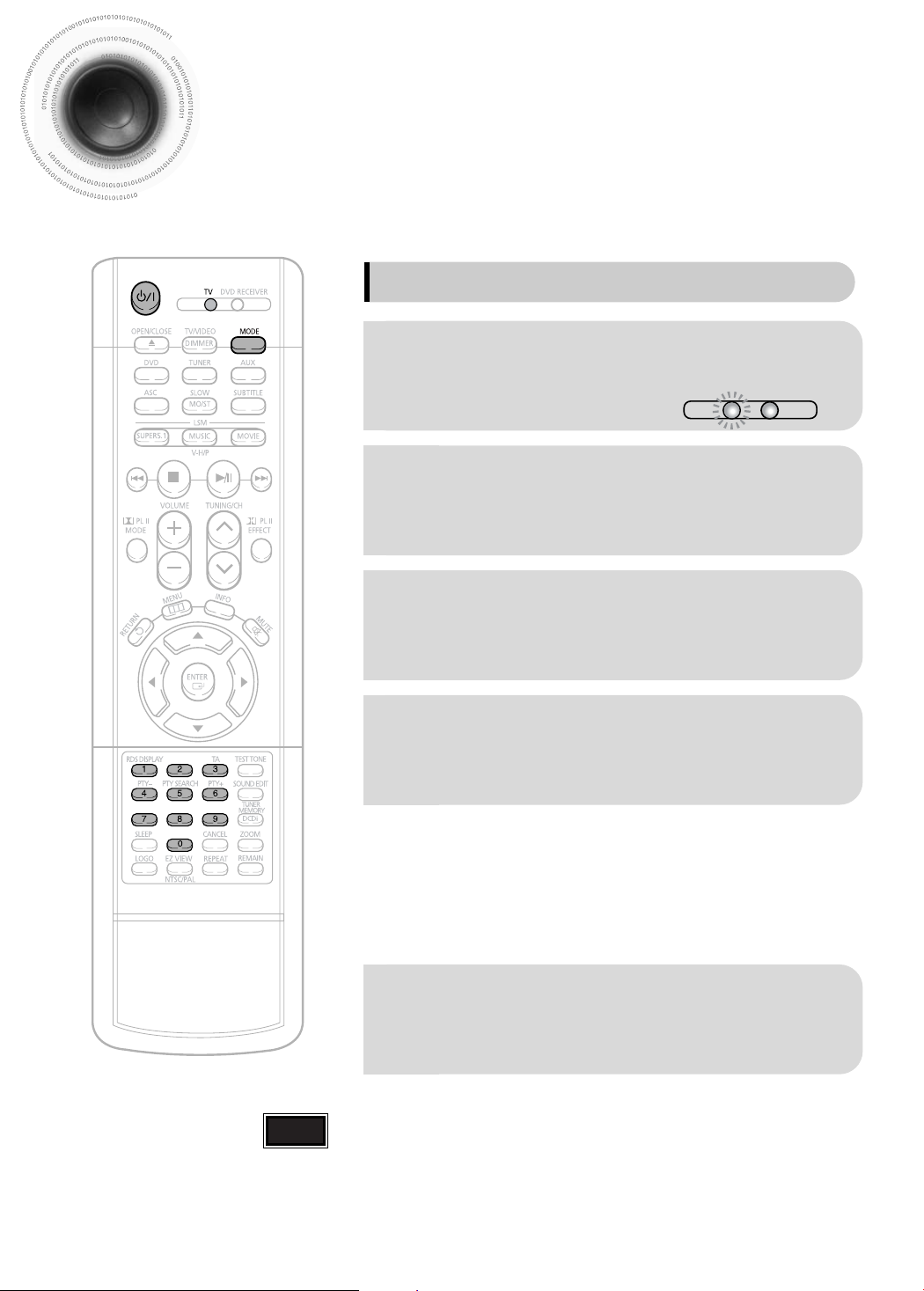

Operating a TV with the Remote Control ...........................................................................................................................77

Before Calling for Service ...................................................................................................................................................79

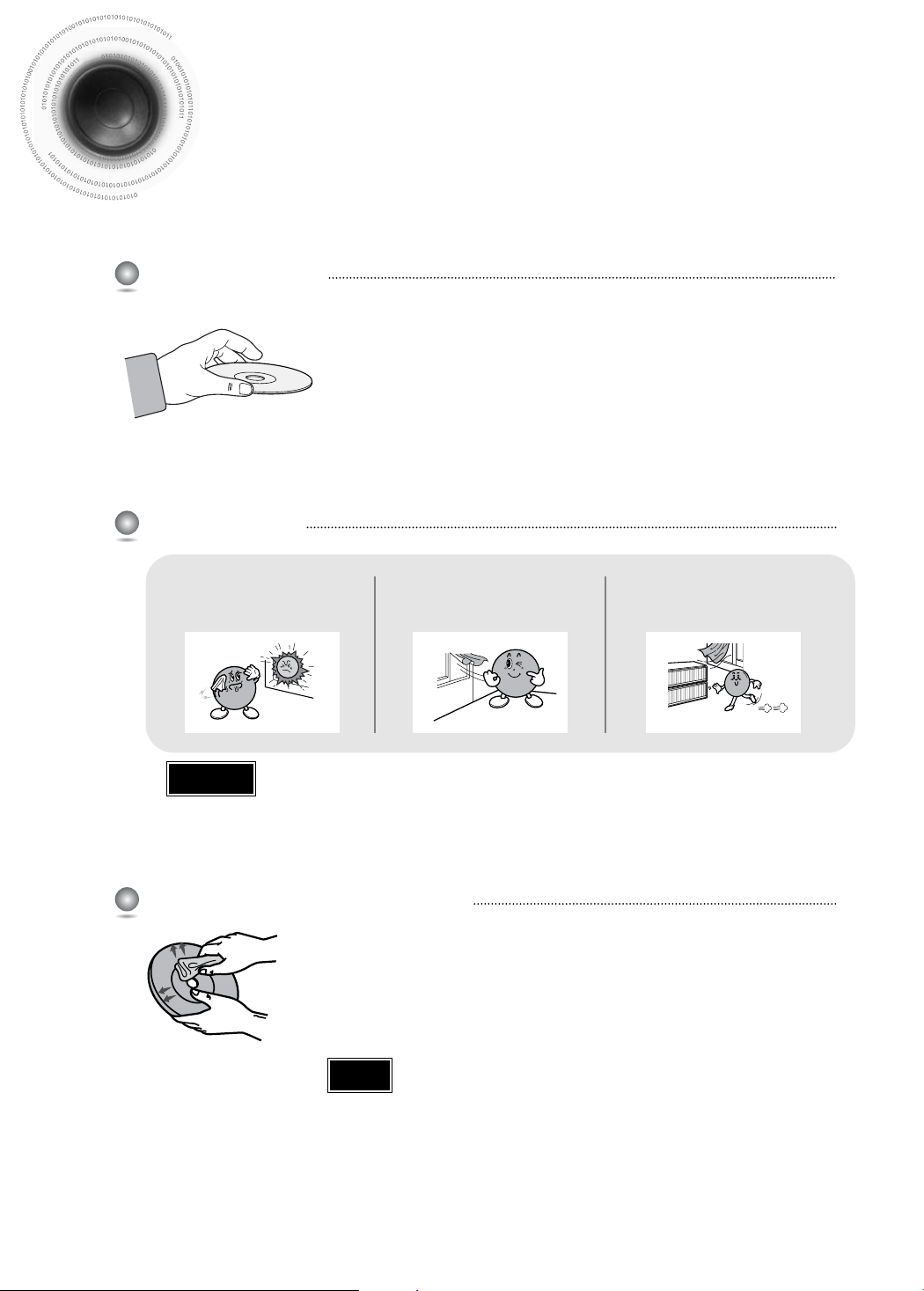

Cautions on Handling and Storing Discs ............................................................................................................................81

Specifications......................................................................................................................................................................82

Notes on Terminology.........................................................................................................................................................83

Memo..................................................................................................................................................................................84

PREPARATION

V I D E O

1 6

Notes on Discs

DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital

surround sound and MPEG-2 video compression technology. Now you can enjoy these realistic effects in the home, as if you were in a movie theater or concert hall.

DVD players and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play. The Region Number for this player is given on the rear panel of the player.

(Your DVD player will only play DVDs that are labeled with identical region codes.)

Playable Discs

Disc Type Disc Size Max. Playing Time

DVD-AUDIO DVD-VIDEO

VIDEO-CD

AUDIO-CD

Mark (Logo)

COMPACT

DIGITAL VIDEO

COMPACT

DIGITAL AUDIO

Recorded Signals

Audio + Video

Audio

12cm

8cm

12cm

8cm

12cm

8cm

Approx. 240 min. (single-sided)

Approx. 480 min. (double-sided)

Approx. 80 min. (single-sided)

Approx. 160 min. (double-sided)

74 min. 20 min. 74 min. 20 min.

Do not use the following types of disc!

LD, CD-G, CD-I, CD-ROM and DVD-ROM cannot be played on this player.

•

If such discs are played, a "WRONG DISC FORMAT" message appears on the TV screen.

DVD discs purchased abroad may not play on this player.

•

If such discs are played, a "WRONG REGION CODE" message appears on the TV screen.

Copy Protection

Many DVD discs are encoded with copy protection. Because of this, you should only connect

•

your DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs.

This product incorporates copyright protection technology that is protected by methods claims of certain

•

U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Disc Recording Format

CD-R/RW Discs

Depending on the disc recording device (CD-Recorder or PC ) and the condition of the disc, some CD-R

•

discs may not be playable. Use a 650MB/74 minute CD-R. Avoid CD-R media, as they may not be playable.

•

If possible, do not use CD-RW (Rewritable) media, as they may not be playable.

•

Only CD-Rs that are properly "closed" can be fully played. If the session is closed but the disc is left open,

•

you may not be able to fully play the disc.

CD-R/RW MP3 Discs

Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played.

•

MP3 file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).

•

Use discs recorded with a compression/decompression data rate greater than 128Kbps.

•

Only files with the ".mp3" and ".MP3" extensions can be played.

•

Only a consecutively written Multisession disc can be played. If there is a blank segment in the Multisession disc,

•

the disc can be played only up to the blank segment. If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played.

•

For files encoded in Variable Bit Rate (VBR) format, i.e. files encoded in both low bit rate and high bit rate (e.g.,

•

32Kbps ~ 320Kbps), the sound may skip during playback. If more than 500 tracks are recorded on a single CD, a maximum of 500 tracks can be played.

•

If more than 300 folders are recorded on a single CD, a maximum of 300 folders can be played.

•

PREPARATION

CD-R/RW JPEG Discs

Only files with the ".jpeg" and ".JPEG" extensions can be played.

•

If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.

•

Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.

•

JPEG file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).

•

Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession disc, the

•

disc can be played only up to the blank segment. A maximum of 9,999 images can be stored on a single CD.

•

When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played.

•

Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.

•

Description

—Front Panel—

Play/Pause ( ) button

Power ( ) button

Function button

Display

Volume control Stop ( ) button

Open/Close ( ) button

Tuning UP & Skip ( ) button

Tuning Down & Skip ( ) button

DOLBY DIGITAL indicator

PRO LOGIC II indicator

DSP indicator

DVD AUDIO indicator

DTS Disc indicator

—Rear Panel—

PREPARATION

Resolution Switch

External Digital in Optical 1,2 Input Connectors

Cooling Fan

Accessories

Remote Control Video Cable HDMI Cable

Auto Sound Calibration

Microphone

HDMI/DVI Cable

FM Antenna DIN Audio Connection

Vertical Stand Screw Large : 3EA Screw Small : 4EA

Cable

Horizontal Stand

Screw Large : 2EA

User's Manual

Description

Top

Headphone Jack

Auto Sound Calibration button

Bottom

FM Antenna Connector

HDMI Video/Audio Output Connector

COMPONENT VIDEO

OUTPUT Connector

External Audio Component

Input Connectors

DIN Audio Output Jack

Video Output Connector

Subwoofer

PSWS1000T (Subwoofer of HT-DS1000)

Subwoofer Level

control

Crossover frequency

control

PREPARATION

DIN Audio Input terminal

Speaker Output Terminals Subwoofer Power button

< Right >

PSWS1100T (Subwoofer of HT-DS1100)

Subwoofer Level control

Subwoofer Power button

< Front >

< Rear >

DIN Audio Input terminal Crossover frequency control

Speaker Output Terminals

< Rear >

Description

TV DVD RECEIVER

OPEN/CLOSE

DVD TUNER AUX

EZ VIEW

NTSC/PAL

SLOW SUB TITLE

ASC

TUNING/CH

PL II

MUTE

MODE

ENTER

SOUND EDIT

TEST TONE

SLEEP

LOGO REPEAT

CANCEL ZOOM

REMAIN

TUNER

MEMORY

DCDi

PL II

EFFECT

VOLUME

LSM

V-H/P

MOVIEMUSIC

SUPER5.1

MO/ST

TV/VIDEO

MODE

DIMMER

RDS DISPLAY

PTY– PTY+PTY SEARCH

—Remote Control—

TV, DVD POWER button

TV/VIDEO, DIMMER button

OPEN/CLOSE button

Auto Sound Calibration button

Live Surround Mode button/

Virtual Headphone button

SUPER 5.1 button

PL II MODE button

VOLUME button

MENU button

RETURN button

TV indicator DVD RECEIVER indicator

MODE button

DVD button

AUX button

TUNER button

SUBTITLE button SLOW, MO/ST button

MOVIE button

Play/Pause button

Stop button

Tuning Preset/CD Skip button

PL II EFFECT button

TUNING/CH button INFO button

MUTE button

Direction/Enter button

RDS Selection button

Number(0~9) buttons

SLEEP button

LOGO COPY button

EZ VIEW, NTSC/PAL button

TEST TONE button SOUND EDIT button

TUNER MEMORY, DCDi button ZOOM button

CANCEL button REMAIN button REPEAT button

Insert Remote Batteries

PREPARATION

Remove the battery

cover on the back of the remote by pressing down and sliding the cover in the direction of the arrow.

Caution

Follow these precautions to avoid leaking or cracking batteries:

Place batteries in the remote control so they match the polarity:(+) to (+)and (–)to (–).

•

Use the correct type of batteries.Batteries that look similar may differ in voltage.

•

Always replace both batteries at the same time.

•

Do not expose batteries to heat or flame.

•

Range of Operation of the Remote Control

The remote control can be used up to approximately 23 feet/7 meters in a straight line. It can also be operated at a horizontal angle of up to 30° from the remote control sensor.

Insert two 1.5V AAA

batteries, paying attention to the correct polarities (+ and –).

To open the remote control cover, push the top of the cover, then slide downward.

Replace the battery

cover.

Installing DVD player

You can select and install either the Vertical or Horizontal Stand, depending on your preference.

Vertical Stand (supplied)

Fix the round support and Vertical Stand with screws 3EA.

Open the cover on the rear of Vertical Stand and connect the Audio/Video

cable into the Vertical Stand.

(See pages 19~24 for how to connect the cable.)

Locate the two indentations on the bottom of the Main unit. Slide the Main unit onto

the two matching dowels on Vertical Stand.

Fix the Vertical Stand and the main unit with screws 4EA.

Main unit

Round support

REAR OF MAIN UNIT

Vertical Stand

REAR OF

VERTICAL ST AND

Horizontal Stand (supplied)

Locate the two indentations on the side of the main unit and slide onto the two

matching dowels on Horizontal Stand.

Fix the Horizontal Stand and the main unit with screws 2EA.

Main unit

Horizontal Stand

RSLS

Connecting the Speakers

RLC

Before moving or installing the product, be sure to turn off the power and disconnect the power cord.

CONNECTIONS

Position of the DVD Player

Place it on a stand or cabinet shelf, or under

•

the TV stand.

Front Speakers

Place these speakers in front of your listening

•

position, facing inwards (about 45°) toward you. Place the speakers so that their tweeters will be at

•

the same height as your ear. Align the front face of the front speakers with the

•

front face of the center speaker or place them slightly in front of the center speakers.

Center Speaker

It is best to install it at the same height as the front

•

speakers. You can also install it directly over or under the TV.

•

Selecting the Listening Position

The listening position should be located about 2.5 to 3 times the distance of the TV's screen size away from the TV. Example: For 32" TVs 2~2.4m (6~8 feet)

For 55" TVs 3.5~4m (11~13 feet)

Rear Speakers

Place these speakers behind your listening position.

•

If there isn't enough room, place these speakers to face each other.

•

Place them about 60 to 90cm (2 to 3feet) above your ear, facing

•

slightly downward.

Unlike the front and center speakers, the rear speakers are used

to handle mainly sound effects and sound will not come from them all the time.

Subwoofer

The position of the subwoofer is not so critical.

•

Place it anywhere you like. Usually, it is placed by a corner near the front speakers.

•

Connecting the Speakers

Connect the front, rear and center speakers to the speaker output jack on the side of subwoofer.

HT-DS1000

Rear of Subwoofer (PSWS1000E)

Bottom of Main unit

(HT-DS1000)

Center Speaker

Rear Speaker (L)

Rear Speaker (R)

Gray

Green

Blue

Red

Front Speaker (R)

Connecting Main Unit to Subwoofer

Use the supplied DIN audio connection cable to connect DIN

Audio Out on the main unit to DIN Audio Input on the subwoofer.

Press the subwoofer power button on the subwoofer to turn

on the power.

Subwoofer Function

Subwoofer: The subwoofer is active, with a built-in a 150W amplifier , and

outputs rich bass through 8 inch speaker units. Y ou can listen to the optimal LFE (bass) by using the subwoofer-only volume control and the variable crossover control.

•

The control is calibrated from –6dB (minimum) to +6dB (maximum).

Crossover: The Crossover sets the cutoff frequency for the subwoofer . Set the

Crossover control for the best bass response in your room.

•

You can adjust the bass or treble output from the front, rear, center speakers and the subwoofer.

•

To the left increases the bass and to the right, treble.

White

Front Speaker (L)

HT-DS1100

Rear of Subwoofer (PSWS1100E)

Bottom of Main unit

(HT-DS1100)

Rear Speaker (R)

Front Speaker (R)

Connecting the Speakers

Press down the terminal

tab on the back of the speaker.

Insert the black wire into the

black terminal (–) and the gray wire into the gray (+) terminal, and then release the tab.

Black

Gray

Green

Blue

WhiteRed

Front Speaker (L)

Connect the correct color speaker cable

to the same color speaker output terminal on the rear of the subwoofer, according to the polarity markings (+/–).

Example: Connect the green center speaker cable

to the green center speaker output terminal on the rear of the subwoofer according to the polarity markings (+/–).

Center Speaker

Rear Speaker (L)

CONNECTIONS

Caution

Do not let children play with or near the speakers.

•

They could get hurt if a speaker falls. When connecting the speaker wires to the speakers,

•

make sure that the polarity (+/–) is correct. Never touch the speaker terminal while the power is on.

•

Doing so may result in a risk of electric shock.

Note

If you place a speaker near your TV set,

•

screen color may be distorted because of the magnetic field generated by the speaker. If this occurs, place the speaker away from your TV set.

Connecting the Video Out to TV

Method1

When you connect to Video Out

Connect the Video Out to the Video

Good Quality

In on the TV.

Set the Video Input source on your TV

to the corresponding Video output on your Home Theater.

Method 2

Connect if the TV component input supports the resolution of over 576p(480p).

When you connect to Component Out

Better Quality

Video Cable (supplied)

Connect the component output (PR

PB, Y) to the component input on the TV (PR, PB

Be sure to make the correct connections between the

•

when you connect the component output jacks to the TV. If these are connected wrong, the screen may show red or blue, or there may be no screen at all.

Set the Video Input source on your TV

, Y).

to the corresponding Component output on your Home Theater.

Note

If the TV only supports a resolution of 576i(480i), the screen may be divided into 2 screens, or

•

display nothing.

The Component input may be marked ‘DVD input’

depending on the TV .

Method 3

Connect if the TV has an HDMI (or DVI) In jack.

When you connect to HDMI Out

Connect the HDMI Out to the HDMI

Best Quality

(or DVI) Input on the TV.

Set the Video Input source on your TV

to the corresponding HDMI output on your Home Theater.

HDMI Cable

(supplied)

HDMI/DVI Cable (supplied)

What is HDMI (High Definition Multimedia Interface)?

This device transmits DVD video and audio signals digitally without the process of converting to analog. You can get sharper digital pictures by connecting the video to the TV using an HDMI connection cable.

CONNECTIONS

Note

• If you connect the HDMI and Component outputs (P

resolution changes automatically to the designated HDMI resolution. Example: If the TV connected to HDMI can only support up to 576p(480p), the HDMI and Component outputs

are all converted to 576p(480p), even if you select the resolution switch to 1080i.

R, P

, Y) at the same time, the Component output

• Since this product has an embedded Video Upscaler function with Faroudja DCDi technology, it can enhance a

576i(480i) DVD resolution output to 576p(480p)/720p/1080i.

•

You do not have to make separate adjustments, since the Home Theater and TV will be automatically adjust themselves to the optimal resolution and aspect ratio if connected to HDMI. (If the TV is an HDTV and has an HDMI Input jack, output is automatically converted to the resolution of 1080i.)

•

Audio will not be output if decoder is not embedded in TV during 5.1 channel disk playback.

•

Component output will give video in ‘576p(480p)’ mode only during DVD disc playback applied with Macrovision.

•

Macrovision processes scramble on analog output to prevent illegal recording. Accordingly, if you are using HDMI only, it can output 576p(480p)/720P/1080i, but is limited to 576p(480p) only if you are using component.

•

When both HDMI connector and COMPONENT connector are connected, COMPONENT video is not displayed.

•

See your TV owner's manual for more information on how to select the TV's Video Input source.

Connecting the Video Out to TV

Selecting Resolution

You can adjust the resolution switch to set the HDMI and component (P 576p(480p)/720p/1080i.

Example: If the TV supports resolution up to 576p(480p)

Set the resolution switch to 576p(480p).

A 576p(480p) video signal is output through the HDMI and component outputs (P

•

R, PB

, Y) output resolution to

R, PB

, Y).

Caution

If you connect the HDMI and Component outputs (P

•

time, Component output resolution changes automatically to the designated HDMI resolution.

Note

•

If copy protection is in place, output resolution is automatically converted to 576p(480p) when you play the DVD, even if you set the resolution to 720p or 1080i.

R, P

B, Y) at the same

DCDi

(Directional Correlational Deinterlacing)

Function

Converts the interlace signal to progressive to prevent flickering and to remove distortion or noise on the edge of screen.

Press and hold DCDi button on the remote control for over 3 seconds.

Each time the button is pressed, the selection alternates between

•

DCDi ON and DCDi OFF.

CONNECTIONS

Connecting External Components

Connecting an External Digital Component

Example: Digital signal components such as a Settop Box or CD Recorder.

Optical Cable

(not supplied)

Connect the Digital In 1 or 2 (OPTICAL) on the main unit to the Digital Output on the

external digital component.

Press AUX on the remote control to select ‘D.IN 1 or D.IN 2’.

Each time the button is pressed, the selection changes as follows: D.IN 1 ➝D.IN 2 ➝AUX.

•

You can also use the FUNCTION button on the main unit.

•

The mode switches as follows: DVD/CD ➝ D.IN 1 ➝D.IN 2 ➝ AUX ➝ FM.

Cooling Fan

The cooling fan dissipates the heat generated inside the unit so that the unit can be operated normally . The cooling fan is activated automatically to supply cool air to the unit.

Please observe the following cautions for your safety.

•

Make sure the unit is well-ventilated. If the unit has poor ventilation, the temperature inside the unit could rise and may damage it.

•

Do not obstruct the cooling fan or ventilation holes. (If the cooling fan or ventilation holes are covered with a newspaper or cloth, heat may build up inside the unit and fire may result.)

Connecting an External Analog Component

Example: Analog signal components such as a VCR or TV.

CONNECTIONS

Audio Cable (not supplied)

If the external analog component has only one Audio Out, connect either left or right.

Connect Audio In on the main unit to Audio Out on the external analog component.

Be sure to match connector colors.

•

Press AUX on the remote control to select AUX.

Each time the button is pressed, the selection changes as follows: D.IN 1 ➝D.IN 2 ➝AUX.

•

You can also use the FUNCTION button on the main unit.

•

The mode switches as follows: DVD/CD ➝ D.IN 1 ➝D.IN 2 ➝ AUX ➝ FM.

To listen TV sound in 5.1 channel sound through the main unit, connect the Audio In on the

Note

•

main unit to the Audio Output on the TV. You can connect Video Output jack on the VCR to the TV, and connect Audio Output jack on

•

the VCR to this product.

Connecting the FM Antenna

FM antenna connection

Connect the FM antenna supplied to the FM 75Ω COAXIAL terminal as a temporary

measure.

Slowly move the antenna wire around until you find a location where reception is

good, then fasten it to a wall or other rigid surface.

Selecting the Video Format

Press and hold NTSC/PAL button on the remote controller for over 5 seconds while the power is turned off.

"NTSC" or "PAL" will appear in the display.

•

At this time, press the NTSC/PAL button shortly to select between "NTSC" and "PAL". Each country has a different video format standard.

•

For normal playback, the video format of the disc must be the same as the video format of your TV.

•

DVD RECEIVER

Before Using Your DVD Player

Your DVD player is capable of playing DVD, VCD, CD, MP3 and JPEG discs.Depending on the disc you are using, these instructions may vary slightly. Read the instructions carefully before using.

Plug the power cord into the AC

power supply.

Press TV/VIDEO button to select

VIDEO mode.

Press the MODE button so that the TV indicator on the remote control

flashes.

Press the MODE button so that the DVD RECEIVER

indicator on the remote control flashes.

Press the POWER button to turn on the TV.

Press DVD button to select DVD/CD mode.

CONNECTIONS

To Operate the TV and DVD Player with a Single Remote Control

Press MODE button.

Each time the button is pressed, the TV indicator (red) and the DVD Receiver indicator (green) will flash alternately.

•

You can operate the TV while the TV indicator is flashing and the DVD player while the DVD indicator is flashing.

•

Buttons Enabled for TV Operation: POWER, CHANNEL, VOLUME, TV/VIDEO and Numeric (0-9) buttons.

•

By default, the remote control is set to work with Samsung TVs.

•

See page 77 for more information on the operation of the remote control.

Note

If you move the product during playback, the disc may be damaged.

•

If you push the disc window up or down by hand, it may cause a breakdown.

•

Do not let children insert their fingers into the unit.

•

Disc Playback

Press OPEN/CLOSE button to open the

disc tray.

Insert the disc so that the printed side

2 3

faces up.

Press OPEN/CLOSE button to close the disc window.

The disc plays automatically when the disc window is closed.

•

The disc menu may appear differently depending on the disc.

•

DVD VCD CD

Playback starts automatically.

•

Note

To stop playback, press STOP during playback.

If pressed once, “PRESS PLAY” is displayed and the

•

stop position will be stored in memory. If PLAY/PAUSE ( ) button or ENTER button is pressed, playback resumes from the stop position. (This function works only with DVDs.) If pressed twice, “STOP” is displayed, and if

•

PLAY/PAUSE ( ) button is pressed, playback starts from the beginning.

Depending on the content of the disc, the initial screen

•

may appear different.

To temporarily pause playback, press PLAY/PAUSE during playback.

To resume playback, press PLAY/PAUSE ( )

•

button again.

GROUP 1 GROUP 2

TRACK 1 TRACK 2 TRACK 1 TRACK 2TRACK 3

TITLE 1 TITLE 2

CHAPTER 1 CHAPTER 2 CHAPTER 1 CHAPTER 2CHAPTER 3

TRACK 1 TRACK 2 TRACK 4 TRACK 5TRACK 3

Disc terminology

Groups and tracks (DVD-AUDIO)

DVD-audios is divided into several large sections called "groups" and smaller

•

sections called "tracks". Numbers are allotted to these sections. These numbers are called "group numbers" and "track numbers".

Titles and chapters (DVD-VIDEO)

DVD-videos is divided into several large sections called "titles" and smaller

•

sections called "chapters". Numbers are allotted to these sections. These numbers are called "title numbers" and "chapter numbers".

OPERATION

Tracks (Video and music CDs)

Video and music CDs are divided into sections called "tracks".

•

Numbers are allotted to these sections. These numbers are called "track numbers".

Note

In this manual, the instructions marked with "DVD ( )" are applicable

•

to DVD-VIDEO, DVD-AUDIO, and DVD-R/RW discs. Where a particular DVD type is mentioned, it is indicated separately.

Depending on the content of the disc, the initial screen may appear different.

•

DVD

MP3-CD Playback

Something like you Back for good Love of my life More than words I need you My love Uptown girl

DVD RECEIVER SMART NAVI

Data CDs (CD-R, CD-RW) encoded in MP3 format can be played.

Press the

OPEN/CLOSE button

to open the disc tray, and then load the MP3 disc.

The MP3 menu screen will appear and

•

playback will start. Depending on the MP3 disc, the

•

appearance of the menu may be different.

To change the album, use to

select another album in Stop mode, and then press the ENTER button.

In Stop mode, use

to select

the album, and then press the ENTER button.

Press the STOP button to stop

playback.

To select another album and track,

•

repeat Steps 2 and 3 above.

Depending on the recording mode, some MP3-CDs may not play.

•

Table of contents of a MP3-CD varies depending on the MP3 track format

•

recorded on the disc.

Note

JPEG Disc Playback

Images captured with a digital camera or camcorder, or JPEG files on a PC can be stored on a CD and then played back with this unit.

Press the OPEN/CLOSE button to open the disc windows, and then load the JPEG disc.

•

Playback will start automatically and each image will show for 5 seconds before moving to

the next image.

To rotate the image

During playback, press .

Rotate vertically Rotate 90° counterclockwise Rotate horizontally Rotate 90° clockwise

OPERATION

DivX Playback

Skip Forward/Back

During playback, press the button.

Go to the next file whenever you press button, if there are over

•

2 files in the disk. Go to the previous file whenever you press button, if there are over

•

2 files in the disk.

Fast playback

Press and hold button.

Each time the button is held down during playback,

•

the playback speed changes as follows:

Zoom Function

Press ZOOM

button.

Each time you press the button,

•

your selection will toggle between “ZOOM X2” and “ZOOM OFF”.

Press Cursor , ,

, buttons to

move to the area

you want to enlarge.

DIVX file can be zoomed

Note

•

only in ZOOM X2 mode.

5 Minute Skip function

During playback, press the , button.

Go to the screen about 5 minutes after whenever you press button.

•

Go to the screen about 5 minutes earlier whenever you press button.

•

Subtitle Display

Press the SUBTITLE button.

Each time you press the button, your selection will toggle between “SUBTITLE ON” (1/1, 1/2 ...) and

•

“SUBTITLE OFF”.

If the disc has only one subtitle file, it will be played automatically.

•

If the disc has more than one subtitle file

If the disc has more than one subtitle file, the default subtitle may not match the movie and you will have select your subtitle language as follows:

OPERATION

In Stop mode, press the , , , button, select the desired subtitle ( ) from the TV screen, and then press the ENTER button.

When you select the desired DivX file from the TV screen, the movie will be played normally.

DivX Feature Table

DivX Supported Avi files are used to contain the audio and video data; these must be stored on CD in the ISO 9660 format.

SPEC

DivX3.11 Up to the latest VERSION

VIDEO Compatibility WMV WMV V1/V2/V3/V7

Screen Size MP3 CBR : 80kbps~320kbps

AUDIO Compatibility AC3 CBR : 128kbps~384kbps

WMA CBR : 56kbps~160kbps

When playing the DivX disk, you can play the file with extension of AVI only.

Note

•

Among the available DivX audio formats, DTS Audio is not supported.

•

WMV V8 is not supported for WMV files.

•

When burning a subtitle file to a CD-ROM with your PC, be sure to burn it as an SMI file.

•

DivX Disc does not playing when its sampling frequency is lower than 32kHz.

•

Some of the discs recorded in DivX or XviD depending on the way of recording could be

•

played back not correctly or couldn't be played back at all.

720~576

MPEGs containing DivX can be divided into Video and Audio.

Video compatibility : All versions of DivX later than 3.11 (including

•

the latest 5.1) are supported. In addition, XviD is supported. For WMV, V1, V2, V3, and V7 formats are possible.

Audio compatibility : MP3s encoded at bitrates from 80kbps to

•

320kbps, AC3s from 128kbps to 384kbps, and WMAs from 56kbps to 160kbps are supported.

In addition, for subtitles, this unit will support Text format (SMI).

•

Displaying Disc Information

Something like you Back for good Love of my life More than words

DVD RECEIVER SMART NAVI

You can view disc playback information on the TV screen.

Press INFO button.

Each time the button is pressed, the display changes as follows:

•

DVD

Display disappears

Note

Depending on the disc, the disc

•

information display may appear different. Depending on the disc, you can also

•

select DTS, DOLBY DIGITAL, or PRO LOGIC.

VCD CD

Display disappears Display disappears

appears on the TV screen!

•

If this symbol appears on the TV screen while buttons are being operated, that operation is not possible with the disc currently being played.

What is a Group?

•

A movie contained in a DVD-AUDIO disc.

What is a Title?

•

A movie contained in a DVD-VIDEO disc.

What is a Chapter?

•

Each title on a DVD disc is divided into several smaller sections called "chapters".

What is a Track (File)?

•

A section of video or a music file recorded on a DVD-AUDIO, CD, or MP3-CD.

MP3 DivX JPEG

Screen Display

DVD display

VCD display

CD display

MP3 CD display

DivX display

DVD

DVD-AUDIO display

AUDIO

TITLE display

GROUP display

CHAPTER display

TRACK (FILE) display

ELAPSED TIME display

REPEAT PLAYBACK display

AUDIO LANGUAGE display

SUBTITLE display

STEREO (L/R) display

DOLBY DIGITAL display

ANGLE display

Checking the Remaining Time

CHAPTER REMAIN

TITLE REMAIN

CHAPTER ELAPSED

TITLE ELAPSED

TRACK REMAIN

GROUP REMAIN

TRACK ELAPSED

GROUP ELAPSED

TRACK REMAIN

TOTAL ELAPSED

TOTAL REMAIN

TRACK ELAPSED

TRACK REMAIN

Press the REMAIN button.

For checking the total and remaining time of a title or chapter

•

being played.

Each time the REMAIN button is pressed

DVD-

VIDEO

DVD-

AUDIO

CDVCD

MP3

OPERATION

Fast/Slow Playback

Fast Playback

Press and hold .

Each time the button is held down during playback,

•

the playback speed changes as follows:

DVD VCD CD MP3

Slow Playback

Press SLOW button.

Each time the button is pressed during playback,

•

the playback speed changes as follows:

DVD VCD DivX

Reverse slow playback does not work

Note

•

with VCD and DivX.

Skipping Scenes/Songs

TITLE 01/05 CHAPTER 002/040

TITLE 01/05 CHAPTER 004/040

DVD VCD MP3

Briefly press .

Each time the button is pressed briefly during playback, the previous or next chapter,

•

track, or directory (file) will be played.

DVD VCD MP3

When watching a VCD with a track

•

longer than 15 minutes, each time

is pressed, playback

will skip back or forward 5 minutes.

DVD RECEIVER SMART NAVI

Something like you Back for good Love of my life More than words I need you My love Uptown girl

OPERATION

Note

During fast playback of a CD or MP3-CD, sound is heard only at 2x speed, and not at 4x, 8x, and 32x speeds.

•

No sound is heard during slow playback and step motion playback.

•

Repeat Playback

Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 file).

DVD VCD CD MP3 JPEG

Press REPEAT button.

Each time the button is pressed during playback, the repeat playback

•

mode changes as follows:

DVD-

VIDEO

DVD-

AUDIO

CDVCDMP3 JPEG

To Select a Repeat Playback Mode in the Disc Information Screen

Press INFO button twice.

Press Cursor button to move to

REPEAT PLAYBACK( ) display.

DVD

Press Cursor button to select the

desired Repeat Playback mode. Press ENTER button.

For MP3 and JPEG discs, you cannot select Repeat

Play from the information display screen.

Repeat Playback Options

• CHAPTER : Repeatedly plays the selected chapter.

• TITLE : Repeatedly plays the selected title.

• GROUP : Repeatedly plays the selected group.

• RANDOM : Plays tracks in random order.

(Atrack that has already been played may be played again.)

• TRACK : Repeatedly plays the selected track.

• DIR : Repeatedly plays all tracks in the selected folder.

• DISC : Repeatedly plays the entire disc.

OPERATION

VCD

• OFF : Cancels Repeat Playback.

Note

Repeat playback operation is not possible with version 2.0 VCD discs if PBC is turned

•

on. To use Repeat Playback on a VCD with PBC, you should set the PBC to OFF in the disc menu. (See page 43.)

A-B Repeat Playback

A -

A -?

REPEAT : A—

A - B

REPEAT : A—B

DVD VCD CD

Press INFO button twice.

For a VCD or CD, press INFO

•

button once.

Press Cursor button to move to

REPEAT PLAYBACK ( ) display.

Press Cursor , buttons to select ‘A-’ and then press ENTER

button at the beginning of the desired segment.

When ENTER button is pressed,

•

the selected position will be stored in memory.

To return to normal playback, press Cursor , buttons to select OFF.

Press ENTER button at the end of the desired segment.

The specified segment will be

•

played repeatedly.

Note

The A-B Repeat function will not work on an MP3 or JPEG disc.

•

Angle Function

1/3

2/3

3/3

1/3

This function allows you to view the same scene in different angles.

DVD

Press Cursor button

Press INFO button.

Press Cursor , or numeric buttons to select the desired angle.

to move to ANGLE

( ) display.

OPERATION

Each time the button is pressed, the angle changes as follows:

•

Note

The Angle function works only with discs on which multiple

•

angles have been recorded.

Zoom Function

This function allows you to enlarge a particular area of the displayed image.

Zoom (Screen Enlarge) Function

Press ZOOM button.

SELECT ZOOM POSITION

Aspect Ratio

Press Cursor , ,

, buttons to

move to the area you

want to enlarge.

DVD

DVD VCD

Press ENTER button.

Each time the button is pressed, the

•

zoom level changes as follows:

Press EZ VIEW button.

Each time the button is pressed, the zoom function will switch between On

•

and Off.

When a movie is played in Widescreen format, black bars at the top and

•

bottom of the TV screen can be removed by pressing the EZ VIEW button.

EZ VIEW OFFEZ VIEW

Note

This function will not work if the DVD is recorded with multi-camera angle format.

•

Black bars may not disappear because some DVD discs have a built-in horizontal to vertical ratio.

•

Bonus Group / Navigating Pages

BONUS GROUP KEY NUMBER :

Bonus Group

Some DVD-Audio discs have an extra ‘bonus’ group that requires a 4-digit key number to access. See the disc packaging for details and the-key number.

DVD-

AUDIO

When you play a DVD-Audio disc that has a bonus group, the key number input screen appears automatically.

Note

If you eject the disc, switch the power off, or unplug the player, you will need to re-enter

•

the key number.

OPERATION

Navigating Pages

DVD-

AUDIO

During playback, press the button on the remote control.

You can select the desired image from a DVD-Audio disc containing still images.

•

With some discs, you may not be able to select images depending on how the

•

disc was manufactured.

Selecting Audio/Subtitle Language

SP 2/3

FR 3/3

EN 1/3 EN 01/ 03

OFF

SP 02/ 03

FR 03/ 03 OFF / 03

Audio Language Selection Function

Press INFO button twice.

Subtitle Language Selection Function

Press INFO button twice.

DVD

Press Cursor , buttons or numeric buttons to select the

desired audio language.

Depending on the number of languages on a

•

DVD disc, a different audio language (ENGLISH, SPANISH, FRENCH, etc.) is selected each time the button is pressed.

DVD

Press Cursor button to move to SUBTITLE ( )

display.

Press Cursor button or numeric buttons to select

the desired subtitle.

Note

You can use the SUBTITLE button

•

on the remote control to select a subtitle language. Depending on the disc, the Subtitle

•

and Audio Language functions may not work.

Moving Directly to a Scene/Song

01/05

001/040 0:00:37 1/1

03/05

001/002 0:00:01 1/1

01/05

001/040 0:00:01 1/1

01/05

025/040 0:00:01 1/1

01/05

028/040 1:30:00 1/1

01/05

025/040 1:17:30 1/1

DVD VCD CD

Press INFO button.

Moving to a Chapter

Press Cursor , buttons or numeric buttons to select the desired

chapter and then press

ENTER button.

Moving to a Title/Track

Press Cursor , buttons or numeric buttons to select the desired title/track and then

press ENTER button.

Moving to a Specific Time

Press Cursor , buttons to move to

time display.

Moving to a Chapter

Press Cursor , buttons to move to Chapter ( )

display.

Moving to a Specific Time

Press the numeric buttons to select the desired time and then

press ENTER button.

OPERATION

MP3 JPEG

Press the numeric buttons.

The selected file will be played.

•

An MP3 or JPEG disc cannot be moved

•

from the disc information screen. When playing an MP3 or JPEG disc, you

•

cannot use , to move a folder. To move a folder, press (Stop) and then press , .

Note

You can press on the

•

remote control to move directly to the desired title, chapter, or track. Depending on the disc, you may not

•

be able to move to the selected title or time.

DVD

Using Disc Menu

You can use the menus for the audio language, subtitle language, profile, etc. DVD menu contents differ from disc to disc.

In Stop mode, press MENU

button.

When playing a VCD (version 2.),

•

this toggles between PBC ON and OFF.

Press Cursor ,

, buttons to

select the desired item.

Press Cursor , buttons to move to

‘DISC MENU’ and then press ENTER button.

When you select the disc menu that is not

•

supported by the disc, the "This menu is not supported" message appears on the screen.

Press ENTER button.

Note

PBC (Playback Control) Function

Press the MENU button while VCD 2.0 version disk is played.

Each time you press the button, "PBC ON" and "PBC OFF" will be repetitively selected in the TV screen.

• PBC ON:This VCD disc is version 2.0. The disc is played back according to the menu screen. Some functions may be disabled. When some functions are disabled, select "PBC OFF" to enable them.

• PBC OFF: This VCD disc is version 1.1. The disc is played back in the same way as with a music CD.

DVD

Using the Title Menu

For DVDs containing multiple titles, you can view the title of each movie. Depending on the disc, this function may either not work at all or may work differently.

In Stop mode, press MENU

button.

Press Cursor , button to move to

‘Title Menu’.

Press ENTER button.

The title menu appears.

•

OPERATION

Press MENU button to exit the setup screen.

Setting the Language

OSD language is set to English by default.

In Stop mode, press MENU button.

Press Cursor button to move to

‘Setup’ and then press ENTER button.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

Press ENTER button.

Press Cursor , button to select the desired item and then press ENTER button.

•

Press Cursor , button to select the desired language and then press ENTER button.

Once the setup is complete, if the language was set to English, OSD will be displayed in English.

SETUP

Selecting the

OSD Language

Selecting the

Audio Language

(recorded on the disc)

Selecting the

Subtitle Language

(recorded on the disc)

Selecting the Menu Language

(recorded on the disc)

If the language you selected is

not recorded on the disc, menu language will not change even if you set it to your desired language.

Setting TV Screen type

Depending on your TV type (Wide Screen TV or conventional 4:3 TV), you can select the TV's aspect ratio.

In Stop mode, press MENU button.

Press Cursor button to move to ‘TV DISPLAY’ and then press ENTER button.

Press Cursor button to move to

‘Setup’ and then press ENTER button.

Press Cursor , button to select the

desired item and then press ENTER button.

Once the setup is complete, you will

•

be taken to the previous screen.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

Adjusting the TV Aspect Ratio (Screen Size)

The horizontal to vertical screen size ratio of conventional TVs is 4:3, while that of wide screen and high definition TVs is 16:9. This ratio is called the aspect ratio. When playing DVDs recorded in different screen sizes, you should adjust the aspect ratio to fit your TV or monitor.

✱ For a standard TV, select either "4:3LB" or "4:3PS" option according to

personal preference. Select "16:9" if you have a wide screen TV.

WIDE

4:3LB

(4:3 Letterbox)

4:3PS

(4:3 Pan&Scan)

Note

• If a DVD is in the 4:3 ratio, you cannot view it in wide screen.

• Since DVD discs are recorded in various image formats, they will look different depending on the software, the type of TV, and the TV aspect ratio setting.

: Select this to view a 16:9 picture in the full-screen

mode on your wide screen TV.

• You can enjoy the wide screen aspect.

: Select this to play a 16:9 picture in the letter box

mode on a conventional TV.

• Black bars will appear at the top and bottom of the screen.

: Select this to play a 16:9 picture in the pan & scan

mode on a conventional TV.

• You can see the central portion of the screen only (with the sides of the 16:9 picture cut off).

SETUP

Setting Parental Controls (Rating Level)

Use this to restrict playback of adult or violent DVDs you do not want children to view.

In Stop mode, press MENU button.

Press Cursor button to move to

‘Setup’ and then press ENTER button.

Press Cursor button to move to ‘PARENTAL’ and then

3 5

press ENTER button.

Press Cursor , button to select the desired rating level and then press

ENTER button.

Enter the password and then press ENTER button.

If you have selected Level 6, you

•

cannot view DVDs with Level 7 or higher. The higher the level, the closer the

•

content is to violent or adult material.

Note

This function works only if a DVD disc contains the rating level information.

•

The password is set to "7890" by default.

•

Once the setup is complete, you will be

•

taken to the previous screen.

SETUP

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

Setting the Password

You can set the password for the Parental (rating level) setting.

Press Cursor

Press MENU button.

button to move to

‘Setup’ and then press ENTER button.

Note

The password is set to "7890" by default.

•

Press Cursor button to move to ‘PASSWORD’ and then press ENTER

3 5

button.

Press ENTER button.

Enter the old password, a new

•

password, and confirm new password. The setting is complete.

•

Enter the password and then press

ENTER button.

SETUP

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

Setting the Wallpaper

While watching a DVD, VCD or JPEG CD, you can set the image you like as background wallpaper.

DVD VCDJPEG

Setting the Wallpaper

During playback, press PLAY/PAUSE button when an image you like appears.

PAUSE

The power will turn off and then back on and the disc tray will open automatically.

The selected wallpaper will be

•

displayed.

Press LOGO

•

button.

“COPY LOGO DATA” will be

displayed on the TV screen.

COPY LOGO DATA

Press OPEN/ CLOSE to close the disc tray.

You can repeat Steps 1 and 2 to set up to 3 wallpapers.

Select this to set the Samsung Logo image as your wallpaper.

Select this to set the desired image as your wallpaper.

To Change the Wallpaper

In Stop mode, press MENU button.

Press to select the desired ‘USER’, and then press ENTER.

Press Cursor button to move to ‘Setup’ and then

21 3

press ENTER button.

Press MENU

button to exit the setup screen.

Press Cursor button to move to ‘LOGO’ and then press ENTER button.

SETUP

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

DVD Playback Mode

Some DVD-Audio discs contain DVD-Video as well as DVD-Audio. To play back the DVD-Video portion of the DVD-Audio disc, set the unit to DVD-Video mode.

Press the MENU button while the disc tray is open.

Press Cursor button to move to

‘Setup’ and then press ENTER button.

Note

DVD Play mode is set to DVD Audio as factory default setting.

•

Press Cursor button to move to ‘DVD TYPE’ and then press ENTER button.

Press Cursor , button to move to

‘DVD VIDEO’ and then press ENTER button.

Set steps 1 ~ 4 again if you want to

•

switch to DVD AUDIO Play mode.

When Selecting DVD Play Mode:

DVD VIDEO : set to play the DVD video

•

contents contained in DVD audio disc.

DVD AUDIO : set to play the default DVD

•

audio.

SETUP

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

Setting the Speaker Mode

Signal outputs and frequency responses from the speakers will automatically be adjusted according to your speaker configuration and whether certain speakers are used or not.

In Stop mode, press MENU button.

In the Speaker Setup, press the ENTER button again.

Press Cursor button to move to ‘Audio’ and then

press ENTER button.

Press Cursor , ,

, buttons to move

to the desired

speaker and then press ENTER button.

For C, LS, and RS, each time the button

•

is pressed, the mode switches alternately as follows: SMALL ➝ NONE. For L and R, the mode is set to SMALL.

•

SMALL

: Select this when using the speakers.

NONE : Select this when no speakers are installed.

Note

Depending on PRO LOGIC and STEREO, the speaker mode may vary.

•

Setting the Test Tone

Use the Test Tone feature to check the speaker connections and to adjust the speaker levels.

In Stop mode, press MENU button.

Press RETURN button to return to the previous level.

Press Cursor button to move to ‘Audio’ and then

press ENTER button.

Press Cursor button to move to ‘TEST TONE’ and then press

ENTER button.

The test tone will be sent to L ➝ C ➝

•

R ➝ RS ➝ LS ➝ SW in that order. If the ENTER button is pressed again at this time, the test tone will stop.

SETUP

Press MENU button to exit the setup screen.

Alternate method: press the TEST TONE button on the remote.

Press TEST TONE button.

Test tone will be produced as follows:

•

When playing a DVD or CD, this will work only in Stop mode. Use this function to check that each speaker is

•

correctly connected and that there is no problem.

To end the test tone, press TEST TONE button again.

L: Front Speaker (L) C: Center Speaker SW: Subwoofer R: Front Speaker (R) LS: Rear Speaker (L) RS: Rear Speaker (R)

Multi-Channel Pro Logic Mode

Start

Setting the Delay Time

If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of the audio signals from the center and rear speakers.

In Stop mode, press MENU button.

Press Cursor button to move to ‘Audio’ and

then press ENTER button.

Setting up the Speaker Delay Time

When 5.1CH Surround Sound is played, you can enjoy the best sound if the distance between you and each speaker is the same. Since the sounds arrive at the listening position at different times depending on the placement of speakers, you can adjust this difference by adding a delay effect to the sound of the Center Speaker and Surround Speakers.

Note

With (Dolby Pro Logic II), the delay time may be different for each mode.

•

With AC-3 and DTS, the delay time can be set between 00 and 15mSEC.

•

Press Cursor button to move to ‘DELAY TIME’ and then press

43 5

ENTER button.

Press Cursor , ,

, buttons to move to the desired speaker and then press ENTER button.

Press Cursor , to set the Delay time.

You can set the delay time for C

•

between 00 and 05mSEC and for LS and RS between 00 and 15mSEC.

SETUP

• Setting CENTER SPEAKER

If the distance of Dc is equal to or longer than the distance of Df in the figure, set the mode as 0ms. Otherwise, change the setting according to the table.

Distance between Df and Dc Delay Time

0.00 m

0.34 m

0.68 m

1.02 m

1.36 m

1.70 m

•

Setting REAR (SURROUND) SPEAKERS

If the distance of Df is equal to the distance of Ds in the figure, set the mode as 0ms. Otherwise, change the setting according to the table.

Distance between Df and Ds

0.00 m

1.02 m

2.04 m

3.06 m

4.08 m

5.10 m

0 ms 1 ms 2 ms 3 ms 4 ms 5 ms

Delay Time

0 ms 3 ms 6 ms

9 ms 12 ms 15 ms

Ideal CENTER SPEAKER placement

Ideal SURROUND SPEAKER placement

It is desirable to place all speakers within this circle.

Df: The distance from FRONT SPEAKER Dc: The distance from CENTER SPEAKER Ds: The distance from SURROUND SPEAKER

Setting the Audio Quality

You can adjust the balance and level for each speaker.

Method 1

When adjusting the audio quality using the setup screen

In Stop mode, press MENU button.

Press Cursor button to move to ‘SOUND EDIT’ and then press ENTER button.

Press Cursor button to move to

‘Audio’ and then press ENTER button.

Press Cursor , buttons to select and adjust the desired item.

Press the , buttons to adjust the settings.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

Method 2

When manually adjusting with the SOUND EDIT button

Adjusting Front Speaker Balance Adjusting Rear Speaker Balance

Press SOUND EDIT button and

then press Cursor

, .

Adjusting Rear Speaker Level

Press SOUND EDIT button and

then press Cursor

, .

Press SOUND EDIT button and

then press Cursor

, .

Adjusting Center Speaker Level

Press SOUND EDIT button and

then press Cursor

, .

SETUP

Note

The adjustments will appear on the main unit, not on your TV screen.

•

Adjusting Front/Rear Speaker Balance

You can select between 00 and –06 and OFF.

•

The volume decreases as you move closer to –6.

•

Adjusting Center/Rear/Subwoofer Speaker Level

You can adjust volume level from -6dB to +6dB.

•

The sound gets louder as you move closer to +6dB and quieter as you get closer to -6dB.

•

Setting the DRC

You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night.

(Dynamic Range Compression)

In Stop mode, press MENU

button.

Press Cursor button to move to

‘DRC’ and then press ENTER button.

Press Cursor button to move to ‘Audio’ and then press ENTER button.

Press Cursor , to adjust the ‘DRC’.

• Pressing the Cursor button

increases the compression, and pressing the Cursor reduces it.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

AV SYNC Setup

Video may lag behind the audio if the unit is connected to a digital TV. If this occurs, adjust the audio delay time to sync up with the video.

Press Cursor , buttons

Press the MENU button.

to move to ‘Audio’ and then

press ENTER button.

Setup menu appears.

•

Press Cursor , buttons to move to ‘AV-SYNC’ and

then press ENTER button.

AV-SYNC screen appears.

•

'Audio' menu appears.

•

Press Cursor , buttons to select the Delay Time of

AV-SYNC and then press the ENTER button.

You can set the audio delay time between 0 ms and

•

300 ms. Set it for the best sync up with audio.

SETUP

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

Dolby Pro Logic II Mode

You can select the desired Dolby Pro Logic II audio mode.

Press PL II MODE button.

Each time the button is pressed, the mode changes as follows.

•

PRO LOGIC II

MUSIC : When listening to music, you can experience sound effects as if you are

•

listening to the actual performance.

CINEMA : Adds realism to the movie soundtrack.

•

PRO LOGIC : You will experience a realistic multi-channel effect, as if using five

•

speakers, while using just the front left and right speakers.

MATRIX : You will hear 5.1 channel surround sound.

•

STEREO : Select this to listen to sounds from the front left and right

•

speakers and the subwoofer only.

Note

When selecting Pro Logic II mode, connect your external device to the

•

AUDIO INPUT jacks (L and R) on the player. If you connect to only one of the inputs (L or R), you cannot listen to 5.1 channel surround sound.

Dolby Pro Logic II Effect

CMX

MPEG-2 AAC MPEG

CMX

MPEG-2 AAC

DSP

CMX

MPEG-2 AAC MPEG

TUNED

CMX

MPEG-2 AAC MPEG

This function works only in Dolby Pro Logic MUSIC mode.

Press PL II MODE

button to select ‘MUSIC’ mode.

Press

and then press Cursor ,

PL II EFFECT button

buttons to select the mode.

You can select between 0 and 7.

•

Press and then press Cursor , buttons to select the mode.

You can select either 0 or 1.

•

Press and then press Cursor , buttons to select the mode.

You can select between 0 and 6.

•

PL II EFFECT button

SETUP

Note

PANORAMA: This mode extends the front stereo image to include the surround speakers for

•

CENTER WIDTH: Sound is output to the center speaker only. The front left and right speakers

•

DIMENSION: Incrementally adjusts the sound field (DSP) from the front or rear.

•

When playing a DVD disc encoded with two or more channels, multi-channel mode will be

•

selected automatically and (Dolby Pro Logic II) button does not work.

an exciting "wraparound" effect with side wall imaging.

produce phantom sound.

Auto Sound Calibration Setup

* This function is available only for DVD/CD playback.

Auto Sound Calibration

By setting the auto sound calibration function just once when you relocate or install the unit, you can have the unit automatically recognize the distance between speakers, levels between channels, and frequency characteristics to create 5.1-channel sound field optimized for the listener's environment.

The following images are for illustrative purposes only and may differ from the actual product.

Auto Sound Calibration

Microphone

Note

L: Front Speaker (L) R: Front Speaker (R) C: Center Speaker SW: Subwoofer LS: Rear Speaker (L) RS: Rear Speaker (R)

If you purchased the unit for the first time or initialized it, pressing the Auto Sound Calibration button without

•

connecting the auto sound calibration microphone will display the message "PLEASE SET ASC FUNCTION FIRST" in the display. Because the volume level of the tone is fixed during the auto sound calibration setup, you cannot adjust the volume

•

using the volume control buttons. If the auto sound microphone is disconnected during the auto sound calibration setup, the setup will be cancelled.

•

To Turn the Sound Logo On/Off

When you turn on the power, the unit produces a sound logo after the disc is read to notify that the unit is optimized for playback.

Press and hold ASC button.

"S.LOGO ON" or "S.LOGO OFF" appears in the display.

•

Briefly press ASC button.

Each time the button is pressed, the selection alternates

•

between S.LOGO ON and S.LOGO OFF. If you select "S.LOGO ON", a sound logo will be output

•

when the disc reading is finished after power-on. If you select "S.LOGO OFF", no sound logo will be output.

To Verify the Auto Sound Calibration

Press and hold ASC button twice.

"ASC CHECK" appears in the display.

•

Briefly press ASC button.

Distance and level values specified for

•

each channel will appear in the display.

Plug the auto sound calibration microphone into the auto sound

calibration input jack.

Place the auto sound calibration

microphone at the listener's position.

Adjust the volume control on the main unit as follows:

3 4

If the distance between the listener and the speaker is over 5 m:

•

Set the main unit's volume to over 25. If the distance between the listener and the speaker is 3 to 5 m:

•

Set the main unit's volume to 25. If the distance between the listener and the speaker is below 3 m:

•

Set the main unit's volume to 15.

Press ASC button.

The tone will be output twice, in the given order (L ➝ C ➝ R ➝ RS ➝

•

LS ➝ SW), and 5.1-channel sound field is optimized automatically. The auto sound calibration setup takes about 2 minutes to complete.

•

A bell sounds and the setup finishes.

A tone is output.

When the message "REMOVE MIC" appears in the display, unplug the auto

sound calibration microphone.

To cancel the auto sound calibration setup, press ASC button.

The tone output stops, "CANCEL ASC" appears in the display followed by "REMOVE MIC", and the setup is cancelled.

•

To listen in the auto sound calibration mode, briefly press ASC button.

The selection alternates between ASC ON and ASC OFF in the display.

•

If you select "ASC ON", you will hear sound in the auto sound calibration mode.

•

If you select "ASC OFF", you will hear sound in the mode set in the audio setting of the setup screen.

A result for each speaker is displayed.

SETUP

Live Surround Mode

SUPER 5.1

You can reproduce a 2-channel sound source, such as CD, and radio broadcast, in 5.1-channel surround sound.

Press SUPER5.1 button.

Each time the button is pressed, the

•

selection alternates between SUPER

5.1 and SUPER OFF. Select "SUPER 5.1" to play 2-channel

•

sound in 5.1 channels.

If you press the MUSIC button when listening to a 2-channel sound source, it will be reproduced in

5.1-channel surround sound so that you can enjoy a dynamic sound with a sense of presence.

Press MUSIC button.

Each time the button is pressed,

•

the selection changes as follows:

LIVE ➝ JAZZ ➝ ROCK ➝ CLASSIC ➝ DISCO ➝ LSM OFF.

MUSIC

MOVIE

You can select from 3 different modes of sound field for movies.

Press MOVIE button.

Each time the button is pressed, the

•

selection changes as follows: CINEMA ➝ STADIUM ➝ LSM OFF.

Note

When you insert a DVD recorded in 2-channel or multi-channel format and press the

•

SUPER 5.1 button, the message "THIS FUNCTION APPLIES ONLY 2CH SOURCE" appears in the display and it will not work.

Virtual Headphone Function

Use headphones (not supplied) for private listening pleasure. You can enjoy a dynamic sound effects similar to that of 5.1 channel surround sound using conventional stereo headphones.

Plug the

Press V-H/P

headphones into the

button.

headphone jack.

You can purchase headphones

•

from most Electronics stores.

Do not listen at extremely high volume levels when using headphones.

Note

•

Extended, high-volume listening can lead to permanent hearing loss.

Each time the button is pressed, the

•

selection alternates between V-H/P ON and V-H/P OFF.

SETUP

VIRTUAL HEADPHONE ON: Select to enjoy a 5.1-channel surround sound that

•

gives the feeling of being in a baseball park or concert hall.

VIRTUAL HEADPHONE OFF: Select to listen to a standard 2-channel stereo

•

sound.

Listening to Radio

You can listen to the chosen band (FM broadcast stations) by using either the automatic or manual tuning operation.

Remote Control Unit

Press TUNER button.

The selection toggles back

•

and forth between "FM" each time the TUNER button is pressed.

Main Unit

Press the Function button to select the desired band (FM).

Tune in to the desired station.

Automatic Tuning 1

Automatic Tuning 2

Manual Tuning

When is pressed, a preset broadcast station is selected.

Press and hold to automatically search for active broadcasting stations.

Briefly press to increase or decrease the frequency incrementally.

Select a broadcast station.

Automatic Tuning 1

PRESET and then press button to select the preset station.

Automatic Tuning 2

then press and hold button to automatically search the band.

Manual Tuning

press to tune in to a lower or higher frequency.

Press the STOP ( ) button to select

Press the STOP to select "MANUAL" and

Press STOP MANUAL and then briefly

( )

button

to select

Press MO/ST button to listen in Mono/Stereo.

(This applies only when listening to an FM station.)

Each time the button is pressed, the sound switches between "STEREO" and "MONO".

•

In a poor reception area, select MONO for a clear, interference-free broadcast.

•

Presetting Stations

You can store up to: 15 FM stations

Example: Presetting FM 89.1 in the memory

Press the TUNER button and select the FM band.

Press to select preset number.

You can select between 1 and

•

15.

Press to

select "89.10".

Refer to Step 2 on page 71 to

•

automatically or manually tune in to a station.

Press the TUNER

MEMORY button

again.

Press the TUNER MEMORY button before

•

‘PRGM’ disappears from the display. ‘PRGM’ disappears from the display and

•

the station is stored in memory.

Press the TUNER

MEMORY button.

“PRGM” flashes in the

•

display. Tune in to a station.

To preset another station, repeat

steps 2 to 5.

RADIO OPERATION

To tune in to a preset station, press on the remote control to select a channel.

About RDS broadcasting

Using the RDS (Radio Data System) to receive FM stations

RDS allows FM stations to send an additional signal along with their regular program signals. For example,the stations send their station names,as well as information about what type of program they broadcast, such as sports or music,etc.

When tuned to an FM station which provides the RDS service,the RDS indicator lights up on the display.

Description on RDS function

•

1. PTY (Program Type) : Displays the type of programme currently being broadcast

2. PS NAME (Program Service Name) :

and is composed of 8 characters.

3. RT (Radio Text) :

of maximum 64 characters.

4. CT (Clock Time) :

• Some stations may not transmit PTY, RT or CT information therefore this may not be displayed in all cases.

5. TA (Traffic Announcement) :

announcement is in progress.

Note

Decodes the text broadcast by a station (if any) and is composed

Decodes the real time clock from the FM frequency.

RDS is not available for AM broadcasts.

•

RDS may not operate correctly if the station tuned is not transmitting

•

RDS signal properly or if the signal strength is weak.

Indicates the name of broadcasting station

When this symbol flashes it shows that the traffic

What information can RDS signals provide?

You can see the RDS signals the station sends on the display.

TO show the RDS signals

Press RDS DISPLAY while listening to an FM station.

Each time you press the button, the display change to show you the following information:

PS (Program Service) :While searching,"PS"appears and then the station names will be displayed."NO PS" appears if no signal is sent. RT(RadioText) : while searching,"RT"appears and then text messages the station sends will be displayed. "NO RT"appears if no signal is sent.

Frequency : station frequency (non-RDS service)

About characters shown in the display

When the display shows PS,or RT signals,the following characters are used.

The display window cannot differentiate upper case and lower case lrtters and always

•

uses upper case letters. The display window cannot show accented letters, “A,” for instance, may stans for

•

accented “A’s” like “À, Â, Ä, Á, Åand Ã.”

Note

If searching finishes at once,“PS”,and “RT” will not appear on the display.

•

PTY (Program Type) indication and PTY-SEARCH function

One of the advantages of the RDS service is that you can locate a particular kind of program from the preset channels by specifying the PTY codes.

To search for a program using the PTY codes

Before you start, remember...

The PTY Search is only applicable to preset

•

stations. To stop searching any time during the process,

•

press PTY SEARCH while searching. There is a time limit in doing the following steps.

•

If the setting is cancelled before you finish, start from step 1 again. When pressing the buttons on the primary remote

•

control, make sure that you have selected the FM station using the primary remote control.

Press PTY SEARCH while listenning to an

FM station.

Press the PTY-or PTY+until the PTY code

you want appears on the display.

The display gives you the PTY codes described

•

to the right.

Press PTY SEARCH again, while the PTY

code selected in the previous step is still on the display.

The center unit searches 15 preset FM

•

stations,stops when it finds the one you have selected, and tunes in that station.

AFFAIRS

EDUCATE

CULTURE

SCIENCE

VARIED

ROCK M

M.O.R.M

LIGHT M

CLASSIC

OTHER M

WEATHER

FINANCE

CHILDREN

SOCIAL A RELIGION

PHONE IN

TRAVEL

LEISURE

COUNTRY NATION M

FOLK M

DOCUMENT

Display

NEWS

INFO

SPORT

DRAMA

POP M

JAZZ

OLDIES

Program Type

• News including an announced opinion and report

• Several matters including a current incident, documentary, discussion and analysis.

• Information including weights and measures,

returns and forecast, matters interesting the customer, medical information, etc.

• Sports

• Education

• Drama-Radio serial, etc.

• Culture-National or local culture including the religious problem, social science, language, theater,etc.

• Natural science and technology

• Others-Speech, amusing program (quiz, game), interview, comedy and satirical play, etc.

• Pop music

• Rock music

• Current contemporary music considered to be “easylistening.”

• Light classical music- Classical music and instrumental and chorus music

• Heavy classical music-Orchestra music, symphony, chamber music and opera

• Other music - Jazz, R&B country music

• Weather

• Finance

• Children’s programmes

• Social affairs

• Religion

• Phone in

• Travel

• Leisure

• Jazz Music

• Country Music

• National Music

• Oldies Music

• Folk Music

• Documentary

RADIO OPERATION

Convenient Functions

Sleep Timer Function

You can set the time that the DVD player will shut itself off.

Press SLEEP button.

"SLEEP" will be displayed. Each time the button is pressed

•

the preset time changes as follows: 10 ➝ 20 ➝ 30 ➝ 60 ➝ 90 ➝ 120 ➝ 150 ➝ OFF.

To confirm the sleep timer setting, press SLEEP button.

The remaining time before the DVD player will shut itself off is displayed.

•

Pressing the button again changes the sleep time from what you have set

•

earlier.

To cancel the sleep timer, press SLEEP button until OFF appears on the display.

Adjusting Display Brightness

Touch your hands to the front of main unit to automatically turn on the LED and Operation Buttons.

Press DIMMER button.

Press the DIMMIER button to toggle between DIMMER AUTO

•

➝ DIMMER ON ➝ DIMMER OFF on the Display. DIMMER AUTO : Touch your hands to the operation buttons,

and it will turn on for about 5 seconds and then turn off.

DIMMER ON : Operation buttons are always turned on. DIMMER OFF : Operation buttons are always turned off.

DIMMER AUTO mode, if you touch the LED buttons on the

Note

• In

main unit once, firstly the LED brighten,and then touch again the

function will work.

Mute Function

This is useful when answering the door or a telephone call.

Press MUTE button.

MUTE’ flash in the display.

‘

•

To switch the sound back on (at the same volume as

•

before), press MUTE again or the VOLUME buttons.

MISCELLANEOUS

Operating a TV with the Remote Control

DVD RECEIVER

When operating a TV with the remote control

Press the MODE button to make the TV indicator on the remote control flash.

1 2

Press POWER button to turn on the TV.

Point the remote control toward the TV.

While holding down POWER, enter the code

corresponding to your brand of TV.

If the code matches the TV's code, the TV will be turned off.

•

If there is more than one code listed for your TV in the table,

•

enter one at a time to determine which code works.

Example: For a Samsung TV

While holding down POWER, use the number buttons to enter 00, 01, 02, 03, 04, and 05.

Pont the remote control toward the TV and press POWER. If the TV turns off or on, the setting is complete.

You can use the TV POWER, VOLUME, CHANNEL, and Numeric

•

Note

The remote control may not work on some brands of TVs. Also some operations may not be

•

possible depending on your brand of TV. If you do not set the remote control with the code for your brand of TV, the remote control will

•

work on a Samsung TV by default.

buttons (0~9).

TV Brand Code List

No.

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29

Brand

SAMSUNG

ANAM

DAEWOO

HITACHI

JVC

SHARP

SONY

TOSHIBA

SANYO

MITSUBISHI

MATSUSHITA

TELEFUNKEN

RCA

PANASONIC

SABA

PHILIPS

GRUNDIG

ZENITH

MIVAL

NOBLEX

EMERSON

MAGNAVOX

LOEWE

THOMSON

NORDMENDE

LOEWE OPTA

BLAUPUNKT

SIEMENS

Code

00(Initial Value), 01, 02, 03, 04, 05, 73

06~11, 59

12~18, 20, 21

05, 20, 21, 22, 53

23, 40, 41, 49

24, 55

27, 33, 34, 35, 54

27, 36

27, 37, 42, 43, 44, 46

27, 30, 31, 32

05, 27, 28

09, 26

41, 49, 51, 57

29, 61

07, 09, 26, 48, 49, 50

40, 41, 47, 48, 49

05, 45, 47, 64, 65, 66, 67, 68, 69

39, 42, 46, 70, 71, 72

38 52 56 19 25

05, 60

40, 41, 49, 62, 63

40, 41, 49 36, 47, 05

39 39

No.

30 31 32 33 34 35 36 37 38 39 40 41

CONTINENTAL EDISON

42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57

BANG & OLUFSEN

RADIOMARELLI

Brand

BRANDT

FERGUSON

PIONEER TELEAVA

FINLUX FISHER

AKAI

YOKO

PHONOLA

RADIOLA

SCHNEIDER

NEWSAN

SALORA SELECO

NOKIA

REX

MIVAR

IMPERIAL

CGE

BRIONVEGA

FORMENTI

METZ

WEGA

SINGER

SINUDYNE

Code

41 41

41, 48, 74

05, 42, 47

31 31 05

05, 45, 47

05, 45

05 58 49 48 48 48 48 46 46 46 47 47 47 47 47 47 47 47

MISCELLANEOUS

Before Calling for Service

Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Center.

Symptom Check/Remedy

Disc tray does not open.

Playback does not start.

Playback does not start immediately when the Play/Pause button is pressed.

Sound is not produced.

Sound can be heard only from a few speakers and not all six.

Is the power cord plugged securely into the outlet?

•

Turn off the power and then turn it back on.

•

Check the region number of the DVD.

•

DVD discs purchased from abroad may not be playable. CD-ROMs and DVD-ROMs cannot be played on this DVD

•

player. Make sure that the rating level is correct.

•

Are you using a deformed disc or a disc with scratches on

•

the surface? Wipe the disc clean.

•

No sound is heard during fast playback, slow playback, and step

•

motion playback. Are the speakers connected properly? Is the speaker setup

•

correctly customized? Is the disc severely damaged?

•

When listening to a CD or radio, sound is output to the front

•

speakers (L/R) only. Select "PRO LOGIC II" by pressing (Dolby Pro Logic II) on the remote control to use all six speakers. Make sure that the DVD disc is 5.1-CH compatible.

•

If you set C, SL, and SR to NONE in the speaker mode in the

•

audio setup of the setup screen, no sound is heard from the center speaker and the front left and right speakers. Set C, SL, and SR to SMALL.

Picture does not appear, sound is not produced, or the disc tray opens 2 to 5 seconds later.

Dolby Digital 5.1 CH Surround Sound is not produced.

Was the DVD player suddenly moved from a cold place to a warm

•

one? When condensation forms inside the player, remove the disc and let the player stand for 1 or 2 hours with the power on. (You can use the player again after condensation disappears.)

Is there a "Dolby Digital 5.1 CH" mark on the disc? Dolby Digital

•

5.1 CH Surround Sound is produced only if the disc is recorded with 5.1 channel sound. Is the audio language correctly set to DOLBY DIGITAL 5.1-CH in

•

the information display?

Symptom Check/Remedy

Is the TV power on?

• Disc is rotating but no picture is produced.

• Picture quality is poor and

•

Are the video cables connected properly?

•

Is the disc dirty or damaged?

•

A poorly manufactured disc may not be playable.

•

picture is shaking.

Is the remote control being operated within its operation range of

•

The remote control does not work.

angle and distance? Are the batteries exhausted?

•

Have you selected the mode(TV/DVD) functions of the remote

•

control (TV or DVD) correctly?

Audio language and subtitles do not work.

Menu screen does not appear even

Audio language and subtitles will not work for DVDs not containing

•

them. And depending on the disc, they may work differently. Are you using a disc that does not contain menus?

•

when the menu function is selected.

You can play 16:9 DVDs in 16:9 WIDE mode, 4:3 LETTER BOX

Aspect ratio cannot be changed.

Can't receive radio broadcast.

•

The main unit is not working.

(Example: The power goes out or strange noise is heard.)

• The DVD player is not working normally.

The password for rating level has been forgotten.

•

mode, or 4:3 PAN SCAN mode, but 4:3 DVDs can be seen in 4:3 ratio only. Refer to the DVD disc jacket and then select the appropriate function.

Is the antenna connected properly?

•

If the antenna's input signal is weak, install an external FM

•

antenna in an area with good reception.

Turn off the power and hold the button on the main unit for

•

longer than 5 seconds.

Using the RESET function will erase all stored settings. Do not use this unless necessary.

While “NO DISC” message appears on the display of main unit, hold

•

the main unit's button for longer than 5 seconds. “INITIALIZE” appears on the display and all settings will return to the default values.

Press the POWER button.

•

Using the RESET function will erase all stored settings. Do not use this unless necessary.

MISCELLANEOUS

Cautions on Handling and Storing Discs

Small scratches on the disc may reduce sound and picture quality or cause skipping. Be especially careful not to scratch discs when handling them.

Handling discs

Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints will not get on the surface. Do not stick paper or tape on the disc.

Disc Storage

Do not keep in direct sunlight

Caution

Do not allow the discs to become contaminated with dirt.

•

Do not load cracked or scratched discs.

•

Keep in a cool ventilated area

Handling and Storing Discs

When you get fingerprints or dirt on the disc, clean it with a mild detergent diluted in water and wipe with a soft cloth.

When cleaning, wipe gently from the inside to the outside of the disc.

•

Note

Keep in a clean Protection jacket. Store vertically.

Condensation may form if warm air comes into contact with cold parts

•

inside the player. When condensation forms inside the player, the player may not operate correctly. If this occurs, remove the disc and let the player stand for 1 or 2 hours with the power on.

Specifications

Power Consumption

G E N

Weight

E R

Dimensions (W x H x D)

Operating Temperature Range

Operating Humidity Range

Usable Sensitivity

I D E O

S/N Ratio

Distortion

Composite Video

O U

Component Video

HDMI Front speaker output

Center speaker output

Rear speaker output

Subwoofer speaker output

Frequency range

S/N Ratio

Channel separation

Input sensitivity

Speaker system (PSDS 1000E)

Impedance Frequency range Output sound pressure level Rated input Maximum input

Dimensions (W x H x D)

S P

Weight

E A K

Speaker system (PSDS 1100E)

E R

Impedance

Frequency range Output sound pressure level Rated input Maximum input

Dimensions (W x H x D) Weight

HT-DS1000/1100 : 30W PSWS1000E/1100E : 150W MAIN UNIT : 2.25kg VERTICAL STAND : 6.35kg HORIZONTAL STAND : 1.5kg 180 x 500 x 68 mm 5°C ~ 35°C 10% ~ 75% 10dB 60dB

0.5%

1.0Vp-p(75Ω load) Y:1.0Vp-p(75Ω load) Pr:0.70Vp-p(75Ω load) Pb:0.70Vp-p(75Ω load) Impedance: 85~115Ω 100W x 2(4Ω) 100W(4Ω) 100W x 2(4Ω) 150W(3Ω) 20Hz~20kHz 70dB 60dB (AUX)500mV

5.1ch speaker system Front/Center/Rear speaker 4Ω x 5 150Hz~20kHz 82dB/W/M 100W 200W

Front/Rear

Center

Front/Rear

Center

Front/Rear

Center 100Hz~20kHz 86dB/W/M 100W 200W

Front/Rear

Center

Front/Rear

Center

70 x 1388 x 145 mm 414 x 82 x 155 mm

6.0 kg

1.5 kg

5.1ch speaker system

Front/Center/Rear speaker

4Ω x 4 4Ω

380 x 1388 x 245 mm 418 x 140 x 150 mm

7.5 kg

2.8 kg

Subwoofer speaker 3Ω 30Hz~200Hz 85dB/W/M 150W 300W

250 x 460 x 505 mm

11.5 kg

Subwoofer speaker 3Ω 30Hz~200Hz

86dB/W/M 150W 300W

280 x 470 x 435 mm

12.6 kg

MISCELLANEOUS

Notes on Terminology

Recorded onto some DVD discs are scenes which have been simultaneously shot from a number

ANGLE

of different angles (the same scene is shot from the front, from the left , from the right , etc.). With such discs, the Angle button can be used to change the angle of view for specific scenes.

CHAPTER

NUMBER

DVD

PCM

PBC

(PLAYBACK

CONTROL)

REGION NUMBER

SUBTITLES

TITLE NUMBER

TRACK NUMBER

These numbers are recorded on DVD discs. A Title is subdivided into many sections, each of which is numbered, and specific parts of the video can be searched quickly using these numbers.

A high-density optical disc on which high-quality pictures and sound have been recorded by means of digital signals. Incorporating a new video compression technology (MPEG-2) and highdensity recording technology, a DVD disc comprises two 0.6 mm thick discs bonded together.

An acronym for Pulse Code Modulation - another name for digital audio.

This is recorded on a video CD (version 2.0). Selected scenes or information can be chosen from the menu displayed on the TV monitor.

Both the DVD player and DVD discs are encoded with a region number. If the region number on the DVD disc does not correspond to the region number of the DVD player, the player cannot play the disc.

Translated appearing at the bottom of the screen. A DVD disc can contain up to 32 subtitle languages.

These numbers are recorded on DVD discs. When a disc contains two or more movies, these movies are numbered as Title 1, Title 2, etc.

These numbers are assigned to the tracks which are recorded on video and audio CDs. They enable specific tracks to be located quickly.

VIDEO CD

Contains recordings of pictures and sound whose quality is roughly comparable to that of video tape. This player also supports video CDs with playback control (version 2.0).

You can enjoy 5.1 (or 6) channels of high fidelity digital sound from various digital input sources such as DVD, CD etc. DTS provides a realistic, clear surround sound that has not previously been available from conventional surround sound.

5.1 (or 6) Channel Digital Surround sound reproduced from DVDs and LDs recorded as a digital signals (with disc marking). With better sound quality, dynamic range, and directionality than traditional Dolby surround technology, you can enjoy dynamic, realistic sound.

A 4 channel analog sound reproduced from a program source such as a videotape or LD with the mark. You can enjoy a more realistic, robust sound unavailable from regular stereo sources.

Memo

MISCELLANEOUS

THIS APPLIANCE IS MANUFACTURED BY:

AH68-01544B

SAMSUNG HT-DS1000, HT-DS1100 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Safety Warnings

Precautions

Features

Contents

Notes on Discs

Description

Installing DVD player

Connecting the Speakers

Connecting the Video Out to TV

Connecting External Components

Connecting the FM Antenna

Before Using Your DVD Player

Disc Playback

MP3-CD Playback

JPEG Disc Playback

DivX Playback

Displaying Disc Information

Checking the Remaining Time

Fast/Slow Playback

Skipping Scenes/Songs

Repeat Playback

A-B Repeat Playback

Angle Function

Zoom Function

Bonus Group / Navigating Pages

Selecting Audio/Subtitle Language

Moving Directly to a Scene/Song

Using Disc Menu

Using the Title Menu

Setting the Language

Setting TV Screen type

Setting Parental Controls (Rating Level)

Setting the Password

Setting the Wallpaper

DVD Playback Mode

Setting the Speaker Mode

Setting the Test Tone

Setting the Delay Time

Setting the Audio Quality

AV SYNC Setup

Dolby Pro Logic II Mode

Dolby Pro Logic II Effect

Auto Sound Calibration Setup

Live Surround Mode

Listening to Radio

Presetting Stations

About RDS broadcasting

Convenient Functions

Operating a TV with the Remote Control

Before Calling for Service

Cautions on Handling and Storing Discs

Specifications

Notes on Terminology

Memo
