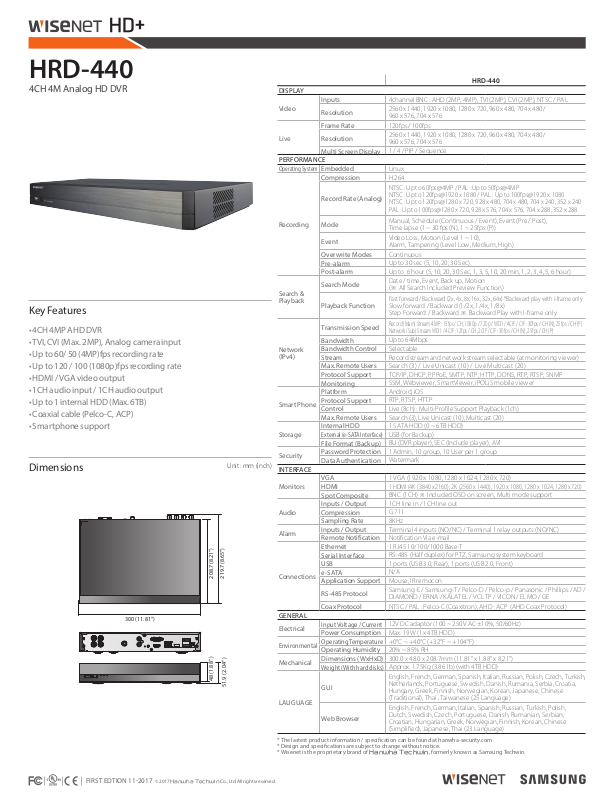

Samsung HRD-440 Specsheet
HRD-440 |
|
|
HRD-440 |
|
4CH 4M Analog HD DVR |
DISPLAY |
|
|
|
|
|
Inputs |
4channel BNC : AHD (2MP, 4MP), TVI (2MP), CVI (2MP), NTSC / PAL |
|
|
Video |
Resolution |
2560 x 1440, 1920 x 1080, 1280 x 720, 960 x 480, 704 x 480 / |
|
|
|
960 x 576, 704 x 576 |
||
|
|
|
||
|
|
FrameRate |
120fps / 100fps |
|
|
Live |
Resolution |
2560 x 1440, 1920 x 1080, 1280 x 720, 960 x 480, 704 x 480 / |
|
|
960 x 576, 704 x 576 |
|||
|
|
|
||
|
|
MultiScreenDisplay |
1 / 4 / PIP / Sequence |
|
|
PERFORMANCE |
|
||
|
OperatingSystem |
Embedded |
Linux |
|
|
|
Compression |
H.264 |
|
|
|
|
NTSC : Up to 60fps@4MP / PAL : Up to 50fps@4MP |
|
|
|
RecordRate(Analog) |
NTSC : Up to 120fps@1920 x 1080 / PAL : Up to 100fps@1920 x 1080 |
|
|
|
NTSC : Up to 120fps@1280 x 720, 928 x 480, 704 x 480, 704 x 240, 352 x 240 |
||
|
|
|
PAL : Up to 100fps@1280 x 720, 928 x 576, 704 x 576, 704 x 288, 352 x 288 |
|
|
Recording |
Mode |
Manual, Schedule (Continuous / Event), Event (Pre / Post), |
|
|
Time lapse (1 ~ 30 fps (N), 1 ~ 25fps (P)) |
|||
|
|
|
||
|
|
Event |
Video Loss, Motion (Level 1 ~ 10), |
|
|
|
Alarm, Tampering (Level Low, Medium, High) |
||
|
|
|
||
|
|
OverwriteModes |
Continuous |
|
|
|
Pre-alarm |
Up to 30 sec (5, 10, 20, 30 Sec) |
|
|
|
Post-alarm |
Up to 6 hour (5, 10, 20, 30 Sec, 1, 3, 5, 10, 20 min, 1, 2, 3, 4, 5, 6 hour) |
|
|
|
SearchMode |
Date / time, Event, Back up, Motion |
|
|
|
( All Search Included Preview Function) |
||
|
Search& |
|
||
|
|
Fast forward / Backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with i-frame only |
||
|
Playback |
|
||
KeyFeatures |
PlaybackFunction |
Slow forward / Backward (1/2x, 1/4x, 1/8x) |
||
|
||||
|
|
Step Forward / Backward Backward Play with I-frame only |
||
•4CH4MPAHDDVR |
|
TransmissionSpeed |
Record (Main) Stream 4MP : 15fps / CH, 1080p / 720p / WD1 / 4CIF / CIF : 30fps / CH (N), 25fps / CH (P) |
|
|
Network (Sub) Stream WD1 / 4CIF : 12fps / CH, 2CIF / CIF : 30fps / CH (N), 25fps / CH (P) |
|||
•TVI,CVI(Max.2MP),Analogcamerainput |
Network |
Bandwidth |
Up to 64Mbps |
|
•Upto60/50(4MP)fpsrecordingrate |
BandwidthControl |
Selectable |
||
(IPv4) |
Stream |
Record stream and network stream selectable (at monitoring viewer) |
||
•Upto120/100(1080p)fpsrecordingrate |
||||
|
Max.RemoteUsers |
Search (3) / Live Unicast (10) / Live Multicast (20) |
||
•HDMI/VGAvideooutput |
|
ProtocolSupport |
TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP, SNMP |
|
|
Monitoring |
SSM, Webviewer, SmartViewer, iPOLiS mobile viewer |
||
•1CHaudioinput/1CHaudiooutput |
|
|||
|
Platform |
Android, iOS |
||
•Upto1internalHDD(Max.6TB) |
SmartPhone |
ProtocolSupport |
RTP, RTSP, HTTP |
|
•Coaxialcable(Pelco-C,ACP) |
Control |
Live (8ch) : Multi-Profile Support Playback (1ch) |
||
|
Max.RemoteUsers |
Search (3), Live Unicast (10), Multicast (20) |
||
•Smartphonesupport |
|
InternalHDD |
1 SATA HDD (0 ~ 6TB HDD) |
|
|
Storage |
External(e-SATAInterface) |
USB (for Backup) |
|
|
|
FileFormat(Backup) |
BU (DVR player), SEC (Include player), AVI |
|
|
Security |
PasswordProtection |
1 Admin, 10 group, 10 User per 1 group |
|
|
DataAuthentication |
Watermark |
||
Dimensions |
Unit : mm (inch) INTERFACE |
|||
VGA |
1 VGA (1920 x 1080, 1280 x 1024, 1280 x 720) |
|||
|
|
|||
|
Monitors |
HDMI |
1 HDMI (4K (3840 x 2160), 2K (2560 x 1440), 1920 x 1080, 1280 x 1024, 1280 x 720) |
|
|
|
SpotComposite |
BNC (1CH) Included OSD on screen, Multi mode support |
|
|
|
Inputs/Output |
1CH line in / 1CH line out |
|
|
Audio |
Compression |
G.711 |
|
|
|
SamplingRate |
8KHz |
|
|
Alarm |
Inputs/Output |
Terminal 4 inputs (NO/NC) / Terminal 1 relay outputs (NO/NC) |
|
|
RemoteNotification |
Notification Via e-mail |
||
|
|
|||
.22") |
7.219(8.7(8.65"). |
Ethernet |
1 RJ45 10/100/1000 Base-T |
|
SerialInterface |
RS-485 (Half duplex) for PTZ, Samsung system keyboard |
|||
.7208 |
||||
.21") |
|
|||
(8 |
|
|
|
|
(8 |
|
USB |
1 ports (USB 3.0, Rear), 1 ports (USB 2.0, Front) |
|
.7 |
|
|||
|
Connections |
e-SATA |
N/A |
|
|
ApplicationSupport |
Mouse, IR remocon |
||
|
|
RS-485Protocol |
Samsung-E / Samsung-T / Pelco-D / Pelco-p / Panasonic / Phillips / AD / |
|
|
|
DIAMOND / ERNA / KALATEL / VCL TP / VICON / ELMO / GE |
||
|
|
|
||
|
|
CoaxProtocol |
NTSC / PAL : Pelco-C (Coaxitron), AHD : ACP (AHD Coax Protocol) |
|
300.0(11(11.81").81") |
GENERAL |
|
|
|
|
InputVoltage/Current |
12V DC adaptor (100 ~ 250V AC ±10%, 50/60Hz) |
||
|
Electrical |
|||
|
PowerConsumption |
Max. 19W (1 x 4TB HDD) |
||
|
|
|||
|
Environmental |
OperatingTemperature |
+0°C ~ +40°C (+32°F ~ +104°F) |
|
7.480(1(1.88".85") |
OperatingHumidity |
20% ~ 85% RH |
||
Mechanical |
Dimensions(WxHxD) |
300.0 x 48.0 x 208.7mm (11.81" x 1.88" x 8.21") |
||
Weight(Withharddisks) |
Approx. 1.75Kg (3.86 lb) (with 4TB HDD) |
|||
51.9.9(204").. |
|
English, French, German, Spanish, Italian, Russian, Polish, Czech, Turkish, |
||
GUI |
Netherlands, Portuguese, Swedish, Danish, Rumania, Serbia, Croatia, |
|||
|
|
Hungary, Greek, Finnish, Norwegian, Korean, Japanese, Chinese |
||
|
|
|
||
|
LAUGUAGE |
|
(Traditional), Thai , Taiwanese (25 Language) |
|
|
|
English, French, German, Italian, Spanish, Russian, Turkish, Polish, |
||
|
|
|
||
|
|
WebBrowser |
Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, |
|
|
|
Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese |
||
|
|
|
||
|
|
|
(Simplified), Japanese, Thai (23 Language) |
|
*The lastest product information / specification can be found at hanwha-security.com
*Design and specifications are subject to change without notice.
*Wisenet is the proprietary brand of Hanwha Techwin, formerly known as SamsungTechwin.
FIRSTEDTION11-2017 ©2017Hanwha TechwinCo.,Ltd.Allrightsreserved.
