SAMSUNG HP-T5044 User Manual

HP-T5044

PLASMA DISPLAY

Owner’s
Instructions

Register your product at www.samsung.com/global/register
Record your Model and Serial number here for future reference.

▪ Model _______________ ▪ Serial No. _______________

English - 2

Important Warranty Information Regarding Television Format Viewing

Wide screen format PDP Displays (16:9, the aspect ratio of the screen width to height) are primarily designed to view wide
screen format full-motion video. The images displayed on them should primarily be in the wide screen 16:9 ratio format,
or expanded to fill the screen if your model offers this feature and the images are constantly moving. Displaying stationary
graphics and images on screen, such as the dark side-bars on nonexpanded standard format television video and
programming, should be limited to no more than 5% of the total television viewing per week.

Additionally
web sites or computer graphics and patterns, should be limited as described above for all televisions. Displaying stationary

images that exceed the above guidelines can cause uneven aging of PDP Displays that leave subtle, but permanent
burned-in ghost images in the PDP
full screen moving images, not stationary patterns or dark bars.

On PDP

Be careful in the selection and duration of television formats used for viewing. Uneven PDP aging as a result of format
selection and use, as well as burned-in images, are not covered by your Samsung limited warranty.

, viewing other stationary images and text such as stock market reports, video game displays, station logos,

picture. To avoid this, vary the programming and images, and primarily display

models that offer picture sizing features, use these controls to view different formats as a full screen picture.

© 2007 Samsung Electronics Co., Ltd. All rights reserved.

User Instructions

Screen Image retention

Do not display a still image (such as on a video game) on the plasma display panel for more than several minutes as it can
cause screen image retention. This image retention is also known as “screen burn”. To avoid such image retention, refer to
page 27 of this manual to reduce the degree of brightness and contrast of the screen when displaying a still image.

Altitude

The PDP can only operate normally at heights under 6500ft.

Heat on the top of the PDP TV

The top side of the product may be hot after long periods of use as heat dissipates from the panel through the vent hole in
the upper part of the product.
This is normal and does not indicate any defect or operation failure of the product.
However, children should be prevented from touching the upper part of the product.

The product is making a ‘cracking’ noise.

A ‘cracking’ noise may occur when the product contracts or expands due to a change of surrounding environment such as
temperature or humidity. This is normal and not a defect of the unit.

Cell Defects

The PDP uses a panel consisting of 1,230,000(SD-level) to 3,150,000(HD-level) pixels which require sophisticated
technology to produce. However, there may be a few bright or dark pixels on the screen. These pixels will have no impact
on the performance of the product.

Avoid operating the TV at temperatures below 5°C (41°F)

A still image displayed too long may cause permanent damage to the PDP Panel.

Watching the PDP TV in 4:3 format for a long period of time may leave traces of borders displayed on
the left, right and center of the screen caused by the difference of light emission on the screen.
Playing a DVD or a game console may cause similar effects to the screen.
Damages caused by the above effect are not covered by the Warranty.

After-images on the Screen.

Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images.

To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images for a long time.

Warranty

Warranty does not cover any damage caused by image retention.

Burn-in is not covered by the warranty.

English - 3

English - 4

Contents

General Information

■ List of Features ............................................................5

■ Accessories ..................................................................5

■ Viewing the Control Panel ............................................6

■ Viewing the Connection Panel .....................................7

■ Remote Control ............................................................8

■ Installing Batteries in the Remote Control ....................9

Connections

■ Connecting VHF and UHF Antennas ...........................9

■ Connecting Cable TV .................................................10

■ Connecting a VCR .....................................................11

■ Connecting a Camcorder ...........................................12

■ Connecting a DVD Player/Cable Box/

Satellite receiver (Set-Top Box) .................................

■ Connecting a DVD Player/Cable Box/
Satellite receiver (Set-Top Box)

■ Connecting a DVD Player/Cable Box/
Satellite receiver (Set-Top Box)

■ Connecting a Digital Audio System ............................14

■ Connecting an Amplifier/DVD Home Theater ............14

■ Connecting a PC ........................................................15

via HDMI ..................13

via DVI .....................13

12

Operation

■ Turning the TV On and Off .........................................16

■ Plug & Play Feature ...................................................16

■ Changing Channels ...................................................18

■ Adjusting the Volume .................................................19

■ Viewing the Display ....................................................19

■ Viewing the Menus .....................................................19

■ Memorizing the Channels ..........................................20

■ Setting Up Your Remote Control ................................21

■ To Select the Source ..................................................26

■ To Edit the Input Source Name ..................................26

Picture Control

■ Using Automatic Picture Settings ...............................27

■ Digital Noise Reduction ..............................................28

■ Changing the Screen Size .........................................29

■ Making Detailed Picture Settings ...............................30

■ Active Color ................................................................31

■ DNIe (Digital Natural Image engine) ..........................31

■ Selecting the Film Mode ............................................32

■ Setting the Blue Screen Mode ...................................32

■ Setting the HDMI Black Level ....................................32

■ Viewing Picture-in-Picture ..........................................33

■ Freezing the Current Picture ......................................34

Sound Control

■ Using Automatic Sound Settings ................................35

■ Customizing the Sound ..............................................35

■ Setting the TruSurround XT .......................................36

■ Choosing a Multi-Channel Sound (MTS) Track -

Digital .........................................................................36

■ Choosing a Multi-Channel Sound (MTS) Track -

Analog ........................................................................37

■ Automatic Volume Control .........................................37

■ Selecting the Internal Mute ........................................37

■ Adjusting the TV On/Off Melody Sound .....................38

■ Listening to the Sound of the Sub (PIP) Picture ........38

Channel Control

■ Selecting the Antenna ................................................39

■ Clearing Scrambled Channels - Digital ......................39

■ Adding and Erasing Channels ...................................40

■ Setting Up Your Favorite Channels ............................41

■ Viewing the Channel Lists ..........................................42

■ Setting the Default Channel List Mode ......................42

■ Labeling Channels .....................................................43

■ Fine Tuning Analog Channels ....................................43

■ Checking the Digital-Signal Strength .........................44

■ LNA (Low Noise Amplifier) .........................................44

PC Display

■ Using Your TV as a Computer (PC) Display ..............45

■ Display Modes ...........................................................45

■ Setting up the TV with your PC ..................................46

■ Setting the Home Theater PC ....................................47

Time Setting

■ Setting the Time .........................................................48

Function Description

■ Selecting a Menu Language ......................................51

■ Using the Game Mode ...............................................51

■ Viewing Closed Captions

(On-Screen Text Messages) - Digital .........................

■ Viewing Closed Captions

On-Screen Text Messages) - Analog .........................

■ Menu Transparency Level ..........................................54

■ Setting the Light Effect ...............................................54

■ Using the Energy Saving Feature ..............................55

■ Preventing Screen Burn-in .........................................55

■ Reducing the Effects of Screen Burn .........................56

■ Setting the Function Help ...........................................56

■ Upgrading the Software .............................................57

■ Using the V-Chip ........................................................57

About Anynet

■ What is Anynet+? .......................................................63

■ Connecting Anynet+ Devices .....................................63

■ Setting Up Anynet

■ Scanning and Switching between Anynet+ Devices ..64

■ Recording ...................................................................65

■ Listening through a Receiver (Home theater) ............66

■ Troubleshooting for Anynet

+

+ ....................................................64

+ ......................................66

52

53

Appendix

■ Troubleshooting .........................................................67

■ Wall- mount adjustment (Sold separately) .................68

■ Wall Mount Kit Specifications (VESA) ........................69

■ How to assemble the Stand-Base

(depending on the model) ................................. 70

■ Specifications .............................................................70

■ Dimensions ................................................................71

Symbols

Press

One-Touch

Button

➢

Note

General Information

RETURN

FAV.CH

List of Features

• Adjustable picture settings that can be stored in the TV’s memory.

• Automatic timer to turn the TV on and off.

• A special sleep timer.

• V-Chip function.

• Excellent Digital Interface & Networking :
With a built-in HD digital tuner, non-subscription HD broadcasts can be viewed with no Cable Box/Satellite receiver
(Set-Top Box) needed.

• Remote Control
The supplied remote can be used to operate the TV as well as most DVD players, Set-top boxes, Cable Boxes and
VCRs.

• Excellent Picture Quality

- DNIe technology provides life-like clear images.

• SRS TruSurround XT

- SRS TruSurround XT provides a virtual Dolby surround system.

Accessories

Please make sure the following items are included with your TV. If any items are missing, contact your dealer.

Remote Control

(BN59-00599A) /

AAA Batteries

(4301-000103)

Cloth-Clean

Power Cord

(3903-000144)

Owner’s Instructions /

Quick Setup Guide

Warranty Card /

Registration Card /

Safety Guide Manual

Ferrite Core for

Power Cord

(3301-001110)

The following parts are sold separately and are available at most electronics stores.

S-VIDEO Cable (BN39-00149A) HDMI Cable (BN39-00641A) HDMI/DVI cable (BN39-00643A) Component Cables (RCA)

PC Cable (BN39-00115A) PC Audio Cable (BN39-00061B) Optical Cable Antenna Cable (BN39-00333A)

Ferrite Core (Power Cord)

➢

(BN39-00279A)

The ferrite cores are used to shield the cables from interference.
When connecting a cable, open the ferrite core and clip it around
the cable near the plug.

English - 5

English - 6

Viewing the Control Panel

Buttons on the Lower-Right Part of the Panel

The buttons on the lower-right panel control your TV’s basic features, including the on-screen menu.
To use the more advanced features, you must use the remote control.

The product color and shape may vary depending on the model.

➢

1

SOURCE

Toggles between all the available input sources (TV, AV,

S-Video, Component1,
HDMI2).

2

MENU

Press to see an on-screen menu of your TV’s features.

3

+ VOL –

Press to increase or decrease the volume. In the on-

screen menu, use the + VOL – buttons as you would
use the ◄ and ► buttons on the remote control.

4

CH

Press to change channels.

In the on-screen menu, use the CH buttons as
you would use the ▲ and ▼ buttons on the remote

control.

Component2, PC, HDMI1, or

5

Press to confirm a selection.

6

Press to turn the TV on and off.

Blinks and turns off when the power is on and lights up

Aim the remote control towards this spot on the TV.

7

(ENTER)

POWER

Power Indicator

in stand-by mode.

Remote Control Sensor

Speakers

Viewing the Connection Panel

Rear Panel Jacks

Use the rear panel jacks to connect A/V components that will be connected continuously, such as VCR or DVD players.
For more information on connecting equipment, see pages 9~15. The product color and shape may vary depending on the
model.

1

POWER IN

Connect the supplied power cord.

2

DIGITAL AUDIO OUT (OPTICAL)

Connect to a Digital Audio component.

3

AUDIO OUT (R/L)

Audio outputs for external devices.

4

PC AUDIO IN

Connect to the audio output jack on your PC.

5

PC IN

Connect to the video output jack on your PC.

6

DVI IN (HDMI 1) (AUDIO-R/L)

Connect to the DVI audio output jack of an external device.

7

HDMI IN 1, 2

Connect to the HDMI jack of a device with HDMI output.
(Only HDMI 1 can support HDMI and DVI IN.)

This input can also be used as a DVI connection with
separate analog audio inputs. An optional HDMI/DVI
cable will be necessary to make this connection.
When using an optional HDMI/DVI adapter, the DVI analog
audio inputs on your TV allow you to receive left and right
audio from your DVI device. (Not compatible with PC)

8

ANT 1 IN(AIR)/ANT 2 IN(CABLE)

Uses a 75Ω Coaxial connector for an Air/Cable

Network.

9

EX-LINK

Connect the serial jack between the electro-motion wall

mount bracket and your TV when you want to adjust the
TV viewing angle using your remote control.

0

AUDIO-R/L (AV IN 1)

Audio inputs for external devices, such as a camcorder

or VCR.

!

S-VIDEO (AV IN 1)

Video input for external devices with an S-Video output,

such as a camcorder or VCR.

@

VIDEO (AV IN 1)

Video input for external devices, such as a camcorder

or VCR.

#

SERVICE

For service only.

$

COMPONENT IN 1, 2

Video (Y/PB/PR) and audio (R-AUDIO-L) Component inputs.

English - 7

English - 8

Remote Control

RETURN

FAV.CH

You can use the remote control up to a distance of about 23 feet from the TV. When using the remote, always
point it directly at the TV. You can also use your remote control to operate your VCR, Cable box, DVD player,
or Set-Top Box.

1

This is a special remote control for

➢

the visually impaired person, and has
Braille points on the POWER, Channel,
Volume, STOP, and PLAY/PAUSE

POWER

Turns the TV on and off.

2

NUMERIC BUTTONS

Press to directly select a channel.

3

–

Press to select additional channels

(digital and analog) being broadcast
by the same station. For example,
to select channel “54-3”, press “54”,
then press “–” and “3”.

4

CH LIST

Used to display Channel Lists on the

screen.

5

ANTENNA

Press to select “AIR” or “CABLE”.

6

VCR/DVD Functions

- Rewind

- Stop

- Play/Pause

- Fast/Forward

7

Press to increase or decrease the

8

Press to temporarily cut off the

9

Displays the main on-screen menu.

0

Press to select the sound mode.

!

Returns to the previous menu.

@

Press to select the picture mode.

#

Controls the caption decoder.

$

Press to switch to your favorite

%

Press to select a preset time interval

^

Selects SRS TruSurround XT mode.

&

SET

Sets the remote to control your TV,

*

TV/DVD/STB/CABLE/VCR

Press to operate your TV, DVD

–

+ VOL

volume.

MUTE

sound.

MENU

S.MODE

RETURN

P.MODE

CAPTION

FAV.CH

channels.

SLEEP

for automatic shut off.

SRS

VCR, Cable, DVD player, or Set-Top
Box.

player, STB, CABLE (box), or VCR.

(

Press to backlight the VOL, CH,

and active source button (TV, DVD,
CABLE, STB, VCR) on the remote.

)

SOURCE

Press to display all of the available

video sources.

a

PRE-CH

Tunes to the previous channel.

b

WISELINK

Not available.

c

REC

This remote can be used to control

recording on Samsung DVD
recorders. (Refer to page 65)

d

CH

Press to change channels.

e

EXIT

Press to exit the menu.

f

UP▲/DOWN▼/LEFT◄/
RIGHT►/ENTER

Use to select on-screen menu items

and change menu values.

g

INFO

Press to display information on the

TV screen.

h

Anynet+

Runs the Anynet+ functions and sets

up Anynet+ devices.

i

STILL

Press to stop the action during a

particular scene. Press again to
resume normal video.

j

P.SIZE

Press to change the screen size.

k

PIP

Picture-in Picture ON/OFF.

l

CH /

Displays the available channels in

sequence. (These buttons change
channels in the PIP window only.)

m

MTS

Press to choose stereo, mono or

Separate Audio Program (SAP
broadcast).

n

RESET

When your remote does not work,

change the batteries and press
the RESET button for 2-3 seconds
before use.

buttons.

The performance of the remote control

➢

may be affected by bright light.

Installing Batteries in the Remote Control

1 Lift the cover at the back of the remote control upward as shown in the figure.
2 Install two AAA size batteries.

Make sure to match the “+” and “–” ends of the batteries with the diagram inside the

➢

compartment.

Do not mix battery types, i.e. alkaline and manganese.

➢

3 Close the cover as shown in the figure.

Remove the batteries and store them in a cool, dry place if you won’t be using the remote

➢

control for a long time. The remote control can be used up to about 23 feet (7m) from the TV.
(Assuming typical TV usage, the batteries last for about one year.)

If the remote control doesn’t work, check the following:

➢

1. Is the TV power on?

2. Are the plus and minus ends of the batteries reversed?

3. Are the batteries drained?

4. Is there a power cut, or is the power cord unplugged?

5. Is there a special fluorescent light or a neon sign nearby?

Connections

Connecting VHF and UHF Antennas

If your antenna has a set of leads that look like this, see “Antennas with 300 Ω Flat Twin Leads”
below.

If your antenna has one lead that looks like this, see “Antennas with 75 Ω Round Leads”.
If you have two antennas, see “Separate VHF and UHF Antennas”.

Antennas with 300 Ω Flat Twin Leads

If you are using an off-air antenna (such as a roof antenna or “rabbit ears”) that has 300 Ω twin flat leads, follow the directions
below.

1 Place the wires from the twin leads under the screws on a 300-75 Ω adapter (not supplied).

Use a screwdriver to tighten the screws.

2 Plug the adaptor into the ANT 1 IN (AIR) or ANT 2 IN (CABLE) terminal on the back of the TV.

ANT 1 IN (AIR)

Antennas with 75 Ω Round Leads

1

Plug the antenna lead into the ANT 1 IN (AIR) or ANT 2 IN (CABLE) terminal on the back of the TV.

ANT 1 IN (AIR)

Separate VHF and UHF Antennas

If you have two separate antennas for your TV (one VHF and one UHF), you must combine the two antenna signals before
connecting the antennas to the TV. This procedure requires an optional combiner-adaptor (available at most electronics shops).

1 Connect both antenna leads to the combiner.

UHF

2 Plug the combiner into the ANT 1 IN (AIR) or ANT 2 IN (CABLE) terminal on the bottom of the

back panel.

VHF

English - 9

UHF

VHF

ANT 1 IN (AIR)

English - 10

Connecting Cable TV

To connect to a cable TV system, follow the instructions below.

Cable without a Cable Box

1 Plug the incoming cable into the ANT 2 IN(CABLE) terminal on the back of the TV.

Because this TV is cable-ready, you do not need a cable box to view unscrambled

➢

cable channels.

Connecting to a Cable Box that Descrambles All Channels

1 Find the cable that is connected to the ANT OUT terminal on your cable box.

This terminal might be labeled “ANT OUT”, “VHF OUT” or simply, “OUT”.

➢

2 Connect the other end of this cable to the ANT 2 IN (CABLE) terminal on the back of

the TV.

Connecting to a Cable Box that Descrambles Some Channels

If your cable box descrambles only some channels (such as premium channels), follow the instructions below.
You will need a two-way splitter, an RF (A/B) switch, and four lengths of Antenna cable. (These items are available
at most electronics stores.)

1 Find and disconnect the cable that is

connected to the ANT IN terminal on your
cable box.

This terminal might be labeled “ANT IN”, “VHF

➢

IN” or simply, “IN”.

2 Connect this cable to a two-way splitter.

ANT IN

ANT IN

ANT 2 IN (CABLE)

ANT OUT

ANT 2 IN (CABLE)

Incoming

cable

Splitter

3 Connect an Antenna cable between an

OUTPUT terminal on the splitter and the IN
terminal on the cable box.

Incoming

cable

Splitter

Cable Box

4 Connect an Antenna cable between the ANT

OUT terminal on the cable box and the B–IN
terminal on the RF(A/B) switch.

Incoming

cable

Splitter

Cable Box

RF (A/B)

Switch

5 Connect another cable between the other

OUT terminal on the splitter and the A–IN
terminal on the RF (A/B) switch.

6 Connect the last Antenna cable between the

OUT terminal on the RF (A/B) switch and the
ANT 2 IN (CABLE) terminal on the rear of the
TV.

Incoming

cable

Incoming

cable

Splitter

Splitter

Cable Box

RF (A/B)

Switch

RF (A/B)

Switch

TV Rear

ANT 2 IN (CABLE)

After you have made this connection, set the A/B switch to the “A” position for normal viewing. Set the A/B switch to the “B”
position to view scrambled channels. (When you set the A/B switch to “B”, you will need to tune your TV to the cable box’s
output channel, which is usually channel 3 or 4.)

Connecting a VCR

Video Connection

These instructions assume that you have already connected your TV to an antenna or a cable TV system (according
to the instructions on pages 9~10). Skip step 1 if you have not yet connected to an antenna or a cable system.

1 Unplug the cable or antenna

from the back of the TV.

2 Connect the cable or antenna

to the ANT IN terminal on the
back of the VCR.

3 Connect an Antenna Cable

between the ANT OUT
terminal on the VCR and the

VCR Rear Panel

ANT 1 IN(AIR) or ANT 2 IN
(CABLE) terminal on the TV.

4 Connect a Video Cable

between the VIDEO OUT jack
on the VCR and the AV IN 1
[VIDEO] jack on the TV.

5 Connect Audio Cables

between the AUDIO OUT
jacks on the VCR and the AV
IN 1 [R-AUDIO-L] jacks on

2

Audio Cable(Not supplied)5

Video Cable(Not supplied)4

Antenna cable(Not supplied)3

the TV.

If you have a “mono” (non-stereo) VCR, use a Y-connector (not supplied) to hook up to the right and left audio input

➢

jacks of the TV. If your VCR is stereo, you must connect two cables.

Each VCR has a different back panel configuration.

➢

When connecting a VCR, match the color of the connection terminal to the cable.

➢

TV Rear Panel

S-Video Connection

Your Samsung TV can be connected to the S-Video jack of a VCR.
(This connection delivers a better picture when compared to the regular Video connection above.)

1 To begin, follow steps 1–3

in the previous section to
connect the antenna or cable

VCR Rear Panel

TV Rear Panel

to your VCR and your TV.

2 Connect an S-Video Cable

between the S-VIDEO OUT
jack on the VCR and the AV
IN 1 [S-VIDEO] jack on the
TV.

3 Connect Audio Cables

between the AUDIO OUT
jacks on the VCR and the AV
IN 1 [R-AUDIO-L] jacks on

Audio Cable (Not supplied)

3

S-Video Cable(Not supplied)2

Antenna cable(Not supplied)1

the TV.

An S-Video cable is usually included with an S-VHS VCR. (If not, check your local electronics store.)

Each VCR has a different back panel configuration.

➢

When connecting a VCR, match the color of the connection terminal to the cable.

➢

English - 11

English - 12

Connecting a Camcorder

The rear panel jacks on your TV make it easy to connect a camcorder to your TV.
They allow you to view the camcorder tapes without using a VCR

1 Connect a Video Cable

(or S-Video Cable) between
the AV IN 1 [VIDEO]
(or S-VIDEO) jack on the TV
and the VIDEO OUT jack on
the Camcorder.

2 Connect Audio Cables

between the AV IN 1
[L-AUDIO-R] jacks on the TV
and the AUDIO OUT jacks on
the Camcorder.

Each Camcorder has

➢

a different back panel
configuration.
When connecting a Camcorder,

➢

match the color of the connection terminal to the cable

Camcorder

or

Audio Cable (Not supplied)2

Video Cable (Not supplied)1

S-Video Cable(Not supplied)

1

.

TV Rear Panel

Connecting a DVD Player/Cable Box/Satellite receiver (Set-Top Box)

The rear panel jacks on your TV make it easy to connect a DVD Player/Cable Box/Satellite receiver (Set-Top Box)
to your TV.

1 Connect Component Cable

between the COMPONENT
IN 1 [Y, P
COMPONENT IN 2 [Y, P

B

, PR] (or

B

,
PR]) jacks on the TV and the
COMPONENT OUT [Y, P

B

,
PR] jacks on the DVD Player/
Cable Box/Satellite receiver
(Set-Top Box).

2 Connect Audio Cables

between the COMPONENT
IN 1 [R-AUDIO-L](or
COMPONENT IN 2
[R-AUDIO-L]) jacks on the TV and the AUDIO OUT jacks on the DVD Player/Cable Box/Satellite receiver (Set-Top
Box).

Component video separates the video into Y (Luminance (brightness)), PB (Blue) and PR (Red) for enhanced video

➢

quality. Be sure to match the component video and audio connections. For example, if connecting the video cable to
COMPONENT IN, connect the audio cable to COMPONENT IN also.

Each DVD Player/Cable Box/Satellite receiver (Set-Top Box) has a different back panel configuration.

➢

When connecting a DVD Player/Cable Box/Satellite receiver (Set-Top Box), match the color of the connection terminal

➢

to the cable.

DVD Player/Cable Box/

Satellite receiver (Set-Top Box).

TV Rear Panel

Audio Cable (Not supplied)2

Component Cable (Not supplied)1

Connecting a DVD Player/Cable Box/Satellite receiver (Set-Top Box) via HDMI

This connection can only be made if there is an HDMI Output jack on the external device.
This connection will provide the highest quality picture.

1 Connect an HDMI Cable

between the HDMI IN1 (or
HDMI IN 2) on the TV and
the HDMI OUT on the DVD
Player/Cable Box/Satellite
receiver (Set-Top Box).

What is HDMI?

• HDMI, or high-definition multimedia interface, is a interface that enables the transmission of digital audio and video
signals using a single cable.

• The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital
Copy Protection) coding feature installed, and supports multi-channel digital audio.

Each DVD Player/Cable Box/Satellite receiver (Set-Top Box) has a different back panel configuration.

➢

When connecting a DVD Player/Cable Box/Satellite receiver (Set-Top Box), match the color of the connection terminal

➢

to the cable.

When connecting via HDMI, you do not need to connect Audio Cables. You only need to connect Audio cables when

➢

connecting via HDMI/DVI.

DVD Player/Cable Box/

Satellite receiver (Set-Top Box)

TV Rear Panel

HDMI Cable (Not supplied)1

Connecting a DVD Player/Cable Box/Satellite receiver (Set-Top Box) via DVI

This connection can only be made if there is a DVI Output jack on the external device.

1 Connect a HDMI/DVI Cable

or DVI-HDMI Adapter
between the HDMI IN 1 jack

DVD Player/Cable Box/
Satellite receiver
(Set-Top Box)

on the TV and the DVI jack on
the DVD Player/Cable Box/
Satellite receiver (Set-Top
Box).

2 Connect Audio Cables

between the DVI IN (HDMI 1)
[R-AUDIO-L] jacks on the TV
and the AUDIO OUT jacks
on the DVD Player/Cable
Box/Satellite receiver (Set­Top Box).

Each DVD Player and Cable Box/Satellite receiver (Set-Top Box), has a different back panel configuration.

➢

When connecting a DVD Player/Cable Box/Satellite receiver (Set-Top Box),, match the color of the connection terminal

➢

Audio Cable (Not supplied)2

HDMI/DVI Cable (Not supplied)1

to the cable.

Only HDMI IN 1 can support HDMI and DVI.

➢

TV Rear Panel

English - 13

English - 14

Connecting a Digital Audio System

The rear panel jacks on your TV make it easy to connect a Digital Audio System to your TV.

1 Connect an Optical Cable

between the DIGITAL AUDIO
OUT (OPTICAL) jack on the
TV and the Digital Audio Input
(OPTICAL) jack on the Digital
Audio System.

When a Digital Audio System
is connected to the “DIGITAL
AUDIO OUT (OPTICAL)”
terminal:
Decrease the gain (volume)
of the TV, and adjust the
volume level with the
system’s volume control.

What is OPTICAL?

• An optical cable converts an electric signal into an optical light signal, and transmits it through glass fibers. S/PDIF is a
transmission system of digital audio in the form of a light wave that uses a glass conductor.

5.1CH audio is possible when the TV is connected to an external device supporting 5.1CH.

➢

Each external input source device has a different back panel configuration.

➢

If you have an external device (DVD player/Cable Box/Satellite receiver (Set-Top Box)) connected via HDMI to the TV,

➢

audio is not output from the Optical jack.

Digital Audio System

TV Rear Panel

Optical Cable (Not supplied)

Connecting an Amplifier/DVD Home Theater

1 Connect Audio Cables

between the AUDIO OUT
[R-AUDIO-L] jacks on the TV
and AUDIO IN [L-AUDIO-R]
jacks on the Amplifier/DVD
Home Theater.

When an audio amplifier is
connected to the “AUDIO
OUT [R-AUDIO-L]” jacks:
Decrease the gain (volume)
of the TV, and adjust the
volume level with the
Amplifier’s volume control.

Each Amplifier/DVD Home Theater has a different back panel configuration.

➢

When connecting an Amplifier/DVD Home Theater, match the color of the connection terminal to the cable.

➢

Amplifier/DVD Home Theater

Audio Cable (Not supplied)

TV Rear Panel

Connecting a PC

Using the D-Sub Cable
1 Connect a D-Sub Cable

between PC IN [PC] jack on
the TV and the PC output jack
on your computer.

2 Connect a PC Audio Cable

between the PC IN [AUDIO]
jack on the TV and the Audio
Out jack of the sound card on
your computer.

Using the HDMI/DVI Cable
1 Connect a HDMI/DVI cable

between the HDMI IN 1 jack
on the TV and the PC output
jack on your computer.

2 Connect a 1Stereo/2RCA

cable between the DVI IN
(HDMI 1) [R-AUDIO-L] jacks
on the TV and the Audio Out
jack of the sound card on
your computer.

Using the D-Sub Cable

TV Rear Panel

PC

PC Audio Cable (Not supplied)2

D-Sub Cable (Not supplied)1

Using the HDMI/DVI Cable

TV Rear Panel

PC

3.5 mm Stereo plug to 2 RCA Cable (Not supplied)2

HDMI/DVI Cable (Not supplied)1

Each PC has a different back panel configuration.

➢

When connecting a PC, match the color of the connection terminal to the cable.

➢

When using an HDMI/DVI cable connection, you must use the HDMI IN1 terminal.

➢

English - 15

English - 16

Operation

Turning the TV On and Off

Press the POWER button on the remote control.
You can also use the POWER button on the TV.

It may take a while when your TV starts.

➢

Plug & Play Feature

When the TV is initially powered On, basic customer settings proceed automatically and subsequently:

1 Press the POWER button on the remote control.

The message Menu language, Shop Mode, Channels and Time will be set. is
displayed.

2 Press the ENTER button. The message Select the language of the OSD. is

automatically displayed.
Press the ▲ or ▼ button to select language, then press the ENTER button.
The message Select Home Mode when installing this TV at home. is
automatically displayed.

3 Press the ◄ or ► button to select Shop or Home, then press the ENTER button.

The default selection is Home.

➢

We recommend setting the TV to Home mode for the best picture in your home

➢

environment.

Shop mode is only intended for use in retail environments.

➢

If the unit is accidentally set to Shop mode and you want to return to Dynamic

➢

(Home) mode, press the any Volume button and then hold down the

MENU

button for five seconds on the TV panel.

Menu language, Shop Mode,

i

Channels and Time will be set.

Start

Plug & Play

Select the language of the OSD.

Menu Language :

Move

Select Home Mode when installing this TV at home.

Shop

Move

English

Español
Français

Enter

Plug & Play

Enter

Home

Skip

Skip

4 Press the ▲ or ▼ button to memorize the channels of the selected connection.

Press the ENTER button to select Start.

If the antenna is connected to ANT1 IN(AIR), select Air and if it is connected to

➢

ANT 2 IN(CABLE), select

If both ANT 1 IN(AIR) and ANT 2 IN(CABLE) are connected,

➢

Cable.

select the Air + Cable.

In Cable mode, select the correct analog signal cable system source among

➢

STD, HRC, and IRC by pressing the ▲ or ▼ button, then press the ENTER
button. If you have Digital cable, select the cable system signal source for both
Analog and Digital. Contact your local cable company to identify the type of
cable system that exists in your particular area.
To memorize the channels, press the ► button to select

Start, then press the

ENTER button.

Contact your local cable company to identify the type of cable system that
exists in your particular area.

Plug & Play

Select the antennas to memorize.

Enter

Enter

Start
Start
Start

Start

Air
Cable
Air + Cable

Move

Analog

STD

HRC

IRC

Digital

STD

HRC

IRC

Plug & Play

Selects a cable signal type for your location.

Move

Continued...

Skip

Skip

5 The TV will begin memorizing all of the available channels.

After all the available channels are stored, the Auto program menu reappears.
Press the ENTER button when channel memorization is complete.
The Clock Mode menu is automatically displayed.

To stop the search before it has finished, press the ENTER button with Stop

➢

selected.

Plug & Play

Auto Program in progress.

Auto Program is completed.
14 Channels were memorized.
Air : 9 , Cable : 5.

Cable Channel 67

Stop

Enter

Plug & Play

OK

Enter

68%

Skip

Skip

6 Press the ENTER button.

Press the ▲ or ▼ button to select Manual if you want to set the current time
manually, then press the

If you select Auto, Set to daylight savings time. is displayed,

➢

ENTER button. Set current date and time. is displayed.

then go to step 9.

7 Press the ◄ or ► button to move to Month, Day, Year, Hour, Minute, or

am/pm. Set the date and time you want by pressing the ▲ or ▼ button,

then press the MENU button.

You can set the Month, Day, Year, Hour, and Minute directly by pressing the

➢

number buttons on the remote control.

8 The message Enjoy your watching. is displayed.

When you have finished, press the ENTER button.

Even if the ENTER button is not pressed, the message will automatically

➢

disappear after several seconds.

Setting the Clock Automatically

9 Press the ENTER button.

Press the ▲ or ▼ button to select On or Off, then press the ENTER button.
Select the time zone in which you live. menu is automatically displayed.

Plug & Play

Select the clock mode.

Clock Mode :

Move

Set current date and time.

Month Day Year

Hour Minute am/pm

Move

Enjoy your watching.

i

Set to daylight savings time.

Daylight Savings Time :

Clock Set

--

--

Adjust

Plug & Play

OK

Enter

--

--

Manual

Auto

Enter

--- -

On

Off

--

Skip

Skip

10 Press the ▲ or ▼ button to highlight the time zone for your local area (and to

move the highlight to the appropriate time zone on the map of the United States).
Press the ENTER button.
If clock is not automatically set, see page 49 to set the clock.

11 The message

Enjoy your watching. is displayed.

When you have finished, press the ENTER button.

Even if the ENTER button is not pressed, the message will automatically

➢

disappear after several seconds.

English - 17

Move

Select the time zone in which you live.

Newfoundland
Atlantic

Eastern

Central
Mountain
Pacific
Alaska
Hawaii

Move

Enjoy your watching.

i

Enter

Plug & Play

Enter

OK

Continued...

Skip

Skip

English - 18

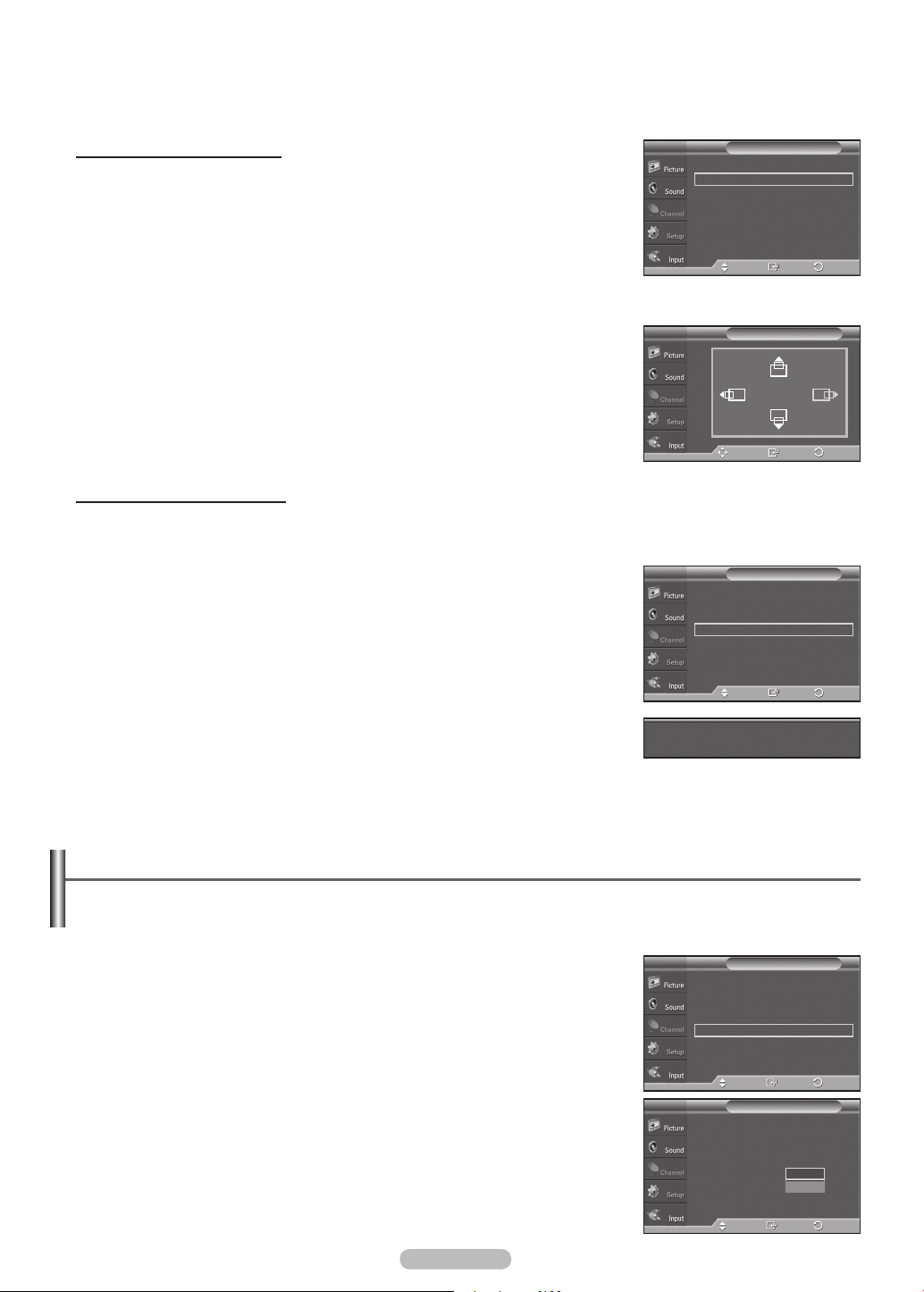

If you want to reset this feature...

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Setup, then press the ENTER button.

2 Press the ENTER button to select Plug & Play. For further details on setting up

options, refer to the pages 16~17.

The Plug & Play feature is only available in the TV and DTV mode.

➢

Changing Channels

Using the Channel Buttons

1 Press the CH or CH button to change channels.

When you press the CH or CH button, the TV changes channels in

➢

sequence. You will see all the channels that the TV has memorized.
(The TV must have memorized at least three channels). You will not see
channels that were either erased or not memorized. See page 20 to memorize
channels.

Using the Number Buttons

1 Press the number buttons to go directly to a channel. For example, to select

channel 27, press 2, then 7.
The TV will change channels when you press the second number.

Plug & Play
Language : English
Time

Game Mode : Off

V-Chip
Caption
Menu Transparency

▼

More

Move

Menu language, Shop Mode,

i

Channels and Time will be set.

Start

SetupT V

: Medium

Enter

Return

►
►
►

►

►
►
►

Using the “-” Button

The “-” button is used to select stations that broadcast a digital signal.

1 For example, for Channel 7-1, press 7, then -, then 1.

HD indicates the TV is receiving a Digital High Definition signal.

➢

SD indicates the TV is receiving a Standard Definition signal.

For quick channel change, press the number buttons, then press the ENTER

➢

button.

Using the PRE-CH Button to select the Previous Channel

Use the number buttons to quickly tune to any channel.

1 Press the PRE-CH button. The TV will switch to the last channel viewed.

To quickly switch between two channels that are far apart, tune to one channel, then use the number button to

➢

select the second channel.
Then use the PRE-CH button to quickly alternate between them.

Adjusting the Volume

RETURN

Using the Volume Buttons

1 Press the VOL + or VOL – button to increase or decrease the volume.

Using the Mute Button

At any time, you can cut off the sound using the

MUTE button.

1 Press MUTE and the sound cuts off.

The word “Mute” will appear in the lower-left corner of the screen.

2 To turn mute off, press the MUTE button again, or simply press the VOL + or VOL – button.

Viewing the Display

The display identifies the current channel and the status of certain audio-video settings.

1 Press the INFO button on the remote control.

The TV will display the channel, the type of sound, and the status of certain picture
and sound settings.

Air 28

Press the INFO button once more or wait approximately 10 seconds and it
disappears automatically.

Viewing the Menus

1 With the power on, press the MENU button.

The main menu appears on the screen. Its left side has five icons:

Picture, Sound, Channel, Setup, Input.

2 Use the ▲ or ▼ button to select one of the five icons.

Then press the ENTER button to access the icon’s sub-menu.

3 Press the EXIT button to exit.

It takes about one minute until the on-screen menu disappears.

➢

Mono

Picture Mode : Dynamic
Sound Mode : Custom
MTS : Stereo

12 : 00 am

Mode : Dynamic
Contrast 100
Brightness 45
Sharpness 75
Color 55
Tint G 50 R 50

▼

More

Move

PictureT V

Enter

►

Exit

English - 19

English - 20

Memorizing the Channels

Your TV can memorize and store all of the available channels for both “off-air” (air) and cable channels.
After the available channels are memorized, use the CH or CH button to scan through the channels.
This eliminates the need to change channels by entering the channel digits. There are three steps for memorizing
channels: selecting a broadcast source, memorizing the channels (automatic) and adding or deleting channels
(Channel Lists).

Selecting the Video Signal-source

Before your television can begin memorizing the available channels, you must specify
the type of signal source that is connected to the TV (i.e. an air or a cable system).

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Channel, then press the ENTER button.

2 Press the ENTER button select Antenna.

Press the ▲ or ▼ button to select Air or Cable, then press the ENTER button.

Press the

EXIT button to exit.

T V

Storing Channels in Memory (Automatic Method)

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Channel, then press the ENTER button.

2 Press the ▲ or ▼ button to select Auto Program, then press the ENTER button.

3 Press the ▲ or ▼ button to select the antenna connection, then press the ENTER

button.

Air: “Air” antenna signal.

➢

Cable: “Cable” antenna signal.
Air+Cable: “Air” and “Cable” antenna signals.

If the antenna is connected to ANT 2 IN(CABLE), select Cable and if it is

➢

connected to ANT 1 IN(AIR), select
If both ANT 1 IN and ANT 2 IN are connected, select the Air + Cable.

➢

If you selected Air, then go to step 5.

➢

Air.

4 Press the ▲ or ▼ to select the correct analog signal cable system source among

STD, HRC, and IRC, then press the ENTER button. If you have Digital cable,
select the cable system signal source for both Analog and Digital.

If you have Digital cable TV, select the signal source for both Analog and

➢

Digital.

STD, HRC, and IRC identify various types of cable TV systems. Contact your

➢

local cable company to identify the type of cable system that exists in your
particular area. At this point the signal source has been selected.

5 The TV begins memorizing all available stations.

If you want to stop Auto Programming, press the

ENTER button. The Stop Auto

Program? message will be displayed. Select Yes by pressing the ◄ or ► button.

Press the

➢

EXIT button to exit.

The TV must be connected to an antenna/cable in order to receive digital

Auto Program in progress.

TV signals. Even if a particular channel is deleted from the memory, you can
always tune to that channel directly by using the number buttons on the remote
control.

• All available DTV and analog channels are automatically stored in memory.

➢

Stop Auto Program?

• It takes approximately 3 to 10 minutes to memorize channels.

Move

Antenna : Air
Auto Program

Clear Scrambled Channel

Channel List
Name
Fine Tune

Signal Strength

LNA : On

Antenna : Air

Auto Program

Clear Scrambled Channel

Channel List
Name
Fine Tune

Signal Strength

LNA : On

Antenna : Air
Auto Program

Clear Scrambled Channel

Channel List
Name
Fine Tune

Signal Strength

LNA : On

Select the antennas to memorize.

Air

Cable

Air + Cable

Select the cable system.

Yes No

ChannelT V

Move

Channel

Move

ChannelT V

Move

Auto ProgramT V

Move

Auto ProgramT V

Analog

STD

HRC

IRC

Digital

STD

HRC

IRC

Move

Auto Program

68 %

Stop

Enter

Auto Program

Enter

Enter

Return

Air

Cable

Enter

Return

Enter

Return

Start
Start
Start

Return

Enter

Start

Enter

Return

Cable Channel 67

Return

68 %

Return

►
►

►

►
►
►

►

►

►
►

►

►
►
►

►

►

Setting Up Your Remote Control

RETURN

FAV.CH

RETURN

FAV.CH

After your remote control has been properly set up, your remote control can operate in five different modes:
TV, VCR, Cable, DVD, or Set-Top Box. Pressing the corresponding button on the remote control allows you to
switch among these modes, and control whichever piece of equipment you choose.

➢

The remote control might not be compatible with all DVD Players, VCRs, Cable boxes, and Set-Top Boxes.

Setting Up the Remote to Operate Your VCR

1 Turn off your VCR.

2 Press the

3 Press the SET button on your TV’s remote control.

4 Using the number buttons on your remote control, enter three digits of the VCR code listed

on page 23 of this manual for your brand of VCR. Make sure you enter three digits of the
code, even if the first digit is a “0”. (If more than one code is listed, try the first one.)

5 Press the

is set up correctly.

If your VCR does not turn on after set-up, repeat steps 2, 3 and 4, but try one of the other codes
listed for your brand of VCR. If no other codes are listed, try each VCR code, 000 through 080.

Note on Using Remote Control Modes: VCR
When your remote control is in VCR mode, the volume buttons still control your TV’s volume.

VCR button on your TV’s remote control.

POWER button on the remote control. Your VCR should turn on if your remote

Setting Up the Remote to Operate Your Cable Box

1 Turn off your cable box.

2 Press the CABLE button on your TV’s remote control.

3 Press the

4 Using the number buttons on your remote control, enter three digits of the cable box code

listed on page 24 of this manual for your brand of cable box. Make sure you enter three
digits of the code, even if the first digit is a “0”. (If more than one code is listed, try the first
one.)

5 Press the POWER button on the remote control.

Your cable box should turn on if your remote is set up correctly.

If your cable box does not turn on after set-up, repeat steps 2, 3 and 4, but try one of the other
codes listed for your brand of cable box. If no other codes are listed, try each code, 000 through

046.

Note on Using Remote Control Modes: Cable Box
When your remote control is in CABLE mode, the volume buttons still control your TV’s volume.

SET button on your TV’s remote control.

English - 21

Continued...

English - 22

Setting Up the Remote to Operate Your DVD

RETURN

FAV.CH

RETURN

FAV.CH

1 Turn off your DVD.

2 Press the

DVD button on your TV’s remote control.

3 Press the SET button on your TV’s remote control.

4 Using the number buttons on your remote control, enter three digits of the DVD code listed

on page 25 of this manual for your brand of DVD. Make sure you enter three digits of the
code, even if the first digit is a “0”. (If more than one code is listed, try the first one.)

5 Press the POWER button on the remote control.

Your DVD should turn on if your remote is set up correctly.

If your DVD does not turn on after set-up, repeat steps 2, 3 and 4, but try one of the other codes
listed for your brand of DVD. If no other codes are listed, try each code, 000 through 141.

Note on Using Remote Control Modes: DVD
When your remote control is in DVD mode, the volume buttons still control your TV’s volume.

Setting Up the Remote to Operate Your Set Top Box

1 Turn off your STB.

2 Press the STB button on your TV’s remote control.

3 Press the

4 Using the number buttons on your remote control, enter three digits of the STB code listed

on page 24 of this manual for your brand of STB. Make sure you enter three digits of the
code, even if the first digit is a “0”. (If more than one code is listed, try the first one.)

5 Press the

Your STB should turn on if your remote is set up correctly.

SET button on your TV’s remote control.

POWER button on the remote control.

If your STB does not turn on after set-up, repeat steps 2, 3 and 4, but try one of the other codes
listed for your brand of STB. If no other codes are listed, try each code, 000 through 074.

Note on Using Remote Control Modes: STB
When your remote control is in STB mode, the volume buttons still control your TV’s volume.

Continued...

Remote Control Codes

VCR

Brand

SAMSUNG
ADMIRAL
AIWA
AKAI
AUDIO DYNAMICS
BELL&HOWELL
BROKSONIC
CANDLE
CANON
CITIZEN
COLORTYME
CRAIG
CURTIS MATHES
DAEWOO
DB
DIMENSIA
DYNATECH
ELECTROHOME
EMERSON

FISHER
FUNAI
GENERAL ELECTRIC
GO VIDEO
LG(Goldstar)
HARMAN KARDON
HITACHI
INSTANT REPLAY
JC PENNEY

JCL
KENWOOD
KLH
LIOYD
LOGIK
LXI
JVC
MAGNAVOX
MARANTZ
MARTA
KONIA
ORION
MEI
MEMOREX
MGA
MIDLAND
MINOLTA

Code

000 001 002 003 004 005 077 078 079
020
025
004 027 032
007 026
018
022
002 003 006 008 015 055
021 056
002 003 006 008 015 055
007
002 024
002 007 008 017 021 025 056 064 066
003 010 011 012 013 014 015 016
007 026
017
025
034
001 003 006 021 022 025 030 032 034
040 047 050 052 060 063 065 066 067
069 073
018 024 028 029 048 051 061
025
002 005 017 021 056
002
006 007 008 009 010
007
019 025 041 042 074
021
002 007 018 019 021 026 037 041
054 056
007 008 018 021 026 037
007 008 018 026 037
070
025
038
025
081 082 083
021 056 059
007 008 018 021 026 037 062
006
036
073 074 075 076
021
006 021 024 025
034
005
019 041 075

Brand

MITSUBISHI
MONTGOMERY WARD
MTC
MULTITECH
NEC
OPTIMUS
PANASONIC
PENTAX
PENTEX RESEARCH+
PHILCO
PHILIPS
PIONEER
PORTLAND
PROSCAN
QUARTZ
QUASAR
RADIO SHACK/
REALISTIC
RCA

SANSUI
SANYO
SCOTT
SEARS
SHARP
SHIMTOM
SIGNATURE
SONY
SYLVANIA
SYMPHONIC
TANDY
TASHIKA
TATUNG
TEAC
TECHNICS
TEKNIKA
TMK
TOSHIBA
TOTEVISION
UNITECH
VECTOR RESEARCH
VICTOR
VIDEO CONCEPTS
VIDEOSONIC
WARDS

YAMAHA
ZENITH

Code

019 034 041 046
020
002 025
002 005 025 038
007 008 018 026 037 062 064
020
021 056 071 072
019 041 075
008
021 056 059
021 080
019 026 039 053
015 049 055
017
018
021 056
006 018 020 021 024 025 029 034
048 056
002 017 019 021 035 041 043 057
068 076
026
018 024
003 047 052 067
006 018 019 024 028 029 041 048 051
020 034 045 015
027 033 038 058
025
027 033 044
021 025 056 059
025
018 025
006
037
025 037 068
021
006 021 025 031
066
003 019 029 051 052
002 006
002
007 026
026
007 026
002
002 003 006 019 020 021 024 025 034
038 041
007 008 018 026 037
023 027 033

English - 23

Continued...

English - 24

CABLE BOX

Brand

SAMSUNG
GI
HAMLIN
HITACHI
JERROLD
MACOM
MAGNAVOX
OAK
PANASONIC
PHILIPS
PIONEER
RCA
REGAL

Code

000 001 002 003 004 005 006 007
041
003 024 031
025 030
038 039
025 030
019 023 028
026
003 022 027 037 044
019 021 023 028
004 018 020 044
014 022 040
003

SAMSUNG SET-TOP BOX

Product

Ground wave STB
CABLE STB
Satellite STB

SET-TOP BOX

Brand

ALPHASTAR
ANAM
CHANNEL MASTER
CROSSDIGITAL
CHAPARRAL
DIRECT TV

DAEWOO
DISH NETWORK SYSTEM
DISHPRO
DRAKE
DX ANTENNA
ECHOSTAR
EXPRESSVU
GOI
GE
GENERAL INSTRUMENT
HTS
HOME CABLE
HITACHI
HUGHES NETWORK
IQ
IQ PRISM
JANEIL
JERROID
JVC

Code

023
043
018 034
019
035
015 016 017 019 022 045 060
061 062 065 066 067 068
074
069 070
069
018 024 032
027
025 069 070 071
069
069
065
046 047 048 063 064
069
056
022
015 017
020
020
059
063
069 070

Code
000 001 002 008 013
000 004 008 013
000 003 008 013

Brand

REGENCY
SA
SCIENTIFIC ATLAN
SPRUCER
STARGATE 2000
SYLVANIA
TEXSCAN
TOCOM
UNIVERSAL
VIEWSTAR
WARNER AMEX
ZENITH

Brand

LG(Goldstar)
MAGNAVOX
MEMOREX
MOTOROLA
MACOM
MITSUBISHI
NEXT LEVEL
PHILIPS

PRIMESTAR
PANASONIC
PAYSAT
PROSCAN
RCA
RADIOSHACK
REALISTIC
STS
STAR TRAK
SKY
SKY LIFE
SHACK
STAR CHOICE
SONY
TOSHIBA
ULTIMATE TV
UNIDEN
ZENITH

Code

015 023
042 043
042 043
022
036
016
016
032
033 034
019 021 023 028
046
017 029 035 037 045

Code

044 073
016 021 036 038 039 040 041 042
016
064
018
015
047 048 064
015 016 017 021 033 036 038 039
040 041 042 067
046 049 050 063
058 059 061 062
016
065 066
051 052 053 065 066
064
057
020 027
026
031
005 006 007
064
064
054 060
015 017 028 029 030 072
060 066
016 021 037 055 056 057
024 031 068

Continued...

SAMSUNG DVD

Product

DVD
DVDR
BD Record
VCR COMBO
VCR Record
DHR COMBO

DVD

Brand

ANAM
AUDIOVOX
AUDIOLOGIC
ANABA
APEX DIGITAL

AIWA
BROKSONIC
BLAUPUNKT
B&K
CURTIS MATHES
CYBER HOME
CLARION
CIRRUS
CINEVISION
DAEWOO
DENON
FARENHEIT
FISHER
GPX
GO VIDEO
GE
GREENHILL
HITACHI
HITEKER
HOYO
HARMAN / KARDON
IRT
INTEGRA
JBL
JVC
JATON
KENWOOD
KISS
KONKA
KLH
LG(Goldstar)
LOEWE
LASONIC
MOBILE AUTHORITY
MEMOREX
MALATA
MAGNAVOX
MINTEK
MONYKA

Code

000 001 002
003 004
005 006
007 008 009 010 011
012
013

Code

030
075
085
072
070 071 074 086 083 084 088
111 112
114
062
074
122 123
027
065 077 078 079 082
080 125
081
095
066
146
067 068
090
060
061 089 133 135
069 074
074
064 113
071
073
091 110
089
092
091
022 033 115 116
073
051 108 109
073
059 100 106 107
074 075
025 031
057
058
054
055
056
076 093
074 094
073

Product

Home Theater VCR COMBO
HDD Record COMBO
TWIN TRAY COMBO
STB DVD COMBO
DVD Receiver
AV Receiver

Brand

NORCENT
NEXT BASE
NEC
NANTAUS
NESA
OPTOMEDIA ELECTRONICS
OPTIVIEW
ONKYO
PHILCO
PRINCETON
PROSCAN
PANASONIC
PHILIPS
ROTEL
RIO
RCA
RAITE
ROWA
SAMPO
SONY

SHERWOOD
SVA
SYLVANIA
SHARP
SANSUI
SANYO
SHINSONIC
SANYO
THOMSON
TOSHIBA
TECHNICS
TVIEW
TOKAI
TEAC
TECHWOOD
TREDEX
URBAN CONCEPTS
VENTURER
VOCOPRO
YAMAHA
YAMAKAWA
XWAVE
ZENITH

Code

014 015 016
017
018
019
020
021

Code

048 049 050
052
053
144
074
105
072
076 092 119
044 045
046 047
023
024 034 124 134 136 137 138
036 076
117 118
120
023 035 074 075 131 132
073
038
104
026 029 126 127 128 129
130 141
039 041
042
043 093
140
062
062
094
090
145
028 062 076
139
072
073
096
097
098 099 101
076
075
102
032 063
040 073
103
076 121

English - 25

English - 26

To Select the Source

Use to select TV or other external input sources such as DVD players or Cable Box/Satellite receivers (Set-Top
Box) connected to the TV. Use to select the input source of your choice.

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Input, then press the ENTER button.

2 Press the ENTER button to select Source List.

Source List : TV
Edit Name
Anynet+(HDMI-CEC)

InputT V

Press the ▲ or ▼ button to select the signal, then press the ENTER button.

You can choose between the following sets of jacks: AV, S-Video, Component1,

➢

Component2, PC, HDMI1, or HDMI2 on the TV’s rear panel.

HDMI1 or HDMI2 input can only be selected when the external device is turned

➢

on and connected via HDMI.

You can choose only those external devices that are connected to the TV.

➢

Press the SOURCE button on the remote control to view an external signal source.

Move

TV

AV :
S-Video :
Component1 :
Component2 :
PC :
HDMI1 :

▼

More

Move

Source ListT V

Enter

- - - -

- - - -

- - - -

- - - -

- - - -

- - - -

Enter

Return

To Edit the Input Source Name

Name the device connected to the input jacks to make your input source selection easier.

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Input, then press the ENTER button.
Press the ▲ or ▼ button to select Edit Name, then press the ENTER button.

Source List : TV
Edit Name
Anynet+(HDMI-CEC)

InputT V

Return

►
►
►

►
►
►

2 Press the ▲ or ▼ button to select AV, S-Video, Component1, Component2,

PC, HDMI1, or HDMI2 input jack,
then press the ENTER button.

3 Press the ▲ or ▼ button to select VCR, DVD, D-VHS, Cable STB, HD STB,

Satellite STB, PVR STB, AV Receiver, DVD Receiver, Game, Camcorder,
DVD Combo, PC, VOD STB, or TV input source, then press the ENTER button.

Press the

➢

EXIT button to exit.

When a PC with a resolution of 640 x 480@60Hz is connected to the

HDMI IN 1 port, you should set the HDMI1 mode to PC in the Source List of
Input mode. If the HDMI1 mode is not PC, it may work depending on the TV
setting.

Move

AV :
S-Video :
Component1 :
Component2 :
PC :
HDMI1 :

▼

More

Move

AV :

S-Video :
Component1 :
Component2 :
PC :
HDMI1 :

▼

More

Move

AV :

S-Video :
Component1 :
Componentv2 :
PC :
HDMI1 :

▼

More

Move

Enter

Edit NameT V

- - - -

- - - -

- - - -

- - - -

- - - -

- - - -

Enter

Edit NameT V

- - - -

- - - -

VCR

- - - -

DVD

- - - -

D-VHS

- - - -

Cable STB
HD STB

- - - -

Satellite STB

- - - -

PVR STB

Enter

Edit NameT V

AV Receiver

- - - -

DVD Receiver

- - - -

Game

- - - -

Camcorder

- - - -

DVD Combo
PC

- - - -

VOD STB

- - - -

TV

Enter

Return

►
►
►
►
►
►

Return

▼

Return

▲

Return

Picture Control

RETURN

FAV.CH

Using Automatic Picture Settings

Your new Plasma TV gives you optimal control over the picture you’re watching. You can change the screen size,
improve the image quality, even watch something else without turning off what you’re currently watching. Please
be aware that the best picture on this TV will be obtained from High Definition (HD) sources such as Digital cable
or DVD players.

1 Press the MENU button to display the menu.

Press the ENTER button to select Picture.

2 Press the ENTER button to select Mode.

Press the ▲ or ▼ button to select the Dynamic, Standard, or Movie picture
setting, then press the ENTER button.

• Choose Dynamic to increase the clarity and sharpness of the picture.

• Choose Standard for general TV watching mode.

• Choose Movie when watching movies.

Press the P.MODE button on the remote control to select one of the standard picture
settings.

Mode : Dynamic
Contrast 100
Brightness 45
Sharpness 75
Color 55
Tint G 50 R 50

▼

More

Mode : Dynamic

Contrast 100
Brightness 45
Sharpness 75
Color 55
Tint G 50 R 50

▼

More

Move

Move

PictureT V

Enter

PictureT V

Dynamic

Standard
Movie

Enter

►

Return

Return

3 Press the ▲ or ▼ button to select Contrast, Brightness, Sharpness, Color,

or Tint, then press the ENTER button.

4 Press the ◄ or ► button to decrease or increase the value of a particular item.

Press the ENTER button.

• In PC mode, only the Contrast and Brightness can be selected.

➢

• Each adjusted setting will be stored separately according to its input mode.

• When you make changes to

Contrast, Brightness, Sharpness, Color, or Tint, the OSD will be adjusted

accordingly.

Move

ModeT V

Enter

Return

Return

Mode : Dynamic
Contrast 100
Brightness 45
Sharpness 75
Color 55
Tint G 50 R 50

▼

More

Contrast 100

Move Adjust

►

Continued...

English - 27

English - 28

5 Press the ENTER button to return to Picture.

6 Press the ▲ or ▼ button to select Color Tone, then press the ENTER button.

7 Press the ▲ or ▼ button to select Cool2, Cool1, Normal, Warm1, or Warm2, then

press the ENTER button.

When the picture mode is set to Dynamic or Standard, Warm1 and Warm2

➢

cannot be selected.

Resetting the Picture Settings to the Factory Defaults

8 Press the ▲ or ▼ button to select Reset, then press the ENTER button.

Press the ▲ or ▼ button to select OK, then press the ENTER button.

Press the

➢

EXIT button to exit.

Each picture mode can be reset.

Move

Move

:

Move

PictureT V

PictureT V

PictureT V

Enter

Cool2

Cool1

Normal

Warm1
Warm2

Enter

OK

Cancel

Enter

▲

More
Color Tone : Cool1

Detailed Settings

Size : 16:9
Digital NR : Auto
Active Color : On
DNIe : On
Reset : OK

▲

More

Color Tone : Cool1

Detailed Settings

Size : 16:9
Digital NR : Auto
Active Color : On
DNIe : On
Reset : OK

▲

More
Color Tone : Cool1

Detailed Settings

Size : 16:9
Digital NR : Auto
Active Color : On
DNIe : On

Reset

Return

Return

Return

►

►

►
►
►
►
►

Digital Noise Reduction

If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help
reduce any static and ghosting that may appear on the screen.

1 Press the MENU button to display the menu.

Press the ENTER button to select Picture.

2 Press the ▲ or ▼ button to select Digital NR, then press the ENTER button.

3 Press the ▲ or ▼ button to select Off, Low, Medium, High, or Auto, then press

the ENTER button.

Press the

➢

EXIT button to exit.

The Digital NR function is available in all modes except PC.

▲

More
Color Tone : Cool1

Detailed Settings

Size : 16:9
Digital NR : Auto
Active Color : On
DNIe : On
Reset : OK

▲

More
Color Tone : Cool1

Detailed Settings

Size : 16:9

Digital NR : Auto

Active Color : On
DNIe : On
Reset : OK

Move

Move

PictureT V

PictureT V

Enter

Off
Low
Medium
High

Auto

Enter

Return

Return

►

►

►
►
►
►
►

Changing the Screen Size

RETURN

FAV.CH

Occasionally, you may want to change the size of the image on your screen. Your TV comes with six screen size
options, each designed to work best with specific types of video input. Your cable box or satellite receiver may
have its own set of screen sizes as well.

Move

Move

PictureT V

SizeT V

▲

Po sit io n

▼

Enter

Adjust

Re set

Return

Return

►

►

►
►
►
►
►

1 Press the MENU button to display the menu.

Press the ENTER button to select Picture.

2 Press the ▲ or ▼ button to select Size, then press the ENTER button.

3 Press the ▲ or ▼ button to select the screen format you want.

Press the ENTER button.

Press the

• 16:9 : Sets the picture to 16:9 wide mode.

• Zoom1 : Magnifies the size of the picture on the screen.

• Zoom2 : Expands the Zoom1 format picture.

• Wide Fit : Enlarges the aspect ratio of the picture to fit the entire screen.

• 4:3 : Sets the picture to 4:3 normal mode.

•

EXIT button to exit.

Just Scan : Use this function to see the full image without any cutoff when HDMI

720p/1080i signals are input.

Press the P.SIZE button on the remote control to change the picture size.

▲

More
Color Tone : Cool1

Detailed Settings

Size : 16:9
Digital NR : Auto
Active Color : On
DNIe : On
Reset : OK

16:9

Zoom1

Zoom2

Wide Fit

4:3

Just Scan

16:9

Sets the picture to 16:9 wide
mode.

Wide Fit

Enlarges the aspect ratio of
the picture to fit the entire
screen.

• In TV, VIDEO, S-VIDEO, and COMPONENT(480i, 480p) modes, all screen modes can be selected.

➢

Zoom1

The screen size when Wide
screen is vertically enlarged.

4:3

Sets the picture to 4:3 normal
mode.

Zoom2

The screen size when the Zoom1
screen is vertically enlarged.

Just Scan

Use this function to see the full
image without any cutoff when
HDMI 720p/1080i signals are input.

(16:9 ➞ Zoom1 ➞ Zoom2 ➞ 4:3)

• In COMPONENT(720p, 1080i) or HDMI(720p, 1080i) mode, 16:9, 4:3 and Wide Fit

can be selected.

• In Zoom1, Zoom2 and Wide Fit modes, you can move the picture on the screen by pressing the ▲ or ▼ button.

• You can not change the picture size when PIP is set to Double.

• When Double (

, ) mode has been set in PIP, the Picture Size cannot be set.

• Wide Fit can be used when watching a Digital HD (High Definition) signal.

• If Just Scan is selected, on picture may appear black areas caused by an external device or broadcasting not by TV.

Some cable boxes and satellite receivers have their own set of screen sizes, which may differ from the ones above.

➢

English - 29

English - 30

Making Detailed Picture Settings

Samsung’s new TVs allow you to make even more precise picture settings than
previous models. See below to make Detailed picture settings.

1 Press the MENU button to display the menu.

Press the ENTER button to select Picture.

2 Press the ▲ or ▼ button to select Detailed Settings, then press the ENTER

button.

3 Select the desired Detailed Settings option by pressing the ▲ or ▼ button,

then press the ENTER button.

4 When you are satisfied with your setting, press the ENTER button.

Press the

When the picture mode is set to Standard or Movie, Detailed Settings can be

➢

EXIT button to exit.

selected.

If DNIe is set to Off and the picture mode is in Standard mode, the Detailed

➢

Settings cannot be selected.

Black Adjust: Off/Low/Medium/High

You can select the black level on the screen to adjust the screen depth.

Dynamic Contrast: Off/Low/Medium/High

You can adjust the screen contrast so that the optimal contrast is provided.

Gamma: -3 ~ 3

You can adjust the Primary Color (Red, Green, Blue) Intensity.
Press the ◄ or ► button until you reach the optimal setting.

Color Space: Auto/Wide

Color space is a color matrix composed of red, green, and blue colors. Select your
favorite color space and experience the most natural color.

Gamma 0

White Balance: R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain/Reset

You can adjust the color temperature for more natural picture colors.
Select the required option by pressing the ▲ or ▼ button, then press the ENTER

button. Press the ◄ or ► button until you reach the optimal setting.

• R-Offset : Adjusts the red color darkness.

• G-Offset : Adjusts the green color darkness.

• B-Offset : Adjusts the blue color darkness.

• R-Gain : Adjusts the red color brightness.

• G-Gain : Adjusts the green color brightness.
B-Gain : Adjusts the blue color brightness.

•
Reset : The previously adjusted white balance will be reset to the factory defaults.

•

T V

My Color Control: Pink/Green/Blue/White/Reset

This setting can be adjusted to suit your personal preferences.
Pink/Green/Blue/White: Select the desired color by pressing the ▲ or ▼ button, then

press the ENTER button. Press the ◄ or ► button until you reach the optimal setting.

When using the My Color Control Feature, the current picture remains in

➢

T V

movement.

Reset: The previously adjusted colors will be reset to the factory defaults.

▲

More
Color Tone : Cool1
Detailed Settings
Size : 16:9
Digital NR : Auto

Active Color : On

DNIe : On
Reset : OK

Black Adjust : Medium
Dynamic Contrast
Gamma : 0
Color Space : Wide
White Balance
My Color Control
Edge Enhancement

Black Adjust : Medium

Dynamic Contrast
Gamma : 0
Color Space : Wide
White Balance
My Color Control
Edge Enhancement

Black Adjust : Medium

Dynamic Contrast

Gamma : 0
Color Space : Wide
White Balance
My Color Control
Edge Enhancement

Black Adjust : Medium
Dynamic Contrast
Gamma : 0

Color Space : Wide

White Balance
My Color Control
Edge Enhancement

R-Offset 15
G-Offset 15
B-Offset 15
R-Gain 15
G-Gain 15
B-Gain 15
Reset

Pink 15
Green 15
Blue 15
White 15
Reset

PictureT V

Move

Detailed SettingsT V

: Medium

: On

Move

Detailed SettingsT V

: Medium

: On

Move

Detailed SettingsT V

: Medium

: On

Move

Adjust

Detailed SettingsT V

: Medium

: On

Move

White Balance

Move

My Color Control

Enter

Enter

Off
Low

Medium

High

Enter

Off
Low

Medium

High

Enter

Return

Auto

Wide

Enter

Enter

Return

Return

Return

Return

Return

Return

►
►
►
►

►

►
►

►
►
►
►
►
►
►

Edge Enhancement: Off/On

You can emphasize object boundaries.

Move

Enter

Detailed SettingsT V

Black Adjust : Medium
Dynamic Contrast
Gamma : 0
Color Space : Wide
White Balance
My Color Control

Edge Enhancement

Move

: Medium

: On

Off

On

Enter

Return

Return

Active Color

If you turn on this option, the blue and green colors will be more vivid.

1 Press the MENU button to display the menu.

Press the ENTER button to select Picture.

2 Press the ▲ or ▼ button to select Active Color, then press the ENTER button.

3 Press the ▲ or ▼ button to select Off or On, then press the ENTER button.

Press the

This function is not available in PC mode.

➢

This function is not available in Standard or Movie mode.

➢

EXIT button to exit.

Move

Move

PictureT V

Enter

PictureT V

Off

On

Enter

▲

More

Color Tone : Cool1

Detailed Settings

Size : 16:9
Digital NR : Auto
Active Color : On
DNIe : On
Reset : OK

▲

More

Color Tone : Cool1

Detailed Settings

Size : 16:9
Digital NR : Auto

Active Color : On

DNIe : On
Reset : OK

Return

Return

►

►

►
►
►
►
►

DNIe (Digital Natural Image engine)

This TV includes the DNIe function to provide high visual quality. If you set DNIe to on, you can view the screen
with the DNIe feature activated. If you set the DNIe to Demo, you can view the applied DNIe and normal pictures
on the screen, for demonstration purposes. Using this function, you can view the difference in the visual quality.

1 Press the MENU button to display the menu.

Press the ENTER button to select Picture.

2 Press the ▲ or ▼ button to select DNIe, then press the ENTER button.

This function doesn’t work when the Input Source is PC.

➢

3 Press the ▲ or ▼ button to select Off, Demo or On, then press the ENTER button.

Press the

• Off: Switches off the DNIe mode.

• Demo : The screen before applying DNIe appears on the left and the screen after

• On: Switches on the DNIe mode.

➢
➢

EXIT button to exit.

applying DNIe appears on the right.

The DNIe function is not supported in the Movie mode.
DNIeTM (Digital Natural Image engine)

This feature brings you more a detailed image with detail, contrast and white
enhancement.

▲

More

Color Tone : Cool1

Detailed Settings

Size : 16:9
Digital NR : Auto
Active Color : On
DNIe : On
Reset : OK

▲

More

Color Tone : Cool1

Detailed Settings

Size : 16:9
Digital NR : Auto
Active Color : On

DNIe : On

Reset : OK

Move

Move

PictureT V

PictureT V

Enter

Off
Demo

On

Enter

Return

Return

►

►

►
►
►
►
►

English - 31

English - 32

Selecting the Film Mode

Automatically senses and processes film signals from all sources and adjusts the picture for optimum quality.

1 Press the MENU button to display the menu.

Move

Move

SetupT V

Enter

SetupT V

Enter

►

►

►

►
►

►
►

Return

Off

On

Return

Press the ▲ or ▼ button to select Setup, then press the ENTER button.

2 Press the ▲ or ▼ button to select Film Mode, then press the ENTER button.

3 Press the ▲ or ▼ button to select Off or On, then press the ENTER button.

Press the

EXIT button to exit.

▲

More

Screen Burn Protection

HDMI Black Level : Normal

Film Mode : Off

Wall-Mount Adjustment
PIP

Function Help : On
SW Upgrade

▲

More
Screen Burn Protection

HDMI Black Level : Normal

Film Mode : Off

Wall-Mount Adjustment
PIP

Function Help : On
SW Upgrade

Setting the Blue Screen Mode

If no signal is being received or the signal is very weak, a blue screen automatically replaces the noisy picture
background. If you wish to continue viewing the poor picture, you must set the “Blue Screen” mode to “Off”.

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Setup, then press the ENTER button.

2 Press the ▲ or ▼ button to select Blue Screen, then press the ENTER button.

3 Press the ▲ or ▼ button to select Off or On, then press the ENTER button.

Press the

➢

EXIT button to exit.

A Blue Screen is displayed when there is no signal from an external device,

regardless of the Blue Screen Setting.

T V

▲

More

Blue Screen : Off
Melody : Medium

PC
Home Theater PC : Off

Light Effect :
Energy Saving : Off

▼

More

T V

▲

More

Blue Screen : Off

Melody : Medium

PC
Home Theater PC : Off

Light Effect :
Energy Saving : Off

▼

More

Move

Move

Setup

Enter

Setup

In Standby

Off

On

In Standby

Enter

Return

Return

►
►

►
►

►
►

Setting the HDMI Black Level

Use this function to adjust the Black Level of the picture while in HDMI mode.

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Setup, then press the ENTER button.

2 Press the ▲ or ▼ button to select HDMI Black Level, then press the ENTER

button.

3 Press the ▲ or ▼ button to select Normal or Low, then press the ENTER button.

Press the

This function is active only when an external device is connected to a TV via HDMI.

➢

EXIT button to exit.

Move

Move

SetupT V

Enter

SetupT V

Normal

Low

Enter

▲

More

Screen Burn Protection
HDMI Black Level : Normal
Film Mode : Off

Wall-Mount Adjustment
PIP

Function Help : On
SW Upgrade

▲

More
Screen Burn Protection

HDMI Black Level : Normal

Film Mode : Off

Wall-Mount Adjustment
PIP

Function Help : On
SW Upgrade

Return

Return

►
►
►

►
►

►
►

Viewing Picture-in-Picture

RETURN

FAV.CH

This product has one built-in tuner, which does not allow PIP to function in the same mode. For example, you
cannot watch one TV channel in the main screen, and a different one in the PIP screen. Please see ‘PIP Settings’
below for details. You can use the PIP feature to simultaneously watch two video sources. (See page 38 to select
the PIP picture sound.)

While the V-Chip is in operation, the PIP function cannot be used. (Refer to page 57)

➢

Activating Picture-in-Picture

Move

Move

SetupT V

Enter

PIPT V

Off

On

Enter

Return

Return

►
►
►

►

►
►
►

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Setup, then press the ENTER button.
Press the ▲ or ▼ button to select PIP, then press the ENTER button.

2 Press the ENTER button again.

Press the ▲ or ▼ button to select On, then press the ENTER button.

If you turn the TV off while watching in PIP mode and turn it on again, the PIP

➢

window will disappear.

Main picture Sub picture

Component1,2
HDMI1, 2

Analog TV broadcasts only

PC

Press the PIP button on the remote control to activate or deactivate the PIP.

▲

More

Screen Burn Protection
HDMI Black Level : Normal
Film Mode : Off

Wall-Mount Adjustment

PIP
Function Help : On
SW Upgrade

PIP : Off

Size :
Position :
Channel : Air 3

Analog TV signals can be viewed on the PIP screen while viewing the picture from

➢

an external source (DVD, Set-top box, PC etc.) connected to the Component 1, 2,
PC and HDMI 1, 2 jacks on the main screen.

Changing the Size of the PIP Window

3 Press the ▲ or ▼ button to select Size, then press the ENTER button.

Press the ▲ or ▼ button to select the desired size of the PIP window, then press
the ENTER button.

If the main picture is in PC and HDMI 1 modes, Size is not available.

➢

You may notice that the picture in the PIP window becomes slightly unnatural

➢

when you use the main picture to view a game or karaoke.

PIP : On

Size :

Position :
Channel : Air 3

Move

PIPT V

Enter

Return

Continued...

English - 33

English - 34

Changing the Position of the PIP Window

RETURN

FAV.CH

RETURN

FAV.CH

4 Press the ▲ or ▼ button to select Position, then press the ENTER button. Press

the ▲ or ▼ button to select the desired PIP window position, then press the
ENTER button.

In Double Window (

➢

) and Double Wide ( ) modes, Position cannot be

selected.

If the PIP window is set to Double Window (

➢

mode, the screen size or alignment may slightly differ depending on the signal

) or Double Wide ( )

type.

PIP : On
Size :

Position :

Channel : Air 3

Move

PIPT V

Enter

Return

Changing the PIP Channel

5 Press the ▲ or ▼ button to select Channel, then press the ENTER button. Press

the ▲ or ▼ button at the bottom of the remote to select the desired channel in the
PIP window, then press the

The channel can be active when the sub picture is set to TV.

➢

Press the

Press the PIP CH
channel.

EXIT button to exit.

and CH

ENTER button.

and buttons on the remote control to change the PIP

Freezing the Current Picture

PIP : On
Size :
Position :

Channel : Air 3

Move

PIPT V

Enter

Air 3

▲

▲

Return

1 Press the STILL button to freeze a moving picture.

Normal sound will still be heard. Press again to cancel.

➢

To prevent screen burn-in, this function will automatically cancel after 5

➢

minutes.

While V-Chip is in operation, the Still function cannot be used.

➢

Sound Control

RETURN

FAV.CH

Using Automatic Sound Settings

Your TV has automatic sound settings (“Standard”, “Music”, “Movie”, “Speech”, and “Custom”) that are preset at
the factory. Or, you can select “Custom”, which automatically recalls your personalized sound settings.

Move

SoundT V

: Off

Enter

Standard
Music
Movie
Speech

Custom

Return

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Sound, then press the ENTER button.

2 Press the ENTER button to select Mode. Press the ▲ or ▼ button to select

Standard, Music, Movie, Speech, or Custom sound setting, then press the
ENTER button.

Press the

• Choose Standard for the standard factory settings.

• Choose Music when watching music videos or concerts.

• Choose Movie when watching movies.

• Choose Speech when watching a show that is mostly dialog (i.e., news).

• Choose Custom to recall your personalized settings (see Customizing the Sound).

Press the S.MODE button on the remote control to select one of the standard sound
settings.

EXIT button to exit.

Customizing the Sound

Mode : Custom

Equalizer
SRS TruSurround XT
Multi-Track Options
Auto Volume : Off
Internal Mute : Off

Sound Select : Main
Reset

The sound settings can be adjusted to suit your personal preference. (Alternatively, you can use one of the
“automatic” settings.)

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Sound, then press the ENTER button.

2 Press the ▲ or ▼ button to select Equalizer, then press the ENTER button.

3 Press the ◄ or ► button to select a particular frequency to adjust.

Press the ▲ or ▼ button to increase or decrease the level of the particular
frequency, then press the

Press the

➢

EXIT button to exit.

• R/L Sound Balance Adjustment: To adjust the sound balance of the R/L

ENTER button.

speakers.

• Bandwidth Adjustment (100Hz, 300Hz, 1KHz, 3KHz, 10KHz): To adjust the
level of different bandwidth frequencies.

If you make any changes to the equalizer settings, the sound mode is

➢

automatically switched to the Custom mode.

Resetting the Equalizer Settings to the Factory Defaults

To operate the Reset function, the Game mode must be set to On.
(Refer to page 51)

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Sound, then press the ENTER button.

2 Press the ▲ or ▼ button to select Reset, then press the ENTER button.

The equalizer resets to the factory defaults.

➢

Press the

EXIT button to exit.

Mode : Custom
Equalizer
SRS TruSurround XT
Multi-Track Options
Auto Volume : Off
Internal Mute : Off

Sound Select : Main
Reset

R

L

Balance

Mode : Custom
Equalizer
SRS TruSurround XT

Multi-Track Options

Auto Volume : Off
Internal Mute : Off

Sound Select : Main

Reset

SoundT V

: Off

Move

Enter

EqualizerT V

+

0

-

100Hz 300Hz 1KHz 3KHz 10KHz

Move

Adjust

SoundT V

: Off

Move

Enter

Return

+

0

-

Return

Return

►
►
►
►
►
►

►

►
►
►

►

►
►

►

English - 35

English - 36

Setting the TruSurround XT

RETURN

FAV.CH

RETURN

FAV.CH

TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over
two speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker
playback system, including internal television speakers. It is fully compatible with all multi channel formats.

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Sound, then press the ENTER button.

2 Press the ▲ or ▼ button to select SRS TruSurround XT, then press the ENTER

button.

3 Press the ▲ or ▼ button to select Off or On, then press the ENTER button.

Press the

Press the SRS button on the remote control to select On or Off.

TRADEMARK & LABEL LICENSE NOTICE

EXIT button to exit.

TruSurround XT, SRS and Symbol are trademarks of

SRS Labs, Inc.
TruSurround XT technology is incorporated under license from
SRS Labs, Inc.

Mode : Custom
Equalizer

SRS TruSurround XT

Multi-Track Options
Auto Volume : Off
Internal Mute : Off

Sound Select : Main
Reset

Move

SoundT V

: Off

Enter

Off

On

Return

Choosing a Multi-Channel Sound (MTS) Track - Digital

The digital-TV broadcast system is capable of simultaneous transmission of many audio tracks (for example,
simultaneous translations of the program into foreign languages). The availability of these additional
“multitracks” depends upon the program.

Preferred language

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Sound, then press the ENTER button.

2 Press the ▲ or ▼ button to select Multi-Track Options, then press the ENTER

button.

3 Press the ENTER button to select Preferred Language.

Press the ▲ or ▼ button to choose the language (English, Spanish, or French)
you want, then press the ENTER button.

Press the

➢

EXIT button to exit.

You can only select the language from among the actual languages being

broadcast.

Press the MTS button on the remote control to listen in a language other than the
preferred language.

Mode : Custom
Equalizer
SRS TruSurround XT
Multi-Track Options
Auto Volume : Off
Internal Mute : Off

Sound Select : Main
Reset

Preferred Language : English

Multi-Track Sound : Stereo

Move

Move

SoundT V

►

Return

Return

►
►
►
►
►

►

: Off

Enter

Multi-Track OptionsT V

English

Spanish
French

Enter

Choosing a Multi-Channel Sound (MTS) Track - Analog

RETURN

FAV.CH

Depending on the particular program being broadcast, you can listen to Mono, Stereo or SAP.

Multi-Track Sound

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Sound, then press the ENTER button.

2 Press the ▲ or ▼ button to select Multi-Track Options, then press the ENTER

button.

3 Press the ENTER button to select Multi-Track Sound.

Press the ▲ or ▼ button to select a setting you want, then press the ENTER
button.

Press the

• Choose Mono for channels that are broadcasting in mono, or if you are having

• Choose Stereo for channels that are broadcasting in stereo.

• Choose SAP to listen to the Separate Audio Program, which is usually a foreign-

Press the MTS buttons on the remote control to select Mono, Stereo, or SAP.

EXIT button to exit.

difficulty receiving a stereo signal.

language translation.

Automatic Volume Control

Reduces the difference in volume level among broadcasters.

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Sound, then press the ENTER button.

2 Press the ▲ or ▼ button to select Auto Volume, then press the ENTER button.

3 Press the ▲ or ▼ button to select Off or On, then press the ENTER button.

Press the

EXIT button to exit.

SoundT V

Mode : Custom
Equalizer
SRS TruSurround XT
Multi-Track Options
Auto Volume : Off
Internal Mute : Off

Sound Select : Main
Reset

Preferred Language : English

Multi-Track Sound : Stereo

Mode : Custom
Equalizer
SRS TruSurround XT
Multi-Track Options
Auto Volume : Off
Internal Mute : Off

Sound Select : Main
Reset

Mode : Custom
Equalizer
SRS TruSurround XT
Multi-Track Options

Auto Volume : Off

Internal Mute : Off

Sound Select : Main
Reset

Move

Multi-Track OptionsT V

Move

Move

Move

: Off

Return

Enter

Mono
Stereo
SAP

Return

Enter

SoundT V

: Off

Return

Enter

SoundT V

: Off

Off

On

Return

Enter

►
►
►
►
►
►

►

►
►
►
►
►
►

►

Selecting the Internal Mute

Sound output from the TV speakers is muted. This is useful when you want to listen to audio through your sound
system instead of the TV.

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Sound, then press the ENTER button.

2 Press the ▲ or ▼ button to select Internal Mute, then press the ENTER button.

English - 37

Mode : Custom
Equalizer
SRS TruSurround XT
Multi-Track Options
Auto Volume : Off
Internal Mute : Off

Sound Select : Main
Reset

Move

SoundT V

: Off

Enter

Continued...

Return

►
►
►
►
►
►

►

English - 38

Move

SoundT V

: Off

Off

On

Enter

3 Press the ▲ or ▼ button to select Off or On, then press the ENTER button.

Press the

➢

EXIT button to exit.

• When Internal Mute is set to On, Sound menus except Multi-track Options
cannot be adjusted.

• The left/right audio outputs and digital audio outputs (Optical) remain
enabled.

• The VOL +

, VOL - and MUTE buttons do not operate when the Internal Mute

Mode : Custom
Equalizer
SRS TruSurround XT
Multi-Track Options
Auto Volume : Off

Internal Mute : Off

Sound Select : Main
Reset

is set to On.

TV’s Internal Speakers AV, S-Video Audio Out Optical (R/L Out) to Sound System

TV AV/S-Video

Component, PC, HDMI

TV AV/S-Video

Component, PC, HDMI

Internal Mute Off Speaker Output Speaker Output Speaker Output Sound Output Sound Output Sound Output

Internal Mute On

Video No Signal

If you have an external device (DVD player/Cable Box/Satellite receiver (Set-Top Box)) connected via HDMI to the TV,

➢

Mute Mute Mute Sound Output Sound Output Sound Output

Mute Mute Mute Mute Mute Mute

audio is not output from the Optical jack.

Adjusting the TV On/Off Melody Sound

Return

The TV power on/off melody sound volume can be adjusted.

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Setup, then press the ENTER button.

2 Press the ▲ or ▼ button to select Melody, then press the ENTER button.

▲

Blue Screen : Off
Melody : Medium

PC
Home Theater PC : Off

Light Effect :
Energy Saving : Off

▼

3 Press the ▲ or ▼ button to select Off, Low, Medium, or High, then press the

ENTER button.

Press the

TRADEMARK & LABEL LICENSE NOTICE

EXIT button to exit.

Manufactured under license from Dolby Laboratories. Dolby and the double-D
symbol are trademarks of Dolby Laboratories.

▲

Blue Screen : Off

Melody : Medium

PC
Home Theater PC : Off

Light Effect :
Energy Saving : Off

▼

Listening to the Sound of the Sub (PIP) Picture

When the PIP feature is activated, you can listen to the sound of the sub (PIP) picture.

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Sound, then press the ENTER button.
2 Press the ▲ or ▼ button to select Sound Select, then press the ENTER button.
3 Press the ▲ or ▼ button to select Sub, then press the ENTER button.

Press the

• Main: Used to listen to the sound of the main picture.

• Sub: Used to listen to the sound of the sub picture.

You can select this option when PIP is set to On.

➢

EXIT button to exit.

Mode : Custom
Equalizer
SRS TruSurround XT

Multi-Track Options

Auto Volume : Off
Internal Mute : Off
Sound Select : Main
Reset

Mode : Custom
Equalizer
SRS TruSurround XT

Multi-Track Options

Auto Volume : Off
Internal Mute : Off

Sound Select : Main

Reset

More

More

More

More

Move

Move

Move

Move

SetupT V

SetupT V

SoundT V

SoundT V

: Off

: Off

In Standby

Enter

Off
Low

Medium

High

In Standby

Enter

Enter

Main

Sub

Enter

Return

Return

Return

Return

►
►

►
►

►
►

►
►
►

►

►
►
►

Channel Control

Selecting the Antenna

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Channel, then press the ENTER button.

2 Press the ENTER button to select Antenna.

Press the ▲ or ▼ button to select Air or Cable, then press the ENTER button.

Press the

Press the ANTENNA button on the remote control to select Air or Cable.

If the antenna is connected to ANT1 IN(AIR),

➢

select Air and if it is connected to ANT2 IN(CABLE),
select Cable.

If both ANT1 IN(AIR) and ANT2 IN(CABLE) are

➢

connected, select the antenna input you want. If the
antenna input is not selected properly, noise may
appear on the screen.

EXIT button to exit.

Clearing Scrambled Channels - Digital

The Clear Scrambled Channel function is used to filter out scrambled channels
after Auto Program is completed. It removes the scrambled channels from the
list by tuning the digital cable channels. This process may take up to 20-30
minutes.

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Channel, then press the ENTER button.

2 Press the ▲ or ▼ button to select Clear Scrambled Channel, then press the

ENTER button. It searches scrambled channels, which are to be removed from

the list.

To stop searching scrambled channels

Press the ▼ button to select Stop, then press the ENTER button.
Press the ◄ button to select Yes, then press the ENTER button.

3 When the scrambled channel searching is completed, press the ENTER button.

Press the EXIT button to exit.

Removing scrambled channel.

ChannelT V

Move

ChannelT V

Move

3 %

Stop

Enter

Air

Cable

Enter

Enter

Cable Channel 67

Antenna : Air

Auto Program

Clear Scrambled Channel

Channel List
Name
Fine Tune

Signal Strength

LNA : On

Antenna : Air
Auto Program
Clear Scrambled Channel
Channel List

Name
Fine Tune

Signal Strength
LNA : On

Clear Scrambled Channel

Return

Return

Return

►
►
►
►

►
►

►
►

English - 39

English - 40

Adding and Erasing Channels

You can add or delete a channel to display the channels you want. To use the Channel List function, first run Auto
Program (see page 20).

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Channel, then press the ENTER button.

2 Press the ▲ or ▼ button to select Channel List, then press the ENTER button.

3 Press the ▲ or ▼ button to select Added, then press the ENTER button.

Antenna : Air
Auto Program

Clear Scrambled Channel

Channel List
Name
Fine Tune

Signal Strength

LNA : On

All
Added
Favorite
Default List Mode : All

Move

ChannelT V

►
►

►

►
►
►

►

►

Return

Enter

Channel ListT V

►
►
►
►

4 Press the ▲/▼/◄/► buttons to select a channel to add, then press the ENTER

button.
Press the ▲ or ▼ button to select Add, then press the ENTER button to add the
channel.

Press the

➢

MENU button to return.

All added channels will be shown in the Added menu.

5 Press the ▲/▼/◄/► buttons to select a channel to delete, then press the

ENTER button.

Press the ▲ or ▼ button to select Delete, then press the ENTER button to delete
the channel.

Press the

• P.MODE (RED) button: Press repeatedly to select All, Added, or Favorite.

• S.MODE (GREEN) button: Press to add all channels deleted.

• STILL (YELLOW) button: Press to delete all channels memorized.

EXIT button to exit.

Air 2

Air 2

Air 2

Air 2

Air 3
Air 4
Air 5
Air 6
Air 7
Cable 8
Air 9

Move

Air 2

Air 3
Air 4
Air 5
Air 6
Air 7
Cable 8
Air 9

Move

Air 2

Air 3
Air 4
Air 5
Air 6
Air 7
Cable 8
Air 9

Move

Move

Enter

Channel List /Added

Cable 9
Air 10
Air 11
Cable 11
Air 12
Air 13
Air 14
Air 15

List Mode Delete All

Enter

Channel List /Added

Watch

Cable 9

Add

Air 10

Delete

Air 11

Favorite

Cable 11
Air 12
Air 13
Air 14
Air 15

List Mode Delete All

Enter

Channel List /Added

Watch

Cable 9

Add

Air 10

Delete

Air 11

Favorite

Cable 11
Air 12
Air 13
Air 14
Air 15

List Mode Delete All

Enter

Air 16

Add All

Air 16

Add All

Air 16

Return

Return

Return

Return

Setting Up Your Favorite Channels

RETURN

FAV.CH

You can set channels you watch frequently as favorites.

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Channel, then press the ENTER button.

2 Press the ▲ or ▼ button to select Channel List, then press the ENTER button.

3 Press the ▲ or ▼ button to select All or Added, then press the ENTER button.

ChannelT V

Antenna : Air
Auto Program

Clear Scrambled Channel

Channel List
Name
Fine Tune

Signal Strength

LNA : On

Move

Enter

Channel ListT V

All
Added
Favorite
Default List Mode : All

Return

►
►

►

►
►
►

►

►

►
►
►
►

4 Press the ▲/▼/◄/► buttons to select a channel as a favorite channel, then

press the ENTER button.

Press the

CH and CH button to display the next channel list page.

5 Press the ▲ or ▼ button to select Favorite, then press the ENTER button.

The “ ” symbol will be highlighted and the channel will be set as a Favorite.
To cancel your Favorite channel selection, press the

ENTER button until the

“ ” symbol disappears.

Press the

➢
➢

To select the favorite channels you have set up, press the FAV.CH button on the remote
control.

EXIT button to exit.
Only memorized channels can be set as favorite channels.
All favorite channels will be shown on the Favorite menu.

Move

Move

Move

Channel List /Added

Cable 9
Air 10
Air 11
Cable 11
Air 12
Air 13
Air 14
Air 15

List Mode Delete All

Channel List /Added

Watch

Add

Delete

Favorite

List Mode Delete All

Enter

Cable 9
Air 10
Air 11
Cable 11
Air 12
Air 13
Air 14
Air 15

Enter

Page

Page

Air 2

Air 2
Air 3
Air 4
Air 5
Air 6
Air 7
Cable 8

►

Air 9

Air 2

Air 2

Air 3
Air 4
Air 5
Air 6
Air 7
Cable 8

►

Air 9

Enter

Air 16
Cable 11
Cable 12
Cable 13
Cable 14
Cable 15
Cable 16
Cable 17

Air 16
Cable 11
Cable 12
Cable 13
Cable 14
Cable 15
Cable 16
Cable 17

Return

1/2

►

Return

1/2

►

Return

English - 41

English - 42

Viewing the Channel Lists

RETURN

FAV.CH

You can display a list of all channels, added channels or your favorite channels.

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Channel, then press the ENTER button.

2 Press the ▲ or ▼ button to select Channel List, then press the ENTER button.

3 Press the ▲ or ▼ button to select All, Added or Favorite, then press the ENTER

button.

To toggle between your all channels, add channels, or favorite channels, use the

P.MODE

(RED) button on the remote control.

• P.MODE (RED) button: Press repeatedly to select All, Added, or Favorite.

• STILL (YELLOW) button: Press to delete all channels memorized.

Air 2

Air 2
Air 3
Air 4
Air 5
Air 6
Air 7
Cable 8
Air 9

Move

ChannelT V

Antenna : Air
Auto Program

Clear Scrambled Channel

Channel List
Name
Fine Tune

Signal Strength

LNA : On

Move

Enter

Channel ListT V

All
Added
Favorite
Default List Mode : All

Move

Enter

Channel List /Added

Cable 9
Air 10
Air 11
Cable 11
Air 12
Air 13
Air 14
Air 15

List Mode Delete All

Enter

Air 16

Return

Return

Return

►
►

►

►
►
►

►

►

►
►
►
►

Setting the Default Channel List Mode

You can set All, Added, or Favorite to be the Default List that appears when you press the CH LIST button.

Move

Move

ChannelT V

►
►

►

►
►
►

►

►

Return

Enter

Channel ListT V

All

Added
Favorite

Return

Enter

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Channel, then press the ENTER button.

2 Press the ▲ or ▼ button to select Channel List, then press the ENTER button.

3 Press the ▲ or ▼ button to select Default List Mode, then press the ENTER

button.
Press the ▲ or ▼ button to select All, Added, or Favorite, then press the ENTER
button.

The Channel list you want to appear when you press the CH LIST button.

➢

• All:

Shows All the channels when you press the CH LIST button on the remote control.

• Added:

• Favorite:

Shows Added channels when you press CH LIST button on the remote control.

Shows Favorite channels when you press CH LIST button on the remote control.

Press the EXIT button to exit.

Press the CH LIST button on the remote control to bring up the Channel Lists.

Antenna : Air
Auto Program

Clear Scrambled Channel

Channel List
Name
Fine Tune

Signal Strength

LNA : On

All
Added
Favorite

Default List Mode : All

Labeling Channels

Channels can labeled so that their call letters appear whenever the channel is selected.

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Channel, then press the ENTER button. Press
the ▲ or ▼ button to select Name, then press the ENTER button.

2 Press the ▲ or ▼ button to select the channel to be assigned a new name, then

press the ENTER button.

3 Press the ▲ or ▼ button to select a letter, a number or a blank (Results in this

sequence: A~Z, 0~9, +,

-

, *, /, blank).
Press the ► button to switch to the next field, which will be selected.
Select a second letter or digit by pressing the ▲ or ▼ button, as above.
Repeat the process to select the last three digits. When you have finished,
press the ENTER button to assign the new name.
To erase the assigned new name, select

Clear by pressing the ◄ or ► button,

then press the ENTER button.

Press the

➢

EXIT button to exit.

The names of digital broadcasting channels are automatically assigned and

thus cannot be assigned by users.

Antenna : Air
Auto Program

Clear Scrambled Channel

Channel List
Name
Fine Tune

Signal Strength

LNA : On

Air 6
Air 7
Air 9
Air 11
Air 13

▼

Air 6 A
Air 7
Air 9
Air 11
Air 13

▼

Move

Move

Move

▲

▼

ChannelT V

-----

-----

-----

-----

-----

NameT V

NameT V

Enter

Enter

Adjust

►
►

►

►
►
►

►

►

Return

Clear
Clear
Clear
Clear
Clear

Return

Clear
Clear
Clear
Clear
Clear

Return

Fine Tuning Analog Channels

Use fine tuning to manually adjust a particular channel for optimal reception.

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Channel, then press the ENTER button.

2 Press the ▲ or ▼ button to select Fine Tune, then press the ENTER button.

3 Press the ◄ or ► button to adjust the fine tuning.

4 To store the fine tuning setting in the TV’s memory, press the ENTER button.

To reset the fine tuning setting, press the ▼ button to select
ENTER button.

Press the

➢
➢

EXIT button to exit.
Only analog TV channels can be fine tuned.
“ * ” will appear next to the number of fine-tuned channels.

Reset, then press the

ChannelT V

Antenna : Air
Auto Program

Clear Scrambled Channel

Channel List
Name
Fine Tune

Signal Strength

LNA : On

Move

Enter

Fine Tune

Air 4

Reset

Adjust

Air 4 * Fine Tuned

Adjust

Air 4

Move

Save

Fine Tune

Reset

Save

Fine Tune

Reset

Enter

Return

0

Return

+10

Return

0

Return

►
►

►

►
►
►

►

►

English - 43

Checking the Digital-Signal Strength

Unlike analog channels, which can vary in reception quality from “snowy” to clear, digital (HDTV) channels
have either perfect reception quality or you will not receive them at all. So, unlike analog channels, you cannot
fine tune a digital channel. You can, however, adjust your antenna to improve the reception of available digital
channels.

Move

ChannelT V

►
►
►
►

►
►

►
►

Return

Enter

Signal StrengthT V

OK

Return

Enter

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Channel, then press the ENTER button.

2 Press the ▲ or ▼ button to select Signal Strength, then press the ENTER button.

If the signal strength meter indicates that the signal is weak, physically adjust your
antenna to increase the signal strength.
Continue to adjust the antenna until you find the best position with the strongest
signal.

Press the

You can also press the

EXIT button to exit.

ENTER button to select OK then press the EXIT button to

exit the menu.

Antenna : Air
Auto Program
Clear Scrambled Channel
Channel List

Name
Fine Tune

Signal Strength
LNA : On

LNA (Low Noise Amplifier)

If the TV is operating in a weak-signal area, sometimes the LNA function can improve the reception (a low-noise
preamplifier boosts the incoming signal).

Move

Move

ChannelT V

►
►

►

►
►
►

►

►

Return

Enter

ChannelT V

Off

On

Return

Enter

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Channel, then press the ENTER button.

2 Press the ▲ or ▼ button to select LNA, then press the ENTER button.

3 Press the ▲ or ▼ button to select Off or On, then press the ENTER button.

Press the

➢
➢

EXIT button to exit.
If the picture is noisy with the LNA set to On, select Off.
The LNA setting must be made separately for each channel.

Antenna : Air
Auto Program

Clear Scrambled Channel

Channel List
Name
Fine Tune

Signal Strength

LNA : On

Antenna : Air
Auto Program

Clear Scrambled Channel

Channel List
Name
Fine Tune

Signal Strength

LNA : On

English - 44

PC Display

Using Your TV as a Computer (PC) Display

Setting Up Your PC Software (Based on Windows XP)

The Windows display-settings for a typical computer are shown below. The actual screens on your PC will probably be
different, depending upon your particular version of Windows and your particular video card. However, even if your actual
screens look different, the same basic set-up information will apply in almost all cases. (If not, contact your computer or
video card manufacturer.)

1 First, click on Control Panel on the Windows start menu.
2 When the control panel window appears, click on Appearance and Themes and a

display dialog-box will appear.

3 When the control panel window appears, click on Display and a display dialog-box

will appear.

4 Navigate to the Settings tab on the display dialog-box.

The correct size setting (resolution)

Optimum: 1360 x 768 pixels

If a vertical-frequency option exists on your display settings dialog box, the correct
value is 60 or 60 Hz. Otherwise, just click OK and exit the dialog box.

Display Modes

If the signal from the system equals the standard signal mode, the screen is adjusted automatically. If the signal
from the system doesn’t equal the standard signal mode, adjust the mode by referring to your videocard user
guide; otherwise there may be no video. For the display modes listed below, the screen image has been optimized
during manufacture.

D-Sub Input

Resolution Vertical Frequency (Hz) Horizontal Frequency (kHz) Vertical Polarity Horizontal Polarity HP-T5044

720 x 400 70.087 31.469 N P

VGA

640 x 480

SVGA 800 x 600

XGA 1024 x 768

WXGA 1360 x 768 60.015 47.712 P P

59.940 31.469 N N

72.809 37.861 N N

75.000 37.500 N N

60.317 37.879 P P

72.188 48.077 P P

75.000 46.875 P P

60.004 48.363 N N

70.069 56.476 N N

75.029 60.023 P P

HDMI/DVI Input

Resolution Vertical Frequency (Hz) Horizontal Frequency (kHz) Vertical Polarity Horizontal Polarity HP-T5044

720 x 400 70.087 31.469 N P

VGA

640 x 480 59.940 31.469 N N

SVGA 800 x 600 60.317 37.879 P P

XGA 1024 x 768 60.004 48.363 N N

WXGA 1360 x 768 60.015 47.712 P P

• The interlace mode is not supported.

• The TV operates abnormally if a non-standard video format is selected.

• The table above conforms to IBM/VESA regulations and is based on using the Analog Input.

• “

” mark means that this mode can be supported.

✔

➢ • For the HP-T5044, PC text quality is optimum in WXGA mode (1360 x 768@60Hz).

(Three pixels on left, right, top and bottom will be grayed out at the resolution setting of 1360x768@60Hz. This is not a mechanical problem
but a result caused by the pixel difference between the standard resolution and the PDP panel.)

• When this TV is used as a PC display, 32-bit color is supported.

• Depending on the manufacturer, your PC display screen might appear different. (and depending on your particular version of Windows.)
Check your PC instruction book for information about connecting your PC to a TV.

• If a vertical and horizontal frequency-select mode exists, select 60Hz (vertical) and 48.4KHz (horizontal).
In some cases, abnormal signals (such as stripes) might appear on the TV screen when the PC power is turned off (or if the PC is disconnected).

•
If so, press the SOURCE button on the remote control or TV panel to enter a VIDEO mode. Also, make sure that the PC is connected.

✔

✔

✔

✔

✔

✔

✔

✔

✔

✔

✔

✔

✔

✔

✔

✔

English - 45

English - 46

Setting up the TV with your PC

Use the Auto Adjust function to have the TV set automatically adjust the video signals it receives from the PC.
The function also automatically fine-tunes the settings and adjusts the frequency values and positions.

How to Auto Adjust

Move

Move

SetupT V

PCT V

In Standby

Enter

Enter

Return

Return

►
►
►
►
►
►

►
►

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Setup, then press the ENTER button.
Press the ▲ or ▼ button to select PC, then press the ENTER button.

2 Press the ▲ or ▼ button to select Auto Adjustment, then press the ENTER

button. The message Auto Adjustment in progress. Please wait.

appears on the

screen and the picture adjustments are automatically activated.

Press the

➢
➢

EXIT button to exit.
This function does not work in DVI-Digital mode.
Change to the PC mode first.

▲

More
Blue Screen : Off
Melody : Low
PC
Home Theater PC : Off
Light Effect :
Energy Saving : Off

▼

More

Image Lock
Position
Auto Adjustment
Image Reset

Auto Adjustment in progress. Please wait.

Adjusting the Screen Quality

The purpose of the picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by
fine tuning alone, then do the frequency adjustments to the utmost and fine tune again. After the noise has been
reduced, re-adjust the picture so that it is aligned on the center of the screen.

Change to the PC mode first.

➢

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Setup, then press the ENTER button.
Press the ▲ or ▼ button to select PC, then press the ENTER button.

2 Press the ENTER button to select Image Lock.

Image Lock
Position
Auto Adjustment
Image Reset

PCT V

►
►

3 Press the ▲ or ▼ button to select Coarse or Fine, then press the ENTER button.

Press the ◄ or ► button to adjust the screen quality, then press the

ENTER

button.

Press the

➢

EXIT button to exit.

This feature may change the width of the image. If necessary, adjust the

position to center.

Enter

Enter

Return

Return

Return

Move

Image LockT V

Coarse 50
Fine 0

Move

Coarse 50

Move Adjust

Continued...

Changing the Screen Position

You can adjust the position of the screen after connecting the TV to your PC.

Change to the PC mode first.

➢

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Setup, then press the ENTER button.
Press the ▲ or ▼ button to select PC, then press the ENTER button.

2 Press the ▲ or ▼ button to select Position, then press the ENTER button.

Image Lock
Position
Auto Adjustment
Image Reset

Move

PCT V

Enter

Return

►
►

3 Press the ▲ or ▼ button to adjust the V-Position.

Press the ◄ or ► button to adjust the H-Position.
Press the ENTER button.

Press the

EXIT button to exit.

Initializing the Screen Position

Change to the PC mode first.

➢

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Setup, then press the ENTER button.
Press the ▲ or ▼ button to select PC, then press the ENTER button.

2 Press the ▲ or ▼ button to select Image Reset, then press the ENTER button.

The message Image Reset is completed. appears on the screen.

Press the

➢

EXIT button to exit.

The previously adjusted settings will be reset to the factory defaults.

PositionT V

Enter

Adjust

PCT V

Image Lock
Position
Auto Adjustment
Image Reset

Move

Enter

Image Reset is completed.

Return

Return

►
►

Setting the Home Theater PC

This function enables you to view higher quality pictures while in PC Mode. After setting the Home Theater PC function
to On, you can go into the Detailed Settings menu and make adjustments without affecting settings in the regular TV
mode.

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Setup, then press the ENTER button.
Press the ▲ or ▼ button to select Home Theater PC, then press the ENTER
button.

2 Press the ▲ or ▼ button to select Off or On, then press the ENTER button.

Press the

This function is available only in PC mode.

➢

EXIT button to exit.

English - 47

T V

▲

Blue Screen : Off
Melody : Low
PC
Home Theater PC : Off
Light Effect :
Energy Saving : Off

▼

▲

Blue Screen : Off
Melody : Low
PC

Home Theater PC : Off

Light Effect :
Energy Saving : Off

▼

More

More

More

More

Move

Move

Setup

Enter

SetupT V

Enter

In Standby

Off

On

In Standby

Return

Return

►
►
►
►
►
►

English - 48

Time Setting

Setting the Time

Setting the clock is necessary in order to use the various timer features of the TV. Also, you can check the time
while watching the TV. (Just press the INFO button.)

Option 1: Setting the Clock Manually

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Setup, then press the ENTER button.
Press the ▲ or ▼ button to select Time, then press the ENTER button.

2 Press the ENTER button to select Clock.

3 Press the ENTER button to select Clock Mode.

Press the ▲ or ▼ button to select Manual, then press the ENTER button.

4 Press the ▲ or ▼ button to select Clock Set, then press the ENTER button.

T V

Plug & Play
Language : English
Time

Game Mode : Off

V-Chip
Caption
Menu Transparency

▼

More

Move

--/ --/ ----/ -- : -- --

Clock
Sleep Timer : Off

Timer1 : Inactivated
Timer2 : Inactivated
Timer3 : Inactivated

Move

Clock Mode : Auto

Clock Set

Time Zone
DST : Off

Move

Clock Mode : Manual
Clock Set

Time Zone
DST : Off

Setup

: Medium

Enter

TimeT V

Enter

ClockT V

Manual
Auto

Enter

ClockT V

Return

Return

Return

►
►
►

►

►
►
►

►
►

►
►
►

►
►

►
►

5 Press the ◄ or ► button to move to Month, Day, Year, Hour, Minute, or am/pm.

Set the date and time you want by pressing the ▲ or ▼ button, then press the
ENTER button.

Press the

➢
➢

EXIT button to exit.
The current time will appear every time you press the INFO button.
You can set the Month, Day, Year, Hour, and Minute directly by pressing the

number buttons on the remote control.

Move

Enter

Clock SetT V

Set current date and time.

Month Day Year

▲

--

▼

Hour Minute am/pm

--

Move

----

--

--

--

Adjust

Continued...

Return

Return

Option 2: Setting the Clock Automatically

The Clock can be set automatically if you are receiving a digital signal.

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Setup, then press the ENTER button.
Press the ▲ or ▼ button to select Time, then press the ENTER button.

2 Press the ENTER button to select Clock.

3 Press the ENTER button to select Clock Mode.

Press the ▲ or ▼ button to select Auto, then press the ENTER button.

T V

Plug & Play
Language : English
Time

Game Mode : Off

V-Chip
Caption
Menu Transparency

▼

More

Move

--/ --/ ----/ -- : -- --

Clock
Sleep Timer : Off

Timer1 : Inactivated
Timer2 : Inactivated
Timer3 : Inactivated

Move

Clock Mode : Auto

Clock Set

Time Zone
DST : Off

Setup

: Medium

Enter

TimeT V

Enter

ClockT V

Manual

Auto

Return

Return

►
►
►

►

►
►
►

►
►

►
►
►

4 Press the ▲ or ▼ button to select Time Zone, then press the ENTER button.

5 Press the ▲ or ▼ button to highlight the time zone for your local area (and to move

the highlight to the appropriate time zone on the map of the United States), then
press the ENTER button.

6 Press the ▲ or ▼ button to select DST (Daylight Saving Time), then press the

ENTER button.

Press the ▲ or ▼ button to select On or Off, then press the ENTER button.

Press the

➢

EXIT button to exit.

Depending on the broadcast station and signal, the auto time may not be set

correctly. If this occurs, set the time manually.

Antenna or Cable must be connected in order to set the time automatically.

➢

Move

T V

Select the time zone in which you live.

Newfoundland
Atlantic

Eastern

Central
Mountain
Pacific
Alaska
Hawaii

Clock Mode : Auto

Clock Set

Time Zone

DST : Off

Time Zone

Move

Move

Return

Enter

Return

Enter

ClockT V

On
Off

Return

Enter

English - 49

Continued...

English - 50

Setting the On/Off Timer

RETURN

FAV.CH

Use this feature to set the TV to turn on or off at a desired time. You must set the clock first.

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Setup, then press the ENTER button.
Press the ▲ or ▼ button to select Time, then press the ENTER button.

2 Press the ▲ or ▼ button to select Timer1, Timer2,or Timer3, then press the

ENTER button. The timer menu is displayed.

Press the ▲ or ▼ button to adjust hour, then press the ► button to move to the
next step. Set other items using the same method as above.

Plug & Play
Language : English
Time

Game Mode : Off

V-Chip
Caption
Menu Transparency

▼

More

3 Press the ◄ or ► button to select the desired item below.

Press the ▲ or ▼ button to adjust the setting.

Press the

• On Time: Select hour, minute, am/pm, and Inactivated/Activated.

• Off Time: Select hour, minute, am/pm, and Inactivated/Activated.

• Repeat: Select Once, Everyday, Mon~Fri, Mon~Sat, or Sat~Sun.

• Volume: Select the volume level you want the TV to be at when it turns on with the Timer.

• Antenna : Select Air or Cable.

• Channel : Select the required channel.

➢

EXIT button to exit.

To activate timer with the setting, set to Activated.)

(To activate timer with the setting, set to Activated.)

You can set the hour, and minute directly by pressing the number buttons on

the remote control.

Auto Power Off

➢

When you set the timer

On, the television will eventually turn off, if no controls

are operated for 3 hours after the TV was turned on by timer. This function is

1/ 1/ 2007/ 12 : 04 am

Clock
Sleep Timer : Off
Timer1 : Inactivated
Timer2 : Inactivated
Timer3 : Inactivated

On Time :

Off Time :

Repeat Volume

Antenna

12 0 am

12 0 am

Cab le

Move

only available in timer On mode and prevents overheating, which may occur if
a TV is on for too long time.

Onc e

Move

Move

Timer 1

Channel

Adjust

SetupT V

: Medium

Enter

TimeT V

Enter

Ina ctivat e

Ina ctivat e

3

10

Return

Return

Return

►
►
►

►

►
►
►

►
►
►
►
►

Setting the Sleep Timer

The sleep timer automatically shuts off the TV after a preset time (30, 60, 90, 120, 150 and 180 minutes).

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Setup, then press the ENTER button.
Press the ▲ or ▼ button to select Time, then press the ENTER button.

2 Press the ▲ or ▼ button to select Sleep Timer, then press the ENTER button.

3 Press the ▲ or ▼ button to select the minute.

Setting the Timer sets the

Activation to On automatically.

To cancel the set sleep timer:

Press the ► button to select
Press the ▲ or ▼ button to select

Press the

Press the SLEEP button on the remote control until the appropriate time interval appears
(any of the preset values from 30 min to 180 min).

EXIT button to exit.

Activation.

Off, then press the ENTER button.

1/ 1/ 2007/ 12 : 04 am

Clock
Sleep Timer : Off
Timer1 : Inactivated
Timer2 : Inactivated
Timer3 : Inactivated

TimeT V

Move

Enter

Sleep TimerT V

Set sleep timer.

Minute Activation

▲

---

Off

▼

Move

Adjust

Sleep TimerT V

Set sleep timer.

Minute Activation

▲

30

On

▼

Move

Adjust

Return

Return

Return

►
►
►
►
►

Function Description

Selecting a Menu Language

Setting the clock is necessary in order to use the various timer features of the TV. Also, you can check the time
while watching the TV. (Just press the INFO button.)

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Setup, then press the ENTER button.
Press the ▲ or ▼ button to select Language, then press the ENTER button.

2 Press the ▲ or ▼ button to select the appropriate language: English, Español, or

Français, then press the ENTER button.

Press the

EXIT button to exit.

Using the Game Mode

T V

Plug & Play
Language : English
Time

Game Mode : Off

V-Chip
Caption
Menu Transparency

▼

More

Plug & Play

Language : English

Time

Game Mode : Off

V-Chip
Caption
Menu Transparency

▼

More

Move

Move

Setup

: Medium

Enter

SetupT V

English

Español
Français

: Medium

Enter

Return

Return

►
►
►

►

►
►
►

When connecting to a game console such as PlayStationTM or XboxTM, you can enjoy a more realistic gaming
experience by selecting game menu.

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Setup, then press the ENTER button.

2 Press the ▲ or ▼ button to select Game Mode, then press the ENTER button.

3 Select Off or On by pressing the ▲ or ▼ button, then press the ENTER button.

4 Press the EXIT button to exit.

Restrictions on Game mode (Caution)

➢

• To disconnect the game console and connect another external device, set
the Game mode to Off in the setup menu.

• If you display the TV menu in Game mode, the screen shakes slightly.

• The mark (

) appears on the screen which means that Game Mode is on

with the selected source.

If Game Mode is On

➢

Plug & Play

Language : English
Time
Game Mode : Off

V-Chip
Caption

Menu Transparency

▼

More

Plug & Play

Language : English
Time

Game Mode : Off

V-Chip
Caption

Menu Transparency

▼

More

SetupT V

: Medium

Move

Enter

SetupT V

Off

On

: Medium

Move

Enter

AV

Game Mode

Return

Return

• Picture Mode is automatically changed to Game and cannot be changed.

• Sound Mode in the Sound menu is deactivated. You must adjust the sound using the equalizer.

• The Reset in the Sound menu is activated. The Reset function restores Equalizer settings to the factory default
settings.

Game Mode is not available in regular TV/Antenna mode.

➢

If the picture is poor when a game console is connected to the TV, check if the Game Mode is On. Set Game Mode

➢

to Off and connect external devices.

►

►
►
►

►
►

►

English - 51

English - 52

Viewing Closed Captions (On-Screen Text Messages) - Digital

RETURN

FAV.CH

The Digital Captions function operates on digital channels.

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Setup, then press the ENTER button.

2 Press the ▲ or ▼ button to select Caption, then press the ENTER button.

3 Press the ENTER button to select Caption.

Press the ▲ or ▼ button to select On, then press the ENTER button.

4 Press the ▲ or ▼ button to select Caption Mode, then press the ENTER button.

Press the ▲ or ▼ button to select submenu (Default, Service1~Service6,
CC1~CC4 or Text1~Text4) you want, then press the ENTER button.

5 Press the ▲ or ▼ button to select Caption Options, then press the ENTER

button.

6 Press the ▲ or ▼ button to select Size, then press the ENTER button.

Press the ▲ or ▼ button to select the desired caption option, then press the
ENTER button.
Press the ▲ or ▼ button to select the desired sub-menu options (see options
below), then press the ENTER button.

Press the

➢
➢
➢
➢

• Size: This option consists of Default, Small, Standard, and Large. The default is Default.

• Font Style: This option consists of Default, Style0 ~ Style7. You can change the font you

• Foreground Color: This option consists of Default, White, Black, Red, Green, Blue,

• Background Color: This option consists of Default, White, Black, Red, Green, Blue,

• Foreground Opacity: This option consists of Default, Transparent, Translucent, Solid,

• Background Opacity: This option consists of Default, Transparent, Translucent, Solid,

• Return to Default: This option sets each of Size, Font Style, Foreground Color,

Press the CAPTION button on the remote control to select On or Off.

EXIT button to exit.

The availability of captions depends on the program being broadcast.
Default means to follow the standard set by the broadcaster.
Foreground and Background cannot be set to have the same color.
Foreground Opacity and Background Opacity cannot be both set to

Transparent.

want. The default is

Yellow
The default is Default.

Yellow

the caption. The default is

Background Color, Foreground Opacity, and Background Opacity
to its default.

Default.

, Magenta, and Cyan. You can change the color of the letter.

, Magenta, and Cyan. You can change the background color of

Default.

and Flashing. You can change the opacity of the letter.

and Flashing. You can change the background opacity of the
caption.

Size : Default
Font Style : Default
Foreground Color : Default
Background Color : Default
Foreground Opacity : Default
Background Opacity : Default
Return to Default

SetupT V

Plug & Play
Language : English
Time

Game Mode : Off

V-Chip
Caption
Menu Transparency

▼

More

Caption : Off

Caption Mode : Default
Caption Options

Caption : On
Caption Mode : Default
Caption Options

Caption : Off

Caption Mode : Default

Caption Options

Caption : On
Caption Mode : Default
Caption Options

Move

Move

Move

Move

Move

Move

Caption OptionsT V

: Medium

Enter

CaptionT V

Off

On

Enter

CaptionT V

Enter

CaptionT V

Default

Service1
Service2
Service3
Service4
Service5
Service6
CC1

Enter

CaptionT V

Enter

Enter

►

▼

►

Return

Return

Return

Return

Return

►
►
►

►

►
►
►

►

►

►

►

►
►
►
►
►
►
►

Viewing Closed Captions (On-Screen Text Messages) - Analog

RETURN

FAV.CH

The Analog Caption function operates in either analog TV channel mode or external signal mode. (Depending on
the broadcasting signal, the Analog Caption function may operate on digital channels.)

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Setup, then press the ENTER button.

2 Press the ▲ or ▼ button to select Caption, then press the ENTER button.

Plug & Play
Language : English
Time

Game Mode : Off

V-Chip
Caption
Menu Transparency

▼

More

Caption : Off

Caption Mode : Default
Caption Options

Move

SetupT V

: Medium

Enter

CaptionT V

Off

On

Return

►
►
►

►

►
►
►

3 Press the ENTER button to select Caption.

Press the ▲ or ▼ button to select On, then press the ENTER button.

4 Press the ▲ or ▼ button to select Caption Mode, then press the ENTER button.

Press the ▲ or ▼ button to select submenu (CC1~CC4 or Text1~Text4) you want,
then press the ENTER button.

Press the

• The default is Default.

• CC1: The Primary Synchronous Caption Service. These are captions in the primary

• CC2: The Special Non-Synchronous Use Captions.This channel carries data that is intended

• CC3: Secondary Synchronous Caption Service.

• CC4: Special Non-Synchronous Use Captions. Similar to CC2.

• Text1: First Text Service. This may be various non-program related data.

• Text2: Second Text Service. Additional data, usually not program related.

• Text3/Text4: Third and Fourth Text Services. These data channels should be used only if

➢

EXIT button to exit.

language that must be in sync with the sound, preferably matched to a specific frame.

to augment information carried in the program.

Alternate program-related caption data, typically second language captions.

Text1 and Text2 are not sufficient.

• The Caption feature doesn’t work in COMPONENT, PC, HDMI(DVI) modes.

• The availability of captions depends on the program being broadcast.

Move

Enter

CaptionT V

Caption : On
Caption Mode : Default

Caption Options

Move

Enter

CaptionT V

Move

Default
CC1
CC2
CC3
CC4
Text 1
Text 2
Text 3
Text 4

Enter

Caption : Off

Caption Mode : Default

Caption Options

Return

►

Return

Return

►

►

You can also press the CAPTION button on the remote control to select Captions

On or Off.

English - 53

English - 54

Menu Transparency Level

Adjusts the transparency of the menu screen.

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Setup, then press the ENTER button.

2 Press the ▲ or ▼ button to select Menu Transparency, then press the ENTER

button.

3 Press the ▲ or ▼ button to select level, then press the ENTER button.

Press the

EXIT button to exit.

Setting the Light Effect

SetupT V

Plug & Play
Language : English
Time

Game Mode : Off

V-Chip
Caption
Menu Transparency

▼

More

Plug & Play
Language : English
Time

Game Mode : Off

V-Chip
Caption

Menu Transparency

▼

More

Move

Move

: Medium

Enter

SetupT V

High

Medium

Low
Opaque

: Medium

Enter

Return

Return

►
►
►

►

►
►
►

You can turn the blue LED on the front of your TV on/off.

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Setup, then press the ENTER button.

2 Press the ▲ or ▼ button to select Light Effect, then press the ENTER button.

Press the ▲ or ▼ button to select Off, In Standby, In Watching TV, or Always,
then press the ENTER button.

Press the

• Off: The LED is always off.

• In Standby:

• In Watching TV:

• Always: The LED is always lit.

Set the Light Effect to Off to reduce power consumption.

➢

EXIT button to exit.

The LED lights while in Standby mode and it turns off when your TV is turned on.

The LED lights when watching TV and it turns off when your TV is turned off.

T V

▲

More
Blue Screen : Off
Melody : Low

PC
Home Theater PC : Off

Light Effect :
Energy Saving : Off

▼

More

▲

More
Blue Screen : Off
Melody : Low

PC
Home Theater PC : Off

Light Effect :

Energy Saving : Off

▼

More

Move

Move

Setup

In Standby

Enter

SetupT V

Off

In Standby

In Watching TV
Always

In Standby

Enter

►
►

►
►

►
►

Return

Return

Using the Energy Saving Feature

This feature adjusts the power consumption of the unit in order to save energy.

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Setup, then press the ENTER button.

2 Press the ▲ or ▼ button to select Energy Saving, then press the ENTER button.

Press the ▲ or ▼ button to select Off, Low, Medium, or High, then press the
ENTER button.

Press the

• Off: Switches off the Energy Saving mode.

• Low: Operates in standard mode.

• Medium: Enters medium power saving mode.

• High: Enters maximum power saving mode.

EXIT button to exit.

Preventing Screen Burn-in

Move

Move

SetupT V

SetupT V

In Standby

Enter

Off
Low

In Standby

Mideum

High

Enter

▲

More
Blue Screen : Off
Melody : Low

PC
Home Theater PC : Off

Light Effect :
Energy Saving : Off

▼

More

▲

More
Blue Screen : Off
Melody : Low

PC
Home Theater PC : Off

Light Effect :

Energy Saving : Off

▼

More

►
►

►
►

►
►

Return

Return

To reduce the possibility of screen burn, this unit is equipped with screen burn prevention technology. This
technology enables you to set picture movement up/down (Vertical Line) and side to side (Horizontal Dot).
The Time setting allows you to program the time between movement of the picture in minutes.

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Setup, then press the ENTER button.

2 Press the ▲ or ▼ button to select Screen Burn Protection, then press the

ENTER button.

3 Press the ENTER button to select Pixel Shift, then press the ENTER button.

Pressing the ▲ or ▼ button will alternate between On and Off.
You will also see the items

• Pixel Shift: Using this function, you can minutely move pixels on the PDP in horizontal or
vertical direction to prevent after-images on the screen.

Horizontal Dot, Vertical Line and Time.

4 Press the ▲ or ▼ button to select the item you wish to change, then press the

ENTER button.

Press the ▲ or ▼ button to change the value of the item, then press the ENTER
button.

▲

More
Screen Burn Protection

HDMI Black Level : Normal

Film Mode : Off

Wall-Mount Adjustment
PIP

Function Help : On
SW Upgrade

Pixel Shift
White
Scrolling
Side Gray : Light

Pixel Shift : On

Horizontal Dot : 2
Vertical Line : 2
Time : 1

Move

Screen Burn ProtectionT V

Move

SetupT V

Enter

Enter

Pixel ShiftT V

Off

On

• Optimum condition for pixel shift;

PC

Horizontal Dot 1 2

Vertical Line

Time(min)

Press the

EXIT button to exit.

1 2
2 2

TV/AV/S-Video/

Component/HDMI

Enter

0
1

2

3
4

Return

Move

Pixel ShiftT V

Pixel Shift : On

Horizontal Dot : 2

Vertical Line : 2
Time : 1

Return

Return

►

►

►

►
►

►
►

►
►
►
►

English - 55

Move

Enter

Return

English - 56

Reducing the Effects of Screen Burn

If screen burn has occurred, you can select a white screen or signal pattern (rolling screen) to help remove screen
burn artifacts.

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Setup, then press the ENTER button.

2 Press the ▲ or ▼ button to select Screen Burn Protection, then press the

ENTER button.

3 Press the ▲ or ▼ button to select White, Scrolling, or Side Gray, then press the

ENTER button.
Press the EXIT button to exit.

White

This function removes after-images on the screen by changing the color of pixels to
white. Use this function when there are remaining after-images or symbols on the
screen especially when you displayed a still image on the screen for a long time.

Screen Burn ProtectionT V

Pixel Shift

White

Scrolling

Side Gray : Light

Move

Enter

Screen Burn ProtectionT V

Pixel Shift

White

Scrolling

Side Gray : Light

Return

►
►
►
►

►
►
►
►

Scrolling

This function removes after-images on the screen by moving all the pixels on the PDP
according to a pattern. Use this function when there are remaining after-images or
symbols on the screen especially when you displayed a still image on the screen for a
long time.

Side Gray

Move

Enter

Screen Burn ProtectionT V

Pixel Shift

White

Scrolling

Side Gray : Light

Dark

Light

Return

When you watch TV with the screen ratio of 4:3, the screen is prevented from any
damage by adjusting the white balance on both extreme left and right sides.
To prevent the screen burn from happening, select Dark or Light.

• Dark: When you set the screen ratio to 4:3, it darkens the left and right sides.

• Light: When you set the screen ratio to 4:3, it brightens the left and right sides.

To remove after-images on the screen, use either the White or Scrolling function. Although both functions remove

➢

Move

Enter

after-images on the screen, Scrolling is more effective.

The after-image removal function has to be executed for a long time (approximately 1 hour) to effectively remove after-

➢

images on the screen. If the after-image is not removed after performing the function, repeat the function again.

Press any key on the remote control to cancel this feature.

➢

Setting the Function Help

Displays help on the menu functions.

Move

Move

SetupT V

Return

Enter

SetupT V

Off

On

Return

Enter

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Setup, then press the ENTER button.

2 Press the ▲ or ▼ button to select Function Help, then press the ENTER button.

3 Press the ▲ or ▼ button to select Off or On, then press the ENTER button.

Press the

➢

EXIT button to exit.

The Function Help default setting is On.

▲

More
Screen Burn Protection

HDMI Black Level : Normal

Film Mode : Off

Wall-Mount Adjustment
PIP

Function Help : On
SW Upgrade

▲

More
Screen Burn Protection

HDMI Black Level : Normal

Film Mode : Off

Wall-Mount Adjustment
PIP

Function Help : On

SW Upgrade

Return

►

►

►

►
►

►
►

Upgrading the Software

Samsung may offer upgrades for your TV’s firmware in the future. Please contact the Samsung call center at
1-800-SAMSUNG to receive information about downloading upgrades and using a USB drive. Upgrades will be
possible by connecting a USB drive to the USB port located on the rear of your TV.

1 Insert a USB drive containing the firmware upgrade into the USB Upgrade Port on

the rear of the

2 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Setup, then press the ENTER button.

3 Press the ▲ or ▼ button to select SW Upgrade, then press the ENTER button.

4 Press the ▲ or ▼ button to select USB, then press the ENTER button.

The message Scanning for USB... It may take up to 30 seconds. is displayed.

5 If the firmware on the USB is properly recognized, the message Upgrade version

xxxx to version xxxx? The system would be reset after upgrade. is displayed.

Press the ◄ or ► button to select OK, then press the ENTER button.
The upgrade starts.

Please be careful to not disconnect the power or remove the USB drive while

upgrades are being applied.
The

TV will shut off and turn on automatically after completing the firmware
upgrade.
Please check the firmware version after the upgrades are complete.

The firmware and upgrade process may be different by country and region.

➢

TV.

▲

More
Screen Burn Protection

HDMI Black Level : Normal

Film Mode : Off

Wall-Mount Adjustment
PIP

Function Help : On
SW Upgrade

USB

Scanning for USB...
It may take up to 30 seconds.

SetupT V

Move

SW UpgradeT V

Move

SW Upgrade

Enter

Enter

Return

Return

►

►

►

►
►

►
►

►

SW Upgrade

Upgrade version XXXX to version XXXX ?
The system would be reset after upgrade.

OK Cancel

Using the V-Chip

The V-Chip feature automatically locks out programs that are deemed inappropriate for children. The user must
enter a PIN (personal ID number) before any of the V-Chip restrictions are set up or changed.

When the V-Chip feature is activated, the PIP features do not function.

➢

The V-Chip does not work if the input is DTV (HD or SD).

➢

V-Chip function is not available in HDMI or component mode.

➢

Setting Up Your Personal ID Number (PIN)

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Setup, then press the ENTER button.

2 Press the ▲ or ▼ button to select V

-Chip, then press the ENTER button.

The message Enter PIN will appear. Enter your 4 digit PIN number.

The default PIN number of a new TV set is 0-0-0-0.

➢

T V

Plug & Play
Language : English
Time

Game Mode : Off

V-Chip
Caption
Menu Transparency

▼

More

Enter PIN

Setup

Move

V-ChipT V

* * * *

0~9 Enter PIN

: Medium

Enter

Return

Return

►
►
►

►

►
►
►

English - 57

Continued...

English - 58

3 The V-Chip screen will appear.

Press the ▲ or ▼ button to select Change PIN, then press the ENTER button. The
Change PIN screen will appear. Choose any 4 digits for your PIN and enter them.
Re-enter the same 4 digits. When the message PIN is changed successfully. is
displayed, your PIN has been memorized.

Press the

➢

EXIT button to exit.

If you forget the PIN, press the remote-control buttons in the following

sequence, which resets the pin to 0-0-0-0 : Power Off. → Mute → 8 → 2 → 4
→ Power On.

V-ChipT V

V-Chip Lock : Off

TV Parental Guidelines
MPAA Rating
Canadian English
Canadian French
Downloadable U.S. Rating

Change PIN

Move

Enter

Change PINT V

Enter new PIN

Confirm new PIN

Return

►

►
►
►
►
►

►

How to Enable/Disable the V-Chip

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Setup, then press the ENTER button.

2 Press the ▲ or ▼ button to select V-Chip, then press the ENTER button.

The message Enter PIN will appear. Enter your 4 digit PIN number.

3 The V-Chip screen will appear.

To enable the V-Chip feature, press the

ENTER button so that the V-Chip Lock
field is On. (Pressing the ▲ or ▼ button will alternate between On and Off.)
Press the ENTER button.

Press the

EXIT button to exit.

How to Set up Restrictions Using “TV Parental Guidelines”

First, set up a personal identification number (PIN), and enable the V-Chip.
(See previous section.) Parental restrictions can be set up using either of two
methods: The TV guidelines or the MPAA rating.

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Setup, then press the ENTER button.

0~9 Enter PIN

Enter PIN

*

0~9 Enter PIN

V-Chip Lock : Off

TV Parental Guidelines
MPAA Rating
Canadian English
Canadian French
Downloadable U.S. Rating

Change PIN

Move

T V

Plug & Play
Language : English
Time

Game Mode : Off

V-Chip
Caption
Menu Transparency

▼

More

Move

V-ChipT V

* *

V-ChipT V

Setup

V-ChipT V

*

Off

On

Enter

: Medium

Enter

Return

Return

Return

Return

►
►
►

►

►
►
►

2 Press the ▲ or ▼ button to select V-Chip, then press the ENTER button.

The message Enter PIN will appear. Enter your 4 digit PIN number.

Enter PIN

*

0~9 Enter PIN

* *

*

Continued...

Return

3 The V-Chip screen will appear. Press the ▲ or ▼ button to select TV Parental

Guidelines, then press the ENTER button.

4 The TV Parental Guidelines screen will appear.

Press the ▲ or ▼ button to select one of the six aged based categories:

• TV-Y: All children. The themes and elements in this program are specifically designed

for a very young audience, including children from ages two to six.

V-Chip Lock : On
TV Parental Guidelines
MPAA Rating
Canadian English
Canadian French
Downloadable U.S. Rating
Change PIN

V-ChipT V

Move

• TV-Y7: Directed to older children. The themes and elements in this program may

include mild physical or comedic violence, or may frighten children under the age of

TV Parental GuidelinesT V

seven.

• TV-G: General audience. It contains little or no violence, no strong language, and little

or no sexual dialog or situations.

• TV-PG: Parental guidance suggested. This program may contain infrequent coarse

language, limited violence, some suggestive sexual dialog and situations.

• TV-14: Parents strongly cautioned. This program may contain sophisticated themes,

sexual content, strong language and more intense violence.

• TV-MA: Mature audiences only. This program may contain mature themes, profane

Move

language, graphic violence and explicit sexual content.

5 At this point, one of the TV-Ratings is selected.

Press the ENTER button. Depending on your existing setup, the “ ” symbol will be selected.
(Blank = Unblocked, = Blocked) While “ ” is selected, press the ENTER button to block or unblock the category.
To select a different TV-Rating, press the ▲ or ▼ button and then repeat the process.

Allow all: Press to unlock all TV ratings.

➢

Block all: Press to lock all TV ratings.

The TV-Y, TV-Y7, TV-G, TV-PG, TV-14 and TV-MA have additional options.

➢

See the next step to change any of the following sub-ratings:

• FV: Fantasy violence.

• D: Sexually suggestive dialog.

• L: Adult language.

• S: Sexual situation.

• V: Violence.

Enter

Enter

Return

Allow All
Block All

Return

►
►
►
►
►
►
►

The V-Chip will automatically block certain categories that are “more restrictive”. For example, if you block TV-Y

➢

category, then TV-Y7 will automatically be blocked. Similarly, if you block the TV-G category, then all the categories
in the “young adult” group will be blocked (TV-G, TV-PG, TV-14, and TV-MA). The subratings (D, L, S, V) work
together similarly.
(See next section.)

6 How to set the FV, D, L, S and V sub-ratings. First, select one of these TV-Ratings: TV-Y, TV-Y7, TV-G, TV-PG, TV-14,

or TV-MA (See Step

4), and press the ENTER button. The “ ” symbol will be displayed for each sub-rating. While “ ”
is selected, press the ► button to go to a sub rating.
Press the ENTER to block the sub rating. To select a different TV-Rating,
press the ▲ or ▼ button and then repeat the process.

7 Press the EXIT button to clear all the screens. (Or proceed to the next section, and set up additional restrictions based

on the MPAA codes.)

These categories consist of two separate groups: TV-Y and TV-Y7 (young children through age 7), and TV-G

➢

through TV-MA (everybody else).
The restrictions for these two groups work independently: If a household includes very young children as well as
young adults, the TV guidelines must be set up separately for each age group.

English - 59

Continued...

English - 60

How to Set up Restrictions Using “MPAA Ratings” (G, PG, PG-13, R, NC-17, X, NR )

The MPAA rating system uses the Motion Picture Association of America (MPAA) system, and its main application
is for movies. When the V-Chip lock is on, the TV will automatically block any programs that are coded with
objectionable ratings (either MPAA or TV-Ratings).

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Setup, then press the ENTER button.

2 Press the ▲ or ▼ button to select V-Chip, then press the ENTER button.

The message

Enter PIN will appear. Enter your 4 digit PIN number.

3 The V-Chip screen will appear. Press the ▲ or ▼ button to select MPAA Rating,

T V

Plug & Play
Language : English
Time

Game Mode : Off

V-Chip
Caption
Menu Transparency

▼

More

Enter PIN

Move

*

Setup

V-ChipT V

* *

: Medium

Enter

*

Return

►
►
►

►

►
►
►

then press the ENTER button.

Enter

Return

Return

Allow All
Block All

►
►
►
►
►
►
►

4 Press the ▲ or ▼ button to select an appropriate restriction.

Press the ENTER button to activate the restriction selected.
The “ ” symbol is indicated. While “ ” is selected, press the ENTER button to
block or unblock the category.

Press the

➢

EXIT button to exit.

Allow all: Press to unlock all TV ratings.

Block all: Press to lock all TV ratings.

0~9 Enter PIN

V-ChipT V

V-Chip Lock : On
TV Parental Guidelines
MPAA Rating
Canadian English
Canadian French
Downloadable U.S. Rating
Change PIN

Move

MPAA RatingT V

• G: General audience (no restriction).

• PG: Parental guidance suggested.

• PG-13: Parents strongly cautioned.

• R: Restricted. Children under 17 should be accompanied by an adult.

Move

Enter

• NC-17: No children under age 17.

• X: Adults only.

• NR: Not rated.

The V-Chip will automatically block any category that is “more restrictive”. For example, if you block the PG-13

➢

category, then R, NC-17 and X will automatically be blocked also.

How to Set up Restrictions Using “Canadian English” (for Canada Models)

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Setup, then press the ENTER button.

2 Press the ▲ or ▼ button to select V-Chip, then press the ENTER button.

The message Enter PIN will appear. Enter your 4 digit PIN number.

T V

Plug & Play
Language : English
Time

Game Mode : Off

V-Chip
Caption
Menu Transparency

▼

More

Enter PIN

Setup

Move

V-ChipT V

* * * *

0~9 Enter PIN

: Medium

Enter

Continued...

Return

Return

Return

►
►
►

►

►
►
►

3 The V-Chip screen will appear. Press the ▲ or ▼ button to select Canadian

English, then press the ENTER button

4 Press the ▲ or ▼ button to select an appropriate restriction.

Press the ENTER button to activate the restriction selected. The “ ” symbol is
indicated.

Press the

➢

EXIT button to exit.

Allow all: Press to unlock all TV ratings.

Block all: Press to lock all TV ratings.

V-Chip Lock : On
TV Parental Guidelines
MPAA Rating
Canadian English
Canadian French
Downloadable U.S. Rating
Change PIN

T V

V-ChipT V

Move

Canadian English

Enter

Return

Allow All

Block All

►
►
►
►
►
►
►

• C: Programming intended for children under age 8.

• C8+:

Programming generally considered acceptable for children 8 years and over to watch

Move

on their own.

• G: General programming, suitable for all audiences.

• PG: Parental guidance.

• 14+: Programming contains themes or content which may not be suitable for viewers

under the age of 14.

• 18+: Adult programming.

The V-Chip will automatically block any category that is “more restrictive”. For example, if you block G category,

➢

then PG, 14+ and 18+ will automatically be blocked also.

How to Set up Restrictions Using “Canadian French” (for Canada Models)

Plug & Play

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Setup, then press the ENTER button.

2 Press the ▲ or ▼ button to select V-Chip, then press the ENTER button.

The message Enter PIN will appear. Enter your 4 digit PIN number.

3 The V-Chip screen will appear. Press the ▲ or ▼ button to select Canadian

Language : English
Time

Game Mode : Off

V-Chip
Caption
Menu Transparency

▼

More

Move

French, then press the ENTER button.

4 Press the ▲ or ▼ button to select an appropriate restriction.

Press the ENTER button to activate the restriction selected. The “ ” symbol is
indicated.

Press the

➢

EXIT button to exit.

Allow all: Press to unlock all TV ratings.

Block all: Press to lock all TV ratings.

• G:

General.

• 8 ans+: Not recommended for young children.

• 13 ans+: Programming may not be suitable for children under the age of 13.

• 16 ans+: Programming is not suitable for children under the age of 16.

• 18 ans+: Programming restricted to adults.

The V-Chip will automatically block any category that is “more restrictive”. For

➢

example, if you block 8 ans+ category, then 13 ans+, 16 ans+ and

Enter PIN

* * * *

0~9 Enter PIN

V-Chip Lock : On
TV Parental Guidelines
MPAA Rating
Canadian English
Canadian French
Downloadable U.S. Rating
Change PIN

Move

18 ans+ will automatically be blocked also.

Canadian FrenchT V

Enter

SetupT V

: Medium

Enter

V-ChipT V

V-ChipT V

Enter

Return

Return

Return

Return

Allow All
Block All

►
►
►

►

►
►
►

►
►
►
►
►
►
►

English - 61

Move

Return

Enter

Continued...

English - 62

Using the V-Chip for Digital channels

Parental restriction information can be used while watching DTV channels.

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Setup, then press the ENTER button.

2 Press the ▲ or ▼ button to select V-Chip, then press the ENTER button.

The message Enter PIN will appear. Enter your 4 digit PIN number.

3 The V-Chip screen will appear. Press the ▲ or ▼ button to select Downloadable

U.S. Rating, then press the ENTER button.

If information is not downloaded from the broadcasting station, the

➢

Downloadable U.S. Rating menu is deactivated.

Parental restriction information is automatically downloaded while watching

➢

DTV channels. It may take several seconds.

The Downloadable U.S. Rating menu is available for use after information

➢

is downloaded from the broadcasting station. However, depending on the
information from the broadcasting station, it may not be available for use.

4 Press the ▲ or ▼ button to select an appropriate restriction.

Press the ENTER button to activate the restriction selected.
The “ ” symbol is indicated.

Press the

➢

EXIT button to exit.

Allow all: Press to unlock all TV ratings.

Block all: Press to lock all TV ratings.

Parental restriction levels differ depending on the broadcasting station.

➢

The default menu name and downloadable US rating changes depending on

➢

the downloaded information.

Even if you set the on-screen display to your desired language, the

➢

Downloadable U.S. Rating menu will appear in English only.

The rating will automatically block certain categories that are more restrictive.

➢

The rating titles (for example: Humor Level..etc) and TV ratings (for example:

➢

DH,MH,H..etc) may differ depending on the broadcasting station.

T V

Plug & Play
Language : English
Time

Game Mode : Off

V-Chip
Caption
Menu Transparency

▼

V-Chip Lock : On
TV Parental Guidelines
MPAA Rating
Canadian English
Canadian French
Downloadable U.S. Rating
Change PIN

Rating title

T V

Setup

More

Enter PIN

The number of
current rating
information

Humor Level ► 1/2

: Medium

Move

Enter

V-ChipT V

* * * *

0~9 Enter PIN

V-ChipT V

Move

Enter

Downloadable U.S. Rating

DH
MH
H
VH
EH

Move

Enter

The number of
all the rating
information

Return

Return

Return

Allow All
Block All

Return

►
►
►

►

►
►
►

►
►
►
►
►
►
►

How to Reset the TV after the V-Chip Blocks a Channel (“Emergency Escape”)

If the TV is tuned to a restricted channel, the V-Chip will block it. The screen
will go blank and the following message will appear:

1 Enter your PIN.

To resume normal viewing, tune to a different channel using

CH or

CH button. Under certain conditions (depending on the rating of the local TV

programs) the V-Chip might lock out all the channels. In this case, use the
V-Chip function for an “emergency escape”:

2 Press the MENU button. Press the ▲ or ▼ button to select Setup, then press the

ENTER button.

3 Press the ▲ or ▼ button to select V-Chip, then press the ENTER button.

4 Enter your PIN, then press the ENTER button, and press the ▲ or ▼ button to

temporarily disable the V-Chip Lock.

If you forget the PIN, press the remote-control buttons in the following

➢

sequence, which resets the pin to 0-0-0-0 : Power Off. →

MUTE → 8 → 2 →

4 → Power On.

Channel Is Locked by

TV-PG[ S ]

Use the NUMBER buttons to enter your

pin number to unlock all channels.

Press EXIT to clear PIN.

Press MENU for main menu.

Channel Is Locked by

TV-PG[ L ]

Use the NUMBER buttons to enter your

pin number to unlock all channels.

Press EXIT to clear PIN.

Press MENU for main menu.

About Anynet

+

What is Anynet+?

Anynet+ is a function that enables you to control all connected Samsung devices that support Anynet+ with your
Samsung TV’s remote.

Connecting Anynet+ Devices

The Anynet+ system can be used only with Samsung devices that have the Anynet+ feature. To be sure your
Samsung device has this feature, check if there is an Anynet+ logo on it.

To connect to a TV

TV

Anynet+ Device 1 Anynet+ Device 2

Connect the [HDMI IN 1] or
[HDMI IN 2] jack on the TV
and the HDMI OUT jack of the
corresponding Anynet
using an HDMI cable.

+

device

HDMI Cable

To connect to

Connect the Optical cable between the Digital Audio Out (Optical) jack on your TV and the Digital Audio Input on the

➢

Home Theater.

Connect only one Home Theater.

➢

When following the connection above, the Optical jack only outputs 2 channel audio. You will only hear sound from the

➢

Home Theater’s Front Left and Right speakers and the subwoofer. If you want to hear 5.1 channel audio, connect the
DIGITAL AUDIO OUT (OPTICAL) jack on the DVD player or Cable/Satellite Box (i.e. Anynet Device 1 or 2) directly to
the Amplifier or Home Theater, not the TV. Please see the home theater’s user manual for more information.

You can connect an Anynet+ device using the HDMI Cable. Some HDMI cables may not support Anynet+ functions.

➢

Anynet

➢

Anynet

➢

a Home Theater

TV

Optical Cable

+

works when the AV device supporting Anynet

+

supports up to 12 AV devices in total. Note that you can connect up to 3 devices of the same type.

HDMI Cable

HDMI Cable

HDMI Cable

Home Theater

Anynet+ Device 1

Anynet+ Device 2

HDMI Cable

+

is in the Standby or On status.

1. Connect the [HDMI IN 1] or
[HDMI IN 2] jack on the TV
and the HDMI OUT jack of
the corresponding Anynet
device using an HDMI
cable.

2. Connect the HDMI IN jack
of the home theater and
the HDMI OUT jack of the
corresponding Anynet
device using an HDMI
cable.

+

+

English - 63

English - 64

Setting Up Anynet

+

The following settings help set the Anynet+ functions.

To use the Anynet+ Function, Anynet+ (HDMI-CEC) must be set to On

1 Press the Anynet+ button.

Press the ▲ or ▼ button to select Setup, then press the ENTER button.

2 Press the ENTER button to select Anynet+ (HDMI-CEC), then press the

ENTER button.

TV Air 28

Receiver: On

Connect Recorder

Setup

3 Press the ▲ or ▼ button to select On, then press the ENTER button.

The Anynet+ (HDMI-CEC) function is enabled.

➢

If you select Off, Anynet+ (HDMI-CEC) is disabled.

➢

When the Anynet+ (HDMI-CEC) function is disabled, all the Anynet+ related

➢

operations are deactivated.

Move

Anynet+ (HDMI-CEC)

Auto Turn Off

Searching Connections

Move

Exit

Enter

Anynet+ Setup

: Off

: Off

Off

On

Enter Return

Setting an Anynet+ Device to turn Off Automatically when the TV is Turned Off

2 Press the ▲ or ▼ button to select Auto Turn Off, then press the ENTER button.

3 Press the ▲ or ▼ button to select On, then press the ENTER button.

The Auto Turn Off function is enabled.

➢

If you select Off, the Auto Turn Off function is canceled.

➢

Press the

The active source on the TV remote must be set to TV to use the Anynet+ function.

➢

If you set Auto Turn Off to On, connected external devices are also turned off when the TV is turned off.

➢

EXIT button to exit.

Anynet+ (HDMI-CEC)

Auto Turn Off

Searching Connections

Move

Anynet+ Setup

: On

: Off

Enter Return

Off

On

If an external device is still recording, it may or may not turn off.

Scanning and Switching between Anynet+ Devices

1 Press the Anynet+ button.

+

Anynet

➢

devices connected to the TV are listed.

2 Press the ▲ or ▼ button to select a particular device and press the ENTER button.

It is switched to the selected device.

3 If you cannot find a device you want, press the ▲ or ▼ button to select Searching

Connections, then press the ENTER button.

The message Configuring Anynet

+

connection... is displayed.
When searching devices complete, the connected devices are listed in the Anynet+
menu.

Switching to the selected devices may take up to 2 minutes. You cannot cancel the

➢

operation during the switching operation.

The time required to scan for devices is determined by the number of connected

➢

devices.

When the device scan is complete, the number of devices found are not displayed.

➢

Although the TV automatically scans devices when it is turned on using the POWER button, devices connected when

➢

the TV is already on are not displayed in the device list. In this case, select the Searching Connections menu to search
devices.

If you have selected an external device by pressing the SOURCE button, you cannot use the Anynet+ function. Make

➢

sure to switch to an external Anynet

+

device by using the Anynet+ button.

TV Air 28

Receiver: On

Connect Recorder

Setup

Move

Anynet+ (HDMI-CEC)

Auto Turn Off

Searching Connections

Move

Exit

Enter

Anynet+ Setup

: On ►

: On ►

Enter Return

►

Continued...

Anynet+ Menu

+

The Anynet

View TV Switches from Anynet

Record Starts a recording. (This menu works only for a device supporting recording.)

(Device_Name) Menu Shows the menu of the connected device.

(Device_Name) Operation Shows the play control menu of the connected device.

Connect (Device_Name) Your TV connects to the corresponding device.

Receiver Sound is output through the receiver (home theater).

Setup You can set the Anynet+ (HDMI-CEC), auto turn off, and searching connections for using

menu changes depending on the type and status of the Anynet+ devices connected to the TV.

Anynet+ Menu Description

+

to TV broadcast mode.

Example: When a DVD Recorder is connected, the DVD Recorder’s title menu appears.

Example: When a DVD Recorder is connected, the play control menu of the DVD Recorder
appears.

Anynet+.

TV Remote Control Buttons Available in Anynet+ Mode

Device Type Operating Status Available Buttons

Numeric buttons
After switching to the device, when the menu of the
corresponding device is displayed on the screen.

Anynet+ Device

After switching to the device, while playing a file

Device with built-in Tuner

Audio Device When a Receiver is activated

After switching to the device, when you are watching
a TV program

▲/▼/◄/►/ENTER buttons

Color buttons

EXIT button

◄◄ (Backward search)

►►(Forward search)

(Stop)

 

►

(Play/Pause)

CH ▲/▼ button

VOL +/- button

MUTE button

The Anynet

➢

The REC button works only while in the recordable state.

➢

You cannot control Anynet

➢

+

function only works when the active source on the TV remote control is set to TV.

+

devices using the buttons on the side of the TV. You can control Anynet

+

devices only

using the TV remote control.

The TV remote control may not work under certain conditions. In this case, reselect the Anynet+ device.

➢

The Anynet

➢

The ◄◄, ►► operations may differ depending on the device.

➢

+

functions do not operate with other manufacturers’ products.

Recording

You can make a recording of a TV program using a recorder.

Press the REC button.
Recording begins. (Only when the Anynet

You can record the source streams by selecting Record after pressing the Anynet+ button.

➢

Pressing the REC button will record whatever you are currently watching. If you are watching video from another

➢

device, the video from the device is recorded.

Before recording, check whether the antenna jack is properly connected to the recording device.

➢

To properly connect an antenna to a recording device, refer to the recording devices users manual.

+

enabled recording device is connected.)

English - 65

English - 66

Listening through a Receiver (Home theater)

You can listen to sound through a receiver instead of the TV speaker.

1 Press the Anynet+ button.

Press the ▲ or ▼ button to select Receiver, then press the ENTER button.

2 Press the ◄ or ► button to select to On, then press the ENTER button.

Now you can listen to sound through the receiver.

3 Press the EXIT button to exit.

When the receiver (home theater) is set to On, you can hear sound output from the TV’s

➢

Optical jack. When the TV is displaying a DTV(air) signal, the TV will send out 5.1 channel
sound to the Home theater receiver. When the source is a digital component such as a DVD
and is connected to the TV via HDMI, only 2 channel sound will be heard from the Home Theater receiver.

If your receiver supports audio only, it may not appear in the device list.

➢

The receiver will work when you have properly connected the Optical IN jack of the receiver to the Optical Out jack of

➢

the TV.

When using the WISELINK feature, sound may not output properly through the receiver.

➢

When listening through the receiver, there are restrictions for using the PIP and audio-related(MTS, Preferred

➢

language) menus.

TV Air 28

Receiver: On

Connect Recorder

Setup

Move

Enter

Exit

Troubleshooting for Anynet

Symptom Solution

Anynet+ does not work. ■ Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices

+

I want to start Anynet

I want to exit Anynet

The message Connecting to
Anynet+ device... appears on the
screen.

The Anynet

The connected device is not
displayed.

The TV program cannot be
recorded.

The TV sound is not output through
the receiver.

+

device does not play. You cannot use the play function when Plug & Play is in progress.

. ■ Check if the Anynet+ device is properly connected to the TV and check if the Anynet+

+

. ■ Select View TV in Anynet+ menu.

+

only.

■ Connect only one receiver (home theater).

■ Check if the Anynet+ device power cord is properly connected.

■ Check the Anynet+ device’s Video/Audio/HDMI Cable connections.

■ Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu.

■ Check whether the TV remote control is in TV mode.

■ Check whether it is Anynet+ exclusive remote control.

■ Anynet+ doesn’t work at a certain condition. (Searching channels, Operating WISELINK)

■ When connecting or removing the HDMI Cable, please make sure to search devices
again or restart your TV.

■ Check if the Anynet+ Function of Anynet+ device is set on.

(HDMI-CEC) is set to On in the Anynet+ Setup menu.

■ Press the TV button on the TV remote control to switch to TV. Then press the Anynet+
button to show the Anynet+ menu and select a menu you want.

■ Press the SOURCE button on the TV remote control and select a device other than
Anynet+ devices.

■ Press any of CH, CH LIST, PRE-CH, and FAV.CH to change the TV mode.
(Note that the channel button operates only when an Anynet+ device with a built-in tuner
is not connected.)

■ You cannot use the remote control when you are configuring Anynet+ or switching to a
view mode.

■ Use the remote control when the Anynet+ setting or switching to view mode is complete.

■ Check whether or not the device supports Anynet+ functions.

■ Check whether or not the HDMI Cable is properly connected.

■ Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu.

■ Search Anynet+ devices again.

■ You can connect an Anynet+ device using the HDMI Cable only. Some HDMI cables may
not support Anynet+ functions.

Check whether the antenna jack on the recording device is properly connected.

Connect the optical cable between TV and the receiver.

Appendix

Troubleshooting

If the TV seems to have a problem, first try this list of possible problems and solutions.
If none of these troubleshooting tips apply, call your nearest Samsung service center.

Problem Possible Solution

Poor picture quality. Try another channel.

Poor sound quality. Try another channel.

No picture or sound. Try another channel.

No sound or sound is too low at
maximum volume.

Picture rolls vertically. Check all connections.
The TV operates erratically. Unplug the TV for 30 seconds, then try operating it again.
The TV won’t turn on.
Remote control malfunctions Replace the remote control batteries.

Digital broadcasting screen problem. Please check the digital signal strength and input antenna.

The image is too light or too dark. Adjust the Brightness and Contrast.

The image is too large or too small. Adjust the Size settings.
The visual qualities of digital channels

vary.

Screen is black and power indicator
light blinks steadily.

Although the TV caption shows HD,
the visual quality is not satisfactory.

The damaged picture appears in the
corner of the screen.

Adjust the antenna.
Check all wire connections.

Adjust the antenna.

Press the SOURCE button.
Make sure the TV is plugged in.
Check the antenna connections.
Make sure the MUTE button is off.

First, check the volume of units connected to your TV (digital broadcasting receiver, DVD, cable
broadcasting receiver, VCR, etc.). Then, adjust the TV volume accordingly.

Make sure the wall outlet is working.

Clean the upper edge of the remote control (transmission window).
Check the battery terminals.
Press the TV button to put your remote control in the TV mode.
Make sure the remote has batteries.
Check that the “+” and “-” ends of the batteries are inserted correctly.

Adjust the Fine tuning.

The visual qualities of digital channels may vary depending on the original production method
(analog or digital).

- If the original production method is digital: High visual quality.

- If the original production method is analog: The digital program displayed on the screen is
originally an analog program which has been converted to digital.

The visual quality is of an SD(Standard Definition) grade.
On your computer; check the Power and Signal Cable.

The TV is using its power management system.
Move the computer’s mouse or press any key on the keyboard.

On your equipment check (STB, DVD, etc) ; Power and Signal Cable.
The TV is using its power management system.
Press the Source button on the panel or remote control.
Turn the TV off and on.

The HD(High Definition) caption that appears when switching channels or when pressing the
Information button on the remote control means the selected channel is a digital channel. If the
broadcasting station converts an analog signal into digital and transmits the signal, the visual
quality may not be perfect.

If Just Scan is selected in some external devices, the damaged picture may appear in the
corner of the screen. This symptom is caused by external devices, not TV.

English - 67

English - 68

Wall- mount adjustment (Sold separately)

RETURN

FAV.CH

Once the wall mount is installed, the position of your TV can be easily adjusted.

TV Rear Panel

EX-LINK Cable (Not supplied)

Entering the menu

1 Press the ▲, ▼, ◄ or ► button on your remote control.

The Wall Mount Adjustment screen is displayed.

➢

If the Wall Mount Adjustment screen is not displayed when clicking on a direction

➢

button while watching your TV, use the menu to display that screen.

• Press the

MENU button to display the menu. Press the ▲ or ▼ button to select

Setup, then press the ENTER button.

• Press the ▲ or ▼ button to select Wall-Mount Adjustment

, then press the

ENTER button.

Remembering the Position

2 Adjust to the desired position using the ▲,▼,◄,► buttons.

If you press an arrow button when no OSD is displayed on the TV screen, the

➢

Adjustment screen appears.

Press the INFO button to reset. Press the ◄ or ► button to select Yes, then

➢

press the ENTER button. The position is initialized to the default setting.

3 Press the blue button.

Press the ▲ and ▼ buttons to select a save mode from either Position1, Position2
or Position3 in order to save the current position.

To not save the current position, press the RETURN button.

➢

When selecting a save mode, you cannot use the Color buttons.

➢

4 Press the ENTER button to save.

When Position1 is selected, the message Current position saved as

➢

Position1 is displayed.

5 Press the ENTER button.

The saved Position appears on the left side of the OSD.

➢

Moving to the remembered position

1 Complete Step 1 of Entering the menu.
2 Pressing a Color (Red, Green, Yellow) button moves the auto wall mount to the

saved position.

You can move the wall mount to one of the 3 pre-set positions by pressing the

➢

Red (Position 1), Green (Position 2) or Yellow (Position 3) buttons.

If you adjust the positon after moving to a pre-set position, the position display

➢

will disappear.

For installation, refer to the Installation Manual provided with the wall mount.

➢

For product installation and the installation and moving of the wall mount, make sure to consult a specialized

➢

installation company.

This installation manual is to be used when attaching the wall mount to a wall. When attaching to other building

➢

materials, please contact your nearest dealer.

The auto wall mount will not work when Anynet+ is operating.

➢

Auto Wall-Mount

Move

Save

Save

Position1

Position2

Position3

Enter

Save

SetupT V

Return

Enter

1 2 3

INFO

Center

Return

1 2 3

INFO

Center

►
►
►
►

►

►
►

▲

More
Screen Burn Protection
HDMI Black Level : Normal
Film Mode : Off
Wall-Mount Adjustment

PIP

Function Help : On
SW Upgrade

Wall-Mount Adjustment

Position1

Position

Adjust

Select a mode to Save.

Adjust

Wall-Mount Adjustment

Position1

Position

Adjust

Wall Mount Kit Specifications (VESA)

Install your wall mount on a solid wall perpendicular to the floor.
When attaching to other building materials, please contact your nearest dealer.
If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.

Product Family inch VESA Spec. (A * B) Standard Screw Quantity

23 ~ 26 200 * 100 M4

32 ~ 40 200 * 200 M6

46 ~ 52 600 * 400

LCD-TV

PDP-TV

We provided the standard dimensions for wall mount kits as shown in the table above.

➢

When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are

➢

provided.

Do not use screws longer than the standard dimension, as they may cause damage to the inside of the TV set.

➢

For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ

➢

depending on their specifications.

Do not use screws that do not comply with the VESA standard screw specifications.

➢

Do not use fasten the screws too strongly, this may damage the product or cause the product to fall, leading to
personal injury. Samsung is not liable for these kinds of accidents.

Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used

➢

or the consumer fails to follow the product installation instructions.

Our 57” and 63” models do not comply with VESA Specifications. Therefore, you should use our dedicated wall

➢

mount kit for this model.

Do not exceed 15 degrees tilt when mounting this TV.

➢

Do not install your Wall Mount Kit while your TV is turned on.
It may result in personal injury due to electric shock.

57

57 ~ 70 800 * 400

80 ~ 1400 * 800

42 ~ 58 600 * 400

70 800 * 400

63 No VESA 6

80 ~ 1400 * 800 4

700 * 400

(No VESA)

M8

M8

4

4

English - 69

English - 70

How to assemble the Stand-Base (depending on the model)

Using the 4 screws for securing the stand base and the monitor, firmly attach the monitor to the stand base.
(The exterior of the set may be different than the picture.)

Warning

Firmly secure the stand to the TV before moving it, as the stand may fall
and could cause serious injury.

Two or more people should carry the TV. Never lay the TV on the

➢

floor because of possible damage to the screen. Always store the TV
upright.

Specifications

Model Name HP-T5044

Screen Size (Diagonal) 50 inch

PC Resolution 1360 x 768 @ 60 Hz

Sound (Output) 10W + 10W

Dimension (W x H x D)

Body

With stand

Weight

Body
With stand

Environmental Considerations

Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity

This device is a Class B digital apparatus.

➢

Design and specifications are subject to change without prior notice.

➢

For the power supply and Power Consumption, refer to the label attached to the product.

➢

48.3 X 31.6 X 3.8 inches

(1,227.1 X 802.2 X 95.5 mm)

48.3 x 33.3 x 13.4 inches

(1,227.1 X 844.8 X 340.1 mm)

94 lbs (42.6 kg)

108 lbs (49.0 kg)

50 °F to 104 °F (10 °C to 40 °C)

10% to 80%, non-condensing

-4 °F to 113 °F (-20 °C to 45 °C)
5% to 95%, non-condensing

Dimensions

TOP VIEW

FRONT VIEW

JACK PANEL DETAIL 2.3"H x 18.8"W @ 5.8" UP FROM BOTTOM

SIDE VIEW

REAR VIEW

English - 71

Contact SAMSUNG WORLD-WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

Contacte con SAMSUNG WORLD-WIDE

Si tiene alguna pregunta o comentario referente a nuestros productos, por favor contacte con nuestro Servicio de Atención al Cliente.

Country

CANADA 1-800-SAMSUNG (7267864) www.samsung.com/ca

U.S.A 1-800-SAMSUNG (7267864) www.samsung.com/us

Customer Care Center 

Web Site

Samsung Electronics Canada Inc., Customer Service
55 Standish Court Mississauga, Ontario L5R 4B2
Canada

Samsung Electronique Canada Inc., Service à la Clientèle
55 Standish Court Mississauga, Ontario L5R 4B2
Canada

Samsung Electronics America, Inc.
105 Challenger Road
Ridgefield Park, NJ 07660-0511

Address

BN68-01192T-00
