Page 1
Disassembly
Step 1 Step 2
-1/1-

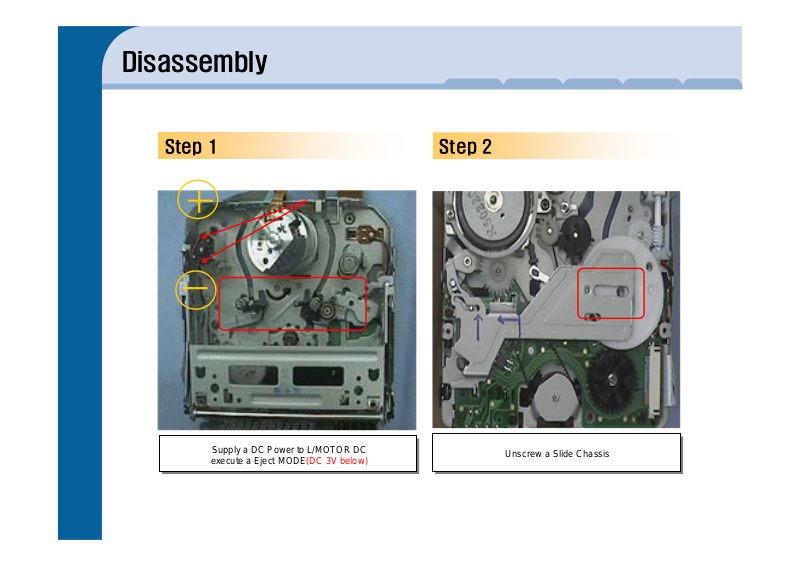

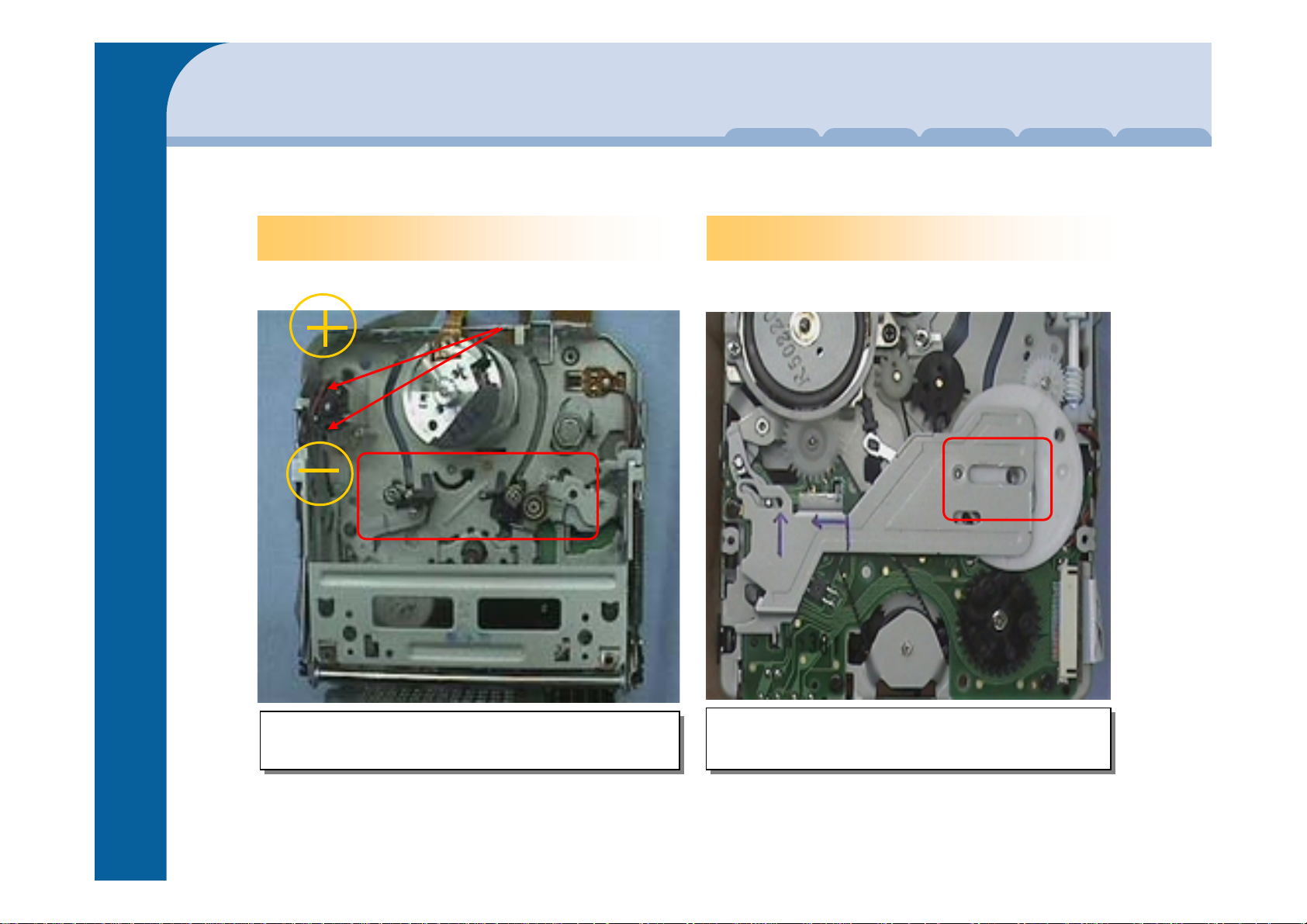

Supply a DC Power to L/MOT OR DC
Supply a DC Power to L/MOT OR DC
execute a Eject MODE(DC 3V below)
execute a Eject MODE(DC 3V below)
Unscrew a Slide Chassis
Unscrew a Slide Chassis
Page 2
Step 3 Step 4
-2/1-

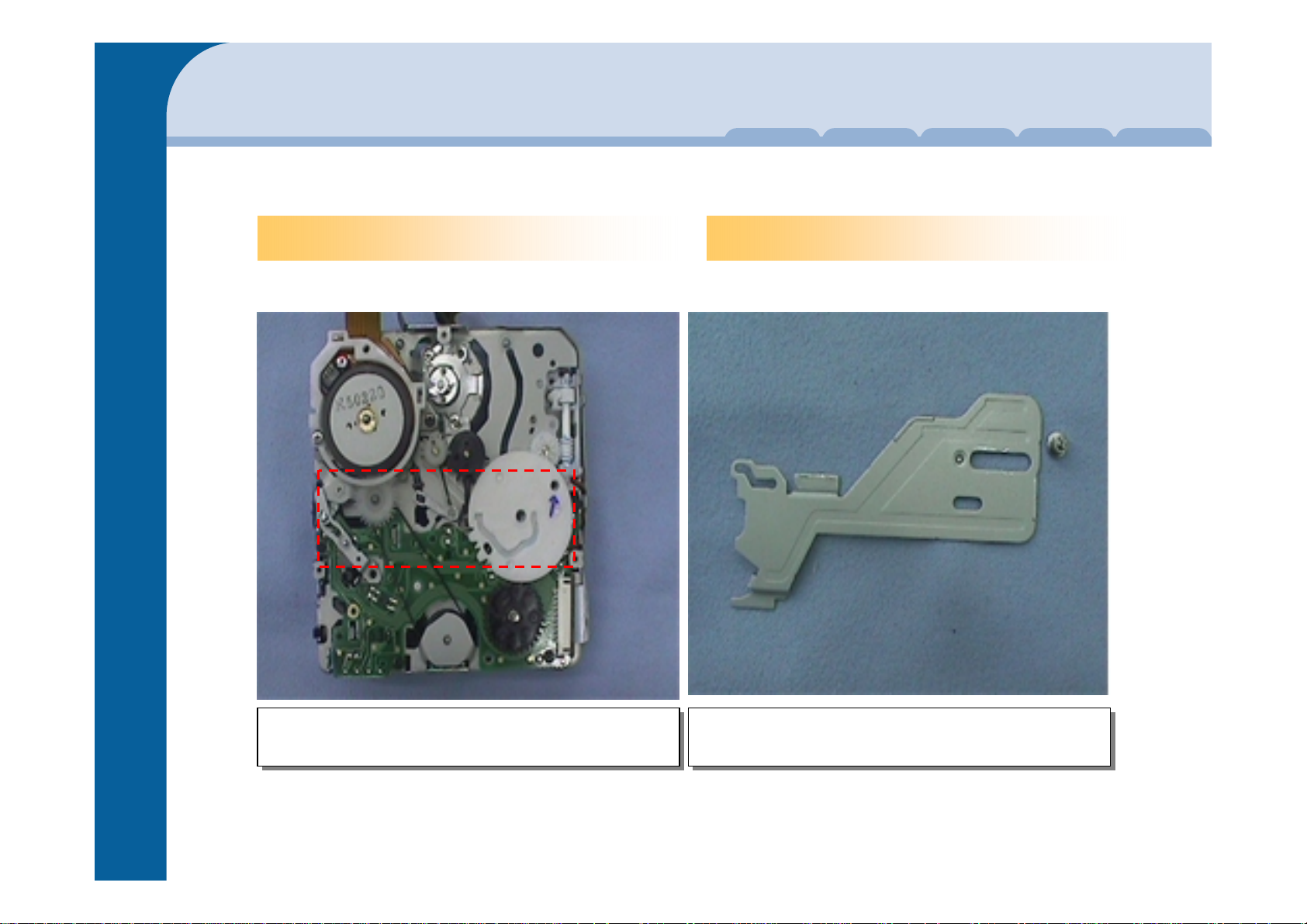

Disassembly Slide Chassis.
Disassembly Slide Chassis.
Separated a Slide chassis
Separated a Slide chassis
Page 3
Modification
a
a

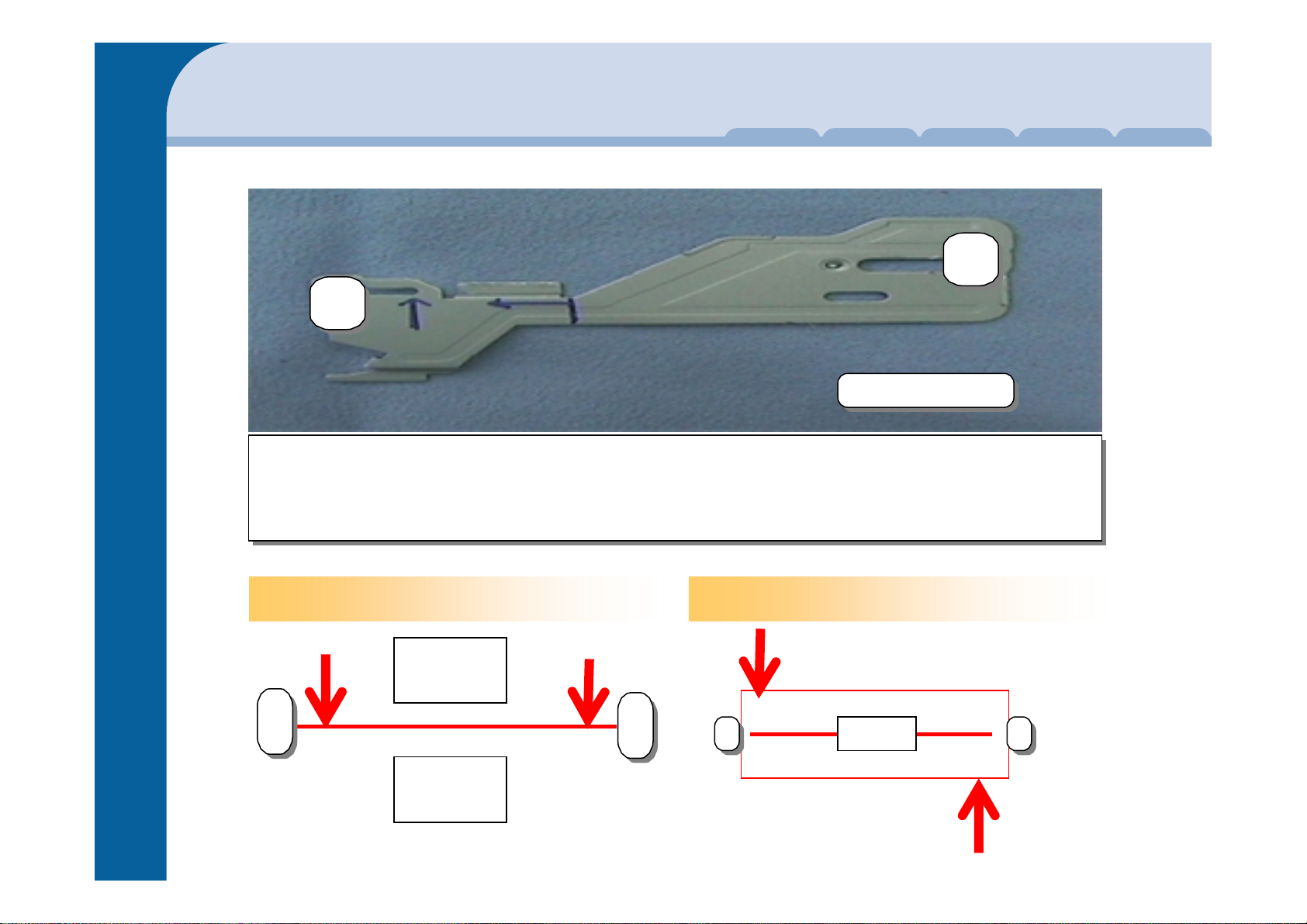

1. replace a new Slide Main Chassis ( Recommend )
1. replace a new Slide Main Chassis ( Recommend )
2. Modification of Slide Main Chassis
2. Modification of Slide Main Chassis
( Bend a little, not too much. ( First, Down and Twist direction))
( Bend a little, not too much. ( First, Down and Twist direction))
b
b
code: AD66-00327A
code: AD66-00327A
-3/1-
First Second
Front
a
a
Back
b
b
a Front
a
b
b
Page 4
Assembly
Step 1
1
1
3
3
2
1
1
2
-4/1-
2
2

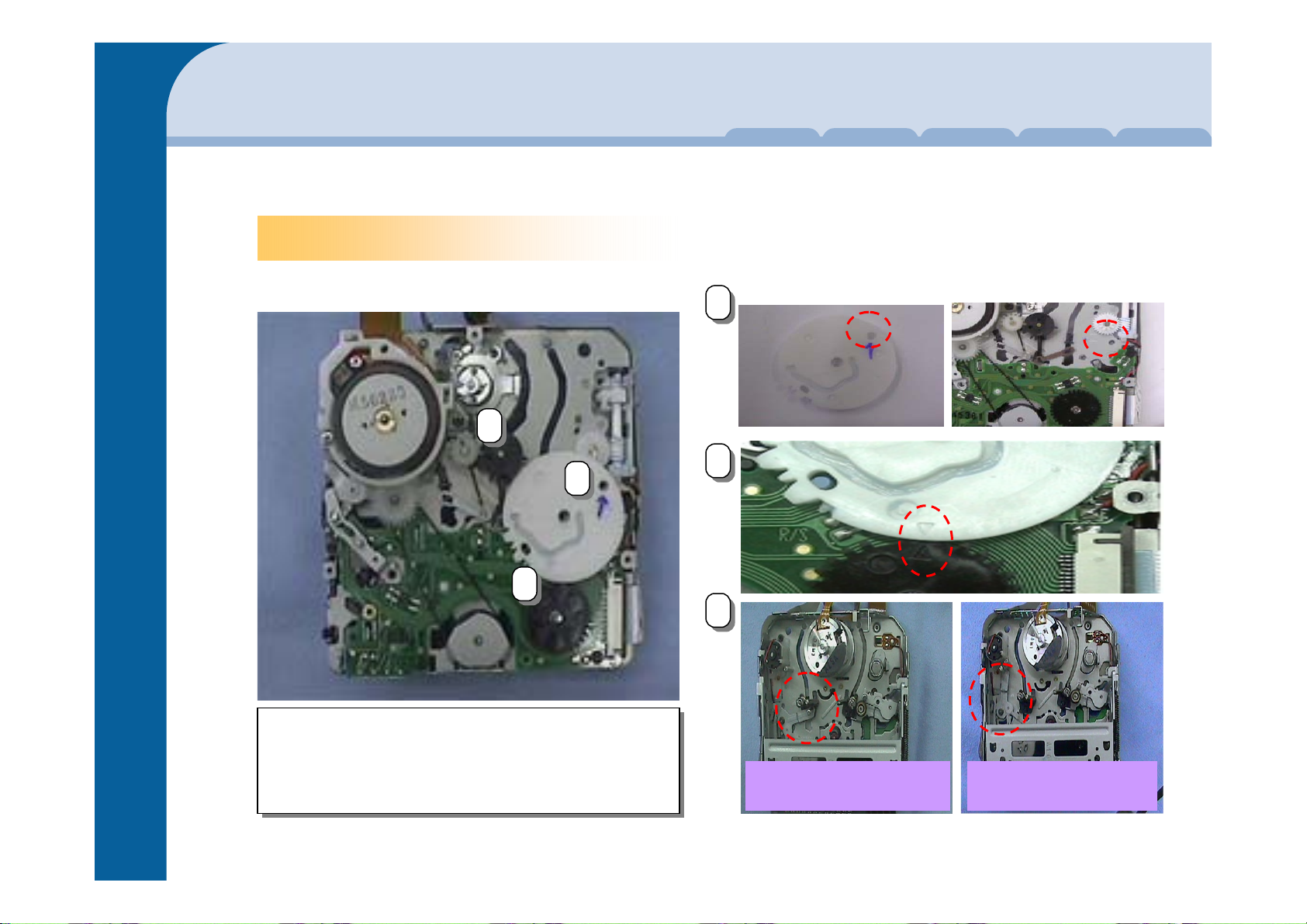

before Assembly of slide chassis,
before Assembly of slide chassis,
set a hole(①) of gear to one of main chassis and check
set a hole(①) of gear to one of main chassis and check
points(②) between gears and check a position of Arm
points(②) between gears and check a position of Arm
Tension (③).
Tension (③).
3
3
OK NG
Page 5
Step 2 Step 3
-5/1-

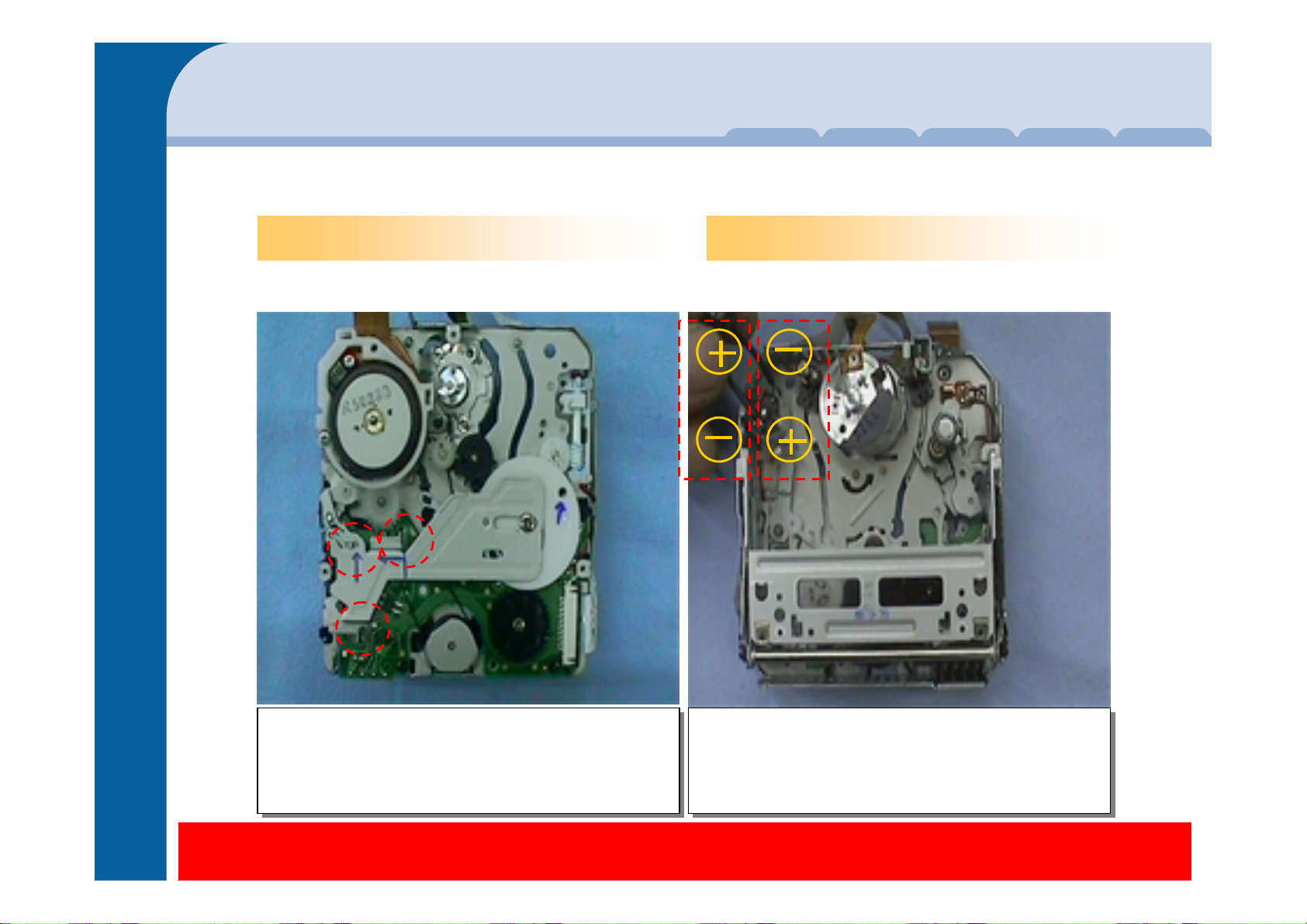

Test : supply a DC Power to L/MOTOR.
Put a Slide main and screw it
Put a Slide main and screw it
Test : supply a DC Power to L/MOTOR.
( in direction and reverse test )
( in direction and reverse test )
** final Test ---> Loading & Unloading Test after inserting a tape ( over 5 times)
( on condition of full Unit.)
