Samsung GT-S7520U Electrical Part List

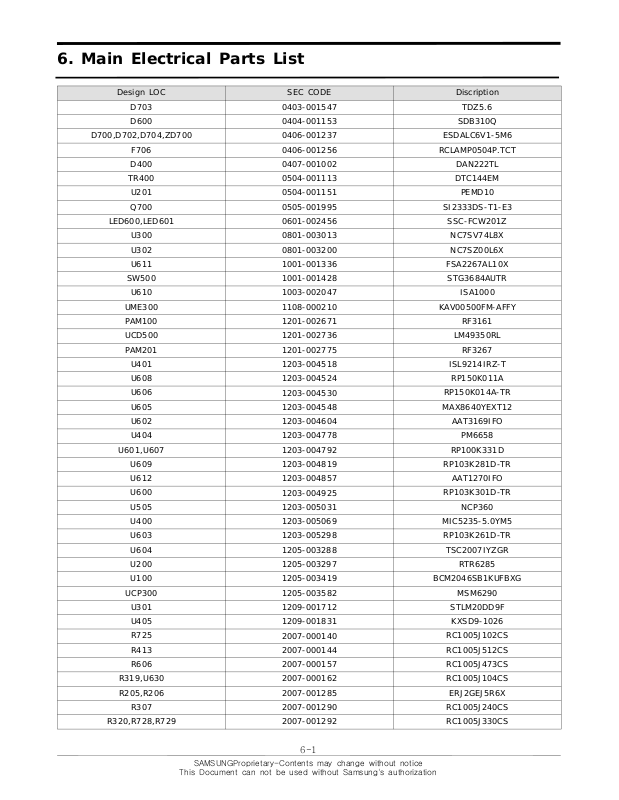

Main Electrical Parts List
6.
Design LOC SEC CODE Discription
D703
D600
D700,D702,D704,ZD700
F706
D400
TR400
U201
Q700
LED600,LED601
U300
U302
U611
SW500
U610
UME300
PAM100
UCD500
PAM201
U401
U608
U606
U605
U602
U404
U601,U607
U609
U612
U600
U505
U400
U603
U604
U200
U100
UCP300
U301
U405
R725
R413
R606
R319,U630
R205,R206
R307
R320,R728,R729
0403-001547
0404-001153
0406-001237
0406-001256
0407-001002
0504-001113
0504-001151
0505-001995
0601-002456
0801-003013
0801-003200
1001-001336
1001-001428
1003-002047
1108-000210
1201-002671
1201-002736
1201-002775
1203-004518
1203-004524
1203-004530
1203-004548
1203-004604
1203-004778
1203-004792
1203-004819
1203-004857
1203-004925
1203-005031
1203-005069
1203-005298
1205-003288
1205-003297
1205-003419
1205-003582
1209-001712
1209-001831
2007-000140
2007-000144
2007-000157
2007-000162
2007-001285
2007-001290
2007-001292
TDZ5.6
SDB310Q
ESDALC6V1-5M6
RCLAMP0504P.TCT
DAN222TL
DTC144EM
PEMD10
SI2333DS-T1-E3
SSC-FCW201Z
NC7SV74L8X
NC7SZ00L6X
FSA2267AL10X
STG3684AUTR
ISA1000
KAV00500FM-AFFY
RF3161
LM49350RL
RF3267
ISL9214IRZ-T
RP150K011A
RP150K014A-TR
MAX8640YEXT12
AAT3169IFO
PM6658
RP100K331D
RP103K281D-TR
AAT1270IFO
RP103K301D-TR
NCP360
MIC5235-5.0YM5
RP103K261D-TR
TSC2007IYZGR
RTR6285
BCM2046SB1KUFBXG
MSM6290
STLM20DD9F
KXSD9-1026
RC1005J102CS
RC1005J512CS
RC1005J473CS
RC1005J104CS
ERJ2GEJ5R6X
RC1005J240CS
RC1005J330CS
6-1
SAMSUNGProprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Main Electrical Parts List
R107
R104
R604,R605
R730
R621
R403
R103,R105
R106,R108
R723
R402
R405
R111
R727
R624
R102,R304,R321,R500
R618
R306
R505,R506,R610,R612
R615
R622,R623,R705,R707
R731,R732
R212,R715,R716,R717
R718,R719
R308
R400,R414,R620
R301,R302,R303,R305
R411,R700,R701,R702
R703,R704
R208
R721,R722
R512,R513,R514,R515
R323,R324,R607,R609
R613
R318
R207
R313,R420
R706
R322,R408,R410
R309
R720
R518,R519
R602,R619,R708,R710
R712
R314,R315,R316,R317
R407,R409,R412
2007-001294
2007-001301
2007-001319
2007-003029
2007-007107
2007-007131
2007-007306
2007-007307
2007-007310
2007-007314
2007-007468
2007-007489
2007-007590
2007-007981
2007-008045
2007-008045
2007-008049
2007-008052
2007-008052
2007-008055
2007-008057
2007-008419
2007-008419
2007-008477
2007-008486
2007-008516
2007-008516
2007-008516
2007-008531
2007-008542
2007-008548
2007-008588
2007-008588
2007-008766
2007-008774
2007-008780
2007-008798
2007-008806
2007-009084
2007-009111
2007-009154
2007-009170
2007-009170
2007-009171
2007-009171
RC1005J360CS
MCR01MZP5J680
RC1005J122CS
RMC16S-824J-TP
RC1005F1003CS
RC1005F133CS
RC1005F1000CS
RK73H1ETP1500F
MCR01MZP5F8201
MCR01MZP5F5601
RK73H1ETP1213F
RK73H1ETP1503F
RK73H1ETP8202F
ERJ2RKF1803X
ERJ1GEJ101C
ERJ1GEJ101C
MCR006YZPJ202
ERJ1GENJ472X
ERJ1GENJ472X
ERJ1GENJ104X
MCR006YZPJ151
ERJ1GEJ102C
ERJ1GEJ102C
RK73B1HTTB471J
ERJ1GEJ204C
ERJ1GEJ103C
ERJ1GEJ103C
ERJ1GEJ103C
MCR006MZPJ0100
ERJ1GEJ000C
ERJ1GEJ122C
MCR006YZPJ222
MCR006YZPJ222
ERJ2RKF6041X
ERJ1GEJ2R2C
SR73H1ETP0R1F
MCR006YZPJ153
RC0603J510CS
MCR006YZPJ105
RC0603J220CS
RMC1/20-120JTP
MCR006YZPJ184
MCR006YZPJ184
MCR006YZPJ513
MCR006YZPJ513
6-2
SAMSUNGProprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
