Samsung GT-S5570 User Manual
GT-S5570
user manual
Using this manual
Thank you for purchasing this Samsung mobile device.
This device will provide you with high quality mobile
communication and entertainment based on Samsung’s
exceptional technology and high standards.
This user manual has been specially designed to guide you
through the functions and features of your device.
Read me rst
Please read all safety precautions and this manual •
carefully before using your device to ensure safe and
proper use.
The descriptions in this manual are based on the default
•
settings of your device.
Images and screenshots used in this user manual may
•
dier in appearance from the actual product.
Using this manual
2
Content in this user manual may dier from the product,
•
or from software provided by service providers or
carriers, and is subject to change without prior notice.
Refer to www.samsung.com for the latest version of the
user manual.
Available features and additional services may vary by
•
device, software, or service provider.
Formatting and delivery of this user manual is based
•
on Google Android operating systems and may vary
depending on the user’s operating system.
Applications and their functions may vary by country,
•
region, or hardware specications. Samsung is not
liable for performance issues caused by third-party
applications.
Samsung is not liable for performance issues or
•
incompatibilities caused by user editing of registry
settings.
You may upgrade your mobile device’s software by
•
accessing www.samsung.com.
•
Sound sources, wallpapers, and images provided in this
device are licenced for limited use between Samsung
and their respective owners. Extracting and using
these materials for commercial or other purposes is an
infringement of copyright laws. Samsung is not liable for
such copyright infringement by the user.
Please keep this manual for future reference.
•
Instructional icons
Before you start, familiarise yourself with the icons you will
see in this manual:
Warning—situations that could cause injury to
yourself or others
Caution—situations that could cause damage to
your device or other equipment
Note—notes, usage tips, or additional
information
Refer to—pages with related information; for
►
example:
► p.12 (represents “see page 12”)
→
Followed by—the order of options or menus
you must select to perform a step; for example:
In Idle mode, open the application list and select
→
Settings
followed by About phone)
Square brackets—device keys; for example:
[ ]
[
About phone (represents Settings,
] (represents the Power/Lock key)
Using this manual
3
Copyright
Copyright © 2011 Samsung Electronics
This user manual is protected under international
copyright laws.
No part of this user manual may be reproduced,
distributed, translated, or transmitted in any form or by any
means, electronic or mechanical, including photocopying,
recording, or storing in any information storage and
retrieval system, without the prior written permission of
Samsung Electronics.
Trademarks
SAMSUNG and the SAMSUNG logo are registered •
trademarks of Samsung Electronics.
The Android logo, Google Search
•
Google Mail
Google Talk
Using this manual
4
, YouTube™, Android Market™, and
™
are trademarks of Google, Inc.
™
, Google Maps™,
™
• and are trademarks of SRS Labs, Inc. CS
Headphone and WOW HD technologies are incorporated
under licence from SRS Labs, Inc.
Bluetooth
•
SIG, Inc. worldwide.
Oracle and Java are registered trademarks of Oracle and/
•
or its aliates. Other names may be trademarks of their
respective owners.
Wi-Fi
•
registered trademarks of the Wi-Fi Alliance.
All other trademarks and copyrights are the property of
•
their respective owners.
is a registered trademark of the Bluetooth
®
, the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are
®
Contents
Assembling ............................................. 9
Unpack .................................................................. 9
Install the SIM or USIM card and battery ...... 9
Charge the battery ........................................... 11
Insert a memory card (optional) ................... 13
Attach a hand strap (optional) ...................... 16
Getting started ..................................... 17
Turn your device on and o ........................... 17
Get to know your device ................................. 17
Use the touch screen ........................................ 21
Lock or unlock the touch screen and keys .. 22
Get to know the idle screen ........................... 22
Access applications .......................................... 24
Customise your device .................................... 26
Enter text ............................................................ 30
Download applications from Android
Market ................................................................. 33
Download les from the web ........................ 34
Synchronise data .............................................. 34
Contents
5
Communication ................................... 36
Calling .................................................................. 36
Messaging .......................................................... 40
Google Mail ........................................................ 42
Email .................................................................... 43
Talk ....................................................................... 45
Social Hub ........................................................... 46
Entertainment ...................................... 47
Camera ................................................................ 47
Gallery ................................................................. 55
Music .................................................................... 57
FM radio .............................................................. 60
Contents
6
Personal information .......................... 64
Contacts .............................................................. 64
Calendar .............................................................. 68
Memo ................................................................... 69
Voice recorder .................................................... 70
Web ........................................................ 71
Internet ............................................................... 71
Maps .................................................................... 74
Latitude ............................................................... 76
Places ................................................................... 77
Navigation .......................................................... 77
Google Search ................................................... 78
YouTube .............................................................. 78
News & Weather ................................................ 80
Samsung Apps .................................................. 80
Market ................................................................. 81
Connectivity ......................................... 82
Bluetooth ............................................................ 82
Wi-Fi ..................................................................... 84
Mobile AP ........................................................... 85
USB tethering .................................................... 86
PC connections .................................................. 86
VPN connections ............................................... 88
Tools ....................................................... 90
Clock .................................................................... 90
Calculator ............................................................ 91
My les ................................................................ 91
Quickoce ......................................................... 92
SIM Toolkit .......................................................... 92
Task manager .................................................... 93
Voice Search ....................................................... 93
Settings .................................................. 94
Access the Settings menu ............................... 94
Wireless and networks .................................... 94
Call settings ........................................................ 96
Contents
7
Sound .................................................................. 97
Display ................................................................. 97
Location and security ...................................... 98
Applications ....................................................... 99
Accounts and sync ......................................... 100
Privacy .............................................................. 100
SD card and phone storage ......................... 100
Locale and text ............................................... 101
Voice input and output ................................ 103
Accessibility ..................................................... 104
Date and time ................................................. 104
About phone ................................................... 104
Contents
8
Troubleshooting ................................ 105
Safety precautions ............................. 111
Index .................................................... 122
Assembling
Unpack
Check your product box for the following items:
Mobile device
•
Battery•
Travel adapter (charger)•
Quick Start Guide•
Use only Samsung-approved software. Pirated or
illegal software may cause damage or malfunctions
that are not covered by your manufacturer's
warranty.
The items supplied with your device may vary •
depending on the software and accessories
available in your region or oered by your service
provider.
You can obtain additional accessories from your
•
local Samsung dealer.
The supplied accessories perform best for your
•
device.
Accessories other than the supplied ones may not
•
be compatible with your device.
Install the SIM or USIM card and battery
When you subscribe to a cellular service, you will receive
a Subscriber Identity Module (SIM) card, with subscription
details, such as your personal identication number (PIN)
and optional services. To use UMTS or HSDPA services,
you can purchase a Universal Subscriber Identity Module
(USIM) card.
Assembling
9
To install the SIM or USIM card and battery,
If the device is on, press and hold [
1
Power o
Remove the back cover.
2
10
→
OK to turn it o.
Be careful not to damage your ngernails when you
remove the back cover.
Assembling
] and select
Insert the SIM or USIM card with the gold-coloured
3
contacts facing down.
If you do not insert a SIM or USIM card, you can only
use your device’s non-network services and some
menus.
Insert the battery.
4
Replace the back cover.
5
Charge the battery
Before using the device for the rst time, you must charge
the battery.
You can charge the device with the provided travel adapter
or by connecting the device to a PC with a PC data cable.
Use only Samsung-approved chargers and cables.
Unauthorised chargers or cables can cause batteries
to explode or damage your device.
When your battery is low, the device will emit a
warning tone and display a low battery message.
The battery icon
level becomes too low, the device will automatically
power o. Recharge your battery to continue using
your device.
will also be empty. If the battery
Assembling
11
Charge with the travel adapter
›
Open the cover of the multifunction jack.
1
Plug the small end of the travel adapter into the
2
multifunction jack.
Connecting the travel adapter improperly may
cause serious damage to the device. Any damage
caused by misuse is not covered by the warranty.
Assembling
12
Plug the large end of the travel adapter into a power
3
outlet.
You can use the device while it is charging, but it •
may take longer to fully charge the battery.
While the device is charging, the touch screen may
•
not function due to an unstable power supply. If
this happens, unplug the travel adapter from the
device.
While charging, the device may heat up. This
•
is normal and should not aect your device’s
lifespan or performance.
If your device is not charging properly, bring your
•
device and the charger to a Samsung Service
Centre.
When the battery is fully charged (the battery icon is
4
no longer moving), unplug the travel adapter from the
device and then from the power outlet.
Do not remove the battery before removing the
travel adapter. Doing this may cause damage to the
device.
To save energy, unplug the travel adapter when not
in use. The travel adapter does not have a power
switch, so you must unplug the travel adapter from
the outlet to interrupt the power supply. The travel
adapter should remain close to the socket when
in use.
Charge with the PC data cable
›
Before charging, ensure that your PC is turned on.
Open the cover of the multifunction jack.
1
Plug one end (micro-USB) of the PC data cable into the
2
multifunction jack.
Plug the other end of the PC data cable into a USB port
3
on a PC.
Depending on the type of PC data cable you are
using, it may take some time before charging
begins.
When the battery is fully charged (the battery icon is
4
no longer moving), unplug the PC data cable from the
device and then from the PC.
Insert a memory card (optional)
To store additional multimedia les, you must insert
a memory card. Your device accepts microSD
microSDHC
of 32 GB (depending on memory card manufacturer and
type).
memory cards with maximum capacities
™
or
™
Assembling
13
Samsung uses approved industry standards for
memory cards, but some brands may not be fully
compatible with your device. Using an incompatible
memory card may damage your device or the
memory card and can corrupt data stored on the
card.
Your device supports only the FAT le structure for •
memory cards. If you insert a card formatted with
a dierent le structure, your device will ask you to
reformat the memory card.
Frequent writing and erasing of data will shorten
•
the lifespan of memory cards.
When you insert a memory card in your device,
•
the le directory of the memory card will appear
in the sdcard folder.
Assembling
14
Open the cover to the memory card slot on the side of
1
the device.
Insert a memory card with the gold-coloured contacts
2
facing down.
Push the memory card in the memory card slot until it
3
locks in place.
Close the cover to the memory card slot.
4
Remove the memory card
›
Before removing a memory card, rst unmount it for safe
removal.
In Idle mode, select
1
phone storage
Open the cover to the memory card slot on the side of
2
the device.
Push the memory card gently until it disengages from
3
the device.
Pull the memory card out of the memory card slot.
4
Close the cover to the memory card slot.
5
Do not remove a memory card while the device is
transferring or accessing information, as this could
result in loss of data or damage to the memory card
or device.
→ Settings → SD card and
→
Unmount SD card → OK.
Format the memory card
›
Formatting your memory card on a PC may cause
incompatibilities with your device. Format the memory
card only on the device.
In Idle mode, select
→
storage
Format SD card
Unmount SD card → OK → Format SD card →
Before formatting the memory card, remember to
make backup copies of all important data stored on
your device. The manufacturer’s warranty does not
cover loss of data resulting from user actions.
→ Settings → SD card and phone
→
Erase everything.
Assembling
15
Attach a hand strap (optional)
Remove the back cover.
1
Slide a hand strap through the slot and hook it over
2
the small projection.
Replace the back cover.
3
Assembling
16
Getting started
Turn your device on and o
To turn on your device,
Press and hold [
1
If you turn on your device for the rst time, follow the
2
on-screen instructions to set up your device.
To turn o your device, press and hold [
Power o
→
Follow all posted warnings and directions from •
ocial personnel when in areas where the use of
wireless devices is restricted, such as aeroplanes
and hospitals.
To use your device's non-network services only,
•
switch to Flight mode. Press and hold [ ] and
select Flight mode.
].
] and select
OK.
Get to know your device
Device layout
›
Proximity sensor
Volume key
Home key
Menu key
Earpiece
Touch screen
Back key
Mouthpiece
Getting started
17
Headset jack
Power/Lock key
Memory card slot
Speaker
Getting started
18
Multifunction jack
Camera lens
Back cover
Internal antenna
Keys
›
Key Function
Turn on the device (press and
Power/
Lock
Menu
Home
Back Return to the previous screen.
Volume Adjust the device’s volume.
hold); Access the quick menus
(press and hold); Lock the touch
screen.
Open a list of options available on
the current screen; Open the quick
search bar (press and hold).
Return to the idle screen; Open
the list of recent applications
(press and hold).
Indicator icons
›
Icons shown on the display may vary depending on
your region or service provider.
Icon Denition
No signal
Signal strength
GPRS network connected
EDGE network connected
UMTS network connected
Open WLANs available
WLAN activated
Bluetooth activated
Bluetooth headset connected
Icon Denition
GPS activated
Call in progress
Call on hold
Speakerphone activated
Missed call
Synchronised with the web
Uploading data
Downloading data
Call diverting activated
Connected to PC
USB tethering activated
Getting started
19
Icon Denition
Mobile AP activated
No SIM or USIM card
New text or multimedia message
New email message
New voice mail message
Alarm activated
Event notication
Roaming (outside of normal service area)
Silent mode activated
Flight mode activated
Vibration mode activated
Getting started
20
Icon Denition
Music playback in progress
Music playback paused
FM radio turned on in the background
Error occurred or caution required
Battery power level
10:00
Current time
Use the touch screen
Your device’s touch screen lets you easily select items or
perform functions. Learn basic actions to use the touch
screen.
To avoid scratching the touch screen, do not use •
sharp tools.
Do not allow the touch screen to come into
•
contact with other electrical devices. Electrostatic
discharges can cause the touch screen to
malfunction.
Do not allow the touch screen to come into
•
contact with water. The touch screen may
malfunction in humid conditions or when
exposed to water.
For optimal use of the touch screen, remove the •
screen protection lm before using your device.
Your touch screen has a layer that detects small
•
electrical charges emitted by the human body.
For best performance, tap the touch screen with
your ngertip. The touch screen will not react to
touches of sharp tools, such as a stylus or pen.
Control your touch screen with the following actions:
Tap: Touch once with your nger to select or launch a
•
menu, option, or application.
Tap and hold: Tap an item and hold it for more than 2
•
seconds to open a pop-up option list.
Drag: Tap and drag your nger up, down, left, or right to
•
move to items on lists.
Getting started
21
Drag and drop: Tap and hold your nger on an item, and
•
then drag your nger to move the item.
Double-tap: Tap twice quickly with your nger to zoom
•
in or out while viewing photos or web pages.
Your device turns o the touch screen when you •
do not use the device for a specied period.
You can adjust the backlight time. In Idle mode,
•
open the application list and select Settings →
→
Display
Screen timeout.
Lock or unlock the touch screen and keys
You can lock the touch screen and keys to prevent any
unwanted device operations.
To lock, press [
right until it reaches the dot.
Getting started
22
]. To unlock, turn on the screen and drag
Get to know the idle screen
When the device is in Idle mode, you will see the idle
screen. From the idle screen, you can view your device’s
status and access applications.
The idle screen has multiple panels. Scroll left or right to a
panel of the idle screen.
Add items to the idle screen
›
You can customise the idle screen by adding shortcuts to
applications or items in applications, widgets, or folders. To
add items to the idle screen,
Press [
1
2
] → Add or tap and hold the empty area on
the idle screen.
Select the item category
• : Add widgets. Widgets are small
Widgets
applications that provide convenient functions and
information on your idle screen.
→
an item:
Shortcuts
• : Add shortcuts to items, such as
applications, bookmarks, and contacts.
Folders
• : Create a new folder or add folders for your
contacts.
Wallpapers
• : Set a background image.
Move items on the idle screen
›
Tap and hold an item to move until the item appears
1
gre y.
Drag the item to the location you want.
2
Remove items from the idle screen
›
Tap and hold an item to remove.
1
The trash bin appears at the bottom of the idle screen.
Drag the item to the trash bin.
2
When the item turns red, release the item.
3
Use the shortcuts panel
›
In Idle mode or while using an application, tap the
indicator icons area and drag your nger down to open
the shortcuts panel. You can activate or deactivate wireless
connection features and access a list of notications, such
as messages, calls, events or processing status. To hide the
list, drag the bottom of the list up.
From the shortcuts panel, you can use the following
options:
Wi-Fi
• : Activate or deactivate the WLAN connection
feature.
► p. 84
B/T
• : Activate or deactivate the Bluetooth wireless
connection feature.
GPS
• : Activate or deactivate the GPS feature.
Sound
• /Vibration: Activate or deactivate Vibration
mode.
Auto rotation
• : Activate or deactivate the auto rotation.
Available options may vary depending on your
region or service provider.
► p. 82
Getting started
23
Add or remove panels to the idle screen
›
You can add or remove panels of the idle screen to
organise widgets according to your preferences and needs.
In Idle mode, press [
1
You can also place your two ngers on the screen and
pinch to switch to Edit mode.
Add or remove panels by using the following features:
2
To remove a panel, tap and hold the thumbnail of a •
panel and drag it to the trash bin at the bottom of
the screen.
To add a new panel, select
• .
•
To change the order of the panels, tap and hold the
thumbnail of a panel and drag it to the location you
want.
When you are nished, press [
3
Getting started
24
] → Edit.
].
Access applications
To access your device’s applications,
In Idle mode, select
1
Scroll left or right to another application screen.
2
You can also select a dot on the top of the screen to
move to the corresponding main menu screen directly.
Select an application.
3
When you use applications provided by Google, •
you must have a Google account. If you do not
have a Google account, sign up for a Google
account.
You can add a shortcut to an application by
•
tapping and holding the application icon from
the application list. You can move the icon to the
location you want on the idle screen.
to access the application list.
Press [4 ] to return to the previous screen; Press the
Home key to return to the idle screen.
Your device has a built-in motion sensor that detects
its orientation. If you rotate the device while using
some features, the interface will automatically
switch to landscape view. To set the interface to
keep the orientation when you rotate the device,
select Settings
Organise applications
›
You can reorganise the applications in the application list
by changing their order or grouping them into categories
to suit your preferences and needs.
In the application list, press [
1
Tap and hold an application.
2
→
Display → Auto-rotate screen.
] → Edit.
Drag the application icon to the location you want.
3
You can move an application icon to another main
menu screen.
Press [
4
To change the order of the main menu screens,
1
2
›
1
2
] → Save.
In the application list, place your two ngers on the
screen and pinch.
Tap and hold the thumbnail of a screen and drag it to
the location you want.
Access recent applications
Press and hold the Home key to open the list of
applications you have accessed recently.
Select an application to access.
Getting started
25
Use the task manager
›
Your device is a multitasking device. It can run more than
one application at the same time. However, multitasking
may cause hang-ups, freezing, memory problems, or
additional power consumption. To avoid these problems,
end unnecessary programs using the task manager.
In Idle mode, open the application list and select
1
2
26
→
manager
The list of all the applications currently running on
your device appears.
To close an application, select
To close all active applications, select End all.
Active applications.
End.
Getting started
Task
Customise your device
Get more from your device by customising it to match your
preferences.
Set the current time and date
›
In Idle mode, open the application list and select
1
Settings → Date and time.
Set the time and date and change other options.
2
Turn on or o the touch tone
›
In Idle mode, open the application list and select Settings
→
Sound → Audible selection.
Adjust the volume of the ringtones
›
Press the Volume key up or down to adjust the ringtone
volume.
Switch to Silent mode
›
To mute or unmute your device, do one of the following:
In Idle mode, open the application list and select
•
Keypad and tap and hold
Press and hold [
• ] and select Silent mode.
You can set the device to alert you to various events
in Silent mode. In Idle mode, open the application
list and select Settings
Always or Only in Silent mode. When you switch to
Silent mode,
Change your ringtone
›
In Idle mode, open the application list and select
1
Settings → Sound → Phone ringtone.
Select a ringtone from the list and select
2
.
→
Sound → Vibrate →
will appear in place of .
→
OK.
Activate animation for switching
›
windows
In Idle mode, open the application list and select Settings
→
Display → Animation → Some animations or All
animations.
Select a wallpaper for the idle screen
›
In Idle mode, press [1 ] →Wallpaper → an option.
Select an image.
2
Select 3 Save or Set wallpaper.
Samsung is not responsible for any use of default
images or wallpapers provided on your device.
Getting started
27
Adjust the brightness of the display
›
In Idle mode, open the application list and select
1
Settings → Display → Brightness.
Drag the slider
2
Select
3
The brightness level of the display will aect how
quickly the device consumes battery power.
Set a screen lock
›
You can lock the touch screen with an unlock pattern or
password to prevent unauthorised people from using the
device without your permission.
Getting started
28
to adjust the level of brightness.
OK.
Once you set a screen lock, your device will require •
an unlock code each time you turn it on or unlock
the touch screen.
If you forget your PIN or password, bring your
•
device to a Samsung Service Centre to reset it.
Samsung is not responsible for any loss of security
•
codes or private information or other damages
caused by illegal software.
Set an unlock pattern
In Idle mode, open the application list and select
1
Settings → Location and security → Set screen lock
→
Pattern.
See the on-screen instructions and example patterns
2
and select Next.
Draw a pattern by dragging your nger to connect at
3
least 4 dots.
Select
4
5
Continue.
Draw a pattern again to conrm.
Select 6 Conrm.
Set an unlock PIN code
In Idle mode, open the application list and select
1
Settings → Location and security → Set screen lock
→
PIN.
Enter a new PIN (numeric) and select
2
Enter the PIN again and select
3
Continue.
OK.
Set an unlock password
In Idle mode, open the application list and select
1
Settings → Location and security → Set screen lock
→
Password.
Enter a new password (alphanumeric) and select
2
Enter the password again and select
3
OK.
OK.
Lock your SIM or USIM card
›
You can lock your device by activating the PIN supplied
with your SIM or USIM card.
In Idle mode, open the application list and select
1
Settings → Location and security → Set up SIM card
→
lock
Lock SIM card.
Enter your PIN and select
2
Once the PIN lock is enabled, you must enter the PIN each
time you turn on the device.
If you enter an incorrect PIN too many times, your •
SIM or USIM card will be blocked. You must enter
a PIN unlock key (PUK) to unblock the SIM or USIM
card.
If you block your SIM or USIM card by entering
•
an incorrect PUK, bring the card to your service
provider to unblock it.
OK.
Getting started
29
Enter text
You can enter text by selecting characters on the virtual
keypad or by inputting handwriting on the screen.
You cannot enter text in some languages. To enter
text, you should change the writing language to one
of the supported languages.

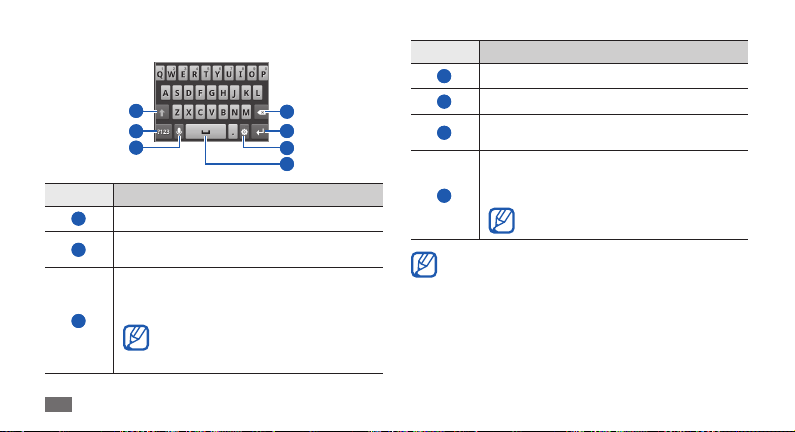

Change the keyboard type
›
You can change the keyboard type. Tap and hold the text
input eld and select Input method
(Swype or Samsung keypad).
Enter text using the Swype keyboard
›
Select the rst character of a word and drag your nger
1
to the second character without releasing the nger
from the screen.
Getting started
30
► p. 101
→
a keyboard type
Pause on the second character for a moment and drag
2
the nger to the next character.
Continue until you have nished the word.
3
Release the nger on the last character. The word is
4
inserted into the text input eld.
Repeat steps 1-4 to complete your text.
5
Tap and hold each key to enter additional characters.
Loading...
