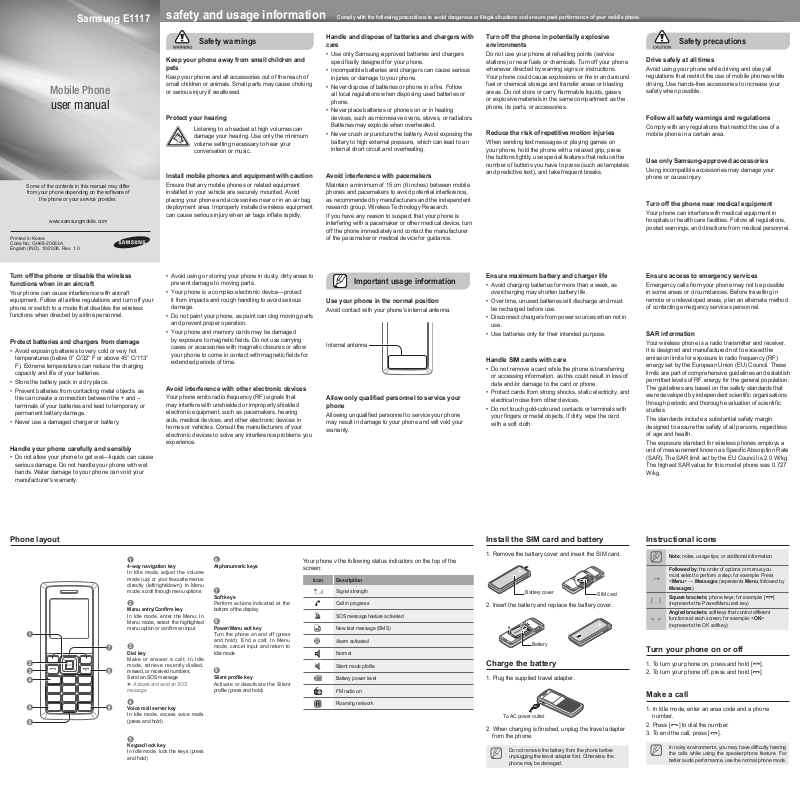

Samsung GT-E1117 User Guide
Samsung E1117
safety and usage information
Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone.
Mobile Phone
user manual
Some of the contents in this manual may differ
from your phone depending on the software of
the phone or your service provider.
www.samsungmobile.com
Printed in Korea
Code No.:GH68-20933A
English (IND). 10/2008. Rev. 1.0
Turn off the phone or disable the wireless
functions when in an aircraft
Your phone can cause interference with aircraft
equipment. Follow all airline regulations and turn off your
phone or switch to a mode that disables the wireless
functions when directed by airline personnel.
Protect batteries and chargers from damage
Avoid exposing batteries to very cold or very hot
•
temperatures (below 0° C/32° F or above 45° C/113°
F). Extreme temperatures can reduce the charging
capacity and life of your batteries.
Store the battery pack in a dry place.
•
Prevent batteries from contacting metal objects, as
•
this can create a connection between the + and –
terminals of your batteries and lead to temporary or
permanent battery damage.
Never use a damaged charger or battery.
•
Handle your phone carefully and sensibly
Do not allow your phone to get wet—liquids can cause
•
serious damage. Do not handle your phone with wet
hands. Water damage to your phone can void your
manufacturer's warranty.
Safety warnings
Keep your phone away from small children and
pets
Keep your phone and all accessories out of the reach of
small children or animals. Small parts may cause choking
or serious injury if swallowed.
Protect your hearing
Listening to a headset at high volumes can
damage your hearing. Use only the minimum
volume setting necessary to hear your
conversation or music.
Install mobile phones and equipment with caution
Ensure that any mobile phones or related equipment
installed in your vehicle are securely mounted. Avoid
placing your phone and accessories near or in an air bag
deployment area. Improperly installed wireless equipment
can cause serious injury when air bags inate rapidly.
•
Avoid using or storing your phone in dusty, dirty areas to
prevent damage to moving parts.
•
Your phone is a complex electronic device—protect
it from impacts and rough handling to avoid serious
damage.
•
Do not paint your phone, as paint can clog moving parts
and prevent proper operation.
•
Your phone and memory cards may be damaged
by exposure to magnetic elds. Do not use carrying
cases or accessories with magnetic closures or allow
your phone to come in contact with magnetic elds for
extended periods of time.
Avoid interference with other electronic devices
Your phone emits radio frequency (RF) signals that
may interfere with unshielded or improperly shielded
electronic equipment, such as pacemakers, hearing
aids, medical devices, and other electronic devices in
homes or vehicles. Consult the manufacturers of your
electronic devices to solve any interference problems you
experience.
Handle and dispose of batteries and chargers with
care
Use only Samsung-approved batteries and chargers
•
specically designed for your phone.
Incompatible batteries and chargers can cause serious
•
injuries or damage to your phone.
Never dispose of batteries or phone in a re. Follow
•
all local regulations when disposing used batteries or
phone.
Never place batteries or phones on or in heating
•
devices, such as microwave ovens, stoves, or radiators.
Batteries may explode when overheated.
Never crush or puncture the battery. Avoid exposing the
•
battery to high external pressure, which can lead to an
internal short circuit and overheating.
Avoid interference with pacemakers
Maintain a minimum of 15 cm (6 inches) between mobile
phones and pacemakers to avoid potential interference,
as recommended by manufacturers and the independent
research group, Wireless Technology Research.
If you have any reason to suspect that your phone is
interfering with a pacemaker or other medical device, turn
off the phone immediately and contact the manufacturer
of the pacemaker or medical device for guidance.
Important usage information
Use your phone in the normal position
Avoid contact with your phone's internal antenna.
Internal antenna
Allow only qualied personnel to service your
phone
Allowing unqualied personnel to service your phone
may result in damage to your phone and will void your
warranty.
Turn off the phone in potentially explosive
environments
Do not use your phone at refuelling points (service
stations) or near fuels or chemicals. Turn off your phone
whenever directed by warning signs or instructions.
Your phone could cause explosions or re in and around
fuel or chemical storage and transfer areas or blasting
areas. Do not store or carry ammable liquids, gases,
or explosive materials in the same compartment as the
phone, its parts, or accessories.
Reduce the risk of repetitive motion injuries
When sending text messages or playing games on
your phone, hold the phone with a relaxed grip, press
the buttons lightly, use special features that reduce the
number of buttons you have to press (such as templates
and predictive text), and take frequent breaks.
Ensure maximum battery and charger life
Avoid charging batteries for more than a week, as
•
overcharging may shorten battery life.
Over time, unused batteries will discharge and must
•
be recharged before use.
Disconnect chargers from power sources when not in
•
use.
Use batteries only for their intended purpose.
•
Handle SIM cards with care
Do not remove a card while the phone is transferring
•
or accessing information, as this could result in loss of
data and/or damage to the card or phone.
Protect cards from strong shocks, static electricity, and
•
electrical noise from other devices.
Do not touch gold-coloured contacts or terminals with
•
your ngers or metal objects. If dirty, wipe the card
with a soft cloth.
Safety precautions
Drive safely at all times
Avoid using your phone while driving and obey all
regulations that restrict the use of mobile phones while
driving. Use hands-free accessories to increase your
safety when possible.
Follow all safety warnings and regulations
Comply with any regulations that restrict the use of a
mobile phone in a certain area.
Use only Samsung-approved accessories
Using incompatible accessories may damage your
phone or cause injury.
Turn off the phone near medical equipment
Your phone can interfere with medical equipment in
hospitals or health care facilities. Follow all regulations,
posted warnings, and directions from medical personnel.
Ensure access to emergency services
Emergency calls from your phone may not be possible
in some areas or circumstances. Before travelling in
remote or undeveloped areas, plan an alternate method
of contacting emergency services personnel.
SAR information
Your wireless phone is a radio transmitter and receiver.
It is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF)
energy set by the European Union (EU) Council. These
limits are part of comprehensive guidelines and establish
permitted levels of RF energy for the general population.
The guidelines are based on the safety standards that
were developed by independent scientic organisations
through periodic and thorough evaluation of scientic
studies.
The standards include a substantial safety margin
designed to assure the safety of all persons, regardless
of age and health.
The exposure standard for wireless phones employs a
unit of measurement known as Specic Absorption Rate
(SAR). The SAR limit set by the EU Council is 2.0 W/kg.
The highest SAR value for this model phone was 0.727
W/kg.
Phone layout
1
4-way navigation key
In Idle mode, adju st the v olume
mode (up) or your favourite menus
directly (left/right/down); In Me nu
mode, scroll through menu options
2
Menu entry/Conrm key
In Idle mode, enter the Menu; In
Menu mode, select the highlighted
menu option or conrm an input
3
Dial key
Make or ans wer a cal l; In Id le
mod e, retri eve recently dia lle d,
missed, or received numbers;
Send an SOS message
►
Activate and send an SOS
message
4
Voice mail server key
In Idle mode, access voice mails
(press and hold)
5
Keypad lock key
In Idle mode, lock the keys (press
and hold)
6
Alphanumeric keys
7
Soft keys
Perfo rm acti ons indicated at the
bottom of the display
8
Power/Menu exit key
Turn the phone on and off (press
and ho ld) ; End a c al l; In Menu
mode, cancel in put and return to
Idle mode
9
Silent prole key
Activ ate or de activ ate the Silen t
prole (press and hold)
Your phone v the following status indicators on the top of the
screen:
Icon Description
Signal strength
Call in progress
SOS message feature activated
New text message (SMS)
Alarm activated
Normal
Silent mode pfole
Battery power level
FM radio on
Roaming network
Install the SIM card and battery
1. Remove the battery cover and insert the SIM card.
Battery cover
SIM card
2. Insert the battery and replace the battery cover.
Battery
Charge the battery
1. Plug the supplied travel adapter.
To AC power outlet
2. When charging is nished, unplug the travel adapter
from the phone.
Do not remove the battery from the phone before
unplugging the travel adapter rst. Otherwise, the
phone may be damaged.
Instructional icons
Note; notes, usage tips, or additional information
Followed by; the order of options or menus you
must select to perform a step; for example: Press
<Menu> → Messages (represents Menu, followed by
Messages)
Square brackets; phone keys; for example: [ ]
[ ]
(represents the Power/Menu exit key)
Angled brackets; softkeys that control different
functions at each screen; for example: <OK>
< >
(represents the OK softkey)
Turn your phone on or off
1. To turn your phone on, press and hold [ ].
2. To turn your phone off, press and hold [ ].
Make a call
1. In Idle mode, enter an area code and a phone
number.
2. Press [ ] to dial the number.
3. To end the call, press [ ].
In noisy environments, you may have difculty hearing
the calls while using the speakerphone feature. For
better audio performance, use the normal phone mode.
Answer a call
1. When a call comes in, press [ ].
2. To end the call, press [ ].
Adjust the volume
To adjust the volume of the ringtone
1. In Idle mode, press < Menu > → Settings → Phone
settings → Phone proles.
2. Scroll to the phone prole you are using.
3. Press <Options> → Edit.
4. Press the left or right navigation key to select
Incoming calls.
5. Scroll up to select Ringtone volume.
6. Press [OK] and press the left or right navigation key
to adjust the volume and press [OK].
To adjust the volume of voice during a call
While a call is in progress, press the navigation key up
or down to adjust the earpiece volume.
Change your ringtone
1. In Idle mode, press < Menu > → Settings → Phone
settings → Phone proles.
2. Select the phone proles you want to change by using
the up/down navigation.
3. Press <Options> → Edit.
4. Press the left or right navigation key to select
Incoming calls.
5. Scroll up to select Ring tone.
6. Press [OK] and then scroll up or down to select a ring
tone.
7. Press [OK].
Call a recently dialled number
1. In Idle mode, press [ ].
2. Scroll left or right to select a call type.
3. Scroll up or down to select a number or name.
4. Press [OK] to view details of the call or [ ] to dial the
number.
Enter text
To change the text input mode
Press [ ] to change case.
•
Press and hold [ ] to switch to an input mode.
•
Press and hold [ ] to switch to Symbol mode.
•
To change the Hinglish input mode
Press <Options> → Input language
•
T9 and Hinglish DB mode
1. Press the appropriate alphanumeric keys to enter an
entire word.
2. When the word display correctly, press [ ] to insert a
space. If the correct word does not display, press the
navigation key down to select an alternate word.
ABC mode
Press the appropriate alphanumeric key until the character
you want appears on the display.
Number mode
Press the appropriate alphanumeric key to enter a
number.
Symbol mode
Press the appropriate alphanumeric key to select a
symbol.
•
To move the cursor, press the navigation key.
•
To delete characters one by one, press <Clear>. To
delete all of the characters, press and hold <Clear>.
•
To insert a space between characters, press [ ].
•
To enter punctuation marks in English mode, press [1].
Neopad Indian Mode
To enter a character in the Neopad Hindi mode:
1. Press a corresponding key to access the Virtual
Keypad that contains a character you want.
The characters will appear in the Virtual Keypad at
•
the bottom of the display.
If you want to know which key is assigned to which
•
Hindi character group, see the table of "List of the
characters available in Hindi."
2. Press the corresponding key 1 to 5 to enter a
character, or press the key to toggle a virtual
keypad page to Virama.
When you enter a character, you will see the predicted
word in the word prediction box at the bottom of the
display. If you want to know about this feature, see use
the linguistic dictionary (Forward prediction). Otherwise,
repeat above steps to enter other characters.
List of the characters available in Hindi
Key
1
2
3
4
5
6
7
8
9
0
Characters in the order displayed
Press the numeric key
Virama (togles a virtual keypad page)
And press the key
Key 1~7: Consonant Groups
Key 8: Independent Vowel Group
Key 9: Dependent Vowel Group
Key 0: Signs & Symbols
Example
To enter (made up of half character), press the 1,
(Virama), 1, 5, and 5 keys.
Example
To enter ( + + ), press the 1, 1, 9, 2, 8,
(toggles the page), and 2 keys.
Use the linguistic dictionary (Forward prediction)
1. Enter the rst character of the word you want.
You will see a word starting with the character you
•
entered in the word prediction box at the bottom of
the display.
2. If that word is correct, go to step 3.
Alternatively, scroll up or down to search for the word
•
you want.
3. Press [OK] to select it.
Example
To enter ( + + + + space + + +
+ + ) using the linguistic dictionary,
1. Press the 5, 3, 7, and 3 keys.
You will see in the word prediction box.
•
2. Press [OK] to select the word.
3. Press the key to insert a space for the next word.
4. Press the 8, 1, 2, (Virama), and 1 keys.
You will see in the word prediction box.
•
5. Press [OK] to select the word.
List of the combination of half and full formed
consonant
Add a new contact
1. In Idle mode, enter a phone number and press
<Options> → Save.
2. Select Phone to save the number to the phone's
memory.
3. Select New → a number type.
4. Enter a contact information.
5. Press <Options> → Save.
Send and view messages
Send a text message
1. In Idle mode, press <Menu> → Messages → Create
new message.
2. Enter the text message.
3. Press <Options> → Send only or Save and send.
4. Enter the destination number.
5. Press <Options> → Send to send the message.
View text messages
1. In Idle mode, press <Menu> → Messages → My
messages → Inbox.
2. Select a text message.
Activate the mobile tracker
This feature helps track your phone when it is stolen
or when someone tries to use your phone using other
SIM card, the phone will automatically send the preset
tracking message to family or friends. This feature may
be unavailable due to certain features supported by your
service provider.
1. In Idle mode, press <Menu> Settings Security
settings Mobile Tracker 2.0.
2. Enter a new 4- to 8-digit password and press <OK>.
3. Enter the new password again and press <OK>.
4. Select Settings.
5. Enter a new 8-digit password for the mobile tracker
and press <OK>.
6. Enter the new password again and press <OK>.
7. Scroll left or right to On.
8. Scroll down and press [OK] to open the recipient list.
9. Press <Options> Phonebook to open your contact
list.
10. Scroll to a contact and press [OK].
11. When you are nished selecting contacts, press
<Options> Select to return to the recipient list.
12. Press <Options> OK to save the recipients.
13. Scroll down and enter the sender's name.
14. Press <Options> Save <Accept>.
Accessing a remote phone
If a remote phone has the mobile tracker 2.0 feature and
it is activated, you can get contacts, delete data, forward
calls, and get location information of the remote phone.
To get contacts of the remote phone:
1. In Idle mode, press <Menu> Settings Security
settings Mobile Tracker 2.0 Access Remote
Phone.
2. Enter the number of the remote phone.
3. Scroll down and enter the mobile tracker password of
the remote phone.
4. Press the <OK>.
5. Select Get Contact.
6. Enter the name of the contact you want to retrieve and
press the <Send>.
Your phone wil receive a text message with the contact
information.
To delete data on the remote phone:
1. In Idle mode, press <Menu> Settings Security
settings Mobile Tracker 2.0 Access remote
phone.
2. Enter the number of the remote phone.
3. Scroll down and enter the mobile tracker password of
the remote phone.
4. Press the <OK>.
5. Select Delete User Data.
6. Press the <Yes> twice.
A call log list, Phonebook contacts, and all messages of
the remote phome will be deleted.
To forward calls to another phone:
1. In Idle mode, press <Menu> Settings Security
settings Mobile Tracker 2.0 Access remote
phone.
2. Enter the number of the remote phone.
3. Scroll down and enter the mobile tracker password of
the remote phone.
4. Press the <OK>.
5. Select Set call diverting.
6. Enter the phone number to which incoming calls of the
remote phone will be forwarded.
7. Press the <Options> Activate.
All incoming calls of the remote phone will be forwarded
to the new phone number.
To get location information:
1. In Idle mode, press <Menu> Settings Security
settings Mobile Tracker 2.0 Access remote
phone.
2. Enter the number of the remote phone.
3. Scroll down and enter the mobile tracker password of
the remote phone.
4. Press the <OK>.
5. Select Get location information.
6. Press the <Send>.
You will receive a text message with the remote phone's
location information.
Activate and send an SOS message
In an emergency, you can send SOS messages to your
family or friends for help.
To activate the SOS message
1. In Idle mode, press <Menu> → Messages → SOS
messages → Sending options.
2. Scroll left or right to On.
3. Scroll down and press [OK] to open the recipient list.
4. Press [OK] to open your contact list.
5. Scroll to a contact and press [OK].
6. Select a number (if necessary).
7. When you are nished selecting contacts, press
<Options> → Select to return to the recipient list.
8. Press <Options> Save to save the recipients.
9. Scroll down and set the number of times to repeat
the SOS message.
10. Press <Save> → <Yes>.
To send an SOS message
1. Press [ ] 4 times in Idle mode with the keypad
locked to send an SOS message to preset phone
numbers. Once the SOS message is sent, the phone
will change to SOS mode and will receive calls only
from the registered recipients. Upon receiving a call
from the SOS message recipients, the phone will
automatically answer the call.
2. To exit SOS mode, press [ ].
Loading...
