Page 1
Some of the contents in this manual may differ from your phone depending on the software of the phone or your
service provider.
World Wide Web
http://www.samsungmobile.com
Printed in Korea
Code No.:GH68-25291A
English (IND). 08/2009. Rev. 1.0
Page 2
GT-B3313
user manual
Page 3
using this
Instructional icons
Before you start, familiarise yourself with the icons
you will see in this manual:
manual
This user manual has been specially designed to
guide you through the functions and features of your
mobile phone. To get started quickly,
refer to “introducing your mobile phone,”
“assembling and preparing your mobile phone,”
and “using basic functions.”
X
Warning
injury to yourself or others
Caution
damage to your phone or other equipment
Note
information
Refer to
for example:
page 12”)
—situations that could cause
—situations that could cause
—notes, usage tips, or additional
—pages with related information;
X
p. 12 (represents “see
Page 4
Copyright information
→
[ ]
< >
Followed by
menus you must select to perform a step;
for example: In Menu mode, select
Messages → Create message
(represents Messages, followed by
Create message)
Square brackets
example: [ ] (represents the Power/
Menu exit key)
Angled brackets
different functions at each screen; for
example: <OK> (represents the OK
softkey)
—the order of options or
—phone keys; for
—softkeys that control
Rights to all technologies and products that
comprise this device are the property of their
respective owners:
using this manual
• Bluetooth® is a registered trademark of the
Bluetooth SIG, Inc. worldwide
Bluetooth QD ID: B015648
• Java™ is a trademark of Sun Microsystems, Inc.
Page 5
safety and usage information .................. 1
Safety warnings ..........................................1
contents
Safety precautions ......................................4
Important usage information .......................6
introducing your mobile phone .............12
Unpack .....................................................12
Phone layout .............................................13
Keypad .....................................................14
QWERTY keyboard ...................................15
Display ......................................................17
Icons .........................................................17
assembling and preparing your mobile
phone ...................................................... 19

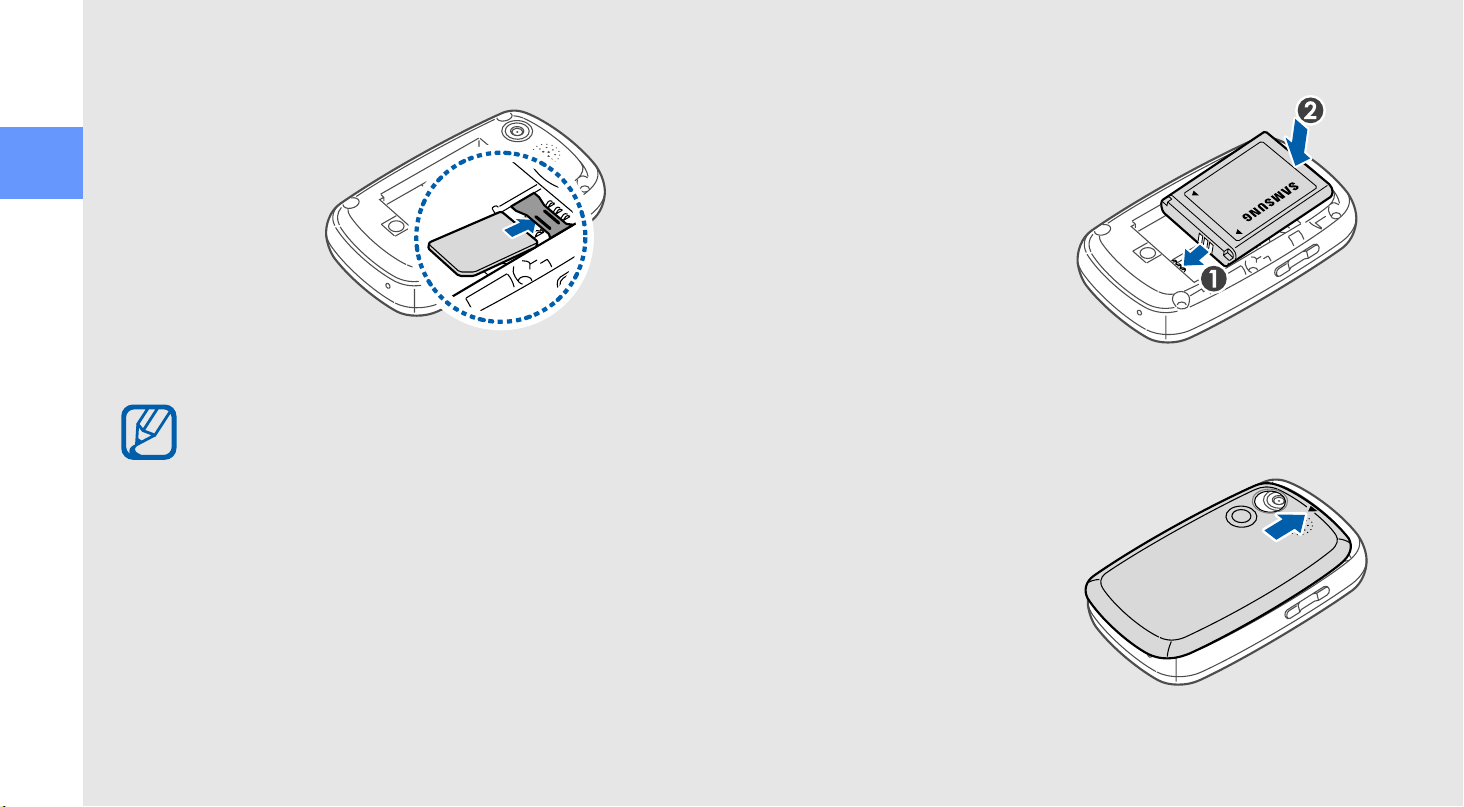

Install the SIM card and battery .................19

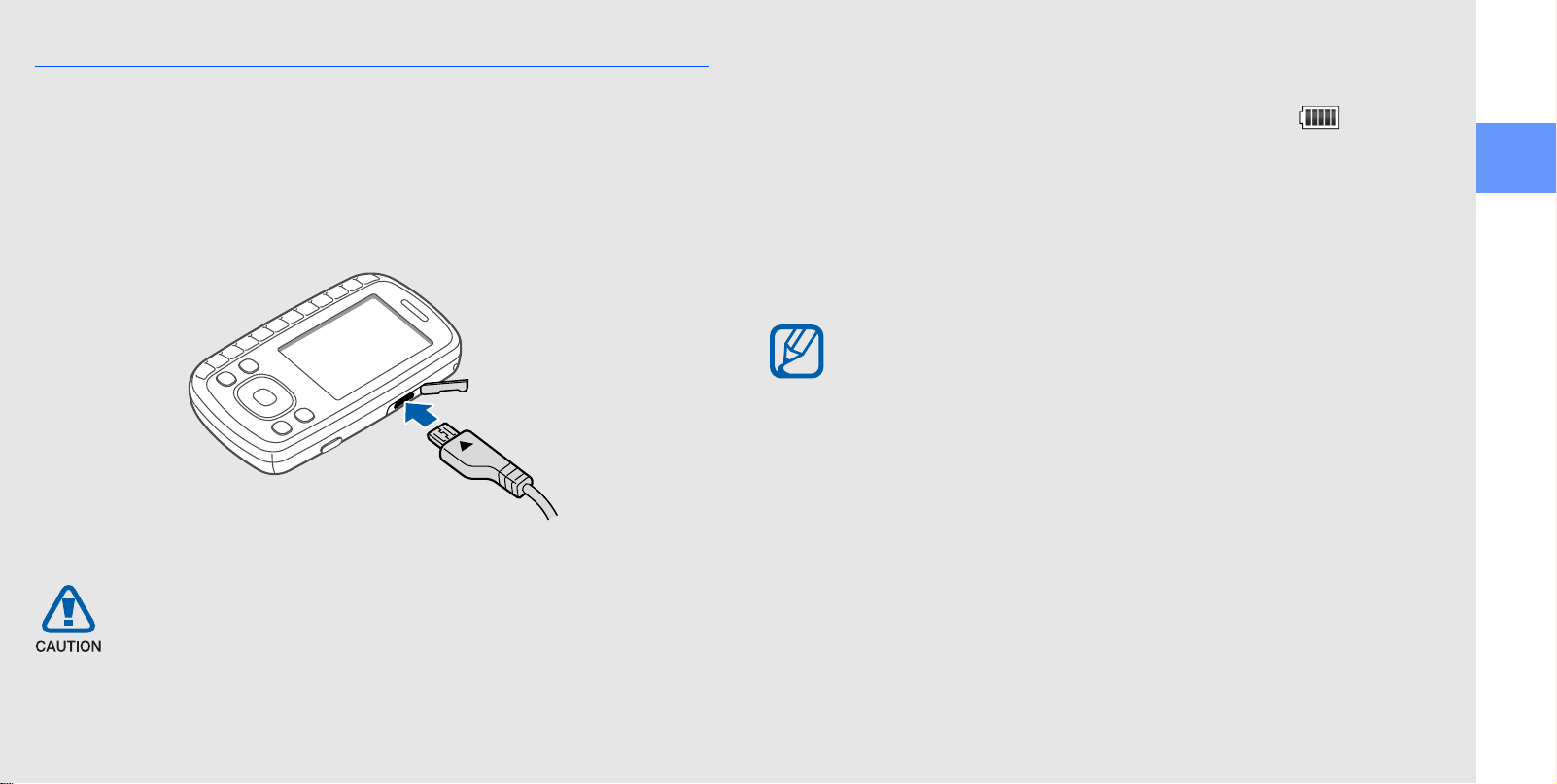

Charge the battery ....................................21
Insert a memory card (optional) .................22
Page 6
using basic functions ............................ 24
Use advanced messaging functions .......... 41
Turn your phone on and off ....................... 24
Access menus ..........................................25
Use shortcut menus from the
shortcut toolbar ........................................ 25
Use messaging shortcuts in Quick
access mode ............................................26
Customise your phone ..............................26
Use basic call functions ............................ 28
Send and view messages ......................... 30
Add and find contacts ...............................32
Use basic camera functions ......................33
Listen to music .........................................34
Browse the web ........................................ 35
using advanced functions ..................... 37
Use advanced camera functions ............... 43
Use advanced music functions ................. 46
using tools and applications ................. 49
Use the Bluetooth wireless feature ............ 49
Activate and send an SOS message ......... 51
Activate the mobile tracker ........................ 51
Make fake calls .........................................52
Record and play voice memos .................. 53
View photos and videos on the web ......... 54
Use Java-powered games and
applications .............................................. 54
Create and view world clocks ................... 55
Set and use alarms ................................... 56
Use the calculator .....................................57
contents
Use advanced call functions .....................37
Use advanced phonebook functions ......... 40
Convert currencies or measurements ....... 57
Set a countdown timer .............................58
Page 7
Use the stopwatch ....................................58
Create a new task ..................................... 58
Create a text memo ..................................58
Manage your calendar ..............................59
contents
troubleshooting ........................................ a
Page 8
safety and
usage
Safety warnings
Keep your phone away from small
children and pets
Keep your phone and all accessories out of the
reach of small children or animals. Small parts may
information
Comply with the following precautions to avoid
dangerous or illegal situations and ensure peak
performance of your mobile phone.
cause choking or serious injury if swallowed.
Protect your hearing
Listening to a headset at high volumes
can damage your hearing. Use only the
minimum volume setting necessary to
hear your conversation or music.
Page 9
safety and usage information
Install mobile phones and equipment
with caution
Ensure that any mobile phones or related equipment
installed in your vehicle are securely mounted. Avoid
placing your phone and accessories near or in an air
bag deployment area. Improperly installed wireless
equipment can cause serious injury when air bags
inflate rapidly.
• Never place batteries or phones on or in heating
devices, such as microwave ovens, stoves, or
radiators. Batteries may explode when
overheated.
• Never crush or puncture the battery. Avoid
exposing the battery to high external pressure,
which can lead to an internal short circuit and
overheating.
Handle and dispose of batteries and
chargers with care
• Use only Samsung-approved batteries and
chargers specifically designed for your phone.
Incompatible batteries and chargers can cause
serious injuries or damage to your phone.
• Never dispose of batteries or phones in a fire.
Follow all local regulations when disposing used
batteries or phones.
Avoid interference with pacemakers
Maintain a minimum of 15 cm (6 inches) between
mobile phones and pacemakers to avoid potential
interference, as recommended by manufacturers
and the independent research group, Wireless
Technology Research. If you have any reason to
suspect that your phone is interfering with a
pacemaker or other medical device, turn off the
phone immediately and contact the manufacturer of
the pacemaker or medical device for guidance.
Page 10
Turn off the phone in potentially
Do not use the phone if the screen is
explosive environments
Do not use your phone at refuelling points (service
stations) or near fuels or chemicals. Turn off your
phone whenever directed by warning signs or
instructions. Your phone could cause explosions or
fire in and around fuel or chemical storage and
transfer areas or blasting areas. Do not store or carry
flammable liquids, gases, or explosive materials in
the same compartment as the phone, its parts, or
accessories.
Reduce the risk of repetitive motion
injuries
While using your phone, hold the phone with a
relaxed grip, press the keys lightly, use special
features that reduce the number of keys you have to
cracked or broken
Broken glass or acrylic could cause injury to your
hand and face. Bring the phone to a Samsung
service centre to replace the screen. Damage
caused by careless handling will void your
manufacturer's warranty.
safety and usage information
press (such as templates and predictive text), and
take frequent breaks.
Page 11
Safety precautions
Turn off the phone near medical
equipment
Your phone can interfere with medical equipment in
safety and usage information
Drive safely at all times
Avoid using your phone while driving and obey all
regulations that restrict the use of mobile phones
while driving. Use hands-free accessories to
increase your safety when possible.
Follow all safety warnings and
regulations
Comply with any regulations that restrict the use of a
mobile phone in a certain area.
Use only Samsung-approved
accessories
Using incompatible accessories may damage your
phone or cause injury.
hospitals or health care facilities. Follow all
regulations, posted warnings, and directions from
medical personnel.
Turn off the phone or disable the
wireless functions when in an aircraft
Your phone can cause interference with aircraft
equipment. Follow all airline regulations and turn off
your phone or switch to a mode that disables the
wireless functions when directed by airline
personnel.
Page 12
Protect batteries and chargers from
damage
• Avoid exposing batteries to very cold or very hot
temperatures (below 0° C/32° F or above 45° C/
113° F). Extreme temperatures can reduce the
charging capacity and life of your batteries.
• Prevent batteries from contacting metal objects,
as this can create a connection between the +
and - terminals of your batteries and lead to
temporary or permanent battery damage.
• Never use a damaged charger or battery.
• Do not allow your phone to get wet—liquids can
cause serious damage and will change the colour
of the label that indicates water damage inside the
phone. Do not handle your phone with wet
hands. Water damage to your phone can void
your manufacturer’s warranty.
• Avoid using or storing your phone in dusty, dirty
areas to prevent damage to moving parts.
• Your phone is a complex electronic device—
protect it from impacts and rough handling to
avoid serious damage.
• Do not paint your phone, as paint can clog
safety and usage information
Handle your phone carefully and
sensibly
• Do not disassemble your phone due to a risk of
electric shock.
moving parts and prevent proper operation.
• If your phone has a camera flash or light, avoid
using it.
• Your phone may be damaged by exposure to
magnetic fields. Do not use carrying cases or
accessories with magnetic closures or allow your
phone to come in contact with magnetic fields for
extended periods of time.
Page 13
Avoid interference with other electronic
devices
Important usage information
safety and usage information
Your phone emits radio frequency (RF) signals that
may interfere with unshielded or improperly shielded
electronic equipment, such as pacemakers, hearing
aids, medical devices, and other electronic devices
in homes or vehicles. Consult the manufacturers of
your electronic devices to solve any interference
problems you experience.
Use your phone in the normal position
Avoid contact with your phone’s internal antenna.
Allow only qualified personnel to service
your phone
Allowing unqualified personnel to service your phone
may result in damage to your phone and will void
your warranty.
Ensure maximum battery and charger
life
• Avoid charging batteries for more than a week, as
overcharging may shorten battery life.
• Over time, unused batteries will discharge and
must be recharged before use.
Page 14
• Disconnect chargers from power sources when
not in use.
• Use batteries only for their intended purpose.

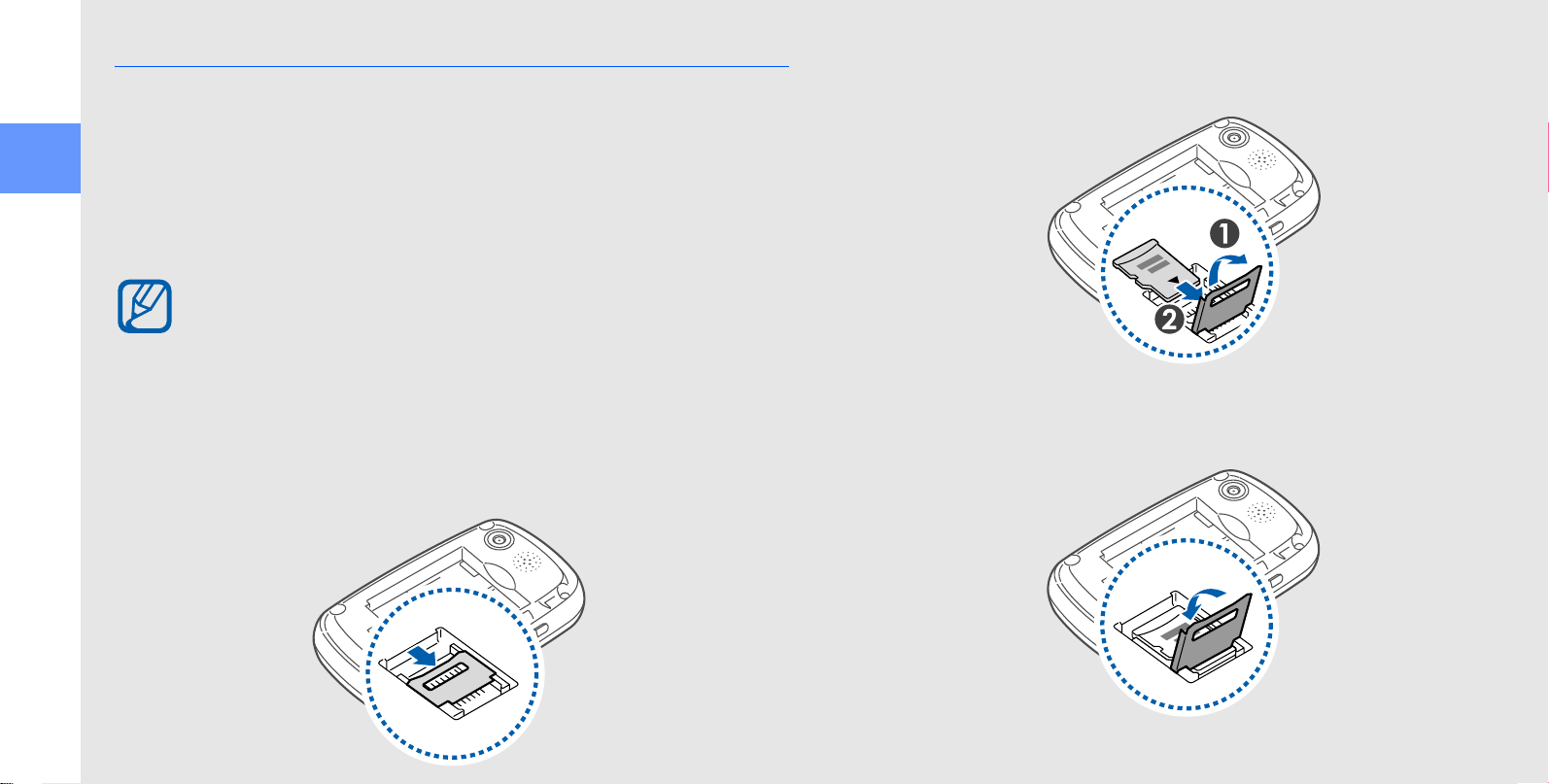

Handle SIM cards and memory cards
with care
• Do not remove a card while the phone is
transferring or accessing information, as this
could result in loss of data and/or damage to the
Ensure access to emergency services
Emergency calls from your phone may not be
possible in some areas or circumstances. Before
travelling in remote or undeveloped areas, plan an
alternate method of contacting emergency services
personnel.
Specific Absorption Rate (SAR)
certification information
safety and usage information
card or phone.
• Protect cards from strong shocks, static
electricity, and electrical noise from other devices.
• Frequent writing and erasing will shorten the life
span of memory cards.
• Do not touch gold-coloured contacts or terminals
with your fingers or metal objects. If dirty, wipe the
card with a soft cloth.
Your phone conforms to European Union (EU)
standards that limit human exposure to radio
frequency (RF) energy emitted by radio and
telecommunications equipment. These standards
prevent the sale of mobile phones that exceed a
maximum exposure level (known as the Specific
Absorption Rate, or SAR) of 2.0 watts per kilogram.
Page 15
safety and usage information
During testing, the maximum SAR recorded for this
model was 0.659 watts per kilogram. In normal use,
the actual SAR is likely to be much lower, as the
phone has been designed to emit only the RF
energy necessary to transmit a signal to the nearest
base station. By automatically emitting lower levels
Correct disposal of this product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and
other European countries with separate
collection systems)
when possible, your phone reduces your overall
exposure to RF energy.
For more information about the SAR and related EU
standards, visit the Samsung mobile phone website.
This marking on the product, accessories
or literature indicates that the product and
its electronic accessories (e.g. charger, headset,
USB cable) should not be disposed of with other
household waste at the end of their working life. To
prevent possible harm to the environment or human
health from uncontrolled waste disposal, please
separate these items from other types of waste and
recycle them responsibly to promote the sustainable
reuse of material resources.
Page 16
Household users should contact either the retailer
where they purchased this product, or their local
government office, for details of where and how they
can take these items for environmentally safe
recycling.
Business users should contact their supplier and
check the terms and conditions of the purchase
contract. This product and its electronic accessories
should not be mixed with other commercial wastes
for disposal.
Correct disposal of batteries in this
product
(Applicable in the European Union and
other European countries with separate
battery return systems)
This marking on the battery, manual or
packaging indicates that the batteries in this product
should not be disposed of with other household
waste at the end of their working life. Where marked,
the chemical symbols Hg, Cd or Pb indicate that the
battery contains mercury, cadmium or lead above
the reference levels in EC Directive 2006/66. If
batteries are not properly disposed of, these
substances can cause harm to human health or the
environment.
safety and usage information
To protect natural resources and to promote material
reuse, please separate batteries from other types of
waste and recycle them through your local, free
battery return system.
Page 17
safety and usage information
Disclaimer
Some content and services accessible through this
device belong to third parties and are protected by
copyright, patent, trademark and/or other intellectual
property laws. Such content and services are
provided solely for your personal noncommercial
use. You may not use any content or services in a
manner that has not been authorised by the content
owner or service provider. Without limiting the
foregoing, unless expressly authorised by the
applicable content owner or service provider, you
may not modify, copy, republish, upload, post,
transmit, translate, sell, create derivative works,
exploit, or distribute in any manner or medium any
content or services displayed through this device.
“THIRD PARTY CONTENT AND SERVICES ARE
PROVIDED "AS IS." SAMSUNG DOES NOT
WARRANT CONTENT OR SERVICES SO
PROVIDED, EITHER EXPRESSLY OR IMPLIEDLY,
FOR ANY PURPOSE. SAMSUNG EXPRESSLY
DISCLAIMS ANY IMPLIED WARRANTIES,
INCLUDING BUT NOT LIMITED TO, WARRANTIES
OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. SAMSUNG DOES NOT
GUARANTEE THE ACCURACY, VALIDITY,
TIMELINESS, LEGALITY, OR COMPLETENESS OF
ANY CONTENT OR SERVICE MADE AVAILABLE
THROUGH THIS DEVICE AND UNDER NO
CIRCUMSTANCES, INCLUDING NEGLIGENCE,
SHALL SAMSUNG BE LIABLE, WHETHER IN
CONTRACT OR TORT, FOR ANY DIRECT,
INDIRECT, INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES, ATTORNEY FEES,
EXPENSES, OR ANY OTHER DAMAGES ARISING
OUT OF, OR IN CONNECTION WITH, ANY
INFORMATION CONTAINED IN, OR AS A RESULT
OF THE USE OF ANY CONTENT OR SERVICE BY
YOU OR ANY THIRD PARTY, EVEN IF ADVISED OF
THE POSSIBILITY OF SUCH DAMAGES."
Page 18
Third party services may be terminated or interrupted
at any time, and Samsung makes no representation
or warranty that any content or service will remain
available for any period of time. Content and
services are transmitted by third parties by means of
networks and transmission facilities over which
Samsung has no control. Without limiting the
generality of this disclaimer, Samsung expressly
disclaims any responsibility or liability for any
interruption or suspension of any content or service
made available through this device.
Samsung is neither responsible nor liable for
customer service related to the content and
services. Any question or request for service relating
to the content or services should be made directly to
the respective content and service providers.
safety and usage information
Page 19
introducing your
mobile phone
In this section, learn about your mobile phone’s
layout, keys, display, and icons.
Unpack
Check your product box for the following items:
• Mobile phone
• Battery
• Travel adapter (charger)
•User manual
• The items supplied with your phone may vary
depending on the software and accessories
available in your region or offered by your
service provider. You can obtain additional
accessories from your local Samsung dealer.
• The supplied accessories perform best for
your phone.
Page 20
Phone layout
The front of your phone includes the following keys
and features:
Earpiece
Alphanumeric
keys
Display
Volume key
The inside of your phone includes the following keys
and features:
introducing your mobile phone
QWERTY
keyboard
4-way
navigation key
Left softkey
Dial key
Mouthpiece
Confirm key
Right softkey
Power/Menu
exit key
Depending on your region, the composition of
the QWERTY keyboard may differ.
Page 21
The rear of your phone includes the following keys
and features:
Keypad
Key Function
Softkeys
Perform actions indicated at the
bottom of the display
introducing your mobile phone
Camera lens
Multifunction
jack
Mirror
Camera key
Speaker
Battery cover
Internal antenna
4-way
navigation
In Idle mode, access user-defined
menus (depending on your service
provider, pre-defined menus may
differ) or scroll through the shortcuts;
In Menu mode, scroll through menu
options
In Idle mode, launch the web
browser or access Menu mode
(depending on your service provider
or region, the key may perform
Confirm
differently); In Idle mode, select a
menu on the shortcuts toolbar; In
You can lock the exposed keys to prevent any
unwanted phone operations. To lock or unlock,
Menu mode, select the highlighted
menu option or confirm an input
press and hold [ ].
Page 22
Key Function
Key Function
Dial
Power/
Menu exit
Alphanumeric
Special
function
Make or answer a call; In Idle mode,
retrieve recently dialled, missed, or
received numbers
Turn the phone on and off (press
and hold); End a call; In Menu mode,
cancel input and return to Idle mode
Enter numbers, letters and special
characters; In Idle mode, press and
hold [1] to access voice mails and
[0] to enter an international call prefix
Enter special characters or perform
special functions; In Idle mode,
press and hold [ ] for the silent
profile; In Idle mode, press and hold
[ ] to enter a pause between
numbers; In Idle mode, press and
hold [ ] to lock or unlock the keys
Adjust the phone’s volume; Silence a
Volume
Camera
ringtone for incoming calls or reject
calls (press and hold)
In Idle mode, turn on the camera
(press and hold); In Camera mode,
take a photo or record a video
QWERTY keyboard
Depending on your region, the composition of
the QWERTY keyboard may differ.
Key Function
Softkeys
Messaging/
Perform actions indicated at the
bottom of the display
In Idle mode, open the new
message screen; Access the Inbox
introducing your mobile phone
Shift
(press and hold); Change case in a
text input field
Page 23
Key Function
Key Function
Alt
Use characters on the upper half of
the keys in a text input field
Delete
Enter
introducing your mobile phone
Alphabet/
Symbol
Enter letters and special characters
Delete characters
Start a new line in a text input field
In Idle mode, launch the web
browser or access Menu mode
(depending on your service provider
or region, the key may perform
Confirm
Space
4-way
navigation
Insert a space in a text input field
In Idle mode, access user-defined
menus (depending on your service
provider, pre-defined menus may
differ) or scroll through the
shortcuts; In Menu mode, scroll
through menu options
differently); In Idle mode, select a
menu on the shortcuts toolbar; In
Menu mode, select the highlighted
menu option or confirm an input
Page 24
Display
Icons
Your phone’s display consists of three areas:
Icon line
Displays various icons
Text and graphic area
Displays messages,
instructions, and
information you enter
Softkey line
Displays the current actions
assigned to each softkey
Learn about the icons that appear on your display.
Icon Definition
Signal strength
GPRS network connected
Transferring data via GPRS network
EDGE network connected
Transferring data via EDGE network
Call in progress
SOS message feature activated
Connecting to secured web page
Browsing the web
Call diverting activated
introducing your mobile phone
Roaming (outside of normal service area)
Bluetooth activated
Page 25
Icon Definition
Music playback in progress
Music playback paused
Music playback stopped
introducing your mobile phone
FM radio on
FM radio suspended
Memory card inserted
New text or multimedia message
New email message
New voice mail message
Alarm activated
Normal profile activated
Silent profile activated
Battery power level
Current time
Page 26
assembling and
preparing your
Install the SIM card and battery
When you subscribe to a cellular service, you will
receive a Subscriber Identity Module (SIM) with
subscription details, such as your personal
identification number (PIN) and optional services.
To install the SIM card and battery,
mobile phone
Get started by assembling and setting up
your mobile phone for its first use.

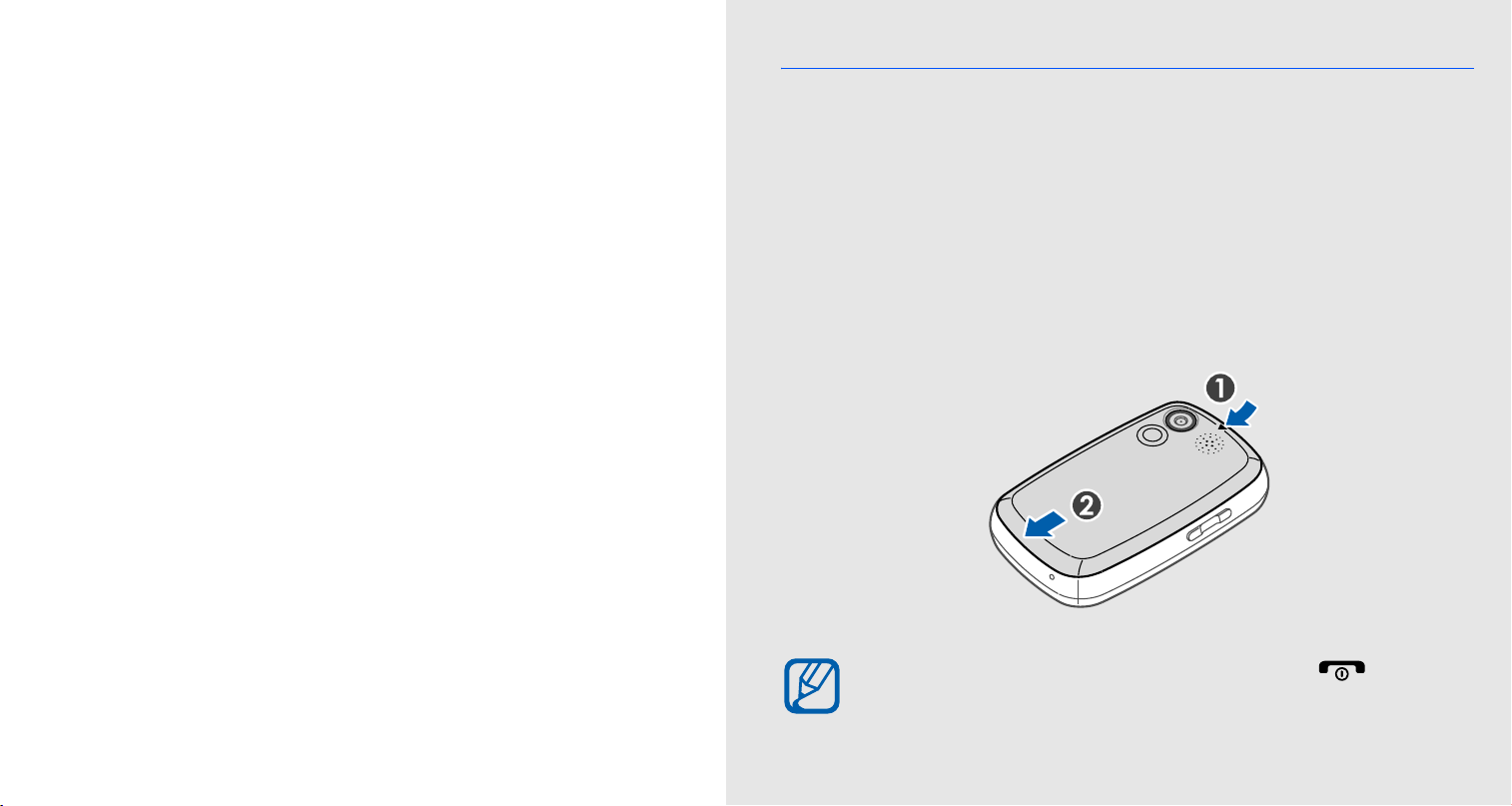

1. Remove the battery cover.
If the phone is on, press and hold [ ] to turn
it off.
Page 27
assembling and preparing your mobile phone
2. Insert the SIM card. 3. Insert the battery.
• Place the SIM card in the phone with the
gold-coloured contacts facing down.
• Without inserting a SIM card, you can use
your phone’s non-network services and
some menus.
4. Replace the battery cover.
Page 28
Charge the battery
Before using the phone for the first time, you must
charge the battery.
1. Open the cover to the multifunction jack and plug
the small end of the travel adapter.
With the triangle
facing up
Improperly connecting the travel adapter can
2. Plug the large end of the travel adapter into a
power outlet.
3. When the battery is fully charged (the icon is
no longer moving), unplug the travel adapter from
the power outlet.
4. Unplug the travel adapter from the phone.
5. Close the cover to the multifunction jack.
About the low battery indicator
When your battery is low, the phone will emit a
warning tone and a low battery message. The
battery icon will also be empty and blinking. If
the battery level becomes too low, the phone
will automatically power off. Recharge your
battery to continue using your phone.
assembling and preparing your mobile phone
cause serious damage to the phone. Any
damages by misuse are not covered by the
warranty.
Page 29
Insert a memory card (optional)
To store additional multimedia files, you must insert a
memory card. Your phone accepts microSD™ or
microSDHC™ memory cards up to 8 GB

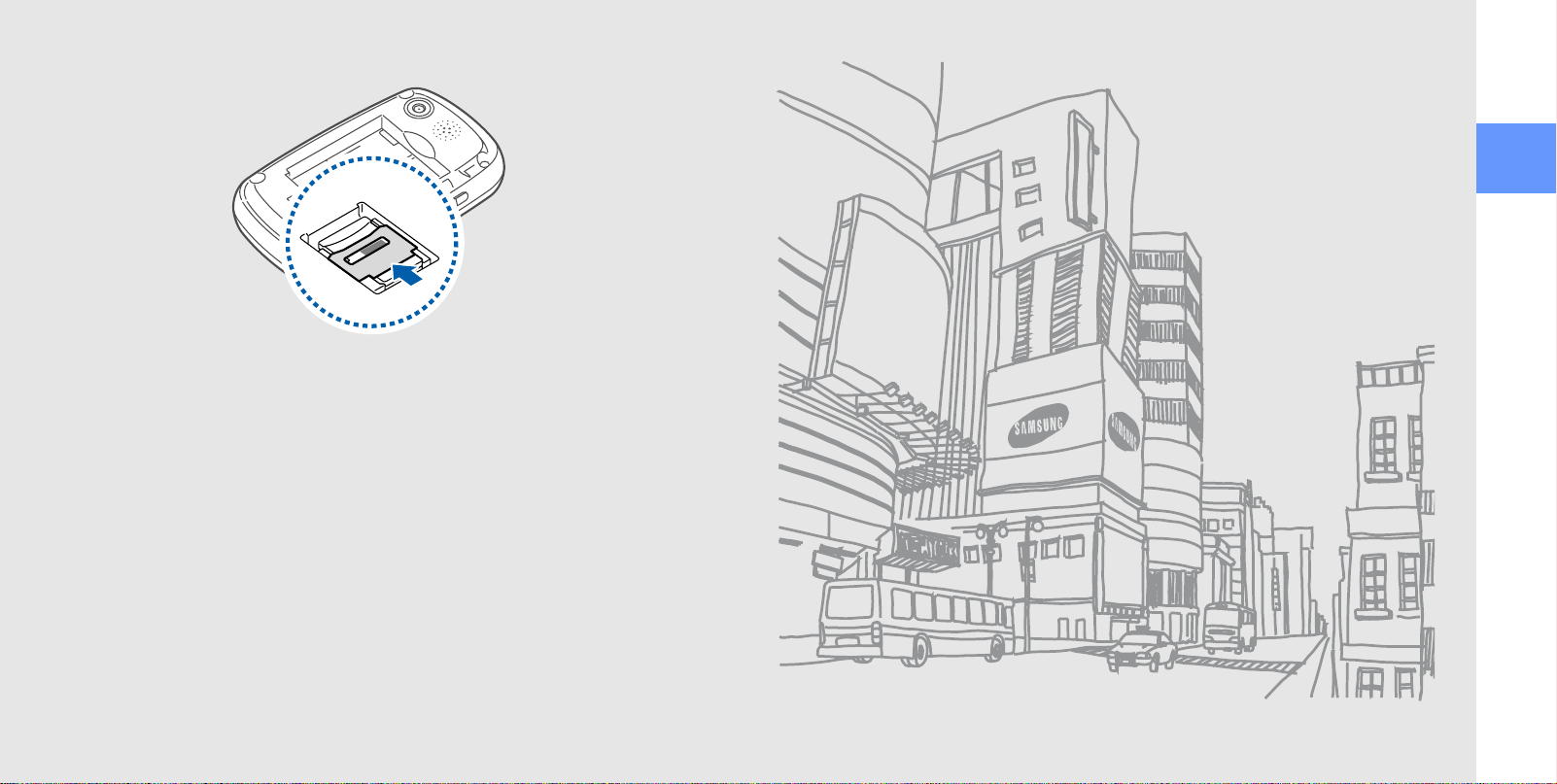

3. Lift the memory card cover and insert a memory
card with the label side facing up.
assembling and preparing your mobile phone
(depending on memory card manufacturer and
type)..
Formatting the memory card on a PC may
cause incompatibility with your phone. Format
the memory card only on the phone.
1. Remove the battery cover.
2. Unlock the memory card cover.
4. Close the memory card cover.
Page 30
5. Lock the memory card cover.
6. Replace the battery cover.
To remove the memory card, remove the battery
cover, unlock and lift the memory card cover, and
remove the memory card.
assembling and preparing your mobile phone
Page 31
using basic
functions
Learn how to perform basic operations and use the
main features of your mobile phone.
Turn your phone on and off
To turn your phone on,
1. Press and hold [ ].
2. Enter your PIN and press <OK> (if necessary).
3. When the setup wizard opens, customise your
phone as desired by following the screen.
To turn your phone off, repeat step 1 above.
Switch to the offline profile
By switching to the offline profile, you can use your
phone’s non-network services in areas where
wireless devices are prohibited, such as aeroplane
and hospitals.
To switch to the offline profile, in Menu mode, select
Settings → Phone profiles → Offline.
Follow all posted warnings and directions from
official personnel when in areas where wireless
devices are prohibited.
Page 32
Access menus
Use shortcut menus from the
To access your phone’s menus,
1. In Idle mode, press <Menu> to access Menu
mode.
You may need to press the Confirm key to
access Menu mode depending on your
region or service provider.
2. Use the Navigation key to scroll to a menu or
option.
3. Press <Select>, <OK>, or the Confirm key to
confirm the highlighted option.
4. Press <Back> to move up one level; Press [ ]
to return to Idle mode.
shortcut toolbar
Learn to use the items on the toolbar.
To access an item from the shortcut toolbar, in Idle
mode, scroll left or right to the menu item you want
and press the Confirm key.
To edit items on the shortcut toolbar,
1. In Menu mode, select Settings → Display and
light → Shortcuts toolbar.
2. Press <Options> → Edit.
3. Select your favourite menus.
4. Press <Options> → Open to select submenus
(if necessary).
5. Press <Save>, or press <Options> → Save.
using basic functions
To deactivate the shortcuts toolbar, in Menu
mode, select
Home screen
Settings → Display and light →
→
Shortcuts toolbar
→
Off
.
Page 33
Use messaging shortcuts in Quick
Menu Description
access mode
Learn to use some messaging shortcuts in Quick
access mode by sliding open the phone.
1. In Menu mode, select Settings → Phone
using basic functions
settings → Quick access → On (if necessary).
2. Press [ ] to return to Idle mode.
3. Slide open the phone.
4. Rotate the phone anti-clockwise to landscape
view.
5. Scroll left or right to use the following menus:
Menu Description
Create
message
Communities
Create a new text or multimedia
message
View photos and videos on the
web via various websites
Customise your phone
Get more from your phone by customising it to
match your preferences.
Adjust the volume of the key tones
In Idle mode, press [ / ] to adjust the key tone
volume.
Switch to or from the silent profile
In Idle mode, press and hold [ ] to silence or
unsilence your phone.
Conversations
Fring
messenger
View messages you have sent
and received
Chat with your friends instantly
Page 34
Set a phone profile
3. Enter a name for the profile and press <Save>.
To change the ringtone of the current profile,
1. In Menu mode, select Settings → Phone
profiles.
2. Scroll to the profile you are using.
If you are using the silent or offline profile,
you are not allowed to change the ringtone.
3. Press <Options> → Edit → Voice call ringtone.
4. Select a ringtone category → a ringtone.
5. Press <Save>.
To switch to another profile, select it from the list.
To create a phone profile,
1. In Menu mode, select Settings → Phone
profiles.
4. Customise the sound settings as desired.
5. When you are finished, press <Save>.
Select a wallpaper (Idle mode)
1. In Menu mode, select Settings → Display and
light → Home screen.
2. Scroll left or right to Images.
3. Select Wallpaper.
4. Select an image category → an image.
5. Press <Select> → <Save>.
Select a theme for the display
1. In Menu mode, select Settings → Display and
light → My theme.
using basic functions
2. Press <Options> → Create.
2. Scroll to a theme and press <Save>.
Page 35
Set menu shortcuts
3. Enter the new password again and press <OK>.
1. In Menu mode, select Settings → Phone
settings → Shortcuts.
2. Select a key to use as a shortcut.
3. Select a menu to assign to the shortcut key.
using basic functions
Lock your phone
1. In Menu mode, select Settings → Security →
2. Enter a new 4- to 8-digit password and press
When the shortcuts toolbar is activated, the
Navigation keys (left/right) do not work as
shortcuts.
Phone lock → On.
<OK>.
Use basic call functions
Learn to make or answer calls and use basic call
functions.
Make a call
1. In Idle mode, enter an area code and a phone
2. Press [ ] to dial the number
• The first time you access a menu that
requires a password, you will be prompted to
create and confirm a password.
• Samsung is not responsible for any loss of
passwords or private information or other
damages caused by illegal software.
number.
3. To end the call, press [ ].
Page 36
Answer a call
Record a conversation
1. When a call comes in, press [ ].
2. To end the call, press [ ].
Adjust the volume
To adjust the volume during a call, press [ / ].
Use the speakerphone feature
1. During a call, press the Confirm key → <Yes> to
activate the speaker.
2. To switch back to the earpiece, press the
Confirm key again.
In noisy environments, you may have difficulty
hearing the calls while using the speakerphone
feature. For better performance, use the normal
phone mode.
This feature may not be available depending on
your region or service provider.
1. During a call, press <Options> → Menu →
Applications → Voice recorder.
2. Press the Confirm key to start recording.
3. Press the Navigation key down to stop
recording.
Use the headset
By plugging the supplied headset into the
multifunction jack, you can make and answer calls:
• To redial the last call, press the headset button
twice.
• To answer a call, press the headset button.
• To end a call, press the headset button.
using basic functions
Page 37
Send and view messages
Send an email
Learn to send or view text (SMS), multimedia (MMS),
or email messages.
Send a text or multimedia message
using basic functions
1. In Menu mode, select Messages → Create
message → Message.
2. Enter a destination number or an email address
and scroll down.
3. Enter your message text.
For sending as a text message, skip to step 5.
For attaching multimedia, continue with step 4.
4. Press <Options> → Add multimedia and add
an item.
5. Press the Confirm key to send the message.
X
p. 30
1. In Menu mode, select Messages → Create
message → Email.
2. Enter an email address and scroll down.
3. Enter a subject and scroll down.
4. Enter your email text.
5. Press <Options> → Attach multimedia and
attach a file (if necessary).
6. Press the Confirm key to send the email.
Enter text
Open the phone and enter text as you would use a
computer’s keyboard. If the phone is closed, use the
keypad.
Page 38
Enter text on the keypad
• Press [Sym] to switch to Symbol mode.
When entering text on the keypad, you can change
the text input mode:
• Press and hold [ ] to switch between T9 and
ABC modes. Depending on your country, you
may be able to access an input mode for your
specific language.
• Press [ ] to change case or switch to Number
mode.
• Press [ ] to switch to Symbol mode.
• Press [ ] twice to open the emoticon list.
• Press and hold [ ] and select an input mode or
change the input language.
Enter text on the QWERTY keyboard
When entering text on the QWERTY keyboard, you
can use the following functions:
• Press [ ] to change case.
• Press [Alt] to enter characters on the upper half of
the keys.
• Press [Alt] → [ ] to open the emoticon list.
Enter text in one of the following modes:
Mode Function
Press the appropriate alphanumeric key
ABC
T9 (only in
until the character you want appears on
the display.
1. Press the appropriate alphanumeric
keys to enter an entire word.
2. When the word displays correctly,
0
press [
] to insert a space. If the
the keypad)
correct word does not display, select
an alternate word from the list that
appears.
Press an appropriate alphanumeric key
Number
to enter a number.
using basic functions
Page 39
Mode Function
Add and find contacts
Symbol
Press an appropriate alphanumeric key
to enter a symbol.
Learn the basics of using the phonebook feature.
Add a new contact
View text or multimedia messages
1. In Menu mode, select Messages → Inbox.
using basic functions
2. Select a text or multimedia message.
1. In Idle mode, enter a phone number and press
<Options>.
2. Select Save contact → a memory location
(phone or SIM) → New.
View an email
3. Select a number type (if necessary).
1. In Menu mode, select Messages → Email
inbox.
2. Select an account.
3. Press <Options> → Download.
4. Select an email or a header.
5. If you selected a header, press <Options> →
Retrieve to view the body of the email.
4. Enter contact information.
5. Press <Save>, or press <Options> → Save to
add the contact to memory.
Find a contact
1. In Menu mode, select Phonebook.
2. Enter the first few letters of the name you want to
find.
Page 40
3. Select the contact’s name from the search list.
4. Press the Confirm key or [ ] to take a photo.
Once you have found a contact, you can:
• call the contact by pressing [ ]
• edit the contact information by pressing
Confirm key
the
Use basic camera functions
Learn the basics to capture and view photos and
videos.
Capture photos
1. In Idle mode, press and hold [ ] to turn on the
camera.
2. Rotate the phone anti-clockwise to landscape
view.
The photo is saved automatically.
5. Press < > or [ ] to take another photo (step
3).
View photos
In Menu mode, select My files → Images → My
photos → a photo file.
Capture videos
1. In Idle mode, press and hold [ ] to turn on the
camera.
2. Rotate the phone anti-clockwise to landscape
view.
3. Press [1] to switch to Recording mode.
using basic functions
3. Aim the lens at the subject and make any
adjustments.
4. Aim the lens at the subject and make any
adjustments.
Page 41
5. Press the Confirm key or [ ] to start recording.
2. In Menu mode, select FM radio.
6. Press < >, the Confirm key, or [ ] to stop
recording.
The video is saved automatically.
7. Press <Back> or [ ] to record another video
(step 4).
using basic functions
3. Press the Confirm key to turn on the FM radio.
4. Press <Yes> to start automatic tuning.
The radio scans and saves available stations
automatically.
The first time you turn on
be prompted to start automatic tuning.
FM radio
, you will
View videos
In Menu mode, select My files → Videos → My
video clips → a video file.
5. Press and hold the Navigation key left or right to
select a saved radio station.
6. To turn off the FM radio, press the Confirm key.
Listen to music
Listen to music files
Learn how to listen to music via the music player or
FM radio.
Listen to the FM radio
Start by transferring files to your phone or memory
card:
• Download from the wireless web.
X
p. 35
1. Plug the supplied headset into the phone’s
multifunction jack.
• Download from a PC with the optional Samsung
X
PC Studio.
p. 46
Page 42
• Receive via Bluetooth. X p. 50
If you select
My files → Memory card → a
X
• Copy to your memory card.
p. 46
After transferring music files to your phone or
memory card,
1. In Menu mode, select Music → Music player.
2. Select a music category → a music file.
3. Control playback using the following keys:
Key Function
Confirm
/
Navigation
Pause or resume playback
Adjust the volume up or down
• Left: Restart playback; Skip
backward (press within 2
seconds); Scan backward in a
file (press and hold)
• Right: Skip forward; Scan
forward in a file (press and hold)
music file, you cannot skip forward or
backward during playback.
Browse the web
Learn to access and bookmark your favourite web
pages.
• You may incur additional charges for
accessing the web and downloading media.
• The browser menu may be labelled differently
depending on your service provider.
Browse web pages
1. In Menu mode, select Internet → Home to
launch your service provider’s homepage.
using basic functions
• Up: Open the playlist
• Down: Stop playback
Page 43
2. Navigate web pages using the following keys:
Key Function
Navigation
Confirm
<
Back
<
using basic functions
Options
>
Scroll up or down on a web page
Select an item
Return to the previous page
Access a list of browser options
>
Bookmark your favourite web pages
1. In Menu mode, select Internet → Bookmarks.
2. Press <Add>.
3. Enter a page title and a web address (URL).
4. Press <Save>.
Page 44
using advanced
functions
Learn how to perform advanced operations and use
additional features of your mobile phone.
Use advanced call functions
Learn about your phone’s additional calling
capabilities.
View and dial missed calls
Your phone will display calls you have missed on the
display. To dial the number of a missed call,
1. Press <View>.
2. Scroll to the missed call you want to dial.
3. Press [ ] to dial.
Call a recently dialled number
1. In Idle mode, press [ ] to display a list of
recent numbers.
2. Scroll to the number you want and press [ ] to
dial.
Page 45
Hold a call or retrieve a held call
Answer a second call
using advanced functions
Press <Hold> to place a call on hold or press
<Retrieve> to retrieve a held call.
Dial a second call
If your network supports this function, you can dial
another number during a call:
1. Press <Hold> to place the first call on hold.
2. Enter the second number to dial and press
[].
3. Press <Swap> to switch between the two calls.
4. To end the call on hold, press <Options> → End
held call.
5. To end the current call, press [ ].
If your network supports this function, you can
answer a second incoming call:
1. Press [ ] to answer the second call.
The first call is automatically placed on hold.
2. Press <Swap> to switch between the calls.
Make a multiparty call (conference call)
1. Call the first party you want to add to the
multiparty call.
2. While connected to the first party, call the
second party.
The first party is automatically placed on hold.
3. When connected to the second party, press
<Options> → Join.
4. Repeat steps 2 and 3 to add more parties (if
necessary).
5. To end the multiparty call, press [ ].
Page 46
Call an international number
Reject a call
1. In Idle mode, press and hold [0] to insert the +
character.
2. Enter the complete number you want to dial
(country code, area code, and phone number),
and then press [ ] to dial.
Call a contact from the phonebook
You can call numbers directly from the phonebook
X
using stored contacts.
1. In Menu mode, select Phonebook.
2. Scroll to the number you want to dial and press
[] to dial.
p. 32
To reject an incoming call, press [ ]. The caller will
hear a busy tone.
To reject calls from certain numbers automatically,
use the auto rejection. To activate the auto rejection
and set up the reject list,
using advanced functions
1. In Menu mode, select Settings → Application
settings → Call → All calls → Auto reject.
2. Scroll left or right to On.
3. Select Reject list.
4. Press <Options> → Add → New.
5. Enter a number to reject and press <Save>.
6. Repeat steps 4-5 to add more numbers.
7. Select the check boxes next to the numbers.
8. Press <Options> → Save.
9. Press <Save>.
Page 47
Use advanced phonebook functions
Learn to create namecards, set speed dial numbers,
and create groups of contacts.
3. Scroll to a number you want to set and press the
Confirm key.
4. Select a contact → a number (if necessary) to
assign to the number.
using advanced functions
Create a namecard
1. In Menu mode, select Phonebook.
2. Press <Options> → My namecard.
3. Enter your personal details.
4. Press <Save>, or press <Options> → Save.
You can send your namecard by attaching it to
a message or email or transferring it via the
Bluetooth wireless feature.
Set speed dial numbers
1. In Menu mode, select Phonebook.
2. Press <Options> → Settings→ Speed dial.
The contact is saved to the speed dial number.
You can now call this contact from Idle mode
by pressing and holding the assigned speed
dial number.
Create a group of contacts
By creating groups of contacts, you can assign
ringtones and caller ID photos to each group or send
messages to an entire group. Start by creating a
group:
1. In Menu mode, select Phonebook.
2. Scroll left or right to Groups.
3. Press <Options> → Create group.
4. Enter a group name.
Page 48
5. To set the caller ID image, scroll down and press
the Confirm key → an image category → an
image.
6. To set a group ringtone, scroll down and press
the Confirm key → a ringtone category → a
ringtone.
7. Press <Save>.
Create a multimedia template
1. In Menu mode, select Messages → Templates
→ Multimedia message templates.
2. Press <Options> → Create.
3. Create a multimedia message, with a subject
and desired attachments, to use as your
using advanced functions
template. X p. 30
Use advanced messaging functions
Learn to create templates, use templates to create
new messages, and use the messengers.
Create a text template
1. In Menu mode, select Messages → Templates
→ Text message templates.
2. Press <Create> to open a new template
window.
3. Enter your text and press the Confirm key to save
the template.
4. Press <Options> → Save as template to save
the template.
Insert text templates in new messages
1. In Menu mode, select Messages → Create
message → a message type.
2. In the text field, press <Options> → Add text →
Template → a template.
If you are using the QWERTY keyboard, press
[Alt] → [ ] to insert a text template.
Page 49
Create a message from a multimedia
4. Scroll to a device and press <Select>.
using advanced functions
template
1. In Menu mode, select Messages → Templates
→ Multimedia message templates.
2. Scroll to the template you want and press
<Options> → Send.
Your template opens as a new multimedia
message.
Use the Bluetooth messenger
Learn to chat with your family or friends instantly via
the Bluetooth wireless feature.
1. In Menu mode, select Messages → Bluetooth
messenger.
2. Press <Yes> to turn on the Bluetooth wireless
feature (if necessary).
5. Enter a PIN for the Bluetooth wireless feature or
the other device’s Bluetooth PIN, if it has one,
and press <OK>.
When the owner of the other device enters the
same PIN or accepts the connection, pairing is
complete.
You may not need to enter a PIN depending
on the device.
6. Enter your message and press the Confirm key.
Use the Fring messenger
1. In Menu mode, select Messages → Fring
messenger.
2. Enter your user ID and password, and press the
Confirm key.
3. Press <Options> → Search Bluetooth contact
→ Search for new devices.
3. Chat with your family or friends instantly.
Page 50
Create a folder to manage messages
3. Press < > → Shooting mode → Multiple.
1. In Menu mode, select Messages → My folders.
2. Press <Yes>.
3. Enter a new folder name and press <OK>.
4. Move messages from the Inbox to your folders to
manage them as your preferences.
Use advanced camera functions
Learn how to capture photos in various modes and
customise camera settings.
Capture a series of photos
1. In Idle mode, press and hold [ ] to turn on the
camera.
2. Rotate the phone anti-clockwise to landscape
view.
4. Select the number of photos to capture.
5. Make any necessary adjustments.
6. Press the Confirm key or [ ] to take series of
photos.
7. Select photos to save and press < > to save
the photos.
Capture divided photos
1. In Idle mode, press and hold [ ] to turn on the
camera.
2. Press < > → Shooting mode → Mosaic.
3. Select an image layout and press the Confirm
key.
4. Make any necessary adjustments.
5. Press the Confirm key or [ ] to take photos for
each segment.
using advanced functions
Page 51
Capture panoramic photos
Capture photos with decorative frames
using advanced functions
1. In Idle mode, press and hold [ ] to turn on the
camera.
2. Rotate the phone anti-clockwise to landscape
view.
3. Press < > → Shooting mode → Panorama.
4. Make any necessary adjustments.
5. Press the Confirm key or [ ] to take the first
photo.
6. Slowly move the phone to the right. The phone
captures the next photo automatically.
7. Repeat step 6 to complete the panoramic photo.
8. Press < > to save the photo.
1. In Idle mode, press and hold [ ] to turn on the
camera.
2. Rotate the phone anti-clockwise to landscape
view.
3. Press < > → Frames.
4. Select a frame and press the Confirm key.
5. Make any necessary adjustments.
6. Press the Confirm key or [ ] to take a photo
with the frame.
Page 52
Use camera options
Before capturing a photo, press < > to access the
Before capturing a video, press < > to access the
following options:
following options:
Option Function
Shooting mode
Resolution
Switch the shooting modes
Change the resolution option
Set whether to use Night shot
Night mode
mode
Timer
Effects
Frames
White balance
Viewfinder mode
Shortcuts
Select the time delay
Apply a special effect
Add a decorative frame
Adjust the colour balance
Change the preview screen
View the shortcut information
Option Function
Size
Timer
Effects
White balance
Audio recording
Recording mode
Viewfinder mode
Shortcuts
Change the video size
Select the time delay
Apply a special effect
Adjust the colour balance
Turn the audio on or off
Change the recording mode
Change the preview screen
View the shortcut information
using advanced functions
Page 53
Customise camera settings
Use advanced music functions
using advanced functions
From the viewfinder, press < > → Settings →
Camera or Camcorder to access the following
settings:
Option Function
Quality
Shutter sound
Zoom sound
Brightness
sound
Default storage
Adjust the quality of your digital
images or video clips
Select a sound to accompany the
shutter action
Turn the zoom sound on or off
Turn the brightness sound on or off
Select a memory location to store
new images or video clips
Learn to prepare music files, create playlists, and
store radio stations.
Copy music files via Samsung PC Studio
1. Using an optional PC data cable, connect the
multifunction jack on your phone to a PC.
2. Run Samsung PC Studio and copy files from the
PC to the phone.
Refer to the Samsung PC Studio help for more
information.
Copy music files to a memory card
1. Insert a memory card.
2. Using an optional PC data cable, connect the
multifunction jack on your phone to a PC.
When connected, a pop-up window will appear
on the PC.
Page 54
3. Open a folder to view files.
Customise your music player settings
4. Copy files from the PC to the memory card.
Create a playlist
1. In Menu mode, select Music → Music player →
Playlists.
2. Press <Options> → Create playlist.
3. Enter a title for your new playlist and press
<Save>.
4. Select the new playlist.
5. Press <Options> → Add → Tracks.
6. Select the files you want to include and press
<Add>.
Learn to adjust the playback and sound settings for
your music player.
1. In Menu mode, select Music → Music player.
2. Press <Options> → Player settings.
3. Adjust the settings to customise your music
player:
Option Function
Set whether to play music in the
Background
playing
background when you end the
music player
Sound
effects
Change the sound effects
Music auto
off
Set the timer when the music player
automatically turns off
using advanced functions
4. Press <Save>.
Page 55
Store radio stations automatically
Find information of music
using advanced functions
1. Plug the supplied headset into the phone’s
multifunction jack.
2. In Menu mode, select FM radio.
3. Press the Confirm key to start the FM radio.
4. Press <Options> → Self-tuning.
5. Press <Yes> to confirm (if necessary).
The radio scans and saves available stations
automatically.
Learn to access an online music service and get
information about the songs you hear while on the
move.
1. In Menu mode, select Music → Find music.
2. Select Find music to connect to the server.
3. When the phone is successfully registered,
press <Record> to record a part of music you
want to find.
Some service providers may not support this
service and the database may not have
information for all songs.
Page 56
using tools and
Use the Bluetooth wireless feature
Learn about your phone’s ability to connect to other
wireless devices for exchanging data and using
hands-free features.
applications
Learn how to work with your mobile phone’s tools
and additional applications.
Turn on the Bluetooth wireless feature
1. In Menu mode, select Applications →
Bluetooth.
2. Press <Options> → Settings.
3. Scroll down to Activation.
4. Scroll left or right to On.
5. To allow other devices to locate your phone,
scroll down to My phone’s visibility and scroll
left or right to On.
If you select Custom, scroll down and set
duration that your phone is visible.
6. Press <Save>.
Page 57
Find and pair with other Bluetooth-
Send data using the Bluetooth wireless
using tools and applications
enabled devices
1. In Menu mode, select Applications
Bluetooth
2. Scroll to a device and press <Select>.
3. Enter a PIN for the Bluetooth wireless feature or
the other device’s Bluetooth PIN, if it has one,
and press <OK>.
When the owner of the other device enters the
same PIN or accepts the connection, pairing is
complete.
You may not need to enter a PIN depending on
the device.
→
Search for new devices.
→
feature
1. Select the file or item from one of your phone’s
applications that you want to send.
2. Press <Options> → Send via or Send
namecard via → Bluetooth (when sending
contact data, specify which data to send).
Receive data using the Bluetooth
wireless feature
1. Enter the PIN for the Bluetooth wireless feature
and press <OK> (if necessary).
2. Press <Yes> to confirm that you are willing to
receive data from the device (if necessary).
Page 58
Activate and send an SOS message
When you have an emergency, you can send an
SOS message asking for help.
1. In Menu mode, select Messages → Settings →
SOS messages → Sending options.
9. Scroll down and set the number of times to
repeat the SOS message.
10.Press <Save> → <Yes>.
To send an SOS message, the phone must be
closed and the keys locked. Press the Volume key
four times.
2. Scroll left or right to On.
3. Scroll down and press the Confirm key to open
the recipient list.
4. Press <Options> → Phonebook to open your
contact list.
5. Scroll to a contact and press the Confirm key.
6. Select a number (if necessary).
7. When you are finished selecting contacts, press
<Select> to return to the recipient list.
8. Press the Confirm key to save the recipients.
Once you send an SOS message, all phone
functions will be suspended until you press
[].
Activate the mobile tracker
This feature helps track your phone when it is stolen
or when someone tries to use your phone using
other SIM card, the phone will automatically send the
preset tracking message to family or friends. This
feature may be unavailable due to certain features
supported by your service provider.
using tools and applications
Page 59
1. In Idle mode, press <Menu> → Settings →
12. When you are finished selecting contacts, press
using tools and applications
Security → Mobile tracker 2.0.
2. Enter a new 4- to 8-digit password and press
<OK>.
3. Enter the new password again and press <OK>.
4. Select Settings.
5. Enter a new 8-digit password for the mobile
tracker and press <OK>.
6. Enter the new password again and press <OK>.
7. Scroll left or right to On.
8. Scroll down and press the Confirm key to open
the recipient list.
9. Press <Options> → Phonebook to open your
contact list.
10. Scroll to a contact and press the Confirm key.
11. Select a number (if necessary).
<Select> to return to the recipient list.
13.Press <Options> → OK to save the recipients.
14. Scroll down and enter the sender's name.
15.Press <Options> → Save → <Accept>.
Make fake calls
You can simulate an incoming call when you want to
get out of meetings or unwanted conversations. You
can also make it appear as if you are talking on the
phone by playing back a recorded voice.
Record a voice
1. In Menu mode, select Settings → Application
settings → Fake call.
2. Press <Options> → Edit.
3. Press <Record> to start recording.
Page 60
4. Speak into the microphone.
Record and play voice memos
5. When you are finished speaking, press the
Navigation key down.
6. Press <Set> to set the recording as a response
for fake calls.
Make a fake call
You must set a shortcut key to make a fake call.
X
p. 28
To make a fake call,
• In Idle mode, press and hold the shortcut key.
• When the phone is closed and keys are locked,
press the shortcut key four times.
Learn to operate your phone’s voice recorder.
Record a voice memo
1. In Menu mode, select Applications → Voice
recorder.
using tools and applications
2. Press the Confirm key to start recording.
3. Speak your memo into the microphone.
4. When you are finished speaking, press the
Navigation key down.
Play a voice memo
1. From the voice recorder screen, press
<Options> → My voice clips.
2. Select a file.
Page 61
3. Control playback using the following keys:
1. In Menu mode, select Applications →
using tools and applications
Key Function
Confirm
/
Navigation
Pause or resume playback
Adjust the volume
• Left: Skip backward; Scan
backward in a file (press and hold)
• Right: Skip forward; Scan forward
in a file (press and hold)
• Down: Stop playback
View photos and videos on the web
Learn to access photo sharing websites and blogs
and view photos and videos.
This feature may be unavailable depending on
your region or service provider.
Communities.
2. Select a destination you want to view.
3. Enter your user ID and password of the
destination (if necessary).
Use Java-powered games and
applications
Learn to use games and applications powered by
award-winning Java technology.
The download of Java files may not be
supported depending on the software of the
phone.
Page 62
Download games or applications
Launch applications
1. In Menu mode, select Applications → Games
and more → More games.
Your phone connects to the website preset by
your service provider.
2. Search for a game or an application and
download it to the phone.
Play games
1. In Menu mode, select Applications → Games
and more → My games.
2. Select a game from the list and follow the onscreen instructions.
Available games may vary, depending on your
region or service provider. Game controls and
options may vary.
1. In Menu mode, select Applications → Games
and more → an application.
2. Press <Options> to access a list of various
options and settings for your application.
using tools and applications
Create and view world clocks
Learn to view the time in another city and set world
clocks to appear on your display.
Create a world clock
1. In Menu mode, select Organiser → World
clock.
2. Press <Options> → Add.
3. Scroll left or right to a time zone.
Page 63
4. To set daylight saving time, scroll down and
4. In Menu mode, select Settings → Display and
using tools and applications
press the Confirm key.
5. Press <Save> to create your world clock.
The world clock is set as the second clock.
6. To add more world clocks, repeat steps 2-5
above.
Add a world clock to your display
In Dual Clock Display mode, you can view clocks
with two different time zones on your display.
After you have created world clocks,
1. In Menu mode, select Organiser → World
clock.
2. Scroll to the world clock you want to add and
press <Options> → Set as second clock.
light → Home screen.
5. Scroll left or right to Images (if necessary).
6. Select Clock.
7. Scroll left or right to Dual.
8. Scroll down, and then scroll left or right to select
a dual clock style.
9. Press <Set> → <Save>.
Set and use alarms
Learn to set and control alarms for important events.
Set a new alarm
1. In Menu mode, select Alarms.
3. Press <Back> twice.
2. Scroll to an empty alarm location and press the
Confirm key, or press <Options> → Create
alarm.
Page 64
3. Set alarm details.
3. Scroll down (if necessary).
4. Press <Save>.
The auto power-up feature sets the phone to
automatically turn on and sound the alarm at
the designated time if the phone is turned off.
Stop an alarm
When the alarm sounds,
• Press any key to stop the alarm without snooze.
• Press <Confirm> or the Confirm key to stop the
alarm with snooze, or press <Snooze> to silence
the alarm for the snooze period.
Deactivate an alarm
1. In Menu mode, select Alarms.
4. Scroll left or right to Off.
5. Press <Save>.
Use the calculator
1. In Menu mode, select Organiser → Calculator.
2. Use the keys that correspond to the calculator
display to perform basic mathematical
operations.
Convert currencies or
measurements
1. In Menu mode, select Organiser → Convertor
→ a conversion type.
using tools and applications
2. Scroll to the alarm you want to deactivate and
press the Confirm key.
2. Enter the currencies or measurements and units
in the appropriate fields.
Page 65
Set a countdown timer
Create a new task
using tools and applications
1. In Menu mode, select Applications → Timer.
2. Press <Set>.
3. Enter the length of time to count down and press
<OK>.
4. Press the Confirm key to begin or pause the
countdown.
5. When the timer expires, press <Exit> to stop the
alert.
Use the stopwatch
1. In Menu mode, select Applications →
Stopwatch.
2. Press the Confirm key to begin and record lap
times.
1. In Menu mode, select Organiser → Task.
2. Press <Options> → Create.
3. Enter the details of the task.
4. Press <Save>, or press <Options> → Save.
Create a text memo
1. In Menu mode, select Organiser → Memo.
2. Press <Options> → Create.
3. Enter your memo text and press the Confirm key.
3. Press <Reset> to clear recorded times.
Page 66
Manage your calendar
View events
Learn to change the calendar view and create
events.
Change the calendar view
1. In Menu mode, select Organiser → Calendar.
2. Press <Options> → View by → Day or Week.
Create an event
1. In Menu mode, select Organiser → Calendar.
2. Press <Options> → Create → an event type.
3. Enter the details of the event as required.
4. Press <Save>, or press <Options> → Save.
To view events of a specific date,
1. In Menu mode, select Organiser → Calendar.
2. Select a date on the calendar.
3. Select an event to view its details.
To view events by event types,
1. In Menu mode, select Organiser → Calendar.
2. Press <Options> → Event list → an event type.
3. Select an event to view its details.
using tools and applications
Page 67
troubleshooting
If you are having trouble with your mobile phone, try these troubleshooting procedures before contacting a service
professional.
When you turn on your phone or while you are
using the phone, it prompts you to enter one of
the following codes:
Code Try this to solve the problem:
When the phone lock feature is
Password
PIN
enabled, you must enter the password
you set for the phone.
When using the phone for the first time
or when the PIN requirement is
enabled, you must enter the PIN
supplied with the SIM card. You can
disable this feature by using the
menu.
lock
PIN
Code Try this to solve the problem:
Your SIM card is blocked, usually as a
result of entering your PIN incorrectly
PUK
several times. You must enter the PUK
supplied by your service provider.
When you access a menu requiring the
PIN2, you must enter the PIN2 supplied
PIN2
with the SIM card. For details, contact
your service provider.
The phone prompts you to insert the SIM card.
Ensure that the SIM card is installed correctly.
Page 68
Your phone displays “Service unavailable” or
Another caller cannot reach you.
“Not done.”
• When you are in areas with weak signals or poor
reception, you may lose reception. Move to
another area and try again.
• You cannot access some options without a
subscription. Contact your service provider for
more details.
You enter a number, but the call is not dialled.
• Ensure that you have pressed the Dial key: [ ].
• Ensure that you have accessed the right cellular
network.
• Ensure that you have not set call barring for the
phone number.
• Ensure that your phone is turned on.
• Ensure that you have accessed the right cellular
network.
• Ensure that you have not set call barring for the
phone number.
Another caller cannot hear you speaking.
• Ensure that you are not covering the built-in
microphone.
• Ensure that the microphone is close to your
mouth.
• If using a headset, ensure that it is properly
connected.
troubleshooting
Page 69
The phone beeps and the battery icon flashes.
The battery does not charge properly or
Your battery is low. Recharge or replace the battery to
sometimes the phone turns itself off.
continue using the phone.
• The battery terminals may be dirty. Wipe both
gold-coloured contacts with a clean, soft cloth
The audio quality of the call is poor.
and try charging the battery again.
• Ensure that you are not blocking the phone’s
internal antenna.
• When you are in areas with weak signals or poor
troubleshooting
reception, you may lose reception. Move to
• If the battery will no longer charge completely,
dispose of the old battery properly and replace it
with a new battery.
Your phone is hot to the touch.
another area and try again.
When you use several applications at once, your
You select a contact to call, but the call is not
phone requires more power and may heat up.
dialled.
This is normal and should not affect your phone’s
• Ensure that the correct number is stored in the
lifespan or performance.
contact list.
• Re-enter and save the number, if necessary.
Loading...
