Page 1

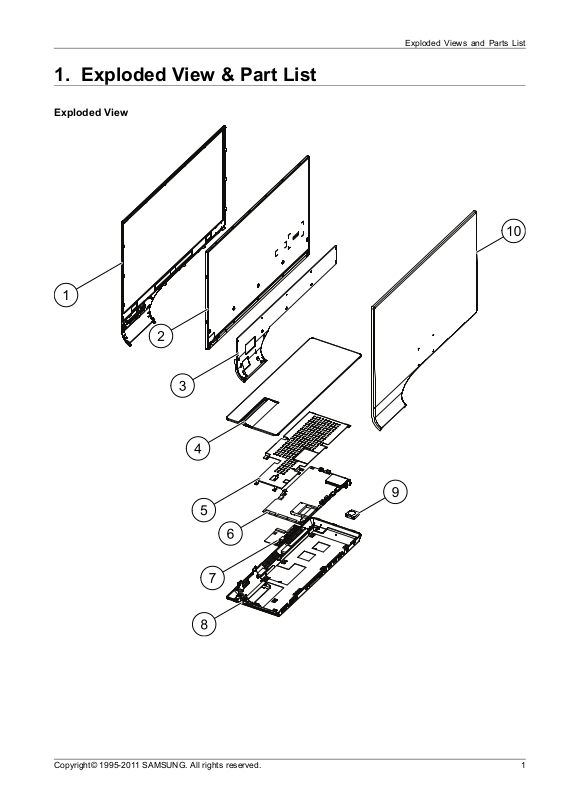

1.ExplodedView&PartList

ExplodedView
ExplodedViewsandPartsList
Copyright©1995-2011SAMSUNG.Allrightsreserved.1
Page 2
ExplodedViewsandPartsList
PartsList
No.ParentLvl.Loc.MaterialCodeDescription&SpecicationSNAQty.
1BN90-03389B2F001ABN96-18128BASSYCOVERP-FRONT;
2BN91-07040A2P ANELBN07-01012ALCD-P ANEL;
LTM230HU04-V ,SSRZUWV ,6Bit+Hi
3BN91-07030B2CB06ABN96-19056AASSYBRACKETP-P ANEL;SA950
23,HGI,T2.0,B
4BN91-07030B2BN96-18126BASSYSTANDP-TOP;T A950,USA,AL
T0.6
5BN91-07030B2CB07BN61-07667ABRACKET -PCB;
TA950,SECC,T0.5,450mm,150mm,
6BN91-07017A2M0014BN94-04693AASSYPCBMAIN;LT23A950ND/ZASA1
7BN91-07017A2BN94-04694AASSYPCBMISC-SUBBOARD;T A950,
TA750
8BN91-07030B2B001ABN96-18125BASSYCOVERP-BOTTOM;
TA950(27),HIPS,V0,BK
9BN96-18125B3EF01BN31-00024BFAN;
BSB04512LA-9P1R_1,PLASTIC,100mm(wire
10BN90-03390A2R001ABN96-18129AASSYCOVERP-REAR;SA950(23),AL
T1.0AL30
SA1
SA1
SA1
SA1
SNA1
SA1
SNA1
SA1
SA1
2Copyright©1995-201 1SAMSUNG.Allrightsreserved.
Page 3
ExplodedViewsandPartsList

2.ElectricalPartsList

LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA
LT23A950ND/ZA(ST01)
1BN90-03389BASSYCOVERFRONT;TA950231SNA
.2T0527AA68-03539ALABELBARCODE;65X40mm,ARTPAPER1SNA
.2F001ABN96-18128BASSYCOVERP-FRONT;T A950(23),PC,V2,TP0021SA
..3CCM1BN63-02183DCOVER-SHEET;Rhcm,PEVinyl,T0.05,680mm,201SNA
..3F001BN63-07975BCOVER-FRONT;TA95023,PC,V2,TP0021,H/Glos1SNA
..3BN63-08573BCOVER-SHEET;SA950,PE,T0.08,600mm,200M,CL1SNA
..3FB05ABN96-19256AASSYBOARDP;T A950,CT5000-8830A,SEC,Sub1SA
1R001ABN90-03390AASSYCOVERREAR;TA95023,USA1SNA
.2R001ABN96-18129AASSYCOVERP-REAR;SA950(23),ALT1.0AL301SA
..3BN60-00121BSP ACER-FEL T;UC7000,FEL T,L300,BLK,T0.35,W1SNA
..3BN61-07405ABOSS-TAPE;SA950,ACRYL,T0.4,W10,122*85,Gr1SNA
..3R002ABN63-07978ACOVER-MIDDLE;SA95023",HIPS,V0,BK00201SNA
..3R001BN63-08006ACOVER-REAR;SA95023",AL3003H14,T1.01SNA
1M0017BN91-07017AASSYCHASSIS;L T23A950ND/ZX1SNA
.2M0014BN94-04693AASSYPCBMAIN;L T23A950ND/ZA1SA
..3M0131AA63-01044AGASKET;SA17PO,ConductiveFabric,3mm,10mm1SA
..3AH62-00243AHEA TSINK-ES;HT-D550,A6063,1,NTR,23*23*52SNA
..3ET01BN40-00208ATUNER;DTVS20FVH083A,DTVS20FVH083A,VSBHa1SA
..3BN97-05592AASSYSMD-MAIN;LT23A950ND/ZX,BN97-04535A1SNA
...4DS01A0401-000116DIODE-SWITCHING;MMSD914T1,100V ,200mA,SOD2SA
...4DS01A0401-001056DIODE-SWITCHING;MMBD4148SE,100V ,200mA,SO6SA
...4D10401-001099DIODE-SWITCHING;1N4148WS,75V ,150mA,SOD-33SA
...4D02540402-000553DIODE-SCHOTTKY;SS24/B240,40V ,2000mA,DO-21SA
...40403-000771DIODE-ZENER;VLZ6V2B,5.96-6.27V ,500mW,SOD4SA
...40403-001062DIODE-ZENER;UDZSNP4.7B,4.55/4.75V ,200mW,4SA
...40403-001798DIODE-ZENER;SDZ36VG,35.07/36.87V ,500mW,S6SNA
...4D02540404-001404DIODE-SCHOTTKY;BA T721C,40V ,200mA,SOT-23,8SA
...40404-001595DIODE-SCHOTTKY ;B2100,100V ,2000mA,SMB,TP2SA
...4T01390406-001200DIODE-TVS;RCLAMP0504F,6/-/-V ,150W,SC-702SA
...4Q10400501-000457TR-SMALLSIGNAL;MMBT2222A/KST2222A,NPN,36SA
...4Q10420501-000462TR-SMALLSIGNAL;MMBT2907A,PNP ,350mW ,SOT -1SA
...4PQ020501-002080TR-SMALLSIGNAL;2SC2412K,NPN,200mW,SC-595SA
...4CEQ20505-000110FET-SILICON;2N7002,N,60V ,115mA,7.5ohm,0.8SA
...40505-001844FET -SILICON;SI4435DDY -T1-GE3,P ,-30V ,-11.2SA
...40505-002421FET -SILICON;AOD464,N,105V ,40A,28mohm,1002SA
...4Q4090505-002572FET -SILICON;AO4801AL,P ,-30V ,-5.6A,0.075o1SA
...40505-002694FET -SILICON;SI3443CDV ,P,-20V ,-4.7A,0.06o1SC
Copyright©1995-2011SAMSUNG.Allrightsreserved.3
Page 4
ExplodedViewsandPartsList
LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA
...40505-002854FET -SILICON;AO5404E,N,20V ,0.5A,0.55ohm,01SNA
...40505-002894FET -SILICON;MMBFJ177L T1G,P ,20mA,300ohm,01SNA
...40904-002631IC-USC;QFN,28P ,5.0mmX5.0mm,12MHz,TP,PL1SA
...41001-001680IC-ANALOGMUL TIPLEX;TC7SB3157CFU,CMOS,US3SA
...41001-001683IC-VIDEOSWITCH;SiI9489ACTUC,QFP ,128P,141SNA
...41001-001686IC-ANALOGMUL TIPLEX;74L V4052,CMOS,TTSOP,1SA
...41103-001500IC-EEPROM;AT24C02C-SSHM-T ,2Kbit,256x8,SO1SA
...41103-001506IC-EEPROM;M24512-RMN6TP,512Kbit,64Kx8,SO1SA
...41105-002086IC-DDRSDRAM;EM6A9320BIA,128MB,LFBGA,1442SA
...41105-002191IC-DDR2SDRAM;W9725G6JB-18,DDR2SDRAM,251SA
...41105-002194IC-DDR3SDRAM;K4B1G1646G-BCH9,DDR3SDRAM4SA
...41201-003158IC-POWERAMP;T AS5725,PQFP ,48P,7x7mm,DUAL1SA
...4IC7031203-003121IC-POSI.FIXEDREG.;FAN1112,SOT-223,3P ,6.1SA
...41203-004363IC-VOL.DETECTOR;R T9818C-29PV ,SOT-23,3P,1SA
...41203-005988IC-DC/DCCONVERTER;TPS54620RGY ,QFN,14P,34SA
...41203-006017IC-VOL.DETECTOR;R T9824GJ8,TSOT23,8P ,2.91SA
...4T00871203-006130IC-POSI.FIXEDREG.;S-1172B25-U5T1G,SOT-83SA
...4T00871203-006135IC-POSI.FIXEDREG.;AP1117D-33-GZ-13-89,T3SA
...4T00871203-006136IC-POSI.FIXEDREG.;AP1117D-18-GZ-13-89,T2SA
...4T00871203-006141IC-POSI.FIXEDREG.;S-1172B33-U5T1G,SOT-81SA
...41203-006594IC-BACKLIGHTDRIVER;BD9264EFV ,QFN,28P,9.2SNA
...41203-006619IC-DC/DCCONVERTER;AOZ1033AI,SO-8,8P ,4.94SA
...4IC1181204-003101IC-VIDEOPROCESS;SDP94,PBGA,345P ,19x19mm1SA
...41204-003217IC-DECODER;SDP1001,FCBGA,937P ,35x35mm,PL1SA
...41205-003479IC-SWITCH;TPS2051BDBVR,SOT -23,5P ,2.9x1.62SA
...41205-003733IC-SWITCH;AP2191MPG-13,MSOP-8L-EP ,8P ,2.91SA
...41205-003735IC-SWITCH;AP2151WG-7,SOT25,5P ,2.9x1.6mm,1SA
...41205-003834IC-ETHERNETCONTROLLER;RTL8201E-VC-GRT,Q1SA
...41205-004095IC-CODEC;AK4686EQ,LQFP ,48P ,9.0x9.0x1.7mm1SA
...42007-000039R-CHIP;0ohm,1%,1/10W ,TP ,16084SA
...4PR42007-000052R-CHIP;10Kohm,1%,1/10W ,TP ,16082SA
...4KAR132007-000060R-CHIP;100Kohm,1%,1/10W,TP ,160813SNA
...4R1042007-000063R-CHIP;150Kohm,1%,1/10W ,TP ,16082SNA
...4ND51C22007-000066R-CHIP;20Kohm,1%,1/10W,TP,16082SNA
...4KR242007-000067R-CHIP;15Kohm,1%,1/10W,TP ,16081SNA
...4KAR212007-000070R-CHIP;0ohm,5%,1/10W,TP ,160822SA
...4CER022007-000071R-CHIP;22ohm,5%,1/10W,TP ,16083SA
...4AR302007-000074R-CHIP;100ohm,5%,1/10W,TP ,16081SA
...4CER042007-000084R-CHIP;4.7Kohm,5%,1/10W,TP ,16084SA
...4MROP12007-000090R-CHIP;10Kohm,5%,1/10W,TP ,16086SA
4Copyright©1995-201 1SAMSUNG.Allrightsreserved.
Page 5
ExplodedViewsandPartsList
LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA
...4ARR22007-000102R-CHIP;100Kohm,5%,1/10W ,TP ,16083SA
...4ZR242007-000109R-CHIP;1Mohm,5%,1/10W,TP ,16081SA
...4MR6042007-000137R-CHIP;2Kohm,5%,1/16W ,TP ,10057SNA
...4MR3062007-000141R-CHIP;2.2Kohm,5%,1/16W ,TP ,100513SA
...4R3192007-000143R-CHIP;4.7Kohm,5%,1/16W ,TP ,100567SA
...4R1042007-000148R-CHIP;10Kohm,5%,1/16W ,TP ,100514SA
...4AR432007-000155R-CHIP;27Kohm,5%,1/16W,TP ,10051SA
...4DR392007-000162R-CHIP;100Kohm,5%,1/16W,TP ,100521SA
...42007-000165R-CHIP;200Kohm,5%,1/16W ,TP ,10054SNA
...4R5092007-000170R-CHIP;1Mohm,5%,1/16W ,TP ,10055SA
...4R1112007-000171R-CHIP;0ohm,5%,1/16W,TP ,100551SA
...4HDR172007-000172R-CHIP;10ohm,5%,1/16W,TP ,10053SNA
...4R3382007-000173R-CHIP;22ohm,5%,1/16W ,TP ,100530SA
...42007-000231R-CHIP;1.3Kohm,1%,1/10W ,TP ,16082SA
...4MR392007-000242R-CHIP;1.5Kohm,5%,1/16W ,TP ,10051SNA
...4R1092007-000293R-CHIP;100ohm,5%,1/4W ,TP ,32162SNA
...4MR1122007-000309R-CHIP;10ohm,5%,1/10W ,TP ,16082SA
...4RT012007-000483R-CHIP;1ohm,5%,1/8W,TP ,20122SNA
...4HR122007-000591R-CHIP;22ohm,1%,1/10W,TP ,16082SNA
...42007-000602R-CHIP;240Kohm,1%,1/10W ,TP ,16082SA
...4ER132007-000669R-CHIP;2Kohm,1%,1/10W,TP ,16082SNA
...42007-000758R-CHIP;330Kohm,5%,1/16W ,TP ,10051SNA
...4R2992007-000772R-CHIP;33Kohm,1%,1/10W ,TP ,16082SA
...4R1242007-000775R-CHIP;33Kohm,5%,1/16W ,TP ,10051SNA
...4R20072007-000803R-CHIP;36Kohm,1%,1/10W,TP ,16081SA
...4RF032007-000828R-CHIP;39Kohm,1%,1/10W ,TP ,16081SA
...4AR612007-000869R-CHIP;4.7Kohm,1%,1/10W,TP ,16081SNA
...4DR372007-000932R-CHIP;470ohm,5%,1/16W,TP ,10052SA
...4AR422007-000939R-CHIP;47Kohm,1%,1/10W,TP ,16082SA
...4HR102007-000962R-CHIP;5.1Kohm,1%,1/10W,TP ,16081SA
...4PR122007-000979R-CHIP;5.6Kohm,1%,1/10W ,TP ,16084SA
...4CER422007-000999R-CHIP;510ohm,1%,1/10W,TP ,16082SA
...4WR15B2007-001044R-CHIP;56ohm,5%,1/10W,TP ,16081SA
...4AR22007-001068R-CHIP;6.8Kohm,1%,1/10W ,TP ,16082SA
...42007-001090R-CHIP;620ohm,1%,1/10W ,TP ,16083SA
...42007-001135R-CHIP;68ohm,5%,1/4W,TP ,32164SA
...4R252007-001139R-CHIP;7.5Kohm,1%,1/10W,TP ,16081SA
...4AR1612007-001167R-CHIP;75ohm,5%,1/10W,TP,16081SNA
...4R35122007-001206R-CHIP;82Kohm,1%,1/10W,TP ,16082SNA
...42007-001288R-CHIP;18ohm,5%,1/16W ,TP ,10054SA
Copyright©1995-2011SAMSUNG.Allrightsreserved.5
Page 6
ExplodedViewsandPartsList
LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA
...4MR312007-001305R-CHIP;120ohm,5%,1/16W ,TP ,10051SNA
...4CER072007-001308R-CHIP;200ohm,5%,1/16W ,TP ,10052SNA
...42007-001316R-CHIP;820ohm,5%,1/16W ,TP ,10051SA
...4R3262007-001325R-CHIP;3.3Kohm,5%,1/16W ,TP ,10051SNA
...42007-002906R-CHIP;200Kohm,1%,1/10W ,TP ,16082SA
...42007-002915R-CHIP;4.02Kohm,1%,1/10W ,TP ,16081SA
...4DR82007-007001R-CHIP;3.9Kohm,5%,1/16W ,TP ,10051SA
...4PR82007-007015R-CHIP;13Kohm,5%,1/16W ,TP ,10051SA
...42007-007132R-CHIP;15Kohm,1%,1/16W ,TP ,10052SA
...42007-007135R-CHIP;18Kohm,1%,1/16W ,TP ,10052SNA
...42007-007136R-CHIP;4.7Kohm,1%,1/16W ,TP ,10051SNA
...42007-007137R-CHIP;1.2Kohm,1%,1/16W ,TP ,10055SA
...42007-007138R-CHIP;27Kohm,1%,1/16W ,TP ,10051SA
...42007-007139R-CHIP;47Kohm,1%,1/16W ,TP ,10052SA
...4DR42007-007142R-CHIP;10Kohm,1%,1/16W ,TP ,100529SA
...42007-007156R-CHIP;1ohm,5%,1/16W ,TP ,10055SA
...42007-007306R-CHIP;100ohm,1%,1/16W ,TP ,10055SNA
...42007-007318R-CHIP;1Kohm,1%,1/16W ,TP ,100519SA
...42007-007431R-CHIP;91Kohm,1%,1/10W ,TP ,16081SA
...4HDR442007-007470R-CHIP;7.5Kohm,1%,1/16W,TP ,10054SNA
...42007-007488R-CHIP;75Kohm,1%,1/16W ,TP ,10053SNA
...42007-007517R-CHIP;240ohm,1%,1/16W ,TP ,10057SNA
...42007-007617R-CHIP;2.49Kohm,1%,1/10W ,TP ,16081SA
...42007-007698R-CHIP;5.1Kohm,1%,1/16W ,TP ,10052SA
...4V86422007-007768R-CHIP;13Kohm,1%,1/10W,TP ,16081SA
...42007-007797R-CHIP;44.2ohm,1%,1/10W ,TP ,16082SA
...42007-008137R-CHIP;24Kohm,1%,1/16W ,TP ,10056SNA
...42007-008213R-CHIP;4.3Kohm,1%,1/16W ,TP ,10051SA
...42007-008263R-CHIP;3Kohm,1%,1/16W ,TP ,10052SA
...42007-008275R-CHIP;30Kohm,1%,1/16W ,TP ,10051SNA
...42007-008391R-CHIP;6.34Kohm,1%,1/16W ,TP ,10052SA
...42007-008593R-CHIP;750ohm,1%,1/16W ,TP ,10051SA
...42007-009853R-CHIP;1.6Kohm,1%,1/16W ,TP ,10051SNA
...42007-009923R-CHIP;0.3ohm,1%,1/4W ,TP ,32168SNA
...4ZRN102011-001261R-NETWORK;33ohm,5%,1/16W,L,CHIP ,8P ,TP,2.2SA
...4DAR092011-001262R-NETWORK;22ohm,5%,1/16W,L,CHIP ,8P ,TP,2.6SA
...4DRP292011-001396R-NETWORK;4.7Kohm,5%,1/16W,L,CHIP ,8P,TP ,1SNA
...42011-001449R-NETWORK;22ohm,5%,1/16W,L,4P ,TP ,10108SA
...42011-001497R-NETWORK;470ohm,5%,1/16W,L,CHIP ,4P ,TP,11SNA
...42011-001527R-NETWORK;4.7Kohm,5%,1/16W,L,CHIP ,4P ,TP,5SA
6Copyright©1995-201 1SAMSUNG.Allrightsreserved.
Page 7
ExplodedViewsandPartsList
LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA
...4C2582203-000236C-CER,CHIP;0.1nF ,5%,50V ,C0G,TP,16084SA
...4C1342203-000257C-CER,CHIP;10nF ,10%,50V ,X7R,TP,16082SA
...4DC542203-000278C-CER,CHIP;0.01nF,0.5pF ,50V ,C0G,TP,10051SA
...4DC22203-000330C-CER,CHIP;0.012nF,5%,50V ,C0G,TP,10058SA
...4C32203-000384C-CER,CHIP;0.015nF,5%,50V ,C0G,TP ,1608,0.2SNA
...4DC12203-000386C-CER,CHIP;0.015nF,5%,50V ,C0G,TP,10058SA
...4MC3022203-000425C-CER,CHIP;0.018nF ,5%,50V ,C0G,TP,10052SA
...4C2542203-000438C-CER,CHIP;1nF ,10%,50V ,X7R,TP,100512SA
...4C2122203-000440C-CER,CHIP;1nF ,10,50V ,X7R,TP,160814SA
...4C5072203-000489C-CER,CHIP;2.2nF ,10%,50V ,X7R,TP,10052SA
...4V12332203-000575C-CER,CHIP;220nF,10%,25V ,X7R,TP ,20126SA
...4AD4802203-000679C-CER,CHIP;0.027nF ,5%,50V ,C0G,TP,10052SA
...4AD4802203-000714C-CER,CHIP;3.3nF ,10%,50V ,X7R,TP,1005,-5SA
...4AC1092203-000783C-CER,CHIP;0.33nF,5%,50V ,C0G,16082SA
...4AD4802203-000995C-CER,CHIP;0.047nF ,5%,50V ,C0G,TP,10052SA
...4AC1242203-000998C-CER,CHIP;0.047nF,5%,50V ,C0G,16082SNA
...4AC282203-001607C-CER,CHIP;0.22nF,5%,50V ,NP0,16082SA
...4AC22203-002711C-CER,CHIP;100nF,10%,25V ,X7R,TP,16081SA
...4AD4802203-005054C-CER,CHIP;0.0047nF ,0.25pF ,50V ,NP0,TP,108SA
...4DC182203-005138C-CER,CHIP;1.8nF,10%,50V ,X7R,10055SA
...4C2312203-005221C-CER,CHIP;15nF ,10%,50V ,X7R,16085SNA
...4AAC12203-005249C-CER,CHIP;100nF,10%,50V ,X7R,TP,160821SA
...4AD4802203-005344C-CER,CHIP;22nF ,10%,25V ,X7R,TP,1005,0.5T16SNA
...4PC82203-005642C-CER,CHIP;0.22nF,5%,50V ,NP0,10051SNA
...4AD4802203-005968C-CER,CHIP;4.7nF ,10%,50V ,X7R,TP,1005,0.53SNA
...4PC112203-006141C-CER,CHIP;1000nF,10%,16V ,X5R,TP,1608,0.1SNA
...4AD4802203-006307C-CER,CHIP;1000nF ,10%,25V ,X5R,20122SNA
...4AD4802203-006336C-CER,CHIP;10000nF ,10%,25V ,X5R,TP,32166SA
...4AD4802203-006460C-CER,CHIP;2200nF ,10%,16V ,X5R,TP,1608,-2SA
...4HE42203-006474C-CER,CHIP;22000nF,20%,6.3V ,X5R,20128SA
...4AD4802203-006824C-CER,CHIP;4700nF ,10%,10V ,X5R,160812SNA
...4AD4802203-006841C-CER,CHIP;1000nF ,10%,16V ,X5R,TP,10051SNA
...4C232203-006890C-CER,CHIP;10000nF,20%,6.3V ,X5R,160822SNA
...4AD4802203-006908C-CER,CHIP;100000nF ,20%,6.3V ,X5R,TP,32251SA
...4AD4802203-007132C-CER,CHIP;10000nF ,10%,25V ,X7R,TP,3216,121SA
...4AD4802203-007233C-CER,CHIP;22000nF ,10%,16V ,X5R,TP,3216,16SA
...4AD4802203-007306C-CER,CHIP;10000nF ,10%,25V ,X5R,TP,2012,14SNA
...4AD4802203-007513C-CER,CHIP;10000nF ,10%,10V ,X5R,TP,1608,04SA
...4AD4802203-007602C-CER,CHIP;2200nF ,10%,100V ,X7R,TP,32252SA
...4C2402-001268C-AL,SMD;100uF,20%,25V ,WT,TP ,8x6.3mm1SA
Copyright©1995-2011SAMSUNG.Allrightsreserved.7
Page 8
ExplodedViewsandPartsList
LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA
...42402-001387C-AL,SMD;10uF,20%,100V ,TP,8x8x6.22SA
...42409-001128C-POLYMER,CHIP;3.3uF ,20%,16V ,WT,TP,3.2x1SA
...42409-001129C-POLYMER,CHIP;100uF ,20%,6.3V ,WT,TP,3.57SA
...4T00522703-000158INDUCTOR-SMD;1uH,10%,20123SA
...4T00522703-002268INDUCTOR-SMD;8.2nH,5%,10052SNA
...4T00522703-003362INDUCTOR-SMD;4.7uH,20%,70701SA
...4PL12703-003408INDUCTOR-SMD;10uH,20%,70701SNA
...4T00522703-003790INDUCTOR-SMD;4.7uH,20%,80804SA
...42703-003930INDUCTOR-SMD;4.7uH,20%,50504SA
...42703-003948INDUCTOR-SMD;47uH,20%,12122SNA
...42703-004160INDUCTOR-SMD;1.5uH,20%,73663SA
...4X2022801-003948CRYSTAL-SMD;12MHz,30ppm,28-AAN,12pF,60oh1SA
...4PX12801-004021CRYST AL-SMD;24.576MHz,20ppm,28-AAN,12pF ,1SA
...4X2022801-004629CRYSTAL-SMD;27MHz,20ppm,12pF,50ohm,TP1SNA
...4X2022801-004734CRYSTAL-SMD;25.000000MHz,20ppm,28-AAN,121SA
...4X2022801-004774CRYSTAL-SMD;24MHz,30ppm,14pF,30ohm,TP2SA
...4X2022801-004775CRYSTAL-SMD;12MHz,30ppm,16pF,30ohm,TP1SNA
...4X2022801-004885CRYSTAL-SMD;27MHz,50ppm,BMC-30,18pF,100o1SA
...42801-005048CRYSTAL-SMD;34.650000MHz,30ppm,HC-49/SM51SA
...4F1032901-001506FILTER-EMISMD;5V ,0.13A,0pF,2x1x0.5mm,TP4SA
...4DR323301-000314BEAD-SMD;120ohm,1608,TP8SNA
...4T05683301-001404BEAD-SMD;30ohm,2012,TP ,15.9OHM/30MHz,-3SA
...4T05683301-002039BEAD-SMD;26ohm,1608,TP71SA
...4T03133404-001209SWITCH-TACT;12VDC,50mA,250gf,4.5x4.5x1.51SA
...4F2013601-001374FUSE-SURFACEMOUNT;32V ,5A,F AST -ACTING,Hi3SA
...43601-001376FUSE-SURFACEMOUNT;32V ,3A,F AST -ACTING,Hi1SNA
...43701-001293CONNECTOR-HDMI;19P ,2R,FEMALE,SMD-A,AU2SA
...4CN16013708-002909CONNECTOR-FPC/FFC/PIC;82P ,0.5mm,SMD-S,AU1SA
...4HB01A3711-005292HEADER-BOARDTOCABLE;BOX,3P,1R,2MM,SMD-1SA
...4HB01A3711-005499HEADER-BOARDTOCABLE;BOX,8P,1R,1.25mm,S1SA
...4HB01A3711-007319HEADER-BOARDTOCABLE;SMD,4P,1R,2.50mm,S1SA
...4EH013711-007582HEADER-BOARDTOCABLE;BOX,8P ,1R,2.0mm,AN2SA
...4CN15013722-003044JACK-USB;4P/1C,NI,BLK,SMD-A,A-TYPE2SA
...43722-003205JACK-DCPOWER;4P ,6.35PI,SN/NI,BLK1SA
...4BN13-00042AICASIC;SDP1005,P ARMA,404P ,3.3V ,-25to+851SA
...4BN13-00047AICASIC;SDP1008,M180,544,3.3V ,-40to+1251SA
...4T0010BN27-00007ACOILCHOKE-SMD;DHB0504-100,RB15/17NS,10u2SA
...4BN41-01648BPCBMAIN;TA950,FR-4,4,1.2T ,288mmx168mm1SNA
...4BN97-05610AASSYMICOM-MAIN;T -GASMAKUC-1008.0,2011.01SNA
....51107-001990IC-NANDFLASH;KFG1GN6W2D-HIB6,1Gbit,64Mx1SA
8Copyright©1995-201 1SAMSUNG.Allrightsreserved.
Page 9
ExplodedViewsandPartsList
LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA
....5T0527AA68-03540ALABEL-MICOM;AR TP APE,7X6mm1SNA
...4BN97-05611AASSYMICOM-SUB;T -GENMAUSS1-1005.0,2011.01SNA
....50903-001718IC-MICROCONTROLLER;61P805-RG480WT ,LQFP ,41SNA
...4BN97-05612AASSYMICOM-INAND;T -GENMAUSS1-1001.0,20111SNA
....51107-001983IC-NANDFLASH;SDIN5D2-2G-944D,2GByte,BGA1SNA
..3M0131BP63-00786AGASKET;HLS6187WX/XAA,ConductiveFabric,22SNA
.2BN94-04694AASSYPCBMISC-SUBBOARD;T A950,T A7501SA
..30202-001463SOLDER-WIRE;LFC2-W3.0,-,D3,99.79Sn/0.2Cu1SNA
..30202-001608SOLDER-WIREFLUX;LFC7-107,D0.8,99.3Sn/0.0SNA
..30204-002420SOL VENT;1M-1000,C3H70H,962SNA
..30204-002607FLUX;DF-234U,13%,14KG,Gravity0.821SNA
..3T0756AA68-01018ALABEL-PQS;50mmX,13,WHITE1SNA
..3BN97-05620AASSYSMD-SUB;TA750,T A950,BN97-04535A1SNA
...40202-001477SOLDER-CREAM;LST309-M,D20~45um,96.5Sn/3A0SNA
...40403-001783DIODE-ZENER;BZB84-C6V2,5.8/6.6V ,300mW,SO3SNA
...4T01390406-001271DIODE-TVS;RCLAMP0524P ,6/-/-V ,150W,SLP2511SNA
...41006-001509IC-DRIVER/RECEIVER;MAX3222ECPWR,TSSOP ,201SA
...41405-001233V ARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP3SA
...41405-001271V ARISTOR;20Vdc,5A,1.0x0.5x0.6mm,TP8SA
...4R1052007-000138R-CHIP;100ohm,5%,1/16W ,TP ,10054SA
...4AR492007-000140R-CHIP;1Kohm,5%,1/16W ,TP ,10056SA
...4MR132007-000157R-CHIP;47Kohm,5%,1/16W ,TP ,10056SNA
...4UR232007-000174R-CHIP;47ohm,5%,1/16W ,TP ,10052SA
...42007-001168R-CHIP;75ohm,5%,1/4W,TP ,32161SA
...4OTR12007-001292R-CHIP;33ohm,5%,1/16W,TP ,10053SA
...4MR112007-008015R-CHIP;75ohm,1%,1/16W ,TP ,10052SA
...42011-001519R-NETWORK;33OHM,5%,1/16W,L,CHIP ,4P ,TP,1.1SA
...4PC432203-000233C-CER,CHIP;0.1nF,5%,50V ,C0G,TP,10052SA
...4DC252203-000812C-CER,CHIP;0.033nF ,5%,50V ,C0G,TP,10053SA
...4AD4802203-002285C-CER,CHIP;10nF ,10%,50V ,X7R,TP,10052SNA
...4VC372203-006048C-CER,CHIP;100nF ,10%,10V ,X7R,TP,10055SA
...4AD4802203-006126C-CER,CHIP;47nF ,10%,16V ,X7R,TP,10052SNA
...4C1022203-006158C-CER,CHIP;100nF ,10%,16V ,X7R,TP,1005,0.52SA
...4C8022203-006348C-CER,CHIP;1000nF ,10%,25V ,X5R,TP,1608,0.1SA
...4C1252203-006361C-CER,CHIP;10000nF ,10%,10V ,X5R,TP,20122SC
...4HDC112203-006562C-CER,CHIP;1000nF,10%,10V ,X5R,TP ,10051SNA
...4AD4802203-006992C-CER,CHIP;0.33nF ,5%,50V ,C0G,TP,10052SNA
...4T00522703-001239INDUCTOR-SMD;3.3uH,10%,16086SA
...4CN3033707-001104CONNECTOR-OPTICAL;SMD-A(UltraSlim),SPDI1SA
...4AC5103708-001150CONNECTOR-FPC/FFC/PIC;30P,1mm,SMD-A,SN,Y1SA
Copyright©1995-2011SAMSUNG.Allrightsreserved.9
Page 10
ExplodedViewsandPartsList
LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA
...4CN3023722-003158JACK-PHONE;1/6P ,NI,BLK,ANGLE2SA
...4CN17013722-003199JACK-MODULAR;8P/8C,ANGLE,AU,1P1SA
...4CN5013722-003207JACK-PHONE;2P/9C,AU,LIMEGRN,SMD-A(DIP)1SA
...43722-003234JACK-PHONE;1P/6C,AU,SKYBLUE,SMD-A(DIP)1SA
...4BN41-01647BPCBSUB-BOARD;TA950,FR-4,2,1.2T ,124mmx111SNA
...4BN68-02775ALABEL-SMD;ALLMODELS,8.5,21,COMMON1SNA
1BN91-07030BASSYSHIELD;T A95023,USA1SNA
.2CIS10203-001586T APE-FILAMENT;#893,0.15,30,55,WHT,FILAME0SNA
.2CIS10203-001598T APE-FILAMENT;#8915,0.15,12,55000,CLR0SNA
.2T00816001-001114SCREW-MACHINE;FH,+,M4,L6,ZPC(BLK),SWRCH19SNA
.26001-001470SCREW-MACHINE;CH,+,M3,L3,ZPC(WHT),SWRCH15SNA
.2M00816003-000264SCREW-TAPTYPE;PWH,+,-,B,M3,L6,ZPC(WHT),S4SA
.2M00816003-001001SCREW-TAPTYPE;FH,+,B,M3,L8,ZPC(BLK),SWRC2SA
.2W4206003-001086SCREW-TAPTYPE;BH,+,-,B,M3,L12,ZPC(BLK),S7SA
.2BN39-01513ACONNECTWIRE;TA950,FlatConnectorAss'y ,1SA
.2CB07BN61-07667ABRACKET -PCB;T A950,SECC,T0.5,450mm,150mm,1SNA
.2BN62-00203APADGAP;TA750,SILICON+POL YMER,15*30*2T ,P1SNA
.2BN63-08674BSHEET-PROTECTOR;SA950,PET ,0.2,35,150,CLE1SNA
.2BN63-08731ASHEET-SILICON;SILICON+POLYMER,0.1,20mm,31SNA
.2CCMM1BN73-00024DSILICON/RUBBER;BORDEAUX,SILICON,28x28XT62SNA
.2CCMM1BN73-00218ASILICON/RUBBER;UE32B6000VWXXC,SILICON+PO1SNA
.2BN73-00282ASILICON/RUBBER-GAPPAD;UC9Z,SILICON+POLYM1SNA
.2B001ABN96-18125BASSYCOVERP-BOTTOM;TA950(27),HIPS,V0,BK1SNA
..3T00816001-001114SCREW-MACHINE;FH,+,M4,L6,ZPC(BLK),SWRCH14SNA
..3W3856003-000109SCREW -T APTYPE;BH,+,B,M2.6,L8,ZPC(BLK),SW3SA
..3W3926003-000282SCREW -T APTYPE;BH,+,-,B,M3,L8,ZPC(BLK),SW1SA
..36902-001426BAGPE;HDPE/NITRON,T0.015/T0.5,W600,L3501SNA
..3C1023AK61-00608ALEG;DVD-VR330,RUBBER,BLK,124SNA
..3EF01BN31-00024BF AN;BSB04512LA-9P1R_1,PLASTIC,100mm(wire1SA
..3BN61-07213BBRACKET -ST ANDBOTTOM;TA950-27,HGI,T2.01SNA
..3BN62-00124AINSULATOR-MAIN;T A950,PCSHEET ,0.4,NTR,MF1SNA
..3BN63-08001BCOVER-STANDBOTTOM;TA950-27,HIPS,V0,BK001SNA
..3BN64-01660AINLAY -COVER;T A950-27,PET,T0.25,BLK,SPEAK1SNA
..3BN64-01814AINLAY -A V;T A950,PET ,T0.051SNA
..3BN96-16483AASSYHINGEP-SET;SA950,SM50CT2.01SA
..3FB05ABN96-17107DASSYBOARDP;T A950,CT5000-9010A,SEC,Sub1SA
..3SP01ABN96-17609AASSYSPEAKERP;6ohm,4pin,7W,950MFM_spk1SA
.2BN96-18126BASSYST ANDP-TOP;TA950,USA,ALT0.61SA
..3M0131AA63-01240AGASKET;FIRENZE,ConductiveFabric,3mm,12m2SA
..3BN61-05728ABOSS-TAPE;UB7000,T0.4,W10,DARKGRAY2SNA
10Copyright©1995-201 1SAMSUNG.Allrightsreserved.
Page 11
ExplodedViewsandPartsList
LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA
..3CCM1BN63-05199QCOVER-SHEET;CREAM,PE,T0.08,W50,200M,CLEA1SNA
..3BN63-08002BCOVER-STANDTOP;T A950,AL,T0.6,USA1SNA
..3BN63-08003BCOVER-STANDMIDDLE;T A950-27,ABS+PC,V0,BK1SNA
..3BN64-01812AINLAY -BACK;SA950,PET,T0.2,5,130,CLEAR1SNA
.2FL06BN96-18610AASSYCABLEP-FFC;FFC,FFCCABLE,P1030-A221SA
.2CB06ABN96-19056AASSYBRACKETP-P ANEL;SA95023,HGI,T2.0,B1SA
..3BN60-00162XSPACER-FOAM;FOAM,30000mm,DarkGray,1T,150SNA
..3AB258BN61-07218ABRACKET -P ANEL;SA95023",HGI,T2.0,BLKSPR1SNA
.2BN96-19130AASSYCABLEP-FPC;TA950L VDScable,1030691SA
1BN91-07040AASSYLCD;BN07-01012A1SNA
.2P ANELBN07-01012ALCD-PANEL;LTM230HU04-V ,SSRZUWV ,6Bit+Hi1SA
1ACCE1BN92-08291AASSYACCESSORY ;L T27A950ND/ZA1SNA
.2REMO2AA59-00442AREMOCON;TM1060,49,3V ,NortnAmerica,6500,1SA
.2P001ABN44-00455ADCVSS(A);PN8014,TA750/950,14V ,5.72A,1101SA
.2ACCE1BN96-13115SASSYACCESSORY;LT23A950ND/ZA1SNA
..3T02683903-000598CBF-POWERCORD;DT,UL/CSA,EP-2,N,125V ,5A,1SA
..3T01204301-000121BATTERY -MN;1.5V ,R03,10.5x44.5m,HOLDER,7.2SNA
..3T05246902-000110BAGPE;LDPE,T0.05,W250,L400,TRP ,28,2,9.21SNA
..3AA68-03242LLEAFLET -07,SAFETYGUIDE;comm,Samsung,Eng1SNA
..3EC03BN39-01154WCBFSIGNAL;COMPONENTGENDER/UD8000,2P ,1SA
..3EC08BN39-01286ACBFSIGNAL-STEREO;3p,UL2547,AudioStand1SC
..3BN39-01502AHDMICABLE;BKA0C009,19P ,50,1500mm,55mm,B1SA
..3BN46-00078DS/WDRIVER-02,TRIDEF3D;T A750,TA950,Sy1SNA
..3M9889BN63-02368BCLOTH-CLEAN;CLOTH,120,160,seablue,ToC1SNA
..3BN68-00226MLEAFLET -02,WARRANTY;comm,SAMSUNG,Eng/Fre1SNA
..3T0527BN68-00513ALABEL-E,PASS;ALLMODEL,YUPO(110G),50X15,1SNA
..3BN68-03598CMANUALUSERS;comm,Samsung,Eng/Spa/Fre,N.1SNA
..3BN68-03632BMANUALUSERS-03;comm,SyncMaster,America/1SNA
..3BN68-03677ALEAFLET-W ARRANTY ;QR,1YEAR,US,Mojo80g,141SNA
..3BN96-19089AASSYACCESSORY-HOLDERCLAMP;T A950/750,BN1SNA
...4T05246902-000022BAGPE;LDPE,T0.08,W90,L250,TRP ,2.100g1SNA
...4BN61-07588AHOLDER-WIRE;SA950,NYLON6/6,1.3,8.7,195,1SNA
...4BN65-00007ACLAMP-CABLE;SA950,NYLON6/6,BLK1SNA
.2BN96-18236AASSYACCESSORY3DGLASSES;SSG-M3150GB,1e1SA
..3BN81-06576AA/S-GLASSES;SSG-M3150GB,LCLENS1SNA
..3BN81-06590AA/S-COVERTEMPLE;SSG-3100GB,PA12-TR90,CO1SNA
..3BN81-06591AA/S-COVERBA TTERY ;SSG-3100GB,PC+ABS,CO1SNA
1BN92-08308AASSYP/MA TERIAL;T A950231SNA
.26902-000622BAGSHEET;HDPE/NITRON,T0.015/T1.0,W1000,1SNA
.26902-001241BAGSHEET;HDPE/NITRON,T0.015/T1.0,W700,L1SNA
Copyright©1995-2011SAMSUNG.Allrightsreserved.11
Page 12
ExplodedViewsandPartsList
LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA
.26902-001426BAGPE;HDPE/NITRON,T0.015/T0.5,W600,L3501SNA
.2BH69-00418ABAGWRAPPING;LDPE,762,1828M,SAMEXF ACTOR1SNA
.2T0527BN68-00129ALABELSHIPPING-00;LABELSHIPPING,AR T -P AP1SNA
.2BN69-00131YPALLET-PACKING;FZ46UO,WOOD,1235,1000,1201SNA
.2BN69-05528APACKINGINNER;P ADCOMM,CB,3,1828.8,100,C1SNA
.2BN69-05906ACUSHION-SET;23SA/T A950,EPS,16.7g/l1SNA
.2BN74-00008DTAPE-OPPMASKING;OPP,T0.05,W75,L800M,CLR2SNA
1BN92-08326AASSYBOX;TA95023,USA1SNA
.2T0527BH68-00634ALABELBOX-00;ALLMODEL,MOJO90G,80,75,WH1SNA
.2M0120BH75-10529AUNIT -HANDLEPACKING;LXA410TLMU,PE,WHITE1SNA
..3M0019BN72-60001ALEVER-TOP;LSD210TL,PE-LD,WHITE,TFT_LCD1SNA
..3BN72-60002ALEVER-BOTTOM;LSD210TL,PE-LD,WHITE,TFT-LC1SNA
.2BN69-06162CBOX-03,SET;23TA950,CB,A-01,SW2,OFFSET,W51SNA
1BN92-09070AASSYLABEL;NEWMODEL1SNA
.2BN68-01102GLABELRA TING;W/W ,SS,PET ,T0.05,90,60,POL Y1SNA
.2BN68-03547ALABEL-01,POP;TA950,PET ,T0.05,78,216,W/W ,1SNA
.2BN68-03547DLABEL-MONITOR-POP;TA950,PET,T0.05,78,2161SNA
.2BN68-03651QLABEL-STICKER;T23A950,ZA,PET,T0.05,38,141SNA
12Copyright©1995-201 1SAMSUNG.Allrightsreserved.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
