Page 1
Exploded Views and Parts List

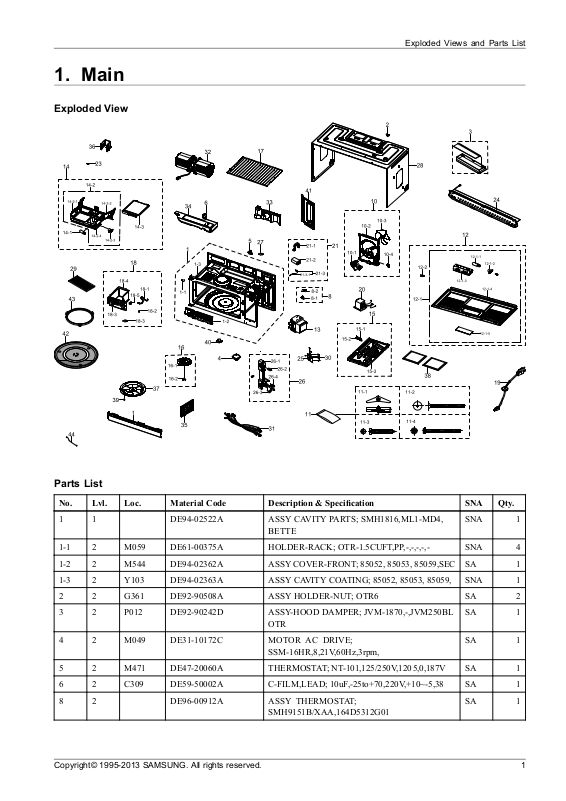

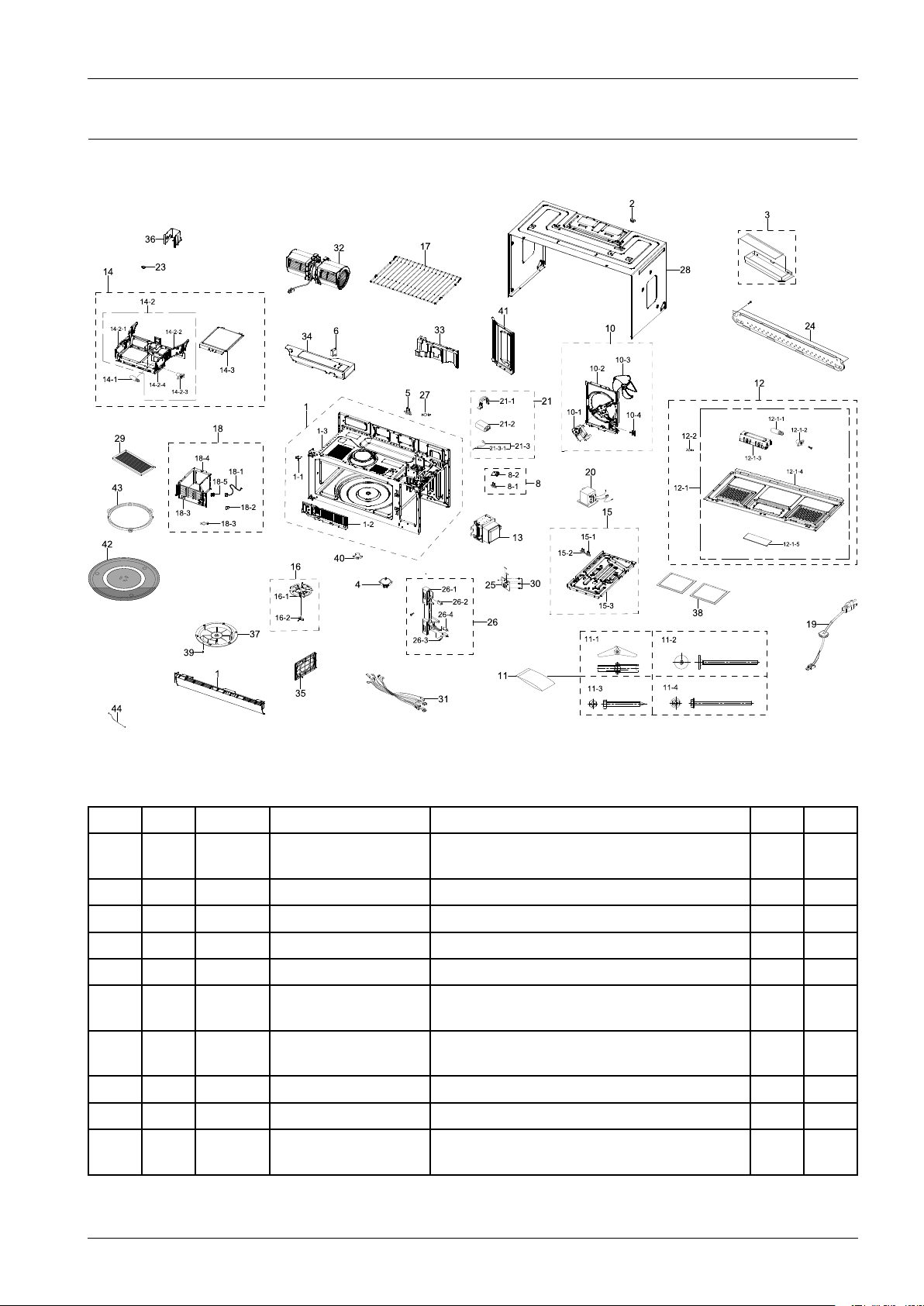

1. Main
Exploded View
Parts List
No. Lvl. Loc. Material Code Description & Specication SNA Qty.
1 1 DE94-02522A ASSY CAVITY PARTS; SMH1816,ML1-MD4,
BETTE
SNA 1
1-1 2 M059 DE61-00375A HOLDER-RACK; OTR-1.5CUFT,PP,-,-,-,-,- SNA 4
1-2 2 M544 DE94-02362A ASSY COVER-FRONT; 85052, 85053, 85059,SEC SA 1
1-3 2 Y103 DE94-02363A ASSY CAVITY COATING; 85052, 85053, 85059, SNA 1
2 2 G361 DE92-90508A ASSY HOLDER-NUT; OTR6 SA 2
3 2 P012 DE92-90242D ASSY-HOOD DAMPER; JVM-1870,-,JVM250BL
OTR
SA 1
4 2 M049 DE31-10172C MOTOR AC DRIVE;
SSM-16HR,8,21V,60Hz,3rpm,
SA 1
5 2 M471 DE47-20060A THERMOSTAT; NT-101,125/250V,1205,0,187V SA 1
6 2 C309 DE59-50002A C-FILM,LEAD; 10uF,-25to+70,220V,+10~-5,38 SA 1
8 2 DE96-00912A ASSY THERMOSTAT;
SMH9151B/XAA,164D5312G01
SA 1
Copyright© 1995-2013 SAMSUNG. All rights reserved. 1
Page 2
Exploded Views and Parts List
No. Lvl. Loc. Material Code Description & Specication SNA Qty.
8-1 3 M439 DE47-20007B THERMOSTAT;
NT-101NA,125/250V,7.5/15A,150
SA 1
8-2 3 H012 DE61-01371A BRACKET-TCO; SMH9151B/XAA,EGI-SECC SA 1
10 2 M021 DE94-02367B ASSY COVER MOTOR;
59285042,SECC,T0.6,CANA
SA 1
10-1 3 M023 DE31-00045B MOTOR AC FAN;
SMF-U2070B,2,120V,60Hz,25W,
SA 1
10-2 3 P109 DE63-00661A COVER-MOTOR; MODULAR4,EGI-SECC,T0.6 SNA 1
10-3 3 H018 DE31-00064A BLADE-FAN; MODULAR4,PP SA 1
10-4 3 M098 DE61-00164A HOLDER-WIRE; OTR8,PP,NTR SNA 1
11 2 M060 DE92-90505N ASSY HARD WARE; SMH1611B/XAA,SS MD-3 SA 1
11-1 3 P090 DE60-30022A NUT TOGGLE; ZPC,ZPC2 SNA 2
11-2 3 P089 DE60-20066A BOLT-FLAT; MSWR-SWRM,L100,UNF1/4,- SA 2
11-3 3 S259 DE60-10111A SCREW-INCH MACH;
HH,M6,L50,ZPC(WHT),SWRCH
SNA 1
11-4 3 P088 DE60-20022A BOLT-TOGGLE;
MSWR-SWRM,W3/16X75,MSWR
SA 2
12 1 U001 DE94-02547A ASSY BASE BOTTOM; SMH1816B,ML1-MD4,
BETTE
SNA 1
12-1 2 U001 DE94-02365C ASSY BASE BOTTOM;
SMH1816B_SMH1816S,SECC,
SA 1
12-1-1 3 M036 4713-001013 LAMP-INCANDESCENT; 130V,40W,ORG,25X73 SA 1
12-1-2 3 M102 DE47-00006A LAMP SOCKET; E17,250V,Phenol,75W,E17,1 SA 1
12-1-3 3 U004 DE61-00319A BRACKET-BOTTOM LAMP;
OTR-9,EGI-SECC,T0.4
SNA 1
12-1-4 3 U007 DE61-01302E BASE-BOTTOM; 85053
MHC4,EGI-SECC,T0.4,BLA
SNA 1
12-1-5 3 U005 DE67-40063A GLASS-COOK TOP LAMP;
GLASS,T2.8,W59,L159.
SA 1
12-2 2 M058 6502-001056 CABLE CLAMP;
DAWH-2NC,ID18.5,NYLON6/6,NTR
SNA 1
13 1 M035 OM75P-21-ESGN ASSY MGT; ASSY MGT 1
14 2 P034 DE94-02374A ASSY DUCT UPPER; 85053,SECC,T0.4,MHC4,LASA 1
14-1 3 M036 4713-001013 LAMP-INCANDESCENT; 130V,40W,ORG,25X73 SA 1
14-2 3 Y097 DE94-02373A ASSY DUCT UPPER-SUB;
85053,SECC,T0.4,MHC4
SNA 1
14-2-1 4 P442 DE67-00262A DUCT-UPPER FRONT;
MODULAR4,EGI-SECC,T0.4
SNA 1
14-2-2 4 P443 DE67-00263A DUCT-UPPER REAR;
MODULAR4,EGI-SECC,T0.4
SNA 1
14-2-3 4 M102 DE47-00006A LAMP SOCKET; E17,250V,Phenol,75W,E17,1 SA 1
14-2-4 4 G244 DE61-01300A HOLDER-LAMP; MODULAR4,EGI-SECC,T0.4 SA 1
14-3 3 M086 DE63-00659A COVER-LAMP; MODULAR4,EGI-SECC,T0.4 SA 1
2 Copyright© 1995-2013 SAMSUNG. All rights reserved.
Page 3
Exploded Views and Parts List
No. Lvl. Loc. Material Code Description & Specication SNA Qty.
15 2 M155 DE94-02379A ASSY BASE PLATE;
85053,SECC,T0.6,MODULAR
SNA 1
15-1 3 M029 DE47-00050C THERMOSTAT;
NT-101NA,230/125V,10/15A,140,
SA 1
15-2 3 M453 DE47-20034A THERMOSTAT; NT-101,125/250V,405,70 5,2 SA 1
15-3 3 M048 DE61-01296A BASE-PLATE; MODULAR4,EGI-SECC,T0.6 SNA 1
16 2 P001 DE94-02377A ASSY STIRRER; 85053,MHC-4,ALP T0.6,SEARS SA 1
16-1 3 T036 DE66-00227A BLADE-STIRRER;
MODULAR4,ALCOT,T0.6,1.9 CU
SNA 1
16-2 3 T037 DE61-01061A HOLDER-STIRRER; MD3,SPS,-,-,-,-,- SA 1
17 2 T030 DE75-00083A RACK-WIRE; 85052, 85053,
85059,MSWR-SWRM,
SA 1
18 2 P359 DE94-02372A ASSY DUCT EXHAUST;
85052,SGCC,T0.5,SEARS
SA 1
18-1 3 P036 DE39-40678D WIRE HARNESS-S;
SMH7185WG/XAA,120V60HZ,86
SA 1
18-2 3 P025 DE61-90111A HOLDER-SENSOR; POM,NATURAL,HB,K300 SA 1
18-3 3 P086 DE61-01304A BRACKET-BARRIER;
MODULAR4,EGI-SECC,T0.4
SNA 1
18-4 3 P026 DE67-00264A DUCT-EXHAUST; MODULAR4,GI-SGCC,T0.5 SNA 1
18-5 3 P024 DE32-60011A SENSOR GAS; TGS-880,-,-,-,-,-,-,-,- SC 1
19 2 M015 DE96-00218F ASSY POWER CORD;
UL,Straight,USA,125V/15A
SA 1
20 2 M038 DE26-00126B TRANS H.V; SHV-U1870D,120V,60Hz,2545/2385 SA 1
21 2 P393 DE96-00269A ASSY HVC; SMH7175,-,-,0.91UF HVC,-,- SA 1
21-1 3 M040 DE61-00115A BRACKET-HVC; SMH7175,EGI-SECC,T0.5 SNA 1
21-2 3 M039 2501-001011 C-OIL; 910nF,2100V,BK,54x35x75mm,20mm SA 1
21-3 3 M528 DE91-70063D ASSY HVD; MWO-GE,HV03-12,-,-,RED,- SA 1
21-3-1 4 M527 DE59-00002A DIODE-H.V; MWO ALL,2CL4512H,-,450mA
13KV,
SA 1
23 2 D046 DE64-01851A DOOR-CAP; MHC4,PP,-,-,-,-,-,- SA 1
24 2 P007 DE70-00561A PLATE-MOUNTING; GE 1.6 NEW
APPEARANCE,EGI
SA 1
25 2 M017 DE96-00400D ASSY NOISE FILTER; -,SN-UF12D,250V/20A,SE SA 1
26 2 B022 DE96-00414A ASSY BODY LATCH; RVM-1625BJ,- SA 1
26-1 3 B064 DE66-00168A LATCH-BODY; MODULAR-2,PP,-,-,-,-,- SA 1
26-2 3 B048 3405-001034 SWITCH-MICRO;
125/250VAC,16A,200gf,SPST-N
SA 2
26-3 3 B013 DE66-90106B LEVER SWITCH-LOWER; OTR6,PP,T1.4,-,-,-,-, SA 1
26-4 3 B047 3405-001033 SWITCH-MICRO;
125/250VAC,16A,200gf,SPST-N
SA 1
27 2 M131 DE66-00123A WIRE-SADDLE; JE620/610BF/WF,PA66 SA 1
28 2 M001 DE64-02379D PANEL-OUTER;
SMH1816B/XAA,EGI-SECC,T0.4,-
SA 1
Copyright© 1995-2013 SAMSUNG. All rights reserved. 3
Page 4
Exploded Views and Parts List
No. Lvl. Loc. Material Code Description & Specication SNA Qty.
29 2 M061 DE63-30016D FILTER-CHARCOAL;
SMH7175,AL,T10,W222,L100
SC 1
30 2 M116 DE61-30129A SUPPORT-PCB; PA66 SNA 4
31 2 W002 DE96-00922A ASSY WIRE HARNESS-A;
SMH1816,120V/60Hz,MD
SA 1
32 2 M024 DE31-00029H MOTOR AC VENTILATION;
SMV-U460B,2,120V,60
SA 1
33 2 P432 DE61-01297A GUIDE-VENT AIR; MODULAR4,PP SA 1
34 2 P433 DE61-01299A GUIDE-STIRRER AIR;
MODULAR4,EGI-SECC,T0.4
SA 1
35 2 M051 DE63-00532A COVER-MGT; MODULAR3,PP,-,-,-,-,-,-,- SA 1
36 2 M543 DE63-00660A COVER CONNECTOR;
MODULAR4,PP,T2.0,V0,NATU
SA 1
37 2 M087 DE63-00663A COVER-STIRRER; MODULAR4,PP,TB53 SA 1
38 2 U008 DE63-00666A FILTER-AIR; MODULAR4,AL,W172.9,L161.2,4LSA 2
39 2 C144 DE66-20095B BUTTON-LOCKING; PP,OTR5,TB53) SA 1
40 2 M034 DE67-00236A COUPLER; MMV1163,SPS,-,-,-,MODULAR-3 SA 1
41 2 P190 DE67-00261A DUCT-REAR; MODULAR4,EGI-SECC,T0.4 SA 1
42 2 T001 DE74-20002D TRAY-COOKING; 85059,GLASS,T6 SA 1
43 2 T151 DE92-90189V ASSY GUIDE ROLLER; 3RD-1.0 CMO,-,-,-,PI15 SC 1
44 3 C089 DE39-40673A WIRE HARNESS-H; OTR6 ALL MODEL,-,-,-,-,-, SA 1
4 Copyright© 1995-2013 SAMSUNG. All rights reserved.
Page 5
Exploded Views and Parts List

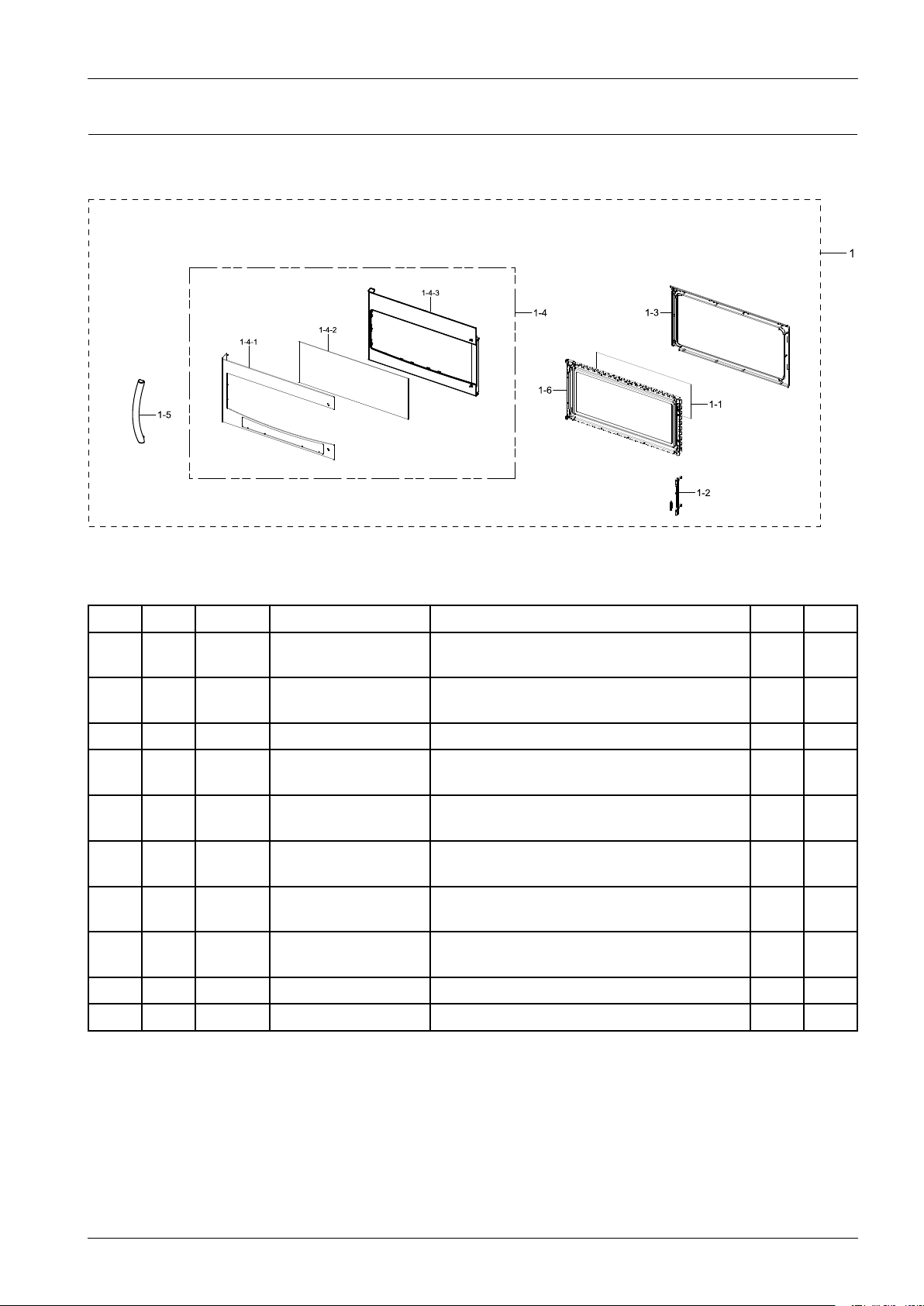

1.1. Assy Door
Exploded View
Parts List
No. Lvl. Loc. Material Code Description & Specication SNA Qty.
1 2 D049 DE94-02521F ASSY DOOR;
SMH1816S/XAA,PC,STS430,ML1-MD4
SA 1
1-1 3 D005 DE01-00127A FILM-DOOR;
JVM-1860,POLYESTER,PET,L479,T0
SNA 1
1-2 3 D011 DE64-01308A DOOR-KEY; MODULAR-2,POM,-,-,-,-,BLK,- SNA 1
1-3 3 D006 DE64-01849A DOOR-C; SMH1816B,
SMH1927B,PP,-,-,PP-MT44
SA 1
1-4 3 D037 DE94-02520B ASSY DOOR A;
SMH1816S/XAA,PC,STS430,BADGE
SA 1
1-4-1 4 Z779 DE64-02527A INLAY-DOOR;
BETTER,STAINLESS-STS430,T0.3
SA 1
1-4-2 4 D024 DE64-02567A SCREEN-DOOR(B);
SMH1816,GLASS,T3.2,W609.9
SA 1
1-4-3 4 D002 DE64-02524C DOOR-A;
SMH1816S,PC,-,HB,141R-701,BLACK,M
SNA 1
1-5 3 D020 DE94-02933A ASSY HANDLE; SMH1927S/XAA,REAL STS304 SA 1
1-6 3 D004 DE94-01470B ASSY DOOR E; SMH7175,-,-,COATING SNA 1
Copyright© 1995-2013 SAMSUNG. All rights reserved. 5
Page 6
Exploded Views and Parts List

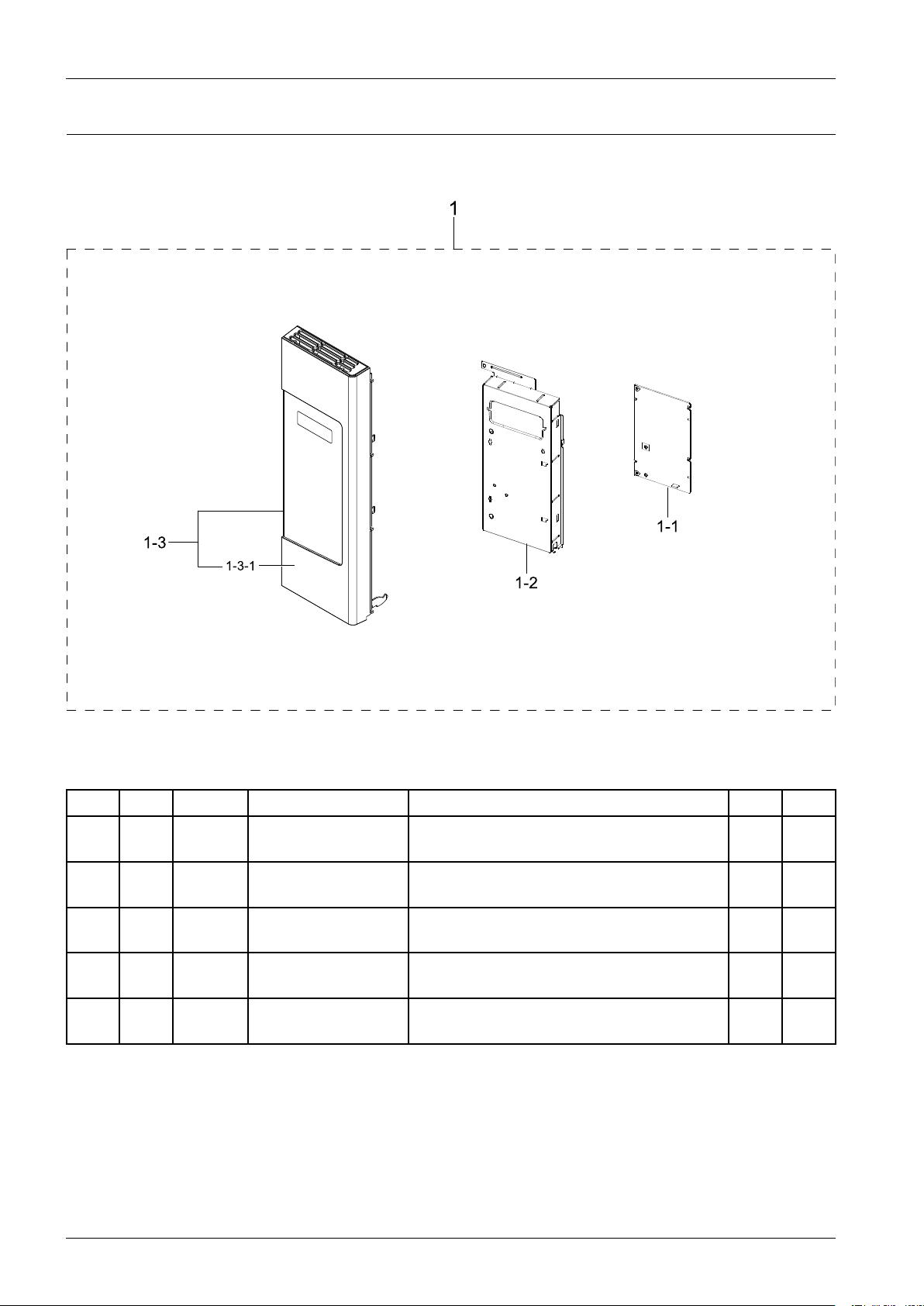

1.2. Assy Control Box
Exploded View
Parts List
No. Lvl. Loc. Material Code Description & Specication SNA Qty.
1 2 C082 DE94-02518C ASSY CONTROL BOX;
SMH1816S,STS430,PC,ML1-
SNA 1
1-1 3 F316 DE92-02329F ASSY PCB MAIN; VFD,MHC-3,Y,120V
60HZ,8W,T
SA 1
1-2 3 P157 DE94-02516A ASSY BRACKET C/PANEL;
SMH1816,SECC,T0.4,M
SA 1
1-3 3 C001 DE94-02517C ASSY CONTROL PANEL;
SMH1816S,STS430,PC,ML
SA 1
1-3-1 4 Z780 DE64-02528A INLAY-CONTROL PANEL;
BETTER,STAINLESS-STS
SA 1
6 Copyright© 1995-2013 SAMSUNG. All rights reserved.
