Page 1
Samsung Electronics5-1
Exploded View & Part List
5. Exploded View & Part List

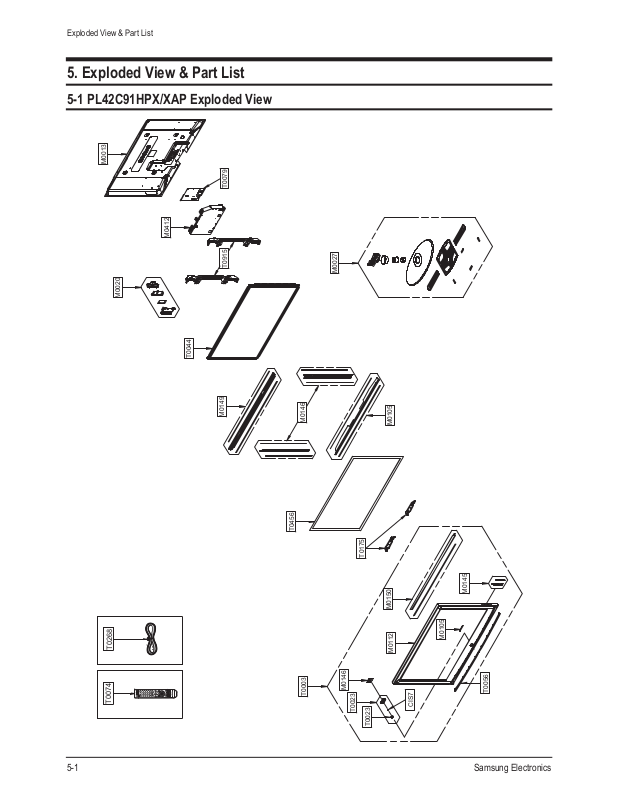

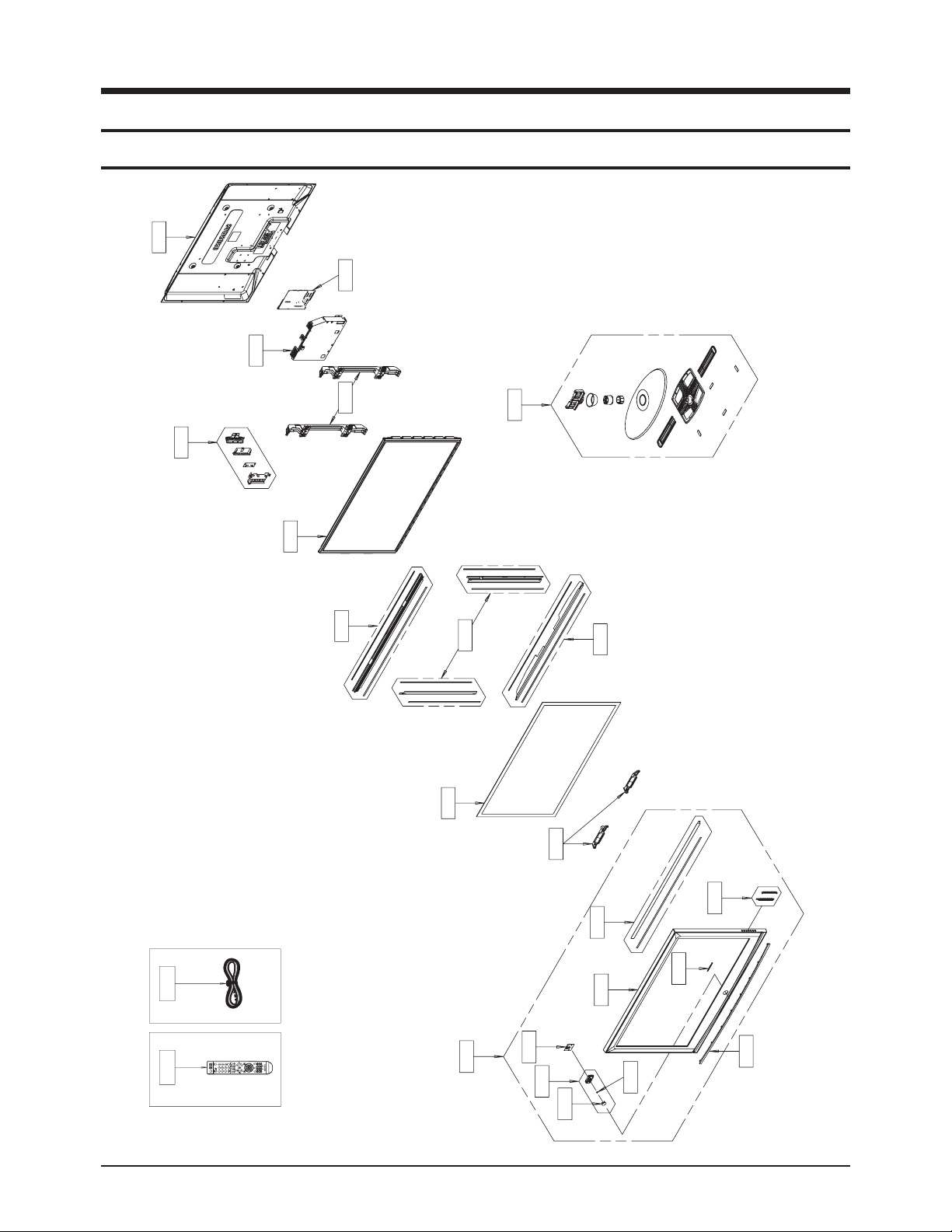

5-1 PL42C91HPX/XAP Exploded View
M0013
T0079T0915
M0412
M0020
M0027
T0268
T0044
M0149
T0456
M0146
M0105
T0175
M0145
M0150
M0105
M0112
T0074
T0003
M0146
T0023
T0056
CIS7
T0023
Page 2
5-2Samsung Electronics
Exploded View & Part List
Loc. No. Code No. Description Specification Q'ty SA/SNA Remark
CIS7 AA61-60003B SPRING ETC-CS -,SUS304,-,-,OD11.2,N7,OD1 1 S.N.A
M0013 BN96-04709D ASSY COVER P-REAR 42Q9/C9,SEA,PCM T0.5,B 1 S.A
M0020 BN96-04900L ASSY BOARD P-SIDE A/V Lily 42",SJ07-01-0 1 S.N.A
M0027 BN96-05835A ASSY STAND P-BASE 42Q9/42C9,ABS,SF-0507, 1 S.A
M0105 BN67-00190A LENS-LED 42Q9,PC,light blue,Material of 1 S.N.A
M0112 BN63-03047A COVER-FRONT 42C9,ABS,-,-,-,HB,-,BK23,STE 1 S.N.A
M0145 BN96-04853B ASSY BOARD P-FUNCTION Lily/Calla,CT5000- 1 S.A
M0146 BN96-04687A ASSY BRACKET P-FILTER SIDE 42Q9,AL6063,T 2 S.N.A
M0146 BN96-04861D ASSY BOARD P-POWER & IR Lily/Calla,CT500 1 S.A
M0149 BN96-04685A ASSY BRACKET P-FILTER TOP 42Q9,AL6063,T1 1 S.N.A
M0150 BN96-04686A ASSY BRACKET P-FILTER BOTTOM 42Q9,AL6063 1 S.N.A
M0150 BN96-04691B ASSY BRACKET P-SUPPORT FILTER 42Q9,Al 60 1 S.N.A
M0412 BN96-04903C ASSY BRACKET P-PCB 42Q9,SECC T0.8 1 S.N.A
T0003 BN96-04712A ASSY COVER P-FRONT 42C9,-,ABS HB,BK23,ST 1 S.A
T0023 BN96-04707A ASSY COVER P-KNOB POWER C9/Q9,ABS HB 1 S.A
T0023 BN64-00567A KNOB POWER 42Q9,PC,VIOLET 1 S.N.A
T0044 BN96-04923A ASSY PDP MODULE P 42HD W2A,S42AX-YB03,W2 1 S.A
T0056 BN63-03091A COVER-DECORATION 42C9,ABS,HB,BLK 1 S.N.A
T0074 BN59-00604A REMOCON Bordeaux Plus,TM87C,SAMSUNG 28P+ 1 S.A
T0079 BN94-01357A ASSY PCB MISC-MAIN LATIN_AMERICA,LILY 42 1 S.A
T0175 BN96-04704A ASSY SPEAKER P 8ohm,C9,10W,4P connector, 1 S.A
T0268 3903-000144 CBF-POWER CORD DT,US,BP3/Y,U(IEC C13-RA) 1 S.A
T0456 BN67-00188A GLASS-FILTER EMI 42" C7 HD,Sputter,with 1 S.A
T0915 BN61-02894B HOLDER-MODULE 42Q9,PC ABS 2 S.N.A
Page 3
Samsung Electronics5-3
Exploded View & Part List

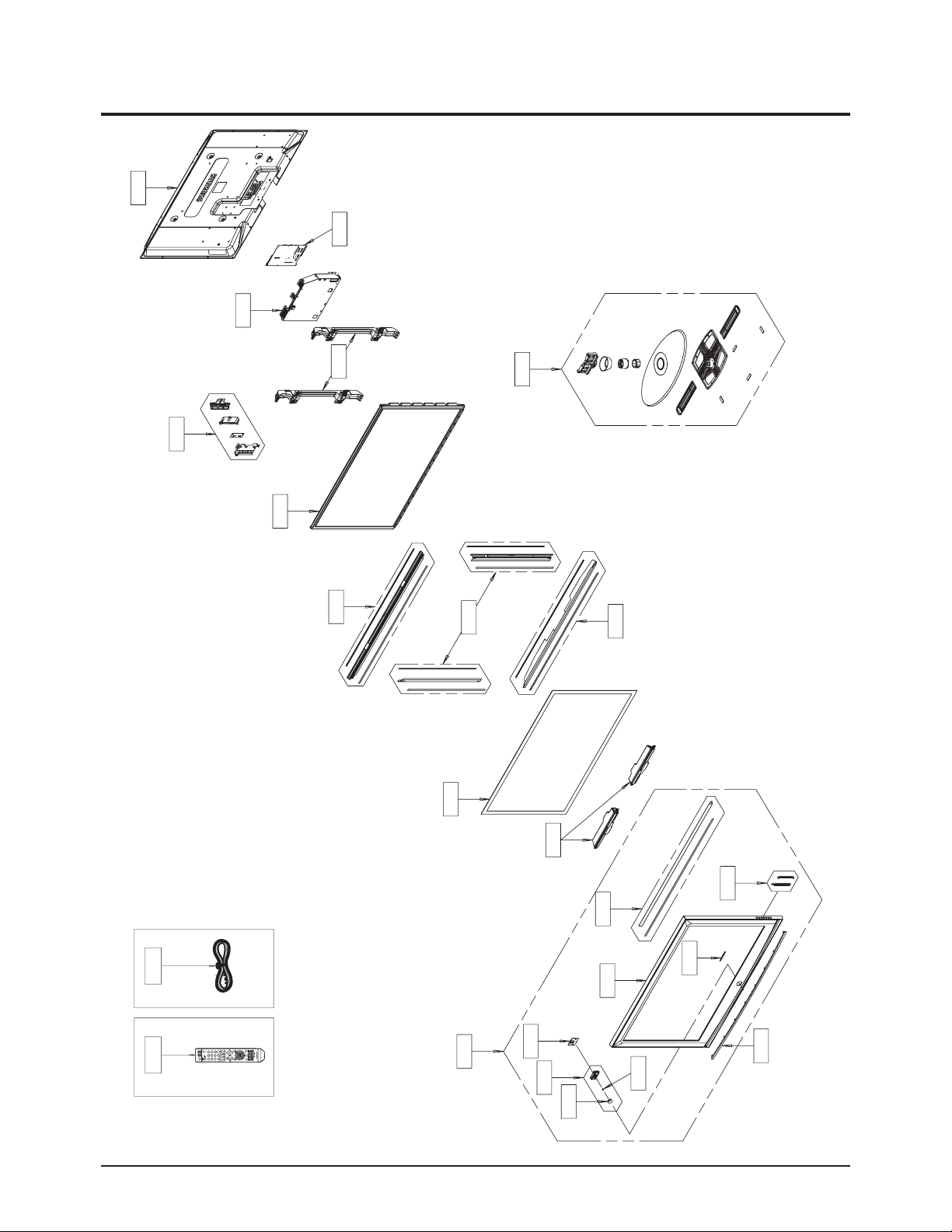

5-2 PL50C91HX/XAZ Exploded View
M0013
T0079
M0412
M0020
T0044
T0915
M0149
M0146
T0456
M0027
M0105
T0268
T0074
T0003
M0146
T0023
T0175
M0145
M0150
M0105
M0112
T0056
CIS7
T0023
Page 4
5-4Samsung Electronics
Exploded View & Part List
Loc. No. Code No. Description Specification Q'ty SA/SNA Remark
CIS7 AA61-60003B SPRING ETC-CS -,SUS304,-,-,OD11.2,N7,OD1 1 S.N.A
M0013 BN96-04711D ASSY COVER P-REAR 50Q9/C9,SEA,PCM T0.5,B 1 S.A
M0020 BN96-04900M ASSY BOARD P-SIDE A/V Lily 50",SJ07-01-0 1 S.N.A
M0027 BN96-04714B ASSY STAND P-BASE C9/Q9,ABS HB SF-0507,B 1 S.A
M0105 BN67-00190A LENS-LED 42Q9,PC,light blue,Material of 1 S.N.A
M0112 BN63-03067A COVER-FRONT 50C9,ABS,-,-,-,HB,-,BK23,STE 1 S.N.A
M0145 BN96-04853B ASSY BOARD P-FUNCTION Lily/Calla,CT5000- 1 S.A
M0146 BN96-04690A ASSY BRACKET P-FILTER SIDE 50Q9,AL6063,T 2 S.N.A
M0146 BN96-04861D ASSY BOARD P-POWER & IR Lily/Calla,CT500 1 S.A
M0149 BN96-04688A ASSY BRACKET P-FILTER TOP 50Q9,AL6063,T1 1 S.N.A
M0150 BN96-04692A ASSY BRACKET P-SUPPORT FILTER 50Q9,AL606 1 S.N.A
M0150 BN96-04689A ASSY BRACKET P-FILTER BOTTOM 50Q9,AL6063 1 S.N.A
M0412 BN96-04903C ASSY BRACKET P-PCB 42Q9,SECC T0.8 1 S.N.A
T0003 BN96-04713A ASSY COVER P-FRONT 50C9,-,ABS HB,BK23,ST 1 S.A
T0023 BN96-04707A ASSY COVER P-KNOB POWER C9/Q9,ABS HB 1 S.A
T0023 BN64-00567A KNOB POWER 42Q9,PC,VIOLET 1 S.N.A
T0044 BN96-05772A ASSY PDP MODULE P PL50HW025A,50HD W2A,PL 1 S.A
T0056 BN63-03081A COVER-DECORATION 50C9,ABS,HB BLK 1 S.N.A
T0074 BN59-00604A REMOCON Bordeaux Plus,TM87C,SAMSUNG 28P+ 1 S.A
T0079 BN94-01357B ASSY PCB MISC-MAIN LATIN AMERICA,LILY 50 1 S.A
T0175 BN96-04704A ASSY SPEAKER P 8ohm,C9,10W,4P connector, 1 S.A
T0268 3903-000195 CBF-POWER CORD DT,BR,BP3/Y,U(IEC C13-RA) 1 S.A
T0456 BN67-00197A GLASS-FILTER EMI 50 W2, C9,Sputter, wit 1 S.A
T0915 BN61-02895B HOLDER-MODULE 50Q9,PCABS 2 S.N.A
Page 5
Samsung Electronics5-5
Exploded View & Part List
5-3 PL42C91HPX/XAP Service Item
Loc. No. Code No. Description Specification Q'ty Remark
M0013 BN96-04709D ASSY COVER P-REAR 42Q9/C9,SEA,PCM T0.5,B 1
M0027 BN96-05835A ASSY STAND P-BASE 42Q9/42C9,ABS,SF-0507, 1
M2893 BN39-00859A LEAD CONNECTOR CALLA 50",UL20276#30,UL/C 1
M2893 BN39-00881A LEAD CONNECTOR LILLY 42"/50",UL1007#26,U 1
T0003 BN96-04712A ASSY COVER P-FRONT 42C9,-,ABS HB,BK23,ST 1
T0044 BN96-04923A ASSY PDP MODULE P 42HD W2A,S42AX-YB03,W2 1
T0074 BN59-00604A REMOCON Bordeaux Plus,TM87C,SAMSUNG 28P+ 1
T0079 BN94-01357A ASSY PCB MISC-MAIN LATIN_AMERICA,LILY 42 1
T0175 BN96-04704A ASSY SPEAKER P 8ohm,C9,10W,4P connector, 1
T0764 BN44-00161A SMPS-PDP TV HPS4253,SEM,AC/DC,370W,AC100 1
T1910 BN96-04593A ASSY PDP MODULE P-X-MAIN 42HD W2,PL42AX0 1
T1911 BN96-04594A ASSY PDP MODULE P-Y-MAIN 42HD W2,PL42AX0 1
T1914 BN96-04597A ASSY PDP MODULE P-ADDRESS-E BU 42HD W2,P 1
T1915 BN96-04598A ASSY PDP MODULE P-ADDRESS-F BU 42HD W2,P 1
T1917 BN96-04596A ASSY PDP MODULE P-LOGIC MAIN 42HD W2,PL4 1
T9698 BN96-04595A ASSY PDP MODULE P-Y-MAIN SCAN 42HD W2,PL 1
※ This is the list which is available to repair the real material at the time of service.
Page 6
5-6Samsung Electronics
Exploded View & Part List
5-4 PL50C91HX/XAZ Service Item
Loc. No. Code No. Description Specification Q'ty Remark
M0013 BN96-04711D ASSY COVER P-REAR 50Q9/C9,SEA,PCM T0.5,B 1
M0027 BN96-04714B ASSY STAND P-BASE C9/Q9,ABS HB SF-0507,B 1
M2893 BN39-00817A LEAD CONNECTOR LILLY 50",UL20276#30,UL/C 1
M2893 BN39-00881A LEAD CONNECTOR LILLY 42"/50",UL1007#26,U 1
T0003 BN96-04713A ASSY COVER P-FRONT 50C9,-,ABS HB,BK23,ST 1
T0044 BN96-05772A ASSY PDP MODULE P PL50HW025A,50HD W2A,PL 1
T0074 BN59-00604A REMOCON Bordeaux Plus,TM87C,SAMSUNG 28P+ 1
T0079 BN94-01357B ASSY PCB MISC-MAIN LATIN AMERICA,LILY 50 1
T0175 BN96-04704A ASSY SPEAKER P 8ohm,C9,10W,4P connector, 1
T0764 BN44-00162A SMPS-PDP TV HPS5053,SEM,AC/DC,460W,AC100 1
T1910 BN96-06091A ASSY PDP MODULE P-X-MAIN BOARD PL50HW025 1
T1911 BN96-06092A ASSY PDP MODULE P-Y-MAIN BOARD PL50HW025 1
T1914 BN96-06096A ASSY PDP MODULE P-ADDRESS E BU PL50HW025 1
T1915 BN96-06097A ASSY PDP MODULE P-ADDRESS F BU PL50HW025 1
T1917 BN96-06095A ASSY PDP MODULE P-LOGIC MAIN PL50HW025A, 1
T1960 BN96-06093A ASSY PDP MODULE P-Y-MAIN UPPER PL50HW025 1
T1961 BN96-06094A ASSY PDP MODULE P-Y-MAIN LOWWE PL50HW025 1
※ This is the list which is available to repair the real material at the time of service.
