5. Exploded Views and Parts List
U008
P032
T001
T017
T030
M087
T036
T037
M034
M059
M059
M049
B018
H018
M023
M017
P109
M021
M061
U005
M036
P015
P030
P124
P122
U003
P016
P034
M067
P106
M068
P226
P013
P012
P014
P001
W002
P025
P039
P097
M001
M015
M035
M029
M040
M041
M039
M042
M206
P059
P121
M050
B002
C081
B013
U003
U007
U001
U012
P122
P123
M038
P007
M024
M060
P090
P088
P087
P089
P091
B001
B001
B006
M036
U004
M048
M155
P024
P086

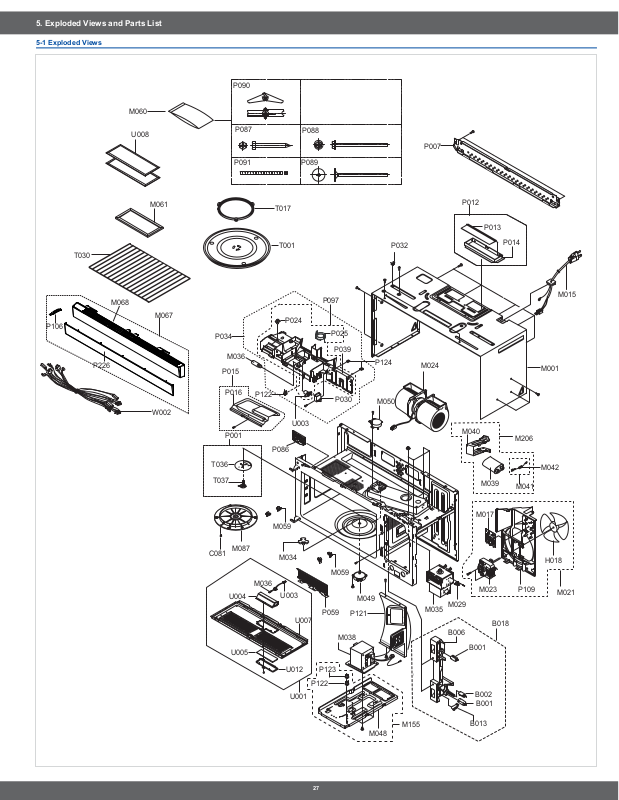

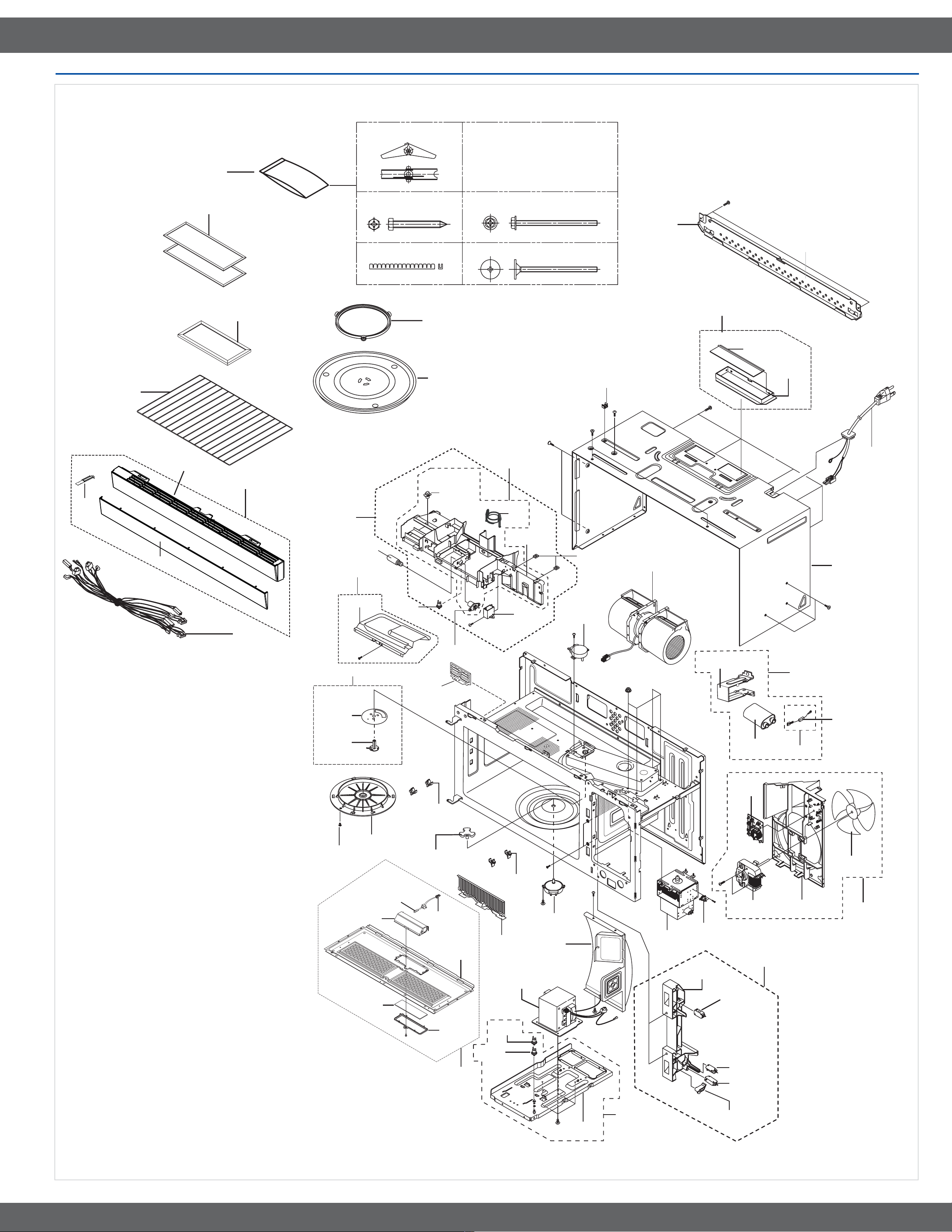

5-1 Exploded Views
27
Page 2
5. Exploded Views and Parts List
5-2 Main Parts List
(S.N.A : SERVICE NOT AVAILABLE)
No. Code No. Description Specication Q’ty SA/SNA Remark
B001 3405-001034 SWITCH-MICRO 125/250VAC,16A,200GF,SPST-N 2 SA -
B002 3405-001033 SWITCH-MICRO 125/250VAC 16A,200GF,SPSTNC 1 SA -
B006 DE66-00168A LATCH-BODY MODULAR-2,PP,-,-,-,-,- 1 SA -
B013 DE66-90106B LEVER-SWITCH LOWER PP,T1.4,-,-,2.0g,OTR 1 SA -
B018 DE96-00414A ASSY BODY LATCH RVM-1625BJ,- 1 SA -
C081 DE66-20095B BUTTON-LOCK -,-,OTR5,-,-,TB53) 1 SA -
H018 DE31-90051A BLADE-FAN P.P,T,D130,-,-,-,- 1 SA -
M001 DE64-00754J PANEL-OUTER MAYTAG2.0,SECC,T0.4,-,-,-,BL 1 SA -
M015 DE96-00218A ASSY-POWER CORD OTR9,120V60HZ,GE,SJT3/14 1 SA -
M017 DE96-00400B ASSY NOISE FILTER SN-UF12B,250V20A,OTR10 1 SA -
M021 DE97-00365C ASSY-COVER MOTOR SMH7175/SMH7178,ASSY-NO 1 SA -
M023 DE31-00044B MOTOR FAN SMF-U4205A,-,-,-,-,120V/60HZ,2 1 SA -
M024 DE31-00029C MOTOR VENTILATION SMV-460UA1-AL,-,120V,6 1 SA -
M029 DE47-20007A THERMOSTAT PW-2N(160/60)187Z,250V7.5A,16 1 SA MGT
M034 DE67-00179A COUPLER SMH7175,SPS,BRN,-,-,- 1 SA -
M035 OM75P(10)ESGN ASSY-MGT 1 SA -
M036 4713-001013 LAMP-INCANDESCENT 130V,-,40W,ORG,E17/20, 1 SA -
M036 4713-001013 LAMP-INCANDESCENT 130V,-,40W,ORG,E17/20, 2 SA -
M038 DE26-00126A TRANS H.V SHV-U1870C,120V,60HZ,2480/2240 1 SA -
M039 2501-001011 C-OIL 910nF,2100V,BK,54x35x75mm,20mm 1 SA -
M040 DE61-00115A BRACKET-HVC SMH7175,SECC,T0.6,-,-,-,- 1 SA -
M041 DE91-70063D ASSY-HVD HV03-12,MWO-GE,RED 1 SA -
M042 DE59-00002A DIODE-H.V 2CL4512H,450mA, 13KV,MWO ALL, 1 SA -
M048 DE61-00905A BASE-PLATE MAYTAG2.0,SECC,T0.6,-,-,-,- 1 SA -
M049 DE31-10172A MOTOR-SYNCHRONOUS M2HJ24Z709,ST-16F,21V, 1 SA TURNTABLE
M050 DE31-10173A MOTOR-SYNCHRONOUS M2HJ29A709,ST-16F,21V, 1 SA STIRRER
M059 DE61-00375A HOLDER-RACK OTR-1.5CUFT,PP,-,-,-,-,- 4 SA -
M060 DE92-90505E ASSY-HARD WARE SMH7175,-,-,- 1 SA -
M061 DE63-00367D FILTER-CHARCOAL MODULAR-2,AL,CARBON,T9,W 1 SA -
M067 DE94-01995A ASSY GRILLE SMH9187,PC,STS430,- 1 SA -
M068 DE64-02067A GRILLE CYMA,PC,-,-,-,-,-,- 1 SA -
M087 DE71-60121A COVER-STIRRER -,PP,T2.0,W7,L198,-,85G,- 1 SA -
M155 DE97-00677A ASSY-BASE PLATE AMV5206,-,BASE-PLATE T0. 1 SA -
M206 DE96-00269A ASSY-HVC SMH7175,0.91UF HVC 1 SA -
P001 DE97-00367A ASSY-STIRRER SMH7175,H/STIRRER+B/STIRRER 1 SA -
P007 DE70-00561A PLATE-MOUNTING GE 1.6 NEW APPEARANCE,GI, 1 SA -
P012 DE92-90242D ASSY-HOOD DAMPER JVM-1870,JVM250BL OTR4, 1 SA -
P013 DE71-60051B COVER-DAMPER JVM-1870,-,0.22,68,248.4,-, 1 SNA -
P014 DE72-40022A DAMPER-MAIN -,SECC,-,W28,L650,OTR4,-,T0. 1 SNA -
P015 DE97-00411A ASSY-BKT DUCT UPPER SMH7175BC,BKT-DUCT U 1 SA -
P016 DE61-00410A BRACKET-DUCT UPPER SMH7175,SECC,T0.5,W20 1 SA -
P024 DE32-60011A SENSOR-GAS ST-MWO,-,-,-,-,-,- 1 SA -
P025 DE61-90111A HOLDER-SENSOR -,POM(DURACON-M90-02),-,-, 1 SA -
P030 DE59-50002A CAPACITOR-MOTOR SH-M 10UF,220V10UF,-,DMB 1 SA -
28
Page 3
5. Exploded Views and Parts List
5-2 Main Parts List (Continued)
(S.N.A : SERVICE NOT AVAILABLE)
No. Code No. Description Specication Q’ty SA/SNA Remark
P032 DE92-90508A ASSY-HOLDER NUT OTR6,-,-,-,-,- 1 SA -
P034 DE97-00366A ASSY-DUCT UPPER SMH7175,SENSOR+HALOGEN,- 1 SA -
P039 DE67-00168A DUCT-UPPER SMH7175,PP,T2.0,BLK,-,-,- 1 SA -
P059 DE63-00419A COVER-FRONT MAYTAG2.0,SECC,T0.6,-,-,-,MA 1 SA -
P086 DE61-01008A BRACKET-BARRIER MHC4/5,SECC,0.5,-,-,-,- 1 SA -
P087 DE60-10111A SCREW-LAG -,-,-,-,MSWR,W1/4X50,-,-,-,- 1 SNA -
P088 DE60-20022A BOLT-TOGGLE MSWR,W3/16X75,-,-,-,-,-,-,- 3 SNA -
P089 DE60-20066A BOLT-FLAT UNF1/4,L110,MSWR10,-,-,OTR6,-, 3 SNA -
P090 DE60-30022A NUT-TOGGLE SBC1,ZPC2,WHT,-,-,-,-,-,- 3 SNA -
P091 DE63-10011A GROMMET -,MS,-,-,-,DACB-16,-,-,- 1 SNA -
P097 DE97-00371A ASSY-DUCT UPPER(SUB) SMH7175,D/UPPER+GAS 1 SA -
P106 DE63-00538A EARTH-GRILLE CYMA,STS430,T0.15,-,-,-,- 1 SNA -
P109 DE63-00141A COVER-MOTOR SMH7175,PP(FB53),T2.5,-,-,-, 1 SA -
P121 DE61-00411B BRACKET-DUCT REAR NEW WAVE / MT 2.0,SECC 1 SA -
P122 DE47-20059A THERMOSTAT PW-2N(8XV),125V15A,V,120/0,23 1 SA -
P122 DE47-20059A THERMOSTAT PW-2N(8XV),125V15A,V,120/0,23 1 SA -
P123 DE47-20034A THERMOSTAT 40/70,M5,-,-,-,-,-,- 1 SA -
P124 DE60-30063A NUT-MOUNTING -,M6.3,S10C,ZNC,YEL,-,-,-,- 2 SA -
P226 DE64-02071A INLAY-GRILLE CYMA,STS201,T0.3,-,-,-,- 1 SNA -
T001 DE74-20002A TRAY-COOKING GLASS,T6,-,- 1 SA -
T017 DE97-00368A ASSY-GUIDE ROLLER SMH7175,SPS,G/ROLLER+R 1 SA -
T030 DE75-00036B RACK-WIRE SMH7175,SNCR,-,W315,-,-,-,D4 1 SNA -
T036 DE31-00023A BLADE-STIRRER SMH7175,ALP1050,-,-,PI82,T 1 SNA -
T037 DE61-00505A HOLDER-STIRRER SMH7175,SPS,-,-,-,-,- 1 SNA -
U001 DE97-00675A ASSY-BASE BOTTOM SMH7174BE,BLK,-,- 1 SA -
U003 DE47-00006A HOLDER-LAMP 250V,75W,250X187 2POLE,OTR 1 SA -
U003 DE47-00006A HOLDER-LAMP 250V,75W,250X187 2POLE,OTR 2 SA -
U004 DE61-00407A BRACKET-BOTTOM LAMP SMH7175,SECC,T0.4,-, 1 SA -
U005 DE64-00911A GLASS-COOKTOP LAMP SMH7175,TEMP-GLASS,T2 1 SA -
U007 DE61-00406F BASE-BOTTOM MAYTAG2.0,SECC,T0.4,-,-,BLK, 1 SA -
U008 DE63-00196A FILTER-AIR SMH7175,AL-MESH,T2.0,W150,L34 2 SA -
U012 DE63-00137B COVER-GLASS COOKTOP SMH7175,SECC,T0.5,W9 1 SA -
W002 DE96-00533F ASSY WIRE HARNESS-A SMH9187,120V/60HZ 1 SNA -
29
Page 4
5. Exploded Views and Parts List
D005
D011
D049
D007
D004
D006
D002
D003
D037
D059
D073
Z779
D072
D063
D064

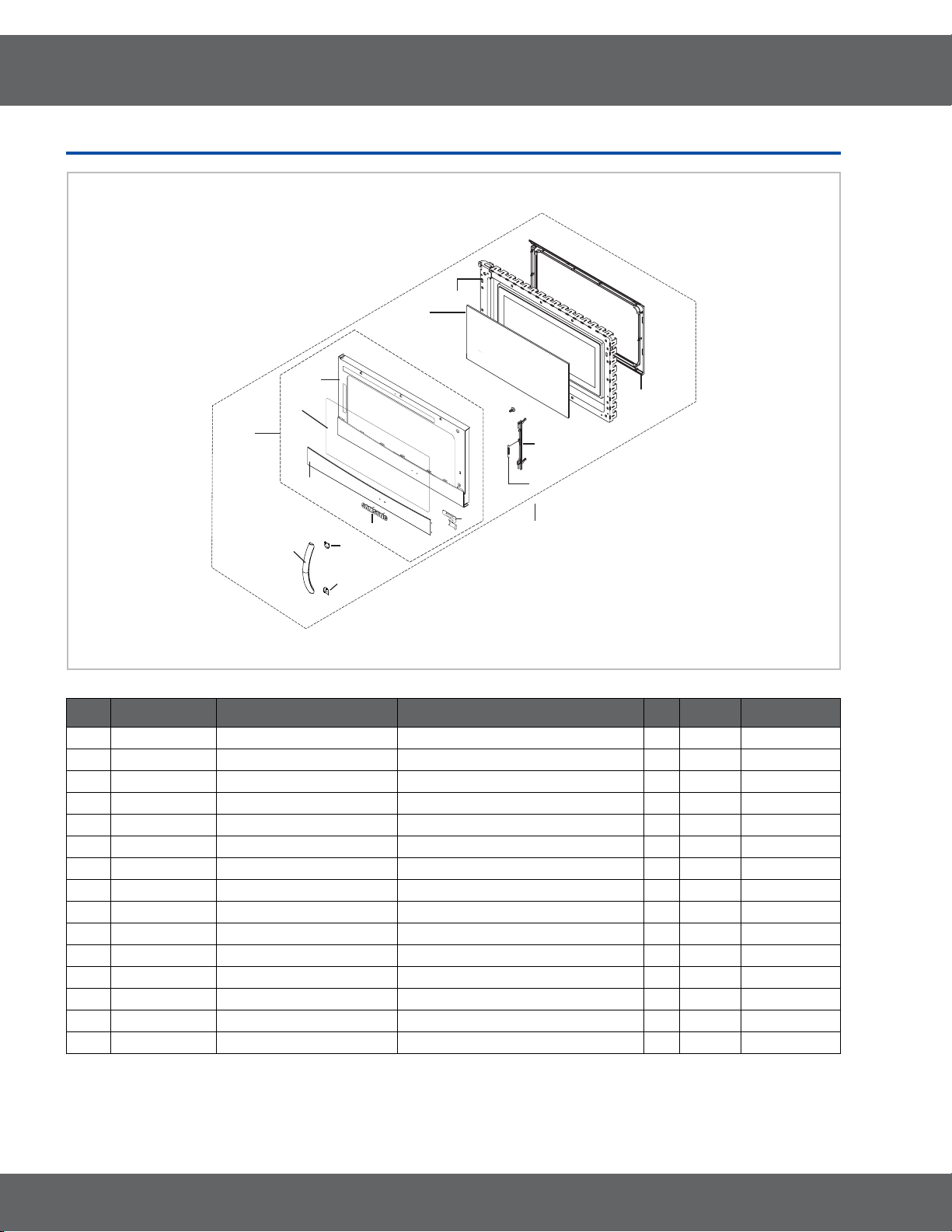

5-3 Door Parts List
(S.N.A : SERVICE NOT AVAILABLE)
No. Code No. Description Specication Q’ty SA/SNA Remark
D002 DE64-02065A DOOR-A CYMA,PC,-,-,-,-,-,- 1 SNA -
D003 DE64-02231A SCREEN-DOOR SMH9187,REINFORCE GLASS,T3.2 1 SA -
D004 DE94-01470B ASSY DOOR-E SMH7175,-,COATING 1 SA -
D005 DE01-00127A FILM-DOOR JVM-1860,POLYESTER,-,L479,T0.0 1 SA -
D006 DE64-00759A DOOR-C SMH7175,PP,T1.5,-,-,-,BLK,- 1 SA -
D007 DE61-00048A SPRING-KEY BLUING,HSWR,PI1.95,D8.75,L43 1 SA -
D011 DE64-01308A DOOR-KEY MODULAR-2,POM,-,-,-,-,BLK,- 1 SA -
D037 DE94-01996A ASSY DOOR A SMH9187,PC,STS430,- 1 SA -
D049 DE94-01997C ASSY DOOR SMH9187,PC,STS,- 1 SA -
D059 DE64-02228A BADGE-LOGO SMH9187,AL1070 H16,T1.3,W10,L 1 SNA -
D063 DE64-02220A HANDLE-BASE UPPER SMH9207,PC,-,-,-,-,BLK 1 SA -
D064 DE64-02243A HANDLE-BASE LOWER SMH9207,PC,-,-,-,-,BLK 1 SA -
D072 DE64-02224A HANDLE-DIECASTING SMH9187,AL,-,-,-,-,-,- 1 SNA -
D073 DE63-00539A EARTH-DOOR CYMA,STS430,T0.15,-,-,-,- 1 SNA -
Z779 DE64-02069A INLAY-DOOR CYMA,STS201,T0.3,-,-,-,- 1 SNA -
30
Page 5
5. Exploded Views and Parts List
C082
C003
P157
P156
C004
C005
Z783
C009
C001

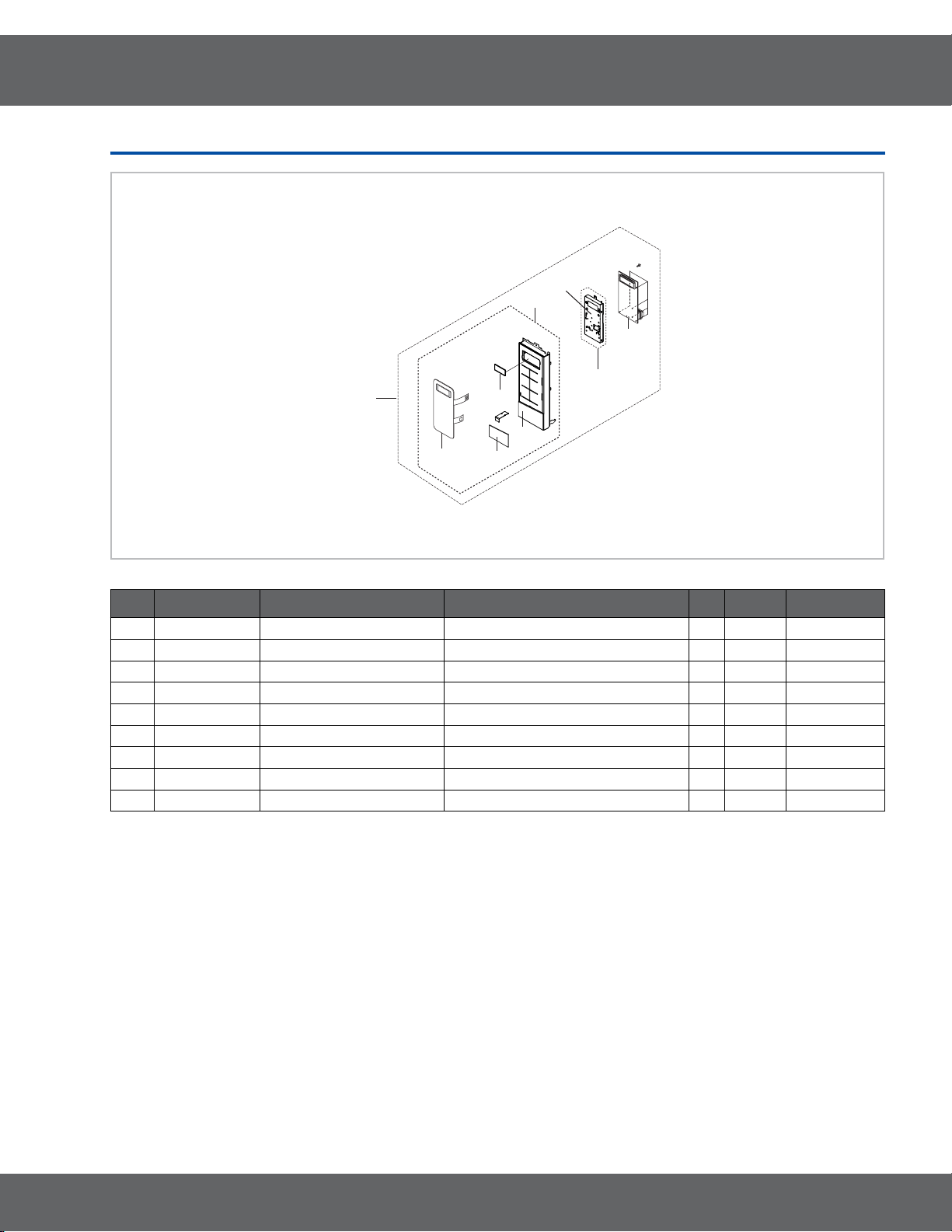

5-4 Control Parts List
(S.N.A : SERVICE NOT AVAILABLE)
No. Code No. Description Specication Q’ty SA/SNA Remark
C001 DE94-02001C ASSY CONTROL PANEL SMH9187,STS,PC,- 1 SNA -
C003 RAS-SM7MGV-07 ASSY PCB PARTS SMH9187,SMPS,120V60HZ 1 SNA -
C004 DE34-00330A SWITCH MEMBRANE SMH9187B,-,-,PET,-,120V/ 1 SA -
C005 DE64-02066A CONTROL-PANEL CYMA,PC,-,-,-,-,-,- 1 SNA -
C009 DE64-02086A WINDOW-DISPLAY CYMA,SAN,-,-,-,-,-,- 1 SA -
C082 DE94-01999C ASSY CONTROL BOX SMH9187,120V60HZ,STS,PC 1 SNA -
P156 DE61-01045A BRACKET-CONTROL PANEL CYMA,SECC,T0.4,-,- 1 SA -
P157 DE94-02002A ASSY BRACKET C/PANEL SMH9187,SECC,T0.4,- 1 SA -
Z783 DE64-02070A INLAY-CONTROL CYMA,STS201,T0.3,-,-,-,- 1 SNA -
31
Page 6
5. Exploded Views and Parts List
5-5 Standard Parts List
(S.N.A : SERVICE NOT AVAILABLE)
Level Code No. Description Specication Q’ty SA/SNA Remark
1-1 6002-000643 SCREW-TAPPING TH,+,2S,M4,L10,ZPC(YEL),SW 2 SNA C.FRONT+C.
1-1 6002-001173 SCREW-TAPPING FH,+,2S,M4,L12,ZPC(BLK),MS 8 SNA GRILLE,O/PANEL
1-1 6003-001568 SCREW-TAPTITE FH,TORX,-,B-TITE,M4,L14,NI 2 SNA BODY LATCH
1-1 6006-001170 SCREW-ASSY TAPP WS,TH,+,M4,L10,ZPC(YEL) 2 SA N.FILTER E.& BKT.
1-1 DE60-10045A SCREW-TAP PH -,-,FEFZY,-,PH,M3,-,L6,-,- 2 SA MGT-TCO
1-1 DE60-10051A SCREW-TAP PH -,-,MSWR,-,PH,M4,-,L6,-,- 2 SA STIRRER
1-1 DE60-10062A SCREW-TAP TH -,-,FEFZB,-,TH,M4,-,L12,-,- 3 SNA BRACKET
1-1 DE60-10067A SCREW-TAP TH -,-,FEFZB,2-SLOT,TH,M4,-,L8 9 SA BASE BOTTOM,P.
1-1 DE60-10080A SCREW-WASHER -,-,-,-,M5,L12,-,2S,-,- 3 SA HVT
1-1 DE60-10082I SCREW-A -,-,-,-,2S-4X10,FEFZY,-,-,-,- 16 SA B.PLATE & CVT.
1-2 DE60-10111A SCREW-LAG -,-,-,-,MSWR,W1/4X50,-,-,-,- 1 SNA -
1-2 6001-002033 SCREW-MACHINE TH,+,-,M4,L16,ZPC(BLK),SWR 2 SNA HANDLE + DOOR E
1-2 6002-000630 SCREW-TAPPING PH,+,2S,M3,L8,ZPC(YEL),SWR 3 SNA PCB
1-2 6006-001170 SCREW-ASSY TAPP WS,TH,+,M4,L10,ZPC(YEL) 1 SA ASSY DIODE
1-2 6002-001004 SCREW-TAPPING TH,+,2,M4,L30,ZPC(YEL),SWR 2 SA -
1-2 DE60-10082I SCREW-A -,-,-,-,2S-4X10,FEFZY,-,-,-,- 1 SA N/FILTER SCREW
1-2 DE60-10067A SCREW-TAP TH -,-,FEFZB,2-SLOT,TH,M4,-,L8 1 SA -
1-2 DE60-10045A SCREW-TAP PH -,-,FEFZY,-,PH,M3,-,L6,-,- 1 SA BT-TCO
UPPER,CVT FRONT+B.
PLATE
HVC,P.CORD
MOTOR,TURNTABLE
MOTOR
BARRIER,BRACKET
D/UPPER,CONTROL
OUTER+V.
MOTOR,PANEL OUTER
BACK,BKT DUCT
REAR,DUCT U
32
