Samsung ES73, ES74 User Manual

Page 1

User Manual

ES73/ES74

Thank you for buying a Samsung Camera. This manual will help you learn to capture images, share or print your photos, and edit photos with the accompanying software. Please read this manual thoroughly.

Page 2

Getting to know your cameraInstructions

Use this camera in the following order.

Setting up the application software

Take a picture

Insert the USB cable

Check the camera's power

Check [Removable Disk]

To use this camera with a PC, install the application software

rst. After this has been done, the stored images in the camera can be moved to the PC and can be edited by an image editing program. (p.90)

Take a picture. (p.21)

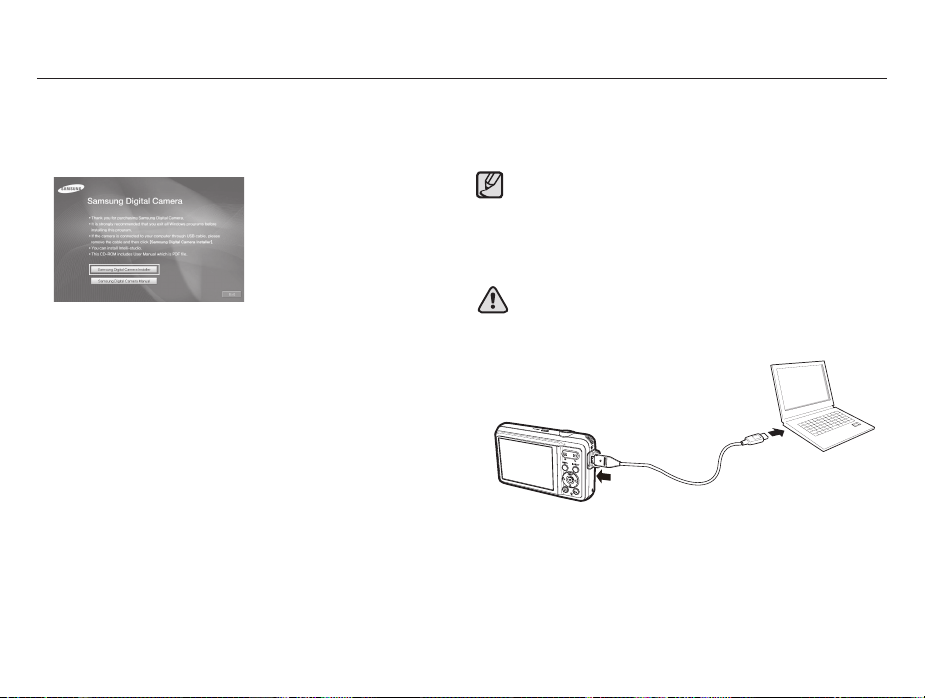

Insert the supplied USB cable

into the PC’s USB port and the camera’s USB connection

terminal. (p.90)

Check the camera’s power. If the power is turned off, preset the

camera button to turn it on.

Open Windows Explorer and

search for [Removable Disk]. (p.91)

Thank you for buying a Samsung Digital Camera.

Prior to using this camera, please read the user manual

thoroughly.

If you require After Sales service, please bring the camera and the

cause of the camera malfunction (such as battery, memory card etc.) to an Authorised Service center.

Please check that the camera is operating properly prior to when

you intend to use it (e.g. for a trip or an important event) to avoid disappointment. Samsung takes no responsibility for any loss or damage that may result from camera malfunction.

Keep this manual in a safe place.

If you use a card reader to copy the images on the memory card to your PC, the images could be damaged. When transferring the images taken with the camera to your PC, be sure to use the supplied USB cable to connect the camera to your PC. Please note that the manufacturer holds no responsibility for loss or damage of images on the memory card due to the use of a card reader.

The contents and illustrations of this manual are subject to change

without prior notice for upgrading the camera functions.

Microsoft, Windows and Windows logo are registered trademarks

of Microsoft Corporation incorporated in the United States and/or other countries.

Adobe and Reader are either trademarks or registered

trademarks in the United States and/or other countries.

All brand and product names appearing in this manual are

registered trademarks of their respective companies.

For Open Source License information, refer to the

"OpenSourceInfo.pdf" in the provided CD-ROM.

001

Page 3

Danger

Warning

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

Do not attempt to modify this camera in any way. To do so may

result in re, injury, electric shock or severe damage to you or your camera. Internal inspection, maintenance and repairs should only be carried out by your dealer or Samsung Camera Service center.

Please do not use this product in close proximity to ammable or

explosive gases, as this could increase the risk of explosion.

Should any form of liquid or a foreign object enter the camera, do

not use it. Switch off the camera, and then disconnect the power

source. You must contact your dealer or Samsung Camera Service center. Do not continue to use the camera as this may cause a re

or electric shock.

Do not insert or drop metallic or inammable foreign objects into

the camera through access points e.g. the memory card slot and battery chamber. This may cause a re or electric shock.

Do not operate this camera with wet hands. This could pose a risk

of electric shock.

002

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Do not use the ash in close proximity to people or animals.

Positioning the ash too close to your subject’s eyes may cause eyesight damage.

For safety reasons keep this product and accessories out of reach

of children or animals to prevent accidents e.g.:

- Swallowing battery or small camera accessories. If an accident should occur, please consult a doctor immediately.

- There is the possibility of injury from the camera’s moving parts.

Battery and camera may become hot during prolonged use and it

may result in camera malfunction. Should this be the case, allow

the camera to sit idle for a few minutes to allow it time to cool.

Do not leave this camera in places subject to extremely high tem-

peratures, such as a sealed vehicle, direct sunlight or other places of extremes in temperature. Exposure to extreme

temperatures may adversely affect the camera’s internal components and could cause a re.

When in use, do not cover the camera or charger. This may cause heat to build up and distort the camera body or cause a re. Always

use the camera and its accessories in a well ventilated area.

Page 4

Caution

Contents

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in a minor or moderate injury.

Leaking, overheating or damaged battery could result in re or injury.

- Use battery with the correct specication for the camera.

- Do not short circuit, heat or dispose of battery in re.

- Do not insert the battery with the polarities reversed.

Remove the battery when not planning to use the camera for a

long period of time. Otherwise the battery may leak corrosive electrolyte and permanently damage the camera’s components.

Do not re the ash while it is in contact with hands or objects. Do

not touch the ash after using it continuously. It may cause burns.

Do not move the camera while it is switched on if you are using

the AC adapter. After use, always switch off the camera before unplugging the cable from the wall socket. Then make sure that any connector cords or cables to other devices are disconnected before moving the camera. Failure to do so may damage the cords or cables and cause a re or electric shock.

Take care not to touch the lens or lens cover to avoid taking an

unclear image and possibly causing camera malfunction.

Avoid obstructing the lens or the ash when you capture an image.

When using this camera in low temperatures, you may experience

the following. These are not camera malfunctions and usually

recover at normal temperature.

- It takes longer to turn on the LCD monitor and the color may differ from the subject.

- When changing the composition, there may be an after image on the LCD monitor.

Credit cards may be demagnetized if left near the case. Avoid

leaving magnetic strip cards near the case.

Never connect the 20 pin connector to the USB port of a PC. This

carries a high risk of computer malfunction.

READY

RECORDING

007 System chart

007 Package Contents 007 Sold Separately

008 Identification of features

008 Front & Top 009 Back 010 Bottom 010 5 Function button 011 Self-timer lamp 011 Camera Status Lamp 011 Mode icon

012 Connecting to a Power Source 015 Inserting the memory car 015 Using the Anti-scratch Mas 016 Instructions on how to use the

memory card

018 When using the camera for the first tim

019 LCD monitor indicato 020 How to use the men 021 Starting the recording mod

021 Selecting modes 021 How to use the Smart Auto mode 023 How to use the Program mode 023 How to use the DIS mode 024 Using the Photo Help Guide mode 025 How to use the Scene modes

003

Page 5

Contents

004

026 How to use the Movie mode 027 Recording the movie clip without sound 027 Pausing while recording a movie clip

(Successive Recording)

028 How to use the

Smart Night Mode

029 Things to watch out for when taking

pictures 030 Using the camera buttons to set the camer 030 POWER butto 030 SHUTTER butto 030 ZOOM butto 032 Info (DISP) / Up butto 032 Macro / Down butto 034 Focus loc 034 Flash / Left butto 036 Self-timer / Right butto 038 MENU butto 038 OK butto 038 Shooting

039 How to enable functions using the MENU

button 039 Photo Size / Movie Size 040 Quality / Frame rate 040 Exposure compensation 041 ISO 041 White balance 042 Face Detection 044 Face Tone 044 Face Retouch

045 Auto Focus typ 045 Metering 046 Photo Style Selector 047 Image Adjust 048 ACB 048 Drive mode 049 Voice Memo

SETUP

049 Voice Recording 050 Recording the movie clip without voice

051 Sound

051 Volume 051 Start up sound 051 Shutter sound 051 Beep sound 052 AF sound

052 Display

052 Language 052 Function Description 053 Start up image 053 Display Brightness 053 Quick View 053 Display Save

054 Settings

054 Formatting the memory 054 Initialization 055 Setting up the Date / Time / Date type

Page 6

Contents

055 Time Zone 055 File name 056 Imprinting the recording date 056 Auto power off 057 Auto Focus lamp 057 Selecting Video out type 058 Setting the USB

059 Starting play mode

PLAY

059 Playing back a still image 059 Playing back a movie clip 060 Movie clip capture function 060 Playing back a recorded voice 060 Playing back a voice memo

061 LCD monitor Indicator 062 Using the camera buttons to set the

camera

062 Thumbnail / Enlargement button

062 Smart Album

064 Info (DISP) / Up button 064 Play & Pause / OK butto 065 Left / Right / Down / MENU butto 065 Delete

button

066 Setting up the play back function using

the LCD monitor

068 Edi

068 Resize 069 Rotating an image 069 Photo Style Selector 070 Image Adjust

072 Starting the Multi Slide Show

072 Start the Multi Slide Show 072 Selecting Images 073 Congure Multi Slide show effects 073 Setting play interval 073 Setting Background Music

074 File Options

074 Deleting images 074 Protecting image 075 Voice memo 076 DPOF 078 Copy to Card

079 PictBridge 080 PictBridge : Picture Selectio 080 PictBridge : Print Settin

081 PictBridge : Rese 081 Important note

s 083 Warning indicato 084 Before contacting a service cente 086 Specification

005

Page 7

Contents

SOFTWARE

006

089 Transferring files to your computer

(for Windows)

089 For Windows users

093 Transferring files to your computer (for Mac)

093 For Mac users

095 FAQ

Page 8

System chart

Please check that you have the correct contents before using this product. The contents can vary depending on the sales region. To buy the equipment contact your nearest Samsung dealer or Samsung service center. Parts and accessories illustrated below may differ from

exact appearance.

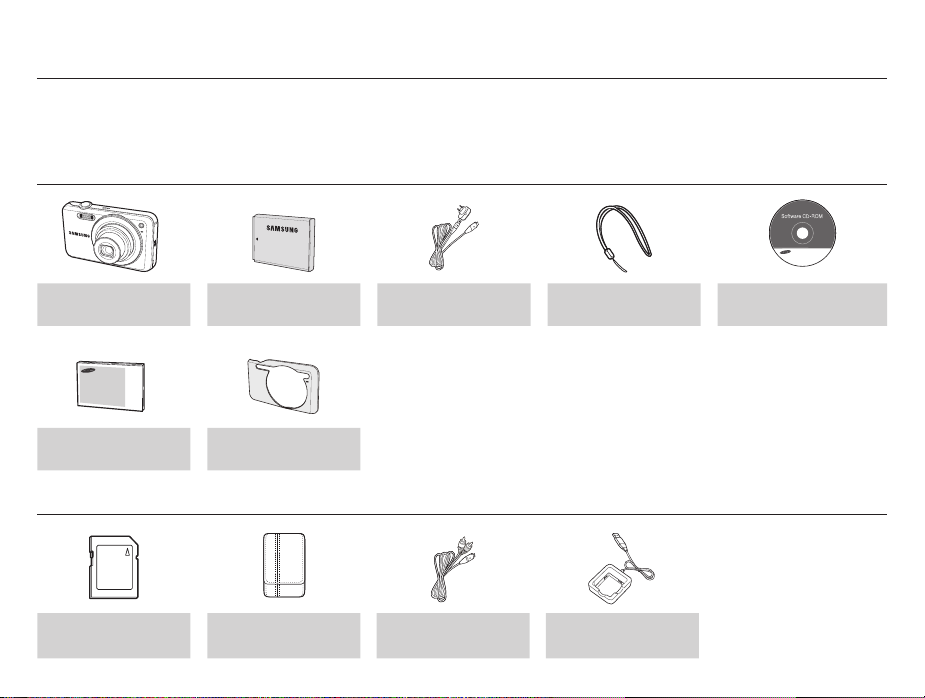

Package Contents

Camera Rechargeable battery

Quick Start Manual Anti-scratch Mask

Sold Separately

SD/SDHC memory card

(see p.17)

Camera case AV cable Battery charger

AC adapter /

USB cable

Camera strap

Software CD

(User manual included)

007

Page 9

Identication of features

Front & Top

008

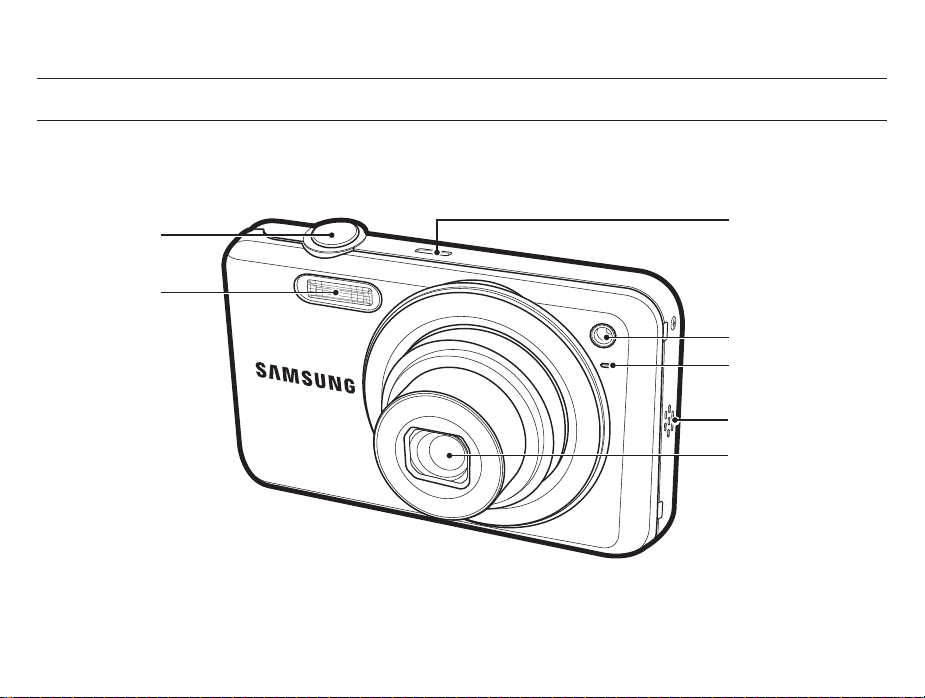

Shutter button

Flash

POWER button

AF sensor / Self-timer lamp

Microphone

Speaker

Lens / Lens cover

Page 10

Identification of features

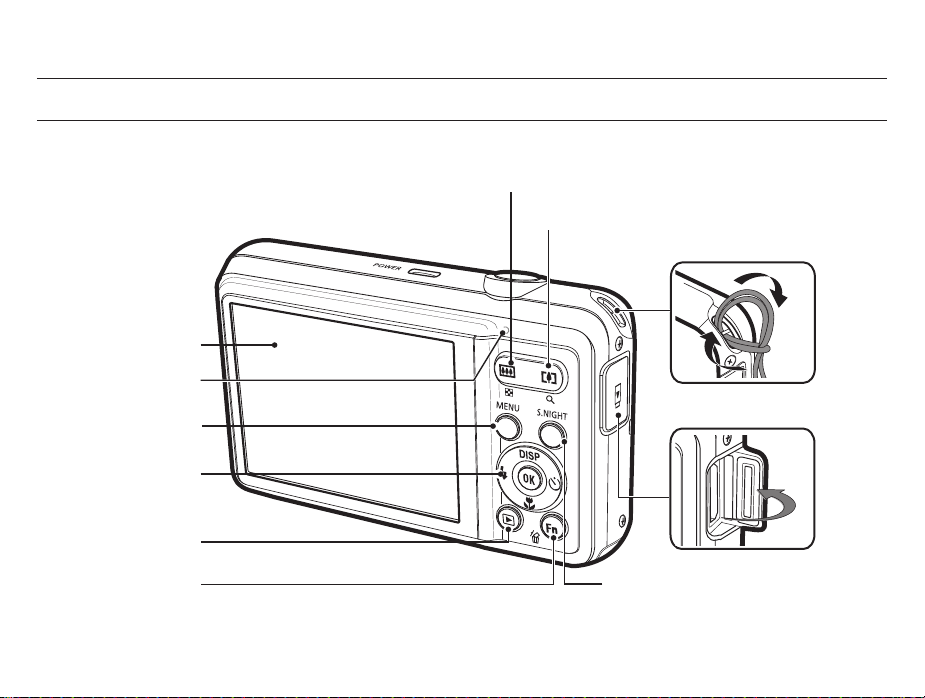

Back

LCD monitor

Zoom Wide(W) button / Thumbnail

Zoom Tele(T) button / Digital zoom

Camera status lamp

MENU button

5 function button

Play mode button

Fn / Delete button

Strap eyelet

USB / AV / DC terminal

S.NIGHT button

009

Page 11

Identification of features

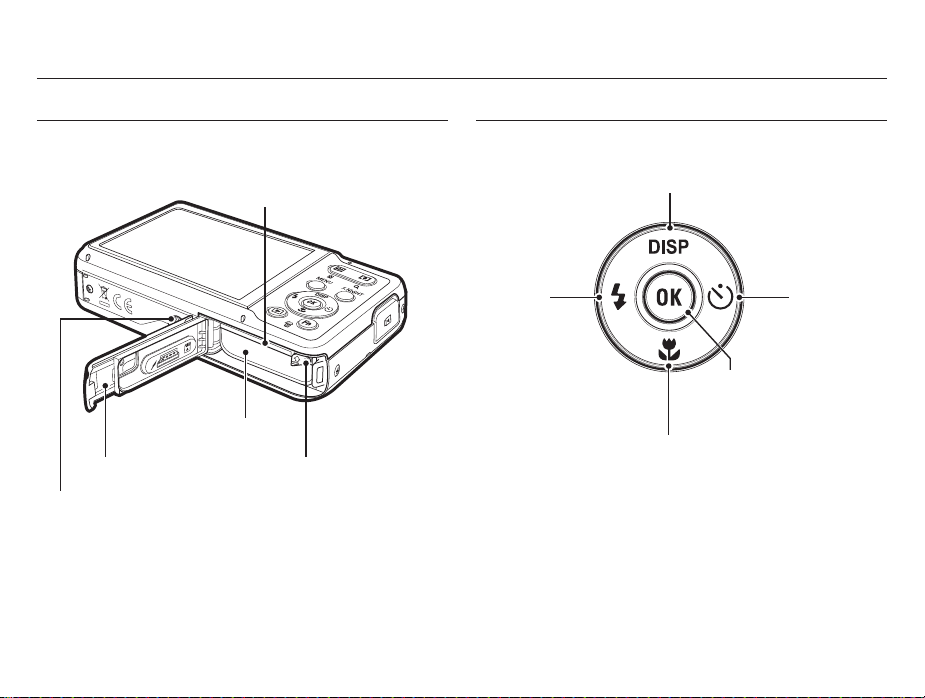

Bottom

Tripod socket

010

Memory card slot

Battery chamber

5 Function button

Information / Up button

Flash /

Left button

OK / Play & Pause button

Macro / Down button

Battery holderBattery chamber cover

Self-timer / Right button

Page 12

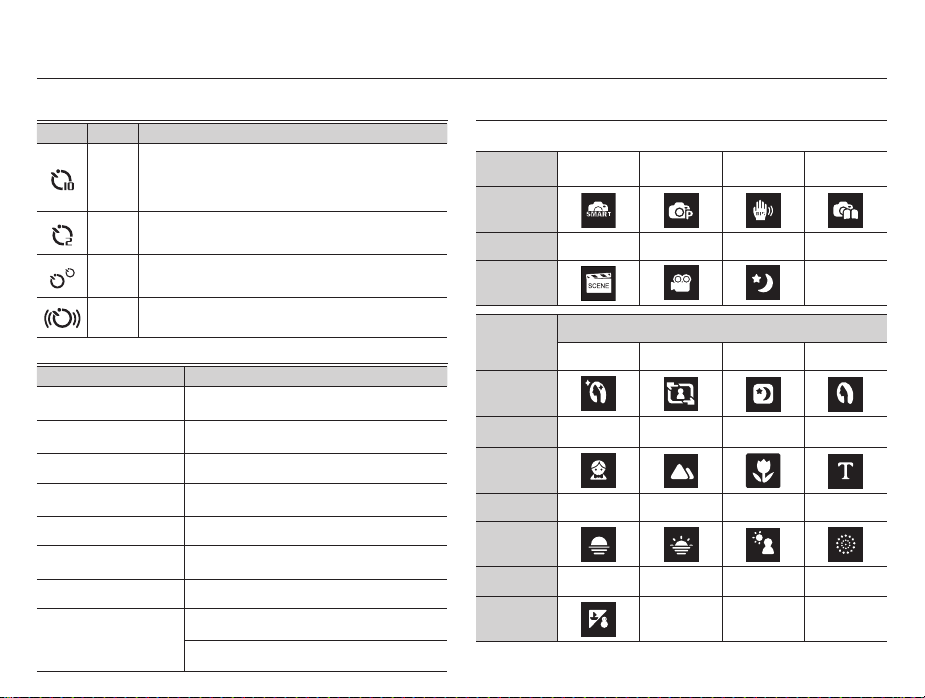

Identification of features

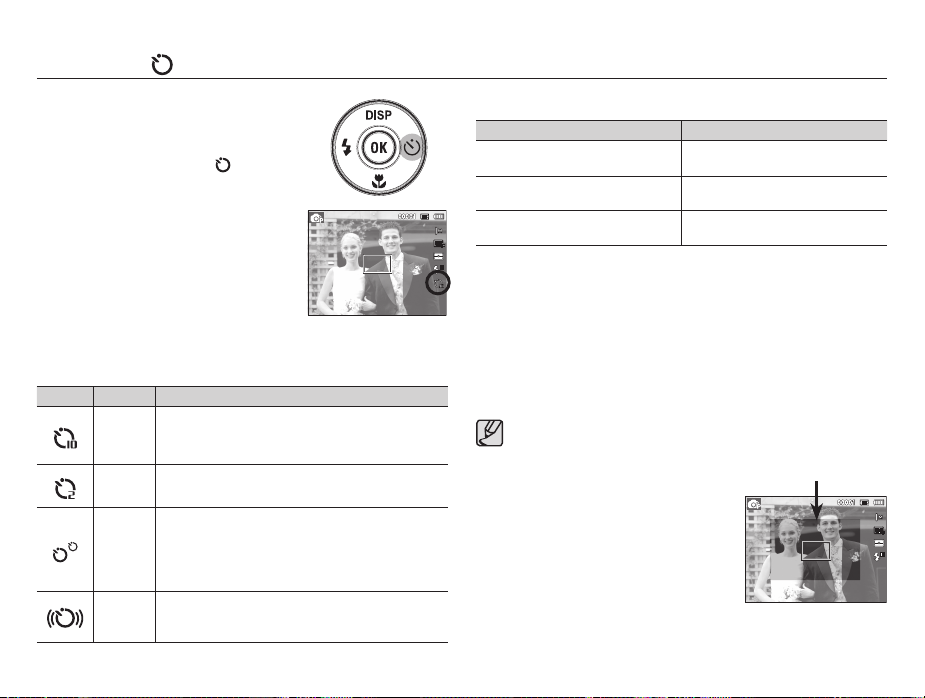

Self-timer lamp

Icon Status Description

- For the rst 8 seconds, the lamp blinks at 1 second

Blinking

intervals.

- For the nal 2 seconds, the lamp blinks quickly at

0.25 seconds intervals.

For the 2 seconds, the lamp blinks quickly at

0.25 seconds intervals.

A picture will be taken after about 10 seconds and 2 seconds later a second picture will be taken.

After pressing the Shutter button, the image is taken in accordance with the subject’s movement.

Camera Status Lamp

Status Description

Power on

After taking a picture

When ash battery is charging

When the USB cable is

inserted to a PC

Transmitting Data with a PC

When the USB cable is

inserted into a printer

When the printer is printing

When the AF activates

The lamp turns on and off when the camera

is ready to take a picture The lamp blinks while saving the image data and turns off when the camera is ready to take a picture

The lamp blinks

The lamp lights up

(LCD monitor turns off after initializing the device)

The lamp blinks (LCD monitor turns off)

The lamp is off

The lamp blinks

The lamp turns on

(The camera focus on the subject) The lamp blinks

(The camera doesn’t focus on the subject)

Mode icon

Refer to p.21 for more information about the camera mode setting.

MODE

ICON

MODE Scene Movie

ICON

MODE

ICON

MODE Children Landscape Close up Text

ICON

MODE Sunset Dawn Backlight Fireworks

ICON

MODE

ICON

Smart Auto

Beauty Shot

Beach&Snow

Program DIS

Smart Night

SCENE

Frame Guide

Night Portrait

Photo Help

Guide

011

Page 13

Connecting to a Power Source

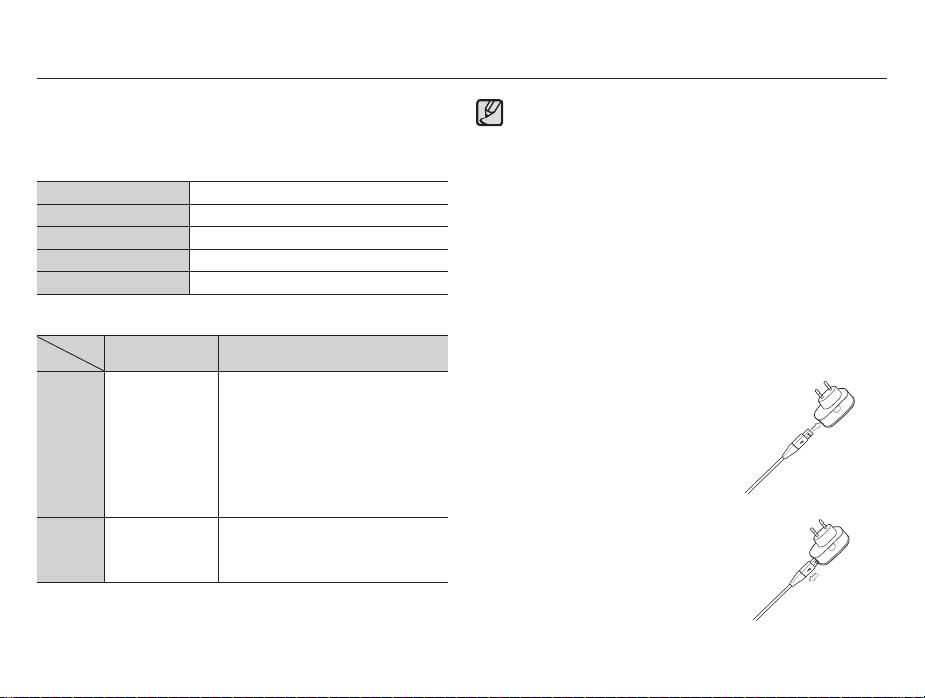

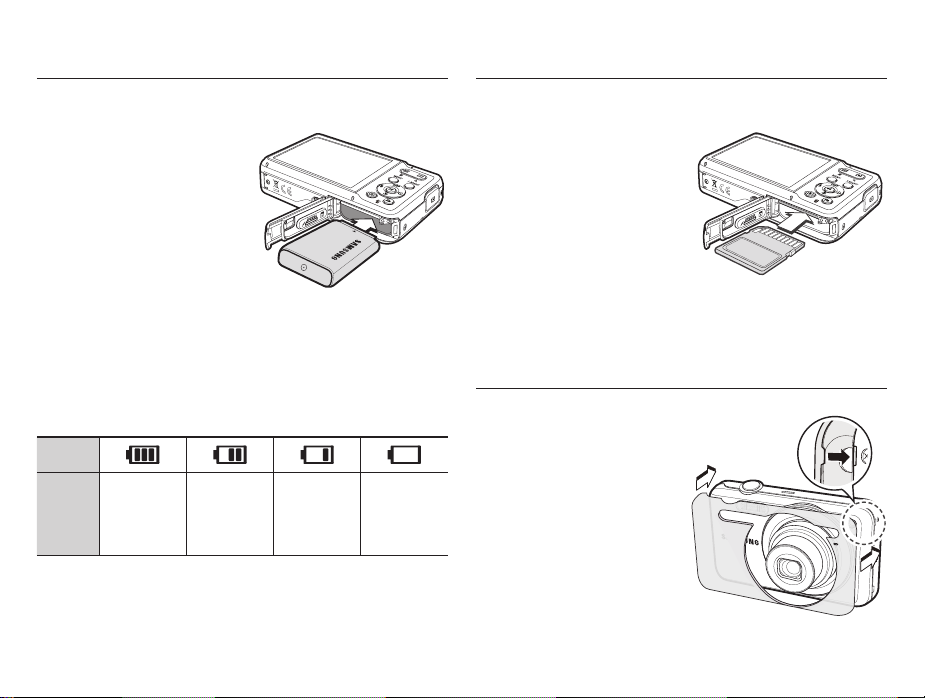

You should use the rechargeable battery BP70A supplied with the camera. Be sure to charge the battery before using the camera.

BP70A rechargeable battery Specication

Model BP70A

Type Lithium lon

Capacity 740mAh

Voltage 3.7V

harging time

Number of images and battery life: Using the BP70A

Battery life /

Number of images

Still image

These gures are measured under Samsung’s standard conditions

Approx. 125 MIN / Approx. 250 shots

Movie Approx. 110 MIN

Approximately 150 Minutes

Conditions

Using the fully charged battery, Default

settings, Program mode, Shot to shot

interval: 30Sec. Changing the zoom position between the Wide and the Tele after every shot. Using the ash on every second shot. Using the camera for 5 minutes and then powering it off for 1 minute.

Using the fully charged battery 640x480 image size 30fps frame rate

and shooting conditions and may vary depending on the user’s

methods.

012

Important information about battery usage.

When camera is not in use, turn off the power.

Please remove the battery if the camera will not be used for long periods. Batteries can lose power over time and are prone to leaking if kept inside the camera.

Low temperatures (below 0°C) can affect the performance of the battery and you may experience reduced battery life.

Batteries will usually recover at normal temperatures.

During extended use of the camera, the camera body may become warm. This is perfectly normal.

Connecting the AC adapter with the USB cable can be used as an

AC cable, and you can charge the rechargeable battery with the AC cable.

- Using an AC cable : Connect the AC adapter to the USB

cable. It can be used as a power cable.

- Using a USB cable : Remove the AC adapter.

You can download stored images

to your PC (p.90) or supply the power to your camera through the USB cable.

Page 14

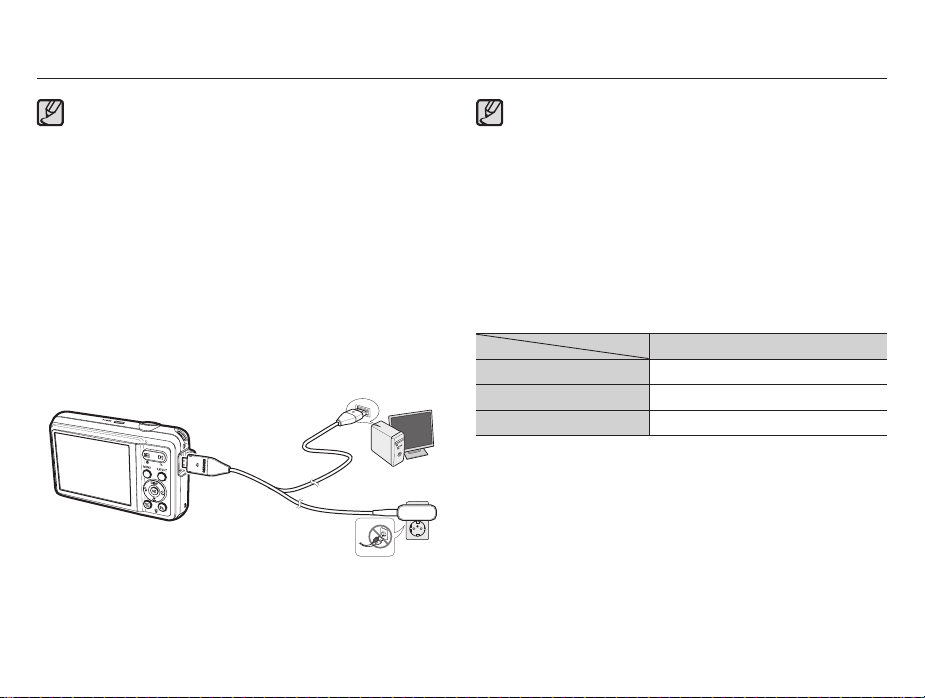

Connecting to a Power Source

Important information about USB cable usage.

Use a USB cable with the correct specication.

If the camera is connected to the PC through a USB hub : connect the camera directly to the PC.

If the camera and other devices are connected to the PC at the same time : remove other device.

Camera can not be detected using the front side USB port of computer. In this case, use the back side USB port of

computer.

If the USB port of the PC doesn’t meet the power output

standard (5V, 500mA), the battery may not be charged.

How to charge the rechargeable battery

Before inserting any cables or AC adapter, check the directions

and do not insert by force. It may cause breakage of cable or

camera.

If the charging LED of the AC Charger does not turn on or blink

after inserting the rechargeable battery, please check whether the battery is inserted correctly.

If you charge the battery with the camera power on, the battery

won’t be fully charged. Turn the camera off while charging the battery.

Charging LED of the AC charger

Charging LED

Being Charged Red LED is on

Charging is complete Green LED is on

Charging error Orange LED is off or blinking

If you insert the fully discharged battery to charge it, do not turn on

the camera at the same time. The camera may not be turned on because of the low battery capacity. Charge the battery for more than 10 minutes before using the camera.

Do not use the ash frequently or take a movie clip with the fully

discharged battery charged for a short time. Even if the charger is inserted, the camera power may be turned off because the rechargeable battery is discharged again.

013

Page 15

Connecting to a Power Source

When using the battery, please keep the following guidelines. Failure to do so may cause the generation of

heat, re or explosion

If you nd the battery shape distorted in size, try to contact a

service center. It may present physical dangers.

Use only the recommended battery charger.

Do not place the product close to the re device.

Do not insert the product into the microwave oven.

Do not place the product inside a car during the summer.

Do not place the product in a space with hot temperature and

high humidity range.

Do not use the product for long time on the carpet, comforter or

electronic mattress.

Do not leave the product turned on where the air cannot be

circulated.

Be careful about the battery slot not to be connected with

accessories like necklace, coin, key, watch and so on.

Use only authentic, manufacturer-recommended, Lithium-ion

replacement batteries.

Do not try to disassemble or perforate the product by using a

sharp pin.

Do not apply pressure to the product.

Do not let the product fall down from the height, or do not give a

shock to the product.

Do not exposure the product to the high temperature over 60

(140℉) degree.

Do not exposure the product to the water or humidity.

Battery shall not be exposed to excessive heat such as sunshine,

re or the like.

014

Guidelines of disposal

Do not throw away the over used battery.

Destruction by re is not allowed for disposal of battery.

The disposal instruction may differ depending on the nation or

the specic region. Please follow the given method of disposal.

Guideline of recharging the battery

Do not recharge the battery by using the different method other

than the user manual indicates. Failure to follow the correct procedure may result in re or explosion.

℃

Page 16

Connecting to a power source

Insert the battery as shown

- If the camera does not turn on after you have inserted battery,

please check whether the

battery (+ / -) direction is right.

- When the battery chamber

cover is open do not force the

battery chamber cover, this may damage it.

There are 4 indicators for battery condition that are displayed on the LCD monitor.

Battery

indicator

The battery is

Battery

When using the camera and the battery in a place that is excessively cold or hot,

fully charged

status

the battery status on the LCD may be different from the actual battery status.

Low battery

capacity

(Prepare to

recharge or use

spare battery)

Low battery

capacity

(Prepare to

recharge or use

spare battery)

Battery empty

(Recharge

or use spare

battery)

Inserting the memory card

Insert the memory card as shown.

- Turn off the camera’s power before inserting the memory card.

- Have the front label of the memory card facing toward the front of the camera (Lens) and the card pins toward the back of the camera (LCD monitor).

- Do not insert the memory card the wrong way around. Doing so may damage the memory card slot.

Using the Anti-scratch Mask

Insert the anti-scratch mask as shown.

Using the anti-scratch mask

can protect the camera from accidental scratches. Make sure three points of

holes in the camera body are connected to the anti-scratch

mask.

015

Page 17

Instructions on how to use the memory card

Be sure to format the memory card (see p.54) if you are using a

newly purchased memory card for the rst time, if it contains data that the camera cannot recognize, or if it contains images captured

with a different camera.

Turn off the camera power whenever the memory card is being

inserted or removed.

Repeated use of the memory card will eventually reduce the

memory card’s performance. Should this be the case, you will need to purchase a new memory card. Wear and tear on the memory card is not covered by the Samsung warranty.

The memory card is an electronic precision device.

Do not bend, drop or subject the memory card to any heavy

impact.

Do not store the memory card in an environment with strong

electronic or magnetic elds, e.g. near loud speakers or TV

receivers.

Please do not use or store in an environment where there are

extremes in temperature.

Do not allow the memory card to become dirty or to come into

contact with any liquid. Should this happen, clean the memory

card with a soft cloth.

Please keep the memory card in its case when not in use.

During and after periods of extended use, you may notice that the

memory card is warm. This is perfectly normal.

Do not use a memory card that is used in another digital camera.

To use the memory card in this camera, format the memory card before using this camera.

Do not use a memory card formatted by another digital camera or

memory card reader.

016

If the memory card is subjected to any of the following, the

recorded data may become corrupted :

- When the memory card is used incorrectly.

- If the power is switched off or the memory card is removed while recording, deleting (formatting) or reading.

Samsung cannot be held responsible for lost data.

It is advisable to copy important data onto other media as backup e.g.

hard disks, CD etc.

If there is insufcient memory available :

A [Memory Full] message will appear and the camera will not operate. To optimize the amount of memory in the camera, replace the memory card or delete unnecessary images stored on the memory card.

Don't remove the memory card when the camera status lamp is

blinking as this may cause damage to data on the memory card.

Page 18

Instructions on how to use the memory card

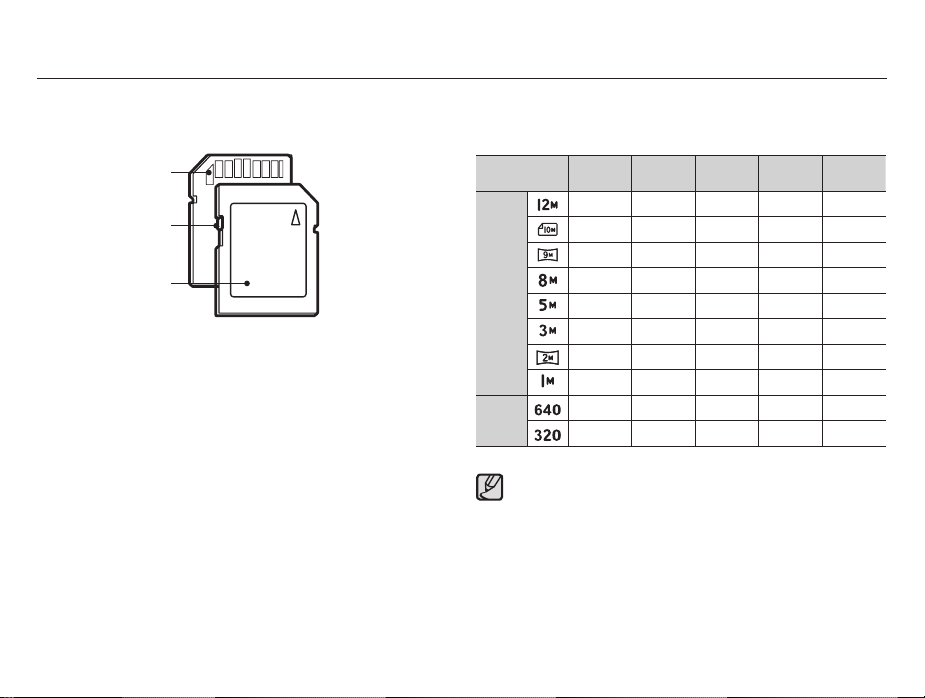

The camera can use SD/SDHC Memory Cards.

Card pins

Write protect switch

Label

[SD (Secure Digital) memory card]

The SD/SDHC memory card has a write protect switch that

prevents image les from being deleted or formatted. By sliding the switch to the bottom of the SD/SDHC memory card, the data will be protected. By sliding the switch to the top of the SD/SDHC memory card, the data protection will be cancelled.

Slide the switch to the top of the SD/SDHC memory card before

taking a picture.

When using a 1GB SD memory, the specied shooting capacity will be as follows. These gures are approximate as image capacities can be affected by variables such as subject matter and memory card type.

Recorded image

size

Still


Movie

clip

å å å

Super Fine

About 147 About 284 About 403 - -

About 167 About 309 About 441 - -

About 202 About 367 About 528 - -

About 211 About 374 About 537 - -

About 339 About 566 About 792 - -

About 532 About 802 About 1065 - -

About 870 About 1144 About 1437 - -

About 1471 About 1670 About 1872

The zoom button doesn’t function during the movie recording. The recording times can be changed by the zoom operation. You can record videos of up to 4GB or 2hours each.

Fine

Normal

- - -

30 FPS 15 FPS

About 9'54"

About 26'24" About 49'23"

About 18'58"

017

Page 19

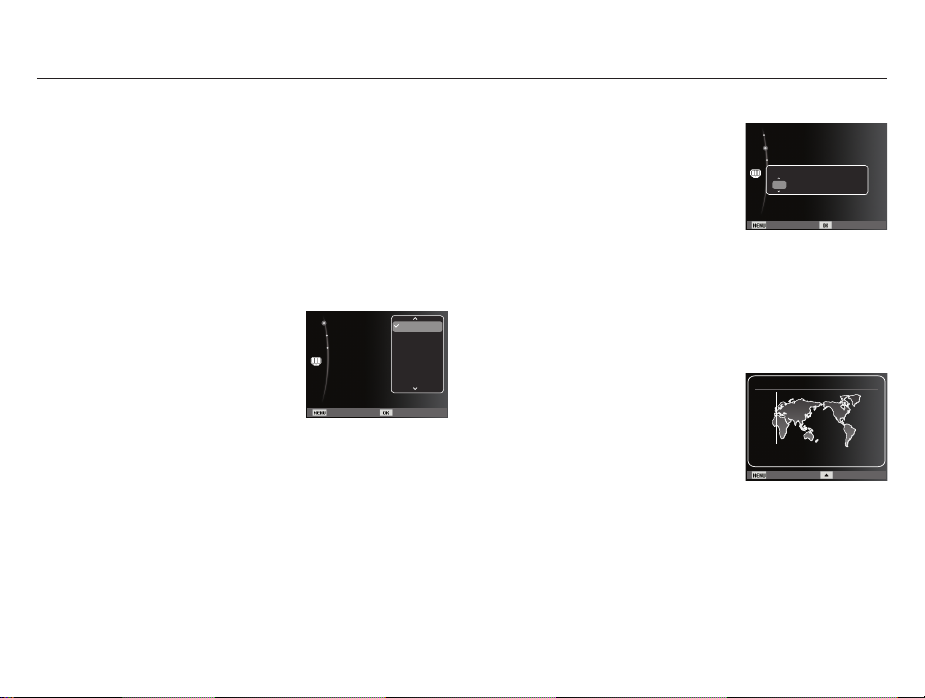

When using the camera for the rst time

Charge the rechargeable battery fully before using the camera for

the rst time.

When the camera is turned on for the rst time, a menu will be

displayed on the LCD monitor to set date, time, time zone and language. This menu will not be displayed again after setting up the date, time, time zone and language. Set up the date, time, time zone and language before using this camera.

Setting up the language

1. Select the [Language] menu by pressing the Up/Down button and press the Right button.

2. Select the desired sub menu by pressing the Up/Down button and press the OK button.

Language :English

Date & Time :London

Time Zone :08/12/01

Back Set

English

한국어

Français

Deutsch

Español

Italiano

018

Setting up the date, time and date type

1. Select the [Date&Time] menu by pressing the Up/Down button and press the Right button.

2. Select the desired sub menu by

Language :English

Date & Time :10/01/01

Time Zone :London

yyyy mm dd

2010 / 01 / 01 12:00 Off

pressing the Up/Down/Left/Right button and press the OK button.

Back Set

Left/Right button : Selects world time/year/month/day/hour/

minute/date type.

Up/Down button : Changes the value of each item.

Setting up the Time Zone

1. Select the [Time Zone] menu by

Time Zone

pressing the Up/Down button and press the Right button.

2. Press the Left/Right button to select the

desired mode.

For more information about the World Time, refer to the p.55.

London

[GMT +00:00] 2010/01/01 12:00 PM

Back DST

Page 20

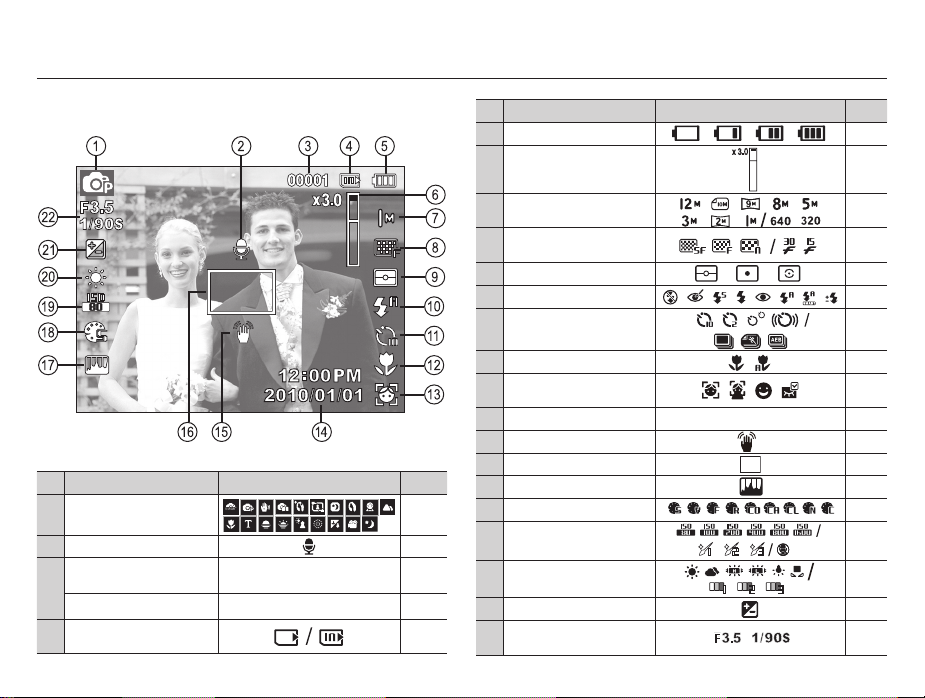

LCD monitor indicator

The LCD monitor displays information about the shooting

functions and selections.

[Image & Full Status]

No. Description Icons Page

1 Recording mode p.21

2 Voice Memo p.49

Number of available shots

remaining

Remaining time 00:00:00 p.17

Memory card icon /

Internal memory icon

00001 p.17

No. Description Icons Page

5 Battery p.15

Optical / Digital Zoom bar /

Digital Zoom rate

7 Photo Size / Movie Size p.39

Image Quality /

Frame Rate

9 Metering p.45

10 Flash p.34

14 Date / Time 2010/01/01 12:00 PM p.55

15 Camera shake warning p.29

17 Image adjust p.47

18 Photo Style Selector p.46

Self-timer /

Drive mode

Macro

Face Detection · Self-Portrait

· Smile Shot · Blink Detection

Auto Focus Frame

ISO / Face Retouch /

Without voice

White Balance

Face Tone

Exposure compensation

Aperture Value /

Shutter Speed

p.30

p.40

p.37/

p.32

p.42

p.45

p.41/44

p.41/

p.40

019

Page 21

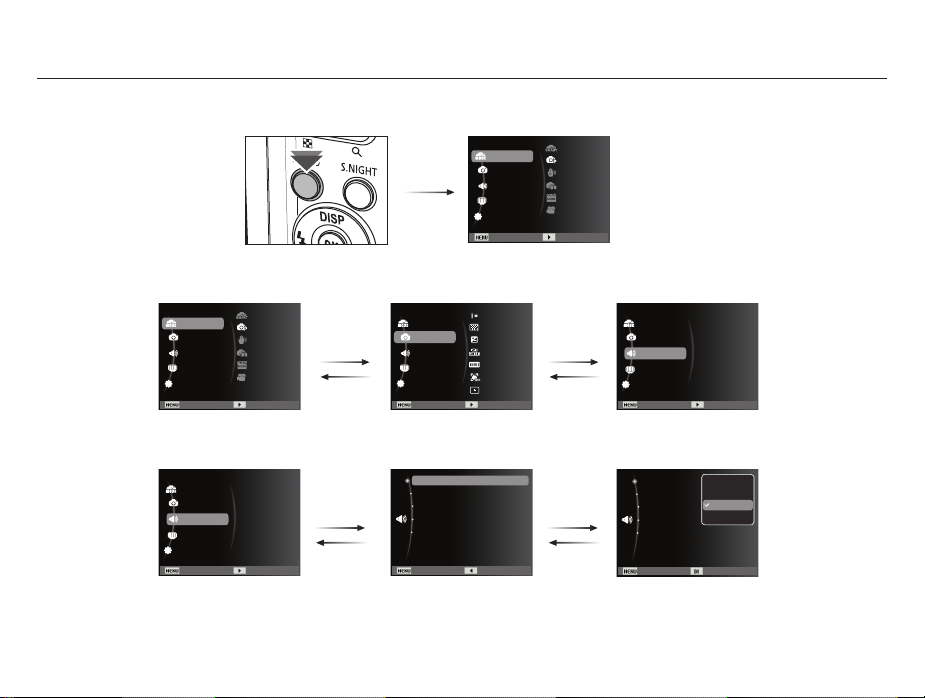

How to use the menu

Turn on the camera and press the MENU button. A menu for each camera mode appears.

Mode

Shooting

Sound

Display

Settings

Exit Change

Smart Auto

Program

DIS

Photo Help...

Scene

Movie

2. Use the up or down button to navigate through the menus.

Mode

Shooting

Sound

Display

Settings

Exit Change

Smart Auto

Program

DIS

Photo Help...

Scene

Movie

Press the

Up or Down

button.

Mode

Shooting

Sound

Display

Settings

Exit Change

Photo Size

Quality

ISO

White Balance

Face Detection

Focus Area

Press the

Up or Down

button.

3. Use the left or right button to select a sub menu.

Volume

Mode

Start Sound

Shooting

Shutter Sound

Beep Sound

Sound

AF Sound

Display

Settings

Exit Change

Press the

Left or Right

button.

Volume :Medium

Start Sound :Off

Shutter Sound :1

Beep Sound :1

AF Sound :On

Exit Back

Press the

Left or Right

button.

4. Select a submenu and click the OK button to save settings and return to the previous window.

020

Volume

Mode

Start Sound

Shooting

Shutter Sound

Beep Sound

Sound

AF Sound

Display

Settings

Exit Change

Volume :Medium

Start Sound :Off

Shutter Sound :1

Beep Sound :1

AF Sound :On

Back Set

Off

Low

Medium

High

Page 22

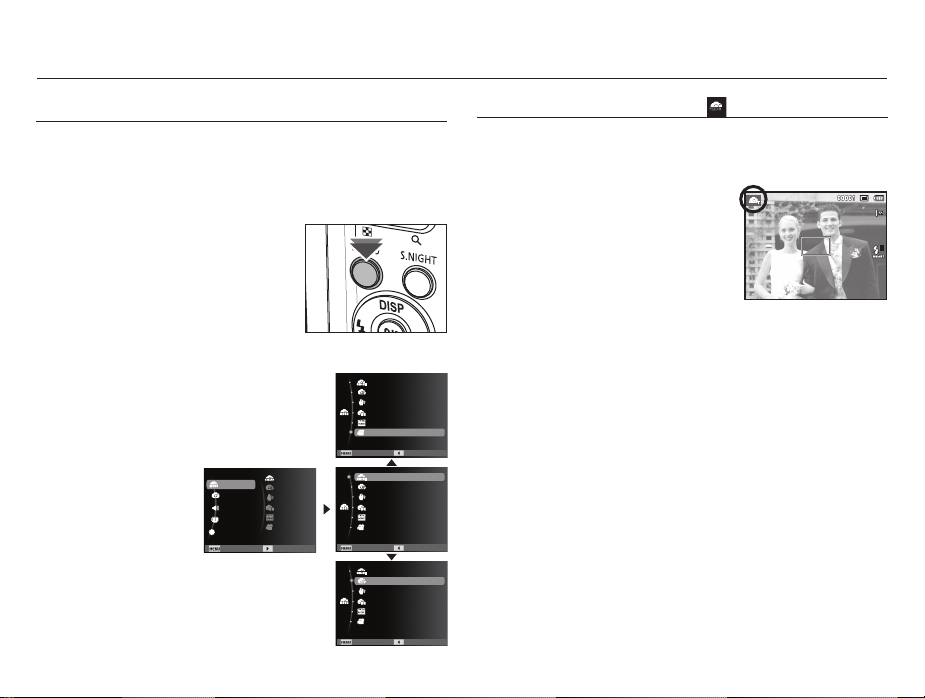

Starting the recording mode

Selecting modes

You can select the shooting modes by using the MENU button on the back of your camera.

How to use the MENU button

1. Press the MENU button and a menu will be displayed.

2. Press the Up / Down button to select the [Mode] menu and press the Right button.

3. Select a desired mode by pressing the Up / Down button and then press the OK button.

Smart Auto

Program

DIS

Photo Help Guide

Scene

Movie

Exit Back

Smart Auto

Mode

Program

Shooting

DIS Photo Help...

Sound

Scene

Display

Movie

Settings

Exit Change

Smart Auto

Program

DIS

Photo Help Guide

Scene Movie

Exit Back

Smart Auto

Program

DIS

Photo Help Guide

Scene Movie

Exit Back

How to use the Smart Auto mode( )

The camera automatically chooses the appropriate camera settings based on a detected type of scene. It will be helpful if you are not

familiar with the camera settings for various scenes.

1. Insert the battery (p.15). Insert the battery taking note of the polarity (+ / -).

2. Insert the memory card (p.15). As this camera has a 9.9MB internal memory, you do not need to insert the memory card. If the memory card is not inserted, an image will be stored on the internal memory. If the memory card is inserted, an image will be stored on the memory card.

3. Close the battery chamber cover.

4. Press the POWER button to turn on the camera.

5. Select the Smart Auto mode by pressing the MENU button.

6. Point the camera towards the subject and compose the image by using the LCD monitor.

7. Press the Shutter button to capture an image.

021

Page 23

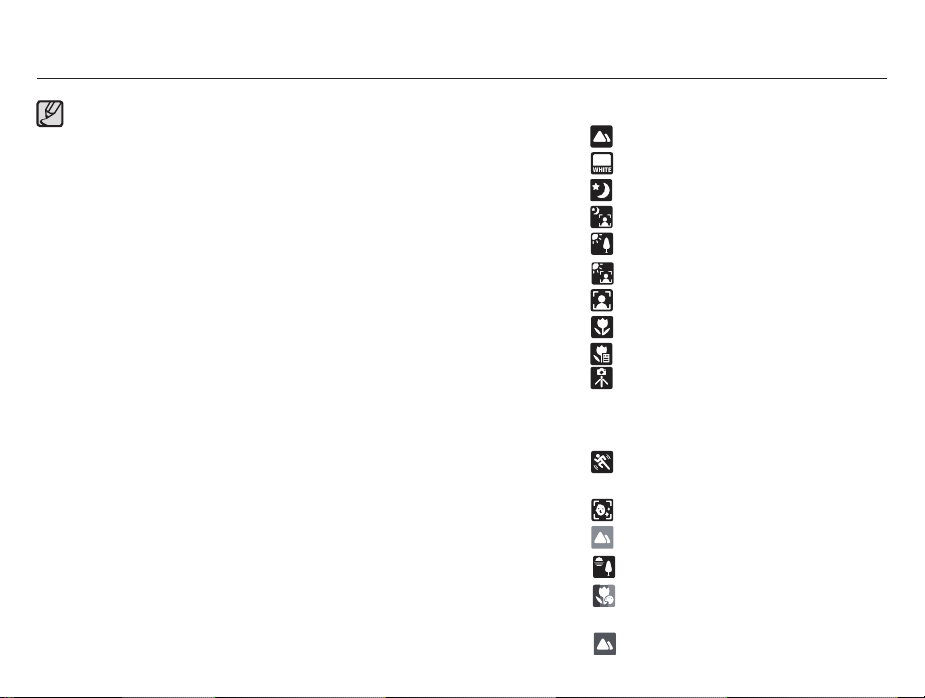

Starting the recording mode

If the camera does not recognize a proper scene mode, the

default settings will be used.

Even if there is a face detected, the camera may not select a

portrait mode depending on the subject’s position or lighting.

The camera may not select the correct scene depending on

shooting environments, such as camera shake, lighting and

distance to the subject.

The [Night] mode recognizes scenes only when the ash is set

to off. The camera operates the [Tripod] mode after checking the

shooting condition on the tripod for a certain time.

Despite using a tripod, the camera may not select a tripod mode

depending on the subject’s movement.

022

Each scene is recognized in the following conditions;

[Landscape] ( ) : When shooting outdoor scenes

[White] (

[Night] (

[Night Portrait] (

[Backlight] ( ) :

[Backlight Portrait]

[Portrait] (

[Macro] (

[Macro Text] (

[Tripod] (

[Action] (

[Macro Portrait]

[Blue Sky] ( ) : When shooting blue sky

[Sunset Sky] ( ) :

[Macro Color] ( ) :

[Natural Green]

) : When shooting a white background

) : When shooting the nighttime scenes

) :

When shooting people in a dark outdoor place

When shooting a backlit scenery without a portrait

( ) : When shooting a backlit portrait

) : When shooting a portrait

) : When shooting close-ups

) : When shooting texts in a close focus

) : When shooting a subject that doesn’t move

for a certain time after the camera is mounted

on the tripod (available only when the camera recognizes it as nighttime)

) : When shooting a subject making frequent

movements

( ) :

When shooting close-up portrait shot

When shooting sunset

When shooting close-up shot for the subject

with various colors

When shooting nature such as forest and leaves

Page 24

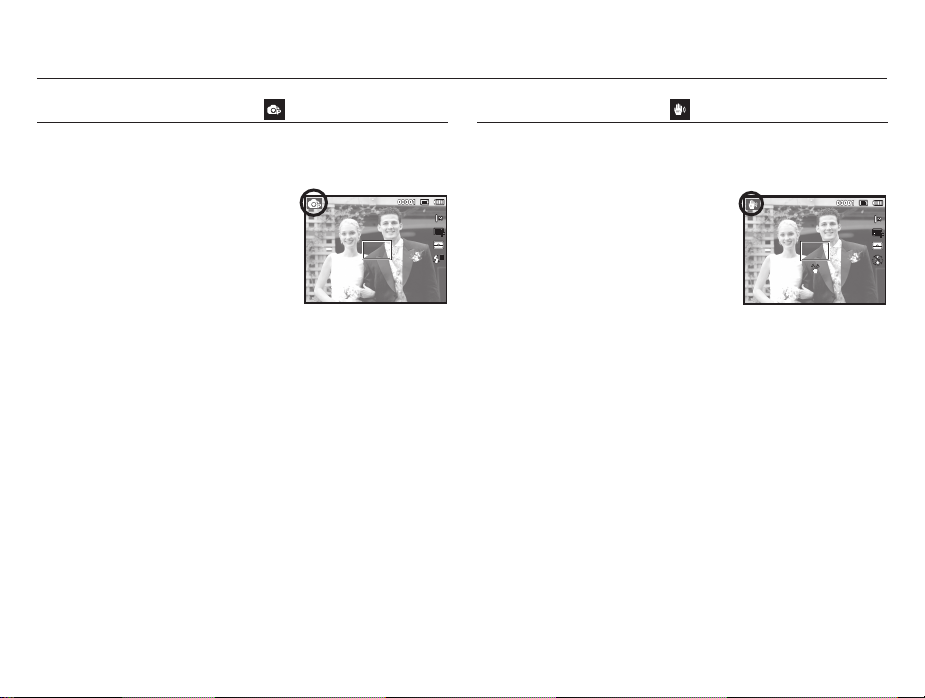

Starting the recording mode

How to use the Program mode ( )

Selecting the automatic mode will congure the camera with optimal settings. You can still manually congure all functions

except the aperture value and shutter speed.

1. Select the Program mode by using the MENU button. (p.21)

2. Press the MENU button to congure

advanced functions.

How to use the DIS mode ( )

Digital Image Stabilization (DIS) mode. This mode will reduce the effect of camera shake and help you get

a well exposed image in dim conditions.

1. Select the DIS mode by using the MENU button. (p.21)

2. Point the camera towards the subject and compose the image by using the LCD monitor.

3. Press the Shutter button to capture an

image.

Things to watch out for using the DIS mode

1. The digital zoom will not operate in the DIS mode.

2. If the lighting condition is brighter than uorescent lighting conditions, the DIS will not activate.

3. If the lighting condition is darker than uorescent lighting conditions, camera shake warning indicator ( \ ) will display. For best results only take pictures in situations where the camera shake warning indicator ( \ ) is not displayed.

4. If the subject is moving, the captured image may be blurred.

5. As the DIS uses the camera's digital signal processor, it may

take a little longer for the camera to process and save the images.

023

Page 25

Starting the recording mode

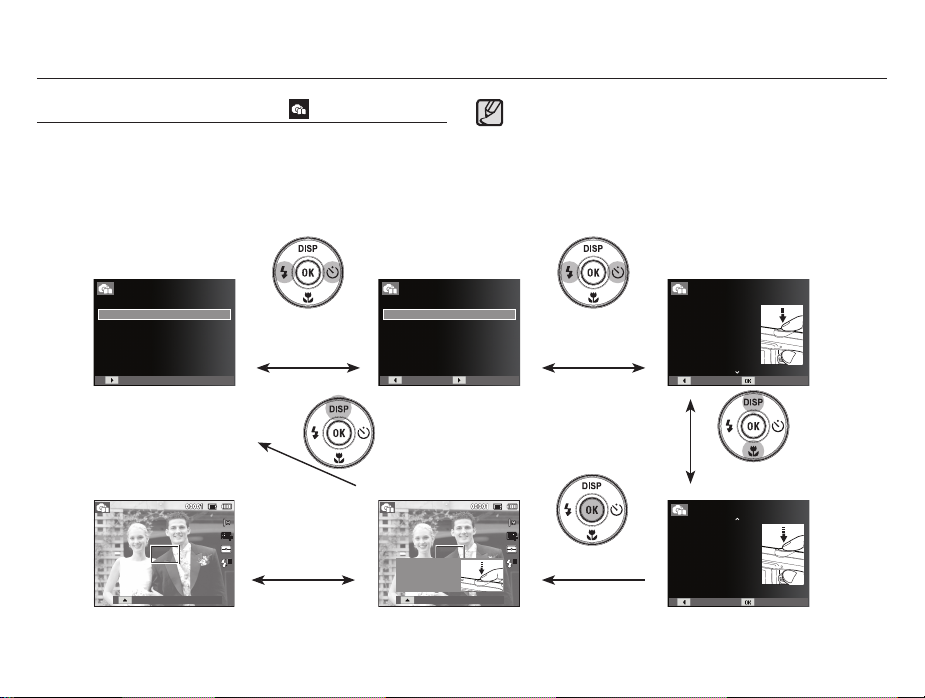

Using the Photo Help Guide mode ( )

Helps the user learn the correct picture taking method and includes solutions for potential problems that may occur. This also enables the user to practice the best way to take the pictures.

Photo Help Guide

Features to use when the image is out of focus

Half-press the shutter button to focus

To focus on a subject 80 cm away or more To focus on a subject less than 80 cm away

To focus on people’s faces

Back Change

Pressing the

Up button

Press the shutter button

to practice using this feature.

Guide list Guide list

024

Photo Help Guide

Features to use when the image is out of focus

Features to reduce camera shake Features to use in low light conditions

Features to use when adjusting brightness Features to use when adjusting colors

Change

Pressing the

Left/Right button

Pressing the OK button

[Function that can be used when focusing is difcult]

Available functions of the photo help guide

Functions that can be used when focusing is difcult

Functions that can be used when the image is blurred

Functions that can be used when lming in the dark

Functions that can be used when adjusting the picture brightness

Functions that can be used when adjusting the picture color

Pressing the

Left/Right button

Photo Help Guide

To focus on your subject, halfpress the shutter button:

- Green frame: subject is in focus

- Red frame: subject is out of focus

1/2

Pressing the OK button

Back Practice

Pressing the

Up/Down button

Photo Help Guide

When the subject is in focus, press the shutter button completely to capture the image

Pressing the OK buttonPressing the shutter button

or video. If the subject is out of focus, try half-pressing the shutter button again.

Back Practice

2/2

Page 26

Starting the recording mode

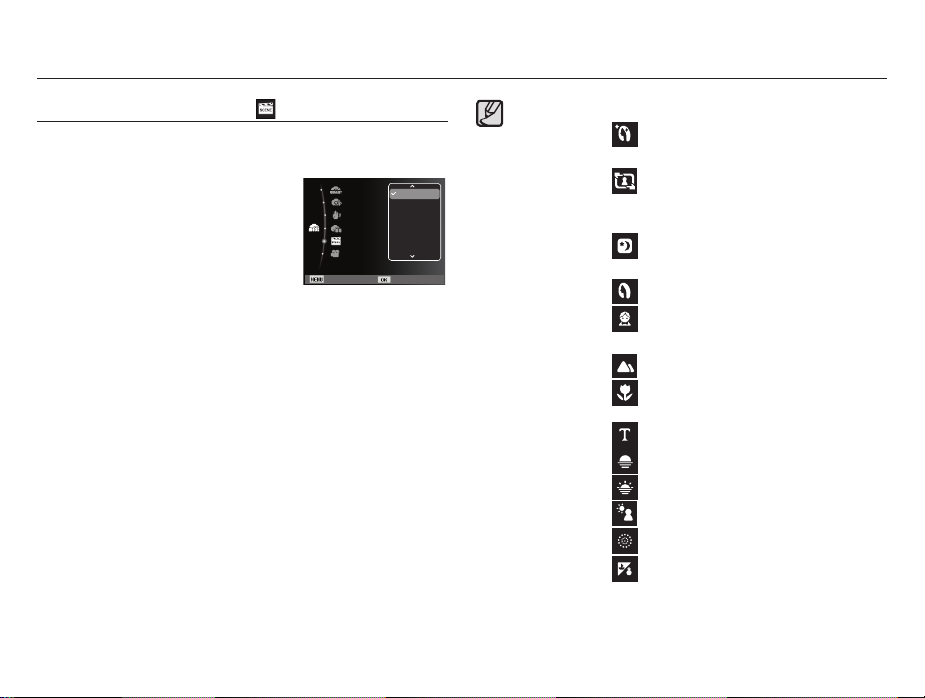

How to use the Scene modes ( )

Use the menu to easily congure optimal settings for a variety of

shooting situations.

1. Select the Scene mode by using the MENU button. (p.21)

2. Press the Right button, then press the Up/Down button to select the desired

mode.

3. Point the camera towards the subject and compose the image by using the LCD monitor.

4. Press the shutter button to capture an

image.

Smart Auto

Program

DIS

Photo Help Guide

Scene

Movie

Back Set

Beauty Shot

Frame Guide

Night

Portrait

Children

Landscape

The scene modes are listed below.

[Beauty Shot] (

) : Take a photo of portraits by setting

options to clear facial imperfections.

[Frame Guide] (

) : Use this mode when you want someone

else to take a picture for you from the angle you choose.

[Night] (

) : Use this for shooting still images at night

or in other dark conditions.

[Portrait] (

[Children] (

) : To take a picture of a person.

) : To take a picture of fast moving

objects, for example: children.

[Landscape] (

[Close Up] (

) : To take pictures of distant scenery.

) : Close-up shooting for small objects such

as plants and insects.

[Text] ( ) : Use this mode to shoot a document.

[Sunset] ( ) : For taking pictures of sunsets.

[Dawn] ( ) : Daybreak scenes.

[Backlight] ( ) :

Portrait without shadows caused by backlight.

[Fireworks] ( ) : Firework scenes.

[Beach&Snow] ( ) : For ocean, lake, beach and snowscape

scenes.

025

Page 27

Starting the recording mode

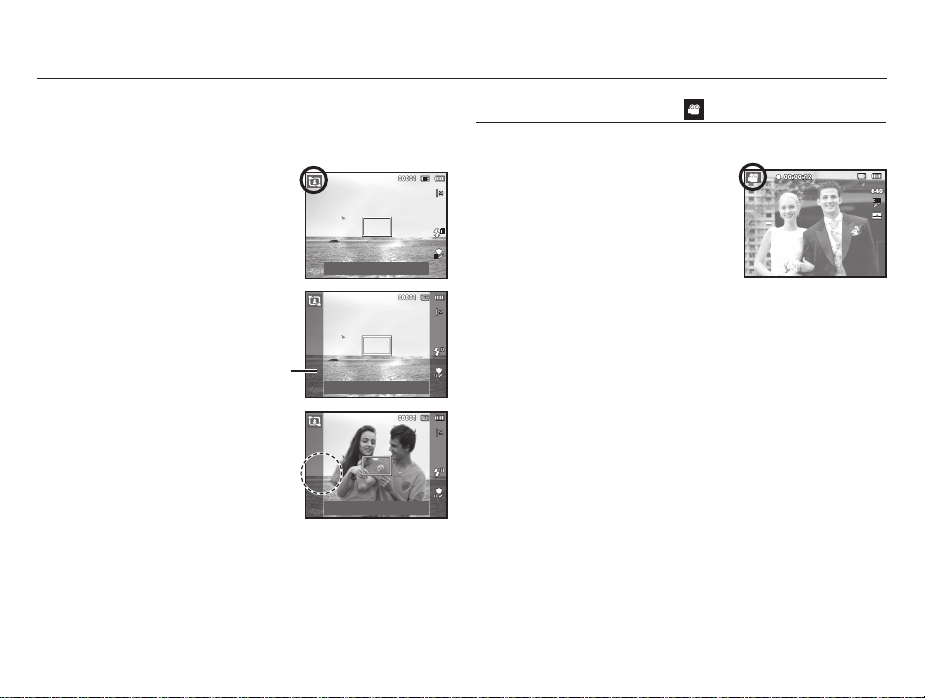

How to use the [Frame Guide] mode

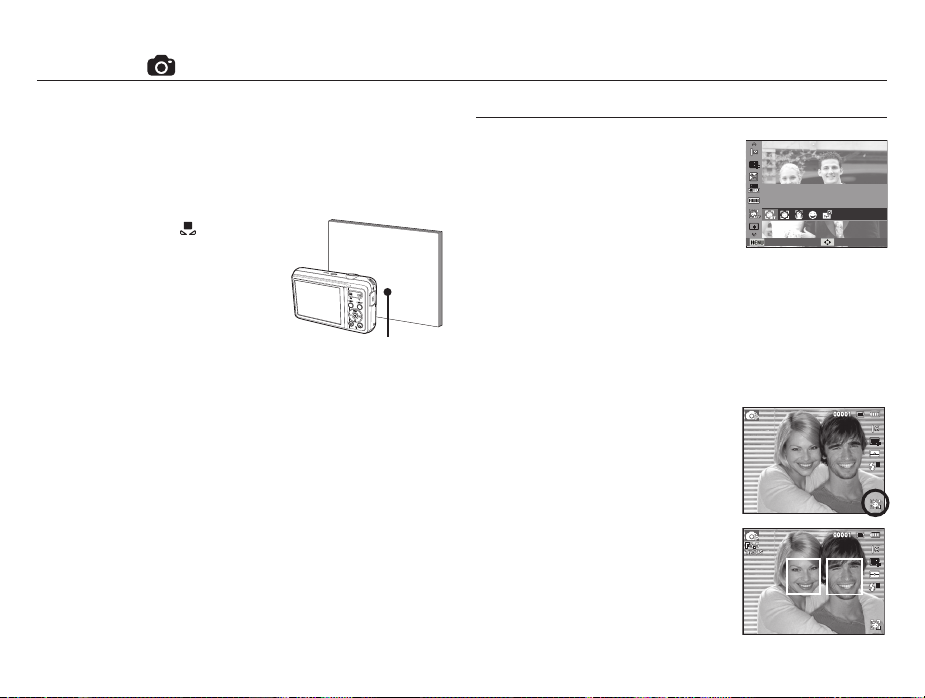

Set [Frame Guide] mode when you want someone else to take a picture for you from the angle you choose.

1. Take a picture from the angle you

choose.

- A guide appears around the sides

of the picture.

2. Then another person can take the picture by aligning the edge of the picture to be taken with the guide

framing the sides of the window.

Guide

Frame Guide: Shutter

Cancel Frame: OK

How to use the Movie mode ( )

A movie clip can be recorded for as long as the available recording time of the memory capacity allows. (Max.2 hours)

1. Select the Movie mode by using the MENU button. (p.21)

2. Point the camera towards the subject and compose the image by using the LCD monitor.

3. Press the shutter button once and

movie clips are recorded for as long as

the available recording time (Max.2 hours) allows. Movie clips will still be recorded if the shutter button is released. If you wish to stop recording, press the shutter button again.

Ä Movie clip size and type are listed below.

- Movie clip size : 640x480, 320x240 (selectable)

- Movie clip le type : AVI (MJPEG)

- Frame Rate : 30 FPS, 15 FPS (selectable)

026

Page 28

Starting the recording mode

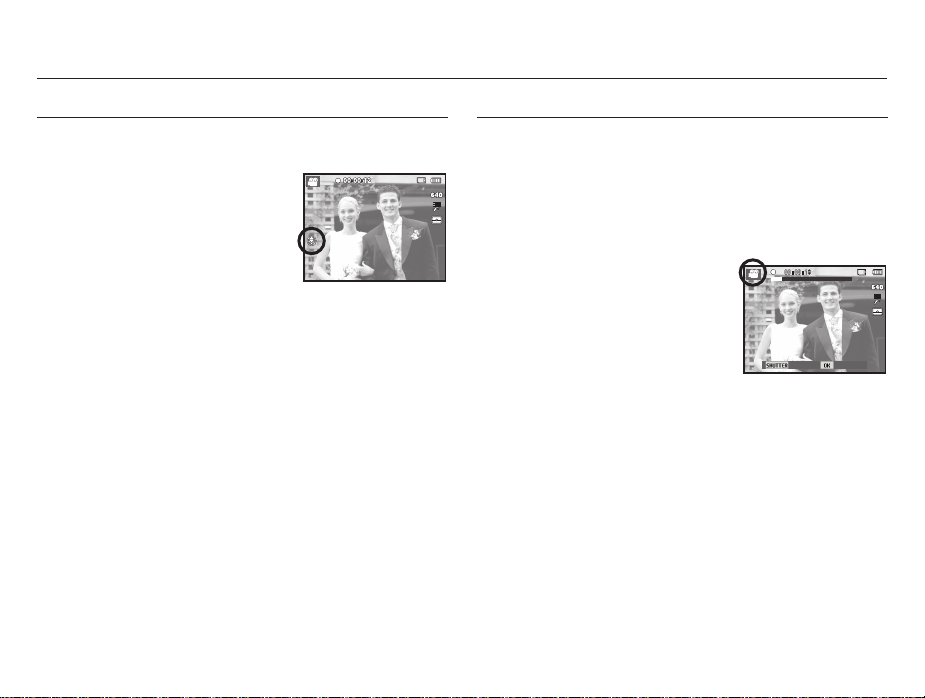

Recording the movie clip without sound

You can record the movie clip without sound.

Steps from 1-3 are the same as those for Movie mode.

4. Press the MENU button.

5. Press the Up / Down button to select the [Movie] menu and press the Right button.

6. Select the [Voice] menu by pressing the Up / Down button and press the OK button.

7. Select the [Off] menu by pressing the Left / Right button.

8. Press the OK button. You can record a movie without sound.

See p.50 for further details.

Pausing while recording a movie clip (Successive Recording)

This camera allows you to temporarily stop during unwanted scenes while recording a movie clip. Using this function, you can record your favorite scenes into a movie clip without having to

create multiple movie clips.

Using Successive Recording

Steps from 1-2 are the same as those for Movie mode.

3. Press the shutter button and movie

clips are recorded for as long as the

available recording time. (Max.2 hours) Movie clips will still be recorded if the shutter button is released.

4. Press the OK button to pause

recording.

5. Press the OK button again to resume the recording.

6. If you wish to stop recording, press the shutter button again.

Stop Pause

027

Page 29

Starting the recording mode

Auto

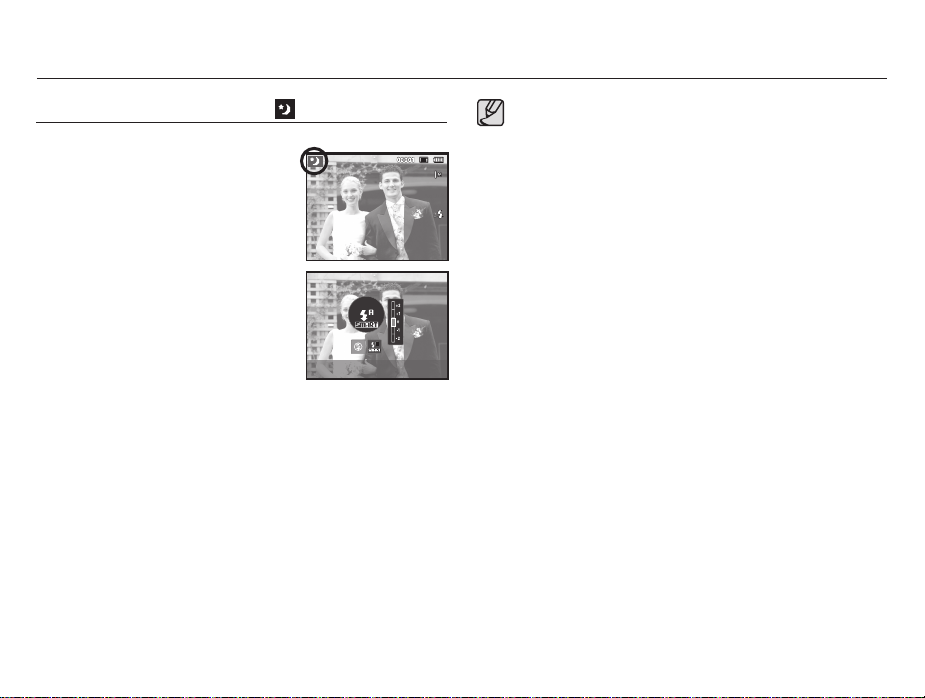

How to use the Smart Night Mode

This mode will help you take photos easily in the night scenes.

1. Press the S.NIGHT button.

2. Press the Flash button,then press the

Left/Right button to select a desired ash mode. By using the Up / Down button, you can set the intensity of the ash.

3. Point the camera towards the subject

and compose the image by using the LCD monitor.

4. Press the shutter button to capture an

image.

( )

Adjusts the ash intensity.

This function is the same as Night mode and Night Portrait

mode in Smart Auto mode.

By pressing the S.NIGHT button, you can set on/off the

Smart Night Mode at any mode.

When the Smart Night Mode is turned off, the camera will be

back to the previous mode.

028

Page 30

Things to watch out for when taking pictures

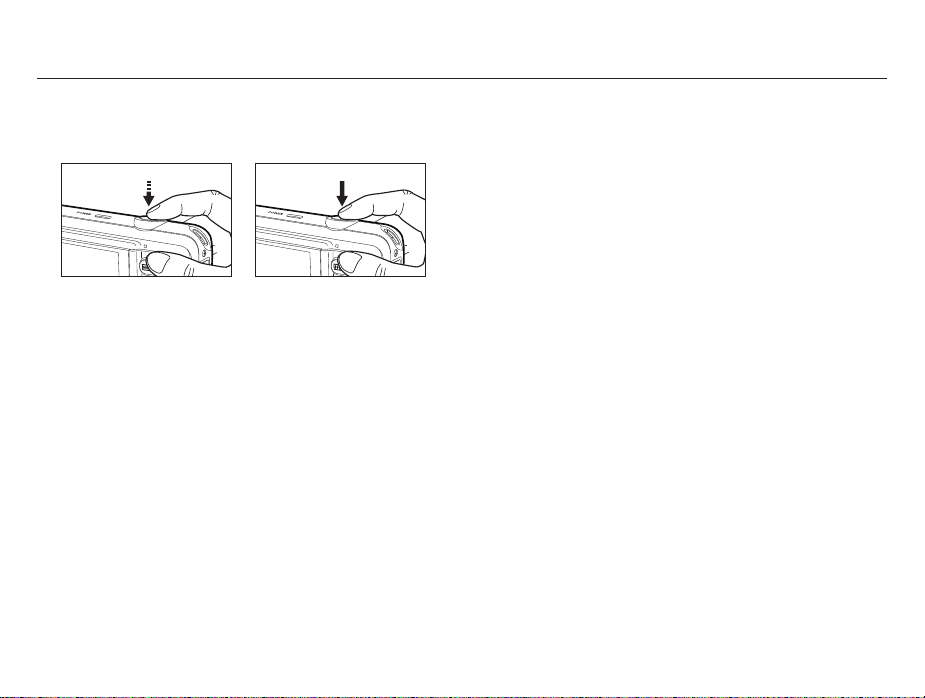

Pressing the shutter button down half way.

Lightly press the shutter button to conrm focus and ash battery

charge. Press the shutter button all way down to take the picture.

[Lightly press the shutter button]

The available memory capacity may vary depending on shooting

conditions and camera settings.

When the Flash Off, Slow synchro mode or DIS mode is selected

in a low lighting condition, the camera shake warning indicator

( \ ) may appear on the LCD monitor. In this case use a tripod to support the camera on a solid surface or change to ash shot

mode.

Shooting against the light

Avoid obstructing the lens or the ash when you capture an image.

: It is best to take pictures with the sun

behind you. Taking pictures against the sun may make the picture come out dark.

To take a picture against the light, please

use the [Backlight] in scene shooting mode (p.25), ll-in ash (p.34), spot metering (p.45), exposure compensation (p.40) or ACB (p.48) function.

[Press the shutter button]

Compose the image by using the LCD monitor.

Under certain conditions the auto focus system may not perform

as expected.

- When photographing a subject that has little contrast.

- If the subject is highly reective or shiny.

- If the subject is moving at high speed.

- When there is strong reected light, or when the background is very bright.

- When the subject matter has only horizontal lines or the subject is very narrow (such as a stick or agpole).

- When the surroundings are dark.

029

Page 31

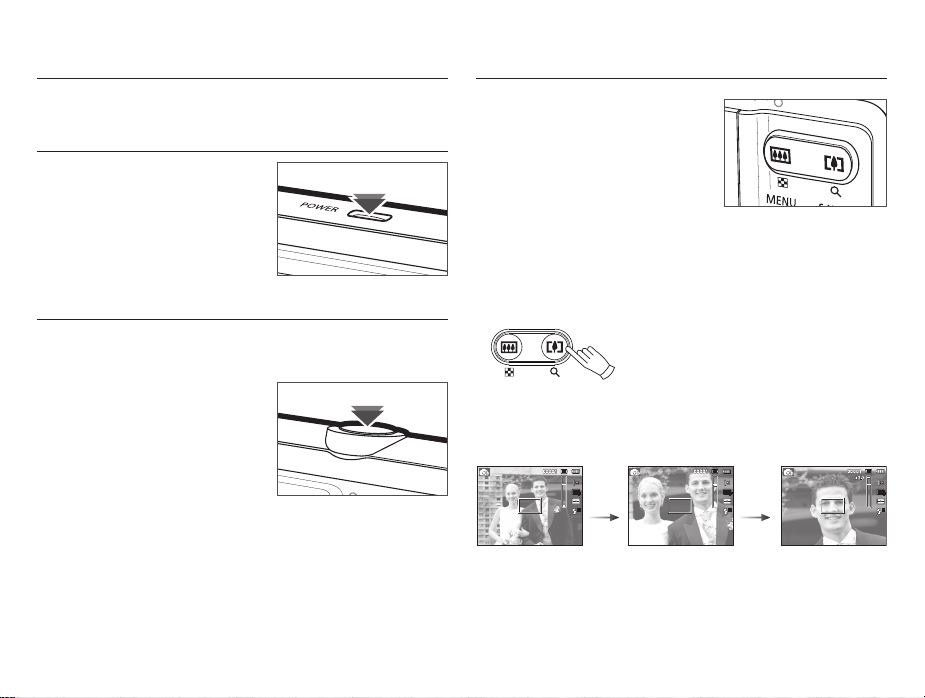

Using the camera buttons to set the camera

ZOOM button

The recording mode function can be set up by using the camera buttons.

POWER button

Used for turning the camera’s power on / off. If there is no operation during

the specied time, the camera's power will be turned off automatically to save battery life. Refer to p.56 for more information about the auto power off

function.

SHUTTER button

Used for taking an image or recording a movie clip in the Recording mode.

In Movie mode

Pressing the shutter button down fully starts the process for recording a movie clip. Press the shutter button

once and the movie clip is recorded

for as long as the available recording time on the memory allows. If you wish to stop recording, press the shutter button again.

In Still image mode

Pressing the shutter button down halfway activates the autofocus and checks the condition of the ash. Pressing the shutter button down fully takes and stores the image. If you select voice memo recording, the recording will start after the camera has nished

storing the image data.

030

If the menu is not displayed, this button works as the OPTICAL ZOOM or DIGITAL ZOOM button. This camera has a 5X optical zoom and a 3X digital zoom function. Using both will offer a total zoom ratio of 15X.

TELE Zoom

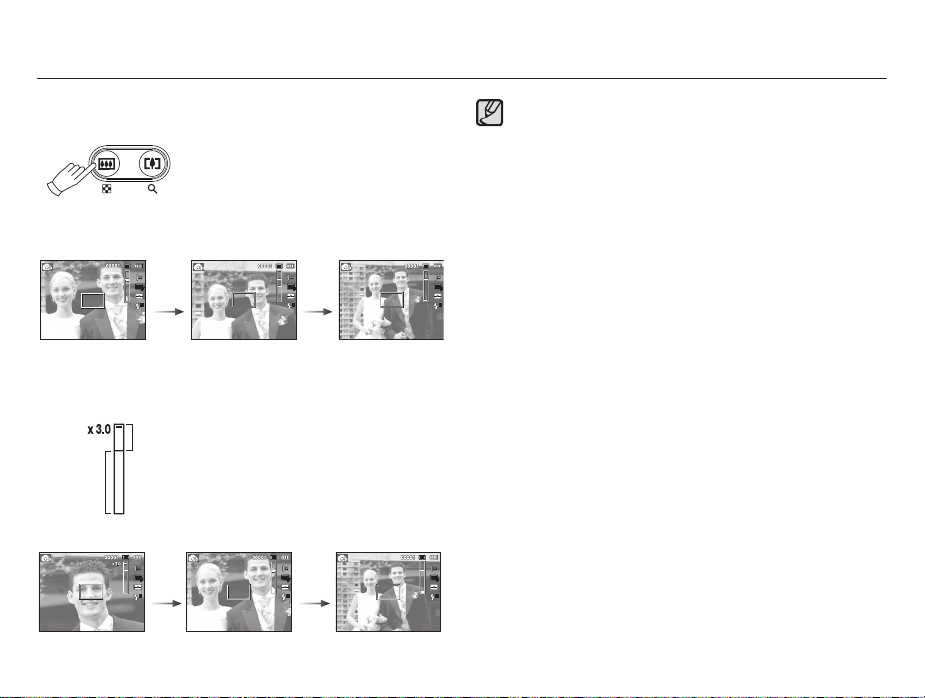

Optical zoom TELE : Pressing the ZOOM T button. This will zoom

Digital zoom TELE : When the maximum (5X) optical zoom

[WIDE zoom]

into the subject i.e. the subject will appear

nearer.

is selected, pressing the ZOOM T button activates the digital zoom software. Releasing ZOOM T button stops the digital zooming at the required setting. Once the maximum digital zoom (3X) is achieved, pressing the ZOOM T button will have no

effect.

Pressing

the ZOOM

T button

[TELE zoom] [Digital zoom 3.0X]

Pressing

the ZOOM

T button

Page 32

ZOOM button

WIDE Zoom

Optical zoom WIDE : Pressing the ZOOM W button. This will

zoom out from the subject i.e. the subject will appear further away. Pressing the ZOOM W button continuously will set the camera to its minimum zoom setting i.e. the subject appears at its furthest from the

camera.

Pressing

the ZOOM

W button

[TELE zoom] [Optical zoom 2X] [WIDE zoom]

Pressing

the ZOOM

W button

Digital zoom WIDE : When the digital zoom is in operation,

pressing the ZOOM W button will reduce

Digital zoom

the digital zooming in steps. Releasing ZOOM W button stops digital zooming. Pressing the ZOOM W button will reduce

Optical zoom

the digital zoom and then it will continue to reduce the optical zoom until the mini-

mum setting is reached.

Pressing

the ZOOM

W button

[Digital zoom 3.0X] [TELE zoom] [WIDE zoom]

Pressing

the ZOOM

W button

Images taken using the digital zoom may take a little longer for the

camera to process. Allow time for this to take place.

If the ZOOM buttons are being pressed during the Movie shots, the

voice will not be recorded.

You may notice a decrease in image quality when using the digital

zoom.

To view a clearer digital zoom image, press the shutter button

halfway at the maximum optical zoom position and press the ZOOM T button again.

The digital zoom can’t be activated in some Scene modes

([Beauty Shot], [Night], [Portrait], [Children], [Close up], [Text], [Fireworks]), DIS mode, Movie mode, Smart Night Mode, [Self-Portrait], [Smile Shot], [Blink Detection] and [Face Detection].

Take care not to touch the lens to avoid taking an unclear image

and possibly causing camera malfunction. If the image is dim, turn the camera power off and on again to modify the lens position.

Take care not to press the lens as this may cause the camera to

malfunction.

When the camera is turned on, take care not to touch the camera’s

moving lens parts as this may cause the resulting image to be dim

and unclear.

Take care not to touch the lens when operating the zoom button.

031

Page 33

Info (DISP) / Up button

Macro ( ) / Down button

While the menu is showing, the Up button operates as a direction button. In the recording modes or playback mode, pressing this button will display the image information.

Show all photographic information.

Show only basic information.

[Information screen][Filming screen]

032

While the menu is showing, the Down button operates as a direction button. When the menu is not showing, you can use the Macro ( ) / Down button to take macro pictures.

The focus ranges are shown on the next page.

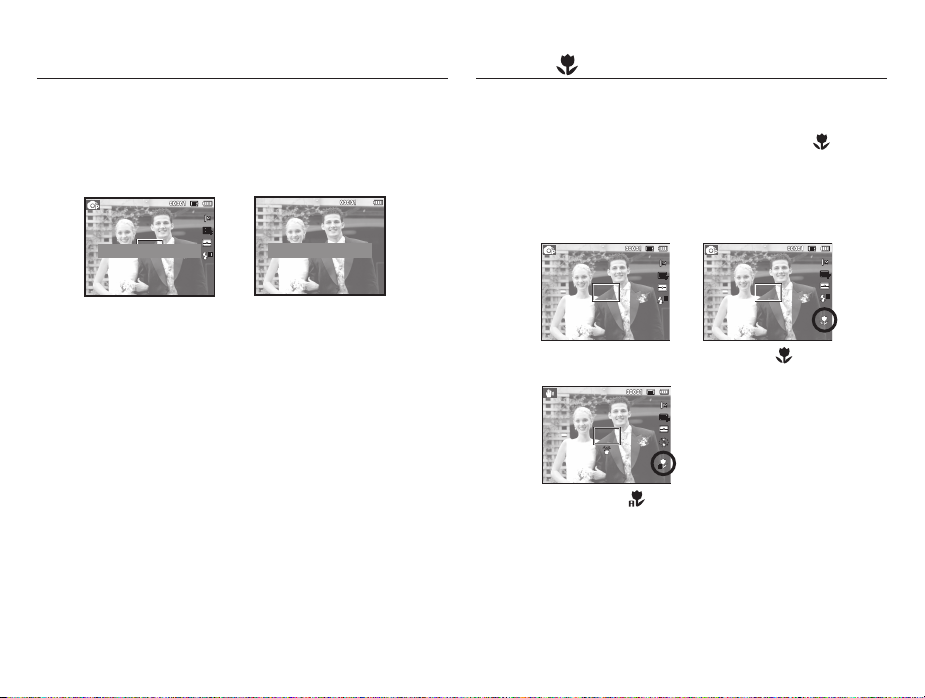

Press the Macro button until the desired macro mode indicator appears on the LCD monitor.

[Auto Focus]

[Auto Macro ( )]

[Macro ( )]

Page 34

Macro ( ) / Down button

Types of focus mode and focus range (W : Wide, T : Tele)

Mode Program ( )

Focus Type Macro ( ) Normal

Focus range

Mode DIS Mode ( )

Focus Type Auto macro ( ) Normal

Focus range

When the macro mode is selected, be particularly careful to

avoid camera shake.

When you take a picture within 40cm (Wide zoom) or 100cm

(Tele zoom) in the Macro mode, select the Flash off mode.

W : 5 ~ 80

T : 100 ~ 150

W : 5 ~ Innity

T : 100 ~ Innity

W : 80 ~ Innity

T : 100 ~ Innity

W : 80 ~ Innity

T : 100 ~ Innity

(Unit: cm)

Available focusing method, by recording mode

( o : Selectable, ä : Innity focus range)

Mode Auto macro Macro Normal

o o

Mode

Auto macro Macro Normal

SCENE

033

Page 35

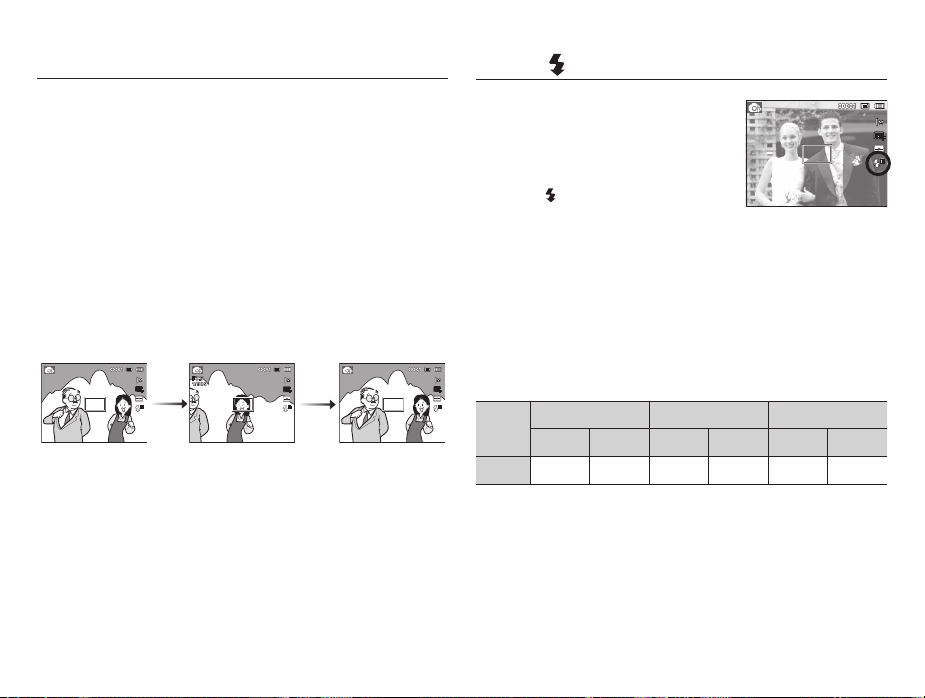

Focus lock

Flash ( ) / Left button

To focus on a subject not positioned in the center of the picture, use

the focus lock function.

Using the Focus Lock

1. Ensure the subject is in the center of the autofocus frame.

2. Press the shutter button halfway. When the green auto focus frame lights up, it means the camera is focused on the subject. Be careful not to press the shutter button all the way down to

avoid taking an unwanted picture.

3. With the shutter button still pressed down only halfway, move the camera to recompose your picture as desired, and then press the shutter button completely to take the picture. If you release your nger from the shutter button, the focus lock function will be

cancelled.

1. The image to be

captured.

Press the shutter

button halfway and focus on the subject.

3. Recompose the picture and fully

depress the shutter

button.

034

When the menu is displayed on the LCD monitor, pressing the Left button makes the cursor shift to the left tab. When the menu is not displayed on the LCD monitor, the Left button operates as the Flash ( ) button.

Selecting the ash mode

[Selecting the Auto ash]

1. Select a desired Recording mode, except the [Movie] mode and the [DIS] mode. (p.21)

2. Press the Flash button until the desired ash mode indicator is displayed on the LCD monitor.

3. A ash mode indicator will be displayed on the LCD monitor. Use the correct ash to suit the environment.

Flash range

ISO

AUTO 0.8~2.68 0.8~1.59 0.2~0.8 0.5~0.8 0.2~2.68 0.5~1.59

Normal Macro Auto macro

WIDE TELE WIDE TELE WIDE TELE

(Unit: m)

Page 36

Flash ( ) / Left button

If you press the shutter button after selecting the ash, the rst

ash res to check the shooting condition (Flash range and Power ratio of ash). Do not move the camera until the second ash res.

Using the ash frequently will reduce the life of the battery.

Under normal operating conditions the recharging time for the

ash is usually within 4 seconds. If the battery is weak, the charging time will be longer.

In the DIS mode, [Landscape], [Close up], [Text], [Sunset], [Dawn],

[Fireworks] scene modes and the Movie mode, the ash function will not operate.

Take photographs within the ash range.

The image quality is not guaranteed if the subject is too close or

highly reective.

When taking an image in poorly lit conditions with the ash, there

may be a white speck in the captured image. The speck is caused by the ash light reecting off atmospheric dust.

Flash mode indicator

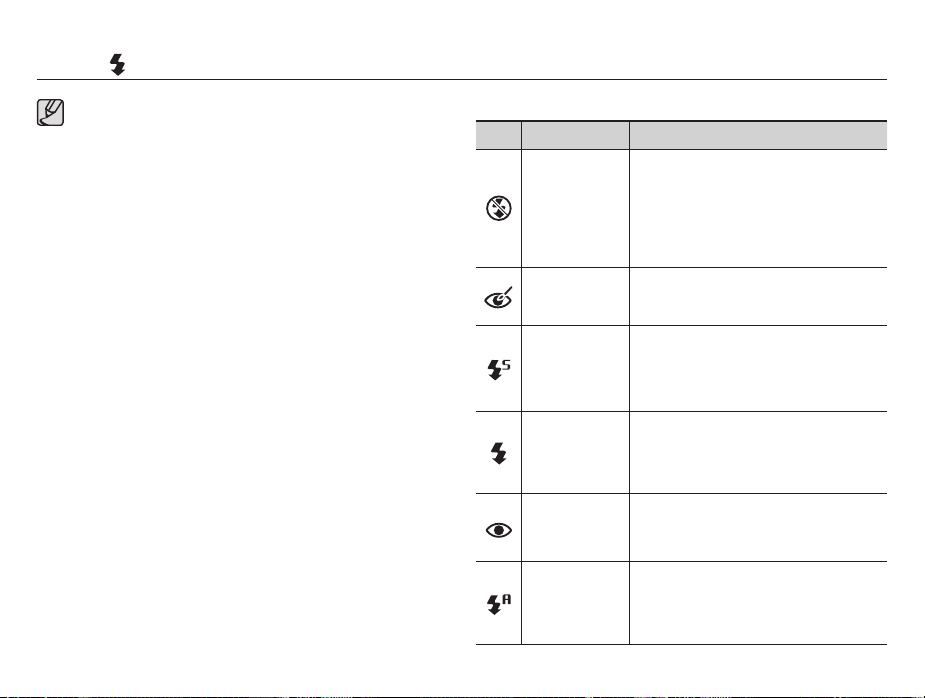

Icon Flash mode Description

The ash does not re.

Select this mode when capturing images in

a place or situation where ash photography

Flash off

Red-eye reduction

Slow synchro

Fill in ash

Auto & Red eye

reduction

is prohibited. When you capture an image in poorly lit conditions, the camera shake warning indicator ( \ ) will appear on the LCD monitor.

When a shot with "red eye" is detected, this mode will reduce the red-eye effect automatically.

The ash operates with a slow shutter speed to obtain a balanced correct exposure. In poor

lighting conditions the camera shake warning

indicator ( \ ) will display on the LCD

monitor.

The ash res regardless of the available light. The intensity of the ash will be automatically controlled to suit the prevailing

conditions.

If a subject or background is dark, the camera ash will work automatically and will reduce the red-eye effect by using the red-eye reduction function.

Auto ash

If the subject or background is dark, the camera ash will operate automatically.

035

Page 37

Flash ( ) / Left button

Self-timer ( ) / Right button

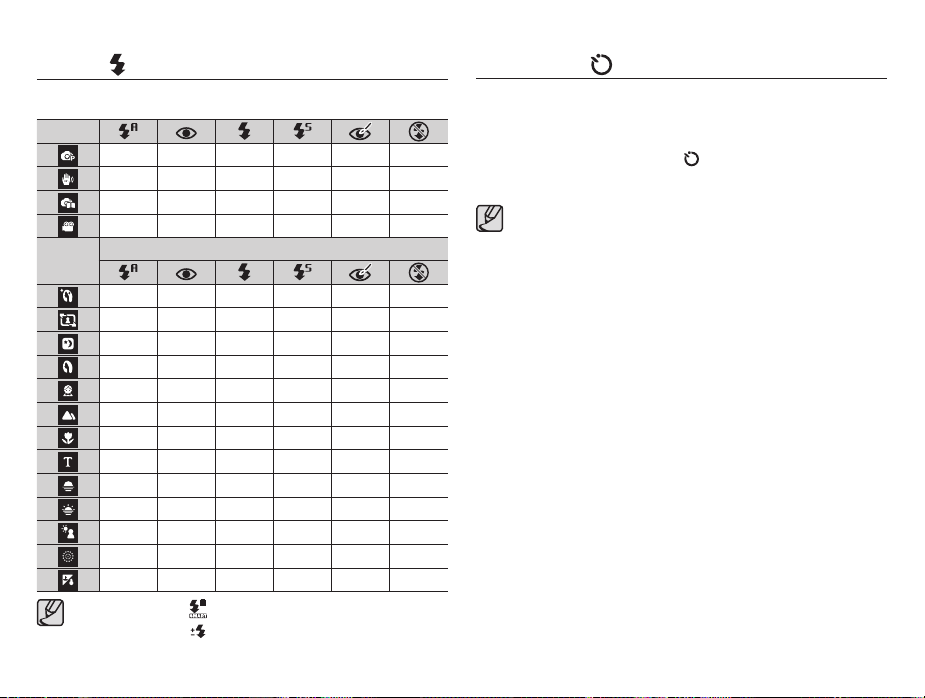

Available ash mode, by recording mode ( o : Selectable)

Mode

o o o o o o

Mode

o o o

o o

Smart Auto Flash ( ) icon will appear in [Smart Auto] mode.

Smart Night Flash( ) icon will appear in [Smart Night] mode.

SCENE

o o o

036

When the menu is displayed on the LCD monitor, pressing the Right button makes the cursor shift to the right tab. When the menu is not displayed on the LCD monitor, the Right button operates as the Self-timer ( ) button. This function is used

when the photographer would also like to be in the image.

If you operate the self-timer button during the self-timer

operation, the self-timer function is cancelled.

Use a tripod to prevent the camera from shaking.

In Movie mode, only the 10 Sec self-timer will work.

Depending on the selected face detection option, the timer is

not available or some timer options are not available.

Page 38

Self-timer ( ) / Right button

Selecting the self-timer

Select a Recording mode with the

exception of Voice recording mode.(p.21)

Press the Self-timer / Right button until the desired mode indicator displays on the LCD monitor. A 10 second, 2 second, Double self-timer or Motion timer icon appears on the LCD monitor.

3. When you press the shutter button, the picture will be taken after the specied

time has elapsed.

Self-timer mode indicator

Icon Mode Description

10 Sec

self-timer

2 Sec

self-timer

Double

self-timer

Motion

Timer

( )

Pressing the shutter button will allow an interval of 10 seconds before the image is taken.

Pressing the shutter button will allow an interval of 2 seconds before the image is taken.

A picture will be taken after about 10 seconds and 2 seconds later a second picture will be taken. When using the ash, the 2-second self-timer may be delayed for longer than 2 seconds depending on the ash charging time.

The camera detects the subject's movement 6 seconds after pressing the Shutter button, and the

picture is taken when the movement is stopped.

[Selecting the 10 SEC

self-timer]

Motion Timer

Pressing the Shuter button after setting the Motion Timer

Detecting the subject's movement Blink (0.25 second interval)

No movement is detected

The Motion Timer ows are as followings. (Movie mode excluded)

Motion Icon & Self-timer lamp

Blink (1 second interval)

Turn on and the image is taken

after 2 seconds

Selecting the Motion Timer Ã Pressing the Shutter button Ã

Conrming the composition (Within 6 sec.)*1 Ã Starting the detection (Swing your hands fully)*2 Ã Stopping the detection (Do not move) Ã Taking an image (after 2 sec.)

*1: The camera detects the subject's movement 6 seconds after pressing the

Shtter button, so conrm the composition within 6 seconds.

*2: Move your body or hands fully.

In the following cases, the Motion Timer may not operate.

The focus distance is over 3m.

The exposure is too bright or too dark.

In backlight conditions.

The movement is insignicant.

The movement is detected

The detection range of

Motion Timer

beyond the center part (50%) of

the sensor where the movement

is recognized.

If the camera doesn't sense any

movement for 30 seconds, or the

camera doesn’t sense stillness after sensing movement.

037

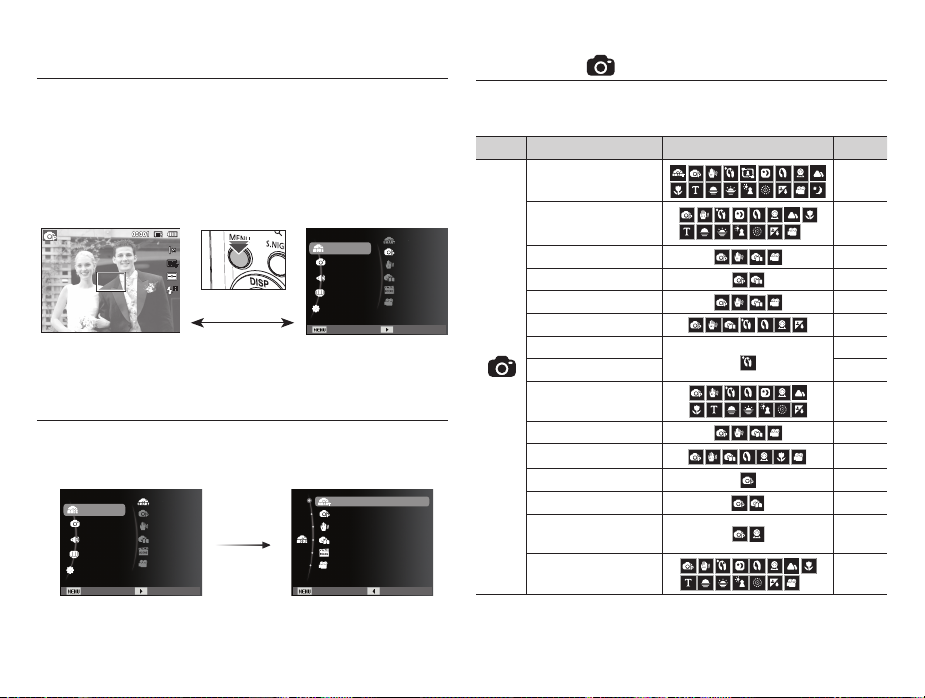

Page 39

MENU button

Shooting ( )

- When you press the MENU button, a menu related to each camera mode will be displayed on the LCD monitor. Pressing it again will return the LCD to the initial display.

- A menu option can be displayed when the following are selected :

Movie and Still image mode. There is no menu available when

the voice recording function is selected.

[Menu off]

[Pressing the MENU button]

Mode

Shooting

Sound

Display

Settings

Exit Change

[Menu on]

Smart Auto

Program

DIS

Photo Help...

Scene

Movie

OK button

- When the menu is displayed on the LCD monitor, this button is used for shifting the cursor to the sub menu or for conrming data.

Smart Auto

Program

DIS

Photo Help Guide

Scene

Movie

Exit Back

038

Mode

Shooting

Sound

Display

Settings

Exit Change

Smart Auto

Program

DIS

Photo Help...

Scene

Movie

[Pressing the

OK button]

Use the menu that enables the functions, or the Fn button to bring up the menus below:

Mode Menu

Photo Size / Movie Size

Available mode Page

p.39

Quality / Frame Rate p.40

EV p.40

ISO p.41

White Balance p.41

Face Detection p.42

Face Tone p.44

(Shooting)

Face Retouch p.44

Focus Area p.45

Metering p.45

Photo Style Selector p.46

Image Adjust p.47

ACB p.48

Drive p.48

Voice p.49~50

Page 40

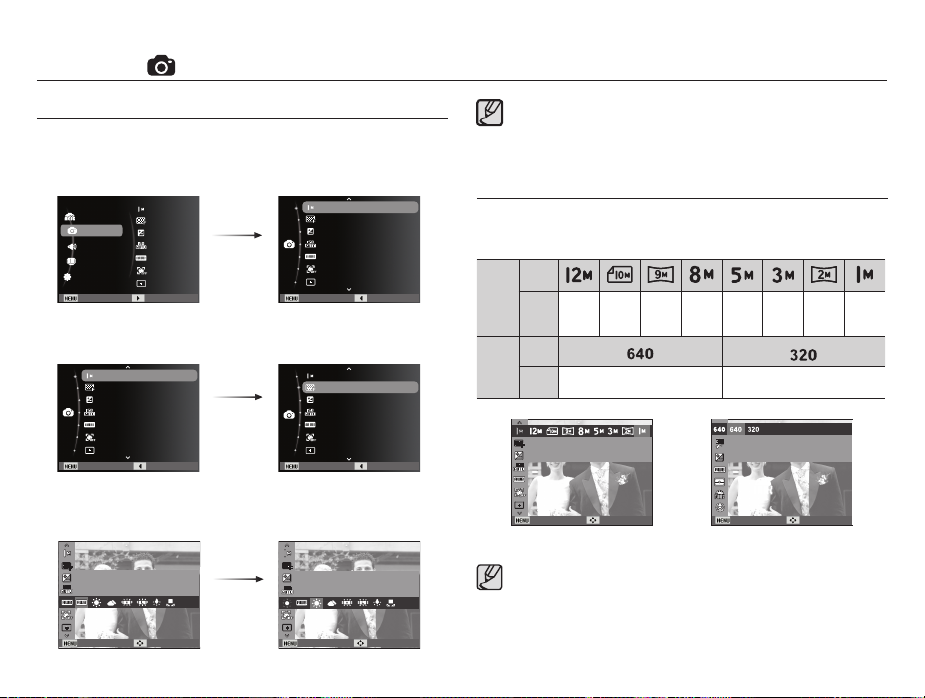

Shooting ( )

How to enable functions using the MENU button

1. Press the MENU button in an available mode.

2. Press the Up / Down button to select the [Shooting] menu and press the Right/OK button.

Mode

Shooting

Sound

Display

Settings

Exit Change

Photo Size

Quality

ISO

White Balance

Face Detection

Focus Area

Right/OK

button

3. Select a desired menu by pressing the Up / Down button and then press the OK button.

Photo Size

Quality

ISO

White Balance

Face Detection

Focus Area

Exit Back

Up / Down

button

4. Select a desired menu by pressing the Left / Right button and then press the OK button.

Adjust the white balance according to the light source.

White Balance

Back Move

Left / Right

button

Photo Size

Quality

ISO

White Balance

Face Detection

Focus Area

Exit Back

Photo Size

Quality

ISO

White Balance

Face Detection

Focus Area

Exit Back

Appropriate for outdoor photography on a clear day. Daylight

Back Move

Use the Fn button on the rear of the camera to bring up the menus that enable frequently used functions faster.

Photo Size / Movie Size

You can select the photo size / movie size appropriate for your

application.

Icon

Still


mode

Movie

mode

4000X

3984X

3840X

3264X

Size

3000

2656

2160

2448

2560X

1920

Icon

Size

Photo Size Set the photo size.

Back Move

[ Still image mode ]

The higher the resolution, the lower the number of shots

640 x 480 320 x 240

Movie Size Set the video size.

Back Move

[ Movie mode ]

available because high resolution images require more memory.

2048X

1536

(Unit: pixel)

1920X

1080

1024X

768

039

Page 41

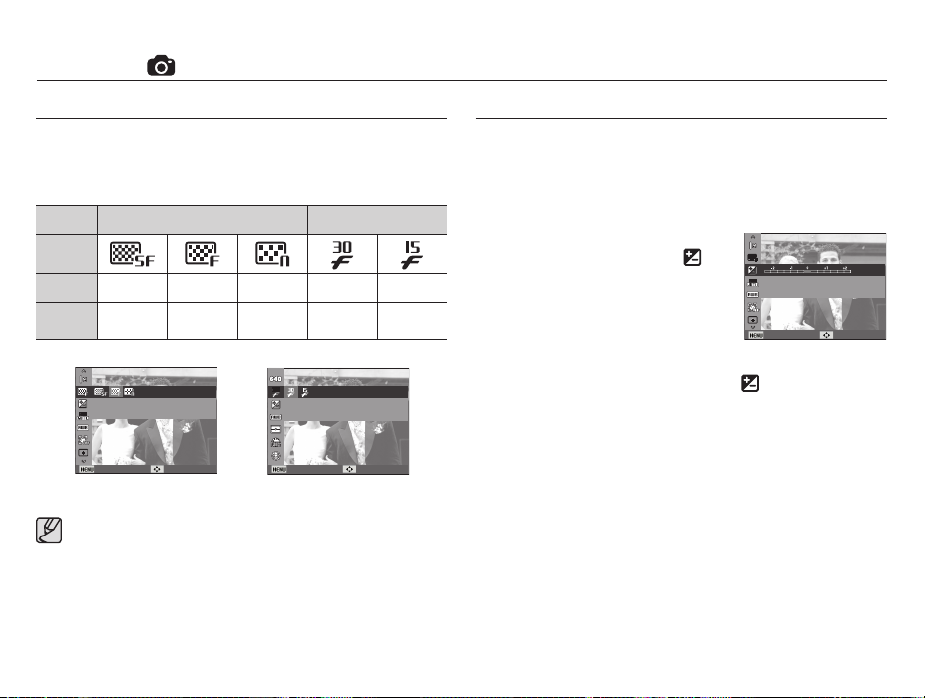

Shooting ( )

Quality / Frame rate

You can select the compression ratio appropriate for your application

of the captured images. The higher the compression ratio, the lower

the picture quality.

Mode STILL IMAGE mode MOVIE mode

Exposure compensation

This camera automatically adjusts the exposure according to the ambient lighting conditions. You can also select the exposure value by using the [EV] menu.

Icon

Sub menu Super Fine Fine Normal 30 FPS 15 FPS

File

Format

jpeg jpeg jpeg avi avi

Quality Adjust the image quality.

[ Still image mode ] [ Movie mode ]

This le format complies with the DCF (Design rule for Camera

File system). JPEG (Joint Photographic Experts Group) :

Frame Rate

Set the number of frames per second for movies.

Back MoveBack Move

JPEG is the image compression standard developed by the Joint Photographic Experts Group. This type of compression is most commonly used for compressing photos and graphics because it can compress the les efciently.

040

Compensating Exposure

1. Click the Up/Down button from the Shooting menu to select [EV] ( ).

2. Use the Left and Right buttons to

set the desired exposure compensation

EV Set exposure value to adjust brightness.

factor.

3. Press the OK button. The value you set will be saved and the Exposure

Back Move

Compensation setup mode will be closed. If you change the exposure value, the exposure indicator ( ) will be displayed

on the left of the LCD monitor.

A negative exposure compensation value reduces the exposure.

Note that a positive exposure compensation value increases the exposure and the LCD monitor will appear white or you may not

get good pictures.

Page 42

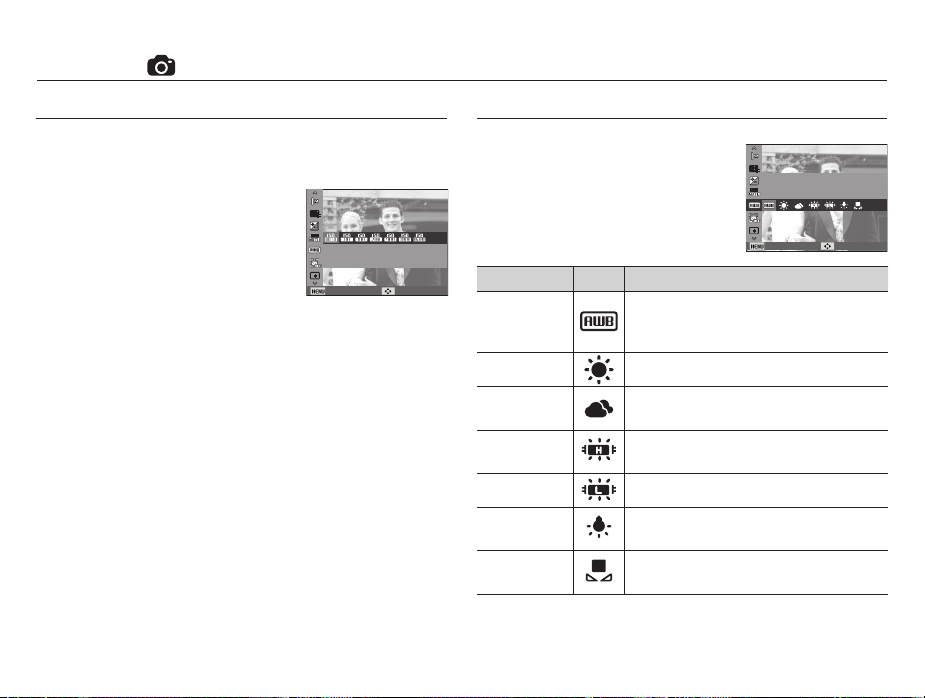

Shooting ( )

ISO

You can select the ISO sensitivity when taking pictures.The speed or specic light-sensitivity of a camera is rated by ISO numbers.

White balance

The white balance control allows you to adjust the colors to appear more natural.

[Auto] : The camera's sensitivity is

automatically changed by variables such as lighting value or subject brightness.

[ISO 80, 100, 200, 400, 800, 1600] :

You can increase the shutter speed while

ISO

Adjust the sensitivity of the camera.

Back Move

the same amount of light is present, by increasing the ISO sensitivity. However, the image may be saturated in high luminance. The higher the ISO value, the higher the camera’s sensitivity to light and therefore the greater its capacity to take pictures in dark conditions. However, the noise level in the image will increase as

the ISO value increases, making the image appear coarse.

When [Motion Capture] is set, ISO speed will be set to Auto.

[ISO] is enabled only in [Program] or [Photo Help Guide] mode.

Adjust the white balance according to the light source.

White Balance

Back Move

Mode Icon Description

Auto WB

Daylight For taking images outside.

Cloudy

Fluorescent_H

Fluorescent_L Shooting under white uorescent lighting.

Tungsten

Custom Set

The camera automatically selects the appropriate white balance settings, depending

on the prevailing lighting conditions.

For taking images under a cloudy and overcast sky.

For shooting under daylight uorescent types of three-way uorescent lighting.

For shooting under tungsten (standard light bulb) lighting.

Allows the user to set the white balance ac-

cording to the shooting condition.

Different lighting conditions may cause a color cast on your images.

041

Page 43

Shooting ( )

Using the Custom White Balance

White balance settings may vary slightly depending on the

shooting environment. You can select the most appropriate

white balance setting for a given shooting environment by setting up the custom white balance.

1. Select the Custom ( ) menu of the

White Balance and place a sheet of white paper in front of the camera

so that the LCD monitor shows only

white.

2. OK button : Selects previous custom white balance.

Shutter button : saves new custom white balance.

- The custom white balance value will be applied, starting with the next picture you take.

- The user congured white balance will be remain effective until

it is overwritten.

White paper

Face Detection

If you use face detection options, your

camera can detect a human face. When

focusing on a human face, the brightness of the face is also adjusted. You can also capture natural facial expressions by using

self portrait.

Normal

This mode detects the face position of the subject automatically and then sets the focus and exposure. Select this mode for quick and easy face picture.

Selectable modes: Program, DIS, Photo Help Guide, Beauty Shot,

Portrait, Children, Beach & Snow

1. The size and position of the auto

focus frame is set at the face of the

subject automatically.

2. Press the shutter button halfway.

The focus frame turns to green when the focus is activated.

3. Press the shutter button fully to take a

picture.

Adjust face detection settings. Face Detection

Back Move

042

Page 44

Shooting ( )

This function can detect up to 10 persons.

When the camera recognizes many people at the same time,

it will focus on the nearest person.

The Digital zoom is not activated in this mode.

When the camera detects a target face, the white color focus

frame will be displayed over the target face and the grey

color focus frame appears over the remaining faces.

Press the shutter button halfway down to focus on the face

and the white focus frame turns green.

Return to previous AF mode if face detection was failure.

In some conditions this function cannot work properly.

- When a person wears dark glasses or some part of the face

is hidden.

- When the person being taken does not look at the camera.

- Camera doesn't detect a face as the brightness is too dark or too bright.

- The distance between the camera and object is far.

The maximum available Face Detection range is 2.5m (Wide).

The nearer the subject, the faster the camera can recognize

the subject.

In [Beauty Shot], [Portrait], and [Children] mode, the

[Face Detection] function setting is set to its default value.

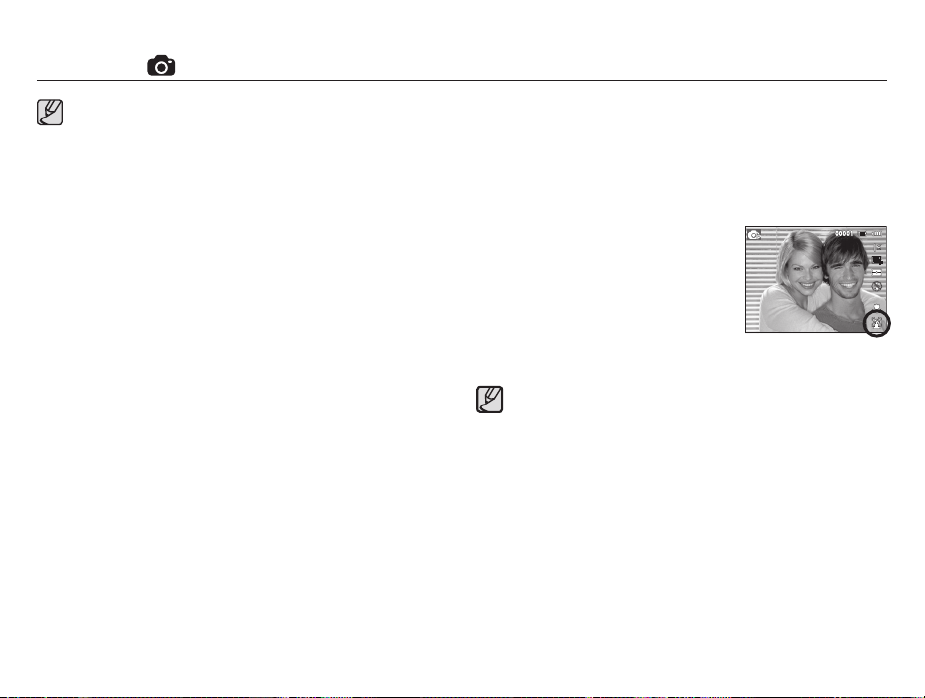

Self Portrait

When taking pictures of yourself, the area of your face is automatically detected so that you can take self pictures more easily and quickly.

Selectable modes: Program, DIS, Photo Help Guide,

1. For self-lming, set the camera lens towards the face of the object. It automatically detects the face of the object, and emits a guiding sound.

2. Start lming by pressing the shutter button.

When locating the face in the center of the screen, it

repeatedly emits a faster sound unlike the sounds that are

emitted when the face is not in the center.

Beauty Shot, Portrait,

Beach & Snow

043

Page 45

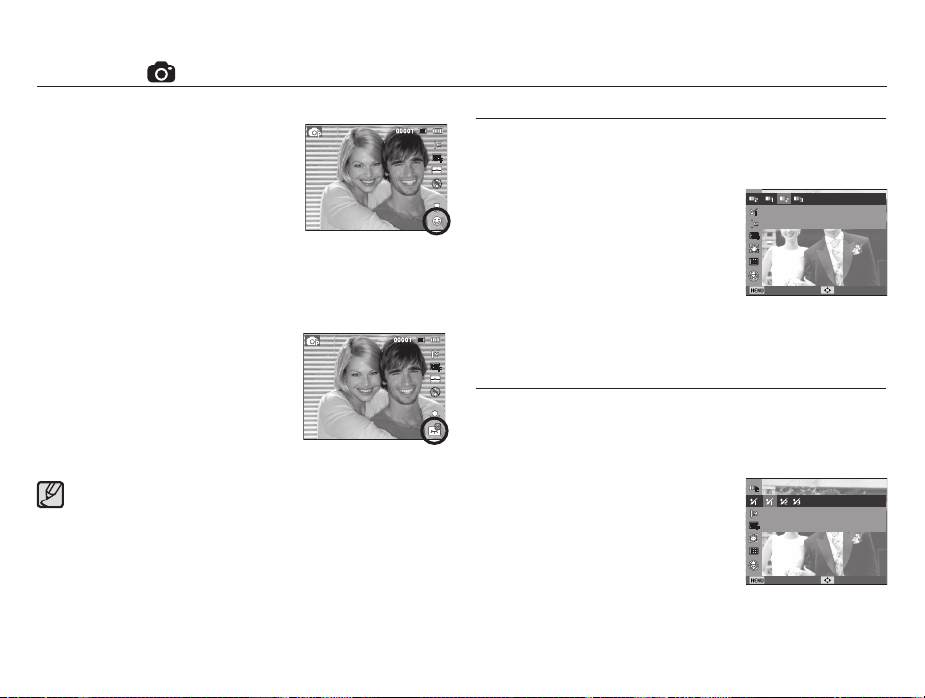

Shooting ( )

Smile Shot

※

Selectable modes: Program, DIS, Photo Help Guide, Beauty shot, Portrait, Children, Beach & Snow The camera automatically takes a picture by detecting the face of the subject although you don’t press the Shutter button. If you press the Shutter button, the picture is taken in the normal way. When taking a picture of smile shot, showing teeth or keeping the smiley face of your subject helps detecting the smile face of the subject.

Blink Detection

※

Selectable modes: Program, Photo Help Guide, Portrait, Children, Beach & Snow If the eyes of the subject are closed when the shutter button is pressed, the camera takes 2 continuous shots and then the images are saved. The camera takes only one picture if the eyes of the subject are open when the Shutter button is pressed.

Detecting the smiling face or the blinking eyes may not be available if any of the following situations occurs:

- If the subject is wearing sunglasses.

- When the subject is not facing directly to the camera.

- If the environmental light is too bright or too dark to detect the face of the subject.

- When the camera is far from the subject. (Orange colored focusing mark)

- If there is reection of the light or the backlight that are too bright.

044

Face Tone

This menu allows you to control the skin tone in images in beauty shot mode. The higher the level you select, the brighter the skin tone.

1. Select [Face Tone] by pressing the Up/Down button.

2. Select a desired face tone by pressing

Face Tone

Set the level of face tone. (brightening the face)

the Left / Right button and then press the OK button.

3. Press the Shutter button to take an

image.

Back Move

Face Retouch

This menu allows you to make skin appear clear and beautiful before recording in beauty shot mode. The higher the level selected, the

more effective the control.

1. Select [Face Retouch] by pressing the Up/Down button.

2. Select a desired face retouch by pressing the Left / Right button and then press the OK button.

3. Press the Shutter button to take an

image.

Face Retouch Set the level of face retouching.

Back Move

Page 46

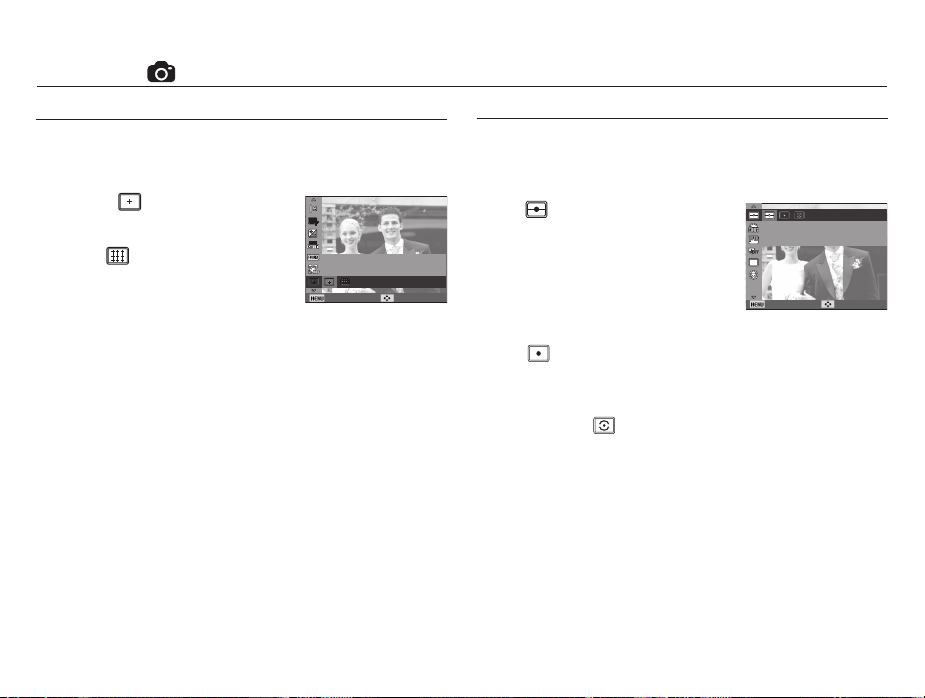

Shooting ( )

Auto Focus type

Metering

You can select your preferred Focus Area according to the shooting

conditions.

[Center AF] (

) : The rectangular area in

the center of the LCD monitor will be focused

[Multi AF] (

When the camera focuses on the subject, the auto focus frame

) : This camera selects all

of available AF point from the 9 AF points.

Set the autofocus method.

Focus Area

Back Move

turns to green. When the camera doesn't focus on the subject, the

auto focus frame turns to red.

If you cannot obtain suitable exposure conditions, you can change the metering method to take brighter pictures.

[Multi] ( ) : Exposure will be calculated

based on an average of the available light in the

Metering Set the light metering option.

image area. However, the calculation will be biased

towards the center of the

image area. This is suitable

Back Move

for general use.

[Spot] ( ) : Only the rectangular area in the center of the LCD

monitor will be metered for light. This is suitable when the subject in the center is exposed correctly, regardless of the back lighting.

[Center-weighted] ( ) : Exposure will be calculated based on an

average of the available light in the image area. However, the calculation will be biased towards the center of the image area. This is suitable for taking a picture of small object like a ower or insects.

If the subject is not the center of the focus area, do not use the

spot metering as this may result in an exposure error. In this circumstance, it is better to use exposure compensation.

045

Page 47

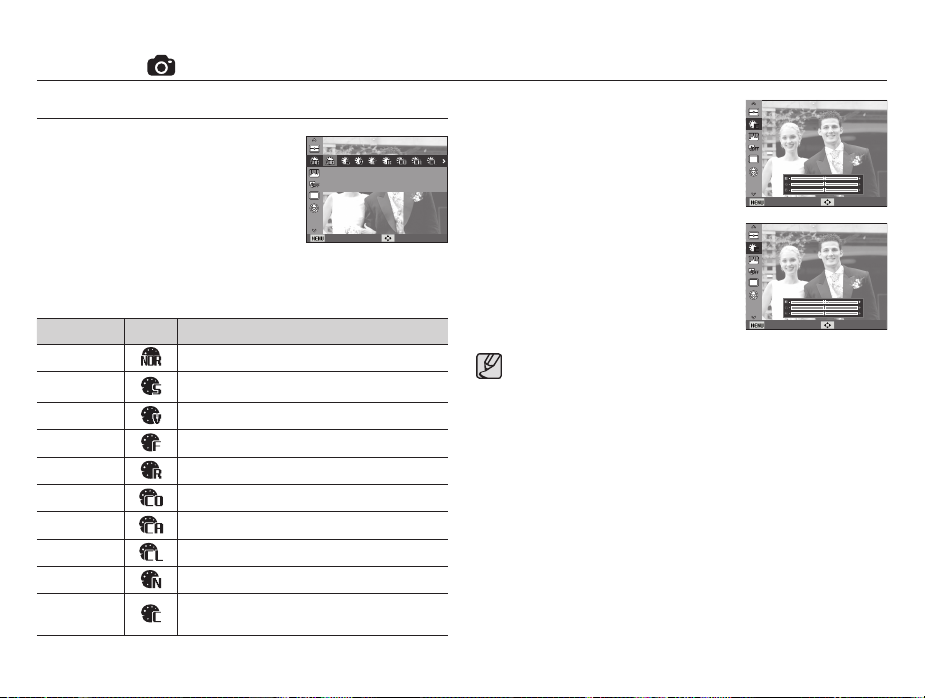

Shooting ( )

Photo Style Selector

You can add various effects to the image without using image editing software.

1. Select the desired Photo style selector by pressing the Left/Right button and press the OK button.

2. Press the Shutter button to take an image.

Style mode Icon Description

Normal No style effect is applied.

Soft Soft style is applied.

Vivid Vivid style is applied.

Forest Forest style is applied.

Retro Sepia style is applied.

Cool Cool style is applied.

Calm Calm style is applied.

Classic Black & white effect is applied.

Negative Negative effect is applied.

Custom RGB

Dene an RGB tone to create your own photo style.

Photo Style Selector Set a photo style to evoke a mood.

Back Move

Custom RGB : You can change the R

(Red), G (Green) and B (Blue) values of the

image.

Back Move

- Up/Down button : Selects R, G, B

- Left/Right button : Changes the values

Back Move

When picture style is set, face detection is not available.

When Photo Style Selector is set, Image Adjust function is not

available.

046

Page 48

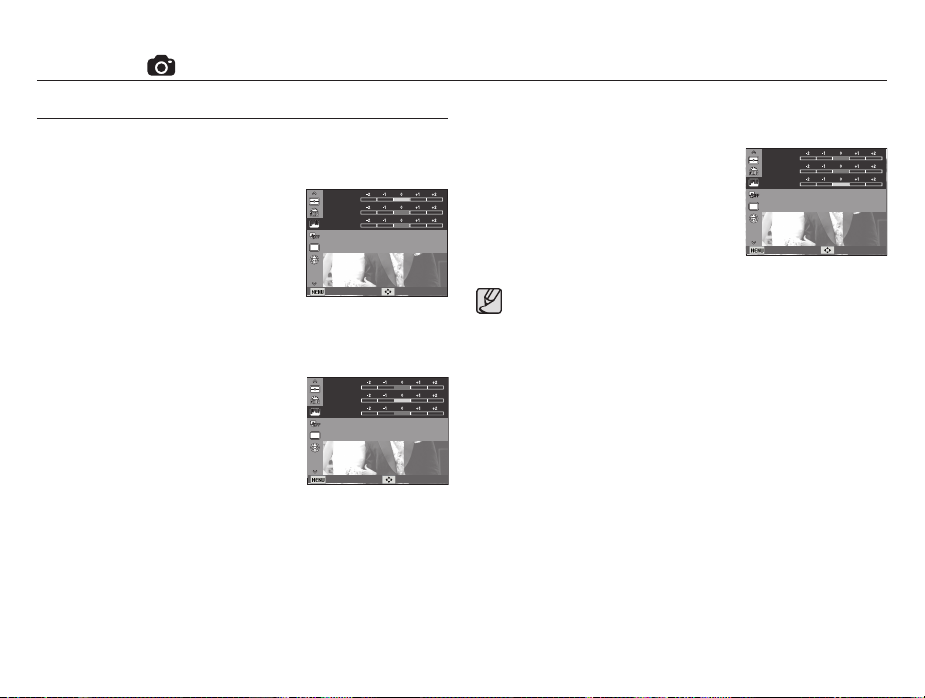

Shooting ( )

Image Adjust

1. Select [Contrast] by pressing the

2. Change the contrast by pressing the

3. Press the Shutter button to take an

1. Select [Sharpness] by pressing the Up/Down button.

2. Change the Sharpness by pressing the Left/Right button.

3. Press the Shutter button to take an image.

Contrast

You can change the contrast of the image.

Up/Down button.

Left/Right button.

image.

Sharpness

You can adjust the sharpness of the picture you are about to take.

You cannot check the sharpness effect

on the LCD monitor before you take a picture, because this function is applied only when the captured image is stored on the memory.

Contrast

Sharpness

Saturation

Contrast

Use normal contrast (default)

Back Move

Contrast

Sharpness

Saturation

Sharpness

Use normal sharpness (default)

Back Move

Saturation

You can change the saturation of the image.

1. Select [Saturation] by pressing the Up/Down button.

2. Change the saturation by pressing the Left/Right button.

Press the Shutter button to take an

image.

When Image Adjust is set, Photo Style Selector function is not

Contrast

Sharpness

Saturation

Use normal color saturation (default)

Back Move

available.

When Saturation is set, Face Detection is not available.

047

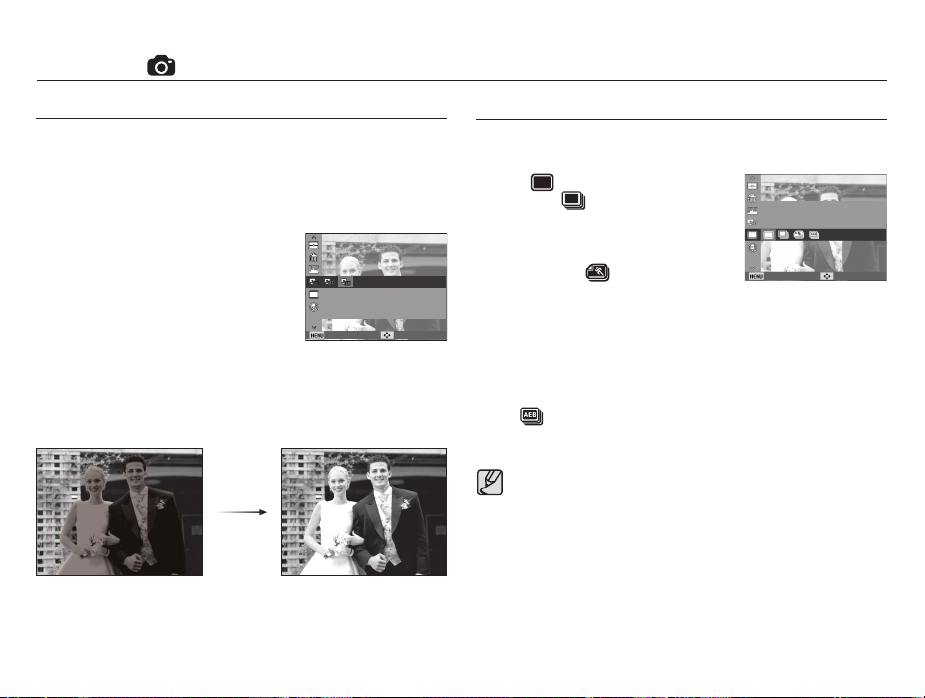

Page 49

Shooting ( )

ACB

This function is to adjust the contrast automatically when taking photos in an environment with big exposure difference i.e. backlight or contrast. This function adjusts the brightness automatically and allows the subject to be photographed clearly.

- [ACB] Sub menus: [Off], [On]

ACB

Auto Contrast Balance automatically compensates for brightness differences.

Back Move

Ä The ACB function is available in [Program], [Portrait] or

[Photo Help Guide] recording mode. ACB function always operates in the [Portrait] recording mode.

048

Drive mode

You can select continuous shot, and AEB (Auto Exposure Bracketing).

[Single] ( ) : Take one picture only. [Continuous] ( ) : Images will be taken

continuously until the shutter button is

released.

[Motion Capture] ( )

: This takes about 6

shots per second, when the shutter is pressed

and held down. After completing the continuous

shooting, images are saved and the images

play back on the Rear LCD. The maximum number of shots is 30 and the image size is xed as VGA.

[AEB] ( ) :

Take three consecutive photos with varying

exposure values. Use this mode if it is hard to

decide exposure of the object.

High resolution and picture quality increases le saving time,

which increases stand-by time. If the [Continuous], [Motion Capture], [AEB] sub menu is

selected, the ash will be off automatically. If less than 3 pictures are available on the memory, the AEB

shooting is not available. If less than 30 pictures are available on the memory, the motion

capture is not available. It is best to use a tripod for the AEB shooting as the time to save

each image le is longer and blurring caused by camera shake may occur.

Set the shooting type. Drive

Back Move

Page 50

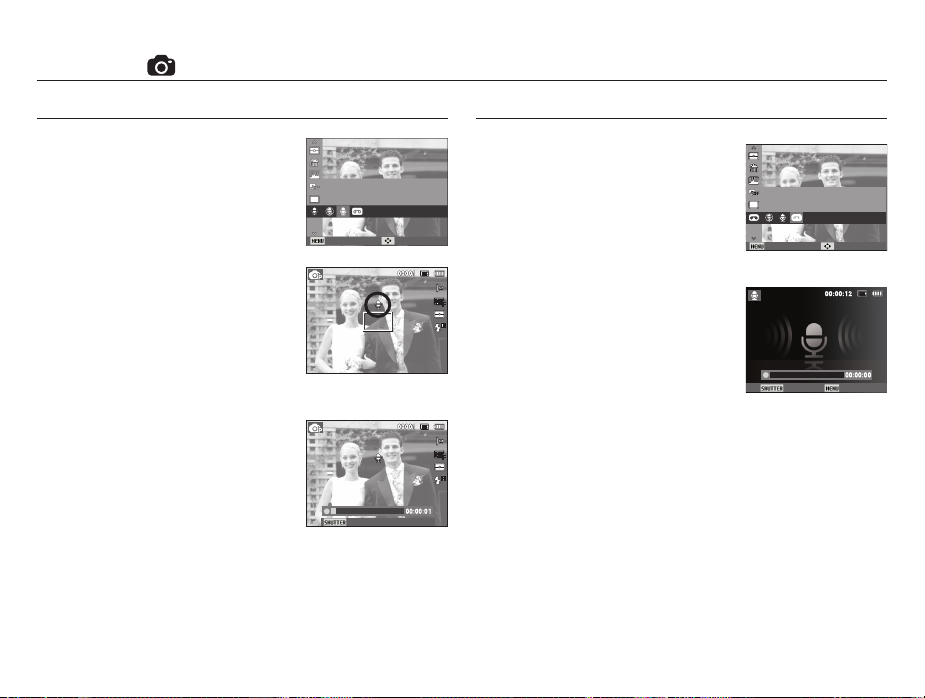

Shooting ( )

Voice Memo

You can add your voice-over to a stored still image. (Max. 10 sec.)

- If the voice memo indicator is displayed on the LCD monitor, the

setting is completed.

- Press the Shutter button and take a

picture. The picture is stored on the

memory card.

- Voice memo will be recorded for ten

seconds from the moment the picture is stored. In the middle of the sound

recording, pressing the shutter button

will stop the voice memo.

Set the voice memo feature. Memo

Back Move

Stop

Voice Recording

A voice can be recorded for as long as the available recording time (Max. 10 hours)

allows.

Press the shutter button to record a voice.

- Press the shutter button once and voice is recorded for as long as the available recording time (Max.10 hours) allows. The recording time will be displayed on the LCD monitor. Voice will still be recorded if the Shutter button is released.

- If you wish to stop recording, press the Shutter button again.

- File type : *.wav

Enable voice recording.

Record

Back Move

Record Exit

[Voice recording mode]

049

Page 51

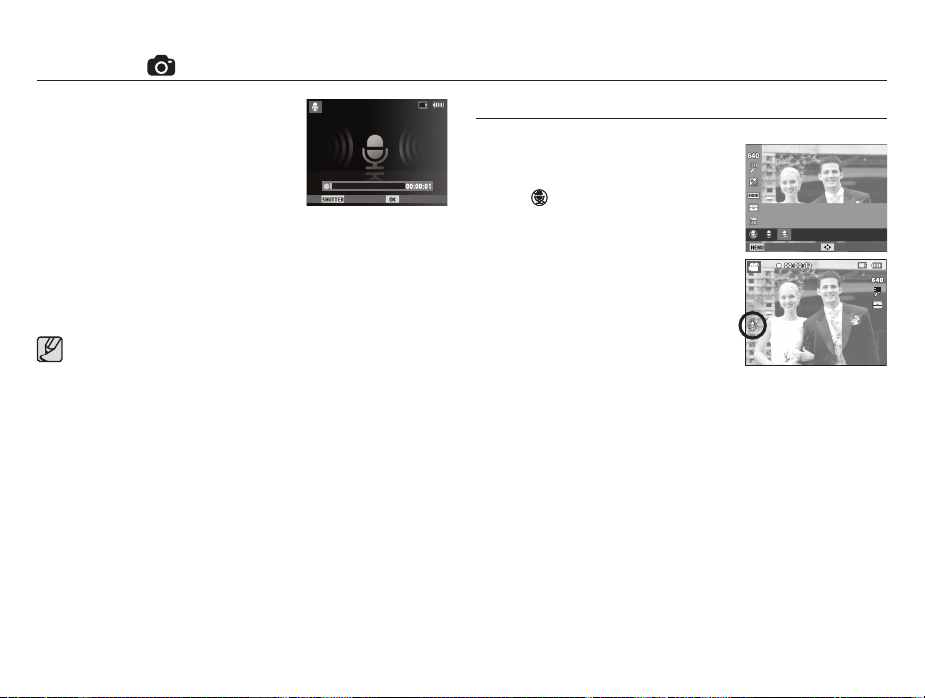

Shooting ( )

Ê Pausing while recording a voice

Using this function, you can record your

favorite voice clips into a voice recording

le without having to create multiple voice recording les.

Press the OK button to pause recording.

Stop Pause

[Voice recording mode]

2. Press the OK button again to resume the recording.

3. If you wish to stop recording, press the Shutter button again.

A distance of 40cm between you and the camera (microphone) is

the best distance to record sound.

If the camera power is turned off while the voice recording is

paused, the voice recording is cancelled.

050

Recording the movie clip without voice

You can record the movie without voice.

Select [Off] of [Voice] menu in the Movie

mode. ( ) icon will appear on the LCD monitor. Press the Shutter button and

a movie will record for as long as the

memory capacity allows without voice.

Record a video without audio. Off

Back Move

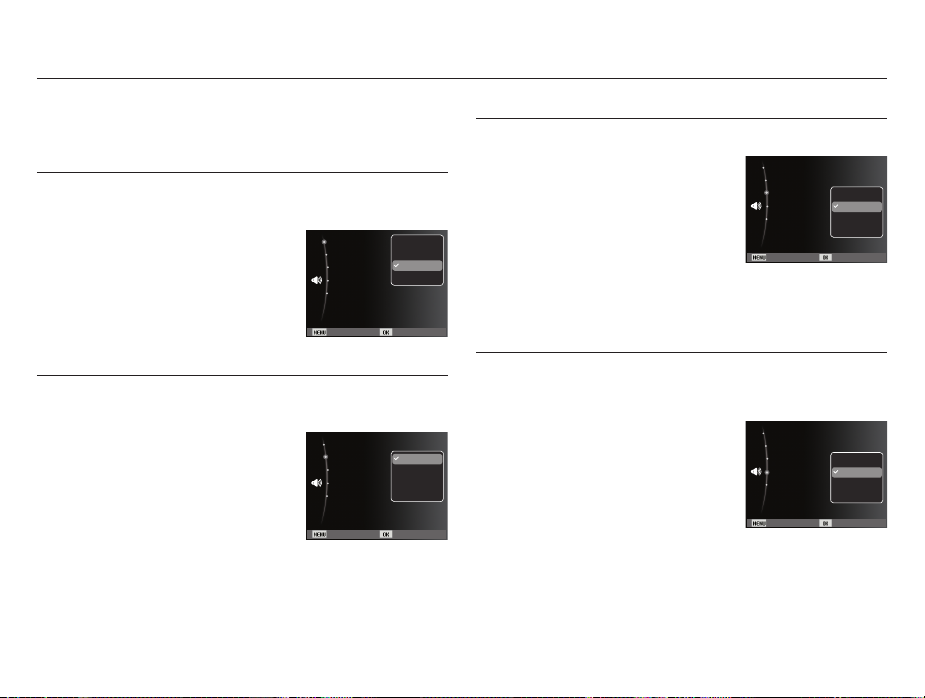

Page 52

Sound ( # )

The items indicated by * are default settings.

Menus are subject to change without prior notice.

Volume

You can select a volume of start up sound, shutter sound, beep sound and AF sound.

- [Volume] sub menus : [Off], [Low], [Medium]*, [High]

Volume :Medium

Start Sound :Off

Shutter Sound :1

Beep Sound :1

AF Sound :On

Off

Low

Medium

High

Shutter sound

You can select the shutter sound.

- Shutter sound : [Off], [1]*, [2], [3]

Volume :Medium

Start Sound :Off

Shutter Sound :1

Beep Sound :1

AF Sound :On

Back Set

Off

Back Set

Start up sound

You can select the sound that is activated whenever the camera is turned on.

- Start up sound : [Off]*, [1], [2], [3]

Volume :Medium

Start Sound :Off

Shutter Sound :1

Beep Sound :1

AF Sound :On

Back Set

Off

Beep sound

If you set sound to ON, a beep will sound when buttons are pressed, letting you know the camera operation status.

[Beep Sound] sub menus : [Off], [1]*, [2], [3]

Volume :Medium

Start Sound :Off

Shutter Sound :1

Beep Sound :1

AF Sound :On

Back Set

Off

051

Page 53

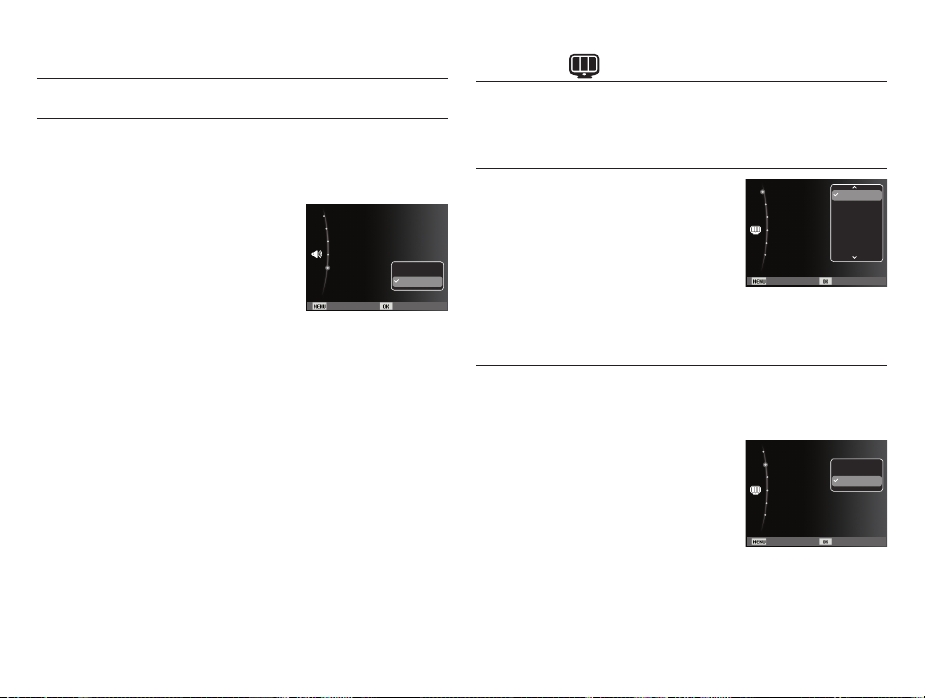

Sound ( # )

AF sound

If you set AF sound to on, AF sound will be activated when the Shutter button is pressed down half way so that you can be aware

of the camera operation status.

- [AF sound] sub menus : [Off], [On]*

Volume :Medium

Start Sound :Off

Shutter Sound :1

Beep Sound :1

AF Sound :On

Back Set

Off

Display ( )

The items indicated by * are default settings.

Menus are subject to change without prior notice.

Language

There is a choice of language that can be displayed on the LCD monitor. Even if the battery is removed and inserted again, the language setting will be preserved.

Function Description

You can select whether the function description can be displayed on

the window in recording mode.

- Function Description sub menus [Off] : The function description

function can’t be activated.

[On]* : The name and description of the

option is displayed.

Language :English

Function Description :On

Start Image :Off

Display Brightness :Auto

Quick View :0.5sec

Power Save :Off

Back Set

Language :English

Function Description :On

Start Image :Off

Display Brightness :Auto

Quick View :0.5sec

Power Save :Off

Back Set

English

한국어

Français

Deutsch

Español

Italiano

Off

052

Page 54

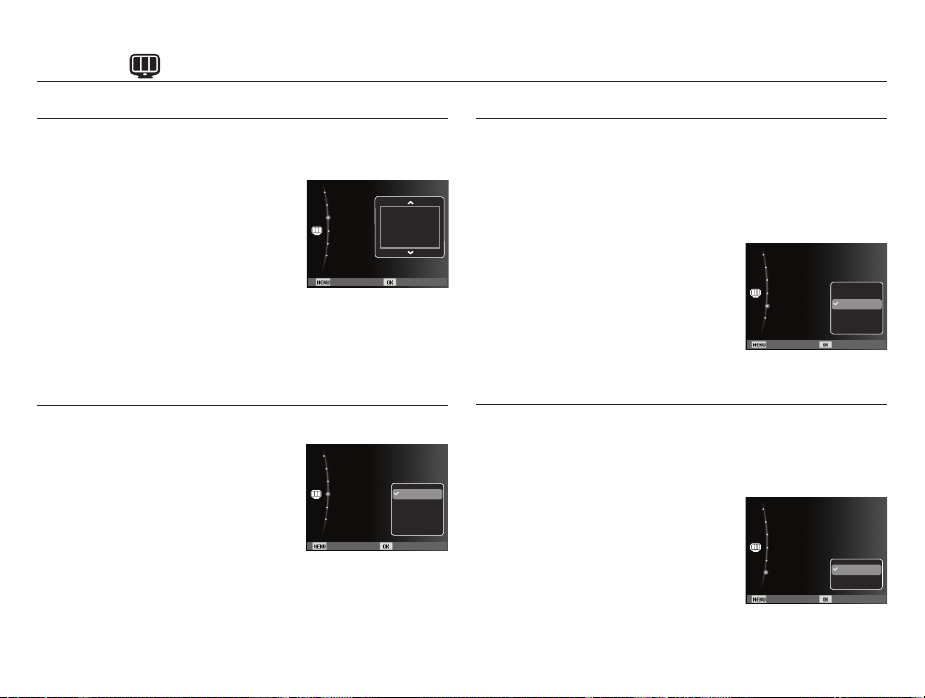

Display ( )

Start up image

You can select the image that is rst displayed on the LCD monitor

whenever the camera is turned on.

- Sub menus : [Off]*, [Logo], [User Image]

- Use a saved image for the start-up image with the [Start Image] in the [Resize] menu in the play mode.

- The start-up image will not be deleted by [Delete] or [Format] menu.

- The user images will be deleted by [Reset]

Language :English

Function Description :On

Start Image :Off

Display Brightness :Auto

Quick View :0.5sec

Power Save :Off

Back Set

OFF

menu.

Display Brightness

You can adjust the LCD brightness.

- Sub menus : [Auto]*, [Dark],

[Normal], [Bright]

Language :English

Function Description :On

Start Image :Off

Display Brightness :Auto

Quick View :0.5sec

Power Save :Off

Back Set

Auto

Dark

Normal

Bright

Quick View

If you enable Quick View before capturing an image, you can view the image you just captured on the LCD monitor for the duration set in the [Quick View] setup. Quick view is possible only with still

images.

- Sub menus [Off] : The quick view function can’t

be activated.

[0.5 sec]*, [1 sec], [3 sec]

: The captured image is briey

displayed during the selected

time.

Language :English

Function Description :On

Start Image :Off

Display Brightness :Auto

Quick View :0.5sec

Power Save :Off

Back Set

Off

0.5sec

1sec

3sec

Display Save

If you set the [Power Save] to On and the camera isn't operated during the specied time, the LCD monitor will be turned off automatically.

- Sub menus

[Off]*: The LCD monitor will not be turned

off.

[On] :

If the camera isn't operated during the specied time (about 30 SEC.), the camera power will be idle (Camera status lamp:Blinking) automatically.

Ä You can’t set the [Power Save] menu of Playback Mode.

Language :English

Function Description :On

Start Image :Off

Display Brightness :Auto

Quick View :0.5sec

Power Save :Off

Back Set

Off

053

Page 55

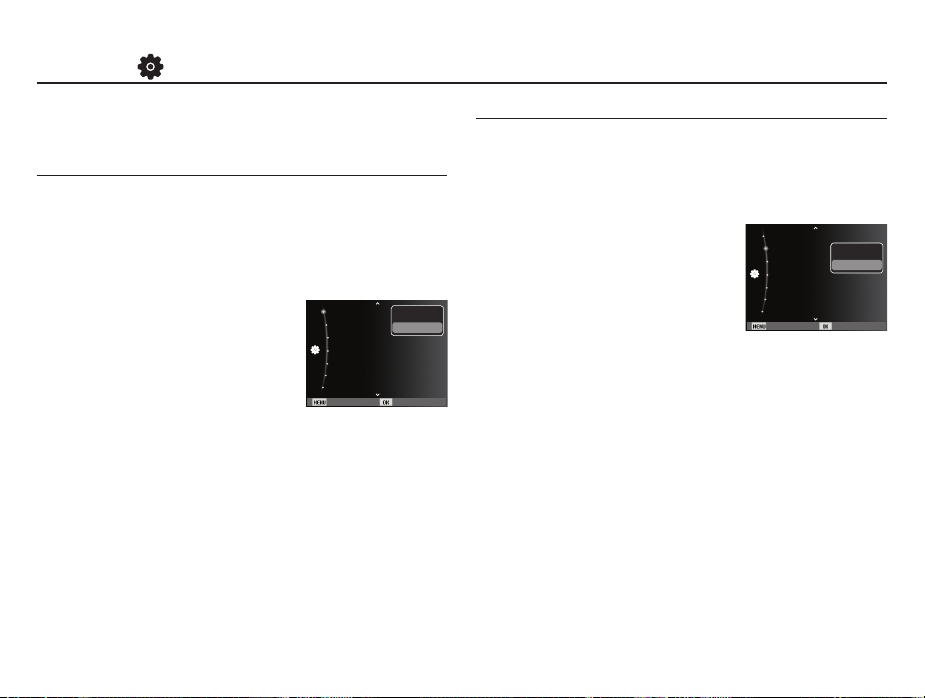

Settings ( )

The items indicated by * are default settings.

Menus are subject to change without prior notice.

Formatting the memory

This is used for formatting the memory. If you run [Format] on the memory, all images, including the protected images will be deleted. Be sure to download important images to your PC before formatting the memory.

- Sub menus [Yes] : A window for conrming the

selection displays. Select the [Yes] menu. A [Formatting]

message appears and the

memory will be formatted. A [Format is completed] message appears and formatting is nished.

[No]* : The memory will not be formatted.

Be sure to run [Format] on the following types of memory card.

- A new memory card or an unformatted memory card.

- A memory card that has a le this camera can't recognize or one that has been taken from another camera.

- Always format the memory card using this camera. If you insert a memory card that has been formatted using other cameras, memory card readers or PCs you will get a [Card Error]

message.

Format

Reset

Date & Time :

Time Zone :London

File No. :Series

Imprint :Off

Auto Power Off :3 min

Back Set

Yes

10/01/01

Initialization

All camera menu and function settings will be restored to their default values. However, values for Date & Time, Language and Video Out will not be changed.

- Sub menus [Yes] : A window to conrm the

selection will be displayed. Select the [Yes] menu and all settings will be restored

to their defaults.

[No]* : Settings will not be restored to

their defaults.

Format

Reset

Date & Time :Off

Time Zone :London

File No. :Series

Imprint :Off

Auto Power Off :3 min

Back Set

Yes

054

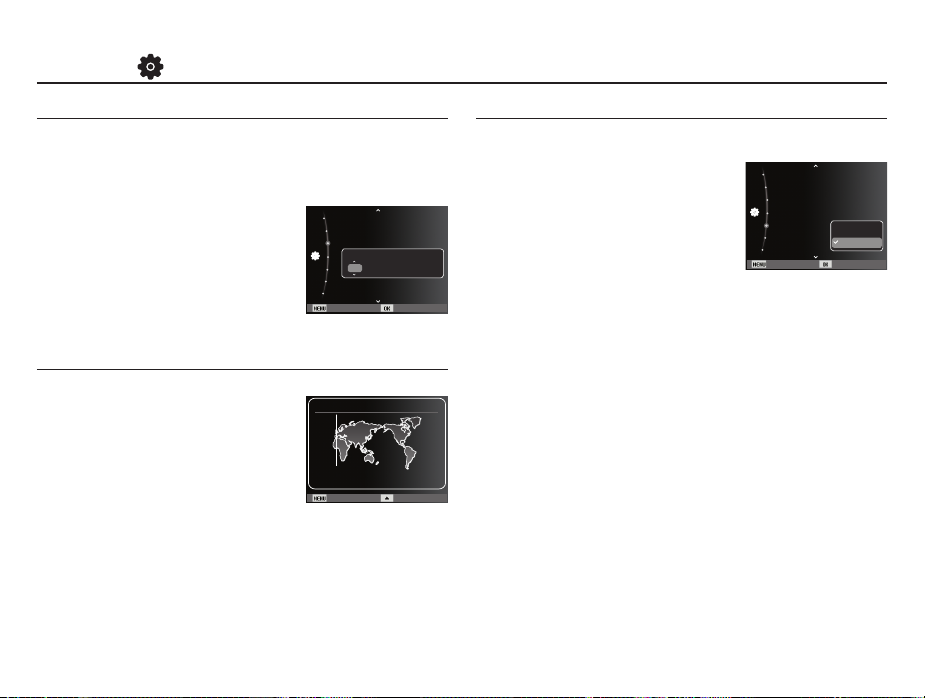

Page 56

Settings ( )

Setting up the Date / Time / Date type

You can change the date and time that will be displayed on the captured images and set up the date type. Setting [Time Zone] enables you to display the local date and time on the LCD monitor

when travelling overseas.

Date type : [yyyy/mm/dd], [mm/dd/yyyy],

[dd/mm/yyyy], [Off]*

Format

Reset

Date & Time :

yyyy mm dd

Time Zone :London

2010 / 01 / 01 12:00 Off

File No. :Series

Imprint :Off

Auto Power Off :3 min

Back Set

10/01/01

Time Zone

Available cities:

London, Cape Verde, Mid-Atlantic, Buenos Aires, Sao Paulo, Newfoundland, Caracas, La Paz, NewYork, Miami, Chicago, Dallas, Denver, Phoenix, LA, San Francisco, Alaska, Honolulu, Hawaii, Samoa, Midway, Wellington, Auckland, Okhotsk, Guam, Sydney, Darwin, Adelaide, Seoul, Tokyo, Beijing, Hong Kong, Bankok, Jakarta, Yangon, Almaty, Kathmandu, Mumbai, New Delhi, Tashkent, Kabul, Abu Dhabi, Teheran, Moscow, Athens, Helsinki, Rome,

Paris, Berlin

DST : Daylight Saving Time

Time Zone

London

[GMT +00:00] 2010/01/01 12:00 PM

Back DST

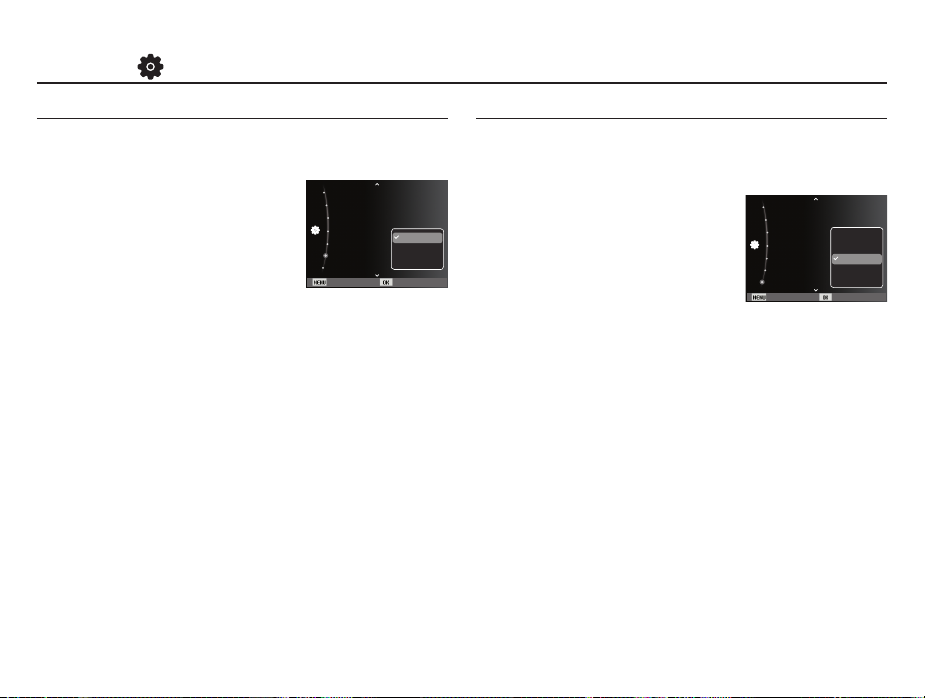

File name

This function allows the user to select the le naming format.

[Reset] : After using the reset function,

the next le name will be set from 0001 even after formatting,

deleting all or inserting a new

memory card.

[Series]*

: New les are named using num-

bers that follow the previous sequence, even when a new memory card is used, or after formatting, or after deleting

all pictures.

- The rst stored folder name is 100PHOTO, and the rst le name

is SAM_0001.

- File names are assigned sequentially from SAM_0001 Ã

SAM_0002 Ã ~ Ã SAM_9999.

- The folder number is assigned sequentially from 100 to 999 as

follows: 100PHOTO Ã 101PHOTO Ã ~ Ã 999PHOTO.

- Maximum numbers of les in a folder are 9999.

- The les used with the memory card conform to the DCF (Design

rule for Camera File systems) format. If you change the image le name, the image may not play back.

Format

Reset

Date & Time :

Time Zone :London

File No. :Series

Imprint :Off

Auto Power Off :3 min

Back Set

Reset

Series

10/01/01

055

Page 57

Settings ( )

Imprinting the recording date

There is an option to include Date&Time on still images.

- Sub menus [Off]* : The Date&Time will not

be imprinted on the image le.

[Date] : Only the Date will be

imprinted on the image

le.

[Date & Time] : The Date&Time will be

imprinted on the image le.

The Date & Time are imprinted at the bottom right side of the still

image.

The imprint function is applied only to still images.

Depending on the manufacturer and print mode, the date printed

on an image may not be printed correctly.

056

Format

Reset

Date & Time :

Time Zone :London

File No. :Series

Imprint :Off

Auto Power Off :3 min

Back Set

10/01/01

Off

Date

Date & Time

Auto power off

This function switches the camera off after a set amount of time in

order to prevent unnecessary battery drainage.

- Sub menus [Off] : The power off function will not

operate.

[1 min], [3 min]*, [5 min], [10 min]

: The power will turn off

automatically if not used for the period of time specied.

After replacing the battery, the power off setting will be preserved.

- Note that the automatic power off function will not operate if the

camera is in the PC / Printer mode, slide show, playing back a voice recording and playing back a movie clip.

Format

Reset

Date & Time :Off

Time Zone :London

File No. :Series

Imprint :Off

Auto Power Off :3 min

Back Set

Off

1 min

3 min

5 min

10 min

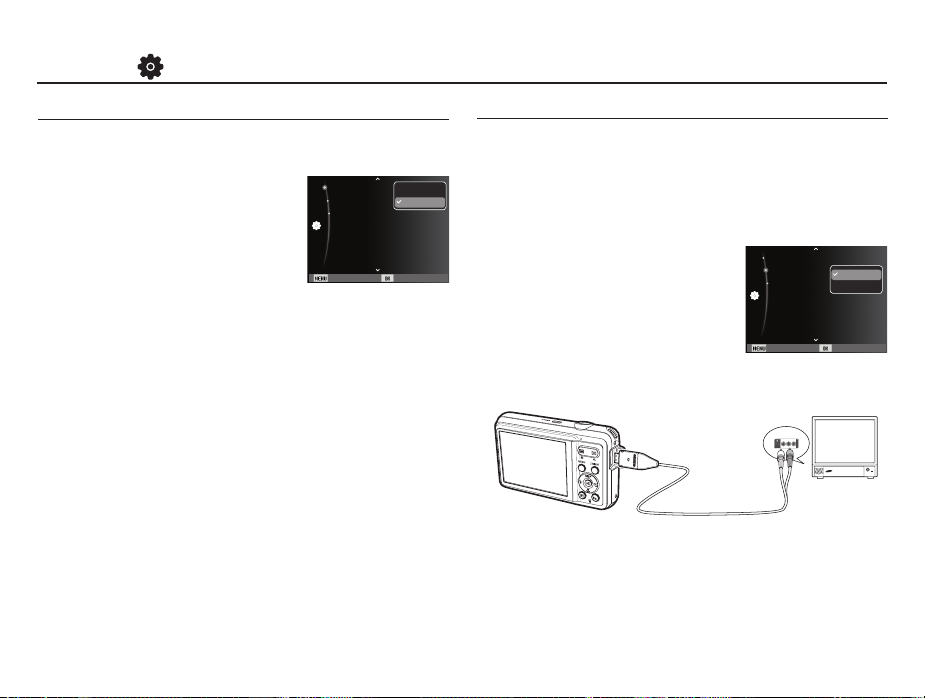

Page 58

Settings ( )

Auto Focus lamp

You can turn on and off the Auto Focus lamp.

- Sub menus [Off] : The AF lamp will not light up in

low light conditions.

[On]*

: The AF lamp will light up in low

light conditions.

AF Lamp :NTSC

Video Out :On

USB :Auto

Back Set

Off

Selecting Video out type

The Video output signal from the camera can be NTSC or PAL. Your choice of output will be governed by the type of device (monitor or TV, etc.) to which the camera is connected. PAL mode can support only BDGHI.

Connecting to an external monitor

When the camera is connected to an external monitor, the image and menus

on the LCD monitor will be visible on the

external monitor.

Yellow - Video White - Sound

AF Lamp :On

Video Out :On

USB :Auto

Back Set

PAL

NTSC

057

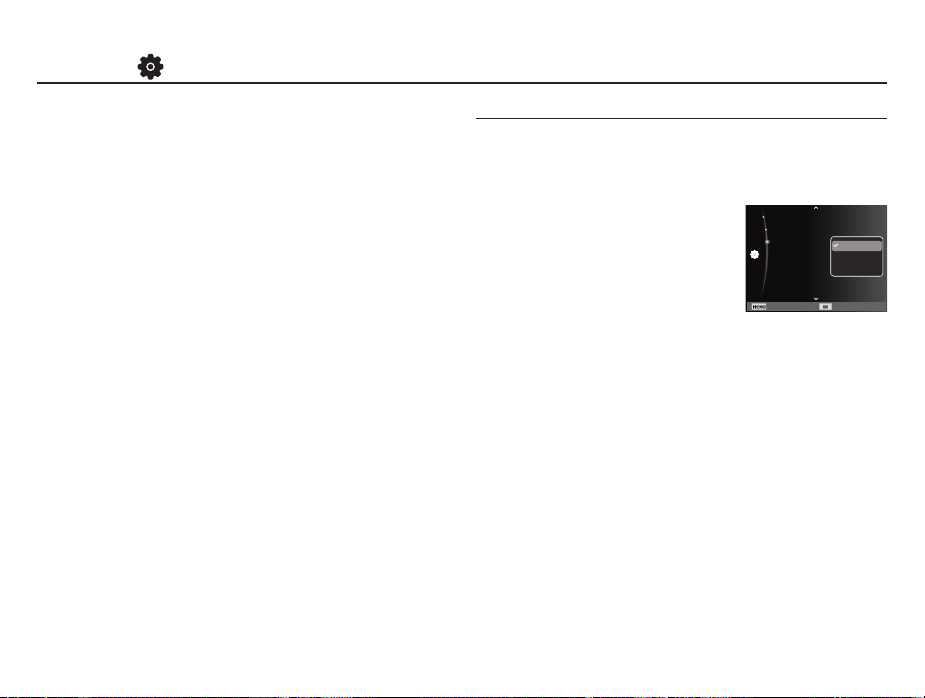

Page 59

Settings ( )

- NTSC : U.S.A, Canada, Japan, South Korea, Taiwan, Mexico etc.

- PAL : Australia, Austria, Belgium, China, Denmark, Finland, Germany, U.K., Holland, Italy, Kuwait, Malaysia, New Zealand, Singapore, Spain, Sweden, Switzerland, Thailand, Norway etc.

- When using a TV as an external monitor, you will need to select the

external or AV channel of the TV.

- There will be digital noise on the external monitor, but it is not a

malfunction.

- If the image is not in the center of the screen, use the TV controls

to center it.

- When the camera is connected to an external monitor, some parts

of the image may not be displayed.

- When the camera is connected to an external monitor, the menu

will be visible on the external monitor and the menu functions are the same as those indicated on the LCD monitor.

058

Setting the USB

If the camera fails to automatically connect with a PC or a printer using a USB cable, you can manually set [Computer] or [Printer].

- [USB] sub menus: [Auto]* : Automatically enables an

external device connected with

a USB cable.

[Computer] : Sets computer connection

mode if the connected external

device cannot be recognized automatically.

[Printer] : Sets printer connection mode if the connected external

device cannot be recognized automatically.

AF Lamp :On

Video Out :NTSC

USB :Auto

Back Set

Auto

Computer

Printer

Page 60

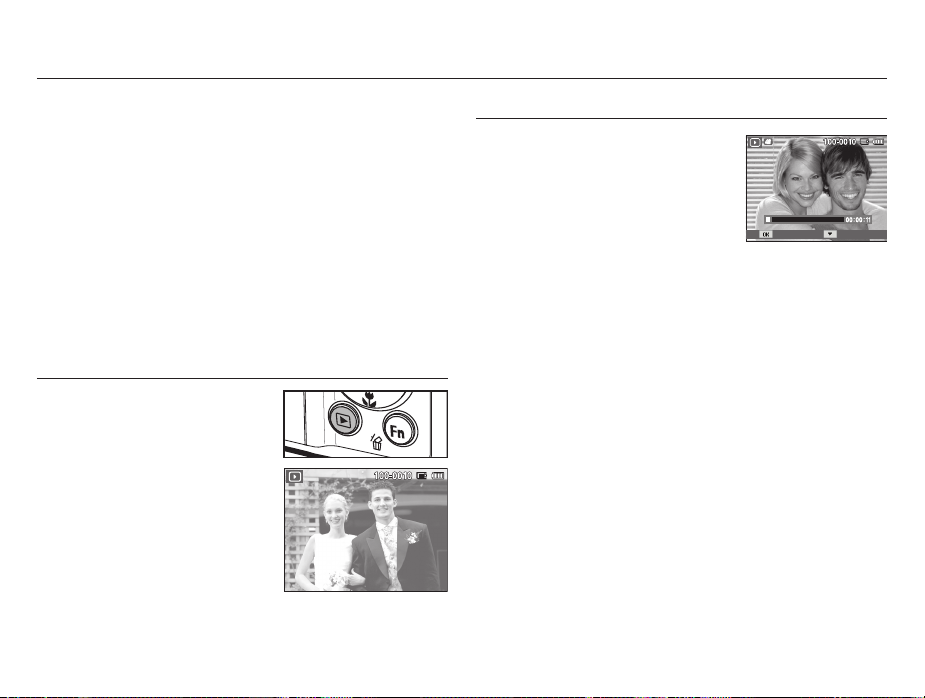

Starting play mode

Turn the camera on and select Play mode by pressing the play mode button ( g ). The camera can now play back the images stored on the memory. If the memory card is inserted in the camera, all the camera functions apply only to the memory card. If the memory card is not inserted in the camera, all the camera functions apply only to the internal memory.

Manner mode

To select the Manner mode, press the Play mode button for more than 5 seconds. In the Manner mode, Operating sound, Effect sound, Start-up sound and Shutter sound will not be generated. To cancel the Manner mode turn on the camera by pressing the POWER button.

Playing back a still image

1. Select the Play mode by pressing the play mode button ( g ).

2. The last image stored on the memory is displayed on the LCD

monitor.

3. Select an image that you want to view by pressing the Left / Right button.

Press and hold the Left or Right

button to play back the images quickly.

Playing back a movie clip

1. Select the recorded movie clip that you want to play back by using the Left / Right button.

2. Press the OK button to play back a movie

clip file.

- To pause a movie clip file while playing it back, press the OK button again.

- Pressing the OK button again will cause the movie clip file to

restart.

To rewind the movie clip while it is playing, press the Left button.

To fast forward the movie clip, press the Right button.

- To stop playback of the movie clip, press the OK button, and

then press the Left or Right button.

Play Capture

059

Page 61

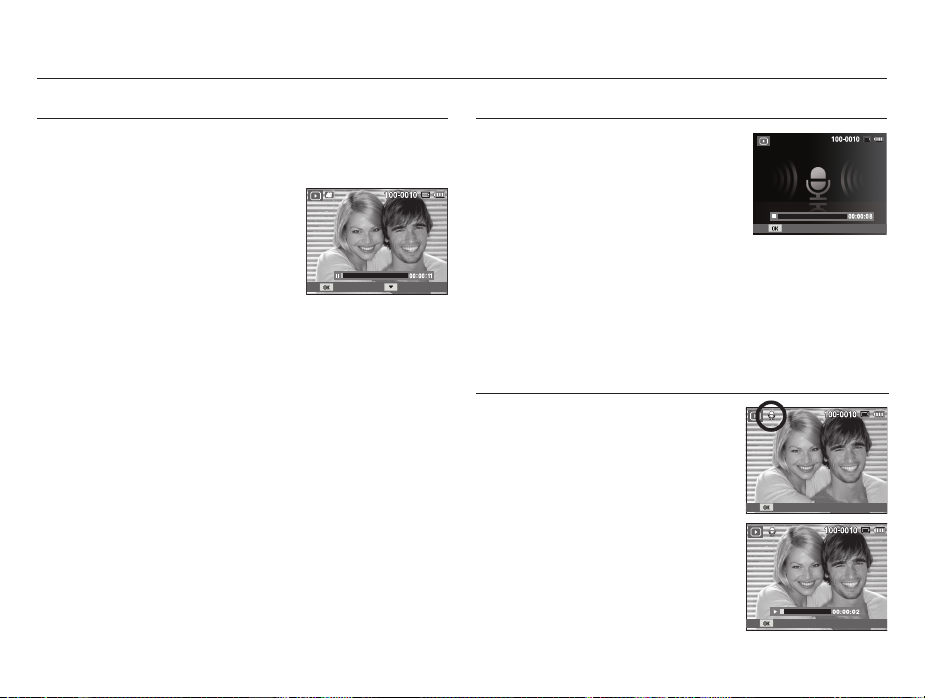

Starting play mode

Movie clip capture function

You can capture still images from the movie clip.

How to capture the movie clip

1. Press the OK button while playing the movie clip. Then press the Down button.

2. The paused movie clip is saved as a

new file name.

The captured movie clip file is the

same size as the original movie clip (640x480, 320x240).

When you press the down button at

the beginning of the movie clip, the first frame of the movie clip will be

saved as a still image.

060

Play Capture

[Paused]

Playing back a recorded voice

1. Select the recorded voice that you want to play back by using the Left / Right button.

2. Press the OK button to play back a

recorded voice file.

- To pause a recorded voice file, while

Play

playing it back, press the OK button again.

- To resume playback of the voice file, press the OK button.

- To rewind the voice file while it is playing, press the Left button. To fast forward the voice file, press the Right button.

- To stop playback of the voice memo, press the Down button.

Playing back a voice memo

1. Select a still image that has the voice

memo.

2. Press the OK button to play back the

voice memo.

- To pause the voice memo, while playing it back, press the OK button

again.

- To resume playback of the voice memo, press the OK button.

Play

Pause

Page 62

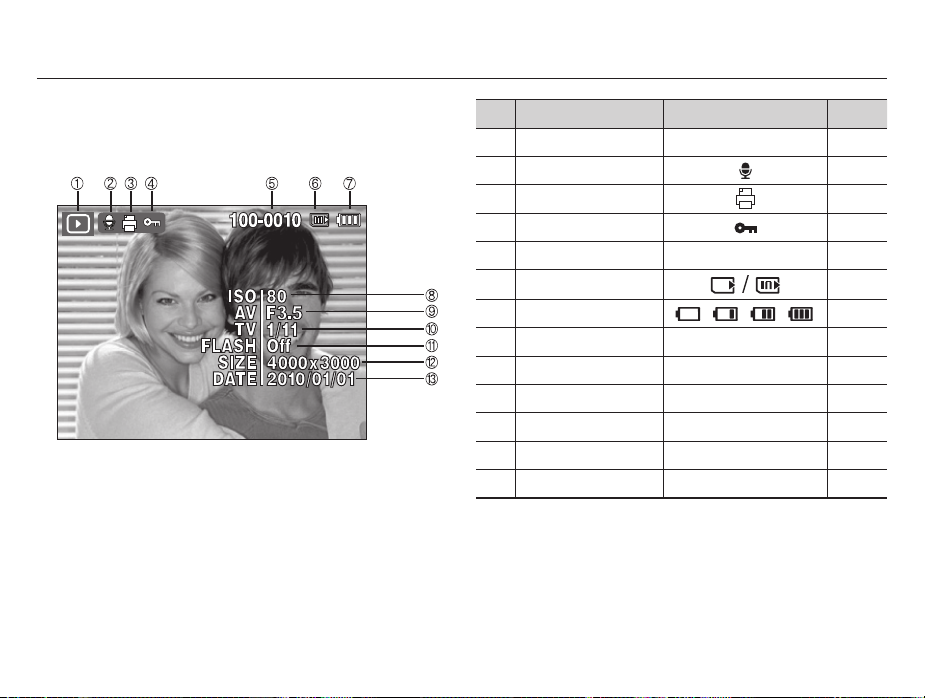

LCD monitor Indicator

The LCD monitor displays shooting information about the displayed

image.

No. Description Icon Page

1 Playback mode

2 Voice Memo p.75

3 DPOF p.76

4 Protect p.74

5 Folder name & File name 100-0010 p.55

6 Memory indicator -

7 Battery p.15

8 ISO 80~1600 p.41

9 Aperture value F3.5 ~ F15 -

10 Shutter speed 8 ~ 1/2,000 -

11 Flash On/Off p.34

12 Photo Size / Movie Size 4000x3000 ~ 320x240 p.39

13 Recording date 2010/01/01 p.55

p.59

061

Page 63

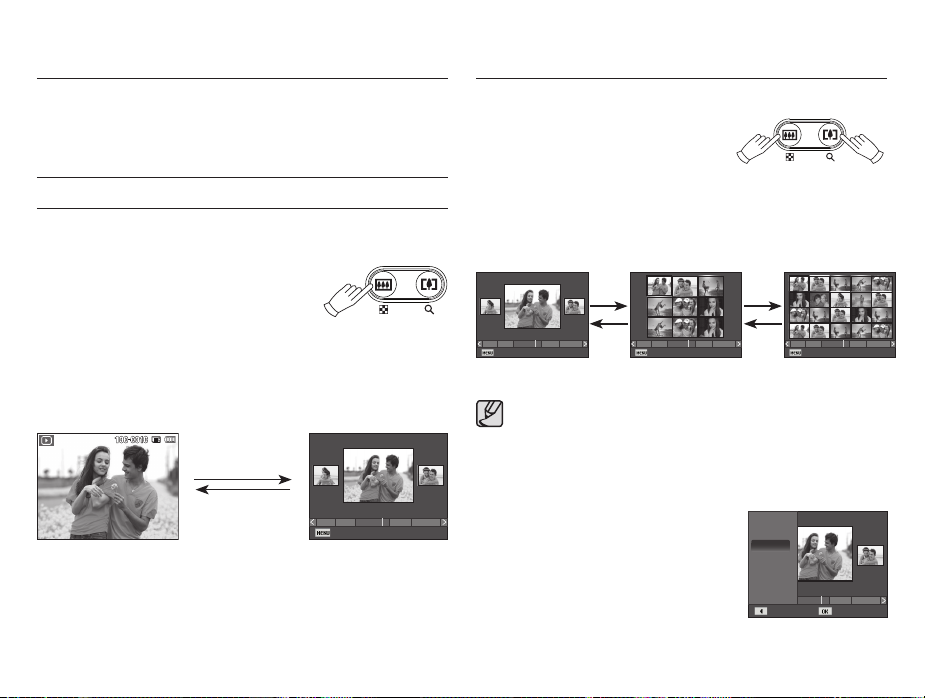

Using the camera buttons to set the camera

Thumbnail ( º ) / Enlargement ( † ) button

In Play mode, you can use the buttons on the camera to conveniently

set up the Play mode functions.

Thumbnail ( º ) / Enlargement ( † ) button

Smart Album

You can view multiple pictures, enlarge a selected picture, and crop and save a selected area of an image.

1. Once a picture has been played back, press the Thumbnail button to run Smart Album mode.

2. Press the Left / Right button to move to a

desired image.

3. Press the Digital Zoom button to return to the normal display mode.

Pressing the thumbnail

button ( º )

[Highlighted image]

062

Pressing the enlargement

button ( † )

[Smart Album 3-Thumbnail Window]

Filter

1 31211 5

2009.01.01

2010.01.01

Searching or Deleting Files

1. Press the Thumbnail button in Smart Album.

2. Each time you press the Thumbnail button, the files in a category are displayed in Smart Album screen.

3. Select the file by pressing the Up / Down / Left / Right buttons.

4. Press the Delete(n) button to delete the selected file.

º º

Filter

1 31211 5

2010.01.01

†

Filter

1 31211 5

2010.01.01

†

2010.01.01

Filter

[9-Thumbnail Window] [20-Thumbnail Window][3-Thumbnail Window]

When Smart Album feature runs or a category is selected, it

may take few seconds depends on recorded data volume. However, it is not a malfunction please wait until Smart Album

screen appears.

Smart Album Filter

1. Press the MENU button in Smart Album mode.

2. Selecting the desired category enables to categorize and search the files by using the Up / Down button.

Type

✔

Date

Color

Week

Back Set

1 31211 5

Page 64

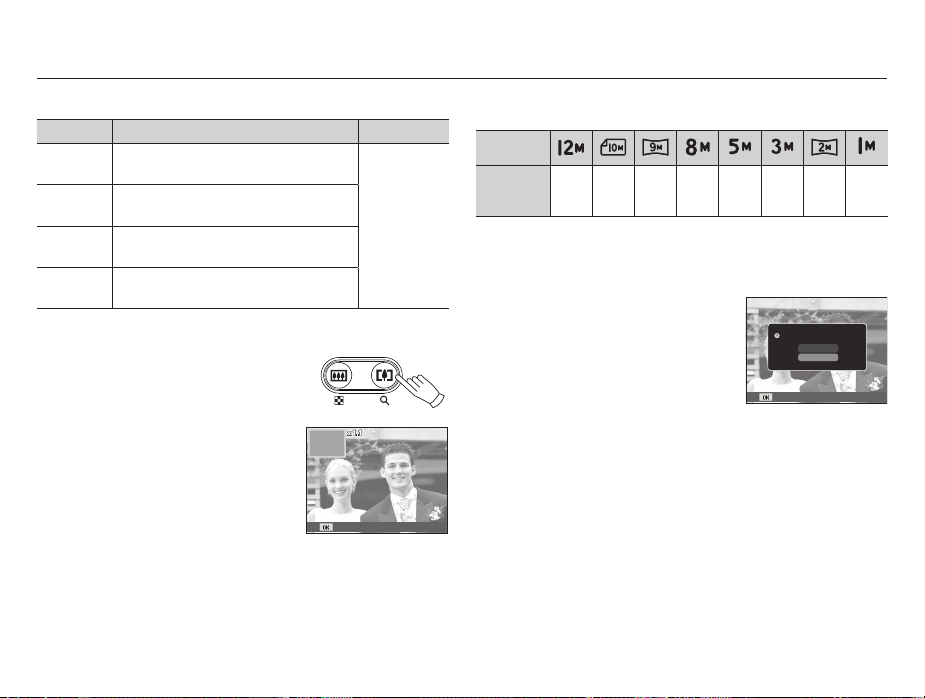

Thumbnail ( º ) / Enlargement ( † ) button

Details of Each Category

Category Description File Format

Categorized depending on the le type

Type

(e.g., picture, video, or voice)

Categorized depending on the sequence

Date

of recorded dates.

Categorized depending on the main

Color

color.

Categorized depending on the sequence

Week

of recorded weeks.

Image enlargement

1. Select an image that you want to enlarge and press the enlargement button.

2. Different parts of the image can be viewed by pressing the 5 function button.

3. Pressing the thumbnail button will zoom back to the original full sized image.

- You can tell whether the image displayed is an enlarged view by

checking the image enlargement indicator shown at the top left of the

LCD monitor. (If the image is not an

enlarged view, the indicator will not be displayed.) You can also check the area of enlargement.

- Movie clips and WAV files can’t be enlarged.

- If an image is enlarged, a loss of quality may occur.

Pictures,

Videos, Voice

Trim

The maximum enlargement rate in proportion to the image size

Image size

Maximum

enlarge-

ment rate

Trimming : You can extract part of the image that you want and

X12.5 X10.4 X10.0 X10.2 X8.0 X6.4 X5.0 X3.2

save it separately.

Select an image that you want to

enlarge and press the enlargement

button. Press the OK button and a message will be displayed.

Trimming?

Yes

2. Select a desired sub menu by pressing the Up / Down button and press the OK button.

Confirm

- [Yes] : The trimmed image will be saved as a new file name, and appear on the LCD monitor.

- [No] : The trimming menu will disappear.

Ä If there is not enough memory space to save the trimmed

image, the image can’t be trimmed.

063

Page 65

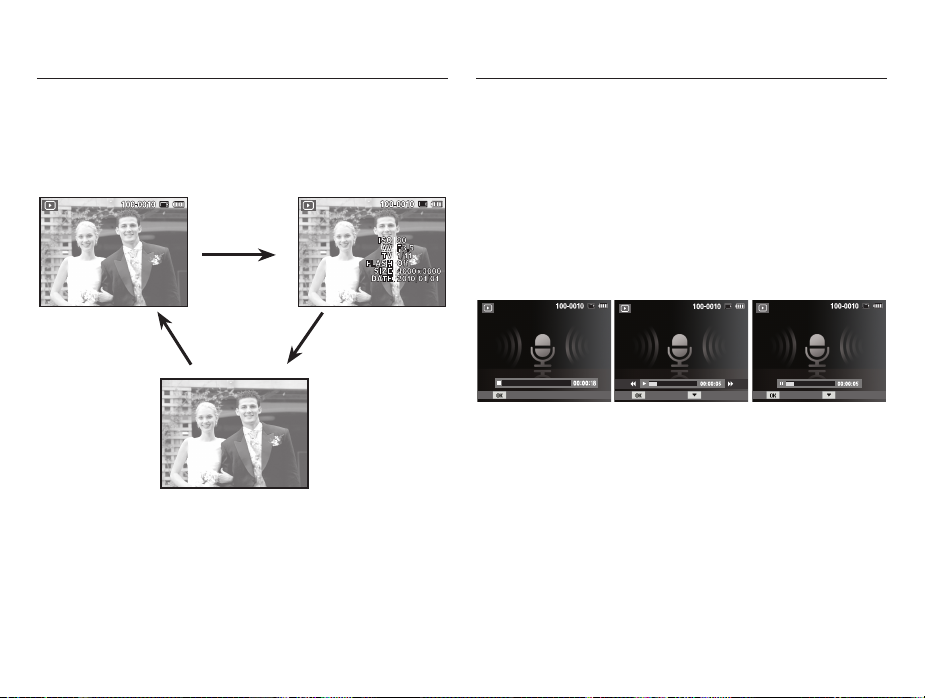

Info (DISP) / Up button

Play & Pause / OK button

When the menu is displayed on the LCD monitor, the Up button operates as a direction button. When the menu is not displayed on the LCD monitor, pressing the Info button will display image information on the LCD monitor.

Info (DISP) button

Info (DISP) buttonInfo (DISP) button

064

In Play mode, the play & pause / OK button works as follows:

When the menu is displayed on the LCD monitor, the OK button

- is used for confirming data that is changed by using the 5 function button.

- If a still image with a voice memo, a voice file or a movie clip is playing

·In Stop mode : Plays a still image with a voice memo, a voice

file or a movie clip.

·During playback : Temporarily stops playback.

·In Pause mode : Resumes playback

Play

[ Voice recording is stopped ] [ Voice recording is playing ] [ Voice recording is paused ]

Pause Stop

Play Stop

Page 66

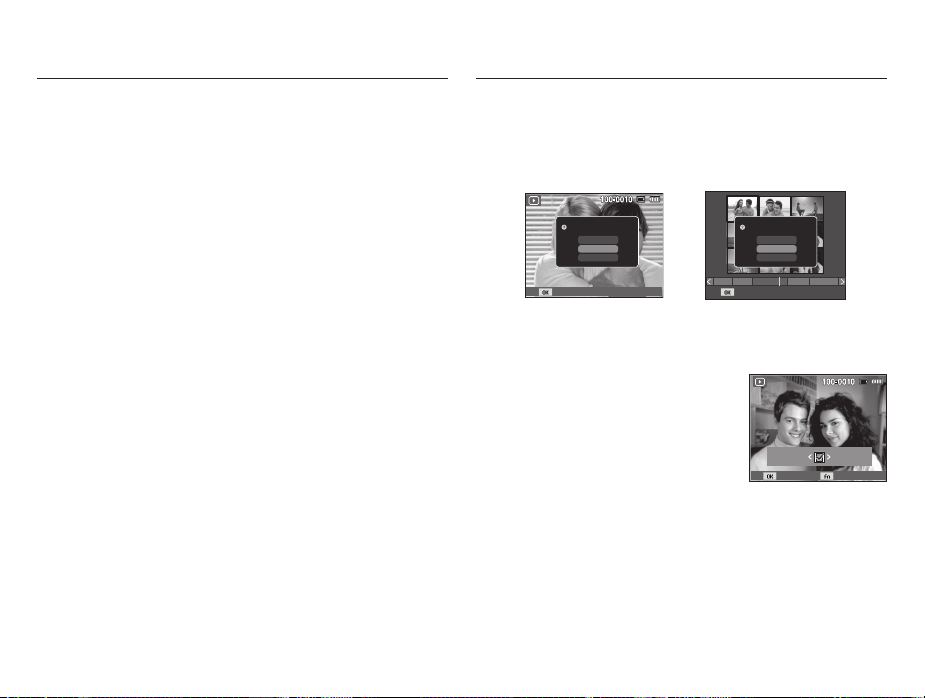

Left / Right / Down / MENU button

Delete

( n )

button

Left / Right / Down / MENU buttons activate the following.

- Left button : While the menu is showing, the Left button operates as a direction button. While the menu is not showing, press the Left button to select the

previous image.

- Right button : While the menu is showing, the Right button operates as a direction button. While the menu is not showing, press the Right button to select the

next image.

- Down button :

While the menu is showing, the Down button operates as a direction button.

- MENU button :

When you press the MENU button, the play mode menu will be displayed on the LCD monitor. Pressing it again will return the LCD to the initial display.

This deletes images stored on the memory.

1. Select an image that you want to delete by pressing the Left / Right button and press the Delete ( n ) button.

Delete File?

Yes

Multiple Delete

Set

[Single Image] [Thumbnail Image]

Delete File?

Set

Yes

Multiple Delete

1 31211 5

2. To add images to delete, select the [Multiple Delete] menu.

- Left / Right button : Selects images

- OK button :

checks for deletion

- Fn button : deletes the

selected images.

Prev Next

Select Delete

3. Select the submenu values by pressing the Up / Down button and then press the OK button.

- If [Yes] is selected : deletes the selected images.

- If [No] is selected : cancels "Delete Image".

065

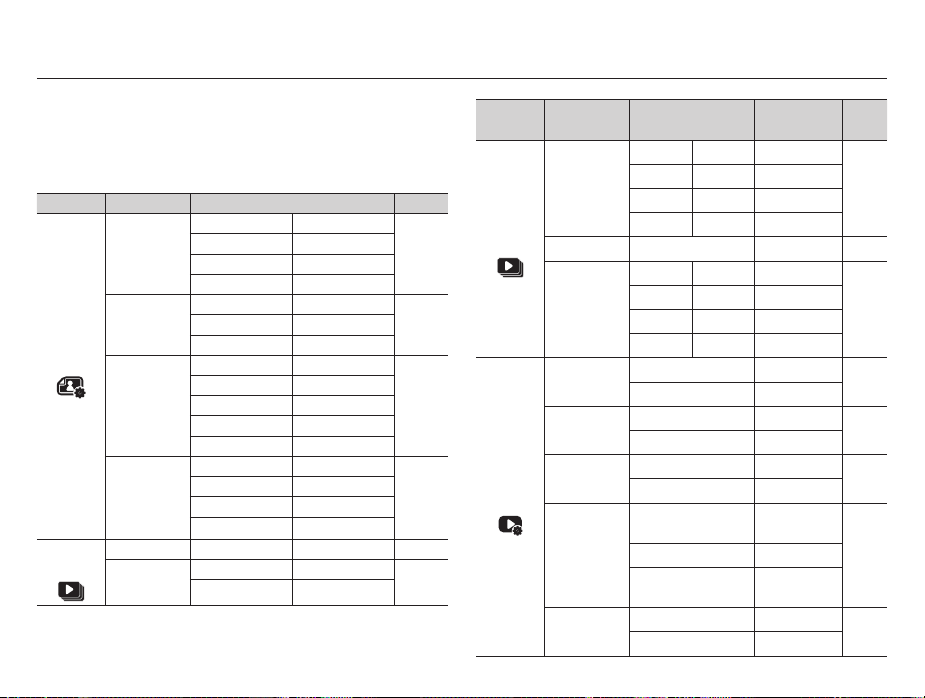

Page 67

Setting up the play back function using the LCD monitor

Play mode functions can be changed by using the LCD monitor. In the Play mode, pressing the MENU button displays the menu on the LCD monitor. The menus you can set up in Play mode are as follows. To capture an image after setting up the play menu, press the Play mode button or shutter button.

Menu Tab Main Menu Sub Menu Page

2560x1920 2048x1536

1024X768 2592X1728 1776X1184 2560X1440 1920X1080 Start Image

Right 90˚ Left 90˚

Vertical Normal Soft

Vivid Forest

Retro Cool Calm Classic

Negative Custom RGB

Off ACB

Red-eye Fix Face Retouch

Brightness Contrast

Saturation Add Noise

All Date

Select -

p.68

p.69180˚ Horizontal

p.69

p.70

p.72

Edit

( )

Multi Slide

Show

( )

Resize

Rotate

Photo Style

Selector

Image Adjust

Start Play / Repeat - p.72

Images

066

Menu Tab Main Menu Sub Menu

Off Calm -

Sweet Rural -

Vivid Lively -

Shine Relax -

Off Mist -

Muse Fall -

Dawn Party -

Drops Trip -

Select -

All Yes / No

Select -

All Unlock / Lock

Off -

On -

Standard

Index Yes / No

Size

Yes

Multi Slide

Show

( )

File

Options

( )

Effect

Interval 1, 3, 5, 10 sec - p.73

Music

Delete

Protect

Voice memo

DPOF

Copy to Card

Secondary

Select / All /

Reset

Select / All /

Reset

Page

p.73

p.74

p.75

p.76

p.77

p.78

Page 68

Setting up the play back function using the LCD monitor

This menu is available while the camera is connected to a PictBridge supporting printer (direct connection to the camera, sold separately) with a USB cable.

Menu Tab Main Menu Sub Menu Secondary Menu Page

Images

Size

Layout

One Photo -

All Photos -

Auto -

PostCard -

Card -

4X6 -

L -

2L -

Letter -

A4 -

A3 -

Auto -

Full -

1 -

2 -

4 -

8 -

9 -

16 -

Index -

p.80

Menu Tab Main Menu Sub Menu Secondary Menu Page

Auto -

Type

Quality

Date

File Name

Reset

Menus are subject to change without prior notice.

Plain -

Photo -

Fast Photo -

Auto -

Draft -

Normal -

Fine -

Auto -

Off -

On -

Auto -

Off -

On -

Yes -

No -

p.80

p.81

067

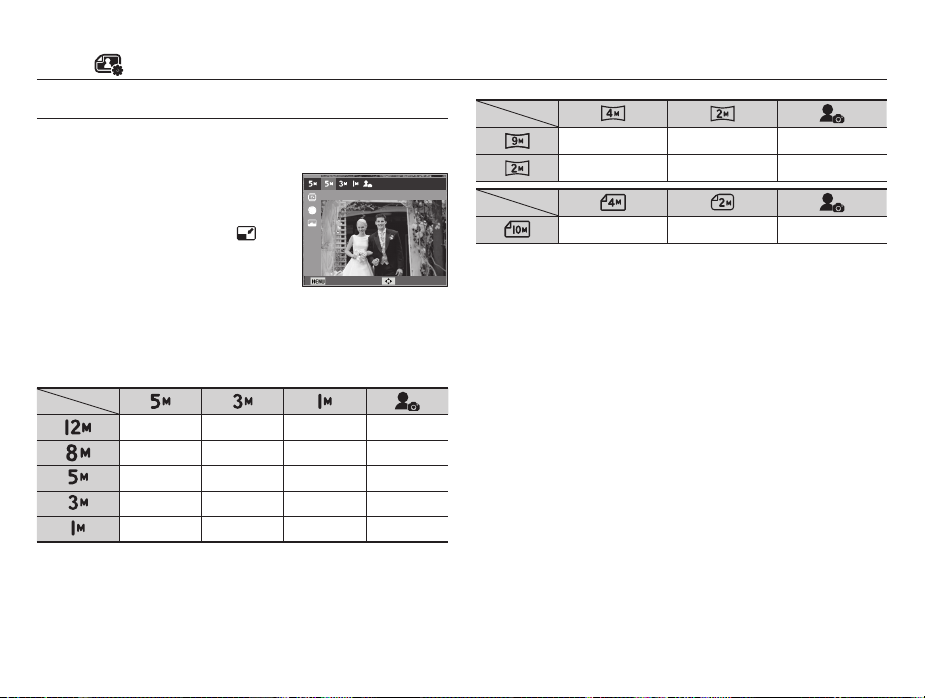

Page 69

Edit ( )

Resize

Change the resolution (size) of pictures taken. Select [Start image] to save an image to be the start-up image.

1. Press the play mode button and press the MENU button.

Click the Up / Down button from the Edit menu to select [Resize] ( ) menu tab and press the OK button.

3. Select a desired sub menu by pressing the Left / Right button and press the OK button.

Image Resize Types ( o : Selectable)

o o o o

o o o

Resize

Back Move

o o

o o o

- A large sized image can be resized to a smaller sized image, but not vice versa.

- Only JPEG images can be resized. Movie clip (AVI), Voice

recording (WAV) files can’t be resized.

- You can change the resolution of only those files compressed in

the JPEG 4:2:2 format.

- The resized image will have a new file name.

The [Start Image] image is stored not on the memory card but on the internal memory.

- If a new user image is saved, the original user image will be

deleted.

- If the memory capacity is insufficient to store the resized image,

a [Memory Full] message will appear on the LCD monitor and the resized image can't be stored.

068

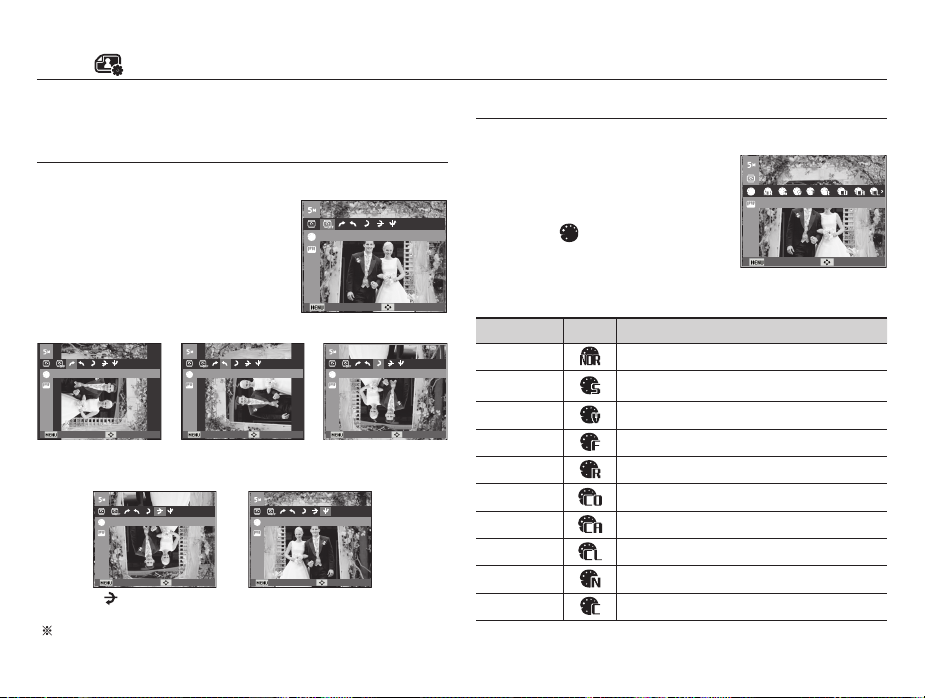

Page 70

Edit ( )

After using [Edit] feature, the edited image will be saved as a smaller size than the original image. (Only with image size from 8M)

Rotating an image

Photo Style Selector

It is possible to add various effects to your images by using this function.

You can rotate the stored images by various degrees.

1. Press the play mode button and press the MENU button.

Click the Up / Down button from the

Rotate

Edit menu to select [Rotate] ( ‹ ) menu tab and press the OK button.

3. Select a desired sub menu by pressing the Left / Right button and press the

Back Move

OK button.

Right 90˚

Back Move

[ ¢ : Right 90˚] : Rotate picture in a

clock-wise direction

[ : Horizontal] : Rotate picture horizontally

Left 90˚

Back Move

[ ¡ : Left 90˚] :

Rotate picture in a

counter-clock-wise direction

VerticalHorizontal

Back MoveBack Move

[ ® : Vertical]

: Rotate picture vertically

If you display the rotated image on the LCD monitor, empty

spaces may appear to the left and right of the image.

180˚

Back Move

[ £ : 180˚] : Rotate picture 180

degrees

4. The changed image is saved as a new file name.

1. Press the play mode button and press the MENU button.

Click the Up / Down button from the Edit menu to select [Photo Style Selector] ( ) menu tab and press the OK button.

3. Select a desired sub menu by pressing the Left / Right button and press the OK button.

Style mode Icon Description

Normal No style effect is applied.

Soft Soft style is applied.

Vivid Vivid style is applied.

Forest Forest style is applied.

Retro Sepia style is applied.

Cool Cool style is applied.

Calm Calm style is applied.

Classic Black & white effect is applied.

Negative Negative effect is applied.

Custom RGB

Dene an RGB tone to create your own photo style.

Photo Style Selector

Back Move

069

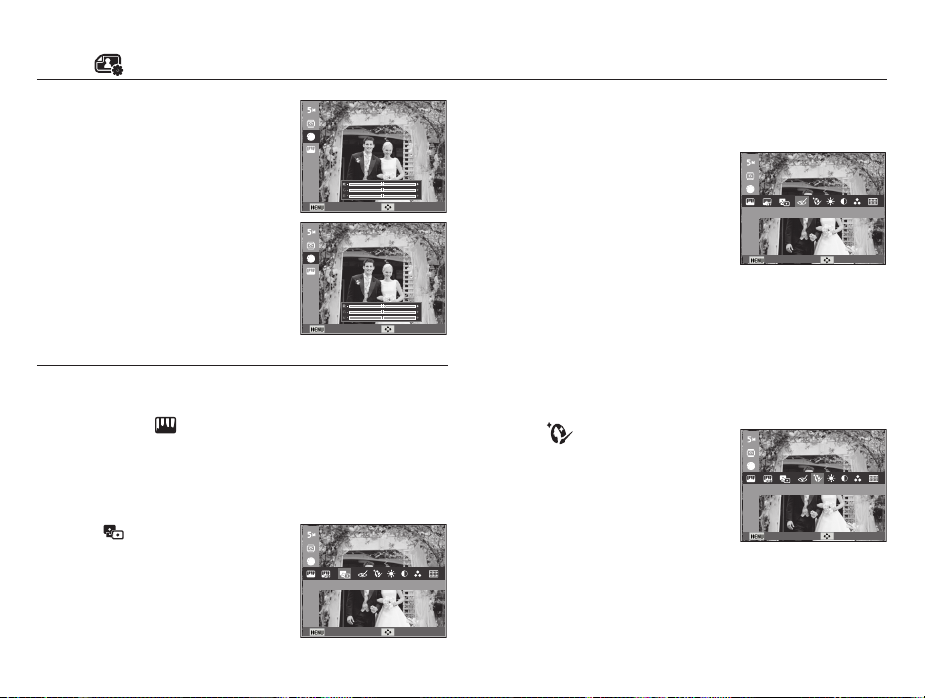

Page 71

Edit ( )

Custom RGB

You can change the R (Red), G (Green) and B (Blue) values of the

image.

- OK button : Select / setup the Custom

Color

Back Move

- Up / Down button : Selects R, G, B

- Left / Right button : Change the values

Back Move

Image Adjust

1. Press the play back button and press the MENU button.

2. Click the Up / Down button from the Edit menu to select [Image Adjust] ( ) menu tab and press the OK button.

ACB

You can automatically adjust the brightness of the dark area, caused by under exposure to the light source.

1. Select ( ) by pressing the Left / Right button and press the OK button.

2. The [Making New Image] message is displayed and the image is saved as a

new file name.

070

ACB

Back Move

Red eye Removal

Red eye effect can be removed from the captured image.

1. Select ( < ) by pressing the Left / Right button and press the OK button.

2. The [Making New Image] message is displayed and the image is saved as a

Red-eye Fix

new file name.

Back Move

Face Retouch

You can make the skin in an image appear clear and beautiful.

1. Select ( ) by pressing the Left / Right button and press the OK button. Then a bar for selecting the face retouch will be displayed.

Face Retouch

2. Change the face retouch by pressing the Left / Right button.

3. Press the OK button and the image will

Back Move

be saved as a new file name.

Page 72

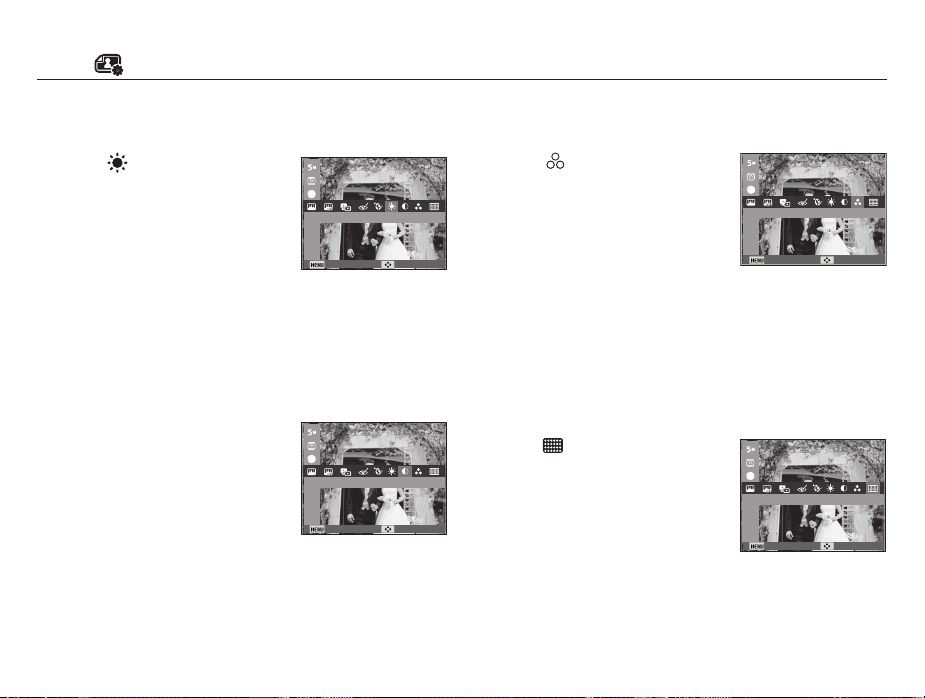

Edit ( )

Brightness control

You can change the brightness of the image.

1. Select ( ) by pressing the Left / Right button and press the OK button. Then a bar for selecting the brightness will be displayed.

2. Change the brightness by pressing the Left / Right button.

3. Press the OK button and the image will be saved as a new file name.

Contrast control

You can change the contrast of the image.

1. Select ( @ ) by pressing the Left / Right button and press the OK button. Then a bar for selecting the contrast will be displayed.

2. Change the contrast by pressing the Left / Right button.

3. Press the OK button and the image will be saved as a new file name.

Brightness

Back Move

Contrast

Back Move

Saturation control

You can change the saturation of the image.

1. Select ( ) by pressing the Left / Right button and press the OK button. Then a bar for selecting the saturation will be displayed.

Saturation

2. Change the saturation by pressing the Left / Right button.

3. Press the OK button and the image

Back Move

will be saved as a new file name.

Noise effect

You can add noise to an image to add a more classic feel to your

photo.

1. Select ( ) by pressing the Left / Right button and press the OK button.

2. The [Making New Image] message is displayed and the image is saved as

Add Noise

a new file name.

Back Move

071

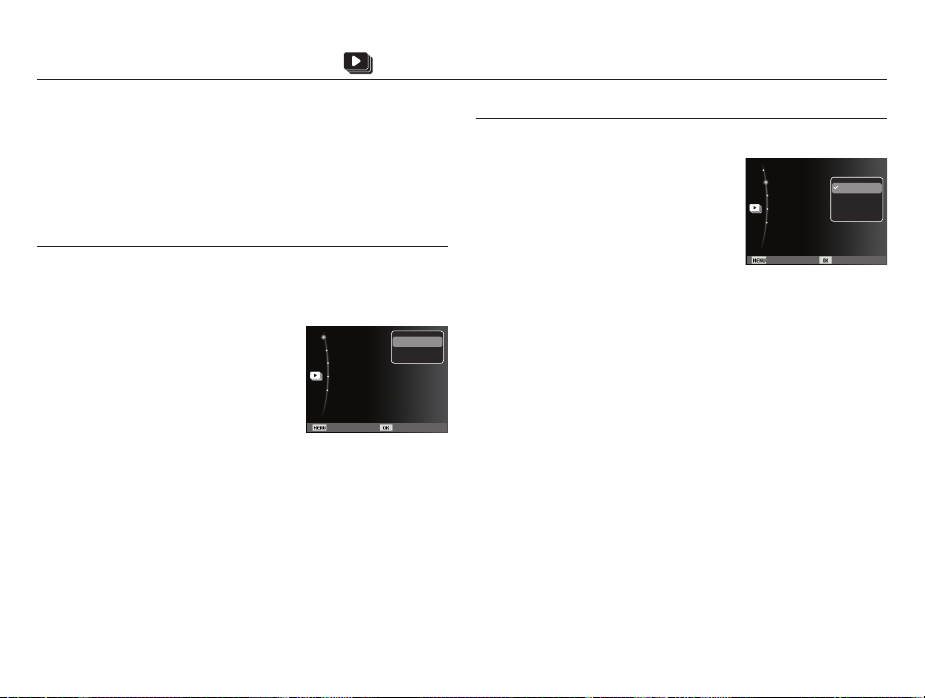

Page 73

Starting the Multi Slide Show

( )

Images can be displayed continuously at preset intervals. You can view the Multi Slide Show by connecting the camera to an

external monitor.

1. Press the play mode button and press the MENU button.

2. Press the Up / Down button and select the [Multi Slide Show] menu tab and press the OK button.

Start the Multi Slide Show

The Multi Slide Show can start only in the [Start] menu.

1. Use the Up / Down button to select the [Start] menu and press the Right button.

2. Select a desired sub menu by pressing the Up / Down button.

[Play] : The Multi Slide Show is

closed after one cycle.

[Repeat] : The Slide show is repeated

until cancelled.

3. Press the OK button and the slide show will be started.

- To pause the slide show while playing it back, press the OK button again.

- Pressing the OK button again will cause the Multi Slide Show

restart.

- To stop playback of the Multi Slide Show, press the OK button, and then press the Left or Right button.

072

Start

Images :All

Effect :Off

Interval :1 sec

Music :Off

Back Set

Play

Repeat

Selecting Images

You can select image to view

1. Use the Up / Down button to select the [Images] menu and press the Right button.

2. Select a desired sub menu by pressing the Up / Down button.

[All] : All images saved on the

memory are played back. Press the OK button and the settings are saved.

[Date] : Images taken in a specified date are played back.

Press the OK button and the settings are saved.

[Select] :

Play only the selected images. If you press the

Down

button, you can select the desired images to play back. The selected image can be saved as [Select1], [Select2] and [Select3]. If you save the selected image with the [New Select] command, it will be saved as [Select1]. But when a new image is saved again using [New Select], the former image which had been saved as [Select1] will be saved as [Select2] automatically.

You can change and cancel the images which were

saved as [Select1], [Select2] and [Select3]. Fn button and the settings are saved.

3. Select [Play] or [Repeat] in the [Start] menu to start the multi slide

show.

Start

Images :All

Effect :Off

Interval :1 sec

Music :Off

Back Set

All

Date

Select

Up /

Press the

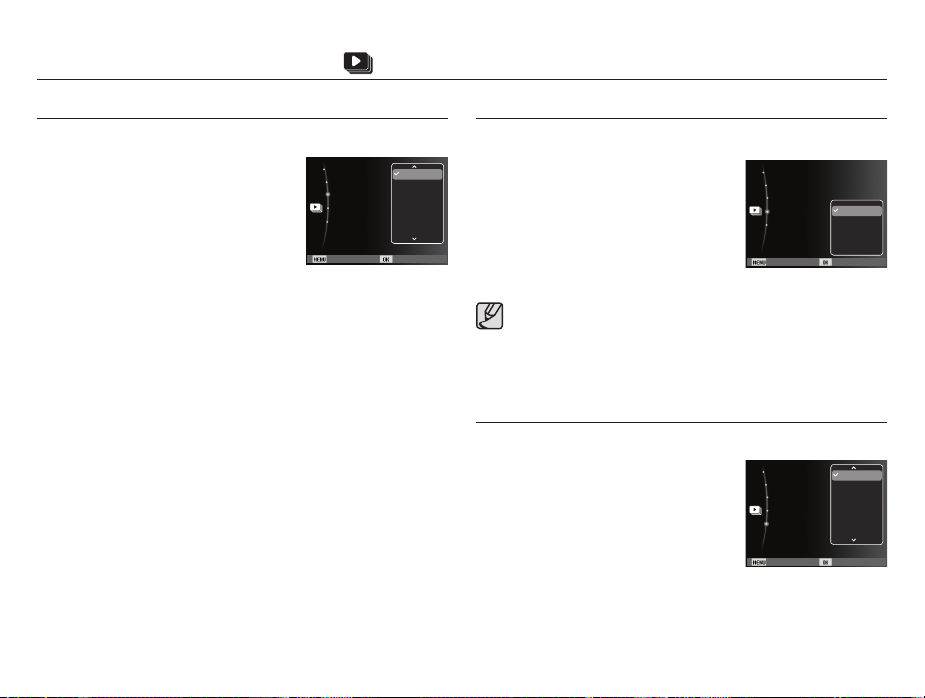

Page 74

Starting the Multi Slide Show

( )

Congure Multi Slide show effects

Unique screen effects can be used for the Multi Slide Show.

Select the [Effect] sub menu by pressing the Up / Down button and press the Right button.

2. Use the Up / Down button to select the type of effect.

3. Press the OK button to confirm the

setting.

Start

Images :All

Effect :Off

Interval :1 sec

Music :Off

Back Set

Off

Calm

Sweet

Rural

Vivid

Lively

Setting play interval

Set the Multi Slide Show play interval.

1. Select the [Interval] sub menu by pressing the Up / Down button and press the Right button.

2. Use the Up / Down button to select

the desired interval.

3. Press the OK button to save the configuration.

The loading time depends on the image size and quality.

While the Multi Slide Show is playing, the Movie clips and voice

recording files will not display. The interval menu functions only when the Effect is set to [Off].

Start

Images :All

Effect :Off

Interval :1 sec

Music :Off

Back Set

Setting Background Music

Set the Multi Slide Show music.

1. Select the [Music] sub menu by pressing the Up / Down button and press the Right button.

2. Use the Up / Down button to select the

desired Music.

3. Press the OK button to save the

configuration.

Start

Images :All

Effect :Off

Interval :1 sec

Music :Off

Back Set

1 sec

3 sec

10 sec

Off

Mist

Muse

Fall

Dawn

Party

sec

073

Page 75

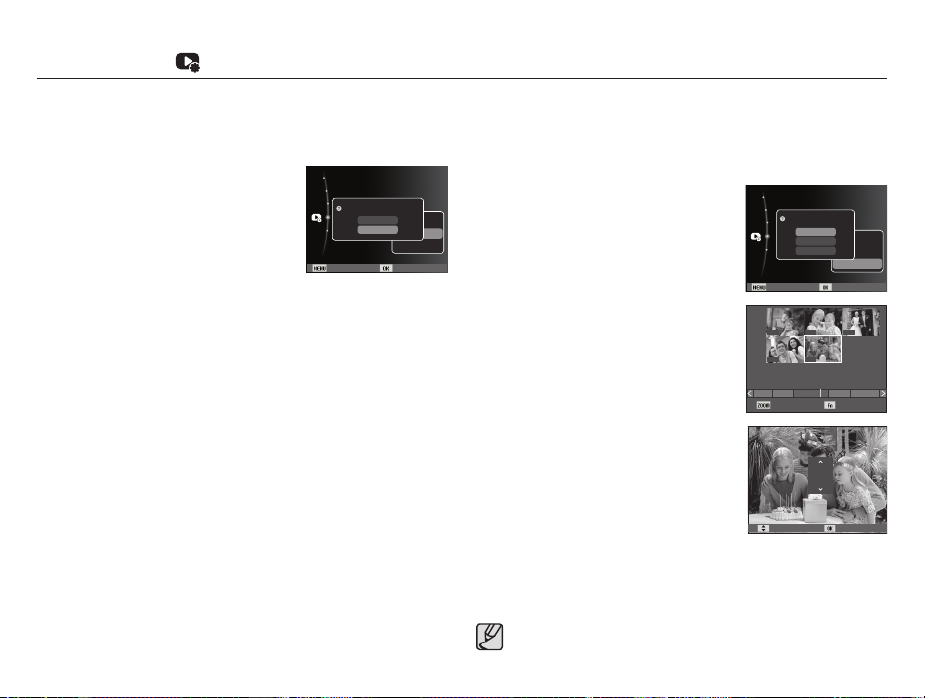

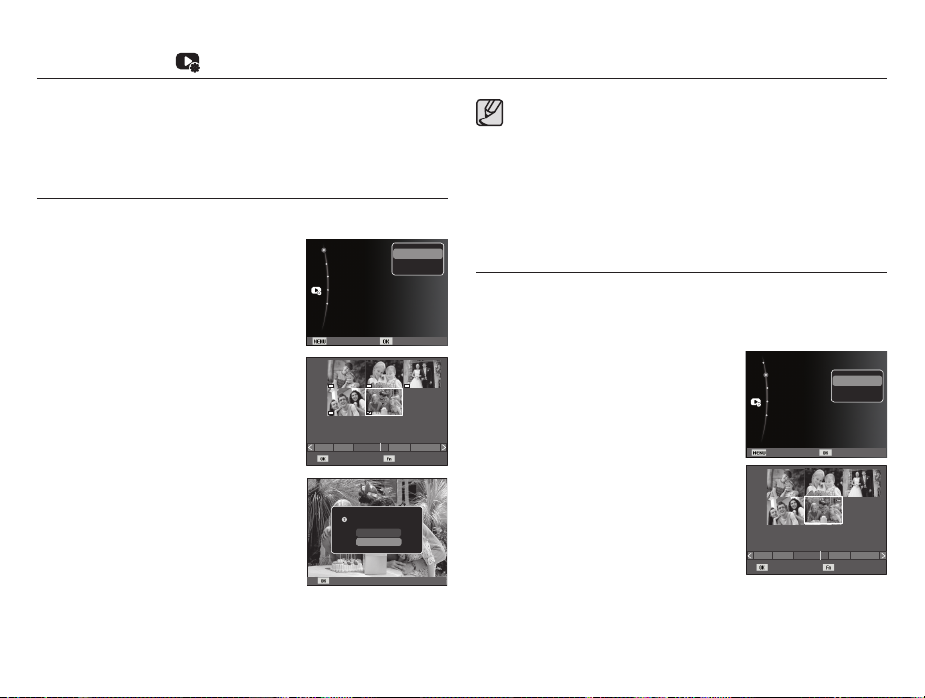

File Options

( )

1. Press the play mode button and press the MENU button.

2. Press the Up / Down button and select the [File Options] menu tab and press the OK button.

Deleting images

This deletes images stored on the memory.

1. Press the Up / Down button and select the [Delete] menu tab. And then press the Right button.

2. Select a desired sub menu by pressing the Up / Down button and press the OK button. [Select] : Selection window for an image to

delete is displayed.

- Up / Down / Left / Right : Select an image

- OK button : Select the image for deletion.

( Ë mark)

- Fn button : Press the Fn button to display

the confirmation message.

Select the [Yes] menu and press the OK button to delete

marked images.

[All] : Displays confirmation window.

Select the [Yes] menu and press the OK button to delete all unprotected images. If there aren't any protected

images, all the images are deleted

and a [No Image File] message will appear.

3. After deletion, the screen will be changed to the play mode screen.

074

Delete

Protect

Voice memo :Off

DPOF

Copy to Card

Back Set

Set

Select

All

1 31211 5

Select Delete

Delete All File(s)?

Yes

Of all the files stored on the memory, the unprotected files

in the DCIM subfolder will be deleted. Remember that this will permanently delete unprotected images. Important shots should be stored on a computer before deletion takes place. The startup image is stored on the camera's internal memory (i.e., not on the memory card) and it will not be deleted even if you delete all files on the memory.

Protecting images

This is used to protect specific shots from being accidentally erased (Lock). It also unprotects images that have been previously protected (Unlock).

1. Press the Up / Down button and select the [Protect] menu tab. And then press the Right button.

2. Select a desired sub menu by pressing the Up / Down button and press the OK button. [Select ] : Selection window for an image

to be protected / released is displayed.

- Up / Down / Left / Right : Select an


- OK button : Protect / release the image

- Fn button : Your changes will be saved

and the menu will disappear.

Delete

Protect

Voice memo :Off

DPOF

Copy to Card

Back Set

Select Set

Select

All

1 31211 5

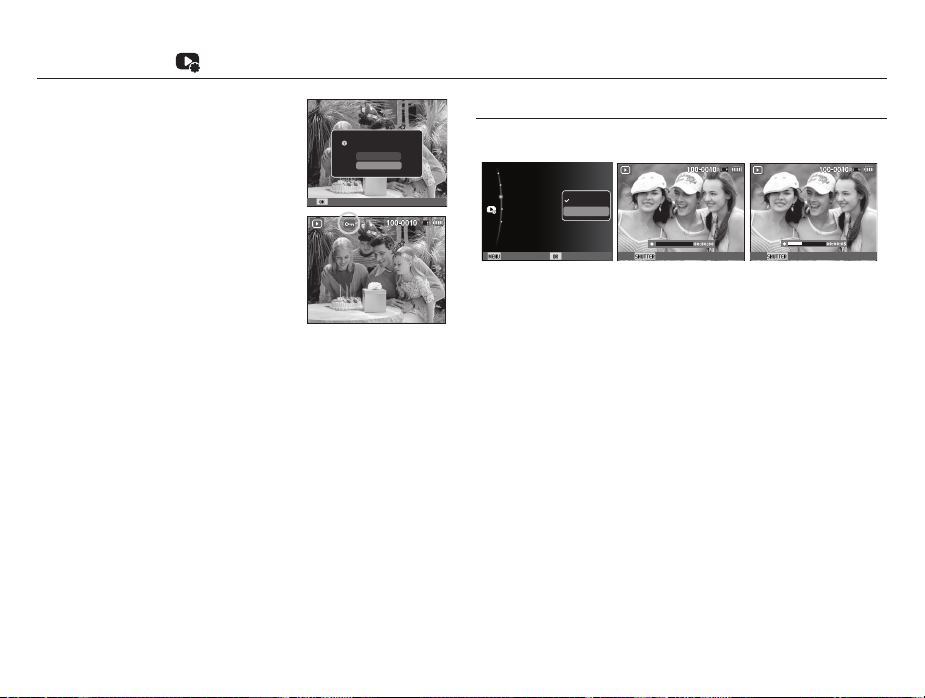

Page 76

File Options

( )

[All] : Protect / release all saved images

- If you protect an image, the protect icon will be displayed on the LCD monitor. (An unprotected image has no indicator)

- An image in LOCK mode will be

protected from the delete function

or [Delete] function, but will NOT be protected from the [Format] function.

Set

Protect All?

Lock

Unlock

Voice memo

You can add your voice to a stored still image.

Delete

Protect

Voice memo :Off

DPOF

Copy to Card

Back Set

- Press the shutter button, the voice will record for 10 seconds.

- To stop the recording, press the shutter button.

Off

Start Stop

[Ready for recording] [Voice is recording][Voice memo menu]

075

Page 77

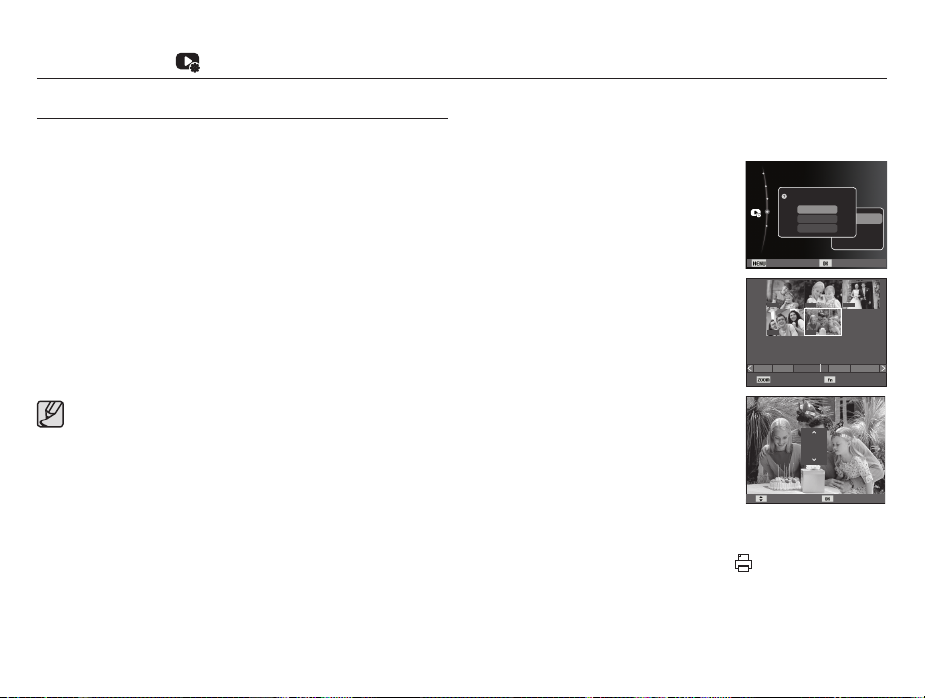

File Options

( )

DPOF

DPOF(Digital Print Order Format) allows you to embed printing information on your memory card’s MISC folder. Select the pictures to be printed and how many prints to make.

The DPOF indicator will display on the LCD monitor when an image that has DPOF information plays back. Images can then be printed on DPOF printers, or at an increasing number of photo labs.

This function is not available for Movie clips and Voice recording files.

When the wide angle image is printed as a wide angle print, 8% of the left and right side of the image may not be printed. Check that your printer can support the wide angle image when you print the image. When you print the image at a photo lab, request that the image is printed as a wide angle image. (Some photo labs may not support the wide angle size print.)

Depending on the printer, the image saved in portrait orientation

may not be printed in portrait orientation.

076

Standard

This function allows you to embed printing quantity information on

a stored image.

1. Press the Up / Down button and select the [DPOF] menu tab. And then press the Right button.

2. Press the Right button again and [Standard] sub menu will display.

3. Select a desired sub menu by pressing the Up / Down button and press the OK button.

[Select] : Selection window for an

image to print is displayed.

- Up / Down / Left / Right : Select an

image to print.

Delete

Protect

Select Image

Voice memo :Off

Select

DPOF

Copy to Card

Back Set

Quantity Set

Standard

All

Reset

Index

Size

0000

1 31211 5

- Zoom button : Select the number of

prints.

[All] : Configure number of prints for all

pictures except movie and voice

files.

- Up / Down button : Select a number of

prints

Quantity Set

[Reset] : Cancel the print setup.

4. Press the OK button to confirm the setting. If an image carries DPOF instruction, the DPOF indicator ( ) will show.

Page 78

File Options

( )

Index

Images (except for movie clips and voice files) are printed as index

type.

1. Press the Up / Down button and select the [DPOF] menu tab. And then press the Right button.

2. Select the [Index] menu and press the Right button again. Sub menu will display.

Delete

Protect

Voice memo :Off

Setting Index?

DPOF

Yes

Standard

Copy to Card

Back Set

Index

Size

3. Select a desired sub menu by pressing the Up / Down button.

If [Yes] is selected : The image will be printed in index format. If [No] is selected : Cancel the index print setting.

4. Press the OK button to confirm the setting.

Print size

You can specify the print size when printing images stored on the

memory card. The [Size] menu is available only for DPOF 1.1 compatible printers.

1. Press the Up / Down button and select the [DPOF] menu tab. And then press the Right button.

2. Select the [Size] menu and press the Right button again. Sub menu will display.

Delete

Protect

Select Image

Voice memo :Off

Select

DPOF

Copy to Card

Back Set

Reset

Standard

All

Index

Size

3. Select a desired sub menu by pressing the Up / Down button and press the OK button.

[Select] : Selection window to change

the printed size of the image is displayed.

Cancel CancelCancel

Cancel

1 31211 5

Size Set

- Up / Down / Left / Right : Select an image.

- Zoom W/T Button : Change the print size.

- Fn button : Your changes will be

saved and the menu will

3X5

disappear.

[All] : Change print size of all saved

images.

Size Set

- Up / Down button : Select a print size

- OK button : Confirm the changed setting. [Reset] : Cancel all of the print size settings.

DPOF [Size] secondary menu : Cancel, 3X5, 4X6, 5X7, 8X10

Depending on the manufacturer and print model, cancelling the

printing may take a little longer for the printer to process.

077

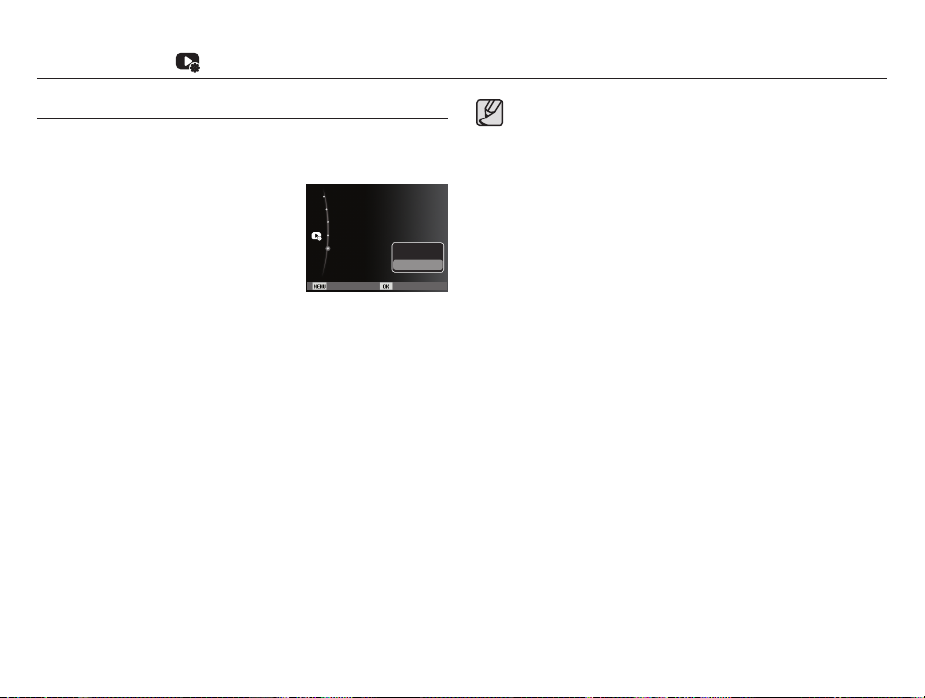

Page 79

File Options

( )

Copy to Card

This enables you to copy image files, movie clips and voice recording files to the memory card.

1. Select the [Copy to Card] menu tab by pressing the Up / Down button. And then press the Right button.

2. Select a desired sub menu by pressing the Up / Down button and press the OK button.

- [Yes] : All images, movie clips and voice recording files saved

in the internal memory are copied to the memory card after the [Copying] message is displayed. After copying has been completed, the screen will return to play mode.

- [No] : Cancels "Copy to Card".

Delete

Protect

Voice memo :Off

DPOF

Copy to Card

Back Set

Yes

If there is not enough space available on the memory card to

copy saved images on the internal memory (About 9.9MB), the [Copy to Card] command will copy only some of the images and display [Memory Full] message. Then the system will return to the playback mode. Please be sure to delete any unnecessary files to free up space before inserting the memory card into the

camera.

When you move the images that are stored on the internal

memory by doing [Copy to Card] to the card, the next number of file names will be created on the card to avoid duplication of the

file name.

- When the [Reset] of the [File No.] setup menu is set : The

copied file names start from after the last stored file name.

- When the [Series] of the [File No.] setup menu is set : The copied file names start from after the last captured file name. After completing [Copy to Card], the last stored image of the last copied folder is displayed on the LCD monitor.

078

Page 80

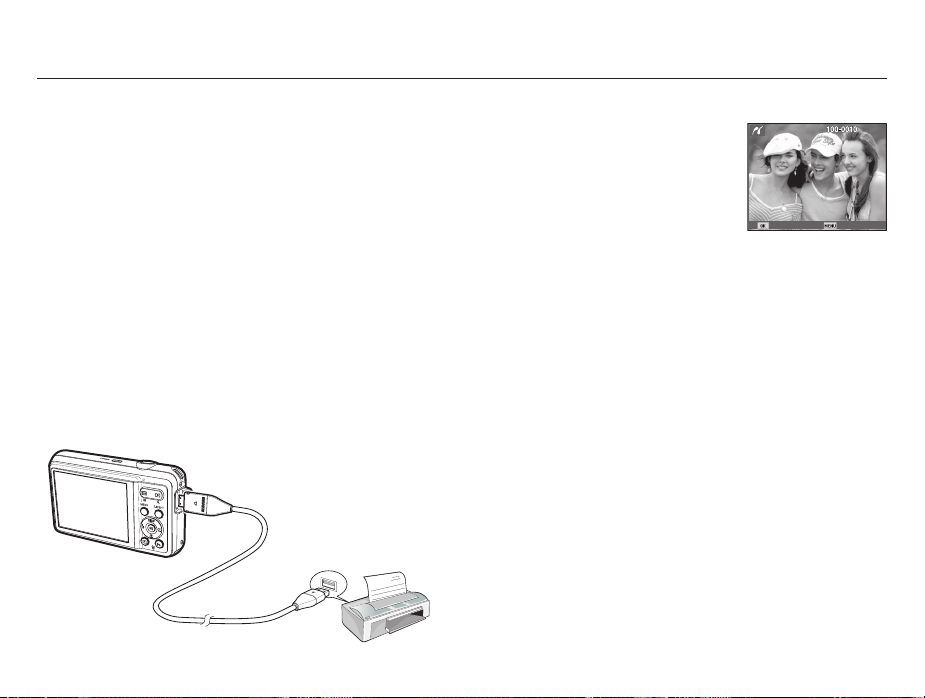

PictBridge

You can use the USB cable to connect this camera to a printer that supports PictBridge (sold separately) and print the stored images directly. Movie clips and voice files cannot be printed.

Setting up the camera for connection to the printer

1. Connect the camera and printer with USB cable.

2. Once the camera is turned on, the camera automatically recognizes

the printer and is connected to it.

If automatic connection fails, set the [USB] menu to [Printer]. (p.58)

For a printer that can enable removable disk, set the [USB] menu to

[Printer].

Connecting the Camera to a Printer

Easy printing

When you connect the camera to printer

in the Play back mode, you can print a picture easily.

- Pressing the Left / Right button :

Selects a previous / next image.

- Pressing the OK button : Currently displayed image will be

printed with the printer’s default settings.

Print Menu

079

Page 81

PictBridge : Picture Selection

PictBridge : Print Setting

You can select images you want to print.

Setting the Number of Copies to Print

1. Press the MENU button and the PictBridge menu will display.

2. Use the Up / Down button to select the [Images] menu and press the Right button.

3. Use the Up / Down button to select a desired sub menu and press the OK

Images :One Photo

Size :Auto

Layout :Auto

Type :Auto

Quality :Auto

Back Set

One Photo

All Photos

button.

- Select [One Photo] or [All Photos]. A screen where you can set the number of copies to print will appear as shown below.

Quantity Set

[When [One Photo] is selected]

[When [All Photos] is selected]

Quantity Set

- Press the Up / Down button to select the number of prints.

- When [One Photo] is selected : Use the Left / Right button to select another picture. After

selecting another picture, select

the number of prints for another

picture.

- After setting the number of prints, press the OK button to save.

- Press the Shutter button to return to the menu without setting

the number of prints.

4. Press the play mode button (

) and images will be printed.

080

You can select the Paper Size, Print Format, Paper Type, Print Quality, Date Print and File Name Print menus for printed pictures.

1. Press the MENU button and the PictBridge menu will display.

2. Use the Up / Down button to select

the desired menu, and then press the

Right button.

3. Use the Up / Down button to select the desired sub menu value, and then

Images :One Photo

Size :Auto

Layout :Auto

Type :Auto

Quality :Auto

Back Set

Auto

Postcard

Card

4x6

press the OK button.

Menu Function Sub menu

Size

Set the size of the printing paper

Layout

Quality

File Name

Some menu options are not supported on all printers.

Set the number of pictures to be

printed on a sheet of paper

Set the quality of the printing

Type

paper

Set the quality of the picture to be printed

Date

Set whether to print the date

Set whether to print the file name

Auto, PostCard, Card, 4X6, L, 2L, Letter, A4, A3

Auto, Full, 1, 2, 4, 8, 9, 16,

Index

Auto, Plain, Photo, Fast Photo

Auto, Draft, Normal, Fine

Auto, Off, On

If not supported, the menus are still displayed on the LCD, but are not selectable.

Page 82

PictBridge : Reset

Important notes

Initializes user-changed configurations.

1. Use the Up / Down button to select the [Reset] menu tab. And then press the Right button.

2. Use the Up / Down button to select the

Date :Auto

File Name :Auto

Reset No

Yes

desired sub menu and then press the OK button.

Back Set

If [Yes] is selected : All print and image

settings will be reset.

If [No] is selected : Settings will not be reset.

Default print setting varies depending on the printer manufacturer.

For your printer’s default setting, refer to the user’s guide that came with your printer.

Be sure to observe the following precautions!

This unit contains precision electronic components. Do not use or store this unit in the following locations.

- Areas exposed to severe changes in temperature and humidity.

- Areas exposed to dust and dirt.

- Areas exposed to direct sunlight or the inside of a vehicle in hot

weather.

- Environments where there is high magnetism or excessive vibration.

- Areas with high explosives or highly flammable materials.

Do not leave this camera in places subject to dust, chemicals (like naphthalene and mothballs), high temperature and high humidity. Keep this camera with silica gel in a hermetically

sealed box when not planning to use the camera for a long

period of time.

Sand can be particularly troublesome to cameras.

- Do not let sand get inside the camera when using it on beaches,

coastal dunes, or other areas where there is lots of sand.

- Doing so may result in failure or may permanently render the camera unusable.

Handling the camera

- Never drop the camera or subject it to severe shocks or vibrations.

- Protect the large size LCD monitor from an impact. When this

camera is not used, keep it in the camera case.

- Avoid obstructing the lens or the flash when you capture an image.

- This camera is not waterproof.

To avoid dangerous electrical shocks, never hold or operate the camera with wet hands.

- If you use this camera in wet places, such as beach or pool, do not let water or sand get inside the camera. Doing so may result in failure or may permanently damage the unit.

081

Page 83

Important notes

Extremes in temperature may cause problems.

- If the camera is transferred from a cold to a warm and humid

environment, condensation can form on the delicate electronic

circuitry. If this occurs, turn the camera off and wait for at least 1 hour until all moisture is dispersed. Moisture built up can also occur on the memory card. If this happens, turn off the camera and remove the memory card. Wait until the moisture

has dispersed.

Caution on Using the Lens

- If the lens is subjected to direct sunlight, it could result in the

discoloration and deterioration of the image sensor.

- Take care not to get fingerprints or foreign substances on the

surface of the lens.

If the digital camera is not used for a long period, an electric

discharge can occur. It is a good idea to remove the battery and the memory card if you do not intend using the camera

for an extended period of time.

If the camera is exposed to electronic interference, it will turn

itself off to protect the memory card.

082

Camera Maintenance

- Use a soft brush (available from photo stores) to gently clean the lens and LCD assemblies. If this does not work, lens cleaning paper with lens cleaning fluid can be used. Clean the camera body with a soft cloth. Do not allow this

camera to come into contact with solvent materials such as

benzol, insecticide, thinners etc. This may damage the body

shell of the camera and also affect its performance. Rough

handling can damage the LCD monitor. Take care to avoid damage and keep the camera in its protective carry case at all

times when not in use.

Do not attempt to disassemble or modify the camera.

Under certain conditions, static electricity can cause the flash

unit to fire. This is not harmful to the camera and is not a malfunction.

When images are uploaded or downloaded, the data transfer

may be affected by static electricity. In this case, disconnect and re-connect the USB cable before trying the transfer again.

Before an important event or going on a trip, you should check the camera condition.

- Take a picture for testing the camera condition and prepare extra battery.

If the digital camera is not used for a long period, the date and time may adopt the default settings by automatical battery discharged. In this case, reset the date and time correctly before the recording.

Page 84

Warning indicator

There are several warnings that may appear on the LCD display.

[Card Error]

Memory card error

Ã Turn off the camera power and turn it on again Ã Insert the memory card again Ã Insert and format the memory card (p.54)

[Card Locked]

The memory card is locked

Ã SD/SDHC memory card : Slide the write protect switch to the

[Memory Full]

The memory card or internal memory is full

Ã Insert new memory card Ã Delete unnecessary image files

[No Image File]

There are no images stored on the memory

Ã Take images Ã Insert a memory card that is storing some images

top of the memory card

[File Error]

File error

Ã Delete the file

Memory card error

Ã Contact a camera service center

[Low Battery]

There is low battery capacity

Ã Insert fresh battery

083

Page 85

Before contacting a service center

Please check the following. Camera does not take images when pressing the Shutter button

The camera doesn’t switch on

There is low battery capacity

Ã Insert fresh battery (p.15)

Battery is inserted incorrectly with the polarities reversed

Ã Insert the battery according to the polarity marks (+, -)

The camera power ceases while in use

The battery is exhausted

Ã Insert fresh battery

The Camera is turned off automatically

Ã Turn on the camera power again

Operation has ceased in a low temperature outside of the camera usage temperature range

Ã Make the camera and battery warm by placing them in your

pocket, etc. and then immediately before shooting, place the battery in the camera and then shoot

084

There is insufficient memory capacity

Ã Delete unnecessary image files

The memory card has not been formatted

Ã Format the memory card (p.54)

The memory card is exhausted

Ã Insert a new memory card

The memory card is locked

Ã Refer to [Card Locked] error message (p.83)

The camera's power is off

Ã Turn the camera power on

The battery is exhausted

Ã Insert fresh battery (p.15)

Battery is inserted incorrectly with the polarities reversed

Ã Insert the battery according to the polarity marks (+, -)

The camera suddenly stops working while in use

The camera stopped due to a malfunction

Ã Remove / reinsert battery and switch the camera on

The images are unclear

A picture was taken of the subject without setting an appropriate

macro mode

Ã Select an appropriate macro mode to take a clear image

Taking a picture beyond the flash range

Ã Take a picture within the flash range

The lens is smudged or dirty

Ã Clean the lens

Page 86

Before contacting a service center

The flash does not fire

Flash off mode has been selected

Ã Disengage flash off mode

The camera mode can't use the flash

Ã Refer to the FLASH instruction (p.34)

Incorrect date and time is displayed

The date and time have been set incorrectly or the camera has

adopted the default settings

Ã Reset the date and time correctly

The camera buttons do not operate

Camera malfunction

Ã Remove / reinsert battery and switch the camera on

A card error has occurred while the memory card is in the camera

Incorrect memory card format

Ã Reformat the memory card

The images don't play back

Incorrect file name (Violation of DCF format)

Ã Do not change the image file name

Color of image is different to the original scene

White balance or effect setting is incorrect

Ã Select appropriate White balance and effect

Images are too bright

Exposure is excessive

Ã Reset exposure compensation

No image on external monitor

Ã Check the connection cables

Ã Insert a memory card that has correct files

When using the PC’s explorer, the [Removable Disk] le does not show

Ã Check the connection

Ã Turn the camera on

Ã Install Windows XP,

A part of the LCD screen does not occasionally turn on or a spot appears

Although the LCD screen is manufactured with high precision technology, the precision pixels are not occasionally lighted or the red, white and blue spots appear

A vertical line appears on the LCD screen when taking a picture of a bright object

If a subject is exposing bright lights, a gray, black, red or purple vertical line may appear

The external monitor has not been connected properly with

the camera

There are incorrect files on the memory card

Cable connection is incorrect

The camera is off

The operating system is not Windows XP, Vista, 7 / Mac OS 10.3. Alternatively the PC does not support USB

supports USB

This phenomenon does not affect the quality of the recorded image and it is not a malfunction

This is a phenomenon called smear and it does not affect the

quality of the recorded image. This is not a malfunction

Vista, 7

/ Mac OS 10.3 to PC that

085

Page 87

Specications

Image Sensor - Type : 1/2.33" CCD

- Effective Pixels : Approx. 12.2 Mega-pixels

- Total Pixels : Approx. 12.3 Mega-pixels

Lens - Focal Length :

- F No. : F3.5(W) ~ F5.9(T)

- Digital Zoom : ·Still Image mode :1.0X ~ 3.0X

Image Stabilization

LCD Monitor - 2.7" color TFT LCD (230,000 dots)

Focusing

- Range

Wide 80cm ~ Infinity 5cm ~ 80cm 5cm ~ Infinity

Tele 100cm ~ Infinity 100cm ~ 150cm 100cm ~ Infinity

Shutter -

Exposure - Control : Program AE

- Metering : Multi, Spot, Center-Weighted,

- Compensation : ±2EV (1/3EV steps)

- ISO : Auto, 80, 100, 200, 400, 800, 1600

086

- DIS (Digital Image Stabilization)

- Type :

Normal Macro Auto Macro

Smart Auto : 8 ~ 1/2,000 sec., Program : 1 ~ 1/2,000 sec., Night : 8 ~ 1/2,000 sec., Fireworks : 2 sec.

SAMSUNG Lens f = 4.9 (35mm film equivalent : 27 ~ 135mm)

·Play mode : 1.0X ~ 12.5X (depends on image size)

TTL auto focus (Multi AF, Center AF, Face Detection AF)

Face Detection AE

24.5mm

Flash - Modes : Auto, Auto & Red-eye reduction, Fill-in

- Range : Wide : 0.2m ~ 2.68m

- Recharging Time : Approx. 4 sec

Sharpness - Soft+, Soft, Normal, Vivid, Vivid+

White Balance - Auto, Daylight, Cloudy, Fluorescent_H,

Voice Recording - Voice Recording (max. 10 hours)

- Voice Memo in Still Image (max. 10 sec.)

Date Imprinting - Date, Date & Time, Off (user selectable)

Shooting - Still Image

·Mode : Smart Auto, Program, DIS, Smart Night

·Scene :

·Smart Auto : Macro, Macro Text, White, Landscape,

·Smart Night : Night Portrait, Night

·Shooting : Single, Continuous, Motion Capture, AEB

·Self-timer : 10 sec., 2 sec., Double,

flash, Slow sync, Flash off, Red-eye Fix

Tele : 0.5m ~ 1.59m (ISO AUTO)

Fluorescent_L, Tungsten, Custom

Photo Help Guide, Scene

Beauty Shot, Frame Guide, Night, Portrait, Children, Landscape, Close-up, Text, Sunset, Dawn, Backlight, Fireworks, Beach & Snow

Action, Tripod, Night, Night Portrait,

Backlight, Backlight Portrait, Portrait,

Macro Portrait, Blue Sky, Sunset Sky, Macro Color, Natural Green

Motion Timer

Page 88

Specifications

- Movie clip

· With Audio or without Audio

(user selectable, recording time : max 2 hours)

·Size : 640x480, 320x240

· Frame rate : 30 fps, 15 fps

· 5X Optical Zoom and Mute in Zooming

· Movie Editing (Embedded): Pause during

recording, Still Image Capture

Storage - Media

·Internal memory : About 9.9MB flash memory

· External memory (Optional) : SD card (Up to 2GB guaranteed) SDHC card (Up to 8GB guaranteed)

- File Format

·Still Image : JPEG (DCF), EXIF 2.21, DPOF 1.1, PictBridge 1.0

·Movie clip : AVI (MJPEG)

·Audio : WAV

- Image Size

4000x

3984x

3840x

3264x

2560x

2048x

1920x

3000

2656

2160

2448

1920

1536

1080

1024x

768

- Capacity (1GB Size)

Super Fine

Fine

Normal

About

147

284

403

About

167

309

441

About

202

367

528

About

211

374

537

About

339

About

532

About

566

About

802

About

792

About 1065 About 1437 About 1872

About

870

About 1471

About 1144 About 1670

Ä These figures are measured under Samsung standard conditions and

may vary depending on shooting conditions and camera settings.

Effect

- Shooting : Photo Style Selector, Image Adjust (Sharpness, Contrast, Saturation)

Editing :

Resize, Rotate, Photo Style Selector, Image Adjust (ACB, Face Retouch, Red-Eye Fix, Brightness, Contrast, Saturation, Add Noise)

Image Play - Type : Single image, Thumbnails, Smart Album,

Multi slide show, Movie clip

Multi slide show : Slide show with Effect & Music

Interface - Digital output connector : USB 2.0

- Audio : Microphone: Mono,

Internal Speaker: Mono

- Video output : NTSC, PAL (user selectable)

- DC power input connector : 4.2 V

087

Page 89

Specifications

Power Source - Rechargeable battery : BP70A, 3.7V

Included battery may vary depending on

sales region.

Dimensions (WxHxD) -

Weight -

Operating Temperature - 0 ~ 40°C

Operating Humidity - 5 ~ 85%

Software - Intelli-studio, Adobe Reader

Specifications are subject to change without prior notice. All trademarks are the property of their respective owners.

088

96.3 X 58.3 X 21.7mm

(excluding protrusions)

Approx. 126.2g (without battery and card)

(740mAh)

Page 90

Transferring les to your computer (for Windows)

For Windows users

Transfer files by connecting your camera to your PC.

Installing programs

Hardware and software requirements

Programs contained on the CD

Intelli-studio Edit photos and videos.

Adobe Reader View the user manual.

Program Purpose

Item Requirements

CPU

RAM 512 MB or more (1 GB or more recommended)

OS Windows XP/Vista/7

Others

Intel® Pentium®4 3.0 GHz or higher

AMD Athlon™ FX 2.2 GHz or higher

- USB port

- CD-ROM drive

- nVIDIA Geforce 7600GT or higher Ati X1600 series or higher

- 1024 X 768 pixels, 16-bit color display compatible monitor (1280 X 1024 pixels, 32-bit color display recommended)

- Microsoft DirectX 9.0c or later

Using a self-assembled PC or a PC and OS that are not

supported may void your warranty.

The programs may not work properly on 64-bit Edition of

Windows XP, Vista and 7.

Intelli-studio may not perform correctly on some computers, even

when the computer meets the requirements.

If your computer does not meet the requirements, videos may not

play correctly or it may take longer to edit videos.

Install DirectX 9.0c or above before you use the program.

089

Page 91

Transferring les to your computer (for Windows)

1. Insert the installation CD in a compatible CD-ROM drive.

2. When the setup screen is displayed, click

Camera Installer to start installation.

3. Select programs to install and follow the onscreen instructions.

4. Click Exit to complete the installation and restart your computer.

090

Samsung Digital

Transferring files to your PC

Once you connect the camera to your PC, the camera will be recognized as a removable drive.

The battery will be charged while the camera is connected to a

PC with the USB cable.

1. Connect your camera to your PC with the USB cable.

You must plug the end of the cable with the indicator light (▲)

into your camera. If the cable is reversed, it may damage your les. The manufacturer is not responsible for any loss of data.

Page 92

Transferring les to your computer (for Windows)

2. Turn on the camera.

- The computer recognizes the camera automatically.

If the camera fails to connect, a pop-up window will appear.

Select Computer.

3. On your PC, select [

DCIM Ã 100PHOTO].

4. Select the files you want and drag or save them to your PC.

My Computer Ã Removable Disk Ã

Disconnecting the camera (for Windows XP)

The way to disconnect the USB cable for Windows Vista/7 is similar.

1. If the status lamp on your camera is blinking, wait until it stops.

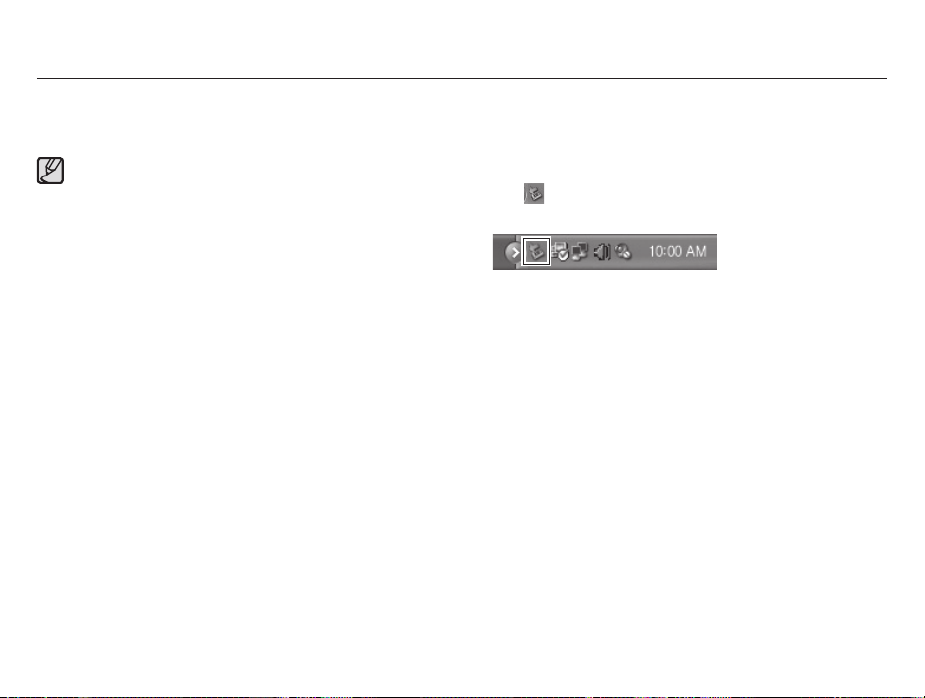

2. Click on the tool bar at the bottom right of your PC screen.

3. Click the pop-up message.

4. Remove the USB cable.

091

Page 93

Transferring les to your computer (for Windows)

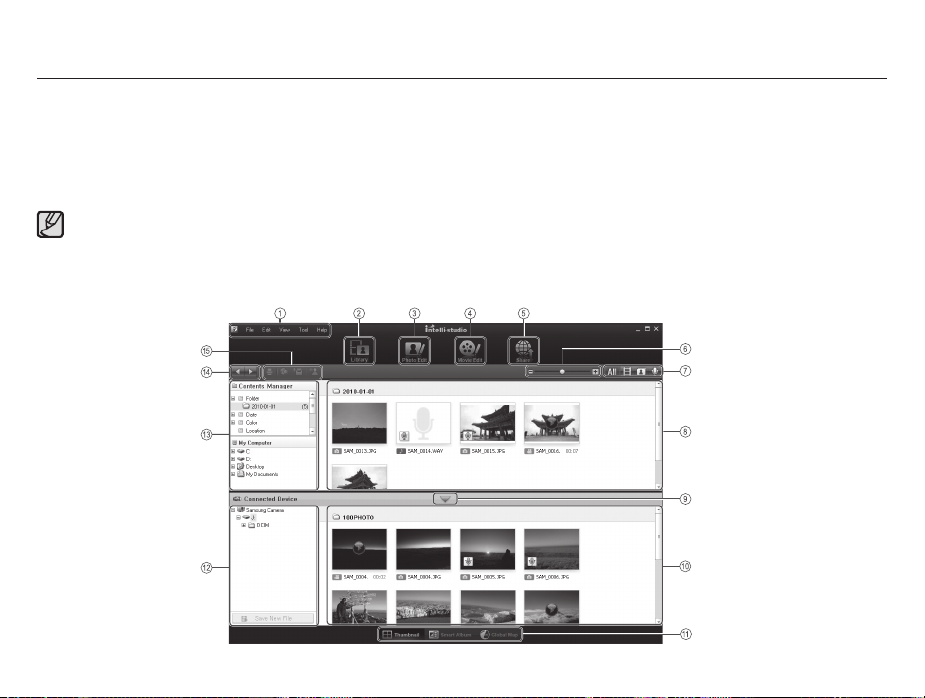

Using Intelli-studio

Once you have installed the Intelli-studio on your PC, the Intelli-studio starts automatically when a camera is connected with your PC. If the Intelli-studio does not start after you have connected the camera to your PC, double-click the Intelli-studio icon on your Windows desktop. The Intelli-studio allows you to play back and edit files. You can also upload files to websites, such as Flickr or YouTube. For details, select [Help Ã Help] in the program.

You cannot edit les directly on the camera. Transfer les to a folder on your computer before editing.

You cannot copy les in your computer to the camera.

Intelli-studio supports the following formats:

- Videos: AVI(MJPEG), MP4 (Video: H.264, Audio: AAC), WMV (WMV 7/8/9)

- Photos: JPG, GIF, BMP, PNG, TIFF

092

Page 94

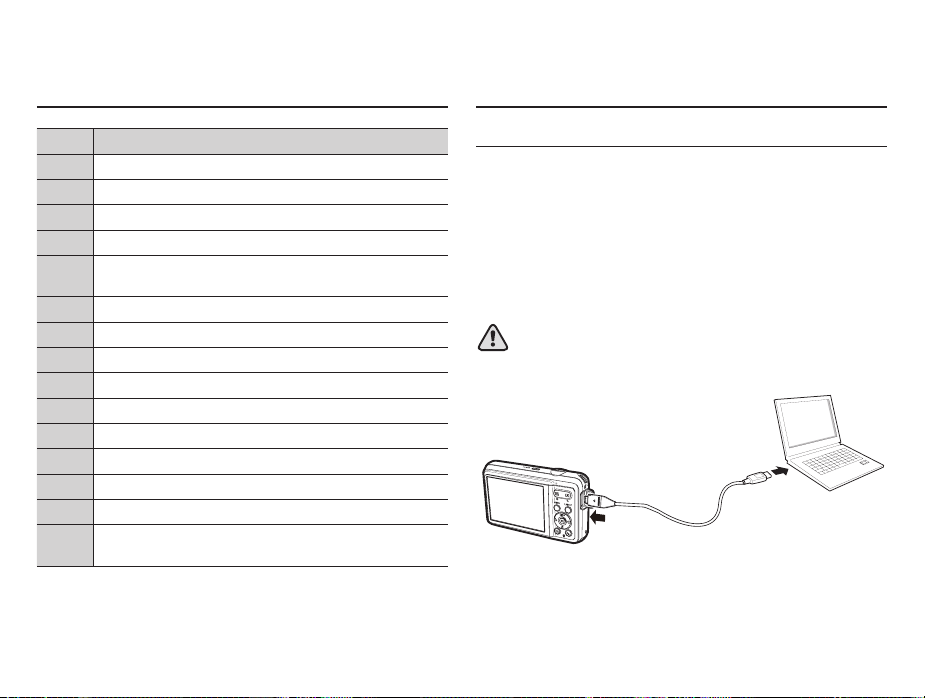

Transferring les to your computer (for Windows)

Transferring les to your computer (for Mac)

Icon Description

1 Open menus

2 Display files in the selected folder

3 Change to the Photo edit mode

4 Change to the Video edit mode

Change to the Sharing mode (You can send files by email

or upload files to websites, such as Flickr or YouTube.)

6 Enlarge or reduce the thumbnails in the list

7 Select a file type

8 View files of the selected folder on your computer

9 Show or hide files of the connected camera

10 View files of the selected folder on the camera

11 View files as thumbnails, in Smart Album, or on a map

12 Browse folders in the connected device

13 Browse folders in your computer

14 Move to the previous or next folder

Print files, view files on a map, store files in My Folder, or

For Mac users

When you connect the camera to a Macintosh computer, the computer will recognize the device automatically. You can transfer files directly from the camera to the computer without installing any programs. MAC OS 10.3 or later is supported.

1. Connect your camera to a Macintosh computer with the USB cable.

You must plug the end of the cable with the indicator light (▲)

into your camera. If the cable is reversed, it may damage your les. The manufacturer is not responsible for any loss of data.

093

Page 95

Transferring les to your computer (for Mac)

2. Turn on the camera.

The computer recognizes the camera automatically and a removable disk icon will be displayed.

3. Double click the removable disk icon.

4. Transfer photos or videos to the computer.

094

Page 96

FAQ

Please check the following if the USB connection malfunctions.

Case 1 USB cable is not connected or it is not the supplied USB

Case 2 The camera is not recognized by your PC.

Case 3 There is an unexpected error during file transfer.

Case 4 When using the USB hub.

Case 5 Are other USB cables connected to the PC?

cable.

Connect the supplied USB cable.

Sometimes, the camera may appear under [Unknown Devices] in Device Manager.

Turn off the camera, remove the USB cable, plug in the

USB cable again, and then turn on the camera.

Turn the camera power off and on again. Transfer the file

again.

There may be a problem in connecting the camera to the

PC through the USB hub if the PC and the hub are not compatible. Wherever possible, connect the camera to the PC directly.

The camera may malfunction when it is connected to the

PC at the same time as another USB cable. In this case, disconnect the other USB cable, and connect only one USB cable to the camera.

Case 6 When I open the Device Manager (by clicking Start

Case 7 In some security programs (Norton Anti Virus, V3,

Case 8 The camera is connected to the USB port located on

(Settings) Control Panel (Performance and Maintenance) System (Hardware) Device Manager), there are Unknown Devices or Other Devices entries with a yellow question mark(?) beside them or devices with an exclamation mark(!) beside them.

Right-click on the entry with the question(?) or exclamation (!) mark and select "Remove". Restart the

PC and connect the camera again.

etc.), the computer may not recognize the camera as a removable disk.

Stop the security programs and connect the camera to the computer. Refer to the security program instructions about how to temporarily disable the program.

the front of the computer.

When the camera is connected to the USB port located

on the front of the computer, the computer may not recognize the camera. Connect the camera to the USB port located on the back of the computer.

095

Page 97

FAQ

When the DirectX 9.0c or later is not installed

Install the DirectX 9.0c or later

1) Insert the CD provided with the camera

2) Run the windows explorer and select the [CD-ROM drive:\ DirectX] folder and click the DXSETUP.exe file. The DirectX will be installed. Visit the Microsoft website for downloading the DirectX.

If a PC connected with the camera stops responding while

Windows is starting.

In this case, disconnect the PC and the camera and Windows

will start. If the problem happens continuously, set the Legacy USB Support to disable and re-start the PC. The Legacy USB Support is in the BIOS setup menu. (The BIOS setup menu

differs from the PC manufacturers and some BIOS menus don’

t have Legacy USB Support) If you can’t change the menu by yourself, contact to the PC manufacturer or BIOS manufacturer.

Correct disposal of batteries in this product

Correct disposal of batteries in this product (Applicable in the European Union and other European countries with separate battery return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause

harm to human health or the environment.

To protect natural resources and to promote material reuse, please

separate batteries from other types of waste and recycle them through your local, free battery return system.

096

Page 98

Correct Disposal of This Product

Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that

the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the

environment or human health from uncontrolled waste disposal,

please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling. Business users should contact

their supplier and check the terms and conditions of the purchase

contract. This product and its electronic accessories should not be

mixed with other commercial wastes for disposal.

This Class [B] digital apparatus complies with Canadian ICES-003.

Samsung Eco-mark

It is Samsung’s own symbol mark is used to effectively communicate Samsung’s environmental friendly prod-

uct activities to the consumers. The mark represents Samsung’s continuous effort on development of environmental conscious products.

097

Page 99
