Samsung Electronics5-1
Exploded View & Part List
5. Exploded View & Part List

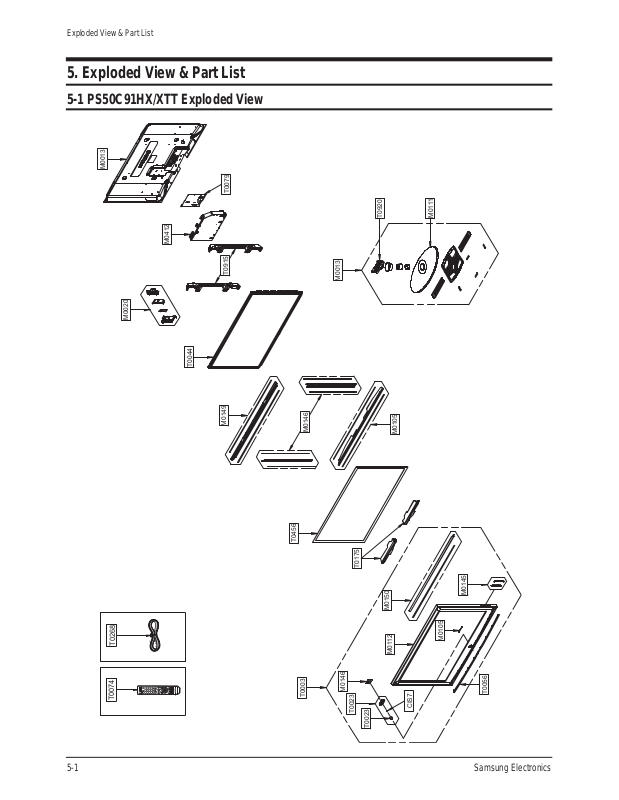

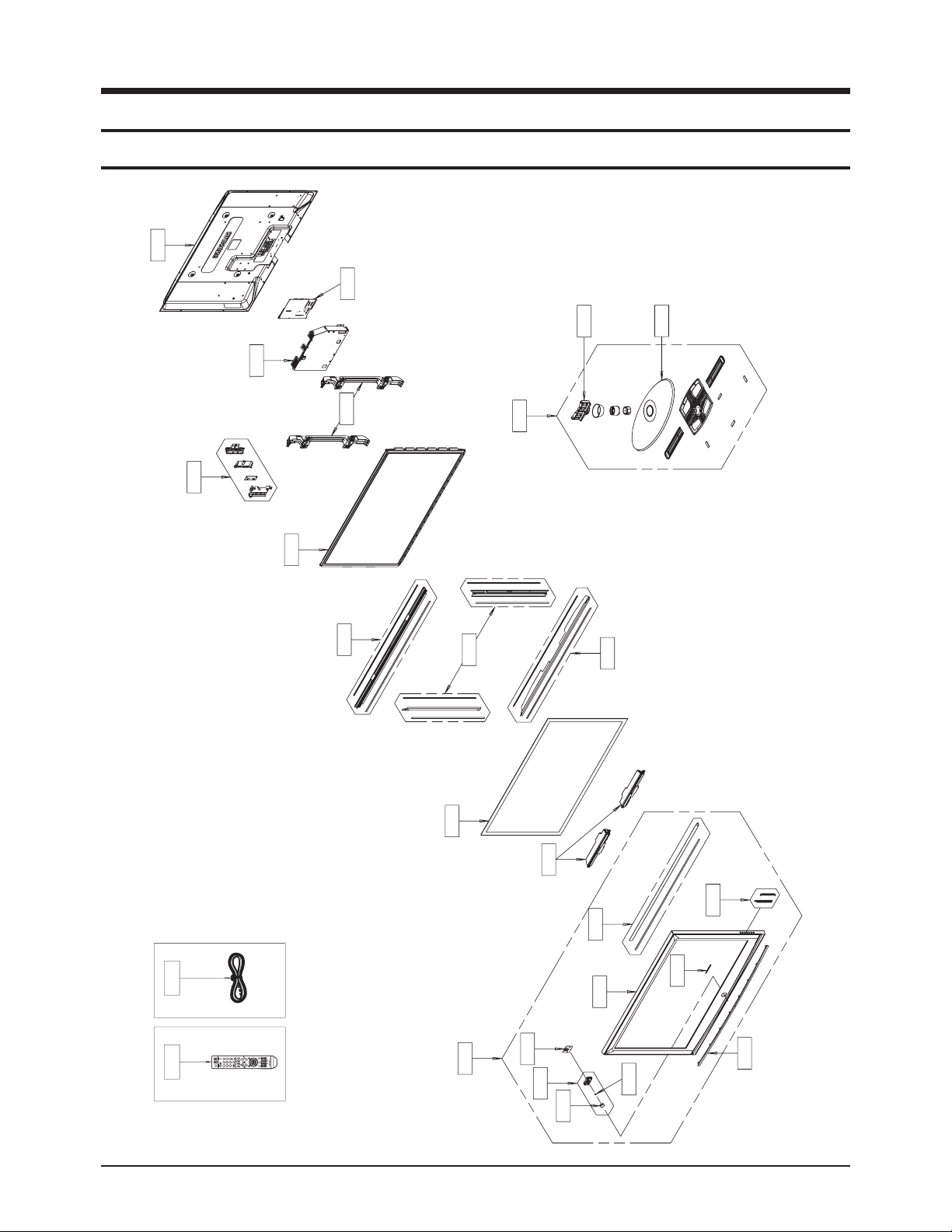

5-1 PS50C91HX/XTT Exploded View
M0013
T0079
M0020
M0412
T0044
T0915
M0149
M0146
M0013
T0920
M0 111
M0105
T0268
T0074
T0456
T0003
M0146
T0023
T0175
M0145
M0150
M0105
M0112
T0056
CIS7
T0023
Page 2
5-2Samsung Electronics
Exploded View & Part List
Loc. No. Code No. Description Specification Q'ty SA/SNA Remark
CIS7 AA61-60003B SPRING ETC-CS -,SUS304,-,-,OD11.2,N7,OD1 1 S.N.A
M0013 BN96-04714B ASSY STAND P-BASE C9/Q9,ABS HB SF-0507,B 1 S.A
M0013 BN96-04711K ASSY COVER P-REAR 50Q9/C9,PCM T0.5,BLM-S 1 S.A
M0020 BN96-04900H ASSY BOARD P-SIDE A/V Lily 50" CHINA,SJ0 1 S.N.A
M0105 BN67-00190A LENS-LED 42Q9,PC,light blue,Material of 1 S.N.A
M0111 BN63-03049B COVER-STAND 42Q9,ABS SF-0507,BK23 1 S.N.A
M0112 BN63-03067G COVER-FRONT 50C9,ABS,HB,BK23,STEAM MOLD 1 S.N.A
M0145 BN96-04853B ASSY BOARD P-FUNCTION Lily/Calla,CT5000- 1 S.A
M0146 BN96-04690A ASSY BRACKET P-FILTER SIDE 50Q9,AL6063,T 2 S.N.A
M0146 BN96-04861D ASSY BOARD P-POWER & IR Lily/Calla,CT500 1 S.A
M0149 BN96-04688A ASSY BRACKET P-FILTER TOP 50Q9,AL6063,T1 1 S.N.A
M0150 BN96-04692A ASSY BRACKET P-SUPPORT FILTER 50Q9,AL606 1 S.N.A
M0150 BN96-04689A ASSY BRACKET P-FILTER BOTTOM 50Q9,AL6063 1 S.N.A
M0412 BN96-04903C ASSY BRACKET P-PCB 42Q9,SECC T0.8 1 S.N.A
T0003 BN96-04713G ASSY COVER P-FRONT 50C9,ABS HB,BK23,STEA 1 S.A
T0023 BN96-04707A ASSY COVER P-KNOB POWER C9/Q9,ABS HB 1 S.N.A
T0023 BN64-00567A KNOB POWER 42Q9,PC,VIOLET 1 S.N.A
T0044 BN96-04775A ASSY PDP MODULE P 50HD W2A,M1,W2A,1365*7 1 S.A
T0056 BN63-03081A COVER-DECORATION 50C9,ABS,HB BLK 1 S.N.A
T0074 BN59-00613A REMOCON Jasmine/Lily,TM86,samsung 24p+ee 1 S.A
T0079 BN94-01357D ASSY PCB MISC-MAIN CHINA,LILY 50INCH 1 S.A
T0175 BN96-04704A ASSY SPEAKER P 8ohm,C9,10W,4P connector, 1 S.A
T0268 3903-000172 CBF-POWER CORD DT,CN,IP3/YES,U(IEC C13-R 1 S.A
T0456 BN67-00197A GLASS-FILTER EMI 50 W2, C9,Sputter, wit 1 S.A
T0915 BN61-02895B HOLDER-MODULE 50Q9,PCABS 2 S.N.A
T0920 BN61-02990A GUIDE-STAND 42Q9,PC GF20% 1 S.N.A
Page 3
Samsung Electronics5-3
Exploded View & Part List
5-2 PS50C91HX/XTT Service Item
Loc. No. Code No. Description Specification Q'ty Remark
M0013 BN96-04711K ASSY COVER P-REAR 50Q9/C9,PCM T0.5,BLM-S 1
M0013 BN96-04714B ASSY STAND P-BASE C9/Q9,ABS HB SF-0507,B 1
M2893 BN39-00817A LEAD CONNECTOR LILLY 50",UL20276#30,UL/C 1
M2893 BN39-00881A LEAD CONNECTOR LILLY 42"/50",UL1007#26,U 1
T0003 BN96-04713G ASSY COVER P-FRONT 50C9,ABS HB,BK23,STEA 1
T0044 BN96-04775A ASSY PDP MODULE P 50HD W2A,M1,W2A,1365*7 1
T0074 BN59-00613A REMOCON Jasmine/Lily,TM86,samsung 24p+ee 1
T0079 BN94-01357D ASSY PCB MISC-MAIN CHINA,LILY 50INCH 1
T0175 BN96-04704A ASSY SPEAKER P 8ohm,C9,10W,4P connector, 1
T0764 BN44-00162A SMPS-PDP TV HPS5053,SEM,AC/DC,460W,AC100 1
T1910 BN96-04573A ASSY PDP MODULE P-X-MAIN 50HD W2,PL50HW0 1
T1911 BN96-04574A ASSY PDP MODULE P-Y-MAIN 50HD W2,PL50HW0 1
T1914 BN96-04578A ASSY PDP MODULE P-ADDRESS E_BU 50HD W2,P 1
T1915 BN96-04579A ASSY PDP MODULE P-ADDRESS F_BU 50HD W2,P 1
T1917 BN96-04881A ASSY PDP MODULE P-LOGIC MAIN PL50HW021A, 1
T1960 BN96-04575A ASSY PDP MODULE P-Y-MAIN UPPER 50HD W2,P 1
T1961 BN96-04576A ASSY PDP MODULE P-Y-MAIN LOWWE 50HD W2,P 1
※ This is the list which is available to repair the real material at the time of service.
