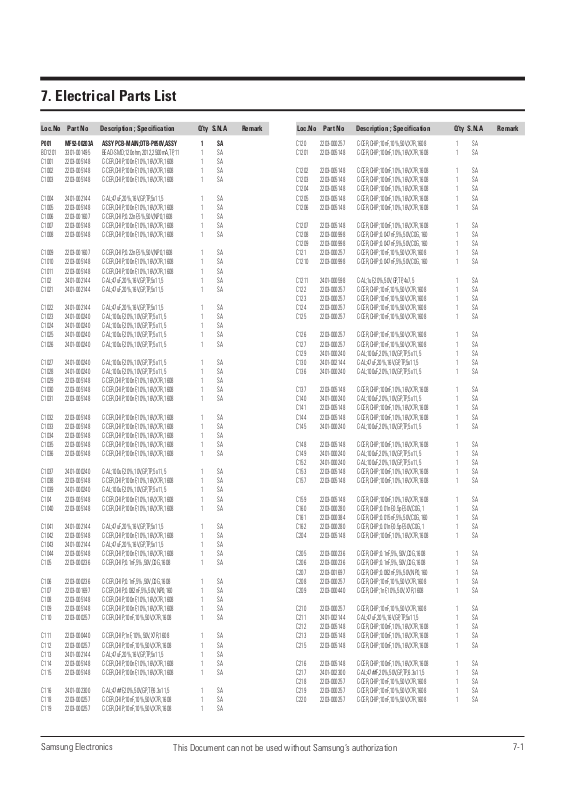

P001 MF92-00203A ASSY PCB-MAIN;DTB-P850V,ASSY 1 SA
BD1201 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,11 1 SA C1001 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C1002 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C1003 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
C1004 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA C1005 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C1006 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,1608 1 SA C1007 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C1008 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
C1022 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA C1023 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 1 SA C1024 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 1 SA C1025 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 1 SA C1026 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 1 SA
C1027 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 1 SA C1028 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 1 SA C1029 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C1030 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C1031 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
C1032 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C1033 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C1034 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C1035 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C1036 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
C1037 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 1 SA C1038 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C1039 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 1 SA C104 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C1040 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
C1041 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA C1042 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C1043 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA C1044 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C105 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA
C106 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA C107 2203-001697 C-CER,CHIP;0.082nF,5%,50V,NP0,160 1 SA C108 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C109 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C110 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA
C111 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 SA C112 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA C113 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA C114 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C115 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
C116 2401-002300 C-AL;47##F,20%,50V,GP,TP,6.3x11,5 1 SA C118 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA C119 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA
C120 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA C1201 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
C1202 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C1203 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C1204 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C1205 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C1206 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
C1207 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C1208 2203-000998 C-CER,CHIP;0.047nF,5%,50V,C0G,160 1 SA C1209 2203-000998 C-CER,CHIP;0.047nF,5%,50V,C0G,160 1 SA C121 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA C1210 2203-000998 C-CER,CHIP;0.047nF,5%,50V,C0G,160 1 SA
C1211 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5 1 SA C122 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA C123 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA C124 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA C125 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA
C126 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA C127 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA C129 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 1 SA C130 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA C136 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 1 SA
C137 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C140 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 1 SA C141 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C144 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C145 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 1 SA
C148 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C149 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 1 SA C152 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 1 SA C153 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C157 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
C159 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C160 2203-000280 C-CER,CHIP;0.01nF,0.5pF,50V,C0G,1 1 SA C161 2203-000384 C-CER,CHIP;0.015nF,5%,50V,C0G,160 1 SA C162 2203-000280 C-CER,CHIP;0.01nF,0.5pF,50V,C0G,1 1 SA C204 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
C205 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA C206 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA C207 2203-001697 C-CER,CHIP;0.082nF,5%,50V,NP0,160 1 SA C208 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA C209 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 SA
C210 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA C211 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA C212 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C213 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C215 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
C216 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C217 2401-002300 C-AL;47##F,20%,50V,GP,TP,6.3x11,5 1 SA C218 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA C219 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA C220 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA
Loc.No Part No Description ; Specification Q’ty S.N.A Remark Loc.No Part No Description ; Specification Q’ty S.N.A Remark
7. Electrical Parts List
Page 2
7-2
Samsung Electronics
Electrical Parts List
This Document can not be used without Samsung’s authorization
C221 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA C222 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA C223 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA C224 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA C225 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA
C226 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA C227 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA C230 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 1 SA C231 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C232 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 1 SA
C233 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C234 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C235 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 1 SA C236 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C237 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 1 SA
C239 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C301 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C302 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C303 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C304 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
C305 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA C306 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C307 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C308 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C309 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
C310 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C311 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C312 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C313 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C314 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA
C315 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA C316 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA C317 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA C318 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA C319 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA
C320 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA C321 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA C322 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA C323 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA C324 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
C325 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C326 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C327 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C328 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C329 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
C330 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C331 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C332 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C333 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C334 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
C401 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C402 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C403 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C501 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C504 2401-002095 C-AL;47uF,20%,25V,GP,TP,6.3x5,5 1 SA
C505 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C601 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
C602 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C603 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C604 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
C605 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C606 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C701 2203-000646 C-CER,CHIP;0.024NF,5%,50V,C0G,TP, 1 SA C702 2203-000646 C-CER,CHIP;0.024NF,5%,50V,C0G,TP, 1 SA C703 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA
C704 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA C705 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V 1 SA C706 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA C708 2203-000646 C-CER,CHIP;0.024NF,5%,50V,C0G,TP, 1 SA C709 2203-000646 C-CER,CHIP;0.024NF,5%,50V,C0G,TP, 1 SA
C710 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V 1 SA C711 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V 1 SA C712 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V 1 SA C713 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V 1 SA C714 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V 1 SA
C715 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V 1 SA C716 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA C717 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA C718 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V 1 SA C719 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA
C720 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V 1 SA C722 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V 1 SA C724 2203-001408 C-CER,CHIP;0.27nF,5%,50V,NP0,1608 1 SA C725 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA C726 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA
C727 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C728 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA C729 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C730 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C731 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,1608 1 SA
C732 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA C733 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,1608 1 SA C734 2203-001408 C-CER,CHIP;0.27nF,5%,50V,NP0,1608 1 SA C735 2401-002095 C-AL;47uF,20%,25V,GP,TP,6.3x5,5 1 SA C736 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
C737 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C738 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA C739 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C740 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA C743 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
C744 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C745 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C746 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C747 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C748 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
C749 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA C751 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA C752 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA C753 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 SA C754 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 SA
C755 2203-000384 C-CER,CHIP;0.015nF,5%,50V,C0G,160 1 SA C756 2203-000384 C-CER,CHIP;0.015nF,5%,50V,C0G,160 1 SA C757 2203-000384 C-CER,CHIP;0.015nF,5%,50V,C0G,160 1 SA C759 2203-000384 C-CER,CHIP;0.015nF,5%,50V,C0G,160 1 SA
Loc.No Part No Description ; Specification Q’ty S.N.A Remark Loc.No Part No Description ; Specification Q’ty S.N.A Remark
Page 3
Electrical Parts List
Samsung Electronics
7-3
This Document can not be used without Samsung’s authorization
C760 2203-000384 C-CER,CHIP;0.015nF,5%,50V,C0G,160 1 SA
C761 2203-000384 C-CER,CHIP;0.015nF,5%,50V,C0G,160 1 SA C762 2203-001658 C-CER,CHIP;0.047nF,5%,50V,NP0,TP, 1 SA C763 2203-001658 C-CER,CHIP;0.047nF,5%,50V,NP0,TP, 1 SA C764 2203-001658 C-CER,CHIP;0.047nF,5%,50V,NP0,TP, 1 SA C765 2203-001658 C-CER,CHIP;0.047nF,5%,50V,NP0,TP, 1 SA
C766 2203-001658 C-CER,CHIP;0.047nF,5%,50V,NP0,TP, 1 SA C767 2203-001658 C-CER,CHIP;0.047nF,5%,50V,NP0,TP, 1 SA C768 2203-001658 C-CER,CHIP;0.047nF,5%,50V,NP0,TP, 1 SA C769 2203-001658 C-CER,CHIP;0.047nF,5%,50V,NP0,TP, 1 SA C770 2203-001658 C-CER,CHIP;0.047nF,5%,50V,NP0,TP, 1 SA
C771 2203-001658 C-CER,CHIP;0.047nF,5%,50V,NP0,TP, 1 SA C772 2203-001658 C-CER,CHIP;0.047nF,5%,50V,NP0,TP, 1 SA C773 2203-001658 C-CER,CHIP;0.047nF,5%,50V,NP0,TP, 1 SA C774 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C775 2401-000414 C-AL;10uF,20%,16V,GP,TP,4x7,5 1 SA
C776 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C801 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA C803 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA C804 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 SA C805 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 SA
C806 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA C807 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA C808 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA C809 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA C810 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V 1 SA
C811 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V 1 SA C812 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V 1 SA C813 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA C814 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 SA C815 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 SA
C816 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA C818 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA C819 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 SA C820 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 SA C821 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V 1 SA
C822 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V 1 SA C823 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V 1 SA C824 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA C825 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA C826 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA
C827 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V 1 SA C828 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V 1 SA C829 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V 1 SA C830 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA C831 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 SA
C832 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 SA C839 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA C840 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA C841 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA C842 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
C903 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C905 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C907 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C908 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA C909 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA
C910 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C912 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C914 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C916 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C918 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA
C919 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C920 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C921 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C922 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C923 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
C924 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C925 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C926 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C927 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C928 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
C938 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C939 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C940 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C941 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C942 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA
C943 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C944 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C945 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C946 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C947 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
C948 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C949 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C950 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C951 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C952 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
C953 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C954 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C955 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C968 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 1 SA C969 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
C970 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C971 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C972 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C973 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA C974 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
C975 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA CN1002 3709-001369 CONNECTOR-CARD SLOT;10P,2.54mm,AN 1 SA CN601 3711-000919 HEADER-BOARD TO CABLE;BOX,40P,2R, 1 SA D1001 0402-001380 DIODE-RECTIFIER;S3J,600V,3A,TO-22 1 SA D701 0401-001116 DIODE-SWITCHING;BAV99DW,75V,150MA 1 SA
D801 0401-001116 DIODE-SWITCHING;BAV99DW,75V,150MA 1 SA D802 0401-001116 DIODE-SWITCHING;BAV99DW,75V,150MA 1 SA D803 0401-001116 DIODE-SWITCHING;BAV99DW,75V,150MA 1 SA D804 0401-001116 DIODE-SWITCHING;BAV99DW,75V,150MA 1 SA D805 0401-001116 DIODE-SWITCHING;BAV99DW,75V,150MA 1 SA
D806 0401-001116 DIODE-SWITCHING;BAV99DW,75V,150MA 1 SA D807 0401-001116 DIODE-SWITCHING;BAV99DW,75V,150MA 1 SA D808 0401-001116 DIODE-SWITCHING;BAV99DW,75V,150MA 1 SA D809 0401-001116 DIODE-SWITCHING;BAV99DW,75V,150MA 1 SA D810 0401-001116 DIODE-SWITCHING;BAV99DW,75V,150MA 1 SA
HU1 3711-000754 HEADER-BOARD TO CABLE;BOX,20P,2R, 1 SA J1201 3722-001628 JACK-PHONE;5PIN,-,-,BLK,- 1 SA
Loc.No Part No Description ; Specification Q’ty S.N.A Remark Loc.No Part No Description ; Specification Q’ty S.N.A Remark
Page 4
7-4
Samsung Electronics
Electrical Parts List
This Document can not be used without Samsung’s authorization
J703 3722-002027 JACK-PIN;6P/6C,SN,YEL/GN/WH/BL/RD 1 SA J801 3722-001345 JACK-SCART;42P/2R,SN,BLK 1 SA L1001 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,11 1 SA L102 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,11 1 SA L103 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,11 1 SA
L105 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,11 1 SA L106 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,11 1 SA L108 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,11 1 SA L111 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,11 1 SA L115 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,11 1 SA
L116 2703-000266 INDUCTOR-SMD;220nH,10%,2012 1 SA L117 2703-000110 INDUCTOR-SMD;100NH,10%,2012 1 SA L118 2703-000110 INDUCTOR-SMD;100NH,10%,2012 1 SA L202 2703-000110 INDUCTOR-SMD;100NH,10%,2012 1 SA L203 2703-000266 INDUCTOR-SMD;220nH,10%,2012 1 SA
L204 2703-000110 INDUCTOR-SMD;100NH,10%,2012 1 SA L205 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,11 1 SA L206 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,11 1 SA L207 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,11 1 SA L208 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,11 1 SA
L209 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,11 1 SA L302 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,11 1 SA L501 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,11 1 SA L701 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,11 1 SA L702 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,11 1 SA
L703 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,11 1 SA L704 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,11 1 SA L705 2703-000229 INDUCTOR-SMD;6.8UH,20%,2012 1 SA L706 2703-000229 INDUCTOR-SMD;6.8UH,20%,2012 1 SA L707 2703-000125 INDUCTOR-SMD;10uH,10%,2012 1 SA
L708 2703-000125 INDUCTOR-SMD;10uH,10%,2012 1 SA L709 2703-000125 INDUCTOR-SMD;10uH,10%,2012 1 SA L710 2703-000125 INDUCTOR-SMD;10uH,10%,2012 1 SA L711 2703-000125 INDUCTOR-SMD;10uH,10%,2012 1 SA L712 2703-000125 INDUCTOR-SMD;10uH,10%,2012 1 SA
L713 2703-000125 INDUCTOR-SMD;10uH,10%,2012 1 SA L801 2703-000229 INDUCTOR-SMD;6.8UH,20%,2012 1 SA L802 2703-000229 INDUCTOR-SMD;6.8UH,20%,2012 1 SA L803 2703-000229 INDUCTOR-SMD;6.8UH,20%,2012 1 SA L804 2703-000229 INDUCTOR-SMD;6.8UH,20%,2012 1 SA
L805 2703-000229 INDUCTOR-SMD;6.8UH,20%,2012 1 SA L806 2703-000229 INDUCTOR-SMD;6.8UH,20%,2012 1 SA L807 2703-000229 INDUCTOR-SMD;6.8UH,20%,2012 1 SA L808 2703-000229 INDUCTOR-SMD;6.8UH,20%,2012 1 SA L809 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,11 1 SA
L901 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,11 1 SA L902 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,11 1 SA L903 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,11 1 SA L904 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,11 1 SA L905 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,11 1 SA
L906 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,11 1 SA L907 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,11 1 SA L908 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,11 1 SA L909 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,11 1 SA
MOD101 MD40-00137A RF MODULATOR;RMUS74055DA(S),PAL,4 1 SA
Q101 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,15 1 SA Q102 0501-000424 TR-SMALL SIGNAL;KTA1504-Y,PNP,150 1 SA Q104 0504-000129 TR-DIGITAL;KSR1104,NPN,200mW,47K/ 1 SA Q105 0504-000152 TR-DIGITAL;KSR2101,PNP,200mW,4.7K 1 SA Q1204 0504-000152 TR-DIGITAL;KSR2101,PNP,200mW,4.7K 1 SA
Q1205 0504-000129 TR-DIGITAL;KSR1104,NPN,200mW,47K/ 1 SA Q1206 1203-003814 IC-RESET;ASM809REURF-T,SOT-23,3P, 1 SA Q201 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,15 1 SA Q202 0501-000424 TR-SMALL SIGNAL;KTA1504-Y,PNP,150 1 SA Q501 0504-000152 TR-DIGITAL;KSR2101,PNP,200mW,4.7K 1 SA
Q705 0501-000424 TR-SMALL SIGNAL;KTA1504-Y,PNP,150 1 SA Q706 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,15 1 SA Q707 0501-000424 TR-SMALL SIGNAL;KTA1504-Y,PNP,150 1 SA Q708 0501-000424 TR-SMALL SIGNAL;KTA1504-Y,PNP,150 1 SA Q709 0501-000424 TR-SMALL SIGNAL;KTA1504-Y,PNP,150 1 SA
Q710 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,15 1 SA Q711 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,15 1 SA R1001 2007-000081 R-CHIP;2.7Kohm,5%,1/10W,TP,1608 1 SA R1002 2007-000081 R-CHIP;2.7Kohm,5%,1/10W,TP,1608 1 SA R1003 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
R1004 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 SA R1005 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA R1006 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA R1009 2007-000979 R-CHIP;5.6Kohm,1%,1/10W,TP,1608 1 SA R101 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 SA
R1010 2007-001175 R-CHIP;8.2Kohm,1%,1/10W,TP,1608 1 SA R1013 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA R1016 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R1017 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R102 2007-000098 R-CHIP;56Kohm,5%,1/10W,TP,1608 1 SA
R103 2007-000450 R-CHIP;180ohm,5%,1/10W,TP,1608 1 SA R104 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R105 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 SA R106 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R107 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA
R108 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA R109 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA R110 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA R111 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608 1 SA R112 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608 1 SA
R113 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA R114 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA R115 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA R116 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA R117 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
R118 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R119 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R120 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R1204 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA R1205 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
Loc.No Part No Description ; Specification Q’ty S.N.A Remark Loc.No Part No Description ; Specification Q’ty S.N.A Remark
Page 5
Electrical Parts List
Samsung Electronics
7-5
This Document can not be used without Samsung’s authorization
R1206 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA R1207 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA R1208 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA R1209 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA R121 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 SA
R1210 2007-000099 R-CHIP;62Kohm,5%,1/10W,TP,1608 1 SA R1211 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA R1212 2007-000130 R-CHIP;39Kohm,5%,1/10W,TP,1608 1 SA R1213 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA R1214 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
R1215 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA R1216 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA R1217 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA R1218 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA R122 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
R123 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA R124 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA R125 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA R126 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA R127 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA
R128 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA R129 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA R134 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA R135 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA R136 2007-000108 R-CHIP;510Kohm,5%,1/10W,TP,1608 1 SA
R139 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R201 2007-000098 R-CHIP;56Kohm,5%,1/10W,TP,1608 1 SA R202 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 SA R203 2007-000450 R-CHIP;180ohm,5%,1/10W,TP,1608 1 SA R204 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
R205 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 SA R206 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R207 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA R208 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA R209 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
R210 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA R211 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608 1 SA R212 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608 1 SA R213 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA R214 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
R215 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA R216 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA R217 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R218 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R219 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
R220 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R221 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 SA R222 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA R223 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R301 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
R302 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA R303 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 SA R304 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA R305 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA R306 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
R307 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA R308 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
R309 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA R310 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA R311 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
R312 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA R313 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA R314 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA R315 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA R316 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
R317 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA R318 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA R319 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA R320 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA R321 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
R322 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA R323 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA R324 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA R325 2007-000450 R-CHIP;180ohm,5%,1/10W,TP,1608 1 SA R326 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
R327 2007-000450 R-CHIP;180ohm,5%,1/10W,TP,1608 1 SA R328 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA R329 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA R330 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R331 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
R332 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA R401 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA R402 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA R403 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA R404 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
R405 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R406 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA R407 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA R408 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA R409 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
R410 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA R411 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA R412 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA R413 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA R421 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
R443 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R444 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R446 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA R447 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA R448 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
R501 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R502 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R503 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA R506 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R507 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
R508 2007-000091 R-CHIP;12Kohm,5%,1/10W,TP,1608 1 SA R509 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R510 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R513 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R514 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
R515 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R516 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R517 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R518 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
Loc.No Part No Description ; Specification Q’ty S.N.A Remark Loc.No Part No Description ; Specification Q’ty S.N.A Remark
Page 6
7-6
Samsung Electronics
Electrical Parts List
This Document can not be used without Samsung’s authorization
R519 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA
R520 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA R601 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R603 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA R604 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R606 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
R607 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R608 2007-000115 R-CHIP;82ohm,5%,1/10W,TP,1608 1 SA R609 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608 1 SA R610 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA R611 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
R612 2007-000115 R-CHIP;82ohm,5%,1/10W,TP,1608 1 SA R613 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA R614 2007-000115 R-CHIP;82ohm,5%,1/10W,TP,1608 1 SA R615 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R616 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
R617 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA R618 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA R620 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R621 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R622 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
R623 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA R701 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R702 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R703 2007-000133 R-CHIP;330Kohm,5%,1/10W,TP,1608 1 SA R704 2007-001179 R-CHIP;8.2Kohm,5%,1/10W,TP,1608 1 SA
R705 2007-001179 R-CHIP;8.2Kohm,5%,1/10W,TP,1608 1 SA R706 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R707 2007-000431 R-CHIP;16Kohm,5%,1/10W,TP,1608 1 SA R708 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 SA R709 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 SA
R71 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R710 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 SA R711 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 SA R712 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 SA R713 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 SA
R714 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA R715 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA R716 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R717 2007-000431 R-CHIP;16Kohm,5%,1/10W,TP,1608 1 SA R719 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
R720 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA R721 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA R725 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA R726 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R727 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 SA
R728 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA R729 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA R730 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA R731 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R732 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 SA
R733 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 SA R734 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 SA R735 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 SA R736 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 SA R737 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 SA
R738 2007-000799 R-CHIP;360ohm,5%,1/10W,TP,1608 1 SA R739 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 SA R740 2007-000799 R-CHIP;360ohm,5%,1/10W,TP,1608 1 SA R741 2007-000799 R-CHIP;360ohm,5%,1/10W,TP,1608 1 SA R742 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA
R743 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA R744 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 SA R745 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA R746 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 SA R747 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 SA
R748 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA R749 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 SA R750 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R751 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 SA R752 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 SA
R753 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA R754 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 SA R755 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 SA R756 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R757 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 SA
R758 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 SA R759 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R760 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 SA R761 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA R762 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 SA
R763 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 SA R764 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 SA R765 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 SA R766 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 SA R768 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
R769 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 SA R770 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 SA R771 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 SA R801 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 SA R802 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 SA
R803 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA R804 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA R805 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA R806 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA R807 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 SA
R808 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 SA R809 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R810 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R811 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R812 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
R813 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA R814 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 SA R815 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA R816 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 SA R817 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 SA
R818 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 SA R819 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 SA R820 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 SA R821 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA R822 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA
R823 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA R824 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
Loc.No Part No Description ; Specification Q’ty S.N.A Remark Loc.No Part No Description ; Specification Q’ty S.N.A Remark
Page 7
Electrical Parts List
Samsung Electronics
7-7
This Document can not be used without Samsung’s authorization
R825 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA R826 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA R827 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 SA
R828 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA R829 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 SA R830 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA R831 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 SA R832 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 SA
R833 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA R834 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 SA R835 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 SA R836 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA R840 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA
R841 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA RN101 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP 1 SA RN102 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP 1 SA RN201 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP 1 SA RN202 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP 1 SA
RN301 2011-000816 R-NET;100ohm,5%,1/16W,L,CHIP,8P,T 1 SA RN302 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP 1 SA RN303 2011-000816 R-NET;100ohm,5%,1/16W,L,CHIP,8P,T 1 SA RN304 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP 1 SA RN305 2011-000816 R-NET;100ohm,5%,1/16W,L,CHIP,8P,T 1 SA
RN306 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP 1 SA RN307 2011-000816 R-NET;100ohm,5%,1/16W,L,CHIP,8P,T 1 SA RN308 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP 1 SA RN309 2011-000816 R-NET;100ohm,5%,1/16W,L,CHIP,8P,T 1 SA RN310 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP 1 SA
RN311 2011-000816 R-NET;100ohm,5%,1/16W,L,CHIP,8P,T 1 SA RN312 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP 1 SA RN313 2011-000816 R-NET;100ohm,5%,1/16W,L,CHIP,8P,T 1 SA RN314 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP 1 SA RN601 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP 1 SA
RN602 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP 1 SA RN603 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP 1 SA RN604 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP 1 SA TM102 MD40-00139A TUNER;U1000ES,DTB-P850F,DVB-T,40, 1 SA TM201 MD40-00138A TUNER;U0000ES,DTB-P850F,DVB-T,40, 1 SA
U1001 1205-002538 IC-ICC;TDA8024T,SOP,28P,17.9x7.5m 1 SA U101 1204-002430 IC-DEMODULATOR;STV0361,TQFP,64P,1 1 SA U1021 1203-003698 IC-POSI.FIXED REG.;KIA78D25F,DPAK 1 SA U1022 1203-002816 IC-POSI.FIXED REG.;AMC1117-1.8SKT 1 SA U1023 1203-003871 IC-POSI.ADJUST REG.;LD29300P2M,P2 1 SA
U1025 1203-002699 IC-POSI.FIXED REG.;78D05,DPAK,3P, 1 SA U1026 1203-002816 IC-POSI.FIXED REG.;AMC1117-1.8SKT 1 SA U1027 1203-002699 IC-POSI.FIXED REG.;78D05,DPAK,3P, 1 SA U1201 1006-000347 IC-LINE TRANSCEIVER;MAX202CSE+T,S 1 SA U1203 1103-001147 IC-EEPROM;24256,256Kbit,32Kx8Bit, 1 SNA
U1204 0801-002701 IC-CMOS LOGIC;74VHCT125A,BUFFER,T 1 SA U201 1204-002430 IC-DEMODULATOR;STV0361,TQFP,64P,1 1 SA U301 1105-001580 IC-DRAM;HYB25D(C)512160,-,512Mbit 1 SA U302 1204-002570 IC-DECODER;STI5100SUC,PBGA,336P,2 1 SA U303 1203-003132 IC-POSI.ADJUST REG.;AMC1117,SOT-2 1 SA
U401 1107-001289 IC-FLASH MEMORY;28F640J3C,64Mbit, 1 SNA U501 1203-002159 IC-POWER PRESCALER;2026,SOP,8P,15 1 SA U502 0406-001229 DIODE-TVS;USBLC6-2P6,6/-/-V,-,SOT 1 SA U504 3711-003942 HEADER-BOARD TO CABLE;BOX,2P,1R,2 1 SA
U601 0801-002326 IC-CMOS LOGIC;74LCX32,OR GATE,TSS 1 SA
U602 0801-002403 IC-CMOS LOGIC;74LCX08,AND GATE,TS 1 SA U603 0802-001007 IC-CMOS LOGIC;74LCX244,BUFFER/LIN 1 SA U604 0801-002095 IC-CMOS LOGIC;74LCX245,TRANSCEIVE 1 SA U605 0801-002095 IC-CMOS LOGIC;74LCX245,TRANSCEIVE 1 SA U606 0801-002867 IC-CMOS LOGIC;SN74AHC1G04DVB,INVE 1 SA
U701 1001-001169 IC-AV SWITCH;STV6412ADT,A/V SWITC 1 SA U702 1201-000163 IC-OP AMP;4560,SOP,8P,173MIL,DUAL 1 SA X101 2801-004284 CRYSTAL-SMD;27MHZ,10PPM,28-AAN,20 1 SA X701 2801-003318 CRYSTAL-UNIT;32.768KHz,20ppm,28-A 1 SA X702 2801-004284 CRYSTAL-SMD;27MHZ,10PPM,28-AAN,20 1 SA
ZD701 0403-001117 DIODE-ZENER;RLZ12B,11.44-12.03V,5 1 SA ZD702 0403-001117 DIODE-ZENER;RLZ12B,11.44-12.03V,5 1 SA ZD704 0403-001117 DIODE-ZENER;RLZ12B,11.44-12.03V,5 1 SA ZD705 0403-001117 DIODE-ZENER;RLZ12B,11.44-12.03V,5 1 SA ZD816 0403-001117 DIODE-ZENER;RLZ12B,11.44-12.03V,5 1 SA
ZD817 0403-001117 DIODE-ZENER;RLZ12B,11.44-12.03V,5 1 SA ZD818 0403-001117 DIODE-ZENER;RLZ12B,11.44-12.03V,5 1 SA ZD819 0403-001117 DIODE-ZENER;RLZ12B,11.44-12.03V,5 1 SA ZD820 0403-001117 DIODE-ZENER;RLZ12B,11.44-12.03V,5 1 SA
AC99-50107Y ASSY PCB-MAIN VCR,t;D-VR3TB/TSB,T 1 SNA
AC99-90103Y ASSY-STAND BOARD,m;-,SMT-170,STAN 1 SNA MF41-00214A PCB-MAIN;DTB-P850X_MAIN,FR-4,4LAY 1 SNA AK92-01361A ASSY PCB-SMD TOP RLC;DTB-R850V,- 1 SNA AK92-01338A ASSY PCB-AI RLC;DTB-P850V,- 1 SNA MF39-00306A CBF CABLE FORM;UCA-ST-140,DTB-P85 1 SA
MF39-00307A CBF CABLE FORM;UCA-ST-151,DTB-P85 1 SA
P003 MD92-00064A ASSY PCB-SMPS;DTB-P850F_SMPS Assy 1 SA
J10 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4m 1 SNA J2 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4m 1 SNA J3 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4m 1 SNA J4 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4m 1 SNA
J5 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4m 1 SNA J6 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4m 1 SNA J7 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4m 1 SNA J8 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4m 1 SNA J9 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4m 1 SNA
PACT1 2301-001792 C-FILM,LEAD;150nF,20%,275V,BK,17. 1 SA PACT2 2301-001792 C-FILM,LEAD;150nF,20%,275V,BK,17. 1 SA PADT1 0402-001111 DIODE-RECTIFIER;1N5397GP,600V,1.5 1 SA PADT2 0402-001111 DIODE-RECTIFIER;1N5397GP,600V,1.5 1 SA PADT3 0402-001111 DIODE-RECTIFIER;1N5397GP,600V,1.5 1 SA
PALT2 AC29-00002A FILTER LINE NOISE;-,30mH,-,-,BLF- 1 SA PART1 2002-000121 R-COMPOSITION;1Mohm,10%,1/2W,AA,T 1 SA PAVV1 1405-000186 VARISTOR;470V,2500A,17.5x7.5mm,TP 1 SA PAVV2 1405-001026 VARISTOR;470V,600A,9x7mm,TP 1 SA PAWT1 3711-000203 HEADER-BOARD TO CABLE;1WALL,2P/3P 1 SA
PBCU2 2201-002044 C-CERAMIC,DISC;0.1NF,10%,400V,Y5P 1 SA PBCU3 2201-000828 C-CERAMIC,DISC;3.3NF,20%,400V,Y5U 1 SA
Loc.No Part No Description ; Specification Q’ty S.N.A Remark Loc.No Part No Description ; Specification Q’ty S.N.A Remark
Page 8
7-8
Samsung Electronics
Electrical Parts List
This Document can not be used without Samsung’s authorization
PBCU4 2201-000828 C-CERAMIC,DISC;3.3NF,20%,400V,Y5U 1 SA PBIZ1 0604-001028 PHOTO-COUPLER;TR,50-600%,250mW,DI 1 SA PDCZ1 2301-001654 C-FILM,LEAD-PEF;1000nF,5%,100V,TP 1 SA
PFCD1 2301-000129 C-FILM,LEAD-PEF;100nF,5%,50V,TP,1 1 SA PFCD2 2301-001654 C-FILM,LEAD-PEF;1000nF,5%,100V,TP 1 SA PFCZ1 2301-000402 C-FILM,LEAD-PEF;1nF,5%,50V,TP,5x7 1 SA PFID1 AC14-12006D IC;KA431Z,TO-92,TAPING 1 SA PFRD1 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X 1 SA
PFRD2 2001-000527 R-CARBON;22OHM,5%,1/8W,AA,TP,1.8X 1 SA PFRD3 2001-000924 R-CARBON;680OHM,5%,1/8W,AA,TP,1.8 1 SA PFRD4 2004-000459 R-METAL;2.2Kohm,1%,1/8W,AA,TP,1.8 1 SA PFRE1 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP,1.8 1 SA PFRE2 2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1. 1 SA
PFRZ1 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X 1 SA PGCE1 2401-001358 C-AL;470uF,20%,10V,WT,TP,8x11.5mm 1 SA PGCE2 2307-000103 C-FILM,LEAD-PCF;100nF,5%,50V,TP,- 1 SA PGDE1 0402-001195 DIODE-RECTIFIER;F1T4,400V,1A,DO-2 1 SA PGRE1 2001-000440 R-CARBON;1OHM,5%,1/8W,AA,TP,1.8X3 1 SA
PLCZ1 2301-000129 C-FILM,LEAD-PEF;100nF,5%,50V,TP,1 1 SA PLRU1 1404-001361 THERMISTOR-NTC;3ohm,4A,-,35mW/C,0 1 SA PLRZ1 2003-000105 R-METAL OXIDE;0.33ohm,5%,2W,AD,TP 1 SA PPCD1 2401-003480 C-AL;1000UF,20%,10V,LZ,TP,10X16MM 1 SA PPCE1 2401-003480 C-AL;1000UF,20%,10V,LZ,TP,10X16MM 1 SA
PPCE2 2401-001363 C-AL;470uF,20%,16V,GP,TP,10x12.5, 1 SA PPCE3 2401-001363 C-AL;470uF,20%,16V,GP,TP,10x12.5, 1 SA PPCF1 2401-003480 C-AL;1000UF,20%,10V,LZ,TP,10X16MM 1 SA PPCI1 2401-001126 C-AL;330uF,20%,25V,WT,TP,10x12.5, 1 SA PPCI2 2401-001126 C-AL;330uF,20%,25V,WT,TP,10x12.5, 1 SA
PPCI3 2401-001126 C-AL;330uF,20%,25V,WT,TP,10x12.5, 1 SA PPCN1 2401-002438 C-AL;47##F,20%,50V,WT,TP,6.3x11,5 1 SA PPCN2 2401-002438 C-AL;47##F,20%,50V,WT,TP,6.3x11,5 1 SA PPCO1 2401-000385 C-AL;10uF,20%,100V,GP,TP,6.3x11,5 1 SC PPCO2 2401-002300 C-AL;47##F,20%,50V,GP,TP,6.3x11,5 1 SA
PPDD1 0402-001643 DIODE-RECTIFIER;MBRF10A0,100V,10A 1 SA PPDD1H AC62-32001B HEAT SINK-MAIN;A1050R,-,T22.5,-,W 1 SNA PPDE1 0402-001643 DIODE-RECTIFIER;MBRF10A0,100V,10A 1 SA PPDE1H AC62-32001B HEAT SINK-MAIN;A1050R,-,T22.5,-,W 1 SNA PPDF1 0402-001587 DIODE-RECTIFIER;SFAF504G,200V,5A, 1 SA
PPDF1H AC62-32001B HEAT SINK-MAIN;A1050R,-,T22.5,-,W 1 SNA PPDI1 0402-001624 DIODE-RECTIFIER;SF26,400V,2A,DO-1 1 SA PPDN1 0402-000012 DIODE-RECTIFIER;UF4007,1KV,1A,DO- 1 SA PPDO1 0402-000012 DIODE-RECTIFIER;UF4007,1KV,1A,DO- 1 SA PPIE1 1203-001589 IC-POSI.FIXED REG.;278R05,TO-220F 1 SA
PPIE1H AC62-32001B HEAT SINK-MAIN;A1050R,-,T22.5,-,W 1 SNA PPII1 1203-002183 IC-SWITCH VOL. REG.;278R12,TO-220 1 SA PPII1H AC62-32001B HEAT SINK-MAIN;A1050R,-,T22.5,-,W 1 SNA PPLD1 AC27-12001N COIL CHOKE;10UH-15%,RA,K-30,Q80,1 1 SA PPLD1 AC27-12001N COIL CHOKE;10UH-15%,RA,K-30,Q80,1 1 SA
PPLE1 AH27-00039A COIL CHOKE;DR CHOKE(8*6),DVD-R200 1 SA PPLF1 AC27-12001N COIL CHOKE;10UH-15%,RA,K-30,Q80,1 1 SA PPLF1 AC27-12001N COIL CHOKE;10UH-15%,RA,K-30,Q80,1 1 SA PPLI1 AC27-12001N COIL CHOKE;10UH-15%,RA,K-30,Q80,1 1 SA PPRN1 2001-000062 R-CARBON;470OHM,5%,1/4W,AA,TP,2.4 1 SA
PQIZ1H AH62-30122A HEAT SINK-POWER;1,AL,VO,T1.3,ANOD 1 SNA PQTZ1 MF26-00161A TRANS SWITCHING;EER3534,DTB-P850F 1 SA PRCU1 2401-003842 C-AL;100uF,20%,450V,WT,BK,25.4X25 1 SA PSCX1 2305-001029 C-FILM,LEAD-PEF;10nF,10%,630V,TP, 1 SA PSCZ2 2201-000129 C-CERAMIC,DISC;0.1nF,10%,1000V,Y5 1 SA
PSDZ1 0402-000012 DIODE-RECTIFIER;UF4007,1KV,1A,DO- 1 SA PSRZ1 2003-000994 R-METAL OXIDE(S);33Kohm,5%,2W,AF, 1 SA PSRZ2 2003-000994 R-METAL OXIDE(S);33Kohm,5%,2W,AF, 1 SA PVCL1 2401-002608 C-AL;33uF,20%,35V,GP,TP,5x11,5 1 SA PVDL1 0402-001195 DIODE-RECTIFIER;F1T4,400V,1A,DO-2 1 SA
PVRL4 2001-000793 R-CARBON;47OHM,5%,1/8W,AA,TP,1.8X 1 SA PVZL1 0403-000713 DIODE-ZENER;MTZJ20B,18.63-17.7V,5 1 SA PZWZ1 3711-000724 HEADER-BOARD TO CABLE;BOX,15P,1R, 1 SA PZWZ2 3711-000240 HEADER-BOARD TO CABLE;1WALL,4P,1R 1 SA
AC99-50106J ASSY PCB-MAIN,t;DVD-P249M,MAIN PC 1 SNA
AK92-01317A ASSY PCB-AI RLC SMPS;DCB-P850Z(S) 1 SNA
P005 MD92-00065A ASSY PCB-FRONT;DTB-P850F_FRONT As 1 SA
C1301 2202-000173 C-CERAMIC,MLC-AXIAL;1nF,10%,50V,Y 1 SA C1302 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 1 SA C1303 2202-002037 C-CERAMIC,MLC-AXIAL;100nF,80-20%, 1 SA C1304 2202-002037 C-CERAMIC,MLC-AXIAL;100nF,80-20%, 1 SA
C1305 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 1 SA C1306 2202-002037 C-CERAMIC,MLC-AXIAL;100nF,80-20%, 1 SA C1307 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 1 SA C1308 2202-002037 C-CERAMIC,MLC-AXIAL;100nF,80-20%, 1 SA C1309 2202-002037 C-CERAMIC,MLC-AXIAL;100nF,80-20%, 1 SA
D1301 0401-000005 DIODE-SWITCHING;1N4148,75V,150mA, 1 SA D1302 0401-000005 DIODE-SWITCHING;1N4148,75V,150mA, 1 SA D1303 0401-000005 DIODE-SWITCHING;1N4148,75V,150mA, 1 SA D1304 0403-000509 DIODE-ZENER;MTZJ5.6B,5.4-5.7V,500 1 SA D1305 0601-001922 LED;ROUND,ULTRA RED,3x4.3mm,3mm,- 1 SA
D1306 0601-001922 LED;ROUND,ULTRA RED,3x4.3mm,3mm,- 1 SA D1307 0601-001922 LED;ROUND,ULTRA RED,3x4.3mm,3mm,- 1 SA D1308 0403-000361 DIODE-ZENER;UZ6.2BSB,5.96-6.27V,5 1 SA D1309 0403-000361 DIODE-ZENER;UZ6.2BSB,5.96-6.27V,5 1 SA D1310 0403-000361 DIODE-ZENER;UZ6.2BSB,5.96-6.27V,5 1 SA
DP1301 AC61-32041A PLATE-GROUND PCB;SV-7000W,SUS,T0. 1 SNA DP1302 AC61-32041A PLATE-GROUND PCB;SV-7000W,SUS,T0. 1 SNA DP1303 AC61-32041A PLATE-GROUND PCB;SV-7000W,SUS,T0. 1 SNA DP1304 AC61-32041A PLATE-GROUND PCB;SV-7000W,SUS,T0. 1 SNA FL261 3809-001886 FFC CABLE-FLAT;30V,80C,100mm,15P, 1 SA
IR1301 0609-001202 Module Remocon;HORIZONTAL,12.4mm, 1 SA J1301 3708-000170 CONNECTOR-FPC/FFC/PIC;15P,1.25MM, 1 SA
Loc.No Part No Description ; Specification Q’ty S.N.A Remark Loc.No Part No Description ; Specification Q’ty S.N.A Remark
Page 9
Electrical Parts List
Samsung Electronics
7-9
This Document can not be used without Samsung’s authorization
J1302 3722-002313 JACK-USB;4P/1C,AU30U,BLK,STRAIGHT 1 SA JP1 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4m 1 SNA JP10 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4m 1 SNA
JP11 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4m 1 SNA JP12 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4m 1 SNA JP13 2001-000982 R-CARBON;8.2OHM,5%,1/4W,AA,TP,2.4 1 SA JP14 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4m 1 SNA JP15 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4m 1 SNA
JP16 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4m 1 SNA JP17 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4m 1 SNA JP18 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4m 1 SNA JP19 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4m 1 SNA JP2 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4m 1 SNA
JP20 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4m 1 SNA JP21 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4m 1 SNA JP22 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4m 1 SNA JP3 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4m 1 SNA JP4 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4m 1 SNA
JP6 2001-000982 R-CARBON;8.2OHM,5%,1/4W,AA,TP,2.4 1 SA JP7 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4m 1 SNA JP8 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4m 1 SNA JP9 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4m 1 SNA L1301 2701-000002 INDUCTOR-AXIAL;100UH,10%,4298 1 SA
L1302 2701-000002 INDUCTOR-AXIAL;100UH,10%,4298 1 SA Q1301 0504-000119 TR-DIGITAL;KSR1004,NPN,300MW,47K/ 1 SA Q1302 0504-000119 TR-DIGITAL;KSR1004,NPN,300MW,47K/ 1 SA Q1303 0504-000119 TR-DIGITAL;KSR1004,NPN,300MW,47K/ 1 SA R1301 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1. 1 SA
R1303 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X 1 SA R1304 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8 1 SA R1305 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8 1 SA R1306 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8 1 SA R1307 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8 1 SA
R1313 2001-000034 R-CARBON;220OHM,5%,1/4W,AA,TP,2.4 1 SA R1314 2001-000034 R-CARBON;220OHM,5%,1/4W,AA,TP,2.4 1 SA R1315 2001-000034 R-CARBON;220OHM,5%,1/4W,AA,TP,2.4 1 SA R1316 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP,1.8 1 SA R1317 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP,1.8 1 SA
R1318 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1. 1 SA R1319 2001-000864 R-CARBON;56KOHM,5%,1/8W,AA,TP,1.8 1 SA R1320 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X 1 SA S1301 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm, 1 SA S1302 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm, 1 SA
S1303 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm, 1 SA S1304 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm, 1 SA S1305 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm, 1 SA S1306 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm, 1 SA S1307 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm, 1 SA
S1308 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm, 1 SA S1309 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm, 1 SA S1310 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm, 1 SA U1301 1003-001039 IC-VFD;UPD16311GC-AB6,QFP,52P,551 1 SA
VF1301 MD07-00001A VFD DISPLAY;DTB-P850F,HNV-12SM97, 1 SA
VF1301 MF61-00105A HOLDER-VFD;DTB-P850F,ABS 94HB,-,1 1 SNA
AC99-40105Q ASSY PCB-MAIN VCR,c;SLV-D990PB,ZE 1 SNA AC99-50106K ASSY PCB-MAIN,t;DVD-P249M/XEV,MAI 1 SNA
C021 MF64-00313A INDICATOR-POWER;DTB-P850F,PMMA,-, 1 SNA C522 MF64-00308A BUTTON-POWER;DTB-P850F,ABS 94HB,2 1 SNA C701 AK73-00028A RUBBER-HDD;DVD-HR800/XAA,BUTHYL 4 4 SA C827 MF64-00312A BUTTON-NAVI;DTB-P850F,ABS 94HB,26 1 SNA C904 MF39-00309A HARNESS;DTB-P850F,-,UL/CSA,4P,150 1 SA
C950 MF64-00317A CHASSIS-BOTTOM;DTB-P850F,SECC,T0. 1 SNA FL261 3809-001886 FFC CABLE-FLAT;30V,80C,100mm,15P, 1 SA ST020 MF64-00307A WINDOW-VFD;05-SS-381-A,PMMA,-,114 1 SNA ST025 MF64-00133A DOOR-LOCK;SIR-S4120TR,SUS304,T0.2 1 SNA ST028 MF64-00341E PANEL FRONT;DTB-P850V,HIPS,T 2.5, 1 SNA
VS074 MF61-00097A BRACKET-HDD;R15-200,SECC,T17,W143 1 SNA W004 6003-000283 SCREW-TAPTITE;BH,+,-,B,M3,L8,ZPC( 6 SA W268 6003-000254 SCREW-TAPTITE;BH,+,-,S,M3,L6,ZPC( 1 SA W307 6001-001868 SCREW-MACHINE;PWH,+,-,M2.6,L4,ZPC 4 SA
MF61-00098A SUPPORT-PEMNUT;R15-200,SUM24L,T18 4 SNA
MF64-00319A CHASSIS-REAR;DTB-P850F,SECC,T0.6, 1 SNA AK61-00608A LEG;DVD-VR330,RUBBER,-,BLK,12,- 4 SNA MF61-00136A SUPPORT-SMPS;DTB-P850F,NYLON66,T9 2 SNA MF68-00269B LABEL-NDS;DSR 100DN,SKYLIFE,Art P 1 SNA AC64-00121A BADGE-SAMSUNG;COBRA,ABS94HB,-,-,3 1 SNA
MF64-00310A BUTTON-REC;DTB-P850F,ABS 94HB,19* 1 SNA MF64-00311A BUTTON-OK;DTB-P850F,ABS 94HB,30*2 1 SNA MF64-00314A DECORATION-MIDDLE;DTB-P850F,ABS 9 1 SNA MF64-00315A DECORATION-LEFT;DTB-P850F,ABS 94H 1 SNA MF64-00316A DECORATION-RIGHT;DTB-P850F,ABS 94 1 SNA
MF61-00105A HOLDER-VFD;DTB-P850F,ABS 94HB,-,1 1 SNA MF64-00320A BUTTON-OK CAP;DTB-P850F,ABS 94HB, 1 SNA MF64-00384A WINDOW-REC;DTB-P850F,PC,T3,W46.8, 1 SNA AK68-00154E LABEL-RATING;DVD-P731M,XAA,ART PA 2 SNA AH39-00043B CABLE-SCART;-,-,21P,1200MM,-,-,PV 1 SA
MF63-00091A SHEET-NITRON;DCB-H360R,HDPE+LDPE+ 1 SNA MF69-00569A CUSHION-RL;DTB-P850F,EPS,T15,W388 1 SNA 0203-001100 TAPE-OPP MASKING;OPP/W75/CLR,T0.0 1 SNA 6902-000604 BAG WRAPPING;LDPE,T0.02,W500,L100 1 SNA MF68-00385A LABEL RATING;DTB-P850F,XEC,ARTPAP 1 SNA
AH68-00371A LABEL-BAR CODE;DVD-611/XAA,-,MOJO 1 SNA MF69-00568G PACKING CASE;DTB-P850V,SW2,A TYPE 1 SA AK97-01851A ASSY-ACCESSORY;IB,WC, cable, batt 1 SNA 6801-001009 CARD-WARRANTY;EUROPE(12),8 1 SNA 4301-000115 BATTERY-MN;1.5V,750mAH,AAA,10.5x4 2 SNA
AC39-00017A CABLE-ETC-RF(PAL);-,MALE/FEMALE,1 1 SA 6902-000078 BAG PE;LDPE,T0.05,W300,L400,TRP,8 1 SNA MF68-00416A MANUAL USERS;DTB-P850V/XEE,-,ENG, 1 SA
Loc.No Part No Description ; Specification Q’ty S.N.A Remark Loc.No Part No Description ; Specification Q’ty S.N.A Remark
Page 10
7-10
Samsung Electronics
Electrical Parts List
MEMO
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
