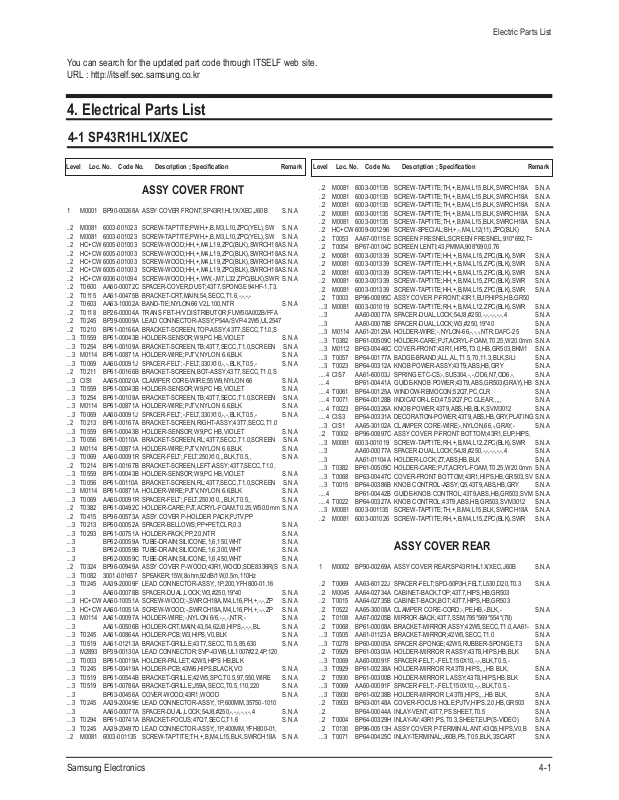

Samsung electrical_part_list_165 Datasheet

Electric Parts List

Samsung Electronics 4-1

4-1 SP43R1HL1X/XEC

4. Electrical Parts List

Level Loc. No. Code No. Description ; Specification Remark

Level Loc. No. Code No. Description ; Specification Remark

You can search for the updated part code through ITSELF web site.
URL : http://itself.sec.samsung.co.kr

ASSY COVER FRONT

1 M0001 BP90-00268A ASSY COVER FRONT;SP43R1HL1X/XEC,J60B S.N.A

..2 M0081 6003-001023 SCREW-TAPTITE;PWH,+,B,M3,L10,ZPC(YEL),SW S.N.A
..2 M0081 6003-001023 SCREW-TAPTITE;PWH,+,B,M3,L10,ZPC(YEL),SW S.N.A
..2 HC+CW 6005-001003 SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18A S.N.A
..2 HC+CW 6005-001003 SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18A S.N.A
..2 HC+CW 6005-001003 SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18A S.N.A
..2 HC+CW 6005-001003 SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18A S.N.A
..2 HC+CW 6006-001094 SCREW-WOOD;HH,+,WW,-,M7,L32,ZPC(BLK),SWR S.N.A
..2 T0600 AA60-00072C SPACER-COVER,DUST;43T7,SPONGE 94HF-1,T3.
..2 T0115 AA61-00475B BRACKET-CRT,MAIN;54,SECC,T1.6,-,-,-,­..2 T0603 AA63-10002A BAND-TIE;NYLON66 V2,L100,NTR S.N.A
..2 T0118 BP26-00004A TRANS FBT-H/V DISTRIBUTOR;FUW50A002B/FFA
..2 T0245 BP39-00009A LEAD CONNECTOR-ASSY;P54A/SVP-42W5,UL2547
..2 T0210 BP61-00166A BRACKET-SCREEN,TOP-ASSY;43T7,SECC,T1.0,S
...3 T0559 BP61-00043B HOLDER-SENSOR;W9,PC HB,VIOLET S.N.A
...3 T0254 BP61-00109A BRACKET-SCREEN,TB;43T7,SECC,T1.0,SCREEN S.N.A
...3 M0114 BP61-00871A HOLDER-WIRE;PJTV,NYLON 6.6,BLK S.N.A
...3 T0069 AA60-00091J SPACER-FELT;-,FELT,330X10,-,-,BLK,T0.5,- S.N.A
..2 T0211 BP61-00166B BRACKET-SCREEN,BOT-ASSY;43T7,SECC,T1.0,S
...3 CIS1 AA65-00020A CLAMPER CORE-WIRE;55W9,NYLON 66 S.N.A
...3 T0559 BP61-00043B HOLDER-SENSOR;W9,PC HB,VIOLET S.N.A
...3 T0254 BP61-00109A BRACKET-SCREEN,TB;43T7,SECC,T1.0,SCREEN S.N.A
...3 M0114 BP61-00871A HOLDER-WIRE;PJTV,NYLON 6.6,BLK S.N.A
...3 T0069 AA60-00091J SPACER-FELT;-,FELT,330X10,-,-,BLK,T0.5,- S.N.A
..2 T0213 BP61-00167A BRACKET-SCREEN,RIGHT-ASSY;43T7,SECC,T1.0
...3 T0559 BP61-00043B HOLDER-SENSOR;W9,PC HB,VIOLET S.N.A
...3 T0056 BP61-00110A BRACKET-SCREEN,RL;43T7,SECC,T1.0,SCREEN S.N.A
...3 M0114 BP61-00871A HOLDER-WIRE;PJTV,NYLON 6.6,BLK S.N.A
...3 T0069 AA60-00091R SPACER-FELT;,FELT,250X10,,,BLK,T0.5,, S.N.A
..2 T0214 BP61-00167B BRACKET-SCREEN,LEFT-ASSY;43T7,SECC,T1.0,
...3 T0559 BP61-00043B HOLDER-SENSOR;W9,PC HB,VIOLET S.N.A
...3 T0056 BP61-00110A BRACKET-SCREEN,RL;43T7,SECC,T1.0,SCREEN S.N.A
...3 M0114 BP61-00871A HOLDER-WIRE;PJTV,NYLON 6.6,BLK S.N.A
...3 T0069 AA60-00091R SPACER-FELT;,FELT,250X10,,,BLK,T0.5,, S.N.A
..2 T0382 BP61-00492C HOLDER-CARE;PJT,ACRYL-FOAM,T0.25,W50.0mm S.N.A
..2 T0415 BP96-00573A ASSY COVER P-HOLDER PACK;PJTV,PP
...3 T0213 BP60-00052A SPACER-BELLOWS;PP+PET,CLR,0.3 S.N.A
...3 T0293 BP61-00751A HOLDER-PACK;PP,2.0,NTR S.N.A
...3 BP62-00059A TUBE-DRAIN;SILICONE,1,6,150,WHT S.N.A
...3 BP62-00059B TUBE-DRAIN;SILICONE,1,6,300,WHT S.N.A
...3 BP62-00059C TUBE-DRAIN;SILICONE,1,6,450,WHT S.N.A
..2 T0324 BP96-00949A ASSY COVER P-WOOD;43R1,WOOD,SDE8336R(S S.N.A
...3 T0082 3001-001657 SPEAKER;15W,8ohm,92dB/1W,0.5m,110Hz
...3 T0245 AA39-20009F LEAD CONNECTOR-ASSY;,1P,200,YFH800-01,16
...3 AA60-00078B SPACER-DUAL,LOCK;W3,#250,19*40 S.N.A
...3 HC+CW AA60-10051A SCREW-WOOD;-,SWRCH18A,M4,L16,PH,+,-,-,ZP S.N.A
...3 HC+CW AA60-10051A SCREW-WOOD;-,SWRCH18A,M4,L16,PH,+,-,-,ZP S.N.A
...3 M0114 AA61-00097A HOLDER-WIRE;-,NYLON 6/6,-,-,-,NTR,- S.N.A
...3 AA61-00506B HOLDER-CRT,MAIN;43,54,62J8,HIPS,-,-,-,BL S.N.A
...3 T0245 AA61-00864A HOLDER-PCB;W3,HIPS,V0,BLK S.N.A
...3 T0519 AA61-01213A BRACKET-GRILLE;43T7,SECC,T0.5,85,630 S.N.A
...3 M2893 BP39-00130A LEAD CONNECTOR;SVP-43W6,UL1007#22,4P,120
...3 T0003 BP61-00019A HOLDER-PALLET;42W5,HIPS HB,BLK
...3 T0245 BP61-00419A HOLDER-PCB;43W6,HIPS,BLACK,VO S.N.A
...3 T0519 BP61-00544B BRACKET-GRILLE;42W5,SPC,T0.5,97,550,WIRE S.N.A
...3 T0519 BP61-00786A BRACKET-GRILLE;J59A,SECC,T0.5,110,220 S.N.A
...3 BP63-00456A COVER-WOOD;43R1,WOOD S.N.A
...3 T0245 AA39-20049E LEAD CONNECTOR-ASSY;,1P,600MM,35750-1010
...3 AA60-00077A SPACER-DUAL,LOCK;54J8,#250,-,-,-,-,-,-,4 S.N.A
...3 T0294 BP61-00741A BRACKET-FOCUS;47Q7,SECC,T1.6 S.N.A
...3 T0245 AA39-20497D LEAD CONNECTOR-ASSY;,1P,400MM,YFH800-01,
..2 M0081 6003-001135 SCREW-TAPTITE;TH,+,B,M4,L15,BLK,SWRCH18A S.N.A

..2 M0081 6003-001135 SCREW-TAPTITE;TH,+,B,M4,L15,BLK,SWRCH18A S.N.A
..2 M0081 6003-001135 SCREW-TAPTITE;TH,+,B,M4,L15,BLK,SWRCH18A S.N.A
..2 M0081 6003-001135 SCREW-TAPTITE;TH,+,B,M4,L15,BLK,SWRCH18A S.N.A
..2 M0081 6003-001135 SCREW-TAPTITE;TH,+,B,M4,L15,BLK,SWRCH18A S.N.A
..2 M0081 6003-001135 SCREW-TAPTITE;TH,+,B,M4,L15,BLK,SWRCH18A S.N.A
..2 HC+CW 6009-001296 SCREW-SPECIAL;BH,+,-,M4,L12(11),ZPC(BLK) S.N.A
..2 T0053 AA67-00115E SCREEN FRESNEL;SCREEN FRESNEL,910*692,T=
..2 T0054 BP67-00104C SCREEN LENTI;43,PMMA,908*690,0.76
..2 M0081 6003-001339 SCREW-TAPTITE;HH,+,B,M4,L15,ZPC(BLK),SWR S.N.A
..2 M0081 6003-001339 SCREW-TAPTITE;HH,+,B,M4,L15,ZPC(BLK),SWR S.N.A
..2 M0081 6003-001339 SCREW-TAPTITE;HH,+,B,M4,L15,ZPC(BLK),SWR S.N.A
..2 M0081 6003-001339 SCREW-TAPTITE;HH,+,B,M4,L15,ZPC(BLK),SWR S.N.A
..2 M0081 6003-001339 SCREW-TAPTITE;HH,+,B,M4,L15,ZPC(BLK),SWR S.N.A
..2 T0003 BP96-00895C ASSY COVER P-FRONT;43R1,EUP,HIPS,HB,GR50
...3 M0081 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR S.N.A
...3 AA60-00077A SPACER-DUAL,LOCK;54J8,#250,-,-,-,-,-,-,4 S.N.A
...3 AA60-00078B SPACER-DUAL,LOCK;W3,#250,19*40 S.N.A
...3 M0114 AA61-20129A HOLDER-WIRE;-,NYLON-66,-,-,-,NTR,DAFC-25 S.N.A
...3 T0382 BP61-00509C HOLDER-CARE;PJT,ACRYL-FOAM,T0.25,W20.0mm S.N.A
...3 M0112 BP63-00446C COVER-FRONT;43R1,HIPS,T3.0,HB,GR503,BKM1 S.N.A
...3 T0057 BP64-00177A BADGE-BRAND;ALL,AL,T1.5,70,11.3,BLK,SILI S.N.A
...3 T0023 BP64-00312A KNOB POWER-ASSY;43T9,ABS,HB,GRY S.N.A

....4 CIS7 AA61-60003J SPRING ETC-CS;-,SUS304,-,-,OD6,N7,OD6,-, S.N.A

....4 BP61-00441A GUIDE-KNOB POWER;43T9,ABS,GR503(GRAY),HB S.N.A

....4 T0061 BP64-00125A WINDOW-REMOCON;52Q7,PC,CLR S.N.A

....4 T0071 BP64-00128B INDICATOR-LED;47,52Q7,PC CLEAR,,,,, S.N.A

....4 T0023 BP64-00326A KNOB POWER;43T9,ABS,HB,BLK,SVM3012 S.N.A

....4 CIS3 BP64-00331A DECORATION-POWER;43T9,ABS,HB,GRY,PLATING S.N.A

...3 CIS1 AA65-30102A CLAMPER CORE-WIRE;-,NYLON,66,-,GRAY,- S.N.A
..2 T0002 BP96-00897C ASSY COVER P-FRONT BOTTOM;43R1,EUP,HIPS,
...3 M0081 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR S.N.A
...3 AA60-00077A SPACER-DUAL,LOCK;54J8,#250,-,-,-,-,-,-,4 S.N.A
...3 AA61-01104A HOLDER-LOCK;Z7,ABS,HB,BLK S.N.A
...3 T0382 BP61-00509C HOLDER-CARE;PJT,ACRYL-FOAM,T0.25,W20.0mm S.N.A
...3 T0068 BP63-00447C COVER-FRONT BOTTOM;43R1,HIPS,HB,GR503,SV S.N.A
...3 T0015 BP64-00386B KNOB CONTROL-ASSY;Q5,43T9,ABS,HB,GRY S.N.A

....4 BP61-00442B GUIDE-KNOB CONTROL;43T9,ABS,HB,GR503,SVM S.N.A

....4 T0022 BP64-00327A KNOB CONTROL;43T9,ABS,HB,GR503,SVM3012 S.N.A

...3 M0081 6003-001135 SCREW-TAPTITE;TH,+,B,M4,L15,BLK,SWRCH18A S.N.A
..2 M0081 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR S.N.A

ASSY COVER REAR

1 M0002 BP90-00269A ASSY COVER REAR;SP43R1HL1X/XEC,J60B S.N.A

..2 T0069 AA63-60122J SPACER-FELT;SPD-50P3H,FELT,L530,D20,T0.3 S.N.A
..2 M0045 AA64-02734A CABINET-BACK,TOP;43T7,HIPS,HB,GR503
..2 T0015 AA64-02735B CABINET-BACK,BOT;43T7,HIPS,HB,GR503
..2 T0522 AA65-30008A CLAMPER CORE-CORD;-,PE,HB,-,BLK,- S.N.A
..2 T0108 AA67-00205B MIRROR-BACK;43T7,SSM,795*569*554*(78)
..2 T0068 BP61-00008A BRACKET-MIRROR,ASSY;42W5,SECC,T1.0,AA61- S.N.A
...3 T0505 AA61-01123A BRACKET-MIRROR;42W5,SECC,T1.0 S.N.A
...3 T0278 BP60-00005A SPACER-SPONGE;42W5,RUBBER-SPONGE,T3 S.N.A
..2 T0929 BP61-00300A HOLDER-MIRROR R ASSY;43T8,HIPS,HB,BLK S.N.A
...3 T0069 AA60-00091F SPACER-FELT;-,FELT,150X10,-,-,BLK,T0.5,­...3 T0929 BP61-00238A HOLDER-MIRROR R;43T8,HIPS,,,,HB BLK, S.N.A
..2 T0930 BP61-00300B HOLDER-MIRROR LASSY;43T8,HIPS,HB,BLK S.N.A
...3 T0069 AA60-00091F SPACER-FELT;-,FELT,150X10,-,-,BLK,T0.5,­...3 T0930 BP61-00238B HOLDER-MIRROR L;43T8,HIPS,,,,HB BLK, S.N.A
..2 T0933 BP63-00148A COVER-FOCUS HOLE;PJTV,HIPS,2.0,HB,GR503 S.N.A
..2 BP64-00044A INLAY-VENT;43T7,PS SHEET,T0.5 S.N.A
..2 T0004 BP64-00329H INLAY-AV;43R1,PS,T0.3,SHEET,EUP(S-VIDEO) S.N.A
..2 T0130 BP96-00513H ASSY COVER P-TERMINAL ANT;43Q5,HIPS,V0,B S.N.A
...3 T0071 BP64-00425C INLAY-TERMINAL;J60B,PS,T0.5,BLK,3SCART S.N.A

...3 T0130 BP65-00009A TERMINAL-BOARD ANT;OMEGA(J60A,P60A),HIPS S.N.A

ASSY PRT

1 T0601 BP91-00995A ASSY PRT;43T8,P59A S.N.A

..2 T0026 BP91-01422A ASSY CPT-R;43T8,P59A
...3 T0257 AA03-00389A CRT MONO;P16QDU11RJA P,FREE,0.76MH,1.22M S.N.A
...3 T0117 AA26-30006F TRANS FBT-ANODE CAP ASS'Y;-,FWZ-50A001C,
...3 T0078 AA27-00042A DEFLECTION YOKE;,7PRT,S/S,7PRT,29.1MM,7P
...3 T0079 AA33-00016A MAGNET CONVERGENCE;JH 92LT - 29F,PJT-TV,
...3 T0245 AA39-00018A LEAD CONNECTOR-ASSY;,UL1015#22,UL/CSA,1P
...3 T0511 AA60-00127B SPACER-LENS;PROJ,SILICONE,D/GRAY S.N.A
...3 M0081 AA60-10011A SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A
...3 T0112 AA61-00056B BRACKET-LENS;PROJECTION,SECC,T1.6,-,-,-, S.N.A
...3 AA61-00806B CASE-COUPLER,R;PROJ,ALDC,T8,BLK S.N.A
...3 AA61-00809B HOLDER-CRT;PROJ,PC/ABS GF 20%,BLK S.N.A
...3 T0511 AA63-00076B SPACER-LENS;FELT,W7,BLK,T0.8 S.N.A
...3 T0107 AA91-00722A ASSY-BRKT,CRT;,SECC T1.6,PROJ

....4 T0072 AA61-00473B BRACKET-CRT;53,SECC,T1.6,-,-,-,- S.N.A

....4 T0210 AA61-00615B BRACKET-EARTH;54J8,PBS,T0.5,-,-,-,- S.N.A

....4 AA61-00812A SPRING ETC-WIRE;PROJ,STS,3.6 S.N.A

...3 T0108 BP61-00079A HOLDER-DY;,PJTV,T0.5,NYLON66 V2 S.N.A
...3 T0334 AA60-00125B SPACER-CRT;PROJ,SILICONE,D/GRAY S.N.A
...3 T0069 BN60-00027B SPACER-FELT;PJTV,PRT,FELT,L20,T1.0,W20 S.N.A
...3 T0333 BP60-00050A SPACER-CAP;EPDM,BLK
...3 T0114 BP61-00725A HOLDER-CAP;PC,CLEAR S.N.A
...3 T0109 BP67-00161A LENS-ASSY;LENS ASSY,SNI 140,RED S.N.A
...3 T0051 BP67-00161D LENS;LENS,SNI 140,CLEAR,C ELEMENT S.N.A
..2 T0027 BP91-01423A ASSY CPT-G;43T8,P59A
...3 T0257 AA03-00388A CRT MONO;P16QDU11GHA P,FREE,0.76MH,1.22M S.N.A
...3 T0117 AA26-30006F TRANS FBT-ANODE CAP ASS'Y;-,FWZ-50A001C,
...3 T0078 AA27-00042A DEFLECTION YOKE;,7PRT,S/S,7PRT,29.1MM,7P
...3 T0245 AA39-00018A LEAD CONNECTOR-ASSY;,UL1015#22,UL/CSA,1P
...3 T0334 AA60-00125B SPACER-CRT;PROJ,SILICONE,D/GRAY S.N.A
...3 T0511 AA60-00127B SPACER-LENS;PROJ,SILICONE,D/GRAY S.N.A
...3 M0081 AA60-10011A SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A
...3 T0112 AA61-00056B BRACKET-LENS;PROJECTION,SECC,T1.6,-,-,-, S.N.A
...3 AA61-00807B CASE-COUPLER,G;PROJ,ALDC,T8,BLK S.N.A
...3 AA61-00809B HOLDER-CRT;PROJ,PC/ABS GF 20%,BLK S.N.A
...3 T0511 AA63-00076B SPACER-LENS;FELT,W7,BLK,T0.8 S.N.A
...3 T0107 AA91-00722A ASSY-BRKT,CRT;,SECC T1.6,PROJ

....4 T0072 AA61-00473B BRACKET-CRT;53,SECC,T1.6,-,-,-,- S.N.A

....4 T0210 AA61-00615B BRACKET-EARTH;54J8,PBS,T0.5,-,-,-,- S.N.A

....4 AA61-00812A SPRING ETC-WIRE;PROJ,STS,3.6 S.N.A

...3 T0108 BP61-00079A HOLDER-DY;,PJTV,T0.5,NYLON66 V2 S.N.A
...3 T0069 BN60-00027B SPACER-FELT;PJTV,PRT,FELT,L20,T1.0,W20 S.N.A
...3 T0333 BP60-00050A SPACER-CAP;EPDM,BLK
...3 T0114 BP61-00725A HOLDER-CAP;PC,CLEAR S.N.A
...3 T0109 BP67-00161B LENS-ASSY;LENS ASSY,SNI 140,GREEN S.N.A
...3 T0051 BP67-00161D LENS;LENS,SNI 140,CLEAR,C ELEMENT S.N.A
..2 T0028 BP91-01424A ASSY CPT-B;43T8,P59A
...3 T0257 AA03-00309A CRT MONO;P16QDU11BEA(S),FREE,0.78MH,7.0M S.N.A
...3 T0117 AA26-30006F TRANS FBT-ANODE CAP ASS'Y;-,FWZ-50A001C,
...3 T0078 AA27-00042A DEFLECTION YOKE;,7PRT,S/S,7PRT,29.1MM,7P
...3 T0079 AA33-00018A MAGNET CONVERGENCE;JH 92LT - 36F,PJT-TV,
...3 T0245 AA39-00018A LEAD CONNECTOR-ASSY;,UL1015#22,UL/CSA,1P
...3 T0511 AA60-00127B SPACER-LENS;PROJ,SILICONE,D/GRAY S.N.A
...3 M0081 AA60-10011A SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A
...3 T0112 AA61-00056B BRACKET-LENS;PROJECTION,SECC,T1.6,-,-,-, S.N.A
...3 AA61-00808B CASE-COUPLER,B;PROJ,ALDC,T8,BLK S.N.A
...3 AA61-00809B HOLDER-CRT;PROJ,PC/ABS GF 20%,BLK S.N.A
...3 T0511 AA63-00076B SPACER-LENS;FELT,W7,BLK,T0.8 S.N.A
...3 T0107 AA91-00722A ASSY-BRKT,CRT;,SECC T1.6,PROJ

....4 T0072 AA61-00473B BRACKET-CRT;53,SECC,T1.6,-,-,-,- S.N.A

....4 T0210 AA61-00615B BRACKET-EARTH;54J8,PBS,T0.5,-,-,-,- S.N.A

....4 AA61-00812A SPRING ETC-WIRE;PROJ,STS,3.6 S.N.A

...3 T0108 BP61-00079A HOLDER-DY;,PJTV,T0.5,NYLON66 V2 S.N.A
...3 T0334 AA60-00125B SPACER-CRT;PROJ,SILICONE,D/GRAY S.N.A
...3 T0069 BN60-00027B SPACER-FELT;PJTV,PRT,FELT,L20,T1.0,W20 S.N.A
...3 T0333 BP60-00050A SPACER-CAP;EPDM,BLK
...3 T0114 BP61-00725A HOLDER-CAP;PC,CLEAR S.N.A
...3 T0109 BP67-00161C LENS-ASSY;LENS ASSY,SNI 140,CLEAR S.N.A
...3 T0051 BP67-00161D LENS;LENS,SNI 140,CLEAR,C ELEMENT S.N.A

ASSY CHASSIS

1 M0017 BP91-01817A ASSY CHASSIS;SP43R1HL1X/XEC,J60B,ANT S.N.A

..2 T0105 BP94-00567A ASSY PCB MISC-DY JACK;SVP-43W6,CHAMP
...3 CN906 3711-000654 CONNECTOR-HEADER;BOX,12P,1R,2.5mm,STRAIG
...3 BP97-00524A ASSY AUTO-DY;SVP-43W6HE,P59A S.N.A

....4 R075 2001-001107 R-CARBON(S);220ohm,5%,1/2W,AA,TP,2.4x6.4

....4 R075 2001-001107 R-CARBON(S);220ohm,5%,1/2W,AA,TP,2.4x6.4

....4 R075 2001-001107 R-CARBON(S);220ohm,5%,1/2W,AA,TP,2.4x6.4

....4 BP41-00053A PCB-DY;43W6,DY-JACK,1L,1.6T,75*50,P59A,1 S.N.A

...3 CN906 3711-003043 CONNECTOR-HEADER;BOX,4P,1R,2.5MM,STRAIGH
...3 CN906 3711-003043 CONNECTOR-HEADER;BOX,4P,1R,2.5MM,STRAIGH
...3 CN906 3711-003043 CONNECTOR-HEADER;BOX,4P,1R,2.5MM,STRAIGH
...3 T0061 BP61-00375A HOLDER-PCB DY;PJTV,HIPS,V0,BLK S.N.A
...3 T0245 0202-001366 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb, S.N.A
...3 GT01 AA60-40012F PIN-GT;4P,2.36PI,6/12/14mm,NYLON66,LOCKI S.N.A
...3 GT811 AA60-40012D PIN-GT,ASSY;T1.6,6-12.5-,NYLON66 S.N.A
...3 GT811 AA60-40012D PIN-GT,ASSY;T1.6,6-12.5-,NYLON66 S.N.A
...3 GT811 AA60-40012D PIN-GT,ASSY;T1.6,6-12.5-,NYLON66 S.N.A
..2 M0014 BP94-00756A ASSY PCB MAIN;EU,OMEGA2
...3 T0245 0202-001366 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb, S.N.A
...3 IC106 1001-000223 IC-VIDEO SWITCH;TEA5114A,-,DIP,16P,334MI
...3 C701 2401-001068 C-AL;3300uF,20%,50V,GP,BK,22x40,10
...3 EX01 2801-004019 CRYSTAL-UNIT;20.25MHz,30ppm,28-AAM,13pF,
...3 CN902 3703-001150 CONNECTOR-BACK PANEL;32P,2R,FEMALE,STRAI
...3 CN906 3711-000012 CONNECTOR-HEADER;BOX,4P,1R,2.5MM,STRAIGH
...3 CN906 3711-000577 CONNECTOR-HEADER;BOX,10P,1R,2.5mm,STRAIG
...3 CN906 3711-000577 CONNECTOR-HEADER;BOX,10P,1R,2.5mm,STRAIG
...3 CN906 3711-000616 CONNECTOR-HEADER;BOX,11P,1R,2.5mm,STRAIG
...3 CN906 3711-003240 CONNECTOR-HEADER;BOX,15P,1R,2.5mm,STRAIG
...3 CN906 3711-003240 CONNECTOR-HEADER;BOX,15P,1R,2.5mm,STRAIG
...3 CN906 3711-003241 CONNECTOR-HEADER;BOX,14P,1R,2.5MM,STRAIG
...3 JA702 3722-000183 JACK-SCART;21P,4mm,SN,BLK,NO
...3 JA701 3722-000195 JACK-SCART;42P,-,SN,BLK,NO
...3 JA704 3722-001802 JACK-PIN;2P,8.3PI,NI,WHT/RED,­...3 JA703 3722-001870 JACK-PIN;5P(10P),8.3MM,NI,GRN/BLU/RED/WH
...3 CIS3 AA40-00127A TUNER;TMQZ2-402A,PAL-CW,PAL Hyper,38.9MH
...3 AA63-00396B SHIELD CASE-TOP;PRJT,P54A,SPTE,T0.5,-,-, S.N.A
...3 AA63-00397B SHIELD CASE-BOT;PRJT,P54A,SPTE,T0.5,-,-, S.N.A
...3 MIC801 BP96-00335E ASSY HEAT SINK P;BP62-00035A,SCREW,SLA30 S.N.A

....4 CIS1 0205-001154 OIL-SILICON;G746,-,- S.N.A

....4 IC012 1203-000203 IC-POSI.ADJUST REG.;3050,TO-220,5P,-,PLA

....4 IC062 1203-003158 IC-MULTI REG.;SLA3010M,SIP,15P,30x15mm,P

....4 M0081 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A

....4 T0175 BP62-00035A HEAT SINK-PS;P57A,A1050S,T2.0,12.5,66,WH S.N.A

...3 IC601 BP96-00712A ASSY HEAT SINK P;BP62-00063A,SCREW,TDA72 S.N.A

....4 CIS1 0205-001154 OIL-SILICON;G746,-,- S.N.A

....4 T0124 1201-001026 IC-POWER AMP;7265,ZIP,11P,19.6MIL,DUAL,1

....4 M0081 6003-000335 SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A

....4 T0175 BP62-00063A HEAT SINK-PS;CHAMP,A1050S,T2.0,42,100,WH S.N.A

...3 M0014 BP97-00849A ASSY AUTO-MAIN;EU,OMEGA 2 S.N.A

....4 T0083 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP

....4 T0083 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP

....4 T0083 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP

....4 T0083 0402-000274 DIODE-RECTIFIER;UF4004,400V,1A,DO-41,TP

....4 T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

....4 T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

....4 DZ016 0403-000167 DIODE-ZENER;1N4758A,5%,1000MW,DO-41,TP

....4 DZ016 0403-000700 DIODE-ZENER;TZP33A,5%,1000MW,DO-41,TP

....4 Q409 0505-000109 FET-SILICON;2N7000,N,60V,200mA,5ohm,400m

....4 Q409 0505-000109 FET-SILICON;2N7000,N,60V,200mA,5ohm,400m

....4 IC904 1203-001943 IC-VOL. DETECTOR;7025,TO-92,3P,-,PLASTIC

....4 R075 2001-000096 R-CARBON(S);1MOHM,5%,1/2W,AA,TP,2.4X6.4M

....4 R075 2001-000109 R-CARBON(S);470OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R125 2001-000739 R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000857 R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000857 R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000857 R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000947 R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R075 2001-001146 R-CARBON(S);4.7OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-001146 R-CARBON(S);4.7OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-001149 R-CARBON(S);43KOHM,5%,1/2W,AA,TP,2.4X6.4

....4 MR815 2003-001091 R-METAL OXIDE(S);10ohm,5%,2W,AF,TP,4x12m

....4 MR814 2003-001098 R-METAL OXIDE(S);22Kohm,5%,3W,AA,TP,6x16

Electric Parts List

4-2 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

....4 R675 2004-000433 R-METAL;1Kohm,1%,1/8W,AA,TP,1.8x3.2mm

....4 R676 2004-000433 R-METAL;1Kohm,1%,1/8W,AA,TP,1.8x3.2mm

....4 R024 2004-001373 R-METAL(S);100Kohm,1%,1/2W,AA,TP,2.4x6.4

....4 R024 2004-001373 R-METAL(S);100Kohm,1%,1/2W,AA,TP,2.4x6.4

....4 R024 2004-001373 R-METAL(S);100Kohm,1%,1/2W,AA,TP,2.4x6.4

....4 R024 2004-001376 R-METAL(S);11Kohm,1%,1/2W,AA,TP,2.4x6.4m

....4 R024 2004-001397 R-METAL(S);4.7Kohm,1%,1/2W,AA,TP,2.4x6.4

....4 R024 2004-001397 R-METAL(S);4.7Kohm,1%,1/2W,AA,TP,2.4x6.4

....4 R024 2004-001397 R-METAL(S);4.7Kohm,1%,1/2W,AA,TP,2.4x6.4

....4 R024 2004-001970 R-METAL(S);1.8Kohm,1%,1/2W,AA,TP,6.5x2.5

....4 R024 2004-001970 R-METAL(S);1.8Kohm,1%,1/2W,AA,TP,6.5x2.5

....4 R024 2004-001970 R-METAL(S);1.8Kohm,1%,1/2W,AA,TP,6.5x2.5

....4 R024 2004-001970 R-METAL(S);1.8Kohm,1%,1/2W,AA,TP,6.5x2.5

....4 R024 2004-004029 R-METAL(S);10Kohm,1%,1/2W,AA,TP,2.5x6.5m

....4 R024 2004-005054 R-METAL(S);39KOHM,1%,1/2W,AA,TP,2.4X6.4M

....4 C598 2201-000281 C-CERAMIC,DISC;1NF,+80-20%,50V,Y5V,TP,5X

....4 C2560 2301-000192 C-FILM,LEAD-PEF;1nF,5%,50V,TP,5.3x10mm,5

....4 C2560 2301-000192 C-FILM,LEAD-PEF;1nF,5%,50V,TP,5.3x10mm,5

....4 FC58 2301-001664 C-FILM,LEAD-OTHER;100nF,3%,50V,TP,20x16x

....4 C2560 2305-000011 C-FILM,LEAD-PEF;470nF,5%,250V,TP,21.5X13

....4 C2560 2305-000411 C-FILM,LEAD-PEF;470nF,5%,50V,TP,7.3x4.8x

....4 C2560 2305-000665 C-FILM,LEAD-PEF;100nF,5%,63V,TP,7.5x4.0x

....4 C2560 2305-000704 C-FILM,LEAD-PEF;100nF,5%,250V,TP,16.5x10

....4 C2560 2305-000704 C-FILM,LEAD-PEF;100nF,5%,250V,TP,16.5x10

....4 C2560 2305-000704 C-FILM,LEAD-PEF;100nF,5%,250V,TP,16.5x10

....4 C2560 2305-000704 C-FILM,LEAD-PEF;100nF,5%,250V,TP,16.5x10

....4 C701 2401-000025 C-AL;100uF,20%,16V,GP,TP,6.3x11,5

....4 C701 2401-000025 C-AL;100uF,20%,16V,GP,TP,6.3x11,5

....4 C701 2401-000039 C-AL;1000uF,20%,16V,GP,TP,10x16,5

....4 C701 2401-000050 C-AL;10uF,20%,16V,GP,TP,5x11,2.5

....4 C701 2401-000050 C-AL;10uF,20%,16V,GP,TP,5x11,2.5

....4 C701 2401-000050 C-AL;10uF,20%,16V,GP,TP,5x11,2.5

....4 C701 2401-000050 C-AL;10uF,20%,16V,GP,TP,5x11,2.5

....4 C701 2401-000050 C-AL;10uF,20%,16V,GP,TP,5x11,2.5

....4 C701 2401-000050 C-AL;10uF,20%,16V,GP,TP,5x11,2.5

....4 C701 2401-000050 C-AL;10uF,20%,16V,GP,TP,5x11,2.5

....4 C701 2401-000050 C-AL;10uF,20%,16V,GP,TP,5x11,2.5

....4 C701 2401-000192 C-AL;1000uF,20%,50V,GP,TP,16x25,7.5

....4 C701 2401-000192 C-AL;1000uF,20%,50V,GP,TP,16x25,7.5

....4 C701 2401-000302 C-AL;100uF,20%,25V,GP,TP,6.3x11,5

....4 C701 2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5

....4 C701 2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5

....4 C701 2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5

....4 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

....4 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

....4 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

....4 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

....4 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

....4 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

....4 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

....4 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

....4 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

....4 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

....4 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

....4 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

....4 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

....4 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

....4 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

....4 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

....4 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

....4 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

....4 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

....4 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

....4 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

....4 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

....4 C701 2401-000603 C-AL;1UF,20%,50V,GP,TP,5X11,2

....4 C701 2401-000603 C-AL;1UF,20%,50V,GP,TP,5X11,2

....4 C701 2401-000603 C-AL;1UF,20%,50V,GP,TP,5X11,2

....4 C701 2401-000660 C-AL;2.2uF,20%,50V,GP,TP,5x11,5

....4 C701 2401-000660 C-AL;2.2uF,20%,50V,GP,TP,5x11,5

....4 C701 2401-000689 C-AL;2200uF,20%,16V,GP,TP,13x25,5

....4 C701 2401-000913 C-AL;22uF,20%,16V,GP,TP,5x11,5

....4 C701 2401-000913 C-AL;22uF,20%,16V,GP,TP,5x11,5

....4 C701 2401-000913 C-AL;22uF,20%,16V,GP,TP,5x11,5

....4 C701 2401-000913 C-AL;22uF,20%,16V,GP,TP,5x11,5

....4 C701 2401-000913 C-AL;22uF,20%,16V,GP,TP,5x11,5

....4 C701 2401-000913 C-AL;22uF,20%,16V,GP,TP,5x11,5

....4 C701 2401-000913 C-AL;22uF,20%,16V,GP,TP,5x11,5

....4 C701 2401-000913 C-AL;22uF,20%,16V,GP,TP,5x11,5

....4 C701 2401-000913 C-AL;22uF,20%,16V,GP,TP,5x11,5

....4 C701 2401-000913 C-AL;22uF,20%,16V,GP,TP,5x11,5

....4 C701 2401-000913 C-AL;22uF,20%,16V,GP,TP,5x11,5

....4 C701 2401-000913 C-AL;22uF,20%,16V,GP,TP,5x11,5

....4 C701 2401-000913 C-AL;22uF,20%,16V,GP,TP,5x11,5

....4 C701 2401-000913 C-AL;22uF,20%,16V,GP,TP,5x11,5

....4 C701 2401-000913 C-AL;22uF,20%,16V,GP,TP,5x11,5

....4 C701 2401-000913 C-AL;22uF,20%,16V,GP,TP,5x11,5

....4 C701 2401-000913 C-AL;22uF,20%,16V,GP,TP,5x11,5

....4 C701 2401-000913 C-AL;22uF,20%,16V,GP,TP,5x11,5

....4 C701 2401-000913 C-AL;22uF,20%,16V,GP,TP,5x11,5

....4 C701 2401-000947 C-AL;22uF,20%,35V,GP,TP,5x11,5

....4 C701 2401-001176 C-AL;33uF,20%,25V,GP,TP,5x11,5

....4 C701 2401-001261 C-AL;4.7uF,20%,50V,BP,TP,5x11mm,5mm

....4 C701 2401-001261 C-AL;4.7uF,20%,50V,BP,TP,5x11mm,5mm

....4 C701 2401-001261 C-AL;4.7uF,20%,50V,BP,TP,5x11mm,5mm

....4 C701 2401-001261 C-AL;4.7uF,20%,50V,BP,TP,5x11mm,5mm

....4 C701 2401-001261 C-AL;4.7uF,20%,50V,BP,TP,5x11mm,5mm

....4 C701 2401-001261 C-AL;4.7uF,20%,50V,BP,TP,5x11mm,5mm

....4 C701 2401-001271 C-AL;4.7uF,20%,50V,GP,TP,5x11mm,5

....4 C701 2401-001271 C-AL;4.7uF,20%,50V,GP,TP,5x11mm,5

....4 C701 2401-001271 C-AL;4.7uF,20%,50V,GP,TP,5x11mm,5

....4 C701 2401-001340 C-AL;0.47UF,20%,50V,WT,TP,5X11,5

....4 C701 2401-001363 C-AL;470uF,20%,16V,GP,TP,10x12.5,5

....4 C701 2401-001363 C-AL;470uF,20%,16V,GP,TP,10x12.5,5

....4 C701 2401-001363 C-AL;470uF,20%,16V,GP,TP,10x12.5,5

....4 C701 2401-001363 C-AL;470uF,20%,16V,GP,TP,10x12.5,5

....4 C701 2401-001397 C-AL;470uF,20%,25V,GP,TP,10x16,5

....4 C701 2401-001576 C-AL;47uF,20%,50V,GP,TP,8x11.5,5

....4 C701 2401-001576 C-AL;47uF,20%,50V,GP,TP,8x11.5,5

....4 C701 2401-001576 C-AL;47uF,20%,50V,GP,TP,8x11.5,5

....4 C701 2401-001576 C-AL;47uF,20%,50V,GP,TP,8x11.5,5

....4 C701 2401-001576 C-AL;47uF,20%,50V,GP,TP,8x11.5,5

....4 C701 2401-002075 C-AL;4.7uF,20%,50V,GP,TP,5x11,5

....4 C701 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

....4 C701 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

....4 C701 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

....4 C701 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

....4 C701 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

....4 C701 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

....4 C701 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

....4 C701 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

....4 C701 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

....4 C701 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

....4 C701 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

....4 C701 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

....4 C701 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

....4 C701 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

....4 C701 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

....4 C701 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

....4 C701 2401-002464 C-AL;47uF,20%,16V,BP,TP,8x11.5,5

....4 C701 2401-002464 C-AL;47uF,20%,16V,BP,TP,8x11.5,5

....4 C701 2401-002464 C-AL;47uF,20%,16V,BP,TP,8x11.5,5

....4 C701 2401-002594 C-AL;220uF,20%,16V,GP,TP,8x11.5,5

....4 C701 2401-002594 C-AL;220uF,20%,16V,GP,TP,8x11.5,5

....4 C701 2401-003036 C-AL;100uF,20%,16V,GP,TP,5X11mm,5mm

....4 C701 2401-003036 C-AL;100uF,20%,16V,GP,TP,5X11mm,5mm

....4 C701 2401-003036 C-AL;100uF,20%,16V,GP,TP,5X11mm,5mm

....4 C701 2401-003036 C-AL;100uF,20%,16V,GP,TP,5X11mm,5mm

....4 C701 2401-003036 C-AL;100uF,20%,16V,GP,TP,5X11mm,5mm

....4 C701 2401-003036 C-AL;100uF,20%,16V,GP,TP,5X11mm,5mm

....4 C701 2401-003036 C-AL;100uF,20%,16V,GP,TP,5X11mm,5mm

....4 C701 2401-003036 C-AL;100uF,20%,16V,GP,TP,5X11mm,5mm

....4 C701 2401-003036 C-AL;100uF,20%,16V,GP,TP,5X11mm,5mm

....4 C701 2401-003036 C-AL;100uF,20%,16V,GP,TP,5X11mm,5mm

....4 C701 2401-003036 C-AL;100uF,20%,16V,GP,TP,5X11mm,5mm

....4 C701 2401-003036 C-AL;100uF,20%,16V,GP,TP,5X11mm,5mm

....4 C701 2401-003036 C-AL;100uF,20%,16V,GP,TP,5X11mm,5mm

....4 C701 2401-003036 C-AL;100uF,20%,16V,GP,TP,5X11mm,5mm

....4 L129 2701-000114 INDUCTOR-AXIAL;10UH,10%,2534

....4 L130 2701-000114 INDUCTOR-AXIAL;10UH,10%,2534

....4 L705 2701-001030 INDUCTOR-AXIAL;43UH,10%,4514

....4 L706 2701-001030 INDUCTOR-AXIAL;43UH,10%,4514

....4 SL01 2701-001030 INDUCTOR-AXIAL;43UH,10%,4514

....4 SL02 2701-001030 INDUCTOR-AXIAL;43UH,10%,4514

Electric Parts List

Samsung Electronics 4-3

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

....4 L602 2701-001032 INDUCTOR-AXIAL;100UH,10%,4514

....4 L601 2701-001040 INDUCTOR-AXIAL;10UH,10%,4514

....4 L603 2701-001040 INDUCTOR-AXIAL;10UH,10%,4514

....4 L904 2701-001040 INDUCTOR-AXIAL;10UH,10%,4514

....4 L907 2701-001040 INDUCTOR-AXIAL;10UH,10%,4514

....4 T0122 2802-001177 RESONATOR-CERAMIC;2.696MHZ,0.4%,BK,10X4.

....4 T0122 2802-001179 RESONATOR-CERAMIC;4MHZ,0.5%,BK,8X3X5.5MM

....4 L2514 3301-000287 BEAD-AXIAL;,3.5x1.0x6.0mm,3000mA,TP,,,50 S.N.A

....4 CN906 3711-002642 CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH

....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO

....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO

....4 BP97-00850A ASSY SMD-MAIN;EU,OMEGA 2 S.N.A

.....5 CISS 0401-000132 DIODE-SWITCHING;BAV99,70V,50MA,SOT-23,TP

.....5 CISS 0401-000132 DIODE-SWITCHING;BAV99,70V,50MA,SOT-23,TP

.....5 CISS 0401-000132 DIODE-SWITCHING;BAV99,70V,50MA,SOT-23,TP

.....5 CISS 0401-000132 DIODE-SWITCHING;BAV99,70V,50MA,SOT-23,TP

.....5 CISS 0401-000133 DIODE-SWITCHING;RLS4148,75V,150MA,LL-34,

.....5 CISS 0401-000133 DIODE-SWITCHING;RLS4148,75V,150MA,LL-34,

.....5 CISS 0401-000133 DIODE-SWITCHING;RLS4148,75V,150MA,LL-34,

.....5 CISS 0401-000133 DIODE-SWITCHING;RLS4148,75V,150MA,LL-34,

.....5 CISS 0401-000133 DIODE-SWITCHING;RLS4148,75V,150MA,LL-34,

.....5 CISS 0401-000133 DIODE-SWITCHING;RLS4148,75V,150MA,LL-34,

.....5 CISS 0401-000133 DIODE-SWITCHING;RLS4148,75V,150MA,LL-34,

.....5 CISS 0401-000133 DIODE-SWITCHING;RLS4148,75V,150MA,LL-34,

.....5 CISS 0401-000133 DIODE-SWITCHING;RLS4148,75V,150MA,LL-34,

.....5 CISS 0401-000133 DIODE-SWITCHING;RLS4148,75V,150MA,LL-34,

.....5 CISS 0401-000133 DIODE-SWITCHING;RLS4148,75V,150MA,LL-34,

.....5 CISS 0401-000133 DIODE-SWITCHING;RLS4148,75V,150MA,LL-34,

.....5 CISS 0401-000133 DIODE-SWITCHING;RLS4148,75V,150MA,LL-34,

.....5 CISS 0401-000133 DIODE-SWITCHING;RLS4148,75V,150MA,LL-34,

.....5 CISS 0401-000133 DIODE-SWITCHING;RLS4148,75V,150MA,LL-34,

.....5 DZ016 0403-000314 DIODE-ZENER;RLZJ9.1B,8.8-9.3V,500MW,LL-3

.....5 DZ016 0403-000314 DIODE-ZENER;RLZJ9.1B,8.8-9.3V,500MW,LL-3

.....5 DZ016 0403-000314 DIODE-ZENER;RLZJ9.1B,8.8-9.3V,500MW,LL-3

.....5 DZ016 0403-000314 DIODE-ZENER;RLZJ9.1B,8.8-9.3V,500MW,LL-3

.....5 DZ016 0403-000314 DIODE-ZENER;RLZJ9.1B,8.8-9.3V,500MW,LL-3

.....5 DZ016 0403-000314 DIODE-ZENER;RLZJ9.1B,8.8-9.3V,500MW,LL-3

.....5 DZ016 0403-000314 DIODE-ZENER;RLZJ9.1B,8.8-9.3V,500MW,LL-3

.....5 DZ016 0403-000314 DIODE-ZENER;RLZJ9.1B,8.8-9.3V,500MW,LL-3

.....5 DZ016 0403-000314 DIODE-ZENER;RLZJ9.1B,8.8-9.3V,500MW,LL-3

.....5 DZ016 0403-000314 DIODE-ZENER;RLZJ9.1B,8.8-9.3V,500MW,LL-3

.....5 DZ016 0403-000314 DIODE-ZENER;RLZJ9.1B,8.8-9.3V,500MW,LL-3

.....5 DZ016 0403-000314 DIODE-ZENER;RLZJ9.1B,8.8-9.3V,500MW,LL-3

.....5 DZ016 0403-000314 DIODE-ZENER;RLZJ9.1B,8.8-9.3V,500MW,LL-3

.....5 DZ016 0403-000314 DIODE-ZENER;RLZJ9.1B,8.8-9.3V,500MW,LL-3

.....5 DZ016 0403-000314 DIODE-ZENER;RLZJ9.1B,8.8-9.3V,500MW,LL-3

.....5 DZ016 0403-000314 DIODE-ZENER;RLZJ9.1B,8.8-9.3V,500MW,LL-3

.....5 DZ016 0403-000314 DIODE-ZENER;RLZJ9.1B,8.8-9.3V,500MW,LL-3

.....5 DZ016 0403-000314 DIODE-ZENER;RLZJ9.1B,8.8-9.3V,500MW,LL-3

.....5 DZ016 0403-000314 DIODE-ZENER;RLZJ9.1B,8.8-9.3V,500MW,LL-3

.....5 DZ016 0403-000314 DIODE-ZENER;RLZJ9.1B,8.8-9.3V,500MW,LL-3

.....5 DZ016 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500MW,LL-

.....5 DZ016 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500MW,LL-

.....5 DZ016 0403-000746 DIODE-ZENER;RLZ3.9B,3.89-4.16V,500MW,LL-

.....5 DZ016 0403-001016 DIODE-ZENER;RLZ6.2B,5.96-6.27V,500mW,LL-

.....5 DZ016 0403-001016 DIODE-ZENER;RLZ6.2B,5.96-6.27V,500mW,LL-

.....5 DZ016 0403-001016 DIODE-ZENER;RLZ6.2B,5.96-6.27V,500mW,LL-

.....5 DZ016 0403-001016 DIODE-ZENER;RLZ6.2B,5.96-6.27V,500mW,LL-

.....5 DZ016 0403-001016 DIODE-ZENER;RLZ6.2B,5.96-6.27V,500mW,LL-

.....5 DZ016 0403-001016 DIODE-ZENER;RLZ6.2B,5.96-6.27V,500mW,LL-

.....5 DZ016 0403-001016 DIODE-ZENER;RLZ6.2B,5.96-6.27V,500mW,LL-

.....5 DZ016 0403-001016 DIODE-ZENER;RLZ6.2B,5.96-6.27V,500mW,LL-

.....5 DZ016 0403-001016 DIODE-ZENER;RLZ6.2B,5.96-6.27V,500mW,LL-

.....5 DZ016 0403-001117 DIODE-ZENER;RLZ12B,11.44-12.03V,500MW,LL

.....5 DZ016 0403-001117 DIODE-ZENER;RLZ12B,11.44-12.03V,500MW,LL

.....5 DZ016 0403-001117 DIODE-ZENER;RLZ12B,11.44-12.03V,500MW,LL

.....5 DZ016 0403-001117 DIODE-ZENER;RLZ12B,11.44-12.03V,500MW,LL

.....5 DZ016 0403-001117 DIODE-ZENER;RLZ12B,11.44-12.03V,500MW,LL

.....5 DZ016 0403-001117 DIODE-ZENER;RLZ12B,11.44-12.03V,500MW,LL

.....5 DZ016 0403-001117 DIODE-ZENER;RLZ12B,11.44-12.03V,500MW,LL

.....5 DZ016 0403-001375 DIODE-ZENER;RLZ3.6B,3.6-3.845V,500MW,LL-

.....5 DZ016 0403-001375 DIODE-ZENER;RLZ3.6B,3.6-3.845V,500MW,LL-

.....5 DZ016 0403-001375 DIODE-ZENER;RLZ3.6B,3.6-3.845V,500MW,LL-

.....5 DZ016 0403-001375 DIODE-ZENER;RLZ3.6B,3.6-3.845V,500MW,LL-

.....5 DZ016 0403-001375 DIODE-ZENER;RLZ3.6B,3.6-3.845V,500MW,LL-

.....5 DZ016 0403-001375 DIODE-ZENER;RLZ3.6B,3.6-3.845V,500MW,LL-

.....5 DZ016 0403-001375 DIODE-ZENER;RLZ3.6B,3.6-3.845V,500MW,LL-

.....5 DZ016 0403-001375 DIODE-ZENER;RLZ3.6B,3.6-3.845V,500MW,LL-

.....5 T0156 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23

.....5 T0156 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23

.....5 T0156 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23

.....5 T0156 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23

.....5 T0156 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23

.....5 T0156 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23

.....5 T0156 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT-

.....5 T0156 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT-

.....5 T0156 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

.....5 T0156 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

.....5 T0156 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

.....5 T0156 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

.....5 T0156 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

.....5 T0156 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

.....5 T0156 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

.....5 T0156 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

.....5 T0156 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

.....5 T0156 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

.....5 T0156 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

.....5 T0156 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

.....5 T0156 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

.....5 T0156 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

.....5 T0156 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

.....5 T0156 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

.....5 T0156 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

.....5 T0156 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

.....5 T0156 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

.....5 T0156 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

.....5 T0156 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

.....5 T0156 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

.....5 T0156 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

.....5 T0156 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

.....5 T0156 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

.....5 T0156 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

.....5 T0156 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

.....5 T0156 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

.....5 T0156 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

.....5 T0156 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

.....5 T0156 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

.....5 T0156 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

.....5 T0156 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

.....5 T0156 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

.....5 T0156 0501-000727 TR-SMALL SIGNAL;BC848C,NPN,310mW,SOT-23,

.....5 IC104 0801-000662 IC-CMOS LOGIC;74HC123,MULTIVIBATOR,SOP,1

.....5 IC106 1001-001082 IC-VIDEO SWITCH;BA7657F,-,SOP,24P,300MIL

.....5 IC106 1001-001177 IC-VIDEO SWITCH;TEA6425D,VIDEO SWITCH ,S

.....5 IC106 1001-001177 IC-VIDEO SWITCH;TEA6425D,VIDEO SWITCH ,S

.....5 IC106 1001-001177 IC-VIDEO SWITCH;TEA6425D,VIDEO SWITCH ,S

.....5 IC605 1001-001178 IC-AUDIO SWITCH;TEA6422D,AUDIO SWITCH ,S

.....5 IC112 1103-001279 IC-EEPROM;24C32,4Kx8,SOP,8P,5x4mm,2.5/5.

.....5 IC114 1106-001367 IC-SRAM;K6R4008C1C-J12,512KX8BIT,SOJ,36P

.....5 IC06 1203-001211 IC-VOL. DETECTOR;7027,SOT-89,3P,-,PLASTI

.....5 T0087 1203-001293 IC-POSI.FIXED REG.;033,T0-252,3P,6.5MIL,

.....5 IC102 1203-001824 IC-VOL. DETECTOR;7042,SOT-89,3P,-,PLASTI

.....5 IC062 1203-003172 IC-MULTI REG.;SI-3006KWM,DPAK,5P,6.6X6.1

.....5 IC02 1204-001814 IC-SELECTOR;CXA2151Q,QFP,48P,144MIL,PLAS

.....5 IC901 1204-001912 IC-DECODER;SDA5550M,P-MQFP,100P,-,PLASTI

.....5 IC118 1204-001989 IC-VIDEO PROCESS;CXA2165Q,QFP,64P,20X14M

.....5 IC602 1204-002048 IC-SOUND PROCESSOR;MSP3411G-QA-B8V3,PQFP

.....5 RO87 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608

.....5 RO87 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608

.....5 RO87 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608

.....5 RO87 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608

.....5 RO87 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608

.....5 RO87 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608

.....5 RO87 2007-000066 R-CHIP;20Kohm,1%,1/10W,TP,1608

.....5 RO87 2007-000066 R-CHIP;20Kohm,1%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

Electric Parts List

4-4 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000073 R-CHIP;91ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000073 R-CHIP;91ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000073 R-CHIP;91ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000073 R-CHIP;91ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000073 R-CHIP;91ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000073 R-CHIP;91ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000073 R-CHIP;91ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000073 R-CHIP;91ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000073 R-CHIP;91ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000073 R-CHIP;91ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608

Electric Parts List

Samsung Electronics 4-5

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

.....5 RO87 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000080 R-CHIP;2Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000080 R-CHIP;2Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000081 R-CHIP;2.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000081 R-CHIP;2.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000081 R-CHIP;2.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000081 R-CHIP;2.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000083 R-CHIP;3Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000096 R-CHIP;30Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000096 R-CHIP;30Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000096 R-CHIP;30Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000098 R-CHIP;56Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000118 R-CHIP;390ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000121 R-CHIP;820ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000126 R-CHIP;4.3Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000219 R-CHIP;1.2Kohm,1%,1/10W,TP,1608

.....5 RO87 2007-000259 R-CHIP;1.6Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000450 R-CHIP;180ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000450 R-CHIP;180ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000583 R-CHIP;22Kohm,1%,1/10W,TP,1608

.....5 RO87 2007-000586 R-CHIP;22Kohm,5%,1/8W,TP,2012

.....5 RO87 2007-000586 R-CHIP;22Kohm,5%,1/8W,TP,2012

.....5 RO87 2007-000691 R-CHIP;3.3Mohm,5%,1/10W,TP,1608

.....5 RO87 2007-000710 R-CHIP;3.9Kohm,5%,1/8W,TP,2012

.....5 RO87 2007-000710 R-CHIP;3.9Kohm,5%,1/8W,TP,2012

.....5 RO87 2007-000828 R-CHIP;39Kohm,1%,1/10W,TP,1608

Electric Parts List

4-6 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

.....5 RO87 2007-000857 R-CHIP;4.3Kohm,1%,1/10W,TP,1608

.....5 RO87 2007-000868 R-CHIP;4.7Kohm,1%,1/8W,TP,2012

.....5 RO87 2007-000869 R-CHIP;4.7Kohm,1%,1/10W,TP,1608

.....5 RO87 2007-000869 R-CHIP;4.7Kohm,1%,1/10W,TP,1608

.....5 RO87 2007-000931 R-CHIP;470ohm,5%,1/8W,TP,2012

.....5 RO87 2007-000939 R-CHIP;47Kohm,1%,1/10W,TP,1608

.....5 RO87 2007-000939 R-CHIP;47Kohm,1%,1/10W,TP,1608

.....5 RO87 2007-000939 R-CHIP;47Kohm,1%,1/10W,TP,1608

.....5 RO87 2007-001068 R-CHIP;6.8Kohm,1%,1/10W,TP,1608

.....5 RO87 2007-001114 R-CHIP;680Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 RO87 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 RO87 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 RO87 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 RO87 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 RO87 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 RO87 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 RO87 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 RO87 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 RO87 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 RO87 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 RO87 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 RO87 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 RO87 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 RO87 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 RO87 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 RO87 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 RO87 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 RO87 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 RO87 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 RO87 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 RO87 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 RO87 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 RO87 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 RO87 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 RO87 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 RO87 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 RO87 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 RO87 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 RO87 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 RO87 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 RO87 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 RO87 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 RO87 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 RO87 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 RO87 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 T0657 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

.....5 T0657 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,-,2012

.....5 T0657 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,-,2012

.....5 T0657 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,-,2012

.....5 T0657 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,-,2012

.....5 T0657 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,-,2012

.....5 T0657 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,-,2012

.....5 T0657 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,-,2012

.....5 T0657 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,-,2012

.....5 T0657 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,-,2012

.....5 T0657 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,-,2012

.....5 T0657 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,-,2012

.....5 T0657 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,-,2012

.....5 T0657 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,-,2012

.....5 T0657 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,-,2012

.....5 T0657 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,-,2012

.....5 T0657 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,-,2012

.....5 T0657 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,-,2012

.....5 T0657 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,-,2012

.....5 T0657 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,-,2012

.....5 T0657 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,-,2012

.....5 T0657 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,-,2012

.....5 T0657 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,-,2012

.....5 T0657 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,-,2012

.....5 T0657 2203-000221 C-CER,CHIP;100nF,20%,50V,Y5V,TP,3216

.....5 T0657 2203-000221 C-CER,CHIP;100nF,20%,50V,Y5V,TP,3216

.....5 T0657 2203-000221 C-CER,CHIP;100nF,20%,50V,Y5V,TP,3216

.....5 T0657 2203-000221 C-CER,CHIP;100nF,20%,50V,Y5V,TP,3216

.....5 T0657 2203-000221 C-CER,CHIP;100nF,20%,50V,Y5V,TP,3216

.....5 T0657 2203-000221 C-CER,CHIP;100nF,20%,50V,Y5V,TP,3216

.....5 T0657 2203-000221 C-CER,CHIP;100nF,20%,50V,Y5V,TP,3216

.....5 T0657 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608

.....5 T0657 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608

.....5 T0657 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608

.....5 T0657 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608

.....5 T0657 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608

.....5 T0657 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608

.....5 T0657 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608

.....5 T0657 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608

.....5 T0657 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608

.....5 T0657 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608

.....5 T0657 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608

.....5 T0657 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608

.....5 T0657 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608

.....5 T0657 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608

.....5 T0657 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608

Electric Parts List

Samsung Electronics 4-7

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

.....5 T0657 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608

.....5 T0657 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608

.....5 T0657 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608

.....5 T0657 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608

.....5 T0657 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608

.....5 T0657 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608

.....5 T0657 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608

.....5 T0657 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608

.....5 T0657 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608

.....5 T0657 2203-000239 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,2012

.....5 T0657 2203-000239 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,2012

.....5 T0657 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608

.....5 T0657 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608

.....5 T0657 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608

.....5 T0657 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608

.....5 T0657 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608

.....5 T0657 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608

.....5 T0657 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608

.....5 T0657 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608

.....5 T0657 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608

.....5 T0657 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608

.....5 T0657 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608

.....5 T0657 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608

.....5 T0657 2203-000260 C-CER,CHIP;10nF,10%,50V,X7R,TP,2012

.....5 T0657 2203-000357 C-CER,CHIP;0.15NF,5%,50V,C0G,TP,1608

.....5 T0657 2203-000384 C-CER,CHIP;0.015NF,5%,50V,C0G,TP,1608

.....5 T0657 2203-000384 C-CER,CHIP;0.015NF,5%,50V,C0G,TP,1608

.....5 T0657 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608

.....5 T0657 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608

.....5 T0657 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608

.....5 T0657 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608

.....5 T0657 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608

.....5 T0657 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608

.....5 T0657 2203-000444 C-CER,CHIP;1nF,10%,50V,X7R,TP,2012,-

.....5 T0657 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1608,-

.....5 T0657 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1608,-

.....5 T0657 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1608,-

.....5 T0657 2203-000575 C-CER,CHIP;220nF,10%,25V,X7R,2012

.....5 T0657 2203-000575 C-CER,CHIP;220nF,10%,25V,X7R,2012

.....5 T0657 2203-000575 C-CER,CHIP;220nF,10%,25V,X7R,2012

.....5 T0657 2203-000575 C-CER,CHIP;220nF,10%,25V,X7R,2012

.....5 T0657 2203-000575 C-CER,CHIP;220nF,10%,25V,X7R,2012

.....5 T0657 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,TP,1608

.....5 T0657 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,TP,1608

.....5 T0657 2203-000681 C-CER,CHIP;0.027NF,5%,50V,C0G,TP,1608

.....5 T0657 2203-000681 C-CER,CHIP;0.027NF,5%,50V,C0G,TP,1608

.....5 T0657 2203-000681 C-CER,CHIP;0.027NF,5%,50V,C0G,TP,1608

.....5 T0657 2203-000748 C-CER,CHIP;0.03NF,5%,50V,C0G,TP,2012

.....5 T0657 2203-000748 C-CER,CHIP;0.03NF,5%,50V,C0G,TP,2012

.....5 T0657 2203-000783 C-CER,CHIP;0.33NF,5%,50V,C0G,TP,1608

.....5 T0657 2203-000783 C-CER,CHIP;0.33NF,5%,50V,C0G,TP,1608

.....5 T0657 2203-000783 C-CER,CHIP;0.33NF,5%,50V,C0G,TP,1608

.....5 T0657 2203-000802 C-CER,CHIP;33nF,10%,50V,X7R,TP,2012

.....5 T0657 2203-000874 C-CER,CHIP;0.003NF,0.25PF,50V,C0G,TP,201

.....5 T0657 2203-000874 C-CER,CHIP;0.003NF,0.25PF,50V,C0G,TP,201

.....5 T0657 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1608

.....5 T0657 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1608

.....5 T0657 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,-

.....5 T0657 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,-

.....5 T0657 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,-

.....5 T0657 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,-

.....5 T0657 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,-

.....5 T0657 2203-000998 C-CER,CHIP;0.047NF,5%,50V,C0G,TP,1608

.....5 T0657 2203-000998 C-CER,CHIP;0.047NF,5%,50V,C0G,TP,1608

.....5 T0657 2203-000998 C-CER,CHIP;0.047NF,5%,50V,C0G,TP,1608

.....5 T0657 2203-000998 C-CER,CHIP;0.047NF,5%,50V,C0G,TP,1608

.....5 T0657 2203-001048 C-CER,CHIP;0.56NF,10%,50V,C0G,TP,2012

.....5 T0657 2203-001071 C-CER,CHIP;0.056NF,5%,50V,C0G,TP,1608

.....5 T0657 2203-001071 C-CER,CHIP;0.056NF,5%,50V,C0G,TP,1608

.....5 T0657 2203-001071 C-CER,CHIP;0.056NF,5%,50V,C0G,TP,1608

.....5 T0657 2203-001071 C-CER,CHIP;0.056NF,5%,50V,C0G,TP,1608

.....5 T0657 2203-001071 C-CER,CHIP;0.056NF,5%,50V,C0G,TP,1608

.....5 T0657 2203-001071 C-CER,CHIP;0.056NF,5%,50V,C0G,TP,1608

.....5 T0657 2203-001071 C-CER,CHIP;0.056NF,5%,50V,C0G,TP,1608

.....5 T0657 2203-001071 C-CER,CHIP;0.056NF,5%,50V,C0G,TP,1608

.....5 T0657 2203-001071 C-CER,CHIP;0.056NF,5%,50V,C0G,TP,1608

.....5 T0657 2203-001071 C-CER,CHIP;0.056NF,5%,50V,C0G,TP,1608

.....5 T0657 2203-001140 C-CER,CHIP;68nF,10%,16V,X7R,TP,1608

.....5 T0657 2203-001211 C-CER,CHIP;8.2nF,10%,50V,X7R,TP,1608

.....5 T0657 2203-001211 C-CER,CHIP;8.2nF,10%,50V,X7R,TP,1608

.....5 T0657 2203-001211 C-CER,CHIP;8.2nF,10%,50V,X7R,TP,1608

.....5 T0657 2203-001211 C-CER,CHIP;8.2nF,10%,50V,X7R,TP,1608

.....5 T0657 2203-001222 C-CER,CHIP;0.82NF,10%,50V,X7R,TP,1608

.....5 T0657 2203-001402 C-CER,CHIP;220nF,+80-20%,16V,Y5V,TP,1608

.....5 T0657 2203-001402 C-CER,CHIP;220nF,+80-20%,16V,Y5V,TP,1608

.....5 T0657 2203-001402 C-CER,CHIP;220nF,+80-20%,16V,Y5V,TP,1608

.....5 T0657 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y5V,1608

.....5 T0657 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y5V,1608

.....5 T0657 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y5V,1608

.....5 T0657 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y5V,1608

.....5 T0657 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y5V,1608

.....5 T0657 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y5V,1608

.....5 T0657 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y5V,1608

.....5 T0657 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y5V,1608

.....5 T0657 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y5V,1608

.....5 T0657 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y5V,1608

.....5 T0657 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y5V,1608

.....5 T0657 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y5V,1608

.....5 T0657 2203-002392 C-CER,CHIP;220nF,+80-20%,50V,Y5V,TP,2012

.....5 T0657 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,2012

.....5 T0657 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,2012

.....5 T0657 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,2012

.....5 T0657 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,2012

.....5 T0657 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,2012

.....5 T0657 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,2012

.....5 T0657 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,2012

.....5 T0657 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,2012

.....5 T0657 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,2012

.....5 T0657 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,2012

.....5 T0657 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,2012

.....5 T0657 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,2012

.....5 T0657 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,2012

.....5 T0657 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,2012

.....5 T0657 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,2012

.....5 T0657 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,2012

.....5 T0657 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,2012

.....5 T0657 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,2012

.....5 T0657 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,2012

.....5 T0657 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,2012

.....5 T0657 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,2012

.....5 T0657 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,2012

.....5 T0657 2203-005590 C-CER,CHIP;330NF,10%,16V,X7R,TP,2012

.....5 T0657 2203-005590 C-CER,CHIP;330NF,10%,16V,X7R,TP,2012

.....5 T0657 2203-005590 C-CER,CHIP;330NF,10%,16V,X7R,TP,2012

.....5 T0657 2203-005590 C-CER,CHIP;330NF,10%,16V,X7R,TP,2012

.....5 T0657 2203-005590 C-CER,CHIP;330NF,10%,16V,X7R,TP,2012

.....5 T0657 2203-005590 C-CER,CHIP;330NF,10%,16V,X7R,TP,2012

.....5 T0657 2203-005590 C-CER,CHIP;330NF,10%,16V,X7R,TP,2012

.....5 T0657 2203-005590 C-CER,CHIP;330NF,10%,16V,X7R,TP,2012

.....5 T0657 2203-005590 C-CER,CHIP;330NF,10%,16V,X7R,TP,2012

.....5 T0657 2203-005809 C-CER,CHIP;1000nF,10%,16V,X7R,TP,2012(T1

.....5 T0657 2203-005809 C-CER,CHIP;1000nF,10%,16V,X7R,TP,2012(T1

.....5 T0052 2703-000125 INDUCTOR-SMD;10uH,10%,2012

.....5 T0052 2703-000125 INDUCTOR-SMD;10uH,10%,2012

.....5 T0052 2703-000274 INDUCTOR-SMD;2.2uH,10%,2012

.....5 T0052 2703-000274 INDUCTOR-SMD;2.2uH,10%,2012

.....5 T0052 2703-000274 INDUCTOR-SMD;2.2uH,10%,2012

.....5 T0052 2703-000274 INDUCTOR-SMD;2.2uH,10%,2012

.....5 T0052 2703-000274 INDUCTOR-SMD;2.2uH,10%,2012

.....5 T0052 2703-000392 INDUCTOR-SMD;10uH,5%,4532

.....5 T0052 2703-000392 INDUCTOR-SMD;10uH,5%,4532

.....5 T0052 2703-000392 INDUCTOR-SMD;10uH,5%,4532

.....5 T0052 2703-000392 INDUCTOR-SMD;10uH,5%,4532

.....5 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225

.....5 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225

.....5 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225

.....5 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225

.....5 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225

.....5 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225

.....5 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225

.....5 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225

.....5 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225

.....5 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225

.....5 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225

Electric Parts List

4-8 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

.....5 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225

.....5 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225

.....5 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225

.....5 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225

.....5 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225

.....5 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225

.....5 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225

.....5 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225

.....5 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225

.....5 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225

.....5 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225

.....5 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225

.....5 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225

.....5 T0052 2703-001070 INDUCTOR-SMD;100uH,10%,4532

.....5 T0052 2703-001245 INDUCTOR-SMD;8.2uH,10%,2012

.....5 X101 2801-003948 CRYSTAL-SMD;12MHz,30ppm,28-AAN,12pF,60oh

.....5 X901 2801-004117 CRYSTAL-SMD;6MHZ,30PPM,28-ABX,20PF,150OH

.....5 X601 2801-004300 CRYSTAL-SMD;18.432MHz,30ppm,28-ABX,13pF,

.....5 T0568 3301-001082 BEAD-SMD;60ohm,3225,1500mA,TP,43ohm/40MH S.N.A

.....5 T0568 3301-001082 BEAD-SMD;60ohm,3225,1500mA,TP,43ohm/40MH S.N.A

.....5 T0568 3301-001082 BEAD-SMD;60ohm,3225,1500mA,TP,43ohm/40MH S.N.A

.....5 T0568 3301-001082 BEAD-SMD;60ohm,3225,1500mA,TP,43ohm/40MH S.N.A

.....5 T0568 3301-001082 BEAD-SMD;60ohm,3225,1500mA,TP,43ohm/40MH S.N.A

.....5 T0568 3301-001082 BEAD-SMD;60ohm,3225,1500mA,TP,43ohm/40MH S.N.A

.....5 T0568 3301-001082 BEAD-SMD;60ohm,3225,1500mA,TP,43ohm/40MH S.N.A

.....5 T0568 3301-001082 BEAD-SMD;60ohm,3225,1500mA,TP,43ohm/40MH S.N.A

.....5 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm S.N.A

.....5 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm S.N.A

.....5 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm S.N.A

.....5 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm S.N.A

.....5 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm S.N.A

.....5 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm S.N.A

.....5 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm S.N.A

.....5 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm S.N.A

.....5 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm S.N.A

.....5 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm S.N.A

.....5 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm S.N.A

.....5 IC905 3704-000249 SOCKET-IC;32P,PLCC,SN,1.27mm

.....5 T0077 BP41-00196A PCB MAIN;OMEGA,CEM-3,2L,A,1.6T,245*245,J S.N.A

.....5 T0119 MD09-00137A IC MICOM;P-PCFM-012,P-PCFM-012,32,5V,12M

.....5 RO87 2007-001177 R-CHIP;8.2Kohm,5%,1/8W,TP,2012

.....5 RO87 2007-001177 R-CHIP;8.2Kohm,5%,1/8W,TP,2012

.....5 IC01 1204-002394 IC-VIDEO DECODER;VSP9405B-C4,QFP,80P,14x

.....5 RO87 2007-000582 R-CHIP;22Kohm,1%,1/8W,TP,2012

.....5 RO87 2007-000708 R-CHIP;3.9Kohm,1%,1/10W,TP,1608

.....5 RO87 2007-000087 R-CHIP;6.8Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000087 R-CHIP;6.8Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000941 R-CHIP;47Kohm,5%,1/8W,TP,2012

.....5 RO87 2007-000941 R-CHIP;47Kohm,5%,1/8W,TP,2012

.....5 RO87 2007-000941 R-CHIP;47Kohm,5%,1/8W,TP,2012

.....5 RO87 2007-000941 R-CHIP;47Kohm,5%,1/8W,TP,2012

.....5 0202-001375 SOLDER-CREAM;RMA-20-21L,S63,-,Sn63/Pb36. S.N.A

....4 C701 2401-001077 C-AL;330nF,20%,50V,GP,TP,4x7mm,5mm

....4 ER81 2003-000592 R-METAL OXIDE(S);22ohm,5%,2W,AF,TP,4x12m

....4 R672 2004-000742 R-METAL;300Kohm,1%,1/4W,AA,TP,2.4x6.4m

...3 M0018 BP97-00915A ASSY MICOM;,J60B,39VF020,T_OM2PEU_1000,0

....4 IC115 1107-001550 IC-FLASH MEMORY;39VF020,256Kx8Bit,PLCC,3

...3 T0286 BP95-00175A ASSY SUB PCB-CG MOD;SP43Q5HL1X/XEC,J60B

....4 T0245 0202-001366 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb, S.N.A

....4 Q409 0505-000109 FET-SILICON;2N7000,N,60V,200mA,5ohm,400m

....4 Q409 0505-000109 FET-SILICON;2N7000,N,60V,200mA,5ohm,400m

....4 L01 2701-001030 INDUCTOR-AXIAL;43UH,10%,4514

....4 CN906 3711-000570 CONNECTOR-HEADER;BOX,10P,1R,2.5MM,ANGLE,

....4 CN906 3711-003601 CONNECTOR-HEADER;BOX,12P,1R,2.5mm,ANGLE,

....4 CN902 3711-003630 CONNECTOR-BACK PANEL;BOX,32P,2R,2.54mm,A

....4 BP97-00914A ASSY SMD-CG;SP43Q5HL1X/XEC,J60B S.N.A

.....5 CISS 0401-000132 DIODE-SWITCHING;BAV99,70V,50MA,SOT-23,TP

.....5 CISS 0401-000132 DIODE-SWITCHING;BAV99,70V,50MA,SOT-23,TP

.....5 CISS 0401-000132 DIODE-SWITCHING;BAV99,70V,50MA,SOT-23,TP

.....5 CISS 0401-000132 DIODE-SWITCHING;BAV99,70V,50MA,SOT-23,TP

.....5 CISS 0401-000132 DIODE-SWITCHING;BAV99,70V,50MA,SOT-23,TP

.....5 CISS 0401-000132 DIODE-SWITCHING;BAV99,70V,50MA,SOT-23,TP

.....5 CISS 0401-000132 DIODE-SWITCHING;BAV99,70V,50MA,SOT-23,TP

.....5 CISS 0401-000132 DIODE-SWITCHING;BAV99,70V,50MA,SOT-23,TP

.....5 CISS 0401-000132 DIODE-SWITCHING;BAV99,70V,50MA,SOT-23,TP

.....5 CISS 0401-000160 DIODE-SWITCHING;ISS314,30V,100MA,SOD-323

.....5 CISS 0401-000160 DIODE-SWITCHING;ISS314,30V,100MA,SOD-323

.....5 CISS 0401-000160 DIODE-SWITCHING;ISS314,30V,100MA,SOD-323

.....5 CISS 0401-000160 DIODE-SWITCHING;ISS314,30V,100MA,SOD-323

.....5 CISS 0401-000160 DIODE-SWITCHING;ISS314,30V,100MA,SOD-323

.....5 CISS 0401-000160 DIODE-SWITCHING;ISS314,30V,100MA,SOD-323

.....5 DZ016 0403-001016 DIODE-ZENER;RLZ6.2B,5.96-6.27V,500mW,LL-

.....5 DZ016 0403-001016 DIODE-ZENER;RLZ6.2B,5.96-6.27V,500mW,LL-

.....5 DZ016 0403-001016 DIODE-ZENER;RLZ6.2B,5.96-6.27V,500mW,LL-

.....5 T0156 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23

.....5 T0156 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT-

.....5 IC104 0801-002404 IC-CMOS LOGIC;74VHC4066,ANALOG SWITCH,SO

.....5 IC104 0801-002449 IC-CMOS LOGIC;74LVX4245,BUS TRANSCEIVER,

.....5 IC07 1001-001211 IC-ANALOG MULTIPLEX;MM74HC4052MTC,DUALMU

.....5 IC15 1001-001211 IC-ANALOG MULTIPLEX;MM74HC4052MTC,DUALMU

.....5 DU410 1201-001135 IC-OP AMP;324,SOP,ST,14P,150MIL,QUAD,100

.....5 DU410 1201-001504 IC-OP AMP;072,SOP,8P,150MIL,DUAL,-,PLAST

.....5 DU410 1201-001504 IC-OP AMP;072,SOP,8P,150MIL,DUAL,-,PLAST

.....5 DU410 1201-001504 IC-OP AMP;072,SOP,8P,150MIL,DUAL,-,PLAST

.....5 DU410 1201-001504 IC-OP AMP;072,SOP,8P,150MIL,DUAL,-,PLAST

.....5 T0074 1201-001520 IC-VIDEO AMP;EL2250CS,SOIC,8P,150MIL,DUA

.....5 IC04 1203-001212 IC-VOL. DETECTOR;7029,SOT-89,3P,-,PLASTI

.....5 IC062 1203-003172 IC-MULTI REG.;SI-3006KWM,DPAK,5P,6.6X6.1

.....5 RO87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

Electric Parts List

Samsung Electronics 4-9

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000080 R-CHIP;2Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000080 R-CHIP;2Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000381 R-CHIP;13Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000512 R-CHIP;2.4Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000512 R-CHIP;2.4Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000512 R-CHIP;2.4Kohm,5%,1/10W,TP,1608

.....5 RO87 2007-000691 R-CHIP;3.3Mohm,5%,1/10W,TP,1608

.....5 RO87 2007-000799 R-CHIP;360ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000799 R-CHIP;360ohm,5%,1/10W,TP,1608

.....5 RO87 2007-000799 R-CHIP;360ohm,5%,1/10W,TP,1608

.....5 RO87 2007-001056 R-CHIP;6.2Kohm,5%,1/10W,TP,1608

.....5 RN01 2011-000817 R-NET;10Kohm,5%,1/16W,L,CHIP,8P,TP

.....5 RN02 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216

.....5 RN03 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216

.....5 T0657 2203-000041 C-CER,CHIP;0.01NF,0.25PF,50V,C0G,TP,1608

.....5 T0657 2203-000041 C-CER,CHIP;0.01NF,0.25PF,50V,C0G,TP,1608

.....5 T0657 2203-000041 C-CER,CHIP;0.01NF,0.25PF,50V,C0G,TP,1608

.....5 T0657 2203-000041 C-CER,CHIP;0.01NF,0.25PF,50V,C0G,TP,1608

.....5 T0657 2203-000041 C-CER,CHIP;0.01NF,0.25PF,50V,C0G,TP,1608

.....5 T0657 2203-000041 C-CER,CHIP;0.01NF,0.25PF,50V,C0G,TP,1608

.....5 T0657 2203-000041 C-CER,CHIP;0.01NF,0.25PF,50V,C0G,TP,1608

.....5 T0657 2203-000041 C-CER,CHIP;0.01NF,0.25PF,50V,C0G,TP,1608

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,TP,2012

.....5 T0657 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608

.....5 T0657 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608

.....5 T0657 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608

.....5 T0657 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608

.....5 T0657 2203-000357 C-CER,CHIP;0.15NF,5%,50V,C0G,TP,1608

.....5 T0657 2203-000357 C-CER,CHIP;0.15NF,5%,50V,C0G,TP,1608

.....5 T0657 2203-000357 C-CER,CHIP;0.15NF,5%,50V,C0G,TP,1608

.....5 T0657 2203-000357 C-CER,CHIP;0.15NF,5%,50V,C0G,TP,1608

.....5 T0657 2203-000357 C-CER,CHIP;0.15NF,5%,50V,C0G,TP,1608

.....5 T0657 2203-000357 C-CER,CHIP;0.15NF,5%,50V,C0G,TP,1608

.....5 T0657 2203-000357 C-CER,CHIP;0.15NF,5%,50V,C0G,TP,1608

.....5 T0657 2203-000357 C-CER,CHIP;0.15NF,5%,50V,C0G,TP,1608

.....5 T0657 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608

.....5 T0657 2203-000972 C-CER,CHIP;47nF,10%,16V,X7R,TP,1608

.....5 T0657 2203-000972 C-CER,CHIP;47nF,10%,16V,X7R,TP,1608

.....5 T0657 2203-000972 C-CER,CHIP;47nF,10%,16V,X7R,TP,1608

.....5 T0657 2203-000972 C-CER,CHIP;47nF,10%,16V,X7R,TP,1608

.....5 T0657 2203-001071 C-CER,CHIP;0.056NF,5%,50V,C0G,TP,1608

.....5 T0657 2203-001071 C-CER,CHIP;0.056NF,5%,50V,C0G,TP,1608

.....5 T0657 2203-001071 C-CER,CHIP;0.056NF,5%,50V,C0G,TP,1608

.....5 T0657 2203-001071 C-CER,CHIP;0.056NF,5%,50V,C0G,TP,1608

.....5 T0657 2203-001071 C-CER,CHIP;0.056NF,5%,50V,C0G,TP,1608

.....5 T0657 2203-001071 C-CER,CHIP;0.056NF,5%,50V,C0G,TP,1608

.....5 T0657 2203-001071 C-CER,CHIP;0.056NF,5%,50V,C0G,TP,1608

.....5 T0657 2203-001071 C-CER,CHIP;0.056NF,5%,50V,C0G,TP,1608

.....5 T0657 2203-001083 C-CER,CHIP;0.005nF,0.1pF,50V,NP0,TP,1608

Electric Parts List

4-10 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

.....5 T0657 2203-001083 C-CER,CHIP;0.005nF,0.1pF,50V,NP0,TP,1608

.....5 T0657 2203-001083 C-CER,CHIP;0.005nF,0.1pF,50V,NP0,TP,1608

.....5 T0657 2203-001083 C-CER,CHIP;0.005nF,0.1pF,50V,NP0,TP,1608

.....5 C28 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4

.....5 C33 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4

.....5 C35 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4

.....5 C01 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 C03 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 C05 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 C07 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 C106 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 C17 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 C24 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 C40 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 C46 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 C48 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 C97 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 OSC01 2804-001594 OSCILLATOR-CLOCK;6MHz,100ppm,15pF,SMD,3.

.....5 IC125 AA13-00110A IC ASIC;SDC31,SDC31,128,+1.8V,+3.3V,-0to

.....5 0 BP41-00197B PCB-CONVERGENCE;SVP-42W5,CEM-3,2L,1.6T,2 S.N.A

.....5 0202-001375 SOLDER-CREAM;RMA-20-21L,S63,-,Sn63/Pb36. S.N.A

..2 T0098 BP94-00908A ASSY PCB MISC-VM;SVP-42Q2HL,P60A
...3 T0245 0202-001366 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb, S.N.A
...3 RZ120 2008-001097 R-FUSIBLE(S);33OHM,5%,1/2W,AC,BK,2.5X6.5
...3 M0081 6003-001023 SCREW-TAPTITE;PWH,+,B,M3,L10,ZPC(YEL),SW S.N.A
...3 T0079 AA33-00017A MAGNET CONVERGENCE;JH 92LT - 29G,PJT-TV,
...3 QZ102 AA96-00243L ASSY HEAT SINK P;-,CRT,AA62-000450A,2SC2 S.N.A

....4 T0522 0205-001153 GREASE-SILICON;SC102,JAPAN,- S.N.A

....4 T0090 0502-000153 TR-POWER;2SC2344-D,NPN,1.2W,TO-220,-,60

....4 M0081 6003-000335 SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A

....4 T0175 AA62-00045A HEAT SINK-PS;-,-,T1.0,-,-,DREAM,-,-,-,-, S.N.A

...3 QZ101 AA96-00243M ASSY HEAT SINK P;-,AMP,AA62-000450A,2SA1 S.N.A

....4 T0522 0205-001153 GREASE-SILICON;SC102,JAPAN,- S.N.A

....4 T0090 0502-000131 TR-POWER;2SA1011-D,PNP,1.2W,TO-220,-,60

....4 M0081 6003-000335 SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A

....4 T0175 AA62-00045A HEAT SINK-PS;-,-,T1.0,-,-,DREAM,-,-,-,-, S.N.A

...3 AA97-07230M ASSY AUTO-VM;OMEGA/CHAMP S.N.A

....4 CISS 0401-000005 DIODE-SWITCHING;1N4148,75V,150MA,DO-35,T

....4 CISS 0401-000005 DIODE-SWITCHING;1N4148,75V,150MA,DO-35,T

....4 CISS 0401-000005 DIODE-SWITCHING;1N4148,75V,150MA,DO-35,T

....4 T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

....4 T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

....4 T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

....4 T0156 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T

....4 T0156 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

....4 T0156 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

....4 T0156 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

....4 R075 2001-000019 R-CARBON(S);10OHM,5%,1/2W,AA,TP,2.4X6.4M

....4 R125 2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000241 R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000241 R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000258 R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000258 R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000331 R-CARBON;12KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000331 R-CARBON;12KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000554 R-CARBON;270OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000666 R-CARBON;33OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000832 R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R075 2001-001100 R-CARBON(S);2.7OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-001100 R-CARBON(S);2.7OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-001139 R-CARBON(S);39KOHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-001139 R-CARBON(S);39KOHM,5%,1/2W,AA,TP,2.4X6.4

....4 RZ103 2003-000713 R-METAL OXIDE(S);47ohm,5%,2W,AF,TP,4x12m

....4 RZ111 2003-000713 R-METAL OXIDE(S);47ohm,5%,2W,AF,TP,4x12m

....4 RZ123 2003-002157 R-METAL OXIDE;220OHM,5%,2W,AG,TP,6X16MM

....4 RZ113 2003-002157 R-METAL OXIDE;220OHM,5%,2W,AG,TP,6X16MM

....4 RZ112 2003-002157 R-METAL OXIDE;220OHM,5%,2W,AG,TP,6X16MM

....4 RFZ101 2008-001086 R-FUSIBLE(S);3.3ohm,5%,2W,AG,TP,3.9x12mm

....4 C598 2201-000193 C-CERAMIC,DISC;0.01NF,0.25PF,50V,C0G,TP,

....4 C598 2201-000193 C-CERAMIC,DISC;0.01NF,0.25PF,50V,C0G,TP,

....4 C598 2201-000604 C-CERAMIC,DISC;0.056NF,+100-0%,500V,SL,T

....4 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

....4 C701 2401-000832 C-AL;220uF,20%,25V,GP,TP,8x11.5,5

....4 C701 2401-001157 C-AL;33uF,20%,160V,GP,TP,12.5x20,5

....4 C701 2401-001220 C-AL;4.7uF,20%,160V,GP,TP,8x11.5,5

....4 C701 2401-001220 C-AL;4.7uF,20%,160V,GP,TP,8x11.5,5

....4 C701 2401-001513 C-AL;47uF,20%,16V,WT,TP,5x11,5

....4 C701 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

....4 LZ101 2701-000002 INDUCTOR-AXIAL;100UH,10%,4298

....4 CN906 3711-002642 CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH

....4 CN906 3711-002642 CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH

....4 CN906 3711-002642 CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH

....4 PCB AA41-00611A PCB-VM;HCM4215W,FR-1,1L,A,1.6T,245X245,P S.N.A

....4 RZ114 2003-000458 R-METAL OXIDE(S);100ohm,5%,2W,AF,TP,4x12

....4 C598 2201-000516 C-CERAMIC,DISC;4.7NF,+100-0%,500V,Y5U,TP

....4 C598 2201-000516 C-CERAMIC,DISC;4.7NF,+100-0%,500V,Y5U,TP

...3 M2893 BP39-00069D LEAD CONNECTOR;P60A,UL1007#26,UL/CSA,6P,
..2 T0101 BP94-00967A ASSY PCB MISC-SENSOR;BP94-00134E,SENSOR
...3 T0245 0202-001366 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb, S.N.A
...3 CN906 3711-000447 CONNECTOR-HEADER;BOX,3P,1R,2.5MM,ANGLE,­...3 BP97-00456E ASSY SMD-SENSOR;SENSOR,ALL S.N.A

....4 RO87 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608

....4 RO87 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608

....4 RO87 2007-000305 R-CHIP;10Mohm,5%,1/10W,TP,1608

....4 AA41-00853B PCB SENSOR;SENSOR,FR-4,2,1.6T,245*245,10 S.N.A

....4 D01 BP32-00001A SENSOR PHOTO;BCS5030G1,-40 TO +85,0.42 U

....4 0202-001375 SOLDER-CREAM;RMA-20-21L,S63,-,Sn63/Pb36. S.N.A

....4 T0156 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT-

..2 T0091 BP94-01405A ASSY PCB MISC-A/V SIDE;SP43R1HL1X,J60B S.N.A
...3 T0245 0202-001366 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb, S.N.A
...3 T0121 3301-001201 CORE-FERRITE;AE,21x11x32mm,1500,280G
...3 CN906 3711-000570 CONNECTOR-HEADER;BOX,10P,1R,2.5MM,ANGLE,
...3 JK101 3722-000544 JACK-VHS;4P,11.5mm,AG,BLK,N
...3 JK102 3722-001164 JACK-PIN;3P,3.4mm,SN,WH:YE:RE,#16-22
...3 BP97-00925A ASSY AUTO-A/V;SP43R1HL1X/XEC,J60B S.N.A

....4 0 BP41-00209A PCB-A/V;SP43R1,FR-1,1L,A,1.6T,110*30,J60 S.N.A

...3 T0603 AA63-10002A BAND-TIE;NYLON66 V2,L100,NTR S.N.A
...3 M2893 BP39-00056E LEAD CONNECTOR;J60B,UL1185#26,10P,800mm, S.N.A
..2 T0097 BP94-01431A ASSY PCB MISC-PWR DEF;J60B,EU
...3 T0245 0202-001366 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb, S.N.A
...3 T0083 0402-000102 DIODE-BRIDGE;D2SB60,200V,1.5A,SIP-4,ST
...3 T0083 0402-000250 DIODE-RECTIFIER;RG4C,1KV,2A,-,­...3 T0083 0402-000540 DIODE-RECTIFIER;RU20A,600V,1.5A,-,TP
...3 T0090 0502-000442 TR-POWER;2SC4636RB,NPN,2W,TO-220,ST,10­...3 Q409 0505-001116 FET-SILICON;BUZ73A,N,200V,22A,0.6ohm,40W
...3 PC811S 0604-001032 PHOTO-COUPLER;TR,170-260%,300mW,DIP-4,ST
...3 PC812S 0604-001032 PHOTO-COUPLER;TR,170-260%,300mW,DIP-4,ST
...3 ICZ104 1001-000208 IC-ANALOG SWITCH;CD4066BN,BILATERAL CMOS
...3 DU410 1201-000191 IC-OP AMP;4558,DIP,8P,300MIL,DUAL,20V/mV
...3 DU410 1201-000191 IC-OP AMP;4558,DIP,8P,300MIL,DUAL,20V/mV
...3 DU410 1201-000229 IC-OP AMP;324,DIP,14P,300MIL,QUAD,100V/m
...3 IC811 1203-000119 IC-NEGA.FIXED REG.;7905,TO-220,3P,-,PLAS
...3 T0086 1203-002177 IC-PWM CONTROLLER;VIPER12ADIP,DIP,8P,300
...3 T0087 1203-002587 IC-POSI.FIXED REG.;KA278R05TU,TO-220,4P,
...3 R0521 2002-001012 R-COMPOSITION;8.2Mohm,5%,1/2W,AA,TP,3.7x
...3 R024 2004-001893 R-METAL(S);22Kohm,1%,1/2W,AA,TP,2.5x6.5m
...3 C598 2201-000963 C-CERAMIC,DISC;1NF,20%,400V,Y5U,TP,9.5X6
...3 C598 2201-000963 C-CERAMIC,DISC;1NF,20%,400V,Y5U,TP,9.5X6
...3 C598 2201-000987 C-CERAMIC,DISC;2.2NF,20%,400V,Y5U,BK,12.
...3 C598 2201-000987 C-CERAMIC,DISC;2.2NF,20%,400V,Y5U,BK,12.
...3 C414 2301-001185 C-FILM,LEAD-PPF;620NF,5%,400V,BK,14.5X26
...3 C417S 2301-001337 C-FILM,LEAD-OTHER;4.3NF,5%,1.6KV,BK,28.5
...3 C421 2301-001337 C-FILM,LEAD-OTHER;4.3NF,5%,1.6KV,BK,28.5
...3 C410S 2301-001338 C-FILM,LEAD-OTHER;0.68NF,5%,1.6KV,BK,28X
...3 C871 2301-001703 C-FILM,LEAD;1000nF,5%,630V,BK,30X23X15,­...3 C422 2303-000296 C-FILM,LEAD-PPF;18nF,0.05,630V,BK,20x16x
...3 C420 2303-001001 C-FILM,LEAD-PPF;22nF,5%,630V,TP,18x14.5x
...3 C418 2306-000147 C-FILM,LEAD-PPF;1uF,5%,250V,BK,26x24x15,
...3 C408S 2306-000322 C-FILM,LEAD-PPF;12NF,5%,1.6KV,BK,29X20.5
...3 C701 2401-000703 C-AL;2200uF,20%,25V,GP,-,12.5x25mm,
...3 C701 2401-000787 C-AL;220uF,20%,160V,GP,BK,16x31.5mm,7.5
...3 C701 2401-000957 C-AL;22UF,20%,450V,GP,BK,16X25MM,7.5
...3 C701 2401-001426 C-AL;470uF,20%,400V,GP,-,35x45mm,10
...3 C701 2401-001675 C-AL;820uF,20%,200V,GP,BK,25x50mm,1
...3 C701 2401-002216 C-AL;2200uF,20%,35V,GP,TP,16x25,7.5
...3 C701 2401-002216 C-AL;2200uF,20%,35V,GP,TP,16x25,7.5
...3 C701 2401-003076 C-AL;3300UF,20%,50V,WT,BK,18X35.5MM,7.5
...3 C701 2401-003076 C-AL;3300UF,20%,50V,WT,BK,18X35.5MM,7.5
...3 C701 2401-003419 C-AL;2200uF,20%,50V,WT,BK,16X35.5mm,7.5
...3 LS804 2701-001040 INDUCTOR-AXIAL;10UH,10%,4514
...3 T0121 3301-001201 CORE-FERRITE;AE,21x11x32mm,1500,280G
...3 RL402 3501-001040 RELAY-POWER;12VDC,500MW,10000MA,1FORMA,1
...3 CN906 3711-000211 CONNECTOR-HEADER;1WALL,3P,1R,3.96mm,STRA

Electric Parts List

Samsung Electronics 4-11

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

...3 CN906 3711-000654 CONNECTOR-HEADER;BOX,12P,1R,2.5mm,STRAIG
...3 CN906 3711-001084 CONNECTOR-HEADER;BOX,8P,1R,2.5mm,STRAIGH
...3 IC063 AA13-00094A IC HYBRID;-,DDRI001A,SIP,5P,-,TP
...3 T401 AA26-50001S TRANS-HORIZ.DRIVE;-,-,-,6.0mH,-,-,44uH,­...3 L817 AA27-00119A COIL CHOKE;10uH,-,10uH,10%,0.07,0.1ohm M
...3 L811 AA27-10002L COIL CHOKE;-,24uH,K,-,2A,-,24UH-K,10x10m
...3 L403 AA27-10002V COIL CHOKE;-,6.3mH,K,-,500mA,-,NY632K(50
...3 T0296 AA27-30003M COIL LINEARITY;-,5uH,OWA14x15,USRC0.1x60
...3 L406 AA27-40001S COIL CHOKE;-,110uH,SB-5S8202.6,PI0.18x20
...3 T0245 AA39-00047A LEAD CONNECTOR-ASSY;,1P,60MM,JUMPER,BLK,
...3 GT811 AA60-40012E PIN-GT,ASSY;T1.6,8-10MM,NYLON66 S.N.A
...3 Q402 AA96-00243H ASSY HEAT SINK P;-,POWER,AA62-00045A,KSD S.N.A

....4 T0522 0205-001153 GREASE-SILICON;SC102,JAPAN,- S.N.A

....4 T0090 0502-000298 TR-POWER;KSD73,NPN,30000mW,TO-220,TP,120

....4 M0081 6003-000335 SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A

....4 T0175 AA62-00045A HEAT SINK-PS;-,-,T1.0,-,-,DREAM,-,-,-,-, S.N.A

...3 D801S AA96-00276A ASSY HEAT SINK P;-,BRIDGE,AA62-00052A,RB S.N.A

....4 T0522 0205-001153 GREASE-SILICON;SC102,JAPAN,- S.N.A

....4 T0083 0402-000549 DIODE-BRIDGE;RBV606,600V,6A,SIP-4,BK

....4 M0081 6003-000335 SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A

....4 T0063 AA60-30003A WASHER;T1.5,SBHG-1 S.N.A

....4 T0175 AA62-00052A HEAT SINK-PS;-,-,-,SILVER,HOLE 18.5mm, 2 S.N.A

...3 IC802S AA96-00310D ASSY HEAT SINK P;STR-X6456,GREASE SILICO S.N.A

....4 CIS1 0205-001154 OIL-SILICON;G746,-,- S.N.A

....4 M0081 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A

....4 IC063 AA13-00105A IC HYBRID;STR-X6456,7,-20TO+125,DIP,21A,

....4 T0175 AA62-00062A HEAT SINK-PS;-,-,T2.0,SILVER,-,-,-,-,108 S.N.A

...3 IC301 AA96-00623A ASSY HEAT SINK P;-,POWER,AA62-00056A,LA7 S.N.A

....4 T0522 0205-001153 GREASE-SILICON;SC102,JAPAN,- S.N.A

....4 T0088 1204-000517 IC-VERTICAL DEF.;LA7845,SIP,7P,-,PLASTIC

....4 M0081 6003-000334 SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR S.N.A

....4 T0175 AA62-00056A HEAT SINK-PS;-,-,T1.0,-,41*35*70,D2,-,-, S.N.A

...3 ICZ101 AA96-02064A ASSY HEAT SINK P;AA62-30173N,SCREW,STK39 S.N.A
...3 ICZ102 AA96-02064A ASSY HEAT SINK P;AA62-30173N,SCREW,STK39 S.N.A

....4 CIS1 0205-001154 OIL-SILICON;G746,-,- S.N.A

....4 M0081 6003-001021 SCREW-TAPTITE;RH,+,B,M3,L15,ZPC(YEL),SWR S.N.A

....4 T0066 AA62-30173N HEAT SINK-ES;SVP-42Q2HL,A6063,2.0,94,120 S.N.A

....4 IC063 BP13-00006A IC HYBRID;,STK394-250,18 PIN,-30 ~ +125,

...3 TS801S BN26-00004A TRANS SWITCHING-DPMS;EE 2020,LCD-TV,400V
...3 T0616 BP26-00015A TRANS FBT;FFA61513L,P60A/Omega-PJT,1.93m
...3 T301 BP26-00016A TRANS-FOCUS;P60A,SVP-42Q2HL,10 pin,2.2mH
...3 M2893 BP39-00092A LEAD CONNECTOR;P58A,1007#26,UL/CSA,15P,1
...3 M2893 BP39-00092A LEAD CONNECTOR;P58A,1007#26,UL/CSA,15P,1
...3 M2893 BP39-00122A LEAD CONNECTOR;P60A,UL1617#22,UL/CSA,6(4
...3 D851 BP96-00020U ASSY HEAT SINK P;AA62-00045A,SCREW,FML-G S.N.A

....4 CIS1 0205-001154 OIL-SILICON;G746,-,- S.N.A

....4 T0083 0402-000233 DIODE-RECTIFIER;FML-G12S,200V,5A,-,-

....4 M0081 6003-000335 SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A

....4 T0175 AA62-00045A HEAT SINK-PS;-,-,T1.0,-,-,DREAM,-,-,-,-, S.N.A

...3 Q401 BP96-00159A ASSY HEAT SINK P;H/S,SCREW,FJL6920,FMP-3 S.N.A

....4 T0083 0402-001296 DIODE-RECTIFIER;FMP-3FU,1.5KV,5A,DO-201A

....4 T0090 0502-001230 TR-POWER;FJL6920YDTU,N,200000MW,TO-264 F

....4 M0081 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A

....4 T0239 BH73-00028B SILICON/RUBBER-HS;TV ALL,SILICON,26*30*T S.N.A

....4 T0175 BP62-00015A HEAT SINK-PS;WT-36Z4HR,A1050S,T2.0,86,80 S.N.A

....4 CIS1 0205-001154 OIL-SILICON;G746,-,- S.N.A

....4 T0105 AA60-30001A WASHER-PLATE;M3,ID3.5,15X8.5,T1.0,SBHG S.N.A

...3 D808 BP96-00335D ASSY HEAT SINK P;BP62-00035A,SCREW,SLA10 S.N.A

....4 CIS1 0205-001154 OIL-SILICON;G746,-,- S.N.A

....4 T0083 0402-001596 DIODE-RECTIFIER;SLA1004,200/700,3.5A,-,S

....4 M0081 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A

....4 T0175 BP62-00035A HEAT SINK-PS;P57A,A1050S,T2.0,12.5,66,WH S.N.A

...3 BP97-00913C ASSY AUTO-SUB;SP43Q5HL1X/XEC,J60B S.N.A

....4 CISS 0401-000005 DIODE-SWITCHING;1N4148,75V,150MA,DO-35,T

....4 CISS 0401-000005 DIODE-SWITCHING;1N4148,75V,150MA,DO-35,T

....4 CISS 0401-000005 DIODE-SWITCHING;1N4148,75V,150MA,DO-35,T

....4 CISS 0401-000005 DIODE-SWITCHING;1N4148,75V,150MA,DO-35,T

....4 CISS 0401-000005 DIODE-SWITCHING;1N4148,75V,150MA,DO-35,T

....4 CISS 0401-000005 DIODE-SWITCHING;1N4148,75V,150MA,DO-35,T

....4 CISS 0401-000005 DIODE-SWITCHING;1N4148,75V,150MA,DO-35,T

....4 CISS 0401-000005 DIODE-SWITCHING;1N4148,75V,150MA,DO-35,T

....4 CISS 0401-000006 DIODE-SWITCHING;BAV21,250V,200MA,DO-35,T

....4 CISS 0401-000006 DIODE-SWITCHING;BAV21,250V,200MA,DO-35,T

....4 CISS 0401-000006 DIODE-SWITCHING;BAV21,250V,200MA,DO-35,T

....4 CISS 0401-000006 DIODE-SWITCHING;BAV21,250V,200MA,DO-35,T

....4 T0083 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP

....4 T0083 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP

....4 T0083 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP

....4 T0083 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP

....4 T0083 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP

....4 T0083 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP

....4 T0083 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP

....4 T0083 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP

....4 T0083 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP

....4 T0083 0402-000493 DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L

....4 T0083 0402-000493 DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L

....4 T0083 0402-000537 DIODE-RECTIFIER;RH1A,600V,0.6A,DO-204AC

....4 T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

....4 T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

....4 T0083 0402-001286 DIODE-RECTIFIER;RP1H,2000V,0.1A,TO-3P,TP

....4 DZ016 0403-000367 DIODE-ZENER;UZ7.5BSC,7.3-7.7V,500MW,DO-3

....4 DZ016 0403-000367 DIODE-ZENER;UZ7.5BSC,7.3-7.7V,500MW,DO-3

....4 DZ016 0403-000699 DIODE-ZENER;TZP27B,27-30.8V,1000MW,DO-41

....4 DZ016 0403-000699 DIODE-ZENER;TZP27B,27-30.8V,1000MW,DO-41

....4 DZ016 0403-000704 DIODE-ZENER;TZP7.5B,7.5-8.4V,1000MW,DO-4

....4 DZ016 0403-000704 DIODE-ZENER;TZP7.5B,7.5-8.4V,1000MW,DO-4

....4 DZ016 0403-000705 DIODE-ZENER;TZP8.2B,8.2-9.3V,1000MW,DO-4

....4 DZ016 0403-000705 DIODE-ZENER;TZP8.2B,8.2-9.3V,1000MW,DO-4

....4 DZ016 0403-000708 DIODE-ZENER;MTZJ13B,12.55-13.21V,500MW,D

....4 DZ016 0403-000708 DIODE-ZENER;MTZJ13B,12.55-13.21V,500MW,D

....4 DZ016 0403-000708 DIODE-ZENER;MTZJ13B,12.55-13.21V,500MW,D

....4 DZ016 0403-000708 DIODE-ZENER;MTZJ13B,12.55-13.21V,500MW,D

....4 DZ016 0403-000708 DIODE-ZENER;MTZJ13B,12.55-13.21V,500MW,D

....4 DZ016 0403-000716 DIODE-ZENER;MTZJ4.7B,4.59-4.77V,500MW,DO

....4 DZ016 0403-000719 DIODE-ZENER;MTZJ7.5B,7.11-7.44V,500MW,DO

....4 DZ016 0403-000734 DIODE-ZENER;TZP15B,14.7-16.5V,1000MW,DO-

....4 DZ016 0403-000734 DIODE-ZENER;TZP15B,14.7-16.5V,1000MW,DO-

....4 DZ016 0403-001167 DIODE-ZENER;MTZJ30D,29.02-30.51V,500MW,D

....4 DZ016 0403-001319 DIODE-ZENER;MTZJ4.7C,4.68-4.93V,500MW,DO

....4 DZ016 0403-001321 DIODE-ZENER;MTZJ6.8C,6.7-6.97V,500MW,DO-

....4 DZ016 0403-001325 DIODE-ZENER;MTZJ15C,14.42-15.02V,500MW,D

....4 DZ016 0403-001327 DIODE-ZENER;MTZJ18A,16.22-17.06V,500MW,D

....4 DZ016 0403-001328 DIODE-ZENER;MTZJ22A,20.15-21.2V,500MW,DO

....4 DZ016 0403-001328 DIODE-ZENER;MTZJ22A,20.15-21.2V,500MW,DO

....4 DZ016 0403-001328 DIODE-ZENER;MTZJ22A,20.15-21.2V,500MW,DO

....4 DZ016 0403-001330 DIODE-ZENER;MTZJ30A,26.99-28.39V,500MW,D

....4 C1Z 0404-001056 DIODE-SCHOTTKY;RK16,60V,1500MA,DO-204AC,

....4 DZ307 0406-001007 DIODE-TVS;P6KE180A,171/180/189V,600W,CAS

....4 DZ307 0406-001062 DIODE-TVS;P6KE200A,190/200/210V,600W,CAS

....4 DZ307 0406-001106 DIODE-TVS;P6KE300A,285/-/315V,600W,DO-20

....4 T0156 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,800mW,TO-92,

....4 T0156 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T

....4 T0156 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T

....4 T0156 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

....4 T0156 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

....4 T0156 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

....4 T0156 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

....4 T0156 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

....4 T0156 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

....4 T0156 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

....4 QZ102 0504-000119 TR-DIGITAL;KSR1004,NPN,300MW,47K/47K,TO-

....4 QZ103 0504-000119 TR-DIGITAL;KSR1004,NPN,300MW,47K/47K,TO-

....4 IC012 1203-000002 IC-POSI.ADJUST REG.;431,TO-92,3P,-,PLAST

....4 R125 2001-000008 R-CARBON;15KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000008 R-CARBON;15KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000009 R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000009 R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000010 R-CARBON;68KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000010 R-CARBON;68KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R075 2001-000016 R-CARBON(S);1OHM,5%,1/2W,AA,TP,2.4X6.4MM

....4 R075 2001-000052 R-CARBON(S);3.3KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R075 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R075 2001-000109 R-CARBON(S);470OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R125 2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

Electric Parts List

4-12 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

....4 R125 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000331 R-CARBON;12KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000347 R-CARBON;13KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000411 R-CARBON;18KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000563 R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000563 R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000563 R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000563 R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000563 R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000563 R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000577 R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000702 R-CARBON;39KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000702 R-CARBON;39KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000761 R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000761 R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000773 R-CARBON;470KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000786 R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000786 R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000786 R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000786 R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000800 R-CARBON;5.1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000800 R-CARBON;5.1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000857 R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000857 R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000857 R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000857 R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000857 R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000857 R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000864 R-CARBON;56KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000864 R-CARBON;56KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000864 R-CARBON;56KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000890 R-CARBON;6.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000947 R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000958 R-CARBON;750OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000989 R-CARBON;820KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R075 2001-001037 R-CARBON(S);0.39OHM,5%,1/2W,AA,TP,2.4X6.

....4 R075 2001-001043 R-CARBON(S);0OHM,5%,1/2W,AA,TP,2.4X6.4MM

....4 R075 2001-001050 R-CARBON(S);1.5KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R075 2001-001050 R-CARBON(S);1.5KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R075 2001-001077 R-CARBON(S);150OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M

....4 R075 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M

....4 R075 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M

....4 R075 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M

....4 R075 2001-001103 R-CARBON(S);20KOHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-001103 R-CARBON(S);20KOHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-001106 R-CARBON(S);220KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R075 2001-001108 R-CARBON(S);22KOHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-001108 R-CARBON(S);22KOHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-001113 R-CARBON(S);270KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R075 2001-001113 R-CARBON(S);270KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R075 2001-001113 R-CARBON(S);270KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R075 2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-001116 R-CARBON(S);27OHM,5%,1/2W,AA,TP,2.4X6.4M

....4 R075 2001-001116 R-CARBON(S);27OHM,5%,1/2W,AA,TP,2.4X6.4M

....4 R075 2001-001150 R-CARBON(S);470KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R075 2001-001150 R-CARBON(S);470KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R075 2001-001155 R-CARBON(S);5.6KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R075 2001-001155 R-CARBON(S);5.6KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R075 2001-001155 R-CARBON(S);5.6KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R075 2001-001164 R-CARBON(S);56KOHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-001178 R-CARBON(S);680OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-001178 R-CARBON(S);680OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-001179 R-CARBON(S);68KOHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-001185 R-CARBON(S);750OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-001187 R-CARBON(S);75OHM,5%,1/2W,AA,TP,2.4X6.4M

....4 R075 2001-001188 R-CARBON(S);8.2KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R075 2001-001194 R-CARBON(S);82KOHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-001196 R-CARBON(S);9.1KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R075 2001-003218 R-CARBON(S);0.18ohm,10%,1/2W,AA,TP,2.4x6

....4 R0521 2002-001017 R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9

....4 R0521 2002-001017 R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9

....4 R0521 2002-001096 R-COMPOSITION;120KOHM,5%,1/2W,AA,TP,3X9M

....4 R0521 2002-001096 R-COMPOSITION;120KOHM,5%,1/2W,AA,TP,3X9M

....4 R315 2003-000012 R-METAL OXIDE(S);100Kohm,5%,1W,AA,TP,3.3

....4 R804 2003-000512 R-METAL OXIDE(S);15Kohm,5%,3W,AA,TP,6x16

....4 R805 2003-000512 R-METAL OXIDE(S);15Kohm,5%,3W,AA,TP,6x16

....4 R418 2003-000540 R-METAL OXIDE(S);1Kohm,5%,2W,AF,TP,4x12m

....4 R419 2003-000540 R-METAL OXIDE(S);1Kohm,5%,2W,AF,TP,4x12m

....4 R425 2003-000586 R-METAL OXIDE(S);22Kohm,5%,2W,AF,TP,4x12

....4 R426 2003-000586 R-METAL OXIDE(S);22Kohm,5%,2W,AF,TP,4x12

....4 R318 2003-000690 R-METAL OXIDE(S);4.7ohm,5%,2W,AA,TP,4x12

....4 R303 2003-001018 R-METAL OXIDE(S);220ohm,5%,2W,AF,TP,3.9x

....4 R420 2003-001018 R-METAL OXIDE(S);220ohm,5%,2W,AF,TP,3.9x

....4 R421 2003-001018 R-METAL OXIDE(S);220ohm,5%,2W,AF,TP,3.9x

....4 RZ151 2003-001024 R-METAL OXIDE(S);150ohm,5%,2W,AF,TP,3.9x

....4 RZ151A 2003-001024 R-METAL OXIDE(S);150ohm,5%,2W,AF,TP,3.9x

....4 RZ152 2003-001024 R-METAL OXIDE(S);150ohm,5%,2W,AF,TP,3.9x

....4 RZ152A 2003-001024 R-METAL OXIDE(S);150ohm,5%,2W,AF,TP,3.9x

....4 RZ153 2003-001024 R-METAL OXIDE(S);150ohm,5%,2W,AF,TP,3.9x

....4 RZ153A 2003-001024 R-METAL OXIDE(S);150ohm,5%,2W,AF,TP,3.9x

....4 RZ154 2003-001024 R-METAL OXIDE(S);150ohm,5%,2W,AF,TP,3.9x

....4 RZ154A 2003-001024 R-METAL OXIDE(S);150ohm,5%,2W,AF,TP,3.9x

....4 RZ155 2003-001024 R-METAL OXIDE(S);150ohm,5%,2W,AF,TP,3.9x

....4 RZ155A 2003-001024 R-METAL OXIDE(S);150ohm,5%,2W,AF,TP,3.9x

....4 RZ156 2003-001024 R-METAL OXIDE(S);150ohm,5%,2W,AF,TP,3.9x

....4 RZ156A 2003-001024 R-METAL OXIDE(S);150ohm,5%,2W,AF,TP,3.9x

....4 R311 2003-001036 R-METAL OXIDE(S);3.3ohm,5%,2W,AF,TP,3.9x

....4 R469 2004-000310 R-METAL;13Kohm,1%,1/4W,AA,TP,2.4x6.4mm

....4 R429 2004-000327 R-METAL;150Kohm,1%,1/4W,AA,TP,2.4x6.4m

....4 R813 2004-000679 R-METAL;2Kohm,1%,1/4W,AA,TP,2.4x6.4mm

....4 R411 2004-000698 R-METAL;3.3Kohm,1%,1/4W,AA,TP,2.4x6.4m

....4 R412 2004-000698 R-METAL;3.3Kohm,1%,1/4W,AA,TP,2.4x6.4m

....4 R024 2004-001373 R-METAL(S);100Kohm,1%,1/2W,AA,TP,2.4x6.4

....4 R024 2004-001390 R-METAL(S);1Kohm,2%,1/2W,AA,TP,2.4x6.4mm

....4 R024 2004-001399 R-METAL(S);5.1Kohm,1%,1/2W,AA,TP,2.4x6.4

....4 R024 2004-001892 R-METAL(S);162Kohm,1%,1/2W,AA,TP,2.5x6.5

....4 R024 2004-001897 R-METAL(S);43.2Kohm,1%,1/2W,AA,TP,2.5x6.

....4 R024 2004-001897 R-METAL(S);43.2Kohm,1%,1/2W,AA,TP,2.5x6.

....4 R024 2004-001897 R-METAL(S);43.2Kohm,1%,1/2W,AA,TP,2.5x6.

....4 R024 2004-001983 R-METAL(S);2.49Kohm,1%,1/2W,AA,TP,2.4x6.

....4 R024 2004-001984 R-METAL(S);26.7Kohm,1%,1/2W,AA,TP,2.4x6.

....4 R024 2004-001984 R-METAL(S);26.7Kohm,1%,1/2W,AA,TP,2.4x6.

....4 R024 2004-002018 R-METAL(S);220Kohm,1%,1/2W,AA,TP,2.4x6.4

....4 R024 2004-002022 R-METAL(S);51Kohm,1%,1/2W,AA,TP,2.4x6.4m

....4 R024 2004-004048 R-METAL(S);3.9Kohm,1%,1/2W,AA,TP,2.5x6.5

....4 R024 2004-005051 R-METAL(S);2.2KOHM,1%,1/2W,AA,TP,2.4X6.4

....4 R410 2004-005076 R-METAL;750ohm,1%,1/2W,AA,TP,2.5X6.5mm

....4 RS801S 2008-000205 R-FUSIBLE(S);10ohm,5%,1/2W,AF,TP,2.5x6.5

....4 RS802S 2008-000206 R-FUSIBLE(S);1ohm,5%,1/2W,AF,TP,2.5x6.5m

....4 R464 2008-000252 R-FUSIBLE(S);0.47ohm,10%,1/2W,AF,TP,2.5x

....4 R413 2008-000253 R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m

....4 R416 2008-000253 R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m

....4 R459 2008-000253 R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m

....4 R467 2008-000253 R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m

....4 R310 2008-001076 R-FUSIBLE(S);1.8ohm,5%,2W,AF,TP,3.9x10mm

....4 RZ128 2008-001155 R-FUSIBLE;3.9OHM,5%,1/2W,AF,TP,2.5X6.5MM

Electric Parts List

Samsung Electronics 4-13

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

....4 RZ129 2008-001155 R-FUSIBLE;3.9OHM,5%,1/2W,AF,TP,2.5X6.5MM

....4 RZ132 2008-001155 R-FUSIBLE;3.9OHM,5%,1/2W,AF,TP,2.5X6.5MM

....4 RZ133 2008-001155 R-FUSIBLE;3.9OHM,5%,1/2W,AF,TP,2.5X6.5MM

....4 RZ136 2008-001155 R-FUSIBLE;3.9OHM,5%,1/2W,AF,TP,2.5X6.5MM

....4 RZ137 2008-001155 R-FUSIBLE;3.9OHM,5%,1/2W,AF,TP,2.5X6.5MM

....4 RZ141 2008-001155 R-FUSIBLE;3.9OHM,5%,1/2W,AF,TP,2.5X6.5MM

....4 RZ142 2008-001155 R-FUSIBLE;3.9OHM,5%,1/2W,AF,TP,2.5X6.5MM

....4 RZ145 2008-001155 R-FUSIBLE;3.9OHM,5%,1/2W,AF,TP,2.5X6.5MM

....4 RZ146 2008-001155 R-FUSIBLE;3.9OHM,5%,1/2W,AF,TP,2.5X6.5MM

....4 RZ149 2008-001155 R-FUSIBLE;3.9OHM,5%,1/2W,AF,TP,2.5X6.5MM

....4 RZ150 2008-001155 R-FUSIBLE;3.9OHM,5%,1/2W,AF,TP,2.5X6.5MM

....4 RR401S 2103-001086 VR-SEMI;100KOHM,25%,0.3W,TOP

....4 C598 2201-000017 C-CERAMIC,DISC;1NF,10%,50V,Y5P,TP,5X3.5M

....4 C598 2201-000112 C-CERAMIC,DISC;1.5NF,10%,50V,Y5V,TP,5X3.

....4 C598 2201-000119 C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,

....4 C598 2201-000119 C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,

....4 C598 2201-000119 C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,

....4 C598 2201-000119 C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,

....4 C598 2201-000119 C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,

....4 C598 2201-000119 C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,

....4 C598 2201-000119 C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,

....4 C598 2201-000119 C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,

....4 C598 2201-000138 C-CERAMIC,DISC;0.1NF,10%,50V,Y5P,TP,4X4M

....4 C598 2201-000144 C-CERAMIC,DISC;0.1NF,5%,50V,C0G,TP,8.5X3

....4 C598 2201-000163 C-CERAMIC,DISC;10NF,+80-20%,50V,Y5V,TP,7

....4 C598 2201-000234 C-CERAMIC,DISC;0.15NF,5%,50V,C0G,TP,9X3M

....4 C598 2201-000281 C-CERAMIC,DISC;1NF,+80-20%,50V,Y5V,TP,5X

....4 C598 2201-000332 C-CERAMIC,DISC;2.2NF,20%,250V,Y5U,TP,9X4

....4 C598 2201-000332 C-CERAMIC,DISC;2.2NF,20%,250V,Y5U,TP,9X4

....4 C598 2201-000376 C-CERAMIC,DISC;0.22NF,5%,50V,SL,TP,6.3X3

....4 C598 2201-000406 C-CERAMIC,DISC;0.27NF,10%,2KV,Y5P,TP,6.3

....4 C598 2201-000406 C-CERAMIC,DISC;0.27NF,10%,2KV,Y5P,TP,6.3

....4 C598 2201-000516 C-CERAMIC,DISC;4.7NF,+100-0%,500V,Y5U,TP

....4 C598 2201-000556 C-CERAMIC,DISC;0.47NF,10%,500V,Y5P,TP,5.

....4 C598 2201-000556 C-CERAMIC,DISC;0.47NF,10%,500V,Y5P,TP,5.

....4 C598 2201-000556 C-CERAMIC,DISC;0.47NF,10%,500V,Y5P,TP,5.

....4 C598 2201-000556 C-CERAMIC,DISC;0.47NF,10%,500V,Y5P,TP,5.

....4 C598 2201-000556 C-CERAMIC,DISC;0.47NF,10%,500V,Y5P,TP,5.

....4 C598 2201-000556 C-CERAMIC,DISC;0.47NF,10%,500V,Y5P,TP,5.

....4 C598 2201-000556 C-CERAMIC,DISC;0.47NF,10%,500V,Y5P,TP,5.

....4 C598 2201-000556 C-CERAMIC,DISC;0.47NF,10%,500V,Y5P,TP,5.

....4 C598 2201-000556 C-CERAMIC,DISC;0.47NF,10%,500V,Y5P,TP,5.

....4 C598 2201-002028 C-CERAMIC,DISC;0.47NF,10%,2KV,Y5P,TP,7.5

....4 C689 2202-000121 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP

....4 C689 2202-000121 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP

....4 C689 2202-000121 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP

....4 C689 2202-000121 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP

....4 C689 2202-000121 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP

....4 C689 2202-000121 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP

....4 C689 2202-000205 C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.

....4 C689 2202-000205 C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.

....4 C689 2202-000205 C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.

....4 C689 2202-000205 C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.

....4 C689 2202-000205 C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.

....4 CZ126 2202-000561 C-CERAMIC,MLC-RADIAL;0.68NF,5%,50V,C0G,T

....4 C866 2202-000654 C-CERAMIC,MLC-RADIAL;100nF,10%,50V,X7R,T

....4 C868 2202-000654 C-CERAMIC,MLC-RADIAL;100nF,10%,50V,X7R,T

....4 C689 2202-000825 C-CERAMIC,MLC-AXIAL;680pF,10%,50V,Y5P,TP

....4 C689 2202-000825 C-CERAMIC,MLC-AXIAL;680pF,10%,50V,Y5P,TP

....4 C689 2202-000825 C-CERAMIC,MLC-AXIAL;680pF,10%,50V,Y5P,TP

....4 C689 2202-000825 C-CERAMIC,MLC-AXIAL;680pF,10%,50V,Y5P,TP

....4 C689 2202-000825 C-CERAMIC,MLC-AXIAL;680pF,10%,50V,Y5P,TP

....4 C689 2202-000825 C-CERAMIC,MLC-AXIAL;680pF,10%,50V,Y5P,TP

....4 C689 2202-000863 C-CERAMIC,MLC-AXIAL;560pF,10%,50V,Y5P,TP

....4 C689 2202-000863 C-CERAMIC,MLC-AXIAL;560pF,10%,50V,Y5P,TP

....4 C689 2202-000863 C-CERAMIC,MLC-AXIAL;560pF,10%,50V,Y5P,TP

....4 C689 2202-000863 C-CERAMIC,MLC-AXIAL;560pF,10%,50V,Y5P,TP

....4 C689 2202-000863 C-CERAMIC,MLC-AXIAL;560pF,10%,50V,Y5P,TP

....4 C689 2202-000863 C-CERAMIC,MLC-AXIAL;560pF,10%,50V,Y5P,TP

....4 C2560 2301-000010 C-FILM,LEAD-PEF;100nF,5%,100V,TP,11.5x12

....4 C2560 2301-000175 C-FILM,LEAD-PEF;15nF,5%,50V,TP,7.1x3.5x1

....4 C2560 2301-000188 C-FILM,LEAD-PEF;1nF,5%,100V,TP,10.5x12.5

....4 C2560 2301-000188 C-FILM,LEAD-PEF;1nF,5%,100V,TP,10.5x12.5

....4 C2560 2301-000192 C-FILM,LEAD-PEF;1nF,5%,50V,TP,5.3x10mm,5

....4 C2560 2301-000213 C-FILM,LEAD-PEF;220nF,5%,250V,TP,21.5x11

....4 C2560 2301-000224 C-FILM,LEAD-PEF;22nF,5%,50V,TP,7.4x3.9x1

....4 C2560 2301-000356 C-FILM,LEAD-PEF;47nF,5%,50V,TP,7.5x4.0x6

....4 C2560 2301-000356 C-FILM,LEAD-PEF;47nF,5%,50V,TP,7.5x4.0x6

....4 C2560 2301-000445 C-FILM,LEAD-PEF;4.7nF,5%,50V,TP,5.5x7x3m

....4 C2560 2301-000445 C-FILM,LEAD-PEF;4.7nF,5%,50V,TP,5.5x7x3m

....4 C403 2301-001194 C-FILM,LEAD-PPF;470nF,5%,250V,TP,18x16x8

....4 C831 2301-001216 C-FILM,LEAD-PPF;47nF,5%,630V,TP,20x14.5x

....4 C811 2301-001342 C-FILM,LEAD-PPF;1.5nF,5%,800V,TP,15x6.5x

....4 C413S 2301-001686 C-FILM,PEF;2.0nF,3%,2000V,bk,20X12.5X6.5

....4 C409S 2303-000002 C-FILM,LEAD-PPF;8.2nF 5% 400V TP 19X18X7

....4 C2560 2305-000149 C-FILM,LEAD-PEF;100nF,5%,100V,TP,12x12.5

....4 C2560 2305-000178 C-FILM,LEAD-PEF;10nF,5%,100V,TP,-,5mm

....4 C2560 2305-000285 C-FILM,LEAD-PEF;220NF,5%,100V,TP,10.5X5.

....4 C2560 2305-000289 C-FILM,LEAD-PEF;220nF,5%,63V,TP,-,5mm

....4 C2560 2305-000289 C-FILM,LEAD-PEF;220nF,5%,63V,TP,-,5mm

....4 C2560 2305-000407 C-FILM,LEAD-PEF;470nF,5%,100V,TP,-,5mm

....4 C2560 2305-000412 C-FILM,LEAD-PEF;470nF,5%,63V,TP,-,5mm

....4 C2560 2305-000665 C-FILM,LEAD-PEF;100nF,5%,63V,TP,7.5x4.0x

....4 C2560 2305-000704 C-FILM,LEAD-PEF;100nF,5%,250V,TP,16.5x10

....4 C407 2306-000122 C-FILM,LEAD-PPF;100nF,5%,50V,TP,7.3x4.0x

....4 CZ134 2306-000122 C-FILM,LEAD-PPF;100nF,5%,50V,TP,7.3x4.0x

....4 C701 2401-000010 C-AL;220uF,20%,16V,GP,-,6.3x11mm,2.

....4 C701 2401-000025 C-AL;100uF,20%,16V,GP,TP,6.3x11,5

....4 C701 2401-000050 C-AL;10uF,20%,16V,GP,TP,5x11,2.5

....4 C701 2401-000142 C-AL;1000uF,20%,16V,WT,TP,10x20,5

....4 C701 2401-000293 C-AL;100uF,+30-10%,200V,GP,TP,16x25

....4 C701 2401-000302 C-AL;100uF,20%,25V,GP,TP,6.3x11,5

....4 C701 2401-000302 C-AL;100uF,20%,25V,GP,TP,6.3x11,5

....4 C701 2401-000302 C-AL;100uF,20%,25V,GP,TP,6.3x11,5

....4 C701 2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5

....4 C701 2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5

....4 C701 2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5

....4 C701 2401-000471 C-AL;10uF,20%,50V,BP,TP,5x11,5mm

....4 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

....4 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

....4 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

....4 C701 2401-000603 C-AL;1UF,20%,50V,GP,TP,5X11,2

....4 C701 2401-000698 C-AL;2200uF,20%,16V,WT,TP,12.5x25,5

....4 C701 2401-000703 C-AL;2200uF,20%,25V,GP,-,12.5x25mm,

....4 C701 2401-000852 C-AL;220uF,20%,35V,GP,TP,8x11.5mm,5

....4 C701 2401-000925 C-AL;22uF,20%,250V,GP,TP,10x20mm,5m

....4 C701 2401-001397 C-AL;470uF,20%,25V,GP,TP,10x16,5

....4 C701 2401-001397 C-AL;470uF,20%,25V,GP,TP,10x16,5

....4 C701 2401-001397 C-AL;470uF,20%,25V,GP,TP,10x16,5

....4 C701 2401-001428 C-AL;470uF,20%,50V,GP,TP,10x20,5

....4 C701 2401-001428 C-AL;470uF,20%,50V,GP,TP,10x20,5

....4 C701 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

....4 C701 2401-002300 C-AL;47uF,20%,50V,GP,TP,6.3x11,5

....4 C701 2401-002300 C-AL;47uF,20%,50V,GP,TP,6.3x11,5

....4 C701 2401-002300 C-AL;47uF,20%,50V,GP,TP,6.3x11,5

....4 C701 2401-003114 C-AL;4.7uF,20%,250V,WT,TP,10x16,5

....4 C701 2401-003473 C-AL;680UF,20%,16V,GP,TP,10X12.5MM,5

....4 LZ101 2701-000142 INDUCTOR-AXIAL;1UH,10%,2534

....4 LZ102 2701-000142 INDUCTOR-AXIAL;1UH,10%,2534

....4 LZ103 2701-000142 INDUCTOR-AXIAL;1UH,10%,2534

....4 LZ104 2701-000142 INDUCTOR-AXIAL;1UH,10%,2534

....4 LZ105 2701-000142 INDUCTOR-AXIAL;1UH,10%,2534

....4 LZ106 2701-000142 INDUCTOR-AXIAL;1UH,10%,2534

....4 F101 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

....4 F101 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

....4 F101 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

....4 F101 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

....4 F101 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

....4 F101 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

....4 F101 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

....4 F101 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

....4 F101 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

....4 F101 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

....4 F101 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

....4 L2514 3301-000287 BEAD-AXIAL;,3.5x1.0x6.0mm,3000mA,TP,,,50 S.N.A

....4 L2514 3301-000287 BEAD-AXIAL;,3.5x1.0x6.0mm,3000mA,TP,,,50 S.N.A

....4 L2514 3301-000287 BEAD-AXIAL;,3.5x1.0x6.0mm,3000mA,TP,,,50 S.N.A

....4 L2514 3301-000287 BEAD-AXIAL;,3.5x1.0x6.0mm,3000mA,TP,,,50 S.N.A

....4 FD801S 3601-001064 FUSE-AXIAL LEAD;125V,4A,FAST-ACTING,GLAS

....4 FD802S 3601-001086 FUSE-AXIAL LEAD;125V,5A,FAST-ACTING,GLAS

....4 FD804S 3601-001086 FUSE-AXIAL LEAD;125V,5A,FAST-ACTING,GLAS

....4 FD805S 3601-001086 FUSE-AXIAL LEAD;125V,5A,FAST-ACTING,GLAS

....4 EL13 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL14 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

Electric Parts List

4-14 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

....4 EL42 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL43 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL44 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL45 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL46 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL47 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL48 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL82 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL83 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL84 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL93 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL94 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL1 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL2 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EY10 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY101 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY102 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY103 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY104 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY107 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY108 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY109 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY11 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY110 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY111 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY112 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY113 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY114 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY115 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY117 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY118 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY119 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY12 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY120 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY123 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY124 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY127 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY128 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY15 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY16 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY17 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY18 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY19 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY20 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY21 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY22 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY23 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY26 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY27 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY28 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY29 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY30 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY31 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY32 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY33 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY34 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY35 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY36 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY37 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY38 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY39 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY40 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY41 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY49 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY50 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY51 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY52 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY55 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY56 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY57 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY58 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY59 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY60 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY61 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY62 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY63 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY64 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY65 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY66 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY67 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY68 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY69 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY70 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY71 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY72 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY73 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY74 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY75 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY76 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY77 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY78 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY79 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY80 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY81 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY85 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY86 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY87 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY88 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY89 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY9 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY90 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY91 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY92 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY95 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY96 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY98 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY100 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY105 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY106 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY116 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO

....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO

....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO

....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO

....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO

....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO

....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO

....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO

....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO

....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO

....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO

....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO

....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO

....4 0 BP41-00049E PCB SUB-POWER;SVP-42Q2HL,CEM-1,1L,1.6T,3 S.N.A

....4 R024 2004-001406 R-METAL(S);8.2Kohm,1%,1/2W,AA,TP,2.4x6.4

...3 IC012 1203-000165 IC-POSI.ADJUST REG.;78R12,TO-220,4P,-,PL
...3 T0117 BP26-00002C TRANS SWITCHING;VD074-04,CHAMP,400V,PL-5
...3 R0251 2009-000017 R-METAL PLATE;0.1ohm,10%,5W,CL,TP,5x14x1
...3 M2893 BP39-00181A LEAD CONNECTOR;J60B,UL1617#22,UL/CSA,3P, S.N.A
...3 M2893 BP39-00183A LEAD CONNECTOR;J60B,UL1007#26,UL/CSA,10P S.N.A
...3 M2893 BP39-00186A LEAD CONNECTOR;J60B,UL1007#22,UL/CSA,12P S.N.A
...3 M2893 BP39-00188A LEAD CONNECTOR;J60B,UL1007#26,UL/CSA,8P, S.N.A
..2 T0520 BP94-01432A ASSY PCB MISC-LINE FILTER;SP43Q5HL1X/XEC S.N.A
...3 T0245 0202-001366 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb, S.N.A
...3 T0900 1404-001195 THERMISTOR-NTC;5.1ohm,15%,2900,27mW/C,BK
...3 CX801S 2301-001055 C-FILM,LEAD-PPF;330nF,20%,275V,TP,10x19.
...3 CX803S 2306-000318 C-FILM,LEAD-PPF;220NF,20%,250V,BK,-,22.5
...3 CX805S 2306-000318 C-FILM,LEAD-PPF;220NF,20%,250V,BK,-,22.5
...3 CX802S 2306-000321 C-FILM,LEAD-PPF;470NF,20%,275V,BK,31X11X
...3 FP801S 3601-001007 FUSE-CARTRIDGE;250V,6.3A,TIME-LAG,GLASS,
...3 LX802S AA29-00011A FILTER LINE NOISE;CZ32W8,-,0.20MAX,1.5KV
...3 LX803S AA29-00011A FILTER LINE NOISE;CZ32W8,-,0.20MAX,1.5KV
...3 LX804S AA29-00011A FILTER LINE NOISE;CZ32W8,-,0.20MAX,1.5KV
...3 LX801S AA29-30001Z FILTER LINE NOISE;-,10mH,2.8A,-,SQE3535
...3 GT801 AA60-40012G PIN-GT;3P,2.36PI,10/5mm,NYLON66,LOCKING S.N.A
...3 BP97-00913A ASSY AUTO-LINE FILTER;SP43Q5HL1X/XEC,J60 S.N.A

....4 VP801S 1405-000152 VARISTOR;560V,2500A,14x8.5mm,TP

....4 VX801S 1405-000187 VARISTOR;750V,1250A,12.5x7mm,TP

....4 R0521 2002-001021 R-COMPOSITION;560KOHM,5%,1/2W,AA,TP,3.7X

....4 F801A 3602-000114 FUSE-HOLDER;-,-,30mohm

....4 F801B 3602-000114 FUSE-HOLDER;-,-,30mohm

....4 EY01 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY02 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY03 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

Electric Parts List

Samsung Electronics 4-15

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

....4 EY04 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY05 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY06 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY07 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY08 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY09 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY10 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY11 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY12 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY13 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY14 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY15 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY16 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY17 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY18 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY19 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY20 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY21 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY22 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY23 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY24 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY25 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY26 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY27 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY45 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO

....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO

....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO

....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO

....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO

....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO

....4 0 BP41-00206A PCB-LINE FILTER;OMEGA-2,FR-1,1L,A,1.6T,2 S.N.A

...3 M2893 BP39-00181A LEAD CONNECTOR;J60B,UL1617#22,UL/CSA,3P, S.N.A
..2 T0137 BP94-01434A ASSY PCB MISC-PFC;SP43Q5HL1X/XEC,J60B
...3 T0245 0202-001366 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb, S.N.A
...3 PFTX01SAA27-00269ACOIL CHOKE-PFC;35MH,CPTTV,35MH,10%,2.0OH
...3 BP97-00584A ASSY AUTO-PFC;SP43W6HEX/XEH,J59A S.N.A

....4 EY01 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY02 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY03 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY04 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY05 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY06 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY07 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO

....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO

....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO

....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO

....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO

....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO

....4 OO BP41-00147A PCB-PFC;SP43T8HE,J59A S.N.A

..2 T0245 BP94-01404A ASSY PCB MISC-KEY CONTROL;SP43R1HL,J60B S.N.A
...3 T0245 0202-001366 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb, S.N.A
...3 CN906 3711-000609 CONNECTOR-HEADER;BOX,11P,1R,2.5MM,ANGLE,
...3 CN906 3711-001075 CONNECTOR-HEADER;BOX,7P,1R,2.50mm,ANGLE,
...3 BP97-00600A ASSY AUTO-KEY CONTROL;SVP-42W5HL,P59A,CHS.N.A

....4 R125 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000832 R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000832 R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000832 R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000924 R-CARBON;680OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 SWY08 3404-000243 SWITCH-TACT;15V,20mA,160gf+-50gf,6x3.4mm

....4 SWY07 3404-000243 SWITCH-TACT;15V,20mA,160gf+-50gf,6x3.4mm

....4 SWY06 3404-000243 SWITCH-TACT;15V,20mA,160gf+-50gf,6x3.4mm

....4 SWY05 3404-000243 SWITCH-TACT;15V,20mA,160gf+-50gf,6x3.4mm

....4 SWY04 3404-000243 SWITCH-TACT;15V,20mA,160gf+-50gf,6x3.4mm

....4 SWY03 3404-000243 SWITCH-TACT;15V,20mA,160gf+-50gf,6x3.4mm

....4 SWY01 3404-000243 SWITCH-TACT;15V,20mA,160gf+-50gf,6x3.4mm

....4 M0119 BP41-00102A PCB CONTROL;SVP-42Q2,FR-1,1L,A,1.6T,245* S.N.A

...3 M2893 BP39-00185A LEAD CONNECTOR;J60B,UL1007#26,UL/CSA,11P S.N.A
..2 T0384 BP94-01444A ASSY PCB MISC-PWR CONTROL;SP43R1HL,J60B S.N.A
...3 T0245 0202-001366 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb, S.N.A
...3 LEDY01 0601-001381 LED;ROUND,RED/GRN,5.0MM,650/563NM
...3 CN906 3711-001075 CONNECTOR-HEADER;BOX,7P,1R,2.50mm,ANGLE,
...3 M0081 6003-001023 SCREW-TAPTITE;PWH,+,B,M3,L10,ZPC(YEL),SW S.N.A
...3 D0254 AA32-00012A MODULE REMOCON;ORC-50HF2,38KHZ,940NM,MES
...3 M2893 BP39-00142A LEAD CONNECTOR;HLP5063WX,UL1007#22,UL/CS

...3 T0286 BP94-00604A ASSY PCB MISC-MASTER S/W;SP47Q7HRX/XTT,J

....4 T0245 0202-001366 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb, S.N.A

....4 SWP01 3403-001130 SWITCH-PUSH;250VAC,5A,SPST,OFF-ON-OFF,-

....4 M0081 6003-000334 SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR S.N.A

....4 AA61-00719B HOLDER-MASTER;T6,W3,HIPS V0,BLK,J52A S.N.A

....4 BP97-00134A ASSY AUTO-MASTER S/W;SVP-55W9HRTC,P55A S.N.A

.....5 PCB AA41-00784A PCB-POWER S/W;SVP-55W9HRTC,CEM-1,1L,A,1. S.N.A

.....5 EY02 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

.....5 EY01 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

.....5 GT811 AA60-40014A PIN-GT,ASSY;AUTO

.....5 GT811 AA60-40014A PIN-GT,ASSY;AUTO

...3 T0238 BP97-00667A ASSY AUTO;SP43T9HRX/XTT,J57A S.N.A

....4 DZ016 0403-000510 DIODE-ZENER;MTZJ6.2B,5.96-6.27V,500MW,DO

....4 DZ016 0403-000510 DIODE-ZENER;MTZJ6.2B,5.96-6.27V,500MW,DO

....4 DZ016 0403-000510 DIODE-ZENER;MTZJ6.2B,5.96-6.27V,500MW,DO

....4 QY02 0504-000123 TR-DIGITAL;KSR1010,NPN,300mW,10K,TO-92,T

....4 QY01 0504-000123 TR-DIGITAL;KSR1010,NPN,300mW,10K,TO-92,T

....4 R075 2001-000020 R-CARBON(S);22OHM,5%,1/2W,AA,TP,2.4X6.4M

....4 R075 2001-000109 R-CARBON(S);470OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-000109 R-CARBON(S);470OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-001108 R-CARBON(S);22KOHM,5%,1/2W,AA,TP,2.4X6.4

....4 C701 2401-002009 C-AL;100uF,20%,16V,GP,TP,6.3x7,5

....4 LY01 2701-000114 INDUCTOR-AXIAL;10UH,10%,2534

....4 OO BP41-00115A PCB-PWR;SP43T9HR,PWR CONTROL,1L,1.6T,330 S.N.A

...3 T0121 3301-001201 CORE-FERRITE;AE,21x11x32mm,1500,280G
...3 M2893 BP39-00048E LEAD CONNECTOR;J60B,UL1617#22,2P,900mm,# S.N.A
..2 T0065 BP94-02002A ASSY PCB CRT;SP43Q5HL1X/XEC,J60B
...3 T0245 0202-001366 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb, S.N.A
...3 T0121 3301-001201 CORE-FERRITE;AE,21x11x32mm,1500,280G
...3 V501 3704-001019 SOCKET-CRT;10P,29.1PI,35.5PI,AU30U,­...3 V531 3704-001019 SOCKET-CRT;10P,29.1PI,35.5PI,AU30U,­...3 V561 3704-001019 SOCKET-CRT;10P,29.1PI,35.5PI,AU30U,­...3 CN906 3711-000577 CONNECTOR-HEADER;BOX,10P,1R,2.5mm,STRAIG
...3 CN906 3711-000577 CONNECTOR-HEADER;BOX,10P,1R,2.5mm,STRAIG
...3 CN906 3711-000577 CONNECTOR-HEADER;BOX,10P,1R,2.5mm,STRAIG
...3 CN906 3711-000577 CONNECTOR-HEADER;BOX,10P,1R,2.5mm,STRAIG
...3 CN906 3711-001038 CONNECTOR-HEADER;BOX,6P,1R,2.5mm,STRAIGH
...3 CN906 3711-001084 CONNECTOR-HEADER;BOX,8P,1R,2.5mm,STRAIGH
...3 CN906 3711-003241 CONNECTOR-HEADER;BOX,14P,1R,2.5MM,STRAIG
...3 GT511 3722-001503 JACK-PIN;1P,1PI,NI,RED,SCR-JACK
...3 GT541 3722-001503 JACK-PIN;1P,1PI,NI,RED,SCR-JACK
...3 GT571 3722-001503 JACK-PIN;1P,1PI,NI,RED,SCR-JACK
...3 T0245 AA39-00198A LEAD CONNECTOR-ASSY;,3P,900/600MM,YFH800
...3 T0245 AA39-20010D LEAD CONNECTOR-ASSY;,1P,400,YFH800-01,S,
...3 T0245 AA39-20010D LEAD CONNECTOR-ASSY;,1P,400,YFH800-01,S,
...3 T0603 AA63-10002A BAND-TIE;NYLON66 V2,L100,NTR S.N.A
...3 CIS1 AA65-00029A CLAMPER CORE-WIRE;PJTV,NYLON66,OD24,DONS.N.A
...3 CIS1 AA65-30018A CLAMPER CORE-WIRE;DONG-A,NYLON-66,-,-,-, S.N.A
...3 IC501 AA96-50311L ASSY HEAT SINK P;-,AMP,AA62-30175D ,TDA S.N.A
...3 IC531 AA96-50311L ASSY HEAT SINK P;-,AMP,AA62-30175D ,TDA S.N.A
...3 IC561 AA96-50311L ASSY HEAT SINK P;-,AMP,AA62-30175D ,TDA S.N.A

....4 T0074 1201-001131 IC-VIDEO AMP;6111,SIP,9P,-,SINGLE,-,PLAS

....4 M0081 6003-000334 SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR S.N.A

....4 T0175 AA62-30175D HEAT SINK-PS;-,SECC,T1.0,-,33X15X30 FT-2 S.N.A

...3 M2893 BP39-00053A LEAD CONNECTOR;P57A/SVP-55WHT,UL1007#26,
...3 M2893 BP39-00053A LEAD CONNECTOR;P57A/SVP-55WHT,UL1007#26,
...3 T0103 BP59-00045A MODULE-FOCUS PACK ASS'Y;SVP-43W6HE,F301­...3 T0100 BP97-00913D ASSY AUTO-CRT;SP43Q5HL1X/XEC,J60B S.N.A

....4 CISS 0401-000005 DIODE-SWITCHING;1N4148,75V,150MA,DO-35,T

....4 CISS 0401-000005 DIODE-SWITCHING;1N4148,75V,150MA,DO-35,T

....4 T0083 0402-000493 DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L

....4 T0083 0402-000493 DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L

....4 T0083 0402-000493 DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L

....4 T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

....4 T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

....4 T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

....4 T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

....4 T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

....4 T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

....4 DZ016 0403-000334 DIODE-ZENER;UZ2.7BSA,2.54-2.75V,500MW,DO

....4 DZ016 0403-000334 DIODE-ZENER;UZ2.7BSA,2.54-2.75V,500MW,DO

....4 DZ016 0403-000334 DIODE-ZENER;UZ2.7BSA,2.54-2.75V,500MW,DO

....4 DZ016 0403-000508 DIODE-ZENER;MTZJ5.6B,5.45-5.73V,500MW,DO

....4 DZ016 0403-000508 DIODE-ZENER;MTZJ5.6B,5.45-5.73V,500MW,DO

....4 DZ016 0403-000508 DIODE-ZENER;MTZJ5.6B,5.45-5.73V,500MW,DO

....4 DZ016 0403-000708 DIODE-ZENER;MTZJ13B,12.55-13.21V,500MW,D

....4 DZ016 0403-000708 DIODE-ZENER;MTZJ13B,12.55-13.21V,500MW,D

Electric Parts List

4-16 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

....4 DZ016 0403-000708 DIODE-ZENER;MTZJ13B,12.55-13.21V,500MW,D

....4 T0156 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T

....4 T0156 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T

....4 T0156 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T

....4 T0156 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T

....4 T0156 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

....4 T0090 0502-000006 TR-POWER;KSC1507,NPN,15W,TO-220,TP,120-

....4 T0090 0502-000006 TR-POWER;KSC1507,NPN,15W,TO-220,TP,120-

....4 T0090 0502-000006 TR-POWER;KSC1507,NPN,15W,TO-220,TP,120-

....4 R125 2001-000006 R-CARBON;2.4KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000007 R-CARBON;3KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000009 R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000009 R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000009 R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000009 R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R075 2001-000028 R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-000028 R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-000028 R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R075 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R075 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R125 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000319 R-CARBON;120KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000347 R-CARBON;13KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000362 R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000362 R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000362 R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000472 R-CARBON;2.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000563 R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000577 R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000613 R-CARBON;3.9KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000890 R-CARBON;6.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000908 R-CARBON;62KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000908 R-CARBON;62KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000908 R-CARBON;62KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000995 R-CARBON;820OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000995 R-CARBON;820OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-001015 R-CARBON;9.1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R075 2001-001049 R-CARBON(S);1.3KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R075 2001-001049 R-CARBON(S);1.3KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R075 2001-001049 R-CARBON(S);1.3KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R075 2001-001050 R-CARBON(S);1.5KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R075 2001-001050 R-CARBON(S);1.5KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R075 2001-001050 R-CARBON(S);1.5KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R075 2001-001052 R-CARBON(S);1.5MOHM,5%,1/2W,AA,TP,2.4X6.

....4 R075 2001-001052 R-CARBON(S);1.5MOHM,5%,1/2W,AA,TP,2.4X6.

....4 R075 2001-001052 R-CARBON(S);1.5MOHM,5%,1/2W,AA,TP,2.4X6.

....4 R075 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M

....4 R075 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M

....4 R075 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M

....4 R0521 2002-001006 R-COMPOSITION;4.7KOHM,15%,1/2W,AA,TP,3.7

....4 R0521 2002-001006 R-COMPOSITION;4.7KOHM,15%,1/2W,AA,TP,3.7

....4 R0521 2002-001006 R-COMPOSITION;4.7KOHM,15%,1/2W,AA,TP,3.7

....4 R0521 2002-001017 R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9

....4 R0521 2002-001017 R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9

....4 R0521 2002-001017 R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9

....4 R0521 2002-001021 R-COMPOSITION;560KOHM,5%,1/2W,AA,TP,3.7X

....4 R0521 2002-001021 R-COMPOSITION;560KOHM,5%,1/2W,AA,TP,3.7X

....4 R0521 2002-001021 R-COMPOSITION;560KOHM,5%,1/2W,AA,TP,3.7X

....4 R508 2003-000738 R-METAL OXIDE(S);56Kohm,5%,2W,AA,TP,4x12

....4 R538 2003-000738 R-METAL OXIDE(S);56Kohm,5%,2W,AA,TP,4x12

....4 R588 2003-000738 R-METAL OXIDE(S);56Kohm,5%,2W,AA,TP,4x12

....4 R513 2008-000252 R-FUSIBLE(S);0.47ohm,10%,1/2W,AF,TP,2.5x

....4 R543 2008-000252 R-FUSIBLE(S);0.47ohm,10%,1/2W,AF,TP,2.5x

....4 R573 2008-000252 R-FUSIBLE(S);0.47ohm,10%,1/2W,AF,TP,2.5x

....4 C598 2201-000119 C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,

....4 C598 2201-000119 C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,

....4 C598 2201-000119 C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,

....4 C598 2201-000599 C-CERAMIC,DISC;0.56NF,10%,500V,Y5P,TP,5.

....4 C598 2201-000599 C-CERAMIC,DISC;0.56NF,10%,500V,Y5P,TP,5.

....4 C598 2201-000599 C-CERAMIC,DISC;0.56NF,10%,500V,Y5P,TP,5.

....4 C598 2201-000723 C-CERAMIC,DISC;4.7NF,20%,3KV,Y5U,TP,16X5

....4 C598 2201-000723 C-CERAMIC,DISC;4.7NF,20%,3KV,Y5U,TP,16X5

....4 C598 2201-000723 C-CERAMIC,DISC;4.7NF,20%,3KV,Y5U,TP,16X5

....4 C598 2201-000983 C-CERAMIC,DISC;1NF,10%,2KV,Y5P,TP,9X5MM,

....4 C598 2201-000983 C-CERAMIC,DISC;1NF,10%,2KV,Y5P,TP,9X5MM,

....4 C598 2201-000983 C-CERAMIC,DISC;1NF,10%,2KV,Y5P,TP,9X5MM,

....4 C2560 2305-000149 C-FILM,LEAD-PEF;100nF,5%,100V,TP,12x12.5

....4 C2560 2305-000149 C-FILM,LEAD-PEF;100nF,5%,100V,TP,12x12.5

....4 C2560 2305-000149 C-FILM,LEAD-PEF;100nF,5%,100V,TP,12x12.5

....4 C2560 2305-000154 C-FILM,LEAD-PEF;100nF,5%,400V,TP,21.5x6.

....4 C2560 2305-000154 C-FILM,LEAD-PEF;100nF,5%,400V,TP,21.5x6.

....4 C2560 2305-000154 C-FILM,LEAD-PEF;100nF,5%,400V,TP,21.5x6.

....4 C701 2401-000133 C-AL;1000uF,20%,16V,GP,TP,10x20,5

....4 C701 2401-000430 C-AL;10uF,20%,250V,GP,TP,10x16mm,5m

....4 C701 2401-000430 C-AL;10uF,20%,250V,GP,TP,10x16mm,5m

....4 C701 2401-000430 C-AL;10uF,20%,250V,GP,TP,10x16mm,5m

....4 C701 2401-000430 C-AL;10uF,20%,250V,GP,TP,10x16mm,5m

....4 C701 2401-000430 C-AL;10uF,20%,250V,GP,TP,10x16mm,5m

....4 C701 2401-000430 C-AL;10uF,20%,250V,GP,TP,10x16mm,5m

....4 C701 2401-000493 C-AL;10uF,20%,50V,LZ,TP,5x11mm,5mm

....4 C701 2401-001571 C-AL;47uF,+20%-0%,50V,GP,TP,8x11.5,

....4 C701 2401-001571 C-AL;47uF,+20%-0%,50V,GP,TP,8x11.5,

....4 C701 2401-001571 C-AL;47uF,+20%-0%,50V,GP,TP,8x11.5,

....4 C701 2401-002075 C-AL;4.7uF,20%,50V,GP,TP,5x11,5

....4 C701 2401-002075 C-AL;4.7uF,20%,50V,GP,TP,5x11,5

....4 C701 2401-002075 C-AL;4.7uF,20%,50V,GP,TP,5x11,5

....4 L501 2701-000168 INDUCTOR-AXIAL;3.3UH,5%,2534

....4 L531 2701-000168 INDUCTOR-AXIAL;3.3UH,5%,2534

....4 L561 2701-000168 INDUCTOR-AXIAL;3.3UH,5%,2534

....4 F101 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

....4 F101 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

....4 F101 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

....4 T0310 4715-001036 SURGE ABSORBER;500V,20%,-,-,TP S.N.A

....4 T0310 4715-001036 SURGE ABSORBER;500V,20%,-,-,TP S.N.A

....4 T0310 4715-001036 SURGE ABSORBER;500V,20%,-,-,TP S.N.A

....4 T0310 4715-001036 SURGE ABSORBER;500V,20%,-,-,TP S.N.A

....4 T0310 4715-001036 SURGE ABSORBER;500V,20%,-,-,TP S.N.A

....4 T0310 4715-001036 SURGE ABSORBER;500V,20%,-,-,TP S.N.A

....4 EL501 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL502 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL503 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL504 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL505 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL506 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL507 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL508 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL509 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL510 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL511 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL512 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL513 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL514 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL515 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 LX085 AA27-90001B COIL-SPARK,GAP;S-23,1.5KV,-,-,-,-,-,-,-,

....4 LX085 AA27-90001B COIL-SPARK,GAP;S-23,1.5KV,-,-,-,-,-,-,-,

....4 LX085 AA27-90001B COIL-SPARK,GAP;S-23,1.5KV,-,-,-,-,-,-,-,

....4 PCB AA41-00986B PCB CRT;SVP-42Q2HR,CRT-PCB,1L,A,1.6T,245 S.N.A

....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO

....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO

....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO

....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO

....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO

....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO

....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO

....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO

....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO

....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO

....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO

....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO

....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO

Electric Parts List

Samsung Electronics 4-17

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

...3 M2893 BP39-00187A LEAD CONNECTOR;J60B,UL1007#26,UL/CSA,14P S.N.A
...3 M2893 BP39-00055A LEAD CONNECTOR;P57A/SVP-55WHT,UL1007#26,

ASSY FIXING

1 T0892 BP91-01820A ASSY FIXING;SP43R1HL1X/XEC,J60B S.N.A

..2 T0121 3301-001201 CORE-FERRITE;AE,21x11x32mm,1500,280G
..2 M0081 6003-001023 SCREW-TAPTITE;PWH,+,B,M3,L10,ZPC(YEL),SW S.N.A
..2 M0081 6003-001023 SCREW-TAPTITE;PWH,+,B,M3,L10,ZPC(YEL),SW S.N.A
..2 T0245 AA39-20010L LEAD CONNECTOR-ASSY;,1P,1400MM,YFH800-01
..2 T0070 AA61-01127A HOLDER-CHASSIS;COMMANDO,HIPS V0,G4309 S.N.A
..2 T0010 AA61-20284A HOLDER;P-CORD,PP,-,-,-,BLK,VO,KE-002 S.N.A
..2 T0603 AA63-10002A BAND-TIE;NYLON66 V2,L100,NTR S.N.A
..2 CIS1 AA65-30110A CLAMPER CORE-WIRE;ALL MODEL,NYLON 66,V2, S.N.A
..2 CIS1 AA65-30111A CLAMPER CORE-WIRE;ALL MODEL,NYLON,V0,-,W S.N.A
..2 M2893 BP39-00018A LEAD CONNECTOR;P55A/HCM4215W,UL2547#26,U
..2 T0268 AA39-10006X CBF-POWER CORD;-,KKP419C,KLCE-2F,2.286MT
..2 CIS1 AA65-30011B CLAMPER CORE-WIRE;-,PVC,-,-,BLK,T0.7 140 S.N.A
..2 CIS1 AA65-30105A CLAMPER CORE-WIRE;ALL MODEL,NYLON 66,V2, S.N.A

ASSY BOX

1 M0003 BP92-01540A ASSY BOX;43R1,P60A S.N.A

..2 BP69-00289A BOX-00,SET,OUT;43R1,D-4,AB,YEL,03(C3),11 S.N.A
..2 BP69-00290A BOX-SET,IN;43R1,D-3 AB,YEL,03(C3),1380,9 S.N.A

ASSY P/MATERIAL

1 M0113 BP92-01541A ASSY P/MATERIAL;43R1 S.N.A

..2 T0376 6902-000001 BAG AIR;LDPE,T0.2,L1800,W1000,TRP,,,LDPE S.N.A
..2 T0376 6902-000061 BAG AIR;LDPE,T0.2,L1000,W500,TRP,,, S.N.A
..2 T0524 6902-000388 BAG PE;HDPE/NITRON/HDPE,T0.02/T0.5/T0.02 S.N.A
..2 T0214 AA60-40006A PIN-STAPLE;AUTO,33X17.8X2.4,H18,33X17.8X S.N.A
..2 T0172 AA69-02609A BAND-PP;W18,CLEA,1G S.N.A

ASSY ACCESSORY

1 M0045 BP92-01562A ASSY ACCESSORY;SP43Q5HL1X/XEC,J60B S.N.A

..2 T0685 4301-000103 BATTERY-ALKALINE;1.5V,750mAH,AAA,10.5x44
..2 T0524 6902-000018 BAG PE;LDPE,T0.1,W280,L400,GRY,8,2- S.N.A
..2 S/N AA68-00291A MANUAL-S/NETWORK;-,SPANISH,-,B5,W/P100G, S.N.A
..2 AA68-01092B MANUAL-S/NETWORK;,ITA,B5,W/P100(G),1,1P S.N.A
..2 0 AA68-03242B MANUAL-SAFETY GUIDE;TH-ENG,SAFETY GUIDE S.N.A
..2 T0098 BN68-00514B MANUAL-01,WARRANTY;PDP/LCD TV,SAMSUNG,WS.N.A
..2 T0074 BP59-00062A REMOCON;OMEGA,TM76A,Projection,47,L/GRAY
...3 T0122 2802-000194 RESONATOR-CERAMIC;8MHz,1.0%,TP,8.5x4.5x5
...3 T0119 AA09-00371A IC MICOM;SZTM-839C R-52MX,28PIN,16KBYTE,
..2 M0156 BP68-00457A MANUAL USERS-01;SP43Q5HL1,SAMSUNG,ENG, S.N.A
..2 M0156 BP68-00457B MANUAL USERS-01;SP43Q5HL1,SAMSUNG,Fre,We S.N.A
..2 M0156 BP68-00457C MANUAL USERS-01;SP43Q5HL1,SAMSUNG,Spa,WS.N.A
..2 M0156 BP68-00457D MANUAL USERS-01;SP43Q5HL1,SAMSUNG,Ita,We S.N.A
..2 M0156 BP68-00457E MANUAL USERS-01;SP43Q5HL1,SAMSUNG,Ger,WeS.N.A
..2 M0432 BP68-00458A MANUAL-S/D;SP43Q5HL1,Samsung,Ita,Western S.N.A
..2 AA68-03575A MANUAL-00,REGISTRATION CARD;XEU,ENG,UK,WS.N.A
..2 AA68-03575B MANUAL-00,REGISTRATION CARD;XEG,GERMAN S.N.A
..2 AA68-03575C MANUAL-00,REGISTRATION CARD;XEF,FRENCH,WS.N.A
..2 AA68-03575D MANUAL-00,REGISTRATION CARD;XEC,SPANISH, S.N.A
..2 AA68-03575E MANUAL-00,REGISTRATION CARD;XET,ITALY,W/ S.N.A
..2 AA68-03575F MANUAL-00,REGISTRATION CARD;XEN,DUTCH,W/ S.N.A
..2 AA68-03575G MANUAL-00,REGISTRATION CARD;XEP,PORTUGAS.N.A

Electric Parts List

4-18 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark
