Samsung ED65C, ED75C User Manual
LFD DISPLAY
User Manual
ED65C ED75C
The color and the appearance may differ depending on the
product, and the specifications are subject to change without
prior notice to improve the performance.
Table of contents
Before Using the Product
Copyright 5
Safety Precautions 6
Symbols 6
Cleaning 6
Storage 7
Electricity and Safety 7
Installation 8
Operation 10
Preparations
Checking the Contents 13
Removing the Packaging 13
Checking the Components 14
Parts 15
Panel Key 15
Reverse Side 16
External sensor KIT 17
Anti-theft Lock 19
Remote Control 20
Before Installing the Product (Installation Guide) 23
Tilting Angle and Rotation 23
Ventilation 23
Dimensions 24
Remote Control (RS232C) 27
Cable Connection 27
Connection 30
Control Codes 31
Connecting and Using a Source
Device
Before Connecting 40
Pre-connection Checkpoints 40
Connecting to a PC 41
Connection using the D-SUB cable (Analog type) 41
Connection Using an HDMI-DVI Cable 42
Connection Using an HDMI Cable 42
Changing the Resolution 43
Changing the Resolution on Windows XP 43
Changing the Resolution on Windows Vista 43
Changing the Resolution on Windows 7 44
Changing the Resolution on Windows 8 44
Connecting to a Video Device 45
Connection Using an HDMI-DVI Cable 45
Connection Using an HDMI Cable 46

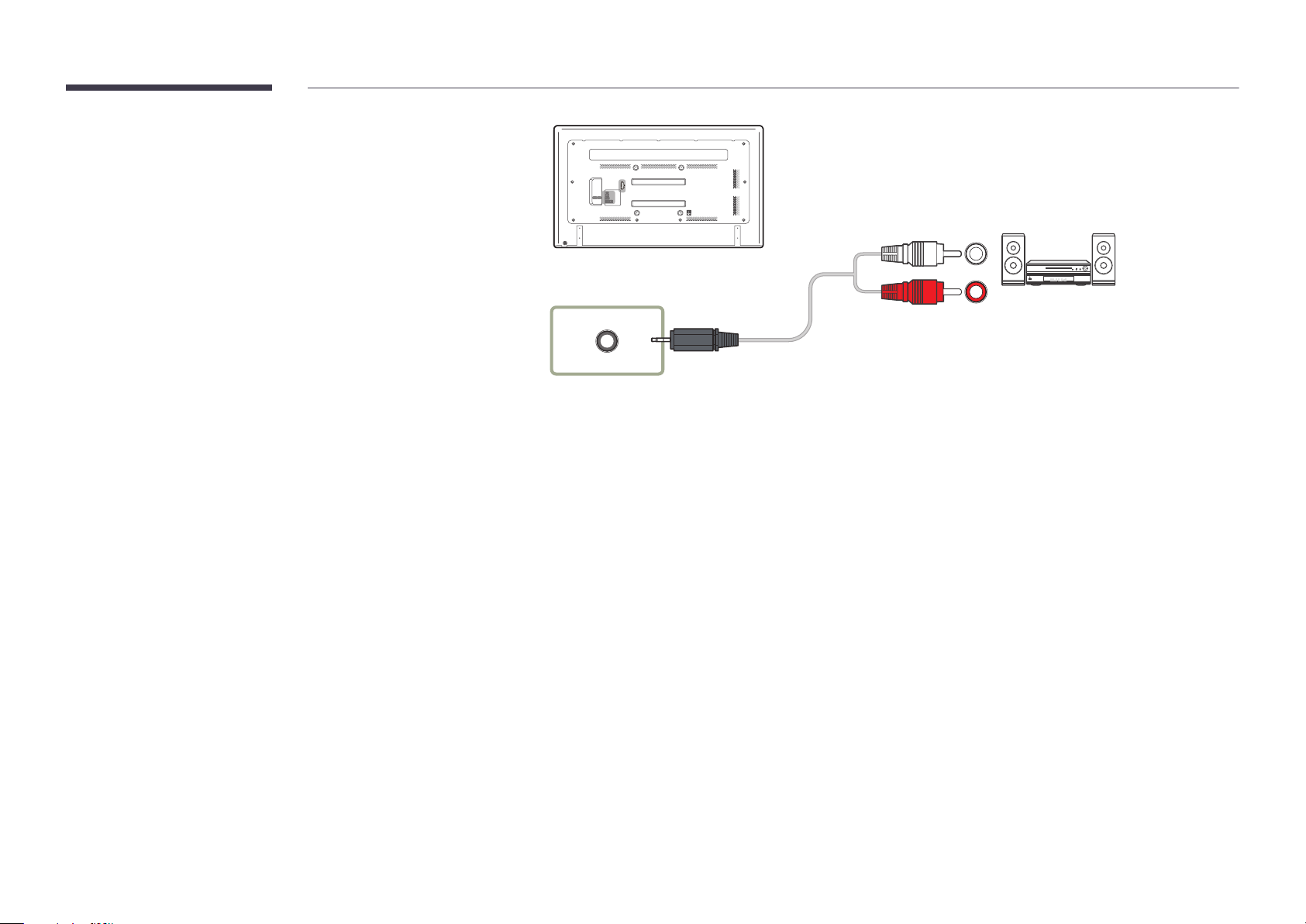

Connecting to an Audio System 47
Changing the Input source 48
Source 48
Using MDC
Configuring Settings for Multi Control 49
Configuring settings for Multi Control 49
MDC Program Installation/Uninstallation 50
Installation 50
Uninstallation 50
What is MDC? 51

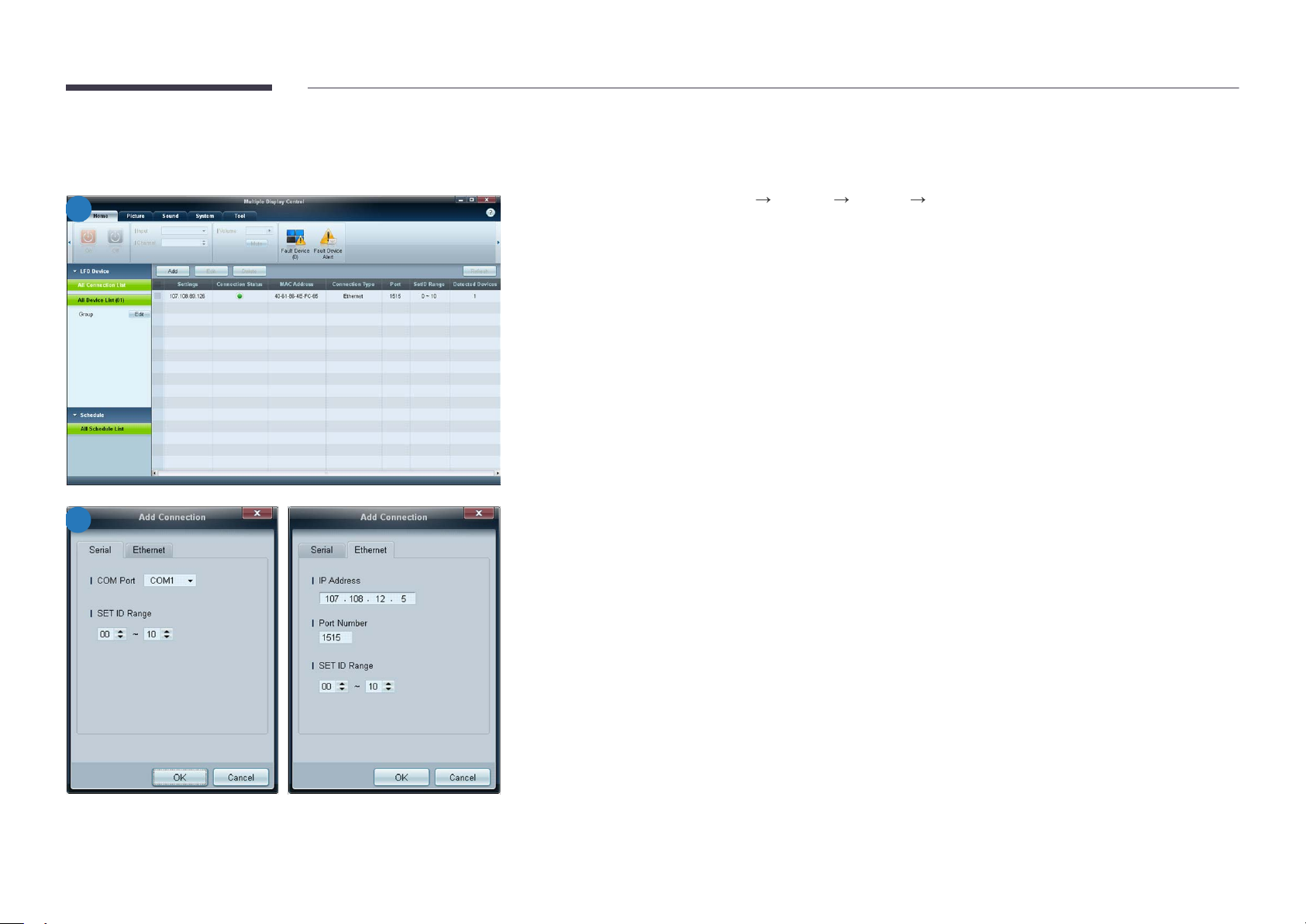

Connecting to MDC 51
Connection Management 53

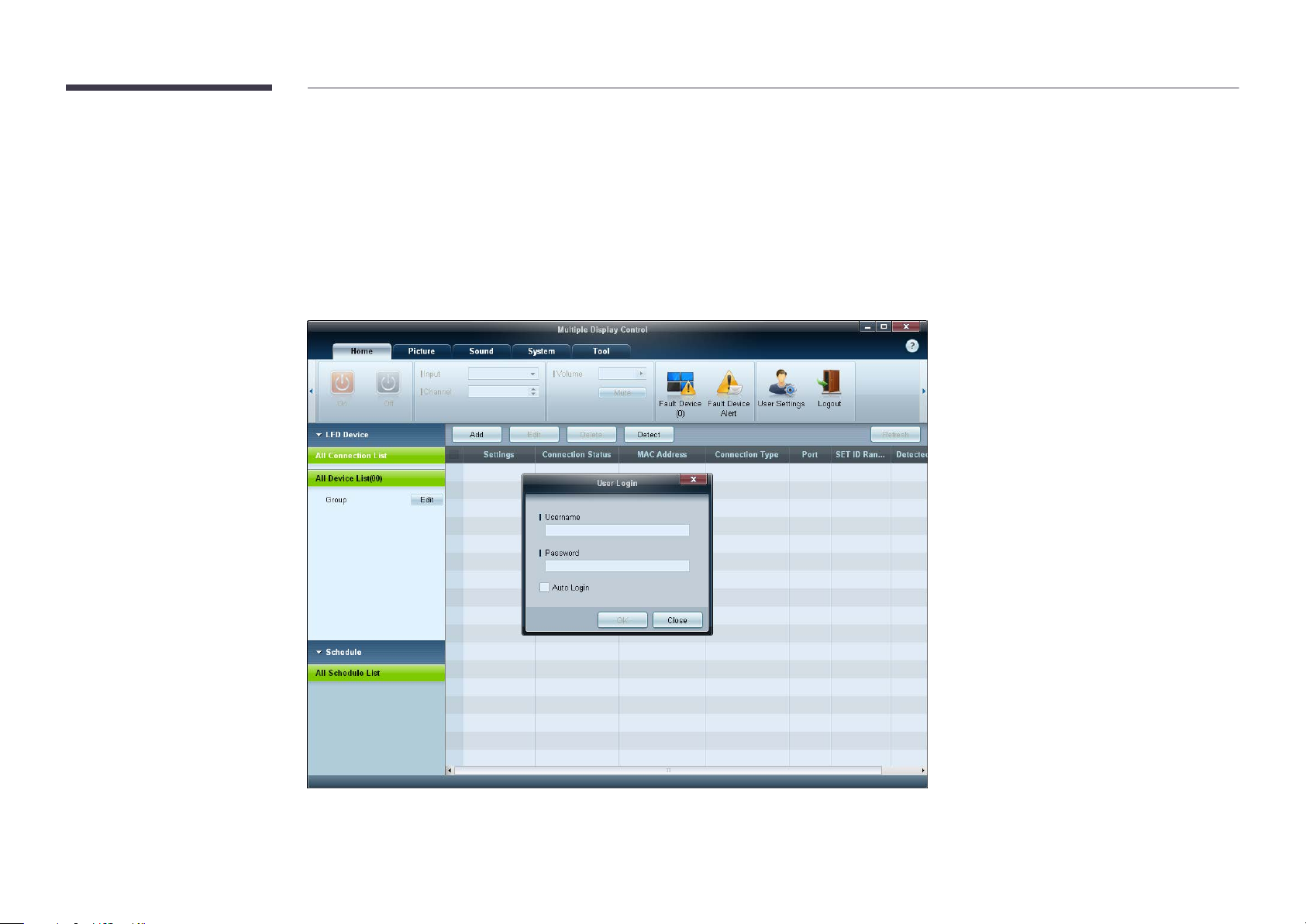

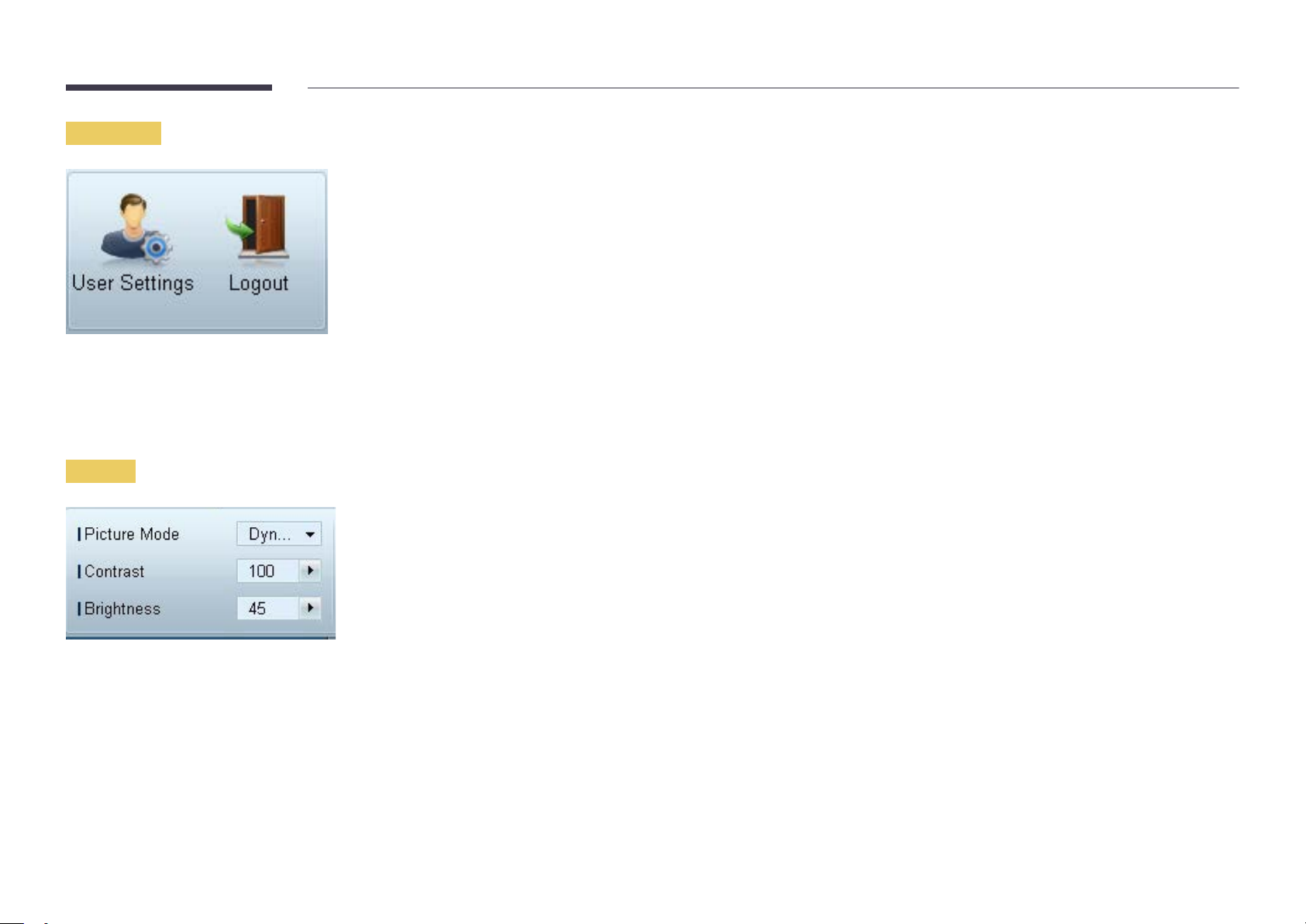

User Login 54
Auto Set ID 55

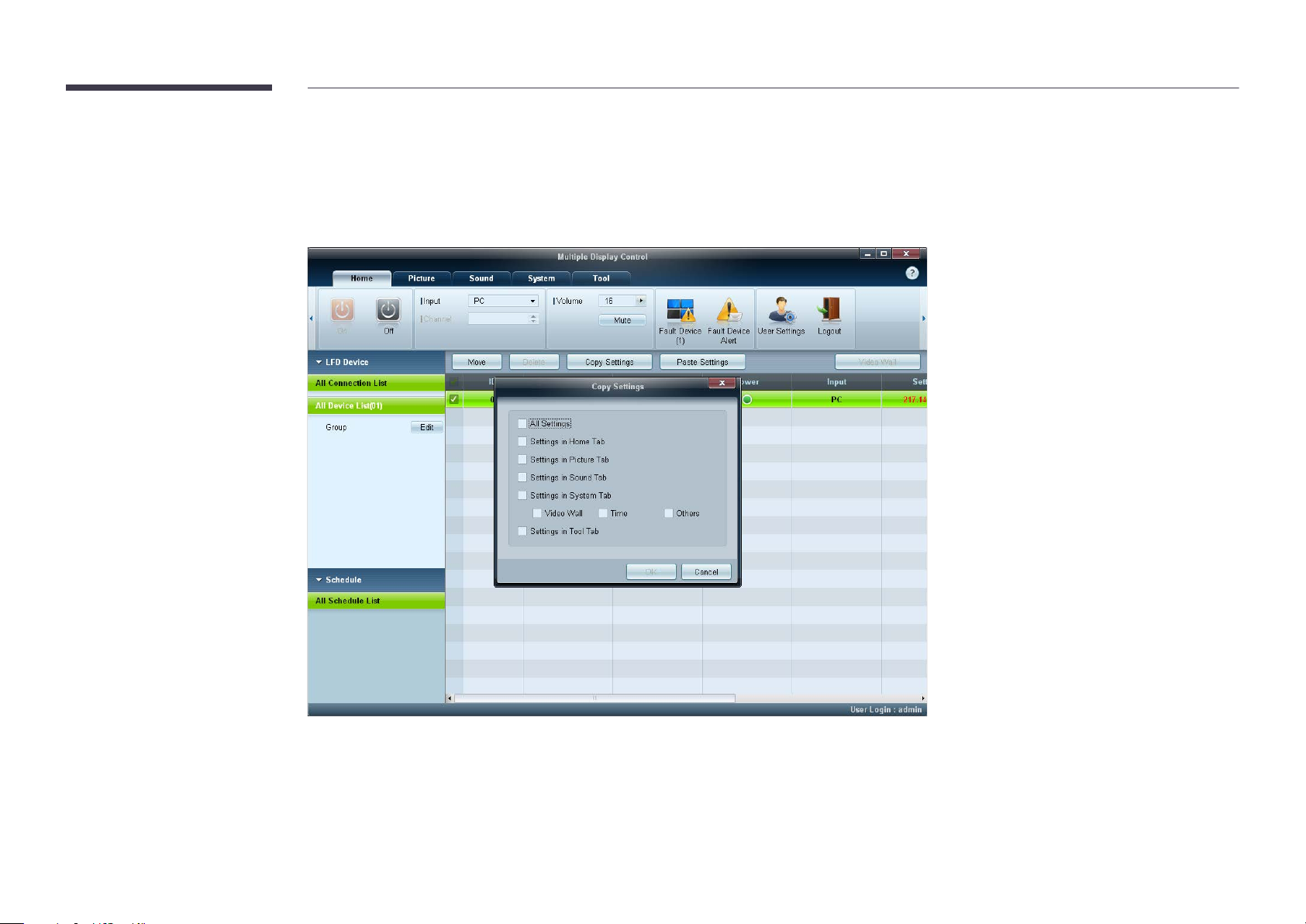

Cloning 56
Command Retry 57
Getting Started with MDC 58
Main Screen Layout 59
Menus 59
Screen Adjustment 61

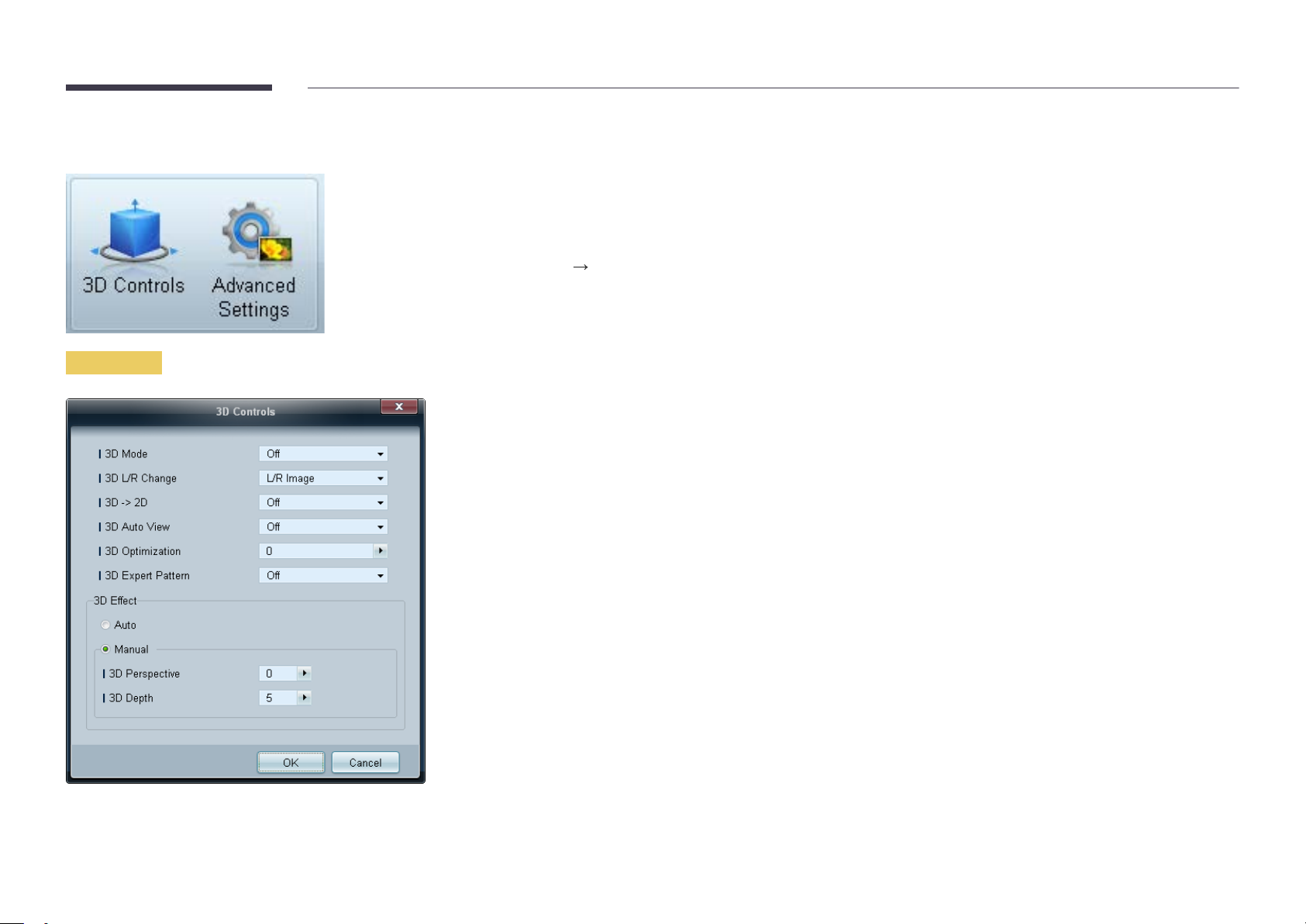

Advanced features 64

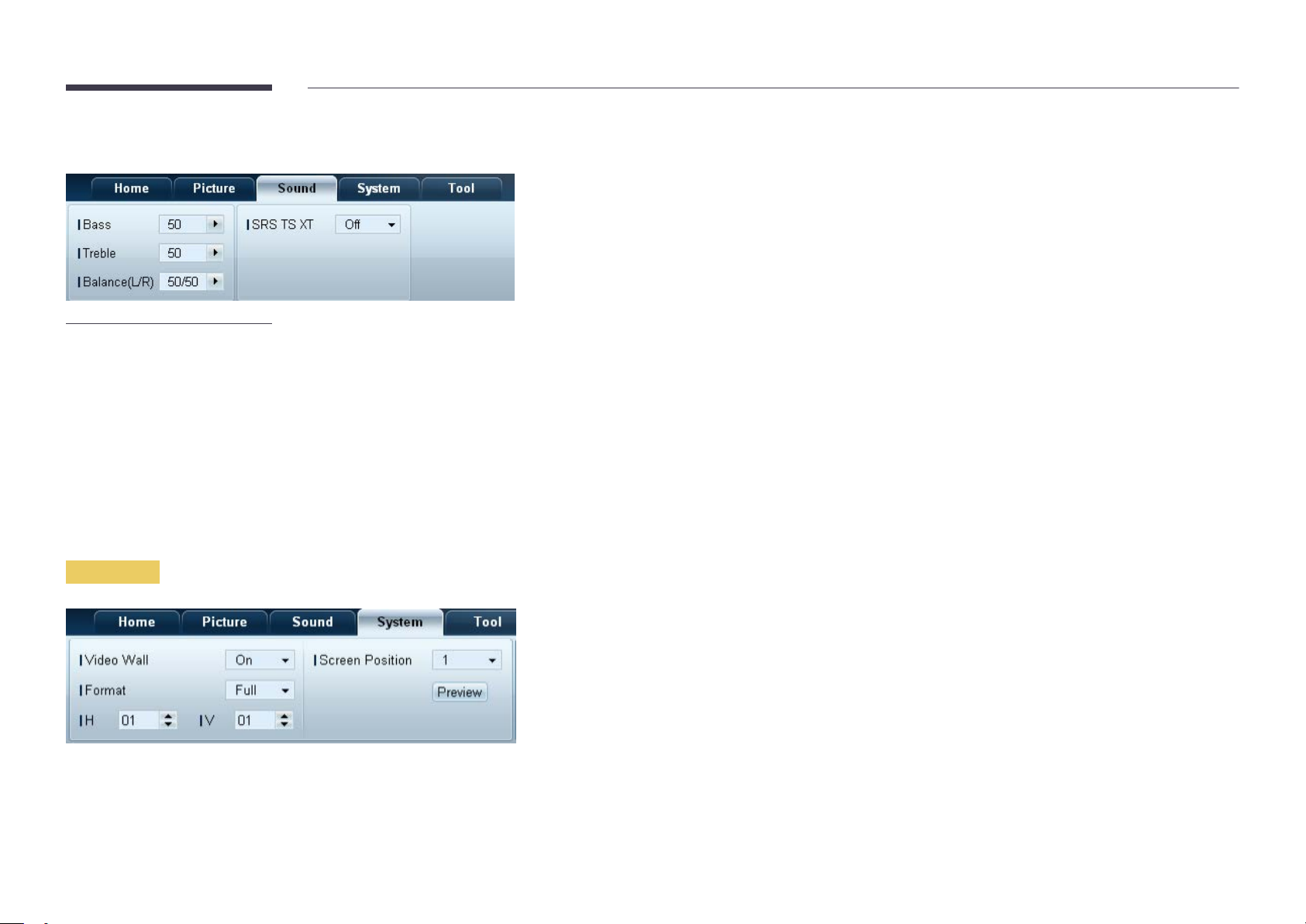

Sound Adjustment 66
System Setup 66

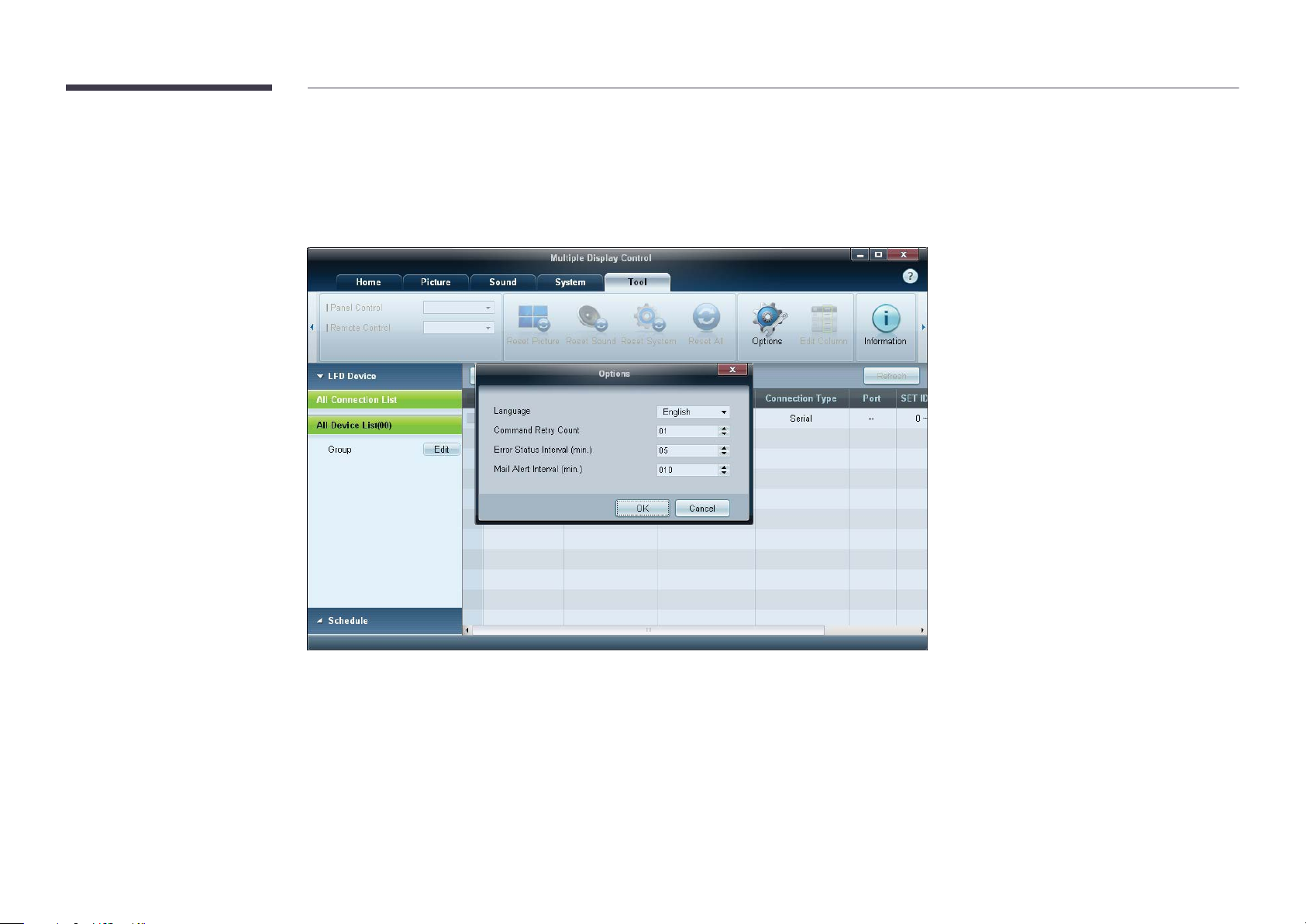

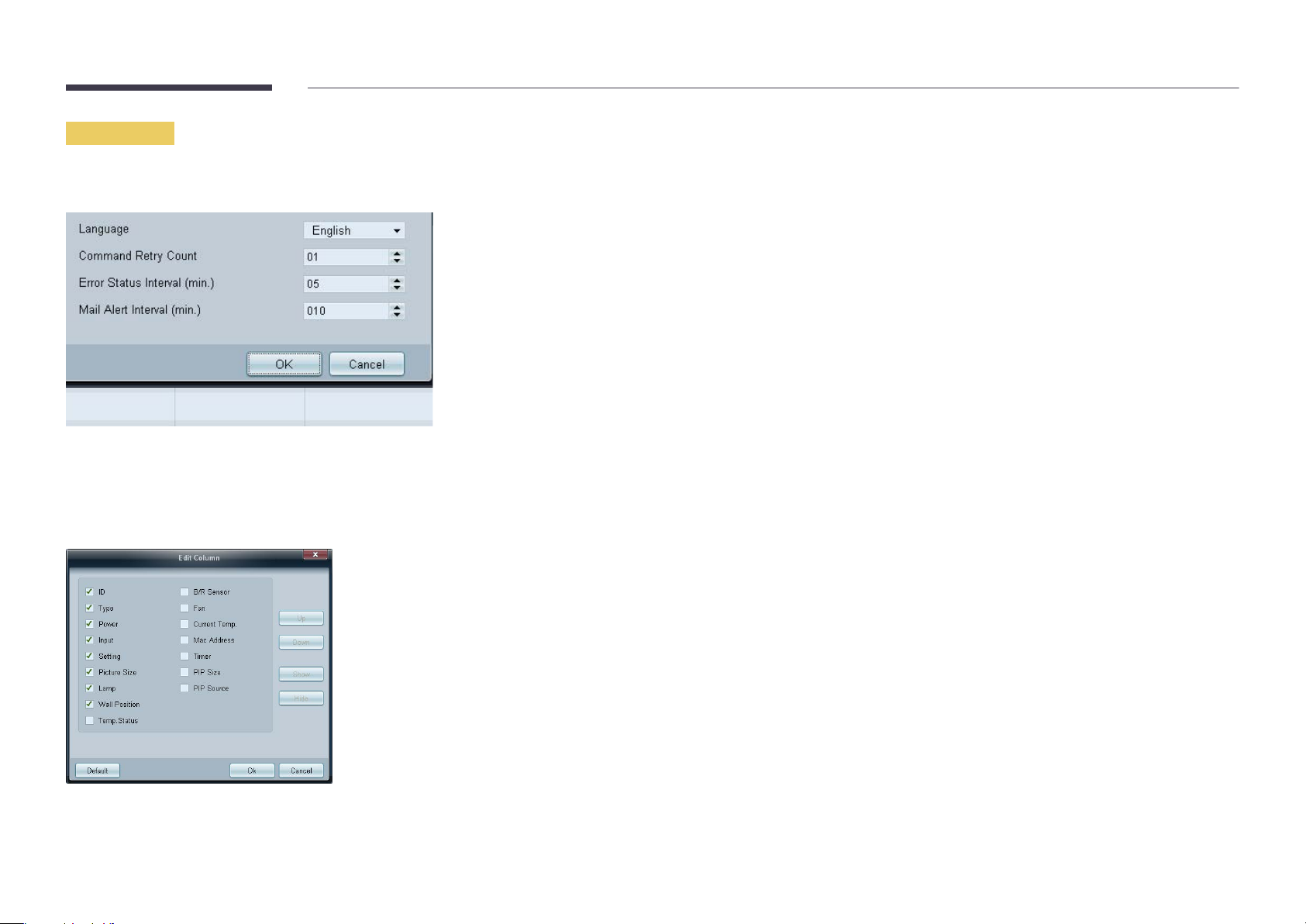

Tool Settings 75
Other Functions 78
Group Management 79
Schedule Management 81
Troubleshooting Guide 83
Installing the Wall Mount 25
Installing the Wall Mount Kit 25
Wall Mount Kit Specifications (VESA) 26
2
Table of contents
Screen Adjustment
Picture Mode 85
If the input source is PC, HDMI(PC) 85
If the input source is HDMI(AV) 85
Backlight / Contrast / Brightness / Sharpness /
Color / Tint (G/R)
Picture Size 87
Picture Size 87
Position 88
Resolution Select 88
Auto Adjustment 89
PC Screen Adjustment 89
PIP 90
Advanced Settings 91
Dynamic Contrast 91
Black Tone 91
Flesh Tone 91
RGB Only Mode 91
Color Space 91
White Balance 92
Gamma 92
Motion Lighting 92
Color Tone 94
Color Temp. 94
Digital Clean View 94
MPEG Noise Filter 94
HDMI Black Level 95
Film Mode 95
Dynamic Backlight 95
86
Picture Off 96
Reset Picture 96
Sound Adjustment
Sound Mode 97
Sound Effect 98
Speaker Settings 99
Reset Sound 99
Applications
Source List 100
Edit Name 100
Information 100
System
Menu Language 101
Multi Control 102
Configuring settings for Multi Control 102
Time 103
Clock Set 103
Sleep Timer 103
On Timer 104
Off Timer 105
Holiday Management 105
Eco Solution 106
Energy Saving 106
Eco Sensor 106
Auto Power Off 106
Screen Burn Protection 107
Pixel Shift 107
Timer 108
Immediate Display 109
Side Gray 109
Ticker 110
Video Wall 111
Video Wall 111
Format 111
Horizontal 111
Vertical 112
Screen Position 112
Source AutoSwitch Settings 113
Source AutoSwitch 113
Primary Source Recovery 113
Primary Source 113
Secondary Source 113
Change PIN 114
General 115
Max. Power Saving 115
Game Mode 115
Auto Power 115
3
Table of contents
Safety Lock 115
Standby Control 116
Lamp Schedule 116
OSD Display 117
Power On Adjustment 117
Temperature Control 117
Anynet+ (HDMI-CEC) 118
Anynet+ (HDMI-CEC) 118
Auto Turn Off 119
Troubleshooting for Anynet+ 120
Magic Clone 122
Reset System 122
Reset All 123
Support
Software Update 124
By USB 124
Contact Samsung 124
Troubleshooting Guide
Requirements Before Contacting Samsung
Customer Service Center 125
Testing the Product 125
Checking the Resolution and Frequency 125
Check the followings. 126
Q & A 129
Specifications
General 131
PowerSaver 133
Preset Timing Modes 134
Appendix
Contact SAMSUNG WORLD WIDE 136
Responsibility for the Pay Service (Cost to
Customers) 145
Not a product defect 145
A Product damage caused by customer's fault 145
Others 145
Optimum Picture Quality and Afterimage Burnin Prevention 146
Optimum Picture Quality 146
Prevention of Afterimage Burn-in 147
License 149
Terminology 150
4
Chapter 01
Before Using the Product
Copyright
The contents of this manual are subject to change without notice to improve quality.
© 2013 Samsung Electronics
Samsung Electronics owns the copyright for this manual.
Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited.
Microsoft, Windows are registered trademarks of Microsoft Corporation.
VESA, DPM and DDC are registered trademarks of the Video Electronics Standards Association.
Ownership of all other trademarks is attributed to their due owner.
5
Safety Precautions
!
Caution
RISK OF ELECTRIC SHOCK DO NOT OPEN
Caution : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. (OR BACK)
THERE ARE NO USER SERVICEABLE PARTS INSIDE.
REFER ALL SERVICING TO QUALIFIED PERSONNEL.
This symbol indicates that high voltage is present inside.
It is dangerous to make any kind of contact with any internal part of this product.
This symbol alerts you that important literature concerning operation and maintenance has been
included with this product.
Symbols
Cleaning
―
Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched.
―
Take the following steps when cleaning.
―
The following images are for reference only. Real-life situations may differ from what is shown in the
images.
Power off the product and computer.
1
Disconnect the power cord from the product.
2
―
Hold the power cable by the plug and do not touch the cable with wet
hands. Otherwise, an electric shock may result.
Wipe the product with a clean, soft and dry cloth.
3
•
Do not use detergents that contain alcohol, solvent or
surface-active agents.
•
Do not spray water or detergent directly on the product.
Warning
Wet a soft and dry cloth in water and wring thoroughly to clean the
A serious or fatal injury may result if instructions are not followed.
4
exterior of the product.
Caution
Personal injury or damage to properties may result if instructions are not followed.
Connect the power cord to the product when cleaning is finished.
Activities marked by this symbol are prohibited.
Instructions marked by this symbol must be followed.
5
Power on the product and computer.
6
6
Storage
High-glossy models can develop white stains on the surface if an ultrasonic wave humidifier is used
nearby.
―
Contact Customer Service Center if the inside of the product needs cleaning (service fee will be
charged).
Electricity and Safety
―
The following images are for reference only. Real-life situations may differ from what is shown in the
images.
Warning
Do not use a damaged power cord or plug, or a loose power socket.
•
An electric shock or fire may result.
Do not use multiple products with a single power socket.
•
Overheated power sockets may cause a fire.
Connect the power plug to a grounded power socket (type 1 insulated
devices only).
•
An electric shock or injury may result.
!
Do not bend or pull the power cord with force. Be careful not to leave the
power cord under a heavy object.
•
Damage to the cord may result in a fire or electric shock.
Do not place the power cord or product near heat sources.
•
A fire or electric shock may result.
Clean any dust around the pins of the power plug or the power socket with
a dry cloth.
•
A fire may result.
!
Do not touch the power plug with wet hands. Otherwise, an electric shock
may result.
Insert the power plug all the way in so it is not loose.
•
An unsecure connection may cause a fire.
!
7
Caution
!
!
!
Do not disconnect the power cord while the product is being used.
•
The product may become damaged by an electric shock.
Only use the power cord provided with your product by Samsung. Do not
use the power cord with other products.
•
A fire or electric shock may result.
Keep the power socket where the power cord is connected unobstructed.
•
The power cord must be disconnected to cut off power to the product
when an issue occurs.
•
Note that the product is not completely powered down by using only
the power button on the remote.
Hold the plug when disconnecting the power cord from the power socket.
•
An electric shock or fire may result.
Installation
Warning
!
DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP OF
THE PRODUCT. DO NOT INSTALL THE PRODUCT NEAR HEAT SOURCES.
•
A fire may result.
Have a technician install the wall-mount hanger.
•
Installation by an unqualified person can result in an injury.
•
Only use approved cabinets.
Do not install the product in poorly ventilated spaces such as a bookcase or
closet.
•
An increased internal temperature may cause a fire.
Install the product at least 10cm away from the wall to allow ventilation.
•
An increased internal temperature may cause a fire.
!
Keep the plastic packaging out of the reach of children.
•
Children may suffocate.
!
8
Do not install the product on an unstable or vibrating surface (insecure shelf,
sloped surface, etc.)
•
The product may fall and become damaged and/or cause an injury.
•
Using the product in an area with excess vibration may damage the
product or cause a fire.
Caution
Do not drop the product while moving.
•
Product failure or personal injury may result.
Do not install the product in a vehicle or a place exposed to dust, moisture
!
(water drips, etc.), oil, or smoke.
•
A fire or electric shock may result.
!
Do not set down the product on its front.
•
The screen may become damaged.
Do not expose the product to direct sunlight, heat, or a hot object such as a
stove.
•
The product lifespan may be reduced or a fire may result.
Do not install the product within the reach of young children.
•
The product may fall and injure children.
•
As the front is heavy, install the product on a flat and stable surface.
Edible oil, such as soybean oil, can damage or deform the product. Do not
!
When installing the product on a cabinet or shelf, make sure that the
bottom edge of the front of the product is not protruding.
•
The product may fall and become damaged and/or cause an injury.
•
Install the product only on cabinets or shelves of the right size.
Set down the product gently.
•
Product failure or personal injury may result.
install the product in a kitchen or near a kitchen counter.
Installing the product in an unusual place (a place exposed to a lot of fine
particles, chemical substances or extreme temperatures, or an airport
or train station where the product should operate continuously for an
SAMSUNG
!
extended period of time) may seriously affect its performance.
•
Be sure to consult Samsung Customer Service Center if you want to
install the product at such a place.
9
Operation
Warning
Do not leave heavy objects or items that children like (toys, sweets, etc.) on
top of the product.
•
The product or heavy objects may fall as children try to reach for the
toys or sweets resulting in a serious injury.
There is a high voltage inside the product. Never disassemble, repair or
modify the product yourself.
•
A fire or electric shock may result.
•
Contact Samsung Customer Service Center for repairs.
!
Before moving the product, turn off the power switch and disconnect the
power cable and all other connected cables.
•
Damage to the cord may result in a fire or electric shock.
!
If the product generates abnormal sounds, a burning smell or smoke,
disconnect the power cord immediately and contact Samsung Customer
Service Center.
•
An electric shock or fire may result.
!
Do not let children hang from the product or climb on top of it.
•
Children may become injured or seriously harmed.
If the product is dropped or the outer case is damaged, turn off the power
switch and disconnect the power cord. Then contact Samsung Customer
Service Center.
•
Continued use can result in a fire or electric shock.
!
!
GAS
During a lightning or thunderstorm, power off the product and remove the
power cable.
•
A fire or electric shock may result.
Do not drop objects on the product or apply impact.
•
A fire or electric shock may result.
Do not move the product by pulling the power cord or any cable.
•
Product failure, an electric shock or fire may result from a damaged
cable.
If a gas leakage is found, do not touch the product or power plug. Also,
ventilate the area immediately.
•
Sparks can cause an explosion or fire.
Do not lift or move the product by pulling the power cord or any cable.
•
Product failure, an electric shock or fire may result from a damaged
cable.
10
Do not use or keep combustible spray or an inflammable substance near
the product.
•
An explosion or fire may result.
!
Ensure the vents are not blocked by tablecloths or curtains.
•
An increased internal temperature may cause a fire.
100
Do not insert metallic objects (chopsticks, coins, hairpins, etc) or objects
that burn easily (paper, matches, etc) into the product (via the vent or input/
output ports, etc).
•
Be sure to power off the product and disconnect the power cord
when water or other foreign substances have entered the product.
Then contact Samsung Customer Service Center.
•
Product failure, an electric shock or fire may result.
Caution
!
-_-
!
!
Leaving the screen fixed on a stationary image for an extended period of
time may cause afterimage burn-in or defective pixels.
•
Activate power-saving mode or a moving-picture screen saver if you
will not be using the product for an extended period of time.
Disconnect the power cord from the power socket if you do not plan on
using the product for an extended period of time (vacation, etc).
•
Dust accumulation combined with heat can cause a fire, electric shock
or electric leakage.
Use the product at the recommended resolution and frequency.
•
Your eyesight may deteriorate.
Do not place objects containing liquid (vases, pots, bottles, etc) or metallic
objects on top of the product.
•
Be sure to power off the product and disconnect the power cord
when water or other foreign substances have entered the product.
Then contact Samsung Customer Service Center.
•
Product failure, an electric shock or fire may result.
Do not hold the product upside-down or move it by holding the stand.
•
The product may fall and become damaged or cause an injury.
Looking at the screen too close for an extended period of time can
deteriorate your eyesight.
!
Do not use humidifiers or stoves around the product.
•
A fire or electric shock may result.
11
Rest your eyes for more than 5 minutes for every 1 hour of product use.
•
Eye fatigue will be relieved.
!
Be careful that children do not place the battery in their mouths when
removed from the remote control. Place the battery in a location that
children or infants cannot reach.
•
If children have had the battery in their mouths, consult your doctor
immediately.
Do not touch the screen when the product has been turned on for an
extended period of time as it will become hot.
Store small accessories out of the reach of children.
!
Exercise caution when adjusting the product angle or stand height.
•
Your hand or finger may get stuck and injured.
•
Tilting the product at an excessive angle may cause the product to fall
!
and an injury may result.
Do not place heavy objects on the product.
•
Product failure or personal injury may result.
When using headphones or earphones, do not turn the volume too high.
•
Having the sound too loud may damage your hearing.
!
!
When replacing the battery, insert it with the right polarity (+, -).
•
Otherwise, the battery may become damaged or it may cause fire,
personal injury or damage due to leakage of the internal liquid.
Use only the specified standardized batteries, and do not use a new battery
and a used battery at the same time.
•
Otherwise, the batteries may be damaged or cause fire, personal injury
or damage due to a leakage of the internal liquid.
The batteries (and rechargeable batteries) are not ordinary refuse and must
be returned for recycling purposes. The customer is responsible for returning
the used or rechargeable batteries for recycling.
•
The customer can return used or rechargeable batteries to a nearby
public recycling center or to a store selling the same type of the
battery or rechargeable battery.
12
Chapter 02
Preparations
Checking the Contents
Removing the Packaging
―
The following images are for reference only. Real-life situations may differ from what is shown in the
images.
Remove the black locking device at the bottom of the box.
1
Using the grooves in the box, lift and remove the top of the box.
2
321
Check the components and remove the styrofoam and plastic bag.
3
―
The appearance of actual components may differ from the image shown.
Store the box in a dry area so that it can be used when moving the product in the future.
4
13
Checking the Components
-
Contact the vendor where you
purchased the product if any
components are missing.
-
The appearance of the components and
items sold separately may differ from the
image shown.
-
A stand is not provided with the product.
To install a stand, you can purchase one
separately.
Components
―
Components may differ in different locations.
Quick setup guide Warranty card
(Not available in some
locations)
-
Remote Control (P.20)
(AA59-00714A)
Batteries (P. 21)
(Not available in some
locations)
Items sold separately
D-SUB cable (P. 41) Power cord
-
+
+
Holder-Wire stand Holder-Ring (4EA)
Wall-mount Kit HDMI cable (P. 42) HDMI-DVI cable (P. 42) PIM
14
Parts
Panel Key
Power on the product.
If you press the [
displayed.
To exit the OSD menu, press and hold the panel key for at least one second.
Move to the upper or lower menu. You can also adjust the value of an option.
Move to the left or right menu.
You can adjust the volume by moving the panel key left or right when
menu is not displayed.
] button when the product is turned on, the control menu will be
the control
15
Reverse Side
Port Description
HDMI IN
SERVICE (5V 0.5A)
EXTERNAL IR / AMBIENT SENSOR IN
RGB IN
AUDIO OUT
RGB / HDMI AUDIO IN
RS232C IN
RS232C OUT
PIM
Connects to a source device using an HDMI cable.
This port is used to upgrade the software.
Supplies power to the external sensor board or receives the light sensor signal.
Connects to a source device using a D-SUB cable.
Connects to the audio of a source device.
Receives sound from a PC via an audio cable.
Connects to MDC using an RS232C-stereo adapter.
Connects to a PIM. (Refer to the PIM user manual for details.)
16
External sensor KIT
Buttons Description
―
The External sensor KIT has a remote-control sensor, a brightness sensor and
function keys. If mounting the display onto a wall, you can move the External
sensor KIT to the side of the display.
―
The color and shape of parts may differ from what is shown. Specifications are
subject to change without notice to improve quality.
Remote Control
Sensor
Light sensor
Power indicator
POWER button
SOURCE button
Aim the remote control towards this spot on the LCD Display.
―
Keep the area between the remote sensor and remote control obstacle-free.
Automatically detects the intensity of ambient light around a selected display and
adjusts the screen brightness.
Turns off in power-on mode and blinks green in power-saving mode.
Use this button for turning the LCD Display on and off.
Switches from PC mode to Video mode.
Selects the input source that an external device is connected to.
17
Attaching the External sensor KIT to the sid
―
This External sensor KIT can be attached to any part of the display using the double-sided tape provided with the sensor.
―
The External sensor KIT can also be attached to a wall near the display.
―
Do not attach the External sensor KIT to the display if the display does not have plastic or metal sides. The display can be damaged.
18
Anti-theft Lock
―
An anti-theft lock allows you to use the product securely even in public places.
―
The locking device shape and locking method depend on the manufacturer. Refer to the user guide provided with your anti-theft locking device for details.
To lock an anti-theft locking device:
―
Stand: Sold separately
Fix the cable of your anti-theft locking device to a heavy object such as a desk.
1
Put one end of the cable through the loop on the other end.
2
Insert the locking device into the anti-theft lock slot at the back of the product.
3
Lock the locking device.
4
-
An anti-theft locking device can be purchased separately.
-
Refer to the user guide provided with your anti-theft locking device for details.
-
Anti-theft locking devices can be purchased at electronics retailers or online.
19
Remote Control
MENU
OFF
VOL
CH
SOURCE
CONTENT
(HOME)
MagicInfo
Lite/S
BLANK
.QZ
1
ABC
2
DEF
3
GHI
4
JKL
5
MNO
6
DEL-/--
MUTESYMBOL
0
PRS
7
TUV
8
WXY
9
―
Using other display devices in the same space as the remote control of this product can cause the other display devices to be inadvertently controlled.
―
A button without a description in the image below is not supported on the product.
Power on the product. Power off the product.
Enter the password in the OSD menu.
-
Remote control button functions may
differ for different products.
Adjust the volume.
Mute the sound.
Unmuting the sound: Press MUTE again or press
the volume control (+ VOL -) button.
Select a connected source device.
Display or hide the onscreen display menu, or
return to the previous menu.
20
MAGICINFO
3D
DVI
B
DP
D
Quickly select frequently used functions.
TOOLS INFO
Display information on the screen.
Move to the upper, lower, left or right menu, or
adjust an option's setting.
Confirm a menu selection.
Return to the previous menu.
To place batteries in the remote control
EXITRETURN
PC
A
HDMI
C
Exit the current menu.
Manually select a connected input source from
PC, HDMI.
It sets safe lock function.
LOCK
-
Remote control button functions may
differ for different products.
21
Adjusting the OSD with the Remote Control
Buttons Description
Open the OSD menu.
1
Select from Picture, Sound, Applications, System or
2
Support in the displayed OSD menu screen.
Remote Control Reception Range
Change settings as desired.
3
Finish setting.
4
Close the onscreen display (OSD) menu.
5
30˚
7m ~ 10m
Use the remote control within 7m to 10m from the sensor on the product at an angle of 30 from the left
and right.
―
Store used batteries out of reach of children and recycle.
―
Do not use a new and used battery together. Replace both batteries at the same time.
―
Remove batteries when the remote control is not to be used for an extended period of time.
30˚
22
Before Installing the Product (Installation Guide)
15 ˚
To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.
•
Ensure that an authorized installation company installs the wall mount.
•
Otherwise, it may fall and cause personal injury.
•
Make sure to install the specified wall mount.
Tilting Angle and Rotation
―
Contact Samsung Customer Service Center for further details.
•
The product can be tilted at a maximum angle of 15
•
To use the product vertically (portrait), turn it clockwise so that the LED is pointing down.
from a perpendicular wall surface.
Ventilation
Installation on a Perpendicular Wall
A
B
Figure 1.1 Side view
A Minimum 40 mm
B Ambient temperature: Under 35
•
When installing the product on a perpendicular wall, allow at least 40 mm of space between the product and wall surface
for ventilation and ensure that the ambient A temperature is kept below 35
C
C.
23
Figure 1.3 Side view
B
Installation on an Indented Wall
―
Contact Samsung Customer Service Center for further details.
A
C
E
Figure 1.2 Side view
Dimensions
1
2
D D
4
5
Plane view
A Minimum 40 mm
B Minimum 70 mm
C Minimum 50 mm
D Minimum 50 mm
E Ambient temperature: Under 35
―
When installing the product on an indented wall, allow at least the space specified above between the product and wall for
ventilation and ensure that the ambient temperature is kept below 35
Model name
ED65C 1467.5 1431.4 806.5 848.0 65.0
ED75C 1675.0 1653.3 931.3 958.5 65.0
―
All drawings are not necessarily to scale. Some dimensions are subject to change without prior notice.
Refer to the dimensions prior to performing installation of your product. Not responsible for typographical or printed errors.
1
C
C.
Unit: mm
2
3 4
5
3
24
Installing the Wall Mount
1
Installing the Wall Mount Kit
The wall mount kit (sold separately) allows you to mount the product on the wall.
For detailed information on installing the wall mount, see the instructions provided with the wall mount.
We recommend you contact a technician for assistance when installing the wall mount bracket.
Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the
wall mount on your own.
25
Wall Mount Kit Specications (VESA)
―
Install your wall mount on a solid wall perpendicular to the floor. Before
attaching the wall mount to surfaces other than plaster board, please contact
your nearest dealer for additional information.
If you install the product on a slanted wall, it may fall and result in severe
personal injury.
•
Samsung wall mount kits contain a detailed installation manual and all parts necessary for assembly are provided.
•
Do not use screws that are longer than the standard length or do not comply with the VESA standard screw
specifications. Screws that are too long may cause damage to the inside of the product.
•
For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ
depending on the wall mount specifications.
•
Do not fasten the screws too firmly. This may damage the product or cause the product to fall, leading to personal injury.
Samsung is not liable for these kinds of accidents.
•
Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the
consumer fails to follow the product installation instructions.
•
Do not mount the product at more than a 15 degree tilt.
•
Always have two people mount the product on a wall.
•
Standard dimensions for wall mount kits are shown in the table below.
Unit: mm
Model name VESA screw hole
Standard Screw Quantity
specs (A * B) in
millimeters
ED65C
ED75C
―
Do not install your Wall Mount Kit while your product is turned on. It may result in personal injury due to electric shock.
400 x 400 M8, L32 4 EA
26
Remote Control (RS232C)
Cable Connection
RS232C Cable
•
Pin assignment
1 2 3 4 5
Interface
Pin
Bit rate
Data bits
Parity
Stop bit
Flow control
Maximum length
RS232C (9 pins)
TxD (No.2), RxD (No.3), GND (No.5)
9600 bps
8 bit
None
1 bit
None
15 m (only shielded type)
6 7 8 9
Pin Signal
1
2
3
4
5
6
7
8
9
Detect data carrier
Received data
Transmitted data
Prepare data terminal
Signal ground
Prepare data set
Send request
Clear to send
Ring indicator
27
•
RS232C cable
Connector: 9-Pin D-Sub to Stereo Cable
59
1
6
-P1-
-P1- -P1- -P2- -P2-
3
2
1
-P2-
LAN Cable
•
Pin assignment
1 2 3 4 5 6 7 8
Female Rx
Tx
Gnd
2
3
5
-------->
<--------
----------
3
2
5
Tx
Rx
Gnd
STEREO
PLUG
(3.5ø)
Pin No Standard Color Signal
1 White and orange TX+
2 Orange TX-
3 White and green RX+
4 Blue NC
5 White and blue NC
6 Green RX-
7 White and brown NC
8 Brown NC
28
•
Connector : RJ45
Direct LAN cable (PC to HUB)
Cross LAN cable (PC to PC)
HUB
P1P2
RJ45 MDC RJ45 MDC
Signal
TX+
TX-
RX+
RX-
P1
P1 P2 Signal
1 <--------> 1 TX+
2 <--------> 2 TX-
3 <--------> 3 RX+
6 <--------> 6 RX-
P2
RJ45 MDC
Signal
TX+
TX-
RX+
RX-
P1 P2
P1 P2 Signal
1 <--------> 3 RX+
2 <--------> 6 RX-
3 <--------> 1 TX+
6 <--------> 2 TX-
29
Connection
•
Connection 1
•
Connection 2
RJ45 RJ45
RS232C
IN OUT
RS232C
IN OUT
RS232C
IN OUT
RS232C
IN OUT
•
Connection 3
RS232C
RJ45 RS232C
OUT
IN OUT
RS232C
IN OUT
RS232C
IN OUT
30
Loading...
