Page 1

Page 2

Instructions

Getting to Know your camera

Use this camera in the following order.

Setting up the application software

Take a picture

Insert the USB cable

Check the camera's power

Check [Removable Disk]

To use this camera with a PC, install the application software ﬁ rst. After this has been done, the stored images in the camera can be moved to the PC and can be edited by an image editing program. (p.92)

Take a picture. (p.19)

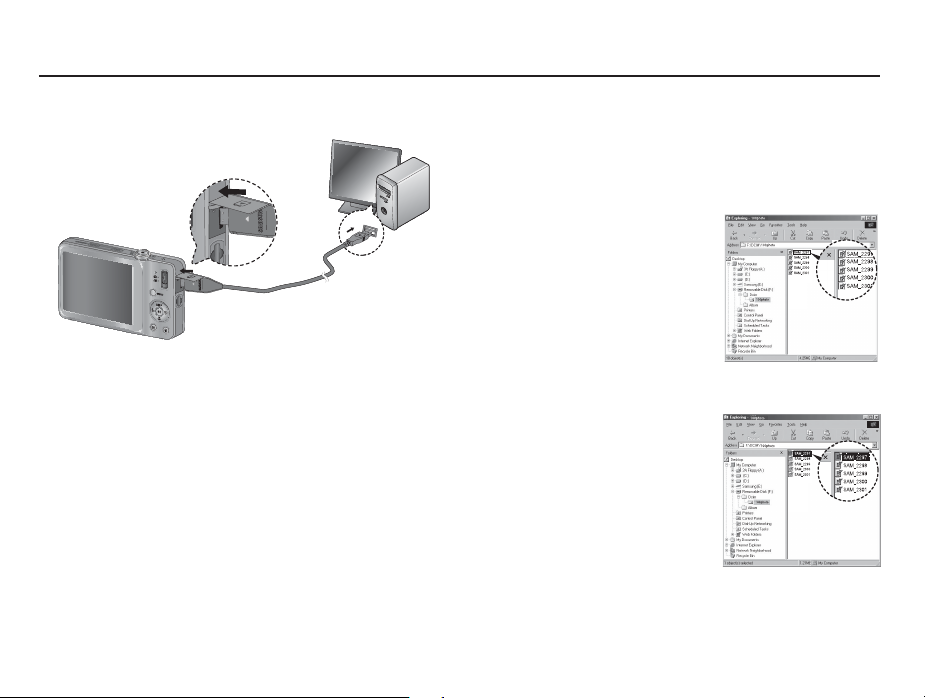

Insert the supplied USB cable into the PC’s USB port and the camera’s USB connection terminal. (p.94)

Check the camera’s power. If the power is turned off, preset the camera button to turn it on.

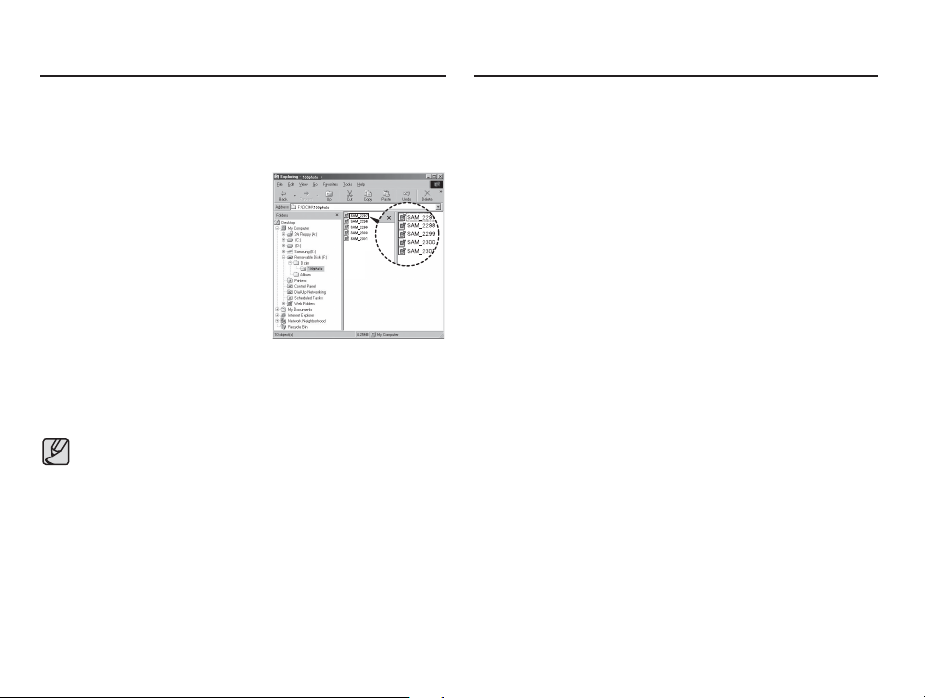

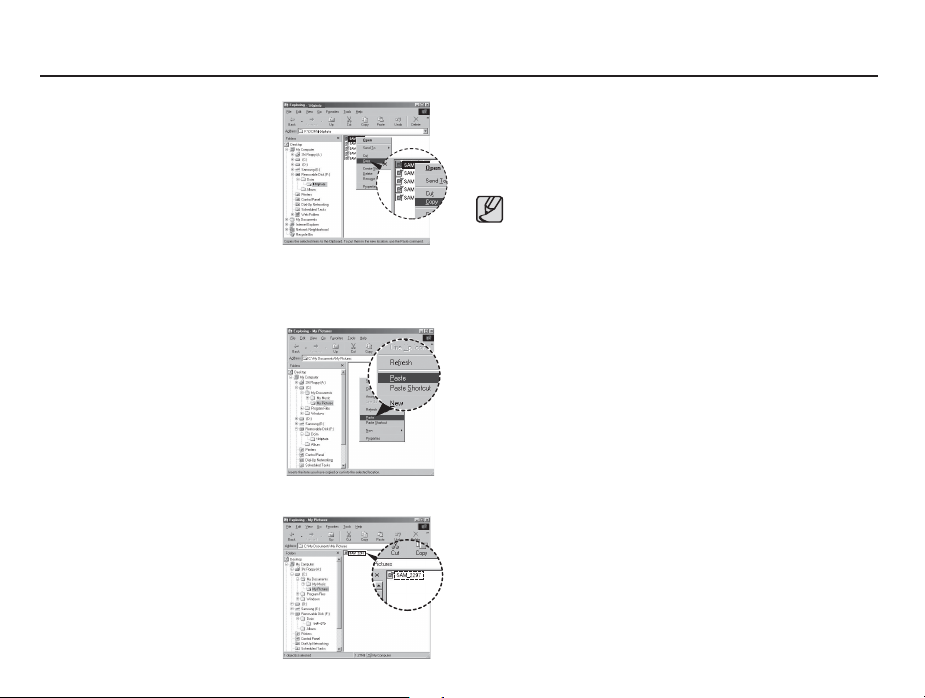

Open Windows’s EXPLORER and search for [Removable Disk]. (p.95)

Thank you for buying a Samsung Digital Camera.



Prior to using this camera, please read the user manual thoroughly.



If you require After Sales service, please bring the camera and the cause of the camera malfunction (such as battery, Memory card etc.) to the A/S centre.



Please check that the camera is operating properly prior to when you intend to use it (e.g. for a trip or an important event) to avoid disappointment. Samsung takes no responsibility for any loss or damage that may result from camera malfunction.



Keep this manual in a safe place.



If you use a card reader to copy the images on the memory card to your PC, the images could be damaged. When transferring the images taken with the camera to your PC, be sure to use the supplied USB cable to connect the camera to your PC. Please note that the manufacturer holds no responsibility for loss or damage of images on the memory card due to the use of a card reader.



The contents and illustrations of this manual are subject to change without prior notice for upgrading the camera functions.

Microsoft, Windows and Windows logo are registered trademarks of Microsoft Corporation incorporated in the United States and/or other countries.

Adobe and Reader are either trademarks or registered trademarks in the United States and/or other countries.

All brand and product names appearing in this manual are registered trademarks of their respective companies.

Page 3

Danger

Warning

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.



Do not attempt to modify this camera in any way. To do so may

result in ﬁ re, injury, electric shock or severe damage to you or your camera. internal inspection, maintenance and repairs should only be carried out by your dealer or Samsung Camera Service centre.



Please do not use this product in close proximity to ﬂ ammable or

explosive gases, as this could increase the risk of explosion.



Should any form of liquid or a foreign object enter the camera,

do not use it. Switch off the camera, and then disconnect the power source. You must contact your dealer or Samsung Camera Service centre. Do not continue to use the camera as this may cause a ﬁ re or electric shock.



Do not insert or drop metallic or inﬂ ammable foreign objects into

the camera through access points e.g. the memory card slot and battery chamber. This may cause a ﬁ re or electric shock.



Do not operate this camera with wet hands. This could pose a

risk of electric shock.

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.



Do not use the ﬂ ash in close proximity to people or animals.

Positioning the ﬂ ash too close to your subject’s eyes may cause eyesight damage.



For safety reasons keep this product and accessories out of

reach of children or animals to prevent accidents e.g.:

- Swallowing battery or small camera accessories. If an accident should occur, please consult a doctor immediately.

- There is the possibility of injury from the camera’s moving parts.



Battery and camera may become hot during prolonged use and it

may result in camera malfunction. Should this be the case, allow the camera to sit idle for a few minutes to allow it time to cool.



Do not leave this camera in places subject to extremely high

temperatures, such as a sealed vehicle, direct sunlight or other places of extremes in temperature. Exposure to extreme temperatures may adversely affect the camera’s internal components and could cause a ﬁ re.



When in use, do not cover the camera or Charger. This may cause heat to build up and distort the camera body or cause a ﬁ re. Always use the camera and its accessories in a well-ventilated area.

Page 4

Caution

Contents

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in a minor or moderate injury.



Leaking, overheating, or damaged battery could result in ﬁ re or injury.

- Use battery with the correct speciﬁ cation for the camera.

- Do not short circuit, heat or dispose of battery in ﬁ re.

- Do not insert the battery with the polarities reversed.



Remove the battery when not planning to use the camera for a

long period of time. Otherwise the battery may leak corrosive electrolyte and permanently damage the camera’s components.



Do not ﬁ re the ﬂ ash while it is in contact with hands or objects. Do

not touch the ﬂ ash after using it continuously. It may cause burns.



Do not move the camera while it is switched on, if you are using

the AC adapter. After use, always switch off the camera before unplugging the cable from the wall socket. Then make sure that any connector cords or cables to other devices are disconnected before moving the camera. Failure to do so may damage the cords or cables and cause a ﬁ re or electric shock.



Take care not to touch the lens or lens cover to avoid taking an

unclear image and possibly causing camera malfunction.



Avoid obstructing the lens or the ﬂ ash when you capture an image.



When using this camera in low temperatures, you may experience

the following. These are not camera malfunctions and usually recover at normal temperature.

- It takes longer to turn on the LCD monitor and the colour may differ from the subject.

- When changing the composition, there may be an after image on the LCD monitor.



Credit cards may be demagnetized if left near case. Avoid leaving

magnetic strip cards near the case.



Never connect the 20 pin connector to the USB port of a PC. This carries a high risk of computer malfunction.

READY

RECORDING

007 System chart

007 Package Contents

007 Sold Separately

008 Identiﬁ cation of features

008 Front & Top

009 Back

010 Bottom

010 5 Function button

011 Self-timer lamp

011 Camera Status Lamp

011 Mode icon

012 Connecting to a Power Source

014 Inserting the memory card

Instructions on how to use the memory card

015

017 LCD monitor indicator

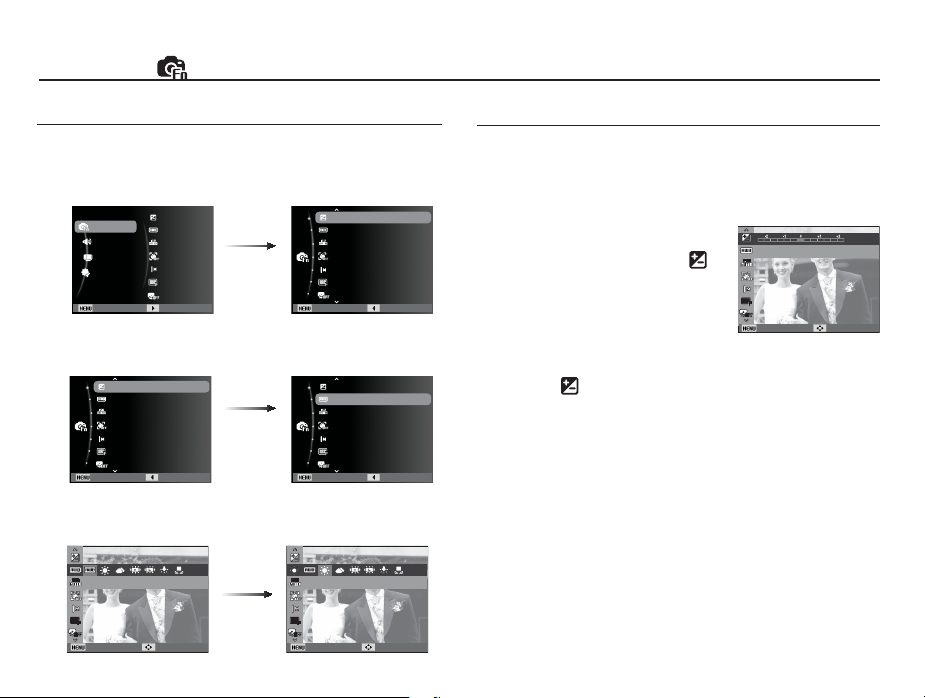

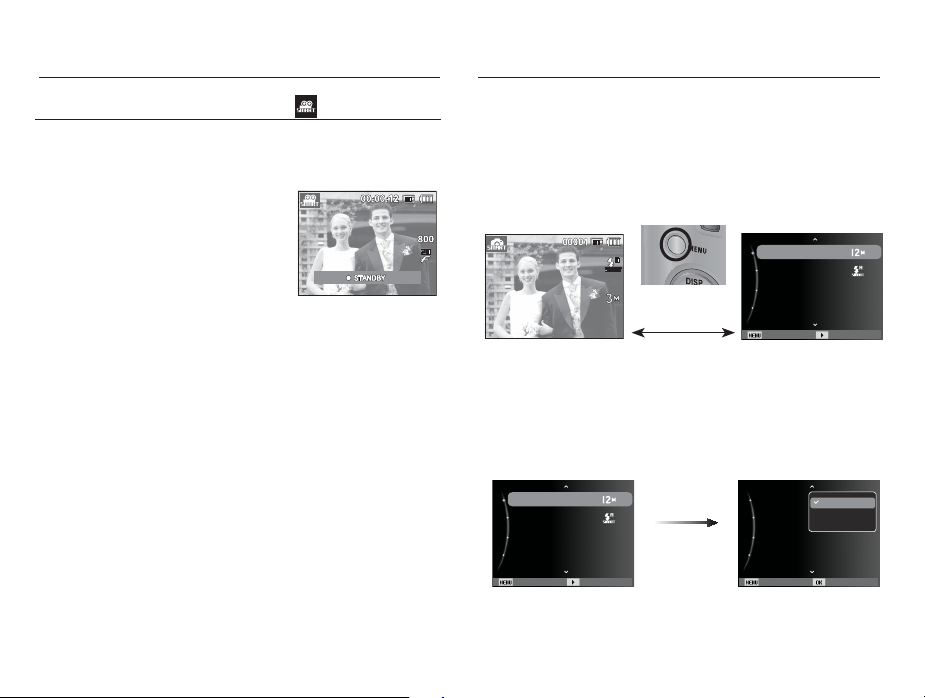

018 How to use the menu

019 Starting the recording mode

019 Selecting modes

019 How to use the Program mode

020 How to use the Movie clip mode

020

Recording the movie clip without sound

021 Pausing while recording a movie clip

(Successive Recording)

021 Things to Watch Out for When Taking

Pictures

Page 5

Contents

022

Using the camera buttons to set the camera

022 POWER button

023 SHUTTER button

023 Smart button

023 Mode switch

024 Zoom W/T Lever

025 Info (DISP) / Up button

026 Macro / Down button

027 Focus lock

027 Flash / Left button

029 Self-timer / Right button

031 MENU button

031 OK button

031 Functions

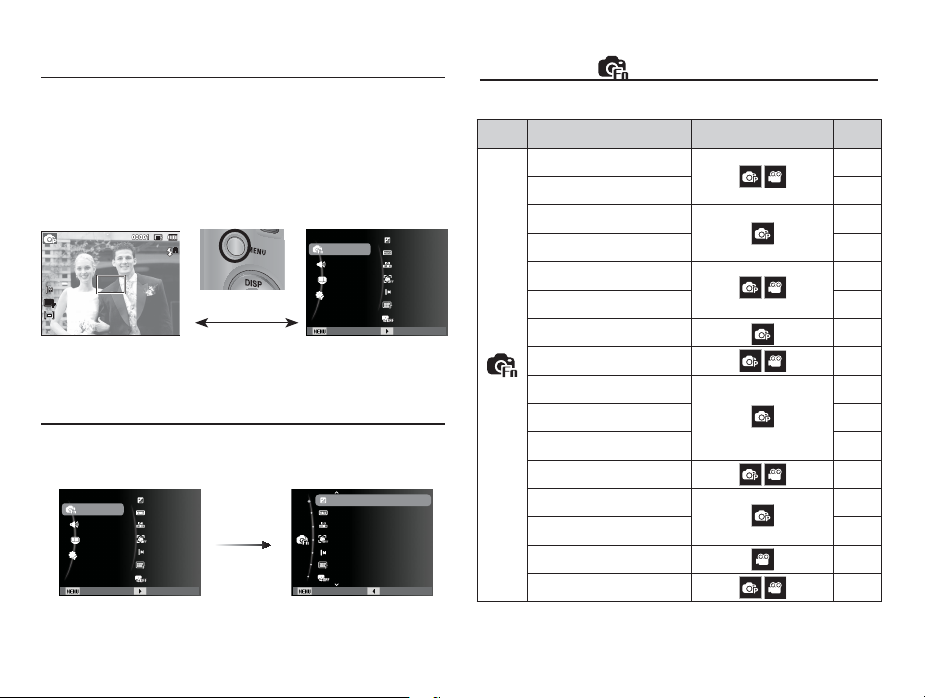

032 How to Enable Functions Using the

MENU Button

032 Exposure compensation

033 White balance

034 ISO

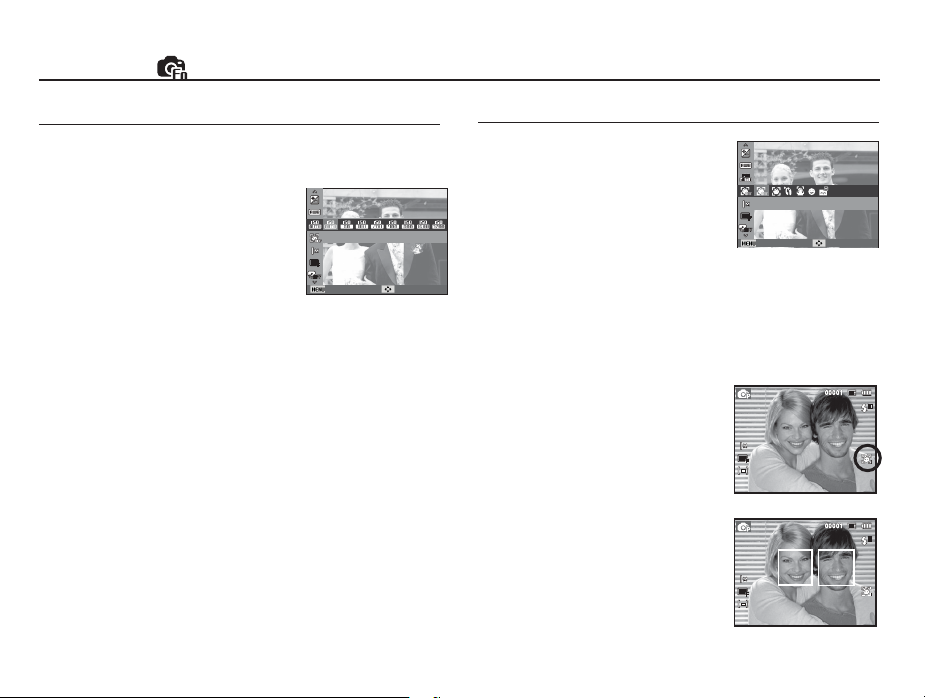

034 Face Detection

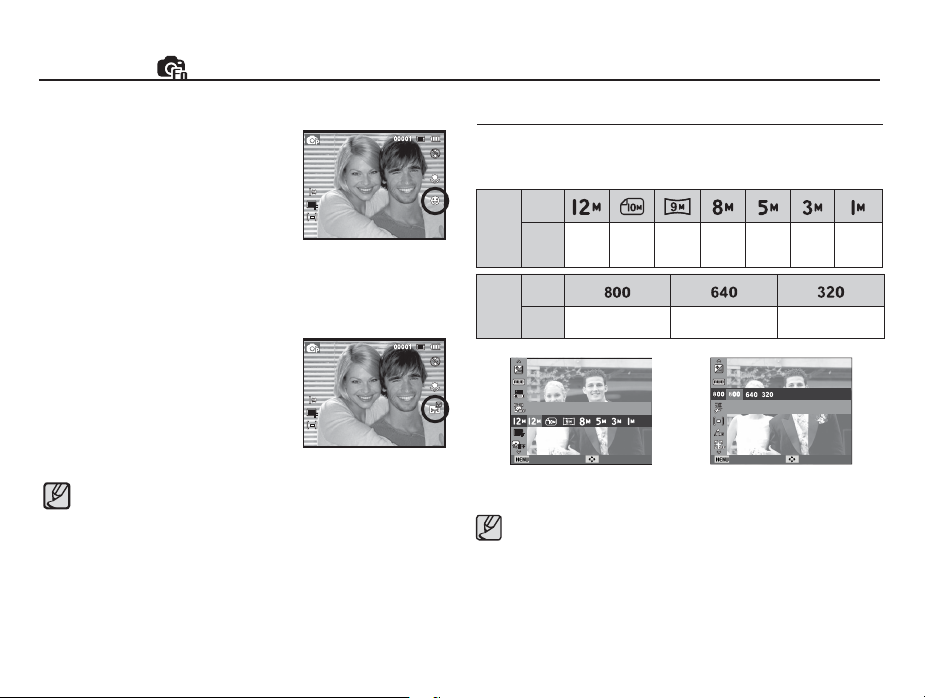

036 Image Size

037 Quality / Frame rate

037 ACB

038 Metering

038 Drive mode

SETUP

039 Frame Guide

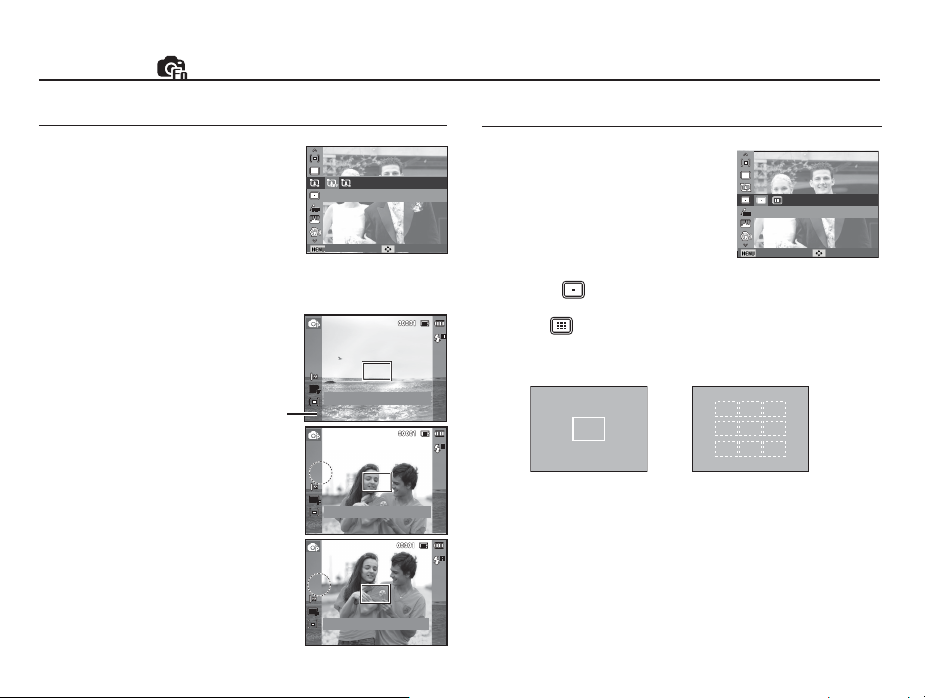

039 Auto Focus type

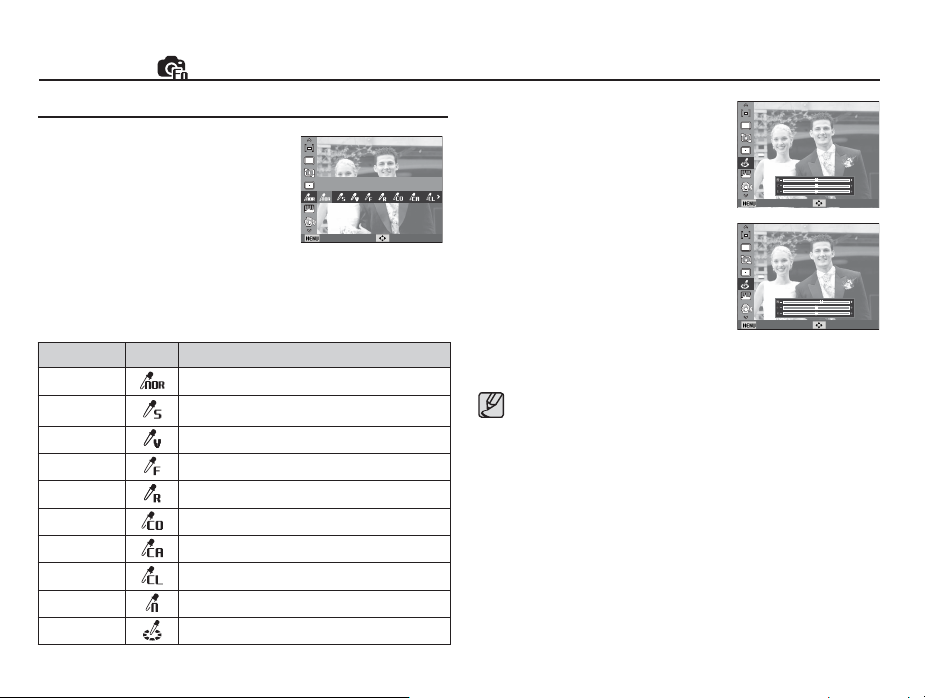

040 Photo Style Selector

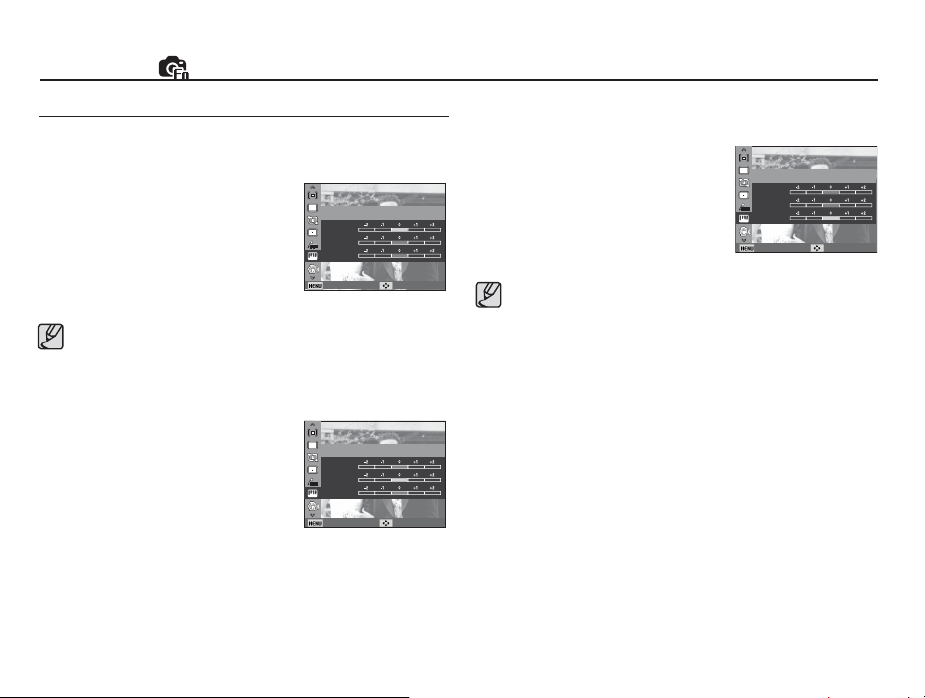

041 Image Adjust

042 DIS

042 Movie Clip frame stabiliser

043 Voice Memo

043 Voice Recording

Recording the movie clip without voice

044

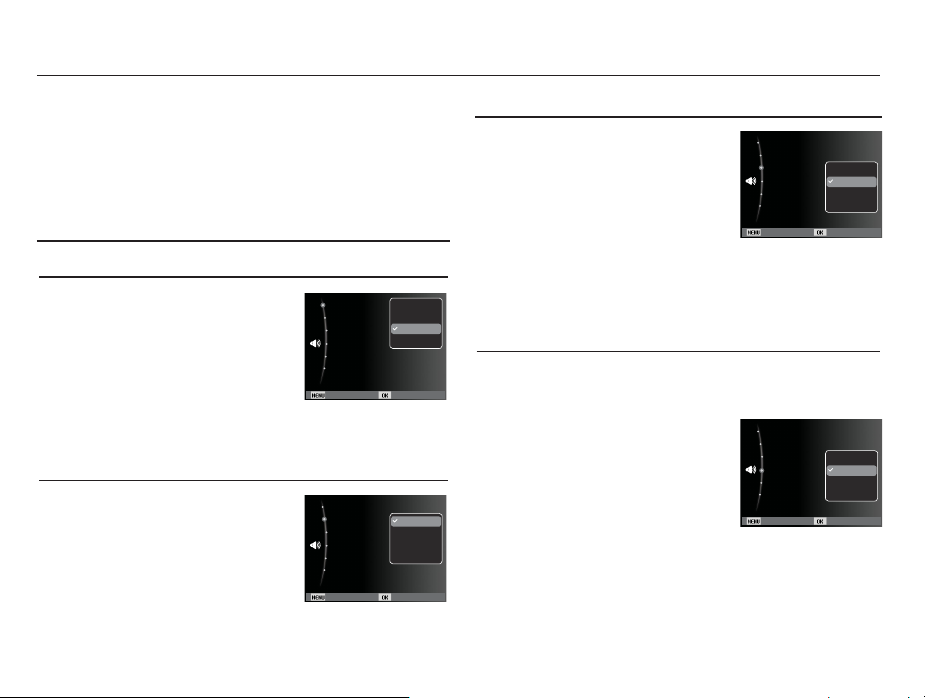

045 Sound menu

045 Sound

045 Volume

045 Start up sound

045 Shutter sound

045 Beep Sound

046 AF sound

046 Self Portrait

046 Setup menu

046 Display

046 Language

046 Function Description

047 Start up image

047 Display Bright

047 Quick view

Page 6

Contents

047 Display SAVE

048 Settings

048 Formatting a memory

048 Initialisation

049 Setting up the Date / Time / Date type

049 Time Zone

049 File name

050 Imprinting the recording date

050 Auto power off

051 Auto Focus lamp

051 Selecting Video out type

052 Setting the USB

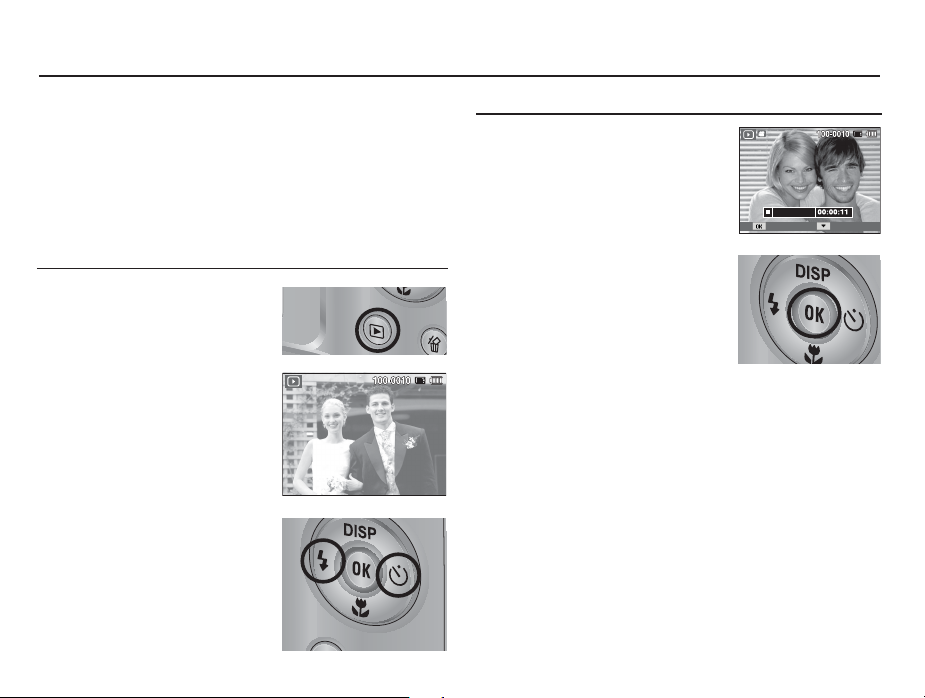

053 Starting play mode

PLAY

053 Playing back a still image

053 Playing back a movie clip

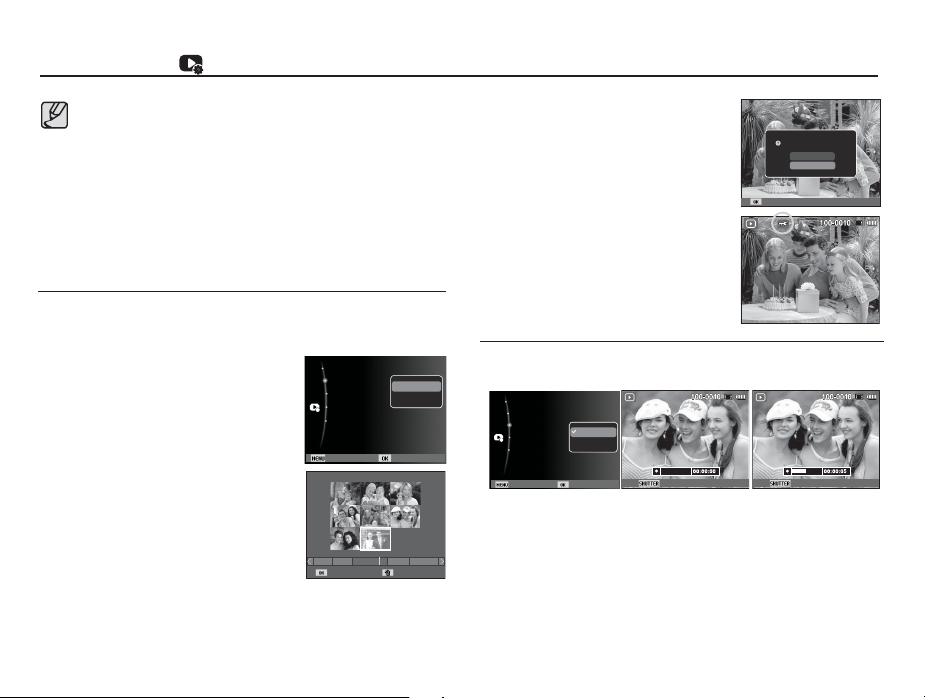

054 Movie clip capture function

054 Playing back a recorded voice

055 Playing back a voice memo

055 LCD monitor Indicator

Using the camera buttons to set the camera

056

056 Play mode button

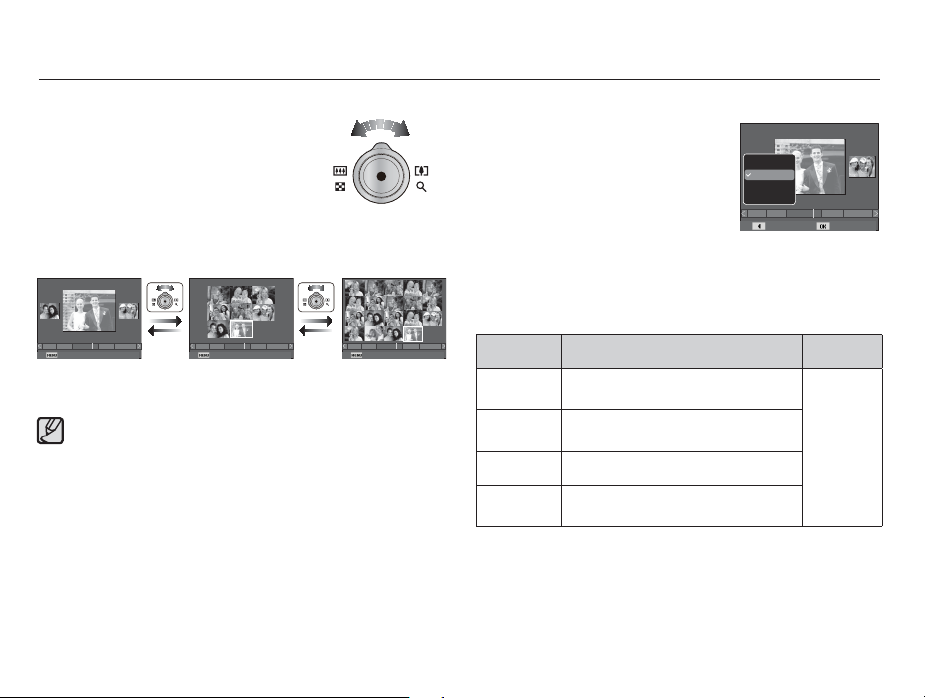

Thumbnail / Enlargement Lever

056

056 Smart Album

059 Info (DISP) / Up button

059 Play & Pause / OK button

060 Left / Right / Down / MENU button

060 Delete button

061 Setting up the play back function using

the LCD monitor

063 Edit

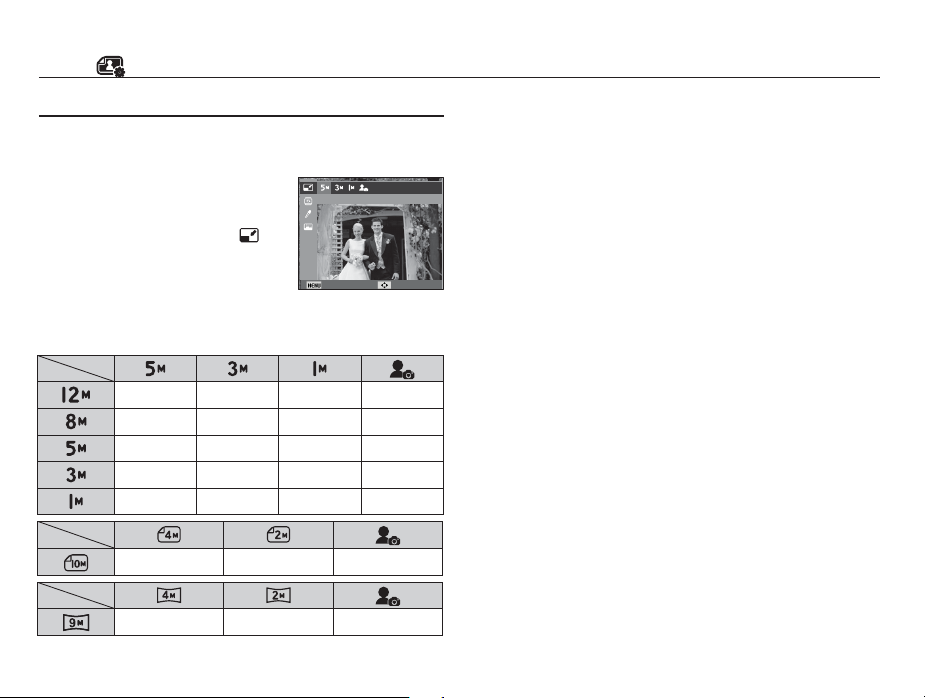

063 Resize

064 Rotating an image

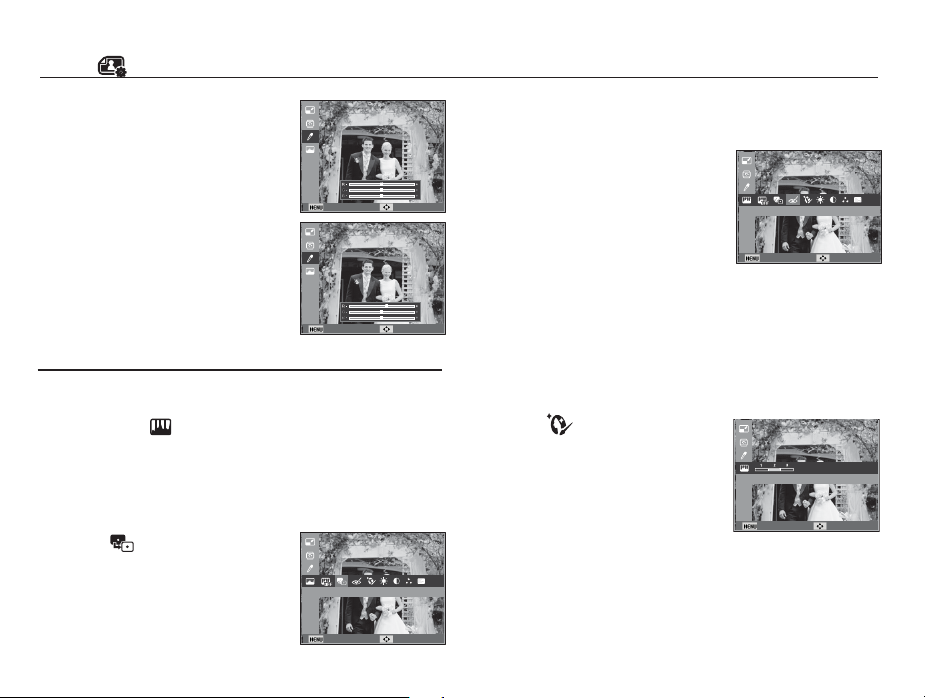

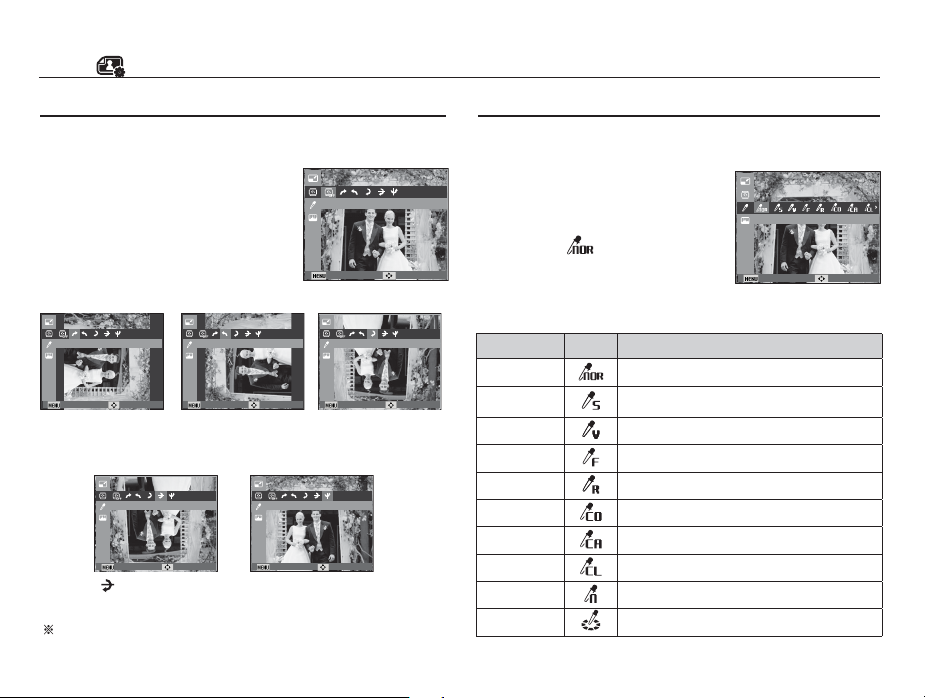

064 Photo Style Selector

065 Image Adjust

067 View

067 Starting the Multi Slide Show

067 Start the Multi Slide Show

068 Selecting Images 068 Conﬁ gure Multi Slide Show effects

069 Setting play interval

069 Setting Background Music

069 File Options

069 Deleting images

070 Protecting images

070 Voice memo

071 DPOF

073 Copy To Card

Page 7

Contents

SMART MODE

SMART

SETUP MODE

SMART

PLAY MODE

PICTBRIDGE

APPENDIX

SOFTWARE

074 Smart mode

Smart mode display

074

075 Starting Smart mode

075 Selecting modes

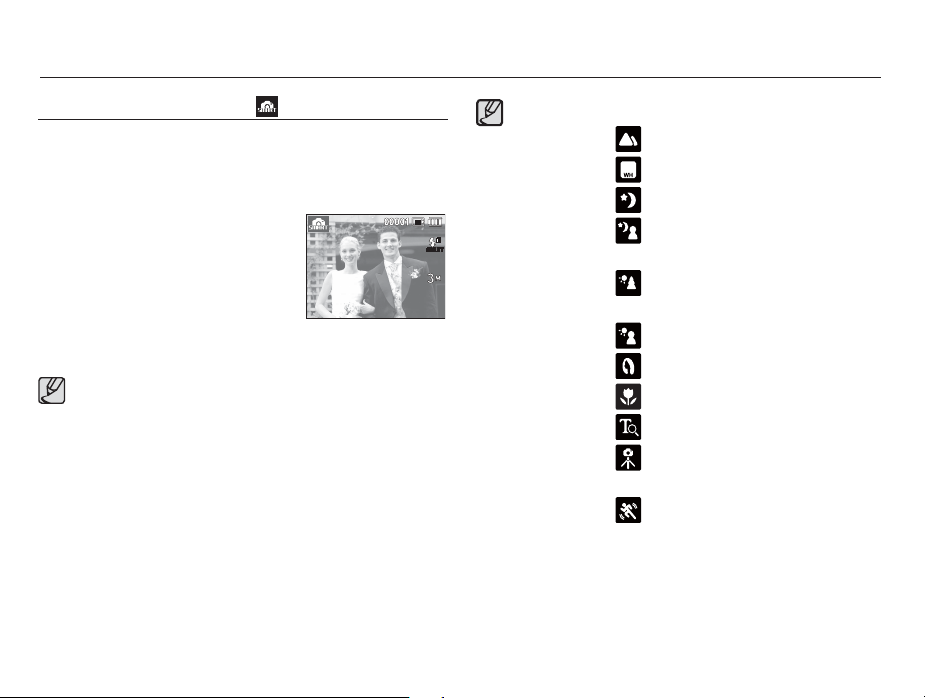

How to use Smart Auto mode

076

077 How to use Smart Movie Clip mode

077 Setting up the Smart menu

079 Smart Play mode display

079 Setting up the Smart Play menu

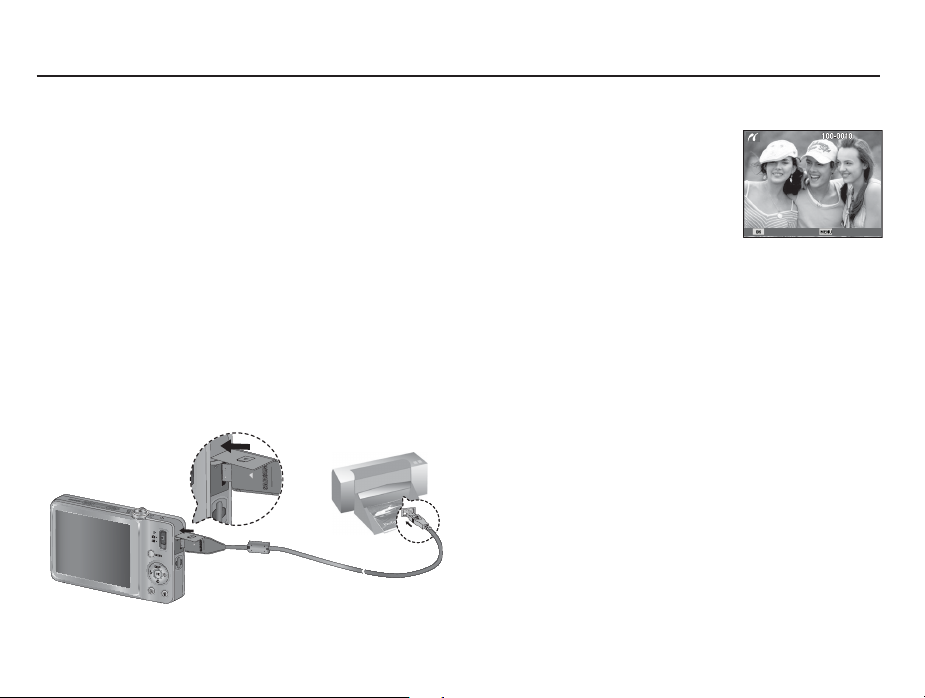

080 PictBridge

081 PictBridge : Picture Selection

081 PictBridge : Print Setting

082 PictBridge : Reset

082 Important notes

084 Warning indicator

085 Before contacting a service centre

087 Speciﬁ cations

090 Software Notes

090 System Requirements

091 About the software

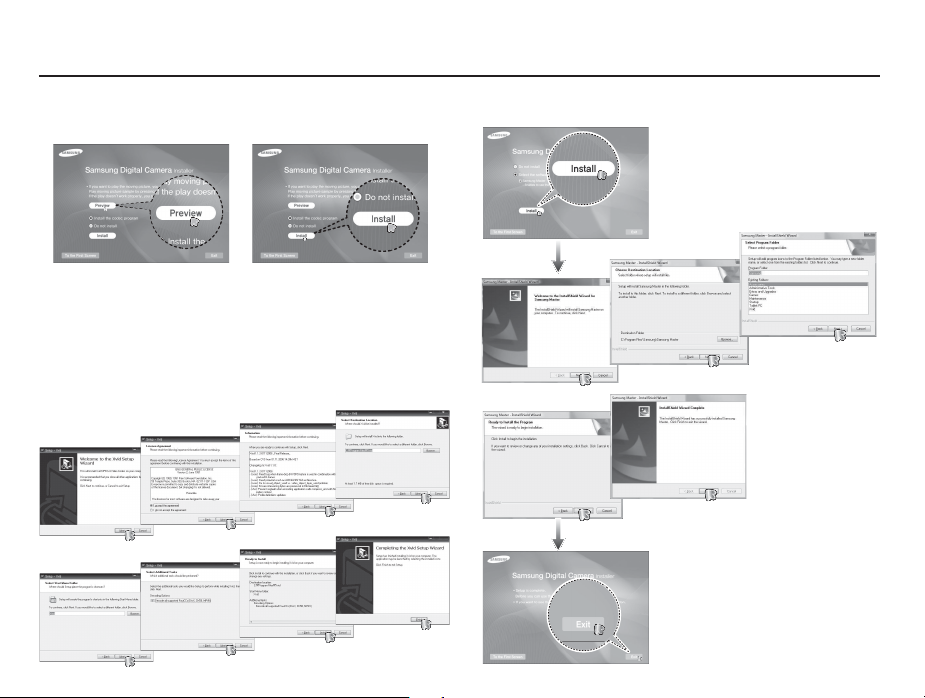

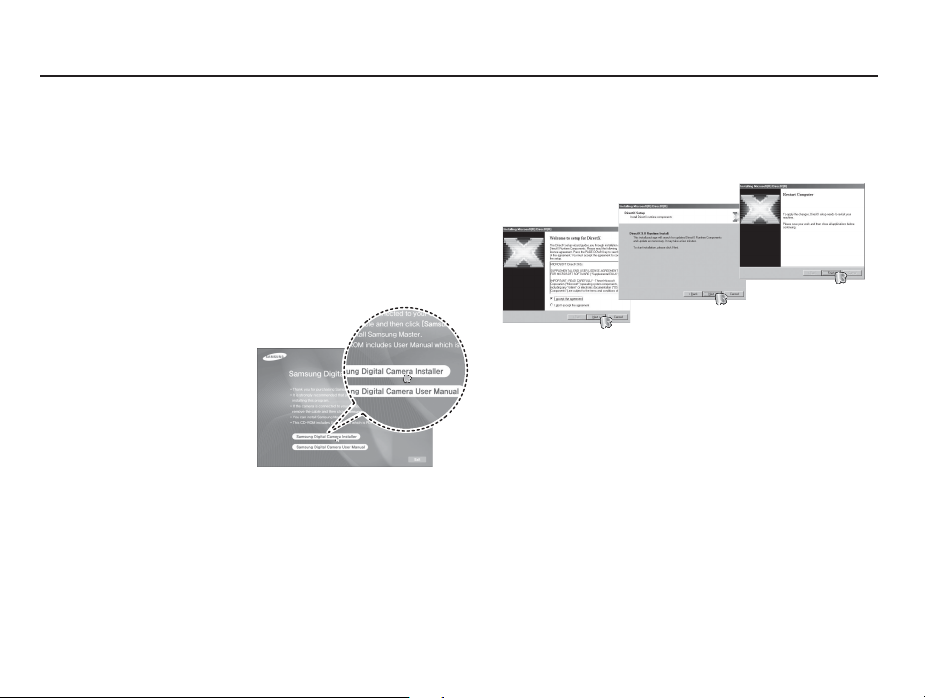

092 Setting up the application software

094 Starting PC mode

097 Removing the removable disk

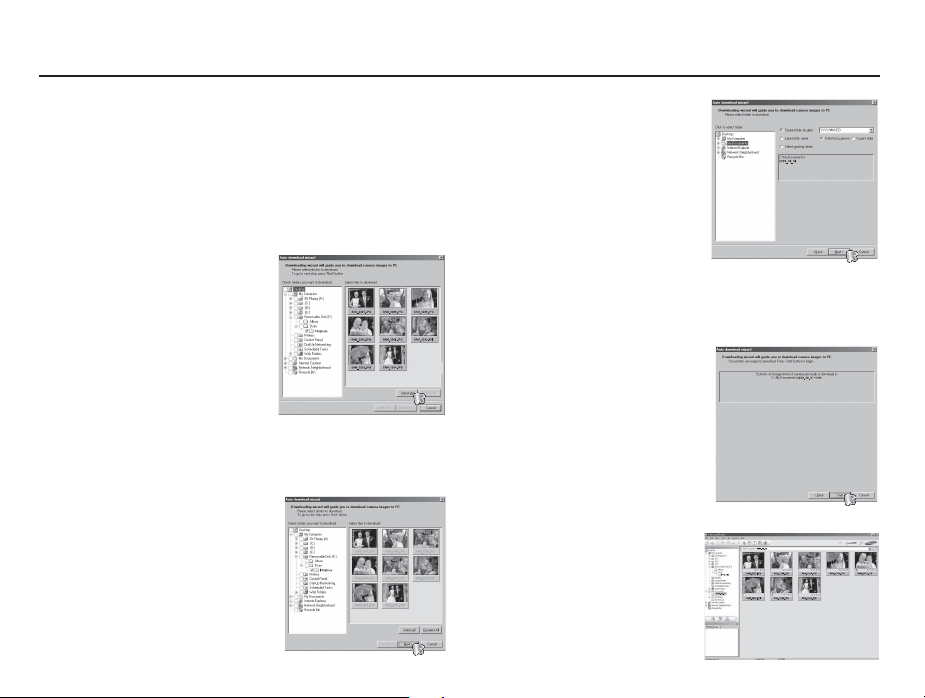

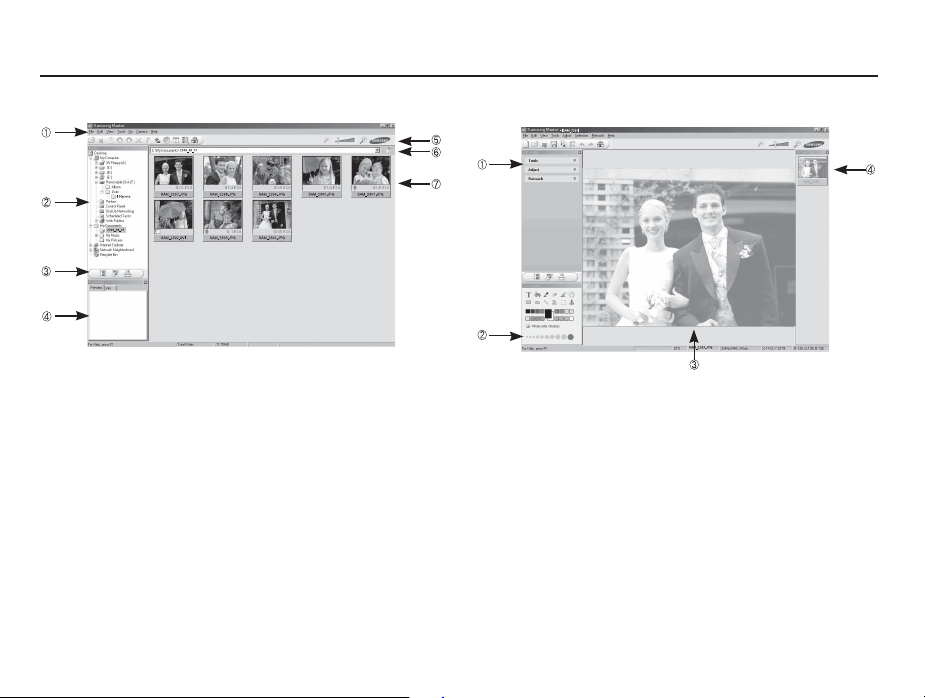

098 Samsung Master

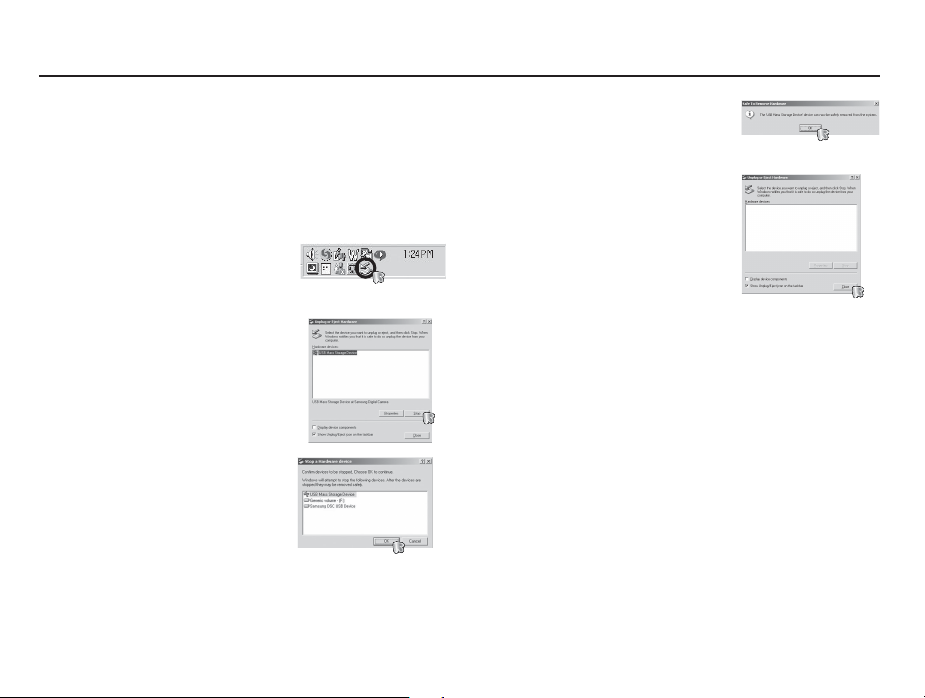

101 Setting up the USB Driver for MAC

101 Using the USB Driver for MAC

102 FAQ

Page 8

System chart

Please check that you have the correct contents before using this product. The contents can vary depending on the sales region. To buy the optional equipment, contact your nearest Samsung dealer or Samsung service centre. Parts and accessories illustrated below may differ from exact appearance.

Package Contents

Camera

User manual,

Product warranty

AD68-04417A

Sold Separately

SD/SDHC memory card / MMC

(see p.16)

Rechargeable battery

4302-001227

Camera case

AC adapter / USB cable

AD44-00143A /

AD39-00165A

AV cable

AD39-00146A

Camera strap

AD63-02596A AD63-02604A

Software CD

(see p.91)

AD46-00288A

Page 9

Identiﬁ cation of features

Front & Top

Zoom T Lever (Digital zoom)

Zoom W Lever (Thumbnail)

Power button

Shutter button

Self-timer lamp /

USB / AV / DC terminal

Speaker

AF Lamp

Smart button

Flash

Lens/ Lens cover

Microphone

Page 10

Identiﬁ cation of features

Back

Camera status lamp

Mode switch

LCD monitor

Strap eyelet

5 function button

Delete button

MENU button

Play mode button

Page 11

Identiﬁ cation of features

Bottom

Battery chamber

Battery holder

Battery chamber cover

Tripod socket

To open the battery chamber cover, slide it in the direction shown above.

Memory card slot

5 Function button

Flash /

Left button

Information / Up button

OK / Play & Pause button

Self-timer / Right button

Macro / Down button

Page 12

Identiﬁ cation of features

Self-timer lamp

Icon Status Description

- For the ﬁ rst 8 seconds, the lamp blinks at 1 second

Blinking

intervals.

- For the ﬁ nal 2 seconds, the lamp blinks quickly at

0.25-second intervals.

For the 2 seconds, the lamp blinks quickly at

0.25-second intervals.

A picture will be taken after about 10 seconds and 2 seconds later a second picture will be taken.

After pressing the Shutter button, the image is taken in accordance with the subject’s movement.

Camera Status Lamp

Status Description

Power on

After taking a picture

When ﬂ ash battery is charging

When the USB cable is inserted to a PC

Transmitting Data with a PC

When the USB cable is inserted into a printer

When the printer is printing

When the AF activates

The lamp turns on and off when the camera is ready to take a picture The lamp blinks while saving the image data and turns off when the camera is ready to take a picture

The lamp blinks

The lamp lights up (LCD monitor turns off after initializing the device)

The lamp blinks (LCD monitor turns off)

The lamp blinks

The lamp turns on (The camera focus on the subject)

The lamp blinks (The camera doesn’t focus on the subject)

Mode icon

Refer to page 19/75 for more information about the camera mode setting.

MODE Program Movie

ICON

SMART

MODE

ICON

Smart Auto Smart Movie

Page 13

Connecting to a Power Source

You should use the rechargeable battery SLB-07A supplied with the camera. Be sure to charge the battery before using the camera.



SLB-07A rechargeable battery Speciﬁ cation

Model SLB-07A

Type Lithium lon

Capacity 720mAh

Voltage 3.7V

harging time



Number of images and battery life: Using the SLB-07A

Battery life /

Number of images

Still image

These ﬁ gures are measured under Samsung’s standard conditions

Approx. 100 MIN / Approx. 200 shots

Movie Approx. 80 MIN

Approximately 120 Minutes

Conditions

Using the fully charged battery, Auto mode, 12M image size, Fine image quality, Shot to shot interval: 30Sec. Changing the zoom position between the Wide and the Tele after every shot. Using the ﬂ ash on every second shot. Using the camera for 5 minutes and then powering it off for 1 minute.

Using the fully charged battery 800x592 image size 20fps frame rate

and shooting conditions and may vary depending on the user’s methods.

Important information about battery usage.



When camera is not in use, turn off the power.



Please remove the battery if the camera will not be used for long periods. Batteries can lose power over time and are prone to leaking if kept inside the camera.



Low temperatures (below 0°C) can affect the performance of the battery and you may experience reduced battery life.



Batteries will usually recover at normal temperatures.



During extended use of the camera, the camera body may become warm. This is perfectly normal.



If you connect the AC adapter to the USB cable, you can use it as an AC cable and recharge the spare battery with it.

- Using an AC cable : Connect the AC adapter to the

USB cable. It can be used as a power cable.

- Using a USB cable : Remove the AC adapter.You can

download stored images to your PC (p.94) or supply the power to your camera through the USB cable.

Page 14

Connecting to a Power Source

Important information about USB cable usage.



Use a USB cable with the correct speciﬁ cation.



If the camera is connected to the PC through a USB hub : connect the camera directly to the PC.



If the camera and other devices are connected to the PC at the same time : remove other device.



Camera can not be detected using the front side USB port of computer. In this case, use the back side USB port of computer.



If the USB port of the PC doesn’t meet the Power output standard (5V, 500mA), the camera may not be charged.



How to charge the rechargeable battery

Before inserting any cables or AC adapter, check the directions and



do not insert by force. It may cause breakage of cable or camera. If the charging LED of the AC Charger does not turn on or blink



after inserting the rechargeable battery, please check whether the battery is inserted correctly. If you charge the battery with the camera power on, the battery won’t



be fully charged. Turn the camera off while charging the battery.



Charging LED of the AC Adapter

Charging LED

Being Charged Red LED is on

Charging is complete Green LED is on

Charging error Orange colored LED is off or blinking



If you insert the fully discharged battery to charge it, do not turn on the camera at the same time. The camera may not be turned on because of the low battery capacity. Charge the battery for more than 10 minutes before using the camera.



Do not use the ﬂ ash frequently or take a movie clip with the fully discharged battery charged for a short time. Even if the charger is inserted, the camera power may be turned off because the rechargeable battery is discharged again.

Page 15

Connecting to a Power Source



Insert the battery as shown

- If the camera does not turn on after you have inserted battery, please check whether the battery (+ / -).

- When the battery chamber cover is opened, do not force the battery chamber cover, this may damage it.



There are 4 indicators for battery condition that are displayed on the LCD monitor.

Battery

indicator

The battery is

Battery

fully charged

status

When using the camera and the battery in a place that is excessively cold or hot, the battery status on the LCD may be different from the actual battery status.

Low battery

capacity

(Prepare to

recharge or use

spare battery)

Low battery

capacity

(Prepare to

recharge or use

spare battery)

Battery empty.

(Recharge

or use spare

battery)

Inserting the memory card



Insert the memory card as shown.

- Turn off the camera’s power before inserting the memory card.

- Have the front of the memory card facing toward the back of the camera (LCD monitor) and the card pins toward the front of the camera (Lens).

- Do not insert the memory card the wrong way round. Doing so may damage the memory card slot.

Page 16

Instructions on how to use the memory card



Be sure to format the memory card (see p.48) if you are using a newly purchased memory card for the ﬁ rst time, if it contains data that the camera cannot recognise, or if it contains images captured with a different camera.



Turn off the camera power whenever the memory card is being inserted or removed.



Repeated use of the memory card will eventually reduce the memory card’s performance. Should this be the case, you will need to purchase a new memory card. Wear and tear on the memory card is not covered by the Samsung warranty.



The memory card is an electronic precision device. Do not bend, drop or subject the memory card to any heavy impact.



Do not store the memory card in an environment with strong electronic or magnetic ﬁ elds, e.g. near loud speakers or TV receivers.



Please do not use or store in an environment where there are extremes in temperature.



Do not allow the memory card to become dirty or to come into contact with any liquid. Should this happen, clean the memory card with a soft cloth.



Please keep the memory card in its case when not in use.



During and after periods of extended use, you may notice that the memory card is warm. This is perfectly normal.



Do not use a memory card that is used in another digital camera. To use the memory card in this camera, format the memory card using this camera.



Do not use a memory card formatted by another digital camera or memory card reader.

If the memory card is subjected to any of the following, the recorded data may become corrupted :

- When the memory card is used incorrectly.

- If the power is switched off or the memory card is removed while recording, deleting (formatting) or reading.



Samsung cannot be held responsible for lost data.



It is advisable to copy important data onto other media as back-up e.g. ﬂ oppy disks, hard disks, CD etc.



If there is insufﬁ cient memory available : A [Memory Full] message will appear and the camera will not operate. To optimise the amount of memory in the camera, replace the memory card or delete unnecessary images stored on the memory card.



Don't remove the memory card when the camera status lamp is blinking as this may cause damage to data in the memory card.

Page 17

Instructions on how to use the memory card

The camera can use SD/SDHC Memory Cards and MMC (Multi Media Cards).

Card pins

Write protect switch

Label

[SD (Secure Digital) memory card]



The SD/SDHC memory card has a write protect switch that prevents image ﬁ les from being deleted or formatted. By sliding the switch to the bottom of the SD/SDHC memory card, the data will be protected. By sliding the switch to the top of the SD/SDHC memory card, the data protection will be cancelled.



Slide the switch to the top of the SD/SDHC memory card before taking a picture.

When using a 1GB SD memory, the speciﬁ ed shooting capacity will be as follows. These ﬁ gures are approximate as image capacities can be affected by variables such as subject matter and memory card type.

Recorded image

size

Still


*Movie

clip

  

Super

Fine

About

169

240

About

196

270

About

231

308

About

246

328

About

365

493

About

548

680

About

986

1095

----

---

The Zoom W/T lever doesn’t function during the movie recording. The recording times can be changed by the zoom operation. Several videos were recorded in succession to determine the total recording time.

30 FPS 20 FPS 15 FPS

Normal

About

365

About

411

About

481

About

519

About

705

About

759

About

1232

---

About 33'43"

About

01:55'08"

About 32'48"

About

01:03'47"

About

02:00'00"

Page 18

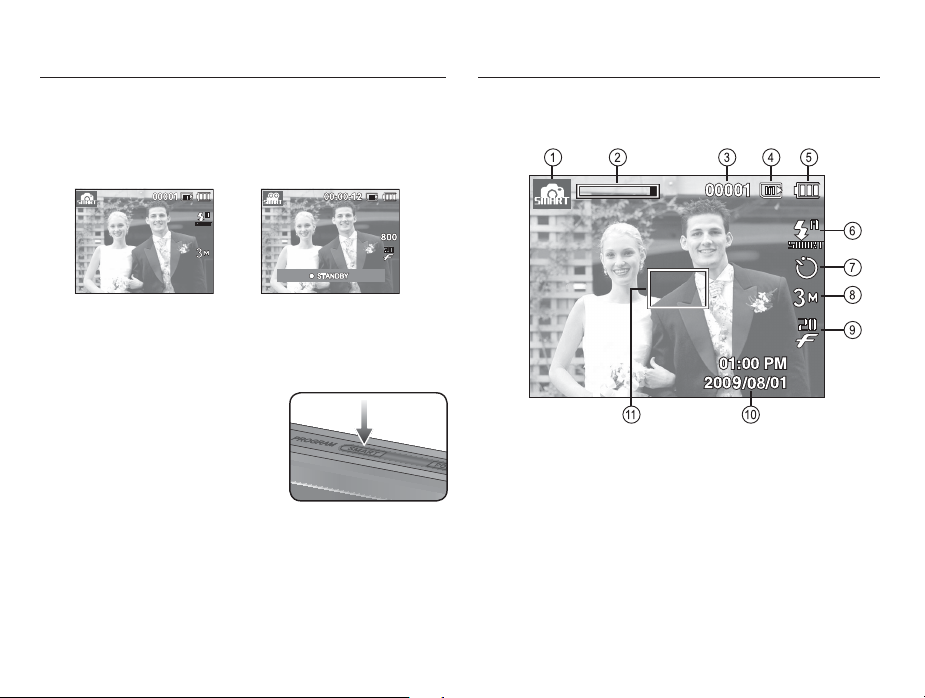

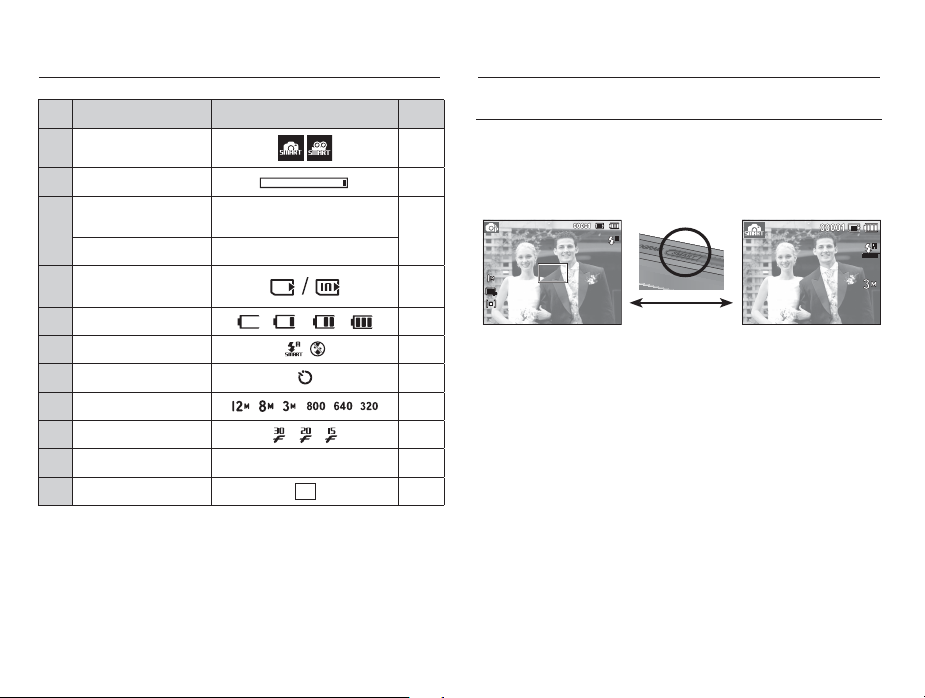

LCD monitor indicator



The LCD monitor displays information about the shooting functions and selections.

[Image & Full Status]

No. Description Icons Page

1 Recording mode

Optical / Digital Zoom bar /

Digital Zoom rate

Voice Memo

Number of available shots

remaining

Remaining time 00:00:00 p.16

00001 p.16

p.19

p.24

p.43

No. Description Icons Page

Memory card icon /

Internal memory icon

6 Battery

7 Flash

8 Self-timer

9 Macro

10 Photo Style Selector

11 Face Detection

12 DIS

Image Adjust /

Without Sound

14 Date / Time 2009/08/01 01:00 PM p.49

15 Camera shake Warning

Auto Focus Frame

17 Drive mode

18 Metering

Image Quality / Frame Rate

20 Image Size

21 ISO

White Balance

Exposure compensation

p.14

p.27

p.29

p.26

p.40

p.34

p.42

p.41/44

p.21

p.39

p.38

p.37

p.36

p.34

p.33

p.32

Page 19

How to use the menu

Turn on the camera and press the MENU button. A menu for each camera mode appears.

Functions

Sound

Display

Settings

Exit Change

2. Use the up or down buttons to navigate through the menus.

Functions

Sound

Display

Settings

Exit Change

White Balance

ISO

Face Detection

Photo Size

Quality

ACB

Press the

UP or DOWN

button.

3. Use the left or right buttons to select a sub menu.

Volum e

Functions

Start Sound

Sound

Shutter Sound

Display

Beep Sound

AF Sound

Settings

Self-Portrait

Exit Change

Press the

LEFT or

RIGHT button.

Volume :Medium

Start Sound :Off

Shutter Sound :1

Beep Sound :1

AF Sound :On

Self-Portrait :On

Exit Back

4. Select a submenu and click the OK button to save settings and return to the previous window.

White Balance

ISO

Face Detection

Photo Size

Quality

ACB

Volume

Functions

Start Sound

Sound

Shutter Sound

Display

Beep Sound

AF Sound

Settings

Self-Portrait

Exit Change

Press the

LEFT or

RIGHT button.

Volume :Medium

Start Sound :Off

Shutter Sound :1

Beep Sound :1

AF Sound :On

Self-Portrait :On

Back Set

Off

Low

Medium

High

Page 20

Starting the recording mode

Selecting modes



Mode selection using the Mode switch

You can use the Mode switch on the back of your camera to select the correct mode.

[Program mode] [Movie Clip mode]

How to use the Program mode ( )

Selecting the automatic mode will conﬁ gure the camera with optimal settings. You can still manually conﬁ gure all functions except the aperture value and shutter speed.

1. Insert the batteries (p.14). Insert the batteries taking note of the polarity (+ / -).

2. Insert the memory card (p.14). As this camera has a 31MB internal memory, you do not need to insert the memory card. If the memory card is not inserted, an image will be stored in the internal memory. If the memory card is inserted, an image will be stored on the memory card.

3. Close the battery chamber cover.

4. Press the power button to turn on the camera.

5. Use the Mode switch to select Program mode (p.19).

6. Press the Menu button to conﬁ gure advanced functions. (See p.31 for further details.)

If the auto focus frame turns to red when you press the shutter



button down half way, it means that the camera cannot focus on the subject. Should this be the case, the camera is unable to capture an image clearly. Avoid obstructing the lens or the ﬂ ash when you capture an image.



Page 21

Starting the recording mode

How to use the Movie clip mode ( )

A movie clip can be recorded for as long as the available recording time (maximum of 20 minutes) of the memory capacity allows.

1. Use the Mode switch to select Movie Clip mode. (The Movie clip mode icon and available recording time will display on the LCD monitor.).

2. Point the camera towards the subject and compose the image by using the LCD monitor.

3. Press the Shutter button once and movie clips are recorded for up to 20 minutes. Movie clips will still be recorded if the shutter button is released. If you wish to stop recording, press the shutter button again.

Image size and type are listed below.

- Image size : 800x592, 640x480, 320x240 (Selectable)

- Movie clip ﬁ le type : AVI (MPEG-4)

- Frame Rate : 30 FPS, 20 FPS, 15 FPS (Selectable)

- The frame rate can be selected when the following image size is selected. 800x592: 20FPS selectable 640x480, 320x240: 30FPS, 15FPS selectable

- If the recording time is takes longer 20 minutes, the recording is stopped and then saved.

Recording the movie clip without sound

You can record the movie clip without sound.

Steps from 1 -3 are the same as those for MOVIE mode.

4. Press the Menu button.

5. Press the Up / Down button to select the [Functions] menu and press the Right button.

6. Select the [Voice] menu by pressing the Up / Down button and press the OK button.

7. Select the [Off] menu by pressing the Left / Right button.

8. Press the OK button. You can record a movie without sound.

See p.44 for further details.

Page 22

Starting the recording mode

Pausing while recording a movie clip (Successive Recording)

This camera allows you to temporarily stop during unwanted scenes, while recording a movie clip. Using this function, you can record your favourite scenes into a movie clip without having to create multiple movie clips.



Using Successive Recording

Steps from 1-2 are the same as those for

MOVIE CLIP mode.

3. Press the shutter button and movie clips are recorded for as long as the available recording time. Movie clips will still be recorded if the shutter button is released.

4. Press the OK button to pause recording.

5. Press the OK button again to resume the recording.

6. If you wish to stop recording, press the shutter button again.

Stop Record

Things to Watch Out for When Taking Pictures



Pressing the shutter button down half way. Lightly press the shutter button to conﬁ rm focus and ﬂ ash battery charge. Press the shutter button all way down to take the picture.



The available memory capacity may vary depending on shooting conditions and camera settings.



When the Flash Off, Slow synchro mode or DIS mode is selected in a low lighting condition, the camera shake warning indicator (Ã ) may appear on the LCD monitor. In this case, use a tripod, support the camera on a solid surface or change to ﬂ ash shot mode.



Shooting against the light



Avoid obstructing the lens or the ﬂ ash when you capture an image.



Compose the image by using the LCD monitor.

[Lightly press the shutter button]

: Please do not take pictures against the

sun. Doing so may make the picture dark. To take a picture against the light, please use the ﬁ ll-in ﬂ ash (see page 28), spot metering (see page 38), exposure compensation (see page 32) or ACB (see page 37) function.

[Press the shutter button]

Page 23

Things to Watch Out for When Taking Pictures



Under certain conditions the auto focus system may not perform as expected.

- When photographing a subject that has little contrast.

- If the subject is highly reﬂ ective or shiny.

- If the subject is moving at high speed.

- When there is strong reﬂ ected light, or when the background is

very bright.

- When the subject matter has only horizontal lines or the subject

is very narrow (such as a stick or ﬂ agpole).

- When the surroundings are dark.

Using the camera buttons to set the camera

The recording mode function can be set up by using the camera buttons.

POWER button

Used for turning the camera’s power on / off. If there is no operation during the speciﬁ ed time, the camera's power will be turned off automatically to save battery life. Refer to page 50 for more information about the auto power off function.

Page 24

SHUTTER button

Mode switch

Used for taking an image or recording voice in the RECORDING mode.



In MOVIE CLIP mode Pressing the shutter button down fully starts the process for recording a movie clip. Press the shutter button once and the movie clip is recorded for as long as the available recording time in the memory allows. If you wish to stop recording, press the shutter button again.



In STILL IMAGE mode

Pressing the shutter button down halfway activates the autofocus and checks the condition of the ﬂ ash. Pressing the shutter button down fully takes and stores the image. If you select voice memo recording, the recording will start after the camera has ﬁ nished storing the image data.

Smart button

You can use the Smart button at the top of your camera to select the correct smart mode.

See p.75 for further details.

You can use the Mode switch on the back of your camera to select the correct mode.

•

Normal mode

When recording a movie clip : Push the Mode switch down to select

When capturing a still image : Push the Mode switch up to select

•

Smart mode

When recording a movie clip : Push the Mode switch down to select

When capturing a still image : Push the Mode switch up to select

Movie Clip mode (The time available for recording movie clips is displayed on the LCD monitor).

Program mode.

Smart Movie Clip mode (The time available for recording movie clips is displayed on the LCD monitor).

Smart Auto mode.

Page 25

Zoom W/T Lever

When the menu window is not displayed, this lever is used to control the optical or digital zoom. This camera has a 3X optical zoom and a 5X digital zoom function. Using both will offer a total zoom ratio of 15X.



TELE Zoom Optical zoom TELE : Move the Zoom W/T lever to the right to

see the subject closer.

Digital zoom TELE : Move the Zoom W/T lever to the right once

again in optical 3x zoom mode to enable digital zoom (software tele). Stop moving the Zoom W/T lever to stop the operation of digital zoom (tele). In digital 5x zoom mode, digital zoom is disabled even if you operate the Zoom W/T lever.

[WIDE zoom]

[TELE zoom] [Digital zoom 5.0X]



WIDE Zoom

Optical zoom WIDE : Move the Zoom W/T lever to the left in

optical zoom mode to see subjects in the distance. Continue to move the Zoom W/T lever to the left to disable optical zoom.

[TELE zoom] [Optical zoom 2X] [WIDE zoom]

Digital zoom WIDE : Move the Zoom W/T lever to the left

Optical zoom

in digital zoom mode to enable digital zoom (software wide). Stop moving the Zoom W/T lever to stop the operation of

Digital zoom

digital zoom. Continue to move the Zoom W/T lever to the left when digital zoom is disabled to disable optical zoom (optical tele).

[Digital zoom 5.0X] [TELE zoom] [WIDE zoom]

Page 26

Zoom W/T Lever



Images taken using the digital zoom may take a little longer for the camera to process. Allow time for this to take place.



If the Zoom W/T lever is being pressed during the Movie shots, the voice will not be recorded.



You may notice a decrease in image quality when using the digital zoom.



To view a clearer digital zoom image, press the shutter button halfway at the maximum optical zoom position and move the Zoom W/T lever to the right again.



The digital zoom does not work in Movie Clip, Smart Auto and Smart Movie Clip modes.



Take care not to touch the lens to avoid taking an unclear image and possibly causing camera malfunction. If the image is dim, turn the camera power off and on again to modify the lens position.



Take care not to press the lens as this may cause a camera malfunction.



When the camera is turned on, take care not to touch the camera’s moving lens parts as this may cause the resulting image to be dim and unclear.



Take care not to touch the lens while operating the Zoom W/T lever.

Info (DISP) / Up button

While the menu is showing, the Up button operates as a direction button. In the recording modes or playback mode, pressing this button will display the image information.

[Information screen][Filming screen]

Page 27

Macro

While the menu is showing, the Down button operates as a direction button. When the menu is not showing, you can use the MACRO ( ) / DOWN button to take macro pictures. The distance ranges are shown below. Press the Macro button until the desired macro mode indicator appears on the LCD monitor.

( )

/ Down button

[Auto Focus]

[Macro ( )]



Types of focus mode and focus range (W : Wide, T : Tele)

Mode Program ( )

Focus Type macro (

Focus range

When the macro mode is selected, be particularly careful to avoid



camera shake. When you take a picture within 40cm (Wide zoom) or 50cm



(Tele zoom) in the Macro mode, select the FLASH OFF mode.



Available focusing method, by recording mode

Mode Macro Normal

) Normal

W : 10 ~ 80

T : 50 ~ 80

( o : Selectable, : Inﬁ nity focus range)

W : 80 ~ Inﬁ nity

T : 80 ~ Inﬁ nity

(Unit: cm)

Page 28

Focus lock

Flash

( )

/ Left button

To focus on a subject not positioned in the centre of the picture, use the focus lock function.



Using the Focus Lock

1. Ensure the subject is in the centre of the autofocus frame.

2. Press the SHUTTER button halfway. When the green auto focus frame lights up, it means the camera is focused on the subject. Be careful not to press the SHUTTER button all the way down to avoid taking an unwanted picture.

3. With the SHUTTER button still pressed down only halfway, move the camera to recompose your picture as desired, and then press the SHUTTER button completely to take the picture. If you release your ﬁ nger from the SHUTTER button, the focus lock function will be cancelled.

1. The image to be captured.

Press the SHUTTER button halfway and focus on the subject.

3. Recompose the picture and fully depress the SHUTTER button.

When the menu is displayed on the LCD monitor, pressing the LEFT button makes the cursor shift to the left tab. When the menu is not displayed on the LCD monitor, the LEFT button operates as the FLASH ( ) button.



Selecting the ﬂ ash mode

Use the Mode switch to select a mode other than Movie Clip mode.

(p.19)

2. Press the Flash button until the desired ﬂ ash mode indicator is

displayed on the LCD monitor.

3. A ﬂ ash mode indicator will be displayed on the LCD monitor. Use the correct ﬂ ash to suit the environment.



Flash range

ISO

AUTO 0.8~3.0 0.8~2.0 0.4~0.8 0.5~0.8 0.4~3.0 0.5~2.0

Normal Macro Auto macro

WIDE TELE WIDE TELE WIDE TELE

[Selecting the Auto ﬂ ash]

(Unit: m)

Page 29

Flash

( )

/ Left button

If you press the shutter button after selecting the ﬂ ash, the ﬁ rst



ﬂ ash ﬁ res to check the shooting condition (Flash range and Power ratio of ﬂ ash). Do not move the camera until the second ﬂ ash ﬁ res. Using the ﬂ ash frequently will reduce the life of the battery.



Under normal operating conditions the re-charging time for



the ﬂ ash is usually within 4 seconds. If the battery is weak, the charging time will be longer. The ﬂ ash does not work in Movie Clip mode.



Take photographs within the ﬂ ash range.



The image quality is not guaranteed if the subject is too close



or highly reﬂ ective. When taking an image in poorly lit conditions with the ﬂ ash,



there may be a white speck in the captured image. The speck is caused by the ﬂ ash light reﬂ ecting off atmospheric dust.



Flash mode indicator

Icon Flash mode Description

Auto ﬂ ash

Auto & Red eye

reduction

Fill in ﬂ ash

Slow synchro

Red-eye reduction

Flash off



Smart Auto ﬂ ash ( ) icon will appear in [Smart Auto]

If the subject or background is dark, the camera ﬂ ash will operate automatically.

If a subject or background is dark, the camera ﬂ ash will work automatically and will reduce the red-eye effect by using the red-eye reduction function.

The ﬂ ash ﬁ res regardless of the avail- able light. The intensity of the ﬂ ash will be automatically controlled to suit the prevailing conditions.

The ﬂ ash operates with a slow shutter speed to obtain a balanced correct exposure. In poor lighting conditions the camera shake warning indicator ( LCD monitor.

When a shot with "red eye" is detected, this mode will reduce the red-eye effect automatically.

The ﬂ ash does not ﬁ re. Select this mode when capturing images in a place or situation where ﬂ ash photography is prohibited. When you capture an image in poorly lit conditions, the camera shake warning indicator ( LCD monitor.

) will display on the

) will appear on the

mode.

Page 30

Flash



Self-timer

When the menu is displayed on the LCD monitor, pressing the Right button makes the cursor shift to the right tab. When the menu is not displayed on the LCD monitor, the RIGHT button operates as the Self-timer ( ) button. This function is used when the photographer would also like to be in the image.

( )

/ Left button

Available ﬂ ash mode, by recording mode

Mode

oooooo

( )

/ Right button



If you operate the Self-timer button during the self-timer operation, the self-timer function is cancelled.



Use a tripod to prevent the camera from shaking.



In Movie Clip mode, only the 10SEC self-timer will work.

( o : Selectable)

Self-timer



Selecting the self-timer

Select a Recording mode with the

exception of Voice recording mode. (p.19)

Press the SELF-TIMER / RIGHT ( )

button until the desired mode indicator displays on the LCD monitor. A 10 second, 2 second, Double self-timer or Motion timer icon appears on the LCD monitor.

3. When you press the SHUTTER button,

the picture will be taken after the speciﬁ ed time has elapsed.



Self-timer mode indicator

Icon Mode Description

( )

10SEC

self-timer

2SEC

self-timer

Double

self-timer

Motion

Timer

/ Right button

Pressing the shutter button will allow an interval of 10 seconds before the image is taken.

Pressing the shutter button will allow an interval of 2 seconds before the image is taken.

A picture will be taken after about 10 seconds and 2 seconds later a second picture will be taken. When using the ﬂ ash, the 2-second self-timer may be delayed for longer than 2 seconds depending on the ﬂ ash charging time.

The camera detects the subject's movement 6 seconds after pressing the Shutter button, and the picture is taken when the movement is stopped.

[Selecting the 10 SEC

self-timer]

Page 31

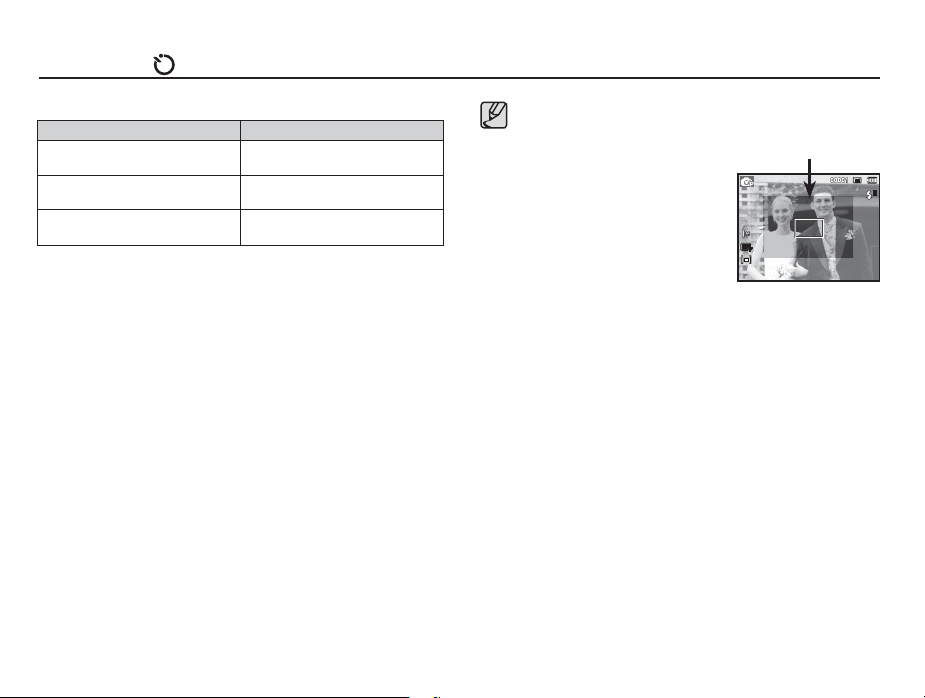

Self-timer

( )

/ Right button



Motion Timer

Pressing the Shuter button after setting the Motion Timer

Detecting the subject's movement Blink (0.25 second interval)

No movement is detected



The Motion Timer ﬂ ows are as followings. (Movie Clip mode excluded)

Selecting the Motion Timer  Pressing the Shutter button Conﬁ rming the composition (Within 6 sec.) detection (Swing your hands fully)

Motion Icon & Self-timer lamp

Blink (1 second interval)

Turn on and the image is taken after 2 seconds



Starting the

Stopping the detection



(Do not move)  Taking an image (after 2 sec.)

*1: The camera detects the subject's movement 6 seconds after pressing the

Shtter button, so conﬁ rm the composition within 6 seconds.

*2: Move your body or hands fully.

In the following cases, the Motion Timer may not operate.

The focus distance is over 3m.



The exposure is too bright or dark



In backlight conditions.



The movement is insigniﬁ cant



The movement is detected beyond



the center part (50%) of the sensor where the movement is recognized. If the camera doesn`t sense any



movement for 30 seconds, or the camera doesn’t sense stillness after sensing movement

The detection range of

Motion Timer

Page 32

MENU button

Functions ( )

- When you press the MENU button, a menu related to each camera mode will be displayed on the LCD monitor. Pressing it again will return the LCD to the initial display.

- A menu option can be displayed when the following are selected : MOVIE CLIP and STILL IMAGE mode. There is no menu available when the voice recording function is selected.

[Menu off]

[Pressing the MENU button]

Functions

Sound

Display

Settings

Exit Change

[Menu on]

White Balance

ISO

Face Detection

Photo Size

Quality

ACB

OK button

- When the menu is displayed on the LCD monitor, this button is

used for shifting the cursor to the sub menu or for conﬁ rming data.

Functions

Sound

Display

Settings

Exit Change

White Balance

ISO

Face Detection

Photo Size

Quality

ACB

[Pressing the

OK button]

White Balance

ISO

Face Detection

Photo Size

Quality

ACB

Exit Back

Use the menu that enables the functions to bring up the menus below:

Mode Menu

Available mode Page

EV p.32

White Balance p.33

ISO

p.34

Face Detection p.34

Photo Size / Movie Size

p.36

Quality / Frame Rate p.37

(Functions)

ACB

Metering

Drive

p.37

p.38

Frame Guide p.39

Focus Area p.39

Photo Style Selector

Image Adjust

p.40

p.41

DIS p.42

Stabiliser

Voice

p.42

p.43

Page 33

Functions ( )

How to Enable Functions Using the MENU Button

1. Press the MENU button in an available mode.

2. Press the Up / Down button to select the [Functions] menu and press the Right/OK button.

Functions

Sound

Display

Settings

Exit Change

White Balance

ISO

Face Detection

Photo Size

Quality

ACB

Right/OK

button

3. Select a desired menu by pressing the Up / Down button and then press the OK button.

White Balance

ISO

Face Detection

Photo Size

Quality

ACB

Exit Back

Up / Down

button

4. Select a desired menu by pressing the Left / Right button and then press the OK button.

White Balance

Left / Right

Back Move

button

White Balance

ISO

Face Detection

Photo Size

Quality

ACB

Exit Back

White Balance

ISO

Face Detection

Photo Size

Quality

ACB

Exit Back

Daylight

Back Move

Exposure compensation

This camera automatically adjusts the exposure according to the ambient lighting conditions. You can also select the exposure value by using the [EV] menu.



Compensating Exposure

1. Click the Up/Down button from the Functions menu to select [EV] (

2. Use the LEFT and RIGHT buttons to set the desired exposure compensation factor.

3. Press the OK button. The value you set will be saved and the Exposure Compensation setup mode will be closed. If you change the exposure value, the exposure indicator ( ) will be displayed on the Left of the LCD monitor.

A negative exposure compensation value reduces the exposure. Note that a positive exposure compensation value increases the exposure and the LCD monitor will appear white or you may not get good pictures.

Back Move

Page 34

Functions ( )

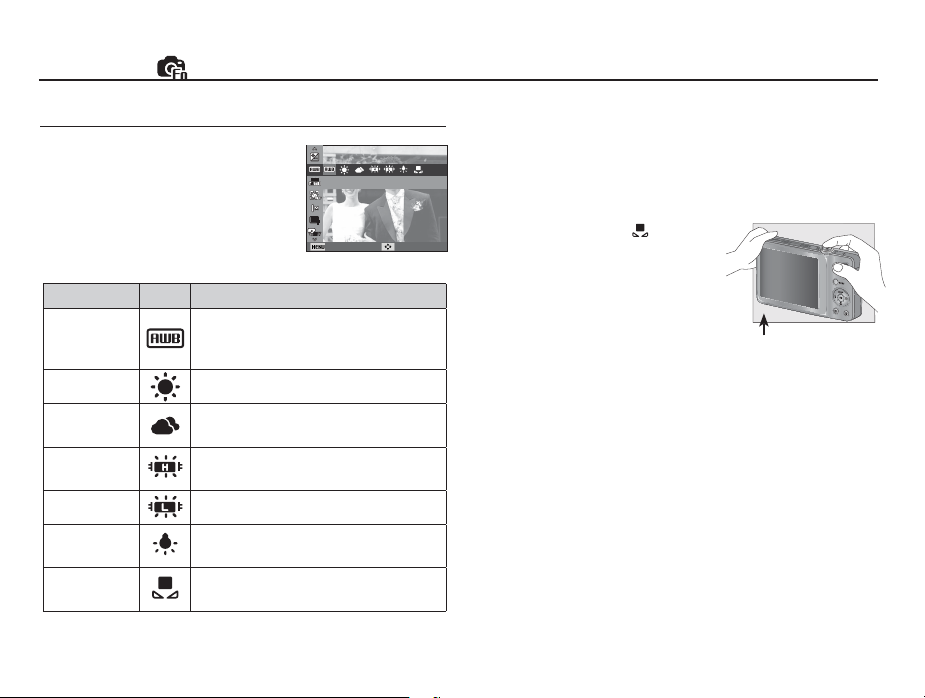

White balance

The white balance control allows you to adjust the colours to appear more natural.

White Balance



Using the Custom White Balance

White balance settings may vary slightly depending on the shooting environment. You can select the most appropriate white balance setting for a given shooting environment by setting up the custom white balance.

Back Move

Mode Icon Description

The camera automatically selects the ap-

Auto WB

Daylight

Cloudy

Fluorescent_H

Fluorescent_L

Tungsten

Custom Set

Different lighting conditions may cause a colour cast on your images.

propriate white balance settings, depending on the prevailing lighting conditions.

For taking images outside.

For taking images under a cloudy and overcast sky.

For shooting under daylight ﬂ uorescent types of three-way ﬂ uorescent lighting.

Shooting under white ﬂ uorescent lighting.

For shooting under tungsten (standard light bulb) lighting.

Allows the user to set the white balance according to the shooting condition.

1. Select the CUSTOM ( ) menu of the White Balance and place a sheet of white paper in front of the camera so that the LCD monitor shows only white.

2. OK button : selects previous

White paper

custom white balance.

Shutter button : saves new custom white balance.

- The custom white balance value will be applied, starting with the next picture you take.

- The user conﬁ gured white balance will be remain effective until it is overwritten.

Page 35

Functions ( )

ISO

You can select the ISO sensitivity when taking pictures.The speed or speciﬁ c light-sensitivity of a camera is rated by ISO numbers.

[Auto] : The camera's sensitivity is

automatically changed by variables such as lighting value or subject brightness.

[ISO 80, 100, 200, 400, 800, 1600, 3200] :

You can increase the shutter speed while the same amount of light is present, by increasing the ISO sensitivity. However, the image may be saturated in high luminance. The higher the ISO value, the higher the camera’s sensitivity to light and therefore the greater its capacity to take pictures in dark conditions. However, the noise level in the image will increase as the ISO value increases, making the image appear coarse.

When [Motion Capture] is set, ISO speed will be set to Auto.

[ISO] is enabled only in [Program] mode.

When the ISO 3200 menu is selected, the image size is ﬁ xed to under 3M.

ISO

Back Move

Face Detection

If you use face detection options, your camera can detect a human face. When focusing on a human face, the brightness of the face is also adjusted. You can also capture natural facial expressions by using self portrait, smile shot or blink detection.



Normal

This mode detects the face position of the subject automatically and then sets the focus and exposure. Select this mode for quick and easy face picture.

1. The size and position of the auto focus frame is set at the face of the subject automatically.

2. Press the shutter button halfway. The focus frame turns to green when the focus is activated.

3. Press the shutter button fully to take a picture.

Face Detection

Back Move

Page 36

Functions ( )



This function can detect up to 10 persons.



When the camera recognises many people at the same time, it will focus on the nearest person.



The Digital zoom is not activated in this mode.



When the camera detects a target face, the white colour focus frame will be displayed over the target face and the grey colour focus frame appears over the remaining faces. Press the shutter button halfway down to focus on the face and the white focus frame turns green.



Return to previous AF mode if face detection was failure.



In some conditions this function cannot work properly.

- When a person wears dark glasses or some part of the face is hidden.

- When the person being taken does not look at the camera.

- Camera doesn't detect a face as the brightness is too dark or too bright.

- The distance between the camera and object are far.



The maximum available Face Detection range is 2.5m (Wide).



The nearer the subject, the faster the camera can recognize the subject.



Beauty Shot

Take a photo of a person with options to hide facial imperfections.



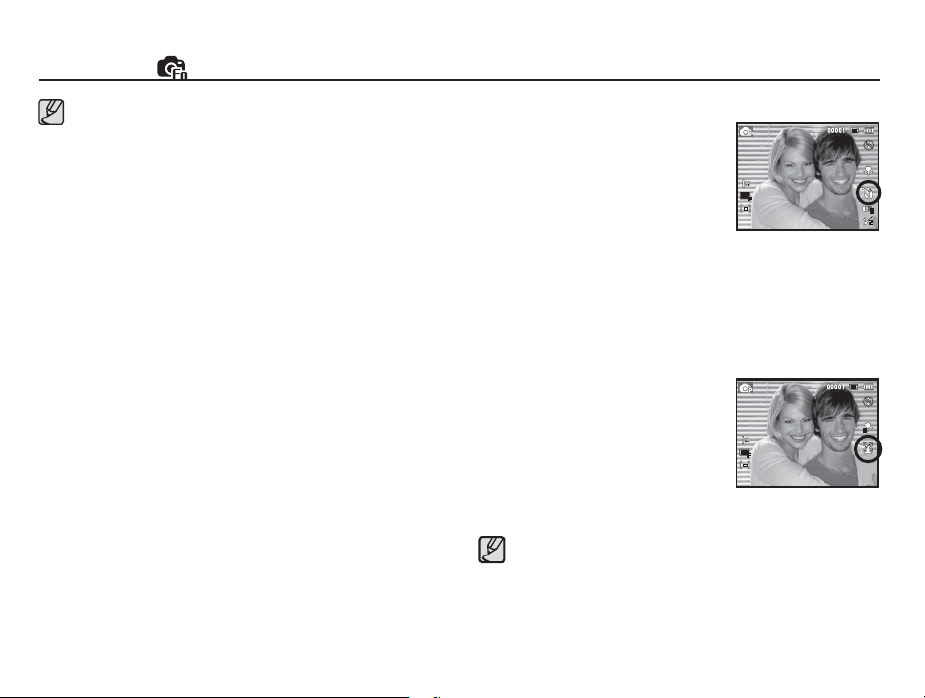

Self Portrait

When taking pictures of yourself, the area of your face is automatically detected so that you can take self pictures more easily and quickly.

1. For self-ﬁ lming, set the camera lens

towards the face of the object. It automatically detects the face of the object, and emits a guiding sound.

2. Start ﬁ lming by pressing the shutter

button.



When locating the face in the center of the screen, it repeatedly emits a faster sound unlike the sounds that are emitted when the face is not in the center.



The guiding sound can be set using the sound setting menu. (See p.46)

Page 37

Functions ( )



Smile Shot

The camera automatically takes a picture by detecting the face of the subject although you don’t press the shutter button. If you press the Shutter button, the picture is taken in the normal way. When taking a picture of smile shot, showing teethes or keeping the smiley face of your subject helps detecting the smile face of the subject.



Blink Detection

If the eyes of the subject are closed when the shutter button is pressed, the camera takes 2 continuous shots and then the images are saved. The camera takes only one picture if the eyes of the subject are open when the Shutter button is pressed.



Detecting the smiling face or the blinking eyes may not be available if any of the following situations occurs:

- If the subject is wearing sunglasses.

- When the subject is not facing directly to the camera.

- If the environmental light is too bright or too dark to detect the face of the subject.

- When the camera is far from the subject. (Orange colored focusing mark)

- If there is reﬂ ection of the light or the back light that are too

bright.

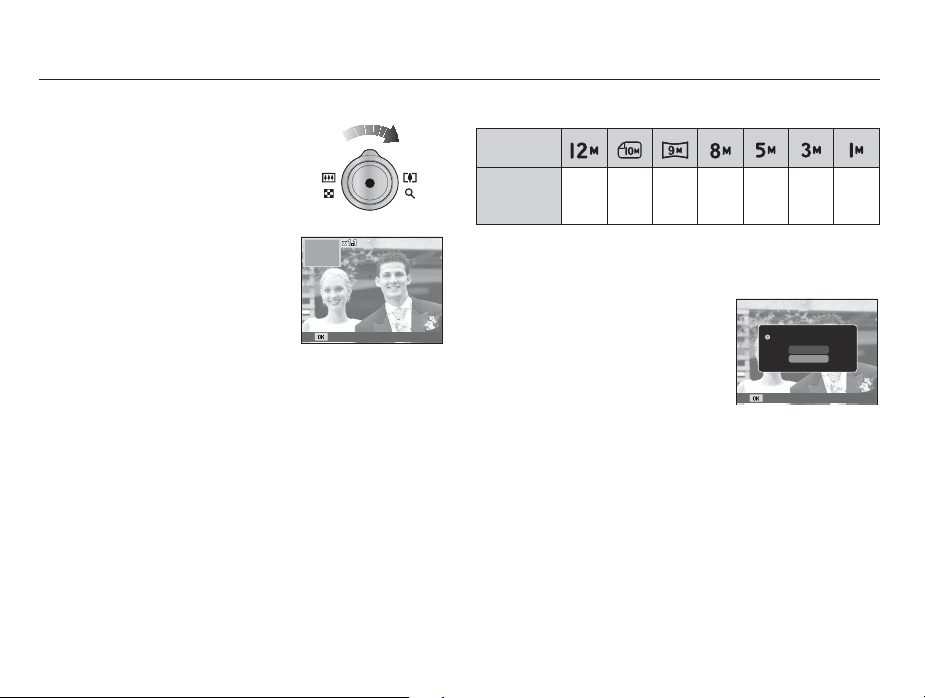

Image Size

You can select the image size appropriate for your application.

(Unit: pixel)

Icon

Still image mode

Movie

clip

mode

4000X

3984X

3968X

3264X

2592X

Size

3000

2656

2232

2448

Icon

Size

Photo Size

Back Move

[ STILL IMAGE mode ]

The higher the resolution, the lower the number of shots



available because high resolution images require more memory.

800X592 640X480 320X240

Movie Size

Back Move

[ MOVIE CLIP mode ]

1944

2048X

1536

1024X

768

Page 38

Functions ( )

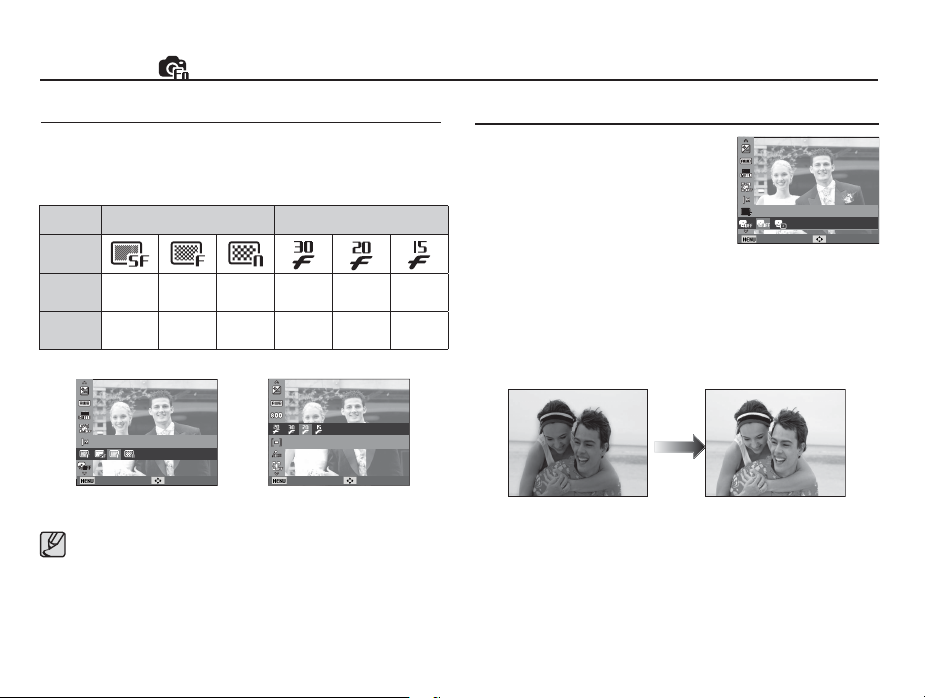

Quality / Frame rate

You can select the compression ratio appropriate for your application of the captured images. The higher the compression ratio, the lower the picture quality.

Mode STILL IMAGE mode MOVIE CLIP mode

ACB

This function is to adjust the contrast automatically when taking photos in an environment with big exposure difference i.e. backlight or contrast. This function adjusts the brightness automatically and allows the subject to be photographed clearly.

Icon

Sub menu

Super

File

Format

Quality

Back Move

[ STILL IMAGE mode ]

This ﬁ le format complies with the DCF (Design rule for Camera



Fine Normal 30 FPS 20 FPS 15 FPS

Fine

jpeg jpeg jpeg avi avi avi

Frame Rate

Back Move

[ MOVIE CLIP mode ]

File system). JPEG (Joint Photographic Experts Group) :



JPEG is the image compression standard developed by the Joint Photographic Experts Group. This type of compression is most commonly used for compressing photos and graphics because it can compress the ﬁ les efﬁ ciently.

ACB

Back Move

- [ACB] Sub menus: [Off], [On].

When using the [Program] mode, the ACB function will operate.

Page 39

Functions ( )

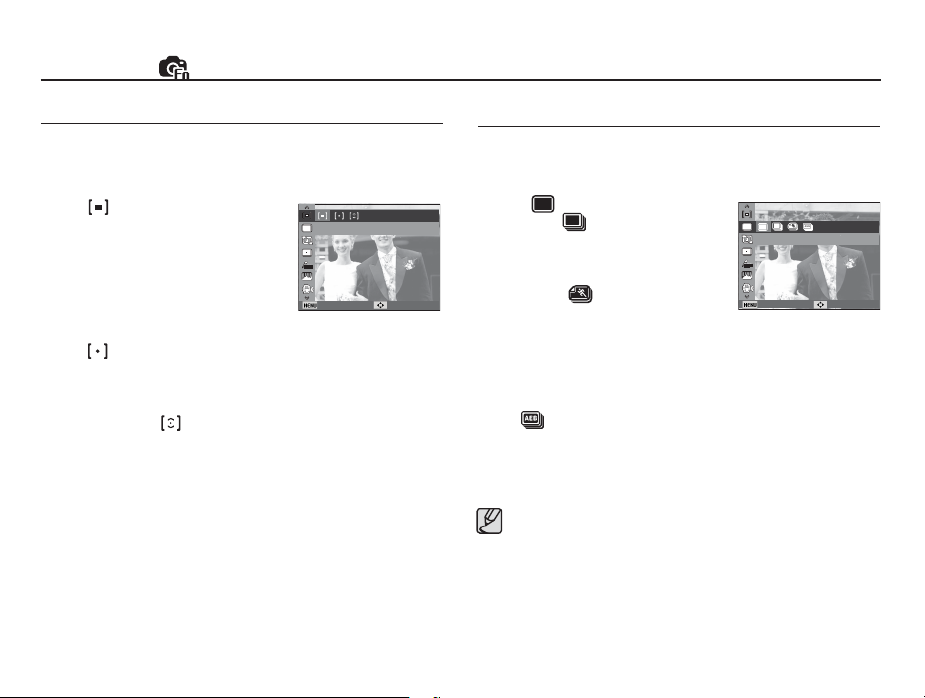

Metering

If you cannot obtain suitable exposure conditions, you can change the metering method to take brighter pictures.

[Multi] ( ) : Exposure will be calculated

[Spot] ( ) : Only the rectangular area in the centre of the LCD

[Center We ighted] ( )

If the subject is not the centre of the focus area, do not use the

spot metering as this may result in an exposure error. In this circumstance, it is better to use exposure compensation.

based on an average of

Metering

the available light in the image area. However, the calculation will be biased towards the centre of the image area. This is suitable

Back Move

for general use.

monitor will be metered for light. This is suitable when the subject in the centre is exposed correctly, regardless of the back lighting.

: Exposure will be calculated based on an average of

the available light in the image area. However, the calculation will be biased towards the centre of the image area. This is suitable for taking a picture of small object like a ﬂ ower or insects.

Drive mode

You can select single, continuous, motion capture, and AEB (Auto Exposure Bracketing).

[Single] ( ) : [Continuous] ( ) : Images will be taken

[Motion Capture] ( )

[AEB] ( ) :



High resolution and picture quality increases ﬁ le saving time, which increases stand-by time.



If the [Continuous], [Motion Capture], [AEB] sub menu is selected, the ﬂ ash will be off automatically.



If less than 3 pictures are available in the memory, the AEB shooting is not available.



It is best to use a tripod for the AEB shooting as the time to save each image ﬁ le is longer and blurring caused by camera shake may occur.

Take one picture only.

continuously until the

Drive

shutter button is released.

: This takes 5 shots

per second, when

Back Move

the shutter is pressed and held down. After completing the continuous shooting, images are saved and the images play back on the Rear LCD. The maximum number of shots is 30 and the image size is ﬁ xed as VGA. Take three pictures in a series in different exposures: standard exposure (0.0EV), short exposure (-1/2EV) and over exposure (+1/2EV).

Page 40

Functions ( )

Frame Guide

Set [Frame Guide] mode when you want someone else to take a picture for you from the angle you choose.

Ŷ How to use the [Frame Guide] mode

1. Take a picture from the angle you choose.

- A guide appears round the sides of the

picture.

Guide

Then another person can take the picture by aligning the edge of the picture to be taken with the guide framing the sides of the window.

Frame Guide

Back Move

Cancel Frame: OK

Auto Focus type

You can select your preferred Focus Area according to the shooting conditions.

Focus Area

Back Move

[Center AF] ( ) : The rectangular area in the center of the LCD

[Multi AF] ( ) : This camera selects all of available AF point

When the camera focuses on the subject, the auto focus frame turns to green. When the camera doesn't focus on the subject, the auto focus frame turns to red.

monitor will be focused

from the 9 AF points.

[Center AF] [Multi AF]

Page 41

Functions ( )

Photo Style Selector

You can add various effects to the image without using image editing software.

Photo Style Selector

Back Move

1. Select the desired Photo style selector by pressing the Left/Right button and press the OK button.

2. Press the Shutter button to take an image.

Style mode Icon Description

Normal

Soft

Vivid

Forest

Retro

Cool

Calm

Classic

Negative

Custom RGB

No style effect is applied.

Soft style is applied.

Vivid style is applied.

Forest style is applied.

Sepia style is applied.

Cool style is applied.

Calm style is applied.

Black & white effect is applied.

Negative effect is applied.

Deﬁ ne an RGB tone to create your own photo style.



Custom colour : You can change the

R (Red), G (Green) and B (Blue) values of the image.

Back Move

- Up/Down button : Selects R, G, B

- Left/Right button : Changes the values

Back Move

When picture style is set, face detection is not available.



When Soft or Vivid in photo style is set, saturation is not available.



When Negative in photo style is set, contrast is not available.



Page 42

Functions ( )

Image Adjust



Contrast You can change the contrast of the image.

1. Select [Contrast] by pressing the Up/Down button.

2. Change the contrast by pressing the Left/Right button.

3. Press the Shutter button to take an image.

When Negative in photo style is set, contrast is not available.





Sharpness You can adjust the sharpness of the picture you are about to take. You cannot check the sharpness effect on the LCD monitor before you take a picture, because this function is applied only when the captured image is stored on the memory.

1. Select [Sharpness] by pressing the Up/Down button.

2. Change the Sharpness by pressing the Left/Right button.

3. Press the Shutter button to take an image.

Image Adjust

Contrast

Sharpness

Saturation

Back Move

Image Adjust

Contrast

Sharpness

Saturation

Back Move



Saturation You can change the saturation of the image.

1. Select [Saturation] by pressing the Up/Down button.

2. Change the saturation by pressing the Left/Right button.

Press the Shutter button to take an

image.

When Soft or Vivid in photo style is set, saturation is not



Image Adjust

Contrast

Sharpness

Saturation

Back Move

available.

Page 43

Functions ( )

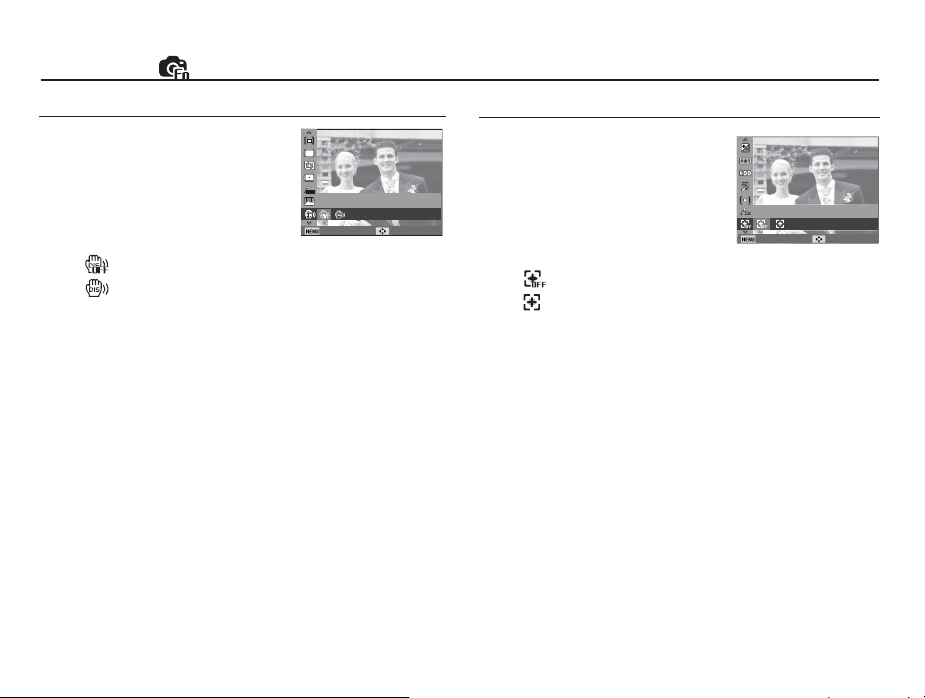

DIS

Digital Image Stabilization (DIS) This function helps minimize camera shake when capturing a still image.

DIS

Back Move

[Off] ( ) : Disables the DIS function when capturing a still image.

[On] ( ) : Enables the DIS function when capturing a still image.



Things to watch out for using the DIS function

1. The digital zoom will not operate in the DIS function.

2. If the lighting condition is brighter than ﬂ uorescent lighting condi-

tions, the DIS will not activate.

3. If the lighting condition is darker than in ﬂ uorescent lighting con-

ditions, camera shake warning indicator ( Ã ) will display. For best results only take pictures in situations where the camera shake warning indicator ( Ã ) is not displayed.

4. If the subject is moving, the captured image may be blurred.

5. As the DIS uses the camera's digital signal processor, it may take a little longer for the camera to process and save the images.

Movie clip frame stabiliser

This function helps stabilize images captured during movie recording. You can select this menu only in the Movie clip mode. If the memory card is not inserted, this function will not operate.

[Off] ( ) : Movie clip frame stabilizer function is disabled.

[On] ( ) :

The recording frame range becomes narrow when you select this

Minimises camera shake during movie recording.

menu.

Stabiliser

Back Move

Page 44

Functions ( )

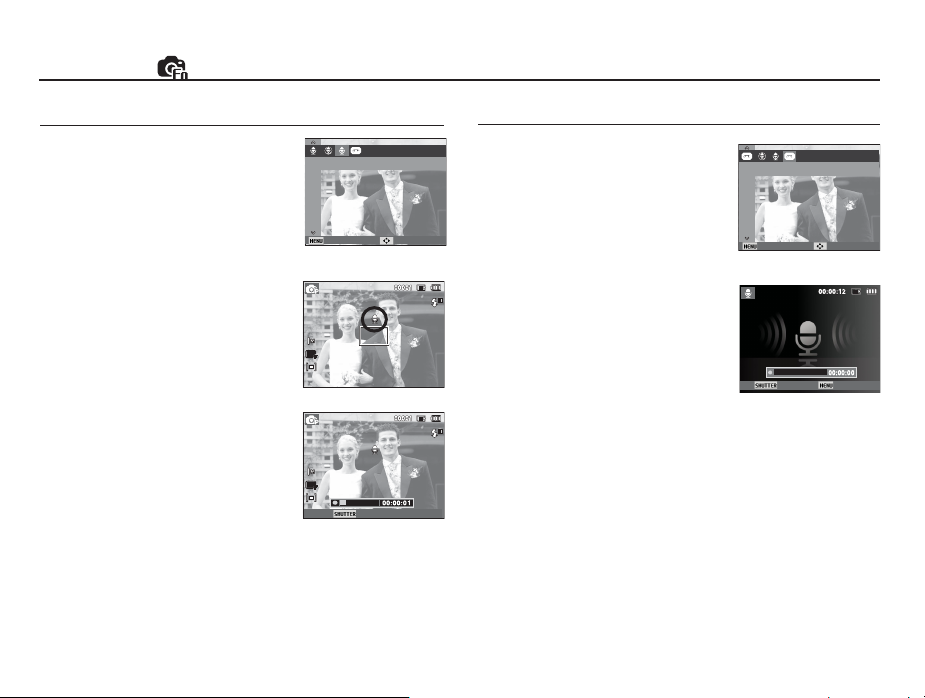

Voice Memo

You can add your voice-over to a stored still image. (Max. 10 sec.)

If the voice memo indicator is displayed on the LCD monitor, the setting is completed.

- Press the shutter button and take a picture. The picture is stored on the memory card.

- Voice memo will be recorded for ten seconds from the moment the picture is stored. In the middle of the sound recording, pressing the shutter button will stop the voice memo.

Memo

Back Move

Stop

Voice Recording

A voice can be recorded for as long as the available recording time (Max. 10 hour) allows.

Press the shutter button to record a voice.

- Press the shutter button once and voice is recorded for as long as the available recording time (max:10 hour) allows. The recording time will be displayed on the LCD monitor. Voice will still be recorded if the shutter button is released.

- If you wish to stop recording, press the shutter button again.

- File type : *.wav

Record

Back Move

Record Exit

[Voice recording mode]

Page 45

Functions ( )



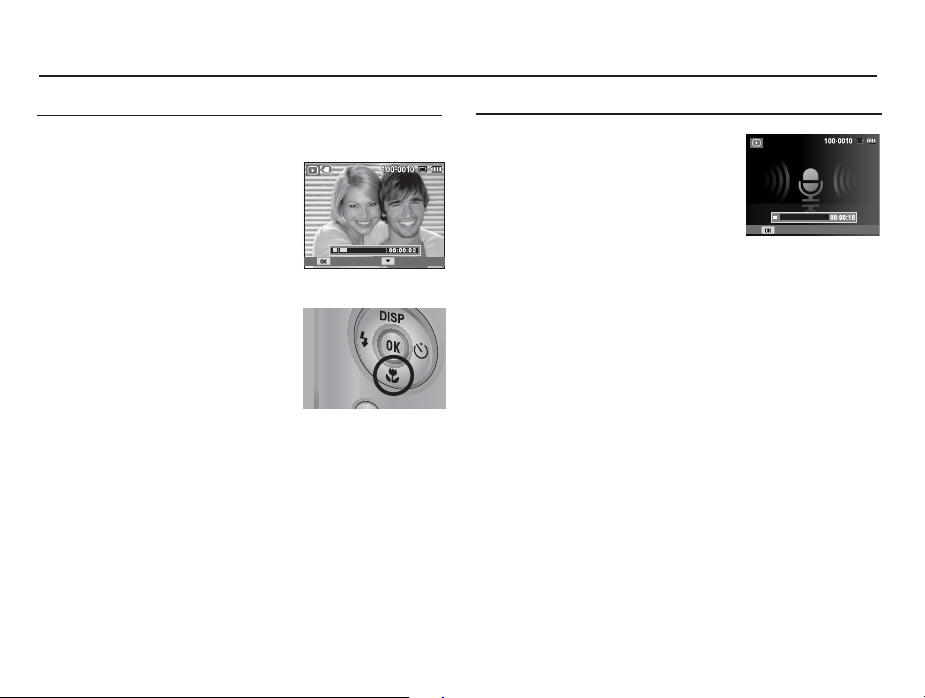

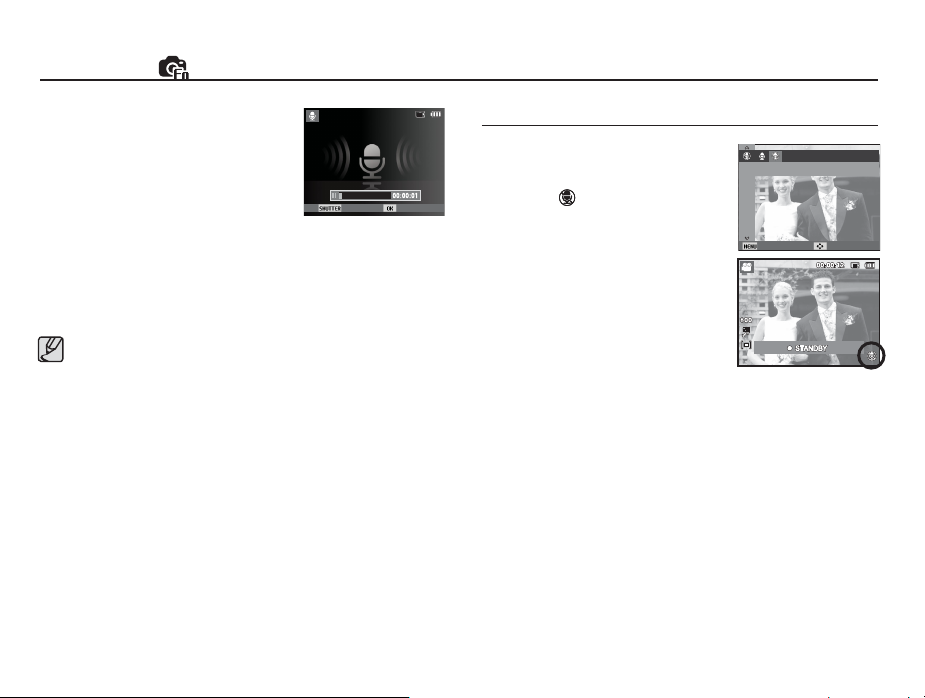

Pausing while recording a voice

Using this function, you can record your favourite voice clips into a voice recording ﬁ le without having to create multiple voice recording ﬁ les.

Stop Record

[Voice recording mode]

Press the OK button to pause recording.

2. Press the OK button again to resume the recording.

3. If you wish to stop recording, press the shutter button again.

A distance of 25cm between you and the camera (microphone)



is the best distance to record sound. If the camera power is turned off while the voice recording is



paused, the voice recording is cancelled.

Recording the movie clip without voice

You can record the movie without voice.

Select [Off] of [Voice] menu in the Movie clip mode. ( ) icon will appear on the LCD monitor. Press the Shutter button and a movie will record for as long as the memory capacity allows without voice.

Off

Back Move

Page 46

Sound menu

In this mode, you can set up sound settings. You can use the setup menu in all camera modes, except Voice Recording mode.



The items indicated by * are default settings.

Menus are subject to change without prior notice.

)

(

Sound



Volume

You can select a volume of start up sound, shutter sound, beep sound and AF sound.

- [Volume] sub menu : [Off], [Low], [Medium]*, [High]

Volume :Medium

Start Sound :Off

Shutter Sound :1

Beep Sound :1

AF Sound :On

Self-Portrait :On

Back Set

Off

Low

Medium

High

Start up sound

You can select the sound that is activated whenever the camera is turned on.

- Start up sound : [Off]*, [1], [2], [3]

Volume :Medium

Start Sound :Off

Shutter Sound :1

Beep Sound :1

AF Sound :On

Self-Portrait :On

Back Set

Off

Shutter sound

You can select the shutter sound.

- Shutter sound : [Off], [1]*, [2], [3]

Volume :Medium

Start Sound :Off

Shutter Sound :1

Beep Sound :1

AF Sound :On

Self-Portrait :On

Back Set

Off

Beep Sound

If you set sound to ON, a beep will sound when buttons are pressed, letting you know the camera operation status.

- [Beep Sound] sub menu : [Off], [1]*, [2], [3]

Volume :Medium

Start Sound :Off

Shutter Sound :1

Beep Sound :1

AF Sound :On

Self-Portrait :On

Back Set

Off

Page 47

Sound

(



)

Setup menu

AF sound

If you set AF sound to on, AF sound will be activated when the Shutter button is pressed down half way so that you can be aware of the camera operation status.

- [AF sound] sub menu : [Off], [On]*

Volume :Medium

Start Sound :Off

Shutter Sound :1

Beep Sound :1

AF Sound :On

Self-Portrait :On

Back Set

Off

Self Portrait

This occurs when it automatically detects the location of the subject’s face when taking a self-portrait.

- This feature can be set by using the [Off] and [On]* buttons.

Volume :Medium

Start Sound :Off

Shutter Sound :1

Beep Sound :1

AF Sound :On

Self-Portrait :On

Back Set

Off

In this mode, you can set up basic settings. You can use the setup menu in all camera modes, except Voice Recording mode.



The items indicated by * are default settings.

Menus are subject to change without prior notice.

Display ( )

Language

There is a choice of language that can be displayed on the LCD monitor. Even if the battery is removed and inserted again, the language setting will be preserved.

Function Description

You can select whether the function description can be displayed on the window in recording mode.

- Function Description sub menu [Off] : The function description

function can’t be activated.

[On]* : The name and description of the

option is displayed.

Language :English

Function Description :On

Start Image :Off

Display Brightness :Auto

Quick View :0.5sec

Power Save :Off

Back Set

Language :English

Function Description :On

Start Image :Off

Display Brightness :Auto

Quick View :0.5sec

Power Save :Off

Back Set

English

䚐ạ㛨

Français

Deutsch

Español

Italiano

Off

Page 48

Display ( )

Start up image

You can select the image that is ﬁ rst displayed on the LCD monitor whenever the camera is turned on.

- Sub menus : [Off]*, [Logo], [User Image]

- Use a saved image for the start-up image with the [Start Image] in the [Resize] menu in the play mode.

- The start-up image will not be deleted by

[Delete] or [Format] menu.

- The User images will be deleted by

Language :English

Function Description :On

Start Image :Off

Display Brightness :Auto

Quick View :0.5sec

Power Save :Off

Exit Back



Off



[Reset] menu.

Display Bright

You can adjust the LCD brightness.

- Sub menus : [Auto]*, [Dark],

[Normal], [Bright]

Language :English

Function Description :On

Start Image :Off

Display Brightness :Auto

Quick View :0.5sec

Power Save :Off

Back Set

Auto

Dark

Normal

Bright

Quick view

If you enable Quick View before capturing an image, you can view the image you just captured on the LCD monitor for the duration set in the [Quick View] setup. Quick view is possible only with still images.

- Sub menus [Off] : The quick view function can’t

be activated.

[0.5 sec]*, [1 sec], [3 sec]

: The captured image is brieﬂ y

displayed during the selected time.

Language :English

Function Description :On

Start Image :Off

Display Brightness :Auto

Quick View :0.5sec

Power Save :Off

Back Set

Off

0.5sec

1sec

3sec

Display SAVE

If you set the [Power Save] to On and the camera isn't operated during the speciﬁ ed time, the LCD monitor will be turned off automatically.

- Sub menus [Off]* :

The LCD monitor will not be turned off.

[On] :

If the camera isn't operated during the speciﬁ ed time (about 30 SEC.), the camera power will be idle (Camera status lamp: Blinking) automatically.

You can’t set the [Power Save] menu of Playback Mode.

Language :English

Function Description :On

Start Image :Off

Display Brightness :Auto

Quick View :0.5sec

Power Save :Off

Back Set

Off

Page 49

Settings

(” )

Formatting a memory

This is used for formatting the memory. If you run [Format] on the memory, all images, including the protected images, will be deleted. Be sure to download important images to your PC before formatting the memory.

- Sub menus [Yes] :

A window for conﬁ rming the selection displays. Select the [Yes] menu. A [Formatting] message appears and the memory will be formatted. If you run FORMAT in Play mode, a [Format is completed] message will appear.

[No]* : The memory will not be formatted.



Be sure to run [Format] on the following types of memory card.

- A new memory card, or an unformatted memory card

- A memory card that has a ﬁ le this camera can't recognise or one

that has been taken from another camera.

- Always format the memory card using this camera. If you insert a memory card that has been formatted using other cameras, memory card readers, or PCs, you will get a [Card Error] message.

Format

Reset

Date & Time :

Time Zone :London

File No. :Series

Imprint :Off

Auto Power Off :3 min

Back Set

Yes

Off

Initialisation

All camera menu and function settings will be restored to their default values. However, values for DATE / TIME, LANGUAGE, and VIDEO OUT will not be changed.

- Sub menus

[Yes] : A window to conﬁ rm the

selection will be displayed. Select the [Yes] menu and all settings will be restored to their defaults.

[No]* : Settings will not be restored to

their defaults.

Format

Reset

Date & Time :Off

Time Zone :London

File No. :Series

Imprint :Off

Auto Power Off :3 min

Back Set

Yes

Page 50

Settings

(” )

Setting up the Date / Time / Date type

You can change the date and time that will be displayed on the captured images and set up the date type. Setting [Time Zone] enables you to display the local date and time on the LCD monitor when travelling overseas.

Date type : [yyyy/mm/dd], [mm/dd/yyyy],

[dd/mm/yyyy], [Off]*

Format

Reset

Date & Time :

yyyy mm dd

Time Zone :London

2009 / 08 / 01 13:00 Off

File No. :Series

Imprint :Off

Auto Power Off :3 min

Back Set

Off

Time Zone



Available cities: London, Cape Verde, Mid-Atlantic, Buenos Aires, Newfoundland, Caracas, La Paz, NewYork, Miami, Chicago, Dallas, Denver, Phoenix, LA, San Francisco, Alaska, Honolulu, Hawaii, Samoa, Midway, Wellington, Auckland, Okhotsk, Guam, Sydney, Darwin Adelaide, Seoul, Tokyo, Beijing, Hong Kong, Bankok, Jakarta, Yangon, Almaty, Kathmandu, Mumbai, New Delhi, Tashkent, Kabul, Abu Dhabi, Teheran, Moscow, Athens, Helsinki, Rome, Paris, Berlin

DST : Daylight Saving Time

Time Zone

London [GMT +00:00] 2009/08/01 01:00 PM

Back DST

File name

This function allows the user to select the ﬁ le naming format.

[Reset] : After using the reset function,

the next ﬁ le name will be set from 0001 even after formatting, deleting all or inserting a new memory card.

[Series]*

: New ﬁ les are named using

numbers that follow the previous sequence, even when a new memory card is used, or after formatting, or after deleting all pictures.

- The ﬁ rst stored folder name is 100PHOTO, and the ﬁ rst ﬁ le

name is SAM_0001.

- File names are assigned sequentially from SAM_0001 SAM_0002 ~  SAM_9999.

- The folder number is assigned sequentially from 100 to 999 as follows: 100PHOTO  101PHOTO  ~  999PHOTO.

- Maximum numbers of ﬁ les in a folder are 9999.

- The ﬁ les used with the memory card conform to the DCF (Design rule for Camera File systems) format. If you change the image ﬁ le name, the image may not play back.

Format

Reset

Date & Time :

Time Zone :London

File No. :Series

Imprint :Off

Auto Power Off :3 min

Back Set

Reset

Series

Off



Page 51

Settings

(” )

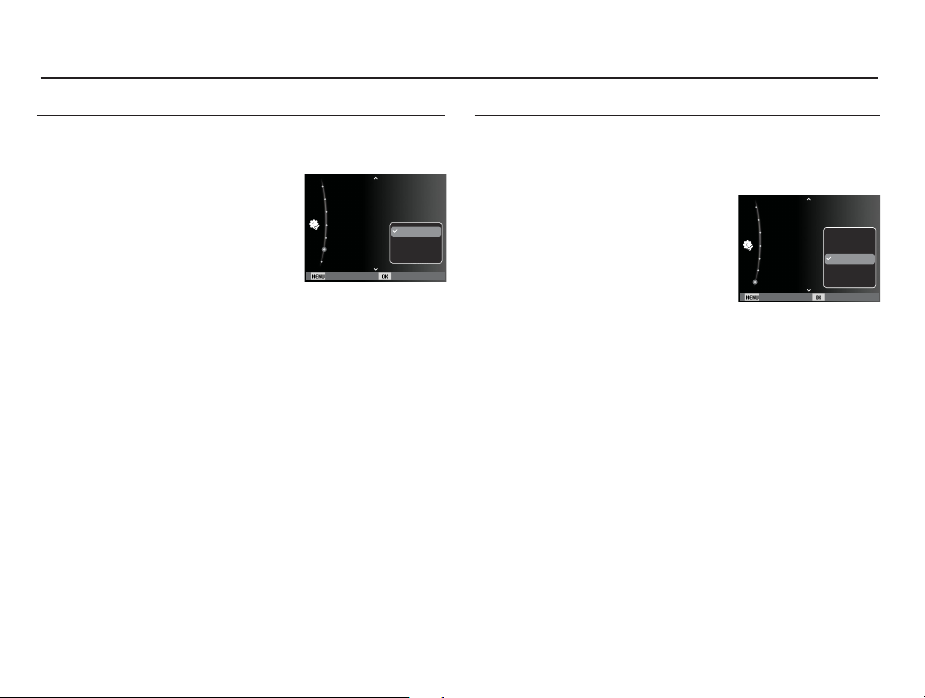

Imprinting the recording date

There is an option to include DATE / TIME on still images.

- Sub menus [Off]* : The DATE & TIME will not be

imprinted on the image ﬁ le.

[Date] : Only the DATE will be

imprinted on the image ﬁ le.

[Date & Time] : The DATE & TIME will be

imprinted on the image ﬁ le.

The Date & Time are imprinted at the bottom right side of the still image.

The imprint function is applied only to still images.

Depending on the manufacturer and print mode, the date printed on an image may not be printed correctly.

Format

Reset

Date & Time :

Time Zone :London

File No. :Series

Imprint :Off

Auto Power Off :3 min

Back Set

Off

Date

Date & Time

Auto power off

This function switches the camera off after a set amount of time in order to prevent unnecessary battery drainage.

- Sub menus [Off] : The power off function will not

operate.

[1 min], [3 min]*, [5 min], [10 min]

: The power will turn off

automatically if not used for the period of time speciﬁ ed.

After replacing the battery, the power off setting will be preserved.

- Note that the automatic power off function will not operate if the

camera is in the PC / Printer mode, slide show, playing back a voice recording and playing back a movie clip.

Format

Reset

Date & Time :Off

Time Zone :London

File No. :Series

Imprint :Off

Auto Power Off :3 min

Back Set

Off

1 min

3 min

5 min

10 min

Page 52

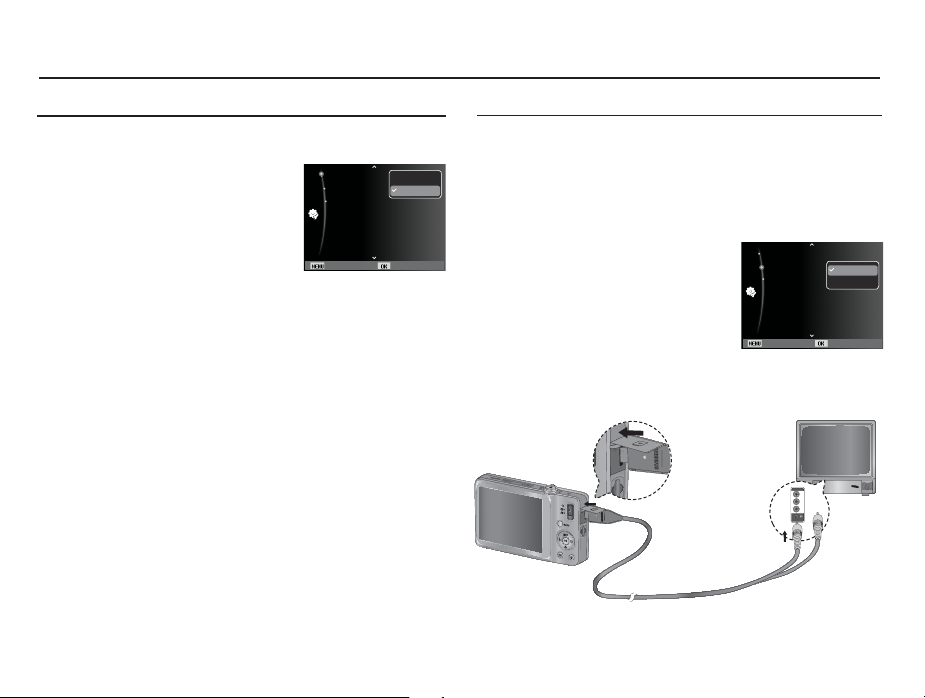

Settings

(” )

Auto Focus lamp

You can turn on and off the Auto Focus lamp.

- Sub menus [Off] : The AF lamp will not light up in

low light conditions.

[On]*

: The AF lamp will light up in low

light conditions.

AF Lamp :On

Video Out :NTSC

USB :Auto

Back Set

Off

Selecting Video out type

The Movie output signal from the camera can be NTSC or PAL. Your choice of output will be governed by the type of device (monitor or TV, etc.) to which the camera is connected. PAL mode can support only BDGHI.



Connecting to an external monitor

When the camera is connected to an

external monitor, the image and menus on the LCD monitor will be visible on the external monitor and the LCD monitor of the camera.

Yellow - Video White - Sound

AF Lamp :On

Video Out :NTSC

USB :Auto

Back Set

NTSC

PAL

Page 53

Settings

(” )

- NTSC : U.S.A, Canada, Japan, South Korea, Taiwan, Mexico.

- PAL : Australia, Austria, Belgium, China, Denmark, Finland, Germany, U.K., Holland, Italy, Kuwait, Malaysia, New Zealand, Singapore, Spain, Sweden, Switzerland, Thailand, Norway.

- When using a TV as an external monitor, you will need to select

the external or AV channel of the TV.

- There will be a digital noise on the external monitor, but it is not a

malfunction.

- If the image is not in the centre of the screen, use the TV controls

to centre it.

- When the camera is connected to an external monitor, some parts

of the image may not be displayed.

- When the camera is connected to an external monitor, the menu

will be visible on the external monitor and the menu functions are the same as those indicated on the LCD monitor.

Setting the USB

If the camera is set to connect automatically to a PC or a printer using a USB cable, you can manually set [Computer] or [Printer].

-[USB] sub menus: [Auto]* : Automatically enables an

external device connected with a USB cable.

[Computer] : Sets computer connec-

tion mode if the connected external device cannot be recognized automatically.

[Printer] : Sets printer connection mode if the connected external

device cannot be recognized automatically.

AF Lamp :On

Video Out :NTSC

USB :Auto

Back Set

Auto

Computer

Printer

Page 54

Starting play mode

Turn the camera on and select Play mode by pressing the play mode button ( Î ). The camera can now play back the images stored in the memory. If the memory card is inserted in the camera, all the camera functions apply only to the memory card. If the memory card is not inserted in the camera, all the camera functions apply only to the internal memory.

Playing back a still image

1. Select the PLAY mode by pressing the play mode button ( Î ).

2. The last image stored on the

memory is displayed on the LCD monitor.

3. Select an image that you want to

view by pressing the Left/ Right button.

Press and hold the Left or Right button to play back the images quickly.

Playing back a movie clip

1. Select the recorded movie clip that you want to play back by using the Left/Right button.

Press the OK button to play back a

2. movie clip file.

- To pause a movie clip file while playing it back, press the OK button again.

- Pressing the OK button again will cause the movie clip file to restart.

To rewind the movie clip while it is

playing, press the Left button. To fast forward the movie clip, press the Right button.

- To stop playback of the movie clip, press the OK button, and then press the Left or Right button.

Play Capture

Page 55

Starting play mode

Movie clip capture function

You can capture still images from the movie clip.



How to capture the movie clip

1. Press the OK button while playing the movie clip. Then press the Down button.

2. The paused movie clip is saved in a

new file name.

The captured movie clip file is the same size as the original movie clip (800x592, 640x480, 320x240).

When you press the down button at the beginning of the movie clip, the first frame of the movie clip will be saved as a still image.

Play Capture

[Press the down button]

[Paused]

Playing back a recorded voice

Select the recorded voice that you want to play back by using the Left/Right button.

2. Press the OK button to play back a recorded voice file.

- To pause a recorded voice file, while playing it back, press the OK button again.

- To resume playback of the voice file, press the OK button.

- To rewind the voice file while it is playing, press the Left button. To fast forward the voice file, press the Right button.

- To stop playback of the voice memo, press the Down button.

Play

Page 56

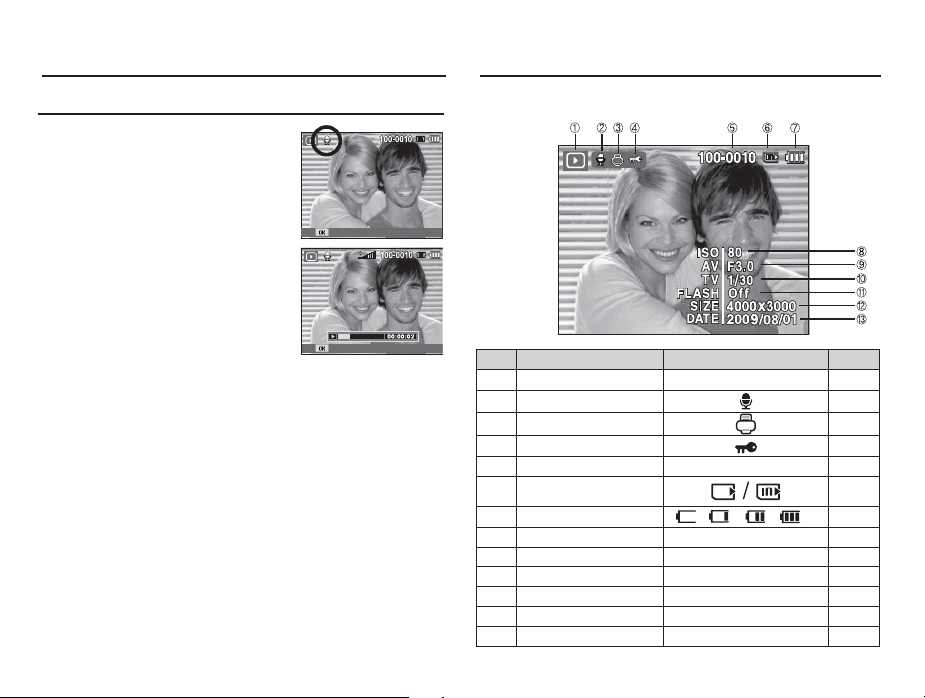

Starting play mode

LCD monitor Indicator

Playing back a voice memo

1. Select a still image that has the voice memo.

2. Press the OK button to play back the voice memo.

- To pause the voice memo, while playing it back, press the OK button again.

- To resume playback of the voice memo, press the OK button.

Play

Pause

The LCD monitor displays shooting information about the displayed image.

No. Description Icon Page

1 Playback mode

2 Voice Memo

3 DPOF

4 Protect p.70 5 Folder name & File name 100-0010 p.49

6 Memory card indicator

7 Battery

8 ISO 80~3200 p.34 9 Aperture value F3.0 ~ F5.6 -

10 Shutter speed 8 ~ 1/1,500 -

11 Flash On/Off p.27 12 Image size 4000X3000 ~ 320X240 p.36 13 Recording date 2009/08/01 p.49

p.53

p.70

p.71

p.14

Page 57

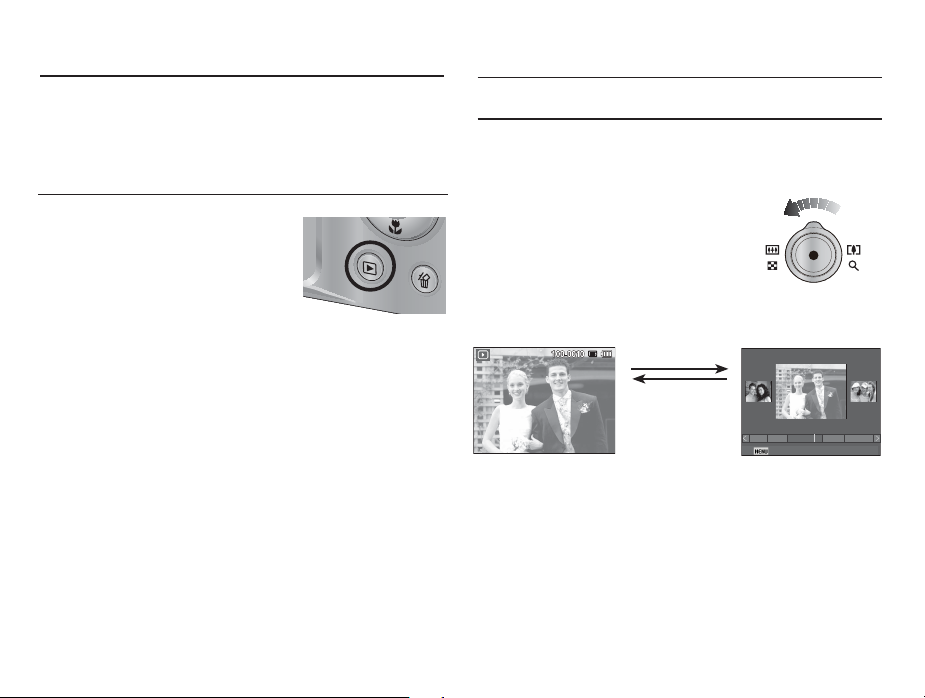

Using the camera buttons to set the camera

Thumbnail ( º ) / Enlargement ( í ) Lever

In Play mode, you can use the buttons on the camera to conveniently set up the Play mode functions.

Play mode button



If you have turned on the camera by pressing the POWER button, you can press the Play mode button once to switch to Play mode and press it again to switch to Recording mode.



You can turn the power on with the Play mode button. The camera is turned on in play mode. Press the Play mode button again to turn off the camera.



Manner mode: To select the Manner mode, press the Play mode

button for more than 3 seconds. In the Manner mode, Operating sound, Effect sound, Start-up sound and Shutter sound will not be generated. To cancel the Manner mode, turn on the camera by pressing the POWER button.

Smart Album

You can view multiple pictures, enlarge a selected picture, and crop and save a selected area of an image.

1. Turn the Thumbnail lever to the left when one picture is displayed to enter the Smart Album screen.

2. Press the Left/Right button to move to a desired image.

3. Turn the Digital Zoom lever to the right to move to the normal display screen.

Turn the Thumbnail

(º) lever to the left.

Turn the Digital Zoom (í) lever to the right.

1 31 31211 5

[Highlighted image]

Filter 2009/08/01

[Smart Album 3-Thumbnail Window]

Page 58

Thumbnail ( º ) / Enlargement ( í ) Lever

Ŷ Searching or Deleting Files

1. Turn the Thumbnail lever to the left on the Smart Album screen.

Each time you turn the Thumbnail lever to the left, ﬁ les in the relevant category are displayed on the Smart Album screen.

3. Select the ﬁ le by pressing the Up/Down/ Left/Right buttons.

4. Press the Delete ( Õ ) button to delete the selected ﬁ le.

1 31 31211 5

Filter 2009/08/01

[3-Thumbnail Window]

1 31 31211 5

Filter 2009/08/01

[9-Thumbnail Window] [20-Thumbnail Window]

1 31 31211 5

Filter 2009/08/01

Ɣ When Smart Album feature runs or a category is selected, it

may take few seconds depends on recorded data volume. However, it is not a malfunction please wait until Smart Album screen appears.

Ŷ Smart Album Filter

1. Press the MENU button in Smart Album mode.

Selecting the desired category enables to categorize and search the ﬁ les by using the Up/Down button.

Type

Date

Colour

Week

1 31 31211 5

Back Set

Ŷ Details of Each Category

Category Description File Format

Categorized depending on the ﬁ le type

Type

(e.g., picture, video, or voice)

Categorized depending on the sequence of

Date

recorded dates.

Colour Categorized depending on the main color.

Week

Categorized depending on the sequence of recorded weeks.

Pictures,

Videos,

Voice

Page 59

Thumbnail ( º ) / Enlargement ( í ) Lever



Image enlargement

1. Select the picture you want to enlarge and move the Digital Zoom lever to the right. Then the selected picture will be digitally enlarged.

2. Different parts of the image can be viewed by pressing the 5 function button.

3. Move the Thumbnail lever to the left to return the enlarged picture to its original size.

- You can tell whether the image displayed is an enlarged view by checking the image enlargement indicator shown at the top left of the LCD monitor. (If the image is not an enlarged view, the indicator will not be displayed.) You can also check the area of enlargement.

- Movie clips and WAV files can’t be enlarged.

- If an image is enlarged, a loss of quality may occur.

Trim



The maximum enlargement rate in proportion to the image size

Image size

Maximum

enlargement



Trimming : You can extract part of the image that you want and

X10.2 X10.2 X9.3 X10.2 X8.1 X6.4 X3.2

rate

save it separately.

Select an image that you want to

enlarge and press the enlargement button. Press the OK button and a message will be displayed.

2. Select a desired sub menu by pressing the Up / Down button and press the OK button.

Trimming?

Confirm

Yes

- [Yes] : The trimmed image will be saved as a new file name, and appear on the LCD monitor.

- [No] : The trimming menu will disappear.

If there is not enough memory space to save the trimmed

image, the image can’t be trimmed.

Page 60

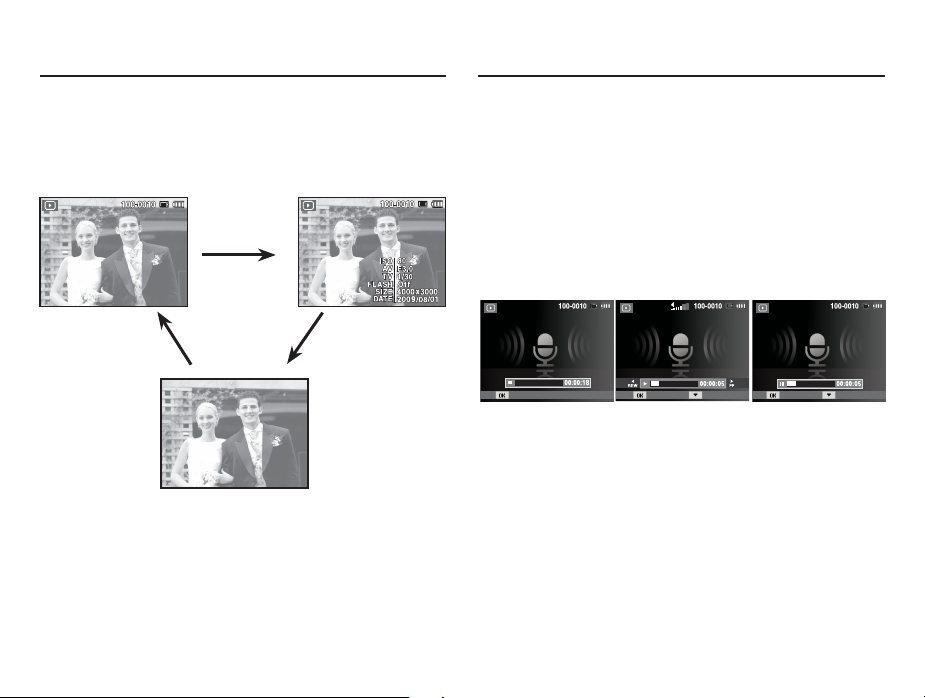

Info (DISP) / Up button

Play & Pause / OK button

When the menu is displayed on the LCD monitor, the UP button operates as a direction button. When the menu is not displayed on the LCD monitor, pressing the Info button will display image information on the LCD monitor.

Info (DISP) button

Info (DISP) buttonInfo (DISP) button

In Play mode, the play & pause/ OK button works as follows:

When the menu is displayed on the LCD monitor, the OK button is used for confirming data that is changed by using the 5 function button.

- If a still image with a voice memo, a voice file, or a movie clip is playing

·In Stop mode : Plays a still image with a voice memo, a

·During playback : Temporarily stops playback.

·In Pause mode : Resumes playback

[ Voice recording is stopped ]

voice file, or a movie clip.

Play StopPause StopPlay

[ Voice recording is playing ] [ Voice recording is paused ]

Page 61

Left / Right / Down / MENU button

Delete

(Õ )

button

LEFT / RIGHT / DOWN / MENU buttons activate the following.

- LEFT button : While the menu is showing, the LEFT button operates as a direction button. While the menu is not showing, press the LEFT button to select the previous image.

- RIGHT button : While the menu is showing, the RIGHT button operates as a direction button. While the menu is not showing, press the RIGHT button to select the next image.

- DOWN button :

While the menu is showing, the Down button operates as a direction button.

- MENU button :

When you press the MENU button, the play mode menu will be displayed on the LCD monitor. Pressing it again will return the LCD to the initial display.

This deletes images stored on the memory card.

1. Select an image that you want to delete by pressing the Left / Right button and press the DELETE ( Õ ) button.

Delete File?

Yes No

Multiple Delete

Set

[Single Image] [Thumbnail Image]

Set

Delete File?

Yes

Multiple Delete

1 31 31211 5

2. To add images to delete, select the [Multiple Delete] menu.

- Left/Right button : Selects images

- OK button :

Delete ( Õ ) button

checks for deletion

: deletes the

selected images.

Prev Next

Select Delete

3. Select the submenu values by pressing the Up / Down button and then press the OK button.

- If [Yes] is selected : deletes the selected images.

- If [No] is selected : cancels "Delete Image".

Page 62

Setting up the play back function using the LCD monitor

PLAY mode functions can be changed by using the LCD monitor. In the PLAY mode, pressing the MENU button displays the menu on the LCD monitor. The menus you can set up in Play mode are as follows. To capture an image after setting up the play menu, press the PLAY mode button or shutter button.

Menu Tab Main Menu Sub Menu Page

2592X1944 2048X1536

1024X768 2592X1728

1800X1200 2592X1458

1920X1080 Start Image

Right 90˚ Left 90˚

Vertical -

Normal Soft

Vivid Forest

Retro Cool

Calm Classic

Negative Custom

ACB Red-eye Fix

Face Retouch Brightness

Contrast Saturation

Add Noise -

Single, 3, 9, 20 p.67

All Date

Select -

p.63

p.64180˚ Horizontal

p.64

p.65

p.68

Edit

(

)

View

( )

Multi Slide

Show

(

)



Resize

Rotate

Photo Style

Selector

Image Adjust

Start Play / Repeat - p.67

Images

Menu Tab Main Menu Sub Menu

Off Calm -

Sweet Rural -

Vivid Lively -

Shine Relax -

Off Mist -

Muse Fall -

Dawn Party -

Drops Trip -

Select -

All Yes / No

Select -

All Unlock / Lock

Off -

On -

Standard

Index Yes / No

Size

Yes

Multi Slide

Show

)

(



File

Options

( )

Effect

Interval 1, 3, 5, 10 sec - p.69

Music

Delete

Protect

Voice memo

DPOF

Copy To Card

Secondary

Select / All /

Reset

Select / All /

Reset

Page

p.68

p.69

p.70

p.71

p.72

p.73

Page 63

Setting up the play back function using the LCD monitor

This menu is available while the camera is connected to a PictBridge supporting printer (direct connection to the camera, sold separately) with a USB cable.

Menu Tab Main Menu Sub Menu Secondary Menu Page

Images

Size

❹

Layout

One Photo -

All Photos -

Auto -

PostCard -

Card -

4X6 -

L-

2L -

Letter -

A4 -

A3 -

Auto -

Full -

16 -

Index -

p.81

Menu Tab Main Menu Sub Menu Secondary Menu Page

Auto -

Type

Quality

❹

Date

File Name

Reset

Menus are subject to change without prior notice.

Plain -

Photo -

FastPhoto -

Auto -

Draft -

Normal -

Fine -

Auto -

Off -

On -

Auto -

Off -

On -

Yes -

No -

p.81

p.82

Page 64

Edit ( )

Resize

Change the resolution (size) of pictures taken. Select [Start image] to save an image to be the start-up image.

1. Press the play mode button and press the MENU button.

2. Click the Up/Down button from the Edit menu to select [Resize] ( ) menu tab and press the OK button.

3. Select a desired sub menu by pressing the Left / Right button and press the OK button.



Image Resize Types ( o : Selectable)

oooo

ooo

Resize

Back Move

- A large sized image can be resized to a smaller sized image, but not vice versa.

- Only JPEG images can be resized. Movie clip (AVI), Voice

recording (WAV) files can’t be resized.

- You can change the resolution of only those files compressed in

the JPEG 4:2:2 format.

The resized image will have a new file name. The [Start Image] image is stored not on the memory card but on the internal memory.

- If a new user image is saved, one of the two user images will be

deleted in order.

- If the memory capacity is insufficient to store the resized image,

a [Memory Full] message will appear on the LCD monitor and the resized image can't be stored.

Page 65

Edit ( )

Rotating an image

You can rotate the stored images by various degrees.

1. Press the play mode button and press the MENU button.

Click the Up/Down button from the Edit menu to select [Rotate] ( ò ) menu tab and press the OK button.

3. Select a desired sub menu by pressing the Left / Right button and press the OK button.

[

: Right 90˚]

: Rotate picture in a

clock-wise direction

[ : Horizontal] : Rotate picture horizontally

[ó : Left 90˚] : Rotate picture in a

counter-clock-wise direction

[® : Vertical] : Rotate picture vertically

If you display the rotated image on the LCD monitor, empty spaces may appear to the left and right of the image.

VerticalHorizontal

Back MoveBack Move

Rotate

Back Move

180˚Left 90˚Right 90˚

Back MoveBack MoveBack Move

[õ : 180˚] : Rotate picture 180

degrees

Photo Style Selector

It is possible to add various effects to your images by using this function.

1. Press the play mode button and press the MENU button.

Click the Up/Down button from the

Edit menu to select [Photo Style Selector ] ( ) menu tab and press

the OK button.

Select a desired sub menu by pressing

the Left / Right button and press the OK button.

Style mode Icon Description

Normal

Soft

Vivid

Forest

Retro

Cool

Calm

Classic

Negative

Custom RGB

No style effect is applied.

Soft style is applied.

Vivid style is applied.

Forest style is applied.

Sepia style is applied.

Cool style is applied.

Calm style is applied.

Black & white effect is applied.

Negative effect is applied.

Deﬁ ne an RGB tone to create your own photo style.

4. The changed image is saved as a new file name.

Photo Style Selector

Back Move

Page 66

Edit ( )



Custom colour

You can change the R (Red), G (Green) and B (Blue) values of the image.

- OK button : Select / setup the Custom

- Up / Down button : Selects R, G, B

- Left / Right button : Change the values

Colour

Back Move



Red eye Removal

Red eye effect can be removed from the captured image.

1. Select (  ) by pressing the Left/Right

button and press the OK button.

2. The [Making New Image] message is displayed and the image is saved as a

Red-eye Fix

new file name.

Back Move

Image Adjust

1. Press the play back button and press the MENU button.

Click the Up/Down button from the Edit menu to select [Image Adjust] ( ) menu tab and press the OK button.



ACB

You can automatically adjust the brightness of the dark area, caused by under exposure to the light source.

1. Select ( ) by pressing the Left/ Right button and press the OK button.

The [Making New Image] message is

displayed and the image is saved as a new file name.

ACB

Back Move



Face Retouch

You can make the skin in an image appear clear and beautiful.

1. Select ( ) by pressing the Left/Right button and press the OK button. Then a bar for selecting the face retouch will be displayed.

Face Retouch

2. Change the face retouch by pressing the Left/Right button.

3. Press the OK button and the image will

Back Move

be saved as a new file name.

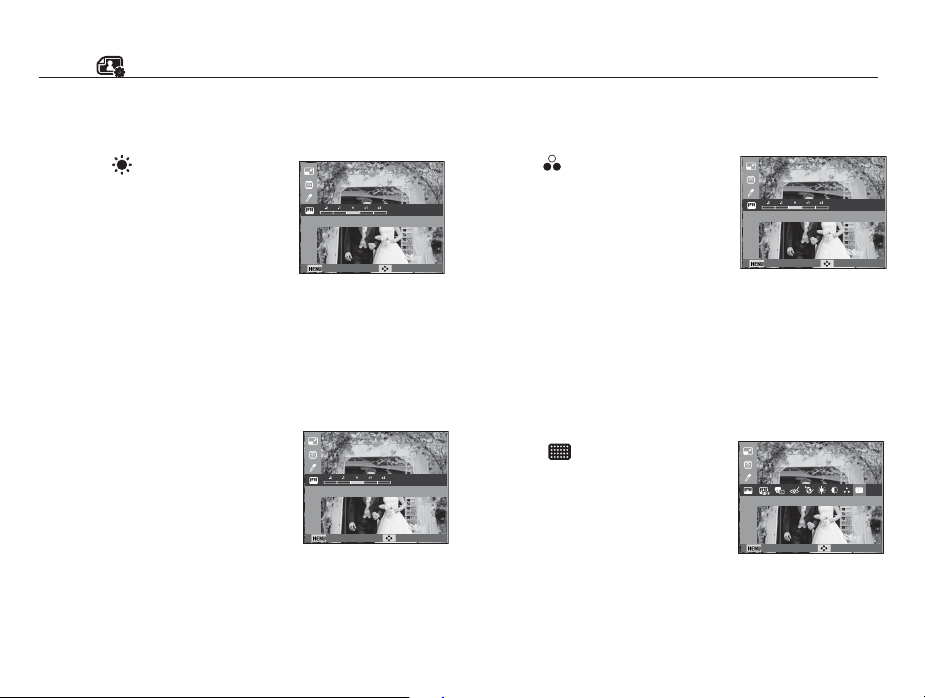

Page 67

Edit ( )



Brightness control

You can change the brightness of the image.

1. Select ( ) by pressing the Left/Right button and press the OK button. Then a bar for selecting the brightness will be displayed.

2. Change the brightness by pressing the

Left/Right button.

3. Press the OK button and the image will

be saved as a new file name.



Contrast control

You can change the contrast of the image.

1. Select (  ) by pressing the Left/Right button and press the OK button. Then a bar for selecting the contrast will be displayed.

2. Change the contrast by pressing the Left/Right button.

3. Press the OK button and the image will be saved as a new file name.

Brightness

Back Move

Contrast

Back Move



Saturation control

You can change the saturation of the image.

1. Select ( ) by pressing the Left/Right button and press the OK button. Then a bar for selecting the saturation will be displayed.

Saturation

2. Change the saturation by pressing the Left/Right button.

3. Press the OK button and the image will be

Back Move

saved as a new file name.



Noise effect

You can add noise to an image to add a more classic feel to your photo.

1. Select ( ) by pressing the Left/ Right button and press the OK button.

The [Making New Image] message is

displayed and the image is saved as a

Add Noise

new file name.

Back Move

Page 68

View

( )

Starting the Multi Slide Show

( )

You can view the thumbnails and easily categorize or search a large amount of content such as pictures and videos.

1. Press the MENU button in playback mode.

2. Press the Up/Down button to select the desired menu.

Single

3. Press the OK button and selected thumbnail screen will appear.

Exit Back

Images can be displayed continuously at pre-set intervals. You can view the Multi Slide Show by connecting the camera to an external monitor.

1. Press the play mode button and press the menu button.

2. Press the Up / Down button and select the [Multi Slide Show] menu tab and press the OK button.

Start the Multi Slide Show

The Multi Slide Show can start only in the [Start] menu.

1. Use the Up / Down buttons to select the [Start] menu and press the Right button.

2. Select a desired sub menu by pressing the Up / Down button.

[Play] : The Multi Slide Show is

closed after one cycle.

[Repeat] : The Slide show is repeated

until cancelled.

3. Press the OK button and the slideshow will be started.

- To pause the slide shown while playing it back, press the OK button again.

- Pressing the OK button again will cause the Multi Slide Show restart.

- To stop playback of the Multi Slide Show, press the OK button, and then press the Left or Right button.

Start

Images :All

Effect :Off

Interval :1 sec

Music :Off

Back Set

Play

Repeat

Page 69

Starting the Multi Slide Show

( )

Selecting Images

You can select image to view

1. Use the Up / Down buttons to select the [Images] menu and press the Right button.

2. Select a desired sub menu by pressing the Up / Down button.

[All] : All images saved in the

Memory are played back. Press the OK button to save the configuration.

[Date] : Images taken in a specified date are played back.

Press the OK button to save the configuration.

[Select] :

Play only the selected images. The selected image can be saved as [Select1], [Select2] and [Select3]. If you save the selected image with the [New Select] command, it will be saved as [Select1]. But when a new image is saved again using [New Select], the former image which had been saved as [Select1] will be saved as [Select2] automatically.You can change and cancel the images which were saved as [Select1], [Select2] and [Select3]. Press the ( Õ ) button to save the configuration.

3. Select [Play] or [Repeat] in the [Start] menu to start the multi slide show.

Start

Images :All

Effect :Off

Interval :1 sec

Music :Off

Back Set

All

Date

Select

Configure Multi Slide show effects

Unique screen effects can be used for the Multi Slide Show.

Select the [Effect] sub menu by press-

ing the UP / DOWN button and press the RIGHT button.

2. Use the Up / Down button to select the type of effect.

3. Press the OK button to confirm the setting.

Start

Images :All

Effect :Off

Interval :1 sec

Music :Off

Back Set

Off

Calm

Sweet

Rural

Vivid

Lively

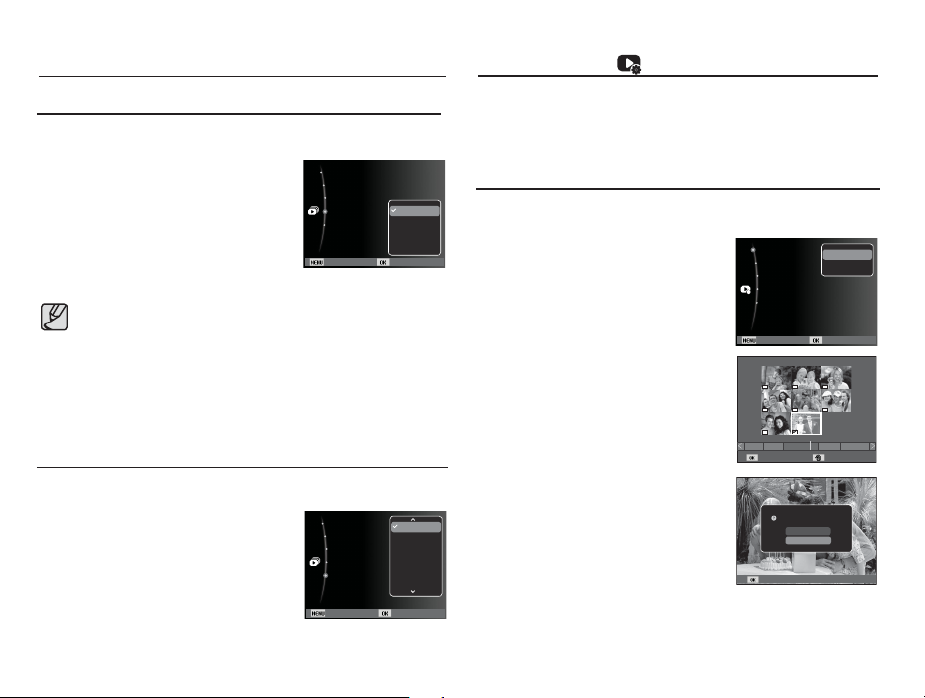

Page 70

Starting the Multi Slide Show

( )

File Options

( )

Setting play interval

Set the Multi Slide Show play interval.

1. Select the [Interval] sub menu by pressing the UP / DOWN button and press the RIGHT button.

2. Use the Up / Down buttons to select the desired interval.

3. Press the OK button to save the configuration.

The loading time depends on the image size and quality.



While the Multi Slide Show is playing, only the first frame



Start

Images :All

Effect :Off

Interval :1 sec

Music :Off

Back Set

of a MOVIE file is displayed. While the Multi Slide Show is playing, the voice recording file



will not display. The interval menu functions in the [Off] menu only.



Setting Background Music

Set the Multi Slide Show music.

1. Select the [Music] sub menu by pressing the UP / DOWN button and press the RIGHT button.

2. Use the Up / Down buttons to select the desired Music.

3. Press the OK button to save the

configuration.

Start

Images :All

Effect :Off

Interval :1 sec

Music :Off

Back Set

1 sec

3 sec

10 sec

Off

Mist

Muse

Fall

Dawn

Party

1. Press the play mode button and press the menu button.

2. Press the Up / Down button and select the [File Options] menu tab and press the OK button.

Deleting images

sec

This deletes images stored on the memory.

1. Press the Up / Down button and select the [Delete] menu tab. And then press the Right button.

2. Select a desired sub menu by pressing the

UP / DOWN button and press the OK button.

[Select] : Selection window for an image

to delete is displayed.

Delete

Protect

Voice memo :Off

DPOF

Copy To Card

Back Set

Select

All

- Up/ Down/ Left/ Right : Select an image

- OK button : Select the image for deletion. ( Ë mark)

- Delete Button : Press the Delete button to

display the confirmation message. Select the [Yes]

1 31 31211 5

Select Delete

menu and press the OK button to delete marked

[All] :

Displays confirmation window.

Select the [Yes] menu and press the OK button to delete all unprotected images. If there aren’t protected

images.

Delete All File(s)?

Set

Yes

images, all the images are deleted and a [No Image File] message will appear.

3. After deletion, the screen will be changed to the play mode screen.

Page 71

File Options

( )



Of all the files stored in the memory card, the unprotected files in the DCIM subfolder will be deleted. Remember that this will permanently delete unprotected images. Important shots should be stored on a computer before deletion takes place. The startup image is stored in the camera's internal memory (i.e., not on the memory card) and it will not be deleted even if you delete all files on the memory card.

Protecting images

This is used to protect specific shots from being accidentally erased (Lock). It also unprotects images that have been previously protected (Unlock).

1. Press the Up / Down button and select the [Protect] menu tab. And then press the Right button.

2. Select a desired sub menu by pressing the UP / DOWN button and press the OK button.

[Select ] : Selection window for an

Delete

Protect

Voice memo :Off

DPOF

Copy To Card

Back Set

Select

All

image to be protected / released is displayed.

- Up / Down / Left / Right : Select an image

- OK button : Protect / release the

- Delete button : Your changes will be


saved and the menu

1 31 31211 5

Select Set

will disappear.

Voice memo

You can add your voice to a stored still image.

- Press the shutter button to record up to 10 seconds of voice into

- To stop the recording, press the shutter button.

[All] : Protect / release all saved images

- If you protect an image, the protect icon will be displayed on the LCD monitor. (An unprotected image has no indicator)

- An image in LOCK mode will be protected from the delete function or [Delete] functions, but will NOT be protected from the [Format] function.

Delete

Protect

Voice memo :Off

DPOF

Copy To Card

Back Set

Off

Start Stop

[Ready for recording] [Voice is recording][Voice memo menu]

a stored still image.

Set

Protect All?

Lock

Unlock

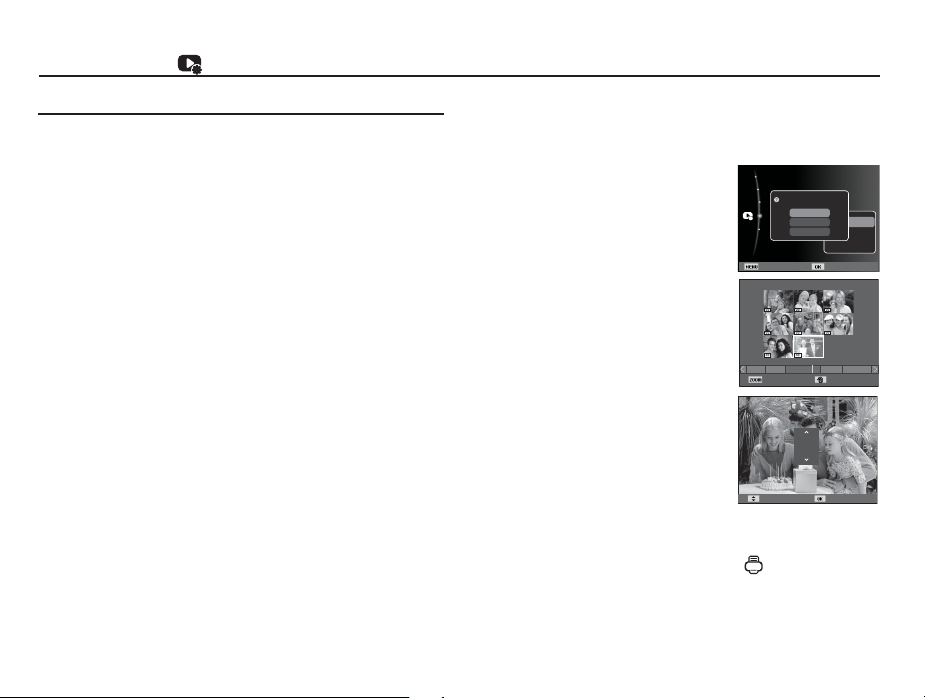

Page 72

File Options

( )

DPOF



DPOF(Digital Print Order Format) allows you to embed printing information on your memory card’s MISC folder. Select the pictures to be printed and how many prints to make.



The DPOF indicator will display on the LCD monitor when an image that has DPOF information plays back. Images can then be printed on DPOF printers, or at an increasing number of photo labs.



This function is not available for Movie clips and Voice recording files.



When the wide angle image is printed as a wide angle print, 8% of the left and right side of the image may not be printed. Check that your printer can support the wide angle image when you print the image. When you print the image at a photo lab, request that the image is printed as a wide angle image. (Some photo labs may not support the wide angle size print.)



Standard

This function allows you to embed printing quantity information on a stored image.

1. Press the Up / Down button and select the [DPOF] menu tab. And then press the Right button.

2. Press the Right button again and [Standard] sub menu will display.

3. Select a desired sub menu by pressing

Delete

Protect

Select Image

Voice memo :Off

Select

DPOF

Copy To Card

Back Set

Reset

Standard

All

Index

Size

the Up / Down button and press the OK button.

[Select] : Selection window for an

image to print is displayed.

- Up / Down / Left / Right : Select an image to print.

1 31 31211 5

Quantity Set

- Zoom W/T Lever : Select the number of

prints.

[All] : Configure number of prints for all

pictures except movie and voice

files.

- Up / Down button : Select a number of

prints

Quantity Set

[Reset] : Cancel the print setup.

4. Press the OK button to confirm the setting. If an image carries DPOF instructions, the DPOF indicator ( ) will show.

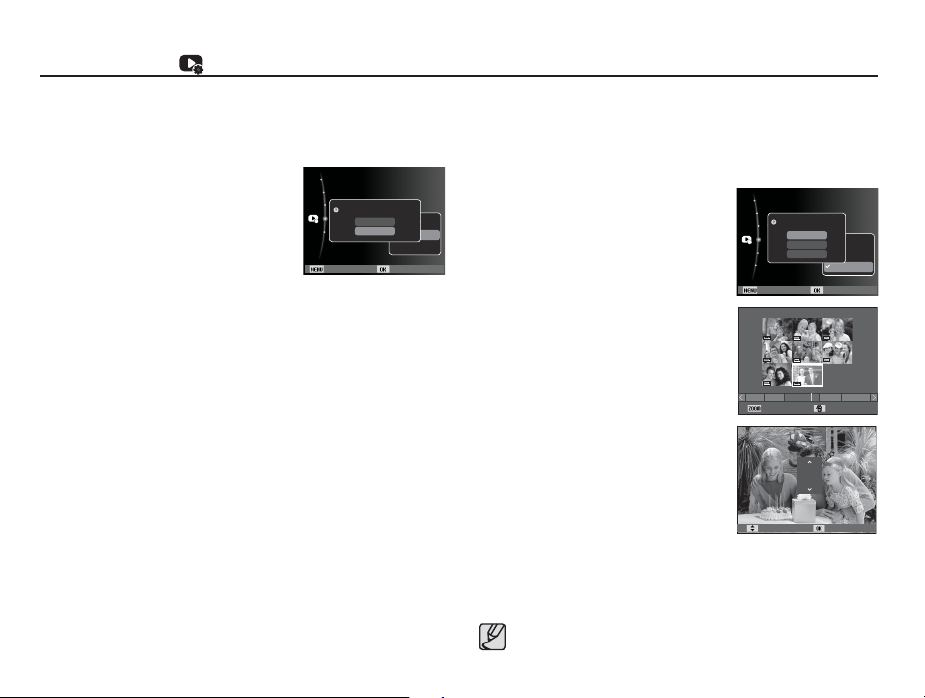

Page 73

File Options

( )



Index

Images (except for movie clips and voice file) are printed as index

type.

1. Press the Up / Down button and select the [DPOF] menu tab. And then press the Right button.

2. Select the [Index] menu and press the Right button again. Sub menu will display.

Delete

Protect

Voice memo :Off

Setting Index?

DPOF

Yes

Standard

Copy To Card

Back Set

Index

Size

3. Select a desired sub menu by pressing the UP / DOWN button.

If [Yes] is selected : The image will be printed in index format. If [No] is selected : Cancel the index print setting.

4. Press the OK button to confirm the setting.



Print size You can specify the print size when printing images stored on the memory card. The [Size] menu is available only for DPOF 1.1 compatible printers.

1. Press the Up / Down button and select the [DPOF] menu tab. And then press the Right button.

2. Select the [Size] menu and press the Right button again. Sub menu will display.

Delete

Protect

Select Image

Voice memo :Off

Select

DPOF

Copy To Card

Back Set

Reset

Standard

All

Index

Size

3. Select a desired sub menu by pressing the UP / DOWN button and press the OK button.

[Select] : Selection window to change

the printed size of the image is displayed.

- Up / Down / Left / Right : Select an image.

1 31 31211 5

Size Set

- Zoom W/T Lever : Change the print size.

- Delete button : Your changes will be saved and the menu

3X5

will disappear.

[All] : Change print size of all saved

images.

Size Set

- Up / Down button : Select a print size

- OK button : Confirm the changed setting.

[Reset] : Cancel all of the print size settings.

DPOF [Size] secondary menu : Cancel, 3X5, 4X6, 5X7, 8X10

Depending on the manufacturer and print model, cancelling the



printing may take a little longer for the printer to process.

Page 74

File Options

( )

Copy To Card

This enables you to copy image files, movie clips and voice recording files to the memory card.

1. Select the [Copy To Card] menu tab by pressing the Up / Down button. And then press the Right button.

2. Select a desired sub menu by pressing the UP/ DOWN button and press the OK button.

- [Yes] :

All images, movie clips and voice recording files saved in the internal memory are copied to the memory card after the [Copying] message is displayed. After copying has been completed, the screen will return to play mode.

- [No] : Cancels "Copy to Card".

Delete

Protect

Voice memo :Off

DPOF

Copy To Card

Back Set

Yes

If there is not enough space available in the memory card to



copy saved images in the internal memory (About 31MB), the [Copy To Card] command will copy only some of the images and display [Memory Full] message. Then the system will return to the playback mode. Please be sure to delete any unnecessary files to free up space before inserting the memory card into the camera. When you move the images that are stored in the internal



memory by doing [Copy To Card] to the card, the next number of file names will be created in the card to avoid duplication of the file name.

- When the [Reset] of the [File No.] setup menu is set : The copied file names start from after the last stored file name.

- When the [Series] of the [File No.] setup menu is set : The copied file names start from after the last captured file name. After completing [Copy To Card], the last stored image of the last copied folder is displayed on the LCD monitor.

Page 75

Smart mode

Smart mode display

Ŷ Smart mode

Smart mode allows users to take a photo simply, without setting any of the more complex functions available. Even beginners can easily learn how to operate it.

[Smart Auto mode]

Ŷ You can use the Smart button at the

top of the camera to start Smart mode.

When you press the Smart button, it will turn blue.

[Smart Movie Clip mode]

Ŷ The LCD monitor displays information about the current Smart

mode setting.

[Image & Full Status]

Page 76

Smart mode display

Starting Smart mode

No. Description Icons Page

1 Recording mode

Optical Zoom bar p.24

Number of available

shots remaining

Remaining time 00:00:00

Memory card icon /

Internal memory icon

5 Battery

6 Flash

7 Self-timer

8 Image Size

9 Frame rate

10 Date / Time 2009/08/01 01:00 PM p.49

Auto Focus Frame

00001

p.75

p.16

p.14

p.27

p.29

p.36

p.37

p.39

Selecting modes



Mode selection using the Smart button

You can use the Smart button at the top of your camera to select the correct smart mode.

[Program mode]

[Smart Auto mode]

Page 77

Starting Smart mode

How to use Smart Auto mode ( )



The camera automatically chooses the appropriate camera settings based on a detected type of scene. It will be helpful if you are not familiar with the camera settings for various scenes.

1. Use the Smart button to select Smart Auto mode.

2. The camera selects a scene automatically. An appropriate mode icon will appear at the top left of the screen.

3. Press the Shutter button to capture an image.



If the camera does not recognize a proper scene mode, the default settings will be used.



Even if there is a face detected, the camera may not select a portrait mode depending on the subject’s position or lighting.



The camera may not select the correct scene depending on shooting environments, such as camera shake, lighting, and distance to the subject.



The [Night] mode recognizes scenes only when the ﬂ ash is set to off. The camera operates the [Tripod] mode after checking the shooting condition on the tripod for a certain time.



Despite using a tripod, the camera may not select a tripod mode depending on the subject’s movement.

Each scene is recognized in the following conditions;

[Landscape] (

[White] ( ) :

[Nights] ( ) : When shooting the nighttime scenes

[Night Portrait] (

[Backlight] (

[Backlight Portrait]

[Portrait] (

[Macro] (

[Macro Text] (

[Tripod] (

[Action] (

) : When shooting outdoor scenes

When shooting in a very bright environment

) : When shooting people in a dark out-

door place

) : When shooting a backlit scenery

without a portrait

( ) : When shooting a backlit portrait

) : When shooting a portrait

) : When shooting close-ups

) : When shooting texts in a close focus

) : When shooting a subject without any

movement on the tripod

) : When shooting a subject making

frequent movements

Page 78

Starting Smart mode

Setting up the Smart menu

How to use Smart Movie Clip mode ( )



This mode allows users to record a movie clip simply, without setting any of the more complex functions available.

1. Use the Smart button to select Smart Movie Clip mode.

2. Point the camera towards the subject and compose the image by using the LCD monitor.

3. Press the shutter button once and movie clips are recorded for as long as the available recording time allows. Movie clips will still be recorded if the shutter button is released. If you wish to stop recording, press the shutter button again.

Ŷ Smart mode allows users to take a photo simply, without setting any

of the more complex functions available. Even beginners can easily learn how to operate it.

- Pressing the Menu button will display a menu screen for each Smart mode. Pressing it again will return to the previous screen.

Photo Size :

Flash :

[Pressing the MENU

button]

[Menu off (Smart Auto)] [Menu on (Smart Auto)]

Press the Up/Down button to select the Smart menu and press the

Timer : Off

Volume :

Exit Change

Medium

Right button, and then you can set a sub menu.

Photo Size :

Flash :

Timer : Off

Volume :

Exit Change

Medium

Right button

Photo Size :

Flash :

Timer : Off

Volume :

12M

Back Set

Medium

Page 79

Setting up the Smart menu

Menu items available in Smart mode are as shown below.



The items indicated by are default settings.

Main Menu Sub Menu Page

Photo Size

Movie Size 800X592 640X480 320X240

Frame Rate 30 FPS 20 FPS 15 FPS p.37

Flash Off Smart Flash p.27

Timer Off 10 Sec p.29

Volume

Language - p.46

Display Brightness

Date & Time

Time Zone

4000X

3000

Medium High

Normal Bright

yyyy/mm/dd mm/dd/yyyy

dd/mm/yyyy Off

Mid-Atlantic Buenos Aires

Newfoundland Caracas, La Paz

Miami, New York Chicago, Dallas

Denver, Phoenix LA, San Francisco

3264X

2448

Off Low

Auto Dark

London Cape Verde

Alaska Hawaii, Honolulu

2048X

1536

p.36

p.45

p.47

p.49

Main Menu Sub Menu Page

Midway, Samoa Auckland, Wellington

Okhotsk Guam, Sydney

Adelaide, Darwin Seoul, Tokyo

Beijing, Hong Kong Bankok, Jakarta

Time Zone

Format No Yes p.48

Video Out NTSC PAL p.51

For more information on how to set up the Smart menu, refer to the

Yangon Almaty

Kathmandu Mumbai, New Delhi

Tashkent Kabul

Abu Dhabi Teheran

Moscow Athens, Helsinki

Berlin, Paris, Rome -

p.49

Normal mode sections.

Page 80

Smart Play mode display

Setting up the Smart Play menu

The LCD monitor displays information about the Smart mode setting of the current photo.

No. Description Icon Page

1 Smart Play mode p.53

2 Voice Memo

3 DPOF

4 Protect p.70 5 Folder name & File name 100-0010 p.49

6 Memory card indicator

7 Battery

8 ISO 80~3200 p.34

9 Aperture value F3.0 ~ F5.6 10 Shutter speed 8 ~ 1/1,500 11 Flash On/Off p.27 12 Image size 4000X3000 ~ 320X240 p.36 13 Recording date 2009/08/01 p.49

p.70

p.71

p.14

Ŷ Setting up the Smart Play menu

You can use the Smart Play menu to set play mode functions easily. Menu items available in Smart Play mode are as shown below.



The items indicated by are default settings.

Main Menu Sub Menu Page

Edit

View

Multi Slide Show Play Repeat p.67

Delete Select All p.69

Protect Select All p.70

For more information on how to set up the Smart Play menu, refer

ACB Red-eye Fix

Face Retouch -

Single 3

920

p.65

p.67

to the Normal mode sections.

Page 81

PictBridge

You can use the USB cable to connect this camera to a printer that supports PictBridge (sold separately) and print the stored images directly. Movie clips and voice files cannot be printed.



Setting up the camera for connection to the printer

1. Connect the camera and printer with USB cable.

2. Once the camera is turned on, the camera automatically recognizes the printer and is connected to it.

If automatic connection fails, set the [USB] menu to [Printer]. (p.52)

For a printer that can enable removable disks, set the [USB] menu to [Printer].



Connecting the Camera to a Printer



Easy printing

When you connect the camera to printer

in the Play back mode, you can print a picture easily.

- Pressing the Left / Right button : Selects a previous / next image.

- Pressing the OK button : Currently displayed image will be

printed with the printer’s default setting.

Print Menu

Page 82

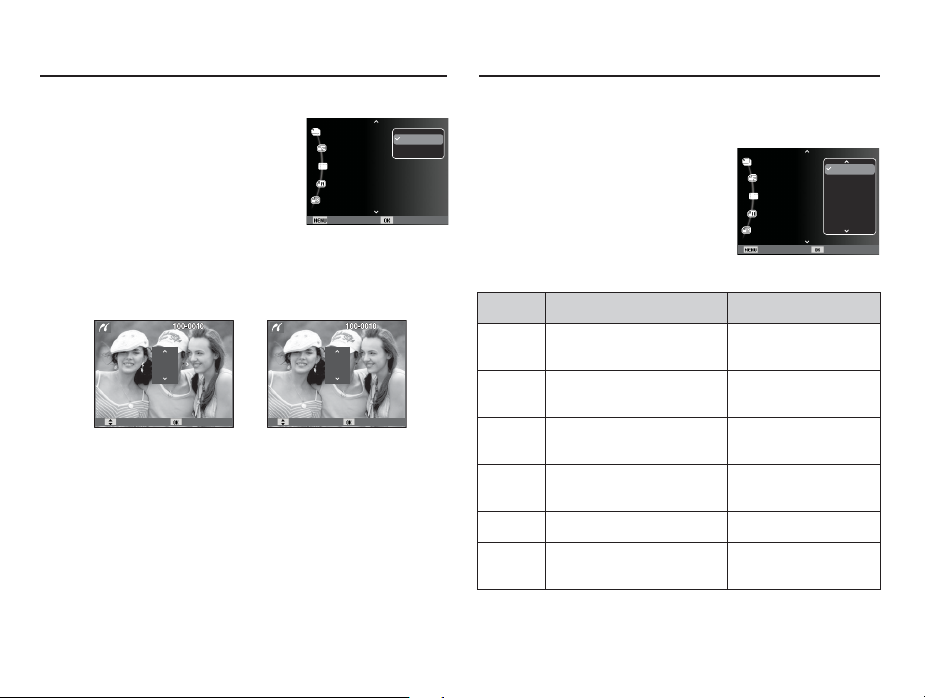

PictBridge : Picture Selection

PictBridge : Print Setting

You can select images you want to print.



Setting the Number of Copies to Print

1. Press the Menu button and the PictBridge menu will display.

2. Use the Up / Down buttons to select the [Images] menu and press the Right button.

Images :One Photo

Size :Auto

Layout :Auto

Type :Auto

Quality :Auto

Back Set

One Photo

All Photos

3. Use the Up / Down buttons to select a desired sub menu and press the OK button.

- Select [One Photo] or [All Photos]. A screen where you can set the number of copies to print will appear as shown below.

Quantity Set

[When [One Photo] is selected]

[When [All Photos] is selected]

Quantity Set

- Press the Up / Down button to select the number of prints.

- When [One Photo] is selected : Use the Left / Right button to select another picture. After selecting another picture, select the number of prints for another picture.

- After setting the number of prints, press the OK button to save.

- Press the Shutter button to return to the menu without setting

the number of prints.

4. Press the play mode button ( Î ) and images will be printed.

You can select the Paper Size, Print Format, Paper Type, Print Quality, Date Print, and File Name Print menus for printed pictures.

1. Press the Menu button and the PictBridge menu will display.

2. Use the Up / Down buttons to select the desired menu, and then press the Right button.

3. Use the Up / Down buttons to select the desired sub menu value, and then

Images :One Photo

Size :Auto

Layout :Auto

Type :Auto

Quality :Auto

Back Set

Auto

Postcard

Card

4x6

press the OK button.

Menu Function Sub menu

Size

Layout

Type

Quality

Set the size of the printing paper

Set the number of pictures to be printed on a sheet of paper

Set the quality of the printing paper

Set the quality of the picture to be printed

Auto, PostCard, Card, 4X6, L, 2L, Letter, A4, A3

Auto, Full, 1, 2, 4, 8, 9, 16, Index

Auto, Plain, Photo, FastPhoto

Auto, Draft, Normal, Fine

Date Set whether to print the date Auto, Off, On

File Name

Some menu options are not supported on all printers.

Set whether to print the file name

Auto, Off, On

If not supported, the menus are still displayed in the LCD, but are not selectable.

Page 83

PictBridge : Reset

Important notes

Initialises user-changed configurations.

1. Use the Up / Down buttons to select the [Reset] menu tab. And then press the Right button.

2. Use the Up / Down buttons to select

Date :Auto

File Name :Auto

Reset No

the desired sub menu value, and then press the OK button.

Back Set

If [Yes] is selected : All print and image settings will be reset. If [No] is selected : Settings will not be reset.

Default print setting varies depending on the printer manufacturer.

For your printer’s default setting, refer to the user’s guide that came with your printer.

Be sure to observe the following precautions!



This unit contains precision electronic components. Do not use or store this unit in the following locations.

Yes

- Areas exposed to severe changes in temperature and humidity.

- Areas exposed to dust and dirt.

- Areas exposed to direct sunlight or the inside of a vehicle in hot weather.

- Environments where there is high magnetism or excessive vibration.

- Areas with high explosives or highly flammable materials.



Do not leave this camera in places subject to dust, chemicals (like naphthalene and mothballs), high temperature and high humidity.

Keep this camera with silica gel in a hermetically sealed box when not planning to use the camera for a long period of time



Sand can be particularly troublesome to cameras.

- Do not let sand get inside the camera when using it on beaches,

coastal dunes, or other areas where there is lots of sand.

- Doing so may result in failure or may permanently render the

camera unusable.



Handling the camera

- Never drop the camera or subject it to severe shocks or vibrations.

- Protect the large size LCD monitor from an impact. When this

camera is not used, keep it in the camera case.

- Avoid obstructing the lens or the flash when you capture an image.

- This camera is not waterproof.

To avoid dangerous electrical shocks, never hold or operate the camera with wet hands.

Page 84

Important notes

- If you use this camera in wet places, such as beach or pool, do not let water or sand get inside the camera. Doing so may result in failure or may permanently damage the unit.



Extremes in temperature may cause problems.

- If the camera is transferred from a cold to a warm and humid environment, condensation can form on the delicate electronic circuitry. If this occurs, turn the camera off and wait for at least 1 hour until all moisture is dispersed. Moisture built up can also occur on the memory card. If this happens, turn off the camera and remove the memory card. Wait until the moisture has dispersed.



Caution on Using the Lens

- If the lens is subjected to direct sunlight, it could result in the discoloration and deterioration of the image sensor.

- Take care not to get fingerprints or foreign substances on the surface of the lens.



If the digital camera is not used for a long period, an electric discharge can occur. It is a good idea to remove the battery and

the memory card if you do not intend using the camera for an extended period of time.



If the camera is exposed to an electronic interference, it will turn itself off to protect the memory card.



Camera Maintenance

- Use a soft brush (available from photo stores) to gently clean the lens and LCD assemblies. If this does not work, lens-cleaning paper with lens cleaning fluid can be used. Clean the camera body with a soft cloth. Do not allow this camera to come into contact with solvent materials such as benzol, insecticide, thinners etc. This may damage the body shell of the camera and also affect its performance. Rough handling can damage the LCD monitor. Take care to avoid damage and keep the camera in its protective carry case at all times when not in use.



Do not attempt to disassemble or modify the camera.



Under certain conditions, static electricity can cause the flash unit to fire. This is not harmful to the camera and is not a malfunction.



When images are uploaded or downloaded, the data transfer may be affected by static electricity. In this case, disconnect and re-

connect the USB cable before trying the transfer again.



Before an important event or going on a trip, you should check the camera condition.

- Take a picture for testing the camera condition and prepare extra battery.

- Samsung cannot be held responsible for camera malfunctions.



If the digital camera is not used for a long period, the date and time may adopt the default settings by automatical battery discharged. In

this case, reset the date and time correctly before the recording.

Page 85

Important notes



Tempered glass is used for the camera’s LCD monitor, but excessive shock may damage the glass. If there are any cracks in it, do not touch them, or you may injure yourself.

Warning indicator

There are several warnings that may appear on the LCD display.

[Card Error]



Memory card error



Turn off the camera power and turn it on again



Insert the memory card again



Insert and format the memory card (p.48)

[Card Locked]



The memory card is locked



SD/SDHC memory card : Slide the write protect switch to the

[Memory Full]



The memory card or internal memory is full.



Insert new memory card.



Delete the unnecessary image files

[No Image File]



There are no images stored on the memory



Take images



Insert a memory card that is holding some images

[File Error]



File error



Delete the file.



Memory card error



Contact a camera service centre.

[Low Battery]



There is low battery capacity



Insert fresh batteries.

top of the memory card

Page 86

Before contacting a service centre

Please check the following Camera does not take images when pressing the Shutter button

The camera doesn’t switch on



There is low battery capacity



Insert fresh batteries. (p.14)



Battery is inserted incorrectly with the polarities reversed.



Insert the battery according to the polarity marks (+, -).

The camera power ceases while in use



The battery is exhausted



Insert fresh batteries.



The Camera is turned off automatically



Turn on the camera power again.



Operation has ceased in a low temperature outside of the camera usage temperature range.



Make the camera and battery warm by placing them in your pocket, etc. and then immediately before shooting, place the battery in the camera and then shoot.



There is insufficient memory capacity



Delete unnecessary image files



The memory card has not been formatted



Format the memory card (p.48)



The memory card is exhausted



Insert a new memory card



The memory card is locked



Refer to [Card Locked] error message



The camera's power is off



Turn the camera power on



The battery is exhausted



Insert fresh batteries (p.14)



Battery is inserted incorrectly with the polarities reversed.



Insert the battery according to the polarity marks (+, -)

The camera suddenly stops working while in use



The camera stopped due to a malfunction



Remove /re-insert battery and switch the camera on

The images are unclear



A picture was taken of the subject without setting an appropriate macro mode



Select an appropriate macro mode to take a clear image.



Taking a picture beyond the flash range



Take a picture within the flash range



The lens is smudged or dirty



Clean the lens

Page 87

Before contacting a service centre

The flash does not fire



Flash off mode has been selected



Dis-engage flash off mode



The camera mode can't use the flash



Refer to the FLASH instruction (p.27)

Incorrect date and time is displayed



The date and time have been set incorrectly or the camera has adopted the default settings



Reset the date and time correctly

The camera buttons do not operate



Camera malfunction



Remove/re-insert battery and switch the camera on

A card error has occurred while the memory card is in the camera.



Incorrect memory card format



Re-format the memory card

The images don't play back



Incorrect file name (Violation of DCF format)



Do not change the image file name

Colour of image is different to the original scene



White balance or effect setting is incorrect



Select appropriate White balance and effect

Images are too bright



Exposure is excessive



Reset exposure compensation

No image on external monitor



The external monitor has not been connected properly with the camera



Check the connection cables



There are incorrect files in the memory card



Insert a memory card that has correct files

When using the PC’s explorer, the [Removable Disk] file does not show



Cable connection is incorrect



Check the connection



The camera is off



Turn the camera on



The operating system is not Windows 2000, XP, Vista / Mac OS

10.3. Alternatively the PC does not support USB



Install Windows 2000, XP, Vista / Mac OS 10.3 to PC that supports USB

A part of the LCD screen does not occasionally turn on or a spot appears.



Although the LCD screen is manufactured with high precision technology, the precision pixels are not occasionally lighted or the red, white and blue spots appear.

This phenomenon does not affect the quality of the recorded image and it is not a malfunction.

A vertical line appears on the LCD screen when taking a picture of a bright object.



If a subject is exposing bright lights, a gray, black, red or purple vertical line may appear.

This is a phenomenon called smear and it does not affect the quality of the recorded image. This is not a malfunction.

Page 88

Specifications

Image Sensor - Type : 1/2.3" CCD

- Effective Pixel : Approx. 12.2 Mega-pixel

- Total Pixel : Approx. 12.4 Mega-pixel

Lens - Focal Length : SAMSUNG Lens f = 6.3 ~ 18.9mm

(35mm film equivalent : 35 ~ 105mm)

- F No. : F3.0(W) ~ F5.6(T)

- Digital Zoom : ·Still Image mode :1.0X ~ 5.0X

·Play mode : 1.0X ~ 10.2X (depends on image size)

LCD Monitor - 2.7" color TFT LCD (230,000 dots)

Focusing

Type : TTL auto focus

(Multi AF, Center AF, Face Detection AF)

- Range

Normal Macro

Wide

Tele 50cm ~ 80cm

80cm ~ Infinity

10cm ~ 80cm

Shutter - Smart Auto : 8 ~ 1/1,500 sec.,

Program : 1 ~ 1/1,500 sec. (AEB, Continuous : 1/4 ~ 1/1,500 sec.)

Exposure - Control : Program AE

- Metering : Multi, Spot, Center-Weighted, Face Detection AE

- Compensation : ±2EV (1/3EV steps)

- ISO : Auto, 80, 100, 200, 400, 800, 1600, 3200

(Up to 3M Size)

Flash - Modes : Auto, Auto & Red-eye reduction, Fill-in

flash, Slow sync, Flash off, Red Eye Fix

- Range : Wide : 0.4m ~ 3.0m, Tele : 0.5m ~ 2.0m

- Recharging Time : Approx. 4 sec

Sharpness - Soft+, Soft, Normal, Vivid, Vivid+

White Balance - Auto, Daylight, Cloudy, Fluorescent_H,

Fluorescent_L, Tungsten, Custom

Voice Recording - Voice Recording (max. 10 hours)

- Voice Memo in Still Image (max. 10 sec.)

Date Imprinting - Date, Date & Time, Off (user selectable)

Shooting - Still Image

Mode : Smart Auto, Program

· Smart Auto : Portrait, Night Portrait, Night,

Backlight Portrait, Backlight, Landscape, White, Macro, Macro Text, Tripod, Action

·Shooting : Single, Continuous, Motion Capture, AEB

·Self-timer : 10 sec., 2 sec., Double,

Motion Timer

Page 89

Specifications

- Movie Clip

With Audio or without Audio (user selectable, recording time : max 20 min.)

Size :

800x592(20 fps), 640x480(30 fps & 15 fps), 320x240(30 fps & 15 fps)

Frame rate : 30 fps, 20 fps, 15 fps

· 3X Optical Zoom and Mute in Zooming, sound recording on/ off selectable

· Movie Editing (Embedded): Movie Stabilization, Pause during recording, Still Image Capture, Time Trimming

Storage - Media

·Internal memory : About 31MB flash memory

· External Memory (Optional) : MMC card (Up to 2GB guaranteed, 4bit 20MHz) SD card (Up to 4GB guaranteed) SDHC card (Up to 8GB guaranteed)

- File Format

·Still Image : JPEG (DCF), EXIF 2.21, DPOF 1.1, PictBridge 1.0

·Movie Clip : AVI (MPEG-4)

·Audio : WAV

- Image Size

4000X

3984X

3968X

3264X

2592X

2048X

3000

2656

2232

2448

1944

1536

1024X

768

- Capacity (1GB Size)

Super

About

Fine

169

196

231

246

365

About

Fine

240

270

308

About

Normal

365

These figures are measured under Samsung standard conditions and

411

About

481

328

About

519

About

493

About

705

548

About

680

About

759

About

986

About

1095

About

1232

may vary depending on shooting conditions and camera settings.

Effect

- Effect : Photo Style Selector, Image Adjust (Sharpness, Contrast, Saturation)

Editing :

Resize, Rotate, Photo Style Selector, Image Adjust (ACB, Face Retouch, Red Eye Fix, Brightness, Contrast, Saturation, Add Noise)

Image Play - Type :

Single image, Thumbnails, Multi slide show, Movie Clip, Smart Album

Multi slide show : Slide show with Effect & Music

Interface - Digital output connector : USB 2.0

- Audio : Mono

- Video output : NTSC, PAL (user selectable)

- DC power input connector : 4.2 V

Page 90

Specifications

Power Source - Rechargeable battery : SLB-07A, 3.7V

Included battery may vary depending on sales region.

Dimensions (WxHxD) -

Weight -

Operating Temperature - 0 ~ 40°C

Operating Humidity - 5 ~ 85%

Software - Samsung Master, Adobe Reader

Specifications are subject to change without prior notice.

All trademarks are the property of their respective owners.

96 x 56.9 x 17.7 mm (excluding protrusions)

Approx. 105 g (without batteries and card)

(720mAh)

Page 91

Software Notes System Requirements

Please ensure that you read the instruction manual carefully before use.

- Under no circumstances should all or part of either the software or the user manual be reproduced.

- Copyrights for software are licensed only for use with a camera.

- In the unlikely event of a manufacturing fault, we will repair or exchange your camera. We cannot, however, be held responsible in any way for damage caused by inappropriate use.

Connection

Speciﬁ cations

- Using a Hand-made PC or a PC and OS that has not been guaranteed by the manufacturer is not covered by the Samsung warranty.

- Before reading this manual, you should have a basic knowledge of computers and O/S (Operating Systems).

Speciﬁ cations

It is not compatible with Windows XP and Vista 64-bit Edition.

Samsung is not responsible for any defects or damages caused by the use of unauthorized computer including an assembled PC.

For Windows For Macintosh

PC with processor better than Pentium III 500MHz

USB

(Pentium III 800MHz recommended) Windows 2000 / XP / Vista Minimum 256MB RAM (Over 512MB recommended) 250MB of available hard disk space (Over 1GB recommend)

Software

1024x768 pixels, 16bit color

Support

display compatible monitor (24bit color display recommended) Microsoft DirectX 9.0c or later

Power Mac G3 or later Mac OS 10.3 or later

Minimum 256MB RAM (Over 512MB recommended) 110MB of available hard disk space

Page 92

About the software

After inserting the CD-ROM provided with this camera into the CD-ROM drive, the following window should automatically run.



XviD codec : This makes movie clips (MPEG-4) recorded with this

To play back a movie clip recorded with this camera, you must install the XviD codec. If a movie clip recorded with this camera does not play well, install this codec. This software is only compatible with Windows.



Samsung Master : This is the all-in-one multi media software

You can download, view, edit and save your digital images and movie clips with this software. This software is only compatible with Windows.

camera play back on a PC.

solution.



You should allow 5 ~ 10 seconds for running the automatic setup program according to the capability of your computer. If the frame does not appear, run the [Windows Explorer] and select [Installer.exe] in the CD-ROM Drive root directory.

Page 93

Setting up the application software

To use this camera with a PC, install the application software first. After this has been done, the stored images in the camera can be moved to the PC and can be edited by an image editing program.



You can visit the Samsung web-site through the internet.

http://www.samsung.com

1. The auto run frame will display.

Click the [Samsung Digital Camera Installer] menu in the Auto run frame.

2. Install DirectX, XviD, Samsung Master by selecting a button shown on the monitor. If a recent version of DirectX has been installed on your computer, DirectX may not be installed.

Page 94

Setting up the application software

computer, install the XviD codec.

The XviD codec is distributed according to the GNU General Public License and everyone can copy, distribute and change this codec. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. For more information, see the License documents (http://www.gnu. org/copyleft/gpl.html).

4. Install the software by instructions on the monitor.3. To play back the movie clip recorded with this camera on the

Page 95

Setting up the application software

Starting PC mode

5. After restarting the computer, connect the PC to the camera with the USB cable.

6. Turn the camera power on. The [Found New Hardware Wizard] will open and the computer will recognise the camera.

If your OS is Windows XP/ Vista, an image viewer program will

open.



PDF documents of user manual are included in the Software CD-ROM supplied with this camera. Search the PDF files with Windows explorer. Before opening the PDF files, you must install the Adobe Reader included in the Software CD-ROM. Install Adobe Reader from the CD provided. If the Internet is not enabled, install Adobe Reader by using the executable file located in the CD.



To install the Adobe Reader 6.0.1 correctly, Internet Explorer

5.01 or later has to be installed. Visit "www.microsoft.com" and upgrade the Internet Explorer.

If you connect the USB cable to a USB port on your PC and then turn on the power, the camera will automatically switch to "computer connection mode". In this mode, you can download stored images to your PC through the USB cable.



Camera settings for connection

1. Turn on the camera.

2. Connect the camera and computer with the supplied USB cable.

3. Once the camera is turned on, the camera automatically recognizes the computer and is connected to it.

If automatic connection fails, set the [USB] menu to [Computer]. (p.52)

Page 96

Starting PC mode



Connecting the camera to a PC



Disconnecting the camera and PC

Refer to page 97 (Removing the removable disk).



Downloading stored images

You can download the still images stored on the camera to your PC's

hard disk and print them or use a photo editing software to edit them.

1. Connect the camera to your PC with the USB cable.

2. On your computer's desktop display, select [My computer] and double click [Removable Disk  DCIM 100PHOTO].The image files will then be displayed.

3. Select an image and press the right mouse button.



Page 97

Starting PC mode

4. A pop-up menu will open. Click the [Cut] or [Copy] menu.

- [Cut] : cuts a selected file.

- [Copy] : copies files.

5. Click a folder where you want to paste the file.

6. Press the right mouse button and a pop-up menu will open. Click [Paste].

7. An image file is transferred from the camera to your PC.

- By using [Samsung Master], you can see the stored images in the memory directly on the PC monitor and you can copy or move the image files.

We recommend that you should copy the images to the PC to



view them. Opening images directly from the removable disk may be subject to unexpected disconnection. When you upload a file that is not taken by this camera to the



Removable Disk, the [File Error] message will be displayed on the LCD monitor in the PLAY mode, and nothing is displayed in THUMBNAIL mode.

Page 98

Removing the removable disk



Windows 2000/XP/Vista (The illustrations may differ from those shown depending on the Windows O/S.)

1. Check whether the camera and PC are transferring a file. If the camera status lamp blinks, please wait until the lamp has finished blinking and is constantly on.

2. Double-click the [Unplug or Eject Hardware] icon on the task bar.

[Double-click!]

3. The [Unplug or Eject Hardware] window will open. Select the [USB Mass Storage Device] and click the [Stop] button.

4. The [Stop a Hardware device] window will open. Select the [USB Mass Storage Device] and click the [OK] button.

5. A [Safe to Remove Hardware] window will open. Click the [OK] button.

6. A [Unplug or Eject Hardware] window will open. Click the [Close] button and the removable disk will be removed safely.

7. Unplug the USB cable.

Page 99

Samsung Master

You can download, view, edit and save your images and movies with this software. This software is only compatible with Windows. To start the program, click [Start  Programs Samsung Samsung Master].



Downloading images

1. Connect the camera to your PC.

2. A window for downloading images will be displayed after connecting the camera to your PC.

- To download the captured images, select the [Select All] button.

- Select desired folder in the window and click the [Select All] button. You can save captured images and selected folder.

- If you click the [Cancel] button, downloading will be cancelled.

3. Click [Next >] button.



4. Select a destination and make a folder to save downloaded images and folders.

- Folder names can be made in order of date and images will be downloaded.

- Folder name will be made as you want and images will be downloaded.

- After selecting a folder that was made before, images will be downloaded.

5. Click [Next >] button.

6. A window will open as shown alongside. The destination of the selected folder will be displayed on the upper side of the window. Click the [Start] button to download the images.

7. Downloaded images will be displayed.

Page 100

Samsung Master



Image viewer : You can view the stored images.

- Image viewer functions are listed below.

Menu bar : You can select menus. File, Edit, View, Tools,

Image selection window : You can select the desired images



Media type selection menu : You can select image viewer, image edit



Preview window : You can preview an image or a movie clip and



Zoom bar : You can change preview size.



Folder display window : You can see the folder location of the



Image display window : Images of the selected folder are displayed.

Refer to the [Help] menu in Samsung Master for further information.

Change functions, Auto download, help, etc.

in this window.

and movie edit functions in this menu.

check the multi media information.

selected image.



Image edit : You can edit the still image.

- Image edit functions are listed below.

Edit menu : You can select the following menus.

[Tools] : You can resize or crop the selected image. See the

[Adjust] : You can modify image quality. See the [Help] menu. [Retouch] : You can change image or insert effects on the image.

Drawing tools : Tools for editing an image.



Image display window : A selected image displays in this window.



Preview window : You can preview the changed image.

A still image edited with Samsung Master can’t be played back on the camera.

Refer to the [Help] menu in Samsung Master for further information.

[Help] menu.

See the [Help] menu.

Samsung EC-TL90ZZBPRUS User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
