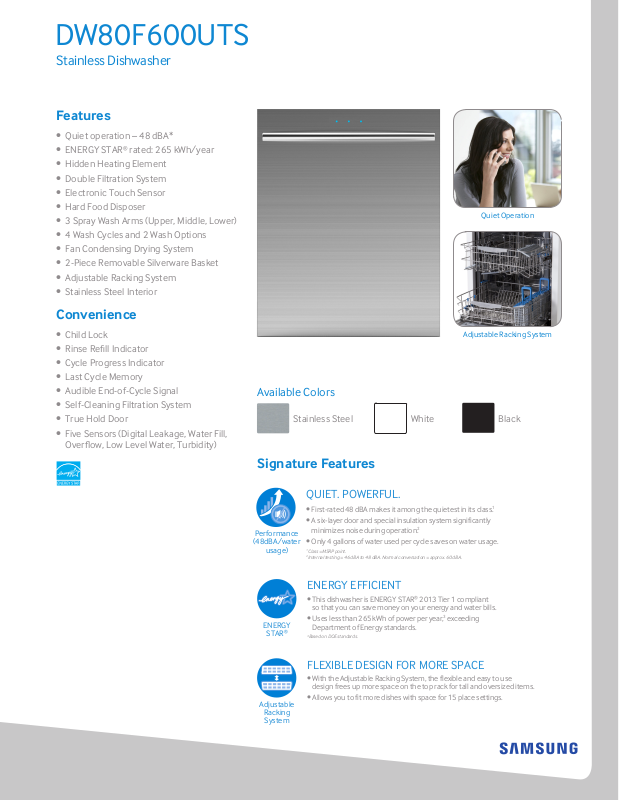

Samsung DW80F600UTS Specification Sheet

DW80F600UTS

Stainless Dishwasher

Features

• Quiet operation – 48 dBA*

• ENERGY STAR® rated: 265 kWh/year

• Hidden Heating Element

• Double Filtration System

• Electronic Touch Sensor

• Hard Food Disposer

• 3 Spray Wash Arms (Upper, Middle, Lower)

• 4 Wash Cycles and 2 Wash Options

• Fan Condensing Drying System

• 2-Piece Removable Silverware Basket

• Adjustable Racking System

• Stainless Steel Interior

Convenience

Quiet Operation

• Child Lock

• Rinse Rell Indicator

• Cycle Progress Indicator

• Last Cycle Memory

• Audible End-of-Cycle Signal

• Self-Cleaning Filtration System

• True Hold Door

• Five Sensors (Digital Leakage, Water Fill,
Overow, Low Level Water, Turbidity)

Available Colors

Stainless Steel

Signature Features

QUIET. POWERFUL.

• First-rated 48 dBA makes it among the quietest in its class.

• A six-layer door and special insulation system significantly

Performance

(48dBA/water

usage)

ENERGY

STAR

minimizes noise during operation.

• Only 4 gallons of water used per cycle saves on water usage.

1

Class = MSRP point.

2

Internal testing = 46 dBA to 48 dBA. Normal conversation = approx. 60 dBA.

ENERGY EFFICIENT

• This dishwasher is ENERGY STAR® 2013 Tier 1 compliant
so that you can save money on your energy and water bills.

• Uses less than 265 kWh of power per year,3 exceeding
Department of Energy standards.

®

3

Based on DOE standards.

White

2

Adjustable Racking System

Black

1

Adjustable

Racking

System

FLEXIBLE DESIGN FOR MORE SPACE

• With the Adjustable Racking System, the flexible and easy to use
design frees up more space on the top rack for tall and oversized items.

• Allows you to fit more dishes with space for 15 place settings.

DW80F600UTS

24"

minimum

Performance

6 Wash Cycles

Smart Auto Wash, Heavy, Pots and Pans,
Normal, Delicate-China, Quick Plus

4 Options

Sanitize-NSF Cer tified, Storm WashTM,
Half Load Wash, Delay Start – Up to 24 Hours

· Hard Food Disposer eliminates the need for
pre-rinsing.

· Hidden Heat Element reduces the risk of
melting plastic.

· Stainless Steel interior tub resists staining and
retains heat for better drying performance.

Convenience Features

· Child Lock

· Audible End of Cycle Signal

· Digital Water Leakage Sensor detects water leaks
before they happen and shuts off the dishwasher
to prevent water damage.

· Nylon Racking

· 2 Piece Removable Silverware Basket with Lids

· One-touch Adjustable rack height

· Upper Rack: 3 Step Adjustable Tine, 2 Fold-Down
Tines, 2 Metal Wire Cup Shelves, 2 Cup Clips,
Rack Removable, 1 Spread Nozzle For
Removable.

· Lower rack: 1 Step Adjustable Tine, 4 Fold-Down
Tines, 1 Removable Tine Unit

Warranty

One (1) Year All Par ts and Labor

Five (5) Year limited on printed circuit board and
interior nylon racks

Lifetime limited warranty on stainless steel door
liner and tub for leakage

Product Dimensions + Weight

Dimensions: (height is adjustable)

(WxHxD) 23

7

⁄8" x 33 7⁄8" – 35 7⁄8" x 25 1⁄4"

Weight: 108 lbs / 49 kg

Shipping Dimensions + Weight

Dimensions: (WxHxD) 27 1⁄4" x 37 3⁄4" x 28 7⁄8"

Installing your Dishwasher

Dimensions

DMT800RHS

Samsung Dishwasher

24" minimum

34"

minimum

24"

minimum

Performance

6 Wash Cycles

Smart Auto Wash, Heavy, Pots and Pans,
Normal, Delicate-China, Quick Plus

4 Options

Sanitize-NSF Certified, Storm WashTM,
Half Load Wash, Delay Star t – Up to 24 Hours

· Hard Food Disposer eliminates the need for
pre-rinsing.

· Hidden Heat Element reduces the risk of
melting plastic.

· Stainless Steel interior tub resists staining and
retains heat for better drying performance.

Convenience Features

· Child Lock

· Audible End of Cycle Signal

· Digital Water Leakage Sensor detects water leaks
before they happen and shuts off the dishwasher
to prevent water damage.

· Nylon Racking

· 2 Piece Removable Silverware Basket with Lids

· One-touch Adjustable rack height

· Upper Rack: 3 Step Adjustable Tine, 2 Fold-Down
Tines, 2 Metal Wire Cup Shelves, 2 Cup Clips,
Rack Removable, 1 Spread Nozzle For
Removable.

· Lower rack: 1 Step Adjustable Tine, 4 Fold-Down
Tines, 1 Removable Tine Unit

Warranty

One (1) Year All Par ts and Labor

Five (5) Year limited on printed circuit board and
interior nylon racks

Lifetime limited warranty on stainless steel door
liner and tub for leakage

Product Dimensions + Weight

Dimensions: (height is adjustable)

(WxHxD) 23 7⁄8" x 33 7⁄8" – 35 7⁄8" x 25 1⁄4"

Weight: 108 lbs / 49 kg

Shipping Dimensions + Weight

Dimensions: (WxHxD) 27 1⁄4" x 37 3⁄4" x 28 7⁄8"
Weight: 124.5 lbs / 56.5 kg

Color Model # UPC Code

Stainless Steel DMT800RHS 036725591981
White DMT800RHW 036725569959
Black DMT800RHB 036725569942

24" minimum

23

7

/8"

33

7

/8" –

35

7

/8"

Performance

6 Wash Cycles

Smart Auto Wash, Heavy, Pots and Pans,
Normal, Delicate-China, Quick Plus

4 Options

Sanitize-NSF Cer tified, Storm WashTM,
Half Load Wash, Delay Start – Up to 24 Hours

· Hard Food Disposer eliminates the need for
pre-rinsing.

· Hidden Heat Element reduces the risk of
melting plastic.

· Stainless Steel interior tub resists staining and
retains heat for better drying performance.

Convenience Features

· Child Lock

· Audible End of Cycle Signal

· Digital Water Leakage Sensor detects water leaks

Stainless Dishwasher

Installing Your Dishwasher

34"

36"

minimum

Dimensions

Side View Rear View

246/8"

©2013 Samsung Electronics America, Inc. 85 Challenger Road, Ridgeeld Park, NJ 07660. Tel: 800-SAMSUNG. samsung.com. Samsung is a registered trademark of Samsung Electronics Co. Ltd.

24" minimum

24"

1 3/4"

Performance

• 4 Wash Cycles
– Smart Auto Wash
– Heavy
– Normal
– Delicate-China/Gentle

• 2 Wash Options
– NSF-Certified for Sanitize­ – Delay Start – 3/6/9 Hours

• 3 Spray Wash Arms (Upper, Middle, Lower)

• Hidden Heating Element

• Double Filtration System

24"

25"

minimum

337/8" –

357/8"

Adjustable Height

237/8"

23 7/8"

The water supply
line, power cable

2 1/2"

Actual color may vary. Design, specications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.

and drain hose
should go through
this space.

• Electronic Touch Sensor

• Hard Food Disposer

• Fan Assisted Condensing Drying System

• Self-Cleaning Filtration System

• Stainless Steel Interior

Convenience

• Child Lock

• Rinse Rell Indicator

• Cycle Progress Indicator

• Last Cycle Memory

• Audible End-of-Cycle Signal

• True Hold Door

• Five sensors (Digital Leakage, Water Fill, Overow,
Low Level Water, Turbidity

• 2 Silverware Baskets

• Adjustable Racking System

Warranty

One (1) Year All Parts and Labor
Five (5) Year Limited on Printed Circuit Board
and Interior Nylon Racks
Lifetime Limited Warranty on Stainless Steel Door

Liner and Tub for Leakage

Product Dimensions & Weight (WxHxD)

Dimensions (adjustable):

237/8" x 337/8" – 357/8" x 246/8"

Weight: 108 lbs.

Shipping Dimensions & Weight (WxHxD)

Dimensions:

271/4" x 373/4" x 287/8"

Weight: 125 lbs.

Color Model # UPC Code

Stainless Steel DW80F600UTS 887276988887
White DW80F600UTW 887276985534
Black DW80F600UTB 887276985527
