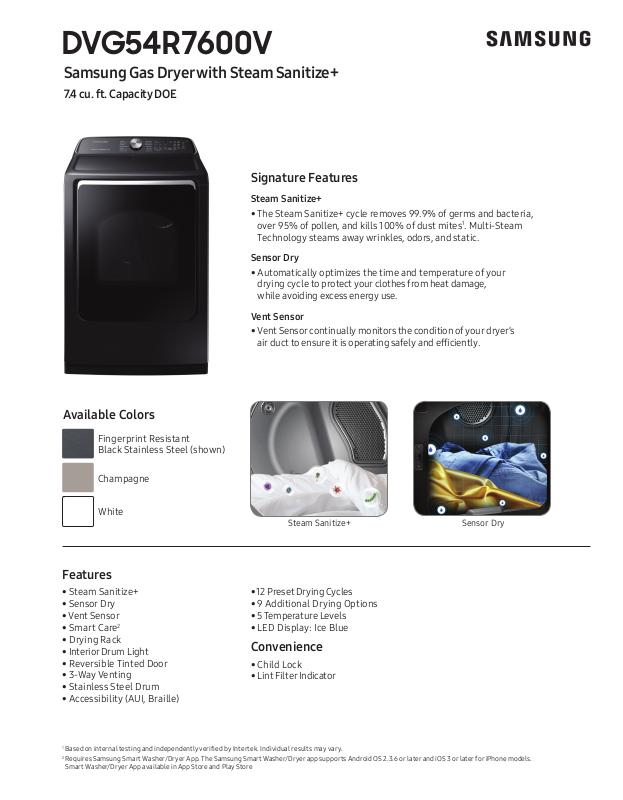

Samsung DVG54R7600W, DVG54R7600V Specifications
DVG54R7600V
Samsung Gas Dryer with Steam Sanitize+
7.4 cu. ft. Capacity DOE
Signature Features
Steam Sanitize+
• The Steam Sanitize+ cycle removes 99.9% of germs and bacteria,
over 95% of pollen, and kills 100% of dust mites1. Multi-Steam
Technology steams away wrinkles, odors, and static.
Sensor Dry
• Automatically optimizes the time and temperature of your
drying cycle to protect your clothes from heat damage,
while avoiding excess energy use.
Vent Sensor
• Vent Sensor continually monitors the condition of your dryer’s
air duct to ensure it is operating safely and efficiently.
Available Colors
Fingerprint Resistant
Black Stainless Steel (shown)
Champagne
White
Features
• Steam Sanitize+
• Sensor Dry
• Vent Sensor
• Smart Care
• Drying Rack
• Interior Drum Light
• Reversible Tinted Door
• 3-Way Venting
• Stainless Steel Drum
• Accessibility (AUI, Braille)
2
Steam Sanitize+ Sensor Dry
• 12 Preset Drying Cycles
• 9 Additional Drying Options
• 5 Temperature Levels
• LED Display: Ice Blue
Convenience
• Child Lock
• Lint Filter Indicator
1
Based on internal testing and independently verifie d by Intertek. Individual results may vary.
2
Require s Samsung Smart Washer/Dr yer App. The Samsung Smar t Washer/Dryer app suppor ts Android OS 2.3.6 or later and iOS 3 or l ater for iPhone models.
Smart Washer/Dryer App available in App Store and Play Store
DVG54R7600V
Depth including dryer clearance
Closet or Door
Samsung Gas Dryer with Steam Sanitize+
7.4 cu. ft. Capacity DOE
Installation Specifications
Alcove or closet installation
RecessedArea SideViewConned
Required space including washer clearance.
1" 1"
3
Area:
48 in.
21"
Minimum clearances for closets and alcoves:
"
Sides – 1"
Top – 21"
2
Rear – 5.9"
Closet Front – 1"
If both the washer and a dryer are installed in the same
location, the front of the alcove or closet must have two
unobstructed air openings for a combined minimum total
area of 72-inch
for washers only.
2
. This clearance requirement is applicable
Depth including dryer clearance
301/4"
1"
515/16"
3-Way Venting
12 Preset Drying Cycles:
Refresh, Steam Sanitize+, Wrinkle Away, Normal,
Heavy Duty, Permanent Press, Bedding, Delicates,
Activewear, Time Dry, Air Fluff, Quick Dry
9 Additional Drying Options:
Damp Alert, Wrinkle Prevent, Adjust Time (Up),
Adjust Time (Down), Child Lock, Alarm Off,
Eco Dry, Smart Care, Drum Light
5 Temperature Levels:
High, Medium High, Medium, Medium Low, Low
5 Dry Levels:
More Dry, Normal-More Dry, Normal Dry,
Normal-Less Dry, Less Dry
Warranty
One (1) Year Parts and Labor
Product Dimensions & Weight (WxHxD)
Dimensions: 27" x 449/16" x 301/4"
Weight: 126 lbs
Shipping Dimensions & Weight (WxHxD)
Dimensions: 299/16" x 4615/16" x 313/16"
Weight: 134 lbs
Gas Model # UPC Code
Fingerprint Resistant
Black Stainless Steel
DVG54R7600V 887276348025
Champagne DVG54R7600C 887276358871
White DVG54R7600W 887276348032
Area:
24 in.
"
3
2
Electric
Fingerprint Resistant
Black Stainless Steel
Champagne DVE54R7600C 887276358864
White DVE54R7600W 887276347998
Dimensions
501/8"
301/4"
Matching Washer
Fingerprint Resistant
Black Stainless Steel
Champagne WA54R7600AC 887276358888
White WA54R7600AW 887276300580
449/16"
27"
Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
©2019 Samsung Electronics America, Inc. 85 Challenger Road, Ridgeeld Park, NJ 07660. Tel: 800-SAMSUNG. samsung.com. Samsung is a registered trademark of Samsung Electronics Co. Ltd.
Accessories
Vent Kit
DVE54R7600V 887276347981
WA54R7600AV 887276300573
DV-2A 887276146416
