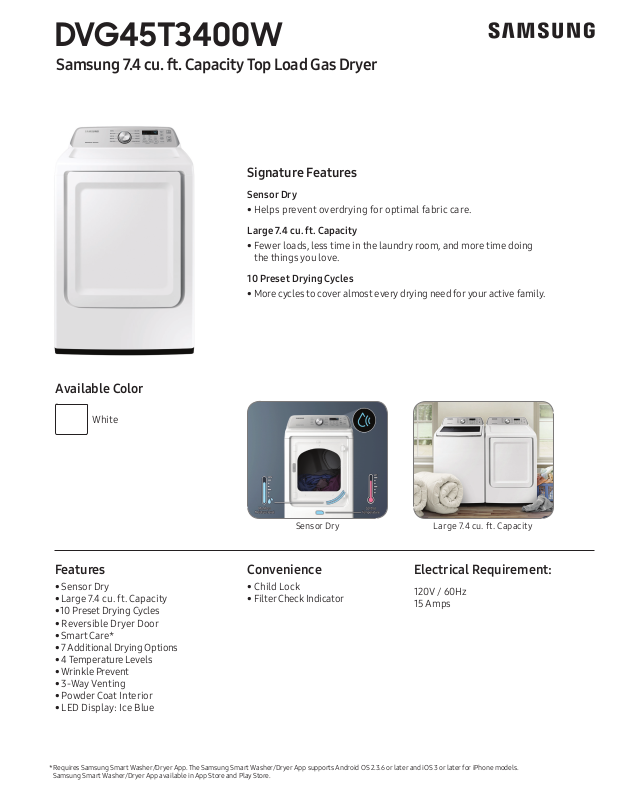

Samsung DVG45T3400W Specifications

DVG45T3400W

Samsung 7.4 cu. ft. Capacity Top Load Gas Dryer

Signature Features

Sensor Dry

• Helps prevent overdrying for optimal fabric care.

Large 7.4 cu. ft. Capacity

• Fewer loads, less time in the laundry room, and more time doing the things you love.

10 Preset Drying Cycles

• More cycles to cover almost every drying need for your active family.

Available Color

White

Features

• Sensor Dry

• Large 7.4 cu. ft. Capacity

• 10 Preset Drying Cycles

• Reversible Dryer Door

• Smart Care*

• 7 Additional Drying Options

• 4 Temperature Levels

• Wrinkle Prevent

• 3-Way Venting

• Powder Coat Interior

• LED Display: Ice Blue

Sensor Dry Large 7.4 cu. ft. Capacity

Convenience

• Child Lock

• Filter Check Indicator

Electrical Requirement:

120V / 60Hz 15 Amps

* Requires Samsung Smart Washer/Dryer App. The Samsung Smart Washer/Dryer App supports Android OS 2.3.6 or later and iOS 3 or later for iPhone models.

Samsung Smart Washer/Dryer App available in App Store and Play Store.

DVG45T3400W

Sides – 1" T Rear – Closet F

Minimum clearances for closets and alcoves:

If both the washer and a dryer are installed in the same location, the front of the alcove or closet must have two u area of 72-inc for washer and dryer pair installation.

For washer’s clearance requirement, see the washer’s us er manual

Samsung 7.4 cu. ft. Capacity Top Load Gas Dryer

Installation Specifications

Alcove or closet installation

 RecessedArea SideViewConned

op – 21"

27" 27"

/16"

ront – 1"

21"

301/4"

515/16"

3-Way Venting

10 Preset Drying Cycles:

Normal, Heavy Duty, Permanent Press, Bedding, Delicates, Sanitize, Time Dry, Air Fluff, Quick Dry, Wrinkle Release

7 Additional Drying Options:

Mixed Load Bell, Wrinkle Prevent, Adjust Time (Up), Adjust Time (Down), Child Lock, Sound On/Off, Smart Care

4 Temperature Levels:

High, Medium, Low, Extra Low

4 Dry Levels:

Very Dry, More Dry, Normal Dry, Damp Dry

Warranty

One (1) Year Parts and Labor

Product Dimensions & Weight (WxHxD)

Dimensions: 27" x 44" x 301/4" Weight: 110.2 lbs

Shipping Dimensions & Weight (WxHxD)

Dimensions: 299/16" x 467/8" x 313/16" Weight: 119.0 lbs

Gas Model # UPC Code

White DVG45T3400W 887276439624

nobstructed air openings for a combined minimum total

h2. This clearance requirement is applicable

Electric

White DVE45T3400W 887276439617

Matching Washer

White WA45T3400AW 887276440392

Dimensions

501/8"

301/4"

44"

Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.

27"

Accessories

Vent Kit DV-2A 887276146416

Weather

hood type

Number of

90° elbows

0 80 ft. 74 ft.

1 68 ft. 62 ft. 2 57 ft. 51 ft. 3 47 ft. 41 ft.

Recommended

4" 2.5"

Rigid Rigid

short-run installation

Use only for
