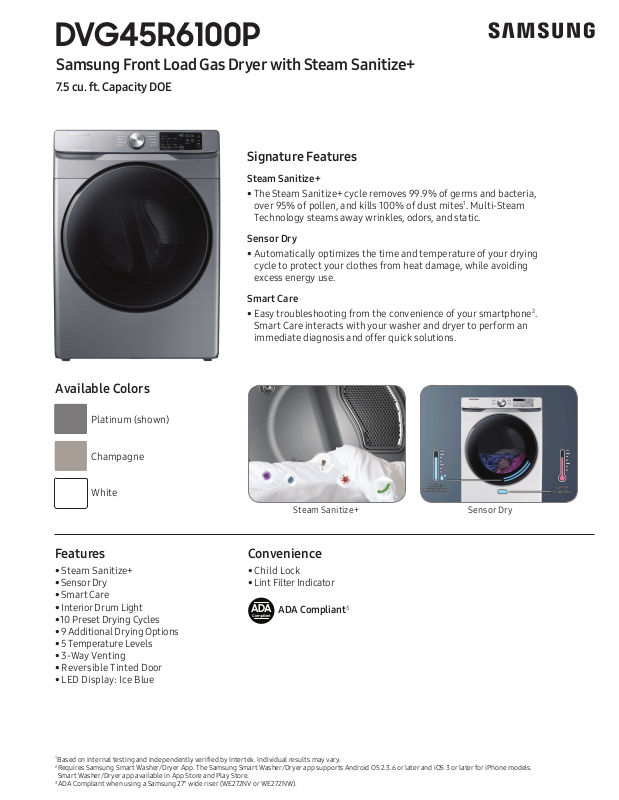

Samsung DVG45R6100P Specifications

DVG45R6100P

Samsung Front Load Gas Dryer with Steam Sanitize+

7.5 cu. ft. Capacity DOE

Signature Features

Steam Sanitize+

• The Steam Sanitize+ cycle removes 99.9% of germs and bacteria, over 95% of pollen, and kills 100% of dust mites1. Multi-Steam Technology steams away wrinkles, odors, and static.

Sensor Dry

• Automatically optimizes the time and temperature of your drying cycle to protect your clothes from heat damage, while avoiding excess energy use.

Smart Care

• Easy troubleshooting from the convenience of your smartphone2. Smart Care interacts with your washer and dryer to perform an immediate diagnosis and offer quick solutions.

Available Colors

Platinum (shown)

Champagne

White

Features

• Steam Sanitize+

• Sensor Dry

• Smart Care

• Interior Drum Light

• 10 Preset Drying Cycles

• 9 Additional Drying Options

• 5 Temperature Levels

• 3-Way Venting

• Reversible Tinted Door

• LED Display: Ice Blue

Steam Sanitize+

Convenience

• Child Lock

• Lint Filter Indicator

ADA

ADA Compliant

Compliant

Sensor Dry

Based on internal testing and independently verified by Intertek. Individual result s may vary.

Requires Samsung Smart Washer/Dryer App. The Samsung Smart Washer/Dryer app supports Android OS 2.3.6 or later and iOS 3 or later for iPhone models. Smart Washer/Dryer app available in App Store and Play Store.

ADA Compliant when using a Samsung 27" wide riser (WE272NV or WE272NW).

DVG45R6100P

78 1/

31 3/

Depth including dryer clearance

Samsung Front Load Gas Dryer with Steam Sanitize+

7.5 cu. ft. Capacity DOE

Installation Specifications

If the washer and dryer are installed together or the dryer alone, the closet front must have two unobstructed air openings for a combined minimum total area of 72-inch Your washer alone does not require a specific air opening.

* Required spacing (External exhaust elbow may require additional space.)

1. Alcove or closet installation

Minimum Clearance for Closet and Alcove Installations:

 RecessedArea SideViewConned

1" 1"

2. With stacked washer and dryer

Area: 48 in.

(see stacked build below).

Depth including dryer clearance

311/2"

5 15/16"

3-Way Venting

10 Preset Drying Cycles:

Refresh, Steam Sanitize+, Normal, Heavy Duty, Permanent Press, Bedding, Delicates, Time Dry, Air Fluff, Quick Dry

9 Additional Drying Options:

Damp Alert, Wrinkle Prevent, Adjust Time (Up), Adjust Time (Down), Eco Dry, Child Lock, Smart Care, Alarm Off, Drum Light

5 Temperature Levels:

High, Medium High, Medium, Medium Low, Low

5 Dry Levels:

More Dry, Normal-More Dry, Normal Dry, Normal-Less Dry, Less Dry

Warranty

One (1) Year Parts and Labor

Product Dimensions & Weight (WxHxD)

Dimensions: 27" x 383/4" x 311/2" Weight: 123 lbs

Shipping Dimensions & Weight (WxHxD)

Dimensions: 293/8" x 429/16" x 331/2" Weight: 130 lbs

Area: 24 in.

Closet or Door

Dimensions

Required Dimensions for Installation with Pedestal:

383/

Gas Model # UPC Code

Platinum DVG45R6100P 887276300481 Champagne DVG45R6100C 887276305271

White DVG45R6100W 887276300498

Electric

Platinum DVE45R6100P 887276300443 Champagne DVE45R6100C 887276305943 White DVE45R6100W 887276300450

Matching Washer

Platinum WF45R6100AP 887276299464 Champagne WF45R6100AC 887276305295

31 3/

311/

Depth with door open 90�

7 1/

White WF45R6100AW 887276299471

Pedestal

Platinum WE402NP 887276310138 Champagne WE402NC 887276310121 White WE402NW 887276310152

Accessories

Stacking Kit SKK-7A 887276146423 Vent Kit DV-2A 887276146416

Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
