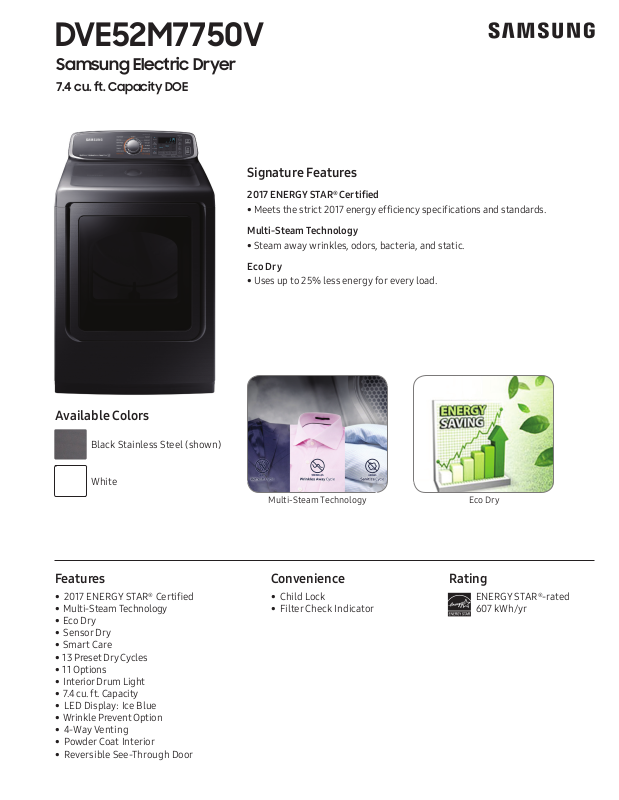

Samsung DVE52M7750V Specification Sheet
DVE52M7750V
Stainless Steel
Samsung Electric Dryer
7.4 cu. ft. Capacity DOE
Signature Features
2017 ENERGY STAR® Certied
• Meets the strict 2017 energy efficiency specifications and standards.
Multi-Steam Technology
• Steam away wrinkles, odors, bacteria, and static.
Eco Dry
• Uses up to 25% less energy for every load.
Available Colors
Black Stainless Steel (shown)
White
Features
• 2017 ENERGY STAR® Certied
• Multi-Steam Technology
• Eco Dry
• Sensor Dry
• Smart Care
• 13 Preset Dry Cycles
• 11 Options
• Interior Drum Light
• 7.4 cu. ft. Capacity
• LED Display: Ice Blue
• Wrinkle Prevent Option
• 4-Way Venting
• Powder Coat Interior
• Reversible See-Through Door
Multi-Steam Technology
Convenience
• Child Lock
• Filter Check Indicator
Eco Dry
Rating
ENERGY STAR®-rated
607 kWh/yr
DVE52M7750V
DV400EWHDWR
*Required spacing (External exhaust elbow may require additional space.)
Samsung Electric Dryer
7.4 cu. ft. Capacity DOE
Installation Specifications
Alcove or closet installation
Recessed Area Side View Confined
1"
27" 27" 1"1"
2" 5"
Minimum clearances for closets and alcoves:
"
3
Area:
48 in.
Sides – 1"
2
Top – 17"
Rear – 5"
Closet Front – 2"
17"
30"
4-Way Venting
13 Preset Dry Cycles:
Steam Refresh, Steam Sanitize, Steam Wrinkle Away,
Normal, Heavy Duty, Towels, Permanent Press, Bedding,
Delicates, Active Wear, Time Dry, Air Fluff, Quick Dry
11 Options:
*
Mixed Load Bell, Wrinkle Prevent, Adjust Time (up),
Adjust Time (down), My Cycle, Child Lock, Sound On/Off,
Anti-Static, Eco Dry, Smart Care, Drum Light
5 Temperature Settings:
High, Medium, Medium Low, Low, Extra Low
5 Dry Levels:
Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry
2 Sound Level Settings:
On/Off
Warranty
One (1) Year Parts and Labor
Product Dimensions & Weight (WxHxD)
Dimensions: 27" x 46" x 30"
Weight: 121.3 lbs
Closet or Door
Dimensions
If the washer and dryer are installed together, the closet front
must have at least a 72-inch
Your washer alone does not require a specific air opening.
Area:
2
24 in.
"
3
30"27"
2
unobstructed air opening.
46" -
461/2"**
Shipping Dimensions & Weight (WxHxD)
Dimensions: 291/2" x 483/16" x 313/16"
Weight: 130.1 lbs
Electric Model # UPC Code
Black Stainless Steel DVE52M7750V 887276196855
White DVE52M7750W 887276196862
Gas
Black Stainless Steel DVG52M7750V 887276197029
White DVG52M7750W 887276197036
Matching Washer
Black Stainless Steel WA52M7750AV 887276196428
White WA52M7750AW 887276196435
**Adjustable height depending on leveling feet.
Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
©2016 Samsung Electronics America, Inc. 85 Challenger Road, Ridgeeld Park, NJ 07660. Tel: 800-SAMSUNG. samsung.com. Samsung is a registered trademark of Samsung Electronics Co. Ltd.
