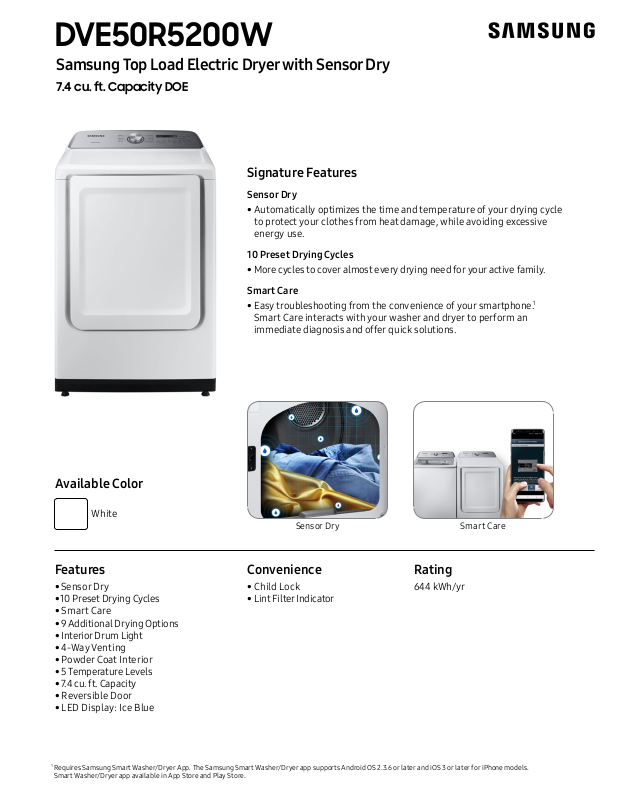

Samsung DVE50R5200W Specifications
DVE50R5200W
Samsung Top Load Electric Dryer with Sensor Dry
7.4 cu. ft. Capacity DOE
Signature Features
Sensor Dry
• Automatically optimizes the time and temperature of your drying cycle
to protect your clothes from heat damage, while avoiding excessive
energy use.
10 Preset Drying Cycles
• More cycles to cover almost every drying need for your active family.
Smart Care
• Easy troubleshooting from the convenience of your smartphone.1
Smart Care interacts with your washer and dryer to perform an
immediate diagnosis and offer quick solutions.
Available Color
White
Sensor Dry Smart Care
Features
• Sensor Dry
• 10 Preset Drying Cycles
• Smart Care
• 9 Additional Drying Options
• Interior Drum Light
• 4-Way Venting
• Powder Coat Interior
• 5 Temperature Levels
• 7.4 cu. ft. Capacity
• Reversible Door
• LED Display: Ice Blue
1
Requires Samsung Smart Washer/Dryer App. The Samsung Smart Washer/Dryer app supports Android OS 2.3.6 or later and iOS 3 or later for iPhone models.
Smart Washer/Dryer app available in App Store and Play Store.
Convenience
• Child Lock
• Lint Filter Indicator
Rating
644 kWh/yr
DVE50R5200W
Depth including dryer clearance
Closet or Door
Samsung Top Load Electric Dryer with Sensor Dry
7.4 cu. ft. Capacity DOE
Installation Specifications
Alcove or closet installation
RecessedArea SideViewConned
Required space including washer clearance.
1" 1"
3
Area:
48 in.
21"
Minimum clearances for closets and alcoves:
"
Sides – 1"
Top – 21"
2
Rear – 5.9"
Closet Front – 1"
If both the washer and a dryer are installed in the same
location, the front of the alcove or closet must have two
unobstructed air openings for a combined minimum total
area of 72-inch
for washers only.
2
. This clearance requirement is applicable
Depth including dryer clearance
301/4"
4-Way Venting
10 Preset Drying Cycles:
Normal, Heavy Duty, Permanent Press, Bedding,
Delicates, Sanitize, Time Dry, Air Fluff, Quick Dry,
Wrinkle Release
9 Additional Drying Options:
Damp Alert, Wrinkle Prevent, Adjust Time (Up),
Adjust Time (Down), Child Lock, Alarm Off,
Eco Dry, Smart Care, Drum Light
5 Temperature Levels:
High, Medium High, Medium, Medium Low, Low
5 Dry Levels:
More Dry, Normal-More Dry, Normal Dry,
Normal-Less Dry, Less Dry
5.9"1"
Warranty
One (1) Year Parts and Labor
Product Dimensions & Weight (WxHxD)
Dimensions: 27" x 449/16" x 301/4"
Weight: 119.0 lbs
Shipping Dimensions & Weight (WxHxD)
Dimensions: 299/16" x 4615/16" x 313/16"
Weight: 125.7 lbs
Electric Model # UPC Code
White DVE50R5200W 887276300733
Gas
White DVG50R5200W 887276300764
Area:
24 in.
"
3
2
Matching Washer
White WA50R5200AW 887276300528
Accessories
Vent Kit DV-2A 887276146416
Dimensions
449/16"
27"
Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
