Samsung DVE45N5300W, DVE45N5300V Specifications

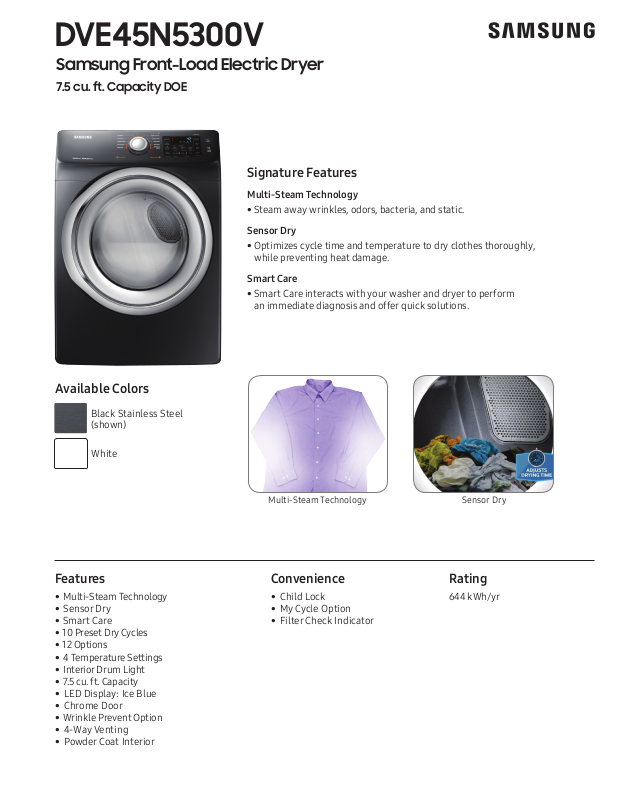

DVE45N5300V
Samsung Front-Load Electric Dryer
7.5 cu. ft. Capacity DOE
Signature Features
Multi-Steam Technology
• Steam away wrinkles, odors, bacteria, and static.
Sensor Dry
• Optimizes cycle time and temperature to dry clothes thoroughly,
while preventing heat damage.
Smart Care
• Smart Care interacts with your washer and dryer to perform
an immediate diagnosis and offer quick solutions.
Available Colors
Black Stainless Steel
(shown)
White
Features
• Multi-Steam Technology
• Sensor Dry
• Smart Care
• 10 Preset Dry Cycles
• 12 Options
• 4 Temperature Settings
• Interior Drum Light
• 7.5 cu. ft. Capacity
• LED Display: Ice Blue
• Chrome Door
• Wrinkle Prevent Option
• 4-Way Venting
• Powder Coat Interior
Multi-Steam Technology
Convenience
• Child Lock
• My Cycle Option
• Filter Check Indicator
Sensor Dry
Rating
644 kWh/yr
DVE45N5300V
2"
3313/
16
"
5
15
/
16
"
*
Samsung Front-Load Electric Dryer
7.5 cu. ft. Capacity DOE
Installation Specifications
If the washer and dryer are installed together or the dryer alone, the closet front must have two
unobstructed air openings for a combined minimum total area of 72-inch
Your washer alone does not require a specific air opening.
1. Alcove or closet installation
Minimum Clearance for Closet and Alcove Installations:
17"
1"
1" 27" 1"27"
Depth including washer clearance
"
34
2"
*
15
5
2. With stacked washer and dryer
"
6
"
"
27
"
1
3
Closet or Door
Area:
48 in.
Area:
24 in.
"
3
2
"
78 1/
2
2
"
3
"
1
2
(see stacked build below).
* Required spacing
(External exhaust elbow
may require additional space.)
"
16
/
"
5
*
"
34
"
8
4-Way Venting
10 Preset Dry Cycles:
Refresh, Wrinkle Away, Normal, Heavy Duty, Permanent
Press, Bedding, Delicates, Sanitize, Time Dry, Quick Dry
12 Options:
Mixed Load Bell, Wrinkle Prevent, Anti-Static,
Small Load Care, My Cycle, Adjust Time (Up),
Adjust Time (Down), Eco Dry, Sound Off, Child Lock,
Smart Care, Drum Light
4 Temperature Settings:
High, Medium, Low, Extra Low
4 Dry Levels:
Very Dry, More Dry, Normal Dry, Damp Dry
Warranty
One (1) Year Parts and Labor
Product Dimensions & Weight (WxHxD)
Dimensions: 27" x 383/4" x 327/16"
Weight: 126 lbs
Shipping Dimensions & Weight (WxHxD)
Dimensions: 293/8" x 423/8" x 331/2"
Weight: 134 lbs
Electric Model # UPC Code
Black Stainless Steel DVE45N5300V 887276256160
White DVE45N5300W 887276256177
Gas
Black Stainless Steel DVG45N5300V 887276256191
White DVG45N5300W 887276256207
Matching Washer
Black Stainless Steel WF45N5300AV 887276252421
White WF45N5300AW 887276250953
Dimensions
Required Dimensions for Installation with Pedestal:
"
27
"
383/
4
"
537/
16
Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
©2018 Samsung Electronics America, Inc. 85 Challenger Road, Ridgeeld Park, NJ 07660. Tel: 800-SAMSUNG. samsung.com. Samsung is a registered trademark of Samsung Electronics Co., Ltd.
327/
"
16
Depth with door open 90�
"
53
