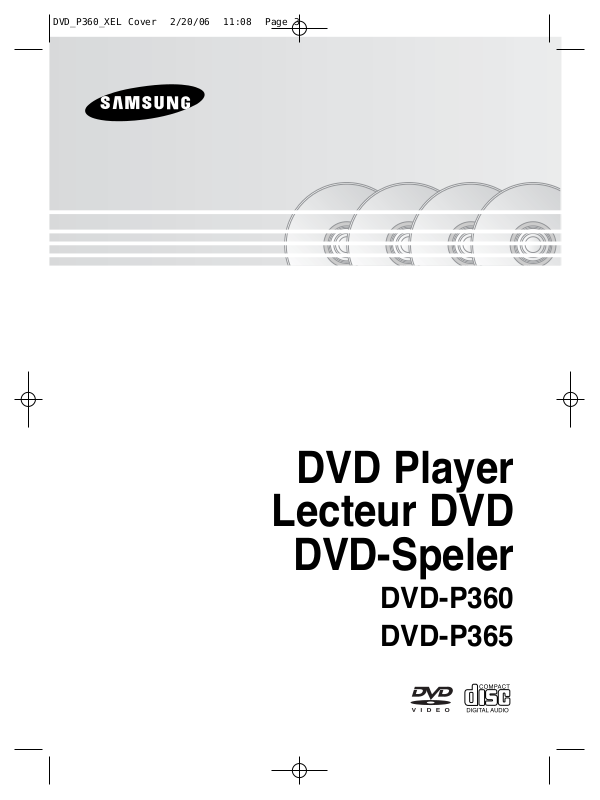

SAMSUNG DVD-P365, DVD-P360 User Manual [en, fr, de, nl, id]

DVD Player

Lecteur DVD

DVD-Speler

DVD-P360 DVD-P365

PRECAUTIONS

1. Setting up

- Refer to the identification label located on the rear of your player for its proper operating voltage.

- Install your player in a cabinet with adequate ventilation holes. (7~10cm) Do not block ventilation holes on any of the components for air circulation.

- Do not push the disc tray in by hand.

- Do not stack components.

- Be sure to turn all components off before moving the player.

- Before connecting other components to this player, be sure to turn them off.

- Be sure to remove the disc and turn off the player after use, especially if you are not going to use it for a long time.

2. For your safety

-This product utilizes a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

- Do not open covers and do not repair yourself. Refer servicing to qualified personal.

3. Caution

-Your player is not intended for industrial use but for domestic purposes. Use of this product is for personal use only.

- Do not put any container filled with liquid or any small metal objects on the player.

- Exterior influences such as lightning and static electricity can affect normal operation of this player. If this occurs, turn the player off and on again with the POWER button, or disconnect and then reconnect the AC power cord to the AC power outlet. The player will operate normally.

- When condensation forms inside the player due to sharp changes in temperature, the player may not operate correctly. If this occurs, leave the player at room temperature until the inside of the player becomes dry and operational.

4. Disc

- Do not clean disc using record-cleaning sprays, benzene, thinner, or other volatile solvents that may cause damage to the disc surface.

- Do not touch the disc’s signal surface. Hold by the edges or by one edge and the hole in the center.

-Wipe the dirt away gently; never wipe a cloth back and forth over the disc.

5. Environmental info

- The battery used in this product contains chemicals that are harmful to the environ ment.

- So, dispose of batteries in the proper man ner, according to federal, state, and local regulations.

The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties. This license is limited to private non-commercial use by end-user consumers for licensed contents. No rights are granted for commercial use. The license does not cover any product unit other than this product unit and the license does not extend to any unlicensed product unit or process conforming to ISO/OUR 11172-3 or ISO/OUR 13818-3 used or sold in combination with this product unit. The license only covers the use of this product unit to encode and/or decode audio files conforming to the ISO/OUR 11172-3 or ISO/OUR 13818-3. No rights are granted under this license for product features or functions that do not conform to the ISO/OUR 11172-3 or ISO/OUR 13818-3.

CAUTION: USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER THAN SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

BEFORE

ARTT

YOU

ABLE OF

TTABLE OF

CONTENTS

Accessories

Remote Control Batteries for Remote

Control (AAA Size)

User’s Manual

Install Batteries in the Remote control

1. Open the battery cover on the back of the remote control.

2. Insert two AAA batteries. Make sure that the polarities (+ and -) are aligned correctly.

3. Replace the battery cover.

If remote control doesn’t operate properly:

- Check the polarity + - of the batteries (Dry-Cell)

- Check if the batteries are drained.

- Check if remote control sensor is blocked by

obstacles.

- Check if there is any fluorescent lighting nearby.

Video/Audio

Cable

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Before you start . . . . . . . . . . . . . . . . . . . . . . . . . 3

Setup

General Features . . . . . . . . . . . . . . . . . . . . . . . . 4

Disc Type and Characteristics . . . . . . . . . . . . . . . 5

Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Tour of the Remote Control . . . . . . . . . . . . . . . . . 8

Connections

Choosing a Connection . . . . . . . . . . . . . . . . . . . . 9

Basic Functions

Playing a Disc . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Using the Search and Skip Functions . . . . . . . . 16

Using the Display Function . . . . . . . . . . . . . . . . 16

Using the Disc and Title Menu . . . . . . . . . . . . . . 17

Using the Function Menu . . . . . . . . . . . . . . . . . . 17

Repeat Play . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Slow Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Advanced Functions

Adjusting the Aspect Ratio (EZ View) . . . . . . . . . 18

Selecting the Audio Language . . . . . . . . . . . . . . 19

Selecting the Subtitle Language . . . . . . . . . . . . . 19

Changing the Camera Angle. . . . . . . . . . . . . . . . 20

Using the Instant Replay/Skip Function. . . . . . . . 20

Using the Bookmark Function. . . . . . . . . . . . . . . 20

Using the Zoom Function . . . . . . . . . . . . . . . . . . 21

Clips Menu for MP3/WMA/JPEG/MPEG4/

CD Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Folder Selection . . . . . . . . . . . . . . . . . . . . . . . . . 21

MP3/WMA/CD Audio Playback . . . . . . . . . . . . . . 22

MPEG4 Playback . . . . . . . . . . . . . . . . . . . . . . . . 22

Picture CD Playback . . . . . . . . . . . . . . . . . . . . . 23

Changing Setup Menu

Using the Setup Menu . . . . . . . . . . . . . . . . . . . . 24

Setting Up the Language Features . . . . . . . . . . . 25

Setting Up the Audio Options . . . . . . . . . . . . . . . 26

Setting Up the Display Options. . . . . . . . . . . . . . 27

Setting Up the Parental Control . . . . . . . . . . . . . 28

Reference

Firmware upgrade . . . . . . . . . . . . . . . . . . . . . . . 29

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . 30

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . 31

English

SETUP

General Features

Excellent Sound

Dolby Digital, a technology developed by Dolby Laboratories, provides crystal clear sound reproduction.

Screen

Both regular and widescreen(16:9) pictures can be viewed.

Slow Motion

An important scene can be viewed in slow motion.

Parental Control (DVD)

The parental control allows users to set the level necessary to prohibit children from viewing harmful movies such as those with violence, adult subject matter, etc.

Various On-Screen Menu Functions

You can select various languages (Audio/Subtitle) and screen angles while enjoying movies.

Progressive Scan

Progressive scanning creates an improved picture with double the scan lines of a conventional interlaced picture.

EZ VIEW (DVD)

Easy View enables picture adjustment to match your TV's screen size (16:9 or 4:3).

Digital Photo Viewer (JPEG)

You can view Digital Photos on your TV.

Repeat

You can repeat a song or movie simply by pressing the REPEAT button.

MP3/WMA

This unit can play discs created from MP3/WMA files.

Instant Replay (DVD)

This function is used to replay the previous 10 seconds of a movie from the current position.

Instant Skip (DVD)

This function skips playback ahead 10 seconds

MPEG4

This unit can play MPEG4 formats within an avi file.

Note

- Discs which cannot be played with this player.

• DVD-ROM • DVD-RAM

• CD-ROM • CDV

•CDI • CVD

• CDGs play audio only, not graphics.

- Ability to play back may depend on recording conditions.

• DVD-R, +R

• CD-RW

• DVD+RW, -RW (V mode)

- The unit may not play certain CD-R, CD-RW and DVD-R due to the disc type or recording conditions.

COPY PROTECTION

Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copyprotected DVD discs.

This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be auzthorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

PROGRESSIVE SCAN OUTPUTS (525p/625p)

“CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE, IN CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING YOUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND 625p DVD PLAYER, PLEASE CONTACT SAMSUNG'S CUSTOMER SERVICE CENTER.”

Disc Type and Characteristics

This DVD player is capable of playing the following types of discs with the corresponding logos:

Disc Types (Logos)

DVD

VIDEO-CD

AUDIO-CD

Disc Markings

Play Region Number

PAL

STEREO

DIGITAL

SOUND

PAL broadcast system in U.K, France, Germany, etc.

Dolby Digital disc

Stereo disc

Digital Audio disc

Recording Types Disc Size Max. Playing Time Characteristics

- DVD contains excellent sound and video due to Dolby Digital and MPEG2 system.

-Various screen and audio functions can be easily selected through the onscreen menu.

-Video with CD sound, VHS quality & MPEG-1 compression technology.

- CD is recorded as a Digital Signal with better audio quality, less distortion and less deterioration of audio quality over time.

Audio

Video

Audio

Video

Audio

12 Cm

8 Cm

12 Cm

8 Cm

12 Cm

8 Cm

Single-sided 240 min.

Double-sided 480 min.

Single-sided 80 min.

Double-sided 160 min.

74 min.

20 min.

74 min.

20 min.

Region Number

Both the DVD player and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play.

The Region Number for this player is described on the rear panel of the player.

English

DTS disc

MP3 disc

You must only insert one DVD disc at a time. Inserting two or more discs will not allow to play them back and it may cause damage to the DVD player.

DivX Certification

DivX, DivX Certified, and associated logos are trademarks of DivXNetworks, Inc and are used under license

Description

Front Panel Controls

DVD-P360

DVD-P365

1. STANDBY/ON ( )

When STANDBY/ON is pressed on, the indicator goes

out and the player is turned on.

2. STANDBY indicator

When the unit is first plugged in, this indicator lights.

3. DISC TRAY

Place the disc here.

4. OPEN/CLOSE ( )

Press to open and close the disc tray.

5. DISPLAY

Operation indicators are displayed here.

6. SKIP ( / ) SEARCH

Allow you to search forward/backward through

a disc. Use to skip the title, chapter or track.

7. STOP ( )

Stops disc play.

8. PLAY/PAUSE ( )

Begin or pause disc play.

Front Panel Display

Total playing time/Displays various messages concerning operations such as PLAY, STOP, LOAD ...

nodSC: No disc loaded. OPEn: The disc tray is open. LOAd: Player is loading disc information.

Rear Panel

English

452

1. SCART JACK

- Connect to a TV scart input jack.

2. DIGITAL AUDIO OUT JACKS

- Use either an optical or coaxial digital cable to connect to a compatible Dolby Digital receiver.

- Use either an optical or coaxial digital cable to connect to an A/V Amplifier that contains a Dolby Digital, MPEG2 or DTS decoder.

3. COMPONENT VIDEO OUT JACKS

- Use these jacks if you have a TV with Component Video in jacks. These jacks provide P video.

- If P-SCAN Video Output is selected in Setup Menu, progressive scan mode will work.

- If I-SCAN Video Output is selected in Setup Menu, interlaced scan mode will work.

, PBand Y

4. AUDIO OUT JACKS

- Connect to the Audio input jacks of your television or audio/video receiver.

5. VIDEO OUT JACK

- Use a video cable to connect to the Video input jack on your television.

- The Video Output in Setup Menu must be set to S-Video.

6. S-VIDEO OUT JACK

- Use the S-Video cable to connect this jack to the S-Video jack on your television for higher picture quality.

- The Video Output in Setup Menu must be set to S-Video.

Note

- Consult your TV User’s Manual to find out if your TV supports Progressive Scan.

If Progressive Scan is supported, follow the TV User’s Manual regarding Progressive Scan settings in the TV’s menu system.

- If P-SCAN Video Output is selected in Setup Menu, S-Video will not work.

- See pages 27 to get more information on how to use the setup menu.

Tour of the Remote Control

4 5 6

7 8

10 11

12 13

1. DVD POWER Button

Turns the power on or off.

2. NUMBER Buttons

3. VIDEO SEL. Button

Selects video output formats

4. SEARCH Buttos (

Allow you to search forward/backward through a disc.

)

14 15

18 19

20 21

22 23

5. INSTANT REPLAY Button

This function is used to replay the previous 10 seconds of a movie from the current position.

6. SKIP Buttons (

Use to skip the title, chapter or track.

7. STOP Button ( )

8. MENU Button

Brings up the DVD player’s menu.

9. ENTER/

This button functions as a toggle switch.

10. EZ VIEW Button

The aspect ratio of a picture can easily be adjusted according to the screen size of your TV (16:9 or 4:3).

11. DISC MENU Button

Brings up the Disc menu.

12. SUBTITLE Button

13. AUDIO Button

Use this button to access various audio functions on a disc.

14. ZOOM Button

Enlarge DVD Picture

15. OPEN/CLOSE ( ) Button

To open and close the disc tray.

16. STEP Button

Advances play one frame at a time.

17. INSTANT SKIP Button

This function skips playback ahead 10 seconds.

18. PLAY/PAUSE Button ( )

Begin/Pause disc play.

19. RETURN Button

Returns to a previous menu.

20. INFO Button

Displays the current disc mode.

21. CANCEL Button

Use to remove menus or status displays from the screen.

22. REPEAT A-B Button

Allows you to repeat A-B disc.

23. REPEAT Button

Allows you to repeat play a title, chapter, track, or disc.

/,¥¥/

Buttons

)

CONNECTIONS

Choosing a Connection

The following shows examples of connections commonly used to connect the DVD player with a TV and other components.

Before Connecting the DVD Player

- Always turn off the DVD player, TV, and other components before you connect or disconnect any cables.

- Refer to the user’s manual of the additional components you are connecting for more information on those particular components.

Connecting to a TV (SCART)

-Using the SCART, connect the SCART (EXT) terminal on the rear of the DVD Player to the SCART (IN) terminal of your TV.

- If your TV is not equipped with a SCART you can select one of the following alternative connections:

Connecting to a TV (VIDEO CVBS)

Using video/audio cables, connect the VIDEO (yellow)/AUDIO (red and white) OUT terminals on the rear of the DVD player to the VIDEO (yellow)/AUDIO (red and white) IN terminals of TV.

Turn on the DVD player and TV.

SCART Cable

RED

YELLOW

WHITE

Audio

Video

Cable

WHITE

RED

YELLOW

English

Press the input selector on your TV remote control until the Video signal from the DVD player appears on the TV screen.

Note

- Noise may be generated if the audio cable is too close to the power cable.

- If you want to connect to an Amplifier, please refer to the Amplifier connection page. (See pages 13 to 14)

- The number and position of terminals can vary depending on your TV set. Please refer to the user's manual of the TV.

- If there is one audio input terminal on the TV, connect it to the [AUDIO OUT][left] (white) terminal of the DVD player.

- Please do not connect Scart and Component Video (Y, Pb, Pr) output simultaneously, as they may interfere and degrade both video output quality.

Connection to a TV (S-Video)

- Connecting to your TV using an S-Video cable.

-You will enjoy high quality images. S-Video separates the picture element into black and white(Y) and color(C) signals to present clearer images than regular video input mode. (Audio signals aredelivered through the audio output.)

Using an S-Video cable (not included), connect the SVIDEO OUT terminal on the rear of the DVD player to the S-VIDEO IN terminal of TV.

Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD player to the AUDIO (red and white) IN terminals of TV. Turn on the

DVD player and TV.

RED

WHITE

Press the input selector on your TV remote control until the S-Video signal from the DVD player appears on your TV screen.

RED

Audio Cable

WHITE

S-Video Cable (not included)

Set the Video Output to S-Video in the Display Setup menu. (See pages 27)

Note

- If you want to connect to an Amplifier, please refer to the Amplifier connection page. (See pages 13 to 14)

- The number and position of terminals can vary depending on the TV set. Please refer to the user's manual of the TV.

- Please do not connect S-Video and Component Video (Y, Pb, Pr) output simultaneously, as they may interfere and degrade both video output quality.

Connection to a TV (Interlace)

- Connecting to your TV using Component video cables.

-You will enjoy high quality and accurate color reproduction images. Component video separates the picture element into black and white(Y), blue(PB), red(PR) signals to present clear and clean images. (Audio signals are delivered through the audio output.)

Using component video cables (not included), connect the COMPONENT VIDEO OUT terminal on the rear of the DVD player to the COMPONENT IN terminal of TV.

Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD player to the AUDIO (red and white) IN terminals of TV. Turn on the

DVD player and TV.

RED

BLUE

GREEN

English

RED

Press the input selector on your TV remote control until the Component signal from the DVD player appears on the TV screen.

RED WHITE

WHITE

Audio Cable

Component cable

GREEN

(not included)

RED

BLUE

Set the Video Output to I-SCAN in the Display Setup menu. (See pages 27)

Note

- If Video output is incorrectly set to S-Video, with the Component cables connected, the screen will turn red.

- If you want to connect to an Amplifier, please refer to the Amplifier connection page. (See pages 13 to 14)

- The component terminal of TV can be marked by “R-Y, B-Y, Y” or “Cr, Cb, Y” instead of “P depending on the manufacturer. The number and position of terminals can vary depending on the TV set. Please refer to the user's manual of the TV.

, PB, Y”

Connection to a TV (Progressive)

Using component video cables (not included), connect the COMPONENT VIDEO OUT terminal on the rear of the DVD player to the COMPONENT IN terminal of TV.

Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD player to the AUDIO (red and white) IN terminals of TV. Turn on the

DVD player and TV.

Press the input selector on your TV remote control until the Component signal from the DVD player appears on the TV screen.

RED

WHITE

RED

Audio Cable

RED

WHITE

BLUE

RED

GREEN

BLUE

Component cable (not included)

GREEN

Set the Video Output to P-SCAN in the Display Setup menu. (See pages 27)

To see the progressive video output,

- Consult your TV User’s Manual to find out if your TV supports Progressive Scan. If Progressive

You need a TV set supporting the progressive scan

Scan is supported, follow the TV User’s Manual regarding Progressive Scan settings in the TV’s

input function. And you have to set up the TV

menu system.

- Depending on your TV, the connection method may differ from the illustration above.

Note

- What is "Progressive Scan"? Progressive scan has twice as many scanning lines as the interlace output method has. Progressive scanning method can provide better and clearer picture quality.

Connection to an Audio System (2 Channel Amplifier)

Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD player to the AUDIO (red and white) IN terminals of the Amplifier.

Using the video signal cable(s), connect the VIDEO, S- VIDEO or COMPONENT OUT terminals on the rear of the

DVD player to the VIDEO, S-VIDEO or COMPONENT IN terminal of your TV as described on pages 9 to 12.

Turn on the DVD player, TV, and Amplifier.

RED

WHITE

RED

Audio Cable

RED

WHITE

BLUE

RED

GREEN

BLUE

Component cable (not included)

GREEN

Press the input select button of the Amplifier to select external input in order to hear sound from the DVD player. Refer to your Amplifier's user manual to set the Amplifier's audio input.

Note

- Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause damage to the speakers and your ears.

-Please set the audio in the menu screen according to the Amplifier. (See pages 26)

- The position of terminals can vary depending on the Amplifier. Please refer to the user's manual of the Amplifier.

English

Connection to an Audio System (Dolby digital, MPEG2 or DTS Amplifier)

If using an optical cable (not included), connect the DIGITAL AUDIO OUT (OPTICAL) terminal on the rear of the

DVD player to the DIGITAL AUDIO IN (OPTICAL) terminal of the Amplifier. If using a coaxial cable (not included), connect the DIGI- TAL AUDIO OUT (COAXIAL) terminal on the rear of the DVD player to the DIGITAL AUDIO IN (COAXIAL) terminal of the Amplifier.

Using the video signal cable(s), connect the VIDEO, S- VIDEO or COMPONENT OUT terminals on the rear of the

DVD player to the VIDEO, S-VIDEO or COMPONENT IN

terminal of your TV as described on pages 9 to 12

Optical Cable (not included)

Coaxial Cable

(not included)

Turn on the DVD player, TV, and Amplifier.

Dolby digital or

DTS amp

Press the input select button of the Amplifier to select external input in order to hear sound from the DVD player. Refer to your Amplifier's user manual to set the Amplifier's audio input.

Note

- When you connect the DVD player to DTS Amplifier and play a DTS disc, set the DTS to On in Audio Setup menu. If it is set to Off, sound doesn't come out or there will be a big noise.

- Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause damage to the speakers and your ears.

-Please set the audio in the menu screen according to the Amplifier. (See pages 26)

- The position of terminals can vary depending on the Amplifier. Please refer to the user's manual of the Amplifier.

- Please remove the dust cover before using the optical cable (not included) and put the cover on the cable again when it's not used.

BASIC

FUNCTION

Playing a Disc

Before Play

-Turn on your TV and set it to the correct Video Input by pressing TV/VIDEO button on the TV remote control.

- If you connected an external Audio System, turn on your Audio System and set it to the correct Audio Input.

After plugging in the player, the first time you press the DVD POWER button, this screen comes up: If you want to select a language, press a NUMBER button. (This screen will only appear when you plug in the player for the first time.) If the language for the startup screen is not set, the settings may change whenever you turn the power on or off. Therefore, make sure that you select the language you want to use. Once you select a menu language, you can change it by pressing the button on the front panel of the unit for more than 5 seconds with no disc in the unit. Then the SELECT MENU LANGUAGE window appears again where you can reset your preferred language.

Press 1 for English

Touche 2 pour Français

Drücken Sie 3 für Deutsch

Pulsar 4 para Español

Premere 5 per Italiano

Druk op 6 voor Nederlands

Playback

1. Press the OPEN/CLOSE ( ) button. The STANDBY

indicator light goes out and the tray opens.

2. Place a disc gently into the tray with the disc’s label facing up.

3. Press the PLAY/PAUSE ( ) button or OPEN/ CLOSE ()button to close the disc tray.

When you stop disc play, the player remembers

where you stopped, so when you press PLAY/PAUSE ( ) button again, it will pick up where you left off.

4. Stopping Play Press the STOP ( ) button during play.

5. Removing Disc Press the OPEN/CLOSE ( ) button.

6. Pausing Play Press the PLAY/PAUSE ( ) or STEP button on the remote control during play.

- Screen stops, no sound. To resume, press the PLAY/PAUSE ( )

button once again.

7. Step Motion Play (Except CD) Press the STEP button on the remote control during play.

- Each time the button is pressed, a new frame will appear.

- No sound is heard during STEP mode.

- Press the PLAY/PAUSE ( ) button to resume normal play.

- You can only perform step motion play in the forward direction.

8. Slow Motion Play Press the SEARCH (/) button to choose the play speed between 1/8, 1/4 and 1/2 of normal during PAUSE or STEP mode.

- No sound is heard during slow mode.

- Press the PLAY/PAUSE ( ) button to resume

normal play.

Note

- If the player is left in the stop mode for more than one minute without any user interaction, a screen saver will be activated. Press the PLAY/PAUSE ( ) button to resume normal play.

- If the player is left in the stop mode for more than about 30 minutes, the power will automatically shut off except when the MIC is connected. (Automatic Power-Off Function)

- If the player is left for about 5 minutes in pause mode, it will stop.

- This ( ) icon indicates an invalid button press.

English

Using the Search and Skip

Title

Chapter

Time

Audio

Subtitle

Functions

During play, you can search quickly through a chapter or track, and use the skip function to jump to the next selection.

Searching through a Chapter or Track

During play, press the SEARCH ( or ) button on the remote control for more than 1 second.

2X, 4X, 64X, 128X

DVD

4X, 8X

VCD

2X, 4X, 8X

Note

- The speed marked in this function may be different from the actual playback speed.

- No sound is hearing during search mode

(Except CD).

Skipping Tracks

During play, press the SKIP ( or ) button.

- When playing a DVD, if you press the SKIP ( ) button, it

moves to the next chapter. If you press the SKIP ( )

button, it moves to the beginning of the chapter. One more

press makes it move to the beginning of the previous

chapter.

- When playing a VCD 2.0 in Menu Off mode, or a VCD 1.1

or a CD, if you press the SKIP ( ) button, it moves to

the next track. If you press the SKIP ( ) button, it moves

to the beginning of the track. One more press makes it

move to the beginning of the previous track.

- If a track exceeds 15 minutes when playing a VCD and

you press the button, it moves forward 5minutes.

If you press the button, it moves backward 5 minutes.

Note

When playing VCD2.0, this function works only when the menu is off. Select Menu Off by pressing the DISC MENU button.

Using the Display Function

When Playing a DVD/VCD/MPEG4

1. During play, press the INFO button on the remote control.

- You can select Info in the function menu by pressing the MENU button.

2. Press the /buttons to select the desired item.

- When playing VCD2.0, this function works only when

the menu is off. Select Menu Off by pressing the DISC MENU button.

3. Press the ¥/ buttons to make the desired setup and then

press the ENTER button.

- You may use the number buttons of the remote control

to directly access a title, chapter or to start the play back from a desired time.

4. To make the screen disappear, press the INFO button

again.

Note

To access the desired title when there is more than one in the disc. For example, if there is more than one movie on a DVD, each movie will be identified.

Most DVD discs are recorded in chapters so that you can quickly find a specific passage (similar to tracks on an audio CD).

Allows playback of the film from a desired time. You must enter the starting time as a reference.The time search function does not operate on some disc.

Refers to the language of the film soundtrack. In the example, the soundtrack is played in English 5.1CH. A DVD disc can have up to eight different soundtracks.

Refers to the subtitle languages available in the disc. You will be able to choose the subtitle languages or, if you prefer, turn them off from the screen. A DVD disc can have up to 32 different subtitles.

(Divx) File size has a relationship with resolution of a title. The larger file size is, the higher resolution is displayed. If the file resolution is small, it scales up automatically, so you can see the larger screen.

MenuReturnEnter

Using the Disc and Title Menu

Using the Disc Menu

1. During the playback of a DVD disc, press the MENU button

on the remote control.

2. Press the / buttons to select Disc Menu, then press the

 or ENTER button.

Press ENTER key for Disc Menu

Note

- Depending on a disc, the Disc Menu may not work.

-You can also use the Disc Menu, using the DISC MENU button on the remote control.

- When playing VCD2.0, this function works only when the menu is off. Select Menu Off by pressing the DISC MENU button.

Using the Title Menu

1. During the playback of a DVD disc, press the MENU button

on the remote control.

2. Press the / buttons to select Title Menu, then press the

 or ENTER button.

Press ENTER key for Title Menu

Note

- Depending on a disc, the Title Menu may not work.

-Title Menu will only be displayed if there are at least two titles in the disc.

Using the Function Menu

Using the Function Menu (DVD/VCD)

1. Press the MENU button during playback.

2. Press the / buttons to select Function, then press the  or ENTER button.

- Info (See page 16)

- Zoom (See page 21)

- Bookmark (See pages 20 to 21)

- Repeat (See pages 17 to 18)

- EZ View (See pages 18 to 19)

- Angle (See page 20)

Info Zoom Bookmark Repeat EZ View Angle

3. Press the / buttons to select one of the six functions.

Then press the  or ENTER button to access the function. You can also directly select these functions using their respective buttons on the remote control.

- INFO

- EZ VIEW

- REPEAT

Repeat Play

Repeat the current track, chapter, title, a chosen section (A-B), or all of the disc.

When playing a DVD/VCD

1. Press the REPEAT button on the remote control. Repeat screen appears.

2. Press the ¥/ buttons to select Chapter, Title or A-B,

then press the ENTER button.

- DVD repeats play by chapter or title, VCD repeat play by disc or track.

- Chapter ( ): repeats the chapter that is playing.

- Title ( ): repeats the title that is playing.

- Disc ( ): repeats the disc that is playing.

- Track ( ): repeats the track that is playing.

- A-B: repeats a segment of the disc that you select.

DVD

REPEAT

Off 01 01 A - B

ENTER

English

VCD

REPEAT

Off

01 01 A - B

ENTER

Using the A-B Repeat function

1. Press the REPEAT A-B button at the point where you want repeat play to start (A). B is automatically highlighted.

2. Press the REPEAT A-B button at the point where you

want the repeat play to stop (B).

- To return to normal play, press the CANCEL button.

3. To return to normal play, press REPEAT button again, then press the ¥/ buttons to select Off and press ENTER button.

DVD

REPEAT

ENTER

REPEAT

ENTER

VCD

Off 01 01 A - B

01 01 A - B

Off

Note

- A-B REPEAT allows you to set point (B) directly after point (A) has been set.

- Depending on a disc, the Repeat function may not work.

- When playing VCD2.0, this function works only when

the menu is off. Select Menu Off by pressing the DISC MENU button.

Slow Play

This feature allows you slowly to repeat scenes containing sports, dancing, musical instruments being played etc., so you can study them more closely.

When playing a DVD

1. During play, press the PLAY/PAUSE ( ) button.

2. Press the SEARCH (/) button to choose the play

speed between 1/8, 1/4 and 1/2 of normal during PAUSE or

STEP mode.

ADV

FUNCTIONS

ANCED

Adjusting the Aspect Ratio (EZ View)

To play back using aspect ratio (DVD)

Press the EZ VIEW button.

- The screen size changes when the button is pressed repeatedly.

- The screen zoom mode operates differently depending on the screen setting in the Display Setup menu.

- To ensure correct operation of the EZ VIEW button, you

should set the correct aspect ratio in the Display Setup menu. (See pages 27).

WIDE SCREEN

If you are using a 16:9 TV

For 16:9 aspect ratio discs

- WIDE SCREEN

Displays the content of the DVD title in 16:9 aspect ratio.

- SCREEN FIT

The top and bottom portions of the screen are cut off. When playing a 2.35:1 aspect ratio disc, the black bars at the top and bottom of the screen will disappear. The picture will look vertically stretched. (Depending on a type of disc, the black bars may not disappear completely.)

- ZOOM FIT

The top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarge

For 4:3 aspect ratio discs

- Normal Wide

Displays the content of the DVD title in 16:9 aspect ratio. The picture will look horizontally stretched.

- SCREEN FIT

The top and bottom portions of the screen are cut off and the full screen appears. The picture will look vertically stretched.

- ZOOM FIT

The top, bottom, left and right portions of the screen are cut off and the central portion of the screen is enlarged.

-Vertical Fit

When a 4:3 DVD is viewed on a 16:9 TV, black bars will appear at the left and right of the screen in order to prevent the picture from looking horizontally stretched.

EZ VIEW

If you are using a 4:3 TV

For 16:9 aspect ratio discs

- 4:3 Letter Box

Displays the content of the DVD title in 16:9 aspect ratio. The black bars will appear at the top and bottom of the screen.

- 4:3 Pan Scan

The left and right portions of the screen are cut off and the central portion of the 16:9 screen is displayed.

- SCREEN FIT

The top and bottom portions of the screen are cut off and a full screen appears. The picture will look vertically stretched.

- ZOOM FIT

The top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarged.

For 4:3 aspect ratio discs

- Normal Screen

Displays the content of the DVD title in 4:3 aspect ratio.

- SCREEN FIT

The top and bottom portions of the screen are cut off and the

full screen appears. The picture will look vertically stretched.

- ZOOM FIT

The top, bottom, left and right portions of the screen are cut off and the central portion of the screen is enlarged.

Note

This function may behave differently depending on the type of disc.

Selecting the Audio Language

You can select a desired audio language quickly and easily with the AUDIO button.

Using the AUDIO button (DVD/VCD/MPEG4)

1. Press the AUDIO button. The Audio changes when the

button is pressed repeatedly. The audio languages are represented by abbreviations.

When playing a VCD you can select among Stereo, Right or Left.

Press AUDIO button at remocon repeatedly to select the desired Audio on MPEG4 then press the ENTER .

DVD

ENG

VCD

Stereo

MPEG4

PCM 1/2

DOLBY DIGITAL 5.1CH

AUDIO

2. To remove the AUDIO icon, press the CANCEL or RETURN

button.

Note

- This function depends on audio languages are encoded on the disc and may not work.

-ADVD disc can contain up to 8 audio languages.

-To have the same audio language come up whenever you play a DVD; Refer to “Using the Audio Language” on page 25.

Selecting the Subtitle Language

You can select a desired subtitle quickly and easily with the SUBTITLE button.

Using the SUBTITLE button (DVD/MPEG4)

1. Press the SUBTITLE button. The subtitle languages are

represented by abbreviations. The subtitle changes when the button is pressed repeatedly.

External Subtitle option will appear, depends on the DivX disc.

Press SUBTITLE button at remocon repeatedly to select the desired subtitle language on a MPEG4 then press the ENTER .

2. To remove the SUBTITLE icon, press the CANCEL or

RETURN button.

Note

- You have to change the desired subtitle in the Disc Menu, according to discs. Press the DISC MENU button.

- This function depends on what subtitles are encoded on the disc and may not work on all DVDs.

- A DVD disc can contain up to 32 subtitle languages.

- To have the same subtitle language come up whenever you play a DVD; Refer to “Using the Subtitle Language” on page 25.

DVD

SUBTITLE

Off

MPEG4

Subtitle Selection

External Subtitle Off

Readme.TXT

Non-standard fonts are not supported

MPEG4

Off

ReturnEnter

SUBTITLE

English

Changing the Camera

CANCEL

Angle

Using the Bookmark Function

When a DVD contains multiple angles of a particular scene, you can use the ANGLE function.

Using the ANGLE button (DVD)

If the disc contains multiple angles, the ANGLE appears on the screen.

1. During play, press the MENU button on the remote control.

2. Press the / buttons to select Function, then press the



or ENTER button.

3. Press the / buttons to select Angle, then press the



or ENTER button.

Info Zoom Bookmark Repeat EZ View

4. Press the

Angle

¥/

buttons or you can use the number buttons

MenuReturnEnter

on the remote control to select the desired angle.

4/6

Note

- If the disc has only one angle, this feature won’t work. Currently, very few discs have this feature.

- Depending on the disc, these functions may not work.

Using the Instant Replay/Skip Function

This feature lets you bookmark sections of a DVD or VCD (Menu Off mode) so you can quickly find them at a later time.

Using the Bookmark Function (DVD/VCD)

1. During play, press the MENU button on the remote control.

2. Press the / buttons to select Function, then press the



or ENTER button.

Info Zoom

Bookmark

Repeat EZ View Angle

MenuReturnEnter

3. Press the / buttons to select Bookmark, then press the



or ENTER button.

- - -

4. When you reach the scene you want to mark, press the

ENTER button. Up to three scenes may be marked at a time.

1 - -

CANCEL

Note

- When VCD 2.0 is in Menu Off mode only, this function works. Select Menu Off by pressing the DISC MENU button.

- Depending on a disc, the Bookmark function

may not work.

Using the Instant Replay function (DVD)

If you miss a scene, you can see it again using this function.

If you press the INSTANT REPLAY button, the current scene moves backward about 10 seconds, and plays back.

Using the Instant Skip function (DVD)

Use this function to skip playback about 10 seconds ahead of the current scene.

Press the INSTANT SKIP button.

- Playback will skip ahead 10 seconds.

Note

Depending on the disc, these functions may not work.

Recalling a Marked Scene

1~3. The first 1~3 steps are the same as those for “Using the

Bookmark Function” on page 20.

¥/

4. Press the

buttons to select a marked scene.

1 2 3

CANCEL

5. Press the PLAY/PAUSE () button to skip to the marked

scene.

Clearing a Bookmark

1~3. The first 1~3 steps are the same as those for “Using the

Bookmark Function” on page 20.

¥/

4. Press the want to delete.

buttons to select the bookmark number you

5. Press the CANCEL button to delete a bookmark number.

CANCEL

-: Name of currently playing file.

1 2 3

CANCEL

Using the Zoom Function

Using the Zoom Function (DVD/VCD)

1. During play or pause mode, press the MENU button on the

remote control.

/

2. Press the



or ENTER button.

3. Press the



or ENTER button.

4. Press the

screen you want to zoom in on. Press the ENTER button.

- During DVD play, press ENTER to zoom in 2X/4X/2X/Normal in order.

- During VCD play, press ENTER to zoom in 2X/4X/2X/Normal in order.

buttons to select Function, then press the

/

buttons to select Zoom, then press the

/

¥/

buttons to select the part of the

Info

Zoom

Bookmark Repeat EZ View Angle

MenuReturnEnter

Clips Menu for MP3/WMA/ JPEG/ MPEG4/CD Audio

CD Audio or discs with MP3/WMA/JPEG contain individual songs and/or pictures that can be organized into folders as shown below. They are similar to how you use your computer to put files into different folders.

Stop

Open the disc tray. Place the disc on the tray. Close the tray. The tray closes and this screen displays.

Stop

WMA

JPEG

MP3

Off

00:00:00

ReturnEnter

-: Current Playback Time.

-: Current Playback Mode : There are four

modes. They can be selected in order by pressing the REPEAT button.

- Off: Normal Playback

- Track: Repeats the current track.

- Folder: Repeats the current folder

- Random: Files in the disc will be played in

random order.

- : MP3 file icon. - : CD Audio file icon.

- : WMA file icon. - : Folder icon.

-: JPEG file icon - : Current Folder icon.

-: MPEG file icon.

Folder Selection

The folder can be selected both in Stop or Play mode.

- To select the Parent Folder Press the RETURN button to go to parent folder, or press the

/

buttons to select “..” and press ENTER to go to the

parent folder.

- To select the Peer Folder

- To select the Sub-Folder

/

Press the

buttons to select the desired folder, then

press ENTER.

/

Press the

buttons to select the desired folder,

then press ENTER.

Root

WMA

JPEG

MP3

MUSIC

1st

2nd

SONG FILE 1

SONG FILE 2

SONG FILE 3

MPEG4 FILES

Parent Folder

Current Folder

Sub-Folders

Peer Folders

English

MP3/WMA/CD Audio Playback

1. Open the disc tray. Place the disc on the tray. Close the tray.

- Only one kind of file is played back when a disc or a folder contains both MP3 and WMA files.

2. Press the /or ¥¥/buttons to select a song file.

Press ENTER to begin playback of the song file.

Play

Because You

...

Because You

Cactus

Sad Dayu

Wonderful

Repeat/Random playback

Press the REPEAT button to change the playback mode. There are four modes, such as Off, Track, Folder and Random.

- Off: Normal Playback

- Track: Repeats the current song file.

- Folder: Repeats the song files which have the same extension in the current folder.

- Random: Song files which have the same extension will be played in random order.

To resume normal play, press the CANCEL button.

CD-R MP3/WMA file

When you record MP3 or WMA files on CD-R, please refer to the following.

- Your MP3 or WMA files should be ISO 9660 or JOLIET format.

ISO 9660 format and Joliet MP3 or WMA files are compatible with Microsoft's DOS and Windows, and with

Apple's Mac. This format is the most widely used.

- When naming your MP3 or WMA files, do not exceed 8 characters, and enter “.mp3, .wma” as the file extension.

General name format : Title.mp3. or Title.wma. When composing your title, make sure that you use 8 characters or less, have no spaces in the name, and avoid the use of special characters including: (.,/,\,=,+).

- Use a decompression transfer rate of at least 128 Kbps when recording MP3 files.

Sound quality with MP3 files basically depends on the rate of compression/decompression you choose. Getting CD audio sound requires an analog/digital sampling rate, that is conversion to MP3 format, of at least 128 Kbps and up to 160 Kbps. However, choosing higher rates, like 192 Kbps or more, only rarely give better sound quality. Conversely, files with decompression rates below 128 Kbps will not be played properly.

Off

00:00:23

REPEAT

ReturnEnter

Repeat

- Use a decompression transfer rate of at least 64Kbps when recording WMA files.

Sound quality with WMA files basically depends on the rate of compression/decompression you choose. Getting CD audio sound requires an analog/digital sampling rate, that is conversion to WMA format, of at least 64Kbps and up to 192Kbps. Conversely, files with decompression rates below 64Kbps or over 192Kbps will not be played properly.

- Do not try recording copyright protected MP3 files.

Certain "secured" files are encrypted and code protected to prevent illegal copying. These files are of the following types: Windows Media SDMI

(registered trade mark of Microsoft Inc) and

(registered trade mark of The SDMI Foundation). You

cannot copy such files.

- Important:

The above recommendations cannot be taken as a guarantee that the DVD player will play MP3 recordings, or as an assurance of sound quality. You should note that certain technologies and methods for MP3 file recording on CD-Rs prevent optimal playback of these files on your DVD player (degraded sound quality and in some cases, inability of the player to read the files).

- This unit can play a maximum of 500 files and 500 folders per disc.

MPEG4 Playback

MPEG4 Play Function

AVI files are used to contain the audio and video data. Only

AVI format files with the “.avi” extensions can be played.

1. Open the disc tray. Place the disc on the tray.

Close the tray.

2. Press the

Repeat playback

Press the REPEAT button to change playback mode. There are 4 modes, such as Off, Folder, Title an A-B (a distance between two points appointed by user)

- Folder : repeats the AVI files which have the same extension

- Title : repeats the title that is playing.

- A-B : repeats a segment of the file that you select.

/

or ¥¥/buttons to select an avi file

(DivX/XiviD) and then press ENTER button.

/MPEG4

...

a01_divx51b-8

a02_divx505b-8

a03_divx502sp-8

a04_divx412-8

Enter Return

in the current folder.

OffStop

00:00:00

MPEG4 Function Description

Function Description Reference page

During play, press the or

Skip

( or )

Slow Motion

Play

Step Motion

Play

ZOOM

button, it moves forward

or backward 5 minutes. During play, press the SEARCH

( or ) button and press again to search at a faster

Allows you to search

speed. at a faster speed in an AVI file. (2X, 4X, 8X)

Allows you to search at a slower speed in an AVI file. (1/8X, 1/4X, 1/2X)

Each time the STEP button is pressed, a new frame will appear.

2X/4X/2X/Normal in order

P15

P21

- These functions may not work depending on MPEG4 file.

CD-R AVI file

This unit can play the following video compression formats within the AVI file format:

- DivX 3.11 contents

- DivX 4 contents (Based on MPEG-4 Simple Profile)

- DivX 5 contents (MPEG-4 simple profile plus additional features such as bi-directional frames. Qpel and GMC are also supported.)

- XviD MPEG-4 compliant Contents.

This unit supports all resolutions up to maximum below.

DivX3.11 & DivX4 & XviD DivX5

Bitrate may fluctuate: Device may skip decoding the high bitrate portions

720 x 480 @30fps 720 x 576 @25fps

: Maximum bitrate : 4Mbps and begin decoding again when Bitrate returns to normal.

Picture CD Playback

1. Select the desired folder.

2. Press the

3. Press the INFO button on the remote control to select the

Note

- Press the STOP button to return to the clips menu.

- When playing a Kodak Picture CD, the unit

Rotation

Zoom

Slide Show

•: The unit enters slide show mode.

• Before beginning the Slide Show, the picture interval must

•: When this icon is selected and ENTER is

•: The pictures change automatically with

/

buttons to select a Picture file in the clips

menu and then press the ENTER button.

menu you want to view and then press the ENTER button.

ENTER RETURN

displays the Photo directly, not the clips menu.

: Each time the ENTER button is pressed, the

picture rotates 90 degrees clockwise.

/

: Press the

the screen you want to zoom in on. Press the ENTER button. Each time the ENTER but- ton is pressed, the picture is enlarged up to 2X.

be set.

pressed, the pictures change automatically with about a 6 second interval.

about a 12 second interval.

about a 18 second interval.

or ¥¥/buttons to select the part of

English

Note

• Some MPEG-4 files created on a personal computer may not be play back. That is why Codec Type, Version and Higher resolution over specification is not supported.

• This unit supports CD-R/RW written in MPEG4 in accordance with the “ISO9660 format”.

RETURN

TIMER:

ENTER

Note

- Depending on a file size, the amount of time between each picture may be different from the manual.

- If you don’t press any button, the slide show will

start automatically in about 10 seconds by default.

Setup

MenuReturnEnter

MP3-JPEG Playback

You can play JPEG using music as a backgound.

Press the /buttons to select an MP3 file in the clips

menu and then press the ENTER button.

Press the /buttons to select a JPEG file in the clips menu and then press the ENTER button.

- Music willplay from the beginning

3. Press Stop button when you want to stop the playback.

Note

MP3 and JPEG files have to be on the same disc.

CD-R JPEG Disc

- Only files with the “.jpg” and “.JPG” extensions can be played.

- If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.

- Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.

- The name of the JPEG file may not be longer than 8 characters and should contain no blank spaces or special characters (. / = +).

- Only a consecutively written multi-session disc can be played. If there is a blank segment in the multi-session disc, the disc can be played only up to the blank segment.

- A maximum of 3000 images can be stored on a single CD.

- Kodak Picture CDs are recommended.

- When playing a Kodak Picture CD, only the JPEG files in the pictures folder can be played.

- Kodak Picture CD: The JPEG files in the pictures folder can be played automatically.

- Konica Picture CD: If you want to see the Picture, select the JPEG files in the clips menu.

- Fuji Picture CD: If you want to see the Picture, select the JPEG files in the clips menu.

- QSS Picture CD: The unit may not play QSS Picture CD.

- If the number of files in 1 Disc is over 500, only 500 JPEG files can be played.

- If the number of folders in 1 Disc is over 500, only JPEG files in 500 folders can be played

CHANGING SETUP

Using the Setup Menu

The Setup menu lets you customize your DVD player by allowing you to select various language preferences, set up a parental level, even adjust the player to the type of television screen you have.

1. With the unit in Stop mode, press the MENU button on the

remote control. Use the



press the

Language Setup: Setup of the Language.

❶

Audio Setup : Setup of the Audio Options.

❷

Display Setup : Setup of the Display Options. Use to

❸

Parental Setup : Setup of the Parental Level. Allows

❹

❺

Divx(R) Registration : Please use the Registration code

2. Press the /buttons to access the different features. Press the

3. To make the setup screen disappear after setting up, press the MENU button again.

or ENTER button.



or ENTER button to access the sub features.

/

buttons to select Setup, then

Language Setup

Audio Setup

Display Setup

Parental Setup :

DivX(R) Registration

select which type of screen you want to watch and several display options.

users to set the level necessary to prevent children from viewing unsuitable movies such as those with violence, adult subject matter, etc.

to register this player with the

DivX(R) Video On Demand

format. To learn more go to

www.divx.com/vod.



Note

Depending on the disc, some Setup Menu selections may not work.

Setting Up the Language

Setup

Enter

Return Menu

Player Menu : English

Setup

Enter

Return Menu

Setup

Enter

Return Menu

Features

If you set the player menu, disc menu, audio and subtitle

language in advance, they will come up automatically every

time you watch a movie.

Using the Player Menu Language

1. With the unit in Stop mode, press the MENU button.

2. Press the

3. Press the

4. Press the

5. Press the

Using the Disc Menu Language

This function changes the text language only on the disc

menu screens.

1. With the unit in Stop mode, press the MENU button.

2. Press the

3. Press the

4. Press the

5. Press the

/

buttons to select Setup, then press the

or ENTER button.

/

buttons to select Language Setup, then



press the

the

then press the

or ENTER button.

/

buttons to select Player Menu, then press



or ENTER button.

/

buttons to select the desired language,



or ENTER button.

- The language is selected and the screen returns to Language Setup menu.

- To make the setup menu disappear, press the MENU

button.

Setup

/

buttons to select Setup, then press the

LANGUAGE SETUP

Player Menu : English

Player Menu

Disc Menu Audio Subtitle DivX Subtitle

Enter

√ English

Français Deutsch Español Italiano Nederlands

Return Menu

or ENTER button.

/

buttons to select Language Setup, then



press the

the

then press the

or ENTER button.

/

buttons to select Disc Menu, then press



or ENTER button.

/

buttons to select the desired language,



or ENTER button.

- If the selected language is not recorded on the disc, the original pre-recorded language is selected.

- The language is selected and the screen returns to Language Setup menu.

- To make the setup menu disappear, press the MENU button.

Player Menu

Disc Menu

Audio Subtitle DivX Subtitle

LANGUAGE SETUP

√ English

Français Deutsch Español Italiano Nederlands



Using the Audio Language

1. With the unit in Stop mode, press the MENU button.

2. Press the

3. Press the

4. Press the

5. Press the

/

buttons to select Setup, then press the



or ENTER button.

/

buttons to select Language Setup, then



press the

or ENTER button.

/

buttons to select Audio, then press the



or ENTER button.

/

buttons to select the desired language, then



press the

or ENTER button.

- Select “Original” if you want the default soundtrack language to be the original language the disc is recorded in.

- If the selected language is not recorded on the disc, the original pre-recorded language is selected.

- The language is selected and the screen returns to Language Setup menu.

- To make the setup menu disappear, press the MENU button.

Player Menu Disc Menu

Audio

Subtitle DivX Subtitle

LANGUAGE SETUP

Original

√ English

Français Deutsch Español Italiano

Using the Subtitle Language

1. With the unit in Stop mode, press the MENU button.

2. Press the

3. Press the

4. Press the

5. Press the

/

buttons to select Setup, then press the



or ENTER button.

/

buttons to select Language Setup, then



press the

or ENTER button.

/

buttons to select Subtitle, then press the

or ENTER button.

/

buttons to select the desired language,



then press the

or ENTER button.

- Select “Automatic” if you want the subtitle language to be the same as the language selected as the audio language.

- Some discs may not contain the language you select as

your initial language; in that case the disc will use its original language setting.

- The language is selected and the screen returns to setup menu.

- To make the setup menu disappear, press the MENU button.

LANGUAGE SETUP

Player Menu Disc Menu Audio

Subtitle

DivX Subtitle

√ Automatic

English Français Deutsch Español Italiano

English



Setup

MenuReturnEnter

Setup

MenuReturnEnter

Using the DivX Subtitle Language

Setup

Enter

Return Menu

1. With the unit in Stop mode, press the MENU button.

2. Press the

/

buttons to select Setup, then press the



or ENTER button.

the



/

buttons to select Language Setup, then



or ENTER button.

/

buttons to select DivX Subtitle, then press

or ENTER button.

/

buttons to select the desired language,



or ENTER button.

3. Press the

press the

4. Press the

5. Press the

then press the

- The language is selected and the screen returns to

Language Setup menu.

- To make the setup menu disappear, press the

MENU button.

LANGUAGE SETUP

Player Menu : English Disc Menu Audio Subtitle

DivX Subtitle

√ Unicode

Western Central Cyrillic Greek

Setting Up the Audio Options

Audio Options allows you to setup the audio device and sound status settings depending on the audio system in use.

❶

Dolby Digital Out

- PCM : Converts to PCM(2CH) audio.

- Bitstream : Outputs Dolby Digital or DTS via the digital

output. Select Bitstream when connecting to a

Dolby Digital or DTS Decoder.

Note

• There is no analog audio output when you play a DTS

sound disc.

❷

MPEG-2 Digital Out

- PCM : Converts to PCM(2CH) audio.

- Bitstream : Converts to MPEG-2 Digital Bitstream (5.1CH

or 8CH). Select Bitstream when using the

Digital Audio Output.

❸

DTS

Select On when connecting to a DTS Decoder.

- Off : Doesn’t output digital signal.

- On : Outputs DTS Bitstream via digital output.

❹

Dynamic Compression

- On : To select dynamic compression.

- Off : To select the standard range.

❺

PCM Down Sampling

- On : Select this when the Amplifier connected to the player

is not 96KHz compatible. In this case, the 96KHz

signals will be down converted to 48KHZ.

- Off : Select this when the Amplifier connected to the player

is 96KHz compatible. In this case, all signals will be

output without any changes.

1. With the unit in Stop mode, press the MENU button.

2. Press the

/

buttons to select Setup, then press the

or ENTER button.

the



or ENTER button.

press the

/

buttons to select Audio Setup, then press

/

buttons to select the desired item, then



or ENTER button.

3. Press the

4. Press the



Language Setup

Audio Setup

Display Setup

Parental Setup :

DivX(R) Registration

Dolby Digital Out : PCM

MPEG-2 Digital Out : PCM DTS : Off Dynamic Compression : On PCM Down Sampling : On

AUDIO SETUP

Note :

Even when PCM Down sampling is Off

• Some discs will only output down sampled

audio through the digital outputs.

• To make the Setup menu disappear, press the MENU button.



Manufactured under license from Dolby



Laboratories. “Dolby” and the double-D symbol



are trademarks of Dolby Laboratories.

“DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.

Setting Up the Display

Setup

MenuReturnEnter

Setup

MenuReturnEnter

Aspect Ratio : 16:9 Wide

Setup

MenuReturnEnter

TV System : PAL

Setup

MenuReturnEnter

Options

Display options enable you to set various video functions of the player.

1. With the unit in Stop mode, press the MENU button.

2. Press the

3. Press the

4. Press the

❶

❷

❸

❹

/

buttons to select Setup, then press the

or ENTER button.

/

the



press the

buttons to select Display Setup, then press

or ENTER button.

/

buttons to select the desired item, then



or ENTER button.

Language Setup

Audio Setup

Display Setup

Parental Setup :

DivX(R) Registration

TV Aspect

Depending on a type of television you have, you may want to adjust the screen setting (aspect ratio).

- 4:3 Letter Box : Select when you want to see the total 16:9 ratio screen DVD supplies, even though you have a TV with a 4:3 ratio screen. Black bars will appear at the top and bottom of the screen.

- 4:3 Pan&Scan : Select this for conventional size TVs when you want to see the central portion of the 16:9 screen. (Extreme left and right side of movie picture will be cut off.)

- 16:9 Wide : You can view the full 16:9 picture on your wide screen TV.

DISPLAY SETUP

TV Aspect

Still Mode Screen Message

√ 16:9 Wide Black Level : Off TV System : PAL Video Output : SCART-RGB

Still Mode

These options will help prevent picture shake in still mode and display small text clearer.

- Auto : When selecting Auto, Field/Frame mode will be automatically converted.

- Field : Select this feature when the screen shakes in the Auto mode.

- Frame : Select this feature when you want to see small letters more clearly in the Auto mode.

Screen Messages

Use to turn on-screen messages On or Off.

Black Level

Adjusts the brightness of the screen.(On or Off) It does not function in Progressive mode.



4:3 Letter Box 4:3 Pan&Scan

TV System

❺

- NTSC : In case of using NTSC disc

• If your TV system only has PAL-Video input, you must choose “PAL”. When you choose “PAL”, Interlace output format is PAL 60 Hz output.

• If your TV system only has NTSC, input you must choose “NTSC ”.

- PAL : In case of using PAL disc

• If your TV system only has NTSC-Video input, you must choose “NTSC”.

• If your TV system only has PAL input, you must choose “PAL ”.



Video Output

➏

Select Video Output.

- S-Video : Select when you want to use Video and S-Video Out.

- I-SCAN : Select when you want to use Component Interlace (625i/525i) Out.

- P-SCAN : Select when you want to use Component Progressive (625p/525p) Out.

- SCART-RGB Output : Select when you want to use Scart Out.

• If the Yes/No selection in the Display Setup sub Menu is not made within 10 seconds, the screen returns to the previous menu.

• Consult your TV User’s Manual to find out if your TV supports Progressive Scan. If Progressive Scan is supported, follow the TV User’s Manual regarding Progressive Scan settings in the TV’s menu system.

• If Video Output is set incorrectly, the screen may be blocked.

DISPLAY SETUP

TV Aspect : Wide Still Mode : Auto Screen Messages : On Black Level : Off

TV System

Video Output

TV Aspect : Wide Still Mode : Auto Screen Messages : On Black Level TV System

Video Output

√ PAL

DISPLAY SETUP

S-Video I-SCAN P-SCAN

√ SCART-RGB

English

NTSC

Setting Up the Parental

Setup

MenuReturnEnter

Setup

MenuReturnEnter

Setup

MenuReturnEnter

Setup

Rating Level : Kids Safe

MenuReturnEnter

Setup

MenuReturnEnter

Setup

MenuReturnEnter

Setup

MenuReturnEnter

Setup

MenuReturnEnter

Control

The Parental Control function works in conjunction with DVDs that have been assigned a rating, which helps you control the types of DVDs that your family watches. There are up to 8 rating levels on a disc.

Setting Up the Rating Level

1. With the unit in Stop mode, press the MENU button.

2. Press the

3. Press the /buttons to select Parental Setup, then

/

or ENTER button.

press the



or ENTER button.

buttons to select Setup, then press the

Language Setup

Audio Setup

Display Setup

Parental Setup :

DivX(R) Registration

Setup

Language Setup

Audio Setup

Display Setup

Parental Setup :

DivX(R) Registration

MenuReturnEnter



To make the setup menu disappear, press the MENU button. For example, if you select up to Level 6, discs that contain Level 7,8 will not play.

Changing the Password

1. With the unit in Stop mode, press the MENU button.

2. Press the

3. Press the /buttons to select Parental Setup, then

/

buttons to select Setup, then press the

or ENTER button.



press the

or ENTER button. The Enter Password screen

appears. Enter your password.

Language Setup

Audio Setup

Display Setup

Parental Setup :

DivX(R) Registration

Language Setup

Audio Setup

Display Setup

Parental Setup :

DivX(R) Registration



4. Press the /buttons to select Rating Level, then press the



or ENTER button.

Rating Level : Kids Safe

Change Password

5. Enter your password.

- By default, password is set to 0000.

Rating Level : Kids Safe

Change Password

Enter Password

6. Press the

/

then press the

buttons to select the Rating Level you want,



or ENTER button.

e.g) Setting up in Kids Safe.

Rating Level

Change Passwor

PARENTAL SETUP

√ Kids Safe

Level 2 Level 3 Level 4 Level 5 Level 6

4. Press the /button to select Change Password, then



press the

or ENTER button. Enter your new password.

Re-enter the new password again.

PARENTAL SETUP

Rating Level :Kids Safe

Change Password

PARENTAL SETUP

Rating Level :Kids Safe

Change Password

Enter Password

PARENTAL SETUP

Rating Level :Kids Safe

Change Password

Enter New Password

Setup

MenuReturnEnter

Note

If you have forgotten your password, see “Forgot Password” in the Troubleshooting Guide.

REFERENCE

Firmware upgrade

Introduction

Samsung will often support the software upgrade to improve the performance of this unit to the latest status, through Samsung Internet Site (www.samsung.com).

Because the specially new mpeg4 codec continues and it is appearing. What improvements are made depends on the upgrade software you are using as well as the software that your DVD-player contained before the upgrade.

How to make an upgrade disc

Write the downloaded file onto a blank CD-R or CDRW disc, using the following settings:

1. You have to download a new file through Download Center of Samsung Internet Site (www.samsung.com).

2. Write the file to Disc using CD-RW of your computer.

Note

- File System CD-ROM ISO Level

- Character set ISO 9660

- Finalized, single session

-Write speed low

Upgrade procedure

1. Open the disc tray. Place the disc on the tray. Close the tray. The Firmware upgrade screen appears.

2. Press the ¥/ buttons to select Total, then press the

ENTER button.

Firmware upgrade starts

- In the middle of the writing, the tray will open automatically. After taking out the disc, please wait for about 2 minutes.

- If the unit was succesfully updated, the unit will turn off and on after closing the tray automatically. When the unit turns on, this screen will display.

3. Press the number buttons to select the desired language

Press 1 for English

Touche 2 pour Français

Drücken Sie 3 für Deutsch

Pulsar 4 para Español

Premere 5 per Italiano

Druk op 6 voor Nederlands

Note

- If the “Select Menu Language” doesn’t appear, please contact to “Samsung Service Center”.

- Do not press any button and unplug the power

cord during upgrade.

- The upgrade procedure may change, refer to the web site (www.samsung.com).

English

Firmware upgrade

appears on the display

Troubleshooting

Before requesting service (troubleshooting), please check the following.

Problem

No operations can be performed with the remote control.

Disc does not play.

5.1 channel sound is not being reproduced.

The icon appears on screen.

Disc Menu doesn’t appear.

Play mode differs from the Setup Menu selection.

The screen ratio cannot be changed.

No audio.

The screen is blocked

Forgot password

If you experience other problems.

The picture is noisy or distorted

Action

• Check the batteries in the remote control. They may need replacing.

• Operate the remote control at a distance of no more than 20 feet.

• Remove batteries and hold down one or more buttons for several minutes to drain

the microprocessor inside the remote control to reset it. Reinstall batteries and try to operate the remote control again.

• Ensure that the disc is installed with the label side facing up.

• Check the region number of the DVD.

• 5.1 channel sound is reproduced only when the following conditions are met. :

1) The DVD player is connected with the proper Amplifier

2) The disc is recorded with 5.1 channel sound.

• Check whether the disc being played has the “5.1 ch” mark on the outside.

• Check if your audio system is connected and working properly.

• In a SETUP Menu, is the Audio Output set to Bitstream?

• The features or action cannot be completed at this time because:

1. The DVD’s software restricts it.

2. The DVD’s software doesn’t support the feature (e.g., angles).

3. The feature is not available at the moment.

4. You’ve requested a title or chapter number or search time that is out of range.

• Check if the disc has a Menu.

• Some of the functions selected in the Setup Menu may not work properly if the

disc is not encoded with the corresponding function.

• The Screen Ratio is fixed on your DVDs.

• Make sure you have selected the correct Digital Output in the Audio Options

Menu.

•

Press the button (in front panel) for more than 5 seconds under no disc

inside. All settings will revert to the factory settings.

• Press the button

under no disc inside. All settings including the password will revert to the factory settings. Don't use this unless absolutely necessary.

• Go to the contents and find the section of the instruction book that contains the

explanations regarding the current problem, and follow the procedure once again.

• If the problem still cannot be solved, please contact your nearest authorized ser-

vice center.

• Make sure that the disc is not dirty or scratched.

• Clean the disc.

(in front panel )

for more than 5 seconds

Page

P24~28

P13-14

P26

P27

P26

P15

P28

+ 106 hidden pages
