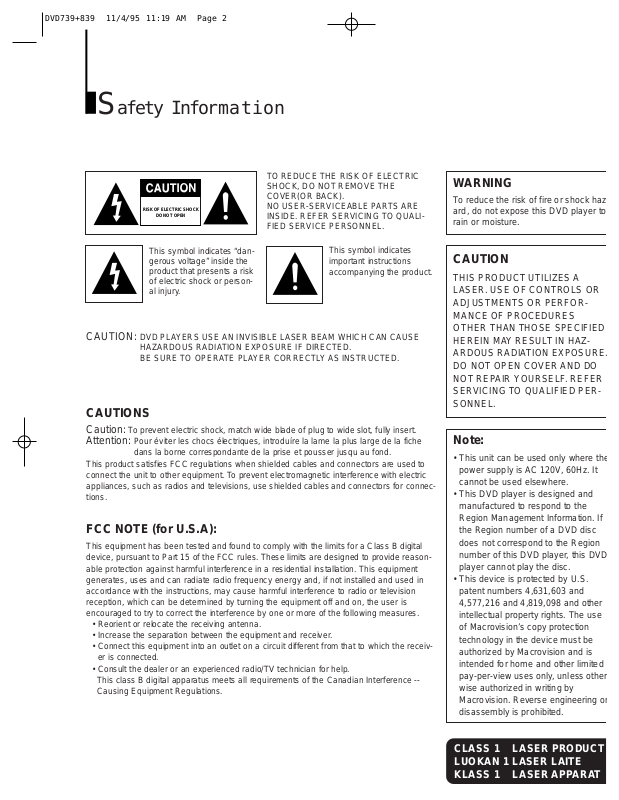

Safety Information
TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE THE
COVER(OR BACK).
NO USER-SERVICEABLE PARTS ARE
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol indicates “dangerous voltage” inside the
product that presents a risk
of electric shock or personal injury.
CAUTION: DVD PLAYERS USE AN INVISIBLE LASER BEAM WHICH CAN CAUSE
HAZARDOUS RADIATION EXPOSURE IF DIRECTED.
BE SURE TO OPERATE PLAYER CORRECTLYAS INSTRUCTED.
This symbol indicates
important instructions
accompanying the product.
CAUTION
THIS PRODUCT UTILIZES A
LASER. USE OF CONTROLS OR
ADJUSTMENTS OR PERFORMANCE OF PROCEDURES
OTHER THAN THOSE SPECIFIED
HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVER AND DO
NOT REPAIR YOURSELF. REFER
SERVICING TO QUALIFIED PERSONNEL.
Note:
• This unit can be used only where the
power supply is AC 120V, 60Hz. It
cannot be used elsewhere.
• This DVD player is designed and
manufactured to respond to the
Region Management Information. If
the Region number of a DVD disc
does not correspond to the Region
number of this DVD player, this DVD
player cannot play the disc.
• This device is protected by U.S.
patent numbers 4,631,603 and
4,577,216 and 4,819,098 and other
intellectual property rights. The use
of Macrovision’s copy protection
technology in the device must be
authorized by Macrovision and is
intended for home and other limited
pay-per-view uses only, unless other
wise authorized in writing by
Macrovision. Reverse engineering or
disassembly is prohibited.
CAUTIONS
Caution: To prevent electric shock, match wide blade of plug to wide slot, fully insert.
Attention: Pour éviter les chocs électriques, introduíre la lame la plus large de la fiche
dans la borne correspondante de la prise et pousser jusqu au fond.
This product satisfies FCC regulations when shielded cables and connectors are used to
connect the unit to other equipment. To prevent electromagnetic interference with electric
appliances, such as radios and televisions, use shielded cables and connectors for connections.
FCC NOTE (for U.S.A):
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures.
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect this equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This class B digital apparatus meets all requirements of the Canadian Interference -Causing Equipment Regulations.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING
To reduce the risk of fire or shock haz
ard, do not expose this DVD player to
rain or moisture.
CLASS 1 LASER PRODUCT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
DVD739+839 11/4/95 11:19 AM Page 2
Page 2
Care & Maintenance
For trouble free operation, follow the instructions shown below.
Handling Cautions
Formation of Condensation
Due to sharp changes in temperature and humidity, condensation may form if warm air comes in contact with any cold parts inside the player
• When condensation forms inside the player, the player may not operate correctly. If this occurs, leave the player at room temperature until t
inside of the player becomes dry and operational.
• If condensation forms on a disc, wipe the disc with a soft and dry cloth by moving the cloth from the center hole toward the outer edge.
• Before connecting other components to this player, be sure to turn them all off.
• Do not move the player while a disc is being played, or the disc may be scratched or
broken, and the player’s internal parts may be damaged.
• Do not put a flower vase filled with water or any small metal objects on the
player.
• Be careful not to put your hand into the disc tray.
• Do not place anything other than the disc in the disc tray.
• Exterior interference such as lightning and static electricity can affect normal operation of this player. If this occurs, turn the player off and on again with the POWER
button, or disconnect and then reconnect the AC power cord to the AC power outlet.
The player will operate normally.
• Be sure to remove the disc and turn off the player after use.
• Disconnect the AC power cord from the AC outlet when you don’t intend to use the
player for long periods of time.
• Clean the disc by wiping in a straight line from the inside to the outside of the disc.
Disc Storage
Be careful not to harm the disc because the data on these discs is highly vulnerable to
the environment.
• Do not keep under direct sunlight.
• Keep in a cool ventilated area.
• Store vertically.
• Keep in a clean protection jacket.
Maintenance of Cabinet
For safety reasons, be sure to disconnect the AC power cord from the AC outlet.
• Do not use benzene, thinner, or other solvents for cleaning.
• Wipe the cabinet with a soft cloth.
Accessories
Remote Control
Batteries for
Remote Control
(AA Size)
Video/Audio
Connection Cable
S-Video Cable
User’s Manual
Registration Card
DVD739+839 11/4/95 11:19 AM Page 3
Page 3
TABLE OF CONTENTS
DVD739+839 11/4/95 11:19 AM Page 4
Page 4
Disc Features
..........................................................
6
Disc Type and Characteristics
................................
7
Description
..............................................................
8
• Front Panel (DVD-839)
................................................
8
• Front Panel (DVD-739)
................................................
9
• Rear Panel (DVD-839)
..............................................
1
• Rear Panel (DVD-739)
................................................
1
A Tour of the Remote Control
..............................
1
• DVD Function Buttons
..............................................
1
• TV Function Buttons
................................................
1
Choosing a Connection (DVD-839)
......................
14
• Connecting to a TV
..................................................
14
• Connecting to an Audio System
..................................
15
Choosing a Connection (DVD-739)
......................
1
• Connecting to a TV
..................................................
1
• Connecting to an Audio System
..................................
1
Playing a Disc
......................................................
18
Searching & Skipping through a Chapter or Track
....
20
Using the Display Function
..................................
21
Repeat Play
..........................................................
2
Using the A-B Repeat Function
............................
2
Program Playback in a Specific Order
................
2
Using the Disc View Function
..............................
25
Selecting Audio
....................................................
26
Selecting the Subtitle Language
..........................
27
Selecting the Desired Screen Angle
....................
2
Using the Bookmark Function
..............................
2
Using the Zoom and 3D Sound Functions
..........
3
Using the Setup Menu
..........................................
31
Setting Up the Language Features
......................
32
Setting Up the Parental Level
..............................
34
Setting Up Audio Options
....................................
3
Setting Up Display Options
..................................
3
Controlling a TV with the Remote
........................
37
Troubleshooting Guide
..........................................
38
Specifications (DVD-839)
....................................
39
Specifications (DVD-739)
....................................
4
Warranty
..............................................................
4
DVD739+839 11/4/95 11:19 AM Page 5
Page 5
D isc Features
Excellent Sound
The Dolby Digital system developed by Dolby Labs
provides crystal clear sound reproduction.
Screen
Video with MPEG2 compression technology. Both
regular and widescreen(16:9) pictures can be
viewed.
Slow Motion
An important scene can be viewed in slow motion.
Programmed Play
You can program tracks to play in desired order.
Parental Level Control
The parental level control allows users to set the
level necessary to prohibit children from viewing
harmful movies such as those with violence, adult
subject matter, etc.
Various On-Screen Menu Functions
You can select various languages(Audio/Subtitle)
and screen angles while enjoying movies.
Repeat
You can repeat a song or movie simply by pressin
the REPEAT button.
DIGITAL VIDEO
SPATIALIZER
N-2-2
PHONE
LEVEL
MIN MAX
OPEN/CLOSE
OPEN/CLOSE
STANDBY/ON
/
SKIP
DVD-83
OPEN/
CLOSE
STANDBY/ON
OPEN/
CLOSE
24bit 96kHz AUDIO D/A CONVERTER
DIGITAL VIDEO
SPATIALIZER
N-2-2
DVD/VIDEO-CD/CD PLAYER DVD-739
/
SKIP
DVD-739
COPY PROTECTION
• Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD player directly to
your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs.
• This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual
property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized b
Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision
Corporation. Reverse engineering or disassembly is prohibited.
DVD739+839 11/4/95 11:19 AM Page 6
Page 6
D isc Type and Characteristics
This DVD player is capable of playing the following types of discs with the corresponding logos:
Disc Markings
~
DIGITAL
SOUND
STEREO
• Playback Region Number • NTSC broadcast
system in U.S.A,
Canada, Korea,
Japan, etc.
• Dolby Digital
disc
• Digital Audio
disc
• Stereo disc • DTS disc
*DO NOT play CD-ROM, CD-I, CD-R and DVD-ROM in this player! (CDGs play audio only, not graphics.)
Playback Region Number
Both the DVD player and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not
match, the disc will not play.
The Region Number for this player is described on the rear panel of the player.
5 inches
3
1/2 inches
Single-sided
240 min.
Double-sided
480 min.
Single-sided
80 min.
Double-sided
160 min.
Audio
+
Video
Audio
+
Video
Audio
• An LP is recorded as an analog sig
nal with more distortion. CD is
recorded as a Digital Signal with
better audio quality, less distortion
and less deterioration of audio qua
ity over time.
• Video with CD sound, VHS quality
& MPEG1 compression technology
• DVD contains excellent sound and
video due to Dolby Digital and
MPEG2 system.
• Various screen and audio function
can be easily selected through the
on-screen menu.
DVD
VIDEO-CD
AUDIO-CD
5 inches
3
1/2 inches
74 min.
20 min.
5 inches
3
1/2 inches
74 min.
20 min.
Logos
Disc Types
Recording
Types
Disc Size
Max.
Playing
Time
Characteristics
NTSC
DVD739+839 11/4/95 11:19 AM Page 7
Page 7
D escription-Front Panel
Front Panel Controls
DVD-839
Front Display
STANDBY LAMP
• When the unit is first plugged in, the indi
cator lights. When power is pressed on,
the lamp goes out.
POWER ON/OFF
• Use to turn your player on and off (standby).
HEADPHONES JACK
• You can attach headphones here for private listening.
HEADPHONES VOLUME
• Use to adjust headphones volume level.
DISPLAY (See below)
• Operation indicators are displayed here.
DISC TRAY
• Press OPEN/CLOSE to open and close
the disc tray.
GREEN LAMP
OPEN/CLOSE
• Press to open and close the disc tray.
SKIP/SEARCH
• Use to skip or search a scene or music.
PLAY/PAUSE
• Begin or pause disc play.
STOP
• Stops disc play.
SHUTTLE DIAL
• Performs fast or slow motion playback.
JOG DIAL
• Operates frame by frame playback. In C
mode, performs track search.
DISC OPERATION ROTARY INDICATO
OPERATION INDICATOR
DISC TYPE INDICATOR
TRACK INDICATOR
3D SOUND INDICATOR
ANGLE INDICATOR
CHAPTER INDICATOR
REPEAT INDICATOR
CHAPTER, TITLE, TRACK & MESSAG
INDICATOR
ALL REPEAT INDICATOR
A-B REPEAT INDICATOR
PROGRAM PLAY INDICATOR
MPEG INDICATOR
DOLBY DIGITAL INDICATOR
LINEAR PCM INDICATOR
DTS INDICATOR
To Connect Headphones (not included) (DVD-839 only)
Connect headphones with a standard stereo plug to the headphone jack (M6).
• Before connecting, set headphone volume at minimum. Then adjust to a suitable volume.
DVD739+839 11/4/95 11:20 AM Page 8
STANDBY/ON
/
PHONE
LEVEL
MIN MAX
OPEN/CLOSE
OPEN/CLOSE
SKIP
SPATIALIZER
N-2-2
DIGITAL VIDEO
Page 8
D escription-Front Panel
DVD-739
Front Panel Controls
Front Display
STANDBY LAMP
• When the unit is first plugged in, the indi
cator lights. When power is pressed on,
the lamp goes out.
POWER ON/OFF
• Use to turn your player on and off (standby).
DISPLAY (See below)
• Operation indicators are displayed here.
DISC TRAY
• Press OPEN/CLOSE to open and close
the disc tray.
GREEN LAMP
SKIP/SEARCH
• Use to skip or search a scene or music.
OPEN/CLOSE
• Press to open and close the disc tray.
PLAY/PAUSE
• Begin or pause disc play.
STOP
• Stops disc play.
DISC OPERATION ROTARY INDICATO
OPERATION INDICATOR
DISC TYPE INDICATOR
TRACK INDICATOR
3D SOUND INDICATOR
ANGLE INDICATOR
CHAPTER INDICATOR
REPEAT INDICATOR
CHAPTER, TITLE, TRACK & MESSAG
INDICATOR
ALL REPEAT INDICATOR
A-B REPEAT INDICATOR
PROGRAM PLAY INDICATOR
MPEG INDICATOR
DOLBY DIGITAL INDICATOR
LINEAR PCM INDICATOR
DTS INDICATOR
DVD739+839 11/4/95 11:20 AM Page 9
STANDBY/ON
/
24bit 96kHz AUDIO D/A CONVERTER
DVD/VIDEO-CD/CD PLAYER DVD-739
OPEN/
OPEN/
CLOSE
CLOSE
SPATIALIZER
SKIP
N-2-2
DIGITAL VIDEO
Page 9
D escription-Rear Panel
DVD-839
Rear Panel
DIGITALAUDIO OUT JACK
• Use either an optical or coaxial digital cable to connect to an
A/V Amplifier that contains a Dolby Digital decoder or DTS
decoder.
ANALOG AUDIO OUT JACKS
• Connect to the Audio input jacks of your television, audio/video
receiver, or VCR.
VIDEO OUT JACKS
• Use a video cable to connect one of these jacks to the Video
input on your television.
S-VIDEO OUT JACK
• Use the S-Video cable to connect this jack to the S-Video jack
on your television for a higher quality picture.
COMPONENT VIDEO OUT JACKS
• Use these jacks if you have a TV with Component Video in
jacks. These jacks provide Pr, Pb and Y video. Along with SVideo, Component Video provides the best picture quality.
DVD739+839 11/4/95 11:20 AM Page 10
OPTICAL COAXIAL
DIGITAL AUDIO OUT ANALOG AUDIO OUT
R1
L1
V1
R2
V2
L2
VIDEO OUT S-VIDEO OUT COMPONENT VIDEO OUT
YPr
Pb
Page 10
D escription-Rear Panel
DVD-739
DIGITAL
AUDIO OUT
ANALOG AUDIO OUT
RL
VIDEO OUT S-VIDEO OUT
COMPONENT VIDEO OUT
YPr
Pb
DIGITALAUDIO OUT JACK
• Use a coaxial digital cable to connect to an A/V Amplifier that
contains a Dolby Digital decoder or DTS decoder.
ANALOG AUDIO OUT JACKS
• Connect to the Audio input jacks of your television, audio/video
receiver, or VCR.
VIDEO OUT JACK
• Use a video cable to connect this jack to the Video input on
your television.
S-VIDEO OUT JACK
• Use the S-Video cable to connect this jack to the S-Video jack
on your television for a higher quality picture.
COMPONENT VIDEO OUT JACKS
• Use these jacks if you have a TV with Component Video in
jacks. These jacks provide Pr, Pb and Y video. Along with SVideo, Component Video provides the best picture quality.
Rear Panel
DVD739+839 11/4/95 11:20 AM Page 11
Page 11
A Tour of the Remote Control
DVD Function Buttons
DVD POWER Button
NUMBER Buttons
OPEN/CLOSE Button
SETUP Button
• Brings up the DVD player’s Setup menu
ZOOM Button
SEARCH Buttons
• Allows you to search forward/backward
through a disc.
STOP Button
STEP Button
• Advances playback one frame at a time.
RETURN Button
• Returns to a previous menu.
TOP MENU Button
• Accesses a music or video display direct
AUDIO Button
• Use this button to access various audio
functions on a disc.
REPEAT Button
• Allows you to repeat play a title, chapter,
track, or disc.
TV POWER Button
• Use to set the remote to control a compa
ble TV.
VOLUME CON. Button
• To control the master volume of the play
3D SOUND Button
BOOKMARK Button
PLAY/PAUSE Button
• Begin/Pause disc play.
SKIP Buttons
• Use to skip the title, chapter, or track.
CLEAR Button
• Use to remove menus or status displays
from the screen.
MODE Button
• Allows you to program a specific order.
DISPLAY Button
• Displays the current disc mode.
MENU Button
• Brings up the Disc menu.
ENTER/DIRECTION Button
(UP/DOWN or LEFT/RIGHT Button)
• This button functions as a toggle switch.
ANGLE Button
• Use to access various camera angles on
DVD.
SUBTITLE Button
A-B REPEAT Button
• Use to mark a segment to repeat betwee
A and B.
DVD739+839 11/4/95 11:20 AM Page 12
Page 12
A Tour of the Remote Control (Cont d)
TV Function Buttons
TV POWER Button
TV/VIDEO Selection Button
CHANNEL UP/DOWN Buttons
VOLUME UP/DOWN Buttons
NOTE
This icon indicates an invalid button press.
If remote doesn’t operate
properly:
1.
Open the battery cover on
the back of the remote.
2.
Insert two AAbatteries.
Make sure that the polarities (+ and -) are aligned
correctly.
3.
Replace the battery cover.
• Check the polarity + - of the
batteries (Dry-Cell)
• Check if the batteries are
drained.
• Check if remote sensor is
blocked by obstacles.
• Check if there is any fluorescent lighting nearby.
Install Batteries in the Remote
DVD739+839 11/4/95 11:20 AM Page 13
Page 13

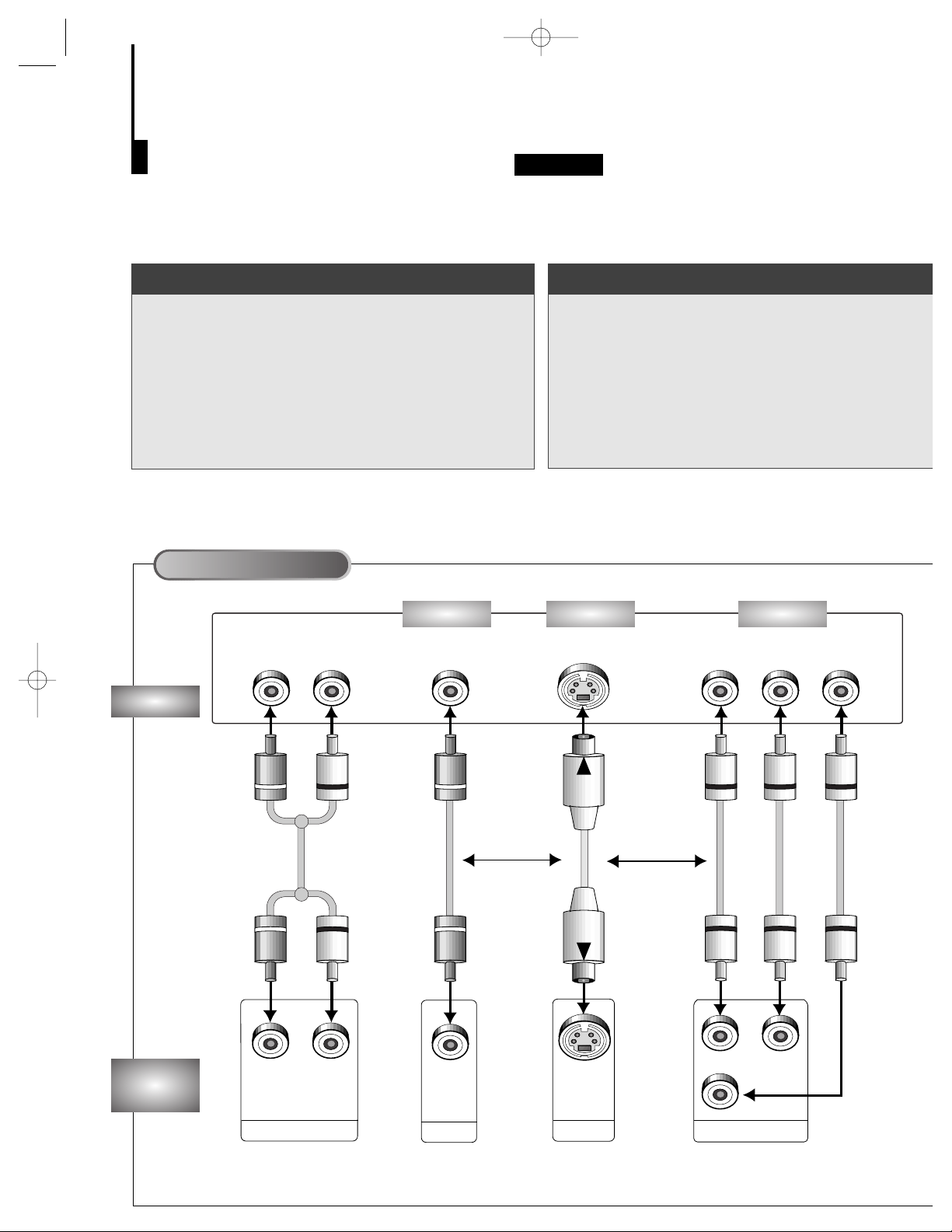

Choosing a Connection
The following show examples of connections commonly used to connect the DVD player with a TV and othe
components.
DVD-839
Before Connecting the DVD Player Connecting to a TV (For Video)
RL
ANALOG AUDIO OUT
R1
L1
R2
L2
V1
V2
VIDEO OUT
S-VIDEO OUT
COMPONENT VIDEO OUT
Y
Y
Pr
Pr
Pb
Pb
TV
DVD
PLAYER
Connecting to a TV
• Method 1
DVD Player + TV with Video Input Jack
• Method 2
DVD Player + TV with S-Video Input Jack
• Method 3
DVD Player + TV with Component Video Jacks
• Always turn off the DVD player, TV, and other
components before you connect or disconnect any
cables.
• Refer to owner’s manual of the components you
are connecting for more information on those particular components.
AV Cable
(included)
S-Video Cable
(included)
Good
pictureBasic Audio
Better
Video Input JackAudio Input Jacks
S-Video Jack
Method 1 Method 2
TV (Normal, Widescreen, Projection, etc..)
OR
Video Cables
(not included)
Best picture
Component Video Jacks
Method 3
OR
DVD739+839 11/4/95 11:20 AM Page 14
Page 14
RL
ANALOG AUDIO OUT
R1 L1
R2 L2
OPTICAL COAXIAL
OPTICAL COAXIAL
DIGITAL AUDIO OUT
Choosing a Connection (Cont d)

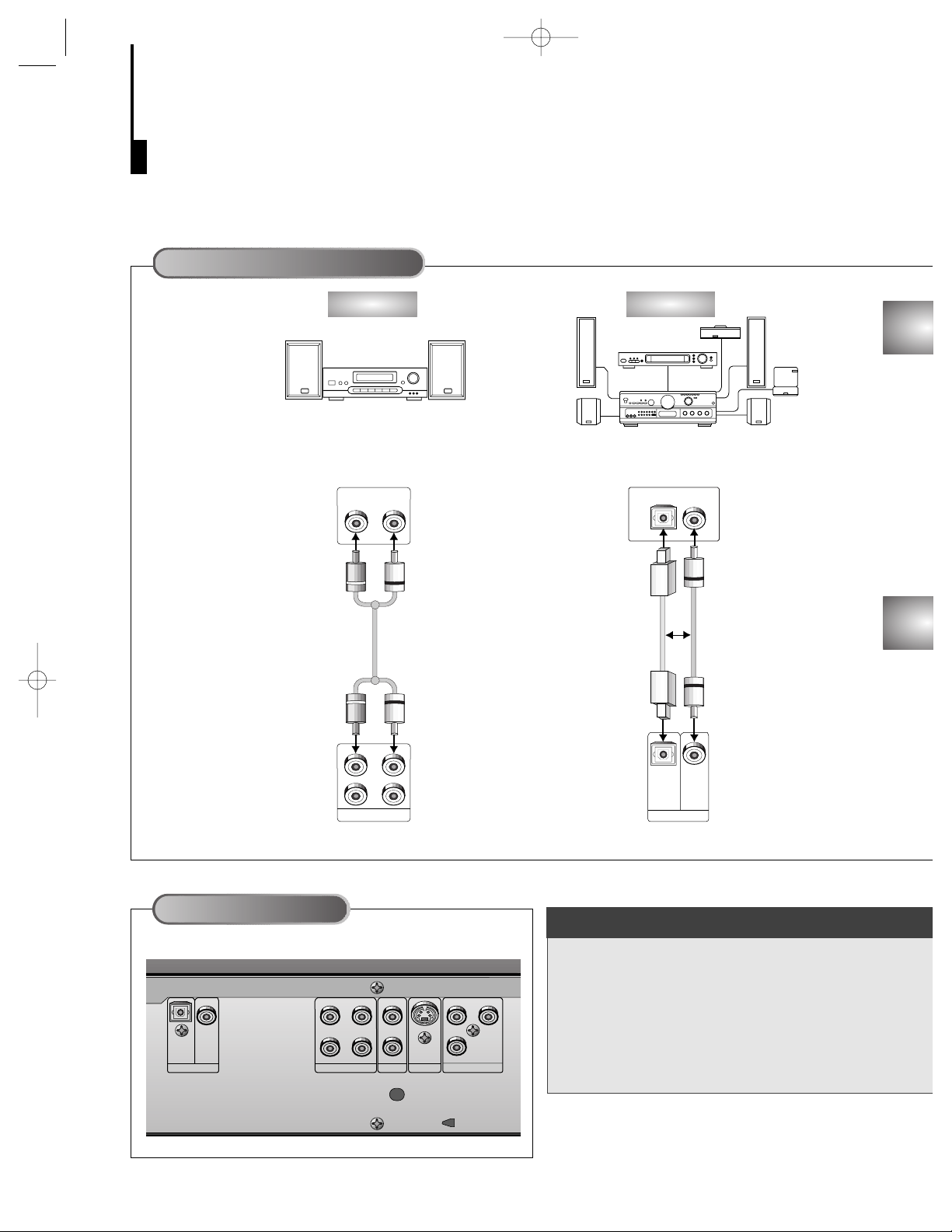

Connecting to an Audio System
AUD
SYST
DV
PLAY
Connecting to an Audio System
Rear Panel
• Method 1
DVD Player + 2ch Stereo Amplifier or Dolby Pro
Logic Decoder
• Method 2
DVD Player + Amplifier with Dolby
Digital Decoder/DTS Decoder
OPTICAL COAXIAL
DIGITAL AUDIO OUT ANALOG AUDIO OUT
VIDEO OUT S-VIDEO OUT COMPONENT VIDEO OUT
YPr
Pb
R1
L1
R2
L2
V1
V2
OR
Method 1
Analog Audio Out
Audio Input Jacks
2ch Amplifier
Method 2
Dolby Digital Decoder
Digital Audio Input Jacks
Digital Audio Out
DVD739+839 11/4/95 11:20 AM Page 15
Page 15
Choosing a Connection
The following show examples of connections commonly used to connect the DVD player with a TV and othe
components.
DVD-739
Before Connecting the DVD Player Connecting to a TV (For Video)
RL
ANALOG AUDIO OUT
RL
VIDEO OUT
S-VIDEO OUT
COMPONENT VIDEO OUT
Y
Y
Pr
Pr
Pb
Pb
TV
DVD
PLAYER
Connecting to a TV
• Method 1
DVD Player + TV with Video Input Jack
• Method 2
DVD Player + TV with S-Video Input Jack
• Method 3
DVD Player + TV with Component Video Jacks
• Always turn off the DVD player, TV, and other
components before you connect or disconnect any
cables.
• Refer to owner’s manual of the components you
are connecting for more information on those particular components.
AV Cable
(included)
S-Video Cable
(included)
Good
pictureBasic Audio
Better
Video Input JackAudio Input Jacks
S-Video Jack
Method 1 Method 2
TV (Normal, Widescreen, Projection, etc..)
OR
Video Cables
(not included)
Best picture
Component Video Jacks
Method 3
OR
DVD739+839 11/4/95 11:20 AM Page 16
Page 16

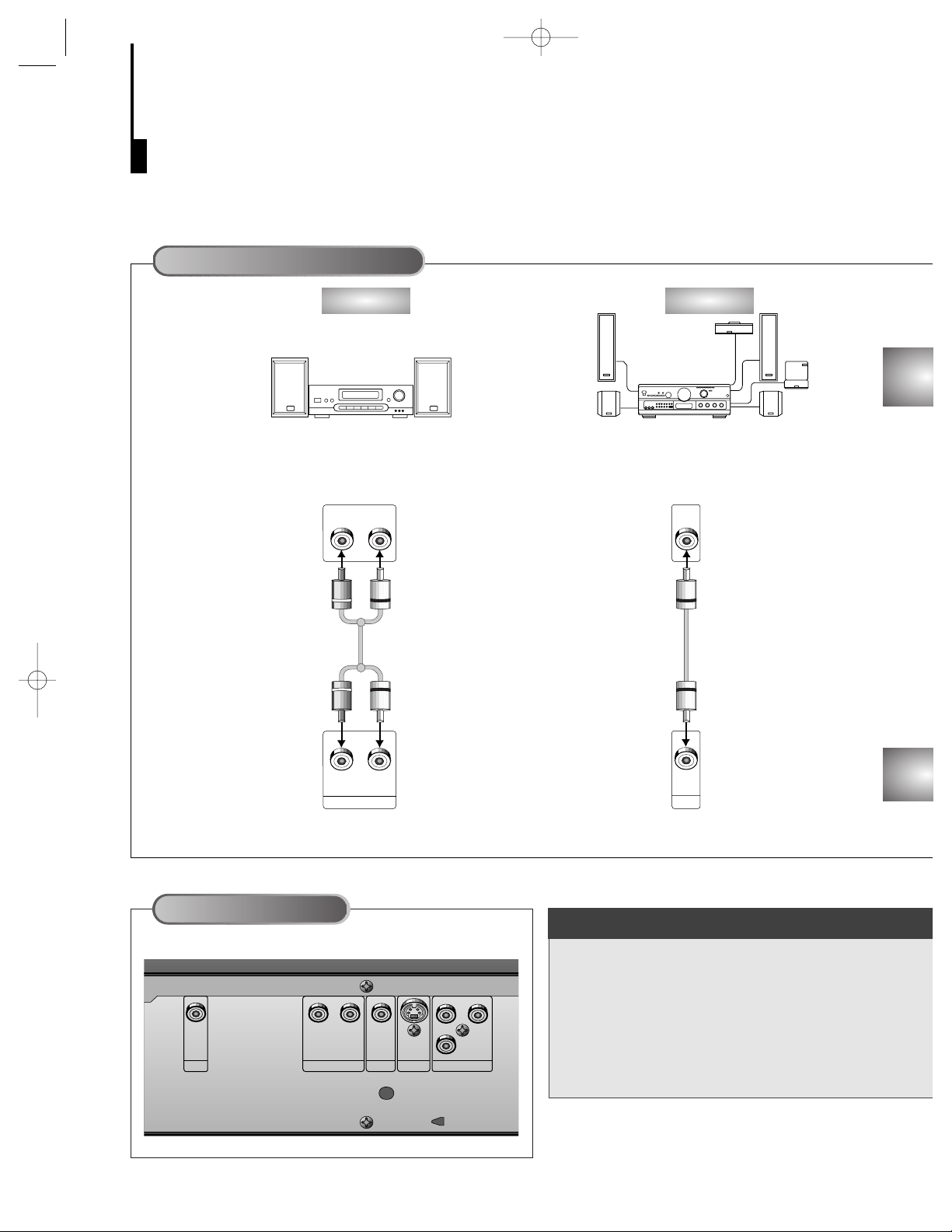

Choosing a Connection (Cont d)
DIGITAL
AUDIO OUT
RL
ANALOG AUDIO OUT
RL
AUD
SYST
DV
PLAY
Connecting to an Audio System
Method 1 Method 2
Analog Audio Out
Audio Input Jacks
Digital Audio Input Jack
Dolby Digital Decoder2ch Amplifier
Digital Audio Out
Rear Panel
DIGITAL
AUDIO OUT
ANALOG AUDIO OUT
RL
VIDEO OUT S-VIDEO OUT
COMPONENT VIDEO OUT
YPr
Pb
Connecting to an Audio System
• Method 1
DVD Player + 2ch Stereo Amplifier or Dolby Pro
Logic Decoder
• Method 2
DVD Player + Amplifier with Dolby Digital
Decoder/DTS Decoder
DVD739+839 11/4/95 11:20 AM Page 17
Page 17

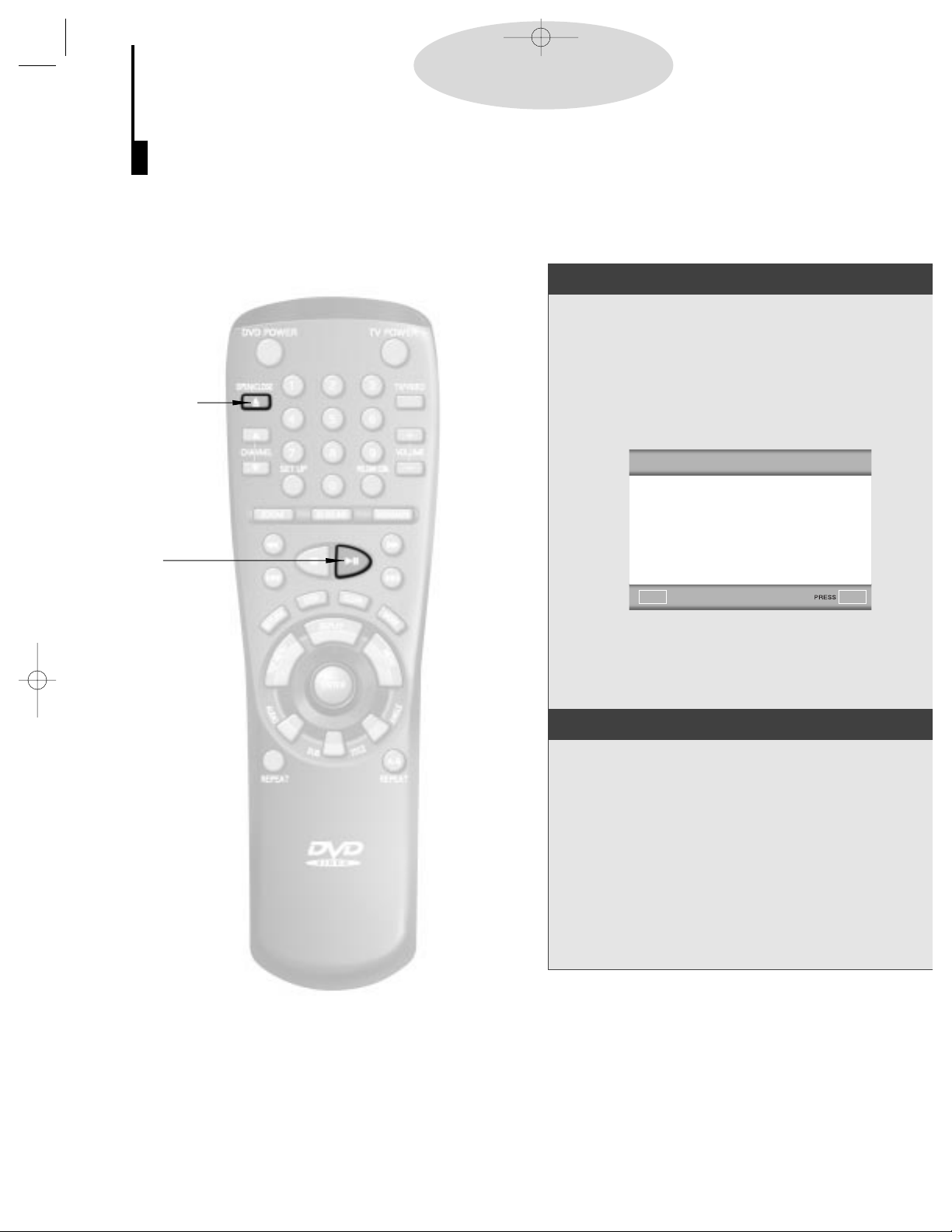

Before Playback
• Turn on a TV and press the TV/VIDEO button to select video
mode.
• Turn on your Audio System to select AUX, CD or DVD.
• Refer to your AUDIO Owner’s Manual.
After plugging in the player, the first time you press
the DVD POWER button, this screen comes up :
If you want to select the language, press a NUMBER button. (This screen will only appear the very
first time you plug in the player.)
Playing a Disc
DDDDVVVVDDDD////VVVVCCCCDDDD////CCCCDD
DD
1.
1.
Press the OPEN/CLOSE button.
The STANDBYindicator light goes out and the tray opens
2.
2.
Place a disc gently into the tray with the disc’s
label facing up.
3.
3.
Press the PLAY/PAUSE button or
OPEN/CLOSE button to close the disc tray.
1 - 6
RETURN
SELECT MENU LANGUAGE
PRESS 1 FOR ENGLISH
PRESSEZ 2 POUR FRANCAIS
DRUCKEN SLE 3 DEUTSCH
PULSAR 4 PARAESPANOL
PREMERE 5 PER ITALIANO
TOETS 6 VOOR NEDERLANDS
1.,3.
1.,3.
3.
3.
Playback
DVD739+839 11/4/95 11:20 AM Page 18
Page 18
Playing a Disc (Cont d)
DDDDVVVVDDDD////VVVVCCCCDDDD////CCCCDD
DD
1.
1.
Stopping Playback
Press the STOP button in playback.
2.
2.
Removing Disc
Press the OPEN/CLOSE button.
3.
3.
Pausing Playback
Press the PLAY/PAUSE or STEP button on the remote
during playback.
- Screen stops, no sound.
- To resume again, press PLAY/PAUSE button once again
4.
4.
Step Motion Playback (Except CD)
Press the STEP button on the remote or turn JOG dial
(DVD-839 only) on the front of the DVD player during
playback.
- Each time the button is pressed, a new frame will
appear.
- No sound is heard during STEP mode.
- Press PLAY/PAUSE to resume normal playback.
(You can only perform step motion playback in the forward direction.)
5.
5.
Slow Motion Playback (Except CD)
Press the FWD or REV SEARCH button on the remote o
turn SHUTTLE dial (DVD-839 only) on the front of the
DVD player during PAUSE or STEP mode.
- By pressing or shuttling, you can select slow motion
playback for 1/2, 1/4 or 1/8 of normal speed.
- No sound is heard during slow mode.
- Press PLAY/PAUSE to resume normal playback.
- When playing a VCD, the reverse slow motion playback
will not work.
Several options are available during DVD playback.
RESUME function
When you stop disc play, the player remembers where you stopped, so when you press PLAY again, it will pick up where you left off (unless
the disc is removed, the STOP button is pressed twice or the player is unplugged.).
2.
2.
5.
5.
1.
1.
4.,5.
4.,5.
3.
3.
3.
3.
NOTE
• If the player is left for 5 minutes in pause mode, it will stop.
• The power is automatically turned off after approximately 30 minutes have elapsed in the stop mode (auto power-off feature).
• If the player is left in the stop mode for more than one minute without any user interaction, a screensaver will be activated, and the
TV screen will fade in and fade out repeatedly. Press PLAY button to resume normal play.
DVD739+839 11/4/95 11:20 AM Page 19
Page 19
Searching & Skipping through a Chapter or Track
During playback, you can search quickly through a chapter or track or use the skip function to jump to the
next selection.
Searching through a Chapter or Track
Skipping Tracks
DDDDVVVVDDDD////VVVVCCCCDDDD////CCCCDD
DD
2.
2.
Press the NEXT SKIP or BACK SKIP button
during playback.
• When playing a DVD, if you press the NEXT SKIP button,
it moves to next chapter. If you press the BACK SKIP button, i
moves to the beginning of the chapter. One more press makes
it move to the beginning of the previous chapter.
• When playing a VCD 2.0 in MENU OFF mode, a VCD 1.1
or a CD,
if you press NEXT SKIP button, it moves to next track. If you
press BACK SKIP button, it moves to the the beginning of the
track. One more press makes it move to the beginning of the
previous track.
• If a track exceeds 15 minutes when playing a VCD and you
press NEXT SKIP button, it moves forward 5 minutes. If you
press BACK SKIP button, it moves backward 5 minutes.
• When playing a VCD 2.0 in the MENU MODE or Track
View function,
if you press NEXT SKIP button, it moves to the next MENU or
the next Track View display. If you press BACK SKIP button, it
moves to the previous MENU or the previous Track View display. (Refer to page 25.)
1.
1.
Press the FWD or REV SEARCH button on the
remote or turn the SHUTTLE dial (DVD-839
only) on the front of the DVD player during the
PLAY mode.
• Press the REVERSE or FORWARD SEARCH button on
the remote and press again to search at a faster
speed(2X/8X/16X/32X/normal speed, in order) on DVD.
• Press the REVERSE or FORWARD SEARCH button on
the remote and press again to search at a faster
speed(4X/8X/normal speed in order) on VCD and CD.
• To return to normal speed playback, press the PLAY/
PAUSE button.
NOTE
• While in search (8X/16X/32X) on DVD or high-speed playback on VCD, no sound will be heard.
• Though 2X SCAN AUDIO is ON in SETUP MENU, no sound will be heard on discs which are recorded with LPCM, DTS or MPEG-
• Depending on the disc, audio may not be heard when a disc is in 2X playback mode.
1.
1.
2.
2.
1.
1.
2.
2.
DVD739+839 11/4/95 11:20 AM Page 20
Page 20
When Playing a DVD
1.
1.
During playback, press the
DISPLAY button on the
remote.
- Current title, chapter number and
elapsed time will be displayed.
• Use the LEFT/RIGHT button to select
a title or a chapter number.
Use the UP/DOWN button or Number
buttons to enter a different title or
chapter number, then press the
ENTER button.
• To enter the time from which you
want to start, use the LEFT/RIGHT
button to select, then use the
Number buttons to enter the time.
Then press the ENTER button.
2.
2.
Press the DISPLAY button
on the remote twice.
- Current audio and subtitle information
will appear.
- To make the screen disappear, press
the DISPLAY button again.
T: 01 C: 04 TIME 0:06:54
Using the Display Function
If you want to display the title, chapter, time, audio and subtitle information on a DVD, press the DISPLAY bu
ton. If you want to display the track and time information on a VCD or CD, press the DISPLAY button.
DDDDVVVVDDDD////VVVVCCCCDDDD////CCCCDD
DD
When Playing a CD/VCD
1
1
During playback, press the
DISPLAY button on the
remote.
- Current track number and elapsed
time will be displayed.
• Use the LEFT/RIGHT button to selec
a track. Use the UP/DOWN button or
Number buttons to enter a different
track number and then press the
ENTER button.
• To enter the time from which you
want to start, use the LEFT/RIGHT
button to select, then use the
Number buttons to enter the time.
Then press the ENTER button.
2
2
Press the DISPLAY button
on the remote twice.
- Elapsed time and remain time will
appear.
- To make the screen disappear, press
the DISPLAY button again.
NOTE
What is a Chapter?
Each Title on a DVD can be divided into chapters (similar to tracks
on an audio CD).
What is a Title?
A DVD may contain several different titles. For example, if a disc
contains four different movies,
each might be considered a title.
1.,1
1.,1
1.,1
1.,1
2.,2
2.,2
AUDIO : ENG DOLBY DIGITAL 5.1CH
SUBTITLE : ENG ON
T: 01 TIME 0:12:43
T:02 0:00:03
T:01 1:07:47 REMAIN
DVD739+839 11/4/95 11:20 AM Page 21
Page 21

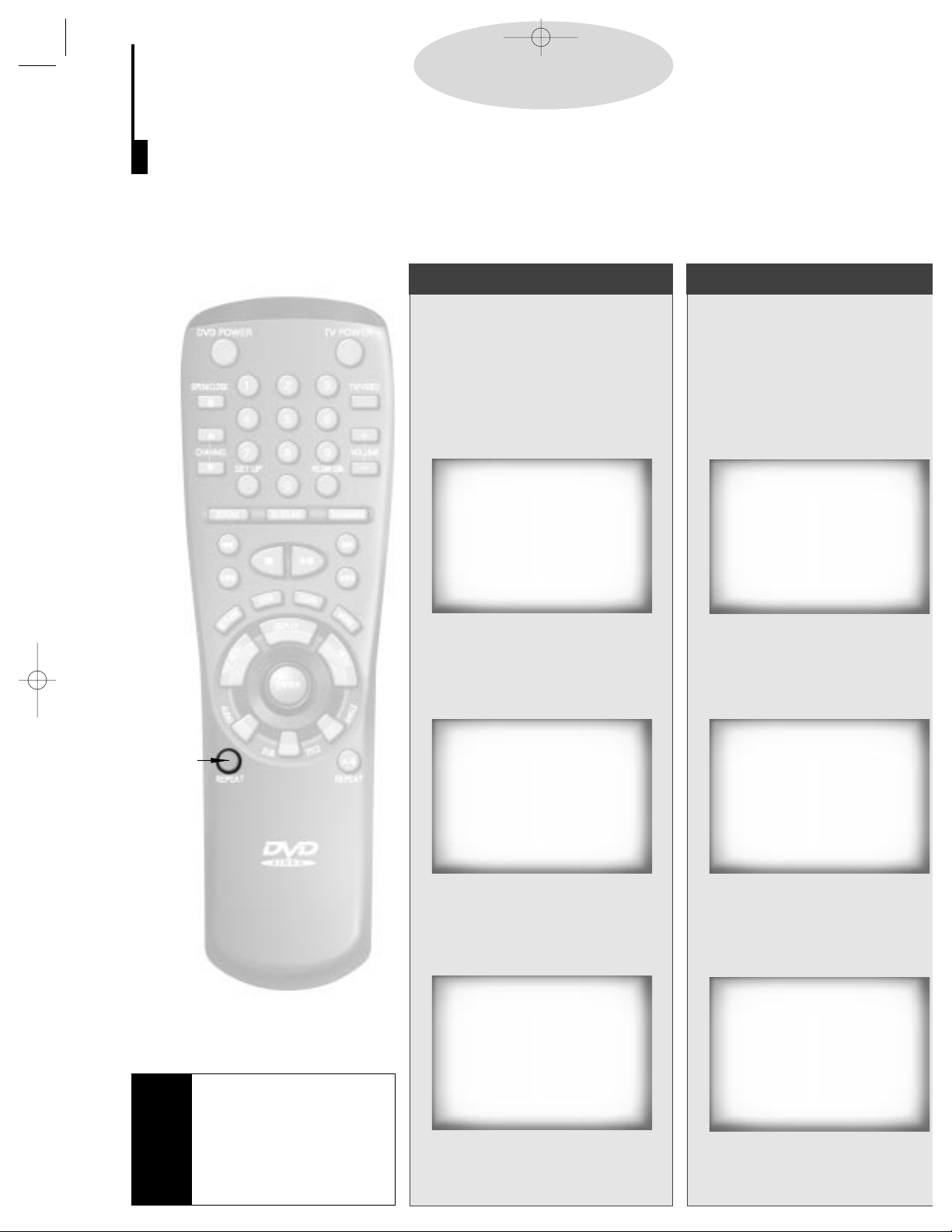

R epeat Play
Repeat play allows you to repeat a track, title, or the entire disc.
DDDDVVVVDDDD////VVVVCCCCDDDD////CCCCDD
DD
When playing a CD/VCDWhen playing a DVD
1
1
Press the REPEAT button
once to display the current
status.
2
2
Press the REPEAT button
twice to repeat the current
track.
3
3
Press the REPEAT button a
third time to repeat all
tracks.
4
4
Press the REPEAT button
again to turn off the repeat
feature.
1.
1.
Press the REPEAT button
once to display the current
status.
2.
2.
Press the REPEAT button
twice to repeat the chapter
currently playing.
3.
3.
Press the REPEAT button a
third time to repeat the title
currently playing.
4.
4.
Press the REPEAT button
again to turn off the repeat
feature.
NOTE
• DVD repeats playback by chapter or title, CD and VCD repeat
playback by disc or track.
• Depending on the disc, the
Repeat function may not work.
• When in VCD 2.0 mode (MENU
ON mode), this function does
not work.
1.,1
1.,1
2.,2
2.,2
3.,3
3.,3
4.,4
4.,4
REPEAT : CHAPTER
REPEAT : TRACK
REPEAT : ALL
REPEAT : OFF
REPEAT : TITLE
REPEAT : OFF
DVD739+839 11/4/95 11:21 AM Page 22
Page 22
1.
1.
Press the A-B REPEAT button at the beginning
(A) of the segment you want to review.
2.
2.
Press the A-B REPEAT button again at the
end (B) of the segment you want to review.
The segment will begin repeating.
1
1
Press the A-B REPEAT button.
Using the A-B Repeat Function
The A-B Repeat function lets you mark a segment to repeat between the beginning (A) and the end (B) of th
segment you want to review.
DDDDVVVVDDDD////VVVVCCCCDDDD////CCCCDD
DD
To set up A-B Repeat
To clear A-B Repeat
NOTE
• The A-B Repeat function works on the same title or track.
• If the title or track is completed before marking the end (B), the end of title or track becomes B automatically.
• Depending on the disc, the A-B REPEAT function may not work.
• When in VCD 2.0 mode (MENU ON mode), this function does not work.
1.,1
1.,1
2.
2.
REPEAT : A -
REPEAT : A - B
REPEAT : OFF
DVD739+839 11/4/95 11:21 AM Page 23
Page 23
Program Playback in a Specific Order
Program playback lets you set up a specific order for playback of titles, chapters or tracks on a disc only. Th
function works in stop mode only.
DDDDVVVVDDDD////VVVVCCCCDDDD////CCCCDD
DD
Program VCD or CD
Program DVD
1.
1.
In stop mode, press the
MODE button.
2.
2.
Use the LEFT/RIGHT button to select CHAPTER.
Press the ENTER button.
3.
3.
Use the LEFT/RIGHT or
UP/DOWN button to select
05 and press ENTER. Then
select 07 and press ENTER
button.
4.
4.
Press the PLAY/PAUSE
button. The disc will be
played back in programmed
order.
1
1
In stop mode, press the
MODE button.
2
2
Use the LEFT/RIGHT but-
ton to select PROGRAM.
Press the ENTER button.
3
3
Use the LEFT/RIGHT or
UP/DOWN button to select
05 and press ENTER.
Then select 07 and press
the ENTER button.
4
4
Press the PLAY/PAUSE
button. The disc will be
played back in programmed order.
• Press the MODE button while in stop
mode.
• Use the LEFT/RIGHT button to
select RANDOM and press the
ENTER button.
- The disc will be played back in ran-
dom order.
e.g
To program chapters 5 and 7 in order.
e.g
To program tracks 5 and 7 in order.
e.g
To start RANDOM playback.
TITLE CHAPTER
01 02 03 04
05 06 07 08
09 10 11 12
13 14 15 16
-- -- -- --
-- -- -- --
-- -- -- --
-- -- -- --
When you make a wrong selection during programming
• Use the UP/DOWN button to select CLEAR LAST TRACK (or CHAPTER, or TITLE).
• Press the ENTER button to delete the last track (or chapter, or title) in the program order.
When you want to delete the entire program
• Use the UP/DOWN button to select CLEAR ALLTRACKS (or CHAPTERS, or TITLES).
• Press the ENTER button to delete all tracks, chapters or titles in the program order. All programmed tracks, chapters or titles are also deleted when the disc is removed or the DVD
player is turned off.
4.,4
4.,4
1.,1
1.,1
2.,2
2.,2
3.,3
3.,3
RETURN
TRACK PROGRAM ORDER
01 02 03 04
05 06 07 08
09 10 11 12
13 14 15 16
-- -- -- --
-- -- -- --
-- -- -- --
-- -- -- --
CLEAR LAST TRACK
CLEAR ALL TRACKS
PRESS PLAY TO START
NOTE
• Depending on the disc, the
Program Playback function ma
not work.
• To resume normal playback,
press the CLEAR button.
DVD739+839 11/4/95 11:21 AM Page 24
Page 24
Using the Disc View Function
The desired music or video display can be accessed directly without using the menu function.
DDDDVVVVDDDD////VVVVCCCCDDDD////CCCCDD
DD
1.,1
1.,1
2.,2
2.,2
3.,3
3.,3
4.,4
4.,4
NOTE
• When in VCD 1.1 & 2.0 mode (MENU OFF mode), this function works.
• In stop mode on VCD, press the TOP MENU button and the TRACK VIEW will be displayed directly.
When you press the TOP MENU button during DVD playback
The disc’s TITLE MENU function will come up. A disc must have at least two titles for the
TITLE MENU function to work.
When you press the TOP MENU button during CD playback
The unit enters the INTRO SCAN mode. INTRO SCAN lets you listen to the beginning of
each track for about 10 seconds.
Track View (VCD)
Displays the beginning view of
each track and the track number.
1.
1.
Press the TOP MENU button during playback.
2.
2.
Press the UP/DOWN button
to select TRACK VIEW.
Press the ENTER button.
3.
3.
Select the desired view by
pressing the UP/DOWN or
LEFT/RIGHT buttons.
(Track View example)
4.
4.
Press the ENTER button.
Index View (VCD)
Displays the equally divided 9
views of the current playing
track.
1
1
Press the TOP MENU button during playback.
2
2
Press UP/DOWN button to
select INDEX VIEW. Press
the ENTER button.
3
3
Select the desired view by
pressing UP/DOWN or
LEFT/RIGHT buttons.
4
4
Press the ENTER button.
DISC VIEW
1 TRACK VIEW
2 INDEX VIEW
INDEX VIEW
1
4
7
2
5
8
3
6
9
TRACK VIEW
1
4
7
2
5
8
3
6
9
DVD739+839 11/4/95 11:21 AM Page 25
Page 25
• This function depends on what languages are encoded on the disc and may not
work with all DVDs.
• ADVD disc can contain up to 8 audio languages.
1.
1.
Press the AUDIO button.
2.
2.
Use the UP/DOWN button
to select the desired language on a DVD.
- The audio and subtitle languages are
represented by abbreviations.
3.
3.
Use the UP/DOWN button
to select STEREO,
R CHANNEL or L CHANNEL. (On VCD/CD)
Selecting Audio
You can select a desired language quickly and easily with the AUDIO button. If a menu is encoded on the di
you can also select by using the MENU button.
DDDDVVVVDDDD////VVVVCCCCDDDD////CCCCDD
DD

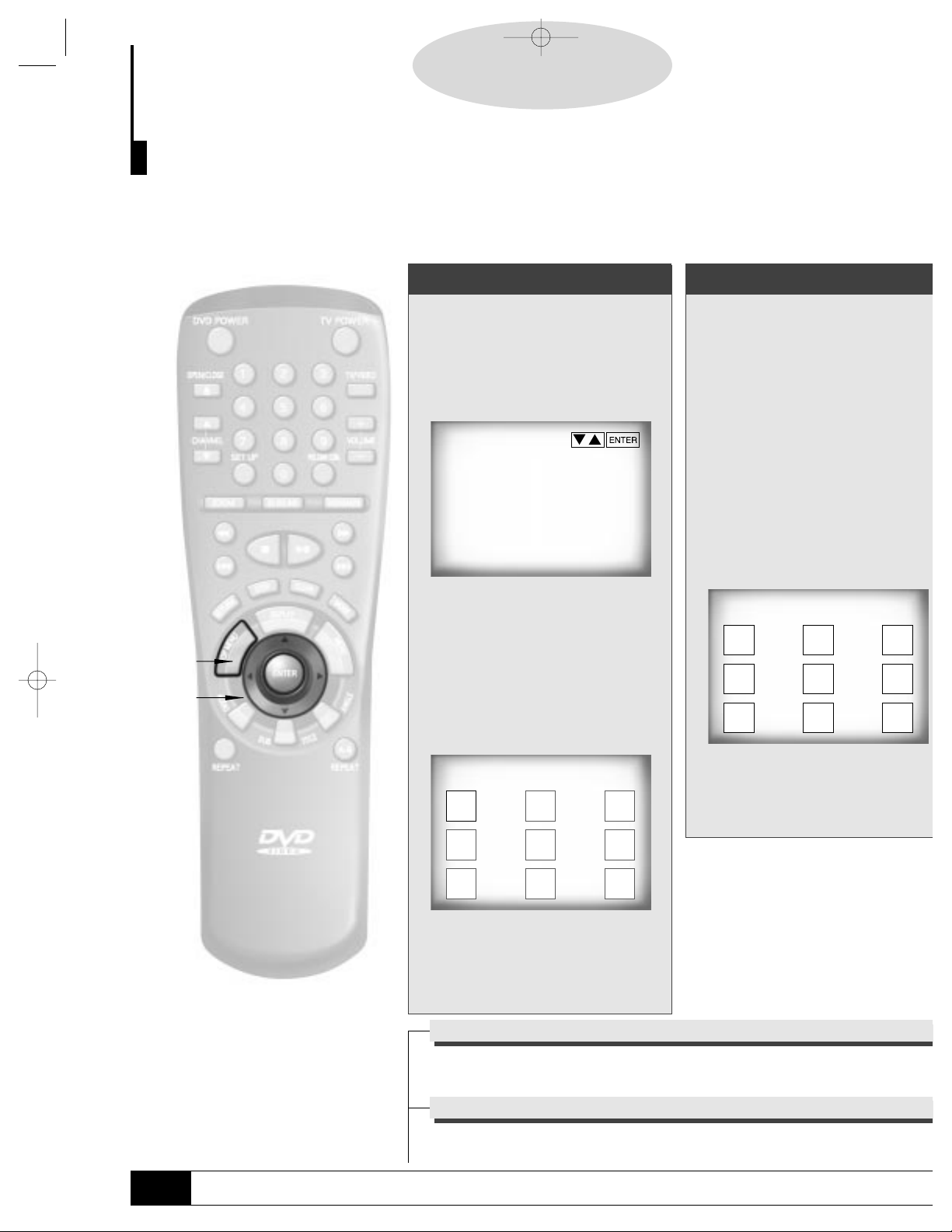

Using the Menu ButtonUsing the Audio Button
When playing a DVD
1
1

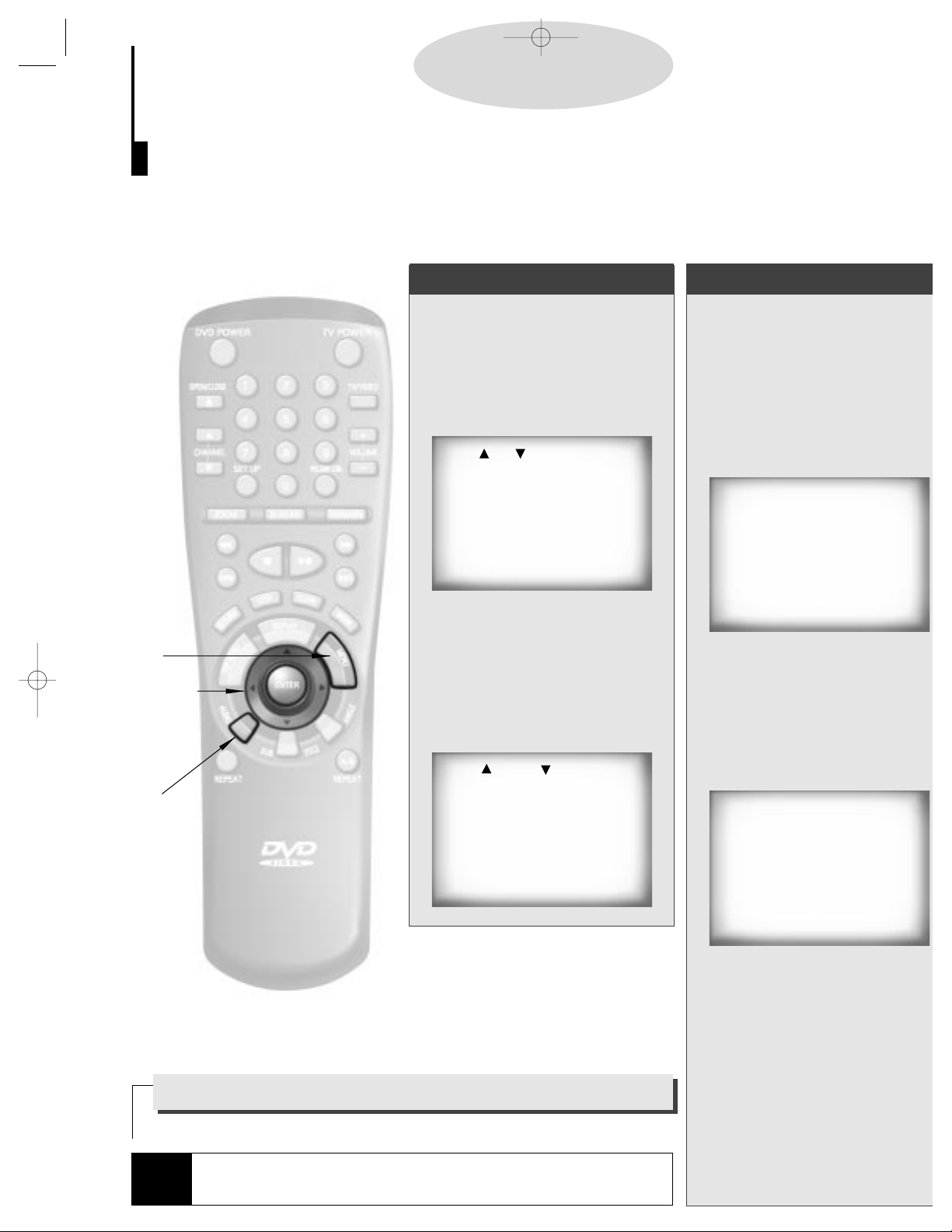

Press the MENU button.
2
2
Use the UP/DOWN button
to select AUDIO information.
(Disc menu example)
3
3
Press the ENTER button.
4
4
Use the UP/DOWN button
to select ‘ENGLISH’.
(Disc menu example)
5
5
Press the ENTER button.
When playing a VCD
In disc version 2.0, the MENU button
works as a conversion switch between
MENU ON and MENU OFF mode.
When playing a VCD 1.1 or CD, the
MENU button will not work.
NOTE
How to have the same audio language come up
whenever you play back a DVD.
Refer to “Setting Up the Language Features” on page 33.
AUDIO: ENG DOLBY DIGITAL 5.1CH
AUDIO: STEREO
1 AUDIO
2 SUBTITLE
1 ENGLISH
2 FRANCAIS
1
1
1.
1.
2.,2
2.,2
3.,3
3.,3
4,5
4,5
DVD739+839 11/4/95 11:21 AM Page 26
Page 26

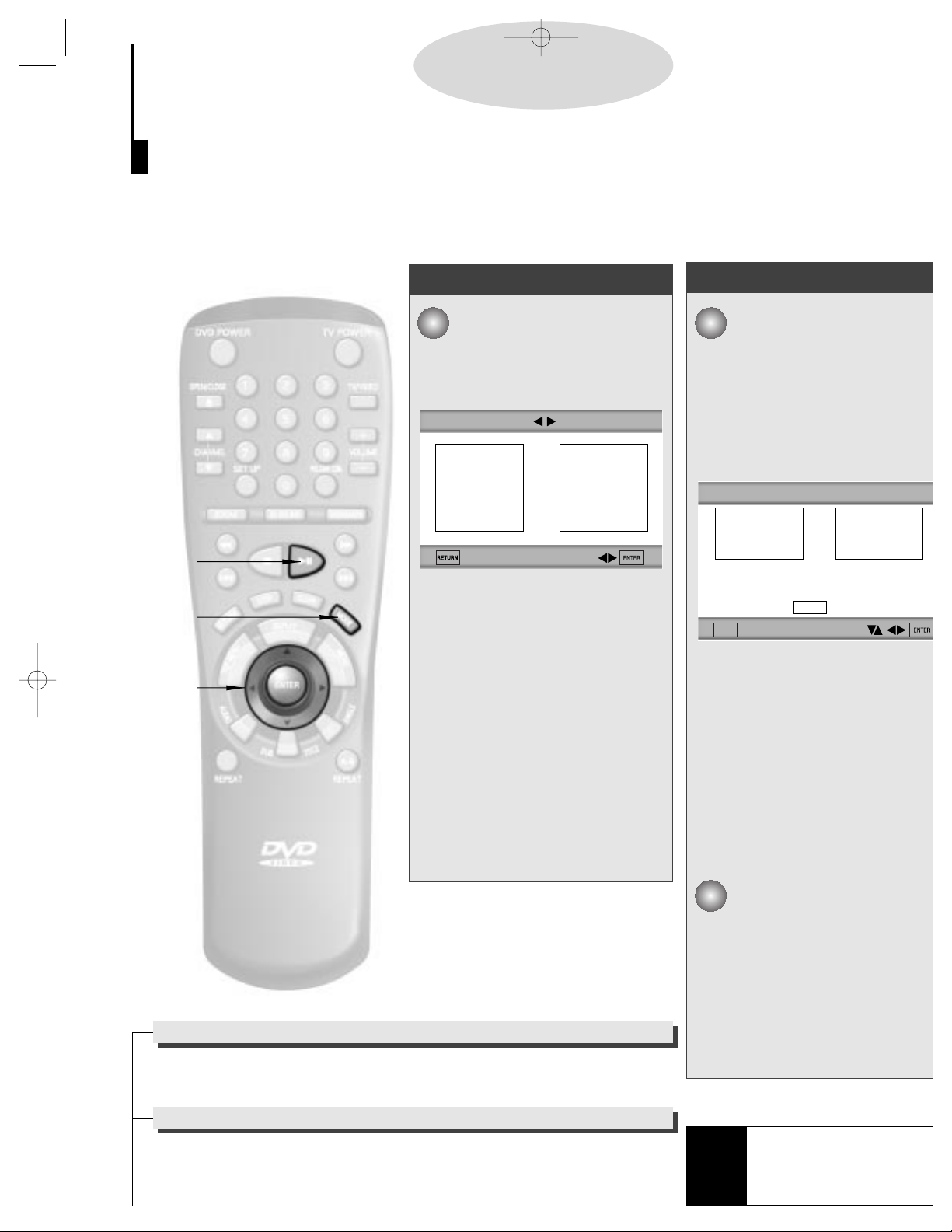

Selecting the Subtitle Language
When a DVD is recorded with subtitles, you can use the Subtitle feature to view the subtitles on-screen.
If a menu is encoded on the disc, you can also select by using the MENU button.
DDDDVVVVDD
DD
Using the MENU buttonUsing the SUBTITLE button
1.
1.

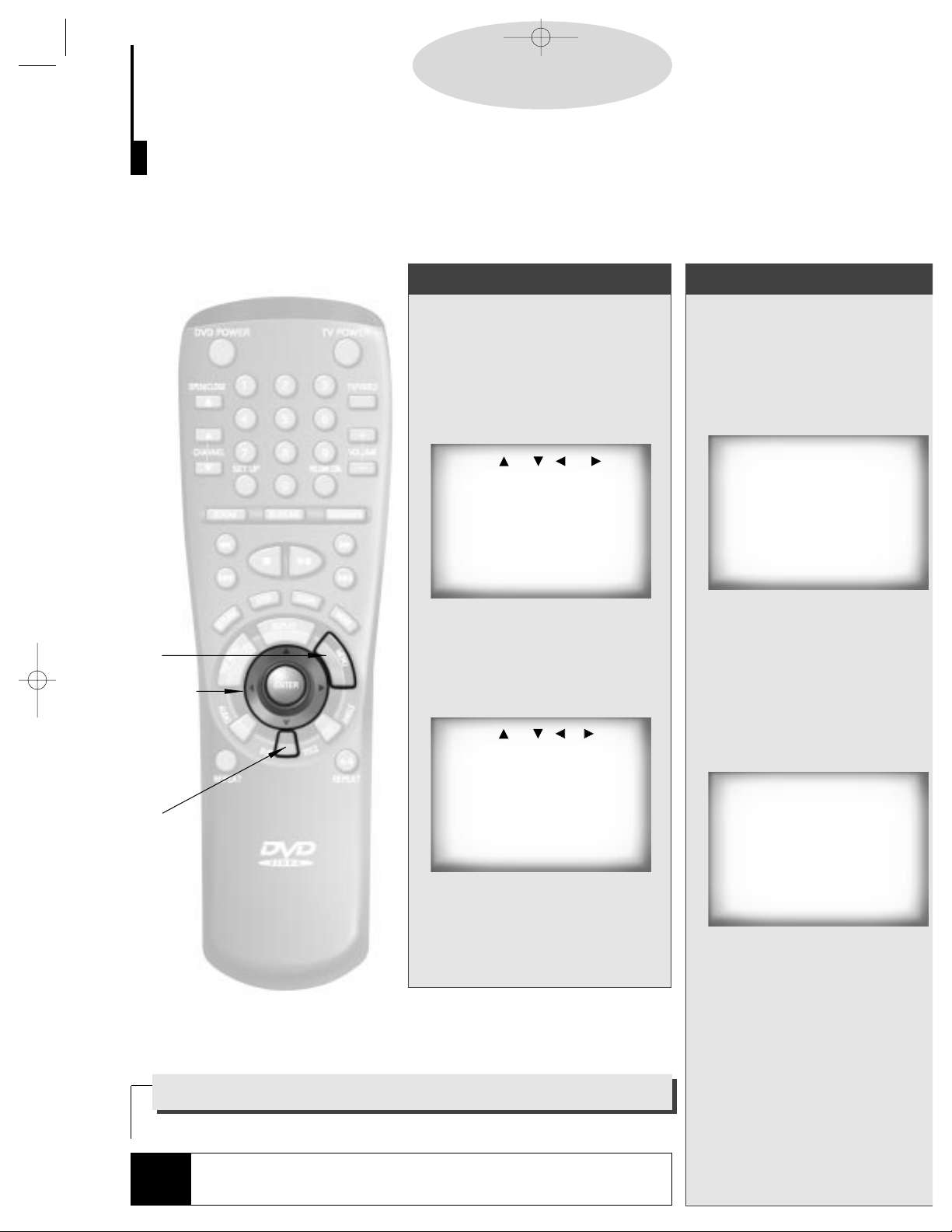

Press the SUBTITLE button.
2.
2.
Use the UP/DOWN button
to select the desired subtitle language.
3.
3.
Use the LEFT/RIGHT button to determine whether or
not the subtitle will be displayed.
- Initially, the subtitling will not appear
on screen.
- The audio and subtitle languages are
represented by abbreviations.
1
1
Press the MENU button.
2
2
Use the UP/DOWN button
to select SUBTITLE information.
(Disc menu example)
3
3
Press the ENTER button.
4
4
Use the UP/DOWN button
to select the desired language.
(Disc menu example)
5
5
Press the ENTER button.
When playing a VCD
In disc version 2.0, the MENU button
works as a conversion switch between
MENU ON and MENU OFF mode.
When playing a VCD 1.1 or CD, the
MENU button will not work.
• This function depends on what languages are encoded on the disc and may not
work with all DVDs.
• ADVD disc can contain up to 32 subtitle languages.
NOTE
How to have the same subtitle language come up
whenever you play back a DVD.
Refer to “Setting Up the Language Features” on page 33.
SUBTITLE: ENG OFF
SUBTITLE: ENG ON
1 AUDIO
2 SUBTITLE
1 ENGLISH
2 FRANCAIS
2.,2
2.,2
3.,3
3.,3
4,5
4,5
1
1
1.
1.
DVD739+839 11/4/95 11:21 AM Page 27
Page 27

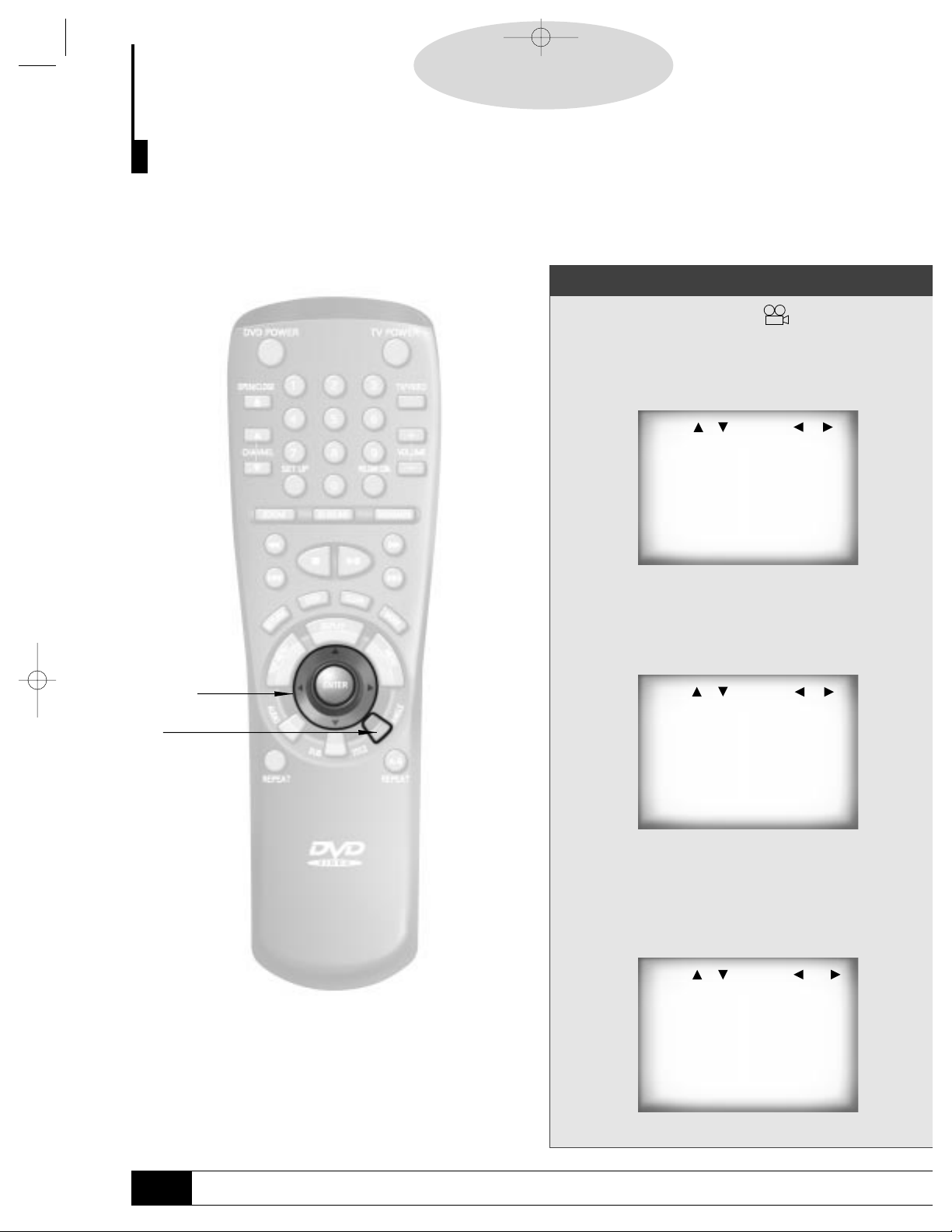

Selecting the Desired Screen Angle
When a DVD contains multiple angles of a particular scene, you can select the Angle function.
Using the ANGLE button
DDDDVVVVDD
DD
Check to see if an ‘ANGLE ( )’ mark is present at
the upper right hand corner of the screen.
1.
1.
When an ‘ANGLE’ mark is shown, press the
ANGLE button.
(Angle information display example)
2.
2.
Use the UP/DOWN button to select the desired
screen angle. Then press the ENTER button.
(Angle information display example)
3.
3.
Use the LEFT/RIGHT button to determine
whether or not the ‘ANGLE’ mark will be displayed.
NOTE
• This function is disc-dependent, and may not work with all DVDs.
• This function does not work when a DVD has not been recorded with a multi-camera angle system.
2.,3.
2.,3.
1.
1.
ANGLE: 1/6 MARK: ON
ANGLE: 5/6 MARK: ON
ANGLE: 5/6 MARK: OFF
DVD739+839 11/4/95 11:21 AM Page 28
Page 28

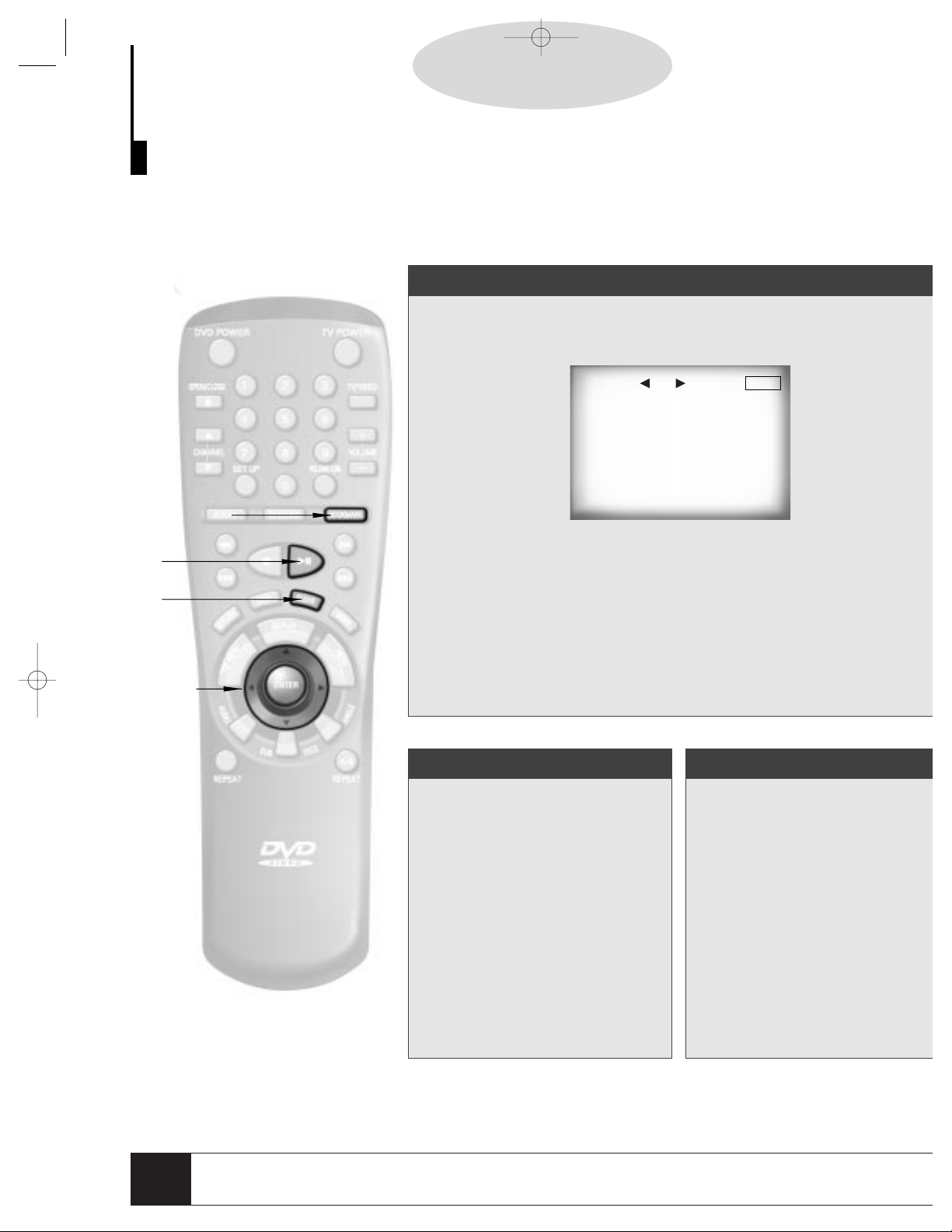

Using the Bookmark Function (DVD/VCD)
1.
1.

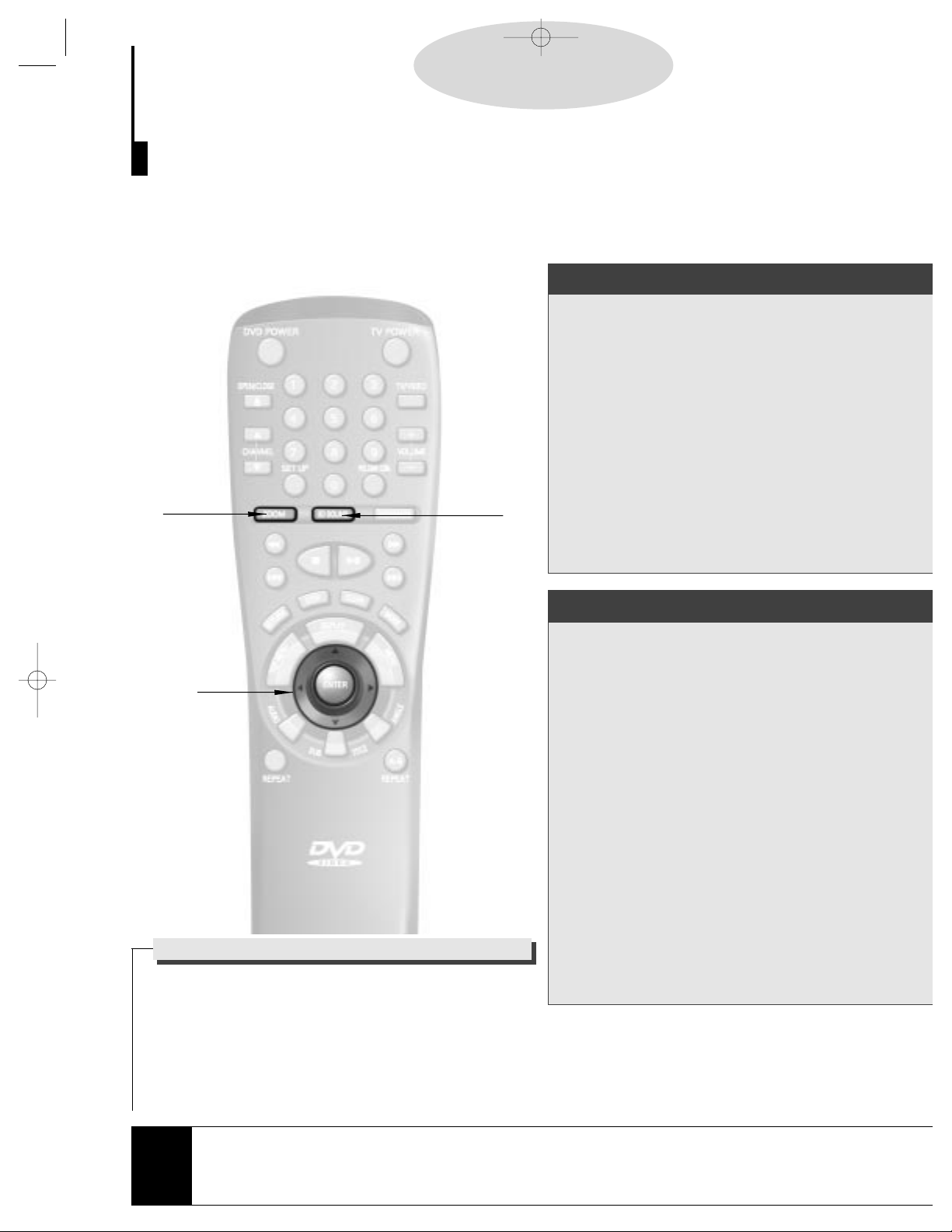

During playback, press the BOOKMARK button on the remote.
Then ‘MARKER’ will be displayed.
2.
2.
Use the LEFT/RIGHT button to move to the desired bookmark
icon.
3.
3.
When you reach the scene you want to mark, press the ENTER
button. The icon will change to a number (1, 2, or 3).
4.
4.
Press the BOOKMARK button to turn off the display.
MARKER: - - - MARK
ENTER
Using the Bookmark Function
The Bookmark function lets you select parts of a DVD or VCD (MENU OFF mode) so that you can quickly
find the section at a later time.
DDDDVVVVDDDD////VVVVCCCCDD
DD
Recalling a Marked Scene
1
1
During playback, press the
BOOKMARK button on the
remote.
2
2
Use the LEFT/RIGHT button to select a marked
scene.
3
3
Press the PLAY/PAUSE
button to skip to the
marked scene.
Clearing a Bookmark
1111..
..
During playback, press the
BOOKMARK button on the
remote.
2222..
..
Use the LEFT/RIGHT button to select the bookmark
number you want to
delete.
3333..
..
Press the CLEAR button to
delete a bookmark number
Press the BOOKMARK
button to turn off display.
NOTE
• Up to three scenes may be marked at the same time.
• When in VCD 2.0 mode (MENU ON mode), this function does not work.
• Depending on the disc, the Bookmark function may not work.
1.,1,
1.,1,1111....
2.,
2.,2222....
3
3
3333..
..
DVD739+839 11/4/95 11:21 AM Page 29
Page 29

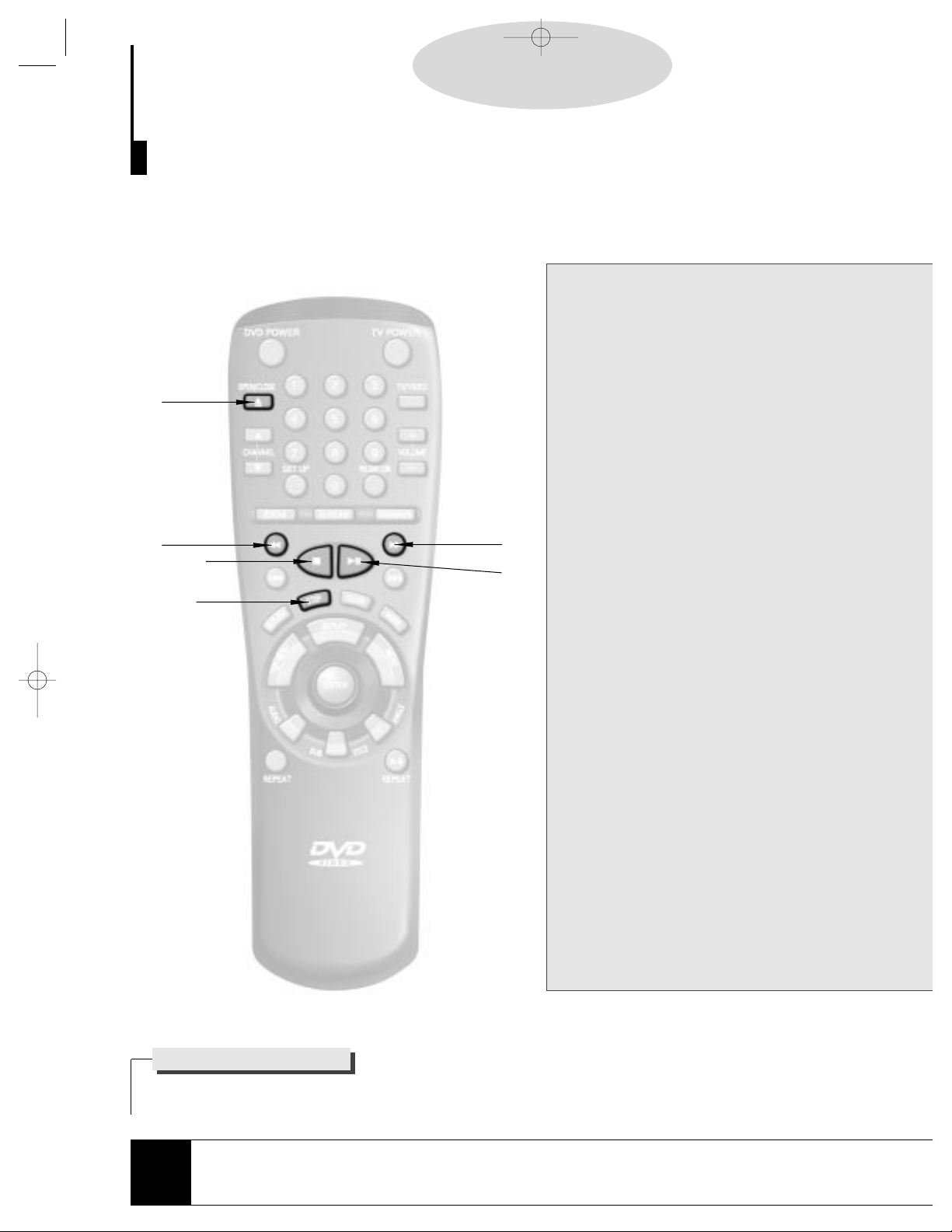

Using the Zoom and 3D Sound
DDDDVVVVDDDD////VVVVCCCCDD
DD
Using the Zoom Function (DVD/VCD)
Using the 3D Sound Function
The simulated surround effect (SPATIALIZER N-2-2
depends on the disc contents. If you connect the
unit to your stereo system, you can enhance sound
quality and produce a greater surround effect.
This feature is useful when you are using the DVD
player with a two channel stereo through the analog
outputs.
(Discs which are recorded with LPCM or DTS will
not work. When the DIGITAL OUTPUT is set to
BITSTREAM in the SETUP MENU, the 3D Sound
function will not work.)
1
1

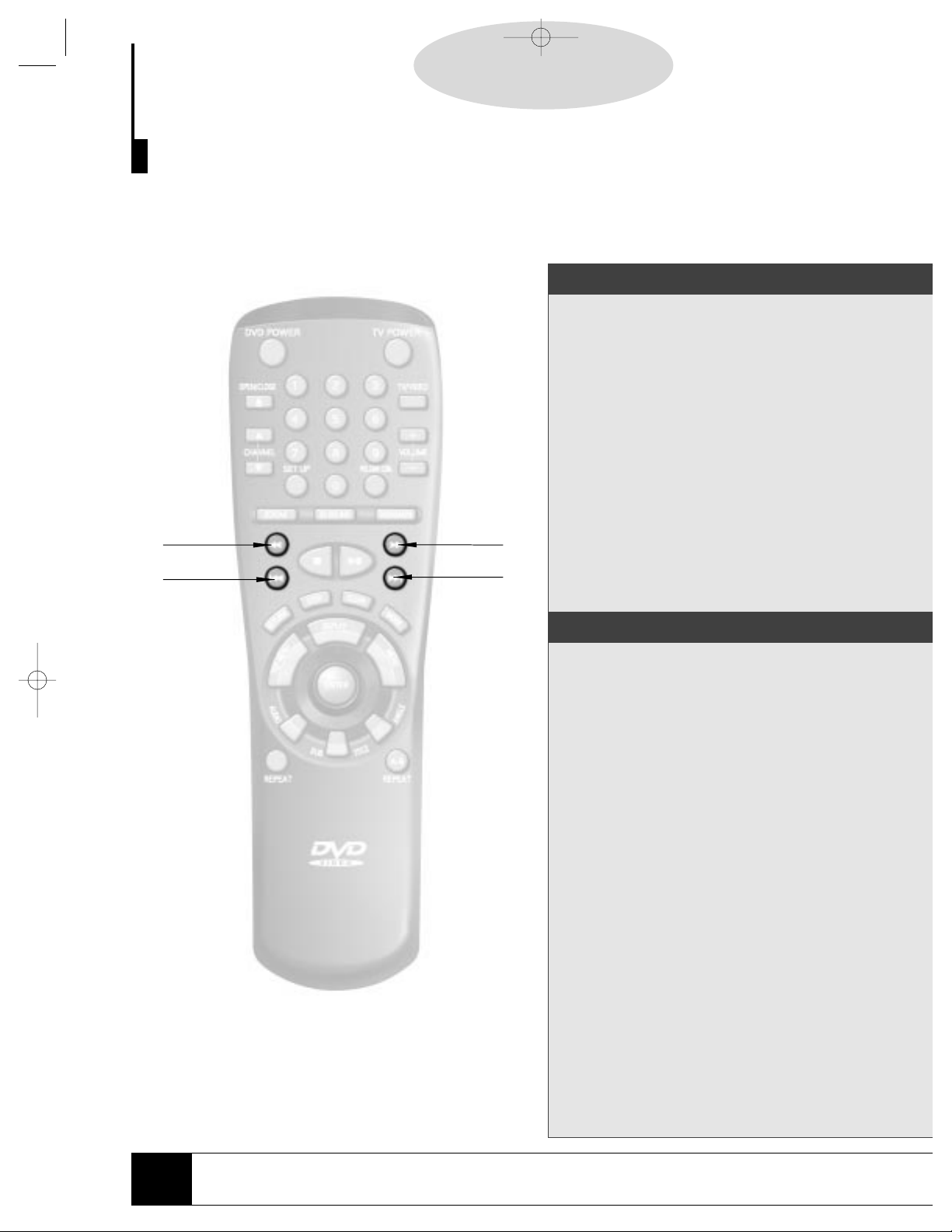

During playback, press the 3D SOUND button.
The 3D SOUND mark will be displayed on
screen. (Be sure the DIGITAL OUTPUT is set
to PCM.)
2
2
Press the LEFT/RIGHT button to turn the 3D
Sound feature on or off.
1.
1.
During playback or pause mode, press the
ZOOM button on the remote. The square frame
will be displayed on screen.
2.
2.
Use the UP/DOWN or LEFT/RIGHT button to
select the part of the screen you want to zoom
3.
3.
Press the ENTER button.
- During DVD playback, press ENTER to zoom in 2X/4X/normal in order.
- During VCD playback, press ENTER to zoom in 2X/normal
in order.
1.
1.
1
1
2.,2
2.,2
NOTE
• 3D Sound is possible only on discs recorded using DOLBY SURROUND or DOLBY DIGITAL. However, some of these discs do no
contain rear channel sound signals.
• Depending on the disc, the Zoom and 3D Sound function may not work.
• Certain audio features of this product manufactured under license from Desper Products Inc., Spatializer®and circle-in-square are
trademarks owned by Desper Products Inc.
Using the Master Volume Control Function
Press the VOLUME CON. button. Use the UP/DOWN button to
select a suitable volume.
• Master Volume Control function lets you adjust the volume of the
player’s output. This is useful for matching the player’s output level
to other equipment in your system.
• Master Volume Control function on CD titles with DTS will not work
under VOLUME : 96 level.
• When the DIGITAL OUTPUT is set to BITSTREAM in the SETUP
MENU, the Volume Control function will not work.
DVD739+839 11/4/95 11:21 AM Page 30

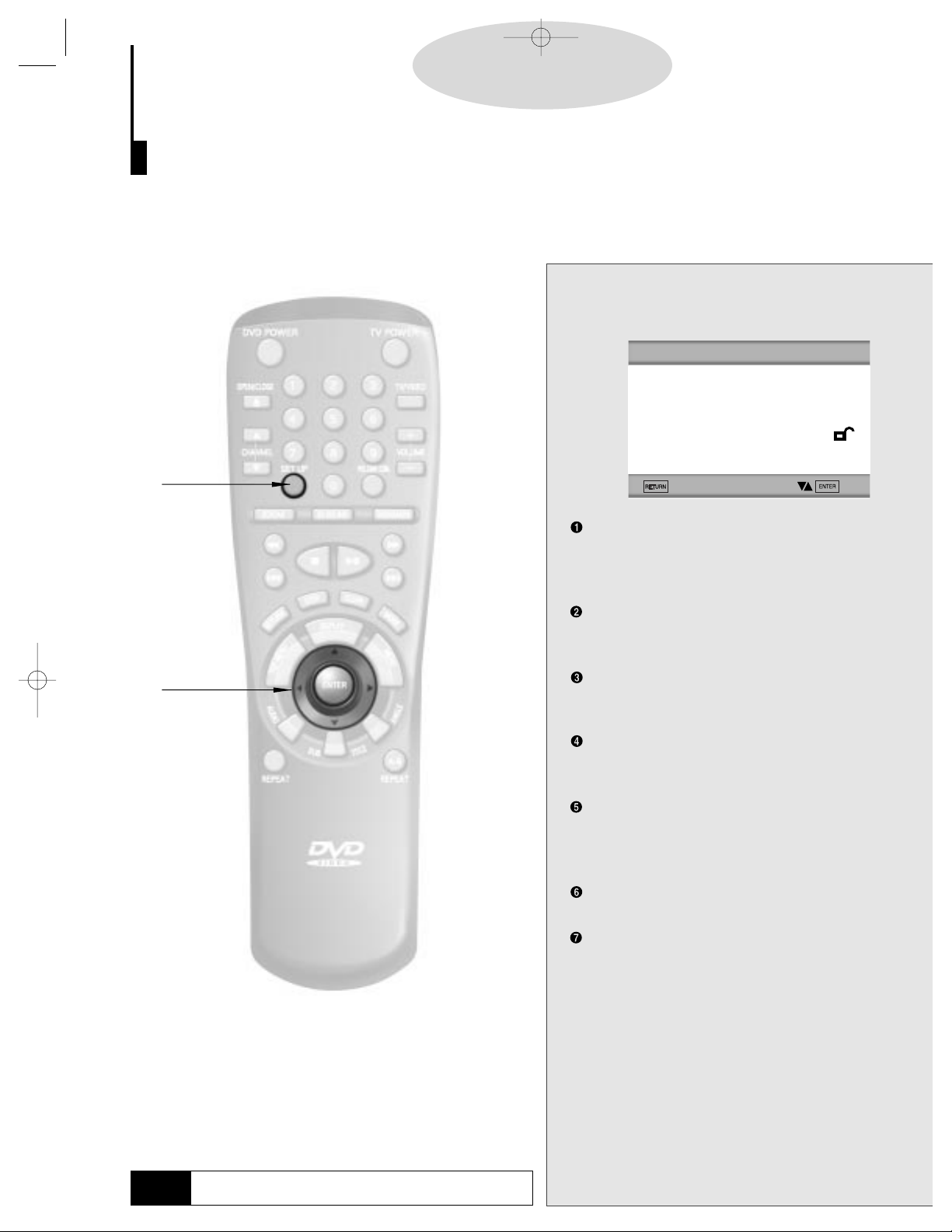

Page 30
1.
1.

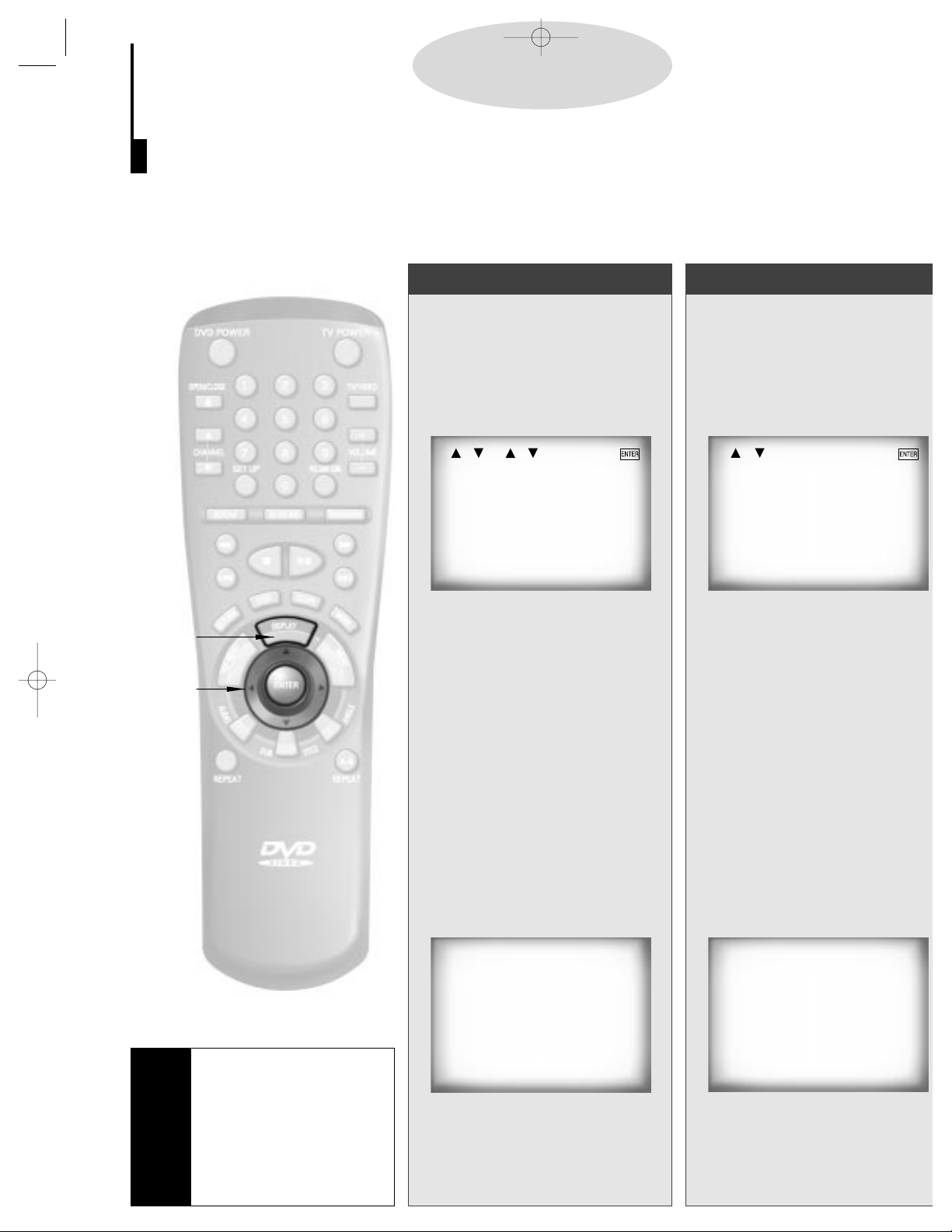

Press the SETUP button on the remote in the
play or stop mode.
PLAYER MENU : Setup of the Display Language
(See P32)
Use the Player preference menu to select the language fo
the player’s on-screen displays.
DISC MENU : Setup of the Menu Language (See P33)
Use the Menu preference menu to select the language
you want a DVD’s disc menu to be displayed in.
AUDIO : Setup of the Audio Language (See P33)
Use the Audio preference menu to select the soundtrack
language.
SUBTITLE : Setup of the Subtitle Language (See P33)
Use the Subtitle preference menu to select the language
the disc’s subtitles are to be displayed in.
PARENTAL : Setup of the Parental Level (See P34)
Allows users to set the level necessary to prevent children
from viewing unsuitable movies such as those with violence, X rating, etc.
AUDIO OPTIONS : Setup of the Audio Options (See P35
Use to set up the audio options such as speaker setup.
DISPLAY OPTIONS : Setup of the Display Options
(See P36)
Use to select
which type of screen you want to watch
and several display options.
2.
2.
Use the UP/DOWN button on the remote to
access the different features.
3.
3.
Press the ENTER button to access the sub
features.
To make the setup screen disappear after setting up, press
the SETUP button again.

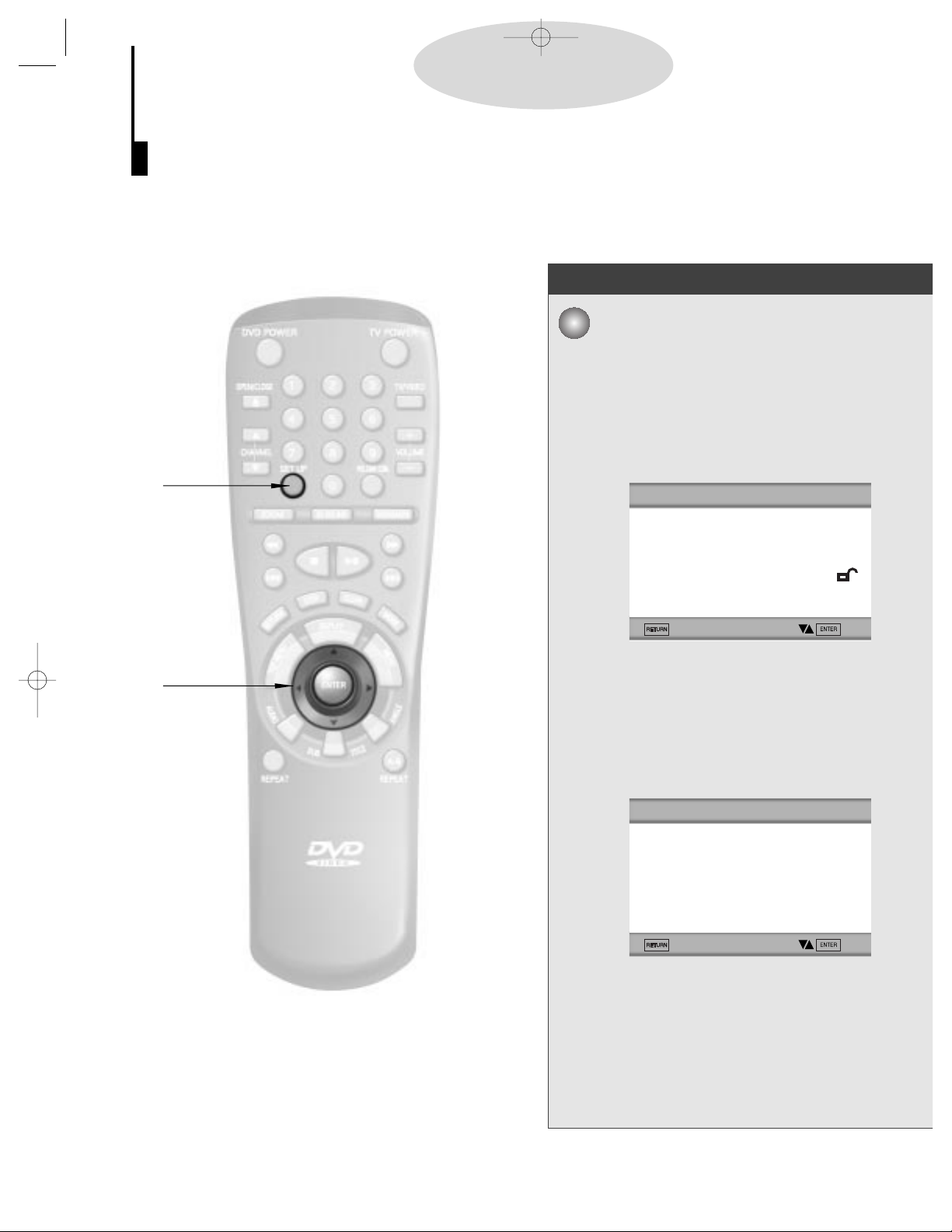

Using the Setup Menu
The Setup menu lets you customize your DVD player by allowing you to select various language
preferences, set up a parental level, even adjust the player to the type of television screen you have
(i.e. widescreen).
DDDDVVVVDD
DD
NOTE
Depending on the disc, some SETUP menu selections
may not work.
1.
1.
2.
2.
SETUP MENU
1 PLAYER MENU ENGLISH
2 DISC MENU ENGLISH
3 AUDIO ENGLISH
4 SUBTITLE AUTOMATIC
5 PARENTAL UNLOCKED
6 AUDIO OPTIONS
7 DISPLAY OPTIONS
DVD739+839 11/4/95 11:22 AM Page 31
Page 31

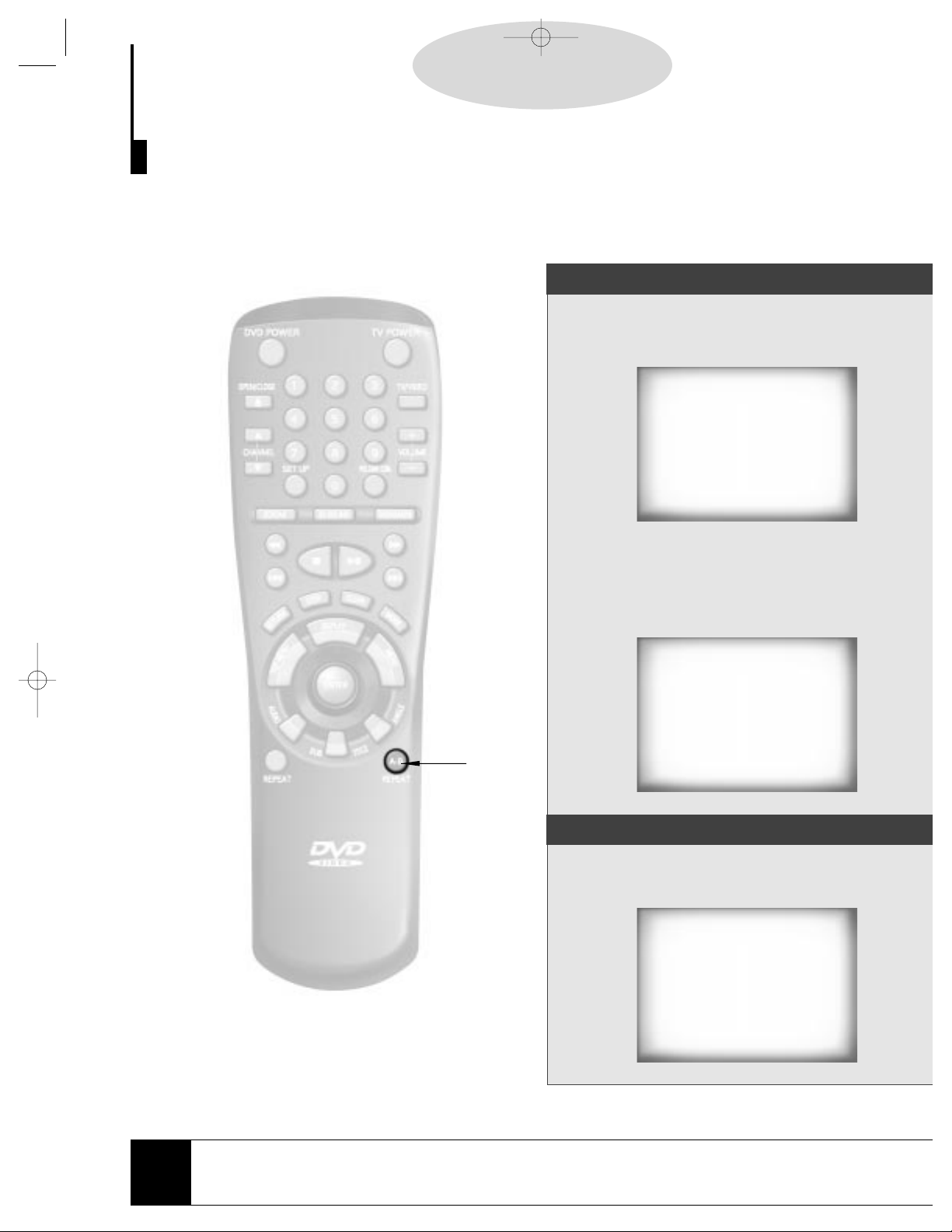

Setting Up the Language Feature s
If you set the player menu, disc menu, audio and subtitle language in advance, it will come up automatically
every time you watch a movie.
Using the Player Menu
DDDDVVVVDD
DD
1.
1.
Press the SETUP button when in play or stop
mode.
2.
2.
Use the UP/DOWN button to select the
PLAYER MENU.
3.
3.
Press the ENTER button.
4.
4.
Use the UP/DOWN button to select ‘ENGLISH’.
5.
5.
Press the ENTER button.
- ENGLISH is selected and the screen returns to SETUP
MENU
- To make the SETUP MENU disappear, press the RETURN
button.
1.
1.
2.
2.
e.g
Setting up in ENGLISH.
SETUP MENU
1 PLAYER MENU ENGLISH
2 DISC MENU ENGLISH
3 AUDIO ENGLISH
4 SUBTITLE AUTOMATIC
5 PARENTAL UNLOCKED
6 AUDIO OPTIONS
7 DISPLAY OPTIONS
PLAYER MENU LANGUAGE
1 ENGLISH
2 FRANCAIS
3 DEUTSCH
4 ESPAÑOL
5 ITALIANO
6 NEDERLANDS
DVD739+839 11/4/95 11:22 AM Page 32
Page 32
Setting Up the Language Features (Cont d)
Using the Subtitle LanguageUsing the Disc Menu Language Using the Audio Language
DDDDVVVVDD
DD
This function changes the language only for the text on the
disc menu screens.
1
1
Press the SETUP button
when in play or stop mode.
2
2
Use the UP/DOWN button
to select DISC MENU.
3
3
Press the ENTER button.
4
4
Use the UP/DOWN button
to select ‘ENGLISH’.
- Select “OTHERS” if the language
you want is not listed.
5
5
Press the ENTER button.
- ENGLISH is selected and the screen
returns to SETUP MENU.
1111..
..
Press the SETUP button
when in play or stop mode.
2222..
..
Press the UP/DOWN button
to move to AUDIO.
3333..
..
Press the ENTER button.
4444..
..
Press the UP/DOWN button
to select ‘ENGLISH’ .
- Select “ORIGINAL” if you want the
default soundtrack language to be
the original language the disc is
recorded in.
- Select “OTHERS” if the language
you want is not listed.
5555..
..
Press the ENTER button.
- ENGLISH is selected and the screen
returns to SETUP MENU.
A
A
Press the SETUP button
when in play or stop mode
B
B
Use the UP/DOWN button
to select SUBTITLE.
C
C
Press the ENTER button.
D
D
Use the UP/DOWN button
to select ‘ENGLISH’.
- Select “AUTOMATIC” if you want the
subtitle language to be the same as
the language selected as the audio
preference.
- Select “OTHERS” if the language
you want is not listed. Some discs
may not contain the language you
select as your initial language; in that
case the disc will use its original
language setting.
E
E
Press the ENTER button.
- ENGLISH is selected and the screen
returns to SETUP MENU.
e.g
Setting up in ENGLISH.
e.g
Setting up in ENGLISH.
e.g
Setting up in ENGLISH.
DISC MENU LANGUAGE
1 ENGLISH
2 FRANCAIS
3 DEUTSCH
4 ESPAÑOL
5 ITALIANO
6 NEDERLANDS
7 OTHERS
AUDIO LANGUAGE
1 ENGLISH
2 FRANCAIS
3 DEUTSCH
4 ESPAÑOL
5 ITALIANO
6 NEDERLANDS
7 ORIGINAL
8 OTHERS
SUBTITLE LANGUAGE
1 AUTOMATIC
2 ENGLISH
3 FRANCAIS
4 DEUTSCH
5 ESPAÑOL
6 ITALIANO
7 NEDERLANDS
8 OTHERS
How to make the SETUP MENU disappear or
return to menu screen during set up.
Press RETURN button.
NOTE
If the selected language is not recorded on the disc, the original pre-recorded language is selected.
DVD739+839 11/4/95 11:22 AM Page 33

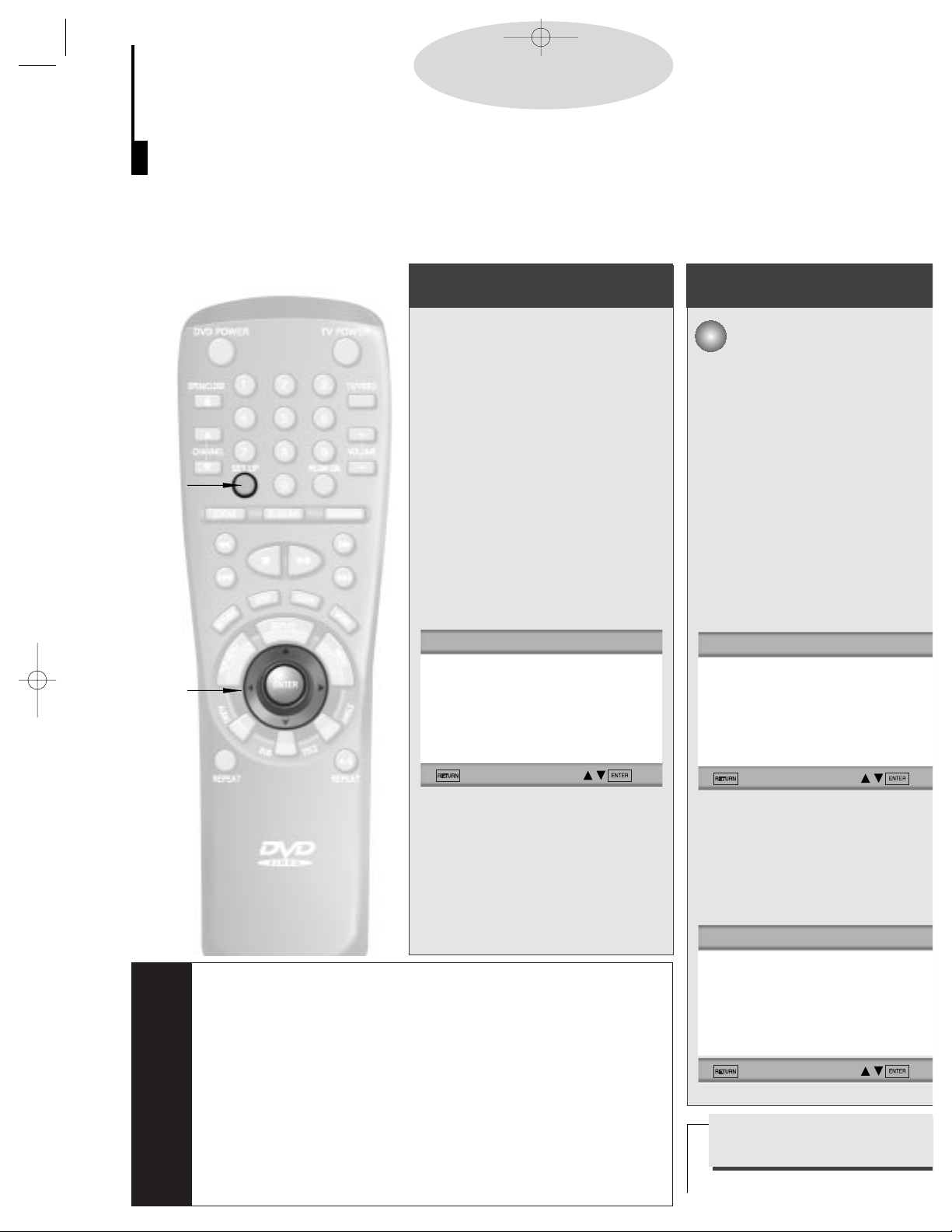

Page 33
SETTING THE
PARENTAL LEVEL
A.
A.
Press the SETUP button
when in play or stop mode.
B.
B.
Press the UP/DOWN button
to select PARENTAL.
C.
C.
Press the ENTER button
and enter your 4-digit pass
word by pressing the 0-9
button.
D.
D.
Move to the RATING
LEVEL by using the
UP/DOWN button and
press the ENTER button.
E.
E.
Move to LEVEL 6 by using
the UP/DOWN button and
press the ENTER button.
- The disc which contains LEVEL 7 or
LEVEL 8 will now not play.
Setting Up the Parental Level
The Parental Level function works in conjunction with DVDs that have been assigned a rating - which helps
control the types of DVDs that your family watches. There are up to 8 rating levels on a disc.
DDDDVVVVDD
DD
SETTING THE
PASSWORD
1.
1.
Press the SETUP button
when in play or stop mode.
2.
2.
Press the UP/DOWN button to select PARENTAL.
3.
3.
Press the ENTER button
and enter your 4-digit password by pressing the 0-9
button.
- ‘7777’ is the original password that
has been encrypted in the player.
4.
4.
Move to CHANGE PASSWORD by using the
UP/DOWN button and
press the ENTER button.
5.
5.
Enter the new password.
- After entering the new password, re-
enter it one more times to make sure
the password works.
- The Parental Level function is com-
patible only with parental level
encoded discs.
1,A
1,A
2,B
2,B
3,C
3,C
4,D
4,D
5,E
5,E
How to make the SETUP MENU
disappear or return to
menu screen during set up.
Press RETURN button.
e.g
Setting up in LEVEL 6
PARENTAL CONTROL
1 RATING LEVEL
2 CHANGE PASSWORD
PARENTAL CONTROL
1 RATING LEVEL
2 CHANGE PASSWORD
NOTE
• What if a DVD’s rating exceeds the player’s rating level?
The player alerts you when you try to play a DVD with a rating that exceeds the
level you’ve set. The message, “YOUR SELECTION EXCEEDS THE RATING
LIMIT FOR THIS PLAYER.” appears on screen. Some discs are authored with a
rating override feature included. When you play a disc with this feature, the message, “Your selection exceeds the rating level for this player. Override the level?” is
displayed. Select “Override” or “Cancel.” If you choose to override the rating level,
you will need to enter your 4-digit password to begin playback.
• If you have forgotten your password, follow this procedure:
Press power on from a cold start with no disc in the unit. Press the STOP and
PLAYbuttons simultaneously on the front panel for three seconds. The Select
Menu Language display will appear. Select the desired language button. Press
the SETUP button on the remote control to select the Parental Mode. The
Parental Mode is now unlocked as indicated on the display. Press the DOWN button to select Parental. Press ENTER and the Password Check display will
appear. Enter the default password of “7777”. You can now set your rating level
and change your password to a new number.
RATING LEVEL
UNLOCK
LOCK LEVEL 8 ADULT
LEVEL 7
LEVEL 6
LEVEL 5
LEVEL 4
LEVEL 3
LEVEL 2
LEVEL 1 KIDS SAFE
DVD739+839 11/4/95 11:22 AM Page 34

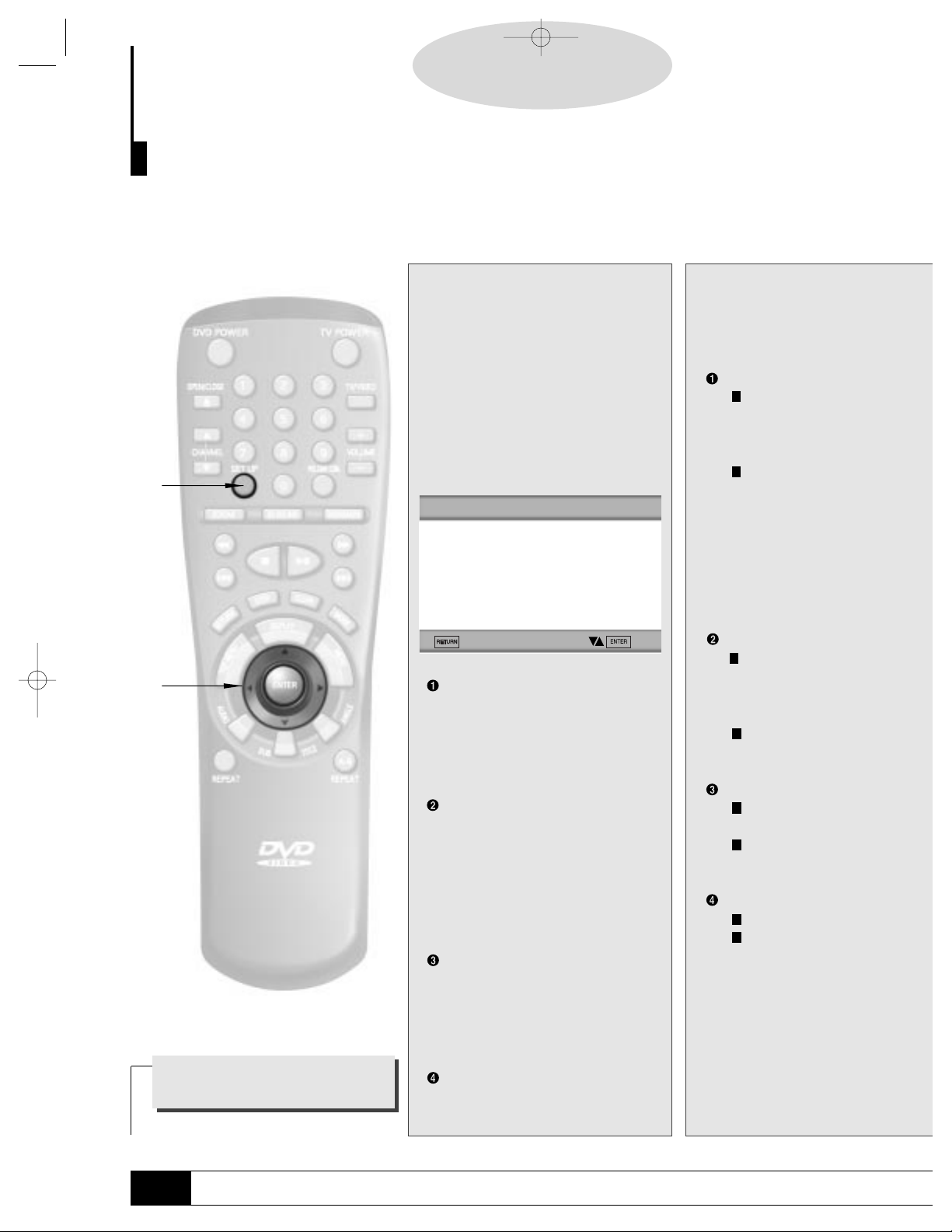

Page 34
4.
4.
Use the UP/DOWN button
to select the desired item.
Then press the ENTER button.
DIGITALOUTPUT
PCM : Converts to PCM(2CH)
48kHz/16Bit audio. Select PCM
when using the Analog Audio
Outputs.
BITSTREAM : Converts to Dolby
Digital BITSTREAM (5.1CH).
Select BITSTREAM when using
the Digital Audio Output.
NOTE : Be sure to select the
correct Digital Output or no
audio will be heard.
DTS
ON : Outputs DTS BITSTREAM
via digital output only.
Select DTS when connecting to a DTS DECODER.
OFF : Doesn’t output digital sig-
nal.
DYNAMIC COMPRESSION
ON : To select dynamic com-
pression.
OFF : To select the standard
range.
2X SCAN AUDIO
ON : Turns 2X audio on.
OFF : Turns 2X audio off.
Though 2X SCAN AUDIO is ON
in the SETUP MENU, no sound
will be heard on discs which are
recorded with LPCM, DTS or
MPEG-2.
1.
1.
Press the SETUP button
when in play or stop mode.
2.
2.
Use the UP/DOWN button to
select AUDIO OPTIONS. Then
press the ENTER button.
3.
3.
Use the UP/DOWN button to
select the desired item. Then
press the ENTER button.
DIGITALOUTPUT
A digital surround sound format
that is recorded by Dolby Digital.
Select the suitable output signal
type of digital audio output
(Bitstream/PCM) during playback.
DTS
This program features discrete 5.1
channel sound-track and must be
played through DTS-capable
equipment. When played through
DTS equipment, sound will be
heard from all five system speakers and a subwoofer.
DYNAMIC COMPRESSION
Compresses the dynamic range
(quietest to loudest sound) of a
disc’s soundtrack. This function is
disc-dependent, and may not work
with all DVDs.
2X SCAN AUDIO
Turns audio off or on when a disc
is in 2X playback mode.
Setting Up Audio Options
DDDDVVVVDD
DD
1.
1.
2.
2.
AUDIO OPTIONS
1 DIGITAL OUTPUT PCM
2 DTS OFF
3 DYNAMIC COMPRESSION ON
4 2X SCAN AUDIO OFF
1
2
1
1
2
2
1
2
NOTE
• Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby
Laboratories. Confidential unpublished works. ©1992-1997 Dolby Laboratories Inc. All rights reserved.
How to make the SETUP MENU
disappear or return to menu
screen during set up.
Press RETURN button.
DVD739+839 11/4/95 11:22 AM Page 35

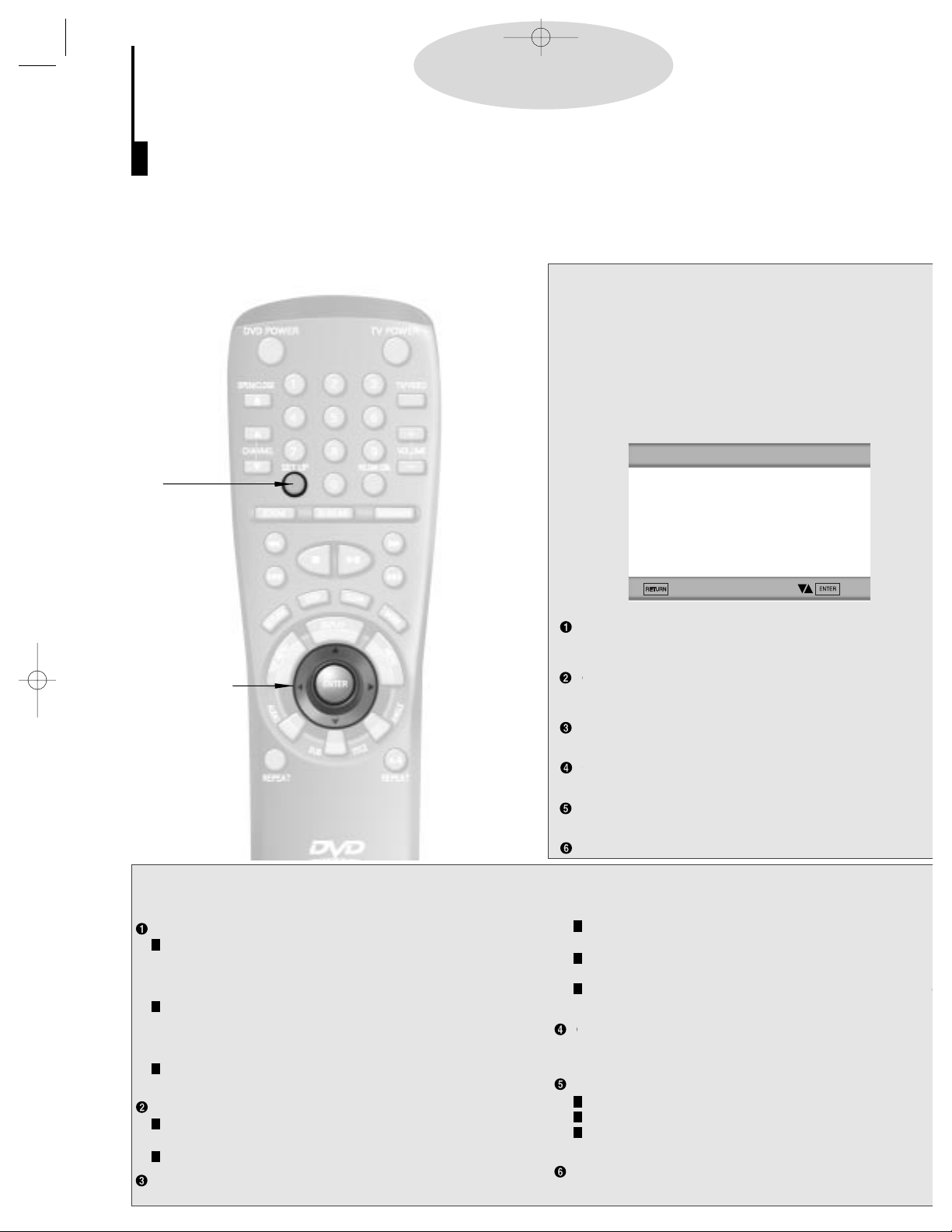

Page 35
1.
1.
2.,3.,4.
2.,3.,4.
Setting Up Display Options
DDDDVVVVDD
DD
4.
4.
Use the UP/DOWN button to select the desired item. Then press the ENTER button.
TV ASPECT
4:3 LETTER BOX :
Select when you want to see the total 16:9 ratio screen DVD
supplies, even though you have a TV with a 4:3 ratio screen.
Black bars will appear at the top and bottom of the screen.
4:3 PAN-SCAN :
Select this for conventional size TVs when you want to see the
central portion of the 16:9 screen. (Extreme left and right side of
movie picture will be cut off.)
16:9 WIDE :
You can view the full 16:9 picture in your widescreen TV.
ANGLE MARK
ON : Displays ANGLE MARK in the upper right corner of
screen.
OFF : Doesn’t display it.
STILL MODE
FIELD : Select this feature when the screen shakes in the
AUTO mode.
FRAME : Select this feature when you want to see small le
ters more clearly in the AUTO mode.
AUTO : When selecting AUTO, FIELD/FRAME mode will be
automatically converted.
SCREEN MESSAGES
Use this feature to turn the on-screen displays on or off that
appear in screen.
FRONT DISPLAY
BRIGHT : It makes the Front Panel Display bright.
DIM : It makes the Front Panel Display dim.
AUTO DIM : It makes the Front Panel Display dim automat
cally when playing a DVD.
BLACK LEVEL
Adjust the brightness of screen.
1
2
3
1
2
1
1
2
3
2
3
1.
1.
Press the SETUP button in play or stop mode.
2.
2.
Use the UP/DOWN button to select DISPLAY
OPTIONS. Then press the ENTER button.
3.
3.
Use the UP/DOWN button to select the desired
item. Then press the ENTER button.
TV ASPECT : Depending on the type of television you have
you may want to adjust the screen setting
(aspect ratio).
ANGLE MARK : Use to turn the on-screen displays on or of
when the DVD contains multiple angles of
a particular scene.
STILL MODE : Prevent picture shaking in still mode and dis
play small text clearer.
SCREEN MESSAGES : Use to turn on-screen messages
on or off.
FRONT DISPLAY
Adjust the brightness of the unit’s front panel display.
BLACK LEVEL
DISPLAY OPTIONS
1 TV ASPECT WIDE
2 ANGLE MARK ON
3 STILL MODE AUTO
4 SCREEN MESSAGES ON
5 FRONT DISPLAY AUTO
6 BLACK LEVEL OFF
DVD739+839 11/4/95 11:22 AM Page 36

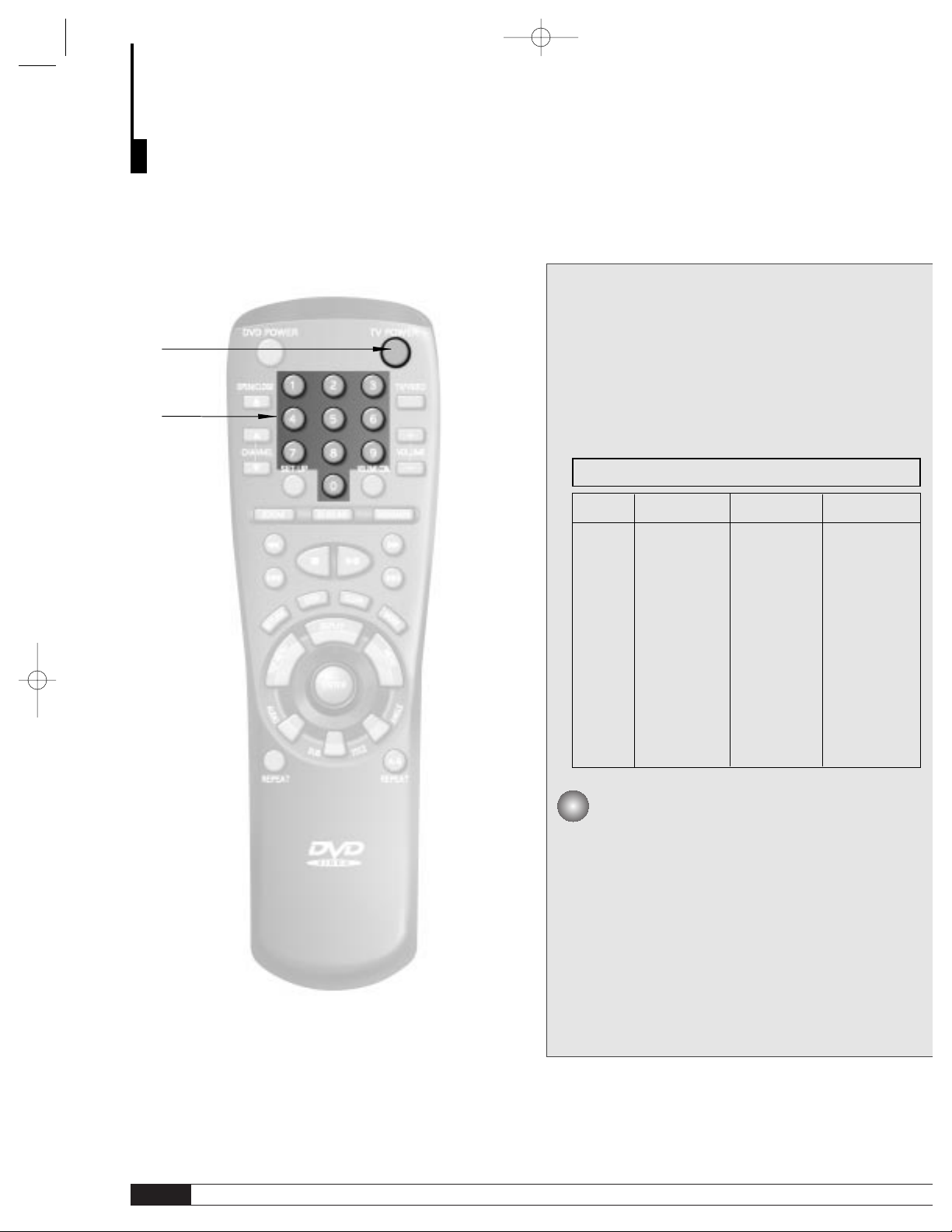

Page 36
Controlling a TV with the Remote
The remote can also be set up to control most TVs. To program the remote, use the code that corresponds t
your brand.
1.
1.
Turn on the TV.
2.
2.
Point the DVD’s remote at the TV.
3.
3.
While holding the TV POWER button down,
enter the code for your brand.
While holding down the TV button, enter 0.
4.
4.
If the TV turns off, setup is complete.
Enter other codes of the same brand if the first code does
not work.
5.
5.
To operate the TV, use the “TV Function
Buttons” described on page 13.
TV Codes
CODE
0
1
2
3
4
5
6
7
8
9
SETUP
DISPLAY
BRAND
SAMSUNG A
SHARP B
SONY
MAGNAVOX
SANYO A
LG B
RCA
LG A
TOSHIBA
HITACHI
JVC
PANASONIC A
CODE
OPEN/CLOSE
AUDIO
SUB TITLE
DVD POWER
ANGLE
TOP MENU
MENU
RETURN
REV SEARCH
REPEAT
FWD SEARCH
BACK SKIP
BRAND
MITSUBISHI
SAMSUNG B
SAMSUNG C
SHARP A
ZENITH
LG C
DAEWOO
SANYO B
EMERSON
SHARP C
SAMSUNG D
PANASONIC B
e.g
For Samsung ATVs
NOTE
The remote may not be able to control every model TV of the brands listed.
1.
1.
3.
3.
DVD739+839 11/4/95 11:22 AM Page 37
Page 37
Troubleshooting Guide
Proper function of your DVD player is mostly dependent on the discs you play. When some of the functions
indicated in the I/B do not work properly, it is highly probable that the disc is responsible. We strongly
recommend you review the instruction book before you start using the player. For your convenience, we
have enlisted some tips to help solve problems you might encounter while using the DVD player.
However, if the same problem occurs repeatedly, please contact your nearest service center.
• Check the batteries in the remote. May need replacing.
• Operate the remote control at a distance of no more than 20 feet.
• Remove batteries and hold down one or more buttons for several minutes
to drain the microprocessor inside the remote to reset it. Reinstall batteries
and try remote again.
• Ensure that the disc is installed with the label side facing up.
• Check the region number of the DVD.
• This player cannot play CD-ROMs, DVD-ROMs, CD-R, etc. Insert a DVD,
a VIDEO-CD a CVD or a CD.
• 5.1 channel sound is reproduced only when the following conditions are
met. : 1)The DVD player is connected with the proper amplifier
2)The disc is recorded with 5.1 channel sound.
• Check whether the disc being played has the “Dolby 5.1 ch” mark on the
outside.
• Check if your audio system is connected and working properly.
• The features or action cannot be completed at this time because:
1) The DVD’s software restricts it.
2) The DVD’s software doesn’t support the feature (e.g., angles).
3) The feature is not available at the moment.
4) You’ve requested a title or chapter number or search time that is out of
range.
• Check if the disc has a Menu.
• Some of the functions selected in the Setup Menu may not work properly if
the disc is not encoded with the corresponding function.
• TV Aspect is fixed on your DVDs.
• Make sure you have selected the correct Digital Output in the Audio
Options Menu.
• Go to the contents and find the section of the instruction book that contains
the explanations regarding the current problem, and follow the procedure
once again.
• If the problem still cannot be solved, please contact your nearest authorized service center or call 1-800-SAMSUNG.
• With the power on, press and hold the STOP and PLAY/PAUSE buttons on
the player. This resets the password feature and all other settings to the
initial factory settings. You may be required to select a menu language.
P36
P35
P34
P31 ~ 36
P26 ~ 27
P13,
P22 ~ 30
P7, 15, 17
35
P7, 18, 19
P13
I/B
Action
No operations can be
performed with remote.
TV Aspect cannot be
changed.
No audio
Playback mode differs
from the Setup Menu
selection
Disc Menu doesn’t appear.
The icon appears on
screen.
If you experience other
problems.
Forgot Rating Limit
Password
5.1 channel sound is not
being reproduced.
Disc does not play.
Problem
DVD739+839 11/4/95 11:22 AM Page 38
Page 38
Specifications
DVD-839
Audio Output
AC 120 V, 60 Hz
19 W
7.5 lbs
W 16.9 in x D 11.0 in x H 3.5 in
+41°F to +95°F
10% to 75%
Reading Speed : 11.45 ft/sec.
Approx. Play Time
(Single Sided, Single Layer Disc) : 135 min.
Reading Speed : 3.9 to 4.6 ft/sec.
Maximum Play Time : 74 min.
Reading Speed : 3.9 to 4.6 ft/sec.
Maximum Play Time : 20 min.
Reading Speed : 3.9 to 4.6 ft/sec.
Maximum Play Time : 74 min. (Video + Audio)
2 channel : 1.0 Vp-p (75 Ω load)
Y : 1.0 Vp-p (75 Ω load)
Pr : 0.70 Vp-p (75 Ω load)
Pb : 0.70 Vp-p (75 Ω load)
Luminance Signal : 1.0 Vp-p (75 Ω load)
Color Signal : 0.286 Vp-p (75 Ω load)
L, R
Analog : 2 Vrms (1 kHz )
Digital : 1.15 Vp-p
48 kHz Sampling : 4 Hz to 22 kHz
96 kHz Sampling : 4 Hz to 44 kHz
110 dB
96 dB
0.003 %
*Frequency Response
*S/N Ratio
*Dynamic Range
*Total Harmonic Distortion
Output Level
2 channel
S-VIDEO
Component Video
Composite Video
VCD : 5 inches
CD : 3
1/2 inches
(COMPACT DISC)
CD : 5 inches
(COMPACT DISC)
DVD
(DIGITAL VERSATILE DISC)
Operating Temperature Range
Operating Humidity Range
Dimensions
Weight
Power Consumption
Power Requirements
General
Disc
Video Output
*: Nominal specification
DVD739+839 11/4/95 11:22 AM Page 39
Page 39
Specifications
DVD-739
Audio Output
AC 120 V, 60 Hz
18 W
7.5 lbs
W 16.9 in x D 11.0 in x H 3.5 in
+41°F to +95°F
10% to 75%
Reading Speed : 11.45 ft/sec.
Approx. Play Time
(Single Sided, Single Layer Disc) : 135 min.
Reading Speed : 3.9 to 4.6 ft/sec.
Maximum Play Time : 74 min.
Reading Speed : 3.9 to 4.6 ft/sec.
Maximum Play Time : 20 min.
Reading Speed : 3.9 to 4.6 ft/sec.
Maximum Play Time : 74 min. (Video + Audio)
1 channel : 1.0 Vp-p (75 Ω load)
Y : 1.0 Vp-p (75 Ω load)
Pr : 0.70 Vp-p (75 Ω load)
Pb : 0.70 Vp-p (75 Ω load)
Luminance Signal : 1.0 Vp-p (75 Ω load)
Color Signal : 0.286 Vp-p (75 Ω load)
L, R
Analog : 2 Vrms (1 kHz )
Digital : 0.50 Vp-p
48 kHz Sampling : 4 Hz to 22 kHz
96 kHz Sampling : 4 Hz to 44 kHz
110 dB
96 dB
0.003 %
*Frequency Response
*S/N Ratio
*Dynamic Range
*Total Harmonic Distortion
Output Level
1 channel
S-VIDEO
Component Video
Composite Video
VCD : 5 inches
CD : 3
1/2 inches
(COMPACT DISC)
CD : 5 inches
(COMPACT DISC)
DVD
(DIGITAL VERSATILE DISC)
Operating Temperature Range
Operating Humidity Range
Dimensions
Weight
Power Consumption
Power Requirements
General
Disc
Video Output
*: Nominal specification
DVD739+839 11/4/95 11:22 AM Page 40
Page 40
Warranty (for USA users only)
This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS AMERICA, INC. (SAMSUNG) and
delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defec
in materials and workmanship for the following limited warranty period:
One (1) Year Parts and Labor
This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the United
States, and does not include transportation, installation, removal or reinstallation. Warranty repairs must be performed by
SAMSUNG's authorized service center. To receive warranty service, the original dated bill of sale must be presented upon reque
as proof of purchase to SAMSUNG or SAMSUNG's authorized service center. Transportation to and from the service center is th
responsibility of the purchaser.
SAMSUNG will repair or replace this product, at our option and at no charge with new or reconditioned parts, if found to be defec
tive during the limited warranty period specified above. The product must be returned during the warranty period with transportation charges prepaid to SAMSUNG's designated service center. Prior to returning any product for warranty service, the purchase
must contact SAMSUNG for problem determination and service procedures. SAMSUNG does not warrant uninterrupted or errorfree operation of the product. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer.
This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, noncommercial use of
this product and shall not apply to the following, including, but not limited to: damage which occurs in shipment; applications and
uses for which this product was not intended; failures or problems which are caused by products or equipment not supplied by
SAMSUNG; accidents, misuse, abuse, neglect, misapplication, fire, water, lightning or other acts of nature; incorrect electrical line
voltage, fluctuations or surges; damage caused by improper or faulty installation; improper connection with any peripheral; produc
alteration or modification; improper or unauthorized repair; cosmetic damage or exterior finish; product with altered serial number
failure to follow operating instructions, customer adjustments, maintenance and environmental instructions that are covered and
prescribed in the instruction book; use of non-SAMSUNG or unauthorized parts, supplies, accessories or equipment which dama
this product or result in service problems; failures or problems due to incompatibility with other equipment.
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO WARRANTIES
WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILIT
OR FITNESS FOR APARTICULAR PURPOSE, SHALLAPPLYAFTER THE EXPRESS WARRANTY PERIODS STATED ABOVE
AND NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH
RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REV
ENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF
THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILI
TY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN
THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMI
ING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO PURCHASER AND PURCHASER'S PROPERTYAND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR
INABILITY TO USE THIS PRODUCT SOLD BY SAMSUNG NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF SAMSUNG.
THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and
you may also have other rights which vary from state to state.
To obtain warranty service, please contact SAMSUNG at:
SAMSUNG ELECTRONICS AMERICA, INC. - CONSUMER ELECTRONICS CUSTOMER SERVICE
1 SAMSUNG PLACE, LEDGEWOOD, NJ 07852
Tel: 973-691-6200, Fax: 973-691-6201
1-800-SAMSUNG (1-800-726-7864)
www.sosimple.com
100899
LIMITED WARRANTY TO ORIGINAL PURCHASER
DVD739+839 11/4/95 11:22 AM Page 41
Page 41
Samsung Electronics Canada Inc.(SECA), warrants that this product is free from defective material and workmanship.
SECA further warrants that if this product falls to operate properly within the specified warranty period and the failure is due to
improper workmanship or defective materials, SECA will repair or replace the product at its option.
All warranty repairs must be performed by a SECAAuthorized Service Center. (The name and address of the location nearest yo
can be obtained by calling toll free: 1- 800- SAMSUNG)
On carry-in models, transportation to and from the service center is the customer’s responsibility.
The original dated sales receipt must be retained by the customer and is the only acceptable proof of purchase. It must be pre-
sented to the authorized service center at the time service is requested.
This warranty does not cover damage due to accident, fire, flood and/ or other acts of God; misuse, incorrect line voltage, improp
installation, improper or unauthorized repairs, commercial use or damage that occurs in shipping. Exterior and interior finish,
lamps, glass are not covered under this warranty. Customer adjustments which are explained in the instruction manual are not co
ered under the terms of this warranty. This warranty will automatically be voided for any unit found with a missing or altered seria
number. This warranty is valid only on products purchased and used in Canada.
LABOR
One year (Carry- in)
PARTS
One year
EXCLUSIONS (WHAT IS NOT COVERED)
Warranty (for Canada users only)
LIMITED WARRANTY TO ORIGINAL PURCHASER
DVD739+839 11/4/95 11:22 AM Page 42
Loading...
