Samsung DVD-511-XAA User Manual

ELECTRONICS

SAMSUNG ELECTRONICS AMERICA INC. 105 CHALLENGER ROAD, RIDGEFIELD PARK, NJ 07660 U.S.A.

V I D E O

DVD PLAYER

DVD/VIDEO-CD/CD

DVD-611/ 511

FOR YOUR NEAREST SAMSUNG SERVICE CENTER DIAL 1-800-SAMSUNG

AH68-00367B

Precautions

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Precautions

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury.

This symbol indicates important instructions accompanying the product.

CAUTION:DVD PLAYERS USE AN INVISIBLE LASER BEAM WHICH CAN

CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED.

BE SURE TO OPERATE PLAYER CORRECTLY AS INSTRUCTED.

CAUTIONS

Caution: To prevent electric shock, match wide blade of plug to wide slot, fully insert. Attention: Pour éviter les chocs électriques, introduíre la lame la plus large de la fiche dans

This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment.To prevent electromagnetic interference with electric appliances, such as radios and televisions, use shielded cables and connectors for connections.

la borne correspondante de la prise et pousser jusqu au fond.

FCC NOTE (for U.S.A):

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect this equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. This class B digital apparatus meets all requirements of the Canadian Interference -Causing Equipment Regulations.

CLASS 1 LASER PRODUCT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT

WARNING

To reduce the risk of fire or shock hazard, do not expose this DVD player to rain or moisture.

CAUTION

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVER AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

Note:

• This unit can be used only where the power supply is AC 120V, 60Hz.It cannot be used elsewhere.

• This DVD player is designed and manufactured to respond to the Region Management Information. If the Region number of a DVD disc does not correspond to the Region number of this DVD player, the DVD player cannot play the disc.

Handling Cautions

• Before connecting other components to this player, be sure to turn them all off.

• Do not move the player while a disc is being played, or the disc may be scratched or broken, and the player’s internal parts may be damaged.

• Do not put a flower vase filled with water or any small metal objects on the player.

• Be careful not to put your hand into the disc tray.

• Do not place anything other than the disc in the disc tray.

• Exterior interference such as lightning and static electricity can affect normal operation of this player. If this occurs, turn the player off and on again with the POWER button, or disconnect and then reconnect the AC power cord to the AC power outlet. The player will operate normally.

• Be sure to remove the disc and turn off the player after use.

• Disconnect the AC power cord from the AC outlet when you don’t intend to use the player for long periods of time.

• Clean the disc by wiping in a straight line from the inside to the outside of the disc.

Disc Storage

Be careful not to harm the disc because the data on these discs is highly vulnerable to the environment.

• Do not keep under direct sunlight.

• Keep in a cool ventilated area.

• Store vertically.

• Keep in a clean protection jacket.

Maintenance of Cabinet

For safety reasons, be sure to disconnect the AC power cord from the AC outlet.

• Do not use benzene, thinner, or other solvents for cleaning.

• Wipe the cabinet with a soft cloth.

Before You Start

TABLE OF CONTENTS

Accessories

Remote Control

S-Video Cable

Install Batteries in the

Remote

Open the battery cover

on the back of the remote.

Insert two AA batteries.

Make sure that the polarities (+ and -) are aligned correctly.

Replace the battery

cover.

Batteries for Remote Control (AA Size)

• Check the polarity + - of the

• Check if the batteries are

• Check if remote sensor is

• Check if there is any fluo-

Video/Audio Cable

User’s Manual

If remote doesn’t operate

properly:

batteries (Dry-Cell)

drained.

blocked by obstacles.

rescent lighting nearby.

General Features Disc Type and Characteristics Description

• Front Panel

Choosing a Connection

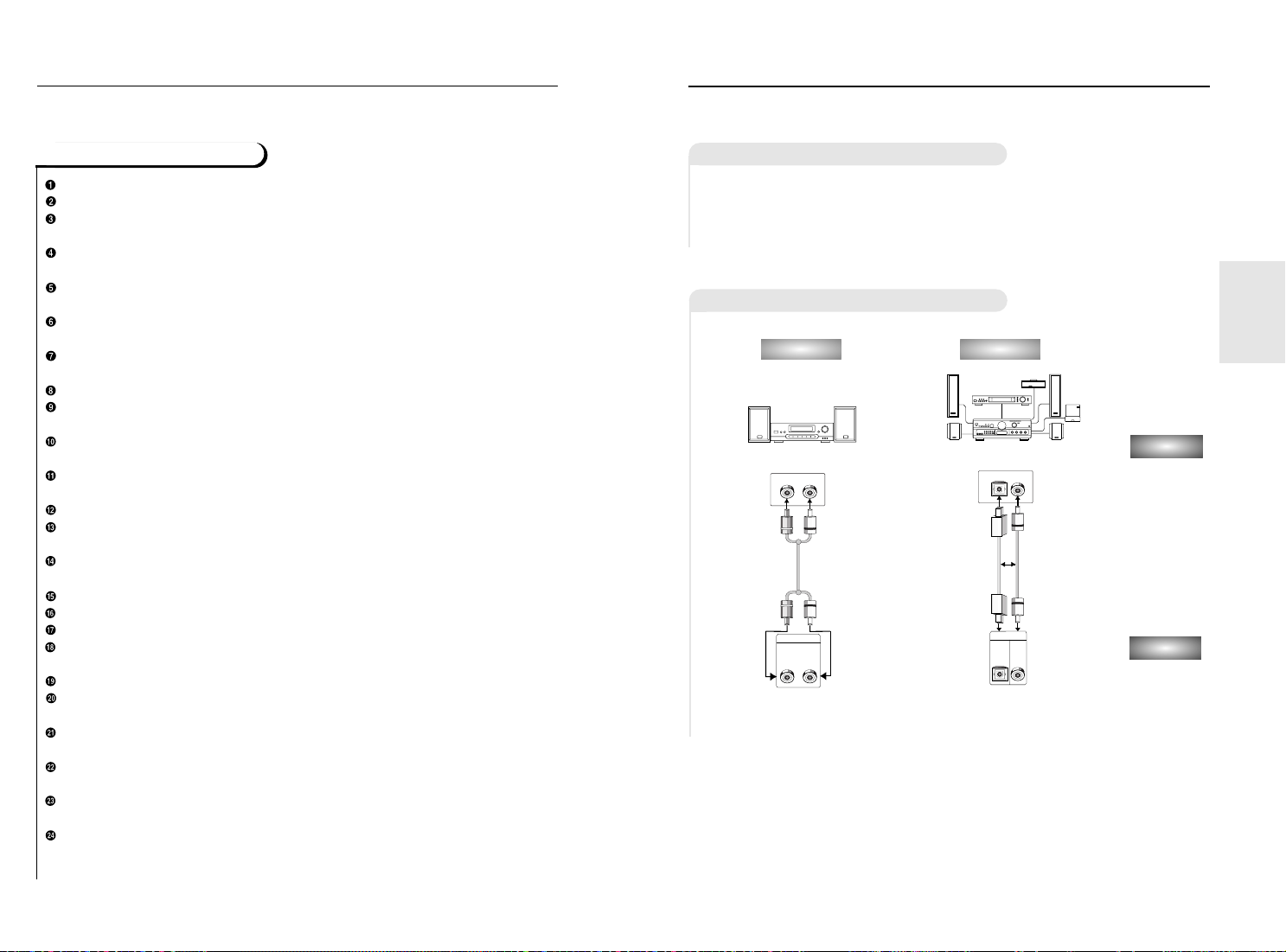

• Connection to an Audio System

Playing a Disc Using the Search & Skip Functions Using the Display Function

Using the Disc View Function Selecting the Audio Language Selecting the Subtitle Language

Using the Setup Menu Setting Up the Language Features Setting Up the Parental Control

Troubleshooting Guide Specifications

.....................................

...............................................

.................

............

.........................................

.....................................

.................

...............

..................

.....................

...............

..............

...........

.........................

............

.........................

........

............

...........

........

• Front Panel Display

• Rear Panel

Tour of the Remote Control

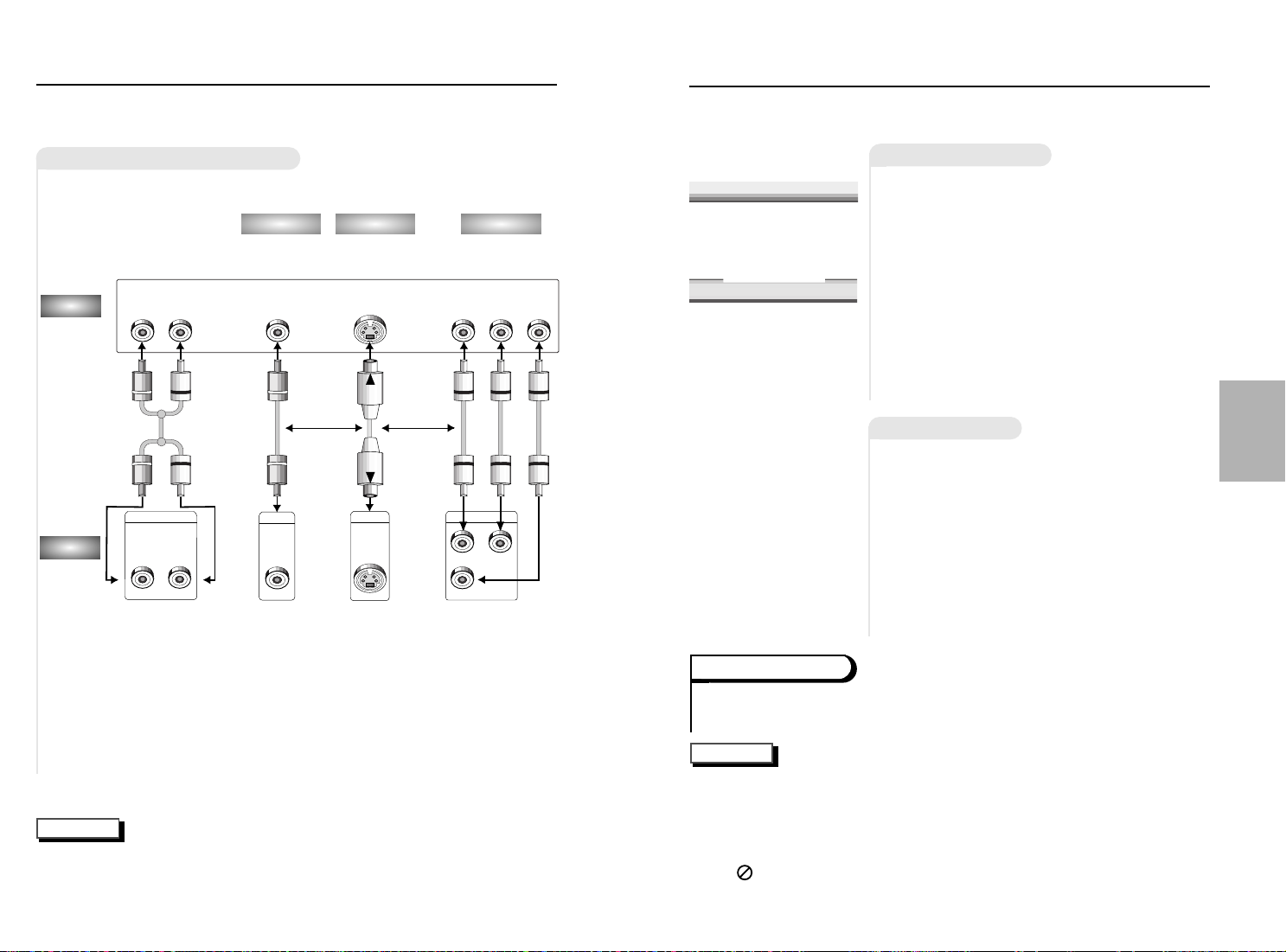

• Connection to a TV

Repeat Play

Program Play & Random Play

17 18

Changing the Camera Angle

Using the Bookmark Function

Using the Zoom and 3D Sound Functions

Setting Up the Audio Options

Setting Up the Display Options

28 30

Warranty

.............................................

...............................

.......

............

...

.................

...............

................

..............

10 11

19 20

24 25

...

31 32

SETUP

CONNEC-

TIONS

FUNCTIONS

BASIC

FUNCTIONS

ADVANCED

SETUP MENU

CHANGING

REFERENCE

General Features

SKIPSTOPPLAY/PAUSE

OPEN/CLOSE

DIGITAL VIDEO

STANDBY/ON

DIGITAL VIDEO

Disc Type and Characteristics

This DVD player is capable of playing the following types of discs with the corresponding logos:

Excellent Sound

Dolby Digital, a technology developed by Dolby Laboratories provides crystal clear sound reproduction.

Screen

Video with MPEG-2 compression technology. Both regular and widescreen(16:9) pictures can be viewed.

Slow Motion

An important scene can be viewed in slow motion.

Programmed Play

You can program tracks to play in desired order.

STANDBY/ON

OPEN/CLOSE

OPEN/ CLOSE

Parental Control

The parental control allows users to set the level necessary to prohibit children from viewing harmful movies such as those with violence, adult subject matter, etc.

Various On-Screen Menu Functions

You can select various languages(Audio/Subtitle) and screen angles while enjoying movies.

Repeat

You can repeat a song or movie simply by pressing the REPEAT button.

DVD-611

DVD-511

SKIPSTOPPLAY/PAUSE

Disc Types

(Logos)

DVD

VIDEO-CD

AUDIO-CD

* DO NOT play CD-ROM, CD-I, CD-R and DVD-ROM in this player!

(CDGs play audio only, not graphics.)

Recording

Types

Audio

Video

Audio

Video

Audio

Disc Size

31/2"

Max.

Playing

Time

Single-sided

240 min.

Double-sided

480 min.

Single-sided

80 min.

Double-sided

160 min.

74 min.

20 min.

74 min.

20 min.

• DVD contains excellent

• Various screen and audio

• Video with CD sound,

• An LP is recorded as an

Disc Markings

Characteristics

sound and video due to Dolby Digital and MPEG-2 system.

functions can be easily selected through the onscreen menu.

VHS quality & MPEG-1 compression technology.

analog signal with more distortion. CD is recorded as a Digital Signal with better audio quality, less distortion and less deterioration of audio quality over time.

SETUP

COPY PROTECTION

• Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs.

• This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

• Playback Region Number

NTSC

• NTSC broadcast system in U.S.A, Canada, Korea, Japan, etc.

• Dolby Digital disc

STEREO

• Stereo disc

DIGITAL

SOUND

• Digital Audio disc

• DTS disc

Playback Region Number

Both the DVD player and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play.

The Region Number for this player is described on the rear panel of the player.

Description-Front Panel

SKIPSTOPPLAY/PAUSE

OPEN/CLOSE

DIGITAL VIDEO

STANDBY/ON

DIGITAL VIDEO

OPEN/ CLOSE

SKIPSTOPPLAY/PAUSE

OPEN/CLOSE

STANDBY/ON

Front Panel Display

DVD-611

DVD-511

Front Panel Controls

STANDBY / ON

• When the unit is first plugged in, the indicator lights.When STANDBY/ON is pressed on again, the light goes out and the player is turned on.

DISC TRA Y

• Press OPEN/CLOSE to open and close the disc tray.

DISPLAY

• Operation indicators are displayed here.

OPEN/CLOSE

• Press to open and close the disc tray.

PLAY/PAUSE

• Begin or pause disc play.

STOP

• Stops disc play.

SKIP

• Use to skip a scene or music.

SETUP

Front Panel Display

Angle indicator. You can select multiple angles of a scene recorded by different cameras. Disc type indicators Reverse playback / Pause / Forward playback Lights when 3D surround is turned on. DVD :Title number DVD :Chapter number. Video/Audio CD :Track number Repeat play mode Linear PCM audio output Dolby Digital Disc DTS (Digital Theater System) output MPEG-2 Audio output Displays various messages concerning operations such as PLAY, STOP, LOAD, RANDOM, ...

no DISC : No disc loaded. OPEN : The disc tray is open. LOAD : Player is loading disc information.

Description-Rear Panel

VIDEO OUT S-VIDEO OUT

ANALOG AUDIO OUT

OPTICAL COAXIAL

DIGITAL AUDIO OUT

S-VIDEO

Y, Pb, Pr

VIDEO OUT SELECT

COMPONENT VIDEO OUT

YPr

VIDEO OUT S-VIDEO OUT

ANALOG AUDIO OUT

OPTICAL

DIGITAL

AUDIO OUT

DVD-611

DVD-511

Rear Panel

Tour of the Remote Control

SETUP

DIGITAL AUDIO OUT JACK

• Use either an optical or coaxial digital cable to connect to a compatible Dolby Digital receiver. Use to connect to an A/V Amplifier that contains a Dolby Digital decoder or DTS decoder.(For DVD-511, coaxial audio out jack not built-in.)

ANALOG AUDIO OUT JACKS

• Connect to the Audio input jacks of your television, audio/video receiver, or VCR.

VIDEO OUT JACK

• Use a video cable to connect to the Video input jack on your television.

* : only DVD-611

S-VIDEO OUT JACK

• Use the S-Video cable to connect this jack to the S-Video jack on your television for a higher quality picture.The S-Video must be selected in the VIDEO OUT SELECT.

COMPONENT VIDEO OUT JACKS

• Use these jacks if you have a TV with Component Video in jacks. These jacks provide Pr, Pb and Y video. Along with S-Video, Component Video provides the best picture quality. The Y, Pb, Pr must be selected in the VIDEO OUT SELECT.

VIDEO OUT SELECT SWITCH

• Use the switch to set video out.

• If Y, Pb or Pr is selected, S-Video may not work. If S-Video is selected, Y, Pb or Pr may not work.
