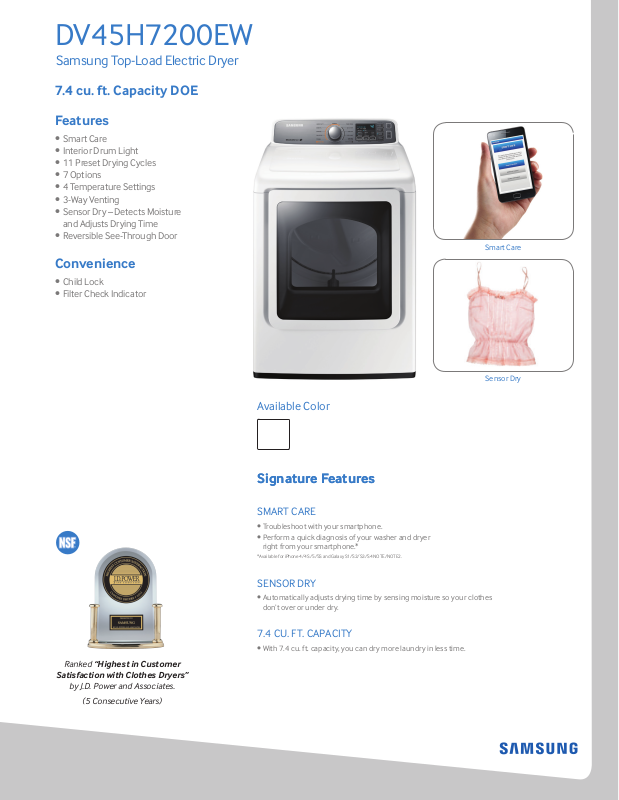

Samsung DV45H7200EW-A2 Specification

DV45H7200EW

Samsung Top-Load Electric Dryer

7.4 cu. ft. Capacity DOE

Features

• Smart Care

• Interior Drum Light

• 11 Preset Drying Cycles

• 7 Options

• 4 Temperature Settings

• 3-Way Venting

• Sensor Dry – Detects Moisture and Adjusts Drying Time

• Reversible See-Through Door

Convenience

• Child Lock

• Filter Check Indicator

Smart Care

Ranked “Highest in Customer

Satisfaction with Clothes Dryers”

by J.D. Power and Associates.

(5 Consecutive Years)

Sensor Dry

Available Color

Signature Features Signature Features

SMART CARE

• Troubleshoot with your smartphone.

• Perform a quick diagnosis of your washer and dryer right from your smartphone.*

*Available for iPhone 4/4S/5/5S and Galaxy S1/S2/S3/S4 NOTE/NOTE2.

SENSOR DRY

• Automatically adjusts drying time by sensing moisture so your clothes don’t over or under dry.

7.4 CU. FT. CAPACITY

• With 7.4 cu. ft. capacity, you can dry more laundry in less time.

DV45H7200EW

Fabric Care

9 Preset Dry Cycles

Normal, Heavy Duty, Permanent Press, Bedding, Delicates, Sanitize, Time Dry, Quick Dry, Wrinkle Release

5 Options

Wrinkle-prevent, Adjust Time, Child Lock, Signal On/Off button, My Cycle

3 Temperature Settings

High, Medium, Low

4 Dry Levels

Very Dry, More Dry, Normal Dry, Damp Dry

2 Signal Sound Levels

On, Off

Accessories:

Vent Kit: DV-1A

Warranty

One (1) Year All Parts and Labor Two (2) Years Control Board

Product Dimensions + Weight

Dimensions: (WxHxD) 27" x 43

⁄8" x 30"

Weight: 125.6 lbs / 57 kg

Shipping Dimensions + Weight

Dimensions: (WxHxD) 29 1⁄2" x 46 1⁄2" x 31 1⁄8" Weight: 134.4 lbs / 61 kg

DV400EWHDWR

7.2 cu. ft. Capacity Electric Top Loading Dryer

Color Model # UPC Code

Neat White DV400EWHDWR 036725590434

Matching Washer

Neat White WA400PJHDWR 036725590427

Installing your dryer

Alcove or closet installation

/8"

Fabric Care

9 Preset Dry Cycles

Normal, Heavy Duty, Permanent Press, Bedding, Delicates, Sanitize, Time Dry, Quick Dry, Wrinkle Release

5 Options

Wrinkle-prevent, Adjust Time, Child Lock, Signal On/Off button, My Cycle

3 Temperature Settings

High, Medium, Low

4 Dry Levels

Very Dry, More Dry, Normal Dry, Damp Dry

2 Signal Sound Levels

On, Off

Accessories:

Vent Kit: DV-1A

Warranty

One (1) Year All Parts and Labor Two (2) Years Control Board

Product Dimensions + Weight

Dimensions: (WxHxD) 27" x 43

⁄8" x 30"

Weight: 125.6 lbs / 57 kg

Shipping Dimensions + Weight

Dimensions: (WxHxD) 29 1⁄2" x 46 1⁄2" x 31 1⁄8" Weight: 134.4 lbs / 61 kg

Color Model # UPC Code

Neat White DV400EWHDWR 036725590434

Matching Washer

Neat White WA400PJHDWR 036725590427

* Required spacing ** External exhaust elbow requires additional space.

Closet or Door

48"² *

24"² *

3 in.

Samsung Top-Load Electric Dryer

Installing your Washer

Installing Your Dryer

Recessed Area Side View Confined

27"

Minimum clearances for closets and alcove:

Sides - 1" Top - 17" Rear - 5" Closet Front - 2"

Dimensions

2" 5"

17 "

30"

If the washer and dryer are installed together, the closet front must have at least a 72 in² (465cm²) unobstructed air opening. Your washer alone does not require a speciﬁc air opening.

43 7/8"

48"² *

24"² *

Closet or Door

* Required spacing ** External exhaust elbow requires additional space.

3 in.

/8"

7.4 cu. ft. Capacity DOE

4-Way Venting

11 Preset Dry Cycles:

Normal, Heavy Duty, Towels, Permanent Press, Bedding, Delicates, Sanitize, Time Dry, Air Flu, Quick Dry, Wrinkle Release

7 Options:

Mixed Load Bell, Wrinkle Prevent, Adjust Time,

Child Lock, Sound On/O, Smart Care, Drum Light

4 Temperature Settings:

High, Medium, Low, Extra Low

4 Dry Levels:

Very Dry, More Dry, Normal Dry, Damp Dry

2 Signal Level Settings:

On/O

Warranty

One (1) Year All Parts and Labor Two (2) Years Control Board

Product Dimensions & Weight (WxHxD)

Dimensions: 27" x 437/8" x 30" Weight: 126 lbs

Shipping Dimensions & Weight (WxHxD)

Dimensions: 291/2" x 461/2" x 311/8" Weight: 134 lbs

Electric Model # UPC Code

White DV45H7200EW 887276963907

Gas Model # UPC Code

White DV45H7200GW 887276963921

Matching Washer

White WA45H7200AW 887276857954

27 "

30"

Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
