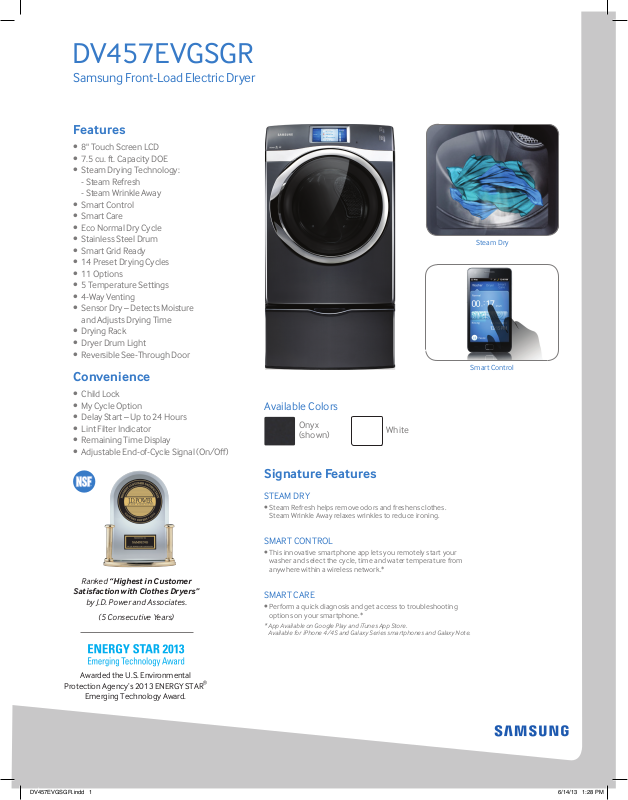

Samsung DV457EVGSGR-A1 Specification

DV457EVGSGR

Samsung Front-Load Electric Dryer

Features

• 8" Touch Screen LCD

• 7.5 cu. ft. Capacity DOE

• Steam Drying Technology:

- Steam Refresh

- Steam Wrinkle Away

• Smart Control

• Smart Care

• Eco Normal Dry Cycle

• Stainless Steel Drum

• Smart Grid Ready

• 14 Preset Drying Cycles

• 11 Options

• 5 Temperature Settings

• 4-Way Venting

• Sensor Dry – Detects Moisture and Adjusts Drying Time

• Drying Rack

• Dryer Drum Light

• Reversible See-Through Door

Convenience

• Child Lock

• My Cycle Option

• Delay Start – Up to 24 Hours

• Lint Filter Indicator

• Remaining Time Display

• Adjustable End-of-Cycle Signal (On/O)

Available Colors

Onyx (shown)

Steam Dry

Smart Control

White

Ranked “Highest in Customer

Satisfaction with Clothes Dryers”

by J.D. Power and Associates.

(5 Consecutive Years)

Awarded the U.S. Environmental

Protection Agency’s 2013 ENERGY STAR

Emerging Technology Award.

Signature Features

STEAM DRY

• Steam Refresh helps remove odors and freshens clothes. Steam Wrinkle Away relaxes wrinkles to reduce ironing.

SMART CONTROL

• This innovative smartphone app lets you remotely start your washer and select the cycle, time and water temperature from anywhere within a wireless network.*

SMART CARE

• Perform a quick diagnosis and get access to troubleshooting options on your smartphone.*

* App Available on Google Play and iTunes App Store.

Available for iPhone 4/4S and Galaxy Series smartphones and Galaxy Note.

DV457EVGSGR.indd 1 6/14/13 1:28 PM

DV457EVGSGR

Fabric Care

14 Preset Dry Cycles

Steam Refresh, Steam Wrinkle Away, Eco Normal, Normal, Heavy Duty, Permanent Press, Bedding, Delicates, Wool, Sanitize, Time Dry, Air Fluff, Quick Dry, ActiveWear

9 Options

Mixed Load Bell, Wrinkle Prevent, Delay Start-Up to 24 Hours, My Cycle, Rack Dry, Adjust Time, Drum Light, Smart Control, Smart Care,

5 Temperature Settings

High, Medium, Medium Low, Low, Extra Low

5 Dry Levels

Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry

2 Signal Sound Levels

On, Off

Accessories:

Stacking Kit: SK-5A Vent Kit: DV-1A Pedestal: WE357A0C, WE357A0W

Warranty

One (1) Year All Parts and Labor Two (2) Years Control Board

Product Dimensions + Weight

Dimensions: (WxHxD) 27" x 39" x 32

⁄4"

Weight: 125.6 lbs / 57 kg

Installation Options:

DV457EVGSGR

7.5 cu. ft. Capacity Electric Steam Dryer

Fabric Care

14 Preset Dry Cycles

Steam Refresh, Steam Wrinkle Away, Eco Normal, Normal, Heavy Duty, Permanent Press, Bedding, Delicates, Wool, Sanitize, Time Dry, Air Fluff, Quick Dry, ActiveWear

9 Options

Mixed Load Bell, Wrinkle Prevent, Delay Start-Up to 24 Hours, My Cycle, Rack Dry, Adjust Time, Drum Light, Smart Control, Smart Care,

5 Temperature Settings

High, Medium, Medium Low, Low, Extra Low

5 Dry Levels

Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry

2 Signal Sound Levels

On, Off

Accessories:

Stacking Kit: SK-5A Vent Kit: DV-1A Pedestal: WE357A0C, WE357A0W

Warranty

One (1) Year All Parts and Labor Two (2) Years Control Board

Product Dimensions + Weight

Dimensions: (WxHxD) 27" x 39" x 32

⁄4"

Weight: 125.6 lbs / 57 kg

Shipping Dimensions + Weight

Dimensions: (WxHxD) 29 3⁄8" x 42 3⁄8" x 33 1⁄2" Weight: 134.4 lbs / 61 kg

Color Model # UPC Code

Neat White DV457EVGSWR 036725570849

Onyx DV457EVGSGR 036725570573

Matching Washer

Neat White WF457ARGSWR 036725570832

Onyx WF457ARGSGR 036725570566

Installing your dryer

Minimum clearances for closets and alcove:

Sides - 1 In.(2.5 cm) Top - 17 In.(43.2 cm) Rear - 4 In. (10.2 cm) Closet Front - 2 In. (5.1 cm)

If the washer and dryer are installed together, the closet front must have at least a 72 in² (465cm²) unobstructed air opening. Your washer alone does not require a speciﬁc air opening.

Recessed Area

17"

Side View Confined

2. With optional pedestal base or stacking kit

1. Alcove or closet installation

Installation Options:

Stacked Side by Side On Pedestals Stacked Depth

(38

⁄8”)

DV457EVGSGR

7.5 cu. ft. Capacity Electric Steam Dryer

27"

/4"

Samsung Front-Load Electric Dryer

Installing Options

7.5 Capacity (cu. ft./DOE)

4-Way Venting

14 Preset Wash Cycles:

Steam Refresh, Steam Wrinkle Away, Eco Normal,

Stacked Side by Side On Pedestals Stacked Depth

Installing Your Dryer

Installing your dryer

1. Alcove or closet installation

Minimum clearances for closets and alcove:

Sides - 1 In.(2.5 cm) Top - 17 In.(43.2 cm) Rear - 4 In. (10.2 cm) Closet Front - 2 In. (5.1 cm)

If the washer and dryer are installed together, the closet front must have at least a 72 in² (465cm²) unobstructed air opening. Your washer alone does not require a speciﬁc air opening.

Dimensions

2. With optional pedestal base or stacking kit

Required Dimensions for Installation With Pedestal

50 13/16" to clear open door

32 1/4"

48"² *

24"² *

Closet or Door

* Required spacing ** External exhaust elbow requires additional space.

DV457EVGSGR.indd 2 6/14/13 1:28 PM

Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.

Samsung received the highest numerical score for clothes washers (2009-2012) and dryers (2008-2012) in the proprietary J.D. Power and Associates Laundry Appliance Studies.SM 2012 study based on 9,339 total responses measuring 12 brands, and measures opinions of consumers about their washer and dryer obtained new in the past 24 months. Proprietary study results are based on experiences and perceptions of consumers surveyed in January-February 2012. Your experiences may vary. Visit jdpower.com.

Recessed Area

27"

53"

27"

32 1/4"

Side View Confined

/2"**

Required Dimensions for Installation

6" *

78"

39"

2 1/2"

(38

32 1/4"

With Stacking Kit

27"

⁄8”)

17"

Normal, Heavy Duty, Permanent Press, Bedding, Delicates, Wool, Sanitize, Time Dry, Air Flu, Quick Dry, Active Wear

11 Options:

Mixed Load Bell, Wrinkle Prevent, Delay Start – Up to 24 Hours, My Cycle, Rack Dry, Adjust Time, Drum Light, Smart Control, Smart Care, Child Lock, Signal On/O

5 Temperature Settings:

High, Medium, Medium Low, Low, Extra Low

5 Dry Levels:

Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry

2 Signal Level Settings:

On/O

Accessories:

Stacking Kit: SK-5A Vent Kit: DV-1A Pedestal: WE357A0C, WE357A0W

Warranty

One (1) Year Parts and Labor Two (2) Years Control Board Three (3) Years Stainless Steel Drum Ten (10) Years Direct Drive Motor

Product Dimensions & Weight (WxHxD)

Dimensions: 27" x 39" x 321/4" Weight: 125.6 lbs

Shipping Dimensions & Weight (WxHxD)

Dimensions: 293/8" x 423/8" x 331/2" Weight: 134.4 lbs

Color Model # UPC Code

White DV457EVGSWR 036725570849 Onyx DV457EVGSGR 036725570573

Matching Dryer (Electric/Gas)

White WF457ARGSWR 036725570832 Onyx WF457ARGSGR 036725570566
