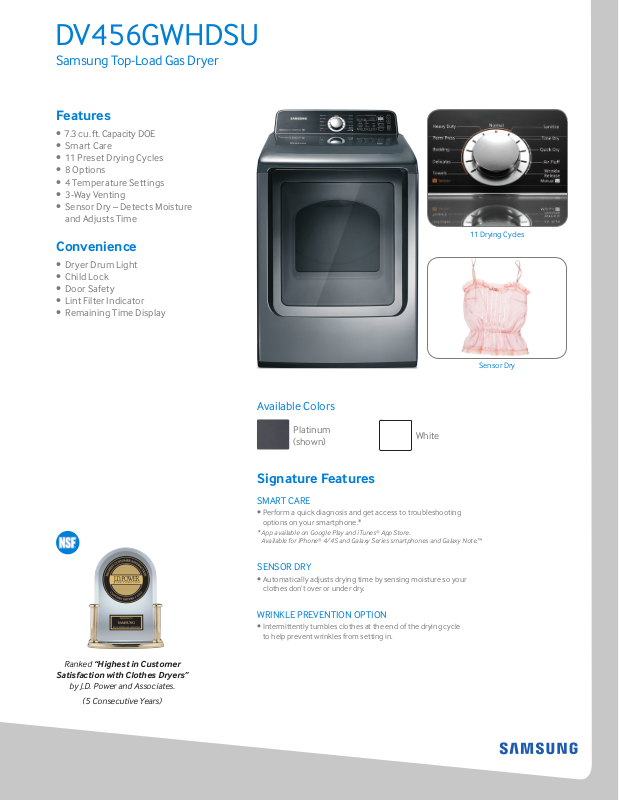

Samsung DV456GWHDSU Specification Sheet
DV456GWHDSU
Samsung Top-Load Gas Dryer
Features
• 7.3 cu. ft. Capacity DOE
• Smart Care
• 11 Preset Drying Cycles
• 8 Options
• 4 Temperature Settings
• 3-Way Venting
• Sensor Dr y – Detects Moisture
and Adjusts Time
Convenience
• Dryer Drum Light
• Child Lock
• Door Safety
• Lint Filter Indicator
• Remaining Time Display
11 Drying Cycles
Available Colors
Platinum
(shown)
White
Signature Features
SMART CARE
• Perform a quick diagnosis and get access to troubleshooting
options on your smartphone.*
* App available on Google Play and iTunes® App Store.
Available for iPhone® 4/4S and Galaxy Series smartphones and Galaxy Note.™
SENSOR DRY
• Automatically adjusts drying time by sensing moisture so your
clothes don’t over or under dry.
WRINKLE PREVENTION OPTION
• Intermittently tumbles clothes at the end of the drying cycle
to help prevent wrinkles from setting in.
Sensor Dry
Ranked “Highest in Customer
Satisfaction with Clothes Dryers”
by J.D. Power and Associates.
(5 Consecutive Years)
Fabric Care
9 Preset Dry Cycles
Normal, Heavy Dut y, Permanent Press, Bedding,
Delicates, Sanitize, Time Dry, Quick Dry, Wrinkle
Release
5 Options
Wrinkle-prevent, Adjust Time, My Cycle,
Signal On/Off button, Child Lock
3 Temperature Settings
High, Medium, Low
4 Dry Levels
Very Dry, More Dry, Normal Dry, Damp Dry
2 Signal Sound Levels
On, Off
Accessories:
Vent Kit: DV-1A
Warranty
One (1) Year All Parts and Labor
Two (2) Years Control Board
Product Dimensions + Weight
Dimensions: (WxHxD) 27" x 43
7
⁄8" x 30"
Weight: 125.6 lbs / 57 kg
Shipping Dimensions + Weight
Dimensions: (WxHxD) 29 1⁄2" x 46 1⁄2" x 31 1⁄8"
Weight: 134.4 lbs / 61 kg
DV422EWHDWR
7.2 cu. ft. Capacity Electric Top Loading Dryer
Installing your dryer
Alcove or closet installation
Color Model # UPC Code
Neat White DV422EWHDWR 036725590403
Matching Washer
Neat White WA422PRHDWR 036725590397
DV456GWHDSU
Samsung Top-Load Gas Dryer
Installing Your Dryer
Alcove or closet installation
Recessed Area Side View Confined
17"
1" 1"
Dimensions
27"
Minimum clearances for closets and alcove:
Sides - 1"
Top - 17"
Rear - 5"
Closet Front - 2"
2" 5"
30"
If the washer and dryer are
installed together, the closet
front must have at least a 72 in²
(465cm²) unobstructed air
opening. Your washer alone does
not require a specific air opening.
Dimensions
43 7/8"
27 "
48"² *
24"² *
Closet or Door
* Required spacing
** External exhaust elbow
requires additional space.
30"
7.3 cu. ft. Capacity DOE
3-Way Venting
3"
3 in.
43
11 Preset Dry Cycles:
Normal, Heavy Duty, Towels, Permanent Press,
Bedding, Delicates, Sanitize, Time Dry, Air Flu,
Quick Dry, Wrinkle Release
8 Options:
Mixed Load Bell, Wrinkle Prevent, Adjust Time, My Cycle,
Child Lock, Signal On/O, Smart Care, Drum Light
4 Temperature Settings:
High, Medium, Low, Extra Low
4 Dry Levels:
Very Dry, More Dry, Normal Dry, Damp Dry
2 Signal Level Settings:
On/O
Accessories:
Vent Kit: DV-1A
Warranty
One (1) Year Parts and Labor
Two (2) Years Control Board
Product Dimensions & Weight (WxHxD)
Dimensions: 27" x 437/8" x 30"
Weight: 125.6 lbs
7
/8"
Shipping Dimensions & Weight (WxHxD)
Dimensions: 291/2" x 461/2" x 311/8"
Weight: 134.4 lbs
Color Model # UPC Code
Platinum DV456GWHDSU 036725590526
White DV456GWHDWR 036725590472
Matching Washer
Platinum WA456DRHDSU 036725590502
White WA456DRHDWR 036725590458
Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
Samsung received the highest numerical score for clothes washers (2009-2012) and dryers (2008-2012) in the proprietary J.D. Power and Associates Laundry Appliance
Studies.SM 2012 study based on 9,339 total responses measuring 12 brands, and measures opinions of consumers about their washer and dryer obtained new in the past
24 months. Proprietary study results are based on experiences and perceptions of consumers surveyed in January-February 2012. Your experiences may vary. Visit jdpower.com.
©2013 Samsung Electronics America, Inc., 85 Challenger Road, Ridgeeld Park, NJ 07660. Tel: 800-SAMSUNG. samsung.com.
Samsung is a registered trademark of Samsung Electronics Co. Ltd.
