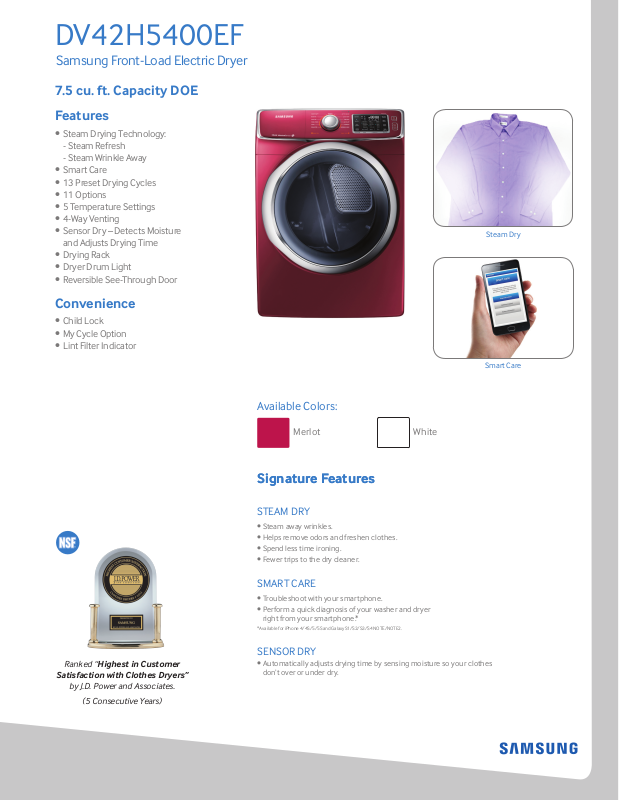

Samsung DV42H5400EF-A3 Specification
DV42H5400EF
Samsung Front-Load Electric Dryer
7.5 cu. ft. Capacity DOE
Features
• Steam Drying Technology:
- Steam Refresh
- Steam Wrinkle Away
• Smart Care
• 13 Preset Drying Cycles
• 11 Options
• 5 Temperature Settings
• 4-Way Venting
• Sensor Dry – Detects Moisture
and Adjusts Drying Time
• Drying Rack
• Dryer Drum Light
• Reversible See-Through Door
Convenience
• Child Lock
• My Cycle Option
• Lint Filter Indicator
Steam Dry
Ranked “Highest in Customer
Satisfaction with Clothes Dryers”
by J.D. Power and Associates.
(5 Consecutive Years)
Smart Care
Available Colors:
Merlot
White
Signature Features Signature Features
STEAM DRY
• Steam away wrinkles.
• Helps remove odors and freshen clothes.
• Spend less time ironing.
• Fewer trips to the dry cleaner.
SMART CARE
• Troubleshoot with your smartphone.
• Perform a quick diagnosis of your washer and dryer
right from your smartphone.*
*Available for iPhone 4/4S/5/5S and Galaxy S1/S2/S3/S4 NOTE/NOTE2.
SENSOR DRY
• Automatically adjusts drying time by sensing moisture so your clothes
don’t over or under dry.
DV42H5400EF
B. Side view - closet
or confined area
2" 323/
8
"
5
"
17"
Fabric Care
14 Preset Dry Cycles
Steam Refresh, Steam Wrinkle Away, Eco Normal,
Normal, Heavy Duty, Permanent Press, Bedding,
Delicates, Wool, Sanitize, Time Dry, Air Fluff,
Quick Dry, ActiveWear
9 Options
Mixed Load Bell, Wrinkle Prevent, Delay Start-Up
to 24 Hours, My Cycle, Rack Dry, Adjust Time,
Drum Light, Smart Control, Smart Care,
5 Temperature Settings
Installation Options:
DV457EVGSGR
7.5 cu. ft. Capacity Electric Steam Dryer
323/8"
5"
53" to clear open door
27"
38
11
/16"
53
1
/4"
323/8"
3"
Closet or Door
3"
1" 8" **
5"
Samsung Front-Load Electric Dryer
Installing Options
Stacked Side by Side On Pedestals Stacked Depth
Installing Your Dryer
1. Alcove or closet installation
MINIMUM CLEARANCES FOR CLOSET
AND ALCOVE INSTALLATIONS:
Sides – 1"
7
/8"
Rear – 5
Top – 17"
Closet Front – 2"
If the washer and dryer are
installed together, the closet
front must have at least a 72"
unobstructed air opening.
Your washer alone does not
require a specific air opening.
1" 27"
Dimensions
2. With optional pedestal base or stacking kit
Required Dimensions for Installation with Pedestal
53" to clear open door
A. Recessed area
1"
1"27"
B. Side view - closet
or confined area
17"
"
2" 323/
Required Dimensions for
Installation with Stacking Kit
8
7.5 cu. ft. Capacity DOE
4-Way Venting
13 Preset Dry Cycles:
Steam Refresh, Steam Wrinkle Away, Normal,
Heavy Duty, Permanent Press, Active Wear, Bedding,
Delicates, Wool, Sanitize, Time Dry, Air Flu, Quick Dry
11 Options:
Mixed Load Bell, Wrinkle Prevent, Anti Static,
Small Load Care, My Cycle, Rack Dry, Adjust Time,
Sound, Child Lock, Smart Care, Drum Light
5 Temperature Settings:
High, Medium, Medium Low, Low, Extra Low
5 Dry Levels:
Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry
2 Signal Level Settings:
On/O
Warranty
One (1) Year Parts and Labor
Two (2) Years Control Board
"
5
Three (3) Years Stainless Steel Drum
Ten (10) Years Direct Drive Motor
Product Dimensions & Weight (WxHxD)
Dimensions: 27" x 3811/16" x 323/8"
Weight: 126 lbs
6" *
3811/16"
48" *
323/8"
3"
531/4"
5"
27"
771/2"
5"
24" *
Closet or Door
Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
Samsung received the highest numerical score for clothes washers (2009-2012) and dryers (2008-2012) in the proprietary J.D. Power and Associates Laundry Appliance
Studies.SM 2012 study based on 9,339 total responses measuring 12 brands, and measures opinions of consumers about their washer and dryer obtained new in the past
24 months. Proprietary study results are based on experiences and perceptions of consumers surveyed in January-February 2012. Your experiences may vary. Visit jdpower.com.
©2014 Samsung Electronics America, Inc. 85 Challenger Road, Ridgeeld Park, NJ 07660. Tel: 800-SAMSUNG. samsung.com.
Samsung is a registered trademark of Samsung Electronics Co. Ltd.
3"
1" 8" **
323/8"
1" 27"
*Required spacing.
**External exhaust elbow
requires additional space.
Shipping Dimensions & Weight (WxHxD)
Dimensions: 291/4" x 421/4" x 331/2"
Weight: 134 lbs
Electric Model # UPC Code
Merlot DV42H5400EF 887276963266
White DV42H5400EW 887276963273
Gas Model # UPC Code
Merlot DV42H5400GF 887276963280
White DV42H5400GW 887276963297
Matching Washer
Merlot WF42H5400AF 887276963044
White WF42H5400AW 887276963099
