DP15H*/DP17L* 2-1

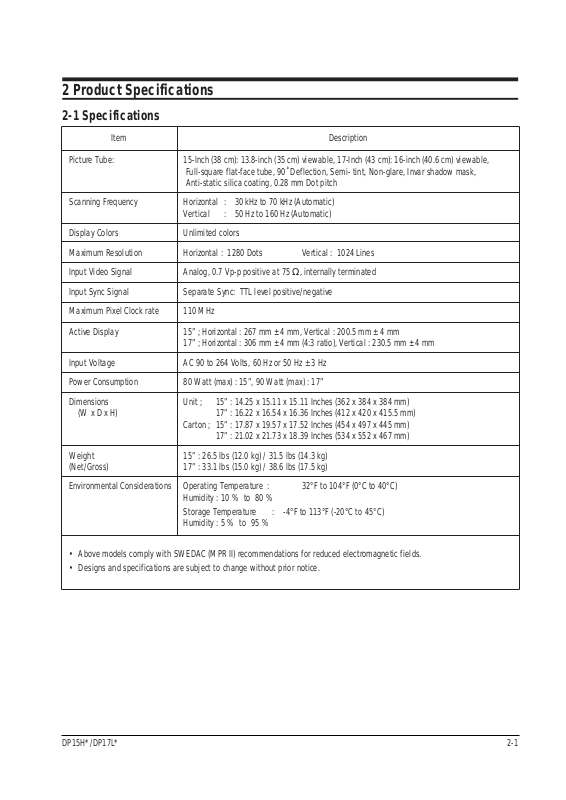

2 Product Specifications
2-1 Specifications
Picture Tube: 15-Inch (38 cm): 13.8-inch (35 cm) viewable, 17-Inch (43 cm): 16-inch (40.6 cm) viewable,
Full-square flat-face tube, 90˚ Deflection, Semi- tint, Non-glare, Invar shadow mask,
Anti-static silica coating, 0.28 mm Dot pitch
Scanning Frequency Horizontal : 30 kHz to 70 kHz (Automatic)
Vertical : 50 Hz to 160 Hz (Automatic)
Display Colors Unlimited colors
Maximum Resolution Horizontal : 1280 Dots Vertical : 1024 Lines
Input Video Signal Analog, 0.7 Vp-p positive at 75 Ω, internally terminated
Input Sync Signal Separate Sync: TTL level positive/negative
Maximum Pixel Clock rate 110 MHz
Active Display 15” ; Horizontal : 267 mm ± 4 mm, Vertical : 200.5 mm ± 4 mm
17” ; Horizontal : 306 mm ± 4 mm (4:3 ratio), Vertical : 230.5 mm ± 4 mm
Input Voltage AC 90 to 264 Volts, 60 Hz or 50 Hz ± 3 Hz
Power Consumption 80 Watt (max) : 15”, 90 Watt (max) : 17”
Dimensions Unit ; 15” : 14.25 x 15.11 x 15.11 Inches (362 x 384 x 384 mm)
(W x D x H) 17” : 16.22 x 16.54 x 16.36 Inches (412 x 420 x 415.5 mm)
Carton ; 15” : 17.87 x 19.57 x 17.52 Inches (454 x 497 x 445 mm)
17” : 21.02 x 21.73 x 18.39 Inches (534 x 552 x 467 mm)
Weight 15” : 26.5 lbs (12.0 kg) / 31.5 lbs (14.3 kg)
(Net/Gross) 17” : 33.1 lbs (15.0 kg) / 38.6 lbs (17.5 kg)
Environmental Considerations Operating Temperature : 32°F to 104°F (0°C to 40°C)
Humidity : 10 % to 80 %
Storage Temperature : -4°F to 113°F (-20°C to 45°C)
Humidity : 5 % to 95 %
• Above models comply with SWEDAC (MPR II) recommendations for reduced electromagnetic fields.
• Designs and specifications are subject to change without prior notice.
Item Description
2 Product Specifications
2-2 DP15H*/DP17L*
2-2 Pin Assignments
5
15
Figure 2-1. Male Type Figure 2-2. Male Type
Sync
Type
Pin No.
Macintosh
Separate
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Red
Green
Blue
N-C
DDC Return
GND-R
GND-G
GND-B
N-C
GND-Sync/Self-raster
N-C
DDC Data
H-Sync
V-Sync
DDC Clock
GND-R
Red
H/V Sync
Sense 0
Green
GND-G
Sense 1
Reserved
Blue
Sense 2
GND
V-Sync
GND-B
GND
H-Sync
