Samsung DMT400RHS, DMT400RHW, DMT400, DMT400RHB, DMT400DD68-00074A User Manual

Dishwasher

user manual
DMT400 Series
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please register your product at
www.samsung.com/register

features of your new samsung dishwasher

Your new Samsung Dishwasher will change the way you feel about doing dishes. From its extra large capacity to its energy efficiency, your new Samsung dishwasher has all the features to make your chores much less mundane.
1. Extra large capacity
The upper rack is slanted for larger dishes. The space has been maximized to accommodate a variety of dish sizes.
2. Elegant design with digital touch sensors
Your dishwasher features digital touch sensors in the control panel for simpler operation with a touch of elegance.
3. Increased convenience
The smart auto cycle determines the level of soil on the dishes and initiates the optimal cycle for cleaning. Use this feature to save water, energy, and time.
4. Extremely quiet operation
Efficient noise control technology gives you the quietest possible operation. Your new Samsung dishwasher is quieter than ever.
5. Self-cleaning filter
Cleaning the filter yourself is a thing of the past! This product keeps food waste internally while operating, then drains it automatically with the water.
6. Twin fan condensing drying
Two fans connected to one motor make for better drying performance. Still better, your dishwasher emits no hot steam. Instead, it mixes external fresh air with the internal hot steam during drying to eliminate the steam, making your dishwasher safer and easier to use.
This manual contains important information regarding the use and care of your new Samsung dishwasher. Refer to it for descriptions of the control panel, instructions on how to use the dishwasher, and tips for making the most of its state-of-the-art features and technologies. The cycle chart on page 22 offers an overview of the different cycles and the troubleshooting section on page 23 tells you what to do if something goes wrong.
2_ features of your new samsung dishwasher
safety information _3

safety information

Throughout this manual, you’ll see Warning and Caution notes. These important safety instructions do not cover all possible situations that might occur.
It is your responsibility to use caution when installing, maintaining, and operating your dishwasher. Samsung will not be liable for damages resulting from improper use.
IMPORTANT SAFETY INSTRUCTIONS
What the icons and signs in this user manual mean :
Hazards or unsafe practices that may result in severe personal injury or
WARNING
CAUTION
CAUTION
death.
Hazards or unsafe practices that may result in personal injury or property damage.
To reduce the risk of fire, explosion, electric shock, or personal injury when using your dishwasher, follow these basic safety precautions:
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions explicity.
Unplug the power plug from the wall socket.
Make sure the machine is grounded to prevent electric shock.
Call the service center for help.
WARNING - When using the dishwasher, follow basic precautions, including the following:
Read all instructions before using the dishwasher. As with any equipment using electricity, water, and moving parts, potential hazards exist. Use the dishwasher only for its intended function. Use only detergents or wetting agents recommended for use in a dishwasher, and keep
them out of the reach of children. When loading items to be washed:
- Locate sharp items so that they are not likely to damage the door seal, and
- Load sharp knives with the handles up to reduce the risk of cut-type injuries.
Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent. For plastic items not so marked, check the manufacturer’s recommendations.
Do not touch the HEATING ELEMENT during or immediately after use.
SAVE THESE INSTRUCTIONS
safety information
Do not operate the dishwasher unless all ENCLOSURE panels are properly in place. Do not tamper with the controls. Do not abuse, sit on, or stand on the door, lid, or dish racks of the dishwasher. To reduce the risk of injury, do not allow children to play in or on the dishwasher. To reduce the risk of fire or explosion:
- Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using the dishwasher turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.
Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.
After unpacking the dishwasher, keep the packaging out of the reach of children. The dishwasher is extremely heavy. Do not attempt to move or carry the dishwasher by
yourself. Two or more people are needed to move a dishwasher and avoid potential injuries. Do not install the dishwasher near electrical components. Keep the dishwasher away from
open flames. Install and level your dishwasher on an uncarpeted floor that can support its weight. Your dishwasher must be properly grounded. Never connect it to an ungrounded outlet.
See page 11 for more information on grounding your dishwasher. Connect the ground wire to the green ground connector in the terminal box. After the dishwasher is installed, check that the drain hose is properly connected and
that there is no leakage from the hose connectors. If the drain hose is loose, it may cause property damage.
The water supply line is susceptible to breakage. As time goes by, it becomes less flexible. Check the line periodically. If it is swollen, torn, cut or there is a water leak, replace it immediately.
To safely operate this appliance, familiarize yourself with its operations and exercise care when using it.
Do not put gasoline, solvents, or other flammable materials inside the dishwasher. Do not wash dishes exposed to these materials.
Keep your dishwasher detergent out of the reach of children. Detergent has an adverse effect on human organs. It contains elements for polishing and is corrosive. Avoid letting the detergent come into contact with your skin and eyes.
Do not push or place pressure on the door when it is open, as this may damage the dishwasher or cause harm.
Do not allow children to play in or on the dishwasher. They may harm themselves or damage the dishwasher.
Disconnect the power cable (or disconnect the circuit breaker) before servicing your dishwasher.
SAVE THESE INSTRUCTIONS
4_ safety information
safety information _5
Do not repair, replace, or service any part of your dishwasher yourself. Disassembly, repairs and modifications are permitted by authorized service technicians only. Work done by an unauthorized person may void your warranty.
Before disposing of your dishwasher, remove the door of the washing compartment or the door latch so that children or small animals do not get trapped inside.
If the dishwasher is left unused for an extended period of time, turn off the water supply. This dishwasher is intended for residential use only.
BEFORE USING YOUR DISHWASHER
WARNING
WARNING
Tip-Over Hazard
- Do not use the dishwasher until it is correctly installed.
- Do not push down on an open door.
- Do not place excessive weight on the open door.
Electric Shock Hazard
Failure to follow these instructions can result in death, fire, or electric shock:
- Electrically ground the dishwasher
- Connect the ground wire to the green ground connector in the junction box.
- Do not use an extension cord.
SAVE THESE INSTRUCTIONS

contents

SETTING UP YOUR DISHWASHER
7
USING YOUR DISHWASHER
12
CLEANING AND MAINTAINING YOUR
DISHWASHER
20
CYCLES
7 Unpacking your dishwasher 7 Checking parts 8 Control panel 10 Cycle selector 10 Progress lights 11 Meeting installation requirements
12 Basic guidelines 14 Removing the plate support 15 Adjusting the height of the upper rack 15 Removing the upper rack 16 Loading the lower rack 16 Loading the upper rack 17 Using the cutlery basket 18 Using the dispenser
20 Cleaning the exterior 20 Cleaning the interior 20 Cleaning the nozzles 21 Storing your dishwasher
22 Cycle chart
6_ Contents
22
TROUBLESHOOTING
23
APPENDIX
27
23 Check these points if your dishwasher… 26 Information codes
27 Helping the environment 27 Specifications
setting up your dishwasher _7

setting up your dishwasher

Be sure to have your installer follow these instructions closely so that your new dishwasher works properly and that you’re not at risk of injury when washing dishes.
UNPACKING YOUR DISHWASHER
• Once your new dishwasher has been delivered to you, carefully unpack it and check for any damage. If the dishwasher has been damaged, make note of it on the waybill and keep a copy. Do not install the dishwasher, and contact Samsung Customer Service at the number listed below.
• If there is no damage to the product, you can proceed with the installation. If you are going to install it yourself, make sure to read through the installation guide and follow the directions inside.
• After unpacking your dishwasher, keep the packaging out of the reach of children to ensure their safety.
CHECKING PARTS
When your dishwasher has been unpacked, make sure you’ve received all the parts shown below. If your dishwasher was damaged during shipping, or if you do not have all the parts, contact Samsung
Customer Service at 1-800-SAMSUNG (726-7864)
01 setting up your dishwasher
Air brake
Base
Dispenser
Door
Middle nozzle
Upper rack Lower rack Cutlery basket
Accessory parts - User/Installation manual, Installation Kit.
Lower nozzle
Vapor vent cover Control panel
setting up your dishwasher
1 62 3 4 5

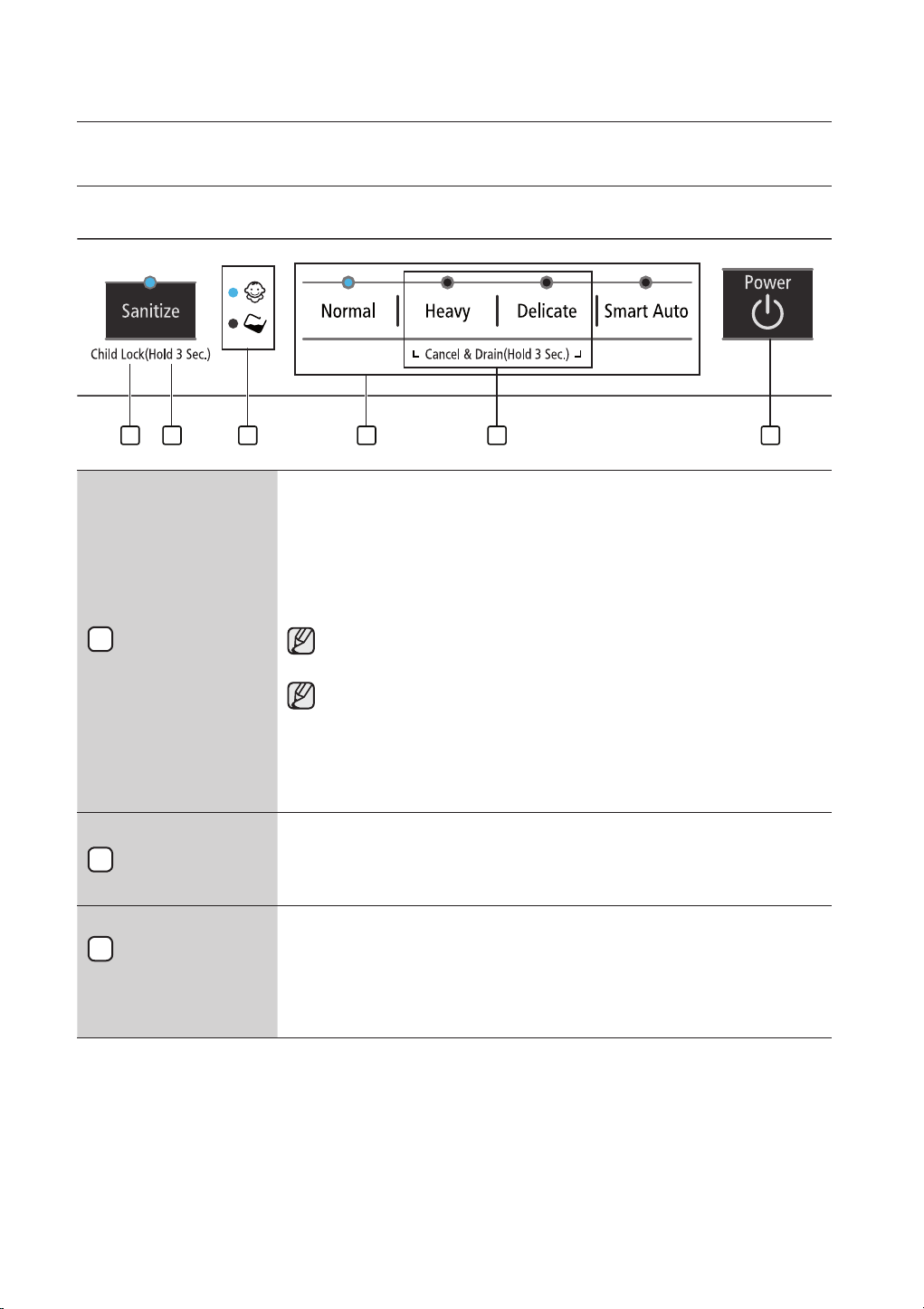

CONTROL PANEL
DMT400 Series
The temperature rises to 162 ˚F (72 ˚C) in the final rinse cycle for high temperature sanitization.
If you select the Sanitize option, the “Sanitize” lamp blinks when the water temperature reaches the sanitary temperature (over 155 ˚F (68 ˚C)), and then remains illuminated until the Sanitze option ends. When you open the door or press Power button, the “Sanitize” lamp turns off.
SANITIZE
1
2
CHILD LOCK
You cannot select the Delicate cycle if you select the Sanitize option.
The Sanitize feature is in accordance with NSF/ANSI Standard 184 for Residential Dishwashers. Certified residential dishwashers are not intended for licensed food establishments. Your dishwasher is NSF Certified.
The cycle that is NSF certified is the Heavy Cycle with the sanitize option selected.
This option allows you to lock the buttons on the control panel so children cannot accidently start the dishwasher by pressing the buttons on the panel.
To lock and unlock the buttons on the control panel, hold the Sanitize button down for three(3) seconds.
- When Power is On : Hold down the Sanitize button for three (3)
seconds.
- When Power is Off : Push the Power button first, and then hold down
the Sanitize button for three (3) seconds.
8_ setting up your dishwasher
setting up your dishwasher _9
DISPLAY
01 setting up your dishwasher
3
CYCLE
4
SELECTOR
Displays information (Child lock, Rinse refill). When Rinse Refill remains illuminated, there is no rinse agent in the
dispenser. Refill the rinse aid dispenser.
Select the appropriate wash cycle depending on the soil level of your dishes. After you select a cycle, the Cycle On light for that cycle lights up. If you want to cancel the selected cycle, press the selected cycle button again.
CANCEL &
5
DRAIN
To cancel a cycle currently running and drain the dishwasher, hold down both the Heavy and Delicate buttons for three (3) seconds.
When you press the Power button, the entire display turns on and off, and then the light of the most recently finished cycle lights up.
6
POWER
When the cycle you selected has finished, all other indicator lights are turned off and the “Clean” light is illuminated for 10 minutes.
Then, the Power turns off automatically.
You can select Sanitize option before starting a cycle. If you change the cycle after selecting an option, the original cycle is reset.
setting up your dishwasher
1 2 3 4
1 2 3

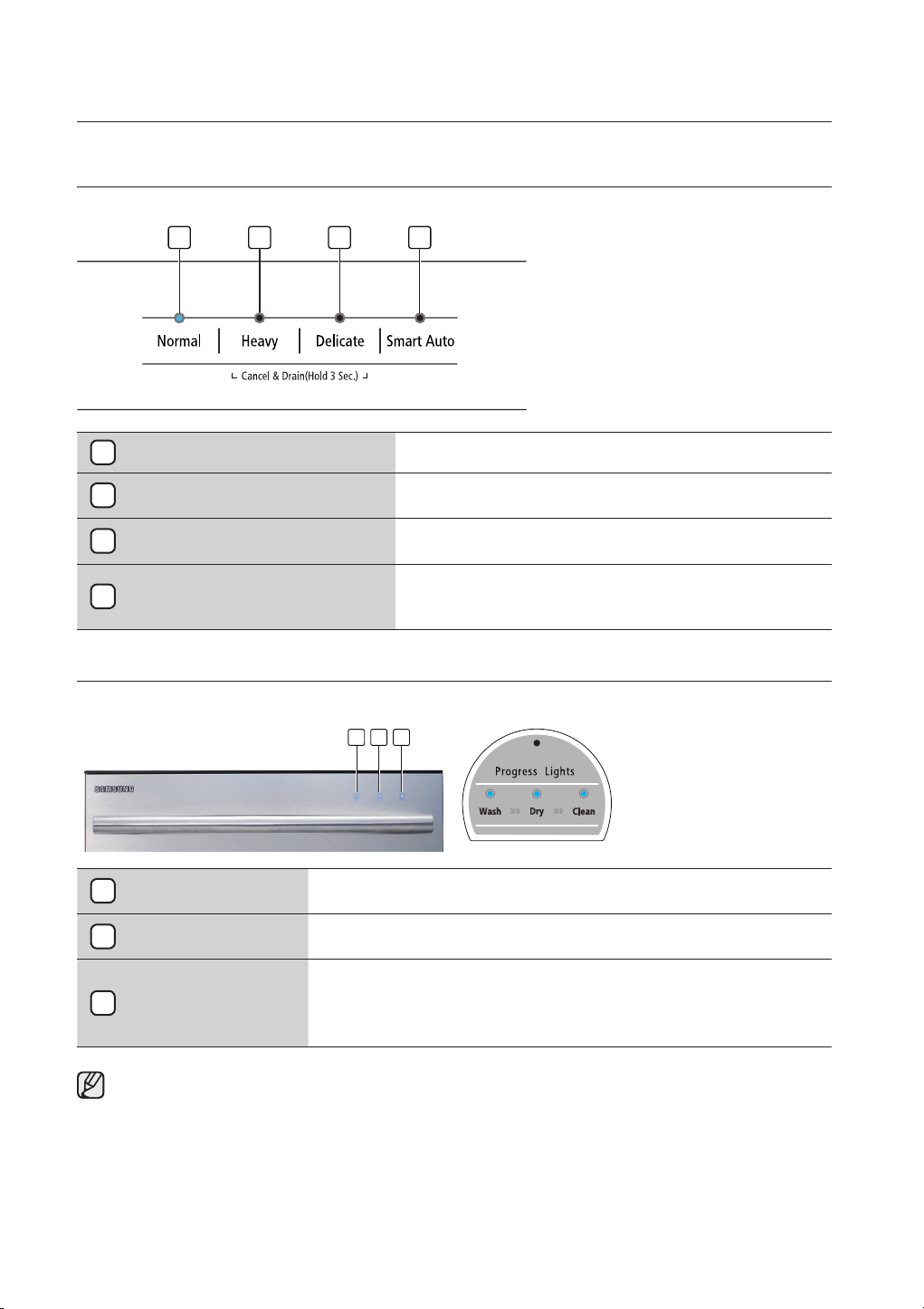

CYCLE SELECTOR
DMT400 Series
1
NORMAL Use this cycle for regular dinner dishes.
2
HEAVY Use this cycle for heavily soiled dishes, and dishes with heavy oil.
3
DELICATE Use this cycle for normally soiled dishes or fragile items such as glasses.
4
SMART AUTO
PROGRESS LIGHTS
DMT400 Series
This cycle detects the level of soil and automatically initiates the optimal cycle after a few minutes of operation.
1
WASH
DRY
2
CLEAN
3
When the dishwasher starts a cycle, the light corresponding to the current operation turns on to show the progress of the cycle. When that portion of the cycle is complete, the illuminating light turns off.
When the dishwasher is in a wash or rinse portion of a cycle, the Wash light is illuminated.
When the dishwasher is in a drying portion of a cycle, the Dry light is illuminated.
After the dishwasher has completed all portions of a cycle, all other indicator lights are turned off and the Clean light is illuminated for 10 minutes.
If you open the door when the Clean light is illuminated, it turns off immediately.
10_ setting up your dishwasher
setting up your dishwasher _11
MEETING INSTALLATION REQUIREMENTS
01 setting up your dishwasher
Electrical supply and grounding
To prevent unnecessary risk of fire, electric shock, or personal injury, all wiring and grounding must be done in accordance with the National Electrical Code ANSI/FNPA, No. 70 Latest Revision and local codes and ordinances. It is the personal responsibility of the appliance owner to provide adequate electrical service for this appliance.
Never use an extension cord. When preparing for installation, ensure that your power supply offers:
CAUTION
• A 120 Volt 60 Hz 15 AMP fuse or circuit breaker
• An individual branch circuit serving only your dishwasher
Your dishwasher must be grounded. If your dishwasher malfunctions or breaks down, grounding will reduce the risk of electric shock by providing a path of least resistance for the electric current.
Never connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes.
WARNING
GROUNDING INSTRUCTIONS
For a permanently connected appliance:
This appliance must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and then connected to the equipment-grounding terminal or lead on the appliance.
Water supply
The hot water supply line pressure must be between 20~120 psi (140~830 kPa). Adjust the water heater to deliver water between 120°F (49°C) ~ 149 ˚F (65 ˚C).
Most plumbing supply stores sell water supply lines of various lengths up to 10 feet (305 cm) long. You can reduce the risk of leaks and water damage by:
• Making water faucets easily accessible.
• Turning off faucets when the dishwasher is not in use.
• Periodically checking for leaks at water supply line fittings.
Before using your dishwasher for the first time, check all connections at the water supply valve and faucets for leaks.
WARNING
Flooring
For safety, your dishwasher must be installed on a solidly constructed floor. Never install your dishwasher on a platform or poorly supported structure.
Your dishwasher must be properly installed in accordance with the Installation Guide before you use it. If you did not receive an Installation Guide with your dishwasher, you can obtain one by visiting our website at www.samsung.com.

using your dishwasher

BASIC GUIDELINES
1. Open the door and load your dishes (see page 16).
- Place dishes into the upper and lower racks.
- Remove any food remains from the dishes before placing them in the rack(s).
- After placing the dishes into the racks, rotate the nozzles by hand to check whether any of the
dishes will interfere with them.
- Check the dishes location not to block the detergent dispenser opening.
2. Add detergent to the dispenser (see page 18).
- Make sure to use only automatic dishwasher detergent.
- Refer to “Using the dispenser” on how to add detergent.
3. Press the Power button.
- When you press the Power button, the entire display turns on and off, and then the cycle light of the
most recently finished cycle lights up.
- If “Rinse Refill” is illuminated, you should refill the rinse aid dispenser to improve washing and
drying performance.
4. Select an appropriate cleaning cycle depending on the soil level of the dishes. (see pages 10 and 22).
- Press the appropriate cycle button.
- When you press a cycle button, the cycle indicator light is illuminated. If you press the cycle button
again, the light turns off and the cycle is canceled.
- For information about selecting a cycle according to the soil level of the dishes, see “Cycle Selector”.
5. Close the door.
- Push the racks back so that they are in place. Close the door.
- When the door is closed, the dishwasher will start the draining after a few seconds and the cycle
you selected.
- Make sure to close the door firmly. If the door is slightly ajar, the selected cycle will not start automatically.
6. When the wash cycle is completed.
- The Clean light illuminates and the dishwasher sounds a chime.
- The power is automatically turned off after 10 minutes.
If you want to load more dishes or pause the dishwasher while it is already running, make sure to open the door slowly and carefully as there is a possibility of injury from the hot steam inside the dishwasher.
CAUTION
(If the door is opened while the dishwasher is running, a safety mechanism is activated and stops the cycle.)
You should use rinse aids for better drying performance. You can further improve drying performance by also selecting the Sanitize option.
If “Rinse Refill” lamp lights during a cycle, the dishwasher adds 30 more minutes to the Drying cycle automatically after the Clean light illuminates.
When the water temperature of the last rinse of the sanitize option reaches the sanitary temperature (over 155 ˚F (68 ˚C)), the Sanitize lamp blinks, and then remains illuminated until the Sanitze option ends. When you open the door or press the Power button, the “Sanitize” lamp turns off.
12_ using your dishwasher
using your dishwasher _13
Touch controls
02 using your dishwasher
Touch controls allow you to operate the dishwasher easily.
• They are convenient to operate, with a soft touch.
• Have a simple and stylish design.
• Are easy to clean.
If you have children or you want to clean the Control Interface, we recommend activating the Child-lock feature to lock the control buttons.
- Children will not be able to accidently start the dishwasher by touching the controls with this option selected.
- If a cycle is running, buttons will not respond.
- If dishwasher is off, only the Power button responds.
Do not wash the following items
WARNING
• Acrylic, Aluminum: Dishes with printed gold rim decoration may become discolored.
• Dishes treated with adhesive: Treated plastics, wood, ivory, copper and tin may come
loose.
• Plastics with a temperature tolerance less than 194 ˚F (90 ˚C) : Thin plastics wash and
dry poorly, and may be damaged due to elevated wash temperatures.
• Tin: Tin should be washed by hand and dried immediately as it may rust.
• Wooden utensils: Wooden items may crack.
When using the dishwasher, try to arrange the dishes properly as described on page 16.
WARNING
• You should remove food remains such as bones, fruit seeds, etc. and any other waste such as toothpicks, paper, etc. from the dishes as these may cause damage to the dishes, create noise, or cause the dishwasher to malfunction.
• Select the appropriate cycle depending on the level of soil and the type of dishes.
• Use only the proper amount of detergent and rinsing agent.
using your dishwasher
REMOVING THE PLATE SUPPORT
In the lower rack, you can easily remove the plate support to make room for large items such as pots and pans. To remove the plate support, lift up the handles (A). To refit the plate support, align it so it is in place, and then push down on the handles (A).
14_ using your dishwasher
using your dishwasher _15

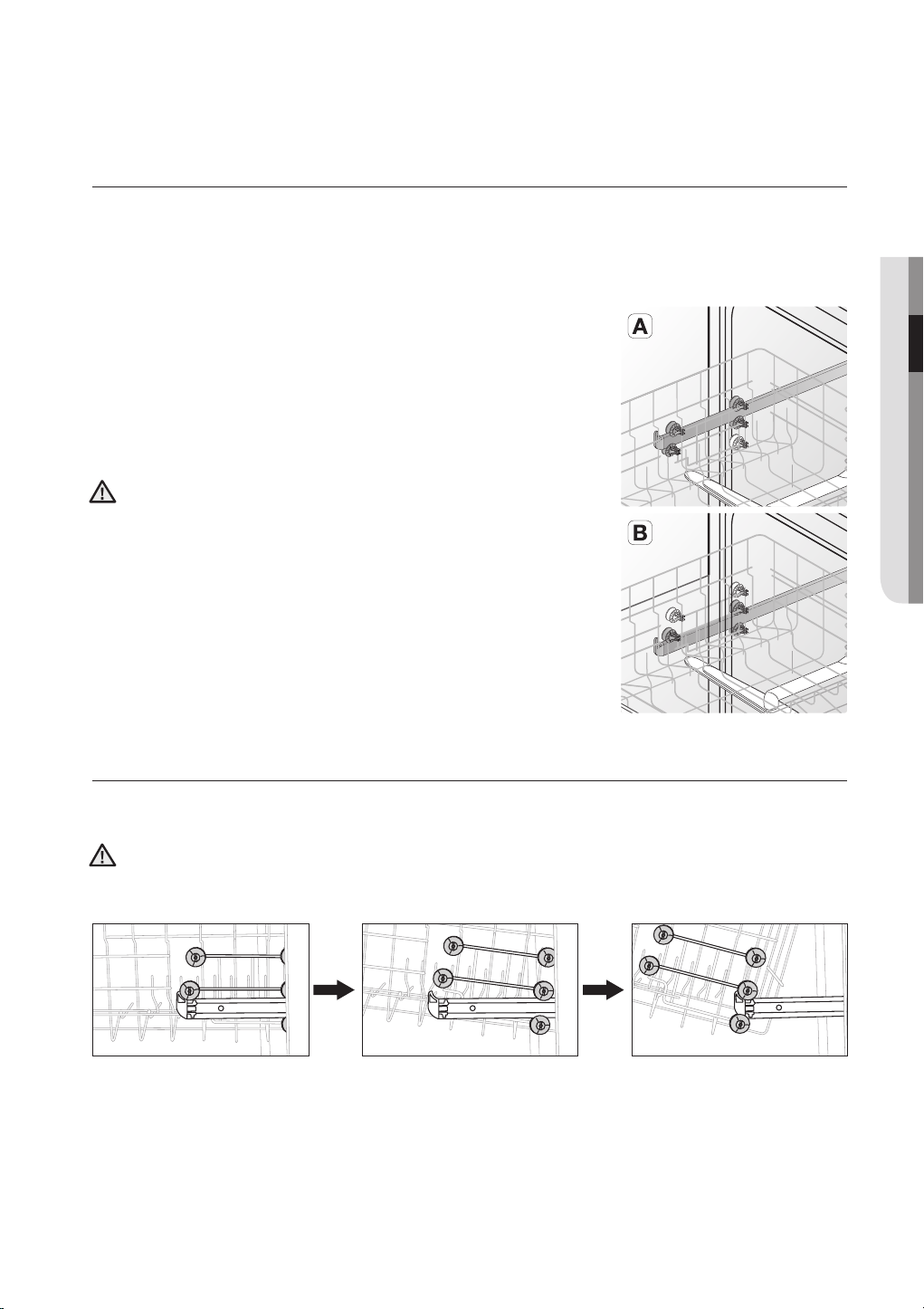

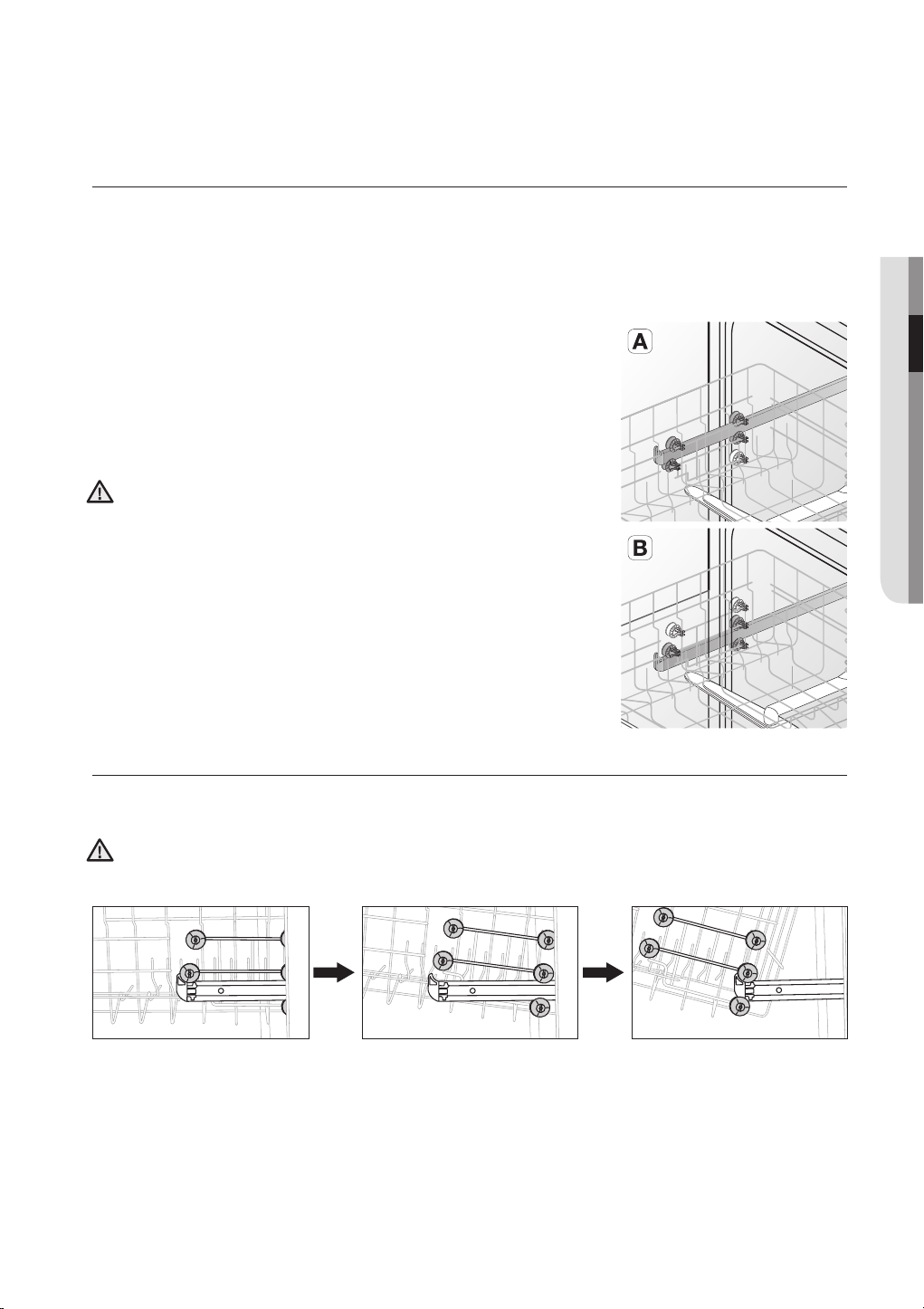

ADJUSTING THE HEIGHT OF THE UPPER RACK
02 using your dishwasher
You can adjust the height of the upper rack in your Samsung dishwasher so that the lower rack can accommodate larger sized dishes. Depending on where you set the upper rack height, the lower rack can accommodate plates up to 14 in. (36cm) in diameter and the upper rack can accommodated plates up to 12 in. (30cm) in diameter.
DMT400 Series
To adjust the height of the upper rack, follow these steps:
1. Remove the upper rack following the directions in Removing the Upper Rack below.
2. If you want to lower the upper rack, re-install the rack as shown in
Figure A to the right.
3. If you want to raise the upper rack, re-install the rack as shown in Figure B to the right.
We recommend adjusting the height of the upper rack before loading dishes into the rack. If you adjust the the rack after loading the
CAUTION
dishes, you may damage the dishes.
REMOVING THE UPPER RACK
Pull the upper rack towards the front and then remove it by lifting it up slightly and pulling it towards the front. See the illustrations below.
While the upper rack is removable, it must be installed for the dishwasher to operate properly.
CAUTION
If you attempt to operate the dishwasher without the rack, noise will occur and the dishwasher will perform poorly.
Step 1. Step 2. Step 3.
using your dishwasher
LOADING THE LOWER RACK
Load cookware (pots, pans, etc.), up to 14 in. (36 cm) in diameter into the lower rack. The lower rack has been especially designed for dinner dishes, soup bowls, plates, pots, lids, casserole dishes, and plates.
Load your plates into the center column of the rack so their open sides face towards the right. Load large items such as pans and pots into the dishwasher so their open sides face downwards. We recommend loading cups, stemware and small plates into the upper rack.
See the recommended loading patterns below.
12 place setting 10 place setting
LOADING THE UPPER RACK
The upper rack has been designed for small plates, mugs, glasses, and plastic items marked “dishwasher safe”. Load your plates into the dishwasher so their open sides face forward.
Make sure the loaded dishes do not interfere with the rotation of the nozzle which is located at the bottom of the upper rack. (Check this by rotating the nozzle by hand.)
When loading dishes, pull the upper rack out sufficiently so you can load it without striking the counter above.
12 place setting 10 place setting
Using the glass support
You can load cups or glasses onto the glass support. This is also very convenient for washing wine glasses. Hang your wine glasses onto the pegs of the glass support.
You can fold the glass support back when it is not being used.
16_ using your dishwasher
using your dishwasher _17
Loading the large items
02 using your dishwasher
4 4 6 3 3
4 4 6 3 3
4 6 6 3 3
2 2 6 5 5
2 2 2 2 2
5 5 5 5 5
2 2 2 2 2
5 5 5 5 5
2 2 6 1 1
2 2 2 2 2
1 1 1 1 1
2 2 2 2 2
1 1 1 1 1
4 6 6 3 3
4 4 6 3 3
4 4 6 3 3
1 532 4
You can load large items such as pans and pots into the lower rack. Make sure pot handles and other items do not interfere with rotation of
the nozzles.
USING THE CUTLERY BASKET
The cutlery basket consists of two compartments. You can place each knife, spoon, or fork separately into the spoon stands in the basket’s covers to prevent
chipping and discoloration.
DO NOT let any item extend through the bottom.
1
Small forks
2
Spoons
3
Knives
4
Large spoons and forks
5
Medium-sized forks
6
Remaining items
The spoon stands as seen from above with the suggested placement of cutlery items. Match the numbers in the diagram to the numbers in the list of cutlery items above.
You can use the cutlery basket with the cover open. Refer to the illustration to the right.
Suggested arrangement for a 12 place setting
using your dishwasher

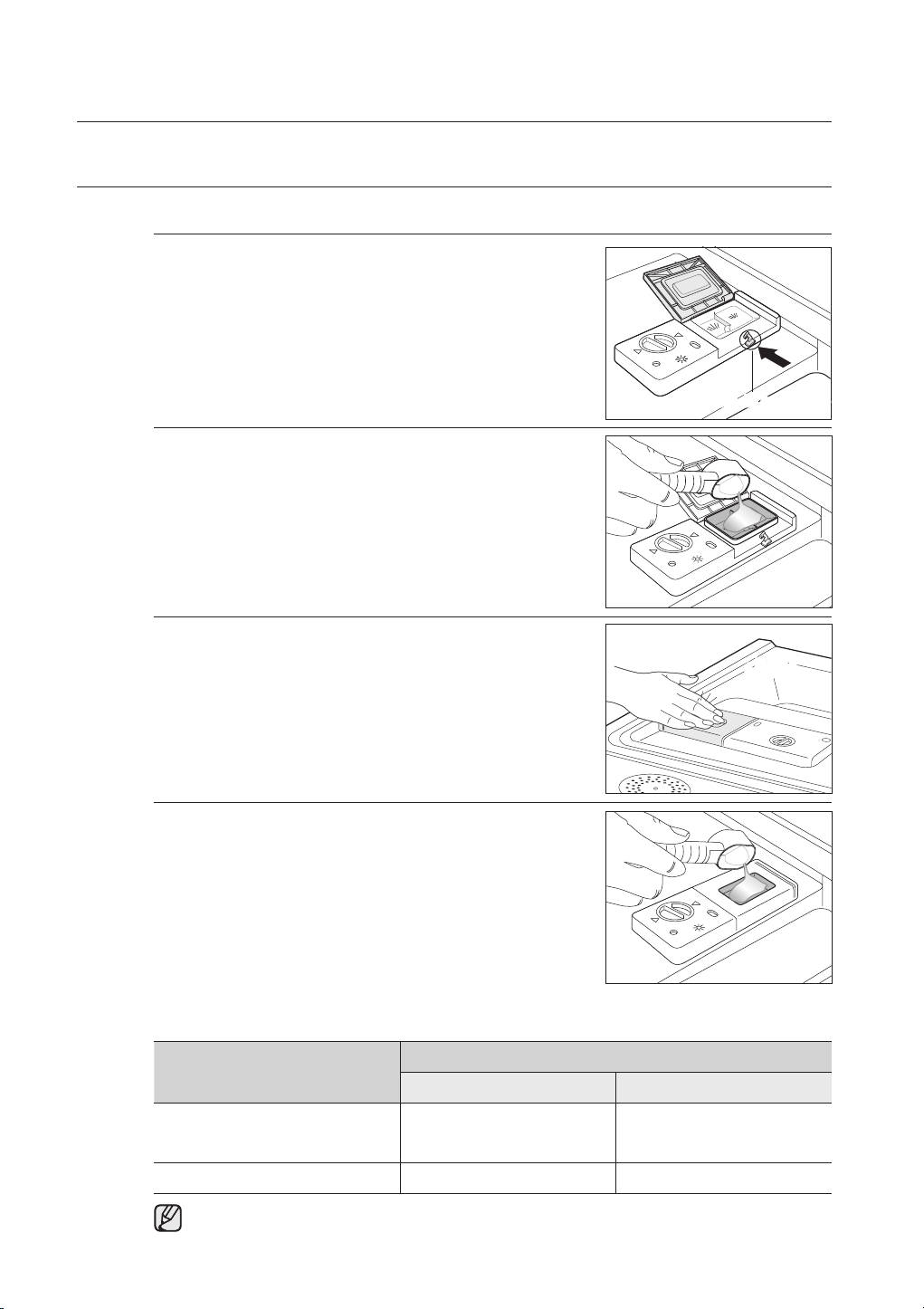

USING THE DISPENSER
Filling the detergent dispenser
1. Open the cover by pushing the cover latch downwards.
2. Add the recommended amount of detergent to the main
wash dispenser using the table below.
Cover latch
3. Close the dispenser cover. You will hear a ‘click’ when it is
closed correctly.
4. When you select the Heavy cycle, add the recommended amount of detergent to the pre-wash dispenser using the table below.
The cover opens automatically to dispense the detergent during the wash.
AMOUNT OF DETERGENT
CYCLE
Main wash dispenser Pre-wash dispenser
Normal, Delicate, Smart Auto 0.5 oz (15 g) No detergent
Heavy 0.7 oz (20 g) 0.2 oz (5 g)
‘Click’
The numbers inside the dispenser refer to grams.
18_ using your dishwasher
using your dishwasher _19
Filling the rinse aid dispenser
02 using your dishwasher
Your dishwasher has been designed to use liquid rinse aid.
The use of a rinse aid greatly improves the drying performance after the final rinse.
1. Turn the dispenser knob counterclockwise to open the cover.
2. Pour rinse aid into the opening until the indicator points to “MAX.” Avoid overfilling the dispenser.
3. Adjust the amount of rinse aid released during the rinse operation.
You can choose one of four levels (1~4). The higher the number, the larger the amount of rinse aid released. The factory default is 3.
When the rinse dispenser is filled up, it is good for about 40 washes.
4. Close the cover. Turn the dispenser knob clockwise.
We strongly recommended using only liquid rinse aid.
CAUTION
Avoid overfilling the dispenser

cleaning and maintaining your dishwasher

Keeping your dishwasher clean improves its performance, reduces unnecessary repairs, and lengthens its life.
CLEANING THE EXTERIOR
It’s best to clean spills on the outside of your dishwasher as they occur. Use a soft damp cloth on the control panel to gently wipe away spills and dust. Do not use benzene, wax, thinner, chlorine bleach, or alcohol. These materials may discolor the inner walls and cause stains. Do not clean the dishwasher by
sprinkling water over it and avoid letting water come into contact with any of the electrical parts.
If your dishwasher has a stainless steel door panel, you can clean it with a stainless steel cleaner for Home Appliances or similar product using a clean, soft cloth.
CLEANING THE INTERIOR
Clean the interior of your dishwasher periodically to remove any dirt or food particles. Wipe the inside of the dishwasher and the inner part of the door with a wet dishcloth. We recommend filling the detergent dispenser with dish detergent, and then running the dishwasher empty periodically using either the Normal or Quick cycle with the sanitize option. This will keep your dishwasher clean.
If white spots and odor are still present in your dishwasher, run the Normal cycle with the dishwasher empty and without detergent until it flushes. Then, interrupt the cycle and put an 8 ounce cup of white vinegar into the lower basket. Close the dishwasher and let the cycle finish.
Do not remove the Seal tub front (the long rubber seal enclosing the opening of the dishwasher).
CAUTION
CLEANING THE NOZZLES
If your dishwasher does not seem to be cleaning adequately or the nozzles seem clogged, you can clean each of the nozzles. When removing the nozzles, take care as they may break.
Lower nozzle
1. Check whether the nozzle holes are clogged by food particles.
2. If cleaning is needed, remove the nozzle by pulling it upwards.
3. Clean the nozzle, and then push it back into place.
4. Check whether the nozzle is engaged correctly by rotating it by hand.
20_ cleaning and maintaining
cleaning and maintaining _21
Middle nozzle
03 cleaning and maintaining
1
2
1. Pull the upper rack towards the front and remove it.
2. Check whether the nozzle holes are clogged by food particles.
3. If cleaning is needed, remove the nozzle.
4. To remove the nozzle, unfasten and
remove the nut, and then remove the nozzle.
5. Clean the nozzle, re-insert it, and fasten the nut.
6. When fastening the nut, turn it firmly by hand.
7. Check whether the nozzle is engaged correctly by rotating it by hand.
Upper nozzle
1. Check whether the nozzle holes are clogged by food particles.
2. If cleaning is needed, remove the nozzle.
3. To remove the nozzle, pull out the upper rack first, unfasten the nozzle cap by turning it counterclockwise, and then remove the upper nozzle.
4. Clean the nozzle, re-insert it, and then fasten the nozzle cap to the nozzle by turning the cap clockwise.
5. Check whether the nozzle is engaged correctly by rotating it by hand.
Cap nozzle
STORING YOUR DISHWASHER
If you need to store your dishwasher for an extended period of time, first drain and disconnect it. If you leave water in the hoses and internal components, you can damage the dishwasher.
After draining and disconnecting the dishwasher, be sure to turn off the water supply valve and circuit breaker.

cycles

CYCLE CHART
( : Basic, : Flexible step)
Cycle
Normal
Heavy
Delicate
Smart
Auto
Pre-
wash1
Pre-
wash2
Main wash Rinse1 Rinse2 Rinse3
120 ~ 138 ˚F
(49 ~ 59 ˚C)
140 ˚F (60 ˚C)
122 ˚F (50 ˚C) 140 ˚F (60 ˚C)
122 ˚F~138 ˚F
(50~59 ˚C)
Last Rinse
[Sanitize]
136 ˚F (58 ˚C)
[162 ˚F (72 ˚C)]
158 ˚F (70 ˚C)
[162 ˚F (72 ˚C)]
136 ˚F (58 ˚C)
[162 ˚F (72 ˚C)]
Dry
Water
[gal(ℓ)]
3.6~6.7
(13.6~25)
8.1 (30.6) 152
4.7 (17.7) 107
4.7~6.7
(17.7~25 )
Time (min)
110~135
100~149
• The numbers in parentheses in the Last Rinse column represent the temperature when you select Sanitize.
• When you select the Smart Auto or Normal cycle, you can eliminate the
(flexible) steps depending on
the soil level of the dishes.
• The wash time varies depending on the steps or options you add, and on the pressure and temperature of the supplied water.
22_ cycles
troubleshooting _23

troubleshooting

CHECK THESE POINTS IF YOUR DISHWASHER…
PROBLEM POSSIBLE CAUSE SOLUTION
The door is not closed completely. Check that the door is latched and closed
completely.
No cycle is selected. Select a proper cycle.
Will not start.
It’s taking too long with an operation or cycle.
There are food particles remaining on dishes.
(Not cleaning properly.)
The power cable is not connected. Connect the power cable properly. The water supply does not work. Check that the water supply valve is open. The Control Panel is locked. Unlock the child lock, (See page 9.) A circuit breaker is open. Reset the circuit breaker. Cold water is being supplied. Check that the water supply line is
connected to a hot water supply. (Additional time is required to heat cold
water.)
You selected an inappropriate cycle.
The water temperature is low. Connect the water supply line to a hot
Low water pressure. The water pressure should be between 20
The water is too hard. Use a commercial dishwasher cleaner.
Dishwasher detergent was not used.
Detergent remains in the dispenser.
There is no rinse aid. Check the dispenser and add the rinse aid.
A nozzle is clogged. Clean the nozzle.
Select a cycle according to the number and soil level of the dishes, as directed in this manual.
water supply. For best performance, the temperature of
the supplied water should be 120 ˚F (49 ˚C).
and 120 psi (140 ~ 830 kPa).
Use high-quality, fresh detergent with rinse aid.
Use automatic dishwasher detergent. We recommend a powder or gel type
dishwasher detergent. Make sure large items such as cookie
sheets cutting boards, or contaners, etc. are not blocking the detergent dispenser and preventing it from opening properly.
Rearrange the dishes so they do not interfere with detergent dispenser operation.
Use the liquid type rinse aid.
05 troubleshooting
The dishes are improperly loaded. Too many dishes have been
loaded.
Rearrange the dishes so they do not interfere with nozzle rotation and detergent dispenser operation.
Load only an appropriate number of dishes. Load your dishes as recommended. (See
page 16.)
troubleshooting
PROBLEM POSSIBLE CAUSE SOLUTION
Leaves glasses with a dim polish.
Leaves a yellow or brown film on the inside of the dishwasher.
Does not dry dishes well.
Has a bad odor.
Is too noisy.
The water supplied is soft and too much detergent was used.
Aluminum dishes were included in the wash load.
This is caused by coffee and tea soils.
There is no rinse aid in the dispenser.
The temperature of the water is low when the dishwasher is running.
Too many dishes have been loaded.
Glasses and cups with concave bottoms hold water. This water may spill onto other items when unloading.
There is water left over when the last cycle is not completed.
Drain Hose is obstructed. Contact a qualified service technician to
The dishwasher is not used daily or Soiled dishes left in unit too long.
Sound is generated when the dispenser cover is open and the drain pump is operating in an early stage.
The dishwasher is not level. Ensure the dishwasher is level. Foreign material (Screw, Plastic
piece) is in pump chamber.
There is a ‘chopping’ sound because a nozzle is bumping against the dishes.
Underload the dishwasher and use a rinse aid to minimize this.
Remove the marks on the dishes using a low sensitivity cleaner.
Remove the soils using a spot cleaner.
Check the dispenser and add the rinse aid. Use a liquid type rinse aid.
Connect the water supply line to a hot water supply.
Use rinse aid with the Sanitize option. Proper loading of items can affect drying.
Load your dishes as recommended. (See page 16.)
After finishing the cycle, empty the lower rack first and then the upper rack, this will avoid water dripping from the upper rack onto the dishes in the lower rack.
Insert detergent without loading dishes, and run the Normal cycle to clean the dishwasher.
remove any obstruction from the drain hose.
With the dishwasher empty and no detergent, place a glass with 8
ounces of vinegar upright into the lower rack, and then run a Normal
cycle. This is normal operation.
Contact a qualified service technician to remove foreign material from the pump chamber.
Rearrange the dishes.
24_ troubleshooting
troubleshooting _25
PROBLEM POSSIBLE CAUSE SOLUTION
05 troubleshooting
Does not have a smoothly rotating nozzle.
Water won’t pump out of the dishwasher.
Has a bent upper rack after loading dishes.
The nozzle hole is clogged with food particles.
The nozzle is blocked by a dish or pot and cannot rotate.
Drain is clogged. Contact a qualified service technician to
The dishes are not loaded properly.
Clean the nozzle hole.
After placing the dishes into the racks, rotate the nozzles by hand to check whether any of the dishes will interfere with them.
remove any obstruction from the drain hose and check the drain pump operation.
Load your dishes as recommended. (See page 16.)
troubleshooting
INFORMATION CODES
The Control Panel displays information codes to help you understand what is occurring with your dishwasher. If you see any of the codes listed below, you should select the Cancel and Drain option, and then follow the instructions in the Solution column.
If your dishwasher have any problem, below CODE SYMBOL light(s) is(are) blinked.
CODE SYMBOL MEANING SOLUTION
Temperature Sensor error
Heater error
High temperature Heating error
Low-level water error
Water supply error
High temperature Water supply error
Drain error
Functional error. With the dishwasher empty, add detergent, and then run a cycle.
If the problem continues, go to your house circuit breaker panel, set the dishwasher’s circuit breaker switch to off, and then contact an authorized Samsung service center.
Check whether the water supply valve is closed, the water supply is suspended or the water inlet valve or line is frozen or clogged by foreign particles.
If the problem continues, close the water supply valve, and then contact an authorized Samsung service center.
Check the temperature of the supplied water. If it is higher than 176 ˚F (80 ˚C), a functional error may occur with the dishwasher.
Check whether the drain hose is clogged or folded. If the problem continues, close the water supply valve, and then contact an authorized Samsung service center.
Over-level water error
Leakage error
Button error
For any codes not listed above, call 1-800-SAMSUNG (726-7864)
Functional error. Close the water supply valve and go to your house circuit breaker panel, set the dishwasher’s circuit breaker switch to off, and then contact an authorized Samsung service center.
Functional error. Turn off the dishwasher and try to start it again.
If the problem continues, contact an authorized Samsung service center.
26_ troubleshooting
appendix _27

appendix

HELPING THE ENVIRONMENT
• Your dishwasher is manufactured from recyclable materials. If you decide to dispose of it, please observe local waste disposal regulations. Cut off the power cable so that the appliance cannot be connected to a power source.
• Remove the door so that animals and small children cannot get trapped inside the appliance.
• Do not exceed the detergent quantities recommended in the detergent manufacturers’ instructions.
SPECIFICATIONS
Model DMT400RHS, DMT400RHB, DMT400RHW
Type Built-in Dishwasher Wash capacity 14 place setting
Power
Rated power uasge
Dimensions
(Width×Depth×Height) Weight Unpacked 104lb (47kg)
120 V/60 Hz AC only, 15 A circuit breaker
Wash Motor : 150 ~ 190 W
Heater : 1100 W
7
23
⁄8 x 24¾ x 337⁄8 in. (605 x 627 x 860 mm)
Used water pressure
20 ~ 120 psi (140 ~ 830 kPa)
06 appendix

warranty

SAMSUNG DISHWASHER LIMITED WARRANTY TO ORIGINAL PURCHASER
This SAMSUNG brand product, as supplied and distributed by USA: SAMSUNG ELECTRONICS AMERICA, INC./CANADA: SAMSUNG ELECTRONICS CANADA, INC. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of:
One (1) Year All Parts and Labor, Five (5) Years Printed Circuit Board, Racking (Labor Charges for in-home service starting from the 2nd year is customer’s responsibility), and Lifetime Stainless Door Liner & Tub for leakage. Samsung will replace your unit with same or current model (that is better or equivalent in functionality) (Labor related to replacement is customer’s responsibility).
This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the United States/Canada. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service center. SAMSUNG will provide in-home service during the warranty period at no charge, subject to availability within the contiguous United States/Canada. In home service is not available in all areas.
To receive in-home service, product must be unobstructed and accessible to the service agent. If service is not available, SAMSUNG may elect to provide transportation of the product to and from an authorized service center.
SAMSUNG will repair, replace, or refund this product at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer.
This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, noncommercial use of this product and shall not apply to the following: damage that occurs in shipment; delivery and installation; applications and uses for which this product was not intended; altered product or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning, or other acts of nature or God; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG that damage this product or result in service problems; incorrect electrical line voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions, maintenance and environmental instructions that are covered and prescribed in the instruction book; product removal and reinstallation; problems caused by pest infestations. This limited warranty does not cover problems resulting from incorrect electric current, voltage or supply, light bulbs, house fuses, house wiring, cost of a service call for instructions, or fixing installation errors. SAMSUNG does not warrant uninterrupted or error-free operation of the product.
28_ warranty
warranty _29
EXCEPT AS SET FORTH HEREIN, THERE ARE NO WARRANTIES ON THIS PRODUCT EITHER EXPRESS OR IMPLIED, AND SAMSUNG DISCLAIMS ALL WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, INFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE. NO WARRANTY OR GUARANTEE GIVEN BY ANY PERSON, FIRM, OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE.
WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE, OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific rights, and you may also have other rights, which vary from state to state.
To obtain warranty service, please contact SAMSUNG at: In USA
SAMSUNG ELECTRONICS AMERICA, INC. – CONSUMER ELECTRONICS CUSTOMER SERVICE 400 Valley Road, Suite 201, Mt. Arlington, NJ 07856 1-800-SAMSUNG(726-7864) www.samsung.com/us
In CANADA
SAMSUNG ELECTRONICS CANADA, INC. – CONSUMER ELECTRONICS CUSTOMER SERVICE 55 Standish Court, Mississauga, Ontario L5R 4B2 Canada 1-800-SAMSUNG(726-7864) www.samsung.com/ca
Loading...
+ 67 hidden pages
