Samsung CZ25M6N7X Schematic

COLOR TELEVISION RECEIVER

Chassis : KS2A(P) (REV. 2) Model : CS21A8W7X/FAT

CS25A6WT7XBBWT CS25M6WT7X/BWT CZ25M6N7X/XEH CZ25M6N7X/SED CS25M6W7X/BOB CS29D8ST7C/SMA CS29D8S7X/CAM CS21S8WT7X/XSG

COLOR TELEVISION RECEIVER CONTENTS

Precautions

Reference Information

Specifications

Alignment and Adjustments

Troubleshooting

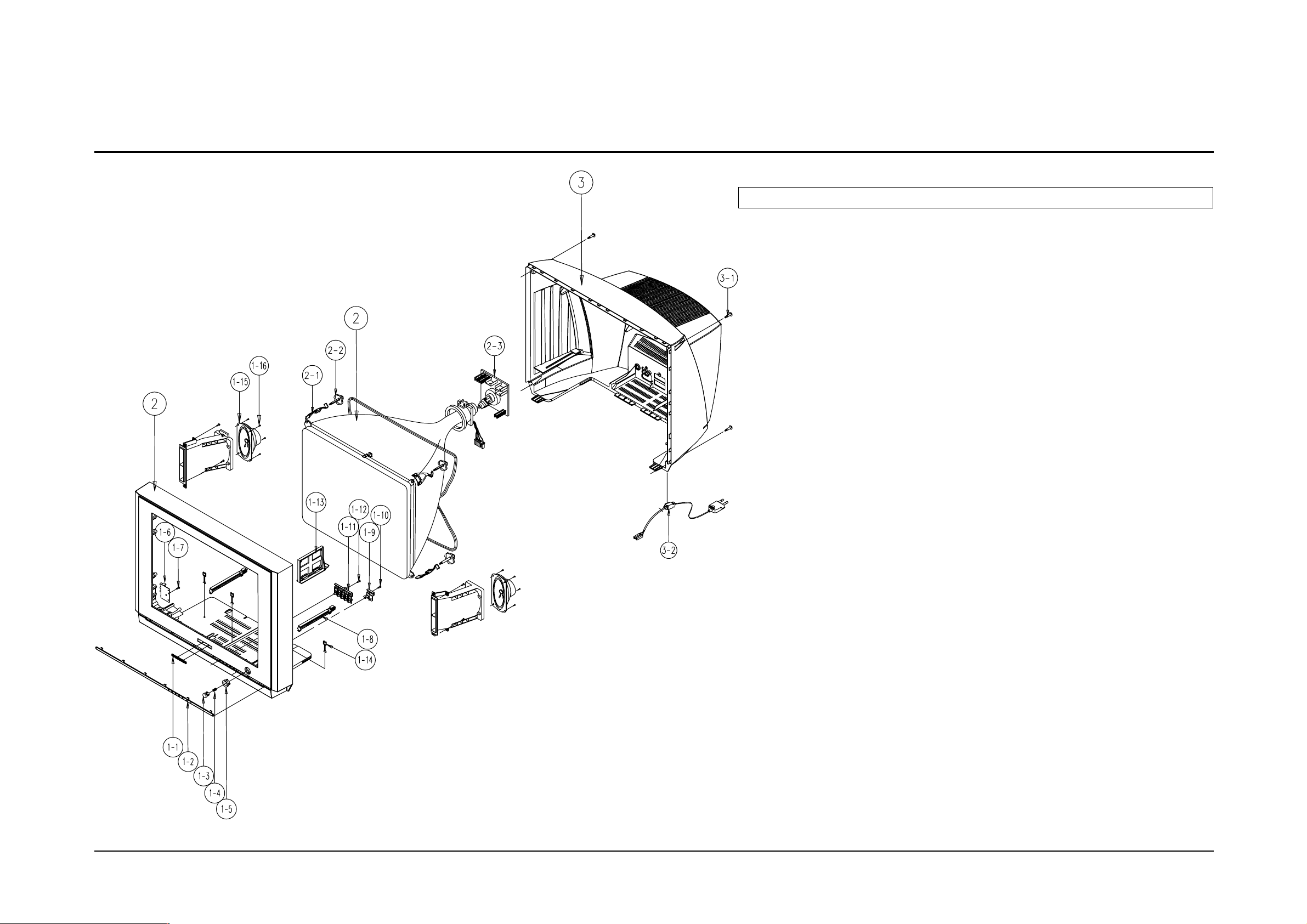

Exploded Views and Parts List

Electrical Parts List

Block Diagrams

Wiring Diagram

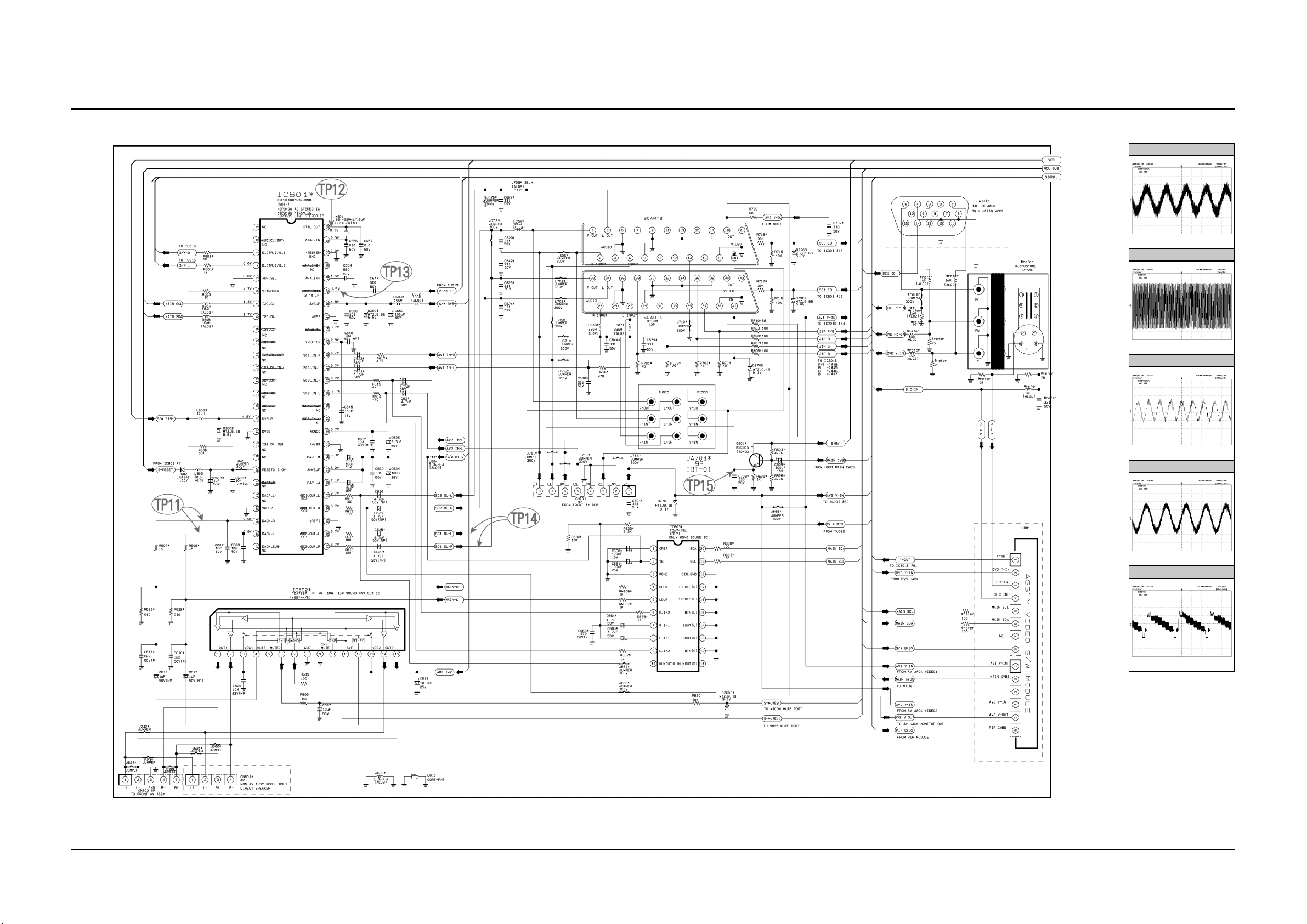

Schematic Diagrams

10.

1. Precautions

1-1 Safety Precautions

1. Be sure that all of the built-in protective devices are replaced. Restore any missing protective shields.

2. When reinstalling the chassis and its assemblies, be sure to restore all protective devices, including: nonmetallic control knobs and compartment covers.

3. Make sure that there are no cabinet openings through which people—particularly children—might insert fingers and contact dangerous voltages. Such openings include the spacing between the picture tube and the cabinet mask, excessively wide cabinet ventilation slots, and improperly fitted back covers.

If the measured resistance is less than 1.0 megohm or greater than 5.2 megohms, an abnormality exists that must be corrected before the unit is returned to the customer.

4. Leakage Current Hot Check (Figure 1-1): Warning: Do not use an isolation transformer during this test. Use a leakagecurrent tester or a metering system that complies with American National Standards Institute (ANIS C101.1, Leakage Current for Appliances), and Underwriters Laboratories (UL Publication UL1410, 59.7).

5. With the unit completely reassembled, plug the AC line cord directly into the power outlet. With the unit’s AC switch first in the ON position and then OFF, measure the current between a known earth ground (metal water pipe, conduit, etc.) and all exposed metal parts, including: antennas, handle brackets, metal cabinets, screwheads and control shafts. The current measured should not exceed 0.5 milliamp. Reverse the powerplug prongs in the AC outlet and repeat the test.

Fig. 1-1 AC Leakage Test

6. Antenna Cold Check: With the unit’s AC plug disconnected from the AC source, connect an electrical jumper across the two AC prongs. Connect one lead of the ohmmeter to an AC prong. Connect the other lead to the coaxial connector.

7. X-ray Limits: The picture tube is especially designed to prohibit X-ray emissions. To ensure continued X-ray protection, replace the picture tube only with one that is the same type as the original. Carefully reinstall the picture tube shields and mounting hardware; these also provide X-ray protection.

8. High Voltage Limits: High voltage must be measured each time servicing is done on the B+, horizontal deflection or high voltage circuits. Correct operation of the X-ray protection circuits must be reconfirmed whenever they are serviced.

(X-ray protection circuits also may be called

“horizontal disable” or “hold-down”.)

Heed the high voltage limits. These include the X–ray Protection Specifications Label, and the Product Safety and X-ray Warning Note on the service data schematic.

Precautions

Samsung Electronics 1-1

LEAKAGE CURRENT

TESTER

DEVICE UNDER

TEST

TEST ALL

EXPOSED METAL

SURFACES

2-WIRE CORD

ALSO TEST WITH

PLUG REVERSED (USING AC ADAPTER PLUG AS REQUIRED)

EARTH

GROUND

(READING SHOULD

NOT BE ABOVE

0.5mA)

Follow these safety, servicing and ESD precautions to prevent damage and protect against potential hazards such as electrical shock and X-rays.

1-1 Safety Precautions (Continued)

9. High voltage is maintained within specified

limits by close-tolerance, safety-related components and adjustments. If the high voltage exceeds the specified limits, check each of the special components.

10. Design Alteration Warning:

Never alter or add to the mechanical or electrical design of this unit. Example: Do not add auxiliary audio or video connectors. Such alterations might create a safety hazard. Also, any design changes or additions will void the manufacturer’s warranty.

11. Hot Chassis Warning:

Some TV receiver chassis are electrically connected directly to one conductor of the AC power cord. If an isolation transformer is not used, these units may be safely serviced only if the AC power plug is inserted so that the chassis is connected to the ground side of the AC source.

To confirm that the AC power plug is inserted correctly, do the following: Using an AC voltmeter, measure the voltage between the chassis and a known earth ground. If the reading is greater than 1.0V, remove the AC power plug, reverse its polarity and reinsert. Re-measure the voltage between the chassis and ground.

12. Some TV chassis are designed to operate with

85 volts AC between chassis and ground, regardless of the AC plug polarity. These units can be safely serviced only if an isolation transformer inserted between the receiver and the power source.

13. Some TV chassis have a secondary ground

system in addition to the main chassis ground. This secondary ground system is not isolated from the AC power line. The two ground systems are electrically separated by insulating material that must not be defeated or altered.

14. Components, parts and wiring that appear to

have overheated or that are otherwise damaged should be replaced with parts that meet the original specifications. Always determine the cause of damage or overheating, and correct any potential hazards.

15. Observe the original lead dress, especially near the following areas: Antenna wiring, sharp edges, and especially the AC and high voltage power supplies. Always inspect for pinched, out-of-place, or frayed wiring. Do not change the spacing between components and the printed circuit board. Check the AC power cord for damage. Make sure that leads and components do not touch thermally hot parts.

16. Picture Tube Implosion Warning: The picture tube in this receiver employs “integral implosion” protection. To ensure continued implosion protection, make sure that the replacement picture tube is the same as the original.

17. Do not remove, install or handle the picture tube without first putting on shatterproof goggles equipped with side shields. Never handle the picture tube by its neck. Some “in-line” picture tubes are equipped with a permanently attached deflection yoke; do not try to remove such “permanently attached” yokes from the picture tube.

18. Product Safety Notice: Some electrical and mechanical parts have special safety-related characteristics which might not be obvious from visual inspection. These safety features and the protection they give might be lost if the replacement component differs from the original—even if the replacement is rated for higher voltage, wattage, etc.

Components that are critical for safety are indicated in the circuit diagram by shading, ( ) or ( ). Use replacement components that have the same ratings, especially for flame resistance and dielectric strength specifications. A replacement part that does not have the same safety characteristics as the original might create shock, fire or other hazards.

Precautions

1-2 Samsung Electronics

1-2 Servicing Precautions

1. Servicing precautions are printed on the cabinet. Follow them.

2. Always unplug the unit’s AC power cord from the AC power source before attempting to: (a) Remove or reinstall any component or assembly, (b) Disconnect an electrical plug or connector, (c) Connect a test component in parallel with an electrolytic capacitor.

3. Some components are raised above the printed circuit board for safety. An insulation tube or tape is sometimes used. The internal wiring is sometimes clamped to prevent contact with thermally hot components. Reinstall all such elements to their original position.

4. After servicing, always check that the screws, components and wiring have been correctly reinstalled. Make sure that the portion around the serviced part has not been damaged.

5. Check the insulation between the blades of the AC plug and accessible conductive parts (examples: metal panels, input terminals and earphone jacks).

6. Insulation Checking Procedure: Disconnect the power cord from the AC source and turn the power switch ON. Connect an insulation resistance meter (500V) to the blades of the AC plug.

The insulation resistance between each blade of the AC plug and accessible conductive parts (see above) should be greater than 1 megohm.

7. Never defeat any of the B+ voltage interlocks. Do not apply AC power to the unit (or any of its assemblies) unless all solid-state heat sinks are correctly installed.

8. Always connect a test instrument’s ground lead to the instrument chassis ground before connecting the positive lead; always remove the instrument’s ground lead last.

Precautions

Samsung Electronics 1-3

Warning1: First read the “Safety Precautions” section of this manual. If some unforeseen circumstance creates a conflict between

the servicing and safety precautions, always follow the safety precautions.

Warning2: An electrolytic capacitor installed with the wrong polarity might explode.

1. Some semiconductor (“solid state”) devices are easily damaged by static electricity. Such components are called Electrostatically Sensitive Devices (ESDs); examples include integrated circuits and some field-effect transistors. The following techniques will reduce the occurrence of component damage caused by static electricity.

2. Immediately before handling any semicon ductor components or assemblies, drain the electrostatic charge from your body by touching a known earth ground. Alternatively, wear a discharging wrist-strap device. (Be sure to remove it prior to applying power— this is an electric shock precaution.)

3. After removing an ESD-equipped assembly, place it on a conductive surface such as aluminum foil to prevent accumulation of electrostatic charge.

4. Do not use freon-propelled chemicals. These can generate electrical charges that damage ESDs.

5. Use only a grounded-tip soldering iron when soldering or unsoldering ESDs.

6. Use only an anti-static solder removal device. Many solder removal devices are not rated as “anti-static”; these can accumulate sufficient electrical charge to damage ESDs.

7. Do not remove a replacement ESD from its protective package until you are ready to install it. Most replacement ESDs are packaged with leads that are electrically shorted together by conductive foam, aluminum foil or other conductive materials.

8. Immediately before removing the protective material from the leads of a replacement ESD, touch the protective material to the chassis or circuit assembly into which the device will be installed.

9. Minimize body motions when handling unpackaged replacement ESDs. Motions such as brushing clothes together, or lifting a foot from a carpeted floor can generate enough static electricity to damage an ESD.

Precautions

1-4 Samsung Electronics

1-3 Precautions for Electrostatically Sensitive Devices (ESDs)

Reference Information

Samsung Electronics 2-1

2. Reference Information

2-1 Tables of Abbreviations and Acronyms

A Ah Å dB dBm

°C °F °K F G GHz g H Hz h ips kWh kg kHz kΩ km km/h kV kVA kW I MHz

Ampere Ampere-hour Angstrom Decibel Decibel Referenced to One Milliwatt Degree Celsius Degree Fahrenheit degree Kelvin Farad Gauss Gigahertz Gram Henry Hertz Hour Inches Per Second Kilowatt-hour Kilogram Kilohertz Kilohm Kilometer Kilometer Per Hour Kilovolt Kilovolt-ampere Kilowatt Liter Megahertz

MV MW MΩ m µA µF µH µm µs µW mA mg mH mI mm ms mV nF

Ω

pF Ib rpm rps s V VA W Wh

Megavolt Megawatt Megohm Meter Microampere Microfarad Microhenry Micrometer Microsecond Microwatt Milliampere Milligram Millihenry Milliliter Millimeter Millisecond Millivolt Nanofarad Ohm Picofarad Pound Revolutions Per Minute Revolutions Per Second Second (Time) Volt Volt-ampere Watt Watt-hour

Table 2-1 Abbreviations

Reference Information

2-2 Samsung Electronics

Table 2-2 Table of Acronyms

ABL AC ACC AF AFC AFT AGC AM ANSI APC APC A/V AVC BAL BPF B-Y CATV CB CCD CCTV Ch CRT CW DC DVM EIA ESD ESD FBP FBT FF FM FS GND G-Y H HF HI-FI IC IC IF

Automatic Brightness Limiter Alternating Current Automatic Chroma Control Audio Frequency Automatic Frequency Control Automatic Fine Tuning Automatic Gain Control Amplitude Modulation American National Standards Institute Automatic Phase Control Automatic Picture Control Audio-Video Automatic Volume Control Balance Bandpass Filter Blue-Y Community Antenna Television (Cable TV) Citizens Band Charge Coupled Device Closed Circuit Television Channel Cathode Ray Tube Continuous Wave Direct Current Digital Volt Meter Electronics Industries Association Electrostatic Discharge Electrostatically Sensitive Device Feedback Pulse Flyback Transformer Flip-Flop Frequency Modulation Fail Safe Ground Green-Y High High-Frequency High Fidelity Inductance-Capacitance Integrated Circuit Intermediate Frequency

I/O L L LED LF MOSFET MTS NAB NEC NTSC OSD PCB PLL PWM QIF R RC RF R-Y SAP SAW SIF SMPS S/N SW TP TTL TV UHF UL UV VCD VCO VCXO VHF VIF VR VTR VTVM TR

Input/output Left Low Light Emitting Diode Low Frequency Metal-Oxide-Semiconductor-Field-Effect-Tr Multi-channel Television Sound National Association of Broadcasters National Electric Code National Television Systems Committee On Screen Display Printed Circuit Board Phase-Locked Loop Pulse Width Modulation Quadrature Intermediate Frequency Right Resistor & Capacitor Radio Frequency Red-Y Second Audio Program Surface Acoustic Wave(Filter) Sound Intermediate Frequency Switching Mode Power Supply Signal/Noise Switch Test Point Transistor Transistor Logic Television Ultra High Frequency Underwriters Laboratories Ultraviolet Variable-Capacitance Diode Voltage Controlled Oscillator Voltage Controlled Crystal Oscillator Very High Frequency Video Intermediate Frequency Variable Resistor Video Tape Recorder Vacuum Tube Voltmeter Transistor

REMARK

Refer to Table 2-3-1 Refer to Table 2-3-2

Refer to Table 2-3-3

VM Option

DH01

DDR01

Refer to Table 2-3-4

LOC. NO

IC201S

IC601 IC901 IC902

IC602

HIC201

IC301

Q401 D409

IC401

Q404

IC801S

D801S

PC801S

IC805

D806 D807 D805

IC804 IC803

IC903 IC904

Q909 Q910

TU01 D813

Table 2 - 3 IC Line - Up

Reference Information

Samsung Electronics 2-3

2-2 IC Line Up

BOARD

MAIN

SPEC

VDP3112B

MSP3410D

SDA555X

KS24L161

TDA7297 DRGB001

LA7845

KSD5703

FMP-3FU

KA393 IRF620

3S1265RD

3S1265R

RBV606 PC123Y

KA78R05

FML-G12S

F10V20S

FMG-G26S

F10V60S

KA7806

KA78R08

KA78RM33 KIA7025AP

2N7000

TCPS3001PD09D(S)

FML-G12S

DESCRIPTION

Video Processor Multistandard Sound Processor MICOM, TTX(MTP)

EEPROM Audio AMP

RGB Drive AMP Hybrid IC Vertical IC

Horizontal Drive IC

E/W Drive IC

SPS Controllor Bridge Diode

Photo Coupler 5V Controlled Regulator

Rectifier Diode

6V Regulator 8V Controlled Regulator

3.3V Regulator MICOM Reset IC

IIC Level Shifter

Main Tuner with IF Block Rectifier Diode

2-4 Samsung Electronics

Table 2 - 3 IC Line - Up

DESCRIPTION

Video Output AMP R.G.B Drive

Video Switching IC with Adder Output High-end Picture-In Picture IC

LOC. NO

IC501 IC502 IC503

IC501

ICS01 ICP01

SPEC

TDA6101Q

STV5109

TEA6425

SDA9488X

REMARK

PCB Version

A,B,C,D

PCB Version

F,G,H,J

Option Option

BOARD

CRT

V-S/W

PIP

Reference Information

FUNCTION

Multistandard, A2 Stereo, Equalizer, 2 Scart, RCA9P Multistandard, A2 Stereo, Nicam, Equalizer, 2 Scart, RCA9P

Multistandard, Line-Stereo, Mono, RCA9P

Reference Information

Samsung Electronics 2-5

SPEC

VDP3112B

VDP3130Y-B2

FUNCTION

50Hz Basic 1H Comb Filter 50Hz, 2H Comb Filter, DVD Input

REMARK

Table 2-3-1 VIDEO IC

SPEC

MSP3400D MSP3410D

MSP3405D/BSP3505D

REMARK

Table 2-3-2 SOUND IC

SPEC

TDA7297

TDA7266S

FUNCTION

15W x 2CH, 10W x 2CH 5W x 2CH

REMARK

Table 2-3-3 SOUND AMP

SPEC

TCPS3001PD09A(S) TCPS3001PD09D(S) TCPS3001PD09C(S)

TAFC-Z141D

FUNCTION

CS, Stereo CS, Stereo CS, Stereo, India CS, Stereo

REMARK

IF IC = Sanyo IF IC = Philips

Table 2-3-4 TUNER

SPEC

KSD5703 KSC5386

FUNCTION

50Hz, With EW Model 50Hz, W/O EW Model

REMARK

Table 2-3-5 HORIZONTAL DRIVE IC (Q401)

2-6 Samsung Electronics

MEMO

Specifications

Samsung Electronics 3-1

3. Specifications

Specifications are subject to change.

Television

System

Antena Input

Power

Consumption

Requirements

Frequency

Sound

Output

Effect

Jacks

Front

(AV2)

Back

PAL/SECAM-B/G,D/K,I, NTSC-M PAL/SECAM-B/G,D/K,I, NTSC4.43

65W (Applied When 21” Flat)

220V Only

Free Voltage

50/60Hz

15W x 2CH

10W x 2CH 5W x 2CH

Turbo Sound

Pseudo Stereo

RCA Input S-VHS

Head-Phone

2Scart Input/Output

DVD Input(YPbPr)

RCA Input/Output

S-VHS

75ohms, Coaxial Cable

Depending on Tuner

Not Present R815

Option

AV1 : Scart I/O, RGB Input,

RF Out

AV2 : Scart I/O, Monitor Out

Option

AV1: Video/Audio-R/Audio-L AV2: Video/Audio-R/Audio-L Monitor Out : Video/Audio-

R/Audio-L

Option

3-2 Samsung Electronics

MEMO

Alignment and Adjustments

Samsung Electronics 4-1

4. Alignment and Adjustments

4-1 General Alignment Instructions

1. Usually, a color TV-VCR needs only slight touch-up adjustment upon installation. Check the basic characteristics such as height, horizontal and vertical sync and focus.

2. Observe the picture for good black and white details. There should be objectionable color shading; if color shading is present, demagnetize, perform purity and convergence adjustments described below.

3. Use the specified test equipment or its equivalent.

4. Correct impedance matching is essential.

5. Avoid overload. Excessive signal from a sweep generator might overload the front-end of the TV. When inserting signal markers, do not allow the marker generator to distort test results.

6. Connect the TV only to an AC power source with voltage and frequency as specified on the backcover nameplate.

7. Do not attempt to connect or disconnect any wires while the TV is turned on. Make sure that the power cord is disconnected before replacing any parts.

8. To protect against shock hazard, use an isolation transformer.

4-2 Automatic Degaussing

A degaussing coil is mounted around the picture tube, so that external degaussing after moving the TV should be unnecessary. But the receiver must be properly degaussed upon installation.

The degaussing coil operates for about 1 second after the power is switched ON. If the set is moved or turned in a different direction, the power should be OFF for at least 10 minutes.

If the chassis or parts of the cabinet become magnetized, poor color purity will result. If this happens, use an external degaussing coil. Slowly move the degaussing coil around the faceplate of the picture tube and the sides and front of the receiver. Slowly withdraw the coil to a distance of about 6 feet before turning power OFF.

If color shading persists, perform the following Color purity and Convergence adjustments.

4-3 High Voltage Check

CAUTION : There is no high voltage adjustment on this chassis. The B+ power supply should be +135 volts (with full color- bar input and normal picture level).

1. Connect a digital voltmeter to the second anode of the picture tube.

2. Turn on the TV. Set the Brightness and Contrast controls to minimum (zero beam current).

3. Adjust the Brightness and contrast controls to both extremes. Ensure that the high voltage does not exceed 30 KV under any conditions.

Alignment and Adjustments

4-2 Samsung Electronics

4-5 SCREEN Adjustment

1. Input Toshiba Pattern

2. Enter “Service Mode”.(Refer to “4-8-1 Service Mode”)

3. Select “G2-Adjust”.

4. Set the values as below.

4-4 FOCUS Adjustment

1. Input a black and white signal.

2. Adjust the tuning control for the clearest picture.

3. Adjust the FOCUS control for well defined scanning lines in the center area of the screen.

5. Turn the SCREEN VR until “MRCR G B” and “MRWDG” are green and those value are about 100. (The incorrect SCREEN Voltage may result that “MRCR G B” and “MRWDG” should be red)

INCH / CRT

14” / SDI

15PF / SDI

21” 1.7R / SDI

21” 1.7R / JCT

21PF / TSB

21PF / LG

21PF / SDI

25PF / SDI

29” 1.3R / SDI

25” 1.3R/SDI

30”

6101

205

220

215

220

230

220

210

220

210

6101

100

200

100

230

200

230

150

180

230

160

COLR G B

(Smallesz Value)

Table 1. Screen Adjustment Table

REGION

Noraml

CIS

Noraml

5109

205

225

215

220

225

220

205

200

210

200

5109

100

160

100

160

200

185

175

200

150

180

220

180

6101

100

150

100

5109

100

150

165

145

140

150

130

CDL

WDRV

IBRM

Alignment and Adjustments

Samsung Electronics 4-3

4-6 E2PROM (IC902) Replacement

1. When IC902 is replaced, all adjustment data revert to the initial values. So, all adjustment values when servicing should be readjusted.

2. After IC902 is replaced, connect the AC power supply cord.

3. Turn the power switch ON.

4. In stand-by, warm up the TV for at least 10 seconds.

5. Power on the TV.

4-7 White Balance Adjustment

■ Equipment : Color-Analyzer (CA-100)

■ Input Signal : Pattern signal (Toshiba pattern)

1. Select STANDARD from the menu.

2. Input an 100% White pattern.

3. Enter the “Service Mode”. (Refer to “4-8 Service Mode”)

4. Warm up the TV set at least for 30 minutes.

5. Input a Toshiba pattern signal.

6. Enter the “Video Adjust1”. (Refer to table 2.)

- Adjust “Sub Contrast” so that Y (luminance) becomes 65 ft ± 3.

- Use “Red Drive” and “ Blue Drive” to adjust High-Light (x : 265, y : 265)

- Adjust “Sub Bright” so that Y (luminance) becomes 1.2ft ± 0.3.

- Use “Red Cutoff” and “Blue Cutoff” to adjust Low-Light (x : 265, y : 265).

7. Adjust CA-100 so that the final adjustment value can be fixed.

8. Use the Channel Up/Down (▲/▼) buttons to move the cursor on the adjustment modes.

9. Use the Volume +/- buttons to change the adjustment value.

Alignment and Adjustments

4-4 Samsung Electronics

Area

East South Asia

Middle East Asia

& Africa

CIS

Australia

Inch

15PF

21” 1.7R

21PF

25”1.3R

25PF

29”1.3R

30”

14”

15PF

21” 1.7R

21PF

25” 1.3R

25PF

29”1.3R

30”

15PF

21PF

25” 1.3R

25PF

29” 1.3R

15PF

21PF

25” 1.3R

25PF

29” 1.3R

High

Luminance

(ft)

Low

Luminance

(ft)

265

290

272

292

265

300

270

307

265

290

265

301

265

300

266

311

1.8

1.2

1.0

1.2

1.0

1.8

1.2

1.0

1.2

1.0

2.2

2.0

2.2

1.8

1.0

1.2

1.0

Table 2. White Balance Table

Alignment and Adjustments

Samsung Electronics 4-5

4-8 Factory Adjustment

1. To enter the “Service Mode”, Press the remote-control keys in this sequence :

- If you do not have Factory remote-control

- If you have Factory remote-control

2. After the Service Mode is entered, the initial screen is as shown in the figure below.

3. Use the Channel Up/Down buttons to move the cursor in the adjustment parameters.

Note :

- When CRT, CRT PCB, FBT, E

PROM (sometimes MICOM) is replaced, the adjustment values

should be controlled.

- After the Service adjustment is completed, Do not select “Reset” in the service mode menu.

(After above procedure is done, power is on initially and the “Plug and Play” will be operated.)

4-8-1 Service Mode

These hexa digits are check sum value which depends on the MICOM version. If check sum value is changed, the value of

PROM Data newly initialed.

PICTURE OFF PICTURE ON

PICTURE ON

xx xx xx

DISPLAY

()

FACTORY

MUTE

Alignment and Adjustments

4-6 Samsung Electronics

Area Micom Version

Excluded Model

Main Problems & History of Corrections

EUROPE

Middle

East Asia

& Africa

& CIS

SIM-806EW

(KS2A/KS3A)

MSP3410 94 58 VERSION

At the current mass production (MP), MASK is applying to ks2a/ks3a chassis

1. Improvement of Secam-L Sound Noise when using MSP3410 94 58 VERSION

2. Improvement of repetition of SECAM-L in AUTO SEARCH SIM-806EW1 (KS2A/KS3A)

3. Improvement of the gap between SCART RGB and CVBS image

centers .(Added to RGB SHIFT FACTORY)

4. Correction of Greek OSD

5. Fixation of Zoom Mode Offset Changed in order to adjust in Service

mode. Application of REMASK via an improvement in picture quality

SIM-806EW2 Application of REMASK via an improvement in picture quality

OIM-806EW

(KS2A/KS3A)

SIM-806MA

(KS2A)

CONTROL 6KEY,PIP MODEL,

All 22-Q models

TOSHIBA OEM MODEL ONLY MICOM (Applied to SEH MP)

MTP is used for all models (excluding KS2A 22Q)

MTP used for KS2A 22Q models

1. VM related items (Delay1,Gain1,Limit,Delay,Coring) Adjust3)

2. Addition of PIP VSPDEL to FACTORY items

3. No color when PIP NTSC 4.43 is received

SIM-806MA1 (KS2A/KS3A)

4. NICAM POP NOISE

5.Av by channel key added

6.When English is used for the language of Libia models, the Libian

must be added and PROGRAM_OSD box must be reduces

(Libian Only)

7. RGB SHIFT/HB START/HB STOP added

8. Countermeasure on RADIATION (Option: Pin49 output software)

9. In NTSC system, a transient phenomenon happens during the channel

East

South

Asia

Australia

SIM-806MA2

(KS2A/KS3A)

SIM-806MA3 (KS2A/KS3A)

SIM-806EA

(KS2A)

SIM-806EAY

(KS2A)

SIM-806EA1

(KS2A/KS3A)

Decided to apply MASK

(June 2001)

Thailand,Vietnam,

PIP MODEL,6-KEY,CONTROL

Correction of Libian about child lock

1. Improvement of SECAM/PAL Color Hysteresis characteristics

2. Correction of instantaneous LNA error

MTP used for KS2A

1. Correction of Thailand/Vietnam OSD problems ("Not available", "S-Video")

1. Change of Indonesia sports string

2. Addtion of VM related items (Delay1,Gain1,Limit,Delay,Coring) to Adjust3

3. Addition of PIP VSPDEL to FACTORY items

4. Improvement of No Color when PIP NTSC 4.43 is received

5. Improvement of NICAM POP NOISE

6. Addition of AV by channel key service

7. Addition of RGB SHIFT/HB START/HB STOP

8. Addition of countermeasure on RADIATION (Option: pin49 output software)

9. Transient phenomena when switching CH in NTSC system

10. In Temperature Low test, the color of SECAM CH' late follows

Alignment and Adjustments

Samsung Electronics 4-7

Area Micom Version

East

South

Asia

SIM-806EA1

(KS2A/KS3A)

Australia

SIM-806C

(KS2A/KS3A)

China

SIM-806C1

(KS2A/KS3A)

Excluded Model

Checking the improvement

in quality: Vietnam/Thailand

28.Dec.2000

Main Problems & History of Corrections

Same with MTP (developed in 22 Sep. 2000)

1. Improvement of color noise in LOW BURST

2. A sound saw filter switching error happens when changing Manual Color System

(For a PAL channel, when switching NTSC3.58 into Auto)

3. Addition of PIP VSPDEL to FACTORY items

4. Improvement of No Color when PIP NTSC 4.43 is received

5. Addition of RGB SHIFT/HB START/HB STOP

6. Addition of countermeasure on RADIATION (Option: pin 49 output software)

7. Transient phenomena happens when switching CH' in NTSC system

India

SIM-806EI

(KS2A/KS3A)

SIM-806EI1

(KS2A/KS3A)

Same with MTP (developed in 6 Sep. 2000)

1. Addition of PIP VSPDEL to FACTORY items

2. Improvement of No Color when PIP NTSC 4.43 is received

3. Addtion of RGB SHIFT/HB START/HB STOP

4. Addition of countermeasure on RADIATION (Option: pin49 output software)

5. Transient phenomena happens when switching CH' in NTSC system

6. In Temperature Low test, the color of SECAM CH' late follows.

7. Addition of woofer to FACTORY items

8. Change of the value of equalizer (Factory Woofer in EQ ON)

Alignment and Adjustments

4-8 Samsung Electronics

4-8-2 Deflection (Memory Data)

4-8-2(A) GEOMETRIC ADJUSTMENT VALUE BY MODEL

INITIAL DATA

RANGEOSD

V SHIFT -128~127 -40 -40 -40 -20 -18 V AMP -128~127 20 20 -15 -40 18 V SLOPE -128~127 0 -5 0 -5 -4 V SC -128~127 -13 -6 -13 0 -17 H EW -128~127 50 -30 20 61 24 H TRAPEZIUM -128~127 20 20 -40 -8 20 H PARABOLA -128~127 15 15 20 -3 17 H SYMMETRY -128~127 13 13 13 12 5 H CORNER -128~127 40 40 40 -32 69 H SHIFT -128~127 0 0 0 0 0 PIP CONTRAST 0~15 7 15 7 7 7 PIP TINT 0~63 0 0 0 0 0 PIP VSPDEL PIP PAL V. POS PIP NTSC V. POS PIP H. POS 0~255 45 45 45 45 45 PIP BLKLG

0~32 0 8 8 0 0 0~255 33 33 33 33 33 0~255 33 33 33 33 33

0~15 6 6 6 6 6

TSB 21-FLAT LG-CPT 21-FLAT SDI 21" FALT SDI 14" SDI 15" FLA

A51LSH196X03(+380) A51LSH198X03(-250)

A51QDJ279X14 A51QDX991X001 A34KQV42X A36QDT351X

RANGEOSD

V SHIFT -128~127 V AMP -128~127 V SLOPE -128~127 V SC -128~127 H EW -128~127 H TRAPEZIUM -128~127 H PARABOLA -128~127 H SYMMETRY -128~127 H CORNER -128~127 H SHIFT -128~127 PIP CONTRAST 0~15 PIP TINT 0~63 PIP VSPDEL PIP PAL V. POS PIP NTSC V. POS PIP H. POS 0~255 PIP BLKLG

0~32 0~255 0~255

0~15

INITIAL DATA

SDI 21"1.7R SDI 25" 1.3R SDI 25" FLAT SDI 29" 1.3R SDI 30"

A51KQJ63X01 A59KPR84X01 A59QDF891X002

-40 -50 -50 -50 -40 5 -10 -15 -20 -48

-2 0 0 0 -2

-7 -6 -13 0 0

64 10 10 -55 20

-20 -50 -10 -40 -80

-13 -40 -60 -60 -75 13 13 13 13 13 15 40 69 70 60

00 0 0 -2 77 7 7 7 00 0 0 0 00 8 0 14

33 33 33 33 33 33 33 33 33 33 45 45 45 45 45

66 6 6 6

A68QBT891X002

A68KVL74X01

A70QBZ791X001

Alignment and Adjustments

Samsung Electronics 4-9

4-8-2(B) GEOMETRIC ADJUSTMENT

RANGEOSD

FUNCTION

V SHIFT -128~127

V AMP -128~127

V SLOPE -128~127 V SC -128~127

H EW -128~127

H TRAPEZIUM -128~127 H PARABOLA -128~127

H SYMMETRY -128~127

H CORNER -128~127

H SHIFT -128~127 PIP CONTRAST 0~15 PIP TINT 0~63

PIP VSPDEL

PIP PAL V. POS PIP NTSC V. POS

PIP H. POS 0~255 PIP BLKLG

0~32

0~255 0~255

0~15

Adjusts Vertical picture position Adjusts Vertical picture size. Adjust 4:4 upper and below picture size in lion head

pattern at factory Adjusts Vertical Slope Correction

Adjusts Vertical s-correction Horizontal east west width. Adjust 5:5 left and right picture size in lion head pattern

at factory.

Adjusts horizontal Trapezium. Adjusts Horizontal Parabola. Adjusts the top and bottom horizontal symmetry of picture.

Adjusts the top and bottom horizontal corner of picture. Adjusts so that the top and bottom of H corner can be linear.

Adjusts Horizontal Position. Adjusts PIP contrast. Adjusts PIP Tint. When a NTSC signal is received, this PIP Tint adjusts color phase PIP vertical sync pulse delay. When chaning data, PIP jitters at two points. In this case,

the PIP VSPDEL is set to the center between two points. Adjust Vertical position the PIP of PAL system. Adjust Vertical position the PIP of NTSC system. Adjust Horizontal Position the PIP. Adjusts PIP blanking level green (PIP low light white balance).

Alignment and Adjustments

4-10 Samsung Electronics

4-8-2(C) SCREEN CHANGE (I2C BUS GEOMETRIC ADJUSTMENT)

1 V Shift

V Slope

3 H EW

6 V Amp

V SC

H Trapizium

4 H Parabola

5 H Corner

H Shift

H Symmetry

Alignment and Adjustments

Samsung Electronics 4-11

4-8-2(D) VIDEO ADJUSTMENT 1

INITIAL DATA

RANGEVIDEO ADJUST1

RED CUTOFF 0~255 GREEN CUTOFF 0~255 BLUE CUTOFF 0~255 RED DRIVE 0~255 GREEN DRIVE 0~255 BLUE DRIVE 0~255 SUB BRIGHT 0~200

SUB CONTRAST 0~63 SUB COLOR 0~27 SUB TINT 0~100 BCL THRESHOLD 0~255 BCL GAIN 0~15 BCL TIME 0~15

TTX CONTRAST 0~255 P. BG YC DELAY P. DK YC DELAY

P.I YC DELAY P.M YC DELAY RF S. BG YC DELAY S. DK YC DELAY S.I YC DELAY

N.M YC DELAY P. YC DELAY VIDEO S. YC DELAY

N. YC DELAY MODE

TSB 21-FLAT LG-CPT 21-FLAT SDI 21" FALT SDI 14" SDI 15" FLA

A51LSH196X03(+380) A51LSH198X03(-250)

127 127 127 127 127 127 127 127 127 127 127 127 127 127 127 127 127 127 127 127 127 127 127 127 127 127 127 127 127 127 100 100 100 100 100

52 52 52 52 52 27 27 27 27 27 30 30 30 30 30 62 54 62 30 35

98888 513131313

90 90 90 90 100

33333 66666

66666 33333 33333 55555 57777

73333 44444 11111

44444

A51QDJ279X14 A51QDX991X001 A34KQV42X A36QDT351X

INITIAL DATA

RANGEVIDEO ADJUST1

RED CUTOFF 0~255 GREEN CUTOFF 0~255 BLUE CUTOFF 0~255 RED DRIVE 0~255 GREEN DRIVE 0~255 BLUE DRIVE 0~255 SUB BRIGHT 0~200

SUB CONTRAST 0~63 SUB COLOR 0~27

SDI 21"1.7R SDI 25" 1.3R SDI 25" FLAT SDI 29" 1.3R SDI 30"

A51KQJ63X01 A59KPR84X01 A59QDF891X002

127 127 127 127 127 127 127 127 127 127(FIX) 127 127 127 127 127 127 127 127 127 127 127 127 127 127 127(FIX) 127 127 127 127 127 100 100 110 100 100

52 52 52 52 52 27 27 27 27 27

A68QBT891X002

A68KVL74X01

A70QBZ791X001

Alignment and Adjustments

4-12 Samsung Electronics

INITIAL DATA

RANGEVIDEO ADJUST1

SUB TINT 0~100 BCL THRESHOLD 0~255 BCL GAIN 0~15 BCL TIME 0~15

TTX CONTRAST 0~255 P. BG YC DELAY P. DK YC DELAY

P.I YC DELAY P.M YC DELAY RF S. BG YC DELAY S. DK YC DELAY S.I YC DELAY

N.M YC DELAY P. YC DELAY VIDEO

S. YC DELAY N. YC DELAY MODE

SDI 21"1.7R SDI 25" 1.3R SDI 25" FLAT SDI 29" 1.3R SDI 30"

A68QBT891X002

A51KQJ63X01 A59KPR84X01 A59QDF891X002

30 30 30 30

A68KVL74X01

A70QBZ791X001

40 60 67 67 64

89 9 8 9

13 7 13 13 7 90 70 90 90 70

33 3 3 3 66 6 6 6 66 6 6 6 33 3 3 3 33 3 3 3 55 5 5 5

77 7 7 7 33 3 3 3

44 4 4 4 11 1 1 1 44 4 4 4

RANGEVIDEO ADJUST 1

RED CUTOFF Adjusts the gain red output of low light. GREEN CUTOFF 0~255 BLUE CUTOFF 0~255

RED DRIVE 0~255

GREEN DRIVE 0~255

BLUE DRIVE 0~255 SUB BRIGHT 0~200

SUB CONTRAST 0~63

SUB COLOR SUB TINT 0~100 BCL THRESHOLD 0~255 BCL GAIN 0~15 BCL TIME 0~15 TTX CONTRAST 0~255

YC DELAY

0~255

0~27

0~8

Adjusts the gain green output of low light. Fix this agin to 127. Adjusts the gain blue output of low light. Adjusts the red blue output of high light. Adjusts the green output of high light. After "G2-Adjustment" and White Balance

adjustments are complete, this data is fixed Adjusts the gain blue output of high light.

Adjust sub brightness level to set the low luminance in Picture Standard mode. Adjusts sub contrast level to set the high luminance in Pitture Standard mode. Set the value of sub contrast to near 50. The user control " contrast" depends on this value. User contrast=[sub cont x 2/100] If sub contrast data is 10, user contrast changes into

1/5 step Adjusts sub color level to set the gain for color in Picture Standard mode.

Adjusts the sub tint level of NTSC color system. Short for Beam Current Limit Threshold. Adjusts the current of CRT long term.

Beam current limit gain Adjusts BCL Time constant. Beam current limit actual time Adjusts contrast on TTX picture. Compensates the time gap between color and luminance boundaries and cotrolls data

difference by system(See table above)

FUNCTION

Alignment and Adjustments

Samsung Electronics 4-13

Table 3. YC Delay Adjustment Table

Delay

Value

PAL

Def.

SECAM

Def.

Note 1. Beam Control Limit Characteristic

WDRGB

BCL THESHOLD

beam

1.8mA

1.6mA

MIN

BCL GAIN

MAX

NTSC

IRE

Alignment and Adjustments

4-14 Samsung Electronics

4-8-2(E) VIDEO 2 ADJUST

RANGE REMARKSOSD

B STRETCH-BTHR 0 ~ 55 B STRETCH-BTLT 0 ~ 15 B STRETCH-BAM 0 ~ 31 CORING 0 ~ 31 RGB BRIGHT 0 ~ 255 RGB CONTRAST 0 ~ 80

EHT TIME 0 ~ 15

EHT VERTICAL

0 ~ 255

INITIAL VALUE

FUNCTION

50 Black stretch threshold

8 Black stretch tilt position

4 Black stretch amount 31 Luminance peaking filter coring DIGITAL NR OFF VALUE 45 External RGB brightness SCARTS MODEL ONLY

0 External RGB contrast SCARTS MODEL ONLY

3112B:0 Electronics high tension time 3130Y:3 EHT vertical correction time(according to beam change)

VDP3130Y NO USED '0'

60 EHT compensation coefficent vertical

out

BAM

BTLT

min

max

Alignment and Adjustments

Samsung Electronics 4-15

4-8-2(F) VIDEO 3 ADJUST

RANGE REMARKSOSD

PEAK THRESHOLD SOFT LIMIT SLOPE B HARD LIMIT PEAK VIDEO REF PEAK VIDEO GAIN ACC-REF(PAL/NTSC) ACCR(SECAM) Gain1(video Delay1(video) Velocity Limt Velocity Delay Velocity Coring

RGB SHIFT

HB START

HB STOP

2H Comb Filter

NR OFF Value Color Hys(SECAM) Color Hys(PAL)

0~255 0~15 0~255 0~4 0~5 0~40 0~39 0~31 0~15 0~127 0~15 0~15

0~255

0~1

0~10 0~255 0~255

INITIAL VALUE

255

0 33 21 11

3 74

7 10

109

117

168

166 200

FUNCTION

White peak level threshold

Refer to picture below

White peak levelthrehold reference White peak level threshild gain Auto color control gain(PAL/NTSC) Auto color control gain(SECAM) Velocity video gain Velocity video delay Velocity limit Velocity delay Velocity frequency coring

Adjust RGB input signal Horizontal position

Horizontal blainking start

Horizontal blainking stop

Comb filter on/off ( 0 : Comb fillter off

1 : Comb filtter on ) VDP3108:No comb filter, VDP3112B/ VDP3130Y/VDP3120B:Comb Filter function present

Adjust Digital NR off value Color killing hysteresys(SECAM) Color killing hysteresys(PAL)

ADD ITEM

Design factor

Design factor Design factor Picture standard color gain setting Picture standard color gain setting Not used(design factor) Not used(design factor) Not used(design factor) Not used(design factor) Not used(design factor) Used to scarts model only. VDP3130Y:Not used Picture right edge position SAG or cut problem countermeasure Picture left edge position SAG or cut problem countermeasure OFF(0):Cross color and Dot crawl phenomenons happen. Detailed characteristics are a little good. ON(1): Cross color and Dot crawl characteristics are good, but Detaile characteristics aren't Picture standard mode detail 0 ~ 155 Not used(SECAM NO COLOR)

Alignment and Adjustments

4-16 Samsung Electronics

4-8-2(G) OPTION 1

Micom Spec : SIM-806EA

Control Description

ESAsia ENGLISH/VIETNAM/THAI/INDONESIA/MALAYSIA A2/NICAM A2 Stereo / Nicam Stereo Model Virtual Dolby Virtual Dolby Model Mono Mono Model Line-Stereo Line stereo Model 4:3 Normal / Zoom / 16:9 Wide Wide CRT ( 16:9 ) Q(12.8:9) Plus / Normal / Zoom / 16:9 4:3-16:9 Normal / Zoom Q - 16:9 Plus / Normal / Zoom 1Scart Built in 1 Scart Model 2Scart Built in 2 Scart Model 2scart+S Built in 2 Scart +SVHS JACK Model 1RCA Built in RCA 6P / RCA 4P Model 2RCA Built in RCA 9P Model 2RCA+S Built in RCA 9P + SVHS JACK Model 2RCA+D Built in RCA 9P + DVD JACK Model 2RCA+S+D Built in RCA 9P + SVHS JACK Model +DVD JACK Model On X-ray detection function on Off X-ray detection function off On CRT Tilt control function on ( wide / 29PF CRT) Off CRT Tilt control function off On automatic change from NICAM to FM depends on NICAM error rate Off automatic change from NICAM to FM depends on NICAM syncronization Off no PIP function 1 - tuner 1 Tuner PIP function 2 - tuner 2 Tuner PIP function West Europe English/German/Skandinavian/Italian

French/Spainsh/Czech

East Europe Polish/Czech/Rumanian/Slovenian/Croatian/

French/Skandinavian/German/Italian

Russian Russian/Ukranian/Estonian/Czech/German/

Lettish/English Greek-Turkey English/Turkey/Greek/French/Skandinavian/German/Spainsh/Italian Arabic English/Arabic/French Farsi English/Farsi/French Arab-Hebrew Arabic/Hebrew On Built in LNA Tuner Off Built in Normal Tuner On Include in Equalizer function ( MSP34X0D) Off Without Equalizer function (MSP34X5D) On High deviation mode on MSP34XX Off Normal mode on MSP34XX On TTX Model Off W/O-TTX Model On Without Video Pannel Key Off With Video Pannel Key

No.

ITEM(OSD)

Language

Sound

CRT

AV Mode

x-ray

Tilt Control

Auto FM

PIP

Txt Language

LNA

Equalizer

High deviate

TTX On/OFF

AV by CH Key

Alignment and Adjustments

Samsung Electronics 4-17

Control Description

Arab English/Arab/French/Pakistan Iran English/Persian/French/Turkey Libya English/Libya/French CIS English/Russia A2/NICAM A2 Stereo / Nicam Stereo Model Virtual Dolby Virtual Dolby Model Mono Mono Model Line-Stereo Line stereo Model 4:3 Normal / Zoom / 16:9 Wide Wide CRT ( 16:9 ) Q(12.8:9) Plus / Normal / Zoom / 16:9 4:3-16:9 Normal / Zoom Q - 16:9 Plus / Normal / Zoom 1Scart Built in 1 Scart Model 2Scart Built in 2 Scart Model 2scart+S Built in 2 Scart +SVHS JACK Model 1RCA Built in RCA 6P / RCA 4P Model 2RCA Built in RCA 9P Model 2RCA+S Built in RCA 9P + SVHS JACK Model 2RCA+D Built in RCA 9P + DVD JACK Model 2RCA+S+D Built in RCA 9P + SVHS JACK Model + DVD JACK Model On X-ray detection function on Off X-ray detection function off On CRT Tilt control function on ( wide / 29PF CRT) Off CRT Tilt control function off On automatic change from NICAM to FM depends on NICAM error rate Off automatic change from NICAM to FM depends on NICAM syncronization Off no PIP function 1- tuner 1 Tuner PIP function 2 - tuner 2 Tuner PIP function West Europe English/German/Skandinavian/Italian/French/Spainsh/Czech East Europe Polish/Czech/Rumanian/Slovenian/Croatian/

French/Skandinavian/German/Italian TRussian Russian/Ukranian/Estonian/Czech/German/Lettish/English Greek-Turkey English/Turkey/Greek/French/Skandinavian/German/Spainsh/Italian Arabic English/Arabic/French Farsi English/Farsi/French Arab-Hebrew Arabic/Hebrew On Built in LNA Tuner Off Built in Normal Tuner On Include in Equalizer function ( MSP34X0D) Off Without Equalizer function (MSP34X5D) On High deviation mode on MSP34XX Off Normal mode on MSP34XX On TTX Model Off W/O-TTX Model On Without Video Pannel Key Off With Video Pannel Key

4-8-2(H) OPTION 2

Micom Spec : SIM-806MA

No.

ITEM(OSD)

Language

Sound

CRT

AV Mode

x-ray

Tilt Control

Auto FM

PIP

Txt Language

LNA

Equalizer

High deviate

TTX On/OFF

AV by CH Key

+ 72 hidden pages
