Page 1

TFT-LCD MONITOR

CN17V*

SERVICE

Manual

TFT-LCD MONITOR CONTENTS

1. Precautions

2. Product Specifications

3. Disassembly & Reassembly

4. Alignments & Adjustments

5. Troubleshooting

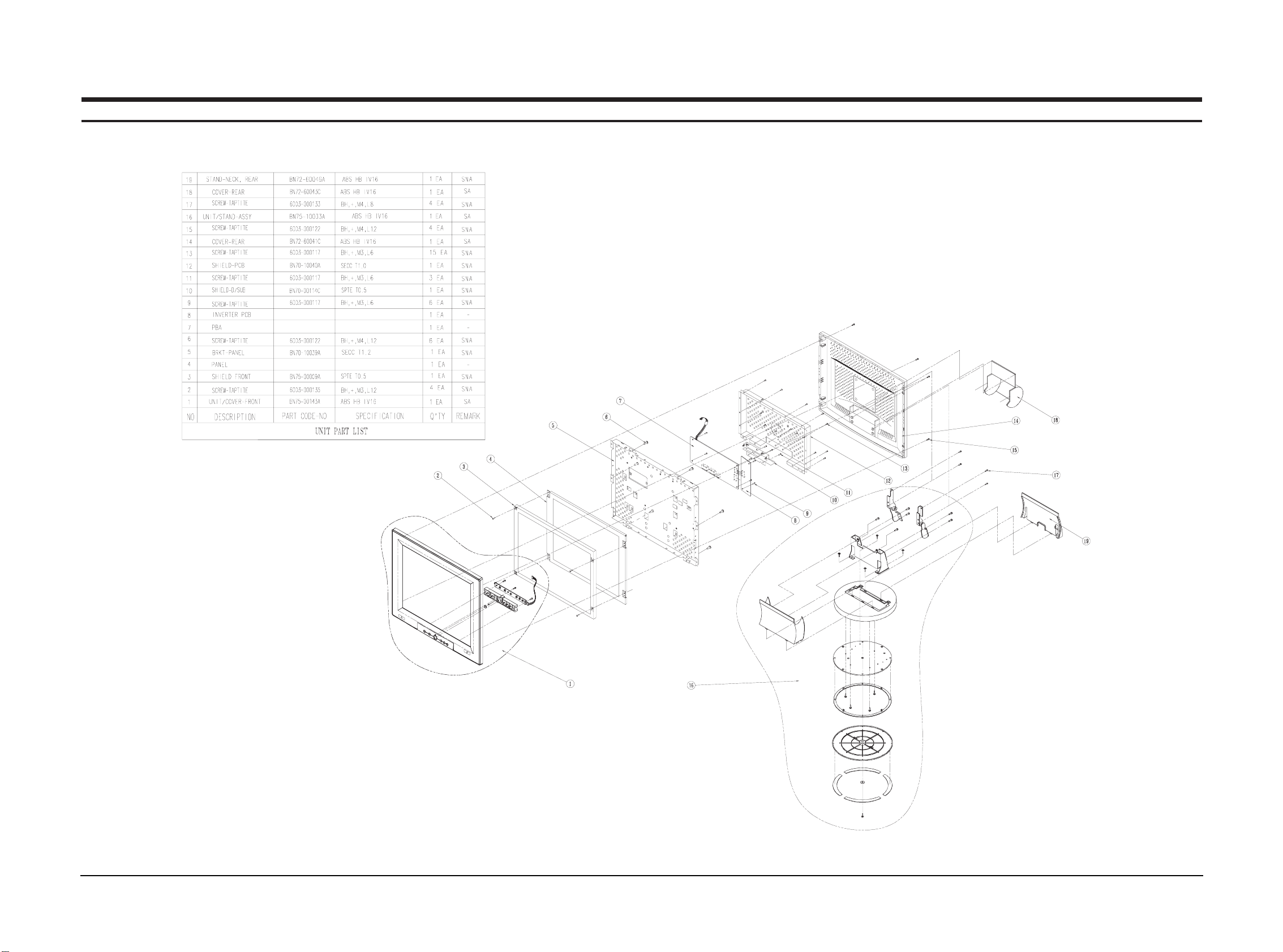

6. Exploded View & Parts List

7. Electrical Parts List

8. Block Diagram

9. Wiring Diagram

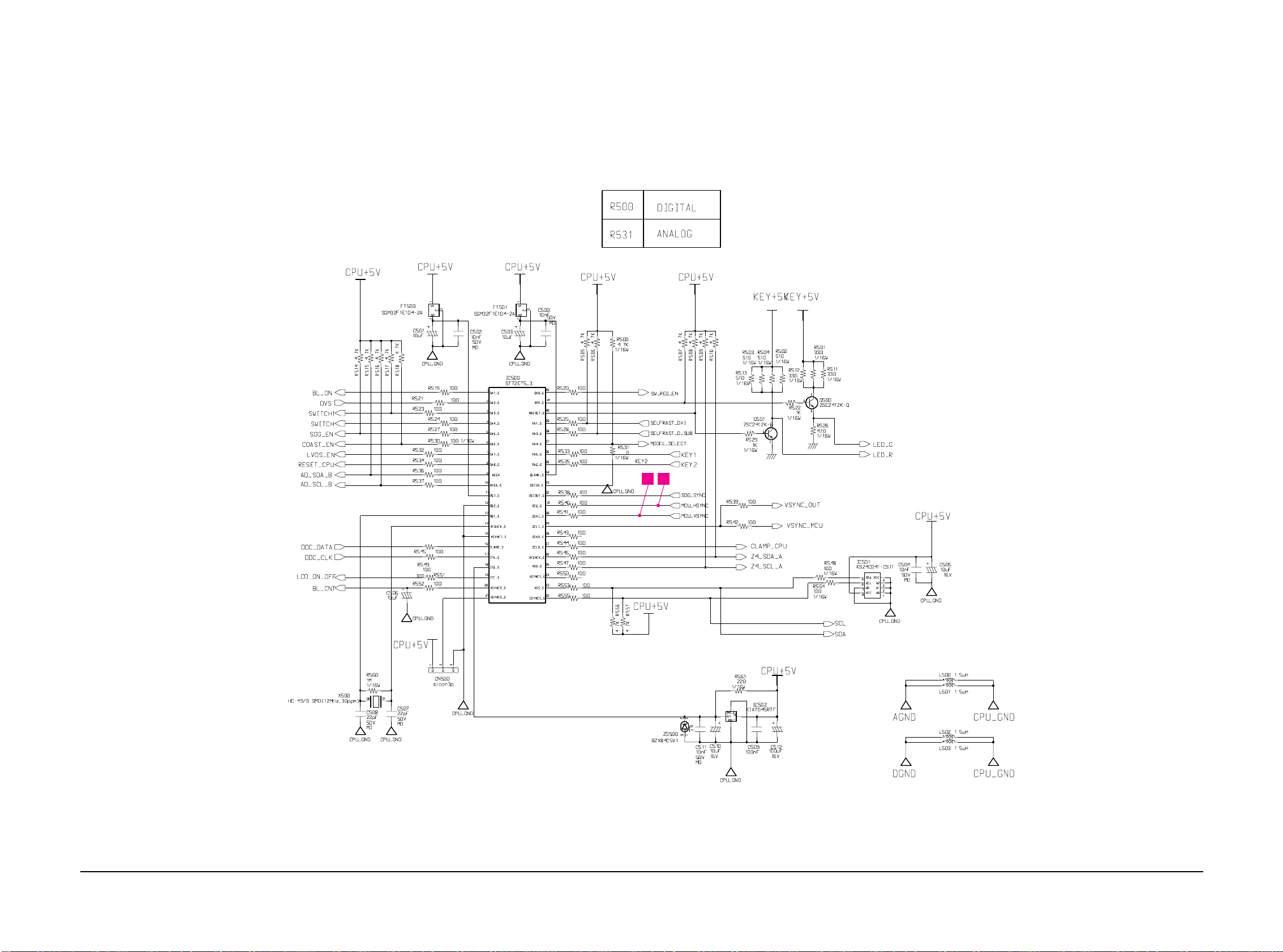

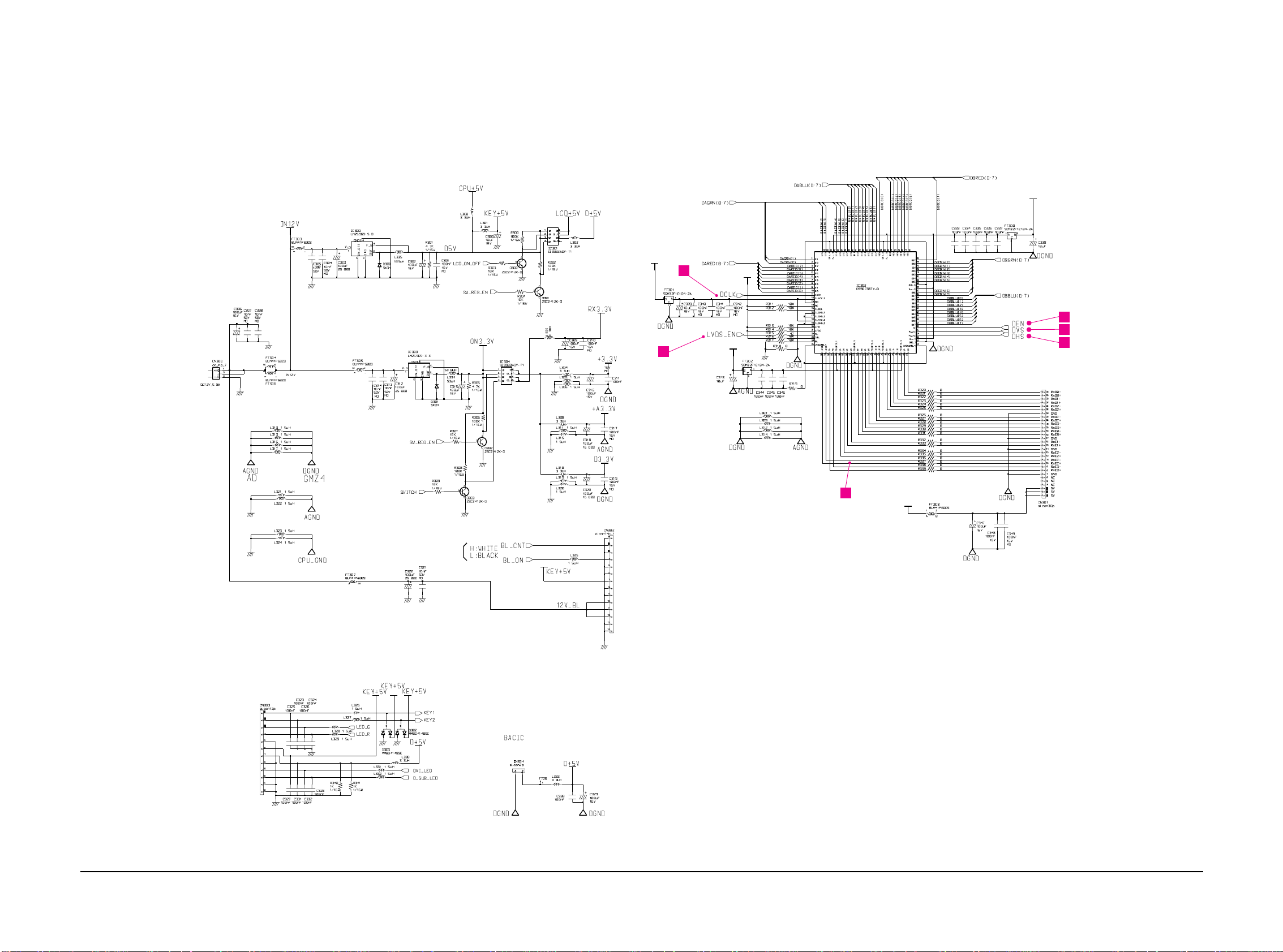

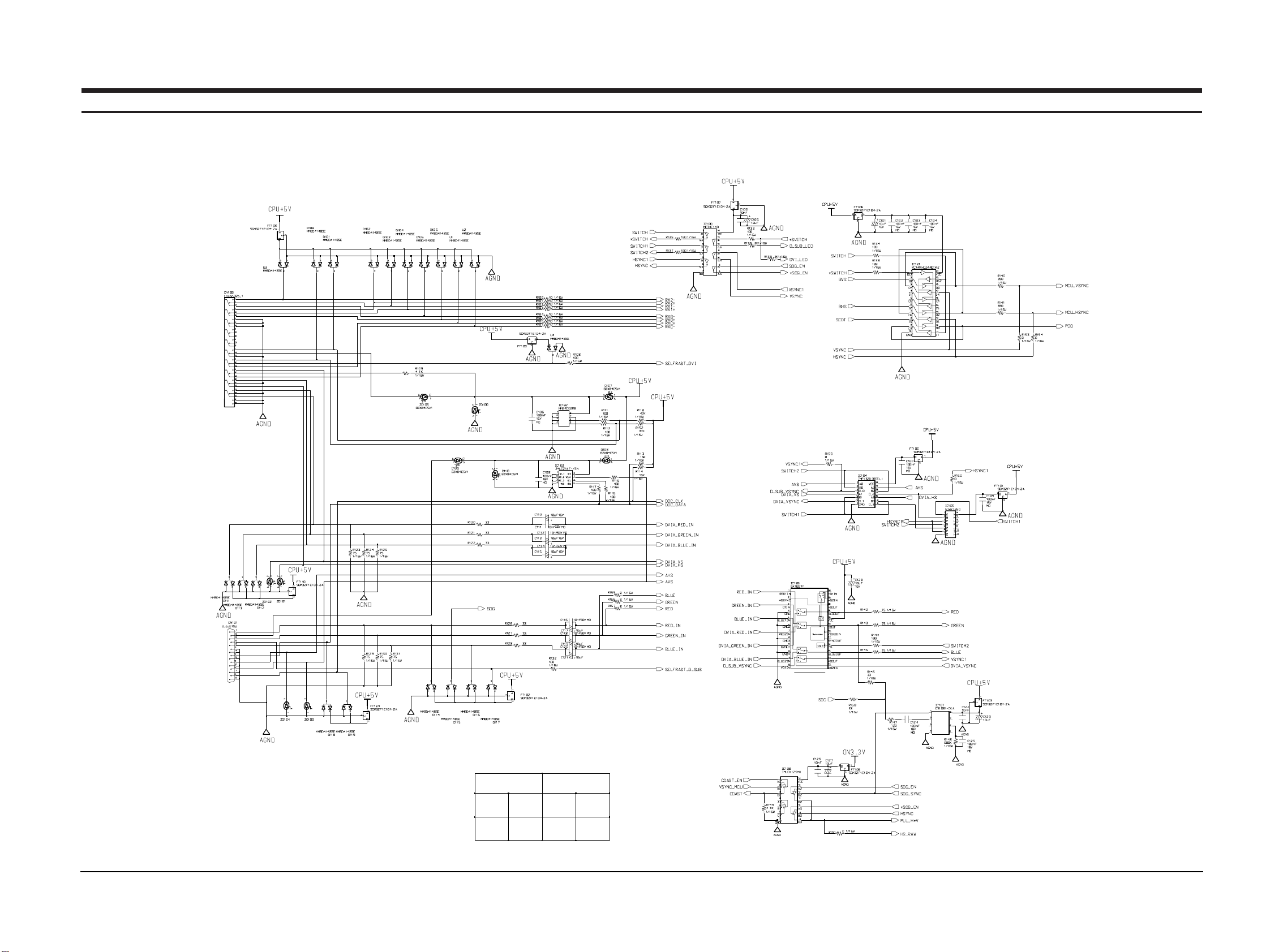

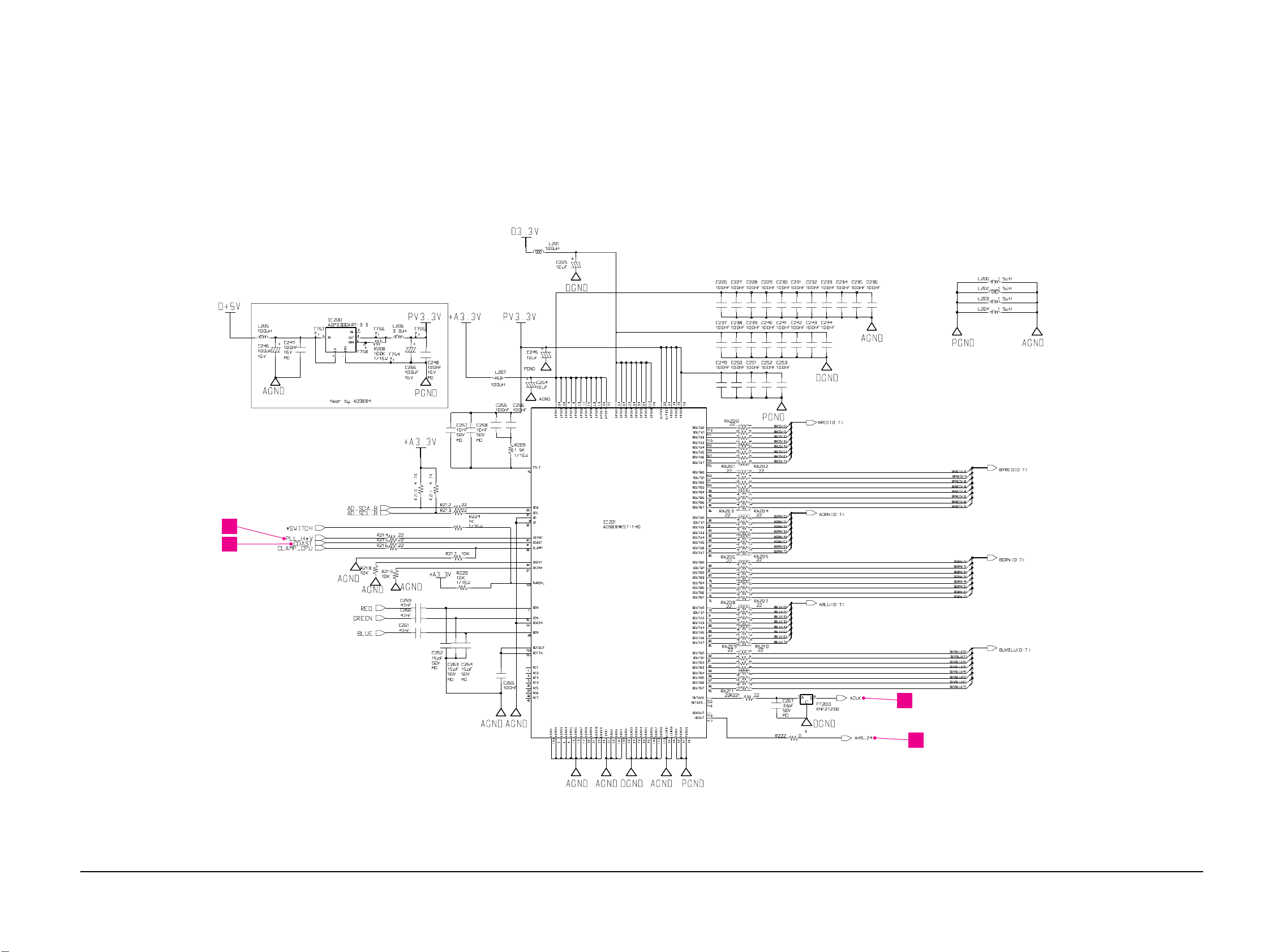

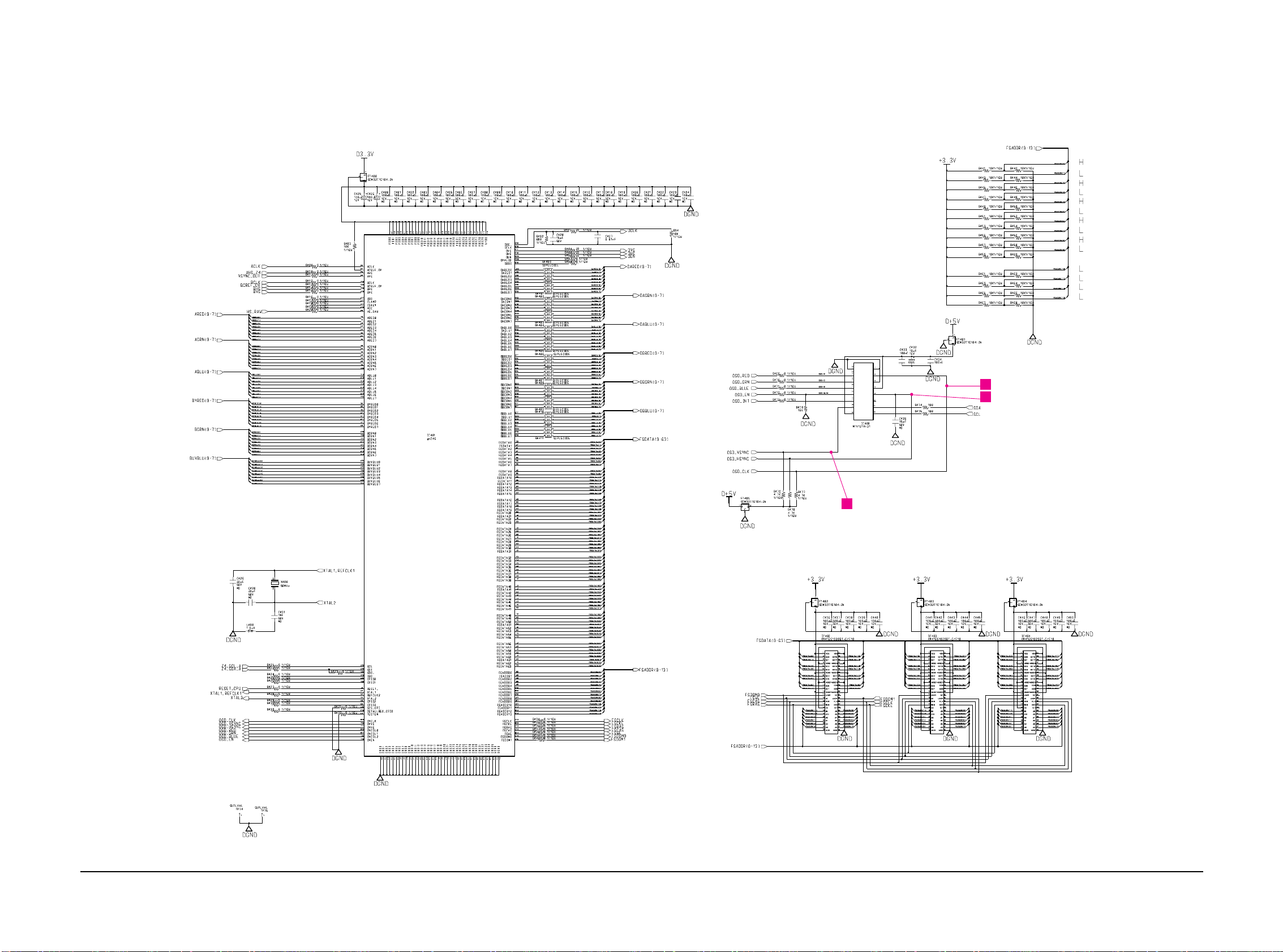

10. Schematic Diagrams

11. Panel Description

Page 2

1 Precautions

DEVICE UNDER TEST

TEST ALL

EXPOSED METAL

SURFACES

(READING SHOULD

NOT BE ABOVE 0.5mA)

LEAKAGE CURRENT

TESTER

2-WIRE CORD

*ALSO TEST WITH

PLUG REVERSED (USING AC ADAPTER PLUG AS REQUIRED)

EARTH

GROUND

Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as electrical shock.

1-1 Safety Precautions

1-1-1 Warnings

1. For continued safety, do not attempt to modify the circuit board.

2. Disconnect the AC power and DC power jack before servicing.

1-1-2 Servicing the LCD Monitor

1. When servicing the LCD Monitor, Disconnect the AC line cord from the AC outlet.

2. It is essential that service technicians have an accurate voltage meter available at all times. Check the calibration of this meter periodically.

1-1-3 Fire and Shock Hazard

Before returning the monitor to the user, perform the following safety checks:

1. Inspect each lead dress to make certain that the leads are not pinched or that hardware is not lodged between the chassis and other metal parts in the monitor.

2. Inspect all protective devices such as nonmetallic control knobs, insulating materials, cabinet backs, adjustment and compartment covers or shields, isolation resistor-capacitor networks, mechanical insulators, etc.

3. Leakage Current Hot Check (Figure 1-1):

WARNING:

Do not use an isolation transformer during this test.

Use a leakage current tester or a metering system that complies with American National Standards Institute (ANSI C101.1, Leakage Current for

Appliances), and Underwriters Laboratories (UL Publication UL1410, 59.7).

Figure 1-1. Leakage Current Test Circuit

4. With the unit completely reassembled, plug the AC line cord directly into a 120V AC outlet. With the unit’s AC switch first in the ON position and then OFF, measure the current between a known earth ground (metal water pipe, conduit, etc.) and all exposed metal parts, including: metal cabinets, screwheads and control shafts. The current measured should not exceed 0.5 milliamp. Reverse the power-plug prongs in the AC outlet and repeat

the test.

1-1-4 Product Safety Notices

Some electrical and mechanical parts have special safety-related characteristics which are often not evident from visual inspection. The protection they give may not be obtained by replacing them with components rated for higher voltage, wattage, etc. Parts that have special safety characteristics are identified by

on schematics and parts lists. A substitute replacement that does not have the same safety characteristics as the recommended replacement part might create shock, fire and / or other hazards. Product safety is under review continuously and new instructions are issued whenever appropriate.

CN17V* 1-1

Page 3

1 Precautions

1-2 Servicing Precautions

WARNING: An electrolytic capacitor installed with the wrong polarity might explode. Caution: Before servicing units covered by this service manual, read and follow the Safety Precautions

section of this manual.

Note: If unforeseen circumstances create conflict between the following servicing precautions and any of the

safety precautions, always follow the safety precautions.

1-2-1 General Servicing Precautions

1. Always unplug the unit’s AC power cord from the AC power source and disconnect the DC Power Jack before attempting to: (a) remove or reinstall any component or assembly, (b) disconnect PCB plugs or connectors, (c) connect a test component in parallel with an electrolytic capacitor.

2. Some components are raised above the printed circuit board for safety. An insulation tube or tape is sometimes used. The internal wiring is sometimes clamped to prevent contact with thermally hot components. Reinstall all such elements to their original position.

3. After servicing, always check that the screws, components and wiring have been correctly reinstalled. Make sure that the area around the serviced part has not been damaged.

4. Check the insulation between the blades of the AC plug and accessible conductive parts (examples: metal panels, input terminals and earphone jacks).

5. Insulation Checking Procedure: Disconnect the power cord from the AC source and turn the power switch ON. Connect an insulation resistance meter (500 V) to the blades of the AC plug.

The insulation resistance between each blade of the AC plug and accessible conductive parts (see above) should be greater than 1 megohm.

6. Always connect a test instrument’s ground lead to the instrument chassis ground before connecting the positive lead; always remove the instrument’s ground lead last.

1-3 Electrostatically Sensitive Devices (ESD) Precautions

Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly called Electrostatically Sensitive Devices (ESD). Examples of typical ESD devices are integrated circuits and some fieldeffect transistors. The following techniques will reduce the incidence of component damage caused by static electricity.

1. Immediately before handling any semiconductor components or assemblies, drain the electrostatic charge from your body by touching a known earth ground. Alternatively, wear a discharging wriststrap device. To avoid a shock hazard, be sure to remove the wrist strap before applying power to the monitor.

2. After removing an ESD-equipped assembly, place it on a conductive surface such as aluminum foil to prevent accumulation of an electrostatic charge.

3. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ESDs.

4. Use only a grounded-tip soldering iron to solder or desolder ESDs.

5. Use only an anti-static solder removal device. Some solder removal devices not classified as “anti-static” can generate electrical charges sufficient to damage ESDs.

6. Do not remove a replacement ESD from its protective package until you are ready to install it. Most replacement ESDs are packaged with leads that are electrically shorted together by conductive foam, aluminum foil or other conductive materials.

7. Immediately before removing the protective material from the leads of a replacement ESD, touch the protective material to the chassis or circuit assembly into which the device will be installed.

Caution: Be sure no power is applied to the

chassis or circuit and observe all other safety precautions.

8. Minimize body motions when handling unpackaged replacement ESDs. Motions such as brushing clothes together, or lifting your foot from a carpeted floor can generate enough static electricity to damage an ESD.

1-2 CN17V*

Page 4

2 Product Specifications

2-1 Specifications

Item

LCD Panel TFT-LCD panel, RGB vertical stripe, normally black transmissive,

17-Inch viewable, 0.264 (H) x 0.264 (V) mm pixel pitch

Scanning Frequency Horizontal : 30 kHz ~ 81 kHz (Automatic)

Vertical : 56 Hz ~ 85 Hz (~XGA), 76 Hz (SXGA)

Display Colors 16,7 Million colors

Maximum Resolution Horizontal : 1280 Pixels

Vertical : 1024 Pixels

Input Video Signal Analog, 0.714 Vp-p ± 5% positive at 75 Ω,

internally terminated

Input Sync Signal Type : Seperate H/V sync, Composite H/V, Sync-on-Green

Level : TTL level (V high ≥ 2.0 V, V low ≤ 0.8 V), Sync-on-Green (≤ –0.25 V)

Maximum Pixel Clock rate 135 MHz

Active Display Horizontal/Vertical 338 ± 3 mm/270 ± 3 mm

AC power voltage & Frequency AC 90 ~ 264 Volts, 60/50 Hz ± 3 Hz

Power Consumption 42 W (max), 40W (normal)

Description

Dimensions Unit (W x D x H) 17.32 x 8.66 x 18.05 Inches (440 x 220 x 458.5 mm) Carton (W x D x H) 22.79 x 22.4 x 12.24 Inches (579 x 569 x 311 mm)

Weight (Net/Gross) 8.0 kg (17.6 lbs) / 10.2 kg (22.5 lbs)

Environmental Considerations Operating Temperature : 50°F ~ 104°F (10°C ~ 35°C)

Humidity : 10 % ~ 80 % Storage Temperature : -68°F ~ 113°F (-20°C ~ 45°C) Humidity : 5 % ~ 95 %

• CN17V* comply with SWEDAC (MPRII) recommendations for reduced electromagnetic fields.

• Designs and specifications are subject to change without prior notice.

CN17V* 2-1

Page 5

2 Product Specifications

2-2 Pin Assignments

Pin No.

10 11 12 13 14 15

Sync Type

Separate Composite

1 2 3 4 5 6 7 8 9

Red Green Blue GND DDC Return (GND) GND-R GND-G GND-B DDC Power Input (+5V) Self Raster GND Bi-Dr Data (SDA) H-Sync. V-Sync. DDC Clock (SCL)

15-Pin D-Sub Signal Cable Connector

Red Green Blue GND DDC Return (GND) GND-R GND-G GND-B DDC Power Input (+5V) Self Raster GND Bi-Dr Data (SDA) H/V-Sync. Not Used DDC Clock (SCL)

Sync-on-green

Red Green + H/V Sync. Blue GND DDC Return (GND) GND-R GND-G GND-B DDC Power Input (+5V) Self Raster GND Bi-Dr Data (SDA) Not Used Not Used DDC Clock (SCL)

2-2 CN17V*

Page 6

2 Product Specifications

QRS

Video

Sync

Horizontal

Vertical

CDE

Video

Sync

VIDEO

Horizontal

Vertical

2-3 Timing Chart

This section of the service manual describes the timing that the computer industry recognizes as standard for computer-generated video signals.

Table 2-1. Timing Chart

Mode

Timing

fH (kHz)

A µsec

B µsec

C µsec

D µsec

E µsec

fV (Hz)

O msec

P msec

Q msec

R msec

S msec

Clock Freq. (MHz)

VGA2/

70 Hz

720 x 400

31.469

31.777

3.813

1.589

26.058

0.318

70.087

14.268

0.064

0.858

13.155

0.191

28.322

IBM

640 x 480

VGA3/

60 Hz

31.469

31.778

3.813

1.589

26.058

0.318

59.940

16.683

0.064

0.794

15.761

0.064

25.175

640/75 Hz

640 x 480

37.500

26.667

2.032

3.810

20.317

0.508

75.000

13.333

0.080

0.427

12.800

0.027

31.500

640/85 Hz

640 x 480

43.269

23.111

1.556

2.222

17.778

1.556

85.008

11.764

0.671

0.578

11.093

0.023

49.500

800/75 Hz

800 x 600

46.875

21.333

1.616

3.232

16.162

0.323

75.000

13.333

0.064

0.448

12.800

0.021

49.500

800/85 Hz

800 x 600

53.674

18.631

1.138

2.702

14.222

0.569

85.061

11.756

0.056

0.503

11.179

0.019

56.250

VESA

1024/60Hz

1024 x 768

48.363

20.677

2.092

2.462

15.754

0.369

60.004

16.666

0.124

0.600

15.880

0.062

75.000

1024/75Hz

1024 x 768

60.023

16.660

1.219

2.235

13.003

0.203

75.029

13.328

0.050

0.466

12.795

0.017

78.750

1024/85Hz

1024x768

68.677

14.561

1.016

2.201

10.836

0.508

84.997

11.765

0.044

0.524

11.183

0.015

94.500

1280/76Hz

1280x1024

(Analog Only) (Analog Only)

81.129

16.640

6.400

2.880

1280/75Hz

1280x1024

79.976

12.504

1.067

1.837

9.481

3.200

76.106

10.660

0.080

3.200

0.119

75.025

13.329

0.038

0.475

12.804

0.020

135.000

0.013

135.000

Polarity H.Sync

V.Sync

Remark

A : Line time total B : Horizontal sync width O : Frame time total P : Vertical sync width

C : Back porch D : Active time Q : Back porch R : Active time

E : Front porch S : Front porch

CN17V* 2-3

Sync

Negative

Positive

Separate

Video

C D

Negative

Separate

Separate Sync

Negative

Separate

Negative

Separate

Video

Q R S

Positive

Separate

Positive

Separate

Negative

Separate

Positive

Separate

Positive

Separate

H/V Composite Sync

Negative

Com.

Positive

Separate

Sync-on-Green

Sync

Green

Horizontal

Vertical

Page 7

2 Product Specifications

Memo

2-4 CN17V*

Page 8

3 Disassembly and Reassembly

This section of the service manual describes the disassembly and reassembly procedures for the CN17V* TFT-LCD monitors.

WARNING: This monitor contains electrostatically sensitive devices. Use caution when handling

these components.

3-1 Disassembly

Cautions:1. Disconnect the monitor from the power source before disassembly.

2. Follow these directions carefully; never use metal instruments to pry apart the cabinet.

3-1-1 Removing the Stand

1. With a pad beneath it, stand the monitor on its front with the screen facing downward and the base close to you. Make sure nothing will damage the screen.

2. Remove the 4 screws on the Stand.

Caution: Be careful. The signal cable and

power cable are still attached to the monitor.

3. Disconnect the Signal Cable and Power Cord.

3-1-2 Main Body Disassembly

1. Remove STAND-NECK/REAR and COVERHINGE on the moniter

2. Remove 4 screws on the STAND-Assy.

Remove signal and Ac adapter cable on the monitor

3. Remove 4 screws on the Rear Cover.

4. Pull the Rear Cover up and off the monitor.

5. Remove 18 screws on the PCB Shield and remove the Shield.

6. Remove 4 screws on the Main PCB and 2 screws on the Inverter PCB and 2 screws on the 10P Harness.

7. Disconnect the interface wire (30P) between the Panel and the CN301 connector on the Main PCB.

8. Disconnect the Function PCB wire (10P) between the Function PCB and the CN303 connector on the Main PCB.

9. Disconnect 4 Inverter wires between the Panel and the CN2, 3, 4, 5 connectors on the Inverter PCB and disconnect the 12P harness between CN1 connector on the inverter and CN302 connector on the Main PCB.

10. Carefully lift the Main PCB Assembly and Inverter PCB and place them on a flat, level surface that is protected from static electricity.

11. Remove 6 screws on the Panel Bracket.

12. Remove the Bracket Assembly from the Front Cover.

13. Remove the 3 screws on the Function PCB from the Front Cover and remove the Function PCB and Function Knob.

14. Remove 4 screws on the Front Shield and remove the Panel Bracket and the Front Shield.

CN17V* 3-1

Page 9

3 Disassembly and Reassembly

3-2 Reassembly

Reassembly procedures are in the reverse order of Disassembly procedures.

3-2 CN17V*

Page 10

4 Alignments and Adjustments

MONITOR

INTERFACE BOARD VER. 2.0

SIGNAL GENERATOR

3-WIRE CABLE

SIGNAL CABLE

5V DC ADAPTOR

PARALLEL CABLE

MONITOR

INTERFACE BOARD VER. 2.0

3-WIRE CABLE

SIGNAL CABLE

PARALLEL CABLE

D-SUB CONNECTOR

5V DC ADAPTOR

This section of the service manual explains how to use the DDC JIG to adjust the black, red, green, and blue levels of the FPD when you replace the AD Board, and how to update the microprocessor when you change the Panel or Lamp(s).

4-1 Required Equipment

The following equipment is necessary for adjusting the monitor:

• Oscilloscope with probe tool

• Computer with Windows 95 , Windows 98 , or Windows NT .

• DV17AS.exe software

• DDC Control JIG

4-2 Using the DDC Control JIG

After replacing the LCD Panel, Lamp(s), and / or AD Board, use the DDC Control JIG to complete your service. Attach the DDC Control JIG to the flat panel display (FPD) as shown in the diagrams, below.

R R R

Figure 4-1. Setup 1, With Signal Generator

Figure 4-2. Setup 2, Without Signal Generator

CN17V* 4-1

Page 11

4 Alignments and Adjustments

4-2-1 Main Menu

4-2-1 (a) Service JIG : DV17

1 2 3 4 5 6

8 9

10 11 12 13 14

Figure 4-3.Service JIG Menu

No Label Definition

Red max value Shows the red video signal max value

Green max value Shows the green video signal max value

Blue max value Shows the blue video signal max value

Red min value Shows the red video signal min value

Green min value Shows the green video signal min value

Blue min value Shows the blue video signal min value

Color Automatical screen contrast setting

Auto Adjustment

Red gain control Adjusts the red video signal gain control

Green gain control Adjusts the green video signal gain control

Blue gain control Adjusts the blue video signal gain control

Red cutoff control Adjusts the red video signal cutoff control

Green cutoff control Adjusts the green video signal cutoff control

Blue cutoff control Adjusts the blue video signal cutoff control

Panel information Shows the sub menu to panel information

(4-2-2 (a))

Scroll bar Changes the value or level of the selected

item. The window to the right shows the value as it changes.

SAVE Saves the current adjustment value of

the R,G,B video contrast gain and cutoff level

Setting Displays and allows you to adjust the

PC and Control JIG communication environment. Use this button to change the Delay parameter and Port Address of your PC system and to test the connection between the Control JIG and your computer

Exit Quits the DDC Control JIG

16 17 18

4-2-2 Sub Menu

4-2-2 (a) Panel Information

Figure 4-4. Control JIG Menu

No Label Definition

Monitor On Time

Panel Cycle The total number of times the Panel has been

Time Total in Hours that this Panel or Lamp has been

Panel Total number of hours that this Panel has

Lamp, Upper Total number of hours that this Upper Lamp

Lamp, Lower Total number of hours that this Lower Lamp

Change No. The number of times this Panel or Lamp has

Panel Replacement times. This value is 00 if original

Lamp, Upper Replacement times. This value is 00 if original

Lamp, Lower Replacement times. This value is 00 if original

Message Shows the message.

Read Reads all Panel information data from the

Write Writes the Panel Parameter Control values to the

Read buffer Reload the Panel Parameter Control values from

Return Main Returns to the Main menu

Total hours that the monitor has been actively functioning.

turned ON.

ON. Reset this number to 000000 after replacing the part.

been ON.

has been ON.

been replaced. The numbers are 00 if the item is the original factory part installed during manufacture of this monitor.

equipment.

AD Board

the Program buffer

4-2 CN17V*

Page 12

4 Alignments and Adjustments

4-2-3 Adjustment Procedures

Use the following procedures whenever you replace the AD Board, Panel, or one or both of the Lamps.

4-2-3 (a) When Replacing the AD Board

1. Before replacing the AD Board, read all Panel information data by using the Read button on the DDC Control JIG.

2. Remove the old AD Board and replace it with a new board.

3. Perform the procedures described in section 4-2-3 (b).

4. Write the Panel information data to the new AD Board by using the Write button.

5. Perform other procedures using the DDC Control JIG, if necessary.

6. When all procedures are complete, select the Exit button ( ) to quit the DDC Control JIG software.

4-2-3 (b) Color Auto Adjustment

1. After displaying 16-Gray pattern or black and white mixed pattern, click “Color Auto Adjustment” button.

2. During normal execution of Auto Algorithm the screen image may flicker. If Auto Algorithm does not excute properly, check DDC Control JIG.

3. After normal execution of Auto Algorithm, confirm optimal settings by observing the contrast of several different patterns on the display.

4. If you want to check each color value, click the button from to and from to

6 8 13

4-2-3 (c) When Replacing the Panel

1. Select the Read Buffer button ( ) to gather the

current information about this monitor.

2. Increment the number by clicking on the (+) button on the Panel row in the Change No. column. If they were not already 00, the numbers for the Upper and Lower Lamps will automatically change to 00.

3. Check all values. If there is an error, select Read Buffer again and increment the Change No. column to the correct number. When all values are correct, select the Write button ( )

to record the data in the firmware.

4. Select the Return Menu button ( ) to Return

Main Menu.

4-2-3 (d) When Replacing the Upper and/or Lower Lamp

1. Select the Read Buffer button ( ) to gather

current information about this monitor.

2. Increment the number by clicking on the (+) button on the Lamp Upper and/or Lamp Lower row in the Change No. column.

3. Check all values. If there is an error, select Read Buffer again and increment the Change No. column to the correct number(s). When all values are correct, select the Write button

( ) to record the data in the firmware.

4. Select the Return Menu button ( ) to Return

Main Menu.

CN17V* 4-3

Page 13

4 Alignments and Adjustments

Memo

4-4 CN17V*

Page 14

5 Troubleshooting

Notes: 1. Before troubleshooting, setup the PC’s display as below.

• Resolution: 1280 x 1024

• H-frequency: 64 kHz

• V-frequency: 60 Hz

2. If no picture appears, make sure the power cord is correctly connected.

3. Check the following circuits.

• No raster appears: Stand PCB, Main PCB

• 14V develop but no screen: Main PCB

• 14V does not develop: Main PCB

4. If you push and hold the EXIT button for more than 5 seconds, the monitor automatically turns back to the factory preset.

5-1 No Power

Does proper DC 14 V appear at

DC jack connected to CN300?

Yes

Does proper DC 5 V appear at

Pin 4 of IC300?

Yes

Does proper 5 V - signal appear at

Pin 42 of IC500 (SW_REG_EN)?

Check Power Adaptor.

Check IC300 and related circuit.

Check IC500 and related circuit.

(CN303, Function Key)

CN17V* 5-1

Page 15

5 Troubleshooting

5-2 No Video [Analog]

Check signal cable and connection.

Does the digital video signal appear

at the Pin 26,27,28,29,31,32,33,34,36,37,38,39, 41,42,44,45,46,47,49, and 50 of IC302?

Yes

The output of Pin 1 and 19 of IC500 is High?

Check IC500 and related circuit.

Does the input signal appear at Pin of 11, 22, 64, 65, and 66 of IC302?(DCLK, LVDS-EN, DHS, DVS, DEN)

2 3

Does the analog video signal appear at

R126,R127 and R128? (RED, GREEN, BLUE)

Yes

Does the Sync. signal appear

at the output of Pin 30 and 31 of IC 500 ?

(MCU_VSYNC, MCU_HSYNC)

Yes

Check TFT-LCD panel and Inverter.

Yes

Replace IC302.

Check PC Signal.

Check IC101 and related circuit.

Does the input signal appear at the Pin 40

and 41 of IC 201?

9 10

(PLL H*V, COAST)

Check the related circuit

for these ports.

Yes

During power on-off, does the input signal

appear at the Pin29 and 30 of IC201?

Check IC500 and related circuit.

(AD-SDA_B, AD-SCL_B)

Yes

Do the clock and Sync. signal appear at Pin115

and 117 of IC 201 (ACLK , AHS_Z4 )

11 12

and does the digital video signal appear at the

Check IC201 and related circuit.

output port RA200~RA211?

Yes

During power on-off dose the input signal

appear at the R546 and R547?

Check IC500 and related circuit.

(Z4_SDA_A, Z4_SCL_A)

5-2 CN17V*

Page 16

WAVEFORMS

5 Troubleshooting

IC302 #26

CH1 RMS = 1.323V

IC302 #65

CH1 RMS = 3.098V

IC201 #40

9 10 11 12

IC302 #11 IC302 #22

2 3 4

CH1 RMS = 2.046V

IC302 #66

6 7 8

CH1 RMS =2.621 V

IC201 #41

CH1 RMS = 4.999V

IC500 #30

CH1 RMS = 4.979V

IC201 #115

IC302 #64

CH1 RMS =2.989V

IC500 #31

CH1 RMS = 4.816V

IC201 #117

CH1 RMS = 1.188V

CH1 RMS = 205mV

CH1 RMS = 1.864V

CH1 RMS = 695mV

CN17V* 5-3

Page 17

5-3 No OSD

There is video but no OSD.

5 Troubleshooting

WAVEFORMS

IC400 #2

Does input signal appear

13 14 15

at the Pin 2, 5 and

10 of IC400?

Yes

While pushing a front control

button does any pulse appear

at Pin 12 of IC400?

Yes

Replace IC400.

Check IC400 and related circuit.

CH1 RMS = 2.462V

IC400 #5

CH1 RMS = 3.163V

IC400 #10

CH1 RMS = 3.154V

5-4 CN17V*

Page 18

CN17V* 6-1

6 Exploded View and Parts List

Page 19

6 Exploded View & Parts List

6-2 CN17V*

Memo

Page 20

7 Electrical Parts List

7-1 Main PCB Parts

Loc. No. Code No. Description Specification Remarks

C306 2409-001004 C-ORGANIC 100uF,20%,16V,LL,BK,8x10.5mm,3

CIS BN70-00114C SHIELD-D/SUB CN17BS,SPTE,-,T0.5,-,-,ANALOG TYPE SNA

CIS BN46-00005Y MICOM-S/W,CN17MSF(E4) CN17MSF(E4 PANEL),-,-,-,-,-,- SNA

CN101 3701-001219 CONNECTOR-DSUB 15P,3R,FEMALE,ANGLE,AUF

CN300 3722-000117 JACK-DC POWER 3P,3.5mm,AG,BLK,NO SNA

CN500 3711-001465 CONNECTOR-HEADER NOWALL,3P,1R,2.54mm,STRAIGHT,A SNA

IC500 0903-001194 IC-MICROCONTROLLER

IC500_SOCK 3704-001071 SOCKET-IC 42P,DIP,SN,1.778mm

C100 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608

C105 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4

C107 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C108 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C116 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608

C117 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4

C118 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608

C119 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4

C120 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608

C121 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4

C122 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608

C123 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4

C124 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C125 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C126 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608

C127 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4

C225 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4

C226 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C227 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C228 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C229 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C230 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C231 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C232 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C233 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C234 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C235 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C236 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C237 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C238 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C239 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

3P863,8Bit,SDIP,42P,600MIL,12MHz,ST,CMOS,PLASTIC,5V,-,-40to+85C,1040BYTE,48KBYTE

SNA

CN17V* 7-1

Page 21

7 Electrical Parts List

Loc. No. Code No. Description Specification Remarks

C240 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C241 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C242 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C243 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C244 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C245 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4

C246 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm

C247 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C248 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C249 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C250 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C251 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C252 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C253 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C254 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4

C255 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C256 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C257 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608

C258 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608

C259 2203-000972 C-CERAMIC,CHIP 47nF,10%,16V,X7R,TP,1608

C260 2203-000972 C-CERAMIC,CHIP 47nF,10%,16V,X7R,TP,1608

C261 2203-000972 C-CERAMIC,CHIP 47nF,10%,16V,X7R,TP,1608

C265 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C266 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm

C267 2203-000815 C-CERAMIC,CHIP 0.033nF,5%,50V,NP0,TP,1608

C300 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4

C301 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C302 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm

C303 2402-001044 C-AL,SMD 100uF,20%,25V,-,TP,8.3x8.3x6.3

C304 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608

C305 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608

C307 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608

C308 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608

C311 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C312 2402-001044 C-AL,SMD 100uF,20%,25V,-,TP,8.3x8.3x6.3

C313 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608

C314 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608

C315 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm

C316 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm

C317 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C318 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm

7-2 CN17V*

Page 22

7 Electrical Parts List

Loc. No. Code No. Description Specification Remarks

C319 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C320 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm

C321 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608

C322 2402-001044 C-AL,SMD 100uF,20%,25V,-,TP,8.3x8.3x6.3

C323 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C324 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C325 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C326 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C327 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C328 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C329 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm

C330 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C331 2007-000077 R-CHIP 470ohm,5%,1/16W,DA,TP,1608

C332 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C333 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C334 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C335 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C336 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C337 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C338 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4

C339 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4

C340 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C341 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C342 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C343 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4

C344 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C345 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C346 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C347 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm

C348 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C349 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C350 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608

C351 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608

C352 2402-000168 C-AL,SMD 100uF,20%,16V,GP,TP,8.3x8.3x6.3mm

C353 2402-000168 C-AL,SMD 100uF,20%,16V,GP,TP,8.3x8.3x6.3mm

C400 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C401 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C402 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C403 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C404 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C405 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

CN17V* 7-3

Page 23

7 Electrical Parts List

Loc. No. Code No. Description Specification Remarks

C406 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C407 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C408 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C409 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C410 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C411 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C412 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C413 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C414 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C415 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C416 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C417 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C418 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C419 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C420 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C421 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C422 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C423 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C424 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C425 2409-001029 C-ORGANIC 120uF,20%,6.3V,WT,TP,10.3x10.3x10.3mm,9

C426 2409-001029 C-ORGANIC 120uF,20%,6.3V,WT,TP,10.3x10.3x10.3mm,9

C427 2203-000280 C-CERAMIC,CHIP 0.01nF,0.5pF,50V,NP0,TP,1608

C428 2203-000384 C-CERAMIC,CHIP 0.015nF,5%,50V,NP0,TP,1608

C429 2203-000626 C-CERAMIC,CHIP 0.022nF,5%,50V,NP0,TP,1608

C430 2203-000626 C-CERAMIC,CHIP 0.022nF,5%,50V,NP0,TP,1608

C431 2203-000455 C-CERAMIC,CHIP 1nF,5%,50V,NP0,TP,2012

C432 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4

C433 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C434 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C435 2203-000384 C-CERAMIC,CHIP 0.015nF,5%,50V,NP0,TP,1608

C436 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C437 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C438 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C439 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C440 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C441 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C442 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C443 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C444 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C445 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C446 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

7-4 CN17V*

Page 24

7 Electrical Parts List

Loc. No. Code No. Description Specification Remarks

C447 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C448 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C449 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C450 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C500 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608

C501 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4

C502 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608

C503 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4

C504 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608

C505 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4

C506 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4

C507 2203-000626 C-CERAMIC,CHIP 0.022nF,5%,50V,NP0,TP,1608

C508 2203-000626 C-CERAMIC,CHIP 0.022nF,5%,50V,NP0,TP,1608

C509 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608

C510 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4

C511 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608

C512 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm

CN301 3711-004070 CONNECTOR-HEADER BOX,30P,1R,1.25mm,SMD-A,SN SNA

CN302 3711-000556 CONNECTOR-HEADER BOX,12P,1R,1.25mm,SMD-A,SN SNA

CN303 3711-002050 CONNECTOR-HEADER BOX,10P,1R,1.25mm,SMD-A,SN SNA

D114 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,600mA,SOT-23,TP

D115 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,600mA,SOT-23,TP

D116 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,600mA,SOT-23,TP

D117 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,600mA,SOT-23,TP

D118 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,600mA,SOT-23,TP

D119 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,600mA,SOT-23,TP

D300 0402-001098 DIODE-RECTIFIER SK34,40V,3A,SMC,TP

D301 0402-001098 DIODE-RECTIFIER SK34,40V,3A,SMC,TP

D302 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,600mA,SOT-23,TP

D303 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,600mA,SOT-23,TP

FT100 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1

FT102 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1

FT103 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1

FT104 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1

FT105 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1

FT107 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1

FT200 2901-001133 FILTER-EMI SMD 25V,0.15A,-,33pF,2x1.25x0.8mm,TP

FT300 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1

FT301 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1

FT302 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1

FT303 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA

CN17V* 7-5

Page 25

7 Electrical Parts List

Loc. No. Code No. Description Specification Remarks

FT304 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA

FT305 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA

FT306 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA

FT307 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA

FT308 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA

FT400 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1

FT401 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1

FT402 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1

FT403 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1

FT404 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1

FT405 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1

FT500 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1

FT501 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1

IC100 0803-000117 IC-TTL 74F14,INVERTER,SOP,14P,150MIL,

IC103 1103-001164 IC-EEPROM

IC104 0803-000106 IC-TTL 74F132,TRIGGER,SOP,14P,150MIL,

IC107 1204-001551 IC-VIDEO SYSTEM

IC108 0801-002171 IC-CMOS LOGIC 74LCX125,BUS BUFFER,SOP,14P,15

IC200 1203-001801 IC-POSI.FIXED REG.

IC201 1002-001204 IC-A/D CONVERTER

IC300 1203-001448 IC-POSI.FIXED REG. 2596,TO-263,5P,-,PLASTIC,4.750

IC302 1205-001870 IC-TRANSMITTER

IC303 1203-001447 IC-POSI.FIXED REG. 2596,TO-263,5P,-,PLASTIC,3.135

IC305 1203-001488 IC-POSI.FIXED REG. 7805,T0-252,3P,-,PLASTIC,4.8/5

IC400 BN09-00001A IC-OSD PROCESSOR LCD,MTV121P-31,16P,-

IC401 1003-001349 IC-LCD CONTROLLER

IC402 1105-001268 IC-DRAM

IC403 1105-001268 IC-DRAM

IC404 1105-001268 IC-DRAM

IC501 1103-001163 IC-EEPROM

IC502 1203-001109 IC-VOL. DETECTOR 7045,SOT-89,3P,-,PLASTIC,4.3/4

L200 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm

L201 2703-001070 INDUCTOR-SMD 100uH,10%,4.5x3.2x3.2mm

L202 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm

L203 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm

L204 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm

L205 2703-001070 INDUCTOR-SMD 100uH,10%,4.5x3.2x3.2mm

L206 2703-001778 INDUCTOR-SMD 3.3UH,20%,3.2X2.5X2.2MM

L207 2703-001070 INDUCTOR-SMD 100uH,10%,4.5x3.2x3.2mm

L300 2703-001778 INDUCTOR-SMD 3.3UH,20%,3.2X2.5X2.2MM

L301 2703-001778 INDUCTOR-SMD 3.3UH,20%,3.2X2.5X2.2MM

24LC21A,128X8BIT,SOP,8P,150MIL,-,5V,10%,PLASTIC,0 TO +70C,100UA,CMOS,TP

GS1881,SOIC,8P,150MIL,PLASTIC,13.2V,-,0TO+70C,TP,VIDEO SYNC SEPARATOR

3300,SOT-23,6P,70MIL,PLASTIC,3.3V,-,-55TO+125C,50MA,-,TP

AD9884AKS-140,8BIT,QFP,128P,-,¡≤0.5LSB,TR,CMOS,PLASTIC,4V,0to+70C,570mW,Flat Pan

DS90C387VJD,QFP,100P,550MIL,PLASTIC,3.6V,2.8W,-10to+70C,TR,Dual Pixel LVDS

gmZ4S,BGA,292P,1063MIL,-,-,TR,PLASTIC,-,0to+70C,-,2.4V,-

3617161,512Kx16bitx2Bit,TSOP,50P,400MIL,7nS,3.3V,10%,PLASTIC,0to+70C,-,CMOS,ST

S524C80D41,512x8Bit,SOP,8P,150MIL,10mS,5V,10%,PLASTIC,-25to+70C,10uA,CMOS,TP

7-6 CN17V*

Page 26

7 Electrical Parts List

Loc. No. Code No. Description Specification Remarks

L302 2703-001778 INDUCTOR-SMD 3.3UH,20%,3.2X2.5X2.2MM

L304 2703-001778 INDUCTOR-SMD 3.3UH,20%,3.2X2.5X2.2MM

L305 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm

L306 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm

L307 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm

L308 2703-001778 INDUCTOR-SMD 3.3UH,20%,3.2X2.5X2.2MM

L309 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm

L310 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm

L311 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm

L312 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm

L313 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm

L314 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm

L315 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm

L316 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm

L317 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm

L319 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm

L320 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm

L321 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm

L322 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm

L323 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm

L324 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm

L325 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm

L326 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm

L327 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm

L328 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm

L329 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm

L330 2703-001778 INDUCTOR-SMD 3.3UH,20%,3.2X2.5X2.2MM

L331 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm

L332 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm

L333 2703-001778 INDUCTOR-SMD 3.3UH,20%,3.2X2.5X2.2MM

L334 BN27-20001A COIL-CHOKE

L335 BN27-20001C COIL-SMD

L400 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm

L500 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm

L501 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm

L502 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm

L503 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm

MP1.2 BN41-00045A PCB MAIN cn17ms,-,-,-,1.6t,223*118.9,-,-,-,- SNA

Q300 0501-002080 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270

Q301 0501-002080 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270

Q302 0501-002080 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270

CN17V* 7-7

Page 27

7 Electrical Parts List

Loc. No. Code No. Description Specification Remarks

Q500 0501-002080 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270

Q501 0501-002080 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270

R113 2007-000092 R-CHIP 15Kohm,5%,1/16W,DA,TP,1608

R114 2007-000092 R-CHIP 15Kohm,5%,1/16W,DA,TP,1608

R115 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608

R116 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608

R117 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608

R126 2007-000113 R-CHIP 33ohm,5%,1/16W,DA,TP,1608

R127 2007-000113 R-CHIP 33ohm,5%,1/16W,DA,TP,1608

R128 2007-000113 R-CHIP 33ohm,5%,1/16W,DA,TP,1608

R129 2007-001167 R-CHIP 75ohm,5%,1/16W,DA,TP,1608

R130 2007-001167 R-CHIP 75ohm,5%,1/16W,DA,TP,1608

R131 2007-001167 R-CHIP 75ohm,5%,1/16W,DA,TP,1608

R132 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608

R133 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608

R135 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608

R136 2007-000080 R-CHIP 2Kohm,5%,1/16W,DA,TP,1608

R137 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608

R139 2007-000080 R-CHIP 2Kohm,5%,1/16W,DA,TP,1608

R147 2007-000116 R-CHIP 120ohm,5%,1/16W,DA,TP,1608

R148 2007-001114 R-CHIP 680Kohm,5%,1/16W,DA,TP,1608

R149 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608

R151 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R153 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R154 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R155 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R156 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R157 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R158 2007-000113 R-CHIP 33ohm,5%,1/16W,DA,TP,1608

R159 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R160 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R208 2007-000102 R-CHIP 100Kohm,5%,1/16W,DA,TP,1608

R209 2007-000239 R-CHIP 1.5Kohm,1%,1/16W,DA,TP,1608

R210 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608

R211 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608

R212 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608

R213 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608

R214 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608

R215 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608

R216 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608

R217 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608

7-8 CN17V*

Page 28

7 Electrical Parts List

Loc. No. Code No. Description Specification Remarks

R218 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608

R219 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608

R220 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608

R221 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608

R222 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R224 2007-000078 R-CHIP 1Kohm,5%,1/16W,DA,TP,1608

R300 2007-000102 R-CHIP 100Kohm,5%,1/16W,DA,TP,1608

R301 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608

R302 2007-000102 R-CHIP 100Kohm,5%,1/16W,DA,TP,1608

R303 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608

R304 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608

R305 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608

R306 2007-000102 R-CHIP 100Kohm,5%,1/16W,DA,TP,1608

R307 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608

R311 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608

R312 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608

R313 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608

R314 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608

R315 2007-000072 R-CHIP 47ohm,5%,1/16W,DA,TP,1608

R316 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608

R317 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608

R318 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R319 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R320 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R321 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R322 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R323 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R324 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R325 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R326 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R327 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R328 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R329 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R330 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R331 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R332 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R333 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R334 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R335 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R336 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R337 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

CN17V* 7-9

Page 29

7 Electrical Parts List

Loc. No. Code No. Description Specification Remarks

R338 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R339 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R34 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608

R340 2007-000077 R-CHIP 470ohm,5%,1/16W,DA,TP,1608

R341 2007-000077 R-CHIP 470ohm,5%,1/16W,DA,TP,1608

R401 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608

R402 2007-000120 R-CHIP 680ohm,5%,1/16W,DA,TP,1608

R403 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608

R404 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608

R405 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608

R406 2007-000071 R-CHIP 22ohm,5%,1/16W,DA,TP,1608

R409 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R410 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R411 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R421 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R422 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R423 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R427 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R431 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R433 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R434 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R435 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R436 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R437 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R438 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R439 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R440 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R441 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608

R444 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608

R445 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608

R448 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608

R449 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608

R452 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608

R453 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608

R456 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608

R457 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608

R460 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608

R462 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608

R464 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608

R466 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608

R468 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608

7-10 CN17V*

Page 30

7 Electrical Parts List

Loc. No. Code No. Description Specification Remarks

R469 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R470 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R471 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R472 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R473 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R474 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608

R475 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608

R476 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608

R477 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608

R478 2007-000078 R-CHIP 1Kohm,5%,1/16W,DA,TP,1608

R479 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608

R501 2007-000076 R-CHIP 330ohm,5%,1/16W,DA,TP,1608

R502 2007-001002 R-CHIP 510ohm,5%,1/16W,DA,TP,1608

R503 2007-001002 R-CHIP 510ohm,5%,1/16W,DA,TP,1608

R504 2007-001002 R-CHIP 510ohm,5%,1/16W,DA,TP,1608

R506 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608

R507 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608

R508 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608

R509 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608

R510 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608

R511 2007-000076 R-CHIP 330ohm,5%,1/16W,DA,TP,1608

R512 2007-000076 R-CHIP 330ohm,5%,1/16W,DA,TP,1608

R513 2007-001002 R-CHIP 510ohm,5%,1/16W,DA,TP,1608

R514 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608

R515 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608

R516 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608

R517 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608

R518 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608

R519 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608

R520 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608

R521 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608

R522 2007-000078 R-CHIP 1Kohm,5%,1/16W,DA,TP,1608

R523 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608

R524 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608

R526 2007-000077 R-CHIP 470ohm,5%,1/16W,DA,TP,1608

R527 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608

R528 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608

R529 2007-000078 R-CHIP 1Kohm,5%,1/16W,DA,TP,1608

R530 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608

R531 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608

R532 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608

CN17V* 7-11

Page 31

7 Electrical Parts List

Loc. No. Code No. Description Specification Remarks

R533 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608

R534 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608

R535 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608

R536 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608

R537 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608

R538 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608

R539 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608

R540 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608

R541 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608

R542 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608

R543 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608

R544 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608

R545 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608

R546 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608

R547 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608

R548 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608

R549 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608

R550 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608

R551 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608

R552 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608

R553 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608

R554 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608

R555 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608

R556 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608

R557 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608

R560 2007-000109 R-CHIP 1Mohm,5%,1/16W,DA,TP,1608

R561 2007-000075 R-CHIP 220ohm,5%,1/16W,DA,TP,1608

RA200 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP

RA201 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP

RA202 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP

RA203 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP

RA204 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP

RA205 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP

RA206 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP

RA207 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP

RA208 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP

RA209 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP

RA210 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP

RA211 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP

RA400 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP

7-12 CN17V*

Page 32

7 Electrical Parts List

Loc. No. Code No. Description Specification Remarks

RA401 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP

RA402 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP

RA403 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP

RA404 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP

RA405 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP

RA406 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP

RA407 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP

RA408 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP

RA409 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP

RA410 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP

RA411 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP

X400 2801-003981 CRYSTAL-SMD 50MHz,30ppm,28-ABX,20pF,80ohm,TP

X500 2801-003773 CRYSTAL-SMD 12MHZ,30PPM,28-AAN,20PF,50OHM,TP

ZD103 0403-000579 DIODE-ZENER BZX84C5V1,5.1V,5%,200mW,SOT-23

ZD104 0403-000579 DIODE-ZENER BZX84C5V1,5.1V,5%,200mW,SOT-23

ZD108 0403-000579 DIODE-ZENER BZX84C5V1,5.1V,5%,200mW,SOT-23

ZD109 0403-000579 DIODE-ZENER BZX84C5V1,5.1V,5%,200mW,SOT-23

ZD110 0403-000579 DIODE-ZENER BZX84C5V1,5.1V,5%,200mW,SOT-23

ZD500 0403-000579 DIODE-ZENER BZX84C5V1,5.1V,5%,200mW,SOT-23

7-2 Others

Loc. No. Code No. Description Specification Remarks

CIS BN39-00114A CBF-SIGNAL NL150MO,15P/15P,2990,1830MM,UL2990,IVORY,D-SUB CIS BN44-00029A INVERTER CIS BN41-00045A PCB MAIN CN301+PAN BN39-00102A CBF-HARNESS CN302+INV BN39-00002A CBF-HARNESS -,60,BLU/WHT,-,26,-

SIC1801,4LAMP,SIC1801,18.1,14V DC,160x45x17 CEZANNE-II,FR-4 ,4,-,1.6T,117.0*172.4*1.6,CN,-,-,-,CN17MS,-,-,-,1.6+,223x118.9,-,-,-,CN17MSS,UL1571,UL/CSA,30P,90MM,BLU/WHT,AWG30,DF14-30S-1.25C,F1-X30H,-,-,-,-,-,-

CN17V* 7-13

Page 33

7 Electrical Parts List

Memo

7-14 CN17V*

Page 34

8 Block Diagram

ANALOG

DRAM

OSD

Scaller

gmZ4S

ADC+PLL

AD9884/

FMS 9884

LCD

Panel I/F

CLOCK

MCU

Setup Data & User I/F

User Key

Back Light Control

Power Sequence Control

CN17V* 8-1

Page 35

8 Block Diagrams

Memo

8-2 CN17V*

Page 36

CN17V* 9-1

9 Wiring Diagram

1 2

3 4 5 6 7 8 9

CN302

1 2

3 4 5 6 7 8 9

GND

BL_CNT

BL_ON

GND

14V_BL

+5V

GND

14V_BL 14V_BL

GND

BL_CNT

BL_ON GND

GND

14V_BL

+5V

GND

14V_BL 14V_BL

CN1

INVERTER

MAIN PCB

1 2 3 4 5 6

CN303

7 8 9

FUNCTION

PCB

KEY1

LED_G

KEY2

LED_R GND KEY +5V

+5V GND

No connection No connection

Reserved Reserved

1 2

3 4 5 6 7 8 9

CN1

111012

DDC_SCL

DDC_SDA

AGND

RX1-

RX1+

AGND

RX2-

RX2+

CN101

1314151617181920212223

RX0+

AGND

RXC-

RXC+

RX0-

SELF RASTER_D

AGND

DDC POWER INPUT (+5V)

CONNECTION SIGNAL OUTPUT(+5V)

2103

GND

SELF TEST

GND

CN100

1112131415

GND

H_SYNC

DDC_DATA

RED

BLUE

GREEN

IN 14V

GND

CN300

DDC_CLK

V_SYNC

KEY1

LED_G

KEY2

LED_R GND KEY +5V

+5V GND

5V5V5V

CN301

10111213141516171819202122

GND

RxE3+

RxE3-

RxEC+

RxEC-

RxE2+

RxE2-

GND

RxE1+

RxE1-

RxEO+

RxEO-

RxO3+

RxO3-

RxO2+

RxO2-

RxO1+

RxO1-

RxO0+

RxO0-

RxOC+

RxOC-

262728

Page 37

Memo

9 Wiring Diagram

9-2 CN17V*

Page 38

CN17V* 10-1

10 Schematic Diagrams

10-1 15P D-Sub Input Part Schematic Diagram

TMDS

DVI-I

SWITCH1

D-SUB

SWITCH

ANALOG

Page 39

10 Schematic Diagrams

10-2 CN17V*

10-2 Analog to Digital Converter Part Schematic Diagram

Page 40

10 Schematic Diagrams

CN17V* 10-3

IC201 #40

CH1 RMS = 3.188V

IC201 #41

CH1 RMS =205mV

IC201 #115

CH1 RMS =1.864V

IC201 #117

CH1 RMS = 695mV

Page 41

10 Schematic Diagrams

10-4 CN17V*

10-3 Power & Panel Interface Part Schematic Diagram

+3.3V

LCD+5V

+A3.3V

+3.3V

Page 42

10 Schematic Diagrams

CN17V* 10-5

IC302 #26

CH1 RMS = 1.323V

IC302 #11

CH1 RMS = 2.046V

IC302 #22

CH1 RMS = 4.999V

IC302 #64

CH1 RMS =2.989V

IC302 #65

CH1 RMS = 3.098V

IC302 #66

CH1 RMS = 2.621V

Page 43

10 Schematic Diagrams

10-6 CN17V*

10-5 Scaler Part Schematic Diagram

Page 44

10 Schematic Diagrams

CN17V* 10-7

IC400 #2

CH1 RMS = 2.462V

IC400 #5

CH1 RMS = 3.163V

IC400 #10

CH1 RMS = 3.154V

Page 45

10 Schematic Diagrams

10-8 CN17V*

10-6 MCU Part Schematic Diagram

7 8

Page 46

10 Schematic Diagrams

CN17V* 10-9

IC500 #30

CH1 RMS =4.979 V

IC500 #31

CH1 RMS = 4.816V

Page 47

10 Schematic Diagrams

10-10 CN17V*

Memo

Page 48

Samsung Electronics Co.,Ltd.

416, Maetan-3Dong, Paldal-Gu, Suwon City, Kyungki-Do, Korea. Tel : +82-31-200-7920 Fax : +82-31-200-7802 Printed in Korea P/N : BN68-00097L-00

http://www.samsungmonitor.com (SyncMaster Worldwide) http://www.samsung-monitor.com (SyncMaster USA) http://www.samtron.com (SAMTRON Worldwide) http://www.sec.co.kr/monitor (Korea)
