Samsung Electronics 3-1

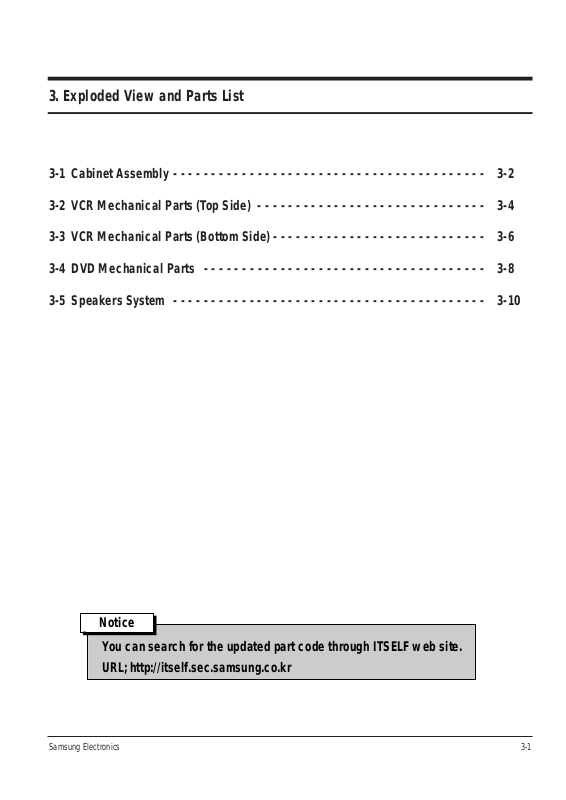

3. Exploded View and Parts List
3-1 Cabinet Assembly - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-2
3-2 VCR Mechanical Parts (Top Side) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-4
3-3 VCR Mechanical Parts (Bottom Side) - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-6
3-4 DVD Mechanical Parts - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-8
3-5 Speakers System - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-10
You can search for the updated part code through ITSELF web site.
URL; http://itself.sec.samsung.co.kr
Notice
Exploded View and Parts List
3-2 Samsung Electronics
3-1 Cabinet Assembly
VCR DECK (S.N.A.)
DVD DECK (S.N.A.)
157
BRACKET-FRAME (S.N.A.)
153
157
UT01
101
10
156
155
701A
701 (FUNCTION-TIMER PCB)
601 (VCR MAIN PCB)
602 (DVD MAIN PCB)
603 (S.M.P.S. PCB)
TM401B
TM402B
200
S602A
S601A
LD601A
1
2
3
21
22
S.N.A. : Service Not Available
5
4
702
154
Exploded View and Parts List
3-3Samsung Electronics
Loc. No Parts No. Description ; Specification Remark
1
Refer to table ; page 3-11
ASSY-PANEL;
2 AK64-00450A DOOR-TRAY;CHT-8400T,ABS,T3.0,H19,-,-,SIL
3 AK64-00334A DOOR-SPRING;DVD-V3500,SWPB,,,,-,,
4 AK64-00460A KNOB-SELECT;CHT-8400T,ABS,T2.0,W16,L20,H
5 AK64-00463A KNOB-VOLUME;CHT-8400T,ABS,T2.0,W21,L28,H
10 AK61-00158A PAN;RDM4010S,-,T10mm,D40mm,W40mm,1
21
Refer to table ; page 3-11
DOOR-CASSETTE;
22 AK61-00014A SPRING ETC;COMBO,SUS304,-,-,-,-,-,-,-,-,
101 AK64-00424A CABINET-TOP;CHT-500,TEXTURE,T0.525,W430,
153 AC60-12126A SCREW-BH;-,-,FE,FZY,BH,-,-,4*12,-,154 6003-000283 SCREW-TAPTITE;BH,+,B,M3,L8,ZPC(YEL),SM20
155 6003-000275 SCREW-TAPTITE;BH,+,B,M3,L10,BLK ,SWCH101
156 6003-000275 SCREW-TAPTITE;BH,+,B,M3,L10,BLK ,SWCH101
157 AC60-10063A SCREW-TAPTITE;-,-,L12,ZPC3,+,-,M3,-,SWRC
200
Refer to table ; page 3-11
CBF-POWER CORD;
601
Refer to table ; page 3-11
ASSY PCB-MAIN;
602
Refer to table ; page 3-11
ASSY PCB-DVD MAIN AMP;
603 AC92-01462A ASSY PCB-SMPS;CHT-8400,THEATER
701 AC94-00251A ASSY PCB-F/TIMER;DVD-CM500/XEG,THEATER
702 AK94-00003A ASSY PCB;SV-DVD7400,THEATER
701A 3711-005008 CONNECTOR-HEADER;NOWALL,20P,1R,1.5MM,STR
LD601A AC61-21009A HOLDER-LED;X-9,POM(M90-44),-,-,-,BLK,S601A AC61-00229A HOLDER-SENSOR;SCORPIO2,POM,-,-,-,BLACK,S602A AC61-00229A HOLDER-SENSOR;SCORPIO2,POM,-,-,-,BLACK,TM401B AC97-02352A ASSY-CONNECTOR BOARD;HIPS HB,CHT-500/XEG
TM402B AK97-00517D ASSY-CON BOARD;HIPS HB,CHT-500,BLK
UT01 AK59-00015F REMOCON-ASSY;CHT-500/XEU,SEC,210*55,-,53
Exploded View and Parts List
3-4 Samsung Electronics
3-2 VCR Mechanical Parts (Top Side)
G001
G555
B475
B561
G510
G480
K546
G680
G681
B410
B440
B448
B452
G546
G560
G060
G520
G527
K188
K182
K110
K240
K248
K350
K330
K140
K340
G070
K470
B474
B473
K250
K530
K490
G530
G420
G450
K502
(OPTIONAL)
(OPTIONAL)
Exploded View and Parts List
3-5Samsung Electronics
Loc. No Parts No. Description ; Specification Remark
B410 AC31-00018A MOTOR-LOADING ASSY;-,SCORPIO2(TS-10A),-,
B440 AC60-10515A SCREW-MACHINE;-,-,M3,L3,PH,+,-,-,ZPC,B448 AC66-00008A GEAR-WORM WHEEL;TS-10,POM,0.8,40,-,NAT,3
B452 AC66-00011A GEAR-FL CAM;TS-10,POM,0.8,59,-,BLK,48.48
B473 AC61-00105A SPRING ETC-PINCH DRIVE;TS-10,SUS304-WPB,
B474 AC61-30180A PLATE-JOINT;X-9,SECC20/20,T0.8,-,-,-,B475 AC47-00003A DAMPER-CAPSTAN;SCORPIO2,POM, NATUAL,-,-,
B561 3809-001270 CABLE-FLAT;30V,80C,140MM,10P,1.25MM,UL28
G001 AC97-02064A ASSY-CYLINDER;PAL,CTS9-DS (KHAN),6PA(ALP
AC97-02065A ASSY-CYLINDER;PAL,CTS9-DS (KHAN),6SA(ALP SECAM Only
G060 6006-001092 SCREW-ASS’Y MACH;WS,PH,+,M3.0,L6.0,ZPC(Y
G070 AC61-00161A PLATE-GROUND DECK;TS-10,SPTE,T0.3,-,-,-,
G420 AC66-80142A SLIDER-SUPPLY ASSY;X-9,X-9(TS),-,-,-,-,G450 AC66-80141A SLIDER-TAKE UP ASSY;X-9,X-9(TS),-,-,-,-,
G480 AC97-01655A ASSY-HEAD ACE;-,SCORPIO2(TS-10A),HVMXA11
G510 AC60-10518A SCREW-TAP TITE;-,-,M2.6,L5.6,PH,+,SW+ZW,
G520 AC66-00033A LEVER-#9 GUIDE ASS’Y;TS-10,-,-,-,-,-,-,G527 AC61-60553A SPRING ETC-GUIDE 9;X-9,SUS304-WPB,0.25,G530 AC33-00007A HEAD-FE;-,-,HVFHPOO43A,-,G546 AC66-00005A LEVER-FL DOOR;TS-10,POM,-,-,-,-,NAT,G555 AC66-00032A LEVER-UNIT PINCH ASS’Y;TS-10,-,-,-,-,-,G560 AC61-00122A POST-#8 GUIDE ASS’Y;TS-10,POM+SUS 303
G680 AC66-00046A LEVER-HEAD CLEANER ASS’Y;TS-10,POM+URETH (OPTIONAL)
G681 AC61-50686A SLEEVE-HEAD CLEANER;-,POM,-,-,-,-,-,-,TS (OPTIONAL)
K110 AC66-10267A REEL-DISK S;X-9,POM,-,-,-,-,-,K140 AC66-10268A REEL-DISK T;X-9,POM,-,-,-,-,-,K182 AC66-30524A LEVER-IDLER;-,POM,-,-,-,-,-,K188 AC66-00039A GEAR-IDLE;TS-10,PET K3372,0.5,-,-,NTR,28
K240 AC66-00035A LEVER-TENSION ASS’Y;TS-10,SECC E20/20+SU
K248 AC61-00107A SPRING ETC-TENSION LEVER;TS-10,SUS304-WP
K250 AC69-00104A BAND-BRAKE ASS’Y;TS-10,-,-,-,-,-,K330 AC66-30550A LEVER-S.BRAKE ASSY;-,POM+SUS,-,-,-,X-9
K340 AC66-30549A LEVER-T.BRAKE ASSY;-,POM+SUS,-,-,-,X-9
K350 AC61-00106A SPRING ETC-BRAKE;TS-10,SUS304-WPB,-,-,-,
K470 AC66-00020A SLIDER-FL DRIVE;TS-10,SECC E20/20,1.0,-,
K490 AC61-00120A HOLDER-FL CASS. ASS’Y;TS-10,-,-,-,-,-,K502 AC61-60561A SPRING ETC-FL.LEVER-LR;X-9,SUS304 WPB,OD
K530 AC66-00034A LEVER-FL ARM ASS’Y;TS-10,-,-,-,-,-,-,K546 AC61-50658A GUIDE-CASS. DOOR;X-9,POM,-,-,-,NTR
Exploded View and Parts List
3-6 Samsung Electronics
3-3 VCR Mechanical Parts (Bottom Side)
G542
B462
B560
B501
B484
B488
B500
B456
B458
B464
B468
K222
K200
K225
K221
B478
B570
B460
B489
Exploded View and Parts List
3-7Samsung Electronics
Loc. No Parts No. Description ; Specification Remark
B456 AC66-00009A GEAR-JOINT 1;TS-10,POM,1.5,17.5(22),-,NA
B458 AC66-00012A GEAR-JOINT 2;TS-10,POM,1.0,23,-,BLK,24.6
B460 AC61-00090A BRACKET-GEAR;TS-10,SECC E20/20,0.8,-,-,B462 AC60-10517A SCREW-TAP TITE;-,-,M2.6,L5,PH,+,-,-,ZPC,
B464 AC66-00019A SLIDER-CAM;TS-10,SECC E20/20,1.2,-,-,-,B468 AC66-00017A LEVER-PINCH DRIVE;TS-10,SECC E20/20,1.0
B478 AC66-00016A LEVER-TENSION DRIVE;TS-10,SECC E20/20,1
B484 AC66-00030A GEAR-LOADING DR. ASS’Y;TS-10,POM+SWPB,-,
B488 AC66-00023A LEVER-S LOADING;TS-10,POM,-,-,-,-,NAT,B489 AC66-00021A LINK-LOADING S;TS-10,SECC E20/20,0.8,-,B500 AC66-00024A LEVER-T LOADING;TS-10,POM,-,-,-,-,NAT,B501 AC66-00022A LINK-LOADING T;TS-10,SECC E20/20,0.8,-,B560 AC31-00016A MOTOR-CAPSTAN;F2QVB05,SCORPIO2(TS-10A),B570 AC60-10514A SCREW-CAPSTAN;-,-,M2.6,L6,PH,+,-,-,-,G542 AC66-60051A BELT-PULLEY;-,5CM-70,2 * 2,-,71.3,-,X-9
K200 AC61-21012A HOLDER-CLUTCH ASSY;X-9,-,-,-,-,-,K221 AC66-20581A GEAR-CENTER ASSY;-,POM,M=O.5,-,HIGHT T.,
K222 AC60-30306A FASTENER-WASHER SLIT;-,-,ID2.1,OD5.0,T0.
K225 AC66-00006A LEVER-UP DOWN;TS-10,POM,-,-,-,-,NAT,-
Exploded View and Parts List
3-8 Samsung Electronics
3-4 DVD Mechanical Parts
H107
S.N.A.
H105
H106
H103
H108
H104
H211
H241
H102
H206
H207
H206
H203
H202
H209
H210
900
900
903
903
904
H204
H205
Exploded View and Parts List
3-9Samsung Electronics
Loc. No Parts No. Description ; Specification Remark
900 6003-001157 SCREW-TAPTITE;PWH,+,B,M2,L6,ZPC(YEL),SWR
903 6001-001370 SCREW-MACHINE;CH,+,M1.7,L3.0,ZPC(YEL),SW
904 6002-001086 SCREW-TAPPING;PH,+,B,M1.7,L5.0,ZPC(YEL),
H102 AH66-00111B CLAMPER-ASSY;DP-5,POM+MAGNET,-,-,-,-,-,H103 AK66-00007A PULLEY-GEAR;DP-9,POM ,-,-,-,-,-,H104 AK31-00003A MOTOR-LOAD ASSY;SM-2412L2,DP-9,-,-,-,-,H105 6602-001076 BELT-RECTANGULAR;CR,T1.2,4.3%,1.2X25.1,B
H106 AK66-00008A GEAR-TRAY;DP-9,POM,-,-,-,-,-,-,H107 AK66-00009A SLIDER-HOUSING;DP-9,POM,-,-,-,-,H108 AK63-00008B TRAY-DISC;DP-9,ABS,-,-,-,-,GRAY,COMBO
H202 AK73-00005A RUBBER-INSULATOR;DP-9,BUTYL RUBBER,-,-,H203 AH61-50327A SHAFT-P/U;DP-3,SUS420J2,L84.7,OD3,-,-,H204 AK66-00010A GEAR-FEED A;DP-9,POM ,-,-,-,-,-,-,H205 AK66-00011A GEAR-FEED B;DP-9,POM ,-,-,-,-,-,-,H206 AK61-00032A HOLDER-CAM SKEW;DP-9,POM,-,-,-,BLACK,H207 AK31-00004A MOTOR SPINDLE;RSM-2606A1,DP-9,350MA,-,-,
H209 AK64-00052A CHASSIS-SUB;DP-9,ABS(SR-0320),0,0,0,-,H210 AK31-00005A MOTOR-FEED ASSY;-,DP-9,-,-,-,-,-,-,-,-,H211 AK97-00166B ASSY-PICK UP;-,SOH-DSSB T544C,SEM,W/T
H241 3809-001409 CABLE-FLAT;30V,80C,230MM,24P,1MM,UL2896
Exploded View and Parts List
3-10 Samsung Electronics
3-5 Speakers System
RADIO ANT.
AM
FM
75
COAXIAL
SPEAKERS
FRONT R FRONT L WOOFER
SURROUND R SURROUND L CENTER
RF
AUX
IN OUT
AUDIO
VIDEO
DVD & VCR
R
L
DVD Only
COMPONENT VIDEO OUT
S-VIDEO OUT
POWER
ON
OFF
SPEAKERS
FRONT R FRONT L WOOFER
SURROUND R SURROUND L CENTER
Center Speaker
Surround
Speaker (R)
Surround
Speaker (L)
Front Speaker (L)
Subwoofer
Front Speaker (R)
SPK-1
CAB-1
CAB-3
CAB-6
CAB-5
CAB-4
SPK-3
SPK-5
SPK-6
SPK-2
CAB-2
SPK-4
SPEAKER CABLE
SPEAKER STAND
Loc. No Parts No. Description ; Specification Remark
CAB-1 AK82-00472A A/S MATERIAL ASSY-SPEAKER C BL;SP-500,XA
CAB-2 AK82-00473A A/S MATERIAL ASSY-SPEAKER C RE;SP-500,XA
CAB-3 AK82-00474A A/S MATERIAL ASSY-SPEAKER C GR;SP-500,XA
CAB-4 AK82-00475A A/S MATERIAL ASSY-SPEAKER C WH;SP-500,XA
CAB-5 AK82-00477A A/S MATERIAL ASSY-C GRAY;SP-500,XAA,SURR
CAB-6 AK82-00476A A/S MATERIAL ASSY-VIOLET;SP-500,XAA,SUB
SPK-1 AK82-00466A A/S MATERIAL ASSY-SPEAKER;SP-500,XAA,WOO
SPK-2 AK82-00483A A/S MATERIAL ASSY-SPEAKER;SP-500S,EUROPE
SPK-3 AK82-00485A A/S MATERIAL ASSY-SPEAKER;SP-500S,EUROPE
SPK-4 AK82-00484A A/S MATERIAL ASSY-SPEAKER;SP-500S,EUROPE
SPK-5 AK82-00482A A/S MATERIAL ASSY-SPEAKER;SP-500S,EUROPE
SPK-6 AK82-00481A A/S MATERIAL ASSY-SPEAKER;SP-500S,EUROPE
STAND AK61-00134D STAND-SPEAKER ASSY;ST-500,SUS304,-,W240, (OPTION)
Exploded View and Parts List
3-11Samsung Electronics
MODELS 1 21 200 601 602
DVD-CM500/XEG AK97-00626F AK64-00448D 3903-000091 AC92-01547A AK92-00420A
DVD-CM500/XEF AK97-00626E AK64-00448D 3903-000091 AC92-01536A AK92-00420A
DVD-CM500/SED AK97-00626E AK64-00448D 3903-000091 AC92-01536A AK92-00420A
DVD-CM500/XEV AK97-00626E AK64-00448D 3903-000091 AC92-01549A AK92-00420A
DVD-CM500/XEUI AK97-00626F AK64-00448D 3903-000100 AC92-01547A AK92-00420A
DVD-CM500/XEU AK97-00626F AK64-00448D 3903-000100 AC92-01547A AK92-00420A
DVD-CM500/XEL AK97-00626F AK64-00448D 3903-000091 AC92-01547A AK92-00420A
DVD-CM500/XET AK97-00626F AK64-00448D 3903-000091 AC92-01547A AK92-00420A
DVD-CM500/XEC AK97-00626F AK64-00448D 3903-000091 AC92-01547A AK92-00420A
DVD-CM500/XEE AK97-00626F AK64-00448D 3903-000091 AC92-01547A AK92-00420A
DVD-CM500/XEP AK97-00626F AK64-00448D 3903-000091 AC92-01547A AK92-00420A
DVD-CM500/FES AK97-00626F AK64-00448D 3903-000091 AC92-01548A AK92-00420A
DVD-CM500/EUR AK97-00626F AK64-00448D 3903-000091 AC92-01548A AK92-00420A
DVD-CM500/AFR AK97-00626E AK64-00448D 3903-000091 AC92-01549A AK92-00420A
DVD-CM500/XEO AK97-00626F AK64-00448D 3903-000091 AC92-01548A AK92-00420A
DVD-CM500/XEH AK97-00626F AK64-00448D 3903-000091 AC92-01548A AK92-00420A
DVD-CM500/XSA AK97-00626M AK64-00448E 3903-000094 AC92-01550A AK92-00421A
DVD-CM500/RAD AK97-00626M AK64-00448E 3903-000094 AC92-01551A AK92-00421A
CHT-2020/HACO AK97-00626G AK64-00448F 3903-000091 AC92-01552A AK92-00421A
CHT-500/XSG AK97-00626J AK64-00448C 3903-000091 AC92-01552A AK92-00421A
CHT-500/TAW AK97-00626J AK64-00448C 3903-000091 AC92-01552A AK92-00421A
CHT-500/UMG AK97-00626J AK64-00448C 3903-000100 AC92-01552A AK92-00421A
CHT-500/ELT AK97-00626J AK64-00448C 3903-000091 AC92-01552A AK92-00421A
CHT-500/SAM AK97-00626J AK64-00448C 3903-000091 AC92-01552A AK92-00421A
CHT-500/XST AK97-00626J AK64-00448C 3903-000091 AC92-01552A AK92-00421A
CHT-500/XSS AK97-00626J AK64-00448C 3903-000091 AC92-01552A AK92-00421A
CHT-500/SMR AK97-00626J AK64-00448C 3903-000091 AC92-01552A AK92-00421A
CHT-500/XSV AK97-00626J AK64-00448C 3903-000091 AC92-01552A AK92-00421A
CHT-500/XSH AK97-00626K AK64-00448E 3903-000100 AC92-01552A AK92-00421A
CHT-500/XTL AK97-00626J AK64-00448C 3903-000091 AC92-01552A AK92-00421A
CHT-500/BPT AK97-00626J AK64-00448C 3903-000091 AC92-01552A AK92-00421A
CHT-500/XFA AK97-00626L AK64-00448C 3903-000091 AC92-01551A AK92-00421A
Exploded View and Parts List
3-12 Samsung Electronics
