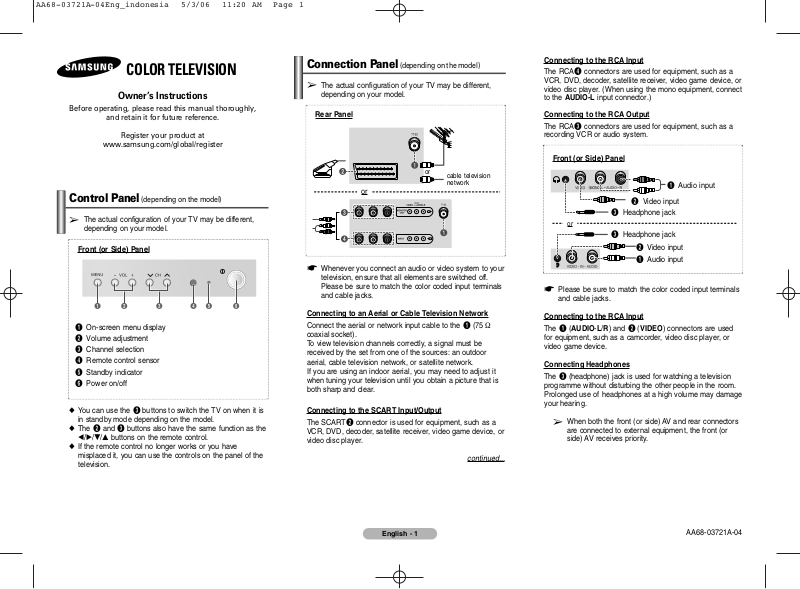

COLOR TELEVISION
Owner’s Instructions
Before operating, please read this manual thoroughly,
Control Panel
➢
1 On-screen menu display
2 Volume adjustment
3 Channel selection
4 Remote control sensor
5 Standby indicator
6 Power on/off
◆ You can use the 3 buttons to switch the TV on when it is
◆ The 2 and 3 buttons also have the same function as the
◆ If the remote control no longer works or you have
and retain it for future reference.
Register your product at
www.samsung.com/global/register
(depending on the model)
The actual configuration of your TV may be different,
depending on your model.
Front (or Side) Panel
in standby mode depending on the model.
œ/√/†/… buttons on the remote control.
misplaced it, you can use the controls on the panel of the
television.
Connection Panel
The actual configuration of your TV may be different,
➢
depending on your model.
Rear Panel
or
Whenever you connect an audio or video system to your
☛
television, ensure that all elements are switched off.
Please be sure to match the color coded input terminals
and cable jacks.
Connecting to an Aerial or Cable Television Network
Connect the aerial or network input cable to the 1 (75 Ω
coaxial socket).
To view television channels correctly, a signal must be
received by the set from one of the sources: an outdoor
aerial, cable television network, or satellite network.
If you are using an indoor aerial, you may need to adjust it
when tuning your television until you obtain a picture that is
both sharp and clear.
Connecting to the SCART Input/Output
The SCART2 connector is used for equipment, such as a
VCR, DVD, decoder, satellite receiver, video game device, or
video disc player.
(depending on the model)
or
cable television
network
continued...
Connecting to the RCA Input
The RCA4 connectors are used for equipment, such as a
VCR, DVD, decoder, satellite receiver, video game device, or
video disc player. (When using the mono equipment, connect
to the AUDIO-L input connector.)
Connecting to the RCA Output
The RCA3 connectors are used for equipment, such as a
recording VCR or audio system.
Front (or Side) Panel
1 Audio input
2 Video input
3 Headphone jack
or
3 Headphone jack
2 Video input
1 Audio input
Please be sure to match the color coded input terminals
☛
and cable jacks.
Connecting to the RCA Input
The 1 (AUDIO-L/R) and 2 (VIDEO) connectors are used
for equipment, such as a camcorder, video disc player, or
video game device.
Connecting Headphones
The 3 (headphone) jack is used for watching a television
programme without disturbing the other people in the room.
Prolonged use of headphones at a high volume may damage
your hearing.
When both the front (or side) AV and rear connectors
➢
are connected to external equipment, the front (or
side) AV receives priority.
English - 1
AA68-03721A-04
Remote Control
Operation of remote control may be affected by bright
➢
artificial light near to the TV.
(depending on the model)
44
MUTE
Used to switch the
sound off temporarily. To
turn the sound back on,
press the MUTE, , or
button.
55
66
77
88 …… / †† / œœ / √√
99
00
!!
@@
/
Used to increase or
decrease the volume.
TV
Used to return to the TV
mode when it is in
external input mode.
MENU
Used to display the onscreen menu or return to
the previous menu.
Used to control the
cursor in the menu.
DUAL I-II (option)
Used to select the
sound mode.
TURBO (option)
Used to select the turbo
sound option.
S.MENU
Used to display the
sound menu.
PRE-CH
Used to switch
repeatedly between the
last two channels
displayed.
##
VIDEO
Used to display all of the
available video sources.
$$
P/
Used to display the next
or previous stored
channel.
%%
INFO
Used to view the
channel information and
setting status you
selected.
^^
EXIT
Used to exit from any
display or return to
normal viewing.
&&
ENTER
While using the onscreen menus, press the
ENTER button to
activate (or change) a
particular item.
**
P.SIZE
Used to change the
screen size.
((
SLEEP
Used to select a preset
time interval for
automatic shut off.
))
P.MODE
Used to select the
picture effect.
aa
S.MODE (option)
Used to select the
sound effect.
Switching the Television On and Off
The mains lead is attached to the rear of the television.
1 Plug the mains lead into an appropriate socket.
The main voltage is indicated on the rear of the
➢
television and the frequency is 50 or 60Hz.
2 Press the button (On/Off) on the front (or side) of the
television.
3 Press the POWER button on the remote control to
switch the television on. The programme that you were
watching last is re-selected automatically. If you have
not yet stored any channels, no clear picture appears.
Refer to “Channel - Auto Store” on page 3 or “Channel Manual Store” on page 4.
If the television is initially powered on, several basic
➢
customer settings proceed automatically. Refer to
“Setup - Plug & Play” on page 3.
4 To switch the television off, press the button (On/Off)
on the front (or side) of the television.
Placing the Television in Standby Mode
The television can be placed in standby mode, in order to
reduce power consumption and wear of the cathode ray
tube. Standby mode can be useful when you wish to
interrupt viewing temporarily (during a meal, for example).
1 Press the POWER button on the remote control while
viewing.
The television is in standby mode.
2 To switch the television back on, simply press it again.
11
POWER
Used to switch the TV
on and off.
22
Numeric buttons
Used to select channels
directly.
33
-/--
Used to select a channel
numbered ten or over.
Press this button, then
“--” symbol is displayed.
Enter the two-digit
channel number.
Installing Batteries
Remove the cover. Install two AAA
size batteries, then replace the cover.
When the remote control does not
operate normally, check that the “+” and “-” ends of the
batteries are inserted correctly or the batteries are drained.
Do not mix battery types, i.e. alkaline and manganese.
➢
English - 2
Do not leave the television in standby mode for long
☛
periods of time (when you are away on holiday, for
example). Turn the television off by pressing the
button (On/Off) on the front (or side) of the television. It
is best to unplug the set from the mains and aerial.
Viewing the Menus
1 Press the MENU button.
The main menu is displayed on the screen. Its left side
has five icons: INPUT, PICTURE, SOUND, CHANNEL, and
SETUP.
2 Press the … or † button to select one of the icons.
Press the ENTER button to access the icon’s sub-menu.
3 Press the … or † button to move to items in the menu.
Press the ENTER button to enter items in the menu.
4 Press the …/†/œ/√ button to change the selected
items. Press the MENU button to return to the previous
menu.
5 Press the EXIT button to exit from the menu.
3 Make sure that the antenna is connected to the
television (refer to page 1). Press the ENTER button.
The SEARCH menu is
displayed.
4 Press the ENTER button to
search the channels.
To stop the search, press
the ENTER button.
When the channel
searching has finished, the
TIME menu is displayed
with CLOCK SET selected.
5 Press the œ or √ button to
move to the hour or minute.
Set the hour or minute by
pressing the … or † button.
6 When you have finished,
press the MENU button.
TV
SEARCH
START
ENTER EXIT
SEARCH
P 1 102MHZ
STOP
ENTER EXIT
CLOCK SET --:--AM
SLEEP TIMER OFF
ON-TIMER --:--AM OFF
OFF-TIMER --:--AM OFF
ON VOLUME : 10
MOVE ENTER RETURN
ENJOY YOUR VIEWING
TIME
The ENJOY YOUR VIEWING is displayed, and then the
channel which has been stored will be activated.
7 %
Input Source List
You can switch between viewing
signal from connected
equipment, such as a VCR,
DVD, set-top box, and the TV
source (broadcast or cable).
You can change the
➢
required external source
simply by pressing the VIDEO button on the remote
control. It might take a short period of time for pictures
to be switched. To return to the TV mode, press the TV
button on the remote control.
(depending on the model)
TV
SOURCE LIST
MOVE ENTER RETURN
INPUT
Channel - Auto Store
√√
Setup - Plug & Play
When the television is initially powered on, several basic
customer settings proceed automatically and subsequently.
The following settings are available.
1 If the television is in standby
mode, press the POWER
button on the remote
control.
The PLUG & PLAY is
displayed. It flickers for a
little while, and then
LANGUAGE menu is
displayed.
2 Select the appropriated language by pressing the … or
† button. Press the ENTER button.
The CHECK ANTENNA
INPUT is displayed.
If any language is not
➢
selected, the language menu will disappear about
30 seconds later.
PLUG & PLAY
LANGUAGE
ENGLISH
MALAY
INDONESIAN
THAI
MOVE EXIT
CHECK ANTENNA INPUT
ENTER EXIT
continued...
R
e-setting the Plug & Play
Method: MENU ➜……/
††
(SETUP) ➜ ENTER ➜ ENTER
(PLUG & PLAY)
English - 3
TV
PLUG & PLAY
LANG:ENGLISH
TIME
CHILD LOCK
††
MORE
MOVE ENTER RETURN
SETUP
You can scan for the frequency ranges available to you (and
√√
√√
√√
√√
availability depends on your country). Automatically allocated
programme numbers may not correspond to actual or
desired programme numbers. However you can sort
numbers manually and clear any channels you do not wish
to watch.
Channels are sorted and stored
in the order which reflects their
position in the frequency range
(with lowest first and highest
TV
AUTO STORE
SEARCH
TURBO SEARCH
√√
√√
last). The programme originally
selected is then displayed.
To stop the search before it
➢
has finished, press the
MENU button.
When finished, the Sort menu
is displayed. To sort the stored
channels into the desired
MOVE ENTER RETURN
SEARCH
P 1 C-- ----- 102MHz
START
ENTER RETURN
7 %
numerical order, refer to “Channel - Sort”. To exit without
sorting, press the EXIT button.
TURBO SEARCH function depends on your country.
Channel - Manual Store
You can store channels,
including those received via
cable networks. When storing
channels manually, you can
choose:
-
Whether or not to store each
of the channels found
-
The programme number of
each stored channel which
you wish to identify
◆ PROGRAMME (Programme
number to be assigned to a
channel)
◆ COLOR SYS.:
AUTO/PAL/NT3.58/NT4.43
◆ SOUND SYS.: BG/DK/I/M
◆ SEARCH: The tuner scans the frequency range until the
first channel or the channel that you selected is received
on the screen.
◆ MFT (MANUAL FINE TUNE): For details, refer to the
following section, “Channel – Manual Store – MFT”.
◆ STORE (When you store the channel and associated
programme number)
If there is no sound or abnormal sound, re-select the
➢
sound standard required.
MANUAL STORE
TV
PROGRAMME : P 4
COLOR SYS. : AUTO
SOUND SYS. : DK
SEARCH : 201MHZ
††
MORE
MOVE ADJUST RETURN
MANUAL STORE
TV
……
MORE
MFT
STORE : ?
MOVE ENTER RETURN
√√
√√
√√
√√
Channel - Manual Store - MFT
If the reception is clear, you do not have to fine-tune the
channel, as this is done automatically during the search and
store operation. If however the signal is weak or distorted,
you may have to fine-tune the channel manually.
Method:
œ/√ : You can obtain a sharp
and clear picture and good
sound quality.
…/† ➜ ENTER : You can save
or reset the setting.
MENU : You can memorise adjusted picture or sound.
FINE TUNE
P 1 0
MOVE ADJUST RETURN
RESETSAVE
Channel - Add/Delete
You can exclude channels you
have chosen from the channels
you scanned. When you scan
through the stored channels,
those you have chosen to skip
are not displayed. All of the
channels that you did not
specifically choose to skip are
displayed during scanning.
TV
ADD/DELETE
P 1 : DELETED
P 2 : ADDED
P 3 : ADDED
P 4 : ADDED
MOVE ENTER RETURN
Channel - Sort
This operation allows you to
change the programme numbers
of stored channels. This
operation may be necessary
TV
FROM : P 1
TO : P STORE : ?
after using auto store.
◆ FROM: Channel number to
MOVE ADJUST RETURN
be changed.
◆ TO: New channel number to be identified.
◆ STORE: Confirmation the exchange of channel numbers.
SORT
√√
√√
√√
Setup - Time
◆ CLOCK SET
You can set the television
clock so that the current time
is displayed when pressing
the INFO button on the
remote control. You must
also set the time if you wish
TV
CLOCK SET --:--AM
SLEEP TIMER OFF
ON-TIMER --:--AM OFF
OFF-TIMER --:--AM OFF
ON VOLUME : 10
MOVE ENTER RETURN
to use the automatic on or off timers.
When pressing the button (On/Off) on the front
➢
(or side) of the television, the clock setting will be
reset.
TIME
continued...
◆ SLEEP TIMER
You can select a time period of between 30 and 180 minutes
after which the television automatically switches to standby
mode.
You can select these options simply by pressing the
➢
SLEEP button on the remote control. If the sleep timer is
not yet set, OFF is displayed. If it is already set, the
remaining time before which the television switches to
standby mode is displayed.
◆ ON-TIMER / OFF-TIMER
You can set the On/Off timers so that the television will switch
on or off automatically at the time you select.
You must set the clock first.
☛
◆ ON VOLUME
The preferred volume can be set for when the timer
automatically turns on the television.
Auto Power Off
☛
When you set the timer “On”, the TV will eventually turn off, if
no controls are operated for 3 hours after the TV was turned
on by timer. This function is only available in timer “On” mode
and prevents overheating, which may occur if a TV is on for
too long.
Setup - Child Lock
This feature allows you to
TV
prevent unauthorized users,
such as children, from watching
unsuitable programmes by
muting out video and audio.
Child Lock cannot be released
using front (or side) panel
MOVE ENTER RETURN
buttons. Only remote control can release the Child Lock
setting, so keep the remote control away from children.
◆ CHILD LOCK: ON/OFF
If you want to unlock a channel, set to OFF.
◆ PROGRAMME: Channel number to be locked.
◆ LOCK: When press the ENTER button, the LOCKED is
displayed.
If any channel is locked, you can not access to the
➢
CHANNEL and CHILD LOCK menu by using the control
buttons on the TV panel (the NOT AVAILABLE is
displayed in the CHILD LOCK menu). You can access
by using the remote control only.
CHILD LOCK
CHILD LOCK : ON
PROGRAMME : P 4
LOCK : ?
English - 4
Setup - Reminder
This feature facilitates you for displaying a message input on
the screen at the desired time set by you.
◆ REMINDER: ON/OFF
If you do not want to display
a message, set to OFF.
◆ MESSAGE (A~Z / 0~9 / & / -)
Message of maximum 30
characters can be entered.
◆ DISP.TIME
It is the time at which the
message will be displayed
on the screen.
◆ ERASE
You can delete the entire
written message.
TV
……
MORE
BLUE SCREEN :ON
DEMONSTRATION
REMINDER
MOVE ENTER RETURN
TV
REMINDER ON
MESSAGE
DISP.TIME --:--AM
ERASE ?
MOVE ENTER RETURN
SETUP
REMINDER
---------------
---------------
√√
√√
√√
Setup Language / Blue Screen /
Demonstration
◆ LANGUAGE
It is variable depending on
the model. When you start
using the television for the
first time, you must select the
language which will be used
for displaying menus and
indications.
◆ BLUE SCREEN
If no signal is being received
or the signal is very weak, a
blue screen automatically
replaces the noisy picture
background. If you wish to
continue viewing the poor
picture, you must set the
BLUE SCREEN to OFF.
◆ DEMONSTRATION
To become familiar with the
various menus provided by
the television, you can view
the in built demonstration.
Each of the menu options is
displayed in turn. To exit
from the demonstration,
press the EXIT button.
TV
PLUG & PLAY
LANG:ENGLISH
TIME
CHILD LOCK
††
MORE
MOVE ENTER RETURN
TV
……
MORE
BLUE SCREEN :ON
DEMONSTRATION
REMINDER
MOVE ENTER RETURN
TV
……
MORE
BLUE SCREEN :ON
DEMONSTRATION
REMINDER
MOVE ENTER RETURN
SETUP
√√
√√
√√
√√
SETUP
√√
√√
√√
SETUP
√√
√√
√√
Picture Mode / Custom /
Color Tone / Size / Digital NR
◆ MODE: DYNAMIC/STANDARD/MOVIE/CUSTOM
You can select the type of
picture which best
corresponds to your viewing
requirements.
You can select these
➢
options simply by
pressing the P.MODE
TV
MODE : DYNAMIC
CUSTOM
COLOR TONE : NORMAL
SIZE : NORMAL
††
MORE
MOVE ENTER RETURN
button on the remote
control.
◆ CUSTOM: CONTRAST/BRIGHTNESS/SHARPNESS/
COLOR/TINT(NTSC only)
The television has several
settings which allow you to
control the picture quality.
If you make any
➢
changes to these
settings, the picture
mode is automatically
switched to CUSTOM.
TV
CONTRAST : 100
BRIGHTNESS : 65
SHARPNESS : 75
COLOR : 55
MOVE ENTER RETURN
◆ COLOR TONE: NORMAL/WARM1/WARM2/COOL2/COOL1
◆ SIZE: NORMAL/ZOOM
You can select the picture size which best corresponds to
your viewing requirements. It is variable depending on
the model.
You can change the picture size simply by pressing
➢
the P.SIZE button on the remote control.
◆ DIGITAL NR
If the signal received by the
television is weak, you can
activate this feature to
TV
……
MORE
DIGITAL NR: ON
reduce any static and
ghosting that may appear on
the screen.
English - 5
MOVE ENTER RETURN
√√
√√
√√
√√
CUSTOM
√√
√√
√√
√√
√√
Sound
Custom / Effect
◆ VOLUME
- Volume / Mode /
(depending on the model)
You can adjust the volume of
the TV.
You can increase or
➢
decrease the volume
simply by pressing the
/ button on
TV
VOLUME : 10
MODE : CUSTOM
CUSTOM
EFFECT : OFF
MOVE ENTER RETURN
SOUND
√√
√√
√√
√√
the remote control.
◆ MODE: STANDARD/MUSIC/MOVIE/SPEECH/CUSTOM
You can select the type of
special sound effect to be
used when watching a given
broadcast.
You can select these
➢
options simply by
pressing the S.MODE
TV
VOLUME : 10
MODE : CUSTOM
CUSTOM
EFFECT : OFF
MOVE ENTER RETURN
SOUND
√√
√√
√√
√√
button on the remote
control.
◆ CUSTOM: BALANCE/BASS/TREBLE
The television has several
settings which allow you to
control the sound quality.
When the MODE is set
➢
to CUSTOM, the CUSTOM
TV
BALANCE : L 50 R 50
BASS : 50
TREBLE : 50
CUSTOM
√√
√√
√√
menu is displayed.
If you make any
➢
changes to these
MOVE ENTER RETURN
settings, the sound mode is automatically switched
to CUSTOM.
You can also display this group simply by pressing
➢
the S.MENU button on the remote control.
◆ EFFECT: PSEUDO/SPATIAL/OFF
PSEUDO: PSEUDO converts
a monaural sound signal into
two identical left and right
channels. Once the EFFECT
is set to PSEUDO or OFF, the
TV
VOLUME : 10
MODE : CUSTOM
CUSTOM
EFFECT : OFF
SOUND
√√
√√
√√
√√
setting applies to the sound
effects such as STANDARD,
MOVE ENTER RETURN
MUSIC, MOVIE and SPEECH.
SPATIAL: Humans as well hear sound in three
dimensions and have the perception of spatial aspects of
sound.
Troubleshooting OSD Map
✽ : It is variable depending on the model.
Before contacting the Samsung after-sales service, perform
the following simple checks. If you cannot solve the problem
using the instructions below, note the model and serial
number of the television and contact your local dealer.
No sound or picture
◆ Check that the mains lead has been connected to a
wall socket.
◆ Check that you have pressed the button (On/Off)
and the POWER button.
◆ Check the picture contrast and brightness settings.
◆ Check the volume.
Normal picture but no sound
◆ Check the volume.
◆ Check whether the volume MUTE button on the
remote control has been pressed.
No picture or black and white picture
◆ Adjust the color settings.
◆ Check that the broadcast system selected is correct.
Sound and picture interference
◆ Try to identify the electrical appliance that is affecting
the television, then move it further away.
◆ Plug the television into a different mains socket.
Blurred or snowy picture, distorted sound
◆ Check the direction, location and connections of your
aerial.
This interference often occurs due to the use of an
indoor aerial.
Remote control malfunctions
◆ Replace the remote control batteries.
◆ Clean the upper edge of the remote control
(transmission window).
◆ Check that the “+” and “-” ends of the batteries are
inserted correctly.
◆ Check that the batteries are drained.
INPUT
SOUND
CHANNEL
SETUP
-
SOURCE LIST
-
MODE
-
CUSTOM
-
COLOR TONE
-
SIZE
✽
-
DIGITAL NR -ON / OFF
-
VOLUME
-
MODE
-
CUSTOM
-
EFFECT
-
AUTO STORE
-
MANUAL STORE
-
ADD/DELETE
-
SORT
-
PLUG & PLAY
-
LANGUAGE
-
TIME
-
CHILD LOCK
-
BLUE SCREEN
-
DEMONSTRATION
-
REMINDER
English - 6
✽
-
-
-
-
✽
✽
✽
✽
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
DYNAMIC / STANDARD / MOVIE / CUSTOM
CONTRAST / BRIGHTNESS / SHARPNESS / COLOR / TINT (NTSC ONLY)
NORMAL / WARM1 / WARM2 / COOL2 / COOL1
NORMAL / ZOOM
STANDARD / MUSIC / MOVIE / SPEECH / CUSTOM
BALANCE / BASS / TREBLE
PSEUDO / SPATIAL / OFF
SEARCH
TURBO SEARCH
PROGRAMME
COLOR SYS.
SOUND SYS.
SEARCH
MFT
✽
STORE
ADDED / DELETE
FROM
TO
STORE
CLOCK SET
SLEEP TIMER
ON-TIMER
OFF-TIMER
ON-VOLUME
CHILD LOCK
PROGRAMME
LOCK
OFF / ON
REMINDER
MESSAGE
DISP.TIME
ERASE
✽
✽
-
AUTO / PAL / NT3.58 / NT4.43
✽
-
BG / DK / I / M
-
OFF / ON
-
OFF / ON
Loading...
