Samsung C675, C670, C675D, C670D User Manual

User’s Manual

Satellite C670/C675/C670D/C675D Satellite Pro C670/C675/C670D Satellite L770/L775/L770D/L775D Satellite Pro L770/L775/L770D/L775D Series

Disclaimer ................................................................................................. v

Trademarks ............................................................................................... v

FCC information ...................................................................................... vi

EU Declaration of Conformity ............................................................... vii

Canadian regulatory information (Canada only) ................................ viii

Following information is only valid for EU-member States:................ ix

Disposing of the computer and the computer's batteries.................... x

REACH - Compliance Statement ............................................................. x

Following information is only for Turkey: .............................................. x

Optical disc drive safety instructions..................................................... x

Precautions ............................................................................................. xii

Preface

Conventions........................................................................................... xiii

General Precautions

Provide adequate ventilation................................................................. xv

Creating a computer-friendly environment.......................................... xv

Stress injury........................................................................................... xvi

Heat injury .............................................................................................. xvi

Pressure or impact damage.................................................................. xvi

Mobile phones ....................................................................................... xvi

Instruction Manual for Safety and Comfort......................................... xvi

Chapter 1 Getting Started

Equipment checklist.............................................................................. 1-1

Getting Started....................................................................................... 1-2

Chapter 2 The Grand Tour

The Grand Tour for Satellite C670/C675/C670D/C675D/Satellite Pro

C670/C675/C670D .................................................................................. 2-1

The Grand Tour for Satellite L770/L775/L770D/L775D/Satellite Pro

L770/L775/L770D/L775D........................................................................ 2-8

Internal Hardware Components ......................................................... 2-17

Chapter 3 Operating Basics

Using the Touch Pad ............................................................................. 3-1

The Keyboard......................................................................................... 3-2

Optical disc drives................................................................................. 3-6

User’s Manual ii

TOSHIBA VIDEO PLAYER ................................................................... 3-16

Using WinDVD BD for TOSHIBA ........................................................ 3-20

Wireless communications .................................................................. 3-22

LAN ....................................................................................................... 3-26

Optional devices.................................................................................. 3-27

Memory media slot .............................................................................. 3-28

Memory media ..................................................................................... 3-29

Media care ............................................................................................ 3-30

Inserting a memory media .................................................................. 3-30

Removing a memory media................................................................ 3-31

Additional memory module ................................................................ 3-32

External monitor .................................................................................. 3-36

HDMI ..................................................................................................... 3-38

Security lock ........................................................................................ 3-41

Optional TOSHIBA Accessories......................................................... 3-41

Sound System...................................................................................... 3-42

Video mode .......................................................................................... 3-44

Computer Handling ............................................................................. 3-44

Heat dispersal ...................................................................................... 3-45

Chapter 4 Utilities & Advanced Usage

Utilities and Applications...................................................................... 4-1

Special features ..................................................................................... 4-6

Using the TOSHIBA Sleep Utility.......................................................... 4-8

Using the TOSHIBA Face Recognition ................................................ 4-9

Password Utility................................................................................... 4-13

HW Setup.............................................................................................. 4-14

TOSHIBA PC Health Monitor .............................................................. 4-19

System Recovery................................................................................. 4-20

Chapter 5 Power and Power-Up Modes

Power conditions for Satellite C670/C675/C670D/C675D/Satellite Pro

C670/C675/C670D .................................................................................. 5-1

Power conditions for Satellite L770/L775/L770D/L775D/satellite Pro

L770/L775/L770D/L775D........................................................................ 5-2

Monitoring of power condition for Satellite

C670/C675/C670D/C675D/Satellite Pro C670/C675/C670D ................. 5-4

Monitoring of power condition for Satellite

L770/L775/L770D/L775D/satellite Pro L770/L775/L770D/L775D ........ 5-5

Battery .................................................................................................... 5-6

Power-up modes.................................................................................. 5-11

Panel power on/off .............................................................................. 5-12

System automatic Sleep/Hibernation ................................................ 5-12

User’s Manual iii

Chapter 6 Troubleshooting

Problem solving process...................................................................... 6-1

Hardware and system checklist ........................................................... 6-4

TOSHIBA support ................................................................................ 6-16

Appendix A Specifications

Physical Dimensions.............................................................................A-1

Environmental Requirements ...............................................................A-1

Power Requirements.............................................................................A-1

External RGB monitor port pin assignment........................................A-2

Appendix B AC Power Cord and Connectors

Certification agencies ...........................................................................B-1

Appendix C Legal Footnotes

Non-applicable Icons ............................................................................C-1

CPU .........................................................................................................C-1

Memory (Main System) .........................................................................C-2

Battery Life.............................................................................................C-3

Hard Disk Drive (HDD) Capacity...........................................................C-3

LCD .........................................................................................................C-3

Graphics Processing Unit ("GPU") ......................................................C-3

Wireless LAN .........................................................................................C-4

Copy Protection.....................................................................................C-4

Appendix D Information for Wireless Devices

Wireless LAN Interoperability............................................................... D-1

Bluetooth wireless technology Interoperability .................................D-1

CAUTION about Wireless Devices .......................................................D-1

Wireless Devices and your health .......................................................D-2

Radio Regulatory Information ..............................................................D-2

Device Authorization.............................................................................D-7

Radio approvals for wireless devices .................................................D-7

Glossary

Index

User’s Manual iv

Copyright

© 2011 by TOSHIBA Corporation. All rights reserved. Under the copyright laws, this manual cannot be reproduced in any form without the prior written permission of TOSHIBA. No patent liability is assumed, with respect to the use of the information contained herein.

First edition Feb. 2011 Copyright authority for music, movies, computer programs, databases and

other intellectual property covered by copyright laws belongs to the author or to the copyright owner. Copyrighted material can be reproduced only for personal use or use within the home. Any other use beyond that stipulated above (including conversion to digital format, alteration, transfer of copied material and distribution on a network) without the permission of the copyright owner is a violation of copyright or author's rights and is subject to civil damages or criminal action. Please comply with copyright laws in making any reproduction from this manual.

Disclaimer

This manual has been validated and reviewed for accuracy. The instructions and descriptions it contains are accurate for your computer at the time of this manual’s production. However, succeeding computers and manuals are subject to change without notice. TOSHIBA assumes no liability for damages incurred directly or indirectly from errors, omissions or discrepancies between the computer and the manual.

Trademarks

Intel, Intel SpeedStep, Intel Core and Centrino are trademarks or registered trademarks of Intel Corporation.

AMD, the AMD Arrow logo, AMD Athlon, AMD Turion, PowerPlay, VariBright and combinations thereof are trademarks of Advanced Micro Devices, Inc.

Windows, Microsoft and Windows logo are registered trademarks of Microsoft Corporation.

Bluetooth is a trademark owned by its proprietor and used by TOSHIBA under license.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

ConfigFree is a trademark of TOSHIBA Corporation.

User’s Manual v

TouchPad is a trademark of Synaptics, Inc Wi-Fi is a registered trademark of the Wi-Fi Alliance. Secure Digital and SD are trademarks of SD Card Association. Memory Stick and Memory Stick PRO are trademarks or registered

trademarks of Sony Corporation. MultiMediaCard and MMC are trademarks of MultiMediaCard Association. Atheros is a registered trademark of Atheros Communication, Inc. Realtek is a registered trademark of Realtek Semiconductor Corporation. Other trademarks and registered trademarks not listed above may be used

in this manual.

FCC information

FCC notice "Declaration of Conformity Information"

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna.

■ Increase the separation between the equipment and receiver.

■ Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

■ Consult the dealer or an experienced radio/TV technician for help.

Only peripherals complying with the FCC class B limits may be attached to this equipment. Operation with non-compliant peripherals or peripherals not recommended by TOSHIBA is likely to result in interference to radio and TV reception. Shielded cables must be used between the external devices and the computer’s External RGB monitor port, Universal Serial Bus (USB 2.0 and 3.0) ports, HDMI port and microphone jack. Changes or modifications made to this equipment, not expressly approved by TOSHIBA or parties authorized by TOSHIBA could void the user’s authority to operate the equipment.

User’s Manual vi

FCC conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

Contact

Address: TOSHIBA America Information Systems, Inc.

9740 Irvine Boulevard

Irvine, California 92618-1697

Telephone: (949) 583-3000

EU Declaration of Conformity

This product is carrying the CE-Mark in accordance with the related European Directives. Responsible for CEMarking is TOSHIBA Europe GmbH, Hammfelddamm 8, 41460 Neuss, Germany. The complete and official EU Declaration of Conformity can be found on TOSHIBA’s web site http://epps.toshiba-teg.com on the Internet.

CE compliance

This product is labelled with the CE Mark in accordance with the related European Directives, notably Electromagnetic Compatibility Directive 2004/108/EC for the notebook and the electronic accessories including the supplied power adapter, the Radio Equipment and Telecommunications Terminal Equipment Directive 1999/5/EC in case of implemented telecommunication accessories and the Low Voltage Directive 2006/95/EC for the supplied power adapter. Furthermore the product complies with the Ecodesign Directive 2009/125/EC (ErP) and its related implementing measures.

This product and the original options are designed to observe the related EMC (Electromagnetic Compatibility) and safety standards. However, TOSHIBA cannot guarantee that this product still observes these EMC standards if options or cables not produced by TOSHIBA are connected or implemented. In this case the persons who have connected/implemented those options/cables have to provide assurance that the system (PC plus options/cables) still fulfils the required standards. To avoid general EMC problems, the following guidance should be noted:

■ Only CE marked options should be connected/implemented

■ Only best shielded cables should be connected

User’s Manual vii

Working environment

This product was designed to fulfil the EMC (Electromagnetic Compatibility) requirements to be observed for so-called “Residential, commercial and light industry environments”. TOSHIBA do not approve the use of this product in working environments other than the above mentioned “Residential, commercial and light industry environments”.

For example, the following environments are not approved:

■ Industrial Environments (e.g. environments where a mains voltage of

380 V three-phase is used)

■ Medical Environments

■ Automotive Environments

■ Aircraft Environments

Any consequences resulting from the use of this product in working environments that are not approved are not the responsibility of TOSHIBA.

The consequences of the use of this product in non-approved working environments may be:

■ Interference with other devices or machines in the near surrounding

area.

■ Malfunction of, or data loss from, this product caused by disturbances

generated by other devices or machines in the near surrounding area.

Therefore TOSHIBA strongly recommend that the electromagnetic compatibility of this product should be suitably tested in all non-approved working environments before use. In the case of automobiles or aircraft, the manufacturer or airline respectively should be asked for permission before use of this product.

Furthermore, for general safety reasons, the use of this product in environments with explosive atmospheres is not permitted.

Canadian regulatory information (Canada only)

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the Radio Interference Regulation of the Canadian Department of Communications.

Note that Canadian Department of Communications (DOC) regulations provide, that changes or modifications not expressly approved by TOSHIBA Corporation could void your authority to operate this equipment.

This Class B digital apparatus meets all requirements of the Canadian Interference-Causng Equipment Regulations.

Cet appareil numérique de la class B respecte toutes les exgences du Règlement sur le matériel brouileur du Canada.

User’s Manual viii

Following information is only valid for EU-member States:

Disposal of products

The crossed out wheeled dust bin symbol indicates that products must be collected and disposed of separately from household waste. Integrated batteries and accumulators can be disposed of with the product. They will be separated at the recycling centres.

The black bar indicates that the product was placed on the market after August 13, 2005.

By participating in separate collection of products and batteries, you will help to assure the proper disposal of products and batteries and thus help to prevent potential negative consequences for the environment and human health.

For more detailed information about the collection and recycling programmes available in your country, please visit our website (http://eu.computers.toshiba-europe.com) or contact your local city office or the shop where you purchased the product.

Disposal of batteries and/or accumulators

The crossed out wheeled dust bin symbol indicates that batteries and/or accumulators must be collected and disposed of separately from household waste.

If the battery or accumulator contains more than the specified values of lead (Pb), mercury (Hg), and/or cadmium (Cd) defined in the Battery Directive (2006/66/EC), then the chemical symbols for lead (Pb), mercury (Hg) and/or cadmium (Cd) will appear below the crossed out wheeled dust bin symbol.

By participating in separate collection of batteries, you will help to assure the proper disposal of products and batteries and thus help to prevent potential negative consequences for the environment and human health.

These symbols may not stick depending on the country and region where you purchased.

User’s Manual ix

Disposing of the computer and the computer's batteries

■ Discard this computer in accordance with applicable laws and

regulations. For further information, contact your local government.

■ This computer contains rechargeable batteries. After repeated use, the

batteries will finally lose their ability to hold a charge and you will need to replace them. Under certain applicable laws and regulation, it may be illegal to dispose of old batteries by placing them in the trash.

■ Please be kind to our shared environment. Check with your local

government authority for details regarding where to recycle old batteries or how to dispose of them properly.

REACH - Compliance Statement

The new European Union (EU) chemical regulation, REACH (Registration, Evaluation, Authorization and Restriction of Chemicals), entered into force on 1 June 2007. TOSHIBA will meet all REACH requirements and is committed to provide our customers with information about the chemical substances in our products according to REACH regulation.

Please consult the following website www.toshibaeurope.com/computers/info/reach for information about the presence in our articles of substances included on the candidate list according to article 59(1) of Regulation (EC) No 1907/2006 („REACH“) in a concentration above 0.1 % weight by weight.

Following information is only for Turkey:

■ Compliant with EEE Regulations: TOSHIBA meets all requirements of

Turkish regulation 26891 “Restriction of the use of certain hazardous substances in electrical and electronic equipment”.

■ The number of possible pixel failures of your display is defined

according to ISO 13406-2 standards. If the number of pixel failures is less than this standard, they will not be counted as defect or failure.

■ Battery is a consumption product, since the battery time depends on the

usage of your computer. If the battery can not be charged at all, then it is a defect or failure. The changes in battery time is not a defect or failure.

Optical disc drive safety instructions

Be sure to check the precautions at the end of this section.

User’s Manual x

■ The drive model employs a laser system. To ensure proper use of this

product, please read this instruction manual carefully and retain for future reference. Should the unit ever require maintenance, contact an authorized service location.

■ Use of controls, adjustments or the performance of procedures other

than those specified may result in hazardous radiation exposure.

■ To prevent direct exposure to the laser beam, do not try to open the

enclosure.

1. Panasonic System Networks

■ DVD SuperMulti with Double Layer UJ8A0

■ BD-Combo UJ141

■ BD-Writer UJ240

Location of the required label

on the optical disc drive

2. HITACHI-LG Data Storage, Inc.

■ DVD SuperMulti with Double Layer GT30N/30F

■ BD-Combo CT31F

■ BD-Writer BT11F

Hitachi-LG Data Storage, Inc. 22-23,KAIGAN 3-CHOME, MINATO-KU,TOKYO,108-0022 JAPAN

User’s Manual xi

3. TOSHIBA Samsung Storage Technology

■ DVD SuperMulti with Double Layer TS-L633F/L633W

TOSHIBA SAMSUNG STORAGE TECHNOLOGY KOREA CORPORATION 416, MEATAN-3 DONG, YEONGTONG-GU, SUWON CITY, GYEONGGI, 443-742, KOREA

4. Sony Optiarc Inc.

■ DVD SuperMulti with Double Layer AD-7710/7713

Complies with 21 CFR, Chapter 1, Subchapter J.

Sony Optiarc Inc. 1-11-1 Osaki Shinagawa-ku, Tokyo, 141-0032, Japan

Precautions

CAUTION: This appliance contains a

laser system and is classified as a “CLASS 1 LASER PRODUCT.” To use this model properly, read the instruction manual carefully and keep this manual for your future reference. In case of any trouble with this model, please contact your nearest “AUTHORIZED service station.” To prevent direct exposure to the laser beam, do not try to open the enclosure.

User’s Manual xii

Preface

Congratulations on your purchase of this computer. This powerful notebook computer provides excellent expansion capability, includes multimedia functionality, and is designed to provide years of reliable, high-performance computing.

This manual tells how to set up and begin using your computer. It also provides detailed information on configuring your computer, basic operations and care, using optional devices and troubleshooting.

Conventions

This manual uses the following formats to describe, identify, and highlight terms and operating procedures.

Abbreviations

On first appearance, and whenever necessary for clarity, abbreviations are enclosed in parentheses following their definition. For example: Read Only Memory (ROM). Acronyms are also defined in the Glossary.

Icons

Icons identify ports, dials, and other parts of your computer. The indicator panel also uses icons to identify the components it is providing information on.

Keys

The keyboard keys are used in the text to describe many computer operations. A distinctive typeface identifies the key top symbols as they appear on the keyboard. For example, ENTER identifies the ENTER key.

Key operation

Some operations require you to simultaneously use two or more keys. We identify such operations by the key top symbols separated by a plus sign (+). For example, CTRL + C means you must hold down CTRL and at the same time press C. If three keys are used, hold down the first two and at the same time press the third.

ABC When procedures require an action such as

clicking an icon or entering text, the icon's name or the text you are to type in is represented in the typeface you see to the left.

User’s Manual xiii

Display

Names of windows or icons or text generated by

S ABC

the computer that appear on its display screen are presented in the type face you see to the left.

Messages

Messages are used in this manual to bring important information to your attention. Each type of message is identified as shown below.

Indicates a potentially hazardous situation, which could result in death or serious injury, if you do not follow instructions.

Pay attention! A caution informs you that improper use of equipment or failure to follow instructions may cause data loss or damage your equipment.

Please read. A note is a hint or advice that helps you make best use of your equipment.

Terminology

This term is defined in this document as follows:

Start

HDD or Hard disk drive Some models are equipped with a "Solid State

Illustration In this manual, situations where the port and

The word "Start" refers to the " " button in Windows 7.

Drive (SSD)" instead of a hard disk drive. In this manual, the word "HDD" or "Hard disk drive" also refers to the SSD unless otherwise stated.

connector locations for this series are different, the locations are shown in the illustrations only for some models.

User’s Manual xiv

General Precautions

TOSHIBA computers are designed to optimize safety, minimize strain and withstand the rigors of portability. However, certain precautions should be observed to further reduce the risk of personal injury or damage to the computer.

Be certain to read the general precautions below and to note the cautions included in the text of the manual.

Provide adequate ventilation

Always make sure your computer and AC adaptor have adequate ventilation and are protected from overheating when the power is turned on or when an AC adaptor is connected to a power outlet (even if your computer is in Sleep Mode). In this condition, observe the following:

■ Never cover your computer or AC adaptor with any object.

■ Never place your computer or AC adaptor near a heat source, such as

an electric blanket or heater.

■ Never cover or block the air vents including those located at the base of

the computer.

■ Always operate your computer on a hard flat surface. Using your

computer on a carpet or other soft material can block the vents.

■ Always provide sufficient space around the computer.

■ Overheating your computer or AC adaptor could cause system failure,

computer or AC adaptor damage or a fire, possibly resulting in serious injury.

Creating a computer-friendly environment

Place the computer on a flat surface that is large enough for the computer and any other items you are using, such as a printer.

Leave enough space around the computer and other equipment to provide adequate ventilation. Otherwise, they may overheat.

To keep your computer in prime operating condition, protect your work area from:

■ Dust, moisture, and direct sunlight.

■ Equipment that generates a strong electromagnetic field, such as

stereo speakers (other than speakers that are connected to the computer) or speakerphones.

■ Rapid changes in temperature or humidity and sources of temperature

change such as air conditioner vents or heaters.

■ Extreme heat, cold, or humidity.

■ Liquids and corrosive chemicals.

User’s Manual xv

Stress injury

Carefully read the Instruction Manual for Safety and Comfort. It contains information on the prevention of stress injuries to your hands and wrists that can be caused by extensive keyboard use. It also includes information on work space design, posture and lighting that can help reduce physical stress.

Heat injury

■ Avoid prolonged physical contact with the computer. If the computer is

used for long periods, its surface can become very warm. While the temperature will not feel hot to the touch, if you maintain physical contact with the computer for a long time, for example if you rest the computer on your lap or if you keep your hands on the palm rest, your skin might suffer a low-heat injury.

■ If the computer has been used for a long time, avoid direct contact with

the metal plate supporting the various interface ports as this can become hot.

■ The surface of the AC adaptor can become hot when in use but this

condition does not indicate a malfunction. If you need to transport the AC adaptor, you should disconnect it and let it cool before moving it.

■ Do not lay the AC adaptor on a material that is sensitive to heat as the

material could become damaged.

Pressure or impact damage

Do not apply heavy pressure to the computer or subject it to any form of strong impact as this can damage the computer's components or otherwise cause it to malfunction.

Mobile phones

Please be aware that the use of mobile phones can interfere with the audio system. The operation of the computer will not be impaired in any way, but it is recommended that a minimum distance of 30cm is maintained between the computer and a mobile phone that is in use.

Instruction Manual for Safety and Comfort

All important information on the safe and proper use of this computer is described in the enclosed Instruction Manual for Safety and Comfort. Be sure to read it before using the computer.

User’s Manual xvi

Chapter 1

Getting Started

This chapter provides an equipment checklist, and basic information to start using your computer.

Some of the features described in this manual may not function properly if you use an operating system that was not pre-installed by TOSHIBA.

Equipment checklist

Carefully unpack your computer, taking care to save the box and packaging materials for future use.

Hardware

Check to make sure you have all the following items:

■ TOSHIBA Portable Personal Computer

■ AC adaptor and power cord (2-pin plug or 3-pin plug)

■ Battery pack

Chapter 1

Documentation

■ User Information Guide

■ Instruction Manual for Safety and Comfort

If any of the items are missing or damaged, contact your dealer immediately.

Software

The following Windows® operating system and utility software are preinstalled.

■ Windows 7

■ TOSHIBA Recovery Media Creator

■ TOSHIBA Assist

■ TOSHIBA ConfigFree™

■ TOSHIBA Flash Cards

■ TOSHIBA Disc Creator

■ TOSHIBA VIDEO PLAYER

User’s Manual 1-1

■ WinDVD BD for TOSHIBA

■ TOSHIBA Resolution+ Plug-in For Windows Media Player

■ TOSHIBA eco Utility

■ TOSHIBA Bulletin Board

■ TOSHIBA ReelTime

■ TOSHIBA HW Setup Utility

■ TOSHIBA Value Added Package

■ TOSHIBA Web Camera Application

■ TOSHIBA Face Recognition

■ TOSHIBA Service Station

■ TOSHIBA PC Health Monitor

■ TOSHIBA Sleep Utility

■ Online Manual

TOSHIBA Portable Personal Computer User's Manual (This manual)

* You may not have all the softwares listed above depending on the model you purchased.

Getting Started

■ All users should be sure to read the section Starting up for the first time.

■ Be sure to read the enclosed Instruction Manual for Safety and Comfort

for information on the safe and proper use of this computer. It is intended to help you be more comfortable and productive while using a notebook computer. By following the recommendations in it you may reduce your chance of developing a painful or disabling injury to your hand, arms, shoulders or neck.

This section provides basic information to start using your computer. It covers the following topics:

■ Connecting the AC adaptor

■ Opening the display

■ Turning on the power

■ Starting up for the first time

■ Turning off the power

■ Restarting the computer

■ Use a virus-check program and make sure it is updated regularly.

■ Never format storage media without checking its content - formatting

destroys all stored data.

■ It is a good idea to periodically back up the internal hard disk drive or

other main storage device to external media. General storage media is not durable or stable over long periods of time and under certain conditions may result in data loss.

User’s Manual 1-2

■ Before you install a device or application, save any data in memory to

the hard disk drive or other storage media. Failure to do so may result in the loss of data.

Connecting the AC adaptor

Attach the AC adaptor when you need to charge the battery or you want to operate from AC power. It is also the fastest way to get started, because the battery pack will need to be charged before you can operate from battery power.

The AC adaptor can automatically adjust to any voltage ranging from 100 to 240 volts and to a frequency of either 50 or 60 hertz, enabling you to use this computer in almost all country/region. The adaptor converts AC power to DC power and reduces the voltage supplied to this computer.

■ Always use the TOSHIBA AC adaptor that was included with your

computer, or use AC adaptors specified by TOSHIBA to avoid any risk of fire or other damage to the computer. Use of an incompatible AC adaptor could cause fire or damage to the computer possibly resulting in serious injury. TOSHIBA assumes no liability for any damage caused by use of an incompatible adaptor.

■ Never plug the AC adaptor into a power source that does not

correspond to both the voltage and the frequency specified on the regulatory label of the unit. Failure to do so could result in a fire or electric shock, possibly resulting in serious injury.

■ Always use or purchase power cables that comply with the legal voltage

and frequency specifications and requirements in the country of use. Failure to do so could result in a fire or electric shock, possibly resulting in serious injury.

■ The supplied power cord conforms to safety rules and regulations in the

region the product is bought and should not be used outside this region. For use in other regions, please buy power cords that conform to safety rules and regulations in the particular region.

■ Do not use a 3-pin to 2-pin conversion plug.

■ When you connect the AC adaptor to the computer, always follow the

steps in the exact order as described in the User’s Manual. Connecting the power cable to a live electrical outlet should be the last step otherwise the adaptor DC output plug could hold an electrical charge and cause an electrical shock or minor bodily injury when touched. As a general safety precaution, avoid touching any metal parts.

■ Never place your computer or AC adaptor on a wooden surface,

furniture, or any other surface that could be marred by exposure to heat since the computer base and AC adaptor's surface increase in temperature during normal use.

■ Always place your computer or AC adaptor on a flat and hard surface

that is resistant to heat damage.

Refer to the enclosed Instruction Manual for Safety and Comfort for detailed precautions and handling instructions.

User’s Manual 1-3

1. Connect the power cord to the AC adaptor.

Figure 1-1 Connecting the power cord to the AC adaptor (2-pin plug)

Figure 1-2 Connecting the power cord to the AC adaptor (3-pin plug)

Either a 2-pin or 3-pin adaptor/cord will be included with the computer depending on the model.

2. Connect the AC adaptor’s DC output plug to the DC IN 19V jack on the left of the computer.

User’s Manual 1-4

Figure 1-3 Connecting the DC output plug to the computer (Satellite

L770/L775/L770D/L775D/Satellite Pro L770/L775/L770D/L775D)

1. DC IN 19V jack 2. DC output plug

3. Plug the power cord into a live wall outlet - the Battery and DC IN indicators or DC IN/Battery indicator on the front of the computer should glow.

Opening the display

The display panel can be opened to a wide range of angles for optimal viewing.

While holding down the palm rest with one hand so that the main body of the computer is not raised, slowly lift the display panel - this will allow the angle of the display panel to be adjusted to provide optimum clarity.

Figure 1-4 Opening the display panel (Satellite L770/L775/L770D/L775D/Satellite

Pro L770/L775/L770D/L775D)

1. Display panel

Use reasonable care when opening and closing the display panel. Opening it vigorously or slamming it shut could damage the computer.

User’s Manual 1-5

■ Be careful not to open the display panel too far as this could put stress

on the display panel’s hinges and cause damage.

■ Do not press or push on the display panel.

■ Do not lift the computer by the display panel.

■ Do not close the display panel with pens or any other objects left in

between the display panel and the keyboard.

■ When opening or closing the display panel, place one hand on the palm

rest to hold the computer in place and use the other hand to slowly open or close the display panel (Do not use excessive force when opening or closing the display panel).

Turning on the power

This section describes how to turn on the power - the Power indicator will then indicate the status. Please refer to the Monitoring of power condition section in Chapter 5, Power and Power-Up Modes for more information.

■ After you turn on the power for the first time, do not turn it off until you

have set up the operating system.

■ Volume cannot be adjusted during Windows Setup.

1. Open the display panel.

2. Press and hold the computer's power button for two or three seconds.

User’s Manual 1-6

Figure 1-5 Turning on the power (Satellite L770/L775/L770D/L775D/Satellite Pro

L770/L775/L770D/L775D)

1. Power button

Starting up for the first time

The Windows 7 Startup Screen will be the first screen displayed when you turn on the power. Follow the on-screen instructions on each screen in order to properly install the operating system.

When it is displayed, be sure to read the Software License Terms carefully.

Turning off the power

The power can be turned off in one of three modes, either Shut Down Mode, Hibernation Mode or Sleep Mode.

Shut Down Mode

When you turn off the power in Shut Down Mode no data will be saved and the computer will boot to the operating system's main screen the next time it is turned on.

1. If you have entered data, either save it to the hard disk drive or to other storage media.

2. Make sure all disk/disc activity has stopped before removing the CD/DVD/BD.

■ Make sure the Hard Disk Drive/Optical Disc Drive indicator is off. If

you turn off the power while a disk (disc) is being accessed, you may lose data or damage the disk.

■ Never turn off the power while an application is running. Doing so could

cause loss of data.

User’s Manual 1-7

■ Never turn off the power, disconnect an external storage device or

remove storage media during data read/write. Doing so can cause data loss.

3. Click Start.

4. Click the Shut down button ( ).

5. Turn off any peripheral devices connected to your computer.

Do not turn the computer or peripheral devices back on immediately - wait a short period to avoid any potential damage.

Sleep Mode

If you have to interrupt your work, you are able to turn off the power without exiting from your software by placing the computer into Sleep Mode. In this mode data is maintained in the computer's main memory so that when you turn on the power again, you can continue working right where you left off.

When you have to turn off your computer aboard an aircraft or in places where electronic devices are regulated or controlled, always completely shut down the computer. This includes turning off any wireless communication functionalities, and cancelling settings that reactivate the computer automatically, such as a timer recording function. Failure to completely shut down the computer in this way could allow the operating system to reactivate and run pre-programmed tasks or preserve unsaved data, which could interfere with aviation or other systems, possibly causing serious injury.

■ Before entering Sleep Mode, be sure to save your data.

■ Do not install or remove a memory module while the computer is in

Sleep Mode. The computer or the memory module could be damaged.

■ Do not remove the battery pack while the computer is in Sleep Mode

(unless the computer is connected to an AC power source). Data in memory could be lost.

■ When the AC adaptor is connected, the computer will go into Sleep

Mode according to the settings in the Power Options (to access it, Start

-> Control Panel -> System and Security -> Power Options).

■ To restore the operation of the computer from Sleep Mode, press and

hold the power button or any key on the keyboard for a short amount of time. Please note that keyboard keys can only be used if the Wake-up on Keyboard option is enabled within the HW Setup utility.

■ If the computer enters Sleep Mode while a network application is active,

the application might not be restored when the computer is next turned on and the system returns from Sleep Mode.

User’s Manual 1-8

■ To prevent the computer from automatically entering Sleep Mode,

disable Sleep Mode within the Power Options (to access it, Start -> Control Panel -> System and Security -> Power Options).

■ To use the Hybrid Sleep function, configure it in the Power Options.

Benefits of Sleep Mode

The Sleep Mode feature provides the following benefits:

■ Restores the previous working environment more rapidly than does the

Hibernation Mode feature.

■ Saves power by shutting down the system when the computer receives

no input or hardware access for the time period set by the System Sleep Mode feature.

■ Allows the use of the panel power off feature.

Executing Sleep Mode

You can also enable Sleep Mode by pressing FN + F3 - please refer to the

Hot key functions section in Chapter 3, Operating Basics, for further details.

You can enter Sleep Mode in one of three ways:

■ Click Start, point to the arrow icon ( ) and then select

Sleep from the menu.

■ Close the display panel. Please note that this feature must be enabled

within the Power Options (to access it, click Start -> Control Panel -> System and Security -> Power Options).

■ Press the power button. Please note that this feature must be enabled

within the Power Options (to access it, click Start -> Control Panel -> System and Security -> Power Options).

When you turn the power back on, you can continue where you left when you shut down the computer.

■ When the computer is in Sleep Mode, the power indicator will blink

amber.

■ If you are operating the computer on battery power, you can lengthen

the overall operating time by turning it off into Hibernation Mode - Sleep Mode will consume more power while the computer is off.

Sleep Mode limitations

Sleep Mode will not function under the following conditions:

■ Power is turned back on immediately after shutting down.

■ Memory circuits are exposed to static electricity or electrical noise.

Hibernation Mode

The Hibernation Mode feature saves the contents of memory to the hard disk drive when the computer is turned off so that, the next time it is turned

User’s Manual 1-9

on, the previous state is restored. Please note that the Hibernation Mode feature does not save the status of any peripheral devices connected to the computer.

■ Save your data. While entering Hibernation Mode, the computer saves

the contents of memory to the hard disk drive. However, for safety sake, it is best to save your data manually.

■ Data will be lost if you remove the battery or disconnect the AC adaptor

before the save is completed. Wait for the Hard Disk Drive/Optical Disc Drive indicator to go out.

■ Do not install or remove a memory module while the computer is in

Hibernation Mode. Data will be lost.

Benefits of Hibernation Mode

The Hibernation Mode feature provides the following benefits:

■ Saves data to the hard disk drive when the computer automatically

shuts down because of a low battery condition.

■ You can return to your previous working environment immediately when

you turn on the computer.

■ Saves power by shutting down the system when the computer receives

no input or hardware access for the time period set by the System Hibernate feature.

■ Allows the use of the panel power off feature.

Starting Hibernation Mode

You can also enable Hibernation Mode by pressing FN + F4 - please refer to the Hot key functions section in Chapter 3, Operating Basics, for further details.

To enter Hibernation Mode, follow the steps below.

1. Click Start.

2. Point to the arrow icon ( ) and then select Hibernate from the menu.

Automatic Hibernation Mode

The computer can be configured to enter Hibernation Mode automatically when you press the power button or close the lid. In order to define these settings, you can follow the steps as described below:

1. Click Start and click the Control Panel.

2. Click System and Security and click Power Options.

3. Click Choose what the power buttons do or Choose what closing the lid does.

4. Enable the desired Hibernation Mode settings for When I press the power button and When I close the lid.

5. Click the Save changes button.

User’s Manual 1-10

Data save in Hibernation Mode

When you turn off the power in Hibernation Mode, the computer will take a moment to save the current data in memory to the hard disk drive. During this time, the Hard Disk Drive/Memory media slot indicator will glow.

After you turn off the computer, and the content of memory has been saved to the hard disk drive, turn off the power to any peripheral devices.

Do not turn the computer or devices back on immediately. Wait a moment to let all capacitors fully discharge.

Restarting the computer

Certain conditions require that you reset the computer, for example if:

■ You change certain computer settings.

■ An error occurs and the computer does not respond to your keyboard

commands.

If you need to restart the computer, there are three ways this can be achieved:

■ Click Start, point to the arrow icon ( ) and then select

Restart from the menu.

■ Press CTRL, ALT and DEL simultaneously (once) to display the menu

window, then select Restart from the Shut down options.

■ Press the power button and hold it down for five seconds. Once the

computer has turned itself off, wait between ten and fifteen seconds before turning the power on again by pressing the power button.

User’s Manual 1-11

Chapter 2

The Grand Tour

This chapter identifies the various components of the computer - it is recommended that you become familiar with each before you operate the computer.

Legal Footnote (Non-applicable Icons)

For more information regarding Non-applicable Icons, please refer to the Legal Footnotes section in Appendix C.

Please handle your computer carefully to avoid scratching or damaging the surface.

The Grand Tour for Satellite C670/C675/C670D/C675D/Satellite Pro C670/C675/C670D

Front with the display closed

The following figure shows the computer’s front with its display panel in the closed position.

Figure 2-1 Front of the computer with display panel closed

1 2

1. DC IN/Battery indicator 2. Power indicator

User’s Manual 2-1

DC IN/Battery indicator

The DC IN/Battery indicator shows the status of the battery’s charge - green indicates the battery is fully charged while power is being correctly supplied from the AC power adaptor. Please refer to Chapter 5, Power and Power-Up Modes for more information on this feature.

Power indicator The Power indicator normally glows green when

the computer is turned on. However, if you turn the computer off into Sleep Mode, this indicator will blink green - approximately two seconds on, two seconds off - both while the system is shutting down and while it remains turned off.

Left side

The following figure shows the computer’s left side.

Figure 2-2 The left side of the computer

1. DC IN 19V jack 6. Memory media slot

2. Cooling vents 7. Universal Serial Bus (USB 2.0) port

3. External RGB monitor port 8. Microphone jack

4. LAN jack 9. Headphone jack

5. Universal Serial Bus (USB 2.0) port

Product appearance depends on the model you purchased.

9765432 81

DC IN 19V jack The AC adaptor connects to this jack in order to

power the computer and charge its internal batteries. Please note that you should only use the model of AC adaptor supplied with the computer at the time of purchase - using the wrong AC adaptor can cause damage to the computer.

Cooling vents The cooling vents help the processor avoid

overheating.

Do not block the cooling vents. Keep foreign metal objects, such as screws, staples and paper clips, out of the cooling vents. Foreign metal objects can create a short circuit, which can cause damage and fire, possibly resulting in serious injury.

User’s Manual 2-2

External RGB monitor port

This port provides 15-pin, analog VGA port. Please refer to Appendix A for information on external RGB monitor port pin assignment.

This port allows you to connect an external RGB monitor to the computer.

LAN jack This jack lets you connect to a LAN. The adaptor

has built-in support for Ethernet LAN (10 megabits per second, 10BASE-T) or Fast Ethernet LAN (100 megabits per second, 100BASE-TX). Some models are equipped with a Gigabit Ethernet LAN (1000 megabits per second, 1000BASE-T). Refer to chapter 3, Operating Basics, for details.

■ Do not connect any cable other than a LAN cable to the LAN jack. It

could cause damage or malfunction.

■ Do not connect the LAN cable to a power supply. It could cause

damage or malfunction.

Universal Serial Bus (USB 2.0) ports

Two Universal Serial Bus ports, which comply to the USB 2.0 standard, are provided on the left side of the computer.

Memory media slot This slot lets you insert an SD™/SDHC™/SDXC™

memory card, miniSD™/microSD™ Card and MultiMediaCard™. Refer to the Optional devices section in Chapter 3, Operating Basics for more information.

Microphone jack A 3.5 mm mini microphone jack enables

connection of a monaural microphone.

Headphone jack A 3.5 mm mini headphone jack enables

connection of a stereo headphone.

Right side

The following figure shows the computer’s right side.

Figure 2-3 The right side of the computer

1 2

1. Optical disc drive 2. Security lock slot

User’s Manual 2-3

Optical disc drive The computer is configured with a DVD Super

Multi, BD-Combo or BD-Writer drive.

2.6GB and 5.2GB DVD-RAM media cannot be read from or written to.

Security lock slot A security cable can be attached to this slot and

then connected to a desk or other large object in order to deter theft of the computer.

Please note that it is not possible to confirm the operation of all functions of all USB devices that are available. In view of this it may be noted that some functions associated with a specific device might not operate properly.

Keep foreign metal objects, such as screws, staples and paper clips, out of the Memory media slot and USB ports. Foreign metal objects can create a short circuit, which can cause damage and fire, possibly resulting in serious injury.

Back

The following figure shows the computer’s back.

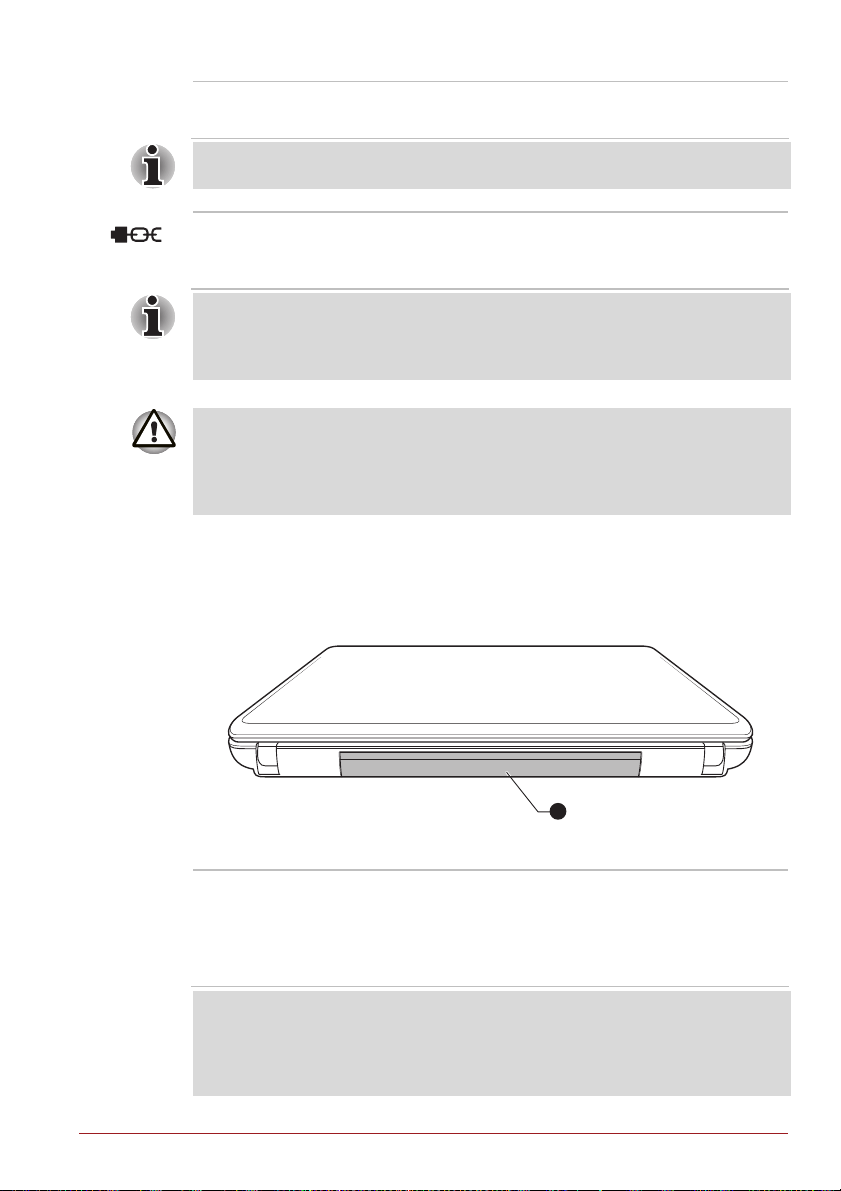

Figure 2-4 The back of the computer

1. Battery pack

Battery pack The rechargeable lithium-ion battery pack provides

power to the computer when the AC adaptor is not connected. For more detailed information on the use and operation of the battery pack please refer to Chapter 5, Power and Power-Up Modes.

Legal Footnote (Battery Life)

For more information regarding Battery Life, please refer to the Legal Footnotes section in Appendix C.

User’s Manual 2-4

Underside

The following figure shows the underside of the computer. You should ensure that the display is closed before the computer is turned over to avoid causing any damage.

Figure 2-5 The underside of the computer

1 2

1. Battery lock 3. Memory module slot

2. Battery release latch 4. Cooling vents

Product appearance depends on the model you purchased.

Battery lock Slide the battery lock to release the battery pack

ready for removal.

Battery release latch Slide and hold this latch into its "Unlock" position in

Memory module slot The memory module slot allows for the installation,

Cooling vents The cooling vents help the processor avoid

order to release the battery pack for removal. For more detailed information on removing the battery pack please refer to Chapter 5, Power and Power-

Up Modes.

replacement and removal of additional memory module.

1 GB, 2 GB or 4 GB memory modules can be installed in the computer's two memory slots for a maximum of 8 GB system memory. The actual amount of useable system memory will be less than the installed memory modules.

Refer to the Additional memory module section in Chapter 3, Operating Basics.

overheating.

User’s Manual 2-5

Carefully clean the dust on the cooling vents’ surface using a soft cloth.

Front with the display open

This section shows the computer with the display panel open. In order to open the display, lift the display panel up and position it at a comfortable viewing angle for you.

Figure 2-6 The front of the computer with the display panel open

1. Display screen 7. Power button

2. Web Camera LED* 8. Keyboard

3. Web Camera* 9. Touch Pad

4. Microphone* 10. Touch Pad control buttons

5. Bluetooth antenna and Wireless LAN

antennas (not shown)*

11. Display hinges

6. Stereo speakers

* Provided with some models. Product appearance depends on the model you purchased.

User’s Manual 2-6

Display screen 43.9 cm (17.3”) LCD screen, 16 million colors,

configured with the following resolution:

■ HD+, 1600 horizontal x 900 vertical pixels

Please be aware that, when the computer is operating on the AC adaptor, the image displayed on the internal screen will be somewhat brighter than when it operates on battery power. This difference in brightness levels is intended to save power when operating on batteries.

Legal Footnote (LCD)

For more information regarding LCD, please refer to the Legal Footnotes section in Appendix C.

Web Camera LED The Web Camera LED glows when the Web

Camera is operating.

Web Camera Web Camera is a device that allows you to record

video or take photographs with your computer. You can use it for video chatting or video conferences using a communication tool such as Windows

Live Messenger. TOSHIBA Web Camera Application will help you to add various video

effects to your video or photograph. Enables the transmission of video and use of video

chat via the internet using specialized applications. Some models are equipped with a Web Camera. Please refer to the Web Camera Application

Online Help for details.

Microphone A built-in microphone allows you to import and

record sounds for your application - please refer to the Sound System section in Chapter 3, Operating Basics for more information.

■ Do not point the web camera directly at the sun.

■ Do not touch or press strongly on the web camera lens. Doing so may

reduce image quality. Use an eyeglass cleaner (cleaner cloth) or other soft cloth to clean the lens if it becomes dirty.

■ When recording in dimly lit environments, select "Night Mode" which

allows for brighter images with less noise.

Wireless LAN antennas

User’s Manual 2-7

Some computers in this series are equipped with the Wireless LAN antennas.

Legal Footnote (Wireless LAN)

For more information regarding Wireless LAN, please refer to the Legal Footnotes section in Appendix C.

Bluetooth antenna Some computers in this series are equipped with

the bluetooth antenna.

Stereo speakers The speakers emit sound generated by your

software as well as audio alarms, such as low battery condition, generated by the system.

Power button Press this button to turn the computer's power on

and off.

Keyboard The internal keyboard provides the dedicated

numeric keys, dedicated cursor control overlay

keys, and Keys. Refer to the The Keyboard section in Chapter 3, Operating Basics, for details.

Touch Pad The Touch Pad located in the palm rest is used to

Touch Pad control buttons

Display hinges The display hinges allow the display panel to be

control the movement of the on-screen pointer. For more information, please refer to the Using the

Touch Pad in Chapter 3, Operating Basics.

The control buttons located below the Touch Pad allow you to select menu items or manipulate text and graphics as designated by the on-screen pointer.

positioned at a variety of easy-to-view angles.

The Grand Tour for Satellite L770/L775/L770D/L775D/Satellite Pro L770/L775/L770D/L775D

Front with the display closed

The following figure shows the computer’s front with its display panel in the closed position.

User’s Manual 2-8

Figure 2-7 Front of the computer with display panel closed

1 2 3 4 5 6

1. DC IN indicator 4. Hard Disk Drive/Optical Disc Drive indicator

2. Power indicator 5. Memory media slot indicator

3. Battery indicator 6. Wireless communication indicator

DC IN indicator The DC IN indicator normally glows white when

power is being correctly supplied from the AC power adaptor.

Power indicator The Power indicator normally glows white when

the computer is turned on. However, if you turn the computer off into Sleep Mode, this indicator will blink amber - approximately two seconds on, two seconds off - both while the system is shutting down and while it remains turned off.

Battery indicator The Battery indicator shows the condition of the

battery's charge - white indicates the battery is fully charged, amber indicates the battery is charging, and blinking amber indicates a low battery condition. Please refer to Chapter 5, Power

and Power-Up Modes for more information on this

feature.

Hard Disk Drive/Optical Disc Drive indicator

The Hard Disk Drive/Optical Disc Drive indicator blinks white whenever the computer is

accessing the built-in hard disk drive or optical disc drive.

Memory media slot indicator

The Memory media slot indicator blinks white when the computer is accessing the memory media slot.

Wireless communication indicator

The Wireless communication indicator glows amber when the Wireless functions are turned on.

Some models are equipped with Wireless functions.

User’s Manual 2-9

Left side

The following figure shows the computer’s left side.

Figure 2-8 The left side of the computer

1. DC IN 19V jack 5. Universal Serial Bus (USB 2.0 or USB

3.0) port*

2. Cooling vents 6. HDMI out port*

3. External RGB monitor port 7. Memory media slot

4. LAN jack

* Provided with some models. Product appearance depends on the model you purchased.

DC IN 19V jack The AC adaptor connects to this jack in order to

Cooling vents The cooling vents help the processor avoid

overheating.

6543 71 2

User’s Manual 2-10

External RGB monitor port

This port provides 15-pin, analog VGA port. Please refer to Appendix A for information on external RGB monitor port pin assignment.

This port allows you to connect an external RGB monitor to the computer.

Universal Serial Bus (USB 2.0 or 3.0) port

One Universal Serial Bus port, which complies to the USB 2.0 or 3.0 standard, is provided on the left

side of the computer. The port with the icon has

Sleep and Charge function.

The USB port type may vary depending on the model you purchased. The Port with blue color is USB 3.0 port.

The USB 2.0 port is compliant with USB 2.0 standard and not compatible with USB 3.0 devices.

The USB 3.0 port is compliant with USB 3.0 standard and backward compatible with USB 2.0 devices.

HDMI out port HDMI out port can connect with Type A connector

HDMI cable. Some models are equipped with an HDMI out port.

Memory media slot This slot lets you insert an SD™/SDHC™/SDXC™

memory card, miniSD™/microSD™ Card, Memory Stick™, Memory Stick™ PRO™ and MultiMediaCard™. Refer to the Optional devices section in Chapter 3, Operating Basics for more information.

Right side

The following figure shows the computer’s right side.

Figure 2-9 The right side of the computer

1 2

1. Headphone jack 4. Optical disc drive

2. Microphone jack 5. Security lock slot

3. Universal Serial Bus (USB 2.0) ports

Product appearance depends on the model you purchased.

User’s Manual 2-11

Headphone jack A 3.5 mm mini headphone jack enables

connection of stereo headphones.

Microphone jack A 3.5 mm mini microphone jack enables

The integrated sound system provides support for the computer's internal speakers and microphone, as well as allowing an external microphone and headphones to be connected via the appropriate jacks.

connection of a three-conductor mini jack for monaural microphone input.

Universal Serial Bus (USB 2.0) ports

Optical disc drive The computer may be configured with a DVD

2.6GB and 5.2GB DVD-RAM media cannot be read from or written to.

Security lock slot A security cable can be attached to this slot and

Keep foreign metal objects, such as screws, staples and paper clips, out of the Memory media slot and USB port. Foreign metal objects can create a short circuit, which can cause damage and fire, possibly resulting in serious injury.

Two Universal Serial Bus ports, which comply to the USB 2.0 standard, are provided on the right hand side of the computer

Super Multi, BD-Combo or BD-Writer drive.

then connected to a desk or other large object in order to deter theft of the computer.

Back

The following figure shows the computer’s back.

User’s Manual 2-12

Figure 2-10 The back of the computer

1. Battery pack

Battery pack The rechargeable lithium-ion battery pack provides

power to the computer when the AC adaptor is not connected. For more detailed information on the use and operation of the battery pack please refer to Chapter 5, Power and Power-Up Modes.

Legal Footnote (Battery Life)

For more information regarding Battery Life, please refer to the Legal Footnotes section in Appendix C.

Underside

The following figure shows the underside of the computer. You should ensure that the display is closed before the computer is turned over to avoid causing any damage.

User’s Manual 2-13

Figure 2-11 The underside of the computer

1 2

1. Battery lock 3. Memory module slot

2. Battery release latch 4. Cooling vents

Product appearance depends on the model you purchased.

Battery lock Slide the battery lock to release the battery pack

ready for removal.

Battery release latch Slide and hold this latch into its "Unlock" position in

order to release the battery pack for removal. For more detailed information on removing the battery pack please refer to Chapter 5, Power and Power-

Up Modes.

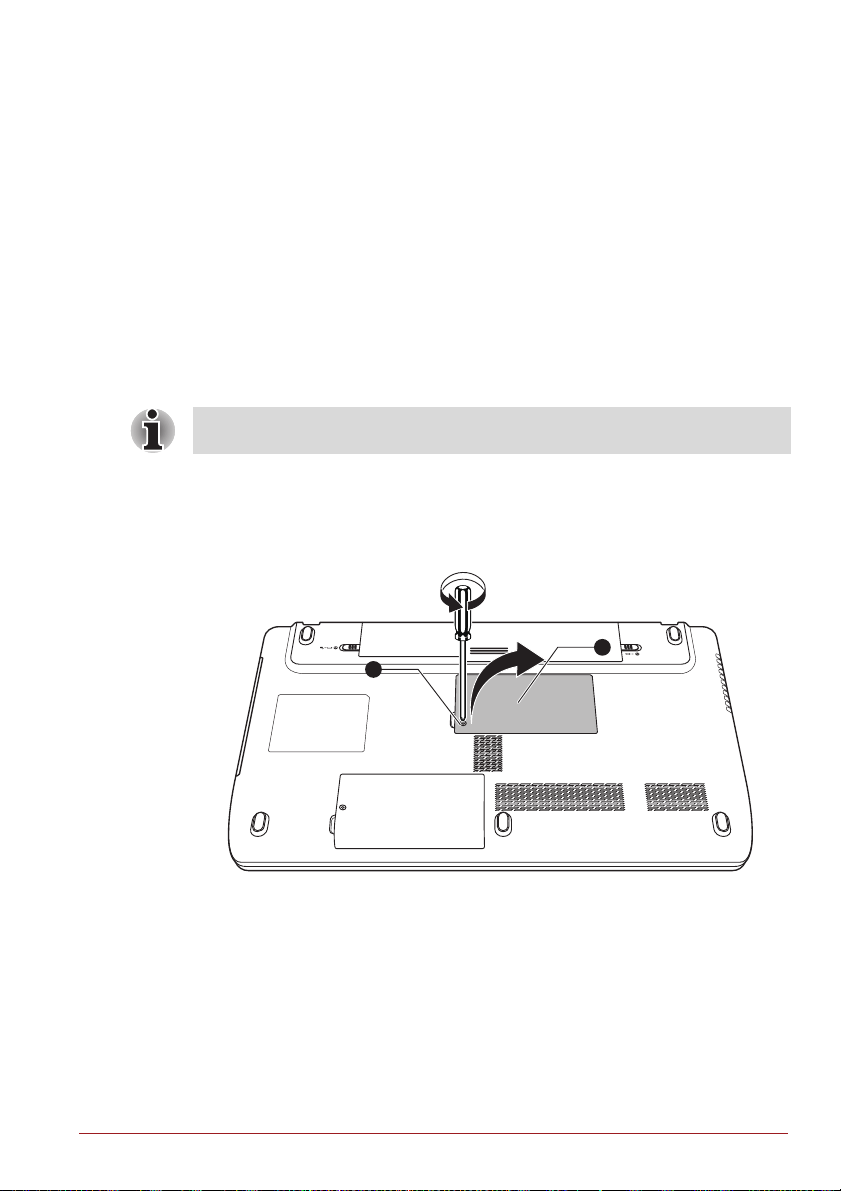

Memory module slot The memory module slot allows for the installation,

replacement and removal of additional memory module.

Refer to the Additional memory module section in Chapter 3, Operating Basics.

Cooling vents The cooling vents help the processor avoid

overheating.

User’s Manual 2-14

Carefully clean the dust on the cooling vents’ surface using a soft cloth.

Front with the display open

This section shows the computer with the display panel open. In order to open the display, lift the display panel up and position it at a comfortable viewing angle for you.

Figure 2-12 The front of the computer with the display panel open

1. Display screen 7. Power button

2. Web Camera* 8. Keyboard

3. Web Camera LED* 9. Touch Pad

4. Microphone* 10. Touch Pad control buttons

5. Bluetooth antenna and Wireless LAN

antennas (not shown)*

11. Display hinges

6. Stereo speakers 12. Touch Pad ON/OFF button

* Provided with some models. Product appearance depends on the model you purchased.

User’s Manual 2-15

Display screen 43.9 cm (17.3”) LCD screen, 16 million colors,

configured with the following resolution:

■ HD+, 1600 horizontal x 900 vertical pixels

Legal Footnote (LCD)

For more information regarding LCD, please refer to the Legal Footnotes section in Appendix C.

Web Camera LED The Web Camera LED glows when the Web

Camera is operating.

Web Camera Web Camera is a device that allows you to record

video or take photographs with your computer. You can use it for video chatting or video conferences using a communication tool such as Windows

Live Messenger. TOSHIBA Web Camera Application will help you to add various video

effects to your video or photograph. Enables the transmission of video and use of video

chat via the internet using specialized applications. Some models are equipped with a Web Camera. Please refer to the Web Camera Application

Online Help for details.

Microphone A built-in microphone allows you to import and

record sounds for your application - please refer to the Sound System section in Chapter 3, Operating Basics for more information.

■ Do not point the web camera directly at the sun.

■ Do not touch or press strongly on the web camera lens. Doing so may

reduce image quality. Use an eyeglass cleaner (cleaner cloth) or other soft cloth to clean the lens if it becomes dirty.

■ When recording in dimly lit environments, select "Night Mode" which

allows for brighter images with less noise.

Wireless LAN antennas

User’s Manual 2-16

Some computers in this series are equipped with the Wireless LAN antennas.

Legal Footnote (Wireless LAN)

For more information regarding Wireless LAN, please refer to the Legal Footnotes section in Appendix C.

Bluetooth antenna Some computers in this series are equipped with

the bluetooth antenna.

Stereo speakers The speakers emit sound generated by your

software as well as audio alarms, such as low battery condition, generated by the system.

Power button Press this button to turn the computer's power on

and off.

Keyboard The internal keyboard provides the dedicated

numeric keys, dedicated cursor control overlay

keys, and Keys. Refer to the The Keyboard section in Chapter 3, Operating Basics, for details.

Touch Pad The Touch Pad located in the palm rest is used to

Touch Pad control buttons

Display hinges The display hinges allow the display panel to be

Touch Pad ON/OFF button

control the movement of the on-screen pointer. For more information, please refer to the Using the

Touch Pad in Chapter 3, Operating Basics.

The control buttons located below the Touch Pad allow you to select menu items or manipulate text and graphics as designated by the on-screen pointer.

positioned at a variety of easy-to-view angles.

Press this button to enable or disable the Touch Pad function.

Internal Hardware Components

This section describes the internal hardware components of your computer. The actual specifications may vary depending on the model you

purchased.

CPU The processor type varies depending on model.

To check which type of processor is included in your model, open the TOSHIBA PC Diagnostic Tool Utility by clicking Start -> All Programs -> TOSHIBA -> Utilities -> PC Diagnostic Tool.

Legal Footnote (CPU)

User’s Manual 2-17

For more information regarding CPU, please refer to the Legal Footnotes section in Appendix C.

Hard Disk Drive or Solid State Drive

■ In this manual, the word "HDD" or "Hard disk drive" also refers to the

SSD unless otherwise stated.

■ SSD is a large-capacity storage media which uses Solid-State Memory

in place of a magnetic disk of the hard disk.

Under certain unusual conditions of prolonged non-use and/or exposure to high temperatures, the SSD may be vulnerable to data retention errors.

The size of the hard disk drive varies depending on the model.

To check which type of HDD/SSD is included in your model, open the TOSHIBA PC Diagnostic Tool Utility by clicking Start -> All Programs -> TOSHIBA -> Utilities -> PC Diagnostic Tool.

Please note that part of the hard disk's overall capacity is reserved as administration space.

Legal Footnote (Hard Disk Drive (HDD) Capacity)

For more information regarding Hard Disk Drive (HDD) Capacity, please refer to the Legal Footnotes section in Appendix C.

RTC battery The internal RTC battery backs up the Real Time

Video RAM The memory in a computer's graphics adaptor,

Clock (RTC) and calendar.

used to store the image displayed on a bitmap display.

The amount of Video RAM available is dependent on the computer's system memory.

Start -> Control Panel -> Appearance and Personalization -> Display -> Adjust resolution.

The amount of Video RAM can be verified by clicking the Advanced settings button in the Screen Resolution window.

Legal Footnote (Memory (Main System))

For more information regarding Memory (Main System), please refer to the Legal Footnotes section in Appendix C.

User’s Manual 2-18

Display controller The display controller interprets software

commands into hardware commands that turn particular parts on the screen on or off.

The display controller also controls the video mode and uses industry standard rules to govern the screen resolution and the maximum number of colors that can be displayed at any one time. Therefore, software written for a given video mode will run on any computer that supports that mode.

Due to the display panel's increased resolution, lines may appear broken in when displaying images in full-screen text mode.

Graphics controller The graphics controller maximizes display

performance.

Legal Footnote (Graphics Processing Unit ("GPU"))

For more information regarding Graphics Processing Unit ("GPU"), please refer to the Legal Footnotes section in Appendix C.

Intel® Display Power Saving Technology

Intel GPU model may include the Display Power Saving Technology feature that can save the computer's power consumption by optimizing picture contrast on the internal LCD.

This feature can be used if the computer is:

■ running under battery mode

■ using the internal LCD display only

The Display Power Saving Technology feature can be enabled in the Intel® Graphics and Media Control Panel.

You can access this control panel in one of the following ways:

■ Click Start -> Control Panel. Select Large icons or Small icons in

View by, and then click Intel(R) Graphics and Media.

■ Right-click on the desktop and click Graphics Properties...

In this control panel:

1. Select Basic Mode and click OK.

2. Click Power.

3. Select On battery from the drop-down menu in Power Source and then select the Display Power Saving Technology check box.

If you want to improve the picture quality under the conditions mentioned above, adjust the setting towards Maximum Quality or disable this feature.

User’s Manual 2-19

AMD® Vari-Bright

™

AMD GPU model may include the AMD® Vari-Bright™ feature that can save the computer's power consumption by optimizing picture contrast on the internal LCD.

This feature can be used if the computer is:

■ running under battery mode

■ using the internal LCD display only

The Vari-Bright feature can be enabled in the Catalyst Control Center. To access this center, go to

Start -> All Programs -> Catalyst Control Center -> CCC

In this control center,

™

1. Select PowerPlay

2. Select the Enable PowerPlay

Vari-Bright

™

under Power.

check box.

™

check box, and then select the Enable

If you want to improve the picture quality under the conditions mentioned above, adjust the setting towards Maximize Quality or disable this feature.

User’s Manual 2-20

Chapter 3

Operating Basics

This chapter describes the basic operations of your computer, highlights the precautions that should be taken when using it.

Using the Touch Pad

To use the Touch Pad, simply touch and move your fingertip across it in the direction you want the on-screen pointer to go.

Figure 3-1 Touch Pad and Touch Pad control buttons (Satellite

L770/L775/L770D/L775D/Satellite Pro L770/L775/L770D/L775D)

Chapter 3

1. Touch Pad ON/OFF button 3. Touch Pad control buttons

2. Touch Pad

Pressing the Touch Pad ON/OFF button enables or disables the Touch Pad function. Some models are equipped with the Touch Pad ON/OFF button.

The two buttons below the Touch Pad are used like the buttons on a standard mouse - press the left button to select a menu item or to manipulate text or graphics designated by the pointer, and press the right button to display a menu or other function depending on the software you are using.

User’s Manual 3-1

The Keyboard

The computer’s keyboard layouts are compatible with a 104/105-key enhanced keyboard - by pressing some keys in combination, all of the 104/105-key enhanced keyboard functions can be performed on the computer.

The number of keys available on your keyboard will depend on which country/region your computer is configured for, with keyboards being available for numerous languages.

In use there are five different types of keys, specifically typewriter keys, function keys, soft keys, Hot keys and Windows special keys.

Keyboard indicators

The following figures show the positions of the CAPS LOCK indicator and the NUM LOCK indicator which show the following conditions:

■ When the CAPS LOCK indicator glows, the keyboard will produce

capitals when any letter is typed.

■ When the NUM LOCK indicator glows, the ten key allows you to enter

numbers.

Figure 3-2 CAPS LOCK and NUM LOCK indicators (Satellite

L770/L775/L770D/L775D/Satellite Pro L770/L775/L770D/L775D)

1. CAPS LOCK indicator 2. NUM LOCK indicator

CAPS LOCK This indicator glows green when letter keys are

locked into their uppercase format.

NUM LOCK When the NUM LOCK indicator glows, you can

use the number keys on the keyboard for number entry.

Function keys: F1 … F9

The function keys (not to be confused with the special FN key) are the nine keys at the top of your keyboard - these keys function differently from other keys.

User’s Manual 3-2

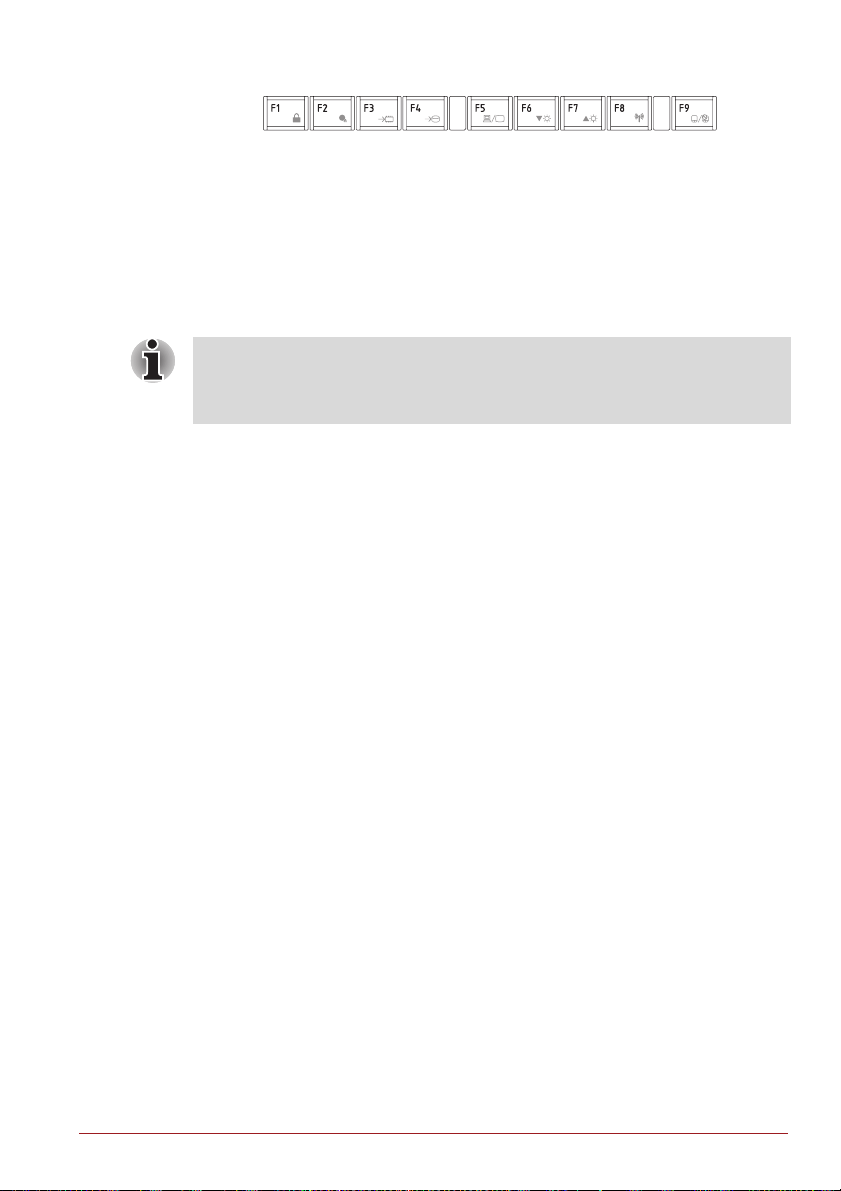

F1 through F9 are called function keys because they execute programmed functions when pressed and, when used in combination with the FN key, those keys marked with icons also execute specific functions on the computer.

Soft keys: FN key combinations

The FN (function) is used in combination with other keys to form soft keys. Soft keys are key combinations that enable, disable or configure specific features.

Please note that some software may disable or interfere with soft-key operations, and that the soft-key settings are not restored when the computer returns from Sleep Mode.

This computer's keyboard is designed to provide all the features of the 104key enhanced keyboard.

Since the keyboard is smaller and has fewer keys, some of the enhanced keyboard functions must be simulated using two keys instead of one on the larger keyboard.

The FN key can be combined with the following keys to simulate functions similar to those of keys on the 104/105 key enhanced keyboard which are not on this computer's keyboard.

Hot key functions

Hot key functions let you enable or disable certain features of the computer. The Hot key functions can be performed using either the Hot Key Cards or by pressing the associated Hot keys (pressing FN + a function or ESC key).

Hot Key Cards

The Hot Key Cards are normally hidden from view. The Cards appear when you press the FN key.

To use the Hot Key Cards:

1. Press and hold the FN key. The TOSHIBA Flash Cards appear along the top of the screen.

2. Select the desired option The selected Card is displayed full-size with its available options below

it. All other Cards are again hidden from view.

3. Click the desired option.

To use a Hot Key Card using a hot key:

1. Press and hold the FN key.

2. Press the hot key associated with the desired function. The associated hot key card appears at the top of the screen with its available options below it.

User’s Manual 3-3

3. To cycle through the displayed options, hold down FN and press the hot key repeatedly. Release the FN key when the desired option is selected.

For more information, please refer to the TOSHIBA Flash Cards Help file. To access this help, click Start -> All Programs -> TOSHIBA -> Utilities ->

Flash Cards Help.

Hot keys

This section describes the associated functions of the hot keys.

■ Mute

Pressing FN + ESC turns the sound on and off.

■ Lock

Pressing FN + F1 enters ''Lock computer mode''. To restore your desktop, you need to log on again.

■ Power Plan

Pressing FN + F2 changes the power settings.

■ Sleep

Pressing FN + F3 switches the system to Sleep Mode.

■ Hibernate

Pressing FN + F4 switches the system to Hibernation Mode.

■ Output

Pressing FN + F5 changes the active display device.

To use a simultaneous mode, you must set the resolution of the internal display panel to match the resolution of the external display device.

■ Brightness Down

Pressing FN + F6 decreases the computer's display panel brightness in individual steps.

■ Brightness Up

Pressing FN + F7 increases the computer's display panel brightness in individual steps.

■ Wireless

Pressing FN + F8 switches the active wireless devices.

If no wireless communication device is installed, no dialog box will appear.

■ Tou c h Pad

Pressing FN + F9 enables or disables the Touch Pad function.

User’s Manual 3-4

■ Zoom

Pressing FN + Space changes the display resolution.

■ Reduce

Pressing FN + 1 reduces the icon size on the desktop or the font sizes within one of the supported application windows.

■ Enlarge

Pressing FN + 2 enlarges the icon size on the desktop or the font sizes within one of the supported application windows.

■ Volume down

Pressing FN + 3 decreases the volume in increment.

■ Volu m e u p

Pressing FN + 4 increases the volume in increment.

FN Sticky key

You can use the TOSHIBA Accessibility Utility to make the FN key sticky, that is, you can press it once, release it, and then press an "F Number" key. To start the TOSHIBA Accessibility utility, click Start -> All Programs ->

TOSHIBA -> Utilities -> Accessibility.

Windows special keys

The keyboard provides two keys that have special functions in Windows, the Windows Start Button key activates the Start menu while the application key has the same function as the secondary (right) mouse button.

This key activates the Windows Start menu.

This key has the same function as the secondary (right) mouse button.

Generating ASCII characters

Not all ASCII characters can be generated using normal keyboard operation, but you are able to generate these characters using their specific ASCII codes.

1. Hold down ALT key.

2. Using the numeric keypad, type the ASCII code of the character you require.

3. Release ALT - the ASCII character will appear on the display screen.

User’s Manual 3-5

Optical disc drives

The computer may be installed with a DVD Super Multi, BD-Combo or BDWriter drive. When the computer is accessing an optical disc, an indicator on the drive glows.

Some models are equipped with an optical disc drive.

Formats

The drives support the following formats.

DVD Super Multi drive Double Layer

The drive supports the following formats: CD-ROM, DVD-ROM, DVDVideo, CD-DA, CD-Text, Photo CDTM (single/multi-session), CD-ROM Mode 1/Mode 2, CD-ROM XA Mode 2 (Form1, Form2), Enhanced CD (CDEXTRA), Addressing Method 2, DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-RAM, DVD-R DL (Format1), DVD+R DL.

BD-Combo drive

In addition to the above formats, BD-Combo drive supports BD-ROM and BD (DL).

BD-Writer drive

In addition to the above formats, BD-Writer drive supports BD-R, BD-R (DL), BE-RE and BD-RE (DL).

Some types and formats of DVD-R (DL) and DVD+R (DL) discs may be unreadable.

Using optical disc drives

The full-size drive provides high-performance execution of disk based programs. You can run either 12 cm (4.72") or 8 cm (3.15") discs without an adaptor.

Use the DVD playback application to view DVD-Video discs.

If you have an Optical disc drive, refer also to the Writing CD/DVD/BDs section for precautions on writing to CDs/DVD/BDs.

To load discs, follow the steps as detailed below:

1. When the computer’s power is on, press the eject button to open the disc tray slightly.

2. Grasp the disc tray gently and pull until it is fully opened.

User’s Manual 3-6

Figure 3-3 Pressing the eject button and pulling the disc tray open (Satellite

L770/L775/L770D/L775D/satellite Pro L770/L775/L770D/L775D)

1. Eject button 2. Disc tray

3. Lay the disc, label side up, in the disc tray.

Figure 3-4 Inserting a disc (Satellite L770/L775/L770D/L775D/satellite Pro

L770/L775/L770D/L775D)

1. Laser lens

When the disc tray is fully opened, the edge of the computer will cover the disc tray slightly. Therefore, you will need to turn the disc at an angle when you place it in the disc tray. After seating the disc, however, make sure it lies flat.

■ Do not touch the laser lens or any portion of its surrounding casing as

this could cause misalignment.

User’s Manual 3-7

■ Prevent foreign objects from entering the drive. Check the surface of

the disc tray, especially the area behind the front edge of the disc tray, to make sure there are no such objects before closing the drive.

4. Press gently at the center of the disc until you feel it click into place. The disc should lie below the top of the spindle, flush with the spindle base.

5. Push the center of the disc tray to close it. Press gently until it locks into place.

If the disc is not seated properly when the disc tray is closed, the disc might be damaged. Also, the disc tray might not open fully when you press the eject button.

Removing discs

To remove the disc, follow the steps as detailed below:

Do not press the eject button while the computer is accessing the media drive. Wait for the optical disc drive indicator to go out before you open the disc tray. Also, if the disc is spinning when you open the disc tray, wait for it to stop before you remove it.

1. To pop the disc tray partially open, press the eject button. Gently pull the disc tray out until it is fully opened.

When the disc tray pops open slightly, wait a moment to make sure the disc has stopped spinning before pulling the disc tray fully open.

2. The disc extends slightly over the sides of the disc tray so you can grasp it. Gently lift out the disc.

3. Push the center of the disc tray to close it. Press gently until it locks into place.

How to remove disc when the disc tray will not open

Pressing the eject button will not open the disc tray when the computer power is off. If the power is off, you can open the disc tray by inserting a slender object (about 15 mm) such as a straightened paper clip into the eject hole near the eject button.

User’s Manual 3-8

Figure 3-5 Manual release with the eject hole (Satellite

L770/L775/L770D/L775D/satellite Pro L770/L775/L770D/L775D)

Φ1.0mm

1. Eject hole

Turn off the power before you use the eject hole. If the disc is spinning when you open the disc tray, the disc could fly off the spindle and cause injury.

Writable discs

This section describes the types of writable discs. Check the specifications of your drive to see the types of discs it can write. Use TOSHIBA Disc Creator and Corel Digital Studio to write compact discs.

CDs

■ CD-R discs can be written only once. The recorded data cannot be

erased or changed.

■ CD-RW discs including multi speed CD-RW discs, high-speed CD-RW

discs and ultra-speed CD-RW discs can be recorded more than once.

DVDs

■ DVD-R, DVD+R, DVD-R DL and DVD+R DL discs can be written only

once. The recorded data cannot be erased or changed.

■ DVD-RW, DVD+RW and DVD-RAM discs can be recorded more than

once.

BDs

■ BD-R and BD-R DL discs can be written only once. The recorded data

cannot be erased or changed.

■ BD-RE and BD-RE DL discs can be recorded more than once.

Writing CD/DVD/BDs

The TOSHIBA Disc Creator and Corel Digital Studio are provided as writing software with this computer.

Corel Digital Studio can be used to write files in video format. TOSHIBA Disc Creator can be used to write data.

User’s Manual 3-9

You can use the DVD Super Multi drive or BD-Combo drive to write data to either CD-R, CD-RW, DVD-R, DVD-R DL, DVD-RW, DVD+R, DVD+R DL, DVD+RW, DVD-RAM or DVD-R DL discs.

You can use the BD-Writer drive to write data to either CD-R, CD-RW, DVD-R, DVD-R DL, DVD-RW, DVD+R, DVD+R DL, DVD+RW, DVD-RAM, DVD-R DL, BD-R or BD-RE discs.

When writing information to media using an optical drive, you should always ensure that you connect the AC adaptor to a live power socket. It is possible that, if data is written while powered by the battery pack, the write process may sometimes fail due to low battery power - in these instances data loss may occur.

Important message

Before you write or rewrite to any of the media supported by the DVD Super Multi Drive or BD-Combo/BD-Writer drive, please read and follow all of the setup and operating instructions in this section. If you fail to do so, you may find that the DVD Super Multi drive or BD-Combo/BD-Writer drive may not function properly, and you may fail to write or rewrite information successfully - this may cause you to either lose data or incur other damage to the drive or media.

Disclaimer

TOSHIBA does not bear responsibility for the following:

■ Damage to any disc that may be caused by writing or rewriting with this

product.

■ Any change or loss of the recorded contents of media that may be

caused by writing or rewriting with this product, or for any business profit loss or business interruption that may be caused by the change or loss of the recorded contents.

■ Damage that may be caused by using third party equipment or

software.

Given the technological limitations of current optical disc writing drives, you may experience unexpected writing or rewriting errors due to disc quality or problems with hardware devices. In view of this, it is good practice to make two or more copies of important data, in case of any undesired change or loss of the recorded contents.

Before writing or rewriting

■ Based on TOSHIBA's limited compatibility testing, we suggest the

following manufacturers of disc media, however, it must be noted that disc quality can affect write or rewrite success rates. Please also be aware that in no event does TOSHIBA guarantee the operation, quality or performance of any disc.

User’s Manual 3-10

CD-R:

TAIYO YUDEN CO., Ltd. MITSUBISHI KAGAKU MEDIA CO., LTD.

CD-RW: (Multi-Speed, High-Speed and Ultra-Speed)

MITSUBISHI KAGAKU MEDIA CO., LTD.

DVD-R: DVD Specifications for Recordable Disc for General Version 2.0

TAIYO YUDEN Co.,Ltd. (for 8x and 16x speed media) MITSUBISHI KAGAKU MEDIA CO., LTD. (for 8x and 16x speed media) Hitachi Maxell, Ltd. (for 8x and 16x speed media)

DVD-R DL:

MITSUBISHI KAGAKU MEDIA CO., LTD. (for 4x and 8x speed media)

DVD+R:

MITSUBISHI KAGAKU MEDIA CO., LTD. (for 8x and 16x speed media) TAIYO YUDEN CO., Ltd. (for 8x and 16x speed media)

DVD+R DL:

MITSUBISHI KAGAKU MEDIA CO., LTD. (for 8x speed media)

DVD-RW: DVD Specifications for Recordable Disc for Version 1.1 or version 1.2

Victor Company of Japan, Ltd. (JVC) (for 2x, 4x and 6x speed media) MITSUBISHI KAGAKU MEDIA CO., LTD. (for 2x, 4x and 6x speed media)

DVD+RW:

MITSUBISHI KAGAKU MEDIA CO., LTD. (for 4x and 8x speed media)

DVD-RAM: (DVD Super Multi drive only) DVD Specifications for DVD-RAM Disc for Version 2.0, Version 2.1 or

Version 2.2

Panasonic Corporation (for 3x and 5x speed media) Hitachi Maxell, Ltd. (for 3x and 5x speed media)

BD-R:

Panasonic Corporation

BD-R DL:

Panasonic Corporation

BD-RE:

Panasonic Corporation

BD-RE DL:

Panasonic Corporation

User’s Manual 3-11

■ Some types and formats of DVD-R DL and DVD+R DL discs may be

unreadable.

■ DISC created in DVD-R DL format4 (Layer Jump Recording) cannot be

read.

When writing or rewriting

Please observe the following points while you write or rewrite data to a media:

■ Always copy data from the hard disk drive to the optical media - do not

use the cut-and-paste function as the original data will be lost if there is a write error.

■ Do not perform any of the following actions:

■ Change users in the Operating Systems.

■ Operate the computer for any other function, including such tasks as

using a mouse or Touch Pad, or closing/opening the display panel.

■ Start a communication application such as a modem.

■ Apply impact or vibration to the computer.

■ Install, remove or connect external devices, including such items as

an memory media card, USB device, external monitor or an optical digital device.

■ Use the audio/video control button to reproduce music or voice.

■ Open the optical disc drive.

■ Do not use shut down, log off, Sleep Mode or Hibernation Mode

functions while writing or rewriting.

■ Make sure that the write/rewrite operation is completed before going

into either Sleep Mode or Hibernation Mode (You can remove an optical media on the optical disc drive after writing is completed).

■ If the media is of poor quality, or is dirty or damaged, writing or rewriting

errors may occur.

■ Set the computer on a level surface and avoid places subject to

vibration such as airplanes, trains or cars. In addition, do not use the computer on an unstable surface such as a stand.

■ Keep mobile phones and other wireless communication devices away

from the computer.

TOSHIBA Disc Creator

Please be aware of the following limitations when you use the TOSHIBA Disc Creator:

■ DVD Video cannot be created using TOSHIBA Disc Creator.

■ DVD Audio cannot be created using TOSHIBA Disc Creator.

■ You cannot use TOSHIBA Disc Creator's "Audio CD" function to record

music to DVD-R, DVD-R DL, DVD-RW, DVD+R, DVD+R DL or DVD+RW media.

User’s Manual 3-12

■ Do not use the "Disc Backup" function of TOSHIBA Disc Creator in

order to copy DVD Video or DVD-ROM material that has copyright protection.

■ DVD-RAM discs cannot be backed up using the "Disc Backup" function

of TOSHIBA Disc Creator.

■ You cannot back up CD-ROM, CD-R or CD-RW media to DVD-R, DVD-

R DL or DVD-RW media using the "Disc Backup" function of TOSHIBA Disc Creator.

■ You cannot back up CD-ROM, CD-R or CD-RW media to DVD+R,

DVD+R DL or DVD+RW media using the "Disc Backup" function of TOSHIBA Disc Creator.

■ You cannot back up DVD-ROM, DVD Video, DVD-R, DVD-R DL, DVD-

RW, DVD+R, DVD+R DL or DVD+RW to CD-R or CD-RW media using the "Disc Backup" function of TOSHIBA Disc Creator.

■ TOSHIBA Disc Creator cannot record in packet format.

■ You might not be able to use the "Disc Backup" function of TOSHIBA

Disc Creator to back up a DVD-R, DVD-R DL, DVD-RW, DVD+R, DVD+R DL or DVD+RW disc that was made with other software on a different optical media recorder.

■ If you add data to a DVD-R, DVD-R DL, DVD+R or DVD+R DL disc that

you have already recorded to, you might not be able to read the added data under some circumstances. For example, it cannot be read under 16-bit operating systems, such as Windows 98SE and Windows Me, while in Windows NT4 you will need Service Pack 6 or later, and in Windows 2000, you will need Service Pack 2. In addition to this, some DVD-ROM and DVD-ROM / CD-R/RW drives cannot read this added data regardless of the operating system.

■ TOSHIBA Disc Creator does not support recording to DVD-RAM discs -

to achieve this you should use Windows Explorer or another similar utility.

■ When you back up a DVD disc, be sure that the source drive supports

recording to DVD-R, DVD-R DL, DVD-RW, DVD+R, DVD+R DL or DVD+RW media - if this is not the case then the source disc might not be backed up correctly.

■ When you back up a DVD-R, DVD-R DL, DVD-RW, DVD+R, DVD+R

DL or DVD+RW disc, be sure to use the same type of disc.

■ You cannot partially delete any data written to a CD-RW, DVD-RW or

DVD+RW disc.

Data Verification

To verify that data has been written or rewritten correctly to a data CD/DVD you should follow the steps below before you begin the write/rewrite process:

1. Click Start -> All Programs -> TOSHIBA -> CD&DVD Applications -> Disc Creator to access the TOSHIBA Disc Creator utility.

User’s Manual 3-13

2. Display the setting dialog box by one of the following two steps:

Click the Recording settings button ( ) for writing on the main toolbar in the Data CD/DVD mode.

Select Settings for Each Mode -> Data CD/DVD in the Settings menu.

3. Mark the Verify Written Data check box.

4. Select File Open or Full Compare mode.

5. Click the OK button.

How to learn more about TOSHIBA Disc Creator

Please refer to the Help files for additional TOSHIBA Disc Creator information.

Using Corel Digital Studio for TOSHIBA

This feature is supported with some models.

How to make a Labelflash DVD

Simplified steps for making a Labelflash DVD:

1. Insert a Labelflash disc in optical disc drive.

■ Set PRINTING SIDE for underside.

2. Click Start -> All Programs -> Corel Digital Studio for TOSHIBA -> Corel Digital Studio for TOSHIBA -> Create.

3. Click Create Disc Label.

How to make a DVD-Video or a Blu-ray Disc Movie

Simplified steps for making a DVD-Video or a Blu-ray disc movie from adding video source:

1. Click Start -> All Programs -> Corel Digital Studio for TOSHIBA -> Corel Digital Studio for TOSHIBA to launch Corel Digital Studio.

2. Insert a DVD-R, DVD+R, DVD-RW, DVD+RW, BD-R or BD-RE disc in optical disc drive.

3. Find a source video and drag it onto Media Tray.

4. Click Burn -> Video Disc.

5. Select DVD or Blu-ray in Select disc.

6. Select DVD-Video or BDMV in Project format.

7. Input project name and select a style.

8. Click the Go to menu editing button.

9. Click the Burn button.

How to learn more about Corel Digital Studio

Please refer to the Help and Manual files for additional Corel Digital Studio information.

User’s Manual 3-14

To open the Corel Digital Studio Manual, press the F1 key when the Corel Digital Studio is launched.

Important information for use

Note the following limitations when you write Video DVD or Blu-ray disc movie, file convert or playback files.

Editing digital video

■ Log in with Administrator rights to use Corel Digital Studio.

■ Make sure that your computer is running on AC power when using

Corel Digital Studio.

■ Operate the computer at Full Power. Do not use power-saving features.

■ While you are editing DVD, you can display preview. However, if

another application is running. The preview might not display properly.

■ Corel Digital Studio cannot edit or play copy protected content.

■ Do not enter Sleep or Hibernation Mode while using Corel Digital

Studio.

■ Do not operate Corel Digital Studio immediately after turning on the

computer. Please wait until all Disc Drive activity has stopped.

■ CD recorder, DVD-Audio, Video CD functions are not supported in this

version.

■ Do not run software like a screen saver because it can put a heavy load

on the CPU.

■ Do not support mp3 decode and encode.

■ DVD-VR format is not supported in this version.

Before recording the video to DVD or Blu-ray disc

■ When you record DVD disc or Blu-ray disc, please use only discs

recommended by the Drive manufacturer.

■ Do not set the working drive to a slow device like a USB1.1 hard disk

drive or it will fail to write DVD or Blu-ray disc.

■ Do not perform any of the following actions:

Operate the computer for any other function, including using a mouse or Touch Pad, or closing/opening the display panel.

Bump or cause vibration to the computer. Use the Mode control button and Audio/Video control button to

reproduce music or voice. Open the DVD/BD drive. Install, remove or connect external devices, including the following:

memory media card, USB device, external display, optical digital devices.

■ Please verify your disc after recording important data.

■ Not support to output VCD and SVCD format.

■ Force eject disc.

User’s Manual 3-15

About recorded DVDs and Blu-ray discs

■ Some DVD-ROM drives for personal computers or other DVD players

may not be able to read DVD-R/+R/-RW/+RW/-RAM discs.

■ When playing your recorded DVD on your computer, please use the

TOSHIBA VIDEO PLAYER software application.

■ When playing your recorded Blu-ray Disc on your computer, please use

the WinDVD BD for TOSHIBA software application.

■ If you use an over-used rewritable disc, the full formatting might be

locked. Please use a brand new disc.

TOSHIBA VIDEO PLAYER

Please be aware of the following limitations when you use the TOSHIBA VIDEO PLAYER:

Notes on use

■ This software can only be used on Windows 7.

■ TOSHIBA VIDEO PLAYER software is supported for playback of DVD-

Video and DVD-VR.

■ Frame dropping, audio skipping or out of sync audio and video may

occur during playback of some DVD-Video titles.

■ Close all other applications when using the TOSHIBA VIDEO PLAYER.

Do not open any other applications or carry out any other operations during video playback. Playback may stop or not function properly in some situations.

■ Unfinalized DVDs created on home DVD recorders may not be playable

on the computer.

■ Use DVD-Video discs with a region code which is either "the same as

the factory default setting" (if applicable) or "ALL".

■ Do not playback video while watching or recording television programs

using other applications. Doing so may cause DVD-Video playback or television program recording errors. In addition, if prescheduled recording starts during DVD-Video playback it may cause DVD-Video playback or television program recording errors. Please view DVDVideo during times when there is no recording prescheduled.

■ The resume function cannot be used with some discs on the TOSHIBA

VIDEO PLAYER.

■ It is recommended the AC adaptor be connected when playing video.

Power saving features may interfere with smooth playback. When playing DVD-Video using battery power, set the Power Options to "Balance".

■ The screen saver is disabled during video playback using the TOSHIBA

VIDEO PLAYER. The computer will not automatically go into Hibernation, Sleep, or shut-down mode.

■ Do not configure the Display automatic power off function to run while

the TOSHIBA VIDEO PLAYER is running.

User’s Manual 3-16

■ Do not switch to Hibernation or Sleep Mode when running the

TOSHIBA VIDEO PLAYER.

■ Do not lock the computer using the Windows logo ( ) + L keys or

the FN + F1 keys when running the TOSHIBA VIDEO PLAYER.

■ The TOSHIBA VIDEO PLAYER does not have a parental control

function.

■ In order to protect copyrights, the Windows Print Screen function is

disabled when TOSHIBA VIDEO PLAYER is running.

■ (Print Screen functions are disabled even when running other

applications besides TOSHIBA VIDEO PLAYER and when TOSHIBA VIDEO PLAYER is minimized.) Please close the TOSHIBA VIDEO PLAYER to use the Print Screen function.

■ Carry out the installation/uninstallation of the TOSHIBA VIDEO

PLAYER under a user account with administrator rights.

■ Do not change Windows Users while TOSHIBA VIDEO PLAYER is

running.

■ For some DVD-Video discs, using the control window to change the

audio track will also change the subtitle track.

■ If you see the screen blinking while playing DVD with subtitle on at

Media Player, please use TOSHIBA VIDEO PLAYER or Media Center to play DVD.

Display Devices & Audio

■ TOSHIBA VIDEO PLAYER will only run when "Colors" is set to "True

Color (32 bit)". Click Start -> Control Panel -> Appearance and Personalization -> Display -> Adjust resolution, click "Advanced

settings", select "Monitor" tab, set "colors" to "True color (32 bit)".

■ If the DVD-Video image is not displayed on an external display or

television, stop the TOSHIBA VIDEO PLAYER, and change the screen resolution. To change the screen resolution, click Start -> Control

Panel -> Appearance and Personalization -> Display -> Adjust resolution. However, video cannot be output to some external displays

and televisions due to output or playback conditions.

■ When viewing DVD-Video on an external display or TV, change the

display device before playing. DVD-Video cannot be displayed simultaneously (in clone mode) on both the computer's display panel and an external display.

■ Do not change the screen resolution while running the TOSHIBA

VIDEO PLAYER.

■ Do not change the display device while running the TOSHIBA VIDEO

PLAYER.

User’s Manual 3-17

Starting TOSHIBA VIDEO PLAYER

Use the following procedure to start TOSHIBA VIDEO PLAYER.

1. Insert an DVD-Video in the optical disc drive while Windows running.

When an DVD-Video disc is set in the DVD drive (for models with DVD drive), if the application selection screen appears, select Play DVD movie, (using TOSHIBA VIDEO PLAYER) to launch the TOSHIBA VIDEO PLAYER.

2. Select Start -> All Programs -> TOSHIBA VIDEO PLAYER ->

TOSHIBA VIDEO PLAYER to start TOSHIBA VIDEO PLAYER.

3D playback feature

(Only some models) TOSHIBA VIDEO PLAYER has 3D playback function, which can playback

3D video content, and 2D home video content (DVD or video file) in 3D using real-time 2Dto3D conversion.

■ The 3D effect can only be shown on external 3D devices connected via

an HDMI output. It cannot be shown on the internal display.

■ The 2Dto3D conversion function uses TOSHIBA's original algorithm to

apply a 3D effect to your own 2D videos. However, note that this function does not provide the same video content as a video originally provided in 3D, and does not create a new video in the 3D format but only plays 2D videos in a 3D like mode.

■ The 2Dto3D conversion function is meant for the enjoyment of your own

2D home video and other 2D contents you created, in 3D according to your personal preferences.

■ The “TOSHIBA VIDEO PLAYER” is set by default in the 2D format. By

pressing the 2Dto3D conversion function button, you decide to activate the 2Dto3D conversion function and therefore decide to watch your 2D content in 3D. The “TOSHIBA VIDEO PLAYER” will not run the 2Dto3D conversion function automatically. Please see the warnings in this section as regard to potential copyright infringement and confirm you have any necessary authorization.

■ The “TOSHIBA VIDEO PLAYER” is intended for playing DVD-Video,

DVD-VR and video files and for viewing 2D home video content in 3D. The 3D playback of any video content not created by the user may require the permission of third parties, where such content is protected by copyright. The protection of intellectual property rights is essential for Toshiba. In this respect, Toshiba underlines that the Player should not be used in a manner infringing such rights. It is your responsibility to ensure that you do not infringe any applicable intellectual property laws when you decide to use the Player and, more specifically, the 2Dto3D conversion function of the “TOSHIBA VIDEO PLAYER”.

■ Some functions are not functionable during 3D playback. In such cases,

any corresponding buttons will be disabled.

■ You may experience some time lag if you perform any of the following

operations when the “Video Display Window” is at full-screen size.

7 is

User’s Manual 3-18

Bring up windows such as [Right-Click Menu], [Settings Window], [Title/Chapter Search], [File Select] or [Error Message]. Operate on Windows Operate on other applications

■ Please make sure AC adapter is used when playing with the enabled

3D playback feature. 3D playback occurs only in full-screen size. When you enable 3D playback, the “Video Display Window” automatically enlarges to fullscreen size. In order for 3D playback to work on external display/TV, you need a 3D enabled display/TV that has an HDCP complaint HDMI port. 3D video content can only be displayed on external display using HDMI 1.4. The 3D effect differs among individuals. Viewing 3D playback may cause discomfort. In this case, please stop viewing and consult your doctor. Please consider if it is suitable or a need for time limit before allowing your child to watch a 3D content. Depending on the lighting condition of your room, you may experience some flickerings when you have the 3D glasses on. Upconvert and 3D Playback functions cannot be used at the same time. Switching to 3D playback while upconvert is running will cause the upconvert function to switch off automatically. Depending on the video content, it might not be able to playback in 3D. Only Side-by-Side and Interleave 3D video formats are supported for playback of 3D video content.

Starting TOSHIBA VIDEO PLAYER

Use the following procedure to start TOSHIBA VIDEO PLAYER.

1. Insert an DVD-Video in the DVD/BD drive while Windows® 7 is running. When a DVD-Video disc is set in the BD drive (for models with BD-

Writer drive or BD-Combo drive), TOSHIBA VIDEO PLAYER starts automatically.

When an DVD-Video disc is set in the DVD drive (for models with DVD Super Multi drive), if the application selection screen appears, select Play DVD movie, (using TOSHIBA VIDEO PLAYER) to launch the TOSHIBA VIDEO PLAYER.

2. Select Start -> All Programs -> TOSHIBA VIDEO PLAYER ->

TOSHIBA VIDEO PLAYER to start TOSHIBA VIDEO PLAYER.

Operating TOSHIBA VIDEO PLAYER

Notes on Using TOSHIBA VIDEO PLAYER.

■ Screen display and available features may vary amongst DVD-Videos

and scenes.

■ If the menu is opened in the Display Area using the Control window's

Top Menu or Menu buttons, touch pad and mouse menu operations may not be able to be used.

Open TOSHIBA VIDEO PLAYER HELP

TOSHIBA VIDEO PLAYER features and instructions are also explained in detail in "TOSHIBA VIDEO PLAYER HELP". Use the following procedure to open "TOSHIBA VIDEO PLAYER HELP".

User’s Manual 3-19

Click the "Help" button ( ) in the Display Area.

Using WinDVD BD for TOSHIBA

Please be aware of the following limitations when you use WinDVD BD for TOSHIBA:

Notes on use

■ WinDVD BD for TOSHIBA is for Blu-ray Disc playback only. DVD

playback is not supported. Please use TOSHIBA VIDEO PLAYER for DVD playback.

■ Playback of high bit rate content may cause frame dropping, audio

skipping or decrease in computer performance.

■ Close all other applications before playing back Blu-ray Disc. Do not

open any other applications or carry out any other operations during Blu-ray Disc playback.

■ Do not switch to Sleep or Hibernation Mode while WinDVD BD is

running. Make sure to close WinDVD BD before going into either Sleep or Hibernation Mode.

■ Because Blu-ray Disc playback operates according to programs built

into the content, operation methods, operation screens, sound effects, icons and other features may vary from disc to disc. For more information on these items refer to instructions included with content or contact the content manufacturers directly.

■ Make sure to connect the computer's AC adapter when playing a Blu-

ray Disc.

■ WinDVD BD supports AACS (Advanced Access Control System) copy

protection technology. Renewal of the AACS key integrated into this product is required for uninterrupted enjoyment of Blu-ray Disc. An Internet connection is required for renewal. AACS key renewal is provided free of charge for 5 years after the purchase of this product, however renewal beyond 5 years is subject to conditions specified by the software provider, Corel Corporation.

■ Do not playback Blu-ray Disc while recording television programs using

"Windows Media Center", "My TV" or other applications. Doing so may cause Blu-ray Disc playback or television program recording errors. In addition, if pre-scheduled recording starts during Blu-ray Disc Video playback it may cause Blu-ray Disc Video playback or television program recording errors. Please view Blu-ray Disc Video during times when there is no recording prescheduled.

■ While playing a BD-J title, keyboard shortcut is ineffective.

■ Resume play function cannot be used with some discs on WinDVD BD.

■ The interactive function on Blu-ray Discs may not work depending on

the contents or network situation.

■ Region codes for BD drives and media BD drives and their associated

media are manufactured according to the specifications of three

User’s Manual 3-20

marketing regions. Region codes can be set from WinDVD BD ([Region] tab in [Setup] dialogue). When you purchase BD Video, make sure it matches your drive, otherwise it will not play properly.

■ To playback video on an external display or TV using WinDVD BD, use

output devices like external displays or TV that have RGB or HDCP supported HDMI port.

■ The Blu-ray disc movie can be played only on internal LCD displays or

external devices connected via an RGB and HDMI output. In Clone mode (DualView), WinDVD plays on a display which set to as the Primary display and shows black screen on the other displays.

■ This product does not play HD DVD discs. Blu-ray discs with high-

definition content are required for HD viewing.

3D playback feature

(Only some models) WinDVD BD for TOSHIBA supports the playback of Blu-ray 3D discs on

external 3D display/TV using HDMI 1.4. Before playback Blu-ray 3D discs, configure the 3D Playback.

1. Click Tools .

2. Select 3D Playback.

3. Check Prefer to play in 3D mode to enable 3D playback.

4. Specify display device information. Monitor Type: Choose the correct monitor type in the drop-down menu. To play on external 3D enabled display/TV with HDMI, set the "HDMI

1.4 Video Output". Display size: Enter the size (in inches) of your computer.

Notes on playing Blu-ray 3D

■ For NVIDIA graphics models, Blu-ray 3D playback works only in full

screen size. When you play the Blu-ray 3D, WinDVD automatically resizes to full screen. When you switch back to window mode or minimize WinDVD, playback will be stopped. If any message pops up, WinDVD will switch back to window mode.

■ WinDVD will use all available graphic hardware resources to display 3D

videos. For NVIDIA graphics models, operations such as Setup, Help, some function buttons and remote control functions will be temporarily disabled.

■ WinDVD BD for TOSHIBA does not support 2Dto3D conversion

function. Please use “TOSHIBA VIDEO PLAYER” for 3D playback of DVD or 3D video file.

■ The 3D effect differs among individuals.

■ Depending on the lighting condition of your room, you may experience

some flickerings when you have the 3D glasses on.

User’s Manual 3-21

■ Viewing 3D playback may cause discomfort. In this case, please stop

viewing and consult your doctor.

■ Please consider if it is suitable or a need for time limit before allowing

your child to watch a 3D content.

■ The 3D effect can be shown on external 3D enabled display/TV that

supports HDMI 1.4. To play the Blu-ray 3D on external 3D enabled display/TV, please

change the display mode to HDMI only (Projector only), and use the 3D glasses that come with your external 3D enabled display/TV.

■ When play the Blu-ray 3D on external display that does not support 3D

function, clear “Prefer to play in 3D mode” checkbox in 3D Playback properties of WinDVD BD for TOSHIBA.

Starting WinDVD BD for TOSHIBA

Use the following procedure to start WinDVD BD for TOSHIBA.

■ When a Blu-ray disc is set in the BD drive, WinDVD BD starts

automatically.

■ Select Start -> All Programs -> Corel -> Corel WinDVD BD to start

WinDVD BD.

Operating WinDVD BD for TOSHIBA

Notes on Using WinDVD BD for TOSHIBA.

■ Screen display and available features may vary amongst BD-Videos

and scenes.

■ If the menu is opened in the Display Area using the Control window's

Top Menu or Menu buttons, touch pad and mouse menu operations may not be able to be used.

Open WinDVD BD for TOSHIBA HELP

WinDVD BD features and instructions are also explained in detail in "WinDVD Help". Use the following procedure to open "WinDVD Help".

■ Click the "Corel Guide" button ( ) in the Display Area and select the

"Launch Help" button.

Wireless communications

The computer’s wireless communication function supports some wireless communication devices.

Only some models are equipped with both Wireless LAN and Bluetooth functions.

■ Do not use the Wireless LAN (Wi-Fi) or Bluetooth functionalities near a

microwave oven or in areas subject to radio interference or magnetic fields. Interference from a microwave oven or other source can disrupt Wi-Fi or Bluetooth operation.

User’s Manual 3-22

■ Turn all wireless functionalities off when near a person who may have a

cardiac pacemaker implant or other medical electric device. Radio waves may affect pacemaker or medical device operation, possibly resulting in serious injury. Follow the instruction of your medical device when using any wireless functionality.

■ Always turn off wireless functionality if the computer is near automatic

control equipment or appliances such as automatic doors or fire detectors. Radio waves can cause malfunction of such equipment, possibly resulting in serious injury.

■ It may not be possible to make a network connection to a specified

network name using the ad hoc network function. If this occurs, the new network(*) will have to be configured for all computers connected to the same network in order to re-enable network connections. * Please be sure to use new network name.

Wireless LAN

The Wireless LAN is compatible with other LAN systems based on Direct Sequence Spread Spectrum / Orthogonal Frequency Division Multiplexing radio technology that complies with the IEEE802.11 Wireless LAN standard.

■ Frequency Channel Selection of 5GHz for IEEE 802.11a or/and

IEEE802.11n

■ Frequency Channel Selection of 2.4GHz for IEEE 802.11b/g or/and

IEEE802.11n

■ Roaming over multiple channels

■ Card power management

■ Wired Equivalent Privacy (WEP) data encryption based on an 128-bit

encryption algorithm

■ Wi-Fi Protected Access™ (WPA™)

The transmission speed over the wireless LAN, and the distance over which the wireless LAN can reach, may vary depending on surrounding electromagnetic environment, obstacles, access point design and configuration, client design and software/hardware configurations. The transmission rate described is the theoretical maximum speed as specified under the appropriate standard - the actual transmission speed will be lower than the theoretical maximum speed.

Setting

1. Please make sure that the Wireless Communication function is on.

2. Click Start -> Control Panel -> Network and Internet -> Network and Sharing Center.

3. Click Set up a new connection or network.

User’s Manual 3-23

4. Follow the wizard. You will need the name of the wireless network together with security settings. Consult the documentation accompanied with your router or ask your wireless network administrator for the settings.

Security

■ TOSHIBA strongly recommend that you enable encryption functionality,

otherwise your computer will be open to illegal access by an outsider using a wireless connection. If this occurs, the outsider may illegally access your system, eavesdrop, or cause the loss or destruction of stored data.

■ TOSHIBA is not liable for the loss of data due to eavesdropping or

illegal access through the wireless LAN and the damage thereof.

Card Specifications

Form Factor PCI Express Mini Card

Compatibility ■ IEEE 802.11 Standard for Wireless LANs

■ Wi-Fi (Wireless Fidelity) certified by the Wi-Fi

Alliance. The "Wi-Fi CERTIFIED" logo is a certification mark of the Wi-Fi Alliance.

Network Operating System

Media Access Protocol

■ Microsoft Windows Networking

■ CSMA/CA (Collision Avoidance) with

Acknowledgment (ACK)

Radio Characteristics

Radio Characteristics of Wireless LAN module may vary according to:

■ Country/region where the product was purchased

■ Type of product

Wireless communication is often subject to local radio regulations. Although Wireless LAN wireless networking products have been designed for operation in the license-free 2.4GHz and 5GHz band, local radio regulations may impose a number of limitations to the use of wireless communication equipment.

Radio Frequency ■ Band 5GHz (5150-5850 MHz) (Revision a and

■ Band 2.4GHz (2400-2483.5 MHz) (Revision b/g

and n)

The range of the wireless signal is related to the transmit rate of the wireless communication. Communications at lower transmit range may travel larger distances.

■ The range of your wireless devices can be affected when the antennas

are placed near metal surfaces and solid high-density materials.

User’s Manual 3-24

■ Range is also impacted due to "obstacles" in the signal path of the radio

that may either absorb or reflect the radio signal.

Bluetooth wireless technology

Some computers in this series have Bluetooth wireless communication function which eliminates the need for cables between electronic devices such as computers, printers and mobile phones. When it is enabled, Bluetooth provides the wireless personal area network environment which is safe and trustworthy, that is quick and easy.

You cannot use the computer's built-in Bluetooth functions and an external Bluetooth adaptor simultaneously. For reference, Bluetooth wireless technology has the following features:

Worldwide operation

The Bluetooth radio transmitter and receiver operate in the 2.4GHz band, which is license-free and compatible with radio systems in most countries in the world.

Radio links

You can easily establish links between two or more devices, with these links being maintained even if the devices are not within a line-of-sight of each other.

Security

Two advanced security mechanisms ensure a high level of security:

■ Authentication prevents access to critical data and makes it impossible

to falsify the origin of a message.

■ Encryption prevents eavesdropping and maintains link privacy.

Bluetooth Stack for Windows by TOSHIBA

Please note that this software is specifically designed for the following operating systems:

■ Windows 7

Information regarding the use of this software with these operating systems is listed below, with further details being contained with the electronic help files supplied with the software.

This Bluetooth Stack is based on the Bluetooth Version

1.1/1.2/2.0+EDR/2.1+EDR/3.0/3.0+HS specification, depending on the model you purchased. However, TOSHIBA cannot confirm the compatibility between any computing products and/or other electronic devices that use Bluetooth, other than TOSHIBA notebook computers.

User’s Manual 3-25

LAN

Release Notes related to the Bluetooth Stack for Windows by TOSHIBA

1. Fax application software: Please be aware that there is some fax application software that you cannot use on this Bluetooth Stack.

2. Multi-user considerations: The use of Bluetooth is not supported in a multi-user environment. This means that, when you use Bluetooth, other users that are logged into the same computer will not be able to use this type of functionality.

Product Support:

The latest information regarding operating system support, language support or available upgrades can be found on our web site http://www.toshiba-europe.com/computers/tnt/bluetooth.htm in Europe or www.pcsupport.toshiba.com in the United States.

The computer has built-in support for Ethernet LAN (10 megabits per second, 10BASE-T), Fast Ethernet LAN (100 megabits per second, 100BASE-TX) or Gigabit Ethernet LAN (1000 megabits per second, 1000BASE-T).

This section describes how to connect/disconnect to a LAN.

Do not install or remove a memory module while Wake-up on LAN is enabled.

■ The Wake-up on LAN function consumes power even when the system

is off. Leave the AC adaptor connected while using this feature.

■ The Link speed (10/100/1000 megabits per second) changes

automatically depending on the network conditions (connected device, cable or noise and so on).

LAN cable types

The computer must be configured properly before connecting to a LAN. Logging onto a LAN using the computer’s default settings could cause a malfunction in LAN operation. Check with your LAN administrator regarding set-up procedures.

If you are using Gigabit Ethernet LAN (1000 megabits per second, 1000BASE-T), be sure to connect with a CAT5e cable or higher. You cannot use a CAT3 or CAT5 cable.

If you are using Fast Ethernet LAN (100 megabits per second, 100BASETX), be sure to connect with a CAT5 cable or higher. You cannot use a CAT3 cable.

User’s Manual 3-26

If you are using Ethernet LAN (10 megabits per second, 10BASE-T), you can connect with a CAT3 or higher cable.

Connecting the LAN cable

To connect the LAN cable, follow the steps as detailed below:

■ Connect the AC adaptor before connecting the LAN cable. The AC

adaptor must remain connected during LAN use. If you disconnect the AC Adaptor while the computer is accessing a LAN, the system may hang up.

■ Do not connect any other cable to the LAN jack except the LAN cable.

Otherwise, malfunctions or damage may occur.

■ Do not connect any power supplying device to the LAN cable that is

connected to the LAN jack. Otherwise, malfunctions or damage may occur.

1. Turn off the power to all external devices connected to the computer.

2. Plug one end of the cable into the LAN jack. Press gently until you hear the latch click into place.

Figure 3-6 Connecting the LAN cable (Satellite L770/L775/L770D/L775D/satellite

Pro L770/L775/L770D/L775D)

1. LAN jack 2. LAN cable

3. Plug the other end of the cable into a LAN hub connector or router. Check with your LAN administrator and hardware or software vendor before using or configuring a network connection.

Optional devices

Optional devices can expand the computer's capabilities and its versatility. This section describes the connection or installation of the following devices:

User’s Manual 3-27

Cards/memory

■ Memory media slot

■ Additional memory module

Peripheral devices

■ External monitor

■ HDMI

Other

■ Security lock

■ Optional TOSHIBA accessories

Memory media slot

The computer is equipped with a memory media slot that can accommodate some kinds of memory media with various memory capacities so that you can easily transfer data from devices, such as digital cameras and Personal Digital Assistants.

Keep foreign objects out of the memory media slot. Never allow metal objects, such as screws, staples and paper clips, to enter the computer or Keyboard. Foreign metal objects can create a short circuit, which can cause computer damage and fire, possibly resulting in serious injury.

■ Please note that an adaptor is required to use miniSD/microSD Card.

■ Please note that not all memory media have been tested and verified to

work correctly. Therefore, it is not possible to guarantee that all memory media will operate properly.

■ The slot does not support Magic Gate functions.

Figure 3-7 Examples of memory media

Secure Digital (SD) Card microSD card adaptor and

microSD card

Memory Stick MultiMediaCard (MMC)

User’s Manual 3-28

Memory media

This section provides the important safety precautions in order to handle your memory media.

Points to note about the memory media card

SD/SDHC/SDXC memory cards comply with SDMI (Secure Digital Music Initiative), which is a technology adopted to prevent unlawful copy or playback of digital music. For this reason, you cannot copy or playback protected material on another computer or other device, and you may not reproduce any copyrighted material except for your personal enjoyment.

Below is a simple explanation for distinguishing SD memory cards from SDHC memory cards.

■ SD, SDHC and SDXC memory cards appear the same externally.

However, the logo on memory cards is different, so pay careful attention to the logo when purchasing.

■ The SD memory card logo is ( ).

■ The SDHC memory card logo is ( ).

■ The maximum capacity of SD memory cards is 2GB. The maximum

capacity of SDHC memory cards is 32GB.

Card Type Capacities SD 8MB, 16MB, 32MB, 64MB, 128MB, 256MB,

512MB, 1GB, 2GB

SDHC 4GB, 8GB, 16GB, 32GB

SDXC 64GB

Memory media format

New media cards are formatted according to specific standards. If you wish to reformat a media card, be sure to do so with a device that uses media cards.

Formatting an memory media card

Memory media cards are sold already formatted in conformity to specific standards. If you reformat an memory card, be sure to reformat it with a device such as digital camera or digital audio player that uses the memory cards, not with the format command provided within Windows.

Should you need to format all areas of the memory card, including the protected area, you will need to obtain an appropriate application that applies the copy protection system.

User’s Manual 3-29

Media care

Observe the following precautions when handling the card.

Card care

■ Do not twist or bend cards.

■ Do not expose cards to liquids or store in humid areas or lay media

■ Do not touch the metal part of a card or expose it to liquids or let it get

■ After using card, return it to its case.

■ The card is designed so that it can be inserted only one way. Do not try

■ Do not leave a card partially inserted in the slot. Press the card until you

Memory card care

■ Set the write-protect switch to the lock position, if you do not want to

■ Memory cards have a limited lifespan, so it is important to backup

■ Do not write to a card if the battery power is low. Low power could affect

■ Do not remove a card while read/write is in progress.

close to containers of liquid.

dirty.

to force the card into the slot.

hear it click into place.

record data.

important data.

writing accuracy.

For more details on using memory cards, see manuals accompanying the cards.

About the write-protect

The memory media cards have a function for protect.

■ SD Card (SD memory card, SDHC memory card and SDXC memory

card)

■ Memory Stick (Memory Stick, Memory Stick PRO)

Set the write-protect switch to the lock position, if you do not want to record data.

Inserting a memory media

The following instructions apply to all types of supported media devices. To insert a memory media, follow the steps as detailed below:

User’s Manual 3-30

1. Turn the memory media so that the contacts (metal areas) are face down.

2. Insert the memory media into the memory media slot on the left of the computer.

3. Press the memory media gently to ensure a firm connection is made.

Figure 3-8 Inserting a memory media (Satellite L770/L775/L770D/L775D/satellite

1. Memory media slot 2. Memory media

■ Make sure memory media is oriented properly before you insert it. If

you insert the media in wrong direction, you may not be able to remove it.

■ When inserting memory media, do not touch the metal contacts. You

could expose the storage area to static electricity, which can destroy data.

■ Do not turn the computer off or switch to Sleep Mode or Hibernation

Mode while files are being copied - doing so may cause data to be lost.

Removing a memory media

Pro L770/L775/L770D/L775D)

The following instructions apply to all types of supported media devices. To remove a memory media, follow the steps as detailed below:

1. Open the Safely Remove Hardware and Eject Media icon on the Windows Taskbar.

2. Point to memory media and click the left Touch Pad control button.

3. Grasp the media and pull it out of the computer to remove it.

■ Make sure the Memory Media slot indicator is out before you remove

the memory media or turn off the computer’s power. If you remove the memory media or turn off the power while the computer is accessing the memory media, you may lose data or damage the media.

User’s Manual 3-31

■ Do not remove the memory media while the computer is in Sleep or

Hibernation Mode. The computer could become unstable or data in the memory media could be lost.

■ Do not remove only the miniSD/microSD Card while leaving the adaptor

in the memory media slot.

Additional memory module

You can install additional memory into the computer in order to increase the amount of system memory that is available. This section describes how to install and remove optional memory modules.

■ You should place a mat beneath the computer in order to prevent the

computer's lid from becoming scratched or damaged when you are installing/replacing the memory module. In this instance you should avoid mats that are made of materials that hold or generate static electricity.

■ When installing or removing a memory module, you must ensure that

you do not touch any other internal areas of the computer.

■ Use only memory modules approved by TOSHIBA.

■ Do not try to install or remove a memory module under the following

conditions. a.The computer is turned on. b.The computer was shut down in either Sleep or Hibernation Mode. c.Wake-up on LAN is enabled. d.The wireless communication function is on. e.Sleep and Charge function is enabled.

■ Be careful not to let screws or other foreign matter fall into the

computer. It could cause malfunction or electric shock.

■ Additional memory module is a precision electronic component that

may be fatally damaged by static electricity. Since the human body can carry static electricity, it is important that you discharge yourself before touching or installing any additional memory modules. To discharge your body’s static electricity, simply touch any metal close to you with bare hands.

Use a point size 1 Phillips screwdriver to remove and fasten the screw - the use of an incorrect screwdriver can damage the screw heads.

User’s Manual 3-32

Installing a memory module

To install a memory module, follow the steps as detailed below:

1. Shut down the computer - make sure the Power indicator is off (refer to the Turning off the power section in Chapter 1, Getting Started if required).

2. Remove the AC adaptor and all cables and peripherals connected to the computer.

3. Close the display panel.

4. Turn the computer upside down and remove the battery pack (refer to

Replacing the battery pack section in Chapter 5, Power and Power-Up

Modes, if required).

5. Loosen the screw securing the memory module cover in place - please note that the screw is attached to the cover in order to prevent them from being lost.

Use a point size 1 Phillips screwdriver.

6. Slide your fingernail or a thin object under the cover and lift it off.

Figure 3-9 Removing the memory module cover (Satellite

L770/L775/L770D/L775D/satellite Pro L770/L775/L770D/L775D)

1. Screw 2. Memory module cover

7. Align the notch of the memory module with that of the memory slot and gently insert the module into the slot at about a 30 degree angle before holding it down until the latches on either side snap into place.

User’s Manual 3-33

Figure 3-10 Seating the memory module (Satellite L770/L775/L770D/L775D/satellite

Pro L770/L775/L770D/L775D)

1. Notch 3. Slot A

2. Slot B

■ Never allow metal objects, such as screws, staples and paper clips, to

enter the computer. Foreign metal objects can create a short circuit, which can cause computer damage and fire, possibly resulting in serious injury.

■ Do not touch the connectors on the memory module or on the

computer. Debris on the connectors may cause memory access problems.

■ The slot A is reserved for the first memory module. Use the slot B for

expanded memory. If only one module is installed, use the slot A.

■ Align the grooves along the edges of the memory module with the

locking tabs on the connector and insert the module into the connector firmly - if you find it difficult to install the memory module, gently prise the locking tabs outwards using the tip of your finger.

■ Please also ensure that you hold the memory module along its left and

right hand edges - the edges with the grooves in.

8. Seat the memory module cover in place and secure it with the screw.

Take care to ensure that the memory module cover is firmly closed.

User’s Manual 3-34

Figure 3-11 Seating the memory module cover (Satellite

L770/L775/L770D/L775D/satellite Pro L770/L775/L770D/L775D)

1. Screw 2. Memory module cover

9. Install the battery pack - refer to Replacing the battery pack section in Chapter 5, Power and Power-Up Modes, if required.

10. Turn your computer over.

11. Turn the computer on and make sure the added memory is recognized to confirmed it, Start -> Control Panel -> System and Security ->

System icon.

Removing a memory module

To remove the memory module, follow the steps as detailed below:

1. Shut down the computer - make sure the Power indicator is off (refer to the Turning off the power section in Chapter 1, Getting Started if required).

2. Remove the AC adaptor and all cables and peripherals connected to the computer.

3. Close the display panel.

4. Turn the computer upside down and remove the battery pack.

5. Loosen the screw securing the memory module cover in place - please note that the screw is attached to the cover in order to prevent them from being lost.

6. Slide your fingernail or a thin object under the cover and lift it off.

7. Push the latches away from the module in order to release it - a spring will force one end of the module up at an angle.

8. Grasp the module by its edges and remove it from the computer.

User’s Manual 3-35

■ If you use the computer for a long time, the memory modules and the

circuits locating close to the memory modules will become hot. In this case, let them cool to room temperature before you replace them. Or you will get burnt if you touch any of them.

■ Do not touch the connectors on the memory module or on the

computer. Debris on the connectors may cause memory access problems.

Figure 3-12 Removing the memory module (Satellite

L770/L775/L770D/L775D/satellite Pro L770/L775/L770D/L775D)

1. Latches

9. Seat the memory module cover in place and secure it with the screw.

Take care to ensure that the memory module cover is firmly closed.

10. Install the battery pack.

11. Turn your computer over.

External monitor

An external analog monitor can be connected to the External RGB monitor port on the computer. To connect a monitor, follow the steps as detailed below:

User’s Manual 3-36

Connecting the monitor cable

1. Connect the monitor cable to the External RGB monitor port.

Figure 3-13 Connecting the monitor cable to the External RGB monitor port (Satellite

L770/L775/L770D/L775D/satellite Pro L770/L775/L770D/L775D)

1. External RGB monitor port 2. Monitor cable

There are no fastening screws for an external monitor cable on this computer's External RGB monitor port. However, external monitor cables which have connectors with fastening screws can still be used.

2. Turn the external monitor's power on.

When you turn on the power, the computer will automatically recognize the monitor and determine whether it is a color or monochrome device. In the event that you find that there are issues getting an image displayed on the correct monitor, you should consider using the FN + F5 hot key to change the display settings (if you then disconnect the external monitor before you turn the computer's power off, be sure to press FN + F5 hot key again to switch to the internal display).

Please refer to the The Keyboard section for further details on using hot keys to change the display setting.

Do not disconnect the external monitor while in Sleep or Hibernation Mode. Turn off the computer before disconnecting the external monitor.

When displaying desktop at external analog monitor, desktop is sometimes displayed on the center of the monitor with black bars around desktop (with small size).

At that time, please read the manual of the monitor and set the display mode which is supporting at the monitor. Then it will be displayed with suitable size with correct aspect ratio.

User’s Manual 3-37

HDMI

Some models are equipped with an HDMI out port. An HDMI monitor can be connected to the HDMI out port on the computer.

To connect monitor, follow the steps as detailed below:

As the port operation of all HDMI (High-Definition Multimedia Interface) monitors have not been confirmed, some HDMI monitors may not function properly.

Connecting the HDMI out port

1. Plug one end of the HDMI cable into the HDMI out port of the HDMI device.

2. Plug the other end of the HDMI cable into the HDMI out port on your computer.

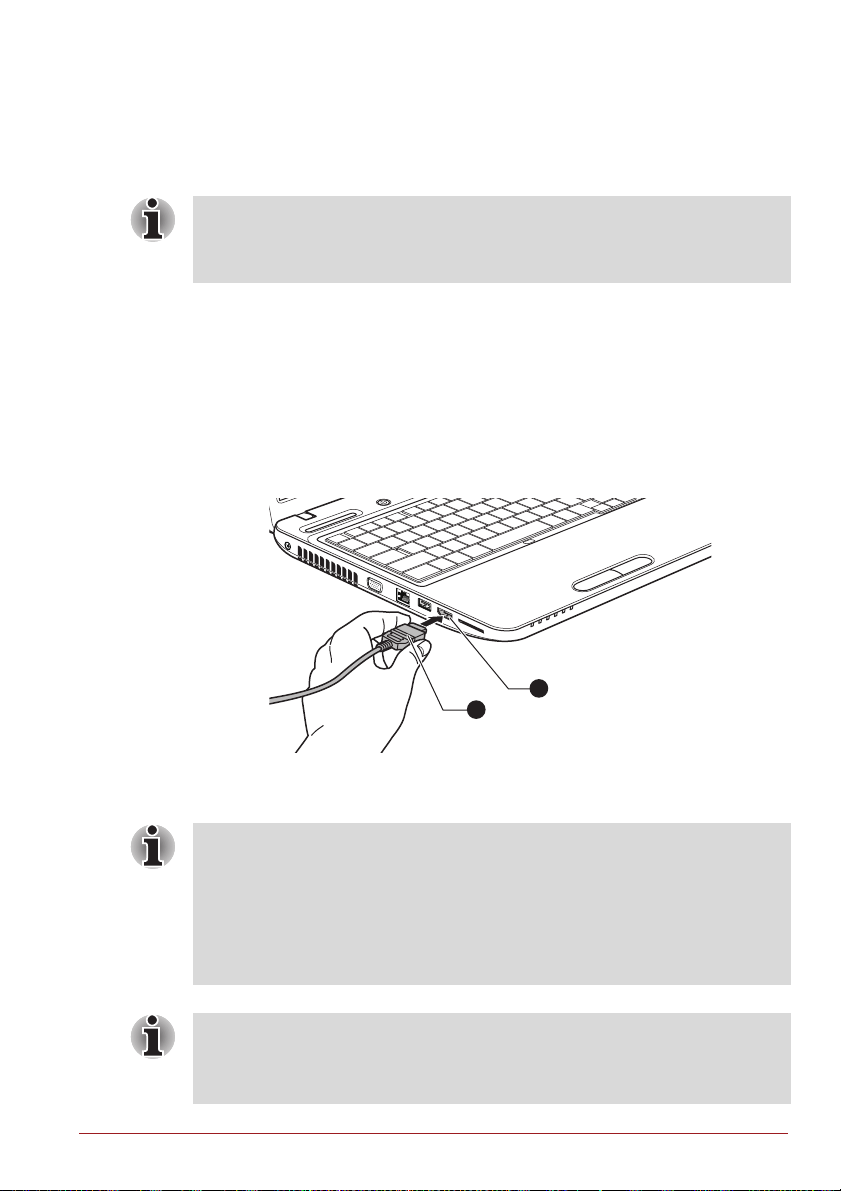

L770/L775/L770D/L775D/satellite Pro L770/L775/L770D/L775D)

Figure 3-14 Connecting the HDMI out port (Satellite

1. HDMI out port 2. HDMI cable

Please connect or disconnect an HDMI device to or from the computer under the following conditions:

■ The computer is turned on.

■ The computer is completely turned off.

Do not do so when the computer is in Sleep Mode or Hibernation Mode.

■ When you connect a television or external monitor to the HDMI port, the

display output device is set to HDMI.

■ When you unplug the HDMI cable and re-plug it, please wait at least 5

seconds before you re-plug the HDMI cable again.

User’s Manual 3-38

■ When you change the display output device by hot key like FN + F5, the

playback device may not switch automatically. In this case, in order to set the playback device to the same device as the display output device, please adjust the playback device manually by the following steps: a. Click Start -> Control Panel -> Hardware and Sound -> Sound. b. In the Playback tab, select the playback device which you want to switch to. c. To use the internal speakers on your computer, select Speakers. To use the television or the external monitor that you have connected to the computer, select a different playback device. d. Click the Set Default button. e. Click OK to close the Sound dialog.

Settings for display video on HDMI

To view video on the HDMI device, be sure to configure the following settings otherwise you may find that nothing is displayed.

Be sure to use the FN + F5 HotKey to select the display device before starting to play video. Do not change the display device while playing video.

Do not change the display device under the following conditions.

■ While data is being read or written.

■ While communication is being carried out.

Select HD Format

To select the display mode, follow the steps as detailed below:

1. Click Start and click Control Panel.

2. Click Appearance and Personalization.

3. Click Display.

4. Click Change display settings.

5. Click Advanced settings.

6. Click List All Modes.

7. Select the one of the below selection at List All Modes.

Display mode at List All Modes HD Format

1920 by 1080, True Color (32bit), 60Herts 1080p

1920 by 1080, True Color (32bit), 30Herts (Interlaced) 1080i

1280 by 720, True Color (32bit), 60Herts 720p

720 by 576, True Color (32bit), 50Herts 576p

720 by 480, True Color (32bit), 60Herts 480p

User’s Manual 3-39

The above display mode is a typical HDMI display mode. The selectable display modes will vary for different HDMI monitors.

HDMI 1.4 3D Video

Only some models are supported with NVDIA HDMI 1.4 3D Video feature. When a television is connected to HDMI port and the television is

supporting 3D feature, the NVDIA HDMI 1.4 3D Video feature may be enabled through the following procedure.

Before setting up the HDMI 1.4 3D Video feature, please ensure the Internet setup is completed in order to receive notifications via the Internet.

■ As not all 3D televisions' port operations have been fully tested yet,

HDMI 1.4 3D Video feature may not be functional on some 3D television models.

■ Follow the steps as detailed below to setup HDMI 1.4 3D Video and

don't execute other operation while running 3D Vision Setup.

1. Connect to a television which supports 3D.

2. Press FN + F5 and set display device to "HDMI device only".

3. Click Start -> All Programs -> NVIDIA Corporation -> 3D Vision -> Enable 3D Vision.

4. "Setup HDMI 1.4 3D Video" screen will appear (When the "Set up NVIDIA 3D Vision" screen displays, HDMI 1.4 3D Video feature is not supported on your television. Click "Exit" and finish setup).

5. Click the Next button.

6. "Turn on your glasses" screen will appear. Turn on your glasses of 3D TV and click the Next button.

7. When the "Test your hardware setup" screen appears, put on your glasses, close your eyes alternately and select the image you see.

8. Click the Next button (When "Hardware test failed" screen appears, your television does not support HDMI 1.4 3D Video feature. Click "Exit" and finish setup).

9. When "Verify your ability to view stereoscopic 3D Content" screen appears, put on your glasses and select the image you see.

10. Click Health and Safety Information, and Internet Explorer will be launched and displays "Health and Safety Information". Please read it carefully.

11. Select "GeForce 3D Vision Setup Wizard" from the task bar after reading the information.

12. Select the "I have read and understand the Health and Safety Information" check box.

13. Click the Next button.

14. Click the Finish button.

HDMI 1.4 3D Video feature is only supported at two resolutions: 1920x1080

User’s Manual 3-40

24Hz and 1280x720 60Hz. The resolution can be reconfigured by the following procedure:

1. Click Start -> Control Panel -> Hardware and Sound -> NVIDIA Control Panel.

2. Click Change resolution from Select a Task....

3. Choose one of the below resolutions from "Resolution": HD 3D: 1080p, 1920 x 1080 HD 3D: 720p, 1280 x 720

4. Click the Apply button.

You are now ready to watch 3D video on your 3D TV.

Security lock

A security locks enable you to anchor your computer a desk or other heavy object in order to help prevent unauthorized removal or theft. The computer has a security lock slot on its right side into which you can attach one end of the security cable, while the other end attaches to a desk or similar object. The methods used for attaching security cables differ from product to product. Please refer to the instructions for the product you are using for more information.

Connecting the security lock

In order to connect a security cable to the computer, follow the steps as detailed below:

1. Turn the computer so its right side faces you.

2. Align the security cable with the lock slot and secure it in place.

Figure 3-15 Security lock (Satellite L770/L775/L770D/L775D/satellite Pro

L770/L775/L770D/L775D)

1. Security lock slot

Optional TOSHIBA Accessories

You are able to add a number of options and accessories in order to make your computer even more powerful and convenient to use. For reference,

User’s Manual 3-41

the following list details some of the items that are available from your reseller or TOSHIBA dealer:

Memory Kit A 1 GB, 2 GB or 4GB memory module (DDR3-

Universal AC Adaptor

Battery Pack An additional battery pack can be purchased for

Sound System

This section describes some of the audio control functions.

Volume Mixer

The Volume Mixer utility lets you control the audio volume for playback of devices and applications under Windows.

■ To launch the Volume Mixer utility, right click on the speaker icon on the

Taskbar, and select Open Volume Mixer from the sub menu.

■ To adjust the volume level of speakers or headphones, move the

Speakers slider.

■ To adjust the volume level of an application that you are using, move

the slider for the corresponding application.

1066/1333) can easily be installed in the computer. The available option memory depends on

TOSHIBA authorization.

If you frequently use your computer at more than one site, it may be convenient to purchase an additional AC adaptor to be kept at each site in order to remove the need to always carry the adaptor with you.

use as either a spare or replacement. Please refer to Chapter 5, Power and Power-Up Modes for further information.

Microphone Level

Follow the steps below to change the microphone recording level.

1. Right click on the speaker icon on the Taskbar, and select Recording devices from the sub menu.

2. Select Microphone, and click Properties.

3. On the Levels tab move the Microphone slider to increase or decrease the microphone volume level.

If you feel the microphone volume level is inadequate, move the

Microphone Boost slider to a higher level.

Audio Enhancements

In order to apply the sound effects for your current speaker, follow the steps below.

User’s Manual 3-42

1. Right click on the speaker icon on the Taskbar, and select Playback Devices from the sub menu.

2. Select Speakers, and click Properties.

3. On the Enhancements tab select the sound effects you would like, and click Apply.

Realtek HD Audio Manager

You can confirm and change the audio configuration using the Realtek Audio Manager. To launch the Realtek Audio Manager, click Start -> Control Panel, select Large icons from View by, then click Realtek HD Audio Manager.

When you first launch the Realtek Audio Manager, you will see two device tabs. Speakers is the default output device. Microphone is the default input device. To change the default device, click the Set Default Device button under the chosen device tab.

Information

Click the information button to view hardware information, software information, and language setting.

Power Management

The audio controller in your computer can be turned off when the audio function is not used. To adjust the configuration of audio power

management, click the Power Management button .

■ When audio power management is enabled, the circle button at the

upper left of the Power Management is blue and convex.

■ When audio power management is disabled, the button is black and

concave.

Speaker Configuration

Click the Auto Test button to confirm the internal speakers or the headphone sound is coming from the right direction.

Default Format

You can change the sample rate and bit depth of sound.

Dolby Advanced Audio

Dolby Advanced Audio provides a stunning listening experience from any pair of speakers or headphones. Adding a new level of realism to movies, music, and games, this is the quality audio customers have been missing from your computers. The Dolby Advanced Audio feature is supported by some models.

Dolby Advanced Audio includes:

User’s Manual 3-43

■ High-Frequency Enhancer: Analyzes and restores high frequencies lost

■ Audio Optimization: Corrects common audio problems caused by

■ Natural Bass: Extends the bass response of any speakers by up to an

■ Dolby Headphone: Enables personal surround sound using any set of

To access Dolby Advanced Audio function, follow the steps as detailed below:

1. Right-click on the speaker icon on the Taskbar, and select Playback

2. Select Speakers, and click Properties.

3. Click the Dolby tab.

Video mode

Video mode settings are configured via the Screen Resolution dialog. To open the Screen Resolution dialog, click Start -> Control Panel ->

Appearance and Personalization -> Display -> Change display settings.

If you are running some applications (for example a 3D application or video playback and so on), you may see some disturbance, flickering or frame dropping on your screen.

during encoding. Works on any speaker for a higher level of audio than was previously possible.

laptop limitations for a better entertainment experience.

octave.

headphones.

Devices from the sub menu.

If that occurs, adjust the resolution of display, lowering it until the screen is displayed properly.

Disabling Windows AeroTM may also help correct this issue.

Computer Handling

This section explains computer handling and maintenance.

Cleaning the computer

To help ensure long, trouble-free operation, keep the computer free of dust and dirt, and use care with all liquids around it.

■ Be careful not to spill liquids into the computer. If the computer does get

wet, turn the power off immediately and let the computer dry completely

- in these circumstance you should get the computer inspected by an authorized service provider in order to assess the scope of any damage.

User’s Manual 3-44

■ Clean the plastics of the computer using a slightly water dampened

cloth.

■ You can clean the display screen by spraying a small amount of glass

cleaner onto a soft, clean cloth and then wiping the screen gently with the cloth.

Never spray cleaner directly onto the computer or let liquid run into any part of it. Never use harsh or caustic chemical products to clean the computer.

Moving the computer

While the computer is designed for flexible day-to-day usage you should exercise a few simple precautions when moving it in order to help ensure trouble-free operation.

■ Make sure all disk/disc activity has ended before moving the computer -

check that the HDD and other indicators (if any) on the front of the computer are off.

■ Turn off (shut down) the computer.

■ Disconnect the AC adaptor and all peripherals before moving the

computer.

■ Close the display panel.

■ Do not pick up the computer by its display panel.

■ Before carrying your computer, shut it down, disconnect the AC adaptor

and allow it to cool down - a failure to follow this instruction may result in minor heat injury.

■ Be careful not to subject the computer to impact or shock - a failure to

follow this instruction could result in damage to computer, computer failure or loss of data.

■ Never transport your computer with any cards installed - this may cause

damage to either the computer and/or the card resulting in product failure.

■ Always use a suitable carry case when transporting the computer.

■ When carrying your computer, be sure to hold it securely so that it does

not fall or hit anything.

■ Do not carry your computer by holding any of its protruding elements.

Heat dispersal

To protect against overheating, the processor is equipped with an internal temperature sensor which activates a cooling fan or lowers the processing speed if the computer's internal temperature rises to a certain level. You are able to select whether to control this temperature by either turning on the fan first, then if necessary lowering the processor speed, or by lowering the processor speed first, then if necessary turning on the fan. Both of these functions are controlled through the Power Options.

User’s Manual 3-45

When the processor's temperature falls within normal range, the fan will be turned off and the processor operation returned to its standard speed.

If the processor's temperature reaches an unacceptably high level with either setting, the computer automatically shuts down to prevent any damage. In this instance all unsaved data in memory will be lost.

User’s Manual 3-46

Chapter 4

Utilities & Advanced Usage

This chapter describes the utilities and special features of this computer, and the advanced usage of some utilities.

Utilities and Applications

This section describes the pre-installed utilities that come with the computer and details how to start them. For further information on their operation, you may refer to each utility's online manual, help files or README.TXT file (if applicable).

TOSHIBA Power Saver

TOSHIBA PC Diagnostic Tool

TOSHIBA Password Utility

TOSHIBA Flash Cards

HW Setup This utility allows you to customize your hardware

TOSHIBA Accessibility

TOSHIBA Power Saver provides you with the features of more various power supply managements.

The TOSHIBA PC Diagnostic Tool will display basic system configuration information and allow the functionality of some of the computer's built-in hardware devices to be tested.

The TOSHIBA Password utility allows you to set a password in order to restrict access to the computer.

The TOSHIBA Flash Cards provide a quick way to modify selected system functions.

■ Hot key function

settings according to the way you work with the computer and the peripherals you use.

The TOSHIBA Accessibility utility provides support to movement impaired users when they need to use the TOSHIBA Hot-key functions. In use, the utility allows you to make the FN key "sticky", that is you can press it once, release it, and they press one of the Function keys in order to access its specific function. When set, the FN key will remain active until another key is pressed.

User’s Manual 4-1

TOSHIBA Face Recognition

TOSHIBA Face Recognition uses a face verification library to verify the face data of users when they log in to Windows. If the verification is successful, the user will be logged into Windows automatically. The user can thus avoid having to enter a password or the like, which makes the login process easier.

For more information, please refer to the Using the

TOSHIBA Face Recognition section.

TOSHIBA VIDEO PLAYER

This software is provided for playback of Video. It has an on-screen interface and functions. Click

Start -> All Programs -> TOSHIBA VIDEO PLAYER -> TOSHIBA VIDEO PLAYER.

For details on how to use TOSHIBA VIDEO PLAYER, see the help file.

Bluetooth Stack for Windows by Toshiba

This software enables communication between the computer and external Bluetooth devices such as printers and mobile phones.

Bluetooth functions cannot be used in models that do not have a Bluetooth module installed.

TOSHIBA Assist TOSHIBA Assist is a graphical user interface that

provides access to specific tools, utilities and applications that make the use and configuration of the computer easier.

To access this utility, click Start -> All Programs

-> TOSHIBA -> Utilities -> TOSHIBA Assist .

TOSHIBA ConfigFree TOSHIBA ConfigFree is a suite of utilities that

improve the ease and control of communication devices and network connections, help in the identification of communication problems and allow the creation of profiles if you need to switch between different locations and communication networks.

To access this utility, click Start -> All Programs

-> TOSHIBA -> ConfigFree.

User’s Manual 4-2

TOSHIBA eco Utility This computer is equipped with "eco mode". This

mode slightly lowers performance of some devices to reduce electric power consumption. You can realize measurable power savings by using it continuously. TOSHIBA eco Utility helps you monitor your power savings by showing approximate real time power consumption. Furthermore, it shows approximate accumulated power consumption and approximate accumulated power savings when using eco mode daily, weekly, and monthly. You can track power savings by using eco mode continuously.

To access this utility, click Start -> All Programs

-> TOSHIBA -> Utilities -> eco Utilities.

TOSHIBA Disc Creator

You can create CDs and DVDs in a number of formats including audio CDs that can be played on a standard CD player, and data CD/DVDs which can store copies of the files and folders on your computer's hard disk drive.

To start this utility, click Start -> All Programs ->

TOSHIBA -> CD&DVD Applications -> Disc Creator.

TOSHIBA DVD-RAM Utility

This utility has the function of Physical Format and Write-Protect to DVD-RAM. This utility is contained the setup module of TOSHIBA Disc Creator. To start this utility, click Start -> All Programs ->

TOSHIBA -> CD&DVD Applications -> DVDRAM Utility.

TOSHIBA HDD/SSD Alert Utility

This utility includes wizard functions to monitor the Disk Drive operating status and execute the system backup.

To access the utility, click Start -> All Programs ->

TOSHIBA -> Utilities -> HDD SSD Alert.

TOSHIBA Service Station

This application allows your computer to automatically search for TOSHIBA software updates or other alerts from TOSHIBA that are specific to your computer system and its programs. When enabled, this application periodically transmits to our servers a limited amount of system information, which will be treated in strict accordance with the rules and regulations as well as applicable data protection law.

To access this utility, click Start -> All Programs

-> TOSHIBA -> Utilities -> Service Station.

User’s Manual 4-3

TOSHIBA Sleep Utility

TOSHIBA Bulletin Board

This utility is able to either enable or disable the Sleep and Charge function.

It shows the positions of USB ports that support the USB Sleep and Charge function and displays the battery's remaining capacity.

To access this utility, click Start -> All Programs

-> TOSHIBA -> Utilities -> Sleep Utility.

Bulletin Board is a convenient place to pin things to visually organize in a fun and creative way.

Simply drag and drop your favorite pictures, files or notes to pin them on the Board. You can use it to create thumbnail shortcuts, reminders, to-do list and so on according to your personal style.

To access this utility, click Start -> All Programs - > TOSHIBA -> TOSHIBA Bulletin Board.

User’s Manual 4-4

TOSHIBA ReelTime This application is a graphical history/indexing tool

that enables you to view recently accessed files in a fun and easy-to-use format. View and scroll through your history of opened or imported files via thumbnails in an intuitive user interface.

To access this utility, click Start -> All Programs -

> TOSHIBA -> TOSHIBA ReelTime.

TOSHIBA Wireless LAN Indicator

TOSHIBA Wireless LAN Indicator utility displays the system's Wireless LAN connection status on the logon screen.

You can quickly check the current Wireless LAN connection status before logging into Windows.

To change the settings of this utility, click Start->

All Programs -> TOSHIBA -> Networking-> Wireless Indicator -> Settings.

TOSHIBA Media Controller

This application allows you to control your music, pictures and videos by streaming content to any compatible device in your home.

To access this utility, click Start -> All Programs -

> TOSHIBA -> TOSHIBA Media Controller -> TOSHIBA Media Controller.

For more information, please refer to the TOSHIBA Media Controller Help.

TOSHIBA Speech System

The TOSHIBA Speech System consists of a voicecomposition application (text-to-speech) that analyzes documents and reads them aloud, and a speech-recognition application that recognizes the words you speak into a microphone. This allows you to control and operate various Windows programs by voice command rather than using the keyboard or a mouse.

To access this utility, click Start -> All Programs - > TOSHIBA -> Speech System.

For more information, please refer to the TOSHIBA Speech System Help.

TOSHIBA Resolution+ Plug-in For Windows Media Player

The plug-in lets you upconverts wmv and mp4 videos on Windows Media Player.

For more information, please refer to the TOSHIBA Resolution+ Plug-in for Windows Media Player Help.

To access it, click Start -> All Programs ->

TOSHIBA -> TOSHIBA Resolution+ Plug-in for Windows Media Player -> TOSHIBA Resolution+ Plug-in for Windows Media Player Help.

User’s Manual 4-5

Special features

The following features are either unique to TOSHIBA computers or are advanced features which make the computer more convenient to use.

Access each function using the following procedures. *1 To access the Power Options, click Start -> Control Panel -> System

and Security -> Power Options.

Hot keys Hot keys are specific key combinations that let you

Display automatic power off

HDD automatic power off

System automatic Sleep/Hibernation

Mode

Power on password Two levels of password security, supervisor and

Instant security A specific hot key function automatically locks the

Intelligent power

supply

Battery save mode

Panel power on/off

quickly change the system configuration directly from the keyboard without running a system program.

This feature automatically cuts off power to the

computer's display panel when there is no keyboard input for a specified time, with power being restored the next time a key is pressed. This can be specified in the Power Options.

This feature automatically cuts off power to the

hard disk drive when it is not accessed for a specified time, with power being restored when the hard disk drive is next accessed. This can be specified in the Power Options.

This feature automatically shuts down the system into either Sleep Mode or Hibernation Mode when there is no input or hardware access for a specified time. This can be specified in the Power Options.

user, are available to prevent unauthorized access to your computer.

system providing data security.

A microprocessor in the computer's intelligent power supply detects the battery's charge, automatically calculates the remaining battery capacity and protects electronic components from abnormal conditions such as a voltage overload from the AC adaptor. This can be specified in the Power Options.

This feature lets you configure the computer in order to save battery power. This can be specified in the Power Options.

This feature automatically turns power to the computer off when the display panel is closed, and turns it back on when the display panel is opened. This can be specified in the Power Options.

User’s Manual 4-6

Low battery automatic

Hibernation Mode

When battery power is exhausted to the point that computer operation cannot be continued, the

system automatically enters Hibernation Mode and shuts itself down. This can be specified in the Power Options.

Heat dispersal

To protect against overheating, the processor has an internal temperature sensor so that, if the computer's internal temperature rises to a certain level, the cooling fan is turned on or the processing speed is lowered. This can be specified in the Power Options.

Hibernation Mode This feature lets you turn off the power to the

computer without exiting from your software. The contents of main memory are automatically saved to the hard disk drive so that when you next turn the power on again, you can continue working right where you left off. Refer to the Turning off the

power section in Chapter 1, Getting Started, for

more details.

Sleep Mode If you have to interrupt your work, you can use this

feature to allow you to turn off power to the computer without exiting from your software. Data is maintained in the computer's main memory so that when you next turn on the power, you can continue working right where you left off.

USB Wakeup function

This function restores the computer from Sleep Mode depending on the external devices connected to the USB ports.

For example, if a mouse or USB keyboard is connected to a USB port, clicking the mouse button or pressing the keyboard will wakeup the computer.

Sleep and Charge function

This feature allows you to charge USB-compatible external devices such as mobile phones or portable digital music players via the USB port when your computer is in Sleep Mode, Hibernation Mode or in the shutdown state.

This function is worked by the TOSHIBA Sleep Utility.

TOSHIBA PC Health Monitor

The TOSHIBA PC Health Monitor application proactively monitors a number of system functions such as power consumption, battery health and system cooling, informing you of significant system conditions. This application recognizes the system and individual component serial numbers and will track specific activities related to their usage.

User’s Manual 4-7
