GSM TELEPHONE
GT-C6712
GSM TELEPHONE
CONTENTS
Safety Precautions
1.
Specification
2.
Product Function
3.
Exploded View and Parts list
4.
MAIN Electrical Parts List
5.
Level1Repair
6.
Level2Repair
7.
Level3Repair
8.
Reference data
9.
Notice
All functionality, features, specifications and other
product information provided in this document inclu
ding, but not limited to, the benefits, design, pricing,
components, performance, availability, and capabiliti
es of the product are subject to change without
-
notice or obligation. Samsung reserves the right to
make changes to this document and the product
described herein, at anytime, without obligation on
Samsung to provide notification of such change.
:
Safety Precautions
1.
Repair Precaution
1-1.
Repair in Shield Box, during detailed tuning. Take specially care of tuning or test, because
―
specipicty of cellular phone is sensitive for surrounding interference(RF noise).
Be careful to useakind of magnetic object or tool, because performance of parts is damaged by
―
the influence of magnetic force.
Surely useastandard screwdriver when you disassemble this product, otherwise screw will be
―
worn away.
Useathicken twisted wire when you measure level.
―
thicken twisted wire has low resistance, therefore error of measurement is few.
A
Repair after separate Test Pack and Set because for short danger(for example an overcurrent
―
and furious flames of parts etc) when you repair board in condition of connecting Test Pack and
tuning on.
Take specially care of soldering, because Land of PCB is small and weak in heat.
―
Surely tune on/off while using AC power plug, becausearepair of battery charger is dangerous
―
when tuning ON/OFF PBA and Connector after disassembling charger.
Don't use as you pleases after change other material than replacement registered on SEC System.
―
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.
1-1
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Safety Precautions
ESD(Electrostatically Sensitive Devices) Precaution
1-2.
Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD
Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
(
You can prevent from ESD damage by static electricity.
Remove static electricity remained your body before you touch semiconductor or parts with
―
semiconductor. There are ways that you touch an earthed place or wear static electricity prevention
string on wrist.
Use earthed soldering steel when you connect or disconnect ESD.
―
Use soldering removing tool to break static electricity.,otherwise ESD will be damaged by static
―
electricity.
Don't unpack until you set up ESD on product. Because most of ESD are packed by box and
―
aluminum plate to have conductive power,they are prevented from static electricity.
You must maintain electric contact between ESD and place due to be set up until ESD is
―
connected completely to the proper place oracircuit board.
1-2
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Specification
2.
GSM General Specification
2-1.
EGSM900 DCS1800
Freq. Band[MHz]
Uplink/Downlink
ARFCN range
Tx/Rx spacing 45MHz 95MHz
Mod. Bit rate
/BitPeriod
Time Slot Period
/ Frame Period
Modulation 0.3GMSK 0.3GMSK
880~915
925~960
0~124 &
975~1023
270.833kbps
3.692us
576.9us
4.615ms
1710~1785
1805~1880
512~885
270.833kbps
3.692us
576.9us
4.615ms
MS Power 33dBm~5dBm 30dBm~0dBm
Po w er C la s s 5~19(
Sensitivity -102dBm -100dBm
TDMA Mux 8 8
Cell Radius 35Km 2Km
class
4) 0~15(
class1)
2-1
Speclflcation
GSM TX power class
2-2.
TX Power
control level
GSM900
TX Power
control level
DCS1800
533±2
631±2
729±2
827±2
925±2
10 23±2
11 21±2
12 19±2
dBm
dBm
dBm
dBm
dBm
dBm
dBm
dBm
030±3
128±3
226±3
324±3
422±3
520±3
618±3
716±3
dBm
dBm
dBm
dBm
dBm
dBm
dBm
dBm
13 17±2
14 15±2
15 13±2
16 11±3
17 9±3
18 7±3
19 5±3
dBm
dBm
dBm
dBm
dBm
dBm
dBm
2-2
814±3
912±4
10 10±4
11 8±4
12 6±4
13 4±4
14 2±5
15 0±5
dBm
dBm
dBm
dBm
dBm
dBm
dBm
dBm
Operation Instruction and Installation
3.
Main Function
EDGE RX
•
•3.2”
•3.2
•
•
•
•
•3.5
•
•
WQVGA LCD
MP Camera
Dual SIM, Dual Standby
BTv3.0,Micro USB
FM Radio Support
Micro SD Card support
pi Earjack Support
Wi-Fi
SMS, MMS
(850/900/1800/1900)
802.11(
b/g/n
)
2.0
3-1
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Exploded View and Parts List
4.
Cellular phone Exploded View
4-1.
QME03
QFR01
QLC01
QLB01
QMI03
QAR01
QCA01
QRF06
QVO01
QME01
QMO01
QCK01
QCK02
QKP01
QVK02
QMP01
QSP01
QRE01
QSD01
QCR101
QBA01
QBC00
4-1
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Exploded View and Parts List
Cellular phone Parts list
4-2.
Design LOC Description SEC CODE
QCR101 SCREW-MACHINE
QBA01 INNER BATTERY PACK-1200MAH,BLK,ENG,MAIN GH43-03447A
QSP01 MODULE-SPK+INT GH59-10668A
QCA01 CAMERA MODULE-3M LSI
QVK02 KEY FPCB-PWR KEY FPCB GH59-10787A
QME03 TOUCH/PANEL-GT-C6712 GH59-10814A
QMI03 RMO RUBBER-MIC TOP GH73-14863A
QMP01 A/S ASSY-PBA MAIN(COMM) GH82-05721A
QLC01 ASSY LCD-3.2"WQVGA GT-C6712 ASSY GH96-05076A
QAR01 ASSY MODULE-RCV(+EARJACK)+BRACKET FPCB GH96-05141A
QFR01 ASSY CASE-FRONT GH98-19406A
QKP01 ASSY KEYPAD-(EU) GH98-19408A
QBC00 ASSY COVER-BATT(IML) GH98-19784A
QLB01 ASSY BRACKET-LCD GH98-19407A
QME01 KEY FPCB-KEY FPCB ASSY GH59-10786A
CC SOCKET TYP GH59-10764A
1/5" 5
6001-002005
QRE01 ASSY CASE-REAR GH98-19409A
QMO01 MOTOR DC GH31-00534A
QRF06 PMO COVER-USB GH72-62923A
QSD01 PMO COVER-SD GH72-62924A
QCK02 PMO KEY-SIM GH72-62926A
QVO01 PMO KEY-VOL GH72-62927A
QCK01 PMO KEY-HOLD GH72-62928A
4-2
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
MAIN Electrical Parts List
5.
SEC CODE Design LOC Description
0403-001870
0404-001172
0404-001504
0406-001286
0406-001293
0406-001413
0406-001446
0406-001446
0801-003130
1001-001410
1001-001607
1001-001655
1001-001687
1108-000395
1201-003166
1203-006589
1203-006660
1205-003868
1205-004046
1205-004113
1209-001945
1404-001221
1405-001298
1405-001298
2007-000138
2007-000138
2007-000139
2007-000140
2007-000141
2007-000141
2007-000143
2007-000144
2007-000148
2007-000156
2007-000159
2007-000162
ZD300 DIODE-ZENER
D401,D402 DIODE-SCHOTTKY
D100,D101 DIODE-SCHOTTKY
ZD301,ZD403 DIODE-TVS
ZD401,ZD402 DIODE-TVS
ZD408,ZD411 DIODE-TVS
U411,ZD404,ZD405 DIODE-TVS
ZD409,ZD410 DIODE-TVS
U200 IC
U403 IC
U104 IC
U401 IC
U100 IC
UME200 MEMORY
PAM100 IC
U402 IC
PM300 IC
U102 IC
UCP200 IC
U105 IC
U301 IC
VR300 THERMISTOR
V400,V401,V405,V407 VARISTOR
V408 VARISTOR
R422,R423,R424,R425 R-CHIP
R430 R-CHIP
R137 R-CHIP
R111,R420 R-CHIP
R206,R207,R208,R209 R-CHIP
R219,R220,R406 R-CHIP
R202,R433 R-CHIP
R211,R212,R213,R214 R-CHIP
R312 R-CHIP
R305,R404 R-CHIP
R204 R-CHIP
R134,R135,R136,R216 R-CHIP
5-1
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Main Electrical Parts List
SEC CODE Design LOC Description
2007-000162
2007-000165
2007-000169
2007-000170
2007-001244
2007-001292
2007-001294
2007-001333
2007-002796
2007-003014
2007-003018
2007-007008
2007-007014
2007-007015
2007-007132
2007-007156
2007-007193
2007-007312
2007-007315
2007-007981
2007-008401
2203-000233
2203-000233
2203-000254
2203-000278
2203-000278
2203-000330
2203-000386
2203-000386
2203-000425
2203-000438
2203-000627
2203-000679
2203-000696
2203-000714
2203-000725
R217,R218,R222 R-CHIP
R300 R-CHIP
R438 R-CHIP
R402,R408 R-CHIP
R205 R-CHIP
R301,R302 R-CHIP
R100,R405 R-CHIP
R409 R-CHIP
R418 R-CHIP
R316 R-CHIP
R108,R110 R-CHIP
R304 R-CHIP
R411 R-CHIP
R439 R-CHIP
R114,R128,R410 R-CHIP
R460,R462 R-CHIP
R200 R-CHIP
R215 R-CHIP
R221 R-CHIP
R313,R315 R-CHIP
R314 R-CHIP
C234,C450,C451,C452 C-CERAMIC
C453,C456 C-CERAMIC
C137,C222,C231 C-CERAMIC
C125,C126,C136,C143 C-CERAMIC
C169,C170,C171 C-CERAMIC
C118 C-CERAMIC
C236,C402,C413,C415 C-CERAMIC
C460 C-CERAMIC
C219 C-CERAMIC
C150,C229 C-CERAMIC
C116,C312,C313 C-CERAMIC
C130 C-CERAMIC
C144 C-CERAMIC
C182 C-CERAMIC
C464,C465 C-CERAMIC
5-2
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Main Electrical Parts List
SEC CODE Design LOC Description
2203-000812
2203-000812
2203-000854
2203-000995
2203-001101
2203-001153
2203-001153
2203-001385
2203-005053
2203-005056
2203-005234
2203-005395
2203-005450
2203-005552
2203-005968
2203-006048
2203-006048
2203-006048
2203-006048
2203-006048
2203-006048
2203-006048
2203-006137
2203-006190
2203-006208
2203-006257
2203-006260
2203-006324
2203-006348
2203-006399
2203-006399
2203-006399
2203-006399
2203-006399
2203-006399
2203-006399
C344,C359,C403,C404 C-CERAMIC
C409,C410 C-CERAMIC
C115,C119 C-CERAMIC
C205,C218,C360 C-CERAMIC
C224 C-CERAMIC
C406,C412,C430,C434 C-CERAMIC
C435 C-CERAMIC
C127 C-CERAMIC
C173 C-CERAMIC
C117 C-CERAMIC
C102 C-CERAMIC
C181 C-CERAMIC
C151 C-CERAMIC
C129 C-CERAMIC
C429 C-CERAMIC
C100,C107,C108,C110 C-CERAMIC
C134,C140,C141,C177 C-CERAMIC
C202,C203,C208,C212 C-CERAMIC
C213,C215,C226,C227 C-CERAMIC
C316,C339,C341,C358 C-CERAMIC
C401,C407,C417,C423 C-CERAMIC
C440,C455,C457 C-CERAMIC
C310,C315 C-CERAMIC
C112,C113 C-CERAMIC
C320,C321,C324 C-CERAMIC
C311,C314,C338 C-CERAMIC
C183 C-CERAMIC
C326,C327 C-CERAMIC
C301 C-CERAMIC
C111,C124,C138,C155 C-CERAMIC
C200,C201,C207,C209 C-CERAMIC
C216,C217,C305,C306 C-CERAMIC
C307,C308,C317,C319 C-CERAMIC
C322,C323,C325,C329 C-CERAMIC
C330,C340,C345,C355 C-CERAMIC
C356,C357,C405,C411 C-CERAMIC
5-3
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Main Electrical Parts List
SEC CODE Design LOC Description
2203-006399
2203-006399
2203-006562
2203-006681
2203-006824
2203-006824
2203-006872
2203-006872
2203-006872
2203-006890
2203-006978
2203-007271
2203-007279
2203-007279
2203-007317
2203-007693
2203-007729
2203-007775
2404-001506
2703-001708
2703-001726
2703-001990
2703-002176
2703-002198
2703-002200
2703-002205
2703-002267
2703-002308
2703-002314
2703-002367
2703-002368
2703-002543
2703-003485
2703-003686
2703-003698
2801-004551
C432,C433,C437,C438 C-CERAMIC
C439 C-CERAMIC
C331,C422 C-CERAMIC
C414,C416 C-CERAMIC
C175,C210,C211,C214 C-CERAMIC
C328 C-CERAMIC
C142,C156,C178,C204 C-CERAMIC
C206,C220,C221,C223 C-CERAMIC
C225 C-CERAMIC
C300,C337 C-CERAMIC
C454 C-CERAMIC
C332,C333,C334,C335 C-CERAMIC
C103,C302,C303,C342 C-CERAMIC
C418,C428 C-CERAMIC
C109,C176,C179 C-CERAMIC
C446 C-CERAMIC
C233 C-CERAMIC
C180 C-CERAMIC
BAT300 C-TA
L107,L109,L111,L115 INDUCTOR-SMD
L112,L114 INDUCTOR-SMD
L150 INDUCTOR-SMD
L121,L149 INDUCTOR-SMD
L117,L118 INDUCTOR-SMD
L122,L123 INDUCTOR-SMD
L120,L124 INDUCTOR-SMD
L116,L119 INDUCTOR-SMD
L426 INDUCTOR-SMD
L412 INDUCTOR-SMD
L105,L110 INDUCTOR-SMD
L102 INDUCTOR-SMD
L113 INDUCTOR-SMD
L413 INDUCTOR-SMD
L300,L301,L302 INDUCTOR-SMD
L108 INDUCTOR-SMD
OSC300 CRYSTAL-UNIT
5-4
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Main Electrical Parts List
SEC CODE Design LOC Description
2801-004893
2901-001604
2904-001937
2909-001337
3003-001136
3301-001438
3301-001534
3301-001659
3301-001917
3301-001917
3301-001917
3301-002037
3301-002062
3301-002070
3404-001303
3404-001303
3705-001731
3708-002236
3709-001575
3709-001685
3710-003376
3711-007533
3712-001348
3712-001348
3712-001348
3712-001348
3722-003172
3711-007746
1001-001701
3711-007738
2904-002008
OSC100,OSC200 CRYSTAL-UNIT
F400,F401,F402 FILTER-EMI SMD
F101 FILTER-SAW
F102 FILTER-DUPLEXER
MIC401 MIC-CONDENSOR
L135 CORE-FERRITE BEAD
L103,L104 CORE-FERRITE BEAD
L125,L126,L200,L201 CORE-FERRITE BEAD
L407,L408,L410,L411 CORE-FERRITE BEAD
L418,L419,L420,L421 CORE-FERRITE BEAD
L422,L423,L424 CORE-FERRITE BEAD
L401,L425 CORE-FERRITE BEAD
L417 CORE-FERRITE BEAD
L400,L406 CORE-FERRITE BEAD
TACK_402,TACT_400 SWITCH-TACT
TACT_401 SWITCH-TACT
RFS100 CONNECTOR-COAXIAL
SLC401 CONNECTOR-FPC/FFC/PIC
SD300 CONNECTOR-CARD EDGE
SIM300 CONNECTOR-CARD EDGE
SOC401 CONNECTOR-SOCKET
BTC300 CONNECTOR-HEADER
ANT100,ANT101,ANT102 CONNECTOR
ANT104,ANT105 CONNECTOR
MOTOR400,MOTOR401 CONNECTOR
SPK400,SPK401 CONNECTOR
IFC400 JACK-PHONE
HDC401 CONNECTOR-HEADER
U302 IC
HDC403 CONNECTOR-HEADER
F100 FILTER SAW
Please consult the GSPN website (Samsung Portal) for the most recent version of the product's part list.
5-5
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Level
6.
Software Downloading
6-1.
Repair
1
6-1-1.
•
•
•
•
•
•
•
•
•
•
Pre-requisite for Downloading
Downloader Program(
GT-C6712 Mobile Phone
JIG BOX
JIG Cable
JIG BOX(GH99-36900A)
RF Test Cable(GH39-00985A)
JIG Cable(GH39-01139A)
Adapter(GH99-38251A)
USB-To-Serial Cable
Binary files
MultiLoader_v5.65_BCOM)
6-1
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Level1Repair
6-1-2.
■
.
1
S/W Downloader Program
Load the binary download program by executing the
MultiLoader_v5.65_BCOM
"
"
Select the"BRCM2133" in Control panel and"Full Download".
Select the binary files
.
2
.
6-2
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Level1Repair
change the phone to'Download Mode', pressing''volume down'' button,''sim swap.''
.
3
button and''ON'' button simultaneously.
Connect the phone to USB cable,press the"Port Search" button and then press
.
4
Download" button.
"
6-3
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Level1Repair
When downloading is complete, you can see"All files complete" at the screen.
.
5
Confirm the downloaded version name and etc.
.
7
*#1234#
Full Reset
:
*2767*3855#
:
6-4
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Level
7.
Disassembly
7-1.
Repair
2
1
※
Be care of scratch and molding damage.
1)
Unscrew the5points.
1)
Caution
2
※
Be care of scratch and molding damage.
1)
Separate the REAR CASE.7hooks
1)
Caution
Separate the KEY connector and
1)
3
detach the KEY FPCB
Caution
※
Be care of scratch and molding damage.
1)
Be care of damage to the KEY FPCB..
2)
4
Caution
※
Be care of scratch and molding damage.
1)
Be care of damage to the LCD fpcb.
2)
Lift left of PBA and Separate the LCD
1)
connector.
7-1
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Level2Repair
7.
5 6
※
1)
2)
3)
Separate BRACKET.
1)
Caution
Be care of scratch and molding damage.
Be care of damage to the LCD.
Be care of damage to the FINGER
&
GASKET.
Detach the Insulation TAPE.
1)
Separate the TSP connector.
2)
Caution
※
Be care of damage to TSP IC.
1)
Be care of damage to TSP FPCB.
2)
7
※
1)
2)
Separate KEYPAD, LCD and TSP.
1)
Caution
Be care of scratch and molding damage.
Be care of damage to the LCD, TSP.
7-2
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Assembly
7-2.
1 2
Assemble the CAMERA.
1)
Solder the KEY FPCB.
1)
Level2Repair
7.
Caution
※
Be care of damage the CAMERA.
1)
3 4
Assemble the EARJACK&RCV MODULE
1)
Caution
※
Be care of damage to FPCB.
1)
Assemble the RUBBER.
1)
Don't block the USB
SOCKET HOLE.
Caution
※
Be care of damage to the module.
1)
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Caution
※
Be care of damage to PBA.
1)
7-3
Level2Repair
7.
5 6
※
Be care of damage to PBA.
1)
Attach the Insulation TAPE.
1)
Caution
1) Attach the TSP.
Caution
※
Be care of damage the TSP FPCB.
1)
Be care of scratch and molding damage.
2)
1) Assemble the LCD and KEYPAD.
7
Caution
※
Be care of scratch and molding damage.
1)
Be care of TSP Fpcbdamage.
2)
8
1) Assemble the KEYPAD.
Caution
※
Be care of damage the LCD module.
1)
Be care of TSP Fpcbdamage.
2)
7-4
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Level2Repair
7.
9 10
Caution
※
Be care of scratch and molding damage.
1)
Be care of damage to TSP FPCB.
2)
Assemble the BRACKET.
1)
Attach the Insulation TAPE.
2)
Connect the LCD connector to PBA.
1)
Caution
※
Be care of scratch and molding damage.
1)
Be care of damage to LCD FPCB.
2)
11
Caution
※
Be care of scratch and molding damage.
1)
Attach KEY FPCB and
1)
connect the KEY connector.
Assemble the REAR CASE&INTENNA.
1)
12
Caution
※
Be care of scratch and molding damage.
1)
Check3hook of INTENNA.
2)
7-5
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Level2Repair
7.
13
Caution
※
Be care of scratch and molding damage.
1)
Assemble the REAR CASE from the
1)
TOP SIDE and SCREW5point.
Screw5points.
1)
Torque
●
Size:M1.4*L4
: 1.0 ~ 1.2
Kgf·cm
7-6
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Level
8.
Block Diagram
8-1.
Repair
3
8-1
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Level3Repair
PCB Diagrams
8-2.
8-2-1.
Top
8-2
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Level3Repair
8-2-1.
Bottom
8-3
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Level3Repair
Flow Chart of Troubleshooting
8-3.
presetting methods for checking TP
※
GND&TP(exp. VBAT=
-
look over the coming out signal.
-
C308
using Oscilloscope
)
GND TP(Test Point)
Oscilloscope
←
8-4
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Multi-meter
←
Level3Repair
Checking the TP(test point) using Multi-meter
←
EX) to look up the TP, shunt Cap.-if checking the GND, you can listen"beep"
-
if checking the Signal, you can't listen it.
8-5
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Level3Repair
LOGIC
8-3.
8-1.
Power On
Power On'does not work
'
Check the Battery Voltage
is more than
Check the Clock at
OSC300(C312, C313,
32.768
Check the voltage of
VDD_CORE_1V28(C320,
VDD_MEM_1V8(C300,
VDD_DIG_3V0(C328,
VDD_VCXO_1V3(C325,
kHz,
±20
Yes
Yes
Yes
3.7V
ppm)
1.8
3.0
1.28
1.3
V),
V),
V)
V),
No
Change the Battery
No
replace the OSC300
No
resolder the PM300
Yes
Check the Clock at
OSC200(C150,26MHz,
Check the initial operation
±10
ppm)
Yes
Yes
END
No
resolder the OSC200
8-6
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Level3Repair

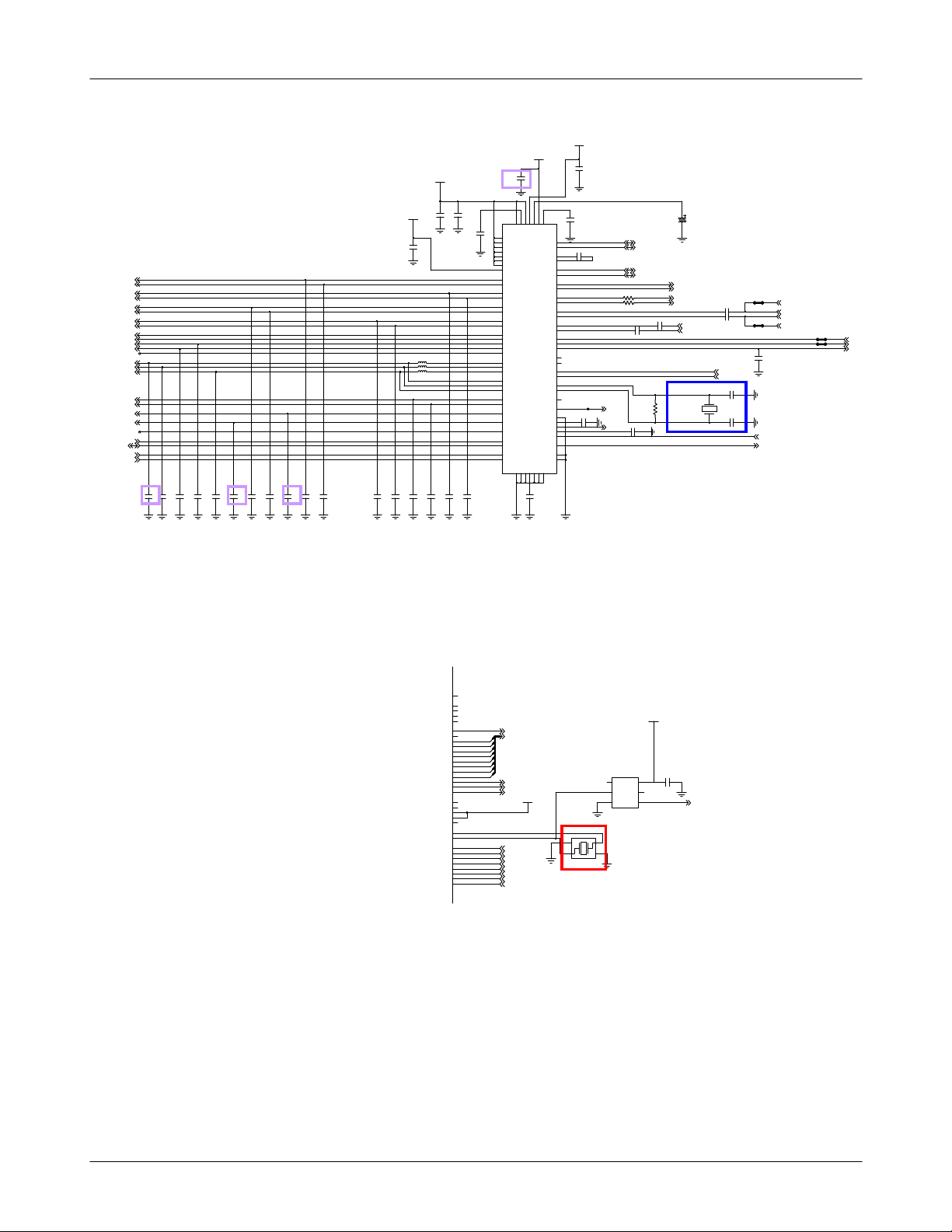

VDD_ANA_3V0
VDD_CAM_A_2V8
VDD_ANA_1V2
VDD_VRF_1V3
VDD_VRF_2V7
VDD_USBOTG_2V5
VDD_LCD_2V9
VDD_USB_NVRAM_3V3
VDD_CAM_IO_2V8
VDD_CAM_CORE_1V2
VDD_MOT_3V0
VDD_TSP_3V0
TP_AUXLDO5
VDD_CORE_1V28
VDD_MEM_1V8
VDD_TV_1.2V
VDD_AMP1_3V0
VDD_SD_3V0
VDD_DIG_3V0
VDD_VCXO_1V3
SDA
LDO_EN5
LDO_EN4
VDD_TP
SCL
C320
C321 C334
C325C322 C329C324C323
C327
C326
C319
C328
VDD_MEM_1V8
VBAT
C302
VDD_MEM_1V8
C306
L300
L301
L302
C332
C331
C330
C333
C300
C303
C305
C335
9
2
7
9
1
3
J
F
D
G
C
C
S
N
T
D
D
I
T
U
D
D
O
A
B
V
V
C
B
V
P
P
V
H
B1
IN1
B2
IN2
C2
IN3
C5
IN4
C6
IN5
C8
IN6
D7
IN7
B3
INLV
B8
ALDO1
B7
ALDO2
C3
LVLDO1
C4
LVLDO2
A8
RFLDO1
A7
RFLDO2
B4
MSLDO1
B6
MSLDO2
F9
AUXLDO1
F8
AUXLDO2
E8
AUXLDO3
E7
AUXLDO4
E6
AUXLDO5
PM300
C1
LX1
A2
LX2
E1
LX3
D2
FB1
A3
FB2
F2
FB3
A6
HCLDO1
A5
HCLDO2
B5
IOLDO
F6
LCLDO
A4
SIMLDO
F3
I2CCLK
F4
I2CDAT
F7
EN5
E5
EN4
1
S
D
S
D
D
D
N
V
N
N
N
P
G
G
G
G
P
H
9
9
1
1
1
4
J
J
E
A
D
G
C337
C301
C345
8
D
L
D
V
D
V
J7
COMN1
J8
COMP2
C307
J2
C1N
H2
C1P
H9
DN1
J9
DP2
H1
OUTN
G1
OUTP
J6
HPL
J5
HPR
H3
INA1
G4
INA2
G5
INB1
F5
INB2
H7
UT1
G7
UR2
H8
UID
H6
SL1
H5
SR2
G3
PC1
E4
PC2
A9
XIN
B9
XOUT
G6
MIC
TP_PMU_IRQ
D3
IRQB
G8
BC
D4
C316
REFBP
D5
RESETB
H4
VBIAS
E3
PWRONB
D6
32KHZ
1
NC
2
NC
3
2
D
D
N
N
G
G
P
P
2
E
PMU_IRQ
RST_BB
USB_D-
USB_D+
USB_DM
USB_DP
R301
R302
C311
C317
BAT300
SPK_N
SPK_P
EAR_SPK_L
EAR_SPK_R
C314
7
1
C
3
OSC300
N
R
C310
C315
INB_L
INB_R
PC
BT_REQ_CLK
C312
C313
TV_AUDIO_L
AMP_N
AMP_P
TV_AUDIO_R
1
6
3
C
C
N
ONKEY
32K_CLK
TXD1
RXD1
JIG_ID
VBUS
UCP200
PMU
F22
CK2
W19
CSI_M_CM_CLK
W18
CSI_M_CP_CLK
Y19
CSI_M_DM0
Y18
CSI_M_DP0
B10
LCDCS0
D12
LCDCS1
A11
LCDD0
F11
LCDD1
F12
LCDD2
E14
LCDD3
A12
LCDD4
D14
LCDD5
E13
LCDD6
D13
LCDD7
G11
LCDCD
B11
LCDRE
E12
LCDWE
U18
OTGCTRL1
V20
OTGCTRL2
V18
OTGCTRL3
V19
OTGCTRL4
V17
OTGCTRL5
A5
RF_X1
A6
RF_X2
C1
RF_INN_0G8
E1
RF_INN_0G9
G1
RF_INN_1G8
J1
RF_INN_1G9
B1
RF_INP_0G8
D1
RF_INP_0G9
F1
RF_INP_1G8
H1
RF_INP_1G9
LD_CS
VDD_VCXO_1V3
LD(0:7)
LD(0)
LD(1)
LD(2)
LD(3)
LD(4)
LD(5)
LD(6)
LD(7)
LD_RS
LD_RD
LD_WR
VDD_DIG_3V0
GSM_850_RX_A
GSM_900_RX_A
DCS_RX_A
PCS_RX_A
GSM_850_RX_B
GSM_900_RX_B
DCS_RX_B
PCS_RX_B
2431
OSC200
U200
C229
6
1
VCC
NC
2
5
A
NC
4
3
Y
GND
BT_CLK
8-7
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization

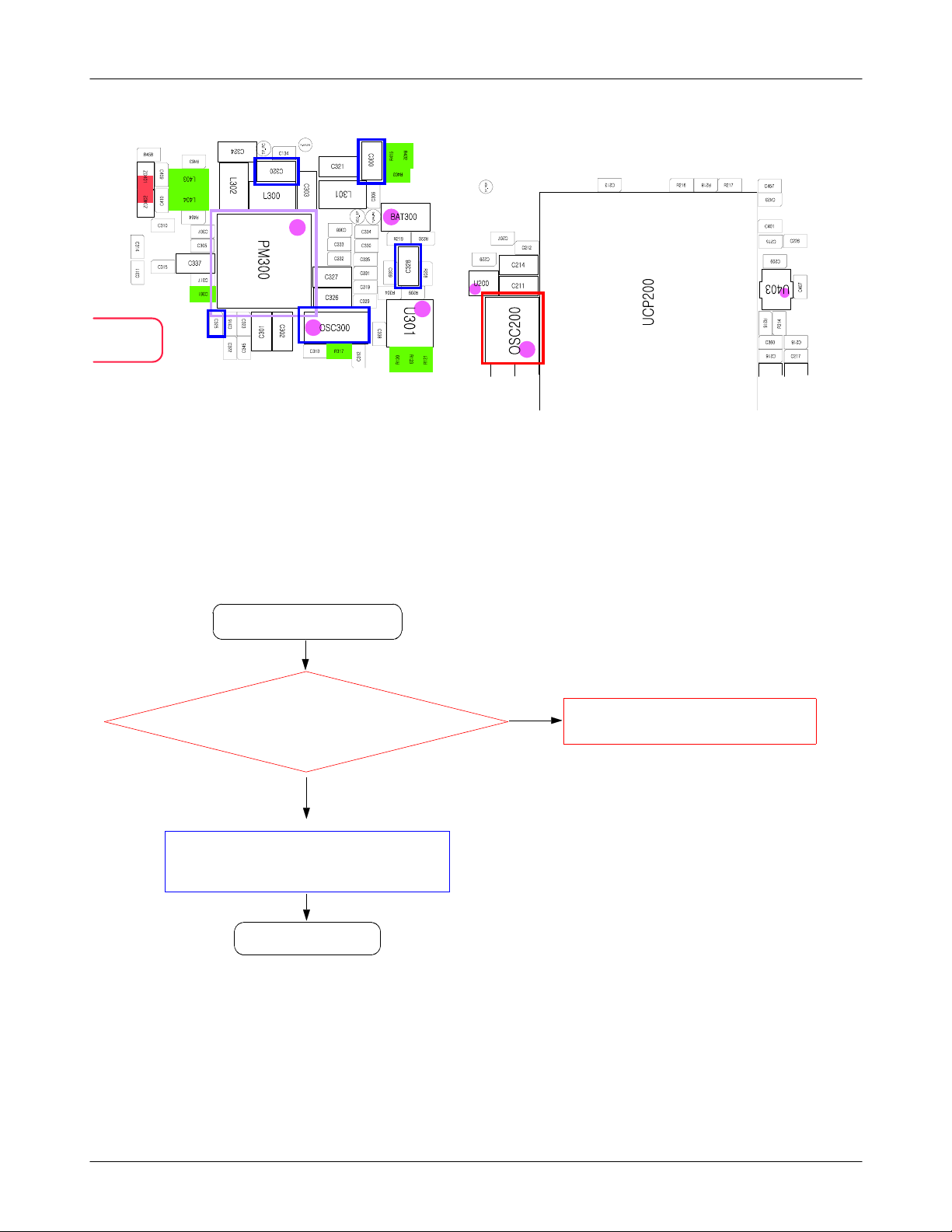

Level3Repair
8-2.
Initial
Initial Failure
Yes
PM300 pin D5(RESETB,
TP_RST_BB
Check the LCD FPCB(teared)&HDC
Short or not solder)
(
)="H"?
Yes
Yes
END
No
Replace PM300
401
8-8
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Level3Repair
VDD_DIG_3V0
2
2
2
R
1
V_JTAG
2
TMS
TMS
3
RTCK
R_TCK
4
TRST_N
TRSTB
5
TDI
TDI
6
TCK
TCK
7
TDO
TDO
TP_RST_BB
8
PON_RESET_N
RST_BB
9
GND
MASTER_JTAG_PAD
8-9
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Level3Repair
8-3.
Charging Part
Abnormal charging part
PM300 pin D9(VBUS, L425)
check the ZD410(short)
Yes
V
≥4.2
Yes
and C361(short)
Yes
No
No
Resolder L425 or IFC400
Replace ZD410
or open the C361
Check the Battery and TA
is connected correctly
Yes
END
8-10
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Level3Repair
PM300
IFC400
1
1
2
2
3
3
4
4
5
5
6
S1
7
S2
8
NC
9
NC
10
NC
11
NC
12
NC
13
NC
IF CON
INB2
H7
UT1
G7
UR2
H8
UID
H6
SL1
H5
SR2
G3
PC1
E4
PC2
XIN
VBAT
C422
C446
VBUS
5
2
4
L
R438
R439
L401
C311
JIG_ID_JTAG
INB_R
0
1
4
D
Z
PC
BT_REQ_CLK
C312
V401
V400
TXD1_JTAG
RXD1_JTAG
USB_D+
USB_D-
JIG_ID
TXD1
RXD1
1
6
3
C
C
N
JIG_ID
8-11
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Level3Repair
8-4.
Sim Part
Pin5(sim1_simclk), pin
Phone can't access SIM Card
Yes
U302 pin1(C355), n4(C356)
="H"?
and
sim2_
20(
simclk)
MHz
5
≥
?
Yes
No
Replace U302
SIM300 pin C1, C9="H"
Pin C3(sim1_simclk), pin
C11(sim2_ simclk)
Check the SIM Card(broken)
and
END
≥
Yes
Yes
5
MHz
?
?
No
Resolder or Replace SIM300
8-12
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
VSIM2
VDD_DIG_3V0
VSIM1
SIM1_SIMCLK
Level3Repair
O
I
T
K
M
S
L
I
R
C
S
_
M
M
I
I
2
S
S
M
_
_
I
2
2
S
M
M
I
I
S
C340
S
R319 NC
8
9
7
6
0
1
2
3
1
1
1
1
2
2
2
2
2
2
F
2
D
C
C
N
N
N
1
G
VSIM2
2
VIO
3
VBAT
VBAT
4
VSIM1
5
SCLK1
1
T
S
R
S
7
6
NCR318
C
T
E
O
K
N
I
S
L
R
S
R
C
V
S
SPIDATA
S
SPICK
U302
SPICS
_SYSRSTB
T
K
NC
S
L
O
R
I
C
1
M
M
M
O
I
I
I
I
S
S
S
S
0
9
8
1
TP_SIM_SPIDATA
15
14
13
12
11
TP_SIM_SPICS
SIM_SPIDATA
SIM_SPICK
SIM_SPICS
SIM_SYSRSTB
SIM2_SIMCLK
SIM1_SIMCLK
SIM2_SIMRST
SIM1_SIMRST
2
M
I
S
V
1
M
I
S
V
C11
CLK2
C3
CLK1
C10
RST2
C2
RST1
C15
I|O2
I|O1
GND2
2
2
1
1
GND1
D
D
D
D
V
V
V
V
S
S
S
S
R
R
R
R
8
4
6
2
1
1
C
C
C
C
SIM2_SIMIO
C7
SIM1_SIMIO
C13
C5
SIM300
R312
C355
C356
C357
C358
C359
K
T
M
I
L
S
S
C
R
_
O
O
_
I
I
T
M
_
I
M
S
M
I
S
I
M
R
I
S
_
S
S
1
_
1
M
I
M
S
I
S
DUAL SIM CONNECTOR
DUAL SIM CONTROLLER
8-13
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Level3Repair
8-5.
Microphone Part
Microphone does not work
Check the MIC.(broken,
teared FPCB,not connected)
Check MIC.bias.
main MIC.:C405,
1)
sub MIC.:C411
2)
Yes
No
Replace the MIC. or connect to the PBA correctly
Yes
No
Resolder C405 or C411
Yes
Check the MIC. circuit
not connected)
(
Yes
END
No
Resolder L400, C440, C402, C406, U411, C401
or C413, C412, L406, C457, C423, U401
8-14
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Level3Repair
R
R
KEY_COL(1)
KEY_COL(0)
KEY_ROW(1)
KEY_ROW(2)
MIC_BIAS
HDC403
L418
1
R422
R423
R424
R425
4
5
6
7
0
0
0
0
4
4
4
4
D
D
D
D
Z
Z
Z
1
2
3
0
5
5
5
5
4
4
4
4
C
C
C
C
Z
C
C
N
N
1
L419
34
3
L420
56
5
L421
78
7
9
9
2
2
4
6
8
10
10
C405
C402
C440
L400
MAIN_MIC_P
MAIN_MIC_GND
U411
C406
SUB_MIC
L406
SUB_MIC_GND
2
1
4
C
MIC_BIAS
MIC401
1
POWE
POWE
GND12GND
GND23GND
4
OUT
OUT
ZD409
C411
C413
MAIN MIC
SEL_REF_MIC
AUX_MIC_P
VDD_DIG_3V0
R405
C423
U401
1
6
S
Y1
2
VCC
GND
3
Y0
Z
C417
SUB_MIC
5
4
3PI5_EAR_MIC_P
SUB_MIC_GND AUX_MIC_N
MIC_NMAIN_MIC_GND
C401
C457
8-15
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Level3Repair
8-6.
Speaker Part
Speaker does not work
(
Check the SPK. circuit.
not connected, short)
(
Yes
Check the SPK.
connection, broken)
Yes
Yes
END
No
No
Change the SPK.
Resolder ZD401, ZD402, C409, C410,
R463, R464
SPK_P
SPK_N
L403
L404
R463
R464
NC
NC
C409
C410
SPK PAD
SPK400
1
1
2
2
SPK401
1
1
2
2
1
0
0
4
4
D
D
Z
Z
2
8-16
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Level3Repair
8-17
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Level3Repair
8-7.
Key Data Input
Check Initial Operation
Check the key FPCB
connection, FPCB teared)
(
Check the key circuit.
not connected, not soldered,
(
short)
Yes
Yes
Yes
No
No
Change the key FPCB
or connect correctly
resolder R430, C456 or V405
KEY_ROW(0)
C456
R430
END
TACT_400
12
3 4567
KEY_COL(0)
ONKEY
V405
HK401
1
2
3
1
2
3
8-18
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Level3Repair
8-8.
Back Light(LCD)
LCDtdoes not work
Yes
Check the LCD FPCB
connection, broken)
(
The Voltage at C432
=2.9V?
Yes
Yes
No
No
Change the LCD or connect the FPCB to
HDC401 correctly.
Resolder the C432
or check the PM300 is working
TSP_SDA
LED+_18.2V
LCD_FLM
TSP_SCL
TSP_INT
RST_LCD
VGH
VDD_TSP_3V0
R433
C434C430 C433
C435
Check the Backlight Driver
IC(U402) circuit
connection, broken)
(
Yes
END
VDD_LCD_2V9
VDD_TSP_3V0
HDC401
2
11
2
4
4
6
556
8
77 8
10
99
10
12
11 11
12
13131414
16
15 15 16
17171818
20 20
19 19
2121 2222
TP_RST_LCD
23 23 24 24
2525 2626
28 28
27 27
2929333030
31 31 32 32
3333 3434
35 35 36 36
3737 3838
39
40 40
C432
39
41G42GG4344
G
LCD CON
TP_LD(0)_LCD
TP_LD_RD_LCD
TP_LD_RS_LCD
TP_LD_WR_LCD
TP_LD_CS_LCD
LD(7)_LCD
LD(6)_LCD
LD(5)_LCD
LD(4)_LCD
LD(3)_LCD
LD(2)_LCD
LD(1)_LCD
LD(0)_LCD
LD_RD_LCD
LD_RS_LCD
LD_WR_LCD
LD_CS_LCD
LED-
No
resolder the components around U402.
Replace the U402 or
VBAT
C455
L417
L413
BL_EN
C428
R409
C429
D402
8
0
4
U402
A1
LX
A2
IN
C3
COMP
PGND
A3
EN|SET
B3
PWM
R
D3
OVP
D2
RSET
D1
CS
B1
C1
GND
1
NC
R410
2
NC
BACKLIGHT DRIVER IC
LED+_18.2V
LED-
R411
C454
8-19
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Level3Repair
8-20
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Level3Repair
8-9.
GSM
850 Rx
RX ON
Cell Power
PAM100
dBm
-65
using spectrum
(R106
analyzer)
PAM100 Pin18
D100,D101,L105,L110,L
-68
F100
107,
-
L109
75
dBm
8,9
dBm
:-60
Yes
Pin
Yes
Yes
11
pin,
≥
dBm
≥
≥
No
No
No
Resolder PAM100
Check PAM100
control check
Resolder F100,D100,D101,L105,L110,L107,L109
No
Yes
Check ANT Switch
control circuit
Resolder PAM100
Yes
Check UCP200 is working
Yes
END
8-21
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Level3Repair
8-10.
GSM
900 Rx
RX ON
Cell Power
Yes
PAM100
L103 using spectrum
(
PAM100 Pin18
L111,L115,L112,L114
Pin
dBm
-65
analyzer)
Yes
dBm
-68
Yes
F100
75
-
:-60
11
6,7
dBm
dBm
Pin,
≥
≥
≥
No
No
No
Resolder PAM100,
check R108(short)
Check PAM100
control check
Resolder F100
No
Yes
pin, L111,L115,L112,L114
6,7
Check ANT Switch
control circuit
Resolder PAM100
Yes
Check UCP200is working
Yes
END
8-22
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Level3Repair
8-11.
DCS
Rx
RX ON
Cell Power
Yes
PAM100
L103 using spectrum
(
PAM100 Pin
F101
L119, L117, L118
Pin
dBm
-65
analyzer)
Yes
dBm
-68
Yes
pin, L116,
9,8
dBm
75
-
:-60
11
16≥
dBm
≥
No
No
≥
No
Resolder PAM100
Check PAM100
control check
Resolder F101
Yes
pin, L116, L119, L117, L118
8,9
No
Check ANT Switch
control circuit
Resolder PAM100
Yes
Check UCP200is working
Yes
END
8-23
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Level3Repair
8-12.
PCS
Rx
RX ON
Cell Power
Yes
PAM100
L103 using spectrum
(
PAM100 Pin16
F101
L124, L122, L123
Pin
dBm
-65
analyzer)
Yes
dBm
-68
Yes
pin, L120,
6,7
dBm
75
-
:-60
11
dBm
≥
≥
No
No
≥
No
Resolder PAM100
Check PAM100
control check
Resolder F101
pin, L120, L124, L122, L123
6,7
No
Yes
Check ANT Switch
control circuit
Resolder PAM100
Yes
Check UCP200is working
Yes
END
8-24
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Level3Repair
PA_HB
PA_LB
SEL_BAND
R108
R110
ANT100
2
2
1
1
27
28
25
18
16
L150
TX_HB_IN
TX_LB_IN
BS
RX1
RX2
C173
1
G
G
2
ANT101
2
1
L102
G
G
3
4
2
1
TX MODULE ( FEM/PAM )
RFS100
G
C
G
A
1
3
2
4
C102
VBAT
C103
6
5
T
T
T
T
A
A
B
B
V
V
PAM100
G
G
G
G
G
G
G
G
G
G
G
G
G
9
8
7
5
4
3
2
0
1
1
1
1
1
G
G
4
3
9
2
9
7
0
2
2
2
2
1
1
3
R106
NC
L105
1
1
T
N
A
TXEN
VRAMP
SW_EN
20
R111
21
26
EN_TX
AUX_DAC
EN_TR_SW
C115
G
G
G
G
G
G
5
4
3
2
1
3
3
3
3
3
G
G
G
G
G
G
G
6
3
G
3
2
1
0
7
3
4
9
8
4
4
4
4
4
3
3
F100
1
GSM850_OUT
IN
G
3
2
GSM850_OUT
GSM900_OUT
GSM900_OUT
G
G
G
5
4
C116
L113
1
0
0
0
1
1
D
D
L110
L111
9
8
7
6
G
0
1
L115
L116
L107
L109
L112
L114
GSM_850_RX_A
GSM_850_RX_B
GSM_900_RX_A
GSM_900_RX_B
DCS_RX_A
L117
C119
L121
F101
GSM1800_OUT
GSM1800_OUT
GSM1900_OUT
GSM1900_OUT
G
G
G
4
5
3
0
1
9
8
7
6
G
1
IN
G
2
8-25
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
L118
L119
L120
L124
DCS_RX_B
PCS_RX_A
L122
L123
PCS_RX_B
Level3Repair
8-26
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Level3Repair
8-13.
GSM
850/900 Tx
(
TX Power is too Low!!
TX ON(5Level)
CLOCK CHECK?
MHz@OSC200
26
YES
PAM100 pin
R110 using spectrum
Check the Voltage
C103
28≥-4
dBm
analyzer)
<3.3
YES
V?
NO
NO
NO
solder OSC200
Re-
solder or change
Re-
UCP200
Check the UCP200&VBAT
circuit.
YES
PAM100
R106 using spectrum
(
Check the RFS100
connection with PCB?
re-solder or change
Pin
dBm
30
analyzer)
YES
YES
Antenna
11
≥
NO
NO
Resolder PAM100
Resolder RFS100.
8-27
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Level3Repair
8-13.
DCS/PCS
Tx
TX Power is too Low!!
TX ON(5Level)
CLOCK CHECK?
26
PAM100 pin
R108 using spectrum
(
Check the Voltage
C103
MHz@OSC200
YES
27≥-4
dBm
analyzer)
YES
V?
<3.3
YES
NO
NO
NO
solder OSC200
Re-
solder or change
Re-
UCP200
Check the UCP200&VBAT
circuit.
PAM100
R106 using spectrum
(
Check the RFS100
connection with PCB?
re-solder or change
Pin
dBm
30
analyzer)
YES
YES
Antenna
11
≥
NO
Resolder PAM100
NO
Resolder RFS100.
8-28
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
SEL_BAND
Level3Repair
ANT101
ANT100
2
2
2
1
1
L150
R108
27
PA_HB
PA_LB
TX_HB_IN
R110
28
TX_LB_IN
25
BS
18
RX1
16
RX2
TX MODULE ( FEM/PAM )
2
1
1
L102
RFS100
G
G
C
A
4
3
1
C173
2
C102
VBAT
C103
G
G
G
G
G
G
G
G
G
G
G
G
7
4
9
8
3
1
2
0
2
3
4
5
1
1
1
1
1
R106
NC
1
6
5
1
T
T
T
N
T
T
A
A
A
B
B
V
V
PAM100
G
G
G
G
G
G
G
G
G
G
0
1
2
3
9
2
7
4
3
9
3
3
3
3
2
1
1
2
2
2
20
TXEN
21
VRAMP
26
SW_EN
G
G
G
G
G
G
G
G
G
G
G
4
7
8
9
0
1
2
3
4
5
6
4
3
3
3
4
4
4
4
3
3
3
EN_TX
R111
AUX_DAC
EN_TR_SW
C115
UCP200
CE2N
G16
CE3N
G15
CE4N
E22
CE5N
F20
CK1
F22
CK2
W19
CSI_M_CM_CLK
W18
CSI_M_CP_CLK
Y19
CSI_M_DM0
Y18
CSI_M_DP0
B10
LD_CS
LCDCS0
D12
LCDCS1
LD(0:7)
A11
LD(0)
LCDD0
F11
LD(1)
LCDD1
F12
LD(2)
LCDD2
E14
LD(3)
LCDD3
A12
LD(4)
LCDD4
D14
LD(5)
LCDD5
E13
LD(6)
LCDD6
D13
LD(7)
LCDD7
G11
LCDCD
LD_RS
B11
LCDRE
LD_RD
E12
LCDWE
LD_WR
VDD_DIG_3V0
U18
OTGCTRL1
V20
OTGCTRL2
V18
OTGCTRL3
V19
OTGCTRL4
V17
OTGCTRL5
A5
RF_X1
A6
RF_X2
C1
RF_INN_0G8
E1
RF_INN_0G9
G1
RF_INN_1G8
J1
RF_INN_1G9
B1
RF_INP_0G8
D1
RF_INP_0G9
F1
RF_INP_1G8
H1
RF_INP_1G9
GSM_850_RX_A
GSM_900_RX_A
DCS_RX_A
PCS_RX_A
GSM_850_RX_B
GSM_900_RX_B
DCS_RX_B
PCS_RX_B
2431
VDD_VCXO_1V3
U200
C229
6
1
VCC
NC
2
5
A
NC
4
3
Y
GND
OSC200
BT_CLK
8-29
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Level3Repair
NC Point(Top View)
-
NC
:
UME200
8-30
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
UCP200
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
A
○○●●○○○○○○○○○○○○○○○○○○○
B
○○○○○○○○○○○○○○○○○○○○○○○
C
○○ ○○
D
○○ ○○○○○○○○○○○○○○○○○ ○○
E
○○ ○○○○○○○○○○○○○○○○○ ○○
F
○○ ○○○○●○○○○○○○○○○○○ ○○
G
○○ ○○○○○○○○○○○○○○○○○ ○○
H
○○ ○○○○○○○○○○○ ○○○○ ○○
J
○○ ○○○○ ○○○○ ○○
K
○○ ○○○○ ○○○○ ○○
L
○○ ○○○○ ○○○○○ ○○○○ ○○
M
○○ ○○○ ○○○○○ ○○○○ ○○
N
○○ ○○○○ ○○○○○ ○○○○ ○○
P
○○ ○○○○ ○○○○○ ○○○○ ○○
R
○○ ○○○○ ○○○○ ○○
T
○○●○○○○ ○○○○ ○○
U
○○ ○○○○○○○○○○○○○○○○○ ○○
V
○○ ○○○○○○○○○○○○○○○○○ ○○
W
○● ○○○○○○○○○○○○○○○○○ ○○
Y
○● ○○○○○○○○○○○○○○○○○ ○○
AA
○○○ ○○○○
AB
○○○○○○○○○○○○○○○○●○○○○○○
AC
○○○○○○○○○○○○○○○○●○○○○○○
Level3Repair
8-31
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Reference Abbreviate
9.
Reference Abbreviate
Advanced Audio Coding.
AAC:
―
AVC :
―
BER :
―
BPSK:
―
CA :
―
CDM :
―
C/I :
―
DMB :
―
EN
―
ES
―
ETSI:
―
MPEG:
―
PN :
―
PS :
―
QPSK:
―
RS :
―
SI :
―
TDM :
―
TS
―
Advanced Video Coding.
Bit Error Rate
Binary Phase Shift Keying
Conditional Access
Code Division Multiplexing
Carrier to Interference
Digital Multimedia Broadcasting
European Standard
:
Elementary Stream
:
European Telecommunications Standards Institute
Moving Picture Experts Group
Pseudo-random Noise
Pilot Symbol
Quadrature Phase Shift Keying
Reed-Solomon
Service Information
Time Division Multiplexing
Transport Stream
:
9-1
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
1
1. RF part
ANT
GSM850 Tx
GSM900 Tx
GSM850 Rx
GSM900 Rx
DCS Tx
PCS Tx
DCS Rx
PCS Rx
WIFI
BT
FM Radio
2. BB Part
Power ON
SAMSUNG PROPRIETARY
THIS DOCUMENT CONTAINS CONFIDENTIAL
PROPRIETARY INFORMATION THAT IS
SAMSUNG ELECTRONICS CO ¡flS PROPERTY.
DO NOT DISCLOSE TO OR DUPLICATE FOR OTHERS
A
EXCEPT AS AUTHORIZED BY SAMSUNG.
SEL_BAND
ANT100
2
2
1
1
R108
PA_HB
R110
PA_LB
ANT103
NC
ZD103
ZD101
NC
NC
L
1
8
C112
C113
TP_WAKE_HOST
K8
GPIO_0
H10
GPIO_1
K9
GPIO_2
J9
GPIO_3
K10
GPIO_6
J10
GPIO_7
M4
GPIO_8
F11
GPIO_9
G7
RF_SW_CTRL_N_0
H8
RF_SW_CTRL_N_2
J5
RF_SW_CTRL_N_3
G8
RF_SW_CTRL_P_0
H9
RF_SW_CTRL_P_2
J6
RF_SW_CTRL_P_3
F4
WRF_GPIO_OUT1
E4
WRF_GPIO_OUT2
C181
B4
WRF_RFINN_A1_XFMR
A8
WRF_RFINN_G1_XFMR
A4
WRF_RFINP_A1
A6
WRF_RFINP_G1
B2
WRF_RFOUTP_A
E1
WRF_RFOUTP_G
F2
WRF_AFE_PAD_TEST_IN
F1
WRF_AFE_PAD_TEST_IP
H2
WRF_AFE_PAD_TEST_ON
H1
WRF_AFE_PAD_TEST_OP
H3
WRF_AFE_PAD_TSSI_A
E3
WRF_AFE_PAD_TSSI_G
F3
WRF_AFE_PAD_IQADC_VREF
F9
WRF_EXTREFIN
R114
B9
WRF_RES_EXT
L5
BT_REG_ON
A10
XTALIN
C11
XTALOUT
E10
3
2
XTAL_PU
R137
OSC100
1
4
VBAT
C118
9
VBAT
VDD_DIG_3V0
C176
C175
C177
J2
F6
F7
L1
L2
P9
P8
N8
N9
K2
K5
K6
K7
M2
L10
L11
P10
C10
VDD
VDD
VDD
VDDIO
VDDIO
VDDIO_RF
OTP_VDD33
SR_AVDD2P5
SR_VDDBAT3
SR_VDDBAT2
SR_VDDBAT3
SR_VDDBAT1
SR_VDDBAT1
SR_VDDNLDO
USB20PHY_AVDD33_PAD
USB20PHY_AVDD25_PAD
USB20PHY_AVDD12_PAD
U102
VSS
VSS
VSSXOD8WRF_GNDA_1P2D9WRF_GNDPFDCP_1P2B5WRF_GNDRX_1P2
SR_VSSPLDO
USB20PHY_AGND_PAD
AVSS_LDO
SR_PAVSSM9SR_AVSS
SR_PVSS1
USB20PHY_GNDPLL_PAD
VSS
SR_PVSS1
F5
P2
N2
K4
G1
M5
M8
P11
D10
D11
N10
M10
C183
L7
P5
N5
N6
G9
B11
G10
VDDXO
VDDIO_RF
VDDIO_SD
VDDIO_SD
VDD_CLDO
VOUT_CLDO
VDD_LNLDO1
VDD_LNLDO2
WRF_BBPLL_GND_1P2
WRF_GNDD_1P2
WRF_GNDLO_1P2
WRF_AFE_PAD_AVSS_RXADC
WRF_GNDPAA_3P3
WRF_GNDCAB_1P2
WRF_GNDPAA_3P3
E5
B8
A1
C1
A9
G4
L8
P6
G2
G3
VOUT_LNLDO1
VOUT_LNLDO2
WRF_AFE_PAD_AVDD_AUX
WRF_AFE_PAD_AVDD_RXADC
WRF_GNDPAG_3P3
WRF_GNDPAG_3P3
E2
C2
E8
H4
C7
WRF_VDDA_1P2C8WRF_VDDD_1P2
WRF_VDDCAB_1P2
WRF_BBPLL_VDD_1P2
WRF_GNDVCO_1P2
WRF_GNDTX_1P2
1NC2
E7
A2
10
C9
D1
C5
A5
B1
WRF_VDDRX_1P2
WRF_VDDLO_1P2
WRF_VDDPAA_3P3
WRF_VDDPAG_3P3
SDIO_DATA_2
WRF_VDDPFDCP_1P2
SDIO_DATA_3
SR_TESTSWG
AMODE_EXT_LNA_GAIN
AMODE_EXT_LNA_PU
AMODE_TX_PU
GMODE_EXT_LNA_GAIN
GMODE_EXT_LNA_PU
GMODE_TX_PU
BTCX_RF_ACTIVE
BTCX_STATUS
BTCX_TXCONF
USB20_DEV_DMNS
USB20_DEV_DPLS
USB20PHY_RREF_PAD
USB20PHY_MONCDR_PAD
USB20PHY_MONPLL_PAD
JTAG_TRST_L
NC
11 15
VREG_PLL_1V2
VREG_LNLDO_1V2
VREG_AFE_1V2
VREG_PLL_1V2
VREG_LDO_1V4
VREG_PALDO_3V3
C109
C111
C110
E6
A3
K11
TP_SD2CLK_WIFI
SDIO_CLK
E11
TP_SD2CMD_WIFI
WRF_VDDTX_1P2
SDIO_CMD
WRF_VDDVCO_1P2
J11
TP_SD2DAT0
SDIO_DATA_0
H11
TP_SD2DAT1
SDIO_DATA_1
G11
TP_SD2DAT2_WIFI
F8
TP_SD2DAT3_WIFI
M11
SR_VLX1
L108
N11
SR_VLX1
N7
SR_PALDO
P7
SR_PALDO
M7
SR_PNPO
L9
C179
P4
UART_RX
N4
UART_TX
J8
J7
J1
G6
G5
H7
L4
BTCX_FREQ
WL_REG_ON
VREF_LDO
EXT_POR_L
COEX_3
K3
COEX_0
L3
COEX_1
P3
COEX_2
P1
N1
M1
M3
N3
J3
TCK
TP_TCK
H5
TDI
TP_TDI
K1
TDO
TP_TDO
H6
TMS
TP_TMS
M6
F10
J4
TP_JTAG_TRST
L6
C182
SD2CLK_WIFI
SD2CMD_WIFI
SD2DAT0
SD2DAT1
SD2DAT2_WIFI
SD2DAT3_WIFI
C180
TP_RST_WIFI
VREG_LNLDO_1V2
C178
VREG_LDO_1V4
VREG_PALDO_3V3
12
VREG_PLL_1V2
L103
L104
RST_WIFI
13 16
VREG_AFE_1V2
C107
C108
VDD_DIG_3V0
14
A
R100
C100
SD2CMD
WIFI_SEL
SD2CLK_WIFI
SD2CLK
SD2CLK_CAM
SD2CMD_WIFI
SD2DAT3_CAM
SD2DAT3SD2CMD_CAM
SD2DAT3_WIFI
WIFI_SEL
SD2DAT2_CAM
SD2DAT2
SD2DAT2_WIFI
BH100
BH105
BH103
BH104
BH102
ANT105
ANT104
1
1
1
1
2
2
2
2
2
1
G
ANT101
2
1
G
7
8
3
RFS100
A2C
G
G
1
3
4
C102
VBAT
C103
5
6
11
ANT
VBATT
VBATT
PAM100
G
G
G10G
G
G
G
G
G
G
G
G
G
G
G
G
9
12
31
32
33
34
35
14
15G17G19
22
23
24
29
13
30
2
L102
C173
L150
27
TX_HB_IN
28
TX_LB_IN
25
BS
18
RX1
16
RX2
G
G
G
4
1
3
2
4
R106
NC
20
TXEN
R111
21
VRAMP
26
SW_EN
C115
G
G
G
G
G
G
G
G
G
G
44
37
38
39
40
36
41
42
43
C116
C119
5
D101
EN_TX
AUX_DAC
EN_TR_SW
F100
1
9
IN
GSM850_OUT
8
GSM850_OUT
7
L113
GSM900_OUT
6
GSM900_OUT
G
G
G
2
3G4G5
10
F101
1
9
IN
GSM1800_OUT
8
GSM1800_OUT
7
GSM1900_OUT
6
GSM1900_OUT
L121
G10G
G
G
2
3
4G5
6
7
VREG_PALDO_3V3
WIFI_WAKE_HOST
L105
GSM_850_RX_A
L107
D100
L109
GSM_850_RX_B
L110
L111
GSM_900_RX_A
L112
L114
L115
GSM_900_RX_B
L116
DCS_RX_A
L117
L118
L119
DCS_RX_B
L120
PCS_RX_A
L122
L123
L124
PCS_RX_B
VDD_DIG_3V0
EN_WIFI_TX
EN_WIFI_RX
EN_BT_SW
WIFI_RX
WIFI_TX
C117
VDD_DIG_3V0
VDD_DIG_3V0
R120
NC
U103
NCR121
6
1
Y1
MAIN_MIC_SEL
1
1
2
2
F103
ATV_ANT_FM
2
1
NC
L137
1005
C184
NC
3
4
R127
NC
32
S
2
VCC
3
Z
MIC_P
NC
R122
C135
R123
NC
NC
C147
NC
L129
NC
L131
NC
NCC148
L132
NC
C149
L134
NC
NC
L136
NC
NC
NCC153
L138
C154 NC
L139
L140
C159
NC
NC
L144
L143
C161
NC
NC
NC
C163
C164
NC
4
GND
Y0
NC
NC
3
4
OSC101
TV_AUDIO_L
5
4
1005
SHORT
L141
L142
NC
NC
2
HOT
GND1
1
HOT
GND2
C165
NC
NC
AMCK
ASCK
MAIN_MIC_P
C145
C146
NC
NC
TP113
TP114
51
44
45
46
47
48
49
50
NC
NC
GND
PU1P
PU1N
BYP3P
BYP3N
1
VDD
2
VHF1N
3
VHF1P
4
UHFP
5
UHFN
6
LNABIASP
U106
7
VHF2P
NC
8
VHF2N
9
LNABIASN
10
VDD
11
BYP1
12
VDD
XTALN16VDD17BIAS18SCL19SDA
BYP214XTALP
C157
15
13
NC
NC
C139
C166
NC
NC
R131
C120
R116
NC
NC
R118
NC
VDD_TV_1.2V
NC
L147
NC
37
38
39
40
41
42
VDD
GND
RSTN
AMCK
GPIO043GPIO1
VDD_D
ALRCK
HSYNC23VSYNC24CKO
VDD_D21VIO
22
20
6
TV_AUDIO_L
C121
NC
TV_AUDIO_R
C123
C122
NC
NC
VDD_CAM_IO_2V8
L146
NC
C133
NC
TP109
TV_RESET
AMCK
36
ASCK
35
ASD
34
VIO
33
D0
32
D1
31
D2
30
D3
29
VDD_D
28
D4
27
D5
26
D6
25
D7
L148
NC
ASCK
TP_SD2DAT2_CAM
SD2DAT2_CAM
SD2DAT3_CAM
Y(2)
Y(3)
Y(4)
Y(5)
Y(6)
Y(7)
C158
NC
CAM_PCLK
CAM_VSYNC
SD2CMD_CAM
R132
OPEN
CAM_SDA
CAM_SCL
OPEN
R133
85
BT_REQ_CLK
HOST_WAKE
FM_LOUT
FM_ROUT
FM_ANT_SW
C134
C136
C137
BT_WAKE
COEX_3
BT_RF
TP_BT_WAKE
TP_HOST_WAKE
TP_COEX_3
L135
C151
I2S_DO
I2S_WS
I2S_CLK
VREG_BT_1V2
VDD_DIG_3V0
C125
C124
L125
L126
VREG_BT_1V2
C138
H2
GPIO0
G2
GPIO1
H1
GPIO2
B2
GPIO5
A1
GPIO6|FM_IRQ
E8
BT_RFP
A3
SPARE
A4
SPARE
B3
FM_AOUT_L
B4
FM_AOUT_R
B8
FM_RXN
A8
FM_RXP
C8
FM_LNA2
A7
SPARE
B5
SPARE
F4
SPARE
D5
I2S_DO
E5
I2S_WS
E4
I2S_CLK
D4
SCL|I2C_CK
D3
SDA|I2C_DA
10
C140
D7
H8
H3
D8
D1
C7
A5
A6
G1
G8
G3
VBAT
VDDC
VDDC
VDDO
SPARE
F3
BT_VDDIF
BT_VDDTF
COEX_IN
BT_VDDRF
BT_VDDPX
FM_VDDRF
E6
COEX_OUT0
FM_VDDAUDIO
E3
COEX_OUT1
F1
PCM_IN
E2
PCM_OUT
F2
PCM_SYNC
E1
PCM_CLK
G4
LPO_CLK
D2
UART_RXD
C1
UART_TXD
C3
UART_CTS_N
B1
U105
UART_RTS_N
H6
XIN
G6
XOUT
H4
VREG
H5
VREGHV
G5
VREG_CTL
F6
TM0
C5
TM2
C6
TM3
F7
RES
A2
TCXO_MODE
VSS
VSSF8VSS
VSS
VSS
VSSB7VSS2NC
VSS
VSS
NC
VSS
1
F5
E7
H7
D6
C4
B6
C2
G7
C142
C141
Close to A5
Close to C7
TP_COEX2
COEX_2
TP_COEX0
COEX_0
TP_COEX1
COEX_1
PCM_IN
PCM_OUT
PCM_SYNC
PCM_CLK
32K_CLK
TP_BT_TXD
UART_TXD
UART_RXD
TP_BT_RTS
TP_BT_PWR
119
VDD_DIG_3V0
UART_RTS_N
UART_CTS_N
BT_CLK
C150
BT_PWR
C155
VDD_DIG_3V0
R128
12 167 15
EN_BT_SW
EN_WIFI_TX
VREG_BT_1V2
R134
C169
C126
BT_RF
C129
WIFI_TX
L149
C170
R135
VDD_DIG_3V0
C156
13
FM_ATV_EN
ATV_ANT_FM
3
4
U104
BT
CTL3
RF_GND
2
ANT
WLAN_TX
5
1
NC
CTL1
6
11
NC
10
GND
WLAN_RX
CTL2
7
8
9
C143
C144
C171
C162
NC
14
C130
EN_WIFI_RX
WIFI_RX
R136
C152
NC
6
15
PORT2
CTL1
CTL2
PORT3
2
4
PORT1
GND
3
U107
NC
F102
2
IN4OUT
G
1G3
ANT102
1
1
2
2
C127
NC
NC
L127
L128
FM_ANT_SW
FM_ANT
SEL_REF_MIC
L
SAMSUNG PROPRIETARY
THIS DOCUMENT CONTAINS CONFIDENTIAL
PROPRIETARY INFORMATION THAT IS
SAMSUNG ELECTRONICS CO ¡flS PROPERTY.
DO NOT DISCLOSE TO OR DUPLICATE FOR OTHERS
EXCEPT AS AUTHORIZED BY SAMSUNG.
14
10
11
11
16
2
1
JTAG_SEL2
13
12
16
13
JTAG_SEL1
0:USB D/L, 1:UART D/L
9
7
52
0:NAND boot, 1:NOR boot
56
6
8
0:Normal Mode, 1:D/L Mode
10
A
A
93
1
7
4 1412
3
L
4 15
8
15
VDD_DIG_3V0
C219
D-
6
3
GND
5
HP|PWR
ID
9
7
RXD
TXD
8
1
VBATT
V_BUS
2
V_BUS
2
JTAGB200
10
ANT
D+
4
D+
4
D-
6
3
GND
5
HP|PWR
ID
9
7
RXD
TXD
8
1
VBATT
MAINTP200
10
ANT
C225
C214
TP_RST_BB
VDD_DIG_3V0
C200
R213
C227
R217
TP_D_WE_N
VDD_CORE_1V28
R220
NC1
24
17
NC2
12
NC3
NC4
13
14
NC5
NC6
15
16
NC7
2
B_D+
B_D-
3
19
B_GND
B_HP/PWR
20
21
B_RXD
B_TXD
22
B_V_BATT18B_V_BUS
1
A_GND
26
8
A_GND
27
A_HP|PWR
A_RXD
28
A_TXD
29
A_V_BATT
25
A_V_BUS
9
B_ANT
7
32
32
33
33
4
4
5
5
6
6
A_ANT
34
A_D+
10
A_D-
11
JTAG201
23
23
30
30
31
31
C211
VDD_USB_NVRAM_3V3
VDD_VCXO_1V3
VDD_ANA_1V2
VDD_DIG_3V0
C207 C213
TP_WE_N
C215
R218
C231
VDD_VRF_1V3
C202
6
VCC
Y
4
VDD_CORE_1V28
R219
U200
2
A
3
GND
NC
1
5
NC
R207
R206
R215
C210
R208
1005
R212
VDD_VRF_1V3
R205
VDD_USB_NVRAM_3V3
C216
VDD_MEM_1V8
TP_TXD1
VDD_CAM_IO_2V8
R211
VDD_DIG_3V0
R200
TP_F_ADV_N
C224C218
TP_ADD
C230
NC
TP_F_CLK
R216
TP_PC
C223
4
1
V_JTAG
VDD_USBOTG_2V5
GND
9
8
PON_RESET_N
3
RTCK
6
TCK
5
TDI
TDO
7
TMS
2
TRST_N
MASTER_JTAG_PAD
C201
C234
C208
C226
C203
C220
VDD_CORE_1V28
VDD_VRF_1V3
R209
TP_F_DAT
VDD_DIG_3V0
R221
VDD_VRF_2V7
1005
L201
VDD_DIG_3V0
C232
NC
1005
C236
VDD_ANA_3V0
TP_OE_N
R214
R202
R222
R204
VDD_MEM_1V8
VDD_VCXO_1V3
2431
VDD_MEM_1V8
VDD_DIG_3V0
VDD_ANA_1V2
OSC200
C217
VDD_DIG_3V0
TP_D_CLK_N
VDD_DIG_3V0
UATX
UARX
Y23
USBDVDD12PLL
Y4
USB_GND
Y5
USBAVDD12PLL
Y6
ATXAVDD3P0
Y7
ATXSPVSSL
Y8
ATXAMPLN100
Y9
APLL_AVDD1P2
Y15
Y16
APLL_AVSS
CSI_AGND
Y17
CSI_M_DP0
Y18
CSI_M_DM0
Y19
Y2
NC_BALL
CSI_AVDD1P2
Y20
Y22
ATXSPVSSL
W8
W9
ATXAMPLP100
USBAVDD25
Y1
ATXAMPRP100
Y10
ATXSPVDDR3P0
Y11
CCP2_S_DP0
Y12
CCP2_S_DM0
Y13
CCP2_DVDDBG1P2
Y14
GPIO23
W2
W20
CSI_AGND
UBRX
W22
UBTX
W23
AUXADCIN0
W4
AUXCOMP100NF
W5
AUXADCIN2
W6
USBAVDD25REF
W7
CCP2_GND
W12
CCP2_GND
W13
W14
CCP2_GND
APLL_AVSS
W15
APLL_AVSS
W16
CSI_AGND
W17
CSI_M_CP_CLK
W18
CSI_M_CM_CLK
W19
AUXAVSS
V5
AUXAVDD3P0
V6
V7
AUXAVSS
ATXAVSS
V8
ATXDVDD1P2
V9
VSSO|VSSC
W1
ATXAMPRN100
W10
ATXSPVDDR3P0
W11
OTGCTRL5
V17
V18
OTGCTRL3
OTGCTRL4
V19
V2
CAMHS
OTGCTRL2
V20
DAOD
V22
VSSO|VSSC
V23
AUXDACOUT
V4
VDDO_CAM
V1
ATXDVSS1P2
V10
GPIO22
V11
UARTSN
V12
V13
BSCSDA
DAMCK
V14
DAID
V15
PCMCK
V16
UBCTSN
U22
DAILR
VDDO_3P0_3
U23
AUXADCIN1
U4
AUXADCIN3
U5
U6
CAMD4
CAMD6
U7
CAMD5
U8
CAMD8
U9
DAOLR
U14
PCMDI
U15
SD1CK
U16
SD1DAT1
U17
OTGCTRL1
U18
U19
PCMDO
GPIO6
U2
U20
AUXADCIN4
T5
CAMD3
T6
CAMD0
T7
GPIO4
U1
CAMD9
U10
CAMVS
U11
UACTSN
U12
BSCSCL
U13
T17
DASCK
T18
UBRTSN
T19
GPIO3
T2
DDQS1
T20
DDQM1
T22
NVM_VDDP
T23
T3
NC_BALL
CAMD7
T4
R20
DDQ11
R22
VDDO_NVM
R23
CAMD2
R4
CAMD1
R5
CAMCK
R6
BSC2SDA
R7
T1
GPIO0
SD1DAT0
P5
BSC2SCL
P6
RTCK
P7
VDDO_3P0_1
R1
SD1DAT2
R17
PCMSYN
R18
DDQ14
R19
R2
AFCPDM
DDQ15
P17
SD1CMD
P18
DDQ8
P19
RESETN
P2
DDQ7
P20
DDQ6
P22
DDQ10
P23
P4
TRSTB
CAMDCK
N6
TMS
N7
VSSO|VSSC
P1
VDDC
P10
VDDC
P11
VDDC
P12
VDDC
P13
P14
VDDC
SD1DAT3
N18
DDQS0
N19
RF_VSS
N2
DDQM0
N20
DDQ1
N22
DDQ5
N23
GPIO18
N4
N5
GPIO20
TCK
M7
RF_VSS
N1
VDDC
N10
VSSO|VSSC
N11
VSSO|VSSC
N12
VSSO|VSSC
N13
VDDC
N14
DDQ12
N17
DDQ9
M19
RF_VSS
M2
DDQ0
M20
DCKE
M22
DCLK
M23
RF_VSSM4RF_VSS
M5
M6
GPIO14
GPIO16
M1
VDDC
M10
VSSO|VSSC
M11
VSSO|VSSC
M12
VSSO|VSSC
M13
VDDC
M14
DDQ13
M17
M18
DDQ3
DDQ2
L2
DBA1
L20
DWEN
L22
DCLKN
L23
L4
RF_VDD_TXLO
RF_VSS
L5
GPIO8
L6
L7
GPIO12
RF_PA_HB
L10
VDDC
L11
VDDC
L12
VDDC
L13
VDDC
L14
VDDO_EMI
L17
DDQ4
L18
DCE1N
L19
RF_VSS
DCASN
DA14
K22
VDDO_EMI
K23
RF_VDD_TXVCO
K4
RF_VSS
K5
GPIO21
K6
TDO
K7
L1
RF_PA_LB
VDDC
RF_VSS
GPIO19
J6
TDI
J7
RF_VSS
K1
VDDP_EMI
K17
DCE0N
K18
DRASN
K19
RF_VSS
K2
K20
DBA0
DA13
J18
J19
DA12
RF_VSS
J2
DA11
J20
DA10
J22
DA9
J23
RF_VDD_PA
J4
J5
DA4
RF_RAMP
H4
RF_VSS
H5
GPIO17
H6
GPIO15
H7
GPIO13
H8
GPIO11
H9
RF_INN_1G9
J1
J17
H13
PUBN
H14
DA3
H17
DA8
H18
DA7
H19
RF_VSS
H2
DA6
H20
DA5
H22
H23
G6
BBL_VSS
G7
GPIO2
G8
GPIO1
G9
RF_INP_1G9
H1
GPIO10
H10
GPIO9
H11
GPIO7
H12
GPIO5
CE2N
G19
RF_VSS
G2
PCRE
G20
DA0
G22
DA1
G23
RF_VDD_TXPLL
G4
RF_VSS
G5
RF_VDD_PLL
LCDCD
G11
SIMRST
G12
SIMDAT
G13
PLBN
G14
CE4N
G15
G16
CE3N
VDDO_EMI
G17
DA2
G18
RF_VSSF4RF_VSSF5RF_VSS
F6
BBL_VDDO
F7
NC_BALL
F8
PC
F9
RF_INN_1G8
G1
GPEN1
G10
FCLK
F16
FRDY
F17
FWEN
F18
FOEN
F19
RF_VSS
F2
CK1
F20
CK2
F22
VDDO_EMI
F23
BBL_CLK_32K
E9
RF_INP_1G8
F1
GPEN2
F10
LCDD1
F11
LCDD2
F12
SIMCLK
F13
VDDO_SIM
F14
FA25
F15
FA17
E20
CE5N
E22
VSSO|VSSC
E23
RF_VDD_VCO
E4
RF_VSS
E5
RF_VDD_RXIF
E6
RF_VSS
E7
RF_DSP_VDDC
E8
LCDD6
E13
LCDD3
E14
FADQ7
E15
FA23
E16
FA22
E17
FA21
E18
FA18
E19
RF_VSS
E2
D5
PWRGOOD
D6
BBL_POR
D7
GPEN7
D8
GPEN9
D9
RF_INN_0G9
E1
GPEN4
E10
GPEN3
E11
LCDWE
E12
D17
FADQ12
D18
FADQ13
D19
RF_VSS
D2
FADQ15
D20
NRDY
D22
VDDO_FA
D23
RF_VDD_RX2P7
D4
RF_VSS
RF_INP_0G9
D1
GPEN8
D10
GPEN6
D11
LCDCS1
D12
LCDD7
D13
LCDD5
D14
FADQ5
D15
FADQ9
D16
FADQ11
GPEN5
B7
GPEN0
B8
GPEN10
B9
RF_INN_0G8
C1
RF_VSS
C2
FWP
C22
FADVN
C23
FADQ8
B20
FADQ14
B21
FA19
B22
FA24
B23
RF_VDD_RXRF
B3
RF_R_REF
B4
RF_VSS
B5
GPEN11
B6
GPIO30
B13
B14
GPIO28
GPIO27
B15
GPIO26
B16
FADQ1
B17
FADQ0
B18
FADQ2
B19
RF_VSS
B2
ATXAMPLN400
AC6
ATXAMPRN400
AC7
ATXAMPRP400
AC8
ATXSPVSSR
AC9
RF_INP_0G8
B1
LCDCS0
B10
LCDRE
B11
GPIO25
B12
USBOTGID
AC2
ARXAVDD3P0
AC20
ARXMICP2
AC21
ARXMICN2
AC22
ARXAUXMICBIAS
AC23
USBAVDD12
AC3
ATXSPVDDL3P0
AC4
ATXAMPLP400
AC5
CCP2_GND
AC12
DSI_AGND
AC13
DSI_M_DM0
AC14
DSI_M_DP0
AC15
DSI_AVDD1P2
AC16
NC_BALL
AC17
MPLL_AVDD1P2
AC18
MPLL_AVSS
AC19
AB5
ATXAMPLP400
ATXAMPLN400
AB6
ATXAMPRN400
AB7
AB8
ATXAMPRP400
ATXSPVSSR
AB9
AC1
USB_GND
CCP2_DVDD1P2
AC10
CCP2_GND
AC11
MPLL_AVSS
MPLL_AVSS
AB19
USBRREF
AB2
ARXAVSS
AB20
ARXMICN1
AB21
ARXMICP1
AB22
ARXMICBIAS
AB23
USB_GND
AB3
ATXSPVDDL3P0
AB4
CCP2_S_CM_CLK
AB11
CCP2_AVDD1P8
AB12
DSI_AGND
AB13
DSI_M_CM_CLK
AB14
DSI_M_CP_CLK
AB15
DSI_AGND
AB16
NC_BALL
AB17
AB18
NC_BALL
AA2
ARXAVSS
AA20
ARXBP1P2
AA21
ARXAVSS
AA22
ARXAVSS
AA23
USBAVDD33
AA3
USBDP
AB1
CCP2_S_CP_CLK
AB10
NC_BALL
A3
A4
NC_BALL
RF_X1
A5
RF_X2
A6
RF_VDD_XO
A7
VDDO_GP
A8
VSSO|VSSC
A9
USBDM
AA1
VDDO_FA
FADQ3
A17
FADQ4
A18
FADQ6
A19
RF_VSS
A2
FADQ10
A20
FA16
A21
FA20
A22
FA26
A23
A1
RF_VSS
A10
VDDO_LCD
LCDD0
A11
LCDD4
A12
GPIO24
A13
GPIO31
A14
GPIO29
A15
A16
UCP200
NC
1
NC
2
C229
C209
VDD_MEM_1V8
ADQ4O
P6
ADQ1O
P7
VDDQDP8VDDQD
P9
VSSQD
VSSD
P11
VDDD
P12
VSSQD
P13
DNU
P14
DNU
P2
DNU
P3
VSSO
P4
ADQ7O
P5
NC
N4
ADQ6O
N5
ADQ3O
N6
VSSQD
N7
NC
N8
DQ1D
N9
NC
P1
DNU
P10
NC
N1
DNU
N10
NC
N11
NC
N12
NC
N13
VDDQD
N14
DNU
N2
VCCQO
N3
VDDQD
M2
VDDD
M3
NC
M4
ADQ5O
M5
ADQ2O
M6
ADQ0O
M7
DQ6D
M8
DQ3D
M9
VSSQD
L2
A8D
L3
A1D
M1
VSSD
M10
NC
M11
NC
M12
NC
M13
DQ0D
M14
ADQ10O
K6
ADQ11O
K7
VCCQO
K8
VSSO
K9
ADQ12O
L1
A13D
L12
DQ5D
L13
DQ7D
L14
ADQ9O
K1
A6D
K10
ADQ13O
K12
DQ2D
K13
LDMD
K14
DQ4D
K2
A10D
K3
A3D
K5
ADQ8O
J1
A4D
J10
ADQ14O
J12
LDQSD
J13
NC
J14
VSSQD
J2
VSSD
J3
A5D
J5
VSSO
H1
VDDD
H10
ADQ15O
H12
VSSD
H13
VDDQD
H14
_CKD
H2
A11D
H3
A7D
H5
CLKO
G1
CKED
G10
NC
G12
VDDD
G13
VDDQD
G14
CKD
G2
A9D
G3
BA1D
G5
NC
F1
_CASD
F10
NC
F12
DQ11D
F13
DQ10D
F14
VSSQD
F2
A12D
F3
A0D
F5
DQ15D
E14
UDQSD
E2
_RASD
E3
A2D
E5
VCCO
E6
NC
E7
NC
E8
INTO
E9
NC
D14
VSSQD
D2
_CSD
D3
BA0D
D4
A1_INDEX
E1
NC
E10
NC
E12
NC
E13
_AVDO
C5
_CEO
C6
RDYO
C7
DQ14D
C8
DQ8D
C9
DQ13D
D1
VDDD
D12
NC
D13
VSSD
C10
NC
C11
NC
C12
DQ9D
C13
UDMD
C14
VDDQD
C2
NC
C3
_WED
C4
VSSO
B3
_OEO
B4
NC
B5
_RPO
B6
_WEO
B7
NC
B8
NC
B9
NC
C1
VDDQD
A9
VSSQD
B1
DNU
B10
DQ12D
B11
NC
B12
NC
B13
VDDQD
B14
DNU
B2
DNU
A14
DNU
A2
DNU
A3
NC
A4
VSSO
A5
VCCO
A6
VSSQD
A7
VDDQD
A8
1
NC
2
NC
A1
DNU
A10
VSSD
A11
VDDD
A12
VSSQD
A13
TXD
8
1
VBATT
V_BUS
2
UME200
10
ANT
D+
4
D-
6
3
GND
5
HP|PWR
ID
9
7
RXD
JTAGA200
C205
C235
NC
VDD_DIG_3V0
1005
VDD_DIG_3V0
VDD_ANA_3V0
C233
TP_DDR_CE
VDD_AMP1_3V0
C204
TP_D_CLK
L200
C222C221
VDD_VRF_1V3
TP_CE_ONE_NAND
C212
VDD_DIG_3V0
C206
TP_DAT
SEL_REF_MIC
MAIN_MIC_SEL
32K_CLK
CAM_PCLK
GND_A
RST_BB
TXD1_JTAG_B
JIG_ID_B
RXD1_JTAG_A
TXD1_JTAG_A
JIG_ID_A
JIG_ID_B
JIG_ID_A
RST_BB
R_TCK
TCK
TDI
TDO
TMS
TRSTB
LCD_DETECT
VBAT
VBUS
RXD1_JTAG
TXD1_JTAG
JIG_ID_JTAG
VBAT_B
VBUS_B
GND_B
VBAT_A
VBUS_A
GND_A
RXD1_JTAG_B
EAR_R
FM_ATV_EN
FADQ(10)
FADQ(15)
FADQ(13)
FADQ(4)
FADQ(3)
GND_A
RXD1_JTAG_A
TXD1_JTAG_A
VBAT_A
VBUS_A
GND_B
RXD1_JTAG_B
TXD1_JTAG_B
VBAT_B VBUS_B
OE_N
DDQ(12)
I2S_WS
I2S_CLK
SIM_SPIDATA
SIM_SPICK
SIM_SYSRSTB
I2S_DO
F_RDY
CE_ONE_NAND
F_ADV_N
D_WE_N
DDQ_M_1
DDQ(9)
WE_N
RST_ONE_NAND
D_CAS_N
N_RDY
DA(2)
D_RAS_N
DDQ_S_1
DDQ(15)
D_BA_0
DDR_CE
DDQ(13)
DDQ(8)
DDQ(14)
FADQ(15)
D_BA_1
DA(9)
D_CLK
D_CKE
F_CLK
DA(0)
DA(12)
DDQ(10)
DDQ(11)
DA(6)
FADQ(9)
DA(5)
DDQ_S_0
FADQ(14)
DA(4)
FADQ(8)
DA(7)
DA(11)
D_CLK_N
DDQ(5)
DA(13)
FADQ(12)
FADQ(11)
FADQ(10)
DA(3)
DA(10)
DDQ(4)
DDQ_M_0
DDQ(2)
FADQ(13)
FADQ(3)
FADQ(6)
DDQ(3)
DDQ(6)
FADQ(0)
FADQ(2)
FADQ(5)
DDQ(0)
DA(1)
DA(8)
DDQ(7)
UART_RXD
UART_TXD
LDO_EN4
LDO_EN5
SIM_SPICS
FADQ(1)
FADQ(4)
FADQ(7)
DDQ(1)
BT_PWR
RST_ONE_NAND
CAM_EN
TV_RESET
FM_SEL
SD2DAT0
SD2DAT1
WIFI_WAKE_HOST
RST_WIFI
TSP_SCL
DA(0:13)
DDQ(0:15)
FADQ(0:15)
ACC_SCL
ACC_SDA
TXD1
WE_N
OE_N
N_RDY
F_ADV_N
F_RDY
F_CLK
CE_ONE_NAND
WIFI_SEL
AMP_N
AMP_P
EAR_L
RXD1
PA_HB
PA_LB
SD_DET
UART_RTS_N
UART_CTS_N
SIM_IO
USB_DP
USB_DM
BT_CLK
SD_CMD
SD_DAT_0
SD_DAT_1
SD_DAT_2
SD_DAT_3
SD_CLK
SIM_CLK
RST_SIM
SD2DAT2
Y(2)
Y(6)
Y(7)
Y(3)
Y(4)
SD2DAT3
Y(5)
RCV_P
RCV_N
TEMP
MEA_VBAT
3PI5_ADC
VF
AUX_DAC
SD2CLK
SD2CMD
TSP_INT
CAM_RST
BL_EN
MIC_N
MIC_P
AUX_MIC_N
AUX_MIC_P
MIC_BIAS
AUX_MIC_BIAS
KEY_COL(0:1)
KEY_COL(0)
KEY_COL(1)
BT_WAKE
3PI5_DET
TSP_SDA
HOST_WAKE
PMU_IRQ
LCD_FLM
RST_LCD
EAR_SW
DA(11)
DA(12)
DA(13)
D_WE_N
D_RAS_N
D_CLK_N
D_CLK
D_CKE
D_CAS_N
SEL_BAND
EN_TX
EN_TR_SW
KEY_ROW(0:2)
KEY_ROW(0)
KEY_ROW(2)
KEY_ROW(1)
PC
PCM_CLK
PCM_OUT
PCM_SYNC
PCM_IN
DA(0:13)
DA(0)
DA(1)
DA(2)
DA(3)
DA(4)
DA(5)
DA(6)
DA(7)
DA(8)
DA(9)
DA(10)
PCS_RX_A
DCS_RX_A
GSM_850_RX_B
GSM_900_RX_B
PCS_RX_B
DCS_RX_B
CAM_SCL
CAM_SDA
TRSTB
RST_BB
CAM_VSYNC
LD_CS
LD_WR
LD_RS
LD_RD
GSM_850_RX_A
GSM_900_RX_A
D_BA_1
D_BA_0
DDR_CE
DDQ_M_1
DDQ_M_0
DDQ_S_1
DDQ_S_0
SDA
SCL
TMS
TDI
TCK
TDO
R_TCK
FADQ(10)
FADQ(11)
FADQ(12)
FADQ(13)
FADQ(14)
FADQ(15)
LD(0:7)
LD(0)
LD(1)
LD(2)
LD(3)
LD(4)
LD(5)
LD(6)
LD(7)
DDQ(0:15)
DDQ(0)
DDQ(1)
DDQ(2)
DDQ(3)
DDQ(4)
DDQ(5)
DDQ(6)
DDQ(7)
DDQ(8)
DDQ(9)
DDQ(10)
DDQ(11)
DDQ(12)
DDQ(13)
DDQ(14)
DDQ(15)
FADQ(0:15)
FADQ(0)
FADQ(1)
FADQ(2)
FADQ(3)
FADQ(4)
FADQ(5)
FADQ(6)
FADQ(7)
FADQ(8)
FADQ(9)
1
SAMSUNG PROPRIETARY
THIS DOCUMENT CONTAINS CONFIDENTIAL
PROPRIETARY INFORMATION THAT IS
SAMSUNG ELECTRONICS CO ¡flS PROPERTY.
DO NOT DISCLOSE TO OR DUPLICATE FOR OTHERS
EXCEPT AS AUTHORIZED BY SAMSUNG.
A
2
VDD_ANA_3V0
VDD_CAM_A_2V8
VDD_ANA_1V2
VDD_VRF_1V3
VDD_VRF_2V7
VDD_USBOTG_2V5
VDD_LCD_2V9
VDD_USB_NVRAM_3V3
VDD_CAM_IO_2V8
VDD_CAM_CORE_1V2
VDD_MOT_3V0
VDD_TSP_3V0
TP_AUXLDO5
VDD_CORE_1V28
VDD_MEM_1V8
VDD_AMP1_3V0
VDD_DIG_3V0
VDD_VCXO_1V3
VDD_TV_1.2V
VDD_SD_3V0
5
6
7
8
9
104
11 163
12
13
14
15
A
SD_DAT_2
SD_DAT_3
SD_CMD
SD_DAT_0
SD_DAT_1
ACC_SDA
VDD_MEM_1V8
VDD_SD_3V0
SD_CLK
SD_DET
C308
VDD_DIG_3V0
1
2
38
4
C339
R300
SD300
1
DAT2
2
DAT3|CD
3
CMD
4
VDD
5
CLK
6
VSS
7
DAT0
8
DAT1
9
GND
10
GND
11
COMMON
12
CD
13
NC
14
NC
12345
6
15
NC
16
NC
17
NC
18
NC
19
NC
ZD301
20
NC
VDD_DIG_3V0
VDD_MEM_1V8
ACC_SCL
R304
13
14
11
12
PS
NC
NC
SCK
10
SDO
CSB
9
VSS2
SDX
U301
VDDIO
VSS1
7
VDDA
VDDD
DNC
INT
6
5
C338
VBUS
VDD_MEM_1V8
C301
C300
VBAT
C303
C302
VDD_MEM_1V8
C305
C306
L300
L301
L302
VDD_TP
SCL
SDA
LDO_EN5
LDO_EN4
C319
C330
C326
C327
C328
C325
C324
C323
C321
C320
C322
C329
C333
C331
C334
C332
C335
C345
J3
F1
D8VLD9
C7
C9
G2
VDD
BATT
VBUS
PVDD
VCOIN
HPVDD
B1
IN1
J7
B2
COMN1
IN2
J8
C2
COMP2
IN3
C5
IN4
C307
J2
C6
C1N
IN5
C8
H2
C1P
IN6
D7
IN7
H9
B3
DN1
INLV
J9
DP2
B8
ALDO1
H1
B7
OUTN
ALDO2
G1
OUTP
C3
LVLDO1
J6
C4
HPL
LVLDO2
J5
HPR
A8
RFLDO1
H3
A7
INA1
RFLDO2
G4
INA2
B4
MSLDO1
B6
G5
MSLDO2
INB1
F5
INB2
F9
AUXLDO1
H7
F8
UT1
AUXLDO2
E8
G7
UR2
AUXLDO3
H8
E7
UID
AUXLDO4
E6
AUXLDO5
H6
SL1
PM300
H5
C1
SR2
LX1
A2
LX2
E1
G3
LX3
PC1
E4
PC2
D2
FB1
A3
A9
FB2
XIN
F2
B9
XOUT
FB3
A6
G6
HCLDO1
MIC
A5
HCLDO2
TP_PMU_IRQ
D3
IRQB
B5
IOLDO
F6
LCLDO
A4
SIMLDO
F3
I2CCLK
F4
I2CDAT
F7
EN5
E5
EN4
GND
GND
J1
E9
G9
PMU_IRQ
G8
BC
D4
C316
REFBP
D5
RESETB
RST_BB
H4
VBIAS
E3
PWRONB
D6
32KHZ
1
NC
2
NC
GND
PGND2
PGND3
HPVSS
PGND1
J4
E2
A1
D1
C337
BAT300
USB_DUSB_D+
USB_DM
USB_DP
SPK_N
SPK_P
R301
EAR_SPK_L
R302
EAR_SPK_R
C314
INB_L
INB_R
C311
OSC300
R317
NC
C317
PC
BT_REQ_CLK
TV_AUDIO_L
AMP_N
C310
AMP_P
C315
TV_AUDIO_R
TXD1
RXD1
C361
NC
C312
JIG_ID
C313
ONKEY
32K_CLK
R319
NC
VDD_DIG_3V0
SIM1_SIMCLK
VSIM2
VBAT
VSIM1
C355
C356
1
2
3
4
5
R318
R312
C357
C358
C359
L
1 6
2
3
4
VDD_VRF_2V7
SIM2_SIMIO
C340
SIM2_SIMRST
SIM2_SIMCLK
17
18
19
20
21NC22NC23
16
NC
TP_SIM_SPIDATA
15
GND
SIO2
VREF
SRST2
SPIDATA
VSIM2
SCLK2
VIO
U302
VBAT
VSIM1
SCLK1
SRST16SIO17SIMIO8SIMRST
9
NC
RST_SIM
SIM_IO
SIM1_SIMRST
SIM1_SIMIO
SIM_SPIDATA
14
SPICK
SIM_SPICK
TP_SIM_SPICS
13
SPICS
SIM_SPICS
12
_SYSRSTB
SIM_SYSRSTB
11
NC
SIMCLK
10
SIM2_SIMCLK
SIM1_SIMCLK
SIM2_SIMRST
SIM1_SIMRST
VSIM2
VSIM1
C15
C11
SIM2_SIMIO
I|O2
CLK2
C7
C3
SIM1_SIMIO
I|O1
CLK1
C10
RST2
C2
RST1
C13
GND2
C5
GND1
RSVD1C8RSVD1
RSVD2
RSVD2
C4
C12
C16
SIM300
SIM_CLK
R305
VF
C343
C344
NC
VBAT
R314
MEA_VBAT
C360
R316
VBAT
BTC300
1
1
2
2
3
3
4
C341
ZD300
NC
C342
5
NC
VDD_VRF_2V7
R313
TEMP
R315
VR300
L
5
7
9
10
11
12
13
14
15
168
1
SAMSUNG PROPRIETARY
THIS DOCUMENT CONTAINS CONFIDENTIAL
PROPRIETARY INFORMATION THAT IS
SAMSUNG ELECTRONICS CO ¡flS PROPERTY.
DO NOT DISCLOSE TO OR DUPLICATE FOR OTHERS
EXCEPT AS AUTHORIZED BY SAMSUNG.
A
RCV_P_CON
RCV_N_CON
L403
SPK_P
L404
SPK_N
IFC400
3
L422
L423
V407
RCV_P
RCV_N
50V
50V
C404
C403
V408
R463
NC
NC
R464
C410
C409
VBUS
VBAT
ZD402
ZD401
L425
1
1
2
2
3
3
4
4
5
5
6
S1
7
S2
8
NC
9
NC
10
NC
11
NC
12
NC
13
NC
R438
R439
C422
C446
JIG_ID_JTAG
L401
ZD410
V401
V400
4
SPK400
1
1
2
2
SPK401
1
1
2
2
TXD1_JTAG
RXD1_JTAG
USB_D+
USB_D-
JIG_ID
SUB_MIC_GND
KEY_COL(1)
KEY_COL(0)
KEY_ROW(1)
KEY_ROW(2)
5
C450
AUX_MIC_BIAS
6
R422
R423
R424
R425
ZD405
ZD404
C452
C451
C453
MIC_NMAIN_MIC_GND
C401
AUX_MIC_N
C457
R418
C418
R406
L424
3PI5_EAR_MIC_P3PI5_EAR_MIC
ZD406
NC
ZD407NC
SEL_REF_MIC
SUB_MIC
AUX_MIC_P
72 8
HDC403
L418
2
1
1
2
L419
3344
L420
6
5
5
6
L421
8
7
7
8
9
10
9
10
L406
C412
VDD_DIG_3V0
R405
C423
9
MIC_BIAS
C440
L400
C405
C402
C406
MIC_BIAS
MIC401
SUB_MIC_GND
C413
U401
1
S
2
VCC
3
Z
C417
POWER1POWER
GND12GND
GND23GND
4
OUT
OUT
ZD409
C411
6
SUB_MIC
Y1
5
GND
4
3PI5_EAR_MIC_P
Y0
U411
MAIN_MIC_P
MAIN_MIC_GND
10
3PI5_ADC
EAR_SW
C421
11
FM_ROUT
VDD_DIG_3V0
10
8
9
IN2
NO2
1
NC
COM2
VCC
2
U403
GND
FM_SEL
NO1
IN1
NC1
COM1
4
5
3
C407
R404
L407
C415
NC
C463
L408
EAR_SPK_L EAR_SPK_R
RCV_N_CON
C464
C461
NC
FM_LOUT
INB_L
INB_R
7
6
EAR_L
EAR_R
SLC401
111112
12
10
9
9
10
778
8
566
5
4
3
RCV_P_CON
3
4
1
2
1
2
C419
NC
14
L426
ZD408
ZD411
L412
R458
R459
NC
1512 13
16
A
VDD_MOT_3V0
C414
MOTOR400
2
2
1
C416
1
D401
MOTOR401
2
2
1
1
VDD_DIG_3V0
R402
L411
L410
FM_ANT
C465
C420
NC
12345
6
3PI5_DET3PI5_EAR_MIC
R420
ZD403
VBAT
C455
L417
L413
D402
U402
D3
OVP
A1
LX
D2
RSET
A2
IN
D1
CS
C3
COMP
B1
PGND
A3
C1
GND
VDD_CAM_A_2V8
C438
C429
VDD_CAM_CORE_1V2
C439
EN|SET
1
B3
NC
PWM
2
NC
R462
CAM_PCLK
CAM_SDA
SD2CLK_CAM
C437
CAM_VSYNC
SD2CMD_CAM
C462
NC
SD2DAT3_CAM
SD2DAT2_CAM
CAM_SCL
TP307
CAM_RST
C447
NC NC
NC
CAM_EN
R460
C449C448
BL_EN
C428
R409
VDD_CAM_IO_2V8
LED+_18.2V
R408
LED-
R411
R410
C454
SOC401
TP_CAM_PCLK
1
1
TP_CAM_VSYNC
2
2
TP_CAM_HSYNC
3
3
4
4
5
5
6
6
7
7
8
Y(7)
8
9
Y(6)
9
10
Y(5)
10
11
11
Y(4)
12
12
Y(3)
13
13
Y(2)
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
NC
26
NC
27
NC
28
NC
C460
L
1 3
2
4
5
VDD_TSP_3V0
VDD_LCD_2V9
VDD_TSP_3V0
R433
LCD_FLM
TSP_SCL
TSP_SDA
TSP_INT
RST_LCD
VGH
LED+_18.2V
C434
C435
C430
F401
5
1
IN1
OUT1
LD(7)
LD(5)
LD(3)
LD(1)
LD(6)
LD(4)
LD(2)
LD(0)
6
2
OUT2
IN2
7
3
OUT3
IN3
8
4
IN4
OUT4
GND
GND
910
F402
5
1
IN1
OUT1
6
2
OUT2
IN2
7
3
OUT3
IN3
8
4
OUT4
IN4
GNDGND
9
10
HDC401
2
2
11
4
4
6
556
8
78
7
10
99
10
12
12
11 11
14
13
14
13
16
15 15 16
17171818
20
20
19 19
21212222
TP_RST_LCD
C432
C433
LD(7)_LCD
LD(5)_LCD
LD(3)_LCD
LD(1)_LCD
LD(6)_LCD
LD(4)_LCD
LD(2)_LCD
LD(0)_LCD
23 23 24 24
25252626
27 27
29293330
31 31 32
33
33 3434
35 35 36 36
37373838
39
39
41G42GG4344
TP_LD(0)_LCD
TP_LD_RD_LCD
TP_LD_RS_LCD
28 28
TP_LD_WR_LCD
30
TP_LD_CS_LCD
32
40 40
G
F400
1
IN1
LD_CS
2
IN2
LD_RD
3
IN3
LD_RS
4
IN4
LD_WR
GND
R432
NC
VGH
R403
NC
LD(7)_LCD
LD(6)_LCD
LD(5)_LCD
LD(4)_LCD
LD(3)_LCD
LD(2)_LCD
LD(1)_LCD
LD(0)_LCD
LD_RD_LCD
LD_RS_LCD
LD_WR_LCD
LD_CS_LCD
LED-
5
OUT1
LD_CS_LCD
6
OUT2
LD_RD_LCD
7
OUT3
LD_RS_LCD
8
OUT4
LD_WR_LCD
GND
910
VDD_MEM_1V8
R415
NC
LCD_DETECT
KEY_ROW(0)
C456
KEY_ROW(1)
R430
TACT_400
2
1
34567
TACK_402
12
34567
R434
ANALOG TV: R434 short
R435
GT-C6712L : R435 short
KEY_COL(0)
KEY_COL(0)
KEY_ROW(0)
TACT_401
12
3456
7
ONKEY
KEY_COL(1)
HK401
1
1
2
2
3
3
V405
L
6
7
8
9
10 1511
12
13
14
16
This Service Manual isaproperty of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Samsung Electronics Co.,Ltd.
ⓒ
2011. 04.
Rev.1.0
Loading...
