Specification
2.
2-1.
General CH and Freq. Table
GSM 850 EGSM 900 DCS1800 PCS1900
Freq.
Band[MHz]
Uplink/Downlink
ARFCN range 128~251
Tx/Rx spacing 45MHz 45MHz 95MHz 80MHz
Mod. Bit rate/
Bit Period
Time Slot
Period/Frame
Period
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK
824~849
869~894
270.833kbps
3.692us
576.9us
4.615ms
880~915
925~960
0~124 &
975~1023
270.833kbps
3.692us
576.9us
4.615ms
1710~1785
1805~1880
512~885 512~810
270.833kbps
3.692us
576.9us
4.615ms
1850~1910
1930~1990
270.833kbps
3.692us
576.9us
4.615ms
MS Power 33dBm~5dBm 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm
Power Class
Sensitivity -102dBm -102dBm -100dBm -100dBm
TDMA Mux 8 8 8 8
Cell Radius 35Km 35Km 2Km 2Km
max
(
4
+33
dBm)
max
(
4
+33
dBm)
max
(
1
+30
dBm)
max
(
1
+30
dBm)
2-1
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Specification
2-2.
GSM General Specification
TX Power
control level
533±2
631±2
729±2
827±2
925±2
10 23±2
11 21±2
GSM850
GSM900
dBm
dBm
dBm
dBm
dBm
dBm
dBm
TX Power
DCS1800
control level
030±3
128±3
226±3
324±3
422±3
520±3
618±3
dBm
dBm
dBm
dBm
dBm
dBm
dBm
TX Power
control level
030±3
128±3
226±3
324±3
422±3
520±3
618±3
PCS1900
dBm
dBm
dBm
dBm
dBm
dBm
dBm
12 19±2
13 17±2
14 15±2
15 13±2
16 11±3
17 9±3
18 7±3
19 5±3
dBm
dBm
dBm
dBm
dBm
dBm
dBm
dBm
716±3
814±3
912±4
10 10±4
11 8±4
12 6±4
13 4±4
14 2±5
15 0±5
dBm
dBm
dBm
dBm
dBm
dBm
dBm
dBm
dBm
716±3
814±3
912±4
10 10±4
11 8±4
12 6±4
13 4±4
14 2±5
dBm
dBm
dBm
dBm
dBm
dBm
dBm
dBm
2-2
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
15 0±5
dBm
Product Function
3.
Main Function
-
EDGE
-1.3
-
-
-
-
-
-
-
Mega Pixel Camera
GSM
850/900/1800/1900
Analog TV
Music player
Bluetooth
FM Radio
MicroSD Card Support
Automatic EQ
&
DNSe
2.0
3-1
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
10.
Reference data
Reference Abbreviate
ADC :
―
AMPS :
―
― BGA :
― BPF :
― CDMA :
DL :
―
FTP :
―
GPS :
―
― MMS :
PBA :
―
PCS :
―
PIM(S) :
―
QPSK :
―
RF :
―
RSS :
―
SAW :
―
SMS :
―
TCXO :
―
TSP :
―
UL :
―
USB :
―
Analog to Digital Converter
Advanced Mobile Phone System(analog IS-95)
Global Positioning System
Radio Frequency
Uplink
Ball Grid Array
Band Pass Filter
Code Division Multiple Access
Downlink
File Transfer Protocol
Multimedia Messaging Service
Panel Board Assembly
Personal Communication System
Personal Information Management(System)
Quadrature Phase Shift Keying
Received Signal Strength
Surface Acoustic Wave
Short Message Service
Temperature Compensated Crystal Oscillator
Touch Screen Panel
Universal Serial Bus
10-1
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Safety Precautions
1.
Repair Precaution
1-1.
Repair in Shield Box, during detailed tuning.
―
Take specially care of tuning or test, because the specification of cellular phone is sensitive for
surrounding interference(RF noise).
Be careful to useakind of magnetic object or tool, because performance of parts is damaged by
―
the influence of magnetic force.
Surely useastandard screwdriver when you disassemble this product, otherwise screw will be
―
worn away.
Useathicken twisted wire when you measure level.
―
thicken twisted wire has low resistance, therefore error of measurement is few.
A
Repair after separate Test Pack and Set because for short danger(for example an overcurrent
―
and furious flames of parts etc) when you repair board in condition of connecting Test Pack and
tuning on.
Take specially care of soldering, because Land of PCB is small and weak in heat.
―
Surely tune on/off while using AC power plug, becausearepair of battery charger is dangerous
―
when tuning ON/OFF PBA and Connector after disassembling charger.
Don't use as you pleases after change other material than replacement registered on SEC System.
―
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.
1-1
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Safety Precautions
ESD(Electrostatically Sensitive Devices) Precaution
1-2.
Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD
Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
(
You can prevent from ESD damage by static electricity.
Remove static electricity remained your body before you touch semiconductor or parts with
―
semiconductor. There are ways that you touch an earthed place or wear static electricity prevention
string on wrist.
Use earthed soldering steel when you connect or disconnect ESD.
―
Use soldering removing tool to break static electricity.Otherwise ESD will be damaged by static
―
electricity.
Don't unpack until you set up ESD on product. Because most of ESD are packed by box and
―
aluminum plate to have conductive power,they are prevented from static electricity.
You must maintain electric contact between ESD and place due to be set up until ESD is
―
connected completely to the proper place oracircuit board.
1-2
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Array course control
4.
Software Adjustments
4-1.

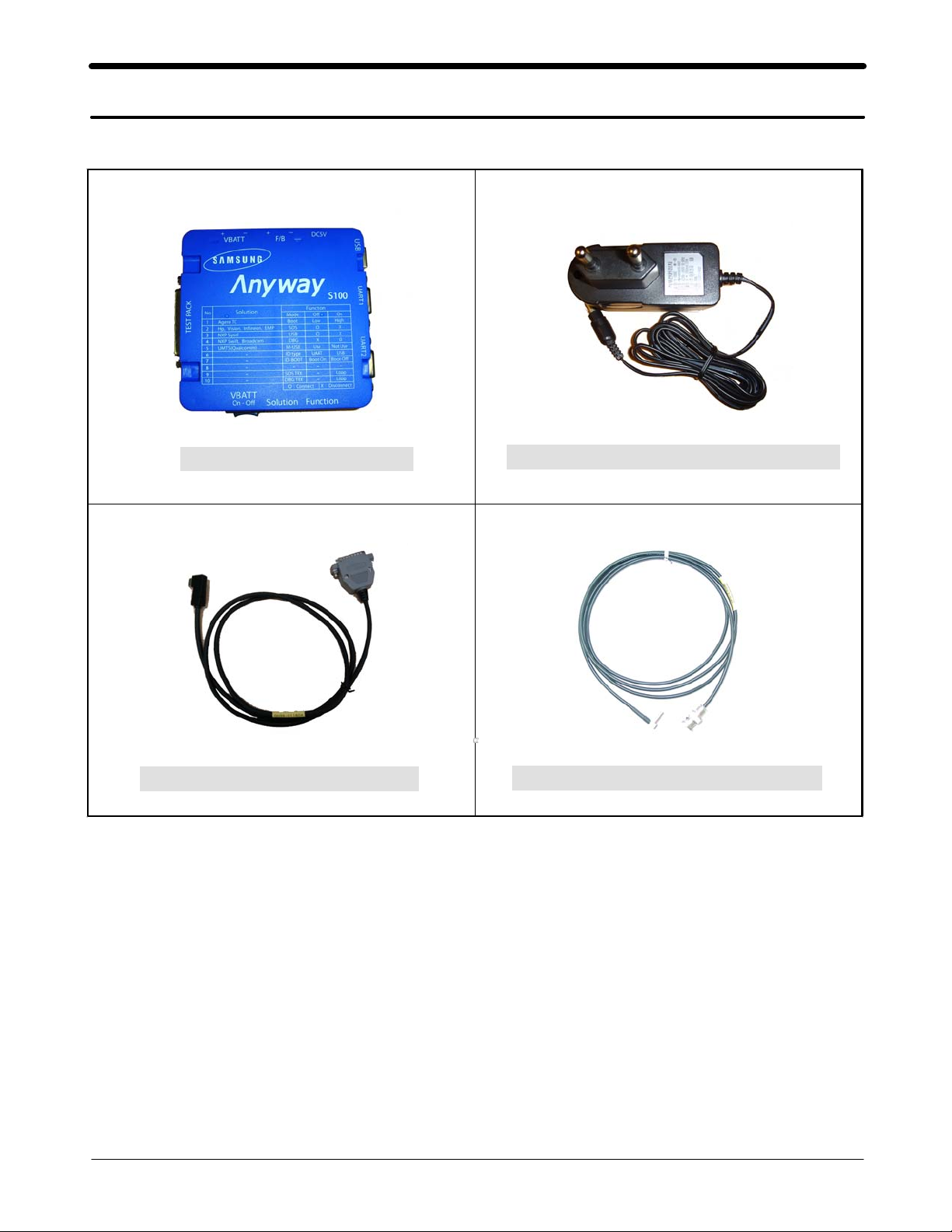

Test Jig(GH99
Test Cable(GH39-01313A)
-36900
A)
INA-XPLUG ADAPTER(GH99-38251A)
GH39-00985A)
RF Test Cable
(
4-1
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Array course control
Software Downloading
4-2.
Pre-requisite for Downloading
4-2-1.
Downloader Program(
•
GT-C3510T Mobile Phone
•
Data Cable
•
Binary file
•
S/W Downloader Program
4-2-2.
Load the binary download program by executing the
■ 1.
Downloader V5.56)
Downloader V5.56
“
”
4-2
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Array course control

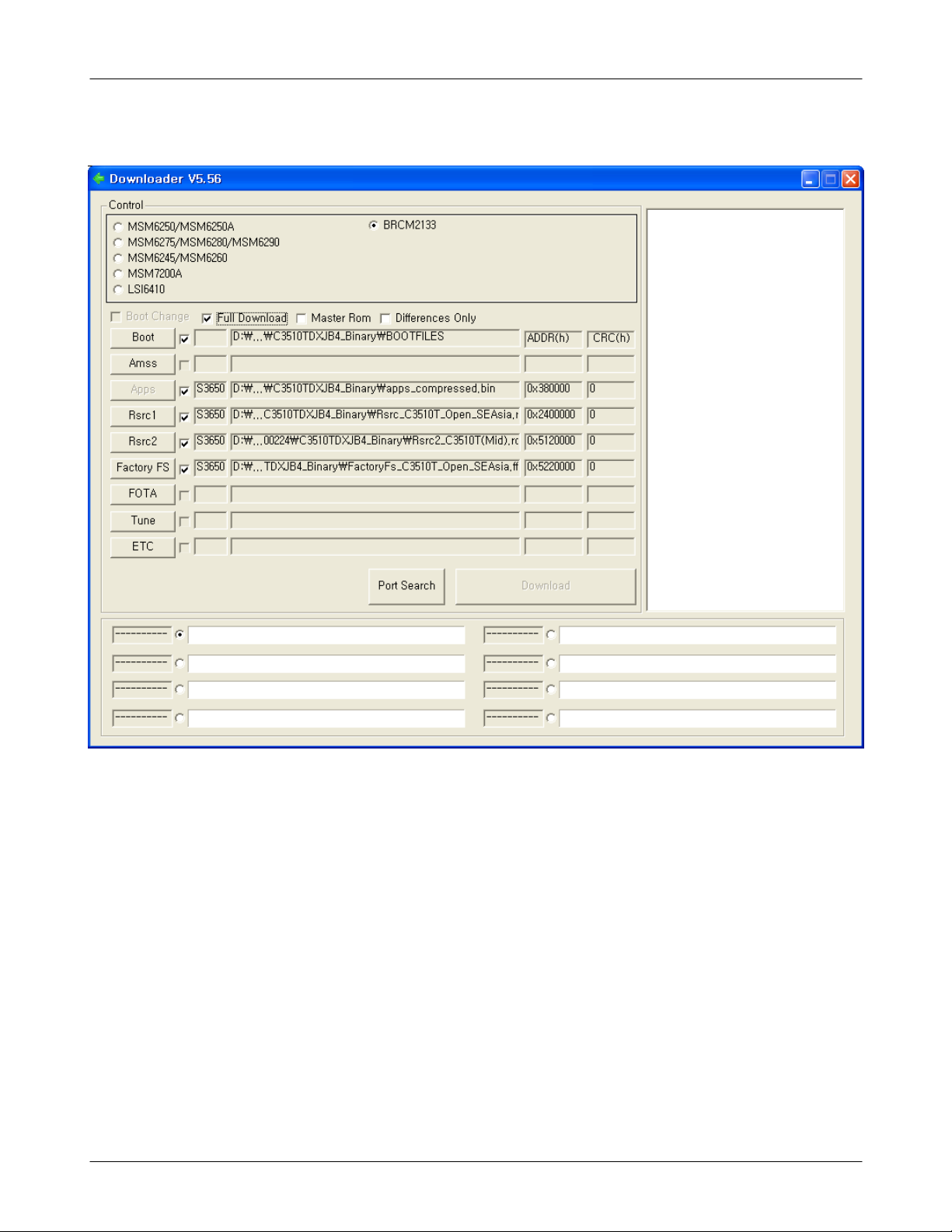

2. Select the
BRCM2133
"
as Control.
"
4-3
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Array course control
Select the Full Download.
3.
4-4
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Array course control
Load the file of Boot, Apps, Rsrc1,Rsrc2, Factory FS from the folder that you saved the binary files.
4.
4-5
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Array course control
Click the Port Search button when the download cable is connected to PC.
5.
cf. You have to set the phone asadownload mode by pressing Volume
simultaneously before connecting to PC
4-6
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Volume
Camera+End key
+
Then the down loader can search the port.
6.
Array course control
4-7
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Array course control
Click the Download button when the Port searched.
7.
It will start to download.
When downloading is finished successfully, there isa"All files complete" message.
7.
Memory Full reset
4-3.
You should take following procedures in order.
:
Memory Full reset
- *2767*3855#
4-8
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
