Samsung C34F791WQ User Guide

USER MANUAL

Curved Monitor

CF79*

The color and the appearance may differ depending on the product, and the specifications are subject to change without prior notice to improve the performance.

The contents of this manual are subject to change without notice to improve quality.

Samsung Electronics owns the copyright for this manual.

Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited.

Trademarks other than that of Samsung Electronics are owned by their respective owners.

• An administration fee may be charged if either

‒ (a) an engineer is called out at your request and there is no defect in the product

(i.e. where you have failed to read this user manual).

‒ (b) you bring the unit to a repair center and there is no defect in the product

(i.e. where you have failed to read this user manual).

• The amount of such administration charge will be advised to you before any work or home visit is carried out.

Table of contents

Before Using the Product

Securing the Installation Space 4

Precautions for storage 4

Safety Precautions 4

Symbols 4 Cleaning 5 Electricity and Safety 5 Installation 6 Operation 7

Preparations

Parts 9

Control Panel 9 Direct Key guide 10 Function Key Guide 11 Changing Brightness, Contrast and Sharpness

settings 13 Changing the Volume setting 13 Reverse Side 14 Adjusting the Product Tilt and Height 14 Anti-theft Lock 15 Precautions for moving the monitor 15

Connecting and Using a Source Device

Pre-connection Checkpoints 19

Connecting and Using a PC 19

Connection Using the HDMI Cable 19 Connection Using an HDMI-DVI Cable 20 Connection Using an DP Cable 20 Connecting to Headphones 20 Connecting the Power 20 Tidying Up the Connected Cables 21

Connecting the Product to a PC as a USB HUB 22

Connecting a PC to the Product 22 Utilizing the Product as a USB HUB 22

Correct posture to use the product 23

Driver Installation 23

Setting Optimum Resolution 23

Screen Setup

SAMSUNG MAGIC Bright 24

Brightness 25

Eye Saver Mode 26

Game Mode 26

Response Time 26

Picture Size 27

Screen Adjustment 27

Calibration Report 27

Configuring the PIP/PBP Settings

PIP/PBP Mode 28

Size 29

Position 29

Sound Source 29

Source 30

Picture Size 30

Contrast 31

Installation 16

Removing the Stand 16 Attaching the Wall-mount bracket 17 Attaching the Stand 18

Contrast 25

Sharpness 25

Color 25

SAMSUNG MAGIC Upscale 26

HDMI Black Level 26

Table of contents

Adjusting OSD (On Screen Display) settings

Transparency 32

Position 32

Language 32

Display Time 32

Setup and Reset

FreeSync 33

Sound 35

Volume 35 Sound Mode 35 Select Sound 35

Eco Saving Plus 35

Off Timer 35

PC/AV Mode 36

Information 37

Installing the Software

Easy Setting Box 38

Restrictions and Problems with the Installation 38 System Requirements 38

Troubleshooting Guide

Requirements Before Contacting Samsung Customer Service Center 39

Testing the Product 39 Checking the Resolution and Frequency 39 Check the following. 39

Q & A 41

Specifications

General 42

Standard Signal Mode Table 43

Appendix

Responsibility for the Pay Service (Cost to Customers) 45

Not a product defect 45 A Product damage caused by customer's fault 45 Others 45

DisplayPort Ver. 36

HDMI Mode 36

Source Detection 36

Key Repeat Time 36

Power LED On 37

Reset All 37

Chapter 01

Before Using the Product

Securing the Installation Space

Ensure some space around the product for ventilation. An internal temperature rise may cause fire and damage the product. Be sure to allow the amount of space as shown below or greater when installing the product.

―

The exterior may differ depending on the product.

10 cm (3.93 inches)

Precautions for storage

10 cm (3.93 inches)

Safety Precautions

Caution

Symbols

Warning

Caution

RISK OF ELECTRIC SHOCK DO NOT OPEN

Caution : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. (OR BACK)

THERE ARE NO USER SERVICEABLE PARTS INSIDE.

REFER ALL SERVICING TO QUALIFIED PERSONNEL.

This symbol indicates that high voltage is present inside.

It is dangerous to make any kind of contact with any internal part of this product.

This symbol alerts you that important literature concerning operation and maintenance has been included with this product.

A serious or fatal injury may result if instructions are not followed.

Personal injury or damage to properties may result if instructions are not followed.

High-glossy models can develop white stains on the surface if an ultrasonic wave humidifier is used nearby.

―

Contact your nearest Samsung Customer Service Center if you want to clean the inside of the product (Service fee will be charged.)

Cleaning

―

Take the following steps when cleaning.

Power off the product and computer.

Disconnect the power cord from the product.

―

Hold the power cable by the plug and do not touch the cable with wet hands. Otherwise, an electric shock may result.

Wipe the monitor with a clean, soft and dry cloth.

‒ Do not apply a cleaning agent that contains alcohol, solvent, or surfactant to the monitor.

‒ Do not spray water or detergent directly on the product.

Wet a soft and dry cloth in water and wring thoroughly to clean the exterior of the product.

Connect the power cord to the product when cleaning is finished.

Power on the product and computer.

Electricity and Safety

Warning

• Do not use a damaged power cord or plug, or a loose power socket.

• Do not use multiple products with a single power socket.

• Do not touch the power plug with wet hands.

• Insert the power plug all the way in so it is not loose.

• Connect the power plug to a grounded power socket (type 1 insulated devices only).

• Do not bend or pull the power cord with force. Be careful not to leave the power cord under a heavy object.

• Do not place the power cord or product near heat sources.

• Clean any dust around the pins of the power plug or the power socket with a dry cloth.

Caution

• Do not disconnect the power cord while the product is being used.

• Only use the power cord provided with your product by Samsung. Do not use the power cord with other products.

• Keep the power socket where the power cord is connected unobstructed.

‒ The power cord must be disconnected to cut off power to the product when an issue occurs.

• Hold the plug when disconnecting the power cord from the power socket.

Installation

Warning

• DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP OF THE PRODUCT. DO NOT INSTALL THE PRODUCT NEAR HEAT SOURCES.

• Do not install the product in poorly ventilated spaces such as a bookcase or closet.

• Install the product at least 10cm away from the wall to allow ventilation.

• Keep the plastic packaging out of the reach of children.

‒ Children may suffocate.

• Do not install the product on an unstable or vibrating surface (insecure shelf, sloped surface, etc.)

‒ The product may fall and become damaged and/or cause an injury.

‒ Using the product in an area with excess vibration may damage the product or cause a fire.

• Do not install the product in a vehicle or a place exposed to dust, moisture (water drips, etc.), oil, or smoke.

• Do not expose the product to direct sunlight, heat, or a hot object such as a stove.

‒ The product lifespan may be reduced or a fire may result.

• Do not install the product within the reach of young children.

‒ The product may fall and injure children.

• Edible oil, such as soybean oil, can damage or deform the product. Do not install the product in a kitchen or near a kitchen counter.

Caution

• Do not drop the product while moving.

• Do not set down the product on its front.

• When installing the product on a cabinet or shelf, make sure that the bottom edge of the front of the product is not protruding.

‒ The product may fall and become damaged and/or cause an injury.

‒ Install the product only on cabinets or shelves of the right size.

• Set down the product gently.

‒ Product failure or personal injury may result.

• Installing the product in an unusual place (a place exposed to a lot of fine dust, chemical substances, extreme temperatures or a significant presence of moisture, or a place where the product will operate continuously for an extended period of time) may seriously affect its performance.

‒ Be sure to consult Samsung Customer Service Center if you want to install the product at such a

place.

Operation

Warning

• There is a high voltage inside the product. Never disassemble, repair or modify the product yourself.

‒ Contact Samsung Customer Service Center for repairs.

• To move the product, first disconnect all the cables from it, including the power cable.

• If the product generates abnormal sounds, a burning smell or smoke, disconnect the power cord immediately and contact Samsung Customer Service Center.

• Do not let children hang from the product or climb on top of it.

‒ Children may become injured or seriously harmed.

• If the product is dropped or the outer case is damaged, turn off the power and disconnect the power cord. Then contact Samsung Customer Service Center.

‒ Continued use can result in a fire or electric shock.

• Do not leave heavy objects or items that children like (toys, sweets, etc.) on top of the product.

‒ The product or heavy objects may fall as children try to reach for the toys or sweets resulting in a

serious injury.

• During a lightning or thunderstorm, power off the product and remove the power cable.

• Do not drop objects on the product or apply impact.

• Do not move the product by pulling the power cord or any cable.

• If a gas leakage is found, do not touch the product or power plug. Also, ventilate the area immediately.

• Do not lift or move the product by pulling the power cord or any cable.

• Do not use or keep combustible spray or an inflammable substance near the product.

• Ensure the vents are not blocked by tablecloths or curtains.

‒ An increased internal temperature may cause a fire.

• Do not insert metallic objects (chopsticks, coins, hairpins, etc) or objects that burn easily (paper, matches, etc) into the product (via the vent or input/output ports, etc).

‒ Be sure to power off the product and disconnect the power cord when water or other foreign

substances have entered the product. Then contact Samsung Customer Service Center.

• Do not place objects containing liquid (vases, pots, bottles, etc) or metallic objects on top of the product.

‒ Be sure to power off the product and disconnect the power cord when water or other foreign

substances have entered the product. Then contact Samsung Customer Service Center.

Caution

• Leaving the screen fixed on a stationary image for an extended period of time may cause afterimage burn-in or defective pixels.

‒ Activate power-saving mode or a moving-picture screen saver if you will not be using the product

for an extended period of time.

• Disconnect the power cord from the power socket if you do not plan on using the product for an extended period of time (vacation, etc).

‒ Dust accumulation combined with heat can cause a fire, electric shock or electric leakage.

• Use the product at the recommended resolution and frequency.

‒ Your eyesight may deteriorate.

• Do not put AC/DC adapters together.

• Remove the plastic bag from the AC/DC adapter before you use it.

• Do not let water enter the AC/DC adapter device or get the device wet.

‒ An electric shock or fire may result.

‒ Avoid using the product outdoors where it can be exposed to rain or snow.

‒ Be careful not to get the AC/DC adapter wet when you wash the floor.

• Do not put the AC/DC adapter near to any heating apparatus.

‒ Otherwise, a fire may result.

• Keep the AC/DC adapter in a well-ventilated area.

• If you place the AC/DC power adapter so that it is hanging with the cord input facing upwards, water or other foreign substances could enter the Adapter and cause the Adapter to malfunction.

Make sure to rest the AC/DC power adapter flat on a table or the floor.

• Do not touch the screen when the product has been turned on for an extended period of time as it will become hot.

• Store small accessories out of the reach of children.

• Exercise caution when adjusting the product angle or stand height.

‒ Your hand or finger may get stuck and injured.

‒ Tilting the product at an excessive angle may cause the product to fall and an injury may result.

• Do not place heavy objects on the product.

‒ Product failure or personal injury may result.

• When using headphones or earphones, do not turn the volume too high.

‒ Having the sound too loud may damage your hearing.

• Do not hold the product upside-down or move it by holding the stand.

‒ The product may fall and become damaged or cause an injury.

• Looking at the screen too close for an extended period of time can deteriorate your eyesight.

• Do not use humidifiers or stoves around the product.

• Rest your eyes for more than 5 minutes for every 1 hour of product use.

Chapter 02

Preparations

Parts

Control Panel

―

The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.

Power LED

Speaker

JOG Button Function Key Guide

Parts Description

Multi directional button that helps navigate.

JOG Button

Power LED

Function Key Guide

―

The JOG button is located on the rear left side of the product. The button can be used to move up, down, left or right, or as Enter.

This LED is power status indicator and works as

• Power On (Power button): Off

• Power saving mode: Blinking

• Power Off (Power button): On

―

The power Indicator operation can be swapped by changing in the menu. (System → Power LED On) Actual models because of functional variation maybe haven’t this function.

Press the JOG button when the screen is turned on. The Function Key Guide will appear. To access the onscreen menu when the guide is displayed, press the corresponding direction button again.

―

Function Key Guide may vary depending on the function or product model. Please refer to the actual product.

LEFT

PRESS(ENTER)

RIGHT

Return

DOWN

Direct Key guide

―

The shortcut button screen (OSD menu) shown below is displayed only when the monitor screen is turned on, the computer resolution changes, or the input source changes.

―

The function buttons page shows if Game Mode is enabled.

: On

: Off

Brightness

Volume

Features

Game Mode Off

• / : Adjust Brightness, Contrast, Sharpness.

• : Adjust Volume, Mute.

• : Display Function Key Guide.

Function Key Guide

―

To enter the main menu or to use other items, press the JOG button to display the Function Key Guide. You can exit by pressing the JOG button again.

UP/DOWN/LEFT/RIGHT: Move to the item you want. The description for each item will appear when the focus changes.

PRESS(ENTER): The selected item will be applied.

Return

Icons Description

Selects to change the input signal by moving the JOG button in the Function Key Guide screen. A message will appear on the top left corner of the screen if the input signal has been changed.

Selects by moving the JOG button in the function key guide screen. The OSD (On Screen Display) of your Monitor’s feature appears.

OSD control lock: Maintain the current settings, or lock the OSD control to prevent unintended changes to settings.

Enable/Disable: To lock/unlock the OSD control, press the LEFT button for 10 seconds when the main menu displayed.

―

If the OSD control is locked, Brightness and Contrast can be adjusted. PIP/PBP is available.

System → Sound, Power LED On is available. Information can be viewed.

Selects by moving the JOG button in the function key guide screen.

Press the button when configuring settings for the PIP/PBP function is required.

Selects to turn the Monitor off by moving the JOG button in the function key guide screen.

―

Actual models because of functional variation, Function key guide options will be different.

When the monitor displays nothing (i.e. Power saving mode or Non-signal mode), 2 direct keys for control source and power could be used as below.

JOG Button Power saving/Non-signal mode

UP Source Change

Down

PRESS(ENTER) for 2 seconds Power Off

When the monitor displays the Main menu the JOG Button could be used as below.

JOG Button Action

UP/DOWN Move the option

Exit the Main menu.

LEFT

RIGHT

PRESS(ENTER)

Close Sublist without saving value.

Value decreases in the slider.

Move to next depth.

Value increases in the slider.

Move to next depth.

Save the value and close Sublist.

Changing Brightness, Contrast and Sharpness settings

MAGIC

SAMSUNG

MAGIC

Changing the Volume setting

You can adjust Brightness, Contrast or Sharpness by moving the JOG button up or down, if no OSD menu is displayed.

Sharpness

Brightness

100

Contrast

―

The displayed image may differ depending on the model.

―

The default brightness can vary depending on the region.

Brightness

―

This menu is not available when

―

This menu is not available when Eco Saving Plus is enabled.

―

This menu is not available when Eye Saver Mode is enabled.

SAMSUNG

Bright is set to Dynamic Contrast mode.

Contrast

―

This menu is not available when

―

This menu is not available when Game Mode is enabled.

―

This menu is not available when PIP/PBP Mode is set to On and the Size is set to

SAMSUNG

Bright is in Cinema or Dynamic Contrast mode.

(PBP Mode).

Sharpness

―

This menu is not available when

―

This menu is not available when

―

This menu is not available when Game Mode is enabled.

―

Not available when PIP/PBP Mode is set to On.

Bright is in Cinema or Dynamic Contrast mode.

SAMSUNG

Upscale is in Mode1 or Mode2 mode.

You can adjust Volume by moving the JOG button left or right, if no OSD menu is displayed.

Volume

Mute

―

The displayed image may differ depending on the model.

―

If the audio quality of a connected input device is poor, the Auto Mute function on the product may mute the sound or cause choppy audio when applying the headphones or speakers. Set the input volume for the input device to at least 20% and control the volume using the volume control (JOG button LEFT/RIGHT) on the product.

―

What is Auto Mute? The function mutes the audio to improve sound effect when there is sound noise or when the input signal

is weak, usually due to a problem with the volume of an input device.

―

To activate the Mute function, access the Volume control screen, then use the JOG button to move the focus down.

―

To disable the Mute function, increase or decrease the Volume.

Reverse Side

HDMI IN 1 HDMI IN 2

DP IN

(PC IN)

SERVICE

Adjusting the Product Tilt and Height

―

The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.

HDMI IN 1DC 19V

HDMI IN 2

DP IN

(PC IN)

SERVICE

Port Description

DC 19V

Connects to the AC/DC adapter.

Connects to a source device using an HDMI cable or HDMI-DVI cable.

Connects to a PC using a DP cable.

Connects to a PC using a USB cable.

―

This port can only connect to a PC.

―

The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.

100 mm ± 5.0 mm

HAS TOP:

-14˚(±4˚) - 22˚(±4˚)

HAS DOWN:

-2˚(±4˚) - 34˚(±4˚)

• The monitor tilt and height can be adjusted.

• To avoid damage to the product when adjusting the tilt, push or pull the top area of the product at the center while holding the top of the stand.

Dedicated to service technicians.

―

This port is for servicing only and has no user function. Do not connect a cable to this port.

Connect to an audio output device such as headphones.

―

The sound could only be heard when using the HDMI to HDMI cable or DP cable.

These ports are enabled when a PC is connected to the USB PC IN

port.

Anti-theft Lock

―

An anti-theft lock allows you to use the product securely even in public places.

―

The locking device shape and locking method depend on the manufacturer. Refer to the user guide provided with your anti-theft locking device for details.

To lock an anti-theft locking device:

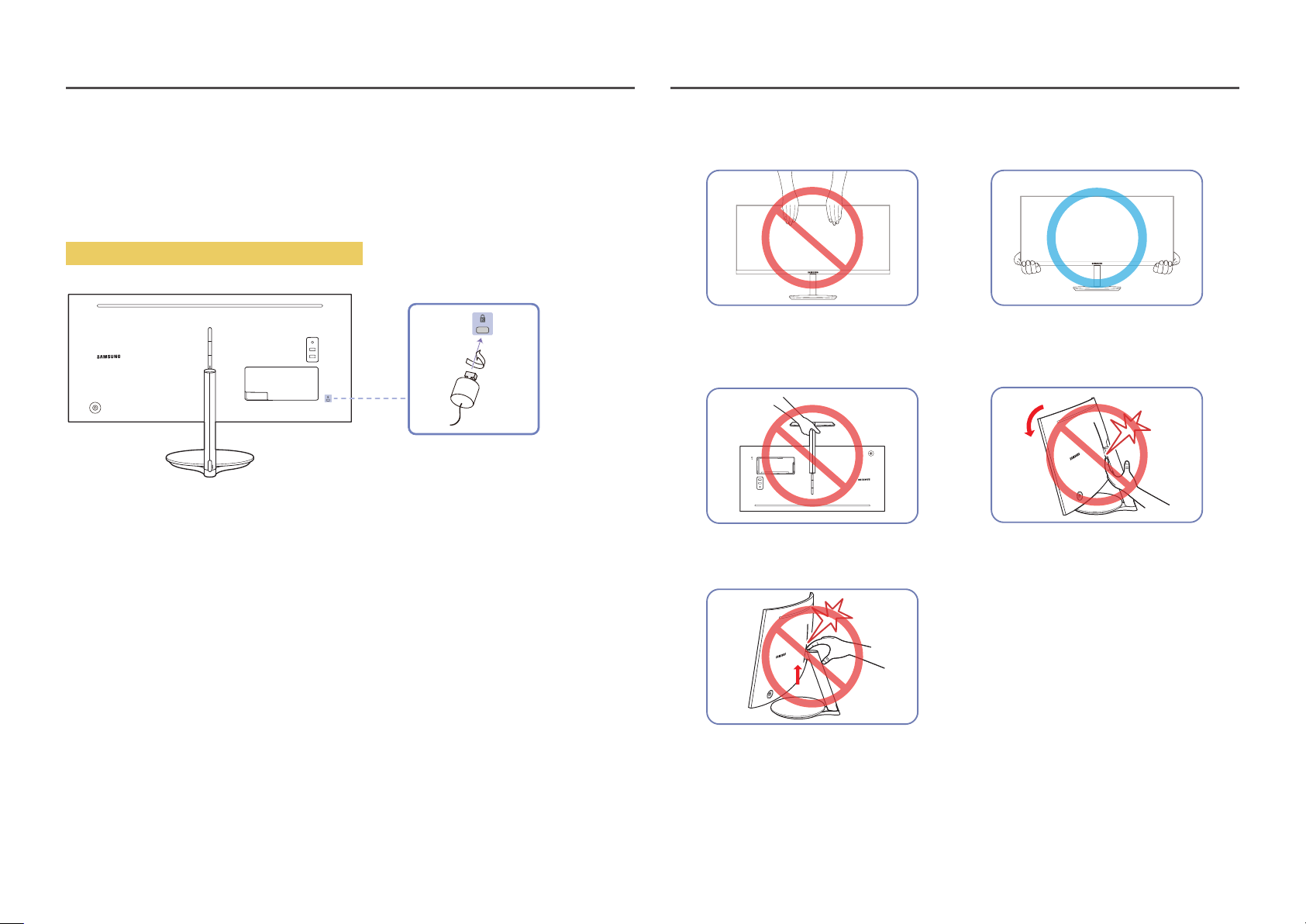

Precautions for moving the monitor

Fix the cable of your anti-theft locking device to a heavy object such as a desk.

Put one end of the cable through the loop on the other end.

Insert the locking device into the anti-theft lock slot at the back of the product.

Lock the locking device.

‒ An anti-theft locking device can be purchased separately.

‒ Refer to the user guide provided with your anti-theft locking device for details.

‒ Anti-theft locking devices can be purchased at electronics retailers or online.

• Do not hold the screen when moving or adjusting the height of the monitor. This may damage the monitor.

• Do not hold the product upside down only by the stand.

• Take extra care to ensure your hand does not get stuck in the height adjustment area. This could injure your hand.

• Hold the lower corners or edges of the monitor when moving it.

• Do not put the hand below the stand body.

•

Installation

Removing the Stand

―

Before removing the stand from the monitor, place the monitor on a flat and stable surface with the screen facing down.

: The product is curved. Placing pressure on the product when on a flat surface may damage the product. When the product is on the ground facing up or down, do not put pressure on it.

Place the protective Styrofoam (cushion) included in the package on the floor and place the product facing down on the Styrofoam, as shown in the image.

―

Make sure to use the styrofoam (cushion) that came with the monitor.

Caution

Do not press down on the monitor. There is a risk of damaging the monitor.

Grab the stand with one hand and use the thumb on your other hand to remove the COVER-STAND NECK LEFT in the direction of the arrow.

Unfasten screws for

―

The screws are also used to attach the Wall-mount bracket. Be careful to ensure the screws are not missing.

and B.

Lift and remove the stand.

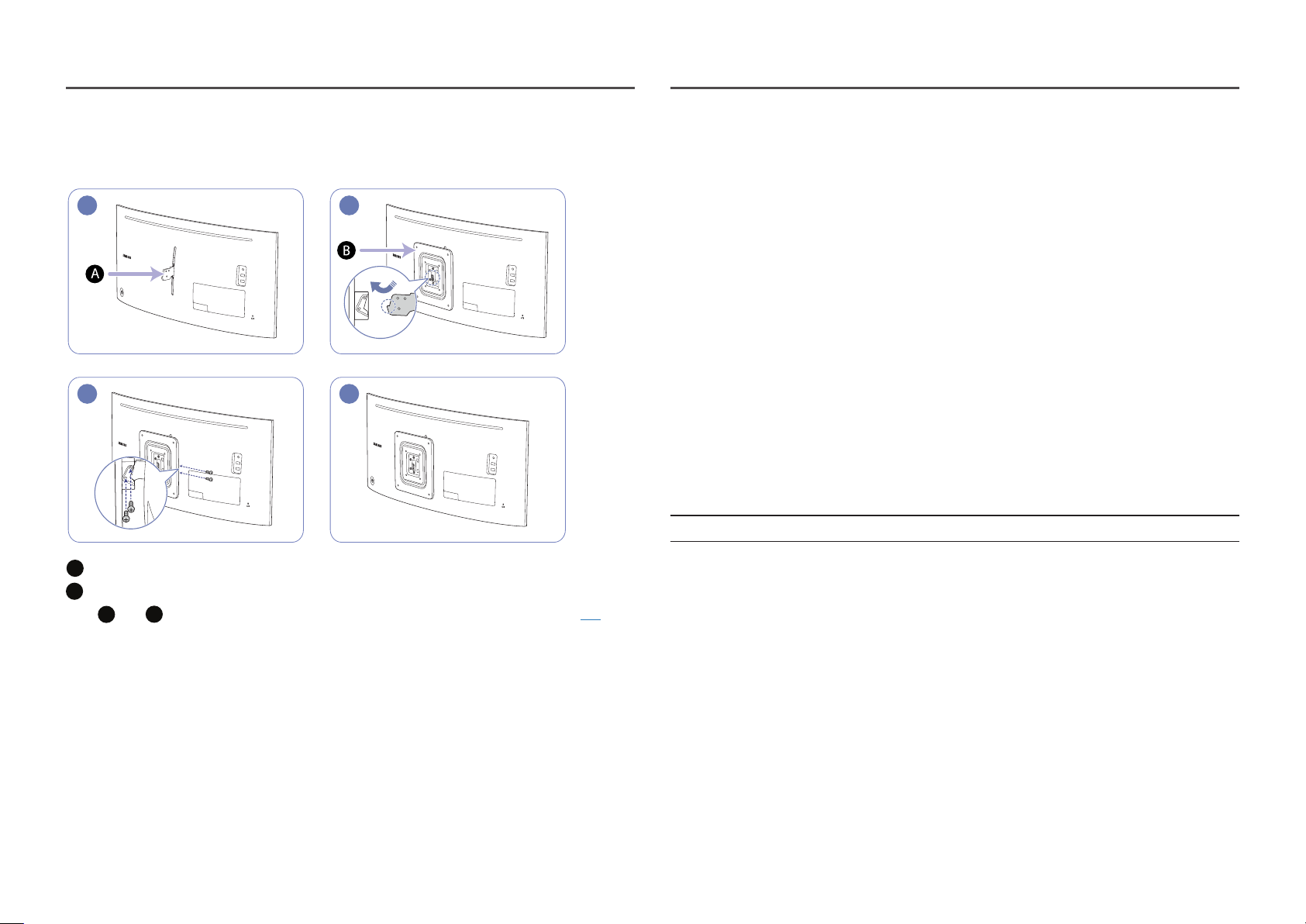

Attaching the Wall-mount bracket

―

Power the product off and remove the power cable from the power socket.

1 2

3 4

• Notes

‒ Using a screw longer than the standard length can damage the internal components of the

product.

‒ The length of screws required for a wall mount that does not comply with the VESA standards may

vary depending on the specifications.

‒ Do not use screws that do not comply with the VESA standards. Do not attach the wall-mount kit

or desktop stand using excessive force. The product may get damaged or fall and cause personal injury. Samsung shall not be held liable for any damage or injury caused by using improper screws or attaching the wall-mount kit or desktop stand using excessive force.

‒ Samsung shall not be held liable for any product damage or personal injury caused by using a wall-

mount kit other than the one specified or from an attempt to install the wall-mount kit on your own.

‒ To mount the product on a wall, ensure you purchase a wall-mount kit that can be installed 10 cm

or farther away from the wall.

‒ Be sure to use a wall-mount kit that complies with the standards.

‒ To install the monitor using a wall mount, disconnect the stand base from the monitor.

Unit: mm (inches)

Attach the Wall-mount bracket here

Wall-mount bracket

Align

with A on the monitor, then tightly fasten with the screws removed from the stand (P.16).

Model name VESA screw hole specs in

Standard Screw Quantity

millimeters

C34F791WQ* 100 x 100 (3.9 x 3.9) M4 4 EA

―

Do not attach the Wall-mount bracket when the monitor is turned on. This may cause electric shock and might result in injury.

Attaching the Stand

―

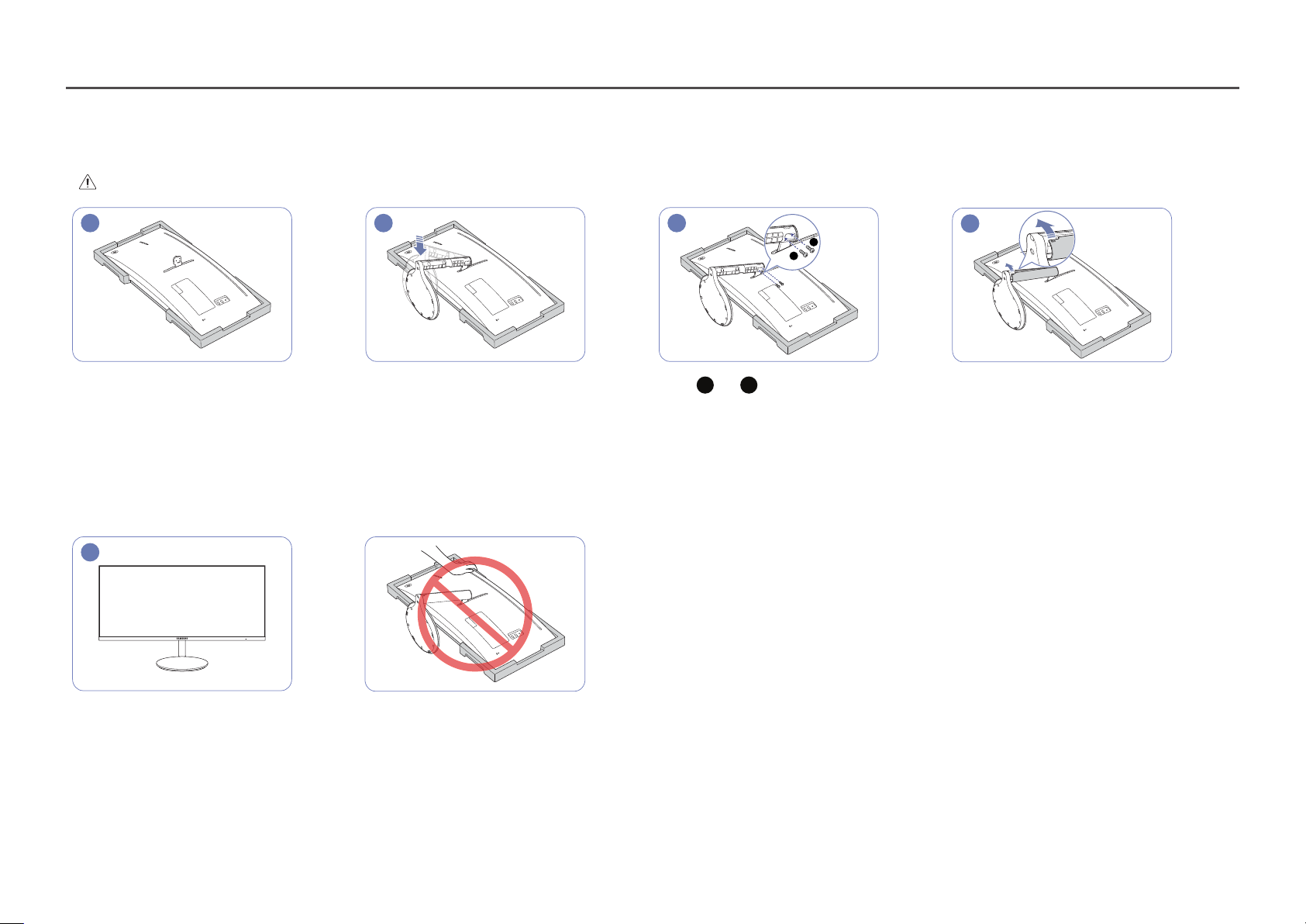

Before assembling the product, place the product down on a flat and stable surface so that the screen is facing downwards.

: The product is curved. Placing pressure on the product when on a flat surface may damage the product. When the product is on the ground facing up or down, do not put pressure on it.

1 2 3

Place the protective Styrofoam (cushion) included in the package on the floor and place the product facing down on the Styrofoam, as shown in the image.

―

Make sure to use the styrofoam (cushion) that came with the monitor.

Attach the stand to the back of the monitor, in the direction of the arrow.

Rotate

and B screws for fixing.

Grab the stand with one hand and use your other hand to attach the COVER-STAND NECK LEFT in the direction of the arrow.

Make sure that the arrow imprinted inside and the ▲OPEN outside of the COVER STAND NECK LEFT are placed on the lower part. The COVER STAND NECK LEFT cannot be attached if the imprints are upside down.

After attaching the stand, place the product in an upright position.

Caution

Do not press down on the monitor. There is a risk of damaging the monitor.

Chapter 03

Connecting and Using a Source Device

Pre-connection Checkpoints

―

Before connecting a source device, read the user manual provided with it. The number and locations of ports on source devices may differ from device to device.

―

Do not connect the power cable before connecting all other cables. Ensure you connect a source device first before connecting the power cable.

Connecting the power cable during connection may damage the product.

―

Check the types of ports at the back of the product you want to connect.

Connecting and Using a PC

Select a connection method suitable for your PC.

―

Connecting parts may differ in different products.

―

Provided ports may vary depending on the product.

Connection Using the HDMI Cable

HDMI IN 1, HDMI IN 2

―

For optimum resolution, use a graphics card and an HDMI cable that support HDMI2.0 output. Ensure your graphics card supports HDMI2.0 output using the graphics card manufacturer's website.

―

Select an HDMI version. Version 2.0 supports a refresh rate of up to 100 Hz, and version 1.4 supports a refresh rate of up to 50 Hz.

―

When using dual monitor mode with HDMI2.0 input, disabling dual monitor mode after turning on the monitor or entering power-saving mode may affect windows and other settings.

Connection Using an HDMI-DVI Cable

HDMI IN 1

DC 19V

HDMI IN 1, HDMI IN 2

―

The audio function is not supported if the source device is connected using the HDMI-DVI cable.

―

The optimum resolution may not be available with an HDMI-DVI cable.

Connection Using an DP Cable

Connecting the Power

DP IN

―

A DP cable shorter under 2 m in length is recommended. Using a cable longer than 2 m can affect the picture quality.

―

To display 3440 x 1440 @ 100 Hz, use a DP cable that supports 3440 x 1440 @ 100 Hz. Make sure that the graphics card of the DP source supports 3440 x 1440 @ 100 Hz.

Connecting to Headphones

―

Use headphones when activating sound with a HDMI-HDMI or DP cable.

Connect the power cable to the AC/DC adapter. Then, connect the AC/DC adapter to the DC 19V port

on the back of the product.

Next, connect the power cable to the power outlet.

Press the JOG button on the back of the monitor to turn it on.

―

The input voltage is switched automatically.

Tidying Up the Connected Cables

1 2 3 4

170 mm

Grab the stand with one hand and use the thumb on your other hand to remove the COVER-REARSUB in the direction of the arrow.

Grab the stand with one hand and use the thumb on your other hand to remove the COVER-STAND NECK LEFT in the direction of the arrow.

5 6 7

Grab the stand with one hand and use your other hand to close the COVER-REAR-SUB in the direction of the arrow.

Grab the stand with one hand and use your other hand to attach the COVER-STAND NECK LEFT in the direction of the arrow.

Connect cables to the appropriate ports.

Run the cables through the opening on the stand, as shown in the image.

The cables are now tidied up.

Ensure that the length of the cables, within the range indicated in the image, is at least 170 mm, so that the cables are loose.

Tight cables make it difficult to attach the COVERSTAND NECK LEFT.

Connecting the Product to a PC as a USB HUB

Connecting a PC to the Product

―

The product can function as a HUB by connecting to a PC via a USB cable. You can connect a source device directly to the product and control the device from the product, without having to connect the device to the PC.

To use the product as a USB hub, connect the product to a PC using a USB cable.

Utilizing the Product as a USB HUB

Using the product as a hub, connect and use various source devices with the product at the same time.

A PC cannot connect to multiple source devices at the same time as it has a limited number of input/ output ports available. The HUB feature on the product will improve your work efficiency by allowing you to connect multiple source devices to the USB ports on the product at the same time without connecting them to a PC.

(PC IN)

Connect the USB cable to on the back of the product and USB on the PC.

―

A USB 2.0 cable can be used to connect the product to a PC. However, to take full advantage of the USB 3.0 function, connect a USB 3.0 cable between the PC and the product. Ensure the PC supports USB 3.0.

(PC IN)

If multiple source devices are connected to the PC, the many cables around the PC may look messy. Connecting the devices directly to the product will resolve such inconvenience.

Connect a mobile device such as an MP3 player or smartphone to the product when connected to a PC. This allows you to control the device from the PC or charge the device battery.

―

To detect and start a source device faster, connect the device to the USB 3.0 port on the product.

―

Performance can vary, depending on the USB version supported by the external device.

―

An external mass-storage HDD requires an external power supply. Be sure to connect it to a power source. (Refer to the device user manual)

Correct posture to use the product

Use the product in the correct posture as follows:

• Straighten your back.

• Adjust the angle so light does not reflect on the screen.

• Keep your forearms perpendicular to your upper arms and level with the back of your hands.

• Keep your elbows at about a right angle.

• Adjust the height of the product so you can keep your knees bent at 90 degrees or more, your heels attached to the floor, and your arms lower than your heart.

Driver Installation

―

You can set the optimum resolution and frequency for this product by installing the corresponding drivers.

―

To install the latest version of the product driver, download it from the Samsung Electronics website at http:// www.samsung.com.

Setting Optimum Resolution

An information message about setting optimum resolution will appear if you power on the product for the first time after purchase.

Select a language on the product and change the resolution on your PC to the optimum setting.

―

If the optimum resolution is not selected, the message will appear up to three times for a specified time even when the product is turned off and on again.

―

The optimum resolution can also be selected in Control Panel on your PC.

Chapter 04

MAGIC

Screen Setup

Configure the screen settings such as brightness. A detailed description of each function is provided. Refer to your product for details.

SAMSUNG MAGIC Bright

This menu provides an optimum picture quality suitable for the environment where the product will be used.

―

This menu is not available when Eco Saving Plus is enabled.

―

This menu is not available when Game Mode is enabled.

―

This menu is not available when Eye Saver Mode is enabled.

―

Not available when PIP/PBP Mode is set to On.

You can customize the brightness to suit your preferences.


SAMSUNG

Bright

MAGIC

Brightness

Contrast

Sharpness

Color

SAMSUNG

Upscale

MAGIC

HDMI Black Level

Custom

Normal

100

Off

Set to an optimum picture quality suitable for the working environment.

Return

In PC mode

• Custom: Customize the contrast and brightness as required.

• Standard: Obtain a picture quality suitable for editing documents or using Internet.

• Cinema: Obtain the brightness and sharpness of TVs suitable for enjoying video and DVD content.

• Dynamic Contrast: Obtain balanced brightness through automatic contrast adjustment.

• Basic Color: This model supports a photochromic station. When switching to this mode, the color area is adjusted to be similar to the standard color gamut of sRGB.

• High Bright: Maximize the screen brightness.

In AV mode

When the external input is connected through HDMI/DP and PC/AV Mode is set to AV, four automatic picture settings (Dynamic, Standard, Movie and Custom) that are preset at the factory. You can activate either Dynamic, Standard, Movie or Custom. You can select Custom which automatically recalls your personalized picture settings.

• Dynamic: Select this mode to view a sharper image than in Standard mode.

• Standard: Select this mode when the surroundings are bright. This also provides a sharp image.

• Movie: Select this mode when the surroundings are dark. This will save power and reduce eye fatigue.

• Custom: Select this mode when you want to adjust the image according to your preferences.

SAMSUNG

Bright has

―

The displayed image may differ depending on the model.

Brightness

MAGIC

SAMSUNG

MAGIC

SAMSUNG

MAGIC

Color

You can adjust the general brightness of the picture. (Range: 0~100)

A higher value will make the picture appear brighter.

―

This menu is not available when

―

This menu is not available when Eco Saving Plus is enabled.

―

This menu is not available when Eye Saver Mode is enabled.

SAMSUNG

Bright is set to Dynamic Contrast mode.

Contrast

Adjust the contrast between the objects and background. (Range: 0~100)

A higher value will increase the contrast to make the object appear clearer.

―

This option is not available when

―

This menu is not available when Game Mode is enabled.

―

This menu is not available when PIP/PBP Mode is set to On and the Size is set to

SAMSUNG

Bright is in Cinema or Dynamic Contrast mode.

Sharpness

Make the outline of objects more clear or blurry. (Range: 0~100)

A higher value will make the outline of objects clearer.

―

This option is not available when

―

This menu is not available when

―

This menu is not available when Game Mode is enabled.

―

Not available when PIP/PBP Mode is set to On.

Bright is in Cinema or Dynamic Contrast mode.

SAMSUNG

Upscale is in Mode1 or Mode2 mode.

(PBP Mode).

Adjust the tint of the screen.

―

This menu is not available when

―

This menu is not available when Game Mode is enabled.

―

This menu is not available when Eye Saver Mode is enabled.

―

Not available when PIP/PBP Mode is set to On.

• Red: Adjust the red saturation level. Values closer to 100 mean greater intensity for the color.

• Green: Adjust the green saturation level. Values closer to 100 mean greater intensity for the color.

• Blue: Adjust the blue saturation level. Values closer to 100 mean greater intensity for the color.

• Color Tone: Select a color tone that best suits your viewing needs.

‒ Cool 2: Set the color temperature to be cooler than Cool 1.

‒ Cool 1: Set the color temperature to be cooler than Normal mode.

‒ Normal: Display the standard color tone.

‒ Warm 1: Set the color temperature to be warmer than Normal mode.

‒ Warm 2: Set the color temperature to be warmer than Warm 1.

‒ Custom: Customize the color tone.

―

When the external input is connected through HDMI/DP and PC/AV Mode is set to AV, Color Tone has four color temperature settings (Cool, Normal, Warm and Custom).

• Gamma: Adjust the middle level of luminance.

‒ Mode1 / Mode2 / Mode3

Bright is set to Cinema or Dynamic Contrast mode.

SAMSUNG MAGIC Upscale

SAMSUNG

MAGIC

Eye Saver Mode

Upscale function can enhance the layers of the picture details and the vividness of the picture.

The function has more obvious effects on low-resolution pictures.

―

This menu is not available when

―

This menu is not available when Game Mode is enabled.

―

Not available when PIP/PBP Mode is set to On.

• Off / Mode1 / Mode2

―

Comparing with Mode1, Mode2 has a stronger effect.

SAMSUNG

Bright is set to Cinema or Dynamic Contrast mode.

HDMI Black Level

If a DVD player or set-top box is connected to the product via HDMI, image quality degradation (contrast/ color degradation, black level, etc.) may occur, depending on the connected source device. In such case,

HDMI Black Level can be used to adjust the image quality.

If this is the case, correct the degraded picture quality using HDMI Black Level.

―

This function is only available in HDMI 1 or HDMI 2 mode.

―

Not available when PIP/PBP Mode is set to On.

• Normal: Select this mode when there is no contrast ratio degradation.

• Low: Select this mode to reduce the black level and increase the white level when there is a contrast ratio degradation.

―

HDMI Black Level may not be compatible with some source devices.

―

The HDMI Black Level feature is only activated at a certain AV resolution, such as 720P and 1080P.

Set to an optimum picture quality suitable for eye relaxation.

TÜV Rheinland “Low Blue Light Content” is a certification for products which meet requirements for lower blue light levels. When Eye Saver Mode is 'On', the blue light that wavelength is around 400nm will decrease, and it will provide an optimum picture quality suitable for eye relaxation. At the same time, the blue light level is lower than in the default settings, and it was tested by TÜV Rheinland and certified as it met the requirements of TÜV Rheinland “Low Blue Light Content” standards.

―

Not available when PIP/PBP Mode is set to On.

Game Mode

Configure the product screen settings for game mode.

Use this feature when playing games on a PC or when a game console such as PlayStation™ or Xbox™ is connected.

―

This menu is not available when Eye Saver Mode is enabled.

―

When the monitor turns off, enters power-saving mode or changes input sources, Game Mode turns Off even if it is set to On.

―

If you want to keep Game Mode enabled all the time, select Always On.

―

Not available when PIP/PBP Mode is set to On.

Response Time

Accelerate the panel response rate to make video appear more vivid and natural.

―

It is best to set Response Time to Standard or Faster when you are not viewing a movie.

―

This menu is not available when PIP/PBP Mode is set to On and the Size is set to

/ / (PIP Mode).

Picture Size

Change the picture size.

―

This menu is not available when PIP/PBP Mode is set to On and the Size is set to

―

This option is not available when FreeSync is enabled.

(PBP Mode).

Screen Adjustment

―

This menu is only available when Picture Size is set to Screen Fit in AV Mode. When a 480P or 576P or 720P or 1080P signal is input in AV mode and the monitor can display normally, select

Screen Fit to adjust horizontal position in 0-6 levels.

In PC mode

• Auto: Display the picture according to the aspect ratio of the input source.

• Wide: Display the picture in full screen regardless of the aspect ratio of the input source.

In AV mode

• 4:3: Display the picture with an aspect ratio of 4:3. Suitable for videos and standard broadcasts.

• 16:9: Display the picture with an aspect ratio of 16:9.

• 21:9: Display the picture with an aspect ratio of 21:9.

• Screen Fit: Display the picture with the original aspect ratio without cutting off.

―

The function may not be supported depending on the ports provided with the product.

―

Changing the screen size is available when the following conditions are satisfied.

―

A digital output device is connected using the HDMI/DP cable.

―

The input signal is 480p, 576p, 720p, or 1080p and monitor can display normally (Not every model can support all of these signals.).

―

This can only be set when the external input is connected through HDMI/DP and PC/AV Mode is set to AV. (DisplayPort/HDMI 1/HDMI 2: This option is available when FreeSync is disabled)

Configuring H-Position & V-Position

H-Position: Move the screen to the left or right.

V-Position: Move the screen up or down.

Calibration Report

The data from this report are measured at the time of shipment.

• The measurements may vary according to the measuring equipment, measuring location, system environment (e.g. computer, graphic board, etc) and other variables.

• Input signal: HDMI

• Each measurement from this report is based on the Custom mode at the time of shipment.

• This report is not provided on the menu of some products, but in an separate hardcopy report instead.

Chapter 05

Configuring the PIP/PBP Settings

A detailed description of each function is provided. Refer to your product for details.

PIP/PBP Mode

Enable or disable the PIP/PBP Mode function.

The PIP (Picture in Picture) function separates the screen into two parts. One source device is displayed on the main screen at the same time the another source device is displayed in inset windows.

The PBP (Picture by Picture) function separates the screen in half displaying output from two different source devices simultaneously on the left and right sides of the screen.

PIP/PBP

PIP/PBP Mode

Size

Position

Sound Source

Source

Picture Size

Contrast

75/75

Turn PIP/PBP Mode on or off.

―

PIP/PBP mode is compatible with Windows 7, Windows 8, and Windows 10.

―

The PIP/PBP function may not be available depending on the specifications of the graphics card used. If the screen is blank in PIP/PBP mode when the optimum resolution is selected, go to Control Panel → Display → Screen Resolution and click Detect on the PC. (Instructions are based on Windows 7.) If the screen is blank when the resolution is set to the optimum resolution, change the resolution to 1280 x 1024.

―

The screen may flicker briefly or appear after a delay when you enable or disable the PIP/PBP function or when you change the screen size with the PIP/PBP function activated. This can typically arise when a PC and a monitor are connected to two or more input sources. It has nothing to do with the performance of a monitor.

The issue is mainly caused when the video signals are delayed in transmission to the monitor depending on the graphics card performance.

―

The displayed image may differ depending on the model.

Return

―

To maximize the picture quality, it is recommended to use a graphics card that supports WQHD+ (3440 x

1440) resolution.

―

When using PIP/PBP, automatic switching to the optimum resolution and frequency is not available, due to conformance with the graphics card and Windows. Set PIP/PBP Mode to Off. Alternatively, restart the monitor, then set the resolution to the optimum setting using the Windows interface.

―

If there are several inputs with different vertical frequencies when using PIP/PBP Mode, a lower vertical frequency is applied. For example, if input 1 is 50 Hz and input 2 is 100 Hz, the vertical frequency is set to 50 Hz.

With two 100 Hz input sources in PIP/PBP Mode, the vertical frequency maximum is 60 Hz.

Size

Sound Source

Select the size and aspect ratio of the sub-screen.

• : Select the icon image if you want to use PBP mode where the optimum resolution for the left and right sides of the screen is 1720 x 1440 (width x height).

• : Select the icon image if you want to use PIP mode where the optimum resolution for the sub- screen is 720 x 480 (width x height).

• : Select the icon image if you want to use PIP mode where the optimum resolution of the sub- screen is 1280 x 720 (width x height).

• : Select the icon image if you want to use PIP mode where the optimum resolution of the sub- screen is 1720 x 720 (width x height).

Position

Select the position of the sub-screen from the available options.

• / / /

―

Not available when PBP is selected.

―

The screen may flicker if the input signal is unstable.

Set which screen you want to hear the sound for.

―

The white area of the icon means that the Sound Source comes from the main screen/sub-screen or the left/ right screen.

PIP mode

• /

PBP mode

• /

Source

Picture Size

PIP Mode (available in PIP mode(Size / / ))

Select the source for each screen.

―

The input source for the main screen changes.

―

With the exception of the current input source, the other two input sources can be selected.

―

The screen may flicker if the input signal is unstable.

―

When the Function Key Guide appears, move the JOG button LEFT to select the JOG button. The main screen will switch in the order DisplayPort → HDMI 1 → HDMI 2.

icon and then press the

PBP Mode (available in PBP mode(Size ))

Select input sources for the devices displayed on the main and sub screens.

―

The input source for the main screen changes.

―

The screen may flicker if the input signal is unstable.

―

When the input signal of the left and right screens are the same, the operation cannot be performed.

―

When the Function Key Guide appears, move the JOG button LEFT to select the JOG button. The main screen will switch in the order DisplayPort → HDMI 1 → HDMI 2.

icon and then press the

PIP Mode (available in PIP mode (Size / / ))

Select the image size for sub-screen.

In PC mode

• Auto: Display the picture according to the aspect ratio of the each screen input source.

• Wide: Display the picture in full screen regardless of the aspect ratio of the each screen input source.

In AV mode

• 4:3: Display the picture of the sub-screen with an aspect ratio of 4:3. Suitable for videos and standard broadcasts.

• 16:9: Display the picture of the sub-screen with an aspect ratio of 16:9.

• 21:9: Display the picture of the sub-screen with an aspect ratio of 21:9.

• Screen Fit: Display the picture of the sub-screen with the original aspect ratio without cutting anything off.

―

The function may not be supported depending on the ports provided with the product.

―

Changing the screen size is available when the following conditions are satisfied.

―

A digital output device is connected using the HDMI/DP cable.

―

The input signal is 480p, 576p, 720p, or 1080p and monitor can display normally (Not every model can support all of these signals.).

―

This can only be set when the external input is connected through HDMI/DP and PC/AV Mode is set to AV.

PBP Mode (available in PBP mode(Size ))

Set the Picture Size for each of the divided screens.

In PC mode

• Auto: Display the picture according to the aspect ratio of the each screen input source.

• Wide: Display the picture in full screen regardless of the aspect ratio of the each screen input source.

Contrast

PIP Mode (available in PIP mode(Size / / ))

Adjust the contrast level for sub-screen.

In AV mode

• 4:3: Display the picture of the sub-screen with an aspect ratio of 4:3. Suitable for videos and standard broadcasts.

• 16:9: Display the picture of the sub-screen with an aspect ratio of 16:9.

• 21:9: Display the picture of the sub-screen with an aspect ratio of 21:9.

• Screen Fit: Display the picture of the sub-screen with the original aspect ratio without cutting anything off.

―

The function may not be supported depending on the ports provided with the product.

―

Changing the screen size is available when the following conditions are satisfied.

―

A digital output device is connected using the HDMI/DP cable.

―

The input signal is 480p, 576p, 720p, or 1080p and monitor can display normally (Not every model can support all of these signals.).

―

This can only be set when the external input is connected through HDMI/DP and PC/AV Mode is set to AV.

PBP Mode (available in PBP mode(Size ))

Adjust the contrast level for each screen.

Chapter 06

Adjusting OSD (On Screen Display) settings

A detailed description of each function is provided. Refer to your product for details.

Transparency

Set the transparency for the menu windows.

OnScreen Display

Transparency

Position

Language

Display Time

―

The displayed image may differ depending on the model.

English

20 sec

Configure the transparency of the menu windows.

Return

Position

Adjust the menu position.

Language

Set the menu language.

―

A change to the language setting will only be applied to the onscreen menu display.

―

It will not be applied to other functions on your PC.

Display Time

Set the on-screen display (OSD) menu to automatically disappear if the menu is not used for a specified period of time.

Display Time can be used to specify the time after which you want the OSD menu to disappear.

Chapter 07

Setup and Reset

A detailed description of each function is provided. Refer to your product for details.

FreeSync

FreeSync technology is solution that eliminates screen tearing without all the usual lag and latency.

This feature will eliminate screen tearing and lag during game play. Improve your gaming experience.

―

Not available when PIP/PBP Mode is set to On.

―

This feature turns Off if PIP/PBP Mode is on.

System

FreeSync

Sound

Eco Saving Plus

Off Timer

PC/AV Mode

DisplayPort Ver.

HDMI Mode

―

The displayed image may differ depending on the model.

FreeSync technology is

Off

solution that eliminates screen tearing without all

Off

the usual lag and latency. FreeSync can be operated when you use AMD's graphic card

1.2 with supporting

Freesync solution.

Return

• Off: Disable FreeSync.

• Standard Engine: Enable the basic FreeSync functions of the AMD graphics card.

• Ultimate Engine: Enable the FreeSync feature with a higher screen frame rate. Screen tearing (abnormal sync between the screen and content) is reduced in this mode. Note that screen flickering may occur during game play.

When select Ultimate Engine mode, please use maximum screen refresh rate for optimal freesync effect.

The refresh rate setting method please refer to Q & A → How can I change the frequency?

―

For use of the FreeSync function, the AMD graphic card and driver that support the function must have been installed. For use of the FreeSync function in HDMI input, the AMD graphic card and driver that support HDMI

2.0 must have been installed and the version in the product must have been set as HDMI 2.0.

―

The FreeSync function is only enabled in HDMI 1, HDMI 2 or DisplayPort mode. Use the HDMI/DisplayPort cable provided by the manufacturer when using FreeSync.

If you use the FreeSync function while playing a game, the following symptoms may occur:

• The screen may flicker depending on the type of graphics card, the game option settings, or the video being played. Try the following actions: decrease the game setting values, change the current

FreeSync mode to Standard Engine, or visit the AMD website to check your graphics driver’s version

and update it with the latest one.

• While you are using the FreeSync function, the screen may flicker due to variation of the output frequency from the graphics card.

• The response rate during the game may fluctuate depending on the resolution. A higher resolution generally decreases the response rate.

• The sound quality of the monitor may be degraded.

―

If you encounter any issues when using the function, contact the Samsung Service Center.

The models in the Graphic Cards list supports FreeSync

FreeSync can only be used with specific AMD graphics card models. Refer to the following list for

supported graphics cards:

Make sure to install the latest official graphics drivers from AMD that support FreeSync.

―

For additional AMD graphics card models that support the FreeSync feature, visit the official AMD website.

―

Select FreeSync Off if you are using a graphics card from a different manufacturer.

• AMD Radeon R9 300 Series

• AMD Radeon R9 Fury X

• AMD Radeon R7 360

• AMD Radeon R9 295X2

• AMD Radeon R9 290X

• AMD Radeon R9 290

• AMD Radeon R9 285

• AMD Radeon R7 260X

• AMD Radeon R7 260

• AMD Radeon RX 480 (Graphic card for HDMI 2.0 3440 x 1440 @ 100 Hz)

How do you enable FreeSync?

Set FreeSync to Standard Engine or Ultimate Engine in the OSD menu.

Enable FreeSync in AMD Radeon Settings:

Right-click the mouse → AMD Radeon Settings → Display

The "AMD FreeSync" feature should be set to "On". Select to "On" if not already enabled.

Sound

SAMSUNG

MAGIC

Volume

Adjust the Volume controlling the JOG button LEFT/RIGHT.

Sound Mode

• Standard: Selects the normal sound mode.

• Music: Emphasizes music over voices.

• Movie: Provides the best sound for movies.

• Clear Voice: Emphasizes voices over other sounds.

Eco Saving Plus

Reduce energy consumption compared to consumption at the maximum brightness level.

―

This option is not available when

―

This menu is not available when Game Mode is enabled.

―

This menu is not available when Eye Saver Mode is enabled.

―

Not available when PIP/PBP Mode is set to On.

• Off: Deactivate the Eco Saving Plus function.

• Auto: The power consumption will automatically be reduced by about 10% over the current setting. (The reduction of power consumption depends on the customer screen brightness condition.)

• Low: Saves up to 25 % energy compared to the maximum brightness.

• High: Saves up to 50 % energy compared to the maximum brightness.

Bright is in Dynamic Contrast mode.

Select Sound

• Stereo: Enable the sound both from the left and right speakers.

• Left Channel: Set the left and right speakers to play only the left channel of the sound source.

• Right Channel: Set the left and right speakers to play only the right channel of the sound source.

Off Timer

Off Timer: Turn on Off Timer mode.

Turn Off After: The off timer can be set within a range of 1 to 23 hours. The product will automatically

power off after the specified number of hours.

―

This option is only available when Off Timer is set to On.

―

For products for the market in some regions, the Off Timer is set to automatically activate 4 hours after the product powers on. This is done in accordance with power supply regulations. If you do not want the timer to activate, go to

→ System and set Off Timer to Off.

PC/AV Mode

HDMI Mode

Set PC/AV Mode to AV. The picture size will be enlarged.

This option is useful when you view a movie.

• Set to PC when connected to a PC.

• Set to AV when connected to an AV device.

―

This feature is only available on the widescreen models that include 16:9, 16:10 and 21:9.

―

If the monitor is in HDMI 1, HDMI 2 or DisplayPort mode and the screen says Check Signal Cable or power saving mode activates, press the JOG button to display the function-button screen and then select the

icon. You can select PC or AV.

DisplayPort Ver.

Select your Displayport. Displayport 1.1 supports High Bit Rate 1, while 1.2 supports High Bit Rate 2.

―

Incorrect settings may cause the screen to go blank. If this occurs, check the device specifications.

―

Select the HDMI mode to use.

―

The supportable device and resolution may differ depending on its version.

―

When the version is changed, the screen may blink or the setup window in your PC may be changed.

―

When the setting is not appropriate, a blank screen may appear. In this case, check the specifications of the device.

• 1.4: HDMI 1.4 input is supported. The product supports the vertical frequency up to 50 Hz in the maximum resolution (3440 x 1440).

• 2.0: HDMI 2.0 input is supported. The product supports the vertical frequency up to 100 Hz in the maximum resolution (3440 x 1440). For use of HDMI 2.0, you must use the graphic card and the standard cable that support HDMI 2.0.

Source Detection

Select either Auto or Manual as the method to recognize input signal.

―

Not available when PIP/PBP Mode is set to On.

Key Repeat Time

Acceleration, 1 sec, or 2 sec can be selected. If No Repeat is selected, a command responds only once

when a button is pressed.

Power LED On

Information

Configure the settings to enable or disable the power LED located at the lower part of the product.

• Working: The power LED is on when the product is turned on.

• Stand-by: The power LED is on when the product is turned off.

Reset All

Return all the settings for the product to the default factory settings.

View the current input source, frequency and resolution.

Information


PIP/PBP

OnScreen Display

PIP

PBP

System

Information


PIP/PBP

OnScreen Display

System

Information

****x****

**kHz **Hz

HDMI 1

****x****

**kHz **Hz

HDMI 2

****x****

**kHz **Hz

Exit


PIP/PBP

OnScreen Display

System

Information

―

The displayed image may differ depending on the model.

Information

****x****

**kHz **Hz

HDMI 1

HDMI 2

****x****

**kHz **Hz

Exit

Chapter 08

Installing the Software

Easy Setting Box

Easy Setting Box enables users to use the monitor by partitioning multiple sections.

To install the latest version of Easy Setting Box, download it from the Samsung Electronics website at http://www.samsung.com.

―

The software may not work properly if you do not restart the computer after the installation.

―

The Easy Setting Box icon may not appear depending on the computer system and the product specifications.

―

If the shortcut icon does not appear, press the F5 key.

Restrictions and Problems with the Installation

The Easy Setting Box installation may be affected by the Graphics Card, Motherboard and the Networking Environment.

System Requirements

OS Hardware

• Windows 7 32Bit/64Bit

• Windows 8 32Bit/64Bit

• Windows 8.1 32Bit/64Bit

• Windows 10 32Bit/64Bit

• At least 32MB of memory

• At least 60MB of free space on the hard disk drive

Chapter 09

Troubleshooting Guide

Requirements Before Contacting Samsung Customer Service Center

―

Before calling Samsung Customer Service Center, test your product as follows. If the problem persists, contact Samsung Customer Service Center.

Testing the Product

Check if your product is operating normally by using the product test function.

If the screen is turned off and the power indicator blinks even though the product is properly connected to a PC, perform a self-diagnosis test.

Power off both the PC and product.

Disconnect the cables from the product.

Power on the product.

If the message Check Signal Cable appears, the product is working normally.

―

If the screen remains blank, check the PC system, video controller and cable.

Checking the Resolution and Frequency

For a mode that exceeds the supported resolution(refer to Standard Signal Mode Table), the message Not

Optimum Mode will appear for a short time.

―

The displayed resolution may vary, depending on the computer system settings and cables.

Check the following.

Installation issue (PC mode)

The screen keeps switching on and off.

Check the cable connection between the product and PC, and ensure the connectors are locked.

Blank spaces are found on all four sides of the screen when an HDMI or HDMI-DVI cable is connected to the product and PC.

The blank spaces found on the screen have nothing to do with the product.

Blank spaces on the screen are caused by the PC or graphics card. To resolve the problem, adjust the screen size in the HDMI or DVI settings for the graphics card.

If the graphics card settings menu does not have an option to adjust the screen size, update the graphics card driver to the latest version.

(Please contact the graphics card or computer manufacturer for further details about how to adjust the screen settings.)

Screen issue

The power LED is off. The screen will not switch on.

Check that the power cable is connected properly.

The message Check Signal Cable appears.

Check that the cable is properly connected to the product.

Check that the device connected to the product is powered on.

Not Optimum Mode is displayed.

This message appears when the signal from the graphics card exceeds the maximum resolution or frequency for the product.

Change the maximum resolution and frequency to suit the product performance, referring to Standard Signal Mode Table (P.43).

The images on the screen look distorted.

Check the cable connection to the product.

The screen is not clear. The screen is blurry.

Remove any accessories (video extension cable, etc.) and try again.

Set the resolution and frequency to the recommended level.

The screen appears unstable and shaky. There are shadows or ghost images left on the screen.

Check that the resolution and frequency for the PC are within the range of resolution and frequency compatible with the product. Next, if required, change the settings, referring to Standard Signal Mode Table (P.43) in this manual and the Information menu on the product.

The screen is too bright. The screen is too dark.

Adjust Brightness and Contrast.

Screen color is inconsistent.

Change the Color settings.

The colors on the screen have a shadow and are distorted.

Change the Color settings.

White does not really look white.

Change the Color settings.

There is no image on the screen and the power LED blinks every 0.5 to 1 second.

The product is operating in power-saving mode.

Press any key on the keyboard or move the mouse to return to normal operating mode.

Text is blurry.

If using a Windows OS (e.g. Windows 7, Windows 8, Windows 8.1 or Windows 10): Go to Control Panel → Fonts → Adjust ClearType text and change Turn on ClearType.

Video playback is choppy.

Playback of high-definition large video files can be choppy. This may be because the video player is not optimized for the computer resource.

Try playing the file on another video player.

Sound issue

There is no sound.

Check the connection of the audio cable or adjust the volume.

Check the volume.

The volume is too low.

Adjust the volume.

If the volume is still low after turning it up to the maximum level, adjust the volume on your PC sound card or software Program.

Video is available but there is no sound.

Sound cannot be heard if a HDMI-DVI cable is used to connect the input device.

Connect the device using an HDMI cable or a DP cable.

Source device issue

A beeping sound is heard when my PC is booting.

If a beeping sound is heard when your PC is booting, have your PC serviced.

Q & A

―

Refer to the user manual for your PC or graphics card for further instructions on adjustment.

How can I change the frequency?

Set the frequency on your graphics card.

• Windows 7: Go to Control Panel → Appearance and Personalization → Display → Screen Resolution → Advanced settings → Monitor, and adjust Refresh rate under Monitor settings.

• Windows 8(Windows 8.1): Go to Settings → Control Panel → Appearance and Personalization → Display → Screen Resolution → Advanced settings → Monitor, and adjust Refresh rate under Monitor settings.

• Windows 10: Go to Settings → System → Display → Advanced display settings → Display adapter properties → Monitor, and adjust Screen refresh rate under Monitor settings.

How can I change the resolution?

• Windows 7: Go to Control Panel → Appearance and Personalization → Display → Adjust Resolution, and adjust the resolution.

• Windows 8(Windows 8.1): Go to Settings → Control Panel → Appearance and Personalization → Display → Adjust Resolution, and adjust the resolution.

• Windows 10: Go to Settings → System → Display → Advanced display settings, and adjust the resolution.

How do I set power-saving mode?

• Windows 7: Set power-saving mode in Control Panel → Appearance and Personalization → Personalize → Screen Saver Settings → Power options or BIOS SETUP on the PC.

• Windows 8(Windows 8.1): Set power-saving mode in Settings → Control Panel → Appearance and Personalization → Personalize → Screen Saver Settings → Power options or BIOS SETUP on the PC.

• Windows 10: Set power-saving mode in Settings → Personalization → Lock screen → Screen timeout settings → Power & sleep or BIOS SETUP on the PC.

Chapter 10

Specifications

General

Model Name C34F791WQ*

Size 34 Class (34.0 Inches / 86.4 cm)

Display area 797.22 mm (H) x 333.72 mm (V)

31.39 Inches (H) x 13.14 Inches (V)

Pixel Pitch 0.07725 mm (H) x 0.23175 mm (V)

0.003041 Inches (H) x 0.009124 Inches (V)

Maximum Pixel Clock 543.500 MHz

Power Supply AC 100 - 240 V ~ (+/- 10 %), 50/60 Hz ± 3 Hz

Refer to the label at the back of the product as the standard voltage can vary in different countries.

Signal connectors HDMI, DisplayPort

Environmental conditions Operating

Temperature: 50 ˚F – 104 ˚F (10 ˚C – 40 ˚C)

Humidity: 10 % – 80 %, non-condensing

Storage

Temperature: -4 ˚F – 113 ˚F (-20 ˚C – 45 ˚C)

Humidity: 5 % – 95 %, non-condensing

―

Plug-and-Play This monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the monitor and PC system optimizes the monitor settings. Monitor installation takes place automatically. However, you can customize the installation settings if desired.

―

Panel Dots (Pixels) Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker on the LCD panel. This does not affect product performance.

―

The above specifications are subject to change without notice to improve quality.

―

This device is a Class B digital apparatus.

―

For detailed device specifications, visit the Samsung Electronics website.

(USA only)

Dispose unwanted electronics through an approved recycler.

To find the nearest recycling location, go to our website:

www.samsung.com/recyclingdirect or call, (877) 278 - 0799

Standard Signal Mode Table

Synchronization Horizontal Frequency 30 – 151 kHz

Vertical Frequency 48 – 100 Hz

Resolution Optimum resolution 3440 x 1440 @ 50 Hz (HDMI1.4)

3440 x 1440 @ 60 Hz (HDMI2.0, DisplayPort)

Maximum resolution 3440 x 1440 @ 50 Hz (HDMI1.4)

3440 x 1440 @ 100 Hz (HDMI2.0, DisplayPort)

If a signal that belongs to the following standard signal modes is transmitted from your PC, the screen will automatically be adjusted. If the signal transmitted from the PC does not belong to the standard signal modes, the screen may be blank even though the power LED turns on. In such a case, change the settings according to the following table by referring to the graphics card user manual.

Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Pixel Clock (MHz) Sync Polarity (H/V)

IBM, 720 x 400

MAC, 640 x 480

MAC, 832 x 624

MAC, 1152 x 870

VESA, 640 x 480

VESA, 800 x 600

VESA, 1024 x 768

VESA, 1152 x 864

31.469 70.087 28.322 -/+

35.000 66.667 30.240 -/-

49.726 74.551 57.284 -/-

68.681 75.062 100.000 -/-

31.469 59.940 25.175 -/-

37.861 72.809 31.500 -/-

37.500 75.000 31.500 -/-

35.156 56.250 36.000 +/+

37.879 60.317 40.000 +/+

48.077 72.188 50.000 +/+

46.875 75.000 49.500 +/+

48.363 60.004 65.000 -/-

56.476 70.069 75.000 -/-

60.023 75.029 78.750 +/+

67.500 75.000 108.000 +/+

Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Pixel Clock (MHz) Sync Polarity (H/V)

VESA, 1280 x 720

VESA, 1280 x 800

VESA, 1280 x 1024

VESA, 1440 x 900

VESA, 1600 x 900 RB

VESA, 1680 x 1050

VESA, 1920 x 1080

VESA, 2560 x 1080

VESA, 2560 x 1440 RB

VESA, 3440 x 1440 (50 Hz)

VESA, 3440 x 1440 (DP)

VESA, 3440 x 1440 (DP, HDMI2.0)

―

Horizontal Frequency The time required to scan a single line from the left to the right side of the screen is called a horizontal cycle. The reciprocal number of a horizontal cycle is called horizontal frequency. Horizontal frequency is measured in kHz.

―

Vertical Frequency Repeating the same picture dozens of times per second allows you to view natural pictures. The repeat frequency is called "vertical frequency" or "refresh rate" and is indicated in Hz.

―

This product can be set to only one resolution for each screen size to obtain the optimum picture quality due to the nature of the panel. Using a resolution other than the specified resolution may degrade the picture quality. To avoid this, it is recommended that you select the optimum resolution specified for your product.

―

Optimum settings may be restricted, depending on the performance and version of the graphics card and cable (HDMI / DisplayPort version, etc.)

45.000 60.000 74.250 +/+

49.702 59.810 83.500 -/+

63.981 60.020 108.000 +/+

79.976 75.025 135.000 +/+

55.935 59.887 106.500 -/+

60.000 60.000 108.000 +/+

65.290 59.954 146.250 -/+

67.500 60.000 148.500 +/+

32.904 29.940 89.500 +/-

88.787 59.951 241.500 +/-

73.681 49.987 265.250 +/-

88.819 59.973 319.750 +/-

150.972 99.982 543.500 +/-

Chapter 11

Appendix

Responsibility for the Pay Service (Cost to Customers)

―

When the service is requested, in spite of in warranty, we may charge you for a visit from a service technician in the following cases.

Not a product defect

Cleaning of the product, Adjustment, Explanation, Re-installation and etc.

• If a service technician gives instructions on how to use product or simply adjusts options without disassembling product.

• If a defect is caused by external environmental factors (Internet, Antenna, Wired Signal, etc.)

• If a product is reinstalled or devices are connected additionally after installing the purchased product for the first time.

• If a product is reinstalled to move to a different spot or to move to a different house.

• If customer requests instructions on how to use because of another company's product.

• If customer requests instructions on how to use the network or another company's Program.

• If customer requests software installation and setup for the product.

• If a service technician removes/cleans dusts or foreign materials inside of the product.

• If customer requests an installation additionally after purchasing a product through home-shopping or online.

A Product damage caused by customer's fault

Product damage caused by customer's mishandling or wrong repair

If a product damage is caused by;

• External impact or drop.

• Use of supplies or separately sold product unspecified by Samsung.

• Repair from a person besides an engineer of outsourcing service company or partner of Samsung Electronics Co., Ltd.

• Remodeling or repairing the product by customer.

• Using it with incorrect voltage or non-authorised electrical connections.

• Not following the "cautions" in User Manual.

Others

• If product fails by natural disaster. (lightning, fire, earthquake, flood damage, etc)

• If consumable components are all used up. (Battery, Toner, Fluorescent lights, Head, Vibrator, Lamp, Filter, Ribbon, etc.)

―

If customer requests a service in case the product has no defect, service fee may be charged. So please read User Manual first.

Samsung C34F791WQ User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Before Using the Product

Securing the Installation Space

Precautions for storage

Safety Precautions

Symbols

Cleaning

Electricity and Safety

Installation

Operation

Preparations

Parts

Control Panel

Direct Key guide

Function Key Guide

Changing Brightness, Contrast and Sharpness settings

Changing the Volume setting

Reverse Side

Adjusting the Product Tilt and Height

Anti-theft Lock

Precautions for moving the monitor

Installation

Removing the Stand

Attaching the Wall-mount bracket

Attaching the Stand

Connecting and Using a Source Device

Pre-connection Checkpoints

Connecting and Using a PC

Connection Using the HDMI Cable

Connection Using an HDMI-DVI Cable

Connection Using an DP Cable

Connecting the Power

Connecting to Headphones

Tidying Up the Connected Cables

Connecting the Product to a PC as a USB HUB

Connecting a PC to the Product

Utilizing the Product as a USB HUB

Correct posture to use the product

Driver Installation

Setting Optimum Resolution

Screen Setup

SAMSUNG MAGIC Bright

Brightness

Color

Contrast

Sharpness

SAMSUNG MAGIC Upscale

Eye Saver Mode

HDMI Black Level

Game Mode

Response Time

Picture Size

Screen Adjustment

Calibration Report

Configuring the PIP/PBP Settings

PIP/PBP Mode

Size

Sound Source

Position

Source

Picture Size

Contrast

Adjusting OSD (On Screen Display) settings

Transparency

Position

Language

Display Time

Setup and Reset

FreeSync

Sound

Volume

Sound Mode

Eco Saving Plus

Select Sound

Off Timer

PC/AV Mode

HDMI Mode
